Installation
1. Insert the hand control cable connector into the SkyScout Connect’s hand control port.
2. Insert the SkyScout Connect’s interface connector into the RS232 port
at the bottom of the hand control.
3. Seat the hand control’s cord in a concentric pattern within the
open space inside the SkyScout Connect.
4. Align the SkyScout Connect’s bottom tabs into the bottom holes
of the hand control, and press in the top of the hand control until
it snaps into the SkyScout Connect. Make sure the hand control
cord is seated securely inside the unit.
5. Insert the USB connector (smaller end) into the SkyScout’s
USB port and insert the larger USB connector into the USB port
located on the bottom of the SkyScout Connect.
6. Attach the SkyScout Connect’s coiled cable into the telescope’s
hand control or AUX port.
#93980 – SKYSCOUT CONNECT
Installation 3
NOTE: The SkyScout Connect will attach directly inside the fork arm for all NexStar SE series. For CPC owners, use
the supplied plastic holder and attach to the fork arm. For Advanced Series and CGE owners, use the supplied holder and
strap to attach unit to the tripod leg.

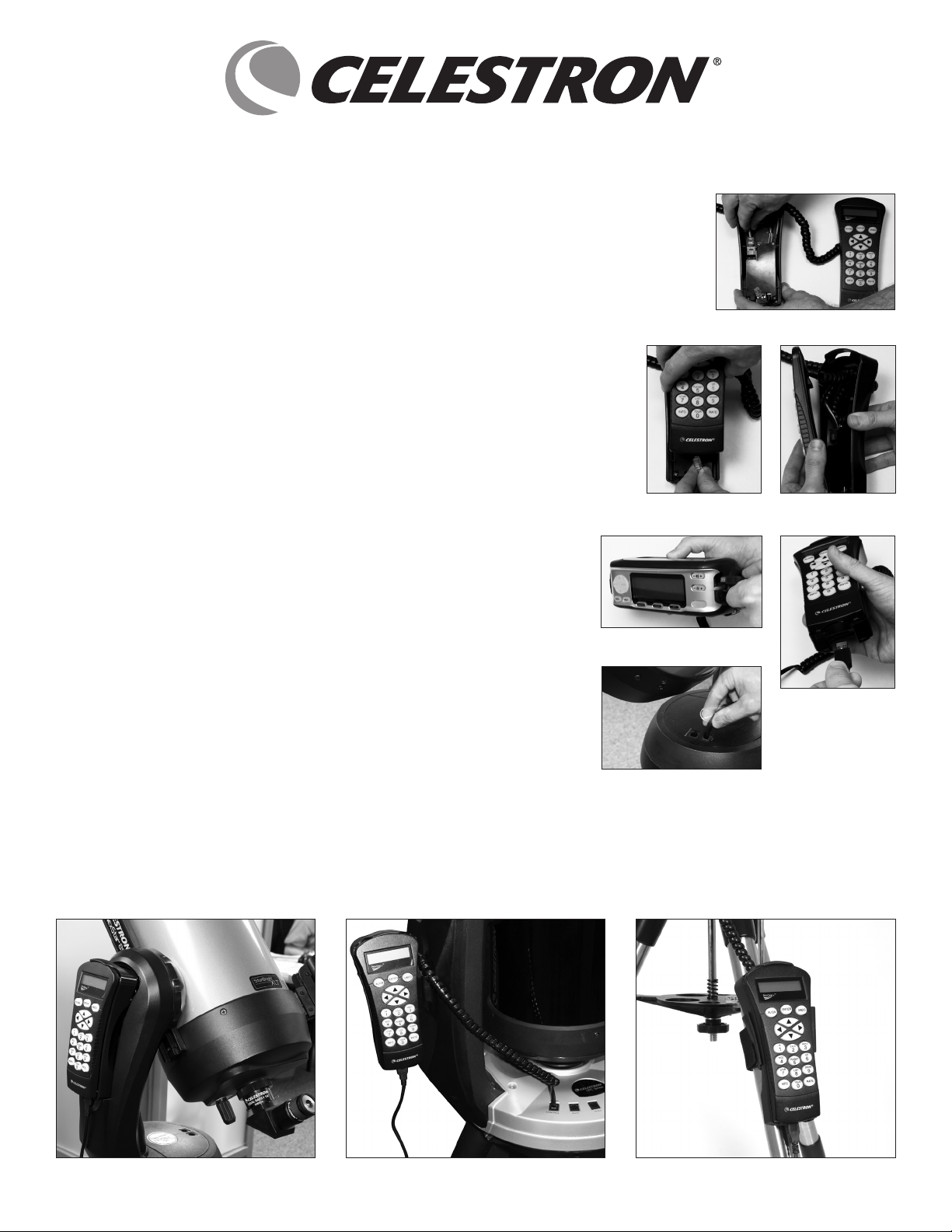

Installation 1
Installation 6
Installation 5a
Installation 5b
Installation 2
NexStar
®
SE Series CPC
®
GPS Series Advanced/CGE™ Series
