en Instruction Manual and Installation Instructions

Washer dryer

WVG30443SN WVG30444SN

Loading ...

Summary of Contents for Bosch WVG30443SN/01:

en Instruction Manual and Installation Instructions1
- Washer dryer1
- Your new washer dryer2
Display rules2
: Warning!2
Caution!2
Note/tip2
1. 2. 3. / a) b) c)2
Contentsen Instruction Manual and Installation Instructions3
- 8 Intended use 43
- ( Safety instructions 53
- 7 Protection of the environment 113
- 5 Positioning and connecting 123
- Y The main points in brief 193
- * Getting to know your appliance 203
- Z Laundry 243
- 1 Operating the appliance 263
- / Overview of programmes 323
- 0 Changing programme default settings 363
- \ Selecting additional functions 383
- MSetting the signal 393
- 2 Cleaning and maintenance 403
- 3 Faults and what to do about them 424
- 4 Customer service 464
- J Technical specifications 464
- [ Consumption values 474
- r Aqua-Stop warranty 484
- 8 Intended use4
  - Intended use4
  - ( Safety instructions5
7 Protection of the environment11
- Protection of the environment11
- Packaging/old appliance11
- Hints and tips11
5 Positioning and connecting12
- Positioning and connecting12

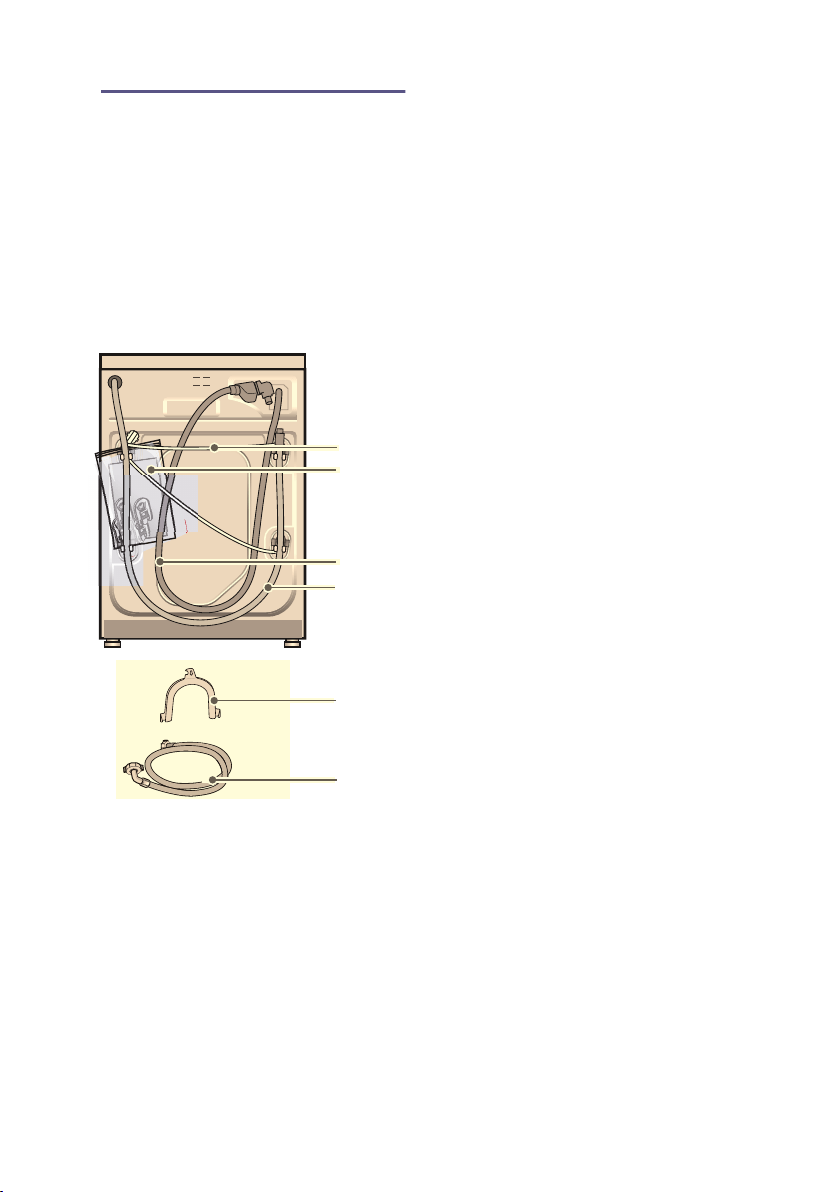

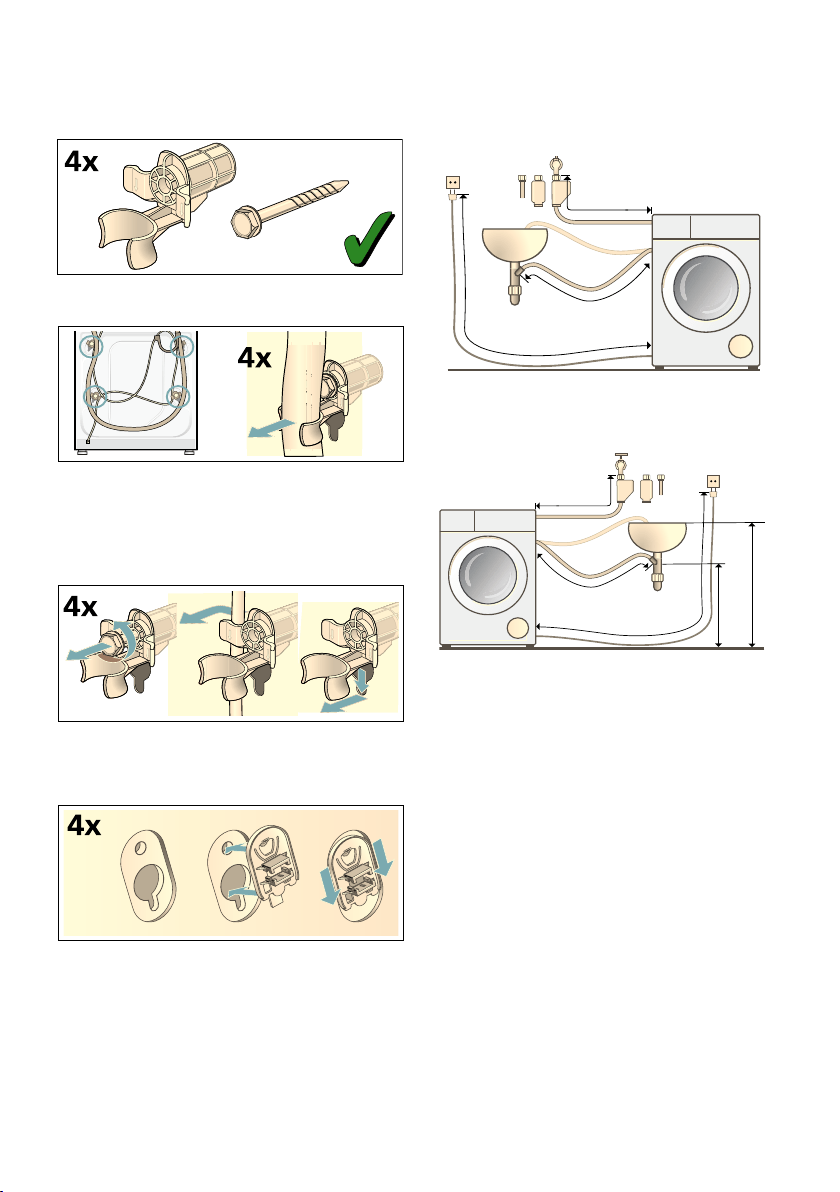

- Included with the appliance12
  - Note:12
- Useful tools12

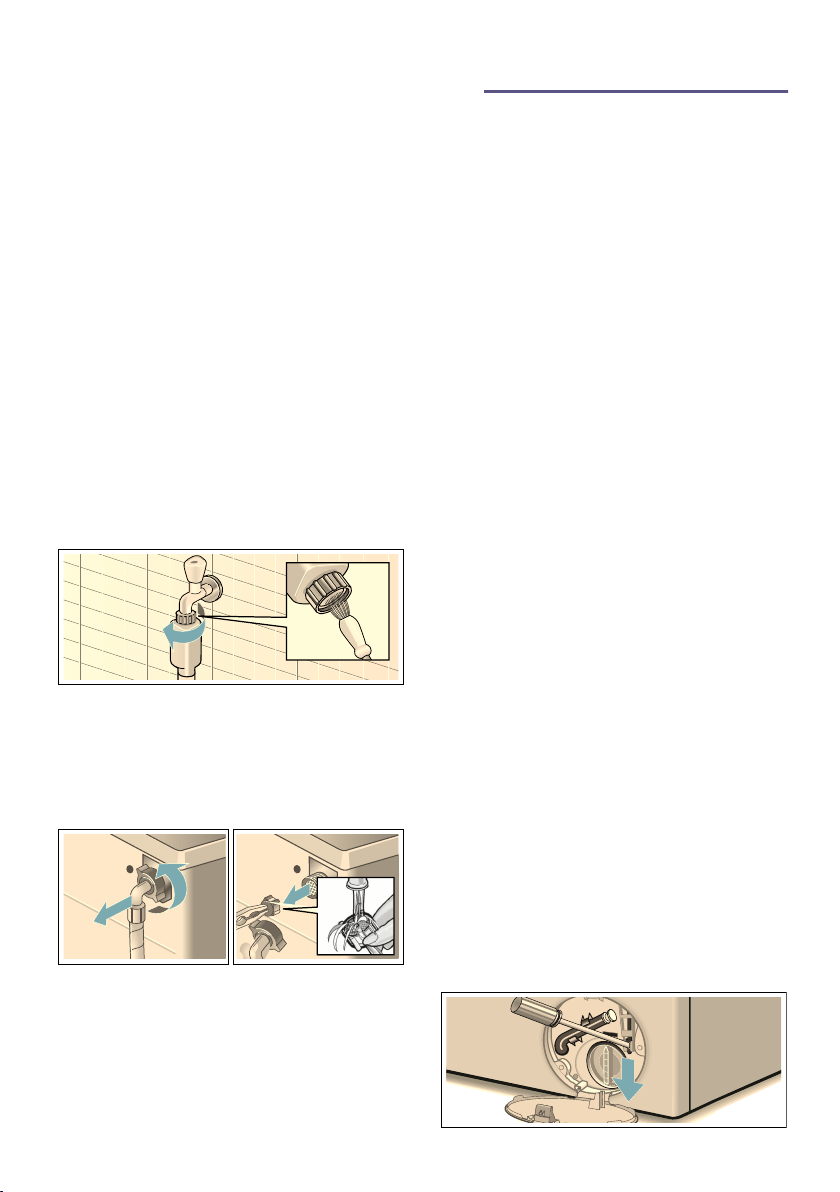

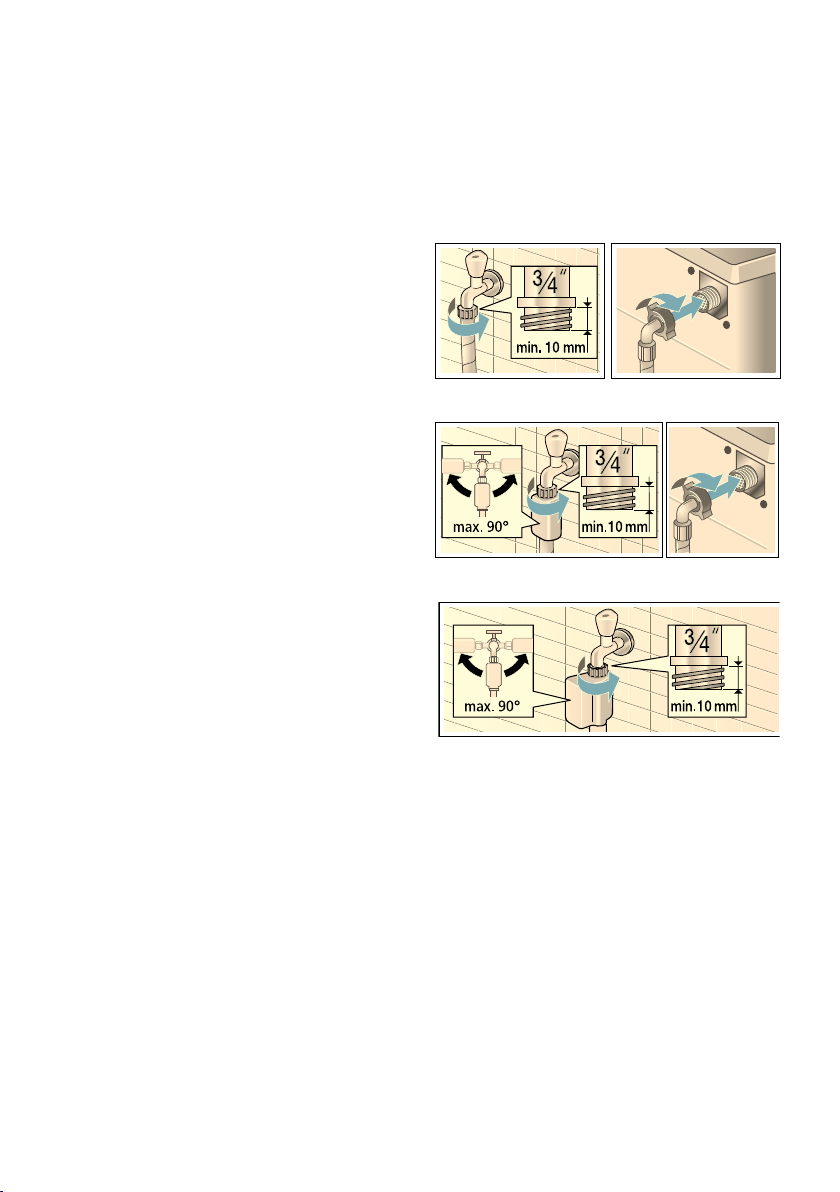

- Connection15
  - Note:15

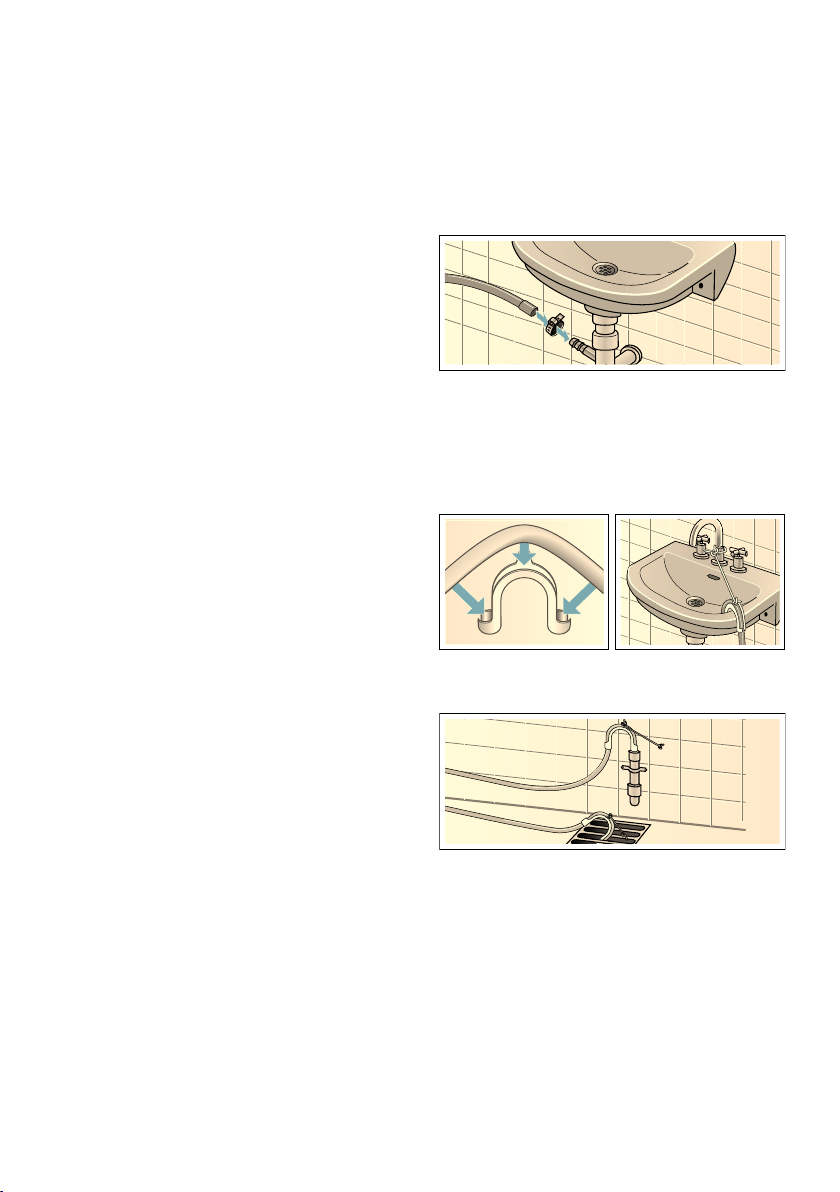

  - Water outlet16
- Connection16
- Electrical safety17
- Preparatory work18

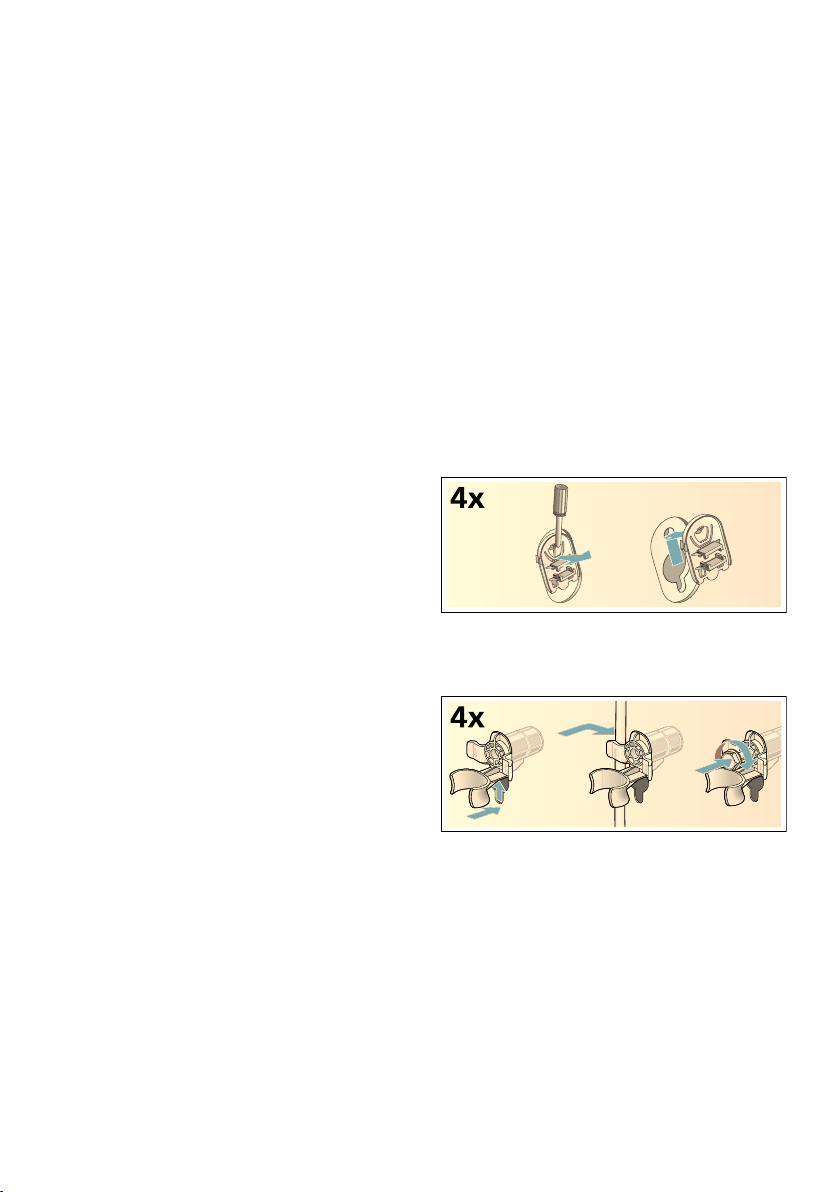

- Installing transportation protection devices:18
  - 1. Remove the covers and keep in a safe place.18
  - 2. Insert all 4 sleeves.18
    - Notes18

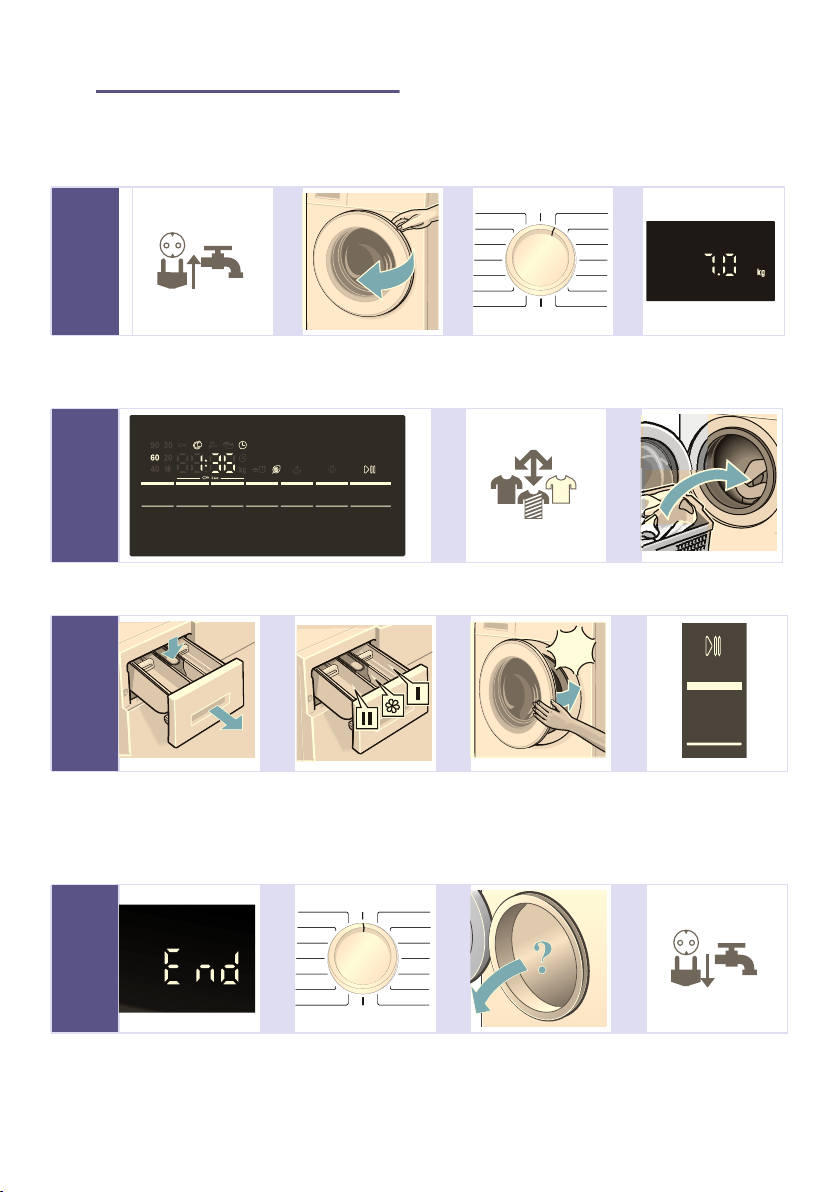

Y The main points in brief19
- The main points in brief19
* Getting to know your appliance20
- Getting to know your appliance20

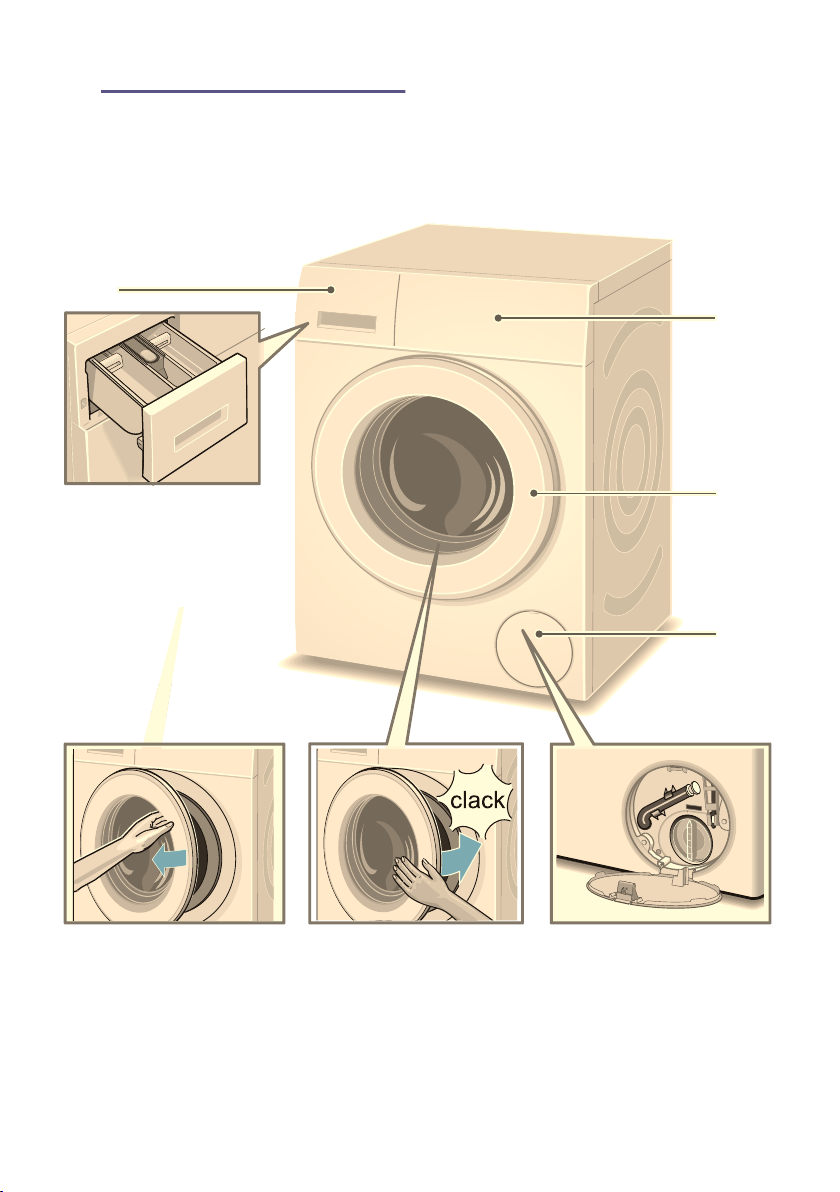

- Washer dryer20
- Control panel21
- Display panel22
  - Displays for the programme22
Z Laundry24
- Laundry24
- Preparing laundry for washing24
- Sorting laundry according to:24
  - Note:24
  - Note:24
- Protecting your laundry and appliance24
1 Operating the appliance26
- Operating the appliance26

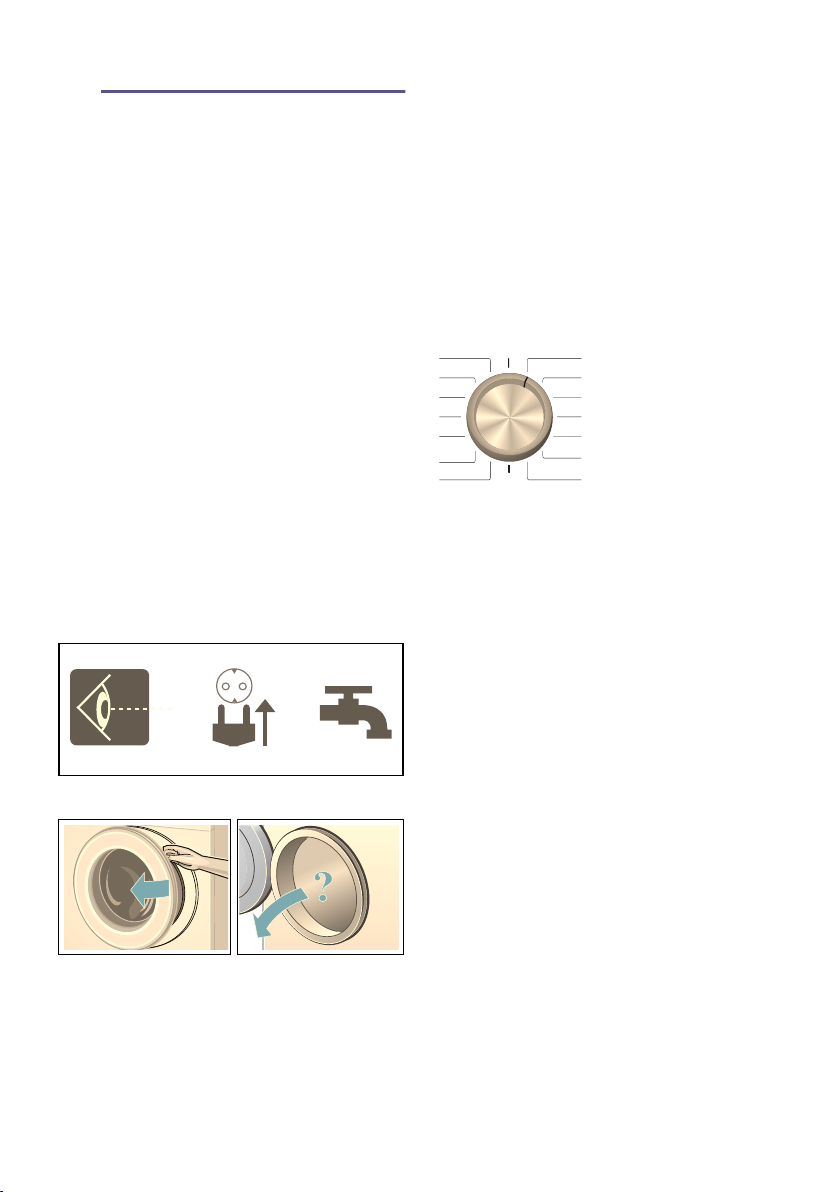

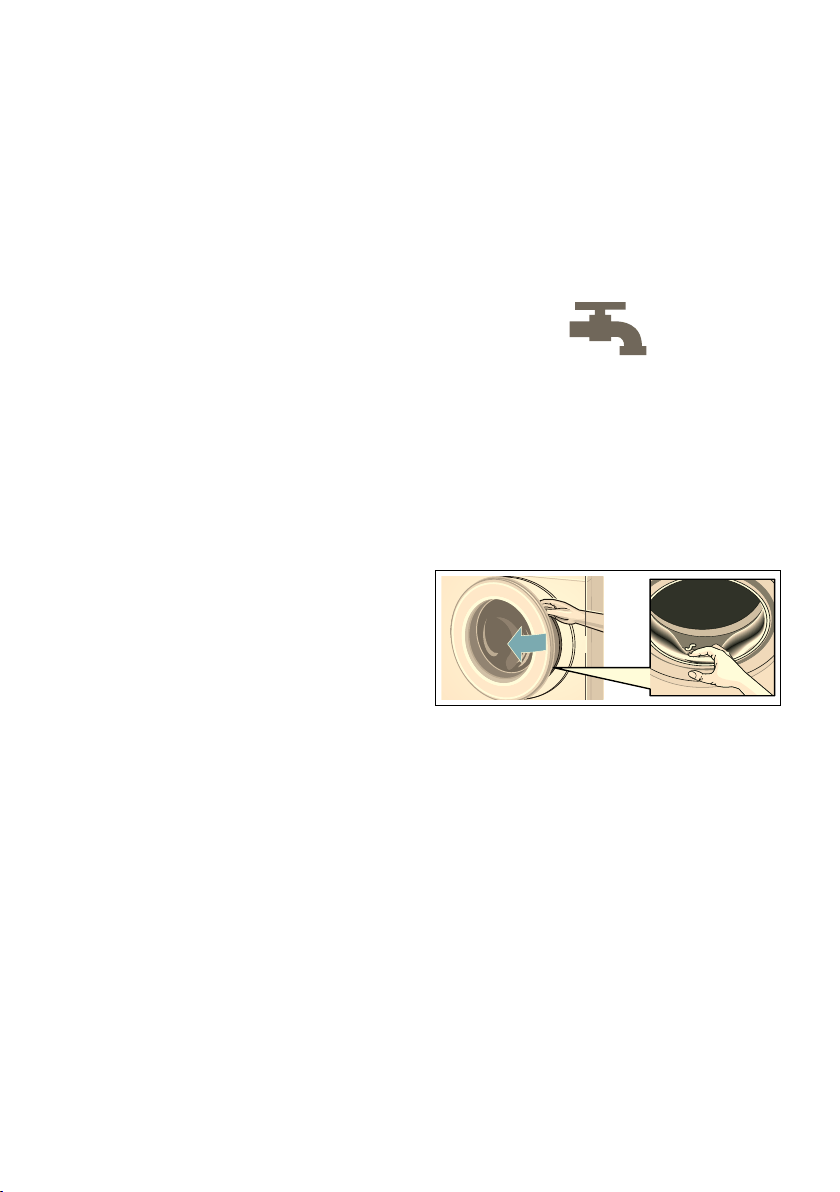

- Preparing the washer dryer26
  - Note:26
    - 1. Insert mains plug.26
- 2. Turn the tap on.26
- 3. Open the door.26

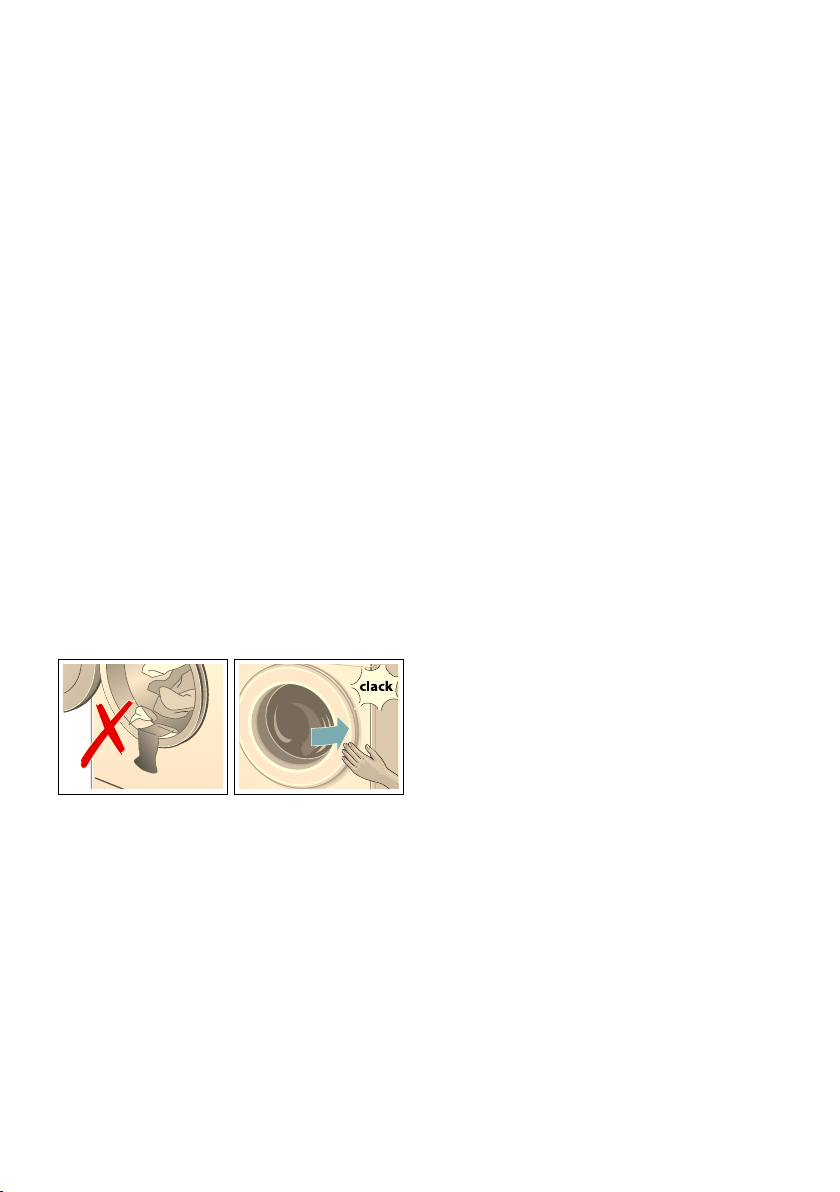

- 2. Ensure that no laundry items are trapped between the door and rubber seal.28
- 3. Close the door.28
  - Note:28

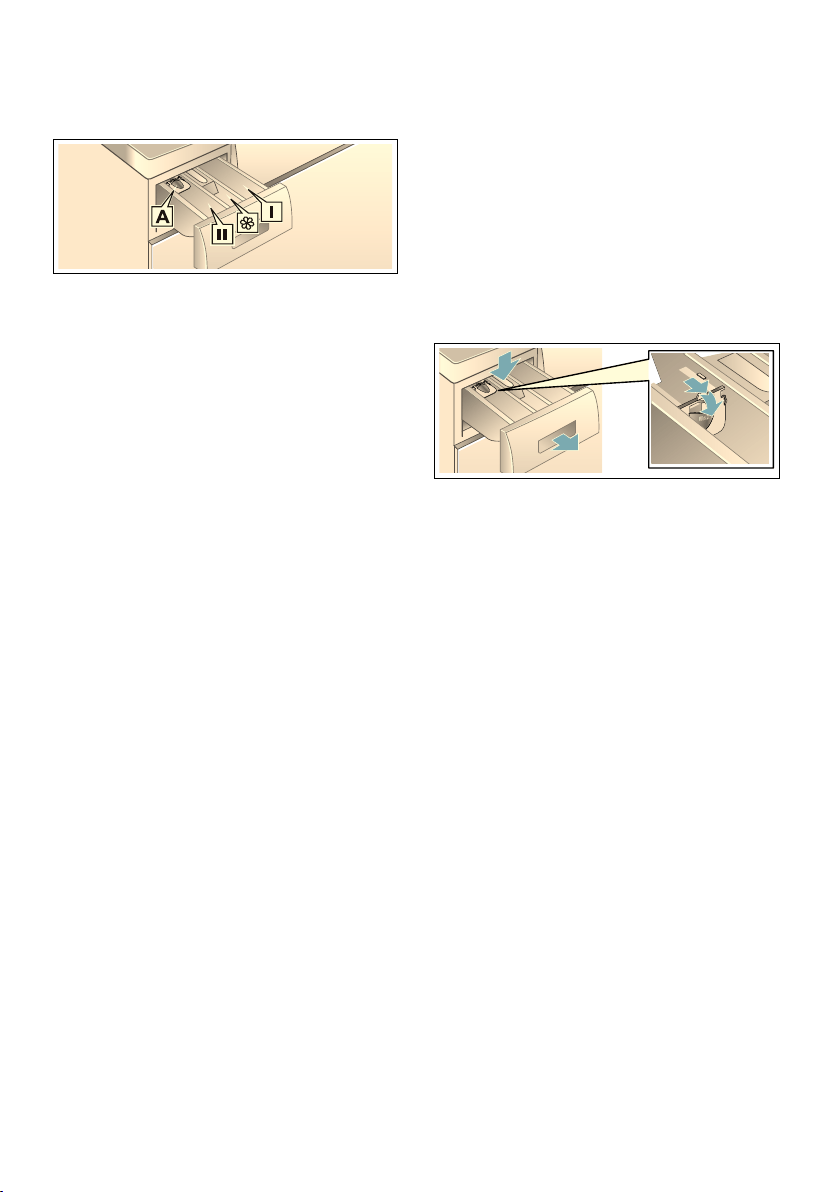

  - Dosing and adding detergent and care product28
    - Caution!28
    - Damage to the appliance28
- 2. Pour in detergent and/or cleaning product.29
  - Notes29

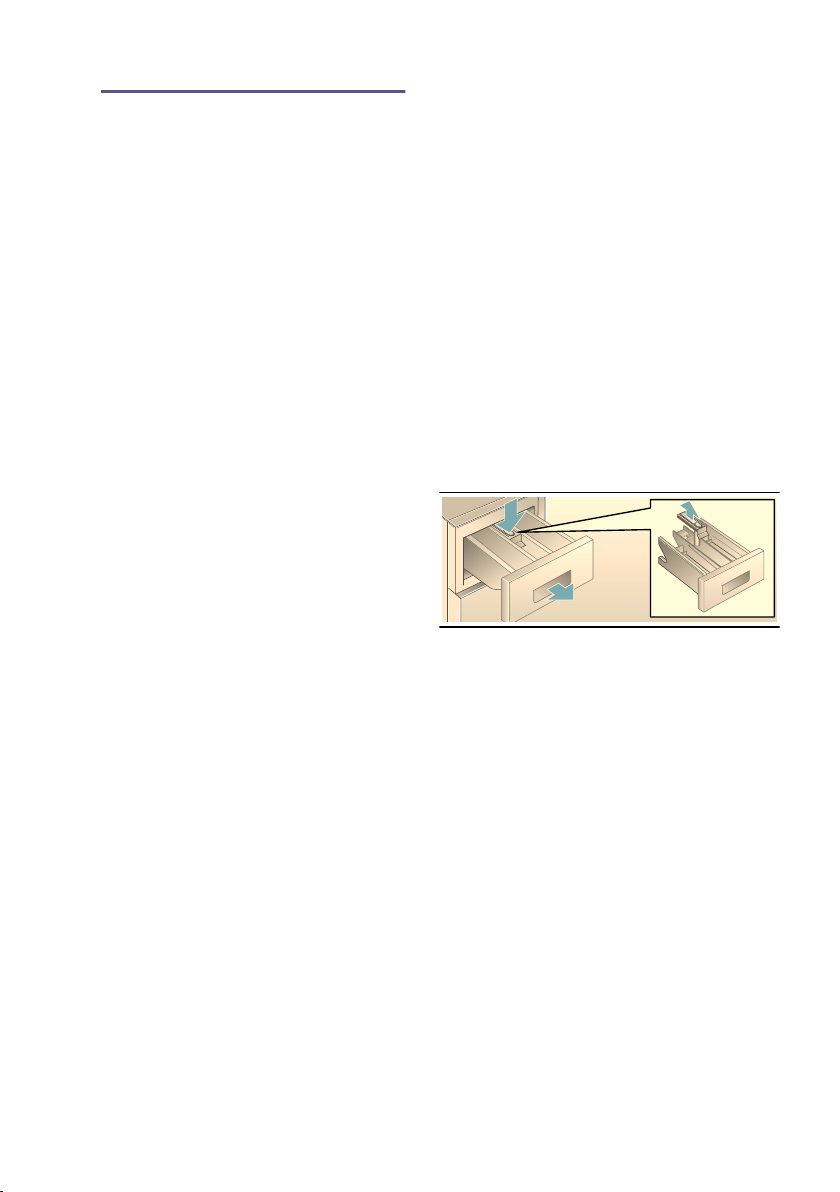

    - 1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.29
- 2. Slide the measuring aid forwards, fold it down and click it into place.29
- 3. Reinsert the drawer.29
- 2. Select another programme. If required, adjust the default settings and/or select additional functions.30
- 3. Select A Start/Reload. The new programme starts from the beginning.30
  - Interrupting or ending the programme30
    - 1. Touch A Start/Reload button.30
- 2. To cool down laundry: select O Rinse.30
- 3. Touch A Start/Reload button.30
  - 1. Touch A Start/Reload button.30
- 2. Select Spin/Drain 0/[.30
- 3. Touch A Start/Reload button.30
  - 1. Select Intensive Dry 5 or Gentle Dry ‰.31
- 2. Touch Š Dry button, and set drying time to 20 minutes.31
- 3. Touch A Start/Reload button.31
  - End of the programme31
    - Notes31
  - After washing/drying31
    - 1. Open the door and remove the laundry.31
- 2. Turn the programme selector to Off. The appliance is switched off.31
- 3. Turn off the tap.31
  - Notes31
/ Overview of programmes32
- Overview of programmes32
- Programme on the programme selector32
- Drying table35
- Starching36
  - Note:36
- Dyeing/Bleaching36
- Soaking36
  - 1. Pour soaking agent/detergent into dispenser II according to the manufacturer’s instructions.36
- 2. Set the programme selector to i Cottons 60°C and select A Start/ Reload36
- 3. After approximately 10 minutes select A Start/Reload to pause the programme.36
- 4. After the required soaking time, reselect A Start/Reload if the programme is to be continued or change the programme.36
  - Note:36
0 Changing programme default settings36
- Changing programme default settings36
- °C Temp.36
- 0 rpm36
- ñ Finished in37
  - Note:37
    - 1. Touch the A Start/Reload button.37
- 2. Touch the ñ Finished in button and change the Finish in time.37
- 3. Touch the A Start/Reload button.37
  - Š Dry37
    - Notes37
      - 1. Touch button Š Dry and activate the function » or ·.37
- 2. Do not exceed the maximum loads for drying.37
- 3. Maximum spin speed for the washing programme will be selected automatically to obtain a good drying result.37
\ Selecting additional functions38
- Selecting additional functions38
- G SpeedPerfect38
  - Note:38
- F Eco Perfect38
  - Note:38
- Z Aqua Plus38
MSetting the signal39
- Setting the signal39
- Setting signal volume39
2 Cleaning and maintenance40
- Cleaning and maintenance40
- : Warning40
- Risk of electric shock!40
- : Warning40
- Risk of poisoning!40
- Caution!40
- Damage to the appliance40
- Appliance housing/control panel40
- Drum40
- Descaling40
- Cleaning the detergent dispenser40
  - 1. Pull out the detergent drawer. Depress the insert and remove the drawer completely.40
- 2. Take out insert: using your finger, press insert upwards.40
- 3. Clean the detergent dispenser and insert with water and a brush and dry.40
- 4. Attach the insert and lock into position (push the cylinder onto the guide pin).40
- 5. Insert detergent drawer.40
  - Note:40

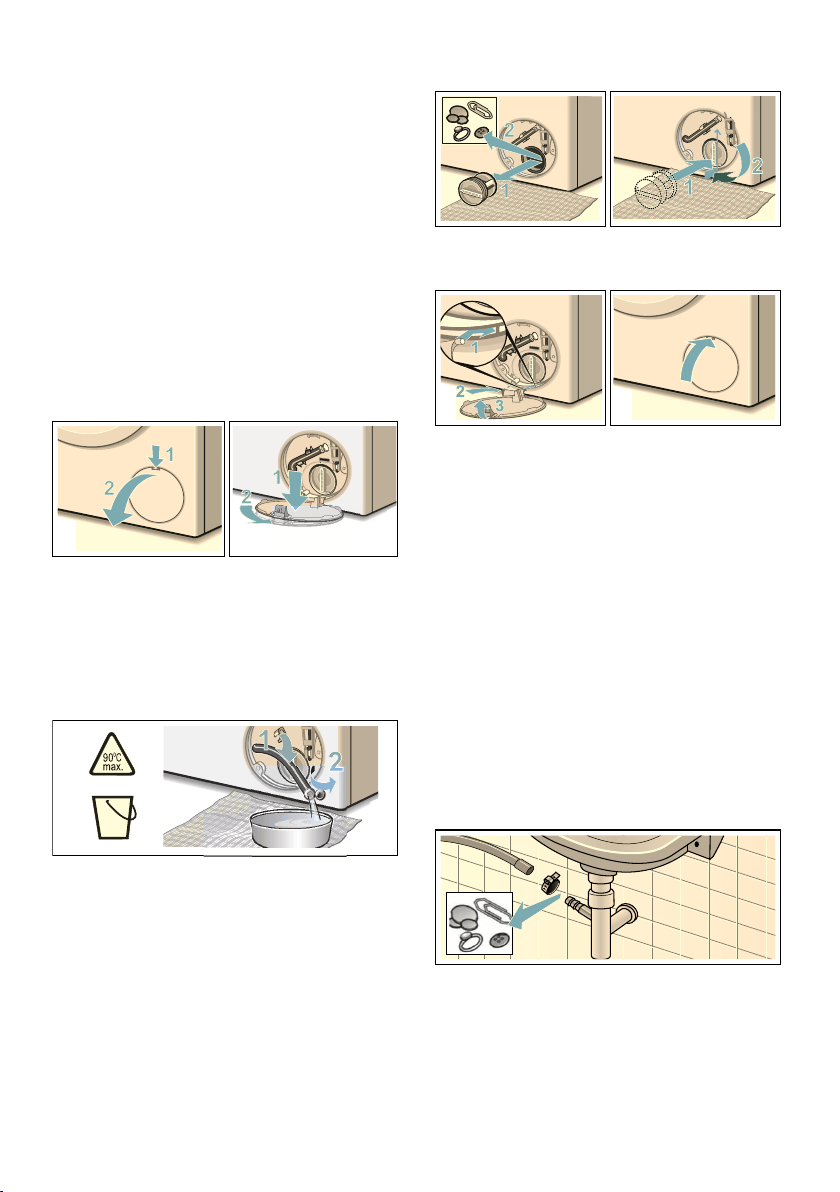

  - Drain pump blocked41
    - : Warning41
    - Risk of scalding!41
      - 1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.41
- 2. Switch off the appliance. Pull out the mains plug.41
- 3. Open and remove the service flap.41
- 4. Take the drain hose out of the retainer.41
- 5. Carefully unscrew the pump cover; residual water may leak out.41
- 6. Place the service flap back on, lock it into place, and close it.41
  - Note:41
  - Drainage hose on the siphon blocked41
    - 1. Turn the programme selector to Off. Pull out the mains plug.41
- 2. Loosen hose clip, carefully remove drainage hose. Residual water may run out.41
- 3. Clean drainage hose and siphon spigot.41
- 4. Re-attach the drainage hose and secure the connection point with the hose clip.41
  - Filter in the water inlet hose blocked42
    - : Warning42
    - Danger of death!42
      - 1. Turn off the tap.42
- 2. Select any programme (except Spin/ Drain 0/[).42
- 3. Select A Start/Reload. Allow the programme to run for approx. 40 s.42
- 4. Turn the programme selector to Off. Pull out the mains plug.42
- 5. Clean the filter on the tap:42
- 6. Clean the filter on the back of the appliance:42
- 7. Connect the hose and check for leaks.42
3 Faults and what to do about them42
- Faults and what to do about them42
- Emergency release, e.g. if a power failure occurs42
- 2. Drain the detergent solution.42
- 3. Pull the emergency release downwards with a tool and release.42
  - Information on the display panel43
    - Information43
    - Cause/Remedy43
  - Faults and what to do about them43
    - Faults43
    - Cause/Remedy43
      - Note:43
4 Customer service46
- Customer service46
J Technical specifications46
- Technical specifications46
[ Consumption values47
- Consumption values47
- Programme47
- Option47
- Load47
- (kg)47
- Energy consumption * (kWh)47
- Water Consumption * (liter)47
- Programme duration * (hours)47
r Aqua-Stop warranty48
- Aqua-Stop warranty48
  - 1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.48
- 2. The liability guarantee is valid for the service life of the appliance.48
- 3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).48
- 4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.48
