Your new washer dryer
You have chosen a Bosch washer dryer.
Please take a few minutes to read and
become familiar with the advantages of
your washer dryer.
To meet the high quality demands
required by Bosch, every washer dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washer dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of the
appliance/any other useful information.
1. 2. 3. / a) b) c)
The steps are represented by numbers or
letters.
■ / -
Lists are represented by a small box or a
dash.
en
3
Contents
enInstruction Manual and Installation Instructions
8 Intended use . . . . . . . . . . . . . 4
( Safety instructions . . . . . . . . . 5
Children/people/pets . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 10
7 Environmental protection . . 12
Packaging/used appliance. . . . . . . . . 12
Tips on economical use . . . . . . . . . . 12
5 Positioning and connecting . 13
Standard accessories . . . . . . . . . . . . 13
Safety instructions . . . . . . . . . . . . . . 13
Installation surface. . . . . . . . . . . . . . 14
Installation on a base or a wooden joist
floor . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the appliance in a kitchenette
. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Removing the transport locks . . . . . . 14
Removing the support struts . . . . . . . 16
Hose and cable lengths . . . . . . . . . . 16
Water inlet . . . . . . . . . . . . . . . . . . . 17
Water outlet . . . . . . . . . . . . . . . . . . 18
Alignment . . . . . . . . . . . . . . . . . . . . 19
Electrical connection. . . . . . . . . . . . . 19
Before washing for the first time . . . . 20
Transportation. . . . . . . . . . . . . . . . . 20
* Getting to know the appliance
22
Appliance . . . . . . . . . . . . . . . . . . . . 22
Control panel. . . . . . . . . . . . . . . . . . 23
Display panel. . . . . . . . . . . . . . . . . . 24
Z Laundry. . . . . . . . . . . . . . . . . 25
Preparing laundry for washing. . . . . . 25
Preparing laundry for drying . . . . . . . 26
Starching . . . . . . . . . . . . . . . . . . . . 26
Dyeing/bleaching . . . . . . . . . . . . . . . 26
C Detergent . . . . . . . . . . . . . . . .27
Correct selection of detergent . . . . . . 27
Saving energy and detergent. . . . . . . 27
P Overview of programmes . . .28
Selectable programme . . . . . . . . . . . 28
Drying table . . . . . . . . . . . . . . . . . . . 32
0 Programme default settings .33
6 Temp.°C . . . . . . . . . . . . . . . . . . . . 33
0 Spin Speed. . . . . . . . . . . . . . . . . . 33
ñ Ready in . . . . . . . . . . . . . . . . . . . 33
\ Additional programme settings
34
É Wash & Dry. . . . . . . . . . . . . . . . . 34
x Anti-Stain . . . . . . . . . . . . . . . . . . 34
Ï Extra Rinse . . . . . . . . . . . . . . . . . 35
2 Hygiene Care. . . . . . . . . . . . . . . . 35
G SpeedPerfect . . . . . . . . . . . . . . . 35
1 Operating the appliance . . . .35
Preparing the appliance. . . . . . . . . . . 35
Select programme/switch on the
appliance. . . . . . . . . . . . . . . . . . . . . 36
Placing laundry into the drum . . . . . . 36
Dosing and adding detergent and care
products . . . . . . . . . . . . . . . . . . . . . 36
Starting the programme . . . . . . . . . . 37
Childproof lock . . . . . . . . . . . . . . . . . 37
Adding/removing laundry . . . . . . . . . 38
Changing the programme . . . . . . . . . 38
Cancel the programme . . . . . . . . . . . 38
Programme end . . . . . . . . . . . . . . . . 38
Removing laundry/switching off the
appliance. . . . . . . . . . . . . . . . . . . . . 38
Q Appliance settings . . . . . . . . .39
H Sensors. . . . . . . . . . . . . . . . . .40
Unbalanced load detection system . . . 40
en Intended use
4
2 Cleaning and maintenance . . 40
Appliance housing/control panel . . . . .40
Drum. . . . . . . . . . . . . . . . . . . . . . . .40
Descaling . . . . . . . . . . . . . . . . . . . . .40
Emptying the detergent draw, cleaning
the detergent drawer and its housing .40
Drain pump is blocked. . . . . . . . . . . .41
The drain hose at the siphon is blocked
. . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Filter in the water supply is blocked . .42
3 Faults and what to do about
them . . . . . . . . . . . . . . . . . . . 43
Emergency release . . . . . . . . . . . . . .43
Information on the display panel . . . .44
Faults and what to do about them . . .45
4 After-sales service. . . . . . . . . 49
[ Consumption values . . . . . . . 50
J Technical data . . . . . . . . . . . . 51
r Aqua-Stop warranty . . . . . . . 51
8 ,QWHQGHGXVH
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if residual
water in it freezes. If hoses freeze up,
they may crack/burst.
■ This appliance must only be used for
washing domestic laundry, consisting
of machine-washable items and hand-
washable woollens (see label on
item). Using the appliance for any
other purpose is outside of the scope
of its intended application and is
forbidden.
■ This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the scope
of its intended application and is
forbidden.
■ This appliance is suitable for operation
with mains water and commercially
available detergents and care
products (must be suitable for use in
washing machines).
■ This appliance is intended for use up
to a maximum height of 4000 metres
above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent use
or for subsequent owners.
Safety instructions en
5
( Safety instructions
Safety instructions
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to your
surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure themselves
or may find themselves in life-
threatening situations. Therefore
please note:
■ The appliance may be used by
children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by persons
with a lack of experience or
knowledge as long as they are
supervised or have received
instruction on how to use the
appliance safely and they
have understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
■ Do not allow children to clean
or maintain this appliance
unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the appliance
behind a door, as this may
obstruct the appliance door or
prevent it from opening
completely.
■ Once an appliance has
reached the end of its life, pull
the mains plug from the
socket before severing the
mains cable, and then destroy
the lock on the appliance
door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or packing
components, children may
become caught in these or pull
them over their heads and
suffocate.
Keep packaging, plastic film and
packing components away from
children.
en Safety instructions
6
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep detergents
and care products out of the
reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact with
detergents or care products.
Keep detergents and care
products out of the reach of
children.
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■ The mains voltage on your
power socket must match the
rated voltage specified on the
appliance (identification
plate). The connected loads
and the required fuse
protection are specified on the
identification plate.
■ The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■ The installation must have an
adequate cross section.
■ The mains plug must be freely
accessible at all times. If this
is not possible, in order to
comply with the relevant
safety regulations, a switch
(all pole disconnection) must
be built into the permanent
installation in accordance with
electrical installation
regulations.
■ If using a residual current
circuit breaker, only use one
that bears the following mark:
z. The presence of this
mark is the only way to be
sure that it fulfils all the
applicable regulations.
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
Safety instructions en
7
:Warning
Risk of fire/material
damage/damage to the
appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly to
an earthed socket that has been
correctly installed. Do not use
extension cords, power strips or
multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface and,
using a spirit level to guide
you, level it with the screw-in
feet.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and cause
injury.
Do not take hold of any of the
appliance's protruding parts in
order to move the appliance.
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could cut
your hands.
Do not take hold of the
appliance by its sharp edges.
Wear protective gloves to lift
it.
Risk of injury!
■ If the hoses and mains cables
are not correctly routed, they
may constitute a tripping
hazard, which may result in
injury.
Route hoses and cables such
that they do not constitute a
tripping hazard.
Caution!
Material damage/damage to
the appliance
■ If the water pressure is too
high or too low, the appliance
may not be able to operate
properly, and it may also
result in material damage or
damage to the appliance.
Make sure that the water
pressure in the water supply
facility is at least
100 kPa (1 bar), and does not
exceed 1000 kPa (10 bar).
Material damage/damage to the appliance
en Safety instructions
8
■ If the water hoses are altered
or damaged, this may result in
material damage or damage
to the appliance.
The water hoses must not be
kinked, crushed, altered or
severed.
Material damage/damage to the appliance
■ The use of hoses supplied by
other brands to connect to the
water supply may result in
material damage or damage
to the appliance.
Use the hoses supplied with
the appliance or genuine
spare part hoses only.
Material damage/damage to the appliance
■ The appliance is secured for
transportation by transport
locking devices. If the
transport locking devices are
not removed before the
appliance is operated, this
may result in damage to the
appliance.
It is important to completely
remove all transport locking
devices before using the
appliance for the first time.
Make sure that you retain
these transport locking
devices separately. It is
important to refit the
transport locking devices if
the appliance is to be
transported, in order to
prevent the appliance from
being damaged in transit.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■ Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■ Do not place laundry in this
appliance to be dried if the
laundry has not been washed
first.
■ Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
:Warning
Risk of explosions/fire!
■ Laundry that has been
pretreated with cleaning
agents that contain solvents,
e.g. stain remover/cleaning
solvent, may cause an
explosion in the drum.
Rinse the laundry thoroughly
with water before washing it
in the machine.
Risk of explosions/fire!
Safety instructions en
9
■ Certain objects may ignite
when drying is in progress, or
even cause the appliance to
catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
■ If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
:Warning
Risk of fire/material
damage/damage to the
appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
■ During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■ Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when it
is open, the appliance may tip
over, which may result in
injury.
Do not support your weight
on the appliance door when it
is open.
Risk of injury!
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When washing at high
temperatures, there is a risk of
scalding if you come into contact
with hot detergent solution (e.g.
when draining hot detergent
solution into a washbasin).
Do not reach into the hot
detergent solution.
en Safety instructions
10
:Warning
Eye/skin irritation!
Detergent and care products
may spray out if the detergent
drawer is opened while the
appliance is in operation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact with
detergents or care products. If
accidentally swallowed, seek
medical advice.
Caution!
Material damage/damage to
the appliance
■ If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs.
Material damage/damage to the appliance
■ Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care products/
cleaning agents and softeners
in accordance with the
manufacturers' instructions.
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance from
the power supply (pull out the
plug).
■ Never take hold of the mains
plug with wet hands.
■ When removing the mains
plug from the socket, always
take hold of the plug itself and
never the mains cable,
otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the appliance
or its features.
Safety instructions en
11
■ Repairs and any other work
on the appliance must only be
conducted by our customer
service or by an electrician.
The same applies for
replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/
material damage/damage to
the appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray gun
to clean your appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use genuine
spare parts and accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they come
into contact with the surfaces of
the appliance. Therefore please
note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent, spray
or other residues immediately.
en Environmental protection
12
7 Environmental
protection
Environmental protection
Packaging/used appliance
Do’s
■ Hand over the old/discarded
electronic equipment only to
authorized collection centers for
disposal
■ Consult the authorized service center
as to whether the Electronic
Equipment can be repaired or not,
before discarding
■ Consult the retailer about appliance
take back schemes
Don’ts
■ Don’t dump the discarded Electronic
Equipment in the open or in any land
fill site, as this will result in
contamination of the soil and the
ground water
■ Don’t dispose of the discarded
Electronic Equipment in household
bins or Municipal bins
■ The product is not meant for re-sale
to any unauthorized agencies/scrap
dealers
■ Don't keep any replaced spare part(s)
from the product in an exposed area
Tips on economical use
■ Always fill the appliance with the
maximum amount of laundry for each
programme.
■ Wash normally soiled laundry without
pretreating.
■ For light and normal soiling in laundry,
you can save energy and detergent.
■ The selectable temperatures apply to
the care labels on the textiles. The
temperatures in the appliance may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
■ Low power mode: If the appliance
is not operated for a prolonged period
(approx. 5 minutes), the display panel
lighting goes out before the
programme starts and after the
programme has ended, ~ (indicator
lamp of A Start/Pause button)
flashes. Select any button to activate
the display backlighting.
Low power mode is not be activated
when the programme is running.
■ If the laundry is then dried in the
appliance, select the maximum
possible spin speed. The less water
the laundry contains, the less time
and energy are required for drying.
Do not dry dripping wet laundry.
)
Dispose of packaging in an
environmentally-responsible
manner.
The following Do’s and Don’ts
provide a framework for the
return and recycling of used
products when available in your
area.
Positioning and connecting en
13
5 Positioning and
connecting
Positioning and connecting
Standard accessories
Note: Check the appliance for transport
damage. Never use a damaged
appliance. If you have any complaints,
contact the dealer from whom you
purchased the appliance or our Customer
Service.
In addition, a hose clamp (24 - 40 mm
diameter, available from specialist
retailers) is required to connect the water
outlet hose to a siphon.
Useful tool
■ Spirit level for aligning
■ Wrench with:
– WAF13 for loosening the transport
braces and
– WAF17 for aligning the appliance
feet
Safety instructions
:Warning
Risk of injury!
■ The appliance is very heavy.
Be careful when lifting/transporting
the appliance.
■ When the appliance is lifted by its
protruding parts (e.g. the appliance
door), the components may break off
and cause injuries.
Do not lift the appliance by protruding
parts.
A Mains lead
B Bag:
■ Installation and operating
instructions
■ Customer Service location
directory*
■ Warranty*
■ Supplementary sheet for the
installation and operating
instructions*
■ Cover caps for openings after
the transport braces have been
removed
■ Home Connect Installation
Guides*
C Water inlet hose on aquaStop
models
D Water outlet hose
E Elbow for securing the water outlet
hose*
F Cold water inlet hose on Standard/
Aqua-Secure models
* Depending on the model
en Positioning and connecting
14
■ If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may rip/burst.
Do not install the appliance in areas
exposed to frost or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must follow
the instructions in this section.
Notes
■ In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■ If in doubt, have the appliance
connected by a specialist.
Installation surface
Note: The appliance must be stable
aligned so that it does not move around.
■ The installation surface must be firm
and level.
■ Soft floors/floor coverings are not
suitable.
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The appliance may "wander" and tip/
topple from the base when spinning.
The feet of the appliance must be
secured with holding brackets.
Order no. WMZ 2200, WX 975600,
CZ 110600, Z 7080X0.
Note: On wooden joist floors, install the
appliance:
■ In a corner, if possible,
■ On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
Installing the appliance in a
kitchenette
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not remove the appliance covering
plate.
Notes
■ Recess width of 60 cm required.
■ Only install the appliance underneath
a continuous worktop that is securely
connected to adjacent cabinets.
Removing the transport
locks
Caution!
Damage to the appliance
■ The appliance is secured for
transportation using transport locks. If
the transport locks are not removed,
the appliance may become damaged
when it is operated.
Before using the appliance for the first
time, make sure that you completely
remove all four transport locks. Keep
the locks in a safe place.
■ To prevent transport damage from
occurring if the appliance is moved at
a later date, you must refit the
transport locks before transporting the
appliance.
Positioning and connecting en
15
Note: Keep the screws and sleeves in a
safe place.
1. Take the hoses out of the holders.
2. Unscrew and remove all four transport
brace screws.
a) Remove the mains cable from the
holders.
b) Remove the sleeves.
3. Fit the covers.
4. Lock the covers firmly in place by
applying pressure to the snap-in
hooks.
en Positioning and connecting
16
Removing the support struts
1. Unscrew and remove all screws in the
vertical transport struts.
2. Remove the transport struts.
3. Undo and remove the screws on the
horizontal transport strut.
4. Remove the transport strut.
Hose and cable lengths
Connection on left side
or
Connection on right side
Note: If the supply hose is too short for
your connection, you can order an
extension from the after-sales service.
7
7
( ~ 140 cm
0 ~ 90 cm
8 ~ 94 cm
@ 0 cm ~ 100 cm
( ~ 94 cm
0 ~ 130 cm
8 ~ 140 cm
@ 0 cm ~ 100 cm
#
#
Positioning and connecting en
17
Water inlet
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not immerse the Aqua-Stop safety
valve* in water (it contains an electric
valve).
* Depending on the model
Observe the following when connecting
the appliance:
Notes
■ Only operate the appliance using cold
mains water.
■ Do not connect the appliance to the
mixer tap of an unpressurised hot-
water boiler.
■ Do not use a used supply hose. Only
use the supply hose supplied or one
that was purchased from an
authorised specialist retailer.
■ Do not bend, squash, modify or cut
through the water supply hose
(otherwise its strength is no longer
guaranteed).
■ Only tighten the screw connections by
hand. If the screw connections are
tightened too much with a tool
(pliers), the thread may be damaged.
Optimum water pressure in the
supply network
At least 100 kPa (1 bar)
Maximum 1000 kPa (10 bar)
When the tap is open, the water flow is at
least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
Connection
1. Connect the water supply hose to the
water tap (¾" = 26.4 mm) and to the
appliance:
– Model: Standard
– Model: Aqua-Secure
– Model: Aqua-Stop
Tip: Connect also an external water
filter (depending on the model)
between water supply hose and tap.
The filter filters dirt particles out of the
water.
Water filter must be cleaned regularly
to remove contaminants. This will
prevent blockages. See also ~
separate installation and cleaning
instruction for water filter.
en Positioning and connecting
18
2. Open the water tap carefully, checking
the leak tightness of the connection
points. The screw connection is under
mains water pressure.
Water outlet
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding if
you come into contact with hot water
(e.g. when draining hot water into a
washbasin).
Do not reach into the hot water.
Caution!
Water damage
When water is being pumped away, the
outlet hose is under water pressure and
may slip out of the wash basin or
connection point.
Secure the drain hose so that it cannot
slip out.
Caution!
Damage to the appliance/fabrics
If the end of the drain hose is immersed
in the drained water, water may be
sucked back into the appliance and may
damage the appliance/fabrics.
Make sure that:
■ The plug does not block drainage
from the washbasin.
■ The end of the drain hose is not
immersed in the drained water.
■ The water drains away quickly
enough.
Note: Do not kink the water drain hose
or put strain on it lengthways.

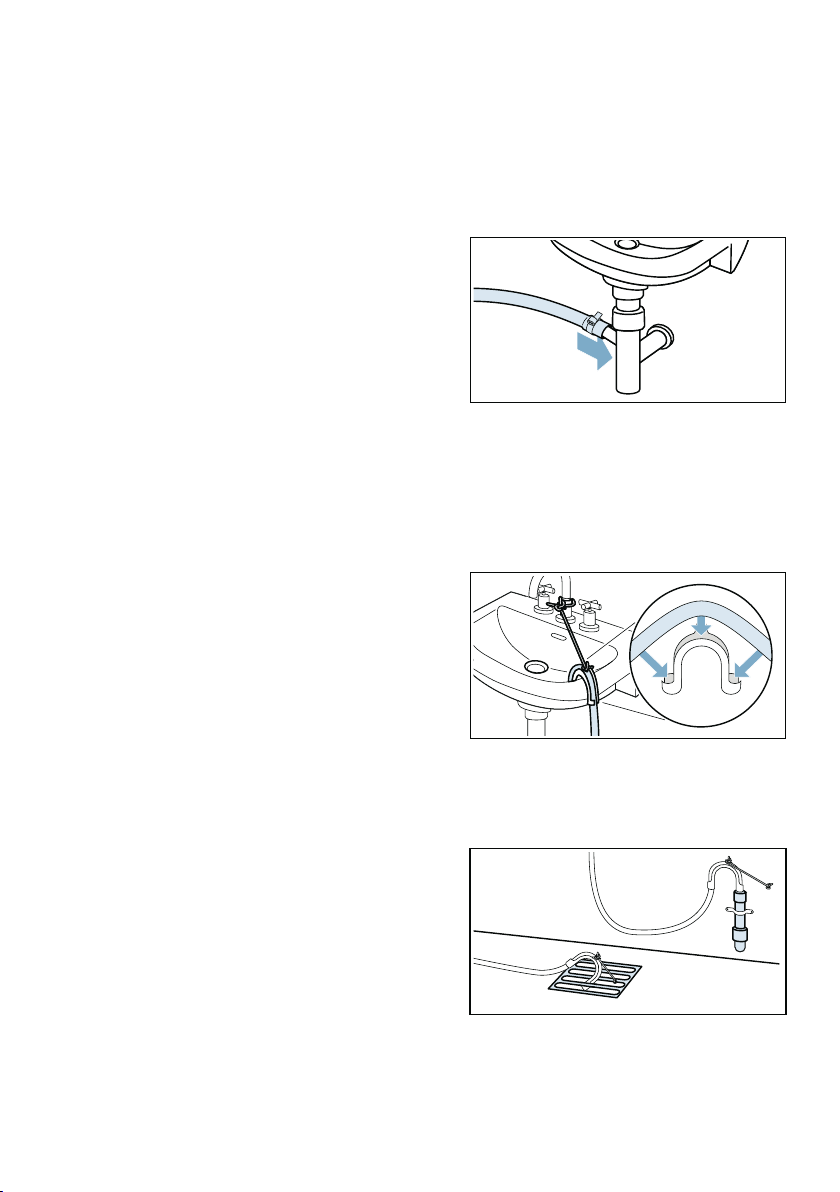

Connection
■ Drainage into a siphon
The connection point must be secured
using a hose clamp with a diameter of
24 - 40 mm (available from specialist
dealers).
■ Drainage into a washbasin
Secure the outlet hose so that it
cannot slip out.
Elbow available from after-sales
service:
Individual part number 00655300
■ Drainage into a plastic pipe with
rubber bushing or into a drainage
pit
Note: The plastic pipe is not
standard accessory, available from
specialist dealers.
Positioning and connecting en
19
Alignment
Level the appliance using a spirit level.
Incorrect levelling may result in intense
noise, vibrations and "wandering".
1. Loosen the lock nuts using a wrench,
by turning it in a clockwise direction.
2. Check the alignment of the appliance
with a spirit level, and adjust it if
necessary. Change the height by
turning the appliance feet.
All four appliance feet must stand
firmly on the ground.
3. Tighten the lock nut against the
housing.
In doing so, hold the foot tight and do
not adjust its height.
The lock nuts on all four appliance
feet must be screwed tightly against
the housing.
Electrical connection
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
■ Never touch or hold the mains plug
with wet hands.
■ Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
Observe the following information and
ensure that:
Notes
■ The mains voltage and voltage
indicated on the appliance (rating
plate) are the same.
The connected load and fuse required
are specified on the rating plate.
■ The appliance is only connected to an
alternating current via a properly
installed earthed socket.
■ The mains plug fits the socket.
■ The earthing system is properly
installed.
■ The mains cable is only replaced by a
qualified electrician (if this is
necessary). Replacement mains
cables are available from the after-
sales service.
■ No multiple plugs/couplings or
extension cables are used.
■ If an earth-leakage circuit breaker is
used, only a type which displays this
symbol is used: z.
Only this symbol guarantees
compliance with the currently
applicable regulations.
■ The mains plug can be accessed at all
times.
■ The mains cable is not bent,
squashed, modified, cut through, or in
contact with heat sources.
en Positioning and connecting
20
Before washing for the first
time
The appliance was inspected thoroughly
before leaving the factory. To remove any
residual test water, run the Drum Clean
programme the first time without
laundry.
Note:
■ The appliance must have been
installed and connected properly.
~ "Positioning and connecting"
on page 13
■ Never switch on a damaged
appliance.
1. Insert mains plug.
2. Turn the water tap on.
3. Close the door. Do not load any
laundry.
4. Select the Drum Clean 90°C
programme.
5. Open the detergent drawer.
6. Pour approx. 1 litre of water into
dispenser II.
7. Add standard detergent to dispenser
II according to manufacturer’s
instructions for light soiling.
Note: To prevent frothing, use only
half the recommended amount
of detergent. Do not use any woollens
or mild detergents.
8. Close the detergent drawer.
9. Select A Start/Pause .
10. When the programme ends, turn the
programme selector to Off.
Your appliance is now ready for use.
Transportation
e.g. when moving home
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the
supply hose. ~ Page 42
3. Drain any residual water. ~ Page 41
4. Disconnect the appliance from the
mains.
5. Remove the hoses.
6. Empty the dispensers.
Caution!
Risk of damage to the appliance
caused by detergent/fabric
softener leaking from the
dispensers
Leaking detergent/fabric softener can
prevent the appliance from working
correctly, e.g. due to damage to the
electronics.
Empty the dispensers before
transporting the appliance.
Installing the transport locks:
1. Remove the covers and keep them in
a safe place.
Note: Use a screwdriver if necessary.
Positioning and connecting en
21
2. Insert all four sleeves.
a) Clip the mains cable securely in
the holders.
b) Insert and tighten the screws.
c) Clip the hoses securely in the
holders.
Before switching on the appliance
again:
Notes
■ The support struts must be removed.
~ "Removing the support struts"
on page 16
■ The transport braces must be
removed.
~ "Removing the transport locks"
on page 14
■ Pour approx. 1 litre of water into
dispenser II, select the Spin
programme and start.
This will prevent detergent from
flowing straight into the drain during
the next wash.
en Getting to know the appliance
22
* Getting to know the appliance
Getting to know the appliance
Appliance
#
( Detergent drawer
0 Control panel
8 Loading door
@ Service flap
Getting to know the appliance en
23
Control panel
#
( Programme default settings
can be changed.
Overview of all programme
default settings ~ Page 33
0 Additional programme
settings can be selected.
Overview of all additional
programme settings ~ Page 34
8 A Start/Pause button for
starting, interrupting, (e.g.
adding laundry) and cancelling a
programme.
@ Programme selector for
selecting the programme and for
switching the appliance on and
off.
en Getting to know the appliance
24
Display panel
Programme default settings
Additional programme settings
Status indicators for the programme
progress (programme sequence)
Display Setting Description
— - 90° Temp.°C Temperature
that can be set
in °C
— = cold
2 -
1400*
Spin Speed Spin speed in
rpm (revolu-
tions per min-
ute)
2 = No spin
2:30* Programme
remaining
time
Programme
remaining time
depends on
the pro-
gramme selec-
tion in h:min
(hours:min-
utes)
0.5 - 24
h
Ready in Programme
ends after ... h
(h = hours)
10.0*
kg/6.0*
kg
Maximum
load for
washing/dry-
ing
Recom-
mended load
in kg
* Depending on the selected model and
programme.
Display Setting
‰/ Y/‰ ˜
Y
É Wash & Dry
°/¶/y/¸ x Anti-Stain
+1/+2/+3 Ï Extra Rinse
~ 2 Hygiene Care
~
G SpeedPerfect
Display Setting
~ A Start/Pause
ã Pretreatment
N Wash
O Rinse
0 Spin/Drain
‰ Dry
V Wrinkle guard
End Programme end
Laundry en
25
Z Laundry
Laundry
Preparing laundry for
washing
Protecting your laundry and
appliance
Caution!
Damage to the appliance/textiles
Foreign objects (e.g. coins, paper clips,
needles, nails) may damage the washing
or components of the appliance.
The following instructions must be
observed when preparing your laundry:
■ Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■ Do not exceed maximum load.
Overfilling will impair the washing
result.
■ Keep detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) away
from the surfaces of the appliance.
Using a damp cloth, immediately
remove any fine spray residue and
other residue or droplets.
■ Empty any pockets. Remove any
foreign objects.
■ Remove metal parts (paper clips,
etc.).
■ Trousers, knitwear and knitted
textiles, e.g. jersey garments, T-shirts
or sweatshirts, should be turned
inside out.
■ Ensure that underwired bras are
appliance-washable.
■ Wash delicates in a net or bag (tights,
underwired bras, etc).
■ Close zips, button up covers.
■ Brush sand out of pockets and collars.
■ Remove curtain fittings or place in a
net/bag.
Sorting laundry
Sort your laundry according to the care
instructions and manufacturer's
information on the care labels, depending
on:
■ Type of fabric/fibre
■ Colour
Note: Laundry may discolour. Wash
white and coloured items separately.
Wash new coloured items separately
the first time you wash them.
■ Soiling
Wash laundry with the same level of
soiling together.
– Light: No need to pretreat, adjust
the G SpeedPerfect setting if
necessary.
– Normal
– Heavy: Load less laundry, need to
pretreat or soak laundry firstly.
– Stains: Remove/pretreat stains
while they are fresh. First dab with
soapy water; do not rub. Then
wash the items of laundry with the
appropriate programme. Stubborn
or dried-in stains can sometimes
only be removed by washing
several times.
■ Symbols on the care labels
M Suitable for normal washing
process;
e.g. Cottons programme
N A gentle washing process is
required;
e.g. Synthetics programme
O An especially gentle washing
process is required;
e.g. Delicates/Silk programme
W Suitable for washing by hand;
e.g. W Wool programme
Ž Do not machine wash.
en Laundry
26
Preparing laundry for drying
Note: To ensure an even drying result,
sort the laundry according to the:
■ Type of fabric
■ Care symbols which are indicated on
the care labels.
Only dry laundry which is labelled “dryer-
proof” or which has the following care
symbols:
■ a : You can select
Cottons/AllergyPlus/Wash & Dry
60 min/Rinse/Spin + É Wash &
Dry
■ ` : You can select
Mix Load/Synthetics/W Wool/
Downs Clothes + É Wash & Dry
The following textiles must not be dried:
■ b = care symbol “Do not dry”
■ Delicates (silk, synthetic curtains).
■ Textiles which contain foam rubber or
similar materials.
■ Textiles which were treated with
flammable liquids, e.g. with stain
remover, petroleum ether, thinners.
Risk of explosion!
■ Textiles which still contain hairspray
or similar substances.
Notes
■ Before drying, hand-washed textiles
must be spun at the appropriate spin
speed.
■ Before drying, spin at the optimum
speed. A spin speed of more than
1000 rpm is recommended for cotton,
more than 800 rpm for easy-care
textiles.
■ Do not iron washing immediately after
drying. It is recommended to roll the
washing up first to distribute residual
moisture evenly.
■ To ensure a good drying performance,
quilts, terry cloths and other large
textiles should be dried separately.
■ Do not exceed the maximum load.
Starching
Note: Laundry should not be treated
with fabric softener.
1. Switch on the appliance.
2. Select the Rinse programme.
3. Measure starch into dispenser i in
accordance with the manufacturer's
instructions (clean first if necessary).
4. Touch the A Start/Pause button.
Dyeing/bleaching
Dye should only be used in normal
household quantities. Salt may damage
stainless steel. Always follow the dye
manufacturer's instructions.
Do not use the appliance to bleach
clothes.
Detergent en
27
C Detergent
Detergent
Correct selection of
detergent
The care label is crucial to ensure correct
detergent selection, temperature and
laundry treatment.
■ Standard detergent with optical
brighteners
suitable for heat-resistant white
washing made from linen or cotton
Programme: Cottons/
cold – max. 90 °C
■ Detergent for colours without
bleach or optical brighteners
suitable for coloured washing made
from linen or cotton
Programme: Cottons/
cold – max. 60 °C
■ Detergent for colours/delicates
without optical brighteners
suitable for coloured laundry made
from easy-care fibres, synthetic fibres
Programme: Synthetics/
cold – max. 60 °C
■ Detergent for delicates
suitable for delicate, fine fabrics, silk
or viscose
Programme: Delicates/Silk/
cold – max. 40 °C
■ Detergent for woollens
suitable for woollen fabrics
Programme: W Wool/ cold – max. 40
°C
Saving energy and detergent
For light and normal soiling, you can save
energy (lower washing temperature) and
detergent.
Note: When measuring the amount of
all detergents/additives/care products
and cleaning agents, please always check
the manufacturer's instructions and
information.
Saving Soiling/note
Reduced tem-
perature and
detergent
quantity as
per the rec-
ommended
dosage
Light
No visible dirt or stains.
Clothing has taken on
some body odour, e.g.:
■ Light summer/sports
clothing (worn for a
few hours)
■ T-shirts, shirts,
blouses (worn for up
to one day)
■ Guest bed linen and
hand towels (used
for one day)
Normal
Visible dirt or a few light
stains, e.g.:
■ T-shirts, shirts,
blouses (sweat
soaked, worn a few
times)
■ Towels, bedding
(used for up to one
week)
Temperature
as per the
care label and
detergent
quantity as
per the rec-
ommended
dosage for
heavy soiling
Heavy
Dirt and/or stains clearly
visible, e.g. tea towels,
baby items, work cloth-
ing
en Overview of programmes
28
P Overview of
programmes
Overview of programmes
Selectable programme
Programme/Type of laundry Options/Information
Name of the programme
Brief explanation of the programme and for which
fabrics it is suitable.
Max. load for washing/
Max. load for drying
Max. load as kg
depending on the model and the
programme
selectable temperature* as °C
selectable spin speed* in rpm
possible additional programme
settings*
softener
Cottons
Hard-wearing fabrics, heat-resistant fabrics made
of cotton or linen.
10,0 (5,0**) kg/6,0 kg
— - 90 °C
400 - 1400 rpm
G SpeedPerfect, Ï Extra
Rinse, x Anti-Stain, 2 Hygiene
Care, É Wash & Dry
possible
Mix Load
Mixed load of cottons and synthetic fabrics.
4,0 kg/2,5 kg
— - 60 °C
400 - 1400 rpm
G SpeedPerfect, Ï Extra
Rinse, x Anti-Stain, 2 Hygiene
Care, É Wash & Dry
possible
Synthetics
Textiles made of synthetic materials or blended
fabrics.
4,0 kg/2,5 kg
— - 60 °C
400 - 1400 rpm
G SpeedPerfect, Ï Extra
Rinse, x Anti-Stain, 2 Hygiene
Care, É Wash & Dry
possible
* Depending on the model and the programme.
** Reduced load with G SpeedPerfect additional programme setting.
Overview of programmes en
29
Delicates/Silk
For delicate, washable fabrics, e.g. made of silk,
satin, synthetic fibres or blends (e.g. silk blouses,
silk scarves).
2,0 kg/-
— - 40 °C
2 - 800 rpm
Ï Extra Rinse, x Anti-Stain
possible
W Wool
Hand- or appliance-washable fabrics that are made
of wool or contain wool;
particularly gentle wash programme to prevent
laundry from shrinking, with longer pauses in the
programme (during which the items rest in the
water).
Note: In order to prevent clothing shrink, after
drying still contain a small amount of water, please
take out the clothes as soon as possible after the
end of the programme to dry.
2,0 kg/1,0 kg
— - 40 °C
2 - 800 rpm
É Wash & Dry
possible
Rinse
For rinsing with a subsequent spin cycle.
-/-
-
2 - 1400 rpm
Ï Extra Rinse, É Wash & Dry
possible
Spin
For spinning with a selectable spin speed and sub-
sequent draining.
Note: If you set the spin speed to 2, it will run
drain programme.
-/-
-
2 - 1400 rpm
É Wash & Dry
not possible
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with G SpeedPerfect additional programme setting.
en Overview of programmes
30
Drum Clean
Special programme for drum hygiene or fluff
removal. Do not load any laundry. Fixed drying pro-
cess is followed to dry drum and gasket.
90°C = antibacterial programme.
40°C = antibacterial programme, special drum
cleaning detergent can be used.
— = no antibacterial programme, to remove hair or
fluff from the tub.
The symbol Û (memory function, drum care)
flashes if you have not used any programme at a
temperature of 60 °C or higher for an extended
period.
Notes
■ Switching the Drum Clean information signal
on/off.
■ Always follow the manufacturer's instructions
when dosing the detergent.
0,0 kg/0,0 kg
—, 40°C, 90 °C
1000 rpm
É Wash & Dry
not possible
Downs Clothes
Appliance-washable fabrics stuffed with down, such
as pillows and duvets; also suitable for items
stuffed with synthetic fibres.
Notes
■ It is recommended that you pull down the coat
zipper before drying and turn the inner layer
inside out.
■ Use the special detergent for down.
2,0 kg/2,0 kg
— - 60 °C
400 - 1000 rpm
Ï Extra Rinse, 2 Hygiene
Care,É Wash & Dry
not possible
Bed Linen
This program is suitable for large items like bed
sets, sofa cover, easy-care curtains. To avoid textile
damages do not wash textile items with garniture
like curtains with stitchery or pearls.
4,0 kg/-
— - 60 °C
400 - 1000 rpm
G SpeedPerfect, Ï Extra
Rinse, x Anti-Stain, 2 Hygiene
Care
possible
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with G SpeedPerfect additional programme setting.
Overview of programmes en
31
AllergyPlus
Suitable for washing soiled babies / kids clothes
made of cotton, effectively removing bacteria.
6,5 kg/5,0 kg
— - 60 °C
400 - 1400 rpm
G SpeedPerfect, Ï Extra
Rinse, x Anti-Stain, 2 Hygiene
Care, É Wash & Dry
possible
Outdoor/Waterproofing
Weatherproof and outdoor clothing with membrane
coating and water-resistant textiles.
Note: Remove all remaining softener in the dis-
penser before washing begins. It is recommended
that you pull down the zipper before washing and
turn the inner layer inside out.
1,0 kg/1,0 kg
— - 40 °C
400 - 800 rpm
Ï Extra Rinse, x Anti-Stain, É
Wash & Dry
not possible
Lingerie
For delicate, washable underwear e.g. made of vel-
vet, lace, Lycra, silk or satin.
1,0 kg/-
— - 40 °C
2 - 800 rpm
Ï Extra Rinse, x Anti-Stain
possible
Wash & Dry 60 min
For small amount lightly soiled garments made of
cotton, linen, synthetic or blended fabrics.
Note: The default programme is Wash & Dry 60
min. You can cancel the drying process by touch É
Wash & Dry button, then it will switch to extra-
short programme of approx. 15 minutes.
2,0 kg/1,0 kg
— - 40 °C
400 - 1000 rpm
É Wash & Dry
possible
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with G SpeedPerfect additional programme setting.
en Overview of programmes
32
Drying table
Estimated drying time (min)
Recommended
drying programme
Drying load (kg)
É Wash & Dry
Cottons/AllergyPlus 1.0-2.0 50-80
2.0-4.0 80-140
4.0-6.0 140-200
Synthetics/Mix Load 0.5-1.5 50-70
1.5-2.5 70-100
Downs Clothes 2.0 60-100
Outdoor/Waterproof-
ing
1.0 120
± The time listed above is the reference value, the actual drying effect may be affect-
ed by the clothing type, clothing weight, dehydration degree and ambient temper-
ature.
± In order to achieve uniform drying effect, it is recommended to distinguish between
heavy and lightweight clothing. For example, separate the thick towel and the shirt
to bake.
± In order to reduce the wrinkling of clothing after drying, it is recommended to put
a small amount of clothing drying.
± Please refer to the panel display for the drying time of the programme not men-
tioned in the table above.
Programme default settings en
33
0 Programme default
settings
Programme default settings
You can change the default settings for
selected programmes. The settings can
be changed even while the selected
programme is running. The effects
depending on the progress of the
programme.
6 Temp.°C
Before and after the programme starts,
you can change the temperature setting,
depending on what stage the programme
is in, by adjusting the desired
temperature on the display.
The maximum temperature that can be
set depends on the programme that has
been selected.
0 Spin Speed
Depending on what stage the programme
is in, you can change the spin speed (in
rpm; revolutions per minute) before and
during the programme by adjusting the
desired speed on the display.
setting 2: 2 =”No spin”. The rinsing
water is drained but there is no final spin.
The laundry stays wet inside the drum,
e.g. for items that should not be spun.
You can select “No spin” to prevent
creasing if the laundry will not be taken
out of the appliance immediately after
the programme has ended.
The maximum speed that can be set
depending on the model and the
programme that has been selected.
ñ Ready in
Before starting the programme, you
can preselect the programme end ("Finish
in" time) in 0.5h (h = hour) increments
(between “minimum selectable ending
time” and 9.5h) or 1 hour increments
(between 10h and 24h) up to a maximum
of 24 hours.
To do this:
1. Select a programme (except
myTime
*
programme).
The programme duration is displayed
for the selected programme, e.g.
2:30 (hours:minutes).
2. Select the ñ Ready in button
repeatedly until the required number
of hours is displayed.
3. Select the A Start/Pause button.
The programme starts.
The selected number of hours (e.g.
8h) is shown in the display panel and
counts down until the programme
starts. The duration of the programme
is then displayed.
Note: The length of the programme is
automatically adjusted when the
programme is running. Changes to the
programme default settings or additional
programme settings may also change the
programme duration.
After starting the programme (if a
“Finish in” time has been selected and
the programme has not yet started), you
can change the preselected number of
hours as follows:
1. Select the A Start/Pause button.
2. Select the ñ Ready in button
repeatedly to change the number of
hours.
3. Select the A Start/Pause button.
* Depending on the model
en Additional programme settings
34
\ Additional
programme settings
Additional programme settings
Note: You can find possible additional
programme settings in the overview;
these differ depending on the model.
By selecting additional programme
settings, you can better adapt the
washing/drying process to your items of
laundry.
The settings can be selected or
deselected depending on the progress of
the programme.
The button indicator lamps light up if a
setting is activated.
The settings are not retained after the
appliance is switched off.
É Wash & Dry
Touch É Wash & Dry to activate or
deactivate the drying function. The
washing and drying without interruption
mode, individual drying mode and
individual washing mode can be selected
with this function.
■ Washing and drying without
interruption mode(only for Optional
drying programmes): select a
washing programme and touch É
Wash & Dry (The symbol ‰ ˜ Y
appeared in display). Then touch A
Start/Pause , the programme runs
and the drying time is automatically
set according to selected programme
and the amount of laundry.
■ The individual drying mode: select a
washing programme and touch É
Wash & Dry till only the symbol ‰/
Y/‰ ˜ Y appeared in display. The
laundry will be drying without
washing.
■ The individual washing mode: when
select a programme (e.g.Wash &
Dry 60 min) that defaulted washing
and drying phases combined, touch
É Wash & Dry till only the symbol
Y appeared in display. The drying
phase will be cancelled.
Notes
■ Do not exceed the maximum loads for
drying.
Overview of programmes ~ Page 28
■ Maximum spin speed for programme
with drying phase will be selected
automatically to obtain a good drying
result.
x Anti-Stain
Types of stain that can be selected:
Do not let stains dry. Remove solid
substances beforehand.
Select a programme with a stain
type:
1. Arrange items of washing as usual.
2. Select a programme.
3. Select a stain type (depending on the
selected programme).
4. Start the programme.
The appliance adjusts the average
washing temperature, drum movement
and soaking time to the specific type of
stain. Hot or cold water, gentle or
intensive washing and long or short
soaking ensure that the wash programme
sequence is specially adapted to each
type of stain. This makes sure that stains
are treated in the best possible way.
° Oil
¶ Blood
y Sweat
¸ Mud
Operating the appliance en
35
Ï Extra Rinse
Settings that can be selected:
Additional rinse cycles for particularly
sensitive skin and/or for areas with very
soft water.
Longer programme duration, due to
additional rinse cycle.
The number of rinse cycles that the
programme actually runs depends on the
number that is set as a basic setting for
the programme.
2 Hygiene Care
An innovative function, pretreat dry
laundry by hot air (up to 65°C) for
additional hygienic demands, followed by
a low temperature washing cycle.
Achieves both hygiene effect and fabric
care. Suitable for most non-delicate
textiles.
Note: During this process, the drum
light will illuminate for approx. 10
minutes.
G SpeedPerfect
Washing in a shorter time while achieving
a washing result that is consistent with
the normal performance.
Touch G SpeedPerfect to activate or
deactivate this additional programme
setting.
Note: With the G SpeedPerfect
additional programme setting activated,
the maximum load of washing will be
reduced, and extra water will be needed
for the washing process.
1 Operating the
appliance
Operating the appliance
Preparing the appliance
The appliance was tested before delivery.
To remove residual water from the test
procedure, the first wash cycle should be
run without laundry using the Drum
Clean programme.
~ "Before washing for the first time"
on page 20
Notes
■ Never switch on a damaged
appliance!
■ Inform customer service!
1. Insert mains plug.
:Warning
5LVNRIGHDWKIURPHOHFWULFVKRFN
Risk of death if live parts are touched.
– Never pull out the mains plug by
tugging the power cord.
– Insert/pull out the mains plug with
dry hands only.
2. Turn the water tap on.
3. Open the appliance door.
+1 + 1 rinse cycle
+2 + 2 rinse cycles
+3 + 3 rinse cycles
en Operating the appliance
36
Select programme/switch
on the appliance
Note: If you have activated the
childproof lock, you must first deactivate
it before you can set a programme.
Use the programme selector to select the
required programme. The programme
selector can be rotated in either direction.
The appliance is switched on.
The programme default settings for
the selected programme alternately
appear in the display panel:
■ The maximum load and
■ the duration of the programme and
■ ...
Placing laundry into the
drum
Insert the laundry.
Close the door.
Notes
■ Unfold and load presorted items
of laundry. Mix large and small items.
Washing items of different size
distribute themselves better during
the spin cycle. Individual items
of washing may cause an unbalanced
load.
■ Observe the maximum specified load.
Overfilling adversely affects the
washing/drying result and promotes
creasing. Make sure that no items of
laundry are trapped between the door
and the rubber seal, and close the
door.
Dosing and adding detergent
and care products
Caution!
Damage to the appliance
Detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) may
damage the surfaces of the appliance.
Keep these agents away from the
surfaces of the appliance. Using a damp
cloth, immediately remove any fine spray
residue and other residue/droplets.
Dosing
Dose the detergents and care products
according to:
■ water hardness (ask your water
supply company),
■ the manufacturer’s specifications on
the packaging,
■ the amount of laundry,
■ soiling.
Operating the appliance en
37
Filling the dispensers
1. Pull out the detergent drawer.
:Warning
(\HVNLQLUULWDWLRQ
If the detergent drawer is opened
while the appliance is running,
detergent/care product may run out.
Carefully open the drawer.
If detergent/care product comes into
contact with eyes or skin, rinse
thoroughly.
If accidentally swallowed, seek
medical advice.
2. Pour in detergent and/or cleaning
product.
Notes
■ Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■ Dilute viscous fabric softener
and fabric conditioner with water. This
will prevent blockages.
■ Be careful when opening the
detergent drawer while the appliance
is running.
Starting the programme
Touch and hold A Start/Pause button
for 1~2 seconds, then release the button.
The programme starts and the appliance
door is locked.
The ñ Ready in is shown in the display
panel and counts down until the
programme starts. After the programme
has started, the programme duration is
displayed. And the symbols for the
programme progress are lighting up.
Childproof lock
You can lock the appliance to prevent the
settings you have set from being changed
inadvertently. To do this, activate the
childproof lock.
To activate the childproof lock:
After the programme starts, Touch and
hold the 2 Hygiene Care and ñ
Ready in buttons for 3 seconds. The
symbol E lights up in the display panel.
■ E lights up: The childproof lock is
activated.
■ E flashes: If the programme and
programme settings are adjusted
while childproof lock is activated.
Note: When the programme ends, End
is displayed. The door is unlocked. E
symbol remain on to remind you to
deactivate the childproof lock.
To deactivate the childproof lock:
Touch and hold the 2 Hygiene Care
and ñ Ready in buttons until the symbol
E disappears.
Dispenser I Detergent for pretreat
and clothing disinfectant.
(only for the appliance
with pretreat and
disinfectant function)
Dispenser i Softener, starch. Do not
exceed the maximum
load.
Dispenser II Detergent for main wash,
water softener, bleach,
stain remover.
en Operating the appliance
38
Adding/removing laundry
After starting the programme, you can
add or remove laundry if necessary.
Touch the A Start/Pause button. The
appliance checks whether reloading is
possible.
If the following appears on the display
panel:
■ The symbol Õ disappears, reloading
is possible.
■ The symbol Õ lights up, reloading is
not possible.
To continue the programme, touch
the A Start/Pause button. The
programme continues automatically.
Notes
■ Do not leave the door open for too
long when adding laundry as water
from the laundry may leak out.
■ For safety reasons, the door remains
locked when the water level or
temperature is high, or while the
drum is turning, and it is not possible
to add laundry during this time.
Changing the programme
If you have started the wrong
programme by mistake, you can change
the programme as follows:
1. Touch the A Start/Pause button.
2. Select another programme.
3. And touch the A Start/Pause
button again. The new programme
starts from the beginning.
Note: If drying is activated, you have to
switch the appliance off and on again to
change the drying programme.
Cancel the programme
For programmes washing at high
temperatures:
1. Touch the A Start/Pause button.
2. To cool down laundry: Select Rinse .
3. Touch the A Start/Pause button.
For programmes washing at low
temperatures:
1. Touch the A Start/Pause button.
2. Select Spin .
3. Touch the A Start/Pause button.
For programmes in drying process:
1. Touch the A Start/Pause button.
2. If the Hot on the display panel,
waiting for the appliance running to
cool down the laundry till the Hot
disappears.
Programme end
End lights up on the display and ~ and
Õ displays are off.
If you have selected 2, the water is only
drained after rinse process, no spin cycle.
Notes
■ If Hot flashes in the display before
the drying programme ends, the
temperature in the drum is high. The
programme for cooling the drum runs
until the temperature in the drum has
dropped.
■ If you do not take laundry out within
15 mins after drying process finished,
wrinkle guard process will start to
prevent laundry getting wrinkled. The
process lasts about 30 minutes. 0:00,
£‘˜, £© and “Ÿš will be displayed
alternately on the display and V
symbol will be displayed as the status
symbol. You can touch any button to
terminate this process, then the door
will be released and laundry can be
taken out.
Removing laundry/
switching off the appliance
1. Set programme selector to Off.
2. Open the door and remove the
laundry.
3. Turn off the water tap.
Note: Not required for Aqua-Stop
models.
Appliance settings en
39
Notes
■ Do not leave any items of laundry in
the drum. They may shrink in the next
wash or discolour another item.
■ Remove any foreign objects from the
drum and the rubber seal – risk of
rusting.
■ Wipe the rubber seal dry.
■ Leave the door and detergent drawer
open so that any residual water can
evaporate.
■ Always wait until the programme
ends, as the appliance could still be
locked. Then switch the appliance on
and wait for it to unlock.
Q Appliance settings
Appliance settings
You can change the following settings:
■ The volume of the end signal.
■ The volume of the button signal.
■ Switching the drum care information
signal on/off.
You will need to activate the setting mode
in order to change these settings.
Activate setting mode:
1. Set the programme selector to
position 1. The appliance is switched
on.
2. Touch and hold the 0 Spin Speed
button and, at the same time, turn the
programme selector clockwise to
position 2. Release the 0 Spin Speed
button.
The setting mode is activated and the
preset setting appears in the display
panel.
Changing the volume and drum care
information
Use the ñ Ready in button to change
the following settings at the
corresponding programme selector
positions:
■ 2: The volume of the end signal.
■ 3: The volume of the button signals.
■ 4: Switching the drum care
information signal on/off.
Exiting setting mode
You can now end the process and set the
programme selector to the Off position.
The settings are saved.
1/2/3/4... positions on the
programme selector
0 = off, 1 = quiet,
2 = medium, 3 = loud,
4 = very loud
Ž on
Πoff
en Sensors
40
H Sensors
Sensors
Unbalanced load detection
system
The automatic unbalanced load detection
system detects imbalances and ensures
even distribution of the laundry by
repeatedly starting and stopping drum
spinning.
If the laundry is extremely unevenly
distributed, the spin speed is reduced or
the spin cycle is not performed for safety
reasons.
Note: Place large and small items of
laundry evenly in the drum.
2 Cleaning and
maintenance
Cleaning and maintenance
:Warning
Risk of death!
There is a risk of electric shock if touch
live components.
Turn the programme selector to Off. Pull
out the mains plug.
Caution!
Fire and explosion hazard!
Toxic vapours can be produced by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
Caution!
The appliance may be damaged!
Cleaning agents that contain solvents,
e.g. cleaning solvent, can damage
surfaces and components in the
appliance.
Do not use cleaning agents that contain
solvents.
Appliance housing/control
panel
■ Remove the detergent residue
immediately.
■ Wipe the housing and the control
panel with a soft, damp cloth.
■ Do not use abrasive cloths, sponges
or detergents (stainless steel cleaner).
■ Do not clean the appliance with a
water jet.
Drum
Use chlorine-free cleaning agents, do not
use steel wool.
If there are odours in the appliance, or to
clean the drum, run the Drum Clean
90°C programme without laundry.
Descaling
Descaling should not be necessary if the
detergent is measured out correctly.
However, if it is required, follow the
manufacturer's instructions for the
descaling agent. Suitable descalers can
be obtained via our website or from
customer services.
Emptying the detergent
draw, cleaning the detergent
drawer and its housing
If the appliance contains detergent or
fabric softener residues:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
Cleaning and maintenance en
41
2. To remove the insert: Push the insert
upwards from below with your finger.
3. Clean the detergent dispenser tray
and insert with water and a brush,
and dry it. Clean the inside of the
housing as well.
4. Fit the insert and lock it in place (push
the cylinder onto the guide pin).
5. Push in the detergent drawer.
Note: Leave the detergent drawer open
so that any residual water can evaporate.
Drain pump is blocked
Note: Turn the water tap off to prevent
more water from flowing in and to ensure
that it is drained via the pump.
:Warning
Risk of scalding!
When you wash at high temperatures,
the water gets very hot. If you come into
contact with the hot water, you may be
scalded.
Allow the water to cool down first.
1. Turn the programme selector to Off.
Pull out the mains plug.
2. Open the service flap.
3. Take the drain hose out of the
retainer.
Remove the sealing cap and pour the
water out into a suitable container.
Replace the sealing cap and place the
drain hose back in the retainer.
en Cleaning and maintenance
42
4. Carefully unscrew the pump cover;
residual water may leak out.
Clean the interior, pump cover thread
and pump housing. The impeller in
the drain pump must be able to
rotate.
5. Refit and screw on the pump cover.
The handle must be in a vertical
position.
6. Close the service flap.
Note: To prevent unused detergent
from flowing straight into the drain during
the next wash: Pour 1 litre of water into
dispenser II and start the Spin
programme.
The drain hose at the siphon
is blocked
1. Turn the programme selector to Off.
Pull out the mains plug.
2. Loosen the hose clamp. Carefully
remove the drain hose; residual water
may leak out.
3. Clean the drain hose and siphon
connecting piece.
4. Re-attach the drain hose and secure
the connection point using the hose
clamp.
Filter in the water supply is
blocked
Release water pressure in the
supply hose:
1. Turn off the water tap.
2. Select the Cottons (activate G
SpeedPerfect setting) programme.
Note: If your appliance with
intelligent dosing system
*
, you also
need to deactivate the intelligent
dosing system.
3. Select the A Start/Pause button.
Allow the programme to run for
approx. 40 seconds.
4. Turn the programme selector to Off.
5. Pull out the mains plug.
* Depending on the module
Faults and what to do about them en
43
Clean the filters:
1. Disconnect the hose from the rear of
the appliance.
2. Use pliers to remove the filter.
3. Clean the filter with a small brush.
4. Connect the hose and check for leaks.
3 Faults and what to do
about them
Faults and what to do about them
Emergency release
E.g. power outage or in the event of a
loss of power
The programme continues when the
power supply is restored.
However, if the laundry has to be
removed, the appliance door can be
opened as follows:
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding if
you come into contact with hot water and
laundry.
If possible, leave it to cool down first.
:Warning
Risk of injury!
Reaching into the drum while it is still
turning may cause hand injuries.
Do not reach into the drum when it is
turning.
Wait until the drum has stopped turning.
Caution!
Water damage!
Any escaping water may cause water
damage.
Do not open the door if water can be
seen through the glass.
1. Turn the programme selector to Off.
Pull out the mains plug.
2. Open the service flap.
en Faults and what to do about them
44
3. Drain the water. ~ Page 41
4. Pull the emergency release
downwards with a tool and release.
The door can then be opened.
Information on the display panel
Display Cause/Remedy
Õ ■ Flashes fast + signal: The door was opened and the water
level is too high. Close the door, continue the programme with
A Start/Pause button or select Spin.
■ Flashes slowly: The door lock temperature is too high to open
the door. Wait approx. 30 seconds until the door lock tempera-
ture cools down.
Hot The temperature in the drum is too high. Wait for the appliance
running to cool down the laundry till the Hot disappears on the
display panel, then the door can be opened.
r ■ Flashes (no water supply): Water tap turned on? Filter in the
water supply is blocked? ~ "Filter in the water supply is
blocked" on page 42
Is the supply hose kinked or trapped?
■ Lights up (low water pressure): For information only. This will
not affect the programme progress. The programme duration is
extended.
E lights up The childproof lock is activated – deactivate it.
The symbol Û
flashes
Run the Drum Clean programme to clean and care for the drum
and the outer tub.
Notes
■ Run the programme without laundry.
■ Use washing powder or a detergent containing bleach. To pre-
vent foaming, only use half the amount of detergent recom-
mended by the detergent manufacturer. Do not use detergent
designed for woollens or delicates.
■ Switching the drum care information signal on/off. ~ Page 39
E:36
alternating with
-10
■ Drain pipe or water drain hose is blocked. Clean the drain pipe
and the water outlet hose.
■ Drain pipe or water drain hose is caught or jammed. Ensure
that the drain pipe and water drain hose are not kinked or
trapped.
■ The drain pump is blocked.
~ "Drain pump is blocked" on page 41
■ The drain hose at the siphon is blocked.
~ "The drain hose at the siphon is blocked" on page 42
■ The water drain hose is connected too high. Install the water
outlet hose at a maximum height of 1 meter.
~ Page 16
Faults and what to do about them en
45
Faults and what to do about them
E:35
alternating with
-10 (Suitable for
special models)
There is water in the base trough, the appliance is leaking. Turn off
the tap. Call customer services.
H:95
alternating with
End
when programme
is finished
No water detected in drying phase, may get bad drying result.
~ "Filter in the water supply is blocked" on page 42
H:32
alternating with
End
when programme
is finished
The unbalanced load detection system has interrupted the spin
cycle because the laundry is unevenly distributed. Distribute small
and large items of laundry evenly in the drum.
Other displays Turn the programme selector to Off, wait for five seconds and
then switch it on again. If the display appears again, call customer
services.
Faults Cause/Remedy
Water is leaking from
the appliance.
■ Attach the drain hose correctly or replace it.
■ Tighten the screw fitting on the supply hose.
The door cannot be
opened.
■ - - - (Rinse hold = no final drain) is activated (depending on
the module). Continue the programme by selecting Spin
and pressing A Start/Pause .
■ The temperature in drum is too high to open the door.
■ The safety function is activated. Stop the programme?
■ The water level in drum is too high.
■ Can the door only be opened by the emergency release?
~ "Emergency release" on page 43
The appliance is not
filling with water.
Detergent is not
being dispensed.
■ Programme does not start?
■ Is the tap turned on?
■ Could the filter in the water supply be blocked?
~ "Filter in the water supply is blocked" on page 42
Note: . If an additional water filter has been installed
(depending on the model), check for contaminants and
clean if required ~ separate installation and cleaning
instruction for water filter.
■ Is the supply hose kinked or trapped?
Display Cause/Remedy
en Faults and what to do about them
46
The programme will
not start.
■ Have you touched the A Start/Pause button or selected
ñ Ready in?
■ Is the door closed?
■ Childproof lock activated? Deactivate childproof lock.
■ Shop mode activated? If the display shows à•‹ for 5 s after
you have switched on the appliance, the appliance is in shop
mode. Wait for the display message à•‹ to disappear.
Touch and hold A Start/Pause for at least 5 s. ‹”” will
appear in the display panel. Turn the programme selector to
Off. Now you already turned off the shop mode. You can
use the appliance now as usual.
The programme has
started and the drum
is rotating, but the
drum is not filling
with water.
Not a fault – Some programme specifically detect and weigh the
load after the programme has started in order to calculate the
optimum amount of water for washing. The drum will then start
filling with water.
The water is not
draining.
■ Drain pipe or water drain hose is blocked. Clean the drain
pipe and the water drain hose.
■ Drain pipe or water drain hose is caught or jammed. Ensure
that the drain pipe and the water drain hose are not kinked
or trapped.
■ Could the drain pump be blocked?
~ "Hose and cable lengths" on page 16
■ Could the drain hose at the siphon be blocked?
~ "The drain hose at the siphon is blocked" on page 42
■ - - - (Rinse hold = no final drain) is activated (depending on
the module). Continue the programme by selecting Spin
and pressing A Start/Pause .
■ The water drain hose is connected too high. Install the water
drain hose at a maximum height of 1 meter.
~ Page 16
Water is not visible
in the drum.
Not a fault – the water is below the visible area.
The wrong deter-
gent/fabric softener
has been poured into
the dispenser(s).
Empty the dispenser(s), clean it/them and pour in the correct
product.
~ "Emptying the detergent draw, cleaning the detergent
drawer and its housing" on page 40
Detergent/fabric sof-
tener has congealed
in the dispensers.
Empty the dispenser(s), clean it/them and pour in the correct
product.
Foam is leaking from
the detergent
drawer.
Too much detergent used?
Mix 1 tablespoon of fabric softener with ½ litre of water and
pour into dispenser II. (Not for outdoor, sports and down-filled
textiles!)
Reduce detergent dosage for the next wash cycle.
Use commercially available low foam detergent and care prod-
uct which are suitable for machine.
Faults Cause/Remedy
Faults and what to do about them en
47
Repeated, intensive
foaming.
Have you used too much detergent? Add less detergent in the
next time you run a wash cycle with the same load.
Detergent/fabric sof-
tener drips off the
seal and collects on
the door or in the
seal fold.
There is too much detergent/fabric softener in the dispensers.
Do not fill the dispensers above the max. mark.
The spin result is not
satisfactory.
Laundry wet/too
damp.
■ Not a fault – the unbalanced load detection system has
interrupted the spin cycle because the laundry is unevenly
distributed. Distribute small and large items of laundry
evenly in the drum.
■ Is Easy iron additional programme setting selected
(depending on the model)?
■ Is Night Wash additional programme setting or Night
Wash programme selected (depending on the model)?
■ Is the selected speed too low?
The spin cycle runs
several times.
Not a fault – the unbalanced load detection system is adjusting
an imbalance.
The programme is
taking longer than
usual.
■ Not a fault – the unbalanced load detection system is adjust-
ing an imbalance by repeatedly distributing the laundry.
■ Not a fault – the foam detection system is activated – a rinse
cycle has been switched on.
The length of the
programme changes
during the wash/dry
cycle.
Not a fault – the programme sequence is optimised for the spe-
cific washing/drying process. This may change the length of the
programme shown on the display panel.
Odours, stain forma-
tion in the appliance.
Run the Drum Clean 90°C programme without laundry.
Add washing powder or a detergent containing bleach.
Note: . To prevent foaming, only use half the amount of deter-
gent recommended by the detergent manufacturer. Do not use
detergents designed for woollens or delicates.
Loud noises, vibra-
tions and appliance
"movement" during
the spin cycle.
■ Is the appliance aligned? ~ "Alignment" on page 19
■ Are the appliance's feet fixed? Secure the appliance's feet.
■ Have the transport locks been removed? ~ "Removing the
transport locks" on page 14
The display panel
indicator lights do
not work while the
appliance is running.
■ Has there been a power failure?
■ Have the fuses blown? Reset/replace the fuses.
■ If the fault occurs repeatedly, call customer services.
There is detergent
residue on the laun-
dry.
■ Some phosphate-free detergents contain water-insoluble
residue.
■ Select Rinse or brush the laundry after washing.
Spin during the dry-
ing phase.
This is an innovative process known as thermal spinning used to
reduce energy consumption during the drying phase. It is
designed like this, please wait until program finished.
Faults Cause/Remedy
en Faults and what to do about them
48
Fluff found on the
laundry.
Run the Drum Clean — (cold) programme without laundry and
detergent to remove fluff which have accumulated inside the
drum during the previous drying cycle.
Water inlet noise
during the drying
phase.
The washer dryer uses water condensation technology, water is
constantly needed to dry the laundry. Therefore the water tap
must be on all the time, till the end of the drying phase.
Drying duration
extended.
■ Run the Drum Clean — (cold) programme to remove fluff
which has collected in the washer drum during the drying
phase.
■ If the ambient temperature is higher than 30 °C, this may
extend the drying time.
■ Insufficient air circulation in the room may increase the dry-
ing time. Ventilate the room.
Drying programme
does not start.
■ Drying additional programme setting not selected?
■ Door not closed properly?
Creasing. ■ Creasing occurs when you have exceeded the maximum
load or selected the wrong program for the type of fabric. All
the required information can be found in the programme
overview table.
■ Remove clothes immediately after drying; creasing may
occur if they are left in the drum.
Faults Cause/Remedy
After-sales service en
49
4 After-sales service
After-sales service
If you cannot rectify a fault yourself,
(~ "Faults and what to do about them"
on page 43), please contact our after-
sales service.
We will always find an appropriate
solution to avoid unnecessary visits by
engineers.
Please provide the after-sales service
with the product number (E-Nr.) and the
production number (FD) of the appliance.
You can find this information (depending
on the model):
■ On the inside of the loading door
■ On the back of the appliance
Trust the expertise of the
manufacturer. Contact us. By doing so,
you can be sure that the repairs are
carried out by trained service personnel
using genuine spare parts.
The drying result is
not satisfactory
(laundry is not dry
enough).
■ After the end of the programme, warm laundry feels damper
than it actually is. Spread the laundry out and allow the heat
to disperse.
■ Excessively high ambient temperature (above 30 °C) or
inadequate ventilation in the room in which the washer
dryer is situated.
■ The laundry has not been spun well enough before drying.
Always set the highest selectable spin speed for the particu-
lar washing programme.
■ Washer dryer overloaded: Observe the recommendations for
the maximum load in the programme table and on the load
display. Do not overload the washer dryer, as the maximum
load for the drying phase is less than the maximum load for
the wash cycle. Unload the washer dryer after washing with
the maximum load and divide the laundry into two drying
cycles.
■ The power supply voltage is too low (below 200 V) – provide
a suitable power supply.
■ The water pressure is low. According to water condensing
principle, low water pressure will cause evaporated steam to
not condense properly and completely.
■ The water tap is closed during drying. Due to the use of the
water condensation technology for drying, please keep the
connected water tap open during the drying process, other-
wise proper drying cannot be guaranteed.
■ Thick multilayered textiles or textiles with thick fillings dry
easily on the surface, but not inside. This equalisation pro-
cess may take longer.
If you cannot rectify a fault yourself (after turning the programme selector to Off and
on again) or a repair is required:
■ Turn the programme selector to Off. Pull out the mains plug.
■ Turn off the tap and call customer services.
Faults Cause/Remedy
E-Nr. Product number
FD Production number
(1U )'
en Consumption values
50
[ Consumption values
Consumption values
Energy and water consumption, programme duration and residual moisture
for the main washing programmes
(approximate values)
Programme Load Energy con-
sumption*
Water con-
sumption*
Programme
duration*
Cottons 20°C 10.0 kg 0.42 kWh 82 l 2^ h
Cottons 40°C 10.0 kg 1.30 kWh 82 l 2_ h
Cottons 60°C 10.0 kg 1.00 kWh 70 l 4 h
Cottons 90°C 10.0 kg 2.90 kWh 80 l 3 h
Synthetics 40°C 4.0 kg 0.81 kWh 66 l 2^ h
Mix Load 40°C 4.0 kg 0.61 kWh 47 l 1 h
Delicates/Silk 30°C 2.0 kg 0.18 kWh 36 l _ h
W Wool 30°C 2.0 kg 0.28 kWh 36 l _ h
Values determined according to the valid version of IEC60456.
* Observed values may deviate from the indicated values due to influence of water
pressure, hardness and inlet temperature, ambient temperature, type, amount and
soiling of laundry, detergent used, fluctuations in power supply and selected addi-
tional functions.
Technical data en
51
J Technical data
Technical data
Dimensions:
848 mm x 598 mm x 590 mm
(height x width x depth)
Weight:
80 kg
Mains connection:
Nominal voltage 220-240 V, 50 Hz
Minimum installation protection (c)10 A
Nominal power 1900-2300 W
Water pressure:
100–1000 kPa (1–10 bar)
r Aqua-Stop warranty
Aqua-Stop warranty
Only for appliances with Aqua-Stop
In addition to warranty claims against the
vendor based on the purchase agreement
and to our appliance warranty, we will
provide compensation under the
following conditions:
1. If water damage is caused due to a
fault in our Aqua-Stop system, we will
compensate domestic customers for
the damage caused.
2. The liability guarantee is valid for the
service life of the appliance.
3. It is a prerequisite of all warranty
claims that the appliance with Aqua-
Stop must have been installed and
connected correctly in accordance
with our instructions; this also
includes a correctly fitted Aqua-Stop
extension (genuine accessories).
Our warranty does not cover defective
feed lines or fittings leading to the
Aqua-Stop connection at the tap.
4. Appliances with Aqua-Stop do not
need to be supervised during
operation, nor secured afterwards by
turning off the tap.
The tap only needs to be turned off if
you are away from home for a long
period, e.g. for several weeks' holiday.
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
*9001462259*
9001462259 (0005)
en
Thank you for buying a Bosch Home
Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You´ll find it here.
Expert advice for your Bosch home appliances, need help with problems or a repair from
Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
