Gather the necessary tools as shown below to complete the installation of this
faucet. Some may not be needed depending on the model of faucet you are
installing. Check with your local hardware store on the requirements of your
installation situation.
Tools:
FLASHLIGHT BASIN WRENCH
SCREW DRIVER
PLIERSADJUSTABLE WRENCH
SEALED-TUBE
HEX-KEY TAPE
Connect to water supply lines with either
A 3 8 O D copper tubing ball nose
risers with the coupling nuts or
B 3 8 copper tubing no ball with
supplied tube head interior connector or
C IPS faucet connectors 1 2
A . B .
C .
Helpful Information
Important
CHANNEL LOCKS
SAFETY GLASSES
PLUMBERS PUTTY
Ava
• Single Hole Bathroom Faucet
2020-01-14 MAAN4382-02
Tighten connection with two wrench to prevent
damage to tube body. Be careful not to bend the
stem as this will void the product warranty.
• STANDARDS
ASME A112.18.1-2012
CSA B125.1-12
NSF 61-9
LISTED IAPMO/cUPC
• 1.2 gpm/4.5 L/min
Gather the necessary tools as shown below to complete the installation of this
faucet. Some may not be needed depending on the model of faucet you are
installing. Check with your local hardware store on the requirements of your
installation situation.
Tools:
FLASHLIGHT BASIN WRENCH
SCREW DRIVER
PLIERSADJUSTABLE WRENCH
SEALED-TUBE
HEX-KEY TAPE
Connect to water supply lines with either
A 3 8 O D copper tubing ball nose
risers with the coupling nuts or
B 3 8 copper tubing no ball with
supplied tube head interior connector or
C IPS faucet connectors 1 2
A . B .
C .
Helpful Information
Important
CHANNEL LOCKS
SAFETY GLASSES
PLUMBERS PUTTY
Ava
• Single Hole Bathroom Faucet
2020-01-14 MAAN4382-02
Tighten connection with two wrench to prevent
damage to tube body. Be careful not to bend the
stem as this will void the product warranty.
• STANDARDS
ASME A112.18.1-2012
CSA B125.1-12
NSF 61-9
LISTED IAPMO/cUPC
• 1.2 gpm/4.5 L/min

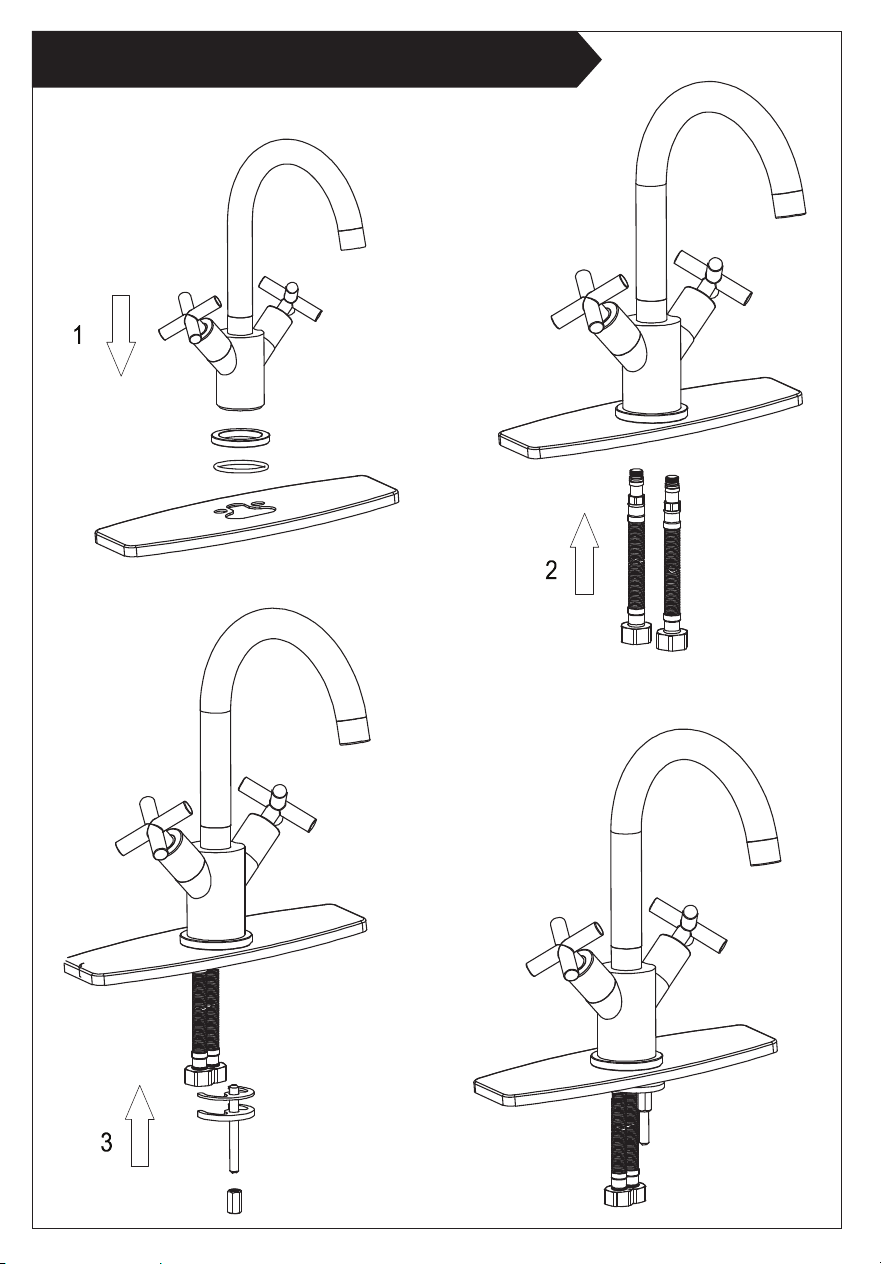

InstallationInstallation Size Map
A. Move handle into "OFF" position.
B. Turn on water supplies. Check connections for leaks.
C. Remove and let both hot and cold water run for
one minute. This will help clean any debris that might
otherwise clog the system. Replace aerator.
D. Operate handle up and down, in cold and hot positions,
to flush water lines thoroughly.
aerator
Test Faucet Installation
Simply rinse the surface with clear water or
mild liquid detergents
if necessary Dry the
faucet with a clean soft cotton cloth
Do not
use any cleaning agents containing
acids
polish abrasives or harsh cleaners
Maintenance:
15.3 cm
(6.0 in.)
Ø3.5 cm
(1.3 in.)
Max 4.5 cm
(1.7 in.)
9/16 in.
17.2 cm
(6.7 in.)
26.7 cm
(10.5 in.)
4.2 cm (1.6 in.)
2.2 cm (0.8 in.)
5 cm
(2 in.)
18.2 cm (7.1 in.)
17.4 cm (6.8 in.)
2.6 cm (1 in.)
8 cm
(3.1 in.)
7.1 cm
(2.8 in.)
InstallationInstallation Size Map
A. Move handle into "OFF" position.
B. Turn on water supplies. Check connections for leaks.
C. Remove and let both hot and cold water run for
one minute. This will help clean any debris that might
otherwise clog the system. Replace aerator.
D. Operate handle up and down, in cold and hot positions,
to flush water lines thoroughly.
aerator
Test Faucet Installation
Simply rinse the surface with clear water or
mild liquid detergents
if necessary Dry the
faucet with a clean soft cotton cloth
Do not
use any cleaning agents containing
acids
polish abrasives or harsh cleaners
Maintenance:
15.3 cm
(6.0 in.)
Ø3.5 cm
(1.3 in.)
Max 4.5 cm
(1.7 in.)
9/16 in.
17.2 cm
(6.7 in.)
26.7 cm
(10.5 in.)
4.2 cm (1.6 in.)
2.2 cm (0.8 in.)
5 cm
(2 in.)
18.2 cm (7.1 in.)
17.4 cm (6.8 in.)
2.6 cm (1 in.)
8 cm
(3.1 in.)
7.1 cm
(2.8 in.)
