Argenta Vessel
Gather the necessary tools as shown below to complete the installation of this
faucet. Some may not be needed depending on the model of faucet you are
installing. Check with your local hardware store on the requirements of your
installation situation.
Tools:
PLUMBERS PUTTY FLASHLIGHT BASIN WRENCH
SAFETY GLASSES SCREW DRIVER
PLIERSCHANNELLOCKS ADJUSTABLE WRENCH
SEALED-TUBE
HEX-KEY TAPE

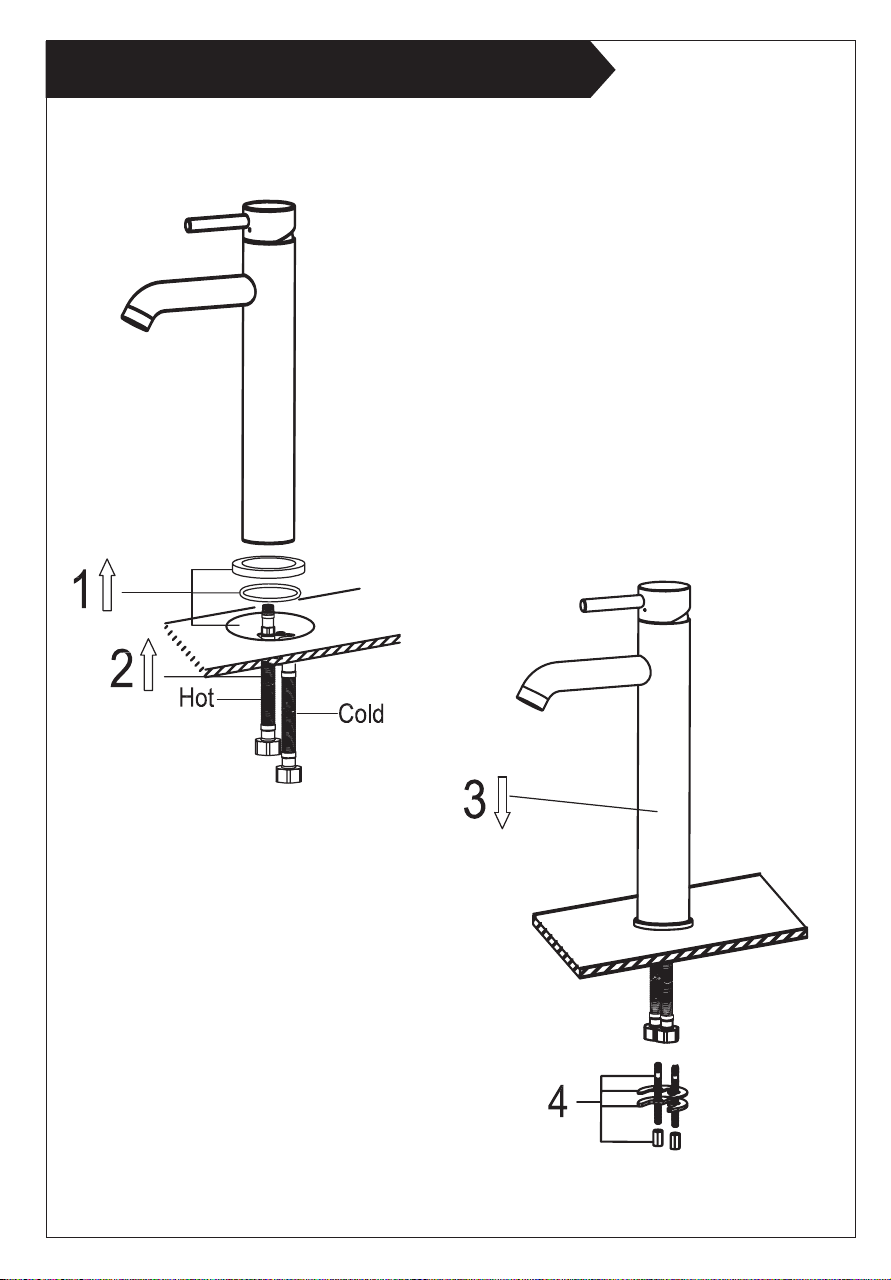

Connect to water supply lines with either
A 3 8 O D copper tubing ball nose
risers with the coupling nuts or
B 3 8 copper tubing no ball with
supplied tube head interior connector or
C IPS faucet connectors 1 2
Tighten connection
with two wrench to
prevent damage to
tube body
Be careful not to
bend the stem as
this will void the
product warranty
C
A . B .
C .
Helpful Information
Important
2021-02-03 MAAN4312-06
• Bathroom Faucet
• STANDARDS
ASME A112.18.1-2012
CSA B125.1-12
NSF 61-9
LISTED IAPMO/cUPC
• 1.2 gpm/4.5 L/min
