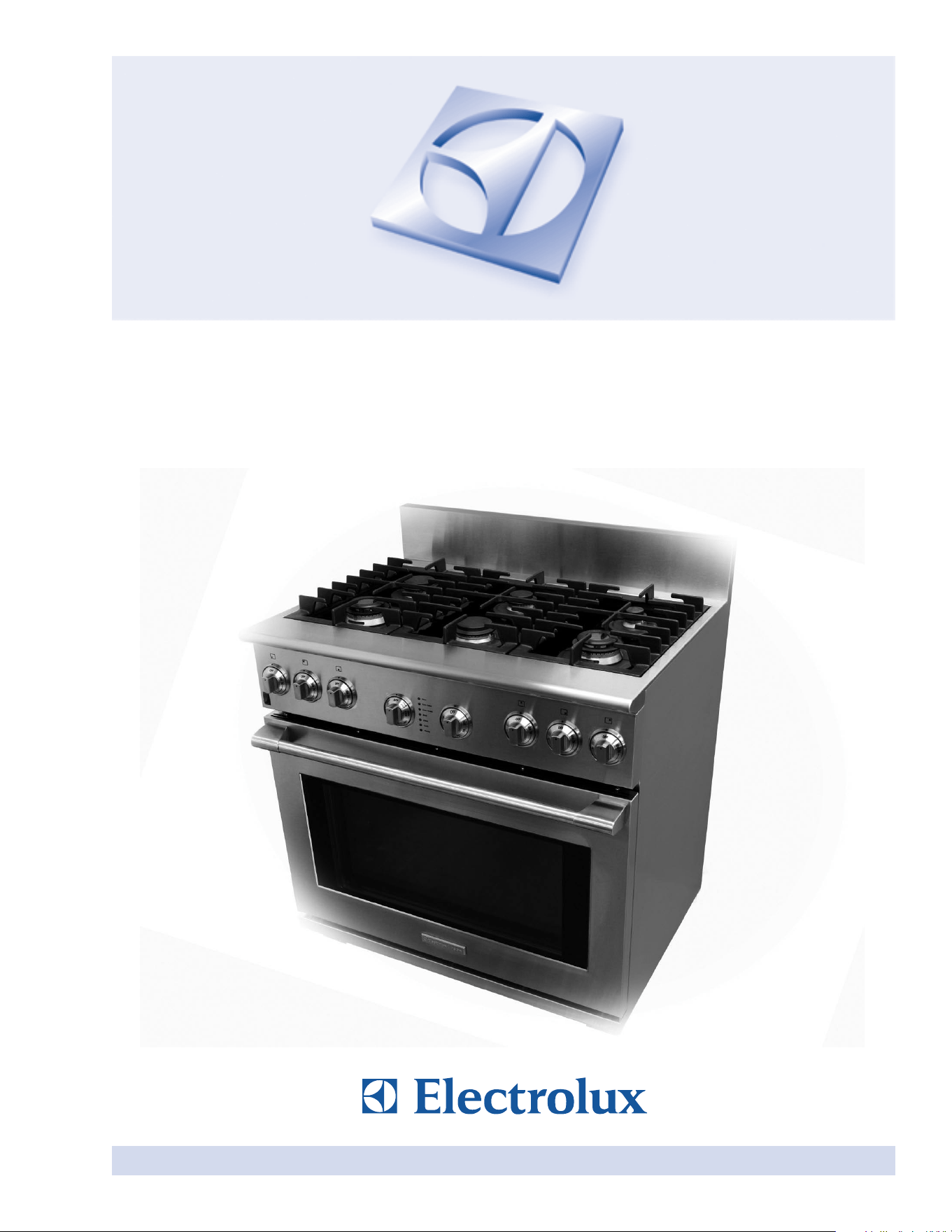

Electrolux E36DF7CGPS1 36'' Dual-Fuel Freestanding Range User Manual

318 203 963 (1001) Rev. A

Use & Care Guide

30” & 36” Dual Fuel Ranges

Finding Information

Make a RecoRd foR futuRe use

Brand _________________________________________________________

Purchase Date __________________________________________________

Model Number __________________________________________________

Serial Number __________________________________________________

Note

the serial and model

numbers may be found

as shown at right.

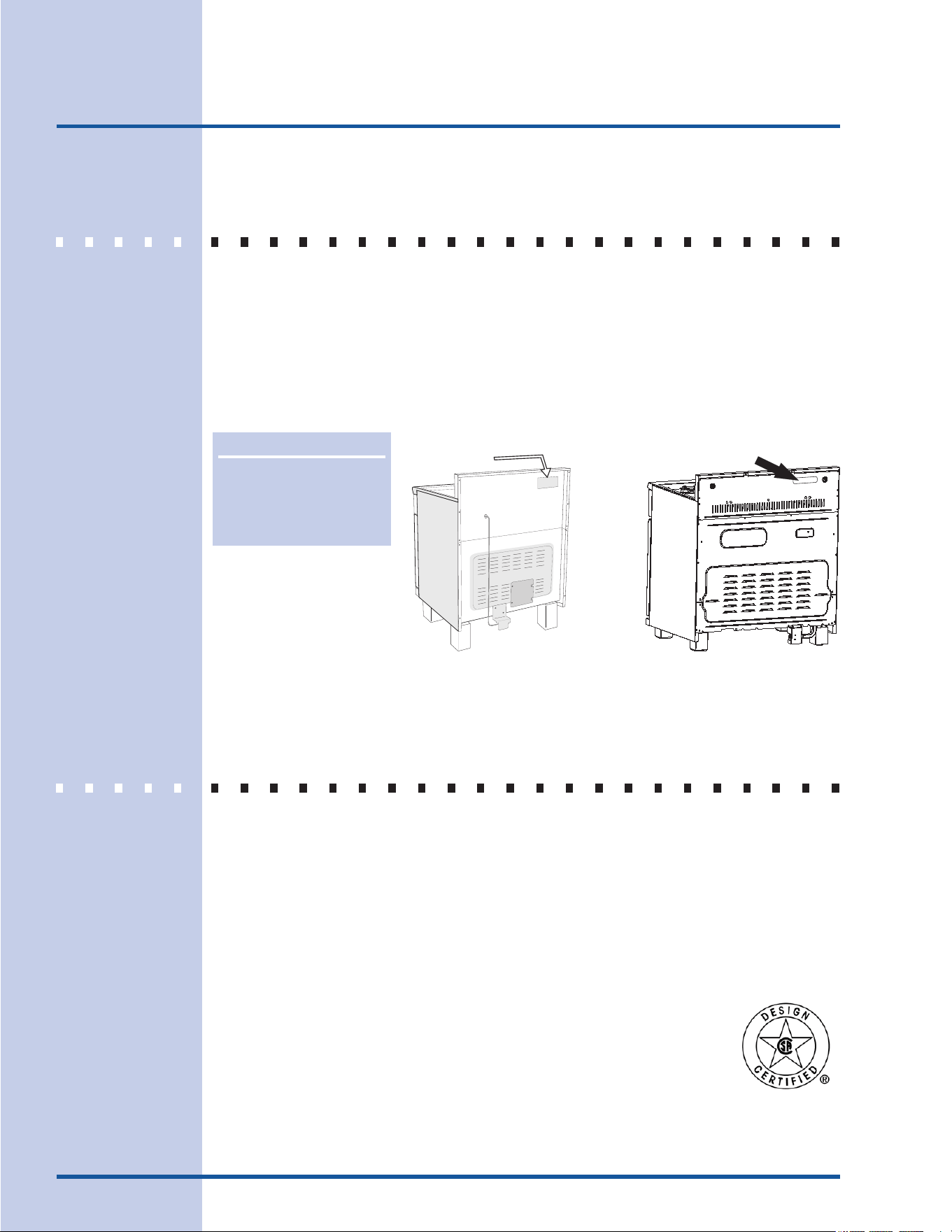

Serial Plate

Location

Post Ofce Box 212378, Augusta, Georgia 30917, USA

Questions?

For toll-free telephone support in the U.S. and Canada:

1-877-4ELECTROLUX (1-877-435-3287)

For online support and internet product information:

www.electrolux.com

Serial Plate

Location

30” models 36” models

Finding Information

table of contents

finding information ............................................. 2-3

Make a Record for Future use .................................. 2

Questions? ............................................................... 2

safety .................................................................... 4-8

Important Safety Instructions .................................... 4

Getting start ............................................................ 9

Liqueed Petroleum (Propane) Gas Conversion ...... 9

Range features ................................................ 10-11

30” Range Features ................................................ 10

36” Range Features .................................................11

surface cooking .............................................. 12-17

Flame size .............................................................. 12

Proper Burner Adjustment ...................................... 12

Burner Locations .................................................... 12

Placement of Burner Heads and Caps ................... 13

Placement of Burner Grates ................................... 13

Surface Cooking Utensils ....................................... 14

Using the Griddle .................................................... 14

Using the Wok Stand .............................................. 15

Using the Simmer Plate .......................................... 16

Setting Surface Controls ......................................... 17

Getting started ................................................. 18-19

Before Setting Oven Controls ............................ 18-19

setting the oven controls .............................. 20-25

Oven Control Features ........................................... 20

Baking ..................................................................... 20

Baking Problems .................................................... 21

Convection Baking .................................................. 22

Convection Roasting .............................................. 22

Bread Proof Feature .............................................. 23

Warm & Hold Feature ............................................. 23

Broiling .................................................................... 24

Setting Broil ............................................................ 25

care & cleaning ............................................... 26-33

Using the Self-Clean Feature ................................ 26

Starting the Oven Self-Clean Cycle ........................ 27

General Cleaning .................................................... 28

Cleaning the Burner Grates, Burner Caps, Burner

Heads, Simmer Plate and Griddle .......................... 29

Cooktop Cleaning and Maintenance ...................... 30

Cleaning recommendations for the Ceramic

Glass Cooktop ................................................... 30-31

Care and Cleaning of Stainless Steel ..................... 31

To Remove and Replace the Oven Door ................ 32

Special Door Care Instructions ............................... 32

Oven Light .............................................................. 33

solutions to common Problems .................... 34-37

Surface Burners Do Not Light ................................. 34

Burner Flame only Lights Half Way

Around Burner ........................................................ 34

Burner Flame is Orange ......................................... 34

Scratches or Abrasions on Ceramic Glass Cooktop

Surface ................................................................... 34

Metal Marks on Ceramic Glass Cooktop Surface..... 35

Brow Streaks and Specks on Ceramic Glass Cooktop

Surface ................................................................... 35

Areas of Discoloration on Ceramic Glass Cooktop

Surface ................................................................... 35

Appliance not Level ................................................ 35

Poor Baking Results ............................................... 35

Entire Oven Does Not Operate ............................... 36

Oven Light Does Not Work ..................................... 36

Fan Noise During Cooking Operation ..................... 36

Oven Smokes Excessively During Broiling ............. 36

Self-Cleaning Cycle Does Not Work ....................... 37

Soil Not Completely Removed After Self-Cleaning

Cycle is Completed ................................................. 37

Flames Inside Oven or Smoke From Vent .............. 37

Warranty information ........................................... 38

Safety

this manual contains important safety symbols and instructions. Please pay attention to these

symbols and follow all instructions given.

• Removealltapeandpackagingwrapbeforeusingtheappliance.Destroythecarton

and plastic bags after unpacking the appliance. Never allow children to play with

packaging material.

•ProperInstallation-Besureyourapplianceisproperlyinstalledandgroundedbya

qualiedtechnicianinaccordancewiththeNationalFuelGasCodeANSIZ223.1—latest

editionintheUnitedStates,orinCanadaCAN/CGAB149.1,andCAN/CGAB149.2,

andtheNationalElectricalCodeANSI/NFPANo.70—latesteditioninUnitedStates,

orinCanadaCSAStandardC22.1,CanadianElectricalCode,Part1,andlocalcode

requirements. Install and/or adjust only per installation instructions provided in the literature

package for this range.

• Incaseofanemergency,knowhowtodisconnecttheelectricalpowertothe

applianceatthecircuitbreakerorfuseboxandhowtoturnoffthegassupplyat

themainshutoffvalve.

• UserServicing—Donotrepairorreplaceanypartoftheapplianceunless

specicallyrecommendedinthemanuals.All other servicing should be done only by

a qualied technician to reduce the risk of personal injury and damage to the range.

WarNiNg

this symbol will help alert you to situations that may cause serious bodily harm, death or

property damage.

cautioN

this symbol will help alert you to situations that may cause bodily injury or property damage.

WarNiNg

To reduce the risk of re, electrical shock, or injury when using your range, follow basic precaution

including the following:

WarNiNg

If the information in this manual is not followed exactly, a re or explosion may result causing property

damage, personal injury or death.

foR YouR safetY:

— Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any

other appliance.

— WHat to do if You sMell Gas:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the re department.

— Installation and service must be performed by a qualied installer, servicer or the gas supplier.

iMPoRtant safetY instRuctions

WarNiNg

- stepping, leaning or sitting on the door of this range can result in serious injuries and may also

cause damage to the range. Do not allow children to climb or play around the range. The weight of a

child on an open door may cause the range to tip, resulting in serious burns or other injury. An open door,

when hot, may cause burns.

- do not use the oven for storage.

- neveR use this appliance as a space heater to heat or warm the room. Doing so may result in carbon

monoxide poisoning and overheating of the oven.

cautioN

do not store items of interest to children in the cabinets above the appliance. children climbing on

the cooktop to reach items could be seriously injured.

Safety

• StorageinoronAppliance—Flammablematerialsshouldnotbestoredinan

oven,nearsurfaceburnersorinthedrawer(ifequipped).This includes paper,

plastic and cloth items, such as cookbooks, plasticware and towels, as well as

ammable liquids. Do not store explosives, such as aerosol cans, on or near the

appliance. Flammable materials may explode and result in re or property damage.

• Donotleavechildrenalone—Childrenshouldnotbeleftaloneorunattendedin

theareawhereapplianceisinuse. They should never be allowed to sit or stand on

any part of the appliance.

• DONOTTOUCHSURFACEBURNERS,AREASNEARTHESEBURNERS,OVEN

HEATINGELEMENTSORINTERIORSURFACESOFTHEOVEN. Both surface

burners and oven heating elements may be hot even though they are dark in color.

Areas near surface burners may become hot enough to cause burns. During and after

use, do not touch, or let clothing or other ammable materials touch these areas until

they have had sufcient time to cool. Among these areas are the cooktop, surfaces

facing the cooktop, the oven vent openings and surfaces near these openings, oven

door and window.

• Wearproperapparel—Loose-ttingorhanginggarmentsshouldneverbeworn

whileusingtheappliance. Do not let clothing or other ammable materials contact

hot surfaces.

• Donotusewaterorourongreaseres—Smothertherewithapanlid,oruse

bakingsoda,adrychemicalorfoam-typeextinguisher.

• Nevermodifyoraltertheconstructionofarangebyremovinglevelinglegs,

panels,wirecovers,anti-tipbrackets/screws,oranyotherpartoftheproduct.

WarNiNg

• All ranges can tip.

• Injury to persons could result.

• Install anti-tip device packed with range.

• See Installation Instructions.

to reduce the risk of tipping, the range must be secured by properly installed

anti-tip bracket(s) provided with the range. to check if the bracket(s) is installed

properly, remove the lower panel or storage drawer and verify that the anti-tip

bracket(s) is engaged. Refer to the installation instructions for proper anti-tip

bracket(s) installation.

Safety

• Whenheatingfatorgrease,watchitclosely. Fat or grease may catch re if allowed

to become too hot.

• Useonlydrypotholders—Moistordamppotholdersonhotsurfacesmayresult

inburnsfromsteam. Do not let potholders touch hot heating elements. Do not use a

towel or other bulky cloth instead of a potholder.

• Donotheatunopenedfoodcontainers—Buildupofpressuremaycausecontainer

toburstandresultininjury.

• Removetheovendoorfromanyunusedrangeifitistobestoredordiscarded.

IMPORTANT—Donotattempttooperatetheovenduringapowerfailure.Ifthepower

fails,alwaysturntheovenoff. If the oven is not turned off and the power resumes, the

oven may begin to operate again. Food left unattended could catch re or spoil.

IMPORTANTINSTRUCTIONSFORUSINGYOURCOOKTOP

• Knowwhichknobcontrolseachsurfaceheatingunit.Always turn the knob to the

LITE position when igniting the burners. Visually check that burner has lit. Then adjust

the ame so it does not extend beyond the edge of the utensil.

• Useproperpansize.This appliance is equipped with one or more surface burners of

different sizes. Select utensils having at bottoms large enough to cover the surface

burner. The use of undersized utensils will expose a portion of the surface burner to

direct contact and may result in ignition of clothing. Proper relationship of utensil to the

surface burner will also improve efciency.

• Utensilhandlesshouldbeturnedinwardandnotextendoveradjacentsurface

burners—To reduce the risk of burns, ignition of ammable materials, and spillage due

to unintentional contact with the utensil. The handle of the utensil should be positioned

so that it is turned inward, and does not extend over adjacent surface burners.

• Neverleavesurfaceburnersunattendedathighheatsettings—Boilovers cause

smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

WarNiNg

In case of re or gas leak, be sure to turn off the main gas shutoff valve.

WarNiNg

Use proper ame size—Adjust ame size so it does not extend beyond the edge of the utensil. The

use of undersized utensils will expose a portion of the burner ame to direct contact and may result in

ignition of clothing. Proper relation of utensil to ame will also improve cooking efciency.

WarNiNg

Do not use stove top grills on the burner grates of sealed gas burners. If you use a stove top grill on a

sealed gas burner, it will cause incomplete combustion and can result in exposure to carbon monoxide

levels above allowable current standards. This can be hazardous to your health.

cautioN

electronic controllers can be damaged by cold temperatures. When you use your appliance for the

rst time, or if it has not been used for a long period of time, make sure that it has been exposed to

a temperature above 0°c/32°f for at least 3 hours before connecting it to the power supply.

Safety

• Protectiveliners—Do not use aluminum foil to line oven bottom or any other part of the

appliance. Only use aluminum foil as recommended for baking if used as a cover placed

on the food. Any other use of protective liners or aluminum foil may result in a risk of

electric shock or re or short circuit.

• Glazedcookingutensils—Only certain types of glass, glass/ceramic, ceramic,

earthenware, or other glazed utensils are suitable for rangetop service without breaking

due to the sudden change in temperature. Check the manufacturer’s recommendations

for rangetop use.

• Aircurtainorotheroverheadrangehoods,whichoperatebyblowingadownward

airowontoarange,shallnotbeusedinconjunctionwithgasrangesotherthan

whenthehoodandrangehavebeendesigned,testedandlistedbyanindepen-

denttestlaboratoryforuseincombinationwitheachother.

• Donotusedecorativesurfaceburnercovers. If a burner is accidentally turned

on, the decorative cover will become hot and possibly melt. Burns will occur if the hot

covers are touched. Damage may also be done to the cooktop or burners because

the covers may cause overheating. Air will be blocked from the burner and cause

combustion problems.

• Donotcleanoroperateabrokencooktop—If cooktop should break, cleaning

solutions and spillovers may penetrate the broken cooktop and create a risk of electric

shock. Contact a qualied technician immediately.

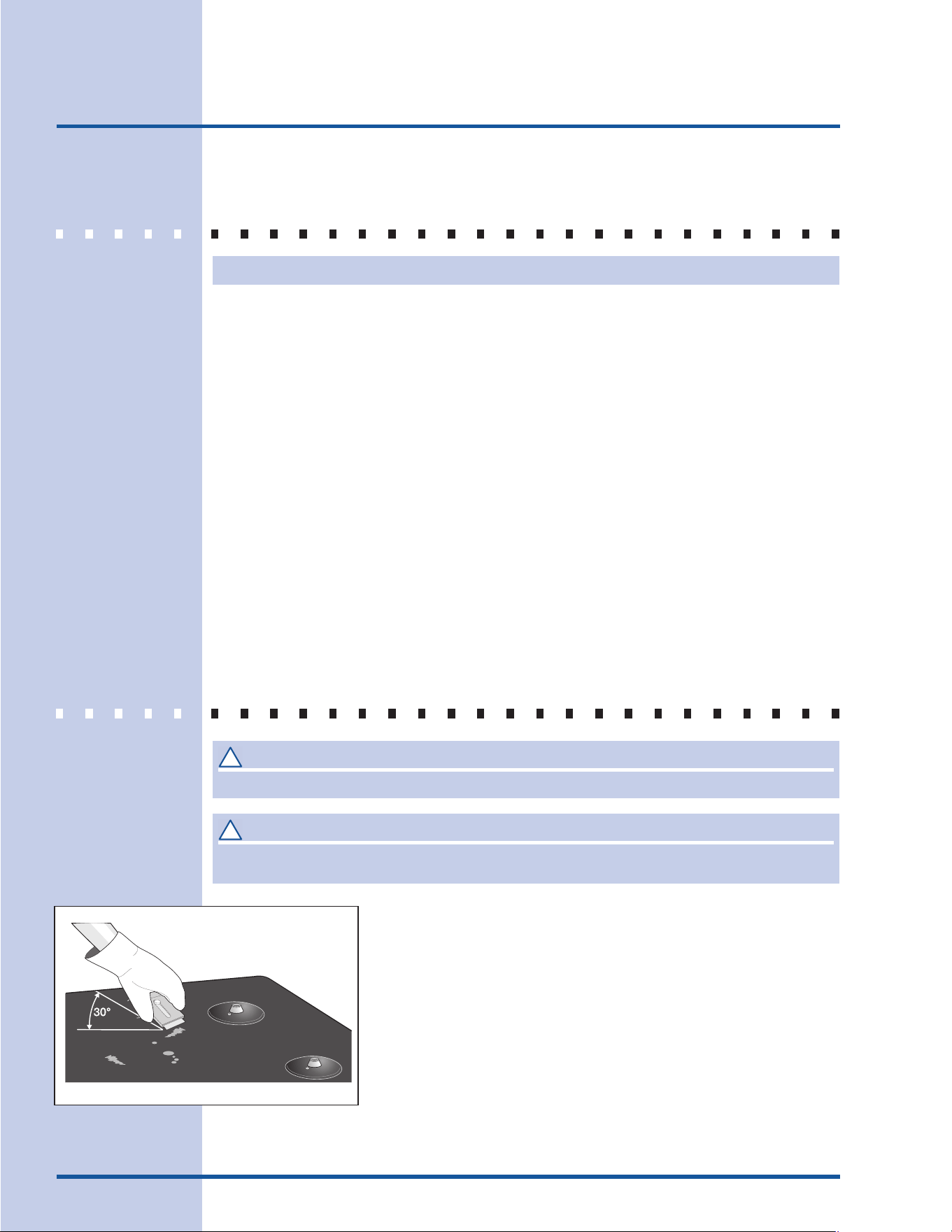

• Cleancooktopglasswithcaution—If a wet sponge or cloth is used to wipe spills on a

hot cooking area, be careful to avoid a steam burn. Some cleaners can produce harmful

fumes if applied to a hot surface.

• Avoidscratchingthecooktopglasswithsharpobjects.

IMPORTANTINSTRUCTIONSFORUSINGYOUROVEN

• Usecarewhenopeningovendoororwarmerdrawer(ifequipped)—Stand to the

side of the range when opening the door of a hot oven. Let hot air or steam escape

before you remove or replace food in the oven/ warmer drawer.

• Keepovenventductsunobstructed. The oven vent is located under the cooktop.

Touching the surfaces in this area when the oven is operating may cause severe burns.

Also, do not place plastic or heat-sensitive items on or near the oven vent. These items

could melt or ignite.

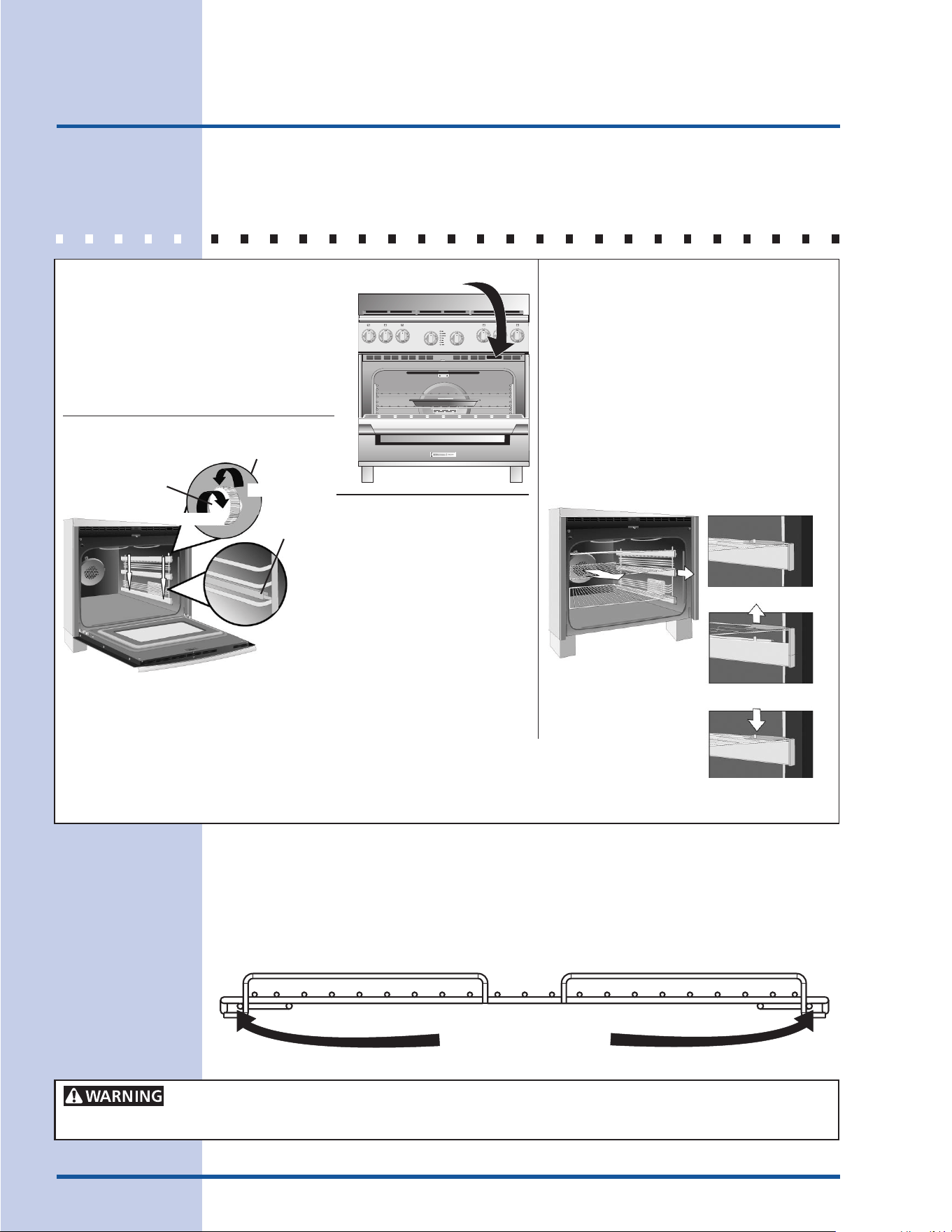

• Placementofoven/warmerdrawer(ifequipped)racks. Always place oven racks in

desired location while oven/warmer drawer (if equipped) is cool. If rack must be moved

while oven is hot use extreme caution. Use potholders and grasp the rack with both

hands to reposition. Do not let potholders contact the hot heating elements in the oven/

warmer drawer (if equipped). Remove all utensils from the rack before moving.

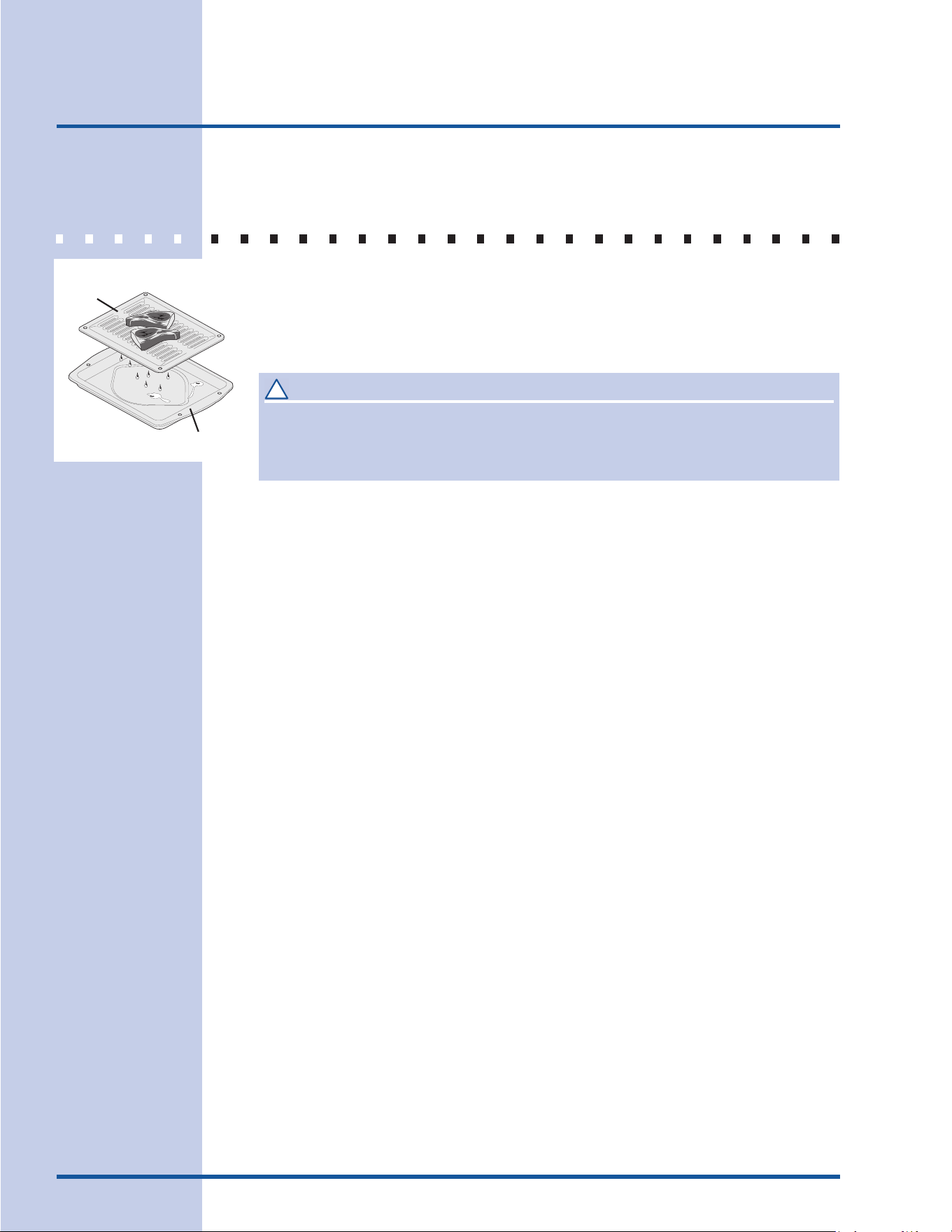

• Donotusethebroilerpanwithoutitsinsert. The broiler pan and its insert allow

dripping fat to drain and be kept away from the high heat of the broiler.

• Donotcoverthebroilerinsertwithaluminumfoil.Exposed fat and grease could

ignite.

• Donottouchahotlightbulbwithadampcloth. Doing so could cause the bulb to

break. Disconnect the appliance or turn off the power to the appliance before removing

and replacing light bulb.

IMPORTANTINSTRUCTIONSFORCLEANINGYOURRANGE

• Cleantherangeregularlytokeepallpartsfreeofgreasethatcouldcatch

re.Exhaust fan ventilation hoods and grease lters should be kept clean. Do not

allow grease to accumulate on hood or lter. Greasy deposits in the fan could catch

re. When you are aming food under the hood, turn the fan on. Refer to the hood

manufacturer’s instructions for cleaning.

Safety

SELFCLEANINGOVENS

• Intheself-CleaningcycleonlycleanthepartslistedinthisUseandCareGuide.

Before self cleaning the oven, remove the broiler pan and any utensils or foods from the

oven.

• Donotuseovencleaners—No commercial oven cleaner or oven liner protective

coating of any kind should be used in or around any part of the oven.

• Donotcleandoorgasket—The door gasket is essential for a good seal. Care should

be taken not to rub, damage or move the gasket.

• Removeovenracks.Oven racks color will change if left in the oven during a self-

cleaning cycle.

Note

save these important safety instructions for future reference.

iMPortaNt SaFetY Notice

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to

publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm,

and requires businesses to warn customers of potential exposure to such substances.

cautioN

Thehealthofsomebirdsisextremelysensitivetothefumesgivenoffduringthe

self-cleaningcycleoftherange.Movethebirdstoanotherwellventilatedroom.

GettingStart

liQuefied PetRoleuM (PRoPane) Gas conveRsion

This appliance can be used with Natural Gas and Propane Gas. It is shipped from the

factory for use with natural gas.

A kit for converting to LP gas is supplied with your cooktop. The kit is marked “FOR LP/

PROPANE GAS CONVERSION”. Follow the installation instructions which are inside the

envelope.

The conversion must be performed by a qualied service technician in accordance with

the kit instructions and all local codes and requirements. Failure to follow instructions could

result in serious injury or property damage. The qualied agency performing this work

assumes responsibility for the conversion.

cautioN

Any additions, changes or conversions required in order for this appliance to satisfactorily meet the

application needs must be made by a qualied service technician in accordance with the manufacturer’s

instructions and all codes and requirements of the authority having jurisdiction. Failure to follow the

instructions could result in serious injury or property damage. The qualied agency performing this work

assumes responsibility for the conversion.

WarNiNg

Severe shock, or damage to the cooktop may occur if the cooktop is not installed by a qualied installer or

electrician.

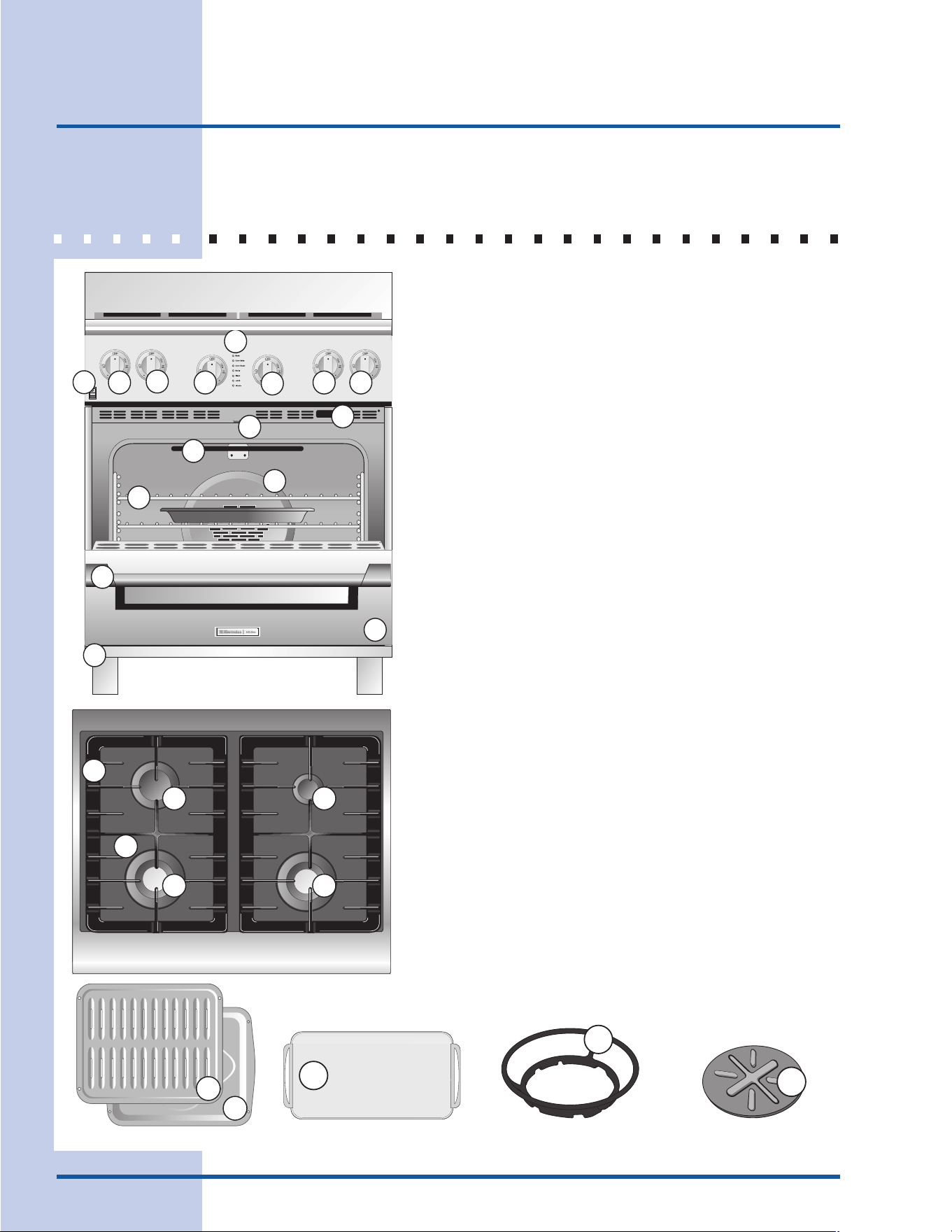

30” RanGe featuRes

Range Features

7 8

18 19

1. Oven Light Switch

2. Left Rear Burner Control Knob

3. Left Front Burner Control Knob

4. Oven Function Control Knob

5. Oven Function Indicator Lights

6. Oven Temperature Control Knob

7. Right Front Burner Control Knob

8. Right Rear Burner Control Knob

9. Oven Vent

10. Oven Door Latch

11. Broil Element

12. Convection Fan Cover

13. Adjustable Oven Racks

14. Door Handle

15. Stainless Steel Oven Door With Large

Window Opening

16. Stainless Steel Trim

17. Burner Grates

18. 14 000BTU Burner

19. 5 000BTU Simmer Burner

20. Glass Cooktop

21. 18 000BTU Dual Flame Burner

22. 18 000 BTU Dual Flame Burner

23. Broiler Pan Cover

24. Broiler Pan

25. Top Burner Griddle

26. Wok Stand

27. Simmer Plate

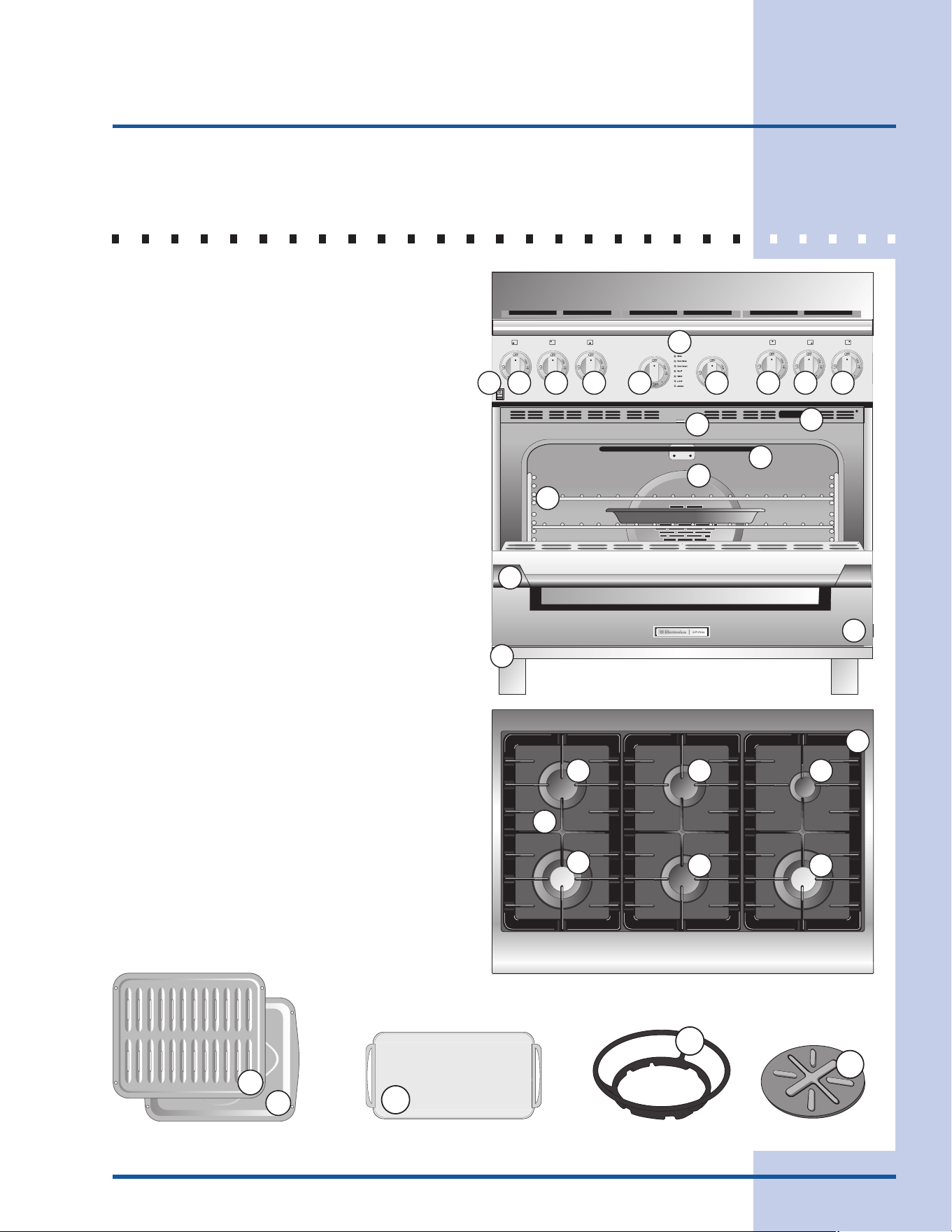

36” RanGe featuRes

Range Features

2 3 4 5

7 8 9

1. Oven Light Switch

2. Left Front Burner Control Knob

3. Left Rear Burner Control Knob

4. Center Front Burner Control Knob

5. Oven Function Control Knob

6. Oven Function Indicator Lights

7. Oven Temperature Control Knob

8. Center Rear Burner Control Knob

9. Right Front Burner Control Knob

10. Right Rear Burner Control Knob

11. Oven Vent

12. Oven Door Latch

13. Broil Element

14. Convection Fan Cover

15. Adjustable Oven Racks

16. Door Handle

17. Stainless Steel Oven Door With Large

Window Opening

18. Stainless Steel Trim

19. Burner Grates

20. 14 000 BTU Burner

21. 9 500 BTU Standard Burner

22. 5 000 BTU Simmer Burner

23. Glass Cooktop

24. 18 000 BTU Dual Flame Burner

25. 14 000 BTU Burner

26. 18 000 BTU Dual Flame Burner

27. Broiler Pan Cover

28. Broiler Pan

29. Top Burner Griddle

30. Wok Stand

31. Simmer Plate

SurfaceCooking

flaMe size

For most cooking, start on the highest control setting and then turn to a lower one to

complete the process. Use the chart below as a guide for determining proper ame size for

various types of cooking. The size and type of utensil used and the amount of food being

cooked will inuence the setting needed for cooking.

For deep fat frying, use a thermometer and adjust the surface control knob accordingly.

If the fat is too cool, the food will absorb the fat and be greasy. If the fat is too hot, the food

will brown so quickly that the center will be undercooked. Do not attempt to deep fat fry too

much food at once as the food will neither brown nor cook properly.

*FlameSize TypeofCooking

High Flame Start most foods; bring water to a boil; pan broiling

Medium Flame Maintain a slow boil; thicken sauces, gravies; steam

Low Flame Keep foods cooking; poach; stew

*Thesesettingsarebasedonusingmedium-weightaluminumpanswith

lids.Settingsmayvarywhenusingothertypesofpans.

Never extend the ame beyond the outer edge of the utensil. A higher ame

simply wastes heat and energy, and increases your risk of being burned by the

ame.

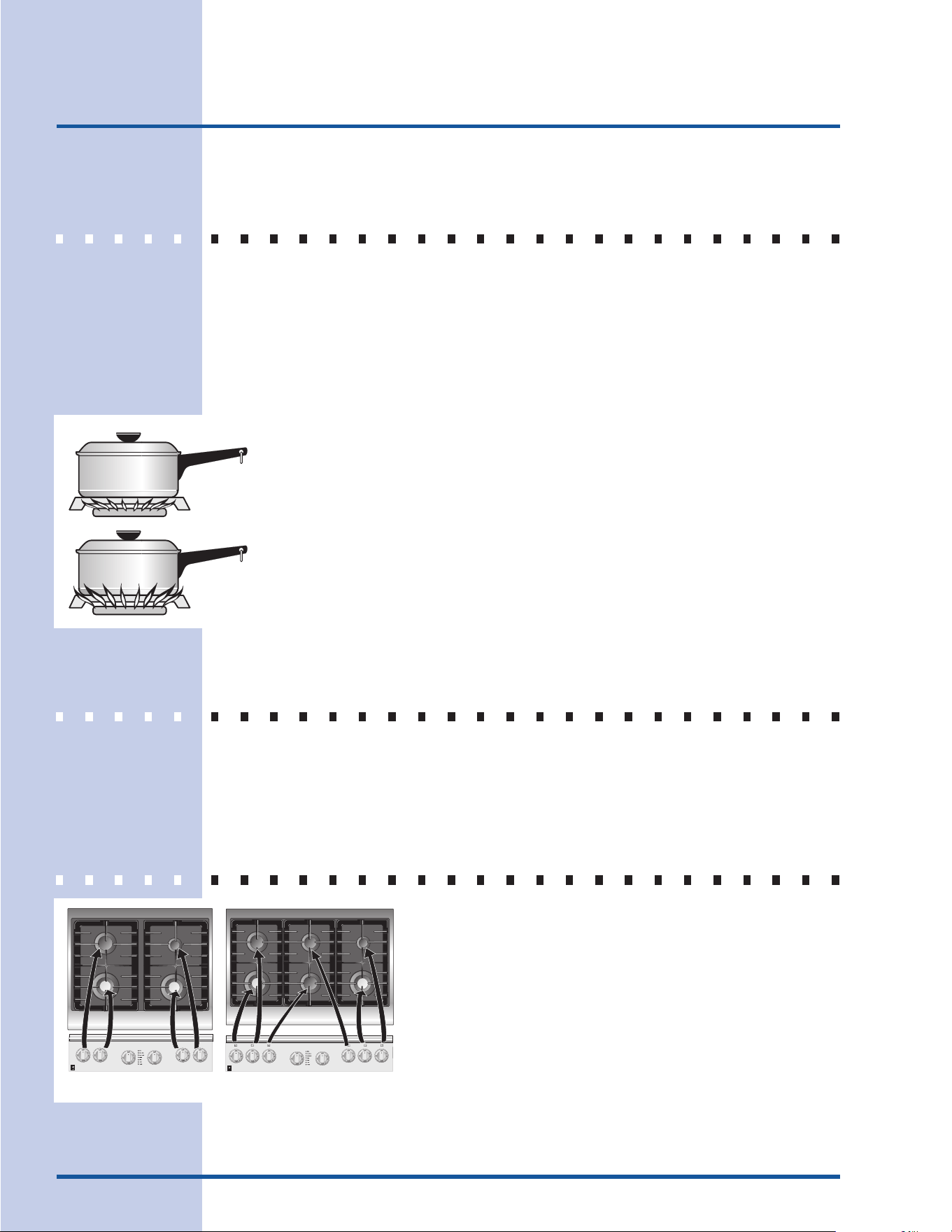

PRoPeR buRneR adjustMents

The color of the ame is the key to proper burner adjustment. A good ame is clear, blue

and hardly visible in a well-lighted room. Each cone of ame should be steady and sharply

dened. Adjust or clean burner if ame is yellow-orange. To clean burner, see instructions

under GeneralCare&Cleaning.

RIGHT

WRONG

buRneR locations

Your cooktop is equipped with different sized burners.

The surface burners are located on the 30” models as follows (Fig. 1):

a 5000BTU(natural gas) burner at the right rear position; a

14000BTU(natural gas) burner at the left rear position; and

two 18000BTUDualFlame(natural gas) burners at the right

and left front positions.

The surface burners are located on the 36” models as follows (Fig. 2):

a 5000BTU(natural gas) burner at the right rear position; a

9500BTU (natural gas) burner at the center rear position; two

14000BTU(natural gas) burners at the left rear and center

front positions; and two 18000BTUDualFlame(natural gas)

burners at the right and left front positions.

Fig. 1 - 30” models Fig. 2 - 36” models

SurfaceCooking

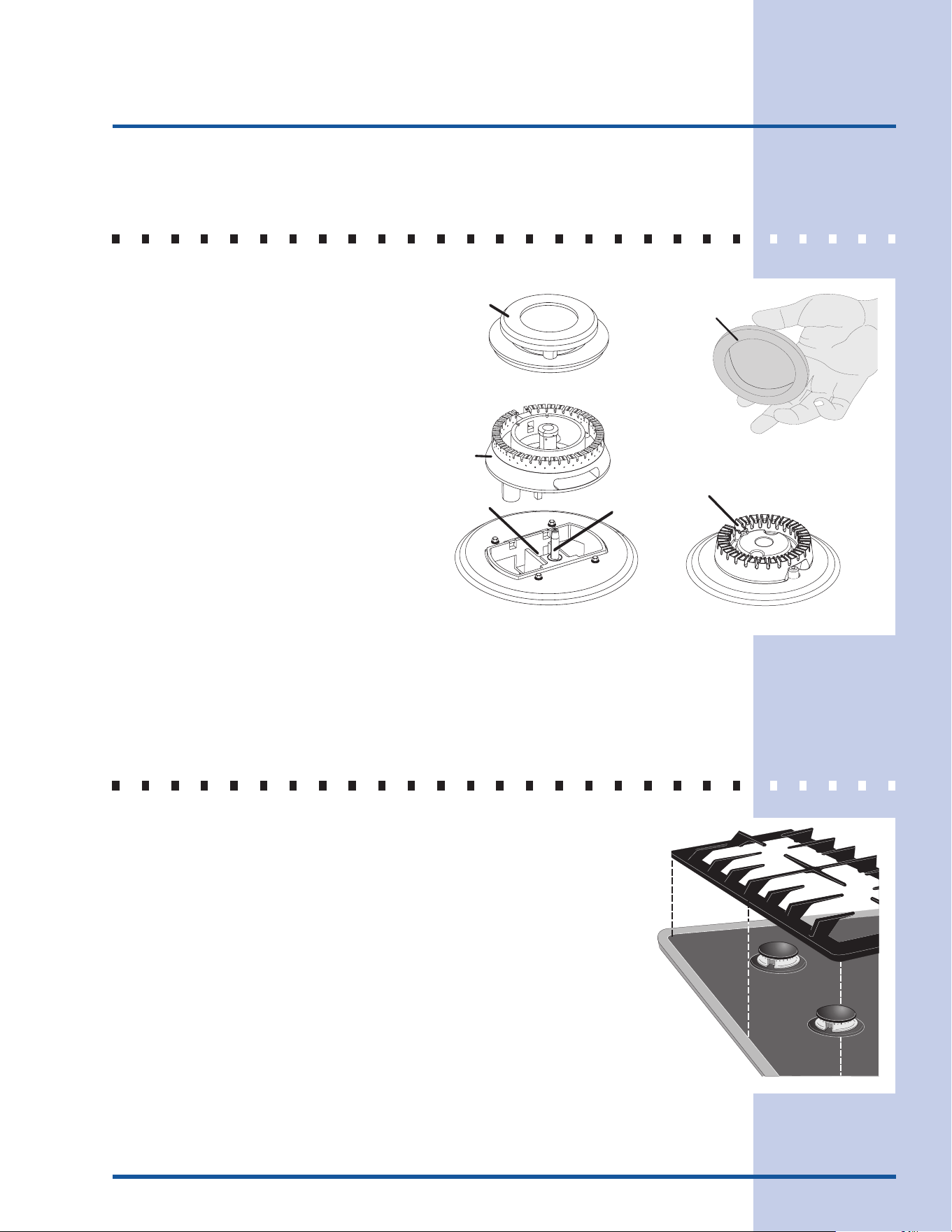

PlaceMent of buRneR GRates

Place grates on the Ceramic Glass Cooktop. Be sure they are right

located inside the stainless steel frame.

ATTENTION: Do not slide the grates on the stainless steel frame, doing so

can damage the surface.

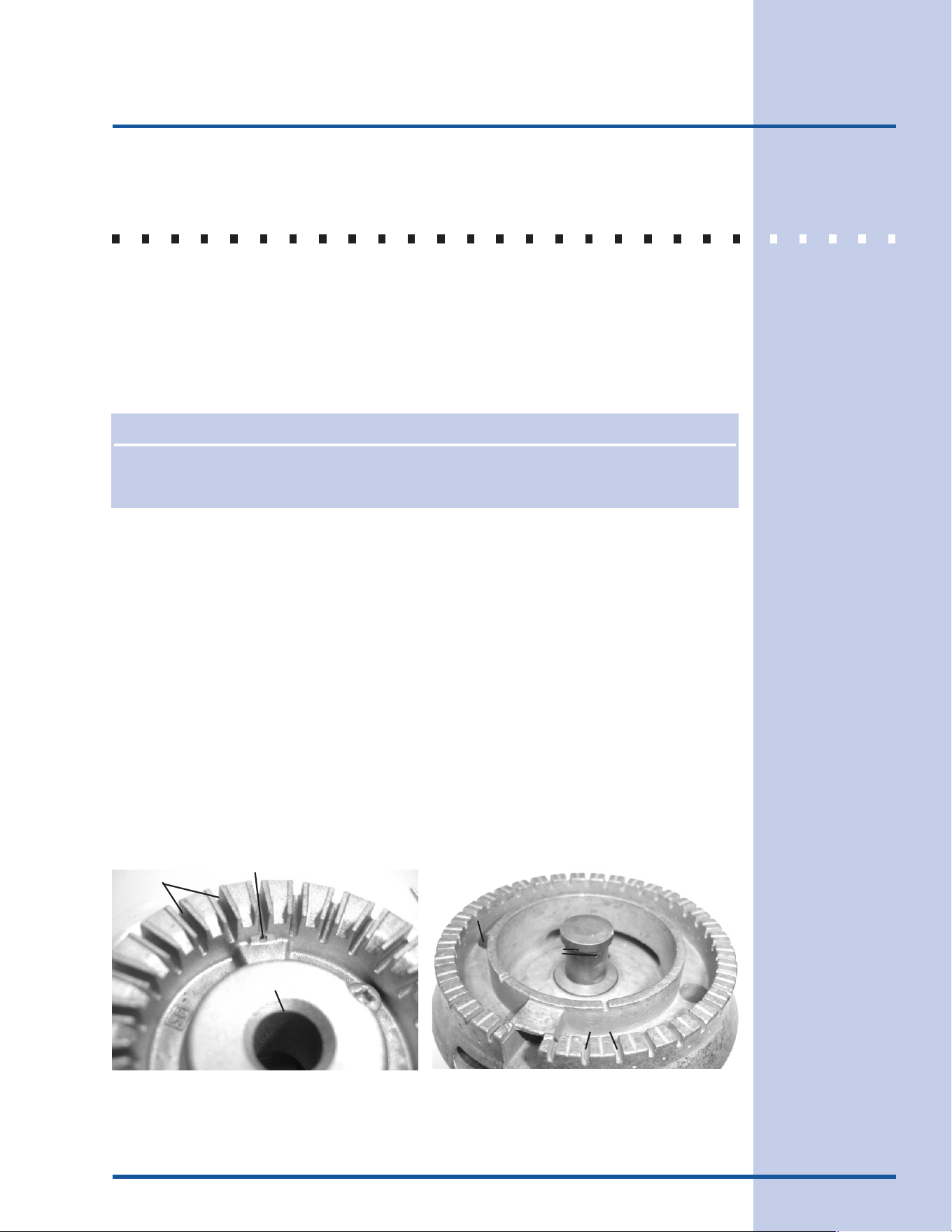

PlaceMent of buRneR Heads and caPs

Forthe18000BTUburner:

Place the burner head over the gas orice

(Figure 1). Becarefulnottodamagethe

electrodewhileplacingtheburnerhead

overtheorice. Make sure electrode ts

correctly into slot in burner head.

Forallburners:

Place a burner cap on each burner head

(see Figure 2), matching the cap size to

the head size. The cap for each burner has

an inner locating ring which centers the

cap correctly on the burner head. Be sure

that all the burner caps and burner heads

are correctly placed BEFORE using your

appliance.

Make sure each burner cap is properly

aligned and level.

Turn the burner on to determine if it will light.

If the burner does not light, contact a Service

Center. Do not service the sealed burner

yourself.

Figure 1 Figure 2

Burner

Cap

Burner

Head

Burner

Cap

Burner

Head

Gas

Opening

Electrode

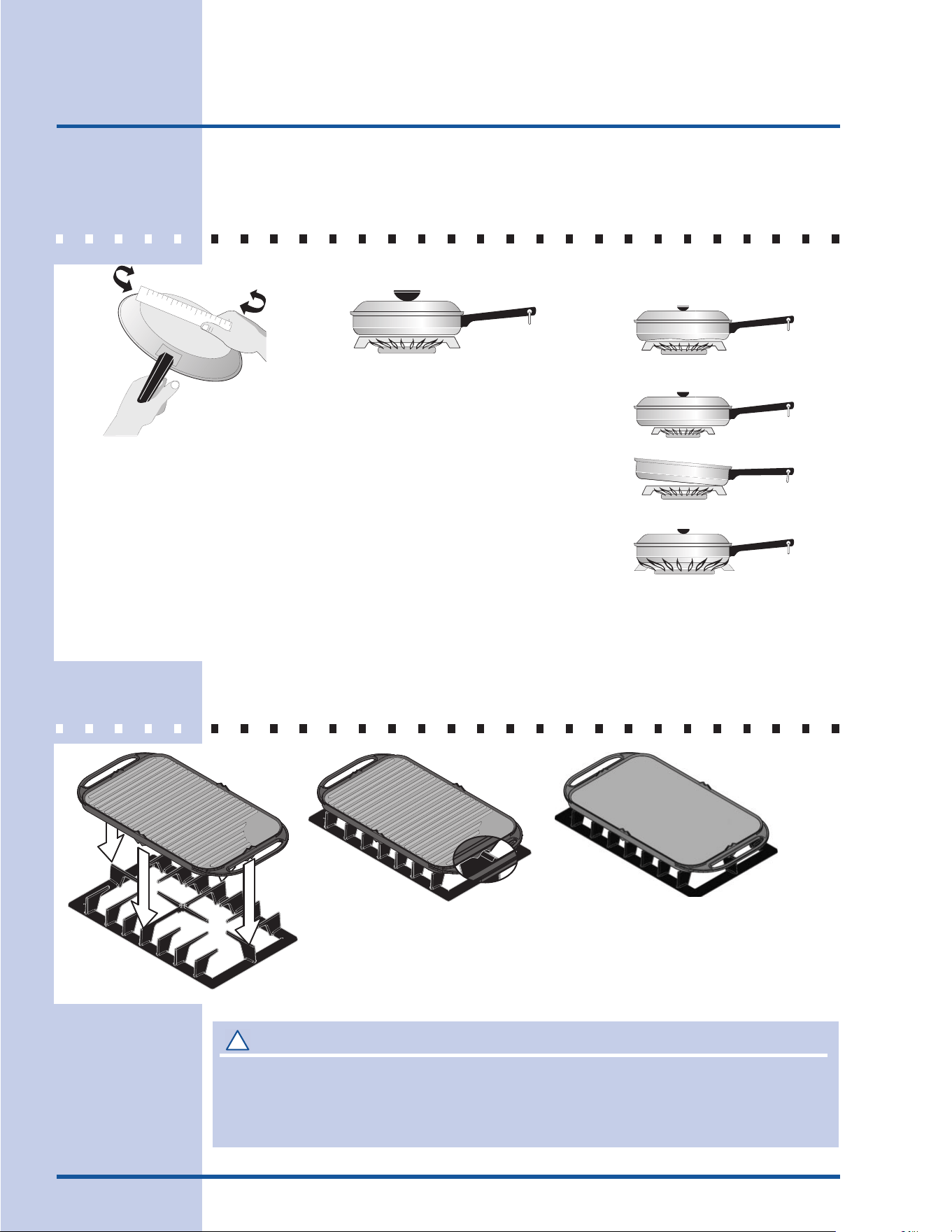

Note:Always use a utensil for its intended purpose. Follow manufacturer’s

instructions. Some utensils were not made to be used in the oven or on the

cooktop.

*GOOD

• Flatbottom and straight sides.

• Tight tting lids.

• Weight of handle does not tilt pan.

Pan is well balanced.

• Pan sizes match the amount of

food to be prepared and the size of

burner.

• Made of material that conducts

heat well.

• Easy to clean.

POOR

• Curved and warped pan bottoms.

• Pan overhangs unit by more than

2.5 cm (1”).

• Heavy handle tilts pan.

• Flame extends beyond unit.

Pans should have at bottoms.

Check for atness by rotating a

ruler across the bottom. There

should be no gaps between

the pan and ruler.

* Specialty pans such as

lobster pots, griddles and

pressure cookers may be used

but must conform to the above

recommended cookware

requirements.

usinG tHe GRiddle

Figure 1

Figure 2

Side with grooves

The griddle is intended for direct food cooking and can be used on both

sides (Figures 2 and 3). Do not use pans or other cookware on the griddle.

Doing so could damage the nish. With the grate in position over the burner,

set the griddle on top of the grate positioning the notches in the griddle over

the grate ngers (Figures 1 and 2).

Figure 3

Flat Side

suRface cookinG utensils

SurfaceCooking

cautioN

always place the griddle on the grate before to turn on the burner.

always use potholders to remove the griddle from the grate. allow the griddle to cool before

removing. Do not set hot griddle on surfaces that cannot withstand high heat; such as countertops.

be sure the griddle is positioned correctly and stable before use to prevent hot spills and possible burns.

Note

the Wok cooking performance is best on the right front PoWeR burner

position.

Figure 1

Flat-bottomwoks with large at

bottoms may also be used on your

cooktop Surface Burner Grates

without the Wok Stand (See

Figure 2). Insure the stability of

the at-bottom wok before cooking

without the Wok Stand. If unstable,

DO NOT use the at-bottom wok

without the Wok Stand.

Round-bottomwoks (with

asupportring) should NOT

be used (See Figure 3). The

supporting ring was not designed

for proper or stable use on the

Surface Burner Grates.

Proper use of at-bottom wok

on Surface Burner Grate

Figure 2

Improper use of round-bottom wok

on Surface Burner Grate

Figure 3

SurfaceCooking

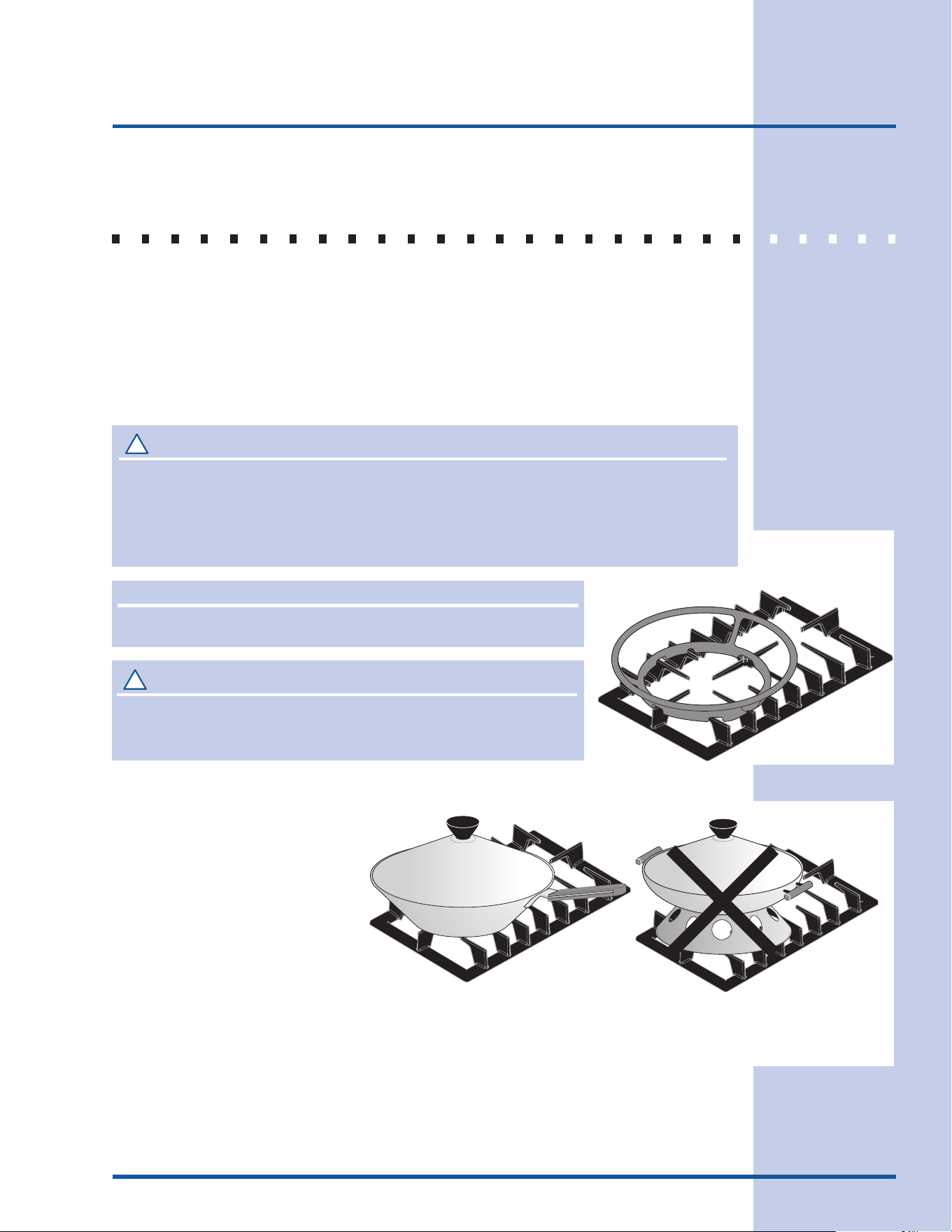

usinG tHe Wok stand

The Wok Stand provided with your cooktop is designed to allow round-bottomed woks to

be used.Itisrecommendedthatyouusea14inchdiameter(35.5cm)orlessWok.

It is recommended that you use the right front POWER burner with the wok stand for best

performance. If properly positioned, the Wok Stand will not slide off the grate.

ToProperlyPositiontheWokStand:

With the grate in position over the burner, set the Wok Stand on top of the grate positioning

the notches in the Wok Stand over the cooktop grate ngers (See Figure 1).

cautioN

always use potholders to remove the wok stand from the grate. allow the wok stand to cool

before removing. Do not set hot wok stand on surfaces that cannot withstand high heat; such as

countertops.

be sure the Wok stand is positioned correctly and stable before use to prevent hot spills and

possible burns.

cautioN

be sure to alWaYs use the Wok stand if the stability of the wok is

uncertain. If cooking large amounts of liquid food without the Wok Stand,

the wok may tip and spill over causing burns.

SurfaceCooking

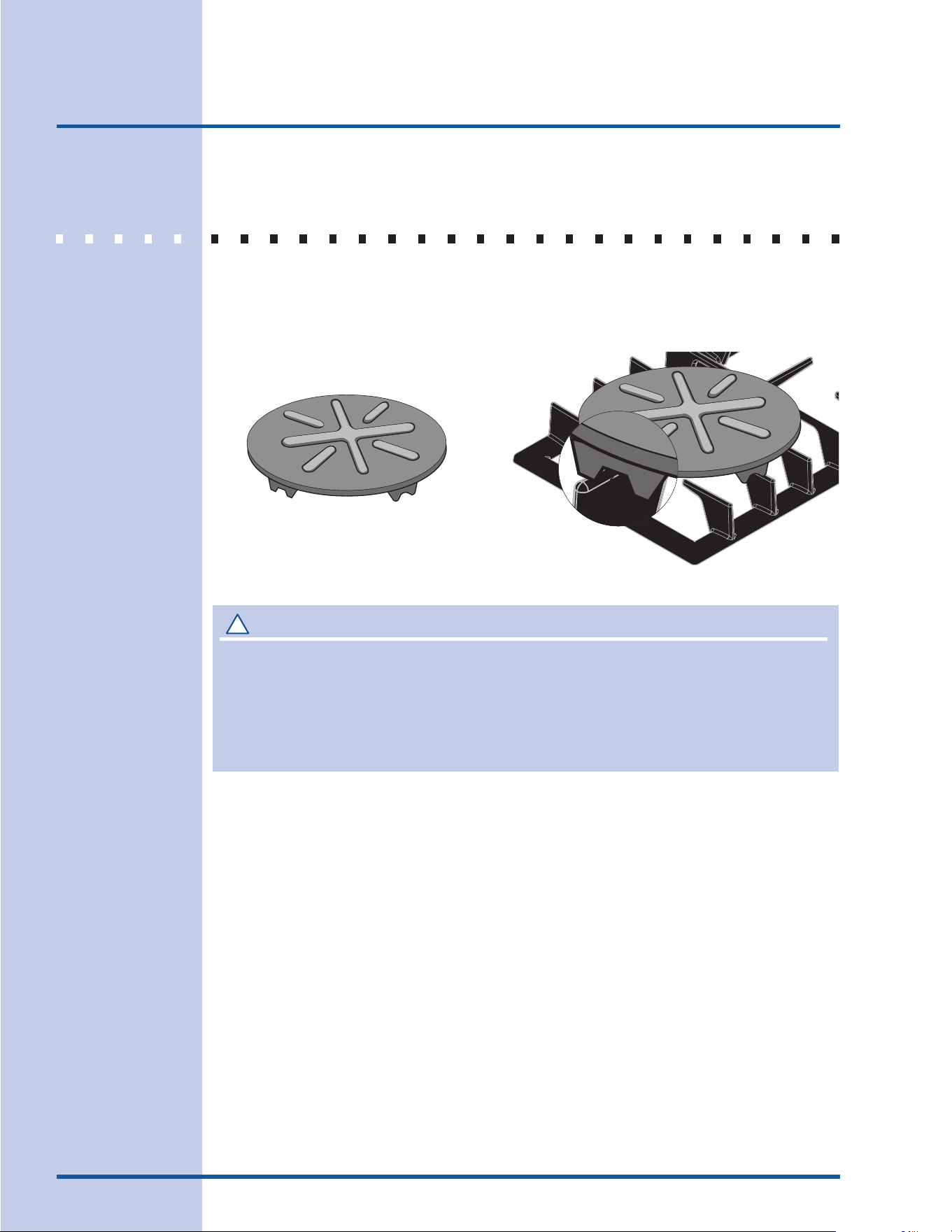

usinG tHe siMMeR Plate

The simmer plate (Figure 1) is intended to diffuse lower temperature of the burner to

help cooking delicate aliment such as chocolate, milk, bechamel, etc. It can also be use

for cooking sauce during long period. With the grate in position over the burner, set the

simmer plate on top of the grate positioning the notches in the simmer plate over the grate

ngers (See Figure 2) and then place the utensil on the simmer plate.

Figure 1

Figure 2

cautioN

always place the simmer plate on the grate before to turn on the burner.

always use potholders to remove the simmer plate from the grate. allow the simmer plate to cool

before removing. Do not set hot simmer plate on surfaces that cannot withstand high heat; such as

countertops.

be sure the simmer plate is positioned correctly and stable before use to prevent hot spills and

possible burns.

SurfaceCooking

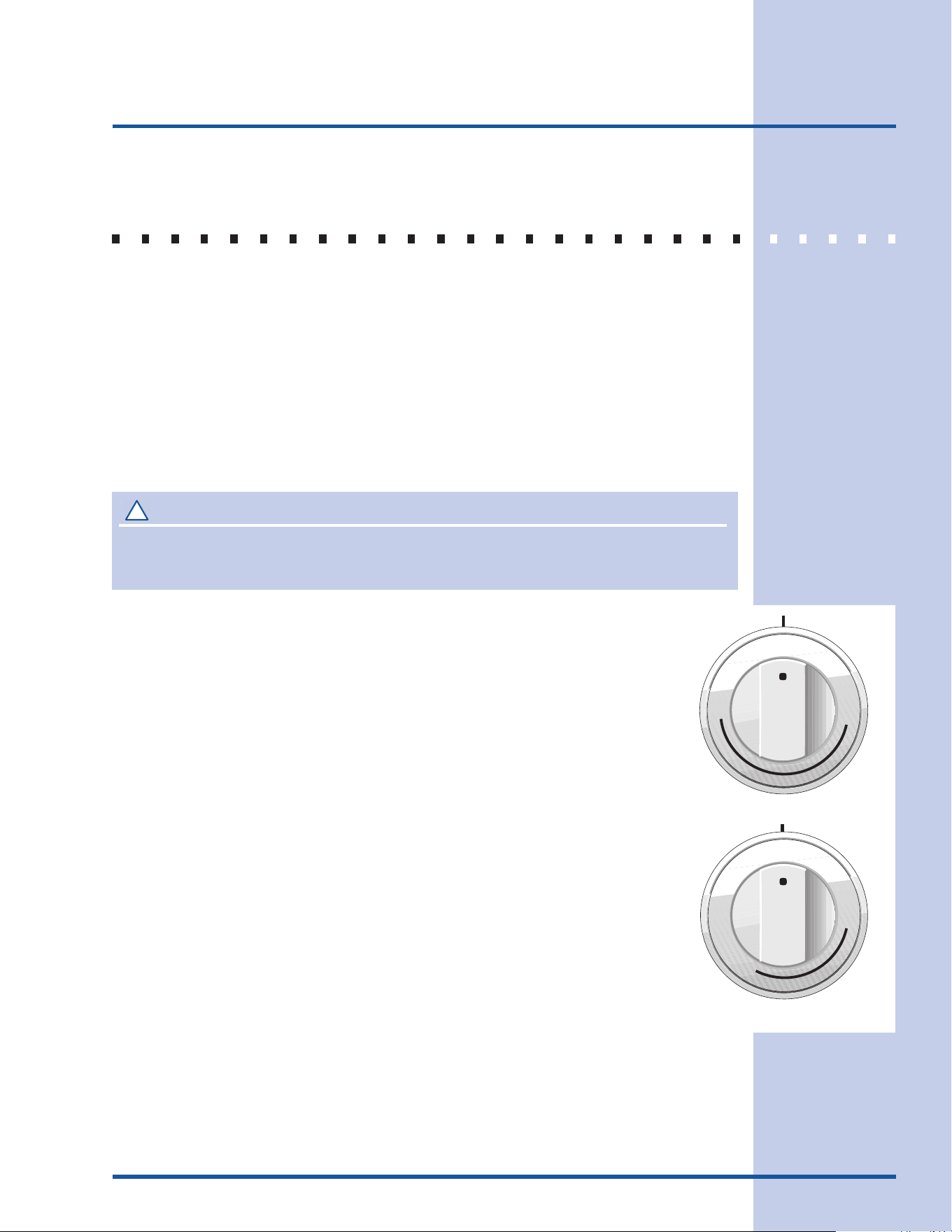

settinG suRface contRols

Your cooktop may be equipped with any combination of the following burners:

Simmer Burner: best used for simmering delicate sauces, etc.

Standard Burner: used for most all surface cooking needs.

Large Burner: best used when bringing large quantities of liquid to temperature and when

preparing larger quantities of food.

Regardless of size, always select a utensil that is suitable for the amount and type of food

being prepared. Select a burner and ame size appropriate to the pan. Never allow ames

to extend beyond the outer edge of the pan.

Your cooktop is also equipped with 270° rotation ame control valves. These valves

provide enhanced control of the burner ame. Each burner lights automatically from an

electric ignitor when its control knob is turned to the LITE position.

RegularBurner-Fig.2

DualBurner-Fig.2

cautioN

do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on

top of the cooktop when it is in use. These items could melt or ignite. Potholders, towels or wood spoons

could catch re if placed too close to a ame.

Tooperatethesurfaceburner:

1. Place cooking utensil on burner.

2. Pushinandturn the Surface Control knob to LITE. Note:All electronic

ignitors will click at the same time. However, only the burner you are turning

on will ignite.

3. Visually check that the burner has lit.

4. Turn the control knob to the desired ame size. The control knobs do not

have to be set at a particular mark. Use the guides and adjust the ame as

needed. DONOTcook with the Surface Control knob in the LITE position.

(The electronic ignitor will continue to click if left in the LITE position, causing

premature wear.)

In the event of an electrical power outage, the surface burners can be lit

manually. To light a surface burner, hold a lit match to the burner head, then

slowly turn the Surface Control knob to LITE. Use caution when lighting surface

burners manually.

GettingStarted

befoRe settinG oven contRols

Removing and Replacing oven Racks

AlwAys ArrAnge oven rAcks

when The oven is cool (Prior

To oPerATing The oven). Always

use oven mitts when using the oven.

Toremoveanovenrack, pull the rack

forward. Lift up the rack off the oven

rack slider.Toreplaceanovenrack,

place the rack on the slider into the 4

pinholes located at the 4 corners of the

rack.

oven vent location

The oven is vented underupper

controlpanel. When the oven is on,

warm air is released through the vent.

This venting is necessary for proper

air circulation in the oven and good

baking results.

Installed on sliders

Toremovefrom

sliders

Toplaceonsliders

Pullovenrack

forward and lift it

upoftheovenrack

slider.

Oven vent

Always arrange the oven racks when the oven is cool (prior to operating the oven). Always use

oven mitts when using the oven.

Removing non-sliding oven Racks

Simply pull the rack and slightly tilt it upward when the rack hits its stop position.

Replacing non-sliding oven Racks

Insert the rack into the oven rack supports by inserting the rack openings into the rack sup-

ports. Be sure the rack is at the same position on each oven rack support on both sides.

Insert the openings

into the rack support

installing oven Rack supports

AlwAys insTAll oven rAck

suPPorT before Turning

on The oven (when The

oven is cool). Toremovethe

ovenracksupports for a self-

clean cycle, (36” range: remove

36” Range Only

Remove

Replace

Oven Rack Sup-

port Screw

Oven Rack Sup-

port Bracket

the screw located over the rack support on each side) pull up the

support from the oven rack support brackets to disengage supports

from the oven. If the rack supports are not removed, the self-clean

cycle won’t start. Always remove the left side support rst. Toinstallovenrack

supports insert the rack supports into the rack support brackets on the oven side

as shown (36” range: put back screws at their original location).

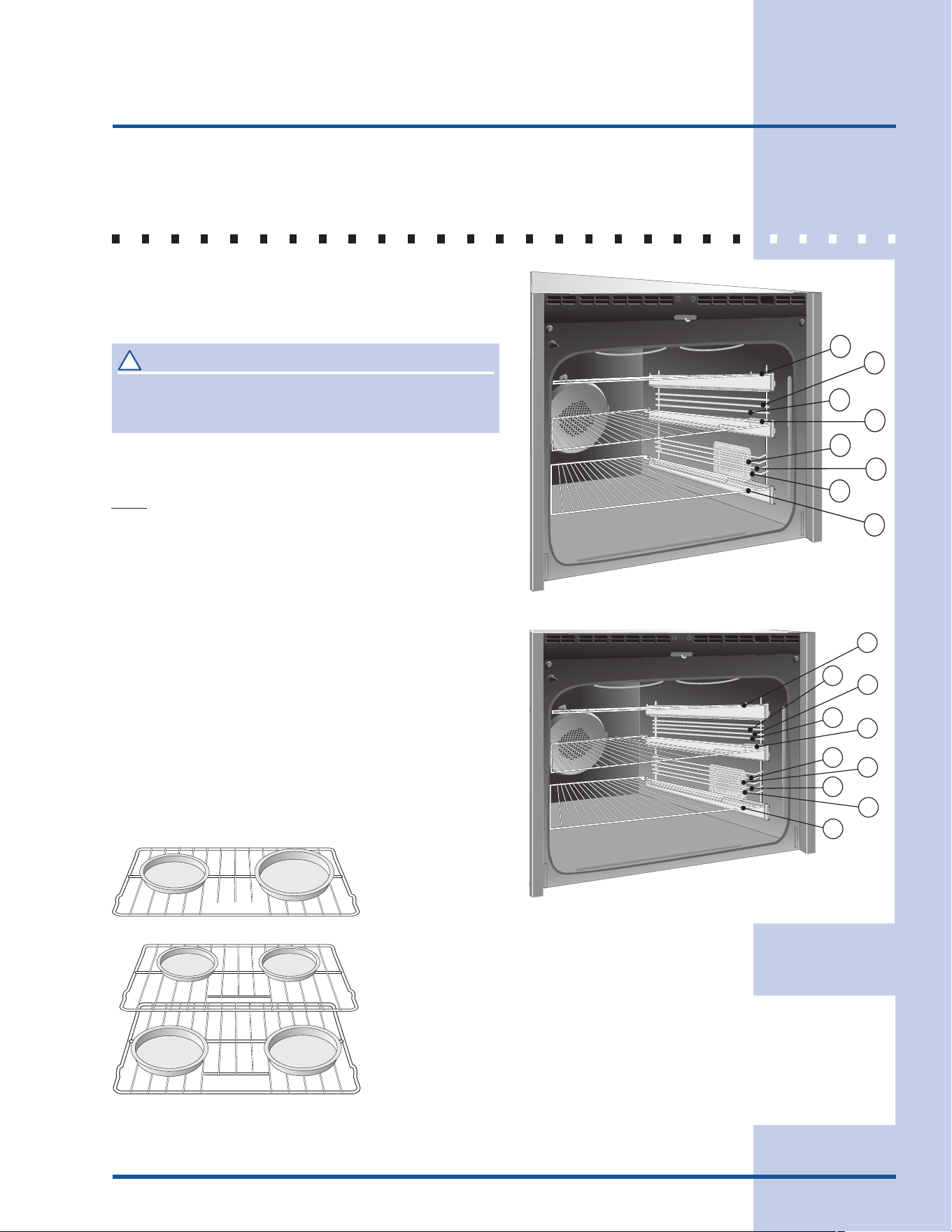

36” Range oven Rack Positions

Rack

positions

OvenRackPositions

AlwAys ArrAnge oven rAcks when The oven

is cool (Prior To oPerATing The oven) Always

use oven mitts when the oven is hot.

1 Oven Rack

Multiple Oven Racks

AirCirculationintheOven

For best air circulation and baking results allow 2-4" (5-10 cm) around

the cookware for proper air circulation and be sure pans and cookware

do not touch each other, the oven door, sides or back of the oven cavity.

The hot air must circulate around the pans and cookware in the oven for

even heat to reach around the food.

GettingStarted

BEForE SETTInG ovEn ConTrolS (ConT’D)

30” Range oven Rack Positions

Rack

positions

cautioN

always use pot holders or oven mitts when adjusting the

oven racks. Wait until the oven has completely cooled if

possible. oven racks may be Hot and may cause burns.

RECOMMENDEDRACKPOSITIONSFORBAKING

30” 36”

Food RackPositions

Broiling meats, chicken or sh

6, 7 or 8 8, 9 or 10

Cookies & mufns

to bake on 1 rack

5 6

2 racks

1 & 6 1 & 8

3 racks

1, 5 & 8 1, 6& 10

cakes & pies

to bake on 1 rack

5 6

2 racks

1 & 5 3 & 6

3 racks

1, 5 & 8 1, 6 & 10

Frozen pies, angel food cake,

yeast, bread, casseroles, small

cuts of meat or poultry

2 or 3 2 or 3

turkey, roast or ham

1 1

Note: Always use caution when removing food.

RECOMMENDEDRACKPOSITIONS

30” 36”

Food Rack Positions

Broiling meats, chicken or sh 6, 7 or 8 8, 9 or 10

Cooking & Mufns

To Bake on: 5 6

1 rack 1 & 6 1 & 8

2 racks 1, 5 & 8 1, 6 & 10

3 racks

Cakes & pies:

To Bake on:

1 rack 5 6

2 racks 1 & 5 3 & 6

3 racks 1, 5 & 8 1, 6 & 10

Frozen pies, angel food cake, yeast,

bread, casseroles, small cuts of meat

or poultry

2 or 3 2 or 3

Turkey, roast or ham 1 1

Note: Always use caution when removing food.

Settingtheovencontrols

contRol featuRes

READTHEINSTRUCTIONSCAREFULLYBEFOREUSINGTHEOVEN.For satisfactory

use of your oven, become familiar with the various features and functions of the oven as

described below.Detailedinstructionsforeachfeatureandfunctionfollowlaterin

thisUse&CareGuide.

The oven can be set to bake at any temperature from 170°F to 550°F

TosettheBakeTemperatureto350°F:

1. Arrange interior oven racks, place food in oven and close oven door.

2. Turn the selector control knob to Bake.

3. The corresponding indicator light will ash.

4. Turn the temperature control knob to 350. The indicator light will stop ashing and the

oven will begin to preheat.

A beep will sound once when temperature reaches 350°F.

The indicator light will stay on until the Selector or the Temperature knob is turned to the

Off position.

5. When baking is completed, turn the temperature and the selector control knobs to Off

position.

TochangetheBaketemperature(examplechangingfrom350°Fto425°F):

1. After the oven has already been set at 350°F, and the oven temperature needs to be

changed to 425°F, turn the temperature control knob to 425°F. A beep will sound when

the oven temperature reaches 425°F.

bakinG

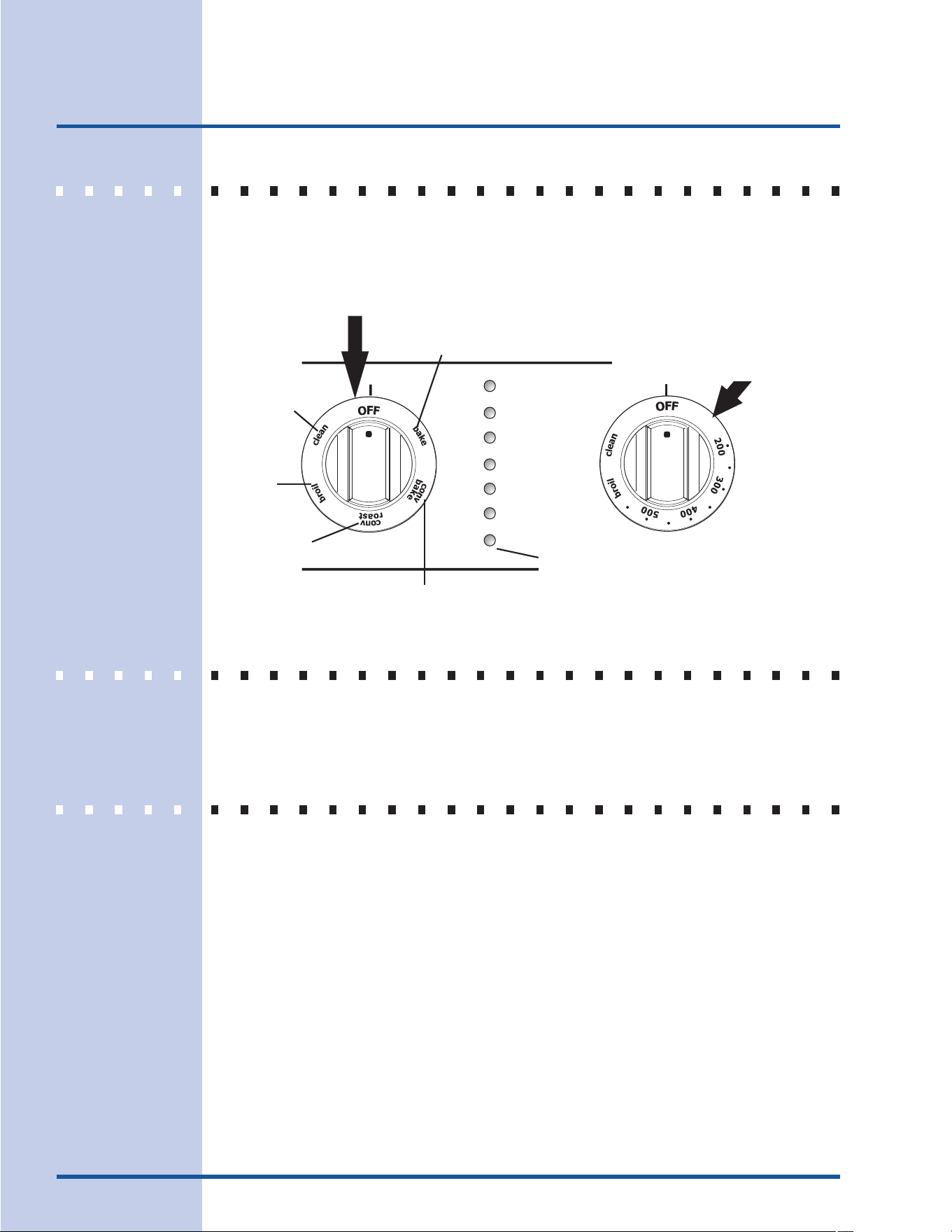

SELECTORCONTROLKNOB-Use to select the Bake,

Convection Bake, Convection Roast, Broil or Clean

Feature.

Bake

Conv Bake

Conv Roast

Broil

Clean

-Lock

-Racks

BROIL—

Used to

select the

broil function.

CONVECTIONBAKE— Used to

select the Convection Bake feature.

CLEAN—

Used to

select the

Self-Cleaning

cycle.

CONVECTION

ROAST—

Used to select

the convection

roasting mode.

BAKE— Used to select

the bake function.

OVENTEMPERATURECONTROL

KNOB— Use to select the required

Bake, Convection Bake, Convection

Roast, Broil or Clean Temperature.

OVENFUNCTIONINDICATORLIGHTS—

Used to indicate which function is used.

GettinG staRted

When the unit is rst plugged in, or when the power supply to the range has been interrupted,

the indicator lights will ash and the control will beep. To stop the lights from ashing, turn the

selector control knob to BAKE and back to OFF.

Settingtheovencontrols

For best cooking results, pre-heat the oven before baking cookies, breads, cakes, pies or

pastries, etc.

The cooking times and temperatures needed to bake a product may vary slightly from your

previously owned appliance.

bakinG PRobleMs

baking

Problems

cookies and biscuits

burn on the bottom.

cakes too dark on top

or bottom.

cakes not done in the

center.

cakes not level.

foods not done when

cooking time is up.

causes

• Cookies and biscuits put into

the oven before the preheating

time is completed.

• Oven rack overcrowded.

• Dark pan absorbs heat too fast.

• Cakes put into the oven before

preheating time is completed.

• Rack position too high or low.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Range not level.

• Pan too close to oven wall or

rack overcrowded.

• Pan warped.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too fre-

quently.

corrections

• Allow oven to preheat to the selected temperature before plac-

ing food in oven.

• Choose pan sizes that will permit 2” to 4” (5.1 cm to 10.2 cm)

of air space on all sides when placed in the oven.

• Use a medium-weight aluminum baking sheet.

• Allow oven to preheat to the selected temperature before plac-

ing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F lower than recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 2” to 4”

(5.1 cm to 10.2 cm) of space on all sides of pan.

• Place a marked glass measuring cup lled with water on the

center of the oven rack. If the water level is uneven, refer to

the installation instructions for leveling the appliance.

• Be sure to allow 2” to 4” (5.1 cm to 10.2 cm) of clearance on

all sides of each pan in the oven.

• Do not use pans that are dented or warped.

• Set oven temperature 25°F higher than suggested and bake

for the recommended time.

• Be sure to remove all pans from the oven except the ones to

be used for baking.

• Open oven door only after shortest recommended baking time.

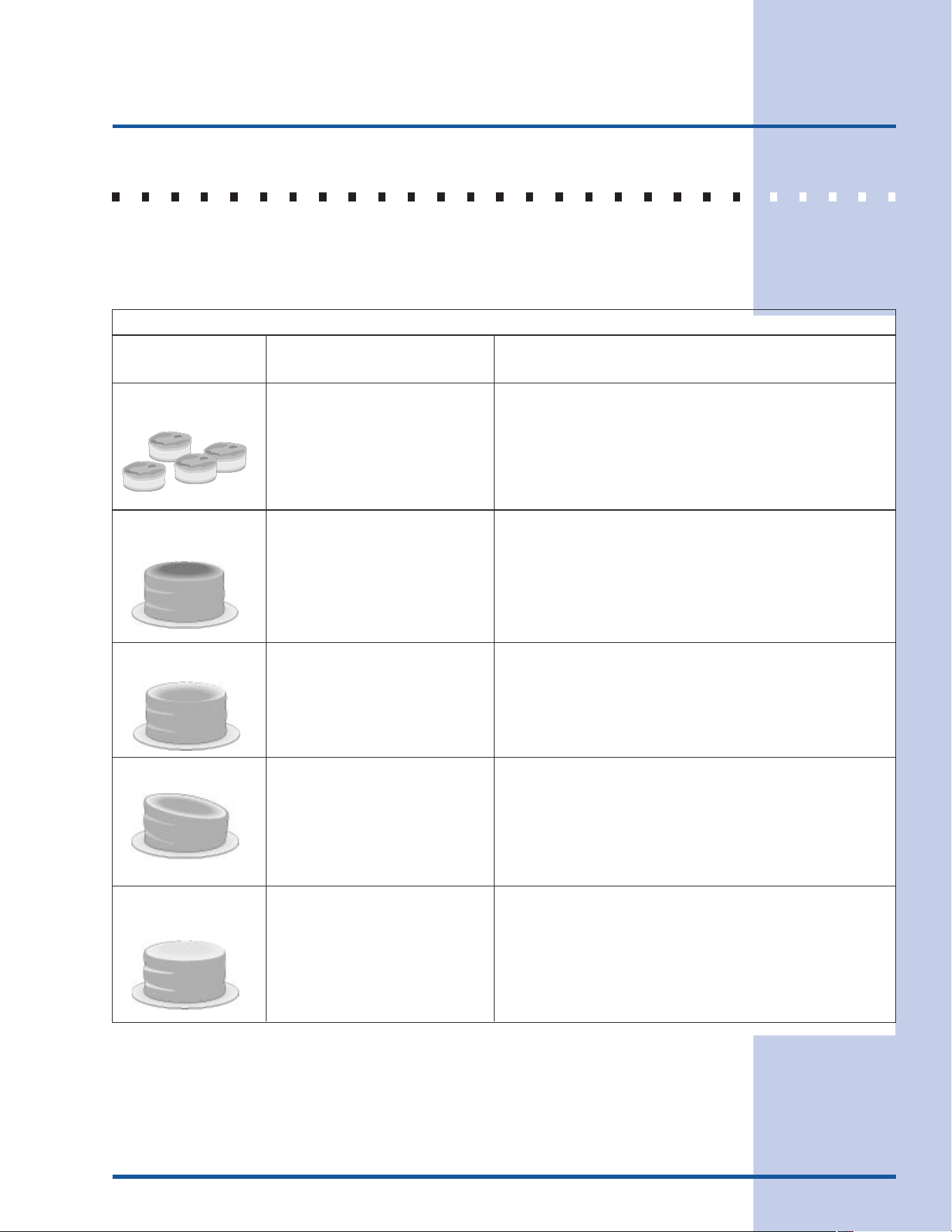

baking Problems and solutions chart

Settingtheovencontrols

convection bakinG

Use the Convection Bake feature when fast cooking is desired. The oven can be

programmed for Convection baking at any temperature between 170°F and 550°F.

Convection baking uses a fan to circulate the oven’s heat evenly and continuously within

the oven (See Figure 1). This improved heat distribution allows for fast, even cooking and

browning results at a lower temperature than conventional bake. It also gives better baking

results when using 2 or 3 racks at the same time. Breads and pastries brown more evenly.

Convection bake cooks most foods faster and more evenly than conventional bake. For

baking efciency, the fan rotates slower in Convection Bake than in Convection Roast.

GeneralConvectionBakeInstructions

1. Adjust the cook time for desired doneness as needed. Time reductions will vary

depending on the amount and type of food to be cooked.

2. Cookies and biscuits should be baked on pans with no sides or very low sides to

allow heated air to circulate around the food. Food baked on pans with a dark nish

will cook faster.

TosettheoventoConvectionBakeat350°F

1. Arrange interior oven racks, place food in oven and close oven door.

2. Turn the selector control knob to ConvBake. The corresponding indicator light will ash.

3. Turn the temperature control knob to 350. The indicator light will stop ashing and

the oven will begin to heat. A beep will sound once the oven reaches 350°F. The

indicator light will remain on until the Selector or Temperature control knob is turned

to the Off position.

4. When baking is completed, turn the temperature and selector control knobs to Off position.

Benetsof

ConvectionBake:

—Some foods cook up

to 30% faster, saving

time and energy.

—Multiple rack baking.

—No special pans or

bakeware needed.

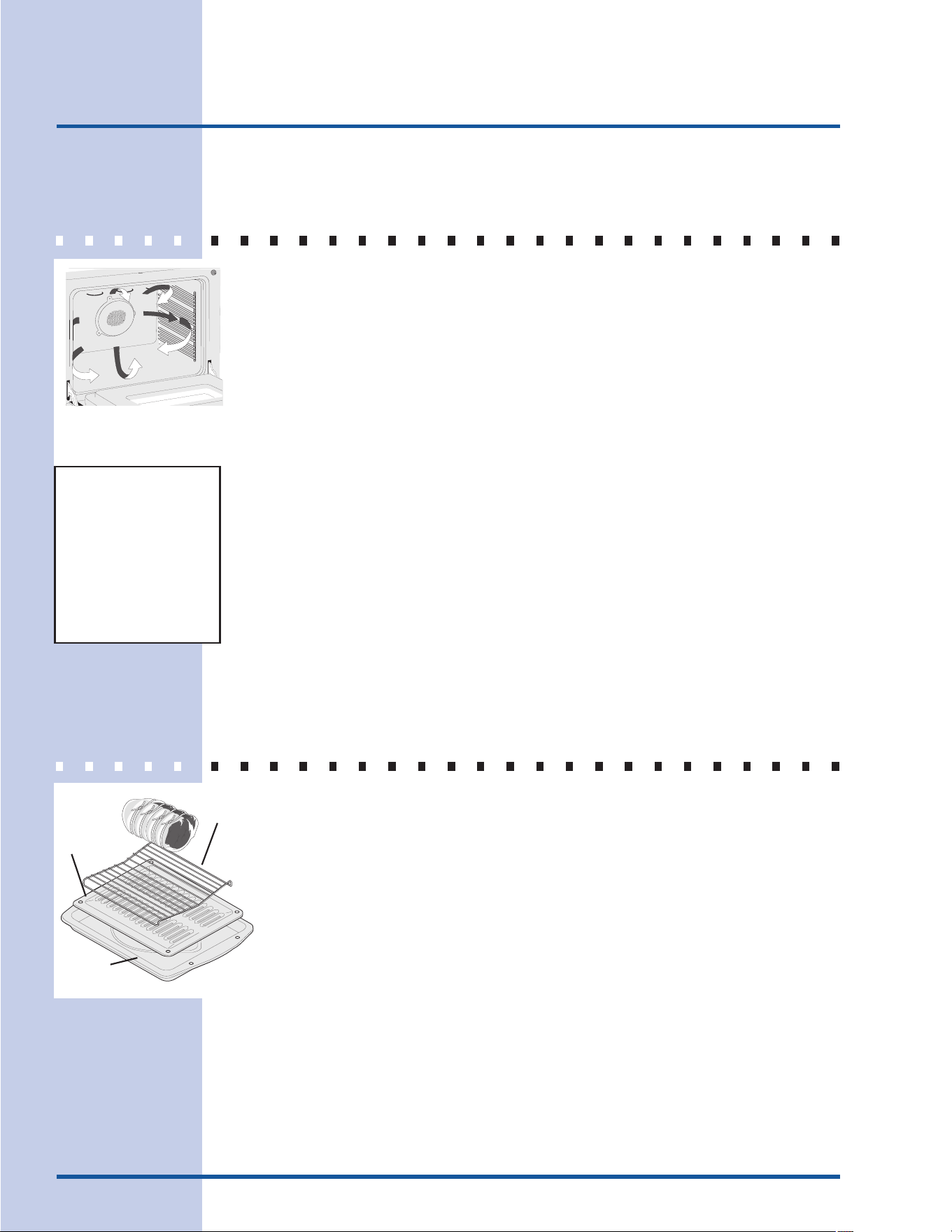

Figure 1

Aircirculationduring

ConvectionBake

convection RoastinG

This method of cooking enables you to obtain the best results when roasting. All baking

modes can be used to successfully roast in your oven. However, the Convection Roast

mode is recommended to produce meats that are deliciously seared on the outside and

succulently juicy on the inside in less time. The oven can be programmed to convection

roast at any temperature from 170°F to 550°F. Remember to use tested recipes with

times adjusted for convection roasting when using the convection mode. Times may be

reduced by as much as 30% when using the convection feature. For roasting efciency,

the fan rotates faster in Convection Roast than in Convection Bake. When preparing

meats for convection roasting, use the broiler pan and insert along with a roasting rack.

The roasting rack will allow to heat to circulate around the meat.

ToSettheoventoConvectionRoastat350°F

1. Arrange interior oven racks, place food in oven and close oven door.

2. Turn the selector control knob to ConvRoast. The corresponding indicator light will

ash.

3. Turn the temperature control knob to 350. The indicator light will stop ashing and

the oven will begin to heat. The indicator light will remain on until the Selector or

Temperature control knob is turned to the Off position.

4. When baking is completed, turn the temperature and the selector control knobs to Off.

Broiler

Pan

Broiler

Pan

Insert

Roasting

Rack

Broiling is a method of cooking tender cuts of meat by direct heat under the broil element

of the oven.

Preheating

For an optimum browning, preheat the broil element for 2 minutes.

to broil

Broil one side until the food is browned; turn and cook on the second side. Season and

serve. Always pull the rack out to the «stop» position before turning or removing food.

broiling tips

The broiler pan and it grid allow dripping grease to drain and be kept away from the high

heat of the broiler.

broiling times

Use the following table for approximate broiling times. Increase or decrease broiling times,

or move the broiling pan to a different rack position to suit for doneness. If the food you

are broiling is not listed in the table, follow the instructions provided in your cookbook and

watch the item closely.

Note

do not use the pan without its grid. do not cover the grid with foil. the exposed grease could

ignite.

bRoilinG

Settingtheovencontrols

cautioN

Should an oven re occur, close the oven door and turn off the oven. If the re continues, throw

baking soda on the re or use re extinguisher. Do noT put water or our on the re. Flour may be

explosive.

ElectricWallOvenBroilingTableRecommendations

food item Rack position knob setting cook time doneness

1st side 2nd side

Steak 1" thick

9 bRoil 6:00 4:00 Rare

9 bRoil 7:00 5:00 Medium

Pork Chops ¾" thick

9 bRoil 8:00 6:00 Well

Chicken - Bone In

7 bRoil 20:00 10:00 Well

Chicken - Boneless

9 bRoil 8:00 6:00 Well

Fish

9 bRoil 13:00 0:00 Well

Shrimp

7 bRoil 5:00 0:00 Well

Hamburger 1" thick

9 bRoil 9:00 7:00 Medium

7 bRoil 10:00 8:00 Well

broiler clean-up tips:

To make cleaning easier, line the bottom of the broiler pan with aluminum foil. DO NOT

cover the broiler grid with foil.

To prevent grease from baking on, remove the broiler pan from the oven as soon as cooking

is completed. Use hot pads because the broiler pan is extremely hot. Pour off grease. Soak

the pan in HOT, soapy water.

Clean the broiler pan as soon as possible after each use. If necessary, use soap-lled steel

wool pads. Heavy scouring may scratch the grid.

Grid

BroilerPan

settinG bRoil

WarNiNg

Should an oven re occur, leave the oven door closed and turn off the oven. If the re

continues, throw baking soda on the re or use a re extinguisher. Do noT put water or our

on the re. Flour may be explosive and water can cause a grease re to spread and cause

personal injury.

Settingtheovencontrols

Tosettheoventobroil

1. Place broiler pan insert on the broiler pan. Then place the food on the broiler pan

insert. DO NOT use the broiler pan without the insert. DO NOT cover the broiler insert

with foil. The exposed grease could ignite.

2. Arrange the interior oven rack and place the broiler pan on the rack. Be sure to center

the broiler pan directly under the broiler element. If preheating the broil element,

position the broiler pan with food after step 5.

3. Turn Selector knob to Broil position.

4. The corresponding indicator light will ash.

5. Turn Temperature knob to Broil. The indicator light will remain on until the Selector or

Temperature knob is turned to the Off position.

When broiling, heat radiates downward from the oven broiler for even coverage.

The broil pan and broil pan insert used together allow dripping grease to drain and

be kept away from the high heat of the oven broiler. DONOT use the broil pan

without the insert.DONOTcoverthebroilpaninsertwithfoil.The exposed

grease could ignite.

Care&Cleaning

adhere to the following cleaning Precau-

tions:

• Allow the oven to cool before cleaning.

• Wear rubber gloves when cleaning any exterior parts of the

oven manually.

During the self-cleaning cycle, the outside of the range can

become very hot to the touch. DO NOT leave a small children

unattended near the range.

Before cleaning any part of the oven, be sure the oven is turned

off. Wait until the oven is cool.

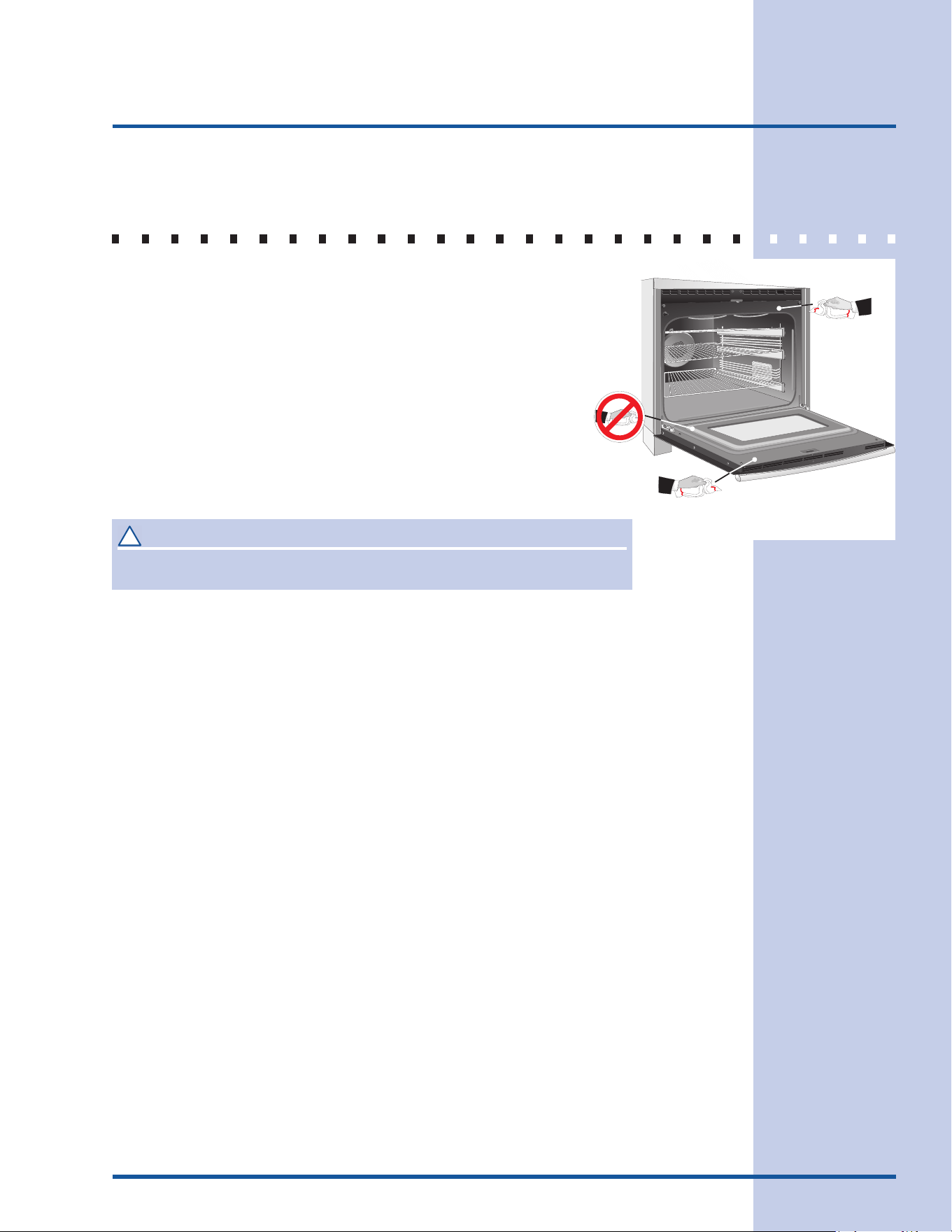

Do Hand Clean Door Area

which out of the Door Gasket

Do Hand

Clean

Frame

Do NOT

Hand

Clean Door

Gasket

cautioN

the health of some birds is extremely sensitive to the fumes given off during the

self-clean cycle of any wall oven. Move birds to another well ventilated room.

DONOT use commercial oven cleaners or oven protective coatings in or around any part

of the self-cleaning oven. DONOTclean the oven door gasket. The gasket on the oven

door is essential for a good seal. Care should be taken not to rub, damage or move the

gasket. DONOT use any cleaning materials on the gasket. Doing so could damage it. DO

NOT use aluminum foil to line the oven bottom. This may affect cooking or foil could melt

and damage the oven surface.

A self-cleaning oven cleans itself with high temperatures (well above cooking tempera-

tures) which eliminate soil completely or reduce it to a ne powdered ash you can whisk

away with damp cloth.

Preparing the oven for self-cleaning

1. Removeanyexcessspillovers in the oven cavity before starting the self-cleaning

cycle. To clean, use hot soapy water and a cloth. Large spillovers can cause smoke or

a re when subjected to high temperatures. DONOTallow food spills with a high sugar

or acid content (such as tomatoes, sauerkraut, fruit juices or pie lling) to remain on the

surface as they may leave a dull spot even after cleaning.

2. Clean any soil from the oven frame and the door liner (see illustration). These areas

heat sufciently during a self-clean to burn soil on. Clean with hot soapy water.

3. Remove all utensils and any foil. These items cannot withstand high cleaning tempera-

tures.

4. Oven racks and oven rack supports must be removed. If they are not removed the self-

cleaning cycle cannot start and the “ Racks” Indicator Light will begin to ash indicating

that you must remove the racks and rack gliders with the supports before starting the

clean cycle. When the cycle has nished and the door can be opened, replace the oven

the oven rack supports and oven racks.

usinG tHe self-clean featuRe

Care&Cleaning

If you are planning to use the oven directly after a self-clean cycle remember to allow time

for the oven to cool down and the oven door to unlock. This normally takes about one hour.

So to self-clean for 3 hours will actually take about 4 hours to complete.

staRtinG tHe oven self-clean cYcle

WarNiNg

during the self-cleaning cycle, the outside of the range can become very hot to the touch. do not

leave small children unattended near the appliance; they may be burned if they touch the hot oven

door surfaces.

cautioN

do not force the oven door open. this can damage the automatic door locking system. use care

when opening the oven door after the self-cleaning cycle. stand to the side of the oven when opening

the door to allow hot air or steam to escape. the oven may still be veRY Hot.

TostartaSelf-Cleaningcycle:

1. Be sure oven is empty and the oven door is closed.

2. Turn the selector knob to Clean position.

3. The corresponding indicator light will ash.

4. Turn the Temperature Control Knob to Clean position.

5. The Lock indicator light will ash while transitioning from unlock to lock. It will stop

ashing when the door is locked.

Note

If the “racks” indicator light is ashing when the clean mode is initiated, the oven racks and rack

glides with supports have not been removed. It will continue ashing, once the selector knob is set

back to the off position and the racks and rack glides with supports are removed from the oven.

6. As soon as the controls are set to clean, the motor driven oven door lock will begin to

close automatically. Once the door has been locked the indicator light will stop ashing

and remain on. Allow about 30 seconds for the oven door lock to close.

Care&Cleaning

cleaning various Parts of Your appliance

Before cleaning any part of the appliance, be sure all controls are turned OFF and the appli-

ance is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE.

REGULAR CLEANINGS WILL REDUCE THE NUMBER OF MAjOR CLEANINGS LATER

surfaces How to clean

aluminum (trim Pieces)

& vinyl

Use hot, soapy water and a cloth. Dry with a clean cloth. Do not scour or use all-purpose

cleaners, ammonia, powdered cleaners or commercial oven cleaner. They can scratch and

discolor aluminum.

Painted and Plastic, control

Panel, body Parts, and

decorative trim

for general cleaning, use hot, soapy water and a cloth. For more difcult soils and built-up

grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes. Rinse

with a damp cloth and dry. DONOTuse abrasive cleaners on any of these materials; they can

scratch.

To remove control knobs, turn to the OFF position; grasp rmly and pull straight off the shaft. To

replace knobs after cleaning, line up the at sides of both the knob and the shaft; then push the

knob into place.

stainless steel, chrome,

control Panel, decorative

trim

Before cleaning the control panel, turn all controls to OFF and remove the control knobs. To

remove, pull each knob straight off the shaft. Clean using hot, soapy water and a dishcloth.

Rinse with clean water using a dishcloth. Be sure to squeeze excess water from the cloth before

wiping the panel; especially when wiping around the controls. Excess water in or around the

controls may cause damage to the appliance. To replace knobs after cleaning, line up the at

sides of both the knob and the shaft; then push the knob into place.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a cloth.

Donotusecleanerswithhighconcentrationsofchloridesorchlorines.Always clean on

the same direction as the stainless steel grain. Do not use harsh scrubbing cleaners. Only use

kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse

the cleaners from the surface as bluish stains may occur during heating that cannot be removed.

Porcelain enamel,

broiler Pan and insert, door

liner, body Parts

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution

of clear water and ammonia. If necessary, cover difcult spots with an ammonia-soaked paper

towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a

soap-lled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the

porcelain may become damaged during future heating. DONOT use spray oven cleaners on the

cooktop.

oven Racks

Removetheladderracksandovenracksduringself-cleaning.These

itemswillbepermanentlydamagedbythehighcleaningtemperatures. If the racks are not

removed, the self-clean cycle won’t start and “Racks” indicator light will lite.

oven door

Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse well. You

may use a glass cleaner on the outside glass of the oven door. DONOT immerse the door in

water. DONOTsprayorallowwaterortheglasscleanertoenterthedoorvents. DO NOT

use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of

the oven door.

DONOT clean the oven door gasket. The oven door gasket is made of a woven material, which

is essential for a good seal. Care should be taken not to rub, damage or remove this gasket.

GeneRal cleaninG

GeneralCare&Cleaning

caRe and cleaninG of stainless steel

Special care and cleaning are required for maintaining the appearance of stainless parts.

Please refer to the table provided at the beginning of the GeneralCare&Cleaning

section in this Use & Care Manual.

cleaninG buRneR GRates, buRneR caPs and

buRneR Heads

cautioN

do not remove any parts from the cooktop until they have completely cooled and are safe to handle.

cautioN

● To avoid possible burns use care when cleaning the cooktop. do not attempt to clean the cooktop

whenever the cooktop or burner heads are still hot.

● To avoid possible burns do not attempt any of the following cleaning instructions provided before turning

OFF all of the surface burners and allow them to cool.

● To avoid possible burns do not attempt to operate the surface burners without the burner caps.

iMPortaNt

do not use spray oven cleaners on the cooktop.

iMPortaNt

● For proper gas ow and ignition of the burners — do not allow spills, food, cleaning agents or any

other material to enter the gas orice opening.

● The cooktop is not removable. Do not attempt to remove or lift the cooktop.

The cooktop is designed to make cleaning easier. Because the gas burner are sealed,

cleanups are easy when spillovers are cleaned up immediately.

Cleaningthegrates

The burner grates are dishwasher safe and may be cleaned in the dishwasher. Remove

any excessive soils before placing in the dishwasher.

Your appliance is shipped with the burner heads and burner caps in the correct locations.

Before using your gas appliance be sure to:

● Follow installation instructions before operating.

● Remove all packing tape from cooktop area.

GeneralCare&Cleaning

cleaninG buRneR GRates, buRneR caPs and

buRneR Heads

BurnerCaps

Should you ever need to remove the burner caps for cleaning lift the burner cap off the

burner head. Clean heavy soils with an absorbent cloth. Rinse with a clean, damp cloth

and immediately thoroughly dry including the bottom and inside of the cap. Do not use

harsh abrasive cleaners. They can scratch the porcelain on the cap. Do not clean burner

caps in dishwasher.

When placing the burner caps, see Important note below.

Doubleringburnercap

The glass in the double ring is designed to t loosely. Clean with normal non abrasive glass

type cleaner and thoroughly dry before replacing.

Burnerheads

Lift the burner cap from the burner head. The surface burner heads are secured to the

cooktop and mustbecleanedinplace.

For proper gas ow it may be necessary to clean the burner heads and slots. To clean, rst

use a clean DAMP cloth to soak up any spills. Remove any food from between the burner

slots using a small nonabrasive brush like a toothbrush and afterwards wipe using a damp

cloth. For stubborn soils located in the slots, use a small-gauge wire or needle to clean.

Should you experience ignition problems it may be that an ignition port hole is partially

blocked with soil (see gs 1 & 2). With the burner head in place, use a small wire gauge

needle or the end of a paper clip to clear the ignition port or ports.

iMPortaNt

When placing the burner caps on the cooktop, be sure the burner caps are seated firmly on top of burner

heads. Improper flame size and uneven heating may result when any surface burners are turned ON and

the burner caps are not seated correctly.

Figure 1 - Cooktop burner head

(All burners except Double ring burner)

Slots

Ignition port

Ignition

port

Orice

port

Orice port

Figure 2 - Double ring burner head

(Models equipped with double ring burner only)

GeneralCare&Cleaning

cooktoP cleaninG and Maintenance

Prior to using your cooktop for the rst time, apply the recommended Cleaning Creme to

the ceramic surface. A sample of that cleaning creme is supplied with your appliance and

you will nd it in store. Clean and buff with a paper towel. This will make cleaning easier

when soiled from cooking. The special cooktop cleaning cream leaves a protective nish

on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop glass can cause metal mark-

ings on the cooktop surface. These marks should be removed immediately after the cook-

top has cooled using the cooktop cleaning cream. Metal marks can become permanent if

not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the

cooktop surface. Donotslideanythingmetalorglass across the cooktop. Donot use

your cooktop as a cutting board or work surface in the kitchen. Donot cook foods directly

on the cooktop surface without a pan. Donot drop heavy or hard objects on the glass

cooktop, they may cause it to crack.

cleaninG RecoMMendations foR tHe ceRaMic

Glass cooktoP

consistent and proper cleaning is essential to maintaining your ceramic glass cooktop

cautioN

before cleaning the cooktop, be sure the controls are turned to off and the cooktop is cool.

WarNiNg

Do noT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and

can chemically damage the ceramic-glass surface.

Forlighttomoderatesoil:

Apply a few drops of Cleaning Creme directly to the cooktop. Use

a paper towel to clean the entire cooktop surface. Make sure the

cooktop is cleaned thoroughly, leaving no residue. Do not use the

towel you use to clean the cooktop for any other purpose.

Forheavy,burnedonsoil:

First, clean the surface as described above. Then, if soils remain,

protect your hand with a potholder and carefully scrape soils with a

metal razor blade scraper, holding scraper at a 30 degree angle to

the surface. Remove loosened soils with cooktop cleaning cream

and buff surface clean.

GeneralCare&Cleaning

cleaninG RecoMMendations foR tHe ceRaMic

Glass cooktoP (continued)

Plasticorfoodswithahighsugarcontent:

These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop

surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed

immediately. After turning the surface elements OFF, use a razor blade scraper or a metal

spatula with a mitt and scrape the soil from the hot surface (as illustrated on previous page).

Allow the cooktop to cool, and use the same method for heavy or burned on soils.

cautioN

damage to the ceramic glass cooktop may occur if you use scrub pad.

Donotusethefollowingontheceramicglasscooktop:

• Donotuseabrasivecleanersandscouringpads,suchasmetal

andsomenylonpads.Theymayscratchthecooktop,makingit

moredifculttoclean.

• Donotuseharshcleaners,suchaschlorinebleach,ammoniaor

ovencleaners,astheymayetchordiscolorthecooktop.

• Donotusedirtysponges,clothsorpapertowels,astheycan

leavesoilorlintonthecooktopwhichcanburnandcause

discoloration.

SpecialCautionforAluminumFoilandAluminumCookingUtensils

•Aluminumfoil-Use of aluminum foil will damage the cooktop. Do not

use thin aluminum cooking utensils or allow foil to touch the ceramic

cooktop under ANY circumstances.

•Aluminumutensils-The melting point of aluminum is much lower than that of other met-

als. Care must be taken when aluminum pots or pans are used on the cooktop. If allowed

to boil dry, not only will the utensil be destroyed, but it may fuse to, break or mark the

ceramic glass surface, permanently damaging the cooktop surface.

sPecial dooR caRe instRuctions

Most oven doors contain glass that can break.

Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing an

increased risk of breakage at a later time.

Care&Cleaning

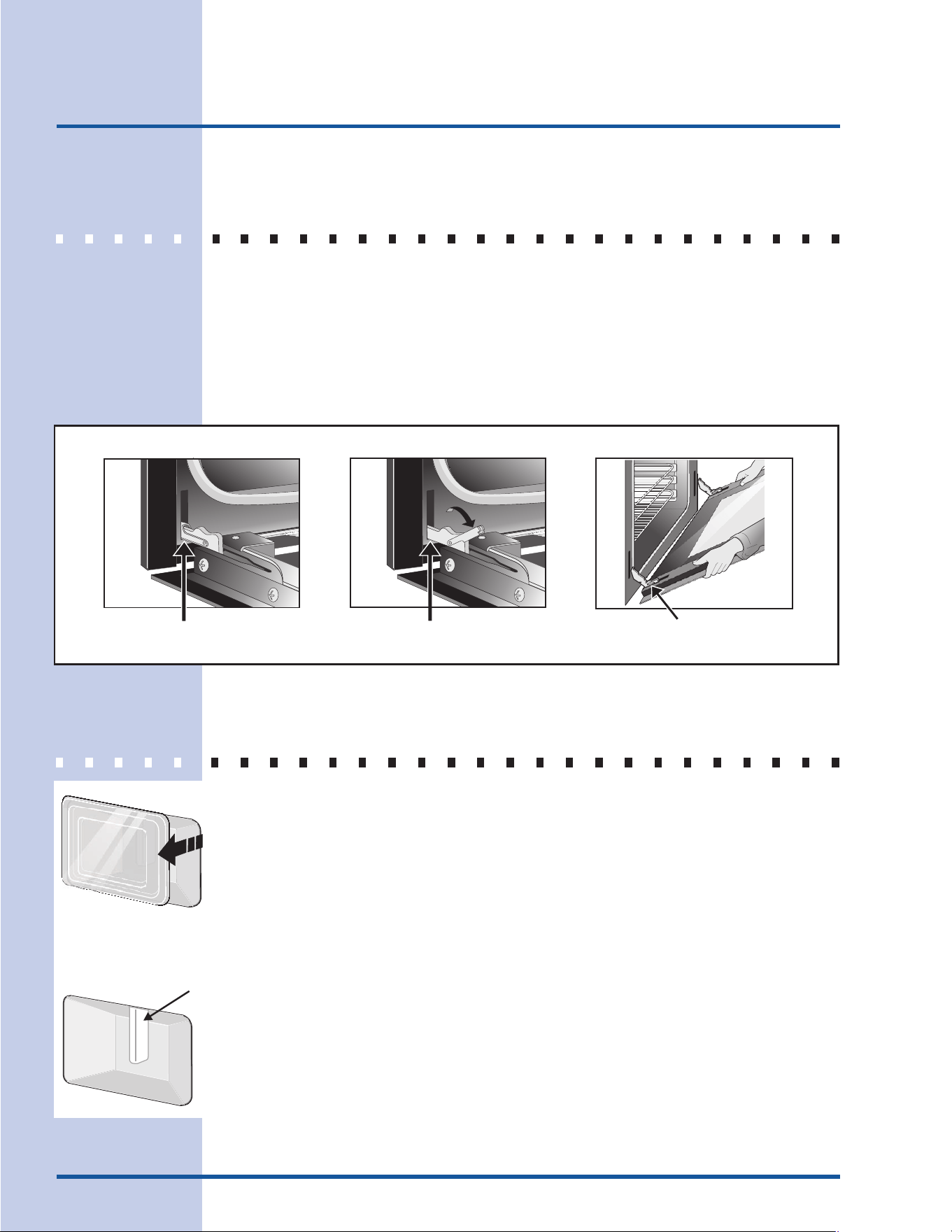

to ReMove and RePlace oven dooR

1. Open the door to the fully opened position.

2. Pull up the lock located on each hinge support toward front of range. You may have to

apply a little upward pressure on the lock to pull it up.

3. Grasp the door by the sides, pull the bottom of the door up and toward you to

disengage the hinge supports.

Keep pulling the bottom of the door toward you while rotating the top of the door

toward the appliance to completely disengage the hinge levers.

4. Proceed in reverse to re-install the door. Make sure the hinge supports are fully

engaged before unlocking the hinge levers.

Lockinnormalposition

Lockengaged

fordoorremoval

Removal of the oven door

HINGESLOT-Doorre-

movedfromtheappliance

lift backside of glass

shield and remove it.

Halogen

light bulb

oven liGHt

An interior oven light will turn automatically when the oven door is opened. The oven light

may be turned on when the door is closed by using the oven light switch located on the

control panel.

The lamp is covered with a glass shield. The glass shield can be remove to be cleaned

manually or to change oven light.

THIS GLASS SHIELD MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.

to replace the light bulb:

CAUTION:BESURETHEOVENISCOOL.

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. To remove the glass shield, pull the back side of the shield toward the inside of the

oven in a manner to lift it up from the oven side.

4. The glass shield should come out easily by pushing a little toward front of the wall

oven.

5. Replace halogen light appliance bulb taking care to not touch the bulb. If you touch

the halogen bulb with nger that can damage it and also burn it.

6. To replace glass shield, proceed in reverse.

SolutionstoCommonProblems

iMPortaNt

before calling for service, review this list. it may save you both time and expense. this list includes common

experiences that are not the result of defective workmanship or material in your cooktop.

suRface buRneRs do not liGHt

• Surface Control knob has not been completely turned to LITE. Push in and turn the Surface

Control knob to LITE until burner ignites and then turn control knob to desired ame size.

• Be sure gas supply valve is open.

• Burner ports are clogged. Clean burners. See CleaningtheBurnerGrates,Burner

Caps,BurnerHeads in General Care & Cleaning section. With the burner off, clean

ports with a small-gauge wire or needle.

• Power cord is disconnected from outlet (Electric Ignition Models only). Be sure cord is

securely plugged into the outlet.

• Electrical power outage (electric ignition models only). Burners can be lit manually. See

Setting Surface Controls in this Use and Care Guide.

buRneR flaMe onlY liGHts Half WaY aRound buRneR

• Burner ports are clogged. With the burner off, clean ports by using a small-gauge wire or

needle.

• Moisture is present after cleaning. Lightly fan the ame and allow burner to operate until

ame is full. Dry the burners thoroughly following instructions in the General Cleaning

section.

buRneR flaMe is oRanGe

• Dust particles in main line. Allow the burner to operate a few minutes until ame turns

blue.

• In coastal areas, a slightly orange ame is unavoidable due to salt air.

scRatcHes oR abRasions on ceRaMic Glass cooktoP

suRface

• Coarse particles (such as salt or sand) are between cooktop and utensil. Be sure cooktop

surface and bottom of utensils are clean before use. Small scratches do not affect

cooking and will become less visible with use.

• Cleaning materials not recommended for glass ceramic cooktop have been used. See

Ceramic-GlassCooktop section in this Owner’s Guide.

Metal MaRks on ceRaMic Glass cooktoP suRface

• Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on

cooktop surface. Use a mildly abrasive cleanser to remove marks.

bRoWn stReaks and sPecks on ceRaMic Glass cooktoP

suRface

• Boilovers have cooked onto surface. Use razor blade scraper to remove soil. See

instructions underGeneralCare&Cleaning.

• Cleaning materials not recommended for ceramic-glass cooktop have been used. Use

recommended cleaners and cleaning method. See Ceramic-GlassCooktop section in

this Owner’s Guide.

aReas of discoloRation on ceRaMic Glass cooktoP

suRface

• Mineral deposits from water and food. Wet surface with water and sprinkle on a cooktop

cleaning creme. Scrub with a clean damp paper towel until the stain disappears. Wipe

remaining paste away, then apply a small amount of cooktop cleaning creme and polish

with a clean paper towel. Use cookware with clean, dry bottoms. See Ceramic-Glass

Cooktopsection in this Owner’s Guide.

aPPliance not level

• Place oven rack in center of oven. Place a level on the oven rack. Contact installing agent

if rack and cabinet cutout ooring are not level.

• Kitchen cabinet misalignment may make oven appear to be not level. Be sure cabinets

are square and level. Contact cabinet maker to correct problem.

PooR bakinG Results

• Many factors affect baking results. See Baking for hints, causes and corrections.

entiRe oven does not oPeRate

• When the unit is rst plugged in, or when the power supply to the range has been interrupted,

the indicator lights will ash and the control will beep. To stop the lights from ashing, turn

the selector control knob to BAKE and back to OFF. The oven cannot be used until this step

is followed.

• Be sure electrical cord is securely connected into the electrical junction box.

• Cord/plug is not installed and/or connected. Cord is not supplied with oven. Contact a

qualied servicer.

• Service wiring not complete. Contact a qualied servicer.

• Power outage. Check house lights to be sure. Call your local electric company.

• Short in cord/plug. Replace cord/plug.

• Controls are not set properly. See instructions under SettingOven Controlsto set the

controls.

• House fuse has blown or circuit breaker has tripped immediately following installation. House

fuse may not be fully engaged. Check fuse and screw or engage circuit breaker securely.

• House fuse has blown or circuit breaker has tripped after the oven has been installed and

previously operating. Contact a qualied servicer.

SolutionstoCommonProblems

oven liGHt does not WoRk

• Burned-out or loose bulb. Follow the instructions under ChangingOvenLightto replace

or tighten the bulb.

fan noise duRinG cookinG oPeRation

• A cooling fan may automatically turn on and off to cool internal parts. This is normal, and

the fan may continue to run even after oven is turned off.

oven sMokes excessivelY duRinG bRoilinG

• Oven door is closed. Door should be open during broiling.

• Meat too close to the broiler unit. Reposition the rack to provide more clearance between

the meat and the broiler. Preheat broil element for quick searing operation.

• Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty edges

to prevent curling, but do not cut into the lean.

• Grid on broiler pan wrong-side up. Grease does not drain into broiler pan. Always place

the grid on the broiler pan with the ribs up and the slots down to allow grease to drip into

the pan.

• Broiler pan used without grid or grid cover with foil.DONOT use the broiler pan without

the grid or cover the grid with foil.

• Oven needs to be cleaned. Grease has built up on oven surfaces. Regular cleaning

is necessary when broiling frequently. Old grease or food spatters cause excessive

smoking.

self-cleaninG cYcle does not WoRk

• Make sure the oven door is closed.

• Make sure the two oven rack ladders are removed from the oven.

• Controls not set properly. Follow instructions.

• Self-cleaning cycle was interrupted. Start a clean again, wait 20 seconds for the Lock light

to stop ashing, turn off the clean and wait again 20 seconds for the light to turn off.

soil not coMPletelY ReMoved afteR self-cleaninG

cYcle is coMPleted

• Failure to hand clean oven frame and door liner outside the oven door gasket before

starting the self-clean cycle. Hand clean burned on residue with a stiff nylon brush and

water or a nylon scrubber. Do not clean the oven door gasket or it will be damaged.

flaMes inside oven oR sMoke fRoM vent

• Excessive spillovers in oven. This is normal, especially for high oven temperatures,

pie spillovers or for large amounts of grease on bottom of oven. Wipe up excessive

spillovers.

appliance WaRRanTY

Your range is protected by this warranty

In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White

Consolidated Industries, Inc. We authorize no person to change or add to any of our obligations under this warranty.

Our obligations for service and parts under this warranty must be performed by us or an authorized Electrolux Home

Products North America servicer. In Canada, your appliance is warranted by Electrolux Canada Corp.

Thiswarrantyappliesonlytoproductsinordinaryhouseholduse,andtheconsumer

isresponsiblefortheitemslistedbelow:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with

the appliance and in accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufcient voltage, replacement of blown

fuses, repair of loose connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim,

cupboards, shelves, etc., which are not a part of the appliance when it was shipped from

the factory.

5. Damages to nish after installation.

6. Replacement of light bulbs and/or uorescent tubes (on models with these features).

Thiswarrantydoesnotcoverthefollowing:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND

INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR

ANY IMPLIED WARRANTY.

NOTE:Some states do not allow the exclusion or limitation of incidental or consequential

damages, so this limitation or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or

for appliances not in ordinary household use. The consumer shall pay for such service

calls.

3. Damages caused by services performed by servicers other than Electrolux Home Products

North America or its authorized servicers; use of parts other than genuine Electrolux Home

Products parts; obtained from persons other than such servicers; or external causes such

as abuse, misuse, inadequate power supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be

readily determined.

Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on

the bill establishes the warranty period should service be required. If service is performed, it

is in your best interest to obtain and keep all receipts. This written warranty gives you specic

legal rights. You may also have other rights that vary from state to state. Service under this

warranty must be obtained by contacting Electrolux Home Products:

*NORMAL

RESPONSIBILITIES

OFTHE

CONSUMER

EXCLUSIONS

IFYOUNEED

SERVICE

USA

1•800•944•9044

Electrolux Home Products

North America

P.O. Box 212378

Augusta, GA 30917

Canada

1•866•294•9911

Electrolux Home Products

North America

802, boul. L’Ange-Gardien

L’Assomption, Québec

j5W 1T6

This warranty only applies in the 50 states of the

U.S.A., Puerto Rico, and Canada. Product features or

specications as described or illustrated are subject

to change without notice. All warranties are made by

Electrolux Home Products North America, a division of

White Consolidated Industries, Inc. In Canada, your

appliance is warranted by Electrolux Canada Corp.

WarrantyInformation

WARRANTY

PERIOD

THROUGH OURAUTHORIZEDSERVICERS,

WE WILL:

THECONSUMERWILLBERESPONSIBLE FOR:

FULL ONE-YEAR

WARRANTY

Oneyearfromoriginal

purchasedate

Pay allcosts forrepairing or replacingany partsofth

appliancewhich provetobedefective in materialso

workmanship.

Costsofservice callsthatare listed under

NORMAL

RESPONSIBILITIESOFTHE CONSUMER.*

LIMITED

WARRANTY

(Applicable to the

StateofAlaska)

Time periods listed

above.

Allofthe provisions of thefullwarrantiesabove andth

exclusions listedbelow apply.

Costsofthe technician's travel to thehomeand anycosts forpick

up anddeliveryofthe appliancerequiredbecause of service.
