USER GUIDE
NZ AU
OVEN
DOUBLE OVEN
CONTEMPORARY
OB76SDPTDX2, OB76DDPTDX2
3
CONTENTS
Safety and warnings 4
Before you begin 9
First use 10
Using the oven light 18
Using the kitchen timer 19
Changing the time 21
Locking the control panel 22
Unlocking the control panel 23
Cooking options 24
Delayed Cook 25
Auto Off 26
Temperature sensor 27
Guided cooking 30
Cooking guide 32
User preference settings 38
Wi-Fi connection and remote mode 40
Sabbath Mode 42
Care and cleaning 44
Using Self Clean 51
Troubleshooting 54
Alert codes 57
Manufacturer’s Warranty and Service guide 58
4
SAFETY AND WARNINGS
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Turn the oven off at the wall before replacing
the oven lamp.
• Before carrying out any work on the
electrical section of the appliance, it must be
disconnected from the mains electricity supply.
• Connection to a good earth wiring system is
absolutely essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician.
WARNING!
Fire Hazard
Failure to follow this advice may result in
overheating, burning, and injury.
• Carefully follow the instructions for starting a
self-clean cycle.
• Do not place aluminium foil, dishes, trays, water
or ice on the oven floor during cooking, this will
irreversibly damage the enamel. Lining the oven
with aluminium foil may cause fire.
• Never use your appliance for warming or
heating the room. Persons could be burned or
injured or a fire could start.
• Flammable materials should not be stored in an
oven or near its surface.
• Do not use adapters, reducers, or branching
devices to connect this appliance to the mains
power supply.
5
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges are sharp.
WARNING!
Hot Surface Hazard
Failure to follow this advice could result in
burns and scalds.
• To avoid burns and scalds, keep children away
from this appliance.
• Surfaces of the appliance may become hot
enough to cause burns. Examples include the
oven vent, the surface near the oven vent, and
the oven door.
• Do not touch heating elements or interior
surfaces of the oven. Heating elements may be
hot, even when they are dark in colour.
• Use protection when handling hot surfaces, such
as oven shelves or dishes.
• Be careful when opening the oven door. Let
hot air or steam escape before removing or
replacing food.
• During and after use, do not touch or let
clothing or other flammable materials contact
heating elements or interior surfaces of the oven
until they have had sufficient time to cool.
SAFETY AND WARNINGS
6
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, electrical shock, injury to persons or damage when using the
oven, follow the important safety instructions listed below. Read all the instructions
before installing or using the oven. Use the oven only for its intended purpose as
described in these instructions.
Installation
z
Ensure your appliance is properly installed and earthed by a qualified technician.
z
Ensure this oven is connected to a circuit which incorporates an isolating switch
providing full disconnection from the power supply.
z
Do not install or operate the appliance if it is damaged or not working properly. If you
receive a damaged product, contact your dealer or installer immediately.
z
Please make this information available to the person installing the appliance—doing so
could reduce your installation costs.
z
This appliance must be installed and connected to the mains power supply only by a
suitably qualified person according to these installation instructions and in compliance
with any applicable local building and electricity regulations. Failure to install the
appliance correctly could invalidate any warranty or liability claims.
z
If the power supply cable is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified person in order to avoid a hazard.
z
Isolating switch: make sure this oven is connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply in accordance with
the wiring rules.
z
The oven must be earthed.
z
Do not use adaptors, reducers or branching devices to connect the oven to the mains
electricity supply, as they can cause overheating and burning.
z
The appliance must not be installed behind a decorative door in order to
avoid overheating.
z
Please take extra care not to damage the lower trim of the oven during installation.
The trim is important for correct air circulation and allows the door to open and close
without obstruction. The manufacturer does not accept any responsibility for damage
resulting from incorrect installation.
Servicing
z
Do not repair or replace any part of the appliance unless specifically recommended in
the user guide. All other servicing should be undertaken be a Fisher & Paykel trained
and supported service technician or qualified person.
Fire hazard
z
Do not use water on grease fires. Smother the fire or flame or use a dry chemical or
foam type extinguisher.
z
Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces could
result in burns from steam. Do not let potholders touch hot areas or heating elements.
Do not use a towel or a bulky cloth for a potholder. It could catch fire.
z
Do not heat unopened food containers. They can build up pressure that may cause the
container to burst and result in injury.
7
SAFETY AND WARNINGS
Food safety
z
Leave food in the oven for as short a time as possible before and after cooking to avoid
contamination by organisms that may cause food poisoning. Take particular care during
warm weather.
General use
z
This product has been designed for use in a domestic (residential) environment. This
product is not designed for any commercial use. Any commercial use by the customer
will affect this product’s manufacturer’s warranty.
z
Household appliances are not intended to be played with by children.
z
Children should not be left alone or unattended in the area where the appliance is in
use. They should never be allowed to sit or stand on any part of the appliance.
z
Children of less than 8 years old must be kept away from the appliance unless
continuously supervised.
z
This appliance can be used by children aged 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
z
Cleaning and user maintenance shall not be carried out by children without supervision.
z
Do not store things children might want above the oven. Children could be burned or
injured while climbing on the oven to retrieve items.
z
Do not place heavy objects on the oven door.
z
Always keep oven vents unobstructed. Do not wear loose fitting or hanging garments
when using the appliance. They could ignite or melt if they touch an element or hot
surface and you could be burned.
z
Caution: Hot air can blow from the vent at the top of the oven as part of the oven’s
cooling system.
z
Always position shelves in the desired location while the oven is cool (before
preheating). If a shelf must be removed while the oven is hot, do not let the oven mitts
or potholder contact hot heating elements in the oven or the base of the oven.
z
Use only bakeware approved for ovens. Follow the bakeware manufacturer’s guidance.
z
Always place oven racks in desired location while oven is cool. If rack must be moved
while oven is hot, do not let potholder contact hot heating element.
z
Do not touch heating elements or interior surfaces of your oven. Heating elements and
interior surfaces may be hot even though they are dark in color and could cause burns.
The oven door, vent openings and surfaces near these openings may also become hot.
z
This appliance is configurable to allow remote operation at any time. Do not store
flammable materials or temperature sensitive items inside, on top or near the appliance.
z
Neither the food probe or aluminium foil must come in contact with the oven elements.
z
Only use the temperature probe recommended for this oven.
z
The appliance must not be installed behind a decorative door in order to
avoid overheating.
z
WARNING: Accessible parts may become hot during use. Young children should be
kept away.
z
Do not change or modify the wireless communication device in any way. Changes or
modifications not expressly approved by Fisher & Paykel could void the user’s authority
to operate the equipment.
8
SAFETY AND WARNINGS
Cleaning
z
Do not clean the oven seal or use any oven-cleaning products on it. It is essential for a
good seal, which ensures that the oven operates efficiently. Care should be taken not to
rub, damage, move or remove the oven seal.
z
Do not use oven cleaners, harsh/abrasive cleaning agents, waxes, or polishes. No
commercial oven cleaner, oven liner, or protective coating of any kind should be used in
or around any part of the oven.
z
Do not use harsh/abrasive cleaners, scourers or sharp metal scrapers to clean the oven
door glass since they scratch the surface, which may result in the glass shattering.
z
Clean only the parts listed in this manual.
z
Do not use a steam cleaner to clean any part of the oven.
z
The door gasket is essential for a good seal. Care should be taken not to rub, damage
or move the gasket.
Self cleaning
z
Spillages must be removed before starting a self-clean cycle.
z
Before starting a self-clean cycle, remove oven shelves and all other cookware and/or
utensils, and wipe up large food spills or grease deposits.
z
Before starting a self-clean cycle, ensure you move any pet birds to another, closed and
well-ventilated room. Some pet birds are extremely sensitive to the fumes given off
during a self-clean cycle and may die if left in the same room as the oven during such
a cycle.
z
During a self-clean cycle, the oven reaches higher temperatures than it does for
cooking. Under such conditions, the surfaces may get hotter than usual and children
should be kept away.
9
BEFORE YOU BEGIN
z
Make sure the installer has completed the Final checklist in the Installation instructions.
z
Read this guide, taking special note of the ‘Safety and warnings’ section.
z
Remove all internal and external packaging and dispose of it responsibly. Recycle items
that you can.
z
Refit the shelves to your desired position in the oven.
z
Condition the oven, using the instructions under ‘First use’
Not all accessories are provided with all models. To purchase additional accessories, go to
www.fisherpaykel.com
8
1
6
7
2
3
4
5
9
!0
!1
!2

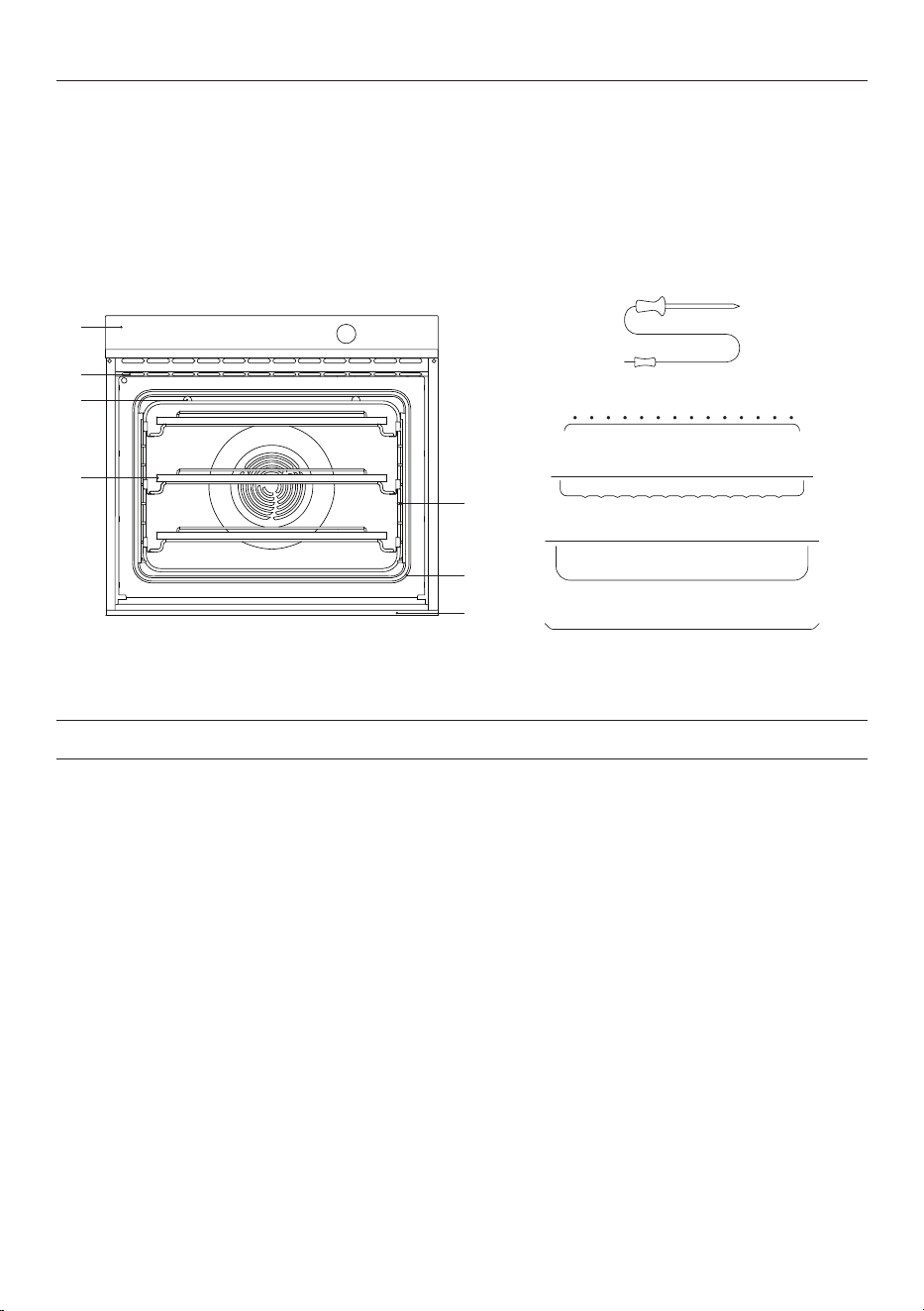

Oven features and accessories
1 Oven controls
2 Oven vents
3 Oven light
4 Shelves
5 Side racks
6 Oven seal
7 Drip channel
8 Temperature sensor
9 Grill rack
!0 Grid
!1 Roast dish
!2 Baking tray
Features and styling may vary.
10
FIRST USE
Oven racks
Your oven comes with the shelves positioned and secured inside. The following shows you
how to remove and reposition them to your preferred position.
Remove shelves from the oven
1 Remove all cable ties and packaging
holding the shelves in place.
2 Remove all the shelves and accessories,
taking special care with the sliding shelves.
3 To remove a sliding shelf, grip it at the front
(making sure you are gripping the wire
shelf and the sliding frame together), lift
upwards and pull it out of the oven.
For your safety, the sliding frames are built
together as one unit and are not separable.
When placed properly on the side racks, the
slides will prevent the wire shelves from tilting
when pulled towards you.
11
To replace shelves
1 Grip the shelf at the front (making sure
you are holding the wire shelf and the
sliding frame together).
2 Ensure the shelf is level and facing
the right way with the guard rail at
the back.
3 Place the shelf on top of the side racks
at the desired height, hooking the rear
tags over the side racks on both side.
4 Push the shelf all the way into the
oven, making sure the front tags
are also securely hooked over the
side racks.
Ensure shelves are positioned on
top of the side rack wires instead of
between them.
When there is food in the oven, take care
to slide the shelves horizontally when
extending them. This will prevent the tags
lifting off the side racks and the shelf
tipping over.
Shelf positions
We recommend placing the sliding shelves
on position 3 and 6 for everyday cooking.
FIRST USE
Replace shelving in your preferred positions
Guard rail
Front bar
12
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
*some models only

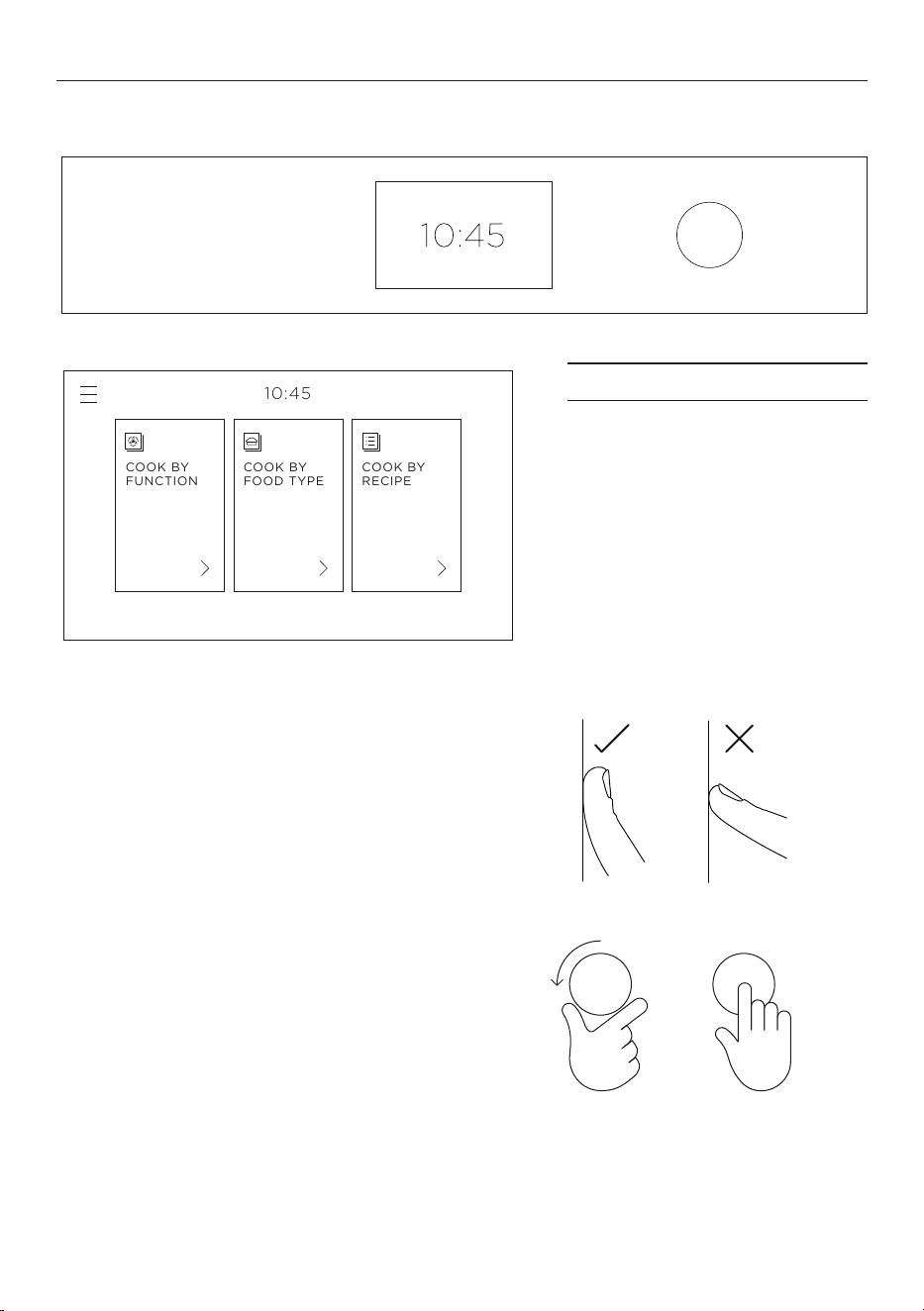

Touch screen display
Your oven is operated using an intuitive touch
screen display. Use the screen to navigate cooking
functions, guided cooking features and settings.
Using the touch controls
Use the ball of your finger, not its tip. The controls
respond to touch, so pressure is not needed.
Control dial*
z
Turn the control dial to scroll through menu
items and set timers.
z
Press in to select or press and hold to go back.
Control panel
FIRST USE
1
3
5 66
4
2
Control panel features
1 Touch screen display
2 Control dial*
3 Menu
4 Clock
5 Oven functions
6 Guided cooking features
13
Set the clock format. Choose between
24 HOURS, 12 HOURS or OFF then
select CONFIRM.
Scroll to set the correct time then
select
CONFIRM.
The time is now set and will show on
the screen.
FIRST USE

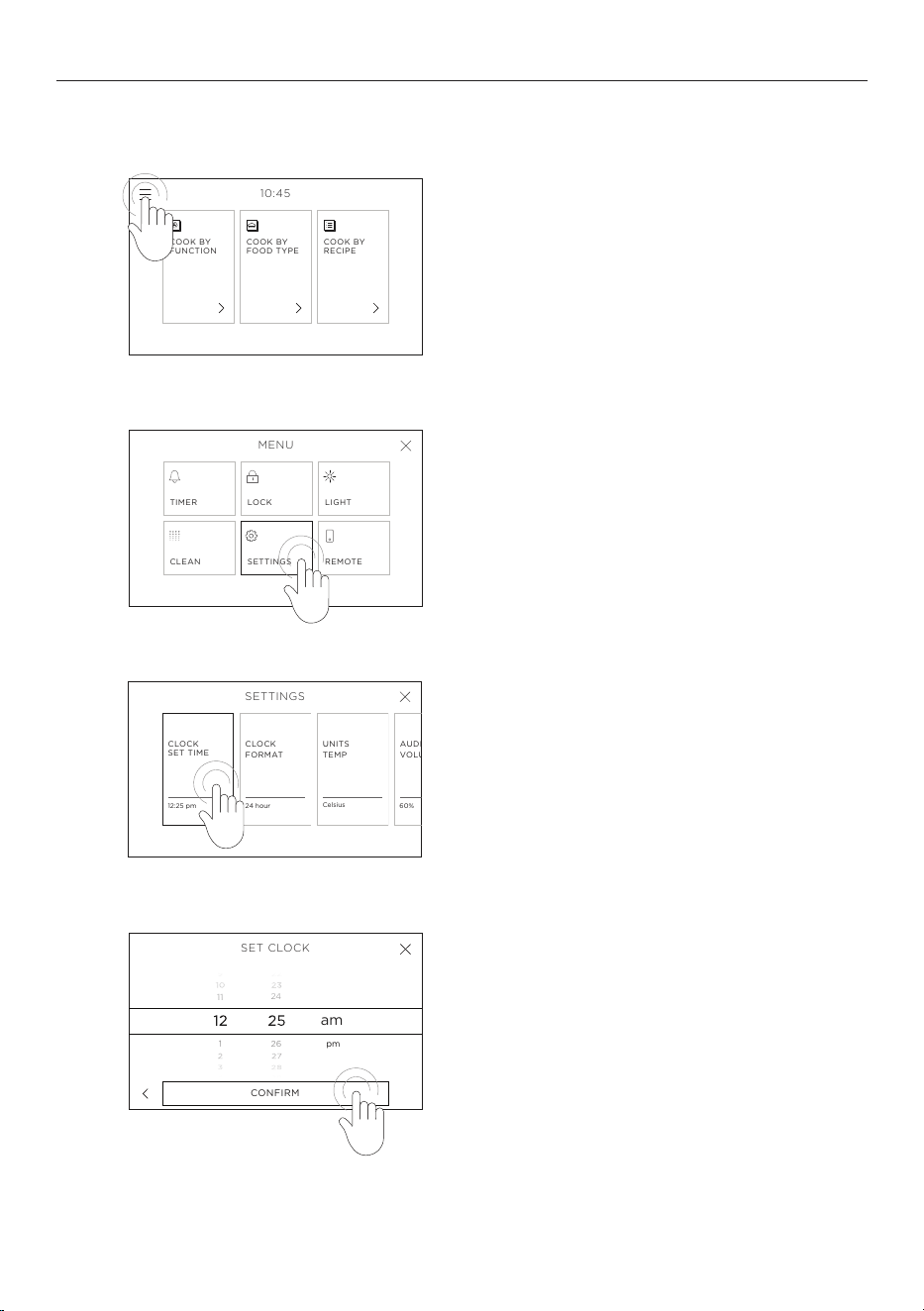

Setting the clock
You’ll need to set the time on your oven when it is first turned on, or after a power cut.
1
2
3
CLOCK FORMAT
24 HOUR
12 HOUR
OFF
CONFIRM
1
11
26
24
:
pm
am
SET CLOCK
CONFIRM
CLOCK FORMAT
24 HOUR
12 HOUR
OFF
CONFIRM
1
11
26
24
:
pm
am
SET CLOCK
CONFIRM
CLOCK FORMAT
24 HOUR
12 HOUR
OFF
CONFIRM
1
11
26
24
:
pm
am
SET CLOCK
CONFIRM
14
Heat radiates from the top and bottom of
the oven while natural convection currents
evenly distribute heat. Moisture is retained
to provide light, succulent dishes
For best results bake on only one shelf at a
time
BAKE
For everyday
cooking…
FUNCTIONS
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
OPTIONS
START
10:45
BAKE
o
C
180
Heat radiates from the top and bottom of
the oven while natural convection currents
evenly distribute heat. Moisture is retained
to provide light, succulent dishes
For best results bake on only one shelf at a
time
BAKE
For everyday
cooking…
FUNCTIONS
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
OPTIONS
START
10:45
BAKE
o
C
180
FIRST USE
Function menu layout
For more information on each function, touch the description underneath each
function name. To select and use a function, touch the function name or icon.
Select function
Expand description
Double models
Before selecting a function, choose which oven you want to cook in.
10:45
BEGIN
BEGIN
UPPER OVEN
OFF
LOWER OVEN
OFF
15
Touch the screen or turn the dial* to enter
the menu. Select COOK BY FUNCTION.
*some models only
To adjust the preset temperature, swipe left
or right or use the dial. Touch START to heat
the oven and begin cooking.
A red bar will show on the screen while the
oven is heating, as well as a white halo on
the dial*.
When the oven has reached the set
temperature, a tone will sound, the bar will
disappear and the dial* will turn red.
Some functions do not need to preheat. For
those functions the bar won’t show and the
dial halo* will remain red throughout cooking.
FIRST USE

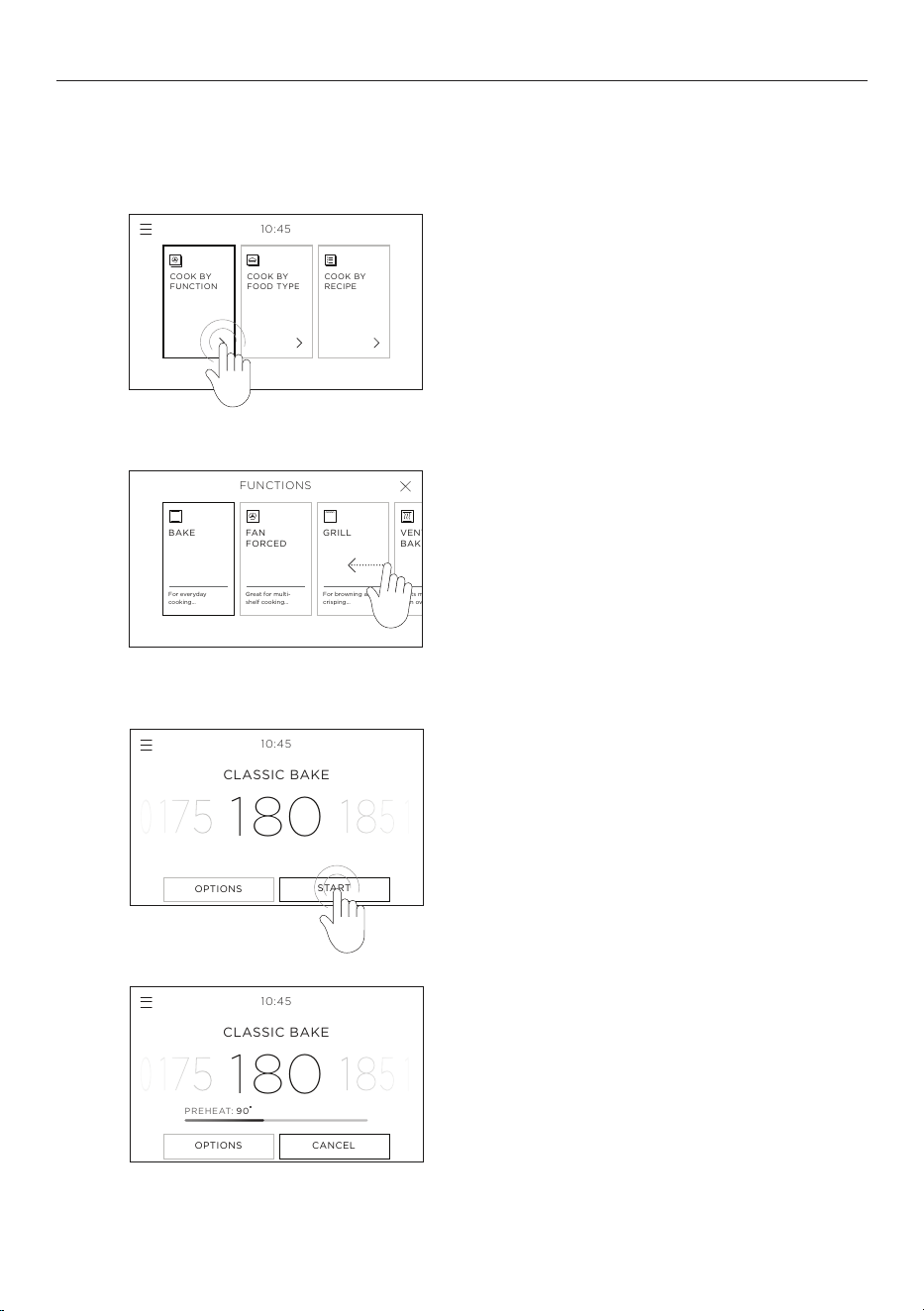

Setting a function and temperature
For more information on the functions, touch the description underneath each
function name or see the ‘Cooking guide’ section of this book.
3
4
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
o
C
180
o
C
180
OPTIONS
STAR T
10:45
OPTIONS
CANCEL
CLASSIC BAKE
10:45
CLASSIC BAKE
o
PREHEAT:
90
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
o
C
180
o
C
180
OPTIONS
STAR T
10:45
OPTIONS
CANCEL
CLASSIC BAKE
10:45
CLASSIC BAKE
o
PREHEAT:
90
Double models: First select which oven you
want to cook in.
Scroll through the functions and select the
one you want to cook with.
1
2
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
o
C
180
o
C
180
OPTIONS
STAR T
10:45
OPTIONS
CANCEL
CLASSIC BAKE
10:45
CLASSIC BAKE
o
PREHEAT:
90
o
C
180
o
C
180
o
C
180
o
C
180
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
OPTIONS
CANCEL
10:45
CLASSIC BAKE
OPTIONS
CANCEL
10:45
CLASSIC BAKE
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
16
FIRST USE
o
C
180
o
C
180
o
C
180
o
C
180
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
OPTIONS
CANCEL
10:45
CLASSIC BAKE
OPTIONS
CANCEL
10:45
CLASSIC BAKE
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
o
C
180
o
C
180
o
C
180
o
C
180
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
OPTIONS
CANCEL
10:45
CLASSIC BAKE
OPTIONS
CANCEL
10:45
CLASSIC BAKE
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
o
C
180
o
C
180
o
C
180
o
C
180
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
OPTIONS
CANCEL
10:45
CLASSIC BAKE
OPTIONS
CANCEL
10:45
CLASSIC BAKE
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
o
C
180
o
C
180
o
C
180
o
C
180
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
OPTIONS
CANCEL
10:45
CLASSIC BAKE
OPTIONS
CANCEL
10:45
CLASSIC BAKE
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
o
C
180
o
C
180
o
C
180
o
C
180
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90
OPTIONS
CANCEL
10:45
CLASSIC BAKE
OPTIONS
CANCEL
10:45
CLASSIC BAKE
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
OPTIONS
CANCEL
CLASSIC BAKE
10:45
o
HEATING:
90

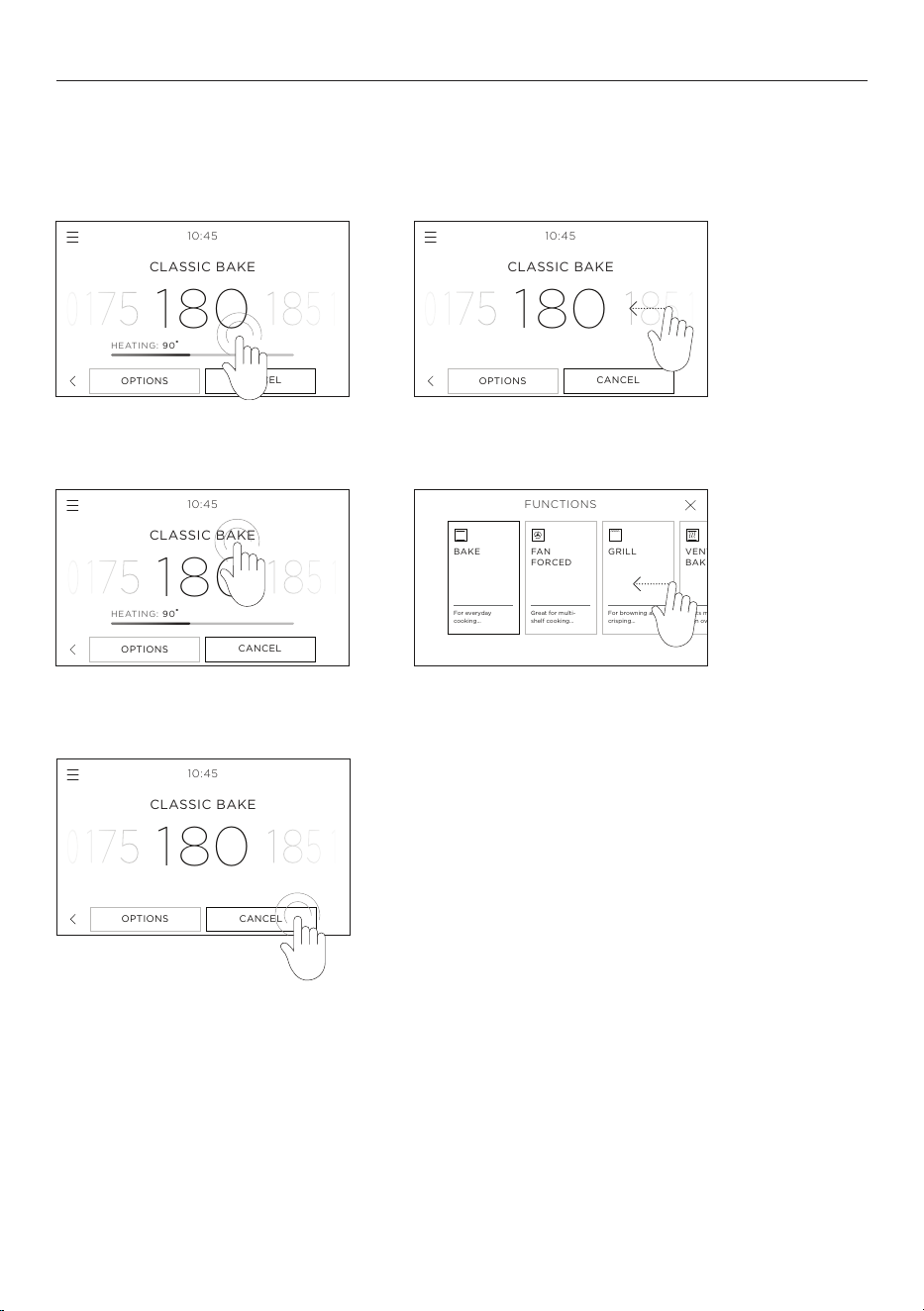

Editing or cancelling cooking
Touch the function name or temperature at any point during cooking to adjust.
Rapid preheating stage
For some cooking functions, the oven will go through an initial rapid preheat stage. In this
stage, the fan and both bake and grill elements will turn on to quickly heat the oven to the
set temperature. Depending on the cooking function, the fan, bake and grill elements will
turn off once the oven reaches the set temperature.
To stop cooking and turn the
oven off, press
CANCEL and then
CONFIRM at any point.
Changing the temperature
Changing the function
Turning the oven off
17
After conditioning:
There will be a distinctive smell and a small amount of smoke during the conditioning
process as manufacturing residue is burnt off. This is normal, but make sure the kitchen is
well ventilated. Once cooled, wipe out the oven with a damp cloth and mild detergent, and
dry thoroughly.
After 30 minutes change the function to
FAN GRILL and heat for 5 minutes.
After 5 minutes change the function to
FAN
FORCED
and heat for a further 20 minutes.
When you have finished, turn the oven off.
FIRST USE

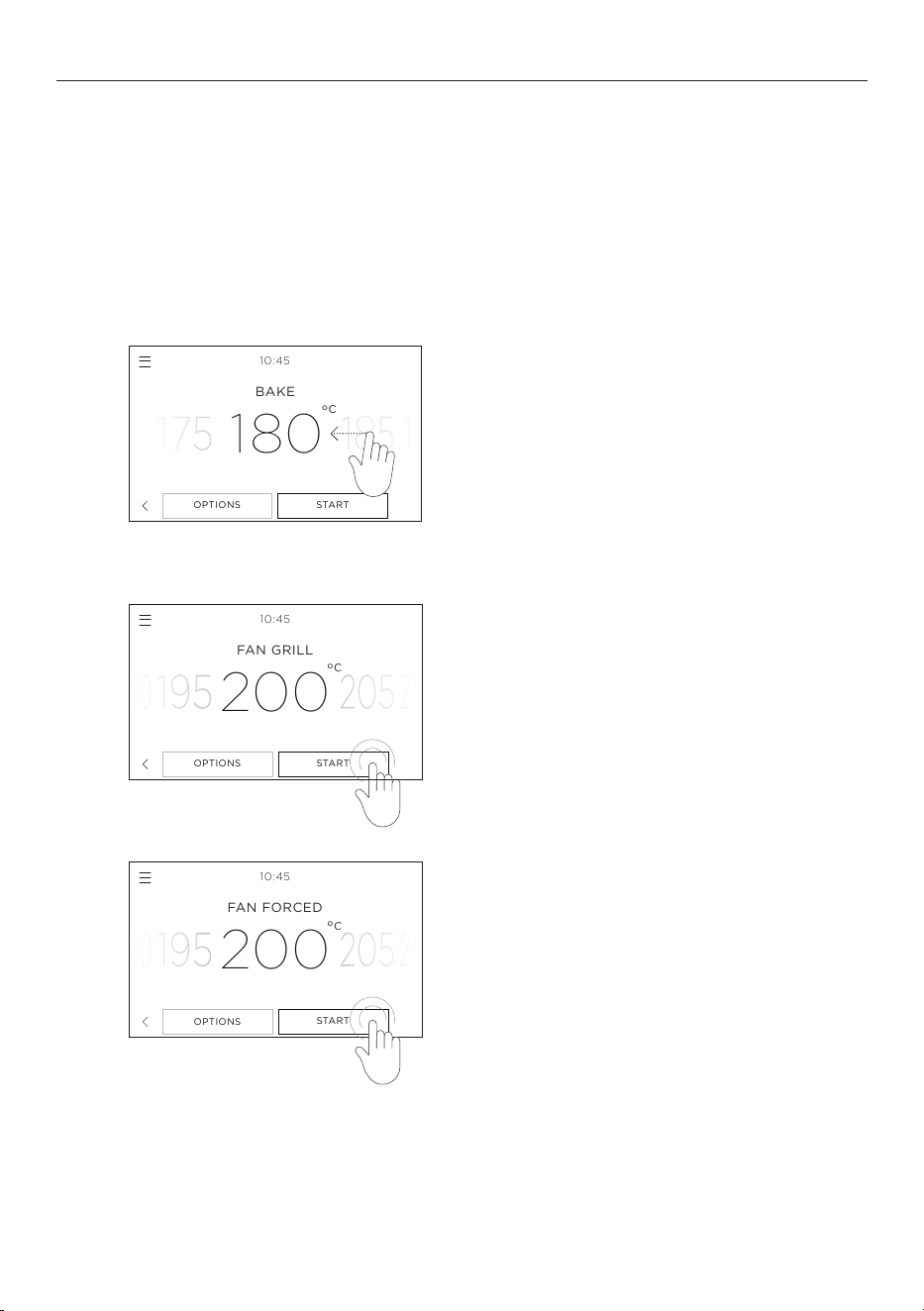

Conditioning the oven
It is important to condition your oven before using it for cooking. This will burn off any
manufacturing residues and ensure that you get the best results right from the start. It
will take appproximately 1 hour.
Before you start:
Make sure you have removed all packaging and any cable ties used to secure the
shelving during transit. Make sure all shelves are fitted in the oven. Make sure the
kitchen is well ventilated during conditioning.
1
2
3
o
C
200
OPTIONS
STAR T
10:45
BAKE
o
C
180
OPTIONS
STAR T
10:45
FAN GRILL
OPTIONS
STAR T
10:45
FAN FORCED
o
C
200
o
C
200
OPTIONS
STAR T
10:45
BAKE
o
C
180
OPTIONS
STAR T
10:45
FAN GRILL
OPTIONS
STAR T
10:45
FAN FORCED
o
C
200
o
C
200
OPTIONS
STAR T
10:45
BAKE
o
C
180
OPTIONS
STAR T
10:45
FAN GRILL
OPTIONS
STAR T
10:45
FAN FORCED
o
C
200
Double models: It is important to condition
both ovens. Follow the instructions below
for both the upper and the lower ovens.
Select
COOK BY FUNCTION and set the oven
to BAKE at 200
o
C and heat for 30 minutes.
18
Touch the menu icon in the top left corner
of the display.
Select
LIGHT.
Select ON or OFF as required and then
select CONFIRM.
USING THE OVEN LIGHT
Turning the oven light ON or OFF
1
2
3
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
OVEN LIGHT
CONFIRM
OFF
ON
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
OVEN LIGHT
CONFIRM
OFF
ON
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
OVEN LIGHT
CONFIRM
OFF
ON
19

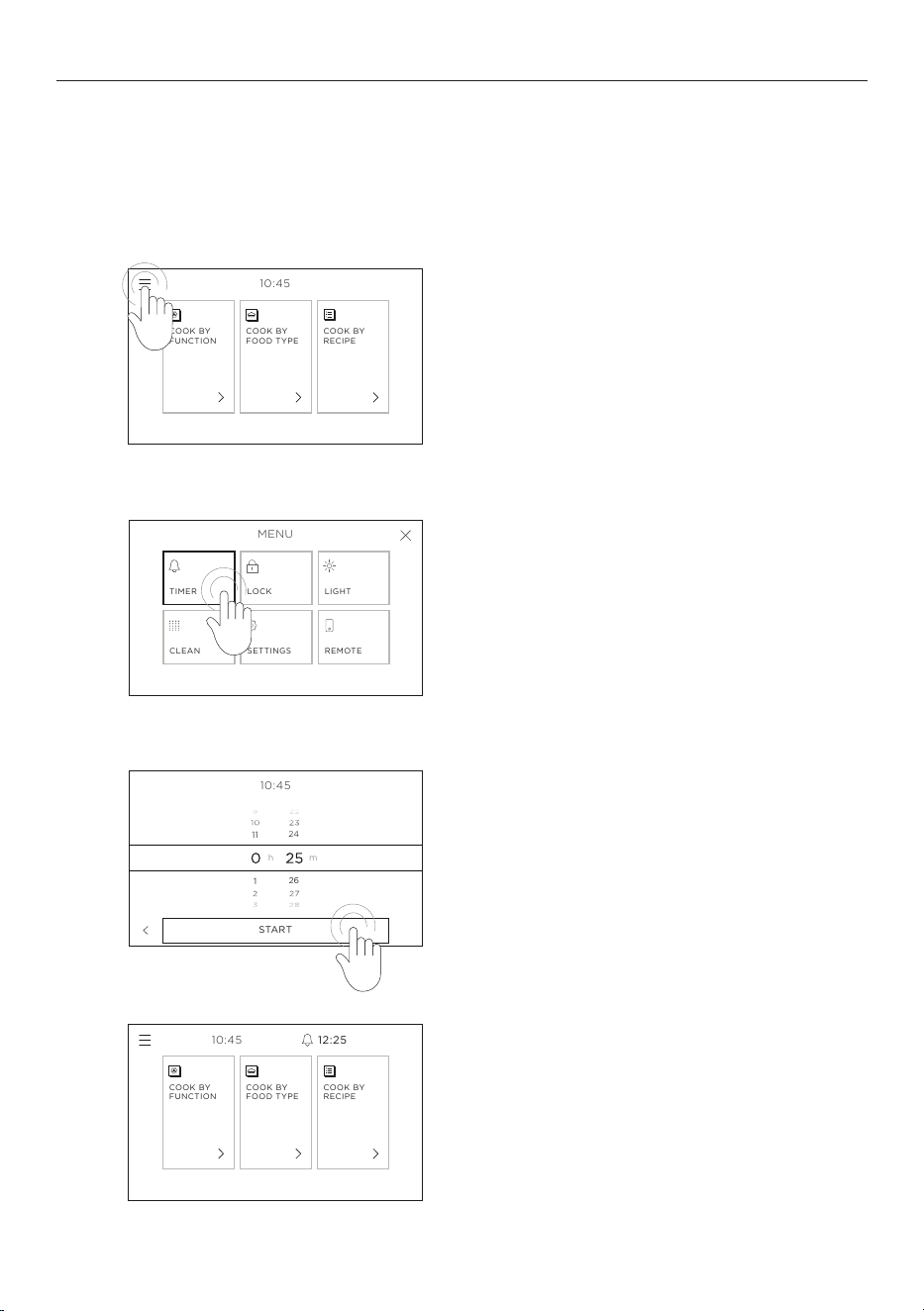

Touch the menu icon in the top left corner
of the screen.
Select
TIMER.
Scroll to set timer length then select
START.
You can set the timer for up to
11 hours 59 minutes.
The timer countdown will show on the screen.
USING THE KITCHEN TIMER
1
2
3
4
z
Use the kitchen timer to keep track of cooking times. You can use it at any time, even
if you are not using the oven.
z
The kitchen timer does not turn the oven off. See ‘Cooking options’ for how to set
the AUTO OFF timer or DELAYED COOK.
Setting the timer
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
10:45
1
26
11
24
h
m
STAR T
12:25
10:45
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
10:45
1
26
11
24
h
m
STAR T
12:25
10:45
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
10:45
1
26
11
24
h
m
STAR T
12:25
10:45
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
10:45
1
26
11
24
h
m
STAR T
12:25
10:45
20
Touch the timer countdown in the top right
of the screen.
Adjust the timer as needed and select
CONFIRM, or touch CANCEL to cancel the
timer completely.
At the end of the timer:
When the set time is up a tone will sound
every few seconds. Touch the screen
anywhere to stop it.
USING THE KITCHEN TIMER
1
2
3
Editing or cancelling the timer
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY:
RECIPE
12:25
10:45
TIMER
COMPLETE
CANCEL
CONFIRM
10:45
1
26
11
24
h
m
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY:
RECIPE
12:25
10:45
TIMER
COMPLETE
CANCEL
CONFIRM
10:45
1
26
11
24
h
m
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY:
RECIPE
12:25
10:45
TIMER
COMPLETE
CANCEL
CONFIRM
10:45
1
26
11
24
h
m
21
CHANGING THE TIME
Touch the menu icon in the top left corner.
Select
SETTINGS.
Select
CLOCK SET TIME.
1
2
3
Changing the time
Scroll to change the time then
select
CONFIRM.
4
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
1
11
26
24
:
pm
am
SET CLOCK
CONFIRM
SETTINGS
CLOCK
SET TIME
CLOCK
FORMAT
UNITS
TEMP
AUDIO
VOLUME
12:25 pm
24 hour
Celsius
60%
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
1
11
26
24
:
pm
am
SET CLOCK
CONFIRM
SETTINGS
CLOCK
SET TIME
CLOCK
FORMAT
UNITS
TEMP
AUDIO
VOLUME
12:25 pm
24 hour
Celsius
60%
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
1
11
26
24
:
pm
am
SET CLOCK
CONFIRM
SETTINGS
CLOCK
SET TIME
CLOCK
FORMAT
UNITS
TEMP
AUDIO
VOLUME
12:25 pm
24 hour
Celsius
60%
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
1
11
26
24
:
pm
am
SET CLOCK
CONFIRM
SETTINGS
CLOCK
SET TIME
CLOCK
FORMAT
UNITS
TEMP
AUDIO
VOLUME
12:25 pm
24 hour
Celsius
60%
22

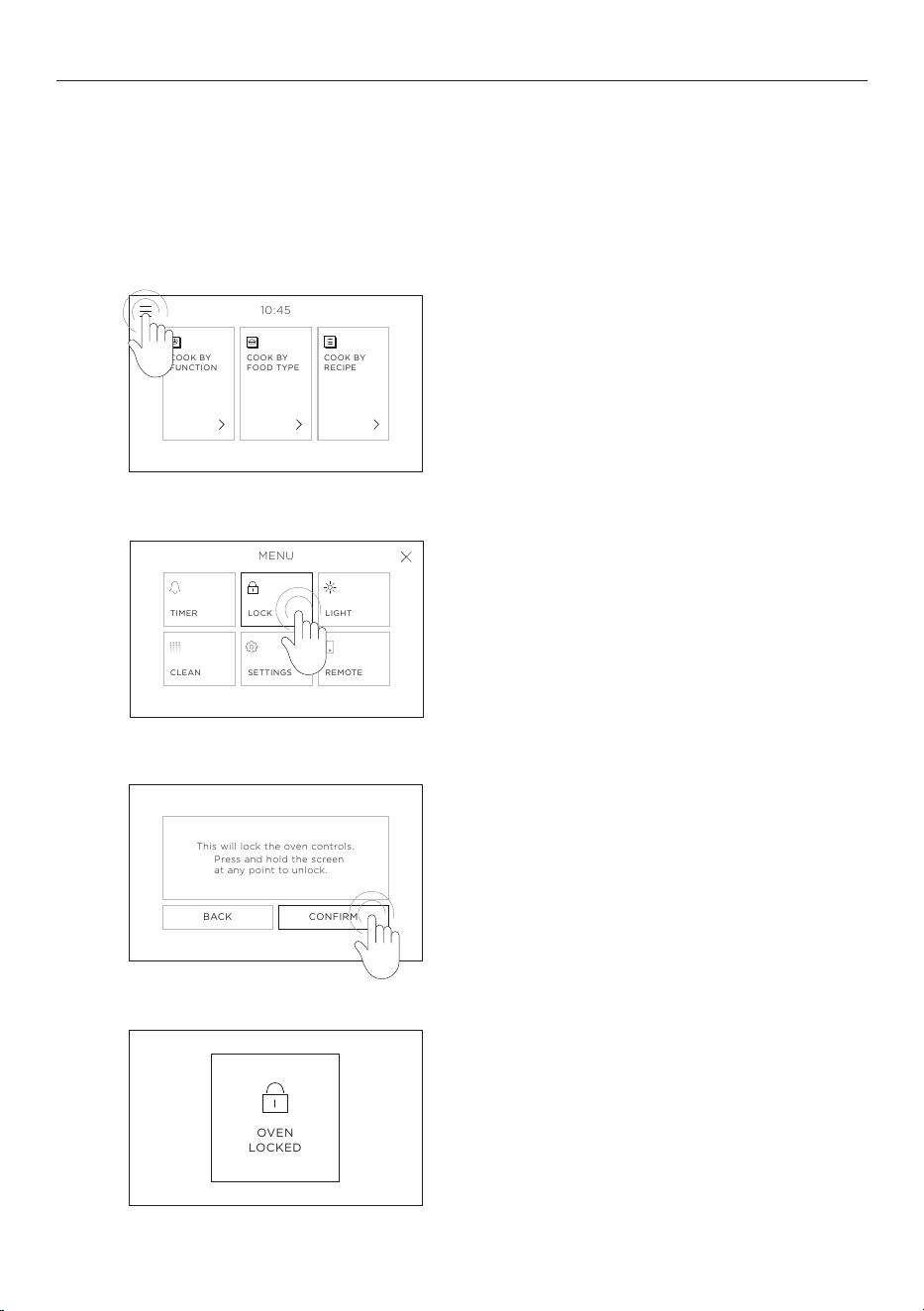

Touch the menu icon in the top left corner
of the screen.
Select
LOCK.
Select
CONFIRM.
The control panel is now locked. The controls
will remain unresponsive until it is unlocked.
LOCKING THE CONTROL PANEL
1
2
3
4
Locking the control panel
Lock the oven controls to prevent accidental use of the oven by children or when
cleaning. When locked, the controls are unresponsive and the oven will not turn on.
For safety reasons you cannot lock the oven controls while the oven is in use or if
automatic cooking options have been set.
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
OVEN
LOCKED
CONFIRM
This will lock the oven controls.
Press and hold the screen
at any point to unlock.
BACK
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
OVEN
LOCKED
CONFIRM
This will lock the oven controls.
Press and hold the screen
at any point to unlock.
BACK
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
OVEN
LOCKED
CONFIRM
This will lock the oven controls.
Press and hold the screen
at any point to unlock.
BACK
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
OVEN
LOCKED
CONFIRM
This will lock the oven controls.
Press and hold the screen
at any point to unlock.
BACK
23
Press and hold anywhere on the screen
until the bar fills and the oven unlocks.
UNLOCKING THE CONTROL PANEL
1
Unlocking the control panel
Press and hold to unlock
Unlocked
24
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
o
C
180
OPTIONS
CANCEL
BAKE
10:45
o
PREHEAT:
90
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
o
C
180
OPTIONS
CANCEL
BAKE
10:45
o
PREHEAT:
90

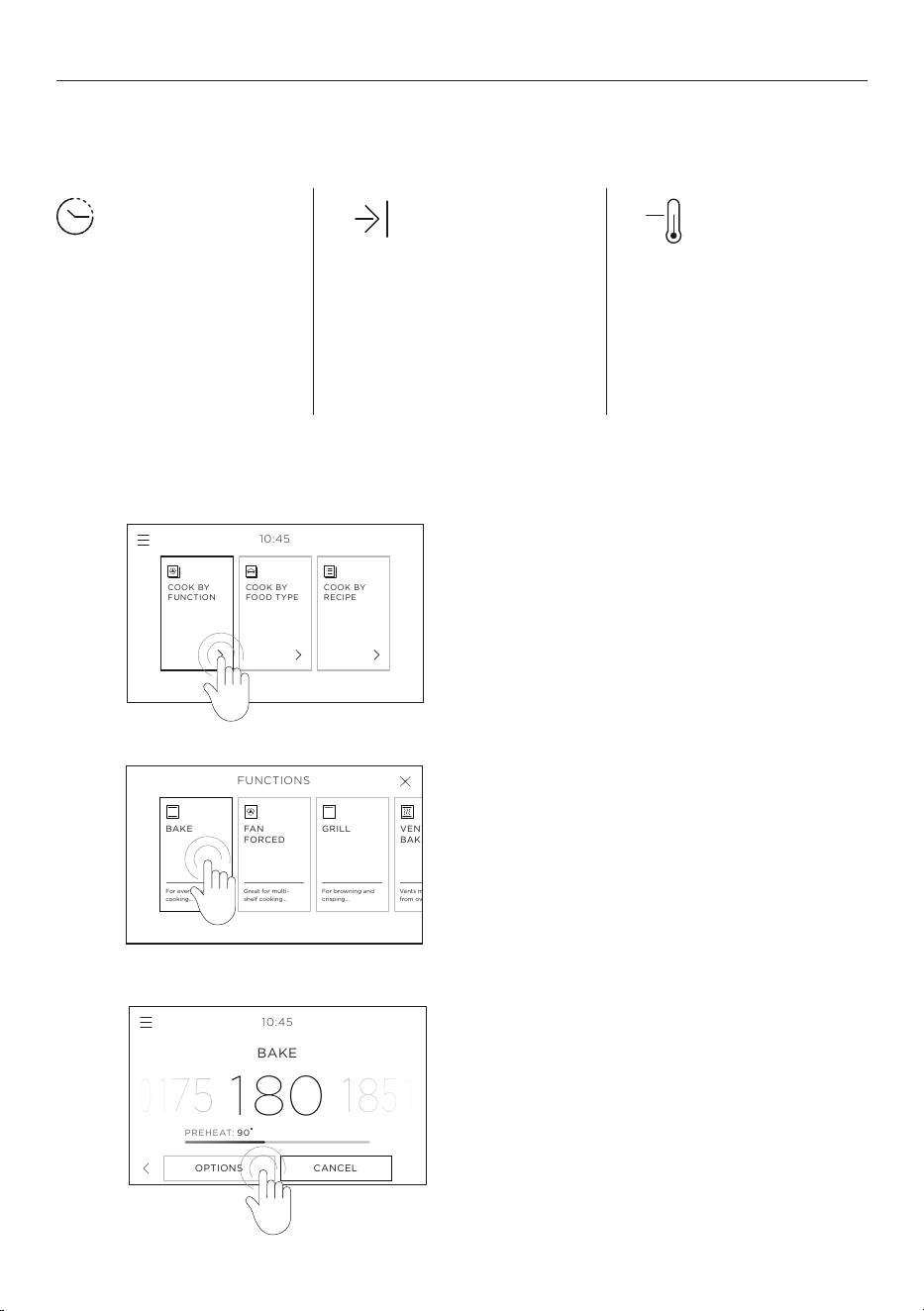

Select COOK BY FUNCTION.
Select the function you want to cook with.
Touch
OPTIONS at the bottom of the
screen and select the option you want
to use.
COOKING OPTIONS
1
2
3
Setting cooking options
Your oven comes with a number of automatic cooking options to help you get the best
results:
You can set these options either before you start cooking, or at any point once your oven is
already running.
Set the oven to turn on
later in the day, cook for
a set length of time and
turn off automatically.
DELAYED COOK
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
VENT
BAKE
Vents moisture
from oven…
BAKE
FAN
FORCED
GRILL
FUNCTIONS
For everyday
cooking…
Great for multi-
shelf cooking…
For browning and
crisping…
o
C
180
OPTIONS
CANCEL
BAKE
10:45
o
PREHEAT:
90
Use the Temperature
sensor to automatically
turn your oven off when
your food reaches a set
internal temperature.
TEMPERATURE
SENSOR
Set the oven to turn off
after a set length of time.
AUTO OFF
25
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
10:45
STAR T
1
26
11
24
m
Cook:
h
1
26
11
24
:
End:
pm
am
o
C
180
o
C
180
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
DELAYED COOK
Setting DELAYED COOK
Safe food handling: leave food in the oven for as short a time as possible before and
after cooking or defrosting, to avoid contamination by organisms which may cause food
poisoning. Take particular care during warmer weather.
When using
DELAYED COOK we do not recommend using MAXI GRILL, GRILL, FAN GRILL or
AIR FRY functions.

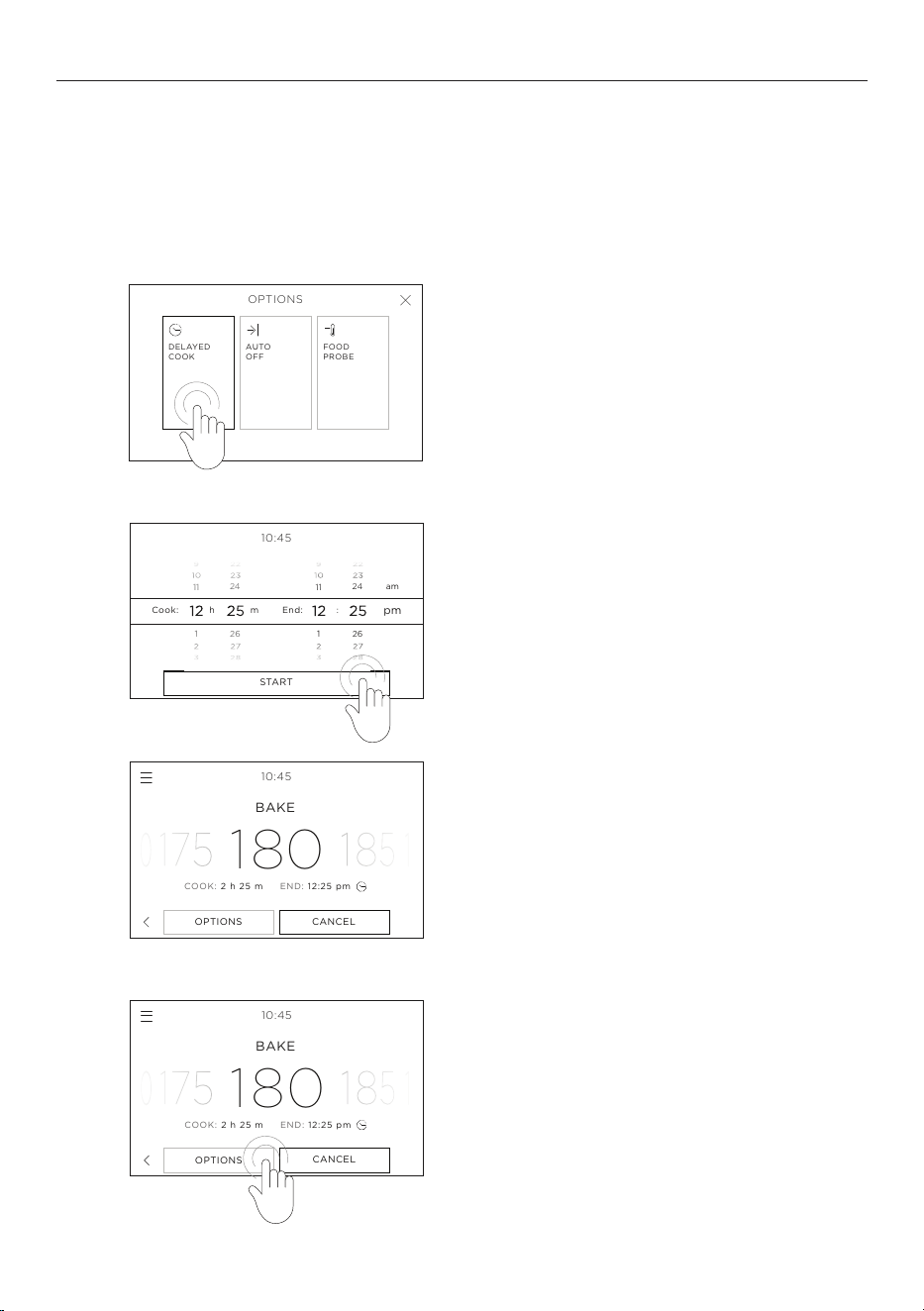

Select DELAYED COOK from the
OPTIONS menu.
Scroll to set a cook duration and an end
time, then select
CONFIRM.
DELAYED COOK is now set.
Your oven will automatically calculate when
it needs to turn on based on what cook
duration is set.
To edit or cancel
Touch
OPTIONS and select DELAYED COOK at
any point to edit or cancel.
When the end time is reached
The oven will automatically turn off and a
tone will sound.
1
2
3
4
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
10:45
STAR T
1
26
11
24
m
Cook:
h
1
26
11
24
:
End:
pm
am
o
C
180
o
C
180
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
10:45
STAR T
1
26
11
24
m
Cook:
h
1
26
11
24
:
End:
pm
am
o
C
180
o
C
180
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
10:45
STAR T
1
26
11
24
m
Cook:
h
1
26
11
24
:
End:
pm
am
o
C
180
o
C
180
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
26
AUTO OFF

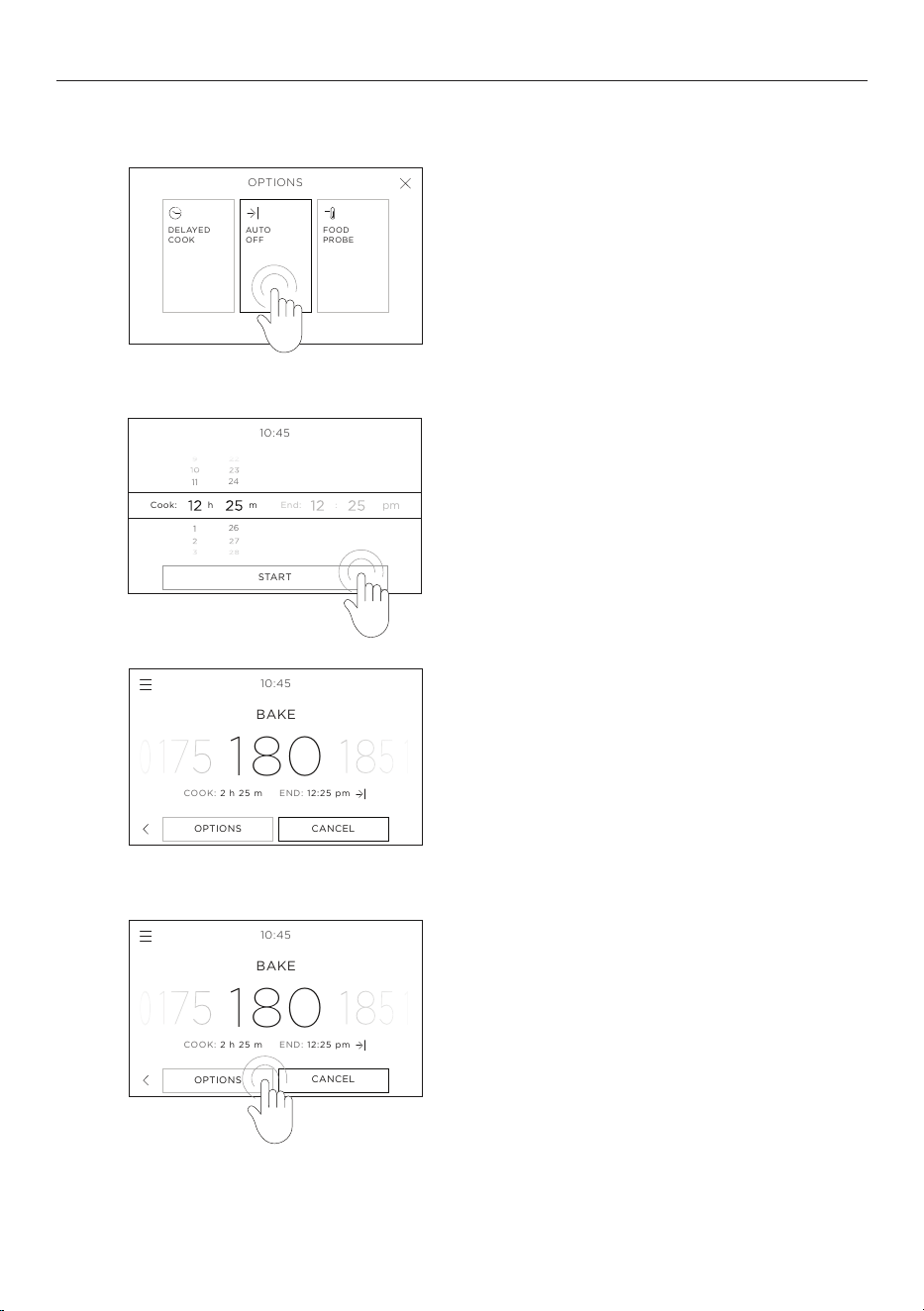

Setting AUTO OFF
Select
AUTO OFF from the OPTIONS menu.
AUTO OFF is now set.
Your oven will cook for the set length of time
and then turn off automatically.
To edit or cancel
Touch
OPTIONS and select AUTO OFF at any
point to edit or cancel.
When the end time is reached
The oven will automatically turn off and a
tone will sound.
1
2
3
4
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
o
C
180
o
C
180
OPTIONS
CANCEL
BAKE
10:45
10:45
STAR T
1
26
11
24
m
Cook:
h
:
End:
pm
COOK:
2 h 25 m
END:
12:25 pm
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
o
C
180
o
C
180
OPTIONS
CANCEL
BAKE
10:45
10:45
STAR T
1
26
11
24
m
Cook:
h
:
End:
pm
COOK:
2 h 25 m
END:
12:25 pm
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
o
C
180
o
C
180
OPTIONS
CANCEL
BAKE
10:45
10:45
STAR T
1
26
11
24
m
Cook:
h
:
End:
pm
COOK:
2 h 25 m
END:
12:25 pm
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
o
C
180
o
C
180
OPTIONS
CANCEL
BAKE
10:45
10:45
STAR T
1
26
11
24
m
Cook:
h
:
End:
pm
COOK:
2 h 25 m
END:
12:25 pm
OPTIONS
CANCEL
BAKE
10:45
COOK:
2 h 25 m
END:
12:25 pm
Scroll to set a cook duration and select START.
Your oven will automatically calculate the end
time based on what cook duration is set.
27
TEMPERATURE SENSOR
Tips for using the temperature sensor
z
You can still use the kitchen timer when the sensor is in use.
z
You cannot use the temperature sensor with DELAYED COOK or AUTO OFF.
z
The internal temperature of meat will continue to rise by a few degrees after you have
removed it from the oven, so allow for this in your calculations. After cooking, cover and
let rest for 15 to 20 minutes.
z
If you wish to remove food from the oven (eg basting), unplug the temperature sensor
from the oven but do not remove it from the meat. When you are ready to resume
cooking, ensure you plug the sensor plug back into the oven.
z
When cooking meat, insert the sensor horizontally into the centre of the thickest part.
The thicker the meat, the longer it will take to cook, so it is important that the tip of the
sensor is measuring the temperature of the meat at its thickest point. Make sure the tip
of the sensor is not protruding out of the meat, and does not touch bone, fat or gristle,
as these will heat up more quickly than the lean meat.
Internal temperatures and food safety
z
Ensure meat is fully defrosted before cooking. The temperatures given onscreen and in
the Cooking Guides are guidelines. Results will depend on the quality and composition of
the food.
z
Rest meat after cooking to allow the internal temperature to continue to rise.
z
For food safety, high risk foods such as fish should reach a minimum internal
temperature of 63 - 70
o
C and poultry and minced meat should reach 75
o
C.
28
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
OPTIONS
STAR T
10:45
ROAST
o
C
200
10:45
STAR T
CHICKEN WHOLE:
LAMB MEDIUM RARE
LAMB MEDIUM
LAMB WELL DONE
CHICKEN PIECES
BEEF WELL DONE
BEEF MEDIUM WELL
85
75
60
65
55
57
50
o
TEMPERATURE SENSOR

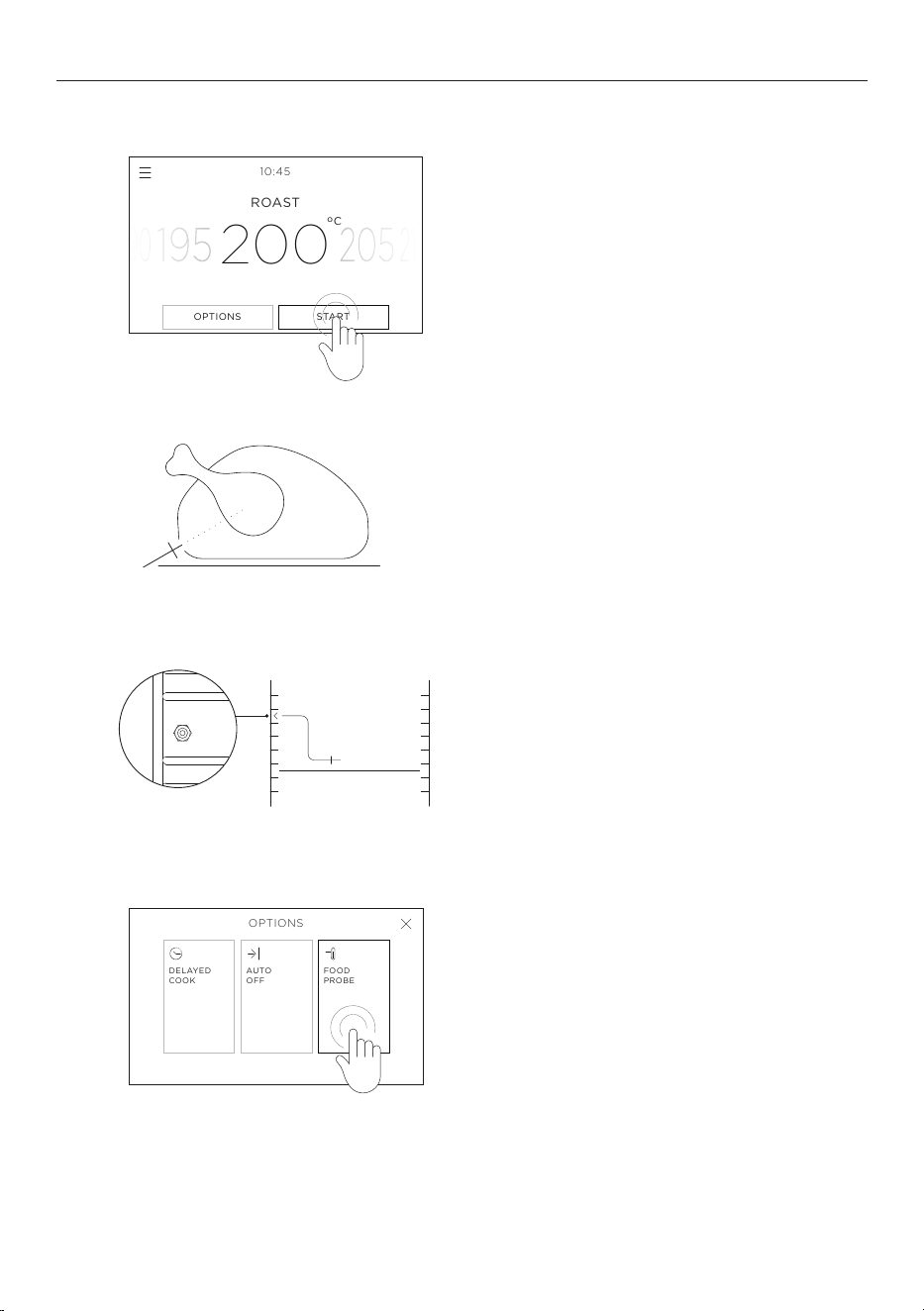

Using the temperature sensor
Select your function and temperature and
preheat the oven if needed.
Insert the sensor into your food.
Always position the tip of the sensor in the
thickest part of the dish, avoiding fat and
bone in meat.
Ensure the tip of the sensor doesn’t
protrude out the other side of food or
touch cookware.
Place food in the oven and plug the
sensor into the socket inside the oven, on
the left hand side.
Go to the
OPTIONS menu and select
TEMPERATURE SENSOR.
1
2
3
4
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
OPTIONS
STAR T
10:45
ROAST
o
C
200
10:45
STAR T
CHICKEN WHOLE:
LAMB MEDIUM RARE
LAMB MEDIUM
LAMB WELL DONE
CHICKEN PIECES
BEEF WELL DONE
BEEF MEDIUM WELL
85
75
60
65
55
57
50
o
Sensor plug
29
TEMPERATURE SENSOR
TEMPERATURE SENSOR is now set.
Your oven will cook until the set temperature
is reached and then turn off automatically.
To edit or cancel
Touch
OPTIONS and select TEMPERATURE
SENSOR
at any point to edit or cancel.
When the end time is reached
The oven will automatically turn off and a
tone will sound.
6
7
o
C
180
o
C
180
OPTIONS
CANCEL
ROAST
10:45
END:
85
o
PROBE:
45
OPTIONS
CANCEL
ROAST
10:45
END:
85
o
PROBE:
45
o
o
o
C
180
o
C
180
OPTIONS
CANCEL
ROAST
10:45
END:
85
o
PROBE:
45
OPTIONS
CANCEL
ROAST
10:45
END:
85
o
PROBE:
45
o
o

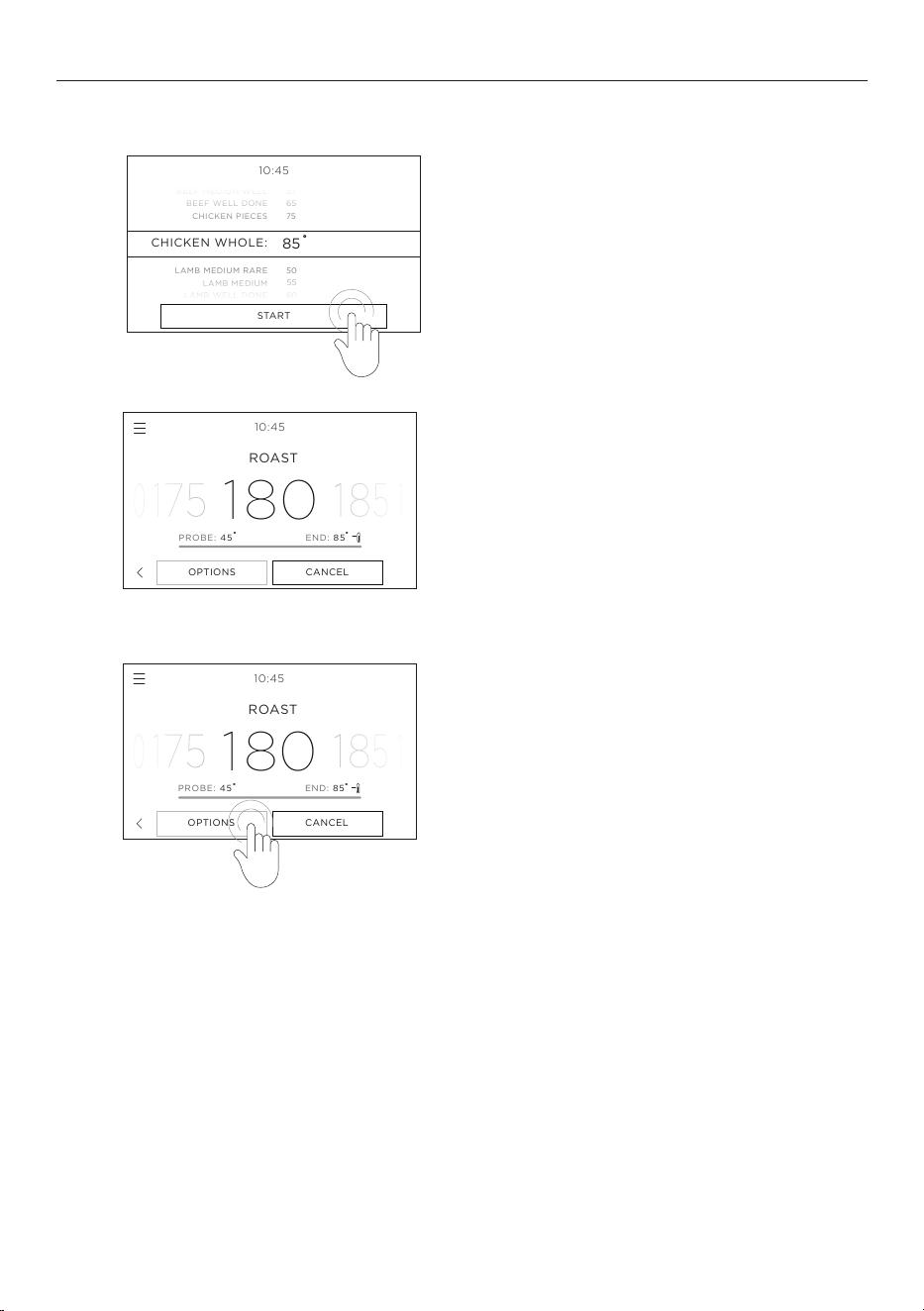

Scroll to select a food type and adjust the
temperature if wanted. Select CONFIRM
to start.
5
DELAYED
COOK
AUTO
OFF
FOOD
PROBE
OPTIONS
OPTIONS
STAR T
10:45
ROAST
o
C
200
10:45
STAR T
CHICKEN WHOLE:
LAMB MEDIUM RARE
LAMB MEDIUM
LAMB WELL DONE
CHICKEN PIECES
BEEF WELL DONE
BEEF MEDIUM WELL
85
75
60
65
55
57
50
o
30
From the home screen, select
COOK BY FOOD TYPE.
Scroll through the various food types and
select the type of food you want to cook.
For more information touch the description
underneath each food type.
Follow the instructions onscreen for
what accessories and cookware to use
and how to set up your oven.
GUIDED COOKING
1
2
3
Setting cooking options
Your oven comes with guided cooking features that help you choose the best oven
settings, accessories and methods to get the best results:
Using COOK BY FOOD TYPE
Optimum oven settings, shelf positions,
cookware and accessories for cooking a
particular type of food or cut of meat.
A collection of recipes that have been
specifically designed for and tested in
this style of oven.
COOK BY FOOD TYPE COOK BY RECIPE
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
FOOD TYPES
BEEF
POULTRY
PORK
LAM
BEEF ROAST
Place steak on roast dish with grid
NEXT
SEED CRACKERS
INGREDIENTS
70g Sunflower seeds
80g Pepitas
40g Sesame seeds
40g Poppy seeds
40g Flaxseeds
40g Black chia seeds
PREHEAT
METHOD
FOOD TYPES
BEEF
POULTRY
PORK
LAM
BEEF ROAST
Place steak on roast dish with grid
NEXT
SEED CRACKERS
INGREDIENTS
70g Sunflower seeds
80g Pepitas
40g Sesame seeds
40g Poppy seeds
40g Flaxseeds
40g Black chia seeds
PREHEAT
METHOD
31
GUIDED COOKING
Using COOK BY RECIPE
Select COOK BY RECIPE.
Scroll to look through the recipe collection
and select your favourite.
Follow the instructions onscreen for
ingredients and method, and how to set up
your oven.
1
2
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
SEED
CRACKERS
RECIPES
32
COOKING GUIDE
General guidelines
This oven has been designed to utilise its four elements and rear fan in differing
combinations to provide you with enhanced performance and a wide range of functions,
allowing you to cook all types of food to perfection.

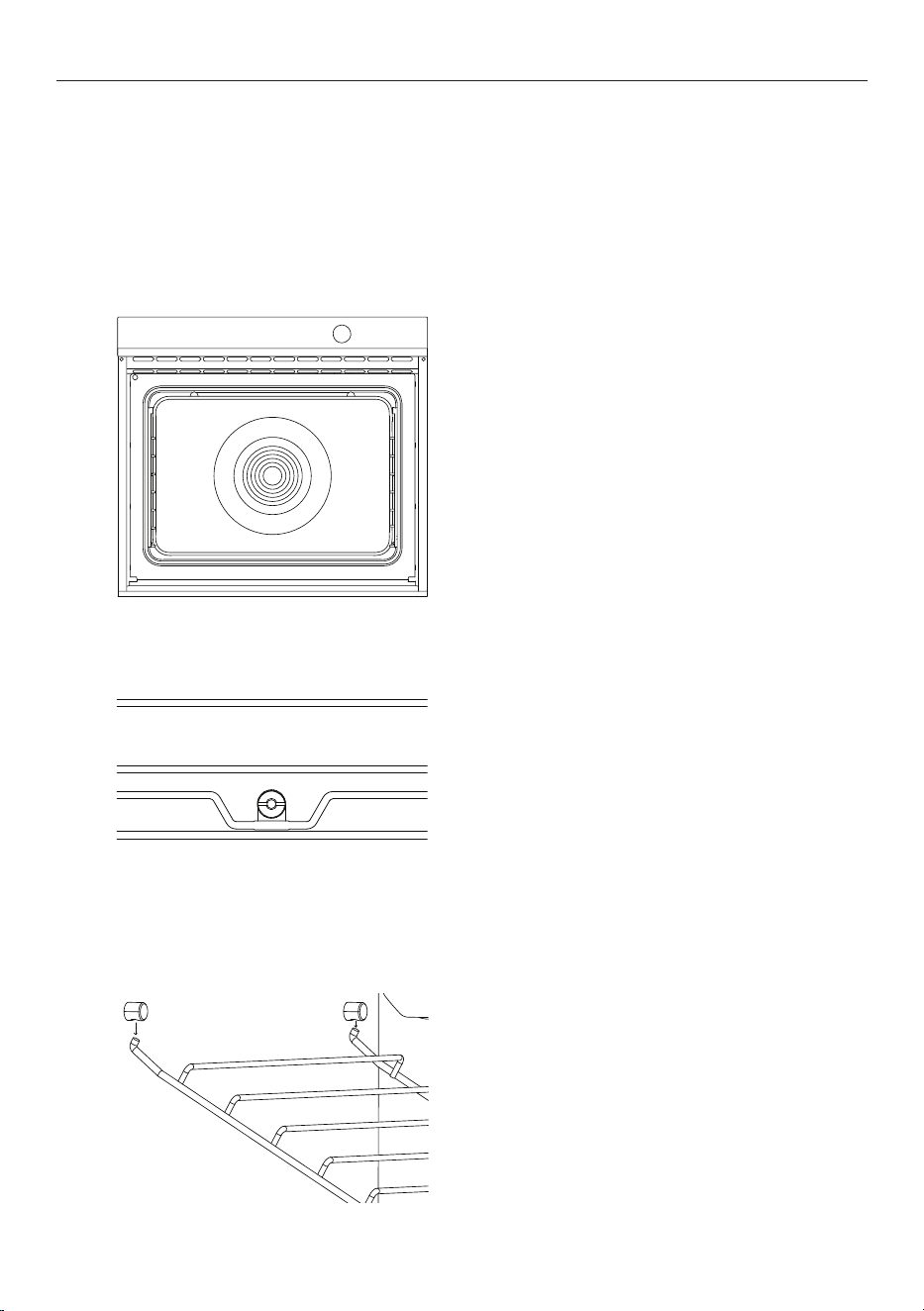

OVERVIEW IMAGE
Oven elements
1 upper outer element
2 upper inner element
3 rear element (concealed)
4 lower element (concealed)
21
3
4
+
IMPORTANT!
Use all the functions with the oven door closed.
Baking
z
For best results when baking, always pre-heat your oven. The screen will show a red
progress bar while the oven is heating up.
z
Single shelf cooking: place your baking on a shelf that will have the top of your pan near
the centre of the oven.
z
Multi shelf cooking: Always leave a space between shelves to allow the air to circulate.
Grilling
z
Always grill with the oven door completely shut.
z
Always keep a close watch on your food to avoid charring or burning.
z
If you use glass or ceramic pans, be sure they can withstand high oven temperatures.
z
For thinner cuts of meat, toasting or browning foods, use a higher shelf position.
z
Thicker cuts of meats should be grilled on lower shelves or at a lower grill setting to
ensure even cooking.
Roasting
z
The ROAST function is designed to brown the outside of the meat but still keep the inside
moist and juicy.
z
Boneless, rolled or stuffed roasts take longer than roasts containing bones. Poultry
should be well cooked with the juices running clear and a minimum internal temperature
of 75°C.
z
Always roast meat fat side up.
z
If using a roasting bag or a covered roast dish, do not use the ROAST function.
33
COOKING GUIDE
Reheating
z
Never reheat food more than once.
z
Use Vent Bake to reheat food, or follow the instructions in COOK BY FOOD TYPE.
z
Always reheat food to piping hot, or a minimum internal temperature of 85°C. This
reduces the risk of contamination.
z
Reheat food in a dish with a lid or cover tightly with foil.
z
Once hot, use the WARM function to keep the food warm.
Dehydrating
z
Use the DEHYDRATE function to preserve food and create healthy snacks.
z
For best results, use the roast dish with grill rack insert. Ensure food is laid flat and isn’t
overlapping. If dehydrating meat, turn halfway through to ensure even drying.
z
Store dehydrated food in an airtight container after it’s completely cooled.
Dough proofing
z
Use the RAPID PROOF function to proof dough for breadmaking and pizza.
z
Place dough in a lightly oiled bowl and cover with plastic wrap or a clean, damp cloth.
Position in the centre of the oven.
z
To prevent overproofing check the dough every 30 minutes.
BAKE
upper outer and lower elements
Ideal for:
foods that require a longer cooking time eg rich fruit cake,
brownies, or bread in combination with
VENT BAKE.
This function will
PREHEAT for around 12 minutes to 180°C.
z
Retains moisture.
z
Ideal for cakes and foods that require baking for a long
time or at low temperatures.
z
This function is not suitable for multi-shelf cooking.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
FAN FORCED
fan plus rear element
Ideal for:
multi-shelf cooking, eg biscuits, cookies, scones, muffins
and cupcakes.
This function will
PREHEAT for around 12 minutes to 180°C.
z
Hot air is blown into the cavity, providing a consistent
temperature at all levels.
z
Always leave a gap between shelves to allow air to move
freely. This ensures food on the lower tray can still brown.
z
If converting a recipe from BAKE to FAN FORCED, we
recommend that you decrease either the bake time and/
or the temperature by approximately 20°C, especially for
items with longer bake times.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
34
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
COOKING GUIDE
MAXI GRILL
upper inner and outer elementst
Ideal for:
large surface area grilling such as toasting bread or finishing
large dishes with top browning.
z
Intense radiant heat is delivered from both top elements.
There are 9 steps between LO and HI (100% power).
z
For best results allow oven to heat for 5 minutes
before grilling.
z
The dial halo* will remain red while using the grill function.
*some models only
VENT BAKE
upper outer and lower elements plus venting
Ideal for:
single shelf baking such as meringues, yorkshire pudding, and
finishing off choux pastry, croissants and bread.
This function will
PREHEAT for around 12 minutes to 180°C.
z
Venting removes excess moisture, reducing both steam and
condensation in the oven.
z
Gently browns without drying.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
FAN GRILL
fan plus upper outer and inner elements
Ideal for:
whole chicken, beef tenderloin or grilling fish or steak.
z
Uses the intense heat from the elements for top browning
and the fan to ensure even cooking of foods.
z
Meat, poultry and vegetables cook beautifully; food is crisp
and brown on the outside while the inside remains moist
and tender.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
FAN BAKE
fan plus upper outer and lower elements
Ideal for:
single shelf baking that takes less than an hour to cook. Foods
such as muffins, biscuits and cupcakes.
This function will
PREHEAT for around 12 minutes to 180°C.
z
The oven fan circulates hot air from the top outer and the
lower elements and distributes it around the oven cavity.
z
Food cooked tends to brown quickly.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
35
COOKING GUIDE
ROAST
fan plus upper and lower elements
Ideal for:
roasting meat and vegetables.
This is a two-step program.
z
Searing:
an initial 20-minute stage that crisps and browns the roast,
and caramelises the outside of the meat.
z
Cooking at preset temperature:
after searing, the temperature will decrease to your preset
level for the remainder of the cook time, producing a
tender and juicy roast.
z
The oven does not need preheating.
z
If desired, use the grill rack or grid, or place vegetables
under the roast to allow the juices to drain away from
your meat. This will allow the hot air to circulate under
the meat as well.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
PIZZA BAKE
fan plus lower element
Ideal for:
crisp-based pizzas.
This function will
PREHEAT for around 12 minutes to 180°C.
z
The fan circulates heat from the lower element throughout
the entire oven.
z
Excellent for cooking pizza as it crisps the base beautifully
without overcooking the topping.
z
For best results, pre-heat a pizza stone for at least 1 hour
and bake on oven shelf position 2 or 3.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
PASTRY BAKE
fan plus lower element
Ideal for:
sweet and savoury pastry foods and delicate foods that require
a crisp base and some top-browning, eg frittata, quiche.
This function will
PREHEAT for around 12 minutes to 180°C.
z
The fan circulates heat from the lower element throughout
the oven.
z
Provides intense heat to the base of foods and allows gentle
top-browning.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
36
COOKING GUIDE
SLOW COOK
fan plus rear element
Ideal for:
slow-cooked dishes such as casseroles, stews and braises.
z
The oven does not need preheating.
z
The fan circulates heat from the rear element to gently
cook food.
z
This function has low energy consumption.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
CLASSIC BAKE
lower element
Ideal for:
dishes that require delicate baking and have a pastry base, like
custard tarts, pies, quiches and cheesecake.
This function will
PREHEAT for around 12 minutes to 180°C.
z
Heat comes from the lower element only.
z
This is the traditional baking function, suitable for recipes
that were developed in conventional ovens.
z
Bake using only one shelf at a time.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
AIR FRY
fan plus outer and inner elements
Ideal for:
food cooked from frozen, or battered and crumbed food that
would usually be deep fried.
z
Replicates the conditions used in an air fryer.
z
A healthier way of frying that crisps while using much less
oil. For best results, coat food with 1-2 tablespoons of oil.
z
For pre-packaged food: if manufacturer’s cooking
instructions use a function that isn’t fan-based, decrease
temperature by 20°C (70°F).
z
This function is not suitable for multi-shelf cooking.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
37
COOKING GUIDE
WARM
upper outer and lower elements plus venting
Ideal for:
keeping cooked food hot, or to warm plates and serving dishes.
z
Provides a constant low heat of less than 90°C.
z
To reheat food from cold, use another function or COOK
BY FOOD TYPE
to heat the food piping hot, then change to
WARM, as this function alone will not bring cold food up to a
high enough temperature to kill any harmful bacteria.
RAPID PROOF
upper outer and lower elements plus venting
Ideal for:
providing the optimum warm and draft-free environment for
proving yeast dough.
z
Gentle heat is generated from the upper and
lower elements.
z
This method provides a faster proof time than at
room temperature.
z
For best results, cover dough to prevent surface drying.
DEHYDRATE
fan plus rear element
Ideal for:
drying meat, fruit, vegetables and herbs, such as beef jerky
and fruit leather.
z
Gently circulates air, providing a consistent low heat for
dehydrating and drying food.
GRILL
upper inner element
Ideal for:
grilling smaller quantities of toast or finishing small dishes with
top browning. Position food in the centre of the shelf.
z
Intense radiant heat is delivered from both top elements.
There are 9 steps between LO and HI (100% power).
z
For best results allow oven to heat for 5 minutes
before grilling.
z
The dial halo* will remain red while using the grill function.
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
BAKEGRILL VENT BAKE
FAN FORCED FAN GRILL PASTRY BAKE
CLASSIC BAKE DEHYDRATE WARM
*some models only
38
USER PREFERENCE SETTINGS
Use the settings menu to adjust your user preferences:
z
Change the time
z
Change the clock format (12 hours, 24 hours or off)
z
Display the temperature in degress Celsius or Fahrenheit
z
Adjust the volume of audio feedback
z
Turn timer alarms on or off
z
Turn audio tones on or off
z
Operate in Sabbath Mode
z
Change the language of the display
z
Manage your Wi-Fi connection
z
Adjust the brightness of the display
z
Manage dial settings*:
z
Change the dial scroll direction
z
Restore all settings to factory original
IMPORTANT!
z
You cannot change the settings when your oven is cooking or has any automatic
cooking options set.
z
Tones and alarms will still sound for faults if audio settings are turned off.
*some models only
39
USER PREFERENCE SETTINGS
Changing the settings
Touch the menu icon in the top left corner
of the screen.
Select
SETTINGS.
Select the setting you want to change,
adjust as needed then select
CONFIRM.
1
2
3
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
METRIC
IMPERIAL
UNITS WEIGHT
CONFIRM
SETTINGS
CLOCK
SET TIME
CLOCK
FORMAT
UNITS
TEMP
AUDIO
VOLUME
12:25 pm
24 hour
Celsius
60%
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
METRIC
IMPERIAL
UNITS WEIGHT
CONFIRM
SETTINGS
CLOCK
SET TIME
CLOCK
FORMAT
UNITS
TEMP
AUDIO
VOLUME
12:25 pm
24 hour
Celsius
60%
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
METRIC
IMPERIAL
UNITS WEIGHT
CONFIRM
SETTINGS
CLOCK
SET TIME
CLOCK
FORMAT
UNITS
TEMP
AUDIO
VOLUME
12:25 pm
24 hour
Celsius
60%
40
Select SETTINGS.
WI-FI CONNECTION AND REMOTE MODE
Your oven can be connected to your home wireless network and operated remotely using
the FISHER & PAYKEL app.
Getting started
z
Ensure your home Wi-Fi network is turned on.
z
You will be given step by step guidance on both your oven and mobile device.
z
It may take up to 10 minutes to connect your oven.
Connecting to your home Wi-Fi
Select
Wi-Fi CONNECT and follow the
onscreen guidance.
On your mobile device:
1 Download the
FISHER & PAYKEL app from www.fisherpaykel.com/connect
2 Register and create an account.
3 Add your appliance and set up the Wi-Fi connection.
1
2
3
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
WIFI
CONNECT
O
DIAL
SCROLL
FACTORY
DEFAULT
Natural
Reset
Appliance
SETTINGS
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
WIFI
CONNECT
O
DIAL
SCROLL
FACTORY
DEFAULT
Natural
Reset
Appliance
SETTINGS
Touch the menu icon in the top left corner
of the screen.
WIFI
CONNECT
O
DIAL
SCROLL
FACTORY
DEFAULT
Natural
Reset
Appliance
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
SETTINGS
41
WI-FI CONNECTION AND REMOTE MODE
Enabling Remote Mode
Touch the menu icon in the top left corner
of the screen.
Select
REMOTE.
Select ON then press CONFIRM.
Remote Mode is now enabled.
1
2
3
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
REMOTE
ON OFF
CONFIRM
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
REMOTE
ON OFF
CONFIRM
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
REMOTE
ON OFF
CONFIRM
42
SABBATH MODE
This setting is designed for religious faiths
that observe a ‘no work’ requirement on
the Sabbath.
While your oven is in Sabbath Mode
it will not have the usual accurate
temperature control:
HEAT LEVEL
APPROXIMATE
TEMP (°C)
APPLICATION
Low 75 – 100 Keep hot food warm
Moderate 155 – 180
Reheat cooked food
from cold
High 185 – 210 Cooking raw food
While your oven is in Sabbath Mode:
z
the oven will not react to user actions
z
lights, fans and display will not respond
to the door opening
z
if the door is open for too long, this
may result in loss of temperature
z
no tones or alarms will sound and alert
codes or temperature changes will not
be displayed
z
the oven light can be set to remain
either on or off
z
the oven will remain in Sabbath Mode
until cancelled
z
CLASSIC BAKE is the only
function available
z
Wi-Fi will be disconnected
z
to maintain cavity temperature
minimise the number of door openings
Setting Sabbath Mode
In the settings menu select
SABBATH MODE
and follow the instructions on the screen.
1
Press and hold to cancel
SABBATH MODE
SABBATH MODE
CANCELLED
SABBATH
MODE SET
10:45
STAR T
HEAT:
12
11
15
10
14
9
13
h
AUDIO
ALARMS
AUDIO
TONES
SABBATH
MODE
DISPLAY
LANGUAGE
SETTINGS
On
On
O
English
Double models only:
Select the cavity that you want to operate,
note that the other cavity will not be
usable if you select single cavity
2
UPPER
OVEN
LOWER
OVEN
BOTH
OVENS
SABBATH MODE
43
SABBATH MODE
Cancelling Sabbath Mode
Touch and hold the screen until the bar fills.
SABBATH MODE CANCELLED will appear and
you can now use your oven normally.
1
2
SETTINGS
AUDIO
ALARMS
AUDIO
VOLUME
AUDIO
TONES
SABBATH
MODE
60%
On
On
O
LANGAUGE
English
Press and hold to cancel
SABBATH MODE
SABBATH MODE
CANCELLED
SABBATH
MODE SET
10:45
STAR T
HEAT:
12
11
15
10
14
9
13
h
SETTINGS
AUDIO
ALARMS
AUDIO
VOLUME
AUDIO
TONES
SABBATH
MODE
60%
On
On
O
LANGAUGE
English
Press and hold to cancel
SABBATH MODE
SABBATH MODE
CANCELLED
SABBATH
MODE SET
10:45
STAR T
HEAT:
12
11
15
10
14
9
13
h
Oven operation during Sabbath Mode has been developed in collaboration with Star-K (USA - www.star-k.org), KF-FedTech (Federation of
Synagogues, UK - www.federation.org.uk/fed-tech/) and Mehadrin Limited (Australia – www.mehadrink.com). Further information for using the
product in compliance with Jewish Law can be found on their websites
Sabbath Mode is now set.
The oven will heat for the set length of
time and then turn off.
The oven will remain in Sabbath Mode
until it is cancelled.
4
Press and hold to cancel
SABBATH MODE
SABBATH MODE
CANCELLED
SABBATH
MODE SET
10:45
STAR T
HEAT:
12
11
15
10
14
9
13
h
AUDIO
ALARMS
AUDIO
TONES
SABBATH
MODE
DISPLAY
LANGUAGE
SETTINGS
On
On
O
English
Set your desired heating level and select
whether you want the oven light ON or OFF
during cooking.
Scroll to set your desired cook time and
then select
START. You can set the oven to
heat for up to 74 hours.
3
Press and hold to cancel
SABBATH MODE
SABBATH MODE
CANCELLED
SABBATH
MODE SET
10:45
STAR T
HEAT:
12
11
15
10
14
9
13
h
AUDIO
ALARMS
AUDIO
TONES
SABBATH
MODE
DISPLAY
LANGUAGE
SETTINGS
On
On
O
English
44
CARE AND CLEANING
ALWAYS NEVER
z
Before any manual cleaning or maintenance,
first wait for the oven to cool down to a safe
temperature to touch, then turn its power
supply off at the wall.
z
Read these cleaning instructions and the
‘Safety and warnings’ section before you start
cleaning your oven.
z
To prevent soiling from becoming ‘baked on’
and stubborn, we recommend removing any
easy-to-reach spills, food or grease stains
from the oven cavity enamel after each use.
z
Always clean the inner glass pane before
starting a Self Clean cycle. Failure to do this
will mean that residue will bake on and be
impossible to remove.
z
Always remove oven shelves before starting a
Self Clean cycle.
z
Never use a steam cleaner.
z
Never store flammable substances in
the oven.
z
Never use abrasive or harsh cleaners,
cloths, scouring pads or steel wool. Some
nylon scourers may also scratch. Check the
label first.
z
Never use oven cleaner on catalytic panels or
in a pyrolytic oven.
z
Never leave alkaline (salty spills) or acidic
substances (such as lemon juice or vinegar)
on the oven surfaces.
z
Never use cleaning products with a chlorine
or acidic base.
z
Never spray detergent or liquid onto the dial*
or control panel.
WHAT? HOW? IMPORTANT!
Oven cavity
z
To clean light soiling off the
enamelled surfaces wipe with
a damp cloth and a solution of
hot water and mild detergent
before drying with a soft cloth.
z
To clean stubborn soiling or
the whole oven cavity use
the Self Clean function. See
‘Using the Self Clean function’
for instructions.
z
To prevent soiling from
becoming ‘baked on’ and
stubborn, we recommend
removing any easy -to-reach
spills, food or grease stains
from the enamelled surfaces
after each use. Doing so will
reduce the need for using the
Self Clean function frequently.
Telescopic sliding
shelf supports
Clean with a solution of mild
detergent and hot water, then dry.
Do not wash these in the
dishwasher. Immerse in soapy
water and use oven cleaner on
them or leave in the oven during a
Self Clean cycle.
Dials* Clean with a solution of mild
detergent and hot water, then dry.
Do not use stainless steel or oven
cleaner on the dial, as doing so may
damage it’s coating.
Manual cleaning
*some models only
45
CARE AND CLEANING
WHAT? HOW? IMPORTANT!
Stainless steel strip/
handle on the front of the
oven door
Clean with a solution of mild
detergent and hot water, then wipe
dry with a microfibre cloth.
If necessary, use a suitable stainless
steel cleaner and polish.
Always read the label to make
sure that your stainless steel
cleaner does not contain chlorine
compounds as these are corrosive
and may damage the appearance of
your oven.
Always rub the stainless steel in the
direction of the grain.
Temperature sensor Clean with a solution of mild
detergent and hot water, then wipe
dry with a microfiber cloth.
Clean after every use to
avoid contamination.
Do not wash in the dishwasher,
immerse in soapy water, use oven
cleaner or leave in the oven during a
Self Clean cycle.
Oven seal Do not clean this part. Do not rub, damage or remove the
seal as it is important for ensuring
your oven runs efficiently.
Oven vent louvres Wipe with a damp cloth. Take care not to let any liquid run
down the louvres of the oven vent.
Full extension sliding shelf Wipe with a damp cloth and mild
detergent. Do not wipe off or wash
away the white lubricating grease
(visible when the shelf is extended).
Never leave this shelf in the oven
during a Self-clean cycle.
Do not wash the shelf in the
dishwasher, immerse in soapy water,
or use oven cleaner on it. Doing
so will prevent the slides from
running smoothly.
Grid
Grill rack
Grill Pan
Side racks
Baking tray
Clean with a solution of mild
detergent and hot water.
Pre-soak stubborn burnt-on stains
in a solution of dishwasher powder
and hot water. These parts are also
dishwasher safe.
Never leave any of these parts in
the oven during a Self clean Cycle
(except for the side racks). They will
become discolored or damaged.
Oven door glass
(after every use)
Use a soft cloth and a mixture of
warm water and dishwashing liquid
to remove soiling after every use.
For stubborn stains, try a mixture of
baking soda and warm water with
a non-abrasive scrubbing pad, then
wipe dry with a soft, lint-free cloth.
Do not use oven cleaners or any
other harsh/abrasive cleaners,
cloths, scouring pads, steel wool or
sharp metal scrapers to clean the
oven door glass. These scratch the
glass, which in turn could result in
the glass cracking and shattering.
Do not allow grease to build up on
the glass or become baked on as
this reduces visibility into the oven.
46
CARE AND CLEANING
Removing the side racks
Remove the side racks to make cleaning the oven easier. The side racks can be left in the
oven during Self Clean.
IMPORTANT!
Always turn the oven off at the wall first. Ensure the oven has cooled down completely
before starting.
Slide out all shelves and remove.
1
Unscrew the fixing nut holding the
side rack in position. A coin may be
used to loosen.
Swing the bottom of the side rack up
towards the center of the oven until it
is almost horizontal. Slide the prongs
at the top out of the mounting slots.
2
3
47
CARE AND CLEANING
Refitting the side racks
IMPORTANT!
Always turn the oven off at the wall first. Ensure the oven has cooled down completely
before starting.
1
Ensure the prongs are fully inserted into
the slots before lowering the side rack
carefully and refit the fixing nut. It is
important to ensure the tab behind the
fixing nut sit flush against the wall. A coin
may be used to tighten.
Supporting the side rack from underneath,
hold it almost horizontally and locate the
prongs into the mounting slots.
If at anytime during the lowering of the
side rack you feel resistance, re-adjust the
prongs to ensure they are fully inserted.
There should be no resistance.
2
48
CARE AND CLEANING
Changing the oven light bulbs
The oven is illuminated by three 12 volt/20 watt halogen bulbs. These have a very long life,
but if you should need to replace one, use only a replacement bulb purchased from your
nearest Fisher & Paykel dealer and follow these steps:
1 Allow the oven to cool and then turn it off at the wall.
2 Take out the shelves and side racks (see ‘Removing and replacing the sliding shelves
and side racks’) and use a small flat-head screwdriver to twist and lift the retainer clip
at the top of the glass light cover while holding the glass to prevent it falling. The clip
pivots anti-clockwise (see the diagram).
3 Carefully lift the glass cover out of the lower support and pull out the faulty bulb.
4 Holding the replacement bulb in a soft cloth or tissue (touching the bulb will reduce its
life span), insert the new bulb.
5 Reposition the glass cover and twist the top clip back in place. The procedure is the
same for the light in the roof of the oven cavity.
Note: oven bulb replacement is not covered by your warranty.
Replacement bulb
Pin Sockets
Pins
Plate glass cover
Retainer clip
49
CARE AND CLEANING
Removing and refitting the oven door
IMPORTANT!
z
Take care, the oven door is heavy.
z
Do not lift the oven door by its handle. Doing so may damage the door.
z
Ensure the oven and the door are cool before you begin to remove the door.
z
Before removing the door, ensure there is a large enough clear, protected surface
in the kitchen to rest the door on.
To remove the door
Open the door completely.
Open the hinge locks fully on both sides
Holding the door on both sides, lift door
back up to 45° and carefully pull the door
out and away from the hinges.
1
2
3
50
CARE AND CLEANING
To refit the door
Holding the door at 45°, carefully align the
hinge tongues with the hinge slots. Push
the door in until you feel the latches locate
into position on each side
Open the door completely and ensure both
hinges are secured by the correct notches.
Rotate the locks up into the closed
position ensuring they rest inside the slots
completely. Note: Incorrect installation will
prevent door from correctly sealing.
Close the oven door ensuring that when
closed, the door is vertical and parallel to
any surrounding cabinetry
1
2
3
4
51
IMPORTANT!
z
You must clean the inside glass door panel BEFORE starting a clean cycle. Failure to do
this may result in permanent staining or marking of the door glass.
See ‘Care and cleaning’ for our recommendations on how to do this.
z
Do not use oven cleaners, any degreasing cleaners, or oven liners.
z
Remove all oven shelves, trays, bakeware and utensils from the oven before starting a
clean cycle (except side racks). If left in the oven they will be permanently damaged;
items made from combustible material (eg wood, fabric, plastic) may even catch fire.
z
Do not use your oven to clean miscellaneous parts.
z
Make sure the room is well ventilated.
z
Before starting a clean cycle, make sure you move any pet birds to another, closed and
well-ventilated room. Some pet birds are extremely sensitive to the fumes given off
during a clean cycle, and may die if left in the same room.
z
During a clean cycle, the oven reaches higher temperatures than it does for cooking.
Under such conditions, the surfaces may get hotter than usual and children should be
kept away.
z
The oven door will be locked during the clean cycle.
z
If there are cracks or flaws on any of the oven door glass panes, if the oven seal is
damaged or worn, or if the door does not close properly, do not start a clean cycle.
Contact a Fisher & Paykel trained and supported service technician or Customer Care.
USING SELF CLEAN
Self Clean takes care of the mess and grime that is traditionally associated with oven
cleaning. The extremely high temperature of the pyrolytic clean cycle burns off and breaks
down grease and grime deposits. All that is left is a small amount of ash that you can easily
be wiped up.
There are two clean cycles available:
STANDARD CLEAN (4 hours)
For normal or heavy soiling
LIGHT CLEAN (3 hours)
For light soiling
Before you start
1 Remove all shelves, accessories and
utensils. You do not need to remove the
side racks.
2 Wipe up any spills, and along the inner
edge of the oven surface around the
seal. Failure to do so may discolor the
oven surface.
Avoid cleaning the seal itself as this may
cause damage.
3 Check the inner glass pane of the oven
door. If it has soiling on it, you will need
to clean it manually before starting a
Clean cycle. For instructions, see ‘Care
and cleaning’.
If soiling is left on the glass, it will
become burnt on during the clean cycle,
making it very difficult to remove.
4 Close the oven door firmly.
52
USING SELF CLEAN
Setting Self Clean
Touch the menu icon in the top left corner
of the screen.
Select
CLEAN.
Select
STANDARD CLEAN or LIGHT CLEAN.
1
2
3
4
5
Follow the on-screen instructions and press
the upper button to the right of the screen
to continue.
Press the middle button to the right of the
screen to start the clean cycle.
For your safety, the oven door will be locked
shut during the cycle. If the door is not shut
properly or is reopened before Self Clean
starts, the cycle will be cancelled.
10:45
COOK BY:
FUNCTION
COOK BY:
FOOD TYPE
COOK BY:
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
STANDARD
CLEAN
LIGHT
CLEAN
3 hours
4 hours
SELF CLEAN
SELF CLEAN
COMPLETE
11:15
REMAINING:
30 m
END:
14:15
SELF CLEAN
CANCEL
10:45
REMAINING:
30 m
END:
11:15
SELF CLEAN
CANCEL
Press button to start
SELF CLEAN
Oven door will be locked
during the cycle
START
Clean inside oven door with mild detergent
and a soft cloth to avoid permanent staining
Remove shelves and accessories from oven
Before starting
Press button to continue
SELF CLEAN
NEXT
10:45
COOK BY:
FUNCTION
COOK BY:
FOOD TYPE
COOK BY:
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
STANDARD
CLEAN
LIGHT
CLEAN
3 hours
4 hours
SELF CLEAN
SELF CLEAN
COMPLETE
11:15
REMAINING:
30 m
END:
14:15
SELF CLEAN
CANCEL
10:45
REMAINING:
30 m
END:
11:15
SELF CLEAN
CANCEL
Press button to start
SELF CLEAN
Oven door will be locked
during the cycle
START
Clean inside oven door with mild detergent
and a soft cloth to avoid permanent staining
Remove shelves and accessories from oven
Before starting
Press button to continue
SELF CLEAN
NEXT
10:45
COOK BY:
FUNCTION
COOK BY:
FOOD TYPE
COOK BY:
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
STANDARD
CLEAN
LIGHT
CLEAN
3 hours
4 hours
SELF CLEAN
SELF CLEAN
COMPLETE
11:15
REMAINING:
30 m
END:
14:15
SELF CLEAN
CANCEL
10:45
REMAINING:
30 m
END:
11:15
SELF CLEAN
CANCEL
Press button to start
SELF CLEAN
Oven door will be locked
during the cycle
START
Clean inside oven door with mild detergent
and a soft cloth to avoid permanent staining
Remove shelves and accessories from oven
Before starting
Press button to continue
SELF CLEAN
NEXT
10:45
COOK BY:
FUNCTION
COOK BY:
FOOD TYPE
COOK BY:
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
STANDARD
CLEAN
LIGHT
CLEAN
3 hours
4 hours
SELF CLEAN
SELF CLEAN
COMPLETE
11:15
REMAINING:
30 m
END:
14:15
SELF CLEAN
CANCEL
10:45
REMAINING:
30 m
END:
11:15
SELF CLEAN
CANCEL
Press button to start
SELF CLEAN
Oven door will be locked
during the cycle
START
Clean inside oven door with mild detergent
and a soft cloth to avoid permanent staining
Remove shelves and accessories from oven
Before starting
Press button to continue
SELF CLEAN
NEXT
10:45
COOK BY:
FUNCTION
COOK BY:
FOOD TYPE
COOK BY:
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
STANDARD
CLEAN
LIGHT
CLEAN
3 hours
4 hours
SELF CLEAN
SELF CLEAN
COMPLETE
11:15
REMAINING:
30 m
END:
14:15
SELF CLEAN
CANCEL
10:45
REMAINING:
30 m
END:
11:15
SELF CLEAN
CANCEL
Press button to start
SELF CLEAN
Oven door will be locked
during the cycle
START
Clean inside oven door with mild detergent
and a soft cloth to avoid permanent staining
Remove shelves and accessories from oven
Before starting
Press button to continue
SELF CLEAN
NEXT
53
Press the button to the left of the screen at
any point during the clean cycle to cancel.
SELF CLEAN COMPLETE will show in the
display. Touch the display to clear.
You need to:
z
wait for the oven to cool down completely
z
remove the grey ash with a small brush or damp cloth
z
wipe out the oven with a clean, damp cloth
z
dry with a clean, lint-free cloth, and
z
replace the oven shelves.
1
1
USING SELF CLEAN
Cancelling Self Clean
When Self Clean is finished
IMPORTANT!
z
The oven door will not unlock until the oven has cooled to a safe temperature.
DO NOT turn off the mains power supply to the oven (wall switch). Turning off the
power while the oven is too hot may damage the oven and its surrounding cabinetry.
z
We do not recommend cancelling Self Clean then immediately starting another cycle.
10:45
COOK BY:
FUNCTION
COOK BY:
FOOD TYPE
COOK BY:
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
STANDARD
CLEAN
LIGHT
CLEAN
3 hours
4 hours
SELF CLEAN
SELF CLEAN
COMPLETE
11:15
REMAINING:
30 m
END:
14:15
SELF CLEAN
CANCEL
10:45
REMAINING:
30 m
END:
11:15
SELF CLEAN
CANCEL
Press button to start
SELF CLEAN
Oven door will be locked
during the cycle
Clean inside oven door with mild detergent
and a soft cloth to avoid permanent staining
Remove shelves and accessories from oven
Before starting
Press button to continue
SELF CLEAN
START
NEXT
10:45
COOK BY:
FUNCTION
COOK BY:
FOOD TYPE
COOK BY:
RECIPE
MENU
TIMER
LOCK
LIGHT
CLEAN
SETTINGS
REMOTE
STANDARD
CLEAN
LIGHT
CLEAN
3 hours
4 hours
SELF CLEAN
SELF CLEAN
COMPLETE
11:15
REMAINING:
30 m
END:
14:15
SELF CLEAN
CANCEL
10:45
REMAINING:
30 m
END:
11:15
SELF CLEAN
CANCEL
Press button to start
SELF CLEAN
Oven door will be locked
during the cycle
Clean inside oven door with mild detergent
and a soft cloth to avoid permanent staining
Remove shelves and accessories from oven
Before starting
Press button to continue
SELF CLEAN
START
NEXT
54
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
The oven does not work No power Check that the mains power
supply (wall switch) is turned on, the
fuse has not tripped and there is no
power outage in your area.
The oven does not work
but the screen is on.
The oven is in Demo Mode. Call Customer Care.
The lights do not come
on when I open the
oven door.
The oven light bulb(s) have blown Replace the light bulb(s). See
‘Care and cleaning’ for instructions.
The door is not correctly fitted. See ‘Care and cleaning’ for
instructions on fitting the
door correctly.
The oven light has been turned off. Go to the menu in the top
left corner of the screen and
select LIGHT.
The oven is not heating. The door is not properly closed
or it is opened too frequently
during cooking.
The heating elements are
disabled while the door is open.
Make sure the door is properly
closed and avoid opening it
frequently during cooking.
A glass pane in the
oven door has cracked,
chipped, or shattered.
Incorrect cleaning or the edge
of the glass hitting against
something.
You must NOT use the oven.
Call your Authorized Repairer or
Customer Care.
The oven controls
are unresponsive.
The control panel is locked. Touch and hold the screen to unlock.
I can feel hot air blowing
out of the vents after I
have turned the oven off.
This is normal. For safety reasons the cooling fans
will continue to run even when you
have turned the oven off. The fans
will switch off automatically when
the oven has cooled.
General
If there is a problem with your oven, please check the following points before contacting
your local Fisher & Paykel trained and supported service technician or the Customer Care
Centre.
55
PROBLEM POSSIBLE CAUSES WHAT TO DO
The oven fan comes
on when I select a
function that does not
use a fan (eg BAKE or
CLASSIC BAKE).
This is normal.
The fan comes on while the oven
is preheating. It may turn off
when the oven has reached the
set temperature.
Wait until the red heating bar on the
screen disappears: the oven will then
be ready to use.
The oven has reached the
set temperature but the
temperature dial halo is
still red*.
The oven is set to GRILL. This is normal. The dial halo* will
stay red whenever this function
is in use as the grill element is
always heating.
The temperature dial halo
never turns white when I
use GRILL*.
This is normal: the halo stays red
to indicate that the grill element
provides instant radiant heat.
The oven sounds a tone
when I try to set the
temperature below a
certain temperature.
This is normal: for food safety
reasons, the oven functions
have factory-set minimum
temperature settings.
Select a different temperature or try
a different function that is designed
for low temperatures.
The oven cancels
automatic cooking
when I try to adjust the
clock setting.
The oven was set for automatic
cooking when you were trying to
adjust the clock setting.
You can only adjust the clock
setting while the oven is not set
for automatic cooking.
The displays work,
and the function and
temperature dials halos
come on but the oven
does not heat up.
The oven is in ‘Demo’ mode. Call Customer Care.
The oven door does not
align with the control
panel or surrounding
cabinetry.
The oven door has been installed
incorrectly and the hinges are
misaligned within the slots.
Re-install the door.
See ‘Removing and refitting the
oven door’ for instructions.
Temperature is not
calibrated correctly.
Door is not sealing correctly. Re-install the door.
See ‘Removing and refitting the
oven door’ for instructions.
TROUBLESHOOTING
General
56
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
During Self Clean, the
oven is louder than usual.
This is normal: the oven’s cooling
fans operate at their highest speed.
The screen shows no time
remaining but the oven
door will not open.
The oven door is locked because
the oven is still too hot to be used
for cooking.
Wait until Self Clean has finished.
If you cancelled a cycle part way
through, the oven still needs to cool
down before it can be used. The
oven door will automatically unlock.
I have cancelled Self Clean
but cannot use the oven:
• the oven door will
not open
• the screen is still
counting down
minutes or showing
no time remaining
• the controls
are unresponsive.
This is normal.
If the oven is still too hot to be
used for cooking the door will stay
locked until it has cooled down.
Wait until the cool-down phase has
finished. A long tone will sound and
the oven door will automatically
unlock when the oven is ready
to use.
Note: depending on when the clean
cycle was cancelled, the cool-down
phase may take up to 45 minutes.
The oven is beeping and
the screen shows A2
or A3.
See section ‘Alert codes’
for instructions.
Follow the guidance on the screen.
There is a power cut
during Self Clean.
Power cut. The heating elements are
disabled while the door is open.
The door will remain locked.
Once the power is turned back
on, the door will remain locked
until the oven has cooled to a
safe temperature.
Self Clean
57
ALERT CODES
What to do if an alert code is displayed
1 If the beeping hasn’t stopped already, touch the display and press the little audio button
in the bottom right to mute it.
2 Make a note of the alert code displayed. You may need this information.
3 Follow the instructions on the screen to resolve the problem.
4 If you can fix the problem and the alert code does not reappear, you can keep using
your oven.
If you can’t fix the problem yourself or the alert code reappears and the problem persists:
wait until the cooling fans have stopped and the oven has completely cooled down, then
turn the power to the oven off at the wall and contact a Fisher & Paykel trained and
supported service technician or Customer Care with the alert code information.
If there is a problem, the oven will automatically suspend all oven functions, beep five times
and display an alert code.
IMPORTANT!
Do not turn off the mains power supply to the oven (wall switch) if you get an alert code,
unless the instructions in the chart following specifically instruct you to. There are cooling
fans within the oven which are needed to cool the oven’s components. Turning off the
power while the oven is too hot may damage the oven and its surrounding cabinetry.
ALERT CODE POSSIBLE CAUSE WHAT TO DO
A1
The oven
has overheated.
• Allow the oven to cool down.
• Once the oven has cooled down and the door has
unlocked, the alert code will disappear. You can now use
the oven.
A2
Door lock error:
the door cannot
be locked after
you have started a
Self Clean cycle.
• Turn the power to the oven off at the wall and on again.
• Wait approximately 10 seconds. This will allow the door
lock to return to its initial position.
• Set the clock. See ‘Setting the clock and first use’
for instructions.
• Try starting a Self Clean cycle again, making sure that you
close the door firmly. See ‘Using the Self Clean function’.
A3
Door lock error:
the door cannot
be unlocked after
a Self Clean cycle
has finished.
• Turn the power to the oven off at the wall and on again.
• Gently press the door a few times to help the door
lock disengage.
• If this doesn’t help and the alert code reappears,
contact a Fisher & Paykel trained and supported service
technician or Customer Care.
F
+ number
Technical fault. • Note down the alert code.
• Wait until the cooling fans have stopped and the oven
has completely cooled down.
• Turn the power to the oven off at the wall.
• Call your Authorized Repairer or Customer Care with
the alert code information.
58
431218A 02.24
FISHERPAYKEL.COM
MANUFACTURER’S WARRANTY AND SERVICE GUIDE
To access your Warranty and Service Guide
Scan the QR code with your smartphone to access your warranty and
book a service, or view online at https://www.fisherpaykel.com/nz/
help-and-support/warranty-information
To access your Warranty and Service Guide
Scan the QR code with your smartphone to access your warranty and
book a service, refer to your separate warranty and service book or
view online at https://www.fisherpaykel.com/au/help-and-support/
warranty-information
This product has been designed for use in a domestic (residential) environment. This
product is not designed for any commercial use. Any commercial use by the customer will
affect this product’s Manufacturer’s Warranty.
AU
NZ
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Tow n
Country
431218A 02.24
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2024. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
