HW-Q600C
FULL MANUAL
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at www.samsung.com/register
ENG - 2
SAFETY INFORMATION
The following also applies to the Wireless
Subwoofer (PS-WC67B).
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Refer to the table below for an explanation of
symbols which may be on your Samsung product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
This symbol indicates that high voltage
is present inside. It is dangerous to
make any kind of contact with any
internal part of this product.
This symbol indicates that this product
has included important literature
concerning operation and maintenance.
Class II product : This symbol indicates
that a safety connection to electrical
earth (ground) is not required.
If this symbol is not present on a
product with a power cord, the product
MUST have a reliable connection to
protective earth (ground).
AC voltage : Rated voltage marked
with this symbol is AC voltage.
DC voltage : Rated voltage marked
with this symbol is DC voltage.
Caution. Consult Instructions for use :
This symbol instructs the user to
consult the user manual for further
safety related information.
WARNING
not expose this appliance to rain or moisture.
To prevent injury, this apparatus must be
securely set on a solid surface or attached to
a wall in accordance with the installation
instructions.
This product contains chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.
CAUTION
Do not expose this apparatus to dripping or
liquids, such as vases, on the apparatus.
To turn this apparatus off completely, you
must pull the power plug out of the wall
socket. Consequently, the power plug must
be easily and readily accessible at all times.
FCC NOTE (for U.S.A):
FCC Supplier’s Declaration of Conformity
Responsible Party - U.S. Contact Information:
Samsung Electronics America, Inc.
85 Challenger Road.
FCC Compliance Statement :
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
ENG - 3
FCC Caution :
approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
shielded cables and connectors are used to
connect the unit to other equipment.
To prevent electromagnetic interference with
electric appliances, such as radios and
televisions, use shielded cables and
connectors for connections.
Class B FCC Statement
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one of the
following measures:
Reorienting or relocating the receiving
antenna.
Increasing the separation between the
equipment and receiver.
Connecting the equipment to an outlet that is
on a different circuit than the radio or TV.
Consulting the dealer or an experienced
radio/TV technician for help.
FCC Radiation Exposure Statement :
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
between the radiator and your body. This device
and its antenna(s) must not be co-located or
operated in conjunction with any other antenna or
transmitter.
CALIFORNIA USA ONLY (Applicable for
networking models only.)
This Perchlorate warning applies only to primary
CR(Manganese Dioxide) Lithium coin cells in the
product sold or distributed ONLY in California
USA “Perchlorate Material - special handling may
apply, See www.dtsc.ca.gov/hazardouswaste/
perchlorate.”
Dispose unwanted electronics through an
location, go to our website:www.samsung.com/
WARNING: Cancer and Reproductive Harm
- www.P65Warnings.ca.gov.
Important Safety Instructions
Read these operating instructions carefully
before using the unit. Follow all the safety
instructions listed below. Keep these operating
instructions handy for future reference.
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
heat.
9. Do not hinder in any way the safety purpose
of the polarized or grounding-type plug.
A polarized plug has two blades with one
wider than the other. A grounding type plug
has two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided plug
electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11.
by the manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table
or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14.
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
PRECAUTIONS
1. Ensure that the AC power supply in your
house complies with the power
sticker located on the bottom of your
product. Install your product horizontally, on
a suitable base (furniture), with enough
Make sure the ventilation slots are not
or other equipment which may become hot.
This unit is designed for continuous use.
To fully turn off the unit, disconnect the AC
plug from the wall outlet. Unplug the unit if
you intend to leave it unused for a long
period of time.
2. During thunderstorms, disconnect the AC
plug from the wall outlet. Voltage peaks due
to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or
other heat sources. This could lead to
overheating and cause the unit to
malfunction.
4. Protect the product from moisture (i.e.
equipment creating strong magnetic or
the AC wall socket if the unit malfunctions.
Your product is not intended for industrial
use. It is for personal use only. Condensation
may occur if your product has been stored in
cold temperatures. If transporting the unit
during the winter, wait approximately
2 hours or until the unit has reached room
temperature before using.
5. The battery used with this product contains
chemicals that are harmful to the
environment. Do not dispose of the battery
in the general household trash. Do not
expose the battery to excess heat, direct
disassemble, or overheat the battery.
CAUTION : Danger of explosion if the battery
is replaced incorrectly. Replace only with the
same or equivalent type.
ENG - 5
CONTENTS
01 Checking the Components 7
02 Product Overview 8
Front Panel / Top Panel of the Soundbar
------------------------- 8
Bottom Panel of the Soundbar
------------------------- 9
03 Using the Remote Control 10
Inserting Batteries before using the Remote Control (AAA batteries X 2)
-------------------------
How to Use the Remote Control
-------------------------
Using the Hidden Buttons (Buttons with more than one function)
-------------------------
-------------------------
Adjusting the Soundbar volume with a TV remote control
------------------------- 15
04 Connecting the Soundbar 16
Connecting Electrical Power
-------------------------
16
Connecting the Samsung Wireless Rear Kit to your Soundbar
-------------------------
19
05 Connecting to a TV 20
Method 1. Connecting with HDMI
-------------------------
Method 2. Connecting using an Optical Cable
-------------------------
22
Method 3. Connecting via Bluetooth
-------------------------
06 Connecting an External Device 26
Method 1. Connecting using an HDMI Cable
(Capable of Dolby Atmos®/DTS:X decoding and playback)
-------------------------
26
Method 2. Connecting using an Optical Cable
-------------------------
27
ENG - 6
07 Connecting a USB drive 28
08 Connecting a Mobile Device 29
Connecting via Bluetooth
-------------------------
29
Using Tap Sound
-------------------------
33
09 Installing the Wall Mount 34
Installation Precautions
-------------------------
Wallmount Components
-------------------------
10 Installing the Soundbar in front of TV 36
11 Software Update 37
USB Update
-------------------------
37
Reset
-------------------------
38
12 Troubleshooting 39
13 License 41
14 Open Source License Notice 42
15 Important Notes About Service 42
-------------------------
ENG - 7
01 CHECKING THE COMPONENTS
SOUND
MODE
WOOFER
TONE
CONTROL
CH LEVEL
Soundbar Main Unit Subwoofer Remote Control (AH81-15340A) /
Batteries
x 2
Power Cord
(Subwoofer, Soundbar)
(AH81-09826A)
AC/DC Adapter
(Soundbar)
(AH81-09783A)
HDMI Cable
(AH81-15339A)
x 2
x 2
x 2
Wall Mount Guide Holder-Screw Bracket-Wall Mount Screw
(AH81-15352A)
For more information about the power supply and power consumption, refer to the label attached
to the product. (Label: Bottom of the Soundbar Main Unit)
To purchase additional components or optional cables, contact a Samsung Service Center or
Samsung Customer Care.
For more information about the wallmount see page.
The appearance of the components may differ slightly from the illustrations above.
ENG - 8
02 PRODUCT OVERVIEW
Front Panel / Top Panel of the Soundbar
Top Panel
Display
Displays the product’s status and current mode.
(Power) Button
Turns the power on and off.
Auto Power Down Function
The unit turns off automatically in the following situations:
– In D.IN / HDMI / BT / USB Mode : If there is no audio signal for 18 minutes.
(Volume) Button
Adjusts the volume.
When adjusted, the volume level appears on the Soundbar’s front display.
(Source) Button
Selects the source input mode.
Input mode Display
Optical D.IN
eARC/ARC (HDMI OUT)
* D.IN TV eARC (Auto conversion)
D.IN TV ARC (Auto conversion)
HDMI HDMI
BLUETOOTH mode BT
USB mode USB
To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the
(Source) button for more than 5 seconds.
“*” mode is supported when the eARC function in the TV setting is On.
ENG - 9
If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and
change the TV speaker to External Speaker.
Bottom Panel of the Soundbar
HDMI
HDMI TO TV
(eARC/ARC)
DIGITAL AUDIO IN (OPTICAL)
USB (5V 0.5A)
DC 24V
HDMI
HDMI TO TV
(eARC/ARC)
DIGITAL AUDIO IN (OPTICAL)
USB (5V 0.5A)
DC 24V
USB (5V 0.5A)
See page 28)
DC 24V (Power Supply In)
Connect the AC/DC power adapter. (See page 16)
HDMI
Inputs digital video and audio signals simultaneously using an HDMI cable.
Connect to the HDMI output of an external device. (See page 26)
HDMI TO TV (eARC/ARC)
Connect to the HDMI IN (eARC) port on a TV. (See page)
DIGITAL AUDIO IN (OPTICAL)
Connect to the digital (optical) output of an external device. (See page 27)
When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.
Do not pull the cable.
Do not connect this unit or other components to an AC outlet until all connections between
components are complete.
03 USING THE REMOTE CONTROL

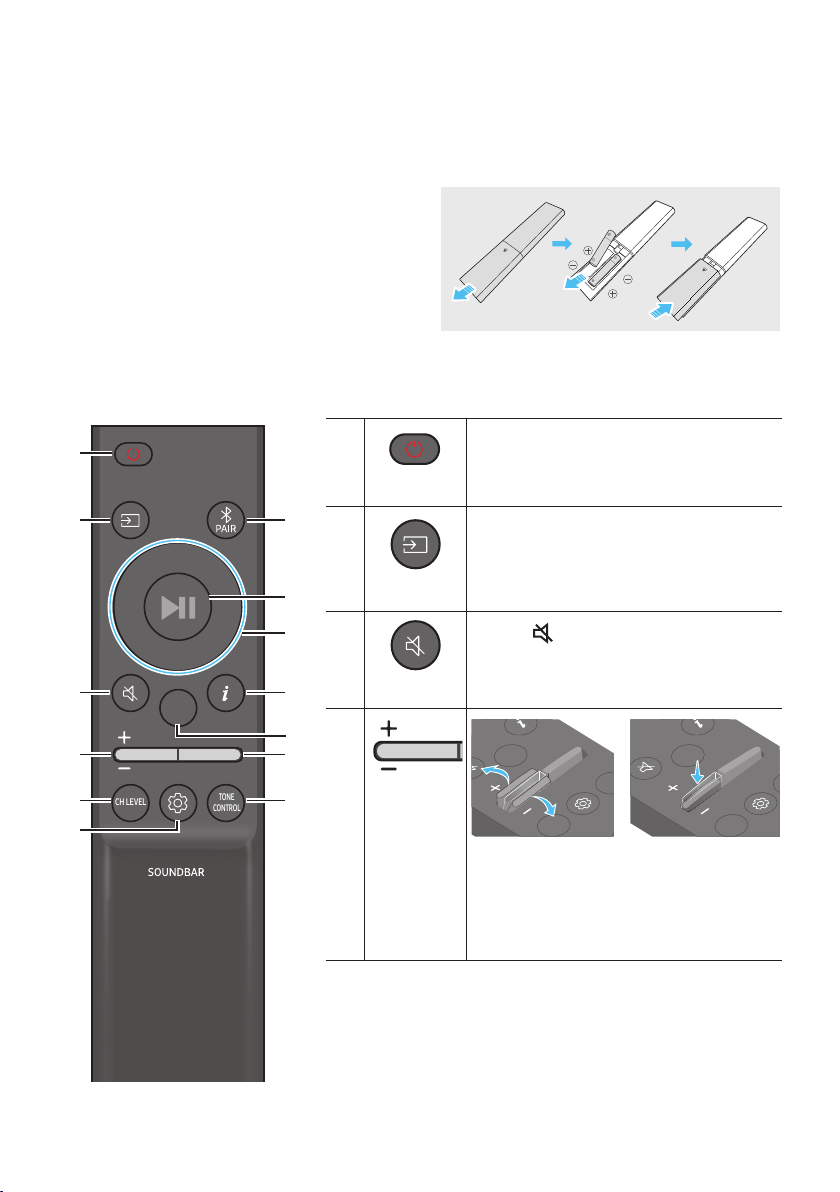

Inserting Batteries before using the Remote Control (AAA batteries X 2)
Slide the back cover in the direction of the arrow
until it is completely removed.
Insert 2 AAA batteries (1.5V) so that their
orientation is correct. Slide the back cover back into
position.
How to Use the Remote Control
SOUND
MODE
WOOFER
TONE
CONTROL
CH LEVEL
Power
Turns the Soundbar on and off.
Source
Press to select a source connected to the
Soundbar.
Mute
Press the
(Mute) button to mute the sound.
Press it again to unmute the sound.
Volume
CH LEVEL
TONE
CONTR
WOOFER
SOUND
MODE
CH LEVEL
TO
C
WOOFER
SOUND
MODE
Push the button up or down to adjust the
volume.
Mute
Press the Volume button in to mute the
sound. Press it in again to unmute the sound.
ENG - 11
CH LEVEL
CH LEVEL
By pressing the button, you can adjust the volume of the each speaker.
Press the button to select CENTER LEVEL or TOP LEVEL and then adjust the volume
between -6~+6 by using the Up/Down buttons.
If the Rear Speakers (sold separately) are connected, the setting REAR LEVEL is
supported. To adjust the volume of the REAR LEVEL between -6 to +6 by using the Up/
Down buttons.
VEL
Sound Control
By pressing the button, you can set the audio function. The desired settings can be
adjusted using the Up/Down buttons.
VOICE ENHANCE ON/OFF NIGHT MODE ON/OFF SYNC VIRTUAL ON/OFF
– VOICE ENHANCE ON/OFF
This mode is makes it easier to hear spoken dialog in movies and TV.
– NIGHT MODE ON/OFF
This mode is optimized for nighttime viewing with the settings adjusted to bring the
volume down but keep the dialog clear.
– SYNC
If the video on the TV and audio from the Soundbar are not synchronized, press the
(Sound Control) button to select SYNC and then set the audio delay between
Up/Down buttons. (Not available in “USB” or “BT”
mode.)
– VIRTUAL ON/OFF
Dolby Virtual function can be turned ON/OFF.
The VOICE ENHANCE, NIGHT MODE, and VIRTUAL audio function can be turned ON/
OFF by using the Up/Down buttons. (VIRTUAL function is not available in “USB” or “BT”
mode.)
Press and hold the (Sound Control) button for about 5 seconds to adjust the sound
selectable using the Left/Right buttons and each can be adjusted to a setting between
-6 to +6 using the Up/Down buttons.
(Make sure the Sound mode is set to “STANDARD”.)
Bluetooth
PAIR
Switch the Soundbar to Bluetooth pairing mode.
Press the
PAIR button and wait for the “BT PAIRING” screen to connect to a new
Bluetooth device.
Play / Pause
You can also play or pause music by pressing the button.
ENG - 12
Up/Down/
Left/Right
Press the indicated areas to select Up/Down/Left/Right.
Press Up/Down/Left/Right on the button to select or set functions.
Repeat
To use the Repeat function in “USB” mode, press the Up button.
Music Skip
Press the RightLeft button to select the
ID SET
Press and hold the Up button for 5 seconds to complete ID SET (when connecting to a
wireless subwoofer or wireless rear speakers).
OUND
Info
Press to display information about the active function or the codec available.
SOUND
MODE
SOUND MODE
By pressing the button, you can select the desired sound mode.
SURROUND SOUND GAME PRO ADAPTIVE SOUND STANDARD
– SURROUND SOUND
– GAME PRO
Provides stereoscopic sound to immerse you in the action while gaming.
– ADAPTIVE SOUND
based on the characteristics of the content.
– STANDARD
Outputs the original sound.
DRC (Dynamic Range Control)
Lets you apply dynamic range control to Dolby Digital tracks. Press and hold the
SOUND MODE
turn DRC (Dynamic Range Control) on or off. With the DRC turned on, loud sound is
reduced. (The sound may be distorted.)
Bluetooth Power
This feature automatically turns the Soundbar on when it receives a connection
request from a previously connected TV or Bluetooth device. The setting is On by
default.
– Press and hold the SOUND MODE button for more than 5 seconds to turn off the
Bluetooth Power function.
ENG - 13
WOOFER
WOOFER
(BASS) LEVEL
CH LEVEL
TONE
CONTR
WOOFER
SOUND
MODE
CH LEVEL
TONE
CONTR
WOOFER
SOUND
MODE
Push the button up or down to adjust the level of the woofer (bass) to -12 or between -6 to
TONE
CONTROL
TONE
CONTROL
By pressing the button, you can adjust the volume of the treble or bass sound.
Press the button to select TREBLE or BASS and then adjust the volume between -6~+6
by using the Up/Down buttons. Once the bass level is changed, the woofer level will be
also adjusted accordingly.
Using the Hidden Buttons (Buttons with more than one function)
Hidden Button
Reference page
Remote Control Button Function
WOOFER (Up) TV remote control On/Off (Standby) page 15
Left TV Auto connect On/Off (BT Ready) page 25
Up ID SET page 12
(Sound Control)
7 Band EQ page 11
SOUND MODE
DRC ON/OFF (Standby) page 12
Bluetooth Power page 12
Effect Input
Output
With Subwoofer Only
With Subwoofer &
Wireless Rear Speaker
Kit
SOUND MODE
SOUND
MODE
SURROUND
SOUND
3.1.2 ch 5.1.2 ch
5.1 ch 3.1.2 ch 5.1.2 ch
Dolby Atmos®, DTS:X 3.1.2 ch 5.1.2 ch
GAME PRO
3.1.2 ch 5.1.2 ch
5.1 ch 3.1.2 ch 5.1.2 ch
Dolby Atmos®, DTS:X 3.1.2 ch 5.1.2 ch
ADAPTIVE
SOUND
3.1.2 ch 5.1.2 ch
5.1 ch 3.1.2 ch 5.1.2 ch
Dolby Atmos®, DTS:X 3.1.2 ch 5.1.2 ch
STANDARD
2.1 ch 2.1 ch
5.1 ch 3.1 ch 5.1 ch
Dolby Atmos®, DTS:X 3.1.2 ch 5.1.2 ch
The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the
vendor you purchased the Soundbar from.
When the input source is Dolby Atmos®, DTS:X, the Subwoofer-only setup provides 3.1.2 channel
audio, while the Subwoofer & Wireless Rear Speaker Kit setup provides 5.1.2 channel audio.
The Rear Speakers will not produce sounds for 2 channel output while STANDARD mode is in use.
To enable sound for the Rear Speakers, change the effect mode to SURROUND SOUND.
ENG - 15

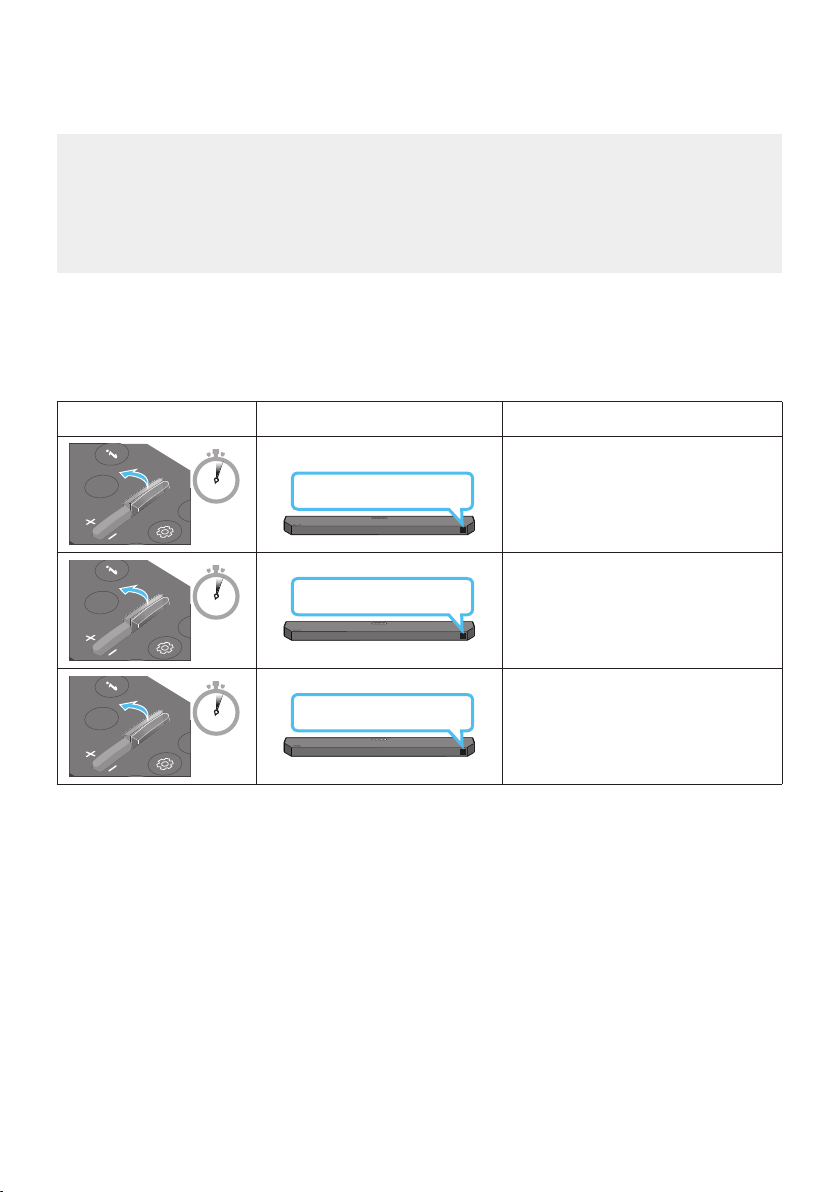

Adjusting the Soundbar volume with a TV remote control
Adjust the Soundbar volume using the TV’s remote control.
This function can be used with IR remote controls only. Bluetooth remote controls (remote
controls that require pairing) are not supported.
Set the TV speaker to External Speaker to use this function.
Manufacturers supporting this function:
Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA
1. Turn Off the Soundbar.
2. Push up and hold the WOOFER button for 5 seconds.
Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the
following order: “OFF-TV REMOTE” (Default mode), “SAMSUNG-TV REMOTE”, “ALL-TV REMOTE”.
Remote Control Button Display Status
SOUND
MODE
WOOFER
L
TONE
CON
5 Sec
OFF-TV REMOTE
(Default mode)
Disable the TV remote control.
SOUND
MODE
WOOFER
L
TONE
CON
5 Sec
SAMSUNG-TV REMOTE
Enable a Samsung TV’s IR remote
control.
SOUND
MODE
WOOFER
L
TONE
CON
5 Sec
ALL-TV REMOTE
Enable a third-party TV’s IR remote
control.
ENG - 16
04 CONNECTING THE SOUNDBAR
Connecting Electrical Power
Use the power components to connect the Subwoofer and Soundbar to an electrical outlet in the following
order:
For more information about the required electrical power and power consumption, refer to the
label attached to the product. (Label: Bottom of the Soundbar Main Unit)
1. Connect the power cord to the Subwoofer.
2. Connect the power cord to the AC/DC adapter. Connect the AC/DC adapter (with the power cord)
to the Soundbar.
3. Connect power to the Soundbar and Subwoofer.
turning on the Soundbar.
POWER
Rear of Subwoofer
Power Cord
Connecting
Electrical Power
USB (5V 0.5A)
DC 24V
DC 24V
Bottom of the
Soundbar Main Unit
AC/DC Adapter
Power Cord
Connecting
Electrical Power
that it is hanging with the AC cord input facing upwards, water or other foreign substances could
enter the Adapter and cause the Adapter to malfunction.
If you unplug and reconnect the power cord when the product is turned on, the Soundbar turns on
automatically.
ENG - 17

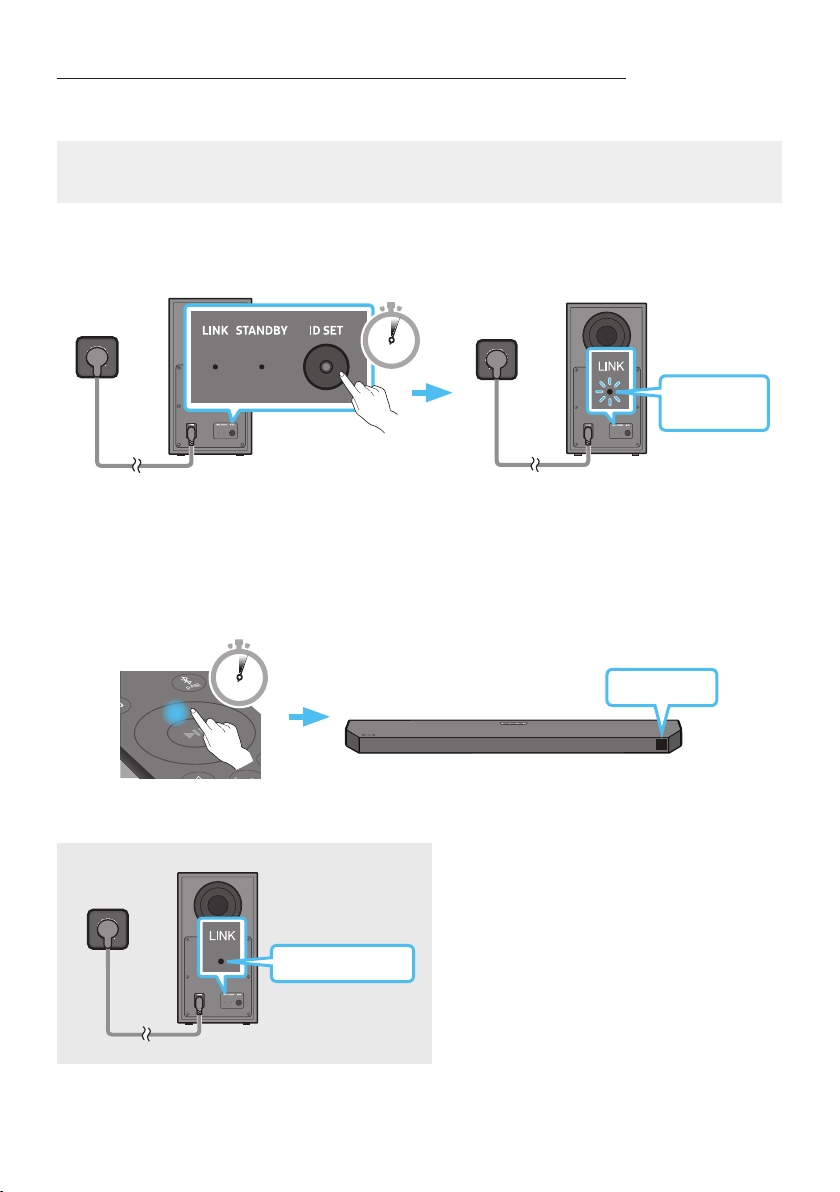

Manually connecting the Subwoofer if automatic connection fails
Before performing the manual connection procedure below:
Check whether the power cables for the Soundbar and subwoofer are connected properly.
Make sure that the Soundbar is turned on.
1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.
The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.
Blinking blue
fast
5 Sec
Rear of Subwoofer Rear of Subwoofer
2. Press and hold the Up button on the remote control for at least 5 seconds.
The ID SET message appears on the display of the Soundbar for a moment, and then it
disappears.
The Soundbar will automatically power on when ID SET is complete.
SOUND
MODE
PAIR
5 Sec
ID SET
3. Check if the LINK LED is solid blue (connection complete).
Blue is On
The LINK LED indicator stops blinking and
glows a solid blue when a connection is
established between the Soundbar and the
Wireless Subwoofer.
ENG - 18
LED Indicator Lights on the Rear of Subwoofer
LED Status Description Resolution
Blue
On
Successfully connected
(normal operation)
-
Blinking Recovering the connection
Check if the power cable
attached to the main
Soundbar unit is connected
properly or wait about 5
minutes. If blinking persists,
try manually connecting the
subwoofer. See page 17.
Red
On
Standby (with the Soundbar
main unit turned off)
Check if the power cable
attached to the main
Soundbar unit is connected
properly.
Connection failed
Connect again. See the
instructions for manual
connection on page 17.
Red and blue
Blinking Malfunction
See the contact information
for the Samsung Service
Center in this manual.
NOTES
Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the
STANDBY LED on the rear of the sub-woofer will turn red after blinking blue several times.
If you use a device that uses the same frequency as the Soundbar near the Soundbar, interference
may cause some sound interruption.
may vary depending on your operating environment. If a steel-concrete or metallic wall is between
the main unit and the wireless subwoofer, the system may not operate at all because the wireless
signal cannot penetrate metal.
ENG - 19
CAUTION
Wireless receiving antennas are built into the wireless subwoofer. Keep the unit away from water
and moisture.
For optimal listening performance, make sure that the area around the wireless subwoofer and the
Wireless Rear Speakers (sold separately) are clear of any obstructions.
Connecting the Samsung Wireless Rear Kit to your Soundbar
Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit
For detailed information on connections, see the Samsung Wireless Rear Speaker Kit manual.
05 CONNECTING TO A TV
Method 1. Connecting with HDMI
Connecting the TV that supports HDMI ARC/eARC (Audio Return Channel/
Enhanced Audio Return Channel)
CAUTION
To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals
marked ARC or eARC. Otherwise, the TV sound output may not work.
The recommended cable is High Speed HDMI Cable with Ethernet.
When connecting a TV that supports the eARC function, “TV eARC” appears on the display and
the sound is heard.
Dolby Atmos®/DTS:X is supported in the ARC/eARC function.
Connect to the HDMI IN (ARC) or
(eARC) port of your TV.
HDMI IN
(eARC)
HDMI TO TV
(eARC/ARC)
HDMI Cable
Bottom of the Soundbar
Connect to the HDMI TO TV (eARC/
ARC) port of the Soundbar main unit.
Top of the Soundbar
TV ARC
or
TV eARC
1.
2. “TV ARC” or “TV eARC” appears in the display window of the Soundbar main unit and the Soundbar
plays TV sound.
“TV eARC” is displayed when the eARC function in the TV setting is On.
ENG - 21
To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV
user manual for details on setting. (e.g. Samsung TV : Home (
All Settings ( )
If TV sound is inaudible, press the (Source) button on the remote control or on the top of
the Soundbar to switch to “D.IN” mode. The screen displays “D.IN” and “TV ARC” or “TV eARC” in
sequence, and TV sound is played.
If “TV ARC” or “TV eARC” does not appear in the display window of the Soundbar main unit,
Use the volume buttons on the TV’s remote control to change the volume on the Soundbar.
NOTES
When you connect the TV that supports the HDMI ARC/eARC (Audio Return Channel/Enhanced
Audio Return Channel) to the Soundbar with an HDMI cable, you can transmit the digital video and
audio data without connecting a separate optical cable.
We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one
This function is not available if the HDMI cable does not support ARC or eARC.
ARC and eARC differ in bandwidth. eARC that is enhanced version of the audio return channel has
be transmitted. So, with the eARC channel, you can enjoy the sound through formats such as Dolby
Atmos® and DTS:X.
When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on
your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the
setting on the TV is changed, you will experience better sound quality. (The TV menu may use
different words for Dolby Digital and PCM depending on the TV manufacturer.)
ENG - 22
Method 2. Connecting using an Optical Cable
Pre-connection Checklist
When you use an optical cable and the terminals have covers, be sure to remove the covers.
OPTICAL OUT
DIGITAL AUDIO IN (OPTICAL)
Bottom of the Soundbar
Optical Cable
(not supplied)
D.IN
Top of the Soundbar
1. Connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar to the OPTICAL OUT port of the
TV with a digital Optical Cable (not supplied).
2. Press the (Source) button on the top panel or remote control, and then select the “D.IN” mode.
3. The TV sound is played from the Soundbar.
ENG - 23
Using the Q-Symphony Function
For Q-Symphony, the Soundbar syncs with a Samsung TV to output sound through two devices for
optimum surround effect. When the Soundbar is connected, the menu, “TV+Soundbar” appears under
the Sound Output menu of the TV. Select the corresponding menu.
TV Menu
OR
Optical Cable (not supplied)
HDMI Cable
D.IN
TV menu example: TV + [AV] Soundbar series name (HDMI)
NOTES
It can operate according to the Codec supported by TV.
This function is supported only when the HDMI Cable or Optical Cable (not supplied) is connected.
The message displayed may differ with the TV model.
This function is available in some Samsung TVs and some Soundbar models.
Method 3. Connecting via Bluetooth
When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.
Only one TV can be connected at a time.
PAIR
OR
BT PAIRING
The initial connection
1. Press the
PAIR button on the remote control to enter the “BT PAIRING” mode.
(OR)
a. Press the
(Source) button on the top panel and then select “BT”.
“BT” changes to “BT PAIRING” in a few seconds automatically or changes to “BT READY” if
there is a connect record.
b. When “BT READY” appears, press and hold the
(Source) button on the top panel of the
Soundbar for more than 5 seconds to display “BT PAIRING”.
2. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.)
3. Select “Soundbar Q6C-Series(Bluetooth)” from the list on TV’s screen.
An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device
list. To connect the TV to the Soundbar, select the message, and then establish a connection.
When the TV is connected, [TV NameBT” appears on the Soundbar’s front display.
4. You can now hear TV sound from the Soundbar.
BT READY” mode to
reconnect.
If the device fails to connect
If a previously connected Soundbar listing (e.g. “Soundbar Q6C-Series(Bluetooth)”) appears in the
list, delete it.
Then repeat steps 1 through 3.
ENG - 25
Disconnecting the Soundbar from the TV
Press the (Source) button on the top panel or on the remote control and switch to any mode but “BT”.
Disconnecting takes time because the TV must receive a response from the Soundbar.
(The time required may differ, depending on the TV model.)
To cancel the automatic Bluetooth connection between the Soundbar and TV, press the
Left button
on the remote control for 5 seconds with the Soundbar in “BT READY
What is the difference between BT READY and BT PAIRING?
BT READY : In this mode, you can reconnect TV or mobile device that was connected before.
BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button
on the remote control or press and hold the (Source) button on the top of the Soundbar for
more than 5 seconds while the Soundbar is in “BT” mode.)
Notes on Bluetooth connection
Locate a new device within 3.28 ft (1 m) to connect via Bluetooth communication.
In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the
The Soundbar automatically turns off after 18 minutes in the Ready state.
The Soundbar may not perform Bluetooth search or connection correctly under the following
circumstances:
–
– If several Bluetooth devices are simultaneously paired with the Soundbar.
– If the Bluetooth device is turned off, not in place, or malfunctions.
Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
ENG - 26
06 CONNECTING AN EXTERNAL DEVICE
Method 1. Connecting using an HDMI Cable (Capable of Dolby
Atmos®/DTS:X decoding and playback)
Pre-connection Checklist
If the Audio Output options include Secondary Audio, make sure Secondary Audio is set to Off.
Make sure that the content supports Dolby Atmos®/DTS:X.
HDMI OUT
HDMI IN
(eARC)
HDMI
HDMI TO TV
(eARC/ARC)
HDMI Cable
HDMI Cable
Bottom of the Soundbar
External Device
HDMI
Top of the Soundbar
1. Connect an HDMI cable from the HDMI port on the bottom of the Soundbar to the HDMI OUT port
on your digital device.
2. Connect an HDMI cable from the HDMI TO TV (eARC/ARC) port on the bottom of the Soundbar to
the HDMI IN (eARC) port on your TV.
3. Press the (Source) button on the top panel or on the remote control, and then select “HDMI”.
4. “HDMI” mode is displayed on the Soundbar display panel and sound plays.
ENG - 27
NOTES
When you use Dolby Atmos®/DTS:X: If the input source is Dolby Atmos®/DTS:X, refer to “Output
on page.
When Dolby Atmos® is activated, “DOLBY ATMOS” appears in the front display.
When DTS:X is activated, “DTS:X” appears in the front display.
Open the audio output options on the settings menu of your BD player or other device and make
sure that “No Encoding” is selected for Bitstream. For example, on a Samsung BD Player, go to
HDMI Pass-Through is that the Soundbar plays the audio from the source through its own speakers
and sends the unaltered video signal to a TV via the second HDMI cable.
Frame rate (fps) Color depth
8 bit
- -
12 bit - -
8 bit - - - -
- - - -
Method 2. Connecting using an Optical Cable
OPTICAL OUT
DIGITAL AUDIO IN (OPTICAL)
Optical Cable
(not supplied)
Bottom of the Soundbar
BD / DVD player /
Set-top box /
Game console
D.IN
Top of the Soundbar
1. Connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar and the OPTICAL OUT port on the
2. Select “D.IN” mode by pressing the (Source) button on the top panel or on the remote control.
3. The external device sound is output from the Soundbar.
ENG - 28
07 CONNECTING A USB DRIVE
USB port
HDMI
HDMI TO TV
(eARC/ARC)
DIGITAL AUDIO IN (OPTICAL)
USB (5V 0.5A)
DC 24V
USB (5V 0.5A)
USB
1. Connect the USB drive to the USB port on the bottom of the product.
2. Press the
(Source) button on the top panel or on the remote control, and then select “USB”.
3. “USB” appears in the display screen.
4.
The Soundbar automatically turns off (Auto Power Down) if there is no audio signal from USB
drive or no USB drive connection for more than 18 minutes.
File Format Type Compatibility list
Extension Codec Sampling Rate Bitrate
*.m p3 MPEG1 Layer2
MPEG1 Layer3
MPEG2 Layer3
MPEG2.5 Layer3 8kHz ~ 12kHz
*.wma WMA7/8/9 (Audio Only)
*.ogg Vorbis
*.aac
*.m 4a
*.mp 4
A AC- LC
*.wav LPCM 32kHz ~ 192kHz
FLAC 32kHz ~ 192kHz
*.ai ff AIFF 32kHz ~ 192kHz
ENG - 29
08 CONNECTING A MOBILE DEVICE
Connecting via Bluetooth
When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of
cabling.
When you connect a paired Bluetooth device with the Soundbar off, the Soundbar automatically
turns on.
The connection is limited to one TV or two Bluetooth devices at the same time.
PAIR
OR
BT PAIRING
Bluetooth device
The initial connection
When connecting to a new Bluetooth device, make sure the device is within 3.28 ft (1 m) distance.
1. Press the
PAIR button on the remote control to enter the “BT PAIRING” mode.
(OR)
a. Press the
(Source) button on the top panel and then select “BT”.
“BT” changes to “BT PAIRING” in a few seconds automatically or changes to “BT READY” if
there is a connect record.
b. When “BT READY” appears, press and hold the
(Source) button on the top panel of the
Soundbar for more than 5 seconds to display “BT PAIRING”.
2. On your device, select “[AV]Samsung Soundbar Q6C-Series” from the list that appears.
When the Soundbar is connected to the Mobile device, [Mobile Device NameBT” appears in
the front display.
3.
BT
READY” mode to reconnect.
If the device fails to connect
If you have an existing Soundbar (e.g., “[AV]Samsung Soundbar Q6C-Series”) on the list of speakers
on the Mobile device, delete it.
Then repeat steps 1 and 2.
What is the difference between BT READY and BT PAIRING?
BT READY : In this mode, you can reconnect TV or mobile device that was connected before.
BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the
PAIR button
on the remote control or press and hold the (Source) button on the top of the Soundbar for
more than 5 seconds while the Soundbar is in “BT” mode.)
Notes on Bluetooth connection
Locate a new device within 3.28 ft (1 m) to connect via Bluetooth communication.
In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the
The Soundbar automatically turns off after 18 minutes in the Ready state.
The Soundbar may not perform Bluetooth search or connection correctly under the following
circumstances:
–
– If several Bluetooth devices are simultaneously paired with the Soundbar.
– If the Bluetooth device is turned off, not in place, or malfunctions.
Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
Connect only to a Bluetooth device that supports the A2DP (AV) function.
You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free)
function.
Once you have paired the Soundbar to a Bluetooth device, selecting “[AV]Samsung Soundbar
Q6C-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT”
mode.
– Available only if the Soundbar is listed among the Bluetooth device’s paired devices.
(The Bluetooth device and the Soundbar must have been previously paired at least once.)
The Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is
displaying “BT READY”.
When connecting the Soundbar to a Bluetooth device, place them as close to each other as possible.
The farther the Soundbar and Bluetooth device are from each other, the lower the sound quality
will become. The Bluetooth connection may disconnect when the devices are out of the effective
range.
The Bluetooth connection may not function as intended in areas with poor reception.
ENG - 31
A Bluetooth device may experience noise or malfunction under in the following conditions:
– When the body is in contact with the signal transceiver on the Bluetooth device or Soundbar
– In corners or when there is an obstacle in proximity, such as a wall or partition, where electrical
changes may occur.
– When exposed to radio interferences by other products operating on the same frequency
ranges, such as medical equipment, microwave ovens, and wireless LAN devices.
– Obstacles such as doors and walls may still impact the sound quality even when the devices
are within the effective range.
Note that your Soundbar cannot be paired with other Bluetooth devices while using the Bluetooth
option.
This wireless device may cause electrical interference during operation.
Bluetooth Power On (SOUND MODE)
If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On
function is on and the Soundbar is turned off, the Soundbar turns on automatically.
1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the
Soundbar is turned on.
2. “ON-BLUETOOTH POWER” appears on the Soundbar’s display.
Disconnecting the Bluetooth device from a Soundbar
You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s
user manual.
The Soundbar will be disconnected.
When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display
“BT DISCONNECTED” on the front display.
Disconnecting the Soundbar from the Bluetooth device
Press the
(Source) button on the top panel or on the remote control, and then change to any mode
except “BT”.
Disconnecting takes time because the Bluetooth device must receive a response from the
Soundbar. (Disconnection time may differ, depending on the Bluetooth device)
When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display
“BT DISCONNECTED” on the front display.
ENG - 32
Bluetooth Multi connection
The Soundbar can be connected to 2 Bluetooth devices at the same time.
Bluetooth device A Bluetooth device B
BT
1. Connect the Soundbar to up to two Bluetooth devices. (See page 29)
2. Play music from one of the connected Bluetooth devices while two devices are connected.
3. If music is played from the Bluetooth device “B” while playing from the device “A”, the music is
started playing on the device “B” and automatically being stopped/paused playback on the device
“A”.
4.
NOTES
Some devices do not support Bluetooth multi connection.
“BT PAIRING” mode stops when no device is paired within 3 minutes.
Switching devices may take about 7 seconds on some apps.
If you attempt to connect a 3rd Bluetooth device, the A or B devices will be disconnected.
(A device that is not currently playing will be disconnected.)
Only one Samsung TV, or 2 Bluetooth devices can be connected at the same time.
The Soundbar will be disconnected from Bluetooth devices when it receives a connection request
from a Samsung TV.
ENG - 33
Using Tap Sound
Tap the Soundbar with your mobile device to play audio from the mobile device through the Soundbar.
This function may not be supported, depending on the mobile device.
This function is only compatible with Samsung mobile devices with Android 8.1 or later.
Mobile device
SmartThings App
Top of the Soundbar
TAP
BT
1. Turn on the Tap Sound function on your mobile device.
For details on how to turn on the function, refer to “Enable the Tap Sound function” below.
2. Tap the Soundbar with the mobile device. Select “Start now” in the displayed message window.
A connection is established between the mobile device and Soundbar via Bluetooth.
3. Play audio from the mobile device through the Soundbar.
This function connects a mobile device to the Soundbar via Bluetooth by detecting vibration
that occurs when the device touches the Soundbar.
Make sure the mobile device does not tap a sharp corner of the Soundbar. The Soundbar or
mobile device may become scratched or damaged.
It is recommended that the mobile device be covered with a case. Lightly tap the wide area in
the upper portion of the Soundbar, without using excessive force.
To use this function, update the SmartThings app to the latest version.
The function may not be supported, depending on the app version.
Enable the Tap Sound function
Use the SmartThings app to turn on the Tap View, Tap Sound function.
1. On the mobile device, run the SmartThings app.
2. Select ( ) in the SmartThings app screen displayed on the mobile device.
3. Set “Tap View, Tap Sound” to On to allow the function to work when a mobile device moves close to
the Soundbar.
NOTES
When the mobile device is in power-saving mode, the Tap Sound function does not work.
The Tap Sound function may not work if there are devices near the Soundbar that cause radio
interference such as electric devices. Make sure devices that may cause radio interference are
09 INSTALLING THE
WALL MOUNT
Installation Precautions
Install on a vertical wall only.
Do not install in a place with high
temperature or humidity.
Verify whether the wall is strong enough to
support the product’s weight. If not, reinforce
the wall or choose another installation point.
anchors appropriate for the kind of wall you
have (plaster board, iron board, wood, etc.). If
studs.
Purchase wall mounting screws according to
the type and thickness of the wall you want to
mount the Soundbar on.
– Diameter: M5
– Length: 1 3/8 inches (35 mm) or longer
recommended.
Connect cables from the unit to external
devices before you install the Soundbar on
the wall.
Make sure the unit is turned off and
unplugged from the power source before you
install it. Otherwise, it may cause an electric
shock.
Wallmount Components
Wall Mount Guide
x 2
x 2
Holder-Screw Screw
x 2
Bracket-Wall Mount
(AH81-15352A)
1. Place the Wall Mount Guide against the wall
surface.
The Wall Mount Guide must be level.
If your TV is mounted on the wall, install
the Soundbar at least 2 inches (5 cm)
below the TV.
2 inches (5 cm) or more
ENG - 35
2. Align the Wall Mount Guide’s Center Line
with the center of your TV (if you are
mounting the Soundbar below your TV), and
Wall Mount Guide to the wall
using tape.
If you are not mounting below a TV, place
the Center Line in the center of the
installation area.
Center Line
3. Push a pen tip or sharpened pencil tip
through the center of the A-TYPE images on
each end of the Guide to mark the holes for
the supporting screws, and then remove the
Wall Mount Guide.
4. Using an appropriately sized drill bit, drill a
hole in the wall at each marking.
If the markings do not correspond to the
positions of studs, make sure you insert
appropriate anchors into the holes before
you insert the support screws. If you use
anchors, make sure the holes you drill are
large enough for the anchors you use.
5. Push a screw (not supplied) through each
Holder-Screw, and then screw each screw
(Not supplied)
Wall
6. Install the 2 Bracket-Wall Mounts in the
correct orientation on the bottom of the
Soundbar using 2 Screws.
When assembling, make sure the hanger
part of the Bracket-Wall Mounts are
located behind the rear of the Soundbar.
Rear of Soundbar
Right end of Soundbar
ENG - 36
7. Install the Soundbar with the attached
Bracket-Wall Mounts by hanging the
Bracket-Wall Mounts on the Holder-Screws
on the wall.
Wall
8. Slide the Soundbar down as shown below so
that the Bracket-Wall Mounts rest securely
on the Holder-Screws.
Insert the Holder-Screws into the wide
(bottom) part of the Bracket-Wall
Mounts, and then slide the Bracket-Wall
Mounts down so that the Bracket-Wall
Mounts rest securely on the
Holder-Screws.
10 INSTALLING THE
SOUNDBAR IN
FRONT OF TV
Place the Soundbar on a TV stand.
1.2 inches (3cm) or more
As illustrated in the image, align the center of the
Soundbar with the center of the TV, carefully
place the Soundbar onto the TV stand.
For optimal sound quality, position the Soundbar
at least 1.2 inches (3 cm) away from the TV front.
NOTES
and solid surface.
acoustic problems.
ENG - 37
11 SOFTWARE
UPDATE
Samsung may offer updates for the Soundbar’s
USB port
HDMI
HDMI TO TV
(eARC/ARC)
DIGITAL AUDIO IN (OPTICAL)
USB (5V 0.5A)
DC 24V
USB (5V 0.5A)
If an update is offered, you can update the
your Soundbar.
USB Update
After the update completes, all your customized
user settings are maintained.
1. Connect a USB drive to the USB port on your
computer.
Important: Make sure there are no music
2.
model name from the customer support menu
option.
For more information about update, refer
to Upgrade Guide.
3.
4.
drive.
5. Turn off the Soundbar and connect the USB
USB port on the Soundbar.
6. Turn on the Soundbar and press the
(Source) button to select USB source.
“UPGR” will be displayed, this may take up to
3 minutes.
UPGR
B --
DONE
BYE
displayed UPGRB --DONEBYE in
sequence, B or H can be displayed
NOTES
Soundbar is rebooted automatically when the
update is completed.
This product has a DUAL BOOT function. If the
During update, do not turn it off or remove the USB.
If update does not proceed, disconnect and
reconnect the Soundbar power cord.
When the latest version is installed, no update is
performed.
Depending on the USB type, update may not be
supported.
If the connection to the subwoofer is not re-
established automatically after the update, refer to
page 17.
If the software update fails, check if the USB drive is
defective.
Mac OS users should use MS-DOS (FAT) as the USB
format.
ENG - 38
Reset
INIT OK
Top of the Soundbar
With the Soundbar on, press the (Volume)
buttons on the top of the Soundbar at the same
time for at least 5 seconds. “INIT OK” appears on
the display and then the Soundbar is reset.
CAUTION
All the settings of the Soundbar are reset.
Be sure to perform this only when a reset is
required.
ENG - 39
12 TROUBLESHOOTING
Refer to the instructions below if this product does not function properly. If the problem you are
experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect
Soundbar does not turn on.
; Check whether the power cord of the
Soundbar is correctly inserted into the
outlet.
Soundbar works erratically.
; After removing the power cord, insert it
again.
; Unplug the power cord and plug it back
into the external device and try again.
; If there is no signal, the Soundbar
automatically turns off after a certain
period of time. Turn on the power.
(See page 8.)
If the remote control does not work.
; Point the remote directly at the Soundbar.
; Replace the batteries with new ones.
Soundbar does not output any sound.
; The volume of the Soundbar is too low or
muted. Adjust the volume.
; When any external device (STB, Bluetooth
device, mobile device, etc.) is connected,
adjust the volume of the external device.
; For sound output of the TV, select
Soundbar. (Samsung TV: Home (
)
Soundbar)
; The cable connection to the Soundbar may
be loose. Remove the cable and connect
again.
; Remove the power cord completely,
reconnect, and turn the power on.
; Reset the product and try again.
(See page 38.)
Subwoofer does not output any sound.
; Check whether the LED indicator on the rear of
the Subwoofer is on in blue. Reconnect the
Soundbar and Subwoofer if the indicator is
blinking in blue or turned red. (See page 17.)
; You may experience an issue if there is an
obstacle between the Soundbar and Subwoofer.
Move devices to an area away from obstacles.
; Other devices sending radio frequency signals
in proximity may interrupt the connection.
Keep your speaker away from such devices.
; Remove and reconnect the power plug.
In case there is sound jitter, delays, or noise from
the Subwoofer.
; If there are any objects between the Soundbar
and Subwoofer speaker, this could cause a
problem. Please reposition these to a place
without interference from that object.
; There may be sound jitter or delays when the
Subwoofer is far from the Soundbar. Please
place it near the Soundbar.
; There may be sound jitter or delays when the
Soundbar is near an instrument or electrical
device that can cause radio interference.
Place the Soundbar far from such devices that
can cause radio interference. (E.g., wireless
router)
; Change the TV network connection status from
wireless to wired.
The Subwoofer volume is too low.
; The original volume of the content you are
playing may be low. Try adjusting the
Subwoofer level. (See page 13.)
; Bring the Subwoofer speaker closer to you.
If the TV is not connected via HDMI TO TV
(eARC/ARC).
; Check whether the HDMI cable is correctly
connected to the eARC terminal.
.)
; Connection may not be possible due to the
connected external device (set-top box, game
machine, etc.). Directly connect the Soundbar.
; HDMI-CEC may not be activated on the TV.
Turn on the CEC on the TV menu. (
Samsung
TV: Home (
All Settings (
ON)
; To connect with eARC, the eARC function in
the TV menu should be set to On.
(Samsung TV:
Home (
Settings ( )
(Auto))
There is no sound in when connecting to the
TV in HDMI TO TV (eARC/ARC) mode.
; Your device is unable to play the input
signal. Change the TV’s audio output to
PCM or AUTO.
(Samsung TV: Home (
Settings (
Format)
Soundbar does not connect via Bluetooth.
; When connecting a new device, switch to
“BT PAIRING” for connection. (Press the
PAIR button on the remote control or
press the
(Source) button on the body
for at least 5 seconds.)
; If the Soundbar is connected to another
switch the device.
; Reconnect it after removing the Bluetooth
speaker list on the device to connect.
(Samsung TV: Home (
Settings (
; The automatic TV connection may be
disabled. While the Soundbar is in “BT
READY”, press and hold the Left button on
the Soundbar remote control for 5 seconds
to select ON-TV CONNECT. If you see
OFF-TV CONNECT, press and hold Left
button again for 5 seconds to switch the
selection.
; Remove and reconnect the power plug,
then try again.
; Reset the product and try again.
(See page 38.)
Sound drops out when connected via
Bluetooth.
; Some devices can cause radio interference
if they are located too close to the
Soundbar. e. g. microwaves, wireless
routers, etc.
; If your device that is connected via
Bluetooth moves too far away from the
Soundbar, it may cause the sound to drop
out. Move the device closer to the
Soundbar.
; If a part of your body is in contact with the
Bluetooth transceiver or the product is
installed on metal furniture, sound may
drop out. Check the installation
environment and conditions for use.
Bluetooth multi connection does not work.
; When the TV is connected to the soundbar,
Bluetooth multi connection may not
operate. Disconnect the Soundbar from the
TV and try again.
; Check whether the Bluetooth Multi
connection setting is turned on.
(Refer to the “Soundbar does not connect
via Bluetooth.” section.)
; Disconnect the device currently playing,
pair with the device that you want to
connect, and reconnect the previous
device.
; If the sound is inaudible even after
connecting properly, refer to the “Sound
drops out when connected via Bluetooth.”
section.
Soundbar does not turn on automatically with
the TV.
; When you turn off the Soundbar while
watching TV, power synchronization with
the TV is disabled. First turn off the TV.
13 LICENSE
Dolby, Dolby Atmos, and the double-D symbol
are registered trademarks of Dolby
Laboratories Licensing Corporation.
Manufactured under license from Dolby
rights reserved.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS, Inc. or
DTS Licensing Limited. DTS, DTS:X, and the
DTS:X logo are registered trademarks or
trademarks of DTS, Inc. in the United States and
RESERVED.
Multimedia Interface, HDMI Trade dress and the
HDMI Logos are trademarks or registered
trademarks of HDMI Licensing Administrator,
Inc.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Samsung
Electronics Co., Ltd. is under license. Other
trademarks and trade names are those of their
respective owners.
[ENERGY STAR]
– Your Samsung product is ENERGY STAR
Change to certain features, settings and
functionality in this product can change the
power consumption, possibly beyond the
limits required for ENERGY STAR
– Environmental Protection Agency and
Department of Energy. ENERGY STAR is a
joint program of the Government agencies,
products and practices.
Refer to www.energystar.gov for more
information of the ENERGY STAR Program.
(Applicable to Thin Client models only)
As an ENERGY STAR® Partner, SAMSUNG has
determined that this product meets the
ENERGY STAR® guidelines for energy
– The ENERGY STAR Program has been to
reduced greenhouse gas emissions and
save energy through voluntary labeling.
– Power management setting of this product
have been enabled by default, and have
various timing setting from 1 minutes to 5
hours.
– The product can wake with a button press
on the chassis from sleep mode.
models)
– As an ENERGY STAR Partner, Samsung has
determined that this product or product
models meets the ENERGY STAR guideline
14 OPEN SOURCE
LICENSE NOTICE
To send inquiries and requests for questions
regarding open sources, contact Samsung Open
Source (http://opensource.samsung.com)
15 IMPORTANT
NOTES ABOUT
SERVICE
Figures and illustrations in this User Manual
are provided for reference only and may differ
from actual product appearance.
An administration fee may be charged if
either:
a. An engineer is called out to your home at
your request and there is no defect in the
product.
b. You bring the unit to a repair center and
there is no defect in the product.
You will be advised of the amount of the
administration fee before any work is done or
a home visit is made.
If you have a problem with this product, we
strongly recommend you read the
appropriate section of this manual, visit the
Support page for your product at
www.samsung.com, or call Samsung Product
before you contact a service center for a
repair.
16 SPECIFICATIONS AND GUIDE
Model Name
USB
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
AMPLIFIER
Rated Output power
Supported play formats
Dolby 5.1ch / Dolby Digital Plus / Dolby TRUE HD
/ Dolby ATMOS / DTS:X MA / DTS:X / DTS-HD
DTS-ES / DTS Digital Surround / LPCM 8ch
Subwoofer Name PS-WC67B
Weight 12.1 lbs (5.5 kg)
Dimensions (W x H x D)
7.2 x 13.5 x 11.6 inches
AMPLIFIER
Rated Output power
NOTES
Weight and dimensions are approximate.
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited
warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the
United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and
service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original
dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service
center. Transportation of the product to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand
name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products,
if provided, are on an “AS IS” basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and
except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and
shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and
installation; applications and uses for which this product was not intended; altered product or serial numbers;
products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs,
external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in
follow operating instructions, cleaning, maintenance and environmental instructions that are covered and
prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to
noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant
uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO
WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY
PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR
CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST
SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND
CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND
THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG
NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO
ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR
EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
you may also have other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG customer care center.
Samsung reseller. THIS LIMITED WARRANTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS PURCHASED
FROM UNAUTHORIZED RESELLERS OR RETAILERS, EXCEPT IN STATES WHERE SUCH RESTRICTION MAY BE
PROHIBITED. For a list of Samsung authorized retailers, please go to:
http://www.samsung.com/us/peaceofmind/authorized_resellers.html.
© 2023 Samsung Electronics Co., Ltd. All rights reserved.
QUESTIONS OR COMMENTS?
Country
IN THE US 1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefi eld Park, NJ 07660
Samsung Service Center
Web Site Address
