Your new washing machine
You have chosen a Bosch washing
machine.
Please take a few minutes to read and
become familiar with the advantages of
your washing machine.
To meet the high quality demands
required by Bosch, every washing
machine that leaves our factory is
carefully checked to ensure that it
functions correctly and is in perfect
condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com/us or contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washing machine.
GB standard:
GB4706.1
GB4706.24
GB19606
GB4343.1
GB17625.1
GB/T 4288
GB12021.4
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Contents
enInstruction Manual and Installation Instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .5
Electrical safety. . . . . . . . . . . . . . . . . . 5
Risk of injury . . . . . . . . . . . . . . . . . . . . 5
Safety for children. . . . . . . . . . . . . . . . 5
7 Protection of the environment . .7
Packaging/used appliance . . . . . . . . . 7
Hints and tips . . . . . . . . . . . . . . . . . . . 8

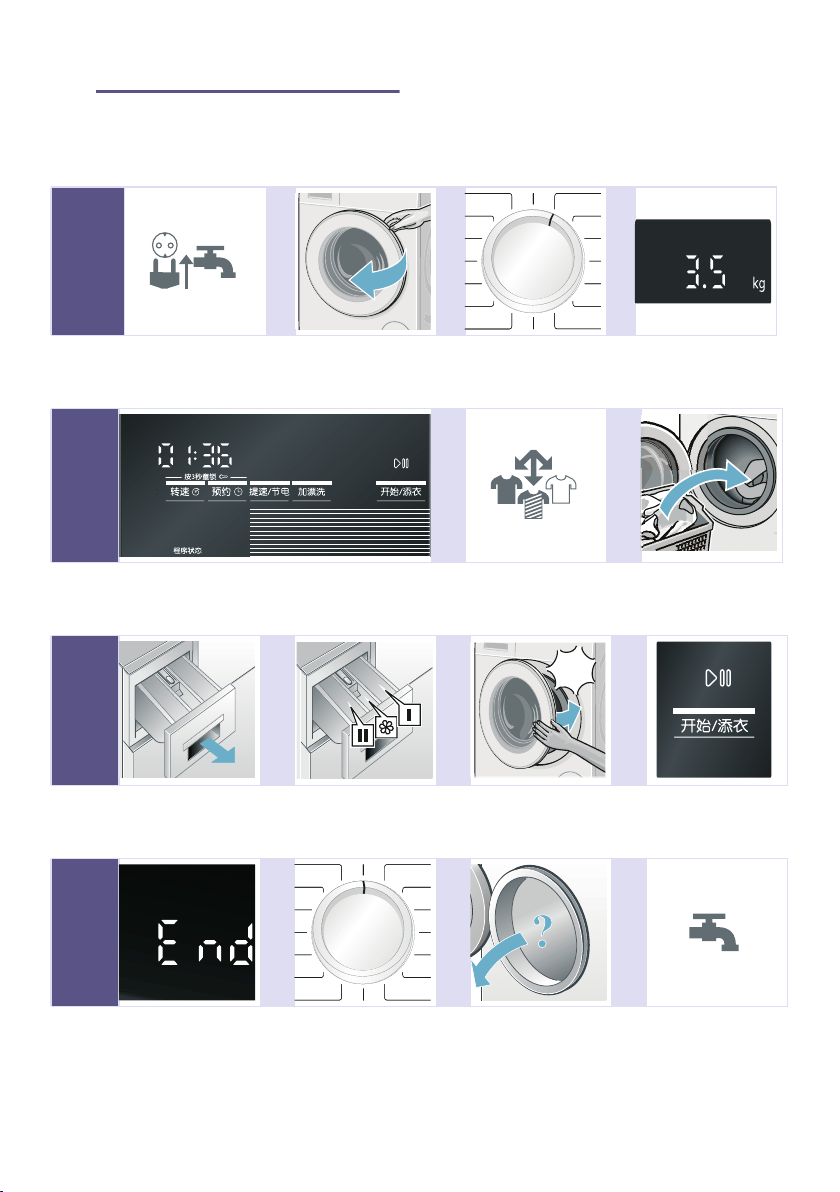

/ The main points in brief . . . . . . .9
* Getting to know your
appliance . . . . . . . . . . . . . . . . . .10
Appliance . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . 11
Display symbols . . . . . . . . . . . . . . . . 12
+ Laundry. . . . . . . . . . . . . . . . . . . .13
Protecting the washing and the
machine: . . . . . . . . . . . . . . . . . . . . . . 13
Sorting laundry according to: . . . . . . 13
1 Operating the appliance . . . . . .14
Preparing the appliance . . . . . . . . . . 14
Adjusting the washing programme . . 14
Placing laundry into the drum . . . . . . 14
Measure and add detergent and care
products . . . . . . . . . . . . . . . . . . . . . . 15
Start the programme. . . . . . . . . . . . . 16
Childproof lock . . . . . . . . . . . . . . . . . 16
Reload the laundry . . . . . . . . . . . . . . 16
Changing the programme. . . . . . . . . 17
Interrupting or ending the
programme. . . . . . . . . . . . . . . . . . . . 17
End of the programme . . . . . . . . . . . 17
After washing . . . . . . . . . . . . . . . . . . 17
P Overview of programmes . . . . .18
0 Individual settings . . . . . . . . . . .20
䖜䙏 0 (Spin speed) . . . . . . . . . . . . . 20
亴㓖 5 (Finish in) . . . . . . . . . . . . . . .20
\ Additional options. . . . . . . . . . . 20
䗨爷撚坍 (speed/eco). . . . . . . . . . . .20
࣐┲⍇ (Rinse plus) . . . . . . . . . . . . . .20
M Signal . . . . . . . . . . . . . . . . . . . . . 21
2 Cleaning and maintenance. . . . 22
Machine housing/Control panel . . . .22
Drum . . . . . . . . . . . . . . . . . . . . . . . . .22
Descaling . . . . . . . . . . . . . . . . . . . . .22

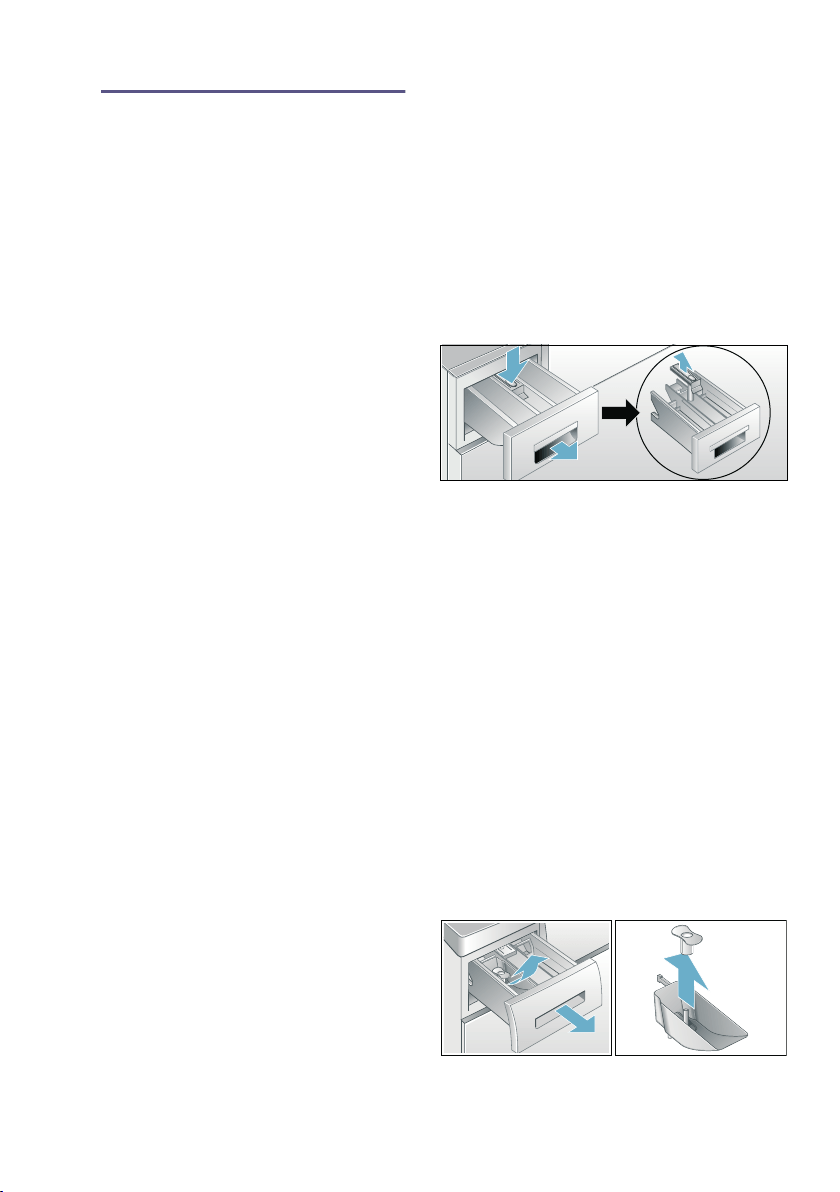

Cleaning the detergent dispenser . . .22
Cleaning the measuring aid A for
liquid detergent . . . . . . . . . . . . . . . . .22
Drain pump blocked . . . . . . . . . . . . .23
Drainage hose on the siphon
blocked . . . . . . . . . . . . . . . . . . . . . . .24

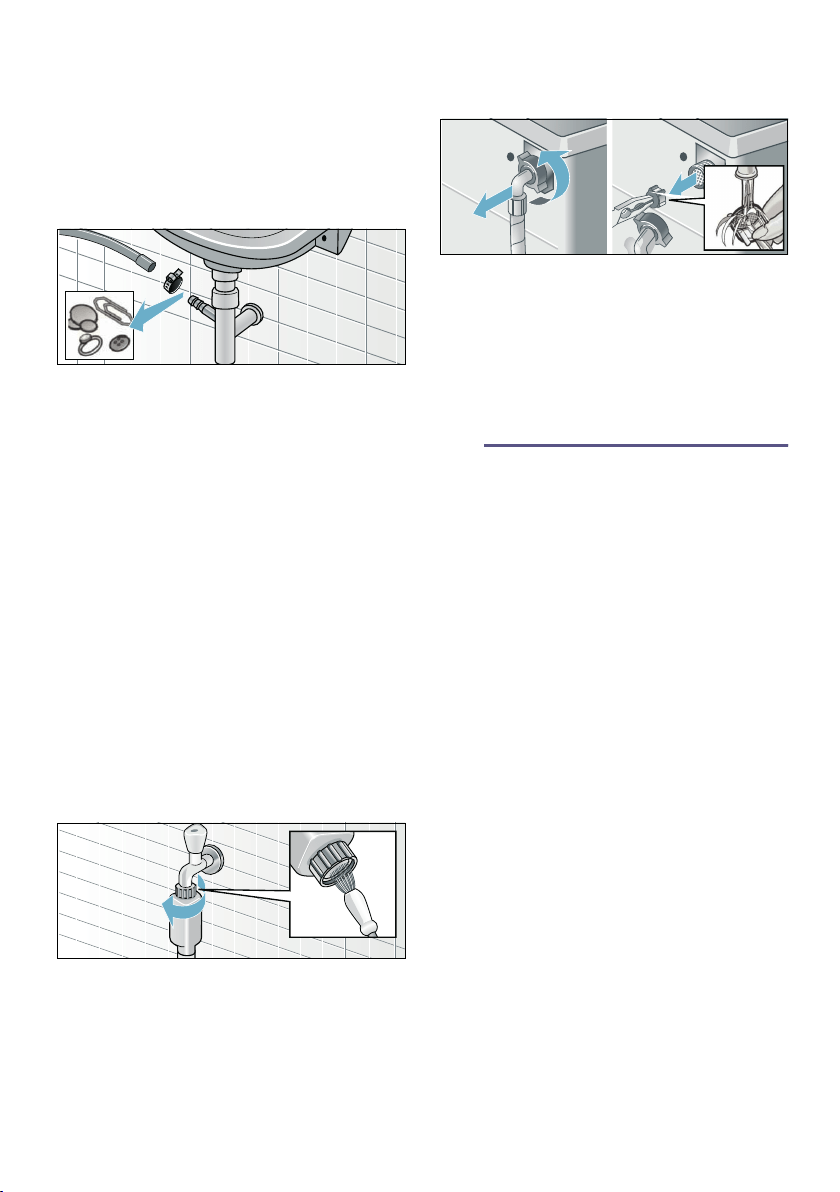

Filter in the water inlet hose blocked.24
3 Faults and what to do about
them . . . . . . . . . . . . . . . . . . . . . . 24
Emergency release, e.g. if a power
failure occurs. . . . . . . . . . . . . . . . . . .24
Information on the display panel . . . .25
Faults and what to do about them. . .25
4 After-sales service . . . . . . . . . . 27
[Consumption values . . . . . . . . . 28
J Technical data . . . . . . . . . . . . . . 28
5 Installation and connection . . . 29
Standard accessories . . . . . . . . . . . .29
Installation . . . . . . . . . . . . . . . . . . . . .30
Secure installation . . . . . . . . . . . . . . .30
Installation area . . . . . . . . . . . . . . . . .30
Installing the appliance on a base
or on a wooden joist ceiling . . . . . . .31
Installing the appliance under/
between units . . . . . . . . . . . . . . . . . .31

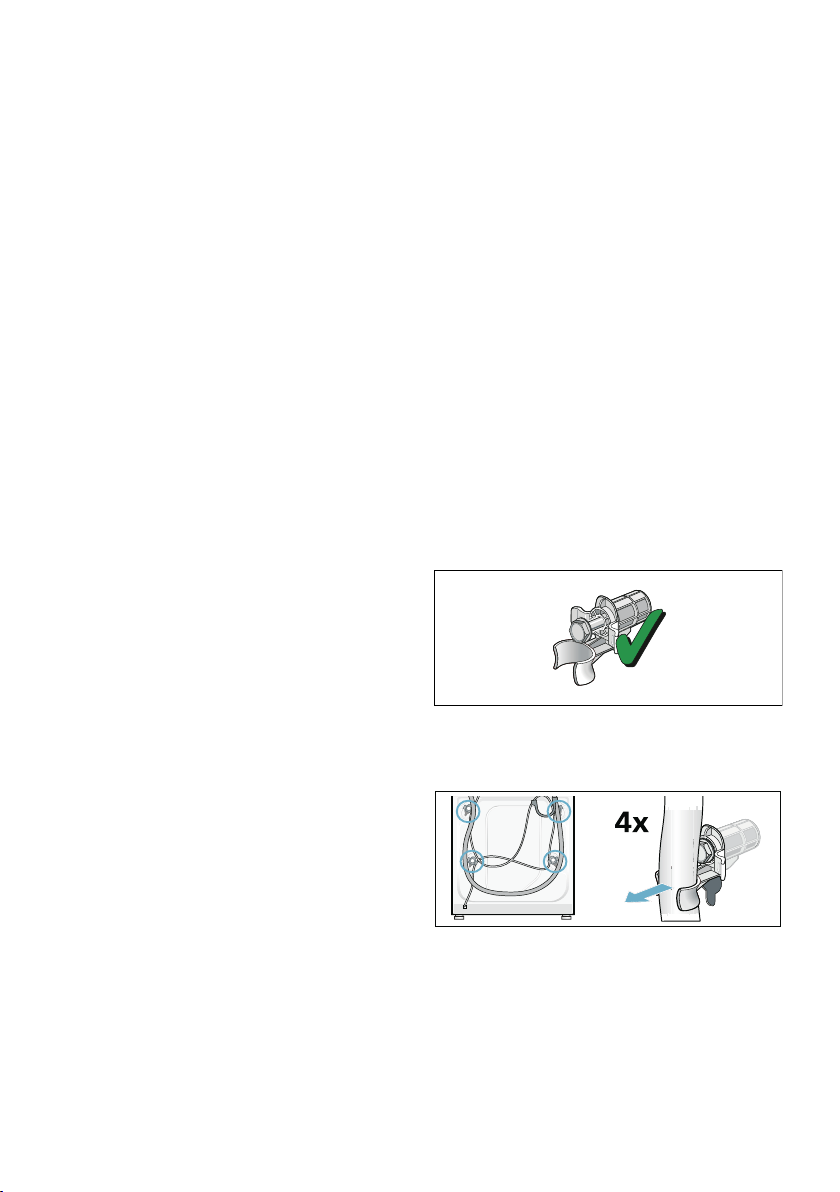

Removing the transportation
protection devices . . . . . . . . . . . . . . .31
en Intended use
4
Connecting the water. . . . . . . . . . . . 32
Water supply . . . . . . . . . . . . . . . . . . 32
Water drainage . . . . . . . . . . . . . . . . 33
Drainage into a wash basin . . . . . . . 33
Drainage into a siphon . . . . . . . . . . 33
Drainage into a plastic pipe with
rubber sleeve or into a gully . . . . . . 33
Alignment . . . . . . . . . . . . . . . . . . . . 34
Electrical connection . . . . . . . . . . . . 34
Before washing for the first time . . . 34
Transportation . . . . . . . . . . . . . . . . . 35
8 Intended use
Intended use
■ For use in the household only.
■ The washing machine is suitable for
washing machine-washable textiles
or hand-washable wool in washing
water.
■ The appliance is suitable to be
operated with cold drinking water
and commercially available
detergents and care products which
are suitable for use in washing
machine.
■ When dosing all detergents,
cleaning aids, cleaning products
and cleaning agents, always follow
the manufacturer's instructions.
■ The washing machine may be
operated by children from 8 years of
age, by persons who have limited
physical, sensory or mental abilities
and by persons who have
inadequate experience or
knowledge, provided they are
supervised or have been instructed
by a responsible person.
■ Keep children under 3 years old
away from the washing machine.
■ Keep pets away from the washing
machine.
■ Install and operate the washing
machine in a room which has an
outflow.
Read and follow the operating and
installation instructions and all other
information enclosed with the washing
machine.
Retain documents for subsequent use.
Safety instructions en
5
( Safety instructions
Safety instructi ons
Electrical safety
:Warning
Warning-Danger of death from
electric shock!!
Danger of death if live parts are
touched.
■ Never pull out the mains
plug by tugging the power
cord.
■ Insert/pull out the mains plug
with dry hands only.
Risk of injury
:Warning
Risk of injury!
■ If the washing machine is
raised by protruding
components (e.g. washing
machine door), the
components may break off
and cause injuries.
Do not lift the washing
machine by its projecting
parts.
■ If you climb onto the washing
machine, the worktop may
break and cause injuries.
Do not climb on the washing
machine.
■ If you lean/support yourself
on the open door, the
washing machine may
overturn and cause injuries.
Do not lean on the open
washing machine door.
■ If you reach into the rotating
drum, you may injure your
hands.
Do not grip the rotating
drum. Wait until the drum
stops rotating.
:Warning
Risk of scalding !
When washing at high
temperatures, you may be
scalded if you touch the hot
wash liquor (e.g. if draining hot
wash liquor into a washbasin).
Allow detergent solution to cool
down.
Safety for children
:Warning
Danger of death!
If children play on the washing
machine, they may place
themselves in life-threatening
situations or injure themselves.
■ Do not leave children
unsupervised near the
washing machine.
■ Children must not play with
the washing machine.
:Warning
Danger of death!
This will prevent children from
locking themselves in and
suffocating.
On redundant appliances:
■ Pull out the mains plug.
■ Sever the power cord and
discard together with the
plug.
en Safety instructions
6
■ Destroy the lock on the door
of the washing machine.
:Warning
Danger of suffocation!
When playing, children may
become entangled in the
packaging/film and packaging
parts or pull them over their
heads and suffocate.
Keep packaging, plastic film
and packaging parts out of the
reach of children.
:Warning
Risk of intoxication!
Detergents and care products
may cause intoxication if
consumed.
Keep detergents and care
products out of the reach of
children.
:Warning
Risk of eye and skin irritation!
Detergents and care products
may cause eye and skin
irritation if touched.
Keep detergents and care
products out of the reach of
children.
:Warning
Risk of injury!
When washing at high
temperatures, the glass of the
door becomes hot.
Prevent children from touching
the hot washing machine door.
Protection of theb environment en
7
7 Protection of the
environment
Protecti on of theb environment
Packaging/used appliance
Dispose of packaging in an environmentally-responsible manner.
Keep children away from the packaging materials and packaging materials are not
toys.
Reprocessing and reuse of packaging material saves raw materials, reducing waste.
All packaging materials used are in line with environmental protection requirements
and reusable.
Name and content of hazardous substances in products
Note: All of component parts in the BSH products that fall into the same category
are covered in the table above, the component parts of this product depend on the
actual situation. If you have any questions, please contact us by dialling the
customer service number in the product.
Component name
Hazardous substance
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
chromium
(Cr(VI))
Polybrominated
biphenyls (PBB)
Polybromin-
ated diphenyl
ethers (PBDE)
PCB x Û Û Û Û Û
Display x Û Û Û Û Û
Controller x Û Û Û Û Û
Power cord and con-
nect wiring harness
x Û Û Û Û Û
Pumps and drives x Û Û Û Û Û
Housing Û Û Û Û Û Û
Door and its constitu-
ent parts
x Û Û Û Û Û
Drum-system and its
constituent parts
x Û Û Û Û Û
Water supply compo-
nents (exempted
dryer)
x Û Û Û Û Û
This table was developed according to the provisions of SJ/T 11364.
Û The content of such hazardous substance in all homogeneous materials of such component is below
the limit required by GB/T 26572.
x The content of such hazardous substance in a certain homogeneous materials of such component is
beyond the limit required by GB/T 26572.
en Protection of theb environment
8
Hints and tips
■ Utilise the maximum amount
of washing for the particular
programme.
Overview of programmes
~ Page 18
■ Wash normally soiled washing
without Prewash.
■ The selectable temperatures apply
to the care labels on the textiles. The
temperatures in the machine may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
■ Energy saving mode: The display
panel light goes out after several
minutes, the 䄒㯝倍橵 (Start/Pause)
button flashes. To activate the light,
select any button. Energy-saving
mode is not activated if a
programme is running.
■ Measure detergent according to the
manufacturer’s instructions and
water hardness.
■ If the laundry is then dried in the
tumble dryer, select spin speed
according to the instruction of the
dryer manufacturer.
Indicative Statement of Environment Protection of Product
Please use and maintain the product according to the instruction of the manual, the product may harm to
environment and human health due to improper utilization or disposal.
According to the law of ‘Statute of Recovery and Disposal of Waste Electrical and Electronic Products’,
Please hand in the products to the disposal enterprises which are qualified when you plan to throw it.
Please refer to the table above for the information about the content of relevant toxic and hazardous sub-
stances.
The main points in brief en
9
/ The main points in
brief
The main points in bri ef
--------
--------
--------
--------
1 @ @ @
Insert mains plug.
Turn the tap on.
Open the washing
machine door.
Select the
programme, e.g.
Cotton 60°C.
Max. load in display
panel.
2 @ @
If required, change programme settings of the
selected programme and select additional
programme settings.
Sort the laundry. Insert the laundry.
3 @ @ @
FODFN
Open the detergent
drawer.
Dose detergent
according to dosing
recommendation.
Close the washing
machine door.
Select 䄒㯝倍橵
(Start/Pause)
4 @ @ @
End of the
programme.
Set programme
selector to Off.
Open the door and
remove the
washing..
Turn off the mains
supply.
en Getting to know your appliance
10
* Getting to know your
appliance
Getting to know your appliance
Appliance
6 7
#
( Detergent dispenser
0 Control panel
8 Door
9S Open the door
9T Close the door
@ Service flap
Getting to know your appliance en
11
Control panel
2II
'UXPFOHDQ
'LVLQIHFWDQW
%HGOLQHQ
'RZQ
2XWGRRU
6XSHU
6\QW KHW LFV
0L[
'HOLFDWH
:RRO
6LQJOHVSLQ
6LQJOHULQVH
&RWWRQ
&RWWRQ
1LJKWZDVK
+ #
Note: All buttons are sensitive, they only need to be touched gently.
( Select a programme. Rotating the programme
selector in either direction is possible.
Overview of programmes ~ Page 18
Select additional functions and change the default
settings for the selected programme:
0 Select buttons and 䖜䙏 0 (Spin speed),
亴㓖 0 (Finish in) for changing default
settings ~ Page 20
8 Select buttons 䗢爱撔均(speed/eco),
㒲儔伩(Rinse plus) for additional
functions ~ Page 20
@ Select 䄒㯝倍橵 (Start/Pause) button to
start, interrupt (e.g. reload washing) and
cancel the programme.
H Switch off the appliance. Set Programme
selector to Off.
en Getting to know your appliance
12
Display symbols
Programme progress symbols
N Washing: On if the washing cycle is running.
O Rinse: On if the rinse cycle is running.
0 Spin: On if the spin cycle is active.
Programme information symbols
r Tap: Flashing if Tap was not opened or no water
supply.
ÅOverdosage: On if too much detergent used.
Õ Door unlocked: On if door can be opened.
E Childproof lock: On if childproof lock is activated.
Activate/deactivate the childproof lock. ~ Page 16
Laundry en
13
+ Laundry
Laundry
Protecting the washing and
the machine:
Notes
■ When dosing all detergents,
cleaning aids, cleaning products
and cleaning agents, always follow
the manufacturer's instructions.
■ Do not exceed maximum load.
Overfilling will impair the washing
result.
■ Keep detergents and agents for the
pretreatment of washing (e.g. stain
remover, prewash sprays, ...) away
from the surfaces of the washer
dryer. Using a damp cloth,
immediately remove any fine spray
residue and other residue/droplets.
■ Empty pockets. Remove foreign
objects.
■ Remove metal parts (paper clips,
etc.).
■ Trousers, knitwear and knitted
textiles, e.g. jersey garments, Tshirts
or sweatshirts should be turned
inside out.
■ Ensure that underwire bras are
machine-washable.
■ Wash delicates in the net/bag
(tights, underwired bras).
■ Close zips, button up covers.
■ Brush sand out of pockets and
collars.
■ Remove curtain fittings or include in
the net/bag.
■ Wash new items separately.
Sorting laundry according to:
■ Type of fabric/fibre
■ Colour
■ Follow manufacturer’s care
information.
■ Soiling
– light
Do not prewash.
– normal
If required, pretreat stains. Select
the programme Cotton with
additional function 㢲⭥ (eco).
– strong
Put less washing in the machine.
Prewash If required, pretreat
stains. Select the programme
Cotton with additional function
㢲⭥ (eco).
■ Care label specifications:
< ; Cottons 95 °C,
90 °C
: 9 8 Coloureds 60 °C,
40 °C, 30 °C
B A > Easy-Care 60 °C,
40 °C, 30 °C
L K Delicates 40 °C,
30 °C
W L K Hand and machine-
washable silk and
woollens cold,
40 °C, 30 °C
Ž Do not wash laundry
in the washing
machine.
en Operating the appliance
14
1 Operating the
appliance
Operating the appliance
Preparing the appliance
The appliance was tested before
delivery. To remove residual water from
the test procedure, the first wash cycle
should be run without laundry using the
Drum clean programme.
Before washing for the first time
Notes
■ Never switch on a damaged
appliance!
■ Inform customer service!
1. Insert mains plug.
:Warning
Riskof death from electric shock!
Risk of death if live parts are
touched.
– Never pull out the mains plug by
tugging the power cord.
– Insert/pull out the mains plug
with dry hands only.
2. Turn the tap on.
3. Open the appliance door.
Adjusting the washing
programme
Turn the programme selector to the
desired programme (eg. Cotton
programme). Presettings and maximum
load are indicated in the display field.
You can use the displayed presettings
or adjust the selected programme
optimally to the items of washing by
changing the presettings or selecting
additional options.
Notes
■ Options are retained when the
appliance is switched off and can be
selected, deselected or changed
depending on the progress of the
programme.
■ All buttons are sensitive, they only
need to be touched gently. If the
button 煾爱 0 (Spin speed), 窖悸
(Finish in) 5 time is held down, the
setting options are automatically
scrolled through.
Placing laundry into the drum
Insert the washing.
Close the door.
Operating the appliance en
15
Notes
■ Unfold and load presorted items
of washing. Mix large and small
items. Washing items of different
size distribute themselves better
during the spin cycle. Individual
items of washing may cause
an unbalanced load.
■ Observe the maximum specified
load. Overfilling adversely affects the
washing result and promotes
creasing. Make sure that no items of
laundry are trapped between the
door and the rubber seal, and close
the door.
Measure and add detergent
and care products
Caution!
Damage to the appliance!
Detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) may
damage the surfaces of the appliance.
Keep these agents away from the
surfaces of the appliance. Using a
damp cloth, immediately remove any
fine spray residue and other residue or
droplets.
Dosing
Dose the detergents and care products
according to:
■ water hardness (ask your water
supply company),
■ the manufacturer’s specifications on
the packaging,
■ the amount of laundry,
■ soiling.
Filling the dispensers
1. Pull out the detergent drawer.
:Warning
Eye / skin irritation!
If the detergent drawer is opened
while the appliance is running,
detergent or care product may run
out.
Open the drawer carefully.
If detergent or care product comes
into contact with eyes or skin, rinse
thoroughly.
If accidentally swallowed, seek
medical advice.
2. Pour in detergent and/or cleaning
product.
* Depending on the model
Notes
■ Dilute viscous fabric softener
and fabric conditioner with water.
This will prevent blockages.
■ Be careful when opening the
detergent drawer while the appliance
is running.
Dispenser I Clothing disinfectant.
(Disinfectant additional
programme setting or
Disinfectant programme is
selected only.)
Dispenser i Softener. Do not exceed
the maximum load.
Dispenser II Detergent for main wash,
liquid detergent.
Measuring aid A * For dosing liquid detergent.
en Operating the appliance
16
Measuring aid A* for liquid detergent
* Depending on the model
Position the measuring aid for
measuring the correct amount of liquid
detergent:
1. Pull out the detergent drawer. Insert
the liquid detergent container into
dispenser II for main wash.
2. Pour liquid detergent into liquid
detergent container and do not
exceed the Maximun mark.
3. Reinsert the drawer.
Note: Do not use the viscous liquid
detergent.
Start the programme
Touch 䄒㯝倍橵 (Start/Pause) button.
The indicator light is on.
Childproof lock
To Activate the childproof lock:
After the programme starts for finish in
time is activated ~page, touch and hold
the 熄爷 0 (Spin speed) and 窜悾 5
(Finish in) button at the same time for 3
seconds;
Release when the w symbol lights up.
If button signal is on, an acoustic signal
will be heard. When the programme
ends, End is displayed. The door is
closed. w symbol and the 䄒㯝倍橵
(Start/Pause) indicator remains on to
remind you to deactivate the childproof
lock.
To deactivate the childproof lock:
Touch 熄爷 0 (Spin speed) and 窜悾 5
(Finish in) button at the same time until
the w symbol turns off.
Release the button.
w symbol flashes if the programme
has been changed while childproof lock
is activated. The original programme will
go on running.
If the childproof lock is deactivate while
the programme selector is in a different
position from when the childproof lock
was activated, the running programme
will be halted.
Reload the laundry
When the programme has started, the
laundry can be reloaded or taken out as
required.
Select 䄒㯝倍橵 (Start/Pause). The
appliance checks whether reloading is
possible.
Notes
■ If there is a high water level, high
temperature or if the drum is
rotating, the door remains locked
for safety reasons and reloading is
not possible.
If the symbol è goes out,
reloading is possible.
If the symbol è is still lit ~
Reloading is not possible.
To continue the programme, select
the 䄒㯝倍橵 (Start/Pause) button.
■ Do not open the door until the
symbols è goes out.
0$;
Operating the appliance en
17
■ Do not leave door open for
a prolonged period – water could
run out of the laundry.
Changing the programme
if you have mistakenly started a wrong
programme.
1. Select 䄒㯝倍橵 (Start/Pause).
2. Select another programme.
If required, adjust the presetting
and/or select other functions.
3. Select 䄒㯝倍橵 (Start/Pause).
The new programme starts from
the beginning.
Interrupting or ending the
programme
For programmes at high temperature:
1. Select䄒㯝倍橵 (Start/Pause).
2. Cool down washing: select Single
rinse
3. Select 䄒㯝倍橵 (Start/Pause).
For programmes at low temperature:
1. Select 䄒㯝倍橵 (Start/Pause).
2. Select Single spin.
3. Select䄒㯝倍橵 (Start/Pause).
End of the programme
Start/Reload indicate light goes out and
End or - - - - (if - - - - was selected,
without drain) appears on the display
field, buzzer sounds. Set volume of
buzzer ~ Page 21
If - - - - was selected, - - - - is displayed
after the programme ends, touch 䄒㯝
倍橵 (Start/Pause) button.
Notes
■ The programme continues by
pumping out the water and spinning
the washing (the standard spin
speed can be changed beforehand).
■ If only the water is to be pumped out,
press the 䄒㯝倍橵 (Start/Pause)
button again before the spinning
starts. The programme is interrupted
and the door lock is released. The
washing can be removed.
After washing
1. Set programme selector to Off.
2. Open appliance door and remove
washing.
Notes
– Do not leave any items
of washing in the drum.
In the next wash they may shrink
or discolour something else.
– Remove any foreign objects from
the drum and the rubber seal.
Notes
– Leave detergent drawer and door
open so that residual water can
evaporate.
– Always remove the washing.
3. Turn off the tap.
en Overview of programmes
18
P Overview of
programmes
Overview of programmes
Programme/Type of washing Options/Information
Programme name
Brief explanation of the programme and for which fabrics it is
suitable.
Max. load *
Max. load according to GB12021.4
selectable spin speed in rpm, the max.
spin speed depends on the model
possible additional functions
softener
Cotton 60°C
Standard washing program for hard-wearing textiles made of cot-
ton or linen.
Note: * Reduced load for 䗢爱 (speed) additional function.
Max. 8.0 kg/5.0**kg
- - - -, 400-1000 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
possible
Cotton 40°C
Standard washing program for hard-wearing textiles made of cot-
ton or linen.
Note: * Reduced load for 䗢爱 (speed)) additional function.
Max. 8.0 kg/5.0**kg
- - - -, 400-1000 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
possible
Synthetics 30°C
Textiles made of synthetic materials or blended fabrics.
Max. 4.0 kg
- - - -, 0-1000 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
possible
Mix cold
Mixed load consisting of textiles made of cotton and synthetics.
Max. 4.0 kg
- - - -, 0-1000 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
possible
Delicate 30°C
For delicate, washable textiles, e.g.made of silk, satin, synthetic
fibres or blended fabrics.
Max. 2.0 kg
- - - -, 0-800 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
possible
Overview of programmes en
19
Wool 30°C
Hand and machine-washable wool or wool-rich textiles. Especially
gentle wash program to prevent shrinkage, longer program
pauses (textiles rest in wash liquor) e.g. cashmere, ohair or
angora. Also suited for hand washable silk.
Max. 2.0 kg
- - - -, 0-800 rpm
-
possible
Single spin
Extra spin with selectable spin speed.
-
0-1000 rpm
-
Not possible
Single rinse
Extra rinse with spin
-
- - - -, 0-1000 rpm
㒸儚伯 (Rinse plus)
Possible
Drum clean 90°C
Special program for drum hygiene or fluff removal 90°C = anti-
bacterial program, use no detergent.
Max. 0.0 kg
1000 rpm
-
Not possible
Disinfectant 40°C
Special program for drum hygiene or fluff removal
Max. 4.0 kg
- - - -, 0-1000 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
possible
Night wash 40°C
Cotton, synthetic fabrics, blended fabrics, lower noise.
Max. 4.0kg
- - - -, 0-1000 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
possible
Bed linen 40°C
For cleaning bedding made from cotton and linen fabrics that has
particularly strict hygienic requirements (e.g. for people with
allergies).
Max. 7.0 kg/5.0**kg
- - - -, 4000-1000 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
possible
Down 30°C
Machine-washable textiles filed with down (e.g. jackets, pillows,
blankets).
Max. 2.0 kg
- - - -, 0-1000 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
Not possible
Programme/Type of washing Options/Information
en Individual settings
20
0 Individual settings
Individual setti ngs
0 (Spin speed)
0: The spin speed can be changed
before and during the programme (in
rpm, revolutions per minute) depending
on the progress of the programme.
Setting - - - - (Rinse stop = without final
drain/spin cycle), laundry remains in the
water after the last rinse cycle.
Setting 0 (Without any spin cycle), drain
the rinsing water only, no spin cycle.
The maximum spin speed depends on
the programme and model.
Overview of programmes
亴㓖 5 (Finish in)
Delays the Finish in time (end
of programme).
Note: When you select a programme,
the respective programme duration is
displayed. The finish-in time indicates
when the programme will be finished. It
can be set in hour increments up to a
maximum of 24h. Press and hould the
亴㓖 5 (Finish in) button until the
required number of hours is shown
(h=hour). Select 䄒㯝倍橵 (Start/
Pause).
\ Additional options
Additional options
㒲爱撔挏 (speed/eco)
For washing in a shorter time with a
washing result comparable to that of the
standard programme.
࣐┲⍇ (Rinse plus)
Additional rinse cycle. Prolonged
programme duration. For areas with
very soft water or for further improving
the washing result.
Outdoor + 30°C
Washing followed by water proofing of weatherproof and outdoor
clothing with membrane coating and water-resistant textiles.
Max. 1.0 kg
- - - -, 0-800 rpm
䗨爷撚坍 (speed/eco), 㒸儚伯
(Rinse plus)
Not possible
Super 15’/30’45’
Extra short program approx. 15 / 30 /45 minutes, suitable for
lightly soiled and small amounts of laundry.
Note: * Reduced load for 䗢爱 (speed) additional function.
Max. .3.5 kg/.2.0** kg
- - - -, 0-1000 rpm
䗨爷撚坍 (speed/eco)
possible
Programme/Type of washing Options/Information
Signal en
21
M Signal
Signal
Setting signal volume
1. Activate setting mode for signal volume
turn to Off step clockwise
Press 䄒㯝倍橵
(Start/Pause) and
hold and
step
clockwise
Release
2. a) Set volume for button signals
press the 亴㓖 5 (Finish
in) and set Volume
set to Off, setting mode for
signal volume is left
2. b) Selecting volume of the information signals
step clockwise
press the 亴㓖 5 (Finish
in) and set Volume
set to Off, setting mode for
signal volume is left
en Cleaning and maintenance
22
2 Cleaning and
maintenance
Cleaning and maintenance
:Warning
Risk of death!
There is a risk of electric shock if touch
live components.
Switch off the appliance and pull out the
mains plug.
Caution!
Fire and explosion hazard!
Toxic vapours can be produced by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
Caution!
The appliance may be damaged!
Cleaning agents that contain solvents,
e.g. cleaning solvent, can damage
surfaces and components in the
appliance.
Do not use cleaning agents that contain
solvents.
Machine housing/Control
panel
■ Immediately remove washing and
cleaning agent residue.
■ Wipe with a soft, damp cloth.
■ Do not use abrasive cloths, sponges
or detergents (stainless steel
cleaner).
■ Do not clean the appliance with a
water jet.
Drum
Use chlorine-free cleaning agent, not
steel wool.
Descaling
Not required if detergent dosed
correctly. However, if this does occur,
follow the instructions of the descaling
agent manufacturer.
Cleaning the detergent
dispenser
If it contains detergent or fabric softener
residue:
1. Pull out, depress insert, take out
drawer all the way.
2. Take out insert: using your finger,
press insert upwards.
3. Clean detergent dispenser and
insert with water and a brush and
dry.
4. Attach insert and lock into position
(push cylinder onto guide pin).
5. Insert detergent drawer.
Note: Leave detergent drawer open so
that residual water can evaporate.
Cleaning the measuring aid A
*
for liquid detergent
If it contains liquid detergent residue:
1. Hold the mearsuring aid, pull the
cover upward and disconnect them.
* depending on the model
Cleaning and maintenance en
23
2. Clean the measuring aid and cover
with water and brush.
3. Install the cover back to the
measuring aid. Pay attention to the
assemble mark, and press the cover
until click sounds.
Drain pump blocked
Note: Turn the tap off to prevent more
water from flowing in and to ensure that
it is drained via the pump.
:Warning
Danger of scalding!
Wash liquor is hot when washing at high
temperatures. You may be scalded if
you touch the hot wash liquor.
Allow wash liquor to cool down.
1. Switch off the appliance. Pull out the
mains plug.
2. Open the service flap.
3. Take the drainage hose out of the
holder.
4. Remove cover flap, drain water into
a suitable receptacle. Press on
cover flap and insert drainage hose
into the holder.
Note: Residual water may run out.
5. Carefully unscrew the pump cover.
Clean the interior, pump cover
thread and pump housing (fan
impeller in the detergent-solution
pump must rotate).
6. Reinsert and screw on pump cover.
Handle should be vertical.
7. Close service flap. If required,
engage disengaged service flap
beforehand.
Note: To prevent unused detergent
from flowing into the outlet during the
next wash: Pour 1 litre of water into
dispenser II and start the Single spin
programme.
en Faults and what to do about them
24
Drainage hose on the siphon
blocked
1. Turn the programme selector to Off.
Pull out the mains plug.
Note: Residual water may run out!
2. Loosen hose clip, carefully remove
drainage hose.
3. Clean drainage hose and siphon
spigot.
4. Re-attach drainage hose and secure
connection point with hose clip.
Filter in the water inlet hose
blocked
First, release water pressure in the
supply hose:
1. Turn off the tap!
2. Select any programme (except
Single spin programme).
3. Select 䄒㯝倍橵 (Start/Pause).
Leave programme for
approx. 40 seconds.
4. Switch off the appliance. Pull out the
mains plug.
5. Clean the filter:
Disconnect the hose from the water
tap.
Clean filter with small brush.
and/or:
Remove hose from the rear of the
appliance.
Take out filter with pliers and clean.
6. Connect the hose and check for
leaks.
3 Faults and what to do
about them
Faults and what to do about them
Emergency release, e.g. if a
power failure occurs
The programme continues running
when the power supply is restored. If
the washing is still to be removed, the
door can be opened as described
below:
:Warning
Danger of scalding!
Wash liquor and washing may be hot.
If touched, there is a risk of scalding.
If required, leave to cool down.
Caution!
Danger when reaching into/gripping
the rotating drum!
If you reach into the rotating drum, you
may injure your hands.
Do not grip the rotating drum. Wait until
the drum stops rotating.
Caution!
Water damage possible!
Leaking water may cause damage.
Do not open the door if you can still see
water through the glass.
Faults and what to do about them en
25
1. Switch off the appliance. Pull out the
mains plug.
2. Drain the water.
3. Pull down emergency release with
a tool and release.
Door can then be opened.
Information on the display panel
Faults and what to do about
them
Display Cause/Remedy
è flashes Please close the door immediately because of rising water level; in pause sta-
tus, è flashes fast and sound an alarm. Please close the door; Door cannot be
locked/unlocked due to high temperature of the door lock coil. Wait a moment
and try again. Or switch off the machine, then switch on the machine again in 5
seconds. The machine can be locked/unlocked.
| Open the tap.
Inlet filter blocked. Clean filter~ Page 24
Supply hose kinked or blocked.
E:32 Alternating display with End when programme is finished, indicating the laun-
dry inside are unbalanced. The washing machines’ unbalanced load detection
system can not adjust the imbalance.To protect the mechanical systems, the
machine will not achieve the highest spin speed, and the laundry can not be
spinned completely. Please wash small and large items of laundry together.
E:18 Clean detergent solution pump ~ Page 23
outlet pipe/drainage hose blocked, clean it. ~ Page 24
Other displays Switch off the appliance, wait 5 seconds and switch it back on.
If the display appears again, call the after-sales services.
Faults Cause/Remedy
Water is running out. ■ Fit/refit drainage hose correctly.
■ Tighten screw–fitting on the supply hose.
Water not flowing in.
Detergent not washed in.
■ 䄒㯝倍橵 (Start/Pause) not selected?
■ Tap not open?
■ Filter blocked? Clean filter.
■ Supply hose kinked or jammed?
There is water in the drum?
en Faults and what to do about them
26
Washing machine door
cannot be opened.
■ Safety function active. Stop programme?
■ - - - - (Rinse stop= without final spin) selected?
■ Can be opened via emergency release only. ~ Page 24
■ Childproof lock activated? Deactivate childproof lock. ~ Page 16
Programme does not
start.
■ 䄒㯝倍橵 (Start/Pause) or 亴㓖 5 (Finish in) selected?
■ Washing machine door closed?
Additional function could
not activate for selected
programme.
■ If the additional function is selectable?
Water is not drained. ■ - - - -(Rinse stop= without final spin) selected?
■ Clean the drain pump. ~ Page 23
■ Clean outlet pipe and/or drainage hose.
Water not visible in the
drum.
Not a fault – water below the visible area.
Spin result not satisfac-
tory.
■ Wash small and large items of washing together.
■ æ (Less iron) selected?
■ Too low speed selected?
Spin cycle activated sev-
eral times.
Not a fault – unbalanced load detection system adjusts imbalance.
Dispenser not completely
rinsed out.
■ Remove the insert. Clean detergent drawer and re-insert.~ Page 22
Stain formation in the
washing machine.
Run Drum clean 90 °C programme without washing.
Use standard detergent.
Foam is coming out of the
detergent drawer.
Too much detergent used?
Mix 1 tablespoon of fabric conditioner with ½ litre of water and pour into
dispenser II in the detergent drawer.
Reduce detergent dosage for the next wash cycle.
Excessive noise, vibra-
tions and wandering dur-
ing spin cycle.
■ Appliance aligned?
Align the appliance. ~ Page 34
■ Appliance feet fixed?
Secure appliance feet. ~ Page 34
■ Transportation safety devices removed?
Remove transportation protection devices. ~ Page 31
Display panel/indicator
lights do not function
while the appliance is run-
ning.
■ Power failure? ~ Page 24
■ Circuit breaker tripped? Reset the circuit breaker /change the fuse.
■ If the fault occurs repeatedly, call the after-sales service.
Programme duration
changes during the wash
cycle.
■ Not a fault – unbalanced load detection system adjusts imbalance by
repeatedly distributing the laundry.
■ Not a fault – foam detection function active. Additional rinse cycle.
Faults Cause/Remedy
After-sales service en
27
4 After-sales service
After- sales service
If you cannot rectify a fault yourself, (),
please contact our after-sales service.
We will always find an appropriate
solution to avoid unnecessary visits by
engineers.
Please provide the after-sales service
with the product number (E-Nr.) and the
production number (FD) of the
appliance.
You can find this information
(depending on the model):
■ On the inside of the loading door
■ On the back of the appliance
Trust the expertise of the
manufacturer. Contact us. By doing so,
you can be sure that the repairs are
carried out by trained service personnel
using genuine spare parts.
Advice and repair order in the event of
faults
Detergent residues on the
laundry.
■ Occasionally phosphate-free detergents contain water-insoluble residues.
■ Select Single rinse or brush the laundry after washing.
If a fault cannot be rectified (switching the machine on and off) or a repair is required:
■ Set programme selector to Off and pull out the mains plug out of the socket.
■ Turn off the tap and call the after-sales service.
Faults Cause/Remedy
E-Nr. Product number
FD Production number
CN 400 885 5888
(1U )'
en Consumption values
28
[Consumption values
Consumpti on values
J Technical data
Technical data
Model: WAP201601W
Grade* 1
Power consumption (Kwh/
cycle)
0.760
Water consumption (L/cycle) 59
Washing efficiency 1.03
Noise value**
Maximum Spin value 69 dB(A)
Maximum Wash value 44 dB(A)
*Energy consumption tested under standard programme Cotton 60°C, and
additional function of 撔均 (eco) according to GB12021.4.
**Noise value tested according to GB19606.
Dimensions a= 598 mm
b= 590 mm
c= 848 mm
Weight 71 kg
Mains connection Nominal voltage 220V, 50 Hz
Nominal current 10A
Nominal power 2050 W
Water pressure 0.1-1 MPa (1-10 bar)
Environmental conditions for use
(according to GB/T 4288)
Ambient Temperature:
0°C- 40°C, non-freezing
Relative Humidity:
less than 95% (at 25 °C), non-con-
densing
F
D
E
Installation and connection en
29
5 Installation and
connection
Installation and connection
Standard accessories
Note:
A hose clip Ø 24–40 mm (specialist
store) is also required for connection
to a siphon. Water connection
~ Page 32
Useful tools:
■ Spirit level for alignment.
~ Page 34
■ Socket wrench for loosening the
transportation protection devices
and for aligning the appliance feet.
~ Page 34
3RZHUFRUG
:DWHUVXSSO\
:DWHUGUDLQDJHKRVH
&RYHUV
2SHUDWLQJDQGLQVWDOODWLRQLQVWUXFWLRQV
en Installation and connection
30
Hose and cable lengths
Available from dealer/customer
service:
■ Extension for cold water inlet hose.
■ Qualified tap.
Installation
Note: Humidity in the drum is caused
by the final inspection.
Secure installation
:Warning
Risk of injury!
■ The washing machine is heavy –
caution: take care when lifting it.
■ If the washing machine is raised by
protruding components
(e.g. washing machine door), the
components may break off and
cause injuries.
Do not lift the washing machine by
its projecting parts.
Caution!
Risk of stumbling!
If the hoses and power cord are
installed incorrectly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of stumbling.
Caution!
The appliance may be damaged.
■ Frozen hoses may tear/burst.
Do not install the washing machine
in an area where there is a risk of
frost or outdoors.
Notes
■ In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■ If in doubt, have the appliance
connected by a technician.
Installation area
Note: Stability is important to prevent
the washing machine from wandering!
■ The installation area must be firm
and level.
■ Soft floors/floor coverings are not
suitable.
aFP
aFP
aFP
aFP
aFP
aFP
PD[
FP
&RQQHFWLRQRQOHIWVLGH
RU
&RQQHFWLRQRQULJKWVLGH
GHSHQGLQJRQPRGHO
Installation and connection en
31
Installing the appliance on
a base or on a wooden joist
ceiling
:Warning
The appliance may be damaged!
The washing machine may wander
during the spin cycle and topple/fall off
the base.
Always secure the washing machine
feet with fixing brackets.
Holding brackets is available from
dealer/customer servive.
Note: If installing on a wooden joist
ceiling:
■ If possible, install the washing
machine in a corner.
■ Screw a water-resistant wooden
panel (min. 30 mm thick) to the floor.
Installing the appliance under/
between units
:Warning
Danger of death from electric shock!
Danger of death if live parts are
touched.
The appliance cover plate must not be
removed.
Build under/build in before connection
to the power supply.
Note: If installing on a wooden joist
ceiling:
■ The corner width of installation area
should at least be 60 cm.
■ Install washer machine only under a
continuous worktop connected firmly
to the adjacent cupboards.
Removing the transportation
protection devices
Caution!
The appliance may be damaged!
Transit bolts which have not been
removed may damage e.g. the drum
while the washing machine is running.
Before using the appliance for the first
time, remove the 4 transportation
protection devices completely and keep
in a safe place.
Caution!
The appliance may be damaged!
To prevent damage in transit when
transporting the appliance
subsequently, always re-install the
transit bolts prior to transportation.
Keep screw and sleeve screwed
together.
1. Take the hoses out of the holders.
2. Loosen and remove all
4 transportation lock screws.
en Installation and connection
32
3. Take the power cord out of the
holders. Remove sleeves.
4. Insert covers. Lock firmly by
pressing on the locking hook.
Connecting the water
:Warning
Danger of death from electric shock!
Danger of death if live parts are
touched.
Notes
■ To prevent leakage or water
damage, follow the instructions in
this chapter!
■ Operate the washing machine with
cold drinking water only. Do not
connect to the mixer tap of an
unpressurised hot-water apparatus.
■ Use only the supplied inlet hose or
one purchased from an authorised
specialist outlet, not a used one!
■ If in doubt, have the appliance
connected by a technician.
Water supply
Note: Water inlet hose: do not kink,
crush, modify or sever (strength is no
longer guaranteed).
Optimum water pressure in the mains:
100–1000 kPa (1–10 bar)
■ When the tap is turned on, the water
flow is at least 8 l/min.
■ If the water pressure is higher, install
a pressure reducing valve.
1. Connect the water supply hose (¾" =
26.4 mm).
:Warning
Threads for screw connections
may be damaged!
If the screw connections are
tightened too tightly using a tool
(pliers), the threads may be
damaged.
Tighten plastic screw-fittings by hand
only.
2. Carefully turn on the tap and check
that the connection points are not
leaking.
Installation and connection en
33
Water drainage
Notes
■ Do not kink or protract the water
drainage hose.
■ Height difference between the
placement area and drainage point:
Minimum 0 cm – maximum 100 cm
Drainage into a wash basin
:Warning
Risk of scalding!
When washing at high temperatures,
you may be scalded if you touch the hot
washing water (e.g. if draining hot
washing water into a washbasin).
Do not touch the hot washing water.
Caution!
Water damage
If the attached drainage hose slips out
of the washbasin due to high water
pressure when draining the appliance,
leaking water may cause damage.
Secure the drainage hose to prevent
it from slipping out of the washbasin.
Caution!
Damage to appliance/textiles
If the end of the drainage hose is
immersed in the drained water, water
may be drawn back into the appliance
and damage the washer dryer and/or
textiles.
Ensure that:
■ the sealing plug does not block the
outflow of the washbasin.
■ the water drains quickly enough.
■ the end of the drainage hose is not
immersed in the drained water.
Installing the drainage hose:
Drainage into a siphon
The connection point must be secured
using a hose clamp with a diameter of
24–40 mm (available from specialist
dealers).
Connecting
Drainage into a plastic pipe
with rubber sleeve or into
a gully
Connecting
en Installation and connection
34
Alignment
1. Loosen lock nut in a clockwise
direction with a wrench.
2. Check alignment of the washing
machine with a spirit level and, if
required, correct. Adjust the height
by rotating the foot.
Note: All four feet must be firmly on
the floor.
The washing machine must not
wobble!
3. Tighten the lock nut against the
housing.
Grip the foot and do not adjust the
height.
Notes
– The lock nuts on all four
appliance feet must be screwed
tightly against the housing!
– Loud noise formation, intense
vibrations and “wandering” may
be due to incorrect alignment!
Electrical connection
Electrical safety
:Warning
Danger of death from electric shock!
Danger of death if live parts are
touched.
■ Never pull out the mains plug by
tugging the power cord.
■ Insert/pull out the mains plug with
dry hands only.
■ Never pull out the mains plug during
operation.
■ Connect the washing machine to an
alternating current via a correctly
installed earthed socket only.
■ The mains voltage and voltage
specifications on the washing
machine (appliance rating plate)
must match.
■ Connected load as well as required
fuse are indicated on the appliance
rating plate.
Ensure that:
■ the mains plug and socket match,
■ the cable cross-section is adequate,
■ earthing system has been installed
correctly.
■ A damaged power cord may
be replaced by an electrician only.
A replacement mains cable can be
obtained from customer service.
■ Do not use multiple plugs/couplings
or extension cables.
■ If a residual-current-operated circuit
breaker is used, use only a type
which features this symbol: z.
Only this symbol guarantees
compliance with the currently valid
regulations.
■ The mains plug must be accessible
at all times.
Before washing for the first
time
The washing machine was inspected
thoroughly before leaving the factory. To
remove any residual test water, run the
Drum clean programme the first time
without washing.
Note: The washing machine must have
been installed and connected properly.
See chapter
Installing ~ Page 30
1. Check the machine.
Note: Never switch on a damaged
machine. Inform your customer
service.
2. Insert mains plug.
3. Turn the tap on.
4. Switch on the appliance.
5. Close the washing machine door.
Do not load any washing.
Installation and connection en
35
6. Select Drum clean 90°C
programme.
7. Open the detergent drawer.
8. Pour approx. 1 litre of water into
dispenser II.
9. Add standard detergent to
dispenser II according
to manufacturer’s instructions for
light soiling.
Note: To prevent frothing, use only
half the recommended amount
of detergent. Do not use any
standard or mild detergents.
10.Close the detergent drawer.
11.Select 䄒㯝倍橵 (Start/Pause).
12.When the programme ends, switch
off the appliance.
Your washing machine is now ready
for use.
Transportation
1. Remove covers and keep in a safe
place.
If required, use a screwdriver.
2. Insert all 4 sleeves.
Clamp mains cable on the holders.
Insert and tighten the bolts.
Before switching on the appliance:
Notes
■ Always remove the transportation
protection devices!
■ To prevent unused detergent from
flowing into the outlet during the next
wash: Pour 1 litre of water into
dispenser II and start the Single
spin programme.
%RVFK+RPH$SSOLDQFHV2IILFLDO:HFKDW
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
*9001037263*
9001037263 (9704)
en
Thank you for buying a Bosch
Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You´ll find it here.
Expert advice for your Bosch home appliances, need help with problems or a repair from
Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
