Thank you for purchasing the Samson RS series active loudspeaker with Bluetooth
®
. RS series
loudspeakers provide the functionality of a powered speaker with the RS110A featuring 300
watts, and RS112A/RS115A featuring 400 watts of bi-amped power, as well as versatility of a
portable PA system with an onboard mixer. Ideal for live music, DJ, lecture, and portable sound
applications.
The RS110A has a heavy-duty 10” low-frequency driver while the RS112A and RS115A
have 12” and 15” low-frequency drivers respectively. All three models have a 1” high
frequency driver mounted in wide-dispersion horn, providing crystal-clear audio and an
ultra-wide sound field. The rear panel three-channel mixer includes two XLR and 1/4” inputs
that handle microphone or line level signals, a 3.5mm aux input and Bluetooth
connectivity
for streaming music. The two Mic/Line channels include a variable compressor for evening
out the input signals. There is also a USB Wireless port for connecting Samson XPD Series
wireless microphone systems. An XLR Mix Output allows you to daisy-chain additional powered
loudspeakers to create larger sound reinforcement systems. The cabinet’s trapezoidal shape
allows it to be configured for either front-of-house use, for operation as a wedge-style monitor,
or can be stand-mounted using the integral 1 3/8” pole-mount receptacles.
In these pages, you’ll find a detailed description of your RS Loudspeaker, as well as step-by-
step instructions for its setup and use. If your loudspeaker was purchased in the United States,
you’ll also find a registration card enclosed — don’t forget to follow the instructions so that you
can receive online technical support and so that we can send you updated information about
this and other Samson products in the future. Also, be sure to check out our website
www.samsontech.com for complete information about our full product line.
We recommend you keep the following records for reference, as well as a copy of your sales receipt:
Serial number: ________________________________________________
Date of purchase: ______________________________________________
If you have any questions or comments regarding the RS Loudspeaker or any other products
from Samson, do no hesitate to contact us at support@samsontech.com.
With proper care and maintenance, your RS Loudspeaker will operate trouble-free for many years.
Should your RS Loudspeaker ever require servicing, a Return Authorization (RA) number must be
obtained before shipping your unit to Samson. Without this number, the unit will not be accepted.
Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain
the original packing materials and, if possible, return the unit in its original carton. If your RS
Loudspeaker was purchased outside of the United States, contact your local distributor for warranty
details and service information.
Introduction
5
RS112A / RS115A

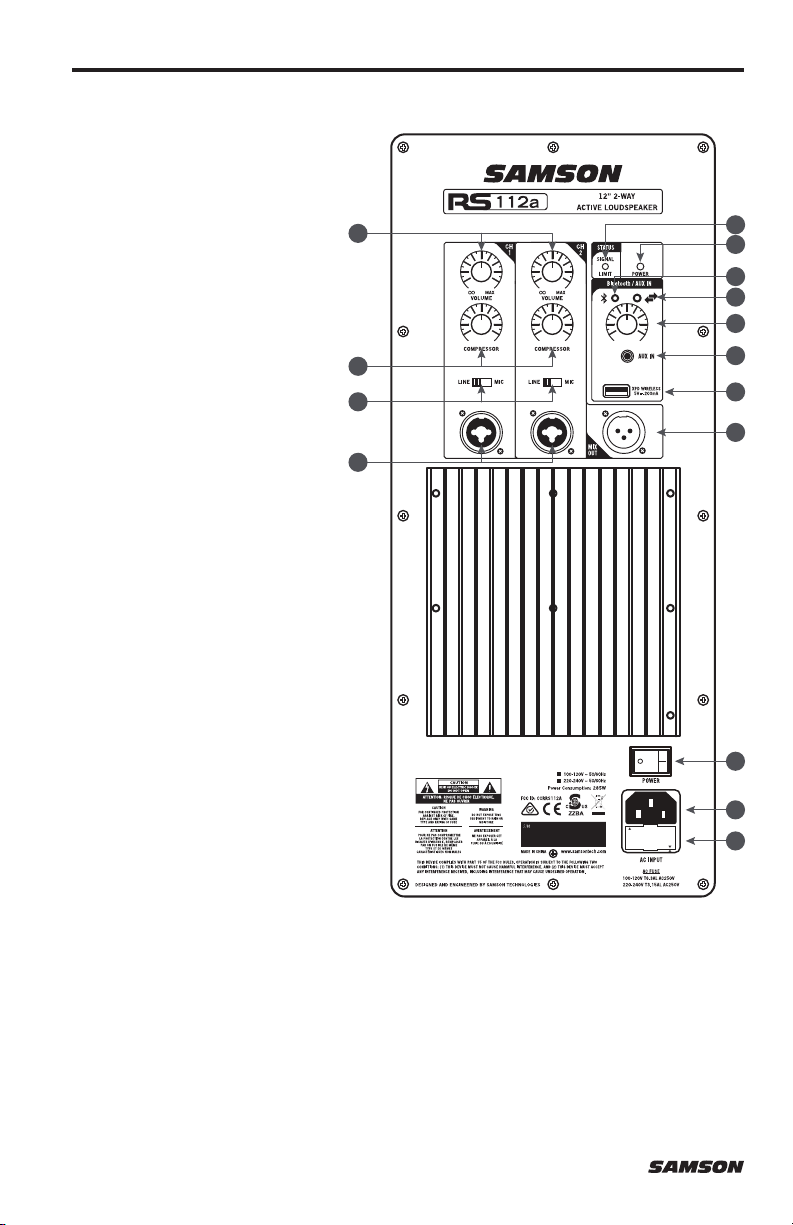

1. XLR & 1/4” Combo Input - Use
these XLR - 1⁄4” input for
balanced microphone or line level
devices.
2. SENSITIVITY Switch (Mic/Line) -
Matches the channel sensitivity to
the input audio source signals.
3. COMPRESSOR - These knobs
adjust the level of compression
applied to the channel. As the
knob is turned clockwise, the
compression ratio is raised
and the output gain is adjusted
accordingly. The dynamic range
of the channel is narrowed, where
softer signals will be magnified
and loud signals will be subdued
to sit better in the mix. Too
much compression can create
a pumping effect, eliminate
all dynamic range, and lead to
feedback.
4. Volume Control - This knob adjusts
the level of the Channel 1 and 2
input signals.
5. Pairing Indicator - Displays the
Bluetooth
®
status of the RS
loudspeaker.
6. Pairing Button - Press this button
to enable discoverable mode to
pair with a Bluetooth audio device.
7. Volume Control - This knob adjusts
the level of the Bluetooth and
Aux In.
8. 1/8” AUX IN - Connect a line level
device using a 3.5mm audio
cable.
9. XPD WIRELESS Input - Connect a
Samson XPD digital wireless USB receiver to this input.
10. MIX OUT - Male XLR connector used to link multiple RS Loudspeaker cabinets.
11. SIGNAL / LIMIT Indicator - This indicator lights green when signal is present. It will light red
when the amp is near the clipping point and the limiter is engaged.
12. POWER Indicator - This LED lights GREEN when amp is active.
13. POWER Switch - Switches on the RS Loudspeaker’s main power.
14. AC Power Inlet - Connect the supplied standard IEC AC power cable here.
15. Fuse Holder - The fuse holder comes from the factory with the appropriately rated fuse for
your model. If you need to change this fuse for any reason, replace it with one that has the
same exact rating.
Rear Panel Layout
USE ONLY WITH A 250V FUSE
EMPLOYER UNIQUEMENT
AVECUN FUSIBLE DE 205V
220–240
110–120
3
4
11
12
7
6
8
9
5
10
13
14
15
1
2
6

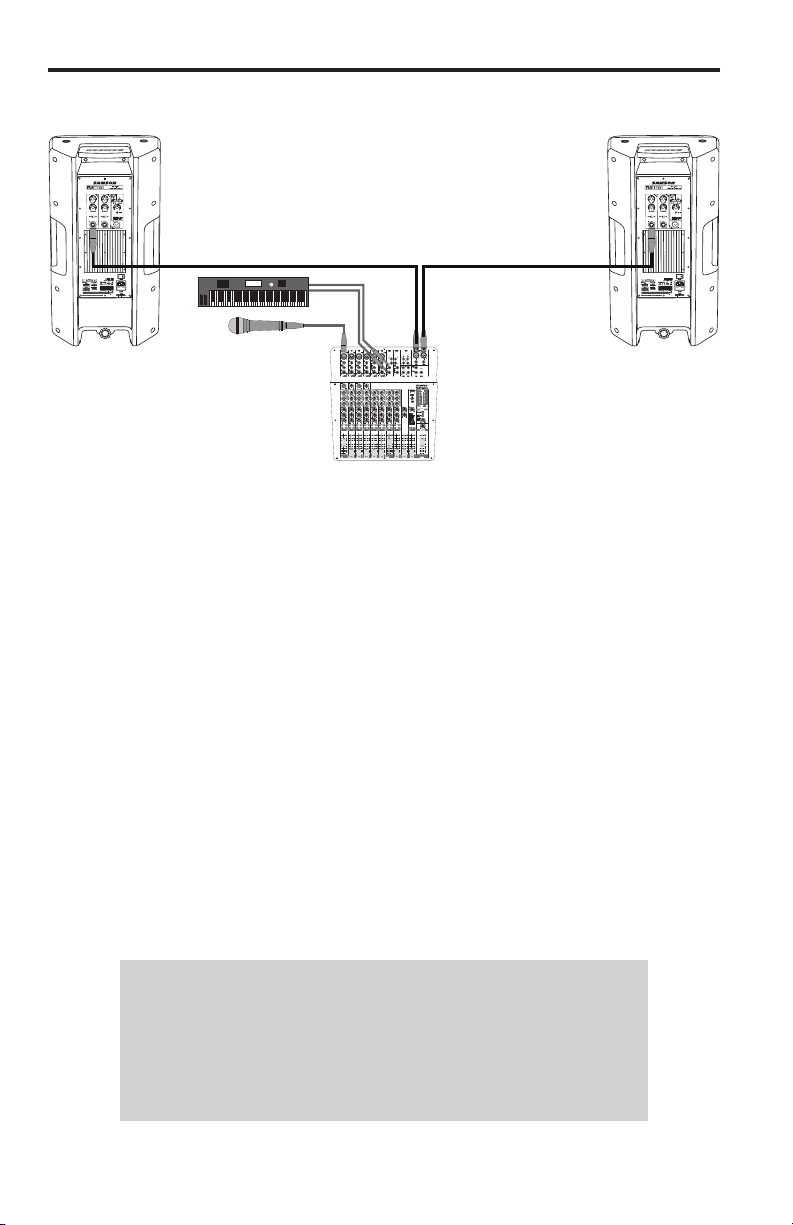

Quick Start
The following steps will help you get started using your RS Series Loudspeaker with a mixer.
1. Turn the RS Loudspeaker and mixer Power switch to the OFF positions.
2. Turn the VOLUME control on the rear panel of the RS Loudspeaker down, fully
counterclockwise.
3. Following the manufacturer’s instruction, connect your audio sources to your mixer.
4. Connect either a XLR or 1/4” cable from the output of your mixer to the INPUT 1 jack on
the RS Loudspeaker rear panel. Set the LINE/MIC switch to the LINE position.
5. Connect the supplied power cable to the IEC socket on the back of the loudspeaker. Plug
the power cable into an AC outlet.
Note: Always make sure that the AC outlet is configured with the correct voltage as
indicated on the rear panel of the RS Loudspeaker.
6. Turn on the power to the mixer and RS Loudspeaker(s).
7. Run an audio signal from your mixer and check that you are getting a good level using the
mixers output meter.
8. Slowly raise the RS Loudspeaker’s VOLUME control until you have reached the desired level.
9. If the volume from the speakers gets really loud, or you see the Limit indicator blinking
frequently, turn down the VOLUME control on the RS Loudspeaker a little until the
indicator does not light, or only lights occasionally with signal peaks.
Note: Before plugging in and turning on, remember the “last on, first
off” rule of powered audio gear - When powering up your system, be
sure that all the wires are connected, first turn on your mixer and
any other outboard gear, then turn on your RS Loudspeakers. When
powering down, turn off your RS Loudspeakers off first and then your
mixer and outboard gear.
7
RS112A / RS115A

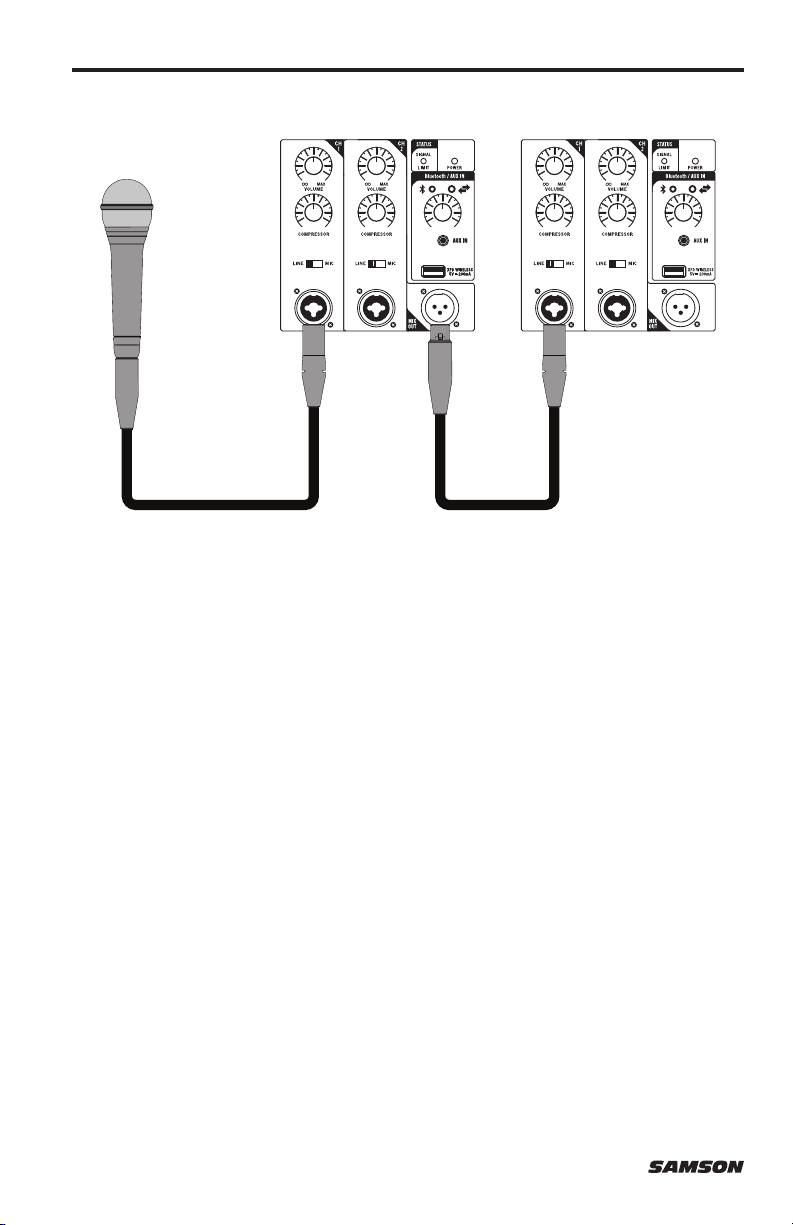

Follow these steps to connect a microphone level signal to your RS Loudspeaker and daisy-
chain the signal to a second RS Loudspeaker:
1. Set both RS Loudspeaker’s POWER switch to the OFF position.
2. Turn the VOLUME control down, fully counterclockwise.
3. Connect the power cables for each cabinet to an AC socket.
4. Connect a standard XLR cable from the main RS Loudspeaker’s MIX OUT to the second
RS Loudspeaker’s INPUT 1 XLR input.
5. On the second RS Loudspeaker, set the SENSITIVITY switch to the LINE position.
6. Using a standard XLR cable, plug a dynamic microphone into the RS Loudspeaker’s XLR
INPUT.
7. Set the SENSITIVITY switch to the MIC position.
8. Switch the Power switch to the ON position.
9. While speaking or singing into the microphone, slowly raise the VOLUME control until you
have reached the desired level.
10. For larger sound reinforcement you can run several monitors using the Mix Output to daisy-
chain one RS Loudspeaker to another. Set the input Sensitivity on the additional cabinets
to the LINE level position.
Connecting a Wired Microphone
8

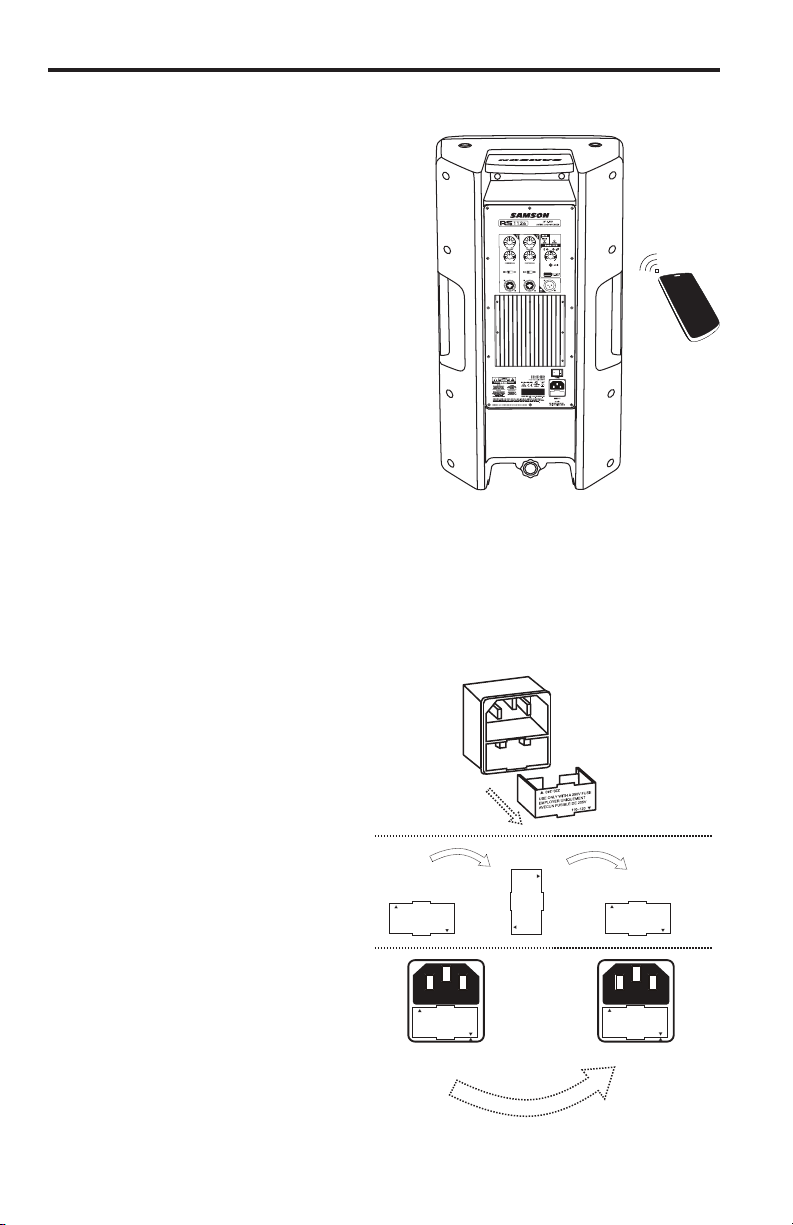

1. Turn the BLUETOOTH/AUX IN Volume control
down counterclockwise to 0.
2. With the RS Loudspeaker and your Bluetooth
device powered on, quickly press and
release the Pair button on the rear panel of
the RS Loudspeaker to make the speaker
discoverable. The Bluetooth indicator will
slowly flash blue.
3. In the settings of your Bluetooth device, set it
to “discover” available devices.
4. From the Bluetooth device list, select the
“Samson BLUETOOTH” device.
5. If your device asks for a passkey, enter digits
0000 (four zeros) and press OK. Some
devices may also ask you to accept the
connection.
6. The RS Loudspeaker speaker indicates that pairing is complete when the indicator turns
steady blue. You can now stream audio from your device to the RS Loudspeaker.
7. With the volume control on your Bluetooth device turned up, play some music, and slowly
raise the RS Loudspeaker BLUETOOTH/AUX IN Volume control until you have reached the
desired level.
Following are step-by-step instructions
for changing the mains voltage of the RS
Loudspeaker.
WARNING: Before carrying out this operation,
remove the power cord!
1. Insert a small screwdriver into the slot
beneath the fuse sled and gently press
in and up. The fuse sled will pop out
approximately 3/8” inch.
2. Remove fuse sled.
3. Remove the fuse. Replace with the
correct fuse for your region.
4. Rotate the fuse sled and line up the
arrow on the AC inlet with the correct
voltage for your region.
5. Push the fuse sled into the AC inlet
until fully seated.
Bluetooth
®
Pairing
Voltage Selection Instructions
USE ONLY WITH A 250V FUSE
EMPLOYER UNIQUEMENT
AVECUN FUSIBLE DE 205V
220–240
110–120
USE ONLY WITH A 250V FUSE
EMPLOYER UNIQUEMENT
AVECUN FUSIBLE DE 205V
220–240
110–120
USE ONLY WITH A 250V FUSE
EMPLOYER UNIQUEMENT
AVECUN FUSIBLE DE 205V
220–240
110–120
USE ONLY WITH A 250V FUSE
EMPLOYER UNIQUEMENT
AVECUN FUSIBLE DE 205V
220–240
110–120
USE ONLY WITH A 250V FUSE
EMPLOYER UNIQUEMENT
AVECUN FUSIBLE DE 205V
220–240
110–120
9
RS112A / RS115A
1. Plug the Samson XPD USB
receiver into the XPD Wireless USB
jack on the rear panel of the RS
Loudspeaker.
2. Turn the Bluetooth/Aux In Volume
knob on the RS Loudspeaker
completely counterclockwise.
3. Place a fresh set of AA (LR6)
batteries in the transmitter battery
holder, taking care to observe the
polarity markings, then replace the
cover.
4. Turn on the power to the transmitter
by pressing and holding Power
switch; the indicator light on the
transmitter and receiver will light
amber.
5. Speak or sing into the mic at a
normal performance level and raise
the Bluetooth/Aux In Volume control
until the desired level is reached.
Connecting XPD Wireless Microphone (sold separately)
10
RS110A RS112A RS115A
Output Power
300 Watts Peak
(260 LF + 40 HF)
400 Watts Peak
(300 LF + 100 HF)
170 Watts RMS
(140 LF + 30 HF)
200 Watts RMS
(150 LF + 50 HF)
Max. SPL (1M) 102dB 115dB 116dB
Frequency
Response
60Hz – 20kHz 55Hz – 20KHz 50Hz – 20kHz
Low Frequency
10” (254mm) Woofer
2” (50.8mm) Voice Coil
12” (305mm) Woofer
2” (50.8mm) Voice Coil
15” (381mm) Woofer
2.5” (63.5mm) Voice Coil
High Frequency
1” (25.4mm)
1” (25.4mm) Voice Coil
Crossover
Frequency: 3.5kHz
Type: 24dB/Oct
Frequency: 3kHz
Type: 18dB/Oct
Horn Coverage 84°H x 56°V 90°H x 60°V
Inputs Balanced XLR–1/4” Combo, USB XPD Wireless
Output Balanced XLR Line Output
Contour
Equalization
100Hz & 12kHz Boost
Electronic
Protection
Thermal, Overload, Analog (Optical) Limiter, Compressor
AC Connector
3-pin IEC 250 VAC,
10 A male
3-pin IEC 250 VAC,
20 A male
Power
Consumption
420W
Fuse
110V-120V T5A AC250V;
220V-240V T2.5A AC250V
T: denotes time lag
L: denotes low breaking
capacity
100-120V T6.3AL AC250V;
220-240V T3.15AL AC250V
T: denotes time lag
L: denotes low breaking capacity
Enclosure Polypropylene
Grille Full metal perforated
Handles Two side, one top
Monitor Angle 45°
Mounting
Method
1-38” (35mm) Pole Mount Receptacle, 4 M10 Flypoints
Dimensions
(LxWxH)
12.6” x 11.2” x 22.1”
320 x 285 x 561mm
15” x 12.9” x 23.9”
380 x 327 x 606.5mm
15.2” x 14” x 24.9”
386 x 356 x 631.5mm
Weight 21.6lb / 9.8kg 30.8lb / 14kg 32.6lb / 14.8kg
At Samson, we are continually improving our products, therefore specifications and images are
subject to change without notice.
Specifications
11
RS112A / RS115A
Samson Technologies Corp.
278-B Duffy Ave
Hicksville, New York 11801
Phone: 1-800-3-SAMSON (1-800-372-6766)
www.samsontech.com
Follow us:
Having Trouble with your RS Loudspeaker?
We can help!
CONTACT OUR SUPPORT TEAM: support@samsontech.com
Our experts can help you resolve any issues.
@samson @samsontech @samson_technologies
