OVERVIEW
The Built-in Coee Maker features a stylish finish and can
be installed in multiple configurations to suit kitchen design
and preference. With 13 beverage options, our Coee Maker
is designed to consistently pour delicious coee – from Flat
White to Latte or Americano. Favourite coee can be
memorised and set to start at the same time each day, while
the conical burr grinder delivers a consistent grind for the
perfect coee.
MODELS
Built-in Coee Maker, 24",
Touchscreen, Dial
EB24MSB1
Trim Kit
30" Black Glass
TK7630NMB1
SERIES & STYLE
Series 9
Minimal
FEATURES
1 Designed to pair perfectly with 60cm ovens and
companion products
2 Install in multiple configurations to suit your kitchen
design
3 Intuitive touch display
4 13 functions to suit any taste and selection – from
Espresso to Latte
5 Personalised coffee and smart self-learning menu
preferences
6 Stainless steel conical burr grinder with 13 coarseness
positions
7 15 bar pump pressure
8 Self-cleaning function and easy to empty coffee grounds
container and drip tray
"0 84.5 fl oz water tank capacity
ACCESSORIES
1 Thermal milk jug (17 fl oz)
2 Water filter
3 Coffee spoon
4 Extractable steam outlet
5 Descaling agent bottle
6 Optional 30" trim kit TK7630NMB1
Coeemaker shown with with Warmer Drawer ADWB6024SMB
90002655 Date: 1 August 2022 The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE BUILT-IN COFFEE MAKER, 24"
90002655 Date: 1 August 2022 The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE BUILT-IN COFFEE MAKER, 24"
SPECIFICATIONS
Model No.
EB24MSB1
(Optional 0" Trim Kit TK760NMB1)
Dimensions
H 18" (458mm) x W 2 7/16" (596mm) x
D 18 17/8" (480mm)
Total water tank capacity
17 fl oz (2.4L)
Weight
29kg (unpackaged)
9kg (packaged)
Electrical
Supply 120V, 50/60Hz
Service 10A circuit
C
B
A
A
C
B
D

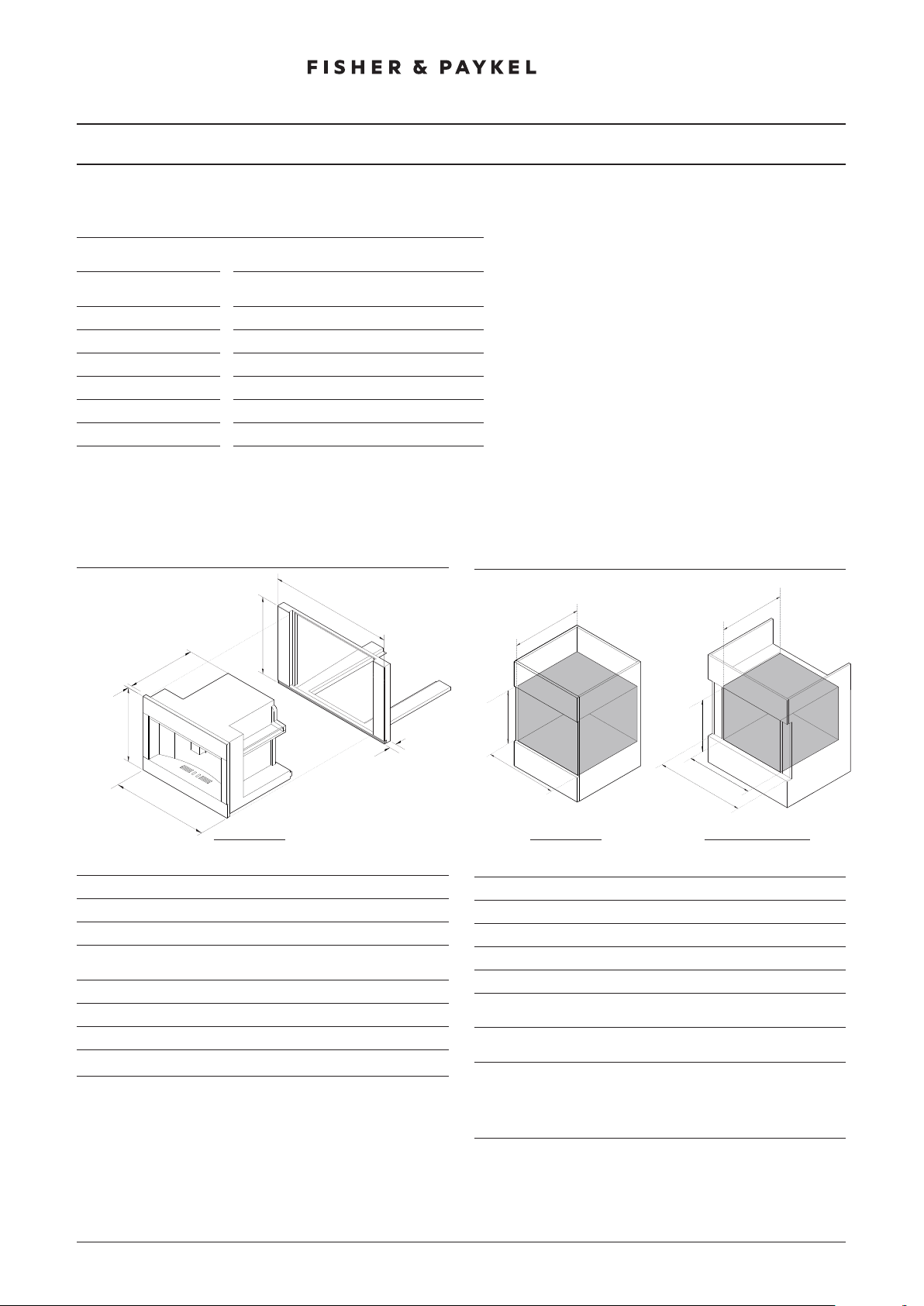

PRODUCT DIMENSIONS
in mm
A
Overall height of coee maker 18” 458
B
Overall width of coee maker 2 7/16” 596
C
Depth of coee maker front and
control panel
1/16” 20
D
Depth of coee maker chassis 18 1/8” 460
E
Height of optional trim 18 1/16” 478
F
Width of optional trim 29 1/16” 757
G
Depth of optional trim front 1 5/8” 42
CAVITY DIMENSIONS
in mm
A
Height of cavity 17 /4” 450
B
Minimum inside width of cavity 22 1/16” 560
C
Minimum inside depth of cavity 21 7/16” 545
D
Height of cavity with trim 18 7/8” 480
E
Minimum inside width of cavity
with trim
22 1/16” 560
F
Width needed to include trim
within cabinetry
29 15/16” 761
G
Minimum inside depth of cavity
with trim – proud install
Minimum inside depth of cavity
with trim – flush install
22 1/16”
2 5/8”
560
600
Note: Ventilation required at the rear of the cavity.
ISO VIEW ISO VIEW ISO VIEW – WITH TRIM
e
f
g
Optional Trim Kit
e
f
g
D
