EL SERIES
PORTABLE AIR CONDITIONER
Instructions for use. Keep these instructions
Visit www.delonghi.com for a list of service
centers near you.
ELECTRIC CHARACTERISTICS
115 V~ 60 Hz
CONDITIONNEUR D’AIR PORTATIF
Mode d’emploi . Conservez cette notice
Visitez www.delonghi.com pour y voir une liste
des centres de réparation proches de chez vous.
CARACTÉRISTIQUES ÉLECTRIQUES
115 V~ 60 Hz
SISTEMA DE AIRE
ACONDICIONADO PORTÁTIL
Repase y guarde estas instrucciones.
Lea cuidadosamente este instructivo
antes de usar su aparato.
Visite www.delonghi.com para ver la lista
de centros de servicios cercanos a usted.
CARACTERISTICAS ELECTRICAS:
115 V~ 60 Hz
2
EN
FR
ES
pag. 4 page 16 pág. 28
3
A
B
B1
B3
B2
B9
B10*
B11*
B8
B6B5
A4
A3
A2
A1
A7
A11
A9
A8
A6
A5
A10
A12
B4
B7
4
Important safeguard
• Use this appliance only as described in this
instruction manual.
As with any electrical appliance, the instructions
aim to cover as many situations as possible.
Caution and common sense should be used when
operating and installing this air conditioner.
• This appliance has been manufactured to cool
and dehumidify domestic environments and
must not be used for other purposes.
• It is dangerous to alter or modify the unit's
characteristics in any way.
• The appliance must be installed in accordance
with the relevant national legislation.
• Should repairs be necessary, contact our toll
free customer service at 1-800-322-3848.
Unauthorized servicing can be dangerous.
• The appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that
they do not play with the appliance.
• If the power cable is damaged, it must be
replaced by the manufacturer or an authorized
technical service centre in order to avoid all risk.
• Always ensure the appliance is plugged into a
grounded 3-prong outlet. If you have any doubts
check with a qualied electrician.
• Do not use extension cables.
• Before cleaning or maintenance operations,
always unplug the unit from the outlet.
• Do not pull on or place strain on the power cord
when moving the appliance.
• The appliance should not be installed where the
atmosphere may contain combustible gases, oil
or sulphur, or near heat sources.
• Do not rest hot or heavy objects on the appliance.
• Clean the lters at least once a week.
• Avoid using heaters near the unit.
• The unit should be transported in a vertical
position. If this is not possible secure the unit at
an angle, do not lie it horizontally.
• Before transporting the unit, drain the unit.
After transportation, wait at least 6 hours before
switching the unit on.
• The packaging materials can be recycled. You
are therefore recommended to place them in
the special containers for dierentiated waste
collection.
• This appliance is tted with a special safety
device. When the compressor switches o, this
device prevents it from switching on again for at
least 3 minutes.
• WARNING: Changes or modications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
Specic warnings for appliances with R410A
refrigerant gas
R410A is a refrigerant that complies with
European eco logical standards; nevertheless, it is
recommended not to pierce the cooling circuit of
the machine. At the end of its useful life, deliver the
appliance to a special waste collec tion centre for
disposal.
This hermetically sealed system contains uorinated
gre enhouse gases.
ENVIRONMENTAL INFORMATION:
This unit contains uorinated greenhouse gases
covered by the Kyoto Protocol.
Maintenance and disposal must be carried out by
qualied personnel only (R410A, GWP=2088).
Save these instructions
This product is for household
only
5
INTRODUCTION
Thank you for choosing a De’Longhi product. Please take a few
moments to read the instructions to avoid risks or damage to the
appliance.
Download the App!
DE’LONGHI
DEʼLONGHI
This appliance can be used also with the App Pinguino that can
be downloaded from the App Store®or from Google Play.
To gain access to all functions you need a local net (Home WLAN)
with access to Internet. Further check there are no obstacles to
the Internet access, such as Firewall, Proxy, authentications, etc.,
DESCRIPTION
Description of the appliance (See page 3 - A)
A1. Air outlet grid
A2. Control panel
A3. Handles
A4. Wheels
A5. Remote control signal receiver
A6. Remote control storage
A7. Filter
A8. Air intake grille
A9. Air exhaust hose housing
A10. Air intake grille
A11. Drainage hose with cap
A12. Power supply cable
Description of accessories (See page 3 - B)
B1. Wall flange with cap
B2. Wall mounting accessory
B3. Air exhaust hose
B4. Hose adapter
B5. Window outlet
B6. Window bracket with pins
B7. Additional window bracket with pins
B8. Water drain hose with cap
B9. Remote control
B10. End of season dust cover (*Only some models)
B11. End of season accessories bag (*Only some models)
Electrical connection
Before plugging the appliance into the outlet, check that:
• The outlet’s power supply corresponds to the value
indicated on the rating label on the back of the appliance;
• The outlet and electrical circuit are adequate for the appli-
ance;
• The outlet is a 3-hole grounded outlet . If this is not
the case, you must choose another outlet. Failure to follow
these important safety instructions absolves the manufac-
turer of all liability.
If it becomes necessary, the power cable must be re-
placed by a qualied professional only.
The instructions below will enable you to prepare your air
conditioner for operation as eciently as possible. Before use,
make sure the air intake and outlet grilles are unobstructed.
USE
Note: This appliance features an auto evaporative
function to remove excess condensate water
during cooling and dehumidiying modes.
CONDITIONING WITH INSTALLATION
For optimal results set-up your appliance in this way:
• Screw the hose adaptor B2 and B4 to the hose’s end B3 as
shown in gure 1a.
• Fit the assembled air exhaust hose B3 in the housing at the
back of the appliance. Insert it as shown in gure 1b.
1a
1b
6

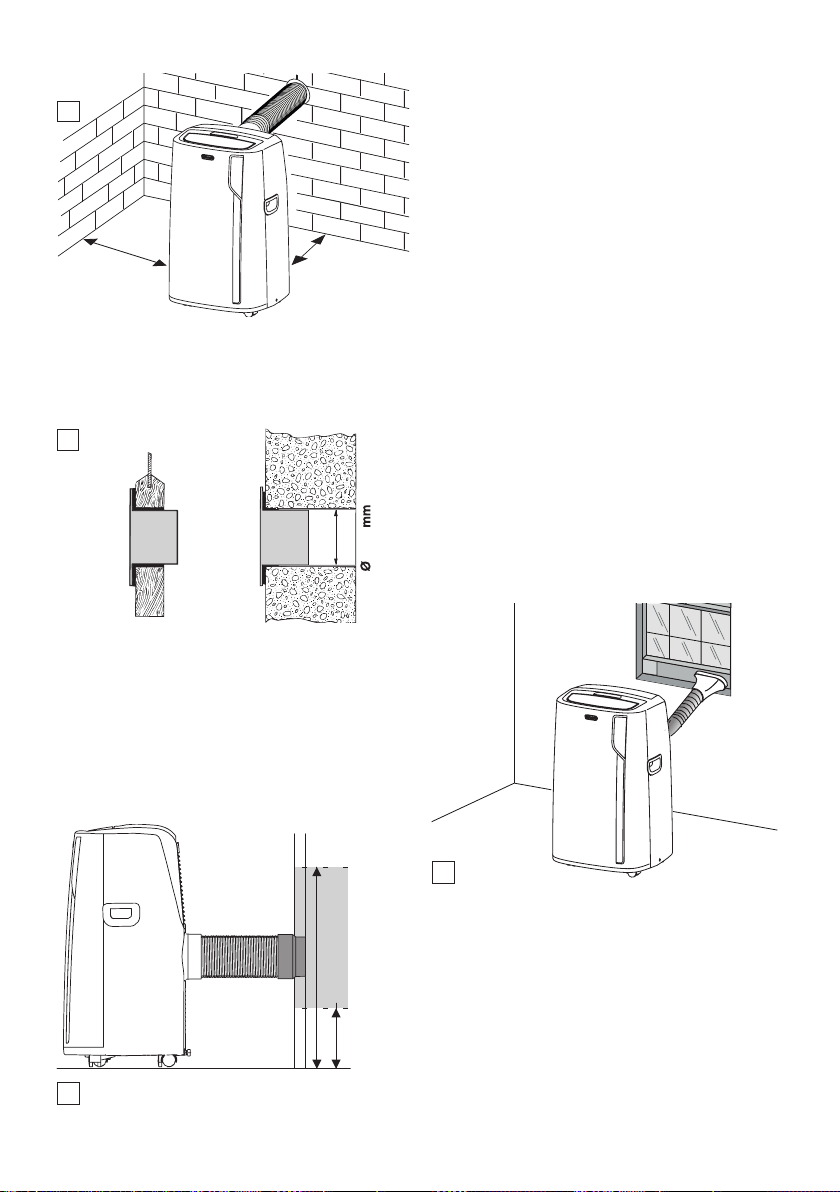

• Respect the distances given in gure 2.
2
min. 11.8 in
min. 30 cm
min. 11.8 in
min. 30 cm
Proceed as follows:
• Drill a hole ø 5,25 inches (134 mm) in an outside wall or
through a wooden kickboard. Respect the dimensions and
height of the hole given in gure 3 and 4.
134
Ø 5,25 in
3
in the wooden
kickboard of a French
window or panel
in the wall:
you are
recommended to insulate the
section of wall using
suitable insulation
• Fit the wall ange B1 into the hole.
• Fit the hose B3 into the wall ange B1 as shown in g. 4.
• When the hose B3 is not connected, the drilled hole can be
closed with the ange cap B1.
4
max 39 in
max 100 cm
min 14 in
min 35 cm
• When installing the air conditioner, you should leave a door
slightly open little as 1/2“ (1 cm) to guarantee correct ven-
tilation and room pressure.
• Keep the air hoses as short and free of curves as possible to
avoid constrictions.
Note:
• As special tools are required for this type of
installation, we suggest you have the appliance in-
stalled by specialized personnel.
CONDITIONING WITHOUT INSTALLATION
You can also set-up in a double-hung window:
• Place the window bracket in the window sill, extend the
bracket fully within the window frame, x the bracket by
using the pin then lower the window onto the bracket.
(Should the window bracket be too large for the window,
the plastic can be cut with a saw by a qualied profes-
sional.)
• Fit the air exhaust hose B3 in the relevant housing located
on the rear side of the appliance. (g. 1).
• Connect the window outlet B5 to the other end of the ex-
haust hose.
• Insert the window outlet B5 of the exhaust hose into the
slot of the window bracket (g. 5).
5
Other set-up methods:
• Thanks to the locking pins, it’s possible to use the window
bracket also for sliding windows. Position the hole of the
bracket so to allow a correct installation of the exhaust hose
(see gure 6).
7
6

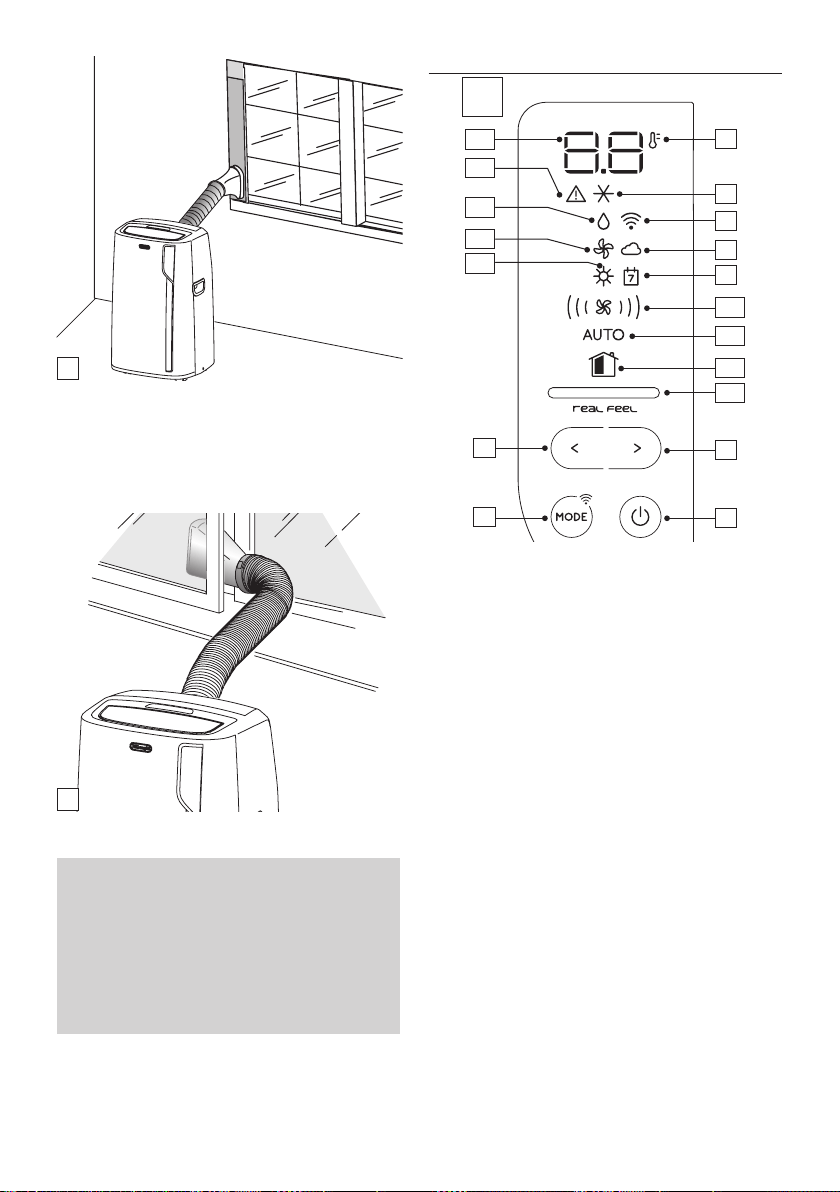

• If you have a casement window (gure 7) proceed as fol-
lows:
• Fit the assembled air exhaust hose B3 in the relevant hous-
ing located on the rear side of the appliance, (g. 1) then,
apply the window outlet B5 to the air exhaust hose B3 and
place it outside the window to exhaust the hot air.
7
For help with installation, operation, and for all
accessories and spare/replacement parts, please contact
our toll free customer service call center at:
1-800-322-3848 [US only]
1-888-335-6644 [Canada only]
or log onto our website at www.delonghi.com
CONTROL PANEL
C1
C3
C5
C6
C7
C8
C2
C4
C17
C18
C14
C15
C16
C13
C9
C10
C12
C11
C
DESCRIPTION OF THE CONTROL PANEL (C)
C1. ON/STAND-BY (on/off) key
C2. Function selection key MODE (air conditioning, dehumidi-
fying, fan, heating, ON-OFF WiFi - reset WLAN settings)
C3. Increase key
C4. Decrease key
C5. Temperature indicator
C6. Air conditioning symbol
C7. WiFi symbol
C8. App indicator
C9. App timer/calendar
C10. Air flow indicator
C11. Auto indicator
C12. REAL FEEL symbol (the function is available only from
remote control and app)
C13. REAL FEEL indicator
C14. Heating symbol
C15. Fan symbol
C16. Dehumidifying symbol
C17. Alarm symbol
C18. Set temperature values
8

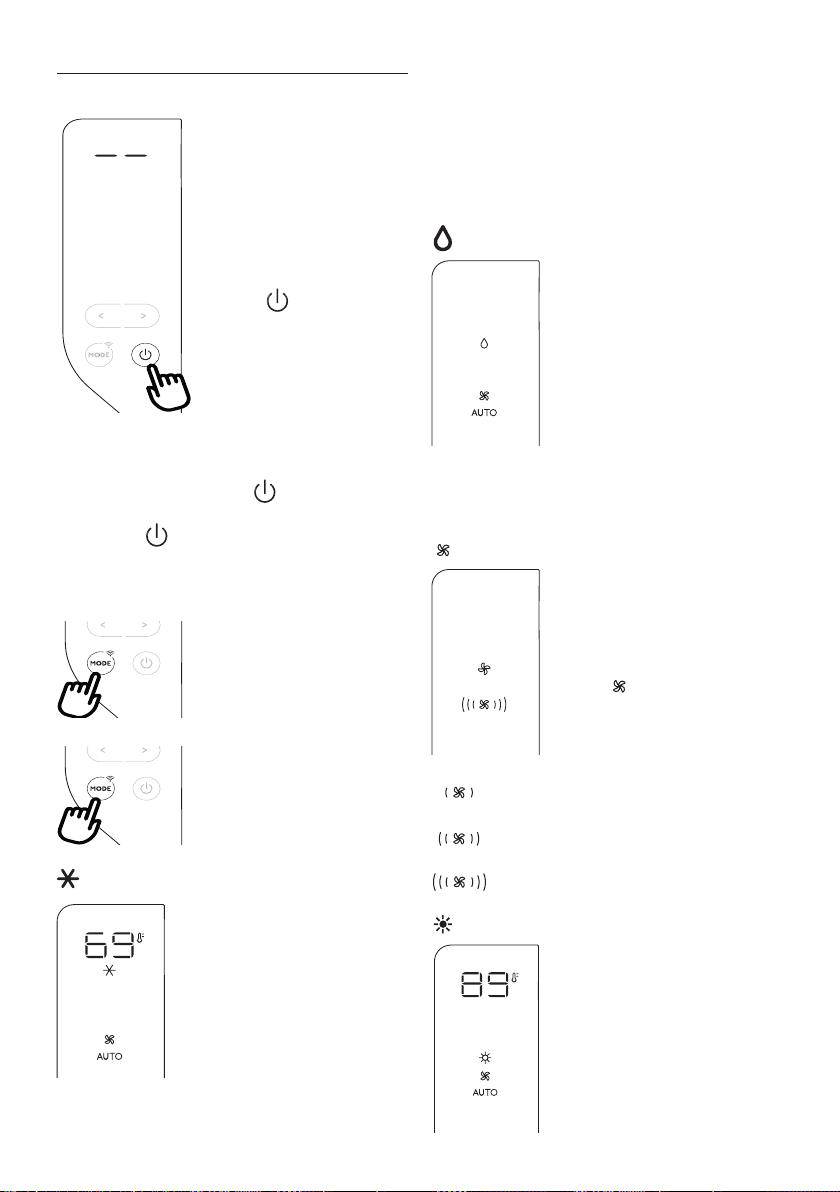

OPERATING FROM THE CONTROL PANEL
TURNING THE APPLIANCE ON/OFF
Before plugging the appliance
check the cap on back of the
unit is correctly inserted on
drainage hose A11.
Insert the plug in the socket.
Two dashes appear on the display
indicating that the appliance is in
stand-by.
Touch the C1 key to turn on the
appliance.
When the appliance comes on, the
last function set before it was shut
o is activated.
NOTE: After few seconds of the con-
trol panel inactivity, its brightness
will be automatically reduced and in the next few minutes it will
be further reduced.
To turn the appliance o, touch the key.
Note: Never turn o the air conditioner by simply pulling the
plug. Touch the key in order to put your air conditioner in
stand-by and wait a few minutes before pulling the plug. In this
manner, the appliance can perform the operating status checks.
MODES SELECTION
To select the desired operating mode,
touch repeatedly the MODE key until
the desired function is selected.
WiFi FUNCTION
To select or deselect the Wi func-
tion, keep touched the MODE key for
3 seconds.
AIR CONDITIONING MODE
This is ideal for hot and humid weather
when the room needs to be both cooled
and dehumidied.
To correctly set this mode:
• Touch repeatedly the MODE key until
the air conditioning symbol appears.
The display will show the desired tem-
perature.
• To change the temperature to be reached, touch the < C4
or > C3 key.
Note: The most suitable temperatures, during the summer
range from 75 to 81°F. However, setting the temperature signi-
cantly lower than the outdoor temperature is not recommended.
In conditioning mode, the air ow can be selected only from the
remote control and app.
DEHUMIDIFYING MODE
This is ideal for reducing humidity in the
room (spring and autumn, damp rooms,
rainy periods, etc). For this type of use, the
appliance must be set up as for air condi-
tioner mode. That is, the air exhaust hose
B3 must be tted to the appliance to allow
the humidity to be discharged outside.
To correctly set this mode:
• Touch repeatedly the MODE key until
the dehumidifying symbol appears.
• The appliance automatically chooses
the best air ow.
FAN MODE
When using this mode, the air exhaust
hose B3 does not need to be attached to
the appliance.
To correctly set this mode:
• Touch repeatedly the MODE key until
the fan symbol appears.
• Select the desired air ow by touching
the i< C4 or > C3 key.
The available air ows are:
Minimum air ow: when maximum silent
operation is desired.
Medium air ow: when the noise level needs to be
low but with a good comfort level.
Maximum air ow: for maximum performance.
HEATING MODE
This is ideal in spring and autumn when
outdoor temperatures are not particular-
ly severe. For this mode, the appliance
should be prepared in the same way as for
air conditioning, with the air exhaust hose
B3 attached.
9
To set this mode:
• Touch repeatedly the MODE button until the heating sym-
bol is displayed.
• Touch increase > C3 or decrease < C4 keys to adjust the
desired temperature.
Notes:
• In this mode, the air ow is selected automatically by the
appliance and cannot be set manually.
• When operating in very cold rooms, the appliance defreezes
automatically, momentarily interrupting normal operation. In
this case, “ Lt “ appears on the display. During this operation, it
is normal for the noise made by the appliance to change.
• In this mode, you may have to wait a few minutes before
the appliance starts giving out hot air.
• In this mode, the fan may operate for short periods, even
though the set temperature has already been reached.

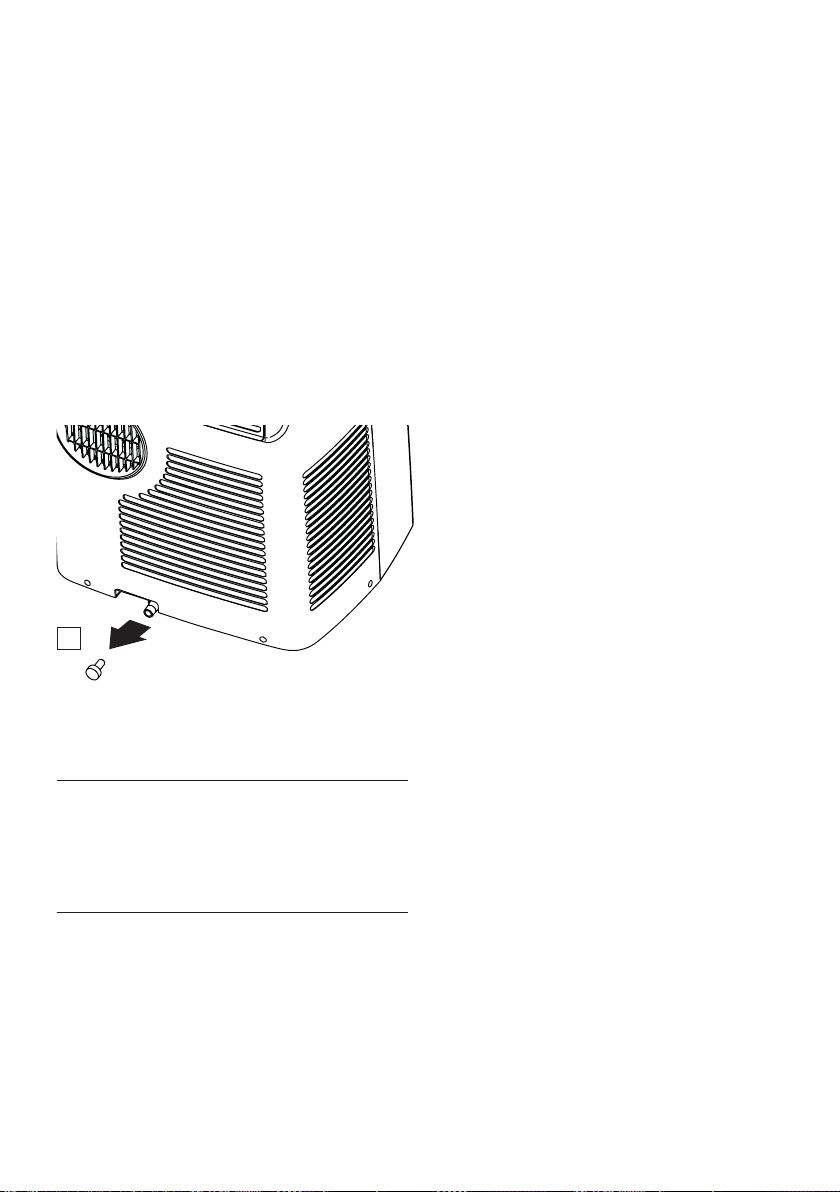

• It may happen that the display shows “HL” alarm. In this
case, empty the internal safety tank following the instruc-
tions in the Section “End of Season operations”. At the end,
press again the button to restore the heating function.
SELECT THE TEMPERATURE SCALE
The temperature can be displayed in °C
or °F.
To change the temperature unit of
measure touch both the increase/de-
crease keys > and < for about 10 sec.
OPERATING FROM THE REMOTE CONTROL
INSERTING OR REPLACING THE BATTERIES
• Remove the cover on the rear of the remote control;
• Insert or replace the batteries with two new R03 “AAA” 1.5V
batteries, inserting them correctly (see the instructions in-
side the battery compartment);
• Replace the cover.
If the remote control unit is replaced or discarded, the batteries
must be removed and disposed of in accordance with current
legislation as they are harmful to the environment.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium) batteries. Do not dispose of batteries in re.
Batteries may explode or leak. If the remote control is not be
used for a certain length of time, remove the batteries.
USING THE REMOTE CONTROL
• Point the remote control at the receiver A5 on the air
conditioner. The remote control must be no more than 23
ft (7 metres) away from the appliance (without obstacles
between the remote control and the receiver).
• The remote control must be handled with care. Do not drop
it or expose it to direct sunlight or sources of heat.
max 23 ft
max 7 m
Note: The remote control can be safely stored in the
appropriate compartment A6 (see gure A page 3).
DESCRIPTION OF THE REMOTE CONTROL
D1
D2
D4
D3
D5
D6
D7
D
D1. ON/STAND-BY (on/o) button
D2. REAL FEEL button
D3. MODE button
D4. Decrease button
D5. Increase button
D6. Air ow button
D7. WiFi button
TURNING THE APPLIANCE ON/OFF
• Plug into the outlet.
• Press the button D1 . When turned on, the air condi-
tioner starts operating in the same mode as when it was
turned o.
• Press the button again to switch the appliance o.
Note: Never switch the appliance o by removing the plug.
10
Always switch it o by pushing the button and waiting few
minutes before removing the plug. Only in this way the appli-
ance will perform the standard checkings.
SELECTING THE OPERATING MODES
The operating modes available on the remote control correspond
to those on the appliance control panel C.
SELECTING THE TEMPERATURES
In conditioning and heating modes press button < D4 or > D5
to select the desired temperature.
SELECTING THE AIR FLOW
In conditioning and fan modes, press button D6 to select the
desired air ow.
The air ow available are:
Minimum air ow: when maximum silent opera-
tion is desired.
Medium air ow: when the noise level needs to
be low but with a good comfort level.
Maximum air ow: for maximum performance.
The appliance automatically chooses the air ow
based on the temperature selected and the envi-
ronmental conditions.This selection is only availa-
ble in conditioning mode.
REAL FEEL FUNCTION
REAL FEEL is the innovative De’Longhi
technology that works simultaneously on
temperature reduction and humidity
control, securing best comfort level. With
traditional systems, during working time,
optimal comfort conditions may be reached
but not secured over time. With REAL FEEL,
once optimal comfort is reached, PAC automatically modulates
compressor action and air ow, to keep it over time.
To activate the function, push the button D2 on remote control
and the REAL FEEL symbol appears.
After approx. 1 minute, the REAL FEEL indicator C13 switches
on and then changes color when approaching the best comfort
level (see following diagram).
Perfect!
Perfect!
Perfect!
HUMIDITY
TEMPERATURE
HIGH
MEDIUM
LOW
HIGH
MEDIUM
LOW
Operating curve
Perfect!
Perfect!
Perfect!
Perfect!
Perfect!
Perfect!
Perfect!
Perfect!
Perfect!
ORANGE LIGHT GREEN LIGHT BLUE LIGHT
Room conditions far
from optimal level.
Most people feel
good room condi-
tions, near optimal
level.
Best comfort level.
• The well-being feeling is a subjective condition: for this
reason, dierent people may judge dierently the same
environmental conditions.
• In particularly severe environmental conditions (large size
of the environment, high temperature or humidity outside,
poor insulation of the room, too many of people or strong
heat load in the room, strong exposure to the sun ...) this
device may not be able to reach the best comfort level.
WIFI FUNCTION
To activate or disactivate the WiFi function, keep touched for few
seconds the WiFi button on the remote control till the emisson
of a double beep.
Once the WiFi icon is displayed it means that the WiFi features
are available.
11
SYMBOL WIFI FIXED
it means that the WiFi features are active AND the
“Home WLAN”
has been found.
SLOW FLASHING
it means that the appliance is searching for the
“Home WLAN” .
FAST FLASHING
it means that the “Home WLAN” has not been
found or has not been set yet.
“APP CONTROL “ ICON
When the APP CONTROL icon appears it means that
the last command has been received via app.
If the memorized
“Home WLAN”
settings needs to be changed,
proceed as follows:
a) keep touched for about 20 seconds the MODE button C2 on
the control panel until a prolonged beep is emitted;
b) use the app to enter the new WLAN settings into the unit.
SETTING THE TIMER
Timer programming is an exclusive function of the app: thanks
to the many possibilities of timer programming, you can prevent
wasting electricity by optimising the operating period, setting
delayed start up or shut down of the appliance.
FCC AND CANADA EMC COMPLIANCE
INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, includ-
ing interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harm-
ful interference to radio or television reception, which can
be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and re-
ceiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Approved under the certication provision of FCC Part 15 as a
Class B Digital Device.
Caution: Changes or modications not expressly approved by
the manufacturer could void the user’s authority to operate
this device.
Caution: To comply with the limits of the Class B digital device,
pursuant to Part 15 of the FCC Rules, this device is to com-
ply with Class B limits. All peripherals must be shielded
and grounded. Operation with non-certied peripherals
or nonshielded cables my result in interference to radio or
reception.
This Class B digital apparatus complies with Canadian ICES-003.
CAN ICES-3 (B)/NMB-3(B)
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
WIRELESS TRANSMITTER COMPLIANCE INFORMATION
The term “IC:” before the radio certication number only signi-
es that Industry Canada technical specications were met.
Le terme «IC:» avant le numéro de certication radio signie seulement
que les spécications techniques d’Industrie Canada ont été respectées.
This device complies with Industry Canada’s licence-exempt
RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including inter-
ference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada ap-
plicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage ra-
dioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
This equipment complies with FCC and IC radiation exposure
limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm
between the radiator and your body. This transmitter must not
be co-located or operating in conjunction with any other an-
tenna or transmitter.
Cet appareil est conforme à FCC et IC l’exposition aux rayonnements
limites xées pour un environnement non contrôlé. Cet appareil
doit être installé et utilisé avec une distance minimale de 20 cm
entre le radiateur et votre corps.
12
Cet transmetteur ne doit pas être co-situé ou opérant en liaison
avec toute autre antenne ou transmetteur.
FCC/IC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC/IC RSS-102 radiation expo-
sure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Host device Labeling
This device includes the following module.
Contains FCC ID:
2ANDL3-TYWE1S
Host device Labeling
This device includes the following module.
Contains IC:
23243-TYWE1S
SELFDIAGNOSIS
The appliance has a self diagnosis system to identify a number of warning/malfunctions.
Error messages are displayed on the appliance display.
IF ... IS DISPLAYED, IF ... IS DISPLAYED, IF ... IS DISPLAYED, IF ... IS DISPLAYED,
“Low Temperature”
(frost prevention)
“Probe Failure”
(Probe damaged)
“High Level”
(Internal tray full)
“Comunication Failure”
(internal comunication issue)
..WHAT SHOULD I DO? ..WHAT SHOULD I DO? ..WHAT SHOULD I DO? ..WHAT SHOULD I DO?
The appliance is tted with a
frost protection device to avoid
excessive formation of ice. The
appliance starts up again auto-
matically when the defrosting
process is completed.
If this is displayed, contact your
local authorized service center
Empty the internal safety tank
following the instructions in
the section “End of
season operations”
If this is displayed, contact your
local authorized service center.
13

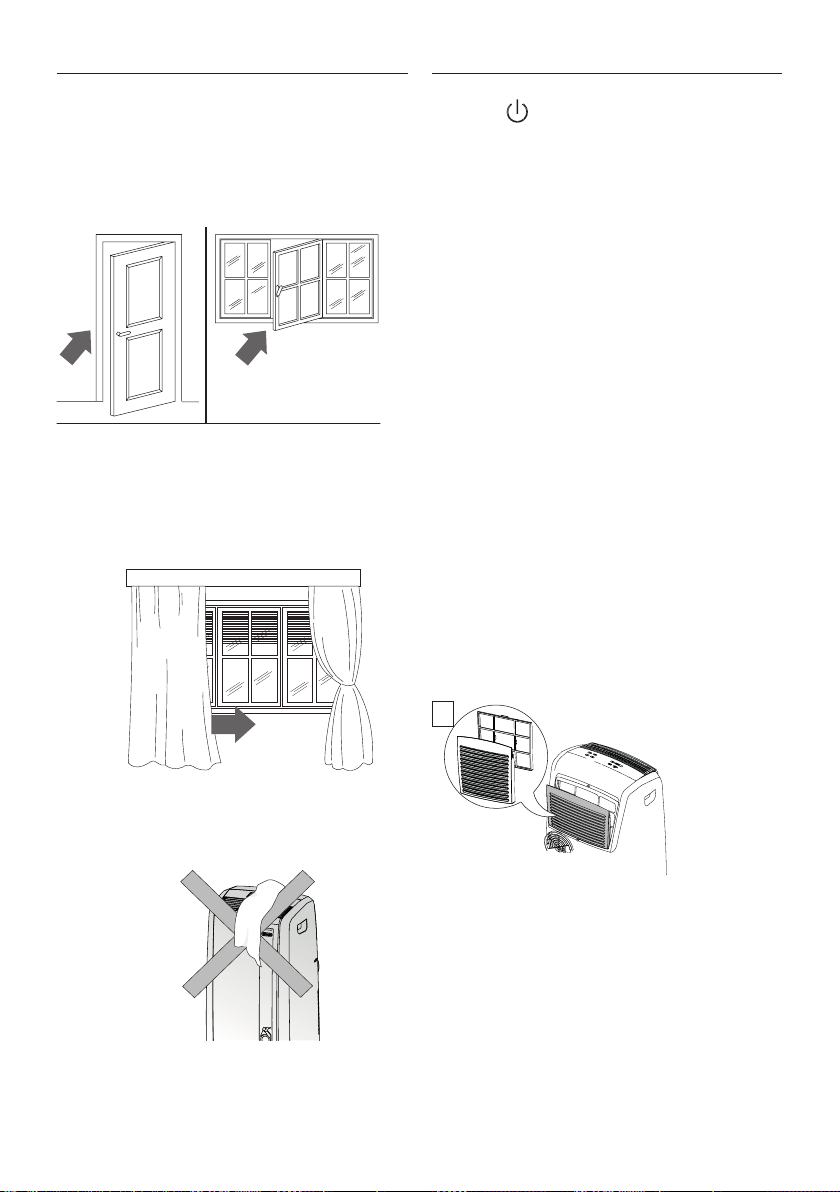

TIPS FOR CORRECT USE
To ensure optimal results from your air conditioner, follow these
recommendations:
• close the windows and doors in the room to be air condi-
tioned When installing the air conditioner semi-perma-
nently, you should leave a door slightly open (as little as
0.39 inch. (1 cm)) to guarantee proper ventilation.
Close doors and windows
• Never use the appliance in very damp rooms (laundries for
example).
• Protect the room from direct exposure to the sun by par-
tially closing curtains and/or blinds to make the appliance
much more economical to run.
Close blinds or curtains
• Never use the appliance outdoors.
•
Make sure there are no heat sources in the room;
• make sure the air conditioner is standing on a level surface.
do not cover the appliance
• Never rest objects of any kind on the air conditioner;
• Never obstruct the air intake or outlet grilles;
CLEANING
Before cleaning or maintenance, turn the appliance o by
touching the button, wait a few seconds, then unplug from
the outlet.
CLEANING THE CABINET
You should clean the appliance with a slightly damp cloth then
dry with a dry cloth. For safety reasons, never wash the air con-
ditioner with water.
Precautions
Never use petrol, alcohol or solvents to clean the appliance. Nev-
er spray insecticide liquids or similar.
CLEANING THE BIO SILVER AIR FILTER
If the lter is dirty, air circulation is compromised and the ef-
ciency of the dehumidifying and air purifying functions de-
creases.
It is therefore good practice to clean the lter at regular inter-
vals. The frequency depends on the duration and conditions of
operation.
If the unit is used constantly or systematically, you are recom-
mended to clean the lter once a week.
The lter is housed in the intake grille.
To clean the lter, extract as shown in g. 8.
To maintain the eciency of the air conditioner, it is recom-
mended to clean the dust lter after every week of use.
The lter is located near the intake grille. Remove the grille to
access the lter. To clean the lter, it will need to be extracted
as shown in g. 8.
8
Use a vacuum cleaner to remove any dust deposited on the lter.
If it is very dirty, submerge it into warm water and rinse it several
times. The water temperature must be kept below 104° F (40°C).
After washing the lter, allow it to dry.
After washing the lter, allow it to dry completely before
repositioning it.
The BioSilver lter helps capture dust and pollen and helps re-
duce the growth of bacteria and mold on the lter.
14
CHECKS AT THE START OF THE SEASON
Make sure the power cable and socket are in perfect condition
and make sure the earthing system is ecient. Comply strictly
with the installation standards.
END OF SEASON OPERATIONS
To drain all water from the circuit, remove the cap A11 from the
drainage on the back of the appliance and allow the water to
drain out into a basin (g. 9).
To facilitate this operation, at the start of the season, it’s possible
to apply the water drain hose with cap B6.
In order to properly storage the appliance at the end of the sea-
son, we suggest you cover it with the supplied end of season
dust cover B10 and you put the accessories in the relevant end
of season accessories bag B11.
9
When the appliance is empty, replace the cap.
Clean the lter and dry thoroughly before putting back.
TECHNICAL SPECIFICATIONS
Power supply voltage see rating label
Max. absorbed power during air conditioning “
Refrigerant “
Cooling capacity “
LIMIT CONDITIONS
Room temperature for
air conditioning 64 ÷ 95°F (18° ÷ 35°C)
Room temperature for
heating 50 ÷ 77°F (10 ÷ 25°C)
Transport, lling, cleaning, recovery and disposal of
refrigerant should be performed by a technical service
centre appointed by the manufacturer only.
The appliance should be disposed of by a specialist centre
appointed by the manufacturer only.
TO AVOID DAMAGE TO THE UNIT:
NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR
ON ITS SIDE. IF THIS OCCURS, WAIT 6 HOURS BEFORE TURNING
THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. After the unit
has been on its side, oil needs to return to the compressor to en-
sure proper function. Without allowing the unit this time (6-24
hours) the unit may function for only a short time, and then the
compressor will break down from lack of oil.
ELECTRICAL CONNECTION
This appliance is equipped with a 3 prong grounded plug. The
plug must be connected into an outlet that is properly installed
and grounded in the accordance with all local codes and ordi-
nances. Do not modify the plug provided with the appliance.
If it will not t the outlet, have a proper outlet installed by a
qualied electrician or relocate the unit to a proper outlet. If the
household electrical supply does not meet the above specica-
tions, or if you are not sure your home has an eective electrical
ground, have a qualied electrician or your local electrical utility
company check it and correct any problems.
SAFETY PLUG
The appliance is tted with a safety plug to protect the power
cable. If power is cut o, unplug from the outlet and make sure
the power cable is undamaged. If the cable is damaged, call the
service center immediately. If power cuts o frequently and the
power cable is undamaged, contact a qualied electrician.
OPERATION OF THE SAFETY PLUG
If the safety device incorporated in the plug trips and cuts o
the power supply, check that the power cable and plug are not
damaged. If the power cable is undamaged, to restore operation
press the “RESET” button. To verify correct operation of the plug,
press the “TEST” button periodically and make sure the appliance
disconnects. If this is not the case, contact the service center. To
restore operation, press the “RESET” button.
15
TROUBLESHOOTING
Check the following points before calling the authorised Technical Service Centre in your area.
PROBLEMS CAUSES SOLUTIONS
The air conditioner does not turn on lt is not plugged in plug it in
there is no power wait
the internal protection device was triggered
call the help centre
The air conditioner works for a short
period of time
the air exhaust hose is obstructed or bent correctly position the air exhaust hose,
limiting the length and curves as much
as possible and avoiding any obstructions
an obstruction is impeding air exhaust
outside
identify and remove the obstacles that
impede air exhaust outside
The air conditioner runs but does not cool
the room
windows, doors, drapes open close the windows, doors and drapes,
keeping in mind the “recommendations
for proper use”
there is some heat source in the room
(oven, hair dryer, etc.)
eliminate the heat source
the air exhaust hose is disconnected from
the appliance
attach the air exhaust hose to the housing
on the back of the appliance (g.1)
dust lters clogged clean or replace the lters as previously
described
the technical characteristics of the
appliance are not suitable for cooling the
room where it is located
During operation there is an unpleasant
odour in the room
dust lters clogged clean or replace the lters as previously
described
The air conditioner does not work for
about 3 minutes from restart
to protect the compressor there is an
internal device that delays startup for
about 3 minutes from restart
wait
The display shows the symbol with
one of the following messages:
HL/PF/FI
the appliance has a self-diagnosis system
that identies some operating errors
refer to the SELF-DIAGNOSIS chapter
