AIR GREASE GUN
OWNER'S MANUAL
Stock Number M582DB
On occasion, after printing of our literature is completed, our manufacturers may make changes and/or modifications to
merchandise which will not be reflected in this manual. Although we strive to maintain complete and accurate information, it is
possible in some instances, that the product may differ slightly from printed specifications. Illustrations are intended for
reference only. Actual merchandise may vary. Wilmar is not responsible for typographical errors.
Please read these instructions carefully and retain them for future use.
2
SPECIFICATIONS
Specifications are subject to change without notice
IMPORTANT SAFETY INFORMATION
WARNING!
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO
SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY
DAMAGE AND WILL VOID WARRANTY.
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of ammable gases or liquids. Do not bring combustible
materials near the tools.
3. Keep children away. Children must never be allowed in the work area. Do not let them
handle machines, tools, hoses or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit
rust. Always lock up tools and keep out of reach of children and other untrained
persons. Switch off all unused electrical tools when stored. Tools are dangerous in the
hands of untrained users.
5. Always wear approved eye protection when using tools. If raising dust, wear a suitable
mask.
6. Work Safe. Do not wear loose clothing or jewelry that could become caught by moving
parts, causing injury. Operate tool a safe distance from yourself and others in the work
area. Keep proper footing and balance at all times. Do not reach over or across run-
ning machines, hoses, etc.
Load: .............................Standard 14 oz. Grease Cartridge,
Pressure Filler or Bulk
Capacity ......................................................... 14 oz. (400cc)
Operating Pressure (PSI): ........................................... 30-90
Avg. Air Consumption (CFM): .............................................6
Air Inlet (NPT): ............................................................. 1/4 in.
Hose Size (ID): ............................................................. 3/8 in.
Length (IN) ..........................................................................16
Weight (LBS) ....................................................................2.65
Warning!
Oil tool before each use. 4 to 5 drops of a good grade Air Tool Oil
placed in the air inlet is sufficient. Use proper air pressure and CFM
rating listed for this tool.
3
IMPORTANT SAFETY INFORMATION
OPERATION
NOTE: For best service you should incorporate an oiler, regu-
lator, and inline filter, as shown in the diagram above.
1. If desired, for quick tool connection, you will need to
prepare a 1/4” quick air connector (not included) to con-
nect to the air source hose. First, wrap the 1/4” quick
air connector (not included) with pipe thread seal tape
(not included) before threading it onto the 3/8” air source
hose. Then, connect the 1/4” quick air connector to the
Air Inlet (2) on the Grease Gun. Note: If you are not using
7. Do not operate any tool if under the inuence of alcohol or drugs. Read warning labels
on prescriptions to determine if your judgment or reexes are impaired while taking
drugs. If there is any doubt, do not operate any tool.
8. Be sure air is in OFF position when connecting tool to air supply.
9. Use only those accessories that are designed for use with tools. For example, with
impact wrenches do not use ordinary sockets. Use impact sockets for all air tools.
10. Be sure to disconnect tool from air supply before changing accessories, performing
service on tool and when not in use.
11. Follow air source manufacturers' directions for connection of regulators, lters, and
other accessories to air source. Do not install quick couplers directly on tool as they
put unnecessary strain on the air inlet threads possibly causing them to wear out
prematurely. Instead, install them on a short length of air hose attached to the tool.
12. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting xtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualied technician.
13. Maintenance. For your safety, maintenance should be performed regularly by a quali-
ed technician using original PERFORMANCE TOOLS® replacement parts. Failure
to do so can lead to accidents for the operator. Use of any other parts will void the
warranty. Only use accessories intended for use with this tool. Approved accessories
are available from Performance Tool®. Use only accessories that are recommended
by the manufacturer for your model. Accessories that may be suitable for one tool may
become hazardous when used on another tool.
WARNING: This product and its packaging contain a chemical known to the State of
California to cause cancer, birth defects, or other reproductive harm.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be understood
by the operator that common sense and caution are factors which cannot be built into this
product, but must be supplied by the operator. Read and understand all of the instructions
provided in the instruction manual of this product, as well as, any other tool (s) used with
this product.
4
OPERATION
OPERATING THE GREASE GUN
Note: If your application requires the Flexible Hose (11), attach it to the
Bent Spout (7).
WARNING: Before every use, prime the Grease Gun by operating the
Gun (see below) until grease ows from the tip. If it does not prime
properly, follow the directions above for venting trapped air.
1. Attach the Grease Gun to the air source hose following the directions
on page four. Set the air compressor to 30 - 90 PSI.
2. Squeeze the Trigger (3) to begin the ow of grease.
3. Pulse the Trigger (3) to continue the ow of Grease, release to stop
the ow of grease.
4. Disconnect from the air source hose before relling the Grease Gun.
Turn off the air compressor.
WARNING: The Grease Gun may still have air pressure after discon-
nected from the air source. Point the Grease Gun into a suitable recep-
tacle and re it until all of the air is expended.
GREASE LOADING INSTRUCTIONS
Grease can be loaded into the Grease Gun by: loading with a ller
pump, using suction lling, or loading with a cartridge.
WARNING:
Disconnect the Grease Gun from the air supply before lling.
Loading A Grease Cartridge
1. Remove the Container Tube (8) from the top of the Housing Cap (6).
2. Pull back on the Plunger Handle (10) until it is fully extended. Lock it
into place with the Catch Plate (12).
an automatic oiler system, before operation, add a few
drops of Pneumatic Tool Oil to the airline connection. Add
a few drops more after each hour of continual use.
2. To check your air system, set the air pressure on your
compressor to 90 PSI. Do not exceed the testing air pres-
sure of 90 PSI.
3. Check the air connection for leaks. After test is complete,
disconnect from the air supply until grease is loaded into
the Air Grease Gun.
5
OPERATION

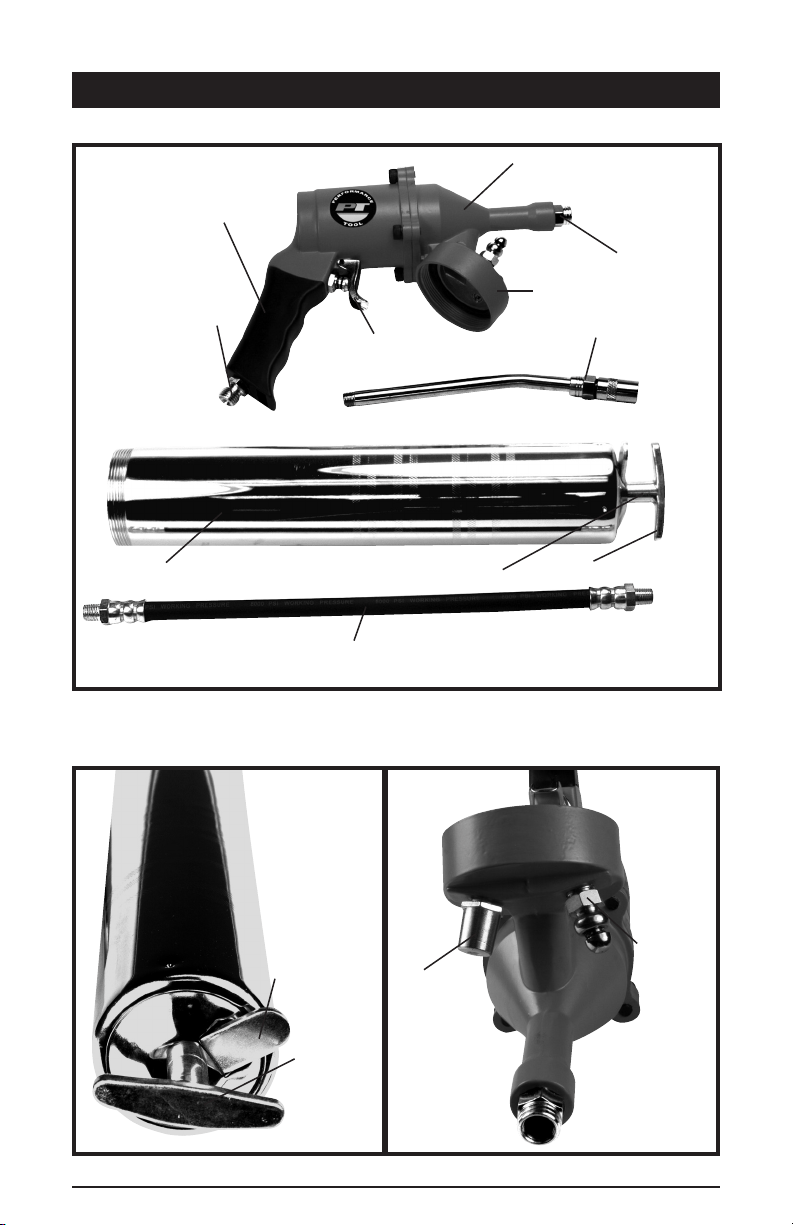

Finger Grip (1)
Air Fitting (2)
Trigger (3)
Front Housing (4)
House Cap (6)
Adaptor (5)
Bend Spout (7)
Top view of
Housing Cap (6)
Container Tube (8) Follower Rod (9)
Catch Plate (12)
Plunger Handle (10)
Plunger
Handle (10)
Air Vent
Valve (14)
Filler
Plug (13)
Flexible Hose Assembly (11)
(Not Included)
FIG. B
FIG. A
FIG. C
6
4. Carefully, reassemble the Container
Tube (8) to the top on the Housing
Cap (6). Press the Catch Plate (12)
and release the Plunger Handle
(10). Press the Plunger Handle (10)
in as far as it will go.
Loading with a Filler Pump
(not included)
1. Slowly, pull back and fully extend
the Plunger Handle (10). Lock it into
place with the Catch Plate (12).
2. Insert the Filler Plug on the end of
the hose of the Filler Pump (not
included) into the Filler Plug (13).
3. Follow the instructions provided in
the Filler Pump manual (not includ-
ed) to operate the Filler Pump until
the Container Tube (8) is full.
OPERATION OPERATION OPERATION
FIG. E
3. Remove the caps/lids from both ends of the cartridge (not included).
Insert the cartridge into the Container Tube (8) in the orientation indi-
cated on the cartridge, making sure that it is in as far as possible.
4. Reassemble the Container Tube (8) to the top on the Housing Cap (6).
Press the Catch Plate (12) and release the Plunger Handle (10). Press
the Plunger Handle (10) in as far as it will go.
Suction Filling
1. Remove the Container Tube (8) from the top of the Housing Cap (6).
2. Submerge the open end of the Container Tube (8) approximately 2
inches into the grease container (not included).
3. Slowly, pull back and fully extend the Plunger Handle (10) to draw
grease upward into the Container Tube (8). When the Plunger Handle
(10) is fully extended, lock it into place with the Catch Plate (12).
FIG. D
7
OPERATION OPERATION OPERATION
Clean air of correct air pressure is recommended for the power supply
for this tool. A maximum of 90 PSI at the tool is recommended for most
air tools of this class. Check specications section for recommended
pressure. (Depending on length of air hose and other circumstances, air
pressure at compressor may need to be increased to 100 PSI to ensure
90 PSI at the tool.)
Water in the air hose and compressor tank contributes to reduced per-
formance and damage of the air tool. Drain the air tank and lters before
each use and as necessary to keep the air supply dry.
Hose length over 25’ causes loss in line pressure. Increase hose I.D. or
increase compressor pressure to compensate for the pressure loss. Use
an in-line pressure regulator with gauge if air inlet pressure is critical.
AIR SOURCE
FIG. F
4. Disconnect the Grease Gun from the
Filler Pump (not included).
5. Press the Catch Plate (12) and re-
lease the Plunger Handle (10). Press
the Plunger Handle (10) in as far as
it will go.
8
Warning!
Oil tool before each use. 4 to 5 drops of a good grade
Air Tool Oil placed in the air inlet is sufficient. Use prop-
er air pressure and CFM rating listed for this tool.
Drain water from hoses and compressor tank. Water in the air supply
line will cause gumming and loss of power. Clean the air lter on the
supply line and ush the tool with gum solvent or a 50/50 mix of air tool
oil and kerosene. It may be necessary to disassemble the tool to prop-
erly clean and re-lubricate.
After each use, clean leftover grease from the Tube (18). Make sure the
Nozzle (10) and the tip of the Grease Gun are clear of dirt, grease, or any
debris. Wipe down the unit with a lint free cloth.

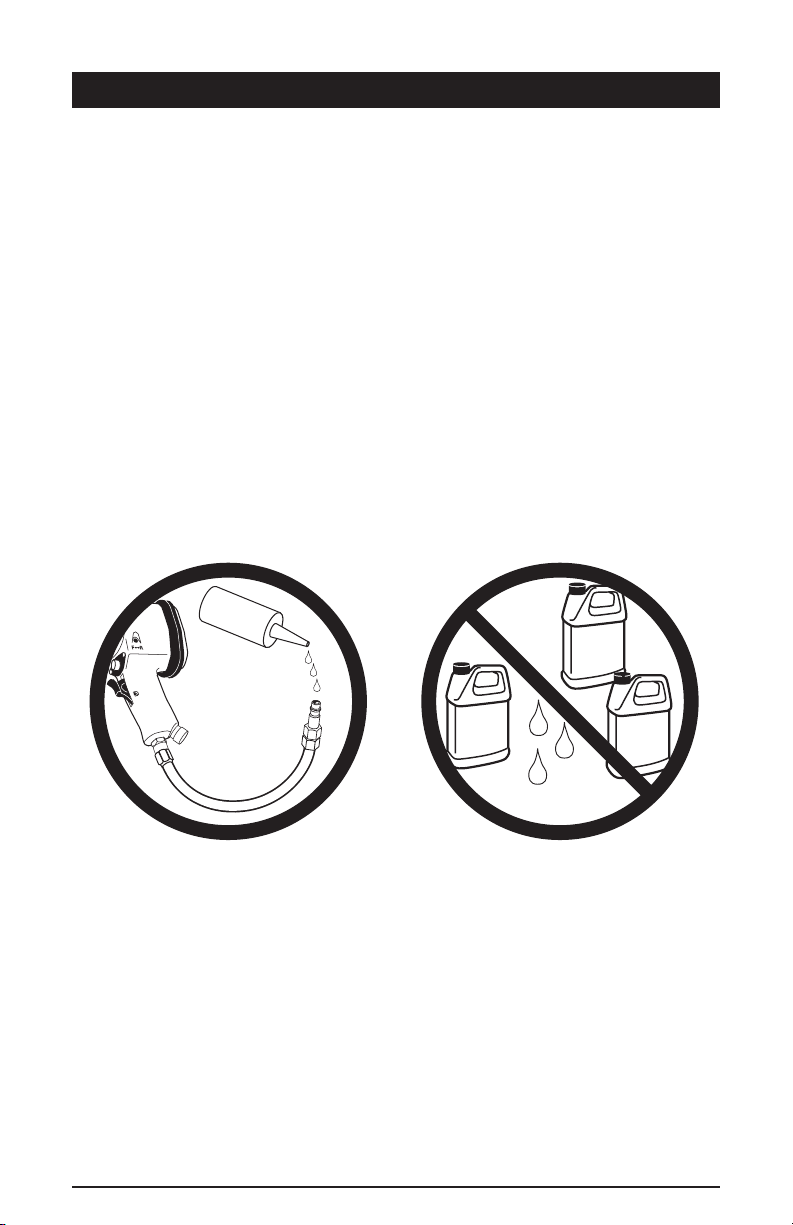

LUBRICATION & MAINTENANCE
Motor
Oil
Trans.
Fluid
Brake
Fluid
Water
Whip
hose
Air Tool
Oil
YesNo
9

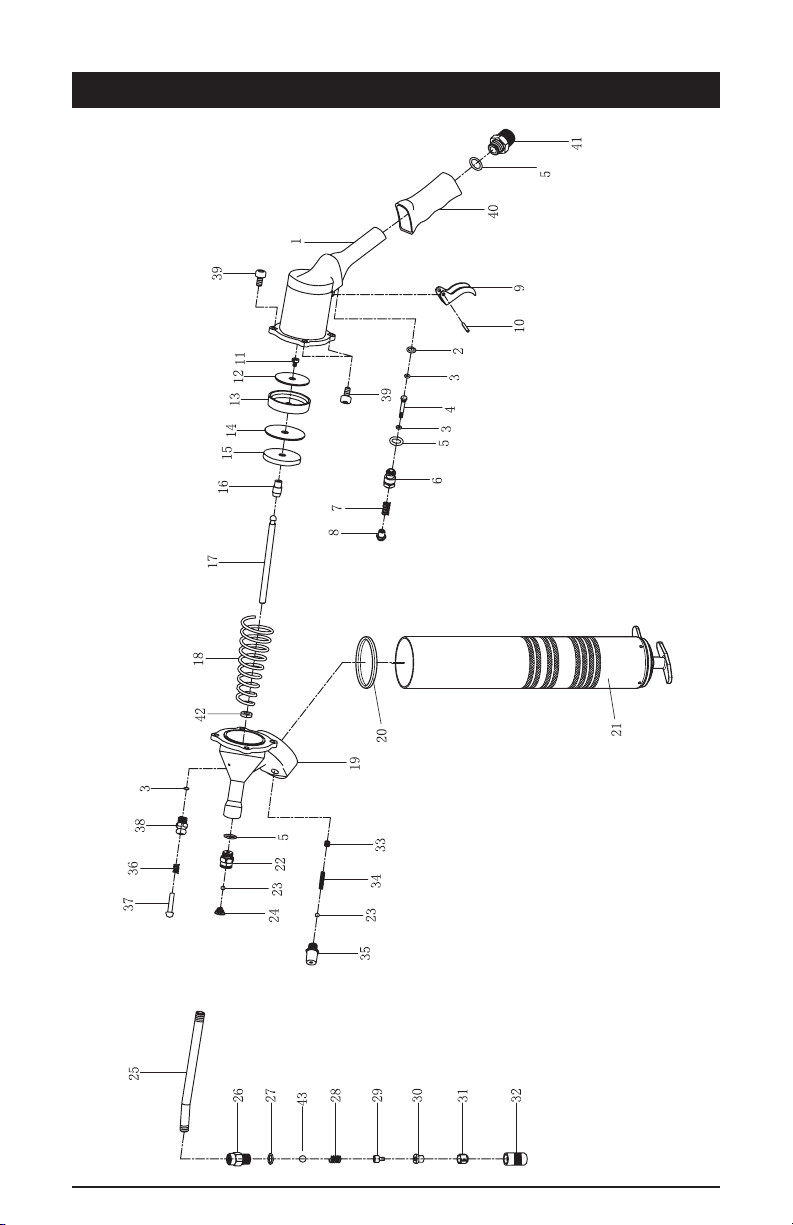

1 295001-1 Housing 1
2 295002-1 O-Ring 1
3 295003-1 O-Ring 3
4 295004-1 Valve Stem 1
5 295005-1 O-Ring 2
6 295006-1 Valve 1
7 295007-1 Spring 1
8 295008-1 Valve Plug 1
9 295009-1 Trigger 1
10 295010-1 Trigger Pin 1
11 295011-1 Screw 1
12 295012-1 Washer 1
13 295013-1 Rubber Cup 1
14 295014-1 Washer 1
15 295015-1 Spring Seat 1
16 295016-1 Piston Seat 1
17 295017-1 Lever 1
18 295018-1 Tower Spring 1
19 295019-1 Connection 1
20 395047-1 Washer 1
21 395048-1 Container Tube 1
22 295022-1 Screw 1
23 295023-1 Steel Ball 2
24 295024-1 Tower Spring 1
25 295025-1 Tube 1
26 295026-1 Screw 1
27 295027-1 O-Ring 2
28 295028-1 Spring 1
29 295029-1 Rubber Seat 1
30 295030-1 Bushing 1
31 295031-1 Arc Board 4
32 295032-1 Retainer 1
33 295033-1 Screw 1
34 295034-1 Spring 1
35 295035-1 Valve 1
36 295036-1 Spring 1
37 295037-1 Valve Stem 1
38 295038-1 Vacuum Valve 1
39 295039-1 Screw 4
40 295040-1 Cover 1
41 297007-1 Air Inlet 1
42 295042-1 Washer 1
43 395040-1 Steel Ball 1
# Part # Description Quantity
REPLACEMENT PARTS LIST
10
REPLACEMENT PARTS LIST
11
INSUFFICIENT POWER:
Probable Cause Solution
Dirty or clogged air passages Flush and lubricate tool, drain air tank
and supply line
Insufficient air supply Increase line pressure, make sure
compressor matches tool's air pressure
and consumption needs
Air leakage Use PTFE tape at all fittings and joints.
O-rings Check tool for worn or damaged seals.
Air pockets Press in The Air Vent Valve (10) at the
same time pull back and fully extend
the Plunger Handle (19) several times.
Then push the Plunger Handle (19) all
the way in and tighten the Container
Tube (17) to the Gun.
Worn/damaged wear &
tear parts Replace as necessary.
Tool matching Be sure you are using a tool suited for
the lubing requirements of the
job at hand.
TROUBLESHOOTING
LIMITED WARRANTY
PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These warranties give specific legal
rights. Except where prohibited by local law, the law of the State of Washington governs all warranties and all exclusions and limitations
of warranties and remedies. There may be other rights which vary from state to state.
PERFORMANCE TOOL® warrants the product to be free from defects in materials and workmanship under normal use and service. A
defective product may be returned for a free replacement within 90 days from the date of purchase, provided that product is returned to
place of purchase immediately after discovery of defect. After 90 days and up to one year from date of purchase, PERFORMANCE
TOOL® will replace at no charge any parts which our examination shall disclose to be defective and under warranty. These warranties
shall be valid only when a sales receipt showing the date of purchase accompanies the defective product or defective part (s) being
returned. For part (s) after 90 days, please remit your request, postage prepaid to:
PERFORMANCE TOOL, P.O. Box 88259 Tukwila, WA 98138
These warranties exclude blades, bits, punches, dies, bulbs, fuses, hoses, and other consumables which must be replaced under normal
use and service. These warranties shall not apply to any product or part which is used for a purpose for which it is not designed, or which
has been repaired or altered in any way so as to affect adversely its
performance or reliability, nor shall these warranties apply to any product or part which has been subject to misuse, neglect, accident or
wear and tear incident to normal use and service.
PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in connection with its
products.
Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL® makes no express or implied
warranties of any kind with respect to its products. In particular, PERFORMANCE TOOL® makes no implied warranty of merchantability
and no implied warranty of fitness for any particular purpose, except that for goods purchased primarily for personal, family or household
use and not for commercial or business use, PERFORMANCE TOOL® makes an implied warranty of merchantability (and, if otherwise
applicable, an implied warranty of fitness for a particular purpose), but only for the particular qualities or characteristics, and for the
duration, expressly warranted above.
The laws on limitation of implied warranties may differ from state to state, so the above limitations may not apply in all cases.
PERFORMANCE TOOL® shall not be liable for consequential, incidental or special damages resulting from or in any manner related to
any product, or to the design, use, or any inability to use the product. The sole and exclusive remedy for a defective product or part shall
be the repair, or replacement thereof as provided above. The laws on limitation of remedies or on consequential, incidental or special
damages may vary from state to state, so the above limitations may not apply in all cases.
© Copyright 2016 WILMAR CORPORATION, P.O. Box 88259 Tukwila, WA 98138
