en
Installation and operating instructions
Tumble dryer
WTX87EH9GR
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTX87EH9GR/01:
en Installation and operating instructions
1
Tumble dryer
1
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Energy-saving tips 13
3
5 Installing and connecting the appliance 14
3
9 Quick reference guide 21
3
* Familiarising yourself with your appliance 22
3
Y Display 24
3
/ Overview of programmes 27
3
0 Settings 30
3
Z Laundry 32
3
1 Operating the appliance 33
3
2 Appliance settings 39
3
o Home Connect 40
3
… Crease-removal function 48
3
Œ Draining the condensation water 51
3
D Cleaning and maintenance 54
4
Ö Appliance care 59
4
3 Help with the appliance 65
4
L Transporting the appliance 68
4
[ Consumption values 69
4
{ Technical data 70
4
) Disposal 70
4
4 Customer Service 71
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
10
Risk of fire/material damage/ damage to the appliance!
10
: Warning
10
Risk of poisoning/material damage!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
12
: Warning
12
Risk of death!
12
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
13
Risk of injury/material damage/damage to the appliance!
13
Caution!
13
Material damage/damage to the appliance
13
7 Energy-saving tips
13
Energy-saving tips
13
Note:
13
Note:
13
5 Installing and connecting the appliance
14
Installing and connecting the appliance
14
Scope of supply
14
1. Remove any packaging and protective covers completely from the appliance.
14
2. Open the door.
14
3. Remove all the accessories from the drum.
14
Caution!
14
Risk of material damage and damage to the appliance
14
Installing the appliance
14
: Warning
14
Risk of death!
14
: Warning
14
Risk of explosions/fire!
14
: Warning
14
Risk of fire/material damage/damage to the appliance!
14
: Warning
15
Risk of injury/material damage/ damage to the appliance!
15
: Warning
15
Risk of injury!
15
Caution!
15
Material damage/damage to the appliance
15
Caution!
15
Risk of material damage and damage to the appliance
15

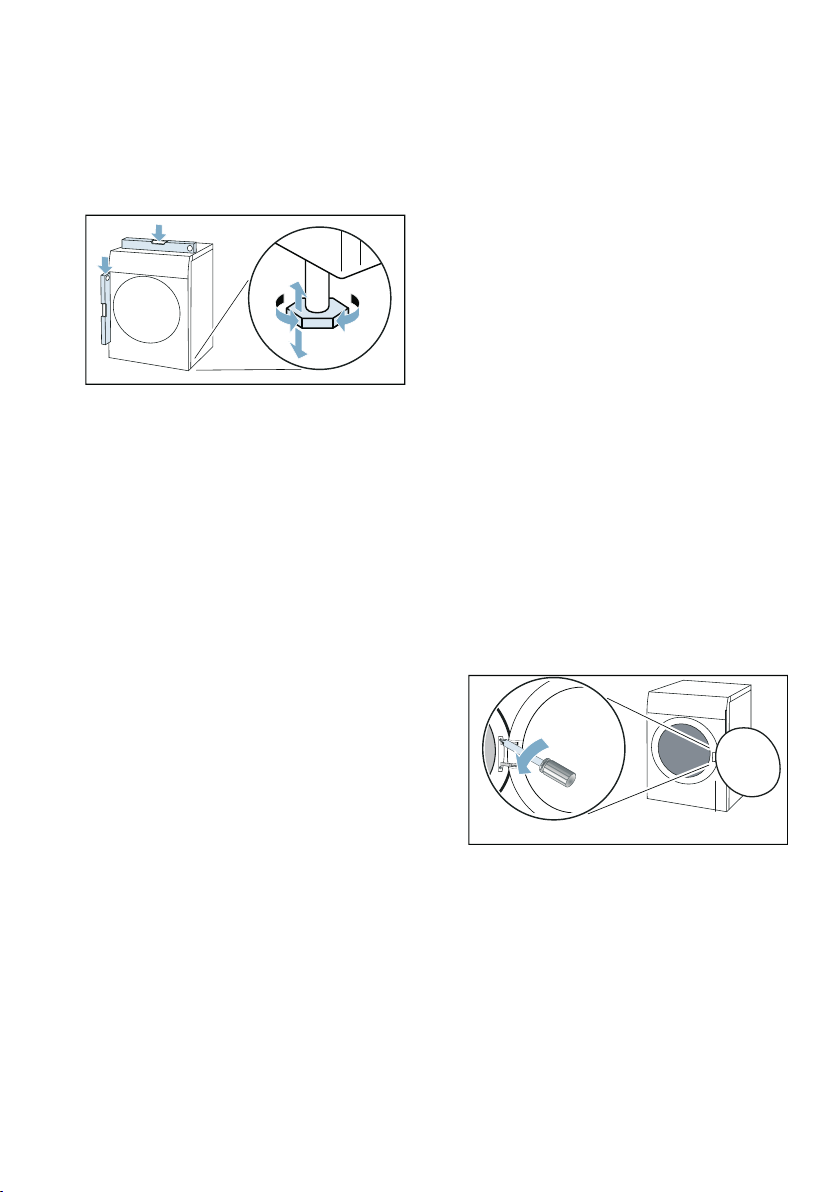

1. Place the appliance on a clean, even, solid surface.
16
2. Check that the appliance is level using a spirit level.
16
3. If necessary, turn the appliance feet to make sure it is level.
16
Notes
16

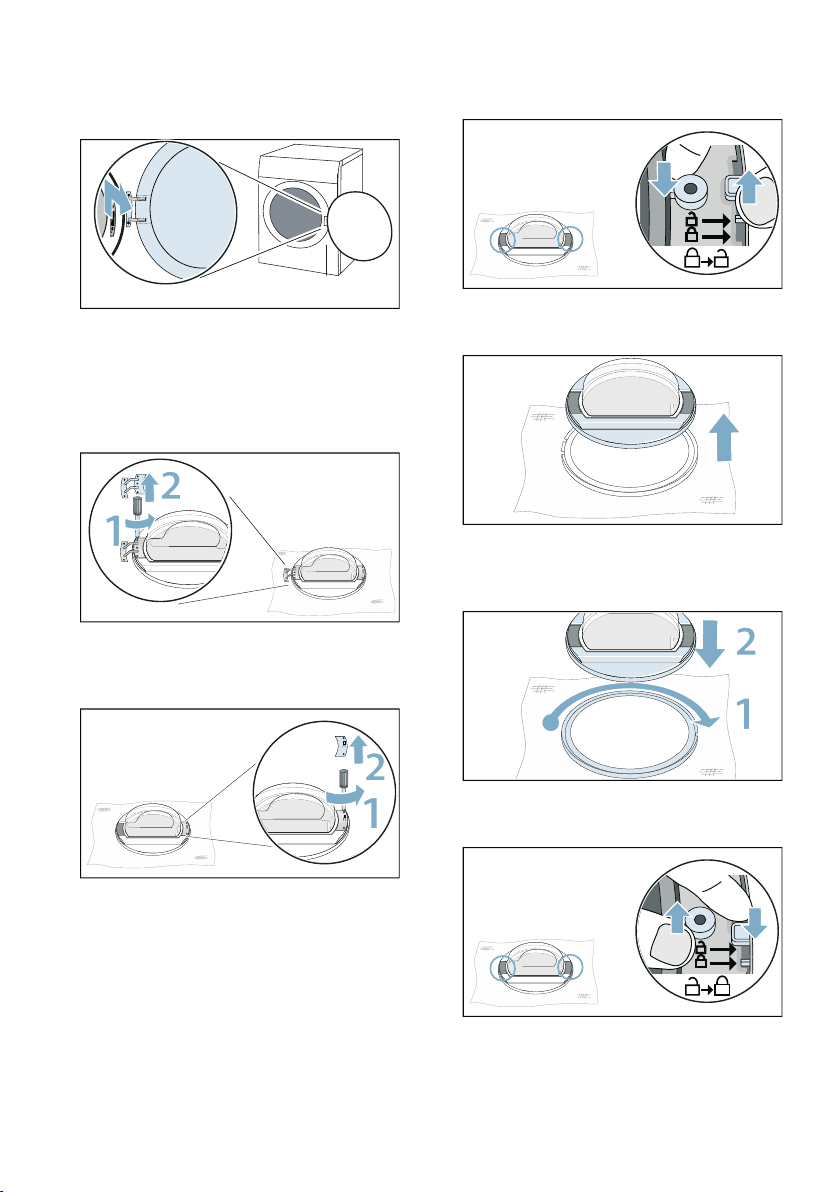

Changing the side on which the door is hinged
16
Note:
16
: Warning
16
Risk of injury!
16
: Warning
16
Risk of injury/material damage/ damage to the appliance!
16
1. Open the door.
16
2. Remove the screws from the hinge on the appliance.
16
Note:
16
3. Remove the door and carefully set it down on a soft, flat surface.
17
Note:
17
4. Remove screws from the hinge, and remove the hinge.
17
5. Remove the screws from the eyelet and remove the eyelet.
17
6. Unlock the door.
17
7. Remove the door from the door ring.
17
8. Rotate the door ring by 180° and insert the door properly.
17
9. Lock the door ring.
17
10. Screw the hinge onto the door.
18
Note:
18
11. Screw the eyelet to the door.
18
Note:
18
12. Remove the cover from the door lock.
18
13. Remove the door lock.
18
14. Turn the door lock by 180° and insert it on the other side.
18
15. Screw the cover from the door lock.
18
16. Insert and screw in the door.
19
Note:
19
Connecting the appliance
19
: Warning
19
Risk of electric shock/fire/material damage/damage to the appliance!
19
: Warning
19
Risk of electric shock/fire/material damage/damage to the appliance!
19
: Warning
19
Risk of fire/material damage/damage to the appliance!
19
: Warning
19
Risk of injury!
19
1. Connecting the drain hose. ~ Page 51
20
2. Plug the appliance's mains plug into the designated socket.
20
3. Check that the mains plug is in securely.
20
Caution!
20
Risk of material damage/damage to the appliance
20
Note:
20
Before using the appliance for the first time
20
Note:
20
Optional accessories
20
9 Quick reference guide
21
Short introduction
21
Note:
21
* Familiarising yourself with your appliance
22
Familiarising yourself with your appliance
22
Appliance overview
22
Fascia
23
Programme selector
23
Y Display
24
Display
24
Display
24
Description
24
Information
24
Information in the display
25
Display
25
Information
25
Notes
26
/ Overview of programmes
27
Overview of programmes
27
Programme
27
Maximum load
27
Notes
27
Notes
27
Notes
27
Notes
28
Notes
28
Notes
28
Note:
28
Note:
28
Περισσότερα (Additional Programs) ™
29
Maximum load
29
Note:
29
Note:
29
Notes
29
0 Settings
30
Program setting
30
Function
30
Note:
30
Notes
30
Note:
30
Note:
31
Note:
31
Appliance setting
31
Function
31
Z Laundry
32
Laundry
32
Preparing laundry
32
: Warning
32
Risk of explosions/fire!
32
Caution!
32
Risk of damage to the drum and laundry
32
Notes
32
Sorting laundry
32
Note:
32
Caution!
32
Risk of material damage to the dryer or laundry
32
Note:
33
Caution!
33
Risk of material damage to the appliance and laundry
33
1 Operating the appliance
33
Operating the appliance
33
Loading laundry and switching on the appliance
33
Note:
33
1. Prepare and sort the laundry.
33
2. Press # to switch on the appliance.
33
3. Open the door.
33
4. Load the laundry unfolded into the drum.
34
5. Close the appliance door.
34
Caution!
34
Risk of material damage to the appliance or laundry.
34
Note:
34
Operation/navigation
34
1. Use the buttons on the left to select a setting.
34
2. Use the buttons on the right to adjust the values of the setting.
35
Note:
35
Setting a programme
35
Note:
35
1. Set the programme you require.
35
2. Adjust the programme settings, if required.
35
1. Set the Περισσότερα(Additional Programs) program.
35
2. Press the button below ™.
35
3. Set the program you require.
35
4. Adjust the programme settings, if required.
35
Note:
35
Programme settings
36
1. Press Επιλογές (options).
36
2. Adjust the setting to the required setting.
36
Note:
36
Starting the programme
36
Note:
36
Programme progress
36
Note:
36
Changing the programme or adding more laundry
36
1. Open the door or press Έναρξη/ A Προσθήκη ρούχων (Start/ Pause) to pause the programme.
36
Note:
36
2. Add or remove laundry.
36
3. If required, select a different programme or a different programme setting.~ "Overview of programmes" on page 27
37
Note:
37
4. Close the appliance door.
37
5. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
37
Note:
37
Cancelling the programme
37
Caution!
37
Risk of fire. Laundry may catch fire.
37
End of programme
37
Removing laundry and switching off the appliance
37
1. Remove the laundry.
37
2. Press # to switch off the appliance.
37

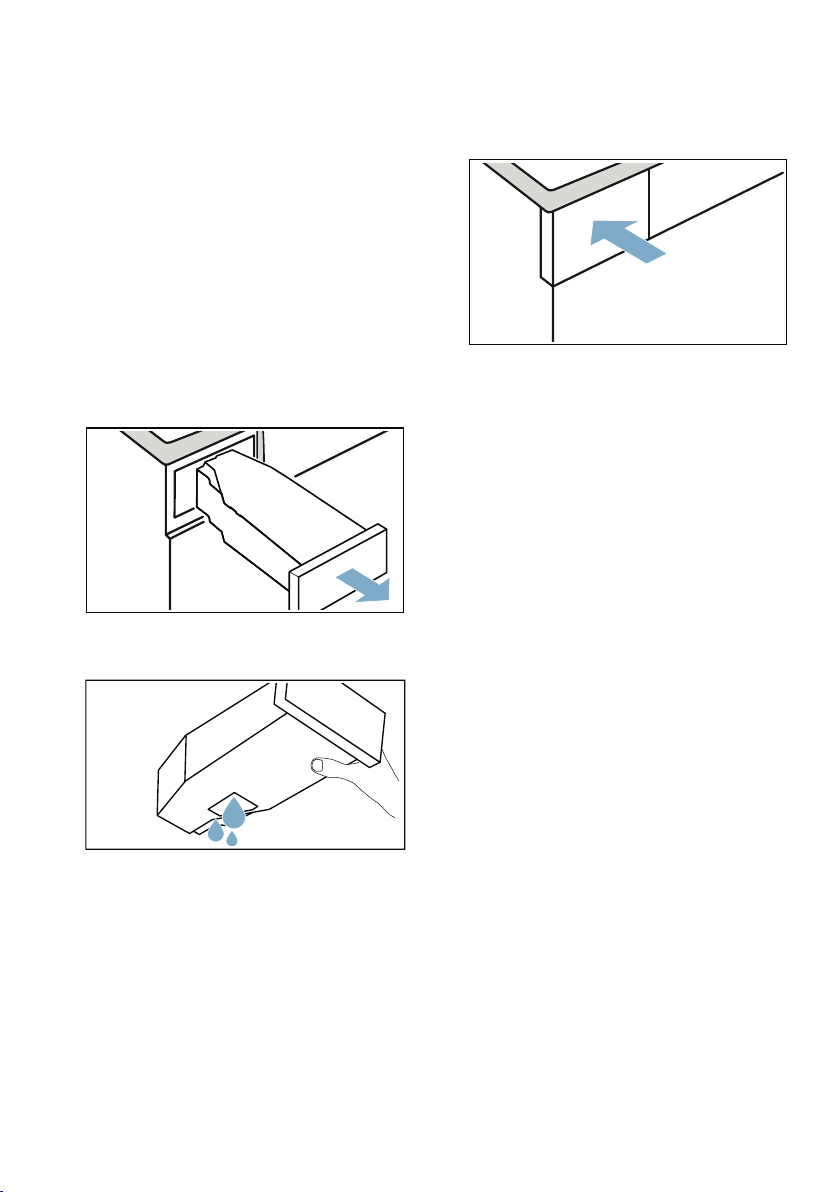

Emptying the condensation container
38
1. Pull out the condensation container horizontally.
38
2. Pour out the condensation water.
38
Caution!
38
Risk of harm to health and material damage
38
3. Push the condensation container back into the appliance until you feel it lock into place.
38
Note:
38
2 Appliance settings
39
Appliance settings
39
Childproof lock
39
Note:
39
Basic settings
39
Basic setting
39
Description
39
Adjust and activate/deactivate the basic settings as follows
39
1. Adjust the setting to the required setting.
39
2. Adjust any additional basic settings you require or save and exit the basic settings.
39
Save and exit the basic settings as follows
39
o Home Connect
40
Home Connect
40
1. Install the Home Connect app on your mobile device.
40
2. Register in the Home Connect app.
40
3. Connect your appliance to your home network automatically or manually (you only need to do this the first time).
40
4. Connect your appliance to the Home Connect app.
40
Notes
40
Calling up the Home Connect menu
40
1. Switch on the appliance.
40
2. Press and hold } Απομακρυσμένη έναρξη (Remote Start) for at least 3 seconds.
40
Note:
40
Connecting to the home network and the Home Connect app
41
Notes
41
Note:
41
Connecting to your home network automatically
41
1. Press Connect.
41
2. Confirm the message in the display.
41
3. Activate the WPS function on your home network router within the next 2 minutes.
41
Note:
41
Connecting to your home network manually
42
1. Press Man. network log-in.
42
2. Press Connect.
42
3. Call up the Wi-Fi setting on the mobile device.
42
4. Connect the mobile device to the Home Connect Wi-Fi network and enter the password (key) HomeConnect.
42
5. Once you have connected successfully, open the Home Connect app on your mobile device and carry out the steps in the app.
42
6. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
42
7. Carry out the last steps in the Home Connect app to connect your appliance.
42
Note:
42
Connecting to the Home Connect app
43
1. Press Connect to the app.
43
2. Press Connect app.
43
3. Once your appliance is displayed in the app, carry out the last steps in the Home Connect app.
43
Note:
43
Activating/deactivating Wi-Fi
43
1. Press Wi-Fi on/off.
43
2. Press on or off.
43
Notes
43
Resetting your network settings
44
1. Press Network settings.
44
2. Press Reset.
44
Note:
44
Updating the software
44
1. Press Software update.
44
2. Press Install now.
44
Note:
44
Note:
44
Energy management
45
Notes
45
1. Press energy mngmt..
45
2. Press Connect.
45
3. Activate Flexstart if you want the smart energy system (Energy manager) to start up your appliance.
45
Flex start
45
Note:
45
1. Select the programme you require.
45
2. Press Λήξη σε (Ready In).
45
3. Select the time period you require.
45
Note:
45
4. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
45
5. Press } Απομακρυσμένη έναρξη (Remote Start).
45
Notes
46
Note:
46
1. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
46
2. Open the door.
46
3. Add or remove laundry.
46
4. Close the appliance door.
46
5. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
46
6. Press } Απομακρυσμένη έναρξη (Remote Start).
46
Intelligent program recommendation
46
Therefore please note the following:
46
1. Switch on the appliance.
46
2. Set the program to Smart Dry Ç.
46
3. To cancel the analysis, set a different program or switch the appliance off.
46
4. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
46
Note:
46
Possible reasons:
47
Remote diagnostics
47
Note:
47
Information on data protection
47
Note:
47
Declaration of Conformity
48
…Crease-removal function
48
Crease-removal function
48
Notes
48
Filling the water tank
48
Caution!
48
Risk of material damage and damage to the appliance
48
1. Select the required crease-removal program.~ "Overview of programmes" on page 27
48
2. Configure the settings for the required crease-removal program.
48
3. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
48
4. Refresher-container is empty, please re-fill. will appear on the display.
49
Note:
49

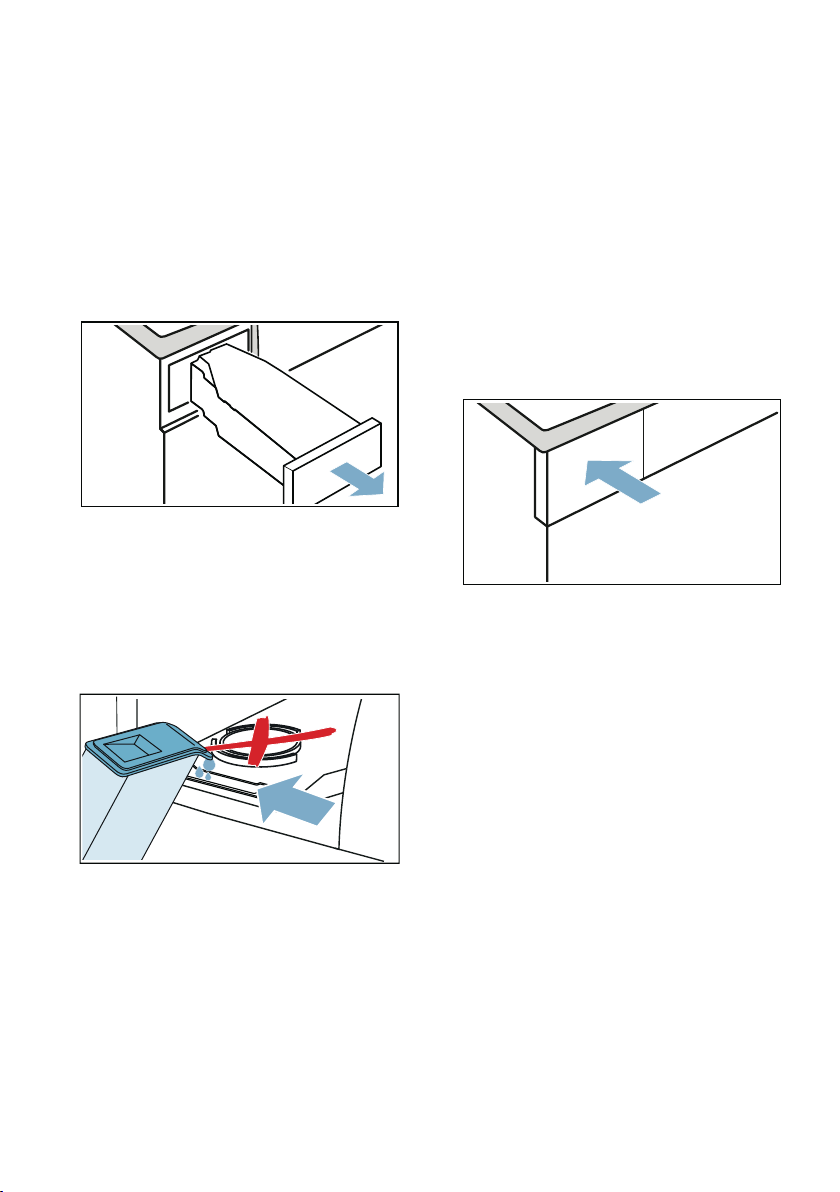

5. Pull out the condensation container horizontally.
49
6. Use the water jug provided to pour approx. 180 ml cold drinking water into the filling hole in the front of the appliance, until Refresher-container is empty, please re-fill. goes out on the display and an audible signal sounds.
49
Note:
49
7. Push the condensation container back into the appliance until you feel it lock into place.
49
8. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
49
Programs for removing creases
50
Cleaning the filter in the water tank
50
Caution!
50
Risk of material damage and damage to the appliance
50

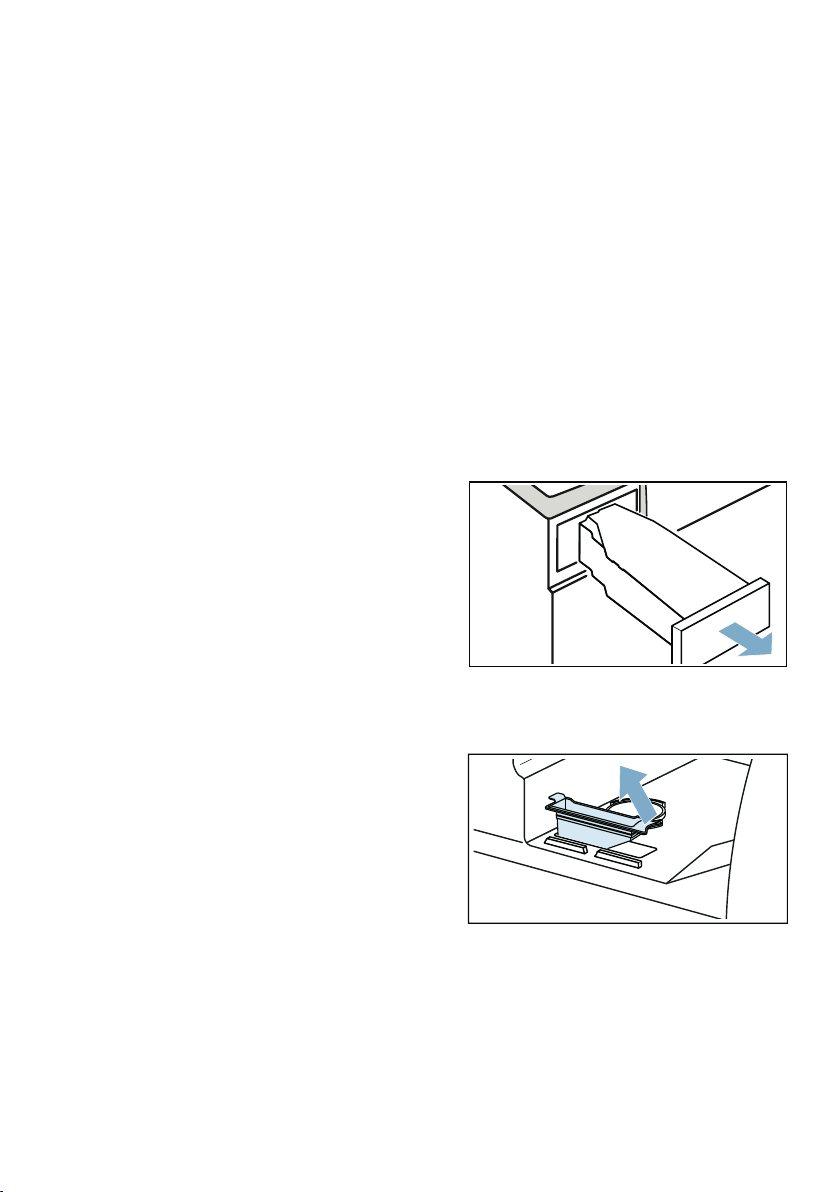

1. Pull out the condensation container horizontally.
50
2. Remove the filter and clean it under running water or in the dishwasher.
50
3. Insert the filter into the water tank.
51
4. Push the condensation container back into the appliance until you feel it lock into place.
51
Œ Draining the condensation water
51
Draining the condensation water
51
Connect the drain hose as follows:
51
1. Remove any accessories from the drum.
51
2. Remove all items from the bag.
51
3. Remove the cap from the socket.
52
Notes
52
4. Push the cap into its "park position".
52
5. Push the drain hose as far as it will go onto the uncovered socket.
52
6. Secure the other side of the drain hose using the remaining accessories, depending on the connection situation.
52
Caution!
53
Risk of material damage due to leaks or draining water.
53
Caution!
53
Risk of accumulated water being drawn back into the appliance and causing material damage.
53
7. Pull out the condensation container horizontally and empty it.
53
8. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.
53
9. Turn the condensation container 180° again and insert the stopper into the recess in the top of the condensation container.
53
10. Slide in the condensation container until it clicks into place.
53
Note:
53
Caution!
53
Risk of material damage/damage to the appliance
53
D Cleaning and maintenance
54
Cleaning and maintenance
54
Cleaning the appliance
54
: Warning
54
Risk of death!
54
: Warning
54
Risk of poisoning!
54
: Warning
54
Risk of electric shock/material damage/damage to the appliance!
54
Caution!
54
Material damage/damage to the appliance
54
Cleaning the base unit
54
Note:
54

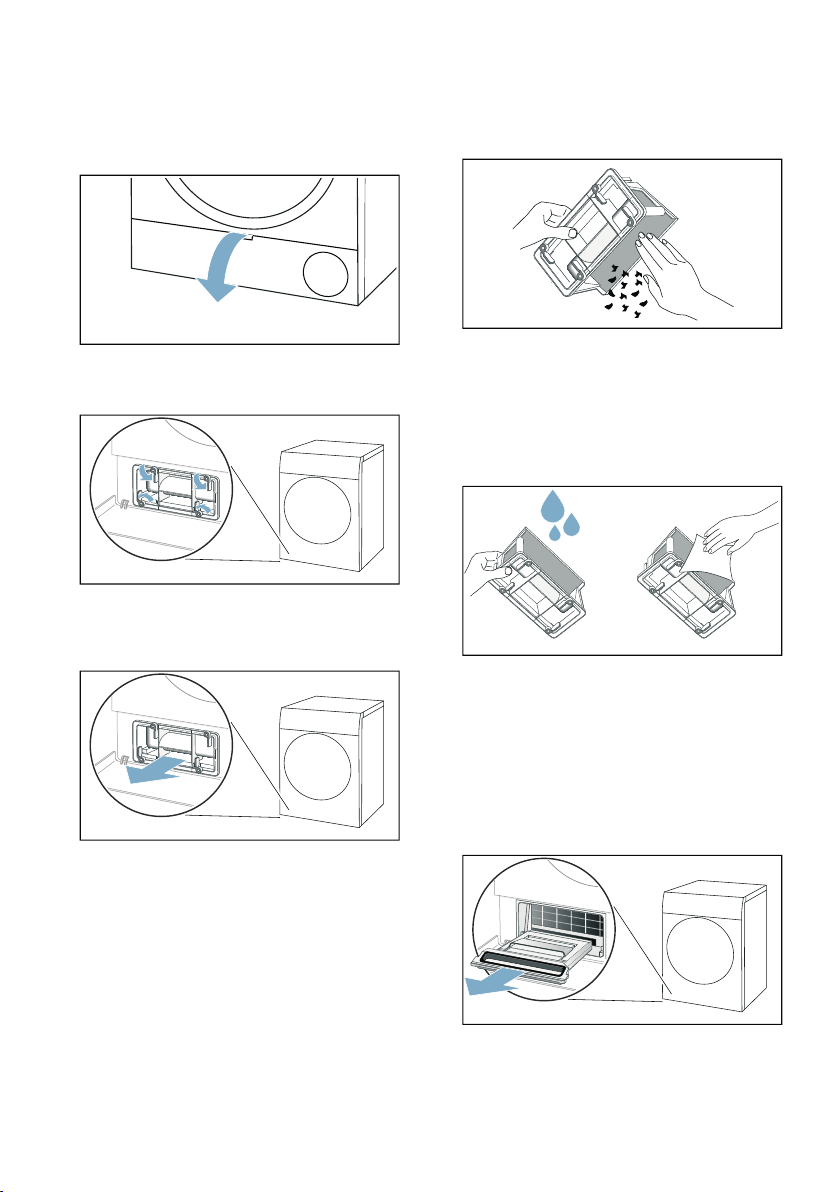

1. Open the maintenance flap by the handle.
55
2. Unlock the levers on the heat exchanger cover.
55
3. Pull the heat exchanger cover out by its grip.
55
4. Remove all of the fluff from the heat exchanger cover and remove the fluff filter.
55
Note:
55
5. Rinse the inside of the heat exchanger cover and the fluff filter thoroughly under running water and dry them.
55
Notes
55
6. Pull the fluff collector out horizontally.
55
Note:
55
7. Open the fluff collector and remove any fluff.
56
8. Rinse the fluff collector's filter thoroughly under running water and dry it.
56
Notes
56
9. Close the fluff collector.
56
Note:
56
10. Slide the fluff collector in horizontally as far as it will go.
56
11. Slide the heat exchanger cover in by its grip.
56
Note:
56
12. Lock the levers on the heat exchanger cover.
56
13. Close the maintenance flap.
57
Caution!
57
Material damage/damage to the appliance
57
Cleaning the moisture sensor
57
Note:
57
1. Open the door.
57
2. Clean the moisture sensor with a rough sponge.
57
Caution!
57
Risk of damaging the moisture sensor.
57
Cleaning the filter in the condensation container
58
Note:
58

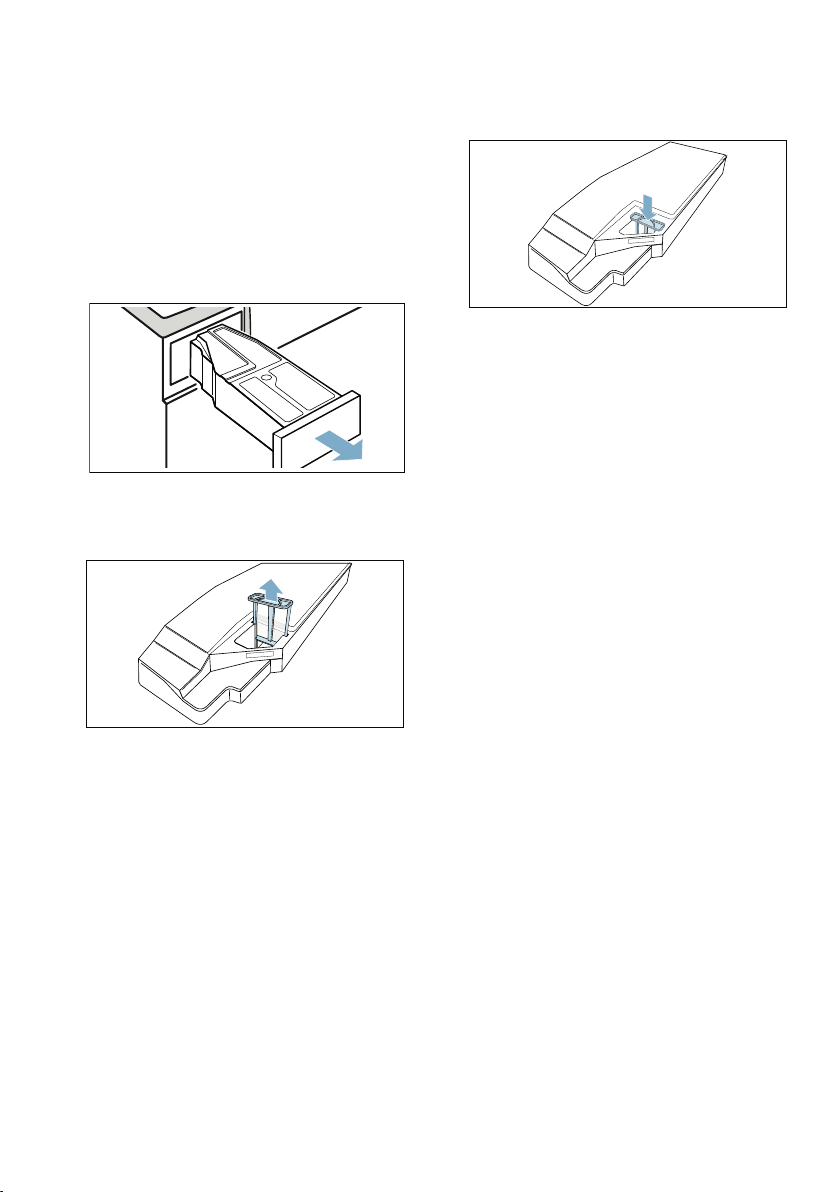

1. Pull out the condensation container horizontally.
58
2. Pour out the condensation water.
58
3. Remove the filter.
58
4. Clean the filter under warm, running water or in the dishwasher.
58
Note:
58
5. Push the filter in until you feel it lock into place.
58
Caution!
58
If the filter is not inserted, fluff can find its way inside the appliance and damage it.
58
6. Push the condensation container in until you feel it lock into place.
58
Ö Appliance care
59
Appliance care
59
: Warning
59
Risk of scalding/material damage/ damage to the appliance!
59
: Warning
59
Risk of poisoning/material damage!
59
Preparing the appliance for appliance care
59
Preparing the appliance for appliance care
59
1. Clean the base unit.~ Page 54
59
2. Open the door.
59
3. Remove the laundry.
59
4. Close the appliance door.
59
5. Pull out the condensation container horizontally and empty it.
59
6. Press # to switch on the appliance.
60
Preparing the condensation container for appliance care
60
1. Remove the stopper inserted in the recess on the condensation container.
60
2. Turn the condensation container 180° onto its underside and insert the stopper.
60
3. Clean the filter in the condensation container.~ Page 58
60
Note:
60
Running the basic appliance care programme
61
Notes
61
Running the appliance care programme
61
1. Prepare the appliance for appliance care. ~ Page 59
61
2. Pour approx. 1 ^ litre of warm tap water into the condensation container.
61
Note:
61
3. Slide in the condensation container until it clicks into place.
61
4. Press and hold the two Ρυθμίσεις 3 δευτ. (Basic Settings 3 sec.) buttons for approx. 3 seconds.
61
5. Press Basic machine care .
61
6. Press start .
61
Note:
61
7. Pull out the condensation container horizontally and empty it.
61
8. Slide in the condensation container until it clicks into place.
62
9. Press # to switch off the appliance.
62
Running the intensive appliance care programme
62
Notes
62
: Warning
62
Risk of injury/material damage/ damage to the appliance!
62
Caution!
63
Material damage/damage to the appliance
63
Running the appliance care programme
63
1. Prepare the appliance for appliance care. ~ Page 59
63

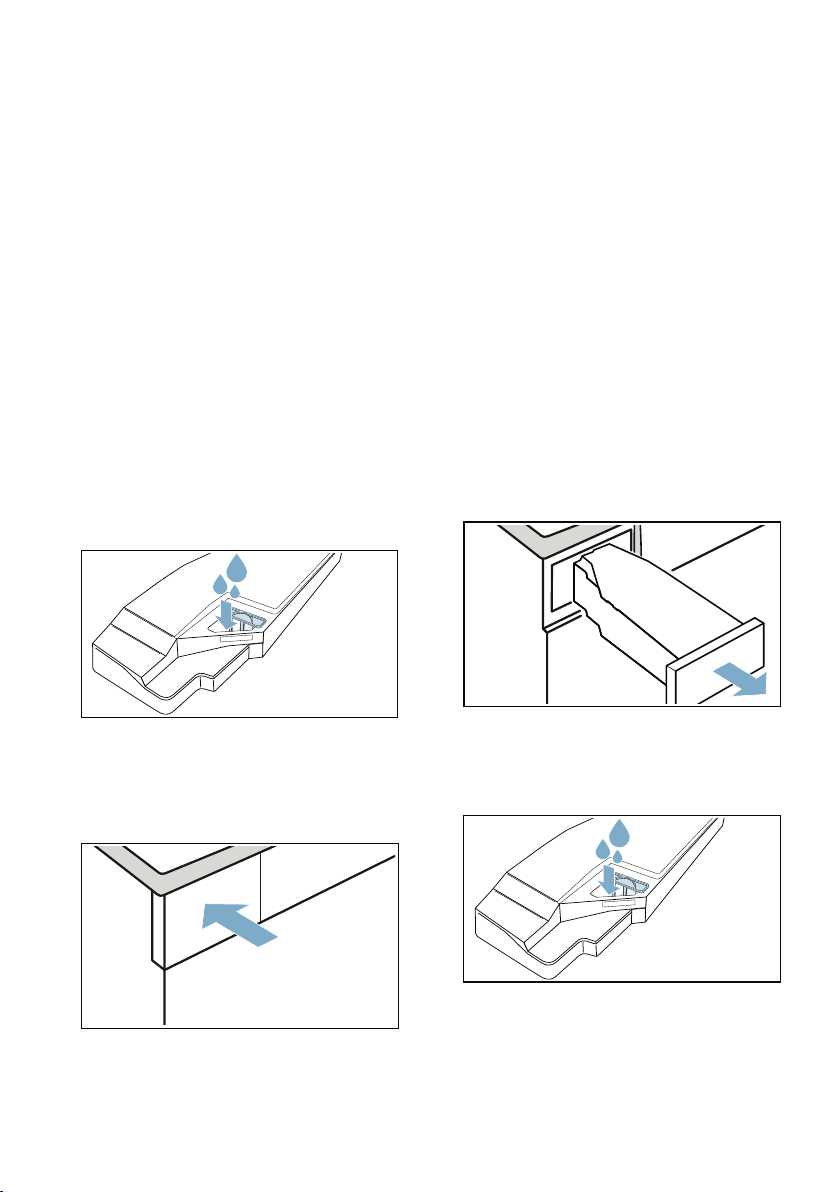

2. Pour a bottle of the original appliance care product and approx. 1 ^ litre of warm tap water into the condensation container.
63
Note:
63
3. Slide in the condensation container until it clicks into place.
63
4. Press and hold the two Ρυθμίσεις 3 δευτ. (Basic Settings 3 sec.) buttons for approx. 3 seconds.
63
5. Press Intensive machine care .
63
6. Press start .
63
Note:
63
7. Pull out the condensation container horizontally and empty it.
63
8. Pour approx. 1 ^ litre of warm tap water into the condensation container.
63
Note:
63
9. Carefully swing the condensation container round horizontally and empty it to dispose of any remaining original appliance care product.
64
10. Pour approx. another 1 ^ litre of warm tap water into the condensation container.
64
11. Slide in the condensation container until it clicks into place.
64
12. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
64
Note:
64
13. Empty the condensation container again.
64
14. Slide in the condensation container until it clicks into place.
64
15. Press # to switch off the appliance.
64
3 Help with the appliance
65
Help with the appliance
65
Faults
65
Cause/Remedy
65
Note:
65
Note:
66
Note:
66
Note:
67
L Transporting the appliance
68
Transporting the appliance
68
: Warning
68
Risk of injury/material damage/ damage to the appliance!
68
: Warning
68
Risk of injury!
68
1. Pull out the condensation container horizontally and empty it.
68
2. Push the condensation container back into the appliance until you feel it lock into place.
68
3. Switch on the appliance.
68
4. Set any programme.
68
5. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
68
6. Wait for 5 minutes.
68
7. Empty the condensation container again.
68
8. If installed, remove the drain hose from the washbasin, siphon or floor drain. ~ Page 51
68
Caution!
68
9. Switch off the appliance.
68
10. Disconnect the appliance's mains plug from the power supply.
68
Caution!
68
Risk of material damage/damage to the appliance
68
[ Consumption values
69
Consumption values
69
Consumption values table
69
9 kg
69
4.5 kg
69
9 kg
69
4.5 kg
69
1400
69
192
69
119
69
1.37
69
0.77
69
1000
69
215
69
132
69
1.61
69
0.90
69
800
69
238
69
145
69
1.85
69
1.03
69
1400
69
143
69
86
69
0.97
69
0.54
69
1000
69
166
69
99
69
1.21
69
0.67
69
800
69
189
69
112
69
1.45
69
0.80
69
3.5 kg
69
3.5 kg
69
800
69
77
69
0.44
69
600
69
87
69
0.53
69
Most efficient programme for cotton laundry
69
The "standard cottons programme" below (denoted by the ü symbol) is suitable for drying cotton laundry with a normal dampness level, and is the most efficient programme for drying damp cotton laundry in terms of combined energy consumption.
69
Standard programmes for cottons in accordance with current EU regulation 932/2012
69
Programme + dryness level
69
Load
69
(in kg)
69
Energy consumption
69
(in kWh)
69
Programme duration
69
(in min)
69
{ Technical data
70
Technical data
70
) Disposal
70
Disposal
70
Caution!
70
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
70
4 Customer Service
71
Customer Service
71
*9001440957*
72
Thank you for buying a Bosch Home Appliance!
72
Looking for help? You´ll find it here.
72
File type: PDF
File name: 8539546_wtx87eh9gr-01.pdf
File size: 3.3 MB
File Language: English
Pages: 72
Author: Bosch
File created: 2019-07-09
Published: 2023-10-26
Updated: 2023-10-26
Download File
Specifications
Brand:
Bosch
Model: WTX87EH9GR/01
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
PIX611E14E/01
PGH6B5B60R/01
WAP20160EE/03
SMV23AX01R/52
WAX16068TI/02
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTX87EH9IT/01
Bosch WTX87KH9FF/01
Bosch WTX87EH0PL/01
Bosch WTX87EH0ES/01
Bosch WTX87K80/01
Bosch WTX87KX0/01
Bosch WTX87E90
Bosch WTX87E40
Bosch WTR87TW8GR/01
Bosch WTX8HKL9SN/01
Bosch WTX8HEL9SN/01
Bosch WTX87KH0BY/01
Bosch WTX87K80TR/01
Bosch WTX88EH9GB
Bosch WTX88RH9GB
Table of Contents
×
en Installation and operating instructions
1
Tumble dryer
1
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Energy-saving tips 13
3
5 Installing and connecting the appliance 14
3
9 Quick reference guide 21
3
* Familiarising yourself with your appliance 22
3
Y Display 24
3
/ Overview of programmes 27
3
0 Settings 30
3
Z Laundry 32
3
1 Operating the appliance 33
3
2 Appliance settings 39
3
o Home Connect 40
3
… Crease-removal function 48
3
Œ Draining the condensation water 51
3
D Cleaning and maintenance 54
4
Ö Appliance care 59
4
3 Help with the appliance 65
4
L Transporting the appliance 68
4
[ Consumption values 69
4
{ Technical data 70
4
) Disposal 70
4
4 Customer Service 71
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
10
Risk of fire/material damage/ damage to the appliance!
10
: Warning
10
Risk of poisoning/material damage!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
12
: Warning
12
Risk of death!
12
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
13
Risk of injury/material damage/damage to the appliance!
13
Caution!
13
Material damage/damage to the appliance
13
7 Energy-saving tips
13
Energy-saving tips
13
Note:
13
Note:
13
5 Installing and connecting the appliance
14
Installing and connecting the appliance
14
Scope of supply
14
1. Remove any packaging and protective covers completely from the appliance.
14
2. Open the door.
14
3. Remove all the accessories from the drum.
14
Caution!
14
Risk of material damage and damage to the appliance
14
Installing the appliance
14
: Warning
14
Risk of death!
14
: Warning
14
Risk of explosions/fire!
14
: Warning
14
Risk of fire/material damage/damage to the appliance!
14
: Warning
15
Risk of injury/material damage/ damage to the appliance!
15
: Warning
15
Risk of injury!
15
Caution!
15
Material damage/damage to the appliance
15
Caution!
15
Risk of material damage and damage to the appliance
15
1. Place the appliance on a clean, even, solid surface.
16
2. Check that the appliance is level using a spirit level.
16
3. If necessary, turn the appliance feet to make sure it is level.
16
Notes
16
Changing the side on which the door is hinged
16
Note:
16
: Warning
16
Risk of injury!
16
: Warning
16
Risk of injury/material damage/ damage to the appliance!
16
1. Open the door.
16
2. Remove the screws from the hinge on the appliance.
16
Note:
16
3. Remove the door and carefully set it down on a soft, flat surface.
17
Note:
17
4. Remove screws from the hinge, and remove the hinge.
17
5. Remove the screws from the eyelet and remove the eyelet.
17
6. Unlock the door.
17
7. Remove the door from the door ring.
17
8. Rotate the door ring by 180° and insert the door properly.
17
9. Lock the door ring.
17
10. Screw the hinge onto the door.
18
Note:
18
11. Screw the eyelet to the door.
18
Note:
18
12. Remove the cover from the door lock.
18
13. Remove the door lock.
18
14. Turn the door lock by 180° and insert it on the other side.
18
15. Screw the cover from the door lock.
18
16. Insert and screw in the door.
19
Note:
19
Connecting the appliance
19
: Warning
19
Risk of electric shock/fire/material damage/damage to the appliance!
19
: Warning
19
Risk of electric shock/fire/material damage/damage to the appliance!
19
: Warning
19
Risk of fire/material damage/damage to the appliance!
19
: Warning
19
Risk of injury!
19
1. Connecting the drain hose. ~ Page 51
20
2. Plug the appliance's mains plug into the designated socket.
20
3. Check that the mains plug is in securely.
20
Caution!
20
Risk of material damage/damage to the appliance
20
Note:
20
Before using the appliance for the first time
20
Note:
20
Optional accessories
20
9 Quick reference guide
21
Short introduction
21
Note:
21
* Familiarising yourself with your appliance
22
Familiarising yourself with your appliance
22
Appliance overview
22
Fascia
23
Programme selector
23
Y Display
24
Display
24
Display
24
Description
24
Information
24
Information in the display
25
Display
25
Information
25
Notes
26
/ Overview of programmes
27
Overview of programmes
27
Programme
27
Maximum load
27
Notes
27
Notes
27
Notes
27
Notes
28
Notes
28
Notes
28
Note:
28
Note:
28
Περισσότερα (Additional Programs) ™
29
Maximum load
29
Note:
29
Note:
29
Notes
29
0 Settings
30
Program setting
30
Function
30
Note:
30
Notes
30
Note:
30
Note:
31
Note:
31
Appliance setting
31
Function
31
Z Laundry
32
Laundry
32
Preparing laundry
32
: Warning
32
Risk of explosions/fire!
32
Caution!
32
Risk of damage to the drum and laundry
32
Notes
32
Sorting laundry
32
Note:
32
Caution!
32
Risk of material damage to the dryer or laundry
32
Note:
33
Caution!
33
Risk of material damage to the appliance and laundry
33
1 Operating the appliance
33
Operating the appliance
33
Loading laundry and switching on the appliance
33
Note:
33
1. Prepare and sort the laundry.
33
2. Press # to switch on the appliance.
33
3. Open the door.
33
4. Load the laundry unfolded into the drum.
34
5. Close the appliance door.
34
Caution!
34
Risk of material damage to the appliance or laundry.
34
Note:
34
Operation/navigation
34
1. Use the buttons on the left to select a setting.
34
2. Use the buttons on the right to adjust the values of the setting.
35
Note:
35
Setting a programme
35
Note:
35
1. Set the programme you require.
35
2. Adjust the programme settings, if required.
35
1. Set the Περισσότερα(Additional Programs) program.
35
2. Press the button below ™.
35
3. Set the program you require.
35
4. Adjust the programme settings, if required.
35
Note:
35
Programme settings
36
1. Press Επιλογές (options).
36
2. Adjust the setting to the required setting.
36
Note:
36
Starting the programme
36
Note:
36
Programme progress
36
Note:
36
Changing the programme or adding more laundry
36
1. Open the door or press Έναρξη/ A Προσθήκη ρούχων (Start/ Pause) to pause the programme.
36
Note:
36
2. Add or remove laundry.
36
3. If required, select a different programme or a different programme setting.~ "Overview of programmes" on page 27
37
Note:
37
4. Close the appliance door.
37
5. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
37
Note:
37
Cancelling the programme
37
Caution!
37
Risk of fire. Laundry may catch fire.
37
End of programme
37
Removing laundry and switching off the appliance
37
1. Remove the laundry.
37
2. Press # to switch off the appliance.
37
Emptying the condensation container
38
1. Pull out the condensation container horizontally.
38
2. Pour out the condensation water.
38
Caution!
38
Risk of harm to health and material damage
38
3. Push the condensation container back into the appliance until you feel it lock into place.
38
Note:
38
2 Appliance settings
39
Appliance settings
39
Childproof lock
39
Note:
39
Basic settings
39
Basic setting
39
Description
39
Adjust and activate/deactivate the basic settings as follows
39
1. Adjust the setting to the required setting.
39
2. Adjust any additional basic settings you require or save and exit the basic settings.
39
Save and exit the basic settings as follows
39
o Home Connect
40
Home Connect
40
1. Install the Home Connect app on your mobile device.
40
2. Register in the Home Connect app.
40
3. Connect your appliance to your home network automatically or manually (you only need to do this the first time).
40
4. Connect your appliance to the Home Connect app.
40
Notes
40
Calling up the Home Connect menu
40
1. Switch on the appliance.
40
2. Press and hold } Απομακρυσμένη έναρξη (Remote Start) for at least 3 seconds.
40
Note:
40
Connecting to the home network and the Home Connect app
41
Notes
41
Note:
41
Connecting to your home network automatically
41
1. Press Connect.
41
2. Confirm the message in the display.
41
3. Activate the WPS function on your home network router within the next 2 minutes.
41
Note:
41
Connecting to your home network manually
42
1. Press Man. network log-in.
42
2. Press Connect.
42
3. Call up the Wi-Fi setting on the mobile device.
42
4. Connect the mobile device to the Home Connect Wi-Fi network and enter the password (key) HomeConnect.
42
5. Once you have connected successfully, open the Home Connect app on your mobile device and carry out the steps in the app.
42
6. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
42
7. Carry out the last steps in the Home Connect app to connect your appliance.
42
Note:
42
Connecting to the Home Connect app
43
1. Press Connect to the app.
43
2. Press Connect app.
43
3. Once your appliance is displayed in the app, carry out the last steps in the Home Connect app.
43
Note:
43
Activating/deactivating Wi-Fi
43
1. Press Wi-Fi on/off.
43
2. Press on or off.
43
Notes
43
Resetting your network settings
44
1. Press Network settings.
44
2. Press Reset.
44
Note:
44
Updating the software
44
1. Press Software update.
44
2. Press Install now.
44
Note:
44
Note:
44
Energy management
45
Notes
45
1. Press energy mngmt..
45
2. Press Connect.
45
3. Activate Flexstart if you want the smart energy system (Energy manager) to start up your appliance.
45
Flex start
45
Note:
45
1. Select the programme you require.
45
2. Press Λήξη σε (Ready In).
45
3. Select the time period you require.
45
Note:
45
4. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
45
5. Press } Απομακρυσμένη έναρξη (Remote Start).
45
Notes
46
Note:
46
1. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
46
2. Open the door.
46
3. Add or remove laundry.
46
4. Close the appliance door.
46
5. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
46
6. Press } Απομακρυσμένη έναρξη (Remote Start).
46
Intelligent program recommendation
46
Therefore please note the following:
46
1. Switch on the appliance.
46
2. Set the program to Smart Dry Ç.
46
3. To cancel the analysis, set a different program or switch the appliance off.
46
4. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
46
Note:
46
Possible reasons:
47
Remote diagnostics
47
Note:
47
Information on data protection
47
Note:
47
Declaration of Conformity
48
…Crease-removal function
48
Crease-removal function
48
Notes
48
Filling the water tank
48
Caution!
48
Risk of material damage and damage to the appliance
48
1. Select the required crease-removal program.~ "Overview of programmes" on page 27
48
2. Configure the settings for the required crease-removal program.
48
3. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
48
4. Refresher-container is empty, please re-fill. will appear on the display.
49
Note:
49
5. Pull out the condensation container horizontally.
49
6. Use the water jug provided to pour approx. 180 ml cold drinking water into the filling hole in the front of the appliance, until Refresher-container is empty, please re-fill. goes out on the display and an audible signal sounds.
49
Note:
49
7. Push the condensation container back into the appliance until you feel it lock into place.
49
8. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
49
Programs for removing creases
50
Cleaning the filter in the water tank
50
Caution!
50
Risk of material damage and damage to the appliance
50
1. Pull out the condensation container horizontally.
50
2. Remove the filter and clean it under running water or in the dishwasher.
50
3. Insert the filter into the water tank.
51
4. Push the condensation container back into the appliance until you feel it lock into place.
51
Œ Draining the condensation water
51
Draining the condensation water
51
Connect the drain hose as follows:
51
1. Remove any accessories from the drum.
51
2. Remove all items from the bag.
51
3. Remove the cap from the socket.
52
Notes
52
4. Push the cap into its "park position".
52
5. Push the drain hose as far as it will go onto the uncovered socket.
52
6. Secure the other side of the drain hose using the remaining accessories, depending on the connection situation.
52
Caution!
53
Risk of material damage due to leaks or draining water.
53
Caution!
53
Risk of accumulated water being drawn back into the appliance and causing material damage.
53
7. Pull out the condensation container horizontally and empty it.
53
8. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.
53
9. Turn the condensation container 180° again and insert the stopper into the recess in the top of the condensation container.
53
10. Slide in the condensation container until it clicks into place.
53
Note:
53
Caution!
53
Risk of material damage/damage to the appliance
53
D Cleaning and maintenance
54
Cleaning and maintenance
54
Cleaning the appliance
54
: Warning
54
Risk of death!
54
: Warning
54
Risk of poisoning!
54
: Warning
54
Risk of electric shock/material damage/damage to the appliance!
54
Caution!
54
Material damage/damage to the appliance
54
Cleaning the base unit
54
Note:
54
1. Open the maintenance flap by the handle.
55
2. Unlock the levers on the heat exchanger cover.
55
3. Pull the heat exchanger cover out by its grip.
55
4. Remove all of the fluff from the heat exchanger cover and remove the fluff filter.
55
Note:
55
5. Rinse the inside of the heat exchanger cover and the fluff filter thoroughly under running water and dry them.
55
Notes
55
6. Pull the fluff collector out horizontally.
55
Note:
55
7. Open the fluff collector and remove any fluff.
56
8. Rinse the fluff collector's filter thoroughly under running water and dry it.
56
Notes
56
9. Close the fluff collector.
56
Note:
56
10. Slide the fluff collector in horizontally as far as it will go.
56
11. Slide the heat exchanger cover in by its grip.
56
Note:
56
12. Lock the levers on the heat exchanger cover.
56
13. Close the maintenance flap.
57
Caution!
57
Material damage/damage to the appliance
57
Cleaning the moisture sensor
57
Note:
57
1. Open the door.
57
2. Clean the moisture sensor with a rough sponge.
57
Caution!
57
Risk of damaging the moisture sensor.
57
Cleaning the filter in the condensation container
58
Note:
58
1. Pull out the condensation container horizontally.
58
2. Pour out the condensation water.
58
3. Remove the filter.
58
4. Clean the filter under warm, running water or in the dishwasher.
58
Note:
58
5. Push the filter in until you feel it lock into place.
58
Caution!
58
If the filter is not inserted, fluff can find its way inside the appliance and damage it.
58
6. Push the condensation container in until you feel it lock into place.
58
Ö Appliance care
59
Appliance care
59
: Warning
59
Risk of scalding/material damage/ damage to the appliance!
59
: Warning
59
Risk of poisoning/material damage!
59
Preparing the appliance for appliance care
59
Preparing the appliance for appliance care
59
1. Clean the base unit.~ Page 54
59
2. Open the door.
59
3. Remove the laundry.
59
4. Close the appliance door.
59
5. Pull out the condensation container horizontally and empty it.
59
6. Press # to switch on the appliance.
60
Preparing the condensation container for appliance care
60
1. Remove the stopper inserted in the recess on the condensation container.
60
2. Turn the condensation container 180° onto its underside and insert the stopper.
60
3. Clean the filter in the condensation container.~ Page 58
60
Note:
60
Running the basic appliance care programme
61
Notes
61
Running the appliance care programme
61
1. Prepare the appliance for appliance care. ~ Page 59
61
2. Pour approx. 1 ^ litre of warm tap water into the condensation container.
61
Note:
61
3. Slide in the condensation container until it clicks into place.
61
4. Press and hold the two Ρυθμίσεις 3 δευτ. (Basic Settings 3 sec.) buttons for approx. 3 seconds.
61
5. Press Basic machine care .
61
6. Press start .
61
Note:
61
7. Pull out the condensation container horizontally and empty it.
61
8. Slide in the condensation container until it clicks into place.
62
9. Press # to switch off the appliance.
62
Running the intensive appliance care programme
62
Notes
62
: Warning
62
Risk of injury/material damage/ damage to the appliance!
62
Caution!
63
Material damage/damage to the appliance
63
Running the appliance care programme
63
1. Prepare the appliance for appliance care. ~ Page 59
63
2. Pour a bottle of the original appliance care product and approx. 1 ^ litre of warm tap water into the condensation container.
63
Note:
63
3. Slide in the condensation container until it clicks into place.
63
4. Press and hold the two Ρυθμίσεις 3 δευτ. (Basic Settings 3 sec.) buttons for approx. 3 seconds.
63
5. Press Intensive machine care .
63
6. Press start .
63
Note:
63
7. Pull out the condensation container horizontally and empty it.
63
8. Pour approx. 1 ^ litre of warm tap water into the condensation container.
63
Note:
63
9. Carefully swing the condensation container round horizontally and empty it to dispose of any remaining original appliance care product.
64
10. Pour approx. another 1 ^ litre of warm tap water into the condensation container.
64
11. Slide in the condensation container until it clicks into place.
64
12. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
64
Note:
64
13. Empty the condensation container again.
64
14. Slide in the condensation container until it clicks into place.
64
15. Press # to switch off the appliance.
64
3 Help with the appliance
65
Help with the appliance
65
Faults
65
Cause/Remedy
65
Note:
65
Note:
66
Note:
66
Note:
67
L Transporting the appliance
68
Transporting the appliance
68
: Warning
68
Risk of injury/material damage/ damage to the appliance!
68
: Warning
68
Risk of injury!
68
1. Pull out the condensation container horizontally and empty it.
68
2. Push the condensation container back into the appliance until you feel it lock into place.
68
3. Switch on the appliance.
68
4. Set any programme.
68
5. Press Έναρξη/A Προσθήκη ρούχων (Start/Pause).
68
6. Wait for 5 minutes.
68
7. Empty the condensation container again.
68
8. If installed, remove the drain hose from the washbasin, siphon or floor drain. ~ Page 51
68
Caution!
68
9. Switch off the appliance.
68
10. Disconnect the appliance's mains plug from the power supply.
68
Caution!
68
Risk of material damage/damage to the appliance
68
[ Consumption values
69
Consumption values
69
Consumption values table
69
9 kg
69
4.5 kg
69
9 kg
69
4.5 kg
69
1400
69
192
69
119
69
1.37
69
0.77
69
1000
69
215
69
132
69
1.61
69
0.90
69
800
69
238
69
145
69
1.85
69
1.03
69
1400
69
143
69
86
69
0.97
69
0.54
69
1000
69
166
69
99
69
1.21
69
0.67
69
800
69
189
69
112
69
1.45
69
0.80
69
3.5 kg
69
3.5 kg
69
800
69
77
69
0.44
69
600
69
87
69
0.53
69
Most efficient programme for cotton laundry
69
The "standard cottons programme" below (denoted by the ü symbol) is suitable for drying cotton laundry with a normal dampness level, and is the most efficient programme for drying damp cotton laundry in terms of combined energy consumption.
69
Standard programmes for cottons in accordance with current EU regulation 932/2012
69
Programme + dryness level
69
Load
69
(in kg)
69
Energy consumption
69
(in kWh)
69
Programme duration
69
(in min)
69
{ Technical data
70
Technical data
70
) Disposal
70
Disposal
70
Caution!
70
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
70
4 Customer Service
71
Customer Service
71
*9001440957*
72
Thank you for buying a Bosch Home Appliance!
72
Looking for help? You´ll find it here.
72
Search:
×
Search
