ELECTRONIC OVEN CONTROL
Control Pad Functions
Read the instructions carefully before using the oven. For satisfactory use of your oven, become familiar with the
various functions of the oven as described below. Note: The graphics on your timer may not look exactly like those shown.
This doesn't change the way it operates.
Note: The oven function will not work if the time of day clock is not set.

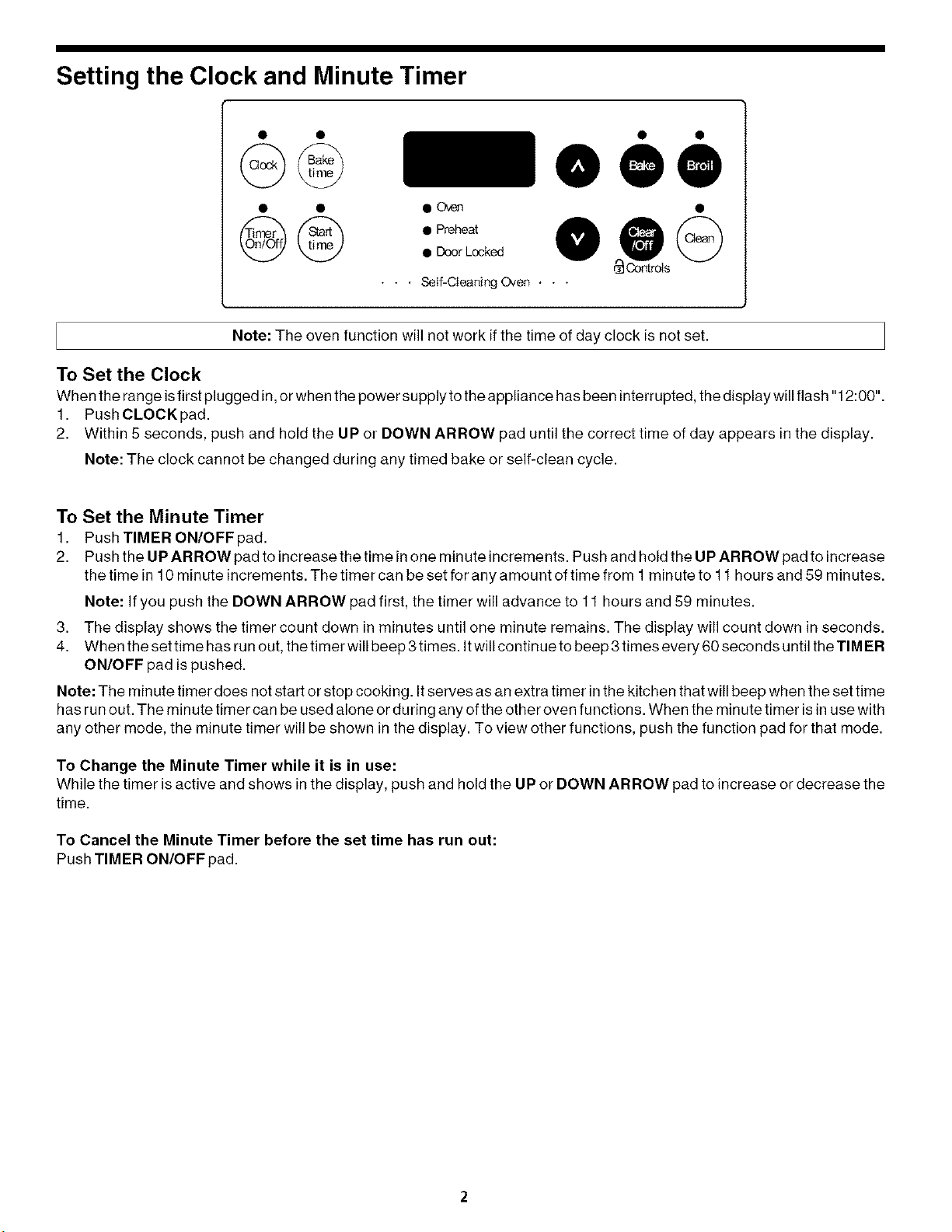

Clock Pad-
Used to set the
time of day.
\
Timer Pad- Used
to set or cancel the
minute timer, The
minute timer does
not start or stop _
cooking.
Start Time Pad-
Used to set the
desired start time
for baking Can be
used with BAKE /_
TIME to program a
delayed bake cycle.

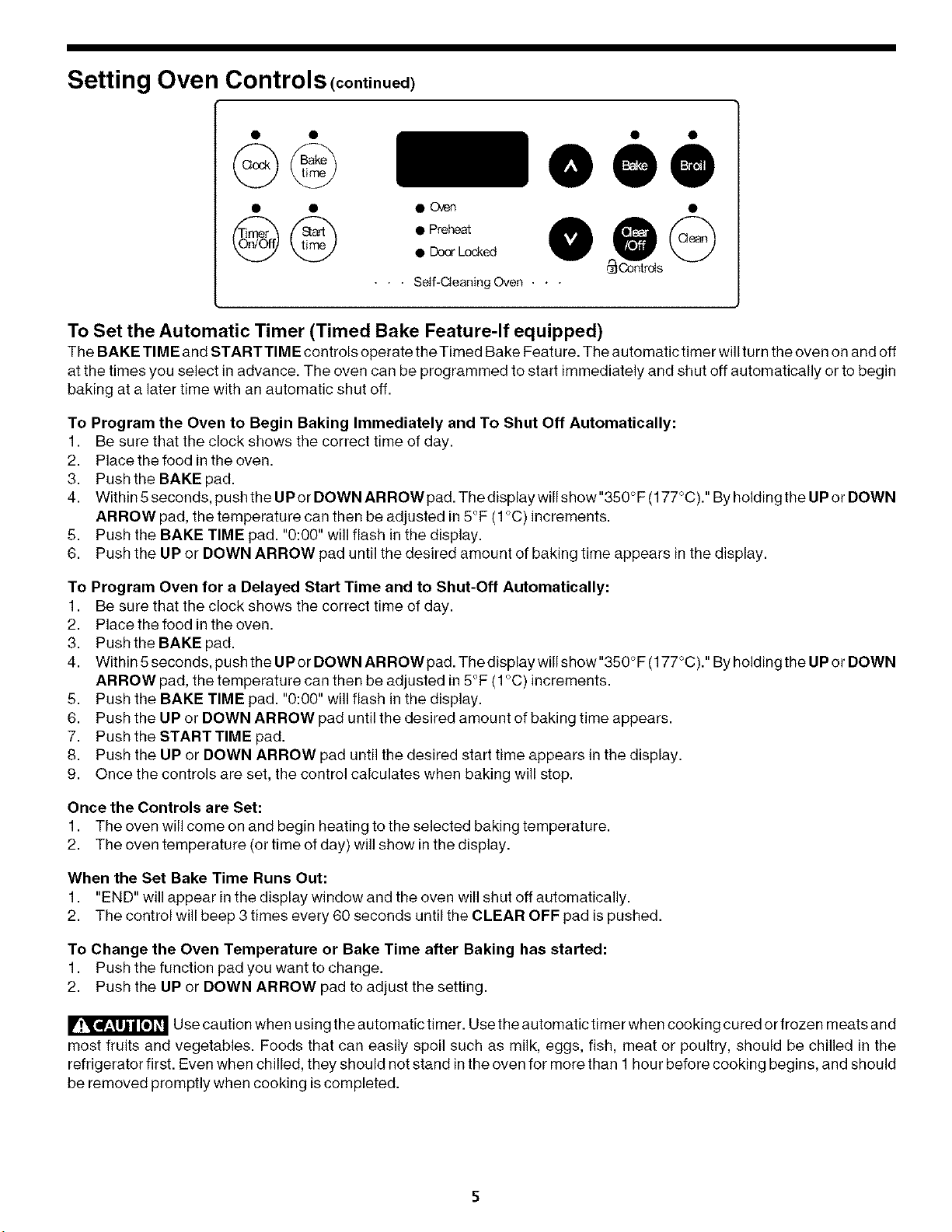

Bake Time Pad-
Used to enter the
length of the baking
time,
Bake Pad- Used to
Up and Down arrow pads- Used along with the enter the normal
function pads to select oven temperature, cooking baking mode
time, start time (when programming an automatic bake _temperature.
J
time), time of day, clean time and minute timer. /
J
• Oven
b Preheat O
J• DoorLocked
Self-Cleaning Oven ,
Feature indicator
lights- These light
to show which
feature is in use.
Oven, Preheat & Lock lights- The "oven" light will glow each time the oven
unit turns on maintain the set oven temperature, The "Preheat" light will
glow when the oven is first set to operate, or if the desired temperature is
reset higher than the actual oven temperature. The "Door Locked" light will
flash until the door locks when the self-clean cycle is in use. it glows
constantly after the door locks.

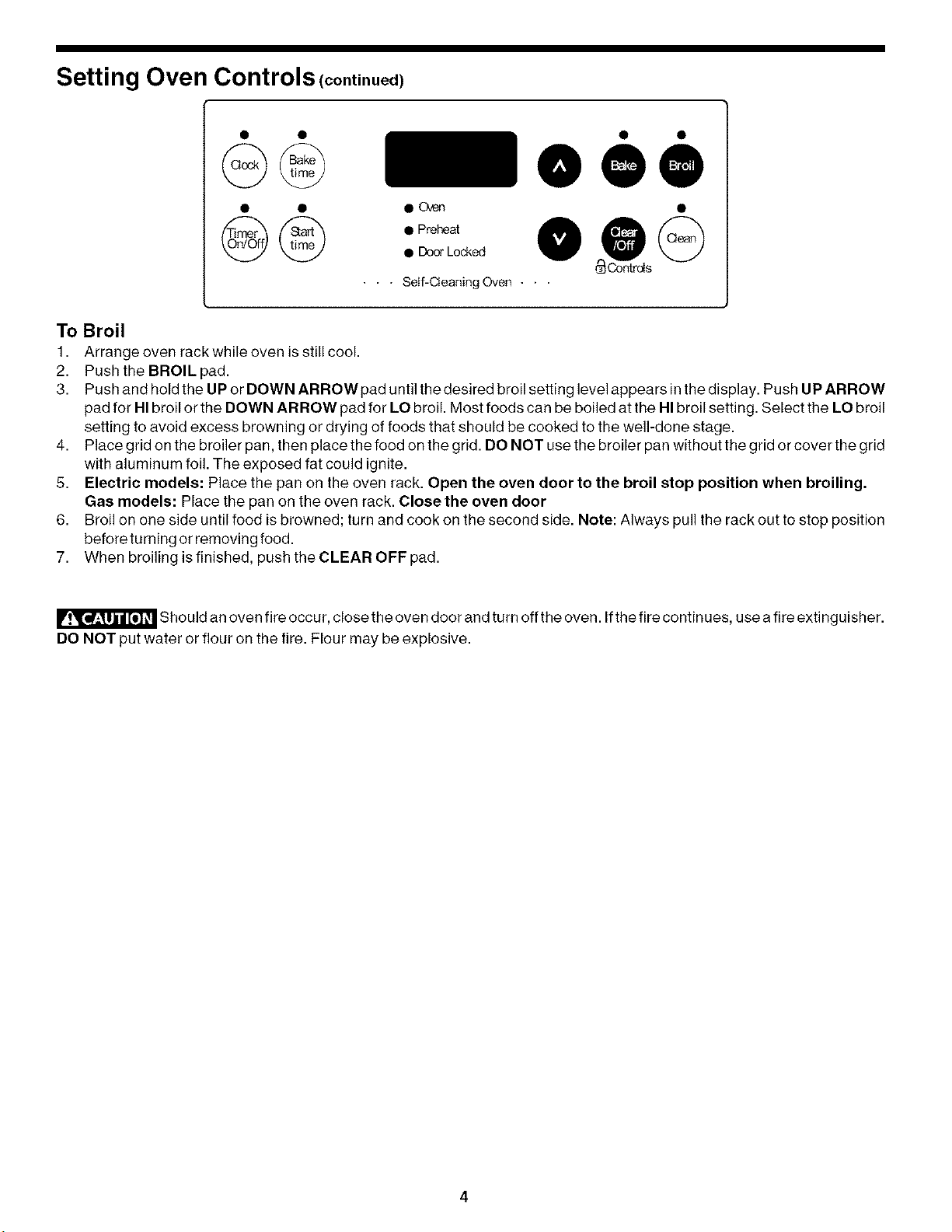

Broil Pad- Used to
select the variable
broil function.
Clean Pad- Used to
selectthe self-

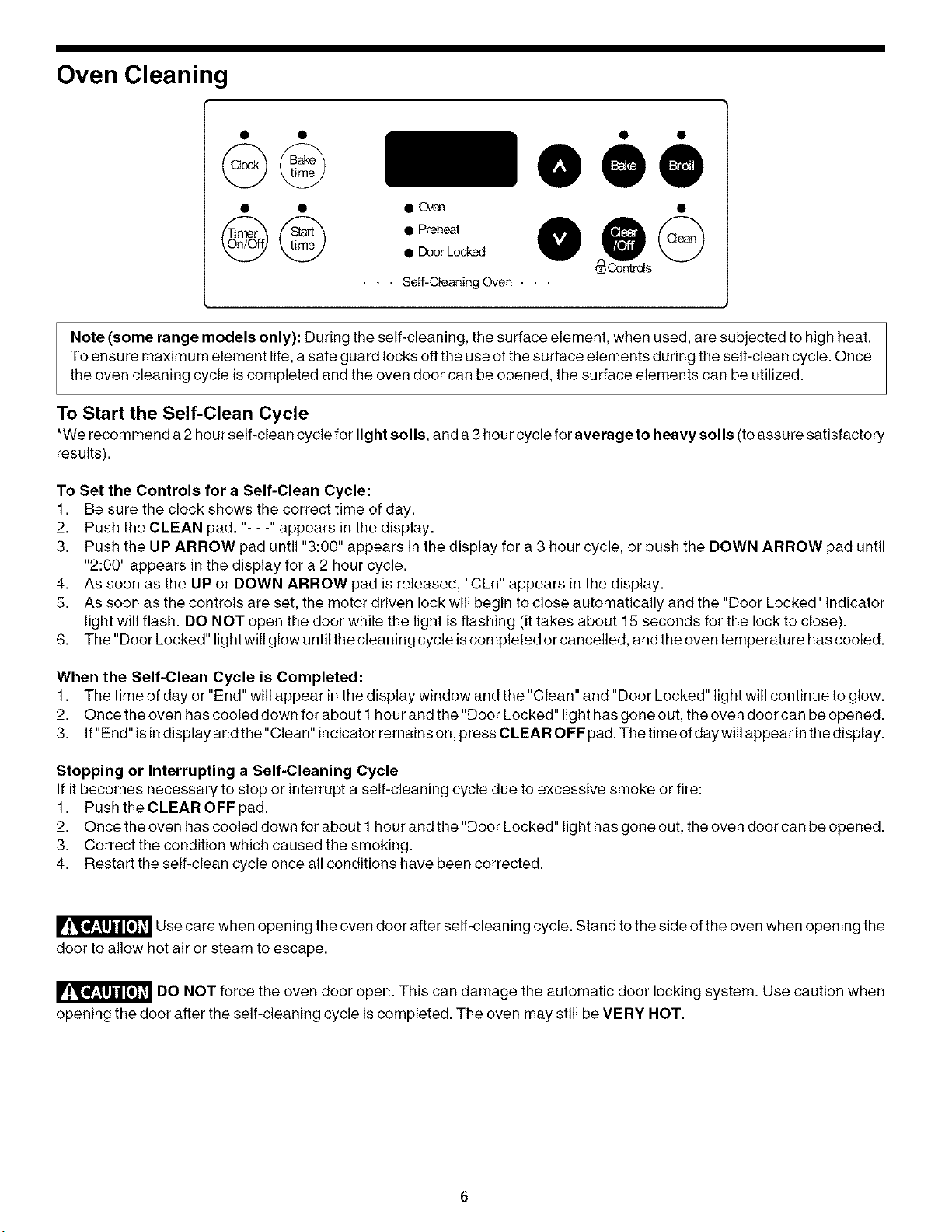

cleaning cycle.
Clear Pad- Used to clear any function previously
entered except the time of day and minute timer.
Push Clear pad to stop cooking.
The oven can be programmed to:
Bake normally, Time Bake, Delayed Bake, Broil, Self-Clean
Note: Push buttons or pads may be shaped differently.
For a silent control panel:
When choosing a function, abeep will be heard each time a pad ispushed. If desired, the controls can be program med for silent
operation. Push and hold START TIME pad. After 7 seconds, the control will beep once. This will block the controls from
sounding when a pad ispushed. To return the sound, push and hold START TIME pad again for 7seconds until 1beep isheard.
Note: The control will return to the audible mode after a power outage.
Tem perature Conversion (Fahrenheit / Celsius)
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be programmed
for any temperature from 170°F to 550 °F (65°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1. Push BROIL pad. "- - -" appears in the display.
2. Push and hold the UP ARROW pad until "HI" appears in the display.
3. Push and hold BROIL pad until °F or °C appears in the display.
4. Push UP or DOWN ARROW pad to change °F to °C or °C to °F.
5. Push any function pad to return to normal operating mode.
Printed in United States 318200184 (0502)Rev.A
