Portable Air Conditioner
Owner’s Manual
Original Instructions
Item NO: A4211D2-10K
Applicable model: OL-A011D2-06CD
READ AND SAVE THESE INSTRUCTIONS
1
1. BEFORE YOU BEGIN
1. PRODUCT DESCRIPTION
Our powerful portable air conditioner provides great cooling solutions for single
rooms, creating a comfortable atmosphere in your space. It also has ventilation
and dehumidifying function to circulate air and remove moisture. It is designed
with a self-contained system that does not require any permanent installation,
allowing you to move it to wherever it is most needed. It is commonly used in
kitchens, temporary residences, computer rooms, garages, and many other places
where the the installation of Air-conditioner Outdoor Unit is limited.
2
THE FOLLOWING SHOULD ALWAYS BE OBEYED FOR SAFETY
This appliance is intended to be used by experts or trained users in shops, in
light industry and on farms, or for commercial use by lay persons.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
The refrigerant loop is sealed. Only a qualified technician should
attempt to service!
Do not discharge the refrigerant into the atmosphere.
The refrigerant collects first in low areas but can be circulated by the
fans.
3
2. FOR YOUR SAFETY
Your safety is the most important thing we concern!
2.1 OPERATIONAL PRECAUTIONS
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be disconnected from its power source during service.
Always operate the unit from a power source of equal voltage, frequency and
rating as indicated on the identification plate of the product.
Always use a power outlet that is grounded.
Unplug the power cord when cleaning or when not in use.
Do not operate with wet hands. Prevent water from spilling onto the unit.
Do not immerse or expose the unit to rain, moisture or any other liquid.
Do not leave the unit running unattended. Do not tilt or turn over the unit.
Do not unplug while the unit is operating.
Do not unplug by pulling the power cord.
Do not use an extension cord or an adapter plug.
Do not put objects on the unit.
Do not climb or sit on the unit.
Do not insert fingers or other objects into the air outlet.
Do not touch the air inlet or the aluminum fins of the unit.
Do not operate the unit if it is dropped, damaged or it shows signs of product
malfunction.
WARNING
Please read this manual carefully and fully understand before
operating your appliance.
4
Do not clean the appliance with any chemicals.
The unit shall be installed in accordance with national wiring regulations.
Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacture.
The appliance shall be stored so as to prevent mechanical damage from
occurring.
Do not piece or burn, even after use.
Be aware that refrigerants may not contain an odour.
Compliance with national gas regulations shall be observed.
Keep all required ventilation openings clear of obstruction.
5
3. PRODUCT OVERVIEW

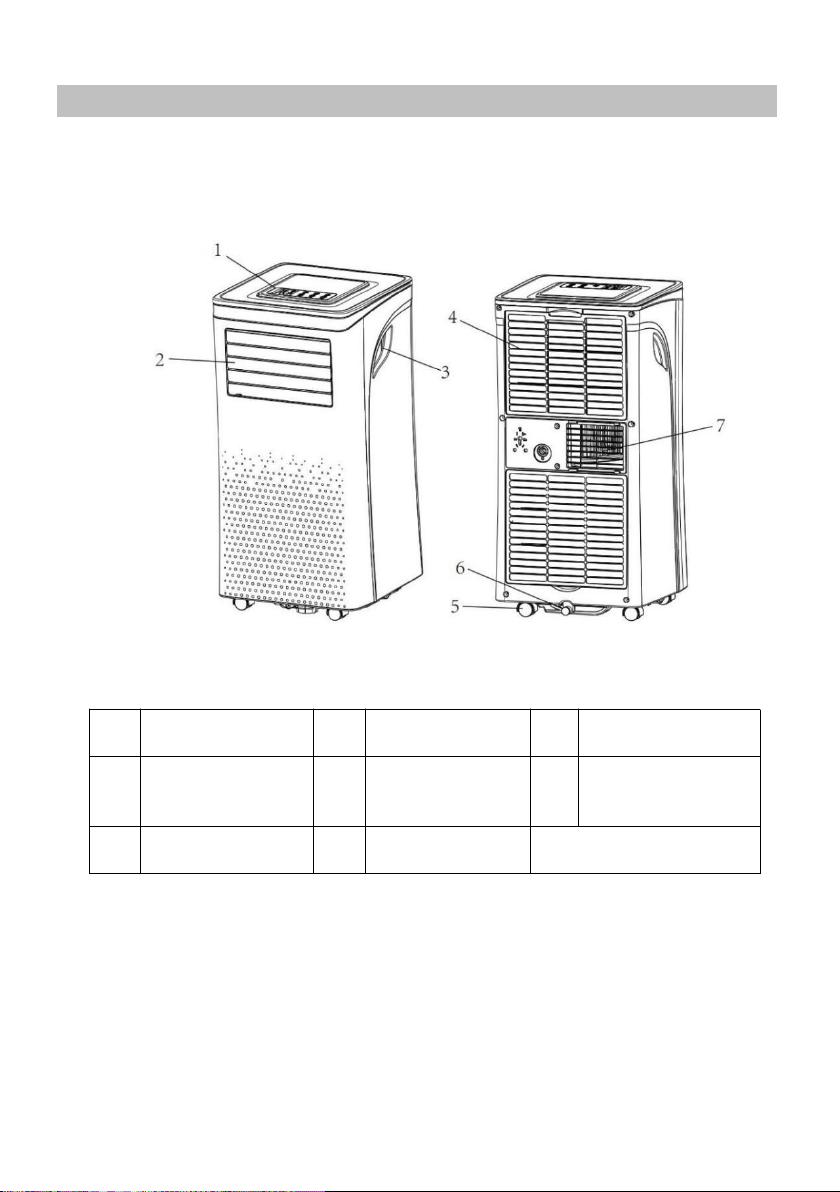

3.1 PRODUCT DIAGRAM
1
Control panel
4
Air inlet with
air filters
6
Drainage hole
2
Air outlet with
adjustable
louvers
5
Caster
7
Air exhaust
3
Handle
Note: The appearance is only for reference. Please see the real product for
detailed information.
6
3.2 FEATURES
High Capacity in a compact size with cooling, dehumidifying and fan
function.
Temperature setting and display
LED Digital display
Electronic control with built-in timer and sleep mode
Self-evaporating system for better efficiency
Auto shut-off upon tank-full
Auto re-start in the event of power outage
Auto defrosting function at low ambient temperatures
Remote control
2-speed fan
Casters for easy mobility
7
4. INSTALLATION
4.1 UNPACKING
Unpack the carton and take out the appliance and accessories.
Check the device after unpacking for any damage or scratches on it.
Accessories:
1. Exhaust hose
2. Hose connector
3. Window kit adapter
4. Remote control
5. Window kit
6. Water pipe
7. User manual
8
4.2 CHOOSE YOUR LOCATIOIN

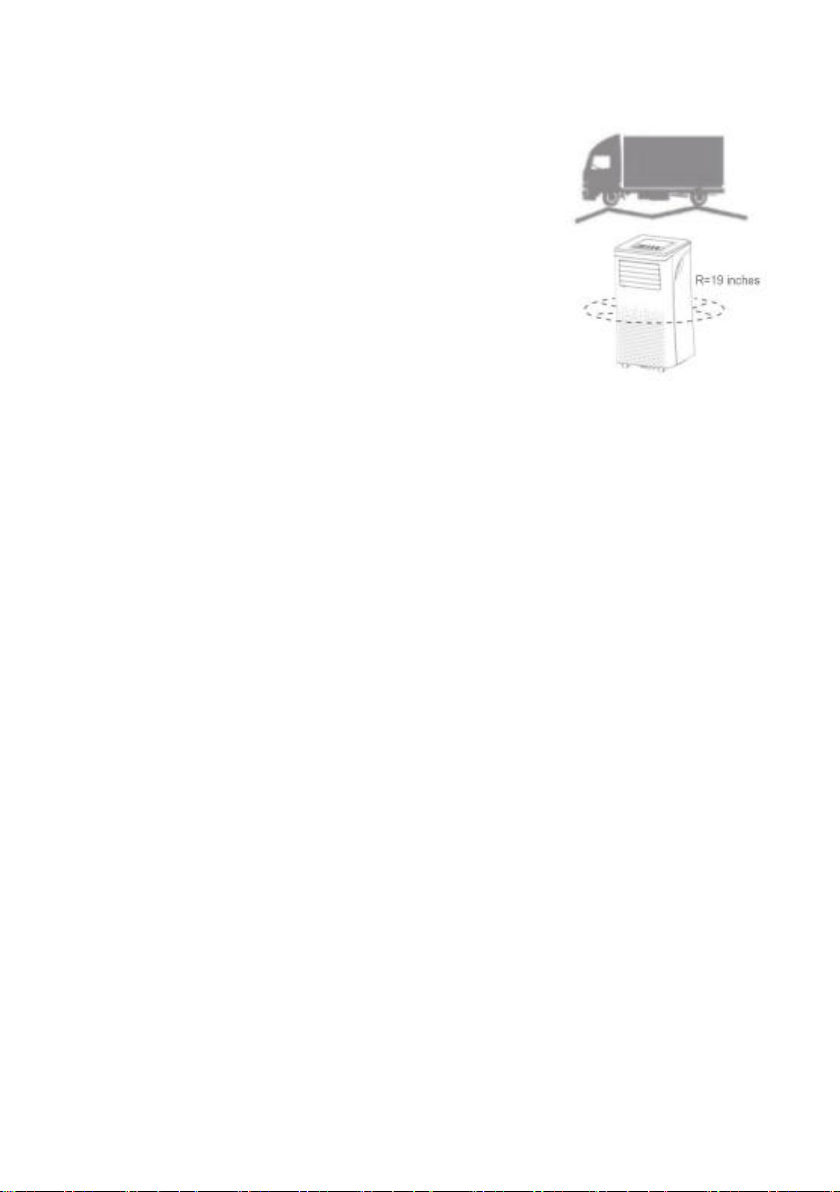

If it is tipped more than 45°, allow the
unit to set upright for at least 24 hours
before starting up.
Place the unit on a firm and level surface
in an area with at least 19 inches of free
space around it to allow proper air
circulation.
Don’t operate in close proximity to walls,
curtains, or other objects that may block
the air inlet and outlet. Keep the air inlet
and outlet free of obstacles.
Never install the unit where it could be subject to：
Heat sources such as radiators, heat registers, stoves or other products
that produce heat.
Direct sunlight
Mechanical vibration or shock
Excessive dust
Lack of ventilation, such as cabinets or bookcases
Uneven surfaces
9
4.3 ATTACH THE EXHAUST HOSE
The air conditioner requires being vented outside so that the exhaust air
which comes from the appliance and contains waste heat and moisture can
escape from the room.
Do not replace or extend the exhaust hose which will result in decreased
efficiency, or even worse, it will shut down the unit due to low back pressure.
Step 1: Connect the hose connector to one end of the exhaust hose.
Step 2: Connect the window kit adapter to the other end of the exhaust
hose.
Step 3: Extend the adjustable window kit to the length of your window.
Connect the exhaust hose to the window kit.
Step 4: Close your window to secure the kit in place. It’s needed to
hold the window kit firmly in place, and secure the window kit with
duct tape if required. It is recommended that the gap between the
10
adapter and the sides of the window should be sealed off for maximum
efficiency.
Step 5: Attach the hose connector to the exhaust air outlet of the unit.
Step 6: Adjust the length of the flexible exhaust hose, and avoid bends
in the hose. Then place AC near an electrical outlet.
Step 7: Adjust the louver at the air outlet, and then switch on the unit.
11
5. OPERATION

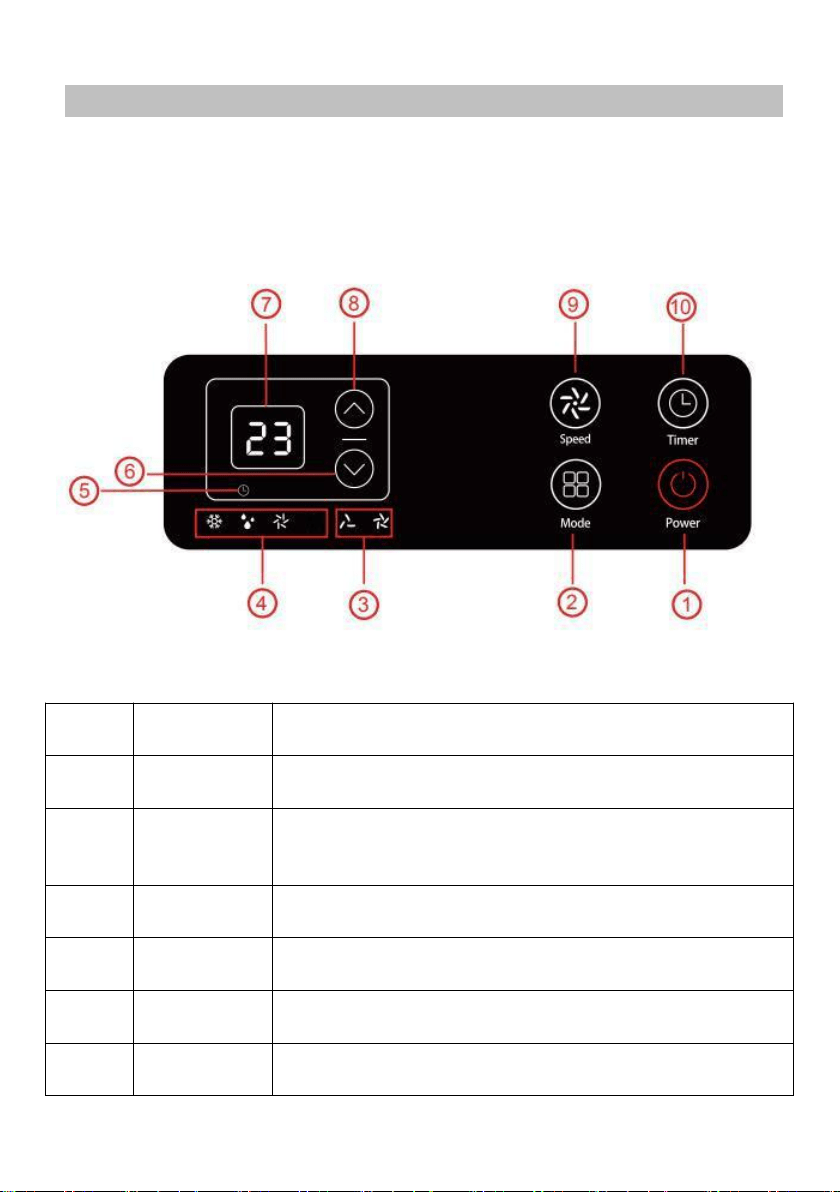

5.1 CONTROL PANEL AND DISPLAY
1
POWER
Press to switch the machine on or off.
2
MODE
Press to switch the operation mode between fan, cooling
and dehumidify.
3
FAN
SPEED
Indicator
Display high fan speed & low fan speed
4
MODE
Indicator
Display the mode between cooling, dehumidify, and fan.
5
TIMER
Indicator
Display the Timer-on.
6
DOWN
Decrease the desired temperature or the timer setting.
7
Digital
Display
Display the timer setting and the room temperature.
12
8
UP
Increase the desired temperature (61℉−90℉) or the timer
setting.
9
SPEED
Press to switch the fan speed between HIGH and LOW
10
TIMER
Set a time for the unit to automatically start or stop.
13

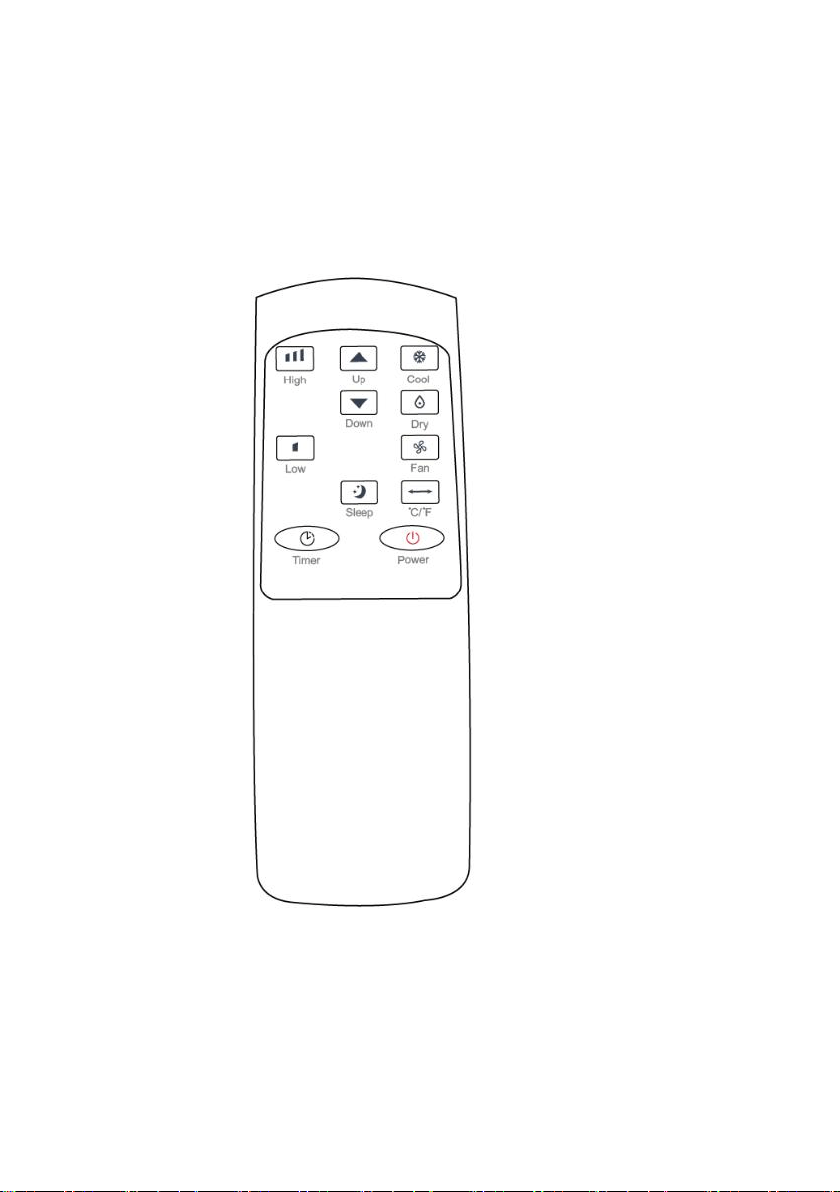

5.2 REMOTE CONTROL
14
5.3 SETTINGS
5.3.1 Start-up and Shut-down
Press POWER to turn the unit on.
The unit runs in FAN as default.
Press MODE button to select the desired operation mode.
Press POWER again to turn off the power.
5.3.2 Operation Mode
The unit has four operation modes: Cool, dry, fan, sleep.
A. Cooling your room
Select the cool mode to lower the temperature in your room.
Press MODE button repeatedly until the LED of COOL operation lights up.
Press Up/Down button to adjust the temperature which is displayed on the screen.
The temperature can be set between 61℉ and 90℉.
Press SPEED button repeatedly until the desired fan speed indicator lights up.
To control the direction of the air flow horizontally, please adjust the inner
louver by hand.
Note: The air conditioner stops if the room temperature is lower than the selected
temperature.
B. Ventilating your room
Press MODE button repeatedly until the LED of FAN operation lights up.
Under the ventilation mode, the air in the room is circulated, but not cooled.
Press SPEED button repeatedly to select the fan speed as desired.
15
C. Drying your room
Press MODE button on the control panel or remote control, the LED of DRY
operation lights up. The fan speed is unable to select. User should connect the
hose to the drain outlet at the bottom of the unit.
Note: In this mode, the fan speed switches over to low speed and cannot be
selected.
D. Sleep mode (this function can only be used with a remote
control)
The sleep mode can be activated when in cool mode.
In cool mode :
After 1 hour, the preset temperature increases by 34℉; after another hour,
the preset temperature will again increase by 34℉.
5.3.3 Timer Setting
（
1 hour−24 hours
）
:
The timer has two ways of operation:
To turn off
(When power on)
To turn on
(When power off)
Cancel timer
5.3.4 Automatic Defrosting
At low room temperatures, frost may build up at the evaporator during the operation. The
unit will automatically start defrosting and the POWER LED will blink. The defrost
control sequence is as follows:
A. The ambient temperature sensor starts to sense the coil temperature after the
compressor works for 20 minutes. When the coil temperature is below or equal to 30
℉for 3 consecutive minutes, the compressor shuts down, the fan operates at high
speed, and the power light blinks; when the temperature is over or equal to 44℉, the
Press Timer key to
turn on the timer
function.
Press Timer key to
turn on the timer
function.
Press
Up/Down
repeatedly to set the
delay OFF time.
Press Up/Down
repeatedly to set the
delay ON time.
Press Up/Down repeatedly until the LED shows “00”.
Note: Pressing POWER will also exit the timer setting.
16
unit exits frost protection..
B. When the unit operates in the drying operation, once the coil temperature sensor
senses the temperature of the evaporator is below 104℉and the differential
temperature between the coil temperature and the room temperature is below 66℉
after the compressor runs for 20minutes, the unit will start defrosting for 5 minutes
and the power indicator will blink.
5.3.5 Overload Protection
In the event of a power loss, there is a 3-minute delay before the compressor restarts to
protect the compressor .
17
5.4 DRAINAGE
Self-evaporating system
The self-evaporating system uses the collected water to cool the condenser
coils for a more efficient performance. It is no need to empty the drainage tank
in cooling operation, drying operation and high humidity conditions. The
condensate water evaporates at the condenser and evacuates through the
exhaust hose.
For continuous operation or unattended operating in drying, please connect the
attached drain hose to the unit. Condensate water can automatically flow into a
bucket or be drained by gravity.
Switch off the unit before operating.

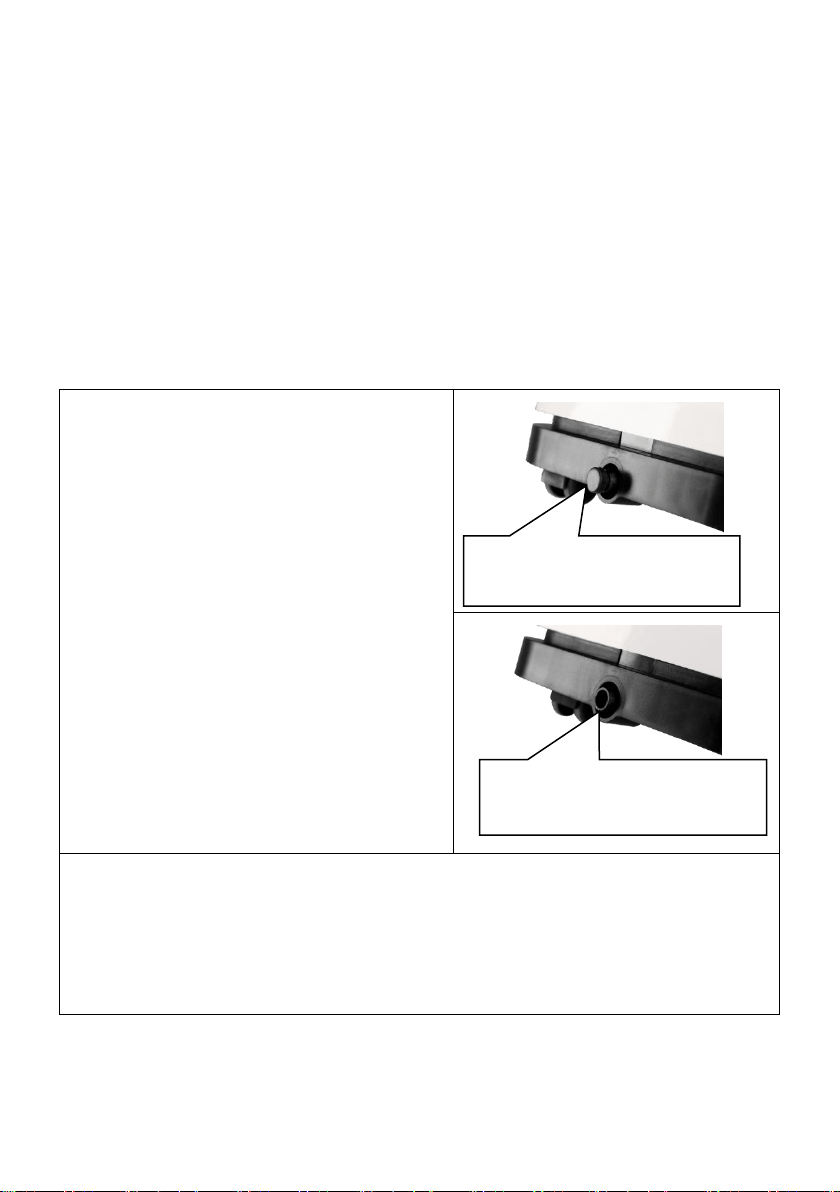

Remove the plug of the water outlet
opening, and keep it in a safe area.
Securely and properly connect the
drain hose and make sure it is not
kinked and clear of obstruction.
Place the outlet of the hose over a
drain or a bucket and ensure that
water could freely flow out of the
unit.
Do not submerge the end of the hose
into water; otherwise it can cause
"Air Lock" in the hose.
To avoid water spillage:
• As the negative pressure of the condensate drain pan is high, tilt the drain
hose downward toward the floor. It is appropriate that the degree of
inclination should exceed 20 degrees.
• Straighten the hose to avoid condensed water remaining in the hose.
Continuous drain hose
Remove the rubber
sealing plug.
18
6. CLEANING AND CARE
6.1 CLEANING THE AIR FILTER (every two weeks)
Dust collects on the filter and restricts the airflow. The restricted airflow
reduces the efficiency of the system and if it becomes blocked, it can cause
damage to the unit.
The air filter requires regular cleaning. The air filter is removable for easy
cleaning. Do not operate the unit without an air filter, or the evaporator may be
contaminated.
1.
Press POWER button to switch off the unit and unplug the power cord.
2.
Remove the filter mesh from the unit.
3.
Use a vacuum cleaner to suck dust from the filter.
4.
Turn the filter over and rinse the air filter under running water. Let the water run
through the filter in the opposite direction of air flow. Set aside and allow
the filter to air dry completely before re-installation.

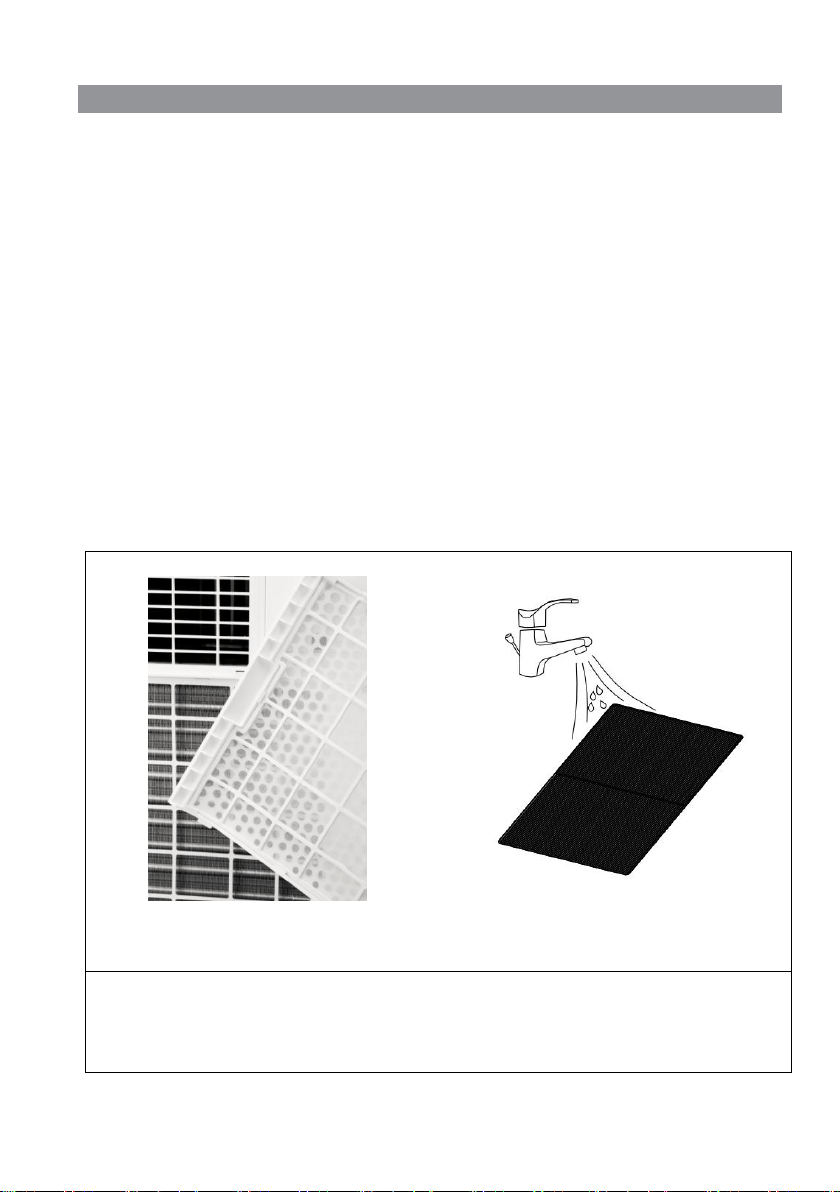

Pic 1. Switch off the unit and remove
two air filters.
Pic 2. Rinse the air filter under running
water.
Warning!!!
Do not touch the evaporator surface with bare-hand; otherwise, it could cause
injury to your fingers.
19
6.2 CLEANING UP OF REFRIGERANT
General Measures:
1. Gas/vapor that is heavier than air may accumulates in confined spaces,
particularly at or below the ground level.
2. Eliminate every possible source of ignition.
3. Use appropriate personal protection equipment (PPE).
4. Evacuate unnecessary personnel.
5. Do not get the refrigerant in eyes, on skin, or on clothing. Do not breathe
vapors or gas.
6. Prevent entry to sewers and public waters.
7. Stop the source of the refrigerant release, if safe to do so. Consider the use of
water spray to disperse vapors.
8. Isolate the area until the gas has dispersed. Ventilate and gas test the area
before entering. Contact competent authorities after a spill.
20
7. TROUBLESHOOTING
Symptom
Inspection
Solution
The unit is not
operating.
Check the power
connection securely.
Insert the power cord securely
into the wall outlet.
Check if the water level
indicator lights up.
Empty the drain pan by removing
the rubber plug.
Check the room temperature.
The range of the operating
temperature is 41−95℉.
The unit
works with
reduced
capacity.
Check the air filter for dirt.
Clean the air filter as necessary.
Check if the air duct is
blocked.
Clear the obstacle.
Check if the room door or the
window is open.
Keep the door and windows
closed.
Check if the desired operating
mode is selected and the
temperature is properly set.
Set the mode and temperature at
proper set-point according to the
manual.
The exhaust hose is detached.
Make sure the exhaust hose is
securely attached.
Water
Leakage
Overflow while moving the
unit.
Empty the water tank before
transport.
Check if the drain hose is
kinked or bends.
Straighten the hose.
Excessive
Noise
Check if the unit is securely
positioned.
Place the unit on horizontal and
firm ground.
Check if there are any loose or
vibrating parts.
Secure and tighten the parts.
Noisy sounds like water
flowing
Noise comes from the flowing
refrigerant. This is normal.
Error
Codes
E0
Communication faults
between main PCB and
display PCB.
Check the wire harness of the
display PCB for damage.
E1
Ambient temperature sensor
failure
Check connection or replace it.
Clean or replace the temperature
sensor.
E2
Coil temperature sensor
failure
Check connection or replace it.
Clean or replace the temperature
sensor.
Ft
High level alarm of
condensate water
Empty the drain pan by removing
the rubber plug.
21
8. DECOMMISSIONING
8.1 STORAGE
Long-term Storage−If you will not use the unit for an extended period of
time (more than a few weeks), it is best to clean the unit and dry it out
completely. Please store the unit with the following steps:
8.2
DISPOSAL
WARNING!!!
Releasing refrigerant into atmosphere is strictly forbidden!
Do not dispose of electrical appliances as
unsorted municipal waste. Use separate
collection facilities. Contact your local
government for information regarding the
collection systems available. If electrical
appliances are disposed of in landfills or dumps,
hazardous substances can leak into the
groundwater and get into the food chain,
damaging your health and well-being.
1.
Unplug the unit and store the exhaust hose with the window kit.
2. Drain the remaining water from the unit.
3. Clean the filter and let the filter dry completely in a shaded area.
4.
Re-install the filter at its origin position.
5.
The unit must be kept in upright position when in storage.
6. Preserve the machine indoor in a dry and safe place with good ventilation
and without corrosive gas.
ATTENTION:
The evaporator inside the machine has to be dried out before the unit is packed to avoid
component damage and molds. Unplug the unit and place it in a dry open area for days to dry
it out. Another way to dry the unit is to turn on the machine, adjust it to low-wind ventilation
mode, and maintain this state until the drainage pipe becomes dry, so as to keep the inside of
the body in a dry state and prevent it from mildewing.
22
Thank you for purchasing this product! If you have any questions about
the product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message or
customer service number: 213-4467172 or 661-4358826
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servic io
al cliente en caso de tener preguntas o i
nquietud es:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO
BAJO GARANTÍA.
Address : 9733 Topanga Canyon Blvd. APT310, Chatsworth, CA 91311
Phone: 213-4467172 or 661-4358826
