Portable Air Conditioner
Owner’s Manual
Original instructions
Item NO: A4210L-8K/10K
Applicable model: OL-A010L-05CD/06CD
READ AND SAVE THESE INSTRUCTIONS
1
1. BEFORE YOU BEGIN
1.1 PRODUCT DESCRIPTION
Our powerful portable air conditioner provides great cooling solutions for single
rooms, creating a comfortable atmosphere in your space. It also has ventilation
and dehumidifying function to circulate air and remove moisture. It is designed
with a self-contained system that does not require any permanent installation,
allowing you to move it to wherever it is most needed. It is commonly used in
kitchens, temporary residences, computer rooms, garages, and many other places
where the installation of Air-conditioner Outdoor Unit is limited.
2
2. FOR YOUR SAFETY
Your safety is the most important thing we concern!
Your safety is the most important thing we concern!
2.1 OPERATIONAL PRECAUTIONS
WARNING-To reduce the risk of fire, electric shock or injury to persons or
property:
Please let the portable air conditioner stand upright for at least 24 hours before
plugging in.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be disconnected from its power source during service.
Always operate the unit from a power source of equal voltage, frequency and
rating as indicated on the product identification plate.
Always use a power outlet that is grounded.
Unplug the power cord when cleaning or when not in use.
Do not operate with wet hands. Prevent water from spilling onto the unit.
Do not immerse or expose the unit to rain, moisture or any other liquid.
Do not leave the unit running unattended. Do not tilt or turn over the unit.
Do not unplug while the unit is operating.
WARNING
Please read this manual carefully and fully understand before
operating your appliance.
WARNING
Please read this manual carefully and fully understand before
operating your appliance.
3
Do not unplug by pulling the power cord.
Do not use an extension cord or an adapter plug.
Do not put objects on the unit.
Do not climb or sit on the unit.
Do not insert fingers or other objects into the air outlet.
Do not touch the air inlet or the aluminum fins of the unit.
Do not operate the unit if it is dropped, damaged or it shows signs of product
malfunction.
Do not clean the appliance with any chemicals.
Ensure the unit is far away from fire, inflammable, or explosive objects.
The unit shall be installed in accordance with national wiring regulations.
Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacture.
The appliance shall be stored in a room without continuous operation of
combustion sources (for example, open flames, an operating gas appliance or
an operating electric heater).
The appliance shall be stored so as to prevent mechanical damage from
occurring.
Do not piece or burn, even after use.
Be aware that refrigerants may not contain an odour.
Compliance with national gas regulations shall be observed.
Keep any required ventilation openings clear of obstruction.
The appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
If there is anything you don't understand or you need help, please contact the dealer
services.
4
3. PRODUCT OVERVIEW
3.1 PRODUCT DIAGRAM
1
Control panel
4
Air inlet with
air filter
7
Air exhaust
2
Air outlet with
adjustable
louver
5
Caster
3
Handle
6
Drainage hole
Note: The appearance is only for reference. Please see the real product for
detailed information.
5
3.2 FEATURES
High capacity in a compact size with fan, cooling and dehumidifying
function.
Temperature setting and display
LED digital display
Electronic control with built-in timer and sleep mode
Self-evaporating system for better efficiency
Auto shut-off upon tank-full
Auto re-start in the event of power outage
Auto defrosting function at low ambient temperatures
Remote control
2-speed fan
Casters for easy mobility
6
4. INSTALLATION
4.1 UNPACKING
Unpack the carton and take the appliance and accessories out.
Check the device after unpacking for any damage or scratches on it.

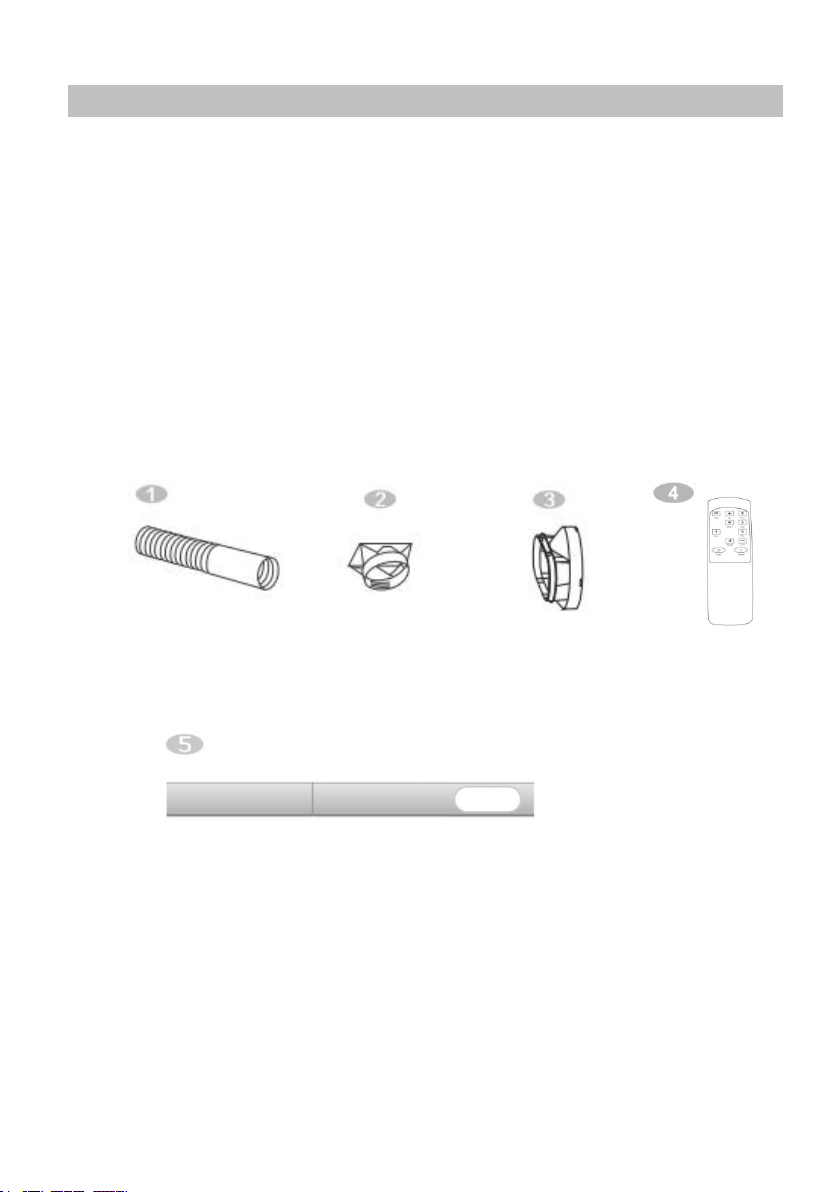

Accessories:
1. Exhaust hose
2. Hose connector
3. Window kit adapter
4. Remote control
5. Window kit
6. Water pipe
7. User manual
7
4.2 Choose your location
If it is tipped more than 45°, allow the unit
to set upright for at least 24 hours before
starting up.
Place the unit on a firm and level surface in
an area with at least 19 inches of free space
around i t to allow for proper air circulation.
Do not operate in close proximity to walls,
curtains, or other objects that may block air
inlet and out let. Keep the air inlet and
outlet free of obstacles.
Never install the unit where it could be subject to
：
Heat sourc
es such as radiators, heat registers, stoves or other products
that produce heat;
Direct sunlight;
Mechanical vibration or shock;
Excessive dust;
Lack of ventilation, such a s cabinets or bookcases;
Uneven surfa ce.
r=19 inches
8
4.3 ATTACH THE EXHAUST HOSE
The air conditioner requires being vented outside so that the exhaust air which
comes from the appliance and contains waste heat and moisture can escape the
room.
Do not replace or extend the exhaust hose. It will result in decreasing efficiency,
or even worse, shut down the unit due to low back pressure.

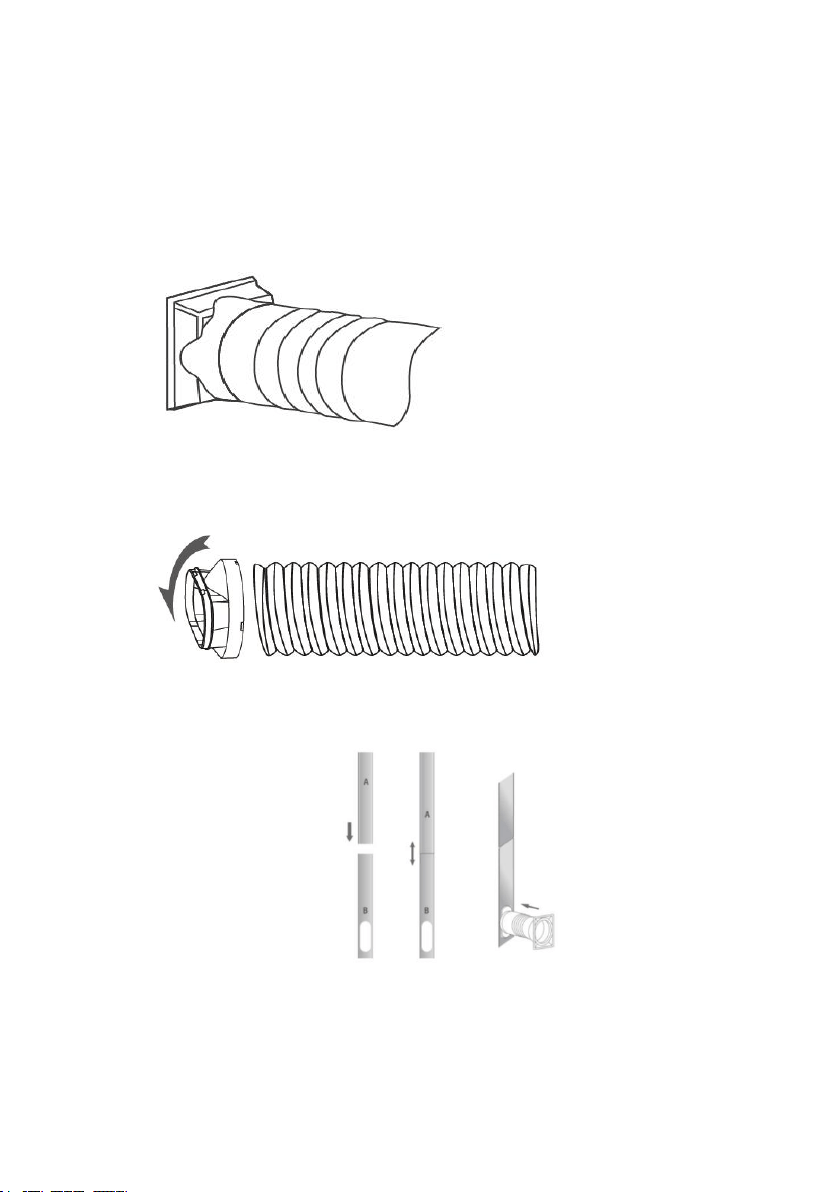

Step 1: Connect the hose connector to one end of the exhaust hose.
Step 2: Connect the windows kit adapter to the other end of the exhaust
hose.
Step 3: Extend the adjustable window kit to the length of your window.
Connect the exhaust hose to the window kit.
Step 4: Close your window to secure the kit in place. It’s needed to hold the window kit
firmly in place. Secure the window kit with duct tape if required. It is recommended
that the gap between the adapter and the sides of the window should be sealed off for
maximum efficiency.
9

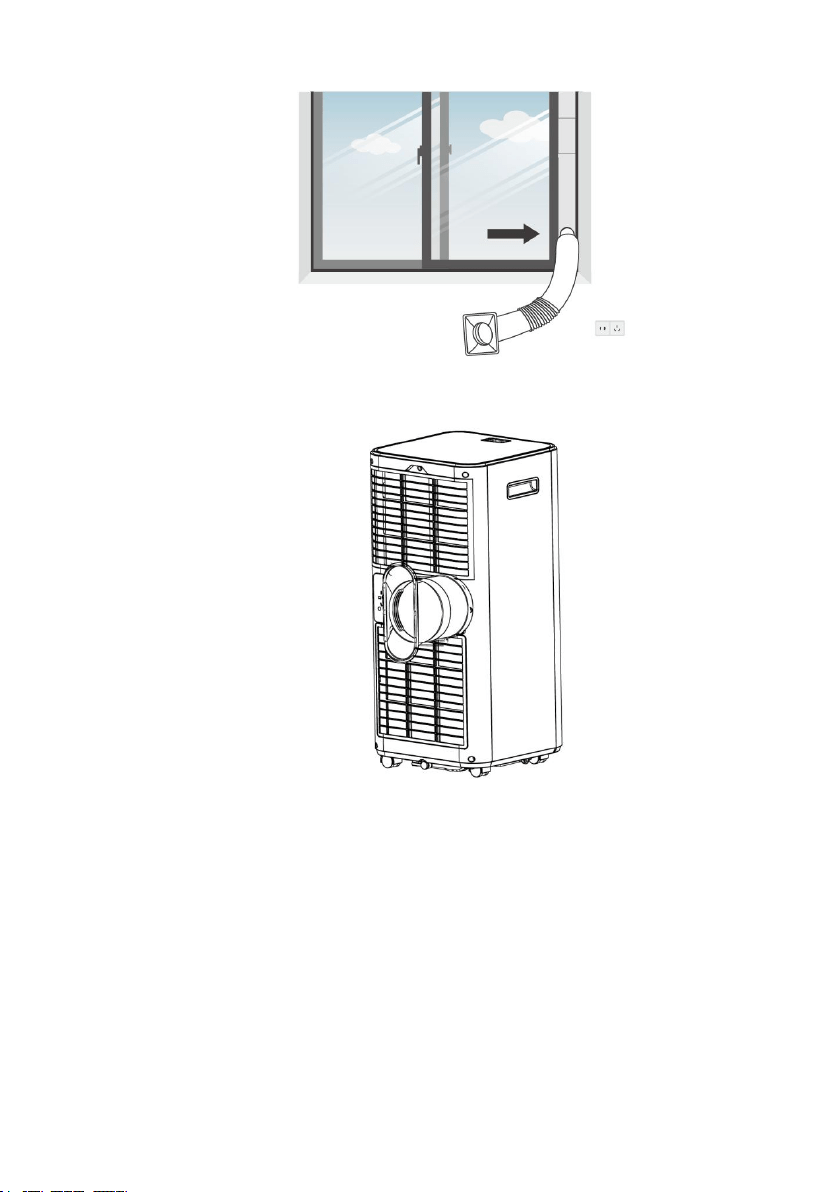

Step 5: Attach the hose connector to the exhaust air outlet of unit.
Step 6: Adjust the length of the flexible exhaust hose, and avoid bends in
the hose. Then place AC near an electrical outlet.
10
Step 7: Adjust the louver at the air outlet, and then switch on the unit.
11
5. OPERATION
5.1 CONTROL PANEL AND DISPLAY
1
POWER
Press to switch the machine on or off.
2
MODE
Press to switch the operation mode among fan, cooling,
and dehumidify.
3
SPEED
Press to switch the fan speed between HIGH and LOW.
4
DOWN
Decrease the desired temperature or timer setting.
5
UP
Increase the desired temperature (61℉−90℉) or timer
setting.
6
TIMER
Set time for the unit to automatically start or stop.
7
SLEEP
Press to turn on/off sleep mode.
8
LOCK
Long press to turn on/off the child lock function.
10
MODE
Indicator
Display the mode among cooling, dehumidify and fan.
12
1. High Fan Speed 2. Low Fan Speed 3. Timer
4. Dehumidify Mode 5. Cooling Mode 6. Fan Mode
7. Sleep 8. Lock 9. Display Window
13

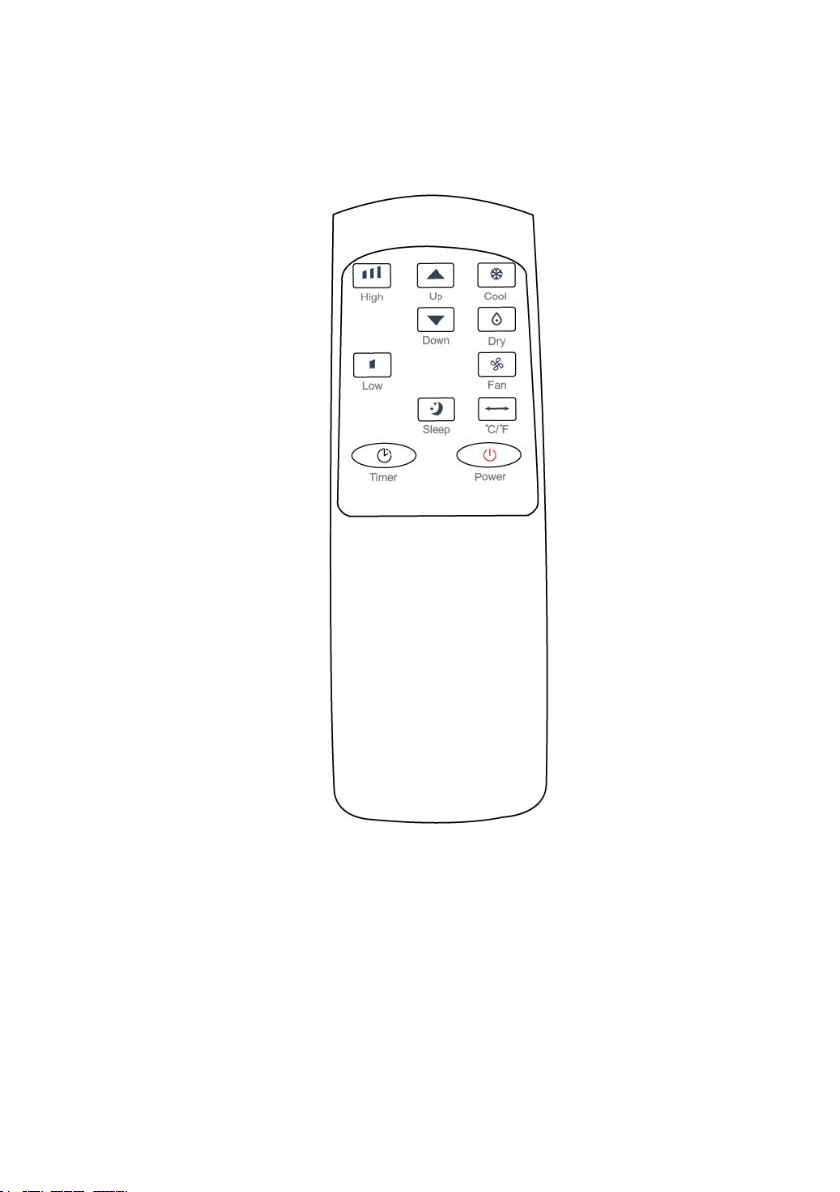

5.2 REMOTE CONTROL
14
5.3 SETTINGS
5.3.1 Start-up and Shut-down
Press POWER to turn on the unit.
Press MODE button to select the desired operation mode.
Press POWER again to turn off the power.
5.3.2 Operation mode
The unit has four operation modes: cool, dry, fan and sleep.
A. Cooling your room
Select the cool mode to lower the temperature in your room.
Press MODE button repeatedly until the COOL indicator lights up.
Press Up/Down button to adjust the temperature which is displayed on the screen.
The temperature can be set between 61℉ and 90℉.
Press SPEED button repeatedly until the desired fan speed indicator lights up.
To control the direction of the air flow horizontally, please adjust the inner
louver by hand.
Note: The air conditioner stops if the room temperature is lower than the selected
temperature.
B. Ventilating your room
Press MODE button repeatedly until the FAN indicator lights up.
In ventilation mode, the room air is circulated, but not cooled.
Press SPEED button repeatedly to select the fan speed as desired.
15
C. Drying your room
Press MODE button on the control panel or remote control, the dry indicator
lights up. The fan speed is unable to be selected. User should connect the hose to
the drain outlet at the bottom of the unit.
Note: In this mode, the fan speed switches over to low speed and cannot be
selected.
D. Sleep mode
The sleep mode can be activated when in cool mode.
In cool mode:
After 1 hour the sleep mode is turned on, the preset temperature will
automatically increase by 34℉; after another hour, the preset temperature
will again increase by 34℉.
16
5.3.3 TIMER SETTING
（
1 hour−24 hours
）
:
The timer has two ways of operation:
To turn off
(When power on)
To turn on
(When power off)
Cancel timer
5.3.4 Automatic Defrosting
At low room temperatures, frost may build up at the evaporator during the operation. The
unit will automatically start defrosting and the POWER LED will blink. The defrosting
control sequence is as follows:
A. When the unit operates in cooling operation and drying operation, and the ambient
temperature sensor senses that the evaporator coil temperature is below 30℉, the unit
will restart to cooling operation mode after the compressor stops operating for 10
minutes or the coil temperature rises up to 44℉.
B. When the unit operates in the drying operation, once the coil temperature sensor
senses that the temperature of the evaporator is below 104℉, and the differential
temperature between the coil temperature and the room temperature is below 66℉,
the unit will start defrosting for 5 minutes and the power indicator will blink after the
compressor runs for 20 minutes.
5.3.5 Overload Protection
In the event of a power loss, there is a 3-minute delay to protect the compressor before it
restarts.
Press Timer key to
turn on the timer
function.
Press Timer key to
turn on the timer
function.
Press
Up/Down
repeatedly to set the
delay OFF time.
Press
Up/Down
repeatedly to set the
delay ON time.
Press Up/Down repeatedly until the LED shows “00”.
Note: Pressing POWER, it will also exit the timer setting.
17
5.4 DRAINAGE
Manual drainage:
1）When the machine stops after the water is full, please unplug the power plug.
Note: Please move the machine carefully so as not to spill the water in the water pan at the
bottom of the body.
2）Place the water container below the side water outlet behind the body.
3）Unplug the water plug, the water will automatically flow into the water container.
Note:
1. Collect the water plug properly.
2. During drainage, the body can be tilted slightly backwards.
3. If the water container cannot hold all the water, before the water container is full, install
the water outlet with the water plug as soon as possible to prevent water from flowing to
the floor or the carpet.
4）When the water is discharged, reinstall the water plug.
Note: Restart the machine after the water plug and the drainage cover are installed;
otherwise, condensed water of the machine will flow to the floor or the carpet.
Continuous drainage
The self-evaporating system uses the collected water to cool the condenser
18
coils for a more efficient performance. Except in drying operation and high
humidity conditions, there is no need to empty the drainage tank in cooling
operation. The condensed water evaporates at the condenser and evacuates
through the exhaust hose.

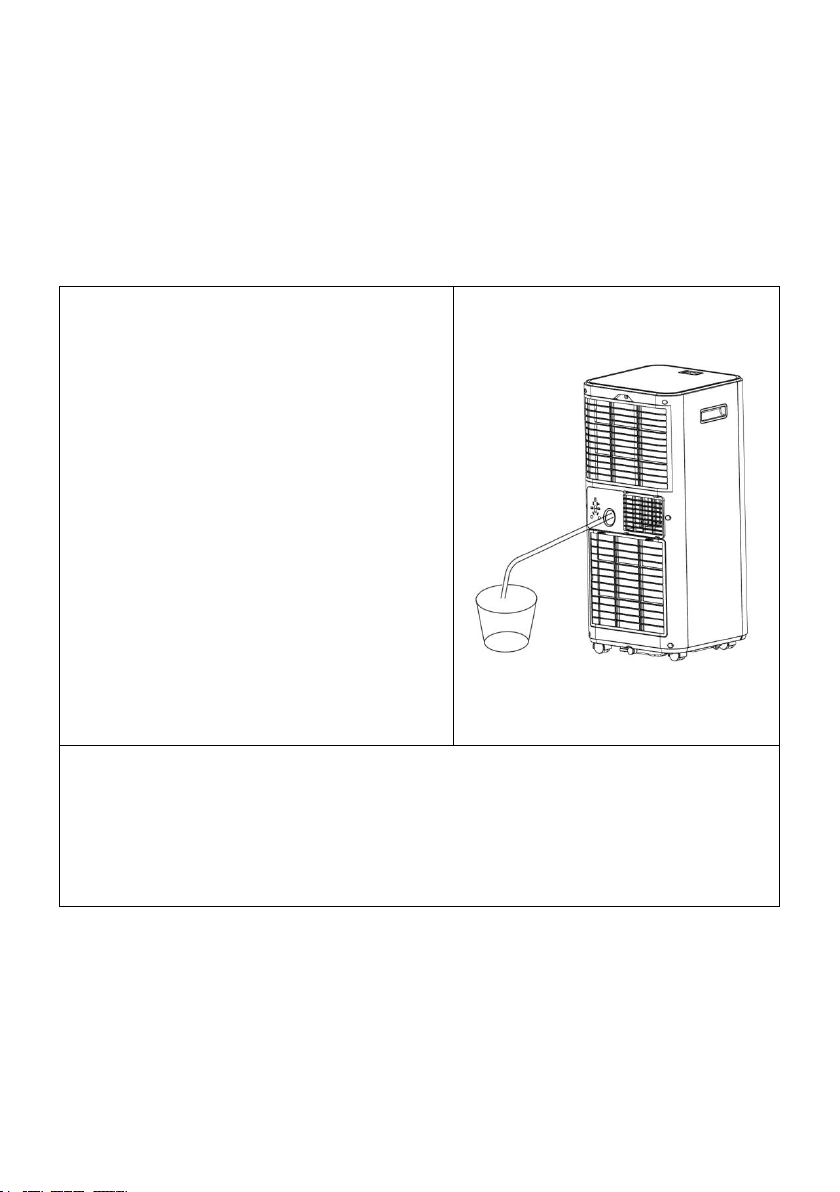

For continuous operation or unattended operating in drying operation, please
connect the attached drain hose to the unit. Condensed water can automatically
flow into a bucket or be drained by gravity.
Switch off the unit before operating.
Remove the plug of the water outlet
opening, and keep it in a safe area.
Securely and properly connect the
drain hose and make sure it is not
kinked and clear of obstruction.
Place the outlet of hose over a drain
or bucket and ensure that water could
freely flow out of the unit.
Do not submerge the end of the hose
into water; otherwise, it can cause
"Air Lock" in the hose.
To avoid water spillage:
• As the negative pressure of condensed drain pan is large, tilt the drain
hose downward toward the floor. It is appropriate that the degree of the
inclination should exceed 20 degrees.
• Straighten the hose to avoid condensed water remaining in the hose.
19
6. CLEANING AND CARE
6.1 CLEANING THE AIR FILTER (every two weeks)
Dust collects on the filter and restricts the airflow. The restricted airflow
reduces the efficiency of the system and if it becomes blocked, damage to the
unit may occur.
The air filter requires regular cleaning. The air filter is removable for easy
cleaning. Do not operate the unit without an air filter, or the evaporator may be
contaminated.
1.
Press POWER button to switch off the unit and unplug the power cord.
2.
Remove the filter mesh from the unit.
3.
Use a vacuum cleaner to suck dust from the filter.
4.
Turn the filter over and rinse the air filter under running water. Let the water
run through the filter in the opposite direction of air flow. Set aside and
allow the filter to air dry completely before reinstalling.

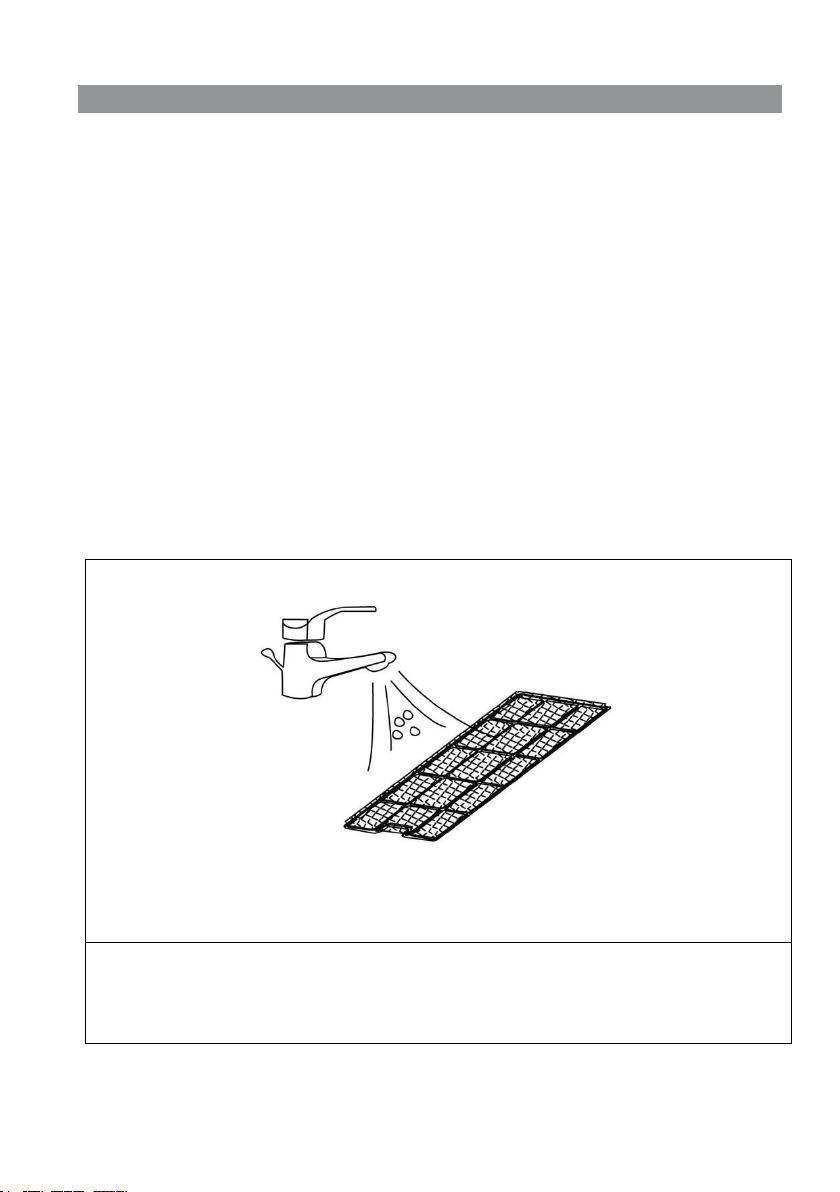

Switch off the unit and remove the air filters.
Rinse the air filters under running water.
Warning!!!
Do not touch the evaporator surface with bare-hand; otherwise, it could cause
injury to your fingers.
20
6.2 CLEANING UP OF REFRIGERANT
General Measures:
1. Gas/vapor that is heavier than air may accumulate in confined spaces,
particularly at or below ground level.
2. Eliminate every possible source of ignition.
3. Use appropriate personal protection equipment (PPE).
4. Evacuate unnecessary personnel.
5. Do not get the refrigerant in eyes, on skin, or on clothing. Do not breathe in
vapors or gas.
6. Prevent entry to sewers and public waters.
7. Stop the source of the refrigerant from releasing, if safe to do so. Consider the
use of water spray to disperse vapors.
8. Isolate the area until gas has been dispersed. Ventilate and gas test the area
before entering. Contact competent authorities after a spill.
21
7. TROUBLESHOOTING
Symptom
Inspection
Solution
The unit is not
operating.
Check the power
connection securely.
Insert the power cord securely
into the wall outlet.
Check if the water level
indicator lights up.
Empty the drain pan by removing
the rubber plug.
Check the room temperature.
The range of the operating
temperature is 41℉−95℉.
The unit
works with
reduced
capacity.
Check the air filter for dirt.
Clean the air filter as necessary.
Check if the air duct is
blocked.
Clear the obstacle.
Check if the room door or
window is open.
Keep the door and windows
closed.
Check if the desired operating
mode is selected and the
temperature is properly set.
Set the mode and temperature at
proper set-point according the
manual.
The exhaust hose is detached.
Make sure the exhaust hose is
securely attached.
Water
Leakage
Overflow while moving the
unit.
Empty the water tank before
transport.
Check if the drain hose is
kinked or bent.
Straighten the hose.
Excessive
Noise
Check if the unit is securely
positioned.
Place the unit on horizontal and
firm ground.
Check if there are any loose or
vibrating parts.
Secure and tighten the parts.
Noisy sounds like water
flowing.
Noise comes from flowing
refrigerant. This is normal.
Error
Codes
E0
Communication faults
between main PCB and
display PCB.
Check the wire harness of the
display PCB for damage.
E1
Ambient temperature sensor
failure.
Check connection or replace it.
Clean or replace the temperature
sensor.
E2
Coil temperature sensor
failure.
Check connection or replace it.
Clean or replace the temperature
sensor.
Ft
High level alarm of condensed
water.
Empty the drain pan by removing
the rubber plug.
22
8. DECOMMISSIONING
8.1 STORAGE
Long-term Storage−If you will not use the unit for an extended period of
time (more than a few weeks), it is best to clean the unit and dry it out
completely. Please store the unit with the following steps:
8.2 DISPOSAL
WARNING!!!
Releasing refrigerant into atmosphere is strictly forbidden!
Do not dispose of electrical appliances as
unsorted municipal waste. Use separate
collection facilities. Contact your local
government for information regarding the
collection systems available. If electrical
appliances are disposed of in landfills or dumps,
hazardous substances can leak into the
groundwater and get into the food chain,
damaging your health and well-being.
1. Unplug the unit and store the exhaust hose with the window kit.
2.
Drain the remaining water from the unit.
3.
Clean the filter and let the filter dry completely in a shaded area.
4. Reinstall the filter at its original position.
5. The unit must be kept in upright position when in storage.
6.
Preserve the machine indoor in a dry and safe place with good ventilation
and without corrosive gas.
ATTENTION:
The evaporator inside the machine has to be dried out before the unit is packed to avoid
component damage and molds. Unplug the unit and place it in a dry open area for days to dry
it out. Another way to dry the unit is to turn on the machine, adjust it to low-wind ventilation
mode, and maintain this state until the drainage pipe becomes dry, so as to keep the inside of
the body in a dry state and prevent it from mildewing.
23
Thank you for purchasing this product! If you have any questions about
the product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message or
customer service number: 213-44 67172 or 661-4358826
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o i
nquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO
BAJO GARANTÍA.
Address : 9733 Topanga Canyon Blvd. APT310, Chatsworth, CA 91311
Phone: 213-4467172 or 661-4358826
