en Safety
4
Safety
Observe the following safety instructions.
General information
You can find general information for this instruction manual here.
¡ Read this instruction manual carefully.
¡ This manual is intended for the installer and the user of the ap-
pliance.
¡ Follow the safety instructions and warnings.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
Intended use
Read the information on intended use to ensure that you use the
appliance correctly and safely.
Only use this appliance:
¡ According to this installation and instruction manual.
¡ For washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ With tap water and commercially available detergents and care
products suitable for washing machines.
¡ In private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of max. 4000m above sea level.
Restriction on user group
Avoid risks to children and vulnerable persons.
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Safety en
5
Children must not play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
Safe installation
Take note of the safety instructions when installing the appliance.
WARNING‒Risk of electric shock!
¡ Improper installation is dangerous.
▶
Connect and operate the appliance only in accordance with
the specifications on the rating plate.
▶
Connect the appliance to a power supply with alternating
current only via a properly installed socket with earthing.
▶
The protective conductor system of the domestic electrical
installation must be properly installed. The installation must
have a sufficiently large cross section.
▶
When using a residual current circuit breaker, only use a
type with the
mark.
▶
Never equip the appliance with an external switching
device, e.g. a timer or remote control.
▶
When the appliance is installed, the mains plug of the
power cord must be freely accessible. If free access is not
possible, an all-pole isolating switch must be installed in the
permanent electrical installation according to the installation
regulations.
▶
When installing the appliance, check that the power cable is
not trapped or damaged.
¡ If the insulation of the power cord is damaged, this is danger-
ous.
▶
Never let the power cord come into contact with hot appli-
ance parts or heat sources.
▶
Never let the power cord come into contact with sharp
points or edges.
▶
Never kink, crush or modify the power cord.
en Safety
6
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-ap-
proved adapters.
▶
Do not use extension cables or multiple socket strips.
▶
If the power cord is too short, contact Customer Service.
▶
Only use adapters approved by the manufacturer.
WARNING‒Risk of injury!
¡ The high weight of the appliance may result in injury when lif-
ted.
▶
Do not lift the appliance on your own.
¡ If this appliance is not correctly installed in a washer-dryer
stack, the installed appliance may fall.
▶
Only stack the dryer on a washing machine using the con-
nection kit from the dryer manufacturer . No other installa-
tion method is permitted.
▶
Do not install the appliance in a washer-dryer stack if the
dryer manufacturer does not offer a suitable connection kit.
▶
Do not install appliances from different manufacturers and
with varying depths and widths in a washer-dryer stack.
▶
Do not install a washer-dryer stack on a platform; the appli-
ances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶
Keep packaging material away from children.
▶
Do not let children play with packaging material.
CAUTION‒Risk of injury!
¡ The appliance may vibrate or move when in use.
▶
Place the appliance on a clean, even, solid surface.
▶
Align the appliance using the appliance feet and a spirit
level.
Safety en
7
¡ If hoses and power cords have been laid incorrectly, this
causes a tripping hazard.
▶
Lay hoses and power cords in such a way that there is no
risk of tripping.
¡ If the appliance is moved by holding onto protruding compon-
ents, such as the appliance door, the parts may break off.
▶
Do not move the appliance by holding onto protruding
parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
▶
Do not touch the sharp edges on the appliance.
▶
Wear protective gloves when installing and transporting the
appliance.
Safe use
Follow these safety instructions when using the appliance.
WARNING‒Risk of electric shock!
¡ If the appliance or the power cord is damaged, this is danger-
ous.
▶
Never operate a damaged appliance.
▶
Never pull on the power cord to unplug the appliance. Al-
ways unplug the appliance at the mains.
▶
If the appliance or the power cord is damaged, immediately
unplug the power cord or switch off the fuse in the fuse box
and turn off the water tap.
▶
"Call Customer Service." →Page64
▶
Repairs to the appliance should only be carried out by
trained specialist staff.
¡ An ingress of moisture can cause an electric shock.
▶
Only use the appliance in enclosed spaces.
▶
Never expose the appliance to intense heat or humidity.
▶
Do not use steam- or high-pressure cleaners, hoses or
sprays to clean the appliance.
en Safety
8
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
▶
Do not install the appliance behind a door as this may ob-
struct the appliance door or prevent it from opening.
▶
With redundant appliances, unplug the power cord. Then
cut through the cord and damage the lock on the appliance
door beyond repair so that the appliance door will no longer
close.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them
to suffocate.
▶
Keep small parts away from children.
▶
Do not let children play with small parts.
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if con-
sumed.
▶
If accidentally swallowed, seek medical advice.
▶
Keep detergents and care products out of the reach of chil-
dren.
WARNING‒Risk of explosion!
Laundry that has been pretreated with cleaning agents that
contain solvents may cause an explosion in the appliance.
▶
Rinse pretreated laundry thoroughly with water before wash-
ing.
CAUTION‒Risk of injury!
¡ The covering plate may break if you stand on or climb onto
the appliance.
▶
Do not stand on or climb onto the appliance.
¡ The appliance may tip over if you sit on or lean against the
open door.
▶
Do not sit on or lean against the appliance door.
▶
Do not place any objects on the appliance door.
Safety en
9
¡ Reaching into the drum while it is still turning may cause hand
injuries.
▶
Wait for the drum to come to a complete stop before reach-
ing inside.
CAUTION‒Risk of burns!
When washing at high temperatures, the glass in the appli-
ance door becomes hot.
▶
Do not touch the appliance door when it is hot.
▶
Keep children away from the appliance door when it is hot.
CAUTION‒Risk of scalding!
When you wash at high temperatures, the detergent solution
gets hot.
▶
Do not touch the hot detergent solution.
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care
products may spray out from the appliance. Contact with eyes
or skin may cause irritation.
▶
Rinse eyes and/or skin thoroughly with clean water if they
come into contact with detergents or care products.
▶
If accidentally swallowed, seek medical advice.
▶
Keep detergents and care products out of the reach of chil-
dren.
Safe cleaning and maintenance
Take note of the safety instructions when cleaning and performing
maintenance work on the appliance.
WARNING‒Risk of electric shock!
¡ Improper repairs are dangerous.
▶
Repairs to the appliance should only be carried out by
trained specialist staff.
▶
Only use genuine spare parts when repairing the appliance.
en Safety
10
▶
If the power cord of this appliance is damaged, it must be
replaced by the manufacturer, the manufacturer's Customer
Service or a similarly qualified person in order to prevent
any risk.
¡ An ingress of moisture can cause an electric shock.
▶
Do not use steam- or high-pressure cleaners, hoses or
sprays to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessor-
ies is dangerous.
▶
Only use the manufacturer's original spare parts and ori-
ginal accessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents
that contain solvents.
▶
Do not use cleaning agents that contain solvents.
Preventing material damage en
11
Preventing material damage
Preventing material dam-
age
Preventing material damage
Follow these instructions to avoid ma-
terial damage and damage to the ap-
pliance.
ATTENTION!
¡ The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener,
detergent, care product or clean-
ing agent.
▶
Follow the dosage recommend-
ations from the manufacturer.
¡ Exceeding the maximum load ca-
pacity impairs the function of the
appliance.
▶
Observe the "maximum load ca-
pacity" →Page26 for each
programme and do not exceed
it.
¡ The appliance is secured for trans-
portation using transit bolts. Transit
bolts which have not been re-
moved may result in material dam-
age and damage to the appliance.
▶
Before starting up the appliance,
remove the transit bolts com-
pletely and keep them in a safe
place.
▶
Before transport, fit the transit
bolts fully in order to prevent
damage in transit.
¡ Material damage may be caused if
the water inlet hose is connected
incorrectly.
▶
Tighten the screw connections
on the water inlet until they are
hand-tight.
▶
Ideally, connect the water inlet
hose directly to the water tap,
without any additional connect-
ing elements such as adapters,
extensions, valves or similar.
▶
Make sure that the valve hous-
ing for the water inlet hose does
not come into contact with its
surroundings and is not subjec-
ted to any external forces.
▶
Ensure that the inner diameter
of the water tap is at least 17
mm.
▶
Make sure that the length of the
thread on the connection to the
water tap is at least 10 mm.
¡ If the water pressure is too high or
too low, the appliance may not be
able to operate properly.
▶
Make sure that the water pres-
sure in the water supply system
is min. 100kPa (1bar) and
max. 1000kPa (10bar).
▶
If the water pressure exceeds
the maximum value specified, a
pressure-reducing valve must be
installed between the drinking
water connection and the hose
set of the appliance.
▶
Do not connect the appliance to
the mixer tap of an unpressur-
ised hot-water boiler.
¡ Modified or damaged water hoses
may result in material damage and
damage to the appliance.
▶
Never kink, crush, modify or cut
through water hoses.
▶
Only use the water hoses sup-
plied with the appliance or genu-
ine spare hoses.
▶
Never re-use water hoses that
have been used before.
¡ Operating the appliance using wa-
ter that is dirty or too hot may
cause material damage.
▶
Only operate the appliance with
cold mains water.
¡ Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
▶
Do not use harsh or abrasive
detergents.
en Environmental protection and saving energy
12
▶
Do not use cleaning products
with a high alcohol content.
▶
Do not use hard scouring pads
or cleaning sponges.
▶
Clean the appliance with nothing
but water and a soft, damp
cloth.
▶
Remove all detergent residue,
spray residue or other residues
immediately if they come into
contact with the appliance.
Environmental protection and saving energy
Environmental protection
and saving energy
Environmental protection and saving energy
Help protect the environment by us-
ing your appliance in a way that con-
serves resources and by disposing of
reusable materials properly.
Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
▶
Sort the individual components by
type and dispose of them separ-
ately.
Information about current disposal
methods are available from your
specialist dealer or local authority.
Save energy and conserve re-
sources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programmes with low tem-
peratures and longer wash times and
use "maximum load capacity"
→Page26.
Energy consumption and water
consumption is most efficient.
Use the economy programme set-
tings.
If you adjust the programme set-
tings for a programme, the display
shows the expected consumption.
"Add " →Page37 detergent based
on the laundry's degree of soiling.
For light to normal soiling, a smal-
ler amount of detergent is suffi-
cient. Observe the dosage recom-
mendation from the detergent
manufacturer.
Reduce the washing temperature for
lightly and normally soiled laundry.
At low temperatures, the appliance
consumes less energy. For light to
normal soiling, lower temperatures
than indicated on the care label
are also sufficient.
Set the maximum spin speed if you
want to dry the laundry in a tumble
dryer afterwards.
The drier the laundry, the shorter
the programme duration when dry-
ing which, in turn, reduces energy
consumption. A higher spin speed
reduces the residual moisture in
the laundry and increases the
volume of the spin noise.
Wash the laundry without prewash.
Washing with prewash increases
the programme duration and in-
creases energy and water con-
sumption.
The appliance has a continuous
automatic load adjustment function.
Depending on the type of fabric
and load capacity, the continuous
automatic load adjustment func-
tion optimally adjusts the water
consumption and programme dur-
ation.
Installation and connection en
13
The appliance comes with an Aqua-
Sensor.
During the rinse cycle, the Aqua-
Sensor checks the degree of tur-
bidity of the rinsing water, and ad-
justs the duration and number of
rinse cycles accordingly.
Energy saving mode
If you do not use the appliance for an
extended period, it automatically
switches to energy-saving mode. All
displays go out and Start/Reload
flashes.
Energy-saving mode ends when you
use the appliance again, e.g. if you
open or close the door.
If you do not use the appliance for an
extended period, the appliance
switches off automatically.
Installation and connection
Installation and connec-
tion
Installation and connection
You can find out where and how best
to install your appliance here. You
will also learn how to connect the ap-
pliance to the water and power sup-
ply.
Unpacking the appliance
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
ATTENTION!
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
▶
Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1. Remove any packaging and pro-
tective covers completely from the
appliance.
For the environmentally friendly
disposal of the packaging materi-
als, observe the information on the
topic of
→"Disposing of packaging",
Page12.
2. Check the appliance for visible
damage.
3. Open the door.
→"Basic operation", Page38
4. Remove the accessory from the
drum.
5. Close the door.
en Installation and connection
14

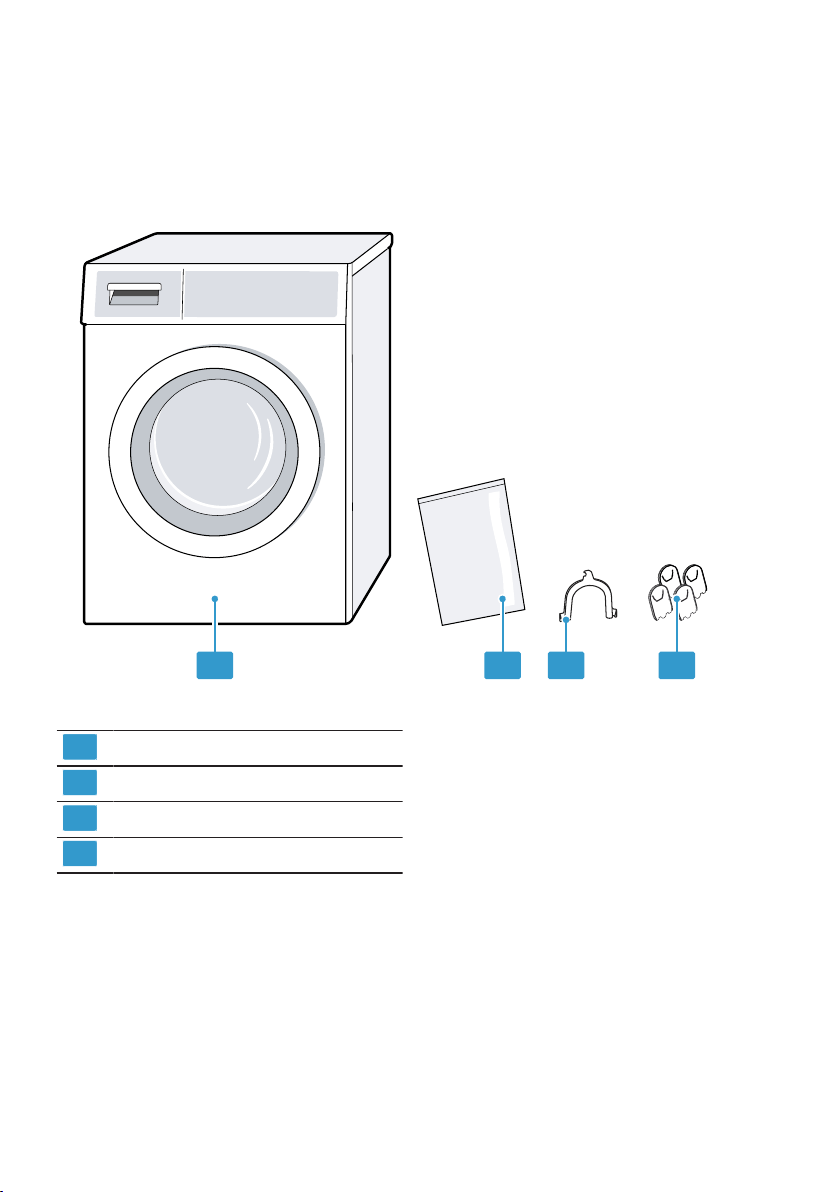

Contents of package
After unpacking all parts, check for any damage in transit and completeness of
the delivery.
1 2 3 4
1
Washing machine
2
Accompanying documents
3
Elbow for fixing the water outlet hose
4
Cover caps
Requirements for the installa-
tion location
The appliance may "wander" when it
spins. Observe the instructions for
the installation location.
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
Installation and connection en
15
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
▶
Do not operate the appliance
without a cover cap.
WARNING
Risk of injury!
When using the appliance on a base,
the appliance may tip over.
▶
Always secure the feet of the appli-
ance to a base using the manufac-
turer's "fixing brackets"
→Page33 before using the ap-
pliance for the first time.
ATTENTION!
¡ If the appliance is installed in
areas exposed to frost or out-
doors, frozen residual water may
damage the appliance and frozen
hoses may crack or split.
▶
Do not install or operate this ap-
pliance anywhere that is liable to
experience frost and/or out-
doors.
¡ The appliance underwent a func-
tion test before leaving the factory
and may, therefore, contain resid-
ual water. This residual water may
leak out if the appliance is tilted at
an angle greater than 40°.
▶
Tilt the appliance carefully.
Installation location Requirements
On a base Secure the appliance
with "fixing brackets"
→Page33.
Installation location Requirements
On a wooden joist
floor
Place the appliance
on a water-resistant
wooden board which
is screwed tightly to
the floor. The wooden
board should be at
least 30mm thick.
In a kitchen unit ¡ A niche width of
60cm is required.
¡ Only install the ap-
pliance under-
neath a continuous
worktop that is se-
curely connected
to adjacent cabin-
ets.
On a wall Do not trap the hoses
between the wall and
the appliance.
Removing the transit bolts
The appliance is secured for trans-
portation using transit bolts on the
rear of the appliance.
Notes
¡ Please read the information in the
"Safety" →Page4 and "Preventing
material damage" →Page11 sec-
tions to ensure that you use the
appliance safely.
¡ Keep the transit bolts, screws and
sleeves in a safe place for future
"transport" →Page62.
en Installation and connection
16

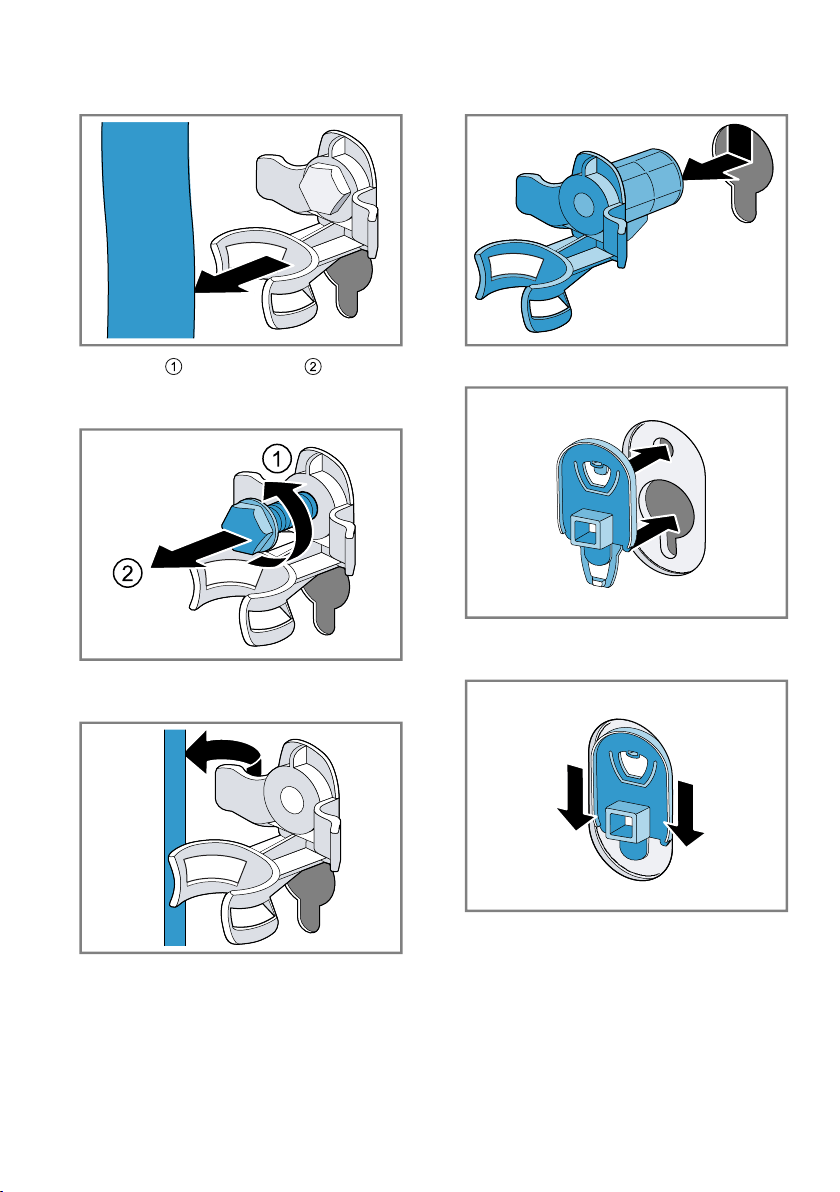

1. Pull the hoses out of the holders.
2. Unscrew and remove all four
screws for the transit bolts with a
WAF 13 wrench.
3. Pull the power cord out of the
holder.
4. Remove the four sleeves.
5. Put on the four cover caps.
6. Press down on the four cover
caps.
Installation and connection en
17
Connecting the appliance
Connect your appliance to the power
supply, water inlet and water outlet.
Connecting the water inlet hose
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
▶
Do not immerse the electrical
AquaStop valve in water.

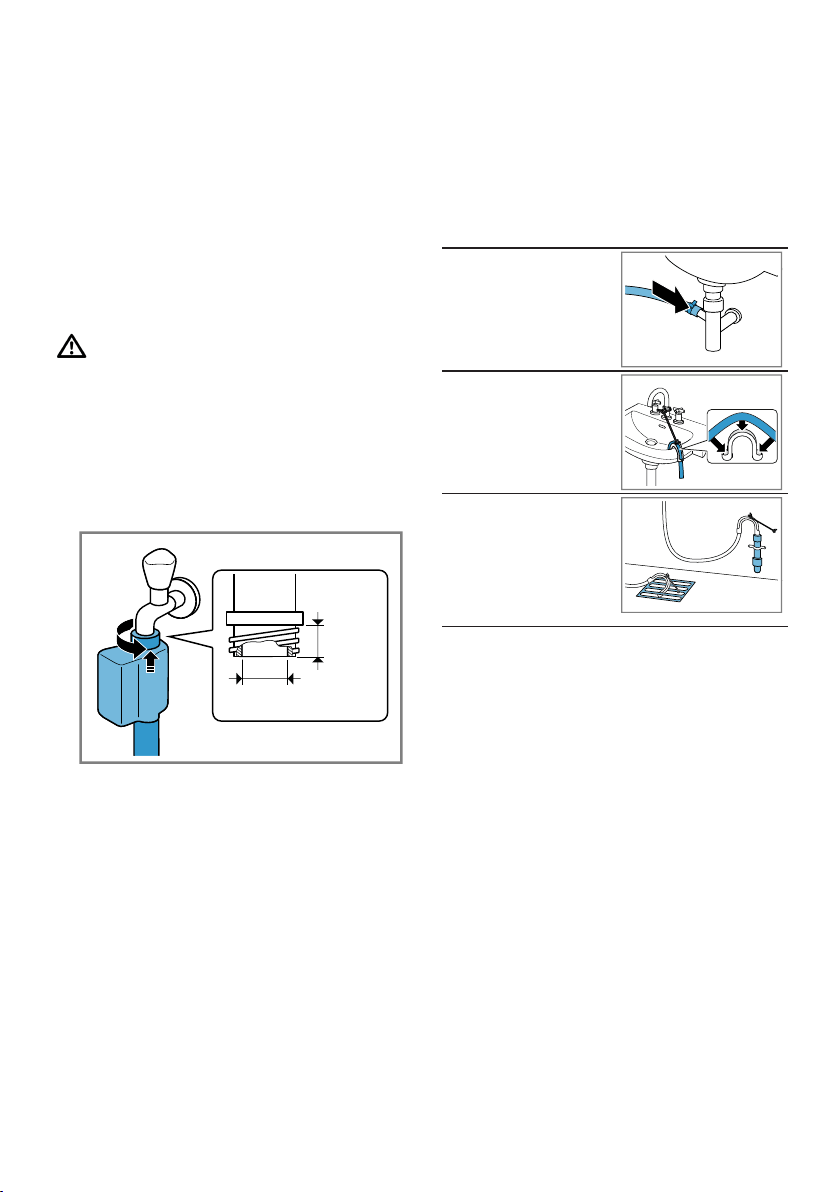

1. Connect the water inlet hose to a
tap (26.4mm=3/4").
¾˝
min.
min.
10 mm
17 mm
¾˝
min.
10 mm
2. Open the water tap carefully and
check that the connection points
are tight.
Water outlet connection types
This information is intended to help
you to connect this appliance to the
water outlet.
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
ATTENTION!
When draining, the water outlet hose
is subject to water pressure and may
come loose from the installed con-
nection point.
▶
Secure the water outlet hose
against unintentional loosening.
Drainage into a si-
phon.
Secure the connec-
tion point with a (24–
40 mm) hose clamp.
Drainage into a wash
basin.
Fix and secure the wa-
ter outlet hose with an
elbow.
Drainage into a plastic
pipe with rubber
sleeve or into a gully.
Fix and secure the wa-
ter outlet hose with an
elbow.
Connecting the appliance to the
electricity supply
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under "Tech-
nical data" →Page65.
2. Check the mains plug is inserted
properly.
en Installation and connection
18
Aligning the appliance
In order to reduce noise and vibra-
tion and to prevent the appliance
from moving, align the appliance cor-
rectly.
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.

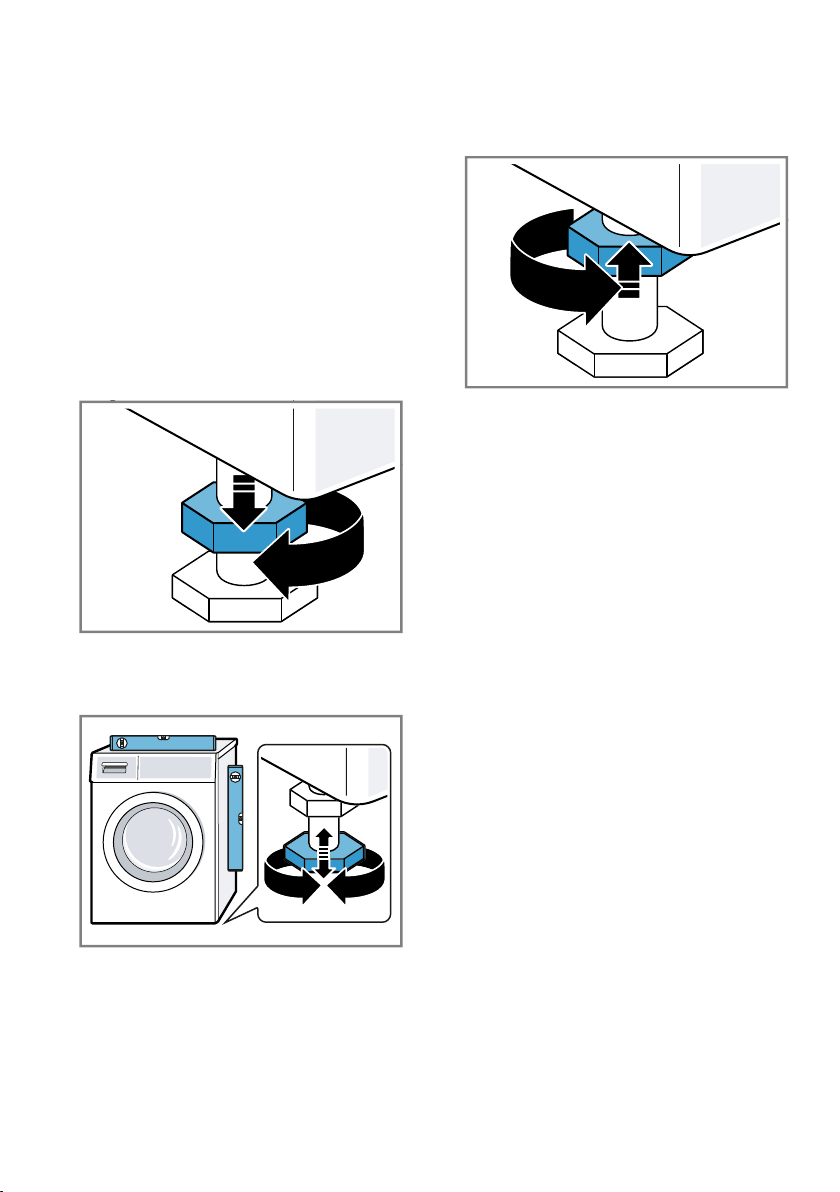

1. Loosen the lock nuts using a WAF
17 wrench by turning it in a clock-
wise direction.
2. To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
3. Screw the lock nuts tightly against
the housing using a WAF 17
wrench.
In doing so, hold the foot tight and
do not adjust its height.
Familiarising yourself with your appliance en
19
Familiarising yourself with your appliance
Familiarising yourself with your appliance
Familiarising yourself with your appliance

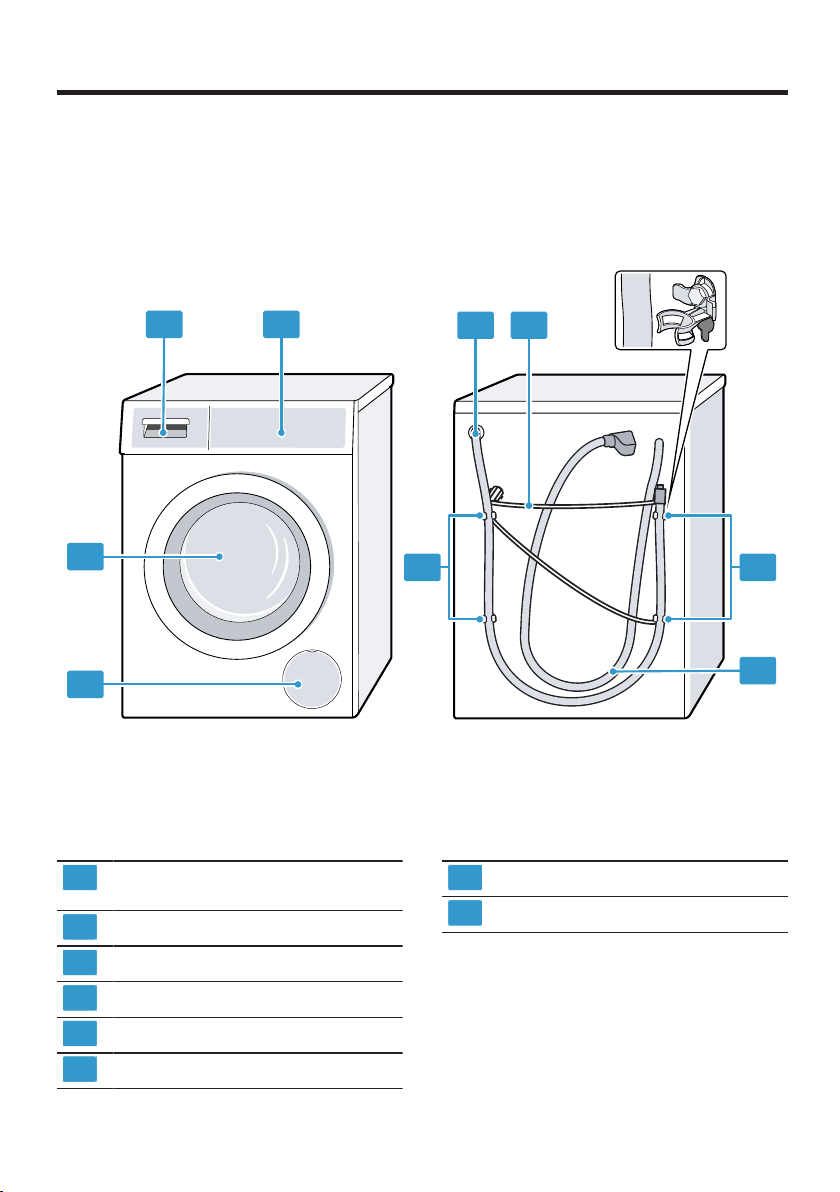

Familiarise yourself with the parts of your appliance.
Appliance
You can find an overview of the parts of your appliance here.
1
2
4
6
3
5
8
7
7
On certain models, specific details such as the colour and shape may differ
from those pictured.
1
"Maintenance flap for the drain pump"
→Page46
2
Door
3
"Detergent drawer" →Page20
4
"Controls" →Page20
5
"Water outlet hose" →Page17
6
"Power cord" →Page17
7
"Transit bolts" →Page15
8
"Water inlet hose" →Page17
en Familiarising yourself with your appliance
20

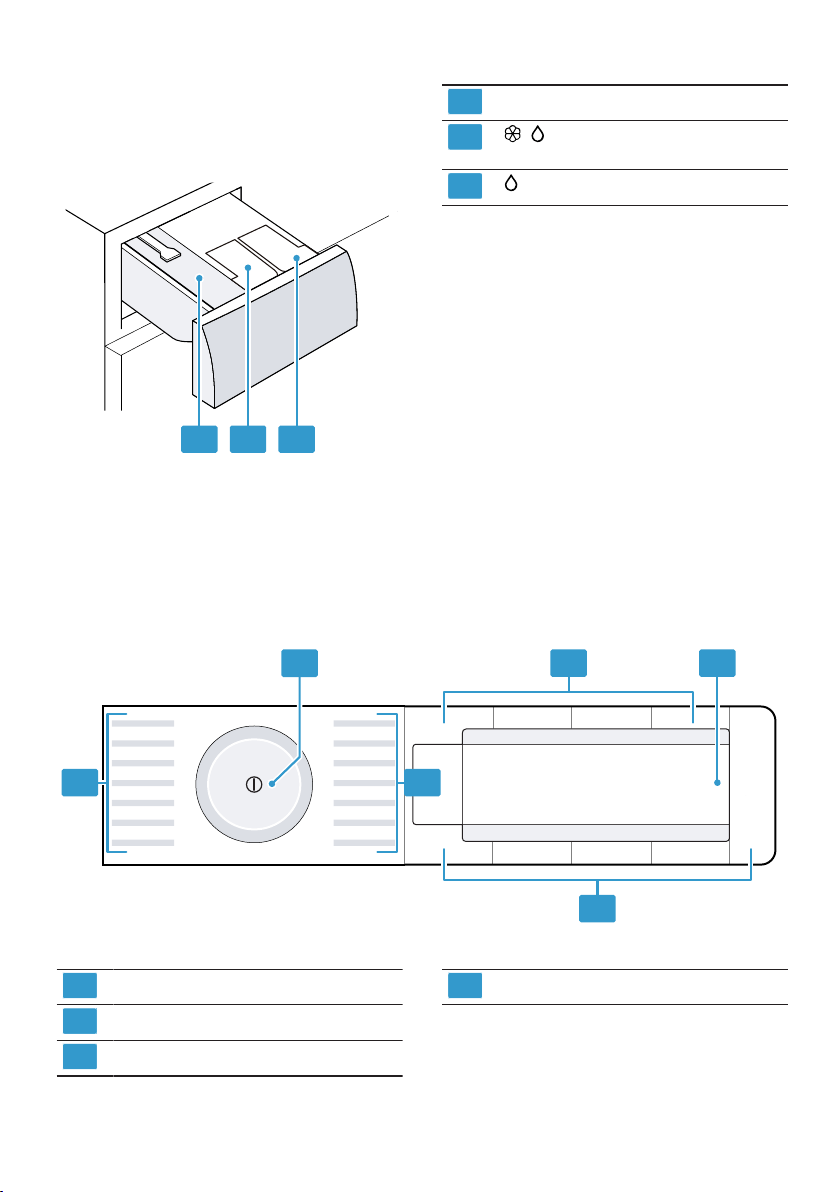

Detergent drawer
Below is an overview of the structure
of the detergent drawer.
2 31
1
Manual dosing compartment
2
/ : Dispenser for fabric softener or
detergent
3
: Dispenser for detergent
Controls
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
2
4
3
3
1 1
1
"Programmes" →Page26
2
"Programme selector" →Page38
3
"Buttons" →Page24
4
"Display" →Page21
Display en
21

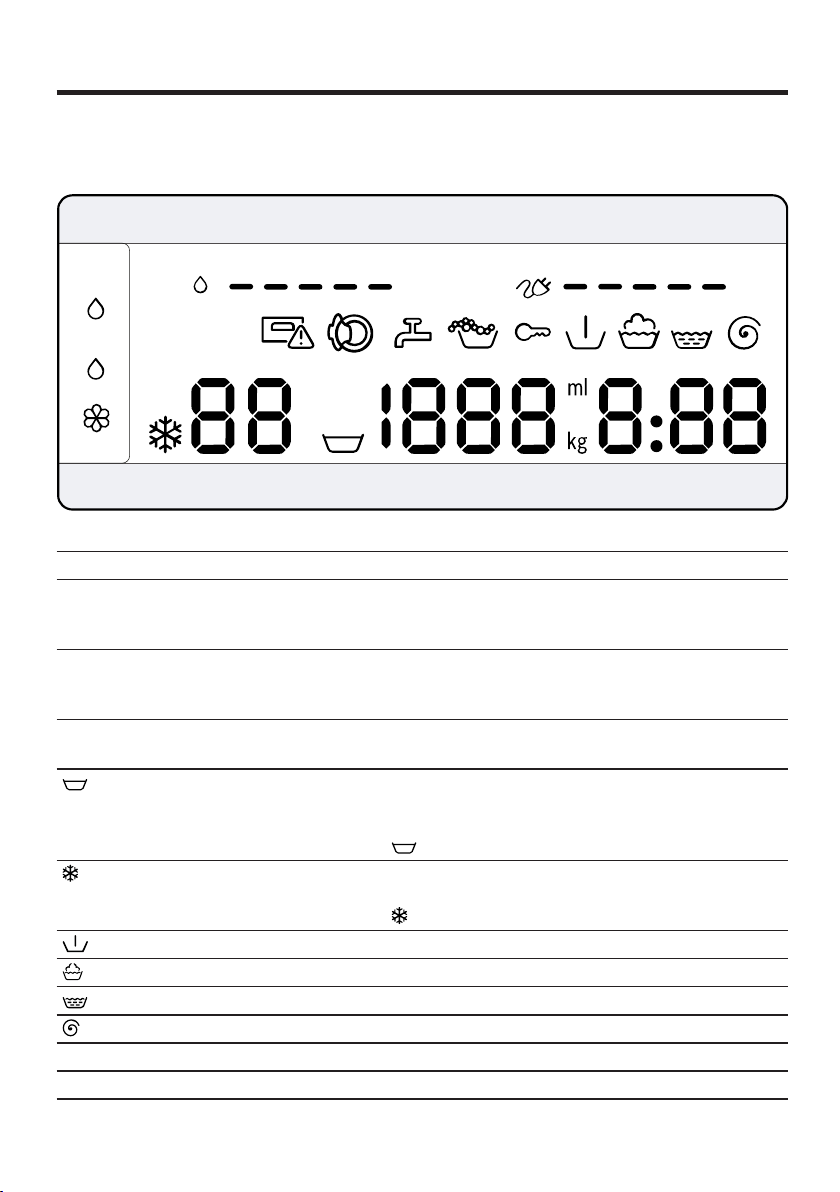

Display
Display
Display
The display shows the current settings, options or relevant information.
Display Designation Description
0:40
1
Programme duration/
programme time re-
maining
Approximate expected programme duration or pro-
gramme time remaining.
10h
1
"Ready in" time The programme end has been set and the remaining
number of hours is displayed.
→"Buttons", Page24
9 kg
1
Recommended load The maximum load capacity for the selected pro-
gramme in kg.
- 1400 Spin speed Set spin speed in rpm.
→"Buttons", Page24
0= No final spin, only draining
: Rinse Hold, no draining
– 90 Temperature Set temperature in °C.
→"Buttons", Page24
(cold)
Prewash Programme status
Wash Programme status
Rinse Programme status
Spin Programme status
-P- Pause Programme status
1
Example
en Display
22
Display Designation Description
-0- End of programme Programme status
Childproof lock ¡ Lights up: The childproof lock is activated.
¡ Flashes: The childproof lock is active and the pro-
gramme selector has been adjusted.
→"Deactivating the childproof lock", Page41
Energy consumption Energy consumption for the selected programme.
¡ : Low energy consumption
¡
: High energy consumption
Water consumption Water consumption for the selected programme.
¡ : Low water consumption
¡
: High water consumption
Dispenser for liquid de-
tergent
¡ Lights up: The intelligent dosing system for liquid
detergent is activated.
¡ Flashes: The fill level of the dispenser is below the
minimum level.
→"Intelligent dosing system", Page41
(liquid detergent)
Dispenser for liquid de-
tergent or fabric
softener.
¡ Lights up: The intelligent dosing system for liquid
detergent or fabric softener is activated.
¡ Flashes: The fill level of the dispenser is below the
minimum level.
→"Intelligent dosing system", Page41
(liquid detergent)
(fabric softener)
50 ml
1
Basic dosage Basic dosage for detergent or fabric softener.
→"Basic dosage", Page42
Voltage control system Flashes: The automatic voltage control system detects
impermissible voltage drops. This will pause the pro-
gramme.
→"Error code / Fault display / Signal", Page51
Note:The programme will continue when the voltage
is permissible again.
Voltage control system Flashes: The programme has been paused because of
impermissible voltage drops. The voltage is permiss-
ible again and the programme will continue.
→"Error code / Fault display / Signal", Page51
Note:The programme duration is extended.
Foam detection system The appliance has detected too much foam.
→"Error code / Fault display / Signal", Page51
Door The door is unlocked and can be opened.
1
Example
Display en
23
Display Designation Description
Tap ¡ No water pressure.
→"Error code / Fault display / Signal", Page51
¡ The water pressure is too low.
Detergent drawer The detergent drawer has not been pushed in fully.
→"Error code / Fault display / Signal", Page51
E:60 / -2B
1
Error Error code, error display, signal.
→"Error code / Fault display / Signal", Page51
1
Example
en Buttons
24
Buttons
Buttons
Buttons
Below is an overview of the buttons and their setting options.
The selection of programme settings depends on the selected programme. You
can see the selection options for each programme in the overview for
→"Programmes", Page26.
Button Selection Description
Start/Reload ¡ Start
¡ Cancel
¡ Pause
Start, cancel or pause the programme.
SpeedPerfect ¡ Activate
¡ Deactivate
Activate or deactivate a short washing pro-
gramme.
Note:Energy consumption increases.
The washing result is not affected by this.
Intensive Plus ¡ Activate
¡ Deactivate
Activate or deactivate an extended washing pro-
gramme.
The programme duration is extended by up to 30
minutes.
Suitable for heavily soiled laundry.
i-DOS ¡ Activate
¡ Deactivate
¡ Basic dosage
Briefly press the button to activate or deactivate
the intelligent dosing system for liquid detergent
.
Press the button for approx. 3 seconds to set the
basic dosage.
→"Intelligent dosing system", Page41
i-DOS ¡ Activate
¡ Deactivate
¡ Dispenser contents
¡ Basic dosage
Briefly press the button to activate or deactivate
the intelligent dosing system for fabric softener
or liquid detergent .
Press the button for approx. 3 seconds to specify
the contents of the dispenser or set the basic
dosage.
→"Intelligent dosing system", Page41
- Ready In + 1–24 hours Set the programme end.
The programme duration is already included in
the set number of hours.
Once the programme has started, the pro-
gramme duration is displayed.
Temperature – 90 °C Adjust the temperature in °C.
Reduce Spin - 1400 Adjust the spin speed or activate (Rinse
Hold).
If is selected, the water is not drained at the
end of the washing cycle and the spin cycle is de-
activated. The laundry remains in the water used
for rinsing.
Buttons en
25
Button Selection Description
(mains switch) ¡ Switch on
¡ Switch off
Switch the appliance on or off.
Child Lock 3 sec. ¡ Activate
¡ Deactivate
Activate or deactivate the childproof lock.
Disable the control panel to prevent unwanted or
accidental operation.
If the childproof lock is activated and the appli-
ance has been switched off, the childproof lock
remains activated.
→"Childproof lock", Page41
Reduce Spin Basic settings Change the basic settings for the appliance.
→"Changing the basic settings", Page44
Prewash ¡ Activate
¡ Deactivate
Activate or deactivate prewash, e.g. for washing
heavily soiled laundry.
Note:If the intelligent dosing system is activated,
the detergent will be dispensed automatically for
the prewash and the main wash.
If the intelligent dosing system is deactivated,
place the detergent for the prewash directly in
the drum.
Extra Rinse ¡ Activate
¡ Deactivate
Activate or deactivate an additional rinse cycle.
Recommended for particularly sensitive skin or
in regions with very soft water.
Easy Iron ¡ Activate
¡ Deactivate
Activate or deactivate the reduced creasing pro-
gramme.
In order to reduce creasing in the laundry, the
spin cycle and the spin speed are adapted.
The laundry is damp enough after washing that it
needs to be hung out on a washing line.
en Programmes
26
Programmes
Programmes
Programmes
Below is an overview of the programmes. You can find information on the load and on the adjustable pro-
gramme options.
Tip:The laundry's care labels provide you with additional information on programme selection.
→"Care symbols on the care labels", Page35
Programme Description
Max. load (kg)
Programme settings
Max. temperature (°C)
1
Max. spin speed (rpm)
1
SpeedPerfect
Extra Rinse
Reduce Spin
(Rinse Hold)
Prewash
Easy Iron
i-DOS
i-DOS
Intensive Plus
Cottons Wash hard-wearing items made from
cotton, linen or blended fabrics.
Also suitable as a short programme
for normally soiled laundry when you
activate SpeedPerfect . If Speed-
Perfect is activated, the max-
imum load capacity is reduced to
5kg.
9 90 1400
Cottons
Eco
Wash hard-wearing items made from
cotton, linen or blended fabrics.
Energy-saving programme.
9 90 1400
–
–
1
Programme setting
Programmes en
27
Programme Description
Max. load (kg)
Programme settings
Max. temperature (°C)
1
Max. spin speed (rpm)
1
SpeedPerfect
Extra Rinse
Reduce Spin
(Rinse Hold)
Prewash
Easy Iron
i-DOS
i-DOS
Intensive Plus
Note:To save energy, the actual
washing temperature may deviate
from the set washing temperature.
The washing performance meets
legal requirements.
Easy Care Wash items made from synthetic or
blended fabrics.
4 60 1200
Delicates/Silk Wash delicate, washable items made
from silk, viscose and synthetics.
Use a detergent that is suitable for
delicates or silk.
Note:Wash especially delicate items
or items with hooks, eyelets or clips
in a mesh laundry bag.
2 40 800
– –
Wool Hand- or machine-washable items
that are made from wool or contain
wool.
To prevent the laundry from shrink-
ing, the drum moves the items very
gently with long pauses.
2 40 800
– – – – – –
1
Programme setting
en Programmes
28
Programme Description
Max. load (kg)
Programme settings
Max. temperature (°C)
1
Max. spin speed (rpm)
1
SpeedPerfect
Extra Rinse
Reduce Spin
(Rinse Hold)
Prewash
Easy Iron
i-DOS
i-DOS
Intensive Plus
Use a detergent that is suitable for
wool.
Rinse Rinses and then spins the laundry,
and then drains the water.
– – 1400
– – – –
Spin/Drain Spins and drains the water.
If you only want to drain the water, ac-
tivate 0. The laundry is not spun.
– – 1400
– – – – – –
Automatic
30°C
Wash delicate items made from cot-
ton, synthetic or blended fabrics.
Gentle laundry care.
The degree of soiling and the type of
fabric are automatically detected. The
washing process is adapted.
3,5 30 1000
– –
– –
–
Duvet Wash pillows or quilts stuffed with
synthetic fibres or down fillings.
Wash large items separately.
Use a detergent that is suitable for
down or delicates.
Use sparingly.
Do not use fabric softener.
2,5 60 1200
– – – – –
1
Programme setting
Programmes en
29
Programme Description
Max. load (kg)
Programme settings
Max. temperature (°C)
1
Max. spin speed (rpm)
1
SpeedPerfect
Extra Rinse
Reduce Spin
(Rinse Hold)
Prewash
Easy Iron
i-DOS
i-DOS
Intensive Plus
Note:To prevent excessive foaming,
remove air from laundry items by
rolling them up before you wash
them.
Drum Clean Cleaning and caring for the drum.
Use this programme in the following
cases:
¡ Before using the appliance for the
first time
¡ If you regularly wash at temperat-
ures of 40°C or lower
¡ After a prolonged period of non-
use
Use washing powder or a detergent
containing bleach.
Halve the amount of detergent to
avoid foaming.
Do not use fabric softener.
Do not use liquid detergent or deter-
gent that is intended for woollens or
delicates.
– – 1200
– – – – – – – –
1
Programme setting
en Programmes
30
Programme Description
Max. load (kg)
Programme settings
Max. temperature (°C)
1
Max. spin speed (rpm)
1
SpeedPerfect
Extra Rinse
Reduce Spin
(Rinse Hold)
Prewash
Easy Iron
i-DOS
i-DOS
Intensive Plus
Note:The drum cleaning indicator
will flash to remind you if you have
not used a programme at 60 °C or
higher for a long time.
Quick/Mix 59' Wash items made from cotton, linen,
or synthetic or blended fabrics.
Suitable for lightly and normally
soiled laundry.
Optimum washing results in under an
hour.
5 40 1400
– –
AllergyPlus Wash hard-wearing items made from
cotton, linen or blended fabrics.
Suitable for allergy sufferers and for
strict hygiene requirements.
Note:Once the set temperature has
been reached, it remains constant
throughout the washing process.
6,5 60 1400
1
Programme setting
Programmes en
31
Programme Description
Max. load (kg)
Programme settings
Max. temperature (°C)
1
Max. spin speed (rpm)
1
SpeedPerfect
Extra Rinse
Reduce Spin
(Rinse Hold)
Prewash
Easy Iron
i-DOS
i-DOS
Intensive Plus
Shirts Wash non-iron shirts and blouses
made from cotton, linen, synthetic
fibres or blended fabrics.
Tip:In order to avoid creasing in your
laundry, you can activate Easy
Iron . The laundry is only given a
short spin and can be removed while
still dripping wet. Hang out shirts and
blouses while they are still dripping
wet so that they drip dry.
Use the Delicates/Silk
programme
to wash shirts and blouses made
from silk or delicate fabrics.
2 60 800
–
/ Super
15'/30'
Wash items made from cotton, syn-
thetic or blended fabrics.
Short programme for small items of
lightly soiled laundry.
The programme duration is approx.
30 minutes.
4 40 1200
– –
–
1
Programme setting
en Programmes
32
Programme Description
Max. load (kg)
Programme settings
Max. temperature (°C)
1
Max. spin speed (rpm)
1
SpeedPerfect
Extra Rinse
Reduce Spin
(Rinse Hold)
Prewash
Easy Iron
i-DOS
i-DOS
Intensive Plus
If you wish to reduce the programme
duration to 15 minutes, activate
SpeedPerfect . The maximum
load is reduced to 2kg.
1
Programme setting
Accessories en
33
Accessories
Accessories
Accessories
Use original accessories. These have been made especially for your appliance.
Use Order number
Water inlet hose extension Extend the water inlet hose for
cold water or AquaStop (approx.
2.50 m).
WMZ2381
Fixing brackets Improves the stability of the ap-
pliance.
WMZ2200
Before using for the first time
Before using for the
first time
Before using for the first time
Prepare the appliance for use.
Starting an empty washing
cycle
Your appliance was inspected thor-
oughly before leaving the factory. To
remove any residual water, run the
first wash cycle without any laundry.
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
1. Press
.
It may take a few seconds for the
appliance to switch on.
2. Set the
Drum Clean pro-
gramme.
3. Close the door.
4. Pull out the detergent drawer.
5. Pour approx. 1 litre of water into
the manual dosing compartment.
en Laundry
34
6. Add washing powder to the
manual dosing compartment.
To prevent foaming, use only half
of the amount of detergent recom-
mended by the detergent manufac-
turer for light soiling. Do not use
detergent suitable for woollens or
delicates.
7. Push in the detergent drawer.
8. Press Start/Reload to start the
programme.
a The display shows the remaining
programme duration.
a After the programme has ended,
the display shows: -0-.
9. Start the first wash cycle or press
to switch off the appliance.
→"Basic operation", Page38
Laundry
Laundry
Laundry
You can wash all items that the man-
ufacturer has marked as machine-
washable on the care label and fab-
rics made from hand-washable wool
using your appliance.
Preparing the laundry
ATTENTION!
Objects remaining in the laundry may
damage the laundry and the drum.
▶
Remove all items from any pock-
ets in your laundry before using
the appliance.
▶
To protect your appliance and the
laundry, prepare the laundry be-
forehand.
– Empty all pockets
– Brush sand out of all collars and
pockets
– Close bed covers and cushion
covers
– Close all zips, Velcro fasteners,
hooks and eyes
– Tie cloth belts and apron strings
together or use a mesh laundry
bag
– Remove curtain hooks and lead
strips or use a mesh laundry
bag
– Use a mesh laundry bag for
small items of laundry such as
children's socks
– Separate items of laundry and
shake them out
– Wash large and small items of
laundry together
– Dab fresh stains with soapy wa-
ter (do not rub them)
– Some stubborn or dried-in stains
can be removed by washing
several times
Laundry en
35
Sorting laundry
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
▶
To improve washing results and
prevent discolouration, sort the
laundry according to the following
criteria before washing.
– Type of fabric and fibre type
– Whites
– Colours
Wash new coloured items
separately the first time you
wash them.
– "Soiling" →Page35
– "Care symbols on the care la-
bels" →Page35
Degrees of soiling
Degree of soiling Soiling Examples
Light ¡ No dirt or stains are visible
¡ Laundry has absorbed odours
Light summer clothing or sports
clothing that has been worn for a
just a few hours
Normal Dirt or light stains are visible ¡ T-shirts, shirts or blouses are
sweat-soaked or have been
worn a few times
¡ Towels or bedding that has
been used for up to one week
Heavy Dirt or stains are clearly visible Tea towels, baby items or work
clothing
Care symbols on the care labels
The symbols indicate the recommended programme and the numbers in the
symbols indicate the maximum recommended washing temperature.
Symbol Washing process Recommended programme
Normal Cottons
Gentle Easy Care
Particularly gentle Delicates/Silk for washing by
hand
Hand wash Wool
Not suitable for machine-washing –
Tip:You can find more information
about care symbols at www.gine-
tex.ch.
en Detergents and care products
36
Detergents and care products
Detergents and care
products
Detergents and care products
You can protect your appliance and
your laundry by selecting and using
the correct detergents and care
products. You can use all detergents
and care products which are suitable
for domestic washing machines.
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
The manufacturer's instructions for
use and dosage can be found on the
packaging.
Notes
¡ Only use liquid detergents that are
self-flowing
¡ Do not mix different liquid deter-
gents
¡ Do not mix detergent and fabric
softener
¡ Do not use products which have
developed a top layer or are highly
congealed
¡ Do not use products containing
solvents, caustic agents or volatile
substances (e.g. bleach)
¡ Use dyes sparingly as salt may
damage stainless steel
¡ Do not use bleaching agents in the
appliance
Detergent recommendation
This information helps you to choose the right detergent for your fabrics.
Detergent Fabrics Programme Temperature
Standard detergent with op-
tical brighteners
Heat-resistant white fabrics
made from cotton or linen
Cottons From cold up to 90°C
Detergent for colours
without bleach or optical
brighteners
Coloured fabrics made from
linen or cotton
Cottons From cold up to 60°C
Detergent for colours/delic-
ates without optical bright-
eners
Coloured fabrics made from
easy-care fibres or synthetic
materials
Easy Care From cold up to 60°C
Detergent for delicates Delicate fabrics made from
silk or viscose
Delicates/Silk From cold up to 40°C
Detergent for woollens Wool Wool From cold up to 40°C
Tip:Visit www.cleanright.eu to find
further information on detergents,
care products and cleaning agents
for domestic use.
Detergents and care products en
37
Detergent dosage
Use the correct detergent dosage to
achieve optimal washing results and
save resources.
The detergent dosage depends on:
¡ The amount of laundry
¡ Degree of soiling
¡ Water hardness
You can find out how hard your
water is from your local water com-
pany or measure it yourself using
a water hardness tester.
Water hardness
Hardness range Total hardness in mmol/l German degrees in °dH
soft (I) 0–1.5 0–8.4
medium (II) 1.5– 2.5 8.4–14
hard (III) over 2.5 over 14
Example of a manufacturer's
instructions for detergent
These example values refer to a
standard load of 4–5 kg.
Soiling Light Normal Heavy
Water hardness: Soft/medium 40ml 55ml 80ml
Water hardness: Hard/very hard 55ml 80ml 105ml
The dosages can be found on the
manufacturer's packaging.
¡ If you are not using manual
dosage, adjust the dosage to the
actual load.
¡ If intelligent dosing is activated, do
not adjust the dosage to the actual
load capacity. The quantity of de-
tergent and fabric softener is auto-
matically calculated via the "basic
dosage" →Page42 and the
amount of laundry detected. The
basic dosage setting must always
comply with the dosage for a load
of 4.5 kg.
en Basic operation
38
Basic operation
Basic operation
Basic operation
You can find out everything you need
to know about operating your appli-
ance here.

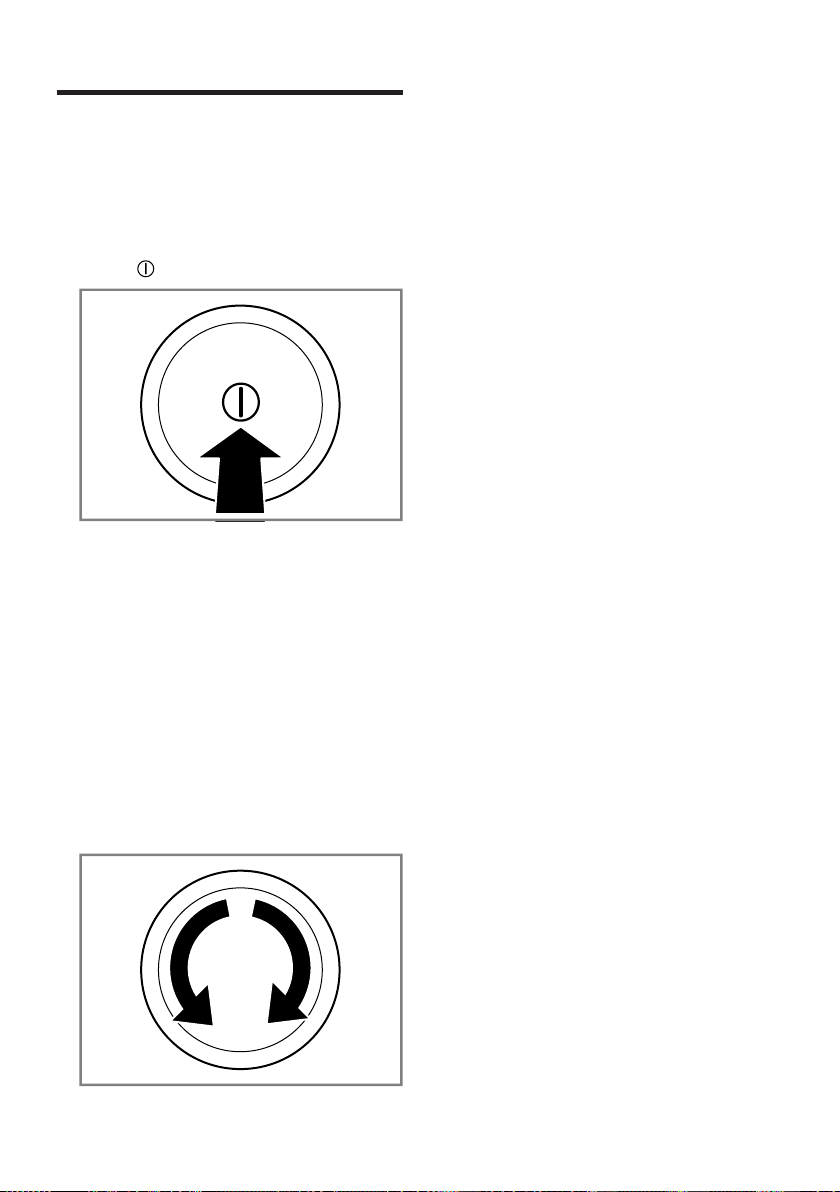

Switching on the appliance
▶
Press
.
It may take a few seconds for the
appliance to switch on.
a The appliance performs an audible
function test in the detergent
drawer.
→"Noise", Page58
Note:The drum is lit up after the
door is opened and closed and once
the programme has started. The light
goes out automatically.
Setting a programme
1. Set the programme selector to the
required "programme" →Page26.
2. If necessary, "adjust the pro-
gramme settings" →Page38.
Adjusting the programme set-
tings
Depending on the programme and
programme progress, you can adjust
or activate/deactivate the settings.
Note:Overview of all programme set-
tings:
→"Buttons", Page24
Requirement:A programme has
been set.
▶
Adjust the programme settings.
The programme settings are not
saved permanently for the pro-
gramme.
Note:The setting is saved if you ac-
tivate or deactivate the intelligent
dosing system.
Loading laundry
Notes
¡ Please read the information in the
"Safety" →Page4 and "Preventing
material damage" →Page11 sec-
tions to ensure that you use the
appliance safely.
¡ To prevent creasing, take note of
the maximum load for the relevant
"programme" →Page26.
Requirement:Prepare and sort the
laundry.
→"Laundry", Page34
Basic operation en
39
1. Open the door.
2. Ensure that the drum is empty.
3. Separate the laundry and place it
in the drum.
4. Note:Ensure that there is no laun-
dry trapped in the door.
Close the door.
Adding detergent and care
product
For programmes in which intelligent
dosing is not possible or desirable,
you can add detergent to the manual
dosing compartment.
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
Tip:In addition to intelligent dosing,
you can also add additional care
product for laundry, e.g. stain re-
mover, starch or bleach, to the
manual dosing compartment. Do not
add any additional detergent to the
manual dosing compartment to avoid
overdosage and/or foaming.
Requirement:Find out the optimum
dosage for "detergent and care
product." →Page36
1. Pull out the detergent drawer.
2. Pour in detergent.
→"Detergent drawer", Page20
3. If required, add the care product.
4. Push in the detergent drawer.
Starting the programme
Note:If you want to change the time
until the programme ends, set the
"Ready in" time first.
▶
Press Start/Reload
.
a The drum rotates and load detec-
tion takes place. This can take up
to 2 minutes, after which water
enters the drum.
a The display shows either the pro-
gramme duration or the "Ready in"
time.
a After the programme has ended,
the display shows: -0-.
Soaking laundry
You can soak the laundry before
washing in the appliance by pausing
the programme.
Note:No additional detergent is re-
quired. The washing solution is then
used for washing.
1. Start the programme.
2. To pause the programme, after ap-
prox. 10 minutes, press Start/Re-
load
.
3. To resume the programme, after
the desired soaking time, press
Start/Reload
.
Adding laundry
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
1. Press Start/Reload
.
The appliance is paused and
checks whether it is possible to
add or remove laundry. Take note
of the programme status.
en Basic operation
40
2. Add or remove laundry.
3. Close the door.
4. Press Start/Reload
.
Cancelling the programme
Once the programme has started,
you can cancel it at any time.
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
1. Press Start/Reload
.
2. Open the door.
The appliance door remains
locked for safety reasons if the
temperature and water levels are
high.
– If the temperature is high, start
the Rinse programme.
– If the water level is high: Start
the Spin or Drain pro-
gramme.

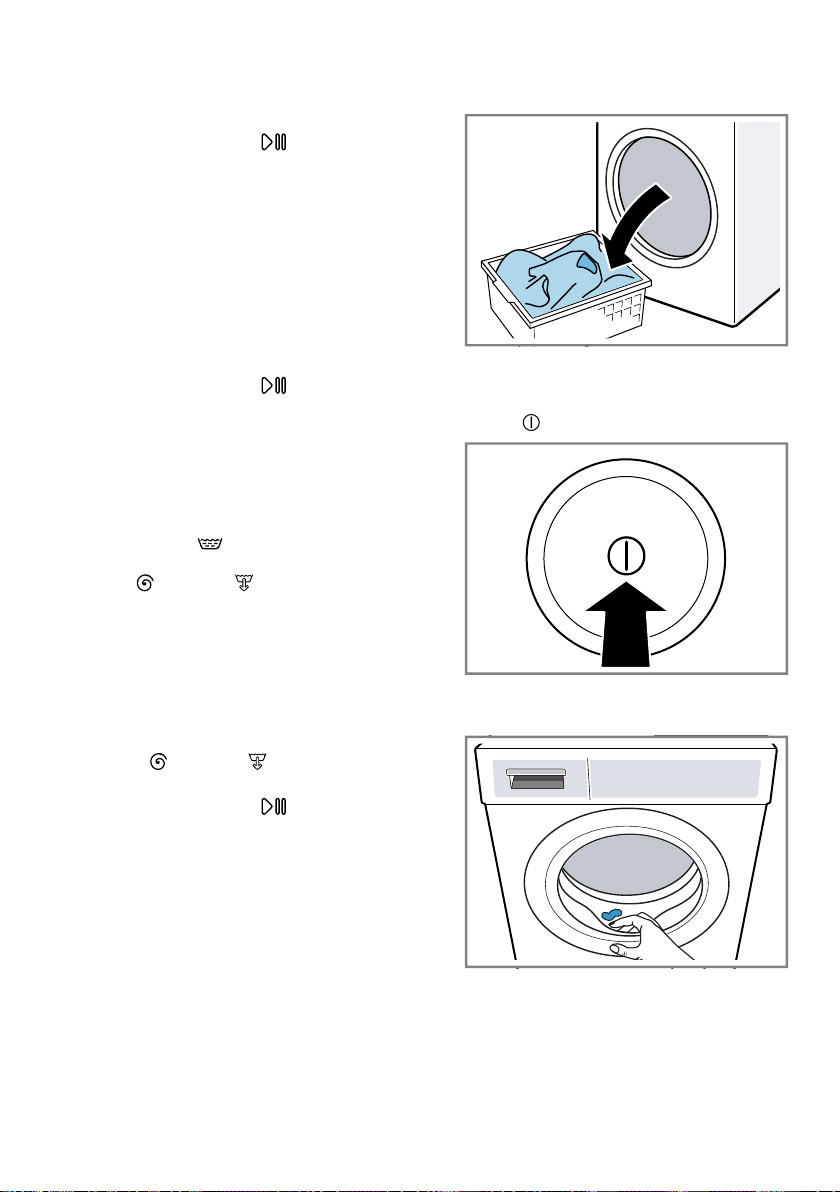

3. Remove the laundry.
Resuming the programme
when the programme status
is Rinse Hold
1. Set the
Spin or Drain pro-
gramme.
2. Press Start/Reload
.
Unloading the laundry
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
1. Open the door.
2. Remove the laundry.
Switching off the appliance
1. Press .
2. Wipe the rubber gasket dry and re-
move any foreign objects.
3. Leave the door and detergent
drawer open so that residual water
can evaporate.
Childproof lock en
41
Childproof lock
Childproof lock
Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
Activating the childproof lock
▶
Press and hold the two Child
Lock
3 sec. buttons for approx.
3seconds.
a The display shows .
a The controls are locked.
a The childproof lock remains active
even after the appliance has been
switched off.
Deactivating the childproof
lock
Requirement:To deactivate the
childproof lock, the appliance must
be switched on.
▶
Press and hold the two Child
Lock
3 sec. buttons for approx.
3seconds.
So that the programme currently
running is not cancelled, the pro-
gramme selector must be set to
the initial programme.
a
goes out in the display.
Intelligent dosing system
Intelligent dosing system
Intelligent dosing system
Your appliance has an intelligent dos-
ing system for liquid detergent and
fabric softener.
The optimum quantities of liquid de-
tergent and fabric softener are dis-
pensed automatically depending on
the programme and settings. The in-
telligent dosing system has been ac-
tivated at the factory for all the desig-
nated "programmes" →Page26 and
can be deactivated for each one indi-
vidually. In all other programmes, you
can manually add detergent.
→"Adding detergent and care
product", Page39
Filling the dispenser
Note
In order to use intelligent dosing, fill the
dispenser.
¡ Fill the dispenser only with suitable
"detergent and care products"
→Page36.
¡ If you change the liquid detergent
or fabric softener, empty and clean
the dispenser beforehand.
→"Cleaning the detergent drawer",
Page44
¡ If you want to use both dispensers
for liquid detergent, adjust the
"contents of the dispenser"
→Page42.
Requirement:
/ flashes.
1. Pull out the detergent drawer.
2. Open the dispenser lid.
en Intelligent dosing system
42

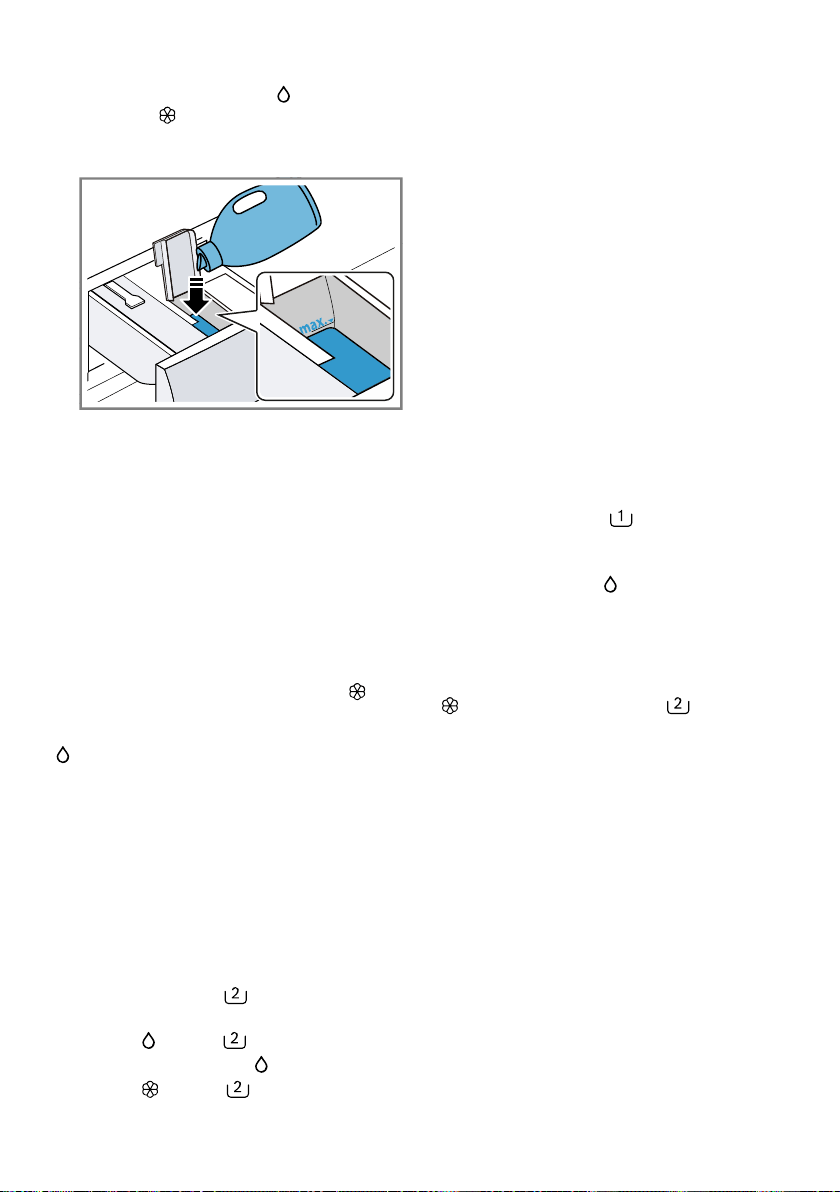

3. Pour liquid detergent and fabric
softener into the relevant dis-
pensers.
→"Detergent drawer", Page20
4. Close the dispenser lid.
Note:To prevent the detergent
from drying out or drying up, do
not leave the dispenser lid open
for a long period of time.
5. Push in the detergent drawer.
6. Adjust the "basic dosage"
→Page42.
Dispenser contents
When it leaves the factory, the dis-
penser is set for fabric softener
. Al-
ternatively, you can also use this dis-
penser for a second liquid detergent
.
Notes
¡ If you change the content of the
dispenser, the basic dosage for
this dispenser is reset.
¡ If you use both dispensers for li-
quid detergent, you must select a
dispenser which is to be used dur-
ing washing.
Adjusting the dispenser contents
1. Press and hold
i-DOS for ap-
prox. 3 seconds.
2. To set , press i-DOS.
a The display shows .
3. To set , press i-DOS again.
4. To end the setting process, wait
briefly.
Basic dosage
You can adjust the preset basic
dosages for liquid detergent and fab-
ric softener.
The basic dosage depends on the
manufacturer's instructions for the de-
tergent, the water hardness and the
degree of soiling of the laundry.
Always set a basic dosage that cor-
responds to the dosage for a stand-
ard load of 4.5 kg.
→"Detergent dosage", Page37
Adjusting the basic dosage
You can individually adjust the basic
dosages for each dispenser.
1. Press and hold
i-DOS for ap-
prox. 3 seconds.
a The display shows the basic
dosage set for
.
2. To adjust the setting, press - / +.
3. To end the setting process, wait
briefly.
Note:To adjust the basic dosage for
, repeat the steps with i-DOS.
Basic settings en
43
Basic settings
Basic settings
Basic settings
You can configure the appliance to meet your needs.
Overview of basic settings
Below is an overview of the basic settings on your appliance.
Basic setting Programme position Value Description
End signal 2 0 (off)
1 (quiet)
2 (medium)
3 (loud)
4 (very loud)
Set the volume of the
signal at the end of the
programme.
Button signal 3 0 (off)
1 (quiet)
2 (medium)
3 (loud)
4 (very loud)
The volume of the aud-
ible signal emitted
when the buttons are
pressed.
Drum cleaning re-
minder
4 ON
OFF
Activate or deactivate
the reminder to clean
the drum.
en Cleaning and servicing
44
Changing the basic settings
1. Set the programme selector to po-
sition 1.
2. Press Reduce Spin and, at the
same time, turn the programme
selector to position2.
a The display shows the current
value.
3. Set the programme selector to the
required position.
4. To change the value, press -/ +.
5. To save the changes, switch off
the appliance.
Cleaning and servicing
Cleaning and servicing
Cleaning and servicing
To keep your appliance working effi-
ciently for a long time, it is important
to clean and maintain it carefully.
Tips on appliance care
Follow the tips for appliance care to
ensure your appliance works cor-
rectly in the long term.
Wipe down the hous-
ing and the control
panel with nothing but
water and a damp
cloth.
The appliance parts
remain clean and hy-
gienic.
Remove all detergent
residue, spray residue
or other residues im-
mediately.
Fresh deposits are
easier to remove
without leaving any
residue.
Keep the appliance
door and detergent
drawer open after
use.
This allows the resid-
ual water to dry, redu-
cing odours in the ap-
pliance.
Cleaning the drum
If you often wash at a washing tem-
perature of 40°C and lower or the
appliance has not been used for a
long period, clean the drum.
CAUTION
Risk of injury!
Permanently washing at low temper-
atures and a lack of ventilation for
the appliance may damage the drum
and cause injury.
▶
Regularly run a programme for
cleaning the drum or wash at tem-
peratures of at least 60°C.
▶
Leave the appliance to dry after
every operation with the door
open, and leave the detergent
drawer to dry.
▶
Run the
Drum Clean pro-
gramme without laundry.
Add washing powder.
Cleaning the detergent drawer
If you change detergent or the deter-
gent drawer is dirty, clean the deter-
gent drawer and the pump unit of the
intelligent dosing system.
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
1. Switch off the appliance.
2. Pull out the detergent drawer.
Cleaning and servicing en
45

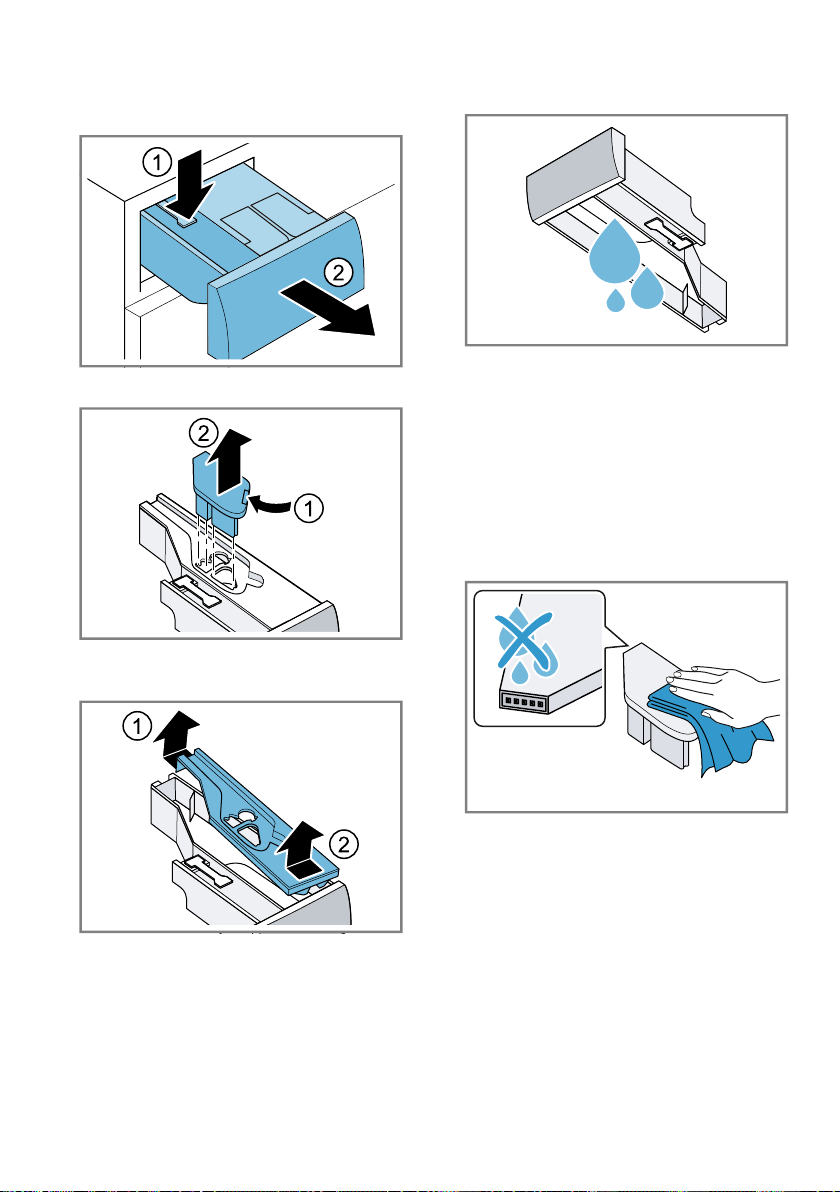

3. Press down on the insert and re-
move the detergent drawer.
4. Remove the pump unit.
5. Unclip the detergent drawer lid
and remove it.
6. Empty the detergent drawer.
7. ATTENTION! The pump unit con-
tains electrical components.
▶
Do not clean the pump unit in the
dishwasher and do not immerse it
in water.
▶
Protect the electrical connection
on the rear against water, deter-
gent and fabric softener residue.
Clean the pump unit with a damp
cloth.
en Cleaning and servicing
46

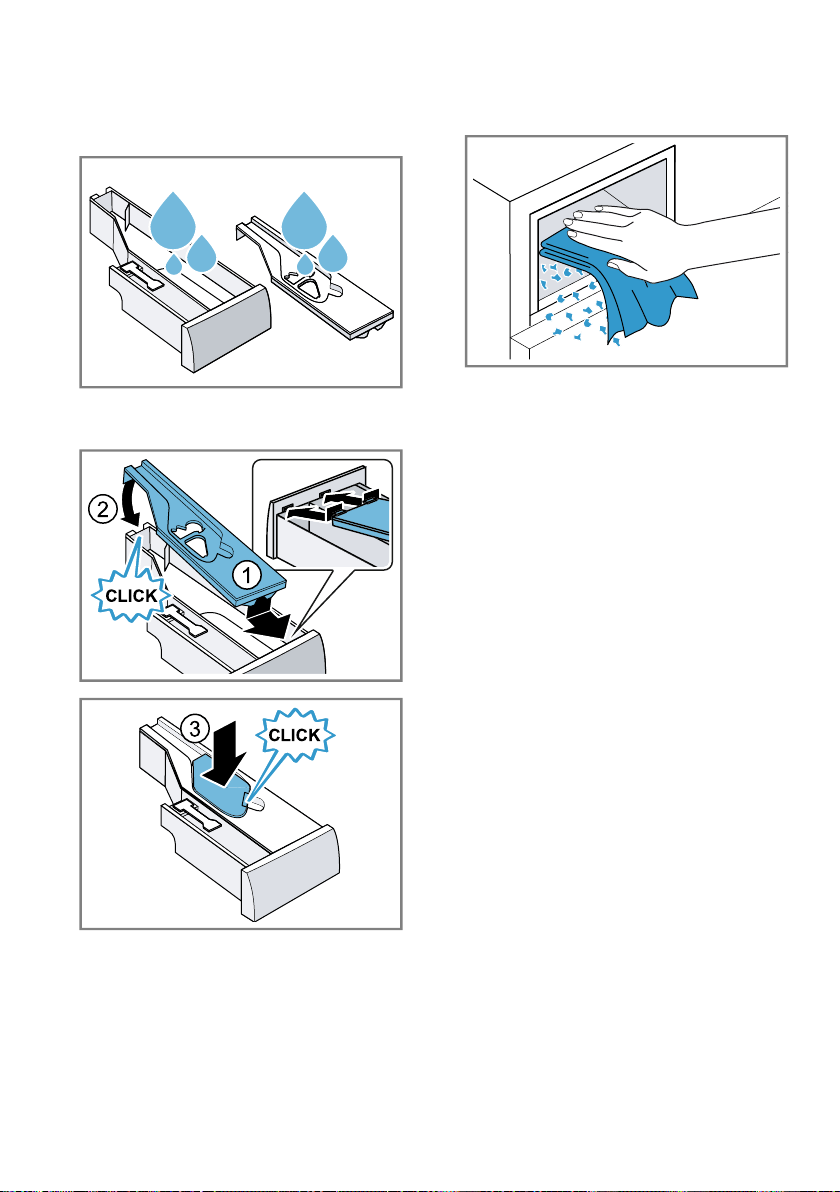

8. Clean the detergent drawer and
the lid with a soft, damp cloth or
hand shower.
9. Dry the detergent drawer, lid and
pump unit and reinsert them.
10.Clean the inside of the detergent
drawer housing.
11.Push in the detergent drawer.
Descaling
If you add detergent correctly, you do
not need to descale your appliance.
If you still wish to use descaler, follow
the manufacturer's instructions for
use.
ATTENTION!
The use of unsuitable descaling
agents, e.g. for coffee machines, may
damage the appliance.
▶
For this appliance, only use de-
scaling agents that are available
from the manufacturer's website or
our after-sales service.
Cleaning the drain pump
Clean the drain pump in the event of
faults, e.g. blockages or rattling
noises.
Emptying the drain pump
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
1. Turn off the water tap.
2. Switch off the device.
Cleaning and servicing en
47
3. Disconnect the appliance's mains
plug from the power supply.
4. Open the maintenance flap.
5. Remove the maintenance flap.
6. Slide a receptacle under the open-
ing.
7. Take the drain hose out of the
holder.
8.
CAUTION-Risk of scalding!
When you wash at high temperat-
ures, the detergent solution gets
hot.
▶
Do not touch the hot detergent
solution.
To allow the detergent solution to
flow out into the container, remove
the sealing cap.
9. Firmly press on the sealing cap.
en Cleaning and servicing
48

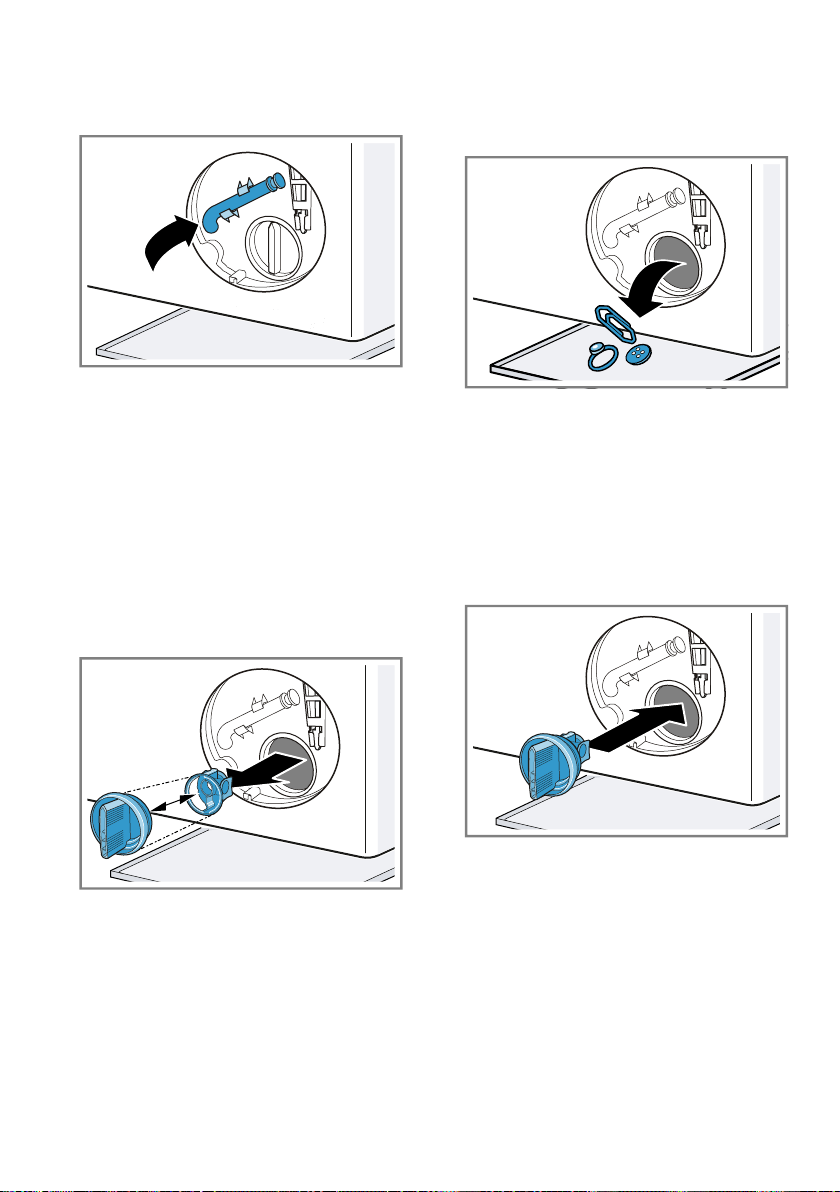

10.Insert the drain hose into the
holder.
Cleaning the drain pump
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
Requirement:"The drain pump is
empty." →Page46
1. Since water may remain in the
drain pump, remove the pump cap
carefully.
2. Clean the interior, the thread on
the pump cap and the pump hous-
ing.
The pump cap is comprised of two
parts which can be taken apart for
cleaning.
3. Make sure that the impeller in the
drain pump can be rotated.
4. Insert the pump cap.
‒ Ensure that the parts of the
pump cap are correctly as-
sembled.
Cleaning and servicing en
49

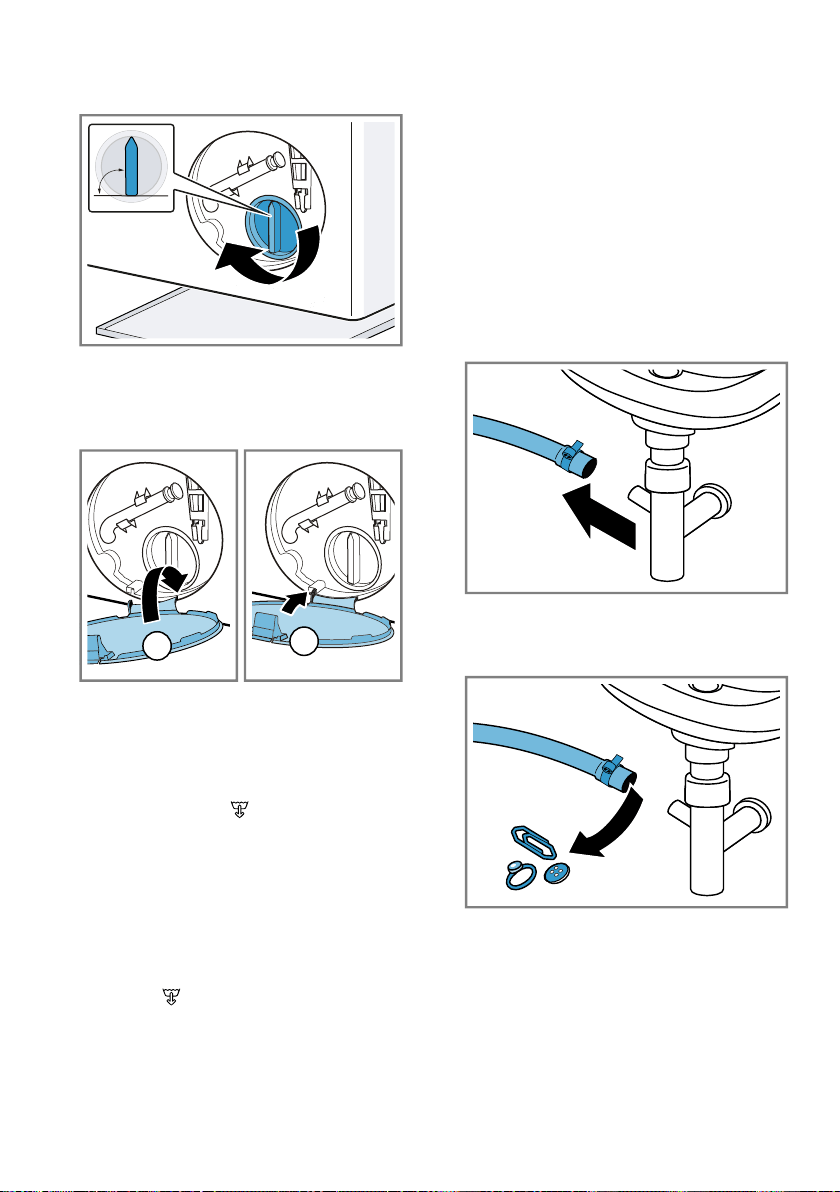

5. Screw on the pump cap.
90°
The handle on the pump cap must
be in a vertical position.
6. Insert the maintenance flap and
lock it into place.
1
2
7. Close the maintenance flap.
Before the next wash
To prevent unused detergent from
flowing straight into the outlet in the
next wash, run the
Drain pro-
gramme after you have emptied the
drain pump.
1. Turn on the tap.
2. Insert the mains plug.
3. Switch on the appliance.
4. Pour 1litre of water into the
manual dosing compartment.
5. Start the
Drain programme.
Cleaning the water outlet
hose at the siphon
If the water outlet hose at the siphon
is dirty or the detergent solution is
not being pumped out, you must
clean these.
1. Switch off the appliance.
2. Disconnect the appliance's mains
plug from the power supply.
3. Loosen the hose clamp and care-
fully remove the water outlet hose.
Residual water may leak out.
4. Clean the water outlet hose and si-
phon connecting piece.
en Cleaning and servicing
50
5. Reattach the water outlet hose and
secure the connection point using
the hose clamp.
Cleaning the water inlet filter
Clean the filter in the water inlet in
the event of blockages or if the water
pressure is too low.
Emptying the water inlet hose
In order to clean the filter, first empty
the water inlet hose.
1. Turn off the tap.
2. Set the Cottons
programme.
3. Start the programme and leave it
to run for approx. 70seconds.
4. Switch off the appliance.
5. Disconnect the appliance's mains
plug from the power supply.
Cleaning the filter on the tap
Note:Please read the information in
the "Safety" →Page4 and "Prevent-
ing material damage" →Page11 sec-
tions to ensure that you use the appli-
ance safely.
Requirement:The water inlet hose is
empty.
1. Remove the water inlet hose from
the tap.
2. Clean the filter with a small brush.
3. Connect the water inlet hose and
check for leaks.
Troubleshooting en
51
Troubleshooting
Troubleshooting
Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Incorrect repairs are dangerous.
▶
Repairs to the appliance should only be carried out by trained specialist
staff.
▶
Only use genuine spare parts when repairing the appliance.
▶
If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Error code / Fault display / Signal
Fault Cause Troubleshooting
The display goes out and
Start/Reload flashes.
Energy-saving mode is act-
ive
▶
Press any button.
a The symbol lights up again.
"E:30 / -80" Drain pipe or water outlet
hose is blocked.
▶
Clean the drain pipe and the water
outlet hose.
Drain pipe or water drain
hose is caught or jammed.
▶
Ensure that the drain pipe and wa-
ter drain hose are not kinked or
trapped.
Drain pump is blocked.
▶
→"Cleaning the drain pump",
Page46
The water outlet hose is con-
nected too high.
▶
Install the water outlet hose at a
maximum height of 1 metre.
→"Technical specifications",
Page66
Pump cover is not correctly
assembled.
▶
Correctly assemble the pump
cover.
Pump cover is not correctly
assembled.
▶
Correctly assemble the pump
cover.
Detergent dosage is too
high.
▶
Immediate measure: Mix one table-
spoon of fabric softener with 0.5
litres of water and pour the mixture
into the compartment for manual
dosing (not for outdoor clothing,
sportswear or items stuffed with
down).
en Troubleshooting
52
Fault Cause Troubleshooting
"E:30 / -80"
▶
If intelligent dosing is activated, re-
duce the "basic dosage"
→Page42.
▶
If you dose manually, reduce the
amount of detergent for the next
washing cycle with the same load.
Unapproved extension in-
stalled on the water drain
hose.
▶
Remove any unapproved exten-
sions from the water hose.
→"Connecting the appliance",
Page17
"E:36 / -25 / -26" Drain pump is blocked.
▶
→"Cleaning the drain pump",
Page46
"E:10 / -00 / -10 / -20" The pump for the intelligent
dosing system is blocked.
1. Switch off the appliance.
2. Clean the pump unit.
→"Cleaning the detergent drawer",
Page44
3. If this indicator appears again, call
our after-sales service.
→"Customer Service", Page64
Note:You can start the washing pro-
gramme if you deactivate the intelli-
gent dosing system and dose manu-
ally.
→"Buttons", Page24
The water pressure is low. No remedial action possible.
The filter in the water inflow
is blocked.
▶
"Clean the water inflow filter"
→Page50.
The tap is turned off.
▶
Turn on the tap.
The water inlet hose is
kinked or jammed.
▶
Ensure that the water inlet hose is
not kinked or jammed.
"E:35 / -10" There is water in the base
trough.
▶
Turn off the water tap.
▶
Call the after-sales service.
→"Customer Service", Page64
The appliance is leaking.
▶
Turn off the water tap.
▶
Call the after-sales service.
→"Customer Service", Page64
The detergent drawer has
not been pushed in as far as
it can go.
▶
Push the detergent drawer in as far
as it will go.
Troubleshooting en
53
Fault Cause Troubleshooting
The pump unit is not inser-
ted.
1. Insert the pump unit into the deter-
gent drawer.
→"Cleaning the detergent drawer",
Page44
2. Push the detergent drawer in as far
as it will go.
flashes. The automatic voltage con-
trol system detects an unau-
thorised voltage under-us-
age.
▶
No remedial action possible.
Note:If the power supply is stable, the
programme continues to run as nor-
mal.
flashes. Voltage under-usage causes
a programme extension.
No remedial action possible.
Detergent dosage is too
high.
▶
Immediate measure: Mix one table-
spoon of fabric softener with 0.5
litres of water and pour the mixture
into the compartment for manual
dosing (not for outdoor clothing,
sportswear or items stuffed with
down).
▶
If intelligent dosing is activated, re-
duce the "basic dosage"
→Page42.
▶
If you dose manually, reduce the
amount of detergent for the next
washing cycle with the same load.
All other error codes. Malfunction
▶
Call the after-sales service.
→"Customer Service", Page64
Malfunctions
Fault Cause Troubleshooting
The appliance is not work-
ing.
The mains plug of the power
cord is not plugged in.
▶
Connect the appliance to the power
supply.
The circuit breaker is faulty.
▶
Check the circuit breaker in the
fuse box.
There has been a power cut.
▶
Check whether the lighting in your
kitchen or other appliances are
working.
The programme does not
start.
You have not pressedStart/
Reload .
▶
Press Start/Reload
.
Door is not closed. 1. Close the door.
en Troubleshooting
54
Fault Cause Troubleshooting
The programme does not
start.
2. Press Start/Reload to start the
programme.
Childproof lock is activated.
▶
→"Deactivating the childproof
lock", Page41
- Ready In + is activated.
▶
Check whether - Ready In +
is
activated.
→"Buttons", Page24
Laundry is caught in the
door.
1. Open the door again.
2. Remove any trapped laundry.
3. Close the door.
4. Press Start/Reload to start the
programme.
The detergent drawer has
not been pushed in as far as
it can go.
▶
Push the detergent drawer in as far
as it will go.
The pump for the intelligent
dosing system is blocked.
1. Switch off the appliance.
2. Clean the pump unit.
→"Cleaning the detergent drawer",
Page44
3. If this indicator appears again, call
our after-sales service.
→"Customer Service", Page64
Note:You can start the washing pro-
gramme if you deactivate the intelli-
gent dosing system and dose manu-
ally.
→"Buttons", Page24
The door cannot beopened. is activated.
▶
Continue the programme by select-
ing
Spin or Drain and press-
ing Start/Reload .
→"Resuming the programme when
the programme status is Rinse
Hold", Page40
The temperature is too high.
▶
Wait until the temperature has
dropped.
▶
→"Cancelling the programme",
Page40
Water level is too high.
▶
Start the
Drainprogramme.
Power failure.
▶
Open the door using the emergency
release.
→"Emergency release", Page62
Troubleshooting en
55
Fault Cause Troubleshooting
The water is not draining. Drain pipe or water outlet
hose is blocked.
▶
Clean the drain pipe and the water
outlet hose.
Drain pipe or water drain
hose is caught or jammed.
▶
Ensure that the drain pipe and wa-
ter drain hose are not kinked or
trapped.
Drain pump is blocked.
▶
→"Cleaning the drain pump",
Page46
is activated.
▶
Continue the programme by select-
ing
Spin or Drain and press-
ing Start/Reload .
→"Resuming the programme when
the programme status is Rinse
Hold", Page40
The water outlet hose is con-
nected too high.
▶
Install the water outlet hose at a
maximum height of 1 metre.
→"Technical specifications",
Page66
Pump cover is not correctly
assembled.
▶
Correctly assemble the pump
cover.
Pump cover is not correctly
assembled.
▶
Correctly assemble the pump
cover.
Detergent dosage is too
high.
▶
Immediate measure: Mix one table-
spoon of fabric softener with 0.5
litres of water and pour the mixture
into the compartment for manual
dosing (not for outdoor clothing,
sportswear or items stuffed with
down).
▶
If intelligent dosing is activated, re-
duce the "basic dosage"
→Page42.
▶
If you dose manually, reduce the
amount of detergent for the next
washing cycle with the same load.
Unapproved extension in-
stalled on the water drain
hose.
▶
Remove any unapproved exten-
sions from the water hose.
→"Connecting the appliance",
Page17
Water is not flowing in. De-
tergent is not being dis-
pensed.
You have not pressedStart/
Reload .
▶
Press Start/Reload
.
en Troubleshooting
56
Fault Cause Troubleshooting
Water is not flowing in. De-
tergent is not being dis-
pensed.
The filter in the water inflow
is blocked.
▶
"Clean the water inflow filter"
→Page50.
The tap is turned off.
▶
Turn on the tap.
The water inlet hose is
kinked or jammed.
▶
Ensure that the water inlet hose is
not kinked or jammed.
The spin cycle runs several
times.
The unbalanced load detec-
tion system eliminates an im-
balance by repeatedly redis-
tributing the laundry.
▶
Not a fault – no action required.
Note:When loading, where possible,
place large and small items of laundry
together in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
The programme duration
changes during the wash
cycle.
The programme operation is
optimised electronically.
This may change the pro-
gramme duration.
▶
Not a fault – no action required.
The unbalanced load detec-
tion system eliminates an im-
balance by repeatedly redis-
tributing the laundry.
▶
Not a fault – no action required.
Note:When loading, where possible,
place large and small items of laundry
together in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
Foam detection system
switches on a rinse cycle if
foam build-up is too high.
▶
Not a fault – no action required.
No water is visible in the
drum.
Water is below the visible
area.
▶
Not a fault – no action required.
Drum jerks after the pro-
gramme starts.
This is caused by an internal
motor test.
▶
Not a fault – no action required.
Vibrations and movement of
the appliance whilst spin-
ning.
Appliance is not correctly
aligned.
▶
Aligning the appliance
The appliance feet are not
fixed.
▶
Secure the appliance feet. Aligning
the appliance
Transit bolts have not been
removed.
▶
Removing the transit bolts
Drum does not turn, water
does not flow in.
Load detection is active.
▶
Not a fault – no action required.
Note:The load detection can take up
to two minutes.
Troubleshooting en
57
Fault Cause Troubleshooting
Heavy foam build-up Detergent dosage is too
high.
▶
Immediate measure: Mix one table-
spoon of fabric softener with 0.5
litres of water and pour the mixture
into the compartment for manual
dosing (not for outdoor clothing,
sportswear or items stuffed with
down).
▶
If intelligent dosing is activated, re-
duce the "basic dosage"
→Page42.
▶
If you dose manually, reduce the
amount of detergent for the next
washing cycle with the same load.
i-DOS i-DOS cannot
be actuated.
Intelligent dosing is not in-
tended for this programme.
▶
Not a fault – no action required.
Programme progress does
not allow intelligent dosing.
No remedial action possible.
High spin speed not
reached.
A low spin speed is selected.
▶
The next time you run a wash cycle,
set a higher spin speed.
Easy Iron is activated.
▶
Select the programmes that are
suitable for the type of fabric.
→"Programmes", Page26
Unbalance load detection
system is using a reduced
spin speed to eliminate an
unbalance.
▶
Redistribute the laundry in the
drum.
Note:Where possible, mix large and
small items in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
▶
Start the
Spinprogramme.
The spin programme does
not start.
Drain pipe or water outlet
hose is blocked.
▶
Clean the drain pipe and the water
outlet hose.
Drain pipe or water drain
hose is caught or jammed.
▶
Ensure that the drain pipe and wa-
ter drain hose are not kinked or
trapped.
The unbalanced load detec-
tion system has interrupted
the spin cycle because the
laundry is unevenly distrib-
uted.
▶
Redistribute the laundry in the
drum.
Note:Where possible, mix large and
small items in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
en Troubleshooting
58
Fault Cause Troubleshooting
The spin programme does
not start.
▶
Start the
Spinprogramme.
Noise
Fault Cause Troubleshooting
Rushing, hissing noise. Water is flushed under pres-
sure into the detergent
drawer.
▶
Not a fault – normal operating
noise.
Longer, whirring noise be-
fore the start of the wash
cycle or fabric softening.
Intelligent dosing system dis-
penses detergent or care
products.
▶
Not a fault – normal operating
noise.
Brief whirring noise after
switching on the appliance.
Intelligent dosing system
carries out a function test.
▶
Not a fault – normal operating
noise.
Loud noises during the spin
cycle.
Appliance is not correctly
aligned.
▶
Aligning the appliance
The appliance feet are not
fixed.
▶
Secure the appliance feet. Aligning
the appliance
Transit bolts have not been
removed.
▶
Removing the transit bolts
Banging noises, rattling in
the drain pump.
Foreign bodies have got into
the drain pump.
▶
→"Cleaning the drain pump",
Page46
Slurping, rhythmical suction
noise.
The drain pump is active, the
detergent solution is
pumped out.
▶
Not a fault – normal operating
noise.
Problem with results
Fault Cause Troubleshooting
Creasing. The spin speed is too high.
▶
The next time you run a wash cycle,
set a lower spin speed.
The load is too large.
▶
The next time you run a wash cycle,
reduce the amount of laundry being
loaded.
The wrong programme is se-
lected for the type of fabric.
▶
Select the programmes that are
suitable for the type of fabric.
→"Programmes", Page26
The spin result is not satis-
factory. The laundry is too
wet/too damp.
A low spin speed is selected.
▶
The next time you run a wash cycle,
set a higher spin speed.
▶
Start the
Spinprogramme.
Troubleshooting en
59
Fault Cause Troubleshooting
The spin result is not satis-
factory. The laundry is too
wet/too damp.
Easy Iron is activated.
▶
Select the programmes that are
suitable for the type of fabric.
→"Programmes", Page26
Drain pipe or water outlet
hose is blocked.
▶
Clean the drain pipe and the water
outlet hose.
Drain pipe or water drain
hose is caught or jammed.
▶
Ensure that the drain pipe and wa-
ter drain hose are not kinked or
trapped.
The unbalanced load detec-
tion system has interrupted
the spin cycle because the
laundry is unevenly distrib-
uted.
▶
Redistribute the laundry in the
drum.
Note:Where possible, mix large and
small items in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
▶
Start the
Spinprogramme.
Unbalance load detection
system is using a reduced
spin speed to eliminate an
unbalance.
▶
Redistribute the laundry in the
drum.
Note:Where possible, mix large and
small items in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
▶
Start the
Spinprogramme.
Detergent residue on the
damp washing.
Detergents may contain wa-
ter-insoluble substances that
deposit on the laundry.
▶
Start the Rinse
programme.
Unsuitable detergent added
to the dispenser of the intelli-
gent dosing system.
1. Check whether the detergent used
is suitable.
→"Detergents and care products",
Page36
2. Drain the dispenser.
→"Cleaning the detergent drawer",
Page44
3. Clean the dispenser.
4. Refill the dispenser.
→"Filling the dispenser", Page41
Basic dosage is not correctly
adjusted.
▶
If intelligent dosing is activated, re-
duce the "basic dosage"
→Page42.
Detergent residue on the dry
laundry.
Detergents may contain wa-
ter-insoluble substances that
deposit on the laundry.
▶
Brush out the laundry after washing
and drying.
en Troubleshooting
60
Fault Cause Troubleshooting
Detergent residue on the dry
laundry.
Unsuitable detergent added
to the dispenser of the intelli-
gent dosing system.
1. Check whether the detergent used
is suitable.
→"Detergents and care products",
Page36
2. Drain the dispenser.
→"Cleaning the detergent drawer",
Page44
3. Clean the dispenser.
4. Refill the dispenser.
→"Filling the dispenser", Page41
Basic dosage is not correctly
adjusted.
▶
If intelligent dosing is activated, re-
duce the "basic dosage"
→Page42.
Insufficient cleaning. Basic dosage is not correctly
adjusted.
▶
If intelligent dosing is activated, ad-
just the "basic dosage" →Page42
correctly.
Detergent or care products
have congealed in dis-
pensers of the intelligent
dosing system.
1. Check whether the detergent used
is suitable.
→"Detergents and care products",
Page36
2. Drain the dispenser.
→"Cleaning the detergent drawer",
Page44
3. Clean the dispenser.
4. Refill the dispenser.
→"Filling the dispenser", Page41
Unsuitable detergent added
to the dispenser of the intelli-
gent dosing system.
1. Check whether the detergent used
is suitable.
→"Detergents and care products",
Page36
2. Drain the dispenser.
→"Cleaning the detergent drawer",
Page44
3. Clean the dispenser.
4. Refill the dispenser.
→"Filling the dispenser", Page41
Troubleshooting en
61
Leakage
Fault Cause Troubleshooting
Water is leaking out at the
water inlet hose.
Water inlet hose is not cor-
rectly/securely connected.
1. Connect the water supply hose cor-
rectly. Connecting the water inlet
hose
2. Tighten the screw connection.
Water is leaking out at the
water outlet hose.
The water outlet hose is
damaged.
▶
Replace the damaged water outlet
hose.
Water outlet hose is not con-
nected correctly.
▶
Connect the water outlet hose cor-
rectly. Water outlet connection
types
Odours
Fault Cause Troubleshooting
Odours have formed in the
appliance.
Humidity and detergent
residue may promote the
formation of bacteria.
▶
→"Cleaning the drum", Page44
▶
If you are not using the appliance,
leave the door and detergent
drawer open so that residual water
can evaporate.
en Transportation, storage and disposal
62

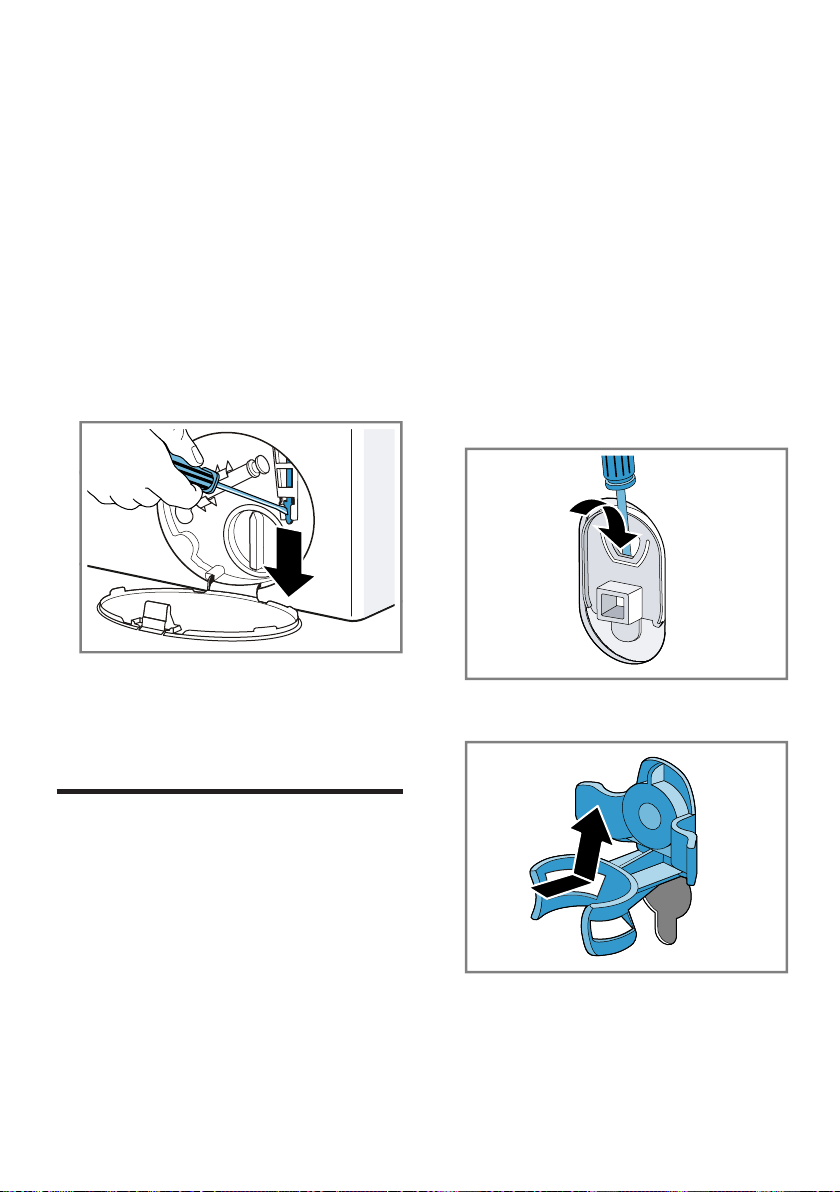

Emergency release
To remove the laundry in the event of
a power failure, for example, you can
manually release the door.
Releasing the door
Requirement:"The drain pump is
empty." →Page46
1. ATTENTION! Escaping water may
cause material damage.
▶
Do not open the door if you can
see water through the glass.
Pull the emergency release down-
wards with a tool and release.
a The door lock is released.
2. Insert the maintenance flap and
lock it into place.
3. Close the maintenance flap.
Transportation, storage and disposal
Transportation, storage
and disposal
Transportation, storage and disposal
You can find out here how to prepare
your appliance for transportation and
storage. You will also find out how to
dispose of old appliances.
Removing the appliance
1. Turn off the tap.
2.
→"Emptying the water inlet hose",
Page50.
3. Switch off the appliance.
4. Unplug the appliance's mains plug.
5. Drain the remaining detergent
solution.
→"Cleaning the drain pump",
Page46
6. Detach the hoses.
7. Empty the dispensers.
Inserting the transit bolts
Secure the appliance for transporta-
tion using transit bolts in order to pre-
vent damage.
1. Remove the four cover caps.
‒ If necessary, use a screwdriver
to remove the cover caps.
Keep the cover caps.
2. Insert the four sleeves.
Transportation, storage and disposal en
63

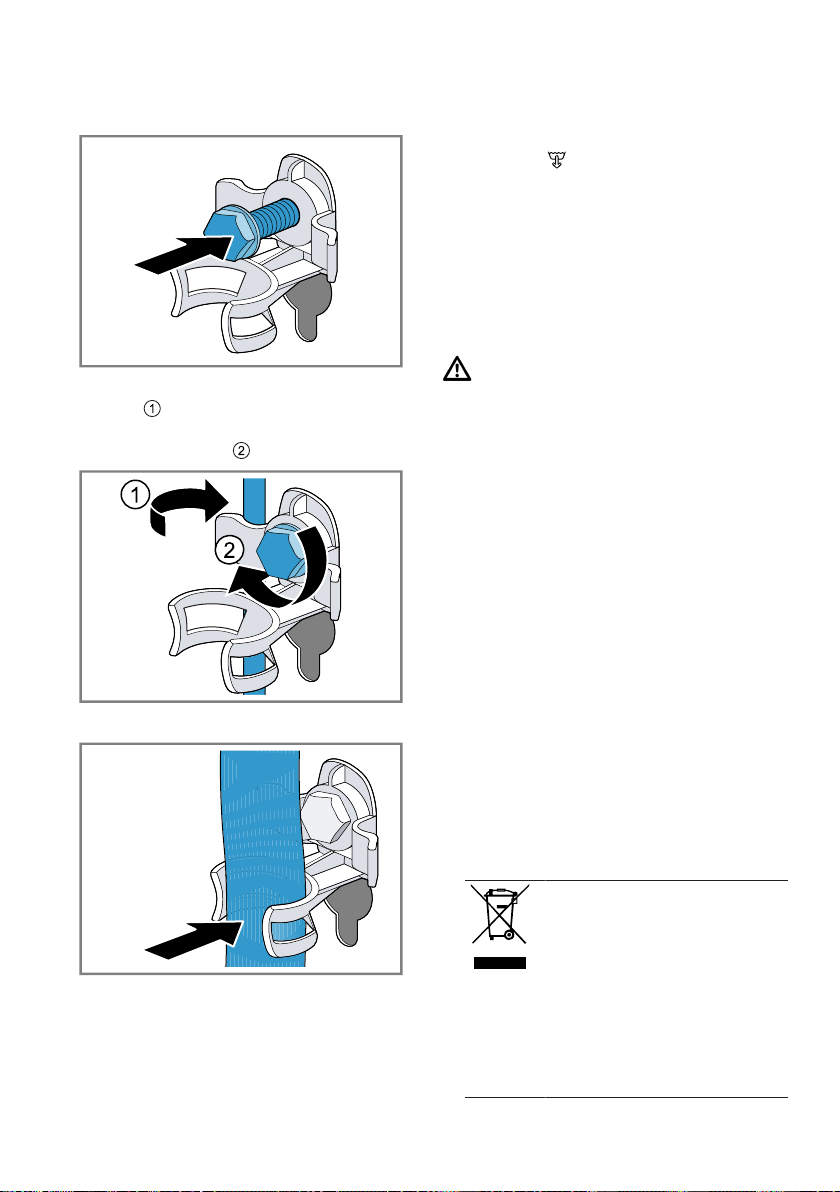

3. Insert all screws into the four
transit bolts and tighten slightly.
4. Insert the power cord into the
holder and tighten all four
screws for the transit bolts with a
WAF 13 wrench .
5. Insert the hose into holder.
Using the appliance again
1. Remove the transit bolts.
2. Pour approx. 1 litre of water into
the manual dosing compartment in
the detergent drawer.
3. Start the
Drain programme.
a The unused detergent cannot flow
straight into the outlet during the
next wash.
Disposing of old appliance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
▶
Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
▶
With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
This appliance is labelled in ac-
cordance with European Direct-
ive 2012/19/EU concerning
used electrical and electronic
appliances (waste electrical and
electronic equipment - WEEE).
The guideline determines the
framework for the return and re-
cycling of used appliances as
applicable throughout the EU.
en Customer Service
64
Customer Service
Customer Service
Customer Service
If you have any queries on use, are
unable to rectify faults on the appli-
ance yourself or if your appliance
needs to be repaired, contact Cus-
tomer Service.
You can solve many problems your-
self by consulting the information on
troubleshooting in these instructions
or on our website. If this is not the
case, contact our after-sales service.
We will always find an appropriate
solution and try to avoid unnecessary
visits being made by a Customer Ser-
vice technician.
With any warranty claims, we will
make sure that your appliance is re-
paired by trained after-sales techni-
cians using genuine spare parts, in-
cluding after the manufacturer's war-
ranty has expired.
Detailed information on the warranty
period and terms of warranty in your
country is available from our after-
sales service, your retailer or on our
website.
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD)
of your appliance.
The contact details for Customer Ser-
vice can be found in the enclosed
Customer Service directory or on our
website.
Product number (E-Nr.) and
production number (FD)
You can find the product number (E-
Nr.) and the production number (FD)
on the appliance's rating plate.
Depending on the model, the rating
plate is located:
¡ On the inside of the door.
¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
AQUA-STOP guarantee
In addition to warranty claims against
the seller under the purchase agree-
ment and in addition to our manufac-
turer's warranty, we offer compensa-
tion under the following conditions.
¡ If our Aqua-Stop system is defect-
ive and causes water damage, we
will make good the damage for
private users. To ensure protection
from water damage, the appliance
must be connected to the power
supply.
¡ The liability guarantee is valid for
the service life of the appliance.
¡ A claim can only be made under
the guarantee if the appliance has
been correctly installed and con-
nected with Aqua-Stop according
to our instructions; this also in-
cludes correctly fitting the Aqua-
Stop extension (genuine access-
ory). Our guarantee does not cover
defective supply lines or fittings up
to the Aqua-Stop connection on
the tap.
¡ If your appliance is fitted with
Aqua-Stop, you can in principle
leave your appliance unattended
during operation and the tap
turned on afterwards. The tap only
needs to be turned off if you are
away from home for a long period,
e.g. on holiday for several weeks.
Consumption values en
65
Consumption values
Consumption values
Consumption values
The indicated consumption values are approximate.
The values may deviate from the indicated values depending on water pres-
sure, water hardness, water inlet temperature, room temperature, type of laun-
dry, amount and soiling of laundry, detergent used, fluctuations in the mains
voltage and selected settings.
Program Temperat-
ure (°C)
Load (kg) Energy
consump-
tion
(kWh)
1
Water
consump-
tion (l)
1
Program
duration
(hr:min)
1
Residual
moisture
(%)
1, 2
Cottons 20 9,0 0,350 90,0 3:00 48
Cottons
3
40 9,0 1,000 90,0 3:30 48
Cottons 60 9,0 1,550 90,0 3:30 48
Cottons Eco
4
9,0 0,950 57,0 4:00 53
Cottons Eco
4
4,5 0,450 47,0 3:45 53
Cottons Eco
4
4,5 0,520 44,0 3:00 53
Cottons 90 9,0 2,100 100,0 3:00 48
Easy Care
3
40 4,0 0,750 56,0 2:30 40
Delicates/Silk 30 2,0 0,200 35,0 0:45 30
Wool 30 2,0 0,200 40,0 0:45 45
1
values determined according to the valid version of EN60456
2
Information on residual moisture based on programme-dependent spin-speed limit and maximum
loads.
3
Information for test institutes: During a test in compliance with the applicable standard EN60456,
you must select the maximal possible spin speed and deactivate the automatic dosing, insofar as
this function is not the subject of the test.
4
Programme setting at maximum speed for testing and energy labelling in accordance with Direct-
ive 2010/30/EU with cold water (15 °C). These programmes are suitable for cleaning normally
soiled cotton items and are the most efficient in terms of combined energy and water consump-
tion. The stated programme temperature is based on the temperature indicated on the care label
for the laundry. The actual washing temperature may differ from the stated programme temperat-
ure for energy-saving reasons; the washing performance meets legal requirements.
Technical specifications
Technical specifications
Technical specifications
Facts and figures for your appliance
can be found here.
Appliance height 85,0cm
1
Depending on the appliance specifications
Appliance width 60,0cm
Appliance depth 64,0cm
Weight 73kg
1
Maximum load capa-
city
9kg
1
Depending on the appliance specifications
en Technical specifications
66
Mains voltage 220 - 240V, 50Hz
Minimum installa-
tion protection
10A
Rated power 2300W
Power consumption ¡ Off mode: 0,10 W
¡ Left-on mode:
0,43W
Water pressure ¡ Minimum: 100kPa
(1bar)
¡ Maximum:
1000kPa (10bar)
Length of the water in-
let hose
150cm
Length of the water
outlet hose
150cm
Length of the power
cord
160cm
Max. draining height 100cm
1
Depending on the appliance specifications
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
•Expert tips & tricks for your appliance
•Warranty extension options
•Discounts for accessories & spare-parts
•Digital manual and all appliance data at hand
•Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service direct-
ory.
*9001497725*
9001497725 (000915)
en
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
GERMANY
www.bosch-home.com
