Fellowes US-100008667 User Manual
Fellowes US-100008667 Railway Linear, 6-Pack, Double Run, 72" Rail, Black
Assembly Guide
For US-100008667.
PDF File Manual
,
12 pages
,
Read Online
|
Download pdf file

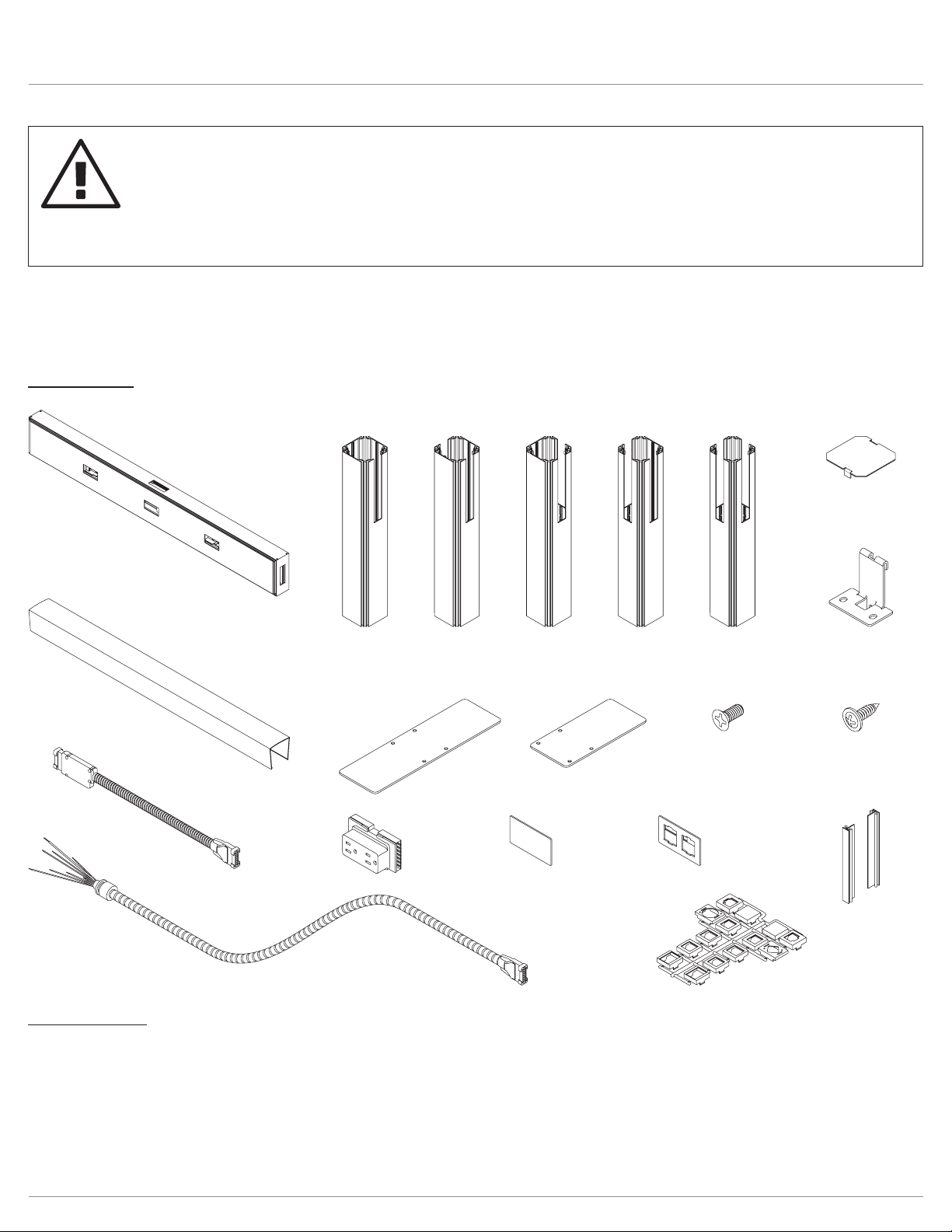

Components
Tools Required
Assembly

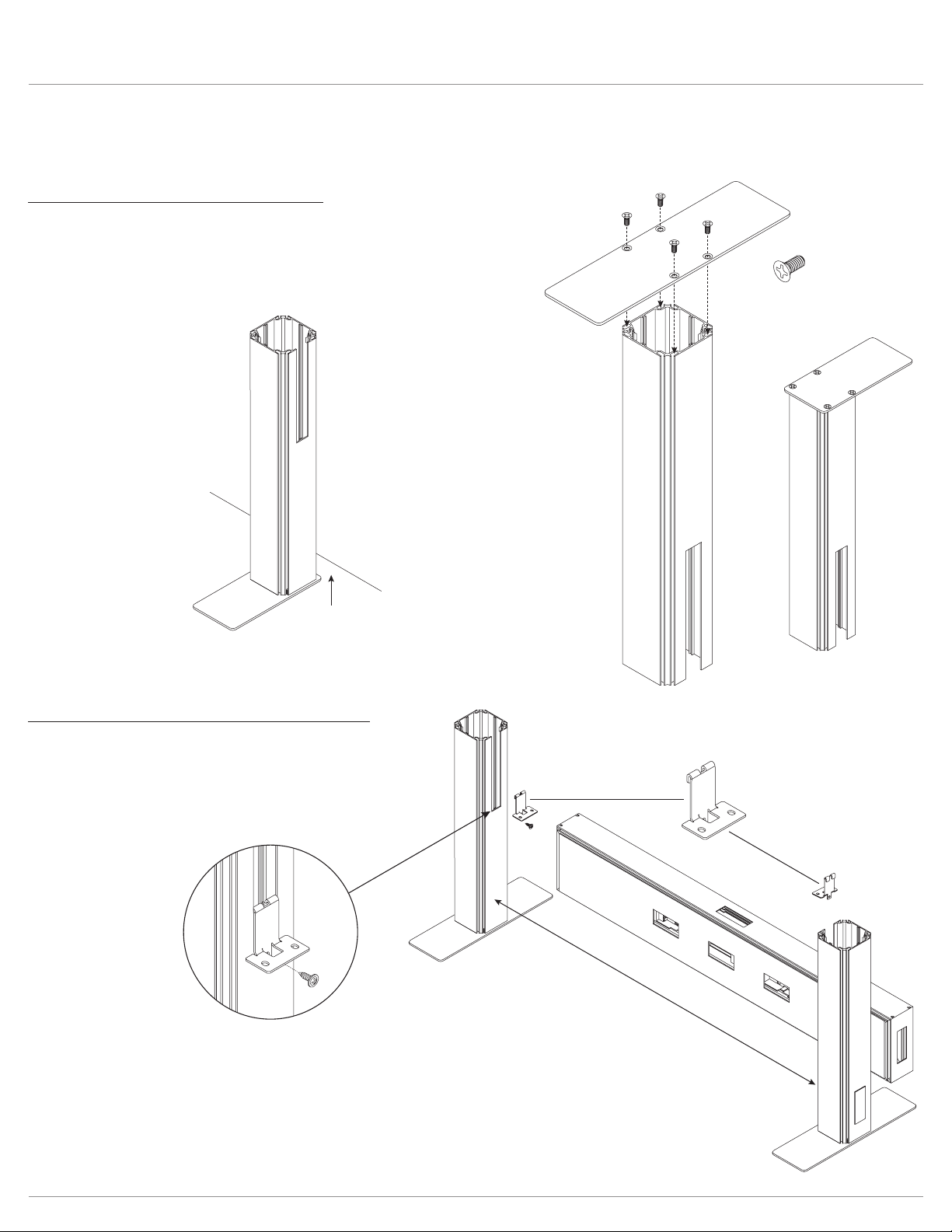

Step #1: Attach Feet To Base Of Posts
Step #2: Hook Mounting Brackets To Posts

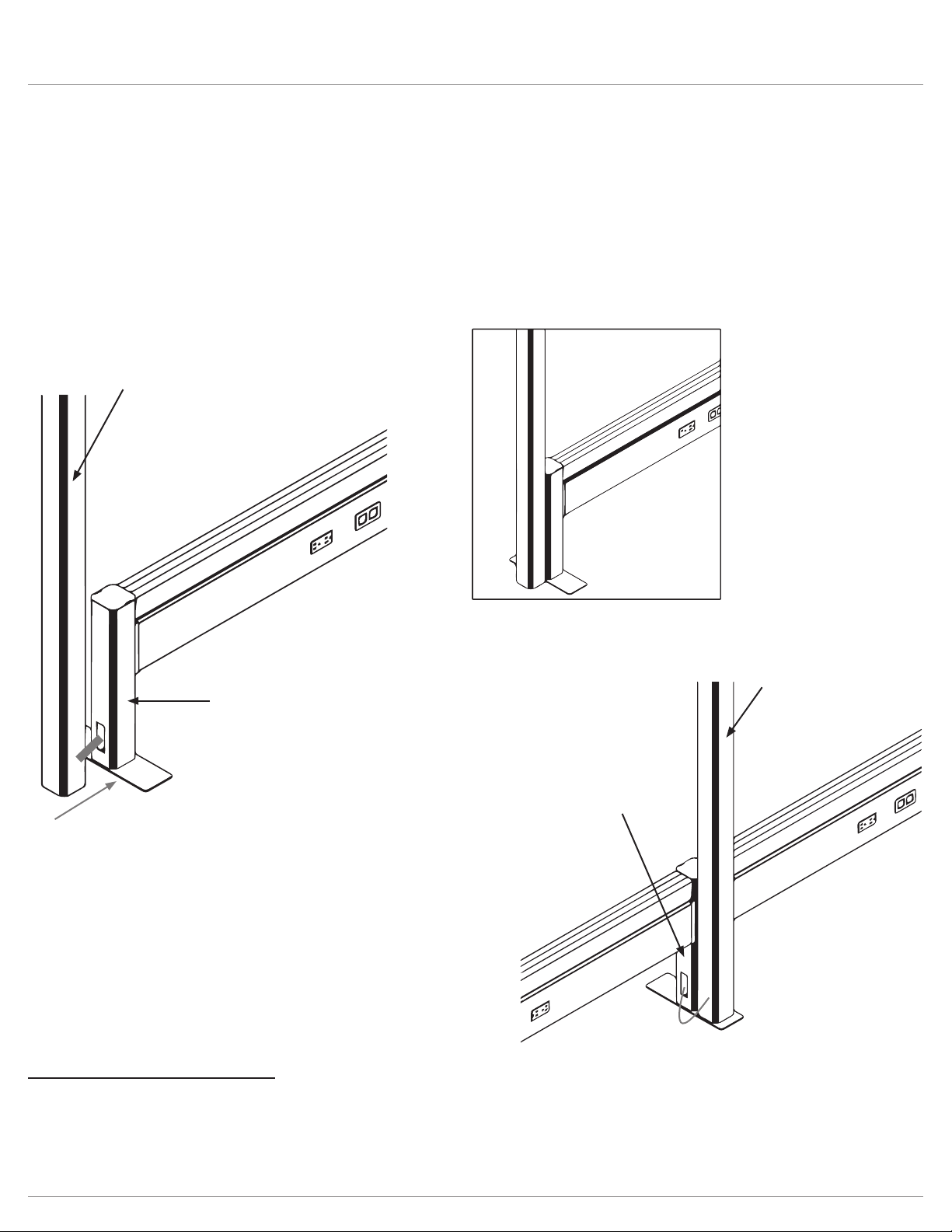

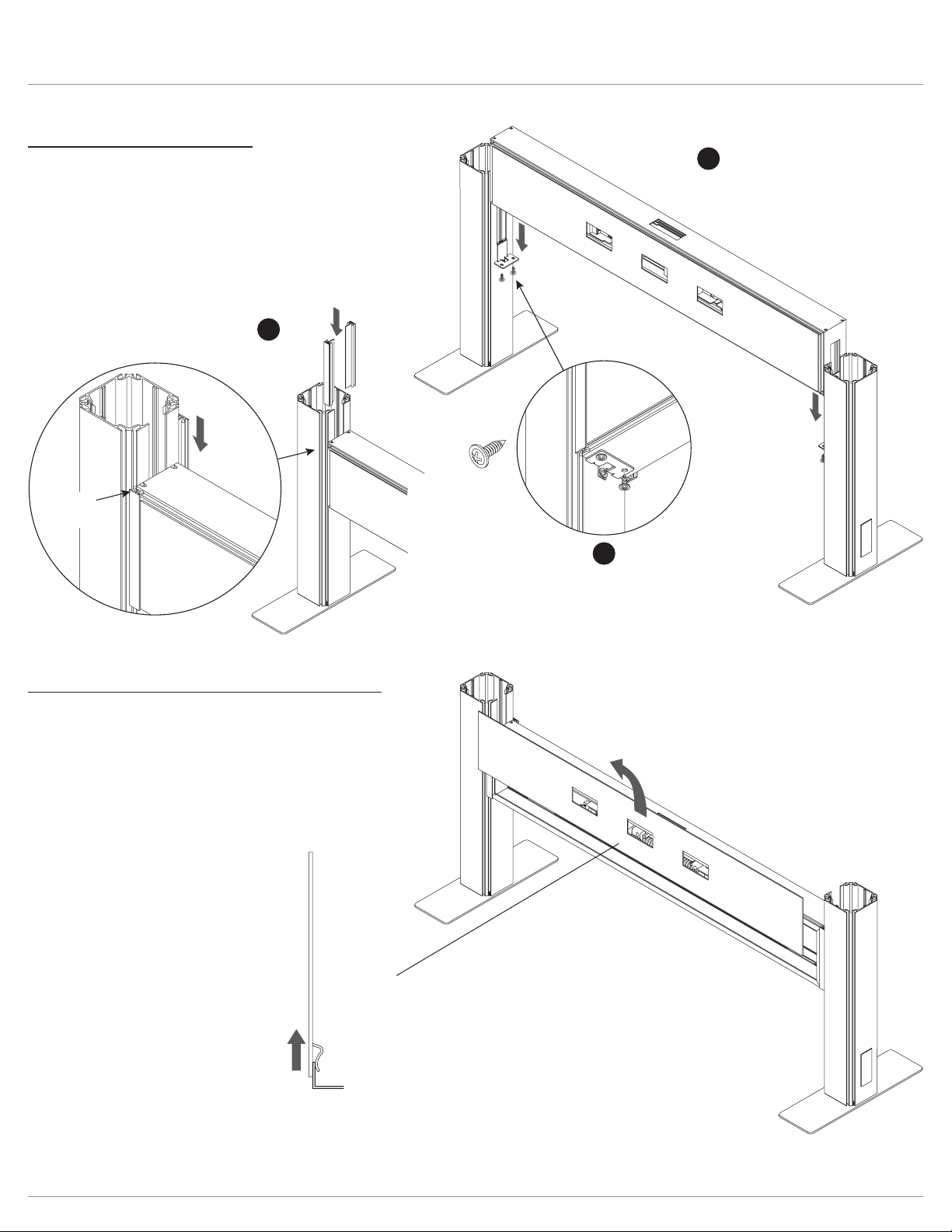

Step #3: Attach Rail To Posts

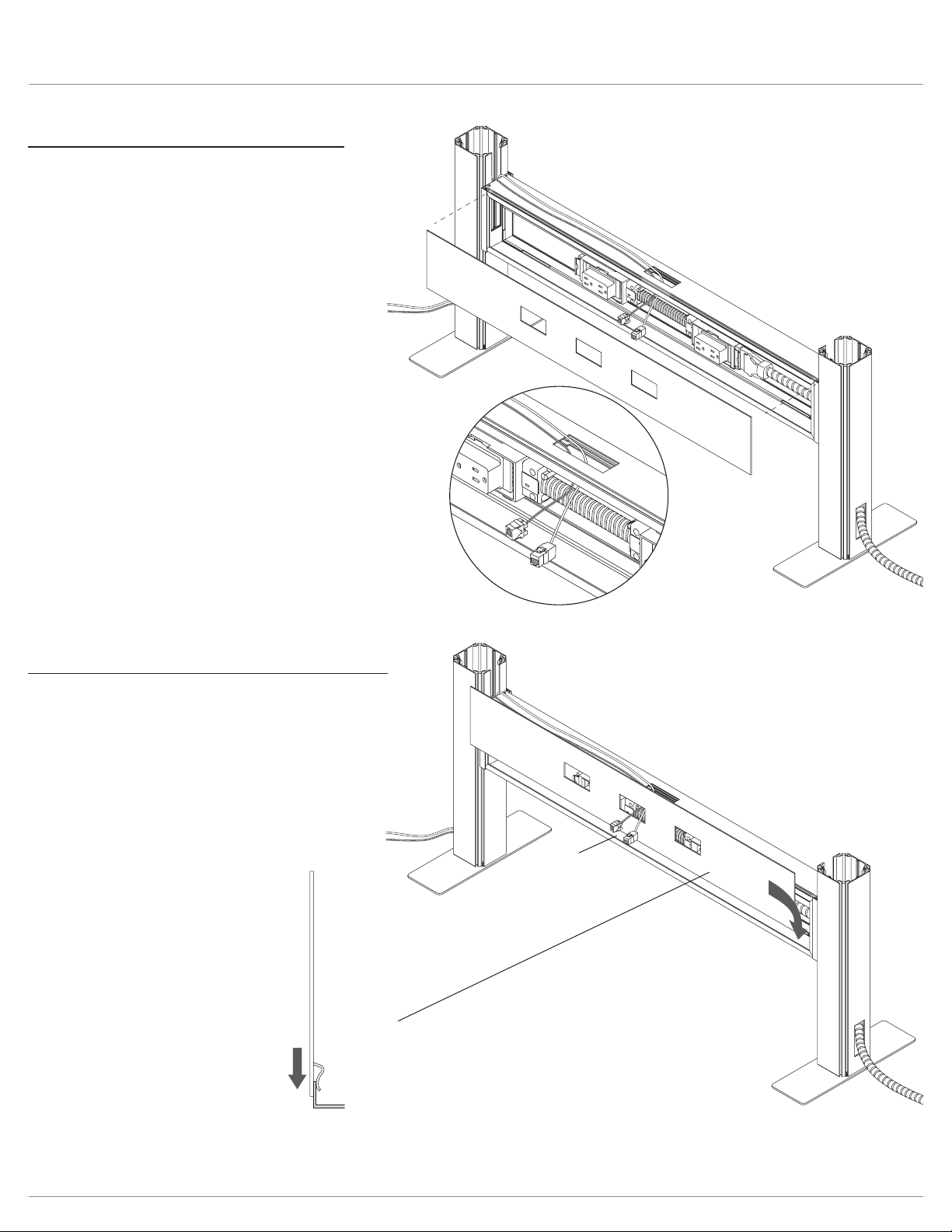

Step #4: Remove Rail Assembly Side Cover(s)

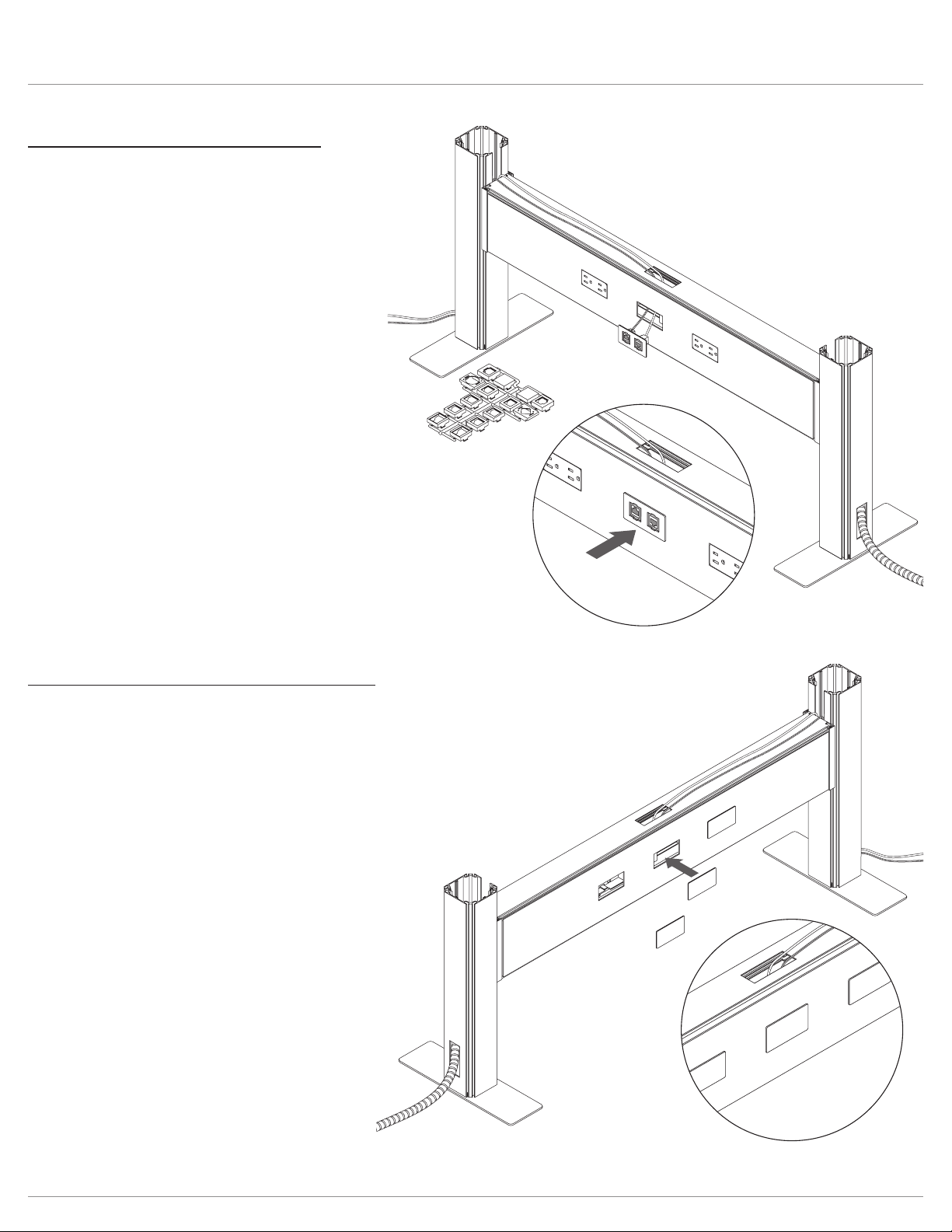

Step #5: Install Receptacles

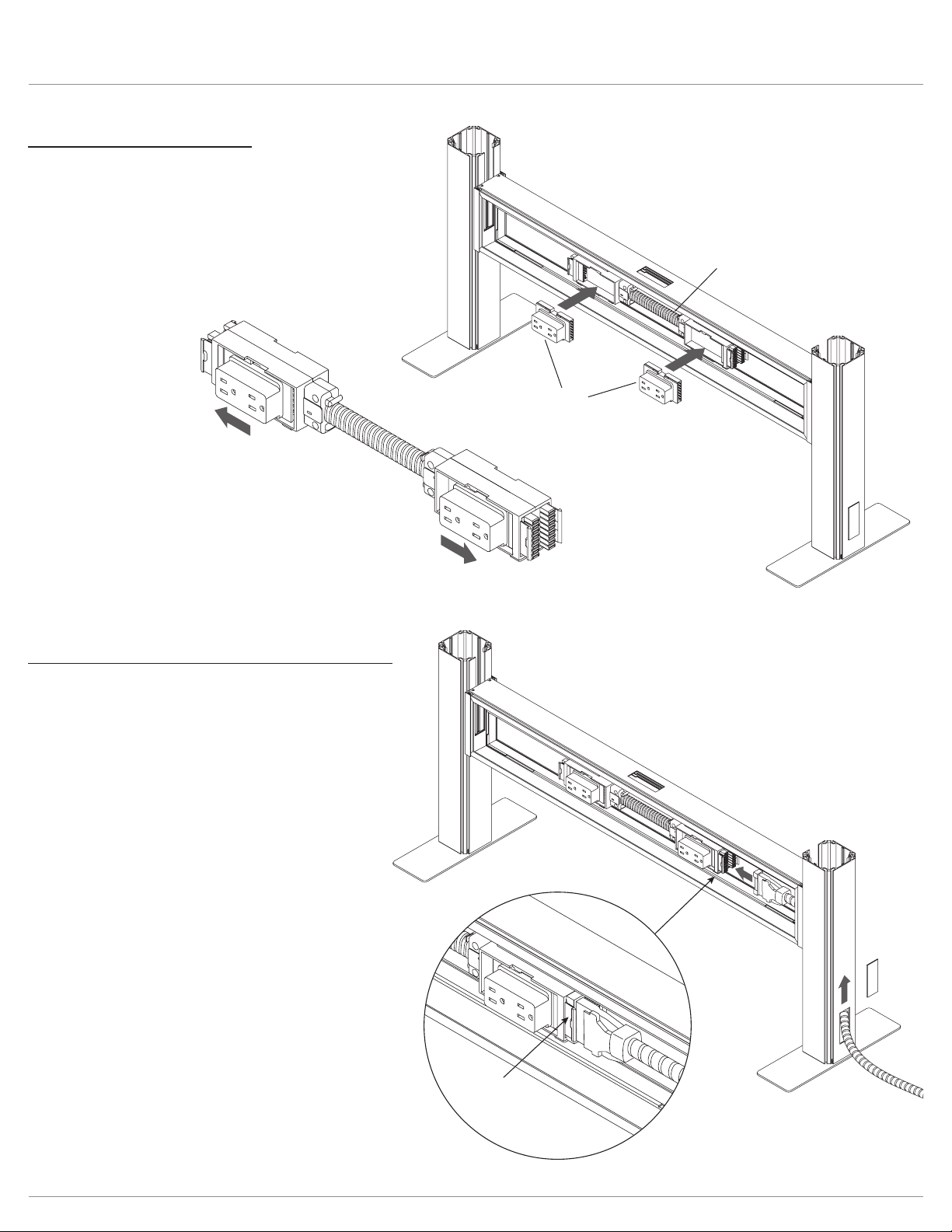

Step #6: Connect Power Feed To Power Block

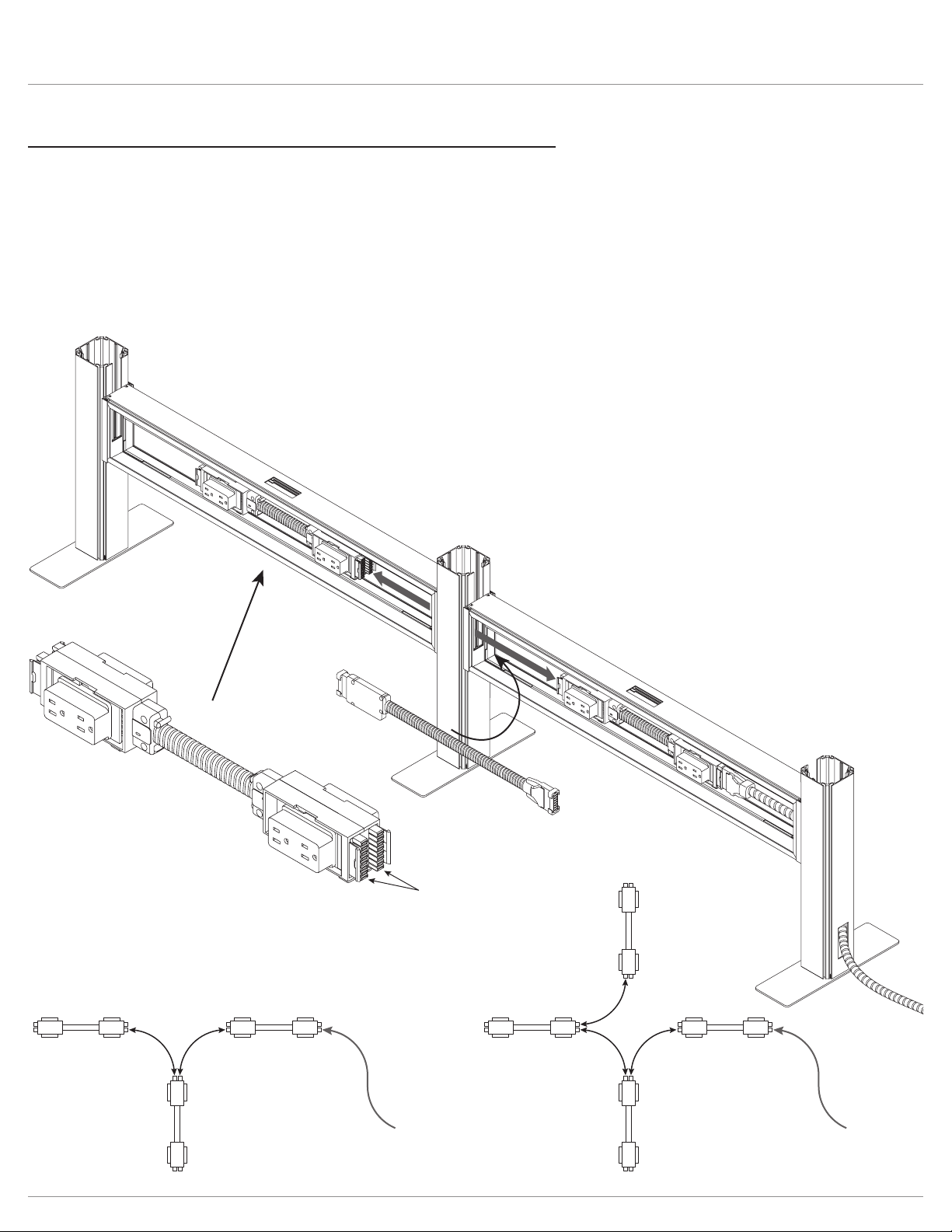

Step #7: Connect Power Blocks With Jumper Cable(s) If Necessary
Step #8: Route Voice And/or Data Wires

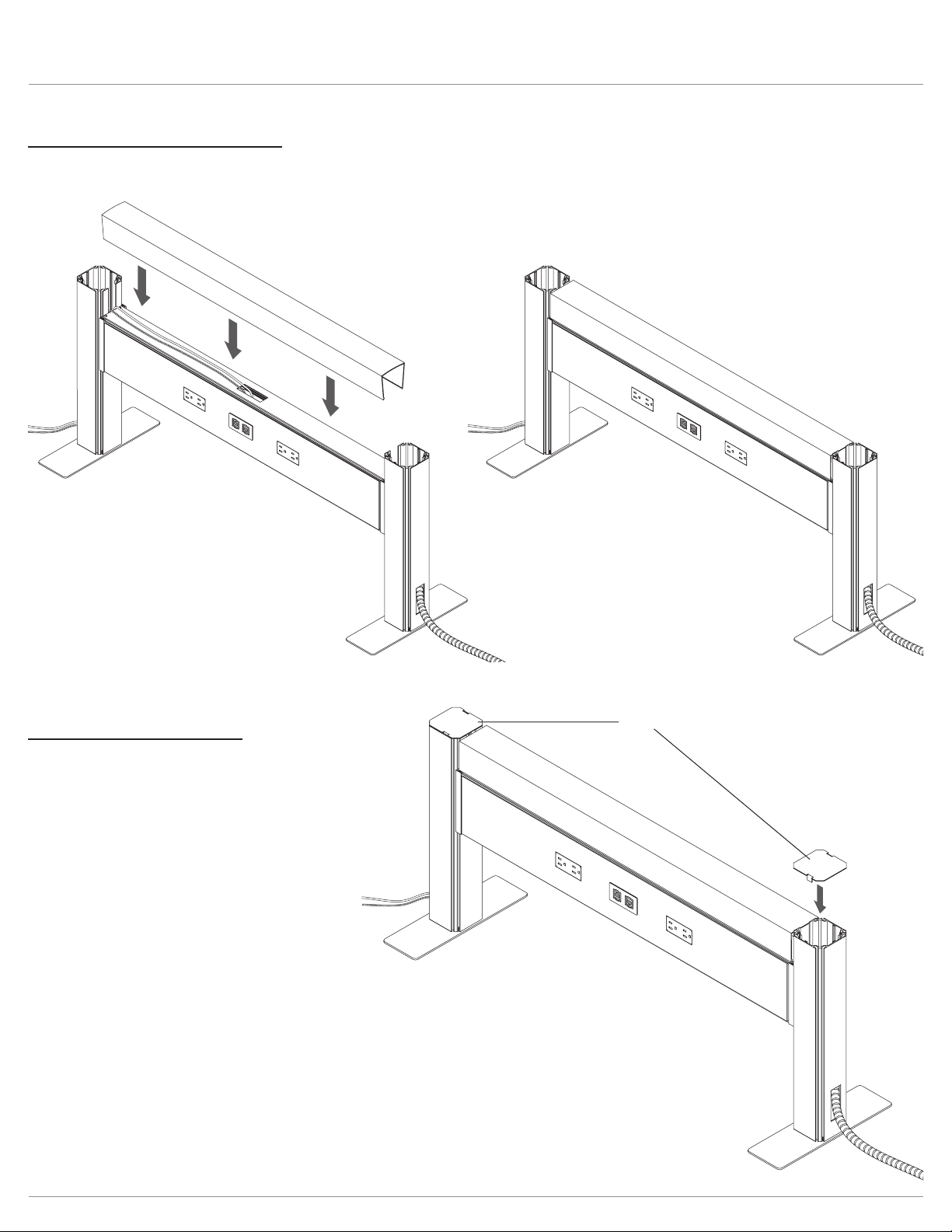

Step #9: Reinstall Rail Assembly Side Cover(s)
Step #10: Install Voice/data Plate(s)
Step #11: Install Cover Plate(s) If Necessary
Step #12: Install Top Data Cover
Step #13: Install Post Caps
Step #14: Connect Power Feed To Building Power (licensed Electrician Required)
