INSTALLATION INSTRUCTIONS
For RAIL-KIT72-4PK-DBL-BLK.
Page 1/12
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Contents
Table of Contents
Search
Previous
Next
Bookmarks
R
a
i
lw
ay
™
data and po
w
er solution
INST
ALLA
TION INSTRUCT
IONS
linear
bullpen
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Fellowes RAIL-KIT72-4PK-DBL-BLK:
Components And Tools
2

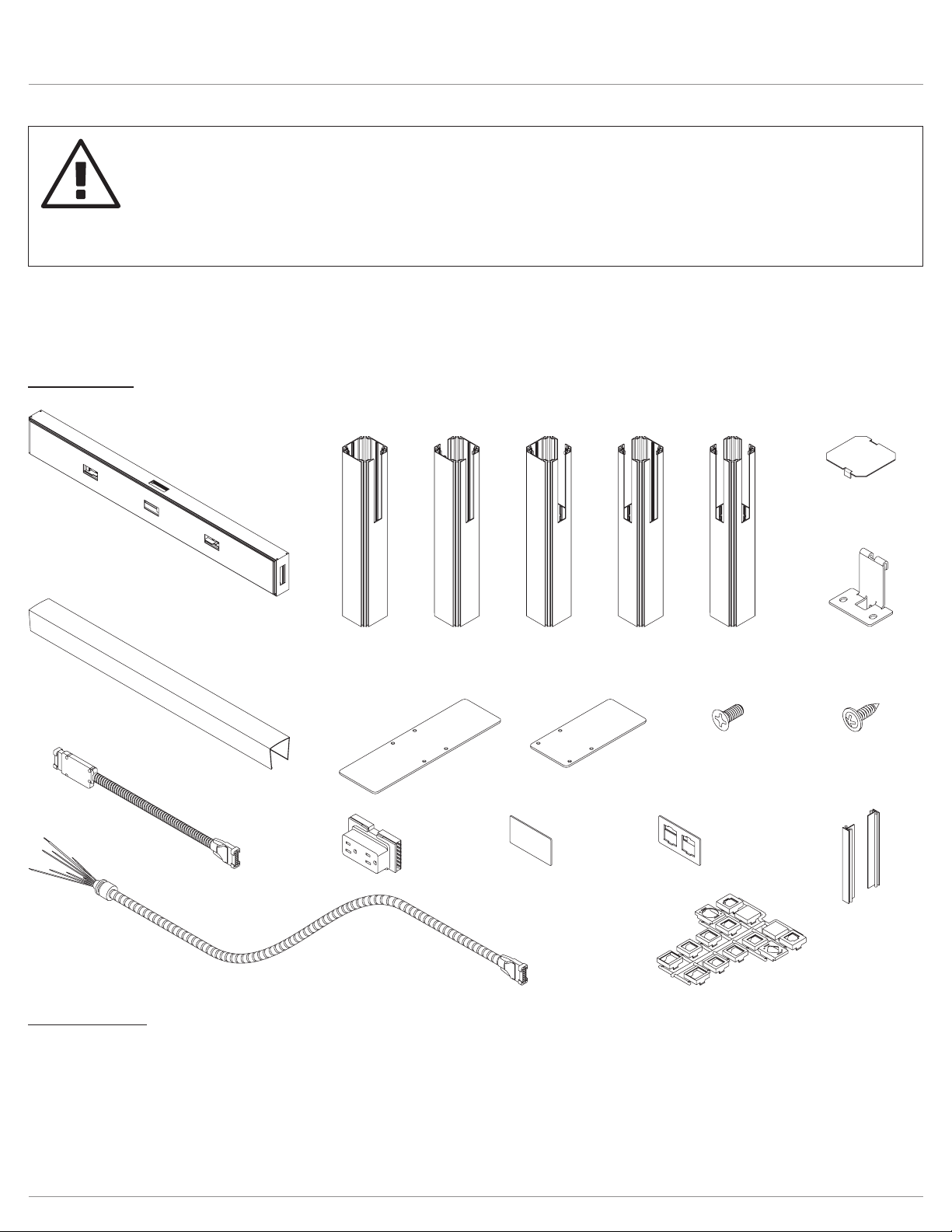

Components
2
Tools Required
2
Component Quantities By Configuration
3
Assembly
4

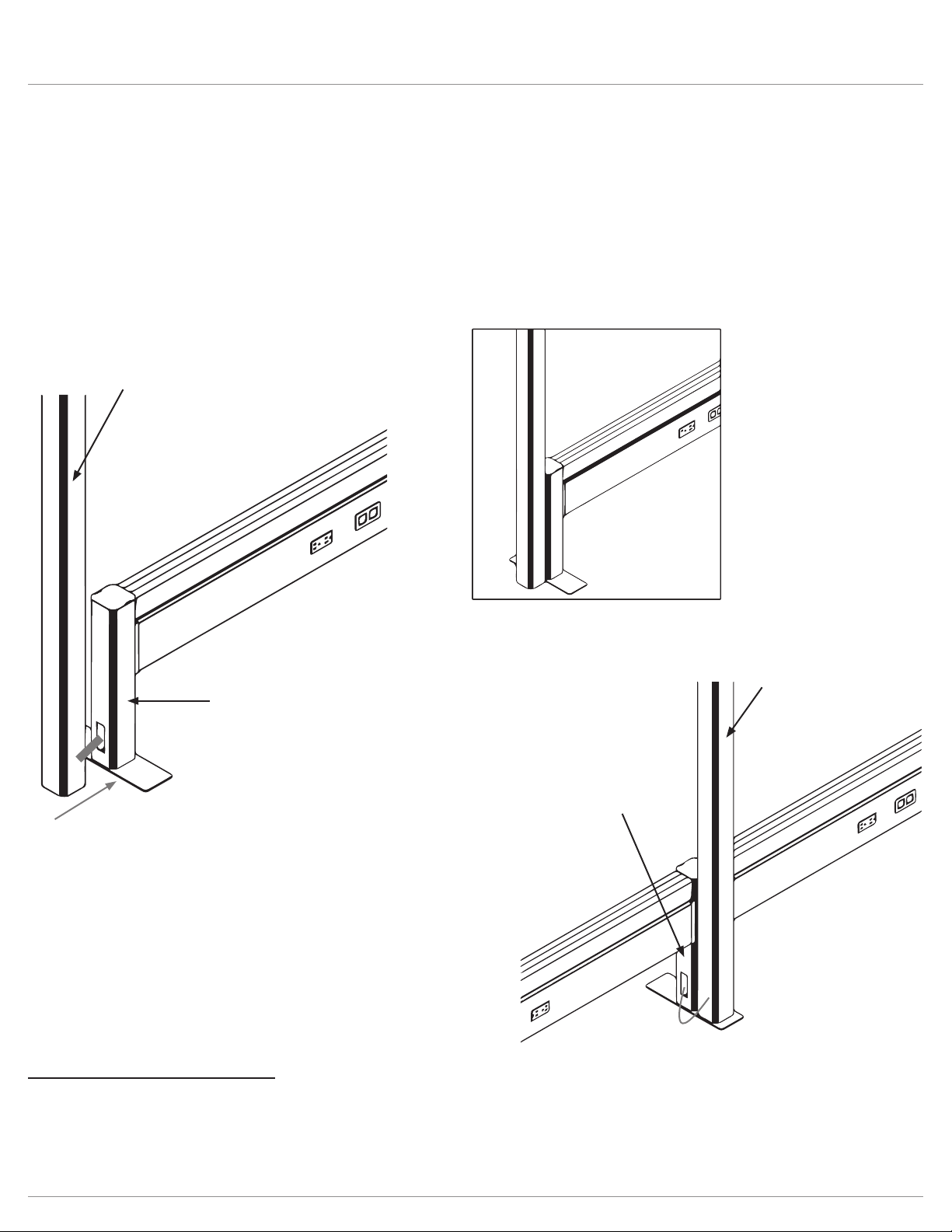

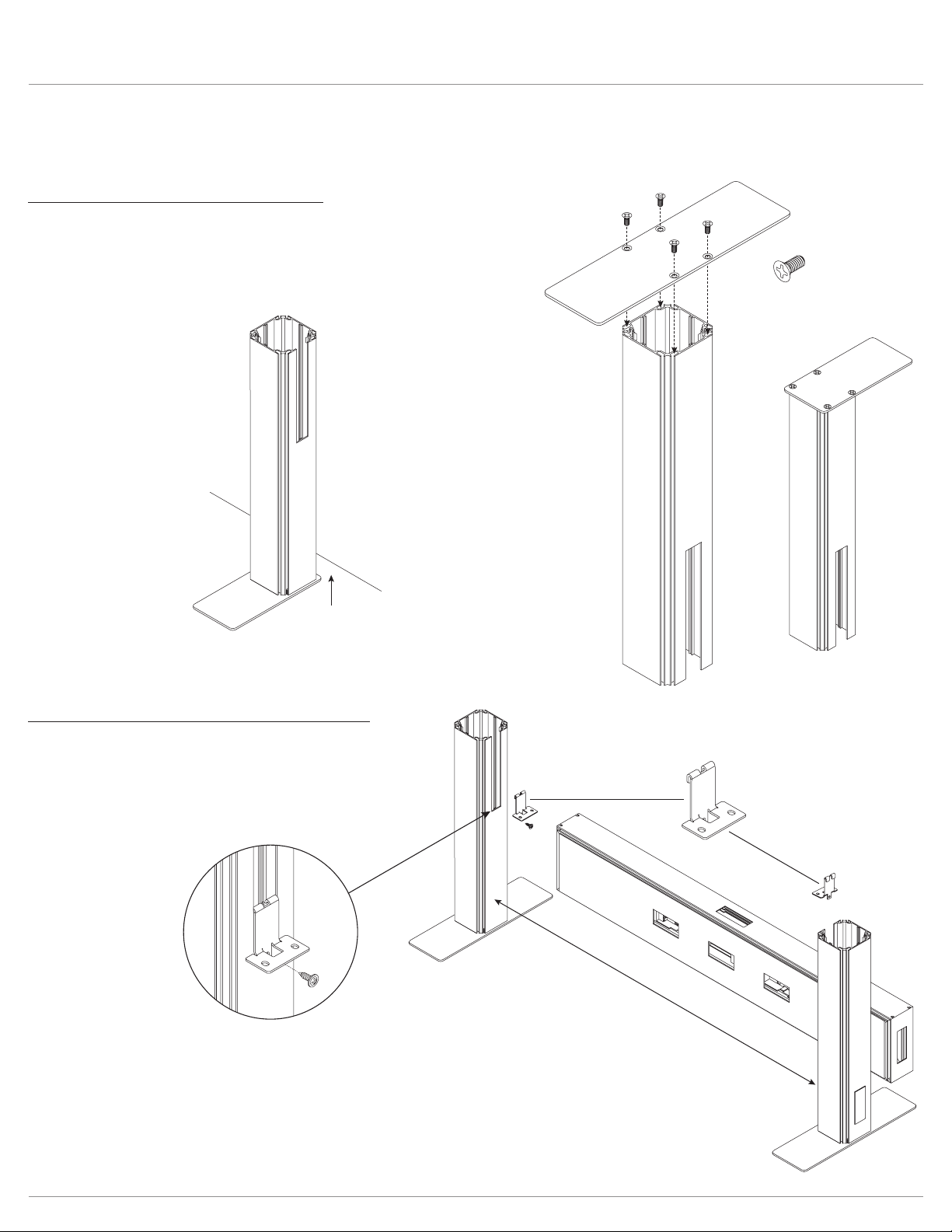

Step #1: Attach Feet To Base Of Posts
4
Step #2: Hook Mounting Brackets To Posts
4

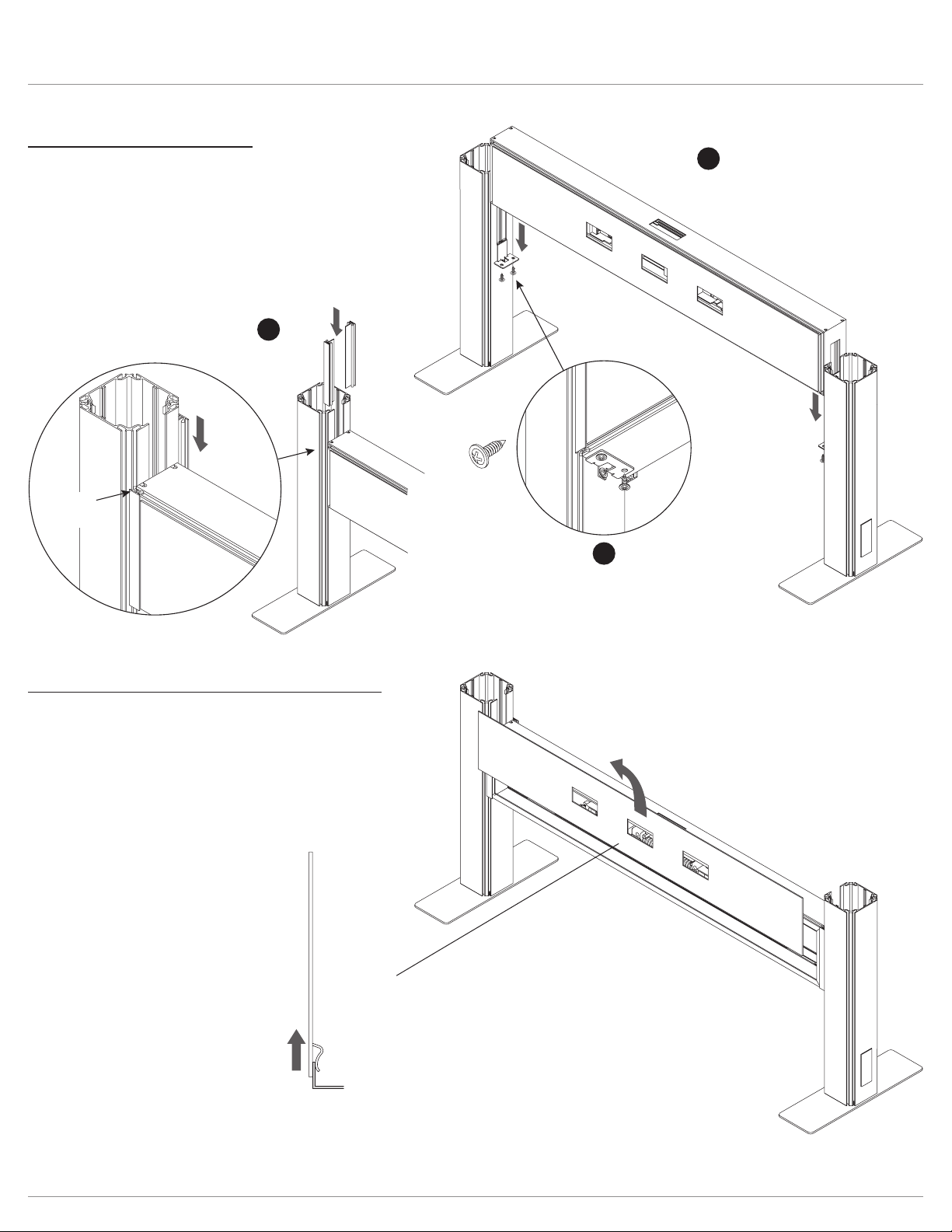

Step #3: Attach Rail To Posts
5

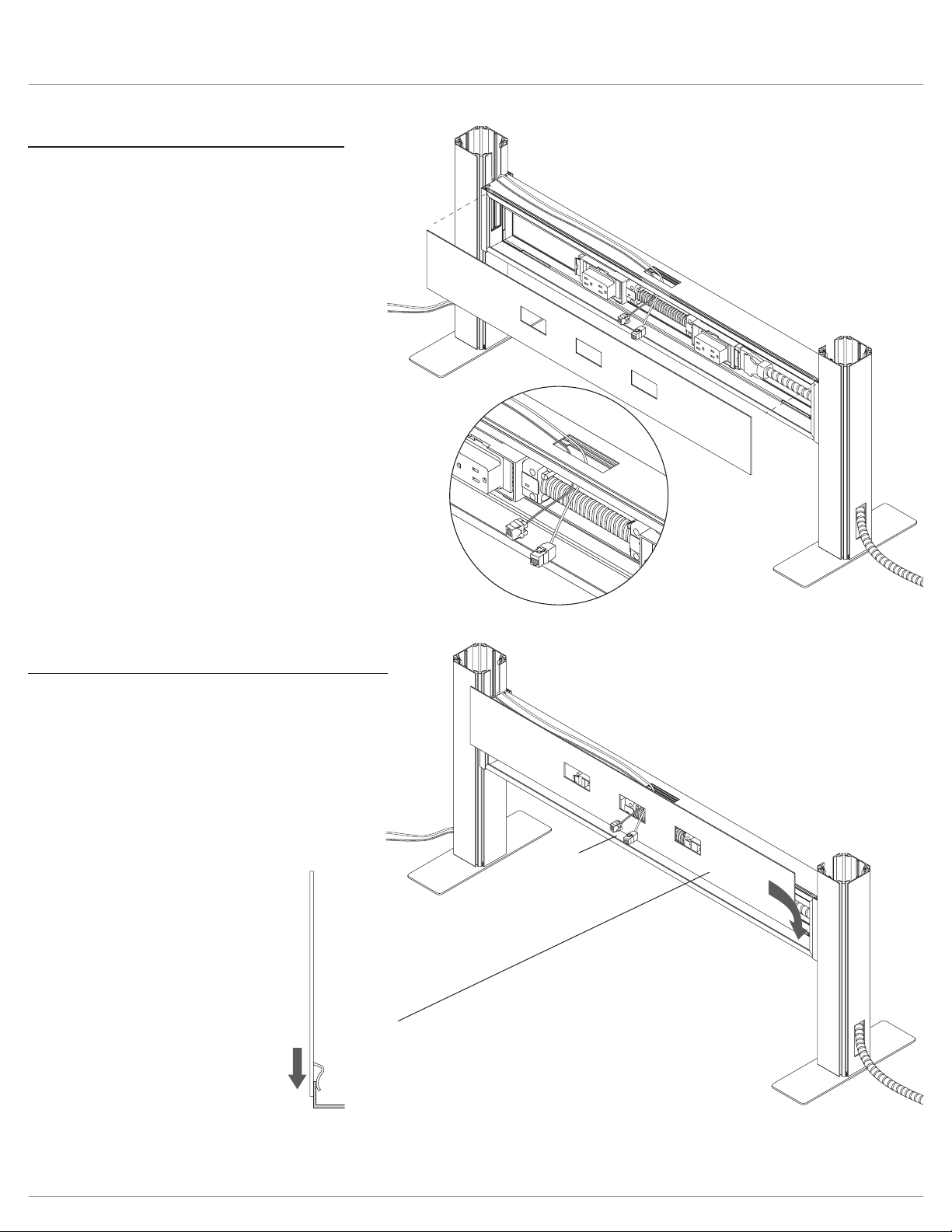

Step #4: Remove Rail Assembly Side Cover(s)
5

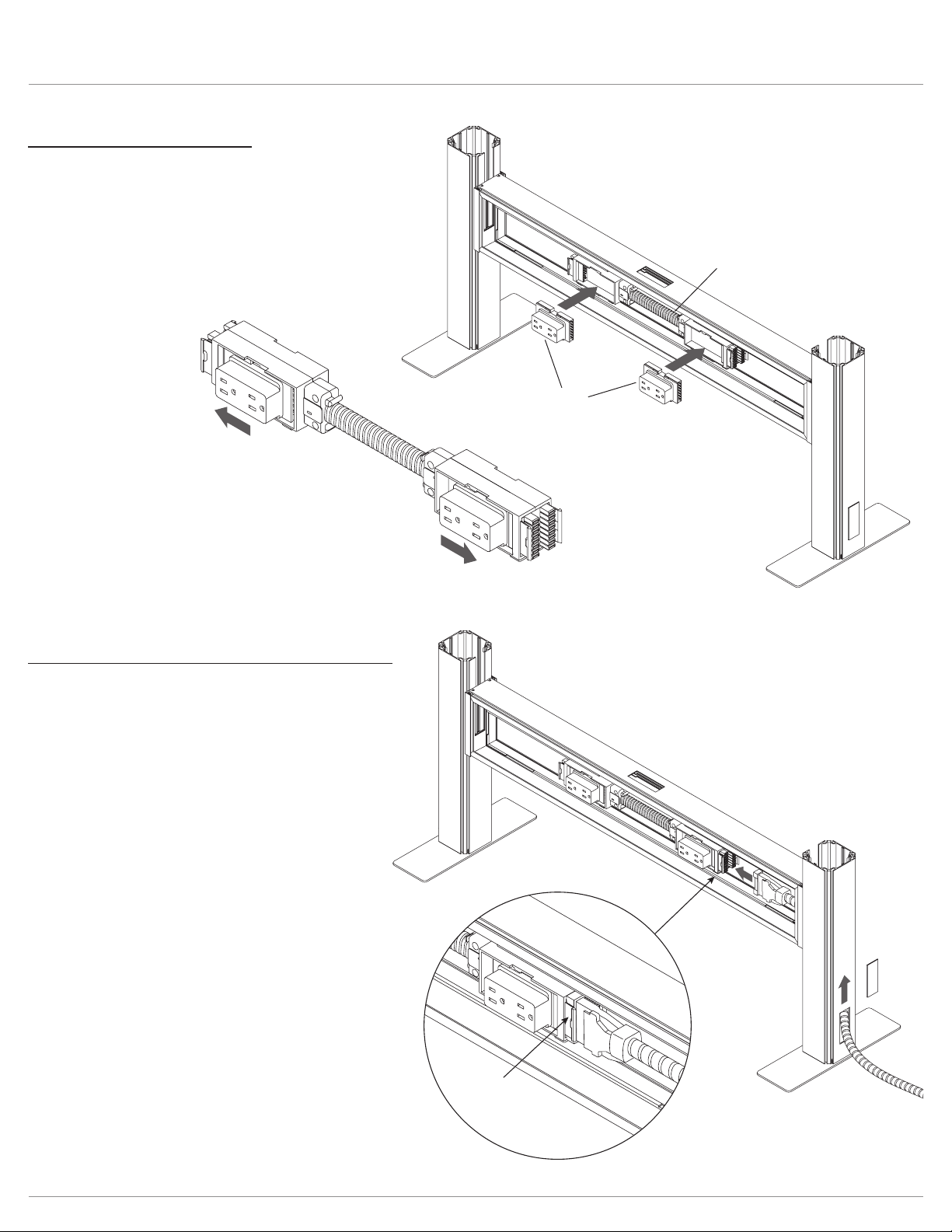

Step #5: Install Receptacles
6
Step #6: Connect Power Feed To Power Block
6

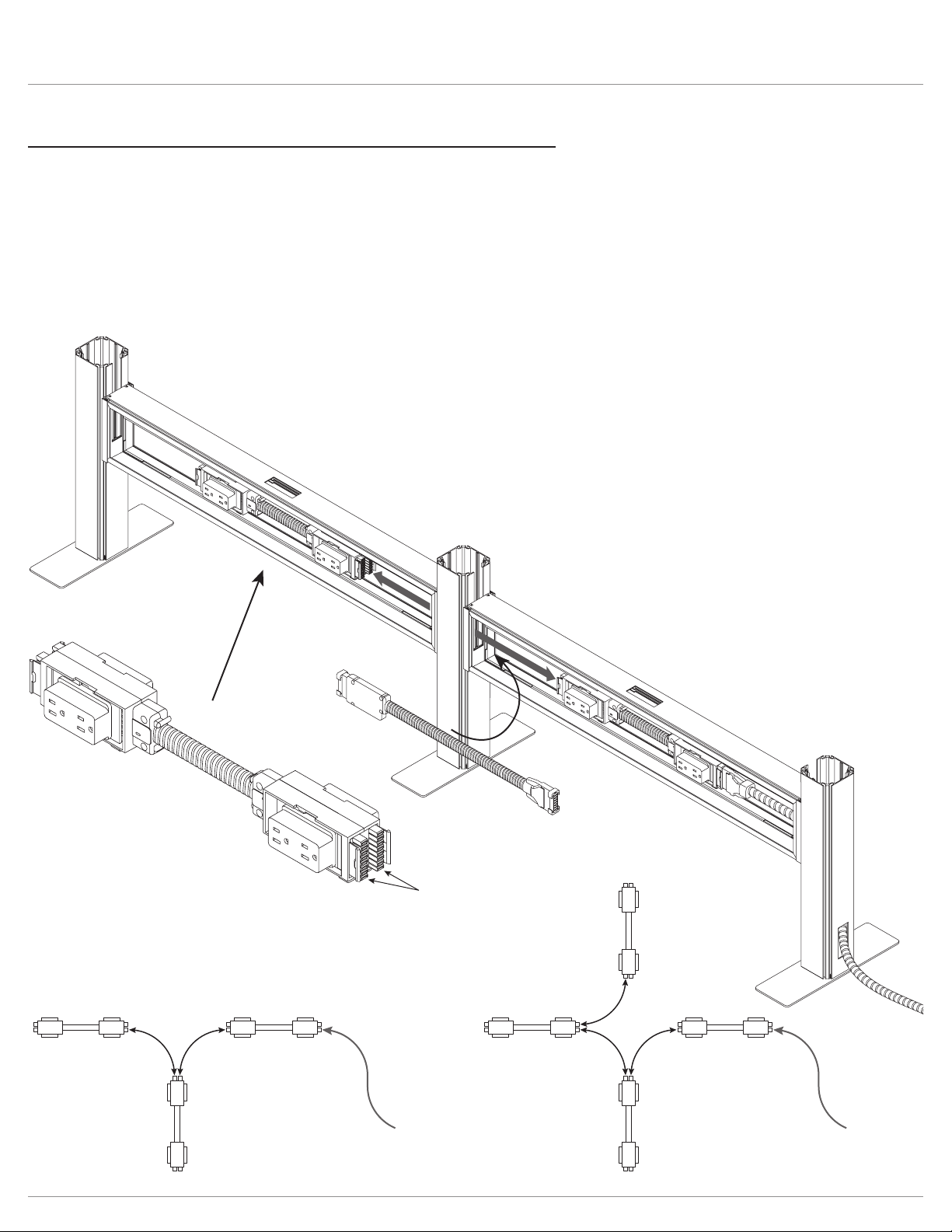

Step #7: Connect Power Blocks With Jumper Cable(s) If Necessary
7
Step #8: Route Voice And/or Data Wires
8

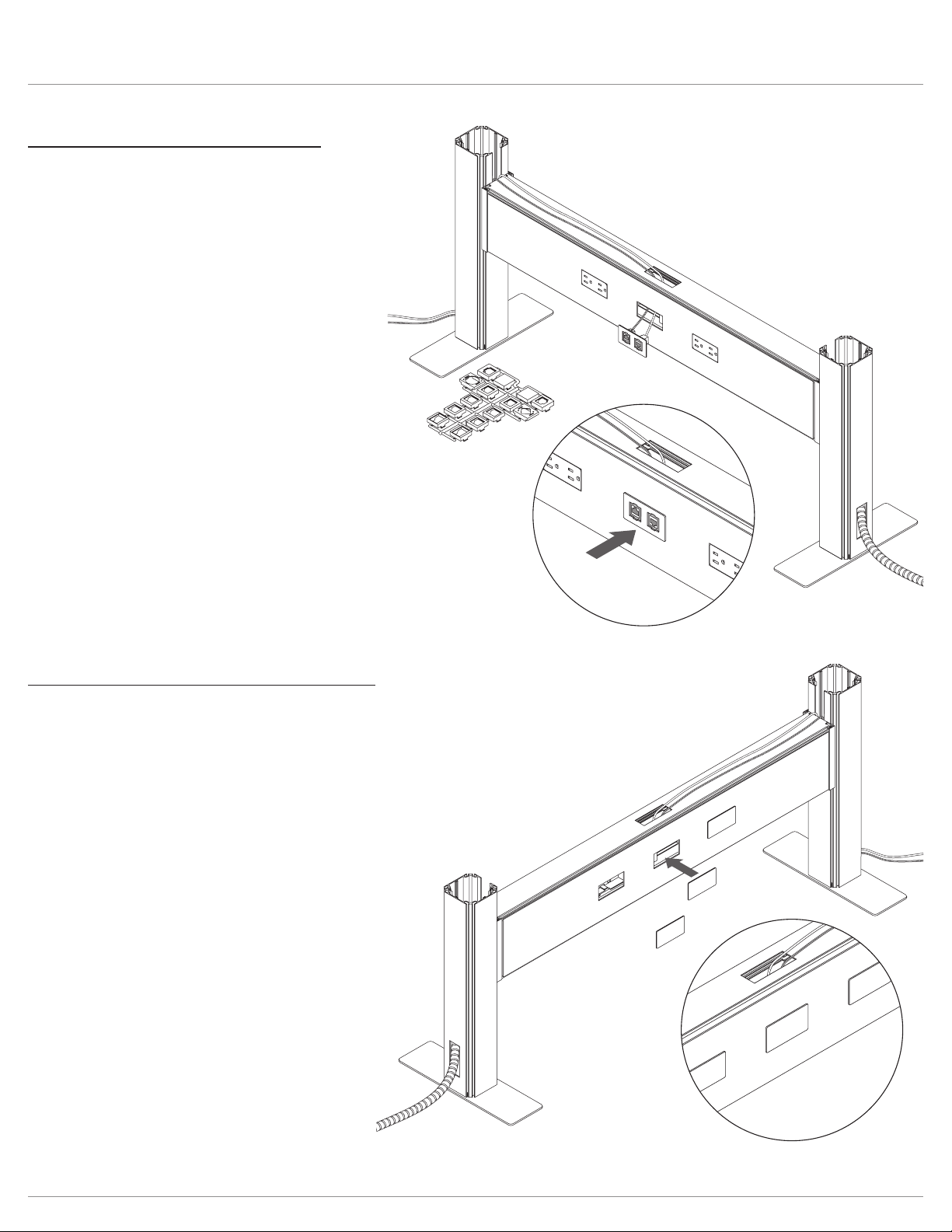

Step #9: Reinstall Rail Assembly Side Cover(s)
8
Step #10: Install Voice/data Plate(s)
9
Step #11: Install Cover Plate(s) If Necessary
9

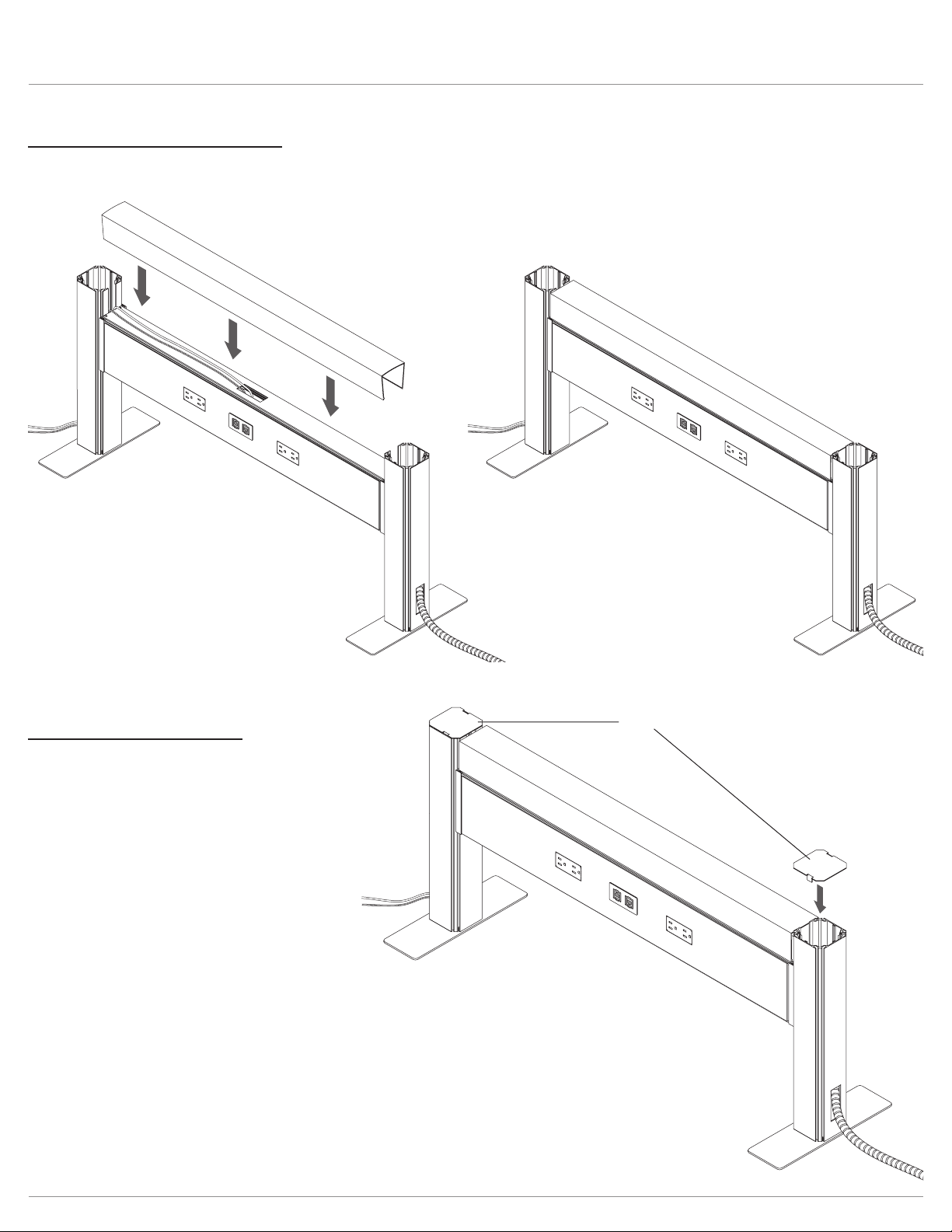

Step #12: Install Top Data Cover
10
Step #13: Install Post Caps
10
Power Connection
11
Step #14: Connect Power Feed To Building Power (licensed Electrician Required)
11
File type: PDF
File name: 50410176_us-100015644.pdf
File size: 2.07 MB
File Language: English
Pages: 12
Author: Fellowes
File created: 2023-09-08
Published: 2023-12-01
Updated: 2023-12-17
Verified by
Jaqueline Hayes
on 2023-12-17
Download File
