Pyle PDJSD2 12U Open Frame Rack Shelf + Device Stand User Manual

PDJSD2

USER’S MANUAL

UNIVERSAL EQUIPMENT/

ELECTRONIC DEVICE RACK STAND

Thanks for choosing Universal Equipment/Electronic Device Rack Stand

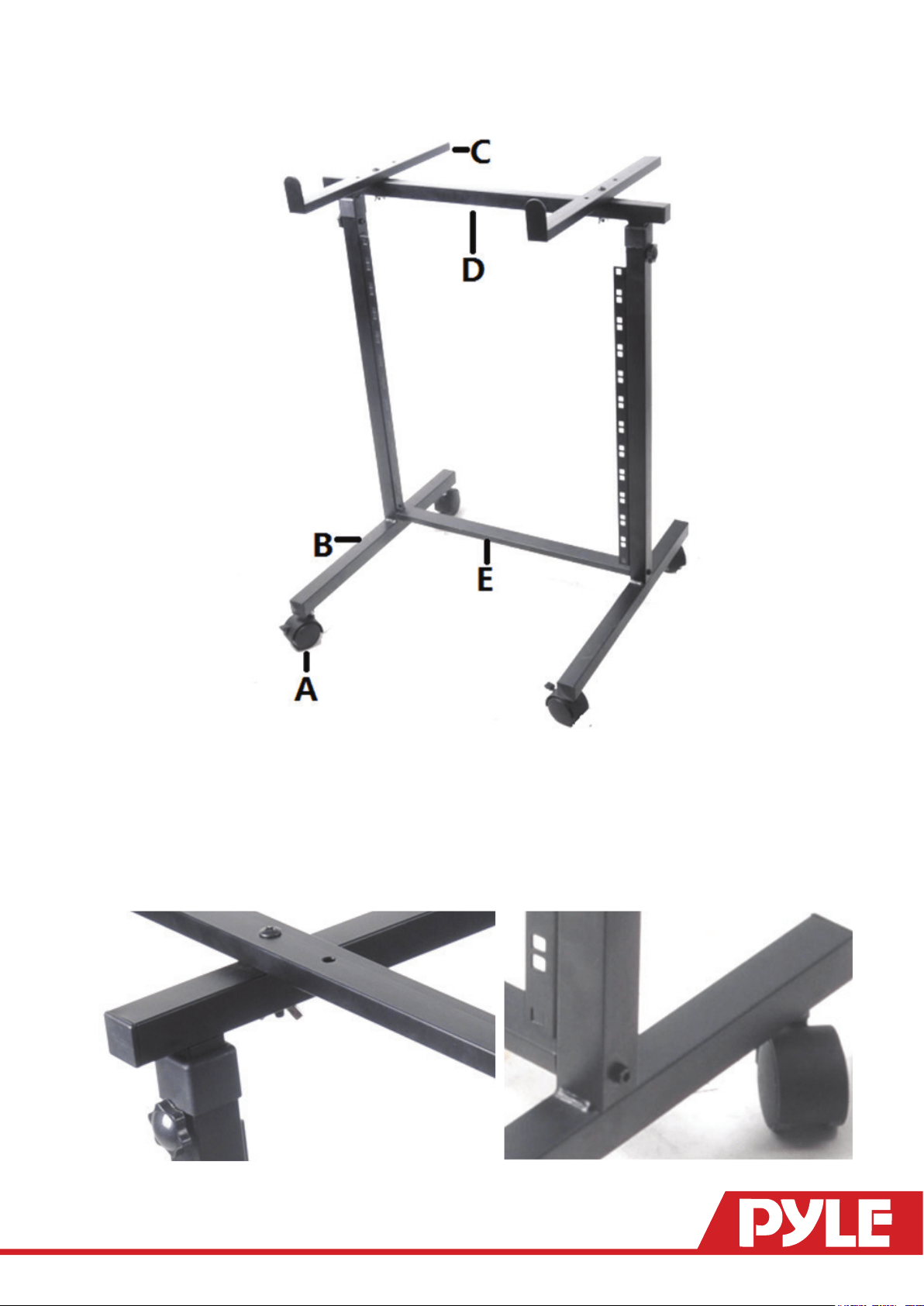

• Open the box you will nd below parts, A,B,C,D

• Install 4 casters on the B, two with brakes should be in front

• Connect two B with E with the equipped bolts

• Insert D into the top of two B and x with two equipped plastic knobs

• Mount two C on D with equipped bolts and screw

• Tighten all the bolts, knobs then you can use this rack

• Then you can mount your 19" equipment on the rack and put your other equipment on the top brackets

C, such as the mixer, keyboard, control workstation

Features:

• Universal Equipment/Electronic Device Rack Stand

• Open Frame Server Rack Style

• Top Arm Bracket Shelf for Device Placement

• Used with Sound Equipment, Mixers, Ampliers, Processors, Keyboards

• Heavy Duty & Reliable Metal Construction

• Convenient Rolling Caster Wheels

• Perfect for the Home, Ofce or Studio

Technical Specs:

• Frame Standard Width: 19’’ -inch

• Rack Server Style: 12U Open Frame

• Construction Material: steel

• Top Bracket Device Shelf (W x D): 16.9’’ x 15.7’’

• Base Platform (W x D): 21.4’’ x 19.9’’

• Max Weight Load Capacity: 110 lbs.

• Sold as: 1

• Weight: 11 lbs.

UNIVERSAL EQUIPMENT/ELECTRONIC DEVICE RACK STAND

FEATURES AND SPECIFICATIONS

Pyle PDJSD2 12U Open Frame Rack Shelf + Device Stand
