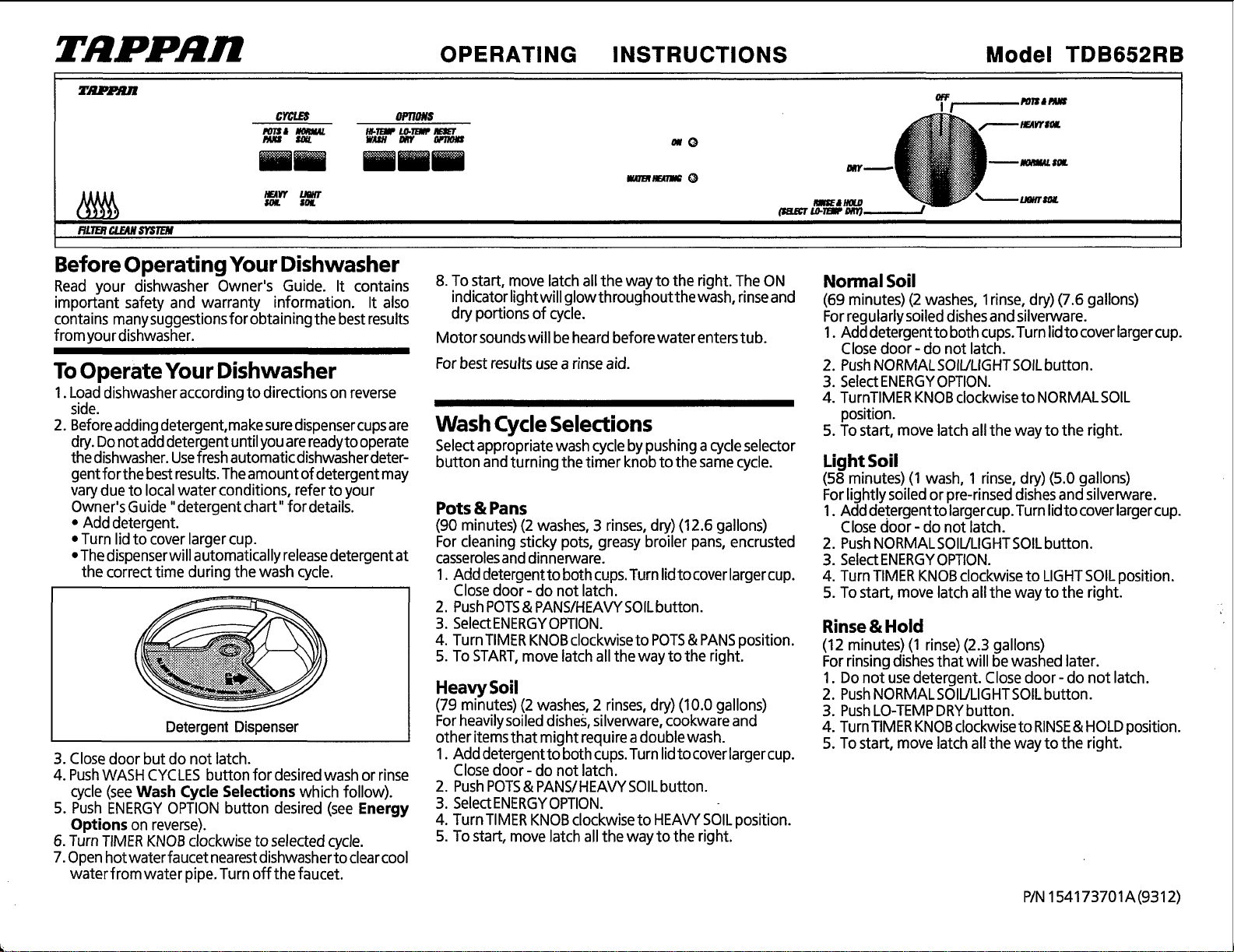

TRPPRn OPERATING INSTRUCTIONS Model TDB652RB
f,q.PA_ZH OFF
I I _
C_
POT841
_P_oXs
IF_.TBW LO-_IW
HF_W l..tetlT
SfML mWE dlHOI._
rm.g'r Le-ma,Kn_
RLIERCLF.MISYSTEM
Before Operating Your Dishwasher
Read your dishwasher Owner's Guide. It contains
important safety and warranty information. It also
contains manysuggestions for obtaining the best results
from your dishwasher.
ToOperate Your Dishwasher
1.Load dishwasher according to directions on reverse
side.
2. Beforeadding detergent, make suredispensercupsare
dry. Donot add detergent until youare readyto operate
the dishwasher. Usefresh automatic dishwasherdeter-
gent for the best results.Theamount of detergent may
vary due to local water conditions, refer to your
Owner's Guide "detergent chart" for details.
• Add detergent.
• Turn lidto cover larger cup.
•Thedispenserwill automatically releasedetergent at
the correct time during the wash cycle.
Detergent Dispenser
3. Close door but do not latch.
4. PushWASH CYCLESbutton for desired wash or rinse
cycle (seeWash Cycle Selections which follow).
5. Push ENERGYOPTION button desired (see Energy
Options on reverse).
6. Turn TIMERKNOBclockwise to selected cycle.
7.Open hot water faucet nearestdishwasher to clearcool
water from water pipe. Turn off the faucet.
8. To start, move latch all the way to the right. The ON
indicator light will glow throughout the wash, rinseand
dry portions of cycle.
Motor sounds will be heard before water enters tub.
Forbest resultsuse a rinse aid.
Wash Cycle Selections
Select appropriate wash cycleby pushing a cycleselector
button and turning the timer knob to the samecycle.
Pots & Pans
(90 minutes) (2 washes, 3 rinses,dry) (12.6 gallons)
Forcleaning sticky pots, greasy broiler pans, encrusted
casserolesand dinnerware.
1. Add detergent to both cups.Turn lidto cover largercup.
Close door - do not latch.
2. PushPOTS& PANS/HEAVYSOILbutton.
3. SelectENERGYOPTION.
4. Turn TIMERKNOBclockwise to POTS& PANSposition.
5. To START,move latch all thewayto the right.
HeavySoil
(79 minutes) (2 washes, 2 rinses,dry) (10.0 gallons)
Forheavily soiled dishes,silverware, cookware and
other itemsthat might require adoublewash.
1. Add detergent to both cups.Turn lidto cover largercup.
Close door - do not latch.
2. PushPOTS& PANS/HEAVYSOILbutton.
3. SelectENERGYOPTION.
4. Turn TIMERKNOBclockwise to HEAVYSOILposition.
5. To start, move latch all the way to the right.
Normal Soil
(69 minutes) (2 washes, I rinse, dry) (7.6 gallons)
Forregularly soiled dishes and silverware.
I. Add detergent to both cups.Turnlid to cover largercup.
Close door - do not latch.
2. PushNORMALSOIL/LIGHTSOILbutton.
3. SelectENERGYOPTION.
4. TurnTIMERKNOBclockwise to NORMALSOIL
position.
5. To start, move latch all the way to the right.
LightSoil
(58 minutes) (I wash, I rinse, dry) (5.0 gallons)
Forlightly soiled or pre-rinsed dishes and silverware.
I. Add detergent to largercup. Turnlidto cover largercup.
Close door- do not latch.
2. PushNORMALSOILILIGHTSOILbutton.
3. SelectENERGYOPTION.
4. Turn TIMERKNOBclockwise to LIGHTSOILposition.
5. To start, move latch all the way to the right.
Rinse & Hold
(12 minutes) (1 rinse)(2.3 gallons)
Forrinsing dishes that willbewashed later.
1. Do not usedetergent. Close door - do not latch.
2. PushNORMAL SOIL/LIGHTSOILbutton.
3. PushLO-TEMPDRYbutton.
4. TurnTIMERKNOBclockwiseto RINSE& HOLDposition.
5. Tostart, move latch all the way to the right.
PIN154173701A (9312)
