Washer-dryer
en Installation and operating instructions
2
Table of contents
Keep all documents in a safe place for future reference, or to pass on to the next owner.
For further information and a selection of our products, visit our website:
www.bosch-home.com
Operating instructions
General safety information ......................................................... 3
Environmental protection/economy tips .................................. 4
Your new washer-dryer ............................................................... 5
Before washing for the first time ................................................ 7
Preparing and sorting the laundry ............................................. 7
Detergents and Care Products................................................... 9
Programmes.................................................................................11
Washing and drying options .................................................13
Washing and drying ..................................................................15
Cleaning and care ......................................................................17
What to do if... ............................................................................19
After-sales service .....................................................................22
Installation instructions
Installation instructions ........................................................23
Appendix
Table of programmes.................................................................28
Consumption rates......................................................................29
Index ..............................................................................................30
Please read the Installation and operating instructions and all the other
information supplied and handle the appliance accordingly.
3
General safety information
Intended use
The washer-dryer is designed for:
– domestic use only.
–washing machine-washable fabrics in detergent solution and drying
these fabrics.
– operation with cold drinking water and commercially available
detergents and care products that are suitable for use in washing
machines.
This washer-dryer complies with the relevant safety regulations.
Hazard warnings
– Keep packaging and packing materials out of the reach of children.
Risk of suffocation from plastic film and collapsible boxes.
– When an appliance is worn out, unplug it from the mains. Cut through
the mains cable and remove it together with the plug. Destroy the lock
on the door. This will prevent children from getting locked in and
putting their lives in danger.
Do not use the washer-dryer if the laundry:
– has been treated with solvents, oil, wax, fat or dye (e.g. stain remover,
cleaning solvent, hairspray, nail varnish remover).
– has come into contact with hairspray, nail varnish remover, or similar
substances. Risk of fire or explosion!
– contains dust residues, e.g. coal dust or flour Risk of explosion!
–contains foam/rubber.
Before using for the first
time
– Set up the washer-dryer according to
the installation instructions → page23.
– Remove the transport safety bolts and keep them in a safe place.
– Do not operate the washer-dryer if it has any visible damage. If you are
in any doubt, please consult our after-sales service or your retailer.
When washing and
drying
– Remove all objects from pockets, particularly sources of ignition
(e.g. lighters, matches, etc.).
– Do not leave children unsupervised near the washer-dryer.
– The washer-dryer must not be used by children or persons who have
not been instructed in its use.
– Keep pets away from the washer-dryer.
– Take care when emptying hot detergent solution.
– The door can become very hot during operation.
– Condensed water is not drinking water quality and may be
contaminated with fluff.
To protect the washer-
dryer
– Do not climb onto the washer-dryer.
– Do not lean on the door of the washer-dryer when it is open.
– Do not install the washer-dryer in areas that are at risk of frost.
– Do not transport the washer-dryer without the transport safety bolts in
place.
WEEE
)
This appliance is labelled in accordance with European Directive
2002/96/EC on Waste Electrical and Electronic Equipment - WEEE.
The directive provides an EU-wide framework for the return and recycling
of used appliances.
4
Environmental protection/
economy tips
– Separate out the various waste materials of the packaging and take
them to the nearest collection point.
– Always fill the appliance with the maximum amount of laundry for each
programme.
– Wash normally soiled laundry without a prewash.
–Instead of Resistentes/Algod. 90 °C (Cottons ), choose the
programme Resistentes/Algod. 60 °C (Cottons), X Intensivo →
page11. Similar cleaning performance with considerably lower energy
consumption.
– Measure the detergent according to the manufacturer's instructions
and in line with the local water hardness.
– If the laundry is subsequently dried in a tumble drier, select the spin
speed according to the tumble drier manufacturer's instructions
.
5
Your new washer-dryer
Description of the
washer dryer
The washer-dryer can be used
in 3 ways → page15:
– washing only,
– drying only,
– successive washing and drying.
The successive wash-dry programme shifts automatically from the wash
cycle to the dry cycle without further intervention.
Drying is achieved using the condensation principle. The condensate that
is produced during drying runs via the drain hose into the drain tank.
Caution: the water supply hose and water drain hose must be correctly
connected during washing and drying → page26. The water hose must
be open.
A safety device prevents the door from being opened during operation.
Before opening
Make sure that there is no water in the drum and that the drum is not
moving.
Door
6
Control panel
Indicator lamps
Indicate the settings that have been
selected for:
– Spin speed: $ - 1200 rpm
(depending on the model).
– Washing options / signal.
Display panel
Shows the settings that have been selected (e.g. spin speed,
drying time), the progress of the current programme and the
programme status.
Programme progress
T N ' B ‘
Prewash, main wash, rinse,
final spin, drying.kg
Auxiliary displays
2 f E
l kg
Finished in Time, Start of the program,
childproof lock,
fluff clean , recommended load.
Indicator lamps Display
Washing and drying options → page13
– B (Spin) : individual adjustment of the spin speed.
– menu (Option): setting the washing options.
– selec. (Select): activation/deactivation of the selected
washing options.
– 0 (Delay) : delays the start of the programme.
– secar ˆ (dry): setting the drying time.
inicio pausa A (Start/Pause):
starts and stops the washing programme → page14.
Buttons
Programme selector → page11
For switching the washer-dryer on
and off and for selecting the
programme, can be turned in both
directions. Do not adjust the
programme selector while washing/
drying is in progress.
Programme selector
7
Before washing for the first time
Preparing and sorting the laundry
The washer-dryer was tested before leaving the factory.
To remove any water that may be left over from the test, do not load any
laundry the first time that you run a wash programme.
Make sure that the transport safety bolts on the rear of the washer-
dryer have been removed → page24.
Do not load any laundry.
Close the door.
Turn on the tap.
Pull out the detergent drawer.
Add ½ a measuring cup of detergent to compartment II → page9.
Do not use detergents for wool or delicates (these cause foam to be
created).
Close the detergent drawer.
Turn the program selector to a 60°C programme.
Press the Start button.
At the end of the programme, set the programme selector to Stop
(Off).
Open the door.
Leave the door open to allow the inside of the washer-dryer to dry.
Sorting laundry for
washing
– Wash white laundry separately from coloureds.
– Unhemmed or torn items should not be washed in the appliance, as
they may fray.
– The laundry may be damaged if you do not observe the fabric care
symbols.
Only wash laundry with the following care labels:
Laundry with care symbol Do not wash.
i
i
Sorting laundry according to
the information on the care
labels
Care label Type of laundry
<;
Cottons 90°C
:98
Coloureds 60°C, 40°C, 30°C
BA>
Easy-care 60°C, 40°C, 30°C
uFAE>
Hand- and machine-washable silk and wool, cold,
40 °C, 30 °C.
8
Sorting laundry for
drying
Only dry laundry that is labelled "suitable for tumble-drying" or which
has the following care symbols:
Do not wash the following fabrics in the washer-dryer:
– Laundry with the care symbol
b.
– Airtight fabrics (e.g. rubber-coated fabrics).
– Delicate materials (silk, curtains made from synthetic fabrics) - they
may crease.
– Dripping-wet laundry - high energy consumption
– Wool or fabrics containing wool.
Preparing laundry for
washing
Loose foreign bodies (e.g. coins, paper-clips, needles, nails) may damage
the laundry and components of the washer-dryer (e.g. the drum).
Empty the pockets of all items.
Brush any sand out of pockets and collars.
Pretreat any stains.
Close zips, do up cover buttons.
Remove curtain fittings or place curtains in a laundry bag.
Wash the following in a laundry bag/pillowcase:
– Delicates, e.g. tights, curtains,
– Small items, e.g. socks or handkerchiefs,
– Underwired bras (the underwiring may come loose during the
washing process and cause damage).
Turn trousers, knitwear and jersey fabrics, e.g. hosiery,
T-shirts or sweatshirts, inside out.
Preparing laundry for
drying
– Only dry fabrics that have already been washed, rinsed and spun.
– Also spin delicate fabrics before drying.
– Sort the items for washing according to material and desired level of
dryness to ensure even drying.
Loading the laundry
Before loading the washer-dryer, make sure that there are no foreign
bodies or pets in the drum.
Risk of explosion. Items that have been treated with cleaning agents
containing solvents, e.g. stain removers, must be carefully rinsed out by
hand before they are loaded into the washer-dryer.
Unfold the laundry and place it loosely in the drum. Load a mixture of
small and large items.
Observe the maximum drum loads,
Programme table → page28.
Take care not to trap items of laundry between the door and the rubber
seal.
Close the door. You will hear it click shut.
Measure out and add detergent and care products for just a washing
programme or a combined washing and drying programme.
Turn on the tap.
Sorting laundry according to
the information on the care
labels
Care label Type of laundry
a
Dry at normal temperature.
`
Dry at low temperature (delicate drying).
9
Detergents and Care Products
Detergent drawer
The detergent drawer is divided into three compartments
Compartment I : detergent for prewash.
Compartment II : detergent for main wash,
Compartment i : Liquid additives, such as starch or fabric softener.
Additives are automatically dispensed during the final rinse cycle.
– Do not exceed the maximum capacity, otherwise compartment i may
be emptied too early.
– Dilute viscous additives with water to prevent blockages.
Liquid detergent insert: this must be folded down before liquid
detergents are used.
To do this:
Pull out the detergent drawer as far as the stop.
Press on the zone labelled PUSH and take out the detergent drawer.
Pull the insert in compartment II forwards as far as the stop and push
it down.
Insert the detergent drawer.
Descaler can be added to compartments I and II according to the
manufacturer's instructions. Add detergent first, followed by the descaler.
Detergents and care
products
Risk of poisoning
Keep detergents and care products out of the reach of children.
Risk of chemical burns
Take care when opening the detergent drawer. There may still be
detergent residues in the drawer.
Select the correct dosage for the detergent according to:
– the amount of laundry,
– the instructions of the detergent manufacturer,
– how dirty the laundry is,
– the water hardness. You can find out about water hardness in your area
from your local waterworks.
Using the correct dosage reduces the impact on the environment and
gives a good washing result.
Only use pH-neutral wool detergent for woollens programmes.
II
I
i
Descaler
i
i
10
Normally soiled laundry
Set the programme.
Do not select
T (Prewash) → page13.
Add all the detergent, according to the manufacturer's instructions, to
compartment II of the detergent drawer.
Heavily soiled laundry
Set the programme.
Select
T (Prewash) → page13.
Add 1/4 of the recommended amount of detergent to compartment I
of the detergent drawer and 3/4 of the detergent to compartment II.
Only use liquid detergent for the main wash cycle with no prewash.
To do this:
Add the recommended amount of detergent to a liquid detergent
measuring aid and place it in the drum.
or
After folding down the liquid detergent insert, add the liquid detergent
to compartment II of the detergent drawer.
Use the scale on the liquid detergent insert as a guide for the dosage of
liquid detergent.
If compartment II is used for washing powder, the liquid detergent insert
must be folded up.
Measuring washing powder
Measuring liquid detergent
i
i
11
Programmes
Programme selector
The programme selector is used to set the washing and drying
programmes.
The time remaining until the end of the programme and the recommended
load are shown on the display panel.
Washing programmes
Resistentes/Algod. (Cottons)
Suitable for hard-wearing fabrics, heat-resistant fabrics made from cotton
or linen.
– Coloureds up to 60 °C.
– Whites 60 °C to 90 °C.
Sintéticos (Easy-Care)
Washing programme for less hard-wearing fabrics made from cotton,
linen, synthetic fibres or blended fabrics. It is advisable to sort the laundry
by colour.
Delicado (Delicate/Silk)
Gentle programme for delicate, washable fabrics, e.g. silk, satin,
synthetics or blended fabrics (e.g. curtains). Gentle spinning between the
rinse cycles and reduced final spin speed.
Lana/Lã u (Wool)
Wool becomes matted when subjected to heat, moisture and movement.
The woollens programme takes these qualities into account and finds a
compromise between standing still and movement.
Suitable for hand- and machine-washable fabrics made from wool or a
wool blend.
Mix Rápido (Mixed Load)
For mixed items of laundry made of various hard-wearing and easy-care
fabrics.
Drying programmes
Secar Normal (Intensive Dry)
Intensive drying for a (robust fabrics), drying is performed at 90°C.
Secar Suave (Heat Dry)
Gentle drying for ` (easy-care fabrics), 60°C.
i
(Depends on the model)
12
Special programmes
limp. pelusas / fios (Fluff Clean)
This programme is designed to clean the drying cycle of any fluff
deposits. After 10 drying cycles, the washer-dryer uses the symbol
l (Fluff Clean) in the display panel to show that this programme should
be run. The electronic cycle counter is then automatically reset. The
l
(Fluff Clean) symbol goes out after the programme starts.
To run the limp. pelusas / fios (Fluff Clean) programme, proceed as
follows:
Make sure that the drum is completely empty and close the door.
Set the programme selector to limp. pelusas / fios (Fluff Clean).
Press the A (Inicio/Pausa) button.
You can also run the limp. pelusas / fios (Fluff Clean) programme at any
time without prompting from the appliance.
'+B (Rinse + Spin):
An additional rinse cycle with a final spin. If the laundry is to be removed
dripping wet, set the spin speed to $ (Rinse stop) before starting the
programme → page13.
t+ B (Empty + Spin):
Drain the rinsing water following a programme with $ (Rinse stop)
→ page13.
Turn the programme selector to
t+B (Empty + Spin).
Set the spin speed to $ (Rinse stop).
Press the A (Inicio/Pausa) button.
or
Drain and spin at the desired spin speed:
Turn the programme selector to
t+B (Empty + Spin).
Press the B (Spin) button repeatedly until the desired spin speed is
set.
Press the A (Inicio/Pausa) button.
i
13
Washing and drying options
B (Spin speed) button
The spin speed can be individually adjusted for each programme.
To set the spin speed, press the B (Spin) button repeatedly until the
required spin speed is displayed.
$ (Rinse stop) deactivates the spin function.
The laundry remains in the rinsing water.
The automatic unbalanced load detection system ensures that the laundry
is evenly distributed using several initial spins. If the laundry is extremely
unevenly distributed, the speed of the final spin is reduced or the spin
cycle is not performed for safety reasons.
menu button
selec. button
The set washing programmes can be individually adjusted.
To choose the required washing option:
press the menu button repeatedly until the required washing option is
selected (indicator lamp flashes).
Press the selec. button to switch the washing option on or off (indicator
lamp is lit/not lit).
If you press and hold the menu button, the appliance scrolls through all
the washing options.
Washing options
T - Prewash Prewash at 35 °C. Suitable for heavily soiled laundry.
X - Intensive Prolonged washing time. Suitable for heavily soiled laundry with dried-on
stains. Cannot be combined with R Flexi Time.
Q - Easy-iron Special spin sequence with subsequent fluffing. Gentle final spin at
reduced speed. Slightly increased residual moisture in the laundry.
Reduces creasing and laundry is easier to iron.
R - Water Plus Increased water level and additional rinse cycle. For regions with very soft
water or for further improving the rinsing result. Any detergent residues
are better removed.
R - Flexi Time Sets the washing time: normal-medium-short.
C - Signal Activates or deactivates the audible signal.
0 Delay button
You can postpone the start of the programme before it begins. Using the
remaining time, you can determine when the selected programme is to
end. The remaining time can be set in one-hour increments, up to a
maximum of 24 hours. Press the 0 Delay button repeatedly until the
required number of hours is displayed.
Then press the A (Start/Pause) button. The programme will start after a
delay according to the set remaining time. The time required until the end
of the programme is shown on the display.
Rinse Hold
Unbalanced load
detection system
i
14
secar button
The drying programmes → page11 can be individually adapted by
selecting the drying time.
– Press the secar button repeatedly until the required drying time is
shown on the display panel.
– To deactivate, press the secar button repeatedly until is shown
on the display panel.
Drying option
Time-controlled
drying
The required drying time can be set to between 2:40 and 0:00 by repeatedly pressing
the secar button.
inicio pause button
Press A (Start/Pause) to start the selected programme.
The 0 (Remaining time) is shown on the display panel. The
% (start of the programme) symbol is lit.
The programme progress is shown on the display panel:
T - Prewash
N - Main wash
' - Rinse
B - Final spin
5 - Drying
To change the programme:
Select a new programme.
Press A (Start/Pause).
The new programme starts from the beginning.
Press and hold the A (Start/Pause) button while the programme is in
progress until appears on the display panel. and 0
(Remaining time) appear alternately while the programme is paused.
Press A (Start/Pause) to continue with the programme.
Press and hold A (Start/Pause) until is displayed.
For washing programmes at high temperatures:
– Cooling down laundry: choose
' + B (Rinse + Spin).
– Press A (Start/Pause).
For programmes at low temperatures:
– choose
t + B (Empty + Spin).
– Press A (Start/Pause).
Caution! if you cancel the drying programme, the laundry may still be very
hot.
i
Programme progress
Changing the
programme
i
Pausing the programme
Cancelling the
programme
15
Washing and drying
Washing only
Set the programme selector to the desired programme,
e.g. Resistentes/Algod. (Cottons)
– 0 (Remaining time) and the recommended load in kg are shown
alternately on the display panel. The ! symbol flashes.
If necessary, adjust the spin speed and select any washing options for
your individualised programme → page13.
–The secar (dry) function must not be activated.
Load the laundry → page8.
– Observe the maximum load,
Programme table → page28.
Press the A (Start/Pause) button.
– 0 (Remaining time) is shown in the display.
The % (Programme start) symbol lights up.
– The washing programme starts.
Drying only
Set the programme selector to the desired drying programme.
– The display panel alternately shows 0 (remaining time) and the
recommended load in kg.
Press the secar (Dry)
button to set the drying time → page14.
Load the laundry → page8.
– Observe the maximum load,
Programme table → page28.
Press the A (Start/Pause) button.
– 0 (Remaining time) is shown on the display panel and the
5 and
symbols light up.
– The drying programme starts.
Washing and drying
Successive washing and drying.
Set the programme selector to the desired programme,
e.g. Resistentes/Algod. 60°C.
– 0 (Remaining time) and the recommended load in kg are shown
alternately on the display panel. The % symbol flashes.
If necessary, adjust the spin speed and select any washing options for
your individualised programme → page13.
Press the secar (Dry)
button to set the drying time → page14.
Load the laundry → page8.
– Observe the maximum load in kg,
Programme table → page28.
Press the A (Start/Pause) button.
The drying programme that is carried out is automatically determined by
the washing programme, see the Programme table → page28.
i
i
16
End of the programme
The washing and drying programmes are ended automatically.
appears on the display panel.
Set the program selector to Stop (Off).
Remove the washing from the drum.
Leave the door open so that the inside of the washer-dryer can dry out.
Turn off the tap (not necessary on models with Aqua-Stop).
If the spin function was deactivated at the start of the wash cycle,
$ (no final spin = laundry remains in last rinsing water), the washing
programme is automatically stopped after the final rinse. The display
panel shows alternating with .
In order to drain the rinsing water and, if required, spin the laundry:
Press the B (Spin) button repeatedly until the required spin speed is
set. The water is drained and the washer-dryer spins the laundry. The
programme is completed when appears in the display field.
The maximum spin speed depends on the selected wash programme.
If you do not wish to spin the laundry:
Set the spin speed to $ (Rinse hold) . The water is drained, but the
washer-dryer does not spin the laundry. The programme is ended
when appears in the display field.
Set the program selector to Stop (Off).
Remove the laundry.
Leave the door open so that the inside of the washer-dryer can dry out.
Turn off the tap (not necessary on models with Aqua-Stop).
Childproof lock
For preventing the washer-dryer functions that you have set from being
changed inadvertently.
Activate/Deactivate: Press the menu and select. buttons at the same
time to activate or deactivate the childproof lock. When the childproof lock
is activated, D lights up on the display.
Rinse
i
17
Cleaning and care
Safety information
Risk of electric shock
You must disconnect the appliance from the mains first. Never clean the
washer-dryer with a water jet!
Risk of explosion.
Never clean the washer-dryer with solvents.
Risk of scalding
Hot washing water must be cooled before draining.
Housing and control
panel
Wipe with a soft, damp cloth.
Remove detergent and cleaning agent residue immediately.
Do not clean with a jet of water.
Drum
Remove any foreign bodies from the drum and rubber seals.
Descaling the drum:
– Only use a proprietary brand of descaler with corrosion inhibitor for
washing machines for descaling the washer-dryer.
– Observe the manufacturer's instructions regarding use and dosage.
– After descaling and removing rust from the drum,
run the
' + B (Rinse + Spin) programme several times to remove
any remaining acid.
If any remaining metal objects (e.g. coins, paper clips, needles, nails)
have caused rust spots:
– Use a chlorine-free cleaning agent; observe the manufacturer's
instructions. Never use steel wool.
Detergent drawer
If there are detergent or care product residues:
Pull out the detergent drawer as far as the stop.
Press on the zone labelled PUSH and take out the detergent drawer.
Clean the detergent drawer guide in the washer-dryer.
Remove the fabric softener compartment insert.
Clean the detergent drawer and fabric softener compartment insert
under running water.
Insert the fabric softener compartment insert.
Insert the detergent drawer.
18
Drain pump
Take the drain hose out of the retainer.
Remove the plug from the drain hose and release the washing water.
– The container for the drained water may have to be emptied several
times.
– When no more water runs out, replace the plug.
Place the drain hose into the retainer.
Unscrew the pump cover.
– Clean the pump housing and remove any foreign objects.
– Make sure that the impeller can turn freely.
Replace the pump cover and screw firmly in place.
Place the kick panel in the 4 clip-in slots and secure to the housing
using the lock pins.
Filter in the water
supply hose
If no water runs into the washer-dryer, or only an insufficient amount, you
must first reduce the water pressure in the supply hose:
Turn off the tap.
Choose any programme (except
'+B (Rinse + Spin) / t+B (Empty
+ Spin).
Press the A (Start/Pause) button.
Allow the programme to run for approximately 40 seconds.
Set the program selector to Stop(Off).
Unplug the mains plug from the socket.
Unscrew the water supply hose from the tap.
Clean the filter with a small brush.
Reconnect the hose.
Turn on the tap.
Check whether water comes out of the end of the hose.
If water is escaping, check that the filter is correctly seated.
Descaling the
washer-dryer
This should not be necessary if the correct detergent dosage has been
used. If it is necessary, however, proceed according to the descaler
manufacturer's instructions. Suitable descalers can be purchased from
our web site or via our after-sales service → page22.
Turn the programme selector to Stop (Off).
Use a screwdriver to release the lock pins.
Tip the kick panel and pull upwards to remove.
Draining the water
Cleaning the drain pump
19
What to do if...
Risk of electric shock.
Repairs must only be carried out by customer services or authorised
technicians.
If repairs are needed, or if you cannot rectify a fault yourself with the help
of the following table:
Set the program selector to Stop (Off).
Disconnect the washer dryer from the power supply.
Turn off the tap.
Call the after-sales service → page22.
Other fault codes are only for use by the after-sales service.
Make a note of the fault code to inform the after-sales service.
Fault Possible cause Remedial action
Programme does not start. The A (Start/Pause) button has not
been pressed.
Press theA (Start/Pause) button.
A delayed start time has been
selected.
Washer dryer starts on completion of
the delay period.
If required, change the remaining time.
Power failure.
The delayed start time that was
selected has been cleared.
Reselect the delayed start time or start
the programme immediately.
Press the A (Start/Pause) button.
The door is not properly closed. Close the door.
Plug not inserted properly into socket. Insert plug correctly.
The maximum spin speed
cannot be set.
The maximum spin speed depends on
the programme selected.
Change programme as required.
The water is not drained. Drain hose is twisted. Fit the drain hose correctly.
Detergent pump is blocked. Clean the drain pump → page18.
Detergent residues in the
detergent drawer.
Damp or lumpy detergent. Clean and dry the detergent drawer
→ page17.
Use the measuring aid for liquid
detergent.
Fault code Description of the problem
The door is not properly closed. Close the door.
The water control system has been activated. Disconnect the appliance from
the mains, turn off the tap and advise the after-sales service.
The washing water is not entering the appliance. See the fault Water is not
flowing in.
The water is not drained. See the fault Water is not drained.
Maximum or minimum drying load not taken into account. HI/End or LO/End
flash alternately in the display. See information for the Drying result not
satisfactory fault.
20
Water is not flowing in. The mains plug is not correctly
plugged in.
Plug in the mains plug correctly.
The door is not properly closed. Close the door.
The tap is not turned on. Turn on the tap.
The filter in the water supply hose is
blocked.
Clean the filter in the water supply hose
→ page18.
The water supply hose is pinched or
kinked.
Check the water inlet hose.
Intense vibrations during
spinning.
The washer-dryer is not correctly
levelled.
Level the washer-dryer → page25.
The transport safety bolts have not
been removed.
Remove the transport safety bolts
→ page24.
Washer dryer fills with water
and continuously drains it
away.
Drain hose fitted too low. Fit the drain hose correctly → page27.
No water can be seen in the
drum.
Not a fault. During certain programmes the water
level is below the visible range.
Water leaks from the bottom
of the appliance.
Supply hose screw connection is
leaking.
Tighten the screw connection.
Drain hose is leaking. Have the drain hose replaced by the
after-sales service.
Foam escapes from
detergent drawer.
Too much detergent has been used. Only use detergent which is correct for
textiles, and suitable for use in
automatic washing machines.
Make sure that you use the correct
dosage.
Several attempts to start
spinning.
Not a fault.
The unbalanced load detection system
attempts to redistribute an unbalanced
load by starting to spin several times.
Always wash large and small items
together.
Washing is not spun
properly.
Large items of laundry are not evenly
distributed in the drum. The spin speed
is automatically reduced for safety
reasons.
Always wash large and small items
together.
Washing results not
satisfactory.
Uncleaned areas worse than expected. Select a suitable programme, e.g. a
programme with prewash. Pretreat
stains if necessary.
Too little or incorrect detergent used. Use the correct dosage of a suitable
detergent, in accordance with the
manufacturer's instructions.
Maximum load exceeded. Select the correct load for the
programme.
Detergent residues on the
washing.
Some phosphate-free detergents
contain water-insoluble residues which
appear on washing as light specks.
Rinse the laundry again or change to
using liquid detergent. Brush the
laundry after it has dried.
Grey residues on the
washing.
Soiling caused by ointments, grease or
oil.
Wash the laundry using the maximum
detergent dosage and the maximum
permissible temperature – see the
care label.
21
Programme terminated
unexpectedly.
The A (Start/Pause) button has been
pressed accidentally.
Press the button again to restart the
programme.
Spinning during drying No fault "Thermo spin", which is for energy-effi-
cient drying, starts after a drying time
of approx. 10 minutes.
Drying result not
satisfactory.
The laundry clings to the sides of the
drum after being spun.
Loosen up the laundry by hand; start
the drying programme → page15.
Closed tap
Maximum load exceeded.
Drying time selected too short.
Turn on the tap.
Reduce the load for the programme
accordingly → page28.
Select the drying time according to the
load and the type of fabric.
Maximum or minimum load not taken
into account → page28
Once the programme has ended:
adjust the load quantity, select a
suitable drying programme and restart.
The fabric softener is not
completely flushed in or too
much water remains in the
compartment i
The fabric softener compartment insert
is not correctly attached or is blocked.
Clean the fabric softener compartment
insert and fit it correctly in the
compartment i → page17.
The laundry is not dried. The tap is turned off. Turn on the tap.
The laundry load is too large. Reduce the amount of laundry.
The drying time is too short. Select a suitable drying time.
No messages on the display
panel.
Power failure. The programme continues when power
is restored. If you wish to remove the
laundry during a power cut, you must
first drain out the water → page18.
Check whether:
– the plug is plugged into the socket
correctly.
– the circuit breaker (fuse) has
tripped; if it has, call the after-sales
service → page22.
The door cannot be
opened.
$ (Rinse stop) is selected. Select the programme
t + B (Empty
+ Spin and press A (Start/Pause).
The programme is running or the door
is locked for safety reasons.
Wait until appears on the
display panel.
Power failure. Unlock the door mechanically.
Emergency unlock. In order to unlock the door mechanically in the event of a power failure, you will
have to:
turn the programme selector to Stop (Off) and unplug the mains plug from
the socket.
open the base panel and drain out the water → page18.
pull the emergency release downwards and open the door at the same time.
– Before opening the door, make sure that there is no water or hot
detergent solution in the washer dryer.
Under no circumstances open the door with the emergency release while the
drum is still turning.
If you cannot correct a fault yourself (switching on/off) or a repair is required:
– Turn the programme selector to Stop (Off) and unplug the mains plug from the socket.
– Turn off the tap and call the after-sales service → page22.
22
After-sales service
Before you call the after-sales service, please check whether you can
correct the fault yourself → page19.
You will be charged if a technician is called out, even during the warranty
period.
You can find information about your nearest after-sales service here or in
the After-sales service directory (depending on the model).
Please give the after-sales service the product number (E-Nr.) and
production number (FD) of the appliance.
Enter the number of your appliance here.
You can find this information on the rating plate in the frame of the door.
Please help us to avoid unnecessary call-outs by quoting the product and
production numbers. This will also save you the associated additional
costs.
You can rely on the competence of the manufacturer. Please contact us.
This way, you can ensure the repair is carried out by trained service
technicians who are equipped with genuine spare parts.
23
Installation instructions
Safety information
The washer-dryer is very heavy. Take care when lifting it.
Do not operate the washer-dryer if it has any visible damage. If you are in
any doubt, please consult our after-sales service or your retailer.
Do not install the washer-dryer outdoors or in areas exposed to frost.
Frozen hoses can crack or burst. As a result, the washer-dryer could be
damaged.
Do not stand the washer-dryer upside down or on its side. Do not lift the
washer-dryer by protruding parts (e.g. door).
Do not place the washer-dryer behind a door or a sliding door which
could obstruct the dryer door or prevent it from being opened. This will
prevent children from locking themselves in and putting their lives in
danger.
Remove the transport braces and cross connectors and store in a safe
place.
In addition to the instructions provided in this document, special
regulations from the relevant water and electric utility companies may
apply.
If in doubt, have a technician connect the appliance.
24
Included with the
appliance
On the back of the washer dryer:
–Water drain hose
– Water supply hose
– Mains cable with plug
– Instruction manual and booklet containing after-sales service
addresses
Moisture may remain in the drum following the final inspection which
every washer-dryer undergoes before leaving the factory.
Removing the transport
safety bolts
Unscrew all four screws
using the spanner
supplied.
Remove all 4 transport safety bolts
completely and take the mains cable out of
the retainers.
Insert the protective
covers.
– Before using the appliance for the first
time, ensure that all transport safety bolts
have been removed and kept safe for any
subsequent transport.
– If you need to transport the appliance at a
later date, always refit the transport safety
bolts to prevent damage to the washer-
dryer.
Positioning and
levelling
– Appliance stability is essential to ensure that the washer dryer does not
“creep” during spin cycles.
– The installation area must be firm, clean and level.
– Parquet floors and soft floor coverings, e.g. carpets or foam-backed
floor coverings, are unsuitable.
Number Description
4 Covers for openings left after removing the transport bolts.
1 Spanner
1 24-40 mm dia. hose clamp for connection to a siphon.
1 Door template
2 Door hinges with screws
25
Positioning
Slide sheets facilitate the insertion of the washer-dryer into the installation
space. These can be ordered from the after-sales service, spare part no.
66 1827.
Moisten the slide sheets with a mixture of water and washing-up liquid
before sliding the washer-dryer into place. Do not use grease and/or oil.
Levelling
Intense noise, vibrations and “wandering” may be the result of incorrect
levelling.
– All four appliance feet must stand firmly on the ground.
– The washer-dryer must not wobble.
– Check the levelness of the washer-dryer with a spirit level and correct
if necessary.
– The washer-dryer must not rest against the sides of the installation
recess.
– The lock nuts of the front appliance feet must be screwed tightly
against the housing.
.
26
Dimensions
Width x depth x height 595 mm x 584 mm x 820 mm
Weight 85 kg

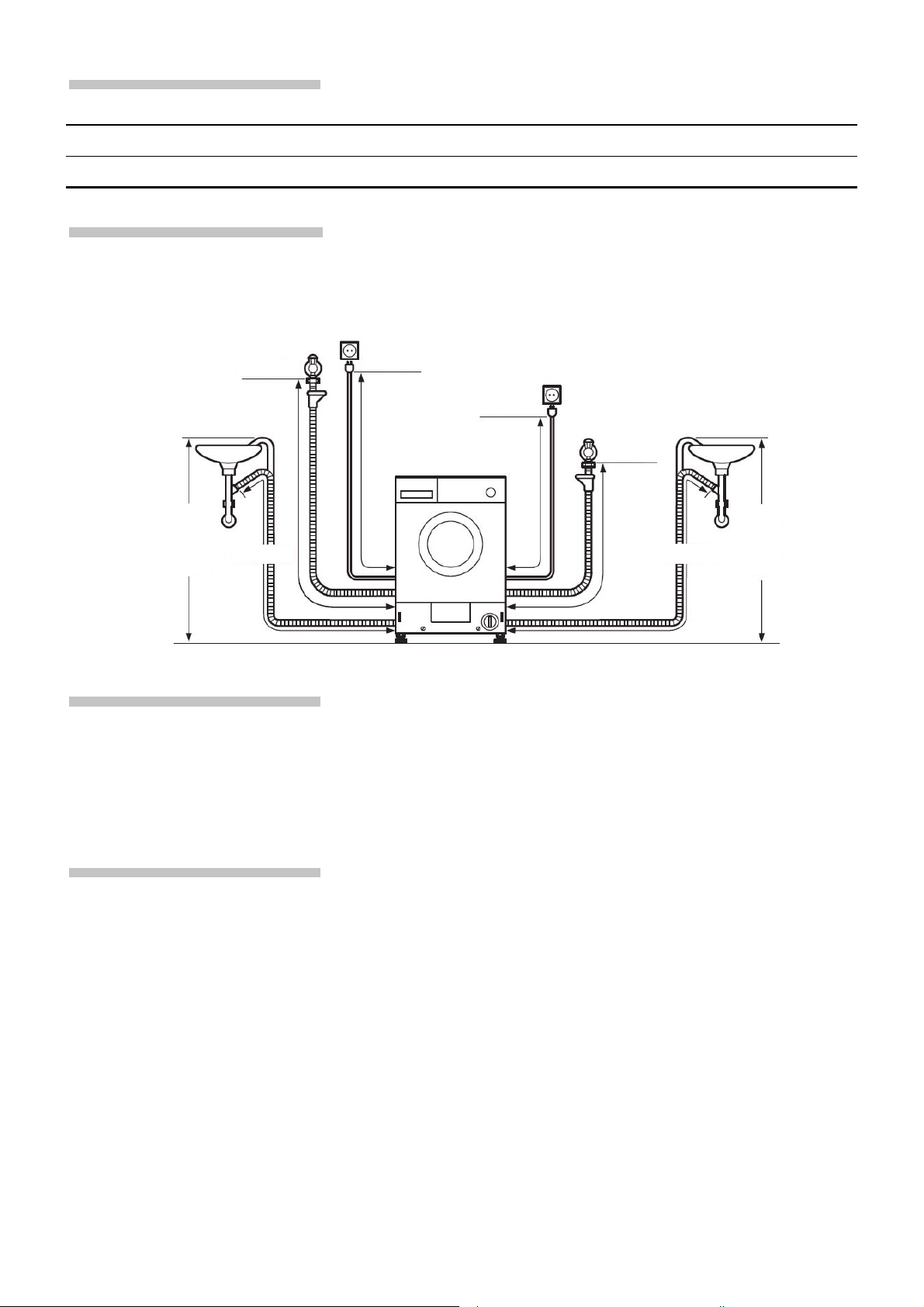

Hose and cable lengths
Left-hand connection
or
Right-hand connection
Water connection
To prevent leaks or water damage, you must observe the instructions in
this section.
If in doubt, have a technician connect the appliance.
The water supply and drain hoses can be routed to the left of right,
depending on installation conditions.
Do not use a used inlet hose. Only use the inlet hose supplied or one
which was purchased from an authorised specialist retailer.
Water supply
Do not allow the water supply hose to be:
– kinked or squashed,
– altered or cut (strength no longer guaranteed).
Note the water pressure in the mains supply:
The water pressure should be between 50-900 kPa (0.5-9 bar) (at least
8 litres of water flow out per minute when the tap is turned on).
If the water pressure is higher, a pressure reducing valve must be fitted.
Connect the cold-water supply hose (blue union nut) to the cold water tap
with ¾" pipe (3/4" = 26,4 mm) thread.
Only tighten plastic screw connections by hand.
Do not remove the filter from the supply hose.
After connecting the water supply hose:
– Turn the tap on fully.
– Check the connections for leaks.
Dimensions in mm
min.
500
max.
900
min.
500
max.
900
approx. 1400
approx. 1400
approx. 1350
approx. 950
approx. 1000
approx.
760
* depends on the model
27
Water drainage
– Do not kink the drain hose or pull it lengthways.
– Height difference between the installation surface and the drain:
max. 90 cm, min. 50 cm.
Secure the connection with the 24-40 mm hose clamp (included with the
appliance).
Electrical connection
The washer-dryer must only be connected to an alternating current supply
via a properly installed earthed socket.
If a residual current circuit breaker is used, only use a type which displays
this symbol:
‚.
Only this symbol guarantees compliance with the currently applicable
regulations.
The mains voltage must match the voltage specifications on the washer-
dryer (rating plate).
The connected load and fuse required are shown on the rating plate.
Make sure that:
– the mains plug fits the socket.
– the cable cross-section is adequate.
– the earthing system is properly installed.
– the appliance is not standing on the mains cable.
– the mains plug is accessible at all times.
Changes to the mains cable may only be carried out by an electrician.
Do not use multiple plugs/adapters or extension cables.
Do not plug in or unplug the mains plug with wet hands.
Only pull the mains plug out by the plug itself.
Fitting the door hinges
to the washer-dryer
Once the washer-dryer has been installed in a kitchen unit, it can be
concealed with a door. If you wish to do this, you must fit the hinges
supplied to the washer-dryer.
Drainage into a siphon
28
Table of programmes
Observe the information on care labels, fabric type and load quantity.
*Programmes and options depend on the model
**Reduced load quantity for successive washing and drying programme
Type of laundry Options* Drying
Programmes* °C max.
T X Q Z R ˆ ‰
Resistentes/
Algod.
(Cottons)
cold-90
6kg/
4kg**
Hard-wearing fabrics, heat-resistant fabrics made of
cotton or linen.
G G G G GG A
Sintéticos
(Easy-Care)
cold-40
3kg
Easy-care fabrics made of cotton, linen, synthetic
fibres or blended fabrics.
G G A G GAG
Mix Rápido
(Mixed Load)
30 Fabrics made from cotton or easy-care fabrics. G G G G GAG
Delicado
(Delicate/Silk)
30
2kg
For delicate, washable fabrics, e.g. made of silk,
satin, synthetic fibres or blended fabrics (e.g.
curtains).
A G A G AAA
Lana/Lã u
(Wool)
cold-30 Suitable for hand or machine-washable fabrics
made from wool or a wool blend.
A A A A AAA
29
Consumption rates
Washing
Programme Load Power*** Water*** Programme
duration***
Resistentes/Algod. (Cottons) 30 °C
6 kg
0.40 kWh 60 l
1:52 h
Resistentes/Algod. (Cottons) 40 °C 0.80 kWh 60 l
1:52 h
Resistentes/Algod. (Cottons)
X Intensivo 60 °C**
1,02 kWh 45 l 2:09 h
mix Rápido (Mixed Load) 30 °C
3 kg
0.35 kWh 40 l
0:49 h
sintéticos (Easy-Care) 40 °C** 0.45 kWh 40 l
1:31 h
Delicado (Delicate/Silk) 30 °C
2 kg
0.11 kWh 35 l
0:36 h
lana/lã u (Wool) cold 0.05 kWh 49 l
0:47 h
Lana/Lã u (Wool) 30 °C 0.20 kWh 49 l
0:47 h
Resistentes/Algod. (Cottons) 60 °C
X Intensivo, sevar normal*
6 kg/ 3 kg
4,85 kWh 83 l 6:03 h
*Programme setting for testing and energy labelling in accordance with EN50229, EU Directive 96/60/EC.
**Programme setting for testing in accordance with currently applicable EN60456 standard. Note on comparative tests: For
testing the test programmes, wash the specified load using the maximum spin speed with the "intensive" option selected. As
a short programme for coloureds, select the sintéticos (Easy-Care) 40 °C programme with the maximum spin speed.
***The values may deviate from the indicated values depending on water pressure, water hardness and supply temperature,
ambient temperature, type, amount and soiling of the laundry, detergent used, fluctuations in the power supply and which
additional functions are selected.
Drying*
Programme Load Cupboard dry Iron dry
ˆ sevar normal (Intensive Dry)
1.5 kg
1:30 h 1:00 h
2 kg
1:30 h 1:00 h
2.5 kg
1:40 h 1:30 h
3 kg
1:50 h 1:40 h
3.5 kg
2:10 h 1:50 h
4 kg
2:40 h 2:10 h
‰ secar delicado
(Low Heat Dry)
1.5 kg
1:30 h 1:00 h
2 kg
1:40 h 1:00 h
2.5 kg
1:50 h 1:30 h
3 kg
2:10 h 1:40 h
*)The values may diverge from those specified depending on over and undervoltage, fabric type, composition of the laundry
to be dried, residual moisture in the fabric and the amount of the load.
30
C
Care information
-Drying ....................................8
-Washing ................................7
Care product ...............................9
Childproof lock ........................ 16
-Display ..................................6
Cleaning
-Control panel .................... 17
-Detergent drawer ............. 17
-Drain pump ....................... 18
-Drum .................................. 17
-Housing ............................. 17
-Water supply hose ........... 18
Connection fittings .................. 26
Consumption rates .................. 29
Control panel ...............................6
-Cleaning ............................ 17
D
Delay .............................................6
Delicate/Silk ...................... 11, 28
Descaling .................................. 18
Detergent .....................................9
-Liquid detergent insert 9, 10
Detergent drawer
-Cleaning ............................ 17
-Description ...........................9
Dimensions ............................... 26
Display
-Fault message .................. 19
Door .......................................5, 16
Door hinges .............................. 27
Drain .......................................... 12
Drain pump
-Cleaning ............................ 18
Draining the water ................... 18
Draining water .......................... 16
Drum
-Cleaning ............................ 17
Drying ........................................ 15
-Display ..................................6
-Options .............................. 14
-Synthetics .............................8
-Woollens ...............................8
Drying programmes ................ 11
E
Easy-Care .......................... 11, 28
Easy-iron ....................................13
Economy tips ..............................4
Electrical connection ...............27
Emergency release ..................21
End of the programme ...........16
Environment
Energy consumption ...........8
Environmental
-protection ............................. 4
F
Fabric softener compartment
insert ...........................................17
Fault message ..........................19
Faults ..........................................19
Filter
-Water supply hose ...........18
Final spin
-Display .................................. 6
First wash .................................... 7
Fluff Clean .................................12
-Display .................................. 6
Foam ............................................ 3
Index
31
H
Hazard information .....................3
Hazard warnings
-Detergent ..............................9
Housing
-Cleaning ............................ 17
I
Included with the appliance .. 24
Installation surface .................. 23
Intensive .................................... 13
Intensive Dry ............................. 11
L
Laundry
-Creasing ...............................8
-Loading .................................8
-Preparing for drying ...........8
-Preparing for washing ........8
-Sorting for drying ................8
-Sorting for washing ............7
Levelling .................................... 25
-Washer-dryer .................... 25
Liquid detergent insert ..............9
M
Main wash
-Display ..................................6
menu ..................................... 6, 13
Mixed Load ........................ 11, 28
modificar .............................. 6, 13
O
Options .........................................6
-Drying options .................. 14
-Washing options .............. 13
P
Positioning
-Washer-dryer .................... 25
Power ........................................ 29
Pre-wash
-Display ..................................6
Prewash .................................... 13
Programme
-Cancelling ......................... 14
-Changing ........................... 14
-Pausing .............................. 14
-Progress ............................ 14
Programme selector ...........6, 11
R
Remaining time
-Button ...................................6
Remedial action ...................... 19
resistentes/algod. ................... 28
Rinse
-Display ..................................6
Rinse Hold ......................... 13, 16
Rinse stop ................................ 13
Rubber .........................................3
S
Safety information 3, 17, 19, 23
Signal
-LED indicators .....................6
Solvents .......................................3
Special programmes .............. 12
Spin speed
-LED indicators .....................6
Start of a programme
-Display ..................................6
Start/Pause ..................................6
T
Time-controlled drying
-Drying options ...................14
Transport safety bolts .............24
U
Unbalanced load detection
system ........................................13
Use .............................................15
W
Washer-dryer
Positioning and levelling ..25
Washing .....................................15
-and drying ..........................15
-Washing options ...............13
Washing options
-LED indicators ..................... 6
Washing programmes ............11
Water ..........................................29
Water drainage .........................27
Water Plus .................................13
Water supply .............................26
Water supply hose
-Cleaning .............................18
Wool ............................ 11, 28, 29
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
DEUTSCHLAND
wkd24360ee
10.2011
9000493029
