WASHLET
■
Thank you for your recent purchase of this product.
Please read the enclosed information to ensure the safe use of your product.
■
Be sure to read this Instruction Manual before using your product and keep it in a
safe place for future reference.
SW3036R
Instruction Manual
What functions are available on your product?
Functions
WASHLET
Ref.
Page
SW3036R
Basic
Functions
Cleansing
Rear cleansing
●
16
Rear soft cleansing
Front cleansing
Changing the cleansing
method
Wand position adjustment
●
Water pressure adjustment
Oscillating cleansing
Pulsating cleansing
Personal setting lock
Drying
Warm air drying
●
Changing the temperature
Temperature adjustment
●
20, 21
Sanitary
Functions
Removing odors
Deodorizer
●
18, 19
"EWATER+" cleaning
Auto wand CLEAN
●
Bowl pre-cleaning
Pre-mist
●
Convenience
Functions
Heating the toilet seat
Heated seat
●
-
Save energy by
lowering the toilet seat
temperature
Auto energy saver
●
22, 23Auto energy saver+
Timer energy saver
Maintenance
Wand cleaning
●
29
Main Unit One-touch removal 30
Removable toilet lid
31
Product name (Model)
Part No.
Part No.
2
Safety Precautions
......................
4
Operational Precautions
..........
11
Parts Names
..............................
12
Preparation
................................
14
Changing Settings
..............
34
What to Do?
..............................
40
If the water does not fl ow due to
a water service interruption
.......
40
If you cannot operate with
the remote control
.....................
40
Freeze Damage Prevention
......
41
Long Periods of Disuse
.............
42
Removal of Operation Guide
....
43
Troubleshooting
........................
44
Specifi cations
...........................
49
Warranty
....................................
50
Basic Operations
.................
16
Automatic Functions
(Cleaning Features)
.................
18
Deodorizer, Auto wand CLEAN,
Pre-mist
Temperature Adjustment
(Toilet Seat, Warm Water,
Drying)
.......................................
20
Energy Saver Features
...........
22
Maintenance
.........................
26
Power plug
................................
26
Main Unit
...................................
27
Deodorizing Filter
......................
28
Wand
.........................................
29
Wand cleaning
Gap between the Main Unit and
the Bowl Unit
.............................
30
Gap between the Main Unit and
the Toilet Lid
..............................
31
Water Filter Drain Valve
............
32
As you
sit
As you
stand up
Removing odors inside the
bowl unit.

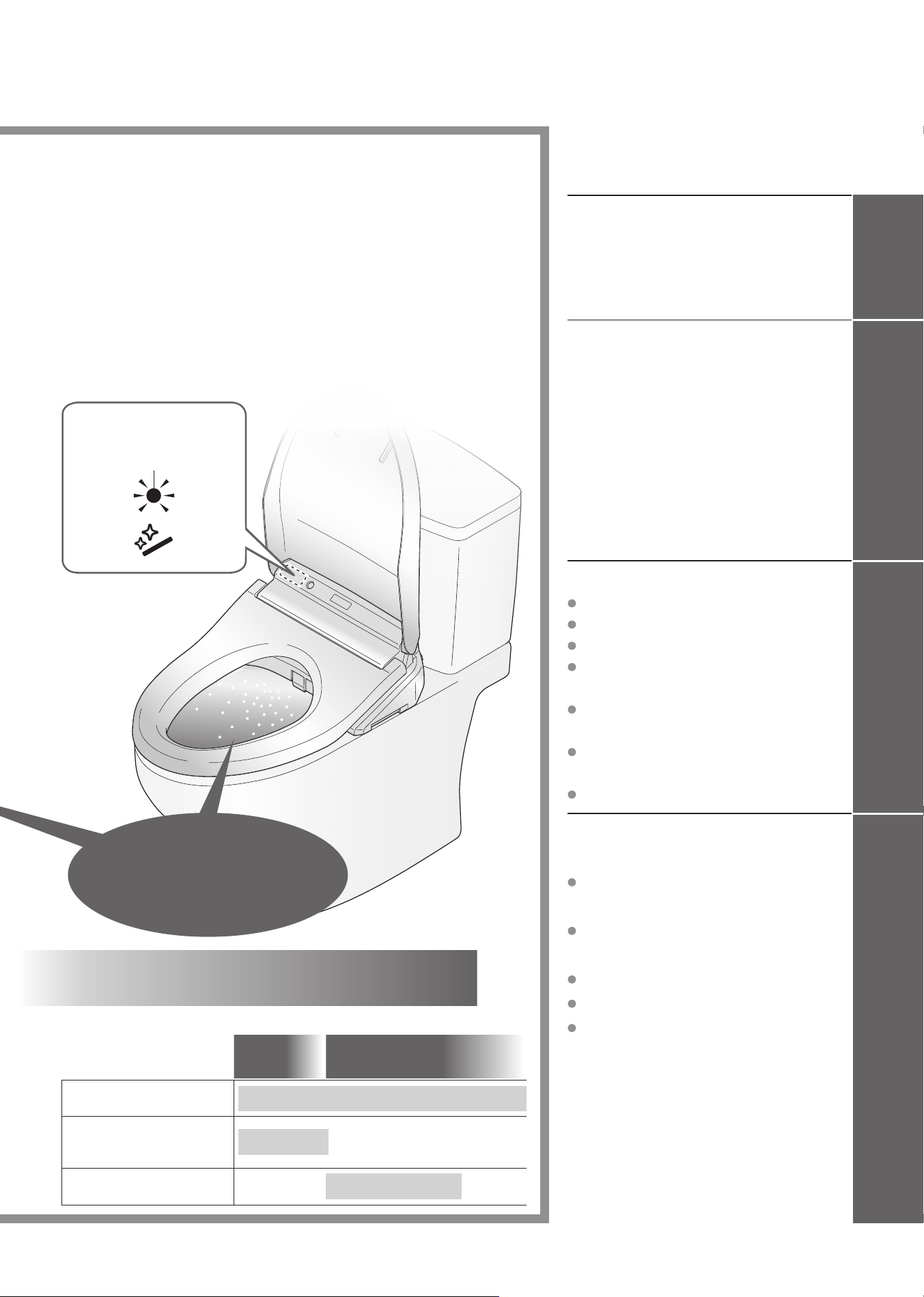

Deodorizer Auto power deodorizer
A mist is automatically sprayed
inside the bowl unit to make it
more diffi cult for dirt to adhere.
Pre-mist
Cleans the wand with
"EWATER+"
Auto wand CLEAN
A mist is automatically
sprayed inside the bowl unit
to make it more diffi cult for
dirt to adhere.

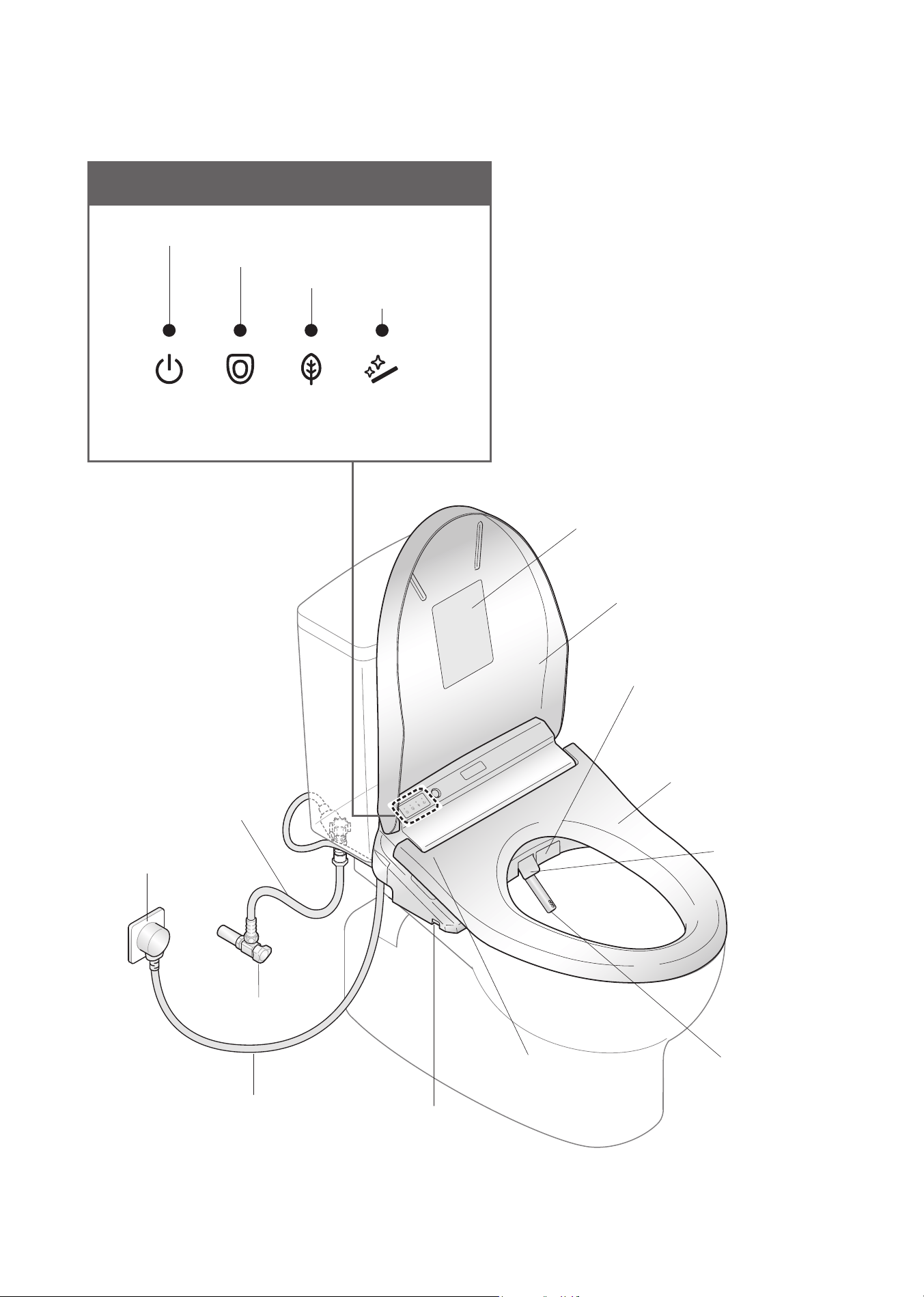

Lights to show that the
"CLEAN" functions are
operating.
3
Keep It
Clean
Sanitary Toilet
The self-cleaning functions operate automatically.
(See pages 18 and 19 for details.)
▶
Table of Contents
ReferenceMaintenanceOperation
Introduction
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING
Symbols and Meanings
WARNING
May result in death or serious injury.
CAUTION
May result in injury or property damage.
The following symbols are used to indicate important safety instructions for the use of the product.
Symbol Meaning
This symbol indicates a prohibited use of the product.
This symbol is used to indicate a required step in the use of this product.
WARNING
Do not plug or unplug the power plug with wet hands.
Doing so may cause electrical shock.
Do not get any water or cleaning solution on the main unit or power plug.
Doing so may cause fi re, electrical shock, heat or short circuit.
Doing so may cause the product to crack resulting in injury or water damage.
Never disassemble, repair or alter.
Doing so may cause fi re, electrical shock, overheating, short circuit or breakdown.
Do not install the product on moving vehicles such as wheeled vehicles or
boats.
Doing so may cause fi re, electric shock, short circuit or malfunction.
The toilet seat, toilet lid, main unit, or other parts may come loose and fall off , resulting in injury.
4
Safety Precautions
WARNING
Do not use the product if a malfunction occurs.
In case of breakdown or other problem, be sure to cut off power by means such as unplugging
the power plug.
Close the water shutoff valve to stop water supply.
Possible malfunctions:
Water is leaking from a pipe or the main unit.
The product is cracked or broken.
The product makes a strange noise or emits a strange odor.
The product emits smoke.
The product is abnormally hot.
The toilet seat cushion is out of place.
Continued use after malfunction could cause a fi re, electric shock, heat, short circuit, injury or
water damage.
Do not use other water than allowed by the laws and ordinances of the
region of use. Only use drinking water.
Do not use seawater or recycled water.
Doing so may cause irritation to the skin and malfunction.
Do not touch the power plug during thunderstorms.
Doing so may cause electrical shock.
Do not allow the water supply hose to touch the power plug or outlet.
Doing so may cause condensation resulting in a fi re, electrical shock, heat or a short.
Do not do anything that may damage the power cord, power plug.
Do not strike, yank, twist, excessively bend, damage, alter, or heat the power cords.
Also, do not place anything heavy on, bind or pinch the power cords.
Using a damaged power cord may result in a fi re, electrical shock, heat or short.
Do not use a loose or faulty electrical outlet.
Doing so may cause fi re or short circuit.
Do not use any outlet or wiring equipment beyond its specifi ed rating.
Plugging too many plugs into the same outlet, for example using outlet splitters, can cause fi re
due to heat.
Do not use any power supply other than the one specifi ed.
AC 120 V, 60Hz
Doing so may cause fi re or excessive heat.
Do not stick a fi nger or anything else into the warm air outlet.
Do not place anything on the warm air outlet or drape clothes over it.
Doing so may cause burns, electrical shock or malfunction.
Keep cigarettes and other open fl ames away from the product.
Failure to do so may cause fi re.
5
Introduction
WARNING
Refrain from sitting on the seat for long periods.
It may cause low-temperature burns.
To prevent the following persons from getting a moderate temperature burn during use, other
person should turn off the toilet seat heater and set the dryer temperature to "Low".
Young children, the aged and other users unable to set the temperature appropriately
themselves.
The ill, physically disabled and others who do not have freedom of movement.
Those using any medicines that cause drowsiness (sleeping or cold medicine), those who have
been drinking heavily, anyone severely fatigued and anyone else liable to fall asleep.
This is an electrical product. Do not install it anywhere water is likely to get on
the product or anywhere with humidity high enough that water is likely to form
on the surface of this product. When using the product in a bathroom, install a
fan or ventilation port and ensure good air fl ow through the bathroom.
Failure to do so may cause fi re or electrical shock.
Always connect the product to the cold water supply.
Connecting to hot water supply may result in burns and equipment damage.
Make sure that a properly grounded (3 prong) outlet has been installed.
Failure to install a grounded outlet could cause electrical shock in the event of a malfunction or
short circuit.
Insert the power plug securely into the outlet.
Failure to do so may cause fi re, heat or short circuit.
To unplug, hold the power plug, not the power cord.
Do not unplug by pulling the power cord.
Pulling on the power cord may cause damage and result in fi re or heat.
If the electric cord is damaged, avoid danger by having the manufacturer’s
repair department or equivalent specialist replace it.
Always unplug the power plug from the outlet before maintenance or
inspection.
Failure to do so may cause electrical shock or malfunction.
Periodically remove dust and dirt from the power plug and make sure it is
securely plugged into the wall outlet.
Failure to do so may cause fi re, heat or short-circuit.
Pull the power plug out from the outlet and wipe clean with a dry cloth.
Always unplug the plug from the outlet before removing the main unit.
Failure to do so may cause a fi re or electrical shock.
Safety Precautions (Continued)
6
WARNING
When leaking battery fl uid adheres to your body or clothes, wash it away
with clean water.
The fl uid may damage your eyes or skin.
Preliminary studies in females suggest that overuse of continuous spraying
can increase the possibility of vaginal mucosa drying and potential reduction in
desirable microbial organisms.
Although these studies have not been validated, please consult your healthcare
provider for concerns regarding whether these circumstances may apply to you.
More importantly, if you are an individual suff ering from any immune defi ciency
as a result of disease, chemotherapy, or other medical condition compromising
the immune system you should consult your healthcare provider before use of
this product.
CAUTION
Do not use the product if the main unit is unstable.
Doing so may cause the main unit to come loose and fall, resulting in injury.
If the product is damaged, do not touch the damaged section.
Doing so may cause electrical shock or injury. Replace it immediately.
Do not apply strong force, mechanical shock, step on or stand on the toilet
seat, toilet lid or main unit. Also do not place any heavy object on the toilet
seat, toilet lid or main unit.
Doing so may cause cracking or cause the main unit to come loose and fall, resulting in injury.
Doing so may damage the product and cause injury or water damage.
Do not lift up this product by the toilet seat or lid.
Do not raise the toilet seat or lid while objects are resting on top of the unit.
Doing so may cause the main unit to come loose and fall, resulting in injury.
When maintaining the plastic parts (main unit etc.) or the water supply hose,
use a neutral kitchen detergent diluted with water. Do not use any of the
following.
Toilet cleaner, household cleaner, benzene, paint thinner, powdered cleanser or nylon
scrubbing brush.
These items may damage or crack the plastic and cause injury or malfunction.
These items could damage the water supply hose and cause a water leak.
To prevent a sudden water leak, do not remove the water fi lter drain valve
when the shutoff valve is open.
Doing so will cause water to spurt out.
(Refer to Page 32 for instructions on cleaning the water fi lter drain valve.)
7
Introduction
Safety Precautions (Continued)
CAUTION
Do not fold or crush the water supply hose; do not damage by cutting with a
sharp object.
Doing so may cause water leaks.
Do not install the base plate, which is not attached.
Doing so may cause damage.
If a water leak should occur, always close the shutoff valve.
When the ambient temperature is likely to drop to 32 °F (0 °C) or lower,
prevent damage to the pipes and hoses due to freezing.
Frozen water pipes could cause the main unit and the pipes to break, resulting in a water leak.
Regulate the room temperature to prevent the pipes and hoses from freezing during cold months.
Drain the water.
When not using the product over an extended period of time, drain the water
out of the top unit and the water supply hose after closing the water shutoff
valve, and pull the power plug from the outlet.
When using the product again, allow the product to refi ll with water fi rst. Otherwise, the water in
the tank might become contaminated and cause skin infl ammation or other problems.
(Refer to Page 42 for instructions on replenishing the water.)
Leaving the power on may cause fi re or heat.
When installing the water fi lter drain valve, make sure that it is securely
tightened in its proper position.
Failure to securely tighten it may cause a water leak.
Push the main unit securely on to the base plate.
After pushing the main unit until a click sound is heard, pull it slightly toward you to make sure
that the product does not detach.
Failure to do so could cause the main unit to come loose and fall resulting in injury.
Make sure of the plus and minus signs on the batteries before inserting them.
Remove depleted batteries immediately.
When replacing the batteries:
Replace both batteries with new ones.
Use the same brand for both new batteries (any brand available).
Failure to do so may cause the batteries to leak fl uid, generate heat, rupture, or ignite.
When the product is supposed not to be used for long time, remove the
batteries from the remote control.
Failure to do so may cause the batteries to leak fl uid.
8
DANGER To reduce the risk of electrocution:
1. Do not use while bathing.
2. Do not place or store the product where it can fall or be pulled into a tub or sink.
3. Do not place in or drop into water or other liquid.
4. Do not reach for the product when it has fallen into water. Unplug immediately.
WARNING
To reduce the risk of burns, electrocution, fi re or injury to persons:
1. Close supervision is necessary when this product is used by, on, or near children
or invalids.
2. Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug, is not working properly,
has been dropped or damaged, or has been dropped in water. Return the product to
a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings on the product or place it on a soft surface, such as a
bed or couch, where the air openings may be blocked. Keep the air openings free of
lint, hair, and other similar items.
6. Never use while sleepy or drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors. Do not operate where aerosol (spray) products are being used
or where oxygen is being administered.
9. Connect this product to a properly grounded outlet only.
See "Grounding Instructions" in Page 10.
10. The tank should be fi lled with water only.
Servicing should be performed by an authorized service representative.
This product is for household use.
9
Introduction
Safety Precautions (Continued)
Grounding Instructions
This product should be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electrical current.
This product is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
DANGER - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to
either fl at-head terminal.
Check with a qualifi ed electrician or serviceman if the grounding wire instructions are not
completely understood, or if in doubt as to whether the product is properly grounded.
SAVE THESE INSTRUCTIONS
10
Q
For prevention of damage
O
Wipe plastic areas such
as the main unit and
remote control with a soft
cloth tightly wrung out with
water.
O
Do not lean against the
toilet lid.
Q
For prevention of malfunctions and
failures
O
Do not block the remote control transmitter or
receiver.
(May cause main unit to malfunction)
O
A toilet seat cover or a toilet lid cover cannot be
used.
(The seat switch may not function properly.)
Covers
Dry cloth or tissue
O
Disconnect the power plug if there is a risk of
lightning.
O
Do not urinate on the main unit, toilet seat or
wand.
(Doing so may cause a failure or discoloration.)
O
Do not apply strong forces to the control panel of
the remote control.
O
When using a toilet cleaner to clean the toilet,
rinse it off within 3 minutes and leave the toilet
seat and toilet lid open.
Wipe off any cleaner that remains on the bowl
unit.
(If vapor from a toilet cleaner enters the main unit,
it may cause a malfunction.)
O
Do not use the product with the toilet lid removed.
O
Do not expose to direct sunlight.
(Doing so may cause changes in color, irregular
heated seat temperature, remote control
malfunction or the product malfunction due to the
change in temperature.)
O
Use radios, etc. away from the product.
(The product could cause interference with the
radio signal.)
O
If you use a booster seat for infants or a soft
highchair, remove it after use.
(Keeping it installed may prevent some of the
functions from being used.)
O
Do not apply force to the remote control.
(May cause malfunctions.)
To prevent the remote control from being dropped,
set it in the hanger when you are not using it. Be
careful not to expose it to water.
O
Do not place anything on the toilet seat and lid,
and do not press them with hands.
(Failure to do so may turn on the seat switch,
causing the fl oor to get wet if buttons on the
remote control are touched and warm water
comes out from the wand.)
11
Operational Precautions
Q
For prevention of malfunctions

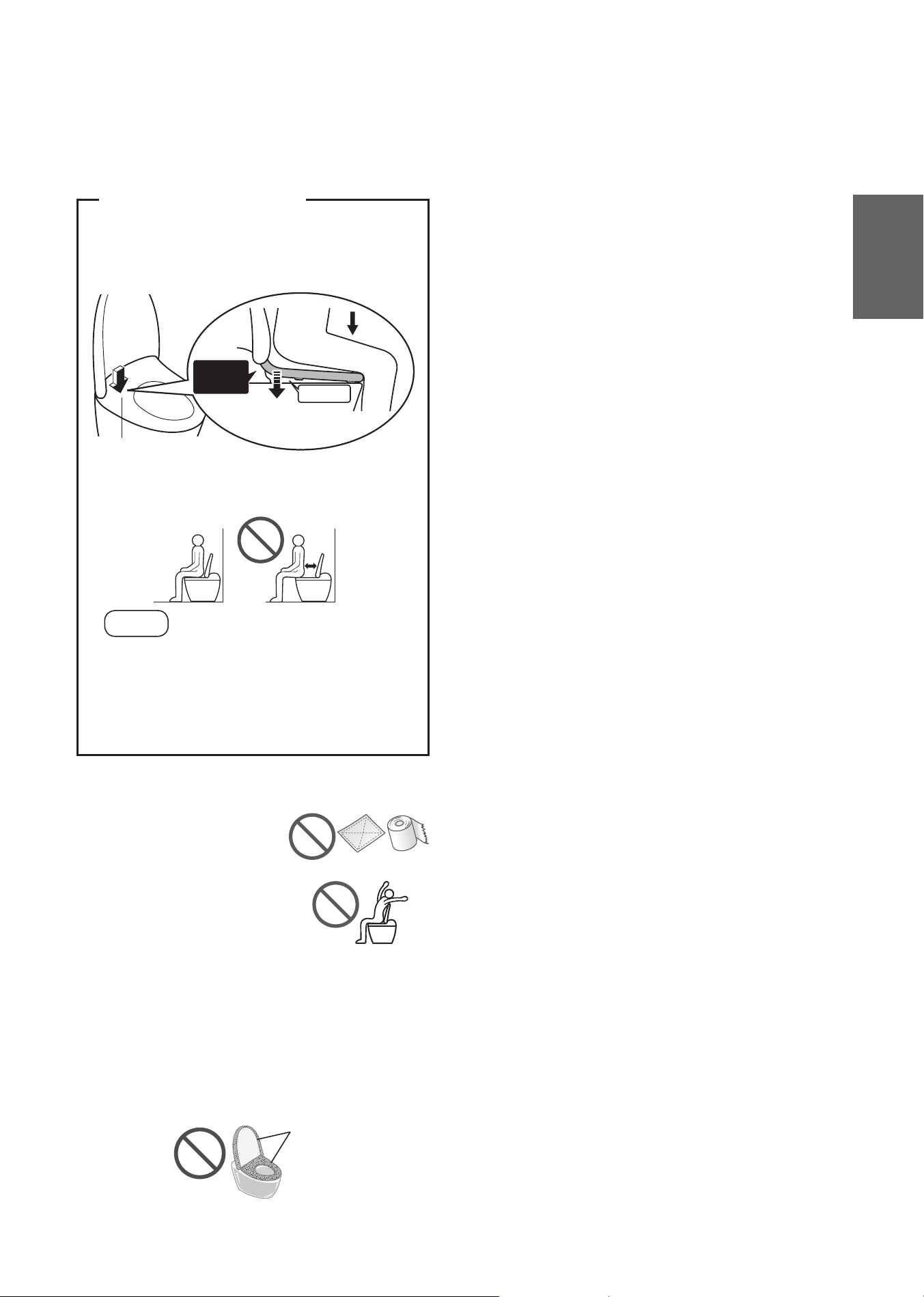

< About the seat switch >
When you sit on the toilet seat, the seat switch
turns ON, enabling you to use various features.
(A click sound is heard when the seat switch is
ACTIVATED.)
Seat switch (Built-in)
Gap
The toilet seat lowers.
Switch
ON
Sit back on the toilet seat.
The seat switch will not turn on unless you
sit on the seat properly.
Note
When a child uses the product, the seat
switch may not be ACTIVATED by their light
body weight.
Since the toilet seat is designed to move up
and down, a clearance is provided between
the toilet seat cushion and the bowl unit.
Introduction
Wand
(Page 29)
Water drain lever
(Page 42)
Toilet lid
Part No., etc.
Power plug
Power cord
Wand cover
Heated seat
Warm air outlet cover
Seat switch
(Built-in)
Main display
<All the LEDs light up in the fi gure>
Water supply hose
(Page 15)
Shutoff valve
Power LED
Seat LED
Energy saver LED
Wand CLEAN LED
12

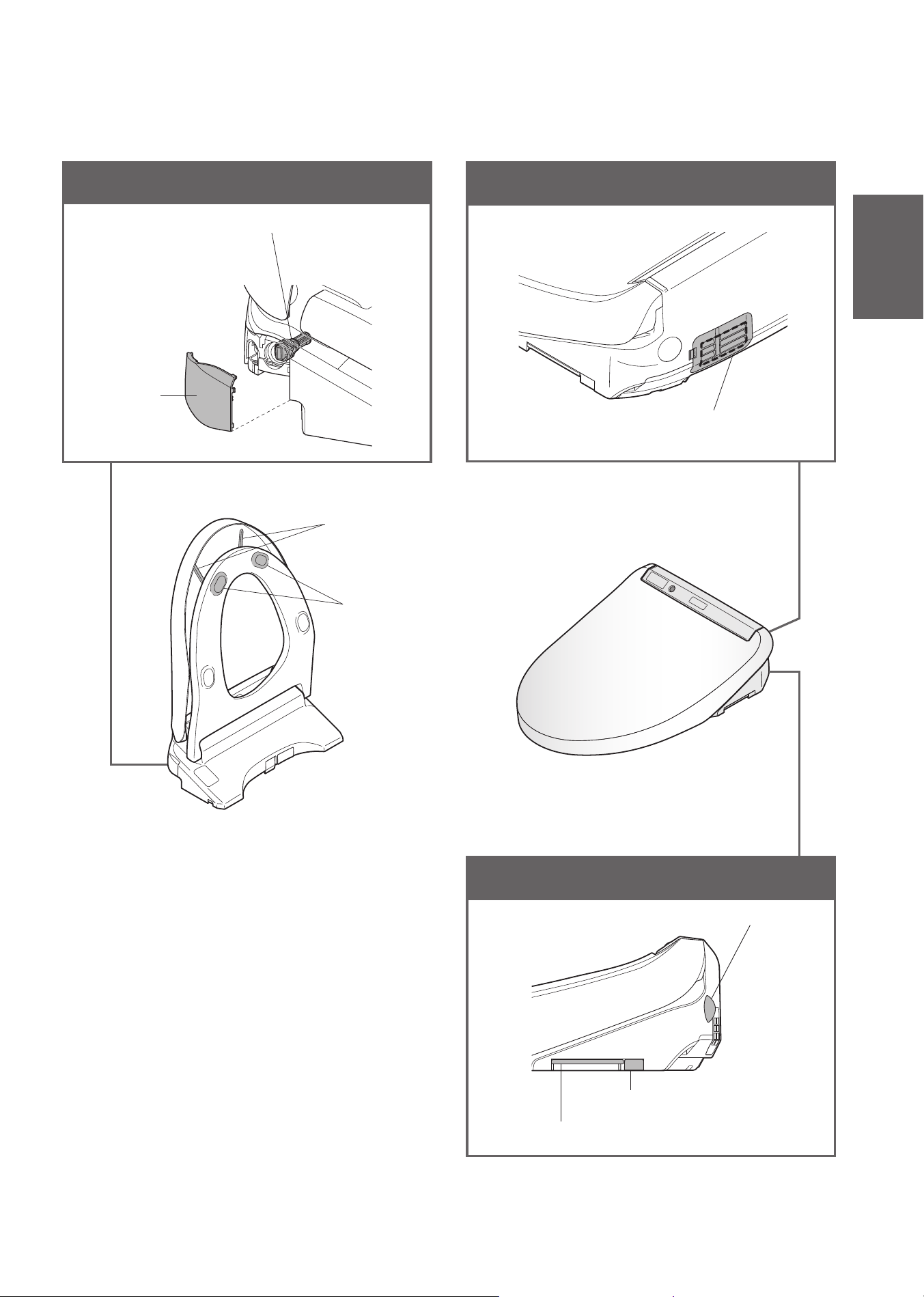

Parts Names
Toilet seat cushions
Toilet lid cushions
Right side of main unit
Left side of main unit
Right rear of main unit
Water fi lter drain valve (Page 32)
Cover
Deodorizer outlet
Main unit removal button (Page 30)
Remote control receiver

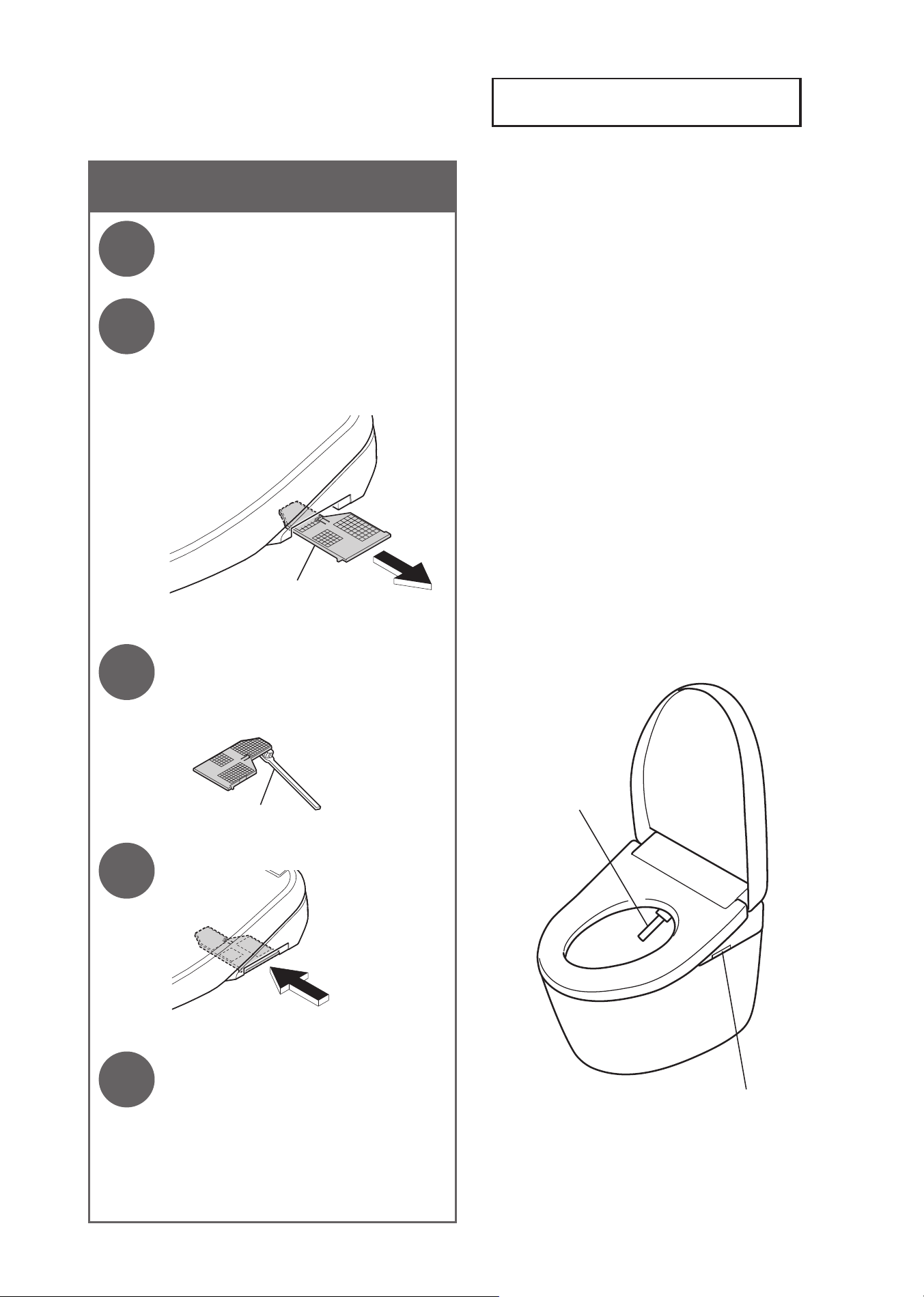

Deodorizing fi lter (Page 28)
13
Introduction
14
1. Insert the battery
1
Remove the
remote control
from the
hanger.
Remote
control
Hanger
2
Open the battery cover and
insert two AA batteries.
Battery cover
Close
Open
●
When batteries are properly loaded, all
the LEDs on the remote controll light up
for about 2 sec.
3
Mount the remote control in the
hanger.
■
About the batteries
Use dry cell, alkaline batteries.
Be sure to follow "Safety Precautions" to
prevent the batteries from rupturing or leaking
fl uid. (Pages 7, 8)
Preparation
Using the Product for the First Time

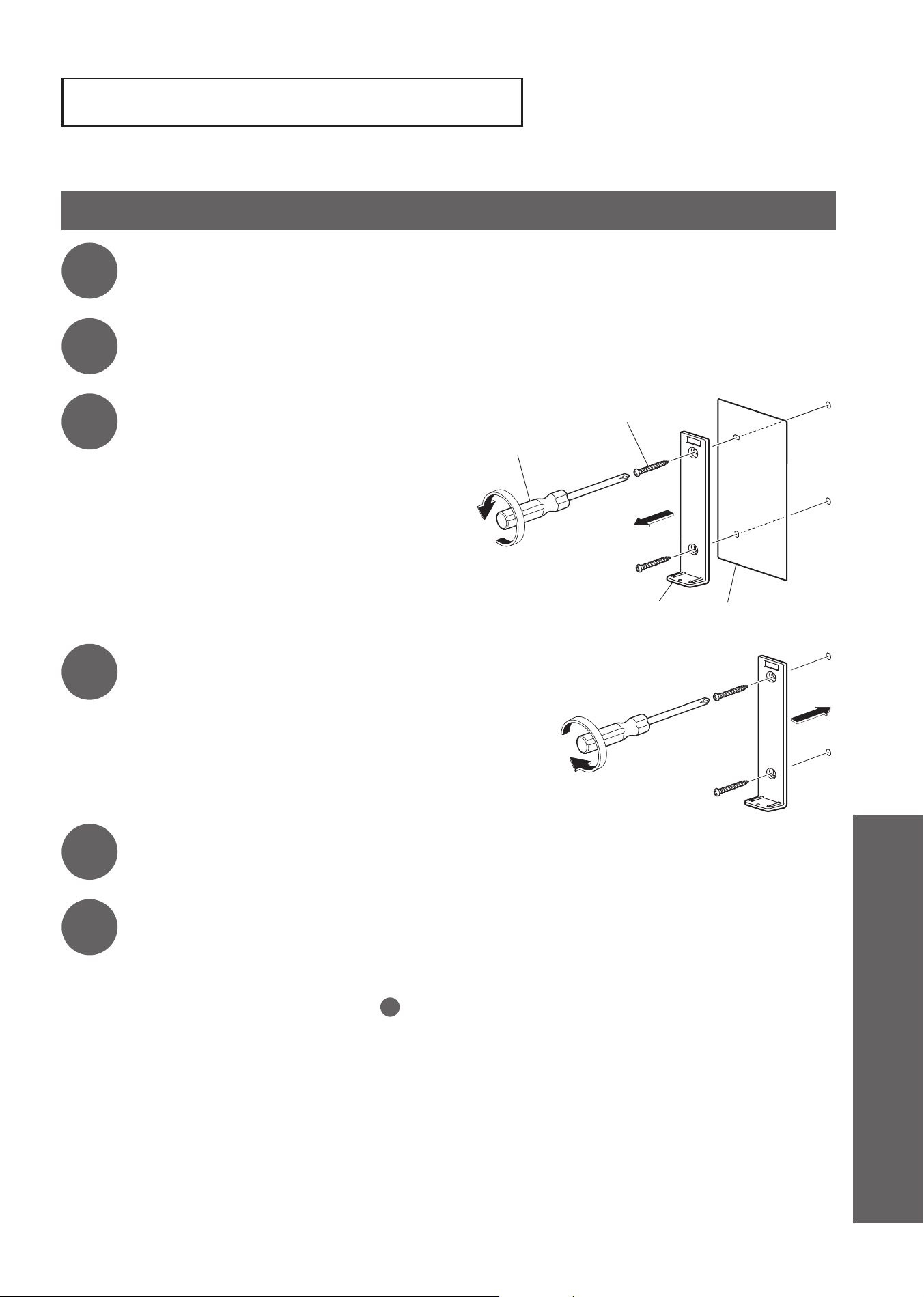

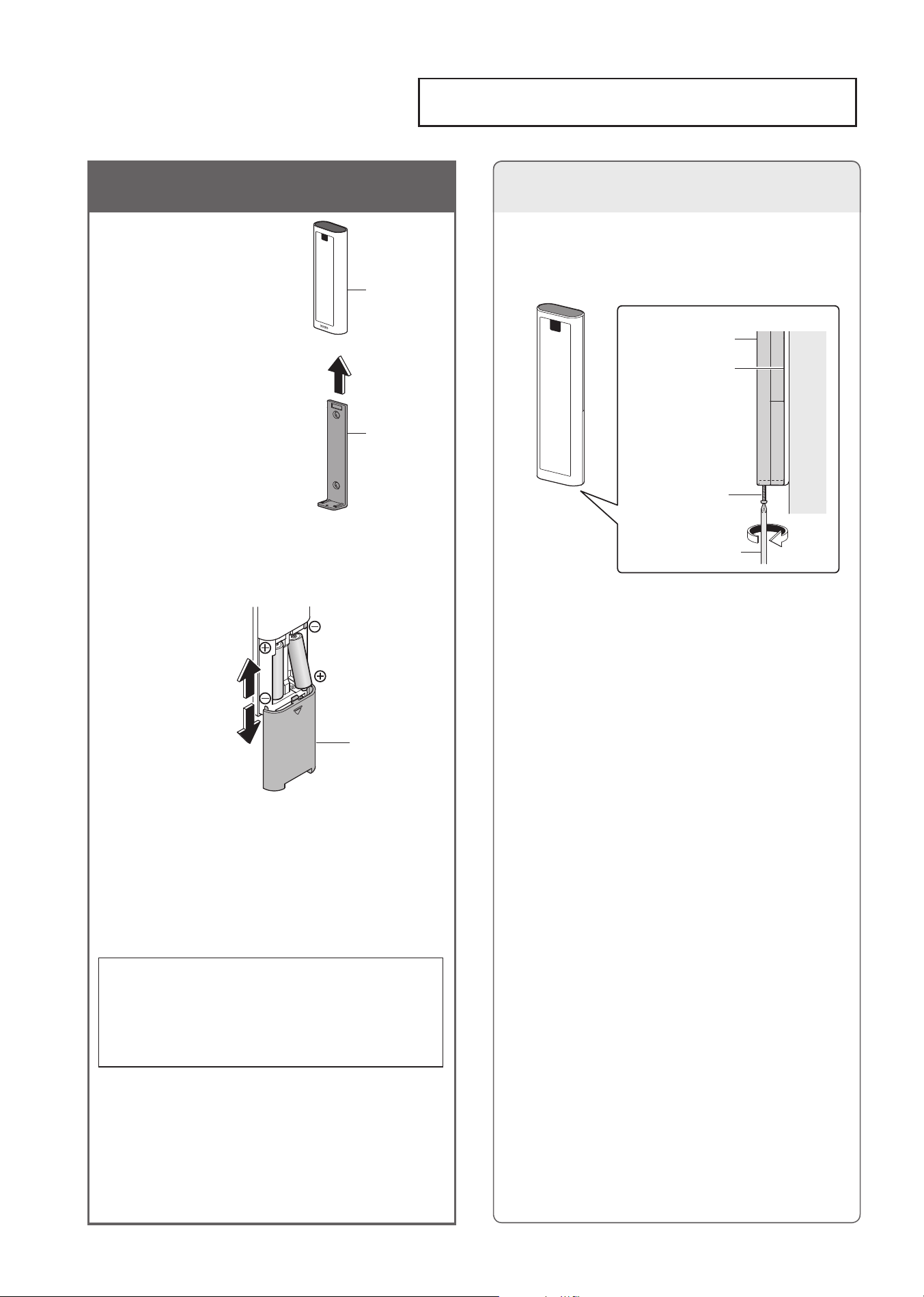

If the remote control is secured
(for anti theft)
1
Remove the screw from the
remote control fi xture.
Remove
Remote control
Hanger
Screw
Wall
Phillips screwdriver
(View from side)
2
Remove the remote control
from the hanger.
■
To secure the remote control again
Tighten and fi x the screw.
(Overtightening may cause damage to parts
such as the hanger.)

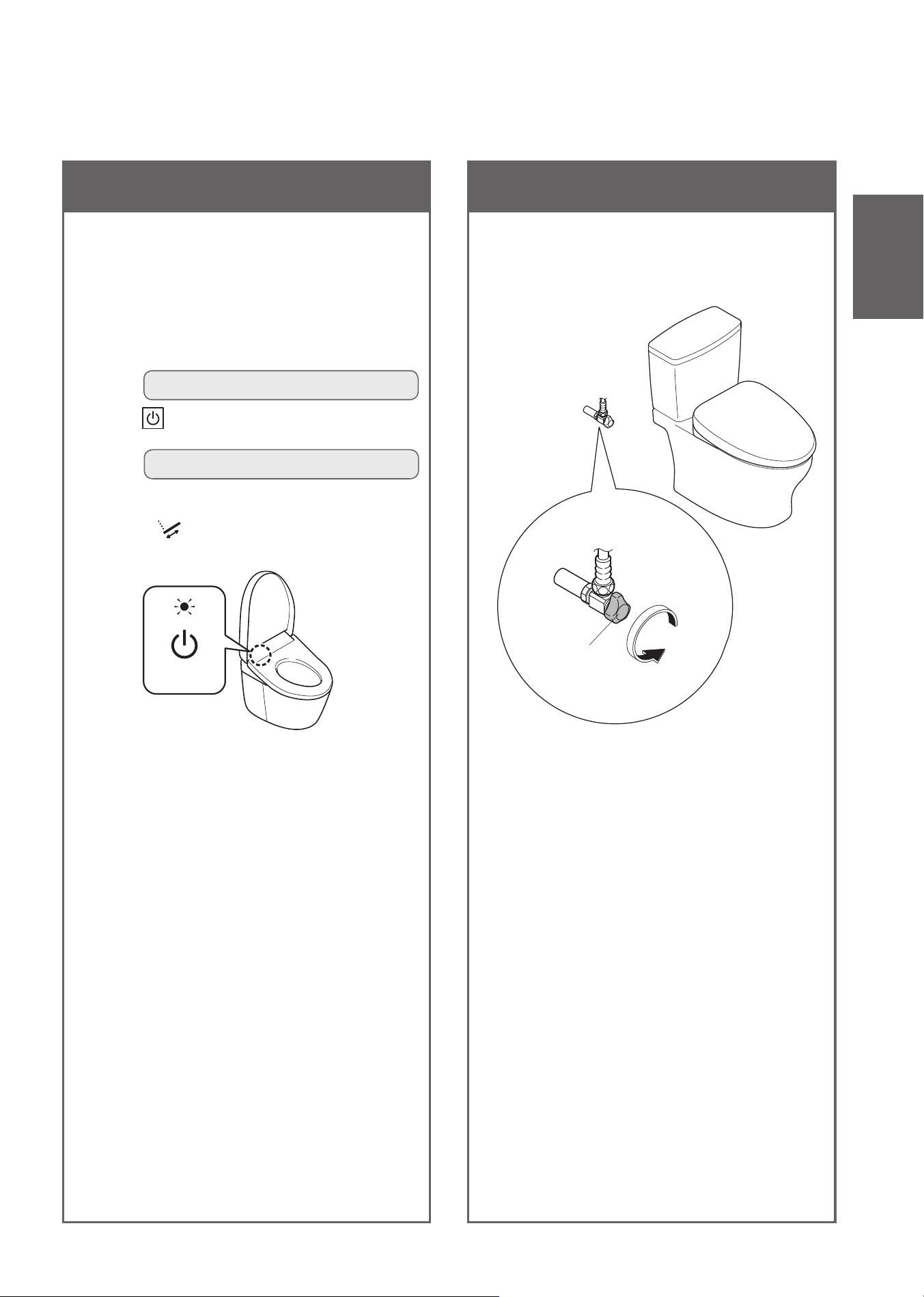

2. Turn on the power
1
Insert the power plug.
The wand extends and then retracts.
2
Check that the "Power" LED
lights up.
When it is off , switch the "Power" to "ON".
To operate from the back of remote control
Press "Power ON/OFF" button about
3 seconds or longer.
To operate from the front of remote control
* Recommended if the remote control is
secured to prevent theft.
Press "Oscillating cleansing" button
about 10 seconds or longer.
<Power>
15
3. Open the shutoff valve
1
Fully open the shutoff valve.
Shutoff valve
Introduction
*1
Stopping
Drying
Cleansing
"Front cleansing"
Serves as a bidet for ladies.
"Rear soft cleansing"
Cleanses your rear with
soft embracing water fl ow.
"Stopping"
Stops the operation.
"Warm air drying"
Dries your rear.
"Rear cleansing"
Cleanses your rear.
The setting changes between
and each time the is pressed.
16

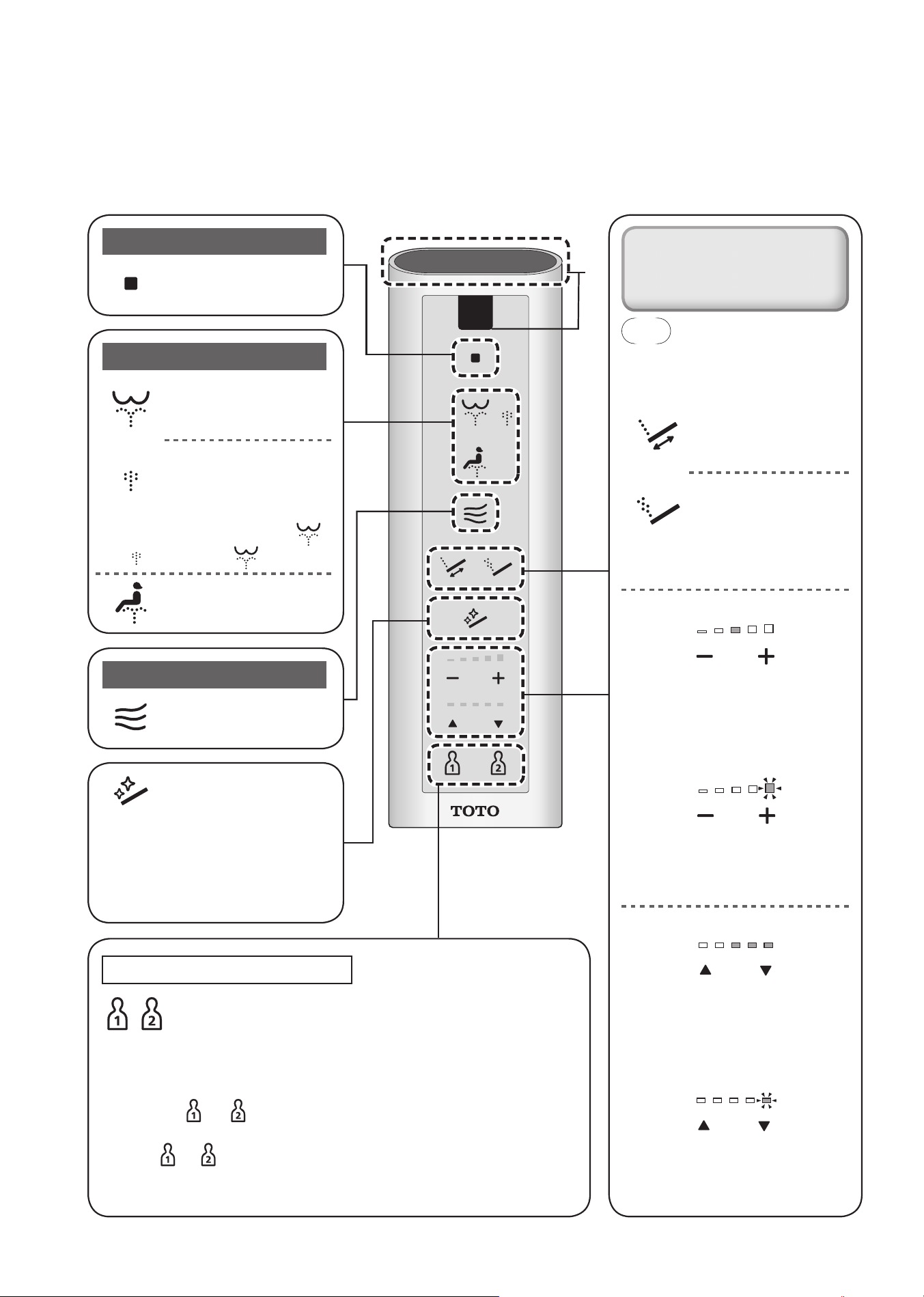

Basic Operations
Operate the controls on the remote control; a beep sounds when the main unit
receives the signal.
●
Functions that operate when a
button is pressed during "Rear
cleansing", "Rear soft cleansing"
or "Front cleansing" cleansing.
"Personal setting lock"
You can store your preferred "Wand position", "Water
pressure" and "Warm water temperature" settings.
●
To store a settings
While cleansing is in progress, set your preferred "Wand position",
"Water pressure" and "Warm water temperature" and then press
and hold or for 2 seconds or longer.
●
To use
Press or , and then press the button for the cleansing you want to use.
The "Wand position" and "Water pressure" lamps will light up for about 10
seconds in their set positions, and the "Water temperature" display switches.
The setting changes between "ON" and
"OFF" each time the button is pressed.
You can adjust the water
pressure to one of fi ve levels.
([-] Softer, [+] Stronger)
After you press the "Water pressure
adjustment" button, the set position
will light for 10 seconds."
You can adjust the washing position to
5 diff erent points between the front and
the rear, using the [▲] and [▼] buttons.
After you press the "Wand position
adjustment" button, the set position
will light for 10 seconds."
It will return to the 3rd position for
a while (not exceeding a maximum
of 5 minutes) once operation of
the remote control has fi nished.
It will return to the 3rd position for
a while (not exceeding a maximum
of 5 minutes) once operation of
the remote control has fi nished.
"Oscillating cleansing"
The wand moves back and forth
to cleanse your rear thoroughly.
"Water pressure adjustment"
"Wand position adjustment"
Note
Sitting back on the toilet seat
makes it easier to adjust the wand
position and to reduce splashing.
*1 Remote control transmitter (Front side, Top side)
"Pulsating cleansing"
Cleanses with the water pressure
pulsating between soft and strong.
Cleans the wand with "EWATER+".
The wand can be automatically
cleaned when you use the
cleansing functions (Rear cleansing,
Front cleansing, etc.). (Page 18)
"Wand CLEAN"
"Toilet seat
temperature"
"Timer energy
saver"

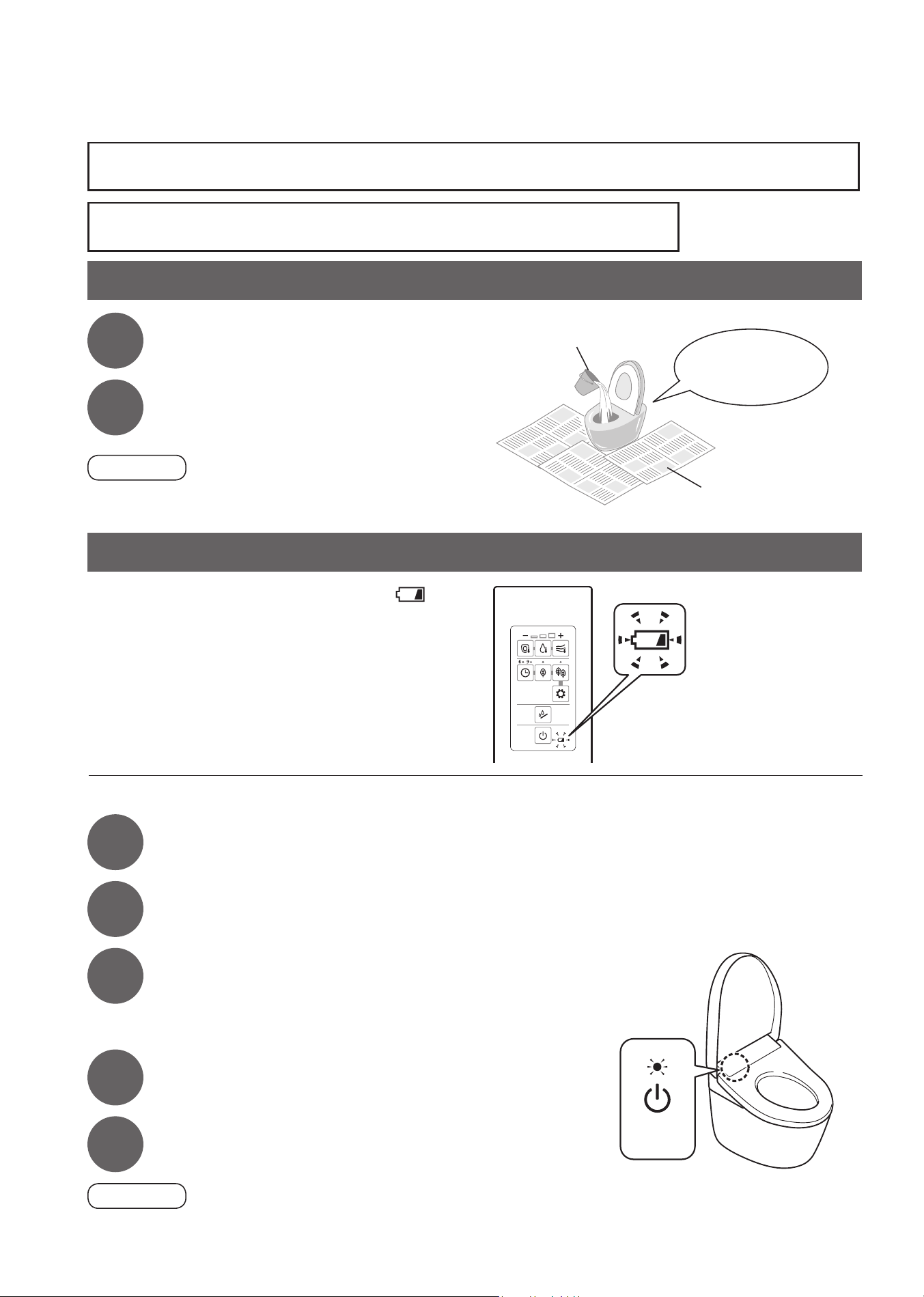

Low battery warning
mark
（Page 40）
"Warm water
temperature"
"Auto energy
saver"
"Drying air
temperature"
"Auto energy
saver+”
Adjust temperatures (Page 20) Saving energy (Page 24)
"Confi rmation of
Setting"
The current setting
can be discerned
from the LEDs.
"Wand cleaning"
To clean the wand
with it extended.
(Page 29)
"Power ON/OFF"
Pressing it about 3 seconds or
longer turns the power on/off .
•
If the remote control is secured to
prevent theft (Page 15 Step 2-2)
Temperatures Energy saver
17

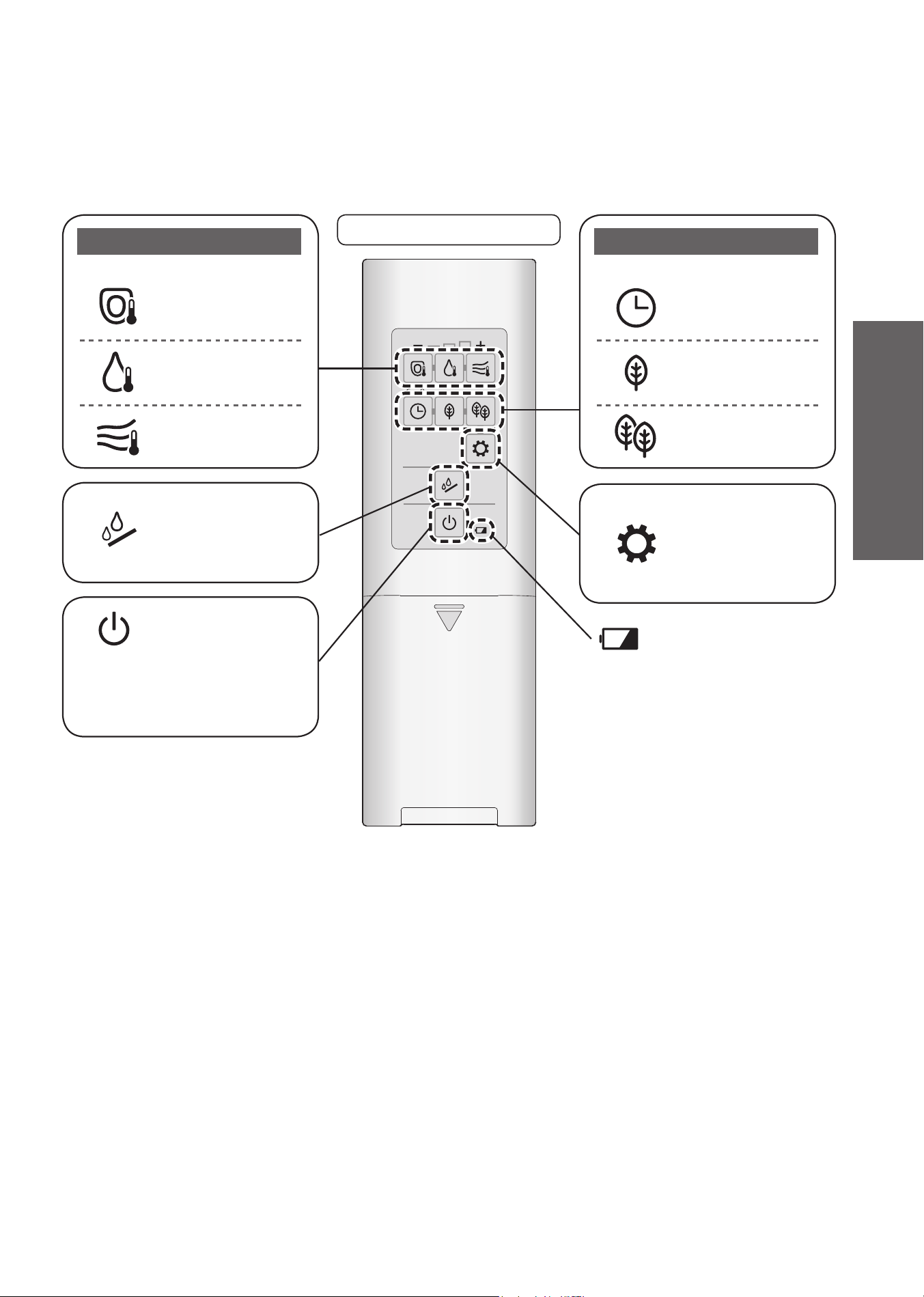

This section is an overview of the settings that can be confi gured with the remote control.
See the corresponding pages for the detailed descriptions.
Remote control back side
Operation
18

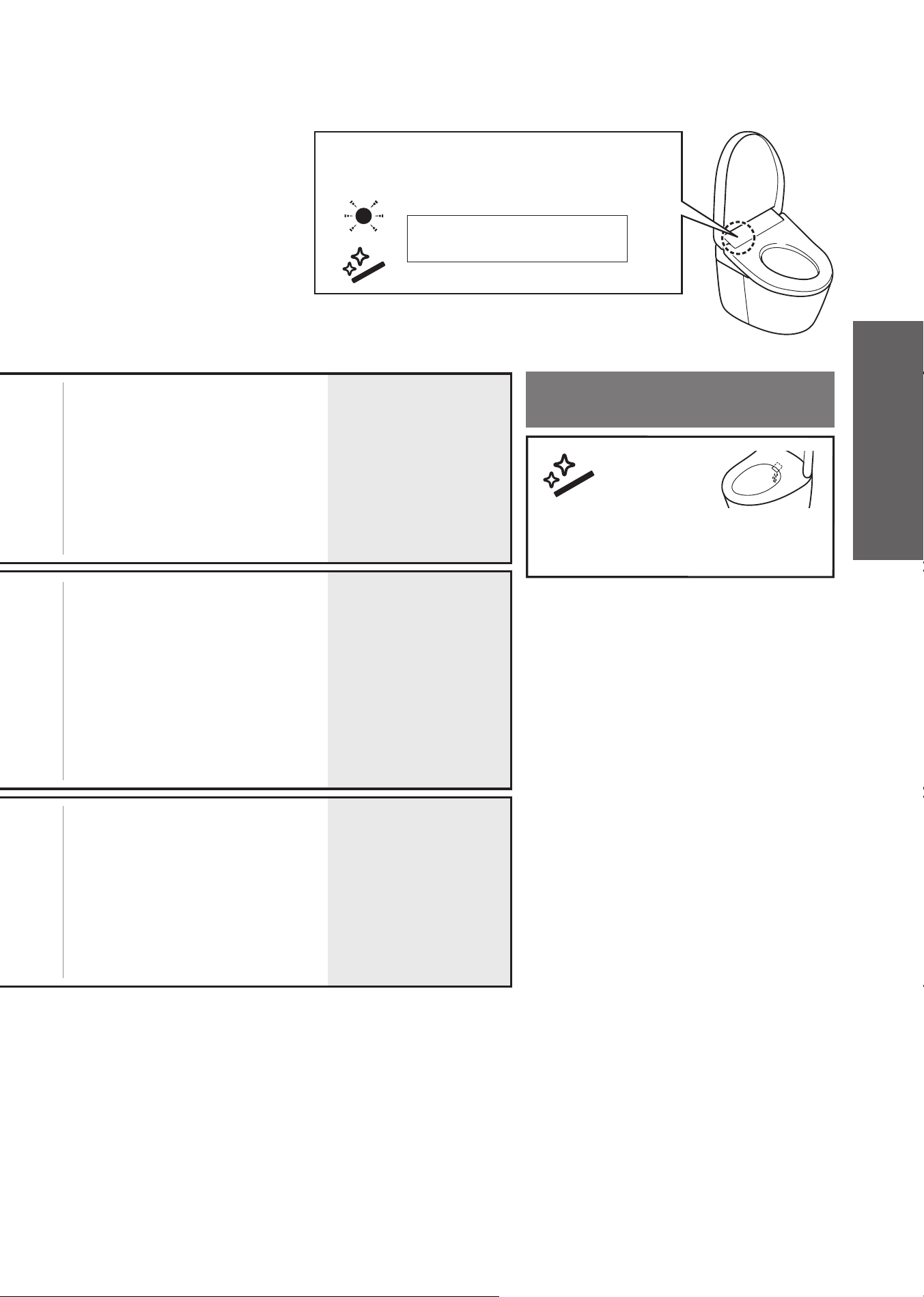

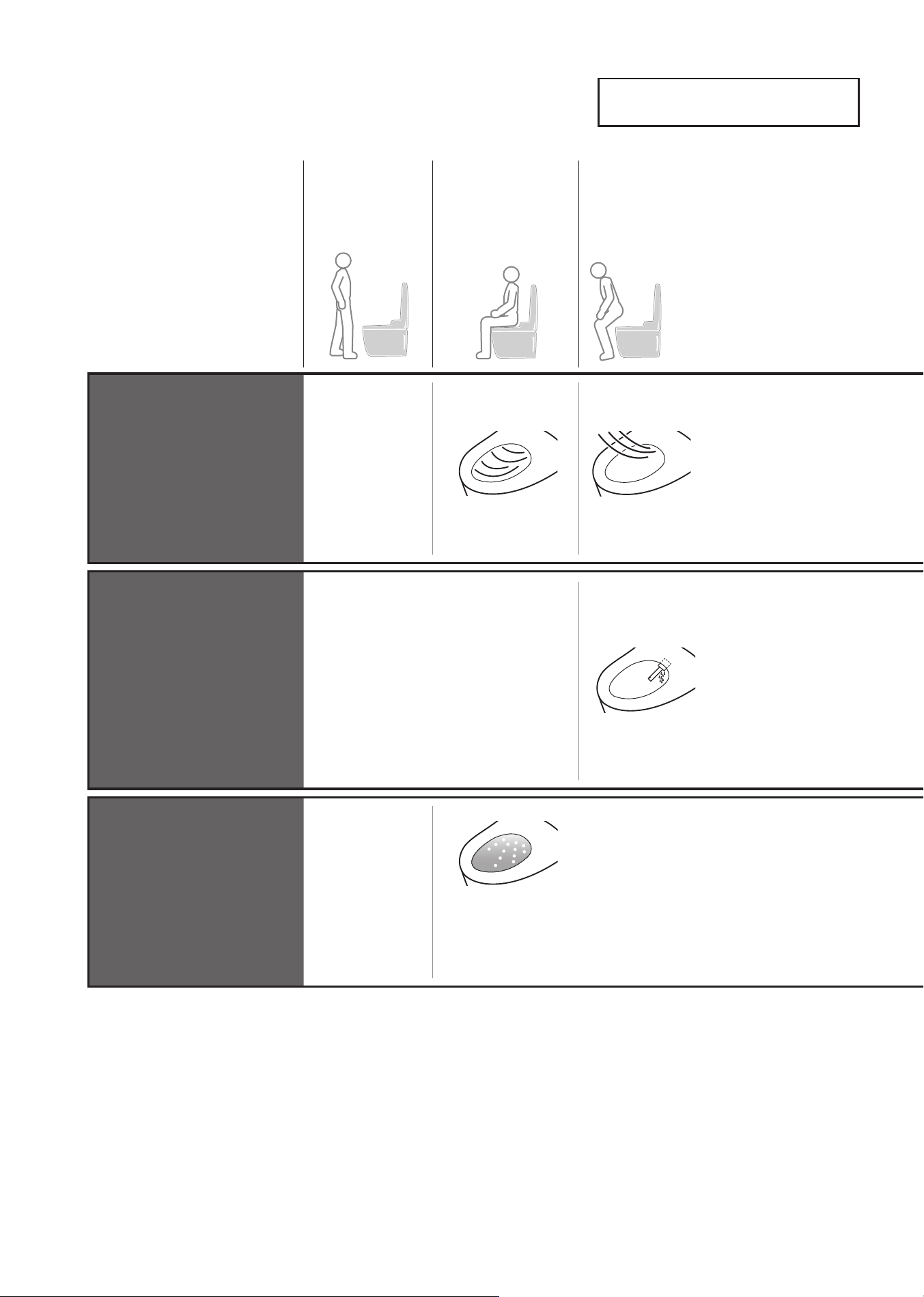

Automatic Functions
Cleaning Features
"EWATER+"
*1
is used
automatically to clean the
wand and bowl unit.
• Operation under the initial
settings is described below.
As you
approach
As you
sit
*2
As you
stand up
Removing odors inside the
bowl unit
Deodorizer
Starts
the deodorizer
Starts the auto
power deodorizer
(After about 10 seconds)
→
It stops after about
60 seconds
Cleans the wand with
"EWATER+"
*1
Auto wand
CLEAN
Cleans the wand
automatically
( After about
25 seconds)
Only when the
cleansing functions are
used.
→
The wand extends and
"EWATER+"
*1
comes
out from the base of
the wand.
A mist is sprayed inside
the bowl unit to make it
more diffi cult for dirt to
adhere
Pre-mist
Pre-mist
→
A mist is sprayed
inside the bowl
unit
19
■
Note
■
Changing
settings
•
Deodorizing filter needs regular
maintenance.
(Page 28)
•
"Deodorizer" ON/OFF
•
"Auto power
deodorizer" ON/OFF
(Page 36 for all)
• "Auto wand CLEAN"
ON/OFF
(Page 36)
• When the cleansing functions (Rear
and Front cleansing etc,) have not
been used in 8 hours, the wand is
cleaned automatically.
(Water comes out from around the
wand.)
•
"Pre-mist" ON/OFF
(Page 36)
•
The pre-mist will not spray for about
90 seconds after you stand up from
the toilet seat.
O

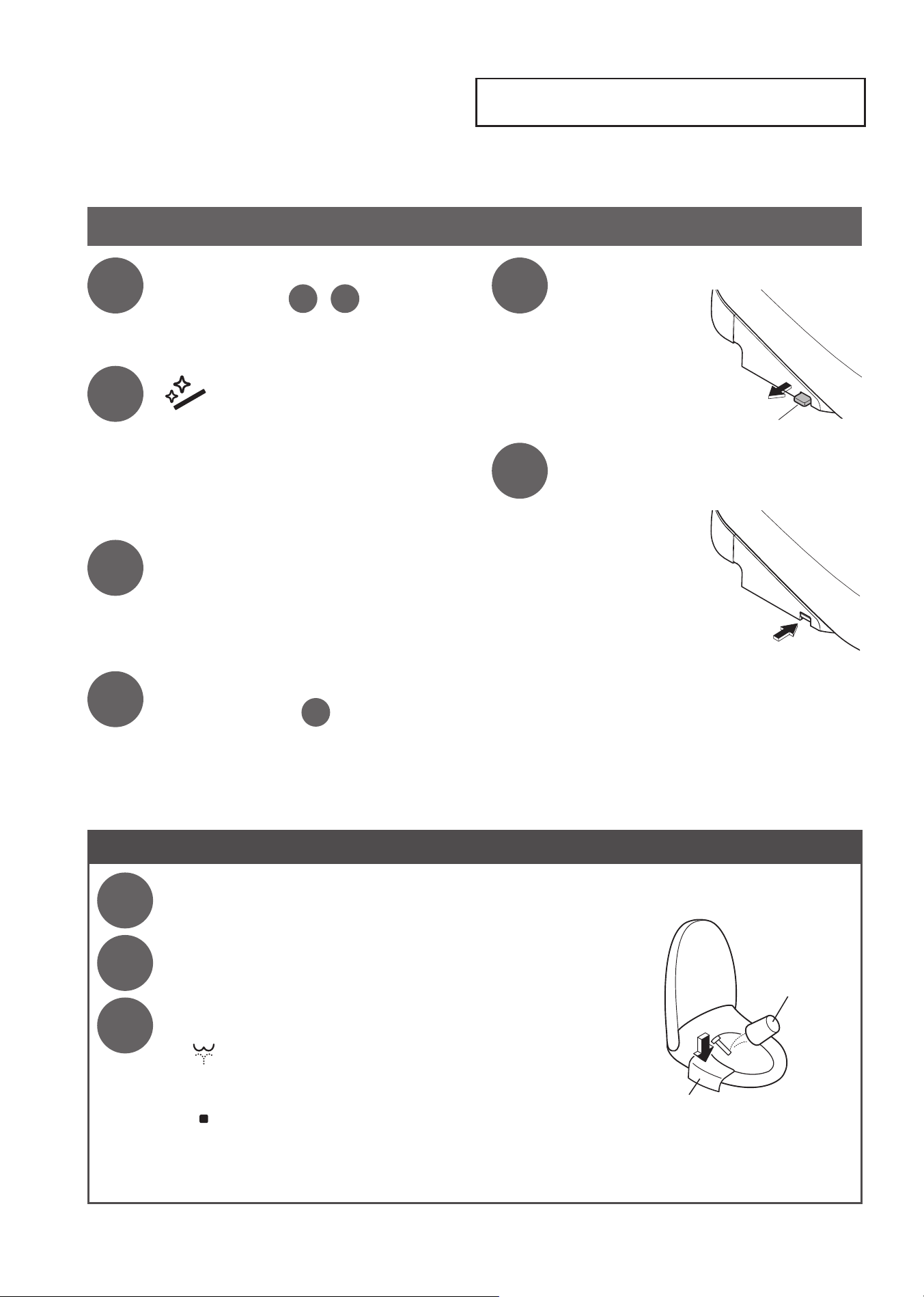

To clean the wand with it extended.
→"Wand cleaning" (Page 29)
(After wand cleaning, water comes out
from around the wand.)
"EWATER+" can also be used by
pressing the remote control button
Press "Wand
CLEAN" button
*1 What is meant by "EWATER+" ?
"EWATER+" helps the self-cleaning wand
feature working eff ectively and preventing the
dirt accumulation causing the stains.
O
"EWATER+" is generated from potable water.
O
"EWATER+" helps to minimize dirty surfaces,
but does not make cleaning unnecessary.
O
The eff ect and duration vary depending on the
usage environment and conditions.
*2 Water comes out from the area around the wand
for several seconds while water is warmed up.
■
"Wand CLEAN" LED
Lights to show that the "Auto wand CLEAN" functions
or the "Wand CLEAN" functions are operating.
During "Auto wand CLEAN" or
"Wand CLEAN": Flashes
Lights to show that the "CLEAN"
functions are operating.
Operation

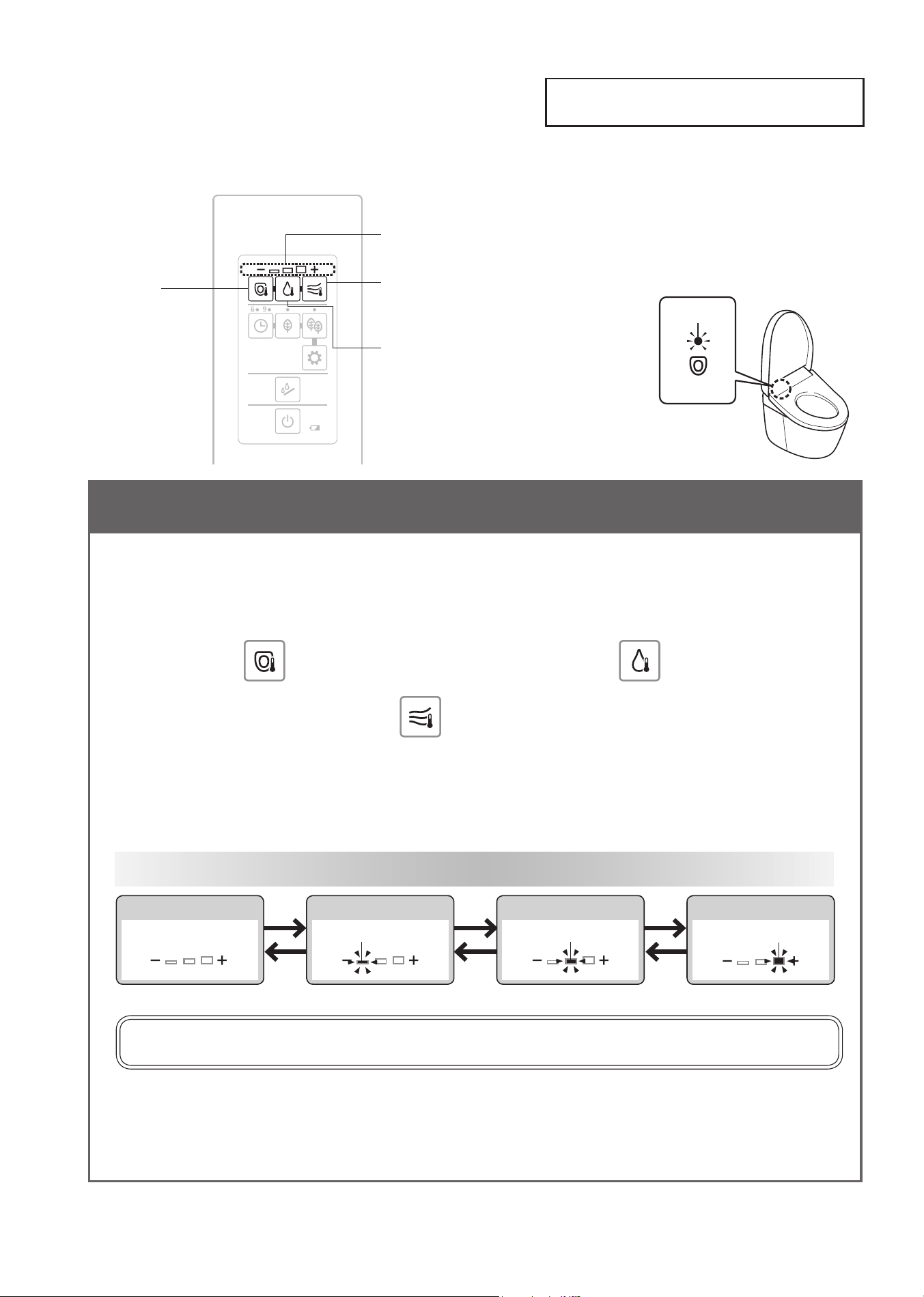

Displaying the temperature
level of the pressed button
Warm water temperature
(When you want to adjust the
warm water temperature)
Drying air temperature
(When you want to adjust the
drying air temperature)
Toilet seat
temperature
(When you
want to adjust
the toilet seat
temperature)
Three diff erent temperature levels (High / Medium / Low) and "OFF" setting can be made.
<Seat>
●
If adjusting the temperature does not warm up the toilet seat.
Is the energy saver set to "ON"? (Page 22)
*1 To prevent condensation, the water temperature does not drop below 68 °F (20 °C) even when set to "OFF".
Adjusting the temperature
1
Remove the remote control from the hanger.
•
If the remote control is secured to prevent theft. (Page 14)
2
Choose and press the button of the temperature that you want to set
from the
("Toilet seat temperature"button), ("Warm water
temperature" button) and
("Dryer temperature" button).
•
The current temperature level appears.
3
Press the button selected in step
2
repeatedly until a desired
temperature level lights up.
The setting changes each time the button is pressed once
"High"
Lit
"Medium"
Lit
"Low"
Lit
"OFF"
OFF
•
The "Drying" cannot be turned "OFF".
If the button is not pressed for about 10 seconds, the "Temperature adjustment" LED will go off , but the setting will be retained.
If the "Temperature adjustment" LED goes out before the setting is completed, start all over again at step 2.
<Settings complete>
4
Mount the remote control in the hanger.
•
If the remote control is secured to prevent theft. (Page 14)
When seat temperature is set
Lit
<Seat>
20
Temperature Adjustment
Toilet Seat, Warm Water, Drying

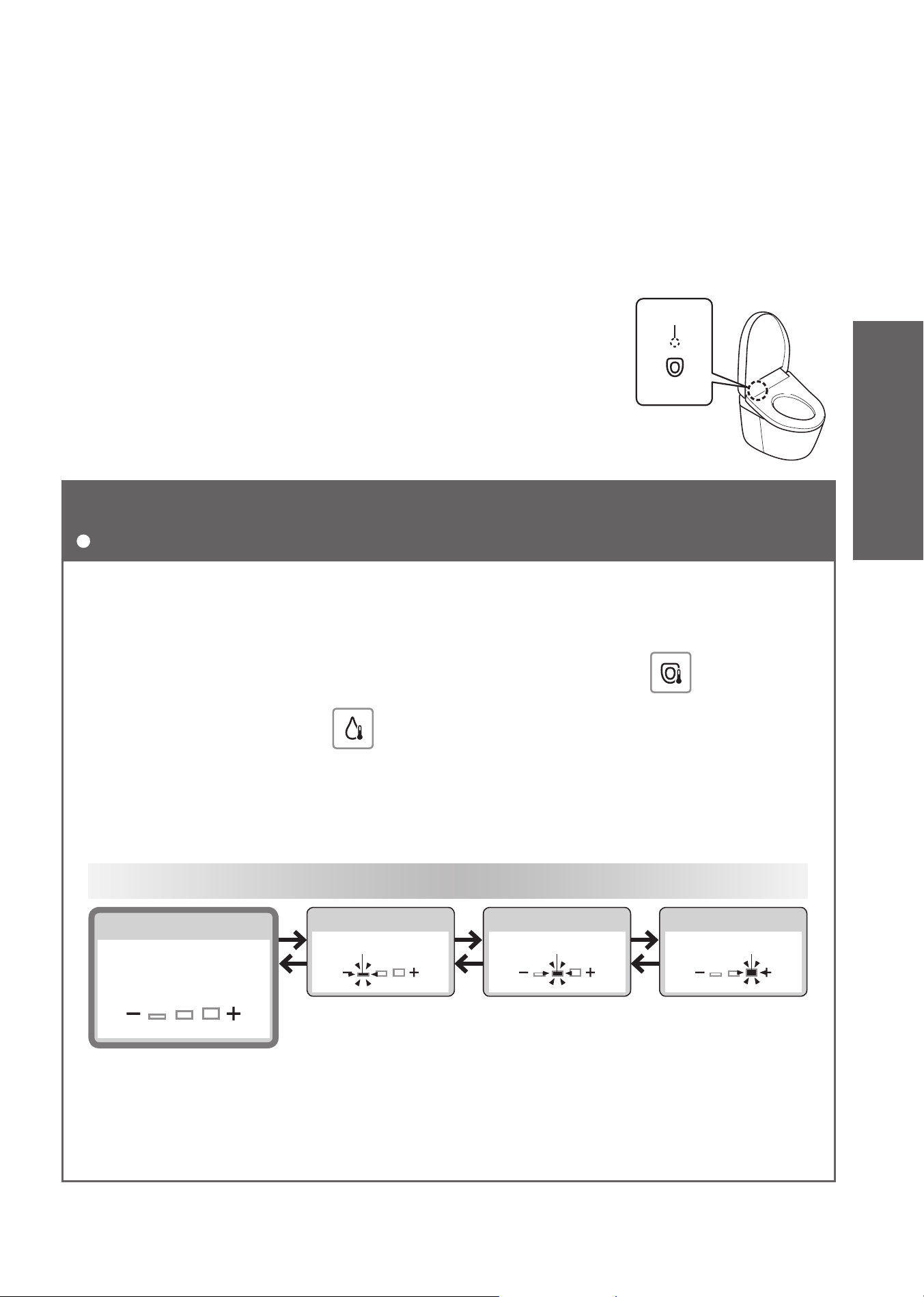

OFF
<Seat>
When seat temperature is "OFF"
To turn the warm water temperature
*1
and toilet seat temperature "OFF"
The "Drying" cannot be turned "OFF".
1
Remove the remote control from the hanger.
•
If the remote control is secured to prevent theft. (Page 14)
2
Select a temperature button you want to turn "OFF" from ("Toilet seat
temperature" button),
("Warm water temperature" button) and press it.
•
The current temperature level appears.
3
Press the button selected in step
2
repeatedly until the temperature level
is set to "OFF".
The setting changes each time the button is pressed once
"OFF"
OFF
(All LED's)
"High"
Lit
"Medium"
Lit
"Low"
Lit
<Settings complete>
4
Mount the remote control in the hanger.
•
If the remote control is secured to prevent theft. (Page 14)
21
Operation
22

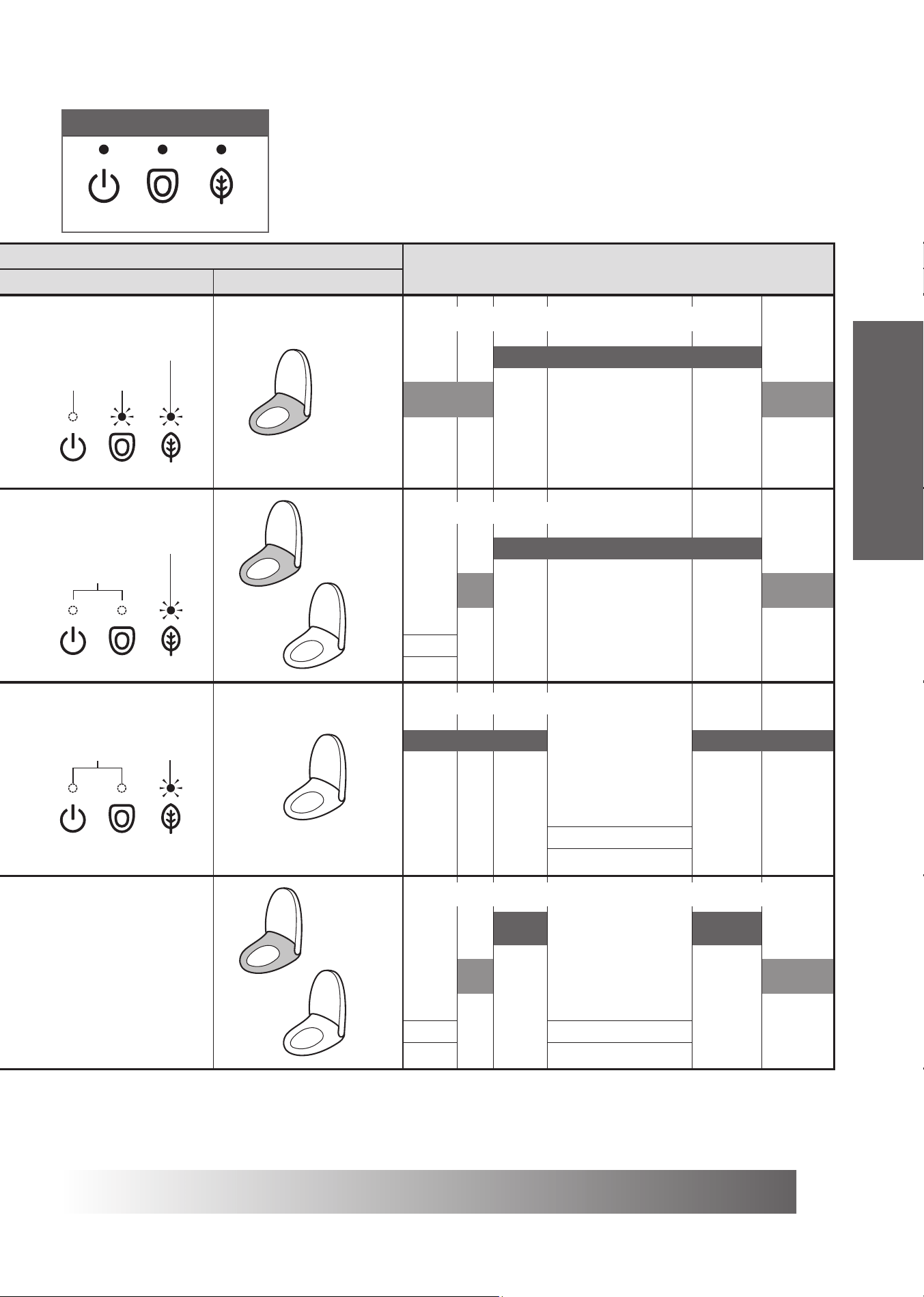

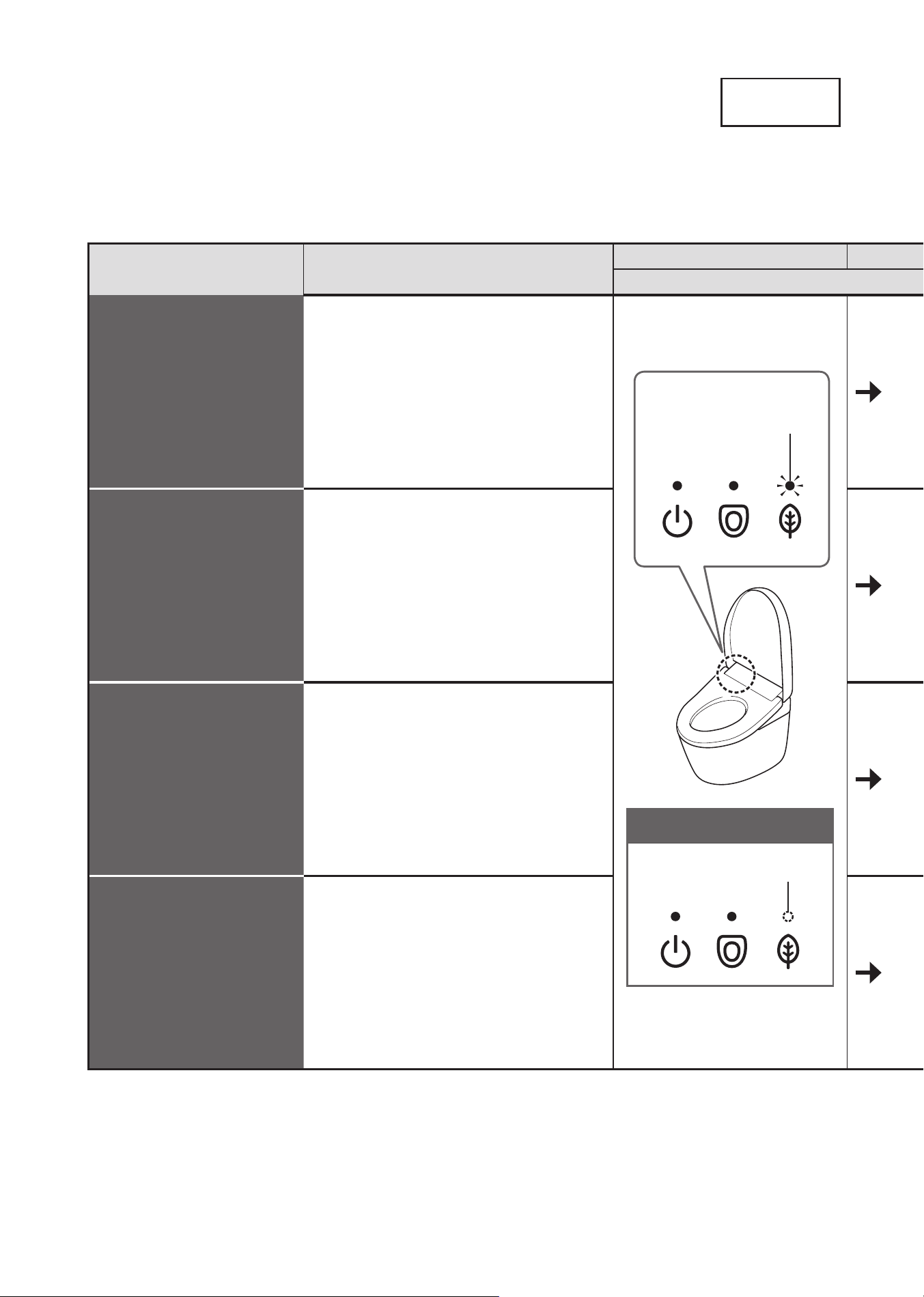

Energy Saver Features
Type
"Auto energy saver", "Auto energy saver+" or "Timer energy saver" can be selected.
To save energy, the temperature of the toilet seat becomes low (or "OFF").
●
"Auto energy saver" takes about 10 days to detect time periods in which the toilet seat is never or infrequently used.
●
Even if the energy saver feature is on (i.e., the toilet seat heater is set to "Low" or "OFF"), the toilet seat is heated
to the set temperature in about 15 minutes.
(The LED indication on the main display returns to the state for when the energy saver is on.)
Type Situation
Energy saver is on
Main display
Auto energy
saver
You want the product to
save energy automatically.
The product detects time periods with
infrequent use and lowers the toilet seat
temperature automatically.
Energy saver is off
OFF
Lit
(Green)
Auto energy
saver+
You want to save more
energy
In addition to the "Auto Energy Saver"
feature, it automatically turns off the toilet
seat heater during time periods when the
toilet is never used.
Timer energy
saver
You want to save energy only
for the preset duration of time.
(6 hours, 9 hours)
Once the time is set, the toilet seat
heater turn off automatically during the
set time period every day.
Timer energy
saver
＋
Auto energy
saver / Auto
energy saver+
You want to save a lot of energy
with auto energy saver and timer
energy saver.
When
both
"Timer energy saver" and
"Auto energy saver / Auto energy saver+"
are set, Auto energy saver / Auto energy
saver+ operates when "Timer energy
saver" is not operating.
23
To set energy saver
Page 24 and 25
▶
*1 The toilet seat temperature set on page 20.
*2 The time period when the toilet seat heater is set to a "Low".
*3 The time period when the toilet seat heater is set to a "OFF".
Main display
<Power> <Seat>
<Energy saver>
When energy saver is in operation
AM PM
Toilet seat heater
046 8 5 9 0
OFF Lit
Lit
(Orange)
Low
Set temperature
*1
Low
temperature
*2
Low
temperature
*2
OFF
Lit
(Orange)
Low
OFF
Set temperature
*1
Low
temperature
*2
Low
temperature
*2
OFF
*3
OFF
Lit
(Green)
OFF
Set temperature
*1
Set temperature
*1
OFF
*3
●
During "Auto energy saver /
Auto energy saver+":
Same LED indication as
"Auto energy saver / Auto
energy saver+" (see above)
●
During "Timer energy saver":
Same LED indication as
"Timer energy saver"
(see above)
Low
OFF
Set
temperature
*1
Set
temperature
*1
Low
temperature
*2
Low
temperature
*2
OFF
*3
OFF
*3
Example: Used infrequently from 9 pm to 6 am
Example: Not used from 0 am to 4 am
Example: Set from 8 am to 5 pm
Example: When "Timer energy saver" and "Auto energy saver+" are used together
Operation

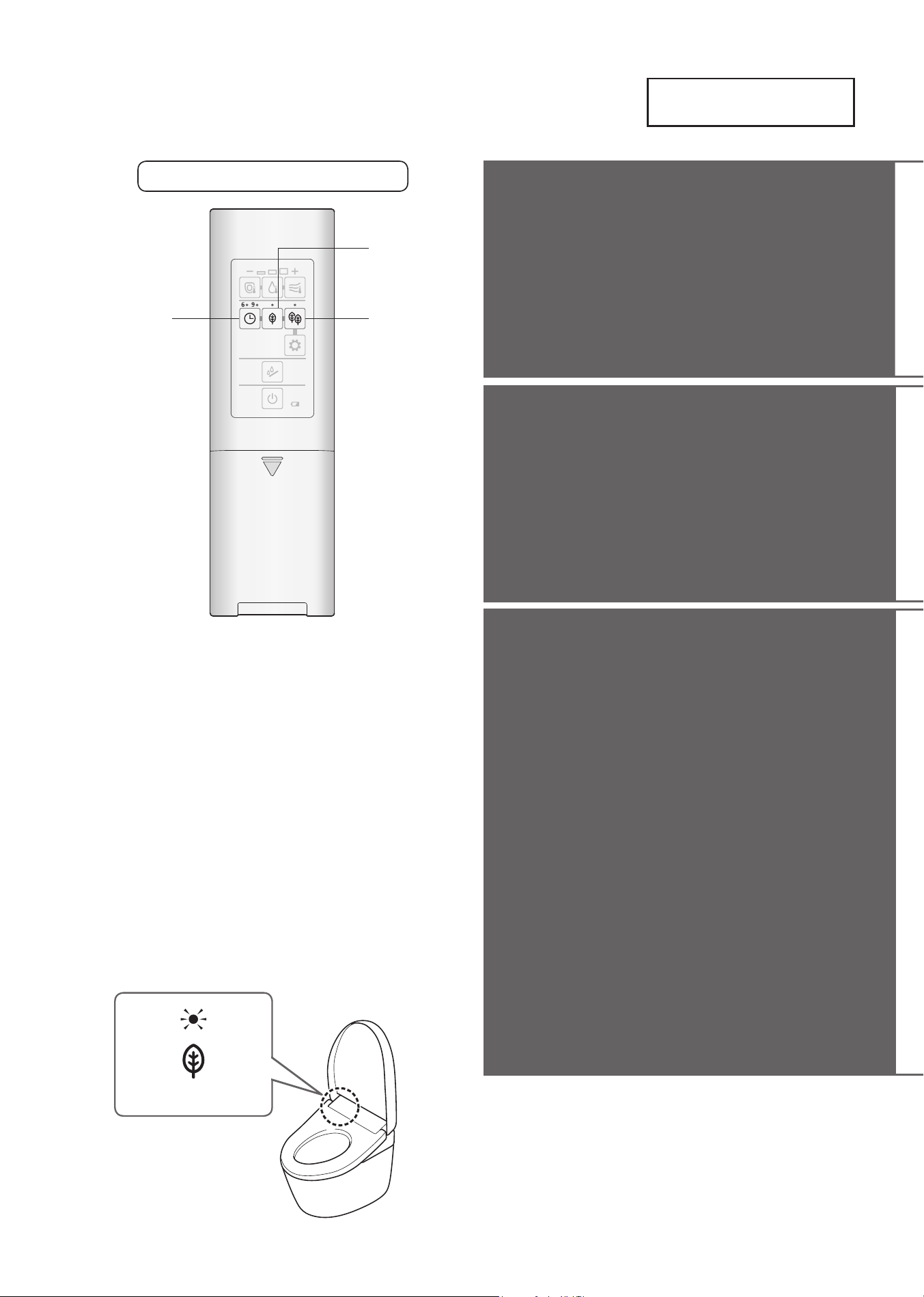

Auto energy saver
Auto energy saver+
Timer energy saver
When energy saver is set,
the "Energy saver" LED
(green) lights up.
<Energy saver>
Timer energy
saver button
Auto energy
saver+ button
Auto energy
saver button
24
Remote control back side
Energy Saver Features

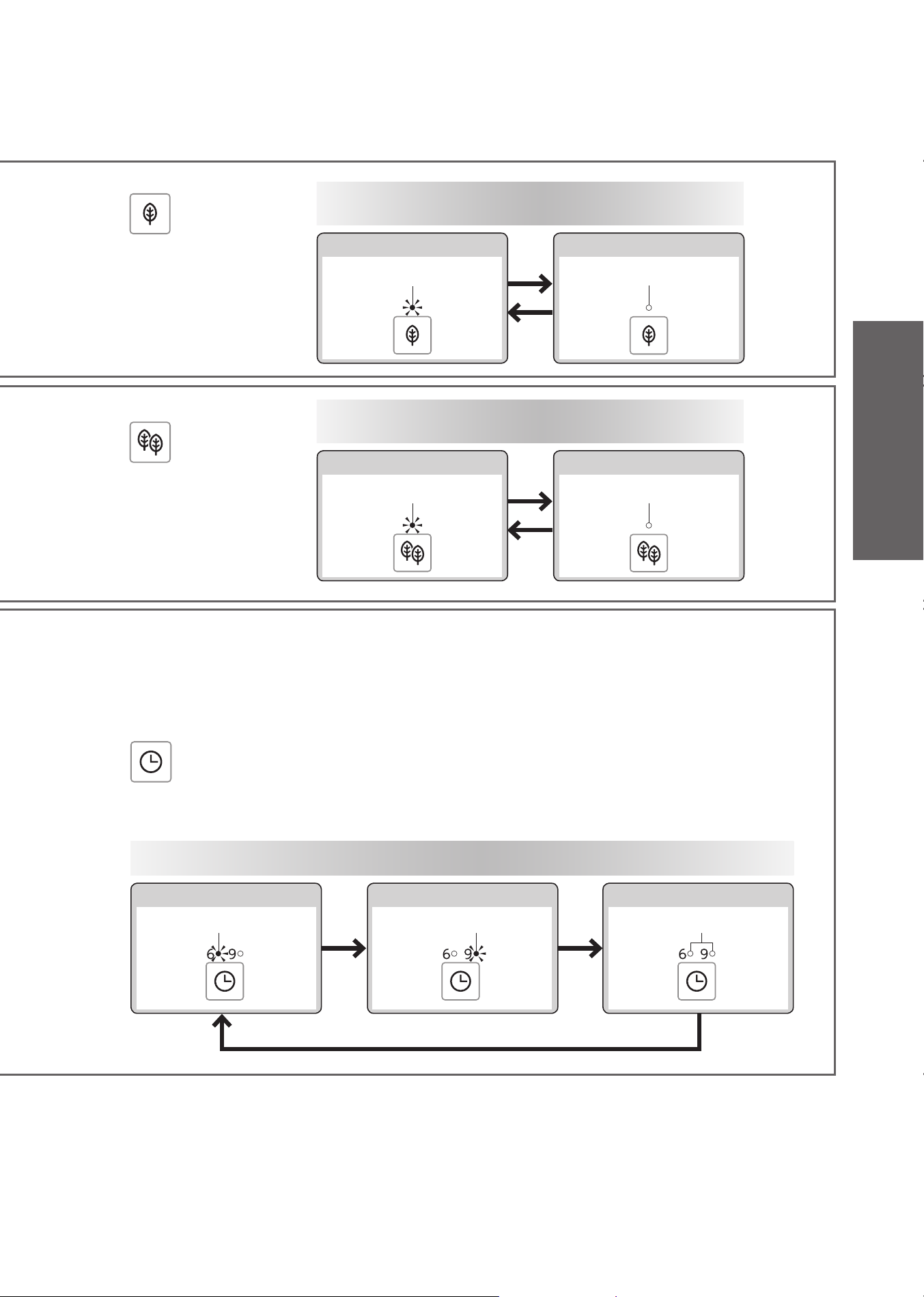

How to Set
1
1
●
Set the Energy saver at the time you want to start it.
Example: To save energy from 1 am to 7 am (for 6 hours)
Press "Timer energy saver" button.
•
Press the "Timer energy saver" button repeatedly until the "6" LED lights up.
When 1:00 AM comes,
1
For setting to "Auto energy saver+"
Lit (Green)
For setting to "OFF"
OFF
The setting changes each time the button is
pressed once
For setting to "Auto energy saver"
Lit (Green)
For setting to "OFF"
OFF
The setting changes each time the button is
pressed once
For 6 hours For 9 hours When "OFF"
Lit Lit OFF
The setting changes each time the button is pressed once
Press "Auto
energy saver"
button.
Press "Auto
energy saver+"
button.
25
Operation

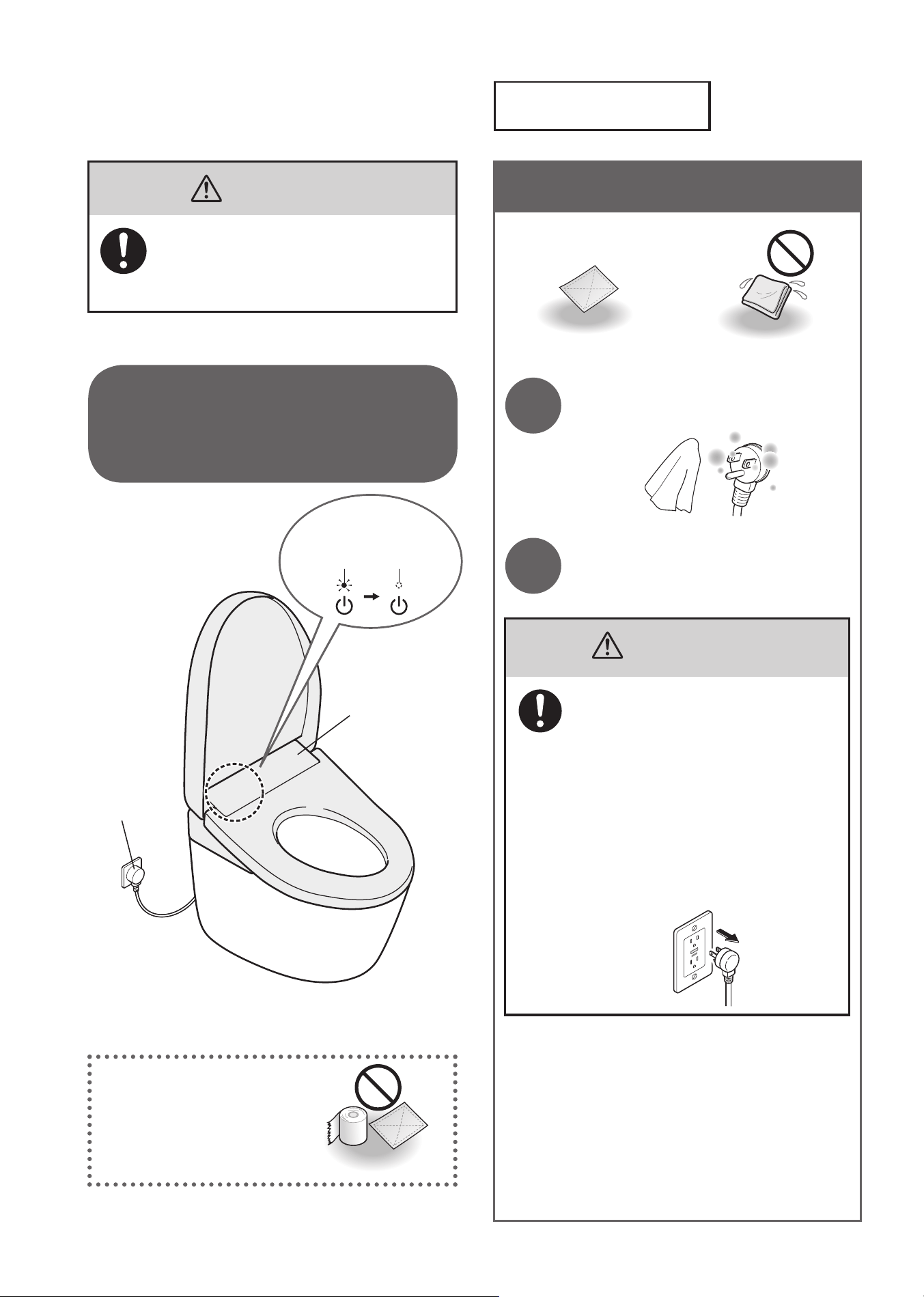

Maintenance
WARNING
Always unplug the power plug from the
outlet before maintenance or inspection.
(Failure to do so may cause electric shock
or malfunction, resulting in a breakdown.)
*1 Except when using "Wand cleaning".
Do not use a dry cloth
or toilet paper on plastic
parts.
(May cause damage.)
Main unit
Power Plug (Approximately once a month)
Dry cloth Wet cloth
1
Unplug the power plug and
wipe it with a dry cloth.
2
Insert the power plug.
The "Power" LED lights up.
WARNING
●
Periodically remove dust from
the blades and other parts of the
power plug.
Unplug the power plug and wipe it
with a dry cloth.
●
Fully insert the power plug.
●
When unplug the power plug, hold
the main body of the power plug.
Pulling the power cord may
damage the power plug or power
cord.
Power Plug
Power Plug
The "Power"
LED goes off .
Lit OFF
26
For safety, unplug the power
plug before maintenance.
*1

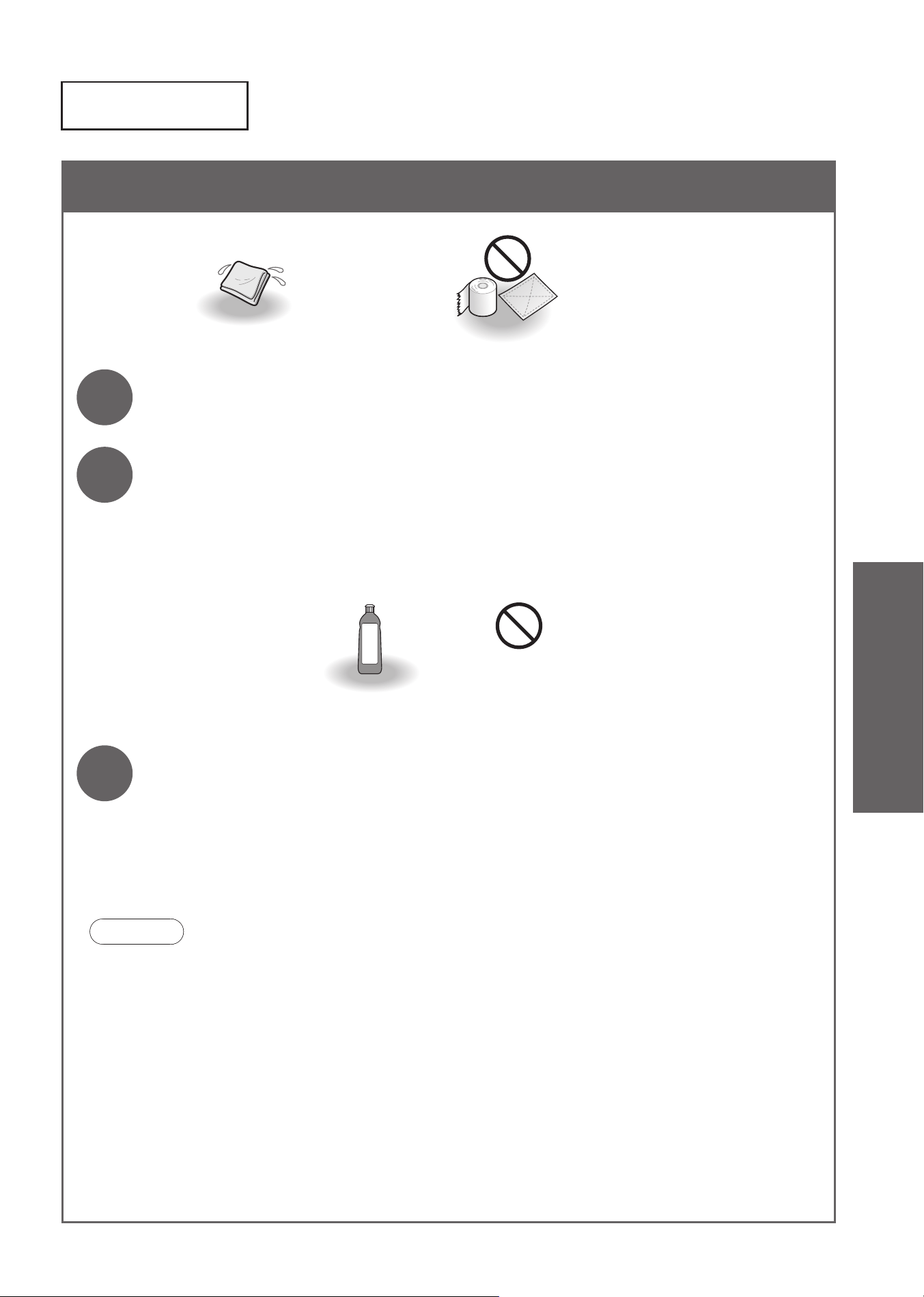

Main Unit (Approximately daily)
Soft cloth soaked
in water
・
Toilet paper
・
Dry cloth
・
Nylon scrubbing brush
(May cause damage.)
1
Unplug the power plug.
2
Wipe with a soft cloth that has been soaked in water and wrung-out
thoroughly.
■
For heavy dirt
•
Wipe with a soft cloth soaked in diluted, neutral kitchen detergent, and then wipe with a soft cloth soaked in
water.
・
Paint thinner
・
Benzene
・
Powdered cleanser
・
Neutral kitchen detergent
3
Insert the power plug.
The "Power" LED lights up.
Attention!
● This product is an electric appliance. Be careful not to let water seep inside or leave detergent in the gap
between the main unit and bowl unit. (May damage plastic parts or cause a malfunction.)
●
When using a toilet cleaner to clean the toilet, rinse it off within 3 minutes and leave the toilet seat and
toilet lid open.
Wipe off any cleaner that remains on the bowl unit. (If vapor from a toilet cleaner enters the main unit, it
may cause a malfunction.)
●
Do not push or pull the covers around the wand with undue force.
(May cause damage or malfunction.)
●
Wipe the back surface of the toilet seat and the toilet seat cushions with a soft cloth tightly wrung out with
water.
(Otherwise adhesion of dirt may result in discoloration.)
Main Unit
27
Maintenance
Maintenance

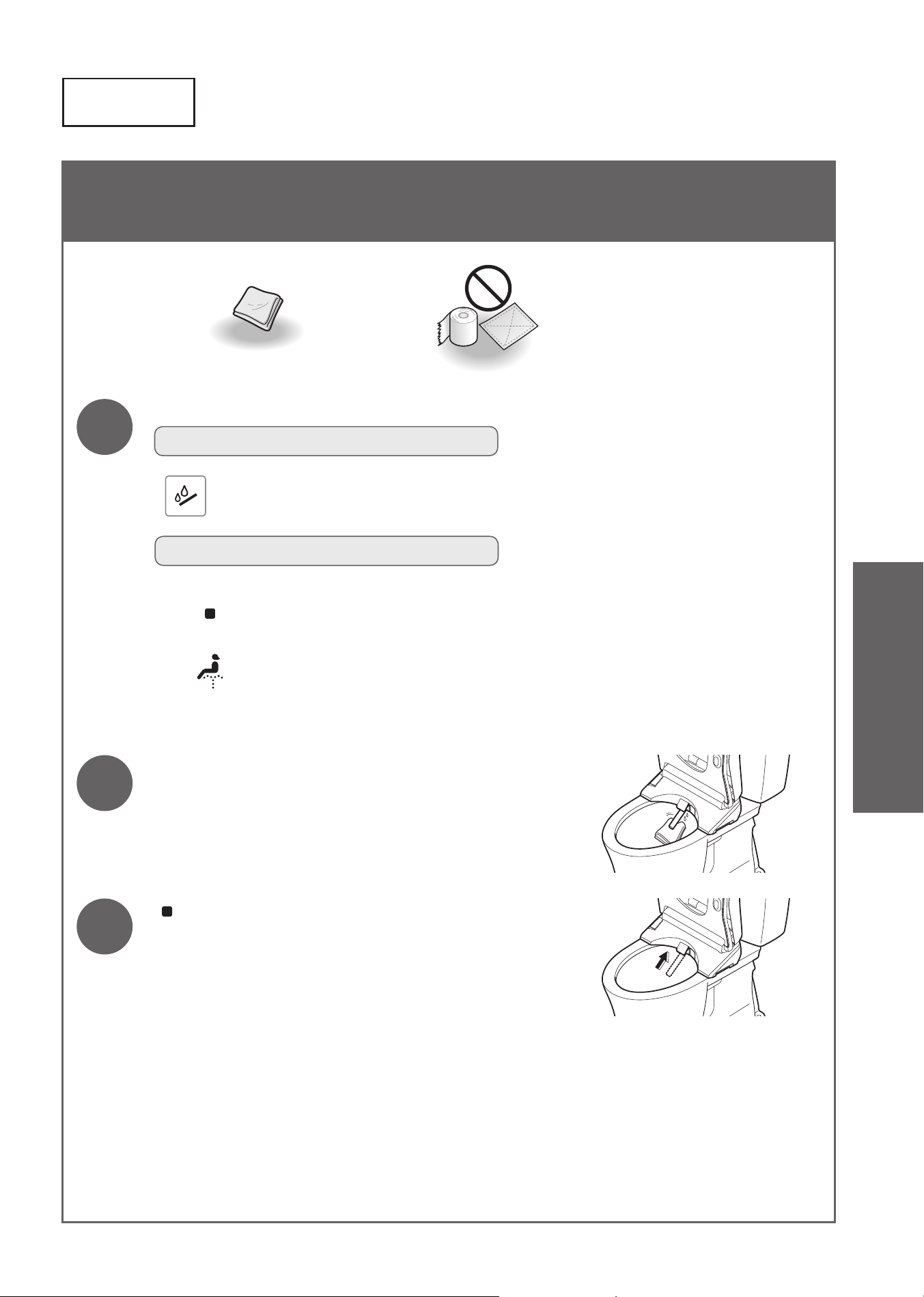

Wand
Deodorizing Filter
28
Deodorizing Filter
Deodorizing Filter (Approximately once a month)
1
Unplug the power plug.
2
Remove the deodorizing
fi lter.
•
Hold the knob and pull outward.
•
Do not pull with undue force.
(May cause damage or malfunction.)
Deodorizing Filter
3
Clean with a tool such as a
toothbrush.
•
When washing with water, dry off all water
before mounting.
Toothbrush, etc.
4
Mount the deodorizing fi lter.
Push fi rmly until a click sound
is heard.
5
Insert the power plug.
•
The "Power" LED lights up.
29
Wand (Approximately once a month)
< If you notice dirt (Wand cleaning)>
Soft cloth
Toilet paper, etc.
(May cause damage.)
1
Extend the wand.
To operate from the back of remote control
Press "Wand cleaning" button.
To operate from the front of remote control
*Recommended if the remote control is secured to prevent theft.
(1) Press "Stopping" button until all LEDs on the remote control start fl ashing. (about 10
seconds)
(2) Press "Front cleansing" button about 3 seconds or longer.
•
The wand extends and water sprays out for cleaning.
•
The wand automatically retracts after about 5 minutes.
2
Wipe with a soft, wet cloth.
•
Do not pull, push or press the wand with excessive force.
(May cause malfunctions or damage.)
3
Press "Stopping" button on the front side
of the remote control.
•
The wand retracts.
Wand
Maintenance
30

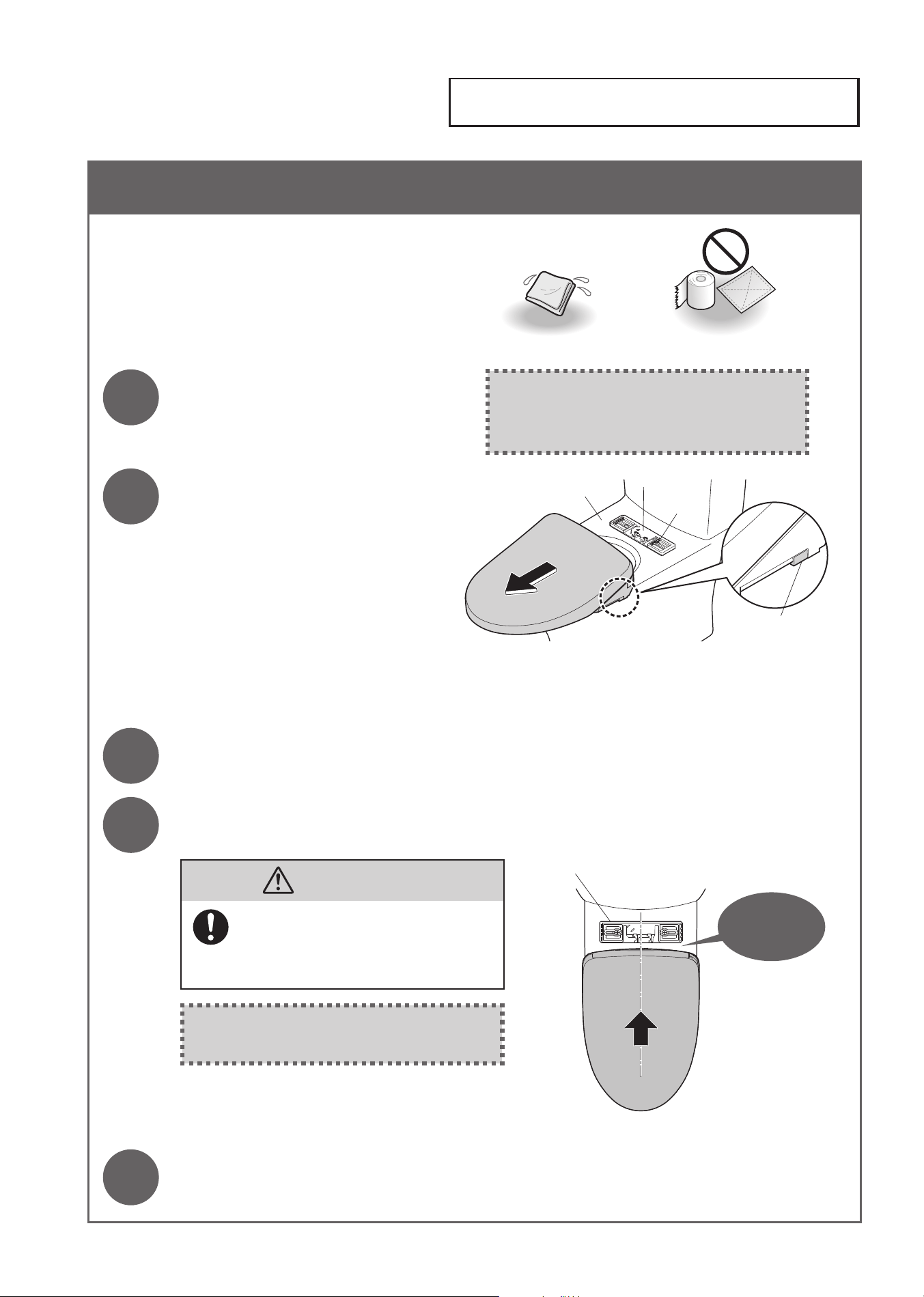

Gap between the Main Unit and Bowl Unit (Approximately once a month)
You can remove the main unit to clean
the top of the bowl unit and the bottom of
the main unit.
Soft cloth soaked in water Toilet paper, etc. (May cause damage.)
1
Unplug the power plug.
If the power is not unplugged, the unit
may malfunction or cause a failure or
electric shock.
2
Remove the main unit.
•
Do not pull the unit with undue force
(because the water supply hose and
power cord are attached).
Main unit
removal button
Pull the main unit toward
you while pressing the
"Main unit removal button".
Base plate
Bolt
Top of the bowl unit
3
Clean the top of the bowl unit and the bottom of the main unit.
•
Wipe with a soft cloth soaked in a diluted, neutral kitchen detergent. Then, wipe it with a soft cloth soaked
in water so that no detergent remains.
4
Mount the main unit.
•
Be careful not to pinch the cords between the main unit and the base plate.
CAUTION
Push the main unit fi rmly on to the
base plate until a click sound is heard.
(Failure to do so could cause the main unit
to come loose and fall resulting in injury.)
After mounting, check that the main unit
does not detach even when pulled.
Click
Align the main
unit with the
center of the
base plate and
press it fi rmly
onto the base
plate until a click
sound is heard.
Base plate
5
Insert the power plug.
•
The "Power" LED lights up.
Maintenance
Gap between the Main Unit and Bowl Unit

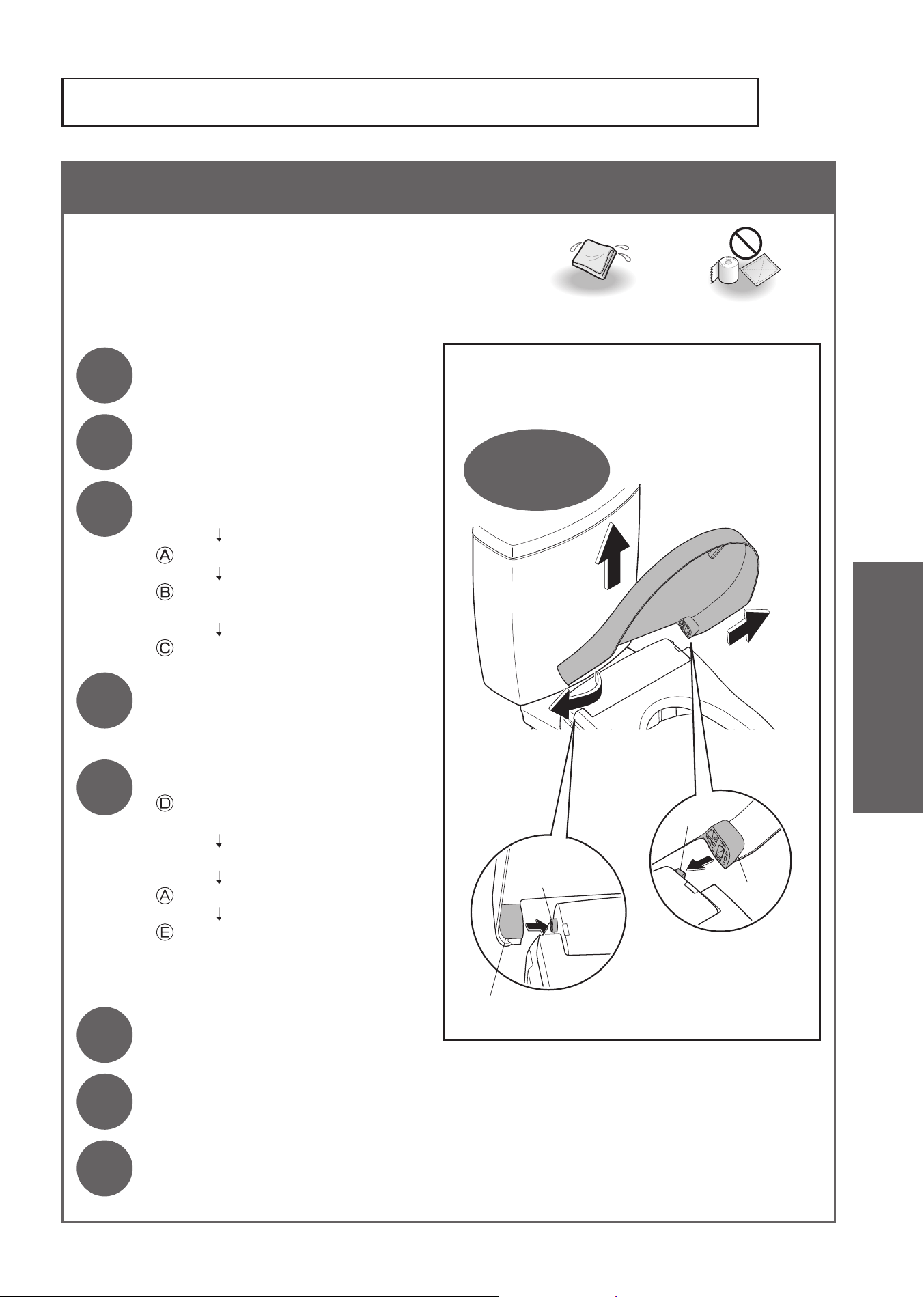

Gap between the Main Unit and the Toilet Lid (Approximately once a month)
The toilet lid can be removed for thorough
cleaning.
Soft cloth soaked in water Toilet paper, etc.
(May cause damage.)
1
Unplug the power plug.
Removing and Reinstalling
Ⓓ
Ⓔ
Pin
Hinge
Hinge
Tab
Ⓑ
Ⓒ
Ⓐ
Hold with
both hands
2
Remove the main unit.
(Page 30)
3
Remove the toilet lid.
Slightly tilt the toilet lid to the front.
: Pull the left side outward.
: Disconnect the hinge from the tab
and pull up.
: Disconnect the right side.
4
Wipe with a soft cloth that
has been soaked in water
and wrung-out thoroughly.
5
Reinstall the toilet lid.
: Join the pin and the hinge on the
right side.
Slightly tilt the toilet lid to the front.
: While pulling out the left side,
: Mount by joining the hinge with the
tab.
* Be careful not to pinch your fi ngers.
6
Mount the main unit.
(Page 30)
7
Insert the power plug.
•
The "Power" LED lights up.
8
Open and close the toilet lid
to check the reinstallation.
31
Gap between the Main Unit and the Toilet Lid
Maintenance

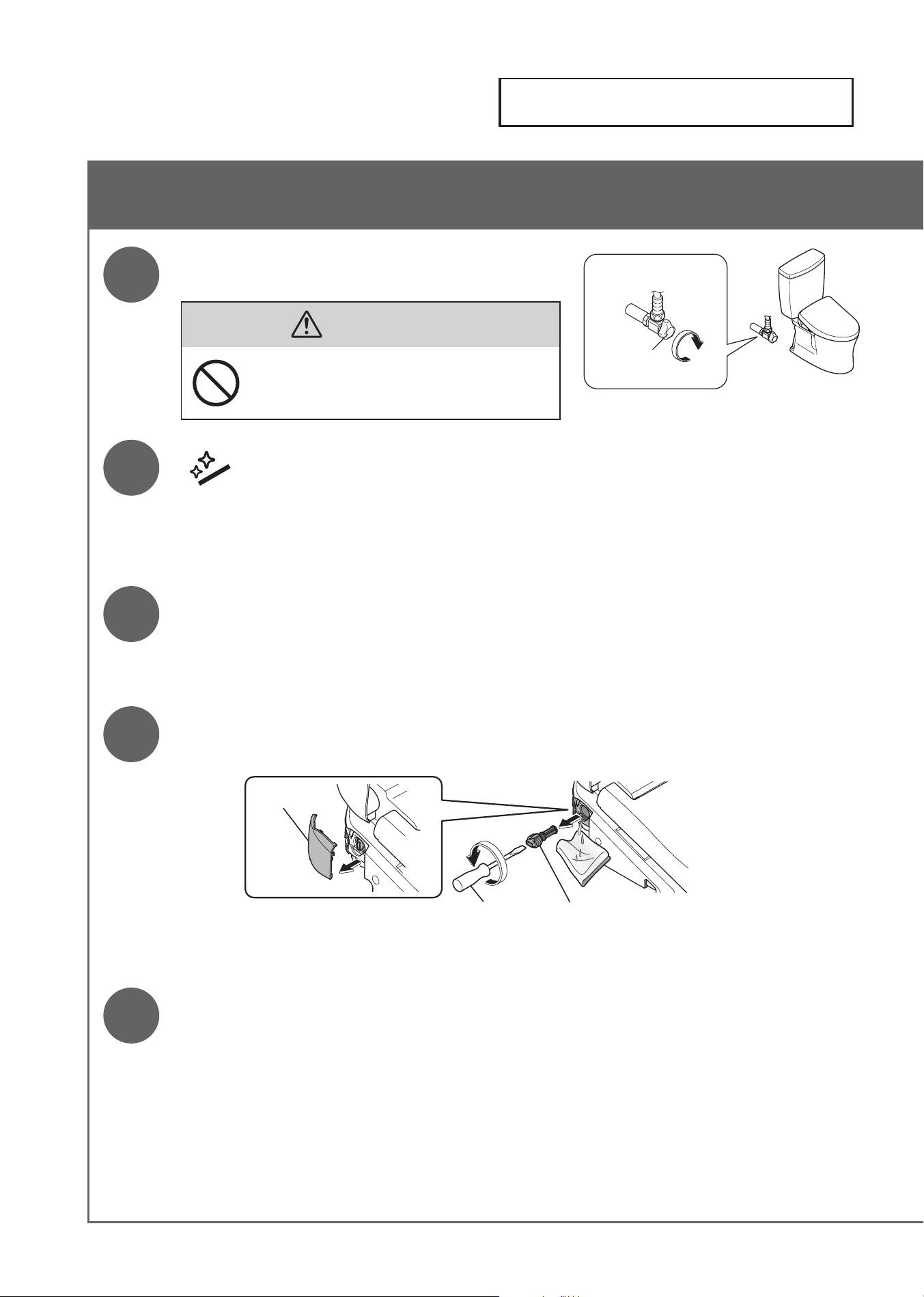

Water Filter Drain Valve
(Approximately once every 6 months)
<If you think the water pressure has weakened>
32
1
Close the shutoff valve.
•
The water supply stops.
Shutoff
valve
CAUTION
Do not remove the water fi lter drain valve
while the shutoff valve is open.
(Otherwise, water may leak out.)
2
Press "Wand CLEAN" button.
(Release the pressure from the water supply pipe.)
3
Unplug the power plug.
4
Remove the cover and water fi lter drain valve.
•
Loosen the water fi lter drain valve with a fl at-head screwdriver and then pull it.
Cover
Flat-head screwdriver
Water Filter Drain Valve
5
Clean with a tool such as a toothbrush.
•
Also, remove any dust from inside the hole of the water fi lter drain valve.
Maintenance
Water Filter
Drain Valve
Water fi lter
drain valve
33

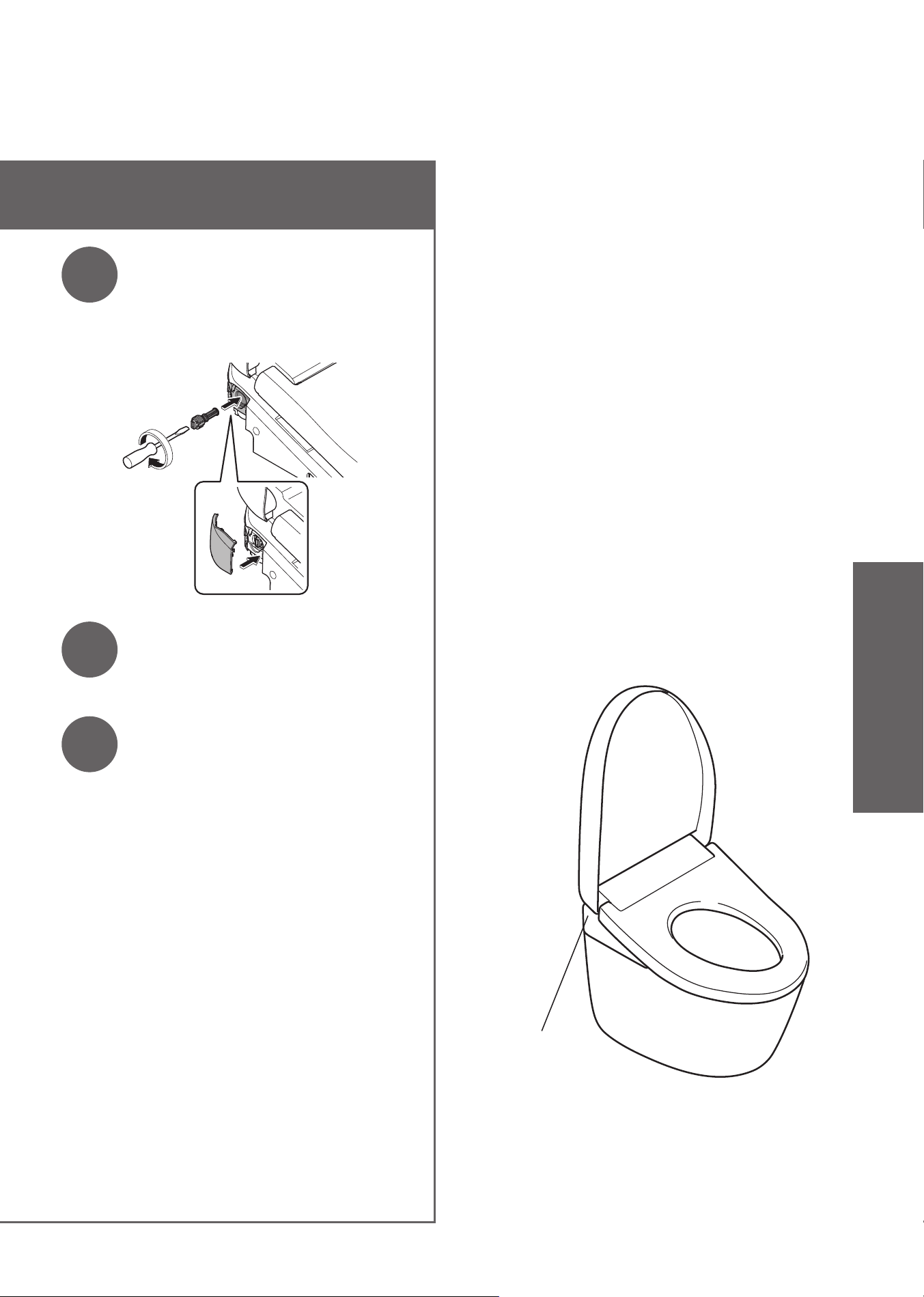

6
Reinstall the water fi lter
drain valve and cover.
•
Insert the water fi lter drain valve and
use a fl at-head screwdriver to tighten it
securely.
7
Insert the power plug.
•
The "Power" LED lights up.
8
Open the shutoff valve.
Maintenance
Setting Types
Auto
functions
Cleaning
Features
Auto wand CLEAN
Pre-mist
Deodorizer
Auto power deodorizer
Other
settings
Beep sound
Personal setting lock
All LEDs on the control panel flash.
*1
Settings cannot be changed
unless all LEDs flash
To change the settings,
check that all LEDs on
the control panel are
flashing!
34
Press "Stopping"
button about
10 seconds or
longer.

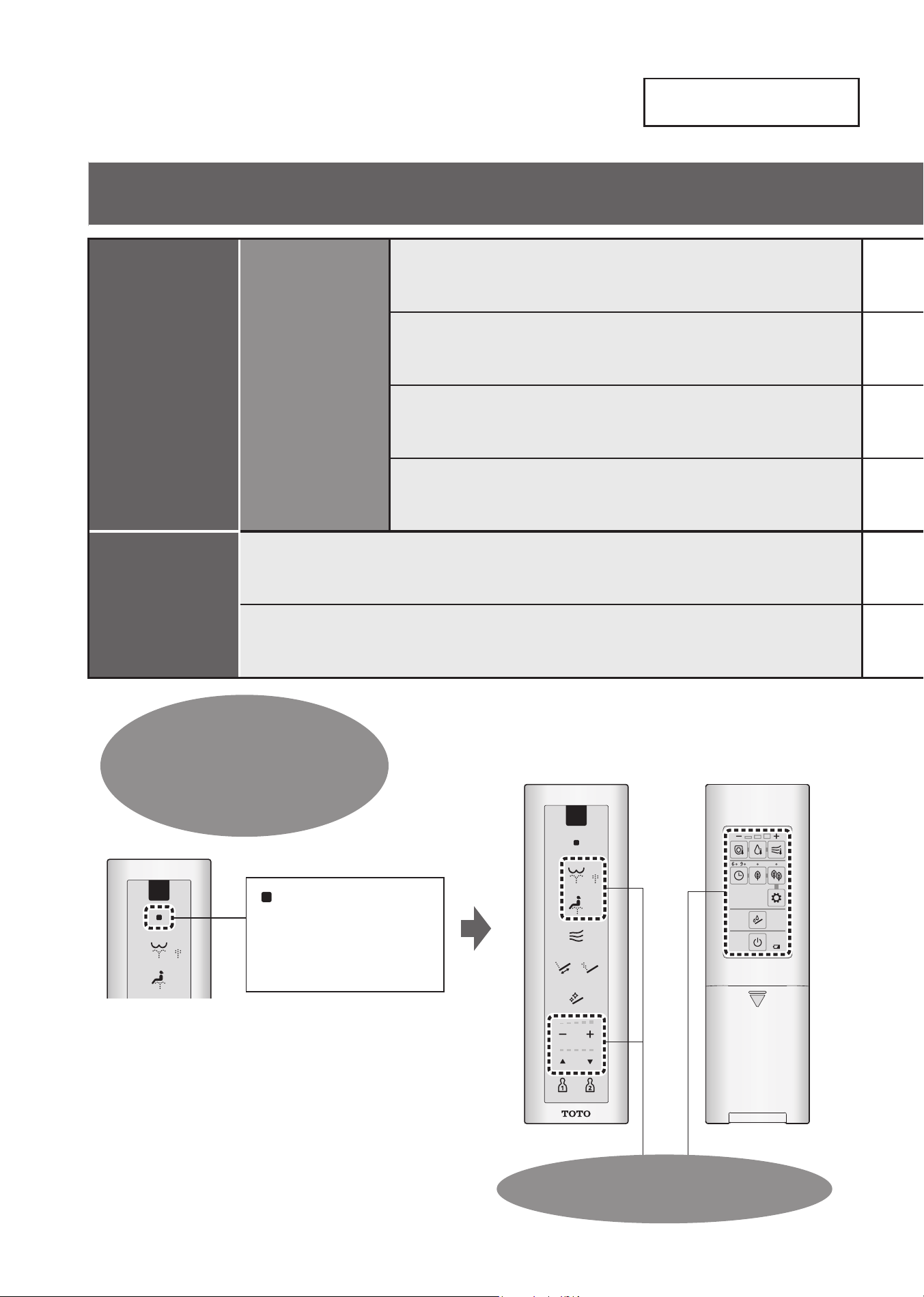

Changing Settings
Setting List
*1 During setting, the display goes out when no button is pressed within about 60 seconds.
If you fail to complete the setting, redo from the step 1.
Available Settings
•
Bold: Initial settings
How to Set
Ref. Page
Set whether or not to clean the wand
automatically
ON / OFF
Page 36
• Set whether or not to
spray mist in the
bowl unit automatically
ON / OFF
• Set whether or not to
deodorize
automatically after sitting on the toilet
seat
ON / OFF
• Set whether or not to
power deodorize
automatically after standing up
ON / OFF
• Set whether or not to
make a beep sound
ON / OFF
Page 38
• Set whether or not to
use the personal
setting lock
ON / OFF
35

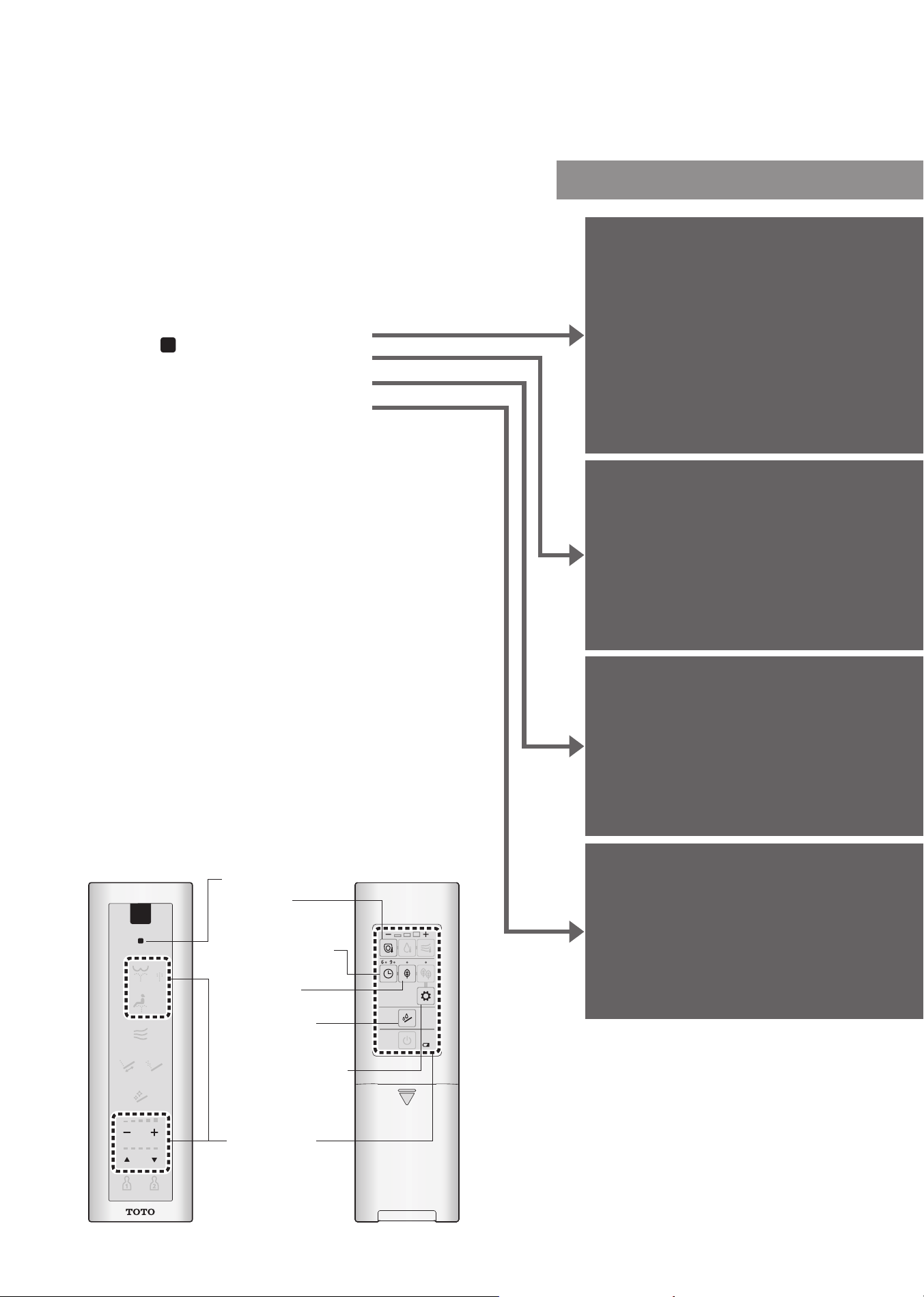

Reference
Changing Settings
Set whether or not to clean the wand
automatically
Auto wand CLEAN
Set whether or not to spray mist in
the bowl unit automatically
Pre-mist
Set whether or not to deodorize
automatically after sitting on
the toilet seat
Deodorizer
Set whether or not to power deodorize
automatically after standing up
Auto power
deodorizer
1
Press "Stopping"
button until all
LEDs on the remote
control start fl ashing.
(about 10 seconds)
All LEDs fl ash
Stopping button
Wand cleaning
button
Setting confi rmation
button
Timer energyaver
button
Auto energy
saver button
Toilet seat
temperature
button
36
Cleaning Features
2
and
Press "Timer
energy saver"
button and "Setting
confi rmation"
button at the same
time.
The setting changes each time the button is pressed once
Set whether or not to clean the wand automatically
Long beepShort beep
For setting to "ON"
For setting to "OFF"
2
and
Press "Setting
confi rmation" button
and "Auto energy
saver" button at the
same time.
The setting changes each time the button is pressed once
Set whether or not to spray mist in the bowl unit automatically.
Long beepShort beep
For setting to "spray"
For setting to "do not spray"
2
Press "Wand
cleaning" button
about 5 seconds
or longer.
The setting changes each time the button is
held down longer than 5 seconds.
Set whether or not to deodorize automatically after sitting on the toilet seat
Long beepShort beep
For setting to "ON"
For setting to "OFF"
2
Press "Toilet seat
temperature"
button.
The setting changes each time the button is pressed once
Set whether or not to power deodorize automatically after standing up
Long beepShort beep
For setting to "ON"
For setting to "OFF"
▶
▶
▶
▶
3
Press
"Stopping"
button.
<Settings complete>
37

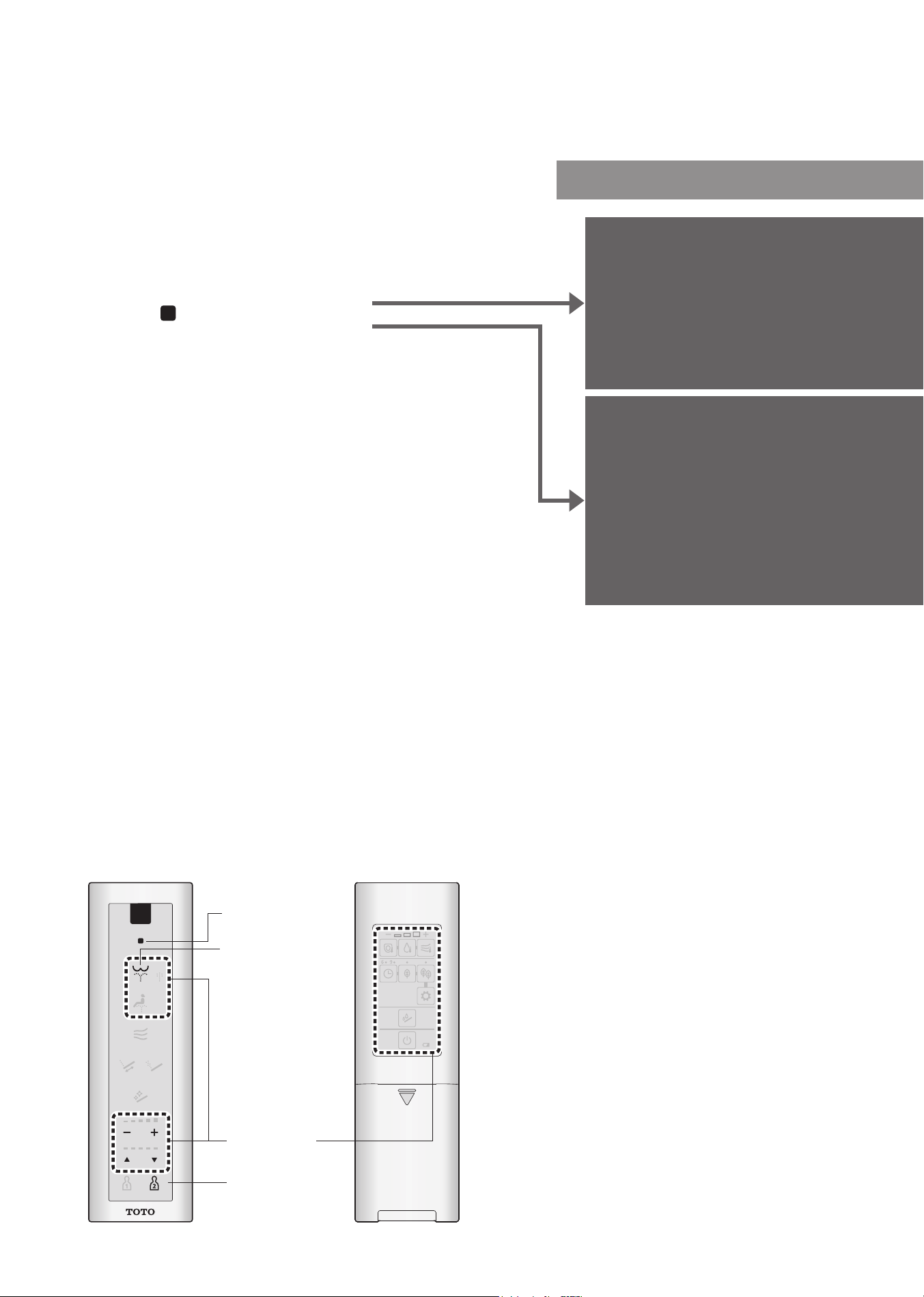

Reference
All LEDs fl ash
Stopping button
Rear cleansing
button
Personal setting
lock 2 button
Changing Settings
1
Press "Stopping"
button until all
LEDs on the remote
control start fl ashing.
(about 10 seconds)
Set whether or not to make a beep
sound
Beep sound
*1
Set whether or not to use
the personal setting lock
Personal setting
lock
Other settings
38

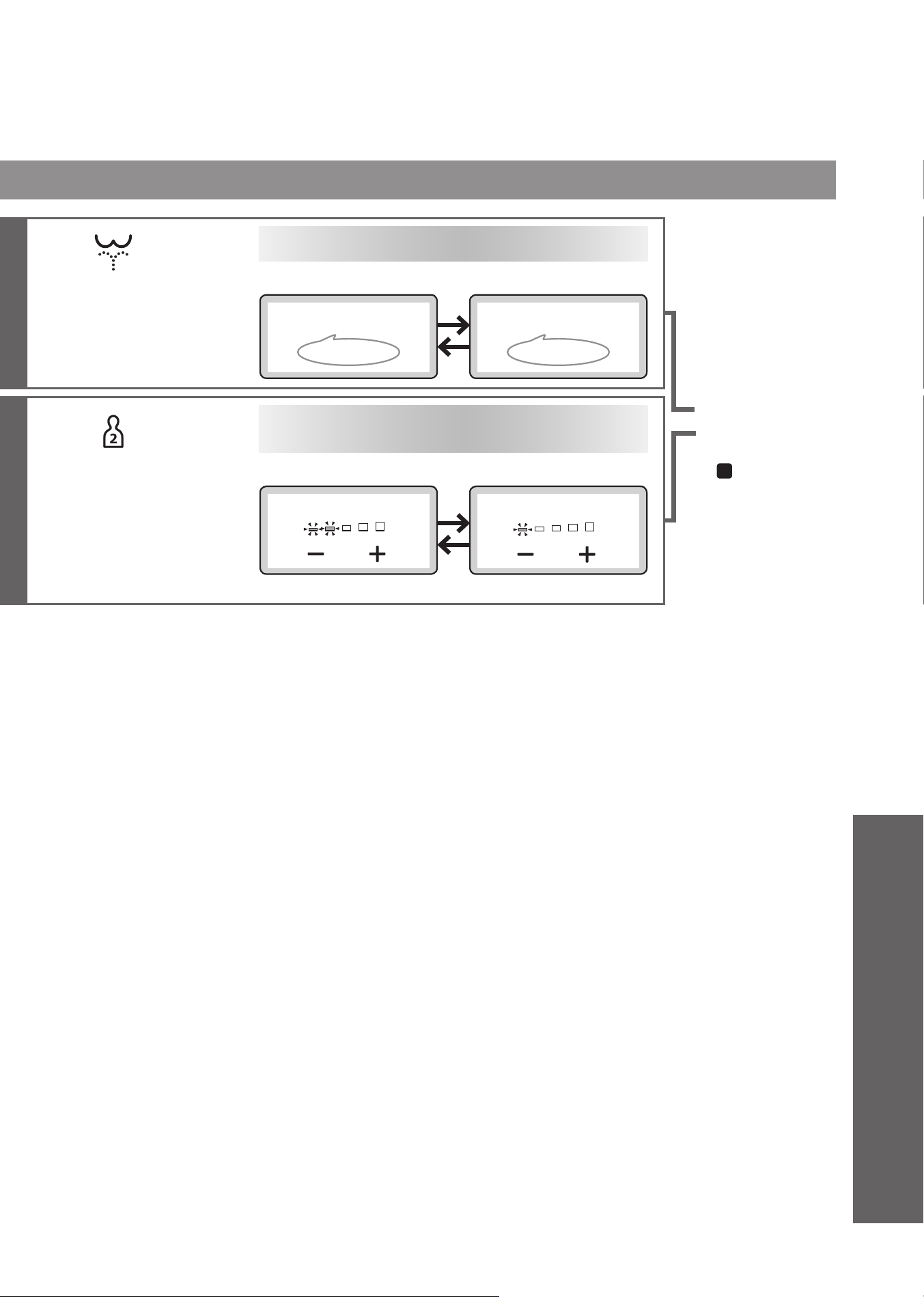

2
Press
"Rear cleansing"
button.
The setting changes each time the button is pressed once
Set whether or not to make a beep sound
Long beepShort beep
For making a beep sound
For not making a beep sound
2
Press "Personal
setting lock 2"
button for 5
seconds or longer.
The setting changes each time the button is
held down longer than 5 seconds.
Set whether or not to use the personal setting lock
Check by the water pressure LED
For setting to "ON"
For setting to "OFF"
*1 When you change each of the settings, set the electronic sound to "Make a beep sound".
3
Press
"Stopping"
button.
<Settings complete>
▶
▶
39
Reference
If you cannot operate with the remote control
●
If the low battery warning mark " " on
the back of the remote control is fl ashing,
please replace the batteries.
It is the time to replace the batteries.
■
Replacing the batteries
1
Unplug the power plug.
2
Remove the remote control from the hanger.
(Page 14)
<Power>
3
Open the battery cover and replace the two AA
batteries.
(Page 14)
•
The low battery warning mark goes off .
4
Mount the remote control in the hanger.
5
Insert the power plug.
•
The "Power" LED lights up.
Attention!
•
"ON" and "OFF" settings of the functions such as the energy saver function may be canceled when the batteries are replaced.
Set them again.
If the water does not fl ow due to a water service interruption
40
1
Use a bucket to fl ush water.
2
If the water level is low after
fl ushing, add more water.
•
Prevents odors.
Attention!
•
When the water supply is restored, be sure to perform a full fl ush.
(To prevent waste from remaining in the drain pipe.)
Newspaper, dustcloth, etc.
Large bucket
Pour strongly, aiming
at the center of the
bowl unit.
What to Do?
If the water does not fl ow due to a water service interruption
If you cannot operate with the remote control
41

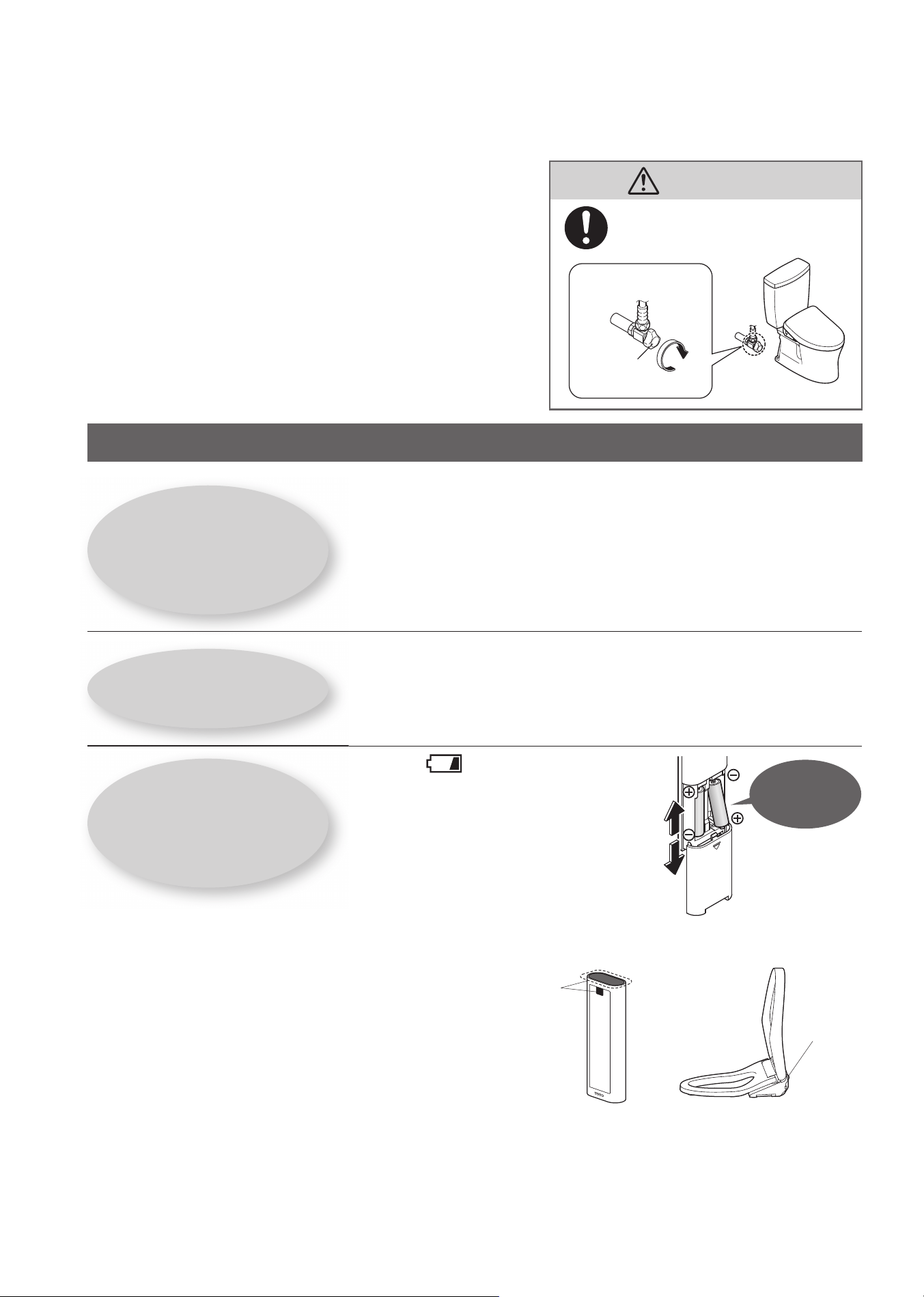

When the ambient temperature is likely to drop to 32 °F (0 °C) or lower, take measures to prevent freezing.
Attention!
•
When the ambient temperature is likely to drop to 32 °F (0 °C) or lower, do not use the energy saver feature. (May damage the product.)
•
Warm the bathroom or take measures against freezing so that the ambient temperature does not drop below 32 °F (0 °C).

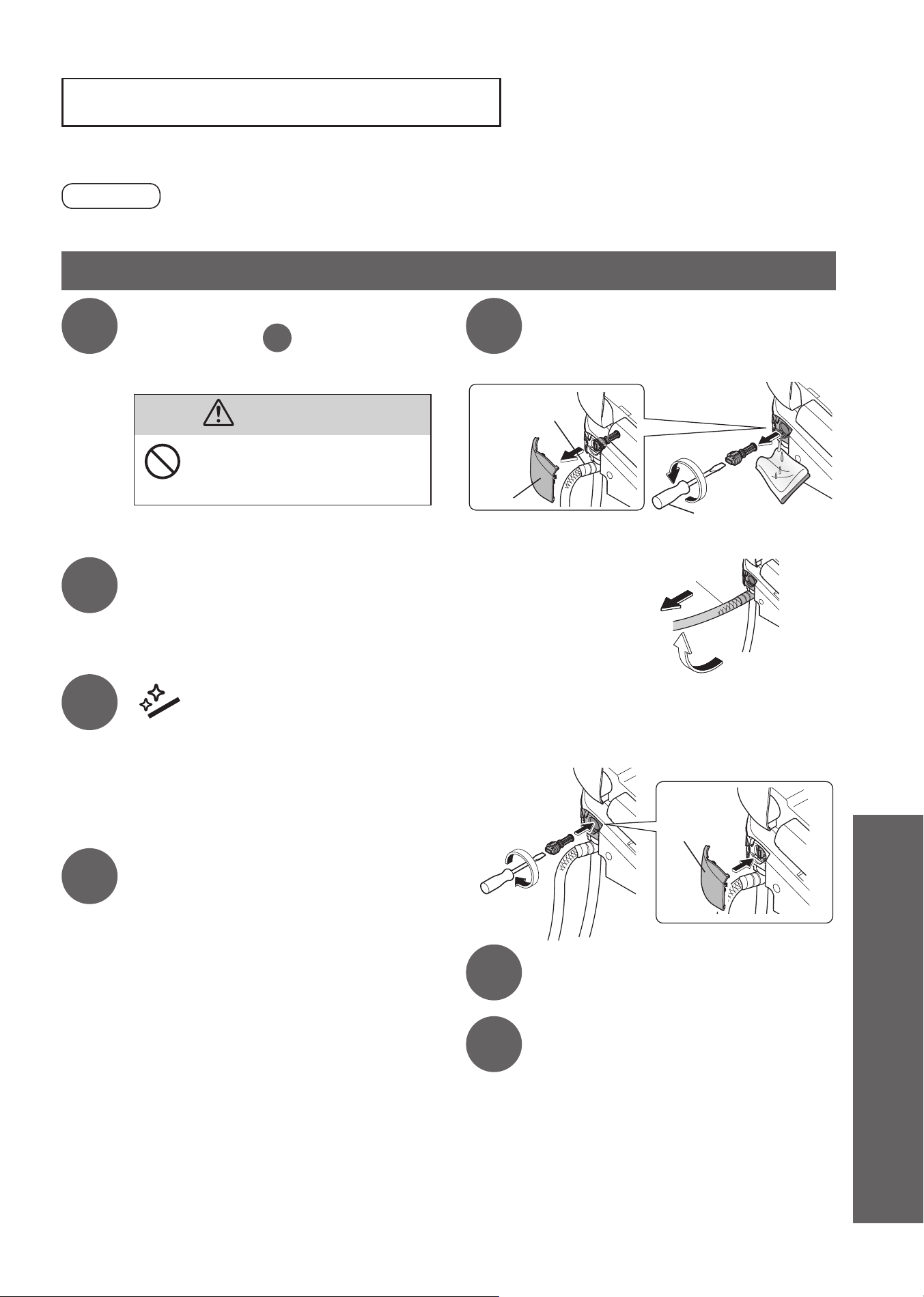

How to freeze damage prevention
1
Close the shutoff valve.
(Page 32 Step
1
)
•
The water supply stops.
CAUTION
Do not remove the water fi lter drain
valve while the shutoff valve is open.
(Otherwise, water may leak out.)
2
Drain the water from the toilet tank.
•
Manipulate the lever/button/etc. until the water
stops.
3
Press
"Wand CLEAN" button.
(Release the pressure from the water supply
pipe.)
4
Unplug the power plug.
5
Drain the pipe.
(1)
Remove the cover and water fi lter drain valve.
•
Loosen the water fi lter drain valve with a
fl at-head screwdriver and then pull it.
Water Filter
Drain Valve
Flat-head screwdriver
Cover
(2)
Drain the water from the water supply hose.
Water supply hose
Horizontally
(3) After draining the water, install the water
fi lter drain valve and cover.
•
Insert the water fi lter drain valve and use a
fl at-head screwdriver to tighten it securely.
Cover
6
Insert the power plug.
•
The "Power" LED lights up.
7
Set the toilet seat temperature
to "High".
(Page 20)
•
To maintain the temperature, close the toilet seat
and toilet lid after fi nishing work.
■
To use the product again
•
The water needs to be resupplied. (Page 42)
Freeze Damage Prevention
Reference
42
What to Do?
Long Periods of Disuse
If the toilet is in a location you will not visit for a long time, drain the water.
(The water in the tank may cause malfunctions or become contaminated and cause skin irritation or other problems.)
How to drain the water
1
Drain the water from the toilet tank.
(Page 41 Step
1
,
2
)
2
Press
"Wand CLEAN" button.
(Release the pressure from the water supply
pipe.)
3
Unplug the power plug.
4
Drain the pipe.
(Page 41 Step
5
)
5
Pull out the water drain lever.
•
Water comes out from
around the wand
(about 20 seconds)
6
Release your hand to return the
water drain lever to its original
position.
■
If water may get frozen
•
Add antifreeze solution in the water in the bowl to
prevent freezing.
(The antifreeze solution should not be fl ushed out.
Collect it before using the toilet and dispose of it.)
■
To use the product again
•
The water needs to be resupplied. (See below)
Water drain lever
Resupplying the Water
1
Open the shutoff valve. (P.15)
•
Check that water is not leaking from a pipe or the main unit.
2
If the power is not on, insert the power plug.
•
The "Power" LED lights up.
3
Discharge water from the wand.
(1) Pressing down the left side of the toilet seat,
(2)
Press "Rear cleansing" button on the remote control to
discharge water from the wand.
•
Catch the water in a paper cup or other receptacle.
(3) Press "Stopping" button.
■
If the remaining water has frozen and no water comes out
•
Heat the inside of the bathroom, and warm the water supply hose and shutoff valve using a cloth
soaked in warm water.
Soft cloth soaked in water
(to prevent scratching)
Paper cup
43
How to remove the operation guide
To remove, follow the procedure below.
1
Unplug the power plug.
2
Remove the remote control from the hanger.
(Page 14)
3
Remove the hanger and
operation guide.
Hanger Operation guide
Phillips screwdriver
Screw
4
Screw the hanger on the wall.
5
Mount the remote control in the hanger.
6
Insert the power plug.
•
The "Power" LED lights up.
Q
To install back the operation guide, follow the procedure above.
(Install the operation guide at step
4
.)
Removal of Operation Guide
Reference
Troubleshooting
CAUTION
If a water leak occurs,
close the shutoff valve.
First, try the actions described on pages 44 - 48. If the problem
persists, consult the installer, seller or TOTO customer service
(see contact information on the back cover).
Please check fi rst
44
Is the Power LED lit?
■
Is the "Power ON/OFF" setting "OFF"?
Switch it to "ON" with the remote control. (Page 15 Step
2
-
2
)
■
Is the power plug inserted?
Check whether there is a power outage.
Is the Energy Saver
LED lit?
■
While the LED is lit, energy saver
(Page 22, 23)
is in
operation, so the toilet seat temperature may be reduced
or the heater may be turned off .
Is the remote control
working?
■
Is the " " LED on the back
of the remote controller fl ashing?
Replace the batteries. (Pages 14, 40)
■
Is the remote control transmitter
or the remote control receiver
blocked?
Remove obstructions, dirt, water droplets
or any other blockages.
The remote control
uses
batteries
to operate.
Shutoff
valve
Remote
control
receiver
Remote control transmitter
Rear Cleansing, Front Cleansing and Wand
Trouble Please check
Ref.
Page
The wand
(or cleansing
water) does
not come out
▶
When the temperature is low, it takes time for the wand to come out after the remote
control button is pressed because the water must be warmed up fi rst.
-
▶
Did you sit on the toilet continuously for 2 hours or longer?
(If so, operation is stopped for safety purposes.)
Stand up from the seat and then use again.
-
▶
If the water supply pressure drops signifi cantly, for example if water is used elsewhere
or if there is a water failure, the function may stop for safety.
Unplug the power plug and wait about 10 seconds before inserting it again.
If the same symptom reappears. There may be a malfunction.
Consult with TOTO customer service (see contact information on the back cover).
-
▶
The seat switch will not turn on unless you sit on the seat properly.
Sit back on the toilet seat.
11
▶
Are you using a toilet seat cover, a toilet lid cover or a seat for
infants?
Remove any covers.
When using a seat for infants or a soft highchair, remove
after each use.
11
▶
Are you pressing "Wand CLEAN" button?
When you press "Wand CLEAN" button, "EWATER+" comes out from the
vicinity of the wand to clean the wand.
To clean the wand with it extended, perform "Wand cleaning".
29
The wand
extends but
the cleansing
water does not
come out / The
cleansing water
pressure is weak
▶
Has a water failure occurred?
Press the "Stopping" button on the remote control and wait until water service is restored.
-
▶
Is the shutoff valve closed?
Fully open the shutoff valve.
15
▶
Is the water fi lter drain valve clogged with foreign matter?
Clean the filter.
32
▶
Is the water pressure set to a low level?
16
The cleansing
water is cold
▶
Is the warm water temperature set to "OFF" or a low level?
When the temperature of the water supply or the bathroom is low, the water
temperature may be low when fi rst sprayed.
20
-
Stops in the
middle of use
▶
"Rear cleansing", "rear soft cleansing" and "front cleansing" stop automatically after about 5
minutes of continuous use.
Does the seat switch have diffi culty detecting?
Sit back on the toilet seat. If you get up slightly from the seat, or sit forward on the
seat, the seating switch may temporarily stop detecting your presence.
-
11
Water comes out
unexpectedly
from the wand
▶
When you sit on the toilet seat, water comes out for several seconds while water is
warmed up.
Is the "Wand CLEAN" LED on the main display flashing?
•
"Auto Wand CLEAN" starts and the wand is cleaned.
-
19
Covers
45
Reference
Toilet Seat and Toilet Lid
Trouble Please check
Ref.
Page
The toilet seat
is cold
▶
Is the toilet seat temperature set to "OFF" or a low level?
20
▶
Is energy saver in operation?
•
The energy saver feature is on when the "Energy saver" LED is on and the "Power"
LED is off on the main display.
When you sit on the seat, the toilet seat heater is turned on temporarily and the seat
is warmed in about 15 minutes.
You can turn it "OFF" if the energy saver feature is "ON".
22
24
▶
Have you been seated for a long time?
•
After about 20 minutes of sitting, the temperature starts going down, and after about
1 hour, the toilet seat heater is turned "OFF". Stand up from the seat and then
use again.
-
▶
The seat switch will not turn on unless you sit on the seat properly.
Sit back on the toilet seat.
11
▶
Is a toilet lid or seat cover installed? Remove any covers.
11
Energy Saver
Trouble Please check
Ref.
Page
The Energy
saver LED
does not light
up
▶
Did you unplug the power plug or was there a power failure?
•
The "Energy saver" LED on the main display may go off when the power is turned
on even if the energy saver feature is "ON".
(It will turn on within about 24 hours since the setting is retained.)
-
The Timer
energy saver
feature is not
working
▶
Did you replace the remote control batteries?
•
"Timer energy saver" may be canceled when the batteries are replaced.
Set the "Timer energy saver" again at the time you want to start it.
24
The Auto
energy saver+
or Auto energy
saver feature
is not working
▶
Because the function takes several days learning the usage conditions before starting
energy saver, the amount of energy saving may be low, depending on the frequency
of use.
Check the energy saver setting.
22
Troubleshooting
Warm air drying
Trouble Please check
Ref.
Page
The dryer
temperature is
low
▶
Is the dryer temperature set to low level?
20
Stops in the
middle of use
▶
The feature stops automatically after about 10 minutes of continuous use.
Does the seat switch have diffi culty detecting?
Sit back on the toilet seat. If you get up slightly from the seat, or sit forward on the
seat, the seating switch may temporarily stop detecting your presence.
-
11
46
Deodorizer
Trouble Please check
Ref.
Page
The deodorizer
seems to be
not working
▶
Is "Deodorizer" set to "OFF"? Set to "ON".
Even after sitting down, you do not hear operation sounds.
Sit back on the toilet seat.
If you hear an operation sound from the deodorizer, but odors are not removed.
Clean the deodorizing fi lter.
36
11
28
A strange odor
is emitted
▶
Are you using an air freshener or deodorizer that you purchased separately?
•
Doing so may reduce the effectiveness of the product's deodorizer or cause strange
odors.
Remove the air freshener or deodorizer.
-
The auto power
deodorizer
feature is not
working
▶
Is "Auto power deodorizer" set to "OFF"?
Set to "ON".
It starts about 10 seconds after you stand up from the toilet seat.
36
-
Sanitary
Trouble Please check
Ref.
Page
The Wand
CLEAN LED
does not light
up
▶
If the "Wand CLEAN" LED does not light up, it is time to replace the component that
generates "EWATER+". Consult the installer, seller, or TOTO customer service (see
contact information on the back cover).
-
47
Reference
Troubleshooting
Others
Trouble Please check
Ref.
Page
Water is
leaking from
the plumbing
connections
▶
If the nut of the connecting pipe is loosened, retighten it by hand.
(Do not use any tool.)
If the water leak does not stop, close the shutoff valve and consult with TOTO
customer service (see contact information on the back cover).
-
The main unit
is unstable
▶
There is clearance between the toilet seat cushion and the bowl unit for activating the
seat switch. When you sit on the toilet seat, the toilet seat subsides slightly to activate
the seat switch.
Are the bolts that anchor the main unit loose?
Remove the main unit and then firmly tighten the base plate bolts.
11
30
The main unit
makes a sound
▶
When sitting on the toilet seat
When the "Pre-mist" is "ON", sounds can be heard as the toilet unit prepares to spray
the pre-mist and while the pre-mist is being sprayed into the bowl unit.
You can turn it "OFF".
36
▶
When moving away from the bowl unit after use
When "Auto power deodorizer" is "ON", operation sounds are made while the
deodorizing power increases for 60 seconds after you stand up from the toilet seat.
You can turn it "OFF".
If "Auto wand CLEAN" is "ON" and you use the cleansing functions (e.g.,Rear
cleansing and Front cleansing), you may hear that the wand is extended and cleaned
with "EWATER+".
You can turn it "OFF".
You may hear the fan ventilating the unit. (About 30 minutes)
36
18
36
-
When not using the product (e.g., at night)
▶
If "Auto wand CLEAN" is "ON" and you do not use the cleansing functions (e.g.,Rear
cleansing and Front cleansing) for about 8 hours, you will hear that the wand is
cleaned with "EWATER+" and then the remaining water is drained from inside the
product.
You can turn it "OFF".
36
You feel air in
the bowl unit
when sitting on
the toilet seat
▶
A mist is sprayed inside the bowl unit to make it more diffi cult for dirt to adhere when
sitting on the toilet seat. You may feel air when a mist is sprayed.
You can turn it "OFF".
36
48
49
Specifi cations
Item SW3036R
Rated power supply AC 120 V 60 Hz
Rated power consumption 1274 W
Maximum power consumption 1430 W
Type of water heater Instantaneous type
Power cord length 3.94 ft (1.2 m)
Water protection level IPX4
Cleansing
Spray
volume
Rear cleansing
Approx. 0.07 - 0.11 gal/min (Approx. 0.27 - 0.43 L/min).
<at 29 PSI (0.20 MPa) water pressure>
Rear soft cleansing
Approx. 0.07 - 0.11 gal/min (Approx. 0.27 - 0.43 L/min).
<at 29 PSI (0.20 MPa) water pressure>
Front cleansing
Approx. 0.08 - 0.11 gal/min (Approx. 0.29 - 0.43 L/min).
<at 29 PSI (0.20 MPa) water pressure>
Water temperature Adjustable temperature range: OFF, about
95 - 104
°
F (about 35 - 40
°
C)
Heater capacity 1116 W
Safety device
Temperature fuse
Backfl ow prevention device Vacuum breaker, Check valve
Heated seat
Surface temperature
Adjustable temperature range:
OFF, about 82 - 97 °F (about 28 - 36 °C)
(Auto energy saver: about 79 °F (about 26 °C),
Auto energy saver+: OFF)
Heater capacity 50 W
Safety device Temperature fuse
Deodorizer
Method O
2
deodorization
Airfl ow volume
Normal mode: Approx. 3.17 ft
3
/min. (Approx. 0.09 m
3
/min.),
Power mode: Approx. 5.65 ft
3
/min. (Approx. 0.16 m
3
/min.)
Power consumption Normal mode: Approx. 1.7 W, Power mode: Approx. 5.3 W
Warm air dryer
Warm air temperature
*1
Adjustable temperature range: about 95 - 140 °F (about 35 - 60 °C)
Airfl ow volume 10.24 ft
3
/min. (0.29 m
3
/min.)
Heater capacity 347 W
Safety device Temperature fuse
Water supply pressure
Minimum required water pressure: 7.25 PSI (0.05 MPa) <dynamic>,
Maximum water pressure: 108.75 PSI (0.75 MPa) <static>
Water supply temperature 32 - 95 °F (0 - 35 °C)
Working ambient temperature 32 - 104 °F (0 - 40 °C)
Dimensions W 1.26 ft x D 1.74 ft x H 0.43 ft (W 384 mm x D 531 mm x H 131 mm)
Weight About 11 lb (about 5 kg)
*1 Temperature around the warm air outlet measured by TOTO.
● When disposing of this product, please follow your local or state guidelines for proper disposal.
Reference
50

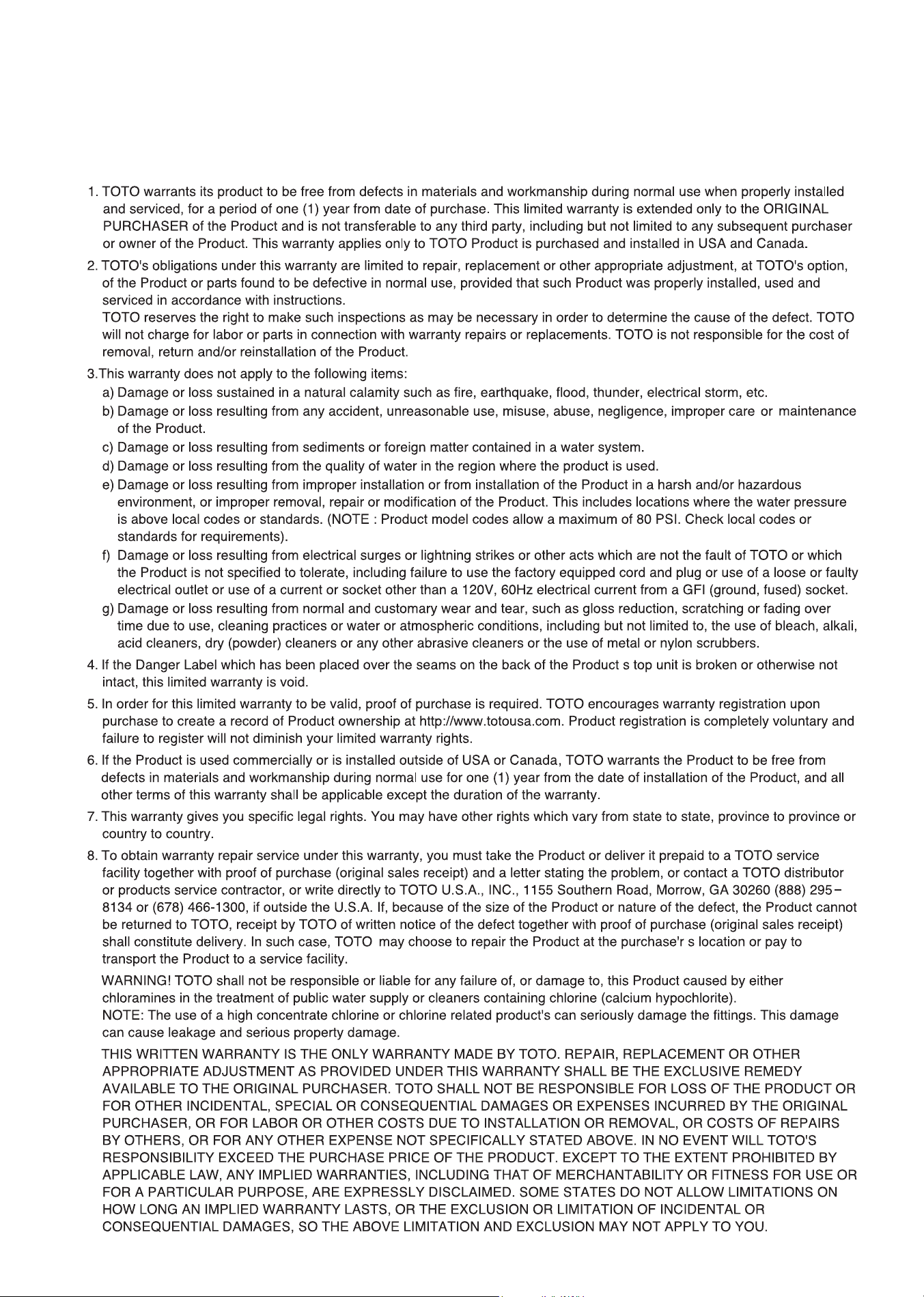

Limited Warranty
One Year Limited Warranty
51
MEMO
Reference
•
You are advised to record the following information to allow quick service.
Date of purchase : Name of shop :
Tel : ( )
Date : year month day
2020.7.22
D07980
