GPW3200 GAS PRESSURE WASHER MANUAL
Green-Power America, LLC
2
Products Service Information
Green-Power America LLC thanks you for choosing a Green-Power America
LLC product.
Please register your product within 10 days of purchase to ensure that you
receive optimal service. Always keep copy of your original receipt.
By registering your product, you are protected:
1. You have a record of the product purchase,
2. Customer Service can Better serve you on Warranty related issues
3. Green-Power America will be able to contact you in the unliky event
that a product recall notification is necessary.
You can register your product in one of two ways follows:
Option 1: go to the Green Power America website at www.green-
poweramerica.com/service (or www.g-
poweramerica.com/service ) and follow the instruction to
register online.
Option 2:Fill out the form on the Warranty Card included in the box, and
return via standard mail to Green Power America at 840 9th Street suite H,
Upland CA 91786. Please note that postage is required to mail the
registration form back to Green-Power America.
If you still have any questions regarding the usage or operation of the product
after you have read the manual, or if you have any quality issue during
operation, please call our toll-free service number shown below:
For any issues related to LCT Engine, the parts include recoil starter, air filter,
spark plug, and all the other parts fixed to the engine, please go to
www.lctusa.com (LCT website) or Toll-Free number:
800-558-5402
For any issues related with the remaining parts except for the LCT Engine parts,
including pump、Spay Gun、Pressure hose, and other parts, please call : Toll-
Free number:
888-834-4218
You may reach us by visiting our web www.green-poweramerica.com (or
www.g-poweramerica.com ) or sending us emails to:
service@green-poweramerica.com.
3
Table of Contents
1. Safety Advice..............................................................................................3
1.1 Definitions........................................................................................... 3
1.2 Safety Warnings...................................................................................4
1.3 Intended Application.............................................................................7
2. Parts List.....................................................................................................8
3. Assembled Model Diagram....................................................................10
4. Assembly Instructions................................................................................12
5. Operating Instructions...............................................................................14
5.1 Using Spray Nozzle.............................................................................14
5.2 Water Supply (Cold Water Only).........................................................14
5.3 Adjusting Water Pressure....................................................................14
5.4 Starting Pressure Washer....................................................................14
5.5 Cleaning with Detergents....................................................................16
5.6 Shutting Down and Cleaning Up.........................................................16
6. Engine Operation.......................................................................................16
6.1 Adding/Checking Oil............................................................................16
6.2 Adding Fuel.........................................................................................16
6.3 Starting Engine....................................................................................17
6.4 Stopping Engine..................................................................................17
7. Cleaning and Maintenance........................................................................17
7.1 Cleaning Water Inlet Filter...................................................................17
7.2 Engine Maintenance...........................................................................17
7.3 Cleaning Carburetor...........................................................................19
7.4 the Spray Tips.....................................................................................19
7.5 Storing.................................................................................................19
7.6 Winterizing Procedures.......................................................................20
8. Technical Specifications.............................................................................21
9. Troubleshooting.........................................................................................22
10. Limited Warranty......................................................................................24
11. Exploded Parts Diagram..........................................................................25
GPW3200 GAS PRESSURE WASHER
4
1. S
AFETY
A
DVICE
IMPORTANT: RETAIN FOR FUTURE
REFERENCE AND READ
CAREFULLY!
Do not attempt to install or operate this product
until you have read the safety instructions in
this manual. Safety items throughout this
manual are labeled
Danger
,
Warning
, or
Caution
depending on the risk type.
Read and understand the operating manual
and labels on the product. Familiarize yourself
with the product application and limitations and
the specific potential hazards. Know the
controls and their proper use. It is important to
know how to stop the product and disengage
the controls quickly.
1.1 Definitions
This is the safety alert symbol. It is used
to alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
1.2 Safety Warnings
DANGER
Indicates an imminently hazardous
situation which, if not avoided, will result
in death or serious injury.
WARNING
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, could result in
minor or moderate injury.
TOXIC GASES
Alerts against possible toxic gases which
can be harmful to your health or deadly if
you are exposed to them.
FLAMMABLE AND
COMBUSTIBLE MATERIALS
Alerts against the presence of
materials/gases which can be extremely
flammable.
POISONOUS
Alerts against materials/gases which are
very poisonous and can cause serious
bodily harm or even death.
IMPORTANT
Installation, operation, or maintenance
information which is important but not
hazard-related.
IMPORTANT
Never operate this product under the
following conditions:
•If a noticeable change occurs in the
engine speed
•If the engine misfires
•If there are flames or smoke in the area
•If there are excessive vibrations
DANGER
Read all safety warnings and all
instructions. Failure to follow the
warnings and instructions may result in
fire and/or serious injury.
GPW3200 GAS PRESSURE WASHER
5
1.2 Safety Warnings
DANGER–WORK AREA
SAFETY AND EXHAUST FUMES
• Keep work area clean and well lit. Cluttered
and dark areas incite accidents.
• Operate the product in a clean, dry and well-
ventilated area.
• Do not operate the product in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
• Never operate the product on a steep slope.
• Keep children, pets, and bystanders away
from the operating area. Breathing exhaust
fumes can cause serious injury or even death.
• Never start or run the engine indoors. The
exhaust fumes are dangerous, containing
carbon monoxide, an odorless and deadly
gas. Operate this product only in a well-
ventilated outdoor area
GASOLINE ENGINES PRODUCE
T
O
XIC
CARBON MONOXIDE EXHAUST
FUMES.
BREATHING CARBON
MONOXIDE
C
AN CAUSE NAUSEA,
FAINTING, OR
DEA
TH.
WARNING–INADEQUATE
VENTILATION
• Materials placed against or near the product,
or operating the product in areas where the
ambient temperature exceeds 40 °C (104 °F)
(such as storage rooms or garages) can
interfere with its proper ventilation features,
causing overheating and possible ignition of
the materials or buildings.
• Operate the product in a clean, dry, and
well-ventilated area at least 7 feet (2m) away
from any buildings, objects, or walls.
• NEVER OPERATE THIS PRODUCT
INDOORS OR INPOORLY VENTILATED
AREAS.
CAUTION–HOT ENGINE AND
MUFFLER
THE ENGINE AND MUFFLER
BECOME VERY HOT DURING
AND AFTER USE. AVOID
TOUCHING THE ENGINE OR THE
MUFFLER DURING OR AFTER
USE.
WARNING–PERSONAL SAFETY
• Stay alert, watch what you are doing, and use
common sense when operating a pressure washer.
Do not use a pressure washer while you are tired or
under the influence of drugs, alcohol, or medication.
A moment of inattention while operating a pressure
washer may result in serious personal injury.
• Use safety equipment. Always wear eye
protection. Protective equipment such as A dust
mask, non-skid safety shoes, A hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
• Do not use the product if the engine’s switch does
not turn it on or off. Any gasoline powered product
that cannot be controlled with the engine switch is
dangerous and must be repaired.
• Remove any adjusting key or wrench before
starting the pressure washer. A wrench or a key left
attached to a rotating part of the pressure washer
may result in personal injury.
• Do not overreach. Do not operate the product
while barefoot or when wearing sandals or similar
lightweight footwear. Wear protective footwear that
will protect your feet and improve your footing on
slippery surfaces. Do not stand on the product.
Keep proper footing and balance at all times. This
enables better control of the product in unexpected
situations.
• Avoid accidental starting. Be sure the engine’s
switch is off before transporting the product or
performing any maintenance or service on the unit.
Transporting or performing maintenance or service
on a product with its switch on invites accidents.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewellery, or long
hair can get caught in moving parts.
• Do not place your hands or feet near moving
parts.
• Do not use while on a ladder.
GPW3200 GAS PRESSURE WASHER
6
1.2 Safety Warnings
FLAMMABLE AND POISONOUS
MATERIALS
• Gasoline is highly flammable and its vapors can
explode if ignited. Take precautions when using fuel
to reduce the chance of serious personal injury.
• When refilling or draining the fuel tank, use an
approved fuel storage container while in a clean,
well-ventilated outdoor area.
• Do not smoke or allow sparks, open flames, or
other sources of ignition near the area while adding
fuel or operating the product. Never fill fuel tank
indoors.
• Equip the operating area with a fire extinguisher
certified to handle gasoline or fuel fires.
• Keep grounded conductive objects, such as tools,
away from exposed, live electrical parts and
connections to avoid sparking or arcing. These
events could ignite fumes or vapors.
• Always stop the engine and allow it to cool before
filling the fuel tank. Never remove the cap of the
fuel tank or add fuel while the engine is running or
when the engine is hot. Do not operate the product
with known leaks in the fuel system.
• Loosen the fuel tank cap slowly to relieve any
pressure in the tank.
• Replace fuel tank and container caps securely and
wipe up spilled fuel. Never operate the product
without both caps securely in place.
• Avoid creating a source of ignition for spilled fuel.
If fuel is spilled, do not attempt to start the engine
near spill. Move the product away from the area of
spillage and avoid creating any source of ignition
until fuel vapors have dissipated.
• Store fuel in containers specifically designed and
approved for this purpose.
• Store fuel in a cool, well-ventilated area, safely
away from sparks, open flames, or other sources of
ignition.
• Never store fuel or product with fuel in the tank
inside a building where fumes may reach a spark,
open flame, or any other source of ignition, such as
a water heater, furnace, clothes dryer, or the like.
Allow the engine to cool before storing indoors.
CAUTION–ENGINE SAFETY
• Certain components in this product and its related
accessories contain chemicals which are known to
cause cancer, birth defects, or other reproductive
harm. Wash hands after handling.
• The engine exhaust from this product contains
chemicals which are known to cause cancer, birth
defects, or other reproductive harm.
• Check fuel lines, tank, cap, and fittings frequently
for cracks or leaks. Replace if necessary.
• This engine was shipped without oil. Before you
start the engine, make sure you add oil according
to the instructions in this manual. If you start the
engine without oil, it will be damaged beyond repair
and will not be covered under the warranty.
• When starting engine ensure that spark plug,
muffler, fuel cap and air filter are in place and
secured.
• Do not crank engine with spark plug removed.
• If engine floods, move the throttle control to fast
position and crank until engine starts.
• When operating the engine do not tip engine or
equipment at an angle which will cause fuel to spill.
• Do not choke the carburetor to stop the engine.
• Never start or run the engine with the air cleaner
assembly or the air filter removed.
• Transport or move the product only with empty
fuel tank.
• Rapid retraction of starter cord (kickback) will pull
hand and arm towards engine faster than you can
let go. Risk of injury – broken bones, fractures,
bruises, or sprains could result.
• Keep the engine and muffle free of grass, leaves,
excessive grease, or carbon build-up to reduce the
chance of a fire hazard.
• Do not tamper with any part of the engine to
increase its speed.
• If the product makes an unusual noise or
vibration, immediately shut off the engine,
disconnect the spark plug wire, and check for the
cause. Unusual noise or vibration is generally a
sign of a problem.
• Use only attachments and accessories approved
by the manufacturer. Failure to do so can result in
personal injury.
GPW3200 GAS PRESSURE WASHER
7
1.2 Safety Warnings
CAUTION–SPECIFIC SAFETY
ADVICE
• Avoid dangerous conditions. Always operate this
product on dry, solid and level ground.
• Never operate this product on slippery, wet,
muddy, or icy surfaces. The operating area should
be free from any obstructions. There should be
plenty of room for handling, and the operator should
stay alert at all times.
• Do not use this product in wet or damp areas or
expose it to rain. Do not use it in areas where
fumes from paint, solvents or flammable liquids
pose a potential hazard.
• Inspect this product. Check before turning it on.
Keep guards in place and in working order. Form a
habit of checking to see that keys and adjusting
wrenches are removed from tool area before
turning it on.
• Replace damaged, missing or failed parts before
using it. Make sure all nuts, bolts, screws, hydraulic
fittings, hose clamps, etc. are securely tightened.
Always check the oil level in the oil tank. Never
operate this product when it needs to be repaired or
when it is in poor mechanical condition.
• Never move or pull this product while spraying.
• Do not run the engine at a high speed when you
are not using the product.
• Risk of electric shock!
The water spray
must never be directed towards any electric
wiring, devices, or directly towards the
pressure washer itself, or fatal electric shock
may occur.
• Risk of injury!
Do not direct the discharge
stream at people. The high-pressure jet can
be dangerous if misused, and therefore must
not be directed at people, animals, electrical
devices or the unit itself.
• Risk of explosion!
When a combustible liquid is
sprayed, there can be danger of fire or explosion,
especially in a closed area. Therefore, do not spray
flammable liquids. Do not use acids and solvents
with this product either. These products can cause
physical injuries to the operator and irreversible
damage to the product.
• Learn how to stop the product and release the
pressure quickly. Familiarize yourself with the
controls.
CAUTION–SPECIFIC SAFETY
ADVICE
•This product is capable of producing high pressure
as rated in the
Technical Specifications.
To avoid
rupture and injury, do not operate this product with
components rated less than the unit itself (including
but not limited to spray guns, hose, and hose
connections).
WARNING–INJECTION HAZARD
•Equipment can cause serious injury if the spray
penetrates the skin. Do not point the gun at anyone
or any part of the body. In case of penetration, seek
medical aid immediately.
CAUTION–SPRAY GUN
•The spray gun kicks back, so hold it with both
hands.
•The trigger gun safety lock prevents the trigger
from being engaged accidentally and it should be
placed in locked position when not in use.
CAUTION–DETERGENTS
• This product has been designed for use with
detergents that are specifically approved for
pressure washer use. The use of other cleaning
detergents may affect the operation
CAUTION–WATER
CONNECTIONS
•For use with fresh and clean water only. Do not
use this product with other liquids.
•To minimize the amount of water spraying back on
the pressure washer, the device should be placed
as far as possible from the cleaning site during use.
•The water supply system must be protected
against backflow.
•Never use this product with water contaminated
with solvents (e.g. paint thinners, gasoline, oil, etc.).
•Always prevent debris from being drawn into the
product by using a clean water source and an
additional water filter, if required.
•If this device is connected to a potable water
system, the system must be protected against
backflow.
•Suitable water temperature: 5
℃
(41
℉
) to 40
℃
(104
℉
).
GPW3200 GAS PRESSURE WASHER
8
1.2 Safety Warnings
1.3 Intended Application
This product is designed for specific
residential applications. Do not modify or
use this product for any application other
than the one it was designed for. Doing so
will void the warranty.
This equipment was not designed for
industrial use. Please refer to the icons
below for suggested applications. For
questions regarding other uses, please
refer to our website at: www.green-
poweramerica.com or call us at Toll Free
1-888-834-4218.
CAUTION–SERVICE
•Before cleaning, repairing, inspecting, or adjusting,
shut off the engine and make sure that all moving
parts have stopped.
•Have your product serviced by certified repair
personnel using only identical replacement parts.
This ensures the safety of the product is
maintained.
•Ensure proper maintenance. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
product’s operation. If damaged, have the product
repaired before use. Many accidents are caused by
poorly maintained equipment.
IMPORTANT–COLD WEATHER
START
•Do not operate this pressure washer in
temperatures below 5 (41
℉
). Operating pressure
washer below 5 (41
℉
) may cause damage to the
pump and other pressure washer parts.
IMPORTANT–SAFETY
FEATURES
•
Thermal Relief Valve:
Protects the pump from
overheating in case the nozzle gets clogged. This
system should not be abused. Make sure the pump
does not overheat.
•
Low-Oil Auto Shut-Off:
Protects the engine and
prevents operating without proper lubrication. If the
engine oil level goes below the recommended level,
the pressure washer shuts off automatically.
CAUTION–PREVENT PUMP
DAMAGE
•Do not run the engine for more than 5 minutes
without pressing the wand trigger, otherwise,
damage to the pump might occur.
•Never let the engine run unless the product is
connected to a water supply. Ensure water is
running through the pressure washer before
attempting to start the engine.
•Never run caustic fluids or acid through this
product.
IMPORTANT–STORAGE
•Store the product in a well-ventilated area, with an
empty fuel tank. Fuel should never be stored or
placed near the product.
•When storing the product for winter, ensure that it
is stored indoors (at room temperature), in a dry
location away from any heat or ignition sources.
•If the product is to be stored with fuel in the fuel
tank, add a fuel stabilizer to keep the gas from
breaking down.
•To protect and extend the life of the product when
storing it, use an antifreeze agent for the pump,
which can be found at your local auto parts &
accessories retailer stores.
IMPORTANT–APPLICATIONS
GPW3200 GAS PRESSURE WASHER
9

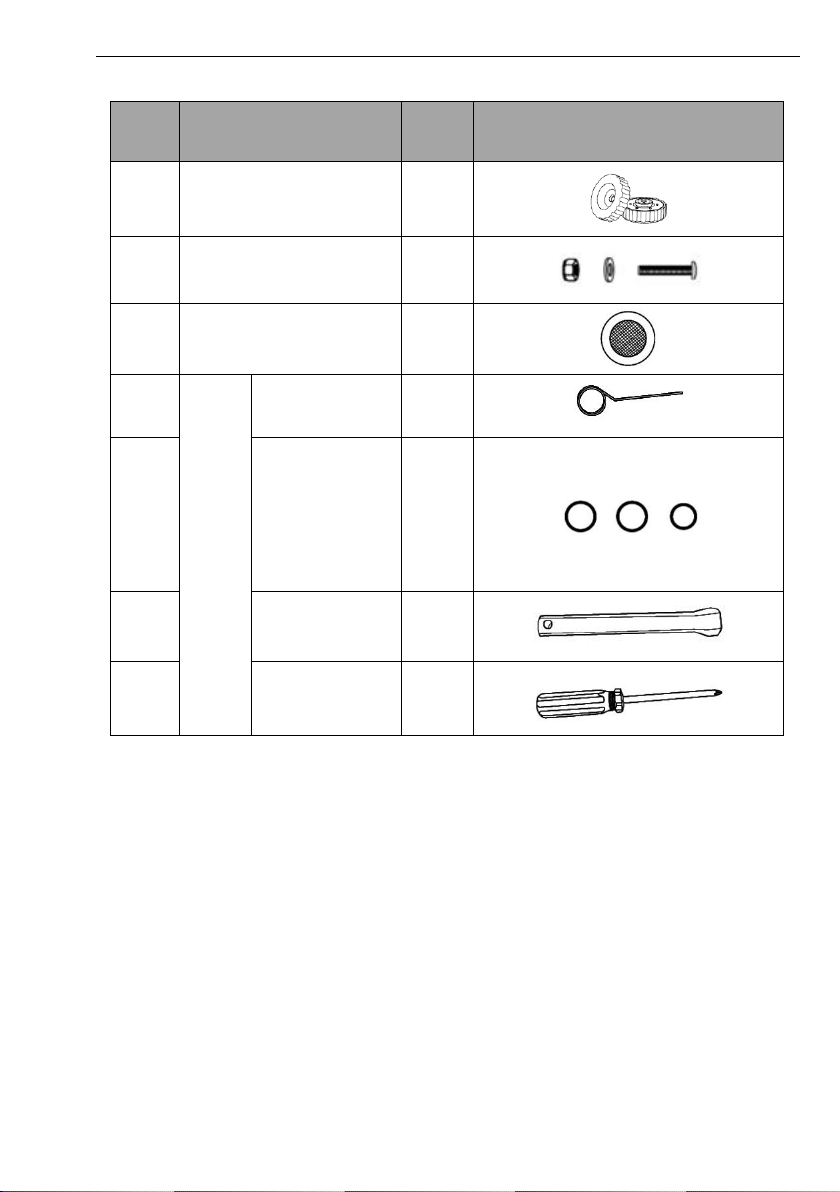

P
ARTS
L
IST
Ref.
Description
Qty.
Visual
A
Main frame
1
B
Wheel with axle
2
C
Spray gun with metal
wand
1
D
High-pressure hose
25’ (7.6 m)
1
E
Gun holster
2
F
Gun storage
1
G
Hose hook
1
GPW3200 GAS PRESSURE WASHER
10
Ref.
Description
Qty.
Visual
H
Knob
2
I
Bolt(M5x50),
Washer(5), Nut(M5)
2sets
J
Water inlet filter
1
K
Spray tip
cleaner
1
L
Spare O-rings
(two for high-
pressure
hose, one for
quick-
connector)
3
M
Spark plug
wrench
1
N
Screwdriver
1
GPW3200 GAS PRESSURE WASHER
11
3. A
SSEMBLED
M
ODEL
D
IAGRAM
GPW3200 GAS PRESSURE WASHER
12
3. A
SSEMBLED
M
ODEL
D
IAGRAM
Note: Engine oil is not included. Always use oil type SAE 10W-30.
Ref.
Description
Ref.
Description
1
Spray nozzles(x5)
12
Engine I/O switch
2
Muffler
13
Detergent dial
3
Air filter
14
Detergent tank caps
4
Choke lever (Close-Open)
15
Pressure hose
5
Fuel valve (OFF-ON)
16
Pump detergent inlet
6
Start cord handle
17
Pump Fresh Water Inlet
3/4” (2 cm)
7
Throttle lever (LOW-HIGH)
18
Spark plug
8
Trigger safety lock
19
Water outlet for pressure
hose
9
Spray gun with wand
20
Oil tank with dipstick
10
Fuel tank cap
21
Detergent tank
11
Fuel tank
22
Pump unit
GPW3200 GAS PRESSURE WASHER
13
4. A
SSEMBLY
I
NSTRUCTIONS
Wheel Assembly
NOTE: Make sure that there is
enough air in wheel before
assembly.
Lift the frame (A) with one hand and
attach one of the wheels (B) by
pressing the wheel’s pin and
inserting the wheel shaft into the
main frame (A). Align the pin with
the hole on the frame (A) until it
snaps in. Repeat it for the opposite
side.
Gun Holster Assembly
Attach the two gun holsters (E),
one at the top and one at the
bottom. Secure them with bolts,
washers, nuts (I). Repeat this
procedure for the upper one.
Frame Assembly
Insert knob (H) to frame (A) and
secure clockwise. Repeat this
procedure for the second knob (H)
on the opposite side.
1
2
3
GPW3200 GAS PRESSURE WASHER
14
GPW3200 GAS PRESSURE WASHER
15
Gun Storage & Hose Hook
Assembly
Attach gun storage (F) and hose
hook (G) to the back of the panel.
Push to the end until they slide into
place.
Hose Connection
Insert the water filter (J) into the
plastic nut of pump inlet until it sits
tightly in the nut. Attach one end of
garden hose to pump inlet, and
fasten the plastic nut counter-
clockwise. Then attach the other
end to water source.
Gun/Wand Assembly
Assemble the spray gun with the
wand. Pull back the rubber piece to
expose the threaded fitting. Then,
screw the two pieces together and
move the rubber piece back
Insert the desired tip to the gun tip
connector.
4
5
6
GPW3200 GAS PRESSURE WASHER
16
5. O
PERATING
I
NSTRUCTIONS
5.1 Using Spray Nozzle
This pressure washer comes with five different
nozzles (1) that can be installed on the metal wand
(9).
The spray pattern is adjusted by installing the
appropriate spray nozzle.
0° (red):
Thin and powerful stream of water for
difficult stains and debris removal
15° (yellow):
Thin-angled spray for detailed cleaning
25° (green): Medium-angled spray for detailed
cleaning
40° (white):
Large pattern for wider cleaning
applications
Detergent (black):
This nozzle must be used
together with a cleaning detergent at a low pressure.
Use only this nozzle when using a detergent.
Installing spray nozzle to the quick-connect
coupler:
5.2 Water Supply (Cold Water
Only)
• The unit must be used with cold water supply only.
The water hose must be at least 1/2” (13 mm) in
diameter.
• The water flow rate must not fall below 18 liters per
minute (LPM) (4 gallons per minute (GPM)), or the
pump might be damaged. The flow rate can be
determined by running water for one minute into an
empty container.
• The water supply temperature must not exceed 40
℃
(104
℉
).
5.3 Adjusting Water Pressure
•The water pressure can be adjusted using the
throttle lever (7).
• Move the throttle lever to
HIGH
position to increase
the engine speed, thus increasing the water
pressure. Move it towards
LOW
position to decrease
the engine speed, thus decreasing the water
pressure.
5.4 Starting Pressure Washer
• Detach the quick connector from pump water inlet
and screw it on a garden hose, then attach them to
pump water inlet
Attach the other end of garden hose to water source.
• Turn on the water tap the water flow rate must not
fall below 18 liters per minute (4 gallons per minute),
or the pump might be damaged.
• Release the trigger safety lock (8) if it is locked.
Purge the air by squeezing the trigger on the gun
until there is a steady stream of water.
Gun & Hose Connections
Take out air shield from pump
outlet. Connect one end of the high
pressure hose to pump outlet, and
secure the plastic nut .Connect the
other hose end to pressure gun,
and fasten the plastic nut.
Pull the coupler ring back and insert the
desired nozzle (1).
Release the coupler ring to lock it back in
place.
7
GPW3200 GAS PRESSURE WASHER
17
• Install appropriate spray nozzle.
• Start the engine. (→Section 6.3 Starting Engine)
• Position the tip of the wand 6-8” (15-20 cm) away
from the surface to be cleaned, at an angle
appropriate to the spray nozzle used
(0°, 15°, 25° or
40°)
5.5 Cleaning with Detergents
• When using detergent , always use the black
detergent nozzle.
• When applying detergents, always operate the unit
at a low water pressure (throttle lever (7) set to
LOW
position).This provides a gentle application of the
detergent, with the water pressure equivalent to a
garden hose. Always test the detergent in a
concealed area before use.
• Pour two types of detergents into separate
detergent tanks (21). It is recommended to have one
detergent tank filled with all-purpose detergent, and
the other filled with a more specific cleaning
detergent, depending on the surface to be cleaned.
• The liquid detergent will be mixed with water
automatically, and discharged through the detergent
nozzle at a low pressure.
• Use the detergent dial (13) to control the type and
amount of detergent used using the scale as
reference.
• Set the detergent dial to OFF position in order to
shutoff detergent supply.
• Allow detergent to remain on the surface for a short
time before rinsing. Do not allow detergent to dry on
the surface.
5.6 Shutting Down and Cleaning
Up
1. Skip step 2 if you are not using detergent.
2. After cleaning with detergent, fill the detergent tank
with clean water. Spray water at a low pressure for
one minute, so that all detergent is flushed out of the
system.
3. Stop the engine (→ Section 6.4 Stopping Engine).
4. Turn off the water supply and disconnect the water
supply from the water inlet (17).
5. Point spray gun in safe direction, push trigger lock,
and squeeze spray gun trigger to relieve retained
high water pressure. Engage the trigger safety lock
(8) on the spray gun
6. Disconnect the garden hose from pump.
7. Disconnect the pressure hose from pump and
pressure gun for storage. For long term storage
instructions, see Instruction Manual.
WARNING–INJECTION
HAZARD
• Pressure washer can cause serious injury if the
spray penetrates the skin. Do not point the gun at
anyone or any part of the body. In case of
penetration, seek medical aid immediately.
WARNING–DEPRESSURIZED
• After cleaning is completed, turn off the water
supply and pull the trigger to depressurize the unit.
Failure to do so might result in personal injury due
to discharge of high-pressure water.
IMPORTANT
This pressure washer is intended for use with
special pressure washer detergents only. Do not
use powdered soaps, which clog the injection
system. Follow the detergent manufacturer’s
directions or call the Green-Power America Toll
Free number at
1-888-834-4218
if you have any
questions or concerns.
IMPORTANT
Working with a detergent ensures quick soaking of
the dirt, and allows the high-pressure water to
penetrate and remove the dirt more effectively.
Always spray detergent on a
dry
surface, do not
presoak the area. Soaking the surface dilutes the
detergent and reduces its cleaning ability.
WARNING
Damage may occur to painted surfaces if
chemicals (detergents) are allowed to dry on them.
Wash and rinse a small section at a time. Avoid
working on hot surfaces or under direct sunlight.
GPW3200 GAS PRESSURE WASHER
18
8. Rewind the pressure hose and attach it to the hose
hook.
9. Disconnect the gun and wand, then insert them
into upper gun holder.
10. Fold the handle and store.
NOTE
：
After turning off the machine, wait for 20
minutes to prevent plastic parts from being burned by
muffler, then fold the handle.
6. E
NGINE
O
PERATION
6.1 Adding/Checking Oil
1. Remove oil tank dipstick (20) and wipe it with a
clean cloth.
2. Replace and retighten the dipstick.
3. Remove the dipstick again and check the oil level.
It should be at the top of the full indicator on the
dipstick.
4. If low, add oil slowly into the oil tank. Do not
overfill. After adding oil, wait one minute and then
recheck the oil level.
5. Replace and retighten the dipstick.
Tip:
When adding oil, use provided oil funnel (N).
6.2 Adding Fuel
1. Stop the engine (→Stopping Engine) and let it cool
at least two minutes before removing the fuel tank
cap (10).
2. Clean the fuel cap area of dirt and debris. Remove
the fuel tank cap and make sure the fuel filter is in
place.
3. Fill the fuel tank (11) with fuel. Never overfill the
fuel tank. Fill tank to no more than ½” (13 mm) below
the bottom of the filler neck to provide space for
expansion caused by the engine heat.
4. Replace the fuel tank cap.
WARNING
Turn off the water supply and pull the trigger to
depressurize the unit. Failure to do so might result
in personal injury due to discharge of pressurized
water.
IMPORTANT
Oil has been drained for shipping. Failure to fill
engine with oil before starting engine will result in
permanent damage and will void engine warranty.
Add oil according to the instructions.
WARNING
• Always check the oil level before starting the
engine, making sure the pressure washer is on a
level surface.
• Always use oil type
SAE 10W-30
, which can be
found at your local store.
OIL TANK CAPACITY:0.6L
WARNING
•Make sure there is enough fuel in the fuel tank
before operating the pressure washer.
• Use only clean, fresh, unleaded fuel. Use a
minimum of 87octane/87 AKI (91 RON).
• Do not use old gas, and do not mix oil with
gasoline.
• Fuel and its vapors are extremely flammable and
explosive. Fire or explosion can cause severe
burns or death.
10
GPW3200 GAS PRESSURE WASHER
19
6.3 Starting Engine
See Section 5.4 Starting Pressure Washer
on Page 15 to start the pressure washer.
1. Turn engine switch to the “
I
” position.
2. Open fuel valve to the “
ON
” position.
3. Push the choke lever by moving the lever to the
“
START
” position.
4. Adjust the throttle lever to “
HIGH
”
5. Locate recoil cord and pull slowly until resistance
is felt. At this point, pull rapidly to start engine.
6. Once engine starts, open choke lever by moving
the lever to “
RUN
” position.
6.4 Stopping Engine
1. Turn engine switch to the “
O
” position.
2. Turn off fuel valve to the “
OFF
” position.
7.
C
LEANNING AND
M
AINTENANCE
7.1 Cleaning Water Inlet Filter
•This pressure washer is equipped with a water inlet
filter (J).
• The water inlet filter (J) must be kept clean at all
times, otherwise it can restrict the water flow to the
pump unit and damage it.
• Remove the quick-connect coupler from the water
inlet, then remove and clean the water inlet filter (J).
7.2 Engine Maintenance
Draining Engine Oil
FUEL TANK CAPACITY: 3.6L
IMPORTANT
• Keep fuel away from sparks, open flames, pilot
lights, heat, and other ignition sources.
• Check fuel hoses, tank, caps, and fittings
frequently for cracks or leaks. Replace if necessary.
• If fuel spills, wait until it evaporates before starting
engine.
• Fill the fuel tank outdoors or in well-ventilated
areas.
IMPORTANT
If you have problems starting the pressure washer,
call the Green-Power America Toll Free number at
1-888-834-4218
and one of our customer service
representatives will be glad to assist you.
IMPORTANT
Before each use:
• Check the oil and fuel level and fill if necessary.
• Make sure that spark plug, muffler, fuel cap, and
air filter are in place and secured.
• Do not crank engine with spark plug removed.
CAUTION
Return the starter cord handle (6) gently to its
starting position to prevent damage to the starter or
the housing.
CAUTION
DO NOT
operate this pressure washer without the
water inlet filter in place, as deposits could build up
internally and affect the functioning of the unit.
11
GPW3200 GAS PRESSURE WASHER
20
The engine oil should be replaced after the first 20
hours of operation, or after the first month of use.
After that, it should be replaced every 100 hours or
every six months.
To drain the engine oil:
1. Loosen the oil tank dipstick (20).
2. Place an oil container underneath the opening on
the mainframe.
3. Remove the hex screw and drain the oil.
4. Once the oil has been completely drained,
retighten the hex screw and oil tank dipstick.
Recommended Engine Oil
Add oil as described in chapter → Adding/Checking
Oil.
Checking Air Filter
Inspecting, Replacing or Cleaning the
Spark Plug
The spark plug should be checked after every 100
hours of operation or every six months.
To replace or clean the spark plug:
1. Disconnect the spark plug wire by pulling it off the
spark plug.
2. Using provided spark plug wrench (M), remove
the spark plug by turning it counter-clockwise. If
there is a carbon sediment build-up, remove it. If
there is too much carbon sediment, replace the
spark plug.
IMPORTANT
Used oil is a hazardous waste product and must be
disposed of properly. Do not discard with
household waste. Check with your local authorities,
service centre.
IMPORTANT
Clean air filter (3) element after every 50 hours of
use (every 10 hours under dusty conditions). Wash
in high flashpoint solvent, squeeze dry, dip in clean
engine oil, and squeeze out excess oil.
GPW3200 GAS PRESSURE WASHER
21
3. Check the gap with a wire gauge. If necessary,
reset the gap to 0.7-0.8 mm. Install and tighten
the spark plug to the recommended torque–180
lb-in (20 Nm).
4. Reinstall the spark plug wire and protection cage
in reverse order.
NOTE:
In some areas, local law requires using a
resistor spark plug to suppress ignition signals. If this
engine was originally equipped with a resistor spark
plug, use the same type for replacement.
7.3 Cleaning the Carburetor
1. Turn the fuel valve to
OFF
position.
2. Screw down the bolt on the bottom of carburetor
with wrench.
3. Push the float up four to five times, then clean
sediment cup with gas.
NOTE:
Put the sediment cup back. Be careful not to
miss the O ring.
7.4 Cleaning the spray tips
Clean the spray tip by carefully inserting the provided
spray tip cleaner (K), or a thin, sharp object (e.g.,
paper clip) into the tip to remove deposits.
7.5 Storing
Store idle product out of the reach of children and do
not allow anyone unfamiliar with the product or these
instructions to operate it. This product is dangerous
in the hands of untrained users. Cover and store
indoors, in a dry, well-ventilated area, such as a tool-
shed.
Long term storage of the pressure washer requires
additional preventive measures to protect it against
deterioration.
1. Drain fuel
• Move the fuel valve (5) to
OFF
position and remove
the hex screw from the carburetor. Then, move the
fuel valve to
ON
position to drain the fuel from the
WARNING
Clogging of the spray tip increases the water
pressure and might damage the pump unit (22).
GPW3200 GAS PRESSURE WASHER
22
tank, carburetor, and hose. Screw the carburetor
drain hex screw back once the fuel has been
completely drained.
2. Add fuel stabilizer
• If you do not wish to drain the fuel tank (11), add a
fuel stabilizer into the fuel tank. Run the engine at
least five minutes after adding the stabilizer to
distribute it inside the fuel system.
3. Drain oil
• Drain the oil (→Draining Engine Oil).
• Remove the spark plug.
• Pour one tablespoon (14 ml) of
10W-30
oil through
the spark plug hole.
• Make sure the engine
I/O
switch (12) is set to
O
position. Slowly pull the starter cord handle (6) until
you feel tension, which indicates the piston is on its
compression stroke and leave it in this position.
• Replace the spark plug.
7.6 Winterizing Procedure
• Pressure washer might be damaged if subjected to
freezing temperatures. This type of damage is not
covered by the limited warranty. To avoid possible
damages, use a small amount of antifreeze.
• Place the pressure washer on its side, with the
water inlet (17) facing upwards, and pour 1/4 cup (60
ml) of antifreeze into the water inlet.
• Make sure the engine
I/O
switch is set to
O
position and pull the starter cord handle several times
to distribute the antifreeze inside the pump system.
• When taking the pressure washer out of storage,
run water through the system until it runs clear.
IMPORTANT
• If the pressure washer is to be stored with
gasoline in the fuel tank and carburetor, it is
important to reduce the hazard of gasoline vapour
ignition.
• Select a well-ventilated storage area away from
any appliance that operates with a flame, such as a
furnace, water heater, or clothes dryer. Also avoid
any area with a spark-producing electric motor, or
where power tools are operated.
• If possible, avoid storage areas with high
humidity, because that promotes rust and
corrosion.
• Place the pressure washer on a level surface.
Tilting can cause fuel or oil leakage.
• Do not use plastic sheets as a dust cover. A
nonporous cover will trap moisture around the
pressure washer, promoting rust and corrosion.
GPW3200 GAS PRESSURE WASHER
23
8.T
ECHNICAL
S
PECIFICATIONS
Maximum Pressure
3200 psi
Rated Water Pressure
2500 psi
Maximum Water Flow
2.4 gallons per minute (gpm))
Minimum Inlet Pressure
30 psi
Maximum Inlet Pressure
100 psi
Pump Type
Heavy-duty, maintenance-free axial
Thermal Relief Valve
Included
Detergent Tank (Volume)
0.6 Gal×2 (2.25 L×2)
Maximum Temperature of Pumped
Water
140°F
Engine Power (OHV)
7.0 HP
No Load Speed
3600 RPM
High Pressure Hose Length
25' (7.6 m)
Inlet & Discharge Ports
3/4" (19 mm) standard garden hose connector
Displacement
208 (cc)
Net Weight
90 lb 10 oz (40 kg)
Oil Type
SAE 10W-30
Oil Capacity
0.6 L
Fuel Type
Unleaded Gasoline
Fuel Tank
2.7 L
GPW3200 GAS PRESSURE WASHER
24
9.
T
OUBLE
S
HOOTING
NOTE:
If your unit still is not functioning properly once you have used this guide please call the Green-Power
America, LLC Toll Free service number at 1-888-834-4218. Please do NOT bring the unit back to the store
until you have called this number.
PROBLEM
POSSIBLE CAUSE
SOLUTION
Engine
Engine
doesn’t
start or is
difficult to
start
The engine power switch is in
OFF (o) position
Ensure the switch is in ON (I) position
No fuel
Fill the fuel tank with regular gasoline
Low oil shut down sensor
tripped to protect engine (not
applicable to 2600 psi
pressure washer)
Add oil until it reaches minimum level on
dip stick
Excess water pressure in
pump or hose
Release water pressure by squeezing
trigger on gun
Choke lever not in right
position
1. When cold starting the engine, set the
choke to START or OFF.
2. When warm starting, set the choke to
RUN or ON or try the middle position.
Clogged carburetor
Clean the carburetor. Refer to the
instruction manual
Carbon build-up on spark
plug
Clean the spark plug. Refer to the
instruction manual
Incorrect starting method
Use correct starting method. Refer to the
instruction manual
Engine
stops after
starting
Low oil or no fuel
Check oil and fuel levels
Choke lever in Start position
Move the choke lever to RUN position
immediately after starting the engine
Engine
lacks
power
Clogged air filter
Clean or replace the air filter. Refer to
the instruction manual
Clogged carburetor
Clean the carburetor. Refer to the
instruction manual
Engine
stops
while
moving
or being
tiled
Low oil shut down sensor
tripped to protect engine (not
applicable to 2600 psi
pressure washer)
Do not tilt the machine past 15° when
operating. Check oil level and ensure it
is above the minimum level on the dip
stick
Carburetor
leaks
Carburetor is clogged
Clean the carburetor. Refer to the
instruction manual
Starter
rope
doesn't
recoil
Recoil mechanism is broken
Call customer service toll-free
Engine
sounds
abnormal
or
overloaded
RPM too low
Adjust throttle lever to Fast position
Clogged nozzle
Clean nozzle with tip cleaner
Pressure is too high
Call customer service toll-free
GPW3200 GAS PRESSURE WASHER
25
PROBLEM
POSSIBLE CAUSE
SOLUTION
Pump
No pressure, low
pressure
Nozzle tip not attached
Attach required nozzle tip
Water supply faucet
closed
Turn on faucet. Ensure there are
no kinks or blockage in hose
Water supply pressure is
low
Ensure faucet is fully opened.
Check to make sure water supply
is a minimum 30 psi, 4 GPM
Inlet water filter is
clogged
Clean the water filter. Refer to the
instruction manual
Air in pump
Squeeze trigger to release the air
in pump when the machine is
running
The loaded RPM is not
set to FAST
Set RPM (throttle lever) to FAST
position
Clogged check valve
Call customer service toll-free
Damaged pump
Call customer service toll-free
Pressure too high
Clogged nozzle
Clean nozzle with tip cleaner
Water or oil leaks out of
pump
Damaged seal ring
Call customer service toll-free
Cold water keeps
draining out of thermal
relief valve
Defective thermal relief
valve
Call customer service toll-free
Accessories & Connections
No intake of detergent
The detergent siphon
tube is not connected
Connect detergent siphon tube
properly. Refer to the instruction
manual
Damaged detergent
siphon tube
Replace the detergent siphon tube
Wrong nozzle
Use black nozzle when applying
detergent. Refer to the instruction
manual
Detergent adjustment
knob set to wrong
position
Check adjustment knob. Refer to
the instruction manual
Clogged nozzle
Clean nozzle
Clogged pump detergent
siphon fitting
Detach the detergent siphon tube
and clean the fitting with tip cleaner
Detergent is too thick.
Clogged detergent filter
Use only detergent approved for
use with pressure washer
Only applies to
GPW2600 2600 psi
pressure washer
Clean detergent filter
The trigger can’t be
squeezed
Safety lock is not open
Open the safety lock. Refer to the
instruction manual
There is water leakage at
joints/connections on
gun, hose and/or pump
Damaged seal ring
Change with back-up O-ring or
purchase accessory kit
High pressure hose can’t
be connected to pump or
gun
The O rings are not
lubricated
Put lubricating oil or water on the O
rings
GPW3200 GAS PRESSURE WASHER
26
10.
L
IMITED
W
ARRANTY
Always keep your receipt as proof of purchase.
We’re here to help! If you have any questions or comments, call our Toll Free
1-888-834-4218. Have your serial number ready. The serial number can be
found on the back plate, located on the rear of the unit.
This product has a Parts Replacement, Product Exchange and/or Repair
Warranty only.
NO REFUNDS will be provided. Please see stores for Product Exchange
details.
One-Year Warranty – Motor
This product is guaranteed to be free from defects in material and
workmanship for one year from the date of its original purchase. If such a
defect appears during the warranty period, upon presentation of proof of
purchase, American Warranty Service (AWS) will repair or replace the product
(at its discretion). Shipping charges may apply.
Ninety-(90)-Day Warranty – Accessories
Trigger gun, hose, spray wands and other accessories are guaranteed for 90
days from the date of purchase. You may purchase accessories directly
through the place of purchase or by calling our Toll Free number 1-888-834-
4218.
This warranty does not cover accidental damage, unreasonable use, normal
wear and tear, use of improper detergents, freezing, neglecter non-compliance
with the operating instructions. The warranty does not cover loss of use or
other consequential damages arising from any of the above, nor does it cover
repairs made or attempted by unauthorized persons.
The warranty is void if the equipment is used for commercial, rental, or
industrial purposes.
If you have further questions, please visit our website (www.green-
poweramerica.com) or call 1-888-834-4218.
GPW3200 GAS PRESSURE WASHER
27
11.
E
XPLODED
P
ARTS
D
IAGRAM
GPW3200 GAS PRESSURE WASHER
28
Ref. # Description Qty. Ref.# Description Qty.
1 Cross Pan Head Screw M5×45 8 39 10" Air Wheel 2
1-2 0° Nozzle (red) 1 40 Plain Washer φ16 2
2-2 15° Nozzle (yellow) 1 41 Circlip φ16 2
3-2 25° Nozzle (green) 1 42 Inner Hexagon Bolt M8×45 2
4-2 40° Nozzle (white) 1 43 Rubber Foot Gasket 2
5-2 Detergent Nozzle (black) 1 44 Rubber Foot φ70 2
3 Nozzle Grommet 5 45 Inner Hexagon Bolt M8×45 4
4 Name Plate （Upper) 1 46 Locknut M8 6
5 Name Plate (Lower) 1 47 Cross Pan Head Screw M5×45 4
6 Front Panel 1 48 Cross Pan Head Screw M6×45 4
7 Throttle Lever Adjust 1 49 Engine Isolator 1
8 Handle 1 50 6.5HP KOHLER Engine 1
9 Foam 1 51 High Pressure Pump 1
10 Throttle Lever Adjust cap 1 52 Out Position Limiter 1
11 Rubber Bar 1 53 Limit Pin 1
12 Gun Storage 1 54 Spring 1
13 Hose Hook 1 55 Inner Position Limiter 1
14 Brake Line 1 56 Gun Holster 2
15 Protecting Sleeve 1 57 Cross Pan Head Screw M5×50 2
16 Hexagon Nut M5 12 58 Muffler Cover 1
17 Rear Panel 1 59 Gun 1
18
Cross Pan Head Tapping Screw ST4×20
4 60 Wand 1
19 High Pressure Hose 1 61 Detergent Bottle Cap 2
20
Cross Pan Head Tapping Screw ST4×10
4 62 Detergent Bottle Gasket 2
21
Plain Washer φ8 21 63 Detegent Upper Board 1
22 Throttle Lever Positioning Plate 1 64
Cross Pan Head Tapping Screw ST4×16
3
23 Rivet 1 65
Cross Pan Head Tapping Screw ST4×8
2
24
Plug φ32 2 66 Detergent Bottle B 1
25 Frame 1 67 Detergent Bottle Panel 1
26 Washer 4 68
Detegent Bottle Fitting Plate (Long)
1
27 Rotation Shaft 2 69
Detegent Bottle Fitting Plate (Right)
1
28 Knob Component 2 70
Plain Washer φ5 4
29 Circlip φ8 2 71 Cross Pan Head Screw M5×12 4
30 Over Flow Valve Cap 1 72 Cross Pan Head Screw M5×16 2
31 Inner Hexagon Bolt M8×25 4 73 Injection Hose 850mm 1
32 Drain Pipe 1 74 Detergent Adjust Switch Assy 1
33
Spring Washer φ8 4 75 Adjust Switch Plate 1
34 Baseboard 1 76 Cross Pan Head Screw M4×10 1
35 Protecting Sleeve 2 77 Adjust Switch Nut 1
36 Clip 2 78 Injection Hose Clip 5
37 Spring Wire 2 79 Injection Hose 310mm 2
38 Wheel Axle 2 80 Detergent Bottle A 1
7.0HP LCT Engine
