ASSEMBLY MANUAL / OWNER’S MANUAL ASSEMBLY MANUAL / OWNER’S MANUAL
™
IC4 / 800IC
Workout with Other Fitness Apps
This tness machine has integrated Bluetooth® connectivity which allows it to work with a number of tness
apps. For our latest list of supported apps, please visit:
www.nautilus.com/partners
2
Important Safety Instructions 3
Safety Warning Labels / Serial Number 5
Specications 6
Before Assembly 6
Parts 7
Hardware 8
Tools 8
Assembly 9
Installing Shoe Clips (Cleats) 13
Moving and Storing the Machine 14
Leveling the Machine 14
Features 15
Emergency Stop 16
Console Features 16
Remote Heart Rate Monitor 17
Shoe Clips (Cleats) 18
Operations 19
Adjustments 19
Locking for Storage 22
Power Up 22
Changing Unit Measures
(English Imperial/Metric) 22
Pausing or Stopping 22
Maintenance 23
Checking Drive Belt Tension 23
Maintenance Parts 24
Troubleshooting 25
Warranty (US/Canada only) 27
Nautilus, Inc., 5415 Centerpoint Parkway, Groveport, OH 43125 USA, www.NautilusInc.com - Customer Service: North America
(800) 605-3369, [email protected] | Nautilus (Shanghai) Fitness Equipments Co, Ltd, Room 1701 &1702, 1018 Changning Road,
Changning District, Shanghai, China 200042, www.nautilus.cn - 86 21 6115 9668 | outside U.S. www.nautilusinternational.com | Printed
in China | © 2019 Nautilus, Inc. | Schwinn, the Schwinn Quality logo, Nautilus, JRNY, and Bowex are trademarks owned or licensed
by Nautilus, Inc., registered or otherwise protected by common law in the U.S. and other countries. Google Play™ is a trademark of
Google Inc. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service
mark of Apple Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such
marks by Nautilus, Inc. is under license.
ORIGINAL MANUAL - ENGLISH VERSION ONLY
TABLE OF CONTENTS
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
If purchased in US/Canada: To register your product warranty , go to: www.SchwinnFitness.com/register
or call 1 (800) 605–3369.
If purchased outside US/Canada: To register your product warranty, contact your local distributor.
For details regarding product warranty or if you have questions or problems with your product, please contact your local
distributor. To nd your local distributor, go to: www.nautilusinternational.com or www.nautilus.cn
3
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
Obey the following warnings:
Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions. Read and understand the complete Manual. Keep
the Manual for future reference.
• Keep bystanders and children away from the product you are assembling at all times.
• Do not connect power supply to the machine until instructed to do so.
• To reduce the risk of electrical shock or unattended/unsupervised usage, always unplug the AC Adapter from the wall
outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the AC Adapter
in a secure location.
• Do not assemble this machine outdoors or in a wet or moist location.
• Make sure assembly is done in an appropriate work space away from foot trac and exposure to bystanders.
• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps
involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
• Set up this machine on a solid, level, horizontal surface.
• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and
will void the warranty.
• If replacement parts are necessary use only genuine replacement parts and hardware supplied by Nautilus. Failure
to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the
warranty.
• Do not use or put the machine into service until the machine has been fully assembled and inspected for correct
performance in accordance with the Manual.
• Read and understand the complete Manual supplied with this machine before rst use. Keep the Manual for future
reference.
• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.
• Connect this machine to a properly grounded or earthed outlet only.
• Keep the AC Adapter away from heat sources and hot surfaces.
• SAVE THESE INSTRUCTIONS.
Before using this equipment, obey the following warnings:
Read and understand the complete Manual. Keep the Manual for future reference.
Read and understand all warnings on this machine. If at any time the Warning stickers become loose,
unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer Service for
replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous
to children.
• Not intended for use by anyone under 14 years of age.
• Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your
chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values
calculated or measured by the machine’s computer for reference purposes only.
• Before each use, examine this machine for damage to power cord, power receptacle, loose parts or signs of wear.
Do not use if found in this condition. Monitor the Seat, Pedals and Crank Arms closely. If purchased in US/Canada,
4
contact Customer Service for repair information. If purchased outside US/Canada, contact your local distributor for
repair information.
• This appliance should only be used with the power supply unit provided, or a replacement power supply unit supplied
from Nautilus, Inc.
• Maximum user weight limit: 150 kg (330 lbs.). Do not use if you are over this weight.
• This machine is for home use only. Do not place or use the machine in a commercial or institutional setting. This
includes gyms, corporations, work places, clubs, tness centers and any public or private entity that has a machine for
use by its members, customers, employees or aliates.
• Do not wear loose clothing or jewelry. This machine contains moving parts. Do not put ngers or other objects into
moving parts of the exercise equipment.
• Always wear rubber soled athletic shoes or cycling shoes with cleats when you use this machine. Do not use the
machine with bare feet or only wearing socks.
• Set up and operate this machine on a solid, level, horizontal surface.
• Do not step o the machine until the Pedals have fully stopped.
• Make the Pedals stable before you step on them. Use caution when you step on and o the machine.
• Disconnect all power before servicing this machine.
• Do not operate this machine outdoors or in moist or wet locations. Keep the Pedals clean and dry.
• Keep at least 0.6 m (24”) along the side used to access the machine and to the rear of the machine clear. This is the
recommended safe distance for access, passage and emergency dismounts from the machine. Keep third parties out
of this space when machine is in use.
• Do not over exert yourself during exercise. Operate the machine in the manner described in this manual.
• Perform all regular and periodic maintenance procedures recommended in the Owner’s Manual.
• Do not drop or put objects into any opening of the machine.
• Correctly adjust and safely engage all Positional Adjustment Devices. Make sure that the Adjustment Devices do not
hit the user.
• Exercise on this machine requires coordination and balance. Be sure to anticipate that changes in speed and
resistance level can occur during workouts, and be attentive in order to avoid loss of balance and possible injury.
• Since this machine operates with a xed gear, do not back, or reverse, pedal. Doing so may loosen the Pedals, which
could result in damage to the machine and/or injury to the user. Never operate this machine with loose Pedals.
• For safe storage of the machine, remove the power supply and place in a secure location. Tighten the Brake/
Resistance Adjustment Knob as described until the Flywheel is locked. Place the machine in a secure location away
from children and pets.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• This bike cannot stop the Pedals independently of the Flywheel. Reduce the pace to slow the Flywheel and Pedals to
a stop. Do not dismount the bike until the Pedals have come to a complete stop. Be aware that the moving Pedals can
strike the backs of the legs.
• Children should be supervised to ensure that they do not play with the appliance.
• SAVE THESE INSTRUCTIONS.
5
SAFETY WARNING LABELS AND SERIAL NUMBER
FCC Compliance
Changes or modications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This product complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to CFR47
Part 15 Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. In the unlikely event that this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING!
• Injury or death is possible if caution is not used while
using this machine.
• Keep children and pets away.
• Read and follow all warnings on this machine.
• Refer to the Owner’s Manual for additional warnings and
safety information.
• The heart rate displayed is an approximation and should
be used for reference only.
• Not intended for use by anyone under 14 years of age.
• The maximum user weight for this machine is 330 lbs
(150 kg.).
• This machine is for home use only.
• Consult a physician prior to using any exercise
equipment.
(Label is only available in English and French
Canadian.)
Product specication
Serial number
This product complies with the European Radio Equipment Directive 2014/53/EU
6
SPECIFICATIONS
Maximum User Weight: 150 kg (330 lbs.)
Machine Weight without Dumbbells: 48.1 kg (106 lbs.)
Weight of Dumbbells (supplied with IC4): 2.7 kg (6 lbs.)
Total Surface Area (footprint) of equipment: 6667 cm2 (1033.3 in2
Power Requirements
(Power Adapter):
Input Voltage: 100-240V AC, 50-60Hz, 0.5A
Output Voltage: 9V DC, 1.5A
(Arm Band - supplied with IC4): Rechargeable lithium battery
DO NOT dispose of this product as refuse. This product is to be recycled. For
proper disposal of this product, please follow the prescribed methods at an
approved waste center.
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard, level surface. Keep the workout area clear 0.6m (24”) along the side used to access the machine and to the rear of
the machine. Allow a workout area of a minimum 1.15m x 1.85m (45.2” x 72.7”).
Basic Assembly Tips
Follow these basic points when you assemble your
machine:
• Read and understand the “Important Safety In-
structions” before assembly.
• Collect all the pieces necessary for each assem-
bly step.
• Using the recommended wrenches, turn the
bolts and nuts to the right (clockwise) to tighten,
and the left (counterclockwise) to loosen, unless
instructed otherwise.
• When attaching 2 pieces, carefully lift and look
through the bolt holes to help insert the bolt
through the holes.
• The assembly requires 2 people.
53.9 cm
(21.2”)
123.7 cm
(48.7”)
131.6 cm
(51.8”)
1.85m
(72.7”)
1.15m
(45.2”)
0.6m
24”
0.6m
24”
7

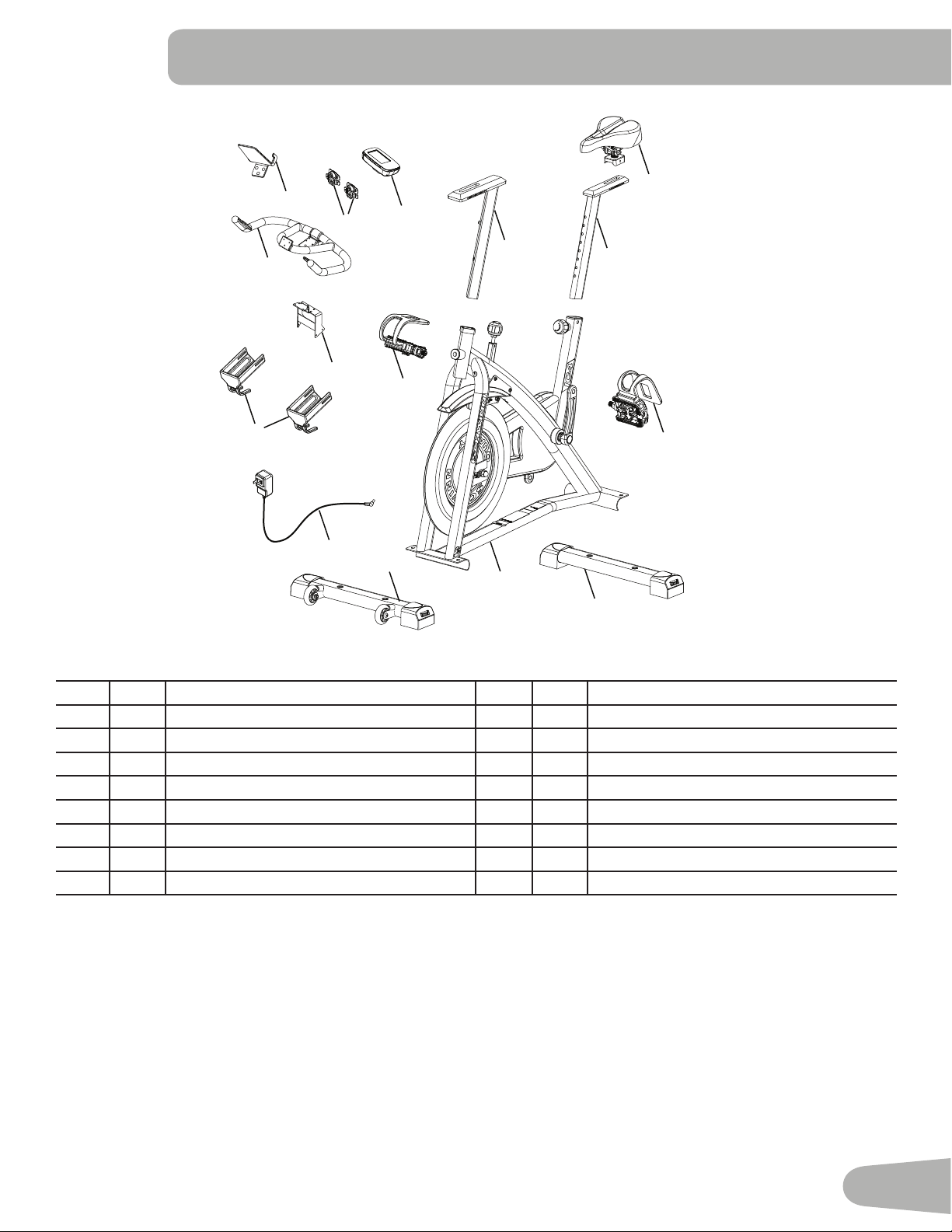

Item Qty Description Item Qty Description
1 1 Console 9 1 AC Adapter
2 1 Handlebar Post 10 2 Water Bottle Holder
3 1 Seat 11 1 Pedal, Right
4 1 Seat Post 12 1 Water Bottle Bracket
5 1 Pedal, Left 13 1 Handlebar
6 1 Stabilizer, Rear 14 1 Media Tray
7 1 Frame 15 2 Shoe Clips (Cleats)
8 1 Stabilizer, Front
PARTS
14
3
4
2
1
5
13
11
12
10
9
7
6
8
15
8

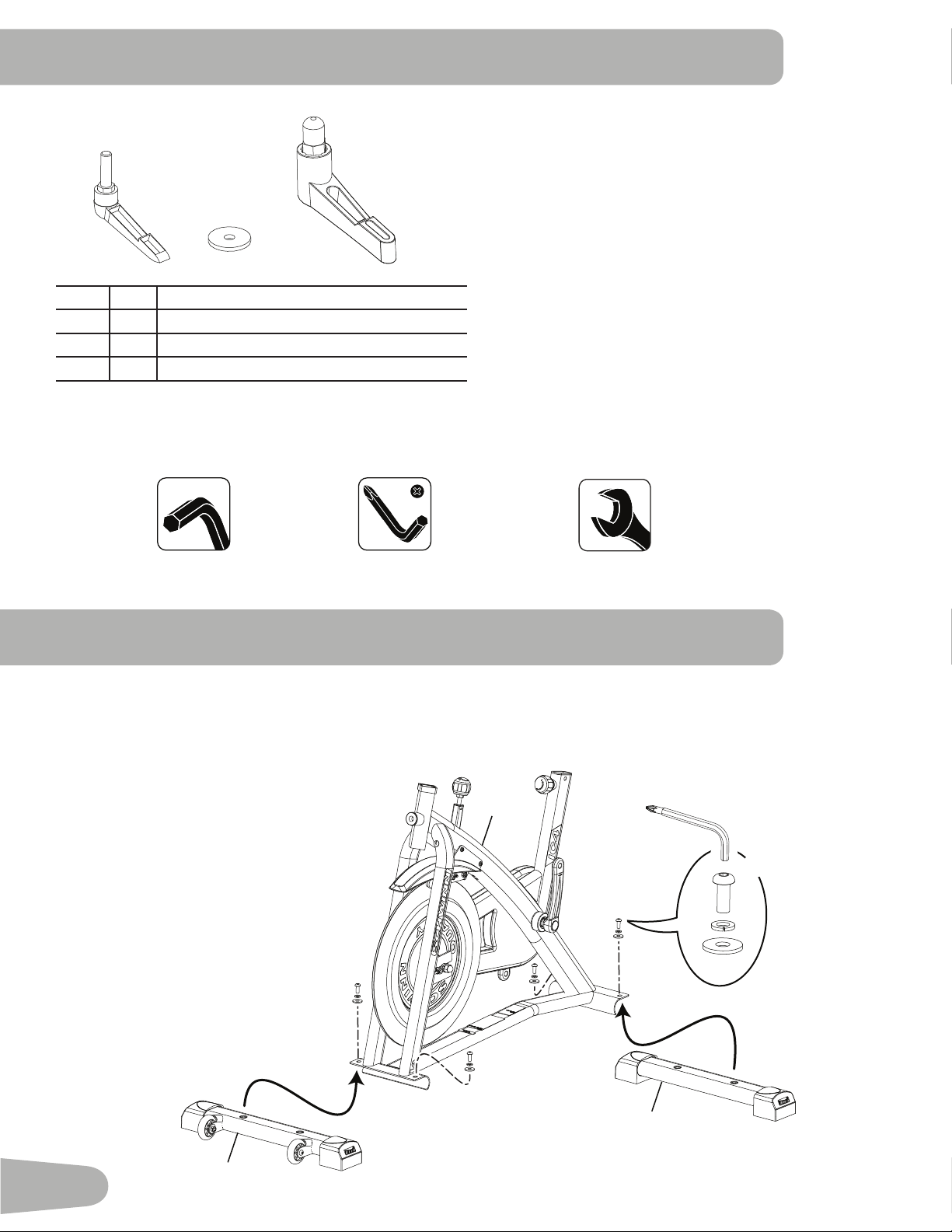

Tools
Included
Item Qty Description
A 2 Adjustment Handle, Handlebar / Seat
B 2 Flat Washer, M10 Wide
C 1 Adjustment Handle, Handlebar Post
HARDWARE / TOOLS
15 mm
17 mm
1. Attach Stabilizers to Frame
Note: The hardware (*) is pre-installed and not in the Hardware Bag. If a tube is pre-installed in the stabilizer bracket,
remove and set it safely aside.
3 mm
*
*
*
6mm
X4
1
6
8
ASSEMBLY
A B C
#2
6 mm
9
2. Attach Pedals to Frame Assembly
If the threads strip due to improper installation, then the Pedals can disengage from the bike and/or break
while under usage, which can result in serious injury to the user.
Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based
from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”.
NOTICE: The Pedals MUST be installed straight into the Crank
Arms by hand or the threads that secure the Pedals may strip.
Start the Pedal by hand. If you feel resistance and the Pedal
does not turn smoothly into the Crank Arm, make sure that the
threads are aligned correctly. Be sure that the Pedal is going on
straight into the Crank Arm. If the Pedal is not in-line with the
opening, remove the Pedal and start again.
5
11
With the Pedal started by several hand turns into the Crank Arm, fully tighten it with the 15 mm Wrench.
Confirm that the Pedal is fully tightened with the Wrench.
Repeat with the other Pedal.
10

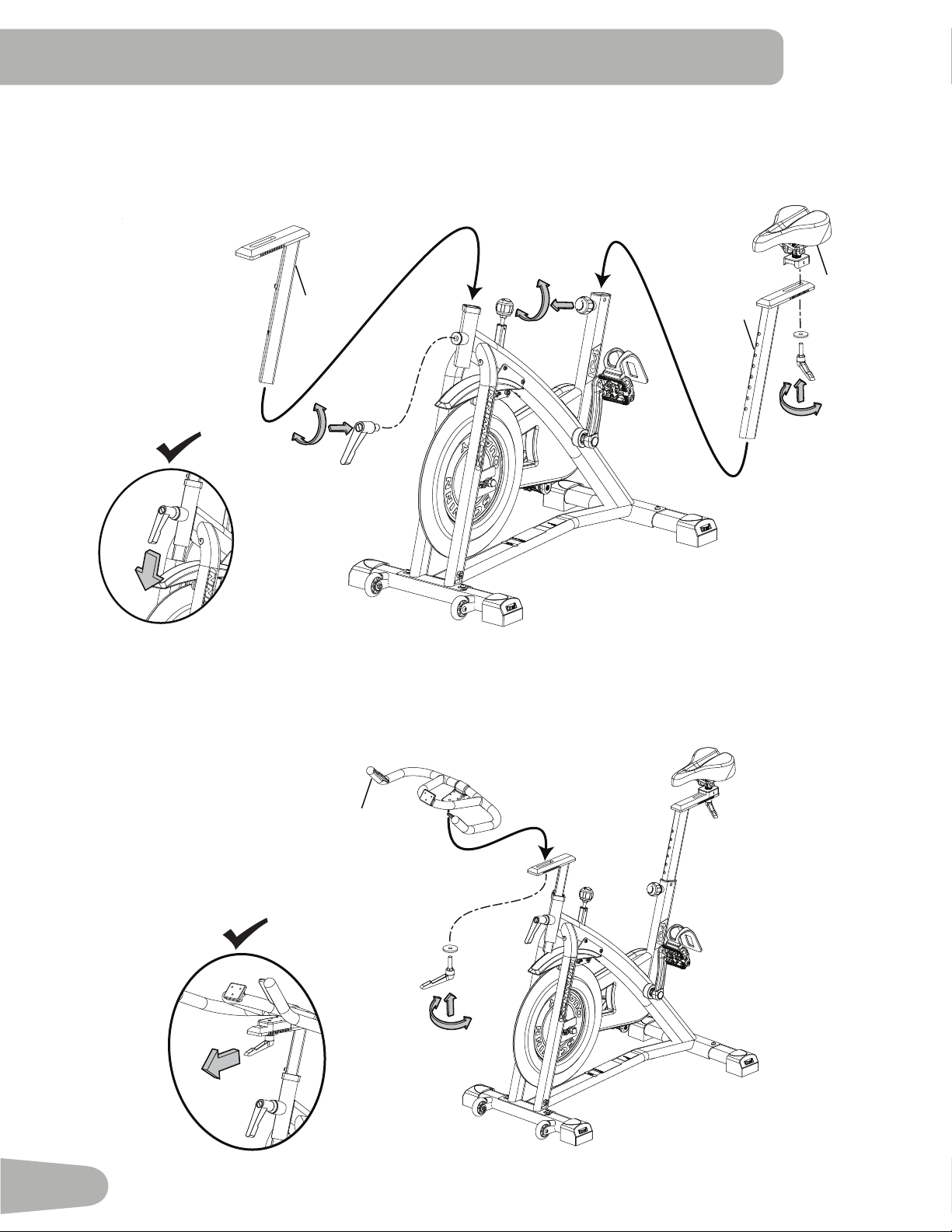

4. Install the Handlebar Assembly to the Frame Assembly
NOTICE: Make sure the Adjustment Handle engages the holes in the Handlebar Post. When fully tightened, the Handlebar
Adjustment Handle must point forward.
13
A
B
3. Attach the Handlebar Post and Seat Post to the Frame Assembly, and then Attach the Seat
NOTICE: Make sure the Handlebar Post Adjustment Handle engages the holes in the Handlebar Post, and the Seat Adjust-
ment Knob engages the holes in the Seat Post. When fully tightened, the Handlebar Post Adjustment Handle must point
downward.
3
4
2
C
A
B
11

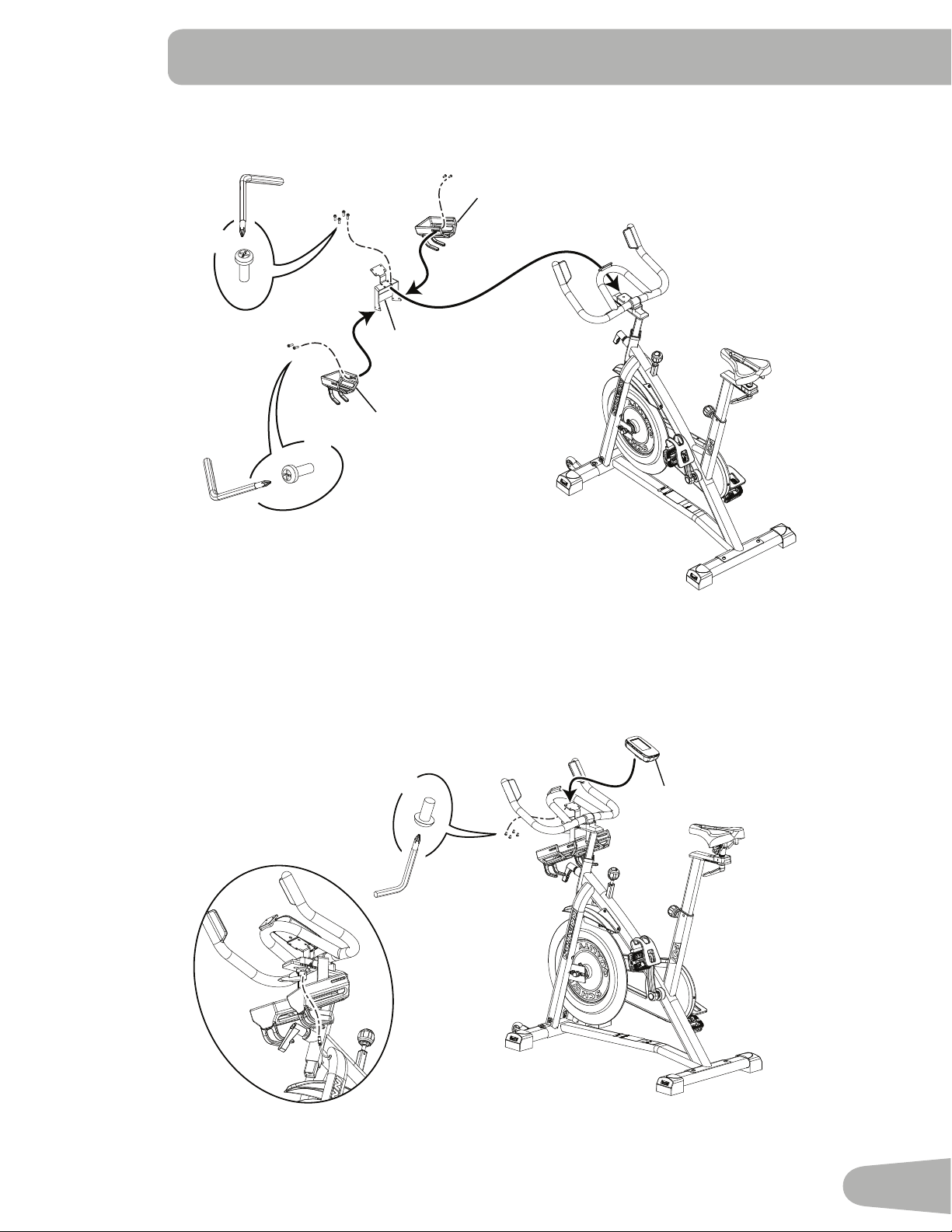

5. Attach the Water Bottle Bracket and Holders to the Frame Assembly
6. Attach the Console to the Frame Assembly
NOTICE: Remove the pre-installed screws(*) from the back of the Console before you connect the cable. Do not crimp the
cable.
1
*
X4
#2
*
X4
X4
10
12
10
*
#2
#2
12
9. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled. Be sure that the Pedals
are fully tightened.
Be sure to record the serial number in the field provided at the front of this manual.
Do not use or put the machine into service until the machine has been fully assembled and inspected for
correct performance in accordance with the Owner’s Manual.

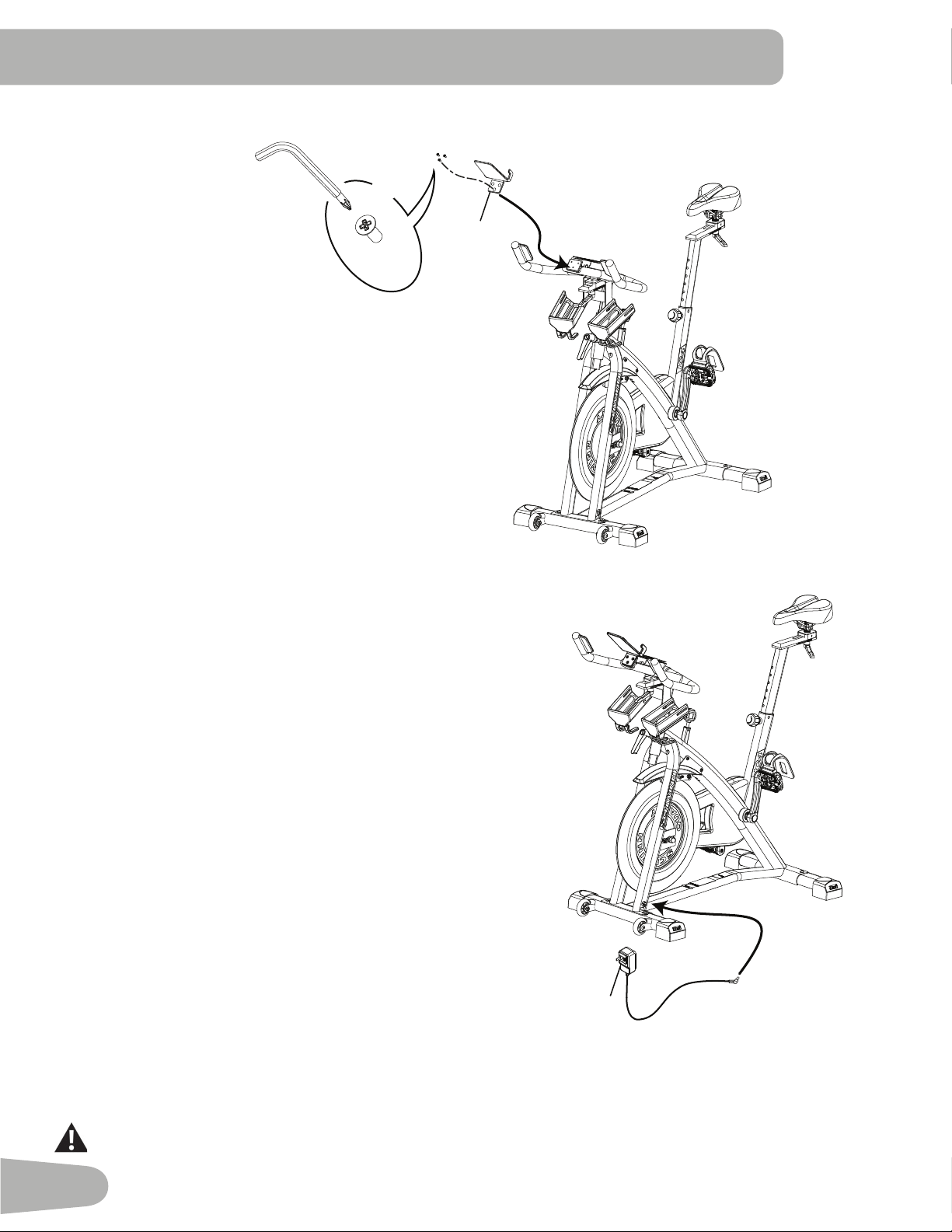

8. Attach the AC Adapter to the Frame Assembly
9
7. Attach the Media Tray to the Frame Assembly
2
X3
#2
*
13

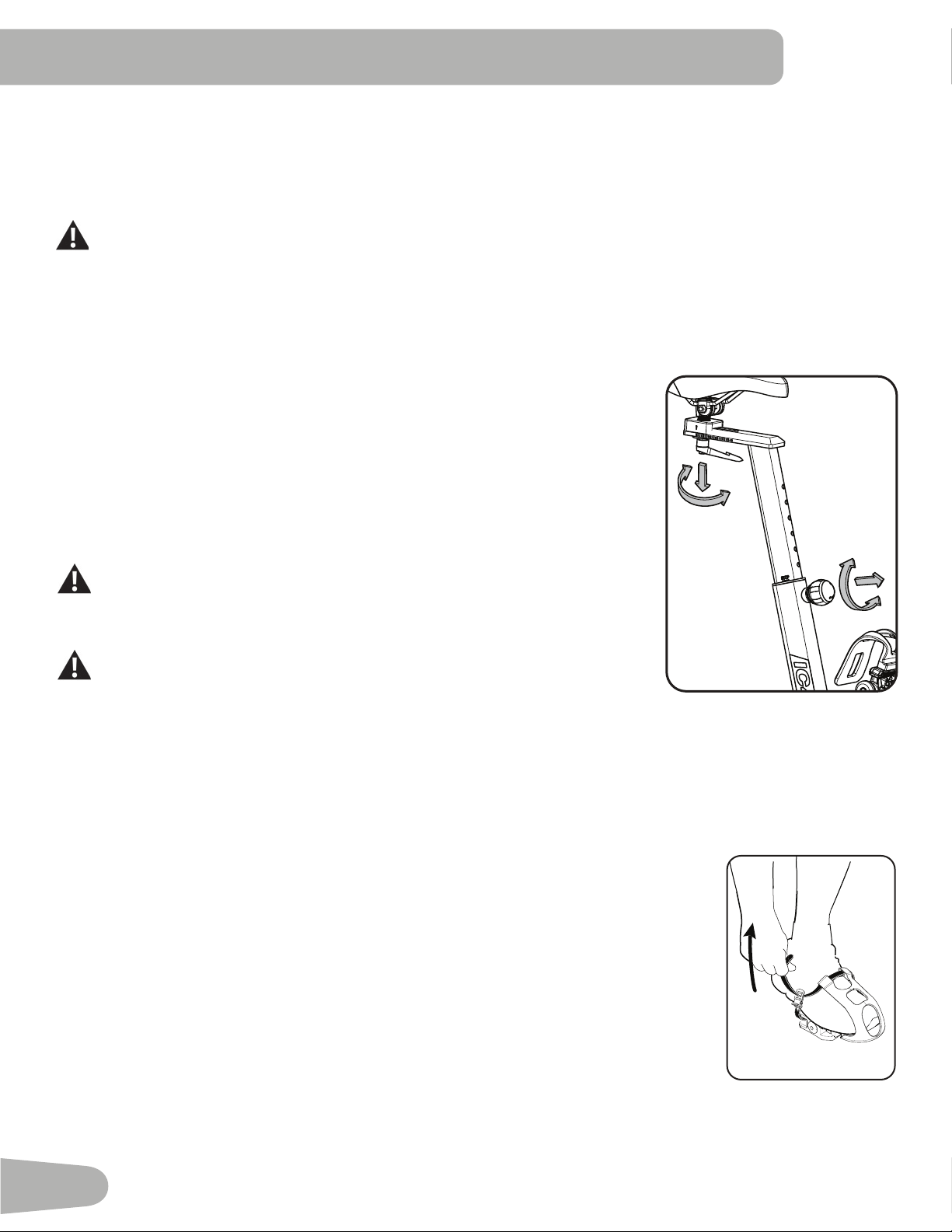

Installing the Shoe Clips (Cleats) on Cycling Shoes (Cycling Shoes not provided)
Note: The provided shoe Cleats t both the right and left Pedals.
Tools needed (not included): pliers, 4 mm hex wrench
1. With a pair of pliers, pull o the rubber cover to expose
the cleat mounting holes on the bottom of the cycling
shoe.
Note: This step may not be necessary, depending on the
type of shoe.
2. From the bottom of the shoe, put the anti-skid sheet in
position over the cleat holes and then a cleat. Be sure
the single arrow on the cleat points toward the toe of the
shoe. Tighten the cleat mounting bolts (2.5 N·m).
3. The cleat has an adjustment range of 20mm front to
back and 5mm left to right. Practice engaging with the
Pedal and releasing, one shoe at a time. Readjust to
determine the best cleat position.
4. Using a 4mm hex key, fully tighten the cleat mounting
bolts (5 – 6 N·m).
4 mm
14
Moving and Storing the Machine
The machine may be moved by one or more persons depending on their physical abilities and capacities.
Make sure that you and others are all physically t and able to move the machine safely.
1. Remove the dumbbells, any media devices, or water bottles from the bike before moving it.
2. To lock the Flywheel, turn the Emergency Brake/Resistance Adjustment Knob clockwise until it encounters an increase
in resistance. Then rotate the Emergency Brake/Resistance Adjustment Knob another 1/2 turn clockwise.
Tighten the Emergency Brake/Resistance Adjustment Knob as described until the Flywheel is locked before
moving it.
3. To move the bike, carefully pull the Handlebars toward you while
pushing the front of the bike downward. Push the bike to the
desired location.
NOTICE: Be careful when you move the machine. Abrupt motions
can aect the computer operation.
For safe storage of the machine, remove the power supply
and place in a secure location. Tighten the Brake/Resis-
tance Adjustment Knob as described until the Flywheel is
locked. Place the machine in a secure location away from
children and pets.
BEFORE YOU START
Leveling the Machine
The machine needs to be leveled if your workout area is uneven. Levelers are found on each side of the stabilizers. Lift
the stabilizer slightly to take the weight o the adjuster, then turn the knob to adjust the stabilizer foot.
Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or
damage to the machine can occur.
Make sure the machine is level and stable before you exercise.
15
A Adjustment Handle, Seat Slider N Flywheel
B Seat Slider OPower Inlet
C Seat PFront Stabilizer
D Adjustment Handle, Seat Post Q Transport Wheel
EEmergency Brake/Resistance Adjustment Knob RLeveler
F Console S Rear Stabilizer
G Media Tray TPedal w/Foot Restraint and Shoe Cleat
HHandlebar Assembly U Cover, Drive Belt
IAdjustment Handle, Handlebar Slider V Shoe Clips (Cleats)
J Water Bottle Holder W USB Charging Port
KDumbbell Rack (Dumbbells only supplied with the
IC4 machine)
XBluetooth® Connectivity (not shown)
L Adjustment Handle, Handlebar Post Y Bluetooth® Heart Rate (HR) Receiver (not shown)
MBrake Assembly
FEATURES
WARNING! Use the values calculated or measured by the machine’s computer for reference purposes
only. The heart rate displayed is an approximation and should be used for reference only. Over exercising may
result in serious injury or death. If you feel faint stop exercising immediately.
D
A
BF
C
E
G
H
I
J
K
L
M
N
O
Q
R
R
P
S
TV
U
W
16
™
Keypad Functions
Connect Bluetooth® Heart Rate button - Makes
the Console disconnect any previous connections,
and look for an active Bluetooth® Heart Rate
Monitor (quick push and release of the button) or a
Bluetooth® enabled device (push and hold down the
button for 3 seconds).
START/ENTER button- Starts a workout, and
conrms the workout values.
RESET button- Push and hold 3 seconds to reset
the console.
Increase () button- Push to increase the value.
Decrease () button- Push to decrease the value.
The console will beep when a button is pushed.
Program Data Display
RPM Range
The RPM range display shows the current average
revolutions per minute (RPM). As the RPM
increases, a larger indicator is lit to show the higher
RPM range. The ranges are: 1-24, 25-49, 50-74, 75-
99, and 100-125.
TIME
The TIME display eld shows the time from start to
nish of workout. To set the time goal for the work-
out, push the START/ENTER button until the TIME
eld blinks. Use the arrow buttons to adjust the
time goal (minutes). During the workout, the display
shows the remaining time. When it reaches zero, the
console will sound an alert.
The maximum time is 99 minutes and 59 seconds.
Connect
Bluetooth®
Heart Rate
button
USB
Charging
Port
START/
ENTER
button
Reset button
Decrease button
Bluetooth®
App
Connected
icon
Bluetooth® Heart Rate
Monitor Connected icon Increase button
Emergency Stop
To stop the pedals immediately, push down hard on the Emergency Brake/Resis-
tance Adjustment Knob.
This bike cannot stop the Pedals independently of the Flywheel. Reduce
the pace to slow the Flywheel and Pedals to a stop. Do not dismount the
bike until the Pedals have come to a complete stop. Be aware that the
moving Pedals can strike the backs of the legs.
Console Features
The Console provides information about your workout on the display screens.
17
CALORIES
The CALORIES display eld shows the estimated total calories from start to nish of workout. To set a calories goal for
the workout, push the START/ENTER button until the CALORIES eld blinks. Use the arrow buttons to adjust the calories.
During the workout, the display shows the remaining calories. When it reaches zero, the console will sound an alert.
The maximum calories value is 9999 Kcal.
SPEED
The SPEED display eld shows the currently calculated speed of the user.
The maximum SPEED is 99.9 km/h.
DISTANCE
The DISTANCE display eld shows the distance from start to nish of workout. To set a distance goal for the workout,
push the START/ENTER button until the DISTANCE eld blinks. Use the arrow buttons to adjust the distance in
increments of 0.50 km (or miles). During the workout, the display shows the remaining distance. When it reaches zero, the
console will sound an alert.
The maximum distance value is 9999.9.
The default distance unit is kilometers (KM). To switch units between kilometers and miles before a workout, push the
Increase and Decrease buttons together and hold for 3 seconds. Push an Increase/Decrease button to change the units
(KM or MI). With the desired unit of distance displayed, push any button to save.
LEVEL
The LEVEL display eld shows the current resistance level. The range of resistance is 0% - 100% which can be modied
by 1% increments. The Emergency Brake/Resistance Adjustment Knob is used to modify the Resistance Level by turning
it clockwise to increase the level, counterclockwise to decrease.
Note: The Emergency Brake/Resistance Adjustment Knob can be turned past the 100% LEVEL of resistance, such as
when storing the bike. Be sure to only use the bike when the LEVEL of resistance is in the 0% - 100% range of
operation.
Bluetooth® App Connected icon - Display shows when the Console is paired with an App.
PULSE (HEART RATE)
The PULSE display shows the heart rate in beats per minute (BPM) from a telemetric heart rate sensor. Push MODE to
activate the Heart Rate. This display value will be blank if a heart rate signal is not detected. The PULSE range is 40 - 240
BPM.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
Bluetooth® Heart Rate Monitor Connected icon - Display shows when the Console is paired with a Bluetooth® Heart Rate
Monitor.
Workout with Other Fitness Apps
This tness machine has integrated Bluetooth® connectivity which allows it to work with a number of tness
apps. For our latest list of supported apps, please visit: www.nautilus.com/partners
18
Using your JRNY™ membership with your machine
If you have a JRNY™ membership*, it can be accessed through your device when synced to the console of this Bowex™
machine. With a JRNY™ membership, you receive guided workouts adapted to your capabilities, conveniently displayed
on your device, and friendly virtual voice coaching designed to support you on your journey to long-term tness success.
1. Download the app, named “Bowex™ JRNY™”. The app is available on the App Store and Google Play™.
2. Be sure that the Bluetooth® and Location Settings are active on your device. Activate them if necessary.
3. Open the app near the machine, and follow the instructions to sync your device to the machine.
If the app will not sync to the machine, restart your device and the machine. Repeat Step 3.
Bluetooth® Heart Rate Enabled
Your tness machine is equipped to be able to receive a signal from a Bluetooth® Heart Rate Sensing device. When
connected, the Console will display the Bluetooth® Heart Rate Monitor Connected icon. Be sure to follow the described
method to sync your device.
If you have a pacemaker or other implanted electronic device, consult your doctor before using a Bluetooth®
strap or other Bluetooth® heart rate monitor.
Bluetooth® Heart Rate Monitor ( Armband supplied with the IC4 machine only)
Your tness machine is equipped to be able to receive a signal from a Bluetooth® Heart Rate (HR) Monitor. Follow the
instructions provided with your Bluetooth® HR monitor.
If you have a pacemaker or other implanted electronic device, consult your doctor before using a Bluetooth®
armband or other Bluetooth® heart rate monitor.
Note: Be sure to remove the protective cover (if provided) from the Heart Rate Sensor before use.
1. Put on your Bluetooth® Heart Rate monitor and activate it.
2. Push the Connect Bluetooth® Heart Rate button on the Console. The Console will actively search for any monitors in
the area, and will rapidly ash the Bluetooth® Heart Rate Monitor Connected icon.
3. When connected, the Bluetooth® Heart Rate Monitor Connected icon will ash with your pulse and your current heart
rate value will be displayed on the Console. You are now ready to workout.
At the end of your workout, push the Connect Bluetooth® Heart Rate button to disconnect your HR monitor from the
Console.
* A JRNY™ membership is required for the JRNY™ experience – see www.bowex.com/jrny for details. For United
States and Canada customers, you can obtain a JRNY™ membership by calling 800-269-4126 or visiting www.bowex.
com/jrny. Where available (including the United States), you can also obtain a JRNY™ membership by downloading the
JRNY™ app onto your phone or tablet and signing up within the downloaded app. JRNY™ memberships may not be
available in all countries.
19
Heart Rate Calculations
Your maximum heart rate usually decreases from 220 Beats Per Minute (BPM) in childhood to approximately 160 BPM by
age 60. This fall in heart rate is usually linear, decreasing by approximately one BPM for each year. There is no indication
that training inuences the decrease in maximum heart rate. Individuals of the same age could have dierent maximum
heart rates. It is more accurate to nd this value by completing a stress test than by using an age related formula.
Your at-rest heart rate is inuenced by endurance training. The typical adult has an at-rest heart rate of approximately 72
BPM, where as highly trained runners may have readings of 40 BPM or lower.
The Heart Rate table is an estimate of what Heart Rate Zone (HRZ) is eective to burn fat and improve your cardiovas-
cular system. Physical conditions vary, therefore your individual HRZ could be several beats higher or lower than what is
shown.
The most ecient procedure to burn fat dur-
ing exercise is to start at a slow pace and
gradually increase your intensity until your
heart rate reaches between 60 – 85% of your
maximum heart rate. Continue at that pace,
keeping your heart rate in that target zone
for over 20 minutes. The longer you maintain
your target heart rate, the more fat your body
will burn.
The graph is a brief guideline, describing the
generally suggested target heart rates based
on age. As noted above, your optimal target
rate may be higher or lower. Consult your
physician for your individual target heart rate
zone.
Note: As with all exercises and tness regi-
mens, always use your best judgment when
you increase your exercise time or intensity.
Shoe Clips (Cleats)
Foot pedals that are equipped for cycling shoes with cleats provide secure footing on the exercise bike. The shoe cleats
provided t both the right and left Pedals.
Prior to use, make sure you understand the operation of the engagement / release mechanism for the pedals
and cleats (shoes).
Keep cleats and bindings clear of dirt and debris to ensure engagement and release.
Check the cleats periodically for wear. When the cleats are worn, replace them. Replace the cleat when it
becomes dicult to release, or starts to release with much less eort than when it was in new condition.
Pedals and cleats are SPD Compatible. They t any shoe size with the correct cleat mounts: shoes with “Standard 2-Hole
MTB SPD Cleat Mounts” (MTB SPD = Mountain Bike Shimano Pedaling Dynamics).
20-24
FAT-BURNING TARGET HEART RATE
Heart Rate BPM (beats per minute)
Age
25-29
0
50
100
150
200
250
30-34 35-39 40-44 45-49 50-54 55-59 60-64 65-69 70+
196 191 186 181 176 171 166 161 156 151 146
167 162 158 154 150 145 141 137 133 128 126
Maximum Heart Rate
Target Heart Rate Zone
(keep within this range
for optimum fat-burning)
11 8 11 5 11 2 109 106 103 10 0 97 94 91 88
20
OPERATIONS
What to Wear
Wear rubber-soled athletic shoes. You will need the appropriate clothes for exercise that allow you to move freely.
How Often Should You Exercise
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed is an approximation and should be used for reference purposes only.
• 3 times a week for 20 minutes each day.
• Schedule workouts in advance and try to follow the schedule.
Seat Adjustment
Correct seat placement encourages exercise eciency and comfort, while reducing the
risk of injury.
1. With a Pedal in the forward position, place the heel of your foot to the lowest part
of it. Your leg should be bent slightly at the knee.
2. If your leg is too straight or your foot cannot touch the Pedal, you need to move
the seat downward. If your leg is bent too much, you need to move the seat
upward.
Step o the machine before you adjust the seat.
3. Loosen and pull the Seat Post Adjustment Knob on the Seat Post. Adjust the seat
to the desired height.
Do not lift the Seat post above the “STOP” mark on the Seat Post.
4. Release the Seat Post Adjustment Knob to engage the locking pin. Be sure that
the pin is fully engaged and fully tighten the adjustment knob.
5. To move the seat closer to, or away from the console, loosen the seat adjustment knob. Slide the seat to the desired
position and fully tighten the knob.
Note: If the handle cannot turn due to collision with another part, pull the handle, turn and push it back in to reposition it.
Continue turning as needed.
Foot Position / Pedal Strap Adjustment
Foot pedals with straps provide secure footing to the exercise bike.
1. Put the ball of each foot in the Foot Restraint on the Pedals.
2. Fasten the strap over the shoe.
3. Repeat for the other foot.
Be sure toes and knees point directly forward to ensure maximum Pedal eciency. Pedal
straps can be left in position for subsequent workouts.
21
Using the Shoe Clips (Cleats)
Foot pedals that are equipped for cycling shoes with cleats provide secure footing on the
exercise bike. Be sure to turn the Pedals so that the Foot Restraint is under the Pedal.
Prior to use, make sure you understand the operation of the engagement /
release mechanism for the pedals and cleats (shoes).
1. Be sure that the arrow on top of the Pedal points forward.
2. Push the cleat down and forward to engage the Pedal.
3. Repeat for the other foot.
4. Practice engaging and disengaging from the Pedals before starting your workout.
To disengage (release) the cleats from the pedals, push the heels outward and lift.
If the body weight of a user is very low, the user may have diculty with operation of the
engagement/release mechanism in the Pedals. It may be necessary to decrease the
retention force of the mechanism. To adjust the retention:
1. Locate the opening in the rear of the Pedal for access to the adjustment bolt. It is
between the 2 screws that attach the Foot Restraint to the Pedal.
2. Use a 3mm hex wrench to turn the adjustment bolt. To decrease the retention, turn it
left (counterclockwise). To increase the retention, turn it right (clockwise).
Handlebar Adjustment
To adjust the handlebar position:
1. Loosen the Handlebar Post Adjustment Knob on the Handlebar Post. Adjust the
Handlebar to the desired height.
Do not lift the Handlebar Post above the “STOP” mark on the Handlebar Post.
2. Tighten the Handlebar Post Adjustment Knob to engage the locking pin. Be sure that
the pin is fully engaged and fully tighten the adjustment knob.
NOTICE: Do not crimp the cables.
3. To move the Handlebar closer to, or away from the console, loosen the Handlebar
Adjustment Knob. Slide the Handlebar to the desired position and fully tighten the
knob.
Note: If the handle cannot turn due to collision with another part, pull the handle, turn and
push it back in to reposition it. Continue turning as needed.
Locking the Flywheel for Storage
When the machine is not in use, be sure to lock the Flywheel with the Emergency Brake/
Resistance Adjustment Knob. To lock the Flywheel, turn the Emergency Brake/Resistance
Adjustment Knob clockwise until it encounters an increase in resistance. Then rotate the
Emergency Brake/Resistance Adjustment Knob another 1/2 turn clockwise. The Flywheel
is now locked. The ywheel should be locked for storage of the machine.
-+
Engage
Disengage (release)
22
For safe storage of the machine, remove the power supply and place in a secure location. Tighten the
Brake/Resistance Adjustment Knob as described until the Flywheel is locked. Place the machine in a secure
location away from children and pets.
With the Flywheel locked, the level of resistance will be out of the range of operation displayed by the Console. Do not
use the machine with the level of resistance outside of the 0% - 100% range. This will damage the ability to quickly stop
the Flywheel during an emergency, and the effectiveness of securing the bike for storage. Turn the Emergency Brake/
Resistance Adjustment Knob until the LEVEL displayed on the Console is less than 100%. The resistance is now in the
designed range of operation for the bike.
Power-Up Mode
The Console will enter Power-Up Mode if any button is pushed, or if it receives a signal from the RPM sensor as a result
of pedaling.
Auto Shut-O (Sleep Mode)
If the Console does not receive any input in approximately 5 minutes, it will automatically shut o. The LCD display is o
while in Sleep Mode.
Note: The Console does not have an On/Off switch.
Resistance Adjustment
To adjust the resistance and workload, turn the resistance adjustment knob clockwise. To reduce the resistance, turn
the resistance adjustment knob counter-clockwise. The range of movement of the Resistance Adjustment Knob is 0% to
slightly past the 100% level of resistance (locked Flywheel). Do not turn the Resistance Adjustment Knob past the range of
movement. If turned past the range of movement, damage to the machine may occur.
Starting a Workout
1. Push the START/ENTER button. The Console will display the Time value.
2. Push the Increase / Decrease buttons to modify the Time value of the workout. When done, push the START/ENTER
button.
3. The Console will display the Calories value. Push the Increase / Decrease buttons to modify the Calories value. When
done, push the START/ENTER button.
4. The Console will display the Distance value. Push the Increase / Decrease buttons to modify the Distance value. When
done, push the START/ENTER button.
5. The Workout will begin.
Changing Unit Measures (English Imperial/Metric)
The units of measurement can be switched between kilometers and miles before you start a workout. To change the units,
push UP and DOWN together and hold 3 seconds. When the display begins to blink, use the arrow button to change the
units (KM or MI). Push any button to save.
Pausing or Stopping
1. Stop pedaling to pause your workout. The Console will pause the workout if there is no RPM signal for 2 seconds.
2. To continue your workout, start pedaling.
The workout will end after being paused for 5 minutes.
When paused, the Console display will display the current workout values for the workout. To end the paused workout,
push and hold down the Reset button.
23
Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do
the necessary tasks.
Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that
regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.
Only manufacturer supplied components can be used to maintain and repair the equipment.
If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased
in US/Canada, contact Customer Service for replacement labels. If purchased outside US/Canada, contact
your local distributor for them.
Disconnect all power to the machine before you service it.
Daily: Before each use, examine the exercise machine for loose, broken, damaged, or worn parts. Do not
use if found in this condition. Repair or replace all parts at the rst sign of wear or damage. Make
sure adjustment knobs are tight. Tighten as necessary. After each workout, use a damp cloth to
wipe your machine and Console free of moisture.
NOTICE: If necessary, only use a mild dish soap with a soft cloth to clean the Console. Do not
clean with a petroleum based solvent, automotive cleaner, or any product that contains
ammonia. Do not clean the Console in direct sunlight or at high temperatures. Be sure to
keep the Console free of moisture.
Weekly: Check pedals and tighten as necessary.
This bike cannot stop the Pedals independently of the Flywheel. Reduce the pace to
slow the Flywheel and Pedals to a stop. Do not dismount the bike until the Pedals have
come to a complete stop. Be aware that the moving Pedals can strike the backs of the
legs.
Clean the machine to remove any dust, dirt, or grime from the surfaces.
Check for smooth seat operation. If needed, sparingly apply a thin coating of silicone lube to ease
operation.
Silicone lubricant is not intended for human consumption. Keep out of reach of
children. Store in a safe place.
Note: Do not use petroleum based products.
Monthly
or after 20
hours:
Check crank arms and tighten as necessary. Make sure all bolts and screws are tight. Tighten as
necessary.
Check the drive belt tension and adjust if necessary.
Checking the Drive Belt Tension
To check the Drive Belt tension, the bike needs to be operated. Get the pedals rotat-
ing at about 20 RPM. Then suddenly increase the RPM to your maximum ability. If the
pedals move normally with no slipping, the tension is correct. If the Pedals slip, the belt
needs to be adjusted.
Adjusting the Drive Belt Tension
1. To change the tension of the Drive Belt, loosen the Axle Nuts. Use a 15mm open
end wrench to hold the Axle Nut on one side steady, and loosen the Axle Nut on
the opposite side with a 15mm socket and wrench.
2. If the Drive Belt is too loose and slipping, use a 10mm wrench to turn each Fly-
wheel Retainer Nut a 1/4 turn to the right (clockwise).
3. Re-test the tension of the Drive Belt, and adjust if still necessary.
A detailed “Adjust the Belt Tension” procedure can be found in the Service Manual.
MAINTENANCE
Flywheel Retainer Nuts
Axle Nut
24
Maintenance Parts
A Adjustment Handle L Dumbbell Rack (Dumbbells only
supplied with the IC4 machine)
W Drive Pulley
B Adjustment Handle, Seat Slider MAdjustment Handle, Handlebar
Post
XCover, Drive Belt
C Seat N Brake Assembly Y Crank Arm
D Seat Post OFlywheel Z Crank Cap
ESeat Post Adjustment Knob PPower Inlet AA Pedal w/Foot Restraint
F Brake/Resistance Knob Q Front Stabilizer BB Axle Nut
G Console RTransport Wheel CC Flywheel Retainer Nut
HMedia Tray S Leveler DD Data Cable
IHandlebar TRear Stabilizer EE Speed Sensor
J Adjustment Handle, Handlebar
Slider
U Drive Belt FF Speed Sensor Magnet
KWater Bottle Holder V Cover, Drive Belt Inside
E
A
B
G
C
F
H
I
J
K
L
M
N
O
P
R
S
S
Q
T
W
X
Z
Y
AA
UV
D
FF
DD
EE
CC
BB
25
TROUBLESHOOTING
Condition/Problem Things to Check Solution
No display/partial display/
unit will not turn on
Check electrical (wall)
outlet
Make sure unit is plugged into a functioning wall outlet.
Check connection at front
of unit
Connection should be secure and undamaged. Replace
adapter or connection at unit if either are damaged.
Check data cable integrity All wires in cable should be intact. If any are visibly crimped or
cut, replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Check console display for
damage
Check for visual sign that console display is cracked or other-
wise damaged. Replace Console if damaged.
Console Display If Console only has partial display and all connections are ne,
replace the Console.
If the above steps do not resolve the problem, contact Cus-
tomer Service (if inside US/Canada) or your local distributor (if
outside US/Canada).
Speed displayed is not
accurate
Check Speed Sensor
Magnet position
Speed Sensor Magnet should be in place on Flywheel.
Speed displayed is always
“0”/stuck in Pause mode
Data cable Make sure the data cable is connected to the Console and the
main frame assembly.
Speed Sensor Make sure the RPM Sensor Magnet and the RPM Sensor are
in place.
No Speed/RPM reading Check data cable integrity All wires in cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Check Speed Sensor
Magnet position
Speed Sensor Magnet should be in place on Flywheel.
Check Speed Sensor
Assembly
Speed Sensor Assembly should be aligned with magnet and
connected to data cable. Realign sensor if necessary. Replace
if there is any damage to the sensor or the connecting wire.
Unit operates but
Bluetooth® Heart Rate
(HR) not displayed
Bluetooth® Heart Rate
Sensing Device (Armband
provided with IC4)
Make sure device is directly against skin and contact area is
wet.
Bluetooth® Heart Rate
Sensing Device Batteries
If device has replaceable batteries, install new batteries.
Interference Try moving unit away from sources of interference (TV, Micro-
wave, etc).
Replace Heart Rate Sens-
ing Device
If interference is eliminated and HR does not function, replace
device.
Replace Console If HR still does not function, replace Console.
Unit operates but
Bluetooth® HR displayed
incorrectly
Connected to previous
user
The Console may be still connected to the previous user. Push
Connect Bluetooth® button to disconnect from them/ connect to
your Heart Rate Sensing Device.
26
Condition/Problem Things to Check Solution
Console shuts o (enters
sleep mode) while in use
Check electrical (wall)
outlet
Make sure unit is plugged into a functioning wall outlet.
Check connection at front
of unit
Connection should be secure and undamaged. Replace
adapter or connection at unit if either are damaged.
Check data cable integrity All wires in the cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Reset machine Unplug unit from electrical outlet for 3 minutes. Reconnect to
outlet.
Check magnet position
(requires shroud removal)
Magnet should be in place on pulley.
Check Speed Sensor
(requires shroud removal)
Speed sensor should be aligned with magnet and connected to
data cable. Realign sensor if necessary. Replace if there is any
damage to the sensor or the connecting wire.
Contact Customer Service (if inside US/Canada) or your local
distributor (if outside US/Canada).
Unit rocks/does not sit
level
Check level adjustment Levelers may be turned to level machine.
Check surface under unit Adjustment may not be able to compensate for extremely un-
even surfaces. Move machine to level area.
Pedals loose/unit dicult
to pedal/ Pedals seem to
skip or slip with a sudden
increase in rpm
Check pedal to crank
connection
Pedal should be tightened securely to crank arm. Be sure con-
nection is not cross-threaded.
Check crank arm to axle
connection
Crank arm should be tightened securely to axle.
Check drive belt tension Refer to the “Adjust the Belt Tension” procedure in the Service
Manual. Contact Customer Service (if inside US/Canada) or
your local distributor (if outside US/Canada).
Clicking sound when
pedaling
Check pedal to crank
connection
Remove pedals. Make sure there is no debris on threads, and
reinstall the pedals.
Seat post movement Check locking pin Be sure adjustment pin is locked into one of the seat post
adjustment holes.
Check locking knob Be sure knob is securely tightened.
27
( If purchased in US/Canada ) WARRANTY
Who Is Covered
This warranty is valid only to the original purchaser and is not transferable or applicable to any other person(s).
What Is Covered
Nautilus, Inc. warrants that this product is free from defects in materials and workmanship, when used for the purpose intended, under normal conditions, and provided it receives
proper care and maintenance as described in the Product’s Assembly and Owner’s manual. This warranty is good only for authentic, original, legitimate machines manufactured by
Nautilus, Inc. and sold through an authorized agent and used in the United States or Canada.
Terms
Warranty terms for products purchased in US/Canada are as stated below
• Frame 10 years
• Mechanical parts 3 years
• Electronics 3 years
• Labor 1 year
(Labor support does not include the installation of replacement parts involved in the initial product assembly and preventative maintenance services.)
For warranty & service of products purchased outside US/Canada, please contact your local distributor. To find your local international distributor, go to: www.nautilusinternational.com
How Nautilus Will Support the Warranty
Throughout the terms of the warranty coverage, Nautilus, Inc. will repair any machine that proves to be defective in materials or workmanship. Nautilus reserves the right to replace the
product in the event a repair is not possible. When Nautilus determines replacement is the correct remedy, Nautilus may apply a limited credit reimbursement toward another Nautilus,
Inc. brand Product, at our discretion. This reimbursement may be prorated based on length of ownership. Nautilus, Inc. provides repair service within major metropolitan areas. Nautilus,
Inc. reserves the right to charge the consumer for travel outside these areas. Nautilus, Inc. is not responsible for dealer labor or maintenance charges beyond the applicable warranty
period(s) stated herein. Nautilus, Inc. reserves the right to substitute material, parts or products of equal or better quality if identical materials or products are not available at the time of
service under this warranty. Any replacement of the product under the terms of the Warranty in no way extends the original Warranty period. Any limited credit reimbursement may be
prorated based on length of ownership. THESE REMEDIES ARE THE EXCLUSIVE AND SOLE REMEDIES FOR ANY BREACH OF WARRANTY.
What You Must Do
• Retain appropriate and acceptable Proof of Purchase.
• Operate, maintain, and inspect the Product as specified in the Product Documentation (Assembly, Owner’s Manuals, etc.).
• Product must be used exclusively for the purpose intended.
• Notify Nautilus within 30 days after detecting an issue with the Product.
• Install replacement parts or components in accordance with any Nautilus instructions.
• Perform diagnostic procedures with a trained Nautilus, Inc representative if requested.
What Is Not Covered
• Damage due to abuse, tampering or modification of the Product, failure to properly follow assembly instructions, maintenance instructions, or safety warnings as stated in the
Product Documentation (Assembly, Owner’s Manuals, etc), damage due to improper storage or the effect of environmental conditions such as moisture or weather, misuse,
mishandling, accident, natural disasters, power surges.
• A machine placed or used in a commercial or institutional setting. This includes gyms, corporations, work places, clubs, fitness centers and any public or private entity that has a
machine for use by its members, customers, employees or affiliates.
• Damage caused by exceeding maximum user weights as defined in the Product’s Owner’s manual or warning label.
• Damage due to normal usage and wear and tear.
• This warranty does not extend to any territories or countries outside the United States and Canada.
How to Obtain Service
For Products purchased directly from Nautilus, Inc. contact the Nautilus office listed on the Contacts page of the products Owner’s manual. You may be required to return the defective
component to a specified address for repair or inspection, at your expense. Standard ground shipping of any warranty replacement parts will be paid by Nautilus, Inc. For products
purchased from a retailer, you may be asked to contact your retailer for warranty support.
Exclusions
The preceding warranties are the sole and exclusive express warranties made by Nautilus, Inc. They supersede any prior, contrary or additional representations, whether oral or
written. No agent, representative, dealer, person or employee has the authority to alter or increase the obligations or limitations of this warranty. Any implied warranties, including the
WARRANTY OF MERCHANTABILITY and any WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the term of the applicable express warranty provided
above, whichever is longer. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Limitation of Remedies
EXCEPT AS OTHERWISE REQUIRED BY APPLICABLE LAW, THE PURCHASER’S EXCLUSIVE REMEDY IS LIMITED TO REPAIR OR REPLACEMENT OF ANY COMPONENT DEEMED BY
NAUTILUS, INC. TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS STATED HEREIN. IN NO EVENT WILL NAUTILUS, INC. BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL,
INCIDENTAL, INDIRECT OR ECONOMIC DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING, WITHOUT LIMITATION, PRODUCT LIABILITY, NEGLIGENCE OR OTHER
TORT) OR FOR ANY LOST REVENUE, PROFIT, DATA, PRIVACY OR FOR ANY PUNITIVE DAMAGES ARISING OUT OF OR RELATED TO THE USE OF THE FITNESS MACHINE EVEN IF
NAUTILUS, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION AND LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL OR INCIDENTAL TYPE DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.
State Laws
This warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
Expirations
If the warranty has expired, Nautilus, Inc. may assist with replacements or repairs to parts and labor, but there will be a charge for these services. Contact a Nautilus office for
information on post-warranty parts and services. Nautilus does not guarantee availability of spare parts after expiration of warranty period.
International Purchases
If you purchased your machine outside of the United States consult your local distributor or dealer for warranty coverage.
™
™
™
™
™
8022929.041521.F
™
EN
