6
>
Summary of Contents for Bosch WGG254A0SG/01:
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 11
3
5 Positioning and connecting 12
3
* Getting to know the appliance 21
3
Z Laundry 24
3
C Detergent 26
3
P Overview of programmes 27
3
0 Programme default settings 30
3
\ Additional programme settings 31
3
1 Operating the appliance 32
3
a Intelligent dosing system 35
3
Q Appliance settings 40
4
H Sensors 41
4
2 Cleaning and maintenance 41
4
3 Faults and what to do about them 44
4
4 After-sales service 49
4
[ Consumption values 50
4
J Technical data 51
4
r Aqua-Stop warranty 51
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
8
Material damage/damage to the appliance
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
10
Material damage/damage to the appliance
10
7 Environmental protection
11
Environmental protection
11
Packaging/used appliance
11
Tips on economical use
11
5 Positioning and connecting
12
Positioning and connecting
12
Standard accessories
12
Note:
12
Safety instructions
13
: Warning
13
Risk of injury!
13
Caution!
13
Damage to the appliance
13
Caution!
13
Water damage
13
Notes
13
Installation surface
13
Note:
13
Installation on a base or a wooden joist floor
13
Caution!
13
Damage to the appliance
13
Note:
13
Installing the appliance in a kitchenette
13
: Warning
13
Risk of death!
13
Notes
13
Removing the transport locks
14
Caution!
14
Damage to the appliance
14
Note:
14
1. Take the hoses out of the holders.
14
2. Unscrew and remove all four transport brace screws.
14
a) Remove the mains cable from the holders.
14
b) Remove the sleeves.
14

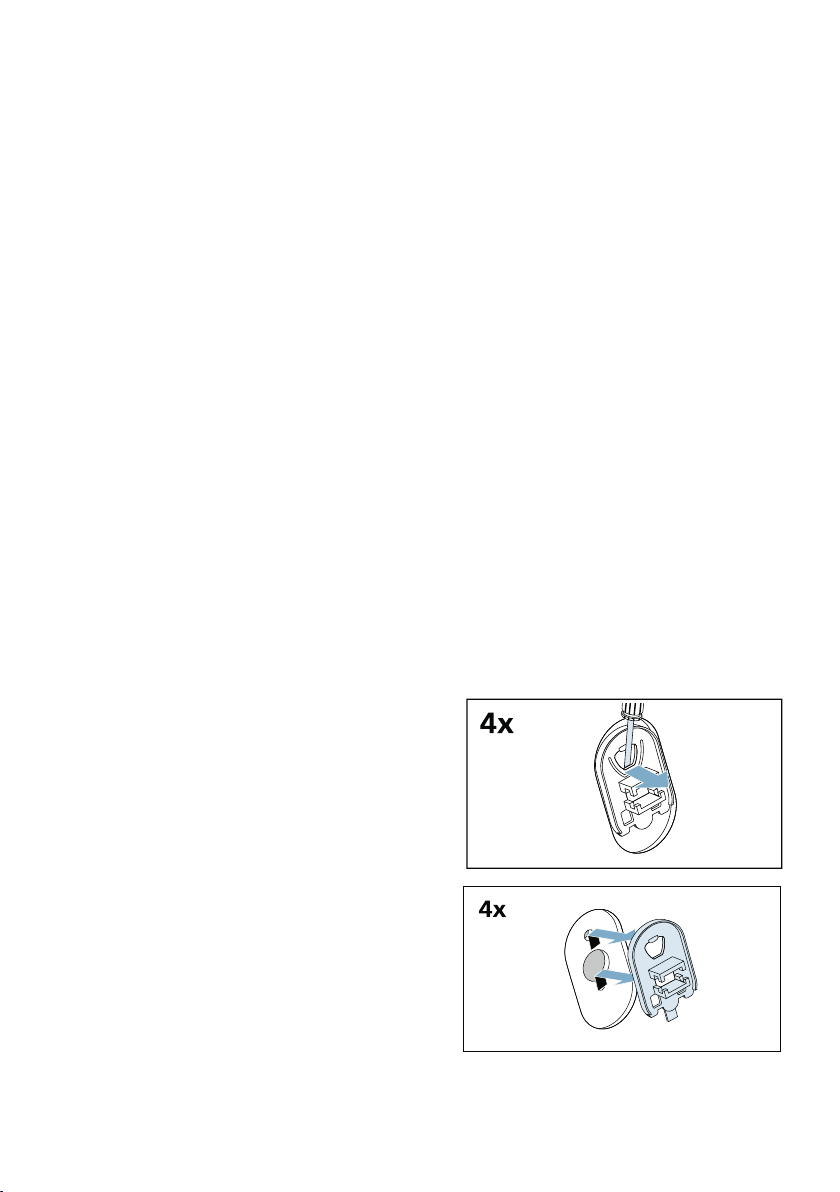

3. Fit the covers.
14
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
15
Removing the support struts
15
1. Unscrew and remove all screws in the vertical transport struts.
15
2. Remove the transport struts.
15
3. Undo and remove the screws on the horizontal transport strut.
15
4. Remove the transport strut.
15

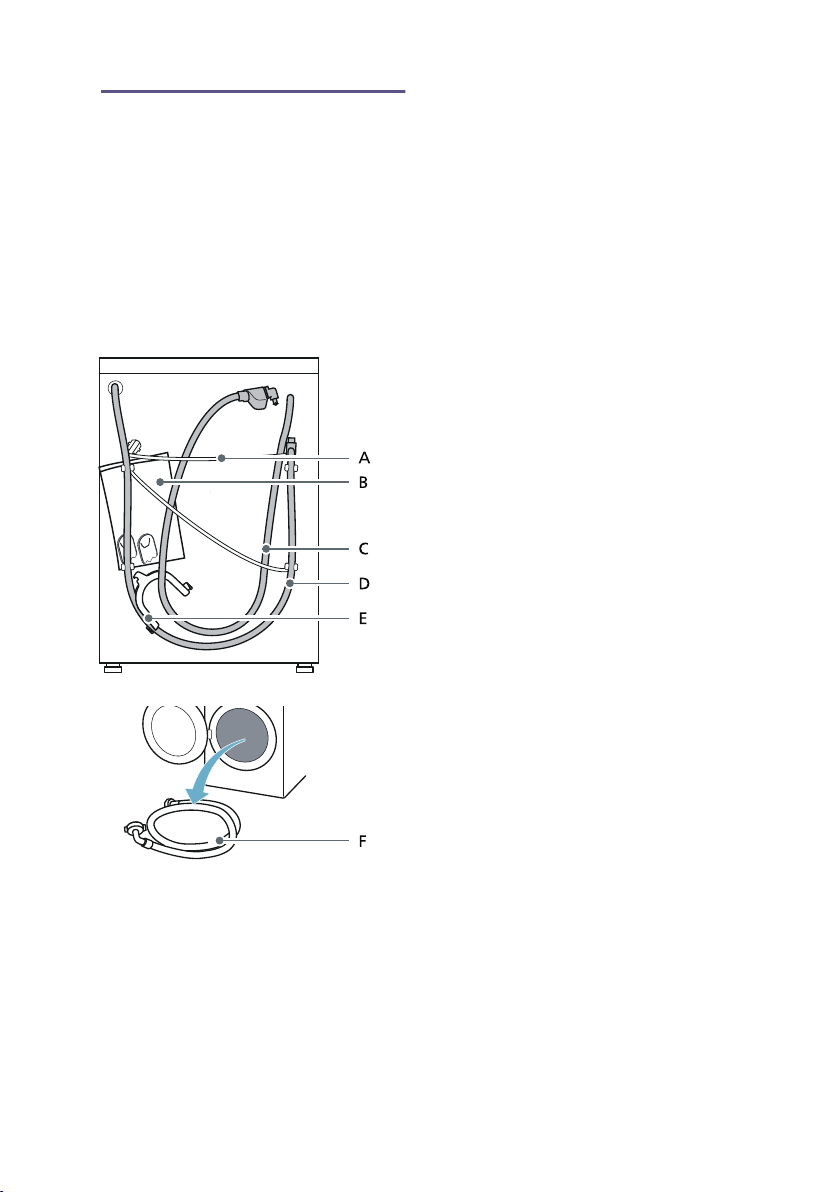

Hose and cable lengths
15
Note:
16
Water inlet
16
: Warning
16
Risk of death!
16
Notes
16
1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
16
Tip:
16
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
17
Water outlet
17
: Warning
17
Risk of scalding!
17
Caution!
17
Water damage
17
Caution!
17
Damage to the appliance/fabrics
17
Note:
17
Note:
17
Alignment
18

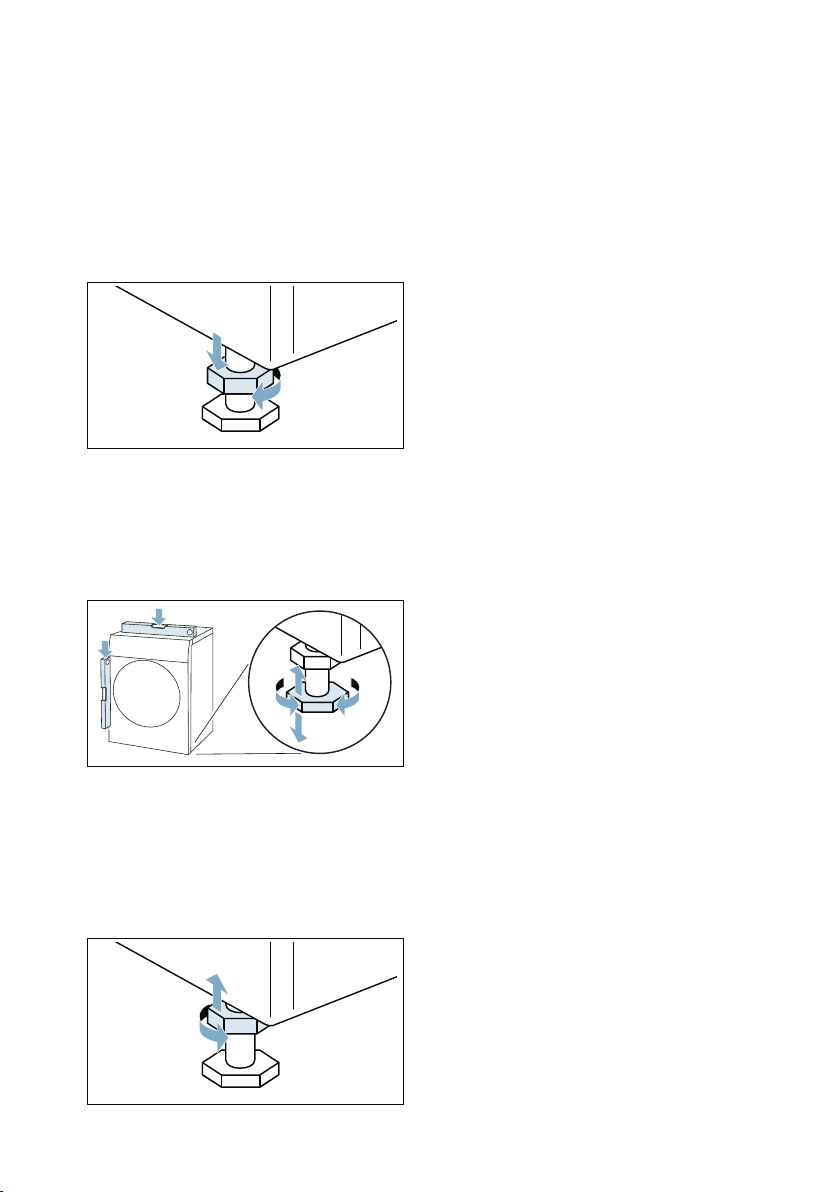

1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
18
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
18
3. Tighten the lock nut against the housing.
18
Electrical connection
18
: Warning
18
Risk of death!
18
Notes
18
Before washing for the first time
19
Note:
19
1. Insert mains plug.
19
2. Turn the water tap on.
19
3. Close the door. Do not load any laundry.
19
4. Select the Û Drum Clean 90°C programme.
19
5. Open the detergent drawer.
19
6. Pour approx. 1 litre of water into manual dosing compartment.
19
7. Add standard detergent to manual dosing compartment according to manufacturer’s instructions for light soiling.
19
Note:
19
8. Close the detergent drawer.
19
9. Select Start/Reload A.
19
10. When the programme ends, turn the programme selector to Off.
19
Transportation
19
1. Turn off the water tap.
19
2. Reduce the water pressure in the supply hose. ~ Page 43
19
3. Drain any residual water. ~ Page 42
19
4. Disconnect the appliance from the mains.
19
5. Remove the hoses.
19
6. Empty the dispensers.
19
Caution!
19
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
19
1. Remove the covers and keep them in a safe place.
19
Note:
19
2. Insert all four sleeves.
20
a) Clip the mains cable securely in the holders.
20
b) Insert and tighten the screws.
20
c) Clip the hoses securely in the holders.
20
Notes
20
* Getting to know the appliance
21
Getting to know the appliance
21
Appliance
21
Control panel
22
Display panel
23
Programme default settings
23
Display
23
Setting
23
Description
23
Additional programme settings
23
Display
23
Setting
23
Intelligent dosing system (Ž i-DOS)
23
Display
23
Setting
23
Status indicators for the programme progress (programme sequence)
24
Display
24
Setting
24
Z Laundry
24
Laundry
24
Protecting your laundry and appliance
24
Caution!
24
Damage to the appliance/textiles
24
Sorting laundry
25
Note:
25
Starching
25
Note:
25
1. Switch on the appliance.
25
2. Select the à Rinse programme.
25
3. Measure starch into manual dosing compartment in accordance with the manufacturer's instructions (clean first if necessary).
25
4. Touch the Start/Reload A button.
25
Dyeing/bleaching
25
C Detergent
26
Detergent
26
Correct selection of detergent
26
Saving energy and detergent
26
Saving
26
Soiling/note
26
Note:
26
P Overview of programmes
27
Overview of programmes
27
Selectable programme
27
Programme/Type of washing
27
Options/Information
27
Note:
27
Notes
28
Note:
29
Note:
29
Note:
29
Note:
29
0 Programme default settings
30
Programme default settings
30
6 Temp. °C
30
0 rpm
30
ñ Finished in
30
1. Select a programme (except myTime programme).
30
2. Select the ñ Finished in button repeatedly until the required number of hours is displayed.
30
3. Select the Start/Reload A button.
30
Note:
30
1. Select the Start/Reload A button.
30
2. Select the ñ Finished in button repeatedly to change the number of hours.
30
3. Select the Start/Reload A button.
30
\ Additional programme settings
31
Additional programme settings
31
Note:
31
T Prewash
31
Notes
31
Ï Rinse Plus
31
p Easy Iron
31
Note:
31
G SpeedPerfect
31
Note:
31
Ž i-DOS setting
31
1 Operating the appliance
32
Operating the appliance
32
Preparing the appliance
32
Notes
32
1. Insert mains plug.
32
: Warning
32
Risk of death from electric shock!
32
2. Turn the water tap on.
32
3. Open the appliance door.
32
Select programme/switch on the appliance
32
Note:
32
Placing laundry into the drum
32
Notes
33
Measuring and adding detergent and care products
33
Starting the programme
33
Childproof lock
33
Note:
33
Adding/removing laundry
33
Notes
34
Changing the programme
34
1. Touch the Start/Reload A button.
34
2. Select another programme.
34
3. And touch the Start/Reload A button again. The new programme starts from the beginning.
34
Cancel the programme
34
1. Touch the Start/Reload A button.
34
2. To cool down laundry: Select à Rinse.
34
3. And touch the Start/Reload A button again.
34
1. Touch the Start/Reload A button.
34
2. Select 0 [ Spin/Drain.
34
3. And touch the Start/Reload A button again.
34
Programme end
34
Removing laundry/switching off the appliance
34
1. Set programme selector to Off.
34
2. Open the door and remove the laundry.
34
3. Turn off the water tap.
34
Note:
34
Notes
34
a Intelligent dosing system
35
Intelligent dosing system
35
Familiarising yourself with Ž i-DOS
35
Ž i-DOS Detergent drawer
35
Before setting up Ž i-DOS
35
Notes
35
Automatic dosing
35
The automatic dosage operates as follows:
35
1. Switch on the appliance.
35
2. Select a programme with Ž i-DOS settings.
35
3. Start the programme.
35
Tip:
36
Notes
36
Ž i-DOS Setting the dosage
36
Check whether the preset basic dosages follow the manufacturer's recommendations in terms of:
36
Below is an example of detergent dosages on a packaging label:
36
For standard load 4 - 5 kg
36
Level of soiling
36
light
36
normal
36
heavy
36
Adjusting the basic dosage
36
1. Press and hold Ž i-DOS for approx. three seconds.
36
2. Change the setting using: ñ Finished in
36
3. Briefly press Ž i-DOS.
36
4. Change the setting using: ñ Finished in
36
5. Press and hold Ž i-DOS for approx. three seconds, briefly press any other selectable button or wait approx. 10 seconds to exit setting mode.
37
Notes
37
Filling the dispensers
37
Notes
37

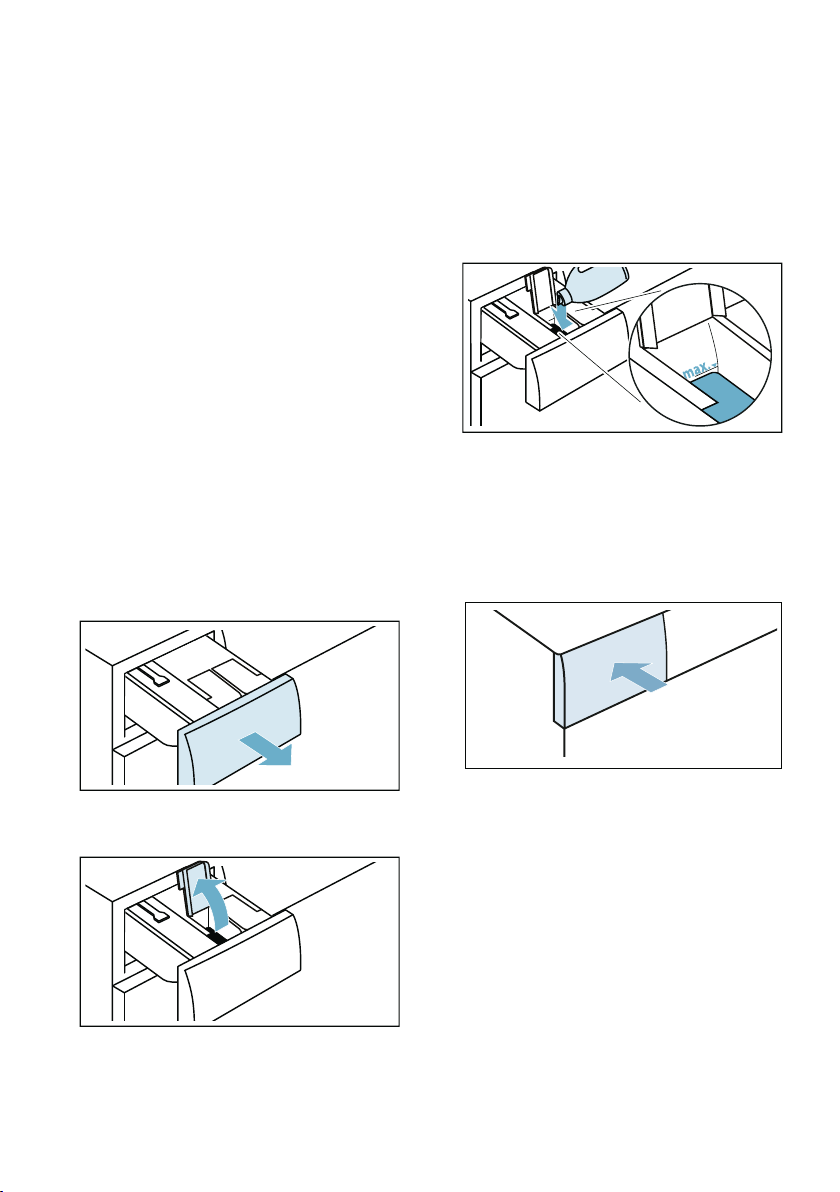

Fill the dispensers as follows:
37
1. Pull out the detergent drawer.
37
2. Open the dispenser lids.
37
3. Pour liquid detergent and fabric softener into the relevant dispensers.
37
Notes
37
4. Close the dispenser lids.
37
Note:
37
5. Push in the detergent drawer.
37
Note:
37
Manual dosing
38
Note:
38
Dosing and adding detergent
38
Note:
38

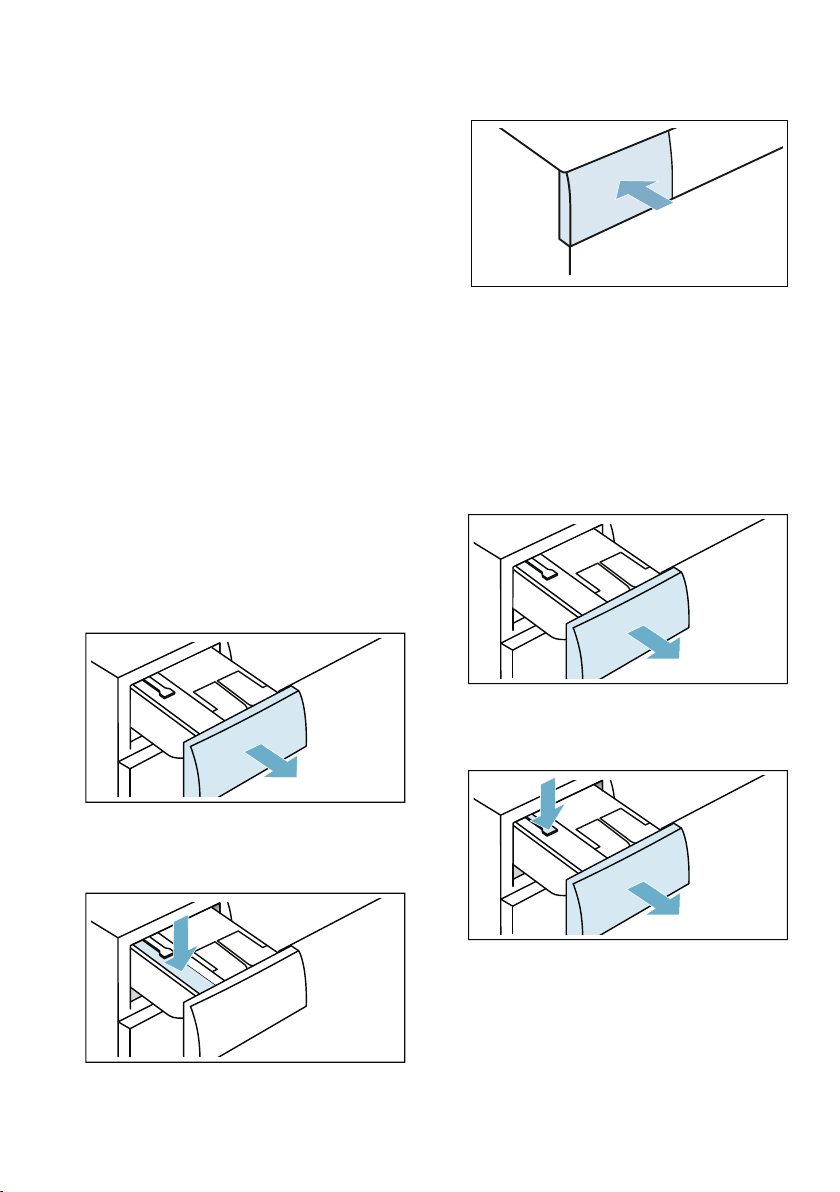

1. Pull out the detergent drawer.
38
2. Pour laundry detergent and/or care product into the manual dosing compartment.
38
3. Push in the detergent drawer.
38

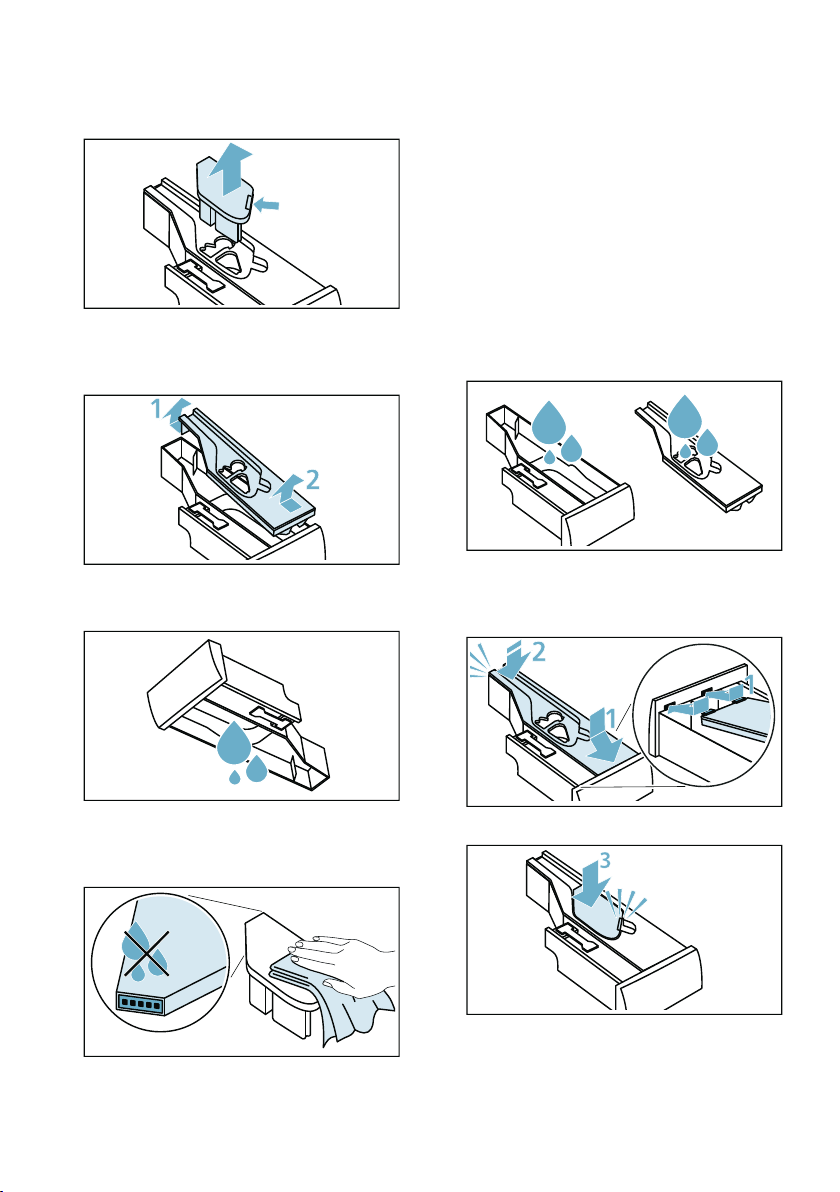

Emptying the Ž i-DOS detergent drawer, cleaning the Ž i-DOS detergent drawer and its housing, cleaning the Ž i-DOS pump unit
38
1. Switch off the appliance.
38
2. Pull out the detergent drawer.
38
3. Press down the insert and remove the drawer completely.
38
4. Press the pump unit insert and remove it.
39
5. Unclip the rear detergent drawer lid and remove it.
39
6. Empty the detergent drawer.
39
7. Clean the pump unit with a damp cloth.
39
Caution!
39
8. Clean the drawer, inside surface and lids with a soft, damp cloth or a hand shower.
39
9. Dry the drawer, lids and pump unit and put them back together.
39
10. Clean the inside of the detergent drawer housing.
40
11. Push in the detergent drawer.
40
Q Appliance settings
40
Appliance settings
40

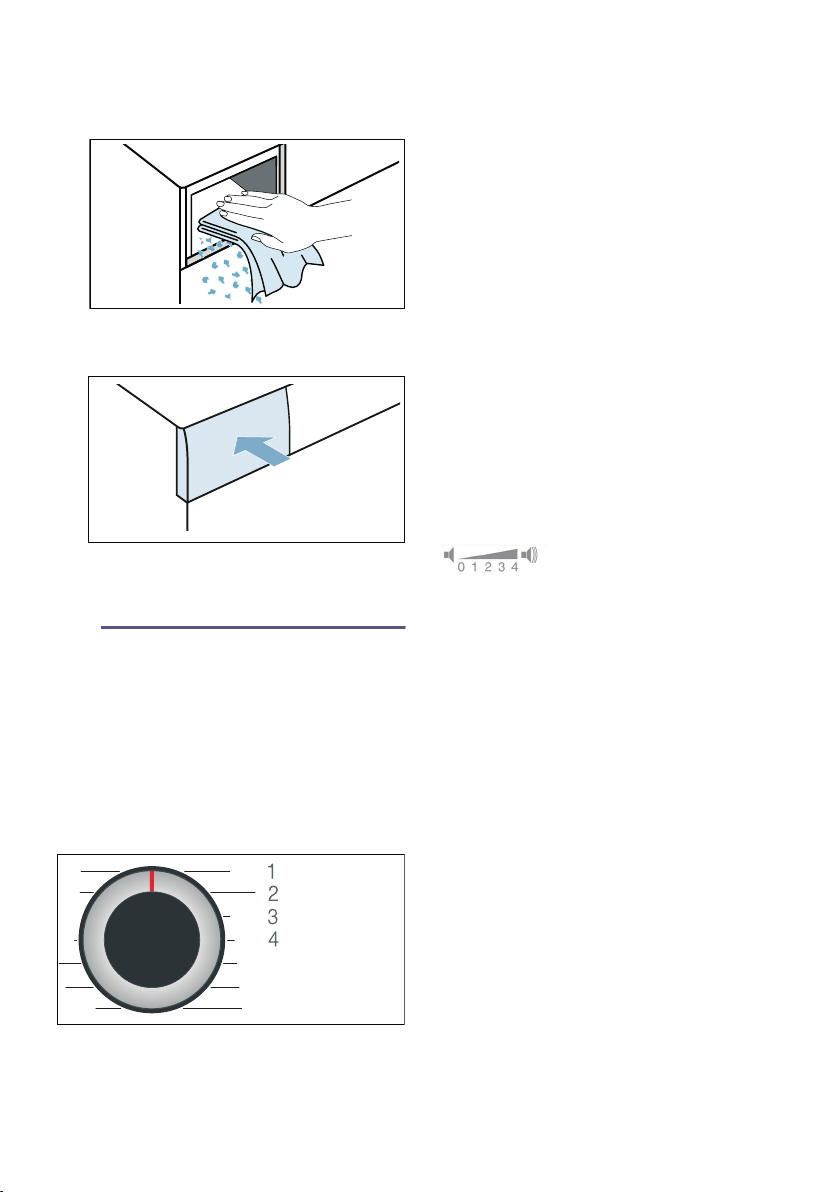

Activate setting mode:
40
1. Set the programme selector to position 1. The appliance is switched on.
40
2. Touch and hold the 0 rpm button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 rpm button.
40
Changing the volume and drum care information
40
H Sensors
41
Sensors
41
Unbalanced load detection system
41
Note:
41
Aqua-Sensors
41
2 Cleaning and maintenance
41
Cleaning and maintenance
41
: Warning
41
Risk of death!
41
Caution!
41
Fire and explosion hazard!
41
Caution!
41
The appliance may be damaged!
41
Appliance housing/control panel
41
Drum
41
Descaling
41

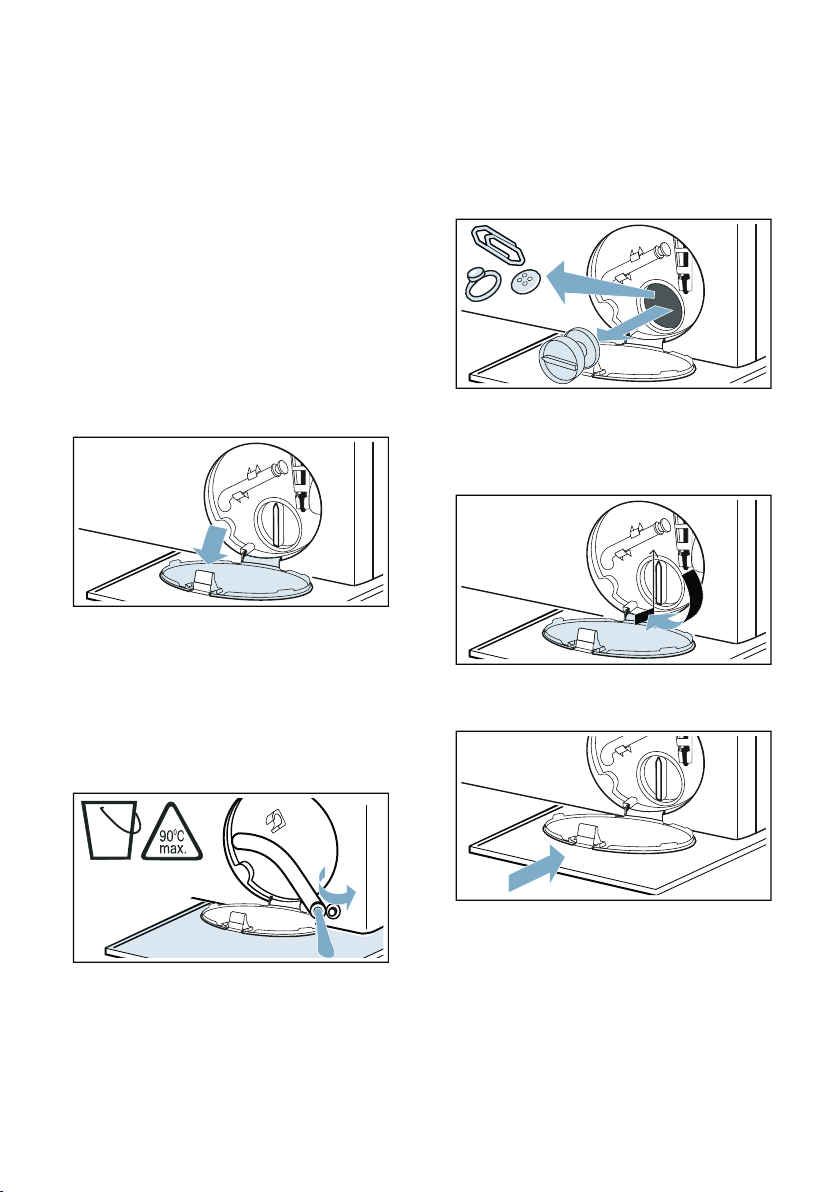

Drain pump is blocked
42
Note:
42
: Warning
42
Risk of scalding!
42
1. Turn the programme selector to Off. Pull out the mains plug.
42
2. Open the service flap.
42
3. Take the drain hose out of the retainer.
42
4. Carefully unscrew the pump cover; residual water may leak out.
42
5. Refit and screw on the pump cover. The handle must be in a vertical position.
42
6. Close the service flap.
42
Note:
42

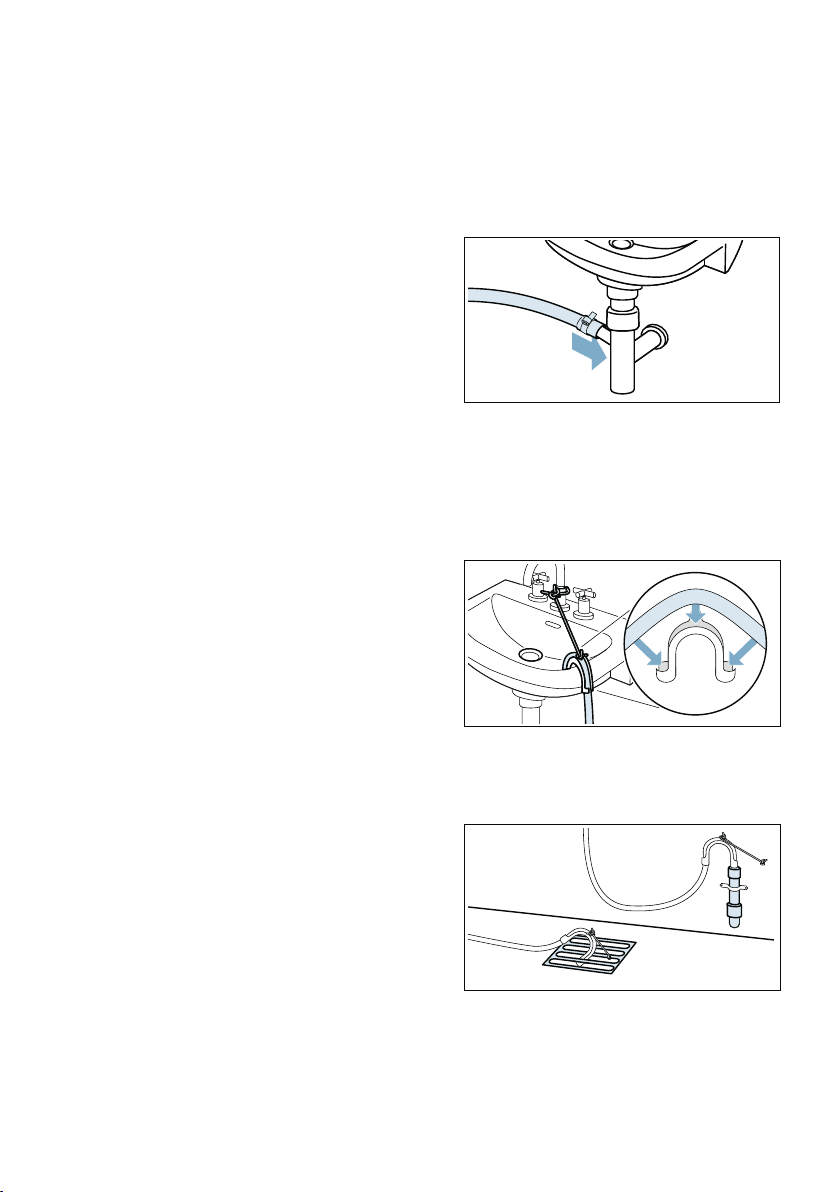

The drain hose at the siphon is blocked
43
1. Turn the programme selector to Off. Pull out the mains plug.
43
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
43
3. Clean the drain hose and siphon connecting piece.
43
4. Re-attach the drain hose and secure the connection point using the hose clamp.
43

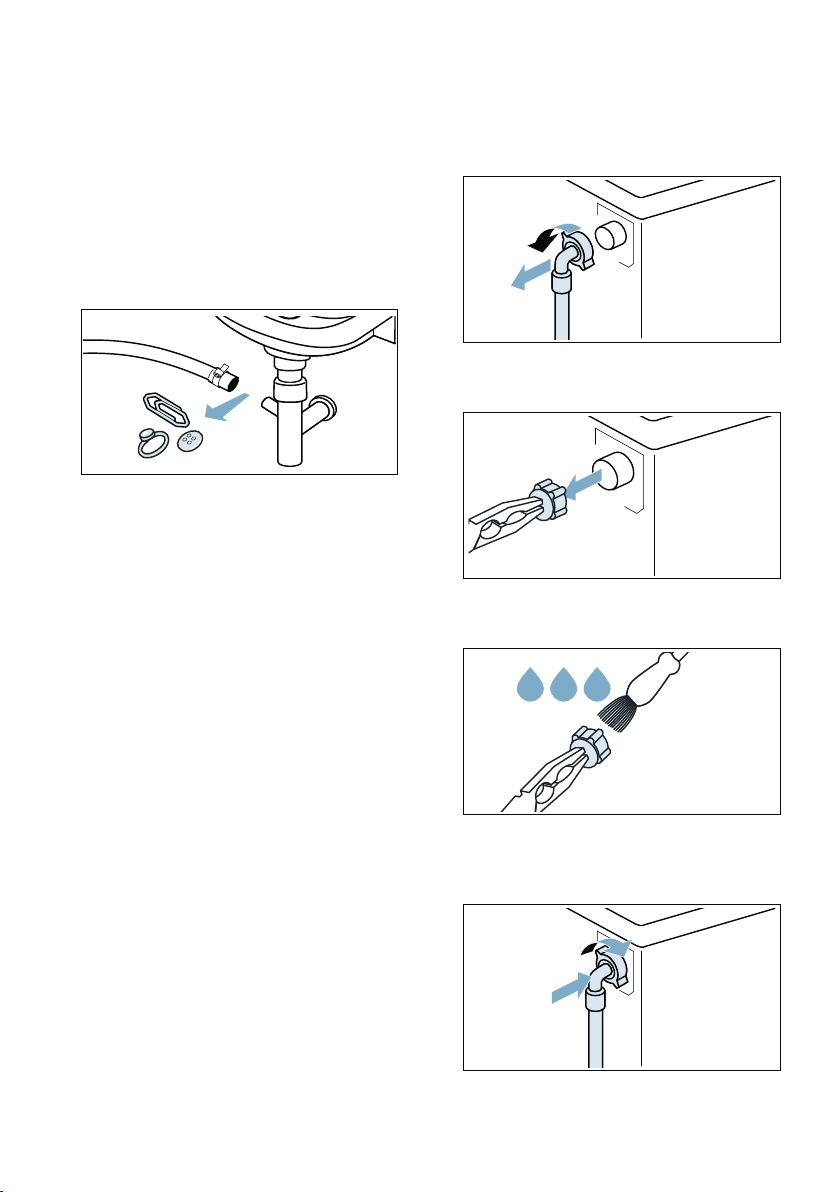

Filter in the water supply is blocked
43
1. Turn off the water tap.
43
2. Select the i Cottons (activate G SpeedPerfect setting) programme.
43
Note:
43
3. Select the Start/Reload A button. Allow the programme to run for approx. 40 seconds.
43
4. Turn the programme selector to Off.
43
5. Pull out the mains plug.
43
1. Disconnect the hose from the rear of the appliance.
43
2. Use pliers to remove the filter.
43
3. Clean the filter with a small brush.
43
4. Connect the hose and check for leaks.
43
3 Faults and what to do about them
44
Faults and what to do about them
44
Emergency release
44
: Warning
44
Risk of scalding!
44
: Warning
44
Risk of injury!
44
Caution!
44
Water damage!
44
1. Turn the programme selector to Off. Pull out the mains plug.
44
2. Open the service flap.
44
3. Drain the water. ~ Page 42
44
4. Pull the emergency release downwards with a tool and release.
44
Information on the display panel
45
Display
45
Cause/Remedy
45
Notes
45
Faults and what to do about them
46
Faults
46
Cause/Remedy
46
Note:
46
Note:
48
4 After-sales service
49
After-sales service
49
[ Consumption values
50
Consumption values
50
Recommended wash mode for normally soiled clothes at rated load capacity used for the evaluation of the captioned model under the Singapore Mandatory Water Efficiency Labelling Scheme (MWELS) is 0 Cottons Eco 60°C.
50
J Technical data
51
Technical data
51
r Aqua-Stop warranty
51
Aqua-Stop warranty
51
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
51
2. The liability guarantee is valid for the service life of the appliance.
51
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
51
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
51
*9001449174*
52
Thank you for buying a Bosch Home Appliance!
52
Looking for help? You´ll find it here.
52
File type: PDF
File name: 96173620_wgg254a0sg-01.pdf
File size: 2.25 MB
File Language: English
Pages: 52
Author: Bosch
File created: 2020-03-12
Published: 2023-12-24
Updated: 2023-12-23
Download File
Specifications
Brand:
Bosch
Model: WGG254A0SG/01
View in the file:
Full Specifications
See other models:
BGN21702/03
PIX675N24E/01
HKT59A120U/02
BBH21621/01
TEK1120/01
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WGG244A0SG/01
Bosch WGG254A0SG
Bosch WGA154A00W/01
Bosch WGG234E0SG/01
Bosch WGA154A80W/01
Bosch WGG25401GB
Bosch WGG244A0NL
Bosch WGG454A0TH
Bosch WGG254F0GB
Bosch WGG25402GB
Bosch WGA144XVEG/01
Bosch WGA152X80W/01
Bosch WGA152U00W/01
Bosch WGA142XVGC/01
Bosch WGA142X0GC/01
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 11
3
5 Positioning and connecting 12
3
* Getting to know the appliance 21
3
Z Laundry 24
3
C Detergent 26
3
P Overview of programmes 27
3
0 Programme default settings 30
3
\ Additional programme settings 31
3
1 Operating the appliance 32
3
a Intelligent dosing system 35
3
Q Appliance settings 40
4
H Sensors 41
4
2 Cleaning and maintenance 41
4
3 Faults and what to do about them 44
4
4 After-sales service 49
4
[ Consumption values 50
4
J Technical data 51
4
r Aqua-Stop warranty 51
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
8
Material damage/damage to the appliance
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
10
Material damage/damage to the appliance
10
7 Environmental protection
11
Environmental protection
11
Packaging/used appliance
11
Tips on economical use
11
5 Positioning and connecting
12
Positioning and connecting
12
Standard accessories
12
Note:
12
Safety instructions
13
: Warning
13
Risk of injury!
13
Caution!
13
Damage to the appliance
13
Caution!
13
Water damage
13
Notes
13
Installation surface
13
Note:
13
Installation on a base or a wooden joist floor
13
Caution!
13
Damage to the appliance
13
Note:
13
Installing the appliance in a kitchenette
13
: Warning
13
Risk of death!
13
Notes
13
Removing the transport locks
14
Caution!
14
Damage to the appliance
14
Note:
14
1. Take the hoses out of the holders.
14
2. Unscrew and remove all four transport brace screws.
14
a) Remove the mains cable from the holders.
14
b) Remove the sleeves.
14
3. Fit the covers.
14
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
15
Removing the support struts
15
1. Unscrew and remove all screws in the vertical transport struts.
15
2. Remove the transport struts.
15
3. Undo and remove the screws on the horizontal transport strut.
15
4. Remove the transport strut.
15
Hose and cable lengths
15
Note:
16
Water inlet
16
: Warning
16
Risk of death!
16
Notes
16
1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
16
Tip:
16
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
17
Water outlet
17
: Warning
17
Risk of scalding!
17
Caution!
17
Water damage
17
Caution!
17
Damage to the appliance/fabrics
17
Note:
17
Note:
17
Alignment
18
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
18
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
18
3. Tighten the lock nut against the housing.
18
Electrical connection
18
: Warning
18
Risk of death!
18
Notes
18
Before washing for the first time
19
Note:
19
1. Insert mains plug.
19

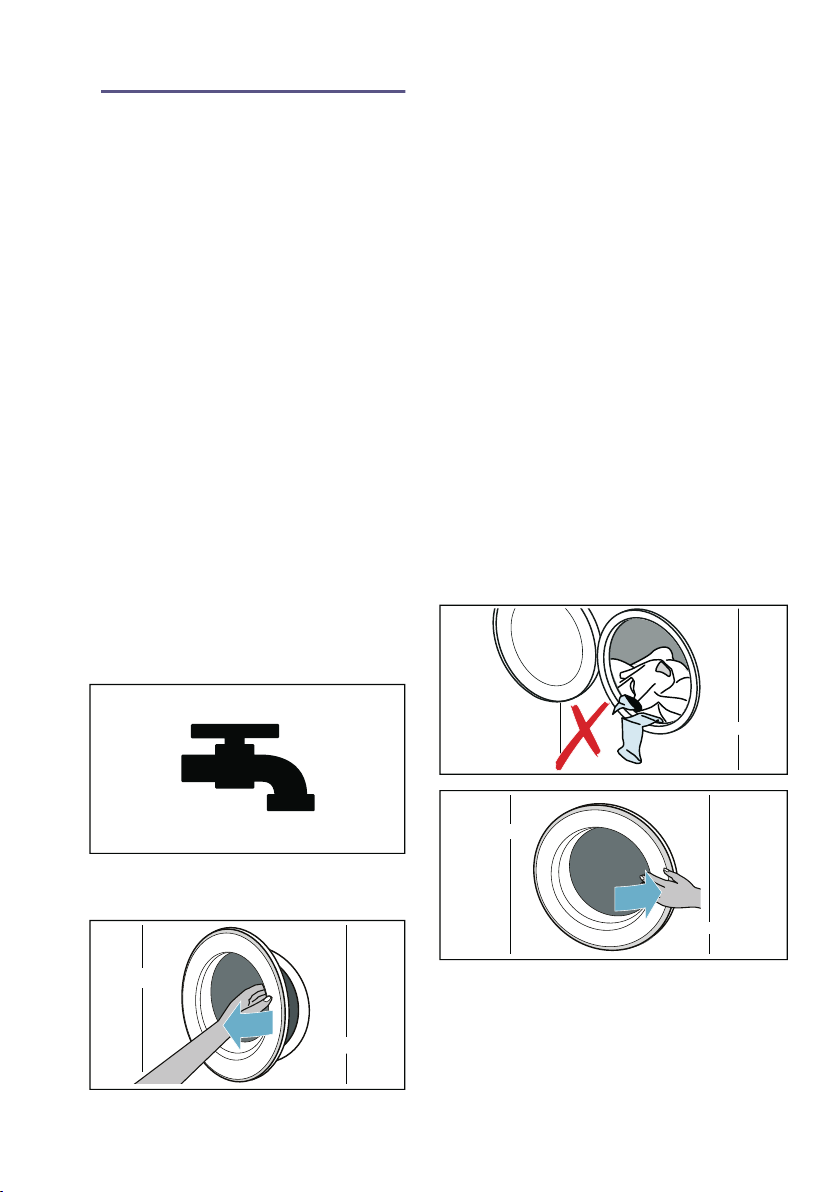

2. Turn the water tap on.
19
3. Close the door. Do not load any laundry.
19
4. Select the Û Drum Clean 90°C programme.
19
5. Open the detergent drawer.
19
6. Pour approx. 1 litre of water into manual dosing compartment.
19
7. Add standard detergent to manual dosing compartment according to manufacturer’s instructions for light soiling.
19
Note:
19
8. Close the detergent drawer.
19
9. Select Start/Reload A.
19
10. When the programme ends, turn the programme selector to Off.
19
Transportation
19
1. Turn off the water tap.
19
2. Reduce the water pressure in the supply hose. ~ Page 43
19
3. Drain any residual water. ~ Page 42
19
4. Disconnect the appliance from the mains.
19
5. Remove the hoses.
19
6. Empty the dispensers.
19
Caution!
19
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
19
1. Remove the covers and keep them in a safe place.
19
Note:
19

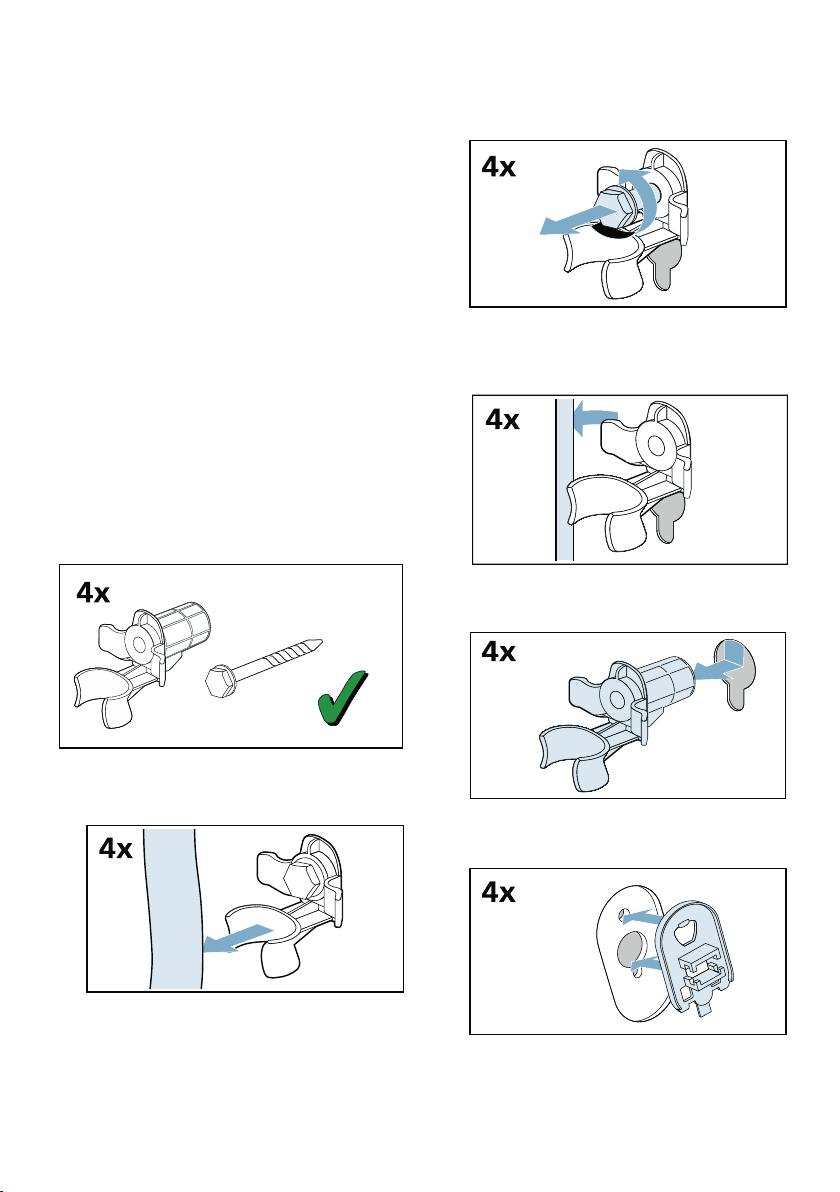

2. Insert all four sleeves.
20
a) Clip the mains cable securely in the holders.
20
b) Insert and tighten the screws.
20
c) Clip the hoses securely in the holders.
20
Notes
20
* Getting to know the appliance
21
Getting to know the appliance
21
Appliance
21
Control panel
22
Display panel
23
Programme default settings
23
Display
23
Setting
23
Description
23
Additional programme settings
23
Display
23
Setting
23
Intelligent dosing system (Ž i-DOS)
23
Display
23
Setting
23
Status indicators for the programme progress (programme sequence)
24
Display
24
Setting
24
Z Laundry
24
Laundry
24
Protecting your laundry and appliance
24
Caution!
24
Damage to the appliance/textiles
24
Sorting laundry
25
Note:
25
Starching
25
Note:
25
1. Switch on the appliance.
25
2. Select the à Rinse programme.
25
3. Measure starch into manual dosing compartment in accordance with the manufacturer's instructions (clean first if necessary).
25
4. Touch the Start/Reload A button.
25
Dyeing/bleaching
25
C Detergent
26
Detergent
26
Correct selection of detergent
26
Saving energy and detergent
26
Saving
26
Soiling/note
26
Note:
26
P Overview of programmes
27
Overview of programmes
27
Selectable programme
27
Programme/Type of washing
27
Options/Information
27
Note:
27
Notes
28
Note:
29
Note:
29
Note:
29
Note:
29
0 Programme default settings
30
Programme default settings
30
6 Temp. °C
30
0 rpm
30
ñ Finished in
30
1. Select a programme (except myTime programme).
30
2. Select the ñ Finished in button repeatedly until the required number of hours is displayed.
30
3. Select the Start/Reload A button.
30
Note:
30
1. Select the Start/Reload A button.
30
2. Select the ñ Finished in button repeatedly to change the number of hours.
30
3. Select the Start/Reload A button.
30
\ Additional programme settings
31
Additional programme settings
31
Note:
31
T Prewash
31
Notes
31
Ï Rinse Plus
31
p Easy Iron
31
Note:
31
G SpeedPerfect
31
Note:
31
Ž i-DOS setting
31
1 Operating the appliance
32
Operating the appliance
32
Preparing the appliance
32
Notes
32
1. Insert mains plug.
32
: Warning
32
Risk of death from electric shock!
32
2. Turn the water tap on.
32
3. Open the appliance door.
32
Select programme/switch on the appliance
32
Note:
32
Placing laundry into the drum
32
Notes
33
Measuring and adding detergent and care products
33
Starting the programme
33
Childproof lock
33
Note:
33
Adding/removing laundry
33
Notes
34
Changing the programme
34
1. Touch the Start/Reload A button.
34
2. Select another programme.
34
3. And touch the Start/Reload A button again. The new programme starts from the beginning.
34
Cancel the programme
34
1. Touch the Start/Reload A button.
34
2. To cool down laundry: Select à Rinse.
34
3. And touch the Start/Reload A button again.
34
1. Touch the Start/Reload A button.
34
2. Select 0 [ Spin/Drain.
34
3. And touch the Start/Reload A button again.
34
Programme end
34
Removing laundry/switching off the appliance
34
1. Set programme selector to Off.
34
2. Open the door and remove the laundry.
34
3. Turn off the water tap.
34
Note:
34
Notes
34
a Intelligent dosing system
35
Intelligent dosing system
35
Familiarising yourself with Ž i-DOS
35
Ž i-DOS Detergent drawer
35
Before setting up Ž i-DOS
35
Notes
35
Automatic dosing
35
The automatic dosage operates as follows:
35
1. Switch on the appliance.
35
2. Select a programme with Ž i-DOS settings.
35
3. Start the programme.
35
Tip:
36
Notes
36
Ž i-DOS Setting the dosage
36
Check whether the preset basic dosages follow the manufacturer's recommendations in terms of:
36
Below is an example of detergent dosages on a packaging label:
36
For standard load 4 - 5 kg
36
Level of soiling
36
light
36
normal
36
heavy
36
Adjusting the basic dosage
36
1. Press and hold Ž i-DOS for approx. three seconds.
36
2. Change the setting using: ñ Finished in
36
3. Briefly press Ž i-DOS.
36
4. Change the setting using: ñ Finished in
36
5. Press and hold Ž i-DOS for approx. three seconds, briefly press any other selectable button or wait approx. 10 seconds to exit setting mode.
37
Notes
37
Filling the dispensers
37
Notes
37
Fill the dispensers as follows:
37
1. Pull out the detergent drawer.
37
2. Open the dispenser lids.
37
3. Pour liquid detergent and fabric softener into the relevant dispensers.
37
Notes
37
4. Close the dispenser lids.
37
Note:
37
5. Push in the detergent drawer.
37
Note:
37
Manual dosing
38
Note:
38
Dosing and adding detergent
38
Note:
38
1. Pull out the detergent drawer.
38
2. Pour laundry detergent and/or care product into the manual dosing compartment.
38
3. Push in the detergent drawer.
38
Emptying the Ž i-DOS detergent drawer, cleaning the Ž i-DOS detergent drawer and its housing, cleaning the Ž i-DOS pump unit
38
1. Switch off the appliance.
38
2. Pull out the detergent drawer.
38
3. Press down the insert and remove the drawer completely.
38
4. Press the pump unit insert and remove it.
39
5. Unclip the rear detergent drawer lid and remove it.
39
6. Empty the detergent drawer.
39
7. Clean the pump unit with a damp cloth.
39
Caution!
39
8. Clean the drawer, inside surface and lids with a soft, damp cloth or a hand shower.
39
9. Dry the drawer, lids and pump unit and put them back together.
39
10. Clean the inside of the detergent drawer housing.
40
11. Push in the detergent drawer.
40
Q Appliance settings
40
Appliance settings
40
Activate setting mode:
40
1. Set the programme selector to position 1. The appliance is switched on.
40
2. Touch and hold the 0 rpm button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 rpm button.
40
Changing the volume and drum care information
40
H Sensors
41
Sensors
41
Unbalanced load detection system
41
Note:
41
Aqua-Sensors
41
2 Cleaning and maintenance
41
Cleaning and maintenance
41
: Warning
41
Risk of death!
41
Caution!
41
Fire and explosion hazard!
41
Caution!
41
The appliance may be damaged!
41
Appliance housing/control panel
41
Drum
41
Descaling
41
Drain pump is blocked
42
Note:
42
: Warning
42
Risk of scalding!
42
1. Turn the programme selector to Off. Pull out the mains plug.
42
2. Open the service flap.
42
3. Take the drain hose out of the retainer.
42
4. Carefully unscrew the pump cover; residual water may leak out.
42
5. Refit and screw on the pump cover. The handle must be in a vertical position.
42
6. Close the service flap.
42
Note:
42
The drain hose at the siphon is blocked
43
1. Turn the programme selector to Off. Pull out the mains plug.
43
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
43
3. Clean the drain hose and siphon connecting piece.
43
4. Re-attach the drain hose and secure the connection point using the hose clamp.
43
Filter in the water supply is blocked
43
1. Turn off the water tap.
43
2. Select the i Cottons (activate G SpeedPerfect setting) programme.
43
Note:
43
3. Select the Start/Reload A button. Allow the programme to run for approx. 40 seconds.
43
4. Turn the programme selector to Off.
43
5. Pull out the mains plug.
43
1. Disconnect the hose from the rear of the appliance.
43
2. Use pliers to remove the filter.
43
3. Clean the filter with a small brush.
43
4. Connect the hose and check for leaks.
43
3 Faults and what to do about them
44
Faults and what to do about them
44
Emergency release
44
: Warning
44
Risk of scalding!
44
: Warning
44
Risk of injury!
44
Caution!
44
Water damage!
44
1. Turn the programme selector to Off. Pull out the mains plug.
44
2. Open the service flap.
44
3. Drain the water. ~ Page 42
44
4. Pull the emergency release downwards with a tool and release.
44
Information on the display panel
45
Display
45
Cause/Remedy
45
Notes
45
Faults and what to do about them
46
Faults
46
Cause/Remedy
46
Note:
46
Note:
48
4 After-sales service
49
After-sales service
49
[ Consumption values
50
Consumption values
50
Recommended wash mode for normally soiled clothes at rated load capacity used for the evaluation of the captioned model under the Singapore Mandatory Water Efficiency Labelling Scheme (MWELS) is 0 Cottons Eco 60°C.
50
J Technical data
51
Technical data
51
r Aqua-Stop warranty
51
Aqua-Stop warranty
51
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
51
2. The liability guarantee is valid for the service life of the appliance.
51
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
51
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
51
*9001449174*
52
Thank you for buying a Bosch Home Appliance!
52
Looking for help? You´ll find it here.
52
Search:
×
Search
