Honeywell HG04854 Liquid Cooled 48kW Home Standby Generator User Manual

This manual should remain with the unit.

4.2L

45kW Models

EPA Certified

Owner's Manual

Stationary Emergency Generator

Cover203 Rev. A 12/10 Part No. 0J2967

NOT INTENDED FOR USE IN CRITICAL LIFE SUPPORT

APPLICATIONS.

ONLY QUALIFIED ELECTRICIANS OR CONTRACTORS

SHOULD ATTEMPT INSTALLATION! DEADLY EXHAUST

FUMES! OUTDOOR INSTALLATION ONLY!

SECTION PAGE

INTRODUCTION ........................................................... 1-1

Read this Manual Thoroughly .......................................................1-1

Operation and Maintenance ..........................................................1-1

How to Obtain Service .................................................................1-1

SAFETY RULES ............................................................ 1-2

IDENTIFICATION RECORD .......................................... 2-1

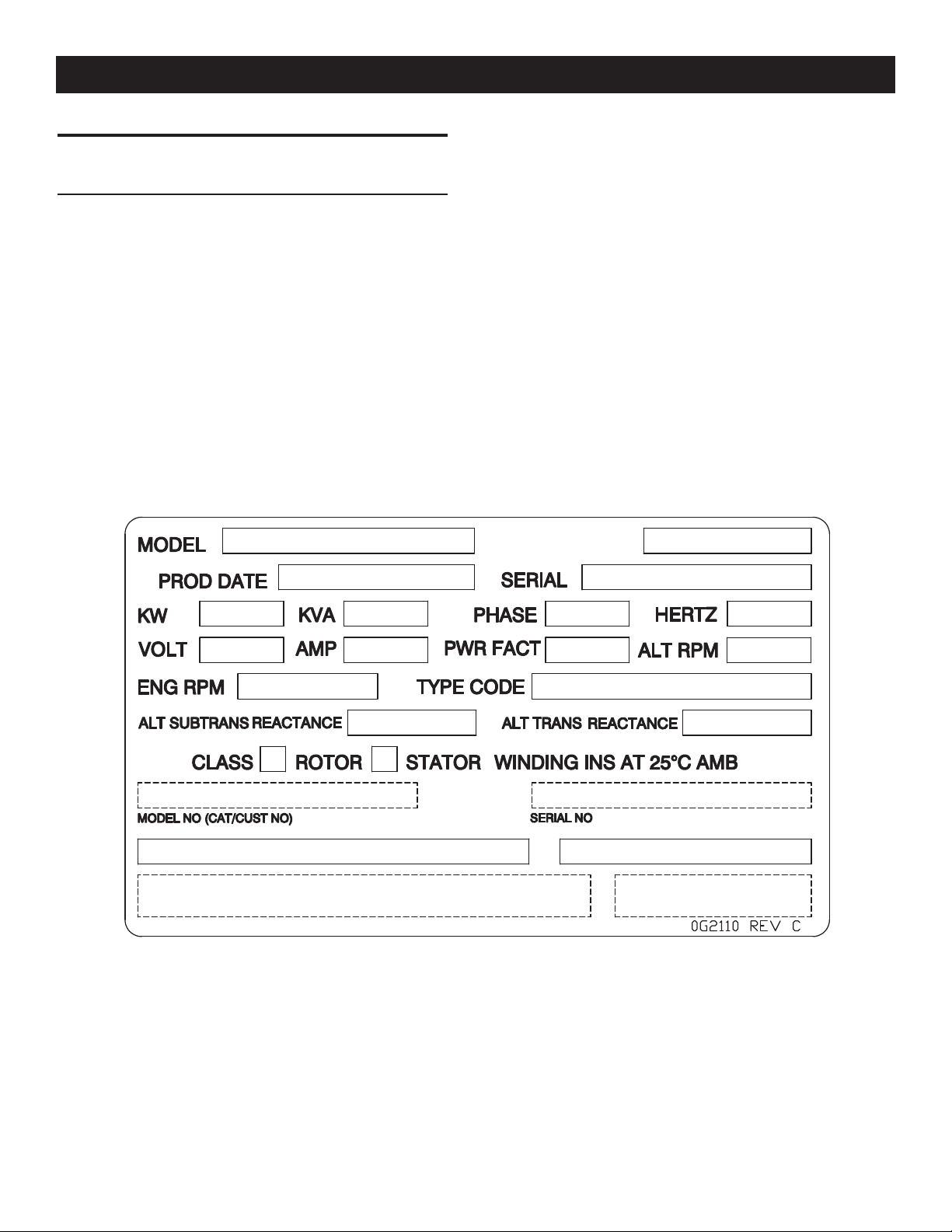

Data Label ...................................................................................2-1

EQUIPMENT DESCRIPTION ........................................ 3-1

Equipment Description .....................................................................3-1

Engine Oil Recommendations ...........................................................3-1

Coolant Recommendations ..............................................................3-1

ENGINE PROTECTIVE DEVICES ................................. 4-1

Engine Protective Devices ................................................................4-1

High Coolant Temperature Sender ................................................4-1

Low Coolant Level Sensor ............................................................4-1

Low Oil Pressure Switch ..............................................................4-1

Overcrank Shutdown ....................................................................4-1

Overspeed Shutdown ...................................................................4-1

RPM Sensor Loss Shutdown........................................................4-1

DC Fuses .....................................................................................4-1

FUEL SYSTEM .............................................................. 5-1

Fuel Requirements .......................................................................5-1

Natural Gas Fuel System ..............................................................5-1

Propane Vapor Withdrawal Fuel System ........................................5-1

LP Liquid Fuel System ..................................................................5-1

SPECIFICATIONS ......................................................... 6-1

Stationarey Emergency Generator.................................................6-1

Engine .........................................................................................6-1

Cooling System............................................................................6-1

Fuel System .................................................................................6-1

Electrical System .........................................................................6-1

Weather and Maintenance Kits .....................................................6-2

Reconfiguring the Fuel System .........................................................6-2

Fuel System .................................................................................6-2

Control Panel ...............................................................................6-2

GENERAL INFORMATION ............................................ 7-1

Alternator AC Lead Connections .......................................................7-1

Four-lead, Single-phase Stator ......................................................7-1

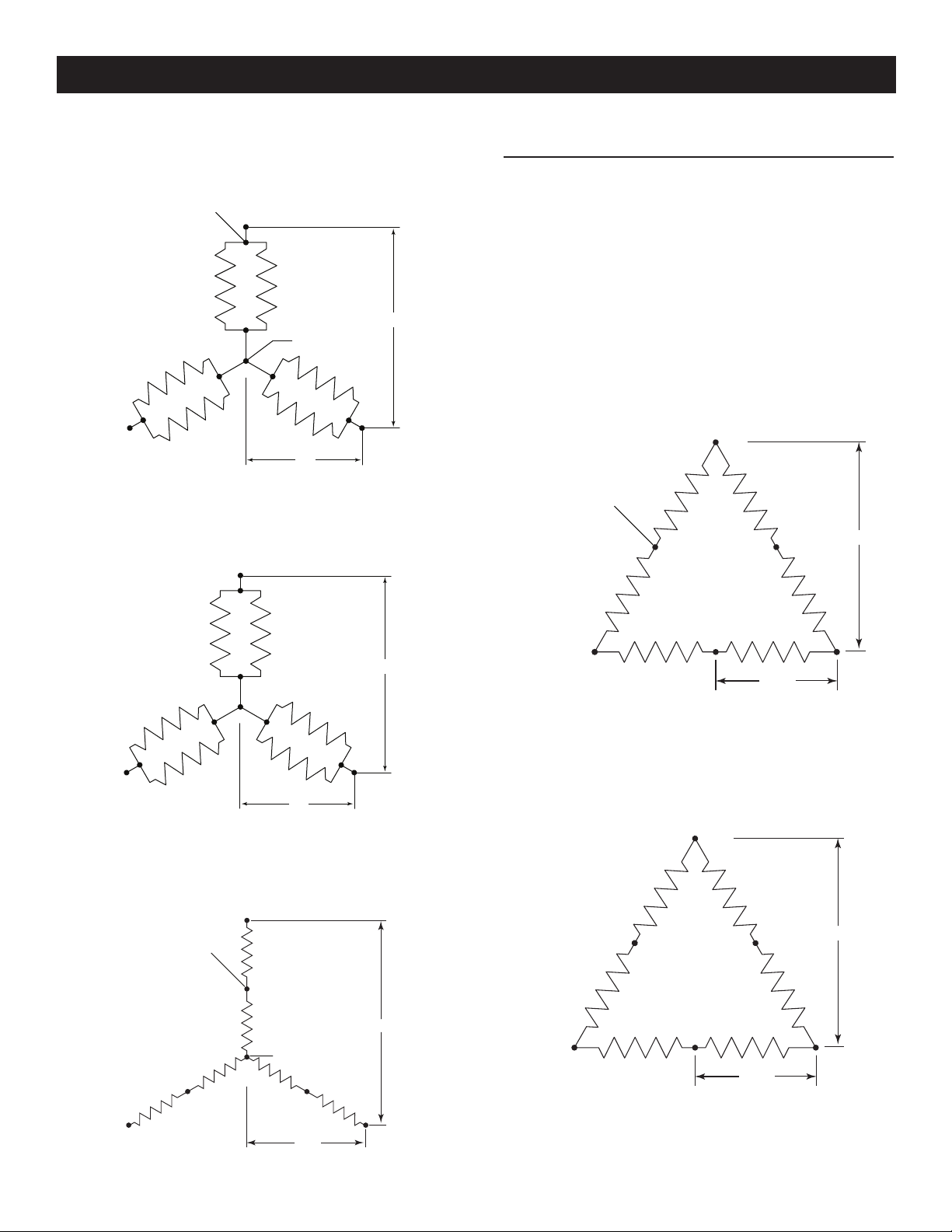

Alternator Power Winding Connections .............................................7-1

3-phase Alternators ("Y" Configuration) ........................................7-1

3-phase Alternators ("Delta" Configuration)...................................7-2

CONTROL PANEL ......................................................... 8-1

Control Panel Interface .....................................................................8-1

Using the Auto/Off/Manual Switch ................................................8-1

Activate the Generator ......................................................................8-1

Display Interface Menus ...................................................................8-1

Activation Chart ...........................................................................8-2

Setting the Exercise Timer ................................................................8-3

Low Speed Exercise .....................................................................8-3

User Adjustable Settings ..................................................................8-3

Fuel Conversion ...............................................................................8-3

Operation ......................................................................................... 8-3

Automatic Transfer Operation .......................................................8-3

Sequence of Automatic Operation ................................................8-4

Crank Cycles and Overcrank Shutdown ........................................8-4

Auto Start ........................................................................................8-4

Manual Start ....................................................................................8-4

Alarm and Warning Messages ..........................................................8-4

Low Oil Pressure Shutdown Alarm ...............................................8-4

High Coolant Temperature Shutdown Alarm ..................................8-4

Overcrank Shutdown Alarm ..........................................................8-4

Overspeed Shutdown Alarm .........................................................8-4

RPM Ssensor Failure Shutdown Alarm .........................................8-4

Under-frequency Shutdown Alarm ................................................8-5

Low Battery Alarm .......................................................................8-5

Low Battery Warning....................................................................8-5

Low Coolant Level Alarm .............................................................8-5

Missing Cam Pulse Alarm ............................................................8-5

Missing Crank Pulse Alarm ..........................................................8-5

Low Fuel Pressure Warning ..........................................................8-5

Governor Sensor Fault Alarm ........................................................8-5

Wiring Error Alarm .......................................................................8-5

Undervoltage Alarm .....................................................................8-5

Overvoltage Alarm .......................................................................8-6

Internal Failure Shutdown Alarm ...................................................8-6

Canbus Alarm ..............................................................................8-6

Ignition Alarm ..............................................................................8-6

Maintenance Warning ...................................................................8-6

Alarm Cancel ...............................................................................8-6

Common Alarm Relay ......................................................................8-6

Maintenance Alerts ..........................................................................8-6

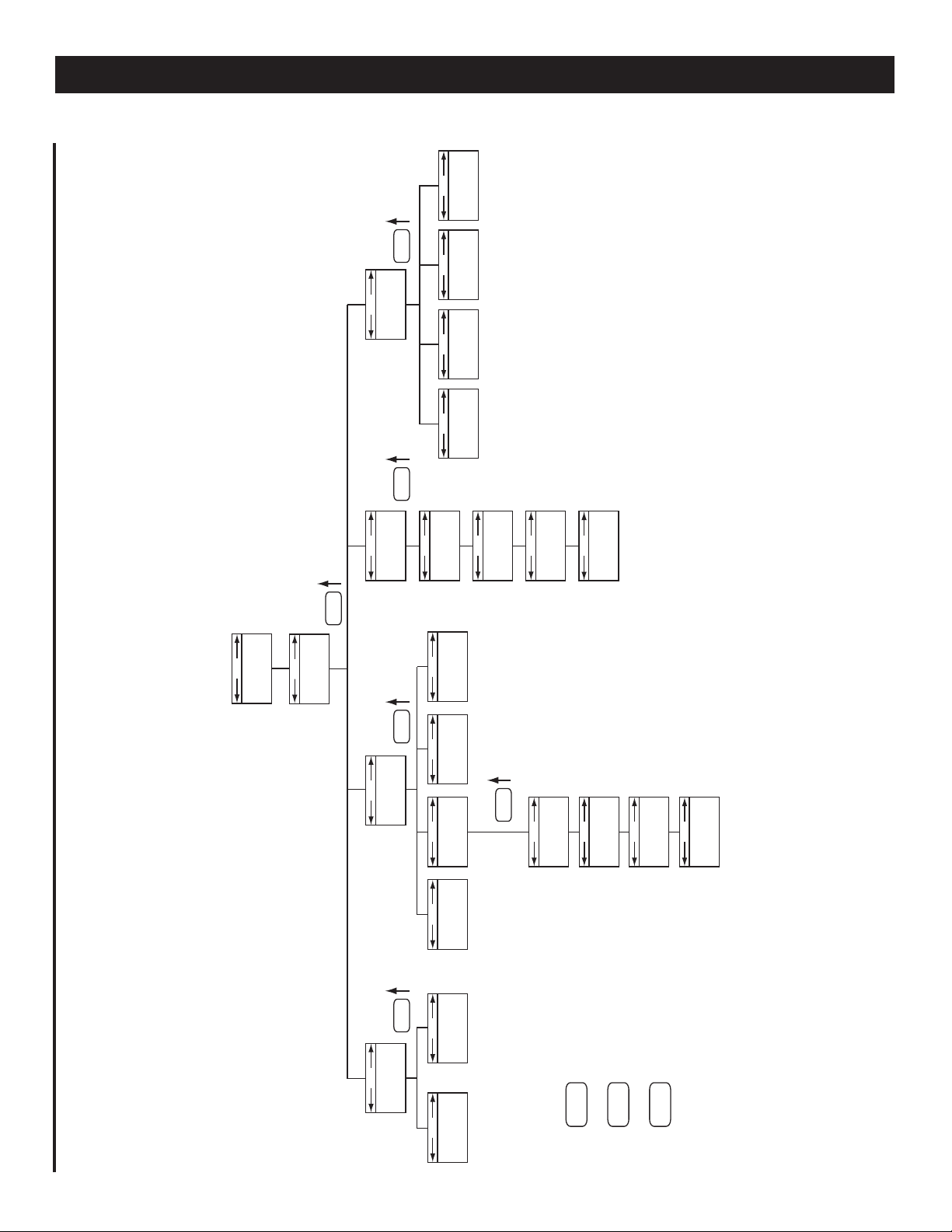

Menu System ...................................................................................8-7

OPERATION .................................................................. 9-1

Stationary Emergency Generator Control and Operation ....................9-1

Operating Unit with Manual Transfer Switch ......................................9-1

Engine Start-up and Transfer ........................................................9-1

Retransfer and Shutdown .............................................................9-1

Operating Unit with Automatic Transfer Switch .................................9-1

MAINTENANCE........................................................... 10-1

General Maintenance ......................................................................10-1

Check Engine Oil ........................................................................10-1

Changing Engine Oil ...................................................................10-1

Cooling Intake/Outlet ..................................................................10-1

Inspect Cooling System .............................................................10-1

Engine Coolant ...........................................................................10-2

Cooant Change ..........................................................................10-2

Overload Protection for Engine DC Electrical System ..................10-2

Exercise System ........................................................................10-2

Perform Visual Inspection ..........................................................10-2

Inspect Exhaust System .............................................................10-2

Check Fan Belt ...........................................................................10-2

Inspect Engine Governor ............................................................10-2

Changing the Engine Air Filter .....................................................10-2

Spark Plugs ...............................................................................10-3

Cam Sensor ...............................................................................10-3

Battery Maintenance ..................................................................10-3

Battery Replacement ..................................................................10-3

Battery Fluid ...............................................................................10-3

Cleaning the Stationary Emergency Generator ............................10-3

SERVICE SCHEDULE ................................................. 11-1

TROUBLESHOOTING ................................................. 12-1

Troubleshooting Guide ....................................................................12-1

EMISSIONS WARRANTY ............................................ 13-1

NOTES

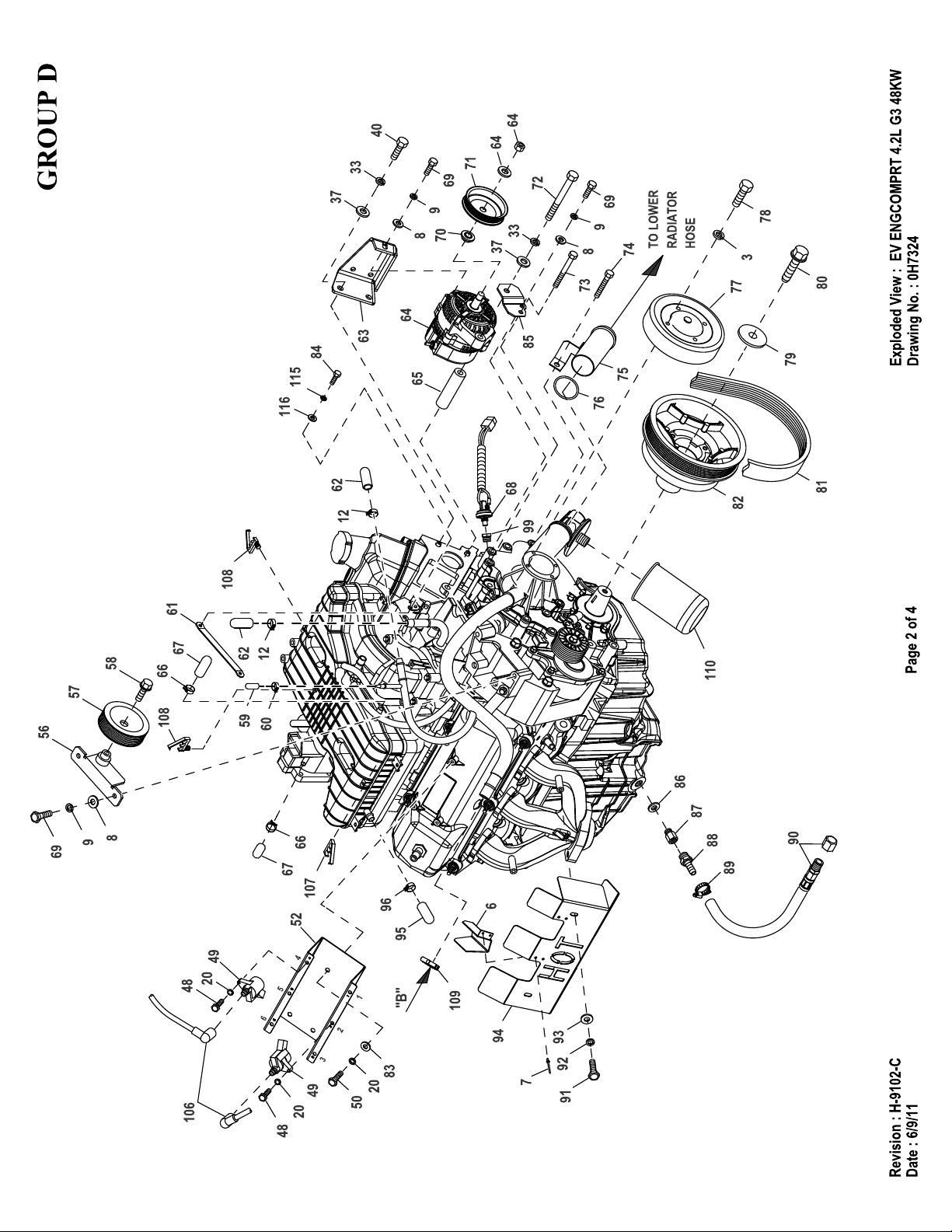

EXPLODED VIEWS & PARTS LISTS

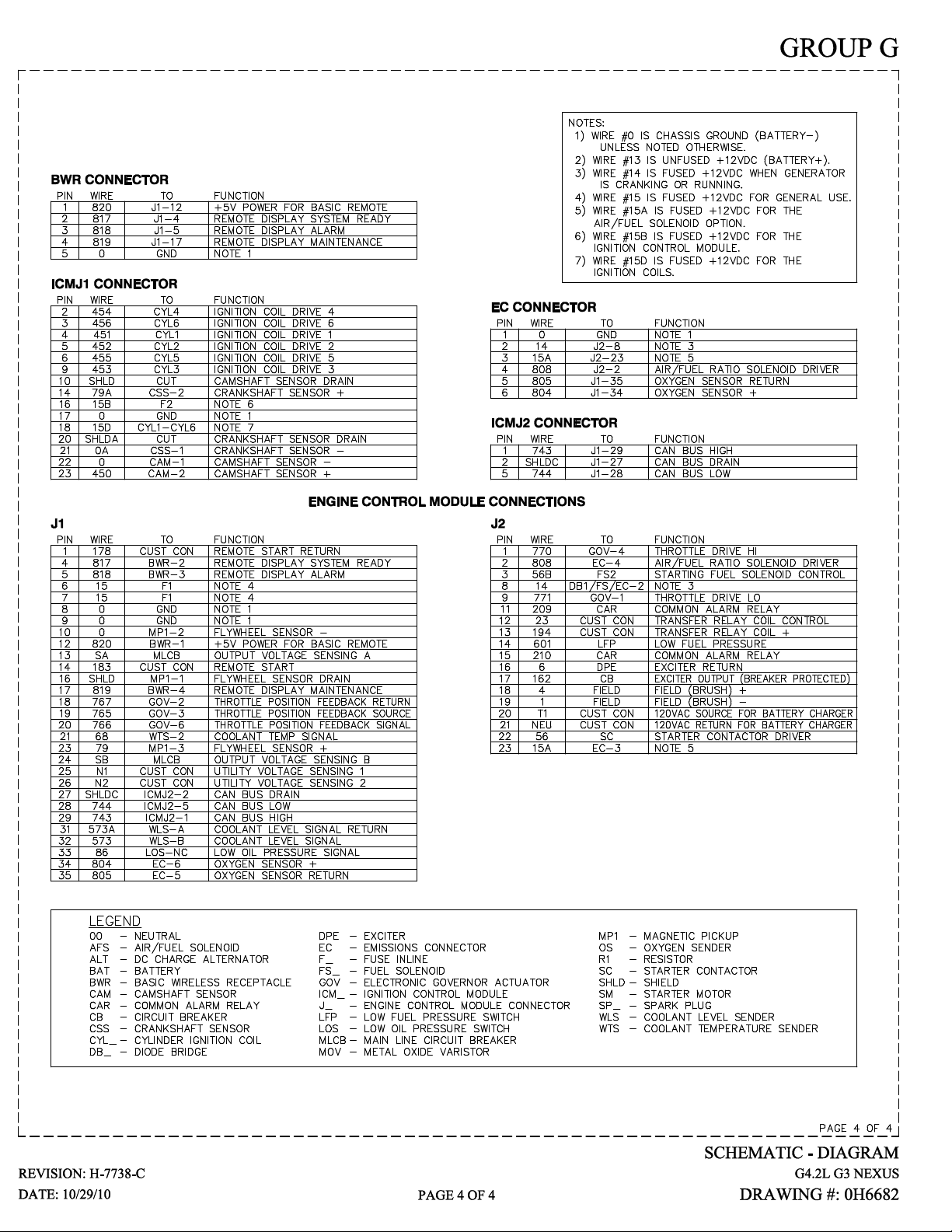

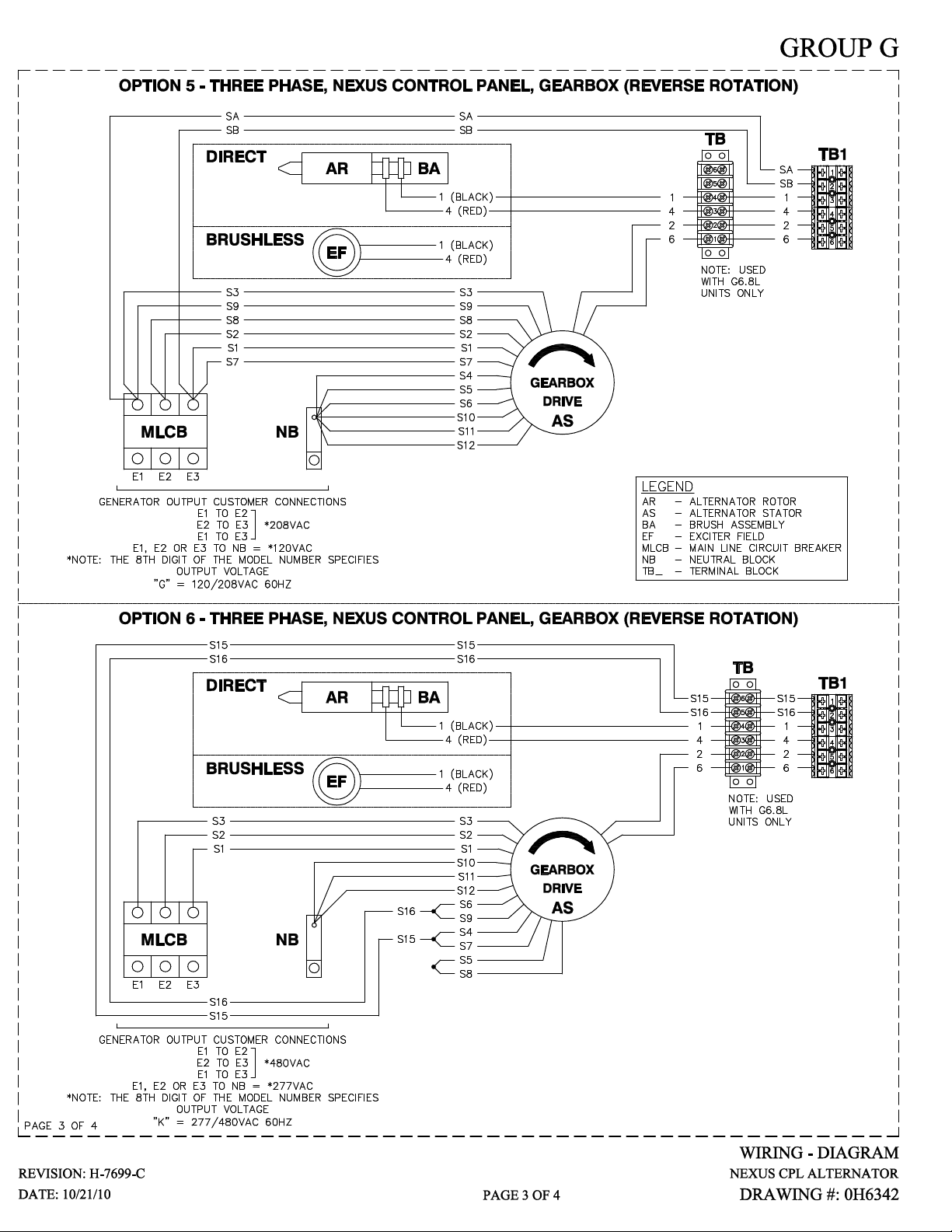

WIRING DIAGRAMS & SCHEMATICS

Content049 Rev. A 05/10

Table of Contents

INTRODUCTION

Thank you for purchasing this model of the stationary emergency

generator product line.

Every effort was expended to make sure that the information and

instructions in this manual were both accurate and current at the

time the manual was written. However, the manufacturer reserves

the right to change, alter or otherwise improve this product(s) at

any time without prior notice.

READ THIS MANUAL THOROUGHLY

If any portion of this manual is not understood, contact the nearest

Service Dealer for starting, operating and servicing procedures.

Throughout this publication, and on tags and decals affixed to the

generator, DANGER, WARNING, CAUTION and NOTE blocks are

used to alert personnel to special instructions about a particular

service or operation that may be hazardous if performed incor-

rectly or carelessly. Observe them carefully. Their definitions are

as follows:

INDICATES A HAZARDOUS SITUATION OR ACTION WHICH, IF

NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS INJURY.

Indicates a hazardous situation or action which, if not

avoided, could result in death or serious injury.

Indicates a hazardous situation or action which, if not

avoided, could result in minor or moderate injury.

NOTE:

Notes contain additional information important to a procedure

and will be found within the regular text body of this manual.

These safety warnings cannot eliminate the hazards that they

indicate. Common sense and strict compliance with the special

instructions while performing the service are essential to prevent-

ing accidents.

Four commonly used safety symbols accompany the DANGER,

WARNING and CAUTION blocks. The type of information each

indicates is as follows:

This symbol points out important safety information that,

if not followed, could endanger personal safety and/or

property of others.





This symbol points out potential explosion hazard.



This symbol points out potential fire hazard.



This symbol points out potential electrical shock hazard.

The operator is responsible for proper and safe use of the equip-

ment. The manufacturer strongly recommends that the operator

read this Owner's Manual and thoroughly understand all instruc-

tions before using this equipment. The manufacturer also strongly

recommends instructing other users to properly start and operate

the unit. This prepares them if they need to operate the equipment

in an emergency.

For safety reasons, the manufacturer recommends that this

equipment be installed, serviced and repaired by a Service

Dealer or other competent, qualified electrician or installation

technician who is familiar with applicable codes, standards and

regulations. The operator also must comply with all such codes,

standards and regulations.

OPERATION AND MAINTENANCE

It is the operator's responsibility to perform all safety checks, to

make sure that all maintenance for safe operation is performed

promptly, and to have the equipment checked periodically by a

Service Dealer. Normal maintenance service and replacement of

parts are the responsibility of the owner/operator and, as such,

are not considered defects in materials or workmanship within the

terms of the warranty. Individual operating habits and usage con-

tribute to the need for maintenance service.

Proper maintenance and care of the generator ensure a minimum

number of problems and keep operating expenses at a minimum.

See a Service Dealer for service aids and accessories.

Operating instructions presented in this manual assume that the

generator electric system has been installed by a Service Dealer or

other competent, qualified contractor. Installation of this equipment

is not a “do-it-yourself” project.

HOW TO OBTAIN SERVICE

When the generator requires servicing or repairs, simply contact

a Service Dealer for assistance. Service technicians are factory-

trained and are capable of handling all service needs.

When contacting a dealer about parts and service, always supply

the complete Model Number, Serial Number and Type Code (where

applicable) from the DATA LABEL that is affixed to the unit.

1-1

Safety004 Rev. F 05/10

Safety Instructions

SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe operation be copied and posted in potential

hazard areas. Safety should be stressed to all operators, potential operators, and service and repair technicians for this

equipment.

SAFETY RULES

Study these SAFETY RULES carefully before installing, operating

or servicing this equipment. Become familiar with this Owner’s

Manual and with the unit. The generator can operate safely, effi-

ciently and reliably only if it is properly installed, operated and

maintained. Many accidents are caused by failing to follow simple

and fundamental rules or precautions.

The manufacturer cannot anticipate every possible circumstance

that might involve a hazard. The warnings in this manual, and on

tags and decals affixed to the unit are, therefore, not all inclusive.

If a procedure, work method or operating technique is used that

the manufacturer does not specifically recommend, ensure that it

is safe for others. Also make sure the procedure, work method or

operating technique utilized does not render the generator unsafe.

Despite the safe design of this generator,

operating this equipment imprudently, neglect-

ing its maintenance or being careless can cause

possible injury or death. Permit only respon-

sible and capable persons to install, operate or

maintain this equipment.



Potentially lethal voltages are generated by

these machines. Ensure all steps are taken to

render the machine safe before attempting to

work on the generator.

Parts of the generator are rotating and/or hot

during operation. Exercise care near running

generators.

GENERAL HAZARDS

For safety reasons, the manufacturer recommends that this •

equipment be installed, serviced and repaired by a Service

Dealer or other competent, qualified electrician or installation

technician who is familiar with applicable codes, standards

and regulations. The operator also must comply with all such

codes, standards and regulations.

Installation, operation, servicing and repair of this (and related) •

equipment must always comply with applicable codes, stan-

dards, laws and regulations. Adhere strictly to local, state and

national electrical and building codes. Comply with regulations

the Occupational Safety and Health Administration (OSHA) has

established. Also, ensure that the generator is installed, operat-

ed and serviced in accordance with the manufacturer’s instruc-

tions and recommendations. Following installation, do nothing

that might render the unit unsafe or in noncompliance with the

aforementioned codes, standards, laws and regulations.

The engine exhaust fumes contain carbon monoxide gas, which •

can be DEADLY. This dangerous gas, if breathed in sufficient

concentrations, can cause unconsciousness or even death. For

that reason, adequate ventilation must be provided. This should

be considered prior to installing the generator. The unit should

be positioned to direct exhaust gasses safely away from any

building where people, animals, etc., will not be harmed. Any

exhaust stacks that ship loose with the unit must be installed

properly per the manufacturer's instruction, and in strict compli-

ance with applicable codes and standards.

Keep hands, feet, clothing, etc., away from drive belts, fans, •

and other moving or hot parts. Never remove any drive belt or

fan guard while the unit is operating.

Adequate, unobstructed flow of cooling and ventilating air is •

critical in any room or building housing the generator to prevent

buildup of explosive gases and to ensure correct generator

operation. Do not alter the installation or permit even partial

blockage of ventilation provisions, as this can seriously affect

safe operation of the generator.

Keep the area around the generator clean and uncluttered. •

Remove any materials that could become hazardous.

When working on this equipment, remain alert at all times. •

Never work on the equipment when physically or mentally

fatigued.

Inspect the generator regularly, and promptly repair or replace •

all worn, damaged or defective parts using only factory-

approved parts.

Before performing any maintenance on the generator, discon-•

nect its battery cables to prevent accidental start-up. Disconnect

the cable from the battery post indicated by a NEGATIVE, NEG

or (–) first. Reconnect that cable last.

Never use the generator or any of its parts as a step. Stepping •

on the unit can stress and break parts, and may result in dan-

gerous operating conditions from leaking exhaust gases, fuel

leakage, oil leakage, etc.

ELECTRICAL HAZARDS

All stationary emergency generators covered by this manual •

produce dangerous electrical voltages and can cause fatal

electrical shock. Utility power delivers extremely high and dan-

gerous voltages to the transfer switch as well as the generator.

Avoid contact with bare wires, terminals, connections, etc.,

on the generator as well as the transfer switch, if applicable.

Ensure all appropriate covers, guards and barriers are in place

before operating the generator. If work must be done around

an operating unit, stand on an insulated, dry surface to reduce

shock hazard.

Do not handle any kind of electrical device while stand-•

ing in water, while barefoot, or while hands or feet are wet.

DANGEROUS ELECTRICAL SHOCK MAY RESULT.

1-2

Safety004 Rev. F 05/10

Safety Instructions

If personnel must stand on metal or concrete while installing, •

operating, servicing, adjusting or repairing this equipment,

place insulative mats over a dry wooden platform. Work on the

equipment only while standing on such insulative mats.

The National Electrical Code (NEC) requires the frame and •

external electrically conductive parts of the generator to be con-

nected to an approved earth ground. This grounding will help

prevent dangerous electrical shock that might be caused by a

ground fault condition in the generator or by static electricity.

Never disconnect the ground wire.

Wire gauge sizes of electrical wiring, cables and cord sets must •

be adequate to handle the maximum electrical current (ampac-

ity) to which they will be subjected.

Before installing or servicing this (and related) equipment, make •

sure that all power voltage supplies are positively turned off at

their source. Failure to do so will result in hazardous and pos-

sibly fatal electrical shock.

Connecting this unit to an electrical system normally supplied •

by an electric utility shall be by means of a transfer switch so as

to isolate the generator electric system from the electric utility

distribution system when the generator is operating. Failure to

isolate the two electric system power sources from each other

by such means will result in damage to the generator and may

also result in injury or death to utility power workers due to

backfeed of electrical energy.

Stationary emergency generators installed with an automatic •

transfer switch will crank and start automatically when normal

(utility) source voltage is removed or is below an acceptable

preset level. To prevent such automatic start-up and possible

injury to personnel, disable the generator’s automatic start cir-

cuit (battery cables, etc.) before working on or around the unit.

Then, place a “Do Not Operate” tag on the generator control

panel and on the transfer switch.

In case of accident caused by electric shock, immediately •

shut down the source of electrical power. If this is not pos-

sible, attempt to free the victim from the live conductor. AVOID

DIRECT CONTACT WITH THE VICTIM. Use a nonconducting

implement, such as a dry rope or board, to free the victim from

the live conductor. If the victim is unconscious, apply first aid

and get immediate medical help.

Never wear jewelry when working on this equipment. Jewelry •

can conduct electricity resulting in electric shock, or may get

caught in moving components causing injury.

FIRE HAZARDS

Keep a fire extinguisher near the generator at all times. Do NOT •

use any carbon tetra-chloride type extinguisher. Its fumes are

toxic, and the liquid can deteriorate wiring insulation. Keep the

extinguisher properly charged and be familiar with its use. If

there are any questions pertaining to fire extinguishers, consult

the local fire department.

EXPLOSION HAZARDS

Properly ventilate any room or building housing the generator to •

prevent build-up of explosive gas.

Do not smoke around the generator. Wipe up any fuel or oil •

spills immediately. Ensure that no combustible materials are left

in the generator compartment, or on or near the generator, as

FIRE or EXPLOSION may result. Keep the area surrounding the

generator clean and free from debris.

These generators may operate using one of several types •

of fuels. All fuel types are potentially FLAMMABLE and/or

EXPLOSIVE and should be handled with care. Comply with all

laws regulating the storage and handling of fuels. Inspect the

unit’s fuel system frequently and correct any leaks immediately.

Fuel supply lines must be properly installed, purged and leak

tested according to applicable fuel-gas codes before placing

this equipment into service.

Diesel fuels are highly FLAMMABLE. Gaseous fluids such •

as natural gas and liquid propane (LP) gas are extremely

EXPLOSIVE. Natural gas is lighter than air, and LP gas is heavier

than air; install leak detectors accordingly.

1-3

Safety004 Rev. F 05/10

Safety Instructions

CALIFORNIA PROPOSITION 65 WARNING

Engine exhaust and some of its constituents are known

to the State of California to cause cancer, birth defects

and other reproductive harm.

CALIFORNIA PROPOSITION 65 WARNING

This product contains or emits chemicals known to the

State of California to cause cancer, birth defects and

other reproductive harm.

IDENTIFICATION RECORD

DATA LABEL

Every generator set has a DATA LABEL that contains important

information pertinent to the generator. The data label, which can be

found attached to the generator’s lower connection box, lists the

unit’s serial number and its rated voltage, amps, wattage capacity,

phase, frequency, rpm, power factor, production date, etc.

NOTE:

For actual information related to this particular model, please

refer to the Manual Drawing Listing located at the end of this

manual, or to the data label affixed to the unit.

Stationary Emergency Generator Model and Serial

Number

This number is the key to numerous engineering and manufactur-

ing details pertaining to your unit. Always supply this number

when requesting service, ordering parts or seeking information.

2-1

Identy005 Rev. D 05/10

General Information

Data Label

EQUIPMENT DESCRIPTION

This equipment is a revolving field, alternating current Stationary

Emergency Generator. It is powered by a gaseous fueled engine

operating at 1800 rpm for 4-pole direct drive units, 3600 rpm for

2-pole direct drive units and 2300 - 3000 rpm for quiet drive gear

units. See the Specifications section for exact numbers. The unit

comes complete with a sound attenuated enclosure, internally

mounted muffler, control console, mainline circuit breaker, bat-

tery charger, and protective alarms as explained in the following

paragraph.

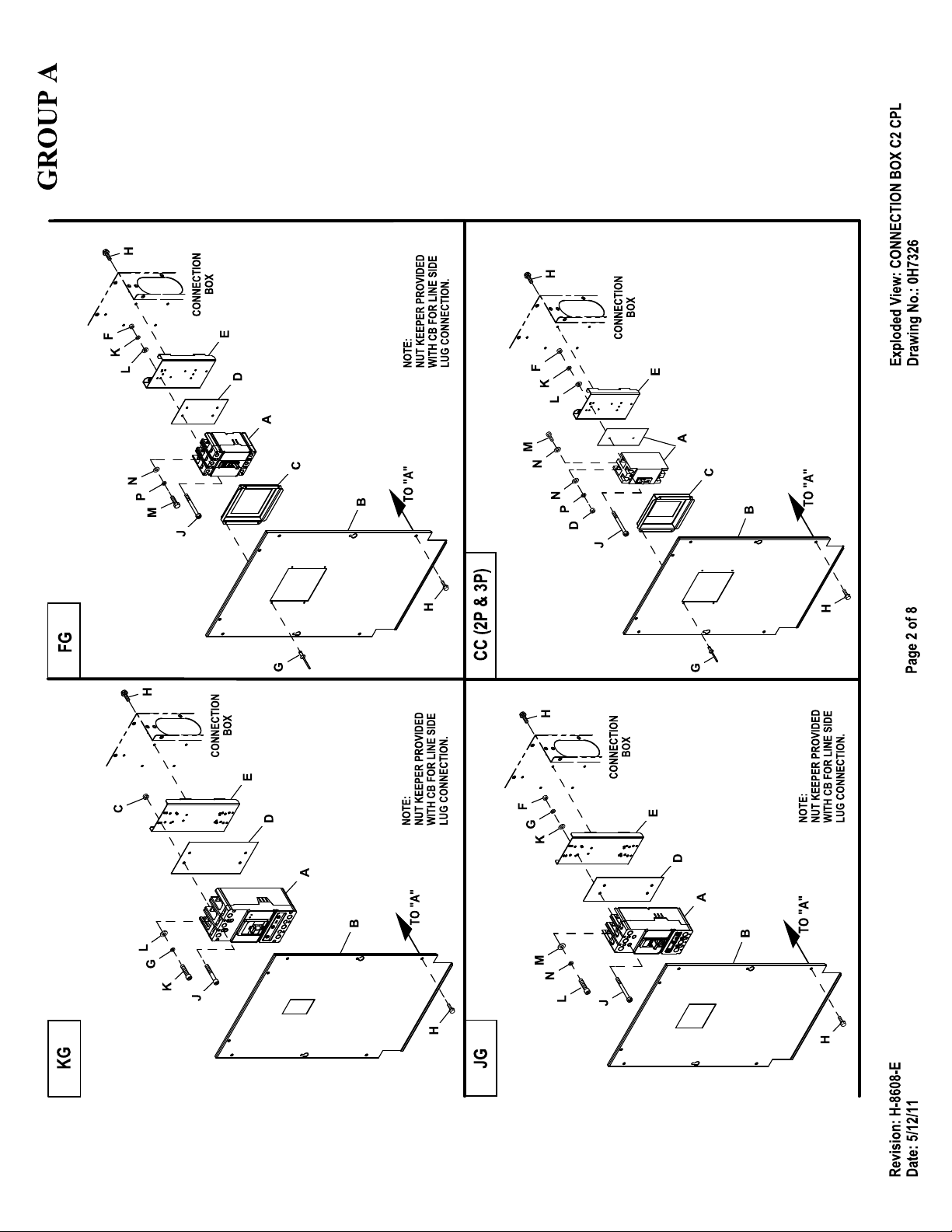

All AC connections, including the power leads from the alterna-

tor, 120 volt battery charger input and control connections to the

transfer switch are available in the main connection box.

The Stationary Emergency Generator incorporates the following

alternator features:

Rotor and Stator insulation class is rated as defined by NEMA •

MG1-32.6, NEMA MG1-1.66. The generator is self ventilated

and drip-proof constructed. Refer to the Specifications section

or the data label for the class ratings.

The voltage waveform deviation, total harmonic content of the •

AC waveform and telephone influence factor have been evalu-

ated and are acceptable according to NEMA MG1-32.

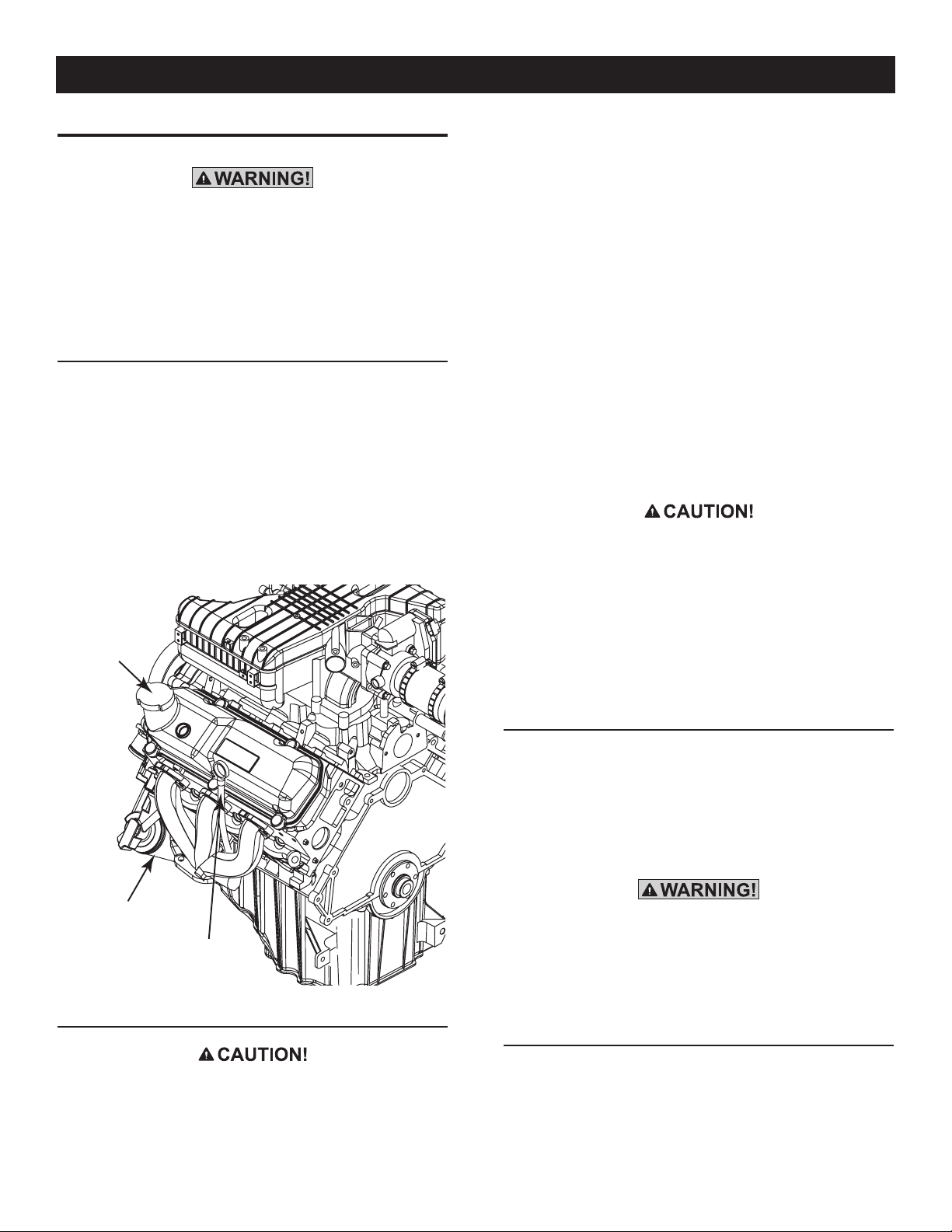

ENGINE OIL RECOMMENDATIONS

The unit has been filled with 5W-20 engine oil at the factory. Use

a high-quality detergent oil classified “For Service SJ or SH.”

Detergent oils keep the engine cleaner and reduce carbon deposits.

When changing the engine oil, be sure to use 5W-30 engine oil.

Any attempt to crank or start the engine before

it has been properly serviced with the recom-

mended oil may result in an engine failure.

NOTE:

If not already equipped, it is strongly recommended to use the

optional Cold Weather Start Kit for temperatures below 32° F.

The part number for the Cold Weather Start Kit can be found

in the Specifications section or by contacting an authorized

dealer. The oil grade for temperatures below 32° F is 5W-30

synthetic oil.

COOLANT RECOMMENDATIONS

Use a mixture of half low silicate ethylene glycol base anti-freeze

and deionized water. Cooling system capacity is listed in the

specifications. Use only deionized water and only low silicate

anti-freeze. If desired, add a high quality rust inhibitor to the rec-

ommended coolant mixture. When adding coolant, always add the

recommended 50-50 mixture.

Do not use any chromate base rust inhibitor

with ethylene glycol base anti-freeze or chro-

mium hydroxide (“green slime”) forms and will

cause overheating. Engines that have been

operated with a chromate base rust inhibitor

must be chemically cleaned before adding eth-

ylene glycol base anti-freeze. Using any high

silicate anti-freeze boosters or additives will

also cause overheating. The manufacturer also

recommends that any soluble oil inhibitor is

NOT used for this equipment.

Do not remove the radiator pressure cap while

the engine is hot or serious burns from boiling

liquid or steam could result.

Ethylene glycol base antifreeze is poisonous.

Do not use mouth to siphon coolant from the

radiator, recovery bottle or any container. Wash

hands thoroughly after handling. Never store

used antifreeze in an open container because

animals are attracted to the smell and taste of

antifreeze even though it is poisonous to them.

3-1

Equip001 Rev. G 05/10

Equipment Description

ENGINE PROTECTIVE DEVICES

The Stationary Emergency Generator may be required to operate

for long periods of time without an operator on hand to monitor

such engine conditions as coolant temperature, oil pressure or

rpm. For that reason, the engine has several devices designed to

protect it against potentially damaging conditions by automatically

shutting down the unit when the oil pressure is too low, the coolant

temperature is too high, the coolant level is too low, or the engine

is running too fast.

NOTE:

Engine protective switches and sensors are mentioned here for

the reader’s convenience. Also refer to the applicable control

panel manual for additional automatic engine shutdown infor-

mation.

HIGH COOLANT TEMPERATURE SENDER

An analog coolant temperture sender, located in the engine's

cooling system will cause an engine shutdown if the temperature

should exceed approximately 125° C (257° F). The generator will

automatically restart once the temperature has returned to a safe

operating level.

LOW COOLANT LEVEL SENSOR

To prevent overheating, the engine has a low coolant level sensor.

If the level of engine coolant drops below the level of the low cool-

ant level sensor, the engine automatically shuts down.

LOW OIL PRESSURE SWITCH

This switch has normally closed contacts that are held open by

engine oil pressure during cranking and operating. Should oil pres-

sure drop below the 8 psi range, switch contacts close, and the

engine shuts down. The unit should not be restarted until oil is

added, and the AUTO/OFF/MANUAL switch must be turned to OFF

and then back to AUTO.

OVERCRANK SHUTDOWN

After a prespecified duration of cranking, this function ends the

cranking if the engine has failed to start. The overcrank message

will turn ON. Turn OFF the AUTO/OFF/MANUAL switch, then turn

switch back to AUTO to reset the generator control board.

NOTE:

If the fault is not corrected, the overcrank feature will continue

to activate.

Approximate Crank Cycle Times

15 seconds ON•

7 seconds OFF•

7 seconds ON•

7 seconds OFF•

Repeat for 45 seconds•

Approximately 90 seconds total.•

OVERSPEED SHUTDOWN

A speed circuit controls engine cranking, start-up, operation and

shutdown. Engine speed signals are delivered to the circuit board

whenever the unit is running. Should the engine overspeed above

a safe, preset value, the circuit board initiates an automatic engine

shutdown. Contact the nearest Authorized Dealer if this failure

occurs.

RPM SENSOR LOSS SHUTDOWN

If the speed signal to the control panel is lost, engine shutdown

will occur.

DC FUSES

A fuse (7.5 amp) is located on the control panel. It protects the

panel components from damaging overload. Always remove this

fuse before commencing work on the generator. The unit will not

start or crank if the fuse is blown.

A fuse (25 amp) is located in the engine wire harness adjacent

to the DC alternator. It is used to prevent circuit failure due to DC

alternator falure. It will also protect the system in the event of a

wiring short-dircuit. If this fuse is blown, the generator will not

operate. Replace these fuses with the same size, type, and rating.

4-1

EngProt003 Rev. B 05/10

Engine Protective Devices

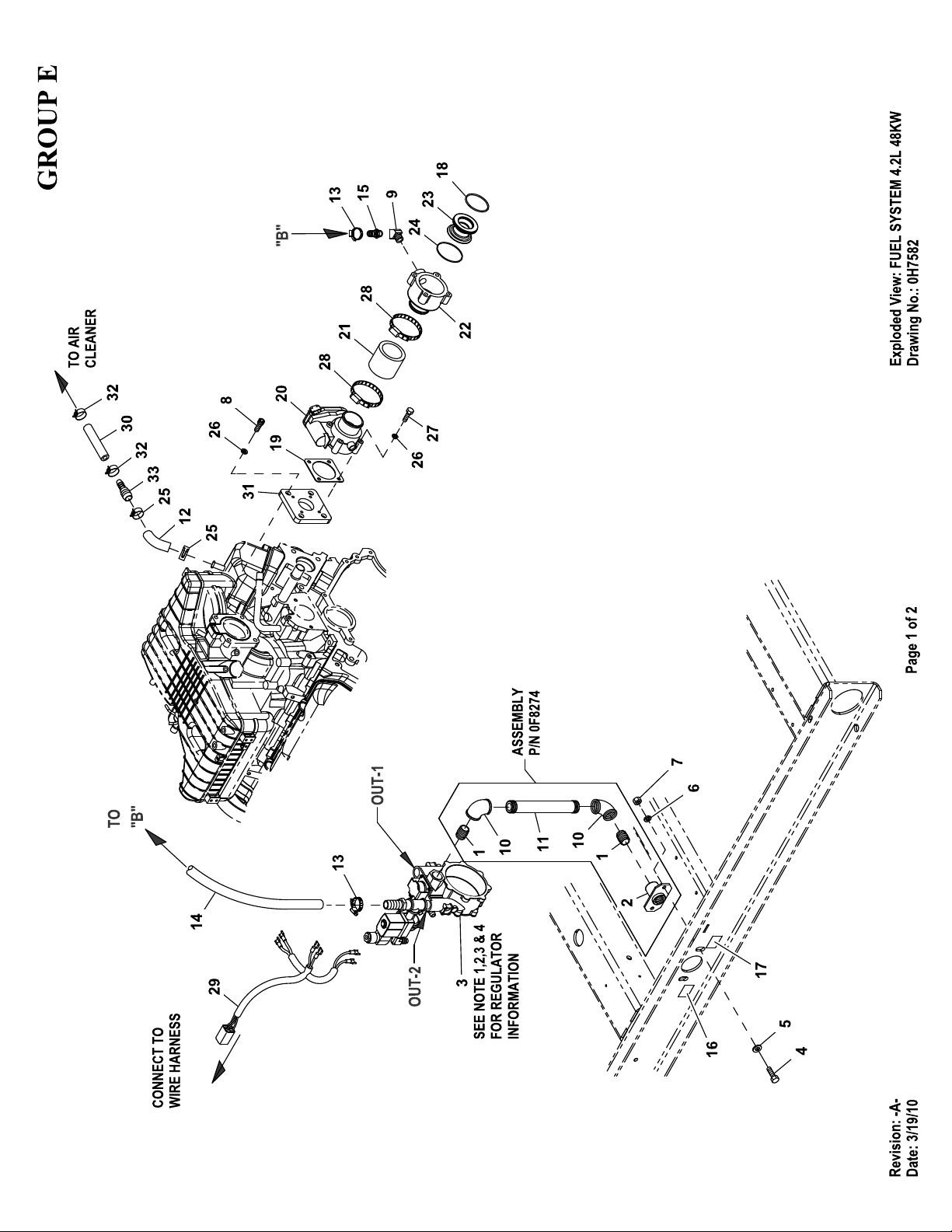

FUEL SYSTEM

FUEL REQUIREMENTS

The Stationary Emergency Generator may be equipped with one of

the following fuel systems:

• Natural gas fuel system

• Propane vapor (LPV) fuel system

Recommended fuels should have a Btu content of at least 1,000

Btu's per cubic foot for natural gas; or at least 2,520 Btu's per

cubic foot for LP gas. Ask the fuel supplier for the Btu content of

the fuel.

NOTE:

The fuel consumption requirements are identified in the

Specifications section of the Owner's Manual. Refer to the

Installation Manual if assistance is required for the sizing of

the pipe diameter for the generator. Any piping used to connect

the generator to the fuel supply should be of adequate size to

achieve the 100% load fuel consumption requirements identi-

fied in the Specifications section regardless of actual load.

NOTE:

The recommended fuel pressure is identified in the Specifications

section this manual.

NOTE:

It is the responsibility of the installer to make sure that only

the correct recommended fuel is supplied to the generator fuel

system. Thereafter, the owner/operator must make certain that

only the proper fuel is supplied.

NATURAL GAS FUEL SYSTEM

Natural gas is supplied in its vapor state. In most cases, the gas

distribution company provides piping from the main gas distribu-

tion line to the standby generator site. The following information

applies to natural gas fuel systems.

• Gas pressure in a building is usually regulated by national, state

and local codes.

• To reduce gas pressure to a safe level before the gas enters a

building, a primary regulator is needed. The natural gas supplier

may or may not supply such a regulator.

• It is the responsibility of the gas supplier to make sure sufficient

gas pressure is available to operate the primary regulator.

• Gas pressure at the inlet to the fuel shutoff solenoid must never

exceed approximately 14 inches water column (0.5 psi).

PROPANE VAPOR WITHDRAWAL FUEL SYSTEM

This type of system utilizes the vapors formed above the liquid

fuel in the supply tank. Approximately 10 to 20 percent of the tank

capacity is needed for fuel expansion from the liquid to the vapor

state. The vapor withdrawal system is generally best suited for

smaller engines that require less fuel. The installer should be aware

of the following:

• When ambient temperatures are low and engine fuel consump-

tion is high, the vapor withdrawal system may not function

efficiently.

• Ambient temperatures around the supply tank must be high

enough to sustain adequate vaporization, or the system will not

deliver the needed fuel volume.

• In addition to the cooling effects of ambient air, the vaporization

process itself provides an additional cooling effect.

5-1

FuelSys001 Rev. F 04/11

Fuel System

SPECIFICATIONS

STATIONARY EMERGENCY GENERATOR

Type......................................................................Synchronous

Rotor Insulation ..............................................................Class F

Stator Insulation ............................................................Class H

Telephone Interference Factor (TIF) .................................. < 50

Alternator Output Leads 3-phase ..................................... 4-wire

Bearings ..................................................................Sealed Ball

Coupling ................................................................Flexible Disc

Load Capacity (Standby Rating) .....................................45kW*

* NOTE: Generator rating and performance in accordance with ISO8528-5, BS5514, SAE

J1349, ISO3046 and DIN 6271 Standards. KW rating is based on LPG fuel and may derate

with natural gas.

Excitation System ............................................................Direct

Generator Output Voltage/kW - 60 Hz kW Amp CB Size

120/240V, 1-phase, 1.0 pf 45 188 200

120/208V, 3-phase, 0.8 pf 45 156 175

120/240V, 3-phase, 0.8 pf 45 135 150

277/480V, 3-phase, 0.8 pf 45 68 80

Generator Locked Rotor KVA Available @ Voltage Dip of 35%

Single-phase or 208, 3-phase (45kW) ........................ 86 KVA

480V, 3-phase (45kW) ................................................ 95 KVA

ENGINE

Make ........................................................................... Generac

Cylinders and Arrangement .........................................6, V-type

Displacement ............................................................... 4.2 Liter

Bore............................................................ 96.8 mm (3.81 in.)

Stroke ............................................................ 95 mm (3.74 in.)

Compression Ratio....................................................... 9.4-to-1

Air Intake System ......................................... Naturally Aspirated

Valve Seats ....................................Precision Ground, Hardened

Lifter Type ........................................................ Roller, Hydraulic

Spark Plug Gap ..................... 1.30-1.40mm (0.052-0.056 inch)

Engine Parameters

Rated Synchronous RPM .......................................60 Hz, 1800

Exhaust System

Exhaust Flow at Rated Output 60 Hz (45kW) ................330 cfm

Exhaust Temp. at Rated Output (45kW) .........................1025° F

Combustion Air Requirements (Natural Gas)

Flow at rated power, 60 Hz (45kW) ..............................120 cfm

Governor

Type...........................................................................Electronic

Frequency Regulation ............................................. Isochronous

Steady State Regulation ..............................................± 0.25%

Engine Lubrication System

Type of Oil Pump ...............................................................Gear

Oil Filter ......................................... Full Flow Spin-on, Cartridge

Crankcase Oil Capacity ......................................... 5.0 U.S. qts.

COOLING SYSTEM

Type............................................. Pressurized Closed Recovery

Water Pump ............................................................. Belt Driven

Fan Speed ..................................................................1300 rpm

Fan Diameter ..............................................................22 inches

Fan Mode ......................................................................... Puller

Air Flow (inlet air including alternator and

combustion air) ................................................. 2460 ft

/min.

Coolant Capacity ......................................11.4 L (3.0 U.S. gal.)

Heat Rejection to Coolant (45kW) .......................186,000 Btu/h

Maximum Operating Air Temp. on Radiator ......... 60° C (150° F)

Maximum Ambient Temperature ......................... 50° C (140° F)

FUEL SYSTEM

Type of Fuel ....................................Natural Gas, Propane Vapor

Carburetor............................................................... Down Draft

Secondary Fuel Regulator............................................ Standard

Fuel Shut-off Solenoid ................................................. Standard

Operating Fuel Pressure ................. 5 in. - 14 in. Water Column

Fuel Consumption - ft

/hr (Natural Gas/LPV)

Exercise 25% 50% 75% 100%

Cycle Load Load Load Load

45kW 70/28 205/81 370/147 516/205 655/260

ELECTRICAL SYSTEM

Battery Charge Alternator ......................................12V, 30 Amp

Static Battery Charger ..................................................2.5 Amp

Recommended Battery ............................... Group 24F, 525CCA

System Voltage ............................................................ 12 Volts

Voltage Regulator

Type...........................................................................Electronic

Sensing ................................................................ Single-phase

Regulation ........................................................................± 1%

Features ......................................... Adjustable Voltage and Gain

Power Adjustment for Ambient Conditions

Temperature Deration

3% for every 10° C above °C (45kW) ..................................25

1.65% for every 10° above °F (45kW) .................................77

Altitude Deration

1% for every 100 m above m (45kW) ...............................183

3% for every 1000 ft. above ft. (45kW) .............................600

Controller ................................................................. Nexus

6-1

GenSpec094 Rev. B 05/11

Specifications

WEATHER AND MAINTENANCE KITS

To keep the generator running at its peak, the following kits are

offered:

• Cold Weather Kit

~ Recommended for climates with temperatures below 32° F.

• Scheduled Maintenance Kit

~ Kit includes the recommended parts to maintain the genera-

tor. Refer to the Service Schedule for regular maintenance

intervals.

For additional information, or to order any of these kits, please

contact an Authorized Service Dealer or Customer Service

Representative.

RECONFIGURING THE FUEL

SYSTEM

NOTE:

All models are configured to run on natural gas from the fac-

tory.

Before the generator can be operated using a LP fuel source, the

fuel system and control panel (refer to the installation drawing for

location) must be reconfigured. The steps to reconfigure the gen-

erator from a natural gas (NG) to a liquidified petroleum (LP) fuel

source are as follows:

FUEL SYSTEM

1. Turn the main gas supply off and disconnect the battery.

2. Remove the carburetor fuel hose from the outlet port of the

demand regulator (see Figure 6.1).

3. Disconnect the power wires from the fuel solenoid located

on top of the regulator assembly by removing the screw on

the front of the connector and pulling the connector forward,

away from the solenoid body.

4. Loosen the spring clamp on the small fuel enrichment line and

remove the hose from the hose barb.

5. Remove the black pipe assembly from the outlet port of the

demand regulator. The solenoid assembly may need to be

removed before performing this operation (Figure 6.1).

6. Remove the NG fuel jet (loosen counter clockwise) from the

outlet port.

7. Remove the LP fuel jet (loosen counter clockwise) from the jet

keeper port on the side of the regulator housing. Install this jet

into the outlet port in the regulator casting.

NOTE:

The jet sizes are stamped on the individual jets. The larger jet

size is used for running on NG.

8. Install the previously removed NG jet into the jet keeper port

on the side of the regulator housing.

9. Install the previously removed black pipe onto the outlet

port of the demand regulator. Use pipe sealant on the pipe

threads.

10. Reverse steps 1-4 in this procedure to reactivate the demand

regulator.

11. Follow the instructions in the Control Panel section.



Serious injury, including death, or damage

may occur if not configured properly. Please

consult an Authorized Dealer with any ques-

tions.

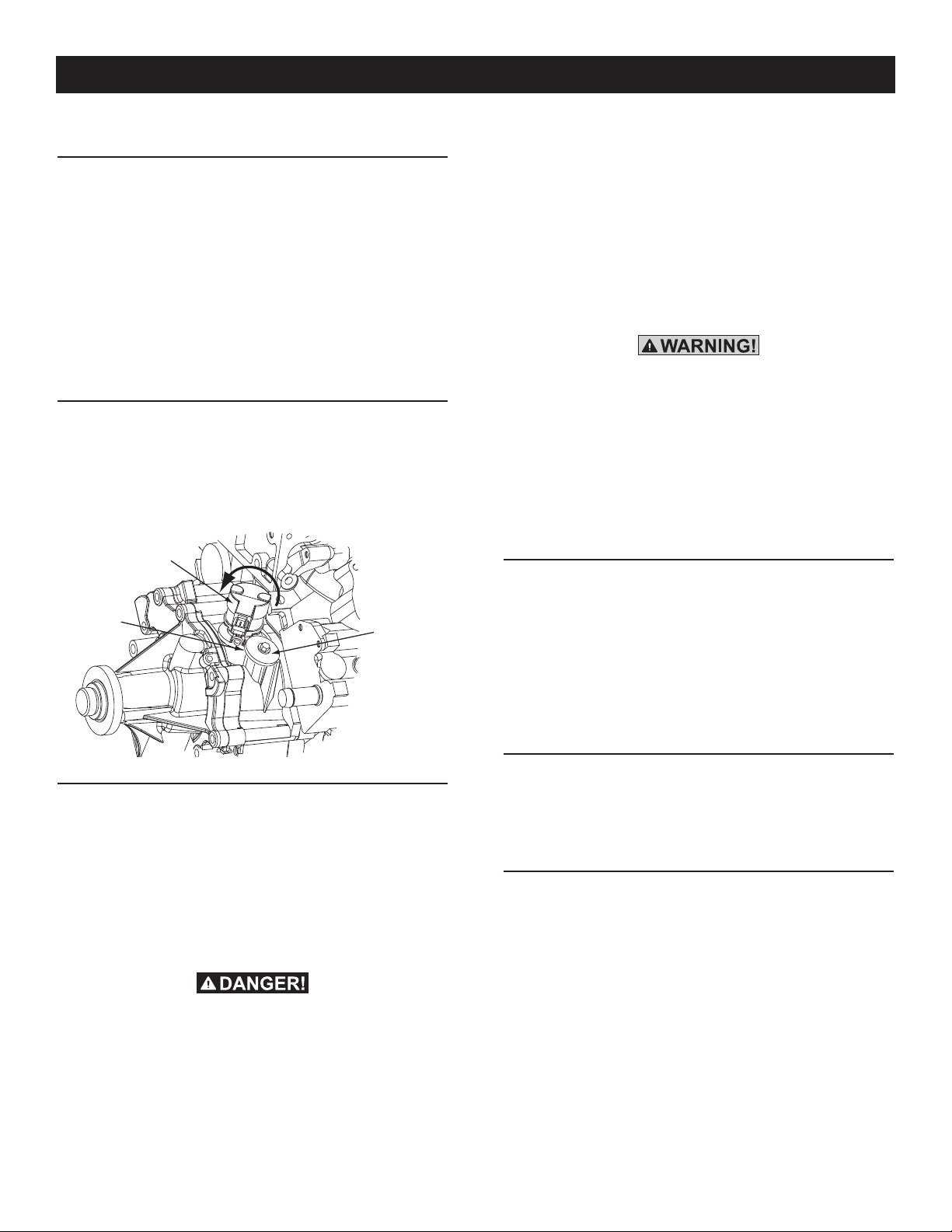

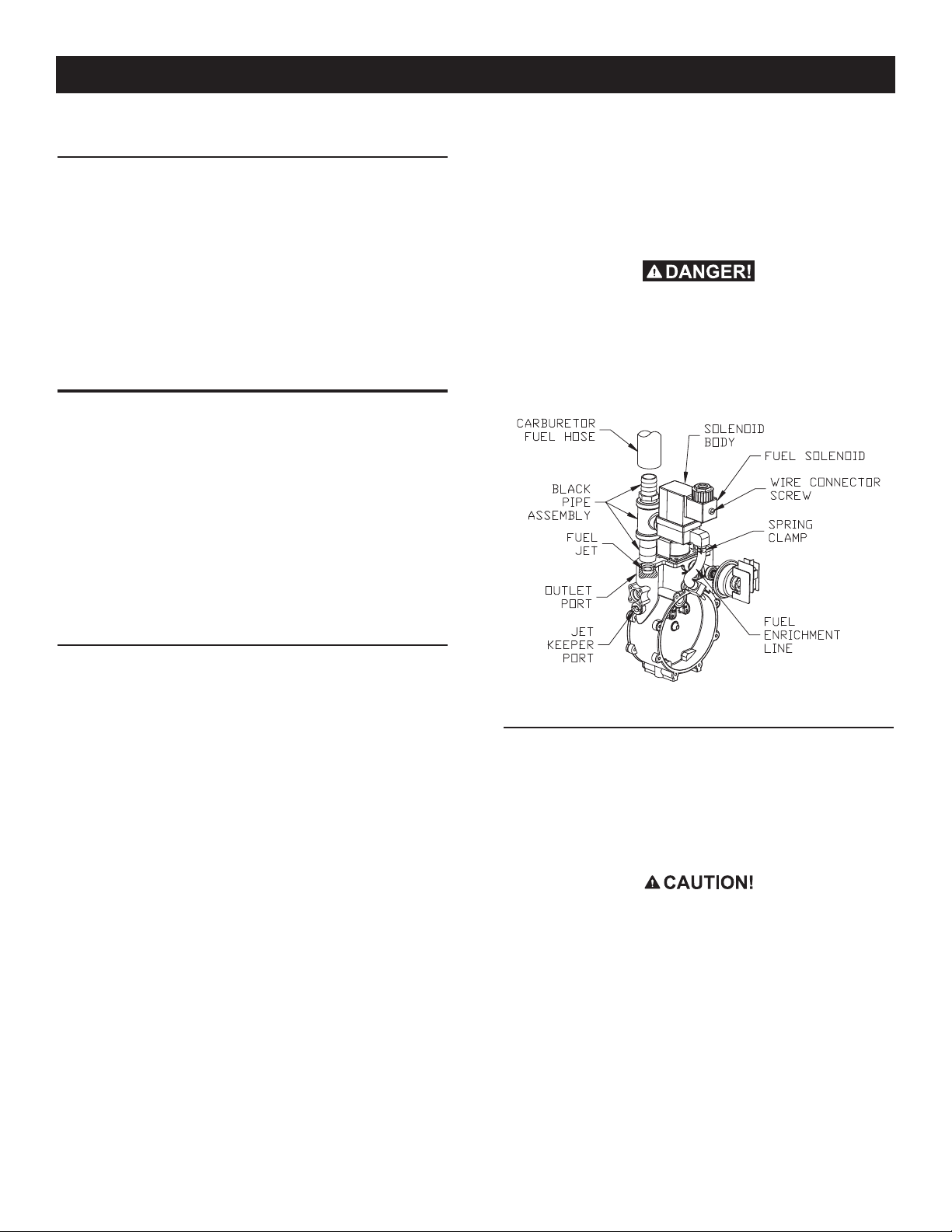

Figure 6.1 — Reconfigure the Fuel System

CONTROL PANEL

The FUEL TYPE must be reconfigured in the control panel to final-

ize the conversion process. This generator is configured at the

factory to operate on natural gas. If conversion to LP is required,

please complete the mechanical conversion process and then call

888-9ACTIVATE for the control panel password. This fuel selection

conversion is required to be password protected by Environmental

Protection Agency [EPA] regulations.



Whenever the Generator’s Fuel Regulator is

converted from one Fuel type to the other,

the Control Panel must be reconfigured for

the correct fuel type. Failure to convert both

the Regulator and Control Panel will result in

decreased performance and an increase in

emissions, and is a violation of EPA regula-

tions.

6-2

GenSpec094 Rev. B 05/11

Specifications

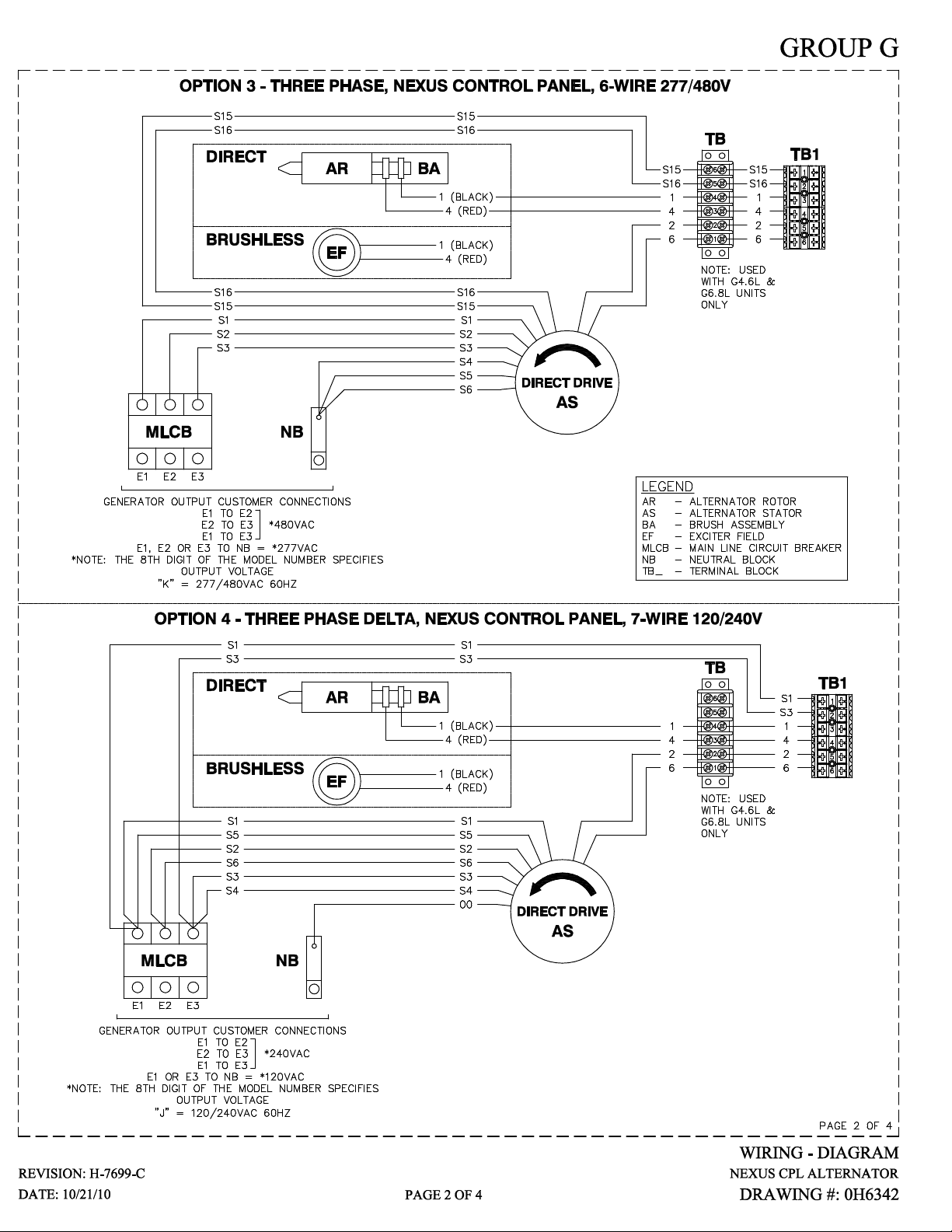

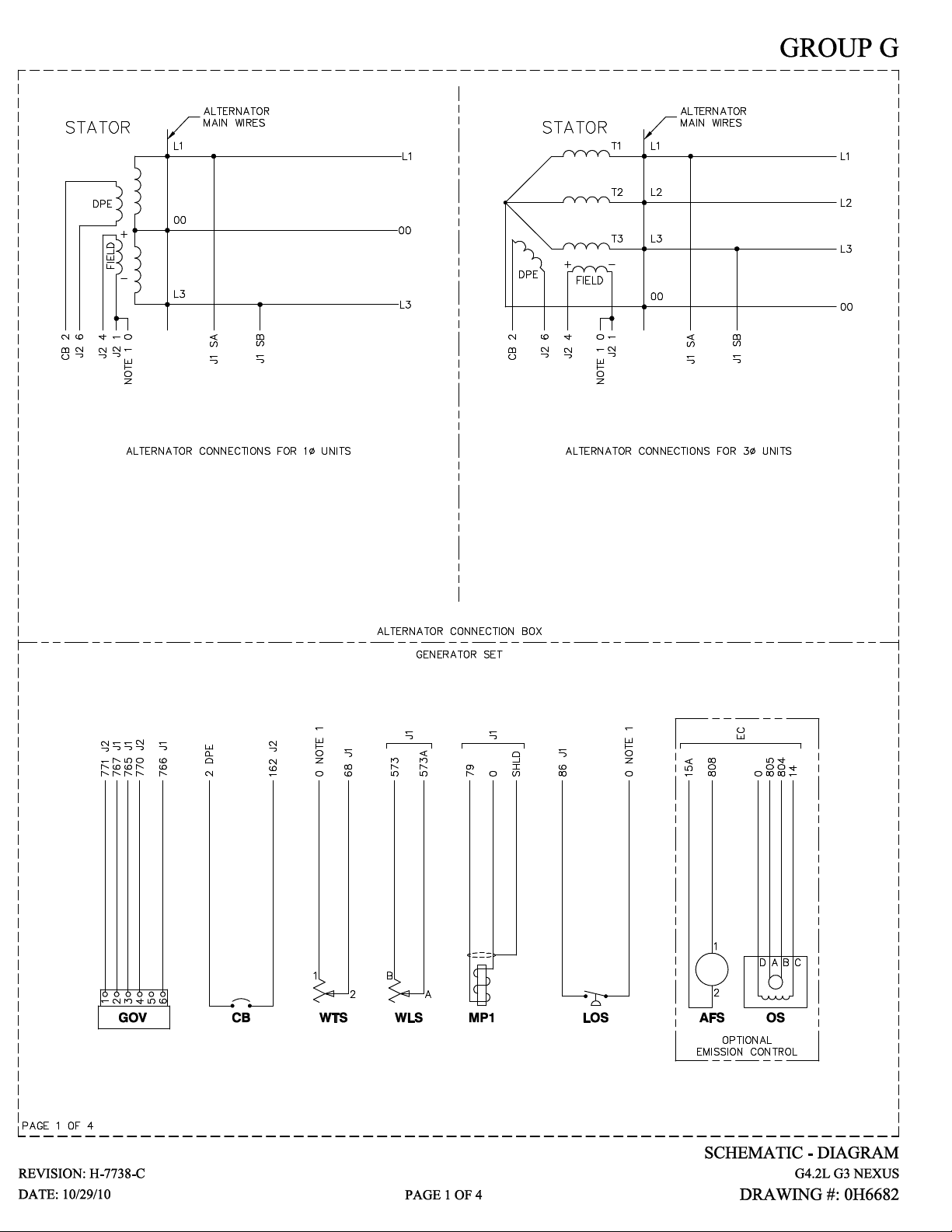

ALTERNATOR AC LEAD

CONNECTIONS

The electrical wires in the unit’s AC connection (lower) panel

should be installed according to the number of leads and the

voltage/phase required for the application. The voltage and phase

are described on the generator data label. The number of lead

wires can be identified using the Specifications section and the

power output rating on the generator data label. For example, if

the generator produces 130kW, 277/480 Volt, 3-phase power, the

generator has 12 alternator output leads. Figure 7.3 describes the

stator power winding connection for the generator.

FOUR-LEAD, SINGLE-PHASE STATOR

Four-lead alternators (see Figure 7.1) are designed to supply elec-

trical loads with voltage code “A” (240V, 1-phase, 60 Hz). Electrical

power is produced in the stator power windings. These windings

were connected at the factory to the main circuit breaker as shown

in Figure 7.1.

The rated voltage between each circuit breaker terminal is 240V.

The rated voltage between each circuit breaker terminal and the

neutral point 00 is 120V.

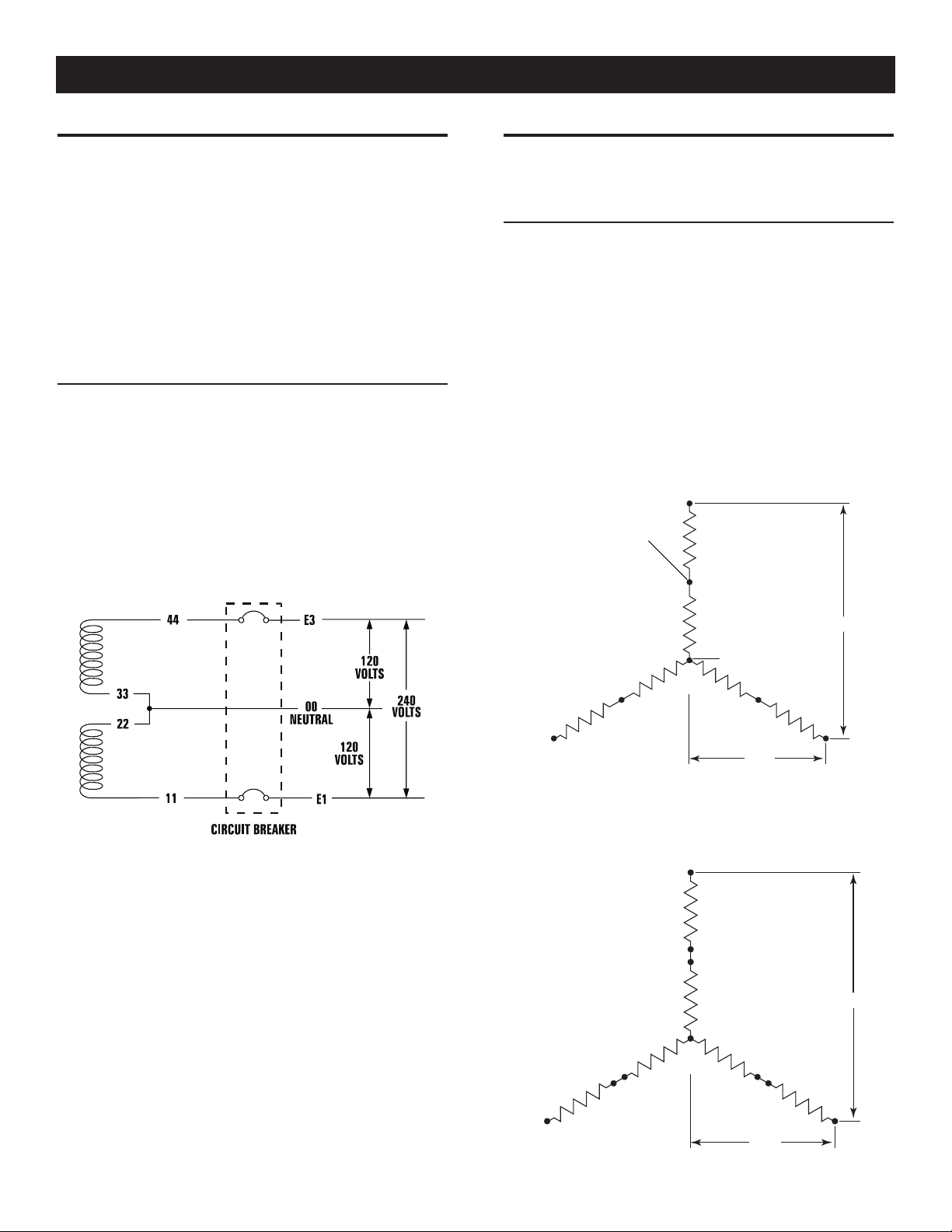

Figure 7.1 — Four-lead, Single-phase Stator

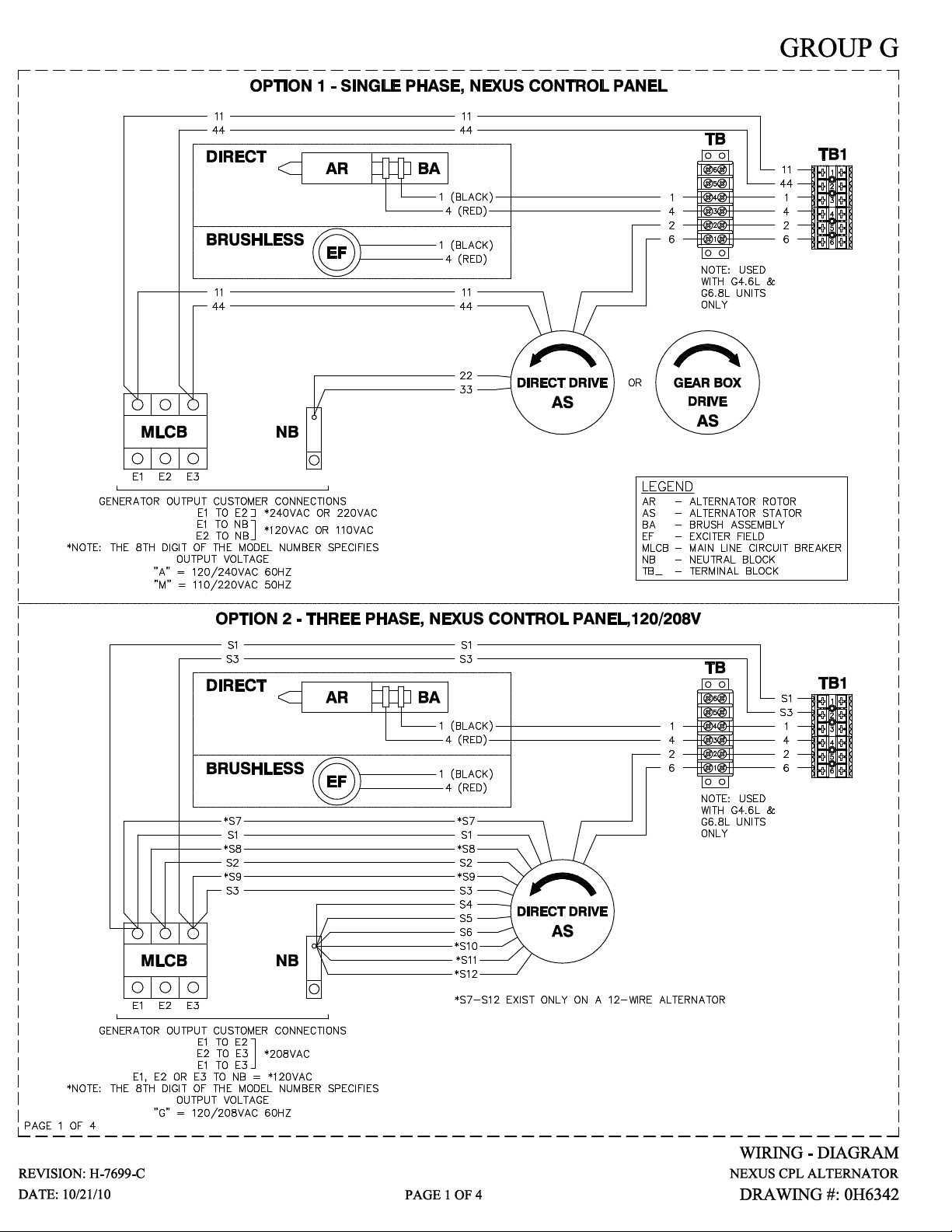

ALTERNATOR POWER WINDING

CONNECTIONS

3-PHASE ALTERNATORS ("Y" CONFIGURATION)

The Stationary Emergency Generator is designed to supply

3-phase electrical loads. Electric power is produced in the alterna-

tor power windings. These windings were connected at the factory

to the main circuit breaker with a “Y” configuration as shown in

Figures 7.2 through 7.6.

The rated voltage between circuit breaker terminals E1-E2, E1-E3

and E2-E3 is 480V, 208V or 600V depending on the model.

The rated voltage between each circuit breaker terminal and the

neutral point 00 is 277V, 120V, or 346V depending on the model.

Figure 7.2 — Stator Power Winding

Connections - 3-phase, 277/480V (6 Lead)

L - N

L - L

INTERNAL

CONNECTIONS

00 (NEUTRAL)

Figure 7.3 — Stator Power Winding

Connections - 3-phase, 277/480V (12 Lead)

S12

S11

S10

L - N

L - L

7-1

ACConn007 Rev. B 05/10

General Information

Figure 7.4 — Stator Power Winding

Connections - 3-phase, 120/208V (6 Lead)

00 (NEUTRAL)

INTERNAL CONNECTIONS

L-L

L-N

Figure 7.5 — Stator Power Winding

Connections - 3-phase, 120/208V (12 Lead)

L-L

L-N

S10

S12

S11

Figure 7.6 — Stator Power Winding

Connections - 3-phase, 346/600V (6 Lead)

L - N

L - L

INTERNAL

CONNECTIONS

00 (NEUTRAL)

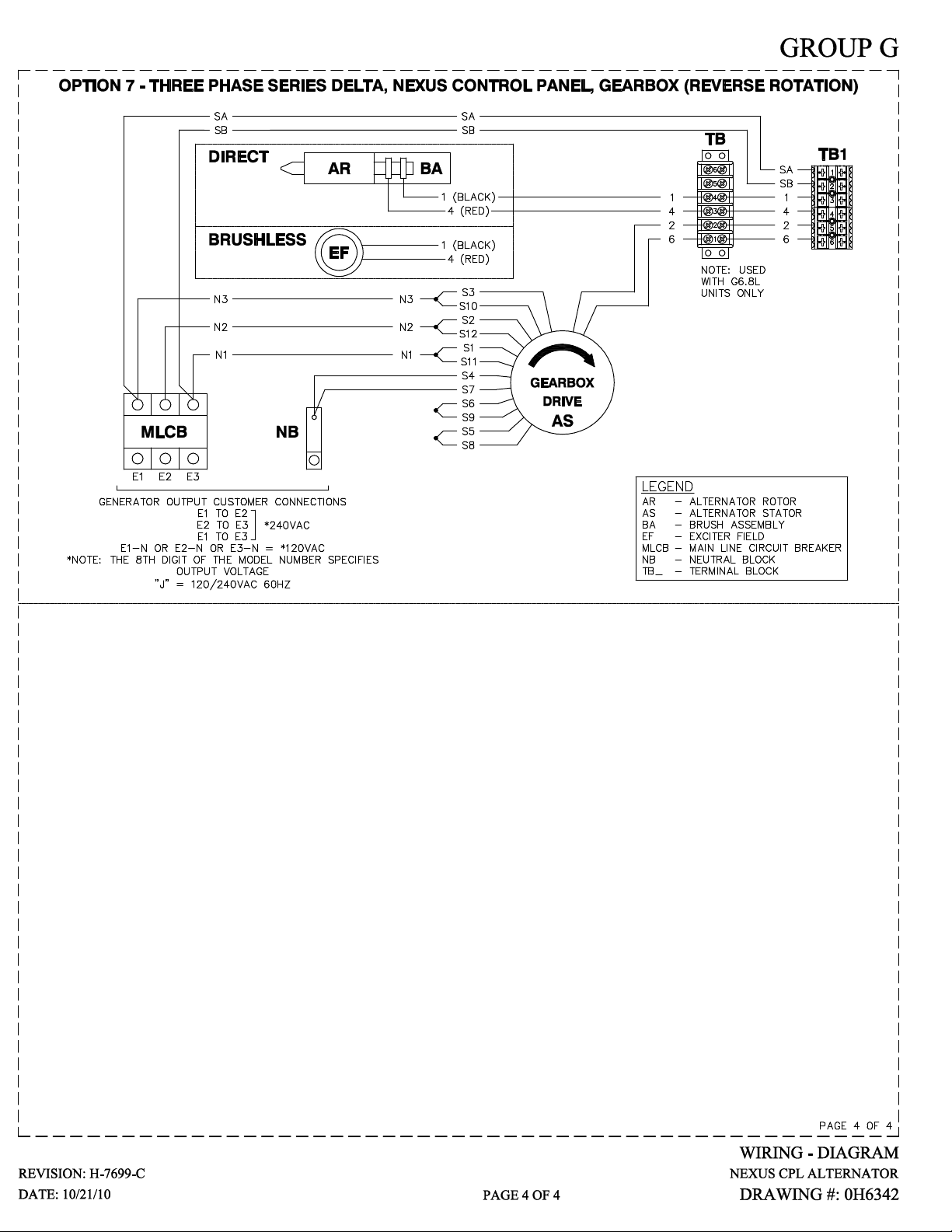

3-PHASE ALTERNATORS ("DELTA" CONFIGURATION)

The Stationary Emergency Generator is designed to supply

3-phase electrical loads. Electric power is produced in the alterna-

tor power windings. These windings were connected at the factory

to the main circuit breaker with a “Delta” configuration as shown

in Figures 7.7 and 7.8.

The rated voltage between circuit breaker terminals E1-E2, E1-E3

and E2-E3 is 240V.

The rated voltage between E1 or E3 and the neutral point 00 is

120V.

Figure 7.7 — Stator Power Winding

Connections - 3-phase, 120/240V (6 Lead)

E1 E3

INTERNAL

CONNECTIONS

L - N

L - L

00 (NEUTRAL)

Figure 7.8 — Stator Power Winding

Connections - 3-phase, 120/240V (12 Lead)

E1 E3

S12

S11

S8 S6

S5 S9

S10

L - N

L - L

00 (NEUTRAL)

7-2

ACConn007 Rev. B 05/10

General Information

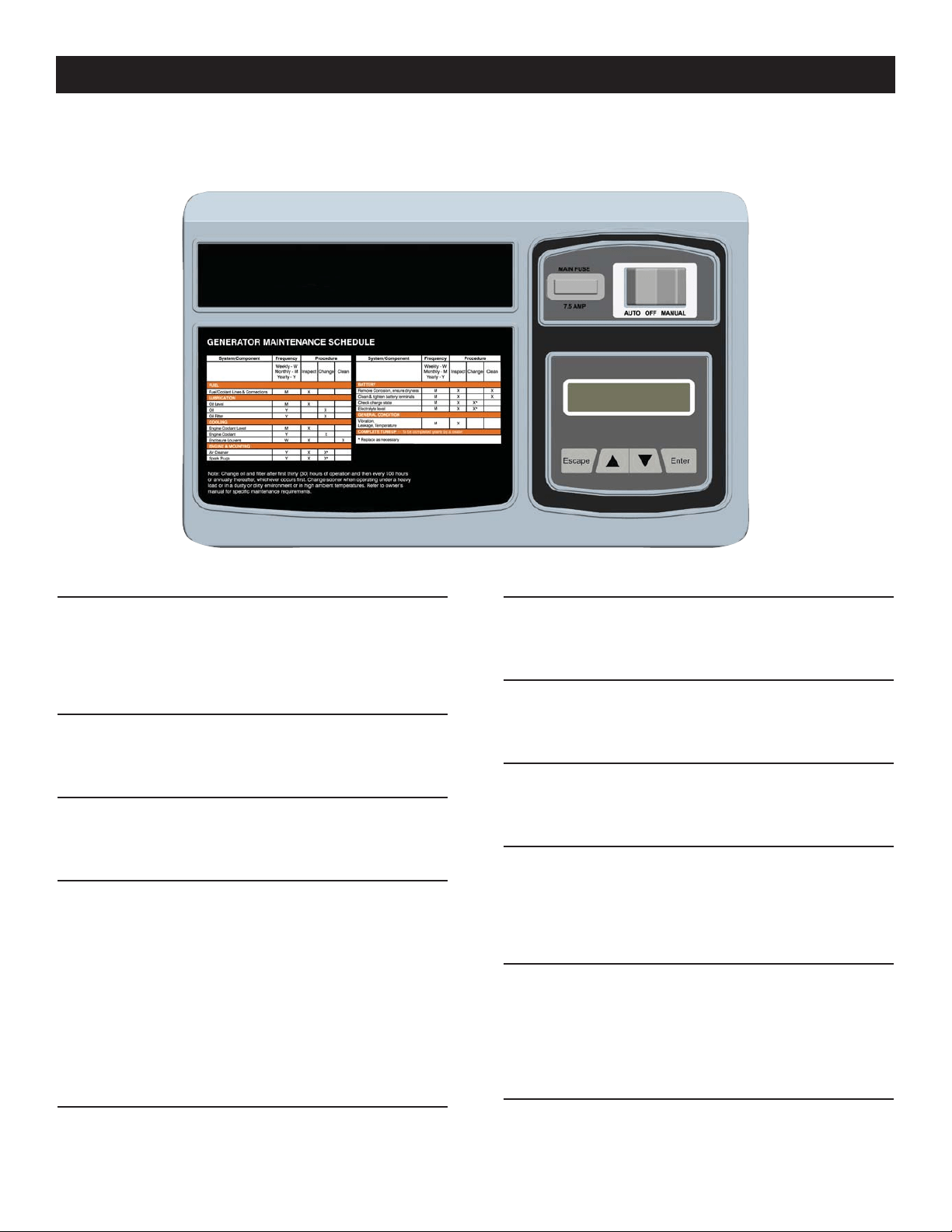

CONTROL PANEL INTERFACE

USING THE AUTO/OFF/MANUAL SWITCH



With the switch set to AUTO, the engine may

crank and start at any time without warning.

Such automatic starting occurs when utility

power source voltage drops below a preset

level or during the normal exercise cycle. To

prevent possible injury that might be caused

by such sudden starts, always set the switch

to OFF and remove the fuse before work-

ing on or around the generator or transfer

switch. Then, place a “DO NOT OPERATE”

tag on the generator panel and on the trans-

fer switch.

1. “AUTO” Position – Selecting this switch activates fully auto-

matic system operation. It also allows the unit to automati-

cally start and exercise the engine every seven days with the

setting of the exercise timer (see the Setting the Exercise

Timer section).

2. “OFF” Position – This switch position shuts down the engine.

This position also prevents automatic operation.

3. “MANUAL” Position – Set the switch to MANUAL to crank

and start the engine. Transfer to standby power will not occur

unless there is a utility failure.

ACTIVATE THE GENERATOR

When battery power is applied to the generator during the instal-

lation process, the controller will turn ON and the LCD screen will

illuminate. However, the generator still needs to be activated before

it will automatically run in the event of a power outage.

Activating the generator is a simple one time process that is guided

by the controller screen prompts. Once the product is activated,

the controller screen will not prompt you again, even if you discon-

nect the generator battery.

To obtain the activation code, record the generator serial number

and log onto www.activategen.com or call 1-888-9ACTIVATE and

follow the steps to retrieve the activation code.

After obtaining your activation code, please complete the following

steps at the generator’s control panel in the Activation Chart on the

following page.

NOTE:

The generator will only run in manual until the passcode has

been entered.

Upon power up, this controller will go through a system self test

which will check for the presence of utility voltage on the DC

circuits. This is done to prevent damage if the installer mistakenly

connects AC utility power sense wires into the DC terminal block.

If utility voltage is detected, the controller will display a warning

message and lock out the generator, preventing damage to the

controller. Power to the controller must be removed to clear this

warning.

Utility voltage must be turned on and present at the N1 and N2

terminals inside the generator control panel for this test to be

performed and pass.

NOTE:

DAMAGE CAUSED BY MISWIRING OF THE INTERCONNECT

WIRES IS NOT WARRANTABLE!

This test will be performed each time the controller is powered

up.

Next, the user must enter the minimum settings to operate. These

settings are current date and time and exercise day and time. The

maintenance intervals will be initialized (i.e. started) the first time

the clock is set. If the clock is never set at power up, the mainte-

nance intervals will be reset every time power is applied.

If a subsequent power loss (loss of battery power) occurs the

Installation assistant will operate upon power restoration. The self

test routine will be run and then the customer will be required to

re-enter the time and date, as this is not retained during a power

loss. The unit will not require re-activation.

DISPLAY INTERFACE MENUS

The LCD display is organized as detailed below:

• The “Home” page, this page is the default page which will be

displayed if no keys are pressed for 30 seconds. This page

normally shows the current Status message and the current

date and time. The highest priority active Alarm and/or Warning

will be automatically posted on this page as well as flashing

the backlight when such an event is detected. In the case of

multiple Alarms or Warnings, only the first message will be

displayed. To clear an Alarm or Warning, see the Protection

Systems section - Clear Alarm.

• The display backlight is normally off. If the user presses any

key, the backlight will come on automatically and remain on for

30 seconds after the last key was pressed.

• The “Main Menu” page will allow the user to navigate to all other

pages or sub-menus by using the Left/Right and Enter keys.

This page can be accessed at any time with several presses of

the dedicated Escape key. Each press of the Escape key takes

you back to the previous menu until the main menu is reached.

This page displays the following options: HISTORY; STATUS;

EDIT; AND DEBUG. (See the Appendix - "Menu System".)

8-1

CntrlNexusus001 Rev. D 04/11

Control Panel

8-2

CntrlNexus001 Rev. D 04/11

Control Panel

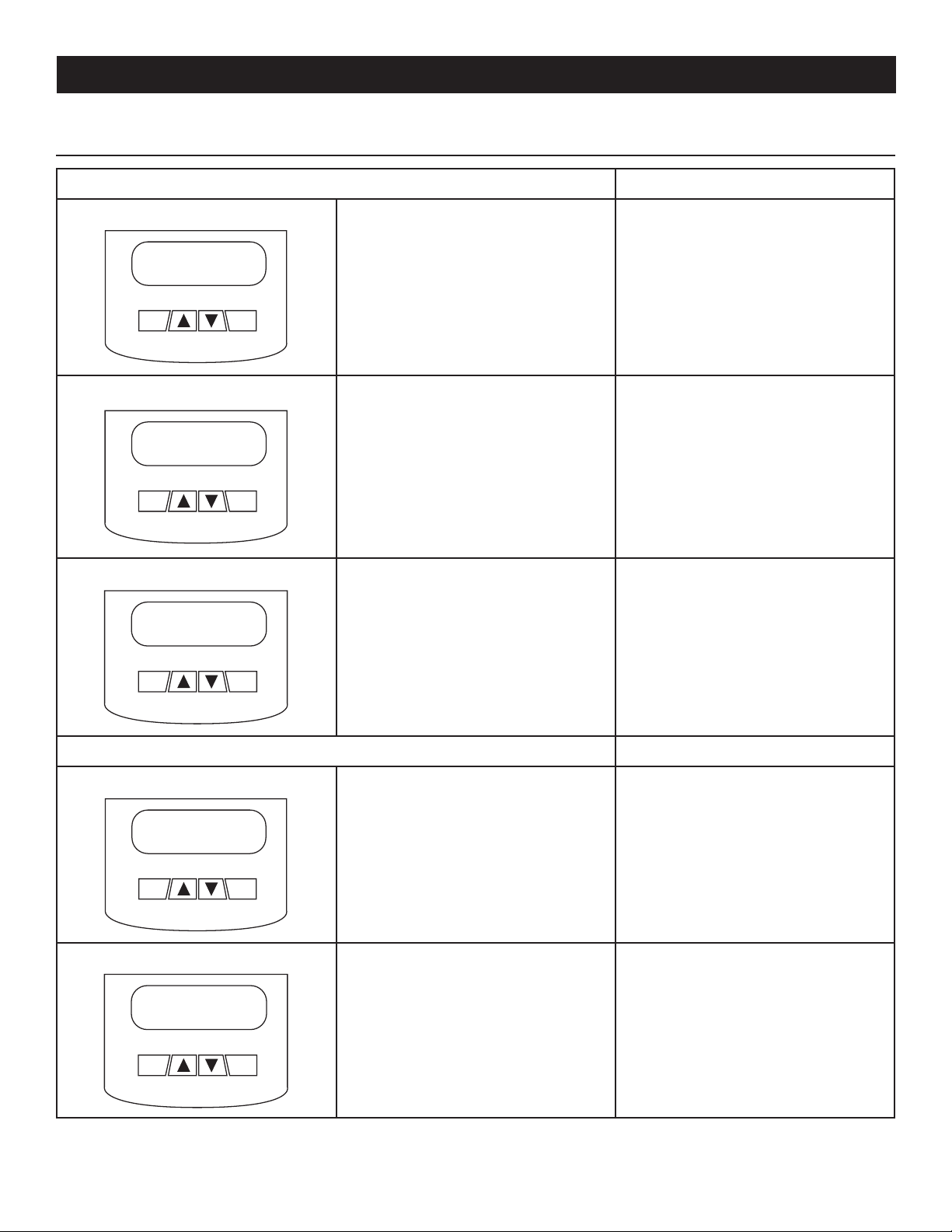

ACTIVATION CHART

CHOOSE LANGUAGE TROUBLESHOOTING

Display Reads: Use ARROW keys to scroll to desired lan-

guage. Press ENTER to select.

If the wrong language is chosen, it can be

changed later using the “edit” menu.

Display Reads: Press ENTER to begin the activation pro-

cess.

If ESCAPE is pressed instead of ENTER,

your generator will only run in manual mode

(for test purposes) and NOT ACTIVATED will

be displayed. You will need to remove the

generator control panel fuse AND disconnect

the T1, N1 and N2 connector in the external

connection box (if equipped); or disconnect

utility input (main breaker) to the transfer

switch for 3-5 seconds and reconnect, then

begin with Step 1.

Display Reads: If you do not have your activation code,

go to www.activategen.com or call

1-888-9ACTIVATE (922-8482).

If you already have your activation code,

wait 3-5 seconds for the next display.

ENTER ACTIVATION CODE (Passcode) TROUBLESHOOTING

Display Reads: Use ARROW keys to scroll and find the first

number of your Activation Code.

Press ENTER to select.

Repeat this step until all digits have been

entered.

Use ESCAPE to correct previous digits.

Display Reads: Activation is complete when all digits are

entered above and your screen shows this

display.

Follow the controller prompts to continue

setting the time function. Refer to your

Owner’s Manual with questions.

What happens if “Wrong Passcode Try

Again” appears?

Re-enter the activation code. If a second

attempt is unsuccessful, check the number

against the code given on activategen.com.

If it is correct and the generator will not

accept it, contact 1-888-9ACTIVATE (922-

8482).

“SELECT HOUR (0-23)”

“- +”6

Escape Enter

Serial 123456789

Passcode XXXXX +/-

Escape Enter

To Activate go to

www.activategen.com

Escape Enter

Activate me (ENT) or

ESC to run in manual

Escape Enter

Language

- English +

Escape Enter

INSTALLATION ASSISTANT

Interconnect System Self Test Feature (follow the on-screen

prompts).

Upon power up, this controller will go through a system self test

which will check for the presence of utility voltage on the DC

circuits. This is done to prevent damage if the installer mistakenly

connects AC utility power sense wires into the DC terminal block.

If utility voltage is detected, the controller will display a warning

message and lock out the generator, preventing damage to the

controller. Power to the controller must be removed to clear this

warning.

Utility voltage must be turned on and present at the N1 and N2

terminals inside the generator control panel for this test to be

performed and pass.

NOTE:

DAMAGE CAUSED BY MISWIRING OF THE INTERCONNECT

WIRES IS NOT WARRANTABLE!

This test will be performed each time the controller is powered

up.

Upon first power up of the generator, the display interface will

begin an installation assistant. The assistant will prompt the user

to set the minimum settings to operate. These settings are simply:

Current Date/Time and Exercise Day/Time. The maintenance inter-

vals will be initialized when the exercise time is entered.

The exercise settings can be changed at any time via the "EDIT"

menu (see Appendix, "Menu System").

If the 12 volt battery is disconnected or the fuse removed, the

Installation Assistant will operate upon power restoration. The

only difference is the display will only prompt the customer for the

current Time and Date.

IF THE INSTALLER TESTS THE GENERATOR PRIOR TO

INSTALLATION, PRESS THE “ENTER” KEY TO AVOID SETTING

UP THE EXERCISE TIME. THIS WILL ENSURE THAT WHEN

THE CUSTOMER POWERS UP THE UNIT, HE WILL STILL BE

PROMPTED TO ENTER AN EXERCISE TIME.

SETTING THE EXERCISE TIMER

This generator is equipped with an exercise timer. Once it is set,

the generator will start and exercise every seven days, on the day

of the week and at the time of day specified. During this exercise

period, the unit runs for approximately 12 minutes and then shuts

down. Transfer of loads to the generator output does not occur

during the exercise cycle unless utility power is lost.

LOW SPEED EXERCISE

The standard start sequence will be initiated.

• All 1800 rpm units will exercise at 1400 RPM

• All 3600 rpm units will exercise at 1800 RPM

If utility is lost during exercise the controller will do the following:

• Wait for the “line interrupt period” for utility to return. If utility

returns within the “line interrupt period”, continue to exercise

at low RPM.

• If utility is still lost after the “line interrupt period”, run the engine

up to normal RPM and transfer the load. At this time the con-

troller will exit the exercise routine and assume full automatic

operation.

USER ADJUSTABLE SETTINGS

Setting

Factory

Default

Minimum

Setting

Maximum

Setting

Increment

Exercise

time

2 pm 00:00 (12 am)

23:59

(11:59 pm)

1 min

Exercise

day

Wed Sun Sat 1 day

Current

Time

12 am 00:00 (12 am)

23:59

(11:59 pm)

1 min

Current

Day

Sun Sun Sat 1 day

Current

Month

Jan Jan Dec 1 month

Current

Year

2008 2008 2100 1 year

Language English French Spanish N/A

Contrast 80% 0% 100% 1%

FUEL CONVERSION

For fuel conversion steps, refer to the GenSpec section,

RECONFIGURING THE FUEL SYSTEM.

OPERATION

This system is intended to supply standby power in the event of a

utility failure. The control system will monitor the utility voltage to

determine if stand-by power is required. Should the utility voltage

fail, the generator will start and run normally, detaching from the

utility and supplying the customer load from the generator. When

utility power returns, the controller will re-transfer the customer

load back to utility and shut down the generator.

AUTOMATIC TRANSFER OPERATION

To select automatic operation, do the following:

1. Make sure the transfer switch main contacts are set to their

UTILITY position, i.e., loads connected to the utility power

source.

2. Be sure that normal UTILITY power source voltage is avail-

able to transfer switch terminal lugs N1 and N2 (Refer to the

Electrical Data section).

3. Set the generator’s AUTO/OFF/MANUAL switch to AUTO.

4. Set the generator’s main circuit breaker to its ON (or CLOSED)

position.

With the preceding steps complete, the generator will start auto-

matically when utility source voltage drops below a preset level.

After the unit starts, loads are transferred to the standby power

source. Refer to the Sequence of Automatic Operation section.

8-3

CntrlNexus001 Rev. D 04/11

Control Panel

SEQUENCE OF AUTOMATIC OPERATION

Initial Conditions: Generator in Auto ready to run, load being sup-

plied by the Utility Source through the transfer switch.

1. When the utility voltage fails (falls below 60% of nominal), a

10-30 second (programmable) “line interrupt” delay timer is

started. The factory set time delay is 10 seconds. If at the

end of the line interrupt time the utility voltage is above 60%

the engine will not crank. If the utility voltage is still below

the 60% of nominal at the end of the line interrupt time, the

unit will crank and start. If the unit cranks for more than 10

seconds and the utility voltage rises above 80% of nominal

(programmed pickup voltage) and the unit has not started, the

crank cycle will abort.

2. As soon as the unit starts a 5 second “warm-up” timer is initi-

ated. When the warm-up timer expires the control will transfer

the load to the generator (through the RTS switch) if the utility

voltage is less than 80% of nominal. If the utility voltage is

greater than the 80% of nominal at the end of the warm-up

time the load will not be transferred to the generator and a one

minute low-speed cool down period will start. At the end of

the one minute cool down period the generator will stop.

3. Once the unit is running and the switch has transferred the

load to the generator the unit will monitor utility voltage.

When utility voltage returns (above the programmable pickup

voltage, normally 80% of nominal), a 15 second “Return to

Utility” timer will start. At the end of the return to utility time,

if the utility voltage is still above the pickup voltage, the unit

will transfer the load back to the utility source and run the unit

through a one minute cool down period. When the cool down

period is over the unit will shut down and be ready for the next

outage.

4. If during the cool down period utility voltage should fall below

60% of nominal the 5 second warm-up timer is initiated and

the unit will transfer the load back to the generator and con-

tinue to monitor the utility.

CRANK CYCLES AND OVERCRANK SHUTDOWN

If the unit fails to start during a cranking period it will display the

Overcrank Shutdown Alarm. The system will control the cranking

cycles as follows:

The first crank cycle is a 16 second crank time followed by a 7

second rest. The next 5 cycles will be 7 seconds of cranking time

each followed by a 7 second rest time.

If the unit fails to start by the end of the 6 crank/rest cycles

the Overcrank Shutdown Alarm will display and the unit will not

attempt to crank until the alarm is reset.

AUTO START

This unit is designed to automatically start in the event of a util-

ity failure or brown out condition. Brown out is defined as utility

voltage less than 60% nominal, while utility is considered good

when it is restored to at least the pickup value, 80% of nominal.

These levels are fixed. The “Line Interrupt period” is an adjustable

parameter by the dealer. If 2-wire start mode is activated, the unit

will start when 2-wire start is active.

MANUAL START

Allows the user to start and run the generator manually.

Transfer of the load to the generator will occur if utility is lost while

the unit is running in the manual mode (only if activated).

ALARM AND WARNING MESSAGES

Alarms are defined as “Latching” which means they must be

cleared before the alarm message on the screen will clear. They

can be of type “Shutdown” or not and are logged in the alarm log.

Alarms are all annunciated on the display).

Warnings are “Non Latching” meaning the message automati-

cally clears when the warning condition goes away. Warnings can

not be of type “Shutdown” but they are logged in the alarm log.

Warnings are all annunciated on the display.

LOW OIL PRESSURE SHUTDOWN ALARM

There is a 10 second delay before oil pressure is monitored.

HIGH COOLANT TEMPERATURE SHUTDOWN ALARM

There is a 10 second delay before engine temperature is moni-

tored.

Once running there is a 1/4 second delay before shut down. The

limit is set at 125° C or 257° F.

OVERCRANK SHUTDOWN ALARM

Occurs if the engine has not started within the specified crank

cycle.

OVERSPEED SHUTDOWN ALARM

Warning indicator is measured and calculated by the microproces-

sor. Overspeed is defined as +20% of nominal engine speed for 3

seconds, or +25% immediate.

Nominal engine speed = 60.0 Hz

RPM SENSOR FAILURE SHUTDOWN ALARM

During cranking: If the board does not see a valid RPM signal

within four (4) seconds of cranking it will shut down and lock out

on RPM sensor loss.

During running: If the RPM signal is lost for one full second the

board will shut the engine down, wait 15 seconds, then re-crank

the engine if in AUTO, it will not re-crank in MANUAL.

If no RPM signal is detected within the first four (4) seconds of

cranking, the control board will shut the engine down and latch out

on RPM sensor loss.

If the RPM signal is detected the engine will start and run normally.

If the RPM signal is subsequently lost the control board will try

two more re-cranks before latching out and flashing the RPM

Sensor Failure message (if it is in AUTO).

8-4

CntrlNexus001 Rev. D 04/11

Control Panel

CHECK ENGINE MESSAGE

The control system has detected an emissions related fault. This

fault cannot be cleared using the control panel interface. The unit

will continue to operate in automatic mode. Contact your local

servicing dealer.

UNDER-FREQUENCY SHUTDOWN ALARM

After starting, if the generator stays under frequency for more than

30 seconds, it will shutdown.

LOW BATTERY ALARM

While running, if the average battery voltage falls below 11.9 volts

for one (1) minute, the low battery alarm will be displayed.

LOW BATTERY WARNING

The microprocessor will continually monitor the battery voltage

and display the Low Battery Voltage message if the battery voltage

falls below 12.2 Volts for one (1) minute.

No other action is taken on a low battery warning condition. The

warning will automatically clear if the battery voltage rises above

12.2 volts.

NOTE:

The battery sentinel is a separate feature that monitors battery

condition.

LOW COOLANT LEVEL ALARM

This is a shutdown alarm. The sensor will be continuously moni-

tored. If an error condition is seen for five (5) consecutive sec-

onds, the alarm will be displayed.

MISSING CAM PULSE ALARM

This is a shutdown alarm. The alarm will activate after five (5)

seconds of continuously missing cam pulses.

MISSING CRANK PULSE ALARM

This is a shutdown alarm. The alarm will activate after 12 con-

secutive revs where crank pulses are missing.

LOW FUEL PRESSURE WARNING

Fuel pressure is monitored by a digital sensor with a fixed setpoint

of below five (5) inches water column.

GOVERNOR SENSOR FAULT ALARM

The governor position is monitored by an analog feedback signal. If

the throttle position is seen outside of the normal operating range,

a shutdown alarm is displayed. If the throttle is commanded to

move, and no movement is seen, a shutdown alarm is displayed.

WIRING ERROR ALARM

When power is first apllied to the contoller, the software will per-

form a check on the wiring of the transfer output, and ensure it

does not have high voltage on the wire. If this is the case, it will

signal a miswire alarm and will not run. The test can be skipped

by use of the escape key.

UNDERVOLTAGE ALARM

If the generator voltage falls below 60% for >5 seconds, an alarm

will be issued.

8-5

CntrlNexus001 Rev. D 04/11

Control Panel

Figure 1 – Generator Control Panel

OVERVOLTAGE ALARM

If the generator voltage rises above 110% for >3 seconds, an

alarm will be issued.

If the generator voltage rises above 130% for >0.2 seconds, an

alarm will be issued.

INTERNAL FAILURE SHUTDOWN ALARM

Any internal failure that can be detected such as corrupted

firmware will cause this shutdown alarm. This alarm cannot be

cleared.

CANBUS ALARM

Where applicable, if the Canbus communications link fails to com-

municate, a “Canbus Alarm” will be generated. This only applies

to systems with external ignition modules. The alarm may be

generated if:

1. The physical link is broken.

2. The Ignition Module fails or resets.

3. The Nexus Controller fails or resets.

4. Having the Battery Chargers 120 VAC connected without a

battery installed.

5. A blown 10 amp Ignition Module fuse (approximately 12

inches away from the starter).

6. A blown 25 amp system fuse (located approximately 12

inches away from the DC alternator).

NOTE:

The “Canbus Alarm” will not clear on its own. To clear the

alarm, press the “enter” key to acknowledge the alarm. The

alarm will clear and if the fault is still present, the alarm will

reoccur.

IGNITION ALARM

When an ignition alarm occurs, a generic message “Ignition Fault”

will be displayed as the fault code.

MAINTENANCE WARNING

When a maintenance period expires, a warning message will be

posted. The warning can be reset by hitting the Enter key. Resetting

will clear the warning and reset the maintenance counters for the

condition annunciated. The history log will reflect the maintenance

warning.

ALARM CANCEL

When the generator is shut down due to a latching alarm, the Auto

/Off/ Manual switch must be set to the off position and the ENTER

key pressed to unlatch any active fault and clear the corresponding

fault alarm message.

COMMON ALARM RELAY

The common alarm relay will be activated if there is a shutdown

alarm. It will not activate on warnings or indicate that the Auto/Off/

Manual switch is in the OFF position. The OFF position will clear

the alarms and the relay. The relay will not be used to indicate a

generator is not activated.

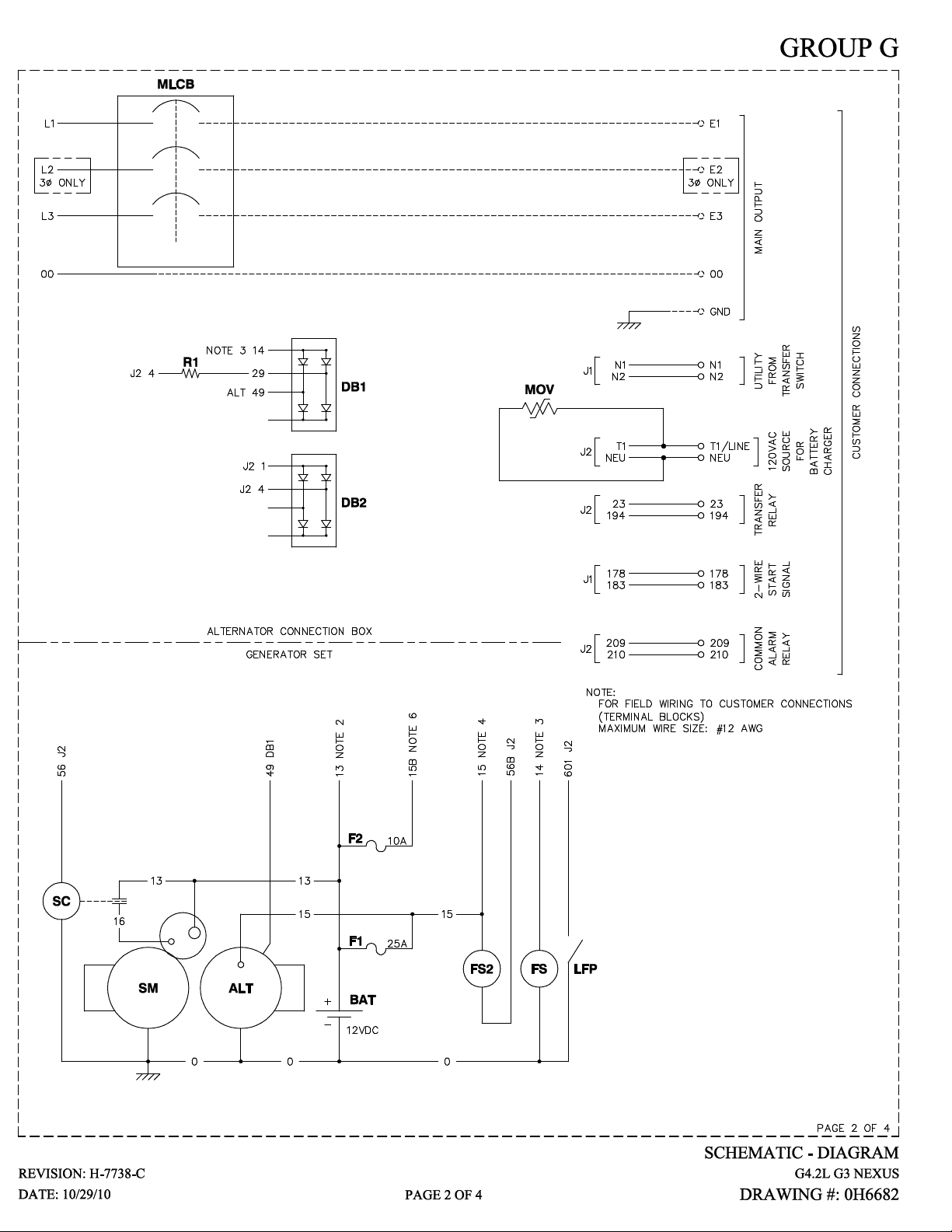

The common alarm connections are wired to a set of potential-

free (dry) contacts on the Nexus controller board. These Normally

Open (N.O.) contacts close when an alarm condition occurs and

are used to activate a remote signaling device. The circuit is rated

for a maximum of 130mA at 24 VDC. The connections are a short

set of free hanging wires that exit the engine harness loom directly

behind the Nexus Control Panel and are labeled numbers 209 and

210.

MAINTENANCE ALERTS

Maintenance alerts will be provided for these conditions (see the

Maintenance Alert Chart).

SERVICE SCHEDULE ‘A’

Inspect Accessory drive alert 1yr /100hrs

Coolant change & flush 1yr /100hrs

Inspect spark plugs alert 1yr /100hrs

Change oil & filter alert 1yr /100hrs

Inspect battery alert 1yr /100hrs

Change / Inspect air filter alert 1yr /100hrs

SERVICE SCHEDULE ‘B’

Change / Inspect spark plugs alert 2yr/ 250hr

8-6

CntrlNexus001 Rev. D 04/11

Control Panel

MAINTENANCE ALERT CHART

CONDITION 1.6 CHERY 2.4/1800 MITSU 2.4/3600 MITSU 4.2 FORD

Change oil & filter alert 3mo/30hrs break-in

1yr/100hrs

3mo/30hrs break-in

1yr/100hrs

3mo/30hrs break-in

1yr/100hrs

3mo/30hrs break-in

1yr/100hrs

Inspect/clean air inlet &

exhaust alert

3mo/30hrs break-in

6mo/50hrs

3mo/30hrs break-in

6mo/50hrs

3mo/30hrs break-in

6mo/50hrs

3mo/30hrs break-in

6mo/50hrs

Change / Inspect air filter

alert

1yr/100hr 1yr/100hr 1yr/100hr 1yr/100hr

Inspect spark plugs alert 1yr /100hrs 1yr /100hrs 1yr /100hrs 1yr /100hrs 1yr /100hrs

Change / Inspect spark

plugs alert

2yr/ 250hr 2yr/ 250hr 2yr/ 250hr 2yr/ 250hr

Inspect Accessory drive

alert

3mo/30hrs break-in

1yr /100hrs

3mo/30hrs break-in

1yr /100hrs

3mo/30hrs break-in

1yr /100hrs

3mo/30hrs break-in

1yr /100hrs

Coolant change & flush 1yr /100hrs 1yr /100hrs 1yr /100hrs 1yr /100hrs

Inspect battery alert 1yr /100hrs 1yr /100hrs 1yr /100hrs 1yr /100hrs

8-7

CntrlNexus001 Rev. D 04/11

Control Panel

8-8

CntrlNexus001 Rev. D 04/11

Control Panel

ACTIVATION

RUN LOGALARM LOG

HISTORY STATUS

COMMANDSTATE VERSIONSDISPLAY

GENERATOR

FREQUENCY

ENGINE

HOURS

ENGINE

RPM

BATTERY

VO LTAGE

DEBUG

INPUTS OUTPUTS DISPLAYS

EDIT

LANGUAGE

TIME/DATE

EXERCISE

TIME/SPEED

ESC

Press the “ESCAPE” key

to jump back up through

the menu levels.

+ / -

Use the “+/-” key

to navigate through

the menu.

ENTER

Use the “ENTER” key

to select items or

enter data.

ESC

ESC ESC

RESET

MAINTENANCE

QT TEST

MAIN MENU

MENU SYSTEM

STATIONARY EMERGENCY

GENERATOR CONTROL AND

OPERATION

Refer to the appropriate control panel operator’s manual for this

unit.

OPERATING UNIT WITH MANUAL

TRANSFER SWITCH

If the Stationary Emergency Generator was installed in conjunction

with a transfer switch capable of manual operation only, the fol-

lowing procedure applies. A manually operated transfer switch is

one that will not provide automatic start-up and does not include

an intelligence circuit.

ENGINE START-UP AND TRANSFER

For additional information, refer to the applicable control panel

manual for this unit, as well as any literature pertaining to the

specific transfer switch.

The Maintenance Disconnect Switch and the

AUTO/OFF/MANUAL switches (if so equipped)

must be set properly, or the generator will

crank and start as soon as the utility power to

the transfer switch is turned off. Refer to appli-

cable control panel and transfer switch manuals

for more information.

Do not proceed until certain that utility source

voltage is available to the transfer switch and

the transfer switch main contacts are set to

UTILITY.



Do not attempt manual operation until all

power supplies to the transfer switch have been

positively turned off, or extremely dangerous -

possibly lethal - electrical shock will result.



Transfer switch enclosure doors should be kept

closed and locked. Only authorized personnel

should be allowed access to the transfer switch

interior. Extremely high and dangerous voltages

are present in the transfer switch.

In order to transfer load from the utility source to the generator,

follow these directions:

Turn OFF or disconnect the utility power circuit to the transfer •

switch, using the means provided (such as the utility source

main line circuit breaker).

Set the transfer handle to its UTILITY (NORMAL) position with •

load circuits connected to the utility power supply.

Set the generator’s main line circuit breaker to its OFF (or OPEN) •

position.

Start the generator.•

Do not crank the engine continuously for lon-

ger than 30 seconds, or the heat may

damage the starter motor.

Let engine stabilize and warm up.•

Check all applicable instrument and gauge readings. When •

certain that all readings are correct, move the transfer switch

manual handle to the STANDBY (or EMERGENCY STANDBY)

position, i.e., load circuits supplied by the generator.

Set the generator’s main line circuit breaker to its ON (or •

CLOSED) position.

Load circuits are now powered by the generator.•

RETRANSFER AND SHUTDOWN

For additional information, refer to the applicable control panel

manual for this unit, as well as any literature pertaining to the

specific transfer switch.

To transfer the load back to the utility power source and shut down

the generator, follow these directions:

Set the generator’s main line circuit breaker to its OFF (or OPEN) •

position.

Manually move the transfer switch handle to its UTILITY •

(NORMAL) position, i.e., load circuits connected to the utility.

Turn ON the utility power supply to the transfer switch, using •

the means provided (such as the utility power source main line

circuit breaker).

Let the generator run at no-load for a few minutes to stabilize •

internal temperatures.

Shut down the generator.•

OPERATING UNIT WITH AUTOMATIC

TRANSFER SWITCH

If the Stationary Emergency Generator has been installed with an

automatic transfer switch, the engine may be started and stopped

automatically or manually.

NOTE:

Refer to the applicable manual for your transfer switch and to

“Transfer Switch Start Signal Connections”. In addition, please

note the dangers under “Engine Start-up and Transfer.”

9-1

Oper001 Rev. D 05/10

Operation

GENERAL MAINTENANCE



Before working on the Stationary Emergency

Generator, ensure the following:

The AUTO/OFF/MANUAL switch is in the OFF position.•

The control panel fuse has been removed from the control •

box.

The 120VAC supply to the battery charger is switched OFF.•

The negative battery cable has been removed.•

CHECK ENGINE OIL

Check engine crankcase oil level (Figure 10.1) according to the

Service Schedule and SIB10-10-L24G.

Remove oil dipstick and wipe dry with a clean, lint-free cloth.•

Install oil dipstick, then remove again.•

Oil should be between FULL and ADD marks.•

If oil level is below the dipstick ADD mark, remove oil fill cap-. •

Add the recommended oil to bring oil level up to the FULL

mark. DO NOT FILL ABOVE THE “FULL” MARK. See “Engine Oil

Recommendations” for recommended oils.

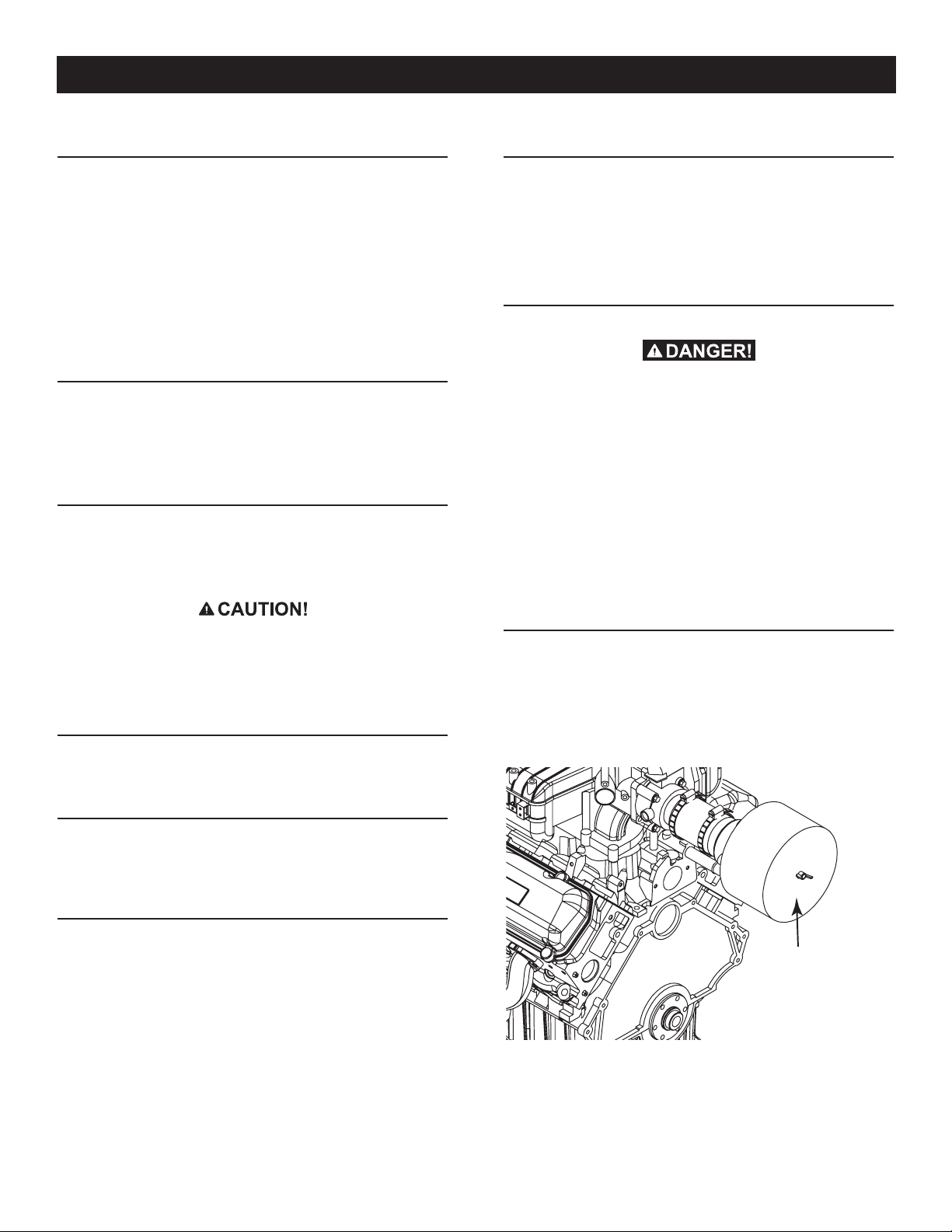

Figure 10.1 - Oil Dipstick and Oil Fill Cap

OIL FILL

CAP

OIL FILTER

OIL DIPSTICK

CHANGING ENGINE OIL

Hot oil may cause burns. Allow engine to cool

before draining oil. Avoid prolonged or repeat-

ed skin exposure with used oil. Thoroughly

wash exposed areas with soap.

Refer to the Service Schedule for engine oil and filter change fre-

quencies.

Drain the oil while the engine is still warm from running. This

means warm up the engine, shut it down and drain immediately

as follows:

1. Remove the drain hose from its retaining clip or cut the zip-tie

securing the oil drain hose.

2. Loosen and remove OIL DRAIN HOSE CAP. Drain oil com-

pletely into suitable container.

3. When all oil has drained, install and tighten OIL DRAIN HOSE

CAP and secure drain hose with a new zip-tie, or place the

hose in its retaining clip.

4. Turn OIL FILTER (Figure 10.1) counterclockwise and remove.

Properly dispose of old filter.

5. Apply light coating of new engine oil to seal of new oil fil-

ter. Install FILTER and tighten by hand only. DO NOT OVER

TIGHTEN.

6. Remove OIL FILL CAP and add recommended oil. Crankcase

oil capacity is listed in the "Specifications" section.

After refilling the crankcase with oil, always

check oil level on dipstick. NEVER OPERATE

ENGINE WITH OIL BELOW THE DIPSTICK “ADD”

MARK.

7. Start engine and check for oil leaks.

8. Shut OFF engine and wait 10 minutes for the oil to settle down

into the oil pan. Recheck oil level on dipstick. DO NOT fill

above the dipstick "FULL" mark.

9. Dispose of used oil at a proper collection center.

COOLING INTAKE/OUTLET

Air intake and outlet openings in the generator compartment must

be open and unobstructed for continued proper operation. This

includes such obstructions as high grass, weeds, brush, leaves

and snow.

Without sufficient cooling and ventilating air flow, the engine/gen-

erator quickly overheats, which causes it to shut down. (See the

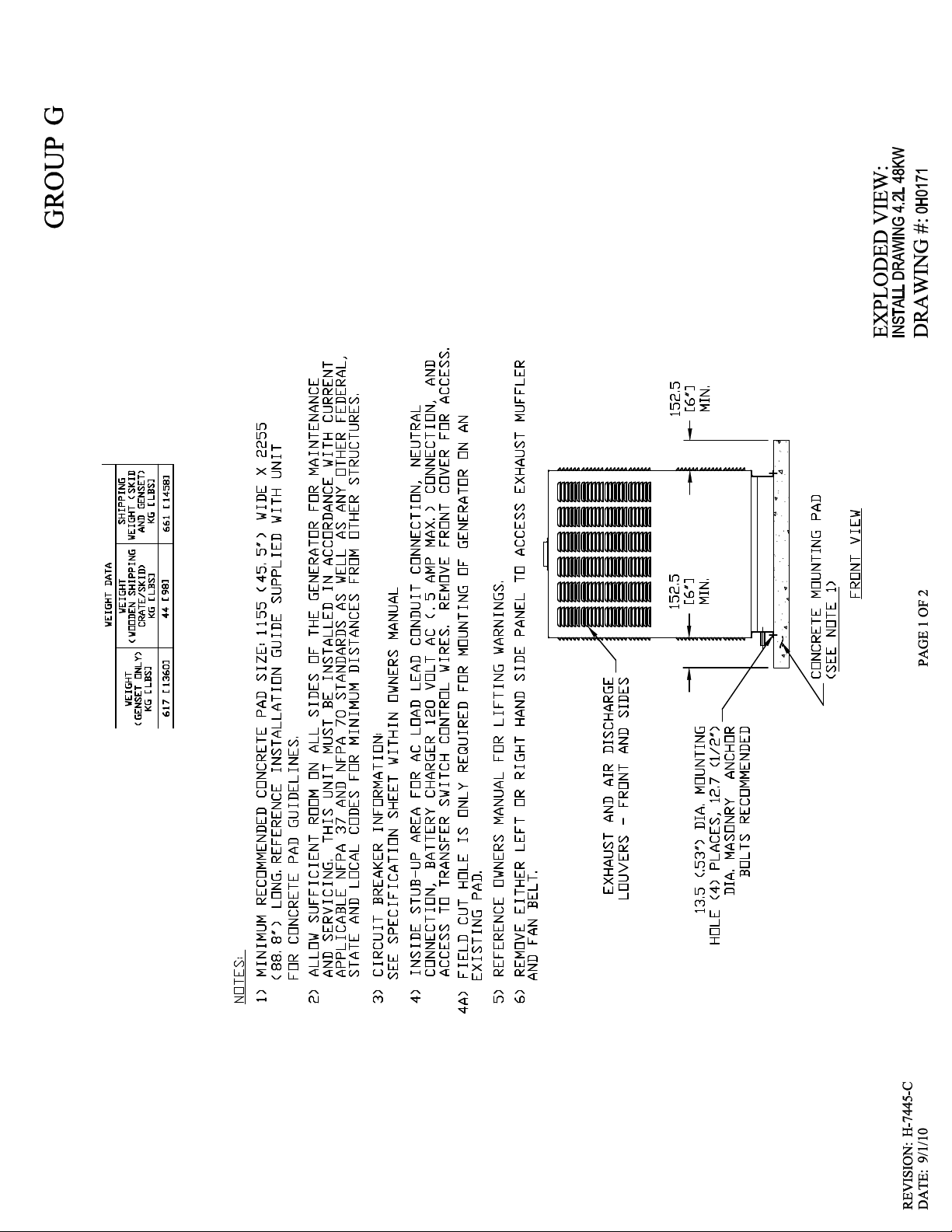

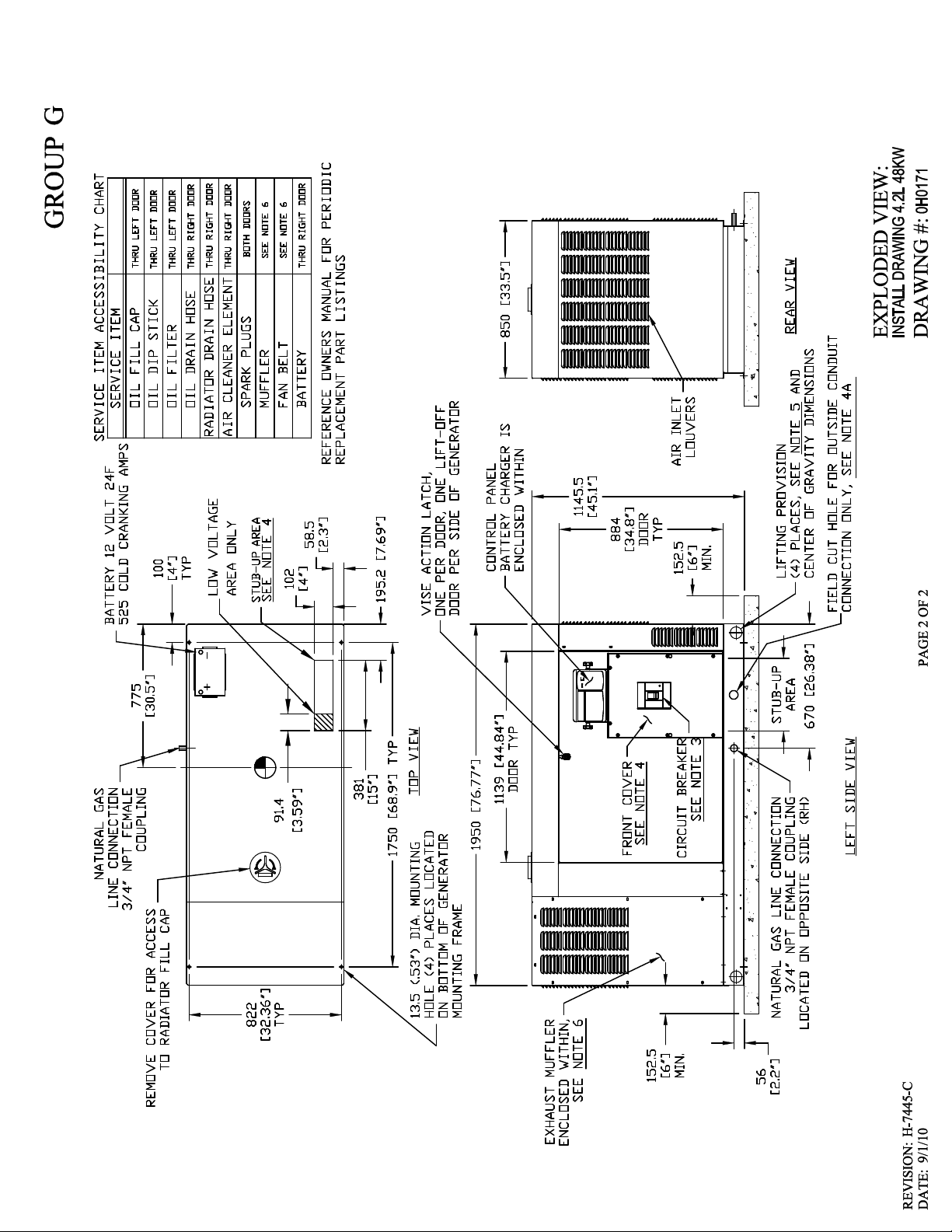

installation diagram.)



The exhaust system parts from this product get

extremely hot and remains hot after shutdown.

High grass, weeds, brush, leaves, etc. must

remain clear of the exhaust. Such materials may

ignite and burn from the heat of the exhaust

system.

INSPECT COOLING SYSTEM

Inspect engine cooling system. See the Service Schedule.•

Check hoses for damage, deterioration, leaks, etc. Correct any •

discrepancies found.

Check hose clamps for tightness.•

10-1

Maint028 Rev. A 05/10

Maintenance

ENGINE COOLANT

Check coolant level in coolant recovery bottle. See the Specifications

and Service Schedule sections.

Add recommended coolant mixture as necessary.•

Periodically remove radiator pressure cap (only when engine •

has cooled down) to make sure the coolant recovery system

is functioning properly. Coolant should be at bottom of radia-

tor filler neck. If coolant level is low, inspect gasket in radiator

pressure cap. Replace cap, if necessary. To have pressure cap

tested, contact a Service Facility. Inspect cooling system and

coolant recovery system for leaks.

COOLANT CHANGE

Every year, have a service facility drain, flush and refill the cooling

system. See the Specifications and Service Schedule for cooling

system recommendations.

OVERLOAD PROTECTION FOR ENGINE DC ELECTRICAL

SYSTEM

Engine cranking, start up and running are controlled by a solid

state Engine Controller circuit board. Battery voltage is delivered

to that circuit board via the control panel fuse. This overcurrent

protection device will open if the circuit is overloaded.

If a circuit breaker opens or a fuse element

melts, find the cause of the overload before

resetting the circuit breaker or replacing the

fuse.

EXERCISE SYSTEM

Starts the Stationary Emergency Generator engine once every

seven days and lets it run for 12 minutes.

PERFORM VISUAL INSPECTION

Complete a thorough visual inspection of the entire engine-genera-

tor monthly. Look for obvious damage, loose, missing or corroded

nuts, bolts and other fasteners. Look for fuel, oil or coolant leaks.

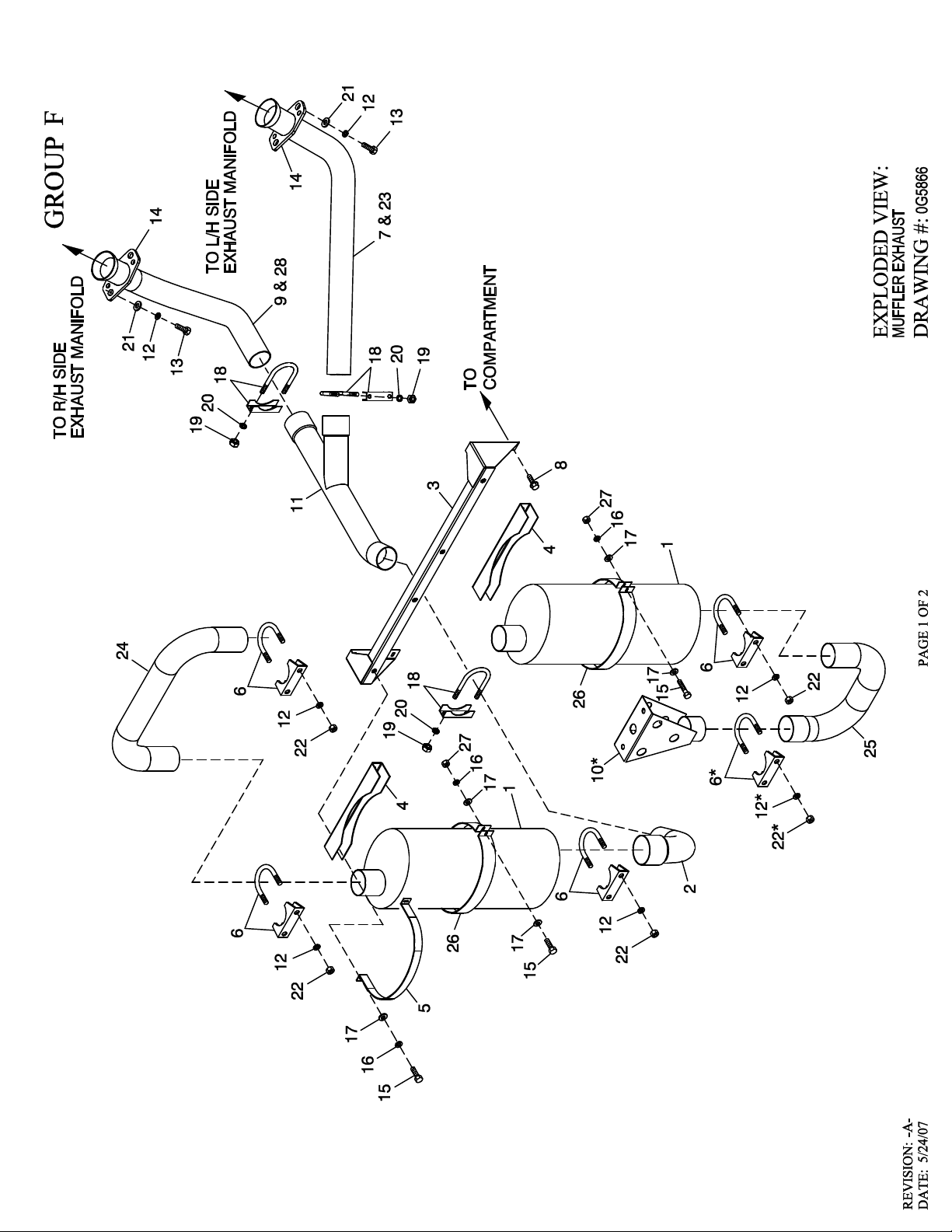

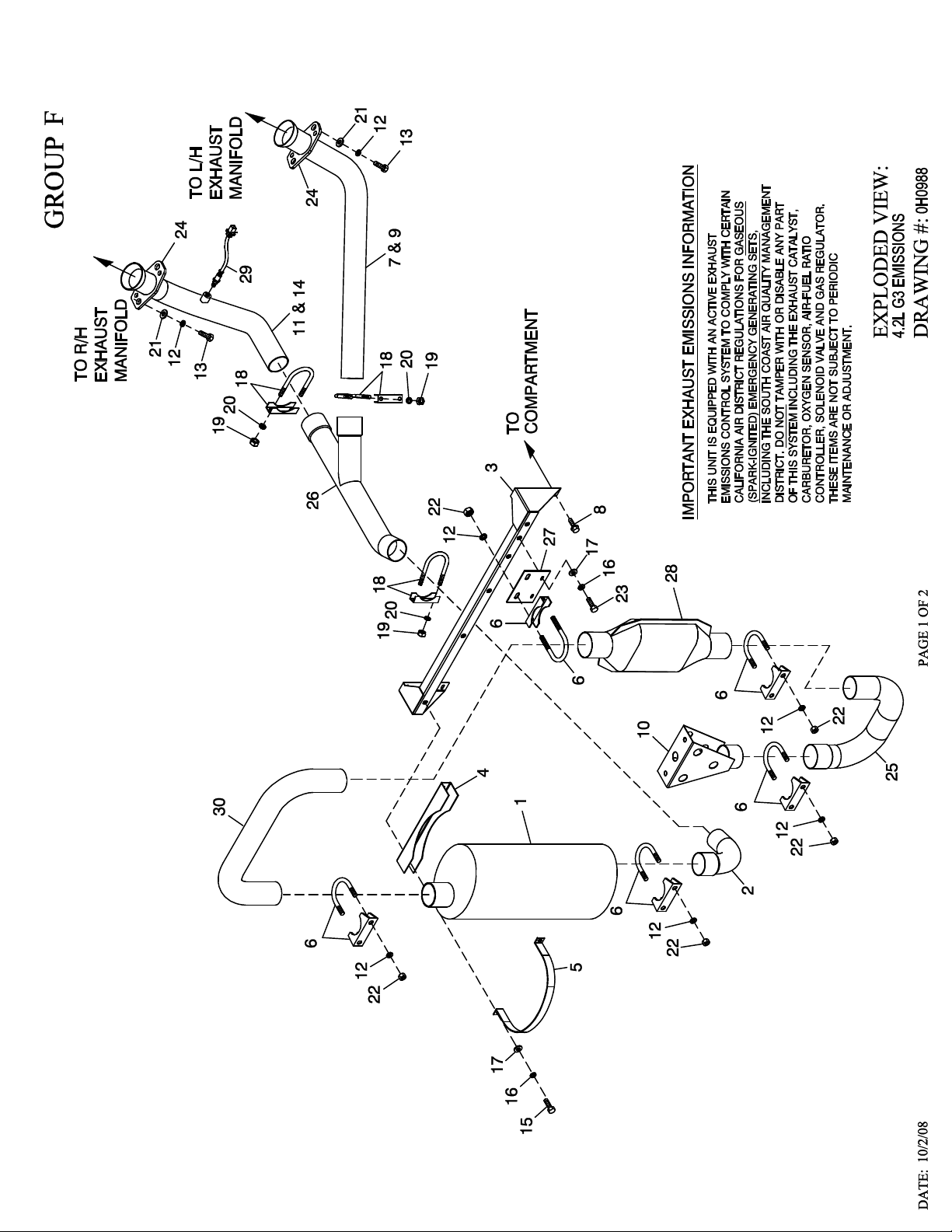

INSPECT EXHAUST SYSTEM

Inspect the exhaust system at least once every year. Check all

exhaust system pipes, mufflers, clamps, etc. for condition, tight-

ness, leaks, security, damage.

CHECK FAN BELT

Inspect fan belts every year. Replace any damaged, deterio-•

rated, worn or otherwise defective belt.

Check fan belt tension. Thumb pressure, exerted midway •

between pulleys, should deflect about 3/8 to 5/8 of an inch.

This system uses an automatic belt tensioner and cannot be

adjusted.

INSPECT ENGINE GOVERNOR

Visually inspect electronic governor.

Do not attempt to adjust the governor. Only

qualified service facilities should adjust the

governor. Excessively high operating speeds

are dangerous and increase the risk of personal

injury. Low speeds impose a heavy load on the

engine when adequate engine power is not

available and may shorten engine life. Correct

rated frequency and voltage are supplied only

at the proper governed speed. Some connected

electrical load devices may be damaged by

incorrect frequency and/or voltage. Only quali-

fied service technicians should adjust the gov-

erned speed.

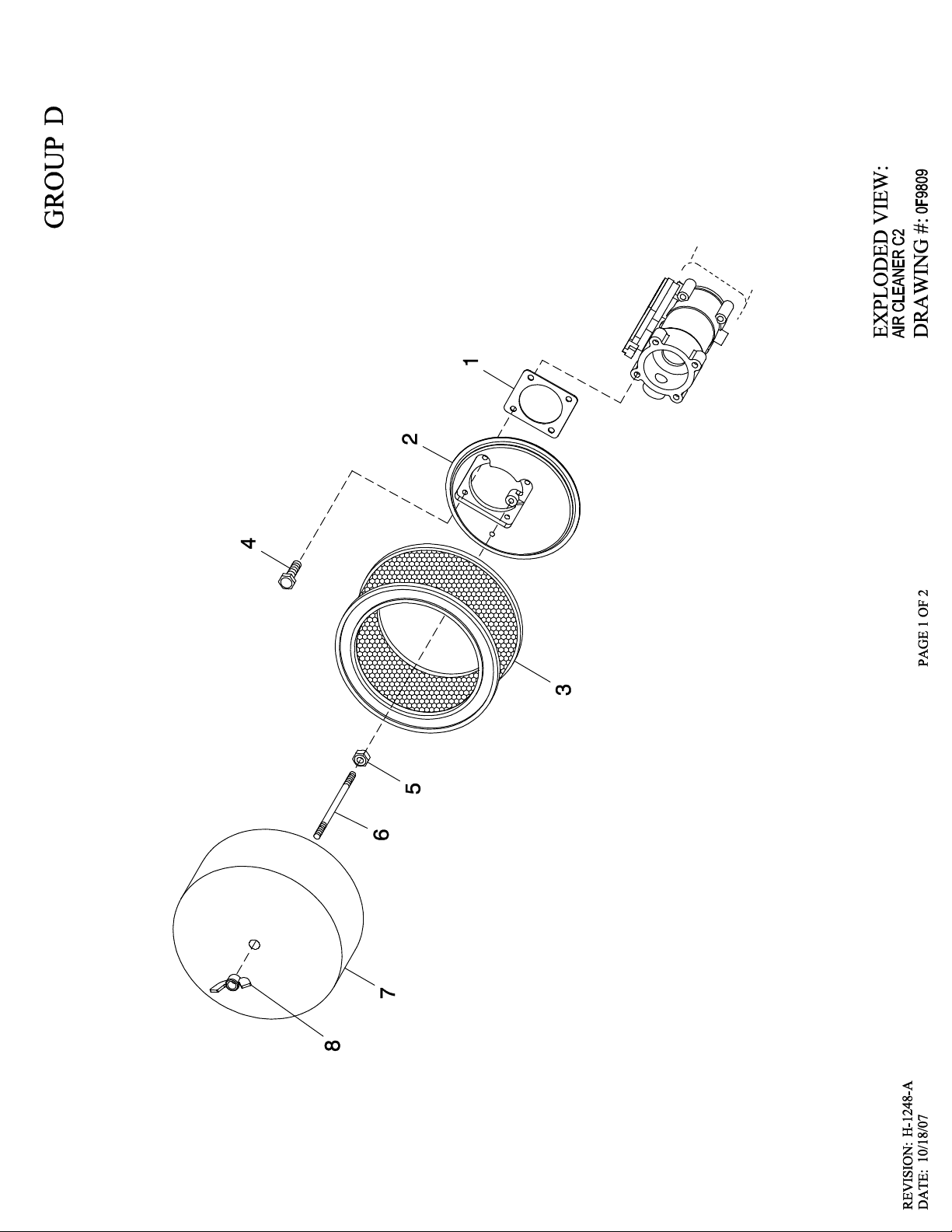

CHANGING THE ENGINE AIR FILTER

To replace the engine air filter, remove the air filter cover and

replace the air filter making sure it is positioned properly before

reattaching the cover (Figure 10.2).

See the Service Schedule for air filter maintenance.

Figure 10.2 – Engine Air Filter

AIR

CLEANER

COVER

10-2

Maint028 Rev. A 05/10

Maintenance

SPARK PLUGS

Reset the spark plug gap or replace the spark plugs as neces-

sary.

1. Clean the area around the base of the spark plugs to keep dirt

and debris out of the engine. Clean by scraping or washing

using a wire brush and commercial solvent. Do not blast the

spark plugs to clean.

2. Remove the spark plugs and check the condition. Replace

the spark plugs if worn or if reuse is questionable. See the

“Service Schedule” section for recommended inspection.

3. Check the spark plug gap using a wire feeler gauge. See the

Specifications section for the required spark plug gap.

CAM SENSOR

Visually inspect Cam Sensor position. Cam sensor should be set

in full counter-clockwise position up against the retaining washer.

(Figure 10.3).

Figure 10.3 - Cam Sensor Position

Cam Sensor (turn

counter-clockwise)

Cam

Sensor

Stop

Retaining

Washer

BATTERY MAINTENANCE

The battery should be inspected per the Service Schedule section.

The following procedure should be followed for inspection:

1. Inspect the battery posts and cables for tightness and corro-

sion. Tighten and clean as necessary.

2. Check the battery fluid level of unsealed batteries and, if

necessary, fill with DISTILLED WATER ONLY. DO NOT USE TAP

WATER IN BATTERIES.

3. Have the state of charge and condition checked. This should

be done with an automotive-type battery hydrometer.



Storage batteries give off explosive hydrogen

gas. This gas can form an explosive mixture

around the battery for several hours after

charging. The slightest spark can ignite the gas

and cause an explosion. Such an explosion can

shatter the battery and cause blindness or other

injury. Any area that houses a storage battery

must be properly ventilated. Do not allow smok-

ing, open flame, sparks or any spark producing

tools or equipment near the battery.

Battery electrolyte fluid is an extremely corro-

sive sulfuric acid solution that can cause severe

burns. Do not permit fluid to contact eyes, skin,

clothing, painted surfaces, etc. Wear protective

goggles, protective clothing and gloves when

handling a battery. If fluid is spilled, flush the

affected area immediately with clear water.

Do not use any jumper cables or booster bat-

tery to crank and start the generator engine. If

the battery has completely discharged, remove

it from the generator for recharging.

Be sure the AUTO/OFF/MANUAL switch is set

to the OFF position, before connecting the

battery cables. If the switch is set to AUTO or

MANUAL, the generator can crank and start as

soon as the battery cables are connected.



Be sure the 120VAC power supply to the battery

is turned OFF, or sparking may occur at the bat-

tery posts as the cables are attached and cause

an explosion.

BATTERY REPLACEMENT

NOTE:

Unit DOES NOT include battery.

When supplying or replacing the battery, the recommended num-

ber and type of battery is listed in the Specifications Section.

NOTE:

The BCI number should be located directly on the battery.

BATTERY FLUID

Check battery electrolyte fluid based on the Service Schedule.

Fluid should cover separators in all battery cells. If fluid level is

low, add distilled water to cover tops of separators. DO NOT USE

TAP WATER IN BATTERY.

CLEANING THE STATIONARY EMERGENCY GENERATOR

Keep the generator as clean and as dry as possible. Dirt and

moisture that accumulates on internal generator windings have an

adverse effect on insulation resistance.

Periodically clean generator exterior surfaces. A soft brush may be

used to loosen caked on dirt. Use a vacuum system or dry, low

pressure air to remove any accumulations of dirt. The generator is

housed inside an all-weather enclosure, clean the enclosure with a

soft, damp cloth or sponge and water.

Once each year have the generator cleaned and inspected by a

Service Dealer. That dealer will use dry, low pressure air to clean

internal windings.

Finally, have the insulation resistance of stator and rotor windings

checked. If insulation resistances are excessively low, the genera-

tor may require drying.

10-3

Maint028 Rev. A 05/10

Maintenance

SERVICE SCHEDULE

System / Component

Frequency Procedure

Weekly - W

Monthly - M

Yearly - Y

Inspect Change Clean

Fuel

Fuel Lines & Connections M X

Lubrication

Oil Level M X*

Oil Y X**

Oil Filter Y X**

Cooling

Engine Coolant Lines & Connections M X

Engine Coolant Level M X

Engine Coolant Y X

Enclosure Louvers W X X

Engine

Air Cleaner Y X X***

Spark Plugs Y X X***

Battery

Remove Corrosion, Ensure Dryness M X X

Clean & Tighten Battery Terminals M X X

Check Charge State M X X***

Check Electrolyte Level M X X***

General Condition

Vibration, Noise, Leakage, Temperature M X

Generator System

Complete Tune-up and System Inspection Y To be completed by an Authorized Service Dealer.

Footnotes

* Inspect the oil level monthly or every 12 hours during continuous operation.

** Change oil and oil filter after the first 30 hours of operation and then every 100 hours or annually thereafter, whichever occurs first.

Change sooner when operating under heavy load or in a dusty or dirty environment or in high ambient temperatures.

*** Replace as necessary.

11-1

SrvSchd004 Rev. B 05/10

Service Schedule

Troubleshooting

TROUBLESHOOTING GUIDE

PROBLEM CAUSE CORRECTION

Engine won’t crank. 1. Control panel 7.5 amp fuse blown. 1. Replace fuse.*

2. Loose or corroded or defective 2. Tighten, clean or replace

battery cables. battery cables as necessary.*

3. Defective starter contactor. 3. Replace contactor.*

4. Defective starter motor. 4. Replace starter motor.*

5. Dead or Defective Battery. 5. Remove, change or replace battery.*

Engine cranks but won't start. 1. Out of fuel. 1. Replenish fuel/turn on fuel valve.

2. Fuel solenoid (FS) is defective 2. Replace solenoid.*

3. Spark plugs defective. 3. Clean, regap or replace plugs.

Engine starts hard, runs rough. 1. Air cleaner plugged or damaged. 1. Clean or replace as needed.

2. Defective spark plugs. 2. Clean, regap or replace plugs.

3. Fuel pressure incorrect. 3. Confirm fuel pressure to regulator is as

recommended in SPECIFICATIONS.*

4. Insufficient fuel supply. 4. Confirm fuel pressure to regualtor is as

recommended in SPECIFICATIONS.*

5. Fuel system set to wrong fuel type. 5. Reconfigure the fuel system. (See

RECONFIGURING THE FUEL SYSTEM in

manual.*

Engine starts then shuts down. 1. Engine oil level is low. 1. Check oil and add oil as needed.

2. Engine is overheated. 2. Check cooling system for leaks.

3. Defective Low Oil Pressure Switch 3. Replace switch.*

4. Defective Coolant Temperature Switch 4. Replace switch.*

5. Defective Control Module circuit board. 5. Replace board.*

6. Coolant Level is Low. 6. Repair leak - Add coolant.

7. Defective Low Coolant Level Switch 7. Replace Switch.*

AUTO/OFF/MANUAL Switch at OFF, 1. Defective AUTO/OFF/MANUAL switch 1. Replace board.*

engine continues to run. 2. Defective Control Module circuit board 2. Replace board.*

No AC output from generator. 1. Main line circuit breaker is tripped/open. 1. Reset to ON/CLOSED.

2. Generator internal failure. 2. *

3. Thermal circuit breaker open. 3. Auto-reset - Wait 5 min. and attempt restart.

*Contact the nearest Dealer for assistance.

12-1

Trblsht003 Rev. B 05/10

13-1

EmsnWrnty001 Rev. C 05/10

United States Environmental Protection Agency Warranty Statement

Warranty Rights, Obligations and Coverage

The United States Environmental Protection Agency (EPA) and Generac Power Systems, Inc. (Generac), are pleased to

explain the Emission Control System Warranty on your new stationary emergency engine. If during the warranty period, any

emission control system or component on your engine is found defective in materials or workmanship Generac will repair

your engine at no cost to you for diagnosis, replacement parts and labor provided it be done by an Authorized Warranty

Service Facility. Your emission control system may include parts such as the fuel metering, ignition, and exhaust systems

and other related emission related components listed below. Generac will warrant the emissions control systems on your

2009 and later model year engines provided there has been no abuse, neglect, unapproved modification or improper main-

tenance of your engine. For engines less than 130 HP the warranty period is two years from the date of sale to the ultimate

purchaser. For engines greater than or equal to 130 HP the warranty period is three year from the date of the engine being

placed into service.

Purchaser’s/Owner’s Warranty Responsibilities

As the engine purchaser/owner you are responsible for the following. 1.) The engine must be installed and configured in

accordance to the installation specifications. 2.) The completion of all maintenance requirements listed in your Owner’s

Manual. 3.) Any engine setting adjustment must be done in accordance and consistent with the instructions in the Owner’s

Manual. 4.) Any emission control system or component must be maintained and operated appropriately in order to ensure

proper operation of the engine and control system to minimize emissions at all times.

Generac may deny any, or all Emission Control System Warranty coverage or responsibility of the engine, or an emission

control system or component on your engine thereof, if it has failed due to abuse, neglect, unapproved modification or

improper maintenance, or the use of counterfeit and/or ‘gray market’ parts not made, supplied or approved by Generac.

Warranty service/scheduled maintenance can be arranged by contacting your selling dealer or an Authorized Warranty

Service dealer. The purchaser/owner shall be responsible for any expenses or other charges incurred for service calls and/or

transportation of the product to/from the inspection or repair facilities. The purchaser/owner shall be responsible for any and/

or all damages or losses incurred while the engine is being transported/shipped for inspection or warranty repairs.

Emission Related Parts Include the Following (if so equipped)

1) Fuel Metering System 3) Ignition System including

1.1) Gasoline Carburetor assembly and internal components a) Spark plug, b) Ignition module,

a) Fuel filter, b) Carburetor, c) Fuel Pump c) ignition coil, d) Spark plug wirers

1.2) Carburetion assembly and its components 4) Exhaust system

a) Fuel controller, b) Carburetor and its gaskets, a) Catalyst assembly, b) Exhaust manifold,

c) Mixer and it gaskets, d) Primary gas regulator c) Muffler, d) Exhaust pipe, e) Muffler gasket

e) Liquid vaporizer 5) Crankcase Breather Assembly including

1.3) Fuel Regulator a) Breather connection tube, b) PCV valve

2) Air Induction System including 6) Oxygen Sensor

a) Intake pipe/manifold, b) Air cleaner 7) Diagnostic Emission-Control System

Warranty

13-2

EmsnWrnty001 Rev. C 05/10

United States Environmental Protection Agency Compliance Requirements

Purchaser’s/Owner’s Recordkeeping Responsibilities

The United States Environmental Protection Agency (EPA) and Generac Power Systems, Inc. (Generac), are pleased to

explain your recordkeeping requirements for compliance with Subpart JJJJ – Standards of Performance for Stationary Spark

Ignition Internal Combustion Engines as listed in the Electronic Code of Federal Regulations Title 40 Part 60. As the engine

purchaser/owner who operates and maintains their certified emergency stationary engine and emission control system

according to applicable emission related guidelines as specified in this Owner’s Manual you are required to meet the fol-

lowing notification and recordkeeping requirements to demonstrate compliance. 1.) Maintain documentation that the engine

is certified to meet emission standards. 2.) Recordkeeping of maintenance conducted. 3.) Recordkeeping of the provision

allowing natural gas engines to operate using propane for a maximum of 100 hours per year as an alternate fuel solely dur-

ing emergency operations provided the engine is not certified to operate on propane. 4.) Meet all compliance notifications

submitted to the purchaser/owner and maintain all supporting documentation. 5.) Recordkeeping of hours of operation,

including what classified the operation as emergency and how many hours are spent for non-emergency operation. For

emergency engines greater than or equal to 130 HP, recordkeeping of hours of operation begins January 1, 2011. For emer-

gency engines less than 130 HP, recordkeeping of hours of operation begins January 1, 2009; Engines are equipped with

non-resettable hour meters to facilitate recordkeeping.

Specific Air Quality Management or Air Pollution Control Districts may have different and additional record keeping/ reporting

requirements. Your permit to construct and/or operate the engine may be contingent upon compliance with those require-

ments. Check with your local Air Quality Management or Air Pollution Control District for specific requirements.

Emergency stationary internal combustion engines (ICE) may be operated for the purpose of maintenance checks and readi-

ness testing, provided that the tests are recommended by Federal, State or local government, Generac, or the insurance com-

pany associated with the engine. Maintenance checks and readiness testing of such units is limited to 100 hours per year.

There is no time limit on the use of emergency stationary ICE in emergency situations. The purchaser/owner may petition the

Administrator for approval of additional hours to be used for maintenance checks and readiness testing, but a petition is not

required if the owner maintains records indicating that Federal, State, or local standards require maintenance and testing of

emergency ICE beyond 100 hours per year. Emergency stationary ICE may operate up to 50 hours per year in non-emergen-

cy situations, but those 50 hours are counted towards the 100 hours per year provided for maintenance and testing. The 50

hours per year for non-emergency situations cannot be used for peak shaving or to generate income for a facility to supply

power to an electric grid or otherwise supply power as part of a financial arrangement with another entity. For purchaser/

owner of emergency engines, any operation other than emergency operation, maintenance and testing, and operation in non-

emergency situations for 50 hours per year, as permitted in this section is prohibited.

If you operate and maintain your certified emergency stationary SI internal combustion engine and emissions control sys-

tems in accordance with the specifications and guidelines in the Owner’s Manual, EPA will not require engine performance

testing. If not, your engine will be considered non-certified and you must demonstrate compliance according to Subpart JJJJ

– Standards of Performance for Stationary Spark Ignition Internal Combustion Engines as listed in the Electronic Code of

Federal Regulations Title 40 Part 60.

Emission-Related Installation Instructions

Your certified emergency stationary engine has pre-set emission control systems or components that require no adjustment.

Inspection and replacement of an emissions related component is required to be done in accordance with the requirements

cited in the United States Environmental Protection Agency Warranty Statement or can be arranged by contacting your sell-

ing dealer or an Authorized Warranty Service dealer. Failing to follow these instructions when installing a certified engine in a

piece of nonroad equipment violates federal law 40 CFR 1068.105 (b), subject to fines or penalties as described in the Clean

Air Act.

Warranty

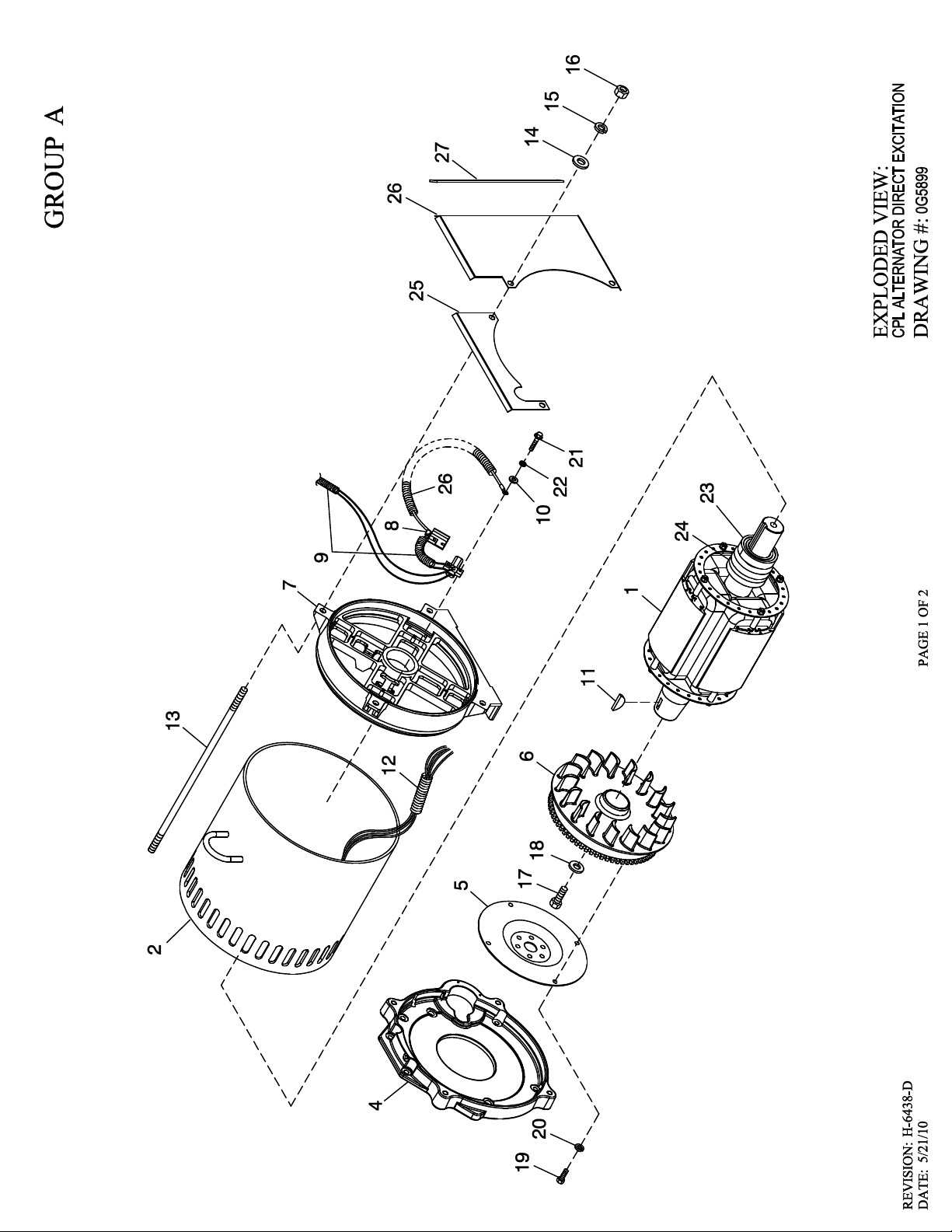

1 0G6568 1 RTR 390 45AD1 CPL

0G6562 1 RTR 390 35AD1 CPL

0G6564 1 RTR 390 35KD1 CPL

0G6570 1 RTR 390 45KD1 CPL

2 0G6569 1 STR 390 45AD1 CPL

0G6563 1 STR 390 35AD1 CPL

0G6566 1 STR 390 35KD1 CPL

0G6565 1 STR 390 35GD1 CPL

0G6572 1 STR 390 45KD1 CPL

0G6571 1 STR 390 45GD1 CPL

0G6365 1 STR 390 45JD1 CPL

3 0C9708 REF INSTR HYPOT TEST (NOT SHOWN)

4 SEE ENGINE EV REF ENGINE ADAPTER

5 SEE ENGINE EV REF FLEXPLATE

6 0F5767B 1 ASSY FLYWHEEL CPL W/40MM FAN B

7 0E5706 1 REAR BEARING CARRIER 390/DRCT

8 0F7874 1 ASSY BRUSH HOLDER 390/HSB

0F7874A 1 ASSY BRUSH HOLDER 390/HSB

9 077043A 1 CONDUIT FLEX .38" ID (60”)

10 038150 4 WASHER FLAT #8 ZINC

11 023454 1 KEY WOODRUFF #E

12 077043E 1 CONDUIT FLEX 1.0" ID (35” LG)

13 04576100BU 4 STUD M14-2.0 570 G5 ZINC

14 052646 4 WASHER FLAT M14

15 043123 4 WASHER LOCK M14

16 051779 4 NUT HEX M14-2.0 G8 YEL CHR

(2) 17 0A2601 1 SCREW HHC M16-2.0 X 45 G8.8

18 072879 1 SPACER .69 X 2.75 X .37 ST/ZNC

(2) 19 0F8408 4 SCREW HHC M10-1.50 X 16 G10.9

20 046526 4 WASHER LOCK M10

21 0C3993 4 SCREW HHTT M4-0.7 X 25 BP

22 022264 4 WASHER LOCK #8-M4

(1) 23 047248 1 BALL BEARING-45 MM

(1) 24 070892 1 SLIP RING MACHINED

25 0G0588 1 GUARD REAR BEARING CARRIER

26 0G0587 1 GUARD REAR BEARING CARRIER

27 056326 1 TRIM VINYL BLACK 1/8GP (16.5”LG)

(1) ROTOR REPLACEMENT PARTS

(2) APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

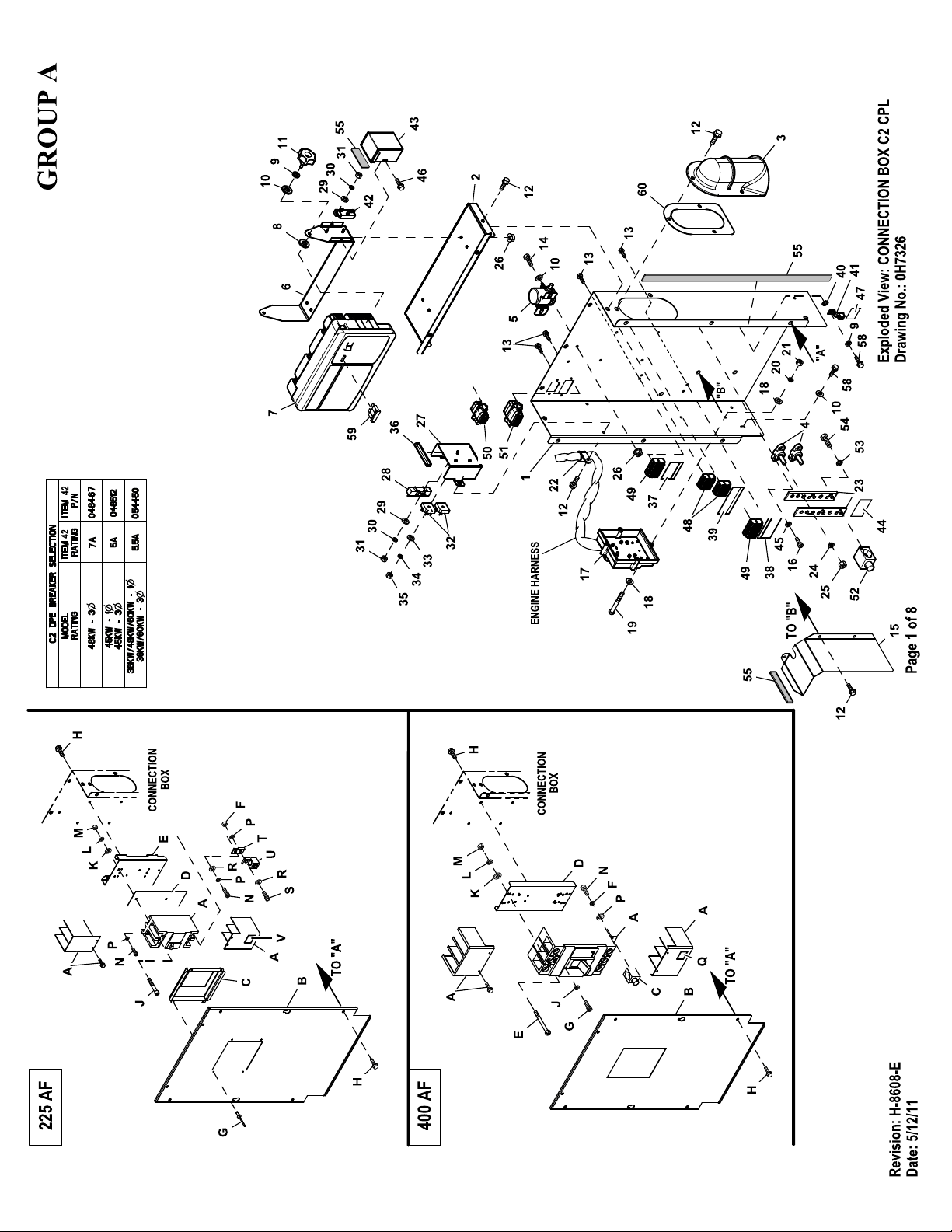

EXPLODED VIEW: CONBOX C2 CPL

DRAWING #: 0H7326

GROUP A

APPLICABLE TO:

REVISION: H-8608-E

Page 4 of 8

DATE: 5/12/11

ITEM PART# QTY. DESCRIPTION

1 0H6266 1 BACK PANEL CONBOX SUPPORT C2

2 0H6265 1 TOP PANEL CONBOX SUPPORT C2

3 0H6160 1 COVER WIRE ENTRY CONBOX

4 057073 2 JUNCTION BLOCK 3/8-16

5 056739 1 RELAY SOLENOID 12VDC PNL MNT

(6)6 0H67330ST0R 1 BRACKET GIMBAL CONTROL PNL RAW

7 0H7668B 1 ASSY CTRL PROGRAMMED

8 0A2115 2 WASHER FLAT NYLON 0.257 X 0.625

9 022097 3 WASHER LOCK M6-1/4

10 022473 8 WASHER FLAT 1/4-M6 ZINC

11 0H7115 2 KNOB M6-1.0 CONTROL PANEL

12 0C2454 13 SCREW HWHT M6-1 X 16 N WA Z/JS

13 0F5458 12 SCREW HHSP #10 X 3/8 HI-LOW

14 042568 2 SCREW HHC M6-1.0 X 20 C8.8

(6)15 0H88390ST0R 1 SHIELD HIGH/LOW C2 RAW

16 0C2265 4 SCREW PHTT M4-0.7 X 12 ZP

(3)17 0H6169B 1 ASSY PROG 2010 IGN MOD 6 CYL

(3)18 023897 4 WASHER FLAT #10 ZINC

(3)19 036943 2 SCREW PPHM #10-32 X 2

(3)20 022152 2 WASHER LOCK #10

(3)21 022158 2 NUT HEX #10-32 STEEL

(3)22 055934D 1 CLAMP STL/VNL 1.06 X .406 Z

(2)23 0D5464B 1 NEUTRAL BLOCK 390/200-400A

24 022237 2 WASHER LOCK 3/8

25 022241 2 NUT HEX 3/8-16 STEEL

26 0D3700 6 NUT FLANGE M6-1.0 NYLOK

27 0H6267 1 COVER VOLTAGE SHIELD

28 0F5752F 1 RES WW 15R 5% 25W QK CONN

29 052777 3 WASHER FLAT M3

30 043182 3 WASHER LOCK M3

31 051714 3 NUT HEX M3-0.5 G8 CLEAR ZINC

32 0D7177V 2 DIODE BRIDGE 1P 35A 1000V

33 051713 2 WASHER FLAT M5

34 049226 2 WASHER LOCK M5

35 051716 2 NUT HEX M5-0.8 G8 CLEAR ZINC

36 056326 1 TRIM VINYL BLACK 1/8GP (3”LG)

37 0J0489 1 DECAL CUSTOMER POWER CONNECT

38 0H7292 1 DECAL CUSTOMER CONTROL CONNECT

39 0H7293 1 DECAL CONBOX TB1 CONNECTIONS

40 026850 1 WASHER LOCK EXT 1/4 STL

41 055414 1 LUG SLDLSS #2-#8 X 17/64 CU

(4)42 SEE CHART 1 CIRCUIT BREAKER

(6)43 0H81040AS0R 1 COVER DPE BREAKER NEXUS RAW

44 0A9457 1 DECAL NEUTRAL

45 022264 4 WASHER LOCK #8-M4

46 045764 2 SCREW HHTT M4-0.7 X 8 ZP

47 0G8785 1 DECAL, GROUNDING ELECTRODE

(1)48 0D7393T REF TERM BLOCK 3P UL 12-20AWG

(1)49 0D7393U REF TERM BLOCK 4P UL 12-20AWG

(1)50 0F5376S0AR REF MX150L SLRRMNT 22-18 8P W/O GA

(1)51 0F5396S0AR REF MX150L SLRRMNT 22-18 12P W/OGA

(2)52 0A7822 REF LUG SLDLSS 600/250-1/0X1/4-28

(2)53 083896 REF WASHER LOCK 1/4-M6 SS

(2)54 045335 REF SCREW HHC 1/4-28 X 3/4 G5

55 029289 1 TAPE ELEC 1/2 FOAM (69“LG)

56 0F6146 1 HANG TAG 2 WIRE START (NOT SHOWN)

57 0H6692 1 HARN CONBOX NEXUS (NOT SHOWN)

58 0D6029 5 SCREW HHTT M6-1.0 X 16 ZYC

59 0D7178T REF FUSE ATO TYPE 7.5AMP (BROWN)

60 0J3060 1 GASKET WIRE ENTRY COVER

EXPLODED VIEW: CONBOX C2 CPL

DRAWING #: 0H7326

GROUP A

APPLICABLE TO:

REVISION: H-8608-E

Page 5 of 8

DATE: 5/12/11

ITEM PART# QTY. DESCRIPTION

UL CIRCUIT BREAKER (225AF)

A 0G5250 1 CB 175A 2 POLE 240V 225AF

B 0H7356 1 COVER CB C2 CPL

C 0F4186AGS0R 1 COVER CB DISH 2P G 225AF

D 0F8432A 1 INSULATOR CB 2P 225AF

E 0H7311 1 STANDOFF CB BOX CONBOX

F 045771 2 NUT HEX M8-1.25 G8 CLEAR ZINC

G 036261 4 RIVET POP .125 X .275 SS

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

J 053640 2 SCREW RHM #8-32 X 3-1/4

K 038150 2 WASHER FLAT #8 ZINC

L 022264 2 WASHER LOCK #8-M4

M 022471 2 NUT HEX #8-32 STEEL

N 049897 4 SCREW SHC M8-1.25 X 20 G8

P 022129 6 WASHER LOCK M8-5/16

R 022145 4 WASHER FLAT 5/16-M8 ZINC

S 058306 2 SCREW SHC M8-1.25 X 25 C12.9

T 0F8843 2 BUS BAR 200A LUG ADAPTOR

U 0F8451 2 LUG SLDLSS 300 MCM-6 AL/CU

V 0G3259 1 DECAL TERMINAL SHOCK HZD BI

UL CIRCUIT BREAKER (400AF)

A 0F4153 1 CB 0250A 3P 480V G 400AF

B 0H6735 1 COVER CB 400AF C2 CONBOX

C 0A7822 3 LUG SLDLSS 600/250-1/0X1/4-28

D 0H6734 1 STANDOFF CB MOUNT CONBOX

E 042419 4 SCREW RHM 10-32 X 4

F 022097 6 WASHER LOCK M6-1/4

G 052647 6 SCREW SHC M10-1.5 X 25 C12.9

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

J 046526 6 WASHER LOCK M10

K 023897 4 WASHER FLAT #10 ZINC

L 022152 4 WASHER LOCK #10

M 022158 4 NUT HEX #10-32 STEEL

N 023334 6 SCREW HHC 1/4-28 X 1/2 G5

P 022473 6 WASHER FLAT 1/4-M6 ZINC

Q 0G3259 1 DECAL TERMINAL SHOCK HZD BI

(1) ITEMS INCLUDED WITH HARNESS P/N 0H6692.

(2) ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

(3) ITEMS INCLUDED WITH 4.2L MODELS ONLY.

(4) SEE “C2 DPE BREAKER SELECTION” TABLE.

(5) QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

(6) SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

• MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM.

• CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE

SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

EXPLODED VIEW: CONBOX C2 CPL

DRAWING #: 0H7326

GROUP A

APPLICABLE TO:

REVISION: H-8608-E

Page 6 of 8

DATE: 5/12/11

ITEM PART# QTY. DESCRIPTION

UL CIRCUIT BREAKER (KG)

A 0H5582 1 CB 0300 3P 600V E KG LL

B 0H6740 1 COVER CB E KG C2 CONBOX

C 0D3700 4 NUT FLANGE M6-1.0 NYLOK

D 0H5581A 1 INSULATOR CB E 3P KG

E 0H6734 1 STANDOFF CB MOUNT CONBOX

G 022129 3 WASHER LOCK M8-5/16

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

J 0D2157 4 SCREW SHC M6-1.0 X 50 C8.8

K 049897 3 SCREW SHC M8-1.25 X 20 G8

L 022145 3 WASHER FLAT 5/16-M8 ZINC

UL CIRCUIT BREAKER (FG)

A 0H5486 1 CB 0060 3P 480V E FG LL

B 0H7356 1 COVER CB C2 CPL

C 0H7434 1 COVER CB DISH 3P E FG

D 0H4698A 1 INSULATOR CB 3P E TYPE CC/FG

E 0H7311 1 STANDOFF CB BOX CONBOX

F 022471 4 NUT HEX #8-32 STEEL

G 036261 4 RIVET POP .125 X .275 SS

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

J 0H5721 4 SCREW PPHM #8-32 X 1-3/4 ZINC

K 022264 4 WASHER LOCK #8-M4

L 038150 4 WASHER FLAT #8 ZINC

M 052619 3 SCREW HHC M5-0.8 X 20 G8.8

N 023897 3 WASHER FLAT #10 ZINC

P 049226 3 WASHER LOCK M5

UL CIRCUIT BREAKER (JG)

A 0H5580 1 CB 0250 3P 600V E JG LL

B 0H6739 1 COVER CB E JG C2 CONBOX

D 0H5576A 1 INSULATOR CB E 3P JG

E 0H6734 1 STANDOFF CB MOUNT CONBOX

F 022127 4 NUT HEX 1/4-20 STEEL

G 022097 4 WASHER LOCK M6-1/4

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

J 022770 4 SCREW RHM 1/4-20 X 3

K 022473 4 WASHER FLAT 1/4-M6 ZINC

L 049897 3 SCREW SHC M8-1.25 X 20 G8

M 022145 3 WASHER FLAT 5/16-M8 ZINC

N 022129 3 WASHER LOCK M8-5/16

UL CIRCUIT BREAKER (CC)

A 0H4748 1 CB 0175A 2P 240V E CC LL

0H4915 1 CB 0150 3P 240V E CC LL

B 0H7356 1 COVER CB C2 CPL

C 0H7432 1 COVER CB DISH 2P E CC

0H7433 1 COVER CB DISH 3P E CC

(5)D 051716 2/3 NUT HEX M5-0.8 G8 CLEAR ZINC

E 0H7311 1 STANDOFF CB BOX CONBOX

(5)F 022471 2/4 NUT HEX #8-32 STEEL

G 036261 4 RIVET POP .125 X .275 SS

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

(5)J 053640 2/4 SCREW RHM #8-32 X 3-1/4

(5)K 022264 2/4 WASHER LOCK #8-M4

(5)L 038150 2/4 WASHER FLAT #8 ZINC

(5)M 052619 2/3 SCREW HHC M5-0.8 X 20 G8.8

(5)N 023897 4/6 WASHER FLAT #10 ZINC

(5)P 049226 2/3 WASHER LOCK M5

(5) QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

EXPLODED VIEW: CONBOX C2 CPL

DRAWING #: 0H7326

GROUP A

APPLICABLE TO:

REVISION: H-8608-E

Page 7 of 8

DATE: 5/12/11

ITEM PART# QTY. DESCRIPTION

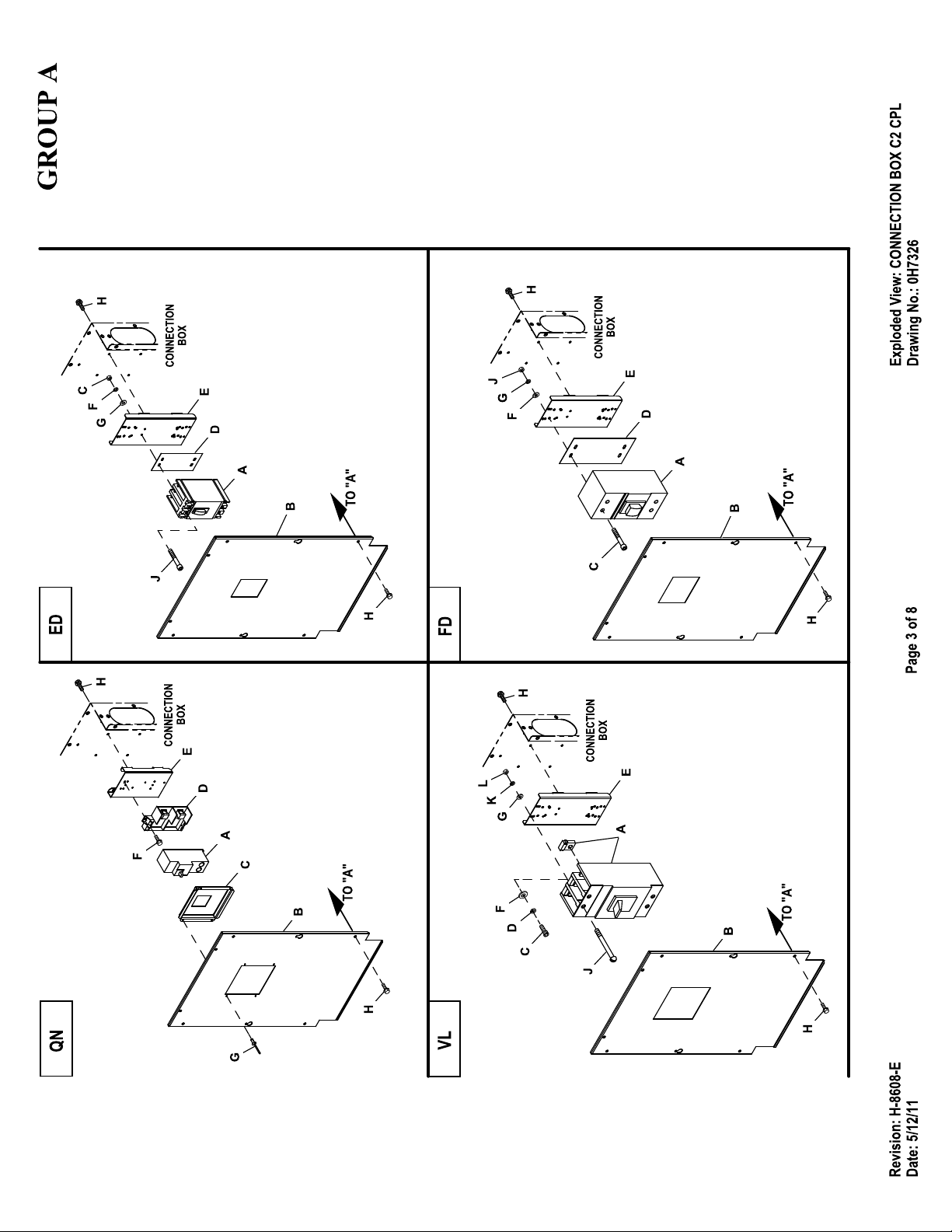

UL CIRCUIT BREAKER (QN)

A 0E7284 1 CB 0175A 2P 240V S QN2 LL

B 0H7356 1 COVER CB C2 CPL

C 0H7429 1 COVER CB DISH 2P S QN

D 0E3664 1 BASE, QN CIRCUIT BREAKER

E 0H7311 1 STANDOFF CB BOX CONBOX

F 074908 2 SCREW HHTT M5-0.8 X 10 BP

G 036261 4 RIVET POP .125 X .275 SS

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

UL CIRCUIT BREAKER (ED)

A 0D9693 1 CB 0125A 3P 480V S ED4 LL

B 0H6736 1 COVER CB S ED C2 CONBOX

C 022158 4 NUT HEX #10-32 STEEL

D 0F0492 1 INSULATOR CB S(ED-3P)

E 0H6734 1 STANDOFF CB MOUNT CONBOX

F 022152 4 WASHER LOCK #10

G 023897 4 WASHER FLAT #10 ZINC

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

J 048927 4 SCREW RHM #10-32 X 4-1/2

UL CIRCUIT BREAKER (VL)

A 0H7519 1 CB 0300A 3P 600V S JG-VL LL

B 0H6738 1 COVER CB S JG VL C2 CONBOX

C 040976 3 SCREW SHC M8-1.25 X 20 C12.9

D 022129 3 WASHER LOCK M8-5/16

E 0H6734 1 STANDOFF CB MOUNT CONBOX

F 022145 3 WASHER FLAT 5/16-M8 ZINC

G 023897 4 WASHER FLAT #10 ZINC

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

J 042419 4 SCREW RHM 10-32 X 4

K 022152 4 WASHER LOCK #10

L 022158 4 NUT HEX #10-32 STEEL

UL CIRCUIT BREAKER (FD)

A 0D5572 1 CB 0150A 3P 600V S FD6 LL

B 0H6737 1 COVER CB S FD6 C2 CONBOX

C 081320 4 SCREW SHC 1/4-20 X 4.5 G8.8 NZ

D 0F0199 1 INSULATOR CB FD FRAME 30MIL

E 0H6734 1 STANDOFF CB MOUNT CONBOX

F 022473 4 WASHER FLAT 1/4-M6 ZINC

G 022097 4 WASHER LOCK M6-1/4

H 0C2454 12 SCREW HWHT M6-1 X 16 N WA Z/JS

J 022127 4 NUT HEX 1/4-20 STEEL

EXPLODED VIEW: CONBOX C2 CPL

DRAWING #: 0H7326

GROUP A

APPLICABLE TO:

REVISION: H-8608-E

Page 8 of 8

DATE: 5/12/11

THIS PAGE LEFT INTENTIONALLY BLANK

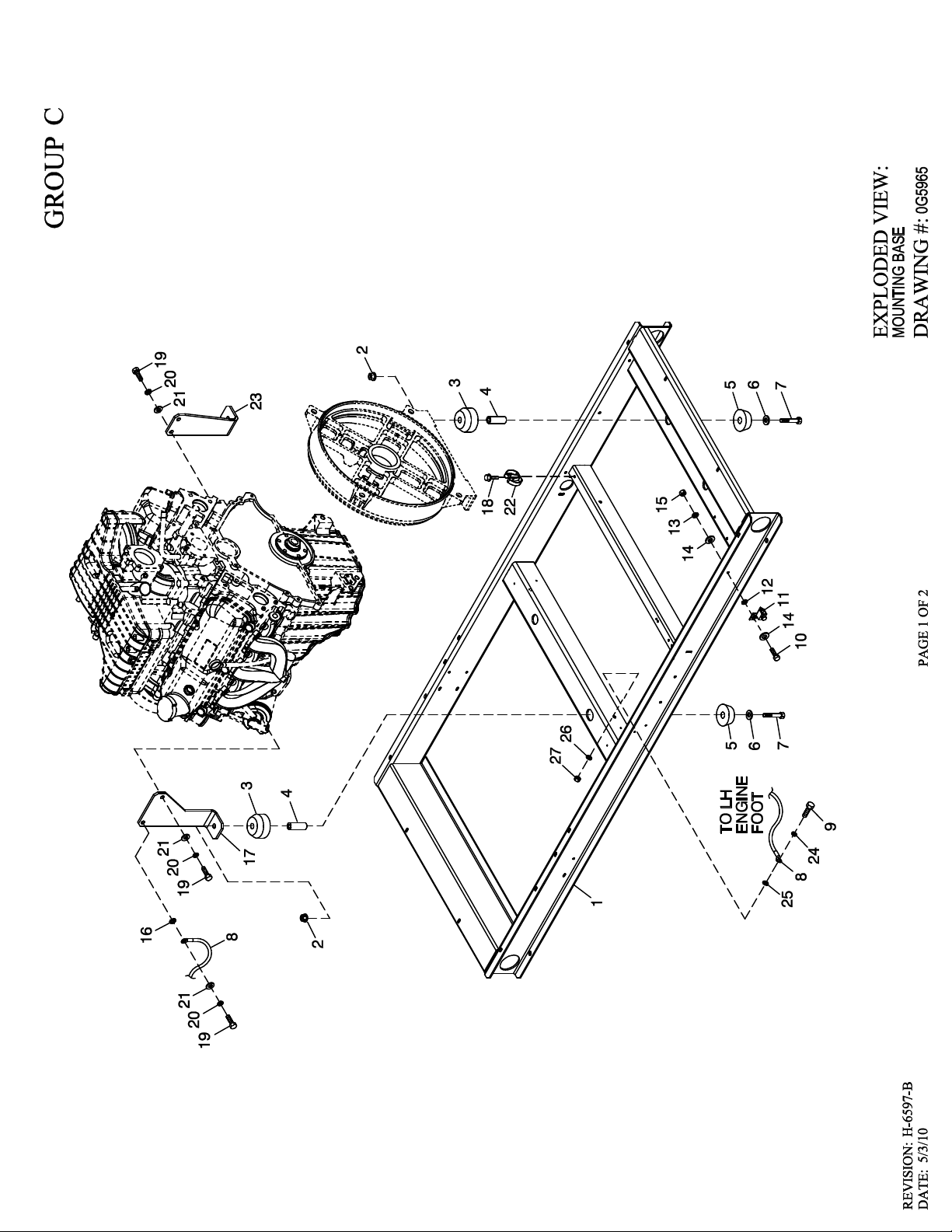

1 0G5313 1 WELDMENT BASEFRAME 4.2L G3

2 052860 4 NUT FLANGED HEX M12-1.75

3 052251 4 DAMPENER VIBRATION 40 BLUE

4 052257 4 SPACER .49 X .62 X 1.87 PWDR/ZNC

5 052252 4 DAMPENER VIBRATION

6 052259 4 WASHER FLAT M12

7 052891 4 SCREW HHC M12-1.75 X 80 G8.8

8 0536210410 1 ASSY WIRE 14.00"

9 042909 1 SCREW HHC M8-1.25 X 30 G8.8

10 047411 1 SCREW HHC M6-1.0 X 16 G8.8

11 055414 1 LUG SLDLSS #2-#8 X 17/64 CU

12 022447 1 WASHER SHAKEPROOF INT 1/4

13 022097 1 WASHER LOCK M6-1/4

14 022473 2 WASHER FLAT M6-1/4 ZINC

15 049813 1 NUT HEX M6 -1.0 G8 YEL CHR

16 022261 1 WASHER SHAKEPROOF INT 3/8

(1)17 0G52280ST03 1 ENGINE FOOT L/H 4.2L CPL

18 045764 1 SCREW HHTT M4-0.7 X 8 BP

19 059981 4 SCREW HHC M10-1.5 X 30 C10.9

20 022302 4 WASHER LOCK 7/16

21 022131 4 WASHER FLAT 3/8-M10 ZINC

22 065852 1 SPRING CLIP HOLDER .37-.62

(1)23 0G52300ST03 1 ENGINE FOOT R/H 4.2L CPL

24 022129 1 WASHER LOCK M8-5/16

25 026204 1 WASHER SHAKEPROOF INT 5/16

26 022145 1 WASHER FLAT 5/16-M8 ZINC

27 045771 1 NUT HEX M8-1.25 G8 CLEAR ZINC

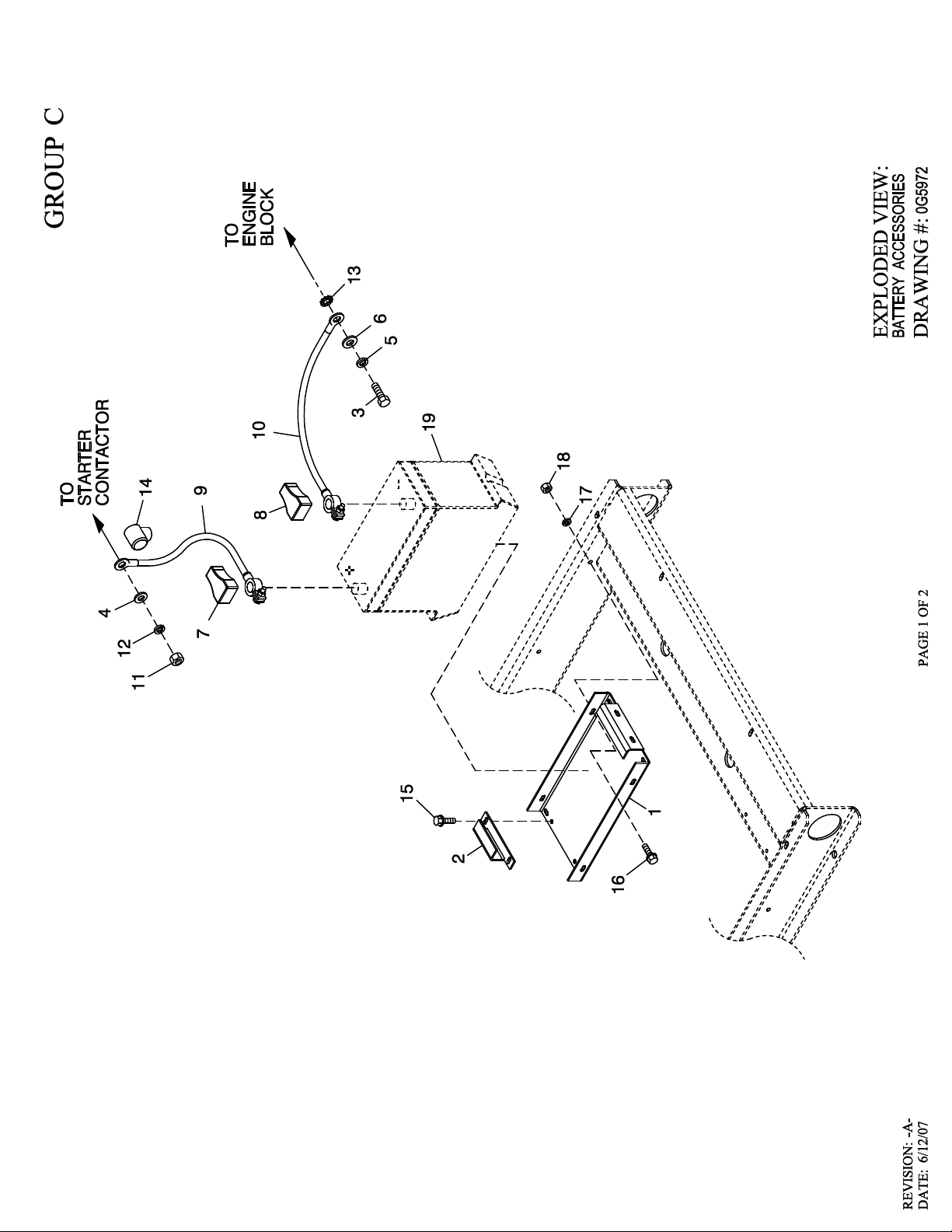

1 0F3408 1 TRAY BATTERY

2 0F3411 1 STRAP BATTERY RETAINMENT

3 051768 1 SCREW HHC M12-1.75 X 25 G8.8

4 022145 1 WASHER FLAT 5/16-M8 ZINC

5 022195 1 WASHER LOCK 1/2

6 022304 1 WASHER FLAT 1/2 ZINC

7 050331A 1 BATTERY POST COVER RED +

8 050331 1 BATTERY POST COVER BLACK -

9 038804U 1 CABLE BATT RED #1 X 28.00

10 038805J 1 CABLE BATT BLK #1 X 30.00 NEG

11 045771 1 NUT HEX M8-1.25 G8 YEL CHR

12 022129 1 WASHER LOCK M8-5/16

13 025507 1 WASHER SHAKEPROOF EXT 7/16 STL

14 0F3976 1 BOOT CONTACTOR CABLES

15 0C2454 2 SCREW THF M6-1 X 16 N WA Z/JS

16 042568 2 SCREW HHC M6-1.0 X 20 G8.8

17 022097 2 WASHER LOCK M6-1/4

18 049813 2 NUT HEX M6 X 1.0 G8 YEL CHR

19 058208 REF BATT 12VDC 24F 525 CCA (SOLD AS AN OPTION)

1 0E6586 1 GASKET BOSCH 32 & 40

2 0E0519A 1 ADAPTER CARBURETOR W/PVC CONN

3 0C8127 1 ELEMENT AIR CLEANER

4 049815 4 SCREW HHC M5-0.8 X 16 G8.8

5 022127 1 NUT HEX 1/4-20 STEEL

(1) 6 062974 1 STUD TH 1/4-20 X 4-1/2 G2 ZNC

7 0G0190 1 PLATE, AIR CLEANER TOP 2.4L

8 037561 1 NUT WING 1/4-20 NYLK

(1) APPLY MEDIUM STRENGTH BLUE TREAD LOCKING FLUID TO THREADS ON

ONE END OF I/N 6 (STUD) THAT SCREWS INTO I/N 2 (CARB ADAPTER).

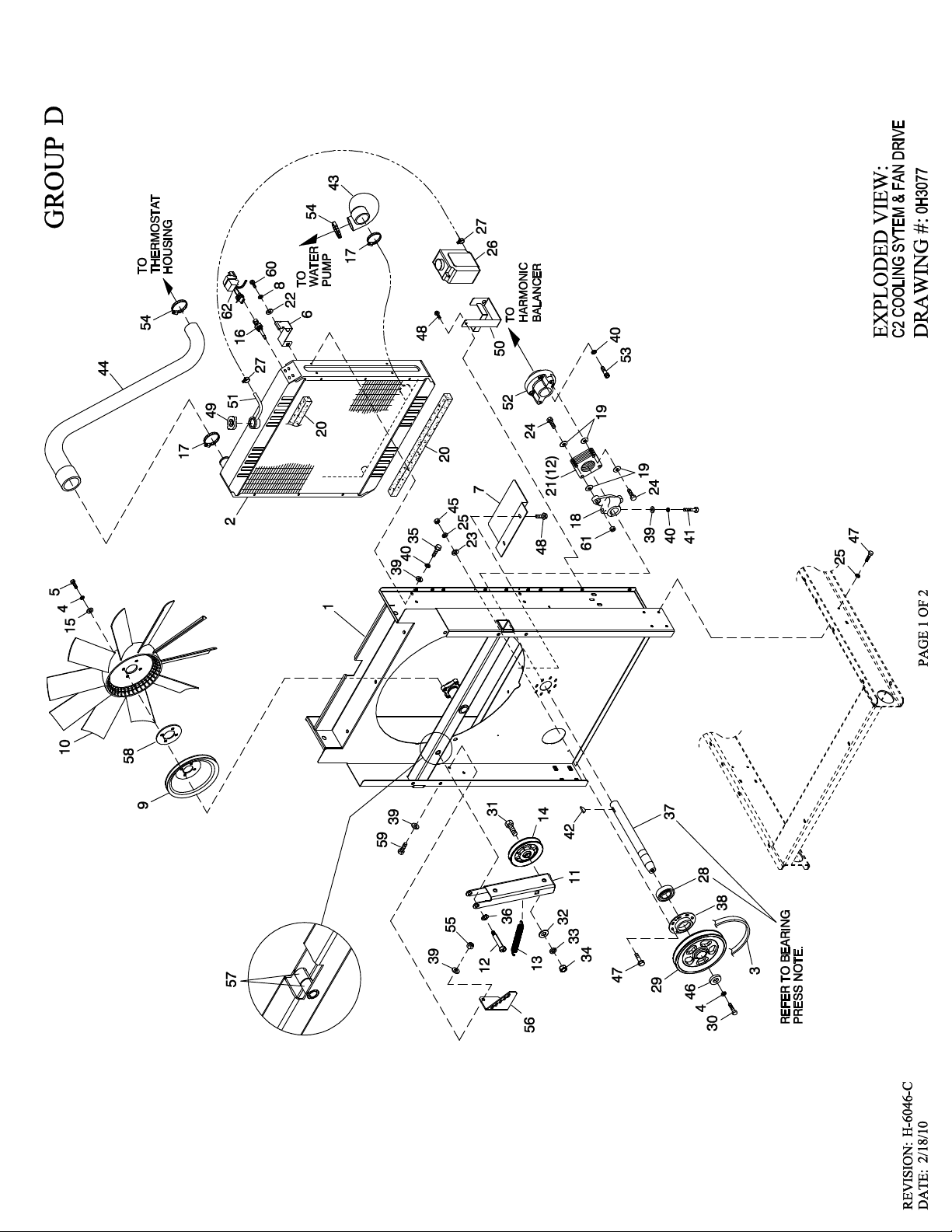

0H30830ST03

WELDMENT RADIATOR SUPPORT C2

2 0F2608A 1 RADIATOR 598 X 568 X 49,CPL LH

3 0E3256 1 V-BELT A58 (60IN O.C.) DDC S60

4 046526 5 WASHER LOCK M10

(1) 5 059981 4 SCREW HHC M10-1.5 X 30 G10.9

6 0F2776A 1 BRACKET, SIGNAL CONDITIONER (USED ONLY WITH QTA

PRODUCT)

7 0F5050A 1 SHIELD RADIATOR C4

8 022129 1 WASHER LOCK M8-5/16 (USED ONLY WITH QTA PRODUCT)

9 0F2573 1 PULLEY FAN V-GROOVE 9"

10 0F4011 1 FAN COOL 22" DIA 10 BLADE LH

11 0H20620ST03 1 ARM BELT TENSIONER

(1) 12 0H2051 1 SHOULDER BOLT 1/2 X 2-1/4"

13 0F2862 1 SPRING TENSION CPL

14 0F2560 1 PULLEY V-BELT 4" FLANGED

022131

WASHER FLAT 3/8

M10 ZINC

16 0E2507 1 PROBE COOLANT LEVEL 3/8 NPTF

0H1827 1 PROBE COOLANT LEVEL 3/8-18NPTF

17 035685 2 CLAMP HOSE #28 1.32-2.25

18 0F2561 1 HUB FLEX PLATE

19 0C8145 8 WASHER FLEX (THIN)

20 052250 2 TAPE FOAM 1 X 1 (26.75” LG)

21 0C7043 12 DISK FLEX

22 022145 1 WASHER FLAT 5/16-M8 ZINC (USED ONLY WITH QTA

PRODUCT)

23 022473 8 WASHER FLAT 1/4-M6 ZINC

(1) 24 0C8146 4 SCREW HHC 5/16-24 X 1.124

25 022097 16 WASHER LOCK M6-1/4

26 076749 1 TANK COOLANT RECOVERY

(2) 27 048031C 2(REF) CLAMP HOSE BAND 1/4

28 031971 1 BEARING #6205 2NSE C3 E SRI2 S

29 0F4028 1 PULLEY 6.5" DIA MACHINED

(1) 30 042911 1 SCREW HHC M10-1.5 X 30 G8.8

31 0F2872 1 SCREW HHC 1/2-13 X 2" G8

32 022304 1 WASHER FLAT 1/2 ZINC

33 022195 1 WASHER LOCK 1/2

34 022196 1 NUT HEX 1/2-13 STEEL

35 0F8651 8 SCREW HHFC M8-1.25 X 20 W/M6

36 052677 1 WASHER NYLON .50 X .87 X .06

37 0F9867 1 SHAFT FAN DRIVE

38 0F2461 1 RETAINER BEARING

39 022145 13 WASHER FLAT 5/16-M8 ZINC

40 022129 12 WASHER LOCK M8-5/16

(1) 41 039287 1 SCREW HHC M8-1.25 X 45 C8.8

42 082774 1 KEY WOODRUFF 4 X 19D

43 0G5465 1 HOSE RADIATOR LOWER FRONT

44 0G5459 1 HOSE RADIATOR UPPER FRONT

45 049813 8 NUT HEX M6 X 1.0 G8 YEL CHR

46 052644 1 SPACER .5 X 1.5 X .25 STL/ZINC

47 0C8566 16 SCREW HHFC M6-1.0 X 20 G8.8

48 0C2454 3 SCREW THF M6-1 X 16 N WA Z/JS

49 090283 1 CAP RADIATOR 13 PSI

50 080713 1 BRACKET COOLANT TANK

51 029032 1 HOSE 9/32 ID (60”LG)

52 0G5299 1 COUPLING FLEX HUB MACHINED

(1) 53 049821 3 SCREW SHC M8-1.25 X 30 G12.9

54 099502 2 CLAMP HOSE #24 B1.06-2.00

55 049820 2 NUT HEX LOCK M8-1.25 NY INS

56 0H30880ST03 1 BRACKET TENSIONER SPRING

(3) 57 0H2844 2 (REF)

BEARING SLEEVE 1/2/ X 3/4 X 1

58 0G53150AL0R 1 SPACER CPL COOLING FAN 1/8"

59 039253 2 SCREW HHC M8-1.25 X 20 C8.8

60 0F8651 1 SCREW HHFC M8-1.25X20 W/M6 (USED ONLY WITH QTA

PRODUCT)

61 0C8165 2 NUT HEX LOCK 5/16-24 NY INS

(4) 62 0H1851 1 ASSY PCB LCL SENSOR (USE WITH I/N 16, P/N 0H1827

ONLY)

63 029333A 9 TIE WRAP UL 7.4” X .19” BLK (NOT SHOWN)

(1) APPLY MEDIUM STRENGTH BLUE THREAD LOCKING

FLUID TO THREADS.

(2) INCLUDED WITH I/N 26.

(3) ITEM 57 IS INCLUDED WITH ITEM 1.

(4) USE WITH R-200 CONTROL PANEL ONLY.

BEARING PRESS NOTE:

APPLY LOCTITE 620 BEARING RETAINMENT COMPOUND TO

BEARING SURFACE ON ITEM 37 PRIOR TO PRESSING ITEM

28 ONTO ITEM 37.

ALSO APPLY LOCTITE 620 BEARING RETAINMENT

COMPOUND TO THE OUTSIDE OF 28 PRIOR TO INSTALLING

ITEM 28 INTO ITEM 38.

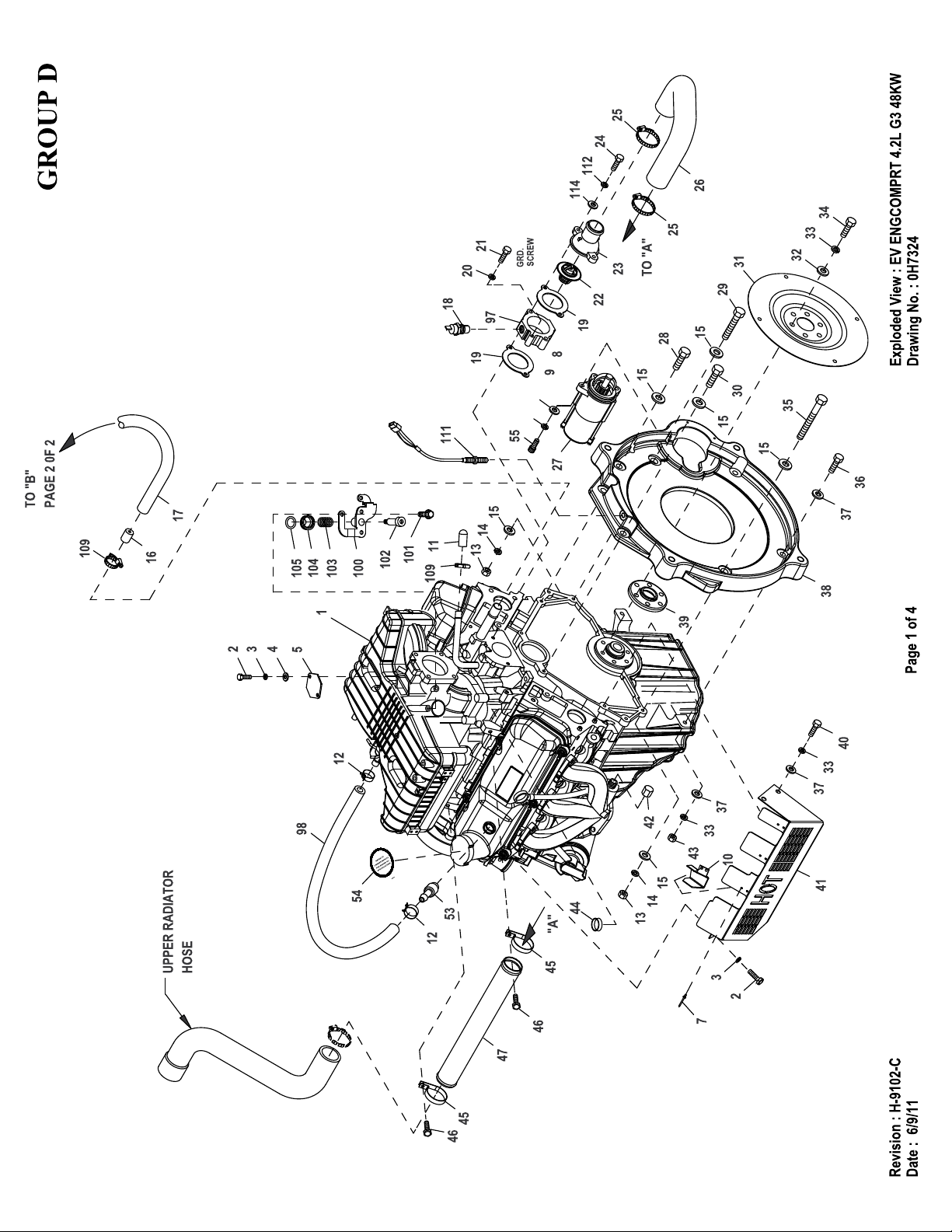

EXPLODED VIEW: EV ENGCOMPRT 4.2L G3 48KW

DRAWING #: 0H7324

GROUP D

APPLICABLE TO:

REVISION: H-8548-B Page 3 of 4

DATE: 4/14/11

ITEM PART# QTY. DESCRIPTION

(3)1 0G4969 1 ENGINE 4.2L G3 (FWD)

0G4969A 1 ENGINE 4.2L G3 (FWD) 6G-724-AB

0G4969B 1 ENGINE 4.2L G3 (FWD) 6G-726-AB

2 047411 4 SCREW HHC M6-1.0 X 16 C8.8

3 022097 8 WASHER LOCK M6-1/4

4 022473 2 WASHER FLAT 1/4-M6 ZINC

5 0E6585 1 COVER IAC ACTUATOR

6 0G6434 2 SHIELD SPARK PLUG BOOT RH

7 036261 10 RIVET POP .125 X .275 SS

8 022145 7 WASHER FLAT 5/16-M8 ZINC

9 022129 7 WASHER LOCK M8-5/16

10 0G6426 3 SHIELD SPARK PLUG BOOT LH

11 077996A 1 CAP ANTIFREEZE 5/8"ID X 2.5"LG

12 048031L 4 CLAMP HOSE BAND 1.0"

13 045773 2 NUT HEX M12-1.75 G8 YEL CHR

14 051769 2 WASHER LOCK M12

15 049808 8 WASHER FLAT M12

16 0G5971 1 RESTRICTOR COOLANT BYPASS

17 0G5474 1 HOSE COOLANT BYPASS 4.2L

18 0E0502 1 TEMPERATURE SENDER, DELPHI

(3)19 0G5511 2 GASKET THERMOSTAT 4.2L

20 049226 10 WASHER LOCK M5

21 074908 1 SCREW HHTT M5-0.8 X 10 BP

(1)22 REF. 1 THERMOSTAT 192 DEGREE

(1)23 REF. 1 THERMOSTAT HOUSING

(3)24 020753 2 SCREW HHC M6-1.0 X 60 C8.8

25 035685 2 CLAMP HOSE #28 1.32-2.25

26 0G5464 1 HOSE RADIATOR REAR

27 0G7461 1 STARTER MOTOR 12V

28 052645 2 SCREW HHC M12-1.75 X 30 C8.8

29 068406 1 SCREW HHC M12-1.75 X 60 C10.9

30 053557 2 SCREW HHC M12-1.75 X 40 C8.8

31 0F9965D 1 FLEX PLATE G3

32 0F3844 6 WASHER FLAT .45 X 1.00

33 046526 11 WASHER LOCK M10

(2)34 0G3757 6 SCREW HHC M10-1.0 X 30 C10.9

35 068407 1 SCREW HHC M12-1.75 X 90 C10.9

36 049541 2 SCREW HHC M10-1.5 X 35 C8.8

37 022131 9 WASHER FLAT 3/8-M10 ZINC

38 0G5231 1 ENGINE ADAPTER 4.2L MACHINED

39 0G5586 1 SPACER FLEXPLATE 4.2L

40 051756 4 SCREW HHC M10-1.5 X 20 C8.8

41 0G5730 1 HEAT SHIELD EXH 4.2L LH

42 0G5649 1 CAP TUBE M22-1.5 STEEL

43 045772 2 NUT HEX M10-1.5 G8 YEL CHR

44 0E0992A 6 PLUG EXPANSION 14 OD

(3)45 055934V 2 CLAMP VINYL 1.5 X .281 Z

(1)46 REF. 2 SCREW HHC M6-1.0 X 25 LONG

(3)47 0F6746 1 TUBE UPPER COOLANT

48 052619 6 SCREW HHC M5-0.8 X 20 G8.8

49 0F2842 6 IGNITION COIL ASSY

50 052618 3 SCREW HHC M5-0.8 X 12 C8.8

51 0H6691 1 HARN ENG G4.2L G3 NEXUS (NOT SHOWN)

52 0G6368 1 BRACKET IGNITION COILS G3 4.2L

53 0G1818 1 VALVE PCV G3

54 0F5114 1 DECAL REFER TO OWNERS MANUAL

55 049821 3 SCREW SHC M8-1.25 X 30 G12.9

56 0G54910ST03 1 WELDMENT IDLER BRACKET 4.2L

57 0D8028 1 PULLEY GROOVED ENGINE IDLER

(2)58 0D8025 1 BOLT HEX FL HD M8-1.25 X 28

59 0G1738A 1 CAP ANTIFREEZE RUBBER 8.5DIA

60 048031M 1 CLAMP HOSE BAND .75

(3)61 0G5601 1 STRAP INTAKE ACTUATOR

EXPLODED VIEW: EV ENGCOMPRT 4.2L G3 48KW

DRAWING #: 0H7324

GROUP D

APPLICABLE TO:

REVISION: H-8548-B Page 4 of 4

DATE: 4/14/11

ITEM PART# QTY. DESCRIPTION

62 077996 2 CAP ANTIFREEZE 5/8"ID X 1.2"LG

63 0G55800ST03 1 BRACKET DC ALTERNATOR LH 4.2L

(2) 64 0E9868A 1 ALTERNATOR DC W/OUT PULLEY

65 0G0638A 1 SPACER ALTERNATOR 4.2L G3

66 048031C 2 CLAMP HOSE BAND .50

67 0E9974 2 CAP VINYL 3/8"ID X 1"DP BLK

68 0H7435 1 HARN LOW OIL PRESS SWITCH ASSY

69 043107 4 SCREW HHC M8-1.25 X 25 C8.8

70 0F3217 1 SPACER DC ALTERNATOR PULLEY

71 0F3216B 1 PULLEY 117 OD DC ALTERNATOR

72 0E2808 1 SCREW HHC M10-1.5 X 160 C8.8

(1)73 REF. 1 SCREW HHC M8-1.25 X 115 LONG

(1)74 REF. 1 SCREW HHC M8-1.25 X 105 LONG

75 0G54220ST11 1 TUBE COOLANT LOWER RADIATOR

76 0G5759 1 O-RING 1-1/2" X 1-3/4" X 1/8"

77 0G5748 1 PULLEY WATER PUMP 4.2L

(2)78 043116 4 SCREW HHC M6-1.0 X 12 G8.8

(1)79 REF. 1 SPACER 46.5 O.D. X 15 I.D. X 5 THK.

(1)(2)80 REF. 1 SCREW HHC M14-1.5 X 40 LONG GRADE 10.9

81 0D3488E 1 BELT SERPENTINE 71.04"

(3)82 0G5258 1 HARMONIC BALANCER REWORK 4.2L

83 051713 3 WASHER FLAT M5

(2)(3)84 045770 2 SCREW HHC M5-0.8 X 10 C8.8

85 0G55790ST03 1 BRACKET DC ALTERNATOR RH 4.2L

86 052677 1 WASHER NYLON .50 X .87 X .06

87 077456 1 ADAPTER M12-1.75 X 3/8NPT

88 055596 1 BARBED STR 3/8NPT X 3/8

89 0C7649 1 CLAMP HOSE .38-.87

90 069860C 1 HOSE OIL DRAIN ASSY 21"

91 080826 2 SCREW HHC M6-1.0 X 12 SS

92 083896 2 WASHER LOCK 1/4-M6 SS

93 084929 2 WASHER FLAT 1/4 SS

94 0G5729 1 HEAT SHIELD EXH 4.2L RH

95 0E6593 1 CAP VINYL .5"ID X 1.0"DP BLK

96 048031J 1 CLAMP HOSE BAND .63

(3)97 0G5515 1 ADAPTER THERMOSTAT

98 0G0321 1 HOSE COOL 5/8"ID 250#WP (24”LG)

99 035579 1 BSHG RDCR HEX 1/4 TO 1/8

100 0G6275 1 TUBE ASSY EGR OUTLET REWORK

(1)101 REF. 2 SCREW HHC M6-1.0 X 15 LONG

102 0G6393 1 BOLT STRIP 3/8-16 X 1-1/4

103 0G6406 1 SPRING COMPRESSION .711 X 1.00

104 0G6274 1 PRESSURE RELIEF VALVE

(1)105 REF. 1 O-RING 29mm I.D. X 36mm O.D. X 3.5mm

106 0G6382 1 SPARK PLUG WIRE SET 4.2L

(1)107 REF. 1 RETAINER SPARK PLUG WIRE - LOOSE TYPE

(1)108 REF. 2 RETAINER SPARK PLUG WIRE - ATTACHED TYPE

109 057823 3 CLAMP HOSE #10 .56-1.06

110 0E7080 REF OIL FILTER 1.6,2.5,3.0,4.2L G3

111 0D2244M 1 ASSY MAGPICKUP(3/8-24 MALE)

(3)112 022097 2 WASHER LOCK M6-1/4

113 0H0016 1 HARN EMISSIONS OVERLAY 4.2L (NOT SHOWN)

(3)114 022473 2 WASHER FLAT 1/4-M6 ZINC

(3)115 049226 2 WASHER LOCK M5

(3)116 051713 2 WASHER FLAT M5

(1) SUPPLIED WITH ENGINE

(2) APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

(3) PART OF ENGINE MAKE:

A) ENGINE 0G4969 = ENGINE MAKE 0G5962.

B) ENGINE 0G4969A = ENGINE MAKE 0G5962A.

C) ENGINE 0G4969B = ENGINE MAKE 0G5962B.

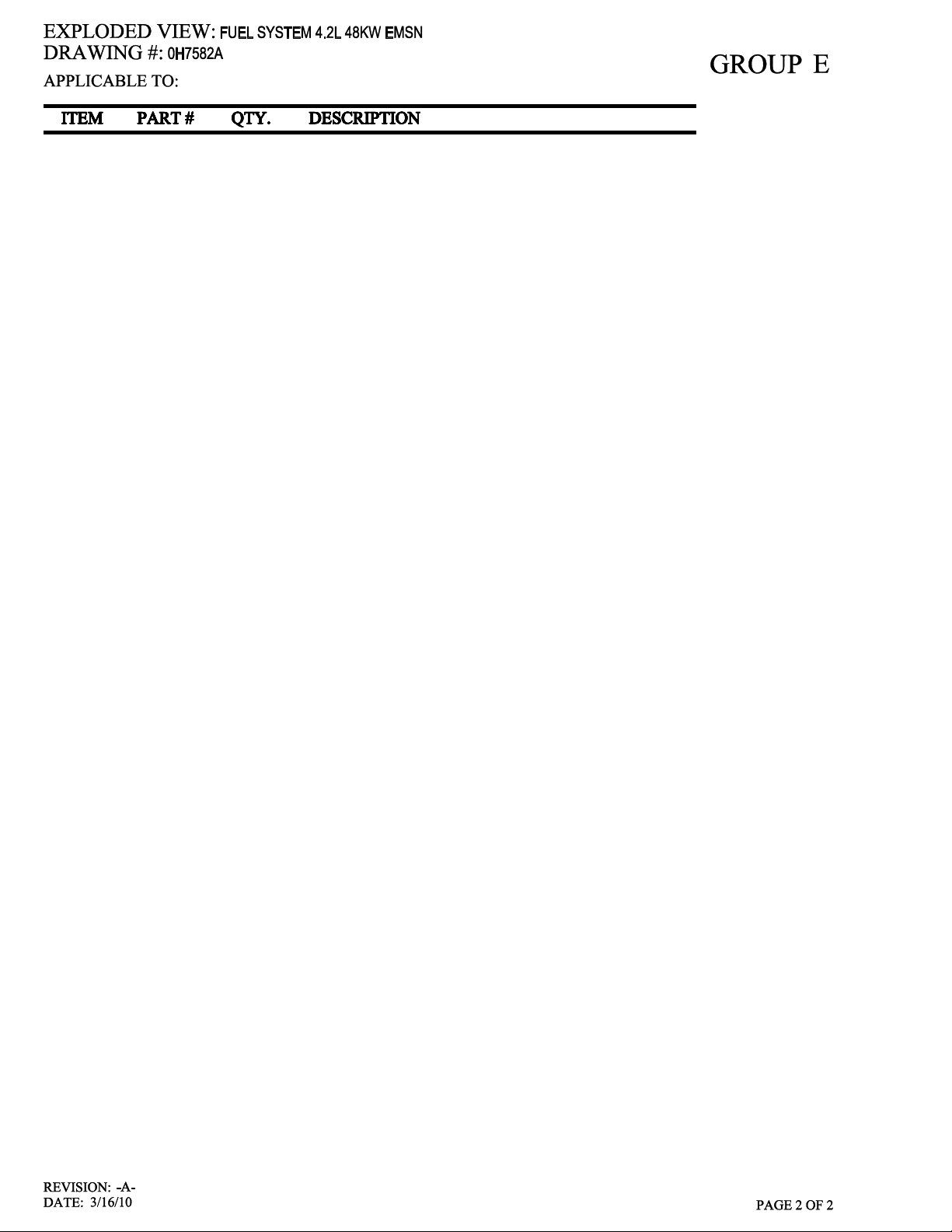

EXPLODED VIEW: FUEL SYSTEM 4.2L 48KW

DRAWING #: 0H7582

GROUP E

APPLICABLE TO:

REVISION: -A- Page 2 of 2

DATE: 3/19/10

ITEM PART# QTY. DESCRIPTION

1 026915 2 NIPPLE CLOSE 3/4 X 1.375

2 075580 1 FLANGE FUEL INLET

3 0F6390E 1 REGULATOR ASSY 4.2L 48KW

4 039253 2 SCREW HHC M8-1.25 X 20 G8.8

5 022145 2 WASHER FLAT 5/16-M8 ZINC

6 022129 2 WASHER LOCK M8-5/16

7 045771 2 NUT HEX M8-1.25 G8 CLEAR ZINC

8 047487 4 SCREW SHC M6-1.0 X 18 G12.9

9 0E8286 1 STREET EL 45D 1/2 NPT BRASS

10 026812 2 ELBOW 90D 3/4 NPT

11 0F8379 1 NIPPLE PIPE 3/4 NPT X 7

12 0G0321 1 HOSE COOL 5/8"ID 250#WP (2”LG)

13 057823 2 CLAMP HOSE #10 .56 - 1.06

14 059057 1 HOSE 3/4 ID SAE-30R2 (22” LG)

15 047527 1 BARBED STR 1/2 NPT X 3/4

16 0D1509 1 DECAL INLET PRESSURE

17 050279 1 DECAL FUEL INLET

18 0F2119 1 O-RING 45.63 ID X 2.62 WIDTH

19 0E6586 1 GASKET BOSCH 32

20 0E4394 1 ACTUATOR BOSCH 40 GOVERNOR

21 040105 1 HOSE COOL 2 IN ID 20R4

22 0G4573B 1 MIXER ACTUATOR 40MM MACHINED

23 0F7790E 1 VENTURI THROTTLE 26MM

24 0E7121 1 O-RING 47.625 ID X 2.38 WIDTH

25 048031P 2 CLAMP HOSE BAND .88"

26 022097 8 WASHER LOCK M6-1/4

27 046580 4 SCREW SHC M6-1.0 X 45 G12.9

28 035685 2 CLAMP HOSE #28 1.32-2.25

29 0H7436 1 HARN FUEL JUMPER SINGLE REG

30 047290 1 HOSE 3/8 ID SINGLE BRAID (20” LG)

31 0E6123A 1 INTAKE ADAPTER 4.2L G3-BOSCH

32 048031J 2 CLAMP HOSE BAND .63

33 0G1462 1 HOSE BARB REDUCER 5/8"-3/8"ID

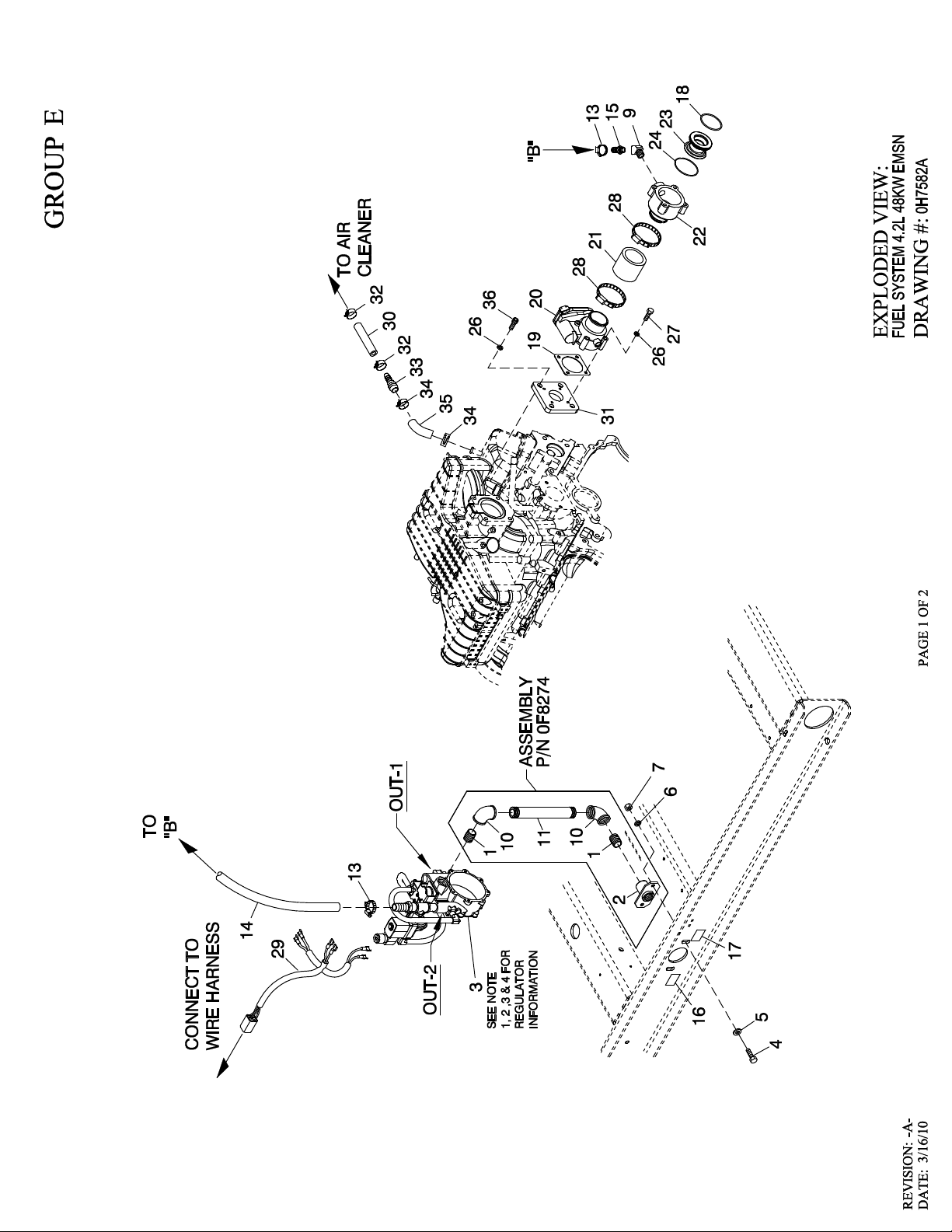

1 026915 2 NIPPLE CLOSE 3/4 X 1.375

2 075580 1 FLANGE FUEL INLET

3 0F6390N 1 REGULATOR ASSY 4.2L 48KW EMSN

4 039253 2 SCREW HHC M8-1.25 X 20 G8.8

5 022145 2 WASHER FLAT 5/16-M8 ZINC

6 022129 2 WASHER LOCK M8-5/16

7 045771 2 NUT HEX M8-1.25 G8 CLEAR ZINC

9 0E8286 1 STREET EL 45D 1/2 NPT BRASS

10 026812 2 ELBOW 90D 3/4 NPT

11 0F8379 1 NIPPLE PIPE 3/4 NPT X 7

13 057823 2 CLAMP HOSE #10 .56 - 1.06

14 059057 1 HOSE 3/4 ID SAE-30R2 (22” LG)

15 047527 1 BARBED STR 1/2 NPT X 3/4

16 0D1509 1 DECAL INLET PRESSURE

17 050279 1 DECAL FUEL INLET NG (NATURAL GAS APPLICATION)

050280 1 DECAL FUEL INLET LPG (LP VAPOR APPLICATION)

18 0F2119 1 O-RING 45.63 ID X 2.62 WIDTH

19 0E6586 1 GASKET BOSCH 32

20 0E4394 1 ACTUATOR BOSCH 40 GOVERNOR

21 040105 1 HOSE COOL 2 IN ID 20R4

22 0G4573B 1 MIXER ACTUATOR 40MM MACHINED

23 0F7790E 1 VENTURI THROTTLE 26MM

24 0E7121 1 O-RING 47.625 ID X 2.38 WIDTH

26 022097 8 WASHER LOCK M6-1/4

27 046580 4 SCREW SHC M6-1.0 X 45 G12.9

28 035685 2 CLAMP HOSE #28 1.32-2.25

29 0H7436 1 HARN FUEL JUMPER SINGLE REG

30 047290 1 HOSE 3/8 ID SINGLE BRAID (20” LG)

31 0E6123A 1 INTAKE ADAPTER 4.2L G3-BOSCH

32 048031J 2 CLAMP HOSE BAND .63

33 0G1462 1 HOSE BARB REDUCER 5/8"-3/8"ID

34 048031P 2 CLAMP HOSE BAND .88"

35 0G0321 1 HOSE COOL 5/8"ID 250#WP (2”LG)

36 047487 4 SCREW SHC M6-1.0 X 18 G12.9

1 0F9794 2 MUFFLER 7" X 9" X 18-1/2" 2" IN/OUT

2 0G0113 1 EXHAUST ELBOW 2"ID X 2-1/2"OD

3 0G1007 1 BRACKET MUFFLER

4 0F2830 2 MUFFLER BRACKET STIFFENER

5 0F2962 2 MUFFLER STRAP

6 080762 5 BOLT U 3/8-16 X 2.62

7 0G5821 1 PIPE EXHAUST LEFT 2"OD

8 0C2454 4 SCREW THF M6-1 X 16 N WA Z/JS

9 0G5822 1 PIPE EXHAUST RIGHT 2"OD

10 0G0007 1 DIFFUSER EXHAUST WELDMENT

11 0G5819 1 Y-PIPE EXHAUST 2"OD 4.2L G3

12 085917 14 WASHER LOCK 3/8 SS

13 0G6401 4 SCREW HHC M10-1.5 X 45 SS FTH

14 0E8816 2 EXHAUST FLANGE 2" PIPE

15 049721 6 SCREW HHC M6-1.0 X 35 G8.8 BLK

16 022097 6 WASHER LOCK M6-1/4

17 022473 8 WASHER FLAT 1/4-M6 ZINC

18 036797 3 BOLT U 5/16-18 X 2.25

19 022259 6 NUT HEX 5/16-18 STEEL

20 070006 6 WASHER LOCK M8 SS

21 088775 4 WASHER FLAT 3/8 SS

22 022241 10 NUT HEX 3/8-16 STEEL

23 0F3794B 1 EXHAUST BLANKET 700MM LONG (NOT SHOWN)

24 0F2809 1 PIPE EXHAUST CROSSOVER

25 0F2808B 1 PIPE EXHAUST MUFFLER OUT

26 0F6803 2 MUFFLER STRAP UPPER/LOWER

27 049813 2 NUT HEX M6 X 1.0 G8 YEL CHR

28 0E0170B 1 EXHAUST BLANKET 850MM (NOT SHOWN)

* NOT USED ON OPEN SET.

1 0F9794 1 MFLR 7"X9"X18-1/2"2-1/2"IN/OUT

2 0G0113 1 EXHAUST ELBOW 2"ID X 2-1/2"OD

3 0G1007 1 BRACKET MUFFLER

4 0F2830 1 MUFFLER BRACKET STIFFENER

5 0F2962 1 MUFFLER STRAP

6 080762 5 BOLT U 3/8-16 X 2.62

7 0G5821 1 PIPE EXHAUST LEFT 2"OD G3 4.2L

8 0C2454 4 SCREW THF M6-1 X 16 N WA Z/JS

9 0F3794B 1 EXHAUST BLANKET 700MM LONG (NOT SHOWN)

10 0G0007 1 DIFFUSER EXHAUST WELDMENT

11 0G5822A 1 PIPE EXHAUST RIGHT G3 4.2 EMSN

12 085917 12 WASHER LOCK 3/8 SS

13 0G6401 4 SCREW HHC M10-1.5 X 45 SS FTH

14 0E0170B 1 EXHAUST BLANKET 850MM (NOT SHOWN)

15 049721 2 SCREW HHC M6-1.0 X 35 G8.8 BLK

16 022097 4 WASHER LOCK M6-1/4

17 022473 4 WASHER FLAT 1/4-M6 ZINC

18 036797 3 BOLT U 5/16-18 X 2.25

19 022259 6 NUT HEX 5/16-18 STEEL

20 070006 6 WASHER LOCK M8 SS

21 088775 2 WASHER FLAT 3/8 SS

22 022241 10 NUT HEX 3/8-16 STEEL

23 047411 2 SCREW HHC M6-1.0 X 16 G8.8

24 0E8816 2 EXHAUST FLANGE 2" PIPE

25 0F2808B 1 PIPE, EXHAUST MUFFLER OUT

26 0G5819 1 Y-PIPE EXHAUST 2"OD 4.2L G3

27 0G2453 1 PLATE, CATALYST MOUNTING

28 0G8026 CATALYST AF-RATIO

29 0F9071 1 SENSOR OXYGEN

30 0F2809A 1 PIPE, EXHAUST CROSSOVER EMSSM

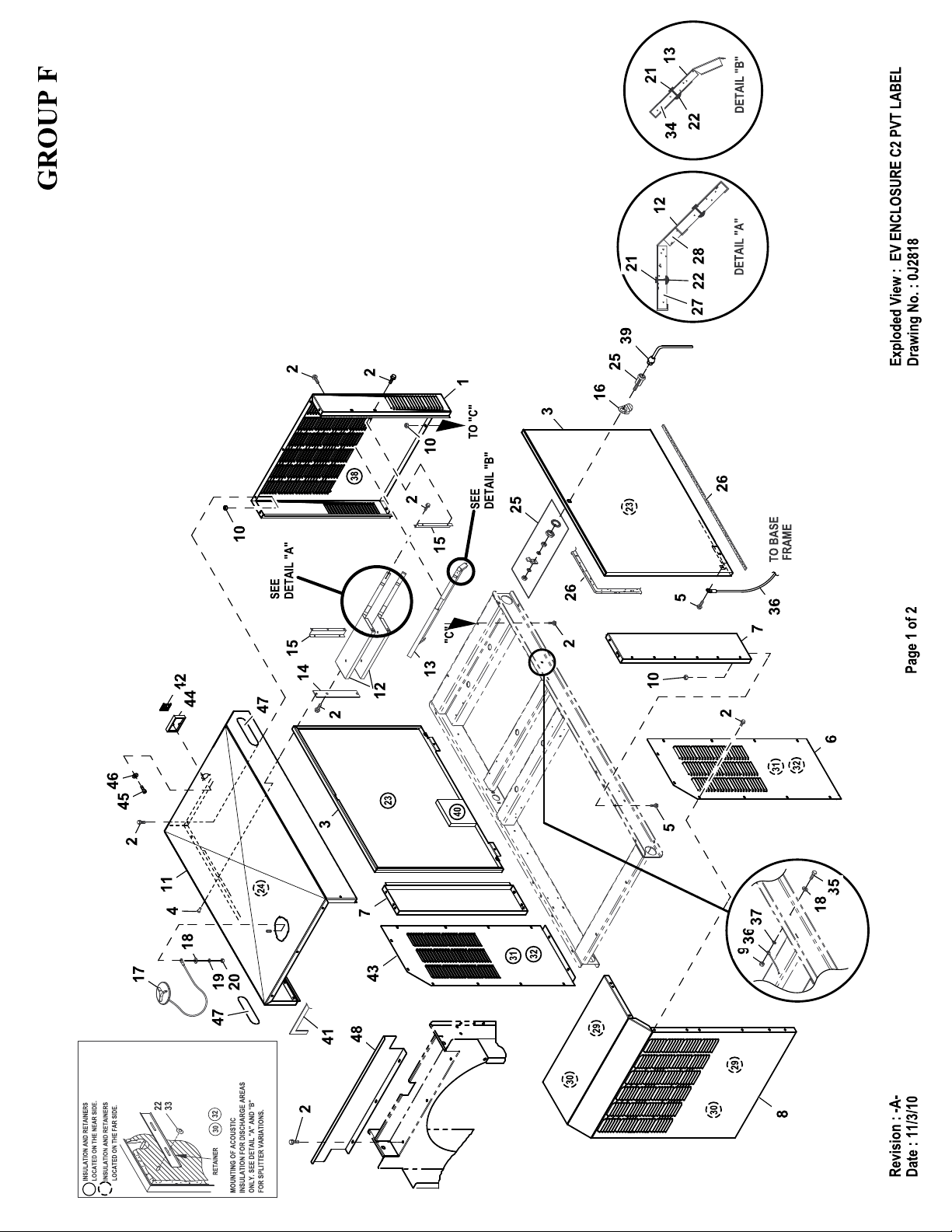

EXPLODED VIEW: EV ENCLOSURE C2

DRAWING #: 0J2818

GROUP F

APPLICABLE TO:

REVISION: -A- Page 2 of 2

DATE: 11/3/10

ITEM PART# QTY. DESCRIPTION

(2) 1 0G00450AL0R 1 REAR WRAP C2 CPL

2 0C2454 64 SCREW THF M6-1 X 16 N WA Z/JS

(2) 3 0F58490AL0R 2 DOOR C2

4 087233 2 RIVET POP .1875 X .450 SS

5 0E3257 4 SCREW TH-FRM M6 W/CAP SHKPRF W

(2) 6 0J28190AL0R 1 DUCT DISCHARGE LH C2 AL

(2) 7 0F98330AL0R 2 FRONT CORNERS C2

(2) 8 0J28200AL0R 1 DUCT DISCHARGE MID C2

9 049813 2 NUT HEX M6 X 1.0 G8 YEL CHR

(1) 10 077992 23 NUT HEX LOCK M6-1.0 SS NY INS

(2) 11 0J28210AL0R 1 ROOF C2 CPL PVT LBL

12 0F2786 2 SLITTER C4

13 0F2785 1 SPLITTER LOWER C4

14 0F3364 1 SPLITTER STRINGER C2

15 0F4880 2 SUPPORT SPLITTER LH C2

16 0F5049 2 TAB PULL

17 0F4487A 1 ASSEMBLY COVER ACCESS

18 022473 3 WASHER FLAT 1/4-M6 ZINC

19 022097 1 WASHER LOCK M6-1/4

20 022127 1 NUT HEX 1/4-20 STEEL

21 0F3072 10 INSULATION RETAINMENT HANGER

22 078115 26 WASHER SELF LOCKING DOME #4-40

23 0G5892 2 INSULATION DOOR C2

24 0G5892A 1 INSULATION ROOF TOP

25 0F5048D 2 VISE-ACTION LATCH SLOTTED CIR

26 0E5968 1 GASKET EXTRUDED TRIM (328” LG)

27 0G5892D 2 INSULATION SPLITTER

28 0G5892C 2 INSULATION SPLITTER

29 0F4051C 2 INSULATION DUCT

30 0F3890B 4 RETAINER INSULATION (820)

31 0F4051B 2 INSULATION DUCT SIDES

32 0F3890 4 RETAINER INSULATION (450)

33 078115A 6 WASHER SELF LOCKING DOME #8-32

34 0G5892E 1 INSULATION LOWER SPLITTER

35 042568 2 SCREW HHC M6-1.0 X 20 G8.8

36 0912970094 2 ASSY WIRE 14 AWG 34.8" GRN/YEL

37 022447 2 WASHER SHAKEPROOF INT 1/4

38 0G5892B 1 INSULATION REAR WRAP

39 0F8869D 1 KEY VISE-ACTION LATCH SLOT CIR

40 0E5298L 1 FOAM 300 X 300 THERMAL ACO (APPLIES TO 4.2L UNITS ONLY)

41 066760 1 STRIP SEALANT 1/8 X 1 (44.52”LG)

42 0H1208C 1 RF COVER PLATE-PLASTIC-DRK GRY (OPTIONAL)

(2)43 0J29470AL0R 1 DUCT DISCHARGE RH C2 AL

44 0G6019 1 ASSY ENCLOSURE GEN SIDE RF

45 084543A 2 SCREW PPPH M3 X 12

46 052777 2 WASHER FLAT M3

47 0J2791 2 BADGE, HONEYWELL

48 0J4013 1 BAFFLE TOP EXHAUST C2 HW

(1) ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURED USING

ITEM 2 & 5 THREAD FORMING FASTENER AND I/N 10 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FORMING

FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL ROOF PANELS ARE TO BE SECURED IN

THE SAME MANNER.

(2) SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR).

• MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM.

•

CUSTOMER: FOR CORRECT MATERIAL AND COLOR OF REPLACEMENT PARTS REFER TO “REPLACEMENT SHEET

METAL PARTS ORDERING GUIDE-0H7169” INCLUDED IN THE MANUAL OR AVAILABLE ON THE GENERAC WEBSITE

Notes

GENERAC POWER SYSTEMS “FIVE YEAR” LIMITED WARRANTY FOR HONEYWELL

SINGLE-PHASE LIQUID-COOLED EMERGENCY GENERATORS BELOW 50KW

For a period of five (5) years from the date of successful activation of the unit, Generac Power Systems, Inc. (Generac) will, at its option, repair or replace any part(s)

which, upon examination, inspection, and testing by Generac or an Authorized/Certified Honeywell Generator Dealer, or branch thereof, is found to be defective under normal

use and service, in accordance with the warranty schedule set forth below. Any equipment that the purchaser/owner claims to be defective must be examined by the

nearest Generac or Authorized/Certified Honeywell Generator Dealer, or branch thereof. Repair or replacement pursuant to this limited warranty shall not renew or extend the

original warranty period. Any repaired product shall be warranted for the remaining original warranty period only. This warranty applies only to Honeywell Generators used

in “Standby” applications, as Generac has defined Standby, provided said generator has been initially installed and/or inspected on-site by Generac or an Authorized/Certi-

fied Honeywell Generator Dealer, or branch thereof. It is highly recommended that scheduled maintenance, as outlined by the generator owner’s manual, be performed by

Generac or an Authorized/Certified Honeywell Generator Dealer, or branch thereof. This will verify service has been performed on the unit throughout the warranty period.

***This warranty only applies to units sold for use in the US and Canada.***

WARRANTY SCHEDULE

YEARS ONE AND TWO — Limited comprehensive coverage on mileage, labor, and parts listed.

• ALL COMPONENTS

YEARS THREE, FOUR AND FIVE — Limited comprehensive coverage on mileage, labor, and parts listed.

• COMPONENTS - Major mechanical or major electrical.

GUIDELINES:

Travel allowance is limited to 100 miles maximum and three (3) hours maximum (per occurrence, whichever is less), round trip from the nearest Authorized/Certified

Honeywell Generator Dealer; and only applies to permanently wired and mounted units. Any additional required travel expense will not be covered by Generac.

1. This warranty only applies to permanently wired and mounted signle-phase units.

2. All warranty repairs, must be performed and/or addressed by an

Authorized/Certified Honeywell Generator Dealer, or branch thereof.

3. Units that have been resold are not covered under the Honeywell Warranty, as this Warranty is not transferable.

4. Unit enclosure is only covered during the first year of the warranty provision.

5. Use of Non-Generac replacement part(s) will void the warranty in its entirety.

6. Generac may choose to Repair, Replace or Refund a piece of equipment.

7. Warranty Labor Rates are based on normal working hours. Additional costs for overtime, holiday or emergency labor costs for repairs outside of normal business

hours will be the responsibility of the customer.

8. Warranty Parts shipment costs are reimbursed at ground shipment rates. Costs related to requests for expedited shipping will be the responsibility of the customer.

9. Verification of required maintenance may be required for warranty coverage.

THIS WARRANTY SHALL NOT APPLY TO THE FOLLOWING:

1. Costs of normal maintenance (tune-ups, associated part (s), loose/leaking clamps, adjustments, installation and start-up).

2. Any failure caused by contaminated fuels, oils, coolants/antifreeze or lack of proper fuels, oils or coolants/antifreeze.

3. Units sold, rated or used for “Prime Power”, “Trailer Mounted” or “Rental Unit” applications as Generac has defined Prime Power,Trailer Mounted or Rental Unit. Con-

tact a Generac Distributor for Prime Power, Trailer Mounted or Rental Unit definition and warranty.

4. Failures caused by any external cause or act of God such as, but not limited to, collision, fire, theft, freezing, vandalism, riot or wars, lightning, earthquake, windstorm,

hail, volcanic eruption, water or flood, tornado, hurricane, terrorist acts or nuclear holocaust.

5. Products that are modified or altered in a manner not authorized by Generac in writing.

6. Failures due, but not limited to, normal wear and tear, accident, misuse, abuse, negligence, or improper installation or sizing.

7. Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s).

8. Damage related to rodent and/or insect infestation.

9. Failure due to misapplication, misrepresentation, or bi-fuel conversion.

10. Telephone, facsimile, cellular phone, satellite, Internet, or any other communication expenses.

11. Rental equipment used while warranty repairs are being performed.

12. Modes of transportation deemed abnormal

13. Steel enclosures that are rusting due to improper installation, location in a harsh or saltwater environment or scratched where integrity of paint applied is compromised.

14. Any and all expenses incurred investigating performance complaints unless defective Generac materials and/or workmanship were the direct cause of the problem.

15. Starter Batteries, Fuses, light bulbs, and overnight freight cost for replacement part(s).

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, SPECIFICALLY, GENERAC MAKES NO OTHER WARRANTIES AS TO THE

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Any implied warranties which are allowed by law, shall be limited in duration to the terms of the express

warranty provided herein. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to purchaser/owner.

GENERAC’S ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT OF PART(S) AS STATED ABOVE. IN NO EVENT SHALL GENERAC BE LIABLE FOR ANY INCI-

DENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF GENERAC’S NEGLIGENCE. Some states do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitations may not apply to purchaser/ owner. Purchaser/owner agrees to make no claims against Generac

based on negligence. This warranty gives purchaser/owner specific legal rights. Purchaser/owner also may have other rights that vary from state to state.

Honeywell International Inc. makes no representations or warranties with respect to this product.

The Honeywell Trademark is used under license from Honeywell International Inc.

GENERAC POWER SYSTEMS, INC. • P.O. BOX 8 • Waukesha, WI 53187 • Ph: 855-GEN-INFO

To locate the nearest Authorized Dealer and to download schematics, exploded parts views and parts lists,

visit our website: www.honeywellgenerators.com

Part No. 0J3248 Revision B 05.11

Warranty

BackPg001 Rev. A 04/07
