© 2021 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
Pacific Accessory Corporation
Rev.8
8/19/2022
LPH Harness Instruction Guide
®
Wiring Connection Chart (All Models)
All LPH harnesses are designed to work on OEM Non-Amplied systems.
All LPH harnesses are designed to be modular and used in various applications. (Listed Below)
-Adding Multi-Channel Ampliers Front -LPH-SPK(A) / (C)
-Adding Multi-Channel Ampliers Rear -LPH-SPK(B) / (D)
-Adding Multi-Channel Ampliers Front / Rear -LPH-SPK(A) / (B) / (C) / (D)
-Adding Mono Amplier Standalone Subwoofer -LPH-SPK(E)
-Provides Power/Ground/ACC -LPH-SPK(F)
-Provides speaker inputs / outputs on all channels
If no powered accessories are going to be installed behind your radio you will not need to use the LPH-SPK(F) pigtail. If you are
using this harness make sure your loose ends are connected prior to plugging in to the main LPH harness. If not connected to a
device or insulated this could cause a short circuit.
LPH-SPK (A) LPH-SPK (B) LPH-SPK (C)
Front - Signal from AMP Rear - Signal from AMP Front - Signal to AMP
Wire Color Funcon Wire Color Funcon Wire Color Funcon
White Front Le (+) Green Rear Le (+) White Front Le (+)
White/Black Front Le (-) Green/Black Rear Le (-) White/Black Front Le (-)
Gray Front Right (+) Violet Rear Right (+) Gray Front Right (+)
Gray/Black Front Right (-) Violet/Black Rear Right (-) Gray/Black Front Right (-)
LPH-SPK (D) LPH-SPK (E) LPH-SPK (F)
Rear - Signal to AMP Signal to AMP (SUB-T) Power Extension
Wire Color Funcon Wire Color Funcon Wire Color Funcon
Green Rear Le (+) Blue Le (+) Yellow Constant 12V
Green/Black Rear Le (-) Blue/Black Le (-) Red Accessory
Violet Rear Right (+) Red Right (+) Black Ground
Violet/Black Rear Right (-) Red/Black Right (-)
LPH-SPK (E) Can be use in both front or rear conguraons based on user preference.
LPH-SPK (F) Not all vehicles will provide accessory signal (Red Wire).
Important Notes

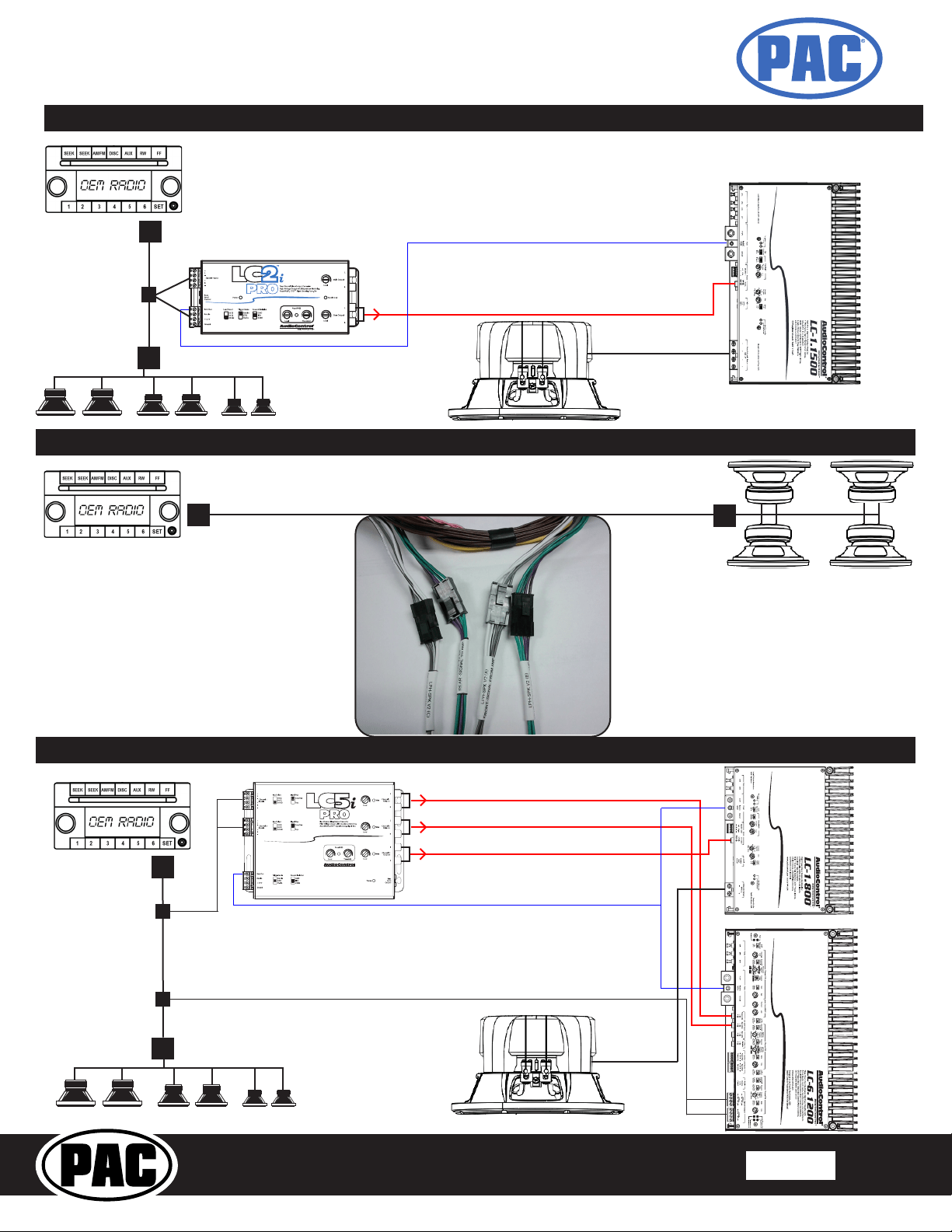

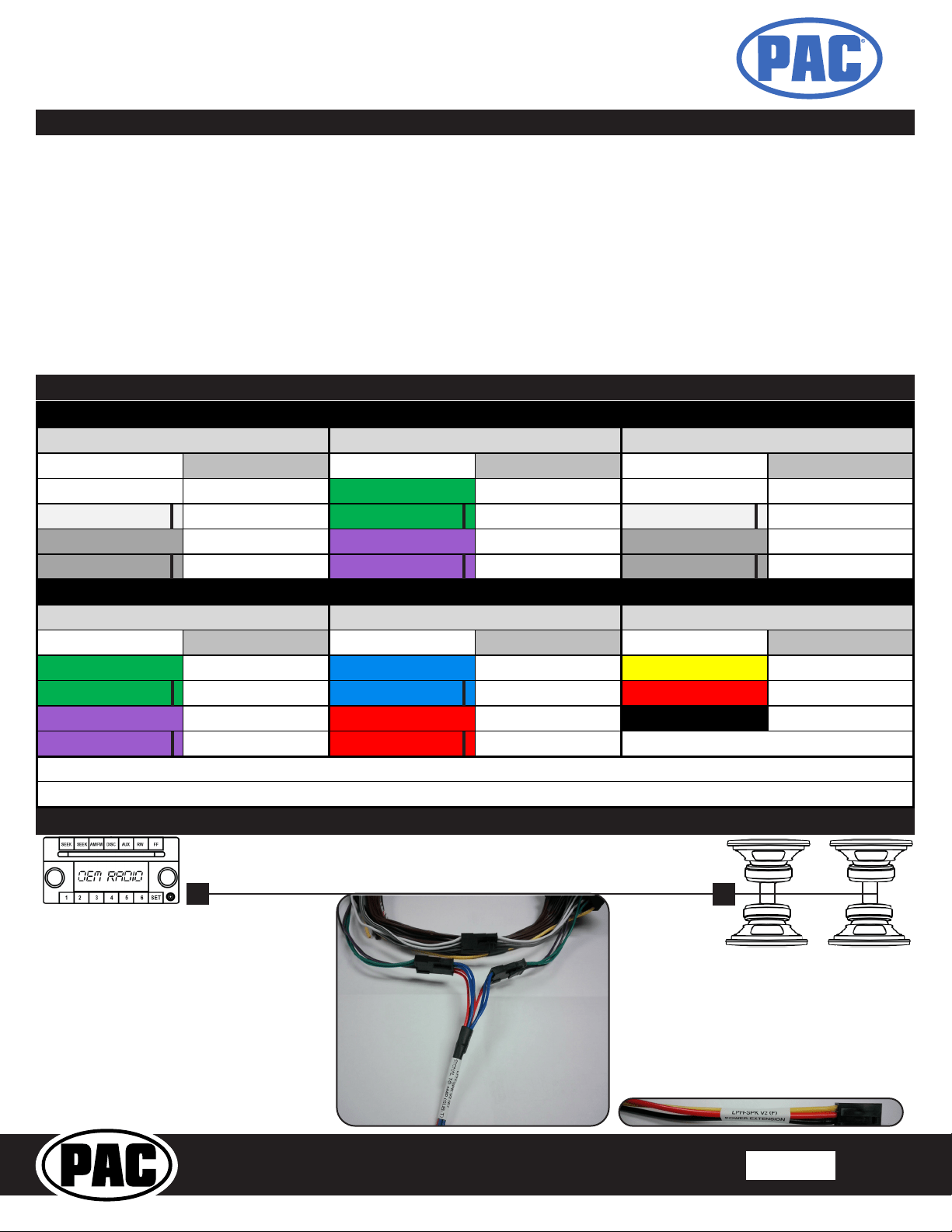

Example Installation - Mono Amplier - LPH-SPK(E)
OEM RADIO HARNESS
LPH TO RADIO CONNECTION
For this application you will want to split
either the front or rear channels on the
main LPH harness and insert (LPH-SPK(E))
in between. (See Photo).
This will provide a High-Level output for
various devices such as an Amplier, DSP,
or LOC that can accept a high-level input
signal.
LPH-SPK(F) can be used to provide Power,
Ground, and in some cases Acc for your
audio adapter (See Photo Bottom Right).
You will want to test your vehicles factory
speaker signal to verify that low level
frequencies are present.
This example will also maintain your
factory speaker connection as it is
bypassed though the harness.
LPH-SPK(F)
