LPHTSL01 Instruction Guide
®

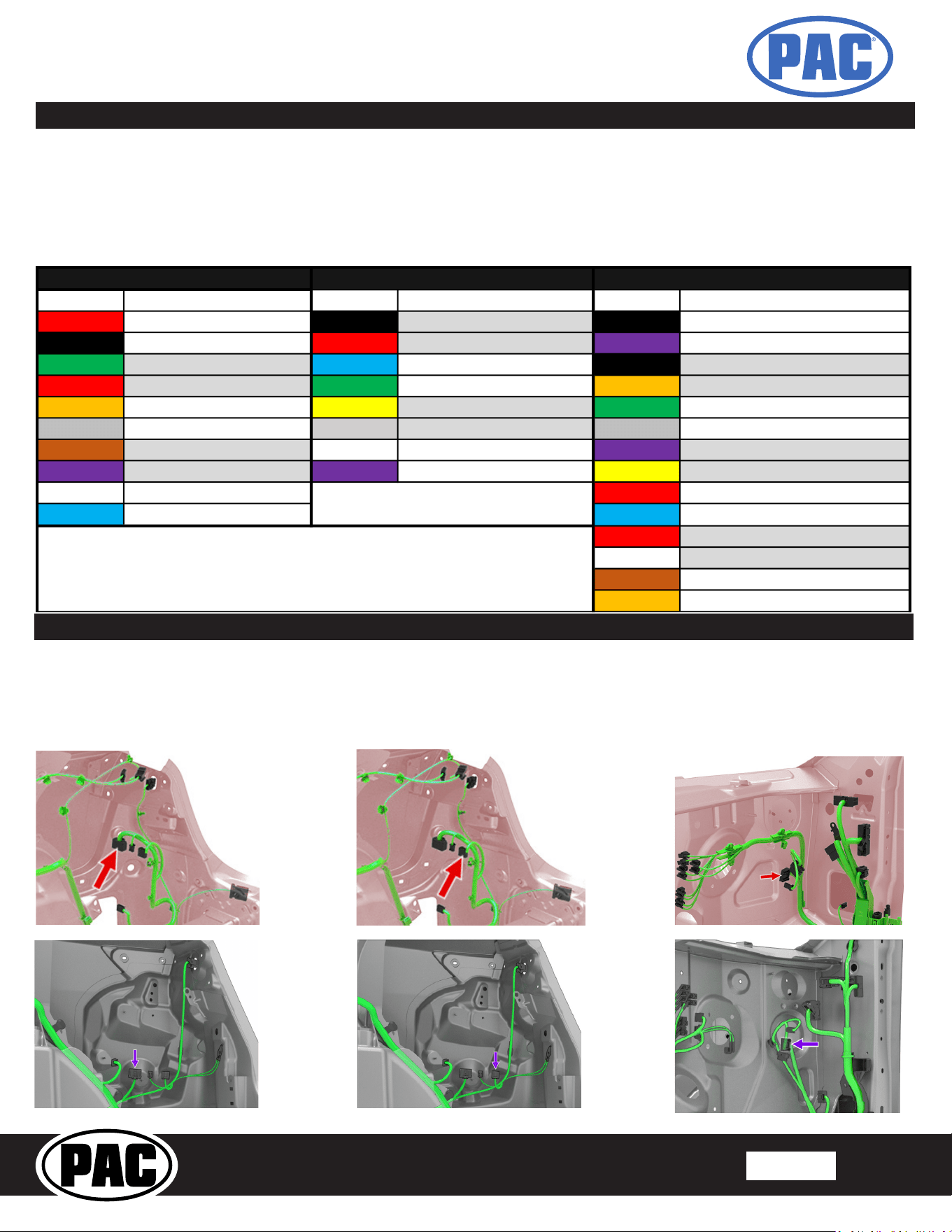

Wiring Connection Chart
Important Notes
• Please ensure that the vehicle is in a sleep state before
disconnecting any factory plugs.
• This harness is provided with a inline fuse installed. Please
remove prior to install and reinsert once nished.
• This vehicle does not provide a ACCESORY source so you will
need a DSP or LPA that can operate o of DC Oset to turn on as
well as trigger the "REM OUT" on the LPA.
This harness is designes to intergrate with aftermarket ampliers in Tesla
Model 3 / Y Vehicles.
Kit Includes:
-LPHTSL01 (A) Harness
-LPHTSL01 (B) Harness
-LPHTSL01 (C) Harness
These three harness will plug in at three dierent locations within the
vehicle and will each provide inputs and outputs to dierent speakers.
(See chart below)
Wire Color
Function
Wire Color
Function
Wire Color
Function
RED
Constant 12V (+)
BLACK
Left Rear Door Mid (-)
BLACK
Left Front Tweeter (+)
BLACK
Ground (-)
RED
Left Rear Door Mid (+)
VIOLET
Left Front Tweeter (-)
GREEN
Subwoofer VC1 (+)
LT BLUE
Right Rear Door Mid (+)
BLACK
Right Dash Mid (-)
RED
Subwoofer VC1 (-)
GREEN
RightRear Door Mid (-)
ORANGE
Right Dash Mid (+)
ORANGE
Right Front Door Mid (+)
YELLOW
Right Parcel Shelf Mid (-)
GREEN
Left Headliner Speaker (+)
GRAY
Right Front Door Mid (-)
GRAY
Right Parcel Shelf Mid (+)
GRAY
Left Headliner Speaker (-)
BROWN
Subwoofer VC2 (-)
WHITE
Left Parcel Shelf Mid (-)
VIOLET
Left Dash Mid (-)
VIOLET
Subwoofer VC2 (+)
VIOLET
Left Parcel Shelf Mid (+)
YELLOW
Left Dash Mid (+)
WHITE
Left Front Door Mid (+)
RED
Center Dash Mid/Tweeter (+)
LT BLUE
Left Front Door Mid (-)
LT BLUE
Center Dash Mid/Tweeter (-)
RED
Right Front Tweeter (-)
WHITE
Right Front Tweeter (+)
BROWN
Right Headliner Speaker (-)
ORANGE
Right Headliner Speaker (+)
LPHTSL01 (A)
LPHTSL01 (B)
LPHTSL01 (C)
ALL SPEAKERS ARE IN TWISTED PAIRS
FOR EASY IDENTIFICATION
Harness Identifier
LPHTSL01 (A) Gray 12 Pin Vehicle Connectors
LPHTSL01 (B) White 12 Pin Vehicle Connectors
LPHTSL01 (C) White 16 Pin Vehicle Connectors
Vehicle Connector Locations
LPHTSL01 (A)
Located in the right rear side of the
trunk under the trim panel.
This is the factory amplier location
and is attached to the OEM subwoofer
enclosure.
LPHTSL01 (B)
Located in the right rear side of the
trunk under the trim panel.
This is the factory amplier location
and is attached to the OEM subwoofer
enclosure.
LPHTSL01 (C)
The 16 pin connector is located up
under the dash, in the corner towards
the front passenger side of the
vehicle. See below for images.
Tesla Model 3
Tesla Model Y
Tesla Model 3
Tesla Model 3
Tesla Model Y Tesla Model Y
