Instruction Manual
WASHLET
SW3074T40
SW3074
■
Thank you for your recent purchase of this product.
Please read the enclosed information to ensure the safe use of your product.
■
Be sure to read this Instruction Manual before using your product and keep it in a safe place
for future reference.
2020.10.1
D07873
TOTO U.S.A., Inc. 1155 Southern Road Morrow, GA 30260
Phone : (770) 282-8686
You are advised to record the following information to allow quick service.
Date of purchase : Name of shop :
Tel : ( )
Date : year month day
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends On-Line Warranty Registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please
contact TOTO U.S.A. Inc.,
Customer Service Department, 1155 Southern Road, Morrow, GA 30260 (888) 295 - 8134 or (678) 466 - 1300
when calling from outside of U.S.A.
What functions are available on your product?
Safety Precautions
................
4
Operational Precautions
.....
11
Parts Names
........................
12
Preparation
..........................
14
What to Do?
.........................
35
If the water does not fl ow due to
a water service interruption
......
35
Freeze Damage Prevention
..
36
Long Periods of Disuse
.......
37
Troubleshooting
...................
38
Specifi cations
......................
42
Limited Warranty
.................
43
Table of Contents
Maintenance
........................
28
Power Plug
..........................
28
Main Unit
.............................
29
Gap between the Main Unit
and Bowl Unit
......................
30
Gap between the Main Unit
and the Toilet Lid
................
32
Deodorizing Filter
................
33
Wand
...................................
33
Wand cleaning
Water Filter Drain Valve
......
34
Basic Operations
.................
16
Mechanism of Auto Functions
...
16
Deodorizer,
Auto wand CLEAN, Pre-mist
Using the Control Panel
......
17
Temperature Adjustment
(Toilet Seat, Warm Water,
Drying)
..................................
18
Energy Saver Features
......
20
Various Operations
.............
24
Setting List
..........................
24
Auto functions
.....................
26
WASHLET
Ref. Page
SW3074T40
SW3074
Basic
Functions
Cleansing
Rear cleansing
●
17
Rear soft cleansing
Front cleansing
Changing the cleansing
method
Wand position
adjustment
●
Water pressure
adjustment
Oscillating cleansing
Pulsating cleansing
Drying
Warm air drying
●
Changing
the temperature
Temperature
adjustment
●
18, 19
Sanitary
Functions
Removing odors
Deodorizer
●
16
"EWATER+" cleaning
Auto wand CLEAN
●
Bowl pre-cleaning
Pre-mist
●
Convenience
Functions
Heating the toilet seat
Heated seat
●
-
Saving energy
Auto energy saver
●
20, 21
Timer energy saver
Maintenance
Main Unit One-touch
removal
●
30, 31
Removable toilet lid 32
Wand cleaning 33
Part No.
Functions
Product name (Model)
Keep It
Clean

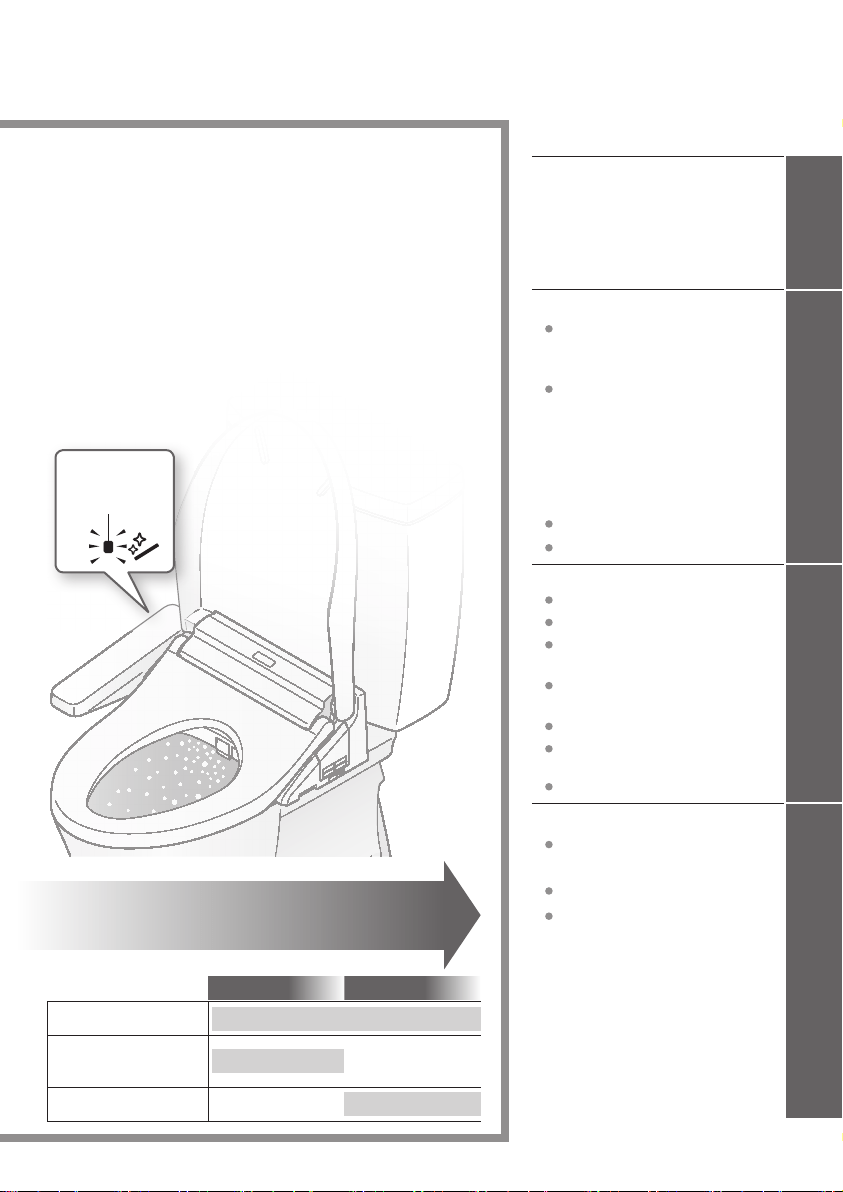

Sanitary Toilet
Lights to show
that the "CLEAN"
functions are
operating.
The self-cleaning functions
operate automatically.
(See page 16 for details.)
As you sit
As you stand up
Removing odors inside
the bowl unit.
Deodorizer Auto power deodorizer
A mist is automatically sprayed
inside the bowl unit to make it
more diffi cult for dirt to adhere.
Pre-mist
Cleans the wand with
"EWATER+"
Auto wand CLEAN
Part No.
2 3
ReferenceMaintenanceOperation
Introduction
What functions are available on your product?
Safety Precautions
................
4
Operational Precautions
.....
11
Parts Names
........................
12
Preparation
..........................
14
What to Do?
.........................
35
If the water does not fl ow due to
a water service interruption
......
35
Freeze Damage Prevention
..
36
Long Periods of Disuse
.......
37
Troubleshooting
...................
38
Specifi cations
......................
42
Limited Warranty
.................
43
Table of Contents
Maintenance
........................
28
Power Plug
..........................
28
Main Unit
.............................
29
Gap between the Main Unit
and Bowl Unit
......................
30
Gap between the Main Unit
and the Toilet Lid
................
32
Deodorizing Filter
................
33
Wand
...................................
33
Wand cleaning
Water Filter Drain Valve
......
34
Basic Operations
.................
16
Mechanism of Auto Functions
...
16
Deodorizer,
Auto wand CLEAN, Pre-mist
Using the Control Panel
......
17
Temperature Adjustment
(Toilet Seat, Warm Water,
Drying)
..................................
18
Energy Saver Features
......
20
Various Operations
.............
24
Setting List
..........................
24
Auto functions
.....................
26
WASHLET
Ref. Page
SW3074T40
SW3074
Basic
Functions
Cleansing
Rear cleansing
●
17
Rear soft cleansing
Front cleansing
Changing the cleansing
method
Wand position
adjustment
●
Water pressure
adjustment
Oscillating cleansing
Pulsating cleansing
Drying
Warm air drying
●
Changing
the temperature
Temperature
adjustment
●
18, 19
Sanitary
Functions
Removing odors
Deodorizer
●
16
"EWATER+" cleaning
Auto wand CLEAN
●
Bowl pre-cleaning
Pre-mist
●
Convenience
Functions
Heating the toilet seat
Heated seat
●
-
Saving energy
Auto energy saver
●
20, 21
Timer energy saver
Maintenance
Main Unit One-touch
removal
●
30, 31
Removable toilet lid 32
Wand cleaning 33
Part No.
Functions
Product name (Model)
Keep It
Clean
Sanitary Toilet
Lights to show
that the "CLEAN"
functions are
operating.
The self-cleaning functions
operate automatically.
(See page 16 for details.)
As you sit
As you stand up
Removing odors inside
the bowl unit.
Deodorizer Auto power deodorizer
A mist is automatically sprayed
inside the bowl unit to make it
more diffi cult for dirt to adhere.
Pre-mist
Cleans the wand with
"EWATER+"
Auto wand CLEAN
Part No.
2 3
ReferenceMaintenanceOperation
Introduction
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING
Symbols and Meanings
WARNING
May result in death or serious injury.
CAUTION
May result in injury or property damage.
The following symbols are used to indicate important safety instructions for the use of the product.
Symbol Meaning
This symbol indicates a prohibited use of the product.
This symbol is used to indicate a required step in the use of this product.
WARNING
Do not plug or unplug the power plug with wet hands.
Doing so may cause electrical shock.
Do not get any water or cleaning solution on the main unit or power plug.
Doing so may cause fi re, electrical shock, heat or short circuit.
Doing so may cause the product to crack resulting in injury or water damage.
Never disassemble, repair or alter.
Doing so may cause fi re, electrical shock, overheating, short circuit or breakdown.
Do not install the product on moving vehicles such as wheeled vehicles or boats.
Doing so may cause fi re, electric shock, short circuit or malfunction.
The toilet seat, toilet lid, main unit, or other parts may come loose and fall off , resulting in injury.
Do not use the product if a malfunction occurs.
In case of breakdown or other problem, be sure to cut off power by means such as unplugging the power plug.
Close the water shutoff valve to stop water supply.
Possible malfunctions:
Water is leaking from a pipe or the main unit.
The product is cracked or broken.
The product makes a strange noise or emits a strange odor.
The product emits smoke.
The product is abnormally hot.
The toilet seat cushion is out of place.
Continued use after malfunction could cause a fi re, electric shock, heat, short circuit, injury or
water damage.
Safety Precautions
WARNING
Do not use other water then allowed by the laws and ordinances of the
region of use. Only Use drinking water.
Do not use seawater or recycled water.
Doing so may cause irritation to the skin and malfunction.
Do not touch the power plug during thunderstorms.
Doing so may cause electrical shock.
Do not allow the water supply hose to touch the power plug or outlet.
Doing so may cause condensation resulting in a fi re, electrical shock, heat or a short.
Do not do anything that may damage the power cord, power plug.
Do not strike, yank, twist, excessively bend, damage, alter, or heat the power cords.
Also, do not place anything heavy on, bind or pinch the power cords.
Using a damaged power cord may result in a fi re, electrical shock, heat or short.
Do not use a loose or faulty electrical outlet.
Doing so may cause fi re or short circuit.
Do no use any outlet or wiring equipment beyond its specifi ed rating.
Plugging too many plugs into the same outlet, for example using outlet splitters, can cause fi re
due to heat.
Do not use any power supply other than the one specifi ed.
AC 120 V, 60 Hz
Doing so may cause fi re or excessive heat.
Do not stick a fi nger or anything else into the warm air outlet.
Do not place anything on the warm air outlet or drape clothes over it.
Doing so may cause burns, electrical shock or malfunction.
Keep cigarettes and other open fl ames away from the product.
Failure to do so may cause fi re.
Refrain from sitting on the seat for long periods.
It may cause low-temperature burns.
To prevent the following persons from getting a moderate temperature burn during use, other
person should turn off the toilet seat heater.
Young children, the aged and other users unable to set the temperature appropriately
themselves.
The ill, physically disabled and others who do not have freedom of movement.
Those using any medicines that cause drowsiness (sleeping or cold medicine), those who have
been drinking heavily, anyone severely fatigued and anyone else liable to fall asleep.
4 5
Introduction
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING
Symbols and Meanings
WARNING
May result in death or serious injury.
CAUTION
May result in injury or property damage.
The following symbols are used to indicate important safety instructions for the use of the product.
Symbol Meaning
This symbol indicates a prohibited use of the product.
This symbol is used to indicate a required step in the use of this product.
WARNING
Do not plug or unplug the power plug with wet hands.
Doing so may cause electrical shock.
Do not get any water or cleaning solution on the main unit or power plug.
Doing so may cause fi re, electrical shock, heat or short circuit.
Doing so may cause the product to crack resulting in injury or water damage.
Never disassemble, repair or alter.
Doing so may cause fi re, electrical shock, overheating, short circuit or breakdown.
Do not install the product on moving vehicles such as wheeled vehicles or boats.
Doing so may cause fi re, electric shock, short circuit or malfunction.
The toilet seat, toilet lid, main unit, or other parts may come loose and fall off , resulting in injury.
Do not use the product if a malfunction occurs.
In case of breakdown or other problem, be sure to cut off power by means such as unplugging the power plug.
Close the water shutoff valve to stop water supply.
Possible malfunctions:
Water is leaking from a pipe or the main unit.
The product is cracked or broken.
The product makes a strange noise or emits a strange odor.
The product emits smoke.
The product is abnormally hot.
The toilet seat cushion is out of place.
Continued use after malfunction could cause a fi re, electric shock, heat, short circuit, injury or
water damage.
Safety Precautions
WARNING
Do not use other water then allowed by the laws and ordinances of the
region of use. Only Use drinking water.
Do not use seawater or recycled water.
Doing so may cause irritation to the skin and malfunction.
Do not touch the power plug during thunderstorms.
Doing so may cause electrical shock.
Do not allow the water supply hose to touch the power plug or outlet.
Doing so may cause condensation resulting in a fi re, electrical shock, heat or a short.
Do not do anything that may damage the power cord, power plug.
Do not strike, yank, twist, excessively bend, damage, alter, or heat the power cords.
Also, do not place anything heavy on, bind or pinch the power cords.
Using a damaged power cord may result in a fi re, electrical shock, heat or short.
Do not use a loose or faulty electrical outlet.
Doing so may cause fi re or short circuit.
Do no use any outlet or wiring equipment beyond its specifi ed rating.
Plugging too many plugs into the same outlet, for example using outlet splitters, can cause fi re
due to heat.
Do not use any power supply other than the one specifi ed.
AC 120 V, 60 Hz
Doing so may cause fi re or excessive heat.
Do not stick a fi nger or anything else into the warm air outlet.
Do not place anything on the warm air outlet or drape clothes over it.
Doing so may cause burns, electrical shock or malfunction.
Keep cigarettes and other open fl ames away from the product.
Failure to do so may cause fi re.
Refrain from sitting on the seat for long periods.
It may cause low-temperature burns.
To prevent the following persons from getting a moderate temperature burn during use, other
person should turn off the toilet seat heater.
Young children, the aged and other users unable to set the temperature appropriately
themselves.
The ill, physically disabled and others who do not have freedom of movement.
Those using any medicines that cause drowsiness (sleeping or cold medicine), those who have
been drinking heavily, anyone severely fatigued and anyone else liable to fall asleep.
4 5
Introduction
WARNING
This is an electrical product. Do not install it anywhere water is likely to get on
the product or anywhere with humidity high enough that water is likely to form
on the surface of this product. When using the product in a bathroom, install a
fan or ventilation port and ensure good air fl ow through the bathroom.
Failure to do so may cause fi re or electrical shock.
Always connect the product to the cold water supply.
Connecting to hot water supply may result in burns and equipment damage.
Make sure that a properly grounded (3 prong) outlet has been installed.
Failure to install a grounded outlet could cause electrical shock in the event of a malfunction or
short circuit.
Insert the power plug securely into the outlet.
Failure to do so may cause fire, heat or short circuit.
To unplug, hold the power plug, not the power cord.
Do not unplug by pulling the power cord.
Pulling on the power cord may cause damage and result in fi re or heat.
If the power cord is damaged, avoid danger by having the manufacturer's
repair department or equivalent specialist replace it.
Always unpug the power plug from the outlet before maintenance or
inspection.
Failure to do so may cause electrical shock or malfunction.
Periodically remove dust and dirt from the power plug and make sure it is
securely plugged into the wall outlet.
Failure to do so may cause fire, heat or short circuit.
Pull the power plug out from the outlet and wipe clean with a dry cloth.
Always unplug the power plug from the outlet before removing the main unit.
Failure to do so may cause fi re or electrical shock.
Preliminary studies in females suggest that overuse of continuous spraying
can increase the possibility of vaginal mucosa drying and potential reduction in
desirable microbial organisms.
Although these studies have not been validated, please consult your healthcare
provider for concerns regarding whether these circumstances may apply to you.
More importantly, if you are an individual suff ering from any immune
defi ciency as a result of disease, chemotherapy, or other medical condition
compromising the immune system you should consult your healthcare
provider before use of this product.
Safety Precautions (Continued)
CAUTION
Do not use the product if the main unit is unstable.
Doing so may cause the main unit to come loose and fall, resulting in injury.
If the product is damaged, do not touch the damaged section.
Doing so may cause electrical shock or injury.
Replace it immediately.
Do not apply strong force, mechanical shock, step on or stand on the toilet
seat, toilet lid or main unit. Also do not place any heavy object on the toilet
seat, toilet lid or main unit.
Doing so may cause cracking or cause the main unit to come loose and fall, resulting in injury.
Doing so may damage the product and cause injury or water damage.
Do not lift up this product by the toilet seat or lid.
Do not raise the toilet seat or lid while objects are resting on top of the unit.
Doing so may cause the main unit to come loose and fall, resulting in injury.
When maintaining the plastic parts (main unit etc.) or the water supply hose,
use a neutral kitchen detergent diluted with water. Do not use any of the
following.
Toilet cleaner, household cleaner, benzene, paint thinner, powdered cleanser or nylon
scrubbing brush.
These items may damage or crack the plastic and cause injury or malfunction.
These items could damage the water supply hose and cause a water leak.
To prevent a sudden water leak, do not remove the water fi lter drain valve
when the shutoff valve is open.
Doing so will cause water to spurt out.
(Refer to Page 34 for instructions on cleaning the water fi lter drain valve.)
Do not fold or crush the water supply hose; do not damage by cutting with a
sharp object.
Doing so may cause water leaks.
Do not install the base plate, which is not attached.
Doing so may cause damage.
6 7
Introduction
WARNING
This is an electrical product. Do not install it anywhere water is likely to get on
the product or anywhere with humidity high enough that water is likely to form
on the surface of this product. When using the product in a bathroom, install a
fan or ventilation port and ensure good air fl ow through the bathroom.
Failure to do so may cause fi re or electrical shock.
Always connect the product to the cold water supply.
Connecting to hot water supply may result in burns and equipment damage.
Make sure that a properly grounded (3 prong) outlet has been installed.
Failure to install a grounded outlet could cause electrical shock in the event of a malfunction or
short circuit.
Insert the power plug securely into the outlet.
Failure to do so may cause fire, heat or short circuit.
To unplug, hold the power plug, not the power cord.
Do not unplug by pulling the power cord.
Pulling on the power cord may cause damage and result in fi re or heat.
If the power cord is damaged, avoid danger by having the manufacturer's
repair department or equivalent specialist replace it.
Always unpug the power plug from the outlet before maintenance or
inspection.
Failure to do so may cause electrical shock or malfunction.
Periodically remove dust and dirt from the power plug and make sure it is
securely plugged into the wall outlet.
Failure to do so may cause fire, heat or short circuit.
Pull the power plug out from the outlet and wipe clean with a dry cloth.
Always unplug the power plug from the outlet before removing the main unit.
Failure to do so may cause fi re or electrical shock.
Preliminary studies in females suggest that overuse of continuous spraying
can increase the possibility of vaginal mucosa drying and potential reduction in
desirable microbial organisms.
Although these studies have not been validated, please consult your healthcare
provider for concerns regarding whether these circumstances may apply to you.
More importantly, if you are an individual suff ering from any immune
defi ciency as a result of disease, chemotherapy, or other medical condition
compromising the immune system you should consult your healthcare
provider before use of this product.
Safety Precautions (Continued)
CAUTION
Do not use the product if the main unit is unstable.
Doing so may cause the main unit to come loose and fall, resulting in injury.
If the product is damaged, do not touch the damaged section.
Doing so may cause electrical shock or injury.
Replace it immediately.
Do not apply strong force, mechanical shock, step on or stand on the toilet
seat, toilet lid or main unit. Also do not place any heavy object on the toilet
seat, toilet lid or main unit.
Doing so may cause cracking or cause the main unit to come loose and fall, resulting in injury.
Doing so may damage the product and cause injury or water damage.
Do not lift up this product by the toilet seat or lid.
Do not raise the toilet seat or lid while objects are resting on top of the unit.
Doing so may cause the main unit to come loose and fall, resulting in injury.
When maintaining the plastic parts (main unit etc.) or the water supply hose,
use a neutral kitchen detergent diluted with water. Do not use any of the
following.
Toilet cleaner, household cleaner, benzene, paint thinner, powdered cleanser or nylon
scrubbing brush.
These items may damage or crack the plastic and cause injury or malfunction.
These items could damage the water supply hose and cause a water leak.
To prevent a sudden water leak, do not remove the water fi lter drain valve
when the shutoff valve is open.
Doing so will cause water to spurt out.
(Refer to Page 34 for instructions on cleaning the water fi lter drain valve.)
Do not fold or crush the water supply hose; do not damage by cutting with a
sharp object.
Doing so may cause water leaks.
Do not install the base plate, which is not attached.
Doing so may cause damage.
6 7
Introduction
Safety Precautions (Continued)
CAUTION
If a water leak should occur, always close the shutoff valve.
When the ambient temperature is likely to drop to 32 °F (0 °C) or lower,
prevent damage to the pipes and hoses due to freezing.
Frozen water pipes could cause the main unit and the pipes to break, resulting in a water leak.
Regulate the room temperature to prevent the pipes and hoses from freezing during cold months.
Drain the water.
When not using the product over an extended period of time, drain the
water out of the main unit and the water supply hose after closing the water
shutoff valve, and pull the power plug from the outlet.
When using the product again, allow the product to refi ll with water fi rst. Otherwise, the water in
the tank might become contaminated and cause skin infl ammation or other problems.
(Refer to Page 37 for instructions on replenishing the water.)
Leaving the power on may cause fi re or heat.
When installing the water fi lter drain valve, make sure that it is securely
tightened in its proper position.
Failure to securely tighten it may cause a water leak.
Push the main unit securely on to the base plate.
After pushing the main unit until a click sound is heard, pull it slightly toward you to make sure
that the product does not detach.
Doing so may cause the main unit to come loose and fall, resulting in injury.
DANGER
To reduce the risk of electrocution:
1. Do not use while bathing.
2. Do not place or store the product where it can fall or be pulled into a tub or sink.
3. Do not place in or drop into water or other liquid.
4. Do not reach for the product when it has fallen into water. Unplug it immediately.
WARNING
To reduce the risk of burns, electrocution, fi re or injury to persons:
1. Close supervision is necessary when this product is used by, on, or near children or
invalids.
2. Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug, is not working properly, has
been dropped or damaged, or has been dropped in water. Return the product to a service
center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings on the product or place it on a soft surface, such as a bed
or couch, where the air openings may be blocked. Keep the air openings free of lint, hair,
and other similar items.
6. Never use while sleepy or drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors. Do not operate where aerosol (spray) products are being used or
where oxygen is being administered.
9. Connect this product to a properly grounded outlet only.
See "Grounding Instructions" in Page 10.
10. The tank should be fi lled with water only.
Servicing should be performed by an authorized service representative.
This product is for household use.
8 9
Introduction
Safety Precautions (Continued)
CAUTION
If a water leak should occur, always close the shutoff valve.
When the ambient temperature is likely to drop to 32 °F (0 °C) or lower,
prevent damage to the pipes and hoses due to freezing.
Frozen water pipes could cause the main unit and the pipes to break, resulting in a water leak.
Regulate the room temperature to prevent the pipes and hoses from freezing during cold months.
Drain the water.
When not using the product over an extended period of time, drain the
water out of the main unit and the water supply hose after closing the water
shutoff valve, and pull the power plug from the outlet.
When using the product again, allow the product to refi ll with water fi rst. Otherwise, the water in
the tank might become contaminated and cause skin infl ammation or other problems.
(Refer to Page 37 for instructions on replenishing the water.)
Leaving the power on may cause fi re or heat.
When installing the water fi lter drain valve, make sure that it is securely
tightened in its proper position.
Failure to securely tighten it may cause a water leak.
Push the main unit securely on to the base plate.
After pushing the main unit until a click sound is heard, pull it slightly toward you to make sure
that the product does not detach.
Doing so may cause the main unit to come loose and fall, resulting in injury.
DANGER
To reduce the risk of electrocution:
1. Do not use while bathing.
2. Do not place or store the product where it can fall or be pulled into a tub or sink.
3. Do not place in or drop into water or other liquid.
4. Do not reach for the product when it has fallen into water. Unplug it immediately.
WARNING
To reduce the risk of burns, electrocution, fi re or injury to persons:
1. Close supervision is necessary when this product is used by, on, or near children or
invalids.
2. Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug, is not working properly, has
been dropped or damaged, or has been dropped in water. Return the product to a service
center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings on the product or place it on a soft surface, such as a bed
or couch, where the air openings may be blocked. Keep the air openings free of lint, hair,
and other similar items.
6. Never use while sleepy or drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors. Do not operate where aerosol (spray) products are being used or
where oxygen is being administered.
9. Connect this product to a properly grounded outlet only.
See "Grounding Instructions" in Page 10.
10. The tank should be fi lled with water only.
Servicing should be performed by an authorized service representative.
This product is for household use.
8 9
Introduction
■
For prevention of damage
●
Wipe plastic areas such as the main unit with a
soft cloth tightly wrung out with water.
Dry cloth or tissue
●
Do not lean against the toilet lid.
■
For prevention of malfunctions and failures
●
Disconnect the power plug if there is a risk of
lightning.
●
A toilet seat cover or a
toilet lid cover cannot
be used.
(The seat switch may
not function properly.
Additionally, the toilet
seat and lid may
not open or close
properly.)
●
Do not urinate on the main unit, toilet seat or wand.
(Doing so may cause a failure or discoloration.)
●
Do not apply strong forces to the control panel.
●
When using a toilet cleaner to clean the toilet, rinse
it off within 3 minutes and leave the toilet seat and
toilet lid open.
(If vapor from a toilet cleaner enters the main unit,
it may cause a malfunction.)
Wipe off any cleaner that remains on the bowl
unit.
●
Do not use the product with the toilet lid removed.
●
Do not expose to direct sunlight.
(Doing so may cause changes in color, irregular
heated seat temperature, the control panel
malfunction or product malfunction due to the
change in temperature.)
●
Use radios, etc. away from the product.
(The product could cause interference with the
radio signal.)
●
If you use a booster seat for infants or a soft
highchair, remove it after use.
(Keeping it installed may prevent some of the
functions from being used.)
●
Do not place anything on the toilet seat and lid,
and do not press them with hands.
(Failure to do so may turn on the seat switch,
causing the fl oor to get wet if buttons on the control
panel are touched and warm water comes out from
the wand.)
■
For prevention of malfunctions

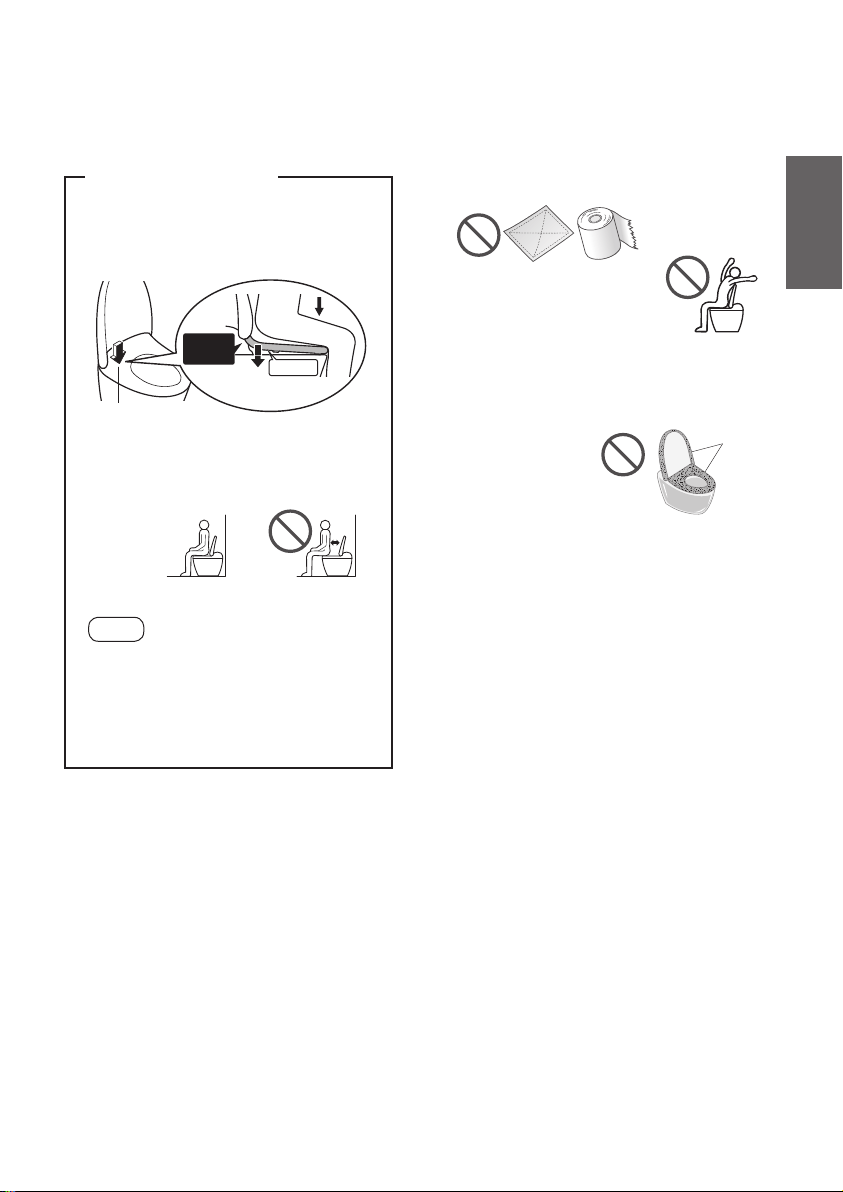

<About the seat switch>
●
When you sit on the toilet seat, the seat switch
turns ON, enabling you to use various features.
(A click sound is heard when the seat switch is
ACTIVATED.)
Seat switch (Built-in)
The toilet seat lowers.
Switch
ON
Gap
●
Sit back on the toilet seat.
The seat switch will not turn on unless you
sit on the seat properly.
Note
When a child uses the product, the seat
switch may not be ACTIVATED by their
light body weight.
Since the toilet seat is designed to move
up and down, a clearance is provided
between the toilet seat cushion and the
bowl unit.
Covers
Grounding Instructions
This product should be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electrical current.
This product is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
DANGER - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire
to either fl at-head terminal.
Check with a qualifi ed electrician or serviceman if the grounding wire instructions are not
completely understood, or if in doubt as to whether the product is properly grounded.
SAVE THESE INSTRUCTIONS
Safety Precautions (Continued) Operational Precautions
10 11
Introduction
■
For prevention of damage
●
Wipe plastic areas such as the main unit with a
soft cloth tightly wrung out with water.
Dry cloth or tissue
●
Do not lean against the toilet lid.
■
For prevention of malfunctions and failures
●
Disconnect the power plug if there is a risk of
lightning.
●
A toilet seat cover or a
toilet lid cover cannot
be used.
(The seat switch may
not function properly.
Additionally, the toilet
seat and lid may
not open or close
properly.)
●
Do not urinate on the main unit, toilet seat or wand.
(Doing so may cause a failure or discoloration.)
●
Do not apply strong forces to the control panel.
●
When using a toilet cleaner to clean the toilet, rinse
it off within 3 minutes and leave the toilet seat and
toilet lid open.
(If vapor from a toilet cleaner enters the main unit,
it may cause a malfunction.)
Wipe off any cleaner that remains on the bowl
unit.
●
Do not use the product with the toilet lid removed.
●
Do not expose to direct sunlight.
(Doing so may cause changes in color, irregular
heated seat temperature, the control panel
malfunction or product malfunction due to the
change in temperature.)
●
Use radios, etc. away from the product.
(The product could cause interference with the
radio signal.)
●
If you use a booster seat for infants or a soft
highchair, remove it after use.
(Keeping it installed may prevent some of the
functions from being used.)
●
Do not place anything on the toilet seat and lid,
and do not press them with hands.
(Failure to do so may turn on the seat switch,
causing the fl oor to get wet if buttons on the control
panel are touched and warm water comes out from
the wand.)
■
For prevention of malfunctions
<About the seat switch>
●
When you sit on the toilet seat, the seat switch
turns ON, enabling you to use various features.
(A click sound is heard when the seat switch is
ACTIVATED.)
Seat switch (Built-in)
The toilet seat lowers.
Switch
ON
Gap
●
Sit back on the toilet seat.
The seat switch will not turn on unless you
sit on the seat properly.
Note
When a child uses the product, the seat
switch may not be ACTIVATED by their
light body weight.
Since the toilet seat is designed to move
up and down, a clearance is provided
between the toilet seat cushion and the
bowl unit.
Covers
Grounding Instructions
This product should be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electrical current.
This product is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
DANGER - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire
to either fl at-head terminal.
Check with a qualifi ed electrician or serviceman if the grounding wire instructions are not
completely understood, or if in doubt as to whether the product is properly grounded.
SAVE THESE INSTRUCTIONS
Safety Precautions (Continued) Operational Precautions
10 11
Introduction

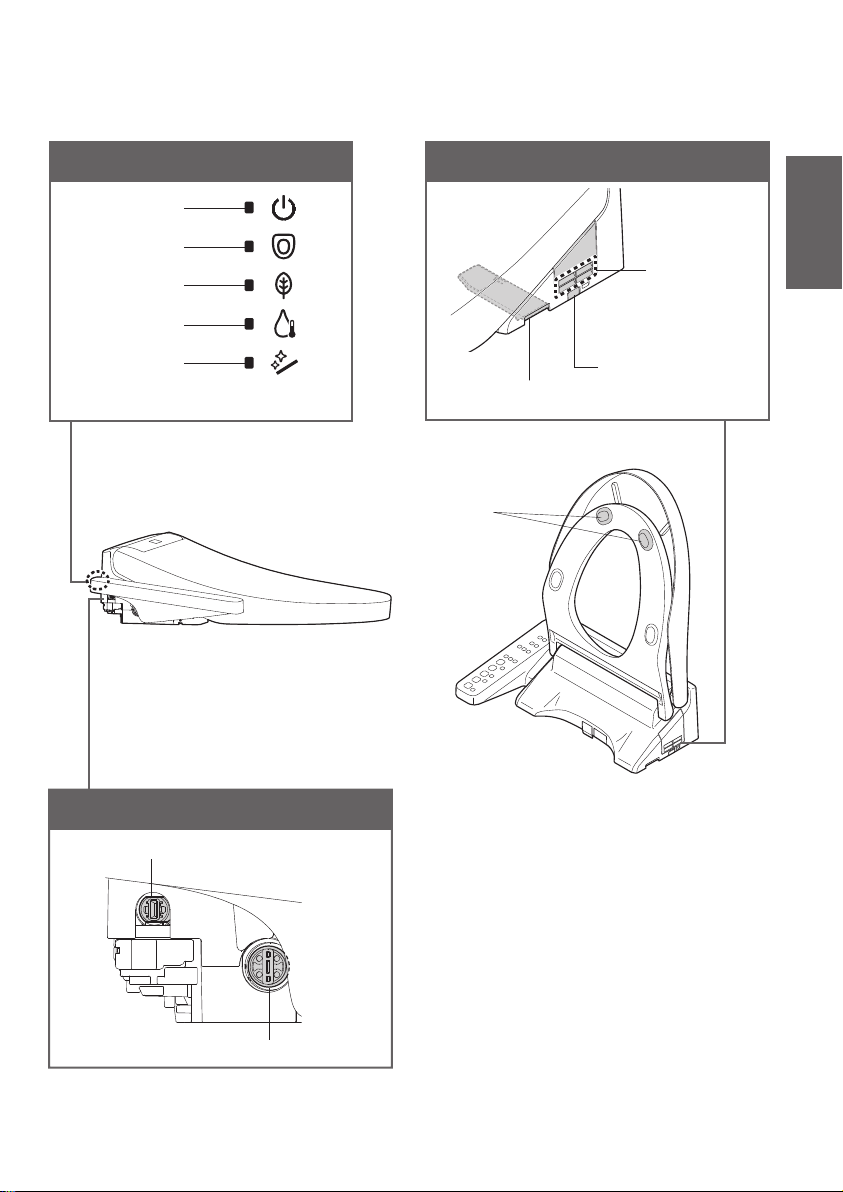

Main display
Right side of the main unit
Left side of the main unit
Deodorizer outlet
Deodorizing fi lter
(Page 33)
Water drain plug (Page 37)
Water fi lter drain valve (Page 34)
Part no., etc.
Toilet lid cushions
Shutoff valve
*1
(Page 14)
Toilet lid
Water supply hose
Control panel
(Page 17)
Main unit removal button
(Pages 30, 31)
Wand cover
Warm air outlet cover
Wand
Seat switch
(Built-in)
Heated seat
Toilet seat
cushions
Power cord
Power LED
Energy saver
LED
Water LED
Wand CLEAN
LED
<All the LEDs light up in the fi gure>
Seat LED
Power Plug
Descriptions in this manual are based on the illustrations of SW3074.
*1 The shape and location vary depending on the type of toilet bowl and tank.
Parts Names
12 13
Introduction
Main display
Right side of the main unit
Left side of the main unit
Deodorizer outlet
Deodorizing fi lter
(Page 33)
Water drain plug (Page 37)
Water fi lter drain valve (Page 34)
Part no., etc.
Toilet lid cushions
Shutoff valve
*1
(Page 14)
Toilet lid
Water supply hose
Control panel
(Page 17)
Main unit removal button
(Pages 30, 31)
Wand cover
Warm air outlet cover
Wand
Seat switch
(Built-in)
Heated seat
Toilet seat
cushions
Power cord
Power LED
Energy saver
LED
Water LED
Wand CLEAN
LED
<All the LEDs light up in the fi gure>
Seat LED
Power Plug
Descriptions in this manual are based on the illustrations of SW3074.
*1 The shape and location vary depending on the type of toilet bowl and tank.
Parts Names
12 13
Introduction

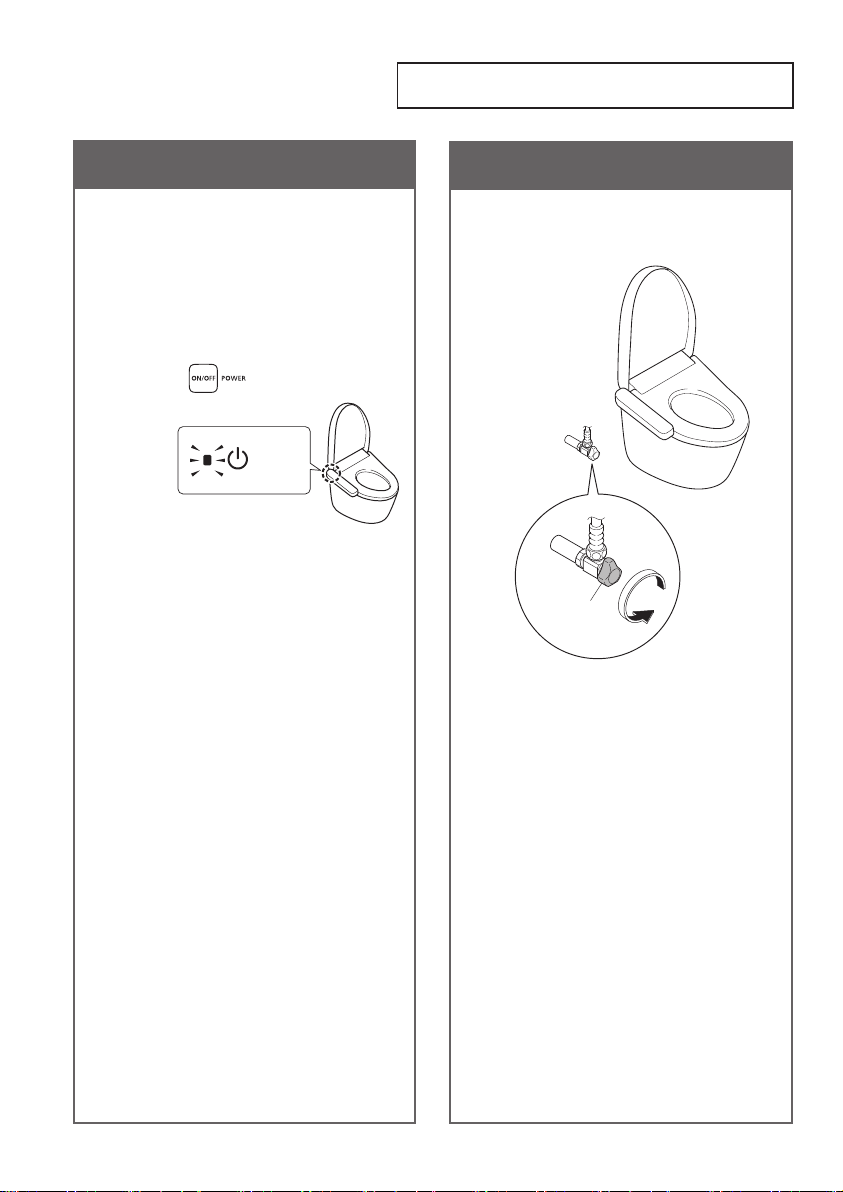

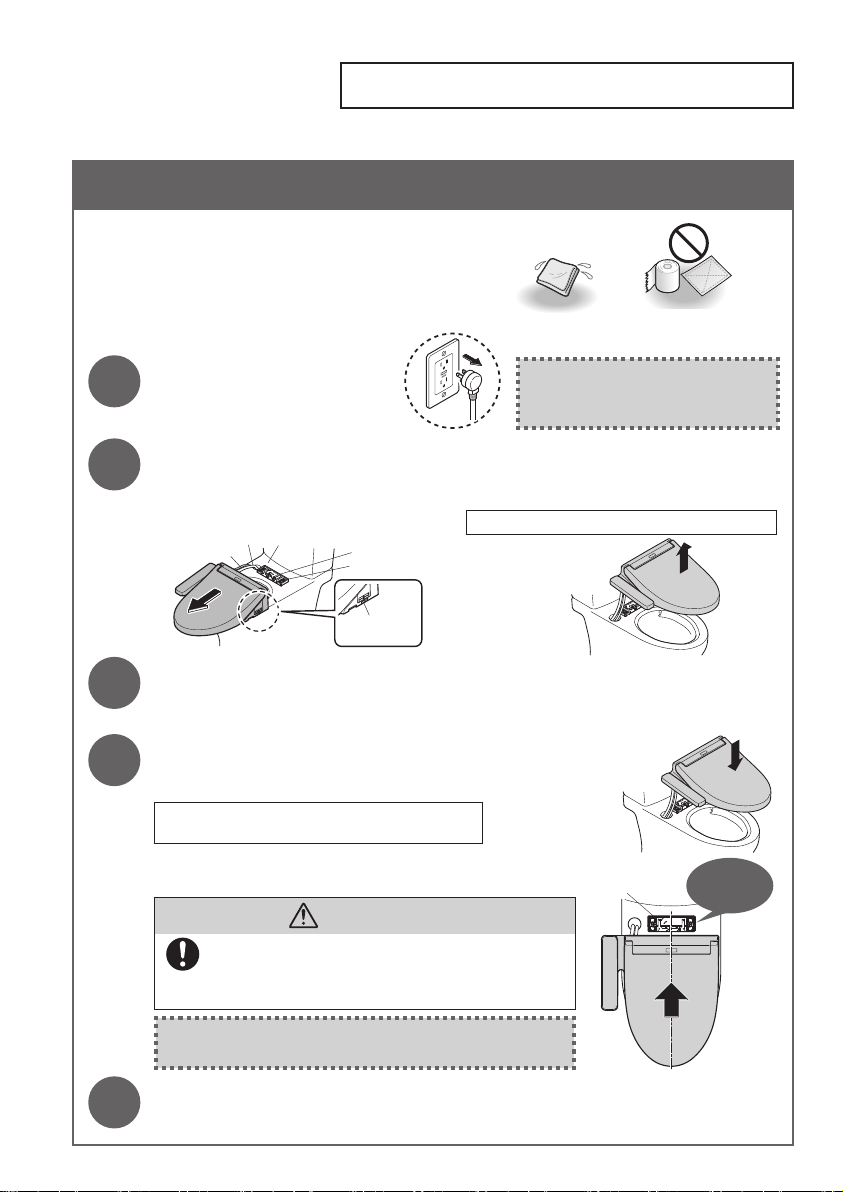

1. Turn on the power
2. Open the shutoff valve
Preparation
Using the Product for the First Time
1
Fully open the shutoff valve.
Shutoff valve
1
Insert the power plug.
The wand extends and then retracts.
2
Check that the "Power" LED
lights up.
When the "Power" LED does not light,
press
for at least 3 seconds.
<Power>
14 15
Introduction
1. Turn on the power
2. Open the shutoff valve
Preparation
Using the Product for the First Time
1
Fully open the shutoff valve.
Shutoff valve
1
Insert the power plug.
The wand extends and then retracts.
2
Check that the "Power" LED
lights up.
When the "Power" LED does not light,
press
for at least 3 seconds.
<Power>
14 15
Introduction
Basic Operation
Mechanism of Auto Functions
Using the Control Panel
For your information
Water may sometimes come out from around the wand when it expands in the warm water tank, but this is normal.
As the warm water tank of hot-water system is used, the temperature of warm water may become lower if it is continuously
consumed.
Cleansing
Stopping
Drying
"Front cleansing"
• Serves as a bidet for ladies.
"Warm air drying"
• Dries your rear.
"Rear
cleansing"
• Cleanses your rear.
"Stopping"
• Stops the
operation.
Temperature setting, Temperature adjustment LED (Page 18)
Adjust temperatures
■
"Wand CLEAN" (Page 16)
Cleans the wand with "EWATER+".
The wand can be automatically cleaned when you
use the cleansing functions (Rear cleansing, Front
cleansing, etc.). (Page 16)
■
"Water pressure adjustment"
You can adjust the water
pressure to one of fi ve levels.
The PRESSURE LEDs lights up
when you sit on the toilet seat.
■
"Wand position adjustment"
You can adjust the washing position as desired to 5
diff erent points.
The washing position returns to the standard position
(3rd point) when you stand up from the toilet seat.
■
"Pulsating cleansing"
Cleanses with the water pressure pulsating between soft and strong.
"Oscillating cleansing"
•
When you press this button
again during use, the wand
moves back and forth to
cleanse your rear thoroughly.
Note
• Sitting back on the toilet seat makes it easier to adjust the wand position and to reduce splashing.
●
Functions that operate
when a button is
pressed during "Rear
cleansing", "Rear soft
cleansing" or "Front
cleansing".
"Rear soft cleansing"
• Cleanses your rear with mild
water pressure.
Main display
(Page 13)
*1 To keep clean the wand every time it is used, water remaining in the wand is drained after you stand up from the toilet seat.
*2 When the cleansing functions (Rear cleansing and Front cleansing etc,) have not been used in 8 hours, the wand is cleaned
automatically. (Water comes out from around the wand.)
The above are default setting
functions.
●
These may be changed.
→ "Various Operations"
(Pages 24 - 27)
Auto wand CLEAN
Flashes
During
"Auto wand CLEAN"
or "Wand CLEAN"
What is meant by "EWATER+" ?
"EWATER+" helps the self-cleaning wand feature working eff ectively
and preventing the dirt accumulation causing the stains.
• "EWATER+" is generated from Potable water.
• "EWATER+" helps to minimize dirty surfaces, but does not make cleaning
unnecessary.
• The eff ect and duration vary depending on the usage environment and
conditions.
"EWATER+" can also be used by pressing the button on
the control panel.
■
Wand
Press
(After wand cleaning, water comes out from around the wand.)
●
To clean the wand with it extended. "Wand cleaning" (Page 33)

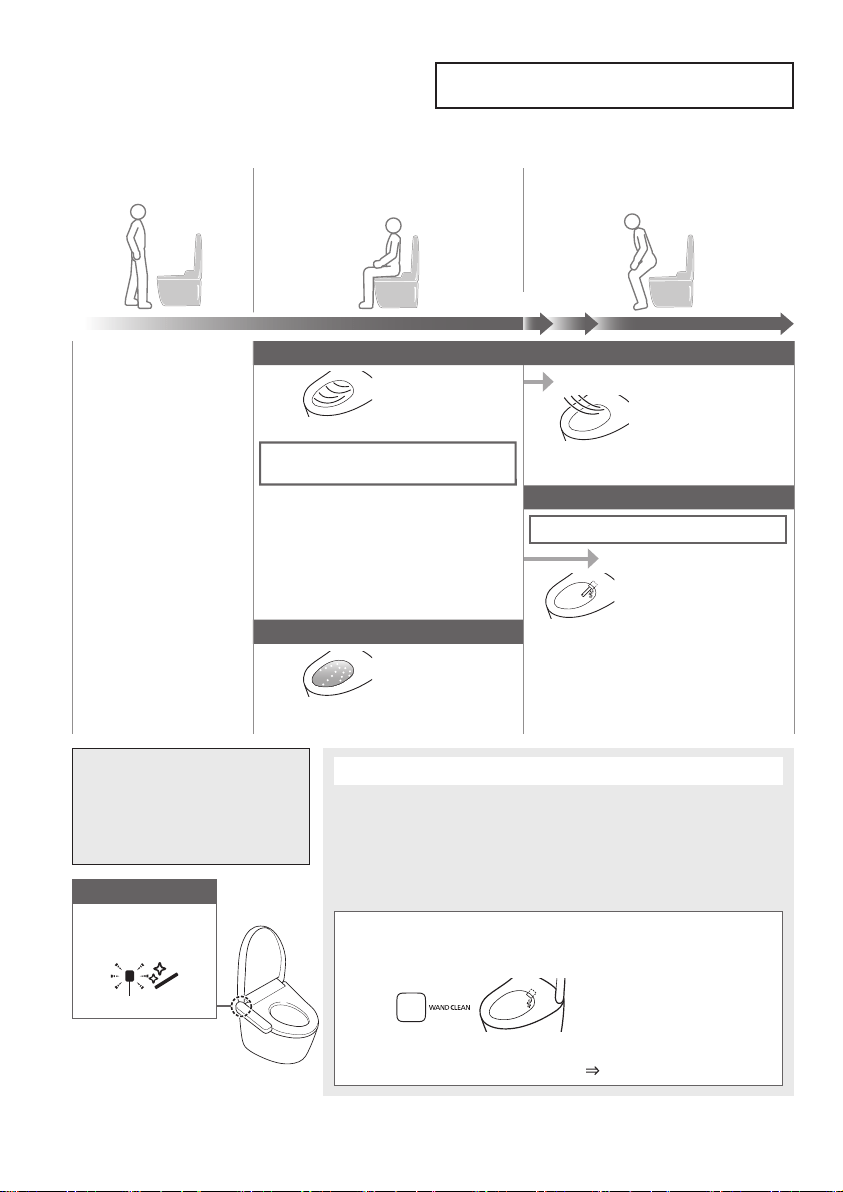

As you approach
As you sit As you stand up
*1
Deodorizer
Auto wand CLEAN
Pre-mist
"EWATER+" is used automatically to clean the wand.
●
Deodorizing fi lter needs regular
maintenance.
(Page 33)
Only when the cleansing functions are used.
Starts the auto
power deodorizer
It stops after about 60 seconds.
After about 10 seconds
After about 25 seconds
The wand extends to clean
with the "EWATER+" that
comes out of the base
*2
0
(sec) 10 25
■
"Power deodorizer"
Pressing the button increases the deodorizer power
This button is only enabled when sitting on
the toilet seat.
When you stand up without turning the button
off , it automatically stops after about 60 seconds.
■
"Power ON/OFF"
Pressing it about 3 seconds or longer turns the
power on/off .
Starts
the deodorizer
Pre-mist
Removing odors inside the bowl unit.
A mist is automatically sprayed inside the bowl
unit to make it more difficult for dirt to adhere.
16 17
Operation
Basic Operation
Mechanism of Auto Functions
Using the Control Panel
For your information
Water may sometimes come out from around the wand when it expands in the warm water tank, but this is normal.
As the warm water tank of hot-water system is used, the temperature of warm water may become lower if it is continuously
consumed.
Cleansing
Stopping
Drying
"Front cleansing"
• Serves as a bidet for ladies.
"Warm air drying"
• Dries your rear.
"Rear
cleansing"
• Cleanses your rear.
"Stopping"
• Stops the
operation.
Temperature setting, Temperature adjustment LED (Page 18)
Adjust temperatures
■
"Wand CLEAN" (Page 16)
Cleans the wand with "EWATER+".
The wand can be automatically cleaned when you
use the cleansing functions (Rear cleansing, Front
cleansing, etc.). (Page 16)
■
"Water pressure adjustment"
You can adjust the water
pressure to one of fi ve levels.
The PRESSURE LEDs lights up
when you sit on the toilet seat.
■
"Wand position adjustment"
You can adjust the washing position as desired to 5
diff erent points.
The washing position returns to the standard position
(3rd point) when you stand up from the toilet seat.
■
"Pulsating cleansing"
Cleanses with the water pressure pulsating between soft and strong.
"Oscillating cleansing"
•
When you press this button
again during use, the wand
moves back and forth to
cleanse your rear thoroughly.
Note
• Sitting back on the toilet seat makes it easier to adjust the wand position and to reduce splashing.
●
Functions that operate
when a button is
pressed during "Rear
cleansing", "Rear soft
cleansing" or "Front
cleansing".
"Rear soft cleansing"
• Cleanses your rear with mild
water pressure.
Main display
(Page 13)
*1 To keep clean the wand every time it is used, water remaining in the wand is drained after you stand up from the toilet seat.
*2 When the cleansing functions (Rear cleansing and Front cleansing etc,) have not been used in 8 hours, the wand is cleaned
automatically. (Water comes out from around the wand.)
The above are default setting
functions.
●
These may be changed.
→ "Various Operations"
(Pages 24 - 27)
Auto wand CLEAN
Flashes
During
"Auto wand CLEAN"
or "Wand CLEAN"
What is meant by "EWATER+" ?
"EWATER+" helps the self-cleaning wand feature working eff ectively
and preventing the dirt accumulation causing the stains.
• "EWATER+" is generated from Potable water.
• "EWATER+" helps to minimize dirty surfaces, but does not make cleaning
unnecessary.
• The eff ect and duration vary depending on the usage environment and
conditions.
"EWATER+" can also be used by pressing the button on
the control panel.
■
Wand
Press
(After wand cleaning, water comes out from around the wand.)
●
To clean the wand with it extended. "Wand cleaning" (Page 33)
As you approach
As you sit As you stand up
*1
Deodorizer
Auto wand CLEAN
Pre-mist
"EWATER+" is used automatically to clean the wand.
●
Deodorizing fi lter needs regular
maintenance.
(Page 33)
Only when the cleansing functions are used.
Starts the auto
power deodorizer
It stops after about 60 seconds.
After about 10 seconds
After about 25 seconds
The wand extends to clean
with the "EWATER+" that
comes out of the base
*2
0
(sec) 10 25
■
"Power deodorizer"
Pressing the button increases the deodorizer power
This button is only enabled when sitting on
the toilet seat.
When you stand up without turning the button
off , it automatically stops after about 60 seconds.
■
"Power ON/OFF"
Pressing it about 3 seconds or longer turns the
power on/off .
Starts
the deodorizer
Pre-mist
Removing odors inside the bowl unit.
A mist is automatically sprayed inside the bowl
unit to make it more difficult for dirt to adhere.
16 17
Operation
To turn the warm water temperature and toilet seat temperature "OFF"
●
The "Drying" cannot be turned "OFF".
Temperature Adjustment
Toilet Seat, Warm Water, Drying
"High"
Lit
"Medium"
Lit
"Low"
Lit
"OFF"
OFF
"High"
Lit
"Medium"
Lit
"Low"
Lit
"OFF"
OFF
(
All
LED's
)
Lit
OFF
<Seat>
<Water>
<Water>
<Seat>
The setting changes each time the button is pressed once
The setting changes each time the button is pressed once
1
• The current temperature level appears.
The "Drying" cannot be turned "OFF".

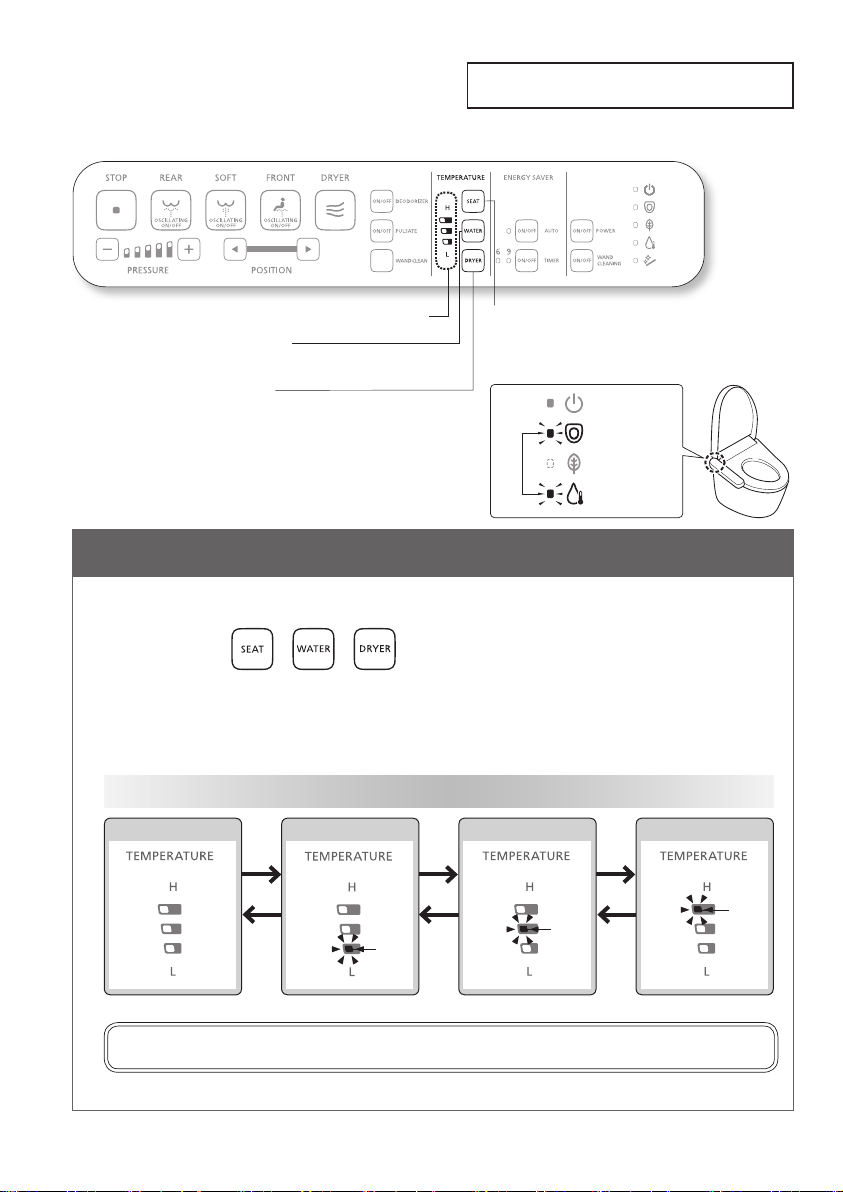

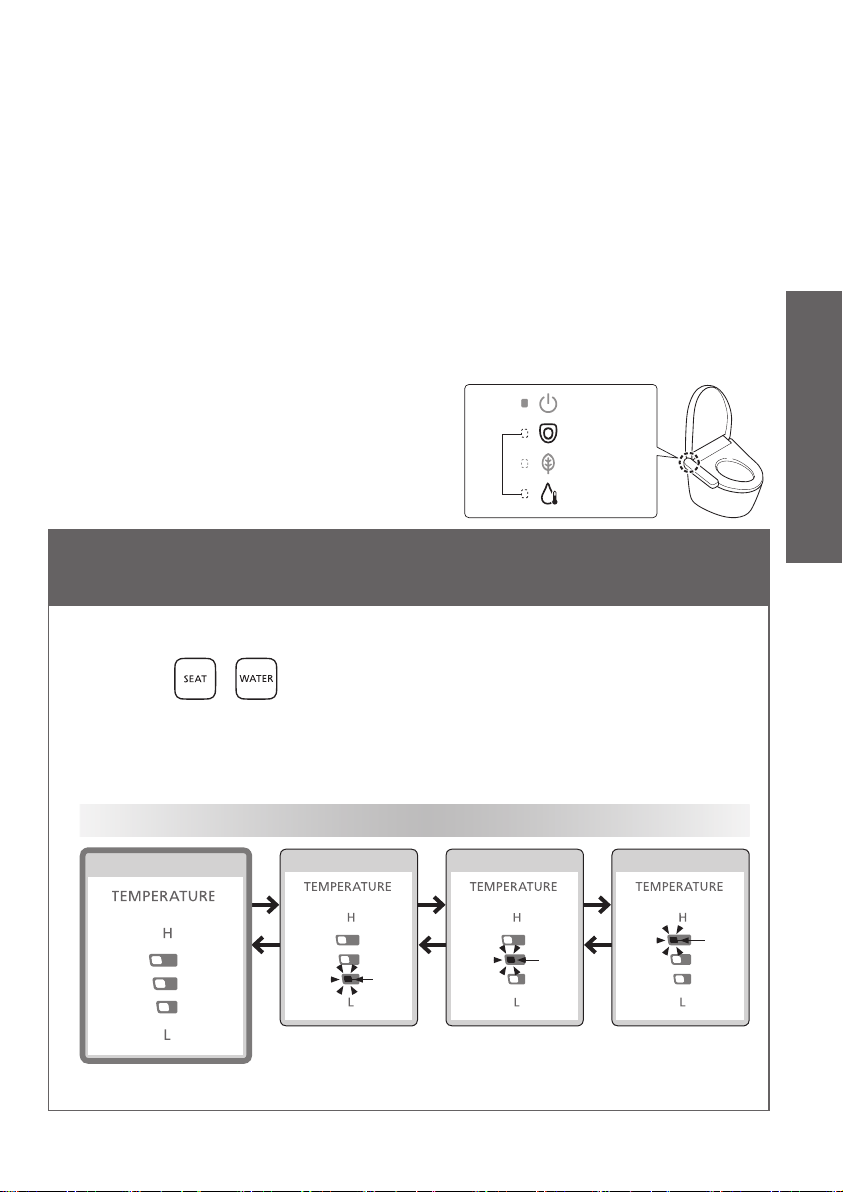

Adjusting the temperature
Three diff erent temperature levels (High, Medium, Low) and "OFF" setting can be made.
2
Warm water temperature button
(When you want to adjust the warm water temperature)
Drying air temperature button
(When you want to adjust the drying air temperature)
Toilet seat temperature button
(When you want to adjust the toilet seat temperature)
Displaying the temperature level of the pressed button
If the button is not pressed for about 10 seconds, the "Temperature adjustment" LED will go off , but the setting will be retained.
If the "Temperature adjustment" LED goes out before the setting is completed, start all over again at step 1.
<Settings complete>
<Settings complete>
●
When the toilet seat does not get warm, or when the warm water is not warm enough, even after temperature adjustment.
➞
Is the "Energy saver" set to "ON"? (Pages 20, 21)
When the seat temperature and the warm water
temperature are turned "OFF"
Choose and press the button of the temperature that you want to set
from the
, , .
Press the button selected in step
1
repeatedly until a desired
temperature level lights up.
1
• The current temperature level appears.
2
Select a temperature button you want to turn "OFF"
from
, and press it.
Press the button selected in step
1
repeatedly until the temperature
level is set to "OFF".
When the seat temperature and the warm water
temperature are set
18 19
Operation
To turn the warm water temperature and toilet seat temperature "OFF"
●
The "Drying" cannot be turned "OFF".
Temperature Adjustment
Toilet Seat, Warm Water, Drying
"High"
Lit
"Medium"
Lit
"Low"
Lit
"OFF"
OFF
"High"
Lit
"Medium"
Lit
"Low"
Lit
"OFF"
OFF
(
All
LED's
)
Lit
OFF
<Seat>
<Water>
<Water>
<Seat>
The setting changes each time the button is pressed once
The setting changes each time the button is pressed once
1
• The current temperature level appears.
The "Drying" cannot be turned "OFF".
Adjusting the temperature
Three diff erent temperature levels (High, Medium, Low) and "OFF" setting can be made.
2
Warm water temperature button
(When you want to adjust the warm water temperature)
Drying air temperature button
(When you want to adjust the drying air temperature)
Toilet seat temperature button
(When you want to adjust the toilet seat temperature)
Displaying the temperature level of the pressed button
If the button is not pressed for about 10 seconds, the "Temperature adjustment" LED will go off , but the setting will be retained.
If the "Temperature adjustment" LED goes out before the setting is completed, start all over again at step 1.
<Settings complete>
<Settings complete>
●
When the toilet seat does not get warm, or when the warm water is not warm enough, even after temperature adjustment.
➞
Is the "Energy saver" set to "ON"? (Pages 20, 21)
When the seat temperature and the warm water
temperature are turned "OFF"
Choose and press the button of the temperature that you want to set
from the
, , .
Press the button selected in step
1
repeatedly until a desired
temperature level lights up.
1
• The current temperature level appears.
2
Select a temperature button you want to turn "OFF"
from
, and press it.
Press the button selected in step
1
repeatedly until the temperature
level is set to "OFF".
When the seat temperature and the warm water
temperature are set
18 19

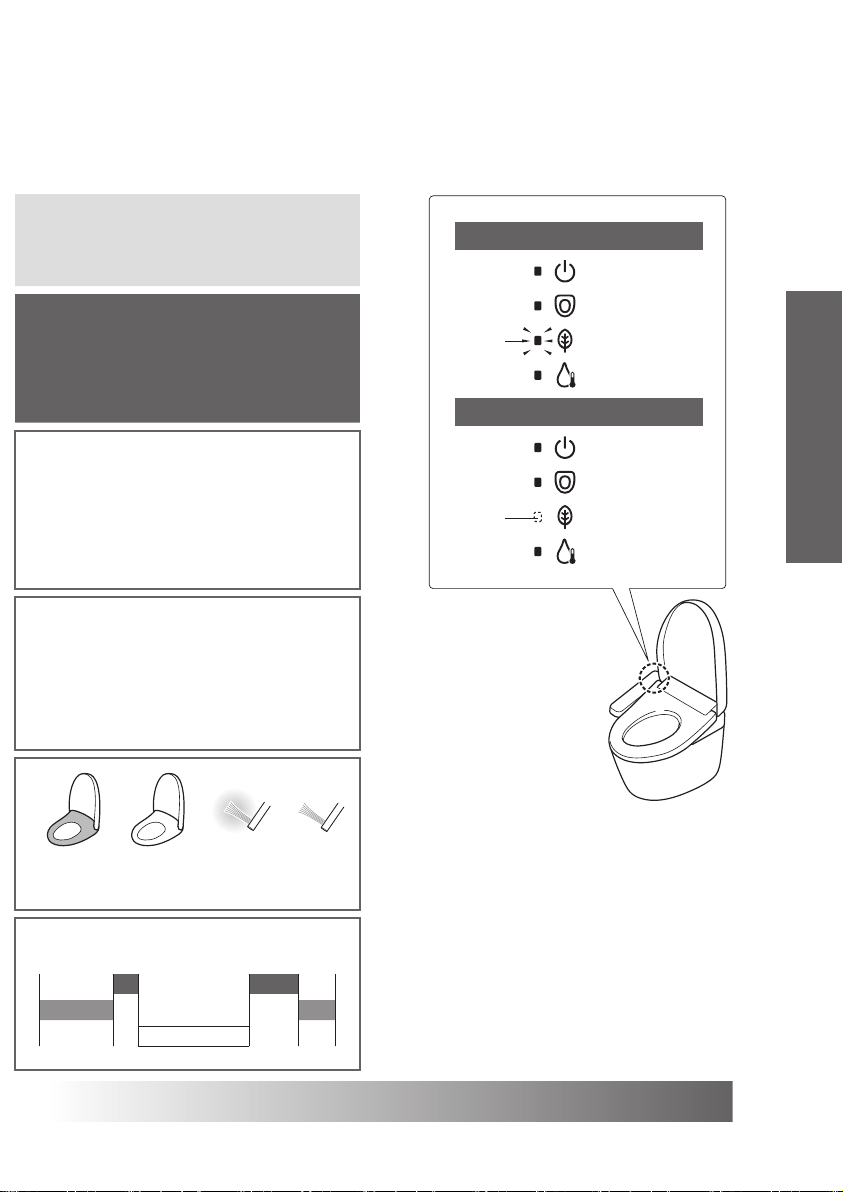

Operation
Energy Saver Features
Type
"Auto energy saver" or "Timer energy saver" can be selected.
To save energy, lower (or turn "OFF") the seat or warm water temperature.
You want the product to save
energy automatically.
You want to save energy only
for the preset duration of time.
(6 hours, 9 hours)
You want to save energy
any way possible
Auto energy saver Timer energy saver
Timer energy saver
+
Auto energy saver
The product detects time periods with
infrequent use and lowers the toilet seat
temperature automatically.
●
It takes about 10 days for the
product to determine the periods
when it is used relatively less
frequently.
Once the time is set, the toilet seat
heater and warm water heater will be
turned off automatically every day at
that same time.
When both "Timer energy saver" and "Auto
energy saver" are set, "Auto energy saver"
operates when "Timer energy saver" is not
operating.
When energy
saver is in
operation
■
Main display
OFF
Lit
Lit
Lit
(Orange)
OFF
OFF
Lit (Green)
●
During "Auto energy saver":
Same LED indication as "Auto energy saver"
●
During "Timer energy saver":
Same LED indication as "Timer energy saver"
■
Toilet seat heater
■
Warm water heater
Low
temperature
Set
*1
temperature
OFF
OFF
Low
temperature
OFF
Set
*1
temperature
OFF
Example
Set temperature
*1
Low temperature
*2
OFF
*3
When used infrequently from 9 pm to 6 am
6 am0 am 9 pm
When set from 8 am to 5 pm
8 am0 am 5 pm
When "Timer energy saver" and
"Auto energy saver" are used together
6 am
8 am
0 am 9 pm
5 pm
*1 The toilet seat temperature set on pages 18, 19.
*2 The time period when the toilet seat heater is set to a "Low".
The warm water heater is "Set temperature".
*3 The time period when the toilet seat heater and warm water
heater are "OFF".
●
Even if the energy saver is being activated (with the
toilet seat heater set to "Low" or "OFF," or with the
warm water heater set to "OFF"), the toilet seat will be
temporarily heated when you sit on it. (To reach the setting
temperature, the toilet seat takes about 15 minutes and the
warm water about 10 minutes, respectively.)
(The LED indication on the main display returns to the
state for when the energy saver is on.)
Lit
(Green)
OFF
<Power>
<Seat>
<Energy saver>
<Water>
<Power>
<Seat>
<Energy saver >
<Water>
Energy saver is on
Energy saver is off
To set energy saver
Pages 22, 23
▶
20 21
Operation
Energy Saver Features
Type
"Auto energy saver" or "Timer energy saver" can be selected.
To save energy, lower (or turn "OFF") the seat or warm water temperature.
You want the product to save
energy automatically.
You want to save energy only
for the preset duration of time.
(6 hours, 9 hours)
You want to save energy
any way possible
Auto energy saver Timer energy saver
Timer energy saver
+
Auto energy saver
The product detects time periods with
infrequent use and lowers the toilet seat
temperature automatically.
●
It takes about 10 days for the
product to determine the periods
when it is used relatively less
frequently.
Once the time is set, the toilet seat
heater and warm water heater will be
turned off automatically every day at
that same time.
When both "Timer energy saver" and "Auto
energy saver" are set, "Auto energy saver"
operates when "Timer energy saver" is not
operating.
When energy
saver is in
operation
■
Main display
OFF
Lit
Lit
Lit
(Orange)
OFF
OFF
Lit (Green)
●
During "Auto energy saver":
Same LED indication as "Auto energy saver"
●
During "Timer energy saver":
Same LED indication as "Timer energy saver"
■
Toilet seat heater
■
Warm water heater
Low
temperature
Set
*1
temperature
OFF
OFF
Low
temperature
OFF
Set
*1
temperature
OFF
Example
Set temperature
*1
Low temperature
*2
OFF
*3
When used infrequently from 9 pm to 6 am
6 am0 am 9 pm
When set from 8 am to 5 pm
8 am0 am 5 pm
When "Timer energy saver" and
"Auto energy saver" are used together
6 am
8 am
0 am 9 pm
5 pm
*1 The toilet seat temperature set on pages 18, 19.
*2 The time period when the toilet seat heater is set to a "Low".
The warm water heater is "Set temperature".
*3 The time period when the toilet seat heater and warm water
heater are "OFF".
●
Even if the energy saver is being activated (with the
toilet seat heater set to "Low" or "OFF," or with the
warm water heater set to "OFF"), the toilet seat will be
temporarily heated when you sit on it. (To reach the setting
temperature, the toilet seat takes about 15 minutes and the
warm water about 10 minutes, respectively.)
(The LED indication on the main display returns to the
state for when the energy saver is on.)
Lit
(Green)
OFF
<Power>
<Seat>
<Energy saver>
<Water>
<Power>
<Seat>
<Energy saver >
<Water>
Energy saver is on
Energy saver is off
To set energy saver
Pages 22, 23
▶
20 21

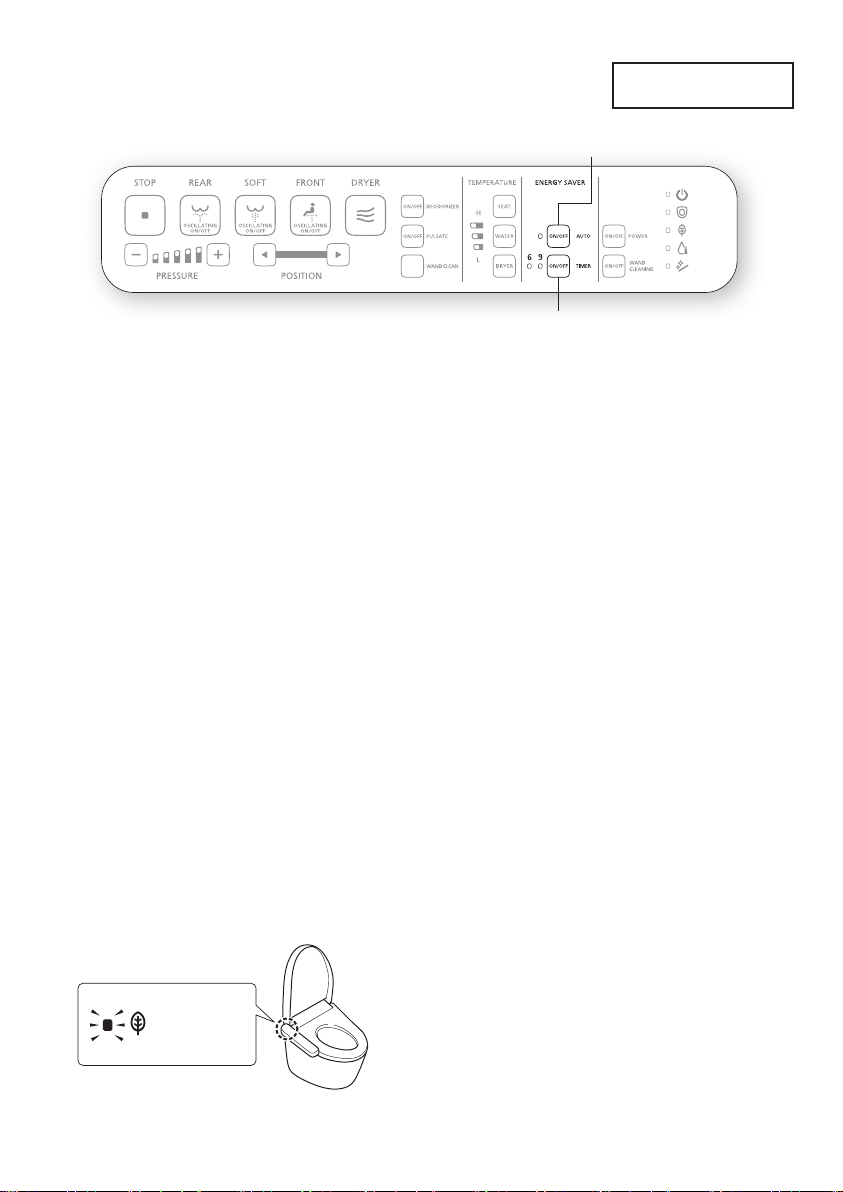

Operation
Auto energy saver Timer energy saver
Energy Saver Features
How to Set
<Energy saver>
Timer energy saver button
Auto energy saver button
When energy saver is set, the "Energy saver" LED (green) lights up.
Press .
Press
.
1
●
Set the Energy saver at the time you want to start it.
Example:
To save energy from 1 am to 7 am (for 6 hours)
<Settings complete>
• Press the "Timer energy saver" button
repeatedly until the "6" LED lights up.
1
<Settings complete>
The setting changes each time
the button is pressed once
The setting changes each time
the button is pressed once
For setting to
"Auto energy saver"
Lit
(Green)
For setting to "OFF"
OFF
When 1:00 AM comes,
For 6 hours
Lit
For 9 hours
Lit
When "OFF"
OFF
22 23
Operation
Auto energy saver Timer energy saver
Energy Saver Features
How to Set
<Energy saver>
Timer energy saver button
Auto energy saver button
When energy saver is set, the "Energy saver" LED (green) lights up.
Press .
Press
.
1
●
Set the Energy saver at the time you want to start it.
Example:
To save energy from 1 am to 7 am (for 6 hours)
<Settings complete>
• Press the "Timer energy saver" button
repeatedly until the "6" LED lights up.
1
<Settings complete>
The setting changes each time
the button is pressed once
The setting changes each time
the button is pressed once
For setting to
"Auto energy saver"
Lit
(Green)
For setting to "OFF"
OFF
When 1:00 AM comes,
For 6 hours
Lit
For 9 hours
Lit
When "OFF"
OFF
22 23
Operation

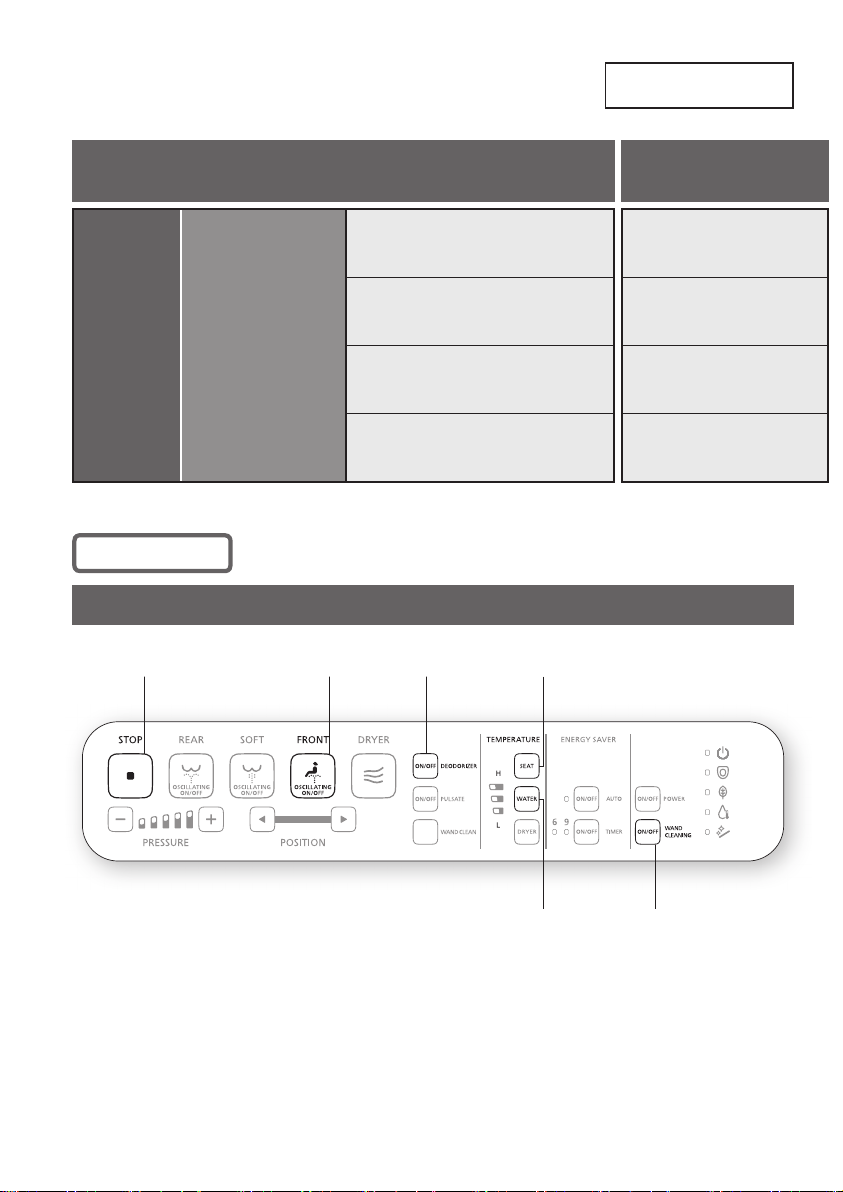

Various Operations
Setting List
Buttons used for setting
Setting Types
Available Settings
Bold: Initial settings
Settings
How to Set
Ref. Page
Auto
functions
Cleaning
Features
Auto wand CLEAN
ON / OFF
• Set whether or not to
clean the wand automatically
Page 26
Pre-mist
ON / OFF
• Set whether or not to
spray mist in the bowl unit automatically
Deodorizer
ON / OFF
• Set whether or not to
deodorize automatically after sitting on the toilet seat
Page 27
Auto power deodorizer
ON / OFF
• Set whether or not to
power deodorize automatically after standing up
Stopping button Toilet seat temperature buttonFront cleansing button Power deodorizer button
Warm water temperature button
Check fi rst!
During setting, if the next button is not pressed within about 60 seconds, the light will stop flashing.
If you fail to complete the setting, redo from the step 1.
LED indication during setting
All control panel LEDs flash
*1
[When the "Stopping" button is pressed for at least 10 seconds]
Wand cleaning button
24 25
Operation
Various Operations
Setting List
Buttons used for setting
Setting Types
Available Settings
Bold: Initial settings
Settings
How to Set
Ref. Page
Auto
functions
Cleaning
Features
Auto wand CLEAN
ON / OFF
• Set whether or not to
clean the wand automatically
Page 26
Pre-mist
ON / OFF
• Set whether or not to
spray mist in the bowl unit automatically
Deodorizer
ON / OFF
• Set whether or not to
deodorize automatically after sitting on the toilet seat
Page 27
Auto power deodorizer
ON / OFF
• Set whether or not to
power deodorize automatically after standing up
Stopping button Toilet seat temperature buttonFront cleansing button Power deodorizer button
Warm water temperature button
Check fi rst!
During setting, if the next button is not pressed within about 60 seconds, the light will stop flashing.
If you fail to complete the setting, redo from the step 1.
LED indication during setting
All control panel LEDs flash
*1
[When the "Stopping" button is pressed for at least 10 seconds]
Wand cleaning button
24 25

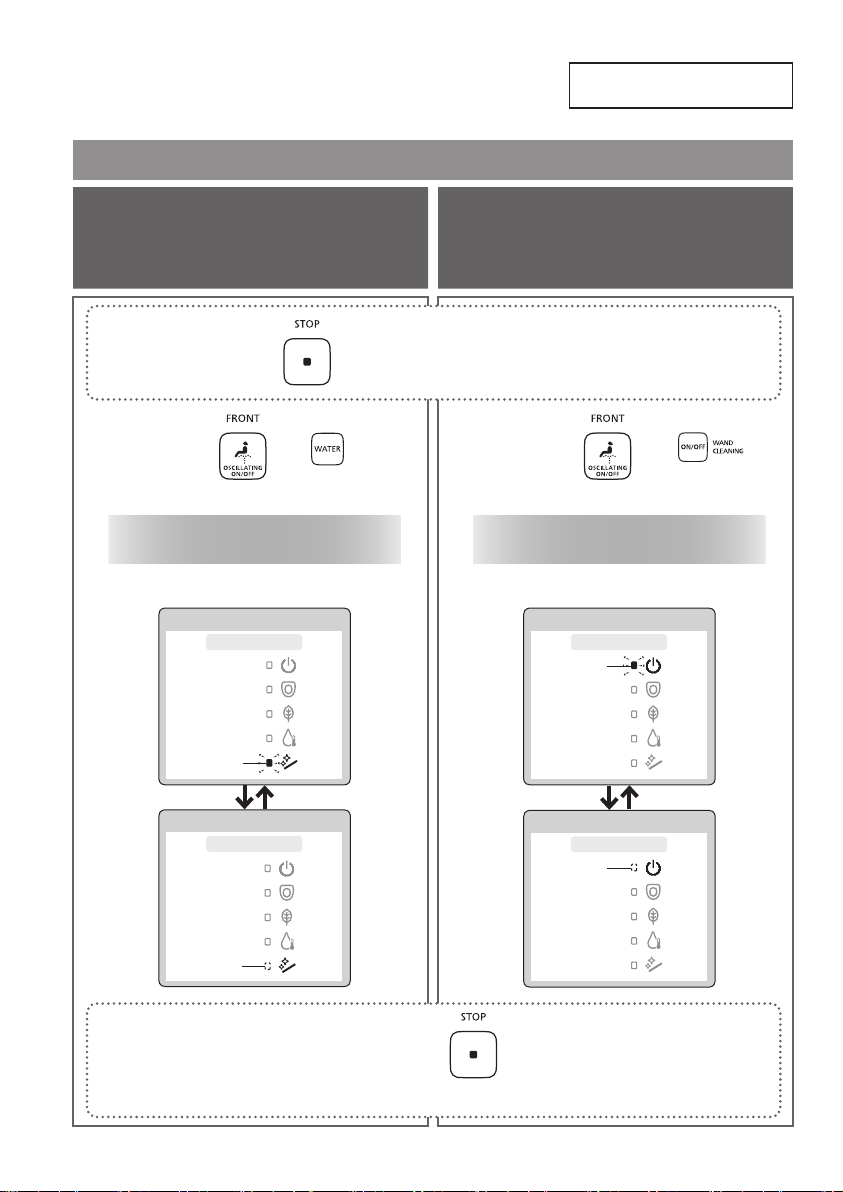

Operation
Various Operations
Auto functions
Cleaning Features
Set whether or not to clean the wand
automatically
Auto wand CLEAN
*1
Set whether or not to spray mist in the bowl
unit automatically
Pre-mist
Cleaning Features

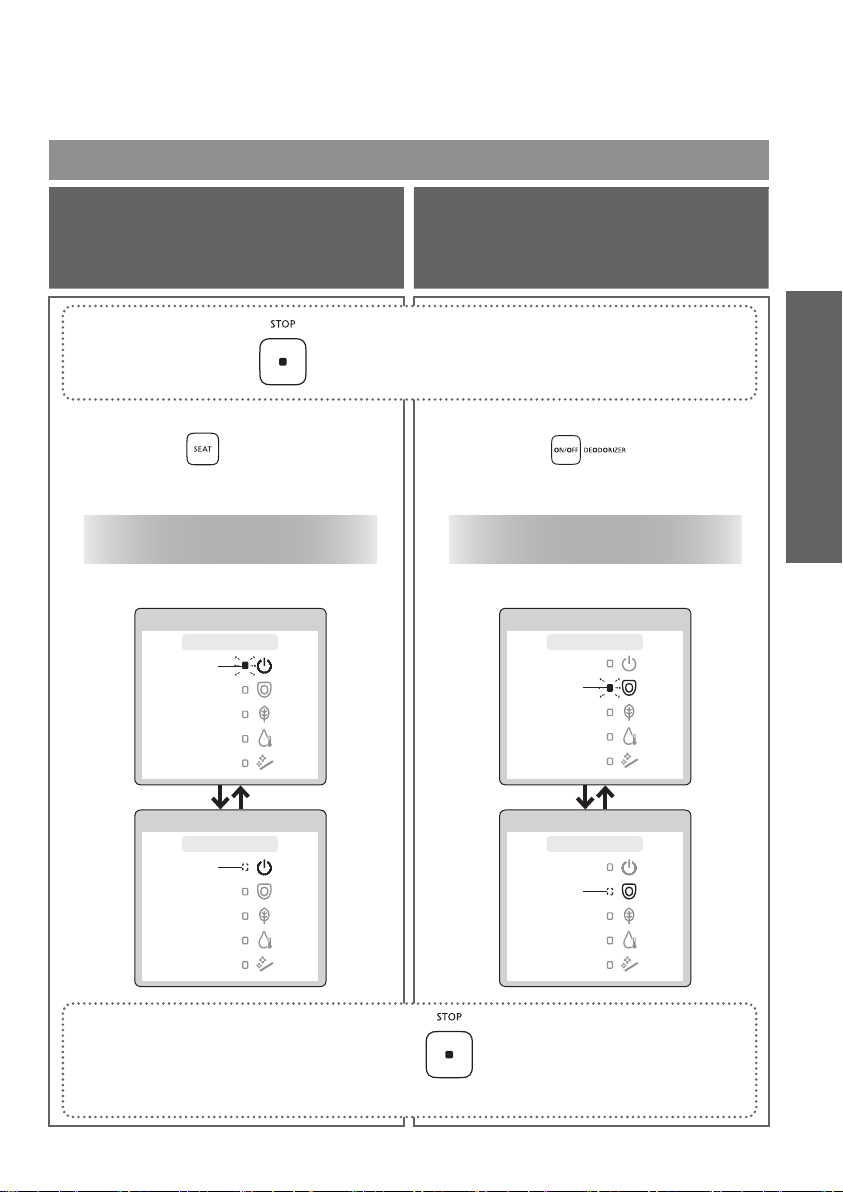

Set whether or not to deodorize automatically
after sitting on the toilet seat
Deodorizer
Set whether or not to power deodorize
automatically after standing up
Auto power deodorizer
*1 When "Auto wand clean" is set to "OFF", the "Wand CLEAN" LED turns off .
2
Press
and
at the same time.
The setting changes each time
the button is pressed once
Set whether or not to clean the wand
automatically
For setting to "ON"
Flashes
Main display
For setting to "OFF"
OFF
Main display
2
Press
and
at the same time.
The setting changes each time
the button is pressed once
Set whether or not to spray mist in the bowl
unit automatically
For setting to "spray"
Flashes
(Orange)
Main display
For setting to "do not spray"
OFF
Main display
2
Press .
The setting changes each time
the button is pressed once
Set whether or not to deodorize
automatically after sitting on the toilet seat
For setting to "ON"
Flashes
(Green)
Main display
For setting to "OFF"
OFF
Main display
1
Press (for about 10 seconds) until all
control panel LEDs fl ash.
1
Press (for about 10 seconds) until all
control panel LEDs fl ash.
3
Press .
<Settings complete>
2
Press .
The setting changes each time
the button is pressed once
Set whether or not to power deodorize
automatically after standing up
For setting to "ON"
Flashes
Main display
For setting to "OFF"
OFF
Main display
3
Press .
<Settings complete>
26 27
Operation
Various Operations
Auto functions
Cleaning Features
Set whether or not to clean the wand
automatically
Auto wand CLEAN
*1
Set whether or not to spray mist in the bowl
unit automatically
Pre-mist
Cleaning Features
Set whether or not to deodorize automatically
after sitting on the toilet seat
Deodorizer
Set whether or not to power deodorize
automatically after standing up
Auto power deodorizer
*1 When "Auto wand clean" is set to "OFF", the "Wand CLEAN" LED turns off .
2
Press
and
at the same time.
The setting changes each time
the button is pressed once
Set whether or not to clean the wand
automatically
For setting to "ON"
Flashes
Main display
For setting to "OFF"
OFF
Main display
2
Press
and
at the same time.
The setting changes each time
the button is pressed once
Set whether or not to spray mist in the bowl
unit automatically
For setting to "spray"
Flashes
(Orange)
Main display
For setting to "do not spray"
OFF
Main display
2
Press .
The setting changes each time
the button is pressed once
Set whether or not to deodorize
automatically after sitting on the toilet seat
For setting to "ON"
Flashes
(Green)
Main display
For setting to "OFF"
OFF
Main display
1
Press (for about 10 seconds) until all
control panel LEDs fl ash.
1
Press (for about 10 seconds) until all
control panel LEDs fl ash.
3
Press .
<Settings complete>
2
Press .
The setting changes each time
the button is pressed once
Set whether or not to power deodorize
automatically after standing up
For setting to "ON"
Flashes
Main display
For setting to "OFF"
OFF
Main display
3
Press .
<Settings complete>
26 27
Operation
Power Plug
(Approximately once a month)
Dry cloth Wet cloth
1
Unplug the power plug and
wipe it with a dry cloth.
2
Insert the power plug.
The "Power" LED lights up.
WARNING
●
Periodically remove dust from
the blades and other parts of the
power plug.
•
Unplug the power plug and wipe it
with a dry cloth.
●
Fully insert the power plug.
●
When unplug the power plug, hold
the main body of the power plug.
•
Pulling the power cord may
damage the power plug or power
cord.
Maintenance
Power Plug Main Unit
Do not use a dry cloth
or toilet paper on plastic
parts.
(May cause damage.)
Main Unit
*1 Except when using "Wand cleaning".
*2
Remove the power plug from the outlet to cancel timer
energy saver settings. Set them again. (Page 23)
(The "Timer energy saver" LED for the set time
fl ashes to notify you.)
For safety, unplug the power
plug before maintenance.
*1 *2
WARNING
Always unplug the power plug from
the outlet before maintenance or
inspection.
(Failure to do so may cause electric shock
or malfunction, resulting in a breakdown.)

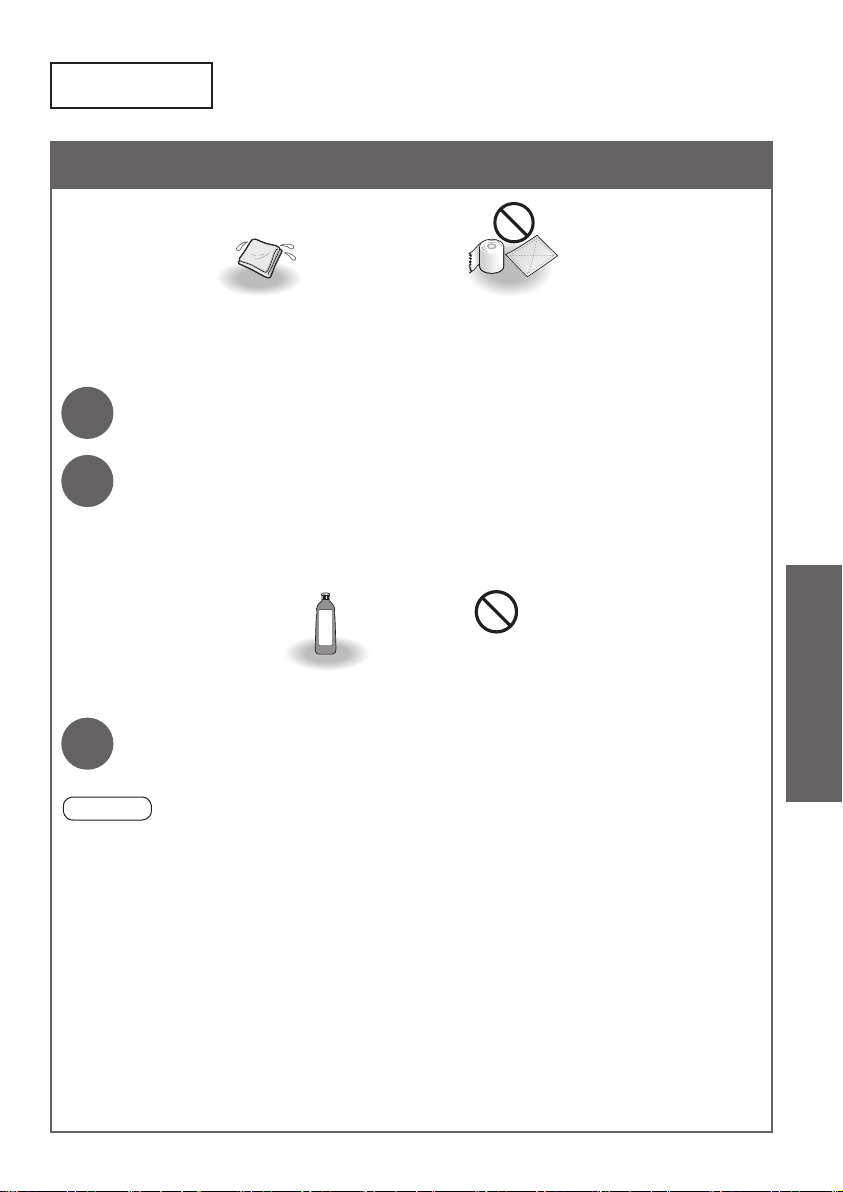

Main Unit
(Approximately daily)
Attention!
●
This product is an electric appliance. Be careful not to let water seep inside or leave detergent in the gap
between the main unit and bowl unit. (May damage plastic parts or cause a malfunction.)
●
When using a toilet cleaner to clean the toilet, rinse it off within 3 minutes and leave the toilet seat and toilet
lid open.
•
Wipe off any cleaner that remains on the bowl unit.
(If vapor from a toilet cleaner enters the main unit, it may cause a malfunction.)
●
Do not push or pull the covers around the wand with undue force.
(May cause damage or malfunction.)
●
Wipe the back surface of the toilet seat and the toilet seat cushions with a soft cloth tightly wrung out with
water.
(Otherwise adhesion of dirt may result in discoloration.)
Soft cloth
soaked in water
•
Toilet paper
•
Dry cloth
•
Nylon scrubbing brush
(May cause damage)
1
Unplug the power plug.
2
Wipe with a soft cloth that has been soaked in water and wrung out
thoroughly.
■
For heavy dirt
• Wipe with a soft cloth soaked in diluted, neutral kitchen detergent, and then wipe with a soft cloth
soaked in water.
Neutral kitchen detergent
•
Paint thinner
•
Benzene
•
Powdered cleanser
3
Insert the power plug.
• The "Power" LED lights up.
The "Power"
LED goes off .
Lit OFF
28 29
Maintenance
Power Plug
(Approximately once a month)
Dry cloth Wet cloth
1
Unplug the power plug and
wipe it with a dry cloth.
2
Insert the power plug.
The "Power" LED lights up.
WARNING
●
Periodically remove dust from
the blades and other parts of the
power plug.
•
Unplug the power plug and wipe it
with a dry cloth.
●
Fully insert the power plug.
●
When unplug the power plug, hold
the main body of the power plug.
•
Pulling the power cord may
damage the power plug or power
cord.
Maintenance
Power Plug Main Unit
Do not use a dry cloth
or toilet paper on plastic
parts.
(May cause damage.)
Main Unit
*1 Except when using "Wand cleaning".
*2
Remove the power plug from the outlet to cancel timer
energy saver settings. Set them again. (Page 23)
(The "Timer energy saver" LED for the set time
fl ashes to notify you.)
For safety, unplug the power
plug before maintenance.
*1 *2
WARNING
Always unplug the power plug from
the outlet before maintenance or
inspection.
(Failure to do so may cause electric shock
or malfunction, resulting in a breakdown.)
Main Unit
(Approximately daily)
Attention!
●
This product is an electric appliance. Be careful not to let water seep inside or leave detergent in the gap
between the main unit and bowl unit. (May damage plastic parts or cause a malfunction.)
●
When using a toilet cleaner to clean the toilet, rinse it off within 3 minutes and leave the toilet seat and toilet
lid open.
•
Wipe off any cleaner that remains on the bowl unit.
(If vapor from a toilet cleaner enters the main unit, it may cause a malfunction.)
●
Do not push or pull the covers around the wand with undue force.
(May cause damage or malfunction.)
●
Wipe the back surface of the toilet seat and the toilet seat cushions with a soft cloth tightly wrung out with
water.
(Otherwise adhesion of dirt may result in discoloration.)
Soft cloth
soaked in water
•
Toilet paper
•
Dry cloth
•
Nylon scrubbing brush
(May cause damage)
1
Unplug the power plug.
2
Wipe with a soft cloth that has been soaked in water and wrung out
thoroughly.
■
For heavy dirt
• Wipe with a soft cloth soaked in diluted, neutral kitchen detergent, and then wipe with a soft cloth
soaked in water.
Neutral kitchen detergent
•
Paint thinner
•
Benzene
•
Powdered cleanser
3
Insert the power plug.
• The "Power" LED lights up.
The "Power"
LED goes off .
Lit OFF
28 29
Maintenance
Gap between the Main Unit and Bowl Unit
(Approximately once a month)
Maintenance
Gap between the Main Unit and Bowl Unit
Gap between the Main Unit and Bowl Unit
Toilet paper, etc.
(May cause damage.)
Soft cloth soaked
in water
[SW3074T40]
Gap between the Main Unit and Bowl Unit
(Approximately once a month)
You can remove the main unit to clean the top
of the bowl unit and the bottom of the main unit.
Soft cloth soaked
in water
Toilet paper, etc.
(May cause damage.)
1
Unplug the power plug.
If the power is not unplugged,
the product may malfunction or
cause a failure or electric shock.
2
Remove the main unit.
• Do not pull the unit with undue force. (because the water supply hose and power cord are attached.)
(1) Pull the main unit toward you while pressing
the "Main unit removal button".
Main unit
removal button
Top of the bowl unitWater supply hose
Power cord
Base plate
Bolt
3
Clean the top of the bowl unit and the bottom of the main unit.
• Wipe with a soft cloth soaked in a diluted, neutral kitchen detergent. Then, wipe it with a soft cloth
soaked in water so that no detergent remains.
4
Mount the main unit.
(1)
Lift the main unit, then lower it straight down while threading the power
cord and water supply hose into the recess on the bowl unit.
• Be careful not to pinch the power cord.
• Do not excessively bend the water supply hose
(2) Align the main unit with the center of the base plate and press it
fi rmly onto the base plate until a click sound is heard.
Click
Base plate
After mounting, check that the main unit does not
detach even when pulled.
CAUTION
Push the main unit fi rmly on to the base plate until a
click sound is heard.
(Doing so may cause the main unit to come loose and fall,
resulting in injury.)
5
Insert the power plug.
• The "Power" LED lights up.
(2) Lift up the main unit.
• Do not excessively bend the water supply hose.
1
3
Clean the top of the bowl unit and the bottom of the main unit.
• Wipe with a soft cloth soaked in a diluted, neutral kitchen detergent. Then, wipe it with a soft
cloth soaked in water so that no detergent remains.
If the power is not unplugged,
the product may malfunction or
cause a failure or electric shock.
You can remove the main unit to clean the top
of the bowl unit and the bottom of the main unit.
2
Remove the main unit.
• Do not pull the unit with undue force.
(because the water supply hose and
power cord are attached.)
5
Insert the power plug.
• The "Power" LED lights up.
4
Align the main unit with the center of the
base plate and press it fi rmly onto the base
plate until a click sound is heard.
Click
Push the main unit fi rmly on to the
base plate until a click sound is heard.
(Doing so may cause the main unit to come
loose and fall, resulting in injury.)
After mounting, check that the main
unit does not detach even when pulled.
Mount the main unit.
Unplug the power plug.
[SW3074]
Water supply hose
Power cord
Pull the main unit toward you while
pressing the "Main unit removal button".
Main unit
removal button
Base plate
Bolt
Top of the bowl unit
CAUTION
30 31
Maintenance
Gap between the Main Unit and Bowl Unit
(Approximately once a month)
Maintenance
Gap between the Main Unit and Bowl Unit
Gap between the Main Unit and Bowl Unit
Toilet paper, etc.
(May cause damage.)
Soft cloth soaked
in water
[SW3074T40]
Gap between the Main Unit and Bowl Unit
(Approximately once a month)
You can remove the main unit to clean the top
of the bowl unit and the bottom of the main unit.
Soft cloth soaked
in water
Toilet paper, etc.
(May cause damage.)
1
Unplug the power plug.
If the power is not unplugged,
the product may malfunction or
cause a failure or electric shock.
2
Remove the main unit.
• Do not pull the unit with undue force. (because the water supply hose and power cord are attached.)
(1) Pull the main unit toward you while pressing
the "Main unit removal button".
Main unit
removal button
Top of the bowl unitWater supply hose
Power cord
Base plate
Bolt
3
Clean the top of the bowl unit and the bottom of the main unit.
• Wipe with a soft cloth soaked in a diluted, neutral kitchen detergent. Then, wipe it with a soft cloth
soaked in water so that no detergent remains.
4
Mount the main unit.
(1)
Lift the main unit, then lower it straight down while threading the power
cord and water supply hose into the recess on the bowl unit.
• Be careful not to pinch the power cord.
• Do not excessively bend the water supply hose
(2) Align the main unit with the center of the base plate and press it
fi rmly onto the base plate until a click sound is heard.
Click
Base plate
After mounting, check that the main unit does not
detach even when pulled.
CAUTION
Push the main unit fi rmly on to the base plate until a
click sound is heard.
(Doing so may cause the main unit to come loose and fall,
resulting in injury.)
5
Insert the power plug.
• The "Power" LED lights up.
(2) Lift up the main unit.
• Do not excessively bend the water supply hose.
1
3
Clean the top of the bowl unit and the bottom of the main unit.
• Wipe with a soft cloth soaked in a diluted, neutral kitchen detergent. Then, wipe it with a soft
cloth soaked in water so that no detergent remains.
If the power is not unplugged,
the product may malfunction or
cause a failure or electric shock.
You can remove the main unit to clean the top
of the bowl unit and the bottom of the main unit.
2
Remove the main unit.
• Do not pull the unit with undue force.
(because the water supply hose and
power cord are attached.)
5
Insert the power plug.
• The "Power" LED lights up.
4
Align the main unit with the center of the
base plate and press it fi rmly onto the base
plate until a click sound is heard.
Click
Push the main unit fi rmly on to the
base plate until a click sound is heard.
(Doing so may cause the main unit to come
loose and fall, resulting in injury.)
After mounting, check that the main
unit does not detach even when pulled.
Mount the main unit.
Unplug the power plug.
[SW3074]
Water supply hose
Power cord
Pull the main unit toward you while
pressing the "Main unit removal button".
Main unit
removal button
Base plate
Bolt
Top of the bowl unit
CAUTION
30 31

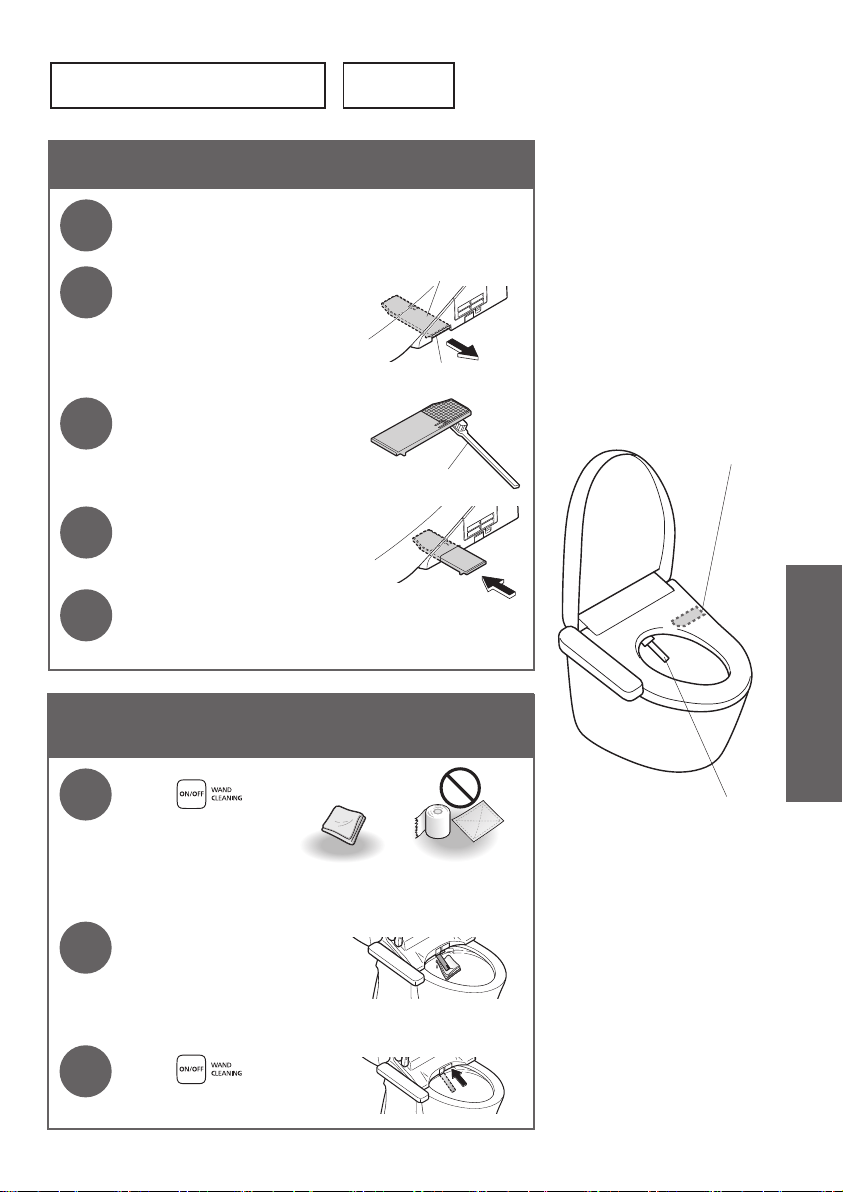

Maintenance
Wand
(Approximately once a month)
<If you notice dirt (Wand cleaning)>
Maintenance
Gap between the Main Unit and the Toilet Lid
Deodorizing Filter
Wand
Soft cloth Toilet paper, etc.
(May cause damage.)
3
Press .
• The wand retracts.
2
Wipe with a soft,
wet cloth.
• Do not pull, push or press the
wand with excessive force.
(May cause damage or
malfunction.)
1
Press .
• The wand extends
and water fl ows out for
cleaning.
• The wand automatically
retracts after about
5 minutes.
Deodorizing Filter
Wand
Gap between the Main Unit and the Toilet Lid
(Approximately once a month)
Soft cloth soaked
in water
Toilet paper, etc.
(May cause damage.)
6
Open and close the toilet lid
to check the reinstallation.
3
Wipe with a soft cloth that
has been soaked in water
and wrung out thoroughly.
1
Unplug the power plug.
The toilet lid can be removed for
thorough cleaning.
4
Reinstall the toilet lid.
: Join the pin and the hinge on the
right side.
↓
Slightly tilt the toilet lid to the front.
↓
: While pulling out the left side,
↓
: Mount by joining the hinge with the
recess.
* Be careful not to pinch your fi ngers.
5
Insert the power plug.
• The "Power" LED lights up.
2
Remove the toilet lid.
Slightly tilt the toilet lid to the front.
↓
: Pull the left side outward.
↓
: Disconnect the hinge from the recess
and pull up.
↓
: Disconnect the right side.
Hold with
both hands
Recess
Pin
Hinge
Removing and Reinstalling
Hinge
Deodorizing Filter
(Approximately once a month)
2
Remove the deodorizing
fi lter.
• Hold the knob and pull outward.
• Do not pull with undue force.
(May cause damage or
malfunction.)
Clean with a tool such as a
toothbrush.
• When washing with water, dry off all
water before mounting.
3
Toothbrush, etc.
4
Mount the deodorizing
fi lter.
1
Unplug the power plug.
5
Insert the power plug.
• The "Power" LED lights up.
Push fi rmly until a click
sound is heard.
Deodorizing Filter
Knob
32 33
Maintenance
Wand
(Approximately once a month)
<If you notice dirt (Wand cleaning)>
Maintenance
Gap between the Main Unit and the Toilet Lid
Deodorizing Filter
Wand
Soft cloth Toilet paper, etc.
(May cause damage.)
3
Press .
• The wand retracts.
2
Wipe with a soft,
wet cloth.
• Do not pull, push or press the
wand with excessive force.
(May cause damage or
malfunction.)
1
Press .
• The wand extends
and water fl ows out for
cleaning.
• The wand automatically
retracts after about
5 minutes.
Deodorizing Filter
Wand
Gap between the Main Unit and the Toilet Lid
(Approximately once a month)
Soft cloth soaked
in water
Toilet paper, etc.
(May cause damage.)
6
Open and close the toilet lid
to check the reinstallation.
3
Wipe with a soft cloth that
has been soaked in water
and wrung out thoroughly.
1
Unplug the power plug.
The toilet lid can be removed for
thorough cleaning.
4
Reinstall the toilet lid.
: Join the pin and the hinge on the
right side.
↓
Slightly tilt the toilet lid to the front.
↓
: While pulling out the left side,
↓
: Mount by joining the hinge with the
recess.
* Be careful not to pinch your fi ngers.
5
Insert the power plug.
• The "Power" LED lights up.
2
Remove the toilet lid.
Slightly tilt the toilet lid to the front.
↓
: Pull the left side outward.
↓
: Disconnect the hinge from the recess
and pull up.
↓
: Disconnect the right side.
Hold with
both hands
Recess
Pin
Hinge
Removing and Reinstalling
Hinge
Deodorizing Filter
(Approximately once a month)
2
Remove the deodorizing
fi lter.
• Hold the knob and pull outward.
• Do not pull with undue force.
(May cause damage or
malfunction.)
Clean with a tool such as a
toothbrush.
• When washing with water, dry off all
water before mounting.
3
Toothbrush, etc.
4
Mount the deodorizing
fi lter.
1
Unplug the power plug.
5
Insert the power plug.
• The "Power" LED lights up.
Push fi rmly until a click
sound is heard.
Deodorizing Filter
Knob
32 33
Maintenance
If the water does not fl ow due to a water service interruption
Maintenance
Water Filter Drain Valve
1
Use a bucket to fl ush water.
2
If the water level is low after
fl ushing, add more water.
• Prevents odors.
• When the water supply is restored, be sure to perform
a fl ush.
(To prevent waste from remaining in the drain pipe.)
Attention!
Newspaper,
dust cloth, etc.
Large bucket
Pour strongly,
aiming at the center
of the bowl unit.

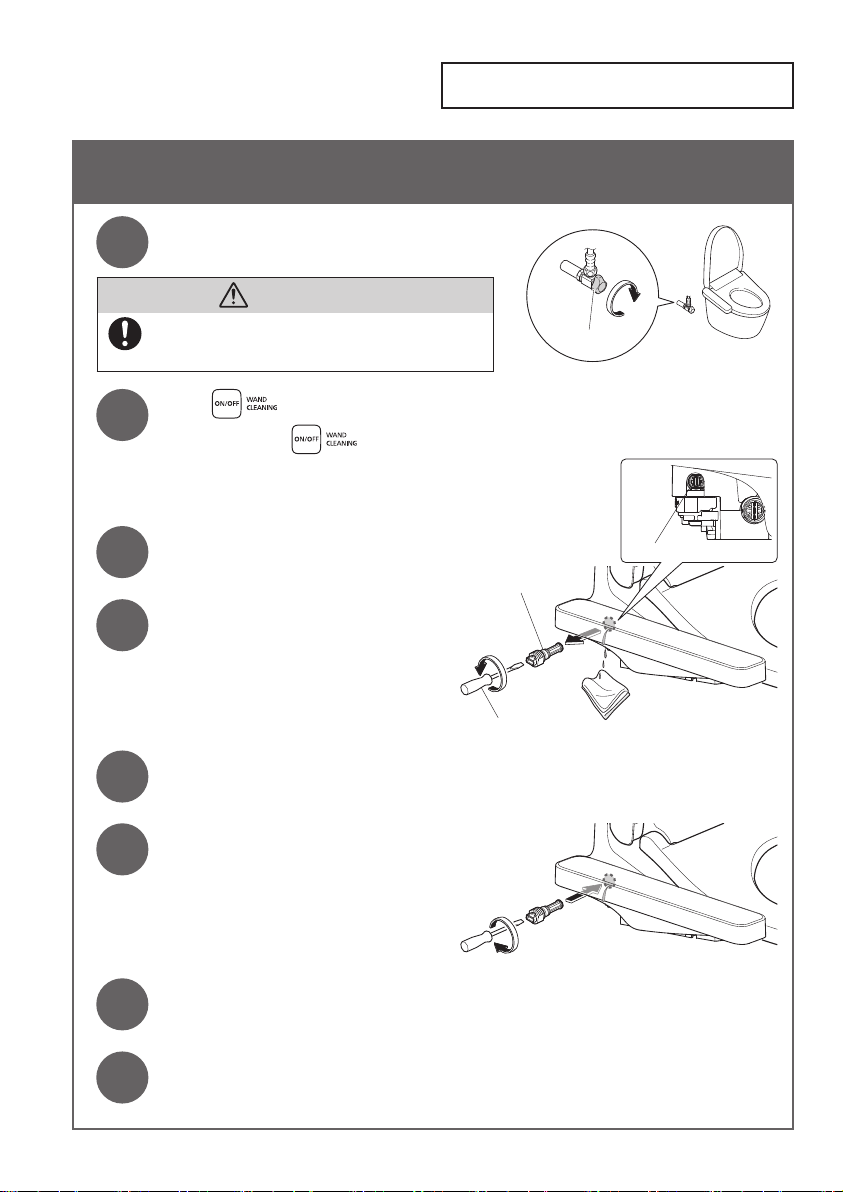

Water Filter Drain Valve
(Approximately once every 6 months)
<If you think the water pressure has weakened>
What to Do?
If the water does not fl ow due to a water service interruption
CAUTION
Do not remove the water fi lter drain valve while
the shutoff valve is open.
(Otherwise, water may leak out)
3
Unplug the power plug.
8
Open the shutoff valve.
(Page 14)
5
Clean with a tool such as a toothbrush.
• Also, remove any dust from inside the hole of the water fi lter drain valve.
1
Close the shutoff valve.
• The water supply stops.
2
Press to extend the wand,
and then press
again to return
the wand.
(Release the pressure from the water supply pipe.)
7
Insert the power plug.
• The "Power" LED lights up.
6
Reinstall the water fi lter drain
valve.
• Insert the water fi lter drain valve and
use a fl at-head screwdriver to tighten it
securely.
4
Remove the water fi lter drain
valve.
• Loosen the water fi lter drain valve with
a fl at-head screwdriver and then pull it.
Shutoff valve
Flat-head screwdriver
Water fi lter drain
valve
Water fi lter drain valve
35
Reference
34
If the water does not fl ow due to a water service interruption
Maintenance
Water Filter Drain Valve
1
Use a bucket to fl ush water.
2
If the water level is low after
fl ushing, add more water.
• Prevents odors.
• When the water supply is restored, be sure to perform
a fl ush.
(To prevent waste from remaining in the drain pipe.)
Attention!
Newspaper,
dust cloth, etc.
Large bucket
Pour strongly,
aiming at the center
of the bowl unit.
Water Filter Drain Valve
(Approximately once every 6 months)
<If you think the water pressure has weakened>
What to Do?
If the water does not fl ow due to a water service interruption
CAUTION
Do not remove the water fi lter drain valve while
the shutoff valve is open.
(Otherwise, water may leak out)
3
Unplug the power plug.
8
Open the shutoff valve.
(Page 14)
5
Clean with a tool such as a toothbrush.
• Also, remove any dust from inside the hole of the water fi lter drain valve.
1
Close the shutoff valve.
• The water supply stops.
2
Press to extend the wand,
and then press
again to return
the wand.
(Release the pressure from the water supply pipe.)
7
Insert the power plug.
• The "Power" LED lights up.
6
Reinstall the water fi lter drain
valve.
• Insert the water fi lter drain valve and
use a fl at-head screwdriver to tighten it
securely.
4
Remove the water fi lter drain
valve.
• Loosen the water fi lter drain valve with
a fl at-head screwdriver and then pull it.
Shutoff valve
Flat-head screwdriver
Water fi lter drain
valve
Water fi lter drain valve
35
Reference
34
What to Do?

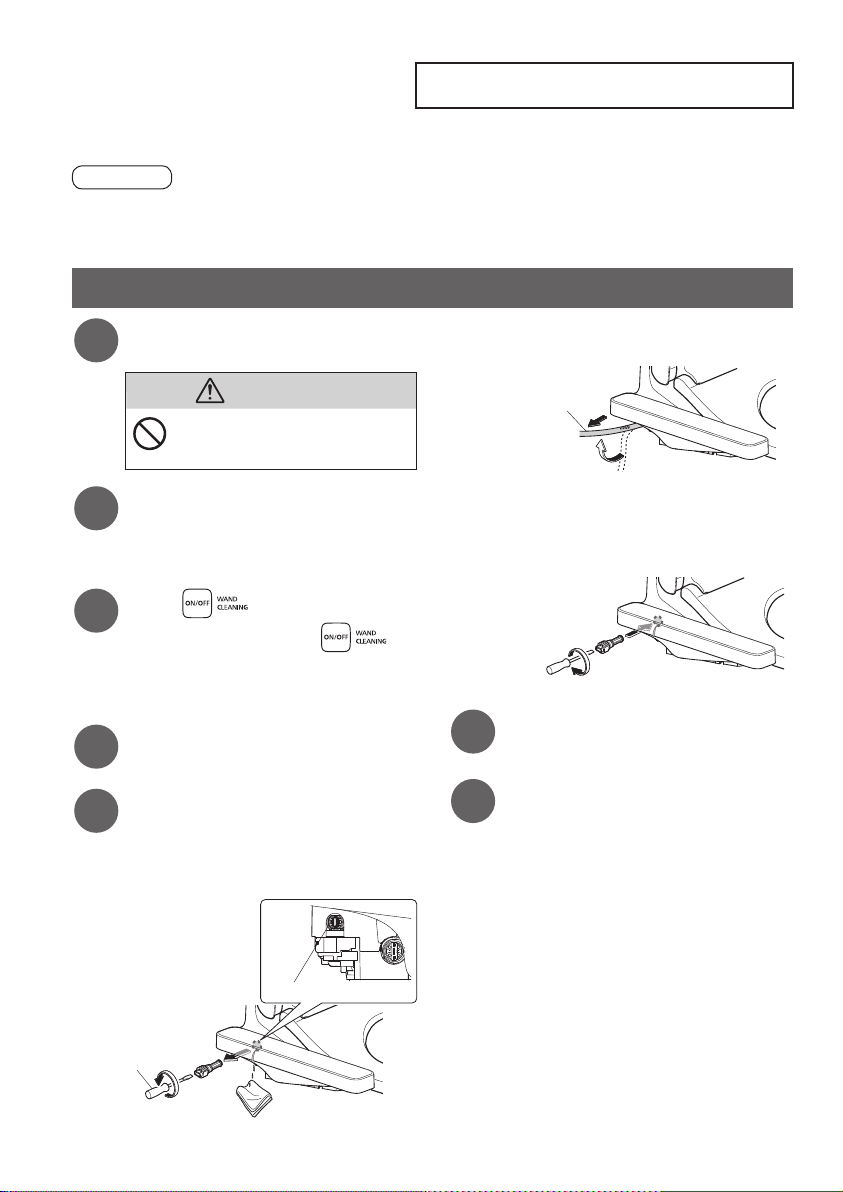

Freeze Damage Prevention
Long Periods of Disuse
When the ambient temperature is likely to drop to 32 °F (0 °C) or lower, take measures to prevent freezing.
• When the ambient temperature is likely to drop to 32 °F (0 °C) or lower, do not use the energy saver feature.
(May damage the product.)
• Warm the bathroom or take measures against freezing so that the ambient temperature does not drop below 32 °F (0 °C).
Attention!
How to freeze damage prevention
1
Close the shutoff valve.
(Page 34)
• The water supply stops.
Do not remove the water fi lter drain valve
while the shutoff valve is open.
(Otherwise, water may leak out)
CAUTION
Water supply hose
Horizontally
■
To use the product again
• The water needs to be resupplied. (Page 37)
7
(2) [Applicable to SW3074 only]
• Drain the water from the water supply hose.
• Insert the water fi lter drain valve and use a
fl at-head screwdriver to tighten it securely.
(3) When water draining is completed, reinstall
the water fi lter drain valve.
6
Insert the power plug.
• The "Power" LED lights up.
Set the water and toilet seat
temperature to "High".
(Page 18)
• To maintain the temperature, close the toilet seat
and toilet lid after fi nishing work.
2
Drain the water from the toilet
tank.
• Manipulate the lever/button/etc. until the
water stops.
4
Unplug the power plug.
5
Drain the pipe.
(1) Remove the water fi lter drain valve.
• Loosen the water fi lter drain valve with a fl at-
head screwdriver and then pull it.

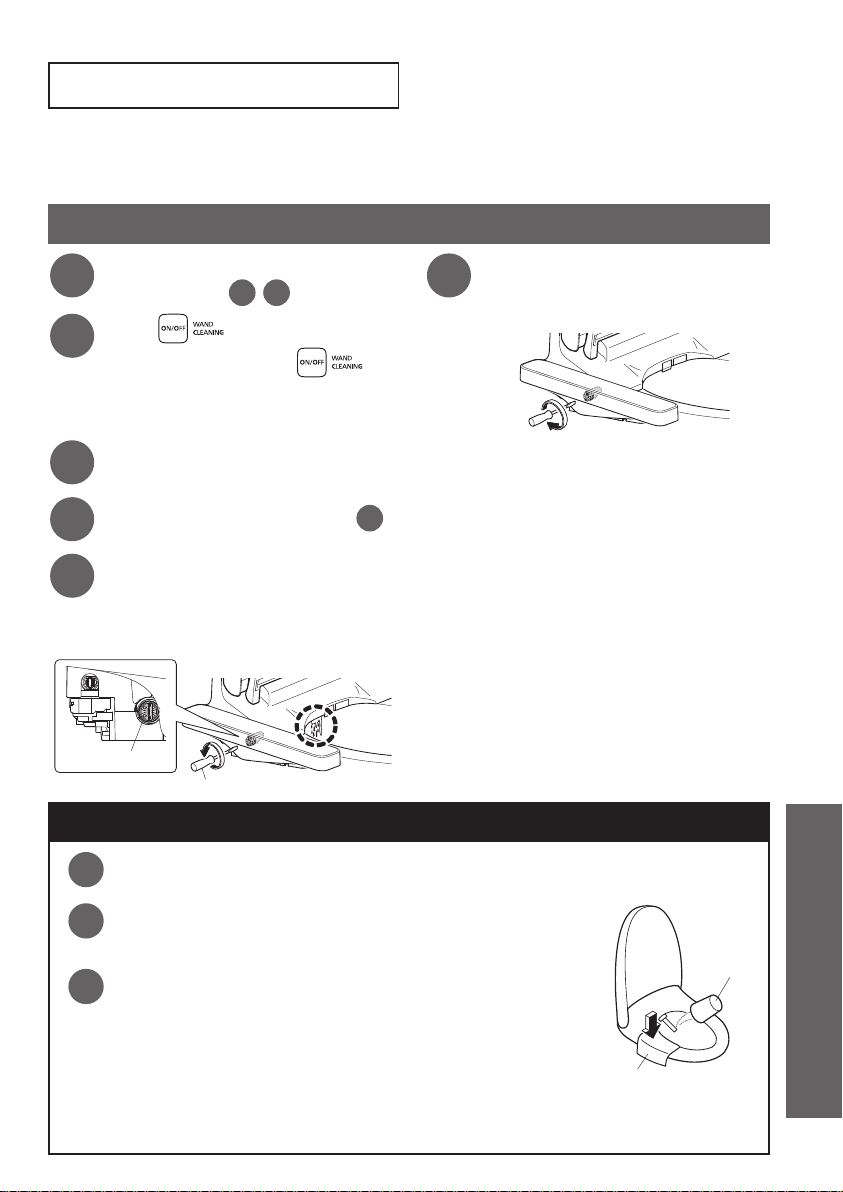

If the toilet is in a location you will not visit for a long time, drain the water.
(Failure to do so may cause breakdown or skin irritation due to polluted product tank water.)
Resupplying the Water
How to drain the water
1
■
If water may get frozen
• Add antifreeze solution in the water in the bowl to
prevent freezing.
(The antifreeze solution should not be fl ushed out.
Collect it before using the toilet and dispose of it.)
■
To use the product again
• The water needs to be resupplied. (See below)
2
If the power is not on,
Insert the power plug.
• The "Power" LED lights up.
3
Discharge water from the wand.
(1) Pressing down the left side of the toilet seat,
(2) Press "Rear cleansing" button on the control panel to discharge water
from the wand for about 2 minutes.
• It takes about 1 minute maximum before water comes out.
• Catch the water in a paper cup or other receptacle.
(3) Press the "Stopping" button on the control panel.
1
Open the shutoff valve.
• Check that water is not leaking from a pipe or the main unit.
4
Drain the pipe. (Page 36 Step
5
)
■
If the remaining water has frozen and no water comes out
•
Heat the inside of the bathroom, and warm the water supply hose and shutoff valve using a cloth soaked in warm water.
Tighten the water drain plug
securely with a fl at-head
screwdriver.
6
Drain the water from the toilet tank.
(Page 36 Step
1
2
)
Unplug the power plug.
3
Soft cloth soaked in water
(to prevent scratching)
Paper cup
Water fi lter drain valve
Flat-head
screwdriver
Water drain plug
Flat-head screwdriver
Loosen the water drain plug until water
comes out from around the wand.
• Water comes out from around the wand.
(It takes about 3 minutes to complete draining.)
* The water drain plug cannot be removed.
5
3
Press to extend the
wand, and then press
again to return the wand.
(Release the pressure from the water supply pipe.)
2
Press to extend the
wand, and then press
again to return the wand.
(Release the pressure from the water supply pipe.)
36 37
Reference
What to Do?
Freeze Damage Prevention
Long Periods of Disuse
When the ambient temperature is likely to drop to 32 °F (0 °C) or lower, take measures to prevent freezing.
• When the ambient temperature is likely to drop to 32 °F (0 °C) or lower, do not use the energy saver feature.
(May damage the product.)
• Warm the bathroom or take measures against freezing so that the ambient temperature does not drop below 32 °F (0 °C).
Attention!
How to freeze damage prevention
1
Close the shutoff valve.
(Page 34)
• The water supply stops.
Do not remove the water fi lter drain valve
while the shutoff valve is open.
(Otherwise, water may leak out)
CAUTION
Water supply hose
Horizontally
■
To use the product again
• The water needs to be resupplied. (Page 37)
7
(2) [Applicable to SW3074 only]
• Drain the water from the water supply hose.
• Insert the water fi lter drain valve and use a
fl at-head screwdriver to tighten it securely.
(3) When water draining is completed, reinstall
the water fi lter drain valve.
6
Insert the power plug.
• The "Power" LED lights up.
Set the water and toilet seat
temperature to "High".
(Page 18)
• To maintain the temperature, close the toilet seat
and toilet lid after fi nishing work.
2
Drain the water from the toilet
tank.
• Manipulate the lever/button/etc. until the
water stops.
4
Unplug the power plug.
5
Drain the pipe.
(1) Remove the water fi lter drain valve.
• Loosen the water fi lter drain valve with a fl at-
head screwdriver and then pull it.
If the toilet is in a location you will not visit for a long time, drain the water.
(Failure to do so may cause breakdown or skin irritation due to polluted product tank water.)
Resupplying the Water
How to drain the water
1
■
If water may get frozen
• Add antifreeze solution in the water in the bowl to
prevent freezing.
(The antifreeze solution should not be fl ushed out.
Collect it before using the toilet and dispose of it.)
■
To use the product again
• The water needs to be resupplied. (See below)
2
If the power is not on,
Insert the power plug.
• The "Power" LED lights up.
3
Discharge water from the wand.
(1) Pressing down the left side of the toilet seat,
(2) Press "Rear cleansing" button on the control panel to discharge water
from the wand for about 2 minutes.
• It takes about 1 minute maximum before water comes out.
• Catch the water in a paper cup or other receptacle.
(3) Press the "Stopping" button on the control panel.
1
Open the shutoff valve.
• Check that water is not leaking from a pipe or the main unit.
4
Drain the pipe. (Page 36 Step
5
)
■
If the remaining water has frozen and no water comes out
•
Heat the inside of the bathroom, and warm the water supply hose and shutoff valve using a cloth soaked in warm water.
Tighten the water drain plug
securely with a fl at-head
screwdriver.
6
Drain the water from the toilet tank.
(Page 36 Step
1
2
)
Unplug the power plug.
3
Soft cloth soaked in water
(to prevent scratching)
Paper cup
Water fi lter drain valve
Flat-head
screwdriver
Water drain plug
Flat-head screwdriver
Loosen the water drain plug until water
comes out from around the wand.
• Water comes out from around the wand.
(It takes about 3 minutes to complete draining.)
* The water drain plug cannot be removed.
5
3
Press to extend the
wand, and then press
again to return the wand.
(Release the pressure from the water supply pipe.)
2
Press to extend the
wand, and then press
again to return the wand.
(Release the pressure from the water supply pipe.)
36 37
Reference

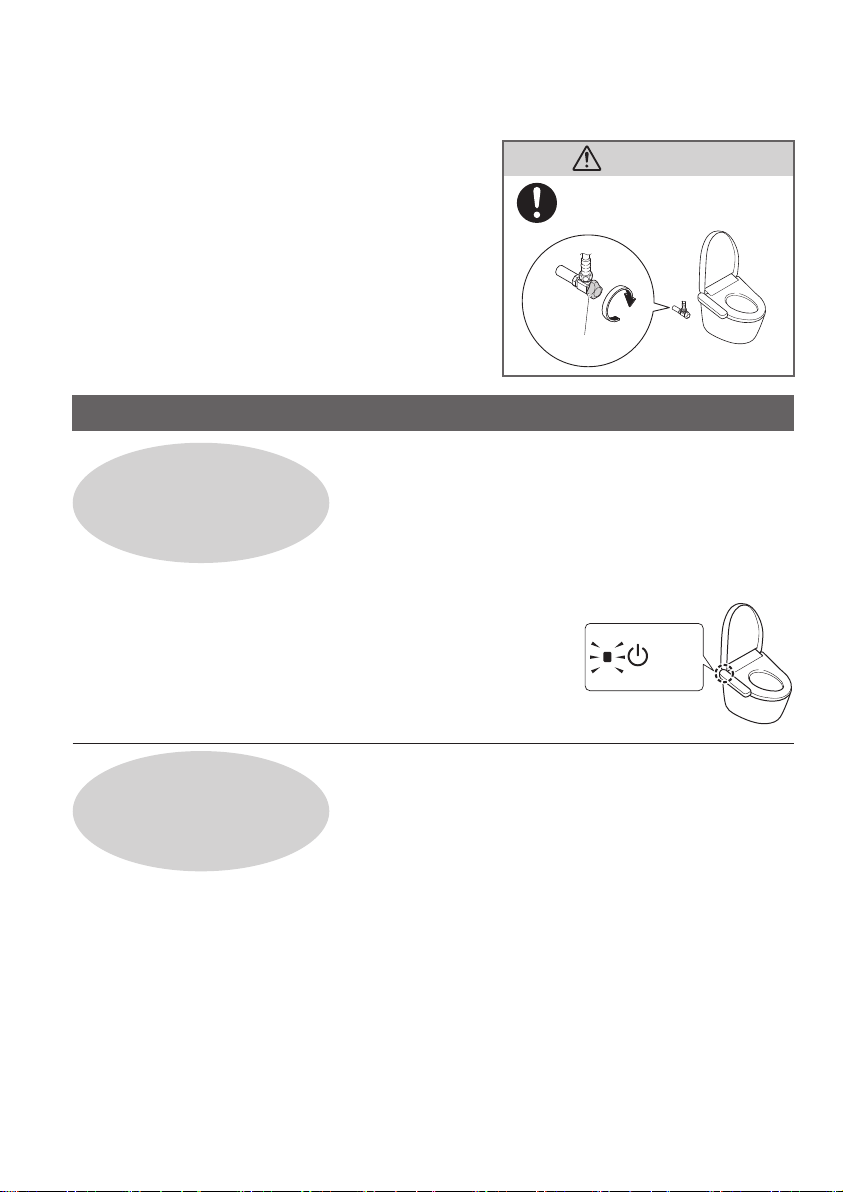

CAUTION
Troubleshooting
Shutoff valve
■
While the LED is lit, energy saver
(Pages 20, 21)
is in
operation, so the toilet seat temperature may be
reduced or the warm water heater and toilet seat
heater may be turned off .
Please check fi rst
Is the Power LED lit?
Is the Energy saver
LED lit?
First, try the actions described on pages 38 - 41.
If the problem persists, consult the installer, seller, or
TOTO customer service.
(see contact information on the back cover.)
If a water leak occurs, close
the shutoff valve.
■
Is the breaker on the distribution board turned on?
→ Check whether there is a power outage or the breaker has turned
"OFF".
■
Is the "Power ON/OFF" setting "OFF"?
→ Switch it to "ON" with the control panel. (Page 14 Step
1
-
2
)
■
Is the "Power" LED on the main display fl ashing?
→ The main unit is not mounted properly. Mount them correctly
again. (Pages 30, 31)
<Power>
Rear cleansing, Rear soft cleansing, Front cleansing and Wand
Trouble Please check
Ref.
Page
The wand
(or cleansing water)
does not come out
●
Did you sit on the toilet continuously for 2 hours or longer? (If so, operation is
stopped for safety purposes.)
➞
Stand up from the seat and then use again.
-
●
The seat switch will not turn on unless you sit on the seat properly.
➞
Sit back on the toilet seat.
11
●
Are you using a toilet seat cover, a toilet lid cover or
a seat for infants?
➞
Remove any covers.
When using a seat for infants or a soft highchair,
remove after each use.
Covers
11
●
Are you pressing "Wand CLEAN" button?
• When you press "Wand CLEAN" button, "EWATER+" comes out from the
vicinity of the wand to clean the wand.
➞
To clean the wand with it extended, perform "Wand cleaning".
33
The wand extends but
the cleansing water
does not come out /
The cleansing water
pressure is weak
●
Has a water failure occurred?
➞
Press "Stopping" button on the remote control and wait until water service
is restored.
-
●
Is the shutoff valve closed?
➞
Fully open the shutoff valve.
14
●
Is the water fi lter drain valve clogged with foreign matter?
➞
Clean the filter.
34
●
Is the water pressure set to a low level?
17
●
Is the water drain plug loosened?
➞
Tighten the water drain plug securely.
37
The cleansing water
is cold
●
Is the warm water temperature set to "OFF" or a low level?
●
When the temperature of the water supply or the bathroom is low, the water
temperature may be low when fi rst sprayed.
●
Is the timer energy saver in operation?
• The energy saver feature is on when the "Energy saver" LED is on and the
"Power" LED is off on the main display.
When you sit on the seat, the warm water heater is temporarily turned on
and water is warmed in about 10 minutes.
➞
When the timer energy saver is set to "ON", you can also turn it "OFF".
18
-
20, 21
23
Stops in the middle
of use
●
"Rear cleansing", "Rear soft cleansing" and "Front cleansing" stop
automatically after 5 minutes of continuous use.
●
Does the seat switch have diffi culty detecting?
➞
Sit back on the toilet seat. If you get up slightly from the seat, or sit forward
on the seat, the seating switch may temporarily stop detecting your
presence.
-
11
Water comes out
unexpectedly from
the wand
●
Water may sometimes come out from around the wand when it expands in
the warm water tank.
●
Is the "Wand CLEAN" LED on the main display fl ashing?
➞
"Auto Wand CLEAN" starts and the wand is cleaned.
-
16
38 39
Reference
CAUTION
Troubleshooting
Shutoff valve
■
While the LED is lit, energy saver
(Pages 20, 21)
is in
operation, so the toilet seat temperature may be
reduced or the warm water heater and toilet seat
heater may be turned off .
Please check fi rst
Is the Power LED lit?
Is the Energy saver
LED lit?
First, try the actions described on pages 38 - 41.
If the problem persists, consult the installer, seller, or
TOTO customer service.
(see contact information on the back cover.)
If a water leak occurs, close
the shutoff valve.
■
Is the breaker on the distribution board turned on?
→ Check whether there is a power outage or the breaker has turned
"OFF".
■
Is the "Power ON/OFF" setting "OFF"?
→ Switch it to "ON" with the control panel. (Page 14 Step
1
-
2
)
■
Is the "Power" LED on the main display fl ashing?
→ The main unit is not mounted properly. Mount them correctly
again. (Pages 30, 31)
<Power>
Rear cleansing, Rear soft cleansing, Front cleansing and Wand
Trouble Please check
Ref.
Page
The wand
(or cleansing water)
does not come out
●
Did you sit on the toilet continuously for 2 hours or longer? (If so, operation is
stopped for safety purposes.)
➞
Stand up from the seat and then use again.
-
●
The seat switch will not turn on unless you sit on the seat properly.
➞
Sit back on the toilet seat.
11
●
Are you using a toilet seat cover, a toilet lid cover or
a seat for infants?
➞
Remove any covers.
When using a seat for infants or a soft highchair,
remove after each use.
Covers
11
●
Are you pressing "Wand CLEAN" button?
• When you press "Wand CLEAN" button, "EWATER+" comes out from the
vicinity of the wand to clean the wand.
➞
To clean the wand with it extended, perform "Wand cleaning".
33
The wand extends but
the cleansing water
does not come out /
The cleansing water
pressure is weak
●
Has a water failure occurred?
➞
Press "Stopping" button on the remote control and wait until water service
is restored.
-
●
Is the shutoff valve closed?
➞
Fully open the shutoff valve.
14
●
Is the water fi lter drain valve clogged with foreign matter?
➞
Clean the filter.
34
●
Is the water pressure set to a low level?
17
●
Is the water drain plug loosened?
➞
Tighten the water drain plug securely.
37
The cleansing water
is cold
●
Is the warm water temperature set to "OFF" or a low level?
●
When the temperature of the water supply or the bathroom is low, the water
temperature may be low when fi rst sprayed.
●
Is the timer energy saver in operation?
• The energy saver feature is on when the "Energy saver" LED is on and the
"Power" LED is off on the main display.
When you sit on the seat, the warm water heater is temporarily turned on
and water is warmed in about 10 minutes.
➞
When the timer energy saver is set to "ON", you can also turn it "OFF".
18
-
20, 21
23
Stops in the middle
of use
●
"Rear cleansing", "Rear soft cleansing" and "Front cleansing" stop
automatically after 5 minutes of continuous use.
●
Does the seat switch have diffi culty detecting?
➞
Sit back on the toilet seat. If you get up slightly from the seat, or sit forward
on the seat, the seating switch may temporarily stop detecting your
presence.
-
11
Water comes out
unexpectedly from
the wand
●
Water may sometimes come out from around the wand when it expands in
the warm water tank.
●
Is the "Wand CLEAN" LED on the main display fl ashing?
➞
"Auto Wand CLEAN" starts and the wand is cleaned.
-
16
38 39
Reference
Troubleshooting
Warm air drying
Trouble Please check
Ref.
Page
The dryer
temperature is low
●
Is the dryer temperature set to low level?
18
Stops in the middle
of use
●
The feature stops automatically after about 10 minutes of continuous use.
●
Does the seat switch have diffi culty detecting?
➞
Sit back on the toilet seat. If you get up slightly from the seat, or sit forward on
the seat, the seating switch may temporarily stop detecting your presence.
-
11
Toilet Seat and Toilet Lid
Trouble Please check
Ref.
Page
The toilet seat is
cold
●
Is the toilet seat temperature set to "OFF" or a low level?
18
●
Is energy saver in operation?
• The energy saver feature is on when the "Energy saver" LED is on and the
"Power" LED is off on the main display.
When you sit on the seat, the toilet seat heater is turned on temporarily and
the seat is warmed in about 15 minutes.
➞
You can turn it "OFF" if the energy saver feature is "ON".
20, 21
23
●
Have you been seated for a long time?
• After about 20 minutes of sitting, the temperature starts going down, and
after about 1 hour, the toilet seat heater is turned "OFF".
➞
Stand up from the seat and then use again.
●
Did you put anything on the toilet seat or the toilet lid?
➞
Remove anything placed on top of the toilet seat or lid.
-
-
●
Is a toilet lid or seat cover installed?
➞
Remove any covers.
11
Energy Saver
Trouble Please check
Ref.
Page
The timer energy saver
feature is not working
●
Did you unplug the power plug or was there a power outage?
• The setting is cancelled. ➞ Set them again.
(When the power is turned off once, the "Timer energy saver" LED fl ashes to
notify you.)
23
The auto energy saver
feature is not working
●
Because the function takes several days learning the usage conditions before
starting energy saver, the amount of energy saving may be low, depending
on the frequency of use.
➞
Check the energy saver setting.
20, 21
Deodorizer
Trouble Please check
Ref.
Page
The deodorizer seems
to be not working
●
Is "Deodorizer" set to "OFF"? ➞ Set to "ON".
●
Even after sitting down, you do not hear operation sounds.
➞
Sit back on the toilet seat.
If you hear an operation sound when you sit on the toilet seat.
➞
Clean the deodorizing filter.
27
-
33
Deodorizer
Trouble Please check
Ref.
Page
A strange odor is
emitted
●
Are you using an air freshener or deodorizer that you purchased separately?
•
Doing so may reduce the effectiveness of the product's deodorizer or cause strange odors.
➞
Remove the air freshener or deodorizer.
-
The auto power deodorizer
feature is not working
●
Is "Auto power deodorizer" set to "OFF"? ➞ Set to "ON".
●
It starts about 10 seconds after you stand up from the toilet seat.
27
-
Sanitary
Trouble Please check
Ref.
Page
The Wand CLEAN
LED does not light up
●
If the "Wand CLEAN" LED does not light up, it is time to replace the component
that generates "EWATER+". Consult the installer, seller, or TOTO customer
service. (see contact information on the back cover.)
-
Others
Trouble Please check
Ref.
Page
Water is leaking from the
plumbing connections
●
If the nut of the connecting pipe is loosened, retighten it by hand. (Do not use any tool.)
➞
If the water leak does not stop, close the shutoff valve and consult with
TOTO customer service. (see contact information on the back cover.)
-
The main unit is
unstable
●
There is clearance between the toilet seat cushion and the bowl unit for activating the seat
switch. When you sit on the toilet seat, the toilet seat subsides slightly to activate the seat switch.
●
Are the bolts that anchor the main unit loose?
➞
Remove the main unit and then firmly tighten the base plate bolts.
11
30, 31
The main unit makes
a sound
When sitting on the toilet seat
●
When "Pre-mist" is "ON", you hear operation sounds for preparing the pre-mist
or spraying mist in the bowl unit.
➞
You can turn it "OFF".
16
26
When moving away from the bowl unit after use
●
When "Auto power deodorizer" is "ON", operation sounds are made while the
deodorizing power increases for 60 seconds after you stand up from the toilet seat.
➞
You can turn it "OFF".
●
If "Auto wand CLEAN" is "ON" and you use the cleansing functions (e.g., Rear cleansing and
Front cleansing), you may hear that the wand is extended and cleaned with "EWATER+".
➞
You can turn it "OFF".
27
26
When not using the product (e.g., at night)
●
If "Auto wand CLEAN" is "ON" and you do not use the cleansing functions (e.g., Rear
cleansing and Front cleansing) for about 8 hours, you will hear that the wand is cleaned
with "EWATER+" and then the remaining water is drained from inside the product.
➞
You can turn it "OFF".
26
The timer energy
saver LED is fl ashing
●
Did you unplug the power plug or was there a power outage?
• The setting is cancelled.
➞
Set them again
(When the power is turned off once, the "Timer energy saver" LED fl ashes to notify you.)
23
You feel air in the bowl unit
when sitting on the toilet seat
●
A mist is sprayed inside the bowl unit to make it more diffi cult for dirt to adhere
when sitting on the toilet seat. You may feel air when a mist is sprayed.
➞
You can turn it "OFF".
-
26
40 41
Reference
Troubleshooting
Warm air drying
Trouble Please check
Ref.
Page
The dryer
temperature is low
●
Is the dryer temperature set to low level?
18
Stops in the middle
of use
●
The feature stops automatically after about 10 minutes of continuous use.
●
Does the seat switch have diffi culty detecting?
➞
Sit back on the toilet seat. If you get up slightly from the seat, or sit forward on
the seat, the seating switch may temporarily stop detecting your presence.
-
11
Toilet Seat and Toilet Lid
Trouble Please check
Ref.
Page
The toilet seat is
cold
●
Is the toilet seat temperature set to "OFF" or a low level?
18
●
Is energy saver in operation?
• The energy saver feature is on when the "Energy saver" LED is on and the
"Power" LED is off on the main display.
When you sit on the seat, the toilet seat heater is turned on temporarily and
the seat is warmed in about 15 minutes.
➞
You can turn it "OFF" if the energy saver feature is "ON".
20, 21
23
●
Have you been seated for a long time?
• After about 20 minutes of sitting, the temperature starts going down, and
after about 1 hour, the toilet seat heater is turned "OFF".
➞
Stand up from the seat and then use again.
●
Did you put anything on the toilet seat or the toilet lid?
➞
Remove anything placed on top of the toilet seat or lid.
-
-
●
Is a toilet lid or seat cover installed?
➞
Remove any covers.
11
Energy Saver
Trouble Please check
Ref.
Page
The timer energy saver
feature is not working
●
Did you unplug the power plug or was there a power outage?
• The setting is cancelled. ➞ Set them again.
(When the power is turned off once, the "Timer energy saver" LED fl ashes to
notify you.)
23
The auto energy saver
feature is not working
●
Because the function takes several days learning the usage conditions before
starting energy saver, the amount of energy saving may be low, depending
on the frequency of use.
➞
Check the energy saver setting.
20, 21
Deodorizer
Trouble Please check
Ref.
Page
The deodorizer seems
to be not working
●
Is "Deodorizer" set to "OFF"? ➞ Set to "ON".
●
Even after sitting down, you do not hear operation sounds.
➞
Sit back on the toilet seat.
If you hear an operation sound when you sit on the toilet seat.
➞
Clean the deodorizing filter.
27
-
33
Deodorizer
Trouble Please check
Ref.
Page
A strange odor is
emitted
●
Are you using an air freshener or deodorizer that you purchased separately?
•
Doing so may reduce the effectiveness of the product's deodorizer or cause strange odors.
➞
Remove the air freshener or deodorizer.
-
The auto power deodorizer
feature is not working
●
Is "Auto power deodorizer" set to "OFF"? ➞ Set to "ON".
●
It starts about 10 seconds after you stand up from the toilet seat.
27
-
Sanitary
Trouble Please check
Ref.
Page
The Wand CLEAN
LED does not light up
●
If the "Wand CLEAN" LED does not light up, it is time to replace the component
that generates "EWATER+". Consult the installer, seller, or TOTO customer
service. (see contact information on the back cover.)
-
Others
Trouble Please check
Ref.
Page
Water is leaking from the
plumbing connections
●
If the nut of the connecting pipe is loosened, retighten it by hand. (Do not use any tool.)
➞
If the water leak does not stop, close the shutoff valve and consult with
TOTO customer service. (see contact information on the back cover.)
-
The main unit is
unstable
●
There is clearance between the toilet seat cushion and the bowl unit for activating the seat
switch. When you sit on the toilet seat, the toilet seat subsides slightly to activate the seat switch.
●
Are the bolts that anchor the main unit loose?
➞
Remove the main unit and then firmly tighten the base plate bolts.
11
30, 31
The main unit makes
a sound
When sitting on the toilet seat
●
When "Pre-mist" is "ON", you hear operation sounds for preparing the pre-mist
or spraying mist in the bowl unit.
➞
You can turn it "OFF".
16
26
When moving away from the bowl unit after use
●
When "Auto power deodorizer" is "ON", operation sounds are made while the
deodorizing power increases for 60 seconds after you stand up from the toilet seat.
➞
You can turn it "OFF".
●
If "Auto wand CLEAN" is "ON" and you use the cleansing functions (e.g., Rear cleansing and
Front cleansing), you may hear that the wand is extended and cleaned with "EWATER+".
➞
You can turn it "OFF".
27
26
When not using the product (e.g., at night)
●
If "Auto wand CLEAN" is "ON" and you do not use the cleansing functions (e.g., Rear
cleansing and Front cleansing) for about 8 hours, you will hear that the wand is cleaned
with "EWATER+" and then the remaining water is drained from inside the product.
➞
You can turn it "OFF".
26
The timer energy
saver LED is fl ashing
●
Did you unplug the power plug or was there a power outage?
• The setting is cancelled.
➞
Set them again
(When the power is turned off once, the "Timer energy saver" LED fl ashes to notify you.)
23
You feel air in the bowl unit
when sitting on the toilet seat
●
A mist is sprayed inside the bowl unit to make it more diffi cult for dirt to adhere
when sitting on the toilet seat. You may feel air when a mist is sprayed.
➞
You can turn it "OFF".
-
26
40 41
Reference
Specifi cations
Item
SW3074T40
SW3074
Rated power supply AC 120 V, 60 Hz
Rated power consumption 403 W
Maximum power consumption
*1
512 W
Type of water heater Tank type
Power cord length 3.93 ft (1.2 m)
Water protection level IPX4
Cleansing
Spray
volume
Rear cleansing
Approx. 0.07-0.11 gal / min (Approx. 0.27-0.43 L / min)
<at 29 PSI (0.20 MPa) water pressure>
Rear soft cleansing
Approx. 0.07-0.11 gal / min (Approx. 0.27-0.43 L / min)
<at 29 PSI (0.20 MPa) water pressure>
Front cleansing
Approx. 0.08-0.11 gal / min (Approx. 0.29-0.43 L / min)
<at 29 PSI (0.20 MPa) water pressure>
Water temperature Adjustable temperature range : OFF, about 95-104 °F (about 35-40 °C)
Toilet tank capacity Approx. 0.13 gal (Approx. 0.49 L)
Heater capacity 225 W
Safety device Temperature fuse, anti-idling fl oat switch
Backfl ow prevention device Vacuum breaker, Check valve
Heated
seat
Surface temperature
Adjustable temperature range : OFF, about 82-97 °F (about 28-36 °C)
(Auto energy saver : about 79 °F (about 26 °C))
Heater capacity 48 W
Safety device Temperature fuse
Deodorizer
Method O
2
deodorization
Airfl ow volume
Normal mode : Approx. 3.18 ft
3
/ min (Approx. 0.09 m
3
/ min)
Power mode : Approx. 5.65 ft
3
/ min (Approx. 0.16 m
3
/ min)
Power consumption Normal mode : Approx. 1.7 W, Power mode : Approx. 5.3 W
Warm air
dryer
Warm air temperature
*2
Adjustable temperature range : about 95-140 °F (about 35-60 °C)
Airfl ow volume Approx. 8.83 ft
3
/ min (Approx. 0.25 m
3
/ min)
Heater capacity 347 W
Safety device Temperature fuse
Water supply pressure
Minimum required water pressure : 7.25 PSI (0.05 MPa) <dynamic>
Maximum water pressure : 108.78 PSI (0.75 MPa) <static>
Water supply temperature 32-95 °F (0-35 °C)
Working ambient temperature 32-104 °F (0-40 °C)
Dimensions
W 1.55 ft × D 1.74 ft × H 0.48 ft
W 472 mm × D 530 mm× H 147 mm
Weight About 11 lb (About 5 kg)
*1 Maximum power consumption for warm water or heated toilet seat.
*2 Temperature around the warm air outlet measured by TOTO.
●
When disposing of this product, please follow your local or state guidelines for proper disposal.
1. TOTO warrants its products to be free from defects in materials and workmanship during normal use when properly installed
and serviced, for a period of one (1) year from date of purchase. This limited warranty is extended only to the ORIGINAL
PURCHASER of the product and is not transferable to any third party, including but not limited to any subsequent purchaser
or owner of the product. This warranty applies only to TOTO product is purchased and installed in USA and Canada.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option,
of the product or parts found to be defective in normal use, provided that such product was properly installed, used and
serviced in accordance with instructions.
TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO
will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of
removal, return and/or reinstallation of the product.
3.This warranty does not apply to the following items:
a) Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b) Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, improper care, or maintenance
of the product.
c) Damage or loss resulting from sediments or foreign matter contained in a water system.
d) Damage or loss resulting from the quality of water in the region where the product is used.
e) Damage or loss resulting from improper installation or from installation of the product in a harsh and/or hazardous
environment, or improper removal, repair or modification of the product. This includes locations where the water pressure
is above local codes or standards. (NOTE : Product model codes allow a maximum of 80 PSI. Check local codes or
standards for requirements).
f) Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which
the product is not specified to tolerate, including failure to use the factory equipped cord and plug or use of a loose or faulty
electrical outlet or use of a current or socket other than a 120V, 60Hz electrical current from a GFI (ground, fused) socket.
g) Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over
time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali,
acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. If the Danger Label which has been placed over the seams on the back of the product’s top unit is broken or otherwise not
intact, this limited warranty is void.
5. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon
purchase to create a record of product ownership at http://www.totousa.com. Product registration is completely voluntary and
failure to register will not diminish your limited warranty rights.
6. If the product is used commercially or is installed outside of USA and Canada, TOTO warrants the product to be free from
defects in materials and workmanship during normal use for one (1) year from the date of installation of the product, and all
other terms of this warranty shall be applicable except the duration of the warranty.
7. This warranty gives you specific legal rights. You may have other rights which vary from state to state, province to province or
country to country.
8. To obtain warranty repair service under this warranty, you must take the product or deliver it prepaid to a TOTO service
facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor
or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 (888)
295-8134 or (678) 466-1300, if outside the U.S.A. If, because of the size of the product or nature of the defect, the product
cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales
receipt) shall constitute delivery. In such case, TOTO
may choose to repair the product at the purchase'r s location or pay to
transport the product to a service facility.
WARNING! TOTO shall not be responsible or liable for any failure of, or damage to, this product caused by either
chloramines in the treatment of public water supply or cleaners containing chlorine (calcium hypochlorite).
NOTE: The use of a high concentrate chlorine or chlorine related products can seriously damage the fittings. This damage
can cause leakage and serious property damage.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER
APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY
AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR
FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL
PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS
BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S
RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR
FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
Limited Warranty
42 43
Reference
Specifi cations
Item
SW3074T40
SW3074
Rated power supply AC 120 V, 60 Hz
Rated power consumption 403 W
Maximum power consumption
*1
512 W
Type of water heater Tank type
Power cord length 3.93 ft (1.2 m)
Water protection level IPX4
Cleansing
Spray
volume
Rear cleansing
Approx. 0.07-0.11 gal / min (Approx. 0.27-0.43 L / min)
<at 29 PSI (0.20 MPa) water pressure>
Rear soft cleansing
Approx. 0.07-0.11 gal / min (Approx. 0.27-0.43 L / min)
<at 29 PSI (0.20 MPa) water pressure>
Front cleansing
Approx. 0.08-0.11 gal / min (Approx. 0.29-0.43 L / min)
<at 29 PSI (0.20 MPa) water pressure>
Water temperature Adjustable temperature range : OFF, about 95-104 °F (about 35-40 °C)
Toilet tank capacity Approx. 0.13 gal (Approx. 0.49 L)
Heater capacity 225 W
Safety device Temperature fuse, anti-idling fl oat switch
Backfl ow prevention device Vacuum breaker, Check valve
Heated
seat
Surface temperature
Adjustable temperature range : OFF, about 82-97 °F (about 28-36 °C)
(Auto energy saver : about 79 °F (about 26 °C))
Heater capacity 48 W
Safety device Temperature fuse
Deodorizer
Method O
2
deodorization
Airfl ow volume
Normal mode : Approx. 3.18 ft
3
/ min (Approx. 0.09 m
3
/ min)
Power mode : Approx. 5.65 ft
3
/ min (Approx. 0.16 m
3
/ min)
Power consumption Normal mode : Approx. 1.7 W, Power mode : Approx. 5.3 W
Warm air
dryer
Warm air temperature
*2
Adjustable temperature range : about 95-140 °F (about 35-60 °C)
Airfl ow volume Approx. 8.83 ft
3
/ min (Approx. 0.25 m
3
/ min)
Heater capacity 347 W
Safety device Temperature fuse
Water supply pressure
Minimum required water pressure : 7.25 PSI (0.05 MPa) <dynamic>
Maximum water pressure : 108.78 PSI (0.75 MPa) <static>
Water supply temperature 32-95 °F (0-35 °C)
Working ambient temperature 32-104 °F (0-40 °C)
Dimensions
W 1.55 ft × D 1.74 ft × H 0.48 ft
W 472 mm × D 530 mm× H 147 mm
Weight About 11 lb (About 5 kg)
*1 Maximum power consumption for warm water or heated toilet seat.
*2 Temperature around the warm air outlet measured by TOTO.
●
When disposing of this product, please follow your local or state guidelines for proper disposal.
1. TOTO warrants its products to be free from defects in materials and workmanship during normal use when properly installed
and serviced, for a period of one (1) year from date of purchase. This limited warranty is extended only to the ORIGINAL
PURCHASER of the product and is not transferable to any third party, including but not limited to any subsequent purchaser
or owner of the product. This warranty applies only to TOTO product is purchased and installed in USA and Canada.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option,
of the product or parts found to be defective in normal use, provided that such product was properly installed, used and
serviced in accordance with instructions.
TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO
will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of
removal, return and/or reinstallation of the product.
3.This warranty does not apply to the following items:
a) Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b) Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, improper care, or maintenance
of the product.
c) Damage or loss resulting from sediments or foreign matter contained in a water system.
d) Damage or loss resulting from the quality of water in the region where the product is used.
e) Damage or loss resulting from improper installation or from installation of the product in a harsh and/or hazardous
environment, or improper removal, repair or modification of the product. This includes locations where the water pressure
is above local codes or standards. (NOTE : Product model codes allow a maximum of 80 PSI. Check local codes or
standards for requirements).
f) Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which
the product is not specified to tolerate, including failure to use the factory equipped cord and plug or use of a loose or faulty
electrical outlet or use of a current or socket other than a 120V, 60Hz electrical current from a GFI (ground, fused) socket.
g) Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over
time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali,
acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. If the Danger Label which has been placed over the seams on the back of the product’s top unit is broken or otherwise not
intact, this limited warranty is void.
5. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon
purchase to create a record of product ownership at http://www.totousa.com. Product registration is completely voluntary and
failure to register will not diminish your limited warranty rights.
6. If the product is used commercially or is installed outside of USA and Canada, TOTO warrants the product to be free from
defects in materials and workmanship during normal use for one (1) year from the date of installation of the product, and all
other terms of this warranty shall be applicable except the duration of the warranty.
7. This warranty gives you specific legal rights. You may have other rights which vary from state to state, province to province or
country to country.
8. To obtain warranty repair service under this warranty, you must take the product or deliver it prepaid to a TOTO service
facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor
or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 (888)
295-8134 or (678) 466-1300, if outside the U.S.A. If, because of the size of the product or nature of the defect, the product
cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales
receipt) shall constitute delivery. In such case, TOTO
may choose to repair the product at the purchase'r s location or pay to
transport the product to a service facility.
WARNING! TOTO shall not be responsible or liable for any failure of, or damage to, this product caused by either
chloramines in the treatment of public water supply or cleaners containing chlorine (calcium hypochlorite).
NOTE: The use of a high concentrate chlorine or chlorine related products can seriously damage the fittings. This damage
can cause leakage and serious property damage.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER
APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY
AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR
FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL
PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS
BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S
RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR
FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
Limited Warranty
42 43
Reference
