XBR55ENT SEMI - RECUMBENT BIKE
OWNER’S MANUAL

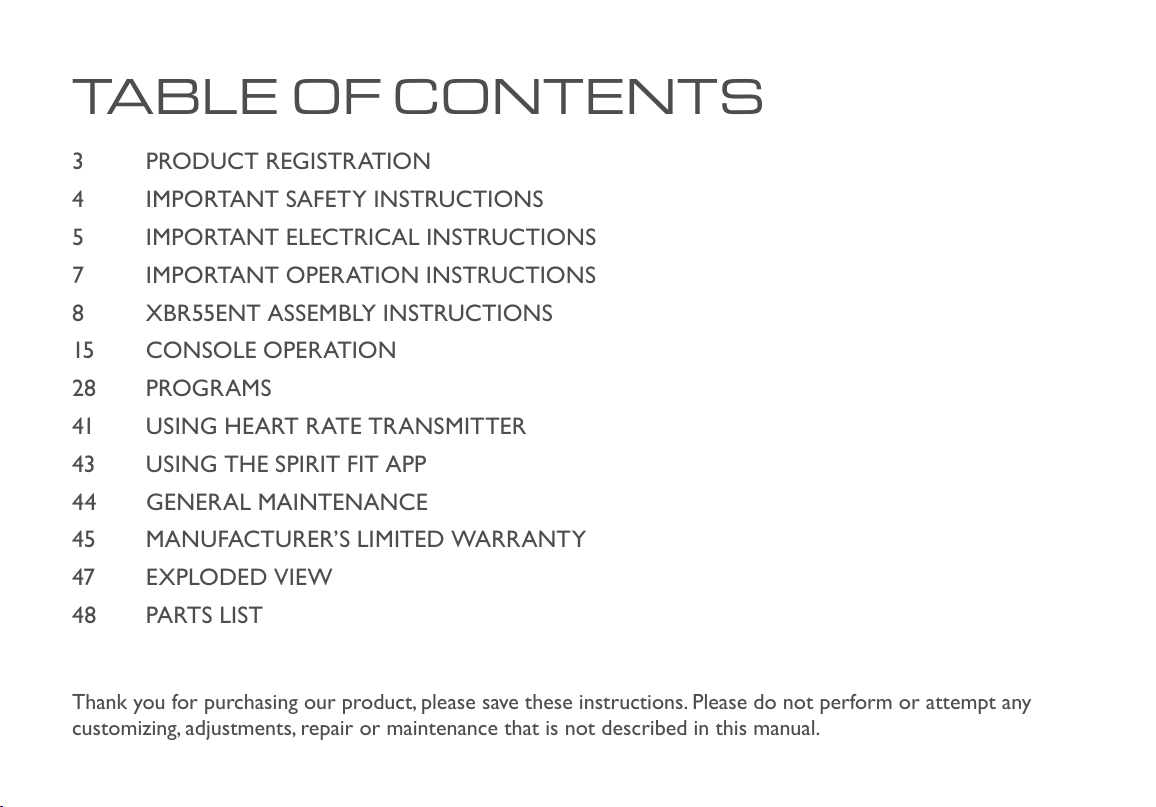

TABLE OF CONTENTS
3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
5 IMPORTANT ELECTRICAL INSTRUCTIONS
7 IMPORTANT OPERATION INSTRUCTIONS
8 XBR55ENT ASSEMBLY INSTRUCTIONS

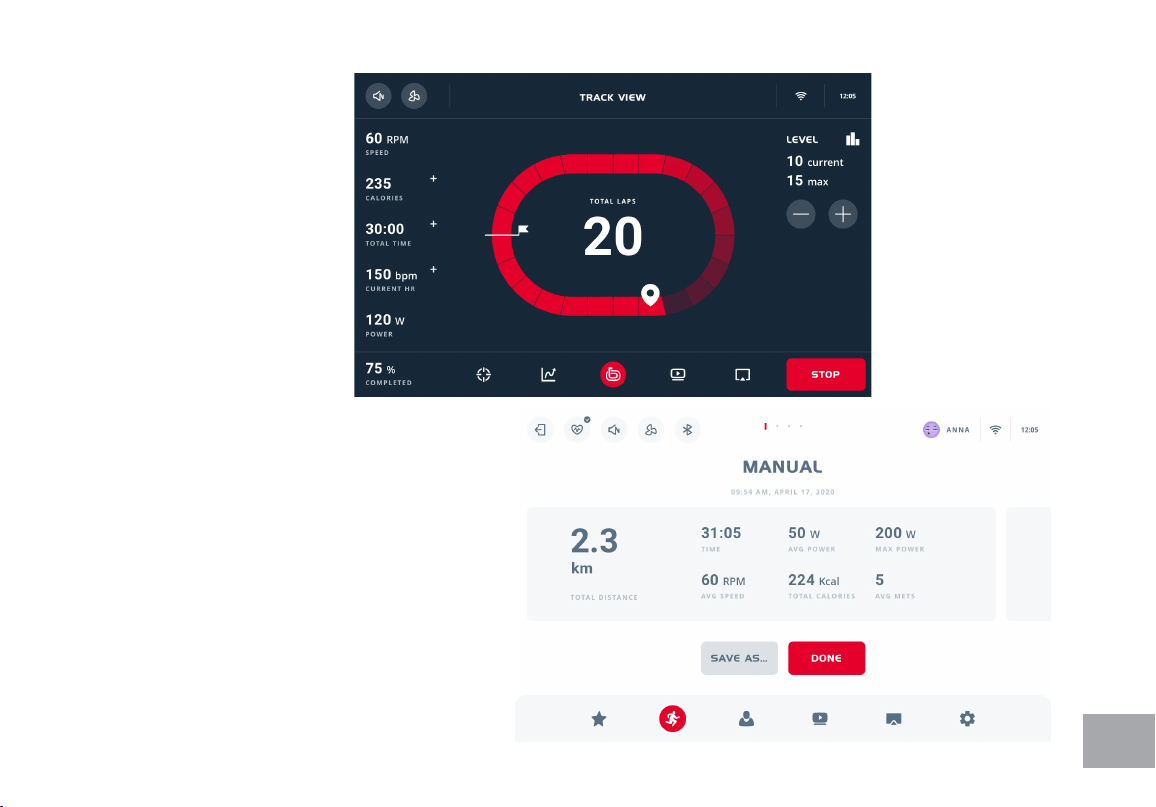

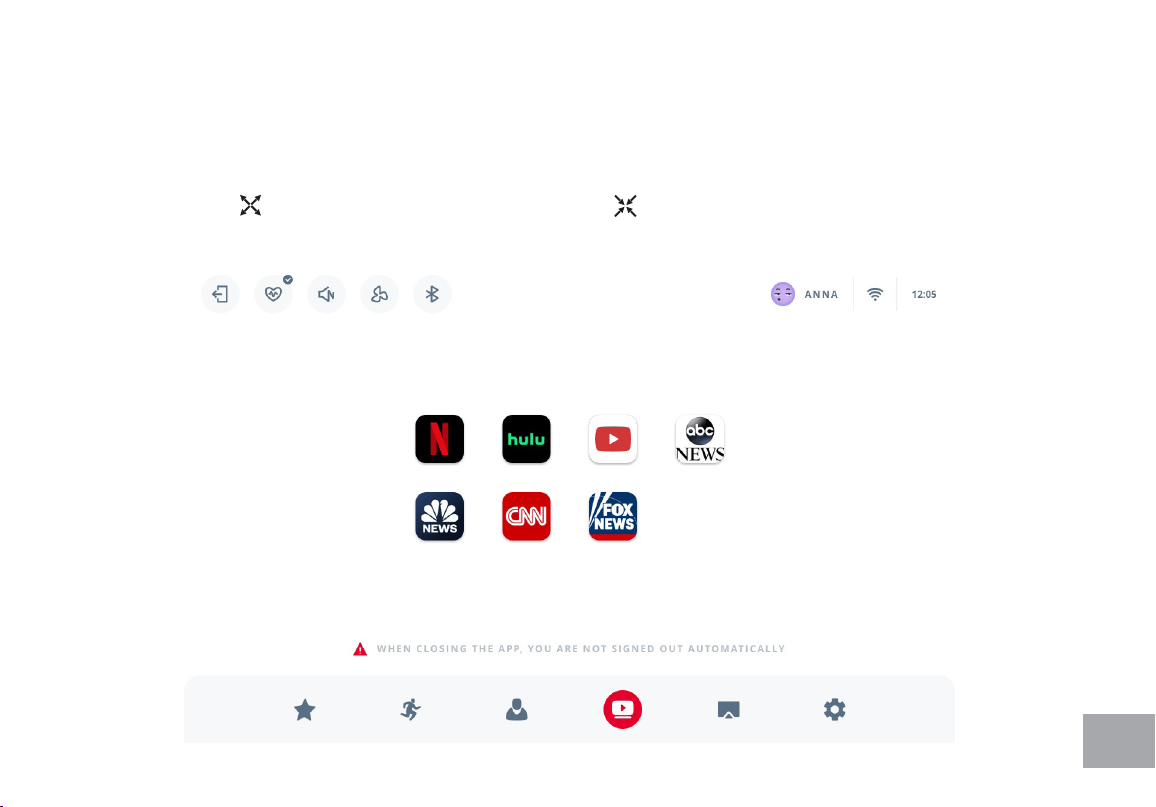

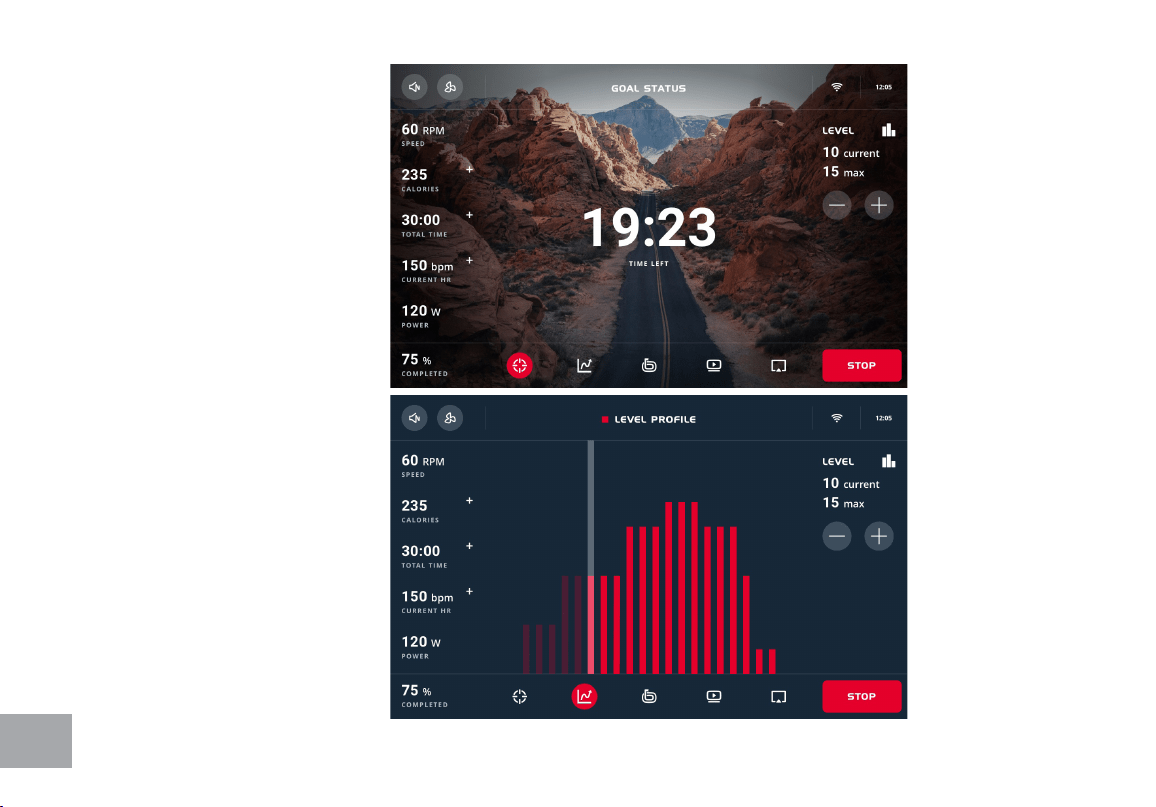

15 CONSOLE OPERATION

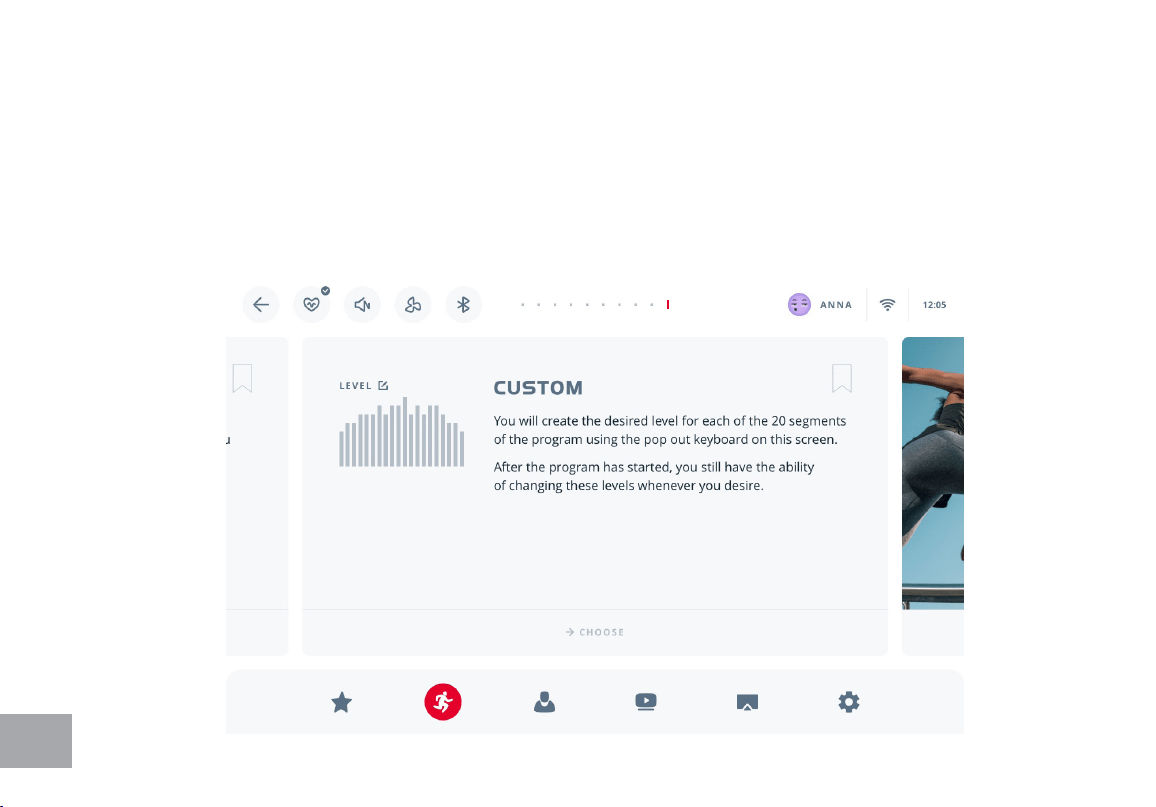

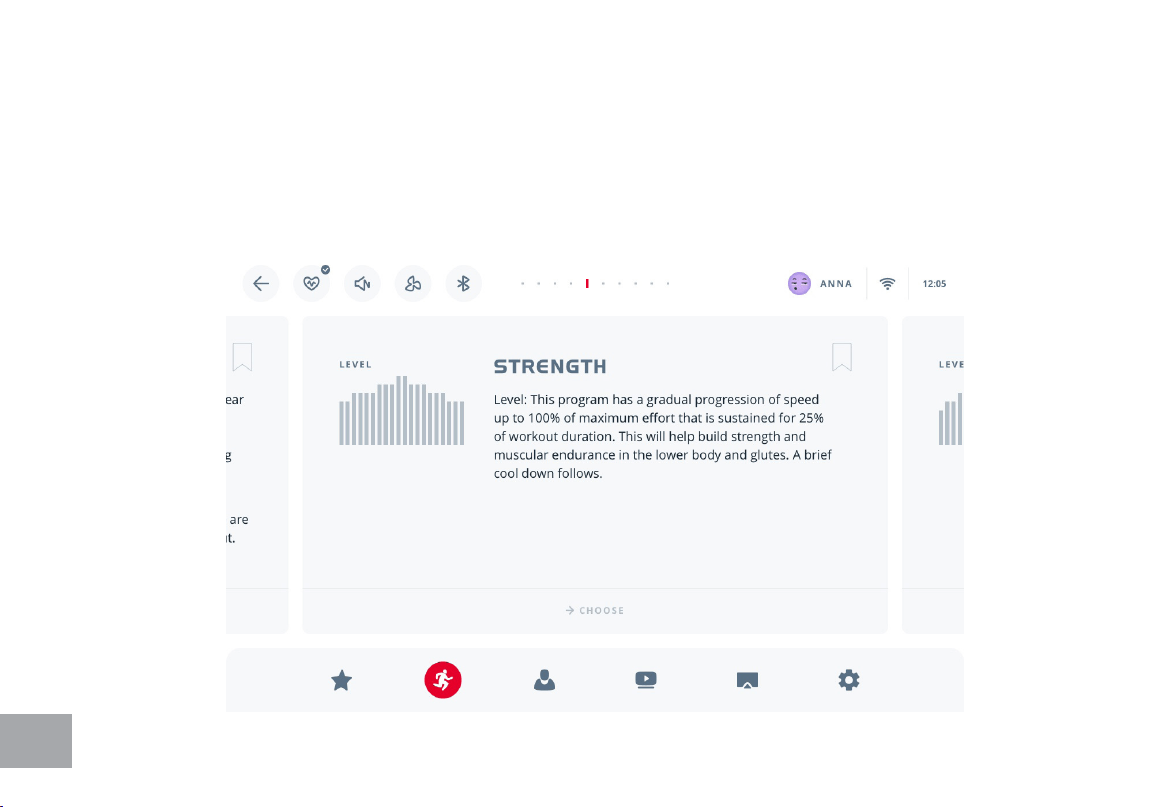

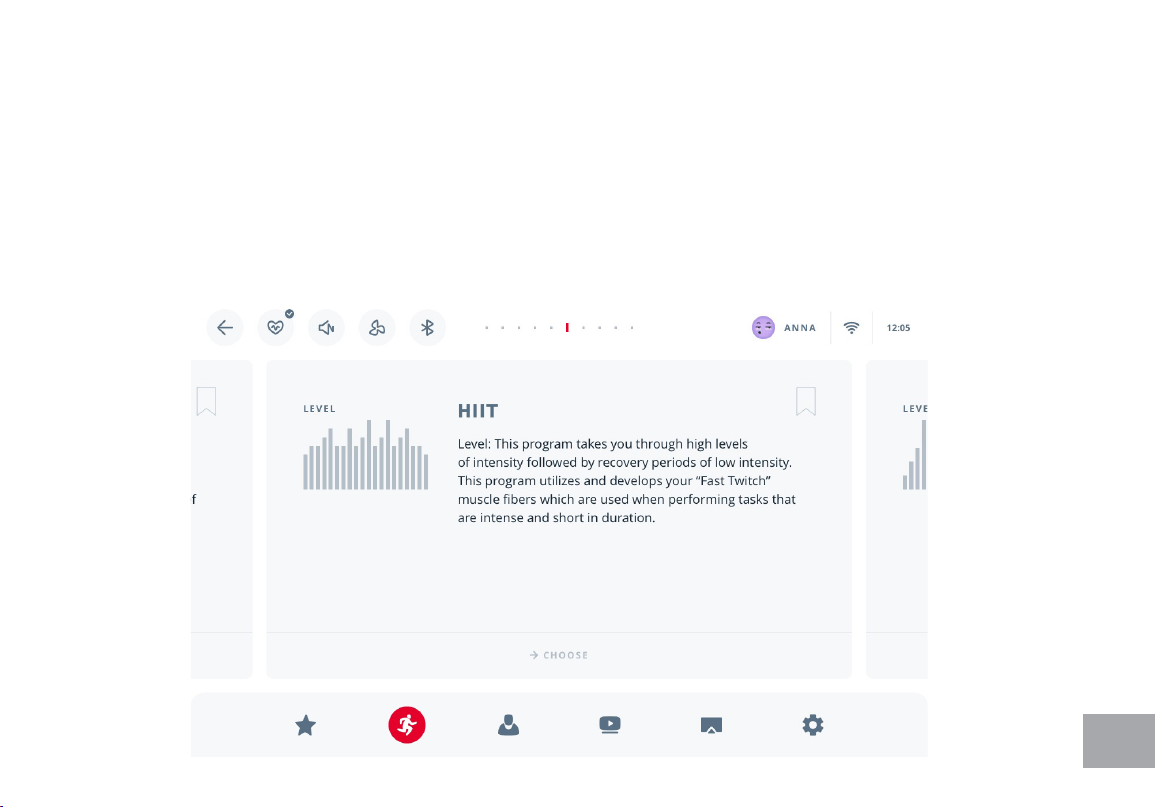

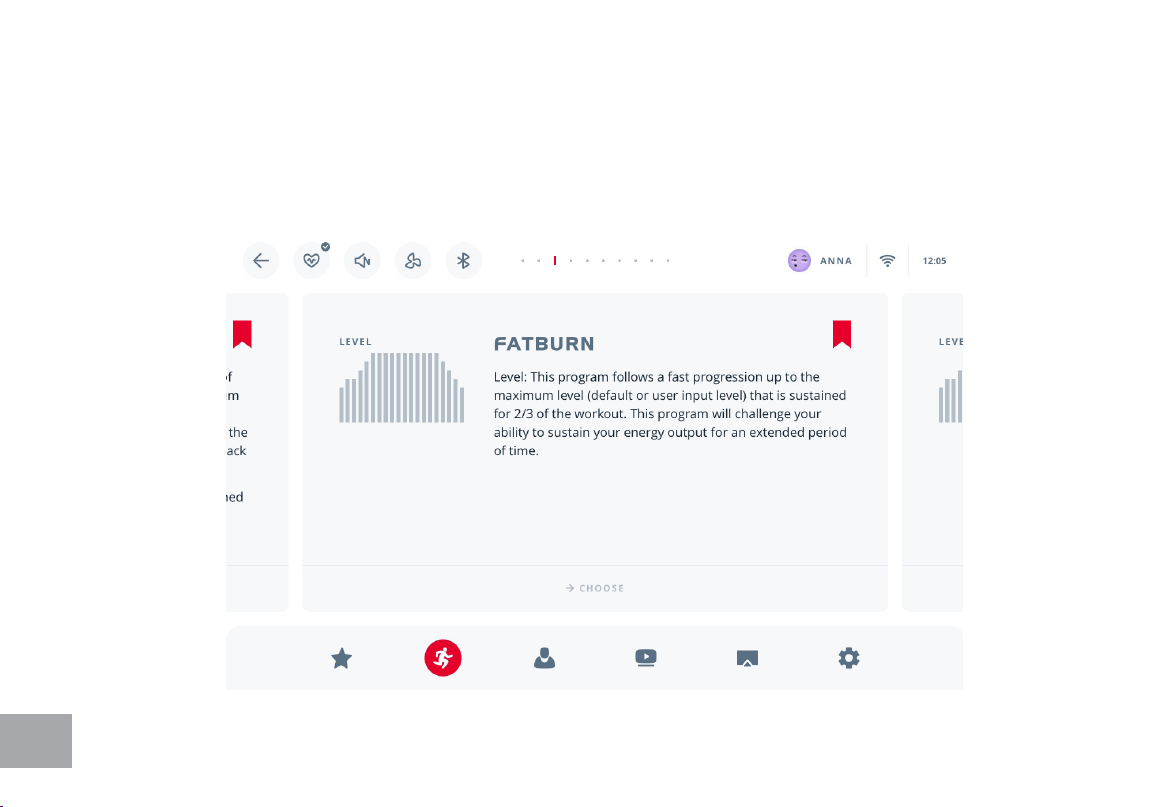

28 PROGRAMS

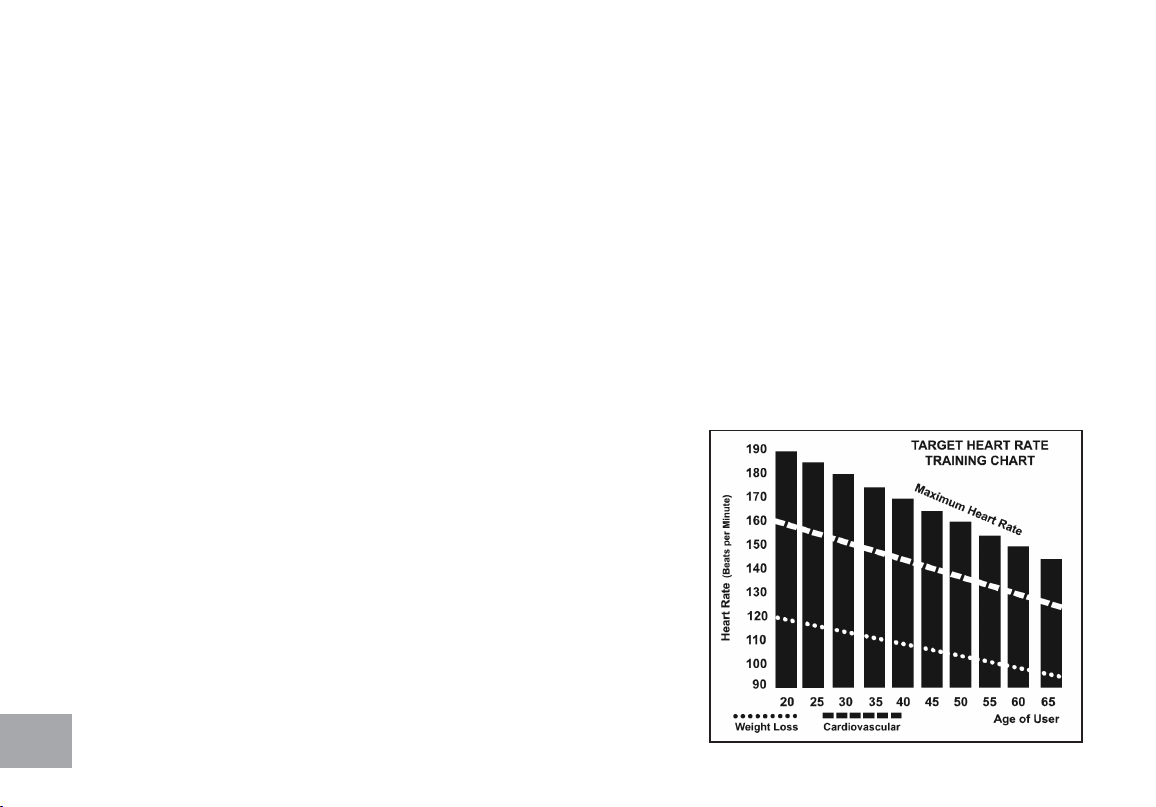

41 USING HEART RATE TRANSMITTER

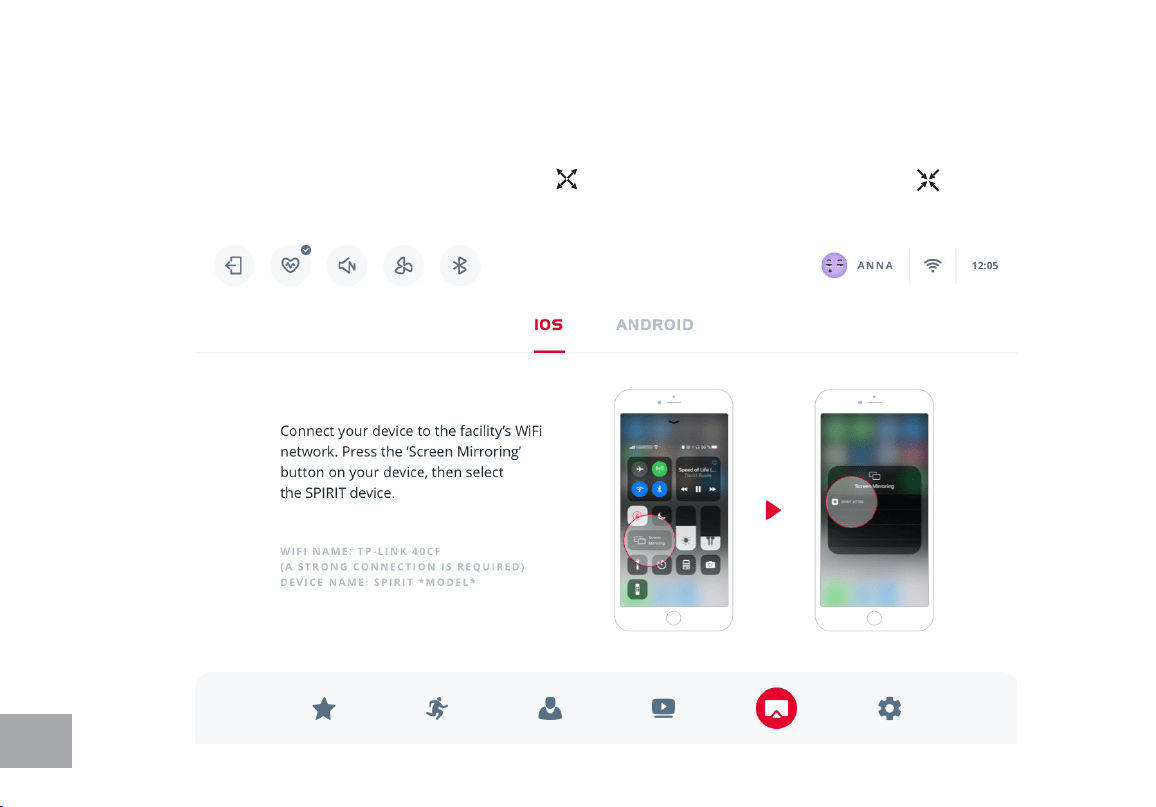

43 USING THE SPIRIT FIT APP
44 GENERAL MAINTENANCE
45 MANUFACTURER’S LIMITED WARRANTY

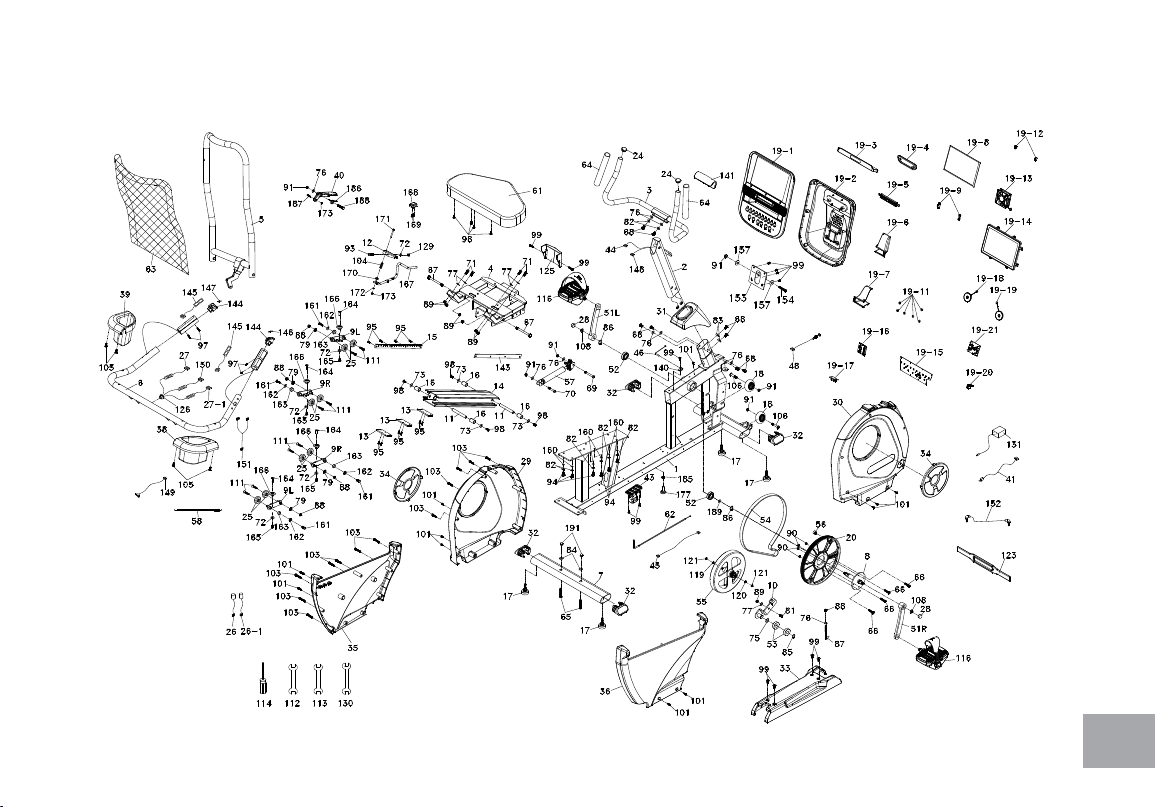

47 EXPLODED VIEW
48 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.
2

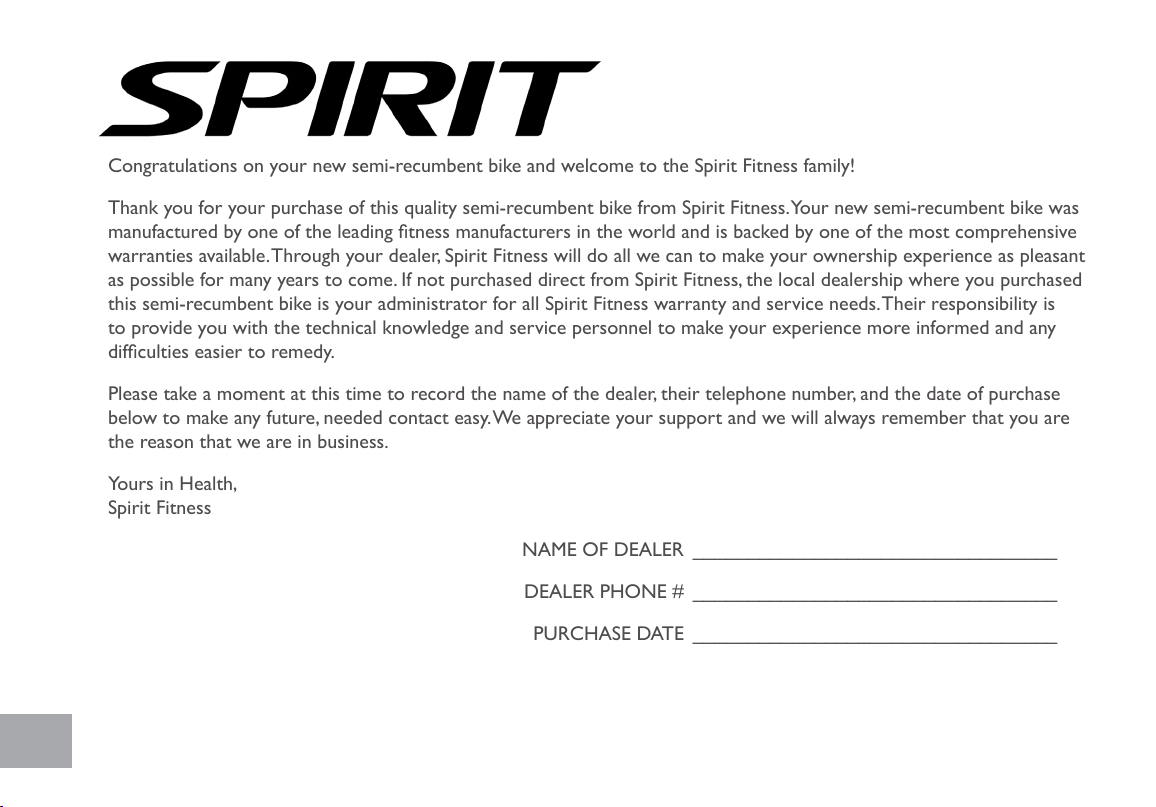

Congratulations on your new semi-recumbent bike and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality semi-recumbent bike from Spirit Fitness. Your new semi-recumbent bike was
manufactured by one of the leading tness manufacturers in the world and is backed by one of the most comprehensive
warranties available. Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant
as possible for many years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased
this semi-recumbent bike is your administrator for all Spirit Fitness warranty and service needs. Their responsibility is
to provide you with the technical knowledge and service personnel to make your experience more informed and any
difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase
below to make any future, needed contact easy. We appreciate your support and we will always remember that you are
the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _________________________________
DEALER PHONE # _________________________________
PURCHASE DATE _________________________________
3
Record Your Serial Number
Please record the serial number of this tness product in the space provided below.
Serial Number:
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to Spirit
Fitness. You can also go to www.spirittness.com/warranty under the Support tab to register online.
4
Important Safety Instructions
WARNING
When using an electrical appliance, basic precautions
should always be followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet
immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric
shock, or injury to persons, install the bike on a at level
surface with access to a 115-volt, 15-amp grounded outlet
with only the bike plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR
BETTER, WITH ONLY ONE OUTLET ON THE END:
• To reduce the risk of burns, re electric shock, or
injury to persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close super vision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord
or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return
the appliance to a service center for examination and
repair.
• Do not carry this appliance by supply cord or use
cord as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and
the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only.
• The appliance is intended for household use.
• This exercise equipment is not intended for use by
persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK
SAFETY!
5
Fitness Equipment Safety Instructions
To disconnect turn all controls to the off position, then remove the plug from the outlet.
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment may
result.
• Before beginning this or any exercise program, consult a physician. This is especially important for persons over the
age of 35 or persons with pre-existing health conditions.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Their purpose is to provide you with an approximate measurement
in relation to your target heart rate. Use of a chest transmitter strap (sold separately) is a much more accurate
method of heart rate analysis .Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your equipment.
Quality athletic shoes are recommended to avoid leg fatigue.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and
possibly others) to injury, and reduce the longevity of the equipment.
Important Electrical Instructions
WARNING
NEVER remove any cover without rst disconnecting D.C. power. If voltage varies by ten percent (10%) or more, the
performance of your tness bike may be affected. Such conditions are not covered under your warranty. If you suspect
the voltage is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this Semi-Recumbent Bike to rain or moisture. This product is NOT designed for use outdoors, near
a pool or spa, or in any other high humidity environment. The operating temperature specication is 40 to 120 degrees
Fahrenheit, and humidity is 95% non-condensing (no water drops forming on surfaces).
6
Circuit Breakers: Some circuit breakers used in homes are not rated for high inrush currents that can occur when a
equipment is rst turned on or even during use. If your equipment is tripping the house circuit breaker (even though it
is the proper current rating) but the circuit breaker on the equipment itself does not trip, you will need to replace the
home breaker with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have no
ability to control. This part is available through most electrical supply stores. Examples: Grainger part # 1D237, or available
online at www.squared.com part #QO120HM. The electrical outlet used should have a dedicated 15 amp circuit breaker.
WARNING
This product can expose you to chemicals including Toluene and Acrylamide which are known to the State of California
to cause Cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
7
Important Operation Instructions
• NEVER operate this Semi-Recumbent Bike without reading and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer
console and release the adjustment key. The computer will obey the command gradually.
• NEVER use your tness bike during an electrical storm. Surges may occur in your household power supply that
could damage tness bike components. Unplug the tness bike during an electrical storm as a precaution.
• Use caution while participating in other activities while pedaling on your Semi-Recumbent Bike; such as watching
television, reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger
pressure.
8
XBR55ENT PRE ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box;
lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four
steps. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are
in parenthesis (#) are the item number from the assembly drawing for
reference.
TOOLS INCLUDED:
12/14mm Wrench
13/15mm Wrench
Phillips Screwdriver
13/14mm Wrench
PARTS INCLUDED:
1 Main Frame
1 Console Mast
1 Rear Stabilizer
1 Seat Back Frame
1 Front Handle Bar
1 Handle Bar
1 Seat Back Cover
1 Console Mast Cover
1 Front Stabilizer Cover
1 Rear Stabilizer Cover
1 Console
1 Seat Cushion
2 Cup Holders
2 Pedals
1 Hardware Kit
9

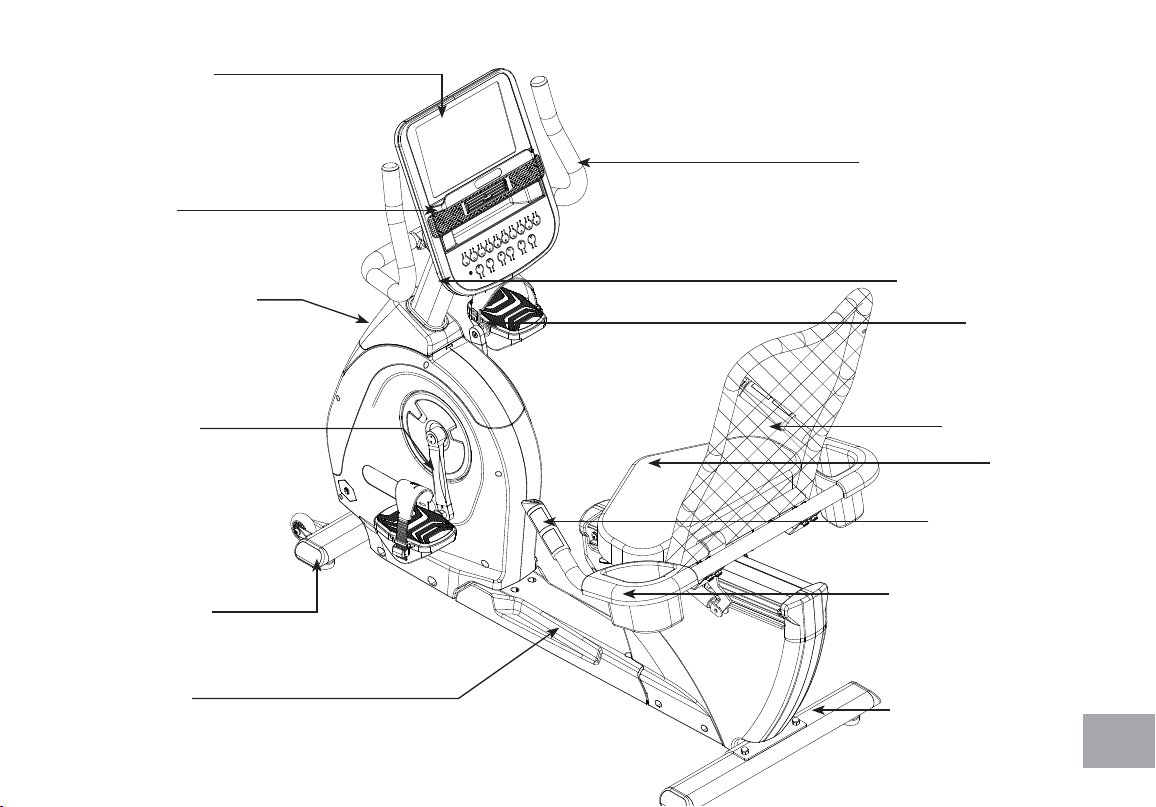

CONSOLE FAN
CONSOLE
FRONT STABILIZER
CRANK ARMS
CONSOLE MAST COVER
MAIN FRAME
PULSE GRIPS
CUP HOLDER
REAR STABILIZER
PEDALS
CONSOLE MAST
SEAT
SEAT BACK
FRONT HANDLEBARS
10

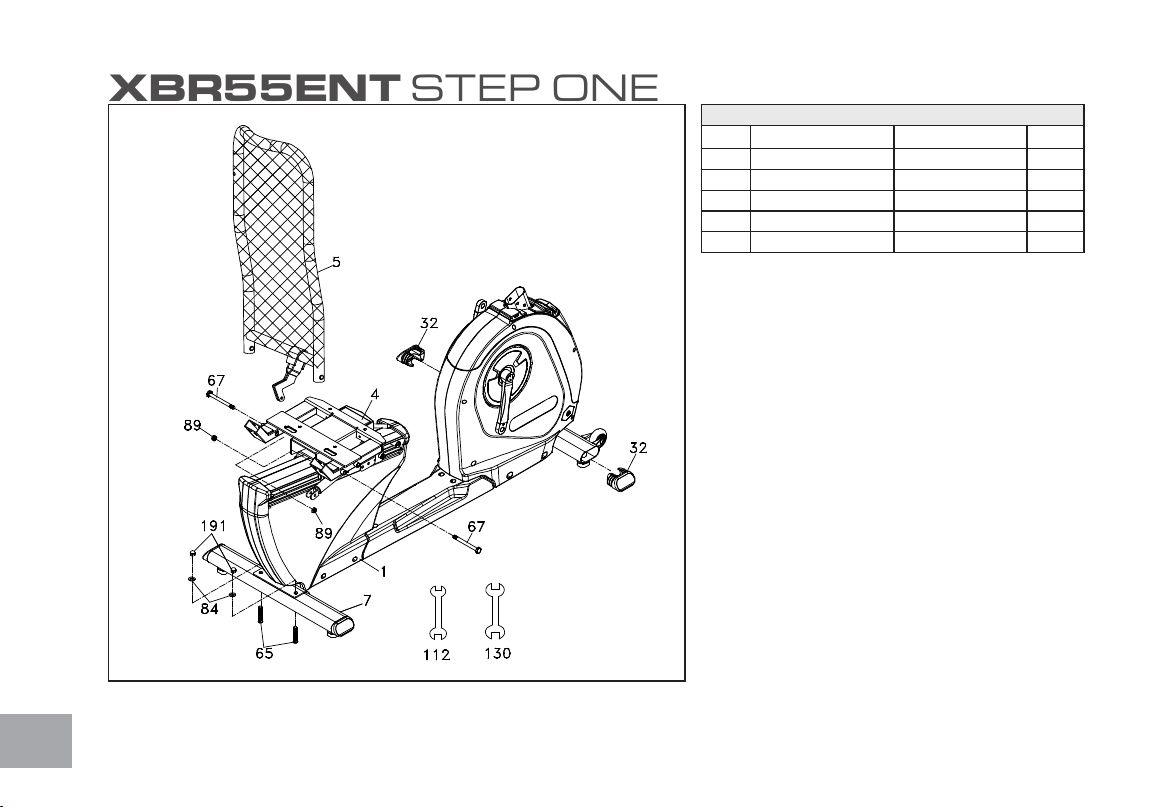

XBR55ENT STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
65 CARRIAGE BOLT
3/8”X53mm
2
67 HEX HEAD BOLT
3/8”XUNC16X4”
2
84 FLAT WASHER
Ø3/8” × Ø25 × 2T
2
89 NYLOC NUT
3/8”X7T
2
191 CAP NUT
3/8”XUNC16X12.5T
2
1. Gather HARDWARE FOR STEP 1.
2. Attach the REAR STABILIZER (7) to the
MAIN FRAME (1) with the 2 BOLTS (65)
and 2 FLAT WASHERS (84) and 2 CAP
NUTS (191). Tighten completely with the
WRENCH (112).
3. Attach the SEAT BACK (5) to the SEAT
CARRIAGE (4) of the main frame. Slide 1
BOLT (67) through each side, then attach a
NYLOC NUT (89) to each bolt. Tighten the
bolts just enough so there is no side to side play,
but freedom of movement front to back. Use the
WRENCHES provided (112 & 130).
4. Insert an END CAP (32) into each opening
of the Front Stabilizer Tube. You may need
to tap them in with a rubber mallet if they are
tight..
11

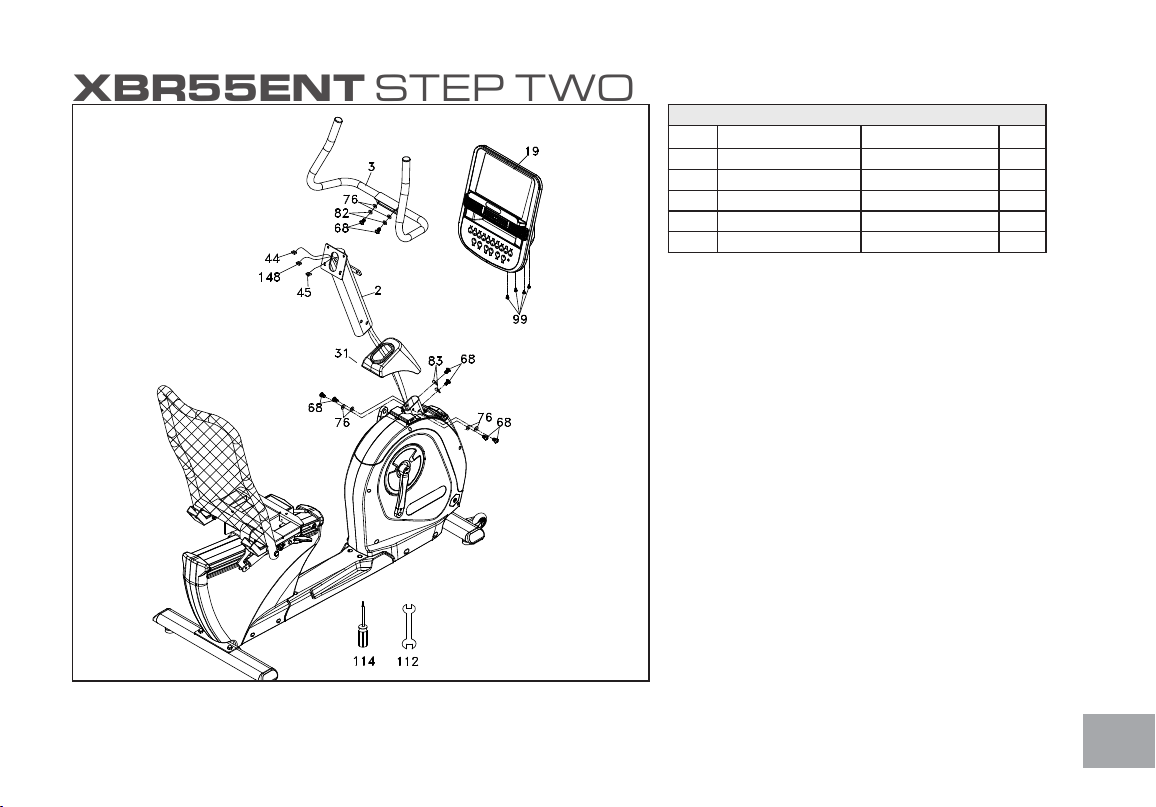

XBR55ENT STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
68 HEX HEAD BOLT
5/16”XUNC18X5/8”
8
76 FLAT WASHER
Ø5/16” × Ø18 × 1.5T
6
82 SPLIT WASHER
5/16”X1.5T
2
83 CURVED WASHER
Ø5/16” × 19 × 1.5T
2
99 PHILLIPS HEAD SCREW
M5 × 12mm
4
1. Gather HARDWARE FOR STEP 2.
2. Slide the COMPUTER CABLE
(44), HANDLEBAR RESISTANCE
CONTROL CABLE (148), and HAND
PULSE CABLE (45) through the bottom
of the CONSOLE MAST COVER (31)
and then the bottom of the CONSOLE
MAST (2). Make sure the Console Mast
Cover is correctly oriented (see illustration).
3. Install the CONSOLE MAST (2) into the
receiving tube (make sure not to pinch cables;
damage to the electronics could occur) of
the MAIN FRAME (1). Insert 2 BOLTS
(68) and 2 FLAT WASHERS (76) on
each side. Insert 2 BOLTS and 2 CURVED
WASHERS (83) on the front. Tighten all 6
bolts rmly with the WRENCH (112).
Continued on next page...
12
4. Remove the white Styrofoam pad (factory installed to
prevent bolts from being accidentally dropped into the
Console Mast Tube).
5. Attach the HANDLE BAR ASSEMBLY (3) onto the
CONSOLE MAST (2) bracket with the 2 BOLTS (68),
2 SPLIT WASHERS (82), and 2 FLAT WASHERS
(76). Completely tighten with the WRENCH (112).
Insert the COMPUTER CABLE (44), HANDLEBAR
RESISTANCE CONTROL CABLE (148), and HAND
PULSE CABLE (45) into their respective connectors in
the back of the CONSOLE ASSEMBLY (19). Attach the
console onto the mounting plate with 4 PHILLIPS HEAD
SCREWS (99). Tighten with the PHILLIPS HEAD
SCREW DRIVER (114).
13

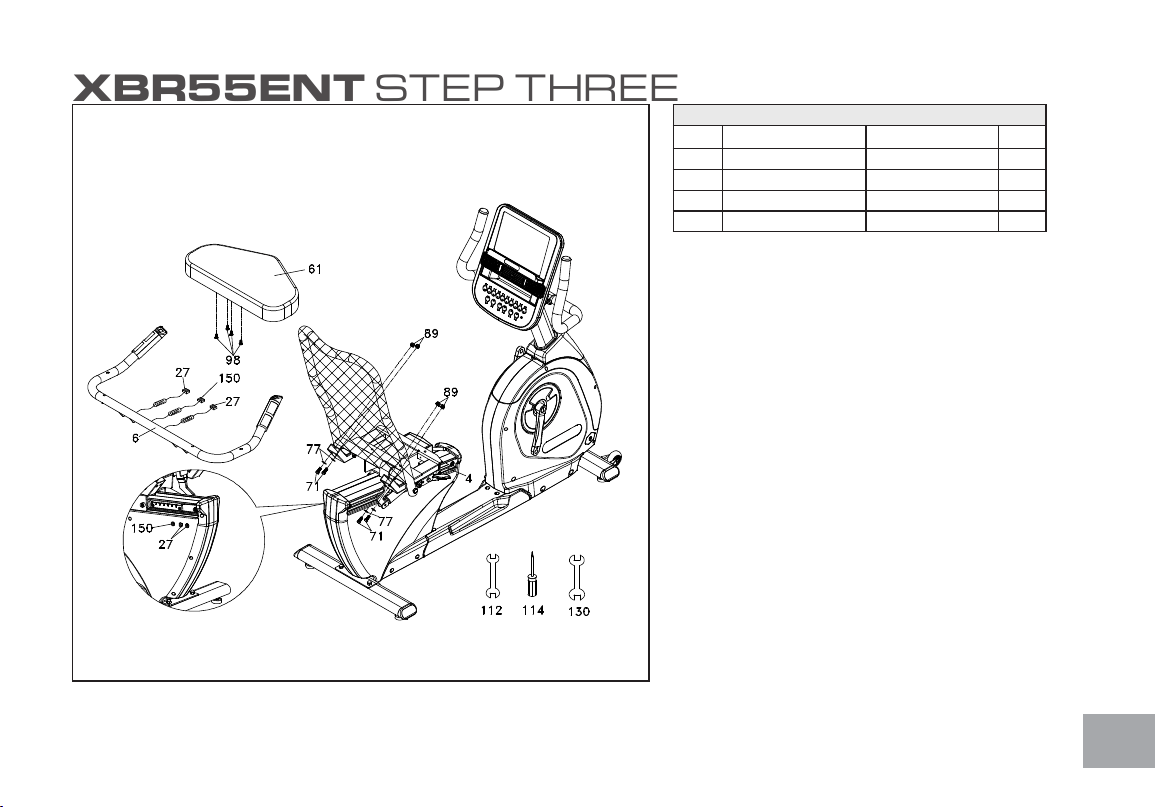

XBR55ENT STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
71 HEX HEAD BOLT
3/8” X 1-3/4”
4
77 FLAT WASHER
Ø3/8” X Ø19 X 1.5T
4
89 NYLOC NUT
3/8”X7T
4
98 PHILLIPS HEAD SCREW
M6X15MM
4
1. Gather HARDWARE FOR STEP 3.
2. Install the SEAT (61) on the SEAT
CARRIAGE (4) with 4 PHILLIPS HEAD
SCREWS (98). Tighten with the PHILLIPS
HEAD SCREW DRIVER (114).
3. Attach the SEAT HANDLE BAR (6) to
the SEAT CARRIAGE (4) with the 4 Hex
Head Bolts (71), 4 FLAT WASHERS
(77), and 4 Nyloc Nuts (89). Tighten with
the WRENCHES provided (112 & 130).
4. Plug the HAND PULSE SENSOR
CABLES (27) into the rear two holes on
the left side of the rear plastic cover. Plug the
HANDLEBAR RESISTANCE CABLES
(150) into the remaining front hole..
14
XBR55ENT STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
70 HEX HEAD BOLT
5/16”XUNC18X1-1/4”
1
76 FLAT WASHER
Ø5/16” × Ø18 × 1.5T
1
91 NYLOC NUT
5/16”X6T
1
105 SHEET METAL SCREW
4X16MM
4
1. Gather HARDWARE FOR STEP 4.
2. Install the GAS CYLINDER (57) on the SEAT
BACK FRAME (5) with 1 BOLT (70), 1 FLAT
WASHER (76) and 1 NYLOC NUT (91) by
using the WRENCHES provided (112 & 113).
3. Attach the PEDALS (116L, 117R) to the
CRANK ARMS (51L, 51R). Tighten with
the WRENCH (113). Remember that the
LEFT PEDAL has a reverse thread and
will be threaded onto the Crank arm in a
COUNTERCLOCKWISE motion. There is an
“L” stamped in the end of the threaded post of
the left pedal and an “R” in the right. Make sure
to tighten the pedals as rmly as you can. It may
be necessary to re-tighten the pedals if you feel a
thumping while pedaling the bike. A thumping or
clicking noise is usually caused by loose pedals.
4. Attach the DRINK BOTTLE HOLDERS (39L
& 38R) to the sides of the SEAT HANDLE
BAR (6) with 4 SHEET METAL SCREWS
(105). Tighten with the PHILLIPS HEAD
SCREW DRIVER (114)
15
XBR55ENT CONSOLE OPERATION
Easy-Touch
Control Keys
Swivel Fan to
keep you cool
Phone and Tablet
Reading Rack
Integrated Speakers
for MP3 Player
Convenient cargo
compartment for
keys, phone, or MP3
player
Touchscreen
Display
16
POWER
When the power cord is connected to the tness bike, the console will automatically power up.
Quick Start
This is the quickest way to start a workout. After the console powers up you just press START
WORKOUT on the screen, or press the Start key to begin. This will initiate the Quick Start
mode. In Quick Start the Time will count up from zero and the workload may be adjusted manually
by pressing the Level Up/ Down buttons. The dot matrix display will have only the bottom row lit
at rst.
There are 20 levels of resistance available for plenty of variety. The rst 5 levels are very easy
workloads and the changes between levels are set to a good progression for de-conditioned
users. Levels 6-10 are more challenging, but the increases in resistance from one level to the next
remain small. Levels 11-15 start getting tough as the levels jump more dramatically. Levels16-20 are
extremely hard and are good for short interval peaks and elite athletic training.
Basic Information
The Stop button actually has several functions. Pressing the Stop key once during a program will
pause the program for 5 minutes. If you need to get a drink, answer the phone or any of the many
things that could interrupt your workout, this is a great feature. To resume your workout during
Pause, just press the Start key. If the Stop button is pressed twice during a workout, the program
will end and the console will display your Workout Summary (Total time, Avg. Speed, Avg. Watts, Avg.
17
HR, total Laps). If the Stop key is held down for 3 seconds or a third time during the program, the
console will perform a complete Reset. During data entry for a program the Stop key performs a
previous screen or segment function. This allows you to go back to change programming data.
Programming The Console
Each of the programs can be customized with your personal information and changed to suit your
needs. Some of the information asked for is necessary to ensure the readouts are correct. You will
be asked for your Age and Weight. Entering your Age ensures that the Heart Rate bar graph
shows the correct number. Your Age is also necessary during the Heart Rate control program to
ensure the correct settings are in the program for your Age. Otherwise the work settings could be
too high or low for you; entering your Weight aides in calculating a more correct Calorie reading.
Although we cannot provide an exact calorie count we do want to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at home, are not
accurate and tend to vary widely. They are meant only as a guide to monitor your progress from workout to workout.
The only way to measure your calorie burn accurately is in a clinical setting connected to a host of machines. This is
because every person is different and burns calories at a different rate. Some good news is that you will continue to
burn calories at an accelerated rate for at least an hour after you have nished exercising!
18
CHARGE PORTABLE DEVICES WITH USB PORT
You can charge your personal device during your workout using the tness equipment’s on-console
USB port. To charge your mobile electronics make sure the tness equipment power is on.
Step 1: Connect your USB charging cable (not included) to the USB Power Port and to your device.
Step 2: Check to make sure your device icon indicates it is charging.
NOTE:
• USB charging cable is not included, make sure compatible USB charging cable is being used.
• The USB port on the console is capable of powering USB devices. It provides up to 5Vdc/1.0
amp of power and meets USB 2.0 regulations. You will not be able to save your workout data to
a USB via this port; it is used for charging purposes only.
WIFI SETUP
Once the console is powered on, connect to the available WiFi network either by pressing the
Signal icon on the top right corner or from the SETTINGS menu on the bottom right corner.
Without WiFi, saving workout data to the cloud, using apps and casting content will not work. If
WiFi connection is not set up, please set data and time manually. If you change your mind later, you
can always nd WiFi settings in the bottom right corner on the screen.
19
• Tap on DISPLAY BRIGHTNESS to adjust the brightness of the screen.
• Tap on WIFI for internet connection settings.
• Tap on BLUETOOTH to pair with the Bluetooth devices including the Bluetooth type of chest straps,
earphones, or speakers.
• Tap on SOFTWARE to check the current software version or to update, if a new one is available. Press
• Update to upload and install the latest version. Be sure to be connected to the Internet.
• Tap on DAT E or TIME to change the machine time settings. The time and date settings dene the time
information in the workout summary. Both 12 and 24 hours formats are available.
• Tap on CHILD LOCK to lock the screen.
• Tap on UNITS to switch between imperial and metric system.
• Tap on DISPLAY MODE to turn ON/OFF the screen.
SETTINGS
20
To create a new prole, press + button on the starting screen. If you already have a Spirit APP
account, open the app and select CONNECT TO MACHINE. Then use your phone’s camera to
scan the QR code that appears on the screen. This action will not only upload your already existing
personal info to the machine, but also link two proles together, so your workout history will be
fully displayed in the Spirit app. One Spirit app account cannot be linked to multiple proles on one
machine.
If you do not have a Spirit account, press the I DON’T button to continue and build one by lling
in the form.

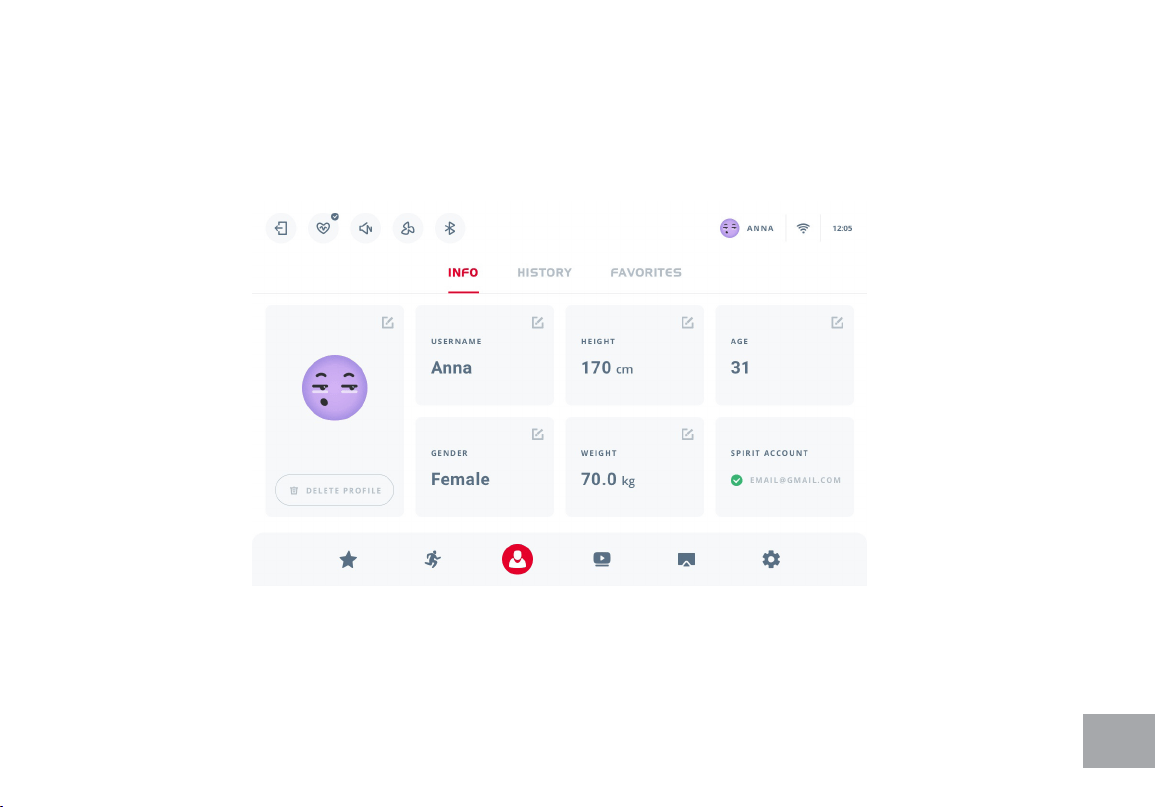

There are 3 tabs in the Prole section: Info, History, and Favorites. Creating a prole lets your
machine remember your physical data, so you don’t need to provide it every time you want to work
out. Your personal data can be found in the INFO tab. To edit, tap on any information eld and make
changes, then press Save. If you haven’t linked your Spirit account to the local machine prole, you
can also do it here by pressing “Spirit Account” eld.
Ten records of the latest activity can be found in HISTORY tab. Workout history only shows
work- outs that were completed by the current user. Tap on the record preview for details. All
the records are available in the Spirit app account, if the prole is linked to the Spirit app account.

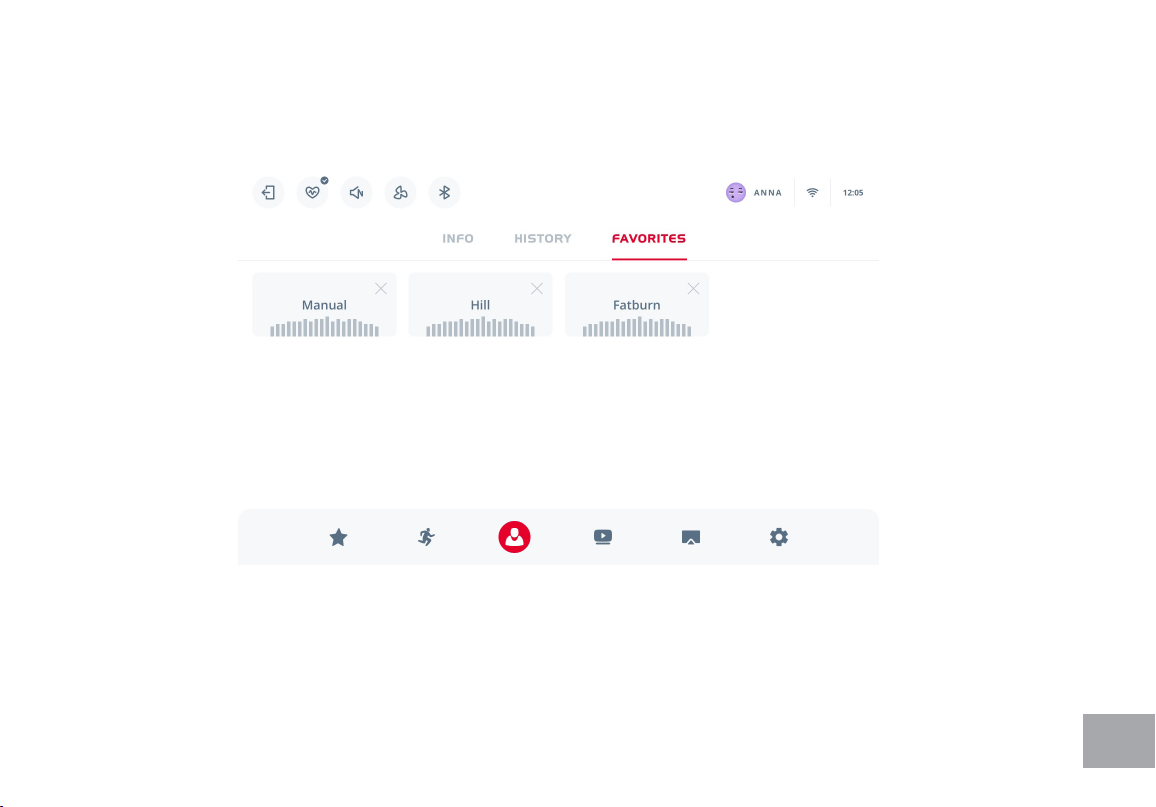

FAVORITES tab is where all the programs that were labeled as favorites by the current user can
be seen and deleted.
Different users can choose different unit systems, select their personal favorite programs and save
their own templates.
PROFILE
21
22
Homescreen
User data
setting
Quick Start
Wi
Settings
Current
User
Activity
Overview
Fan
on/o
Pair Bluetooth
Device
Adjust
volume
Pair HR
device
Log out
Workout
Programs
Proles
Internet
& Apps
Screen
Mirroring
Settings

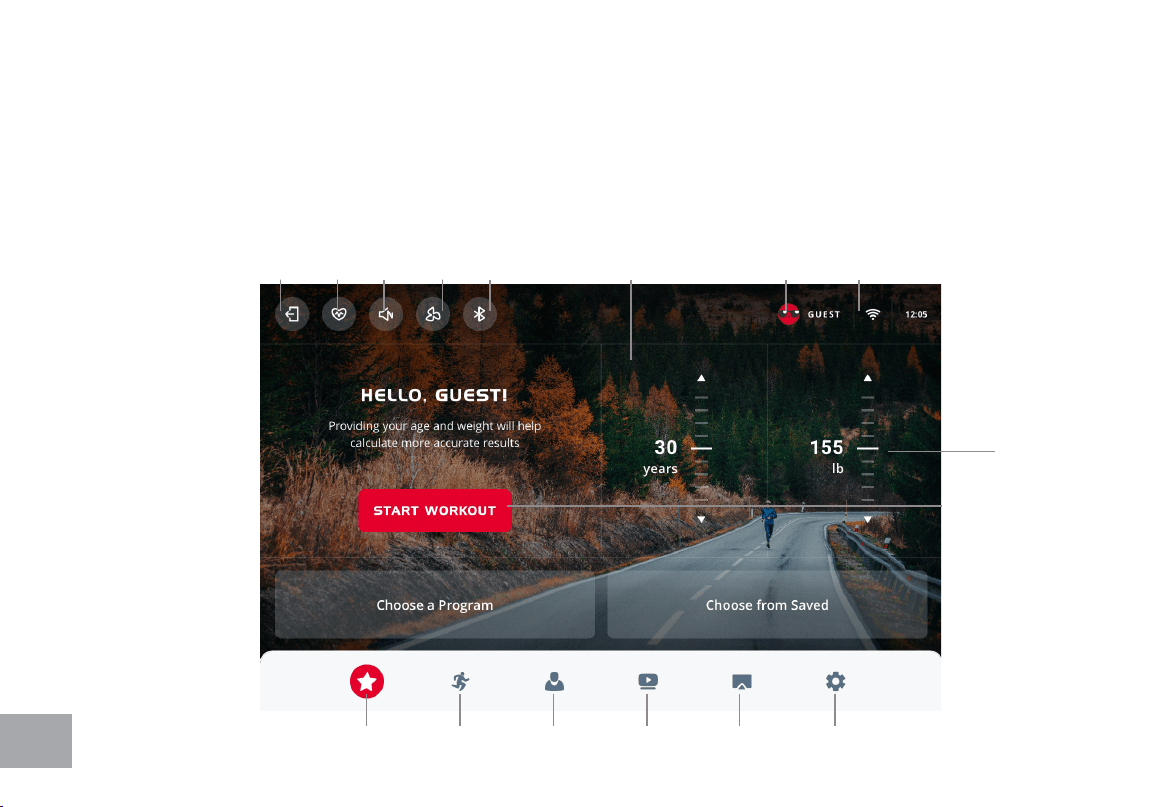

HOMESCREEN
The Homescreen provides activity overview and suggests shortcuts to the training options.
If in Guest mode, you can provide your physical data here, which will help the machine more
accurately calculate your workout summary. Use scales or arrows to adjust your age and weight.
Start Workout button starts the workout immediately.
23
In this section there are a variety of third party apps to keep you entertained during your workout.
To use them, make sure your machine is connected to WiFi (see page 18 for instructions). Then
choose the app you want to use by clicking on it. Note that some apps may require a subscription
to access. Press to enter full screen mode. Press to exit full screen mode. Press ⌂ to
choose another app.
INTERNET & APPS
24
To display various content from your smartphones or tablets on the machine console, open this
section and follow the instructions provided, depending on whether you use an iOS or an Android
device. Once the mirroring has started, press to enter full screen mode. Press to exit full
screen mode.
SCREEN MIRRORING
25
WORKOUT VIEWS
Once the workout has started, after the short countdown the console will appear in its workout
mode. Warm-up and cool-down phases may be skipped by pressing Skip.
The panel on the left is xed and shows your current WORKOUT STATS. More related stats
can be revealed by pressing on the + icon. LEVEL CONTROLS can be adjusted by tapping on
arrows in the right panel. The icons on the top panel are the tools available during your workout:
volume, fan and WiFi. When the workout is paused, you can also access HR device pairing settings.
The bottom panel is with 3 views from the left to the right:
• GOAL VIEW displays the parameter that denes your workout nish (for example, for prole
programs it is time counting down; for distance programs it is distance left).
• PROFILE VIEW shows your workout proles and your current position in them.
• TRACK VIEW helps to imagine yourself making laps on a 1/4 mile track and shows your
progress depending on distance covered.
INTERNET and SCREEN MIRRORING work the same way as in non-workout mode. To pause
or nish the workout, press Stop on the bottom right corner.
26
Goal View:
Profile View:
27
Track View
After the workout is nished, the workout
summary will appear. Slide to the left to
get more details or press Done to go
back to the Home screen. You can also
save the completed program as a template
from here, if you press Save as button. The
workout record will appear in History tab
of the Prole section.
28

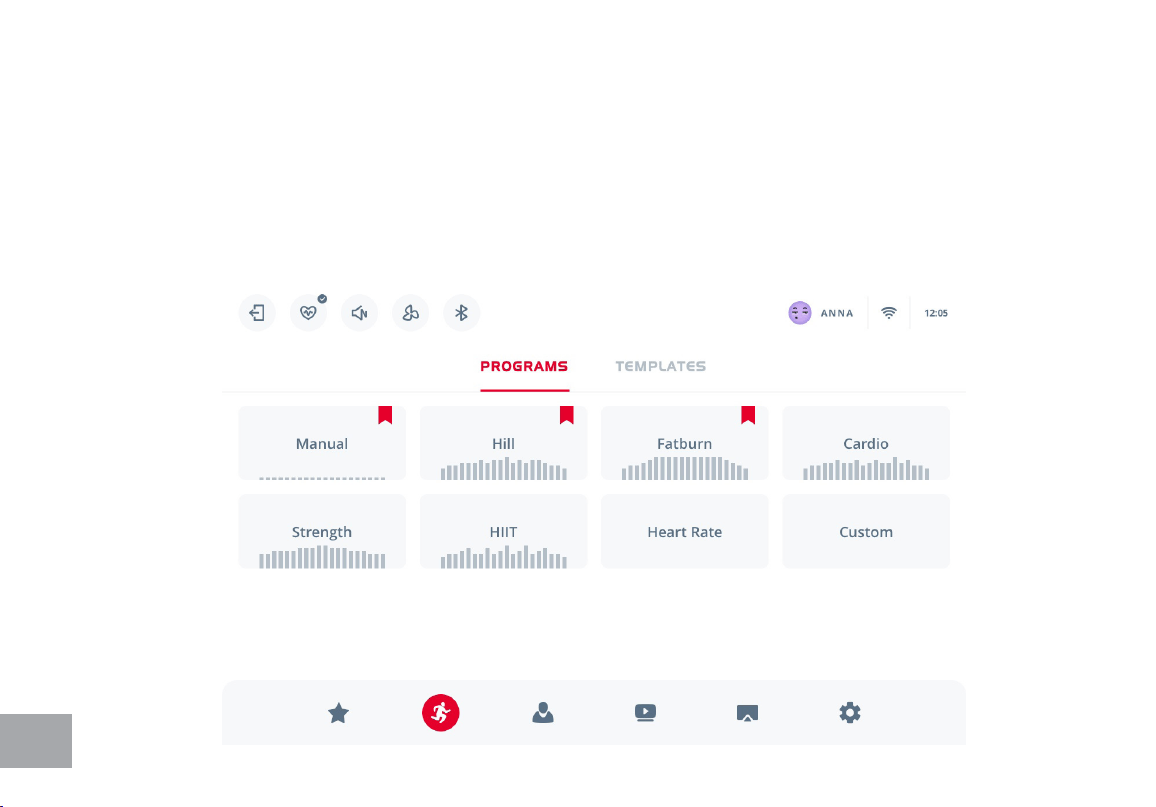

In this section, there are 2 program categories available: Programs (programs with predened level
changing proles) and Templates (regular programs, saved with your personal adjustments).Tap on the
category names to switch between them.
To get more info on each program, tap on the program preview. In this view you can scroll to the side
to see all the program descriptions of the selected category. Press CHOOSE to select and adjust a
program.
WORKOUT PROGRAMS
29
Any program can be labeled as FAVORITE.
Favorite programs appear on the Homescreen, so you can access them anytime you want.
30

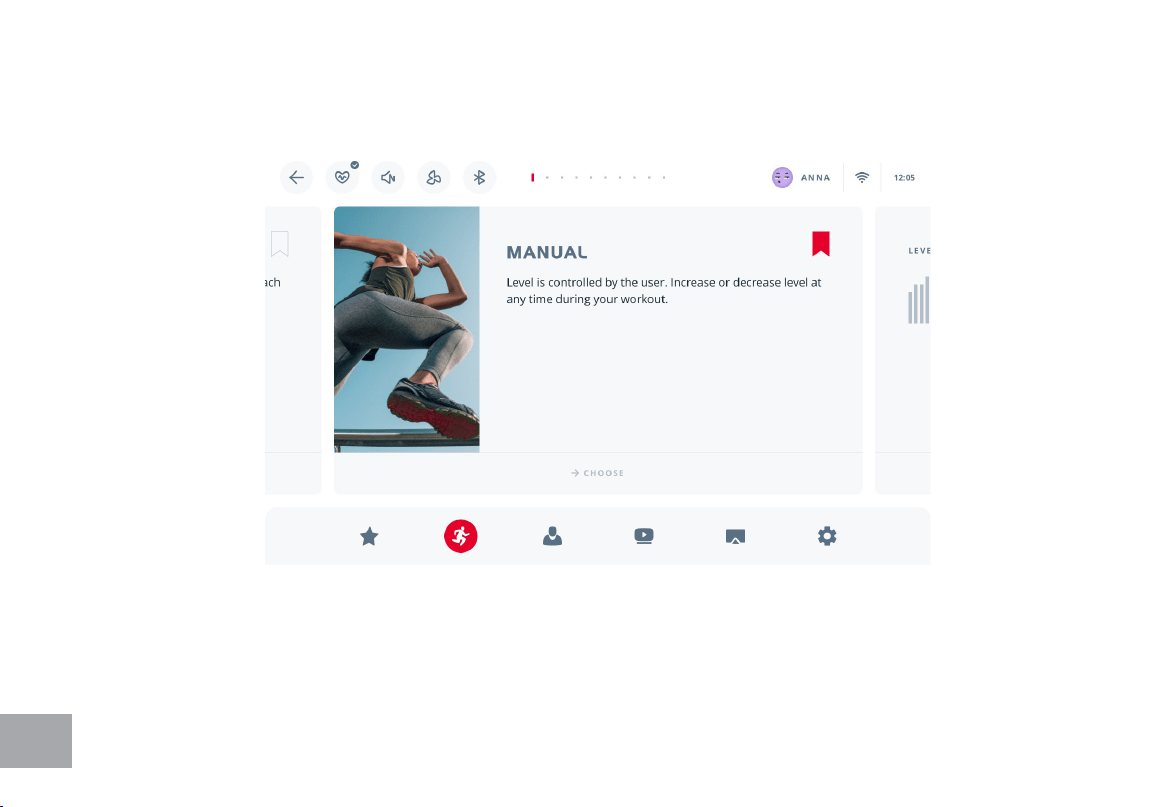

MANUAL program requires a time frame set before starting. Use the scale or arrows to adjust
target time. Level is adjusted manually while running. Press START to begin workout.
31
PRESET PROGRAMS
The elliptical has ve different programs that have been designed for a variety of workouts. These
ve programs have factory preset work level proles for achieving different goals.
HILL program follows a triangle or pyramid type of gradual progression from approximately 10% of
maximum effort (the level that you chose before starting this program) up to a maximum effort
which lasts for 10% of the total workout time, then a gradual regression of resistance back to
approximately 10% of maximum effort..
32
FAT BURN program follows a quick progression up to the maximum resistance level (default or
user input level) that is sustained for 2/3 of the workout. This program will challenge your ability
to sustain your energy output for an extended period of time.
33
CARDIO program presents a quick progression up to near maximum resistance level (default or
user input level). It has slight fluctuations up and down to allow your heart rate to elevate, and then
recover repeatedly, before beginning a quick cool down. This will build up your heart muscle and
increase blood flow and lung capacity.
34
STRENGTH program has a gradual progression of resistance up to 100% of maximum effort that
is sustained for 25% of workout duration. This will help build strength and muscular endurance in
the lower body and glutes. A brief cool down follows.
35
HIIT, OR HIGH INTENSITY INTERVAL Training, program takes you through high levels of intensity
followed by recovery periods of low intensity. This program utilizes and develops your “Fast Twitch”
muscle fibers which are used when performing tasks that are intense and short in duration.
These deplete your oxygen level and spike your heart rate, followed by periods of recovery and
heart rate drop to replenish oxygen. Your cardiovascular system gets programmed to use oxygen
more efficiently.
36
CUSTOM program allows you to set the level variations within a program profile. Once the profile
is defined, choose target time and maximum level, so the intensity adapts accordingly. Every
program can be saved as a template once adjusted or once completed. Press Save as to save the
program with the current settings. You can manage saved programs in TEMPLATES. To delete a
template, tap on it, then press Delete in the top right corner. Maximum of 12 template programs
can be stored. A Template program is only available to a user who created it.
37

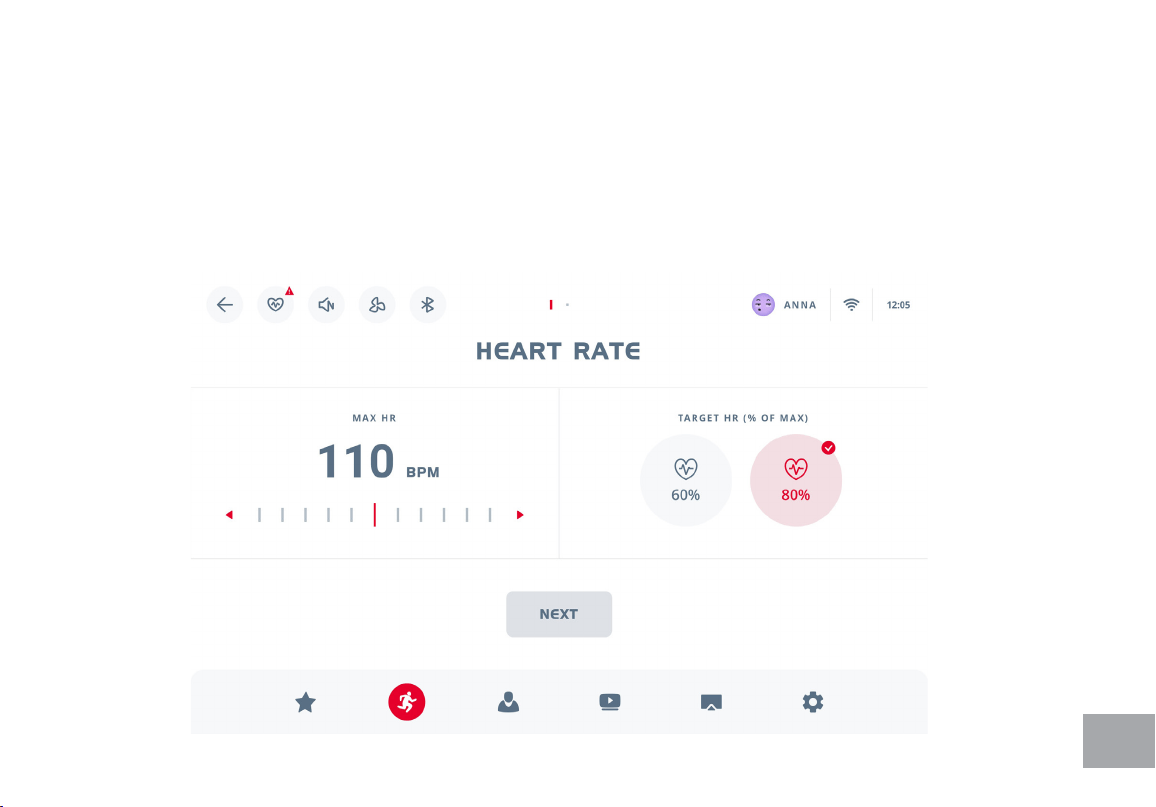

HEART RATE PROGRAMS
Note: You must wear a heart rate transmitter strap for these programs.
Both programs operate the same, the only difference is that HR1 is set to 60% and HR2 is set to
80% of the maximum heart rate. They both are programmed the same way. To start an HR
program select the HR1 or HR2 program, then the Next button and follow the directions on the
screen.
38
Heart Rate Programs
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of exercising
comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With
the proper use of a heart rate monitor, many people nd that their usual choice of exercise intensity
was either too high or too low and exercise is much more enjoyable by maintaining their heart rate
in the desired benet range.
To determine the benet range in which you wish to train, you must rst determine your Maximum
Heart Rate. This can be accomplished by using the following formula: 220 minus your age. This will
give you the Maximum Heart Rate (MHR)for someone of your age. To determine the effective heart
rate range for specic goals you simply calculate a percentage of your MHR. Your Heart rate training
zone is 50% to 90% of your maximum heart rate. 60% of your MHR is the recommended for
burning fat while 80% is recommended for strengthening
the cardio vascular system. This 60% to 80% is the zone to
stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute (60% of maximum)
180 X .8 = 144 beats per minute (80% of maximum)
So for a 40 year old the training zone would
be 108 to 144 beats per minute.
39
If you enter your age during programming the console will perform this calculation automatically.
Entering your age is used for the Heart Rate programs. After calculating your MHR you can decide
upon which goal you would like to pursue.
The two most popular reasons for, or goals, of exercise are cardiovascular tness (training for the
heart and lungs) and weight control. The black columns on the chart above represent the MHR
for a person whose age is listed at the bottom of each column. The training heart rate, for either
cardiovascular tness or weight loss, is represented by two different lines that cut diagonally
through the chart. A denition of the lines’ goal is in the bottom left-hand corner of the chart. If
your goal is cardiovascular tness or if it is weight loss, it can be achieved by training at 80% or 60%,
respectively, of your MHR on a schedule approved by your physician. Consult your physician before
participating in any exercise program.
With all Spirit Fitness Heart Rate programs you may use the heart rate monitor feature without
using the Heart Rate program. This function can be used during manual mode or during any of the
nine different programs. The Heart Rate program automatically controls resistance at the pedals.
40
Rate of Perceived Exertion
Heart rate is important but listening to your body also has a lot of advantages. There are more
variables involved in how hard you should workout than just heart rate. Your stress level, physical
health, emotional health, temperature, humidity, the time of day, the last time you ate and what you
ate, all contribute to the intensity at which you should workout. If you listen to your body, it will tell
you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish
physiologist G.A.V. Borg. This scale rates exercise intensity from 6 to 20 depending upon how you
feel or the perception of your effort.
The scale is as follows:
Rating Perception of Effort
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
You can get an approximate heart rate level for each rating by simply adding a zero to each rating. For example a
rating of 12 will result in an approximate heart rate of 120 beats per minute. Your RPE will vary depending up the
factors discussed earlier. That is the major benet of this type of training. If your body is strong and rested, you will
feel strong and your pace will feel easier. When your body is in this condition, you are able to train harder and the
RPE will support this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition,
your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day.
41

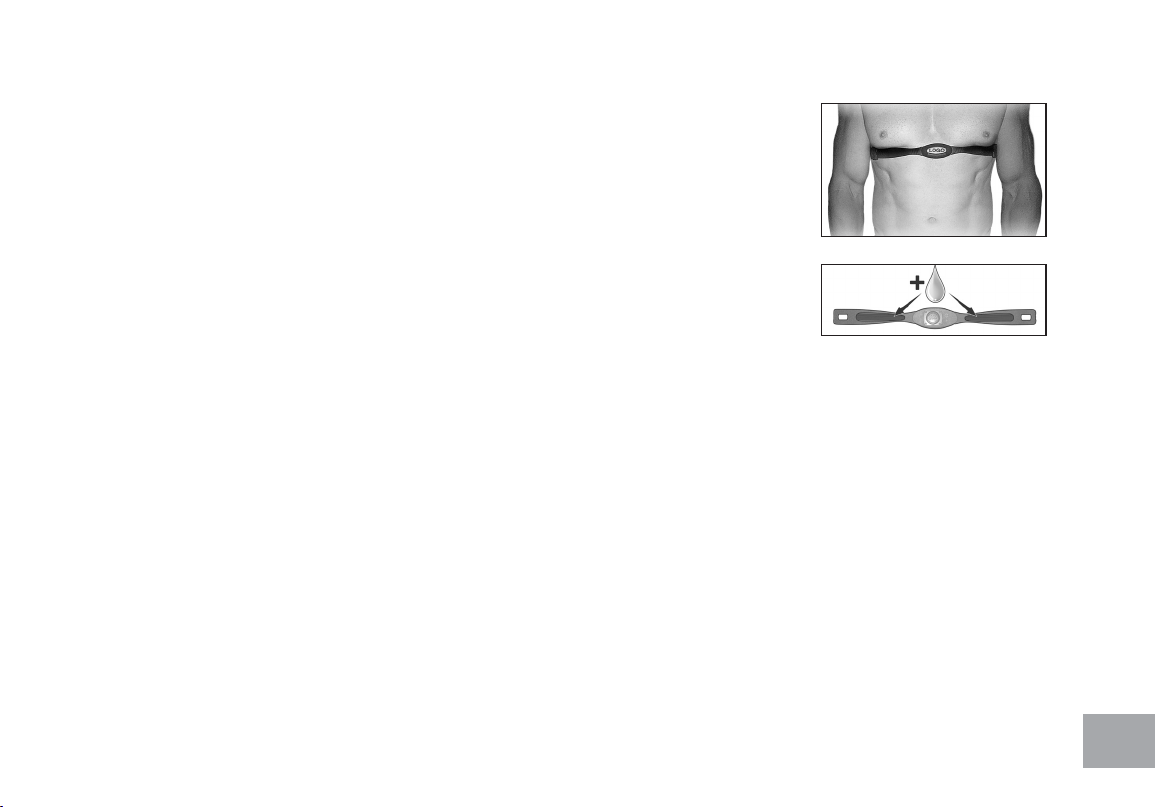

Wearing The Chest Strap
1. Attach the transmitter to the elastic strap using the interlocking key.
2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain
comfortable.
3. Position the transmitter with the logo centered in the middle of your torso facing away
from your chest (some people must position the transmitter slightly left of center).
Attach the nal end of the elastic strap by inserting the round end and, using the locking
parts, secure the transmitter and strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval
areas on the reverse side of the belt and both sides of the transmitter). It’s also recommended that you wear the
transmitter strap a few minutes before your work out. Some users, because of body chemistry, have a more difcult
time in achieving a strong, steady signal at the beginning. After “warming up”, this problem lessens.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong steady signal. The
length of range may vary somewhat but generally stay close enough to the console to maintain good, strong, reliable
readings. Wearing the transmitter directly on bare skin assures you of proper operation. If you wish, you may wear
the transmitter over a shirt. To do so, wet the areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it automatically deactivates when it
does not receive any activity. Although the transmitter is water resistant, moisture can have the effect of creating false signals, so you should take
precautions to completely dry the transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours). The replacement
battery is Panasonic CR2032.
42
Erratic Operation
Caution! Do not use this Semi - Recumbent Bike for Heart Rate programs unless a steady, solid
Actual Heart Rate value is being displayed. High, wild, random numbers being displayed indicate a
problem.
Areas to look for interference which may cause erratic heart rate:
1. Treadmill not properly grounded - Proper grounding is a must!
2. Microwave ovens, TV’s, small appliances, etc.
3. Fluorescent lights.
4. Some household security systems.
5. Perimeter fence for a pet.
6. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try
wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is right
side up.
7. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source,
turning the whole machine 90 degrees may de-tune the interference.
8. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your dealer.
43
Using the Spirit App
In order to help you achieve your exercise goals, your new exercise machine comes equipped with a
Bluetooth® transceiver that will allow it to interact with selected phones or tablet computers via the
Spirit App.
Just download the free Spirit App from the Apple Store or Google Play, and then follow the
instructions in the App to sync with your exercise machine. Now you can view current workout
data in three different Display screens on your device. You can also easily switch back and forth from
the workout display view to internet/social media/email sites via icons on the display screen. When
your workout is nished, the data is automatically saved to the built-in personal calendar for future
reference.
The Spirit App also allows you to sync your workout data with one of many tness cloud sites.
Syncing the App with your exercise machine:
1. Download the App.
2. Open the App on your device (phone or tablet) and make sure Bluetooth® is enabled on your device
(phone or tablet).
3. In the App click the icon in the top left corner to search for your Spirit equipment (shown right).
4. After the equipment is detected, click Connect. When the App and equipment are synced, the Bluetooth® icon on the
equipment’s console display will light up. You may now start using your new Spirit Fitness product.
5. When you workout is nished, the data is automatically saved and you will be prompted to sync your data with each
available tness cloud site. Please note you will have to download the applicable compatible tness App, in order for
the icon to be active and available.
*Note: Your device will need to be running on a minimum operating system of iOs 7 or Android 4.4 for the Spirit App to operate
properly.
44
GENERAL MAINTENANCE
1. Wipe down all areas in the sweat path with a damp cloth after each workout.
2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons:
I. The hardware was not sufciently tightened during assembly. All bolts that were installed
during assembly need to be tightened as much as possible. It may be necessary to use a larger wrench than the
one provided if you cannot tighten the bolts sufciently. I cannot stress this point enough; 90% of calls to the
service department for noise issues can be traced to loose hardware.
II. The crank arm nut needs to be retightened
III. If squeaks or other noises persist, check that the unit is properly leveled. There are 2 leveling pads on the
bottom of the rear stabilizer, use a 14mm wrench (or adjustable wrench) to adjust the levelers.
45
Recumbent Bike Warranty - Effective February 4, 2021
Spirit Fitness warrants all its Semi - Recumbent Bike parts for a period of time listed below from the date of retail sale, as determined by sale receipt,
or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or
remanufactured parts, at Spirit Fitness’ option, and technical support to our independent dealers and servicing organizations. In the absence of a dealer
or service organization, these warranties will be administered by Spirit Fitness directly to a consumer. The warranty period applies to the following
components:
Warranty
Residential
Frame
Lifetime
Brake
Lifetime
Parts
10 Years
Labor
1 Year
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase to
validate the manufacturer’s limited warranty.
2. Proper use of the tness bike in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the tness bike and with all local electric codes.
4. Proper connection to a grounded power supply of sufcient voltage, replacement of blown fuses, repair of loose connections or defects in house
wiring.
5. Expenses for making the tness bike accessible for servicing, including any item that was not part of the tness bike at the time it was shipped
from the factory.
6. Damages to the tness bike nish during shipping, installation or following installation.
7. Routine maintenance of this unit as specied in this manual.
EXCLUSIONS
This warranty does not cover the following:
CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING
FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to
you.
1. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period, for
tness bike not requiring component replacement, or tness bike not in ordinary household use.
2. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of parts other than original Spirit
Fitness parts; or external causes such as corrosion, discoloration of paint or plastic, alterations, modications, abuse, misuse, accident, improper
maintenance, inadequate power supply, or acts of God.
46
3. Products with original serial numbers that have been removed or altered.
4. Products that have been: sold, transferred, bartered, or given to a third party.
5. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to request proof of purchase if no
warranty record exists for the product.
6. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
7. Product use in any environment other than a residential setting.
8. Warranties outside of North America may vary. Please contact your local dealer for details.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined
by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your best interest to obtain and
keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to state. Service under this
warranty must be obtained by following these steps, in order:
9. Contact your selling authorized Spirit Fitness dealer. OR
10. Contact your local authorized Spirit Fitness service organization.
11. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
12. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product through one of our
authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is shipped to a service center freight charges to and
from the service center will be the customer’s responsibility. For replacement parts shipped while the product is under warranty, the customer
will be responsible for shipping and handling charges. For in-home service, the customer will be responsible for a trip charge. There will be an
additional trip charge if the customer is located over 100 miles from the nearest service center.
13. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for damages in shipping.
Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT A RETURN
AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
14. For any further information, or to contact our service department by mail, send your correspondence to:
Spirit Fitness, Inc.
P. O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Fitness, Inc. This
warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
47
48
XBR55ENT Parts List
1 Main Frame 1
2 Console Mast 1
3 Mast Handle bar Assembly 1
4 Seat Carriage 1
5 Seat Back Frame 1
6 Seat Handle Bar 1
7 Rear Stabilizer 1
8 Crank Axle 1
9L Seat Wheel Adjustment Plate (L) 2
9R Seat Wheel Adjustment Plate (R) 2
10 Idler Wheel Assembly 1
11 Seat Stop Axle 2
12 Seat Position Latch 1
13 Backing Plate 3
14 Aluminum Track 1
15 Rack 1
16 Spacer for Stopper Axle 4
17 Rubber Foot 4
18 Transportation Wheel 2
19 Console Assembly 1
19-1 Console Top Cover 1
19-2 Console Bottom Cover 1
19-3 Book Rack 1
19-4 Deector Fan Grill 1
19-5 Deector Fan Grill 1
19-6 Wind Duct (R) 1
19-7 Wind Duct (L) 1
19-8 Water-resist Rubber 1
19-9 Fan Grill Anchor 2
19-11 Speaker Grill Anchor 6
19-12 Fan Grill Anchor 2
19-13 Fan Assembly 1
19-14 Console Display Board 1
19-15 Key Board 1
19-16 Interface Board 1
19-17 300m/m_W/Receiver, HR 1
19-18 250m/m_Speaker W/Cable 1
19-19 460m/m_Speaker W/Cable 1
19-20 Earphone Socket 1
19-21 USB Board 1
20 Drive Pulley 1
24 Button Head Plug 2
25 Seat Track Wheel 8
26 300m/m_Hand Pulse Sensor Assembly W/Cable 1
26-1 300m/m_Hand Pulse Sensor Assembly W/Cable(White) 1
27 750m/m_Handpulse W/Cable Assembly(L) 1
27-1 950m/m_Handpulse W/Cable Assembly(R) 1
28 Crank Arm End Cap 2
29 Front Shroud (L) 1
30 Front Shroud (R) 1
31 Console Mast Cover 1
32 Handgrip End Cap 4
33 Bottom Cover 1
34 Round Disk Cover 2
35 Rear Shroud (L) 1
36 Rear Shroud (R) 1
38 Drink Bottle Holder (R) 1
39 Drink Bottle Holder (L) 1
40 Release Lever 1
41 Transformer Power Cord 1
43 Gear Motor 1
49
44 750m/m_Computer Cable 1
45 2100m/m_Hand Pulse Sensor Assembly W/Cable 1
46 250m/m_Sensor W/Cable 1
48 750m/m_DC Power Cord 1
51L Crank Arm(L) 1
51R Crank Arm(R) 1
52 6004_Bearing 2
53 6203_Bearing 2
54 Drive Belt 1
55 Flywheel 1
56 Magnet 1
57 Gas Cylinder 1
58 Steel Cable 1
61 Seat 1
62 Steel Cable 1
63 Mesh Seat Back 1
64 Handgrip Foam 2
65 3/8" × 53m/m_Carriage Bolt 2
66 1/4" × 3/4"_Hex Head Bolt 4
67 3/8" × UNC16 × 4"_Hex Head Bolt 2
68 5/16" × UNC18 × 5/8"_Hex Head Bolt 8
69 5/16" × 2- 1/2"_Hex Head Bolt 1
70 5/16" × UNC18 × 1-1/4"_Hex Head Bolt 1
71 3/8" × 1-3/4"_Hex Head Bolt 4
72 Ø1/4" × 13 × 1T_Flat Washer 5
73 Ø1/4" × 19 × 1.5T_Flat Washer 4
75 Ø17 × Ø23.5 × 1T_Flat Washer 1
76 Ø5/16" × Ø18 × 1.5T_Flat Washer 10
77 Ø3/8" × Ø19 × 1.5T_Flat Washer 5
79 Ø8 × Ø18 × 3T_Knurled Lock Washer 4
81 3/8" × 3/4"_Button Head Socket Bolt 1
82 5/16" × 1.5T_Split Washer 8
83 5/16" × 19 × 1.5T_Curved Washer 2
84 Ø3/8" × Ø25 × 2T_Flat Washer 2
85 Ø17_C Ring 1
86 Ø20_C Ring 2
87 M8 × 130m/m_J Bolt 1
88 M8 × 7T_Nylon Nut 5
89 3/8" × 7T_Nylon Nut 7
90 1/4" × 8T_Nylon Nut 4
91 5/16" × 6T_Nylon Nut 6
93 M6 × 38m/m_Socket Head Cap Bolt 1
94 5/16" × UNC18 × 3/4"_Hex Head Bolt 6
95 M5 × 12m/m_Flat Head Socket Screw 10
97 3 × 20m/m_Tapping Screw 4
98 M6 × 15m/m_Phillips Head Screw 8
99 M5 × 12m/m_Phillips Head Screw 13
101 Ø5 × 16m/m_Tapping Screw 11
103 3.5 × 16m/m_Sheet Metal Screw 12
104 Spring 1
105 Ø4 × 16m/m_Sheet Metal Screw 4
106 5/16" × UNC18 × 1-3/4"_Button Head Socket Bolt 2
108 M10 × 1.25m/m_Nut 2
111 M5 × P0.8 × 10L_Flat Phillips Head Screw 8
112 12/14m/m_Wrench 1
113 13/15m/m_Wrench 1
114 Phillips Head Screw Driver 1
116 Pedal (L.R) 1
119 3/8"-UNF26 × 3T_Nut 1
120 3/8"-UNF26 × 4T_Nut 1
121 3/8"-UNF26_Nut 2
123 Chest Strap 1
50
125 Seat Carriage Cover 1
126 HGP Wire Grommet 1
129 M6 × 6T_Nylon Nut 1
130 13/14m/m_Wrench 1
131 Power Adaptor 1
140 Sensor Rack 1
141 Handle Bar Cover 1
143 Seat Track Fixing Plate 1
144 Handgrip End Cap 2
145 Resistance Button W/Cable 2
146 Handgrip Key Label(+) 1
147 Handgrip Key Label(-) 1
148 2100m/m_Switch Cable (Upper) 1
149 300m/m_Handle Switch Bracket 1
150 180m/m_Resistance Connecting Cable 1
151 Switch Cable (Lower) 1
152 400m/m_Audio Cable 1
153 Console Holder Assembly 1
154 5/16" × 2-1/2"_Hex Head Bolt 1
157 5/16" × 25 × 3T_ Nylon Washer 2
160 Ø5/16" × 16 × 1.5T_Flat Washer 6
161 M6 × 10L_Flat Phillips Head Screw 4
162 Ø1/4" × Ø16 × 1.0T_Flat Washer 4
163 Sleeve 4
164 M6 × 19L_Nut 4
165 M6 × 10L_Button Head Socket Bolt 4
166 PU Wheel 4
167 Seat Front/Aft Adjustment Lever 1
168 Lever Anchor 1
169 M5 × 25m/m_ 2
170 Ø15 × Ø6 × 4T_Nylon Washer 1
171 M5 × 45m/m_Socket Head Cap Bolt 1
172 Ø5 × Ø10 × 1.0T_Flat Washer 1
173 M5 × 5T_Nylon Nut 2
177 Rubber Foot Pad 1
185 3/8" × 4T_Nut 1
186 ChenChin Torsion-Spring 1
187 M5 × 20L_Phillips Head Screw 1
188 5/16" × UNC18 × 1-1/2"_Hex Head Bolt 1
189 Rubber Pad 1
191 3/8" × UNC16 × 12.5T_Cap Nut 2
210111
51
NOTES
52
NOTES
53
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
XBR55ENT Owners Manual
© 2021 All Rights Reserved
Revision: 03.02.2021
