User manual
DLP
®
Projector
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
Laser Radiation Safety Information ........................................................................................... 5
Copyright ................................................................................................................................... 7
Disclaimer .................................................................................................................................. 7
Trademark Recognition ............................................................................................................. 7
FCC ........................................................................................................................................... 7
Declaration of Conformity for EU countries ............................................................................... 8
WEEE ........................................................................................................................................ 8
Cleaning the Lens...................................................................................................................... 8
INTRODUCTION ................................................................................ 9
Package Overview..................................................................................................................... 9
Standard accessories ................................................................................................................ 9

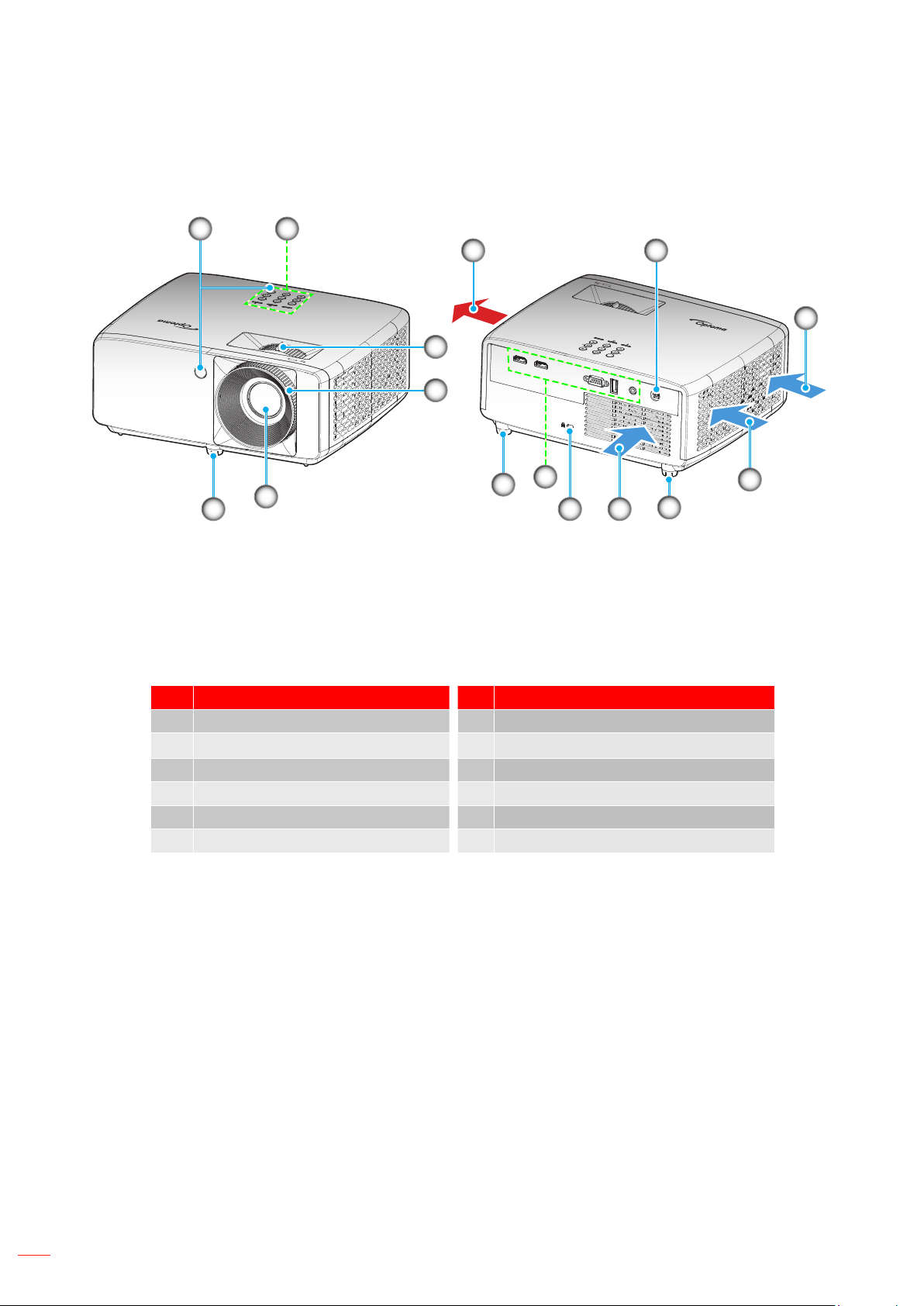

Product Overview ..................................................................................................................... 10
Connections.............................................................................................................................. 11

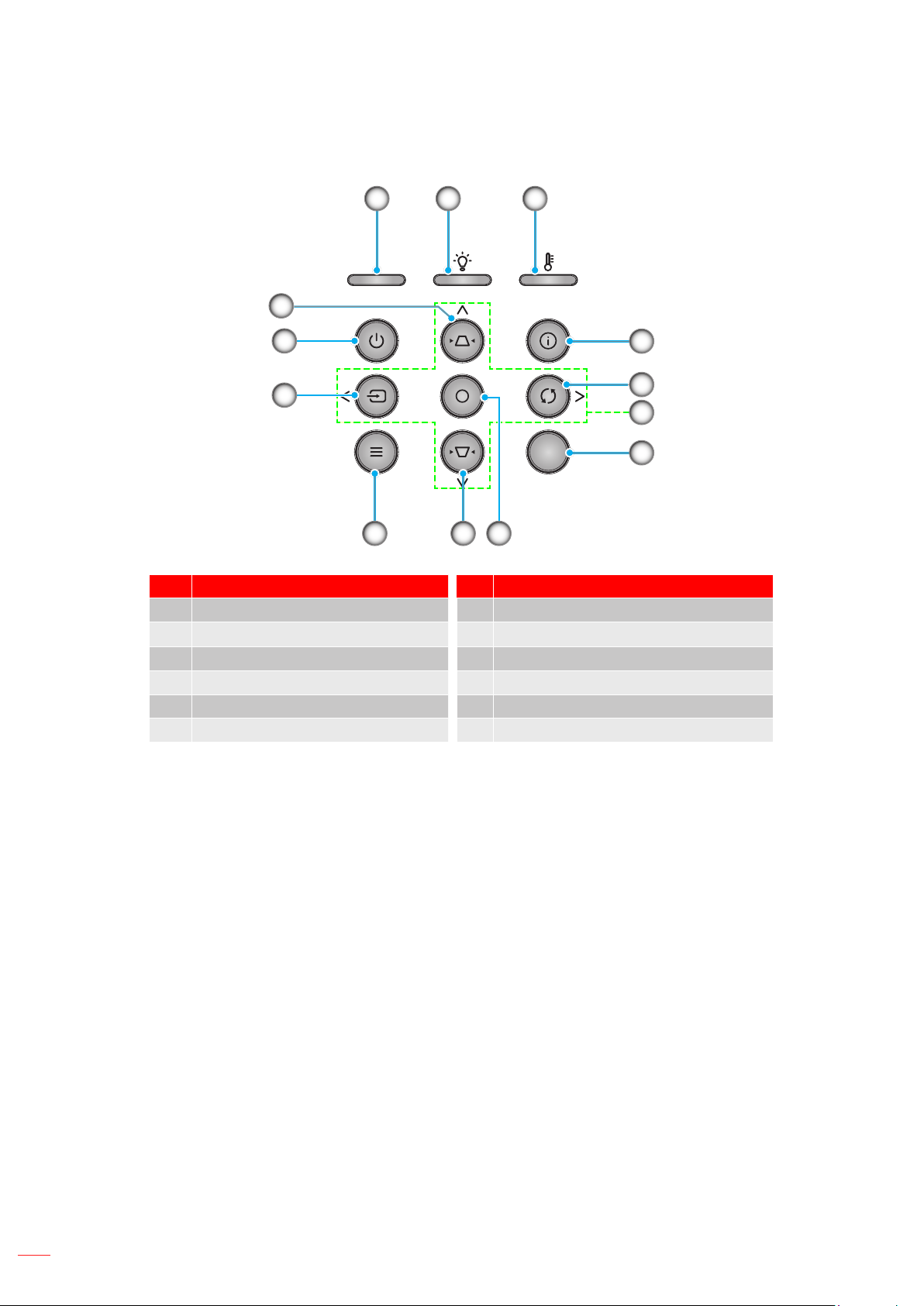

Keypad ..................................................................................................................................... 12

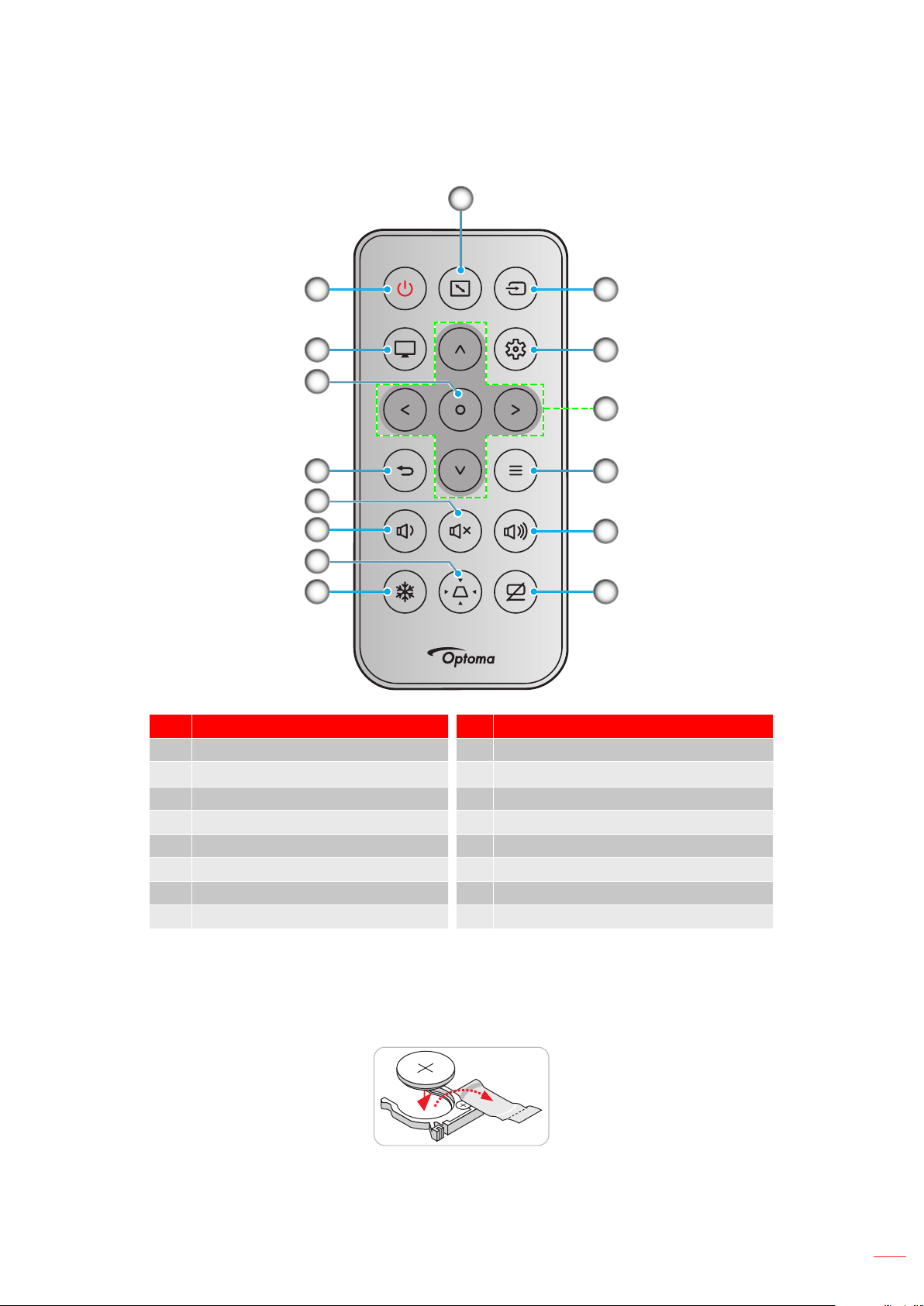

Remote control ......................................................................................................................... 13
SETUP AND INSTALLATION ........................................................... 14

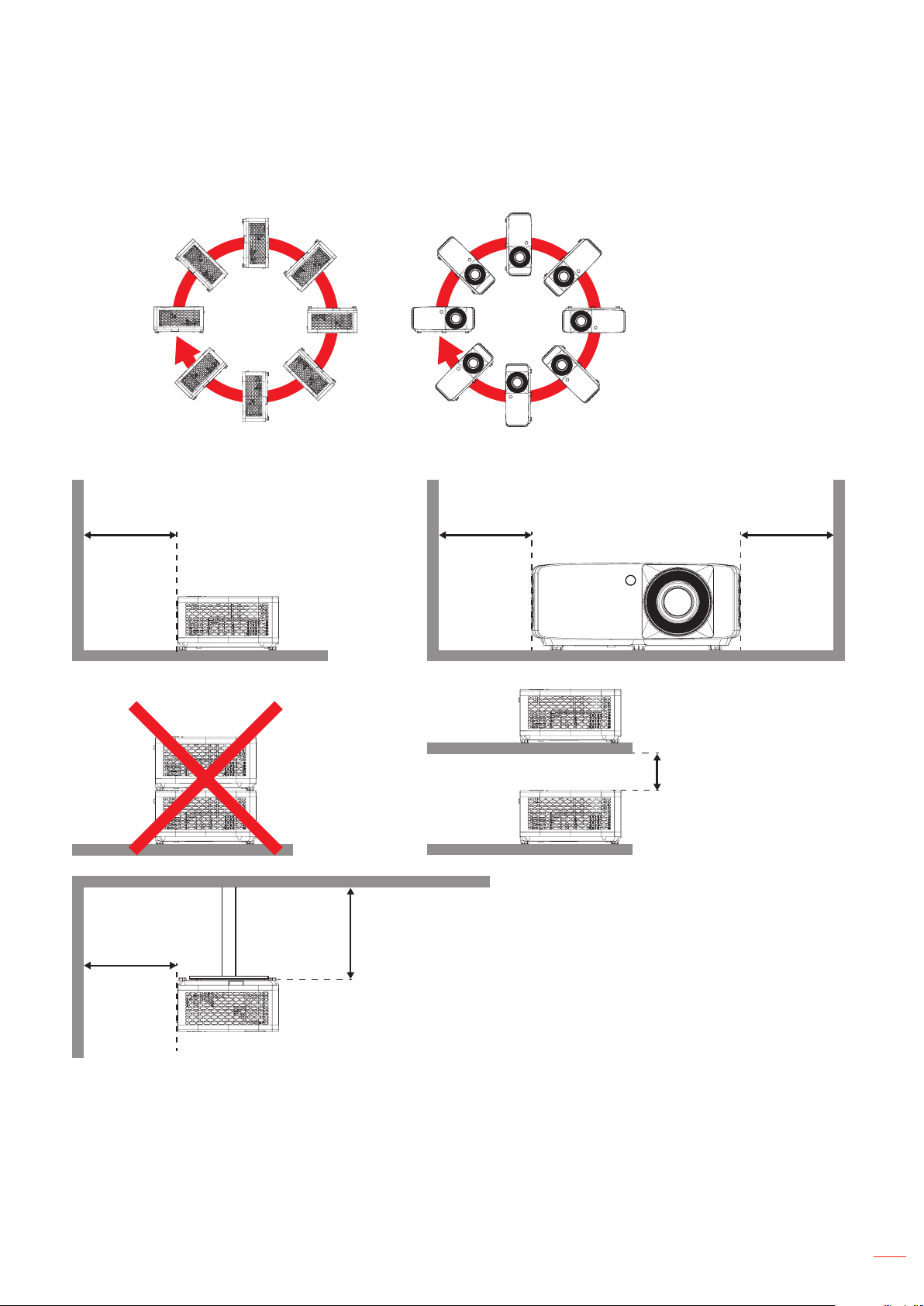

Installing the projector .............................................................................................................. 14

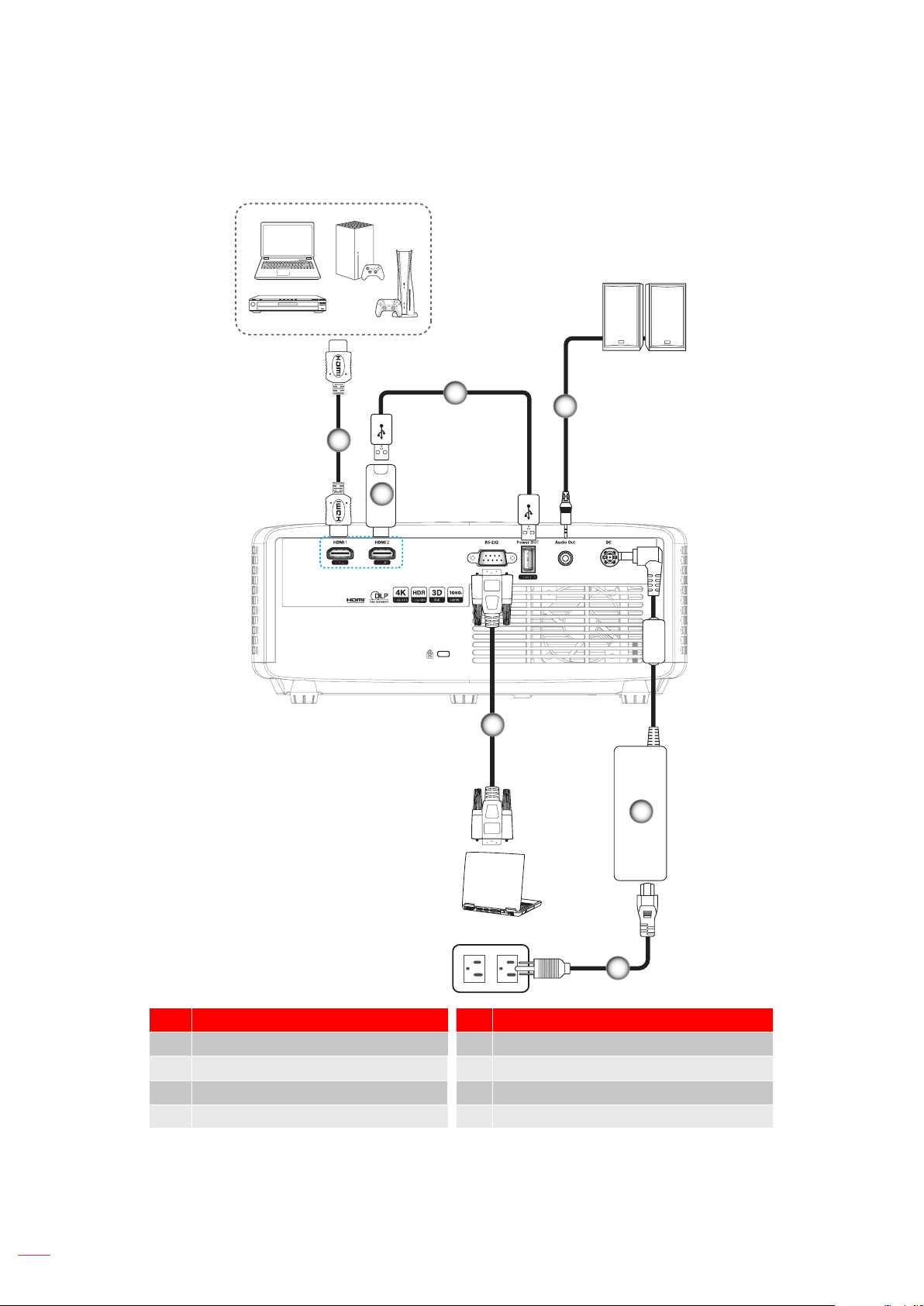

Connecting sources to the projector ......................................................................................... 16

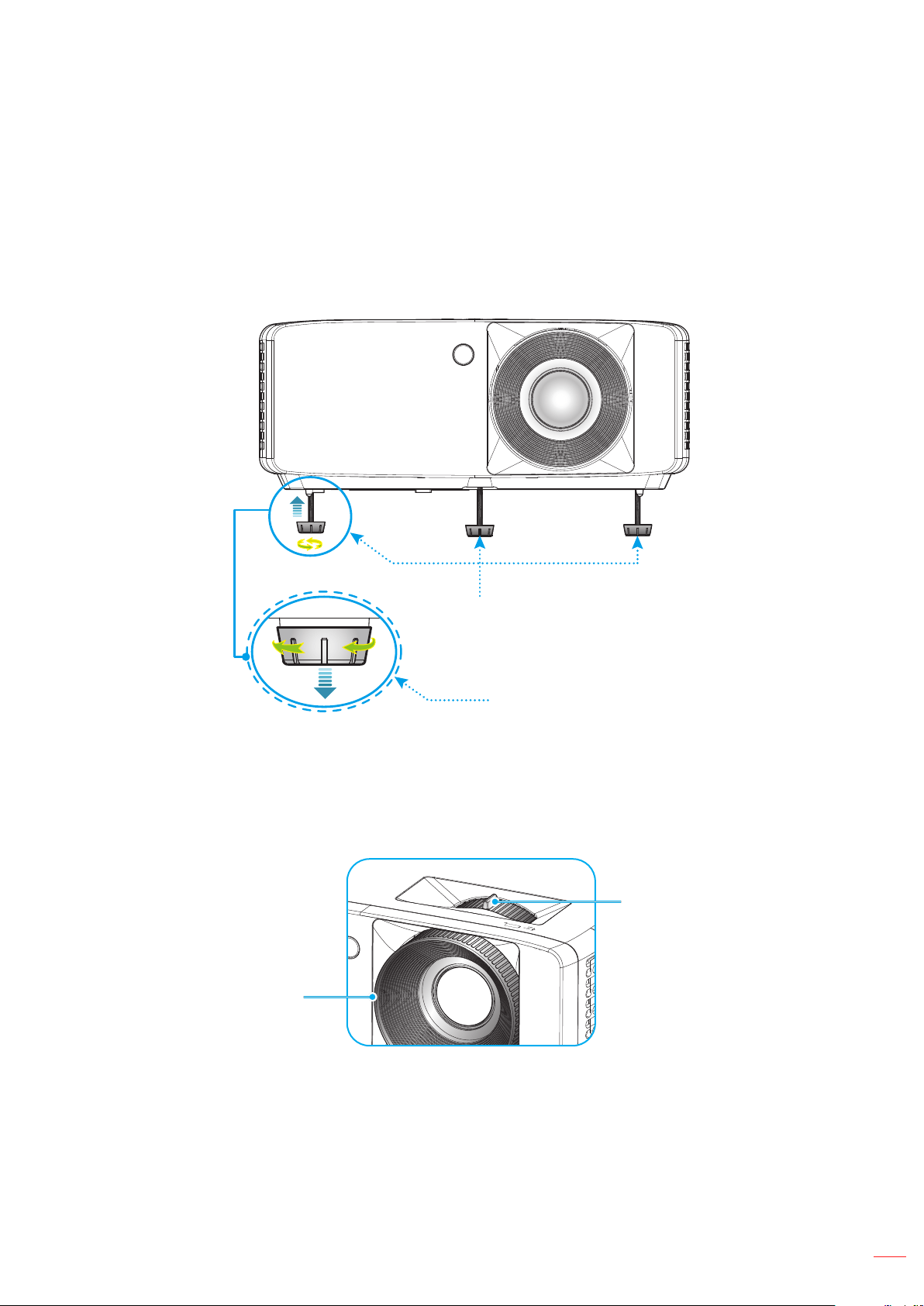

Adjusting the projector image ................................................................................................... 17
Remote setup ........................................................................................................................... 18
USING THE PROJECTOR ............................................................... 20

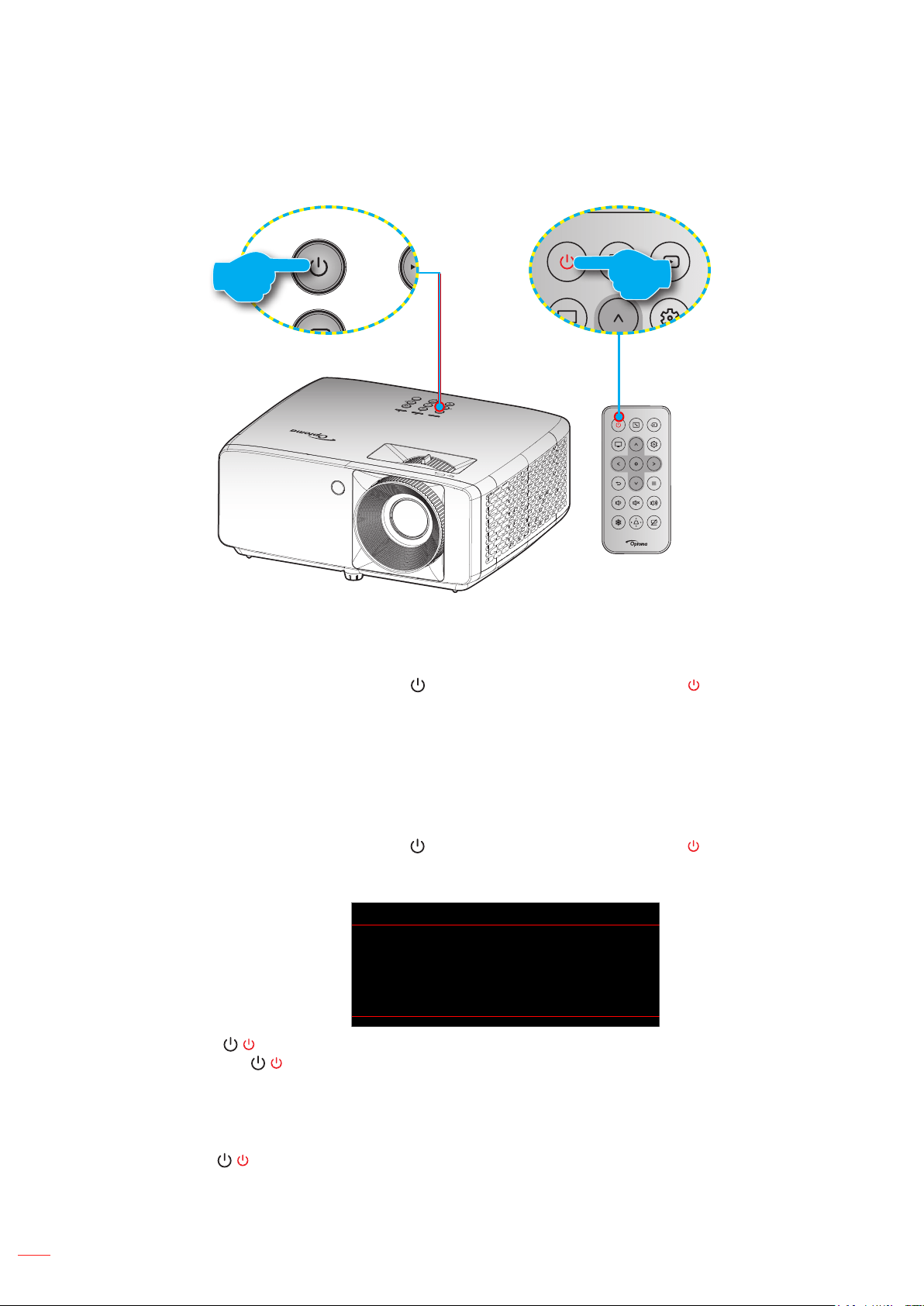

Powering on / o the projector .................................................................................................. 20

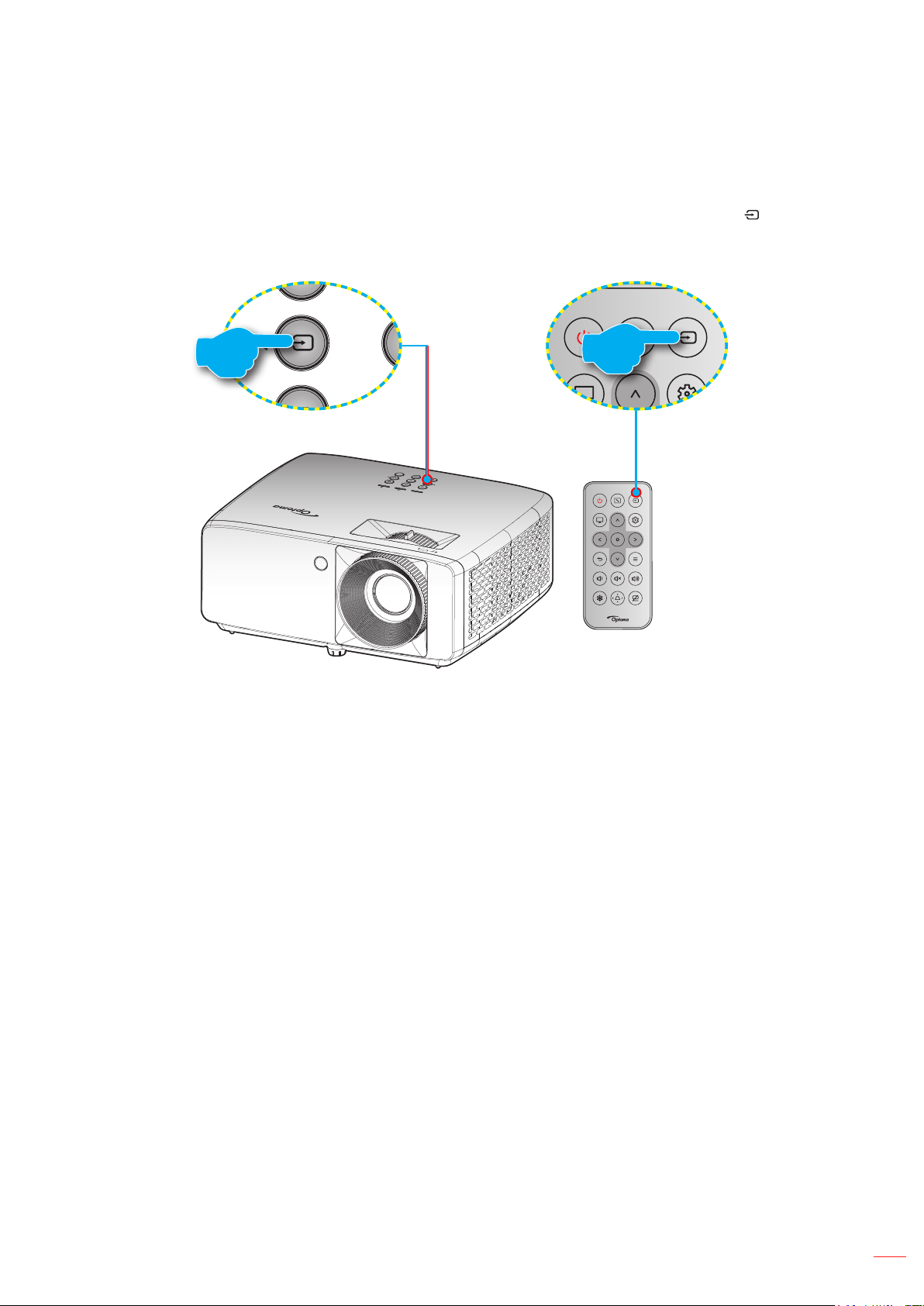

Selecting an input source ......................................................................................................... 21

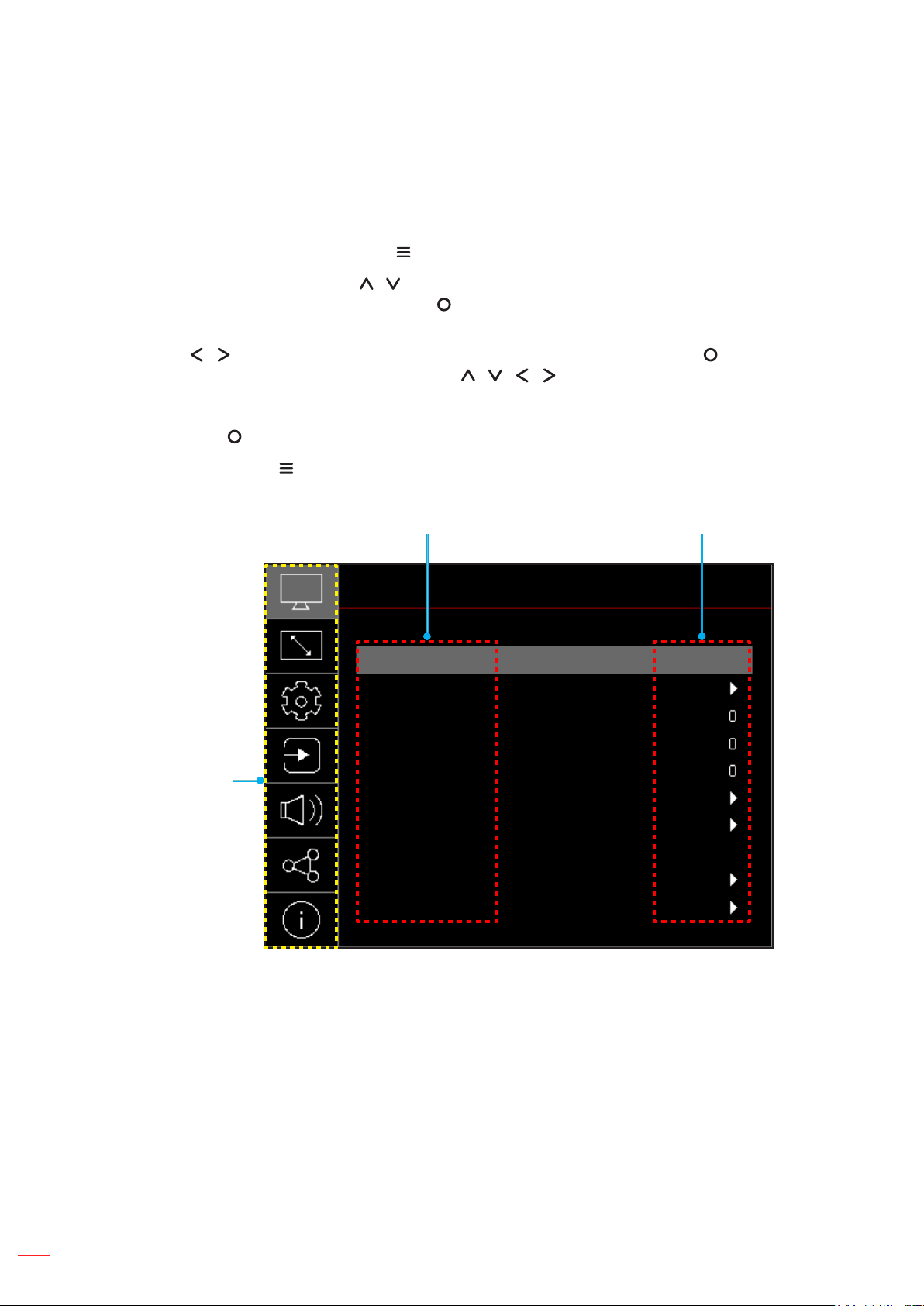

Menu navigation and features .................................................................................................. 22
OSD Menu tree......................................................................................................................... 23
Image picture mode menu ........................................................................................................ 28
Image dynamic range menu ..................................................................................................... 28
Image brightness menu ............................................................................................................ 28
Image contrast menu ................................................................................................................ 29
Image sharpness menu ............................................................................................................ 29
Image gamma menu................................................................................................................. 29
Image color settings menu ....................................................................................................... 29
Image wall color menu.............................................................................................................. 29
Image 3D menu ........................................................................................................................ 30
Image reset menu..................................................................................................................... 30
Display projection orientation menu ......................................................................................... 31
Display light source mode menu .............................................................................................. 31
Display dynamic black menu .................................................................................................... 31
English
3
Display gaming mode menu ..................................................................................................... 31
Display screen type menu ........................................................................................................ 31
Display aspect ratio menu ........................................................................................................ 32
Display geometric correction menu .......................................................................................... 35
Display digital zoom menu........................................................................................................ 35
Display image shift menu ......................................................................................................... 35
Display reset menu ................................................................................................................... 35
Setup test pattern menu ........................................................................................................... 36
Setup language menu .............................................................................................................. 36
Setup menu settings menu ....................................................................................................... 36
Setup high altitude menu .......................................................................................................... 36
Setup power settings menu ...................................................................................................... 36
Setup security menu ................................................................................................................. 37
Setup startup logo menu .......................................................................................................... 37
Setup background color menu.................................................................................................. 37
Setup device reset menu .......................................................................................................... 37
Input auto source menu ............................................................................................................ 38
Input auto input switch menu .................................................................................................... 38
Input HDMI CEC settings menu ............................................................................................... 38
Input reset menu....................................................................................................................... 38
Audio volume menu .................................................................................................................. 39
Audio mute menu ..................................................................................................................... 39
Audio internal speaker menu .................................................................................................... 39
Audio audio output menu.......................................................................................................... 39
Audio reset menu ..................................................................................................................... 39
Control device ID menu ............................................................................................................ 40
Control remote settings menu .................................................................................................. 40
Control keypad settings menu .................................................................................................. 40
Control reset menu ................................................................................................................... 40
Information menu...................................................................................................................... 41
ADDITIONAL INFORMATION .......................................................... 42
Compatible resolutions ............................................................................................................. 42

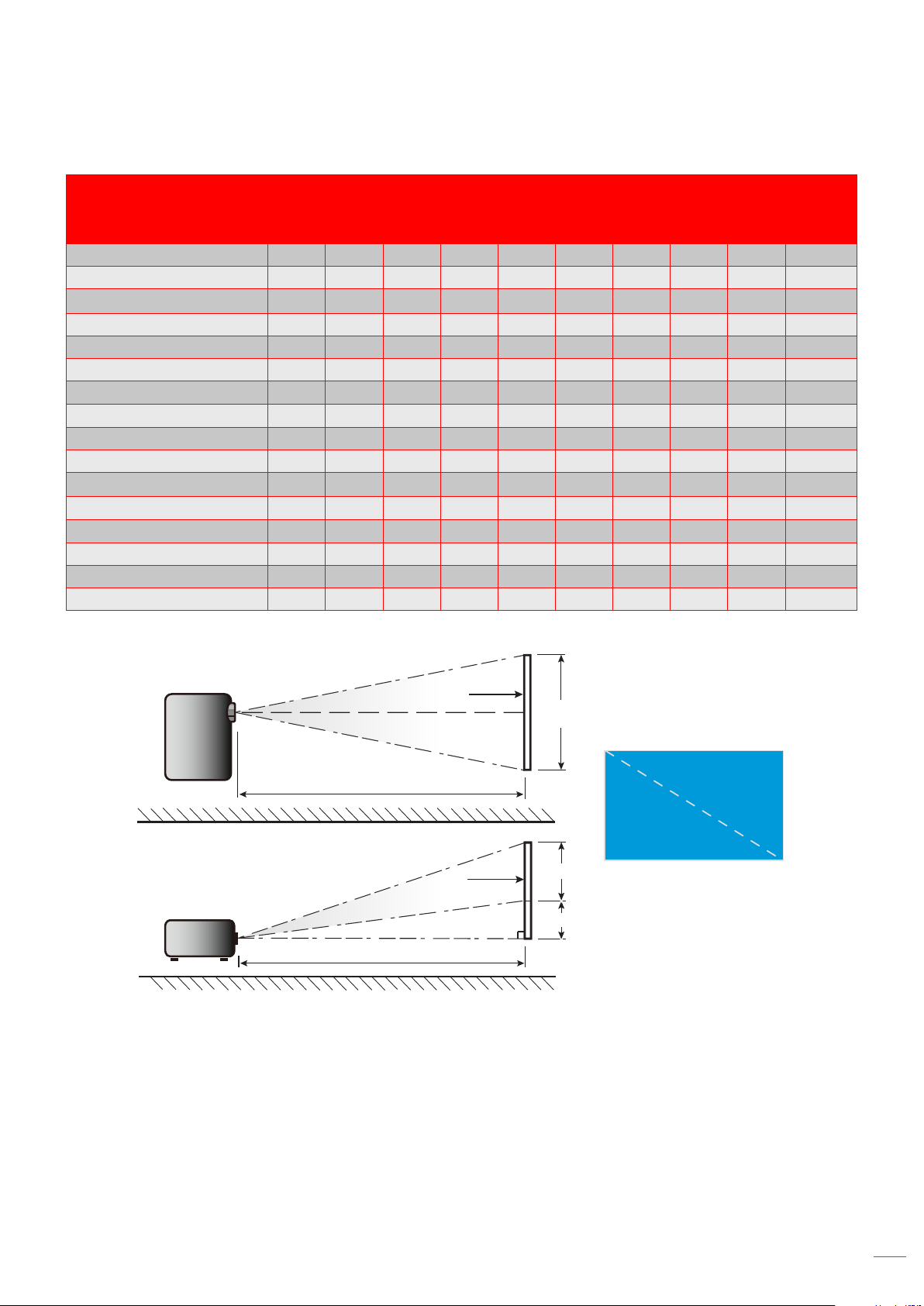

Image size and projection distance .......................................................................................... 46

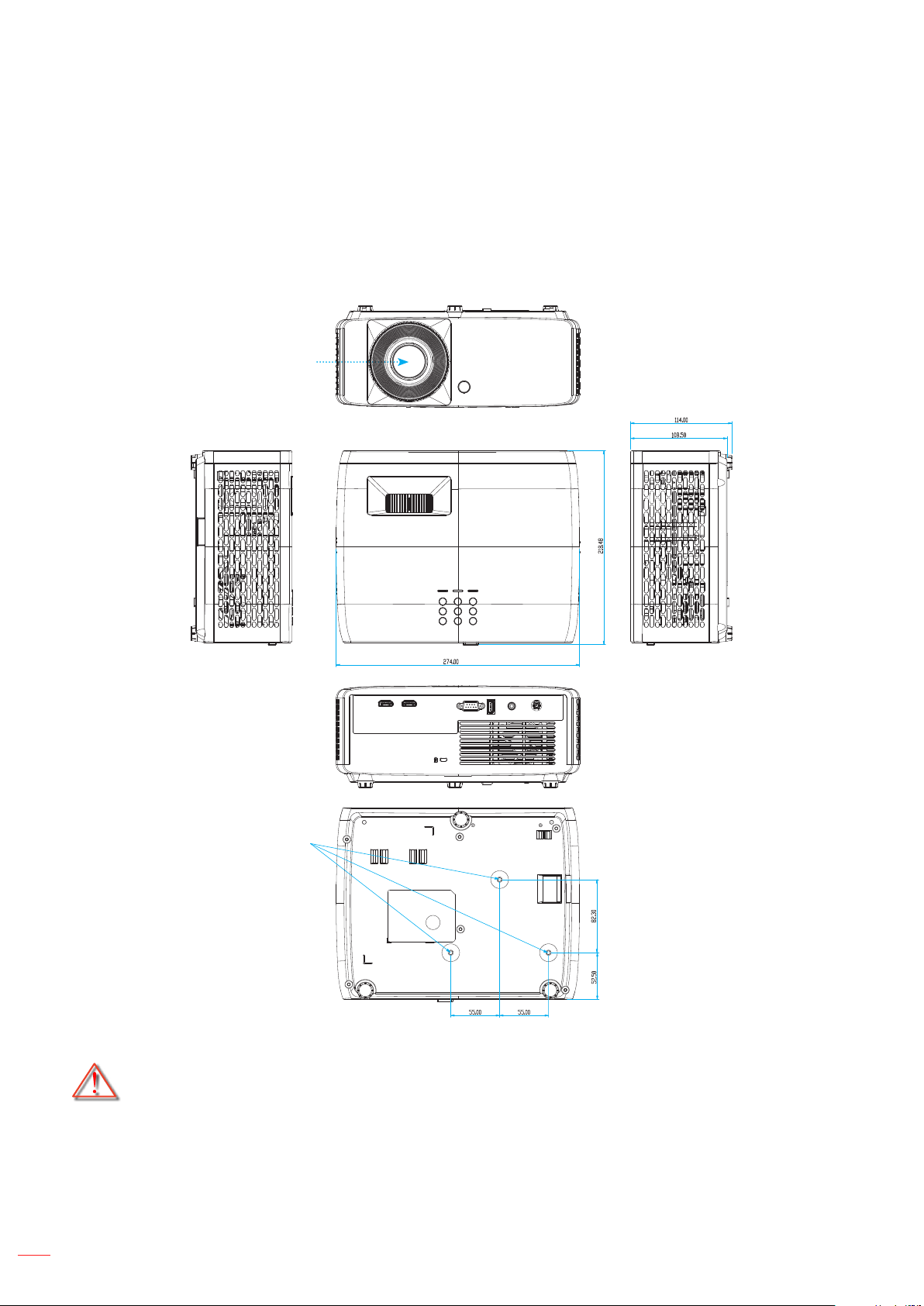

Projector dimensions and ceiling mount installation ................................................................. 48

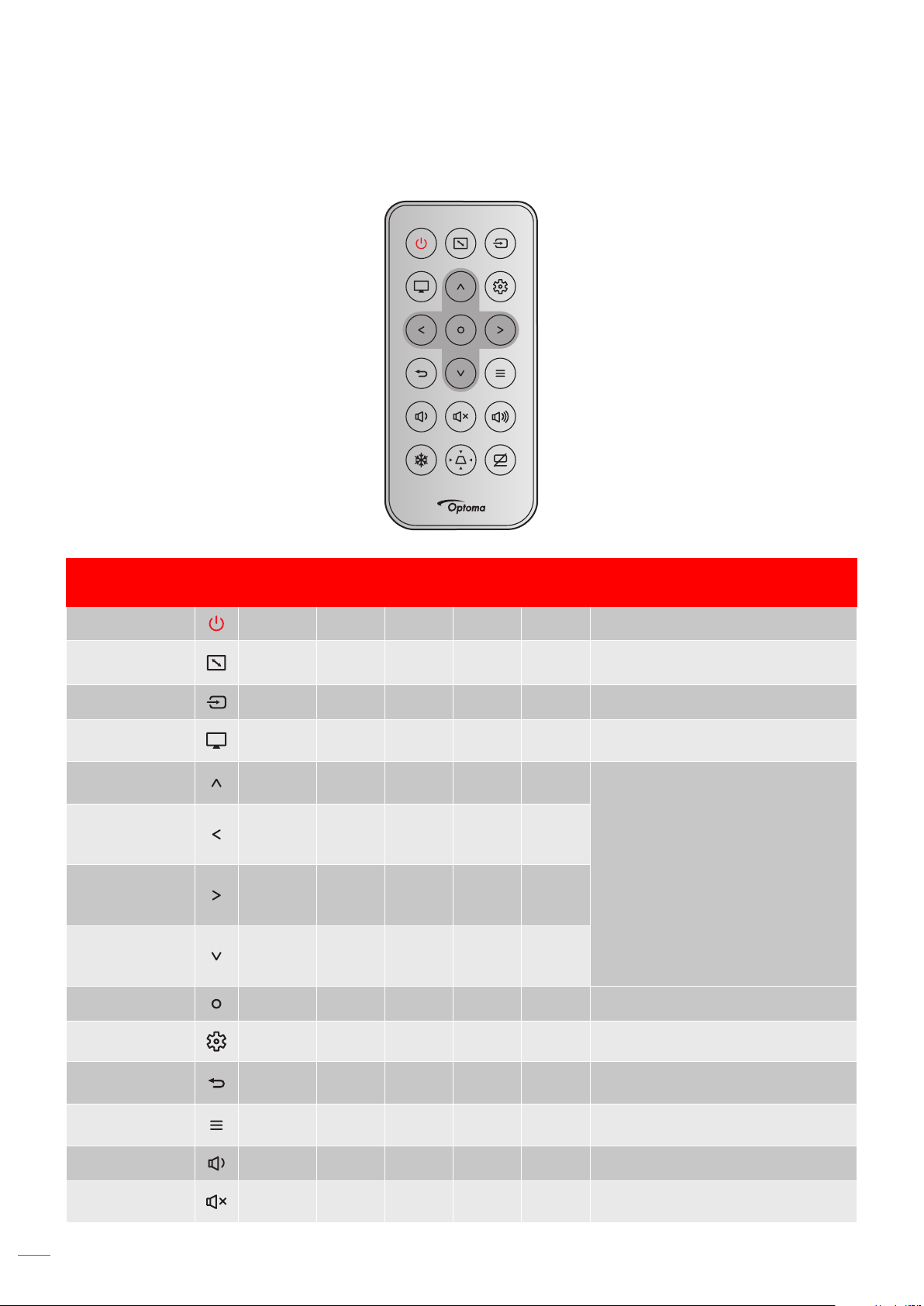

IR remote control codes ........................................................................................................... 50
Troubleshooting ........................................................................................................................ 52
Warning indicators .................................................................................................................... 54
Specications ........................................................................................................................... 55
Optoma global oces ............................................................................................................... 56
English
4
SAFETY
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sucient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
Important Safety Instruction
• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded coee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air ow.
• To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
• Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
• Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
• Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
• Do not block the light coming out of the projector lens when in operation. The light will heat the object
and may melt, cause burns or start a re.
• Please do not open or disassemble the projector as this may cause electric shock.
• Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
• See projector enclosure for safety related markings.
• The unit should only be repaired by authorized service personnel.
• Only use attachments/accessories specied by the manufacturer.
• Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
• This projector will detect the life of the light source itself.
English
5
• When switching the projector o, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
• Turn o and unplug the power plug from the AC outlet before cleaning the product.
• Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
• Do not setup the projector in places where it might be subjected to vibration or shock.
• Do not touch the lens with bare hands.
• Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
• Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely aect the quality of the projector performance.
• Please follow the correct projector orientation installation as non standard installation may aect the
projector performance.
• Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
Laser Radiation Safety Information
• This product is classied as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and
also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector)
as dened in IEC 62471:5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
• As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
• This projector is class 1 laser product of IEC/EN 60825-1:2014 and risk group 2 with the requirements
of IEC 62471-5:2015.
• Additional instructions to supervise children, no staring, and not use optical aids.
• Notice is given to supervise children and to never allow them to stare into the projector beam at any
distance from the projector.
• Notice is given to use caution when using the remote control for starting the projector while in front of
the projection lens.
• Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the
beam.
English
6
• When turning on the projector, make sure no one within projection range is looking at the lens.
• Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being
projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light
coming out of the lens, can cause an unpredictable outcome such as a re or injury to the eyes.
• Any operation or adjustment not specically instructed by the user’s guide creates the risk of
hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser
radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
Without following the control, adjustment or operation procedure may cause damage by the exposure of
laser radiation
English
7
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Copyright 2022
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
DLP
®
, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor
TM
is a
trademark of Texas Instruments.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device o and on is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
English
8
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
• EMC Directive 2014/30/EU (including amendments)
• Low Voltage Directive 2014/35/EU
• RED 2014/53/EU (if product has RF function)
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
Cleaning the Lens
• Before cleaning the lens, be sure to turn o the projector and unplug the power cord to allow it to
completely cool down.
• Use a compressed air tank to remove the dust.
Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers.
• Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This
may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm
to peel o.
Warning: Do not wipe or tap the lens with a hard object.
To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
English
9
INTRODUCTION
Thank you for purchasing an Optoma laser projector. For full list of features please visit the product page on our
website, where you will also nd additional information and documentation such as FAQs.
Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard accessories
Projector Remote control Power cable
Documentation
Warranty Card*
Quick start user manual
Power adapter
Note:
• The remote control is shipped with batteries.
• *For warranty Information, please visit https://www.optoma.com/support/download
• For access to the setup information, user manual, warranty information, and product updates
– please scan the QR Code or visit the following URL:
https://www.optoma.com/support/download
English
10
INTRODUCTION
Product Overview
21
3
5
8
8
8
11
10
7
4
7
7
6
9
Note:
• Do not block projector intake and exhaust vents.
• When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. IR Receivers 7. Ventilation (outlet)
2.
Keypad
8.
Tilt-Adjustment Feet
3. Zoom Lever 9. Kensington™ Lock Port
4. Focus Ring 10. Input / Output
5. Ventilation (inlet) 11. Lens
6. DC Jack
English
11
INTRODUCTION
Connections
XGA/WXGA model
7
1 2 3 4 5 6
1080p model
7
1 2 3 4 5 6
No Item No Item
1. HDMI 1 Connector 5. Audio Out Connector
2.
HDMI 2 Connector
6.
DC Jack
3. RS-232 Connector 7. Kensington
TM
Lock Port
4.
USB Power Out (5V
1.5A)
Connector
Note: Signal mode support varies from dierent model in each sales region.
English
12
INTRODUCTION
Keypad
6
9
2 3
4
5
9
10
11
12
8
7
1
No Item No Item
1. Power LED 7. IR Receiver
2.
Lamp LED
8.
Enter
3. Temp LED 9. Keystone Correction
4. Information 10. Menu
5. Re-Sync 11. Source
6. Four Directional Select Keys 12. Power
English
13
INTRODUCTION
Remote control
1
2
10
3
5
7
9
6
8
11
12
14
15
13
4
No Item No Item
1. Aspect Ratio 9. Freeze
2.
Power On / O 10.
AV Mute
3. Mode 11. Volume +
4. Enter 12.
Menu
5. Return 13. Four Directional Select Keys
6.
Mute 14. Settings/Setup Menu
7. Volume - 15. Source
8. Keystone Correction
Note:
• Some keys may have no function for models that do not support these features.
• Before using the remote control for the rst time, remove the transparent insulation tape. See page
18 for battery installation.
3
V
O
L
T
S
CR2025
English
14
SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
• How to determine projector location for a given screen size,
please refer to distance table on pages
46~47.
• How to determine screen size for a given distance, please refer to distance table on pages
46~47.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
oset also increases proportionally.
English
15
SETUP AND INSTALLATION
Projector installation notice
• 360° free orientation operation
• Allow at least 30 cm clearance around the exhaust vent.
Minimum 100mm
(3.94 inches)
Minimum 300mm
(11.81 inches)
Minimum 300mm
(11.81 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
• Ensure that the intake vents do not recycle hot air from the exhaust vent.
• When operating the projector in an enclosed space, ensure that the surrounding air temperature within
the enclosure does not exceed operation temperature while the projector is running, and the air intake
and exhaust vents are unobstructed.
• All enclosures should pass a certied thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the
acceptable operation temperature range.
English
16
SETUP AND INSTALLATION
Connecting sources to the projector
1
2
3
4
5
6
7
No Item No Item
1. HDMI Cable 5. Power Adapter
2.
HDMI Dongle
6.
Power Cable
3. USB Power Cable 7. RS232 Cable
4. Audio Out Cable
Note: To ensure the best image quality and avoid connection errors, we recommend the use of High Speed or
Premium Certied HDMI cables up to 5 meters.
English
17
SETUP AND INSTALLATION
Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom and focus
• To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
• To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and
legible.
Zoom Lever
Focus Ring
English
18
SETUP AND INSTALLATION
Remote setup

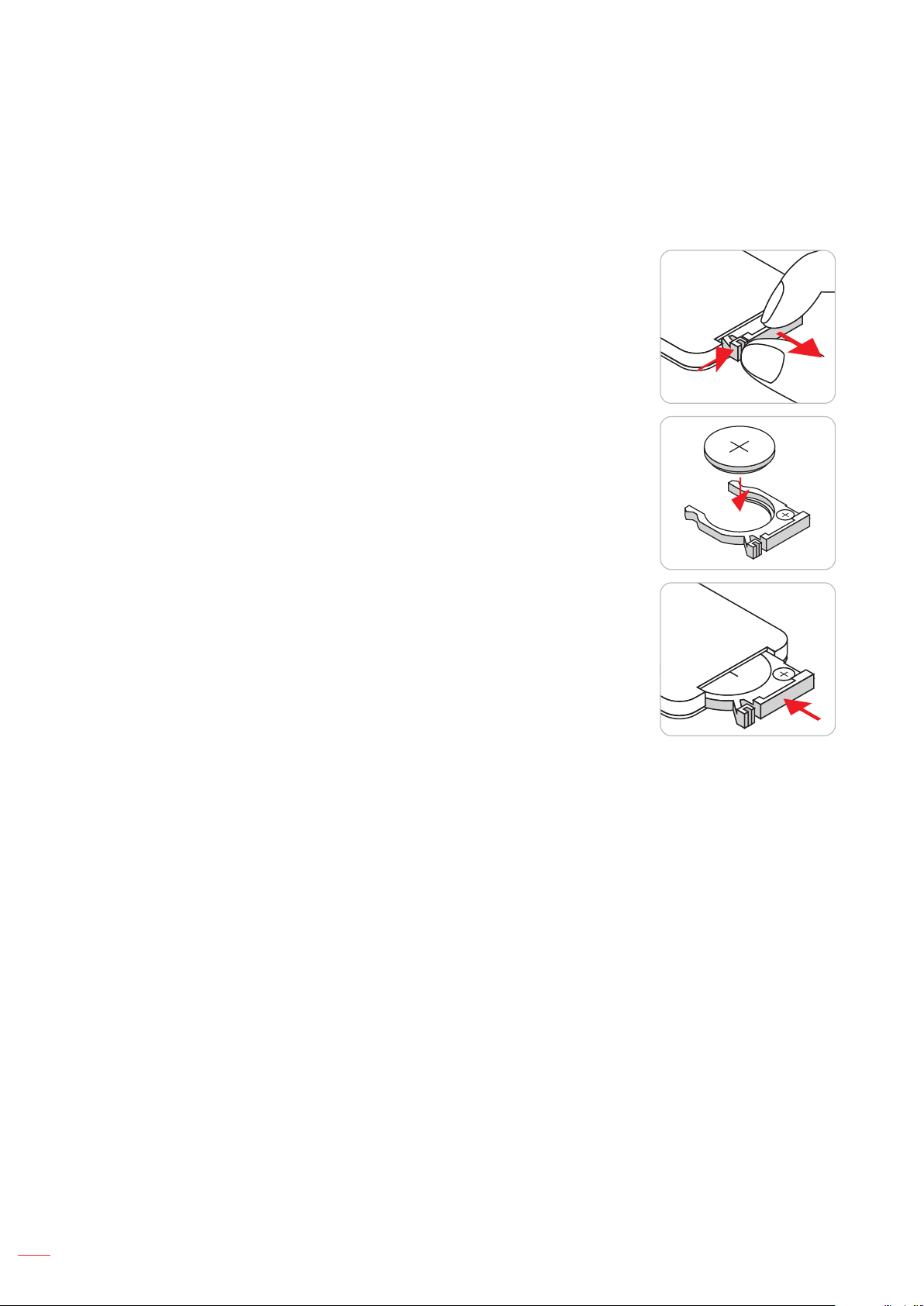

Installing / replacing the batteries
1. Press rmly and slide the battery cover o.
2. Install new battery into the compartment. Remove the old battery and
install new one (CR2025). Ensure that the side with a “+” is facing
up.
3
V
O
L
T
S
CR2025
3. Put the cover back.
M
3
V
O
L
T
S
CR2025
CAUTION: To ensure safe operation, please observe the following precautions:
• Use CR2025 type battery.
• Avoid contact with water or liquid.
• Do not expose the remote control to moisture or heat.
• Do not drop the remote control.
• If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.
• Risk of an explosion if battery is replaced by an incorrect type.
• Dispose of used battery according to the instructions.
English
19
SETUP AND INSTALLATION
Eective range
Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the
remote control at an angle within 30 degrees perpendicular to the projector’s IR remote control sensor to function
correctly. The distance between the remote control and the sensor should not be longer than
6 meters (19.7 feet).
• Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
• Please keep the remote controller away from uorescent lamps for over 2 m or the remote controller
might become malfunction.
• If the remote control is close to Inverter-Type uorescent lamps, it might become ineective from time
to time.
• If the remote control and the projector are within a very short distance, the remote control might
become ineective.
• When you aim at the screen, the eective distance is less than 5 m from the remote control to the
screen and reecting the IR beams back to the projector. However, the eective range might change
according to screens.
Approx. ± 15°
Approx. ± 15°
English
20
USING THE PROJECTOR
Powering on / o the projector
or
Powering on
1. Securely connect the power lead and signal/source cable. When connected, the Power LED will turn
red.
2. Turn on the projector by pressing the
button on the projector keypad or the button on the remote
control.
3. A start up screen will display in approximately 10 seconds and the Power LED will be ashing blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.
Powering o
1. Turn o the projector by pressing the
button on the projector keypad or the button on the remote
control.
2. The following message will be displayed:
Power O
Press power key again.
3. Press the / button again to conrm, otherwise the message will disappear after 15 seconds. When
you press the / button for the second time, the projector will shut down.
4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the Power
LED will ash blue. When the Power LED turns solid red, this indicates the projector has entered
standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has
nished and the projector has entered standby mode. When the projector is in standby mode, simply
press the
/ button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power o procedure.
English
21
USING THE PROJECTOR
Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the
button on the
projector keypad or remote control to select the desired input.
or
English
22
USING THE PROJECTOR
Menu navigation and features
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect the source.
1. To open the OSD menu, press the
button on the projector keypad or remote control.
2. When OSD is displayed, use / keys to select any item in the main menu. While making a
selection on a particular page, press the
button on the projector keypad or remote control to enter
sub menu.
3. Use / keys to select the desired item in the sub menu and then press the button to view
further settings. Adjust the settings by using
/ / / keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press the
button to conrm, and the screen will return to the main menu.
6. To exit, press the
button again. The OSD menu will close and the projector will automatically save
the new settings.
Submenus Settings
Picture Mode
Dynamic Range
Brightness
Contrast
Sharpness
Gamma
Color Settings
Wall Color
3D
Reset
Bright
O
Main Menu
English
23
USING THE PROJECTOR
OSD Menu tree
Note: The OSD menu tree items and features are subject to models and region. Optoma reserve the right to add
or remove items to improve product performance without notice.
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Picture Mode
Vivid
HDR [1080p model]
HLG [1080p model]
Cinema
Game
Sport
Reference
Bright
DICOM SIM.
3D
Dynamic Range
[1080p model]
HDR / HLG
O
Auto
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Gamma
Film
Graphics
1.8
2.0
2.2
2.4
EOTF
Color Settings
Color
-50 ~ 50
Tint
-50 ~ 50
BrilliantColor™
1 ~ 10
Color
Temperature
Warm
Standard
Cool
Cold
CMS / Colour
Adjustment
Color
White / Red / Green / Blue / Cyan /
Magenta / Yellow
Hue
-50 ~ 50
Saturation
-50 ~ 50
Value
(Luminance)
-50 ~ 50
Reset
No
Yes
Color Space
HDMI Input: Auto / RGB(0~255) /
RGB(16~235) / YUV
English
24
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Wall Color
O
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Grey
3D
3D Mode
O
On
3D Sync Type
DLP-Link
3D Sync
3D-2D
Conversion
3D
L
R
3D Format
Auto
Frame Packing
Side by Side
Top and Bottom
Frame Sequential
3D Sync Invert
O
On
Reset
No
Yes
Reset
Display
Projection
Orientation
Front
Rear
Ceiling-Top
Rear-Top
Light Source
Mode
Eco.
Power =100% / 95% / 90% / 85%
/ 80% / 75% / 70% / 65% / 60% /
55% / 50%
(100%~20%)- Password lock
Dynamic Black
O
On
Gaming Mode
O
On
Screen Type
4:3
16:9
16:10
Aspect Ratio
4:3 [Screen Type: 4:3]
16:9 [Screen Type: 16:9]
16:10 [Screen Type: 16:10]
Native
Auto
English
25
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
Geometric
Correction
Auto Keystone
O
On
V Keystone
-40 ~ 40
[-30 ~ 30, for 1080p model]
H Keystone
-40 ~ 40
[-30 ~ 30, for 1080p model]
Four Corner
Adjustment
Reset
Digital Zoom Zoom
-5 ~ 25
Image Shift
H
0 ~ 100
V
0 ~ 100
Reset
Reset
Setup
Test Pattern
Green Grid
Magenta Grid
White Grid
White
O
Language
English
Deutsch
Français
Italiano
Español
Português
Polski
Nederlands
Svenska
Norsk
Dansk
Suomi
ελληνικά
繁體中文
簡体中文
日本語
한국어
Русский
Magyar
Čeština
ไทย
Türkçe
Tiếng Việt
Bahasa Indonesia
Română
English
26
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Menu Settings
Menu Timer
O
5s
10s
20s
30s
Information Hide
O
On
High Altitude
O
On
Power Settings
Direct Power On
O
On
Signal Power On
O
On
Auto Power O
(min.)
0 ~ 180 (1 min increments)
Sleep Timer
(min.)
0 ~ 990 (30 min increments)
Security
Security
O
On
Security Timer
Month
Day
Hour
Change
Password
Startup Logo Logo
Default
Neutral
User
Background
Color
None
Blue
Red
Green
Grey
Logo
Device Reset
Reset OSD
No
Yes
Reset All Settings
No
Yes
English
27
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Input
Auto Source
O
On
Auto Input
Switch
O
On
HDMI CEC
Settings
HDMI Link
O
On
Inclusive of TV
No
Yes
Power On Link
Mutual
PJ Device
Device PJ
Power O Link
O
On
Reset
No
Yes
Audio
Volume
0 ~ 100
Mute
O
On
Internal Speaker
O
On
Audio Output
O
On
Reset
Control
Device ID
0~99
Remote Settings IR Function
O
On
Keypad Settings Keypad Lock
O
On
Reset
Information
Regulatory
Serial Number
Source
Color Info
Light Source
Hours
Picture Mode
Device ID
Filter Usage Hours
Note: Optional dust lter may vary by regions. Please consult with your local agent.
Light Source
Mode
FW Version
DDP
MCU
English
28
USING THE PROJECTOR
Image menu
Image picture mode menu
There are several predened display modes that you can choose from to suit your viewing preference. Each mode
has been ne-tuned by our expert colour team to ensure superior colour performance for wide range of content.
• Vivid: In this mode, the color saturation and brightness are well-balanced. Choose this mode for
playing games.
• HDR / HLG: Decodes and displays High Dynamic Range (HDR) / Hybrid Log Gamma (HLG) content
for the deepest blacks, brightest whites, and vivid cinematic color using REC.2020 color gamut.
This mode will be automatically enabled if HDR/HLG is set to Auto (and HDR/HLG Content is sent
to projector – 4K UHD Blu-ray, 1080p/4K UHD HDR/HLG Games, 4K UHD Streaming Video). While
HDR/HLG mode is active, other display modes (Cinema, Reference, etc.) cannot be selected as
HDR/HLG delivers color that is highly accurate, exceeding the color performance of the other display
modes.
Note: This option is only available for 1080p model.
• Cinema: Provides the best balance of detail and colors for watching movies.
• Game: Optimises your projector for maximum contrast and vivid colours allowing you to see shadow
detail when playing video games.
• Sport: Optimises your projector for watching sports playback or playing sports games.
• Reference: This mode reproduces colours as close as possible the image the way the movie director
intended. Color, color temperature, brightness, contrast and gamma settings are all congured to
Rec.709 color gamut. Select this mode for the most accurate colour reproduction when watching
movies.
• Bright: This mode is suitable for environments where extra-high brightness is required, such as using
the projector in well-lit rooms.
• DICOM SIM.: This mode has been created for viewing greyscale images, perfect for viewing X-rays
and scans during medical training*.
Note: *This projector is not suitable for use in medical diagnosis.
• 3D: Optimized settings for watching 3D content.
Note: To experience the 3D eect, you will need to have compatible DLP Link 3D glasses. See 3D
section for more information.
Image dynamic range menu
HDR / HLG
Congure the High Dynamic Range (HDR) / Hybrid Log Gamma(HLG) setting and its eect when displaying video
from 4K Blu-ray players and streaming devices.
• O: Turn o HDR/HLG Processing. When set to O, the projector will NOT decode HDR/HLG content.
• Auto: Auto detect HDR/HLG signal.
Note: This option is only available for 1080p model.
Image brightness menu
Adjust the brightness of the image.
English
29
USING THE PROJECTOR
Image contrast menu
The contrast controls the degree of dierence between the lightest and darkest parts of the picture.
Image sharpness menu
Adjust the sharpness of the image.
Image gamma menu
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
• Film: For home theater.
• Graphics: For PC / Photo source.
• 1.8 / 2.0 / 2.2 / 2.4: For specic PC / Photo source.
• EOTF: Best for HDR source.
Note: This option is only available for 1080p model.
Image color settings menu
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while
providing true, more vibrant colors in picture.
Color Temperature
Select a color temperature from Warm, Standard, Cool, or Cold.
CMS / Colour Adjustment
Select the following options:
• Color: Adjust the red, green, blue, cyan, yellow, magenta, and white level of the image.
• Hue: Adjust the color balance of red and green.
• Saturation: Adjust a video image from black and white to fully saturated color.
• Value (Luminance): Adjust the luminance of the selected color.
• Reset: Return the factory default settings for color adjustment.
Color Space
Select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV.
Image wall color menu
Designed to adjust the colors of the projected image when projecting on to a wall without a screen. Each mode has
been ne-tuned by our expert colour team to ensure superior color performance.
There are several predened modes that you can choose from to suit the colour of your wall. Select between o,
blackboard, light yellow, light green, light blue, pink, and grey.
Note: For accurate color reproduction, we recommend using a screen.
English
30
USING THE PROJECTOR
Image 3D menu
Note:
• This projector is a 3D ready projector with DLP-Link 3D solution.
• Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video.
• This projector supports frame sequential (page-ip) 3D via HDMI1/HDMI2 ports.
• To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not
supported.
• To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K
(3840x2160) resolution is not supported in 3D mode.
3D Mode
Use this option to disable or enable the 3D function.
• O:
Select “O” to turn o 3D mode.
• On: Select “On” to turn on 3D mode.
3D Sync Type
Use this option to select 3D technology.
• DLP-Link: Select to use optimized settings for DLP 3D Glasses.
• 3D Sync: Select to use optimized settings for IR, RF or polarized 3D Glasses.
3D-2D Conversion
Use this option to specify how the 3D content should appear on the screen.
• 3D: Display 3D signal.
• L: Display the left frame of 3D content.
• R: Display the right frame of 3D content.
3D Format
Use this option to select the appropriate 3D format content.
• Auto: When a 3D identication signal is detected, the 3D format is selected automatically.
• Frame Packing: Display 3D signal in “Frame Packing” format.
• Side by Side: Display 3D signal in “Side-by-Side” format.
• Top and Bottom: Display 3D signal in “Top and Bottom” format.
• Frame Sequential: Display 3D signal in “Frame Sequential” format.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
Reset
Return the factory default setting for 3D settings.
• No: Select to cancel Reset.
• Yes: Select to return the factory default settings for 3D.
Image reset menu
Return the factory default settings for image settings.
English
31
USING THE PROJECTOR
Display menu
Display projection orientation menu
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Display light source mode menu
Select a light source mode depending on the installation requirements.
Display dynamic black menu
Use to automatically adjust the picture brightness in order to give optimum contrast performance.
Display gaming mode menu
Enable this feature to reduce response times (input latency) during gaming to 8.6ms (1080p@120Hz). All geometry
settings (example: Keystone, Four Corners) will be disabled when Gaming Mode is enabled. For more information
is below.
Note:
• The input lag by signals is described in the following table:
• The values in the table can vary slightly.
Source Timing Gaming Mode Output Timing Output Resolution Input Lag
1080p60 On 1080p60Hz 1080p 17ms
1080p120 On 1080p120Hz 1080p 8.6ms
4K60 On 1080p60Hz 1080p 17ms
1080p60 O 1080p60Hz 1080p 33.8ms
1080p120 O 1080p120Hz 1080p 17ms
4K60 O 1080p60Hz 1080p 33.7ms
• 1080p120 and 4K60 only support 1080p model.
Display screen type menu
Choose the screen type from 4:3, 16:9, and 16:10.
English
32
USING THE PROJECTOR
Display aspect ratio menu
Select the aspect ratio of the displayed image between the following options:
• 4:3:
This format is for 4:3 input sources.
• 16:9:
This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
• 16:10:
This format is for 16:10 input sources.
• Native:
This format displays the original image without any scaling.
• Auto: Automatically selects the appropriate display format.
XGA scaling table:
16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1024x768.
16x9 Scale to 1024x576.
Native No scaling will be made; the image is displayed with the resolution based on input source.
Auto - If source is 4:3, the screen type will be scaled to 1024 x 768.
- If source is 16:9, the screen type will be scaled to 1024 x 576.
- If source is 15:9, the screen type will be scaled to 1024 x 614.
- If source is 16:10, the screen type will be scaled to 1024 x 640.
XGA auto mapping rule:
Auto
Input resolution Auto/Scale
H-resolution V-resolution 1024 768
4:3
640 480 1024 768
800 600 1024 768
1024 768 1024 768
1600 1200 1024 768
Wide Laptop
1280 720 1024 576
1280 768 1024 614
1280 800 1024 640
SDTV
720 576 1024 576
720 480 1024 576
HDTV
1280 720 1024 576
1920 1080 1024 576
English
33
USING THE PROJECTOR
WXGA scaling table (screen type 16x10):
16 : 10 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1066x800.
16x10 Scale to 1280x800.
LBX Scale to 1280x960, then get the central 1280x800 image to display.
Native mode
1:1 mapping centered. 1:1 mapping
display
1280x800.
1280x720
centered.
1:1 mapping
centered.
Auto - Input source will be t into 1280x800 display area and be kept its original aspect ratio.
- If source is 4:3, the screen type will be scaled to 1066x800.
- If source is 16:9, the screen type will be scaled to 1280x720.
- If source is 15:9, the screen type will be scaled to 1280x768.
- If source is 16:10, the screen type will be scaled to 1280x800.
WXGA auto mapping rule (screen type 16x10):
Auto
Input resolution Auto/Scale
H-resolution V-resolution 1280 800
4:3
640 480 1066 800
800 600 1066 800
1024 768 1066 800
1280 1024 1066 800
1400 1050 1066 800
1600 1200 1066 800
Wide Laptop
1280 720 1280 720
1280 768 1280 768
1280 800 1280 800
SDTV
720 576 1280 720
720 480 1280 720
HDTV
1280 720 1280 720
1920 1080 1280 720
WXGA scaling table (screen type 16x9):
16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 960x720.
16x9 Scale to 1280x720.
LBX Scale to 1280x960, then get the central 1280x720 image to display.
Native mode
1:1 mapping centered. 1:1 mapping
display
1280x720.
1280x720
centered.
1:1 mapping
centred.
Auto - If auto format is selected, the screen type will automatically become 16:9 (1280x720).
- If source is 4:3, the screen type will be scaled to 960x720.
- If source is 16:9, the screen type will be scaled to 1280x720.
- If source is 15:9, the screen type will be scaled to 1200x720.
- If source is 16:10, the screen type will be scaled to 1152x720.
English
34
USING THE PROJECTOR
WXGA auto mapping rule (screen type 16x9):
Auto
Input resolution Auto/Scale
H-resolution V-resolution 1280 720
4:3
640 480 960 720
800 600 960 720
1024 768 960 720
1280 1024 960 720
1400 1050 960 720
1600 1200 960 720
Wide Laptop
1280 720 1280 720
1280 768 1200 720
1280 800 1152 720
SDTV
720 576 1280 720
720 480 1280 720
HDTV
1280 720 1280 720
1920 1080 1280 720
1080p scaling table:
16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9 Scale to 1920x1080.
LBX Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode - 1:1 mapping centered.
- No scaling will be made; the image is displayed with the resolution based on input source.
Auto - If auto format is selected, the screen type will automatically become 16:9 (1920x1080).
- If source is 4:3, the screen type will be scaled to 1440 x1080.
- If source is 16:9, the screen type will be scaled to 1920x1080.
- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to
display.
1080p auto mapping rule:
Auto
Input resolution Auto/Scale
H-resolution V-resolution 1920 1080
4:3
640 480 1440 1080
800 600 1440 1080
1024 768 1440 1080
1280 1024 1440 1080
1400 1050 1440 1080
1600 1200 1440 1080
Wide Laptop
1280 720 1920 1080
1280 768 1800 1080
1280 800 1728 1080
SDTV
720 576 1350 1080
720 480 1620 1080
HDTV
1280 720 1920 1080
1920 1080 1920 1080
English
35
USING THE PROJECTOR
Display geometric correction menu
Auto Keystone
Correct keystone digitally to t the projected image on the area on which you are projecting.
Note:
• The image size will reduce slightly when adjusting the horizontal and vertical keystone.
• When the Auto Keystone is used, the Four Corner Adjustment function will be disabled.
V Keystone
Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned
image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with
vertically on-axis applications.
H Keystone
Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned
image shape in which the left and right borders of the image are unequal in length. This is intended for use with
horizontally on-axis applications.
Four Corner Adjustment
This setting allows the projected image to be adjusted from each corner to make a square image when the
projection surface is not level.
Reset
Return the factory default setting for geometric correction settings.
Display digital zoom menu
Use to reduce or magnify an image on the projection screen. Digital Zoom is not the same as optical zoom and an
result in degradation of image quality.
Note: Zoom settings are retained on power cycle of the projector.
Display image shift menu
Adjust the projected image position horizontally (H) or vertically (V).
Display reset menu
Return the factory default settings for display settings.
English
36
USING THE PROJECTOR
Setup menu
Setup test pattern menu
Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (o).
Setup language menu
Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch,
Swedish, Norwegian, Danish, Finnish, Greek, Traditional Chinese, Simplied Chinese, Japanese, Korean, Russian,
Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, and Romanian.
Setup menu settings menu
Menu Timer
Set the duration where the OSD menu stays visible on the screen.
Information Hide
Enable this function to hide the information message.
Setup high altitude menu
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Setup power settings menu
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the “Power” key on the projector keypad or on the remote control.
Signal Power On
Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected,
without pressing the “Power” key on the projector Keypad or on the remote control.
Note:
• If the “Signal Power On” option is turned “On”, the power consumption of the projector in standby
mode will be over 3W.
• This function is applicable with HDMI source.
Auto Power O (min.)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power o when the countdown has nished (in minutes).
Sleep Timer (min.)
Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the
projector. The projector will automatically power o when the countdown has nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered o.
English
37
USING THE PROJECTOR
Setup security menu
Security
Enable this function to prompt for a password before using the projector.
• On: Choose “On” to use security verication when the turning on the projector.
• O: Choose “O” to be able to switch on the projector without password verication.
Note: The default password is 1234.
Security Timer
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this
time has elapsed you will be requested to enter your password again.
Change Password
Use to set or modify the password that is prompted when turning the projector on.
Setup startup logo menu
Use this function to set the desired startup screen. If changes are made, they will take eect the next time the
projector is powered on.
• Default: The default startup screen.
• Neutral: Logo is not displayed on startup screen.
• User: Logo capture tool required.
Note: Please visit the website to download the logo capture tool.
The supported le format: png/bmp/jpg.
Setup background color menu
Use this function to display a blue, red, green, grey color, none, or logo screen when no signal is available.
Note: If the background color is set to “None”, then the background color is black.
Setup device reset menu
Reset OSD
Return the factory default settings for OSD menu settings.
Reset All Settings
Return the factory default settings for all settings.
English
38
USING THE PROJECTOR
Input menu
Input auto source menu
Choose this option to let the projector automatically nd an available input source.
Input auto input switch menu
When HDMI input signal is detected, the projector will automatically switch the input source.
Input HDMI CEC settings menu
Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them
on the same power on or power o status using the HDMI Link control feature in the projector’s OSD. This
lets one device or multiple devices in a group power on or power o via HDMI Link Feature in a typical
conguration, your DVD player may be connected to the projector through an amplier or home theater
system.
HDMI
Amplier
HDMI
DVD Player
HDMI Link
Enable/disable the HDMI Link function.
Inclusive of TV
If the settings is set to “Yes” then the power on and power o link options are available.
Power On Link
CEC power on command.
• Mutual: Both projector and CEC device will be turned on simultaneously.
• PJ
Device: The CEC device will be turned on only after the projector is switched on.
• Device
PJ: The projector will be switched on only after the CEC device is turned on.
Power O Link
Enable this function to let both HDMI Link and projector to be automatically turned o at the same time.
Input reset menu
Return the factory default settings for input settings.
English
39
USING THE PROJECTOR
Audio menu
Audio volume menu
Adjust the volume level.
Audio mute menu
Use this option to temporarily turn o the sound.
• On: Choose “On” to turn mute on.
• O: Choose “O” to turn mute o.
Note: “Mute” function aects both internal and external speaker volume.
Audio internal speaker menu
Turn the built-in speaker on or o.
Audio audio output menu
Turn the external audio on or o.
Audio reset menu
Return the factory default settings for audio settings.
English
40
USING THE PROJECTOR
Control menu
Control device ID menu
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232
command.
Note: For a full list of RS232 commands, please refer to the RS232 user manual on our website.
Control remote settings menu
IR Function
Set the IR function setting.
• On: Choose “On”, the projector can be operated by the remote control from the top and front IR
receivers.
• O: Choose “O”, the projector can’t be operated by the remote control. By selecting “O”, you will be
able to use the Keypad keys.
Control keypad settings menu
Keypad Lock
When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the
remote control. By selecting “O”, you will be able to reuse the Keypad.
Control reset menu
Return the factory default settings for control settings.
English
41
USING THE PROJECTOR
Information menu
Information menu
View the projector information as listed below:
• Regulatory
• Serial Number
• Source
• Color Info
• Light Source Hours
• Picture Mode
• Device ID
• Filter Usage Hours
• Light Source Mode
• FW Version
English
42
ADDITIONAL INFORMATION
Compatible resolutions
Input Signal for HDMI
Signal Resolution Refresh Rate(Hz) Notes for Mac
VGA 640 x 480 60 Mac 60/72/85/
SVGA
800 x 600 60(*2)/72/85/120(*2) Mac 60/72/85
XGA 1024 x 768 48/50(*4)/60(*2)/70/75/85/120(*2) Mac 60/70/75/85
SDTV(480I) 720 x 480 60
SDTV(480P) 720 x 480 60
SDTV(576I) 720 x 576 50
SDTV(576P) 720 x 576 50
WSVGA(1024X600) 1024 x 600 60 (*3)
HDTV(720p) 1280 x 720 50(*2)/60/120(*2) Mac 60
WXGA
1280 x 768 60/75/85 Mac 75
1280 x 800 60/50/48hz(*4) Mac 60
WXGA(*5) 1366 x 768 60
SXGA
1280 x 1024 60/75/85 Mac 60/75
1440 x 900 60
SXGA+ 1400 x 1050 60
UXGA 1600 x 1200 60
HDTV(1080I) 1920
x 1080 50/60
HDTV(1080p) 1920 x 1080 24/30/50/60 Mac 60
WUXGA 1920
x 1200(*1) 60/50(*4) Mac 60
Note:
• (*1) 1920 x 1200 @60hz only support RB(reduced blanking).
• (*2) 3D timing for 3D Ready projector(STD) and True 3D projector(Option).
• (*3) New ERA & Data projector must have this timing WSVGA, Proscene and Home is nice to have.
• (*4) Proscene and Data projector >4,000L, Native resolution must support @50Hz/48Hz.
• (*5) Windows 8 standard timing.
English
43
ADDITIONAL INFORMATION
True 3D Video Compatibility
Input
resolutions
HDMI 1.4a
3D Input
Input timing
1280 x 720P @ 50Hz Top-and-Bottom
1280 x 720P @ 60Hz Top-and-Bottom
1280 x 720P @ 50Hz Frame packing
1280 x 720P @ 60Hz Frame packing
1920 x 1080i @ 50Hz Side-by-Side(Half)
1920 x 1080i @ 60Hz Side-by-Side(Half)
1920 x 1080P @ 24Hz Top-and-Bottom
1920 x 1080P @ 24Hz Frame packing
HDMI 1.3
1920 x 1080i @ 50Hz
Side-by-Side(Half) SBS mode is on
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080i @ 50Hz
Top-and-Bottom TAB mode is on
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1024 x 768 @ 120Hz
Frame Sequential 3D format is Frame sequential
1280x 720 @ 120Hz
Note:
• If 3D input is 1080p@24hz, the DMD should replay with integral multiple with 3D mode
• 1080i@25Hz and 720p@50Hz will run in 100Hz; other 3D timing will run in 120Hz.
• 1080p@24Hz will run 144Hz.
English
44
ADDITIONAL INFORMATION
EDID (Digital)
XGA/WXGA
B0 /
Established Timing
B0 /
Standard Timing
B0 /
Detail Timing
B1 /
Video Mode
B1 /
Detail Timing
640 x 480 @ 60Hz 1600 x 1200 @ 60Hz Native timing: 640 x 480p @ 60Hz XGA:
640 x 480 @ 67Hz 1440 x 900 @ 60Hz
XGA:
1024 x 768 @ 60Hz
720(1440) x 480i @ 60Hz 1280 x 720p @ 60Hz
640 x 480 @ 72Hz 1280 x 720 @ 60Hz
WXGA:
1280 x 800 @ 60Hz
720(1440) x 576i @ 50Hz 1366 x 768 @ 60Hz
640 x 480 @ 75Hz 1280 x 800 @ 60Hz 720 x 480p @ 60Hz
1920 x 1080p @ 50Hz
800 x 600 @ 56Hz 640 x 480 @ 120Hz 720 x 576p @ 50Hz 1920 x 1080p @ 60Hz
800 x 600 @ 60Hz 800 x 600 @ 120Hz 1280 x 720p @ 60Hz
800 x 600 @ 72Hz 1024 x 768 @ 120Hz 1280 x 720p @ 50Hz
WXGA:
800 x 600 @ 75Hz 1280 x 720 @ 120Hz 1920 x 1080i @ 60Hz 1280 x 800p @ 120Hz
1024 x 768 @ 60Hz 1920 x 1080i @ 50Hz 1366 x 768 @ 60Hz
1024 x 768 @ 70Hz 1920 x 1080p @ 60Hz 1920 x 1080p @ 50Hz
1024 x 768 @ 75Hz 1920 x 1080p @ 50Hz 1920 x 1080p @ 60Hz
1280 x 1024 @ 75Hz 1920 x 1080p @ 24Hz
1152 x 870 @ 75Hz 1920 x 1080p @ 25Hz
1920 x 1080p @ 30Hz
1080p
B0 /
Established Timing
B0 /
Standard Timing
B0 /
Detail Timing
B1 /
Video Mode
B1 /
Detail Timing
640 x 480 @ 60Hz 1280 x 1024 @ 60Hz Native timing: 720(1440) x 480i @ 60Hz 4:3 3840 x 2160p @ 60Hz
640 x 480 @ 67Hz 1400 x 1050@ 60Hz
1920 x 1080p @60Hz 720(1440) x 576i @ 50 Hz 4:3
640 x 480 @ 72Hz 1024 x 768@ 120Hz 720 x 480p @ 60 Hz 4:3
640 x 480 @ 75Hz 1280 x 720 @ 60Hz 720 x 576p @ 50 Hz 4:3
800 x 600 @ 56Hz 1280 x 720 @ 120Hz 1280 x 720p @ 60 Hz 16:9
800 x 600 @ 60Hz 1280 x 800 @ 60Hz 1280 x 720p @ 50 Hz 16:9
800 x 600 @ 72Hz 1440 x 900@ 60Hz 1920 x 1080i @ 60 Hz 16:9
800 x 600 @ 75Hz 1600 x1200 @ 60Hz 640 x 480p @ 60 Hz 4:3
1024 x 768 @ 60Hz 1920 x 1080p @ 60 Hz 16:9
1024 x 768 @ 70Hz 1920 x 1080p @ 50 Hz 16:9
1024 x 768 @ 75Hz 1920 x 1080p @ 24 Hz 16:9
1280 x 1024 @ 75Hz 1920 x 1080p @ 30 Hz 16:9
1152 x 870 @ 75Hz 1920 x 1080p @ 120 Hz 16:9
3840 x 2160p @ 24 Hz 16:9
3840 x 2160p @ 25 Hz 16:9
3840 x 2160p @ 30 Hz 16:9
3840 x 2160p @ 50 Hz 16:9
3840 x 2160p @ 60 Hz 16:9
4096 x 2160p @ 24 Hz
256:135
4096 x 2160p @ 25 Hz
256:135
4096 x 2160p @ 30 Hz
256:135
4096 x 2160p @ 50 Hz
256:135
English
45
ADDITIONAL INFORMATION
1080p
B0 /
Established Timing
B0 /
Standard Timing
B0 /
Detail Timing
B1 /
Video Mode
B1 /
Detail Timing
4096 x 2160p @ 60 Hz
256:135
720 x 480p @ 60 Hz 16:9
720(1440) x 480i @ 60 Hz 16:9
720 x 576p @ 50 Hz 16:9
2880 x 480i @ 60 Hz 16:9
1440 x 480p @ 60 Hz 16:9
2880 x 576i @ 50 Hz 16:9
1440 x 576p @ 50 Hz 16:9
720(1440) x 576i @ 50 Hz 16:9
English
46
ADDITIONAL INFORMATION
Image size and projection distance
XGA
Diagonal Length Size of
(16:9) Screen
Screen Size (W x H) Projection Distance (D)
Oset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (inch)
25.4 0.52 0.39 20.32 15.24 1.00 1.11 3.28 3.64 0.06 2.36
30 0.61 0.46 24.00 18.00 1.18 1.32 NA 4.33 0.07 2.76
40 0.81 0.61 32.00 24.00 1.58 1.76 5.18 5.77 0.09 3.54
50 1.02 0.76 40.00 30.00 1.97 2.19 6.46 7.19 0.12 4.72
60 1.22 0.91 48.00 36.00 2.37 2.63 7.78 8.63 0.14 5.51
70 1.42 1.07 56.00 42.00 2.76 3.07 9.06 10.07 0.16 6.30
80 1.63 1.22 64.00 48.00 3.15 3.51 10.33 11.52 0.18 7.09
90 1.83 1.37 72.00 54.00 3.55 3.95 11.65 12.96 0.21 8.27
100 2.03 1.52 80.00 60.00 3.94 4.39 12.93 14.40 0.23 9.06
120 2.44 1.83 96.00 72.00 4.73 5.27 15.52 17.29 0.27 10.63
150 3.05 2.29 120.00 90.00 5.91 6.58 19.39 21.59 0.34 13.39
180 3.66 2.74 144.00 108.00 7.10 7.90 23.29 25.92 0.41 16.14
200 4.06 3.05 160.00 120.00 7.88 8.78 25.85 28.81 0.46 18.11
250 5.08 3.81 200.00 150.00 9.86 10.97 32.35 35.99 0.57 22.44
300 6.10 4.57 240.00 180.00 11.83 NA 38.81 NA 0.69 27.17
Note: Zoom Ratio: 1.1x
WXGA
Diagonal Length Size of
(16:9) Screen
Screen Size (W x H) Projection Distance (D)
Oset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (inch)
30 0.65 0.4 25.44 15.90 1.00 1.11 NA 3.64 0.05 1.97
40 0.86 0.54 33.92 21.20 1.33 1.48 4.36 4.86 0.06 2.36
50 1.08 0.67 42.40 26.50 1.66 1.85 5.45 6.07 0.08 3.15
60 1.29 0.81 50.88 31.80 2.00 2.22 6.56 7.28 0.09 3.54
70 1.51 0.94 59.36 37.10 2.33 2.59 7.64 8.50 0.12 4.72
80 1.72 1.08 67.84 42.40 2.66 2.96 8.73 9.71 0.13 5.12
90 1.94 1.21 76.32 47.70 2.99 3.33 9.81 10.93 0.15 5.91
100 2.15 1.35 84.80 53.00 3.33 3.70 10.93 12.14 0.16 6.30
120 2.58 1.62 101.76 63.60 3.99 4.45 13.09 14.60 0.19 7.48
150 3.23 2.02 127.20 79.50 4.99 5.56 16.37 18.24 0.24 9.45
180 3.88 2.42 152.64 95.40 5.99 6.67 19.65 21.88 0.29 11.42
200 4.31 2.69 169.60 106.00 6.65 7.41 21.82 24.31 0.33 12.99
250 5.38 3.37 212.00 132.50 8.31 9.26 27.26 30.38 0.40 15.75
300 6.46 4.04 254.40 159.00 9.98 NA 32.74 NA 0.48 18.90
Note: Zoom Ratio: 1.1x
English
47
ADDITIONAL INFORMATION
1080p
Diagonal Length Size of
(16:9) Screen
Screen Size (W x H) Projection Distance (D)
Oset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (inch)
24.5 0.54 0.31 21.35 12.01 0.80 0.88 NA 2.89 0.04 1.57
30 0.66 0.37 26.15 14.71 0.98 1.08 NA 3.54 0.06 2.36
40 0.89 0.5 34.86 19.6 1.31 1.43 4.30 4.69 0.08 3.15
50 1.11 0.62 43.58 24.5 1.63 1.79 5.35 5.87 0.10 3.94
60 1.33 0.75 52.29 29.4 1.96 2.15 6.43 7.05 0.12 4.72
70 1.55 0.87 61.01 34.3 2.29 2.51 7.51 8.23 0.14 5.51
80 1.77 1 69.73 39.2 2.61 2.87 8.56 9.42 0.16 6.30
90 1.99 1.12 78.44 44.1 2.94 3.23 9.65 10.60 0.18 7.09
100 2.21 1.25 87.16 49 3.27 3.58 10.73 11.75 0.19 7.48
120 2.66 1.49 104.59 58.8 3.92 4.30 12.86 14.11 0.24 9.45
150 3.32 1.87 130.74 73.5 4.90 5.38 16.08 17.65 0.30 11.81
180 3.98 2.24 156.88 88.2 5.88 6.45 19.29 21.16 0.36 14.17
200 4.43 2.49 174.32 98.1 6.54 7.17 21.46 23.52 0.40 15.75
250 5.53 3.11 217.89 122.6 8.17 8.96 26.80 29.40 0.50 19.69
300 6.64 3.74 261.47 147.1 9.80 10.75 32.15 35.27 0.59 23.23
306 6.77 3.81 266.70 150 10.00 NA 32.81 NA 0.61 24.02
Note: Zoom Ratio: 1.1x
Distance
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
English
48
ADDITIONAL INFORMATION
Projector dimensions and ceiling mount installation
1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to
the projector meet the following specications:
• Screw type: M4*10mm
• Minimum screw length: 10mm
Lens
Unit: mm
M4*10mm
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
• If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
• Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
• Avoid installing the projector near a heat source.
English
49
ADDITIONAL INFORMATION

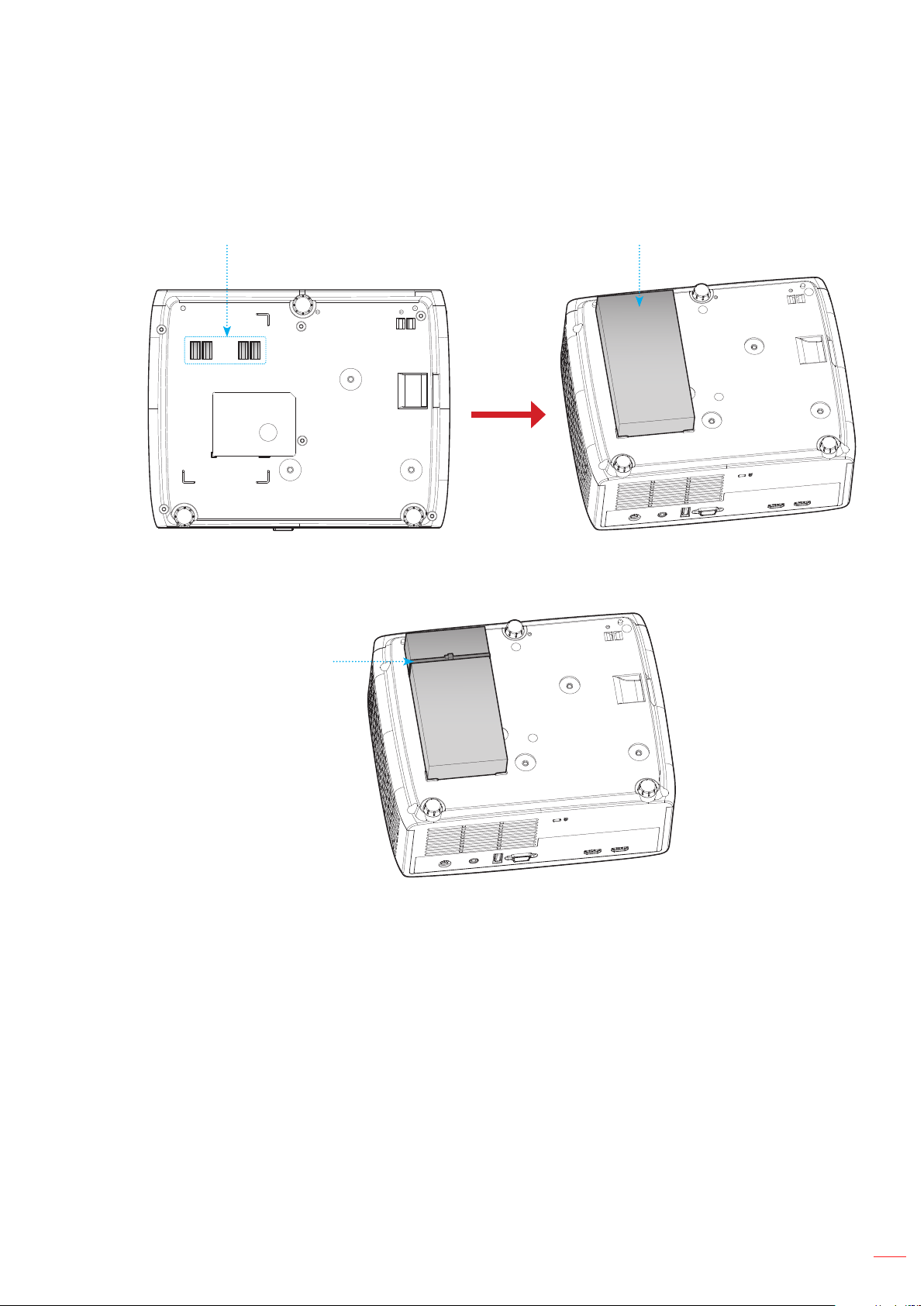

For ceiling mounting, you could purchase a cable tie whose length is over 250mm to x the AC adapter if needed.
1. Install the cable tie to the designated holes on the bottom of the projector. Then place the AC adapter
onto its slot.
Holes for Cable Tie Adapter
2. Secure the AC adapter with the cable tie.
Cable Tie
English
50
ADDITIONAL INFORMATION
IR remote control codes
Key
NEC
format
Customer Code Key Code
Description
Byte 1 Byte 2 Byte 3 Byte 4
Power Format 1 32 CD 02 FD Press to turn on / o the projector.
Aspect ratio Format 1 32 CD 64 9B
Press to change the aspect ratio of a
displayed image.
Source
Format 1 32 CD C3 3C Press to select an input signal.
Mode Format 1 32 CD 5 FA
Press to change the Picture mode of
a displayed image.
Four directional
select keys (Up)
Format 2 32 CD 11 EE
Press to select items or make
adjustments to your selection.
Four directional
select keys
(Left)
Format 2 32 CD 10 EF
Four directional
select keys
(Right)
Format 2 32 CD 12 ED
Four directional
select keys
(Down)
Format 2 32 CD 14 EB
Enter Format 1 32 CD 0F F0 Conrm your item selection.
Settings/Setup
Menu
Format 1 32 CD A8 57 Press to enter the Setup menu.
Return
Format 1 32 CD 0D F2
Press to return to the previous
menu.
Menu
Format 1 32 CD 0E F1
Press to display or exit the on-
screen display menus.
Volume -
Format 2 32 CD 8F 70 Press to decrease the volume.
Mute Format 1 32 CD 52 AD
Press to momentarily turn o / on the
audio.
English
51
ADDITIONAL INFORMATION
Key
NEC
format
Customer Code Key Code
Description
Byte 1 Byte 2 Byte 3 Byte 4
Volume + Format 2 32 CD 8C 73 Press to increase the volume.
Freeze Format 1 32 CD 06 F9 Press to freeze the projector image.
Keystone Format 1 32 CD 7 F8
Press to adjust image distortion
caused by tilting the projector.
AV Mute Format 1 32 CD 03 FC
Press to hide / unhide the screen
picture and turn o / on audio.
English
52
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
• Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
• Ensure the pins of connectors are not crooked or broken.
• Ensure that the "Mute" feature is not turned on.
Image is out of focus
• Turn the focus ring clockwise or counterclockwise until the image is sharp and legible. (Please see
page 17).
• Make sure the projection screen is between the required distance from the projector. (Please refer to
pages
46~47).
The image is stretched when displaying 16:9 DVD title
• When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
• If you play the V-Stretch format DVD title, please change the format as V-Stretch in projector OSD.
• If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
• Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
• Turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.
(Please see page 17).
• Move the projector closer to or further from the screen.
• Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the dierent settings.
Image has slanted sides:
• If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Image is reversed
• Select "Display Projection Orientation" from the OSD and adjust the projection direction.
English
53
ADDITIONAL INFORMATION
Other problems
The projector stops responding to all controls
• If possible, turn o the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Remote control problems
If the remote control does not work
• Check the operating angle of the remote control is pointed within ±15° to the IR receiver on the
projector.
• Make sure there are not any obstructions between the remote control and the projector. Move to within
6 m (19.7 ft) of the projector.
• Make sure batteries are inserted correctly.
• Replace batteries if they are exhausted.
English
54
ADDITIONAL INFORMATION
Warning indicators
When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
• “Lamp” LED indicator is lit red and if “Power” indicator ashes red.
• “Temp” LED indicator is lit red and if “Power” indicator ashes red. This indicates the projector has
overheated. Under normal conditions, the project can be switched back on.
• “Temp” LED indicator ashes red and if “Power” indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or
ash, please contact your nearest service center for assistance.
LED lightning messages
Message
Power LED Temp LED Lamp LED
(Red)
(Blue) (Red) (Red)
Standby state
(Input power cord)
Steady light
Power on (Warming)
Flashing
(0.5 sec o / 0.5 sec
on)
Power on and Lamp lighting Steady light
Power o (Cooling)
Flashing
(0.5 sec o / 0.5
sec on). Back to red
steady light when
cooling fan turns o.
Error (Lamp failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light
• Power o:
Power O
Press power key again.
• Temperature warning:
Warning
TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
English
55
ADDITIONAL INFORMATION
Specications
Item Description
Technology
• XGA:
Texas Instrument DMD, 0.55" S450 DMD
• WXGA: Texas Instrument DMD, 0.65" S450 DMD
• 1080p: Texas Instrument DMD, 0.65" S600 DM
D
Native Resolution
• XGA: 1024 x 768
• WXGA: 1280 x 800
• 1080p: 1920 x 1080
Lens
Throw ratio
• XGA: 1.94~2.16 (60"@2.37m)
• WXGA: 1.54~1.72 (60"@2.37m)
• 1080p: 1.48~1.62 (61"@2.0m)
F-stop
• XGA/WXGA: 2.41~2.53
• 1080p: 2.5~2.67
Focal length
• XGA: 21.85~ 24.01mm
• WXGA: 21.85~ 24.00mm
• 1080p: 12.81~16.74mm
Zoom range 1.1x
Oset
• XGA: 115% @60", tolerance
±5%
• WXGA: 100%~112% @60", tolerance
±5%
• 1080p: 100% ~116% @60", tolerance ±5%
Image size
• XGA/WXGA: Optimized at 60” wide @2.37m
• 1080p: Optimized at 61” wide @2.0m
Projection distance
• XGA: 1m to 11.8m mechanism travel, 1m to 10m optical optimized range
• WXGA: 1m to 10m mechanism travel, 1m to 10m optical optimized range
• 1080p: 0.8m to 10m mechanism travel, 1m to 5m optical optimized range
I/Os
• HDMI 1 (HDMI 1.4b [XGA/WXGA model] / HDMI 2.0 [1080p model])
• HDMI 2 (HDCP 2.0 [XGA/WXGA model] / HDCP 2.2 [1080p model])
• USB Type-A for Power USB 5V/1.5A
• Audio Out 3.5mm
• RS232
Colour 1073.4 Million color
Scan rate
• Horizontal
scan rate: 15KHz ~ 140KHz
• Vertical scan rate: 24Hz ~ 120Hz
Speaker 15W
Power consumption
• ECO mode: 89W (typical) @110VAC; 887W @220VAC
• Bright mode: 140W (typical) @110VAC; 139W @220VAC
Input current DC 19.5V, 9.23A
Installation orientations
Front, Rear, Ceiling, Rear-top
Dimensions (W x D x H)
• Without feet: 274 x 216 x 108.5 mm
• With feet:
274 x 216 x 114 mm
Weight 3.0 ±0.2 kg
Environmental
Operating in 0~40°C, 80% humidity (max., non-condensing)
Note: All specications are subject to change without notice.
English
56
ADDITIONAL INFORMATION
Optoma global oces
For service or support, please contact your local oce.
USA
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-897-8601
Canada
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-897-8601
Latin America
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-897-8601
Europe
Unit 1, Network 41, Bourne End Mills
Hemel Hempstead, Herts,
HP1 2UJ, United Kingdom +44 (0) 1923 691 800
www.optoma.eu +44 (0) 1923 691 888
Benelux BV
Randstad 22-123 +31 (0) 36 820 0252
1316 BW Almere +31 (0) 36 548 9052
The Netherlands
www.optoma.nl
France
Bâtiment E +33 1 41 46 12 20
81-83 avenue Edouard Vaillant +33 1 41 46 94 35
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06
28522 Rivas VaciaMadrid, +34 91 670 08 32
Spain
Deutschland
Am Nordpark 3 +49 (0) 2161 68643 0
41069 Mönchengladbach +49 (0) 2161 68643 99
Scandinavia
Lerpeveien 25 +47 32 98 89 90
3040 Drammen +47 32 98 89 99
PO.BOX 9515
3038 Drammen
Norway
Korea
https://www.optoma.com/kr/
Japan
https://www.optoma.com/jp/
Taiwan
https://www.optoma.com/tw/
China
Room 2001, 20F, Building 4, +86-21-62947376
No.1398 Kaixuan Road, +86-21-62947375
Changning District www.optoma.com.cn
Shanghai, 200052, China
Australia
https://www.optoma.com/au/
www.optoma.com
