Instructions
Cooker
Hood
Model CDG6MBGG / CDG9MBGG
CAUTION:Accessible parts may become hot when used with cooking appliances.
Information and advice
In certain circumstances electrical appliance may be a danger hazard.
G) Disconnect the electrical plug prior to any maintenance.
F)Constantly check food frying to avoid overheated oil splashing and becoming a
fire hazard.
E)Avoid opening gasometer when there is no pan on the stove, as it is damaging
for the filters and a fire hazard.
D)Do not light a flame under the cooker hood.
C)Do not touch the light bulb within half an hour after appliance has been use.
B)Do not check the status of the filters while the cooker hood is operating.
A) There must be adequate ventilation of the room when the cooker hood is used
at the same time as appliances burning gas or other fuels.
H) Regulations concerning the discharge of air have to be fulfilled.
I) When the range hood and appliances supplied with energy Other than electricity
are simultaneously in operation.The negative pressure in the room must not
exceed 4 Pa (4x10 bar)
¯
5
J)If the supply cord is damaged,it must be replaced by the manufacturer,its service
agent or similarly qualified persons in order to avoid a hazard.
K)This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised.
L)the range hood is inteded to be installed over a hob having no more than four hob
elements.
M) Indoor use and household use only
O) Attention ! Observe the warning in the instruction sheet concerning the operation
of the appliance when air is discharged from the room
N)When the appliance is not in use and before cleaning, unplug the appliance from
the outlet.
CAUTION:Accessible parts may become hot when used with cooking appliances.
Information and advice

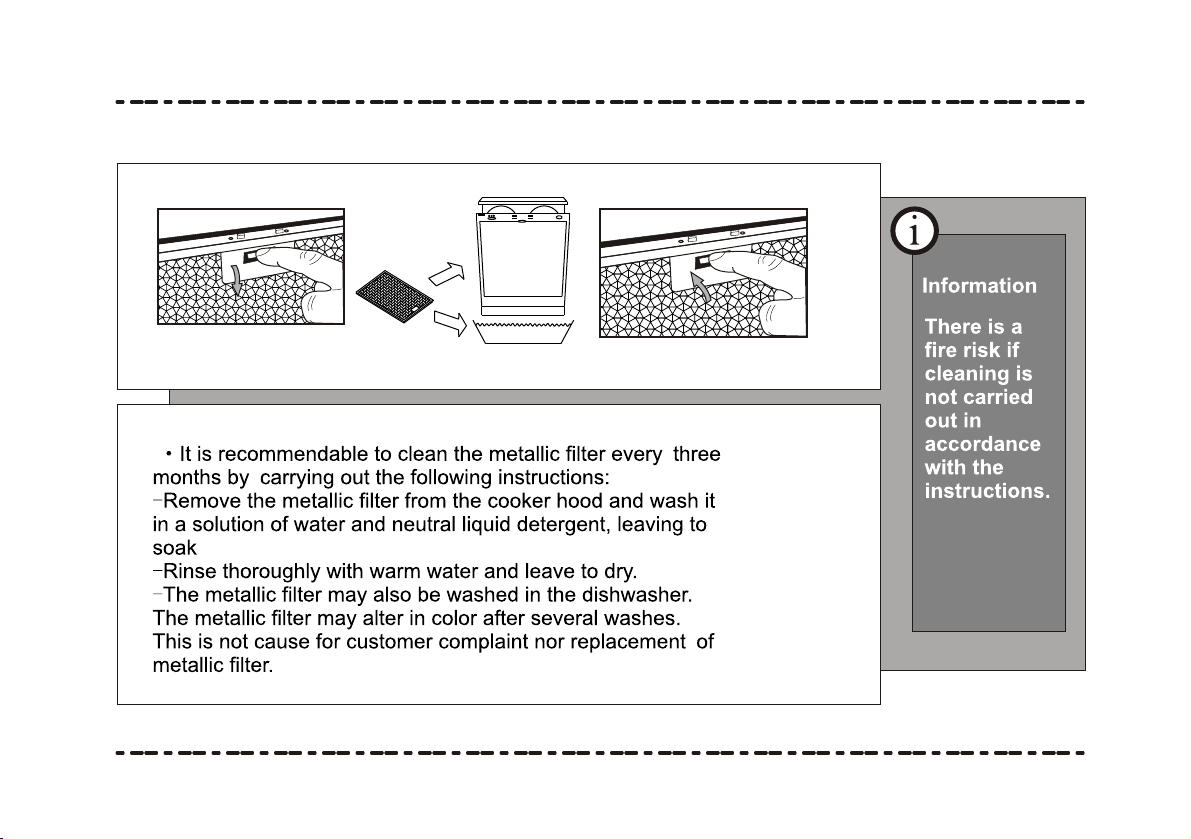

P) There is a fire risk if cleaning is not carried out in accordance with the instructions.
1.Oil Filter 2.Filter aseembly
3.Air duct assembly 4.Glass
5.Main body assembly
6.Outter chimney
3
4
5
6
1
2
1
2
3
3x 8
3x
8 x 40mm
2x
4 x 35mm
150
250
135
100
MIN350mm
MIN350mm
MIN500mm
MIN500mm
650mm-750mm
150
135
250
100
4 5
2 x 8
2x
4x35mm
2x
8x40mm
6 7
OK!
8 9
3x
8x40 mm
3x
4x35 mm
OK!
10 11
4x
4x10 mm
Do not
touch the
light bulb
within half
an hour
after
appliance
use.
The lamp
shall not be
covered
with thermal
insulation or
other
material
12
IMPORTANT: DO NOT ATTEMPT TO MAINTAIN OR CLEAN THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY SUPPLY.
To ensure the best performance from your cooker hood, the charcoal filter should be replaced every
3-4 months, dependent on use. Check with your local retailer or dealer for information on how to
obtain replacement charcoal filters.
This charcoal filter is non-washable and must be replaced as required. To install a new charcoal filter,
first remove the grease filter, as shown in Fig.13.
Charcoal filter installation Care and Maintenance
1 2 3
1
2
13
220-240V 1WX2 MAX
Replacement and maintenance
CAUTION: LED lights replacement must be done by a qualified electrician.
1.Remove the LED lamp by flat-head screwdriver.
2.Pull out the LED lamp. Unplug the lamp wire connector. Replace the LED lamp.
3.Plug wire connector with new lamp.
Push the LED lamp into the hole with sound of snap.
1
14
15
16
.
This appliance is labelled in accordance with European Direcve 2012/19/EU on Waste Electrical and
Electronic Equipment Regulaons 2013 regarding electric and electronic appliances (WEEE). The WEEE
contain both pollung substances (that can have a negave effect on the environment) and base elements
(that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and
dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring
that the WEEE do not become an environmental problem; it is essenal to follow a few basic rules:
- the WEEE should not be treated as domesc waste;
- the WEEE should be taken to dedicated collecon areas managed by the town council or a registered company.
ln many countries, domesc collecons may be available for large WEEEs. When you buy a new appliance, the old one can
be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type
and has the same funcons as the purchased appliance.
