[en] Instructions for installation and use
Extractor hood
Table of contents
[en] Instructions for installation and use
Instruction manual
8 Intended use
Intended use
( Important safety information
Important safety information
: Warning
Danger of suffocation!
: Warning
Risk of fire!
: Warning
Risk of burns!
: Warning
Risk of injury!
: Warning
Risk of injury!
: Warning
Risk of electric shock!
Causes of damage
Caution!
7 Environmental protection
Environmental protection
Saving energy
Environmentally-friendly disposal
1 Operating the appliance
Operating the appliance
Note:

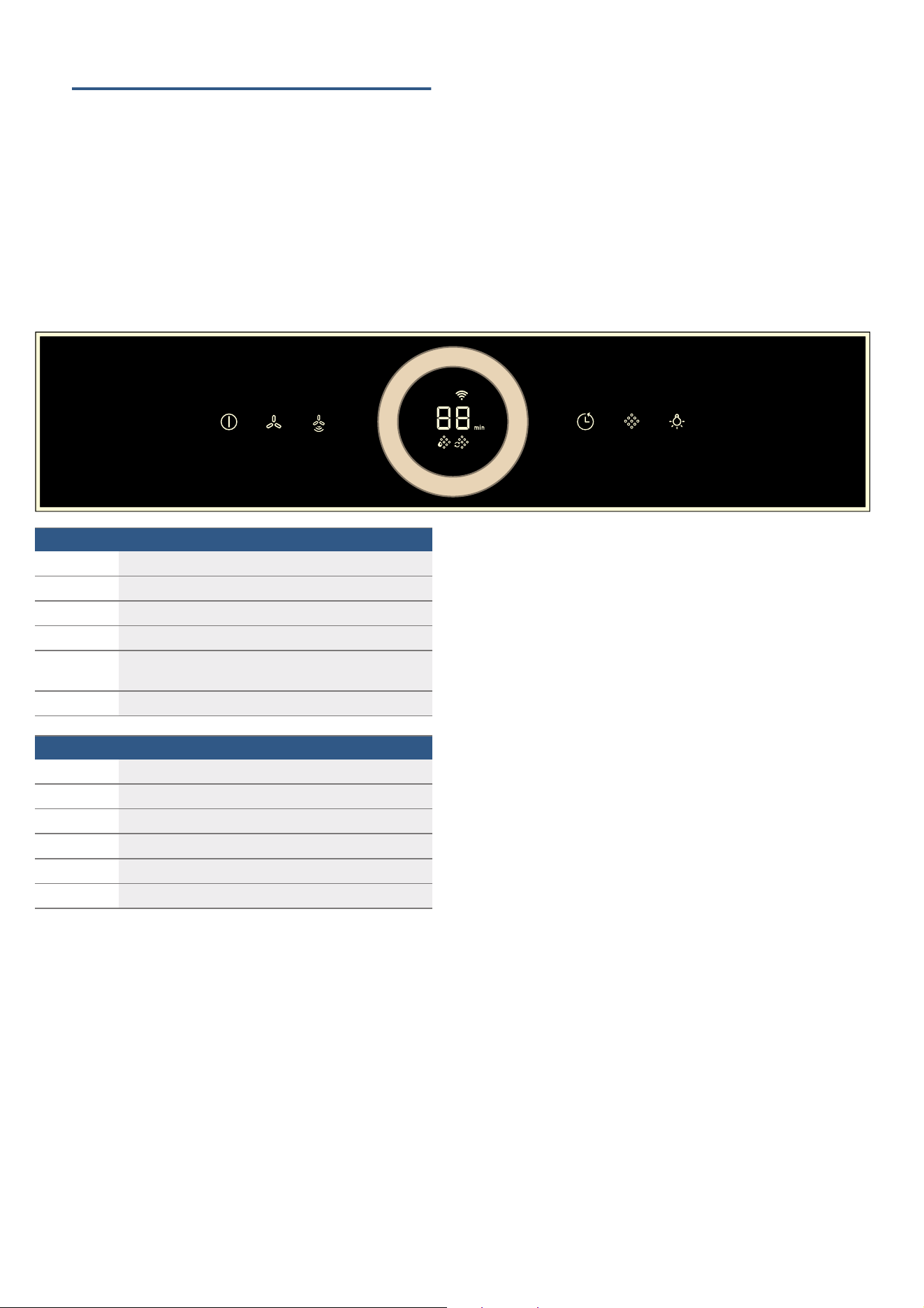

Control panel
Symbol
Explanation
Indicator
Explanation
Setting the fan
1. Touch the # symbol.
2. Use the rotary selector to select the fan setting.
Note:
Intensive setting
Switching on
Note:
Switching off
Automatic mode
Sensor control
1. Touch and hold the > symbol when the fan is switched off. The setting will be displayed.
2. Use the control ring to select the setting you require.
3. Take your finger off the > symbol.
Fan run-on time
Switching on
Note:
Switching off
Lighting
Saturation display
Audible signal
Switching on
Switching off

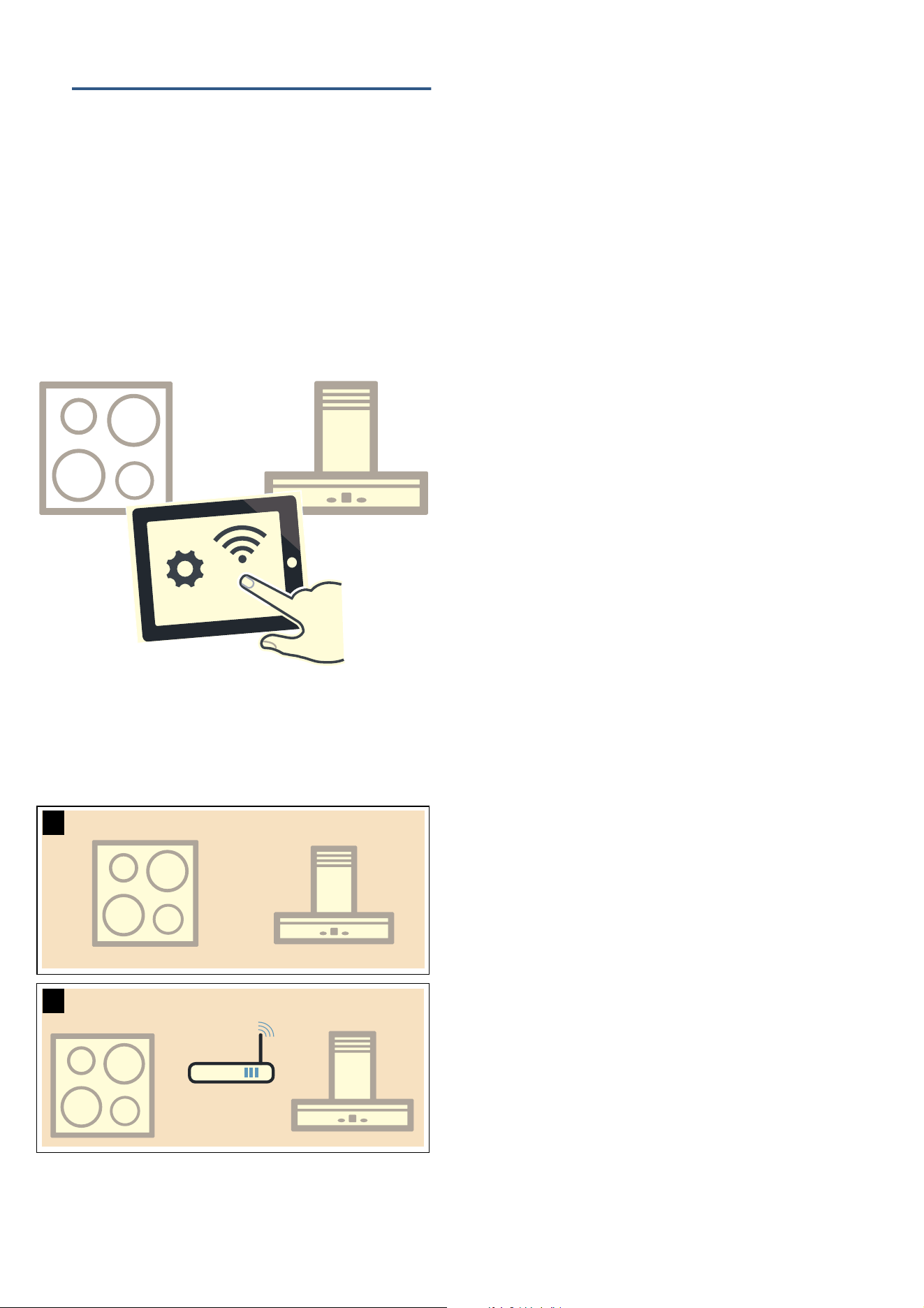

e Connecting to a hob
Connecting to a hob
Notes
Setting up a connection
Connecting directly
Notes
Connecting via your home network
o Home Connect
Home Connect
Notes
Setting up
Note:
Automatic registration in the home network
Notes
1. Press and hold the : and > symbols until the D and Ù indicators start flashing.
2. To start the automatic login to the home network, turn the rotary selector clockwise until D and ‚ flash.
3. Press the WPS button on the router within the next two minutes.
Note:
4. On your mobile device, follow the instructions for automatic network login.
Manual registration in the home network
Notes
1. Press and hold the : and > symbols until the D and Ù indicators start flashing.
2. To start the manual login to the home network, turn the rotary selector clockwise until D and ƒ flash.
3. Use the "Home Connect" SSID and the "Home Connect" key to log the mobile device into the extractor hood network.
4. On your mobile device, follow the instructions for manually logging into your network.
Connecting to the app
Notes
1. Press and hold the : and > symbols until the D and „ indicators start flashing.
2. On your mobile device, follow the instructions in the Home Connect app.
Software update
Notes
Resetting the connection
About data protection
Note:
Declaration of Conformity
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Risk of injury!
: Warning
Risk of electric shock!
: Warning
Risk of electric shock!
: Warning
Risk of injury!
: Warning
Risk of injury!
Cleaning agents
Note:
Note:
Area
Cleaning products
Removing metal grease filter

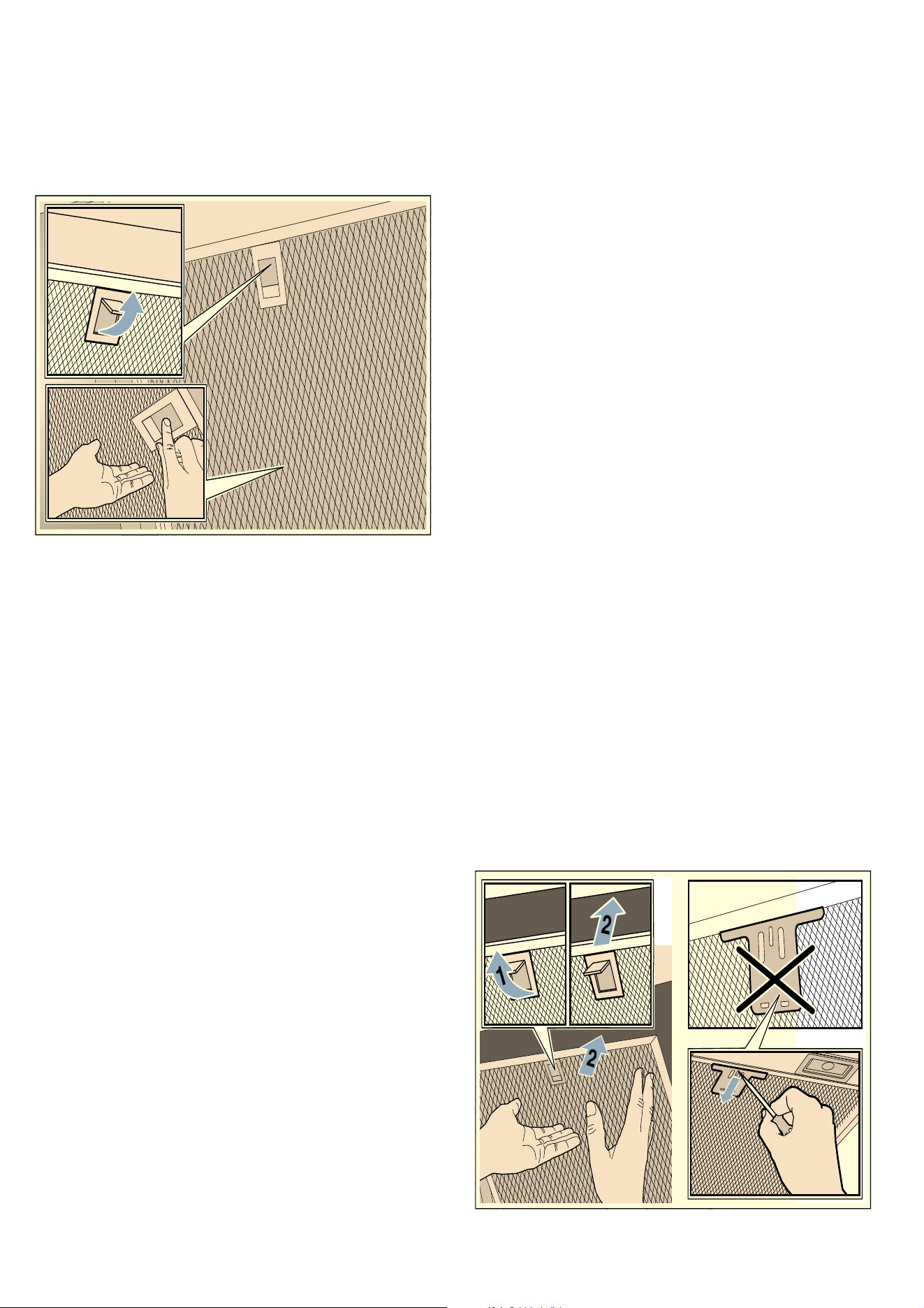

1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
2. Take the metal grease filter out of the holder.
Notes
3. Clean the metal grease filter.
4. Clean the appliance support cables.
5. Clean the accessible parts of the housing. Clean the inside of the appliance.
: Warning
Risk of injury!
Cleaning the metal mesh grease filters
: Warning
Risk of fire!
Notes
By hand:
Note:
In the dishwasher:
Note:
Installing the metal mesh grease filter
: Warning
Risk of injury!
Notes
1. Insert the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
Note:
2. Swing the metal grease filter up and click it into place.
3. If the metal grease filter has not been inserted correctly, open the lock and reinsert the metal grease filter correctly.
Replacing the activated charcoal filter
Note:

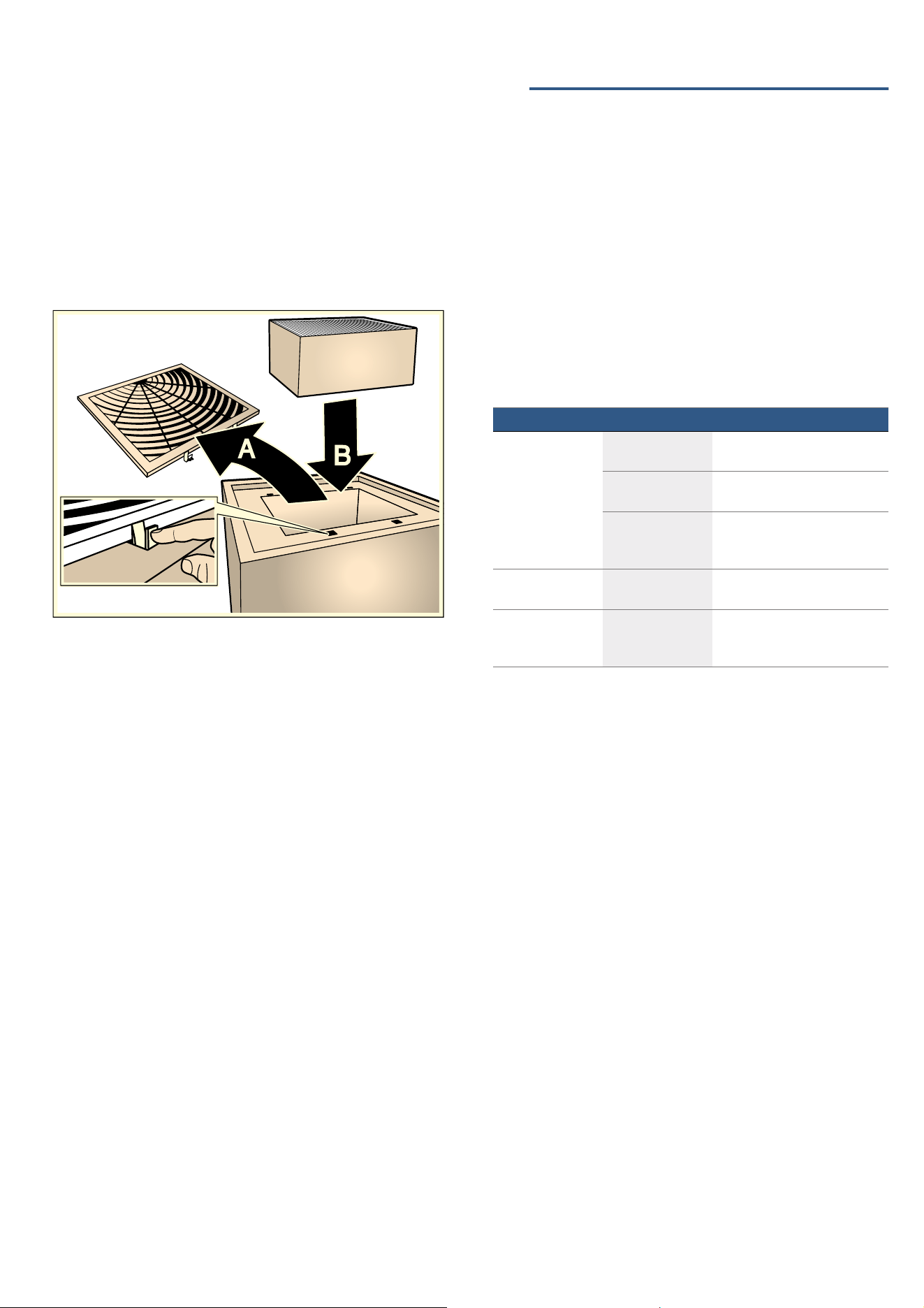

1. Open the cover on the top of the appliance.
2. Remove the old activated charcoal filter and insert the new one.
3. Close the cover.
4. Reset the saturation indicator.~ "Saturation display" on page 6
3 Trouble shooting
Trouble shooting
: Warning
Risk of electric shock!
Malfunction table
Problem
Possible cause
Solution
LED lights
: Warning
Risk of injury!
4 Customer service
Customer service
To book an engineer visit and product advice
Accessories
Note:
Note:
Installation instructions
Installation instruction
( Important safety information
Important safety information
: Warning
Risk of fire!
: Warning
Risk of injury!
: Warning
Risk of electric shock!
: Warning
Risk of electric shock!
: Warning
Risk of electric shock!
: Warning
Danger of suffocation!
K General information
General information
Preparing the ceiling
Electrical connection
: Warning
Risk of electric shock!
: Warning
Risk of electric shock!
5 Installation
Installation

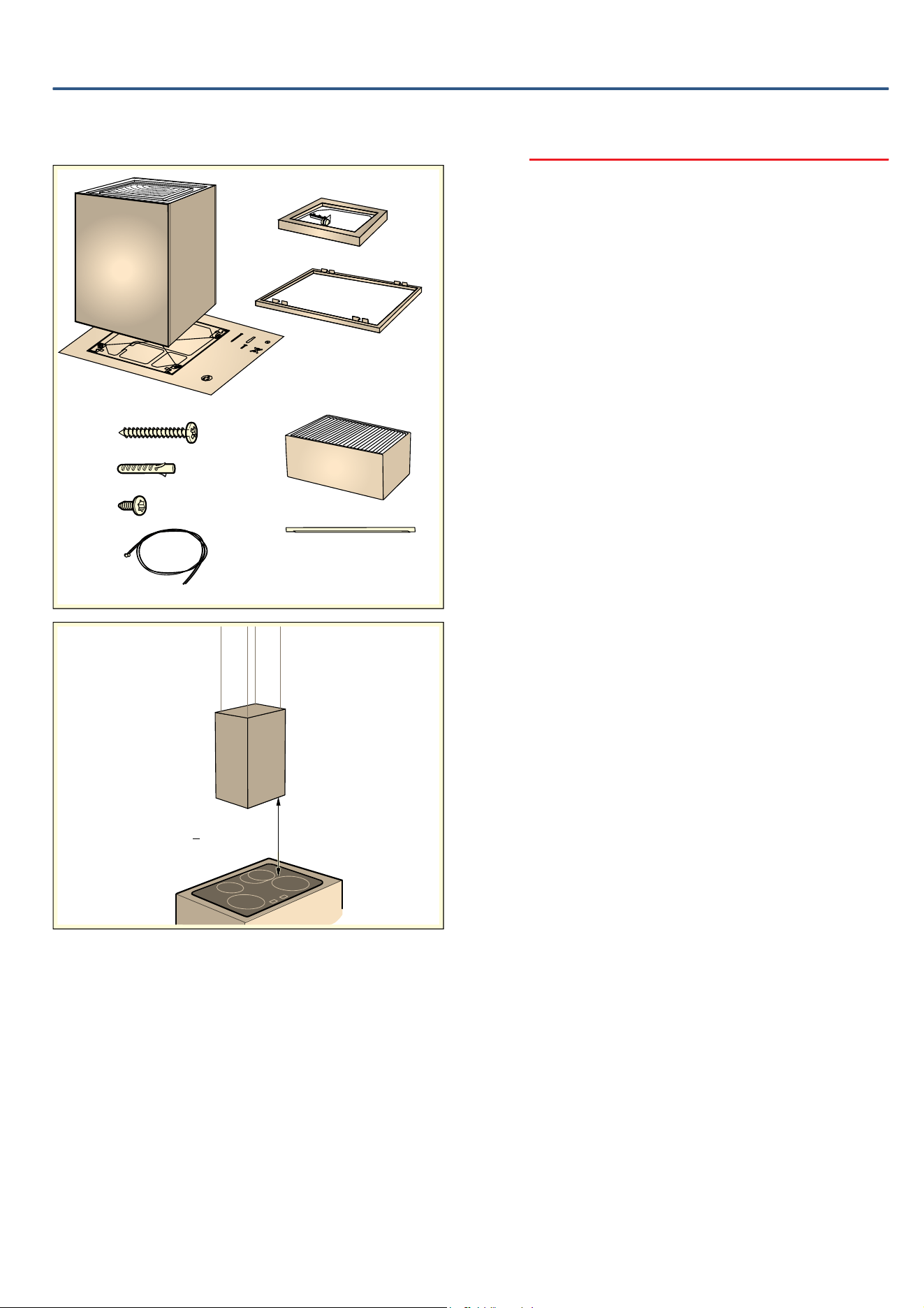

Preparing for installation
Caution!
1. Cover the hob to protect it from damage.
2. Mark where the centre of the extractor hood should be on the ceiling above the centre of the hob.
3. Using the template provided, mark the locations where the bolts should be inserted on the ceiling.
4. Drill four 8 mm diameter holes to a depth of 80 mm for fastening the appliance and press in the wall plugs flush with the wall.
Preparing the appliance

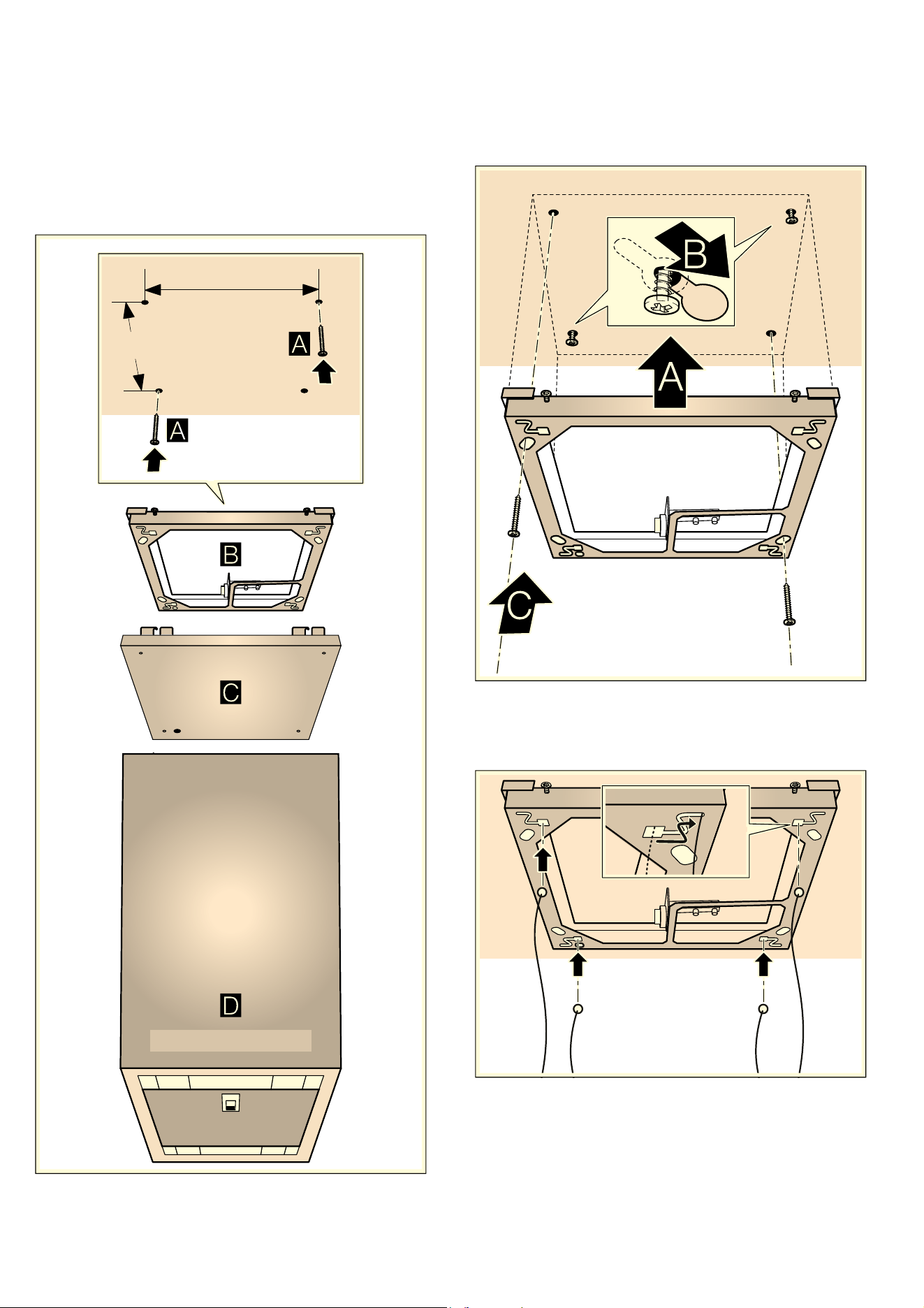

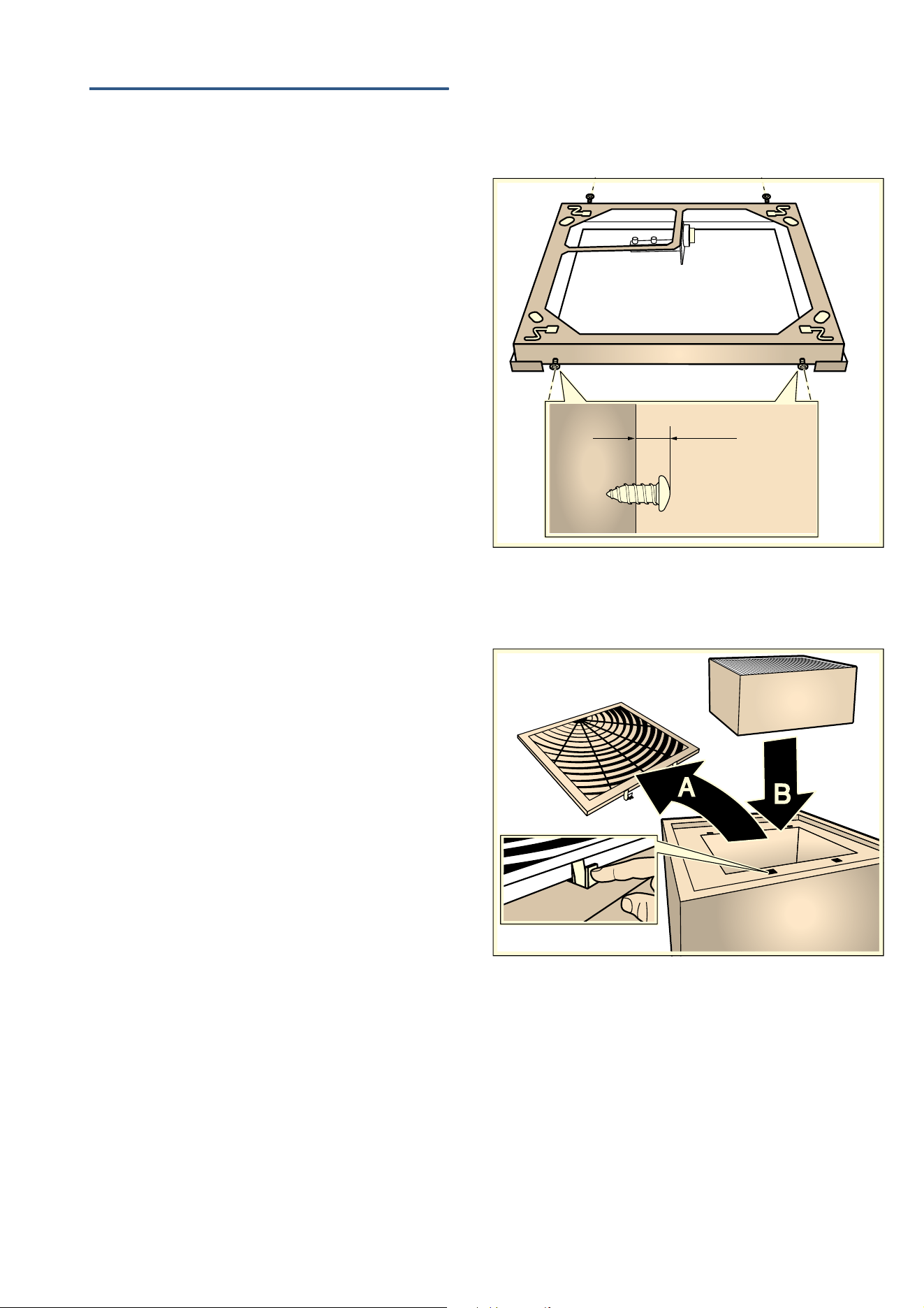

1. Screw in the four bolts on the edge of the frame at the marked locations, leaving them protruding out of the frame by approx. 5 mm.
2. Remove the film from the frame cover.
3. Remove the activated charcoal filter from the film.
4. Open the cover on the top of the appliance and remove it ¨, insert the activated charcoal filter © and then close the cover.
Fitting the frame
1. Screw in the two bolts, leaving them protruding out of the ceiling by 5 - 9 mm ¨.
Note:
2. Insert the two bolts on the ceiling through the openings provided in the frame ¨. Move the frame to allow the bolts to be screwed into the keyhole openings ©.
3. Use two more bolts to screw the frame in place. ª Tighten all the bolts fully.

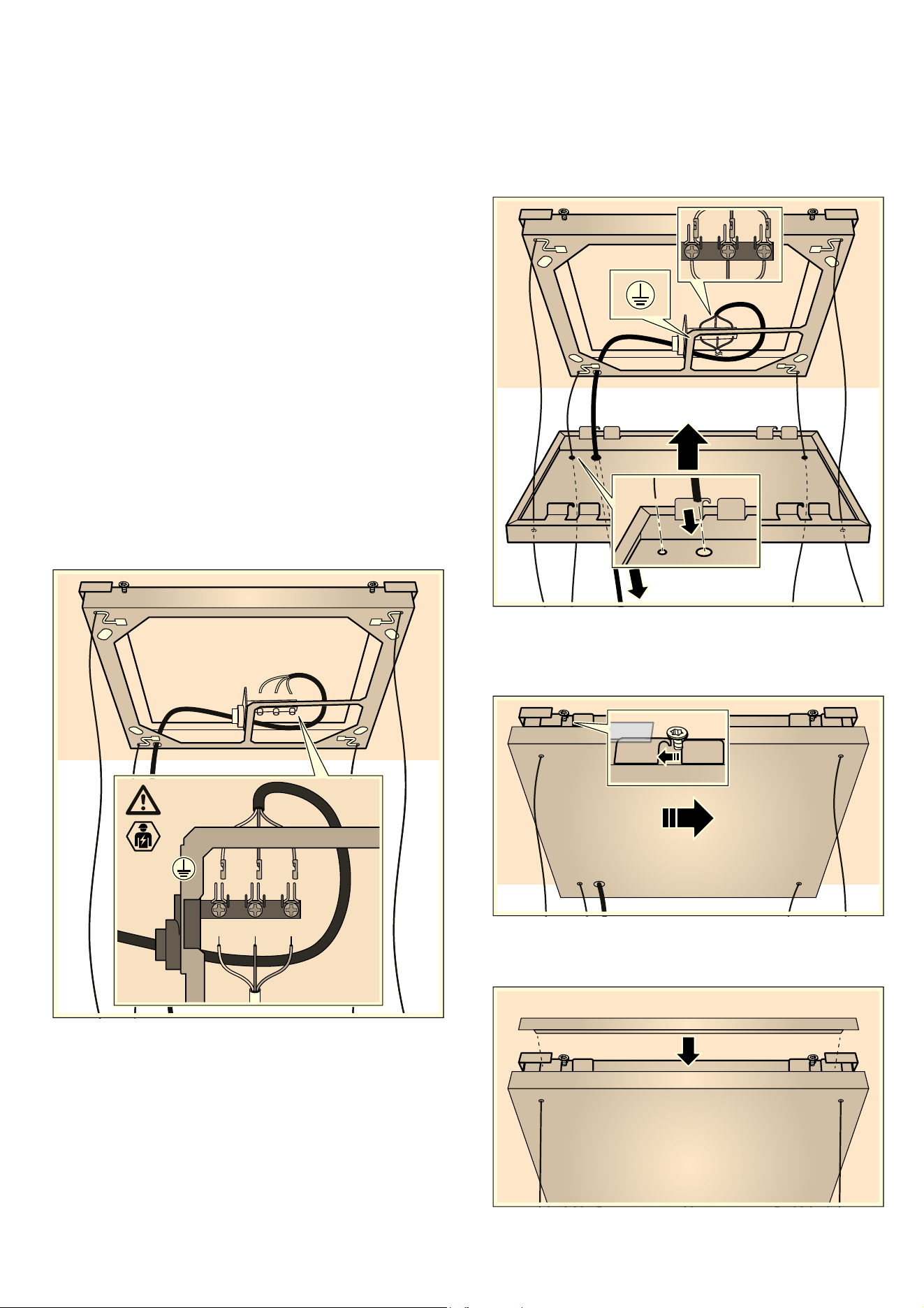

4. Insert the four cables into the openings provided in the frame and thread them through the labyrinth.
Establishing a connection to the mains
: Warning
Risk of electric shock!
Note:
1. Position the appliance underneath the frame.
2. Carefully thread the cables and the mains power cable through the opening in the frame cover. Place the frame cover down onto the appliance.
3. Mount the appliance on the wall and level it; see the section entitled "Wall-mounting the appliance and levelling it".
4. Thread the mains power cable through the opening in the frame and then through the strain relief.
Caution!
5. Connect the appliance to the power supply.
Caution!
6. Use an open-ended spanner (WAF 17) to tighten the strain relief until the mains power cable is held firmly and cannot move.
Fitting the frame cover
1. Slide the frame cover up.
Note:
2. Fit the frame cover onto the four bolts at the edge of the frame.
Note:
3. Tighten the bolts at the edge of the frame.
4. Secure the covers to the magnets to hide the bolts at the edges of the frame.
Attaching and aligning the appliance

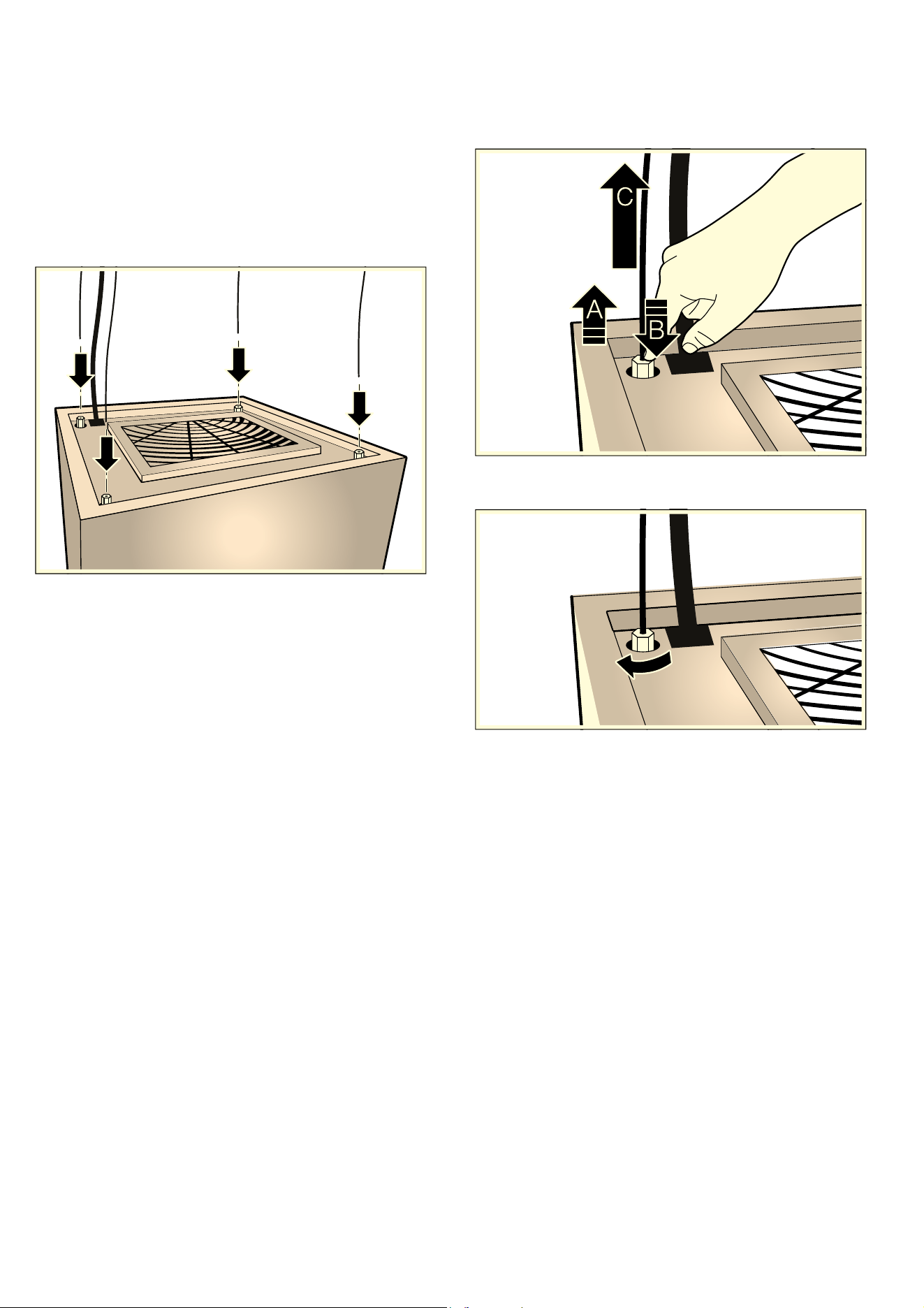

1. Manually open the cable tensioners until the cable can be inserted in it. Do not use any tools.
Note:
2. Enlist the help of a second person to lift the appliance and thread the cables into the cable tensioners on the top of the appliance.
Note:
3. Taking care to comply with the safety clearances, slide the appliance up and level it.
4. If you need to position the appliance lower down, lift it up ¨, push the cable tensioners down © and pull the cables back out of the cable tensioners ª.
5. After aligning, tighten the cable tensioners so that they are hand-tight. Do not use any tools.
