Parts manual

This is the main product document for model F1A-FS.

The file format is pdf, 36 pages, you can download this manual here .

background
Models
R1A, F1A
R2A, F2A
R3A, F3A
Full Glass (FG), Full Solid (FS)
Half Glass(HG), Half Solid (HS)
Steelheart Series
Refrigerated Kitchen Equipment
Parts List
Number: 71422
Issued: 1-15-2019
Revised: 6-10-2021
hoshizakiamerica.com
background
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 8
A. Main Assembly ................................................................................................................. 9
_1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL ............................................... 9
_2A-FG/FS/HG/HS ................................................................................................... 12
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS ......................................................... 15
B. Refrigeration Circuit ......................................................................................................... 18
_1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL
_2A-FG/FS/HG/HS
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS ......................................................... 18
C. Door-Full Glass ................................................................................................................ 22
Right Hinged ............................................................................................................. 22
Left Hinged ................................................................................................................ 23
D. Door-Full Solid ................................................................................................................. 25
Right Hinged ............................................................................................................. 25
Left Hinged ................................................................................................................ 26
E. Door-Half Glass ............................................................................................................... 28
Right Hinged ............................................................................................................. 28
Left Hinged ................................................................................................................ 29
F. Door-Half Solid ................................................................................................................. 31
Right Hinged ............................................................................................................. 31
Left Hinged ................................................................................................................ 32
G. Accessories & Labels ...................................................................................................... 34
_1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL,
_2A-FG/FS/HG/HS, _3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS ........................ 34
background
3
Auxiliary Codes
R1A-FG
H-5 December 2018
J-5 January 2019
J-6 June 2019
J-7 July 2019
K-5 January 2020
K-6 October 2020
L-5 January 2021
R1A-FGCL
H-5 December 2018
J-5 January 2019
J-6 June 2019
J-7 July 2019
K-5 January 2020
K-6 October 2020
R1A-FGCR
J-5 January 2019
J-6 June 2019
J-7 July 2019
K-5 July 2020
K-6 October 2020
L-5 January 2021
R1A-FS
H-5 December 2018
J-5 January 2019
J-6 June 2019
J-7 July 2019
K-5 January 2020
K-6 October 2020
L-5 January 2021
R1A-FSJ
J-5 March 2019
J-6 June 2020
J-7 July 2019
L-5 January 2021
R1A-FSL
H-5 December 2018
J-5 January 2019
J-6 June 2019
J-7 July 2019
K-5 February 2020
K-6 October 2020
L-5 January 2021
R1A-FSLJ
J-5 March 2019
J-7 August 2019
K-5 August 2020
L-5 January 2021
R1A-HG
J-5 January 2019
J-7 September 2019
J-8 October 2019
K-5 July 2020
K-6 October 2020
L-5 April 2021
R1A-HS
H-5 November 2018
J-5 April 2019
J-6 June 2019
J-7 August 2019
K-5 February 2020
K-6 October 2020
L-5 January 2021
R1A-HSL
H-5 December 2018
J-5 February 2019
J-6 June 2019
K-5 February 2020
J-7 July 2019
K-5 February 2020
L-5 January 2021
background
4
Auxillary Code
(Continued)
F1A-FG
J-5 February 2019
K-5 January 2020
L-5 January 2021
F1A-FS
H-5 December 2018
J-5 January 2019
J-6 June 2019
J-7 July 2019
K-5 January 2020
L-5 January 2021
F1A-FSL
H-5 December 2018
J-5 January 2019
J-6 June 2019
J-7 July 2019
K-5 January 2020
L-5 January 2021
F1A-HG
J-5 January 2019
J-7 November 2019
K-5 October 2020
L-5 April 2021
F1A-HS
H-5 November 2018
J-5 February 2019
J-6 June 2019
J-7 July 2019
K-5 February 2020
L-5 January 2021
F1A-HSL
H-5 December 2018
J-5 March 2019
J-6 June 2019
J-7 July 2019
K-5 March 2020
L-5 January 2021
background
5
Auxillary Code
(Continued)
R2A-FG
H-5 December 2018
J-5 January 2019
J-6 April 2019
J-8 July 2019
J-9 November 2019
K-5 March 2020
L-5 January 2021
R2A-FS
H-5 December 2018
J-5 January 2019
J-6 June 2019
J-7 July 2019
J-8 November 2019
K-5 January 2020
L-5 January 2021
R2A-HG
J-5 January 2019
J-6 May 2019
J-7 September 2019
K-5 March 2020
L-5 March 2021
R2A-HS
H-5 November 2018
J-5 February 2019
J-6 June 2019
J-7 September 2019
K-5 March 2020
L-5 January 2021
background
6
Auxillary Code
(Continued)
F2A-FG
J-6 May 2019
K-5 May 2020
L-5 April 2021
F2A-FS
H-5 December 2018
J-5 January 2019
J-6 June 2019
J-7 July 2019
J-8 November 2019
K-5 January 2020
K-6 May 2020
K-7 July 2020
K-6 July 2020
L-5 January 2021
F2A-HG
J-5 January 2019
J-6 May 2019
L-5 January 2021
F2A-HS
H-5 November 2018
J-5 January 2019
J-6 June 2019
J-7 August 2019
K-5 March 2020
K-6 October 2020
L-5 April 2021
background
7
Auxillary Code
(Continued)
R3A-FG
J-5 March 2019
J-6 June 2019
J-7 July 2019
J-8 November 2019
K-5 February 2020
K-6 November 2020
L-5 February 2021
R3A-FS
J-5 January 2019
J-6 June 2019
J-7 July 2019
J-8 November 2019
K-5 January 2020
K-6 October 2020
L-5 January 2021
R3A-FSCL
J-5 January 2019
R3A-FSCR
J-5 March 2019
R3A-HG
J-5 July 2019
K-5 August 2020
L-5 March 2021
R3A-HS
H-5 December 2018
J-5 January 2019
J-6 June 2019
L-5 May 2021
F3A-FS
J-5 March 2019
J-6 June 2019
J-7 July 2019
J-8 November 2019
K-5 January 2020
L-5 January 2021
F3A-HS
H-5 December 2018
J-5 May 2019
J-7 August 2019
K-5 March 2020
background
8
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "5" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This is
the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
F2A-FG J60001E
J60003E-J60012E
F2A-FS J70959G-J70965G
J70968G
J70970G-J70976G
J70979G
J70981G
J71120H-J71123H
J71125H-J71173H
J71176H
J71235H
J71271H-J71281H
J71290J
J71292J-J71338J
J71340J-J71354J
J71378K-J71379K
J71382K-J71432K
J71434K to K62991L
*Freezer Serial Numbers reworked to include TXV Heater (4A6197-01)
F2A-HG J50001A-J5003A
J60004E-J60006E
J70007J-J70009J
F2A-HS J70053H
J70057H
J70061H
J70065K-J70076K
background
9

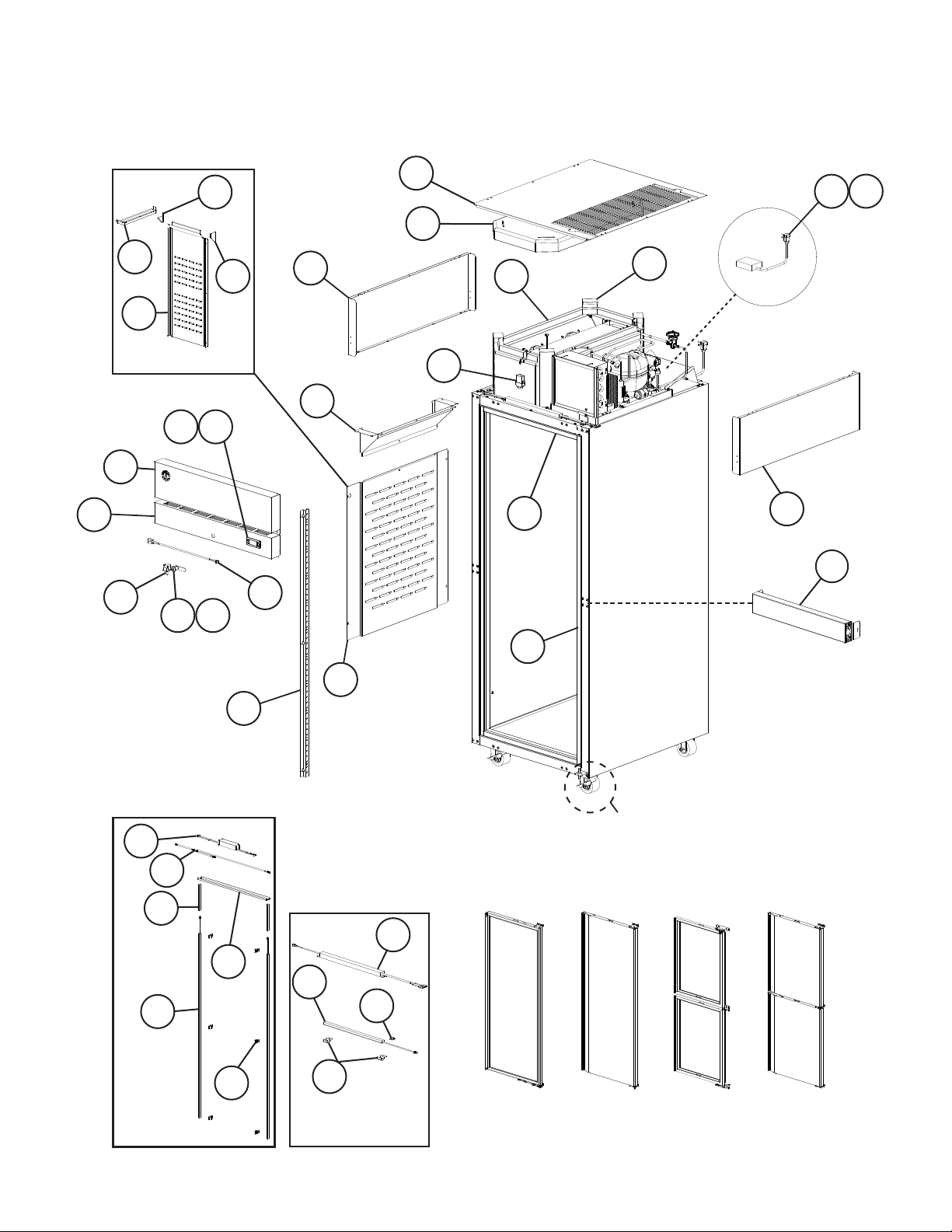

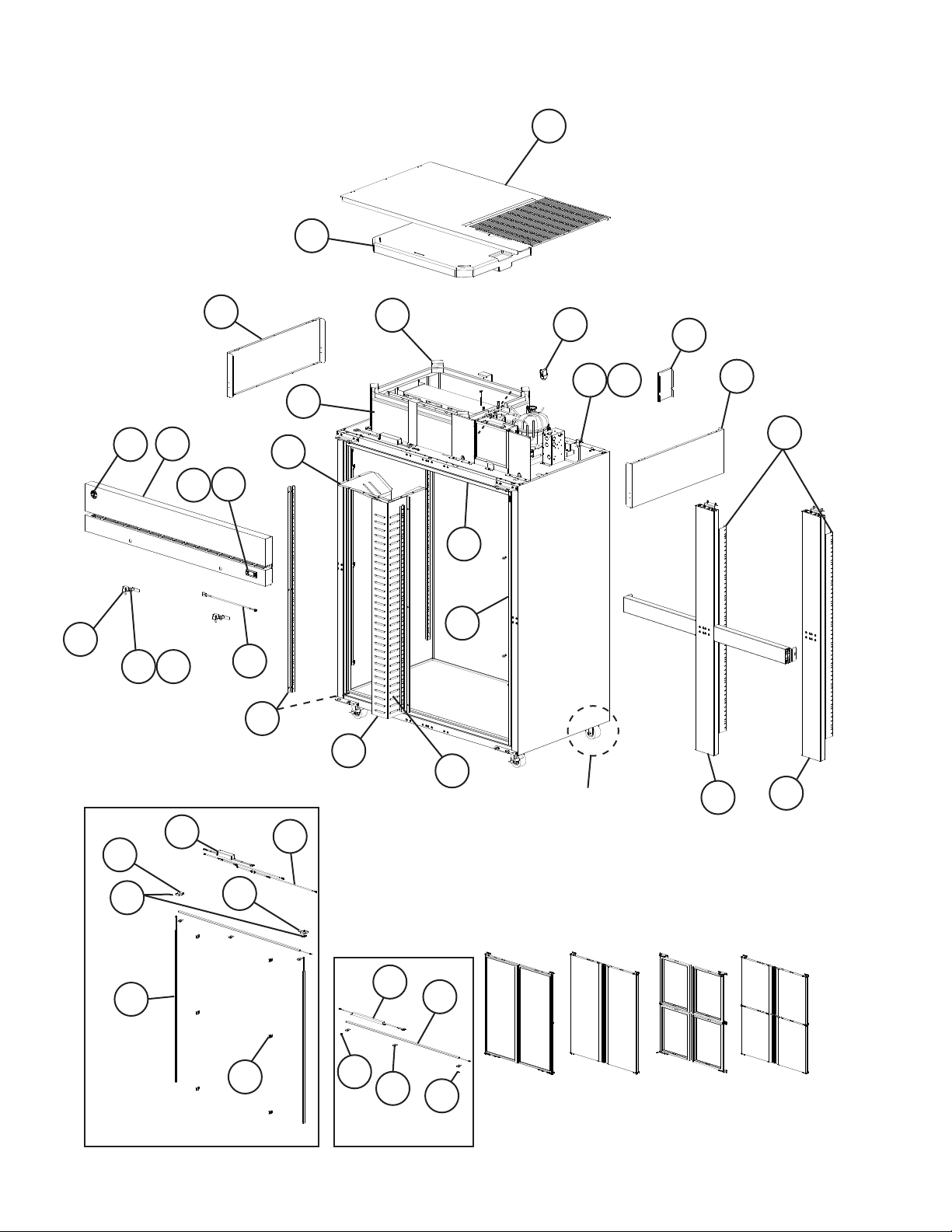

A. Main Assembly
_1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL
H-5 to L-5
1
8
16
21
7
For Casters, see
Section "G"
For Doors, see Section "C" through "F"
Half Solid
Full Solid
18
6
3 3a
8
Full Glass
LED Light
Assembly: Solid
Door Models
31
29
28
30
LED Light
Assembly:
Glass Door
Models
22
24
25
26
27
6a
2
4
5
10
11
12
Half Glass
13
14
15
19
23
20
15
16
17
FSJ and FSLJ
17
9
background
10
Title: A. Main Assembly Model: _1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
J-5
J-6
to
L-5
1 Front Panel _1A-XXXX 3A9604G01 1 1
2 Control Panel _1A-XXXX
Except
-HG Models
2A8615-01 1 1
-HG 2A8651-01 1 1
3 Control Module R1A-FS/FSJ/
FSL/FSLJ/HS/
HSL
4A6195G01 1 1
R1A-FG/FGCL/
FGCR/HG
4A6626G01 1 1
F1A-FS/FSL/
HS/HSL
4A6196G01 1 1
F1A-FG/HG 4A6627G01 1 1
3a Control Module Mounting Clip 4A5502-01 2 2
4 Door Switch 3A1826-01 1 1
5 Door Switch Wire Harness 4A6203-01 1 1
6 Lock (includes 2 of item 6a) 4A4924-01 1 1
6a Key 4A5453-01 1 1
7 Top Louver 2A8254-01 1 1
8 Side Panel 2A8252-01 2 2
9 Evaporator Case 1A4781-01 1 1
10 Evaporator Cover 1A4782-01 1 1
11 Evaporator Case Latch 3A9802-01 4 4
12 Pressure Relief Valve 4A5694-01 1
13 Power Supply Cord/
Wire Harness
3A9838-01 1 1
14 Connector Cap R1A-XXXX 4A6229-01 4 4
15 Air Distribution Top _1A-XXXX
Except
-FSJ, -FSLJ
1A3951-01 1 1
-FSJ, -FSLJ 2A9236-01 1 1
16 Air Distribution Panel _1A-XXXX
Except
-FSJ, -FSLJ
1A4930-01 1 1
-FSJ, -FSLJ 1A5710-01 1 1
17 Air Distribution Cap -FSJ, -FSLJ
(Right)
2A9237-01 1 1
-FSJ, -FSLJ
(Left)
2A9238-01 1 1
18 Pilaster 3A0145-01 4 4
19 Horizontal Thermal
Breaker Cover
561 mm 2A9350-01 2 2
20 Vertical Thermal Breaker Cover 1552 mm 2A9349-01 2 2
21 Horizontal Mullion R1A-HS/HG/
HSL
2A8664A01 1 1
F1A-HS/HG/
HSL
2A8824A01 1 1
background
11
Title: A. Main Assembly Model: _1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
J-5
J-6
to
L-5
22 LED Lens (wire sleeve) -FG, -FGCL,
-FGCR, -HG
3A9861-01 2 2
23 LED Y Harness 4A6080-01 1 1
24 LED Driver 3A9820-01 1 1
25 LED Lamp 3A9868-01 2 2
26 LED Clip 4A5906-01 6 6
27 LED Bracket 2A8826-01 1 1
28 LED Driver -FS, -FSJ,
-FSL, -FSLJ,
-HS, -HSL
3A9867-01 1 1
29 LED Lamp 3A9788-01 1 1
30 LED Clip 4A5906-01 2 2
31 LED Bushing 425307-02 1 1
background
12

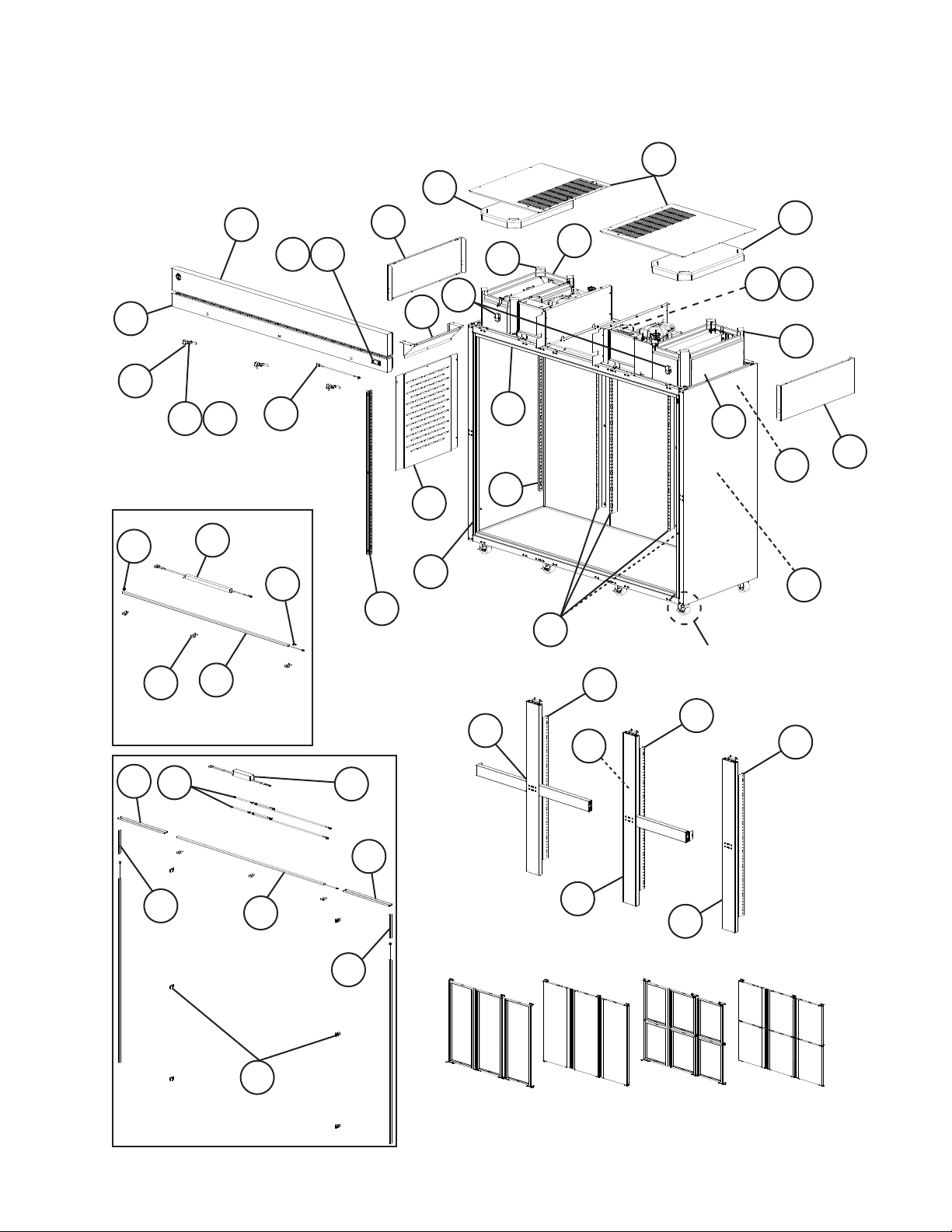

A. Main Assembly
_2A-FG/FS/HG/HS
H-5 to L-5
For Doors, see Sections "C" through "F"
Half Solid
Full Solid
9
1
22
4
17
For Casters,
see Section "G"
22
23
3
3a
7
Full Glass
LED Light Assembly:
Solid Door Models
34
32
31
33
LED Light
Assembly:
Glass Door
Models
30
24
26
27
25
28
6 6a
2
8
8
16
35
11
10
5
Half Glass
15
20
21
13 14
18
19
29
12
background
13
Title: A. Main Assembly Model: _2A-FG/FS/HG/HS/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
J-5
(C)
J-5
(D)
to
J-5
(E)
J-6
to
L-5
1 Front Panel _2A-XXXX 3A9740G01 1 1 1
2 Control Panel _2A-XXXX
Except
-HG Models
2A8583-01 1 1 1
_2A-HG 2A8726-01 1 1 1
3 Control Module R2A-FS/HS 4A6195G01 1 1 1
R2A-FG/HG 4A6626G01 1 1 1
F2A-FS/HS 4A6196G01 1 1 1
F2A-FG/HG 4A6627G01 1 1 1
3a Control Module Mounting Clip 4A5502-01 2 2 2
4 Door Switch 3A1826-01 2 2 2
5 Door Switch Wire Harness 4A6203-01 1 1 1
6 Lock (includes 2 of item 6a) 4A4924-01 2 2 2
6a Key 4A5453-01 2 2 2
7 Top Louver 2A8725-01 1 1 1
8 Side Panel 2A8252-01 2 2 2
9 Evaporator Case 1A4829-01 1 1 1
10 Evaporator Cover 1A4828-01 1 1 1
11 Evaporator Case Latch 3A9802-01 6 6 6
12 Pressure Relief Valve 4A5694-01 1
13 Power Supply Cord/
Wire Harness
3A9838-01 1 1 1
14 Connector Cap R2A-XXXX 4A6229-01 4 4 4
15 Control Box Cover F2A-XXXX 3B0037-01 1 1 1
16 Air Distribution Top 1A3950-03 1 1 1
17 Air Distribution Channel 1A5035-01 1 1 1
18 Horizontal Thermal
Breaker Cover
1260 mm 2A9350-02 2 2 2
19 Vertical Thermal Breaker Cover 1552 mm 2A9349-01 2 2 2
20 Cross Mullion
(Includes 2 Mullion Pilasters)
R2A-HS/HG 2A8746A01 1 1 1
F2A-HS/HG 2A8836A01 1 1 1
21 Vertical Mullion
(Includes 2 Mullion Pilasters)
R2A-FS/FG 2A8734A01 1 1 1
F2A-FS/FG 2A8835A01 1 1 1
22 Pilaster _2A-XXXX 3A0145-01 6 6 6
23 Mullion Pilaster 2A9426-01 2 2 2
24 LED Driver _2A-FG/HG 3A9820-01 1 1 1
25 LED Y Harness 4A6080-01 2 2 2
26 LED Lamp 3A9868-01 3 3 3
27 LED Clip 4A5906-01 9 9 9
28 LED Bracket (Right) 3B0243-01 1 1 1
29 LED Bracket (Left) 3B0243-02 1 1 1
30 Bushing 425307-02 2 -
background
14
Title: A. Main Assembly Model: _2A-FG/FS/HG/HS/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
J-5
(C)
J-5
(D)
to
J-5
(E)
J-6
to
L-5
31 LED Driver _2A-FS/HS 3A9867-01 1 1 1
32 LED Lamp 3A9868-01 1 1 1
33 Bushing 425307-02 1 1 1
34 Hole Plug 4A0586-10 1 1 1
35 LED Clip 4A5906-01 3 3 3
background
15
A. Main Assembly
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
H-5 to L-5
1
8
22
For Casters, see
Section "G"
6
23
7
3
3a
8
9
2
4
6a
5
16
10
11
10
11
16
9
For Doors, see Sections "C" through "F"
Full Solid
Half Solid
Full Glass
Half Glass
LED Light Assembly for
Glass Door Models
30
26
27
29
28
25
30
25
LED Light Assembly for Solid
Door Models
34
33
31
35
32
19
21
20
13 14
22
15
23
23
23
24
17
18
12
15
background
16
Title: A. Main Assembly Model: _3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
J-5
J-6
to
L-5
1 Front Panel 3A9914G01 1 1
2 Control Panel R3A-XXXX
Except
R3A-HG
1A5164-01 1 1
R3A-HG 1A5259-01 1 1
3 Control Module R3A-FS/FSCL/
FSCR/HS
4A6195G01 1 1
R3A-FG/FGCL/
FGCR/HG
4A6626G01 1 1
F3A-HS/FS 4A6196G01 1 1
3a Control Module Mounting Clip 4A5502-01 2 2
4 Door Switch 3A1826-01 3 3
5 Door Switch Harness 4A6203-01 1 1
6 Lock (includes 2 of item 6a) 4A4924-01 3 3
6a Key 4A5453-01 3 3
7 Top Louver Left 2A8254-01 1 1
Right 2A8963-01 1 1
8 Side Panel 2A8252-01 2 2
9 Evaporator Case 1A4781-01 2 2
10 Evaporator Cover 1A4782-01 2 2
11 Evaporator Case Latch 3A9802-01 8 8
12 Pressure Relief Valve 4A5694-01 2
13 Power Supply Cord R3A-XXXX 4A0520-01 1 1
F3A-XXXX 4A6500-01 1 1
14 Control Box Cover 2A9098-01 1 1
15 Air Distribution Top 1A3951-01 2 2
16 Air Distribution Panel 1A4930-01 2 2
17 Horizontal Thermal
Breaker Cover
1958 mm 2A9350-03 2 2
18 Vertical Thermal Breaker Cover 1552 mm 2A9349-01 2 2
19 Vertical Mullion
(Includes 2 Pilaster)
R3A-XXXX
Except
-HG/HS
Models
2A8734A01 2 2
F3A-FS 2A8835A01 2 2
20 Cross Mullion
(Includes 2 Pilaster)
R3A-HG/HS 2A8892A01 1 1
F3A-HS 2A8893A01 1 1
21 Tee Mullion
(Includes 2 Pilaster)
R3A-HG/HS 2A8747A01 1 1
F3A-HS 2A8837A01 1 1
22 Pilaster _3A-XXXX 3A0145-01 4 4
23 Mullion Pilaster _3A-XXXX
Except
-HG/HS
Models
2A9426-01 8 8
-HG/HS 7 7
24 Tee Mullion Pilaster -HG/HS 2A9427-01 1 1
background
17
Title: A. Main Assembly Model: _3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
J-5
J-6
to
L-5
25 LED Lens _3A-FG/FGCL/
FGCR/HG
3A9861-01 2 2
26 LED Driver 3A9820-01 1 1
27 LED Y Harness 4A6080-01 2 2
28 LED Lamp 3A9868-01 3 3
29 LED Clip 4A5906-01 9 9
30 LED Bracket 2A8894-01 2 2
31 LED Driver _3A-FS/FSCL/
FSCR/HS
3A9867-01 1 1
32 LED Lamp 3A9868-01 1 1
33 Bushing 425307-02 1 1
34 Hole Plug 4A0586-10 1 1
35 LED Clip 4A5906-01 3 3
background
18
8
18
2
7
4 5 6
9
17
3
14
10
11
13
25
24
23
22
21
20
19
15
16

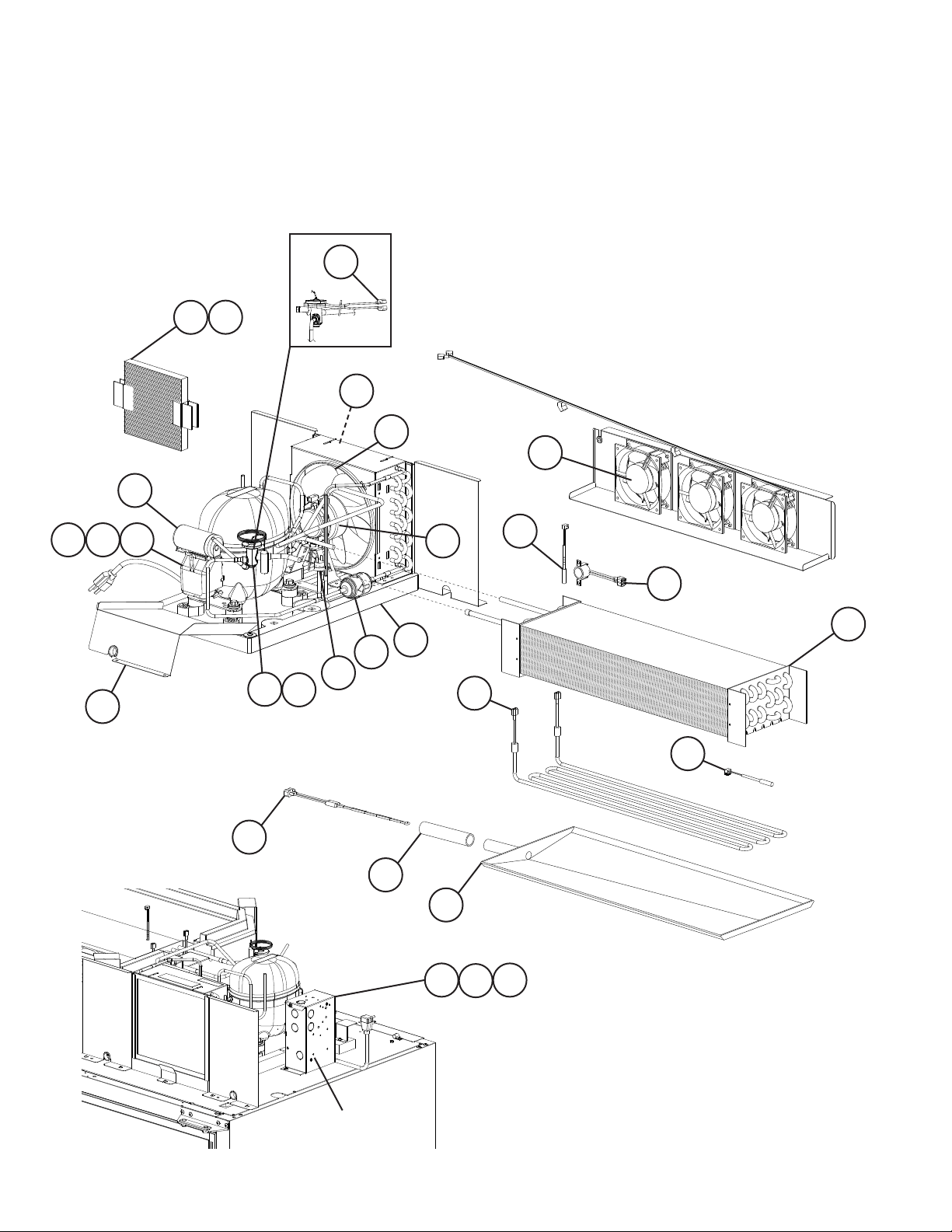

B. Refrigeration Circuit
_1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL
_2A-FG/FS/HG/HS
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
H-5 to L-5
1
12
26
27
28
F2A-XXXX Capacitor Box
background
19
Title: B. Refrigeration Circuit Model: _1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL, 2A-FG/FS/HG/HS,
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5 J-5 J-6 *J-7 *J-8
*J-9
to
*K-6
*K-6
L-5
1 Condensing Unit (includes
compressor, condenser, and
items 2 through 8, compressor
and condenser are not sold
individually)
R1A-XXXX 2A8791-01 1 1 1 1 1 1 1
R3A-XXXX 2 2 2 2 2 2 2
F1A-XXXX 2A8792-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
R2A-XXXX 2A8793-01 1 1 1 1 1 1 1
Condensing Unit (includes
compressor, condenser, control
box (start relay, start capacitor,
and run capacitor) and items
2, 3, 6 through 8, compressor
and condenser are not sold
individually)
F2A-XXXX 2A8794-01 1 1 1 1 1 1 1
2 Condenser Fan Motor _1A-XXXX,
_2A-XXXX
4A6376-01 1 1 1 1 1 1 1
_3A-XXXX 2 2 2 2 2 2 2
3 Condenser Fan Blade _1A-XXXX,
_2A-XXXX
4A6377-01 1 1 1 1 1 1 1
_3A-XXXX 2 2 2 2 2 2 2
4 Compressor External Protector R1A-XXXX 4A6387-01 1 1 1 1 1 1 1
R3A-XXXX 2 2 2 2 2 2 2
R2A-XXXX 4A6388-01 1 1 1 1 1 1 1
F1A-XXXX 4A6389-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
5 Start Relay R1A-XXXX 4A6383-01 1 1 1 1 1 1 1
R3A-XXXX 2 2 2 2 2 2 2
R2A-XXXX 4A6384-01 1 1 1 1 1 1 1
F1A-XXXX 4A6385-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
6 Condensing Unit Power Supply
Cord
R1A-XXXX,
R2A-XXXX
4A6501-01 1 1 1 1 1 1 1
R3A-XXXX 2 2 2 2 2 2 2
F1A-XXXX 4A6502-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
F2A-XXXX 4A6503-01 1 1 1 1 1 1 1
7 Start Capacitor R1A-XXXX 4A6378-01 1 1 1 1 1 1 1
R3A-XXXX 2 2 2 2 2 2 2
R2A-XXXX 4A6379-01 1 1 1 1 1 1 1
F1A-XXXX 4A6380-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
8 Drier _1A-XXXX,
_2A-XXXX
4A1113-01 1 1 1 1 1 1 1
_3A-XXXX 2 2 2 2 2 2 2
9 High-Pressure Switch _1A-XXXX,
_2A-XXXX
4A6039-01 1 1 1 1 1 1 1
_3A-XXXX 2 2 2 2 2 2 2
background
20
Title: B. Refrigeration Circuit Model: _1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL, 2A-FG/FS/HG/HS,
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5 J-5 J-6 *J-7 *J-8
*J-9
to
*K-6
*K-6
L-5
10 Thermostatic Expansion Valve R1A-XXXX 4A6869-01 1 1 1 1 1 1 1
R3A-XXXX 2 2 2 2 2 2 2
R2A-XXXX 4A6816-01 1 1 1 1 1 1 1
F1A-XXXX 4A6816-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
F2A-XXXX 4A6826-01 1 1 1 1 1 1 1
11 Thermostatic Expansion
Valve Cover
_1A-XXXX,
_2A-XXXX
4A6201-01 1 1 1 1 1 1 1
_3A-XXXX 2 2 2 2 2 2 2
12 Thermostatic Expansion
Valve Heater
*For Freezers Aux. Code J-7
and earlier see page 6 "Freezer
Serial Numbers reworked to
include TXV Heater"
R2A-FG 4A6197-01 1 1 1 -
R2A-FS 1 -
R2A-HG 1 1 1 1 -
R2A-HS 1 1 -
F2A-FG 1 1 1 1 -
*F2A-FS 1 1 1 -
F2A-HG 1 1 1 1 1 -
F2A-HS 1 1 1 -
13 Air Filter _1A-XXXX,
_2A-XXXX
4A6189-01 1 1 1 1 1 1 1
_3A-XXXX 2 2 2 2 2 2 2
14 Deector _1A-XXXX,
_3A-XXXX
2A9004-01 1 1 1 1 1 1 1
15 Wick R1A-XXXX,
R2A-XXXX
4A6188-01 1 1 1 1 1 1 1
R3A-XXXX 2 2 2 2 2 2 2
16 Wick Retainer R1A-XXXX,
R2A-XXXX
4A6164-01 2 2 2 2 2 2 2
R3A-XXXX 4 4 4 4 4 4 4
17 Evaporator _1A-XXXX 2A8783-01 1 1 1 1 1 1 1
_3A-XXXX 2 2 2 2 2 2 2
_2A-XXXX 2A8631-01 1 1 1 1 1 1 1
18 Defrost Thermostat F1A-XXXX,
F2A-XXXX
4A6194-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
19 Defrost Heater F1A-XXXX 3A9800-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
F2A-XXXX 3A9801-01 1 1 1 1 1 1 1
20 Evaporator Drain Pan _1A-XXXX 1A4805-01 1 1 1 1 1 1 1
_3A-XXXX 2 2 2 2 2 2 2
_2A-XXXX 1A4827-01 1 1 1 1 1 1 1
21 Drain Hose _1A-XXXX 7716-2025 1 1 1 1 1 1 1
_2A-XXXX
_3A-XXXX 2 2 2 2 2 2 2
22 Drain Tube Heater F1A-XXXX,
F2A-XXXX
4A6197-01 1 1 1 1 1 1 1
F3A-XXXX 2 2 2 2 2 2 2
background
21
Title: B. Refrigeration Circuit Model: _1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL, 2A-FG/FS/HG/HS,
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5 J-5 J-6 *J-7 *J-8
*J-9
to
*K-6
*K-6
L-5
23 Cabinet Thermistor _1A-XXXX,
_2A-XXXX,
_3A-XXXX
4A4864-02 1 1 1 1 1 1 1
24 Defrost Thermistor _1A-XXXX,
_2A-XXXX
4A4865-02 1 1 1 1 1 1 1
_3A-XXXX 4A4865-03 1 1 1 1 1 1 1
25 Evaporator Fan Motor _1A-XXXX 4A6192-01 2 2 2 2 2 2 2
_2A-XXXX 3 3 3 3 3 3 3
_3A-XXXX 4 4 4 4 4 4 4
Capacitor Box F2A-XXX Only
26 Start Relay F2A-XXXX 4A6386-01 1 1 1 1 1 1 1
27 Start Capacitor F2A-XXXX 4A6381-01 1 1 1 1 1 1 1
28 Run Capacitor F2A-XXXX 4A6382-01 1 1 1 1 1 1 1
background
22

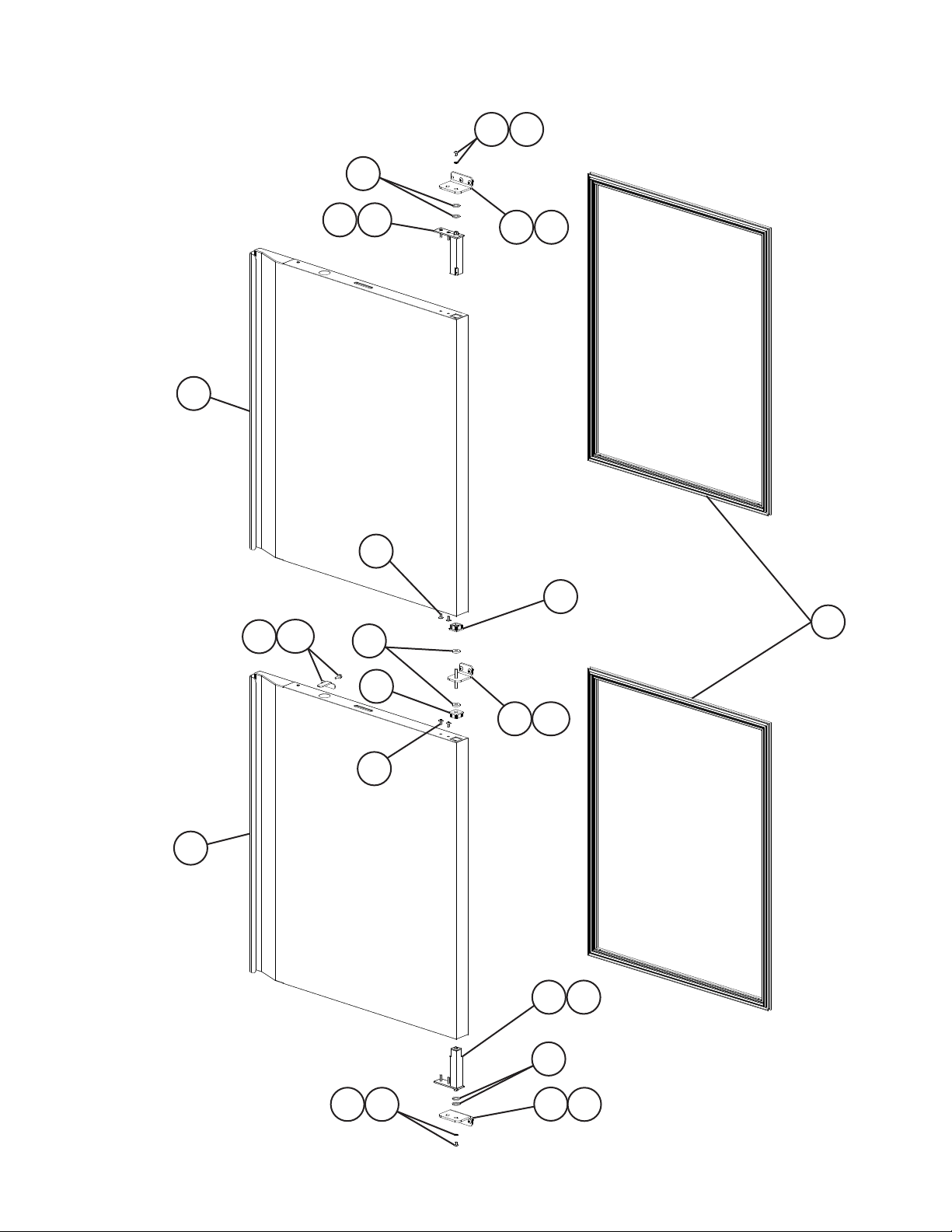

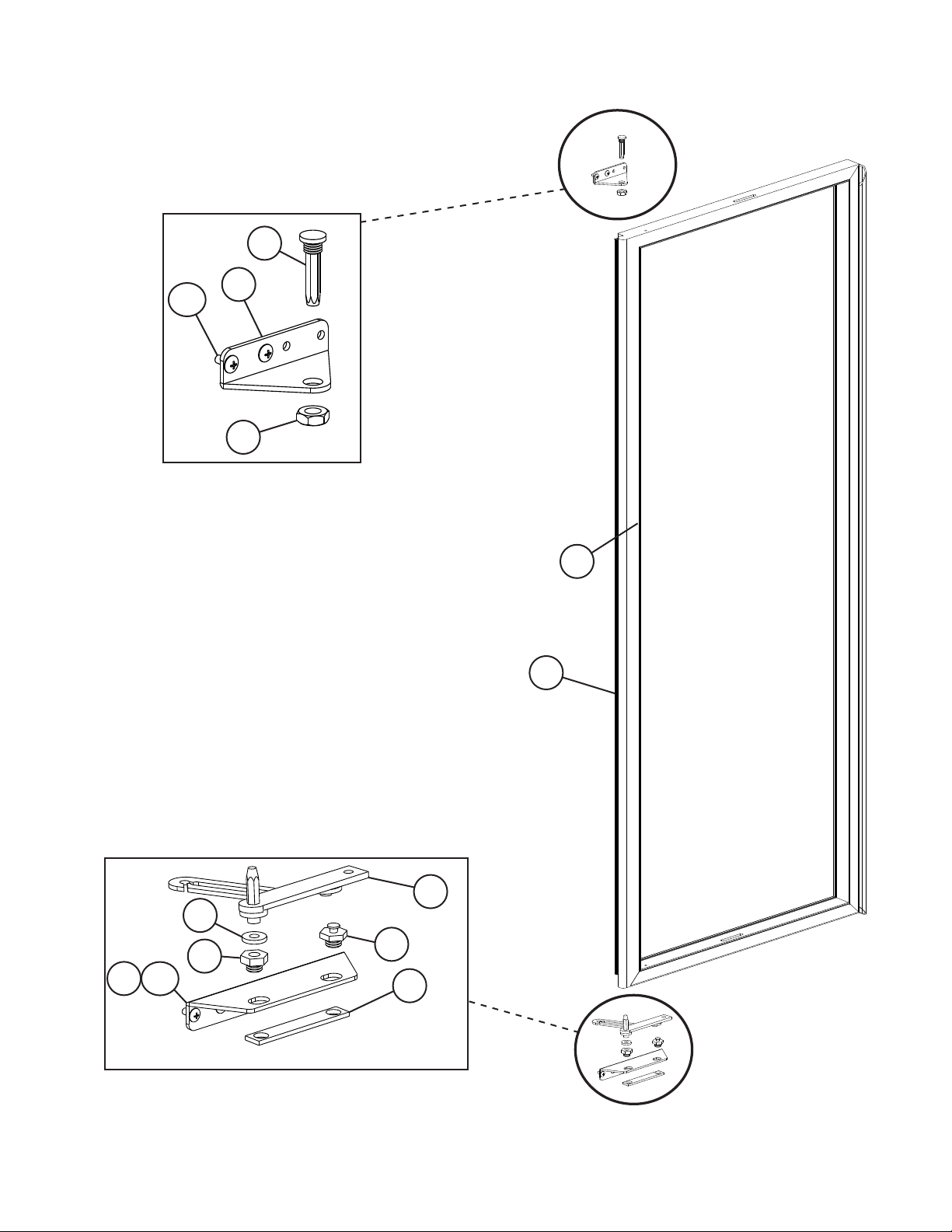

C. Door-Full Glass
Right Hinged
1/2
H-5 to L-5
3
4
5
7
10
8
6
1
2
3a
11
11a
9
background
23

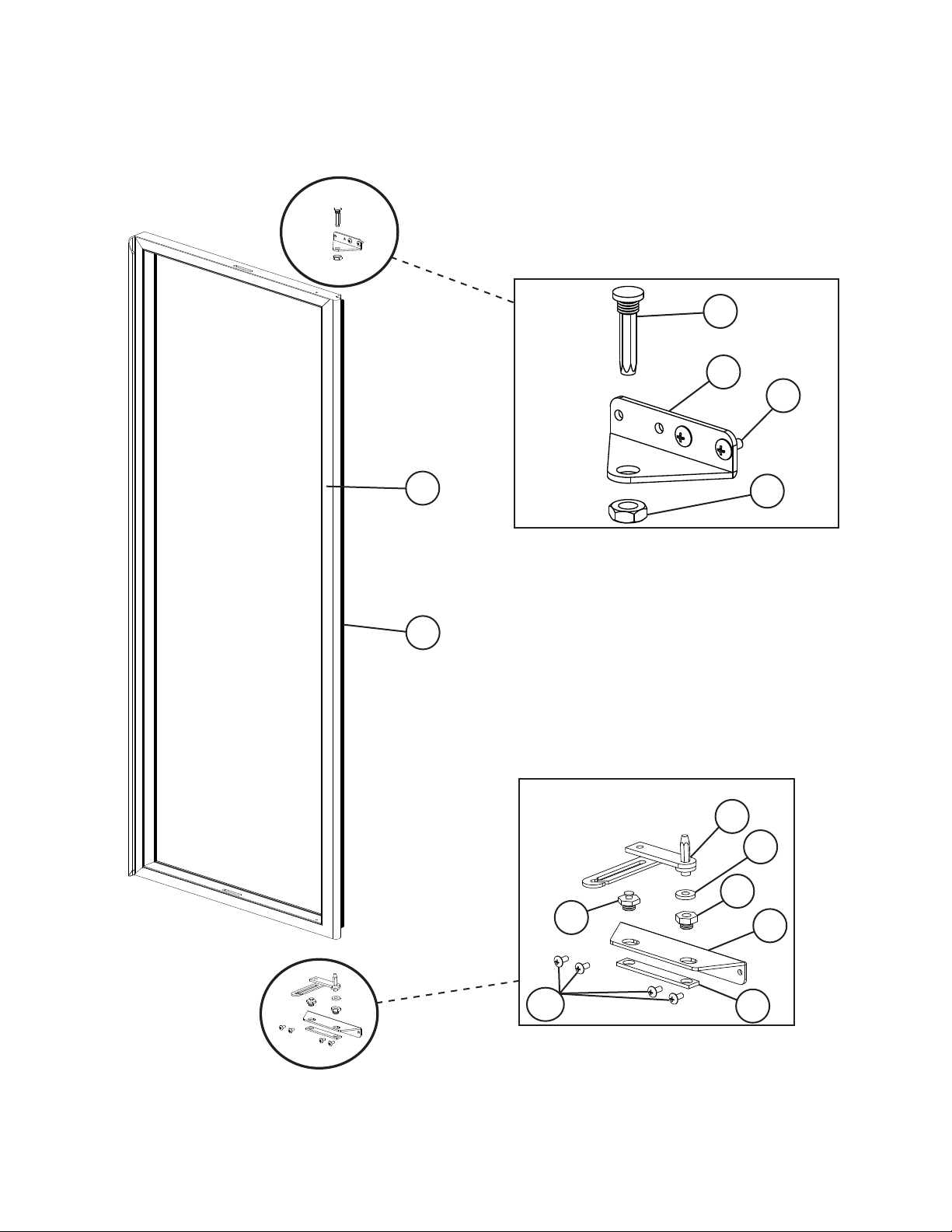

C. Door-Full Glass
Left Hinged
2/2
H-5 to L-5
1
3
4
5
7
10
9
6
2
3a
11
11a
8
background
24
Title: C. Door-Full Glass Model: Full Glass
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
L-5
1 Right Glass Door R_A-FG/FGCR 2A7834-03 1
F_A-FG 2A7834-04 1
Left Glass Door R_A-FG/FGCL 2A7834-01 1
F2A-FG 2A7834-02 1
2 Gasket 3A8864-01 1
3 Upper Hinge Bracket 3A9162-01 1
3a Truss Head Screw 5×12, SS 7C32-0512 2
4 Tension Rod (hinge pin) 3A7946-04 1
5 Lock Nut 3A7946-05 1
6 Lower Hinge Arm 3A7946-01 1
7 Backer Plate 3A7946-08 1
8 Bottom Hinge Bushing 3A7946-09 1
9 Nylon Washer 3A7946-10 1
10 Slide Pin 3A7946-11 1
11 Lower Hinge Bracket 3A9161-01 1
11a Truss Head Screw 5×12, SS 7C32-0512 4
background
25

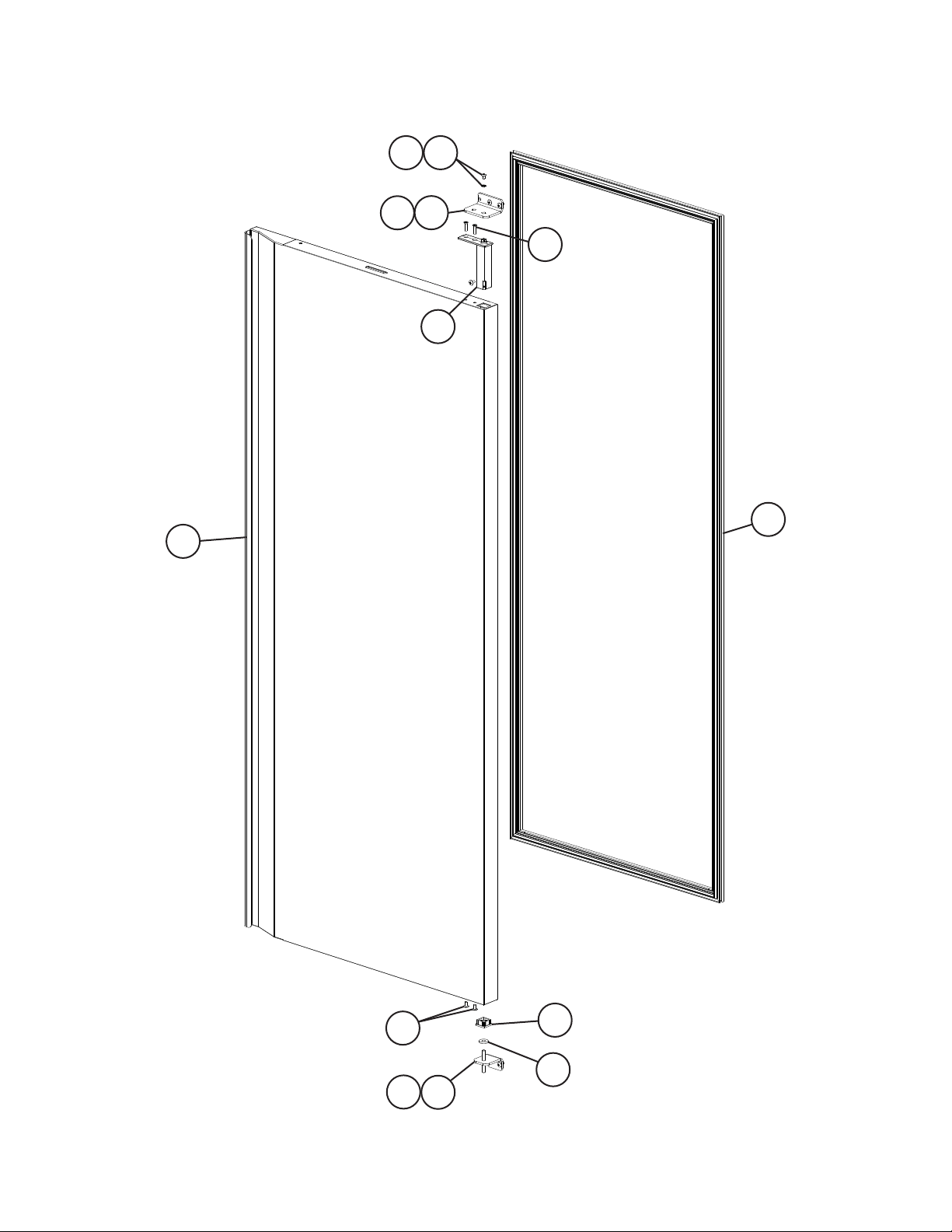

D. Door-Full Solid
Right Hinged
1/2
H-5 to L-5
2
9 10
6a
6
7
8a
8
5
4
3
3a
1
background
26

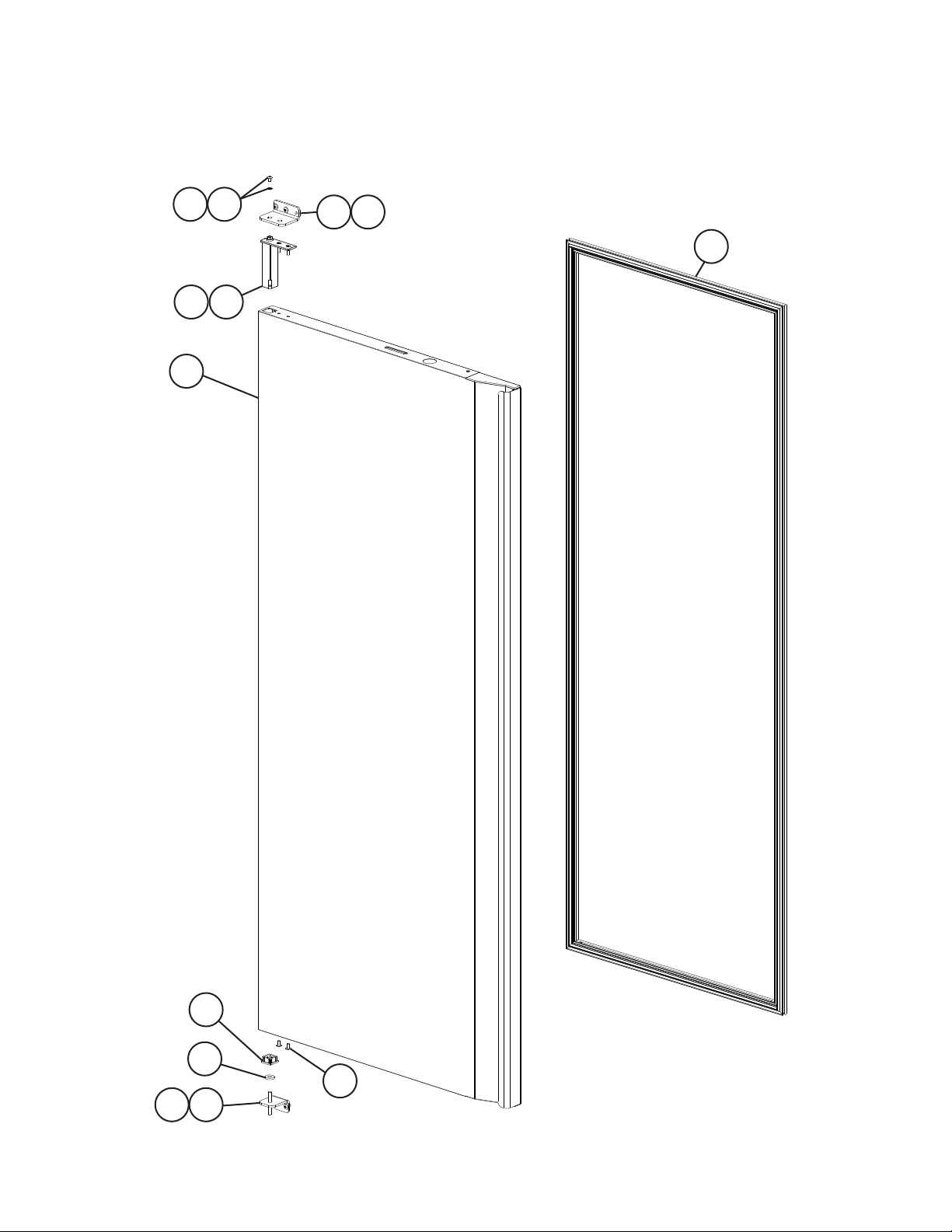

D. Door-Full Solid
Left Hinged
2/2
H-5 to L-5
2
9 10
6a6
7
8a8
5
4
3 3a
1
background
27
Title: D. Door-Full Solid Model: Full Solid
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
L-5
1 Right Door Assembly
(includes items 2 through 5)
2A7814G01 1
Left Door Assembly
(includes items 2 through 5)
2A7817G01 1
2 Gasket 2A5192-23 1
3 Spring Cartridge 3A9206-01 1
3a Spring Cartridge Screw 5×20, SS 7C42-0520 2
4 Truss Head Screw (Filler Screw) 5×10, SS 7C32-0510 2
5 Nylon Bearing 4A5232-01 1
6 Lower Hinge Bracket 3A9767G01 1
6a Truss Head Screw 5×12, SS 7C32-0512 2
7 Thrust Washer 4A5234-01 1
8 Upper Hinge Bracket 3A9689-01 1
8a Truss Head Screw 5×12, SS 7C32-0512 2
9 Upper Hinge Bracket Washer 4A5231-01 1
10 Upper Hinge Bracket Screw 4A5230-01 1
background
28

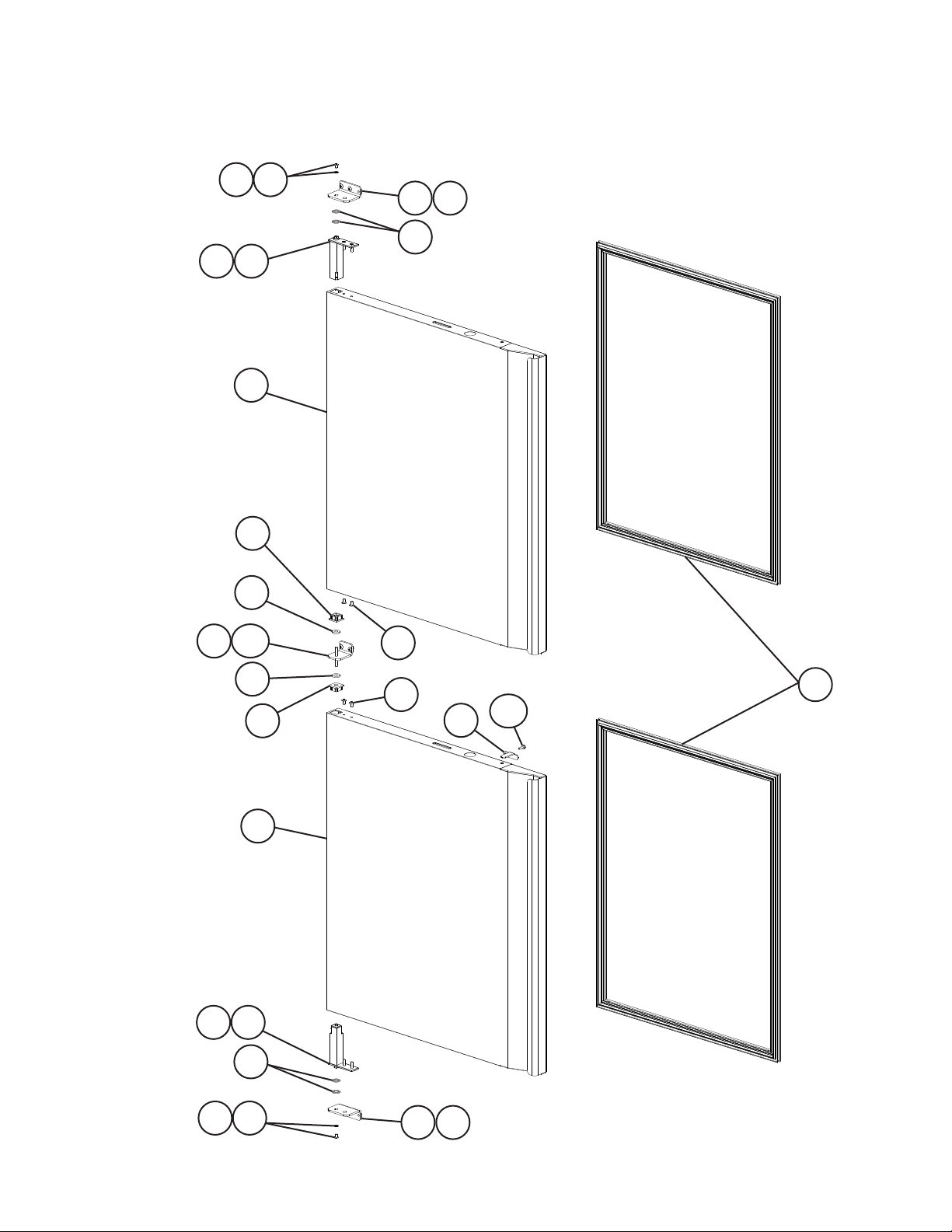

E. Door-Half Glass
Right Hinged
1/2
H-5 to L-5
5
7
4
6
1
2
8
8a
3
10
11
12
13
5
7
4
6
8
8a
9
9a
background
29

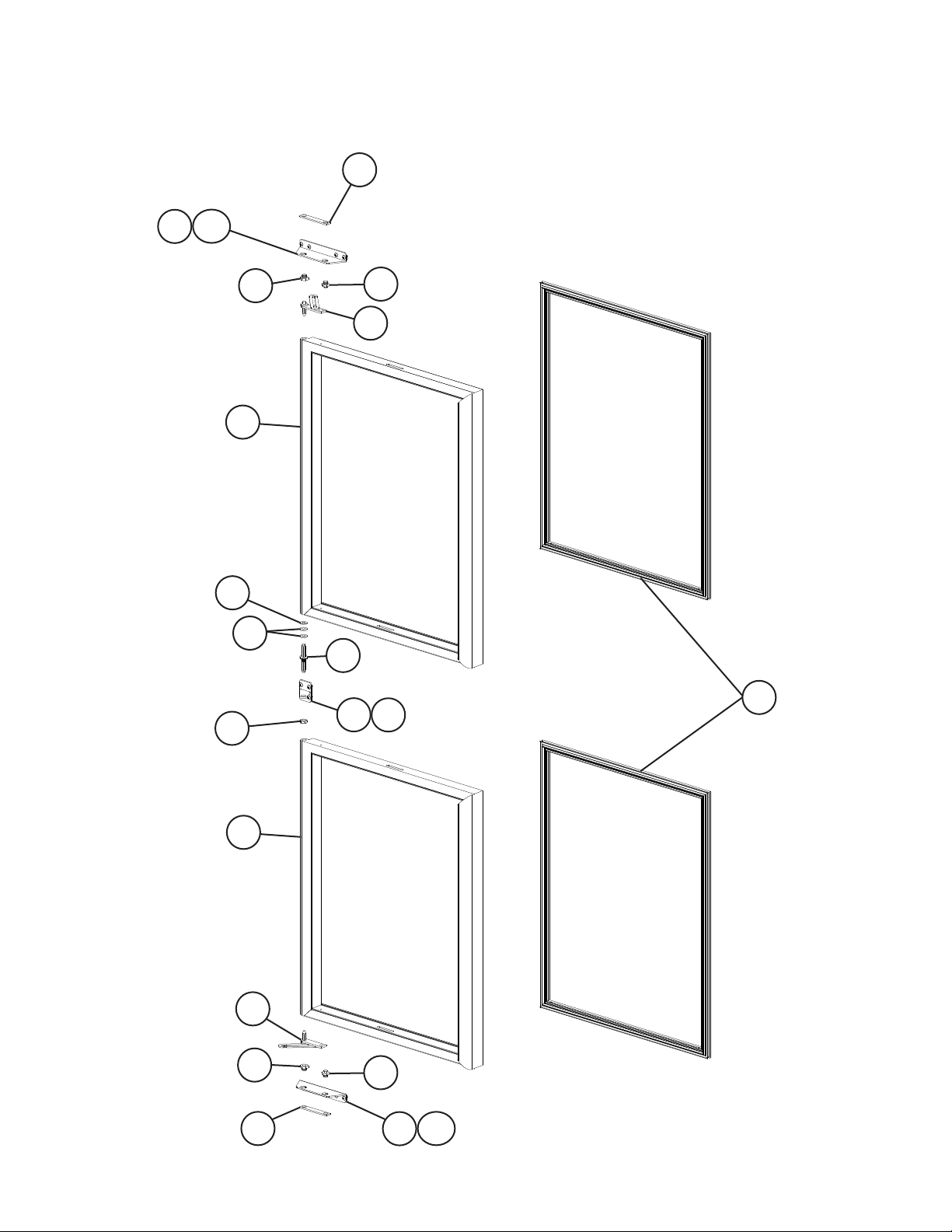

E. Door-Half Glass
Left Hinged
2/2
H-5 to L-5
5
6
4
7
2
8
8a
3
10
11
12
13
5
6
4
7
8
8a
1
9
9a
background
30
Title: E. Door-Half Glass Model: Half Glass
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
L-5
1 Upper Right/Lower Left Door
Assembly (includes half the
quantity of items 3 and 4)
R_A-HG 2A8649-01 1
F_A-HG 2A8649-02 1
2 Lower Right/Upper Left Door
Assembly (includes half the
quantity of items 3 and 4)
R_A-HG 2A8649-03 1
F_A-HG 2A8649-04 1
3 Gasket 3B0450-01 2
4 Hinge Arm 3A7946-01 2
5 Backer Plate 3A7946-08 2
6 Hinge Bushing 3A7946-09 2
7 Slide Pin 3A7946-11 2
8 Hinge Bracket 3A9161-01 2
8a Truss Head Screw 5×12, SS 7C32-0512 8
9 Middle Hinge Bracket 4A6223G01 1
9a Truss Head Screw 5×12, SS 7C32-0512 4
10 Middle Hinge Washer 4A6243-01 1
11 Nylon Washer 3A7946-10 2
12 Hinge Pin 3A9858-01 1
13 Hinge Pin Lock Nut 3A7946-05 1
background
31

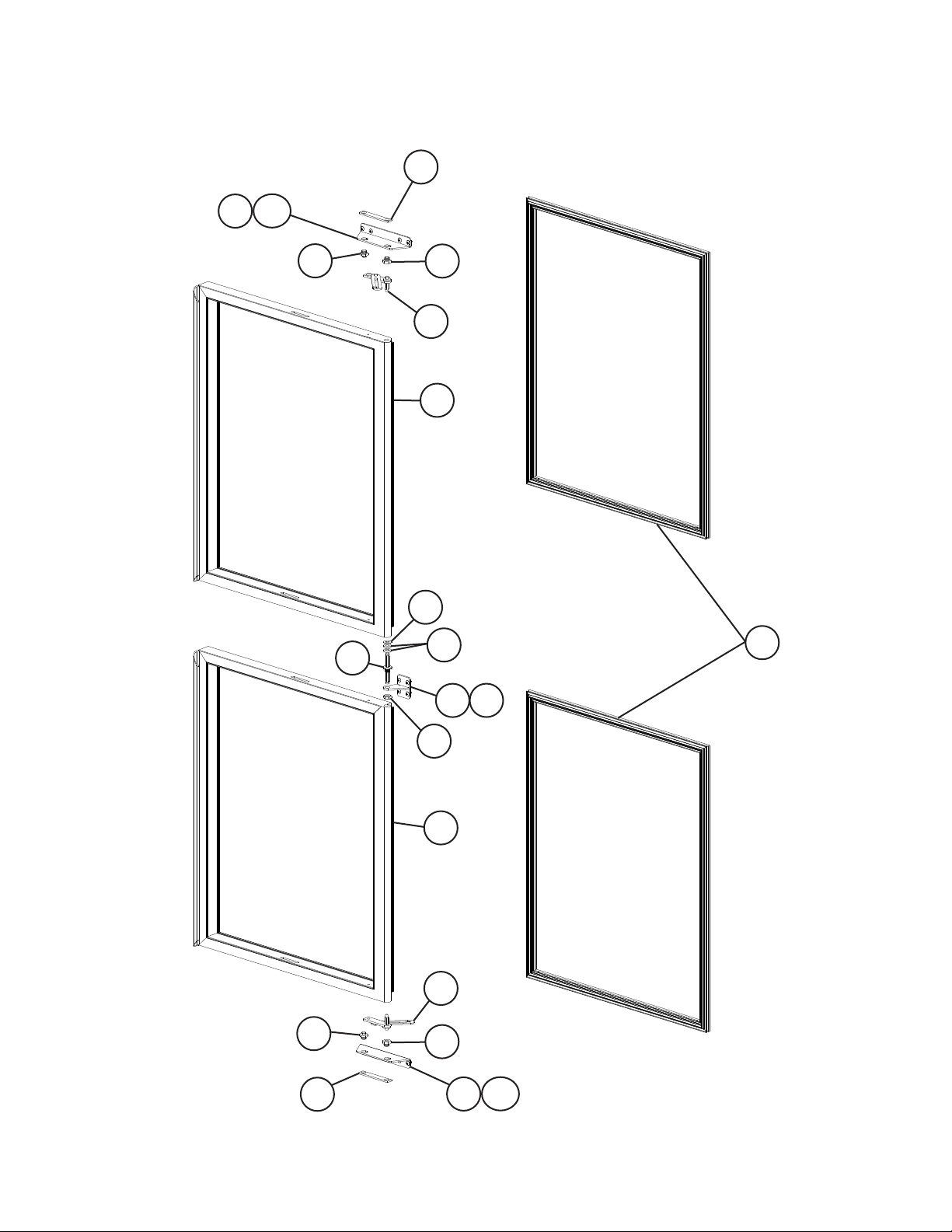

F. Door-Half Solid
Right Hinged
1/2
H-5 to L-5
6
109
4
3
4
8
6
12
9 10
7
7a
7a7
5a5
11 11a
5a5
13
13a
2
1
8
background
32
F. Door-Half Solid
Left Hinged
2/2
H-5 to L-5
6
109
4
4
8
6
12
3
9 10
13
7 7a
7a7
11
11a
1
2
5 5a
5 5a
13a
8
12
background
33
Title: F. Door-Half Solid Model: Half Solid
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
L-5
1 Upper Right/Lower Left Door
Assembly (includes half the
quantity of items 3 through 6)
2A7837G01 1
2 Lower Right/Upper Left Door
Assembly (includes half the
quantity of items 3 through 6)
2A7838G01 1
3 Gasket 2A5192-24 2
4 Truss Head Screw (Filler Screw) 5×10, SS 7C32-0510 4
5 Spring Cartridge 3A9206-01 2
5a Spring Cartridge Screw 5×20, SS 7C42-0520 4
6 Nylon Bearing 4A5232-01 2
7 Upper/Lower Hinge Bracket 3A9689-01 2
7a Truss Head Screw 5×12, SS 7C32-0512 4
8 Thrust Washer 4A5233-01 4
9 Lock Washer 4A5231-01 2
10 Screw 4A5230-01 2
11 Middle Hinge Bracket 3A9767G01 1
11a Truss Head Screw 5×12, SS 7C42-0512 2
12 Thrust Washer 4A5234-01 2
13 Half-Door Lock 4A5249-01 1
13a Bolt 449879-08 1
background
34

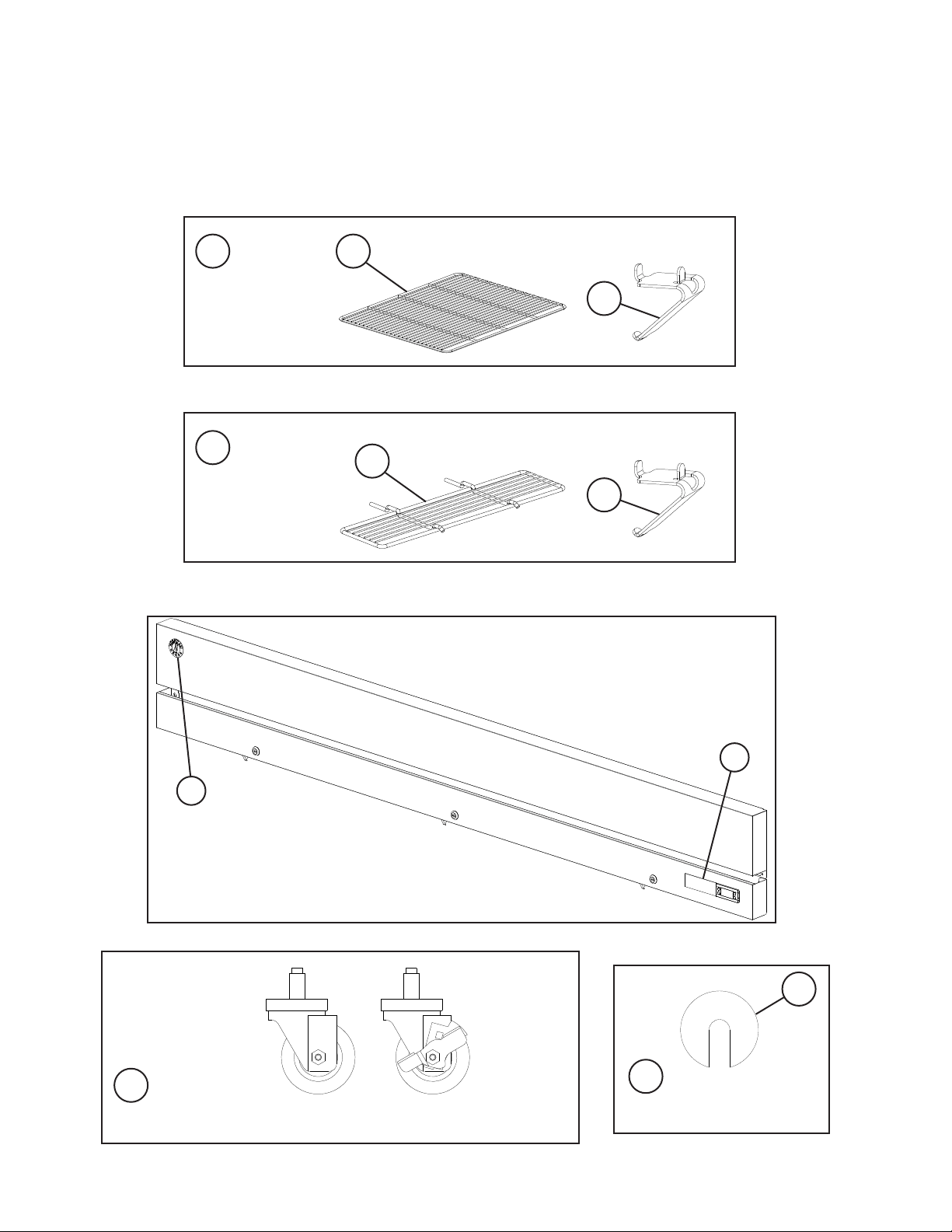

G. Accessories & Labels
_1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL,
_2A-FG/FS/HG/HS, _3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
H-5 to L-5
2
3
7
8
Stem Caster
11
Stem Caster Kit
Includes 1 non-locking stem casters and 1 locking stem casters
Stem Caster Shim
Shelf Kit
Includes items 2
and 3
Stem Caster Shim Kit
Includes 6 stem caster shims
9
10
1
5
6
Center Shelf Kit
Includes items 5
and 6
4
background
35
Title: G. Accessories & Labels Model: _1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL, _2A-FG/FS/HG/HS,
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
L-5
1 Shelf Kit (3 Pack)
(includes items 2 and 3)
_1A-XXXX 3A6902A01
(HS-5053)
1
Shelf Kit (3 Pack)
(one kit includes half of items
2 and 3)
_2A-XXXX 2
Shelf Kit (3 Pack)
(one kit includes a third of items
2 and 3)
_3A-XXXX 3
Shelf Kit (3 Pack)
(one kit includes a sixth of
items 2 and 3)
_3A-FGCL/
FGCR/FSCL/
FSCR
6
2 Shelf R1A-FGCL/
FGCR
3A6876-03
(HS-5052)
1
_1A-XXXX 3
_2A-XXXX 6
_3A-XXXX 9
_3A-FGCL/
FGCR/FSCL/
FSCR
18
3 Shelf Clip R1A-FGCL/
FGCR
428957-01 4
_1A-XXXX 12
_2A-XXXX 24
_3A-XXXX 36
_3A-FGCL/
FGCR/FSCL/
FSCR
72
4 Center Shelf Kit (3 Pack)
(includes items 5 and 6)
_2A-XXXX 3A4451A01
(HS-3510)
1
Center Shelf Kit (3 Pack)
(one kit includes half of items
5 and 6)
_3A-XXXX 3A9920A01
(HS-5389)
2
Center Shelf Kit (3 Pack)
(one kit includes fourth of items
5 and 6)
_3A-FGCL/
FGCR/FSCL/
FSCR
4
5 Center Shelf _2A-XXXX 2A1579-01
(HS-3509)
3
_3A-XXXX 2A8875-01
(HS-5388)
6
_3A-FGCL/
FGCR/FSCL/
FSCR
12
6 Shelf Clip _2A-XXXX 428957-01 3
_3A-XXXX 6
_3A-FGCL/
FGCR/FSCL/
FSCR
12
7 Hoshizaki Label R_A-XXXX 3B0043-01 1
F_A-XXXX 3B0043-02 1
8 Penguin Label 475552L02 1
background
36
Title: G. Accessories & Labels Model: _1A-FG/FGCL/FGCR/FS/FSJ/FSL/FSLJ/HG/HS/HSL, _2A-FG/FS/HG/HS,
_3A-FG/FGCL/FGCR/FS/FSCL/FSCR/HG/HS
Index
No. Description
Material or
Model Number Part Number
Required Number
H-5
to
L-5
Stem Caster
9 4-inch Stem Caster Pack
(includes 1 locking caster and
1 non-locking caster)
_1A-XXXX
_2A-XXXX
4A1347-03 2
_3A-XXXX 4
10 Stem Caster Shim Kit
(includes item 13)
_1A-XXXX
_2A-XXXX
HS-3590 1
_3A-XXXX 2
11 Stem Caster Shim _1A-XXXX
_2A-XXXX
4A3658-01 6
_3A-XXXX 12

Specifications

Indexed Terms: Top Freezer Refrigerator

Hoshizaki F1A-FS Questions and Answers

Find answers or ask new question.
See other models: F1A-FSL CR49A CR98A SRK8H3 URC9F
Questions and Answers
