Gas and Electric
Dryer Owner's
Nlanual
Register your product at
www.samsung.com/global/register
Code No.: DC68-02312A-EN
CongratulationsonyournewSamsungDryer.Thismanualcontainsvaluableinformationonthe
installation,use,andcareofyourappliance.Pleasetakethetimetoreadthismanualtotakefull
advantageofyourdryer'smanybenefitsandfeatures.

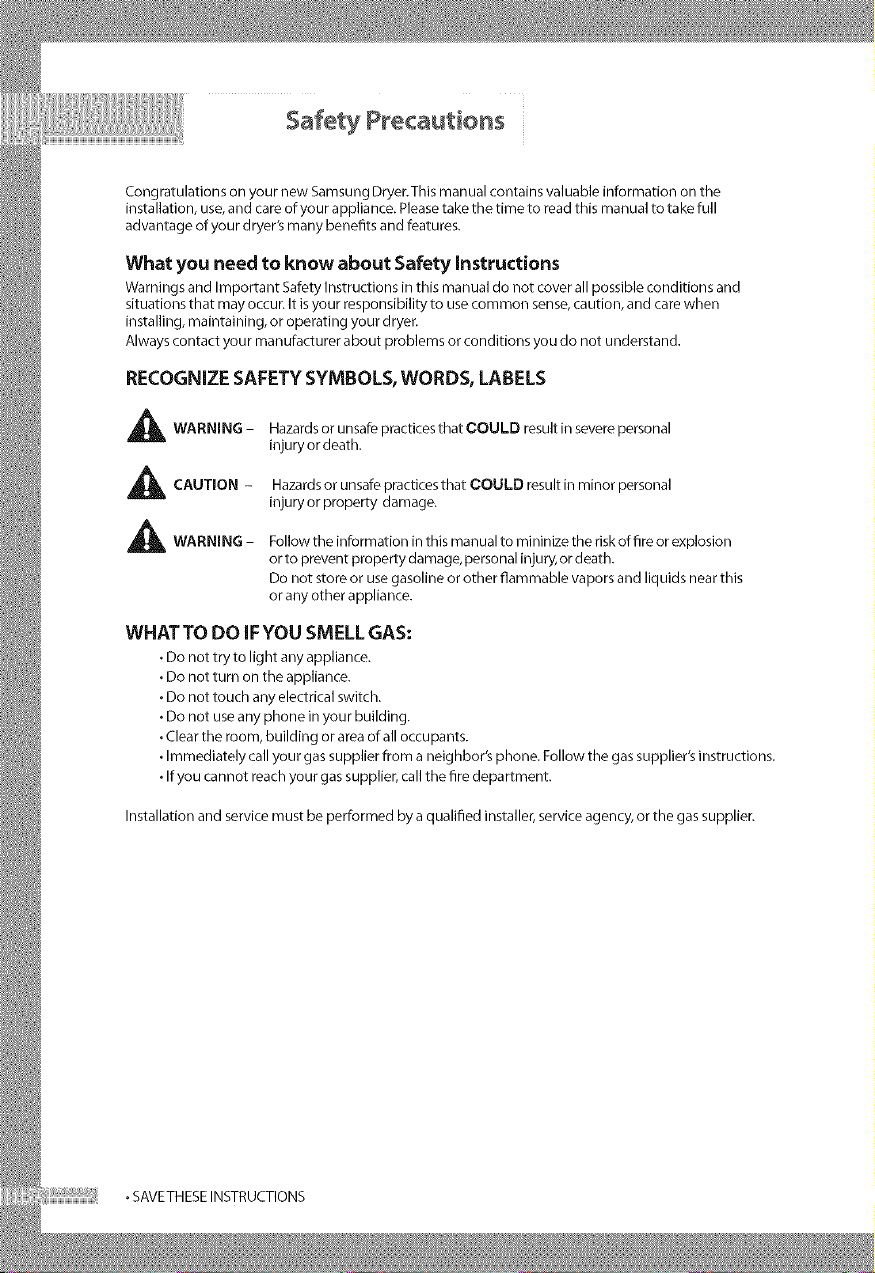

What you need to know about Safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occun It is your responsibility to use common sen se, caution, and care when
installing, maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
RECOGNIZESAFETYSYMBOLS,WORDS, LABELS
_ WARNING-
iL CAUTION -
_1_ WARNING-
Hazardsor unsafepractices that COULD result in severe personal
injury or death.
Hazardsor unsafepracticesthat COULD result in minor personal
injury or property damage.
Follow the information in this manual to mininize the risk of fire or explosion
or to prevent property damage, personal injury, or death.
Do not store or use gasoline or other flammable vapors and liquids near this
or any other appliance.
WHAT TO DO IF YOU SMELLGAS:
• Do not try to light any appliance.
• Do not turn on the appliance.
. Do not touch any electrical switch.
. Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
. If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
.SAVETHESEINSTRUCTIONS

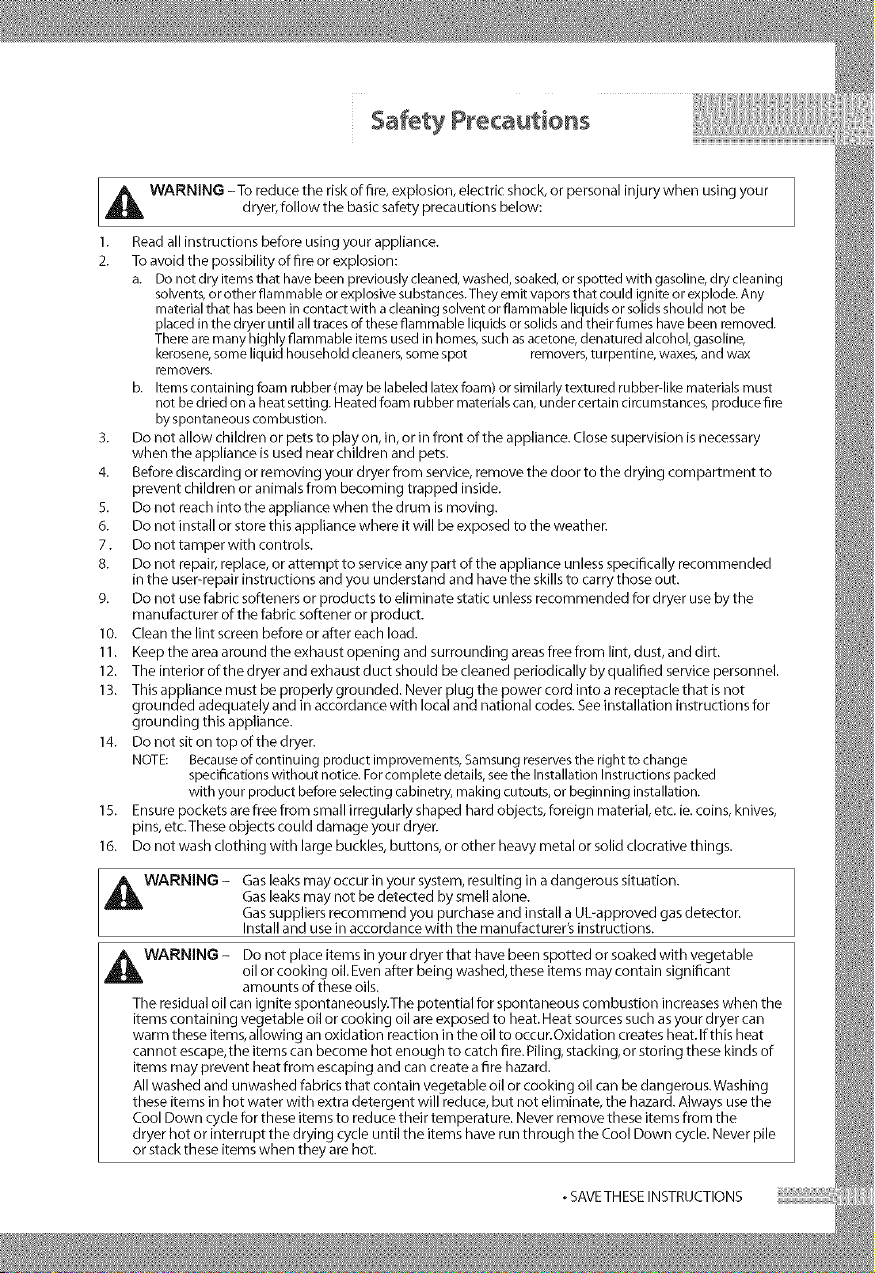

Safety Precautions
I _t_ WARNING -To reduce the risk of fire, explosion, electric shock, or personal injury when using your
_;_ dryer, follow the basic safety precautions below:
1. Read all instructions before using your appliance.
2. To avoid the possibility of fire or explosion:
a. Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning
solvents, or other fla m mable or explosive su bstances.They emit vapors that could ignite or explode. Any
material that has been in contact with acleaning solvent or flammable liquids or solids should not be
placed in the dryer until all traces of these flammable liquids or solids and their fumes have been removed.
There are many highly flammable items used in homes, such as acetone, denatured alcohol, gasoline,
kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax
removers.
b. Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials must
not be dried on a heat setting. Heated foam rubber materials can, under certain circumstances, produce fire
by spontaneous combustion.
3. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary
when the appliance is used near children and pets.
4. Before discarding or removing your dryer from service, remove the door to the drying compartment to
prevent children or animals from becoming trapped inside.
5. Do not reach into the appliance when the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weathen
7. Do not tamper with controls.
8. Do not repair, replace, or attempt to service any part of the appliance unless specifically recommended
in the user-repair instructions and you understand and have the skills to carry those out.
g. Do not use fabric softeners or products to eliminate static unless recommended for dryer use by the
manufacturer of the fabric softener or product.
10. Clean the lint screen before or after each load.
11. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.
12. The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.
13. This appliance must be properly grounded. Never plug the power cord into a receptacle that is not
grounded adequately and in accordance with local and national codes. See installation instructions for
grounding this appliance.
14. Do not sit on top of the dryen
NOTE: Because of continuing product improvements, Samsung reserves the right to change
specifications without notice. For complete details, see the Installation Instructions packed
with your product before selecting cabinetry, making cutouts, or beginning installation.
15. Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie. coins, knives,
pins, etc.These objects could damage your dryer.
16. Do not wash clothing with large buckles, buttons, or other heavy metal or solid clocrative things.
_i WARNING - Gas leaks may occur in your system, resulting in a dangerous situation.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with the manufacturer's instructions.
_1 WARNING - Do not place items in your dryer that have been spotted or soaked with vegetable
oil or cooking oil. Even after being washed, these items may contain significant
amounts of these oils.
The residual oil can ignite spontaneously.The potential for spontaneous combustion increases when the
items containing vegetable oil or cooking oil are exposed to heat. Heat sources such as your dryer can
warm these items, allowing an oxidation reaction in the oil to occur.Oxidation creates heat. If this heat
cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these kinds of
items may prevent heat from escaping and can create a fire hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous. Washing
these items in hot water with extra detergent will reduce, but not eliminate, the hazard. Always use the
Cool Down cycle for these items to red uce their temperature. Never remove these items from the
dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle. Never pile
or stack these items when they are hot.
. SAVE THESE INSTRUCTIONS

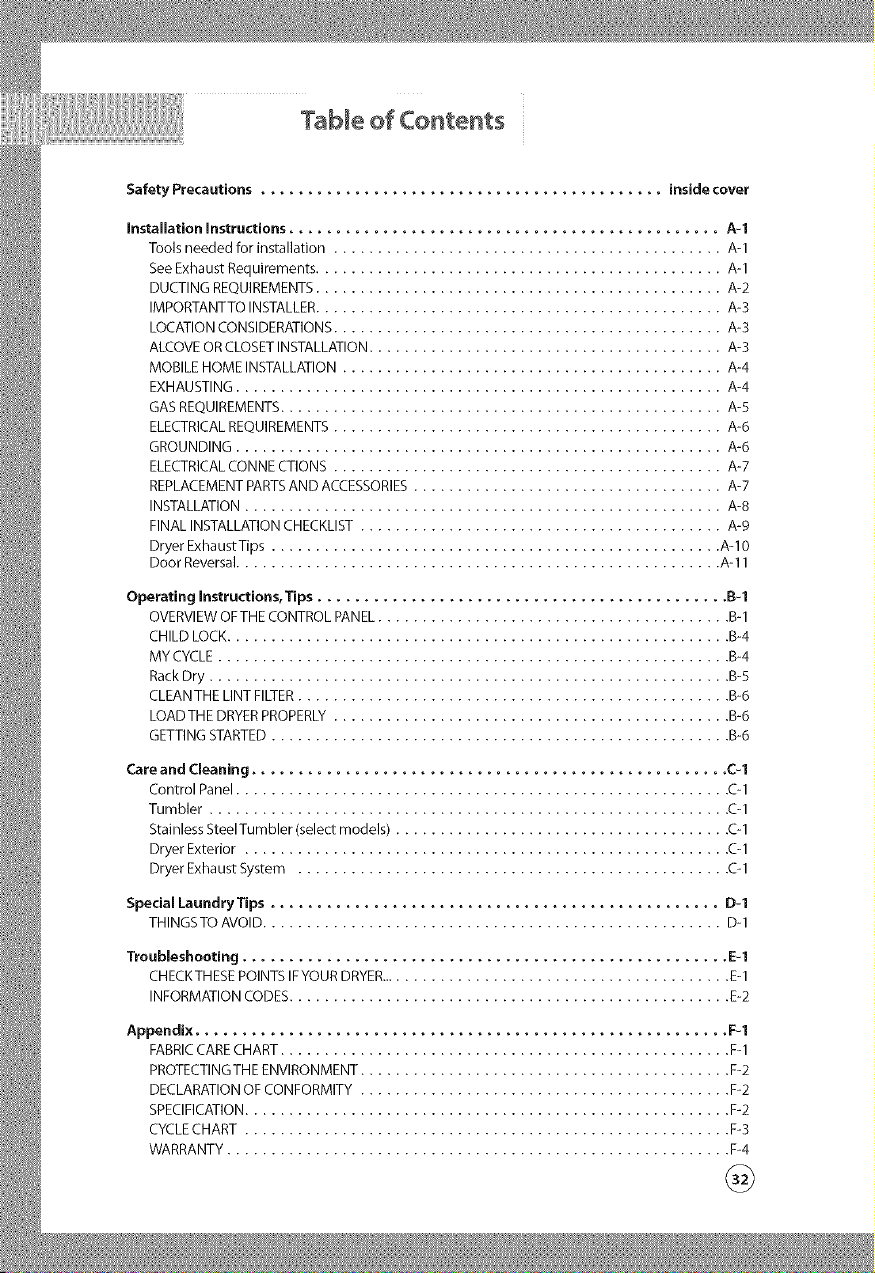

Table of Contents
Safety Precautions ........................................... inside cover
installation instructions .............................................. A-1
Tools needed for installation ............................................ Aq
See Exhaust Requirements .............................................. Aq
DUCTING REQUIREMENTS .............................................. A-2
IMPORTANTTO INSTALLER .............................................. A-3
LOCATION CONSIDERATIONS ............................................ A-3
ALCOVE OR CLOSET INSTALLATION ........................................ A-3
MOBILE HOME INSTALLATION ........................................... A-4
EXHAUSTING ....................................................... A-4
GAS REQUIREMENTS .................................................. A-5
ELECTRICAL REQUIREMENTS ............................................ A-6
GROUNDING ....................................................... A-6
ELECTRICAL CON NE CTIONS ............................................ A-7
REPLACEMENT PARTS AND ACCESSORIES ................................... A-7
INSTALLATION ...................................................... A-8
FINAL INSTALLATION CHECKLIST ......................................... A-9
Dryer Exhaust Tips ................................................... Aq 0

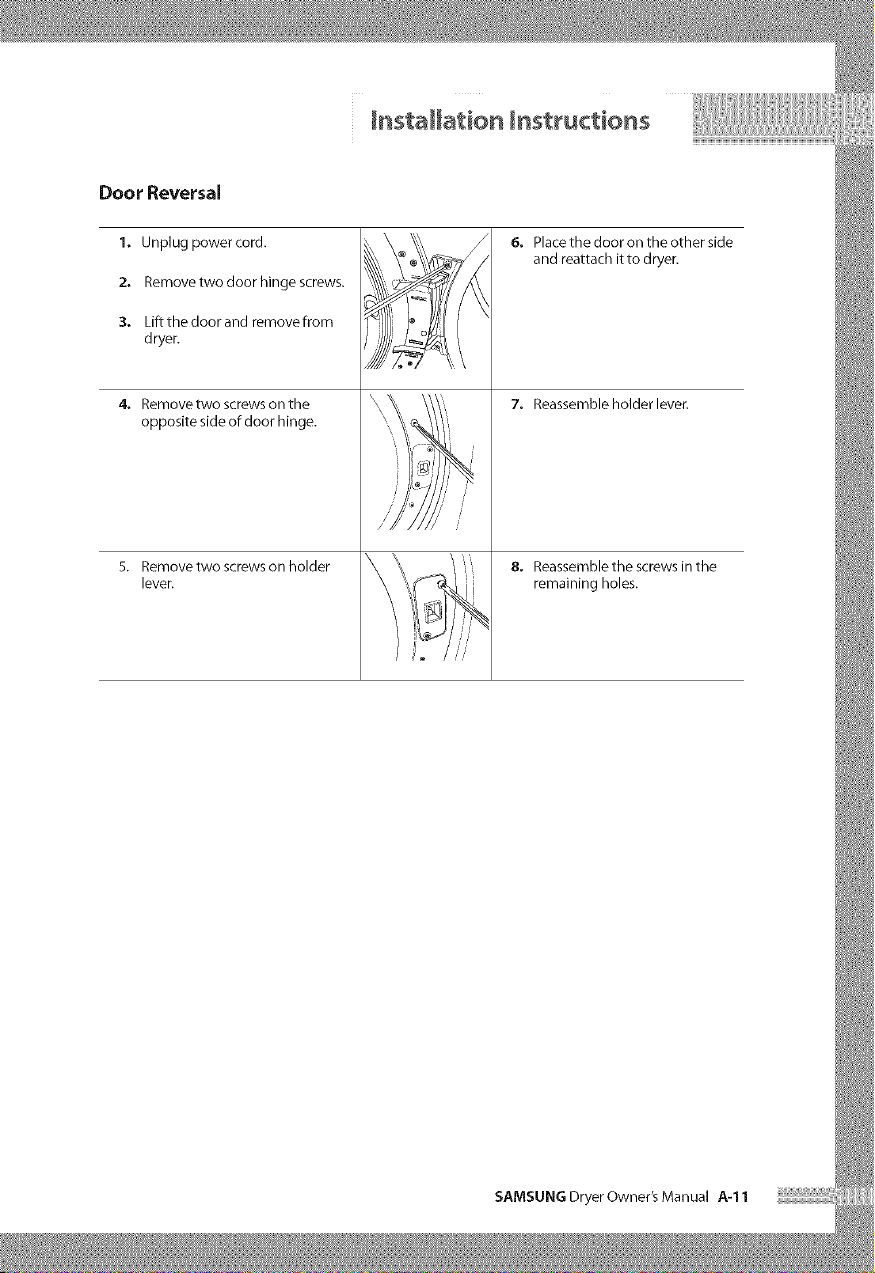

Door Reversal ....................................................... A-11

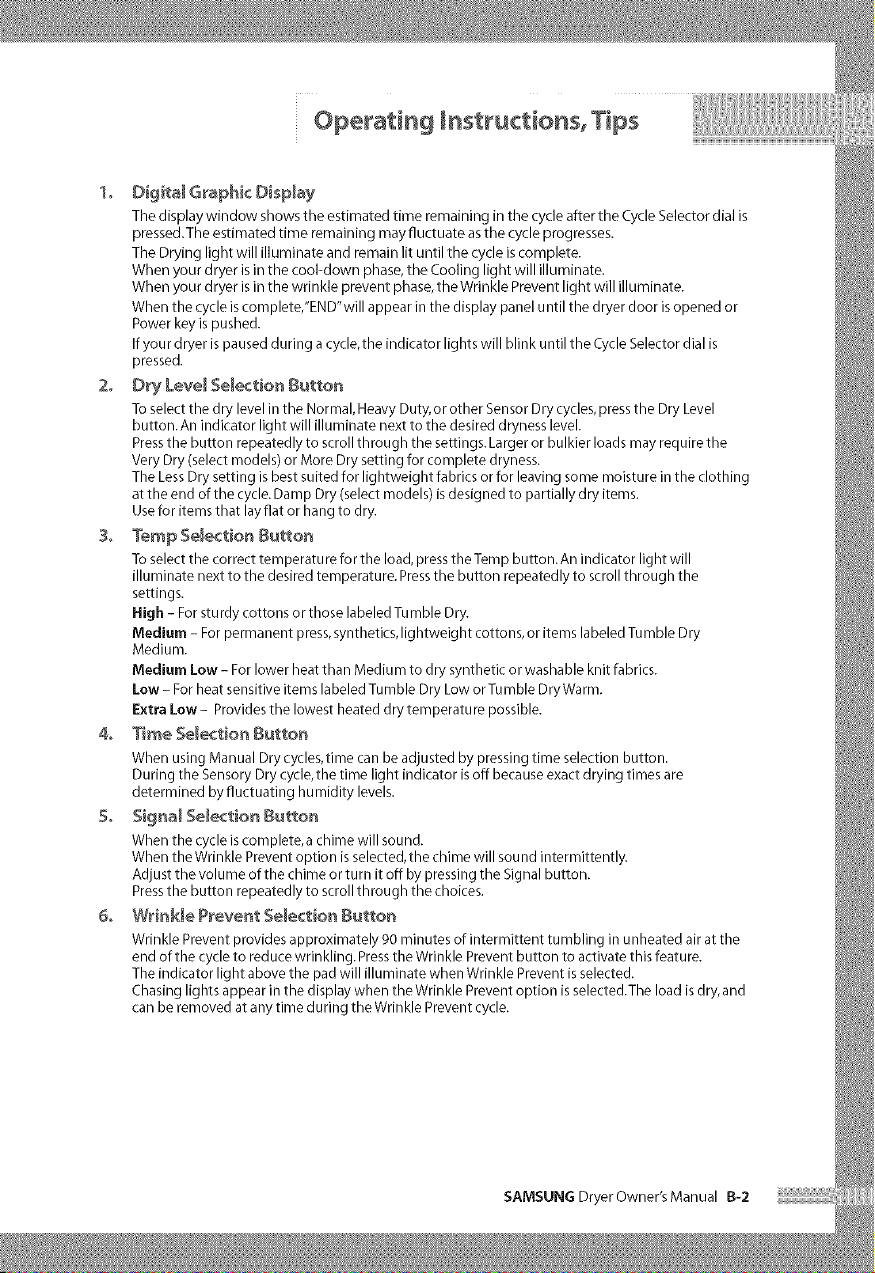

Operating instructions, Tips ............................................ B-1

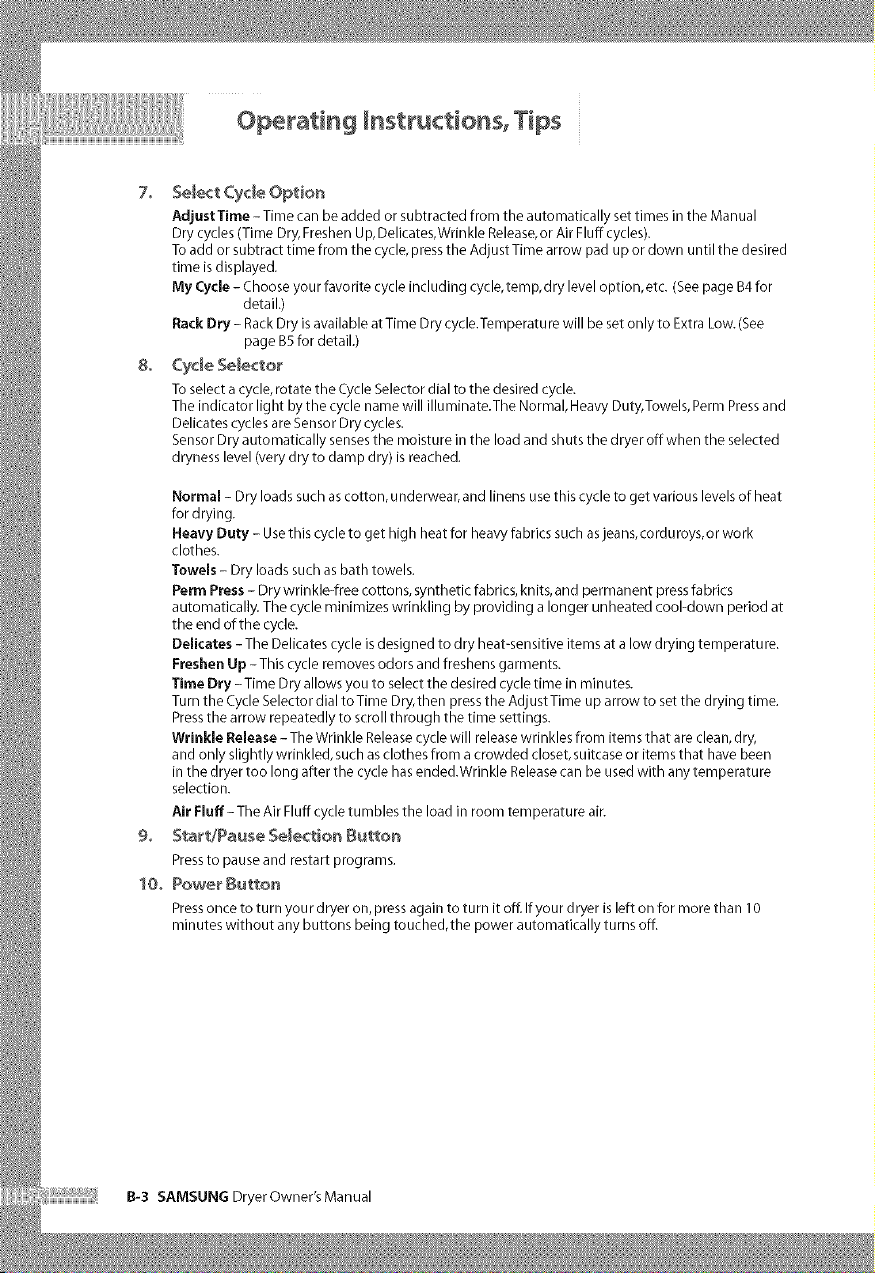

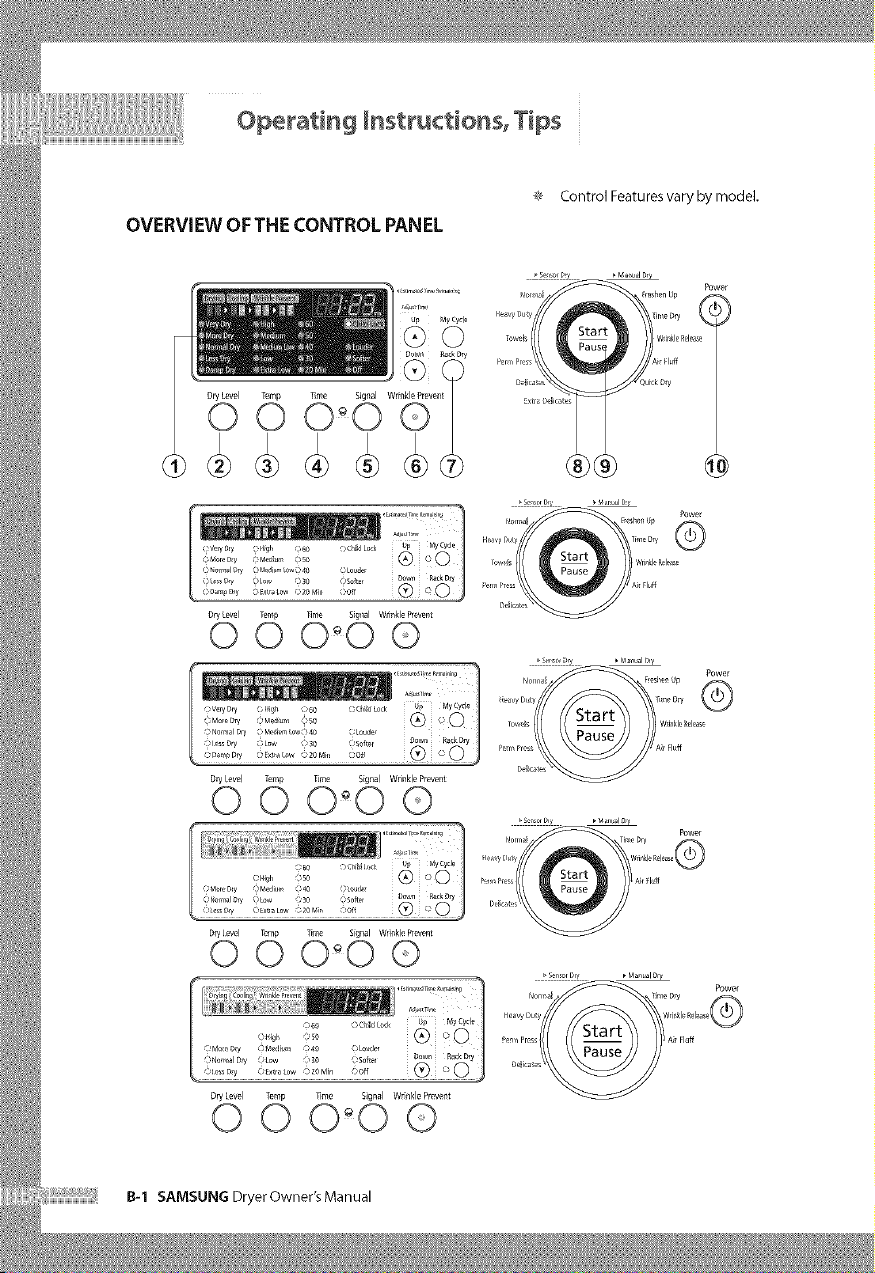

OVERVIEW OFTHE CONTROL PANEL ........................................ B-1

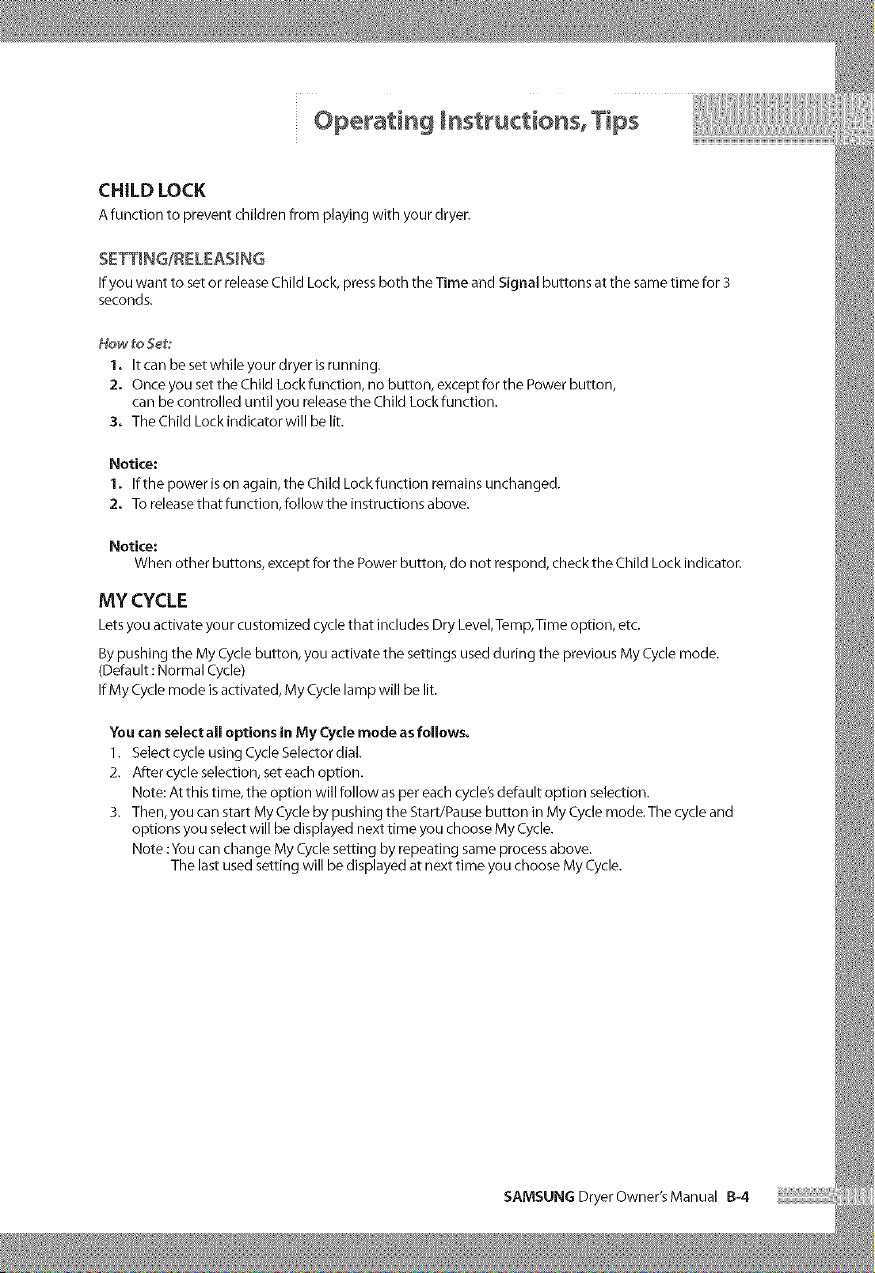

CHILD LOCK ......................................................... B-4
MY CYCLE .......................................................... B-4

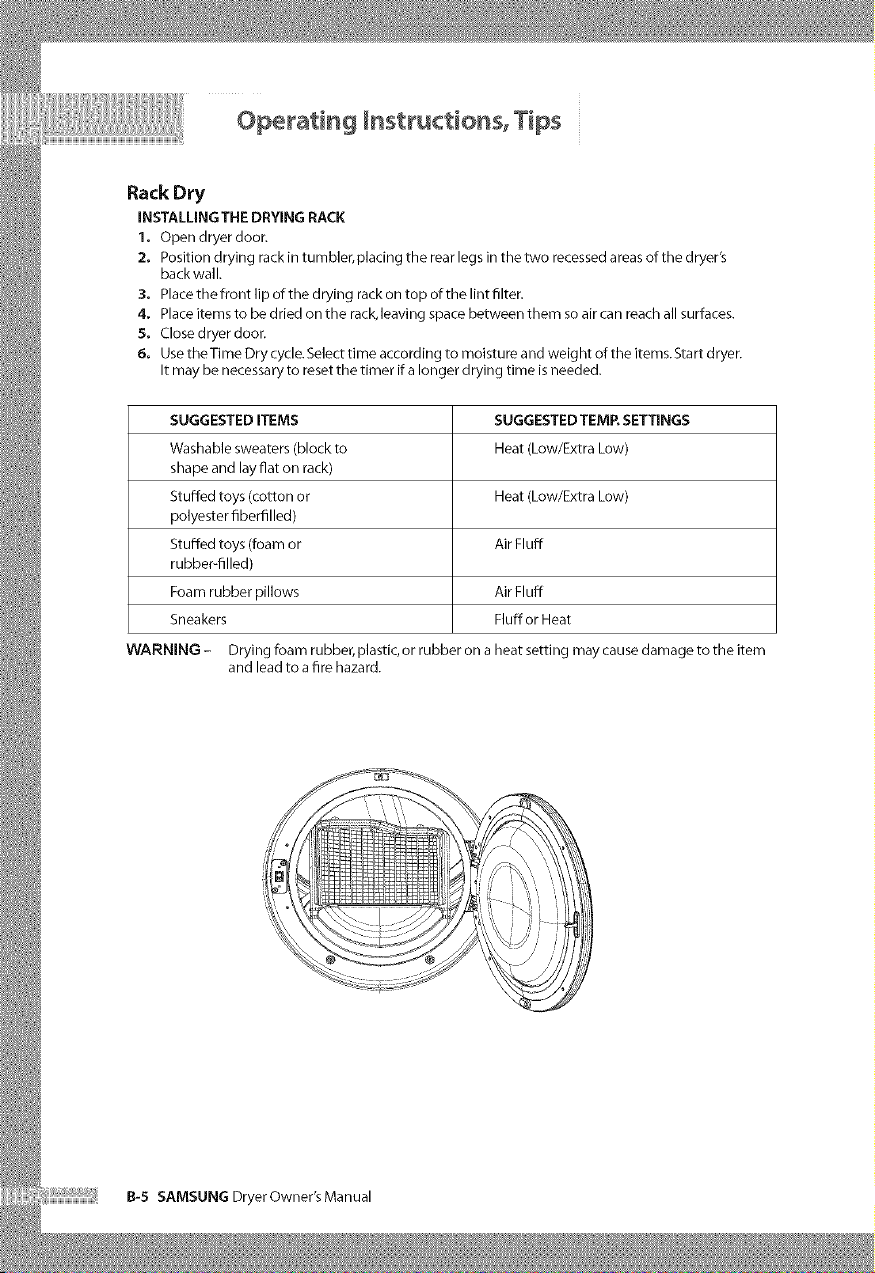

Rack Dry ........................................................... B-S

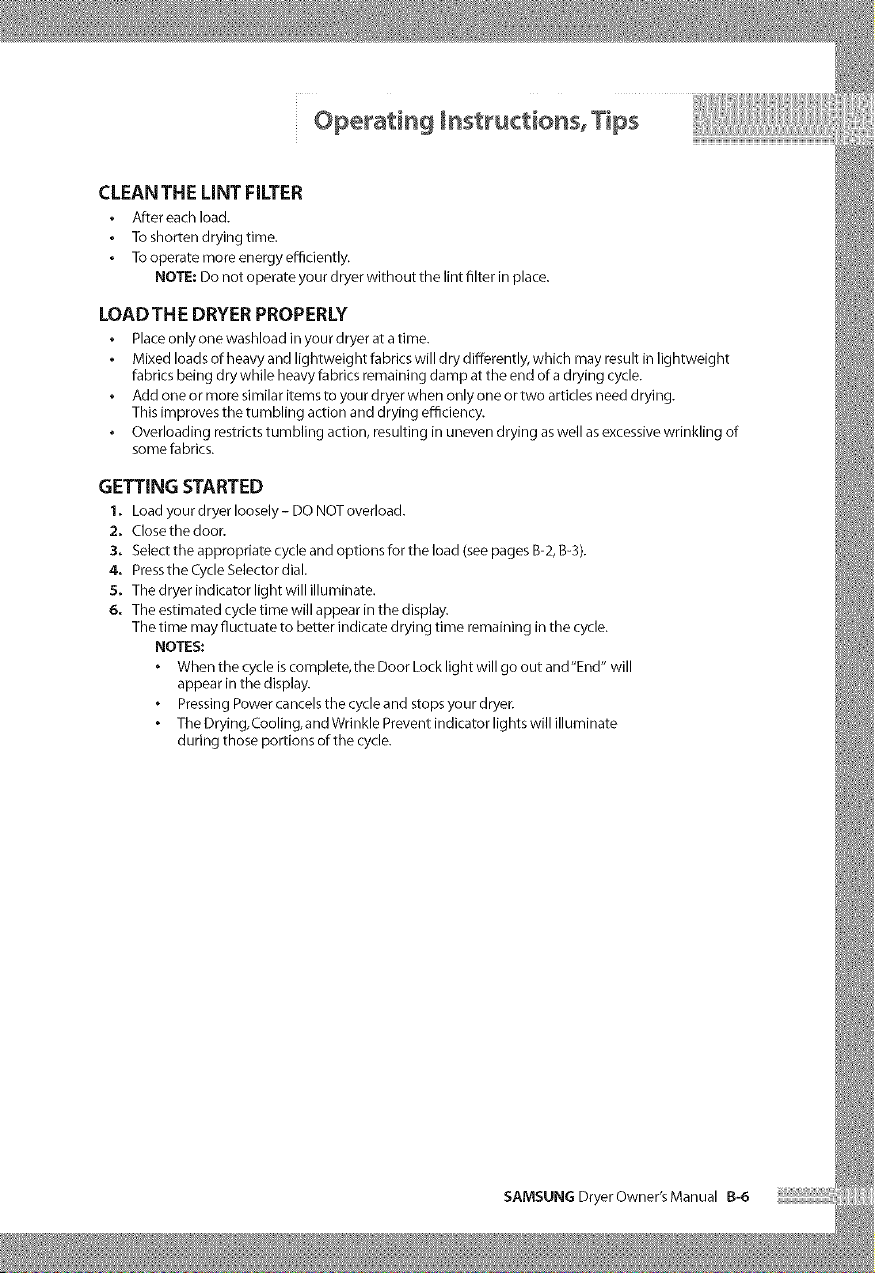

CLEAN THE LINT FILTER ................................................. B-6
LOAD THE DRYER PROPERLY ............................................. B-6
GETTING STARTED .................................................... B-6

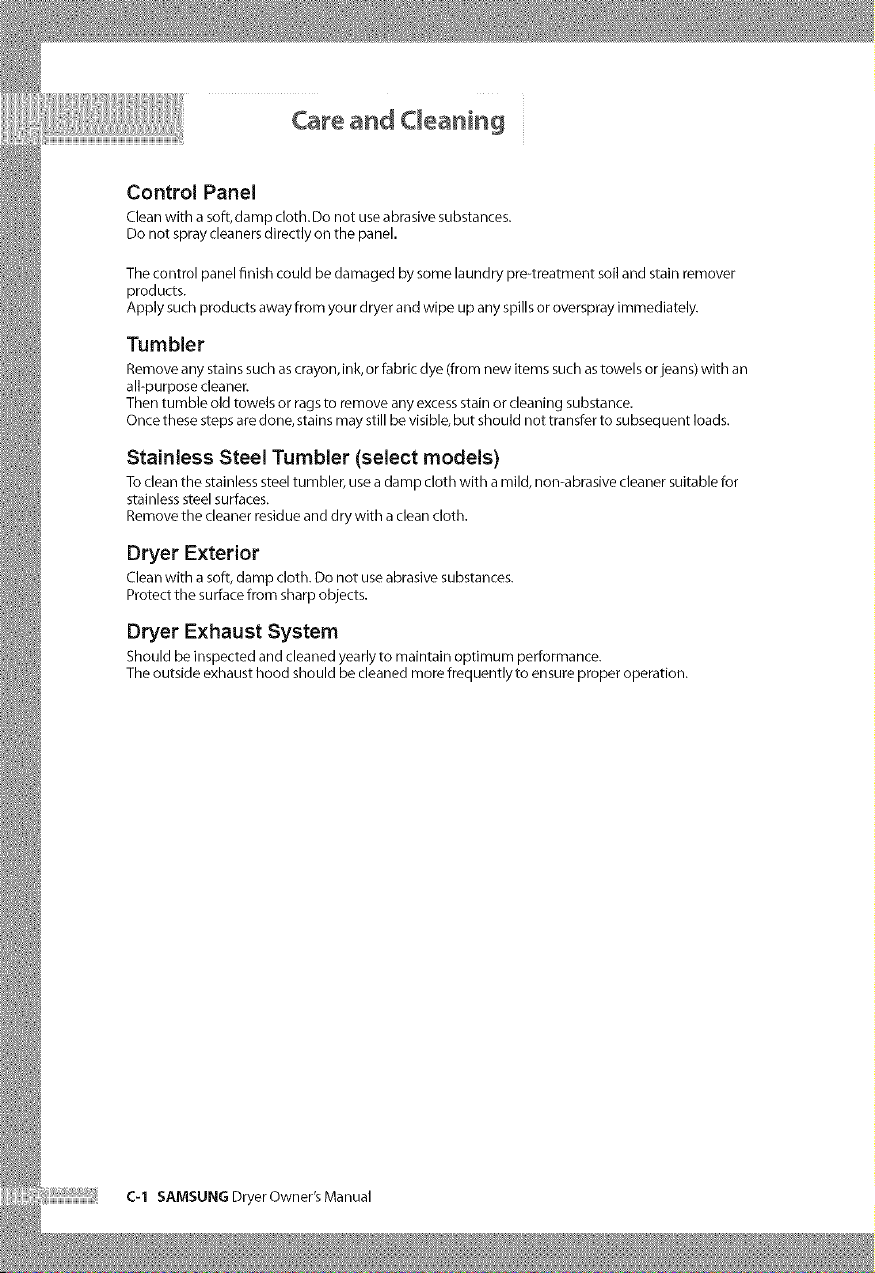

Care and Cleaning ................................................... C-1
Control Panel ........................................................ Cq
Tumbler ........................................................... Cq
StainlessSteelTumbler (selectmodels) ...................................... Cq
Dryer Exterior ....................................................... Cq
Dryer Exhaust System ................................................. Cq

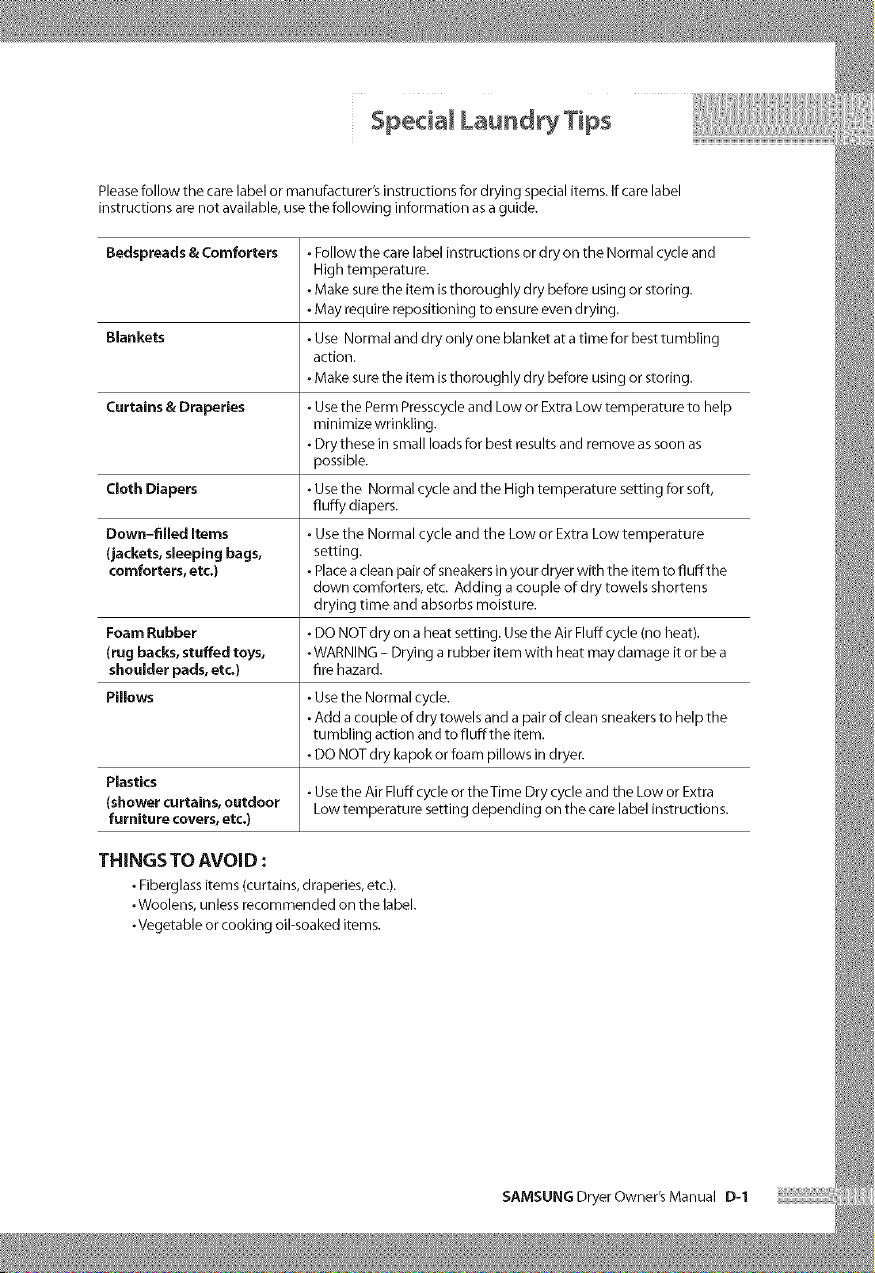

Special Laundry Tips ................................................ D-1
THINGS TO AVOID .................................................... Dq

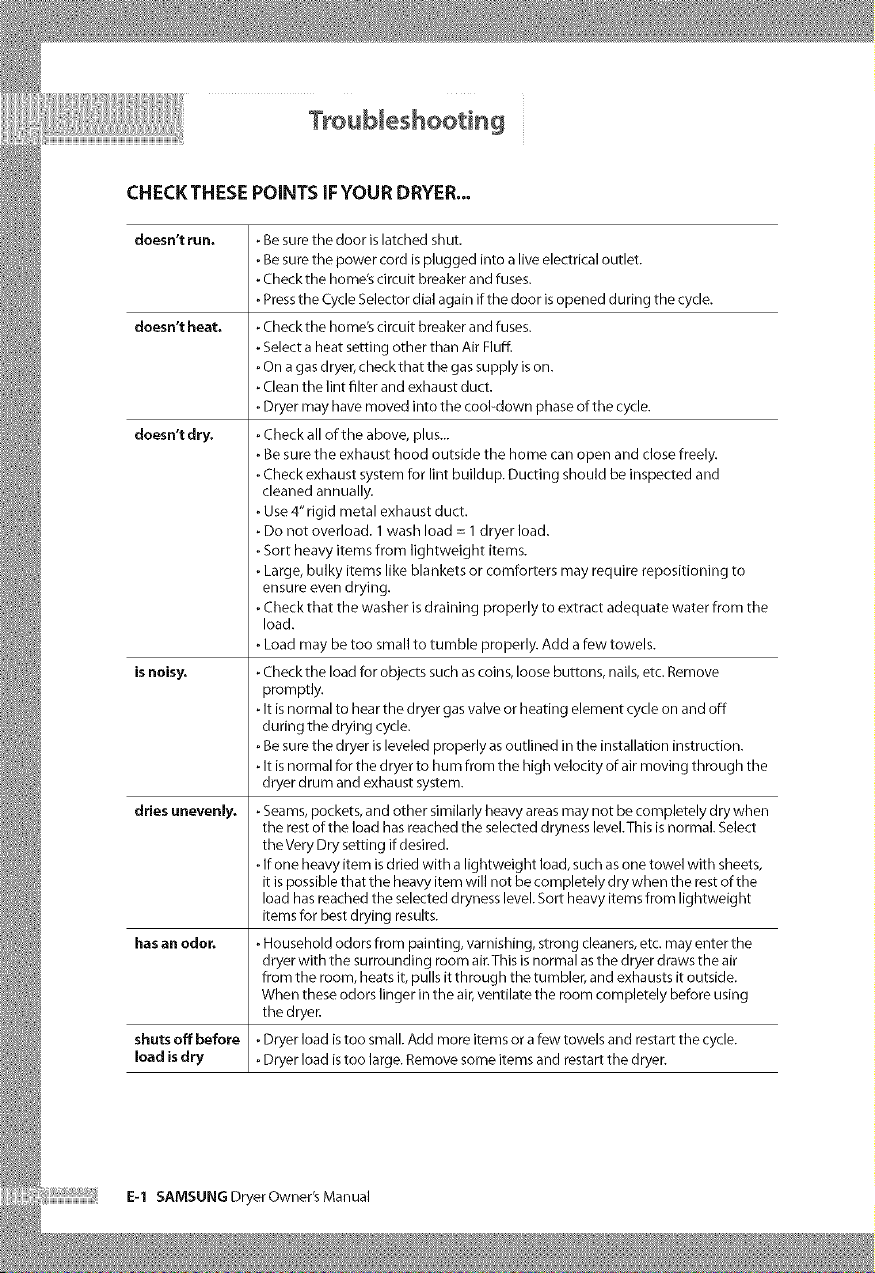

Troubleshooting .................................................... E-1
CHECKTHESE POINTS IFYOUR DRYER......................................... Eq

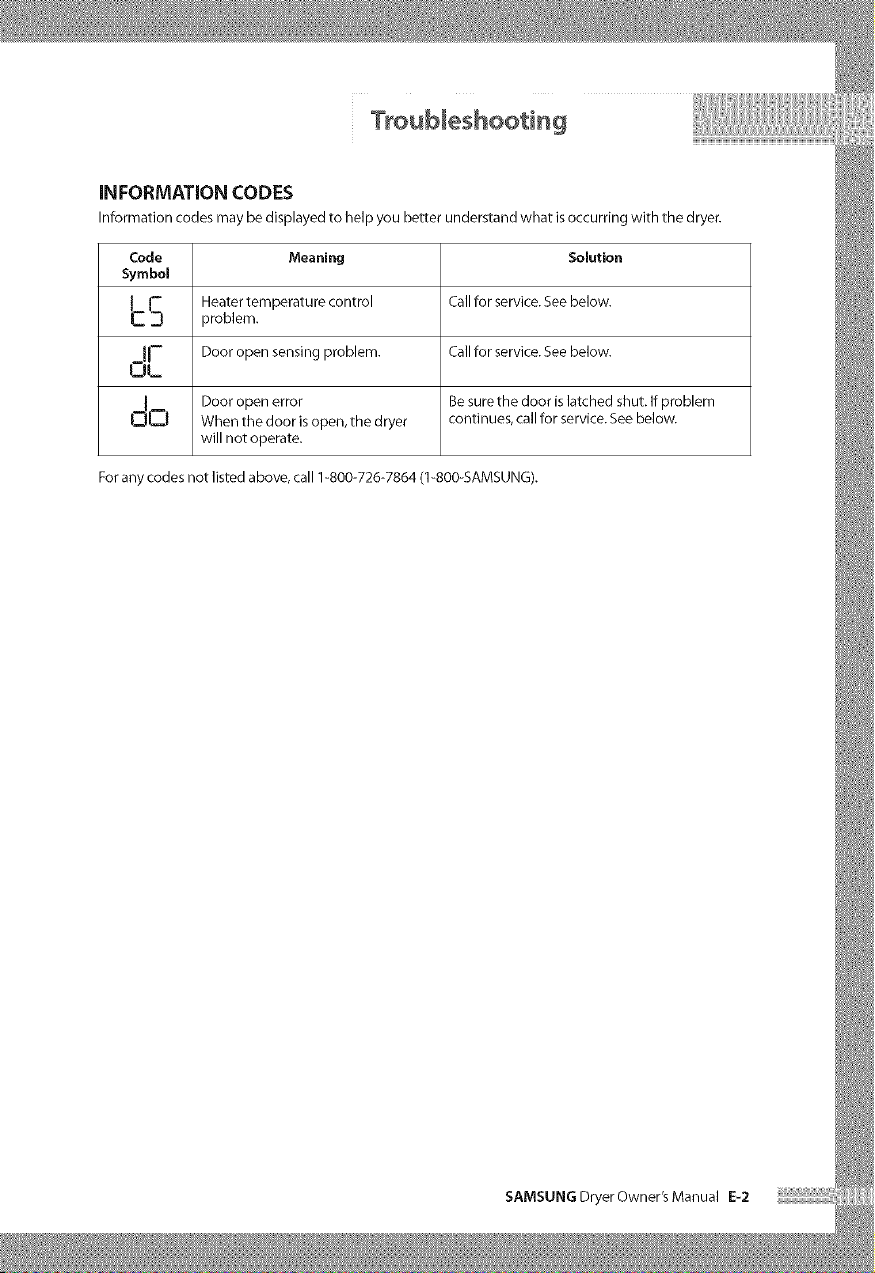

INFORMATION CODES .................................................. E-2

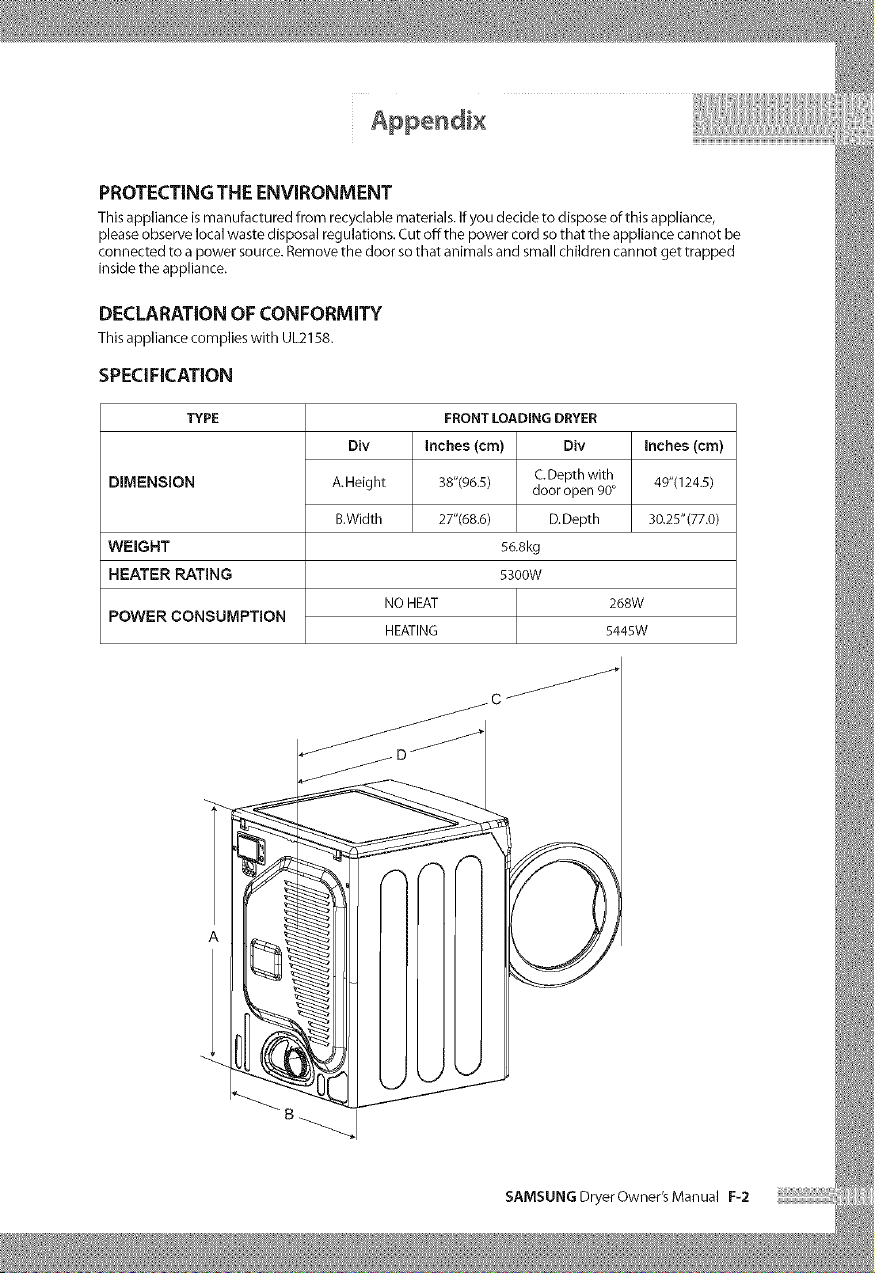

Appendix ......................................................... F-1

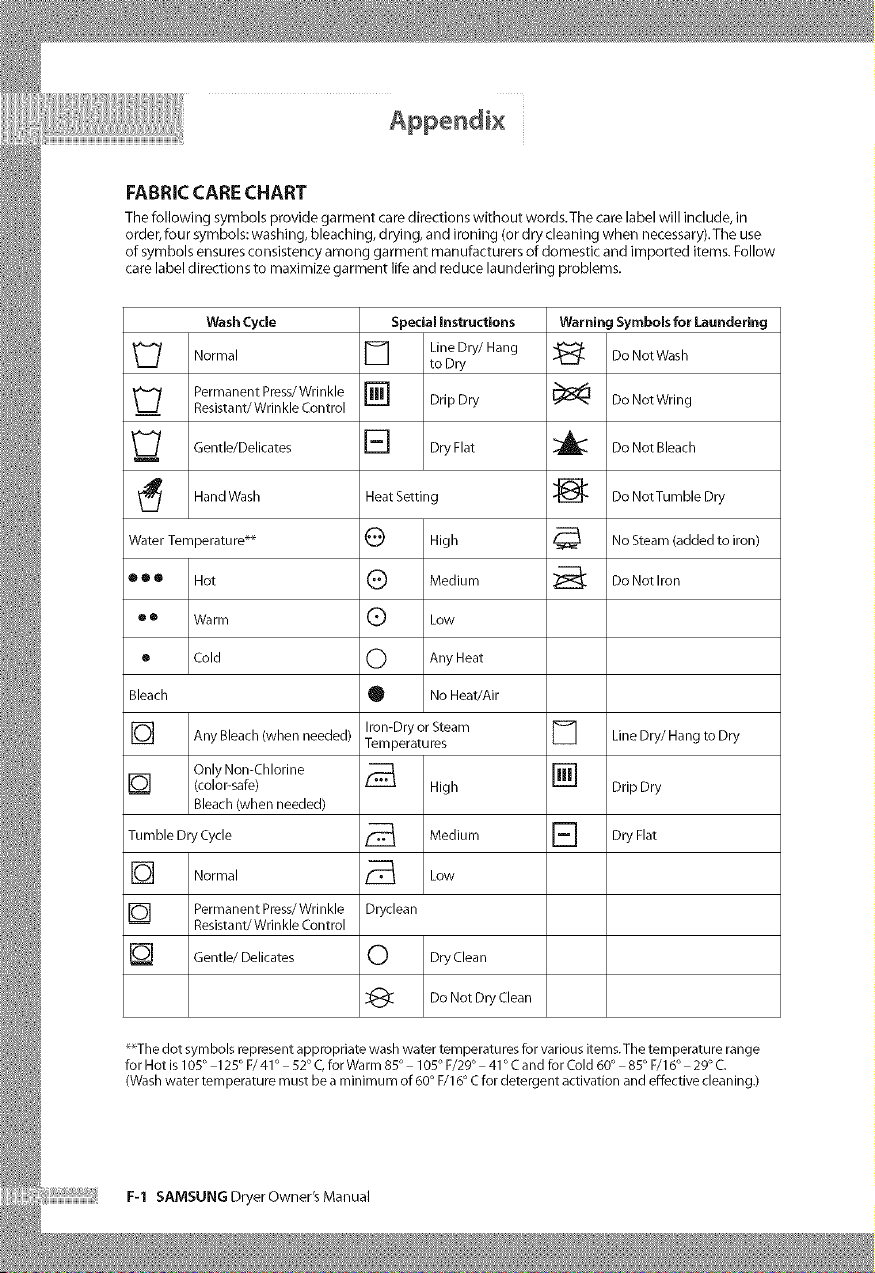

FABRIC CARE CHART ................................................... Fq
PROTECTINGTHE ENVIRONMENT .......................................... F-2
DECLARATION OF CONFORMITY .......................................... F-2
SPECIFICATION ....................................................... F-2

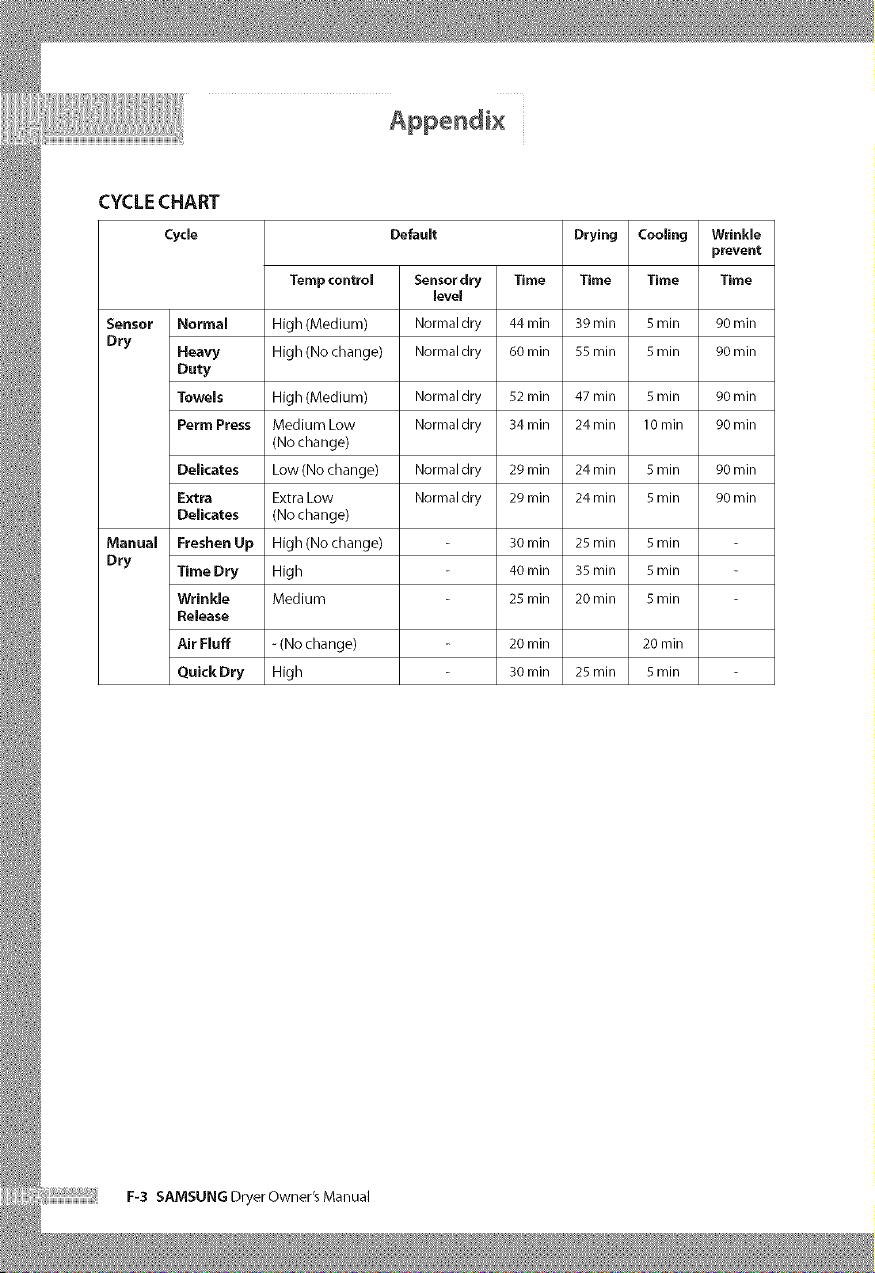

CYCLE CHART ....................................................... F-3

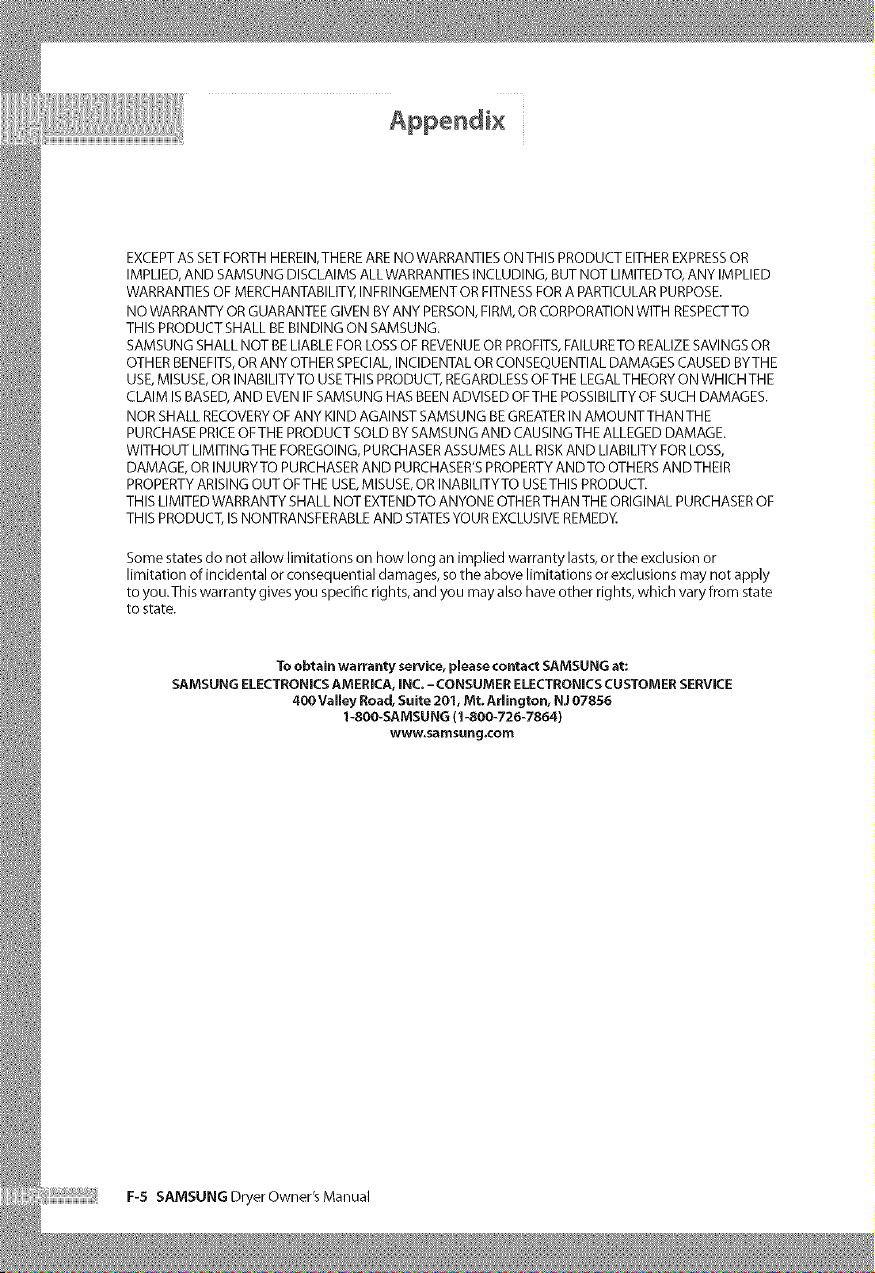

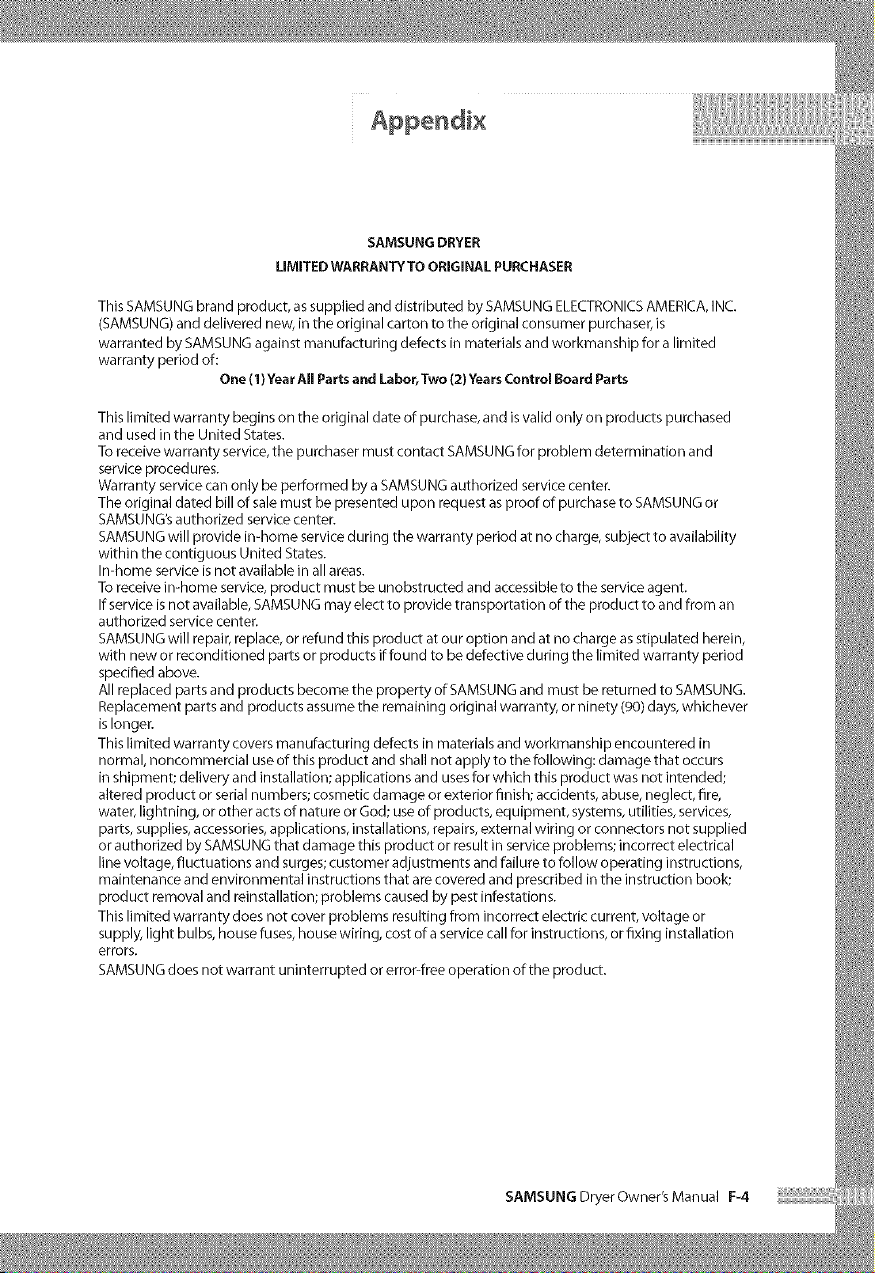

WARRANTY ......................................................... F-4
@
{nstaHationBnstructions

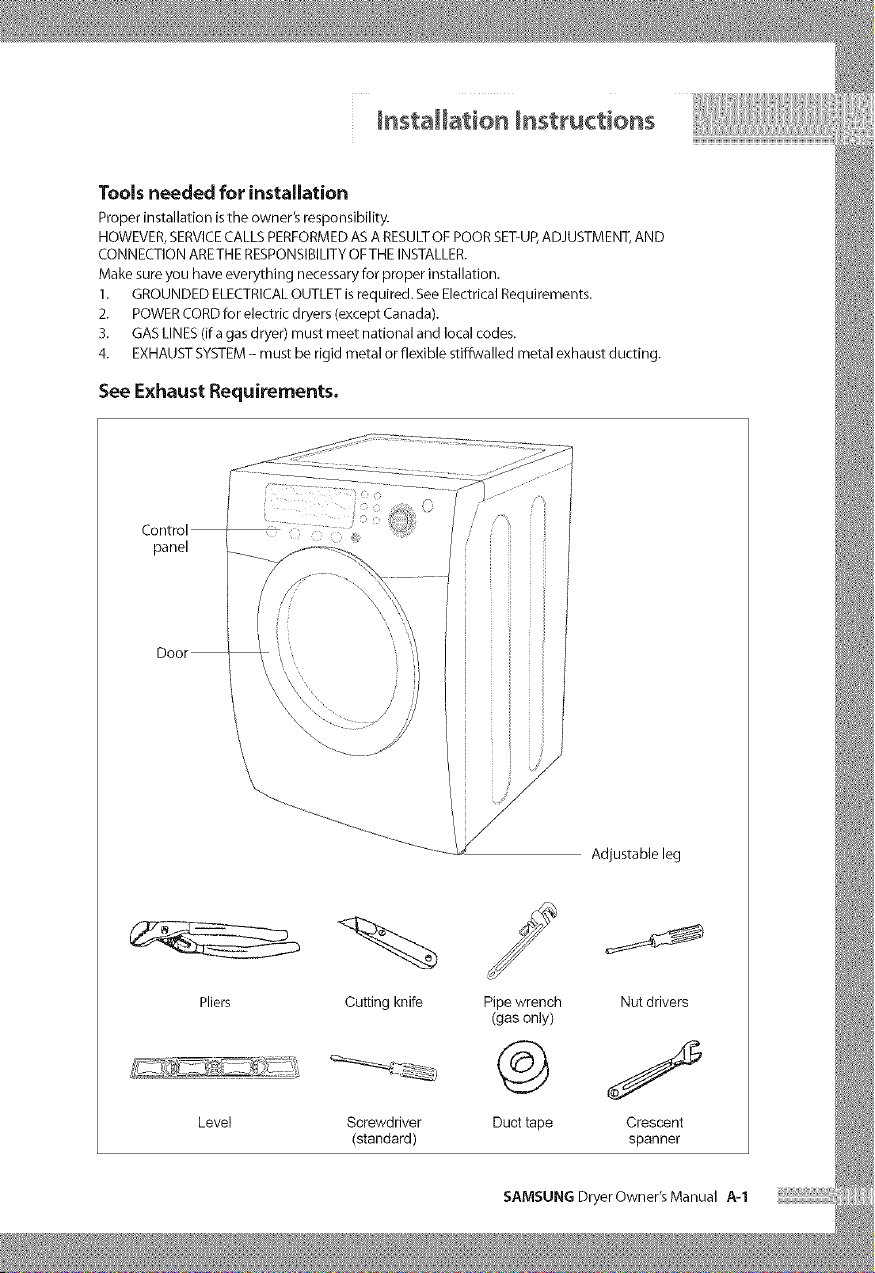

Tools needed for installation
Proper installationisthe owner's responsibility.
HOWEVER, SERVICE CALLS PERFORMED AS A RESULT OF POOR SETUF ADJUSTMENT, AND
CONNECTION ARETHE RESPONSIBILITY OFTHE INSTALLER.
Make sure you have everything necessary for proper installation.
1. GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.
2. POWER CORD for electric dryers (except Canada).
3. GAS LINES (if a gas dryer) must meet national and local codes.
4. EXHAUST SYSTEM - must be rigid metal or flexible stiffwalled metal exhaust ducting.
See Exhaust Requirements.
panel
Adjustable leg
Pliers
Level
Cutting knife
Screwdriver
(standard)
Pipe wrench
(gas only)
©
Duct tape
Nut drivers
Crescent
spanner
SAMSUNG DryerOwner's Manual A-1
nstaHation nstructions

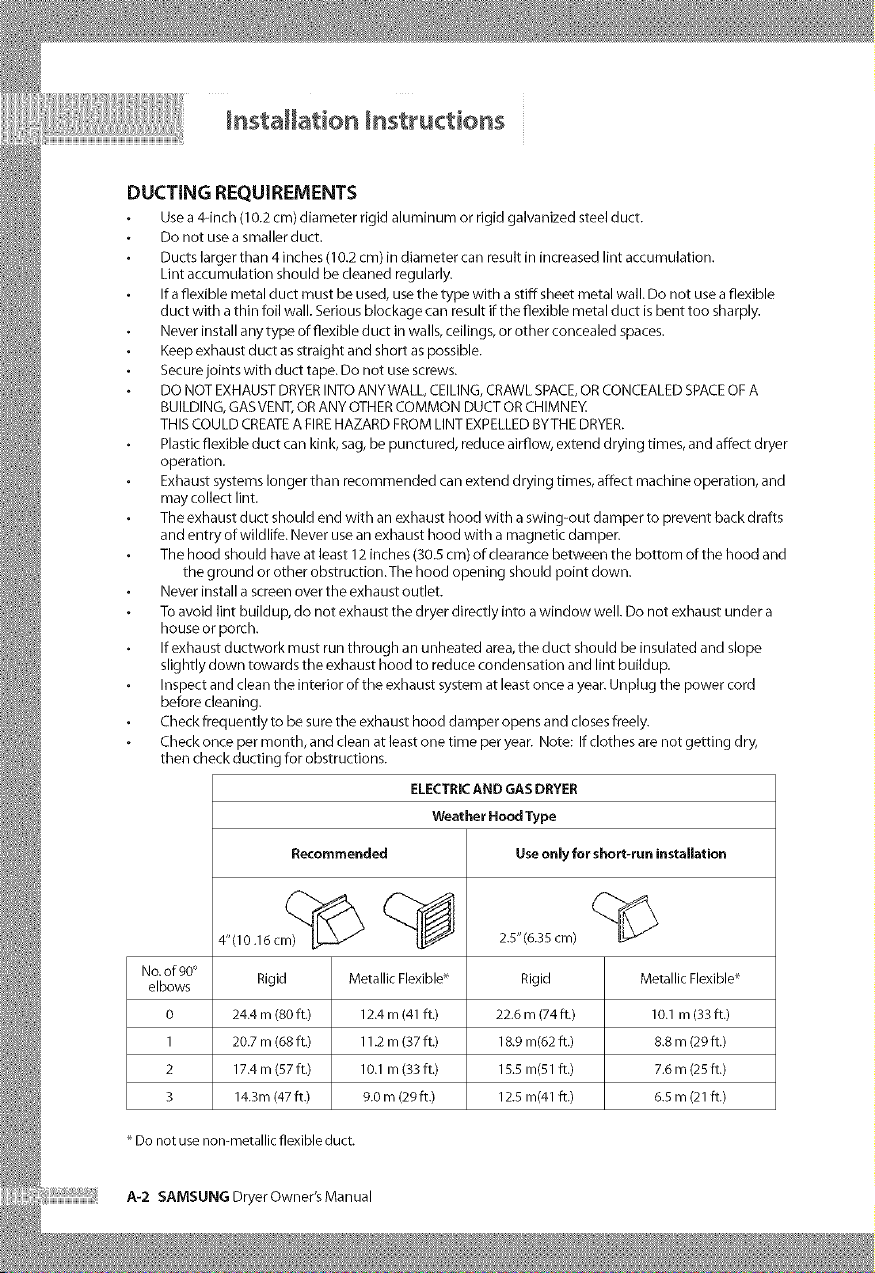

DUCTiNG REQUIREMENTS
Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
Do not use a smaller duct.
Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly.
If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible
duct with athin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
Keep exhaust duct as straight and short as possible.
Secure joints with duct tape. Do not use screws.
DO NOT EXHAUST DRYER INTO ANYWALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF A
BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY.
THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BYTHE DRYER.
Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer
operation.
Exhaust systems longer than recommended can extend drying times, affect machine operation, and
may collect lint.
The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts
and entry of wildlife. Never use an exhaust hood with a magnetic damper.
The hood should have at least 12 inches (305 cm) of clearance between the bottom of the hood and
the ground or other obstruction.The hood opening should point down.
Never install a screen over the exhaust outlet.
To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a
house or porch.
If exhaust ductwork must run through an unheated area, the duct should be insulated and slope
slightly down towards the exhaust hood to reduce condensation and lint buildup.
Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord
before cleaning.
Check frequently to be sure the exhaust hood damper opens and closes freely.
Check once per month, and clean at least one time per year. Note: If clothes are not getting dry,
then check ducting for obstructions.
ELECTRIC AND GAS DRYER
Weather Hood Type
Recommended Use only for short-run installation
No. of 90°
elbows Rigid Metallic Flexible _ Rigid Metallic Flexible _
0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)
1 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m(62 ft.) 8.8 m (29 ft.)
2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m(51 ft.) 7.6 m (25 ft.)
3 14.3m (47 ft.) 9.0 m (29 ft.) 12.5 m(41 ft.) 6.5 m (21 ft.)
Do not use non-metallic flexible duct.
A-2 SAMSUNG Dryer Owner's Manual
nstaHationInstructions

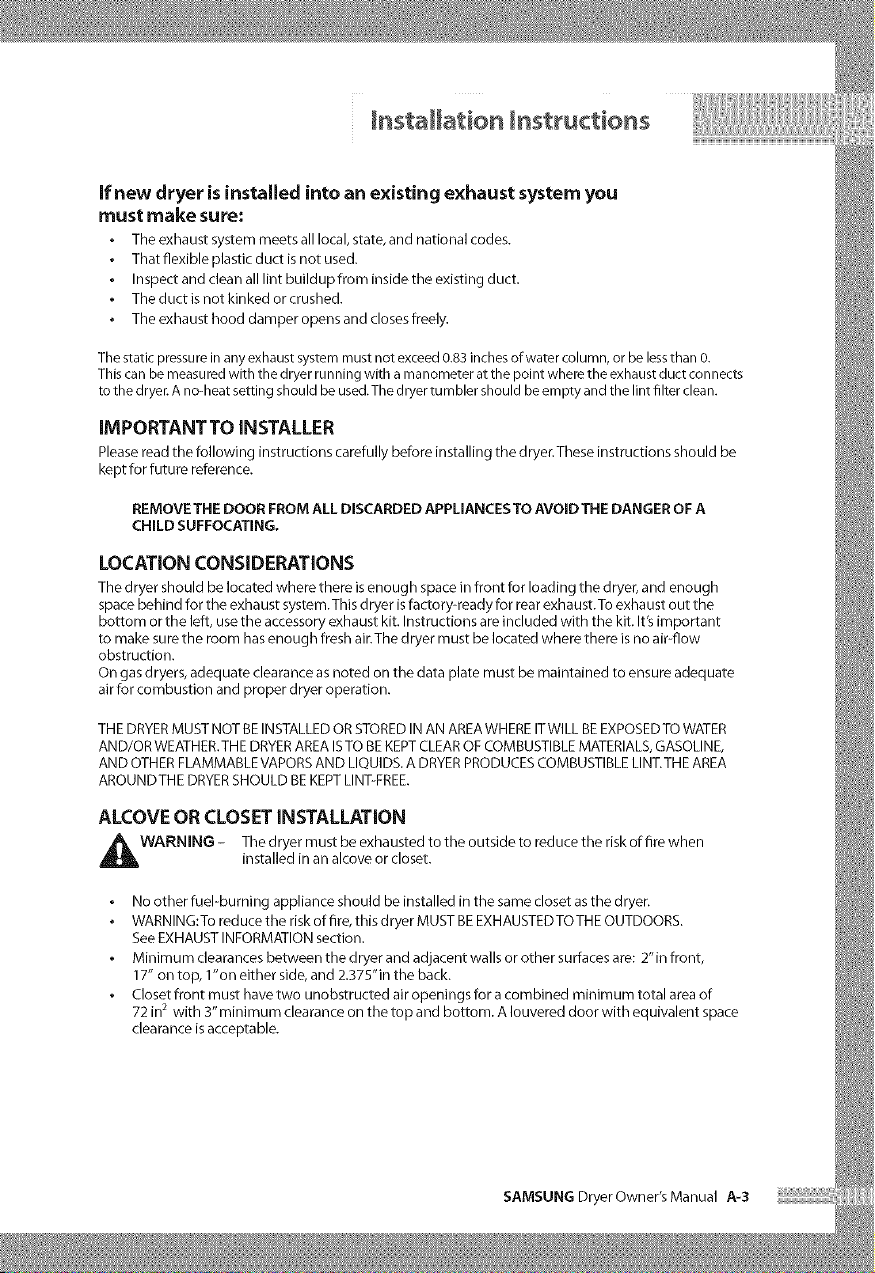

Ifnew dryer isinstalledinto an existingexhaust system you
must make sure:
• The exhaust system meets all local, state, and national codes.
• That flexible plastic duct is not used.
• Inspect and clean all lint buildupfrom inside the existing duct.
• The duct is not kinked or crushed.
• The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be less than 0.
This can be measured with the dryer running with a manometer at the point where the exhaust duct connects
to the dryer. A no-heat setting should be used. The dryer tum bier should be em pry and the lint filter clean.
iMPORTANT TO iNSTALLER
Please read the following instructions carefully before installing the dryecThese instructions should be
kept for future reference.
REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A
CHILD SUFFOCATING.
LOCATION CONSIDERATIONS
The dryer should be located where there is enough space in front for loading the dryer, and enough
space behind for the exhaust system.This dryer is factory-ready for rear exhaust.To exhaust out the
bottom or the left, use the accessory exhaust kit. Instructions are included with the kit. It's important
to make sure the room has enough fresh air.The dryer must be located where there is no airflow
obstruction.
On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate
air for combustion and proper dryer operation.
THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE ITWlLL BE EXPOSEDTO WATER
AND/OR WEATHER.THE DRYER AREA ISTO BE KEPT CLEAR OF COMBUSTIBLE MATERIALS, GASOLINE,
AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE LINT.THE AREA
AROUNDTHE DRYER SHOULD BE KEPT LINT FREE.
ALCOVE OR CLOSET iNSTALLATiON
,_WARNING - The dryer must be exhausted to the outside to reduce the risk of fire when
installed in an alcove or closet.
• No other fuel-burning appliance should be installed in the same closet as the dryen
• WARNING:To reduce the risk of fire, this dryer MUST BE EXHAUSTEDTOTHE OUTDOORS.
See EXHAUST INFORMATION section.
• Minimum clearances between the dryer and adjacent walls or other surfaces are: 2"in front,
17" on top, 1"on either side, and 2.375"in the back.
• Closet front must have two unobstructed air openings for a combined minimum total area of
2
72in with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space
clearance is acceptable.
SAMSUNG DryerOwner's Manual A-3
nstaHation nstructions
MOBILE HOME iNSTALLATiON
The installationof the dryer in mobile hornes must conform to the Manufactured Home Construction
and SafetyStandard Title 24 CFR,Part 32-80 {formerly the FederalStandard for Mobile Home
Construction and Safety,Title 24,HUD (Part 280), 1g75} for the United States)or CSAStandards Z240 (for
Canada).
When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must be made.
Locate in an area that has adequate fresh air.
A minimum of 72 in2(183 cm2) of unobstructed space is required.
Call 1-800-SAMSUNGfor information on purchasing the Floor Anchoring Kit asan accessory.
All mobile home installations must be exhausted to the outside with the exhaust duct termination
securely fastened to the mobile home structure, using materials that will not support combustion.
The exhaust duct may not terminate underneath the mobile home.
SeeExhausting section for more information.
EXHAUSTING
Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown
into the room.
in the United States:
. All dryers must be exhausted to the outside.
• Only rigid or flexible metal duct should be used for exhausting.
in Canada:
• All dryers must be exhausted to the outside.
Outside the U.S.and Canada:
. Referto localcodes.
_k WARNING
The dryer must be exhausted to the outside to reduce the risk of fire when installed
in an alcove or closet.
NEVERUSEPLASTIC OR NON-METAL FLEXIBLEDUCT.
If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.
Use only metal exhaust duct that is nomflam mable to ensu re contain ment of
exhaust air,heat, and lint.
A-4 SAMSUNG Dryer Owner's Manual
nstaHationInstructions
GAS REQUIREMENTS
Use only natural or LP (liquid propane) gases.
THE iNSTALLATiON MUST CONFORM WiTH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES,
WiTH THE NATIONAL FUEL GAS CODE ANSI/Z223,1, LATEST REViSiON (FOR THE UNITED STATES),
OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA),
Gas d ryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with
LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service
technician.
A 1/2" (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8"(1 cm) gas
line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off
valve be installed within 6'of your dryer.
Gas dryers installed in residential garages must be raised 18 inches (46 crn) above the floor,
Additionaliy, a 1/8"(0.3 cm) N.P.T.(National PipeThread) plugged tapping,accessible for test gauge
connection, must be installed immediately upstream of your dryer's gas supply connection.
Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the
system.
DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas
Association (CGA in Canada).
NOTE: . Any pipe joint compound used must be resistant to the action of any liquefied petroleum
gas.
. As a courtesy, most local gas utilities will inspect a gas appliance installation.
GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burnen
There is no constant burning pilot.
COMt_IONWEA[TN OF MASSACNUSETTS INSTALLARION INSTRUCTIONS
Your dryer must be installed by a licensed plumber or gas fltten A'T" handle manual gas valve must be
installed in the gas supply line to your dryen If a flexible gas connector is used to install your dryer, the
connector must have a maximum length of 3'(36").
WARNING -
Gas leaks may occur in your system, creating a dangerous situation.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a Ubapproved gas detecton
Install and use in accordance with manufacturer's instructions.
SAMSUNG DryerOwner's Manual A-5
nstaHation nstructions
ELECTRICALREQUIREMENTS
NOTE:Wiring diagram islocatedon plate below the control panel.
WARNING -
Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt asto whether your dryer is
properly g rounded. Do not modify the plug provided with you r dryer - if it doesn't fit the outlet,
have a proper outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding
must be done in accordancewith local codes, or in the absence of local codes, with the National
Electrical Code,ANSI/NFPANo. 70-Latest Revision(for the U.S.)or the Canadian ElectricalCode
CSAC22.1- Latest Revisionsand local codes and ordinances. It is your responsibility to provide
adequate electrical servicesfor your dryer.
• All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 - Lastest
Revision (for the U.S.)or CAN/CGA- B149Installation Codes- Latest Revision (for Canada)and local
codes and ordinances.
GROUNDING
Thisdryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk
of electrical shock by providing a path of least resistancefor electrical current.
GASMODELS
Your dryer has a cord with an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet
installed by a qualified electrician.
NEVERCONNECTGROUNDWIRETOPLASTICPLUMBINGLINES,GASLINES,ORHOTWATERPIPES.
ELECTRIC MODELS
Your dryer has a cord with an equipment-grounding conductor and a grounding plug, sold
separately.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
If a power cord is not used and the electric dryer isto be permanently wired, the dryer must be
connected to a permanent grounded metal wiring system, or an equipment grounding conductor
must be run with the circuit conductors and connected to the equipment grounding terminal.
A-6 SAMSUNG Dryer Owner's Manual
InstallationInstructions
ELECTRICAL CONNE CTIONS
Before operating or testing, follow all grounding instructions in the Grounding section.
An individual branch (or separate)circuit serving only your dryer is recommended. DO NOTUSEAN
EXTENSIONCORD.
GASMODELS - U,S,and Canada
A 120 volt, 60 Hz ACapproved electrical service, with a 1S-ampere fuse or circuit breaker is required.
ELECTRICMODELS - U.S, Only
Most U.S.dryers require a 120/240 volt, 60 Hz ACapproved electrical service.Some require 120/208
volt, 60 Hz approved electrical service.The electric service requirements can be found on the
data label located behind the door. A 3Gampere fuse or circuit breaker on both sides of the line is
required.
• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
• The power cord is NOTprovided with U.S.electric model dryers.
IMPORTANT:
When local codes allow, the dryer electrical supply may be connected by means of a new
power supply cord kit, marked for usewith a dryer, that is U.L.listed and rated at a minimum
of120/240 volts, 3Gampere with three No. 10 copper wire conductors terminated with closed
loop terminals, open-end spade lugs with turned up ends, or with tinned leads.
1. sizeof the conductors and the type of cord.
2. 3/4"(1.9 cm) Ublisted strain relief
Do not reusea power supply cord from an old dryer.The power cord electric supply wiring must be
retained at the dryer cabinet with a suitable Ublisted strain relie:f.
Grounding through the neutral conductor is prohibited for (1)new branch<ircuit installations,
(2) mobile homes, (3)recreational vehicles,and (4)areaswhere local codes prohibit grounding
through the neutral conductor. (Use4-prong plug for 4 wire receptacle,NEMA type 14-30R.)
ELECTRIC MODELS - Canada Only
. A 120/240 volt, 60 Hz AC approved electrical service fused through a 3Gampere fuse or circuit
breaker on both sides of the line is required.
. All Canadian models are shipped with the power cord attached.The power cord should be
plugged into a 3Gampere receptacle.
NOTE: It is not permissible to convert a dryer in Canada to 208 volts.
REPLACEMENT PARTS AND ACCESSORIES
If your dryer requires replacement parts or accessories,contact the dealerfrom whom you purchased
your dryer or the SAMSUNGcustomer care center at 1-80GSAMSUNG(726-7864).
SAMSUNG DryerOwner's Manual A-7
nsta [ation nstructions
iNSTALLATiON
Parts arid literat_re are pa kaged inide your dryer drum_ To ir_staH:
1. Move your dryer to an appropriate location for installation.Consider installing the dryer and
washer side-by-side,to allow accessto gas,electrical, and exhaust connections.
Laytwo of the carton cushion-tops on the floocTi p your dryer on its side soit will lay across both
cushion-tops.
2. Setyour dryer back in an upright position.
3. Review the Exhausting section before installing the exhaust system.Install the ductwork from your
dryer to the exhaust hood.The crimped end of the duct sections must point away from your dryer.
DO NOTuse sheet metal screws when assembling ducting.These joints should be taped.
Never use plastic flexible exhaust material
Tip for tight installations:install a section of exhaust system to your dryer before putting it in place.
Use duct tape to secure this section to your dryer, but do not cover louvers in dryer cabinet.
4. Review Electrical Requirements section.
BEFOREOPERATINGORTESTING,follow the grounding instructions in the Grounding section.
U,S,MODELS:

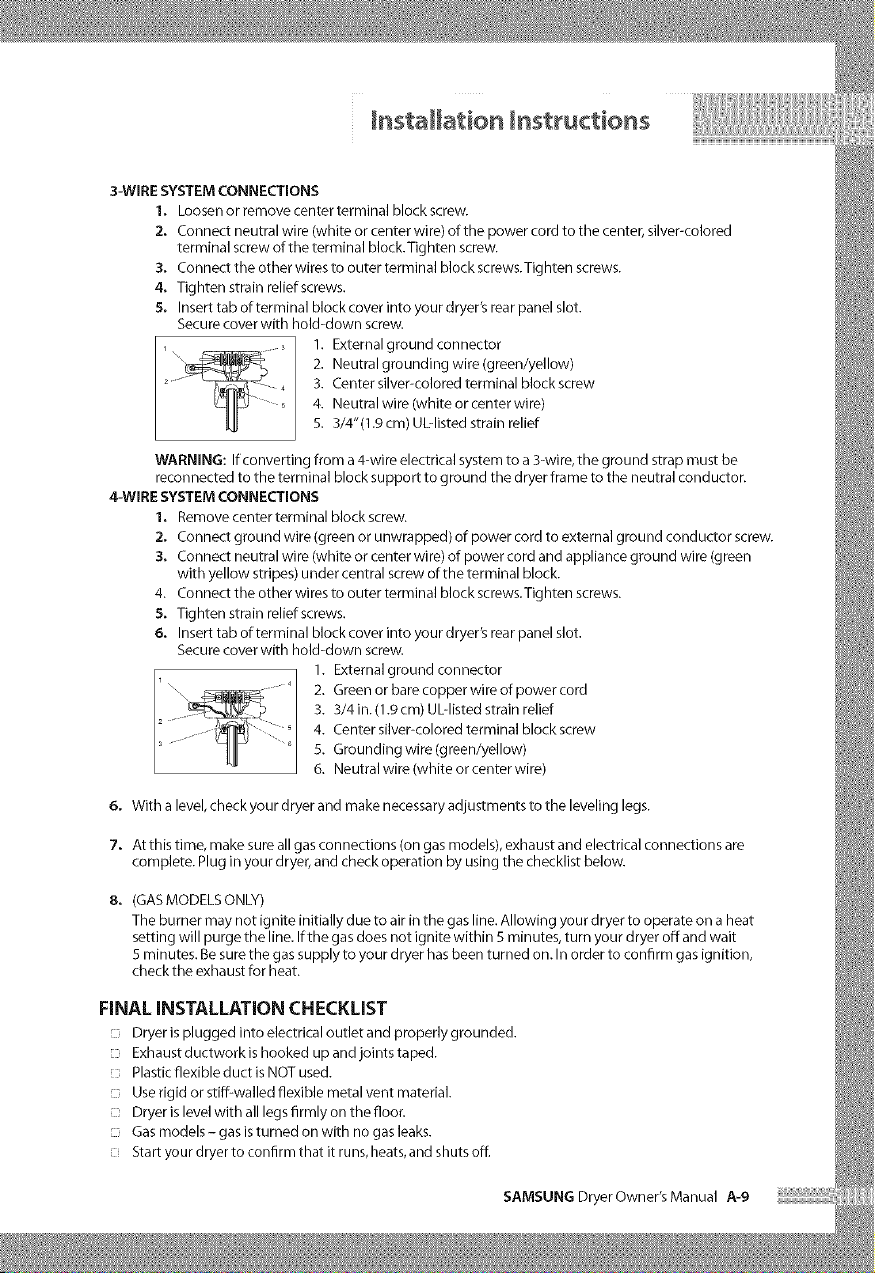

IMPORTANT - All U.S.models are produced for a 3-WIRESYSTEMCONNECTION.
The dryer flame is grounded to the neutral conductor at the terminal block.
A 4-WIRE SYSTEMCONNECTION isrequired for new or remodeled construction, mobile homes,
or if local codes do not permit grounding through neutral. If the 4-wire system is used, the dryer
flame cannot be grounded to the neutral conductor at the terminal block. Referto the following
instructions for 3- and 4-WIRESYSTEMCONNECTIONS.
Remove the terminal block cover plate.
Insert the power cord with a ULdistedstrain reliefthrough the hole provided in the cabinet near
the terminal block.
NOTE:A strain relief must be used.
Do not loosen the nuts already installed on the terminal block. Besure they are tight.
Usea 3/8"(1cm) deep well socket.
5. Review Gas Requirements section.
Remove the pipe thread protective cap.
Apply pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections.
NOTE:Pipe joint compound must be resistant to the action of any liquefied petroleum gas.
Connect the gas supply to your dryer.
An additional fitting is required to connect the 3/4"(1.9 cm) female thread end of a flexible
connector to the 3/8"(1 cm) male threaded end on the dryer.
Securelytighten the gasline fitting over threads.
Turn on the gas supply. Check all gas connections for leaks using a soap solution.
If bubbles appear,tighten the connections and recheck.
DO NOT use an open flame to check for gas leaks.
A-8 SAMSUNG Dryer Owner's Manual
nstaHationInstructions
3-WIRE SYSTEM CONNECTIONS
1. Loosen or remove center terminal block screw.
2. Connect neutral wire (white or center wire) of the power cord to the center, silvePcolored
terminal screw of the terminal block.Tighten screw.
3. Connect the other wires to outer terminal block screws.Tighten screws.
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into your dryer's rear panel slot.
Secure cover with hold-down screw.
1. External ground connector
2. Neutral grounding wire (green/yellow)
3. Center silvePcolored terminal blockscrew
4. Neutral wire (white or center wire)
5. 3/4"(1.9 cm) UUlisted strain relief
WARNING: If converting from a 4-wire electrical system to a 3-wire, the ground strap must be
reconnected to the terminal block support to ground the dryer frame to the neutral conducton
4-WIRE SYSTEM CONNECTIONS
1. Remove center terminal block screw.
2. Connect ground wire (green or unwrapped) of power cord to external ground conductor screw.
3. Connect neutral wire (white or center wire) of power cord and appliance ground wire (green
with yellow stripes) under central screw of the terminal block.
4. Connect the other wires to outer terminal block screws.Tighten screws.
S. Tighten strain relief screws.
6. Insert tab of terminal block cover into your dryeKs rear panel slot.
Secure cover with hold-down screw.
1. External ground connector
2. Green or bare copper wire of power cord
3. 3/4 in. (1.9 cm) UUlisted strain relief
4. Center silver-colored terminal blockscrew
5. Grounding wire (green/yellow)
6. Neutral wire (white or center wire)
6. With a level, check your dryer and make necessary adjustments to the leveling legs.
7. At this time, make sure all gas connections (on gas models), exhaust and electrical connections are
complete. Plug in your dryer, and check operation by using the checklist below.
8. (GAS MODELS ONLY)
The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat
setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait
5 minutes. Be sure the gas supply to your dryer has been turned on. In order to confl rm gas ignition,
check the exhaust for heat.
FINAL iNSTALLATION CHECKLIST
Dryer is plugged into electrical outlet and properly grounded.
Exhaust ductwork is hooked up and joints taped.
Plastic flexible duct is NOT used.
Use rigid or stiff-walled flexible metal vent material.
Dryer is level with all legs firmly on the floon
Gas models - gas is turned on with no gas leaks.
Start your dryer to confirm that it runs, heats, and shuts off.
SAMSUNG DryerOwner's Manual A-9
nstaHation nstructions
Dryer Exhaust Tips
WARNING: Plastic or non-metal fexible duct presents a potential fire hazard.
1 2 3
1, Let your dryer exhaust the air easily.
2. Use4"diameterrigidmetalduct.Tapealljoints, includingatthedryer.
Never use lint-trapping screws.
3, Keep ducts as straight as possible.
4, Clean all old ducts before installing your new dryer.
Be sure vent flap opens and closes freely.
Inspect and clean the exhaust system annually.
Don't let a poor exhaust system slow drying by:
2 3
1. Restricting your dryer with a poor exhaust system.
2. Using a plastic, thin foil, or non-metal flexible duct.
3. Using unnecessarily long duct runs with many elbows.
4. Allowing crushed or clogged ducts and vent.
A-IO SAMSUNG Dryer Owner's Manual
nstaHationInstructions
Door Reversal
1, Unplug powercord.
2, Remove two door hinge screws.
3, Liftthedoorand removeffom
dryer.
4, Removetwo screws on the
opposite side of door hinge.
5. Remove two screwson holder
leven
6, Placethe door on the other side
and reattach it to dryen
7, Reassemble holder lever.
8, Reassemble the screws in the
remaining holes.
SAMSUNG Dryer Owner's Manual A-11
Operating Instructions, Tips
OVERVIEW OF THE CONTROL PANEL
_ Control Featuresvary by model.
i i My Cycle
Dry Level Yemp SigI_al Wrinkle Prevent
000+0©
@@®® ®®®
Dry Lewl [emp lime Sk_nal Wdnkle Prewt't
000+0©
Dry Level Temp Time Signal Wrinkle Prevent
000o0©
DI_ _vel T_mp Tille SigTtal Wrinkle P went
000°0©
®® @
.....i:''= ,::];@
....... kk_/ ,'_ril,,eRe,....
Iiiii iress _i_ Fluff
P_r_i,_i,///__.,,,__ .....,=
_ sens_l [_ly _ Ma,,ualDr_
,,f !,T=,,! _ rir!kbR@ase
)60 ) CIsJdLo_k UP lfy Cycle j HeIVyDU_
.................' ....... C!_'
DR/Level l_mp lime Signal Wr nkle Prevent
000_0©
B-1 SAMSUNG Dryer Owner's Manual
1_ DigitaIGraphkDisp[ay
ThedisplaywindowshowstheestimatedtimeremaininginthecycleaftertheCycleSelectordialis
pressed.Theestimatedtimeremainingmayfluctuateasthecycleprogresses.
TheDryinglightwillilluminateandremainlituntilthecycleiscomplete.
Whenyourdryerisinthecool-downphase,theCoolinglightwillilluminate.
Whenyourdryerisinthewrinklepreventphase,theWrinklePreventlightwillilluminate.
Whenthecycleiscompletei'END"willappearinthedisplaypaneluntilthedryerdoorisopenedor
Powerkeyispushed.
Ifyourdryerispausedduringacycle,theindicatorlightswillblinkuntiltheCycleSelectordialis
pressed.
2_ DryLevelSe[e_:tio_lButton
ToselectthedrylevelintheNormal,HeavyDuty,orotherSensorDrycycles,presstheDryLevel
button.Anindicatorlightwillilluminatenexttothedesireddrynesslevel.
Pressthebuttonrepeatedlytoscrollthroughthesettings.Largerorbulkierloadsmayrequirethe
VeryDry(selectmodels)orMoreDrysettingforcompletedryness.
TheLessDrysettingisbestsuitedforlightweightfabricsorforleavingsomemoistureintheclothing
attheendofthecycle.DampDry(selectmodels)isdesignedtopartiallydryitems.
Useforitemsthatlayfiatorhangtodry.
3_ Temp Selection B_,_tton
To select the correct temperatu refor the load, press the Temp button. An indicator light will
illuminate next to the desired temperature. Pressthe button repeatedly to scroll through the
settings.
High - For stu rdy cottons or those labeled Tu ruble Dry.
Medium - For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry
Medium.
Medium Low - For lower heat than Medium to dry synthetic or washable knit fabrics.
Low - For heat sensitive items labeled Tumble Dry Low or Tumble DryWarm.
Extra Low- Provides the lowest heated dry temperatu re possible.
4o _mege[_tioH Butto_
When using Manual Dry cycles, time can be adjusted by pressing time selection button.
During the Sensory Dry cycle, the time light indicator is off because exact drying times are
determined byfluctuating humidity levels.
5_ Si9_a_ge_ection Butto_
When the cycle is complete, a chime will sound.
When the Wrinkle Prevent option is selected, the chime will sou nd intermittently.
Adjust the volume of the chime or turn it off by pressing the Signal button.
Press the button repeatedly to scroll through the choices.
6_ W_ink_e Prever_t Se_e_tio_'_ B_on
Wrinkle Prevent provides approximately 90 minutes of intermittent tumbling in unheated air at the
end of the cycle to reduce wrinkling. Press the Wrinkle Prevent button to activate this feature.
The indicator light above the pad will illuminate when Wrinkle Prevent is selected.
Chasing lights appear in the display when the Wrinkle Prevent option is selected.The load is dry, and
can be removed at any time during the Wrinkle Prevent cycle.
SAMSUNG Dryer Owner's Manual B-2
Operating nstructions, Tips
Adjust Time - Time can be added or subtracted from the automatically settimes in the Manual
Dry cycles(Time Dry,FreshenUp, Delicates,Wrinkle Release,or Air Fluff cycles).
To add or subtract time from the cycle,press the Adjust Time arrow pad up or down until the desired
time isdisplayed.
My Cycle- Choose your favorite cycle including cycle,temp, dry leveloption, etc. (Seepage B4for
detail.)
Rack Dry - RackDry is available at Time Dry cycle.Temperature will be setonly to Extra Low.(See
page B5for detail.)
To selecta cycle,rotate the CycleSelector dial to the desired cycle.
The indicator light bythe cycle name will illu minate.The Normal,Heavy Duty,Towels,Perm Pressand
Delicatescyclesare SensorDry cycles.
SensorDry automatically sensesthe moisture in the load and shuts the dryer off when the selected
dryness level(very dry to damp dry) is reached.
Normal - Dry loads such ascotton, underwear, and linensuse this cycle to get various levelsof heat
for drying.
Heavy Duty - Usethis cycle to get high heat for heavy fabrics such asjeans,corduroys,or work
clothes.
Towels - Dry loads such asbath towels.
Perm Press- Dry wrinkle-free cottons, synthetic fabrics,knits,and permanent pressfa brits
automatically. The cycle minimizes wrinkling by providing a longer unheated cool-down period at
the end of the cycle.
DelJcates- The Delicatescycle is designed to dry heat-sensitiveitems at a low drying temperatu re.
Freshen Up-This cycle removes odors and freshens garments.
Time Dry - Time Dry allowsyou to selectthe desired cycle time in minutes.
Turn the CycleSelector dial to Time Dry,then pressthe Adjust Time up arrow to set the drying time.
Pressthe arrow repeatedly to scrollthrough the time settings.
Wrinkle Release - The Wrinkle Releasecycle will releasewrinkles from items that are clean,dry,
and only slightly wrinkled, such asclothes from a crowded closet, suitcaseor items that have been
in the dryer too long after the cycle has ended.Wrinkle Releasecan be usedwith anytemperature
selection.
Air Fluff- The Air Fluff cycle tumbles the load in room temperature air.
9o Start/PauseSe_ectioH Button
Pressto pause and restart programs.
10. Powe_ Button
Pressonce to turn you r dryer on, press again to turn it off. If your dryer is left on for more than 10
minutes without any buttons being touched, the power automatically turns off.
B-3 SAMSUNG DryerOwner'sManual
CHILD LOCK
A function to prevent children from playing with your dryer.
SETTING/RELEASiNG
If you want to set or releaseChild Lock,press both the Time and Signal buttons at the same time for 3
seconds.
Hew to Set:
1, It canbe set while your dryer is running.
2. Once you set the Child Lock function, no button, except for the Power button,
can be controlled until you releasethe Child Lockfunction.
3, The Child Lock indicator will be lit.
Notice:
1. If the power is on again, the Child Lock function remains unchanged.
2. To release that function, follow the instructions above.
Notice:
When other buttons, except for the Power button, do not respond, check the Child Lock indicator.
MY CYCLE
Lets you activate your customized cycle that includes Dry LeveI,Temp, Tir'ne option, etc.
By pushing the My Cycle button, you activate the settings used during the previous My Cycle mode.
(De:fault : Normal Cycle)
If My Cycle mode is activated, My Cycle lamp will be lit.
You can select all options in My Cycle mode as fellows,
1. Select cycle using Cycle Selector dial.
2. After cycle selection, set each option.
Note: At this time, the option will follow as per each cycle's ddault option selection.
3. Then, you can start My Cycle by pushing the Start/Pause button in My Cycle mode.The cycle and
options you select will be displayed next time you choose My Cycle.
Note :You can change My Cycle setting by repeating same process above.
The last used setting will be displayed at next time you choose My Cycle.
SAMSUNG Dryer Owner's Manual B-4
Operating nstructions, Tips
Rack Dry
INSTALUNG THE DRYING RACK
1. Open dryerdoor.
2. Position drying rack in tumbler, placing the rear legs in the two recessed areas of the dryerts
back wall.
3. Place the front lip of the drying rack on top of the lint filter.
4. Place items to be dried on the rack, leaving space between them so air can reach all surfaces.
5. Close dryer door.
6. Use theTime Dry cycle.Select time according to moisture and weight of the items.Start dryer.
It may be necessary to reset the timer if a longer drying time is needed.
SUGGESTED iTEMS
Washable sweaters (block to
shape and layflat on rack)
Stuffed toys (cotton or
polyester fiberfilled)
Stuffed toys (foam or
rubber-filled)
Foam rubber pillows
Sneakers
WARNING -
SUGGESTED TEMP. SETTINGS
Heat (Low/Extra Low)
Heat (Low/Extra Low)
Air Fluff
Air Fluff
Fluffor Heat
Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the item
and lead to a fire hazard.
B-5 SAMSUNG DryerOwner'sManual
CLEANTHE LiNT FILTER
• Aftereachload.
• To shorten drying time.
• To operate more energyefficiently.
NOTE: Do not operate your dryer without the lint filter in place.
LOAD THE DRYERPROPERLY
• Placeonly one washload in your dryer at a time.
• Mixed loads of heavy and lightweight fabrics will dry differently, which may result in lightweight
fabrics being dry while heavyfabrics remaining damp at the end of a drying cycle.
• Add one or more similar items to your dryer when only one or two articles need drying.
This improves the tumbling action and drying efficiency.
• Overloading restricts tumbling action, resulting in uneven drying aswell asexcessivewrinkling of
some fabrics.
GETTING STARTED
1, Load your dryer loosely- DO NOToverload.
2. Closethe door.
3, Selectthe appropriate cycle and options for the load (seepages B-2,B-3).
4, Pressthe Cycle Selector dial.
S. The dryer indicator light will illuminate.
6. The estimated cycle time will appear in the display.
The time may fluctuate to better indicate drying time remaining in the cycle.
NOTES:
• When the cycle is complete, the Door Lock light will go out and"End" will
appear in the display.
• PressingPower cancels the cycle and stops your dryer.
• The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate
during those portions of the cycle.
SAMSUNG Dryer Owner's Manual B-6
Caveand C eaning
Control Panel
Clean with a soft, damp cloth. Do not use abrasive substances.
Do not spray cleaners directly on the panel.
The control panel finish could be damaged by some laundry pre-treatment soil and stain remover
products.
Apply such prod ucts away from you r dryer and wipe up any spills or overspray immediately.
Tumbler
Remove any stains such as crayon, ink, or fabric dye (from new items such as towels or jeans) with an
all-purpose cleaner.
Then tumble old towels or rags to remove any excess stain or cleaning substance.
Once these steps are done, stains may still be visible, but should not transfer to subsequent loads.
Stainless Steel Tumbler (select models)
To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for
stainless steel surfaces.
Remove the cleaner residue and dry with a clean cloth.
Dryer Exterior
Clean with a soft, damp cloth. Do not use abrasive substances.
Protect the surface from sharp objects.
Dryer Exhaust System
Should be inspected and cleaned yearly to maintain optimum performance.
The outside exhaust hood should be cleaned more frequently to ensure proper operation.
(:-1 SAMSUNG Dryer Owner's Manual
5peda Laundry Tips
Please follow the care label or manufacturer's instructions for drying special items. If care label
instructions are not available, use the following information as a guide.
Bedspreads & Comforters . Follow the care label instructions or dry on the Normal cycle and
High temperature.
. Make sure the item isthoroughly dry before using or storing.
. May require repositioning to ensure even drying.
Blankets .Use Normal and dry only one blanket at a time for best tumbling
action.
. Make sure the item isthoroughly dry before using or storing.
Curtains & Draperies . Use the Perm Presscycle and Low or Extra Low temperature to help
minimize wrinkling.
. Dry these in small loads for best results and remove as soon as
possible.
Cloth Diapers . Use the Normal cycle and the High temperature setting for soft,
fluffy diapers.
Down-filled Items . Use the Normal cycle and the Low or Extra Low temperature
(jackets, sleeping bags, setting.
comforters, etc,) . Place a clean pair of sneakers in your dryer with the item to fluff the
down comforters, etc. Adding a couple of dry towels shortens
drying time and absorbs moisture.
Foam Rubber . DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).
(rug backs, stuffed toys, .WARNING- Drying a rubber item with heat may damage it or be a
shoulder pads, etc.) fire hazard.
Pillows . Use the Normal cycle.
. Add a couple of dry towels and a pair of clean sneakers to help the
tumbling action and to fluffthe item.
. DO NOT dry kapok or foam pillows in dryec
Plastics
(shower curtains, outdoor . Use the Air Fluff cycle or theTime Dry cycle and the Low or Extra
furniture covers, etc,) Low temperature setting depending on the care label instructions.
THINGS TO AVOID :
• Fiberglass items (curtains, draperies, etc.).
.Woolens, unless recommended on the label.
.Vegetable or cooking oil-soaked items.
SAMSUNG Dryer Owner's Manual D-1
CHECKTHESE POINTS iFYOUR DRYER...
doesn't run,
doesn't heat,
doesn't dry,
is noisy,
dries unevenly,
has an odor,
shuts off before
load is dry
. Be sure the door is latched shut.
. Be sure the power cord is plugged into a live electrical outlet.
. Check the home's circuit breaker and fuses.
. Press the Cycle Selector dial again if the door is opened d uring the cycle.
. Check the home's circuit breaker and fuses.
. Select a heat setting other than Air Fluff.
. On a gas dryer, check that the gas supply is on.
. Clean the lint filter and exhaust duct.
. Dryer may have moved into the cool-down phase of the cycle.
. Check all of the above, plus...
. Be sure the exhaust hood outside the home can open and close freely.
. Check exhaust system for lint buildup. Ducting should be inspected and
cleaned annually.
. Use 4" rigid metal exhaust duct.
. Do not overload. 1 wash load = 1 dryer load.
. Sort heavy items from lightweight items.
. Large, bulky items like blankets or comforters may require repositioning to
ensure even drying.
. Check that the washer is draining properly to extract adequate water from the
load.
. Load may be too small to tumble properly. Add a few towels.
. Check the load for objects such as coin s, loose buttons, nails, etc. Remove
promptly.
. It is normal to hear the dryer gas valve or heating element cycle on and off
during the drying cycle.
. Be sure the dryer is leveled properly as outlined in the installation instruction.
. It is normal for the dryer to hum from the high velocity of air moving through the
dryer drum and exhaust system.
. Seams, pockets, and other similarly heavy areas may not be completely dry when
the rest of the load has reached the selected dryness level.This is normal. Select
the Very Dry setting if desired.
. If one heavy item is dried with a lightweight load, such as one towel with sheets,
it is possible that the heavy item will not be completely dry when the rest of the
load has reached the selected dryness level. Sort heavy items from lightweight
items for best drying results.
. Household odors from painting, varnishing, strong cleaners, etc. may enter the
dryer with the surrounding room air.This is normal as the dryer draws the air
from the room, heats it, pulls it through the tumbler, and exhausts it outside.
When these odors linger in the air, ventilate the room completely before using
the dryen
. Dryer load is too small. Add more items or a few towels and restart the cycle.
. Dryer load is too large. Remove some items and restart the dryen
E-1 SAMSUNG Dryer Owner's Manual
iNFORMATION CODES
Information codes may be displayed to help you better understand what is occurring with the dryer.
Code Meaning Solution
Symbol
tCS Heater temperature control Call for service. See below.
problem.
OIF Door open sensing problem. Call for service. See below.
L
U Door open error Be sure the door is latched shut. If problem
I_J When the door is open, the dryer continues, call for service. See below.
will not operate.
For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG).
SAMSUNG Dryer Owner's Manual E-2
FABRICCARECHART
The following symbols provide garment care directions without words.The care label will include, in
order, four symbols: washing, bleaching, drying, and ironing (or dry cleaning when necessary).The use
of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow
care label directions to maximize garment life and reduce laundering problems.
Wash Cyde
Normal
Permanent Press/Wrinkle
__ Resistant/Wrinkle Control
Gentle/Delicates
Hand Wash
Water Temperature *_
@00 Hot
00
0
Bleach
] Any Bleach (when needed)
Only Non-Chlorine
[] (color-safe)
Bleach (when needed)
Tumble Dry Cycle
] Normal
[] Permanent Press/Wrinkle
-- Resistant/Wrinkle Control
Gentle/Delicates
Warm
Cold
Speciai instructions
] Line Dry/Hang
to Dry
] Drip Dry
] Dry Flat
Heat Setting
_) High
(_) Medium
(_ Low
Any Heat
O No Heat/Air
Iron-Dry or Steam
Temperatures
/_ High
Medium
f_ Low
Dryclean
0 Dry Clean
Do Not Dry Clean
Warning Symbols for Laundering
Do Not Wash
Do NotWring
_:_ Do Not Bleach
Do Not Tumble Dry
No Steam (added to iron)
Do Not Iron
] Line Dry/Hang to Dry
] Drip Dry
] Dry Flat
The dot sym bog represent appropriate wash water temperatures for various items.The temperature range
forHotisl05 ° 125°F/41 ° 52°C, forWarm85 ° 105°F/29 ° 41°CandforCold60 ° 85°F/16 ° 29°C.
(Wash water tern perature must be a minimum of 60 ° F/16° Cfor detergent activation and effective cleaning.)
F-1 SAMSUNG Dryer Owner's Manual
PROTECTINGTHE ENVIRONMENT
This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,
please observe local waste disposal regulations. Cut offthe power cord so that the appliance cannot be
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
DECLARATIONOF CONFORMITY
This appliance complies with UL2158.
SPECIFICATION
TYPE
DIMENSION
WEIGHT
HEATER RATING
POWER CONSUMPTION
Div Inches (cm)
A.Height 49"(124.5)
&Width 30.25" (77.0)
FRONT LOADING DRYER
Inches (cm) Div
C. Depth with
38"(96.5) door open 90 °
2T'(68.6) D.Depth
56.8kg
5300W
NO HEAT 268W
HEATING 5445W
SAMSUNG Dryer Owner's Manual F-2
CYCLECHART
Cycle Default Drying Cooling Wrinkle
prevent
Temp control Sensor dry Time Time Time Time
level
Sensor Normal High (Medium) Normal dry 44 min 39 min 5 min 90 min
Dry
Heavy High (No change) Normal dry 60 min 55 min 5 min 90 min
Duty
Towels High (Medium) Normal dry 52 min 47 min 5 min 90 min
Perm Press Medium Low Normal dry 34 min 24 min 10 min 90 min
(No change)
Delicates Low (No change) Normal dry 29 rain 24 min 5 min 90 min
Extra Extra Low Normal dry 29 min 24 rain 5 rain 90 rain
Delicates (No change)
Manual Freshen Up High(Nochange) 30 min 25 rain 5 rain
Dry
Time Dry High 40 min 35 min 5 min
Wrinkle Medium 25 min 20 min 5 min
Release
Air Fluff - (No change) 20 rain 20 rain
Quick Dry High 30 min 25 min 5 min
F-3 SAMSUNG Dryer Owner's Manual
SAMSUNG DRYER
LiMiTED WARRANTYTO ORiGiNAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is
warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited
warranty period of:
One (1) Year All Parts and Labor, Two (2) Years Control Board Parts
This limited warranty begins on the original date of purchase, and is valid only on products purchased
and used in the United States.
To receive warranty service, the purchaser must contact SAMSUNG for problem determination and
service procedures.
Warranty service can only be performed by a SAMSUNG authorized service centec
The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or
SAMSUNG's authorized service centen
SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability
within the contiguous United States.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service agent.
If service is not available, SAMSU NG may elect to provide transportation of the prod uct to a nd from an
authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,
with new or reconditioned parts or products if found to be defective during the limited warranty period
specified above.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever
is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in
normal, noncommercial use of this product and shall not apply to the following: damage that occurs
in shipment; delivery and installation; applications and uses for which this product was not intended;
altered prod uct or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire,
water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services,
parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical
line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,
maintenance and environmental instructions that are covered and prescribed in the instruction book;
product removal and reinstallation; problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current, voltage or
supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation
errors.
SAMSUNG does not warrant uninterrupted or error4ree operation of the product.
SAMSUNG Dryer Owner's Manual F-4
EXCEPT AS SET FORTH HEREIN,THERE ARE NO WARRANTIES ONTHIS PRODUCT EITHER EXPRESSOR
IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, INFRINGEMENTOR FITNESS FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECTTO
THIS PRODUCTSHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURETO REALIZE SAVINGS OR
OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BYTHE
USE, MISUSE, OR INABILITYTO USETHIS PRODUCT, REGARDLESS OF THE LEGALTHEORY ON WHICH THE
CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNTTHAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,
DAMAGE, OR INJURYTO PURCHASER AND PURCHASER'S PROPERTY ANDTO OTHERS ANDTHEIR
PROPERTY ARISING OUT OFTHE USE, MISUSE, OR INABILITYTO USETHIS PRODUCT.
THIS LIMITED WARRANTY SHALL NOT EXTENDTO ANYONE OTHERTHAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, ISNONTRANSFERABLE AND STATESYOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply
to you.This warranty gives you specific rights, and you may also have other rights, which vary from state
to state.
To obtain warranty service, please contact SAMSUNG at:
SAMSUNG ELECTRONICS AMERICA, iNC. -CONSUMER ELECTRONICS CUSTOMER SERVICE
400 Valley Road, Suite 201, Mt.Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
WW_oV.Sa msung.com
F-5 SAMSUNG Dryer Owner's Manual
SAMSUNG Dryer Owner's Manual F-6
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please
contact the SAMSUNG customer care centen
Samsung Electronics America, Inc.
1-800-SAMSUNG (726-7864)
www.samsung.com
