Go to www.vtechphones.com
to register your product for
enhanced warranty support and
latest VTech product news.
Congratulations
on purchasing your new VTech product. Before using this HD video monitor, please read
Important safety instructions.
For support, shopping, and everything new at VTech, visit our website at
www.vtechphones.com. In Canada, visit www.vtechcanada.com.
Technical specifications
Quick start guide
Android
TM
and Google Play
TM
are trademarks of Google Inc.
App Store is a trademark of Apple Inc., registered in the U.S. and other countries.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
UL STD.
62368-1
CERTIFIED TO
CSA STD.
C22.2 NO.62368-1
CONFORMS TO
RM5764HD
RM5764-2HD
5-inch Smart Wi-Fi 1080p
Pan and Tilt Monitor
What does HD Video Monitor do?
VTech 5-inch Smart Wi-Fi 1080p Pan and Tilt Monitor allows you to stay close to your baby
when you are on the move or away.
This monitor is Wi-Fi enabled, which uses your home wireless network to stream live video and
audio through the HD baby unit and 5-inch color screen parent unit. It allows you to maintain a
constant connection to your baby.
You can also monitor from your smartphone and mobile tablet.
VTech 5-inch Smart Wi-Fi 1080p Pan and Tilt Monitor uses MyVTech Baby 1080p app to let you
instantly see and hear what’s happening with your baby from anywhere in the world.
The app can be downloaded from the App Store or the Google Play
TM
Store, directly from your
smartphone or mobile tablet.
Frequency Baby unit: 2412 - 2462 MHz
Channels 11
LCD 5’’ Color LCD
(IPS 1280x720 pixels)
Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may
vary according to environmental conditions at the time of use.
Power requirement Parent unit/Baby unit power adapters:
VTech, VT05EUS05100
Rated output: 5V DC, 1000mA.
Parent unit battery: BP1763 (3.8V 2100mAh Lithium-ion battery)
ZhongShan Tianmao battery Co. Ltd.
Specifications are subject to change without notice.
© 2021 VTech Communications, Inc. All rights reserved.
04/21. RM5764-XHD_QSG_V6.
RM5764HD
RM5764-2HD
For more support information:
S
m
Disclaimer and Limitation of Liability
VTech Communications, Inc. and its suppliers assume no responsibility for any damage or loss
resulting from the use of this user’s manual. VTech Communications, Inc. and its suppliers assume no
responsibility for any loss or claims by third parties that may arise through the use of this product.
Company: VTech Communications, Inc.
Address: 9020 SW Washington Square Road - Ste 555 Tigard, OR 97223, United States
Phone: 1 (800) 595-9511 in the U.S. or 1 (800) 267-7377 in Canada
Overview
What’s in the box
Connect, charge and power on the baby monitor
Protect your privacy and online security
x 2
x 2
Important safety
instructions
Quick start guide
Your HD video monitor package contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.
How the system works
VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of
industry-recommended best practices to help keep your wireless connection private and
your devices protected when online. We recommend you carefully review and consider
complying with the following tips.
Ensure your wireless connection is secure.
• Before installing a device, ensure your router’s wireless signal is encrypted by selecting
the “WPA2-PSK with AES” setting in your router’s wireless security menu.
Change default settings.
• Change your wireless router’s default wireless network name (SSID) to something unique.
• Change default passwords to unique, strong passwords. A strong password:
- Is at least 10 characters long.
- Is complex.
- Does not contain dictionary words or personal information.
- Contains a mix of uppercase letters, lowercase letters, special characters and numbers.
Keep your devices up to date.
• Download security patches from manufacturers as soon as they become available. This
will ensure you always have the latest security updates.
• If the feature is available, enable automatic updates for future releases.
Disable Universal Plug and Play (UPnP) on your router.
• UPnP enabled on a router can limit the effectiveness of your firewall by allowing other
network devices to open inbound ports without any intervention or approval from you.
A virus or other malware program could use this function to compromise security for the
entire network.
For more information on wireless connections and protecting your data, please review the
following resources from industry experts:
1. Federal Communications Commission: Wireless Connections and Bluetooth Security Tips
–
www.fcc.gov/consumers/guides/how-protect-yourself-online.
2. U.S. Department of Homeland Security: Before You Connect a New Computer to the
Internet –
www.us-cert.gov/ncas/tips/ST15-003.
3. Federal Trade Commission: Using IP Cameras Safely –
https://www.consumer.ftc.gov/articles/0382-using-ip-cameras-safely.
4. Wi-Fi Alliance: Discover Wi-Fi Security –
http://www.wi-fi.org/discover-wi-fi/security.
Parent unit icons
For mobile access:
MyVTech Baby 1080p mobile app
Network Wi-Fi
Wi-Fi router 2.4GHz 802.11 b/g/n
Internet connection
1.5 Mbps @ 720p or 2.5 Mbps @1080p upload
bandwidth per baby unit
Requirements
Connect the baby monitor
• The rechargeable battery in the parent unit is built-in.
• Use only the power adapters supplied with this product.
• Make sure the parent unit and the baby unit are not connected to the switch controlled electric outlets.
• Connect the power adapters in a vertical or floor mount position only. The adapters’ prongs are not
designed to hold the weight of the parent unit and the baby unit, so do not connect them to any ceiling,
under-the-table, or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.
• Make sure the parent unit, the baby unit and the power adapter cords are out of reach of children.
Charge the parent unit battery before use
The parent unit runs on rechargeable battery or AC power. To continuously monitor your
baby, keep the parent unit connected to AC power. With the battery alone, the parent unit
can cordlessly run for a short time only.
• Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When
the parent unit battery is fully charged, the battery icon becomes solid .
• The standby time varies depending on your actual use.
After the parent unit is fully charged, press POWER until the welcoming screen appears.
The battery icon indicates the battery status (see the following table).
Battery indicators Battery status Action
The screen displays and
. The light flashes.
The battery has very little
charge and may be
used
for only a short time.
Charge
without interruption
(about
30 minutes).
The battery icon becomes
solid
.
The battery is fully
charged.
To keep the battery charged, connect
it to AC power when not in use.
Raise the parent unit antenna for better reception
Slide the switch to ON to power on your baby unit.
• When powering up, the baby unit’s status LED turns on.
It will turn off after a while and keeps off.
• The status LED is set to off by default. If you want to
keep the LED on, press MENU, then go to
> Status LED and turn it on.
1 set for RM5764HD
2 sets for RM5764-2HD
Main
Menu
Options
Monitoring mode (* For RM5764-2HD only)
• View baby unit 1 or 2 in Single
mode.
• View both baby units in Patrol
mode.
• View both baby units in Split
screen.
Melodies and soothing sounds
• Select play all melodies, or play
one of the five melodies and
four soothing sounds.
• You can also set the timer to
stop playing after 15, 30 or 60
minutes, or playing non-stop.
Alerts - Sound, motion and temperature
• Select the sound and motion
sensitivity level.
• Turn on/off sound and motion
detection alerts.
• Select maximum and minimum
temperature for alert range.
• Turn on/off temperature alert.
• Turn on/off Auto Wake Up
function.
Parent unit settings
• Adjust parent unit screen
brightness.
• Turn on/off dim mode.
Baby unit settings
• Turn on/off Night Vision.
• Turn on/off baby unit’s status LED.
• Adjust baby unit’s speaker
volume.
• Update baby unit’s security key.
Main
Menu
Options
General settings
• Connect to home Wi-Fi network.
• Turn on/off Parent unit Wi-Fi
Connection.
• Connect mobile phone.
• Turn on/off Low Battery Alert Tone.
• Turn on/off No Link Alert Tone.
Status icons
Direct mode
Parent unit, baby unit 1 and baby unit 2
(*For RM5764-2HD only) are connected
to each others directly.
Router mode
Parent unit, baby unit 1 and baby unit 2
(*For RM5764-2HD only) are connected
to home Wi-Fi network.
Baby unit 1 and 2 are being viewed in
Patrol mode (*For RM5764-2HD only).
Baby unit 1 and 2 are being viewed in
Split mode (*For RM5764-2HD only).
Night vision is turned on.
Motion alert is turned on.
Sound detection alert is turned on.
Melodies and soothing sounds are
turned on.
Parent unit speaker is muted.
Temperature alert is turned on.
Baby unit overview
1 Light sensor
2 Camera lens
3 Microphone
4 Infrared LEDs
• Allow you to see clearly in a dark
surrounding.
5 LED indicator
• Orange is steady on when the baby unit
is connecting to the parent unit directly
in local mode.
• Green is steady on when the baby unit
and parent unit are connecting to your
home Wi-Fi network via the Wi-Fi router.
• Flashes orange slowly during video
streaming in local mode.
• Flashes green slowly during video
streaming via home Wi-Fi network.
6 ON
• Power on/off switch.
7 Speaker
8 Power jack
9 Temperature sensor
10 Slots for wall mounting
• Wall mount bracket is included in your
package.
11
PAIR
• Reset the baby unit to factory default.
1. Press and hold PAIR key until you
hear a beep sound.
2. Release the PAIR key, and then
press the PAIR key again five times
until you hear another beep sound.
3. The baby unit will sound another
beep when the reset completes.
Then, the baby unit will reboot.
1
2
3
5
6
4
7
8
9
10
11

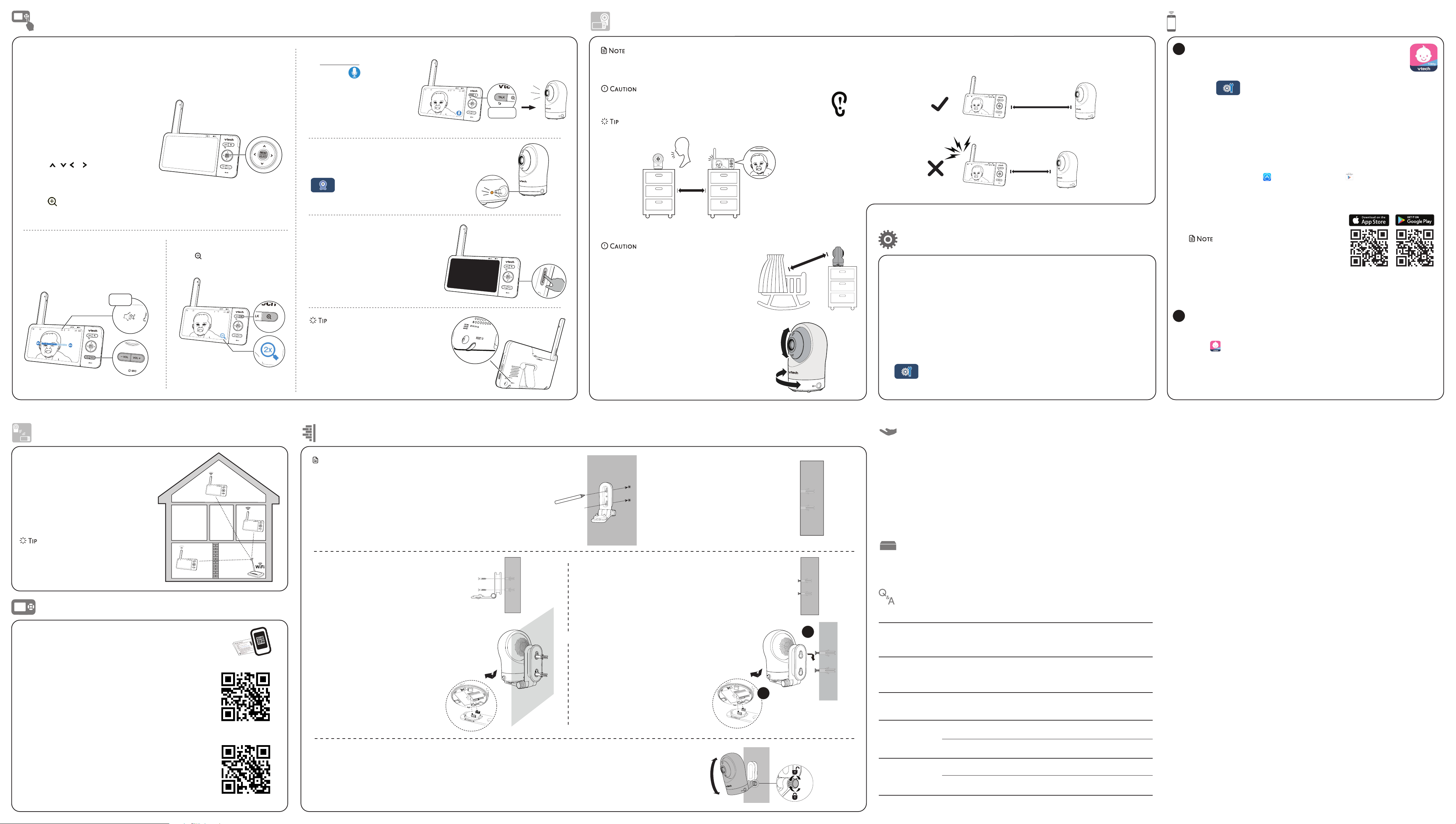

Direct mode
The parent unit and the baby unit of your video monitor connect to each others in Direct mode
by default, which allows you to stream live video right out of the box. Direct mode connection
lets you stream live video from parent unit only.
• You may experience reduced signal strength if your parent unit and baby unit are far apart, or there are
obstructing factors, such as internal walls, between them. Move the parent unit closer to the baby unit to
improve the signal strength. You can also set up Router mode to connect via your home Wi-Fi network to
improve the connection between your parent unit and baby unit.
Router mode
You can continue using your video monitor
with Direct mode connection, or you
can set up your monitor in Router mode
connection.
Router mode uses your home Wi-Fi network
to connect your video monitor. It supports
streaming live video through parent unit
and smartphone app.
We recommend that you set up your
monitor in Router mode to enjoy streaming
live video via your parent unit with better
connection.
If you want to stream live video remotely with your mobile device, download and install the
MyVTech Baby 1080p mobile app. With the mobile app, your Wi-Fi router (not included)
provides Internet connectivity to your HD video monitor system. It serves as a communicating
channel between your baby unit and mobile device, allowing you to monitor and/or control
your baby unit wherever you are. For detail, see Download app for mobile access section in this
quick start guide.
• Your parent unit detects the connection signal strength. If you have connected your video monitor with
your home Wi-Fi network, your parent unit automatically switches to direct or router mode - the one that
has stronger signal strength.
• When both parent unit and app are viewing the camera simultaneously, the video quality will be
optimised to deliver the best possible viewing result.
Power on
Power off
NOTE:
Camera lens and surface may get
warm during normal operation.
WARM
WARM
Parent unit overview
1 LINK LED light
• On when the parent unit is linked to the
baby unit.
• Flashes when the link to the baby unit
is lost.
2
LED light
• On when the parent unit is connected to
AC power, and the battery is charging.
• Off when the parent unit is
disconnected from AC power, or when
the parent unit is connected to AC
power and the battery is fully-charged.
• Flashes when the parent unit battery is
low and needs charging.
3 3- level sound indicator light
• Green on when low sound level is
detected by the baby unit.
• Green and amber on when moderate
sound level is detected by the baby
unit.
• Green, amber and red on when high
sound level is detected by the baby
unit.
4
TALK /
• Press and hold to talk to the baby unit.
• While in a submenu, press to exit.
5
• Press to zoom in/out.
6 Arrow keys
, , or
• Press to navigate leftward, upward,
rightward or downward, within the
main menu and submenus.
• While viewing image from the
baby unit, press to pan the baby
unit leftward, upward, rightward or
downward.
• While viewing zoomed image, press
to move the zoomed image leftward,
upward, rightward or downward.
7 MENU/SELECT
• Press to enter the main menu.
• While in a menu, press to choose an
item, or save a setting.
8 - VOL/ VOL +
• Increase or decrease parent unit’s
volume.
9 Microphone
10 Speaker
11 POWER / LCD ON/OFF
12 Power jack
13 RESET
• Force reboot the parent unit.
14 Antenna
15 Stand
2
1
3
4
5
6
7
8
9
12
13
14
15
11
10
Local access
Mobile access
Enhanced local access
Loading ...
