WHOLE ROOM HEATER OWNER'S GUIDE
READ AND SAVE THESE INSTRUCTIONS
ONLY THE FINEST SINCE 1945
®
VHEAT
vornado.com
2
English
vornado.com
800.234.0604
We expect
this product
to be perfect.
If it is not,
we will make
it right.
3
English
Important Safety Instructions ..................................................4
Features and Benets ..............................................................8
Controls ...................................................................................9
How to Use ............................................................................10
Cleaning .................................................................................11
Storage ...................................................................................12
Reset Heater ..........................................................................12
Troubleshooting ....................................................................13
Warranty .................................................................................14
TABLE OF CONTENTS
4
English
READ ALL INSTRUCTIONS
BEFORE USING THIS
HEATER
IMPORTANT SAFETY
INSTRUCTIONS
This owner’s guide and any additional inserts are considered
part of the product. They contain important information about
safety, use and disposal. Before using the product, please
familiarize yourself with all operating and safety instructions.
Please keep all documents for future reference and pass these
documents on, together with the product, to any future owner.
See www.vornado.com to view, download and print the most
current version of this owner’s guide.
INTENDED USE: This product is intended to heat and
circulate the air in indoor living spaces only. This product is
intended for oor use only. This product is not intended for
commercial or industrial use. This heater is not intended for
use in bathrooms, laundry areas, and similar damp locations.
The manufacturer assumes no responsibility for damage or
injury due to unauthorized use or product modication. Failure
to follow these directions will void the product warranty.
WARNING: When using electrical appliances, basic
precautions should always be followed to reduce the risk
of re, electric shock, injury to persons, and hyperthermia,
including the following:
WARNING: Risk to Children and Impaired Persons
- Extreme caution is required during the installation,
operation, cleaning and maintenance of this product by or
around children 12 years of age and younger and anyone
with reduced physical, sensory or mental capabilities, and
whenever the heater is left operating and unattended.
Children should be supervised to ensure that they do not
play with the appliance, its parts and packaging material.
WARNING: Risk for Heat Stroke (Hyperthermia)
- Hyperthermia can result in death. Symptoms of
hyperthermia include high body temperature, headache,
nausea, vomiting, tiredness, dizziness, fainting, and rapid
pulse. If you begin to experience symptoms related to
hyperthermia, turn off the heater and seek medical attention.
- To avoid excessive room temperatures which can cause
hyperthermia: DO NOT leave product running unattended in
a conned space around infants, or individuals with reduced
physical, sensory, or mental capabilities.
5
English
INSTALLATION WARNING—To reduce risk of re, electrical
shock and injury to persons, observe the following:
- A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint, or ammable liquids are
used or stored.
- Do not use this heater in an RV, boat or during any
application where battery power is converted to AC power.
- Place this product at least 3 feet away on all sides from
electrical outlets, furniture, pillows, bedding, papers, clothes,
curtains and other objects that may cause or catch on re.
Do not place the heater near a bed because objects such as
pillows or blankets can fall off the bed and be ignited by the
heater.
- To prevent a possible re, do not place the heater on soft
surfaces, like a bed, where air intakes or exhaust can be
blocked in any manner.
- No part of this product (the appliance, power cord, plug,
packaging, etc.) should be placed near furnaces, replaces,
stoves or other high temperature heat sources.
- Do not use on an uneven or unstable surface.
- Do not use this product on an elevated surface such as a
shelf or desktop. Use only while placed on the oor. Operate
only in the upright position.
- This appliance, power supply, power cord and plug cannot
come into contact with water. Do not use this product on
wet surfaces. Do not use this product in a bathtub or shower
or position where it may fall into a bathtub, shower, laundry,
swimming pool or other water container. Do not use in a
window, outdoors, or exposed to weather or elements.
- Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route under
furniture or appliances. Arrange cord away from trafc area
and where it will not be tripped over. The cord should not
hang over edges of counters or be placed where it can be
crimped or closed in doors. Place appliance near an easily
accessible outlet so the product can be unplugged quickly
during an emergency.
- Do not modify the product with any aftermarket accessory.
SAFE USE WARNING—To reduce risk of re, electrical
shock and injury to persons, observe the following:
- Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause re,
electric shock, or injury to persons.
- Extreme caution is required at all times a heater is in
operation. Always unplug heater when not in use. Vornado
does not recommend unattended and unsupervised use of
this heater.
- This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. If provided, use handles when
moving this heater.
- Always plug heaters directly into a wall outlet/receptacle.
Never use with an extension cord or relocatable power tap
(outlet/power strip).
- Do not use this heater on a surge-protected unit or Ground
Fault Circuit Interrupted (GFCI) outlet.
- Before plugging power cord into electrical outlet, be sure
6
English
that all electrical information on the rating label, including
voltage, is compatible with your outlet’s power supply.
- To reduce likelihood of circuit overload, re and electric
shock, do not operate with a solid state speed device, such
as a dimmer control switch. Do not use this heater with a
timer designed to automatically turn the unit on or off, as this
may accidentally disable the heater’s thermal cutout safety
feature. Use of this appliance on the same electrical circuit as
another high energy use product, such as a vacuum cleaner,
blender, variable speed fan or circular saw is not advised.
- Risk of re. Do not operate any heater with a damaged cord
or plug or after the heater malfunctions, has been dropped
or damaged in any manner. Discard heater, or return to
authorized service facility for examination and/or repair.
- Do not sit or stand on product.
- Never use the cord as a handle or otherwise yank, strain or
stretch the power cord.
- Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock or re,
or damage the heater.
- Check your heater cord and plug connections. A loose tting
outlet can cause the plug to overheat or cause a re. Be
sure plug ts tight in the outlet. Check frequently during use
to make sure plug and outlet are not hot. If so, discontinue
using heater and have outlet replaced by a qualied
electrician.
- Never ignore the signs of an electrical problem, such
as: warm outlet coverplates, sparks when plugging in or
operating, lights ickering/dimming during operation.
Immediately turn off and unplug the appliance if any such
problems are noticed. Contact a qualied electrician to
investigate possible causes before operating the appliance
again.
- Note: Heaters draw more current than small appliances,
overheating of the outlet may occur even if it has not
occurred with the other appliances.
- Before moving, repositioning, servicing, cleaning and when
not in use, use the product controls to turn off the power
and then unplug. To disconnect from outlet, grasp and pull
only the plug. Also, power off and unplug if the product will
be left unattended for an extended period of time or during
electrical storms.
- This product’s power cord is equipped with a three-prong,
grounded plug that must be inserted into a grounded
receptacle. Connect to properly grounded outlets only.

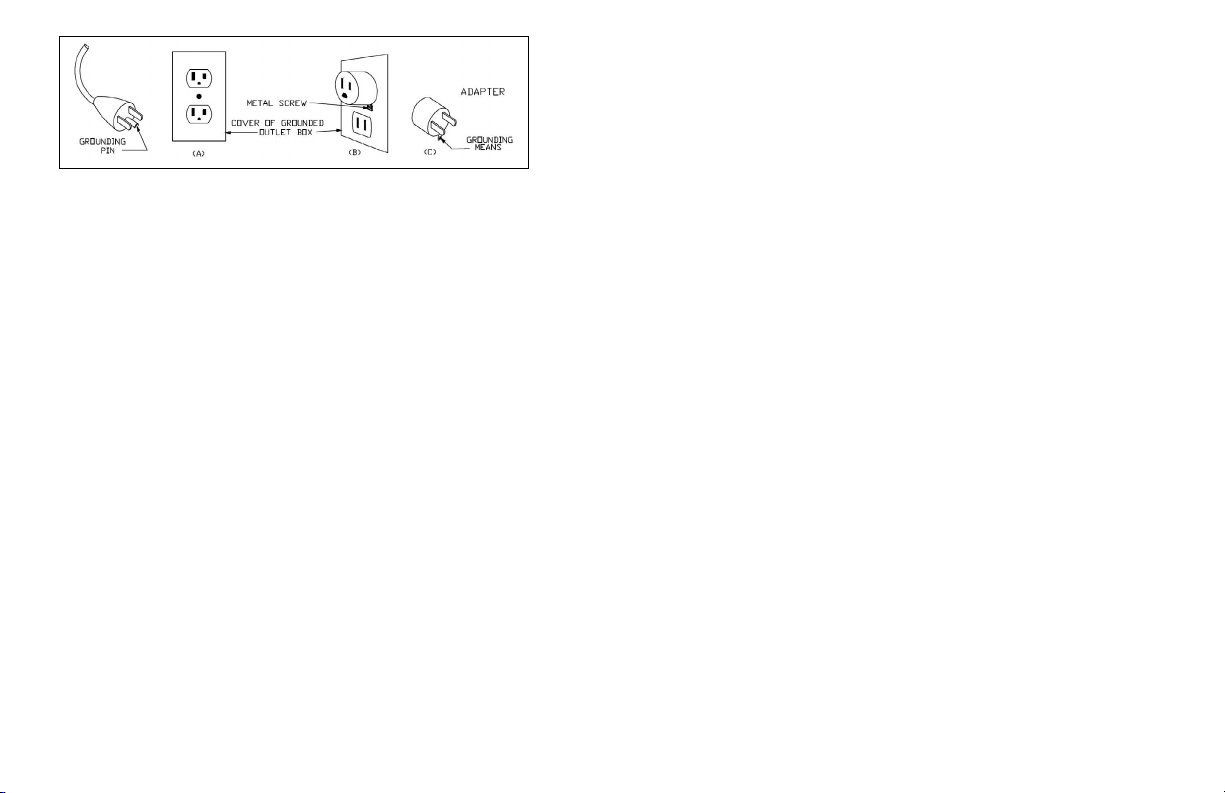

- This heater is for use with 120 volt electrical outlets. The
cord has a plug as shown at A in Figure 68.1, below. An
adapter as shown at C is available for connecting three-
blade grounding-type plugs to two-slot receptacles. The
green grounding lug extending from the adapter must
be connected to a permanent ground such as a properly
grounded outlet box. The adapter should not be used if a
three-slot grounded receptacle is available.
7
English
- If your heater suddenly stops working:
• This heater is equipped with a thermal cutout safety feature
designed to automatically shut off when overheating is
detected. See the “RESET HEATER” instructions in this
guide to determine how to check and reset the heater.
• If the heater and other electrical products suddenly stop
working at the same time, your home circuit breaker
or fuse may have tripped due to an overload of power.
Consider only running your heater on the “low” setting,
only running one heater at once and unplugging all other
electrical products while running the heater, and/or hiring
an electrician to install an additional circuit to your home’s
electrical system.
SERVICING WARNING—To reduce risk of re, electrical
shock and injury to persons, observe the following:
- Clean your product regularly, only as is instructed in this
manual. Prior to cleaning, turn off the power on your
product and unplug. Do not use gasoline, thinners, solvents,
ammonias or other chemicals for cleaning. Refer to the
CLEANING instructions provided.
- Do not open appliance housing while product is plugged in.
To avoid risk of shock, all service and/or repairs must be done
by a Vornado Authorized Service Center.
SAVE THESE
INSTRUCTIONS
Figure 68.1
8
English
FEATURES and BENEFITS
Forged from steel to be re-resistant.
Resists curious ngers.
Adds durability and a more secure wall
connection.

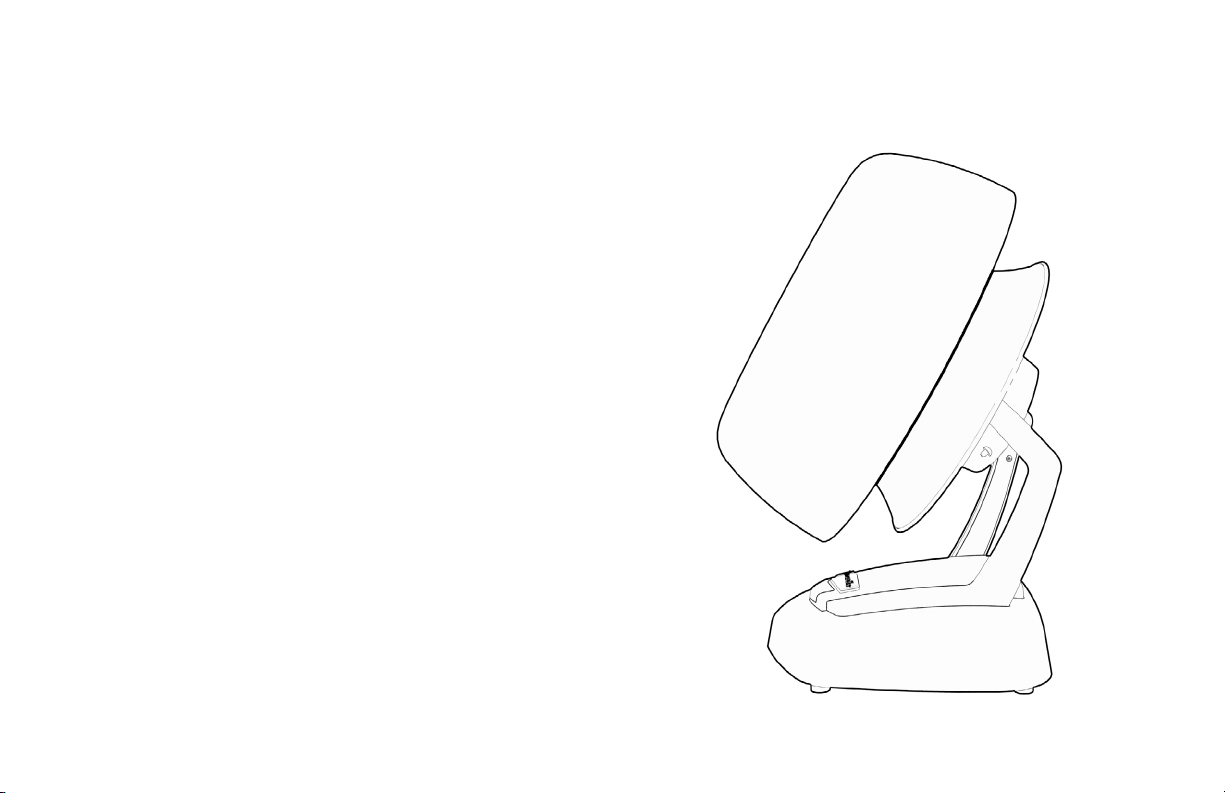

Adjust the tilt of the head 47 degrees
for multi-directional ow.
If heater tips over, safety shut-off system
cuts power to heater. Position heater
back in upright position and power is
restored.
If airow becomes blocked, power
to heater is shut off to prevent
overheating.
METAL CONSTRUCTION
FINGER-FRIENDLY DESIGN
GROUNDED HEAVY-DUTY
POWER CORD
PIVOTING HEAD
AUTOMATIC TIP-OVER
PROTECTION
AUTOMATIC SAFETY
SHUT-OFF SYSTEM
9
English
CONTROLS
THERMOSTAT
POWER ON/OFF
INLET CONE
MODE: High Heat (1500
watts) or Low Heat (750 watts)
Red light illuminates to
indicate heater is on.
POWER INDICATOR
LIGHT
10
English
1. The round inlet cone (connects to the inlet grille on back of heater)
can be used for lifting and carrying the heater.
2. Position heater so airow is not obstructed.
3. Plug power cord into standard grounded wall outlet.
4. Adjust the tilt of the pivoting head for multi-directional airow.
5. Use toggle switch to select Low Heat or High Heat. Red power
indicator light located on front at base of heater illuminates to
indicate the heater is On. Set thermostat to highest setting by
turning clockwise. When room reaches desired comfort level, turn
thermostat slowly counterclockwise until heat cycles off.
6. If heater tips over, power will be cut to heater. The red indicator
light will not illuminate until you position the heater back in upright
position and power is restored.
NOTE: Use caution after the heater has been in use as the metal
outlet grille and pivoting head may be warm to the touch.
Before use, check appliance for visible damage. DO NOT USE THIS
HEATER if there is evidence of damage. If any damage is found,
contact Vornado Air LLC at 1-800-234-0604.
HOW TO USE
11
English
CLEANING
Because your heater moves a substantial amount of air, it will need regular cleaning.
Cleaning the outside of the heater is recommended on a weekly basis. If service is
required, return your heater to Vornado. See WARRANTY for instructions.
1. Unplug heater before cleaning.
2. Use brush attachment on household vacuum cleaner to vacuum
any accumulated dust off the Front Outlet Grille.
3. Use brush attachment on household vacuum cleaner to vacuum
any accumulated dust off Air Inlets on back of heater.

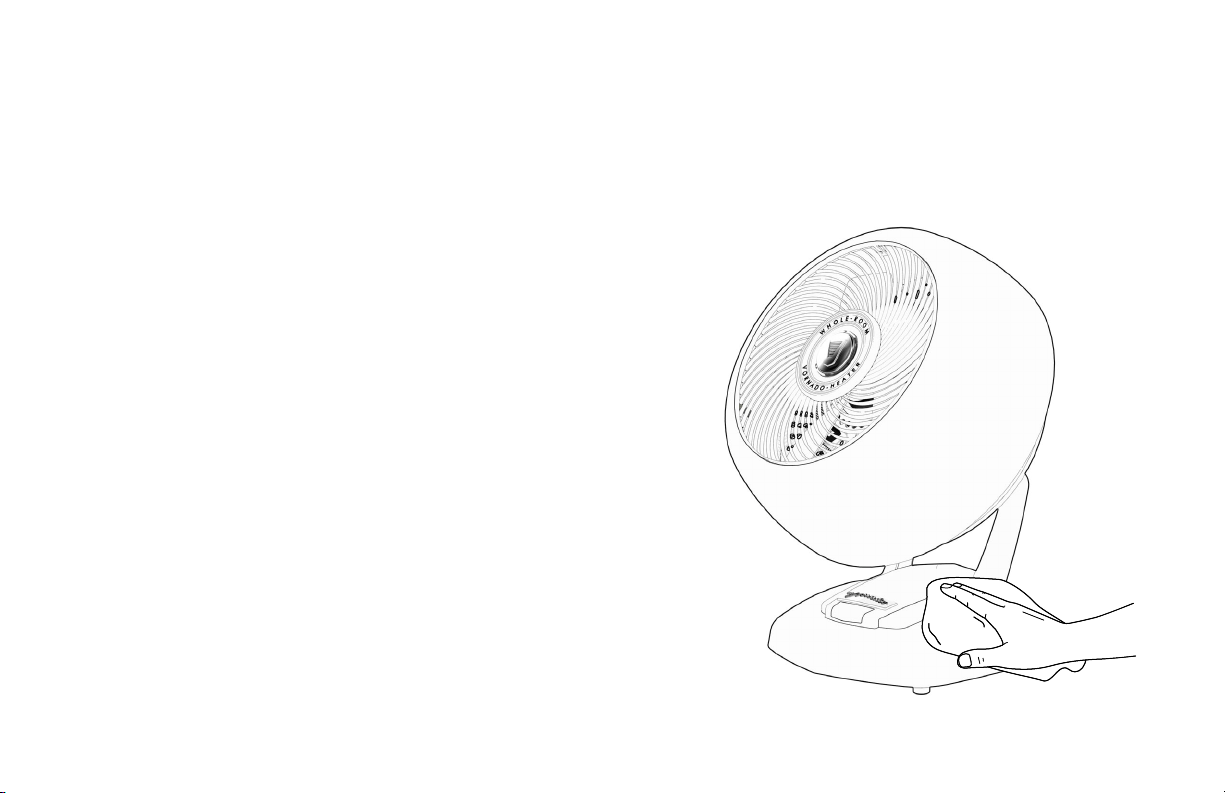

4. Wipe down the entire heater with a soft, dry cloth.
TIP: You should periodically blow out the heater with pressurized air
to keep heat element and motor clear of dust, hair and debris that
can build up inside the heater as it moves air during use. This also
eliminates unwanted odors caused by accumulation of these particles
inside the unit.
Note: Do not modify the product with any aftermarket accessory.
12
English
STORAGE RESET HEATER
During the off-season or after extended periods of non-use, you may
choose to store your heater. To ensure long life of the product, it is
recommended to store your heater by following these instructions:
TIP: Cleaning is recommended before storage.
1. Unplug power cord and bundle loosely.
2. Cover, or place back in retail carton if available. This prevents
heater from accumulating dust over time.
3. Store your heater in a cool and dry location.
Your Vornado Heater has a multilevel safety shut-off system designed
to prevent overheating. Overheating may occur when the inlets or
outlet are blocked. If this happens, the safety shut-off system cuts
power to the heater and you must manually reset the heater.
1. Power heater off, then unplug power cord.
2. Remove any obstructions.
3. Wait 5–10 minutes, allowing heater to cool down.
4. Plug in power cord and place heater in desired position.
5. Power heater On. Your Vornado Heater should now
function normally.
NOTE: If the safety shut-off system repeatedly shuts off your heater
or if it will not reset after following the above procedure, call Vornado
Consumer Services Department toll-free at 1-800-234-0604.
DISPOSAL
Dispose of all packaging materials in an environmentally
responsible manner.
13
English
RESET HEATER
Unit is not plugged in. Plug power cord into electrical outlet.
Household circuit breaker has tripped or blown fuse. Reset circuit breaker or replace fuse. See IMPORTANT SAFETY INSTRUCTIONS.
Ground fault circuit interrupter (GFCI) has tripped. Ground fault circuit interrupters are not recommended for use and may cause nuisance
tripping. If tripping does occur, relocate the unit to a standard wall outlet.
Unit has overheated. Automatic Safety Shut Off has initiated. See RESET HEATER.
Tip-over switch on bottom of unit has been tripped and safety shut-off system has cut power to heater. Place heater on level surface. See
FEATURES and BENEFITS.
Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.
Ensure unit is set to High Heat and thermostat is set to highest temperature setting.
Close all doors and windows to trap heat.
Allow unit to fully circulate heat throughout room; may take several minutes.
Use toggle switch to turn heater Off and unplug unit. A cylindrical plunger is on bottom of unit. Push in 4-5 times, ensuring it is not stuck. Set
unit down on at surface. Ensure power cord is not under unit. Plug unit in and turn toggle switch to High Heat setting.
TROUBLESHOOTING
UNIT FAILS TO
POWER ON
UNIT IS NOT
PRODUCING
SUFFICIENT
AMOUNT OF
HEAT
UNIT IS
POWERED ON
BUT THERE IS NO
HEAT
Possible Cause and SolutionProblem
14
English
Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser
this Vornado® Whole Room Heater (“Product”) is free from defects in material
or workmanship for a period of ve (5) years from the date of purchase. If any
such defect is discovered within the warranty period, Vornado, at its discretion,
will repair or replace the Product at no cost.
FOR WARRANTY OR REPAIR SERVICE:
Authorization (“RA”) form. Please have or include your Product’s model
number and serial number, as well as your name, address, city, state, Zip code
and phone number when contacting Vornado for warranty service. Or to le a
contactless warranty claim, visit vornado.com/contact-us.
AFTER RECEIVING THE RA FORM, SHIP YOUR PRODUCT TO:
Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street, Andover, KS
67002. For your convenience, please have your model number and serial
number when contacting Vornado with service inquiries. To ensure proper
handling, packages must be clearly marked with the RA number. Packages
not clearly marked with the RA number may be refused at the receiving dock.
Please allow 1–2 weeks for repair and return of your Product after the Product
is received.
Repairs not covered by the warranty or outside the warranty period will require
a fee to cover the cost of materials, labor, handling and shipping.
This warranty does not apply to defects resulting from abuse of the Product,
modication, alteration, mishandling, improper maintenance, commercial use
or repair or service of the Product by anyone other than Vornado; damages
which occur in shipment or are attributed to acts of God. Improper product use,
which includes using an external device that alters or converts the voltage or
frequency of electricity, or shipping a Vornado product to a country not intended
for use will void all warranties. Any unauthorized product modication, repair
by unauthorized repair center or use of non-approved replacement parts is not
recommended and any consequences will not be covered by support services
or product warranties. The product warranty will be honored only on models
that are being used in the country intended. REPAIR OR REPLACEMENT AS
PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY. Some states do not
allow the exclusion or limitation of incidental or consequential damages,
or allow limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you. This warranty gives you specic
legal rights, and you may have other rights that vary from state to state. The
manufacturer assumes no responsibility for damage or injury caused by failure
to follow these instructions, improper product use or unauthorized product
modications. Any such actions will invalidate the product warranty.
All company names and product names are trademarks of their respective
owners. © All rights reserved. All technical information, data and instructions
for the installation, connection and operation contained in these instructions
for use correspond to the latest available information at time of printing. The
contents of this manual may differ slightly from the actual product. Observe
any additional supplements.
© 2023 Vornado Air LLC Andover, KS 67002 U.S. Patent Pending. Specications
subject to change without notice. Vornado® is a trademark owned by Vornado
Air LLC.
YEAR WARRANTY
VHEAT
Vornado Air, LLC
415 East 13th Street, Andover, Kansas 67002
800.234.0604 | vornado.com
CL3-0510 RA, V00
