Bosch WGA154A80W/01 User Manual
Bosch WGA154A80W/01 WM
User Manual
For WGA154A80W/01.
PDF File Manual
,
56 pages
,
Read Online
|
Download pdf file
en Instruction Manual and Installation Instructions
Washing machine
Your new washing machine
GB standard:
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
■ / -
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 12
5 Positioning and connecting 14
* Getting to know the appliance 24
Z Laundry 27
P Overview of programmes 29
0 Programme default settings 34
\ Additional programme settings 35
1 Operating the appliance 36
a Intelligent dosing system 39
Q Appliance settings 44
H Sensors 44
2 Cleaning and maintenance 45
3 Faults and what to do about them 48
4 After-sales service 54
[ Consumption values 55
J Technical data 55
8 Intended use
Intended use
■ This appliance is intended for private domestic use only.
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand- washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and...
■ This appliance is suitable for operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to the appliance. Do not operate the appliance if it is damaged. Should you have any problems, please contact your specialist dealer or our customer service.
Read and follow the operating and installation instructions and all other information provided with this appliance.
Retain the documents for subsequent use or for subsequent owners.
( Safety instructions
Safety instructions
The following safety information and warnings are provided to protect you from injury and to prevent material damage to your surroundings.
It is nevertheless important to take the necessary precautions and to proceed with care when installing, maintaining, cleaning and operating the appliance.
Children/people/pets
: Warning
Risk of death!
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
■ Children must not play with this appliance.
■ Do not allow children to clean or maintain this appliance unsupervised.
■ Keep children under 3 years and pets away from this appliance.
■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
: Warning
Risk of death!
■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Risk of burns!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
■ The mains voltage on your power socket must match the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
■ The mains plug and the protective contact socket must match and the earthing system must be correctly installed.
■ The installation must have an adequate cross section.
■ The mains plug must be freely accessible at all times. If this is not possible, in order to comply with the relevant safety regulations, a switch (all pole disconnection) must be built into the permanent installation in accordance with electrical...
■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
: Warning
Risk of scalding!
: Warning
Eye/skin irritation!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
■ Never take hold of the mains plug with wet hands.
■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
■ Do not make any technical modifications to the appliance or its features.
■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
■ Spare mains cables can be ordered from our customer service.
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
■ Do not allow these agents to come into contact with the surfaces of the appliance.
■ Clean the appliance with nothing but water and a soft, damp cloth.
■ Remove any detergent, spray or other residues immediately.
7 Environmental protection
Environmental protection
Packaging/used appliance
Dispose of packaging in an environmentally-responsible manner.
Keep children away from the packaging materials and packaging materials are not toys.
Reprocessing and reuse of packaging material saves raw materials, reducing waste.
All packaging materials used are in line with environmental protection requirements and reusable.
Name and content of hazardous substances in products
Note:
All of component parts in the BSH products that fall into the same category are covered in the table above, the component parts of this product depend on the actual situation. If you have any questions, please contact us by dialling the customer serv...
Tips on economical use
■ Always fill the appliance with the maximum amount of laundry for each programme.
■ Wash normally soiled laundry without pretreating.
■ For light and normal soiling in laundry, you can save energy and detergent.
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the appliance may deviate from this so that you get the optimum mix of energy-saving and washing results.
■ Low power mode: If the appliance is not operated for a prolonged period (approx. 5 minutes), the display panel lighting goes out before the programme starts and after the programme has ended, ~ (indicator lamp of 开始/添衣 (Start/Reload) A bu...
■ If the laundry will be dried in a dryer, select the spin speed according to the dryer manufacturer's instructions.
5 Positioning and connecting
Positioning and connecting
Included with the appliance
Note:
Check the appliance for transport damage. Never use a damaged appliance. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services.
Bag:
■ Operating and installation instructions
■ Warranty
■ Supplementary sheet for the operating and installation instructions*
■ Bottom cover instruction*
■ Home Connect Installation Guides*
■ Cover caps for openings after the transport braces have been removed
* Depending on the model
In addition
a hose clamp (24 - 40 mm diameter, available from specialist dealers) is required to connect the water drain hose to a siphon.
Useful tools
■ Spirit level for aligning
■ Wrench with:
Installation
Note:
Humidity in the drum is caused by the final inspection.
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes
Removing the foam block
This appliance is secured with a foam block, which has to be removed before using the appliance for the first time. If in doubt, please contact specialist.
Caution!
Damage to the appliance
: Warning
Risk of injury/damage to the appliance!
Note:
Remove the foam block first before you remove the transport locks.
1. Remove the foam block.
a) Tilt the appliance to the rear.
b) Remove the foam block and bottom pad.
2. Fit the bottom cover. (You can find it in the drum)
Note:
Installation surface
Note:
The appliance must be stable aligned so that it does not move around.
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
On wooden joist floors, install the appliance:
Installation on a platform with drawer
Platform order no.: WMZ20540W, WMZ20540S, WMZ20540G.
Installing the appliance in a kitchenette
: Warning
Risk of death!
Notes
Removing the transport locks
Caution!
Damage to the appliance
Note:
Keep the screws and sleeves in a safe place.
1. Take the hoses out of the holders.
2. Unscrew and remove all four transport brace screws.
a) Remove the mains cable from the holders.
b) Remove the sleeves.
3. Fit the covers.
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
Hose and cable lengths
Connection on left side
or
Connection on right side
Note:
If the hose holders are used, the possible hose lengths are reduced!
Available from dealer/customer service:
■ Longer supply hose (approx. 2.20 m).
■ Appliance’s tap.
Water inlet
: Warning
Risk of death!
Observe the following when connecting the appliance:
Notes
Optimum water pressure in the supply network
At least 0.1 MPa (1 bar)
Maximum 1 MPa (10 bar)
When the tap is open, the water flow is at least 8 l/min.
If the water pressure is higher than this, a pressure-reducing valve must be installed.
Connection
Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
Note:
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
Water outlet
: Warning
Risk of scalding!
Caution!
Water damage
Caution!
Damage to the appliance/fabrics
Notes
Connection
■ Drainage into a siphon
■ Drainage into a washbasin
■ Drainage into a plastic pipe with rubber bushing or into a drainage pit
Note:
Alignment
Level the appliance using a spirit level.
Incorrect levelling may result in intense noise, vibrations and "wandering".
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
3. Tighten the lock nut against the housing.
Electrical connection
: Warning
Risk of death!
Observe the following information and ensure that:
Notes
Before washing for the first time
The appliance was inspected thoroughly before leaving the factory. To remove any residual test water, run the Drum Clean programme the first time without laundry.
Note:
1. Insert mains plug.

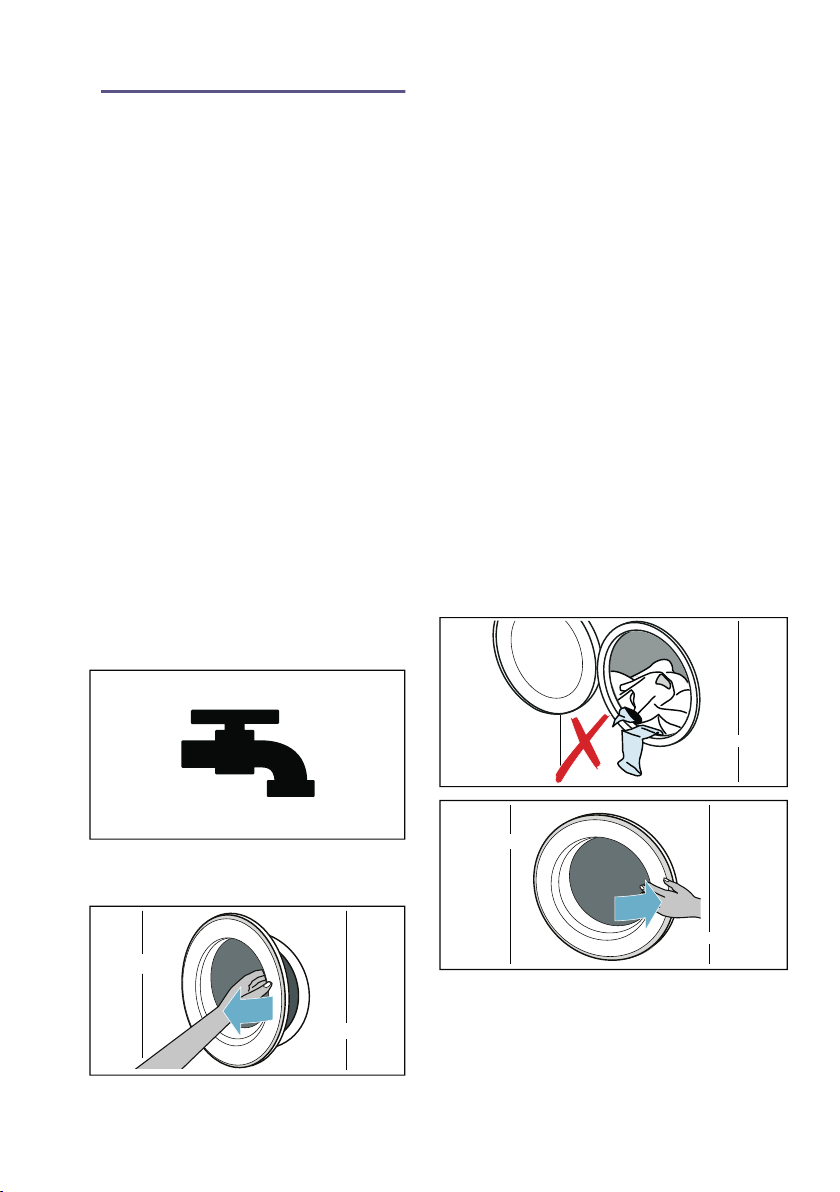

2. Turn the water tap on.
3. Close the door. Do not load any laundry.
4. Select the Drum Clean 90°C programme.

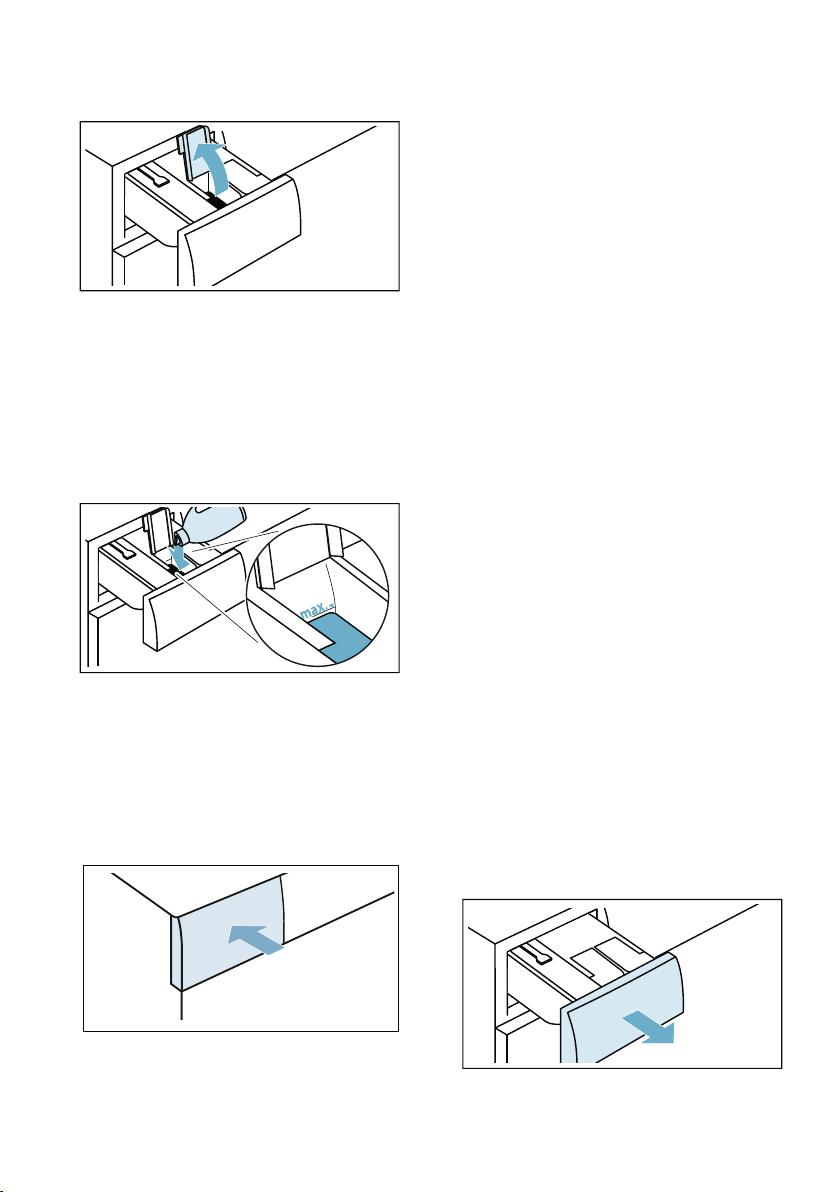

5. Open the detergent drawer.
6. Pour approx. 1 litre of water into manual dosing compartment.
7. Add standard detergent to manual dosing compartment according to manufacturer’s instructions for light soiling.
Note:
8. Close the detergent drawer.
9. Select 开始/添衣 (Start/Reload) A.
10. When the programme ends, turn the programme selector to Off.
Transportation
e.g. when moving home
1. Turn off the water tap.
2. Reduce the water pressure in the supply hose. ~ Page 47
3. Drain any residual water. ~ Page 45
4. Disconnect the appliance from the mains.
5. Remove the hoses.
6. Empty the dispensers.
Caution!
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
1. Remove the covers and keep them in a safe place.
Note:
2. Insert all four sleeves.
a) Clip the mains cable securely in the holders.
b) Insert and tighten the screws.
c) Clip the hoses securely in the holders.
Before switching on the appliance again:
Notes
* Getting to know the appliance
Getting to know the appliance
Appliance
Control panel
Display panel
Programme default settings
Display
Setting
Description
Additional programme settings
Display
Setting
Intelligent dosing system (Ž i-DOS)
Display
Setting
~ "Intelligent dosing system" on page 39
Status indicators for the programme progress (programme sequence)
Display
Setting
Z Laundry
Laundry
Protecting your laundry and appliance
Caution!
Damage to the appliance/textiles
The following instructions must be observed when preparing your laundry:
■ Always follow the manufacturer's instructions when dosing all detergents, cleaning aids, care products and cleaning agents.
■ Do not exceed maximum load. Overfilling will impair the washing result.
■ Keep detergents and agents for the pretreatment of laundry (e.g. stain remover, prewash sprays, etc.) away from the surfaces of the appliance. Using a damp cloth, immediately remove any fine spray residue and other residue or droplets.
■ Empty any pockets. Remove any foreign objects.
■ Remove metal parts (paper clips, etc.).
■ Trousers, knitwear and knitted textiles, e.g. jersey garments, T-shirts or sweatshirts, should be turned inside out.
■ Ensure that underwired bras are appliance-washable.
■ Wash delicates in a net or bag (tights, underwired bras, etc).
■ Close zips, button up covers.
■ Brush sand out of pockets and collars.
■ Remove curtain fittings or place in a net/bag.
Sorting laundry
Sort your laundry according to the care instructions and manufacturer's information on the care labels, depending on:
■ Type of fabric/fibre
■ Colour
Note:
■ Soiling Wash laundry with the same level of soiling together.
■ Symbols on the care labels
P Overview of programmes
Overview of programmes
Selectable programme
Programme/Type of washing
Options/Information
Notes
1. Select a programme.
Note:
2. For washing the laundry, use a special detergent for outdoor textiles; add the correct dosage to the manual dosing compartment in accordance with the manufacturer's instructions. Thoroughly clean the compartment beforehand.
3. Start the programme. The programme stops before the waterproofing cycle, and the symbols - - - and ~ (indicator lamp of 开始/添衣 (Start/Reload) A button) are flashing on the display panel. You can change the spin speed if necessary, and add t...
4. Press the 开始/添衣 (Start/Reload) A button to continue the programme. After-treat the laundry in accordance with the manufacturer's instructions.
Note:
0 Programme default settings
Programme default settings
You can change the default settings for selected programmes. The settings can be changed even while the selected programme is running. The effects depending on the progress of the programme.
6 温度 (Temperature)
Before and after the programme starts, you can change the temperature setting, depending on what stage the programme is in, by adjusting the desired temperature on the display.
The maximum temperature that can be set depends on the programme that has been selected.
0 转速 (Spin speed)
Depending on what stage the programme is in, you can change the spin speed (in rpm; revolutions per minute) before and during the programme by adjusting the desired speed on the display.
setting 2: 2 =”No spin”. The rinsing water is drained but there is no final spin. The laundry stays wet inside the drum, e.g. for items that should not be spun.
You can select “No spin” to prevent creasing if the laundry will not be taken out of the appliance immediately after the programme has ended.
The maximum speed that can be set depending on the model and the programme that has been selected.
ñ 预约 (Finish in time)
Before starting the programme, you can preselect the programme end ("Finish in" time) in 0.5h (h = hour) increments (between “minimum selectable ending time” and 9.5h) or 1 hour increments (between 10h and 24h) up to a maximum of 24 hours.
1. Select a programme (except myTime programme).
2. Select the ñ 预约 (Finish in time) button repeatedly until the required number of hours is displayed.
3. Select the 开始/添衣 (Start/Reload) A button.
Note:
The length of the programme is automatically adjusted when the programme is running. Changes to the programme default settings or additional programme settings may also change the programme duration.
1. Select the 开始/添衣 (Start/Reload) A button.
2. Select the ñ 预约 (Finish in time) button repeatedly to change the number of hours.
3. Select the 开始/添衣 (Start/Reload) A button.
\ Additional programme settings
Additional programme settings
Note:
You can find possible additional programme settings in the overview; these differ depending on the model.
By selecting additional programme settings, you can better adapt the washing process to your items of laundry.
The settings can be selected or deselected depending on the progress of the programme.
The button indicator lamps light up if a setting is activated.
The settings are not retained after the appliance is switched off.
Ï 加漂洗 (Rinse plus)
Settings that can be selected:
Additional rinse cycles for particularly sensitive skin and/or for areas with very soft water.
Longer programme duration, due to additional rinse cycle.
The number of rinse cycles that the programme actually runs depends on the number that is set as a basic setting for the programme.
ç 除菌液 (Disinfectant)
For washing with special disinfectants in order to kill bacteria and thereby meet high standards of hygiene.
Note:
Add disinfectant to manual dosing compartment.
G 提速 (SpeedPerfect)
Washing in a shorter time while achieving a washing result that is consistent with the normal performance.
Touch G 提速 (SpeedPerfect) to activate or deactivate it.
Note:
With the G 提速 (SpeedPerfect) additional programme setting activated, the maximum load of washing will be reduced.
Ž i-DOS setting
Your appliance has an intelligent dosing system for liquid detergent (w) and fabric softener (©).
The optimum quantities of liquid detergent and fabric softener are dispensed automatically.
You can press Ž i-DOS to activate or deactivate automatic dosing and set the basic dosages.
~ "Intelligent dosing system" on page 39
1 Operating the appliance
Operating the appliance
Preparing the appliance
The appliance was tested before delivery. To remove residual water from the test procedure, the first wash cycle should be run without laundry using the Drum Clean programme. ~ "Before washing for the first time" on page 21
Notes
1. Insert mains plug.
: Warning
Risk of death from electric shock!
2. Turn the water tap on.
3. Open the appliance door.
Select programme/switch on the appliance
Note:
If you have activated the childproof lock, you must first deactivate it before you can set a programme.
Use the programme selector to select the required programme. The programme selector can be rotated in either direction.
The appliance is switched on.
The programme default settings for the selected programme alternately appear in the display panel:
■ The maximum load and
■ the duration of the programme and
■ ...
Placing laundry into the drum
Open the door, place laundry in the drum, make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
Notes
Measuring and adding detergent and care products
For the majority of programs on your appliance, detergent and fabric softener are dispensed automatically; it is a factory setting for these programs and can be changed.
~ "Automatic dosing" on page 39
For programs without intelligent dosing, or if you wish to control the dosing yourself (in which case, deactivate intelligent dosing), you will need to add detergent manually to the manual dosing compartment.
~ "Manual dosing" on page 41
Starting the programme
Touch and hold 开始/添衣 (Start/ Reload) A button for 1~2 seconds, then release the button. The programme starts and the appliance door is locked.
The ñ 预约 (Finish in time) is shown in the display panel and counts down until the programme starts. After the programme has started, the programme duration is displayed. And the symbols for the programme progress are lighting up.
Childproof lock
You can lock the appliance to prevent the settings you have set from being changed inadvertently. To do this, activate the childproof lock.
To activate the childproof lock:
After the programme starts, Touch and hold the G 提速(SpeedPerfect) and ñ 预约 (Finish in time) buttons for 3 seconds. The symbol E lights up in the display panel.
■ E lights up: The childproof lock is activated.
■ E flashes: If the programme and programme settings are adjusted while childproof lock is activated.
Note:
When the programme ends, End is displayed. The door is unlocked. E symbol remain on to remind you to deactivate the childproof lock.
To deactivate the childproof lock:
Touch and hold the G 提速 (SpeedPerfect) and ñ 预约 (Finish in time) buttons until the symbol E disappears.
Adding/removing laundry
After starting the programme, you can add or remove laundry if necessary.
Touch the 开始/添衣 (Start/Reload) A button. The appliance checks whether reloading is possible.
If the following appears on the display panel:
■ The symbol Õ disappears, reloading is possible.
■ The symbol Õ lights up, reloading is not possible.
To continue the programme, touch the 开始/添衣 (Start/Reload) A button. The programme continues automatically.
Notes
Changing the programme
1. Touch the 开始/添衣 (Start/Reload) A button.
2. Select another programme.
3. And touch the 开始/添衣 (Start/ Reload) A button again. The new programme starts from the beginning.
Cancel the programme
1. Touch the 开始/添衣 (Start/Reload) A button.
2. To cool down laundry: Select Rinse.
3. And touch the 开始/添衣 (Start/ Reload) A button again.
1. Touch the 开始/添衣 (Start/Reload) A button.
2. Select Spin.
3. And touch the 开始/添衣 (Start/ Reload) A button again.
Programme end
End lights up on the display panel and ~ and Õ displays are off.
If you have selected 2, the water is only drained after rinse process, no spin cycle.
Removing laundry/switching off the appliance
1. Set programme selector to Off.
2. Open the door and remove the laundry.
3. Turn off the water tap.
Note:
Notes
a Intelligent dosing system
Intelligent dosing system
Familiarising yourself with Ž i-DOS
Ž i-DOS Intelligent dosing system
Your appliance has an intelligent dosing system for liquid detergent and fabric softener.
The optimum quantities of liquid detergent and fabric softener are dispensed automatically depending on the programme and settings.
Automatic dosing is activated at the factory for all the designated programmes and it can be adjusted to suit your requirements. The settings are saved when the appliance is switched off.
For programmes in which automatic dosing is not possible, you can add suitable detergent to the compartment in the detergent drawer for manual dosing.
Ž i-DOS Detergent drawer
Before setting up Ž i-DOS
Follow the manufacturer's instructions when choosing your detergent and care product. We recommend using easy- pour, all-purpose, universal and colour liquid detergents for all machine- washable, coloured items made of cotton or synthetic fabrics.
Notes
Automatic dosing
Automatic dosing can be activated or deactivated for each of the designated wash programmes separately.
Automatic dosing can also be activated or deactivated once the programme has started, although this depends on which stage the programme is in.
To activate/deactivate automatic dosing, press Ž i-DOS briefly. The setting is saved until the next time it is changed.
Tip:
Notes
Ž i-DOS Setting the dosage
The basic dosage is the recommended dosage for a typical load of household laundry comprising approx. 10 items of clothing. The quantity of detergent and care product actually dispensed is calculated using the basic dosage and the amount of laundry, ...
The basic dosages for liquid detergent and fabric softener are set at the factory. You can individually adjust the basic dosages for each dispenser.
Check whether the preset basic dosages follow the manufacturer's recommendations in terms of:
■ A load of approx. 10 items of clothing
■ For liquid detergent – the normal degree of soiling and the relevant water hardness
■ For fabric softener – the medium softness
Refer to the packaging label on your liquid detergent/fabric softener or ask the manufacturer directly for this information.
If necessary, adjust the basic dosages to the recommended load for the liquid detergent/care product you are using, the water hardness and/or the degree of soiling.
Adjusting the basic dosage
1. Press and hold Ž i-DOS for approx. three seconds.
2. Change the setting using: 预约 (Finish in time)
3. Briefly press Ž i-DOS.
4. Change the setting using: 预约 (Finish in time)
5. Press and hold Ž i-DOS for approx. three seconds, briefly press any other selectable button or wait approx. 10 seconds to exit setting mode.
Notes
Filling the dispensers
Notes
Fill the dispensers as follows:
1. Pull out the detergent drawer.
2. Open the dispenser lids.
3. Pour liquid detergent and fabric softener into the relevant dispensers.
Notes
4. Close the dispenser lids.
Note:
5. Push in the detergent drawer.
Note:
When refilling the dispensers, always use the same type of liquid detergent or fabric softener.
Do not mix different types of liquid detergent or fabric softener, as this can form lumps that may block the Ž i-DOS pump unit.
If you switch to a different liquid detergent or fabric softener (type, manufacturer, etc.), empty the relevant dispenser completely and clean it beforehand. ~ Page 42
Manual dosing
For programmes in which automatic dosing is not possible or desirable, or in which it has been deactivated, you will need to add detergent to the manual dosing compartment.
The detergent and/or care product in this compartment is dispensed when the wash cycle starts. Do not add fabric softener or any other products that should not be used until later in the wash cycle (e.g. during rinsing).
Note:
Programmes with prewash: When automatic dosing is deactivated, place the detergent for the prewash in the drum. Pour washing powder for the main wash into the manual dosing compartment.
Dosing and adding detergent
Note:
Find out the optimum dosage for detergent and care product.

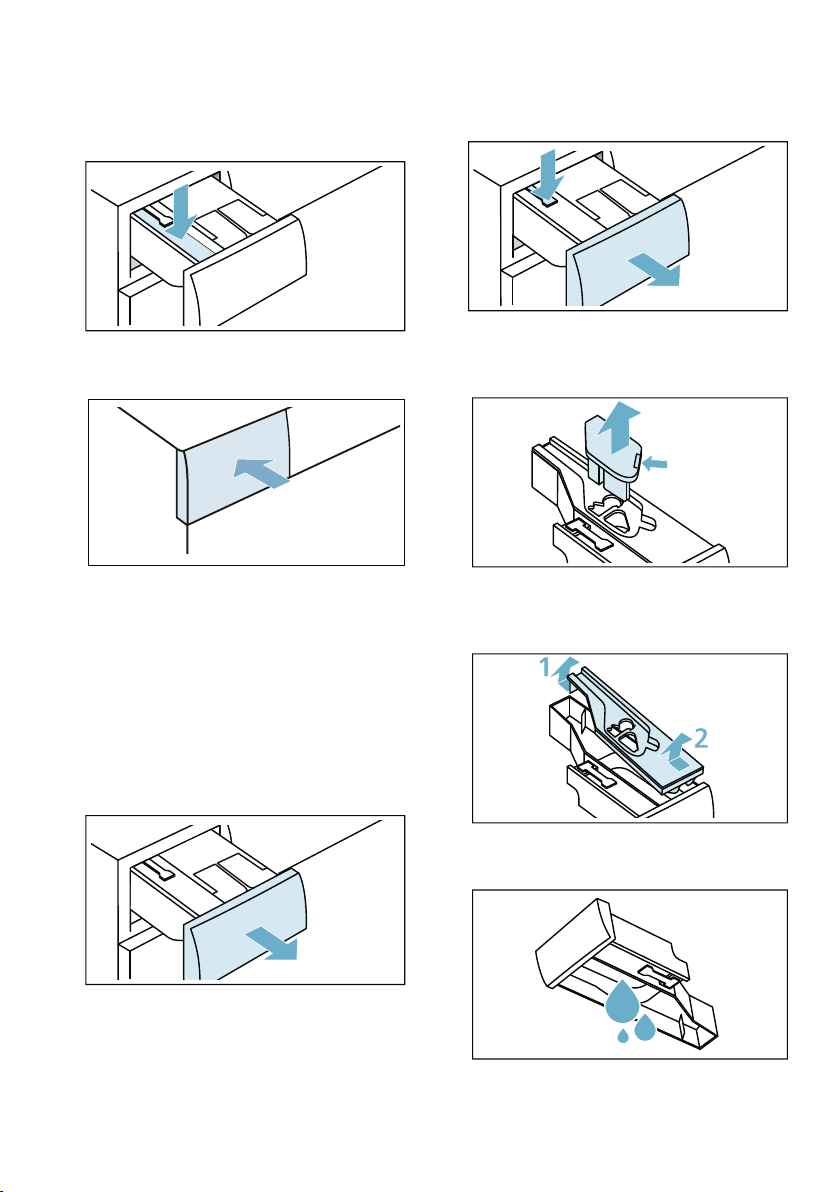

1. Pull out the detergent drawer.
2. Pour laundry detergent and/or care product into the manual dosing compartment.
3. Push in the detergent drawer.
Emptying the Ž i-DOS detergent drawer, cleaning the Ž i-DOS detergent drawer and its housing, cleaning the Ž i-DOS pump unit
1. Switch off the appliance.
2. Pull out the detergent drawer.
3. Press down the insert and remove the drawer completely.
4. Press the pump unit insert and remove it.
5. Unclip the rear detergent drawer lid and remove it.
6. Empty the detergent drawer.
7. Clean the pump unit with a damp cloth.
Caution!
8. Clean the drawer, inside surface and lids with a soft, damp cloth or a hand shower.
9. Dry the drawer, lids and pump unit and put them back together.
10. Clean the inside of the detergent drawer housing.
11. Push in the detergent drawer.
Q Appliance settings
Appliance settings
You can change the following settings:
■ The volume of the end signal.
■ The volume of the button signal.
■ Switching the drum care information signal on/off.
You will need to activate the setting mode in order to change these settings.
Activate setting mode:
1. Set the programme selector to position 1. The appliance is switched on.
2. Touch and hold the 0 转速 (Spin speed) button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 转速 (Spin speed) button.
Changing the volume and drum care information
Use the ñ 预约 (Finish in time) button to change the following settings at the corresponding programme selector positions:
■ 2: The volume of the end signal.
■ 3: The volume of the button signals.
■ 4: Switching the drum care information signal on/off.
Exiting setting mode You can now end the process and set the programme selector to the Off position. The settings are saved.
H Sensors
Sensors
Unbalanced load detection system
The automatic unbalanced load detection system detects imbalances and ensures even distribution of the laundry by repeatedly starting and stopping drum spinning.
If the laundry is extremely unevenly distributed, the spin speed is reduced or the spin cycle is not performed for safety reasons.
Note:
Place large and small items of laundry evenly in the drum.
Aqua-Sensors
Depending on the programme and model
During a rinse cycle, the Aqua sensor checks the turbidity of the rinsing water (turbidity is caused by dirt and detergent residue). The duration and the number of rinse cycles depend on the turbidity of the water.
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Risk of death!
Caution!
Fire and explosion hazard!
Caution!
The appliance may be damaged!
Appliance housing/control panel
■ Remove the detergent residue immediately.
■ Wipe the housing and the control panel with a soft, damp cloth.
■ Do not use abrasive cloths, sponges or detergents (stainless steel cleaner).
■ Do not clean the appliance with a water jet.
Drum
Use chlorine-free cleaning agents, do not use steel wool.
If there are odours in the appliance, or to clean the drum, run the Drum Clean 90°C programme without laundry.
Descaling
Descaling should not be necessary if the detergent is measured out correctly. However, if it is required, follow the manufacturer's instructions for the descaling agent. Suitable descalers can be obtained via our website or from customer services.
Drain pump is blocked
Note:
Turn the water tap off to prevent more water from flowing in and to ensure that it is drained via the pump.
: Warning
Risk of scalding!
1. Turn the programme selector to Off. Pull out the mains plug.
2. Open the service flap.
3. Take the drain hose out of the retainer.
4. Carefully unscrew the pump cover; residual water may leak out.
5. Refit and screw on the pump cover. The handle must be in a vertical position.
6. Close the service flap.
Note:
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into manual dosing compartment and start the Spin programme.
The drain hose at the siphon is blocked
1. Turn the programme selector to Off. Pull out the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
3. Clean the drain hose and siphon connecting piece.
4. Re-attach the drain hose and secure the connection point using the hose clamp.
Filter in the water supply is blocked
Release water pressure in the supply hose:
1. Turn off the water tap.
2. Select the Cottons (activate G 提速 (SpeedPerfect) setting) programme.
Note:
3. Select the 开始/添衣 (Start/Reload) A button. Allow the programme to run for approx. 40 seconds.
4. Turn the programme selector to Off.
5. Pull out the mains plug.
Clean the filters:
1. Disconnect the hose from the rear of the appliance.
2. Use pliers to remove the filter.
3. Clean the filter with a small brush.
4. Connect the hose and check for leaks.
3 Faults and what to do about them
Faults and what to do about them
Emergency release
E.g. power outage or in the event of a loss of power
The programme continues when the power supply is restored.
: Warning
Risk of scalding!
: Warning
Risk of injury!
Caution!
Water damage!
1. Turn the programme selector to Off. Pull out the mains plug.
2. Open the service flap.
3. Drain the water. ~ Page 45
4. Pull the emergency release downwards with a tool and release.
Information on the display panel
Display
Cause/Remedy
Notes
Faults and what to do about them
Faults
Cause/Remedy
Note:
Note:
4 After-sales service
After-sales service
If you cannot rectify a fault yourself, (~ "Faults and what to do about them" on page 48), please contact our after- sales service.
We will always find an appropriate solution to avoid unnecessary visits by engineers.
Please provide the after-sales service with the product number (E-Nr.) and the production number (FD) of the appliance.
You can find this information (depending on the model):
■ On the inside of the loading door
■ On the back of the appliance
Trust the expertise of the manufacturer. Contact us. By doing so, you can be sure that the repairs are carried out by trained service personnel using genuine spare parts.
Advice and repair order in the event of faults
[ Consumption values
Consumption values
J Technical data
Technical data
*9001434835*
Thank you for buying a Bosch Home Appliance!
Looking for help? You´ll find it here.
Page 1/56
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Page 53
Page 54
Page 55
Page 56
Contents
Table of Contents
Search
Previous
Next
Bookmarks
Register
your
new
device
on
MyBosch
now
and
get
free
benefits:
bosch-home.com/
welcome
W
a
s
h
i
n
g
m
a
c
h
i
n
e
XQG100-
WGA154A00W
XQG100-
WGA154A80W
[en]
User manual and installation
instructions
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 74039206_wga154a00w-01.pdf
File size: 1.74 MB
File Language: English
Pages: 56
Author: Bosch
File created: 2020-09-25
Published:
2023-12-22
Updated: 2023-12-21
Download File
Other documents for Bosch WGA154A80W/01
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WGA154A80W/01
View in the file:
Full Specifications
See other models:
HGG222120Z/12
HMT35M653B/35
PVS611FC5E/01
DDA097G50/03
PKV875T01/01
Related Products
Bosch WGA154A00W/01
Bosch WGA152X80W/01
Bosch WGA152U00W/01
Bosch WGA144XVEG/01
Bosch WGA142XVGC/01
Bosch WGA142X0GC/01
Bosch WGA142X0SA/01
Bosch WGA142X0GC/02
Bosch WGA144XVEG/03
Bosch WGG234E0SG/01
Bosch WGG244A0SG/01
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
GB standard:
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 12
3
5 Positioning and connecting 14
3
* Getting to know the appliance 24
3
Z Laundry 27
3
P Overview of programmes 29
3
0 Programme default settings 34
3
\ Additional programme settings 35
3
1 Operating the appliance 36
3
a Intelligent dosing system 39
3
Q Appliance settings 44
4
H Sensors 44
4
2 Cleaning and maintenance 45
4
3 Faults and what to do about them 48
4
4 After-sales service 54
4
[ Consumption values 55
4
J Technical data 55
4
8 Intended use
4
Intended use
4
■ This appliance is intended for private domestic use only.
4
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand- washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and...
4
■ This appliance is suitable for operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).
4
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
Before you switch on the appliance:
4
Check that there is no visible damage to the appliance. Do not operate the appliance if it is damaged. Should you have any problems, please contact your specialist dealer or our customer service.
4
Read and follow the operating and installation instructions and all other information provided with this appliance.
4
Retain the documents for subsequent use or for subsequent owners.
4
( Safety instructions
5
Safety instructions
5
The following safety information and warnings are provided to protect you from injury and to prevent material damage to your surroundings.
5
It is nevertheless important to take the necessary precautions and to proceed with care when installing, maintaining, cleaning and operating the appliance.
5
Children/people/pets
5
: Warning
5
Risk of death!
5
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
5
■ Children must not play with this appliance.
5
■ Do not allow children to clean or maintain this appliance unsupervised.
5
■ Keep children under 3 years and pets away from this appliance.
5
■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
5
: Warning
5
Risk of death!
5
■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
5
■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
■ The mains voltage on your power socket must match the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
6
■ The mains plug and the protective contact socket must match and the earthing system must be correctly installed.
6
■ The installation must have an adequate cross section.
6
■ The mains plug must be freely accessible at all times. If this is not possible, in order to comply with the relevant safety regulations, a switch (all pole disconnection) must be built into the permanent installation in accordance with electrical...
6
■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
8
Material damage/damage to the appliance
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
10
■ Never take hold of the mains plug with wet hands.
10
■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
10
■ Do not make any technical modifications to the appliance or its features.
10
■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
10
■ Spare mains cables can be ordered from our customer service.
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
11
Material damage/damage to the appliance
11
■ Do not allow these agents to come into contact with the surfaces of the appliance.
11
■ Clean the appliance with nothing but water and a soft, damp cloth.
11
■ Remove any detergent, spray or other residues immediately.
11
7 Environmental protection
12
Environmental protection
12
Packaging/used appliance
12
Dispose of packaging in an environmentally-responsible manner.
12
Keep children away from the packaging materials and packaging materials are not toys.
12
Reprocessing and reuse of packaging material saves raw materials, reducing waste.
12
All packaging materials used are in line with environmental protection requirements and reusable.
12
Name and content of hazardous substances in products
12
Note:
12
All of component parts in the BSH products that fall into the same category are covered in the table above, the component parts of this product depend on the actual situation. If you have any questions, please contact us by dialling the customer serv...
12
Tips on economical use
13
■ Always fill the appliance with the maximum amount of laundry for each programme.
13
■ Wash normally soiled laundry without pretreating.
13
■ For light and normal soiling in laundry, you can save energy and detergent.
13
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the appliance may deviate from this so that you get the optimum mix of energy-saving and washing results.
13
■ Low power mode: If the appliance is not operated for a prolonged period (approx. 5 minutes), the display panel lighting goes out before the programme starts and after the programme has ended, ~ (indicator lamp of 开始/添衣 (Start/Reload) A bu...
13
■ If the laundry will be dried in a dryer, select the spin speed according to the dryer manufacturer's instructions.
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Check the appliance for transport damage. Never use a damaged appliance. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services.
14
Bag:
14
■ Operating and installation instructions
14
■ Warranty
14
■ Supplementary sheet for the operating and installation instructions*
14
■ Bottom cover instruction*
14
■ Home Connect Installation Guides*
14
■ Cover caps for openings after the transport braces have been removed
14
* Depending on the model
14
In addition
14
a hose clamp (24 - 40 mm diameter, available from specialist dealers) is required to connect the water drain hose to a siphon.
14
Useful tools
14
■ Spirit level for aligning
14
■ Wrench with:
14
Installation
14
Note:
14
Humidity in the drum is caused by the final inspection.
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Removing the foam block
15
This appliance is secured with a foam block, which has to be removed before using the appliance for the first time. If in doubt, please contact specialist.
15
Caution!
15
Damage to the appliance
15
: Warning
15
Risk of injury/damage to the appliance!
15
Note:
15
Remove the foam block first before you remove the transport locks.
15
1. Remove the foam block.
15
a) Tilt the appliance to the rear.
15
b) Remove the foam block and bottom pad.
16
2. Fit the bottom cover. (You can find it in the drum)
16
Note:
16
Installation surface
16
Note:
16
The appliance must be stable aligned so that it does not move around.
16
Installation on a base or a wooden joist floor
16
Caution!
16
Damage to the appliance
16
Note:
16
On wooden joist floors, install the appliance:
16
Installation on a platform with drawer
16
Platform order no.: WMZ20540W, WMZ20540S, WMZ20540G.
16
Installing the appliance in a kitchenette
16
: Warning
16
Risk of death!
16
Notes
16
Removing the transport locks
17
Caution!
17
Damage to the appliance
17
Note:
17
Keep the screws and sleeves in a safe place.
17
1. Take the hoses out of the holders.
17
2. Unscrew and remove all four transport brace screws.
17
a) Remove the mains cable from the holders.
17
b) Remove the sleeves.
17
3. Fit the covers.
17
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
18
Hose and cable lengths
18
Connection on left side
18
or
18
Connection on right side
18
Note:
18
If the hose holders are used, the possible hose lengths are reduced!
18
Available from dealer/customer service:
18
■ Longer supply hose (approx. 2.20 m).
18
■ Appliance’s tap.
18
Water inlet
18
: Warning
18
Risk of death!
18
Observe the following when connecting the appliance:
18
Notes
19
Optimum water pressure in the supply network
19
At least 0.1 MPa (1 bar)
19
Maximum 1 MPa (10 bar)
19
When the tap is open, the water flow is at least 8 l/min.
19
If the water pressure is higher than this, a pressure-reducing valve must be installed.
19
Connection
19
Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
19
Note:
19
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
19
Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Notes
19
Connection
20
■ Drainage into a siphon
20
■ Drainage into a washbasin
20
■ Drainage into a plastic pipe with rubber bushing or into a drainage pit
20
Note:
20
Alignment
20
Level the appliance using a spirit level.
20
Incorrect levelling may result in intense noise, vibrations and "wandering".
20
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
20
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. Tighten the lock nut against the housing.
20
Electrical connection
21
: Warning
21
Risk of death!
21
Observe the following information and ensure that:
21
Notes
21
Before washing for the first time
21
The appliance was inspected thoroughly before leaving the factory. To remove any residual test water, run the Drum Clean programme the first time without laundry.
21
Note:
21
1. Insert mains plug.
21
2. Turn the water tap on.
21
3. Close the door. Do not load any laundry.
21
4. Select the Drum Clean 90°C programme.
21
5. Open the detergent drawer.
21
6. Pour approx. 1 litre of water into manual dosing compartment.
21
7. Add standard detergent to manual dosing compartment according to manufacturer’s instructions for light soiling.
21
Note:
21
8. Close the detergent drawer.
21
9. Select 开始/添衣 (Start/Reload) A.
21
10. When the programme ends, turn the programme selector to Off.
21
Transportation
22
e.g. when moving home
22
1. Turn off the water tap.
22
2. Reduce the water pressure in the supply hose. ~ Page 47
22
3. Drain any residual water. ~ Page 45
22
4. Disconnect the appliance from the mains.
22
5. Remove the hoses.
22
6. Empty the dispensers.
22
Caution!
22
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
22
1. Remove the covers and keep them in a safe place.
22
Note:
22
2. Insert all four sleeves.
22
a) Clip the mains cable securely in the holders.
22
b) Insert and tighten the screws.
22
c) Clip the hoses securely in the holders.
22
Before switching on the appliance again:
23
Notes
23
* Getting to know the appliance
24
Getting to know the appliance
24
Appliance
24
Control panel
25
Display panel
26
Programme default settings
26
Display
26
Setting
26
Description
26
Additional programme settings
26
Display
26
Setting
26
Intelligent dosing system (Ž i-DOS)
26
Display
26
Setting
26
~ "Intelligent dosing system" on page 39
26
Status indicators for the programme progress (programme sequence)
27
Display
27
Setting
27
Z Laundry
27
Laundry
27
Protecting your laundry and appliance
27
Caution!
27
Damage to the appliance/textiles
27
The following instructions must be observed when preparing your laundry:
27
■ Always follow the manufacturer's instructions when dosing all detergents, cleaning aids, care products and cleaning agents.
27
■ Do not exceed maximum load. Overfilling will impair the washing result.
27
■ Keep detergents and agents for the pretreatment of laundry (e.g. stain remover, prewash sprays, etc.) away from the surfaces of the appliance. Using a damp cloth, immediately remove any fine spray residue and other residue or droplets.
27
■ Empty any pockets. Remove any foreign objects.
27
■ Remove metal parts (paper clips, etc.).
27
■ Trousers, knitwear and knitted textiles, e.g. jersey garments, T-shirts or sweatshirts, should be turned inside out.
27
■ Ensure that underwired bras are appliance-washable.
27
■ Wash delicates in a net or bag (tights, underwired bras, etc).
27
■ Close zips, button up covers.
27
■ Brush sand out of pockets and collars.
27
■ Remove curtain fittings or place in a net/bag.
27
Sorting laundry
28
Sort your laundry according to the care instructions and manufacturer's information on the care labels, depending on:
28
■ Type of fabric/fibre
28
■ Colour
28
Note:
28
■ Soiling Wash laundry with the same level of soiling together.
28
■ Symbols on the care labels
28
P Overview of programmes
29
Overview of programmes
29
Selectable programme
29
Programme/Type of washing
29
Options/Information
29
Notes
31
1. Select a programme.
32
Note:
32
2. For washing the laundry, use a special detergent for outdoor textiles; add the correct dosage to the manual dosing compartment in accordance with the manufacturer's instructions. Thoroughly clean the compartment beforehand.
32
3. Start the programme. The programme stops before the waterproofing cycle, and the symbols - - - and ~ (indicator lamp of 开始/添衣 (Start/Reload) A button) are flashing on the display panel. You can change the spin speed if necessary, and add t...
32
4. Press the 开始/添衣 (Start/Reload) A button to continue the programme. After-treat the laundry in accordance with the manufacturer's instructions.
32
Note:
33
0 Programme default settings
34
Programme default settings
34
You can change the default settings for selected programmes. The settings can be changed even while the selected programme is running. The effects depending on the progress of the programme.
34
6 温度 (Temperature)
34
Before and after the programme starts, you can change the temperature setting, depending on what stage the programme is in, by adjusting the desired temperature on the display.
34
The maximum temperature that can be set depends on the programme that has been selected.
34
0 转速 (Spin speed)
34
Depending on what stage the programme is in, you can change the spin speed (in rpm; revolutions per minute) before and during the programme by adjusting the desired speed on the display.
34
setting 2: 2 =”No spin”. The rinsing water is drained but there is no final spin. The laundry stays wet inside the drum, e.g. for items that should not be spun.
34
You can select “No spin” to prevent creasing if the laundry will not be taken out of the appliance immediately after the programme has ended.
34
The maximum speed that can be set depending on the model and the programme that has been selected.
34
ñ 预约 (Finish in time)
34
Before starting the programme, you can preselect the programme end ("Finish in" time) in 0.5h (h = hour) increments (between “minimum selectable ending time” and 9.5h) or 1 hour increments (between 10h and 24h) up to a maximum of 24 hours.
34
1. Select a programme (except myTime programme).
34
2. Select the ñ 预约 (Finish in time) button repeatedly until the required number of hours is displayed.
34
3. Select the 开始/添衣 (Start/Reload) A button.
34
Note:
34
The length of the programme is automatically adjusted when the programme is running. Changes to the programme default settings or additional programme settings may also change the programme duration.
34
1. Select the 开始/添衣 (Start/Reload) A button.
34
2. Select the ñ 预约 (Finish in time) button repeatedly to change the number of hours.
34
3. Select the 开始/添衣 (Start/Reload) A button.
34
\ Additional programme settings
35
Additional programme settings
35
Note:
35
You can find possible additional programme settings in the overview; these differ depending on the model.
35
By selecting additional programme settings, you can better adapt the washing process to your items of laundry.
35
The settings can be selected or deselected depending on the progress of the programme.
35
The button indicator lamps light up if a setting is activated.
35
The settings are not retained after the appliance is switched off.
35
Ï 加漂洗 (Rinse plus)
35
Settings that can be selected:
35
Additional rinse cycles for particularly sensitive skin and/or for areas with very soft water.
35
Longer programme duration, due to additional rinse cycle.
35
The number of rinse cycles that the programme actually runs depends on the number that is set as a basic setting for the programme.
35
ç 除菌液 (Disinfectant)
35
For washing with special disinfectants in order to kill bacteria and thereby meet high standards of hygiene.
35
Note:
35
Add disinfectant to manual dosing compartment.
35
G 提速 (SpeedPerfect)
35
Washing in a shorter time while achieving a washing result that is consistent with the normal performance.
35
Touch G 提速 (SpeedPerfect) to activate or deactivate it.
35
Note:
35
With the G 提速 (SpeedPerfect) additional programme setting activated, the maximum load of washing will be reduced.
35
Ž i-DOS setting
35
Your appliance has an intelligent dosing system for liquid detergent (w) and fabric softener (©).
35
The optimum quantities of liquid detergent and fabric softener are dispensed automatically.
35
You can press Ž i-DOS to activate or deactivate automatic dosing and set the basic dosages.
35
~ "Intelligent dosing system" on page 39
35
1 Operating the appliance
36
Operating the appliance
36
Preparing the appliance
36
The appliance was tested before delivery. To remove residual water from the test procedure, the first wash cycle should be run without laundry using the Drum Clean programme. ~ "Before washing for the first time" on page 21
36
Notes
36
1. Insert mains plug.
36
: Warning
36
Risk of death from electric shock!
36
2. Turn the water tap on.
36
3. Open the appliance door.
36
Select programme/switch on the appliance
36
Note:
36
If you have activated the childproof lock, you must first deactivate it before you can set a programme.
36
Use the programme selector to select the required programme. The programme selector can be rotated in either direction.
36
The appliance is switched on.
36
The programme default settings for the selected programme alternately appear in the display panel:
36
■ The maximum load and
36
■ the duration of the programme and
36
■ ...
36
Placing laundry into the drum
36
Open the door, place laundry in the drum, make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
36
Notes
37
Measuring and adding detergent and care products
37
For the majority of programs on your appliance, detergent and fabric softener are dispensed automatically; it is a factory setting for these programs and can be changed.
37
~ "Automatic dosing" on page 39
37
For programs without intelligent dosing, or if you wish to control the dosing yourself (in which case, deactivate intelligent dosing), you will need to add detergent manually to the manual dosing compartment.
37
~ "Manual dosing" on page 41
37
Starting the programme
37
Touch and hold 开始/添衣 (Start/ Reload) A button for 1~2 seconds, then release the button. The programme starts and the appliance door is locked.
37
The ñ 预约 (Finish in time) is shown in the display panel and counts down until the programme starts. After the programme has started, the programme duration is displayed. And the symbols for the programme progress are lighting up.
37
Childproof lock
37
You can lock the appliance to prevent the settings you have set from being changed inadvertently. To do this, activate the childproof lock.
37
To activate the childproof lock:
37
After the programme starts, Touch and hold the G 提速(SpeedPerfect) and ñ 预约 (Finish in time) buttons for 3 seconds. The symbol E lights up in the display panel.
37
■ E lights up: The childproof lock is activated.
37
■ E flashes: If the programme and programme settings are adjusted while childproof lock is activated.
37
Note:
37
When the programme ends, End is displayed. The door is unlocked. E symbol remain on to remind you to deactivate the childproof lock.
37
To deactivate the childproof lock:
37
Touch and hold the G 提速 (SpeedPerfect) and ñ 预约 (Finish in time) buttons until the symbol E disappears.
37
Adding/removing laundry
37
After starting the programme, you can add or remove laundry if necessary.
37
Touch the 开始/添衣 (Start/Reload) A button. The appliance checks whether reloading is possible.
37
If the following appears on the display panel:
37
■ The symbol Õ disappears, reloading is possible.
37
■ The symbol Õ lights up, reloading is not possible.
37
To continue the programme, touch the 开始/添衣 (Start/Reload) A button. The programme continues automatically.
37
Notes
38
Changing the programme
38
1. Touch the 开始/添衣 (Start/Reload) A button.
38
2. Select another programme.
38
3. And touch the 开始/添衣 (Start/ Reload) A button again. The new programme starts from the beginning.
38
Cancel the programme
38
1. Touch the 开始/添衣 (Start/Reload) A button.
38
2. To cool down laundry: Select Rinse.
38
3. And touch the 开始/添衣 (Start/ Reload) A button again.
38
1. Touch the 开始/添衣 (Start/Reload) A button.
38
2. Select Spin.
38
3. And touch the 开始/添衣 (Start/ Reload) A button again.
38
Programme end
38
End lights up on the display panel and ~ and Õ displays are off.
38
If you have selected 2, the water is only drained after rinse process, no spin cycle.
38
Removing laundry/switching off the appliance
38
1. Set programme selector to Off.
38
2. Open the door and remove the laundry.
38
3. Turn off the water tap.
38
Note:
38
Notes
38
a Intelligent dosing system
39
Intelligent dosing system
39
Familiarising yourself with Ž i-DOS
39
Ž i-DOS Intelligent dosing system
39
Your appliance has an intelligent dosing system for liquid detergent and fabric softener.
39
The optimum quantities of liquid detergent and fabric softener are dispensed automatically depending on the programme and settings.
39
Automatic dosing is activated at the factory for all the designated programmes and it can be adjusted to suit your requirements. The settings are saved when the appliance is switched off.
39
For programmes in which automatic dosing is not possible, you can add suitable detergent to the compartment in the detergent drawer for manual dosing.
39
Ž i-DOS Detergent drawer
39
Before setting up Ž i-DOS
39
Follow the manufacturer's instructions when choosing your detergent and care product. We recommend using easy- pour, all-purpose, universal and colour liquid detergents for all machine- washable, coloured items made of cotton or synthetic fabrics.
39
Notes
39
Automatic dosing
39
Automatic dosing can be activated or deactivated for each of the designated wash programmes separately.
39
Automatic dosing can also be activated or deactivated once the programme has started, although this depends on which stage the programme is in.
39
To activate/deactivate automatic dosing, press Ž i-DOS briefly. The setting is saved until the next time it is changed.
39
Tip:
39
Notes
40
Ž i-DOS Setting the dosage
40
The basic dosage is the recommended dosage for a typical load of household laundry comprising approx. 10 items of clothing. The quantity of detergent and care product actually dispensed is calculated using the basic dosage and the amount of laundry, ...
40
The basic dosages for liquid detergent and fabric softener are set at the factory. You can individually adjust the basic dosages for each dispenser.
40
Check whether the preset basic dosages follow the manufacturer's recommendations in terms of:
40
■ A load of approx. 10 items of clothing
40
■ For liquid detergent – the normal degree of soiling and the relevant water hardness
40
■ For fabric softener – the medium softness
40
Refer to the packaging label on your liquid detergent/fabric softener or ask the manufacturer directly for this information.
40
If necessary, adjust the basic dosages to the recommended load for the liquid detergent/care product you are using, the water hardness and/or the degree of soiling.
40
Adjusting the basic dosage
40
1. Press and hold Ž i-DOS for approx. three seconds.
40
2. Change the setting using: 预约 (Finish in time)
40
3. Briefly press Ž i-DOS.
40
4. Change the setting using: 预约 (Finish in time)
40
5. Press and hold Ž i-DOS for approx. three seconds, briefly press any other selectable button or wait approx. 10 seconds to exit setting mode.
40
Notes
40
Filling the dispensers
40
Notes
40
Fill the dispensers as follows:
40
1. Pull out the detergent drawer.
40
2. Open the dispenser lids.
41
3. Pour liquid detergent and fabric softener into the relevant dispensers.
41
Notes
41
4. Close the dispenser lids.
41
Note:
41
5. Push in the detergent drawer.
41
Note:
41
When refilling the dispensers, always use the same type of liquid detergent or fabric softener.
41
Do not mix different types of liquid detergent or fabric softener, as this can form lumps that may block the Ž i-DOS pump unit.
41
If you switch to a different liquid detergent or fabric softener (type, manufacturer, etc.), empty the relevant dispenser completely and clean it beforehand. ~ Page 42
41
Manual dosing
41
For programmes in which automatic dosing is not possible or desirable, or in which it has been deactivated, you will need to add detergent to the manual dosing compartment.
41
The detergent and/or care product in this compartment is dispensed when the wash cycle starts. Do not add fabric softener or any other products that should not be used until later in the wash cycle (e.g. during rinsing).
41
Note:
41
Programmes with prewash: When automatic dosing is deactivated, place the detergent for the prewash in the drum. Pour washing powder for the main wash into the manual dosing compartment.
41
Dosing and adding detergent
41
Note:
41
Find out the optimum dosage for detergent and care product.
41
1. Pull out the detergent drawer.
41
2. Pour laundry detergent and/or care product into the manual dosing compartment.
42
3. Push in the detergent drawer.
42
Emptying the Ž i-DOS detergent drawer, cleaning the Ž i-DOS detergent drawer and its housing, cleaning the Ž i-DOS pump unit
42
1. Switch off the appliance.
42
2. Pull out the detergent drawer.
42
3. Press down the insert and remove the drawer completely.
42
4. Press the pump unit insert and remove it.
42
5. Unclip the rear detergent drawer lid and remove it.
42
6. Empty the detergent drawer.
42
7. Clean the pump unit with a damp cloth.
43
Caution!
43
8. Clean the drawer, inside surface and lids with a soft, damp cloth or a hand shower.
43
9. Dry the drawer, lids and pump unit and put them back together.
43
10. Clean the inside of the detergent drawer housing.
43
11. Push in the detergent drawer.
43
Q Appliance settings
44
Appliance settings
44
You can change the following settings:
44
■ The volume of the end signal.
44
■ The volume of the button signal.
44
■ Switching the drum care information signal on/off.
44
You will need to activate the setting mode in order to change these settings.
44
Activate setting mode:
44
1. Set the programme selector to position 1. The appliance is switched on.
44
2. Touch and hold the 0 转速 (Spin speed) button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 转速 (Spin speed) button.
44
Changing the volume and drum care information
44
Use the ñ 预约 (Finish in time) button to change the following settings at the corresponding programme selector positions:
44
■ 2: The volume of the end signal.
44
■ 3: The volume of the button signals.
44
■ 4: Switching the drum care information signal on/off.
44
Exiting setting mode You can now end the process and set the programme selector to the Off position. The settings are saved.
44
H Sensors
44
Sensors
44
Unbalanced load detection system
44
The automatic unbalanced load detection system detects imbalances and ensures even distribution of the laundry by repeatedly starting and stopping drum spinning.
44
If the laundry is extremely unevenly distributed, the spin speed is reduced or the spin cycle is not performed for safety reasons.
44
Note:
44
Place large and small items of laundry evenly in the drum.
44
Aqua-Sensors
44
Depending on the programme and model
44
During a rinse cycle, the Aqua sensor checks the turbidity of the rinsing water (turbidity is caused by dirt and detergent residue). The duration and the number of rinse cycles depend on the turbidity of the water.
44
2 Cleaning and maintenance
45
Cleaning and maintenance
45
: Warning
45
Risk of death!
45
Caution!
45
Fire and explosion hazard!
45
Caution!
45
The appliance may be damaged!
45
Appliance housing/control panel
45
■ Remove the detergent residue immediately.
45
■ Wipe the housing and the control panel with a soft, damp cloth.
45
■ Do not use abrasive cloths, sponges or detergents (stainless steel cleaner).
45
■ Do not clean the appliance with a water jet.
45
Drum
45
Use chlorine-free cleaning agents, do not use steel wool.
45
If there are odours in the appliance, or to clean the drum, run the Drum Clean 90°C programme without laundry.
45
Descaling
45
Descaling should not be necessary if the detergent is measured out correctly. However, if it is required, follow the manufacturer's instructions for the descaling agent. Suitable descalers can be obtained via our website or from customer services.
45
Drain pump is blocked
45
Note:
45
Turn the water tap off to prevent more water from flowing in and to ensure that it is drained via the pump.
45
: Warning
45
Risk of scalding!
45
1. Turn the programme selector to Off. Pull out the mains plug.
45
2. Open the service flap.
45
3. Take the drain hose out of the retainer.
46
4. Carefully unscrew the pump cover; residual water may leak out.
46
5. Refit and screw on the pump cover. The handle must be in a vertical position.
46
6. Close the service flap.
46
Note:
46
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into manual dosing compartment and start the Spin programme.
46
The drain hose at the siphon is blocked
46
1. Turn the programme selector to Off. Pull out the mains plug.
46
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
46
3. Clean the drain hose and siphon connecting piece.
46
4. Re-attach the drain hose and secure the connection point using the hose clamp.
46
Filter in the water supply is blocked
47
Release water pressure in the supply hose:
47
1. Turn off the water tap.
47
2. Select the Cottons (activate G 提速 (SpeedPerfect) setting) programme.
47
Note:
47
3. Select the 开始/添衣 (Start/Reload) A button. Allow the programme to run for approx. 40 seconds.
47
4. Turn the programme selector to Off.
47
5. Pull out the mains plug.
47
Clean the filters:
47
1. Disconnect the hose from the rear of the appliance.
47
2. Use pliers to remove the filter.
47
3. Clean the filter with a small brush.
47
4. Connect the hose and check for leaks.
47
3 Faults and what to do about them
48
Faults and what to do about them
48
Emergency release
48
E.g. power outage or in the event of a loss of power
48
The programme continues when the power supply is restored.
48
: Warning
48
Risk of scalding!
48
: Warning
48
Risk of injury!
48
Caution!
48
Water damage!
48
1. Turn the programme selector to Off. Pull out the mains plug.
48
2. Open the service flap.
48
3. Drain the water. ~ Page 45
48
4. Pull the emergency release downwards with a tool and release.
48
Information on the display panel
49
Display
49
Cause/Remedy
49
Notes
49
Faults and what to do about them
50
Faults
50
Cause/Remedy
50
Note:
50
Note:
53
4 After-sales service
54
After-sales service
54
If you cannot rectify a fault yourself, (~ "Faults and what to do about them" on page 48), please contact our after- sales service.
54
We will always find an appropriate solution to avoid unnecessary visits by engineers.
54
Please provide the after-sales service with the product number (E-Nr.) and the production number (FD) of the appliance.
54
You can find this information (depending on the model):
54
■ On the inside of the loading door
54
■ On the back of the appliance
54
Trust the expertise of the manufacturer. Contact us. By doing so, you can be sure that the repairs are carried out by trained service personnel using genuine spare parts.
54
Advice and repair order in the event of faults
54
[ Consumption values
55
Consumption values
55
J Technical data
55
Technical data
55
*9001434835*
56
Thank you for buying a Bosch Home Appliance!
56
Looking for help? You´ll find it here.
56
Search:
×
Search
