Frigidaire GLEF396ABA electric range User Manual

.... 5-6

7-11

Visit the Frigidaire Web Site at:

http :llwww.frigidaire.com

g ............. 11

g Oven Controls

Warming Drawer Controls...12-14

Control Pad Features .......... 15

Setting Oven Controls .... 16-26

Self-Cleaning .............. 27-30

Adjusting Your

Oven Temperature ........... 30

Care & Cleaning .......... 31-34

Before You Call

Solutions to

Common Problems ............... 35-36

Convection Cooking Tables ........... 37

Warranty ............ Back Cover

READ AND SAVE THESE INSTRUCTIONS P/N 316257106 (0108)

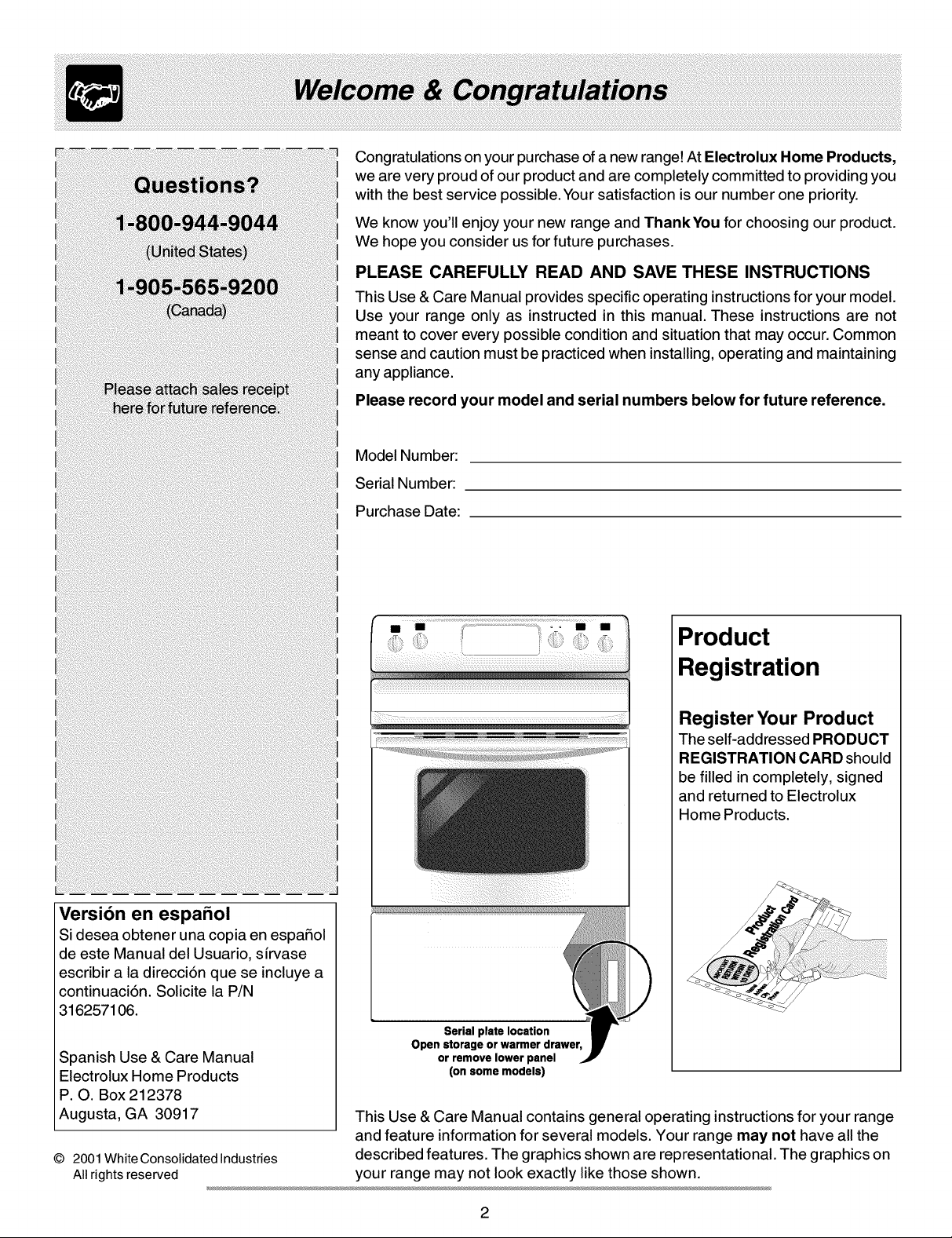

Congratulations on your purchase of a new range! At Electrolux Home Products,

we are very proud of our product and are completely committed to providing you

with the best service possible. Your satisfaction is our number one priority.

We know you'll enjoy your new range and ThankYou for choosing our product.

We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model.

Use your range only as instructed in this manual. These instructions are not

meant to cover every possible condition and situation that may occur. Common

sense and caution must be practiced when installing, operating and maintaining

any appliance.

Please record your model and serial numbers below for future reference.

Model Number:

Serial Number:

Purchase Date:

Versi6n en espahol

Si desea obtener una copia en espa5ol

de este Manual del Usuario, sirvase

escribir a la direcciSn que se incluye a

continuaciSn. Solicite la P/N

316257106.

Spanish Use & Care Manual

Electrolux Home Products

P. O. Box 212378

Augusta, GA 30917

Serial plate location

Open storage or warmer drawer,

or remove lower panel

(on some models)

Product

Registration

The self-addressed PRODUCT

REGISTRATION CARD should

be filled in completely, signed

and returned to Electrolux

Home Products.

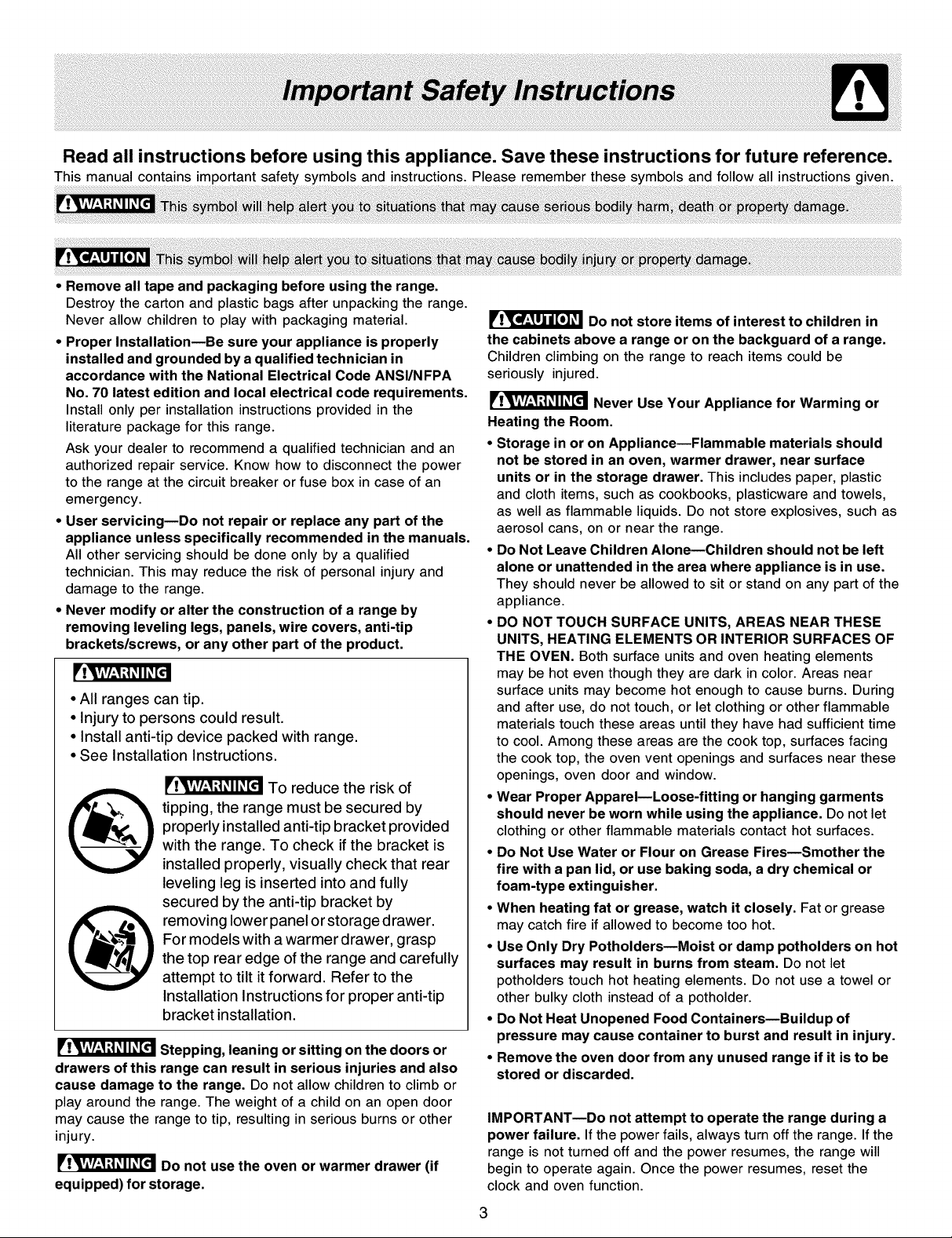

This Use & Care Manual contains general operating instructions for your range

and feature information for several models. Your range may not have all the

Read all instructions before using this appliance. Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please remember these symbols and follow all instructions given.

• Remove all tape and packaging before using the range.

Destroy the carton and plastic bags after unpacking the range.

Never allow children to play with packaging material.

• Proper Installation--Be sure your appliance is properly

installed and grounded by a qualified technician in

accordance with the National Electrical Code ANSI/NFPA

No. 70 latest edition and local electrical code requirements.

Install only per installation instructions provided in the

literature package for this range.

Ask your dealer to recommend a qualified technician and an

authorized repair service. Know how to disconnect the power

to the range at the circuit breaker or fuse box in case of an

emergency.

• User servicing--Do not repair or replace any part of the

appliance unless specifically recommended in the manuals.

All other servicing should be done only by a qualified

technician. This may reduce the risk of personal injury and

damage to the range.

• Never modify or alter the construction of a range by

removing leveling legs, panels, wire covers, anti-tip

brackets/screws, or any other part of the product.

• All ranges can tip.

• Injury to persons could result.

• Install anti-tip device packed with range.

• See Installation Instructions.

To reduce the risk of

tipping, the range must be secured by

properly installed anti-tip bracket provided

with the range. To check if the bracket is

installed properly, visually check that rear

leveling leg is inserted into and fully

secured by the anti-tip bracket by

removing lower panel or storage d rawer.

For models with a warmer drawer, grasp

the top rear edge of the range and carefully

attempt to tilt it forward. Refer to the

Installation Instructions for proper anti-tip

bracket installation.

Stepping, leaning or sitting on the doors or

drawers of this range can result in serious injuries and also

cause damage to the range. Do not allow children to climb or

play around the range. The weight of a child on an open door

may cause the range to tip, resulting in serious burns or other

injury.

Do not use the oven or warmer drawer (if

equipped) for storage.

Do not store items of interest to children in

the cabinets above a range or on the backguard of a range.

Children climbing on the range to reach items could be

seriously injured.

Never Use Your Appliance for Warming or

Heating the Room.

• Storage in or on Appliance--Flammable materials should

not be stored in an oven, warmer drawer, near surface

units or in the storage drawer. This includes paper, plastic

and cloth items, such as cookbooks, plasticware and towels,

as well as flammable liquids. Do not store explosives, such as

aerosol cans, on or near the range.

• Do Not Leave Children Alone--Children should not be left

alone or unattended in the area where appliance is in use.

They should never be allowed to sit or stand on any part of the

appliance.

• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE

UNITS, HEATING ELEMENTS OR INTERIOR SURFACES OF

THE OVEN. Both surface units and oven heating elements

may be hot even though they are dark in color. Areas near

surface units may become hot enough to cause burns. During

and after use, do not touch, or let clothing or other flammable

materials touch these areas until they have had sufficient time

to cool. Among these areas are the cook top, surfaces facing

the cook top, the oven vent openings and surfaces near these

openings, oven door and window.

• Wear Proper Apparel--Loose-fitting or hanging garments

should never be worn while using the appliance. Do not let

clothing or other flammable materials contact hot surfaces.

• Do Not Use Water or Flour on Grease Fires--Smother the

fire with a pan lid, or use baking soda, a dry chemical or

foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat or grease

may catch fire if allowed to become too hot.

• Use Only Dry Potholders--Moist or damp potholders on hot

surfaces may result in burns from steam. Do not let

potholders touch hot heating elements. Do not use a towel or

other bulky cloth instead of a potholder.

• Do Not Heat Unopened Food Containers--Buildup of

pressure may cause container to burst and result in injury.

° Remove the oven door from any unused range if it is to be

stored or discarded.

IMPORTANT--Do not attempt to operate the range during a

power failure. If the power fails, always turn off the range. If the

range is not turned off and the power resumes, the range will

begin to operate again. Once the power resumes, reset the

clock and oven function.

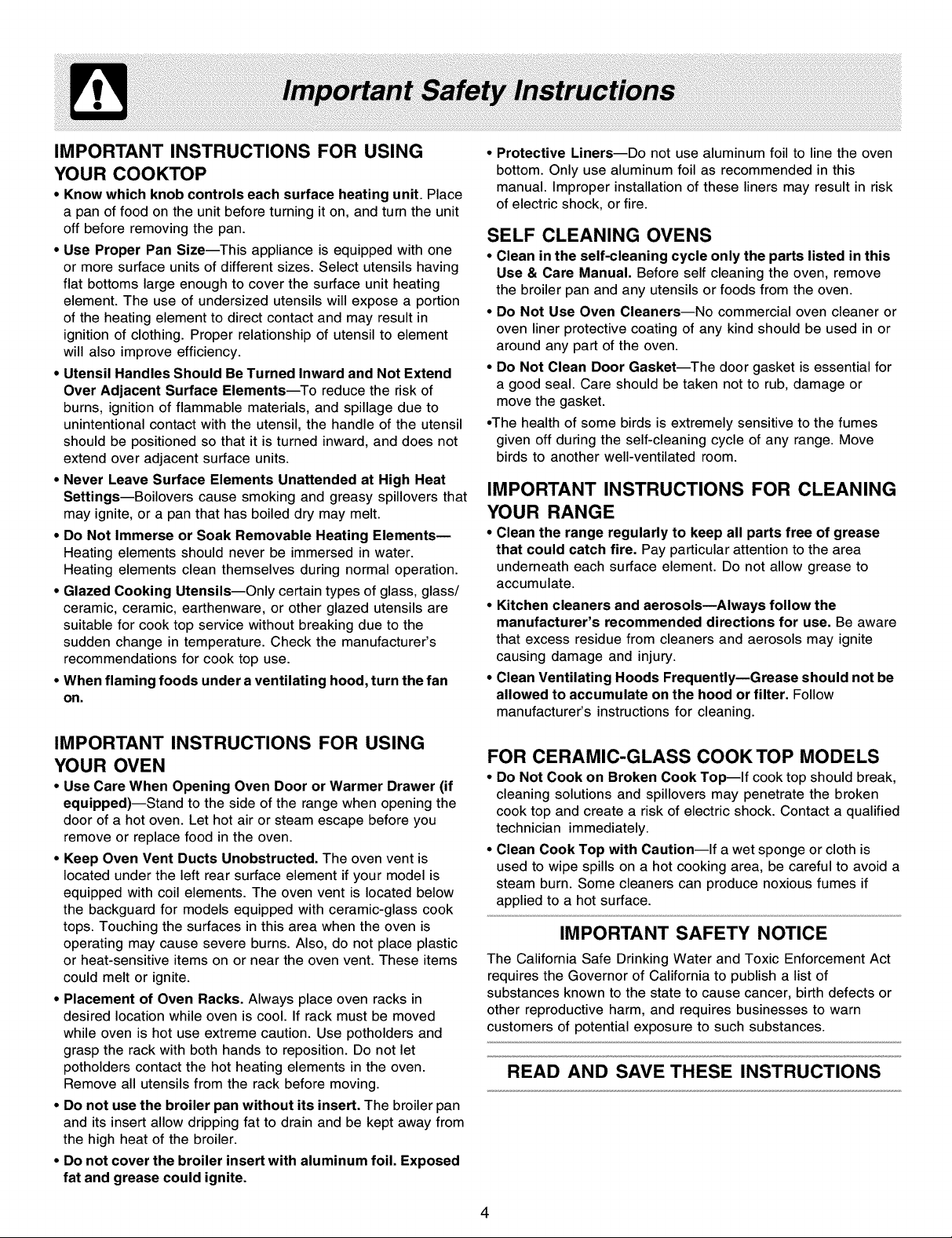

IMPORTANT INSTRUCTIONS FOR USING

YOUR COOKTOP

• Know which knob controls each surface heating unit. Place

a pan of food on the unit before turning it on, and turn the unit

off before removing the pan.

• Use Proper Pan Size--This appliance is equipped with one

or more surface units of different sizes. Select utensils having

flat bottoms large enough to cover the surface unit heating

element. The use of undersized utensils will expose a portion

of the heating element to direct contact and may result in

ignition of clothing. Proper relationship of utensil to element

will also improve efficiency.

• Utensil Handles Should Be Turned Inward and Not Extend

Over Adjacent Surface Elements--To reduce the risk of

burns, ignition of flammable materials, and spillage due to

unintentional contact with the utensil, the handle of the utensil

should be positioned so that it is turned inward, and does not

extend over adjacent surface units.

• Never Leave Surface Elements Unattended at High Heat

Settings--Boilovers cause smoking and greasy spillovers that

may ignite, or a pan that has boiled dry may melt.

• Do Not Immerse or Soak Removable Heating Elements--

Heating elements should never be immersed in water.

Heating elements clean themselves during normal operation.

• Glazed Cooking Utensils--Only certain types of glass, glass/

ceramic, ceramic, earthenware, or other glazed utensils are

suitable for cook top service without breaking due to the

sudden change in temperature. Check the manufacturer's

recommendations for cook top use.

• When flaming foods under a ventilating hood, turn the fan

on.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

• Use Care When Opening Oven Door or Warmer Drawer (if

equipped)--Stand to the side of the range when opening the

door of a hot oven. Let hot air or steam escape before you

remove or replace food in the oven.

• Keep Oven Vent Ducts Unobstructed. The oven vent is

located under the left rear surface element if your model is

equipped with coil elements. The oven vent is located below

the backguard for models equipped with ceramic-glass cook

tops. Touching the surfaces in this area when the oven is

operating may cause severe burns. Also, do not place plastic

or heat-sensitive items on or near the oven vent. These items

could melt or ignite.

• Placement of Oven Racks. Always place oven racks in

desired location while oven is cool. If rack must be moved

while oven is hot use extreme caution. Use potholders and

grasp the rack with both hands to reposition. Do not let

potholders contact the hot heating elements in the oven.

Remove all utensils from the rack before moving.

• Do not use the broiler pan without its insert. The broiler pan

and its insert allow dripping fat to drain and be kept away from

the high heat of the broiler.

• Do not cover the broiler insert with aluminum foil. Exposed

fat and grease could ignite.

• Protective Liners--Do not use aluminum foil to line the oven

bottom. Only use aluminum foil as recommended in this

manual. Improper installation of these liners may result in risk

of electric shock, or fire.

SELF CLEANING OVENS

• Clean in the self-cleaning cycle only the parts listed in this

Use & Care Manual. Before self cleaning the oven, remove

the broiler pan and any utensils or foods from the oven.

• Do Not Use Oven Cleaners--No commercial oven cleaner or

oven liner protective coating of any kind should be used in or

around any part of the oven.

• Do Not Clean Door Gasket--The door gasket is essential for

a good seal. Care should be taken not to rub, damage or

move the gasket.

•The health of some birds is extremely sensitive to the fumes

given off during the self-cleaning cycle of any range. Move

birds to another well-ventilated room.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR RANGE

• Clean the range regularly to keep all parts free of grease

that could catch fire. Pay particular attention to the area

underneath each surface element. Do not allow grease to

accumulate.

• Kitchen cleaners and aerosols--Always follow the

manufacturer's recommended directions for use. Be aware

that excess residue from cleaners and aerosols may ignite

causing damage and injury.

• Clean Ventilating Hoods Frequently--Grease should not be

allowed to accumulate on the hood or filter. Follow

manufacturer's instructions for cleaning.

FOR CERAMIC-GLASS COOK TOP MODELS

• Do Not Cook on Broken Cook Top--If cook top should break,

cleaning solutions and spillovers may penetrate the broken

cook top and create a risk of electric shock. Contact a qualified

technician immediately.

• Clean Cook Top with Caution--If a wet sponge or cloth is

used to wipe spills on a hot cooking area, be careful to avoid a

steam burn. Some cleaners can produce noxious fumes if

applied to a hot surface.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act

requires the Governor of California to publish a list of

substances known to the state to cause cancer, birth defects or

other reproductive harm, and requires businesses to warn

customers of potential exposure to such substances.

READ AND SAVE THESE INSTRUCTIONS

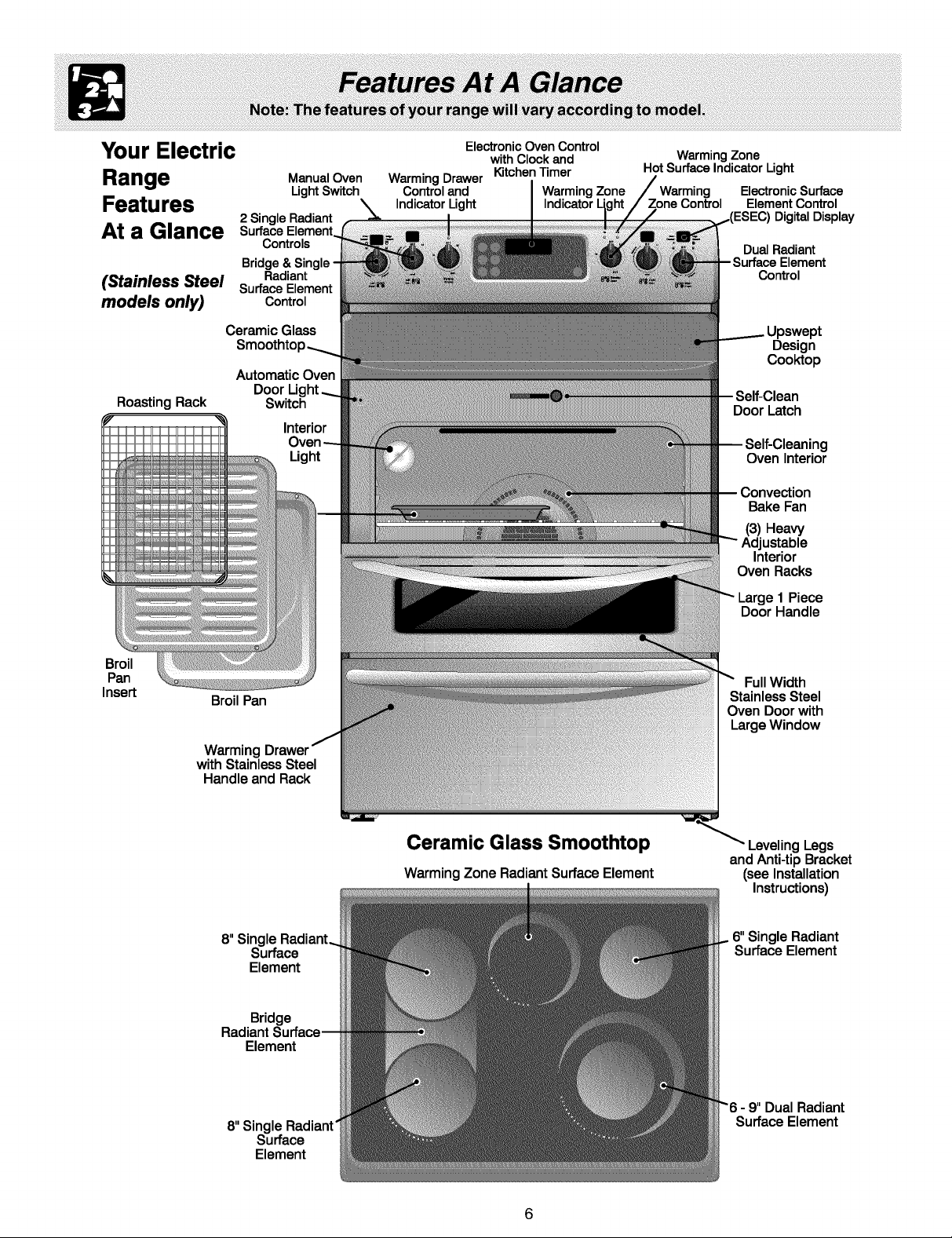

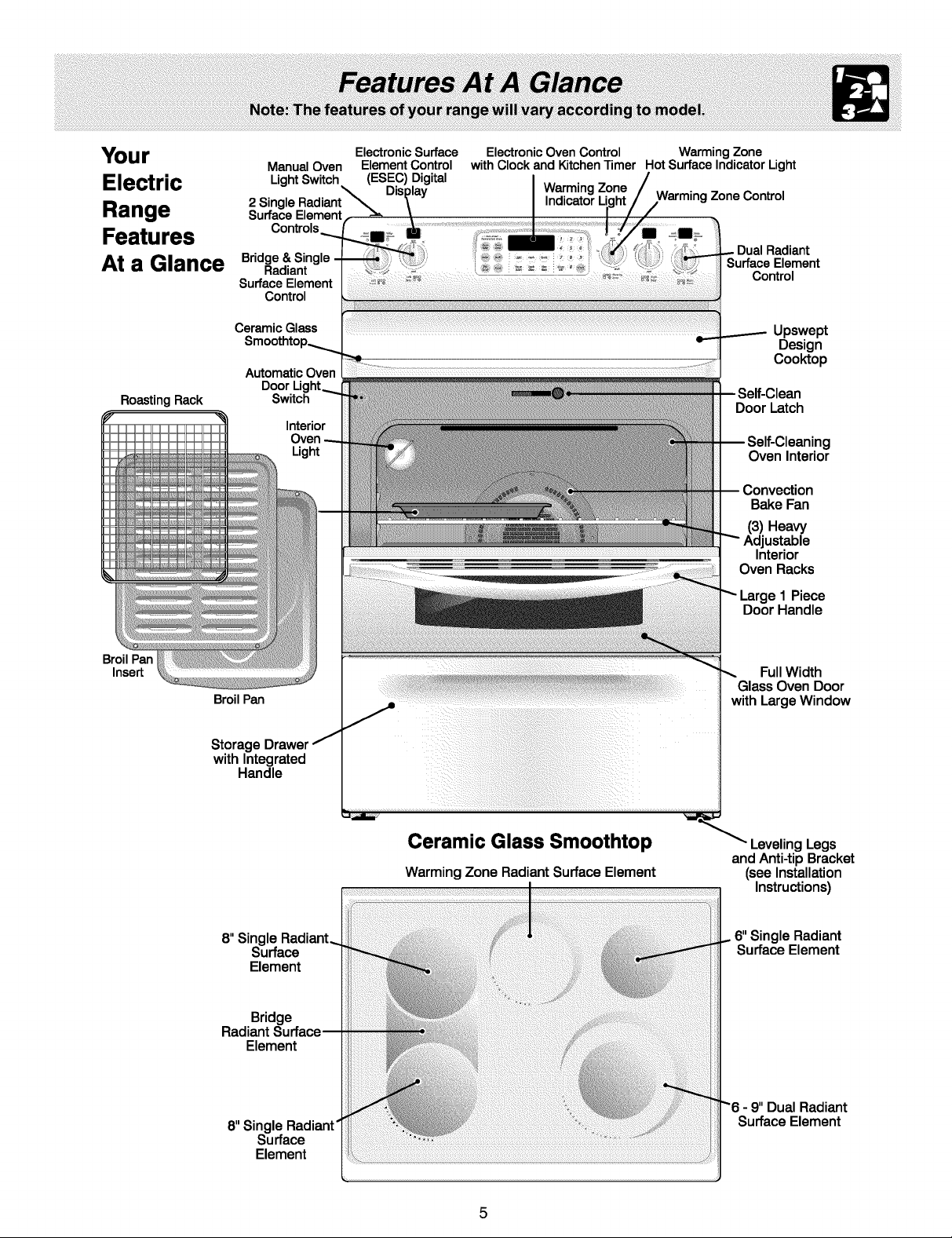

Your

Electric

Range

Features

At a Glance

Roasting Rack

Broil Pan

Insert

Manual Oven

Control

Ceramic Glass

Smoothtop_

AutomaticOven

DoorLi

Switch

BroilPan

StorageDrawerj

withIntegrated

Handle

ElectronicSurface ElectronicOven Control WarmingZone

ElementControl with Clock and KitchenTimer Hot SurfaceIndicatorLight

e---

Ceramic Glass Smoothtop

WarmingZone RadiantSurfaceElement

Upswept

Design

Cooktop

DoorLatch

Oven Interior

Bake Fan

(3) Heavy

ustable

Interior

Oven Racks

e 1 Piece

Door Handle

FullWidth

Glass Oven Door

with Large Window

"_"_ Leveling Legs

and Anti-tipBracket

(see Installation

Instructions)

8"Single

Surface

Element

6" Single Radiant

Surface Element

Bridge

Element

8" Single Radiant"

Surface

Element

9" Dual Radiant

Surface Element

Your Electric ElectronicOvenControl

with Clock and WarmingZone

r,_°an-e ManualOven WarmingDrawer Kitchen,Timer Hot SurfaceIndicatorLight

Features LightSwitch Controland =1WarmingZone Warming ElectronicSurface

IndicatorLight Indicator Zone Control ElementControl

2 Single Radiant DigitalDisplay

At a Glance Surface

Controls DualRadiant

Bridge& Single - Element

Radiant Control

SurfaceElement

Control

(Stainless Steel

models only)

Ceramic Glass

Broil

Pan

Insert

Automatic Oven

Door Li

Roasting Rack Switch

Interior

Light

Broil Pan

Warming Drawer

with Stainless Steel

Handle and Rack

Design

Cooktop

Door Latch

Oven Interior

Convection

Bake Fan

(3) Heavy

Adjustable

Interior

Oven Racks

Large 1 Piece

Door Handle

Full Width

Stainless Steel

Oven Door with

Large Window

Ceramic Glass Smoothtop

Warming Zone Radiant Surface Element

"Leveling Legs

and Anti-tip Bracket

(see Installation

Instructions)

8"Single Radiant

Surface

Element

6"Single Radiant

Surface Element

Bridge

Radiant I

Element

8"Single Radiant'

Surface

Element

- 9" Dual Radiant

Surface Element

Cooktop Appearance

F_o/t R_IF

Left front Left rear

Figure 1

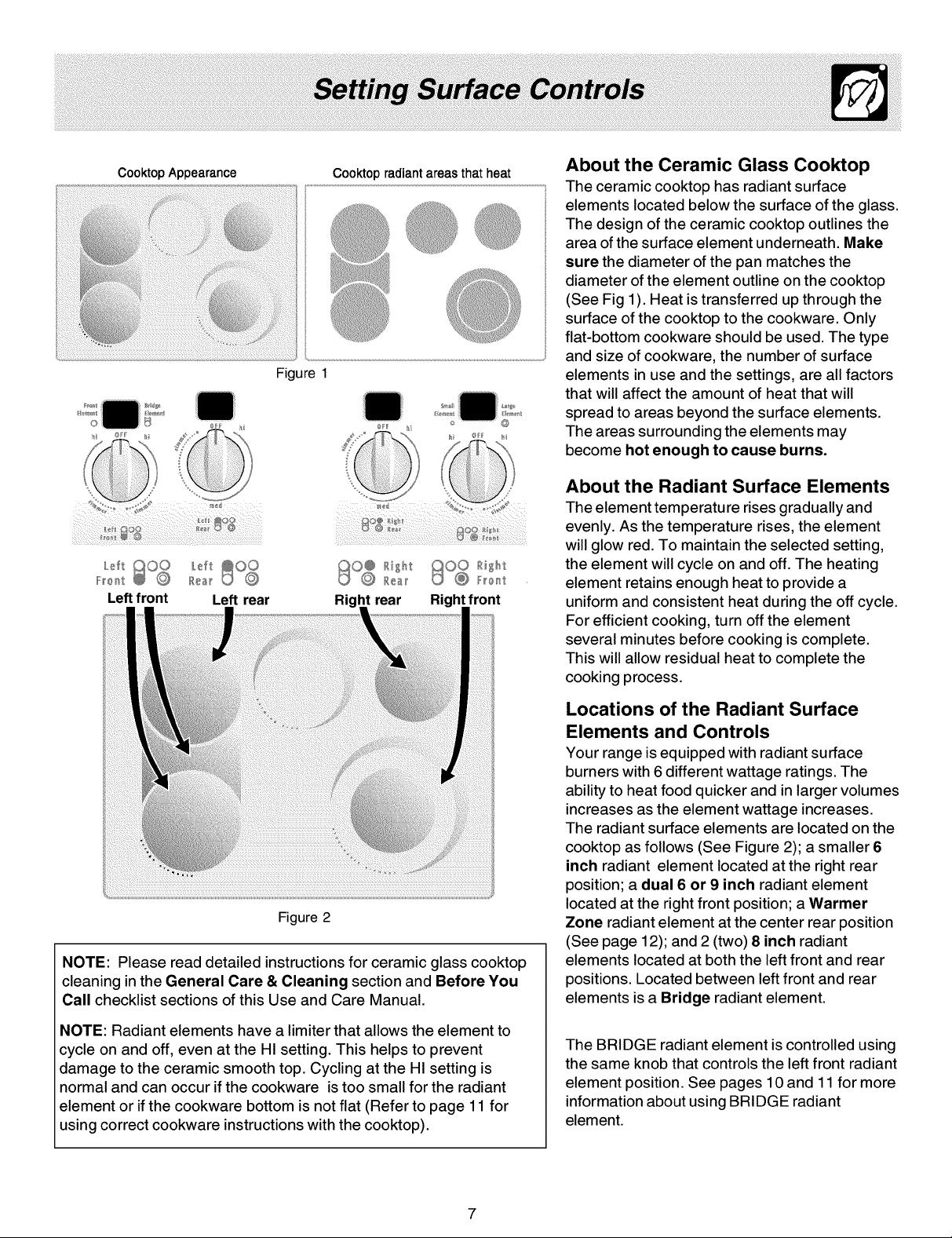

About the Ceramic Glass Cooktop

Cooktop radiant areas that heat

The ceramic cooktop has radiant surface

,_ elements located below the surface of the glass.

,,_.i!ii_,_ is _i! _ The design of the ceramic cooktop outlines the

_:_!;_i_,_ area of the surface element underneath. Make

sure the diameter of the pan matches the

., _,, _. diameter of the element outline on the cooktop

(See Fig 1). Heat is transferred up through the

_ surface of the cooktop to the cookware. Only

_;_:_ flat-bottom cookware should be used. The type

and size of cookware, the number of surface

elements in use and the settings, are all factors

that will affect the amount of heat that will

spread to areas beyond the surface elements.

° ° @ The areas surrounding the elements may

become hot enough to cause burns.

About the Radiant Surface Elements

" The element temperature rises gradually and

evenly. As the temperature rises, the element

will glow red. To maintain the selected setting,

_ _i/tt _ _i,_t the element will cycle on and off. The heating

_t_ _t element retains enough heat to provide a

Rigl rear Rightfront uniform and consistent heat during the off cycle.

For efficient cooking, turn off the element

several minutes before cooking is complete.

This will allow residual heat to complete the

cooking process.

Figure 2

NOTE: Please read detailed instructions for ceramic glass cooktop

cleaning in the General Care & Cleaning section and Before You

Call checklist sections of this Use and Care Manual.

NOTE: Radiant elements have a limiter that allows the element to

cycle on and off, even at the HI setting. This helps to prevent

damage to the ceramic smooth top. Cycling at the HI setting is

normal and can occur if the cookware is too small for the radiant

element or if the cookware bottom is not flat (Refer to page 11 for

using correct cookware instructions with the cooktop).

Locations of the Radiant Surface

Elements and Controls

Your range is equipped with radiant surface

burners with 6 different wattage ratings. The

ability to heat food quicker and in larger volumes

increases as the element wattage increases.

The radiant surface elements are located on the

cooktop as follows (See Figure 2); a smaller 6

inch radiant element located at the right rear

position; a dual 6 or 9 inch radiant element

located at the right front position; a Warmer

Zone radiant element at the center rear position

(See page 12); and 2 (two) 8 inch radiant

elements located at both the left front and rear

positions. Located between left front and rear

elements is a Bridge radiant element.

The BRIDGE radiant element is controlled using

the same knob that controls the left front radiant

element position. See pages 10 and 11 for more

information about using BRIDGE radiant

element.

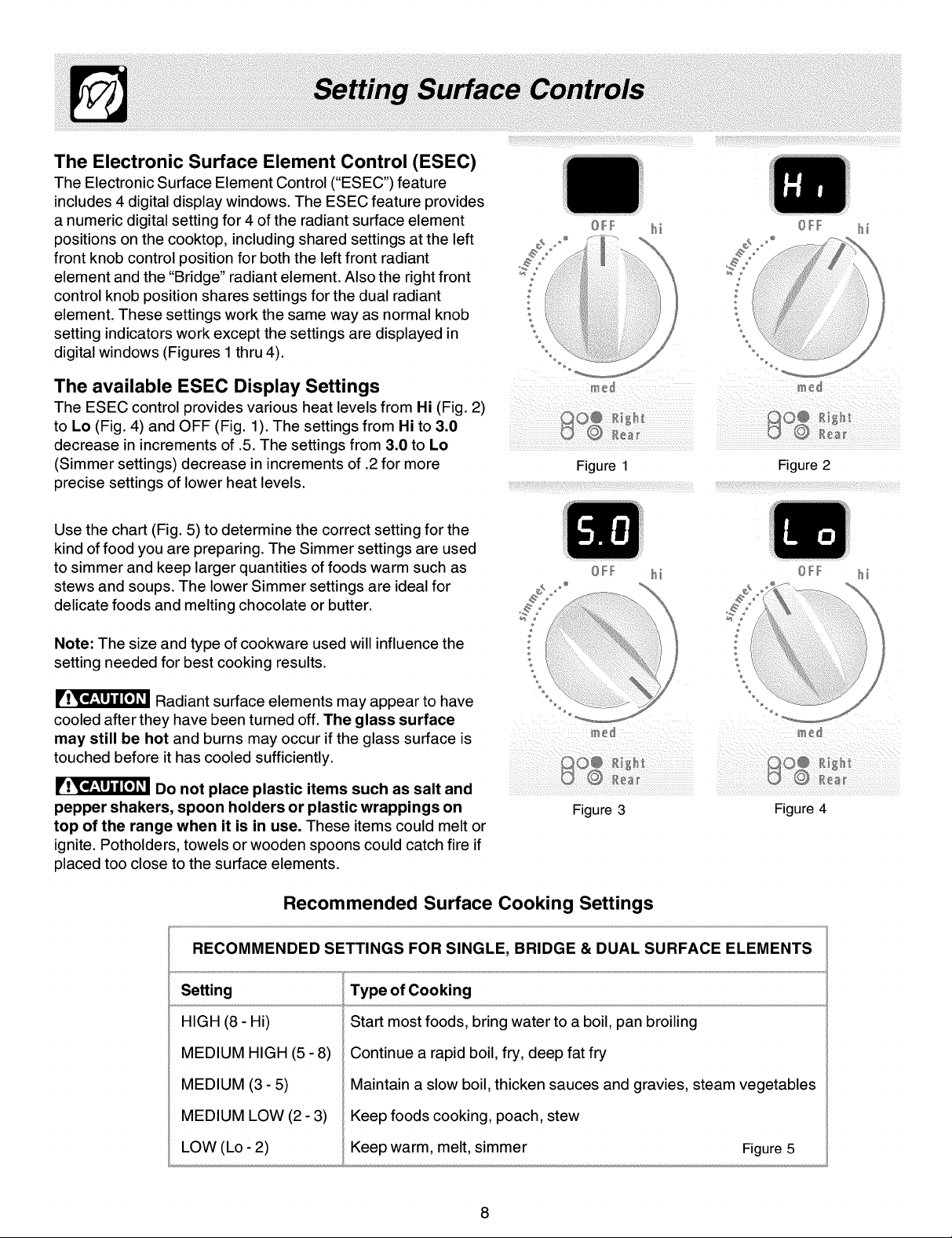

The Electronic Surface Element Control (ESEC)

The Electronic Surface Element Control CESEC') feature

includes 4 digital display windows. The ESEC feature provides

a numeric digital setting for 4 of the radiant surface element

positions on the cooktop, including shared settings at the left

front knob control position for both the left front radiant

element and the "Bridge" radiant element. Also the right front

control knob position shares settings for the dual radiant

element. These settings work the same way as normal knob

setting indicators work except the settings are displayed in

digital windows (Figures 1 thru 4).

The available ESEC Display Settings

The ESEC control provides various heat levels from Hi (Fig. 2)

to Lo (Fig. 4) and OFF (Fig. 1). The settings from Hi to 3.0

decrease in increments of .5. The settings from 3.0 to Lo

(Simmer settings) decrease in increments of .2 for more

precise settings of lower heat levels.

:i_i;:i!ii::!::!:!f!i_::i:ii:i::;!:i:i:iii:ili!i!!:::ii!!i!;fi;i:!:ii::!::i;;!;;;;;;;;:::;;::!::;!;:;;;i;_i;!;!_:i:if:iiill!!;i!i:!:!i_i:!:!: :i_i;i;::ii:::::!::J!!i!::ili:;:i:ii:;!i_:i!i!!?i_:::::!!i;::f::;i!::::i:i;:::i;{:;;::;;::;;::!::;;;;;;;;i:_ii!:ii:iii:iii:il;!ii:¸i:¸¸!!!!!i!!:!

OFF hi OFF hi

med

Figure 2

Use the chart (Fig. 5) to determine the correct setting for the

kind of food you are preparing. The Simmer settings are used

to simmer and keep larger quantities of foods warm such as

stews and soups. The lower Simmer settings are ideal for

delicate foods and melting chocolate or butter.

Note: The size and type of cookware used will influence the

setting needed for best cooking results.

Radiant surface elements may appear to have

cooled after they have been turned off. The glass surface

may still be hot and burns may occur if the glass surface is

touched before it has cooled sufficiently.

Do not place plastic items such as salt and

pepper shakers, spoon holders or plastic wrappings on

top of the range when it is in use. These items could melt or

ignite. Potholders, towels or wooden spoons could catch fire if

placed too close to the surface elements.

OFF _:

Re_

Figure 3

Recommended Surface Cooking Settings

OFF :::

Figure 4

RECOMMENDED SETTINGS FOR SINGLE, BRIDGE & DUAL SURFACE ELEMENTS

Setting

HIGH (8- Hi)

MEDIUM HIGH (5 - 8)

MEDIUM (3- 5)

MEDIUM LOW (2- 3)

LOW (Lo- 2)

Type of Cooking

Start most foods, bring water to a boil, pan broiling

Continue a rapid boil, fry, deep fat fry

Maintain a slow boil, thicken sauces and gravies, steam vegetables

Keep foods cooking, poach, stew

Keep warm, melt, simmer

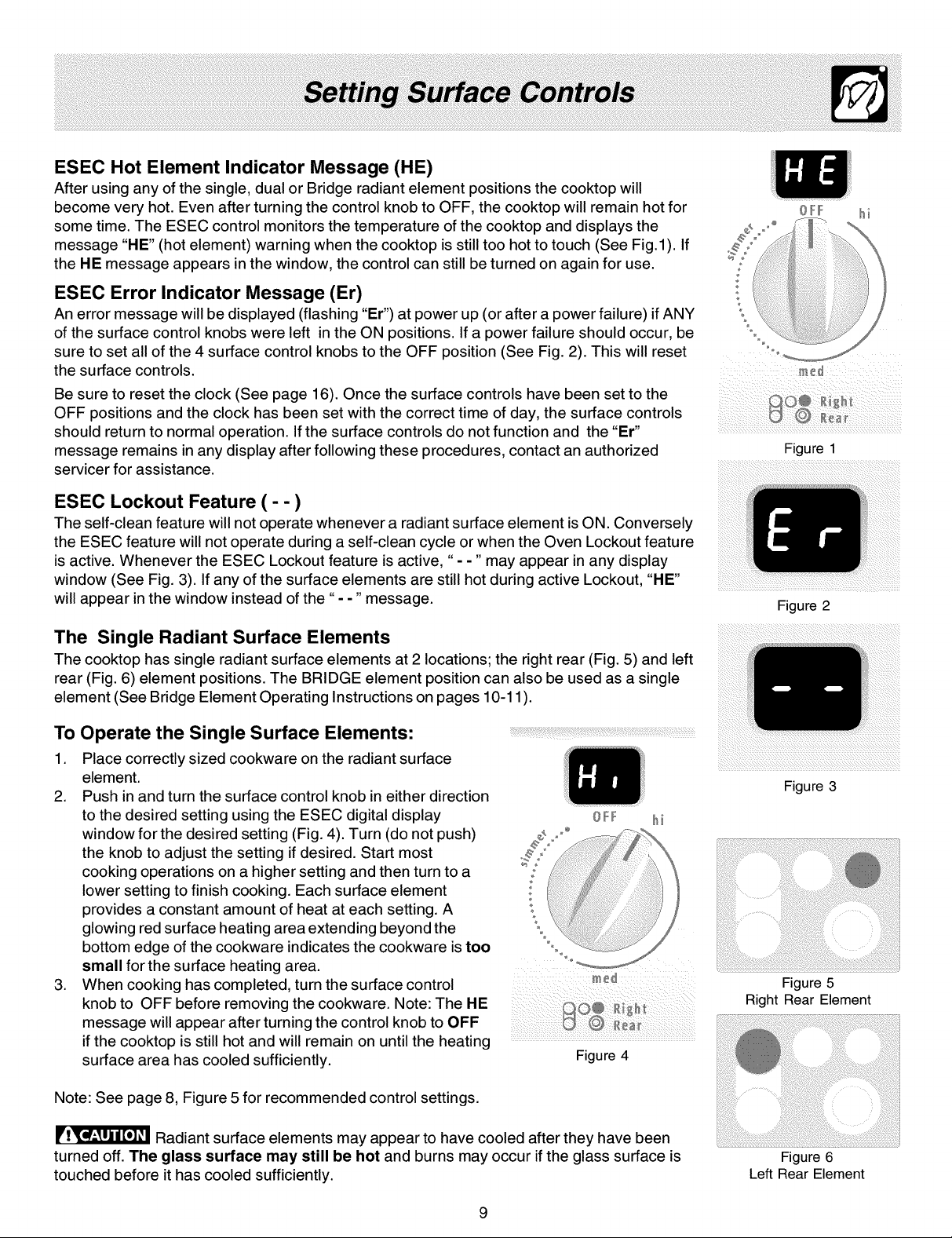

ESEC Hot Element Indicator Message (HE)

After using any of the single, dual or Bridge radiant element positions the cooktop will

become very hot. Even after turning the control knob to OFF, the cooktop will remain hot for

some time. The ESEC control monitors the temperature of the cooktop and displays the

message "HE" (hot element) warning when the cooktop is stilltoo hot to touch (See Fig.1). If

the HE message appears in the window, the control can still be turned on again for use.

ESEC Error Indicator Message (Er)

An error message will be displayed (flashing "Er') at power up (or after a power failure) if ANY

of the surface control knobs were left in the ON positions. If a power failure should occur, be

sure to set all of the 4 surface control knobs to the OFF position (See Fig. 2). This will reset

the surface controls.

Be sure to reset the clock (See page 16). Once the surface controls have been set to the

OFF positions and the clock has been set with the correct time of day, the surface controls

should return to normal operation. If the surface controls do not function and the "Er"

message remains in any display after following these procedures, contact an authorized

servicer for assistance.

ESEC Lockout Feature ( - - )

The self-clean feature will not operate whenever a radiant surface element is ON. Conversely

the ESEC feature will not operate during a self-clean cycle or when the Oven Lockout feature

is active. Whenever the ESEC Lockout feature is active, "- -" may appear in any display

window (See Fig. 3). If any of the surface elements are still hot during active Lockout, "HE"

will appear in the window instead of the "- -" message.

The Single Radiant Surface Elements

The cooktop has single radiant surface elements at 2 locations; the right rear (Fig. 5) and left

rear (Fig. 6) element positions. The BRIDGE element position can also be used as a single

element (See Bridge Element Operating Instructions on pages 10-11).

Figure 2

To Operate the Single Surface Elements:

Place correctly sized cookware on the radiant surface

element.

Push in and turn the surface control knob in either direction

to the desired setting using the ESEC digital display

window for the desired setting (Fig. 4). Turn (do not push)

the knob to adjust the setting if desired. Start most

cooking operations on a higher setting and then turn to a

lower setting to finish cooking. Each surface element

provides a constant amount of heat at each setting. A

glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is too

OFF £1

small for the surface heating area.

When cooking has completed, turn the surface control _el

knob to OFF before removing the cookware. Note: The HE ill

message will appear after turning the control knob to OFF

if the cooktop is still hot and will remain on until the heating .......................................................................................................

surface area has cooled sufficiently. Figure 4

Figure 3

Note: See page 8, Figure 5 for recommended control settings.

Radiant surface elements may appear to have cooled after they have been

turned off. The glass surface may still be hot and burns may occur if the glass surface is

touched before it has cooled sufficiently.

Figure 5

Right Rear Element

Figure 6

Left Rear Element

Figure 1 Figure 4

Sm_H

[_e_eHt

Ra_ge $matl

E_eme_t EIement

bi OFF hi OFF hi

Figure 2 Figure 5

Figure 3 Figure 6

The Bridge Surface Radiant Element

The cooktop is equipped with a "BRIDGE" surface

element located at the left front and middle (See Fig. 10)

positions. The Bridge can be used when cooking with

rectangular (like a griddle) or oval shaped cookware (Fig.

10). The element will maintain an even temperature

setting across both portions of the Bridge. If needed for

normal cookware, the Bridge element can work like a

single element without the Bridge (See Fig. 8).

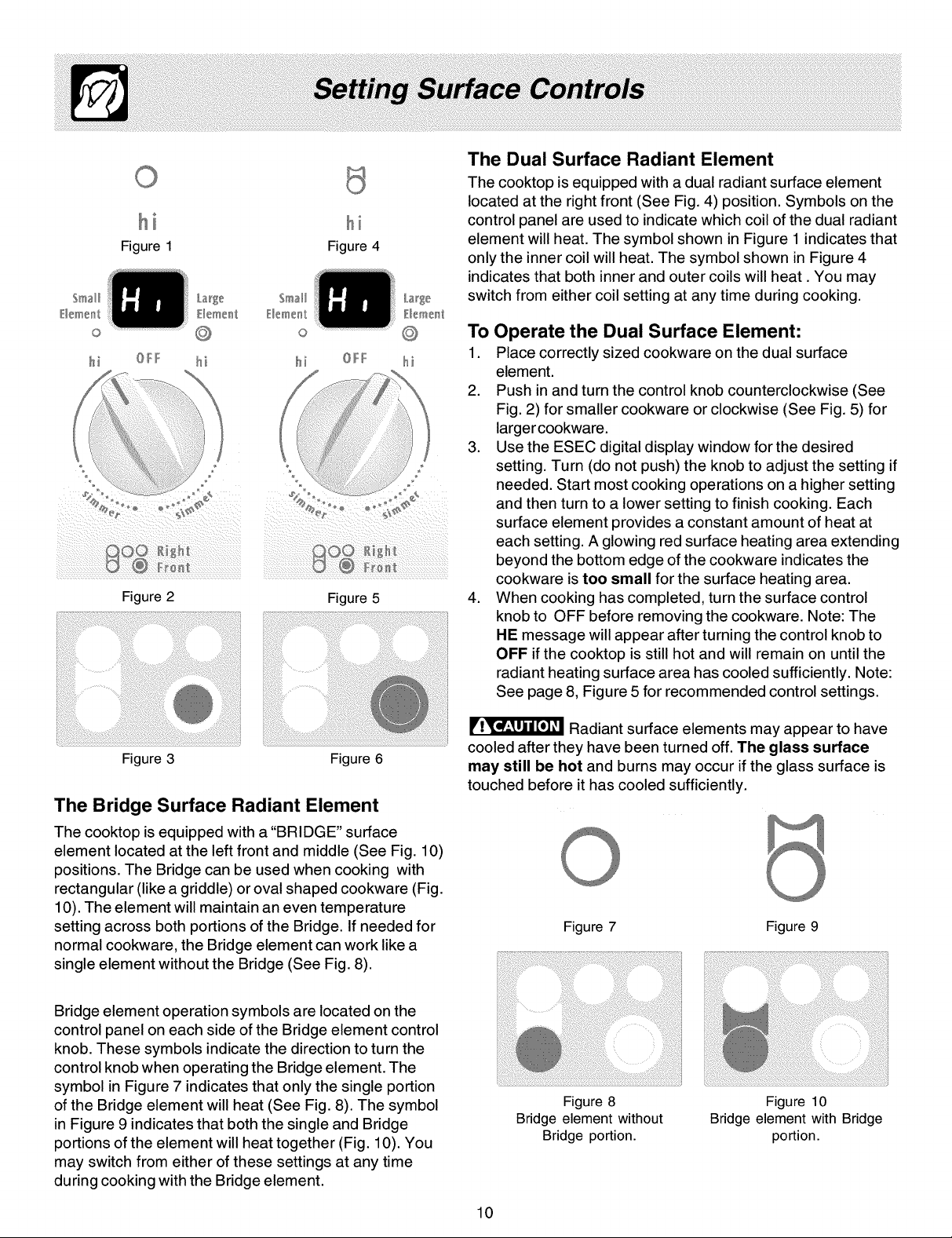

The Dual Surface Radiant Element

The cooktop is equipped with a dual radiant surface element

located at the rightfront (See Fig. 4) position. Symbols on the

control panel are used to indicate which coil of the dual radiant

element will heat. The symbol shown in Figure 1 indicates that

only the inner coil will heat. The symbol shown in Figure 4

indicates that both inner and outer coils will heat. You may

switch from either coil setting at any time during cooking.

To Operate the Dual Surface Element:

1. Place correctly sized cookware on the dual surface

element.

2. Push inand turn the control knob counterclockwise (See

Fig. 2) for smaller cookware or clockwise (See Fig. 5) for

largercookware.

3. Use the ESEC digital display window for the desired

setting. Turn (do not push) the knob to adjust the setting if

needed. Start most cooking operations on a higher setting

and then turn to a lower setting to finish cooking. Each

surface element provides a constant amount of heat at

each setting. A glowing red surface heating area extending

beyond the bottom edge of the cookware indicates the

cookware is too small for the surface heating area.

4. When cooking has completed, turn the surface control

knob to OFF before removing the cookware. Note: The

HE message will appear after turning the control knob to

OFF if the cooktop is still hot and will remain on until the

radiant heating surface area has cooled sufficiently. Note:

See page 8, Figure 5 for recommended control settings.

Radiant surface elements may appear to have

cooled after they have been turned off. The glass surface

may still be hot and burns may occur if the glass surface is

touched before it has cooled sufficiently.

Figure 7 Figure 9

Bridge element operation symbols are located on the

control panel on each side of the Bridge element control

knob. These symbols indicate the direction to turn the

control knob when operating the Bridge element. The

symbol in Figure 7 indicates that only the single portion

of the Bridge element will heat (See Fig. 8). The symbol

in Figure 9 indicates that both the single and Bridge

portions of the element will heat together (Fig. 10). You

may switch from either of these settings at any time

during cooking with the Bridge element.

Figure 8

Bridge element without

Bridge portion.

Figure 10

Bridge element with Bridge

portion.

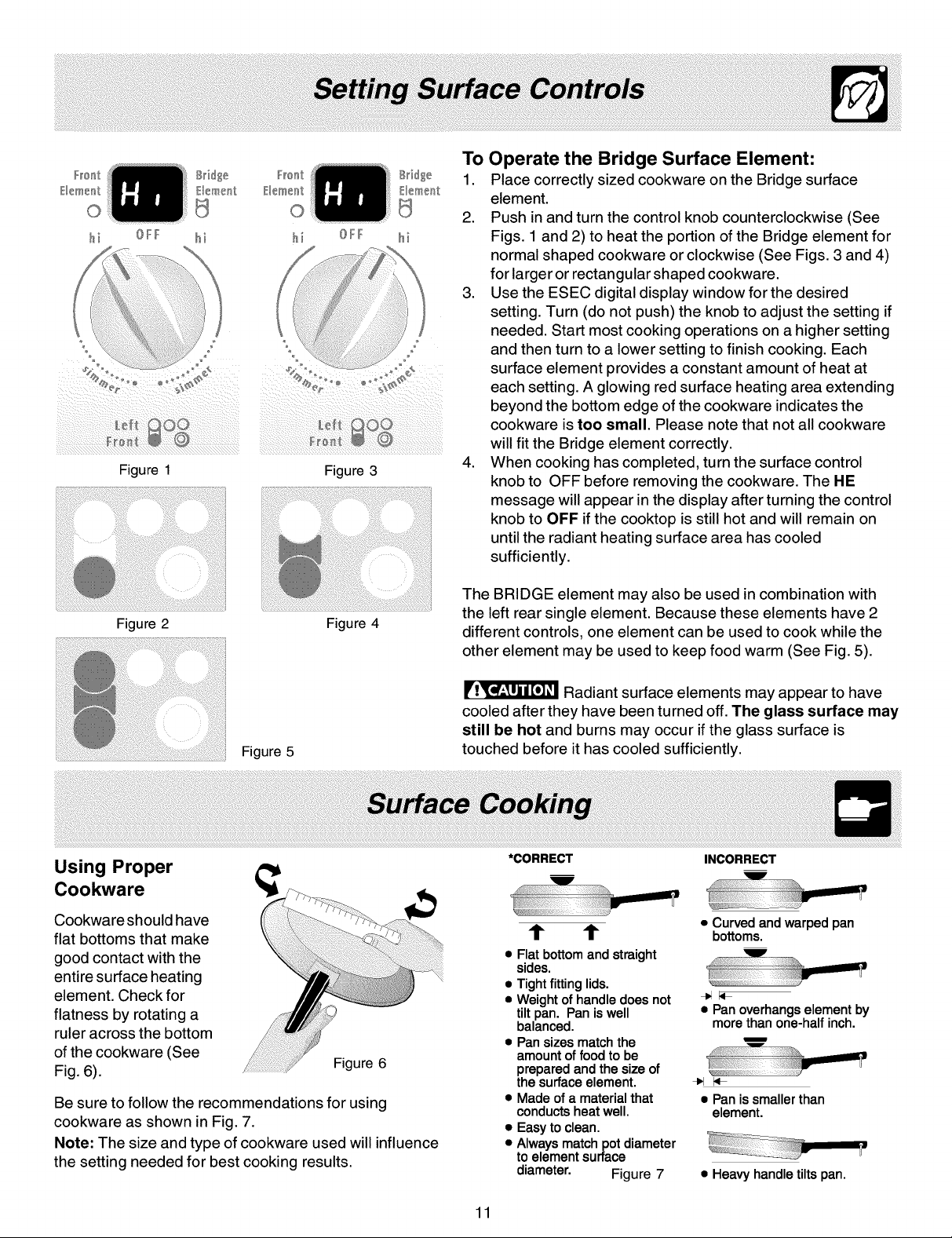

Element

Ii OFF £i

Fron_@

Figure 1

Figure 2

£1eme_t

Figure 5

OFF £i

I1111

Figure 3

Figure 4

To Operate the Bridge Surface Element:

1. Place correctly sized cookware on the Bridge surface

element.

2. Push in and turn the control knob counterclockwise (See

Figs. 1 and 2) to heat the portion of the Bridge element for

normal shaped cookware or clockwise (See Figs. 3 and 4)

for larger or rectangular shaped cookware.

3. Use the ESEC digital display window for the desired

setting. Turn (do not push) the knob to adjust the setting if

needed. Start most cooking operations on a higher setting

and then turn to a lower setting to finish cooking. Each

surface element provides a constant amount of heat at

each setting. A glowing red surface heating area extending

beyond the bottom edge of the cookware indicates the

cookware is too small. Please note that not all cookware

will fit the Bridge element correctly.

4. When cooking has completed, turn the surface control

knob to OFF before removing the cookware. The HE

message will appear in the display after turning the control

knob to OFF if the cooktop is still hot and will remain on

until the radiant heating surface area has cooled

sufficiently.

The BRIDGE element may also be used in combination with

the left rear single element. Because these elements have 2

different controls, one element can be used to cook while the

other element may be used to keep food warm (See Fig. 5).

Radiant surface elements may appear to have

cooled after they have been turned off. The glass surface may

still be hot and burns may occur if the glass surface is

touched before it has cooled sufficiently.

Using Proper

Cookware

Cookware should have

flat bottoms that make

good contact with the

entire surface heating

element. Check for

flatness by rotating a

ruler across the bottom

of the cookware (See

Fig. 6).

Figure 6

Be sure to follow the recommendations for using

cookware as shown in Fig. 7.

Note: The size and type of cookware used will influence

the setting needed for best cooking results.

*CORRECT INCORRECT

t t

• Flat bottom and straight

sides.

• Tight fitting lids.

• Weight of handle does not

tilt pan. Pan is well

balanced.

• Pan sizes match the

amount of food to be

prepared and the size of

the surface element.

• Made of a material that

conducts heat well.

• Easy to clean.

• Always match pot diameter

to element surface

diameter. Figure 7

• Curved andwarpedpan

bottoms.

• Pan overhangs element by

more than one-half inch.

ii!!i1!iiliii11!i!ilii!_ii!iii;!!!i%_

'i_;iii;ii::;i:!iiiiill iliil;: ='

_iiii]11:]]=1i:)

• Pan is smaller than

element.

• Heavy handle tilts pan.

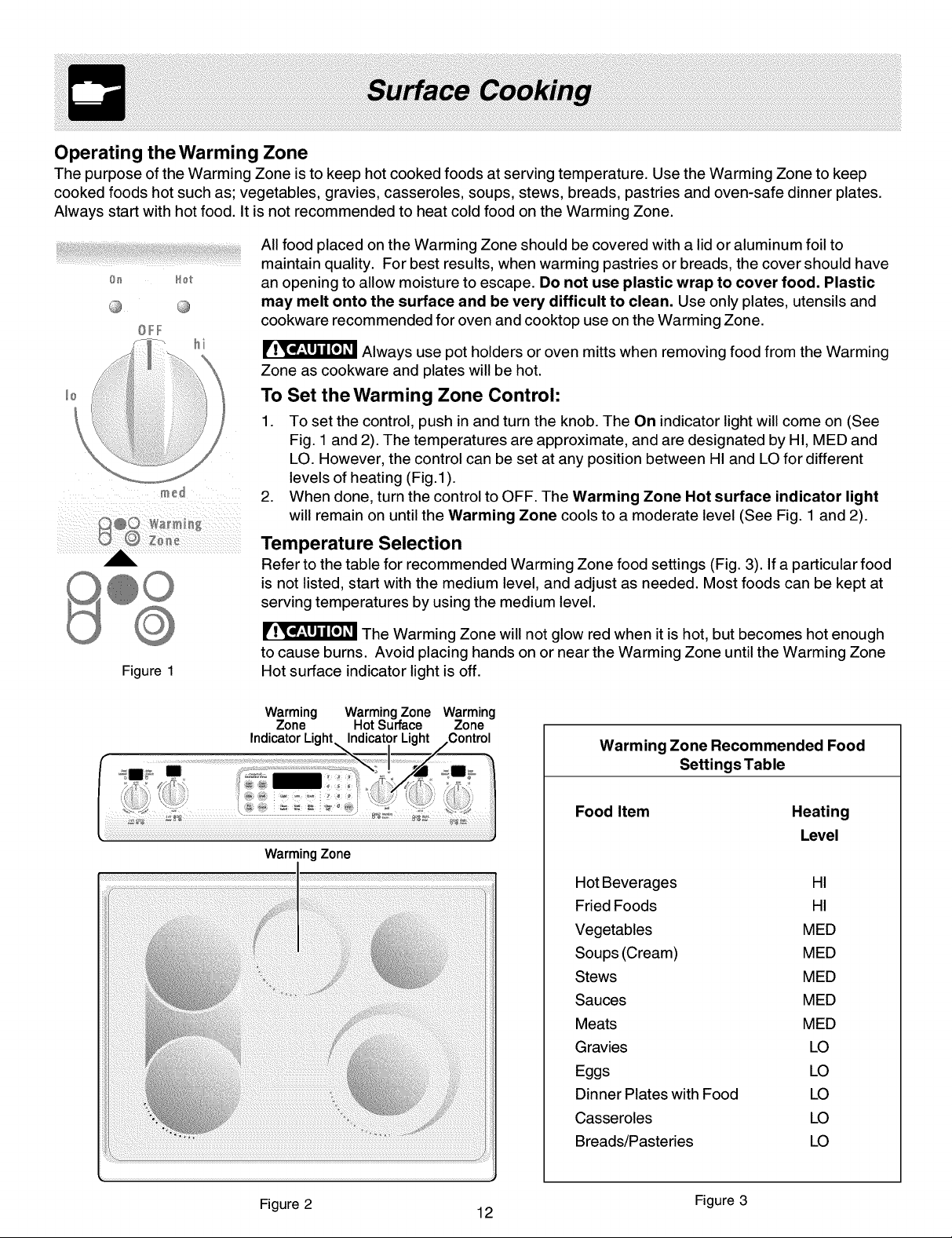

Operating the Warming Zone

The purpose of the Warming Zone is to keep hot cooked foods at serving temperature. Use the Warming Zone to keep

cooked foods hot such as; vegetables, gravies, casseroles, soups, stews, breads, pastries and oven-safe dinner plates.

Always start with hot food. It is not recommended to heat cold food on the Warming Zone.

¸ii

@ @

OFF

Figure 1

All food placed on the Warming Zone should be covered with a lid or aluminum foil to

maintain quality. For best results, when warming pastries or breads, the cover should have

an opening to allow moisture to escape. Do not use plastic wrap to cover food. Plastic

may melt onto the surface and be very difficult to clean. Use only plates, utensils and

cookware recommended for oven and cooktop use on the Warming Zone.

Always use pot holders or oven mitts when removing food from the Warming

Zone as cookware and plates will be hot.

To Set the Warming Zone Control:

1. To set the control, push in and turn the knob. The On indicator light will come on (See

Fig. 1 and 2). The temperatures are approximate, and are designated by HI, MED and

LO. However, the control can be set at any position between HI and LO for different

levels of heating (Fig.1).

2. When done, turn the control to OFF. The Warming Zone Hot surface indicator light

will remain on until the Warming Zone cools to a moderate level (See Fig. 1 and 2).

Temperature Selection

Refer to the table for recommended Warming Zone food settings (Fig. 3). If a particular food

is not listed, start with the medium level, and adjust as needed. Most foods can be kept at

serving temperatures by using the medium level.

The Warming Zone will not glow red when it is hot, but becomes hot enough

to cause burns. Avoid placing hands on or near the Warming Zone until the Warming Zone

Hot surface indicator light is off.

Warming Warming Zone Warming

Zone Hot Surface Zone

Indicator Li Indicator

Warming Zone

Warming Zone Recommended Food

Settings Table

Food Item

Heating

Level

Hot Beverages HI

Fried Foods HI

Vegetables MED

Soups (Cream) MED

Stews MED

Sauces MED

Meats MED

Gravies LO

Eggs LO

Dinner Plates with Food LO

Casseroles LO

Breads/Pasteries LO

Figure 3

Figure 2 12

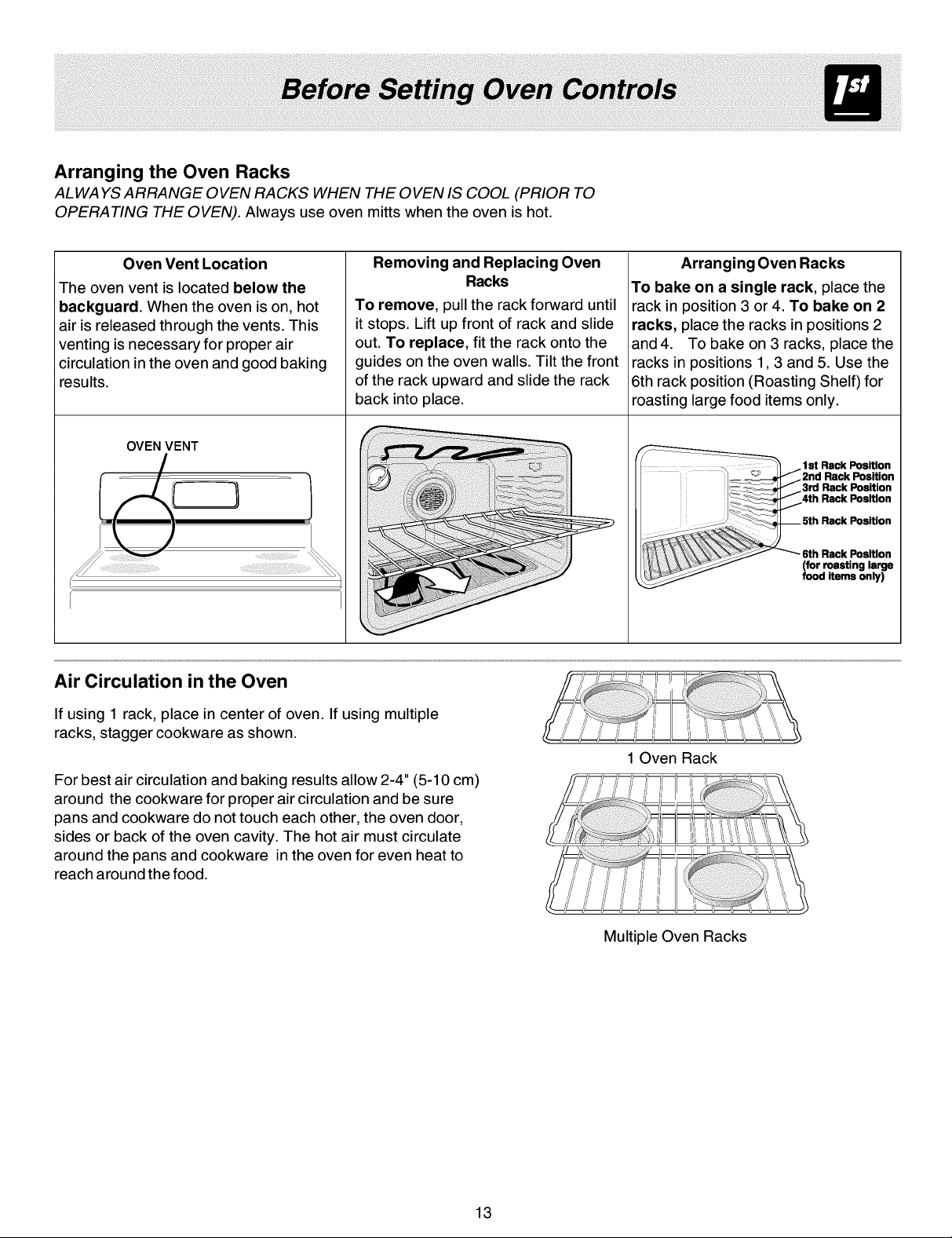

Arranging the Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO

OPERATING THE OVEN). Always use oven mitts when the oven is hot.

Oven Vent Location

The oven vent is located below the

backguard. When the oven is on, hot

air is released through the vents. This

venting is necessary for proper air

circulation in the oven and good baking

results.

OVEN VENT

Removing and Replacing Oven

Racks

To remove, pull the rack forward until

it stops. Lift up front of rack and slide

out. To replace, fit the rack onto the

guides on the oven walls. Tilt the front

of the rack upward and slide the rack

back into place.

Arranging Oven Racks

To bake on a single rack, place the

rack in position 3 or 4. To bake on 2

racks, place the racks in positions 2

and 4. To bake on 3 racks, place the

racks in positions 1,3 and 5. Use the

6th rack position (Roasting Shelf) for

roasting large food items only.

1st Rack Position

2nd Rack Position

3rd Rack Position

4th Rack Position

5th Rack Position

6th Rack Position

(for masting large

food items only)

Air Circulation in the Oven

If using 1 rack, place in center of oven. If using multiple

racks, stagger cookware as shown.

For best air circulation and baking results allow 2-4" (5-10 cm)

around the cookware for proper air circulation and be sure

pans and cookware do not touch each other, the oven door,

sides or back of the oven cavity. The hot air must circulate

around the pans and cookware in the oven for even heat to

reach around the food.

1 Oven Rack

Multiple Oven Racks

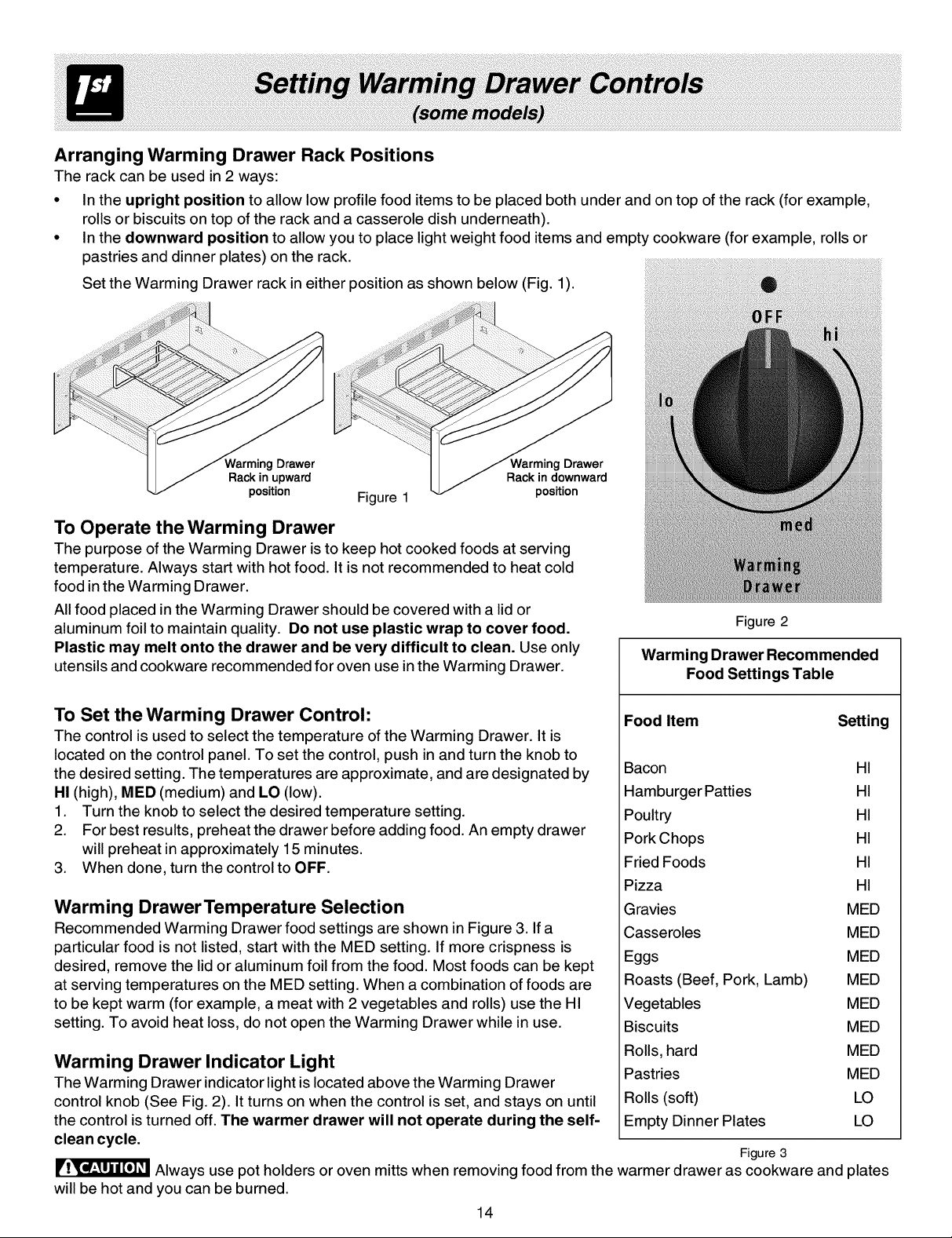

Arranging Warming Drawer Rack Positions

The rack can be used in 2 ways:

• In the upright position to allow low profile food items to be placed both under and on top of the rack (for example,

rolls or biscuits on top of the rack and a casserole dish underneath).

• In the downward position to allow you to place light weight food items and empty cookware (for example, rolls or

pastries and dinner plates) on the rack.

Set the Warming Drawer rack in either position as shown below (Fig. 1).

Drawer

Rack in upward

position

Figure 1

=gDrawer

Rack in downward

position

To Operate the Warming Drawer

The purpose of the Warming Drawer is to keep hot cooked foods at serving

temperature. Always start with hot food. It is not recommended to heat cold

food inthe Warming Drawer.

All food placed inthe Warming Drawer should be covered with a lid or

aluminum foil to maintain quality. Do not use plastic wrap to cover food.

Plastic may melt onto the drawer and be very difficult to clean. Use only

utensils and cookware recommended for oven use in the Warming Drawer.

To Set the Warming Drawer Control:

The control is used to select the temperature of the Warming Drawer. It is

located on the control panel. To set the control, push in and turn the knob to

the desired setting. The temperatures are approximate, and are designated by

HI (high), MED (medium) and LO (low).

1. Turn the knob to select the desired temperature setting.

2. For best results, preheat the drawer before adding food. An empty drawer

will preheat in approximately 15 minutes.

3. When done, turn the control to OFF.

Warming DrawerTemperature Selection

Recommended Warming Drawer food settings are shown in Figure 3. If a

particular food is not listed, start with the MED setting. If more crispness is

desired, remove the lid or aluminum foil from the food. Most foods can be kept

at serving temperatures on the MED setting. When a combination of foods are

to be kept warm (for example, a meat with 2 vegetables and rolls) use the HI

setting. To avoid heat loss, do not open the Warming Drawer while in use.

Figure 2

Warming Drawer Recommended

Food Settings Table

Food Item Setting

Warming Drawer Indicator Light

The Warming Drawer indicator light is located above the Warming Drawer

control knob (See Fig. 2). It turns on when the control is set, and stays on until

the control is turned off. The warmer drawer will not operate during the self-

clean cycle.

Figure 3

Always use pot holders or oven mitts when removing food from the warmer drawer as cookware and plates

will be hot and you can be burned.

Bacon HI

Hamburger Patties HI

Poultry HI

Pork Chops HI

Fried Foods HI

Pizza HI

Gravies MED

Casseroles MED

Eggs MED

Roasts (Beef, Pork, Lamb) MED

Vegetables MED

Biscuits MED

Rolls, hard MED

Pastries MED

Rolls (soft) LO

Empty Dinner Plates LO

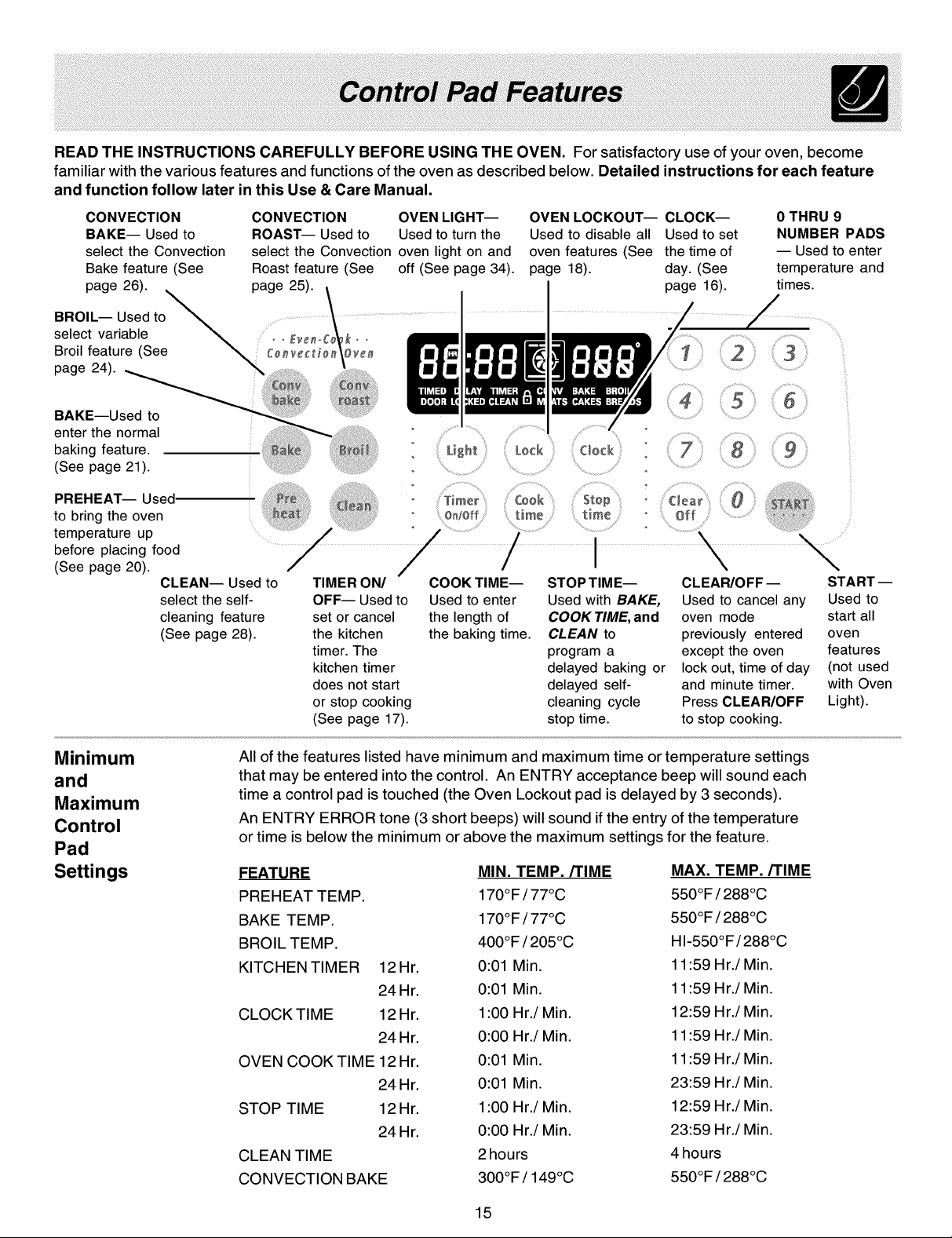

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become

familiar with the various features and functions of the oven as described below. Detailed instructions for each feature

and function follow later in this Use & Care Manual.

CONVECTION

BAKE-- Used to

select the Convection

Bake feature (See

(See page 21).

PREHEAT-- Used

to bring the oven

temperature up

before placing food

(See page 20).

CONVECTION OVEN LIGHT--

ROAST-- Used to Used to turn the

select the Convection oven light on and

Roast feature (See off (See page 34).

CLEAN-- Used to

select the self-

cleaning feature

(See page 28).

OVEN LOCKOUT-- CLOCK--

Used to disable all Used to set

oven features (See the time of

page 18). day. (See

page 16).

0 THRU 9

NUMBER PADS

-- Used to enter

temperature and

times.

TIMER ON/ COOK TIME-- STOP TIME-- CLEAR/OFF --

OFF-- Used to Used to enter Used with BAKE, Used to cancel any

set or cancel the length of COOK TIME, and oven mode

the kitchen the baking time. CLEAN to previously entered

timer. The program a except the oven

kitchen timer delayed baking or lock out, time of day

does not start delayed self- and minute timer.

or stop cooking cleaning cycle Press CLEAR/OFF

(See page 17). stop time. to stop cooking.

START --

Used to

start all

oven

features

(not used

with Oven

Light).

Minimum

and

Maximum

Control

Pad

Settings

All of the features listed have minimum and maximum time or temperature settings

that may be entered into the control. An ENTRY acceptance beep will sound each

time a control pad is touched (the Oven Lockout pad is delayed by 3 seconds).

An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature

or time is below the minimum or above the maximum settings for the feature.

FEATURE

PREHEAT TEMP.

BAKE TEMP.

BROILTEMP.

KITCHEN TIMER

CLOCK TIME

12Hr.

24 Hr.

12Hr.

24 Hr.

OVEN COOK TIME 12Hr.

24 Hr.

STOP TIME 12 Hr.

24 Hr.

CLEAN TIME

CONVECTION BAKE

MIN. TEMP./TIME MAX. TEMP./TIME

170°F/77°C 550°F / 288°C

400°F / 205°C H1-550°F/288°C

0:01 Min. 11:59 Hr./Min.

1:00 Hr./Min. 12:59 Hr./Min.

0:00 Hr./Min. 11:59 Hr./Min.

0:01 Min. 11:59 Hr./Min.

0:01 Min. 23:59 Hr./Min.

1:00 Hr./Min. 12:59 Hr./Min.

0:00 Hr./Min. 23:59 Hr./Min.

2 hours 4 hours

300°F/149°C 550°F/288°C

(liner Co_k

_l@ck

o)(

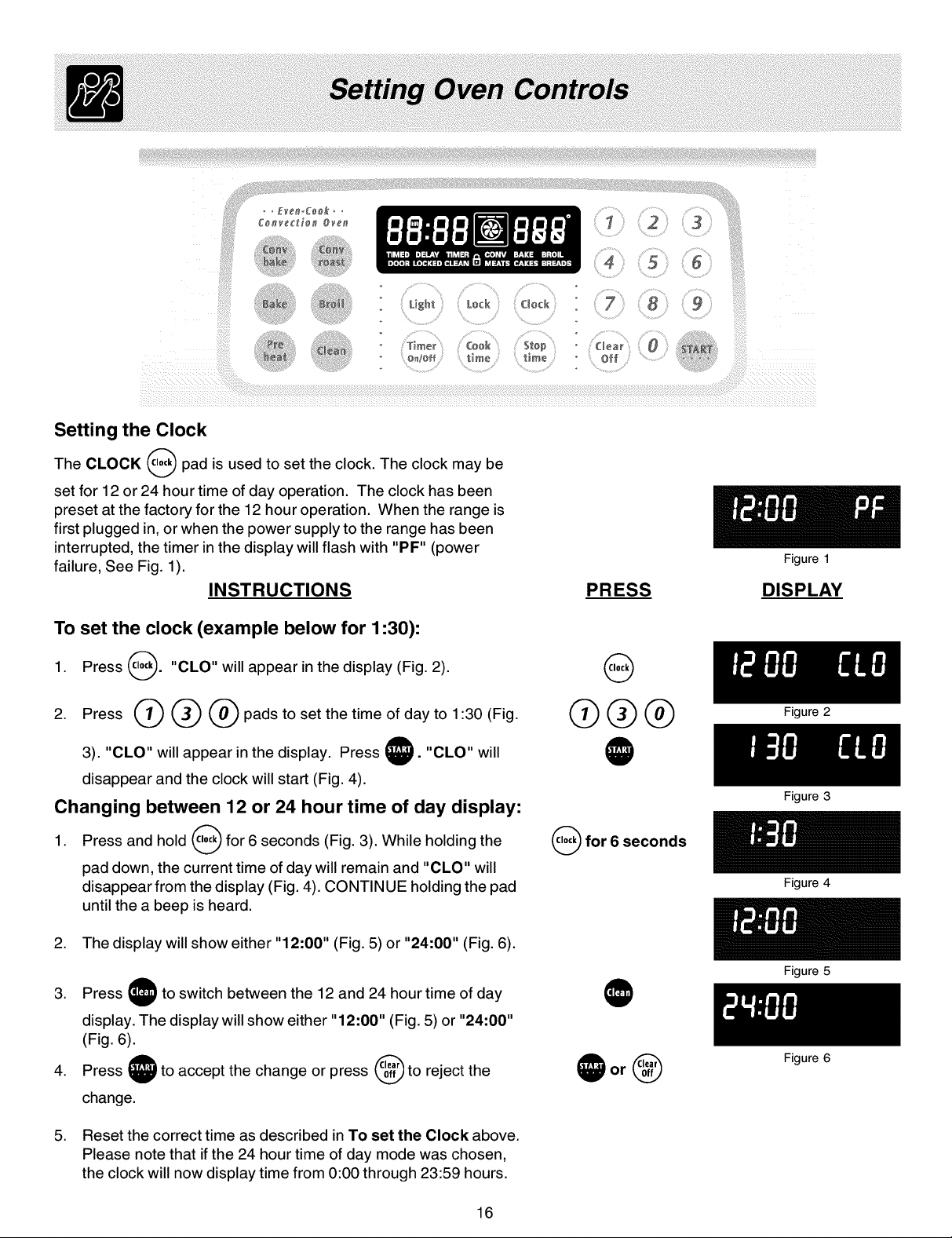

Setting the Clock

The CLOCK @ pad is used to set the clock. The clock may be

set for 12 or 24 hour time of day operation. The clock has been

preset at the factory for the 12 hour operation. When the range is

first plugged in, or when the power supply to the range has been

interrupted, the timer inthe display will flash with "PF" (power

failure, See Fig. 1).

INSTRUCTIONS

Figure 1

PRESS DISPLAY

To set the clock (example below for 1:30):

1. Press @. "CL0" will appear in the display (Fig. 2).

2. Press @ @ @padstosetthetimeofdaytol:30(Fig.

3). "CLO" will appear in the display. Press @1. "CLO" will

disappear and the clock will start (Fig. 4).

Changing between 12 or 24 hour time of day display:

1. Press and hold @ for 6 seconds (Fig. 3). While holding the

pad down, the current time of day will remain and "CLO" will

disappear from the display (Fig. 4). CONTINUE holding the pad

until the a beep is heard.

@@@

for 6 seconds

2. The display will show either "12:00" (Fig. 5) or "24:00" (Fig. 6).

A A

3. Press q_! to switch between the 12 and 24 hour time of day q_!

display. The display will show either "12:00" (Fig. 5) or "24:00"

(Fig. 6).

4. Press @ to accept the change or press @ to reject the @or@

change.

5. Reset the correct time as described in To set the Clock above.

Please note that if the 24 hour time of day mode was chosen,

the clock will now display time from 0:00 through 23:59 hours.

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

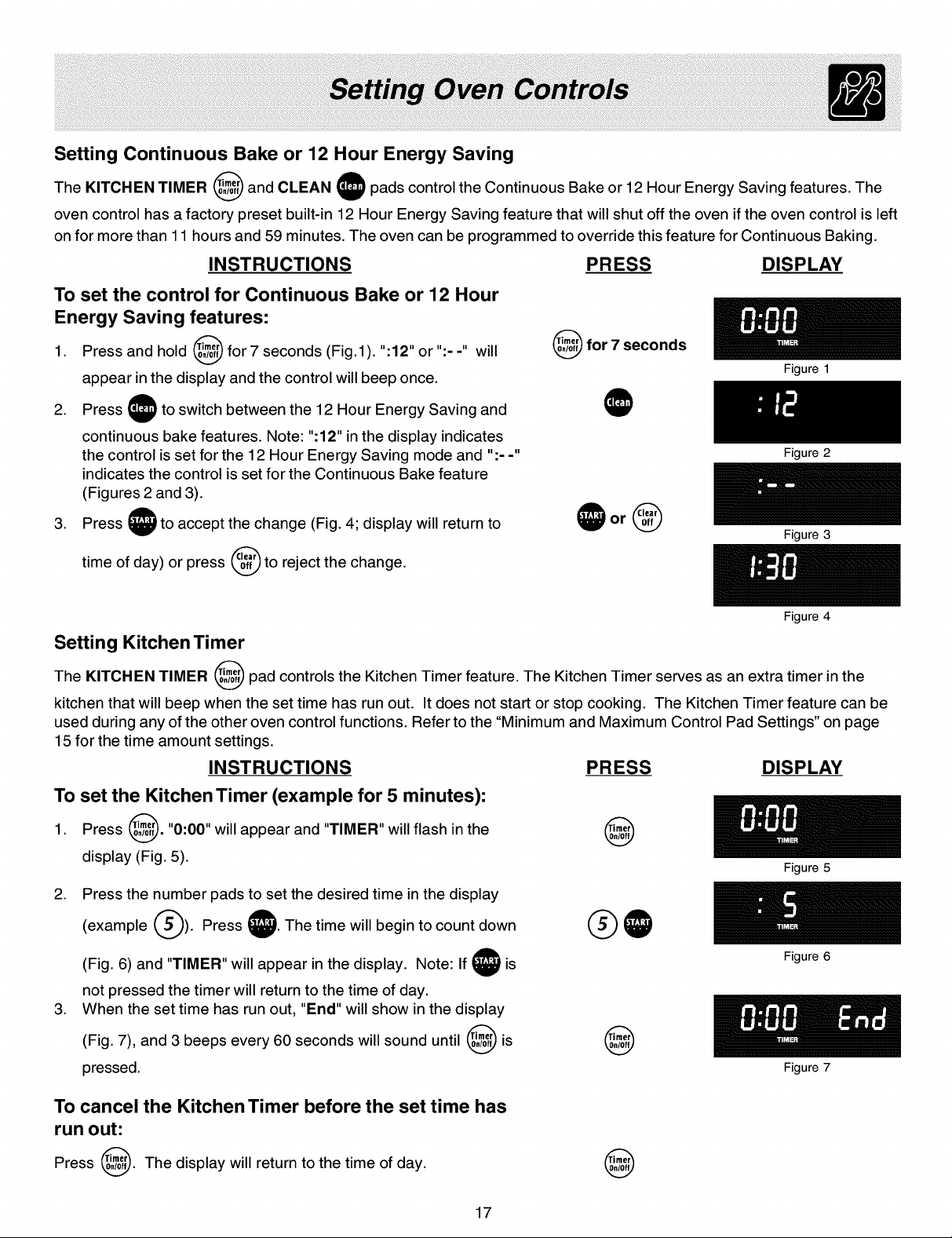

Setting Continuous Bake or 12 Hour Energy Saving

The KITCHEN TIMER _ and CLEAN _! pads control the Continuous Bake or 12 Hour Energy Saving features. The

oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left

on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking.

INSTRUCTIONS PRESS DISPLAY

To set the control for Continuous Bake or 12 Hour

Energy Saving features:

,t, ,t

1. Press and hold for 7 seconds (Fig.l). ":12" or .- - will

appear in the display and the control will beep once.

2. Press O to switch between the 12 Hour Energy Saving and

continuous bake features. Note: ": 12" in the display indicates

the control is set for the 12 Hour Energy Saving mode and ":- -"

indicates the control is set for the Continuous Bake feature

(Figures 2 and 3).

for 7 seconds

3. Press O to accept the change (Fig. 4; display will return to O°r_

time of day) or press _ to reject the change.

Figure 1

Figure 2

Figure 3

Figure 4

Setting Kitchen Timer

The KITCHEN TIMER _ pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the

kitchen that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be

used during any of the other oven control functions. Refer to the "Minimum and Maximum Control Pad Settings" on page

15 for the time amount settings.

INSTRUCTIONS

To set the Kitchen Timer (example for 5 minutes):

1. Press _. "0:00" will appear and "TIMER" will flash in the

display (Fig. 5).

PRESS DISPLAY

2. Press the number pads to set the desired time in the display

(example (_). Press O" The time will begin to count down

(Fig. 6) and "TIMER" will appear in the display. Note: If O _is

not pressed the timer will return to the time of day.

3. When the set time has run out, "End" will show in the display

(Fig. 7), and 3 beeps every 60 seconds will sound until _ is

pressed.

To cancel the Kitchen Timer before the set time has

run out:

Press _. The display will return to the time of day.

Figure 5

Figure 6

Figure 7

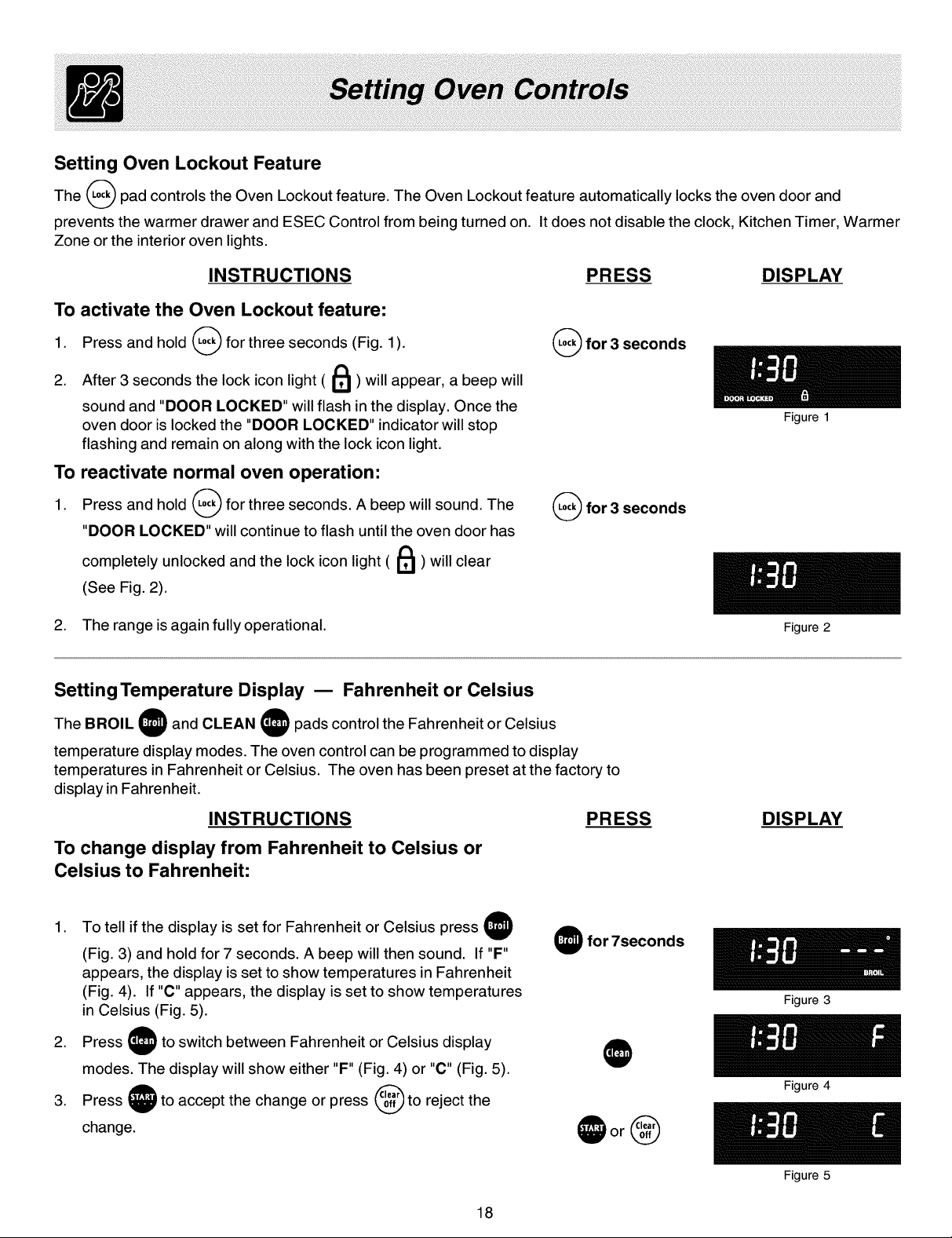

Setting Oven Lockout Feature

The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and

prevents the warmer drawer and ESEC Control from being turned on. It does not disable the clock, Kitchen Timer, Warmer

Zone or the interior oven lights.

INSTRUCTIONS PRESS DISPLAY

To activate the Oven Lockout feature:

1. Press and hold _ for three seconds (Fig. 1).

2. After 3 seconds the lock icon light ( It_ ) will appear, a beep will

sound and "DOOR LOCKED" will flash in the display. Once the

oven door is locked the "DOOR LOCKED" indicator will stop

flashing and remain on along with the lock icon light.

To reactivate normal oven operation:

1. Press and hold _ for three seconds. A beep will sound. The

"DOOR LOCKED" will continue to flash until the oven door has

completely unlocked and the lock icon light ( _ ) will clear

(See Fig. 2).

(_for 3 seconds

2. The range is again fully operational.

Setting Temperature Display m Fahrenheit or Celsius

The BROIL O and CLEAN e) pads control the Fahrenheit or Celsius

temperature display modes. The oven control can be programmed to display

temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to

display in Fahrenheit.

INSTRUCTIONS PRESS

To change display from Fahrenheit to Celsius or

Celsius to Fahrenheit:

Figure 1

Figure 2

DISPLAY

1. To tell if the display is set for Fahrenheit or Celsius press

(Fig. 3) and hold for 7 seconds. A beep will then sound. If "F"

appears, the display is set to show temperatures in Fahrenheit

(Fig. 4). If "C" appears, the display is set to show temperatures

in Celsius (Fig. 5).

2. Press O to switch between Fahrenheit or Celsius display

modes. The display will show either "F" (Fig. 4) or "C" (Fig. 5).

3. Press O to accept the change or press _ to reject the

change.

O for 7seconds

Figure 3

Figure 4

Figure 5

B_e B_oH

L[g_t LOC_ ClOCk

T_ _ COOk U _a

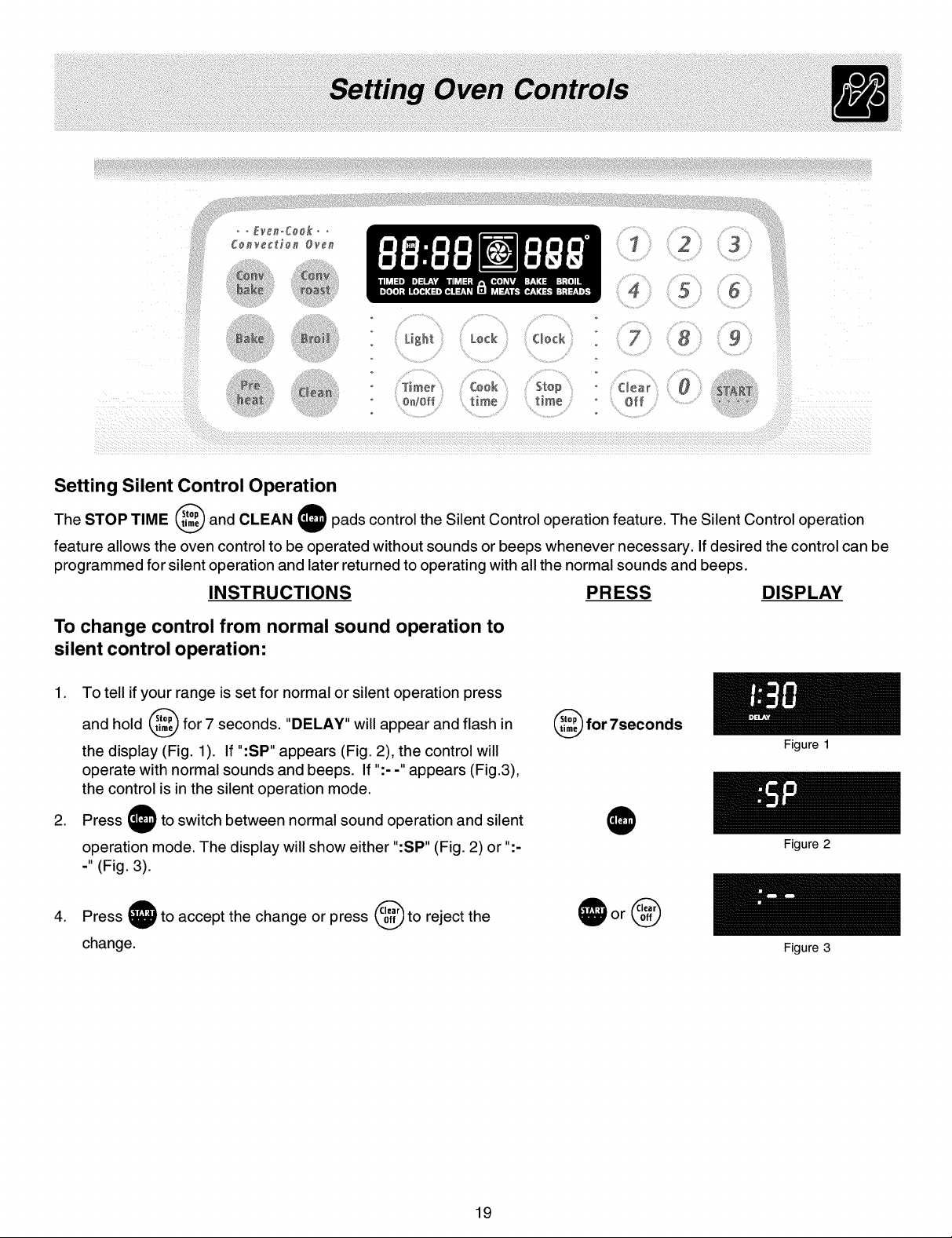

Setting Silent Control Operation

The STOP TIME _ and CLEAN O pads control the Silent Control operation feature. The Silent Control operation

feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be

programmed for silent operation and later returned to operating with all the normal sounds and beeps.

INSTRUCTIONS PRESS DISPLAY

To change control from normal sound operation to

silent control operation:

1. To tell if your range is set for normal or silent operation press

and hold _ for 7 seconds. "DELAY" will appear and flash in

the display (Fig. 1). If ":SP" appears (Fig. 2), the control will

operate with normal sounds and beeps. If ":- -" appears (Fig.3),

the control is in the silent operation mode.

2. Press O to switch between normal sound operation and silent

operation mode. The display will show either ":SP" (Fig. 2) or ":-

-" (Fig. 3).

4. Press ill to accept the change or press _ to reject the

change.

_for 7seconds

Figure 1

Figure 2

Figure 3

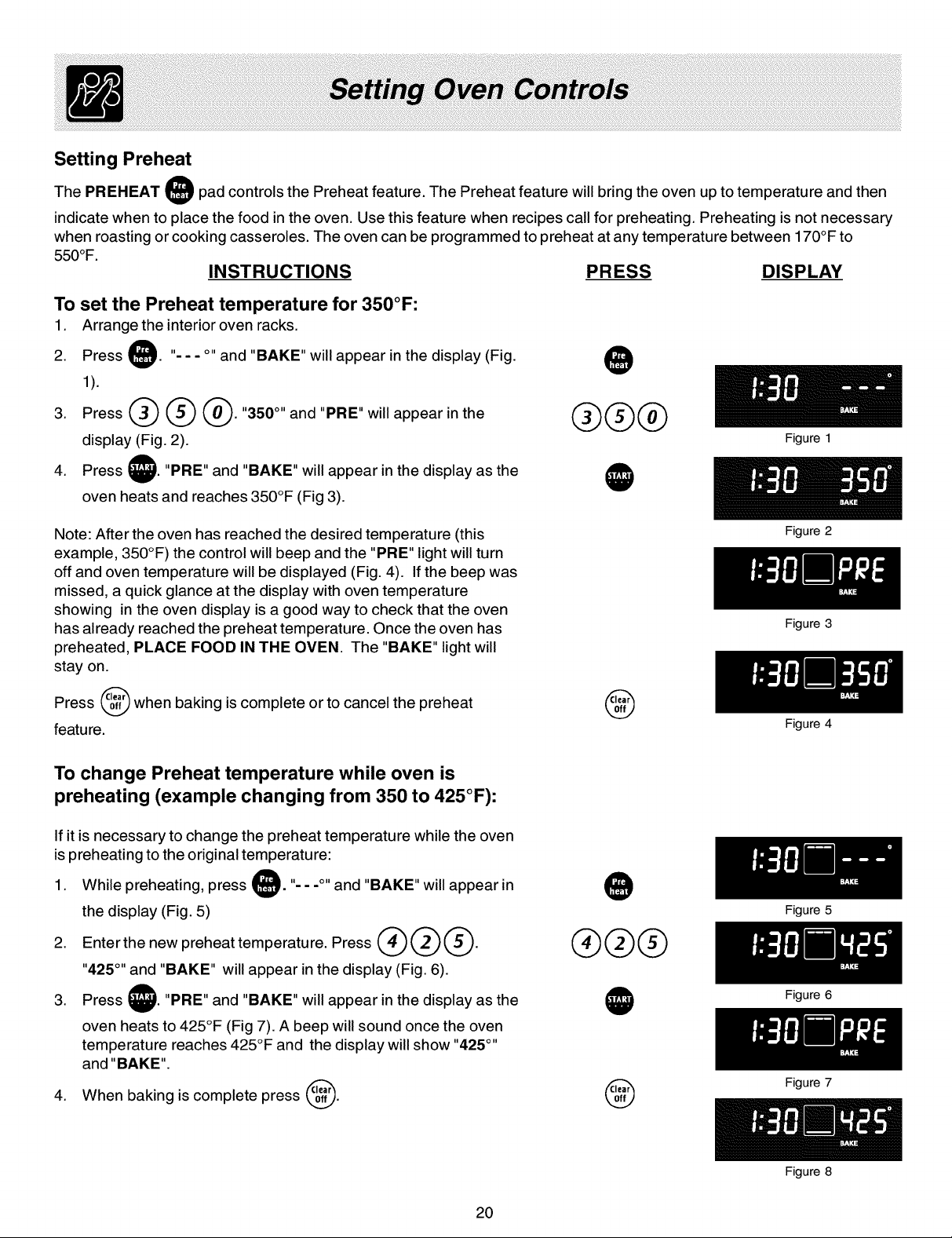

Setting Preheat

The PREHEAT e pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then

indicate when to place the food in the oven. Use this feature when recipes call for preheating. Preheating is not necessary

when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature between 170°F to

550°F.

INSTRUCTIONS PRESS DISPLAY

To set the Preheat temperature for 350°F:

1. Arrange the interior oven racks.

2. Press e ). ,,... o,,and "BAKE" will appear in the display (Fig.

1).

3. Press (_ (_ (_. "350 °`' and "PRE" will appear in the

display (Fig. 2).

4. Press I_. "PRE" and "BAKE" will appear in the display as the

oven heats and reaches 350°F (Fig 3).

®®®

Note: After the oven has reached the desired temperature (this

example, 350°F) the control will beep and the "PRE" light will turn

off and oven temperature will be displayed (Fig. 4). If the beep was

missed, a quick glance at the display with oven temperature

showing in the oven display is a good way to check that the oven

has already reached the preheat temperature. Once the oven has

preheated, PLACE FOOD IN THE OVEN. The "BAKE" light will

stay on.

Press _ when baking is complete or to cancel the preheat

feature.

To change Preheat temperature while oven is

preheating (example changing from 350 to 425°F):

If it is necessary to change the preheat temperature while the oven

is preheating to the original temperature:

1. While preheating, press }. ,,...o,, and "BAKE" will appear in

the display (Fig. 5)

2. Enter the new preheat temperature. Press _ Q Q.

"425 °'' and "BAKE" will appear in the display (Fig. 6).

3. Press I_. "PRE" and "BAKE" will appear in the display as the

oven heats to 425°F (Fig 7). A beep will sound once the oven

temperature reaches 425°F and the display will show "425 °''

and "BAKE".

4. When baking is complete press _.

®®®

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

. Ew_°Cee_

2 3

Time_ Sto# C_ar

o_/of_ t_me Off

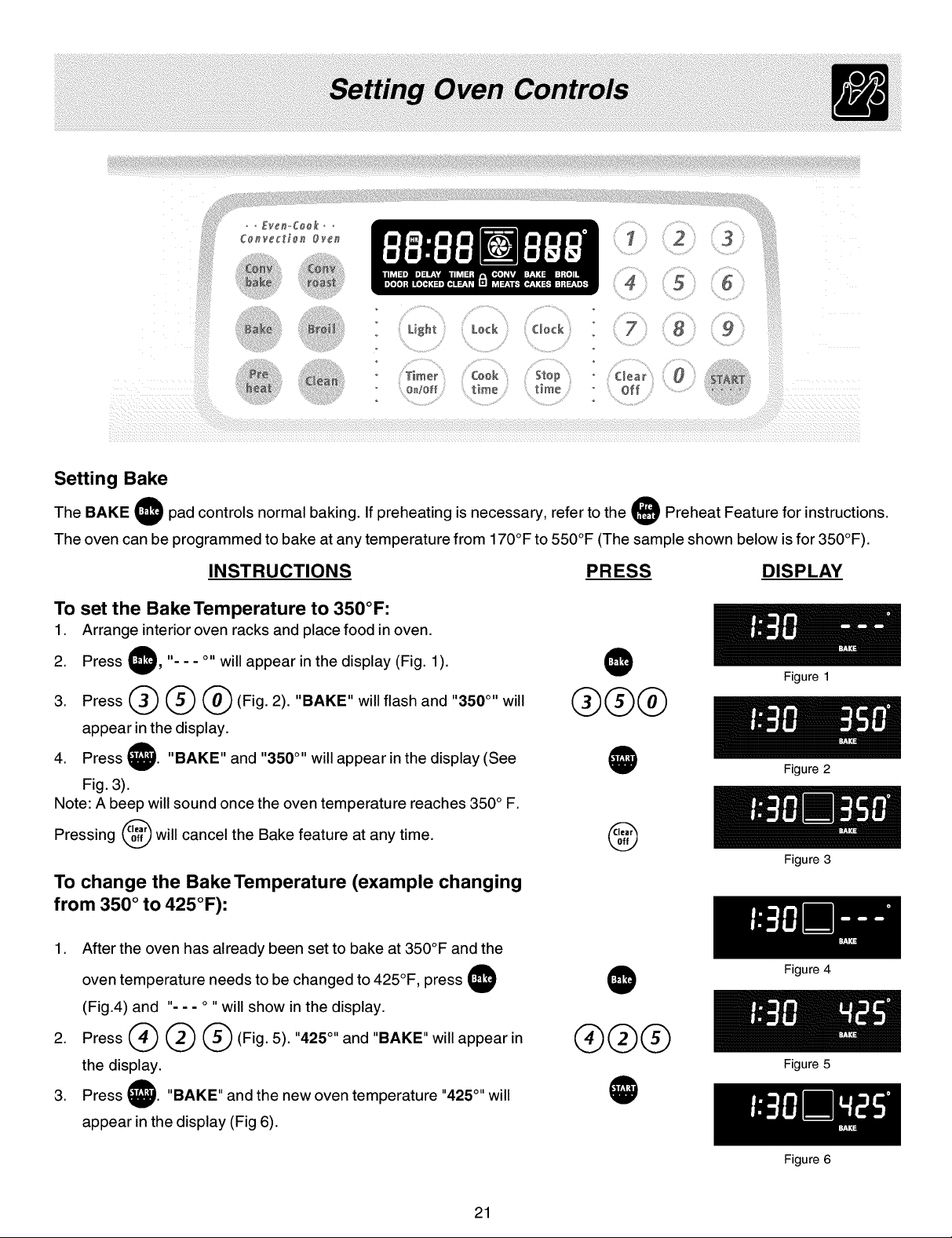

Setting Bake

The BAKE O pad controls normal baking. If preheating is necessary, refer to the O Preheat Feature for instructions.

The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is for 350°F).

INSTRUCTIONS PRESS DISPLAY

To set the BakeTemperature to 350°F:

1. Arrange interior oven racks and place food in oven.

2. Press _), "- - - o. will appear in the display (Fig. 1).

3. Press Q Q @ (Fig. 2). "BAKE" will flash and "350°" will

appear in the display.

4. Press Q. "BAKE" and "350 °'' will appear in the display (See

Fig. 3).

Note: A beep will sound once the oven temperature reaches 350 ° F.

Pressing @ will cancel the Bake feature at any time.

®®®

Figure 1

Figure 2

To change the Bake Temperature (example changing

from 350 ° to 425°F):

1. After the oven has already been set to bake at 350°F and the

oven temperature needs to be changed to 425°F, press O

(Fig.4) and "- - - o ,,will show in the display.

2. Press (_ (_ (_ (Fig. 5). "425 °'' and "BAKE" will appear in

the display.

3. Press Q. "BAKE" and the new oven temperature "425°'' will

appear in the display (Fig 6).

®®®

Figure 3

Figure 4

Figure 5

Figure 6

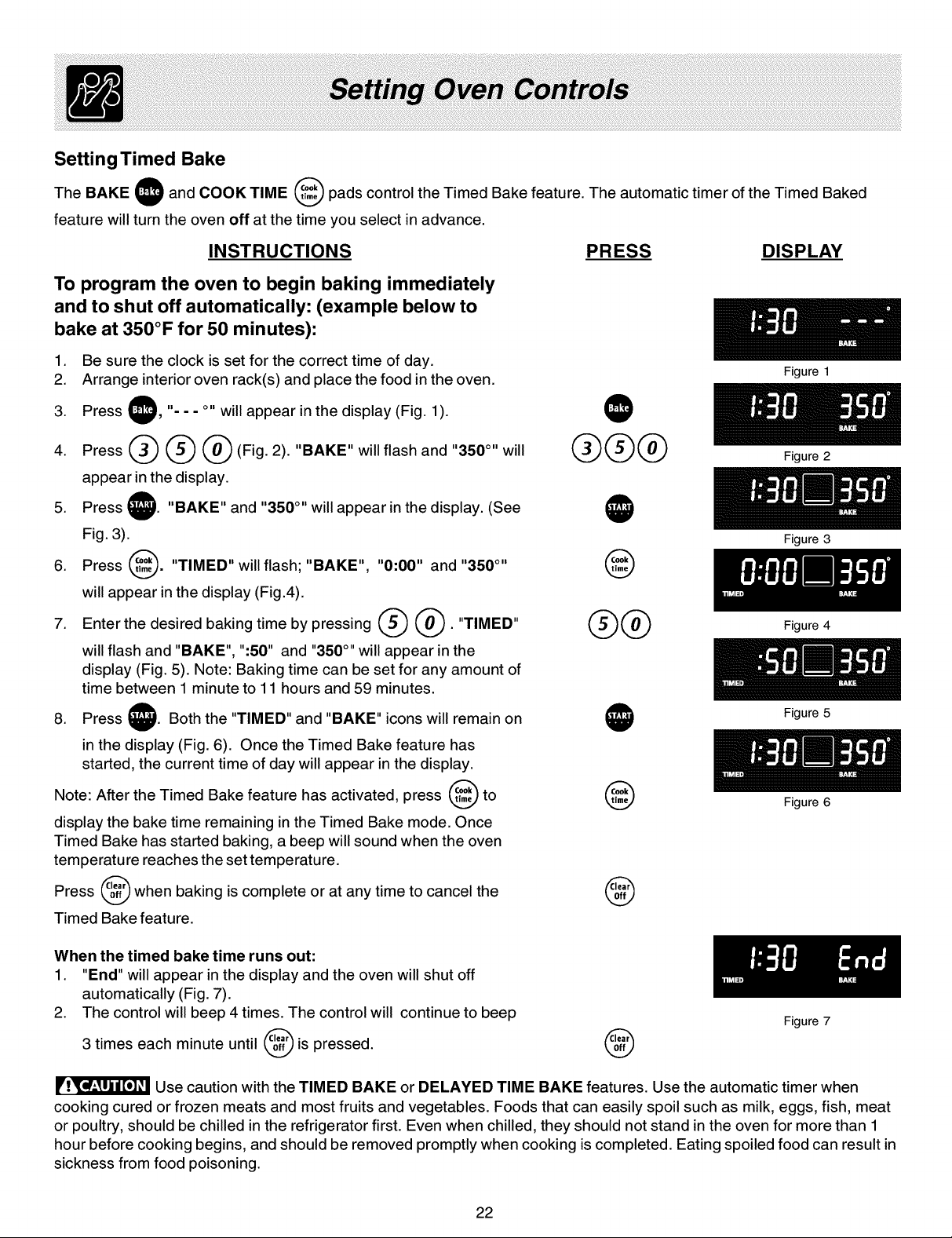

Setting Timed Bake

The BAKE O and COOK TIME _ pads control the Timed Bake feature. The automatic timer of the Timed Baked

feature will turn the oven off at the time you select in advance.

INSTRUCTIONS PRESS DISPLAY

To program the oven to begin baking immediately

and to shut off automatically: (example below to

bake at 350°F for 50 minutes):

1. Be sure the clock is set for the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press _), "- - - o,, will appear in the display (Fig. 1).

4. Press @ Q _ (Fig. 2). "BAKE" will flash and "350°" will

appear in the display.

5. Press Q. "BAKE" and "350 °'' will appear in the display. (See

Fig. 3).

6. Press _. "TIMED" will flash; "BAKE", "0:00" and "350 °''

will appear in the display (Fig.4).

7. Enter the desired baking time by pressing ___ 0_. "TIMED"

will flash and "BAKE", ":50" and "350 °'' will appear in the

display (Fig. 5). Note: Baking time can be set for any amount of

time between 1 minute to 11 hours and 59 minutes.

8. Press O" Both the "TIMED" and "BAKE" icons will remain on

in the display (Fig. 6). Once the Timed Bake feature has

started, the current time of day will appear in the display.

Note: After the Timed Bake feature has activated, press _ to

display the bake time remaining in the Timed Bake mode. Once

Timed Bake has started baking, a beep will sound when the oven

temperature reaches the set temperature.

Press _ when baking is complete or at any time to cancel the

Timed Bake feature.

®®®

®®

When the timed bake time runs out:

1. "End" will appear in the display and the oven will shut off

automatically (Fig. 7).

2. The control will beep 4 times. The control will continue to beep

3 times each minute until _ is pressed. @

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Use caution with the TIMED BAKE or DELAYED TIME BAKE features. Use the automatic timer when

cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat

or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1

hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in

sickness from food poisoning.

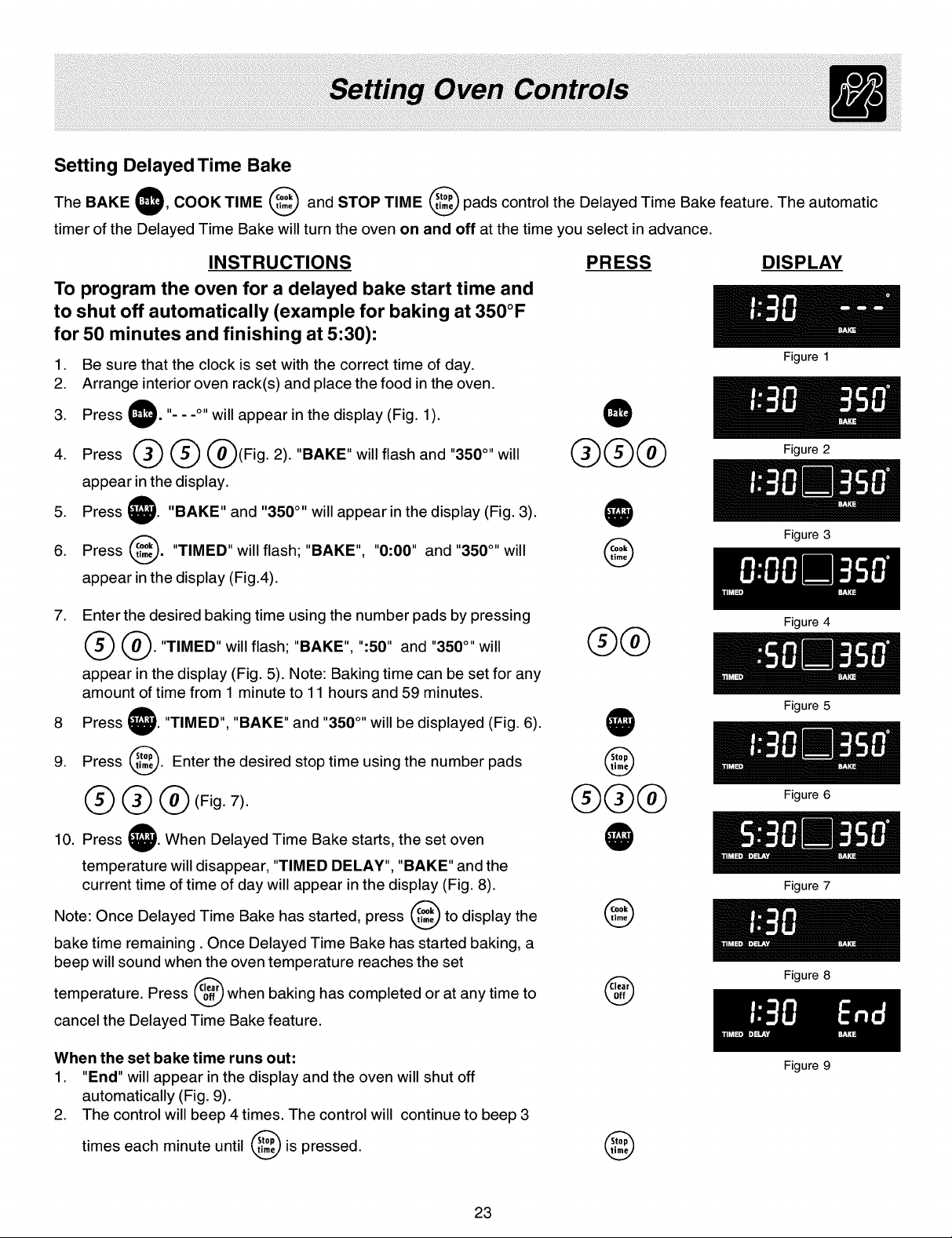

Setting Delayed Time Bake

The BAKE _), COOK TIME @ and STOP TIME @ pads control the Delayed Time Bake feature. The automatic

timer of the Delayed Time Bake will turn the oven on and off at the time you select in advance.

INSTRUCTIONS

To program the oven for a delayed bake start time and

to shut off automatically (example for baking at 350°F

for 50 minutes and finishing at 5:30):

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press _). "- - .o,,will appear in the display (Fig. 1).

4. Press Q Q @(Fig. 2). "BAKE" will flash and "350 °'' will

appear in the display.

5. Press @. "BAKE" and "350 °'' will appear in the display (Fig. 3).

6. Press @. "TIMED" will flash; "BAKE", "0:00" and "350 °'' will

appear in the display (Fig.4).

PRESS DISPLAY

®®®

7. Enter the desired baking time using the number pads by pressing

(_ @. "TIMED" will flash; "BAKE", ":50" and "350 °'' will

appear in the display (Fig. 5). Note: Baking time can be set for any

amount of time from 1 minute to 11 hours and 59 minutes.

8 Press @. "TIMED", "BAKE" and "350 °'' will be displayed (Fig. 6).

9. Press @. Enter the desired stop time using the number pads

® ® ®

10. Press @. When Delayed Time Bake starts, the set oven

temperature will disappear, "TIMED DELAY", "BAKE" and the

current time of time of day will appear in the display (Fig. 8).

Note: Once Delayed Time Bake has started, press @ to display the

bake time remaining. Once Delayed Time Bake has started baking, a

beep will sound when the oven temperature reaches the set

temperature. Press _ when baking has completed or at any time to

cancel the Delayed Time Bake feature.

®®

®®®

When the set bake time runs out:

1. "End" will appear in the display and the oven will shut off

automatically (Fig. 9).

2. The control will beep 4 times. The control will continue to beep 3

times each minute until @ is pressed. @

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

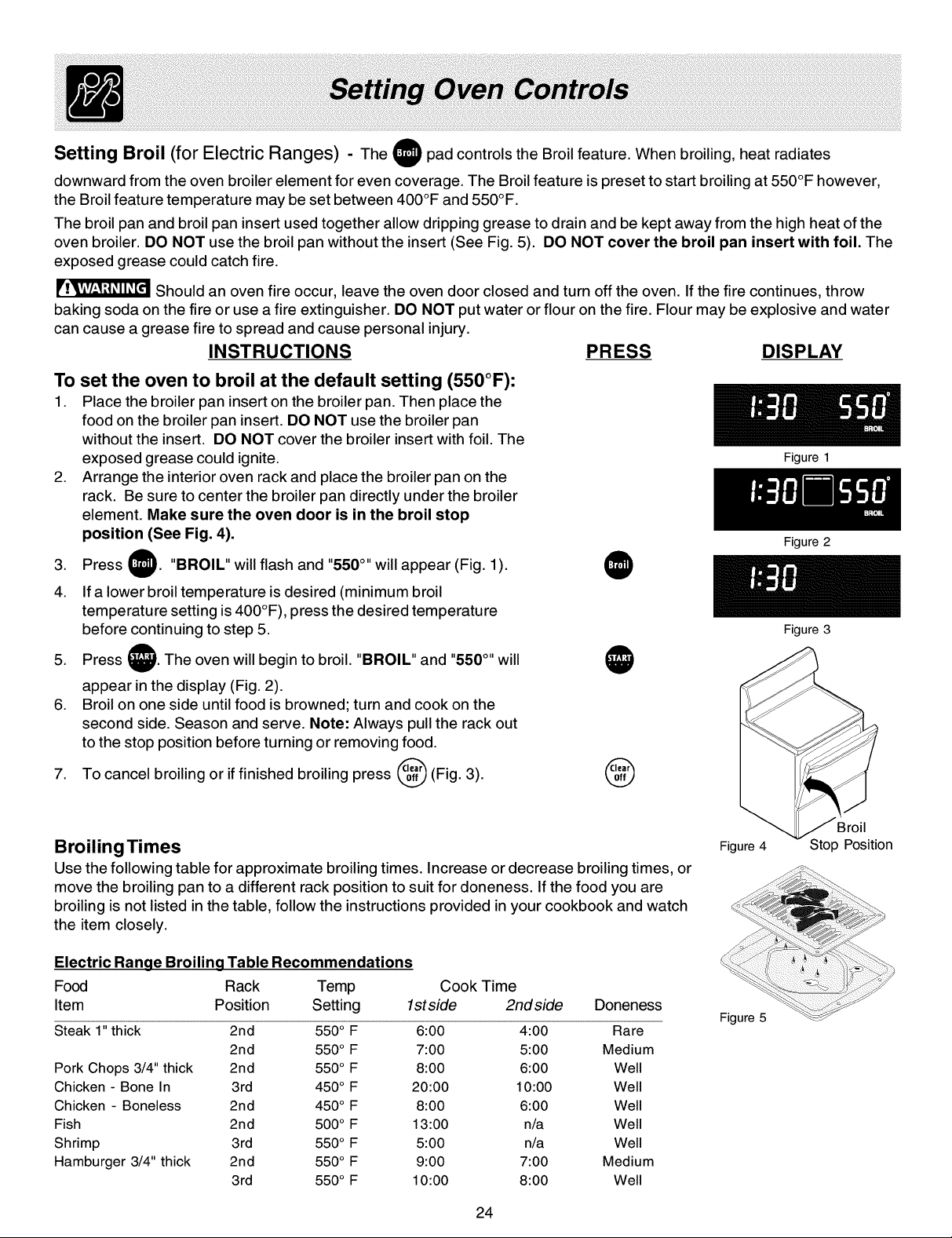

Setting Broil (for Electric Ranges) - The _ pad controls the Broil feature. When broiling, heat radiates

downward from the oven broiler element for even coverage. The Broil feature is preset to start broiling at 550°F however,

the Broil feature temperature may be set between 400°F and 550°F.

The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the

oven broiler. DO NOT use the broil pan without the insert (See Fig. 5). DO NOT cover the broil pan insert with foil. The

exposed grease could catch fire.

Should an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw

baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water

can cause a grease fire to spread and cause personal injury.

INSTRUCTIONS PRESS DISPLAY

To set the oven to broil at the default setting (550°F):

1. Place the broiler pan insert on the broiler pan. Then place the

food on the broiler pan insert. DO NOT use the broiler pan

without the insert. DO NOT cover the broiler insert with foil. The

exposed grease could ignite.

2. Arrange the interior oven rack and place the broiler pan on the

rack. Be sure to center the broiler pan directly under the broiler

element. Make sure the oven door is in the broil stop

position (See Fig. 4).

3. Press _). "BROIL" will flash and "550°" will appear (Fig. 1).

4. If a lower broil temperature is desired (minimum broil

temperature setting is 400°F), press the desired temperature

before continuing to step 5.

5. Press i_). The oven will begin to broil. "BROIL" and "550°" will

appear in the display (Fig. 2).

6. Broil on one side until food is browned; turn and cook on the

second side. Season and serve. Note: Always pull the rack out

to the stop position before turning or removing food.

7. To cancel broiling or if finished broiling press _ (Fig. 3).

Broiling Times

Use the following table for approximate broiling times. Increase or decrease broiling times, or

move the broiling pan to a different rack position to suit for doneness. If the food you are

broiling is not listed in the table, follow the instructions provided in your cookbook and watch

the item closely.

Electric Range Broiling Table Recommendations

Food Rack Temp Cook Time

Item Position Setting lstside 2ndside Doneness

Steak 1" thick 2nd 550 ° F 6:00 4:00 Rare

2nd 550 ° F 7:00 5:00 Medium

Pork Chops 3/4" thick 2nd 550 ° F 8:00 6:00 Well

Chicken - Bone In 3rd 450 ° F 20:00 10:00 Well

Chicken - Boneless 2nd 450 ° F 8:00 6:00 Well

Fish 2nd 500 ° F 13:00 n/a Well

Shrimp 3rd 550 ° F 5:00 n/a Well

Hamburger 3/4" thick 2nd 550 ° F 9:00 7:00 Medium

3rd 550 ° F 10:00 8:00 Well

Figure 4

Figure 5

Figure 1

Figure 2

Figure 3

Broil

Stop Position

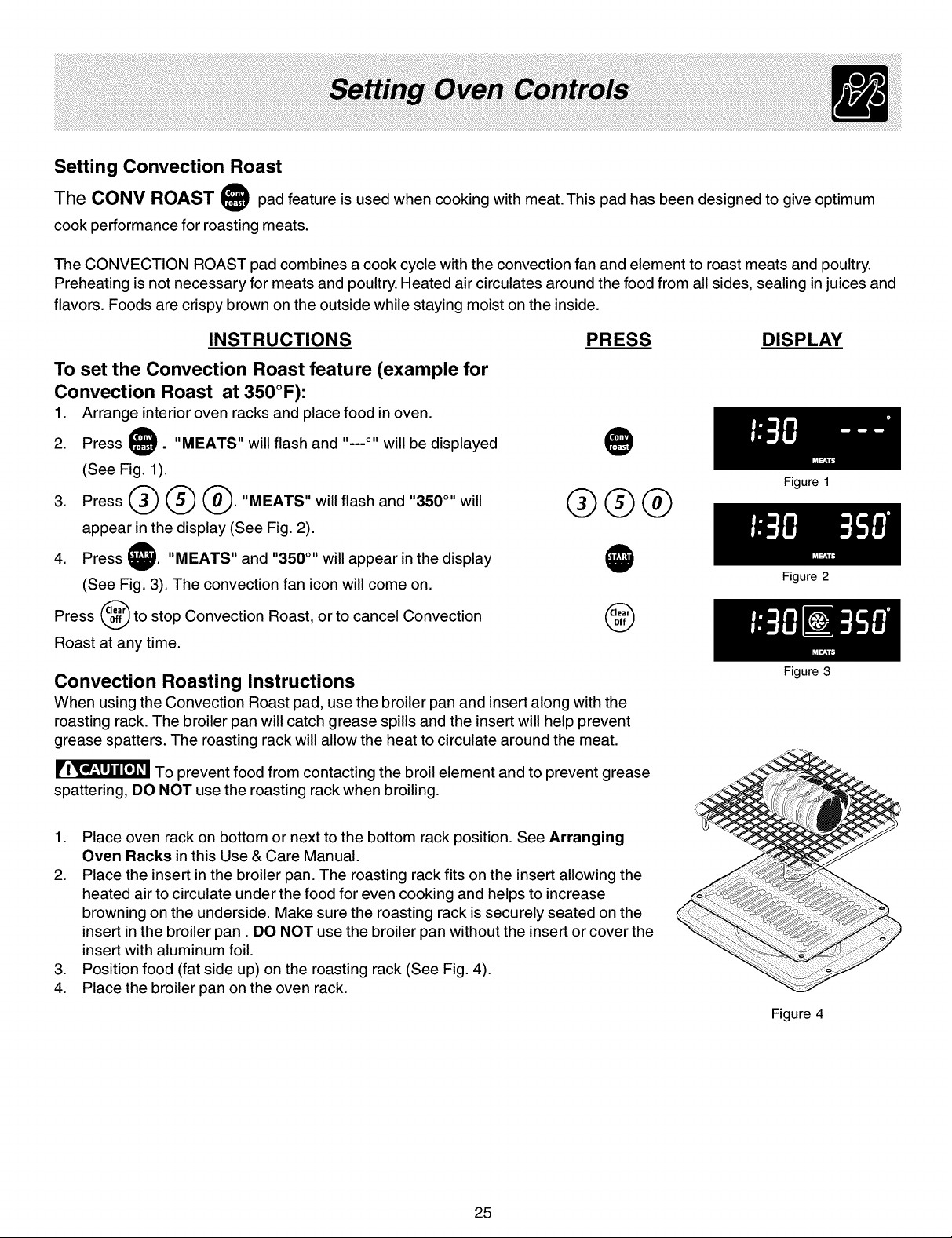

Setting Convection Roast

The CONV ROAST pad feature is used when cooking with meat. This pad has been designed to give optimum

cook performance for roasting meats.

The CONVECTION ROAST pad combines a cook cycle with the convection fan and element to roast meats and poultry.

Preheating is not necessary for meats and poultry. Heated air circulates around the food from all sides, sealing in juices and

flavors. Foods are crispy brown on the outside while staying moist on the inside.

INSTRUCTIONS

To set the Convection Roast feature (example for

Convection Roast at 350°F):

1. Arrange interior oven racks and place food in oven.

2. Press . "MEATS" will flash and ,,...o,, will be displayed

(See Fig. 1).

3. Press @ @ @. "MEATS" will flash and "350°" will

appear in the display (See Fig. 2).

4. Press I_. "MEATS" and "350 °'' will appear in the display

(See Fig. 3). The convection fan icon will come on.

Press _ to stop Convection Roast, or to cancel Convection

Roast at any time.

PRESS DISPLAY

®®®

Convection Roasting Instructions

When using the Convection Roast pad, use the broiler pan and insert along with the

roasting rack. The broiler pan will catch grease spills and the insert will help prevent

grease spatters. The roasting rack will allow the heat to circulate around the meat.

To prevent food from contacting the broil element and to prevent grease

spattering, DO NOT use the roasting rack when broiling.

1. Place oven rack on bottom or next to the bottom rack position. See Arranging

Oven Racks in this Use & Care Manual.

2. Place the insert in the broiler pan. The roasting rack fits on the insert allowing the

heated air to circulate under the food for even cooking and helps to increase

browning on the underside. Make sure the roasting rack is securely seated on the

insert in the broiler pan. DO NOT use the broiler pan without the insert or cover the

insert with aluminum foil.

3. Position food (fat side up) on the roasting rack (See Fig. 4).

4. Place the broiler pan on the oven rack.

Figure 1

Figure 2

Figure 3

Figure 4

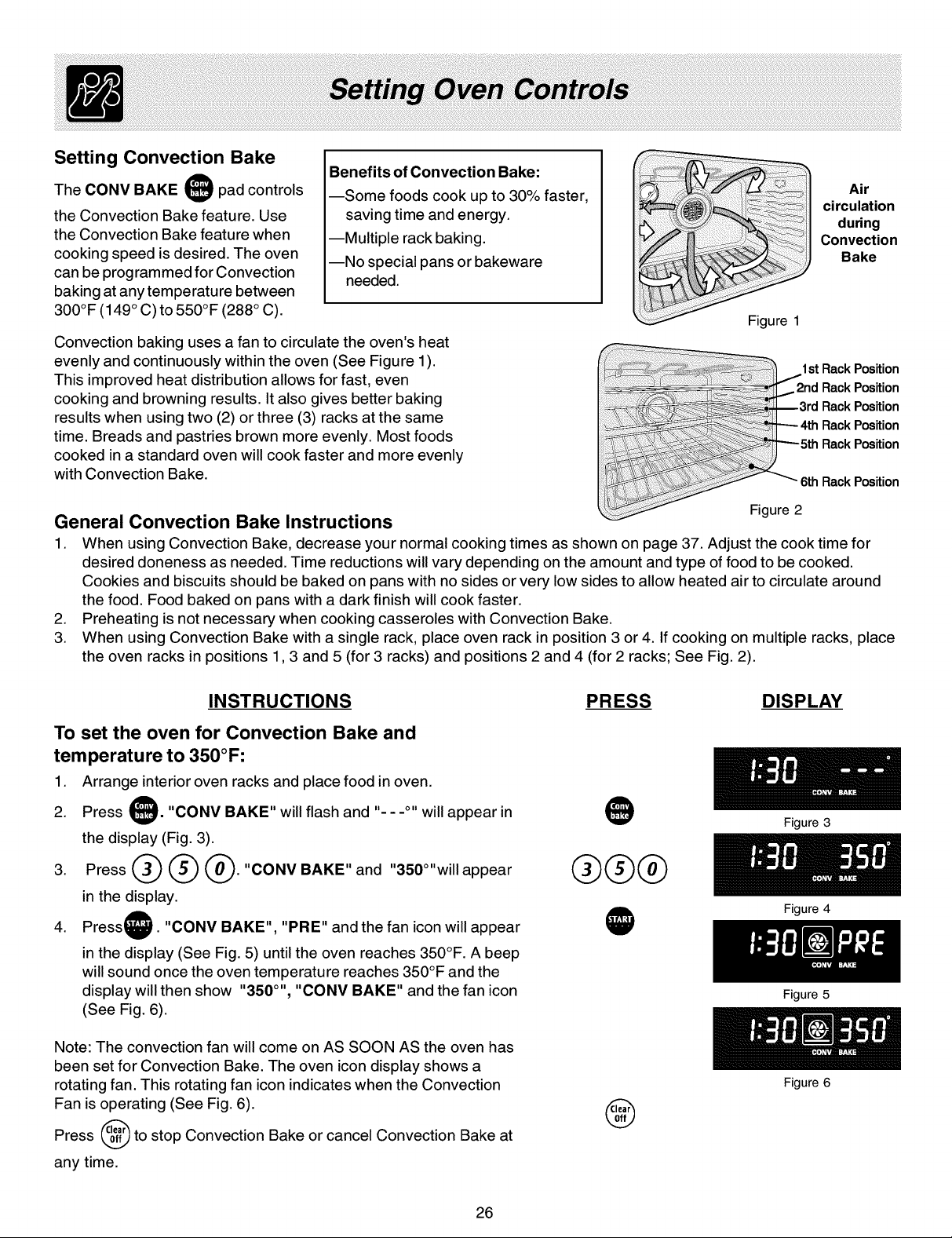

Setting Convection Bake

The CONV BAKE pad controls

the Convection Bake feature. Use

the Convection Bake feature when

cooking speed is desired. The oven

can be programmed for Convection

baking at any temperature between

300°F (149 ° C) to 550°F (288 ° C).

Benefits of Convection Bake:

--Some foods cook up to 30% faster,

saving time and energy.

--Multiple rack baking.

--No special pans or bakeware

needed.

Convection baking uses a fan to circulate the oven's heat

evenly and continuously within the oven (See Figure 1).

This improved heat distribution allows for fast, even

cooking and browning results. It also gives better baking

results when using two (2) or three (3) racks at the same

time. Breads and pastries brown more evenly. Most foods

cooked in a standard oven will cook faster and more evenly

with Convection Bake.

Air

circulation

during

Convection

Bake

Figure 1

1st Rack Position

_nd Rack Position

D3rd Rack Position

4th RackPosition

""-5th RackPosition

6th Rack Position

General Convection Bake Instructions Figure2

1. When using Convection Bake, decrease your normal cooking times as shown on page 37. Adjust the cook time for

desired doneness as needed. Time reductions will vary depending on the amount and type of food to be cooked.

Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to circulate around

the food. Food baked on pans with a dark finish will cook faster.

2. Preheating is not necessary when cooking casseroles with Convection Bake.

3. When using Convection Bake with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place

the oven racks in positions 1,3 and 5 (for 3 racks) and positions 2 and 4 (for 2 racks; See Fig. 2).

INSTRUCTIONS

To set the oven for Convection Bake and

temperature to 350°F:

Arrange interior oven racks and place food in oven.

Press t. "CONV BAKE" will flash and "- - .o,, will appear in

the display (Fig. 3).

Press Q Q _. "CONV BAKE" and "350°"will appear

in the display.

Pressl_). "CONV BAKE", "PRE" and the fan icon will appear

in the display (See Fig. 5) until the oven reaches 350°F. A beep

will sound once the oven temperature reaches 350°F and the

display will then show "350 °'', "CONV BAKE" and the fan icon

(See Fig. 6).

Note: The convection fan will come on AS SOON AS the oven has

been set for Convection Bake. The oven icon display shows a

rotating fan. This rotating fan icon indicates when the Convection

Fan is operating (See Fig. 6).

Press _ to stop Convection Bake or cancel Convection Bake at

any time.

PRESS DISPLAY

®®®

Figure 3

Figure 4

Figure 5

Figure 6

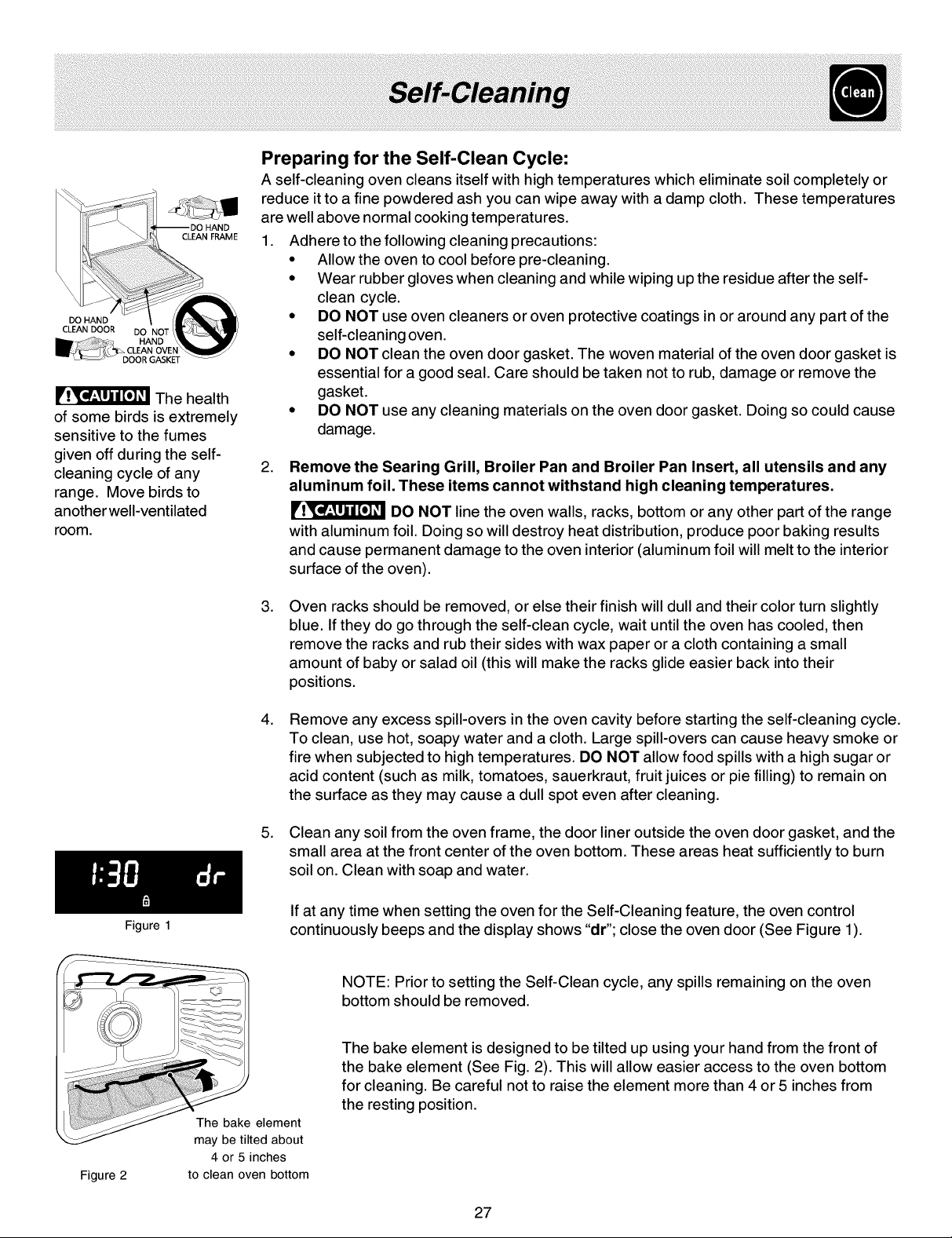

The health

of some birds is extremely

sensitive to the fumes

given off during the self-

cleaning cycle of any

range. Move birds to

another well-ventilated

room.

Figure 1

Preparing for the Self-Clean Cycle:

A self-cleaning oven cleans itself with high temperatures which eliminate soil completely or

reduce it to a fine powdered ash you can wipe away with a damp cloth. These temperatures

are well above normal cooking temperatures.

1. Adhere to the following cleaning precautions:

• Allow the oven to cool before pre-cleaning.

• Wear rubber gloves when cleaning and while wiping up the residue after the self-

clean cycle.

• DO NOT use oven cleaners or oven protective coatings in or around any part of the

self-cleaning oven.

• DO NOT clean the oven door gasket. The woven material of the oven door gasket is

essential for a good seal. Care should be taken not to rub, damage or remove the

gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing so could cause

damage.

Remove the Searing Grill, Broiler Pan and Broiler Pan Insert, all utensils and any

aluminum foil. These items cannot withstand high cleaning temperatures.

DO NOT line the oven walls, racks, bottom or any other part of the range

with aluminum foil. Doing so will destroy heat distribution, produce poor baking results

and cause permanent damage to the oven interior (aluminum foil will melt to the interior

surface of the oven).

Oven racks should be removed, or else their finish will dull and their color turn slightly

blue. If they do go through the self-clean cycle, wait until the oven has cooled, then

remove the racks and rub their sides with wax paper or a cloth containing a small

amount of baby or salad oil (this will make the racks glide easier back into their

positions.

Remove any excess spill-overs in the oven cavity before starting the self-cleaning cycle.

To clean, use hot, soapy water and a cloth. Large spill-overs can cause heavy smoke or

fire when subjected to high temperatures. DO NOT allow food spills with a high sugar or

acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on

the surface as they may cause a dull spot even after cleaning.

5. Clean any soil from the oven frame, the door liner outside the oven door gasket, and the

small area at the front center of the oven bottom. These areas heat sufficiently to burn

soil on. Clean with soap and water.

If at any time when setting the oven for the Self-Cleaning feature, the oven control

continuously beeps and the display shows "dr"; close the oven door (See Figure 1).

Figure 2

The bake element

may be tilted about

4 or 5 inches

to clean oven bottom

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven

bottom should be removed.

The bake element is designed to be tilted up using your hand from the front of

the bake element (See Fig. 2). This will allow easier access to the oven bottom

for cleaning. Be careful not to raise the element more than 4 or 5 inches from

the resting position.

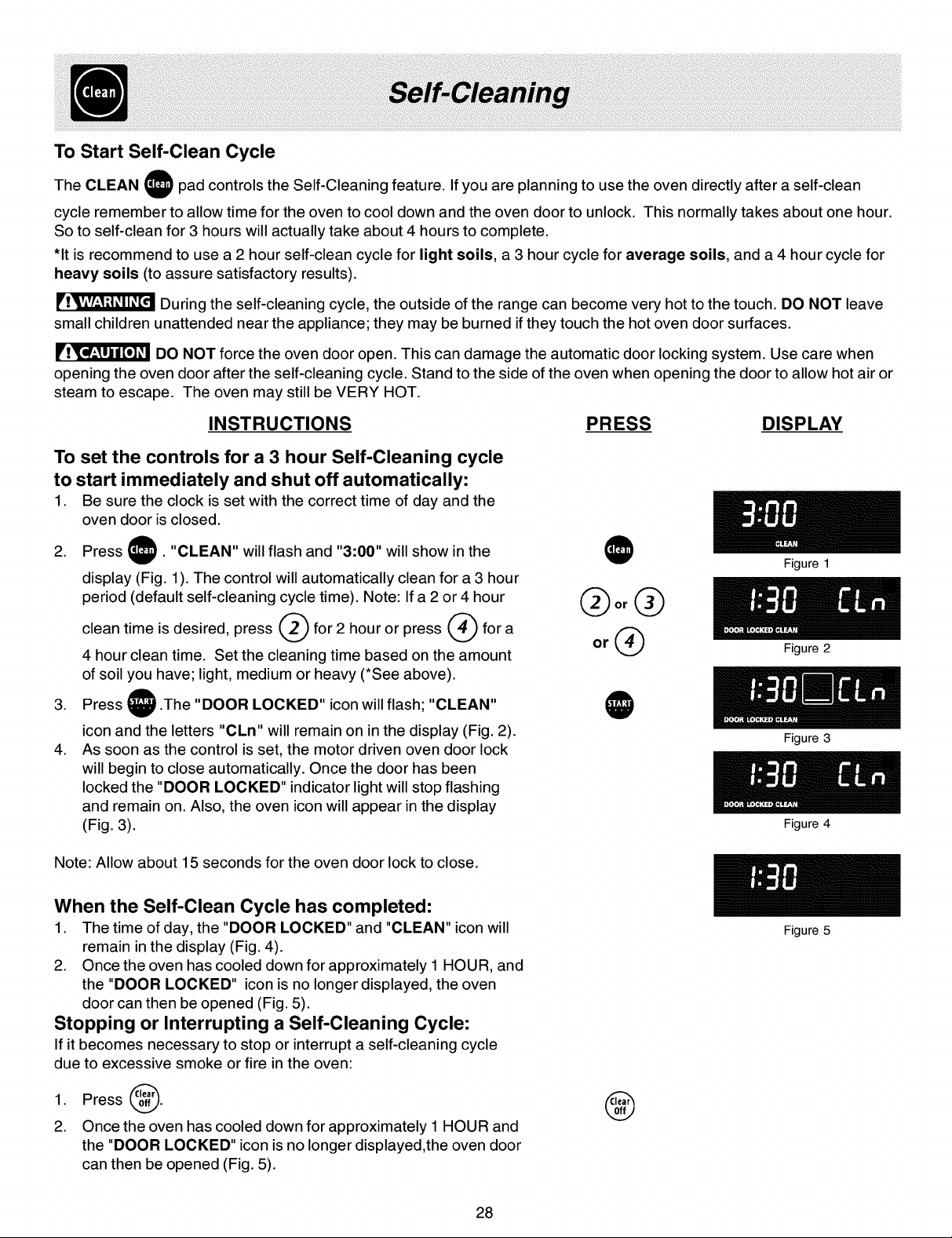

To Start Self-Clean Cycle

The CLEAN O pad controls the Self-Cleaning feature. If you are planning to use the oven directly after a self-clean

cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about one hour.

So to self-clean for 3 hours will actually take about 4 hours to complete.

*It is recommend to use a 2 hour self-clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for

heavy soils (to assure satisfactory results).

During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave

small children unattended near the appliance; they may be burned if they touch the hot oven door surfaces.

DO NOT force the oven door open. This can damage the automatic door locking system. Use care when

opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or

steam to escape. The oven may still be VERY HOT.

INSTRUCTIONS PRESS DISPLAY

To set the controls for a 3 hour Self-Cleaning cycle

to start immediately and shut off automatically:

1. Be sure the clock is set with the correct time of day and the

oven door is closed.

2. Press O " "CLEAN" will flash and "3:00" will show in the

display (Fig. 1). The control will automatically clean for a 3 hour

period (default self-cleaning cycle time). Note: If a 2 or 4 hour

clean time is desired, press (_ for 2 hour or press (_) for a

4 hour clean time. Set the cleaning time based on the amount

of soil you have; light, medium or heavy (*See above).

3. Press (_).The "DOOR LOCKED" icon will flash; "CLEAN"

icon and the letters "CLn" will remain on in the display (Fig. 2).

4. As soon as the control is set, the motor driven oven door lock

will begin to close automatically. Once the door has been

locked the "DOOR LOCKED" indicator light will stop flashing

and remain on. Also, the oven icon will appear in the display

(Fig. 3).

QorQ

Note: Allow about 15 seconds for the oven door lock to close.

When the Self-Clean Cycle has completed:

1. The time of day, the "DOOR LOCKED" and "CLEAN" icon will

remain in the display (Fig. 4).

2. Once the oven has cooled down for approximately 1 HOUR, and

the "DOOR LOCKED" icon is no longer displayed, the oven

door can then be opened (Fig. 5).

Stopping or Interrupting a Self-Cleaning Cycle:

If it becomes necessary to stop or interrupt a self-cleaning cycle

due to excessive smoke or fire in the oven:

Press _.

Once the oven has cooled down for approximately 1 HOUR and

the "DOOR LOCKED" icon is no longer displayed,the oven door

can then be opened (Fig. 5).

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

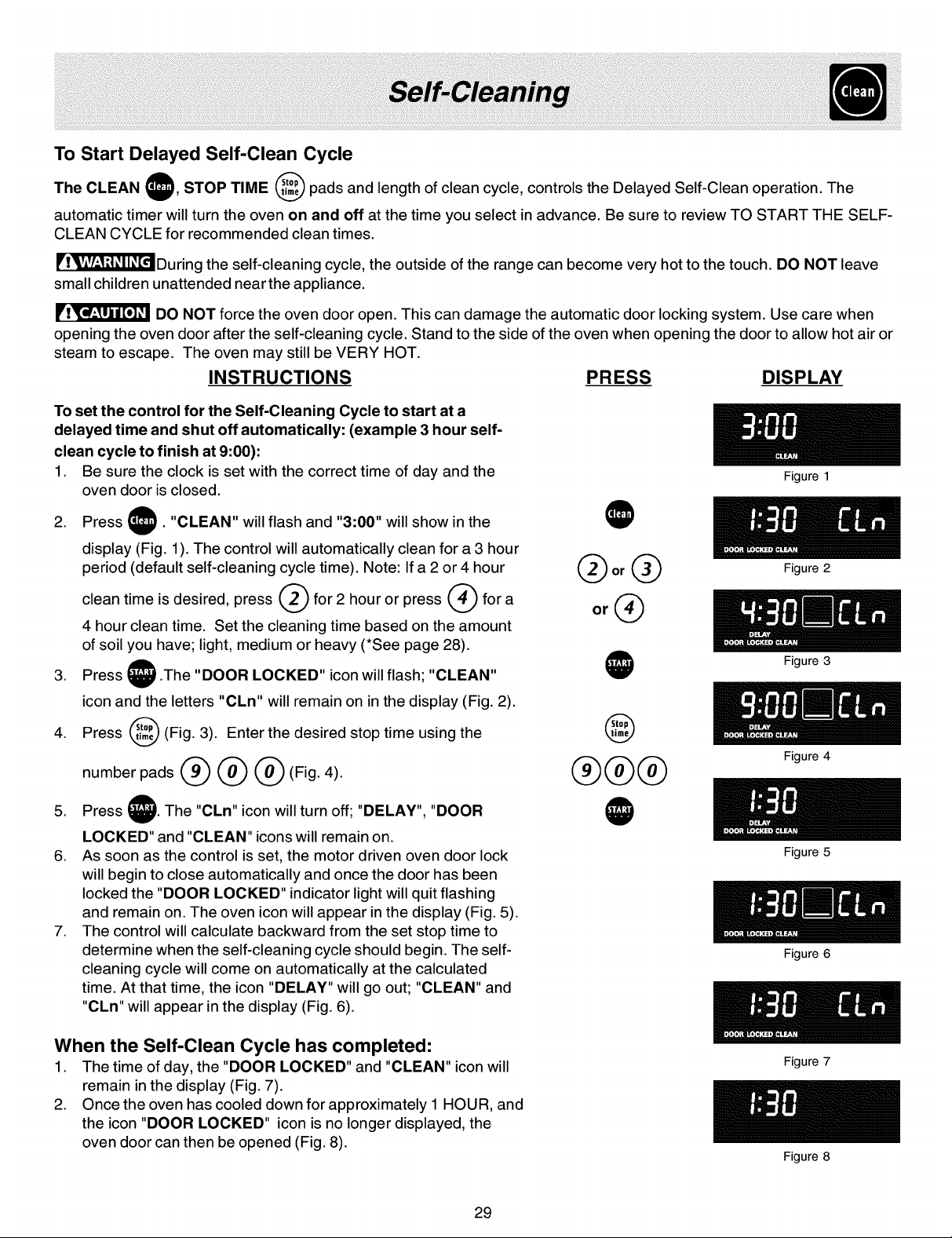

To Start Delayed Self-Clean Cycle

The CLEAN _), STOP TIME _ pads and length of clean cycle, controls the Delayed Self-Clean operation. The

automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO START THE SELF-

CLEAN CYCLE for recommended clean times.

_During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave

small children unattended near the appliance.

DO NOT force the oven door open. This can damage the automatic door locking system. Use care when

opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or

steam to escape. The oven may still be VERY HOT.

INSTRUCTIONS PRESS DISPLAY

To set the control for the Self-Cleaning Cycle to start at a

delayed time and shut off automatically: (example 3 hour self-

clean cycle to finish at 9:00):

1. Be sure the clock is set with the correct time of day and the

oven door is closed.

2. Press O " "CLEAN" will flash and "3:00" will show in the

display (Fig. 1). The control will automatically clean for a 3 hour

period (default self-cleaning cycle time). Note: If a 2 or 4 hour

clean time is desired, press (_ for 2 hour or press (_) for a

4 hour clean time. Set the cleaning time based on the amount

of soil you have; light, medium or heavy (*See page 28).

3. Press II_.The "DOOR LOCKED" icon will flash; "CLEAN"

icon and the letters "CLn" will remain on in the display (Fig. 2).

4. Press _ (Fig. 3). Enter the desired stop time using the

number pads _ _ _ (Fig. 4).

5. Press @. The "CLn" icon will turn off; "DELAY", "DOOR

LOCKED" and "CLEAN" icons will remain on.

6. As soon as the control is set, the motor driven oven door lock

will begin to close automatically and once the door has been

locked the "DOOR LOCKED" indicator light will quit flashing

and remain on. The oven icon will appear in the display (Fig. 5).

7. The control will calculate backward from the set stop time to

determine when the self-cleaning cycle should begin. The self-

cleaning cycle will come on automatically at the calculated

time. At that time, the icon "DELAY" will go out; "CLEAN" and

"CLn" will appear in the display (Fig. 6).

QorQ

®®®

When the Self-Clean Cycle has completed:

1. The time of day, the "DOOR LOCKED" and "CLEAN" icon will

remain in the display (Fig. 7).

2. Once the oven has cooled down for approximately 1 HOUR, and

the icon "DOOR LOCKED" icon is no longer displayed, the

oven door can then be opened (Fig. 8).

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

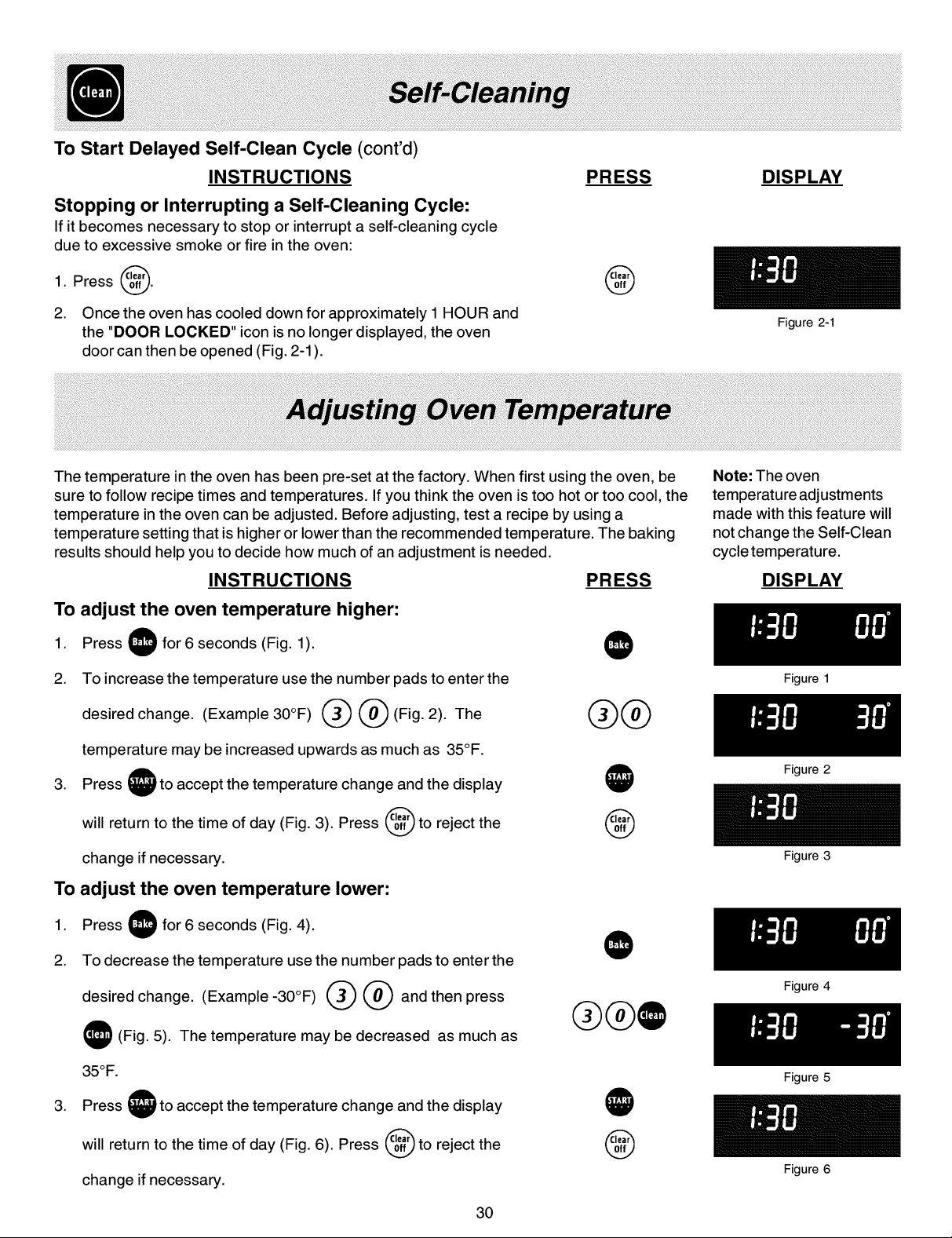

To Start Delayed Self-Clean Cycle (cont'd)

INSTRUCTIONS

Stopping or Interrupting a Self-Cleaning Cycle:

If it becomes necessary to stop or interrupt a self-cleaning cycle

due to excessive smoke or fire in the oven:

1. Press _.

2. Once the oven has cooled down for approximately 1 HOUR and

the "DOOR LOCKED" icon is no longer displayed, the oven

door can then be opened (Fig. 2-1 ).

PRESS DISPLAY

Figure 2-1

The temperature in the oven has been pre-set at the factory. When first using the oven, be

sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, the

temperature in the oven can be adjusted. Before adjusting, test a recipe by using a

temperature setting that is higher or lower than the recommended temperature. The baking

results should help you to decide how much of an adjustment is needed.

INSTRUCTIONS PRESS

To adjust the oven temperature higher:

1. Press O for 6 seconds (Fig. 1). O

2. To increase the temperature use the number pads to enter the

desired change. (Example30°F) Q _(Fig. 2). The Q_

temperature may be increased upwards as much as 35°F.

3. Press O to accept the temperature change and the display I_

return to the time of day (Fig. 3). Press _ to reject the

will

change if necessary.

To adjust the oven temperature lower:

1. Press O for 6 seconds (Fig. 4).

2. To decrease the temperature use the number pads to enter the

desired change. (Example-30°F) Q (_ and then press

®®@

(Fig. 5). The temperature may be decreased as much as

35°F.

3. Press O to accept the temperature change and the display O

will return to the time of day (Fig. 6). Press _ to reject the

change if necessary.

Note: The oven

temperature adjustments

made with this feature will

not change the Self-Clean

cycle temperature.

DISPLAY

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

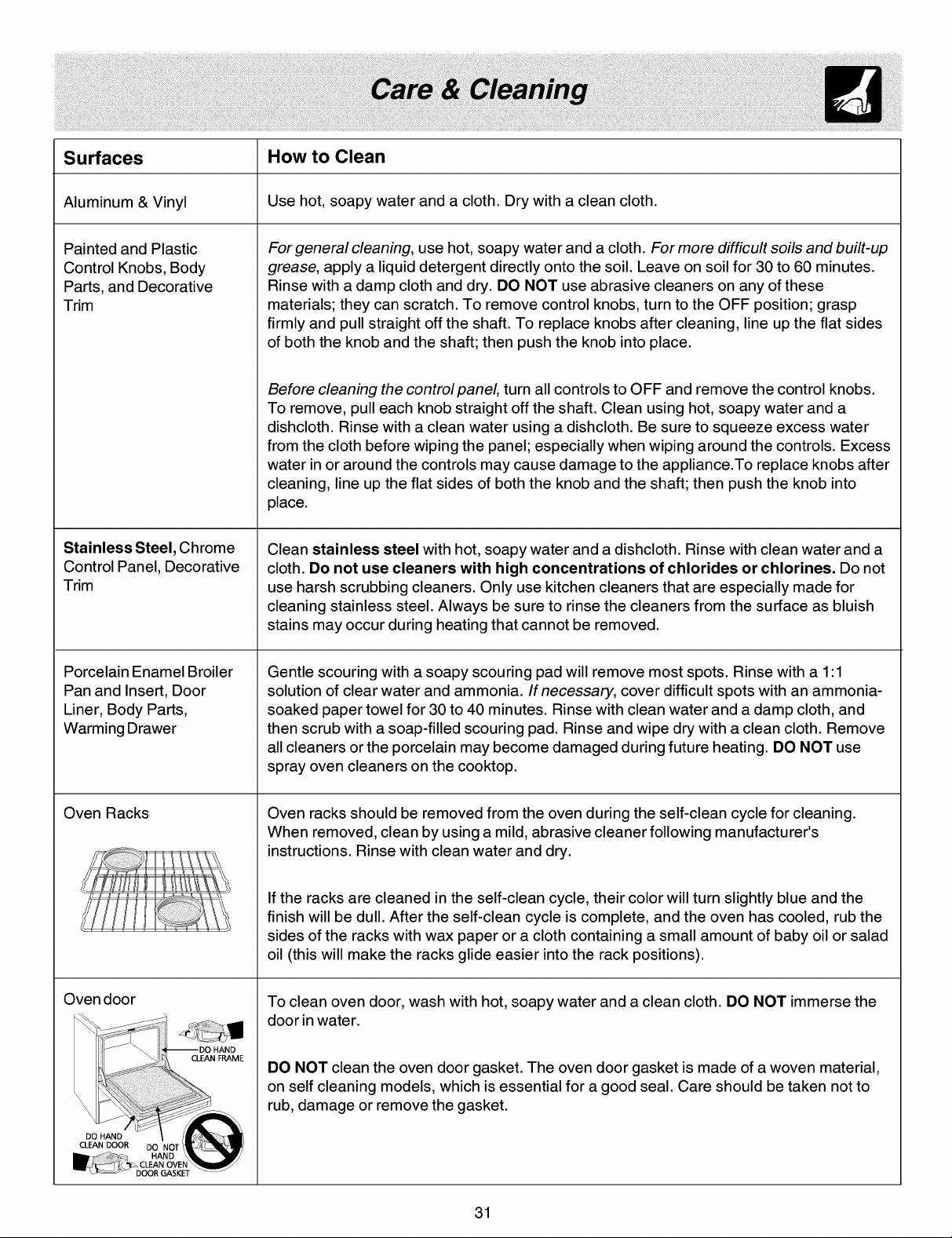

Surfaces How to Clean

Aluminum & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.

Painted and Plastic For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up

Control Knobs, Body grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes.

Parts, and Decorative Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these

Trim materials; they can scratch. To remove control knobs, turn to the OFF position; grasp

firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides

of both the knob and the shaft; then push the knob into place.

Before cleaning the controlpanel, turn all controls to OFF and remove the control knobs.

To remove, pull each knob straight off the shaft. Clean using hot, soapy water and a

dishcloth. Rinse with a clean water using a dishcloth. Be sure to squeeze excess water

from the cloth before wiping the panel; especially when wiping around the controls. Excess

water in or around the controls may cause damage to the appliance.To replace knobs after

cleaning, line up the flat sides of both the knob and the shaft; then push the knob into

place.

Stainless Steel, Chrome Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a

Control Panel, Decorative cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not

Trim use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for

cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish

stains may occur during heating that cannot be removed.

Porcelain Enamel Broiler Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1

Pan and Insert, Door solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-

Liner, Body Parts, soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and

Warming Drawer then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove

all cleaners or the porcelain may become damaged during future heating. DO NOT use

spray oven cleaners on the cooktop.

Oven Racks Oven racks should be removed from the oven during the self-clean cycle for cleaning.

When removed, clean by using a mild, abrasive cleaner following manufacturer's

=_ instructions. Rinse with clean water and dry.

If the racks are cleaned in the self-clean cycle, their color will turn slightly blue and thefinish will be dull. After the self-clean cycle is complete, and the oven has cooled, rub the

sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad

oil (this will make the racks glide easier into the rack positions).

Oven door To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse the

door in water.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven material,

on self cleaning models, which is essential for a good seal. Care should be taken not to

rub, damage or remove the gasket.

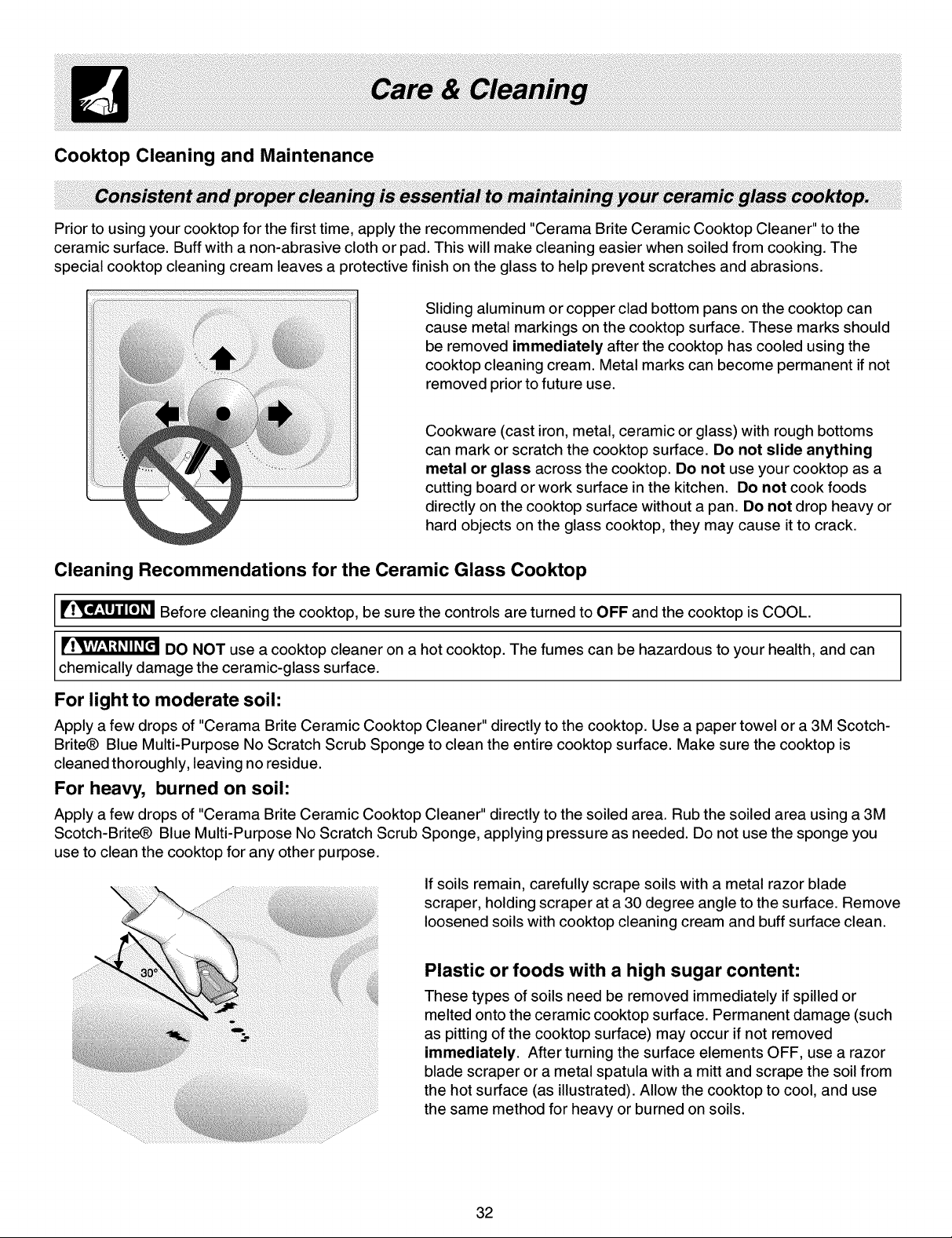

Cooktop Cleaning and Maintenance

Prior to using your cooktop for the first time, apply the recommended "Cerama Brite Ceramic Cooktop Cleaner" to the

ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when soiled from cooking. The

special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can

cause metal markings on the cooktop surface. These marks should

be removed immediately after the cooktop has cooled using the

cooktop cleaning cream. Metal marks can become permanent if not

removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms

can mark or scratch the cooktop surface. Do not slide anything

metal or glass across the cooktop. Do not use your cooktop as a

cutting board or work surface in the kitchen. Do not cook foods

directly on the cooktop surface without a pan. Do not drop heavy or

hard objects on the glass cooktop, they may cause it to crack.

Cleaning Recommendations for the Ceramic Glass Cooktop

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

chem ca y damage the ceram c-g ass surface.

For light to moderate soil:

Apply a few drops of "Cerama Brite Ceramic Cooktop Cleaner" directly to the cooktop. Use a paper towel or a 3M Scotch-

Brite® Blue Multi-Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is

cleaned thoroughly, leaving no residue.

For heavy, burned on soil:

Apply a few drops of "Cerama Brite Ceramic Cooktop Cleaner" directly to the soiled area. Rub the soiled area using a 3M

Scotch-Brite® Blue Multi-Purpose No Scratch Scrub Sponge, applying pressure as needed. Do not use the sponge you

use to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor blade

scraper, holding scraper at a 30 degree angle to the surface. Remove

loosened soils with cooktop cleaning cream and buff surface clean.

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or

melted onto the ceramic cooktop surface. Permanent damage (such

as pitting of the cooktop surface) may occur if not removed

immediately. After turning the surface elements OFF, use a razor

blade scraper or a metal spatula with a mitt and scrape the soil from

the hot surface (as illustrated). Allow the cooktop to cool, and use

the same method for heavy or burned on soils.

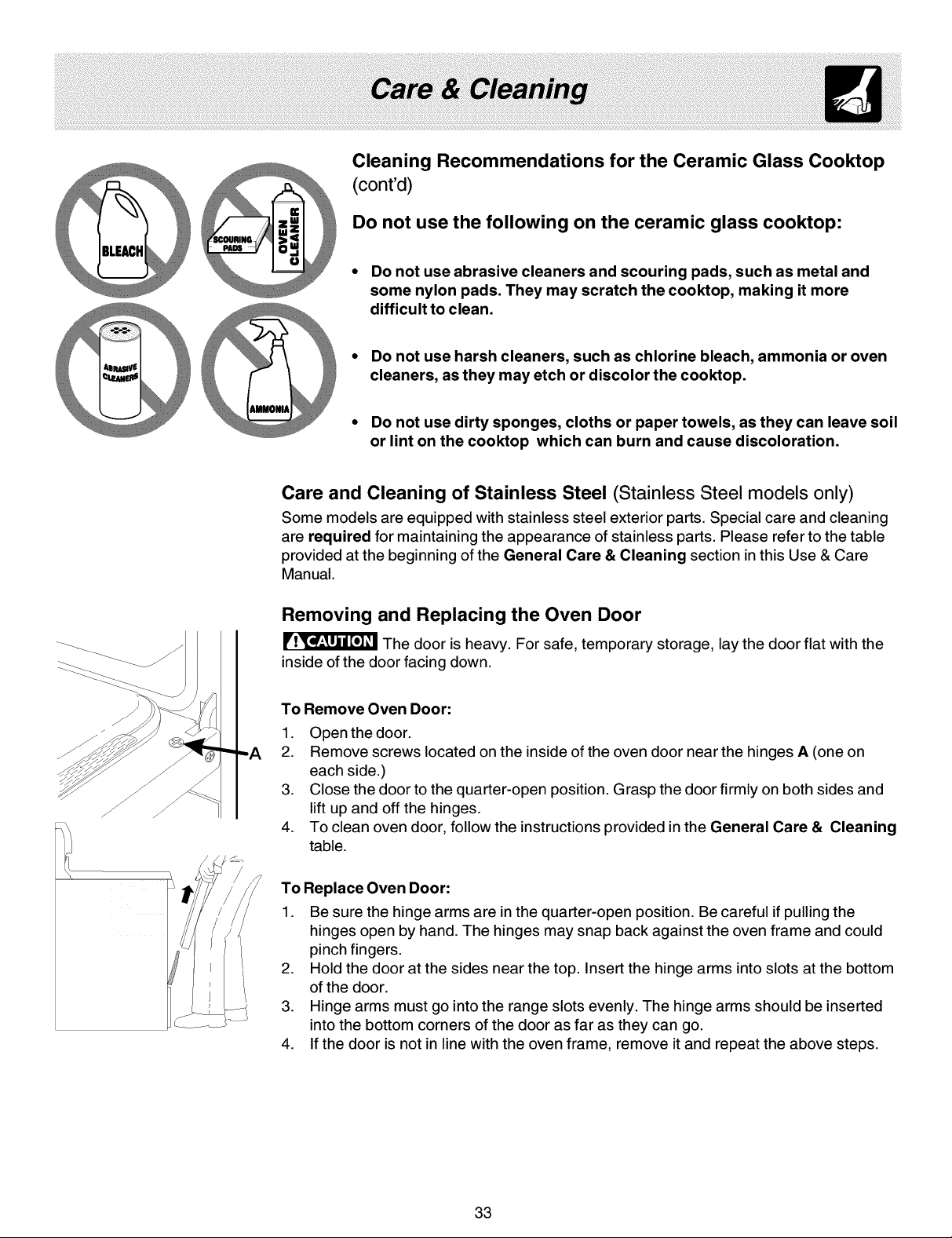

Cleaning Recommendations for the Ceramic Glass Cooktop

(cont'd)

Do not use the following on the ceramic glass cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and

some nylon pads. They may scratch the cooktop, making it more

difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven

cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil

or lint on the cooktop which can burn and cause discoloration.

Care and Cleaning of Stainless Steel (Stainless Steel models only)

Some models are equipped with stainless steel exterior parts. Special care and cleaning

are required for maintaining the appearance of stainless parts. Please refer to the table

provided at the beginning of the General Care & Cleaning section in this Use & Care

Manual.

Removing and Replacing the Oven Door

The door is heavy. For safe, temporary storage, lay the door flat with the

inside of the door facing down.

To Remove Oven Door:

1. Open the door.

2. Remove screws located on the inside of the oven door near the hinges A (one on

each side.)

3. Close the door to the quarter-open position. Grasp the door firmly on both sides and

lift up and off the hinges.

4. To clean oven door, follow the instructions provided in the General Care & Cleaning

table.

To Replace Oven Door:

1. Be sure the hinge arms are in the quarter-open position. Be careful if pulling the

hinges open by hand. The hinges may snap back against the oven frame and could

pinch fingers.

2. Hold the door at the sides near the top. Insert the hinge arms into slots at the bottom

of the door.

3. Hinge arms must go into the range slots evenly. The hinge arms should be inserted

into the bottom corners of the door as far as they can go.

4. If the door is not in line with the oven frame, remove it and repeat the above steps.

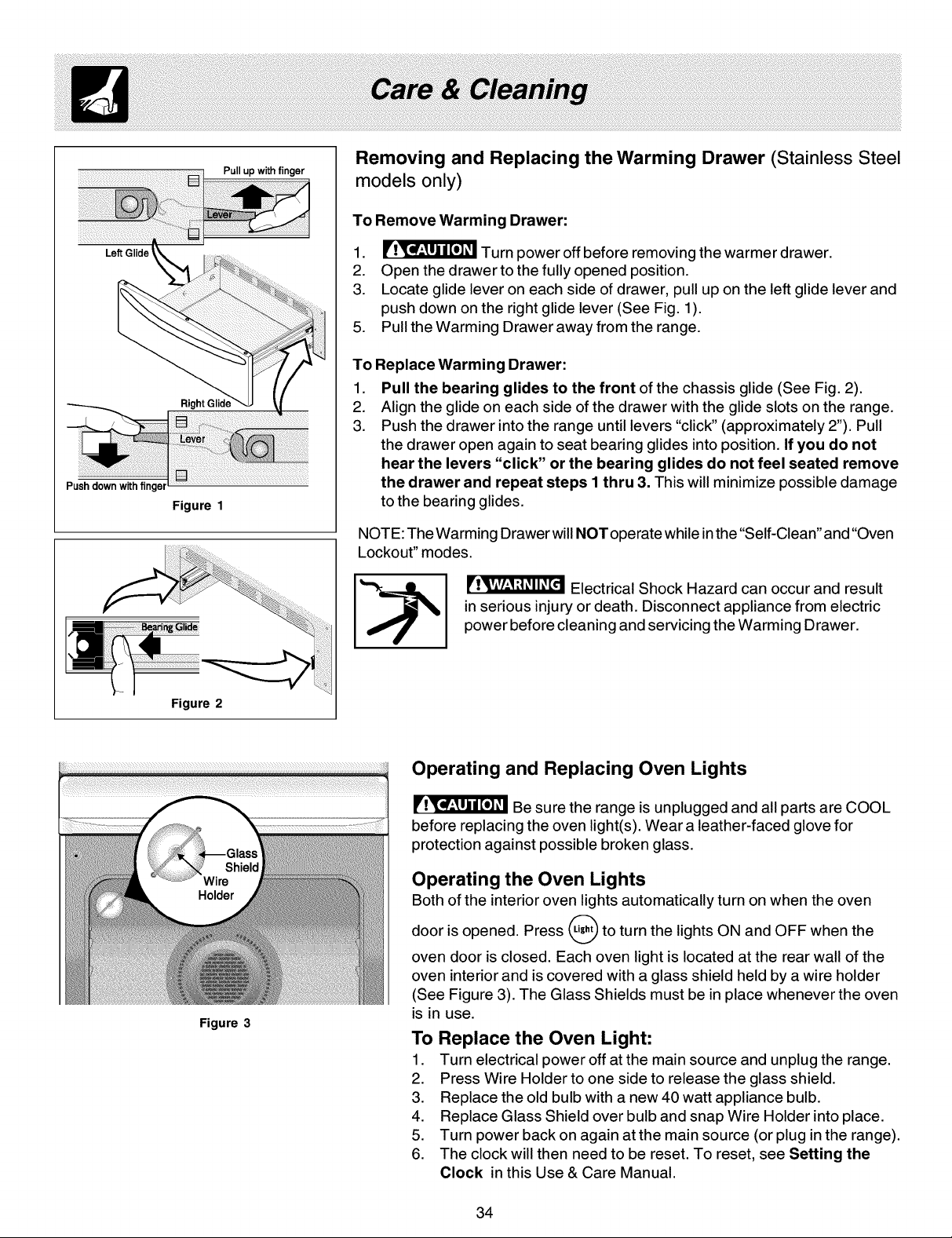

Pull up with finger

Pushdownwithfinger

Figure 1

Figure 2

Removing and Replacing the Warming Drawer (Stainless Steel

models only)

To Remove Warming Drawer:

1. _ Turn power off before removing the warmer drawer.

2. Open the drawer to the fully opened position.

3. Locate glide lever on each side of drawer, pull up on the left glide lever and

push down on the right glide lever (See Fig. 1).

5. Pull the Warming Drawer away from the range.

To Replace Warming Drawer:

1. Pull the bearing glides to the front of the chassis glide (See Fig. 2).

2. Align the glide on each side of the drawer with the glide slots on the range.

3. Push the drawer into the range until levers "click" (approximately 2"). Pull

the drawer open again to seat bearing glides into position. If you do not

hear the levers "click" or the bearing glides do not feel seated remove

the drawer and repeat steps I thru 3. This will minimize possible damage

to the bearing glides.

NOTE: The Warming Drawer will NOT operate while in the "Self-Clean" and "Oven

Lockout" modes.

Electrical Shock Hazard can occur and result

in serious injury or death. Disconnect appliance from electric

power before cleaning and servicing the Warming Drawer.

Holder

Figure 3

Operating and Replacing Oven Lights

Be sure the range is unplugged and all parts are COOL

before replacing the oven light(s). Wear a leather-faced glove for

protection against possible broken glass.

Operating the Oven Lights

Both of the interior oven lights automatically turn on when the oven

door is opened. Press _ to turn the lights ON and OFF when the

oven door is closed. Each oven light is located at the rear wall of the

oven interior and is covered with a glass shield held by a wire holder

(See Figure 3). The Glass Shields must be in place whenever the oven

is in use.

To Replace the Oven Light:

1. Turn electrical power off at the main source and unplug the range.

2. Press Wire Holder to one side to release the glass shield.

3. Replace the old bulb with a new 40 watt appliance bulb.

4. Replace Glass Shield over bulb and snap Wire Holder into place.

5. Turn power back on again at the main source (or plug in the range).

6. The clock will then need to be reset. To reset, see Setting the

Clock in this Use & Care Manual.

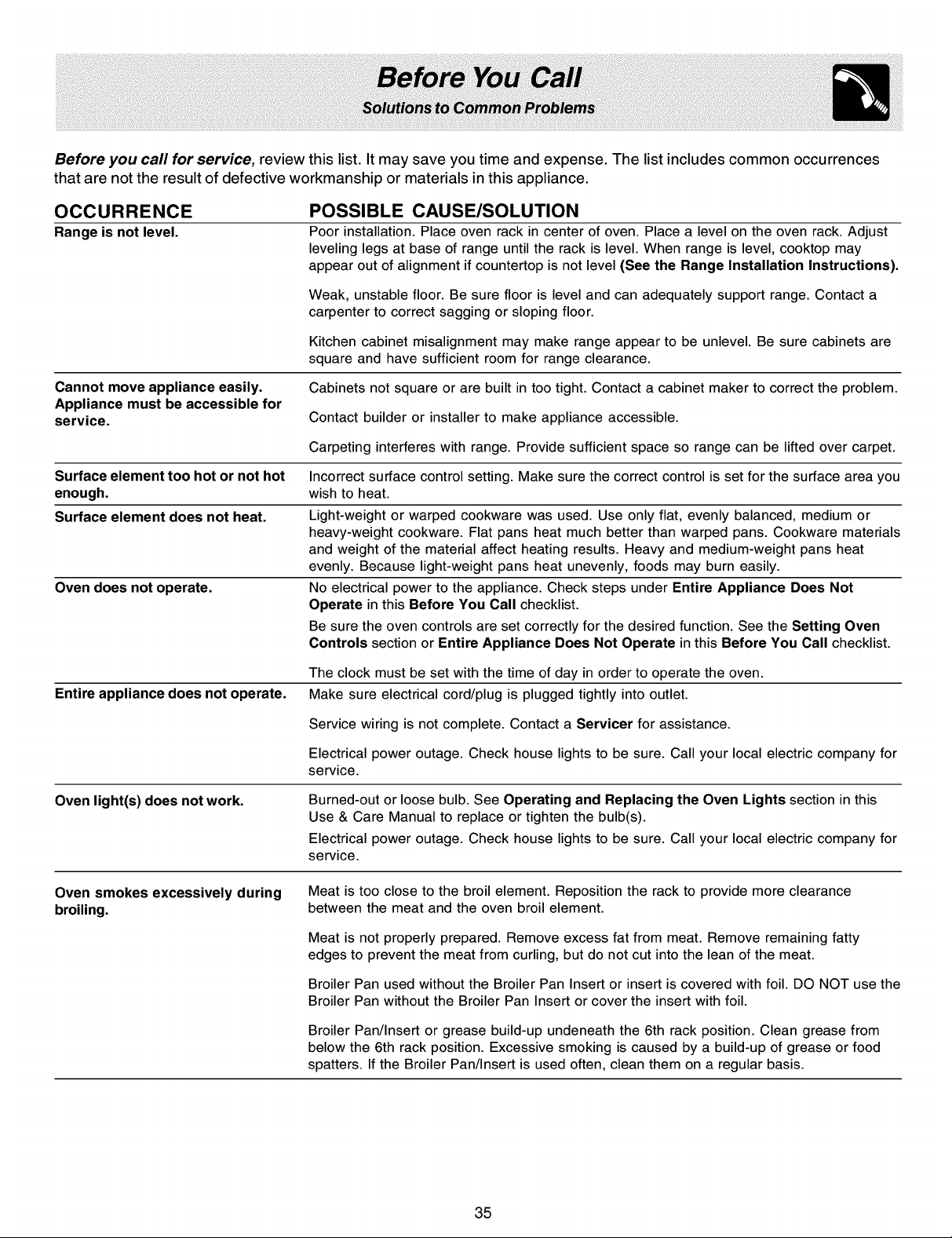

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences

that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE

Range is not level.

Cannot move appliance easily.

Appliance must be accessible for

service.

Surface element too hot or not hot

enough.

Surface element does not heat.

Oven does not operate.

Entire appliance does not operate.

POSSIBLE CAUSE/SOLUTION

Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust

leveling legs at base of range until the rack is level. When range is level, cooktop may

appear out of alignment if countertop is not level (See the Range Installation Instructions).

Weak, unstable floor. Be sure floor is level and can adequately support range. Contact a

carpenter to correct sagging or sloping floor.

Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are

square and have sufficient room for range clearance.

Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.

Contact builder or installer to make appliance accessible.

Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet.

Incorrect surface control setting. Make sure the correct control is set for the surface area you

wish to heat.

Light-weight or warped cookware was used. Use only flat, evenly balanced, medium or

heavy-weight cookware. Flat pans heat much better than warped pans. Cookware materials

and weight of the material affect heating results. Heavy and medium-weight pans heat

evenly. Because light-weight pans heat unevenly, foods may burn easily.

No electrical power to the appliance. Check steps under Entire Appliance Does Not

Operate in this Before You Call checklist.

Be sure the oven controls are set correctly for the desired function. See the Setting Oven

Controls section or Entire Appliance Does Not Operate in this Before You Call checklist.

The clock must be set with the time of day in order to operate the oven.

Make sure electrical cord/plug is plugged tightly into outlet.

Service wiring is not complete. Contact a Servicer for assistance.

Electrical power outage. Check house lights to be sure. Call your local electric company for

service.

Oven light(s) does not work.

Burned-out or loose bulb. See Operating and Replacing the Oven Lights section in this

Use & Care Manual to replace or tighten the bulb(s).

Electrical power outage. Check house lights to be sure. Call your local electric company for

service.

Oven smokes excessively during

broiling.

Meat is too close to the broil element. Reposition the rack to provide more clearance

between the meat and the oven broil element.

Meat is not properly prepared. Remove excess fat from meat. Remove remaining fatty

edges to prevent the meat from curling, but do not cut into the lean of the meat.

Broiler Pan used without the Broiler Pan Insert or insert is covered with foil. DO NOT use the

Broiler Pan without the Broiler Pan Insert or cover the insert with foil.

Broiler Pan/Insert or grease build-up undeneath the 6th rack position. Clean grease from

below the 6th rack position. Excessive smoking is caused by a build-up of grease or food

spatters. If the Broiler Pan/Insert is used often, clean them on a regular basis.

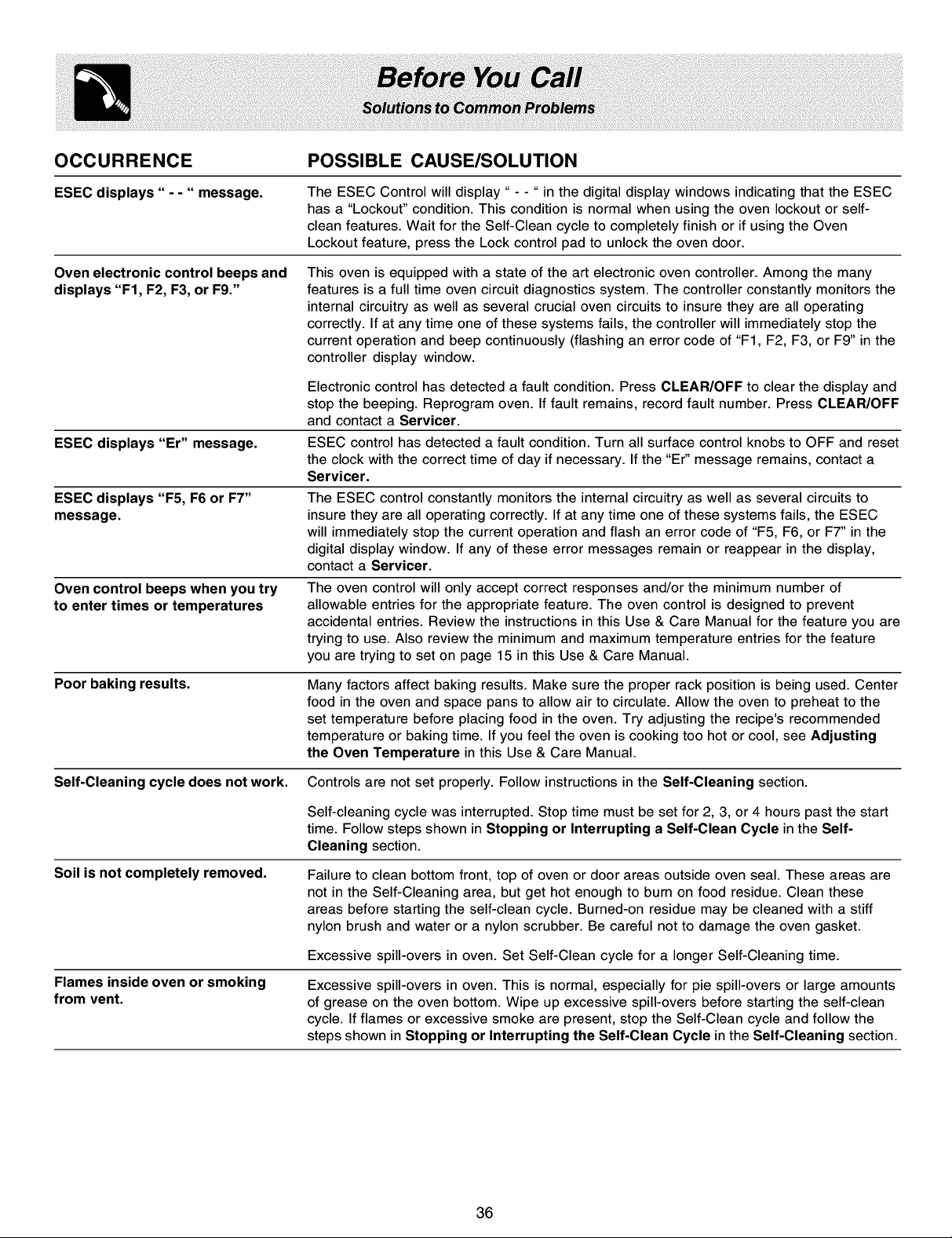

OCCURRENCE POSSIBLE CAUSE/SOLUTION

ESEC displays" - - " message. The ESEC Control will display " - - " in the digital display windows indicating that the ESEC

has a "Lockout" condition. This condition is normal when using the oven lockout or self-

clean features. Wait for the Self-Clean cycle to completely finish or if using the Oven

Lockout feature, press the Lock control pad to unlock the oven door.

Oven electronic control beeps and

displays "F1, F2, F3, or F9."

This oven is equipped with a state of the art electronic oven controller. Among the many

features is a full time oven circuit diagnostics system. The controller constantly monitors the

internal circuitry as well as several crucial oven circuits to insure they are all operating

correctly. If at any time one of these systems fails, the controller will immediately stop the

current operation and beep continuously (flashing an error code of "F1, F2, F3, or F9" in the

controller display window.

ESEC displays "Er" message.

ESEC displays "F5, F6 or F7"

message.

Oven control beeps when you try

to enter times or temperatures

Poor baking results.

Electronic control has detected a fault condition. Press CLEAR/OFF to clear the display and

stop the beeping. Reprogram oven. If fault remains, record fault number. Press CLEAR/OFF

and contact a Servicer.

ESEC control has detected a fault condition. Turn all surface control knobs to OFF and reset

the clock with the correct time of day if necessary. If the "Er" message remains, contact a

Servicer.

The ESEC control constantly monitors the internal circuitry as well as several circuits to

insure they are all operating correctly. If at any time one of these systems fails, the ESEC

will immediately stop the current operation and flash an error code of "F5, F6, or F7" in the

digital display window. If any of these error messages remain or reappear in the display,

contact a Servicer.

The oven control will only accept correct responses and/or the minimum number of

allowable entries for the appropriate feature. The oven control is designed to prevent

accidental entries. Review the instructions in this Use & Care Manual for the feature you are

trying to use. Also review the minimum and maximum temperature entries for the feature

you are trying to set on page 15 in this Use & Care Manual.

Many factors affect baking results. Make sure the proper rack position is being used. Center

food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the

set temperature before placing food in the oven. Try adjusting the recipe's recommended

temperature or baking time. If you feel the oven is cooking too hot or cool, see Adjusting

the Oven Temperature in this Use & Care Manual.

Self-Cleaning cycle does not work. Controls are not set properly. Follow instructions in the Self-Cleaning section.

Soil is not completely removed.

Self-cleaning cycle was interrupted. Stop time must be set for 2, 3, or 4 hours past the start

time. Follow steps shown in Stopping or Interrupting a Self-Clean Cycle in the Self-

Cleaning section.

Failure to clean bottom front, top of oven or door areas outside oven seal. These areas are

not in the Self-Cleaning area, but get hot enough to burn on food residue. Clean these

areas before starting the self-clean cycle. Burned-on residue may be cleaned with a stiff

nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

Flames inside oven or smoking

from vent.

Excessive spill-overs in oven. Set Self-Clean cycle for a longer Self-Cleaning time.

Excessive spill-overs in oven. This is normal, especially for pie spill-overs or large amounts

of grease on the oven bottom. Wipe up excessive spill-overs before starting the self-clean

cycle. If flames or excessive smoke are present, stop the Self-Clean cycle and follow the

steps shown in Stopping or Interrupting the Self-Clean Cycle in the Self-Cleaning section.

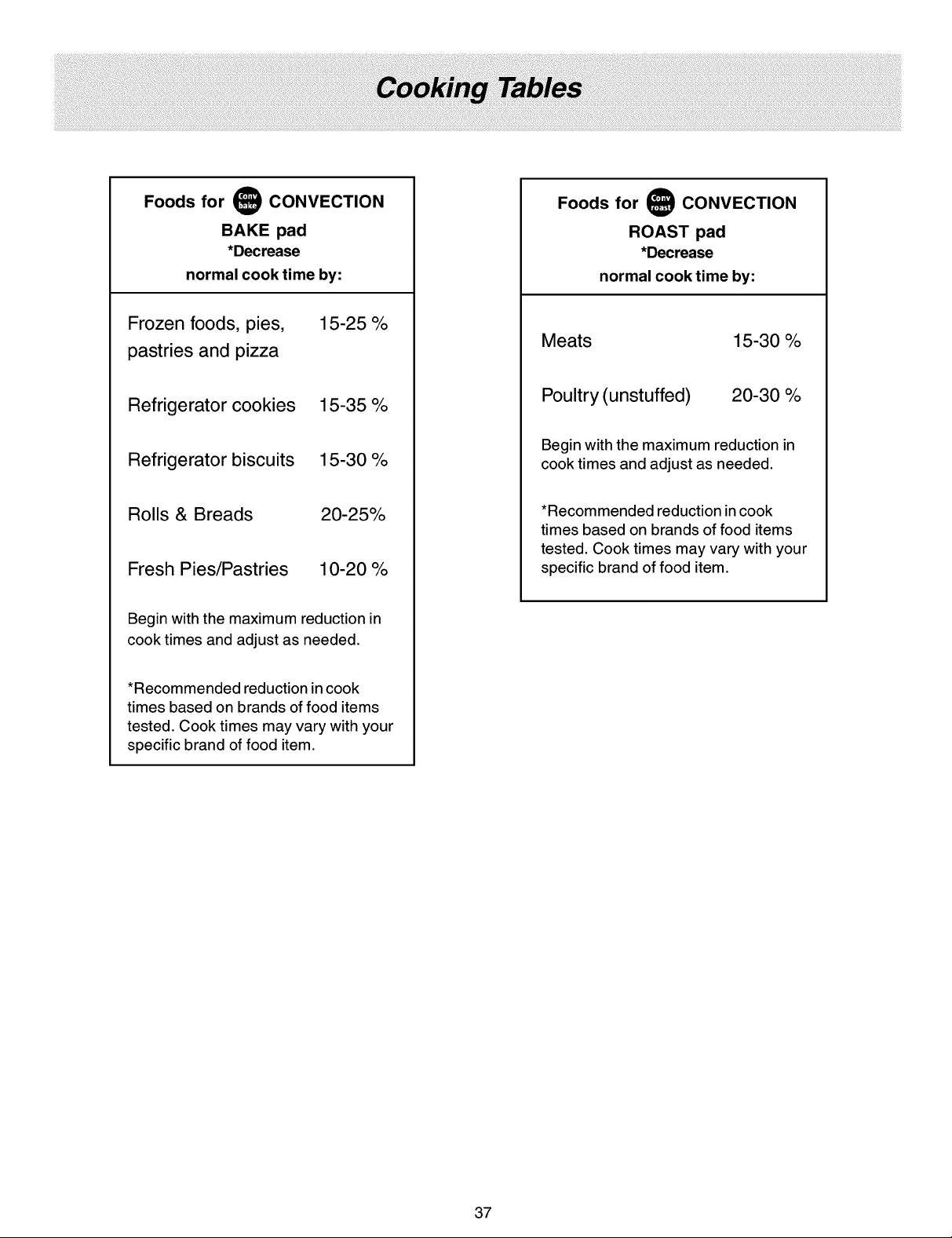

Foods for CONVECTION

BAKE pad

*Decrease

normal cook time by:

Frozen foods, pies,

pastries and pizza

15-25 %

Refrigerator cookies 15-35 %

Refrigerator biscuits 15-30 %

Rolls & Breads 20-25%

Fresh Pies/Pastries 10-20 %

Begin with the maximum reduction in

cook times and adjust as needed.

*Recommended reduction in cook

times based on brands of food items

tested. Cook times may vary with your

specific brand of food item.

Foods for CONVECTION

ROAST pad

*Decrease

normal cook time by:

Meats 15-30 %

Poultry (unstuffed) 20-30 %

Begin with the maximum reduction in

cook times and adjust as needed.

*Recommended reduction in cook

times based on brands of food items

tested. Cook times may vary with your

specific brand of food item.

RANGE WARRANTY

Your range is protected by this warranty

WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLEFOR:

PERIOD WE WILL:

FULL ONE-YEAR Oneyearfrom original Payall costsfor repairingor replacingany parts ofthis Costs of servicecallsthat are listedunder NORMAL

WARRANTY purchasedate. appliancewhich proveto bedefectivein materialsor RESPONSIBILITIESOF THE CONSUMER.*

workmanship.

LIMITED 2ND-5TH Secondthroughfifth Providea replacementforany defectivesurfaceheating Diagnosticcostsand anytransportationandlaborcosts

YEAR WARRANTY yearsfromoriginal element,deterioratedrubberized-siliconeseal (upswept whichare requiredbecauseof service.

(GlassSmoothtop, purchasedate. modelsonly),or glasssmoothtopthat cracksdueto

Seal& Elements) thermalbreakage(not customer abuse).

LIMITED WARRANTY Time periodslisted All of the provisionsof thefull and limitedwarranties Costsof thetechnician'stravelto the homeandany

(Applicableto the above, aboveand the exclusionslistedbelowapply, costsforpick upand deliveryof the appliancerequired

State of Alaska) becauseof service.

In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White Consolidated Industries, Inc. We

authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must

be performed by us or an authorized Electrolux Home Products North America servicer. In Canada, your appliance is warranted by WCI Canada,

Inc.

*NORMAL

RESPONSIBILITIES

OF THE CONSUMER

EXCLUSIONS

IF YOU NEED

SERVICE

This warranty applies only to products in ordinary household use, and the consumer is responsible for the

items listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in

accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose

connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,

which are not a part of the appliance when it was shipped from the factory.

5. Damages to finish after installation.

6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).

This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES

RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.

NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this

limitation or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in

ordinary household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Electrolux Home Products North America or its

authorized servicers; use of parts other than genuine Electrolux Home Products parts; obtained from persons

other than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the

warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all

receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.

Service under this warranty must be obtained by contacting Electrolux Home Products:

This warranty only applies in the 50 states of the U.S.A., Puerto Rico, and Canada. Product features or specifications as described or illustrated are

subject to change without notice. All warranties are made by Electrolux Home Products North America, a division of White Consolidated Industries

Inc. In Canada, your appliance is warranted by WCI Canada, Inc. 03-U-RA-01 (rev. 01/2001)

USA

800.944.9044

Electrolux Home Products North America

P.O. Box 212378

Augusta, GA 30917

Canada

866.213.9397 (English)

866.294.9911 (French)

Electrolux Home Products North America

6150 McLaughlin Road

Mississauga, Ontario, Canada

L5R 4C2

Frigidaire GLEF396ABA electric range

Product's Documents

User Manual

Specifications

Frigidaire GLEF396ABA Questions and Answers
