For Models: GVF125W-KIT or GVF125S-KIT
Extraction Fan Kit
Operating Instructions
Thank you for choosing GOLDAIR. Your GOLDAIR Ceiling / Wall Extractor Fan has been
designed and manufactured to high standards of engineering. With proper use and
care, as described in this leaflet, you can expect years of service. Please read these
instructions carefully.
Please read all instructions carefully before using your extractor fan and keep them for
future reference.
Before performing any wiring ensure the mains power is off and the circuit is fully
isolated.
• Use only the voltage specified on the rating plate of the appliance.
• Do not cover or restrict airflow as the appliance may overheat and become a fire risk.
• Do not mount appliance close to any heat source.
• Do not install the unit directly above shower or bath recesses or enclosures.
• Fan must be installed so that blades are more than 2.1 meters above the floor.
• Do not operate in areas where petrol, paint or other flammable liquids are used or
stored.
• Take precautions to avoid the back-flow of gases into the room from open flue of gas
or other fuel-burning appliances.
• Do not insert or allow foreign objects to enter any point of the appliance, as this may
cause an electric shock, fire or damage to the appliance.
• Do not immerse in liquid or allow liquid to run into the interior of the appliance, as
this could create an electrical shock hazard.
• Do not operate after the appliance malfunctions, has been dropped/damaged in any
manner.
• Do not operate the appliance with wet hands.
• Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer as it may cause fire, electric shock or injury.
• Do not connect the appliance to the electrical supply until completely assembled.
• This appliance is intended for household use only and not for commercial or industrial
use.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience or knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety
• Young children should be supervised to ensure they do not play with the appliance
• This Goldair product is designed only to be used as a fixed ventilation product,
installed into a wall or the ceiling. If the product is installed or used for any other
purpose the warranty will be void.
General Care and Safety Guide
The unit can be installed in any room that requires circulated air flow such as
bathrooms, ensuites, laundries, etc.
For maximum efficiency to remove steam and odours, there must be an adequate air
flow within the room. To obtain maximum air flow ensure there is a gap under doors or
open windows. A good test for this is that the fan should not change speed (or sound)
when you close or open the bathroom door.
The shortest, smooth surface ducting configuration with the least elbow bends will
produce optimum fan performance. Please keep the ducting as straight as possible.
220-240VAC 50Hz electrical supply is required. The unit can be connected to a lighting
or power circuit if loading permits.
All electrical work must be carried out by a registered electrician in accordance with
the latest edition of AS/NZS 3000 (please consult your local electrician for information).
General Care and Safety Guide
Technical specs
Model Input Power Noise Air Volume Cutout Size
GVF125W-KIT
GVF125S-KIT
220-240VAC
50Hz
45W 43dB 270m
3
/h
Max
240mm
CEILING/WALL INSTALLATION:
1) Position the fan in your desired location, ensure you are aware of all existing timer and
electrical cables in walls and ceilings.
2) For installation of external vent, find a suitable location in either the roof or exterior
wall to vent out the exhaust fan and cut out a 130mm ducting hole.
3) Place one end of a 125mm diameter ducting (supplied in the Kit) into the vent hole and
attached external grill (supplied in the kit) to this end of the ducting (FIG 1).
4) Before commencing any cutting, check in the ceiling space that there are no
obstructions such as ceiling joists or beams and there is sufficient height and wall
clearance for the housing (no less than 250mm in either direction, FIG 2).
5) Mark the surface carefully then cut a circular hole to size. We recommend you measure
the physical product to ensure the hole being cut is to size and accurate.
6) Remove the front cover of fan, pull the fascia slightly and press the fastening springs
backwards. illustrated in FIG 3 below.
7) Route the main cable though the cable entry and connect the Live (L), Neutral (N) and
Earth (E) cables.
All electrical work must be completed by a registered electrician.
8) After inserting the fan assembly into the ceiling, rotate the swing clips to hold fan body
in place. Tighten screws so mounting clips clamp onto the ceiling board.
9) Replace the fascia by placing the two fastening springs on the fascia into the two slots
in the main unit.

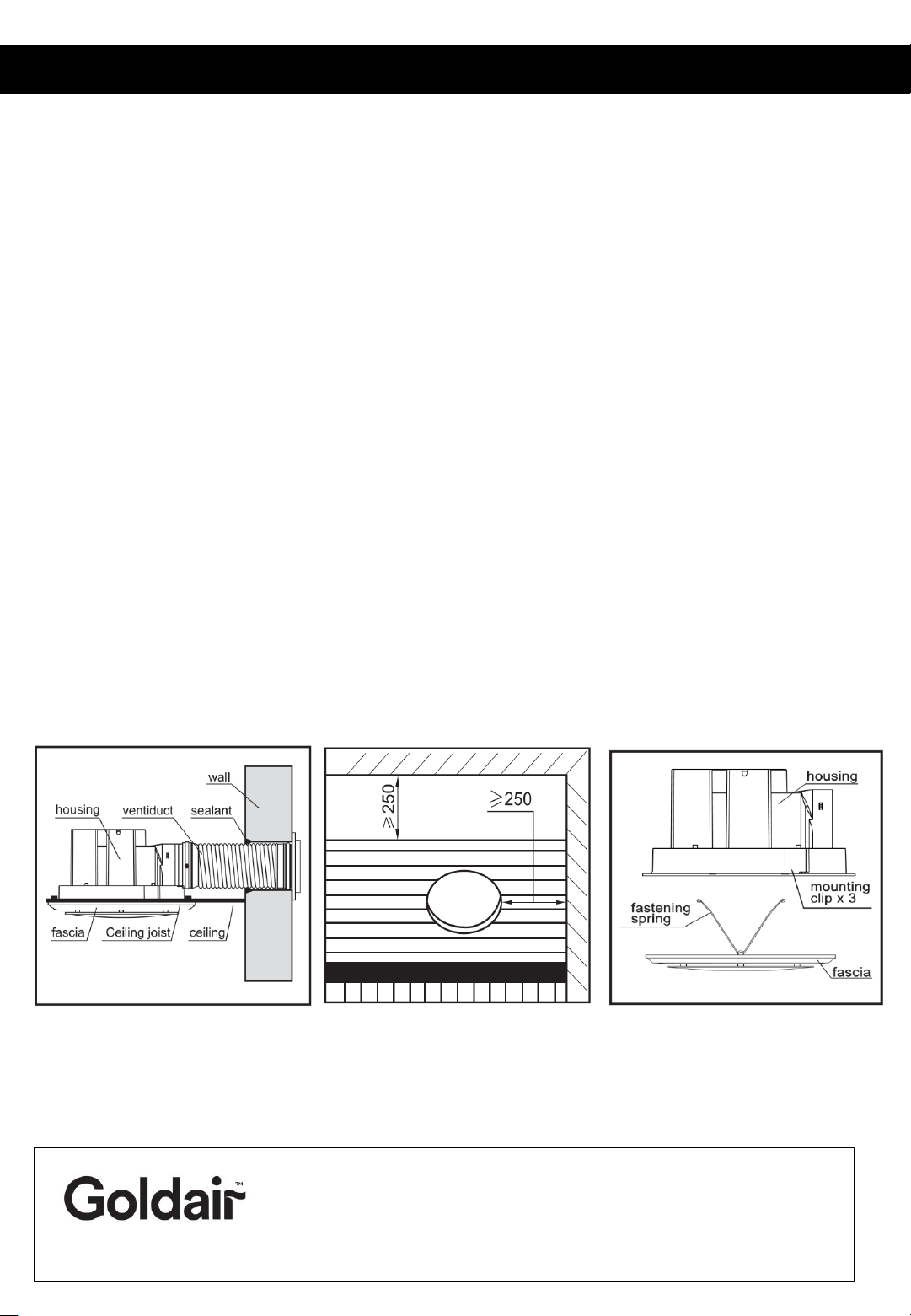

FIG 1.
FIG 2. FIG 3.
Installation Instructions
Goldair – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Goldair – Australia
Monday – Friday 8am-5pm
Phone +61 (0)3 9336 4423
Phone 1300 465 324
[email protected]om.au
SUPPORT AND TECHNICAL ADVICE
PROOF OF PURCHASE
To receive warranty, retain receipt as proof of purchase.
