User Guide
Smart Wi-Fi Dimmer Switch
HS220
© 2021 TP-Link 1910013028 REV3.0.0
Contents
About This Guide ···················································· 1
Introduction ······························································· 2
Set Up Your Smart Dimmer ······························· 4
Main Device Controls ··········································· 5
Adjust Brightness ··················································· 6
Set Presets ································································· 7
Set Schedules ·························································· 9
Set Timer ···································································11
Set Away Mode ······················································12
Manage Device Settings ··································13
Reset Your Smart Dimmer ·······························19
Create Groups ························································22
Create Scenes························································27
Smart Actions ·························································29
Discover Kasa ·························································40
1
About This Guide
This guide provides a brief introduction to Smart Dimmer and the Kasa Smart app, as well as regulatory information.
Features available in Kasa Smart may vary by model and software version. Kasa Smart availability may also vary by region or ISP. All images, steps, and
descriptions in this guide are only examples and may not reect your actual Kasa Smart experience.
Conventions
In this guide, the following convention is used:
Convention Description
Teal
Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline
Hyperlinks are in teal and underlined. You can click to redirect to a website.
More Info
• Specications can be found on the product page at https://www.tp-link.com.
• Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support.
• A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com.
• Frequently Asked Questions (FAQs) can be found at https://www.tp-link.com/support/faq/.
2
Introduction
With the Smart Dimmer, you can control the ambiance of any space with the push of a button. Download the Kasa Smart app and control your dimmer
remotely. The Kasa Smart app provides easy step-by-step installation instructions and convenient remote control from anywhere.
• Brightness Control - Control the brightness of your lights to set the perfect ambiance for any activity
• Control Your Lights From Anywhere - Control your dimmer from wherever you are with the free Kasa app
• Hands-free Experience - Control your lights by voice commands through support from Amazon Alexa and Google Assistant
• No Hub Required - Work with a 2.4GHz Wi-Fi network, no need for a hub or extra equipment.
• Scheduling - Program lights to turn o and on at set times throughout the day or night
Phone not included;
Works with iOS and Android
3
Appearance
The Smart Dimmer has Up/Down buttons to adjust the brightness of your lights, an indicator that tell you the current brightness of your lights, two LEDs
that changes color according to its status, a RESTART button and a RESET button. See the explanation below:
RESET
RESTART
Press and hold (about 5 seconds) until the Wi-Fi status LED blinks amber and green
alternately to initiate App-Cong mode.
Press and hold (about 10 seconds) until the Wi-Fi status LED blinks amber rapidly to
factory reset the Smart Dimmer.
Press to reboot the Smart Dimmer.
Press to decrease the lighting brightness.
Press to increase the lighting brightness.
White
Lit up when the light is switched OFF to show the Smart Dimmer location in the dark.
Green
Lit up for about 30 seconds when connected to the Wi-Fi network, then turns o.
Blinking Amber
Resetting.
Blinking Green
Searching for Wi-Fi.
Red
No Wi-Fi connection.
Blinking Amber and Green
App-Cong mode initiated.
Indicate the current lighting brightness.
4

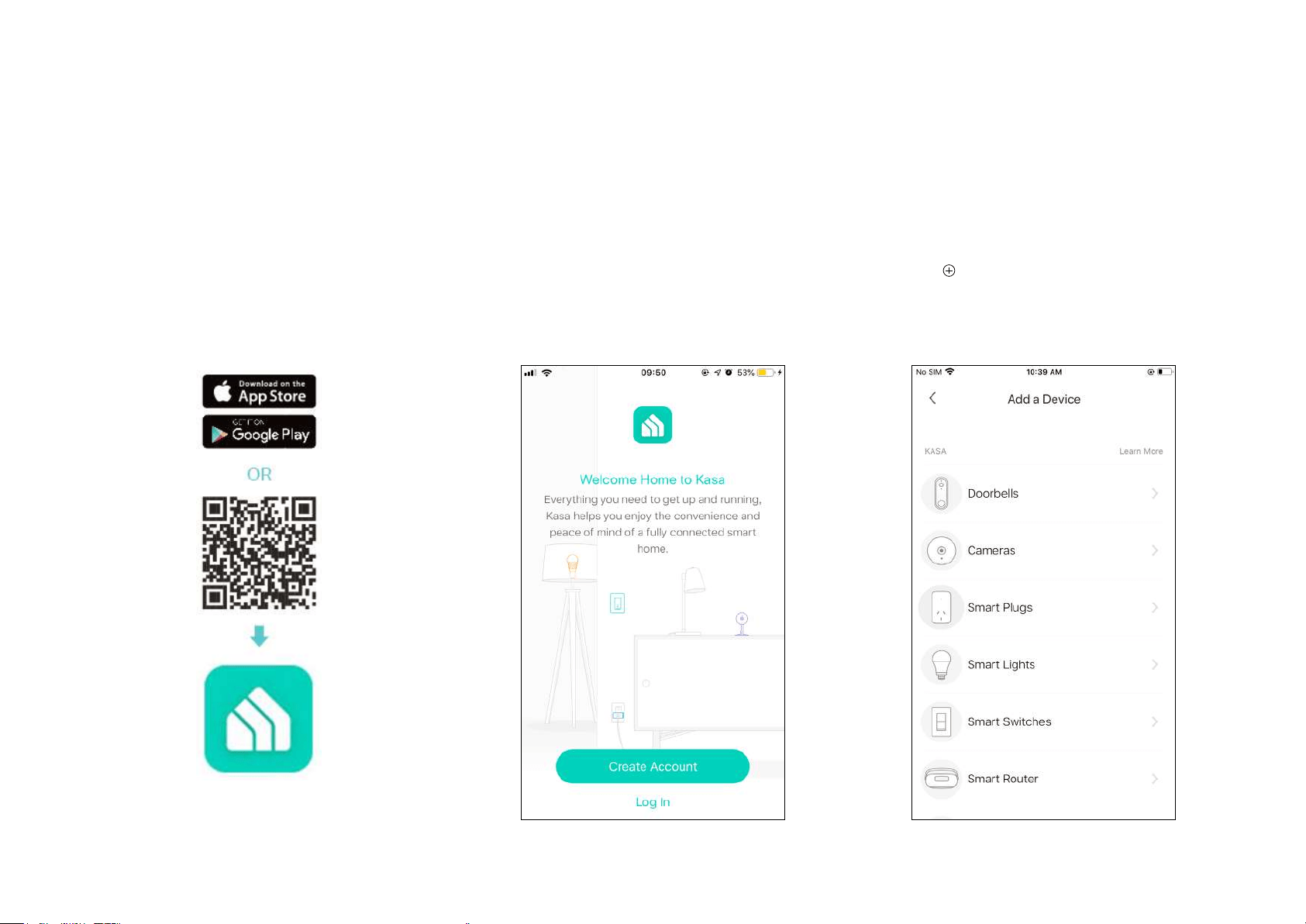

Set Up Your Smart Dimmer
Follow the steps below to set up your Smart Dimmer via Kasa Smart app.
1. Download and install Kasa app
Go to Google Play or the App Store or scan
the QR code below to download the Kasa
Smart app on your Android or iOS smartphone
or tablet.
2. Log in or sign up with TP-Link ID
Open the app. Use your TP-Link ID to log in.
If you don’t have a TP-Link ID, tap Create
Account and the Kasa app will guide you
through the rest.
3. Install and set up
Tap the button in the app and select
Doorbells. Follow the app instructions to wire
your Smart Dimmer and then set up your
Smart Dimmer.
5
Main Device Controls
After you successfully set up your Smart Dimmer, you will see the home page of the Kasa Smart app. Here you can view and manage all devices that
you've added to Kasa. Tap your smart switch to control and manage it.
Home Page
You can see all your Kasa devices listed in
the Home page.
Turn on/o the smart outlet
Turn on/o your Smart Dimmer quickly by tapping the switch on the home page.
Tapping the device to enter its Status page, you can also check or change its status.
6
Adjust Brightness
Brightness: It allows you to adjust the brightness of your light from 1% to 100%.
1. Tap your Smart Dimmer in Home page
to enter the Status page, and then tap the
Brightness bar.
2. Tap on the arc to set the desired
brightness.
7
Set Presets
Presets: Set desired light eects in advance as presets so you can quickly change to the corresponding
eect.
1. Tap your Smart Light Switch in the Home
page, and then tap .
2. Set different brightness and gentle off
(which means turning the light o slowly).
3. The presets you set will be displayed on
the top in the Status page.
8

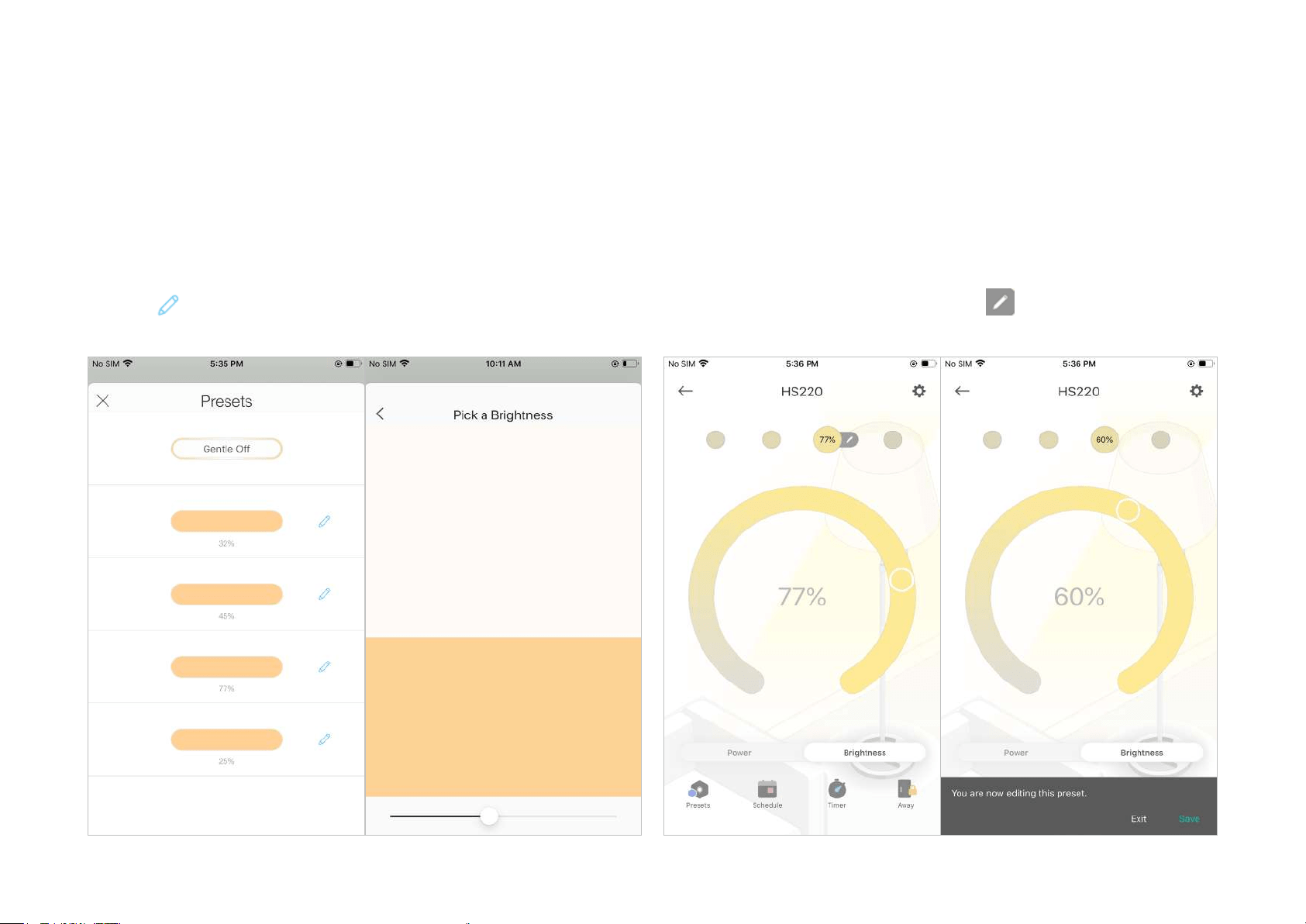

4. Change the brightness of presets by:
1) Tap in the Presets page to change the birghtness.
2) Tap a preset in the Status page, then tap beside. A pop up message
will appear in the bottom. Choose another brightness and tap Save.
9

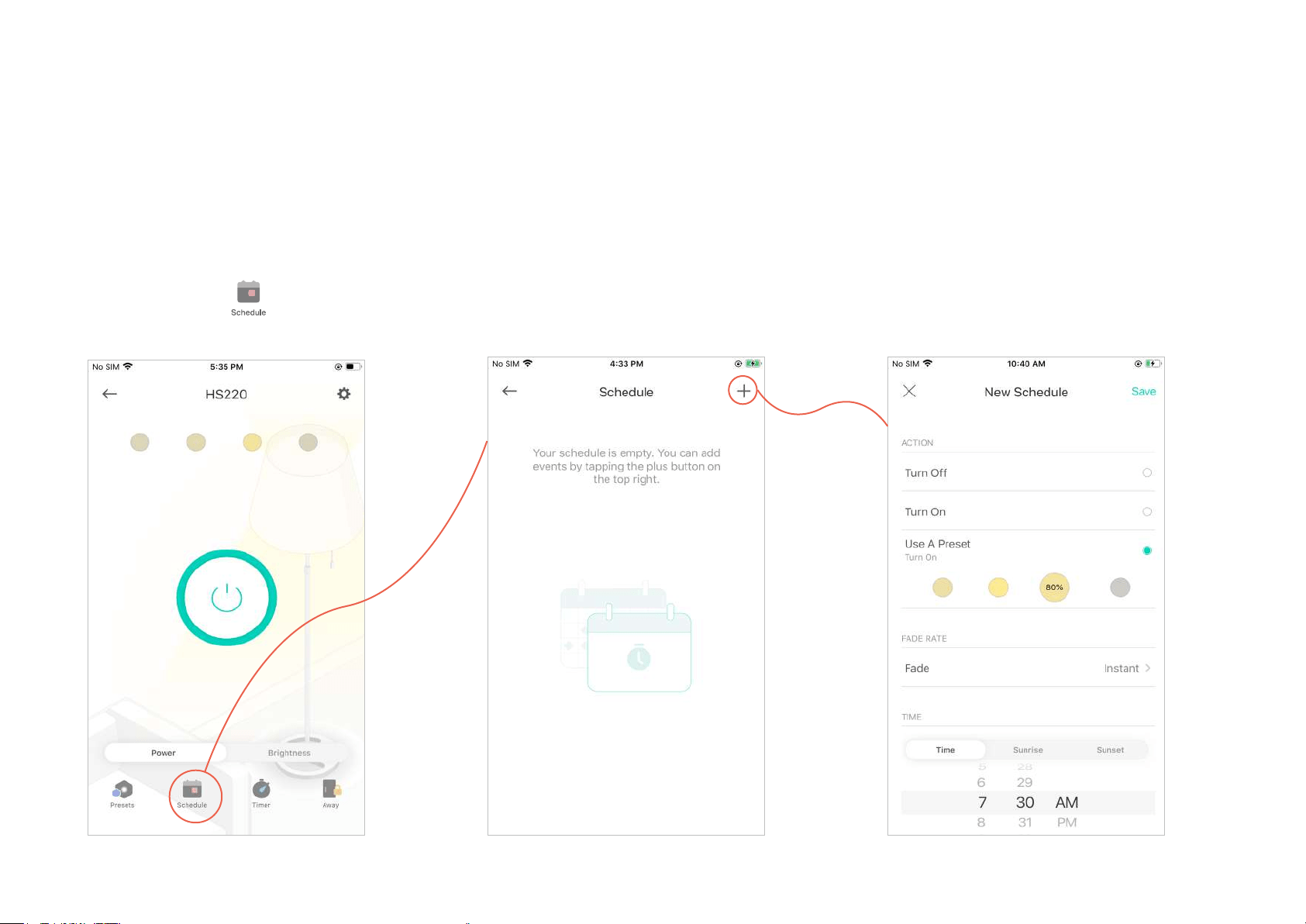

Set Schedules
Schedule: Set schedules to automatically turn on/o the light or apply a preset at set times according to
your daily routine.
1. Tap your Smart Dimmer in the Home
page, and then tap .
2. Tap + on the top right corner. 3. Set a schedule to turn the light on or o,
or apply a specic preset eect.
e.g. I want to turn on the light using the
preset of 80% brightness.
10
4. Set the fade rate, i.e. how long you want
your light to fade in or fade out after your
schedule starts.
e.g. I want the light to slowly turn on in 1 minute.
5. Set the time and frequency for your
schedule.
e.g. I want to use the preset at 7:30 AM every
weekday.
6. You can see the schedule you set at the
Schedule page. You can also turn it o any
time.
11
Set Timer
Timer: Set the timer for your Smart Dimmer to automatically turn on/o after the time ends.
1. Tap your Smart Dimmer in the Home
page, and then tap .
2. Set the time after which the dimmer will
be automatically turned on/o.
For example, when I turn on the light, I want
it to be o after 30 minutes.
2. Tap START and you'll see the timer is
counting down. Tap STOP to stop the Timer
at any time.
12

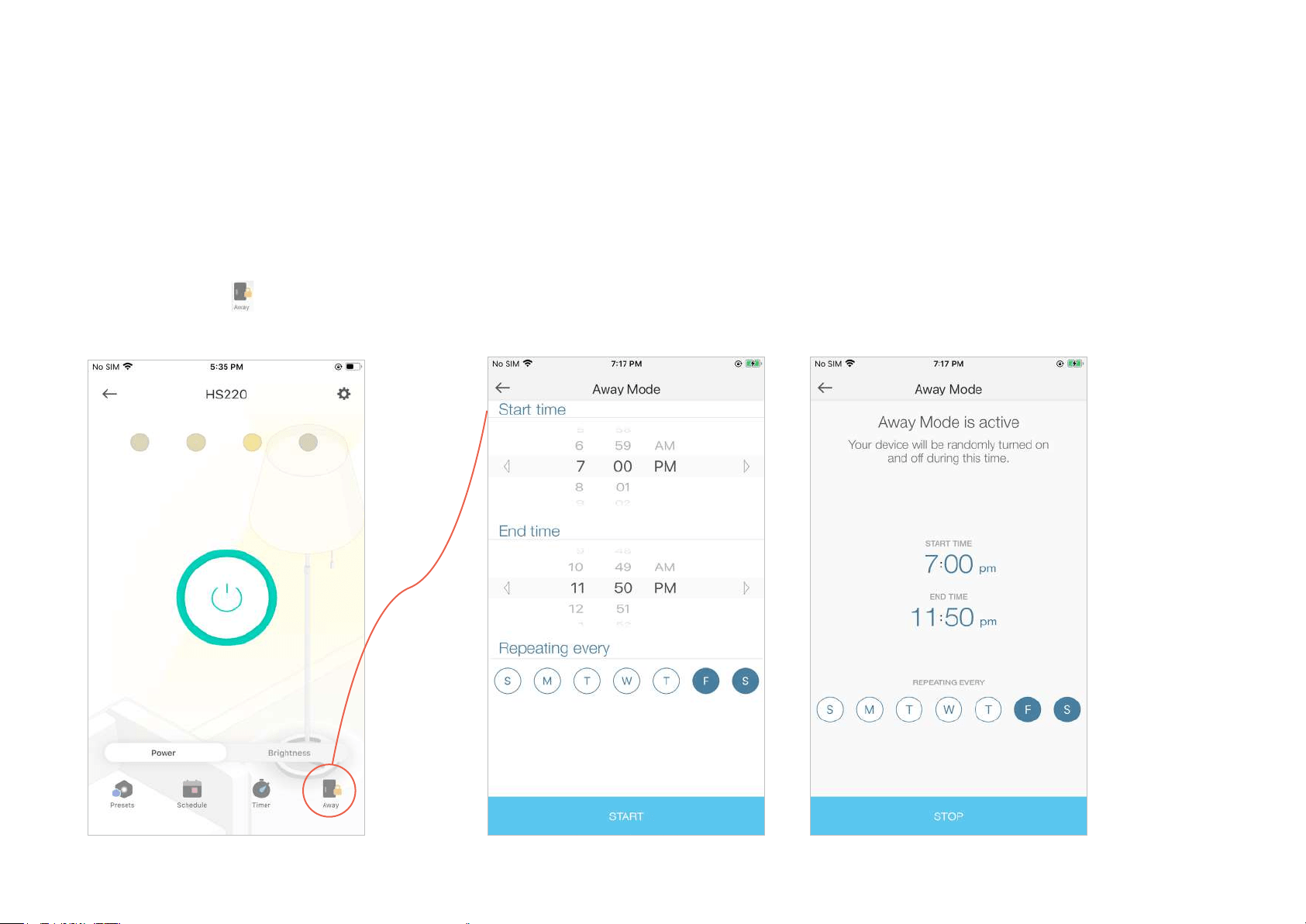

Set Away Mode
Away Mode: Set Away Mode for your Smart Dimmer to turn on/o the light automatically at random intervals
while you are away to make the appearance that someone is at home.
1. Tap your Smart Dimmer in the Home
page, and then tap .
2. Set the start and end time during which the dimmer will be automatically turned on and o at
random intervals, and the repeating frequency.
e.g. I want the light to turn on and o between 7:00 PM to 11:50 PM every Friday and Saturday.
13
Manage Device Settings
You can edit the device settings here.

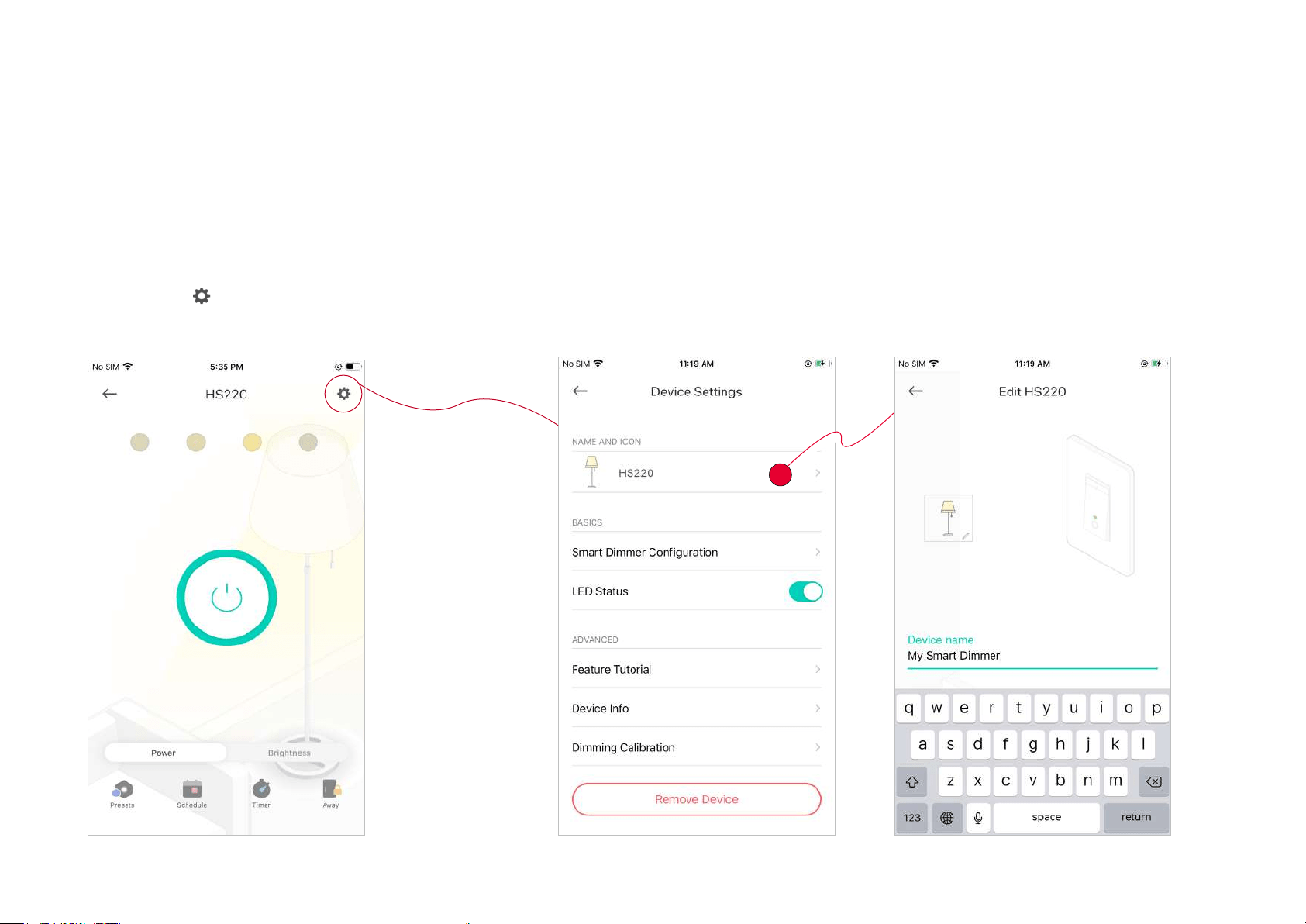

Edit Name & Icon
1. Tap your Smart Dimmer in the Home page
and then tap .
2. Change the name and icon of your switch.
14

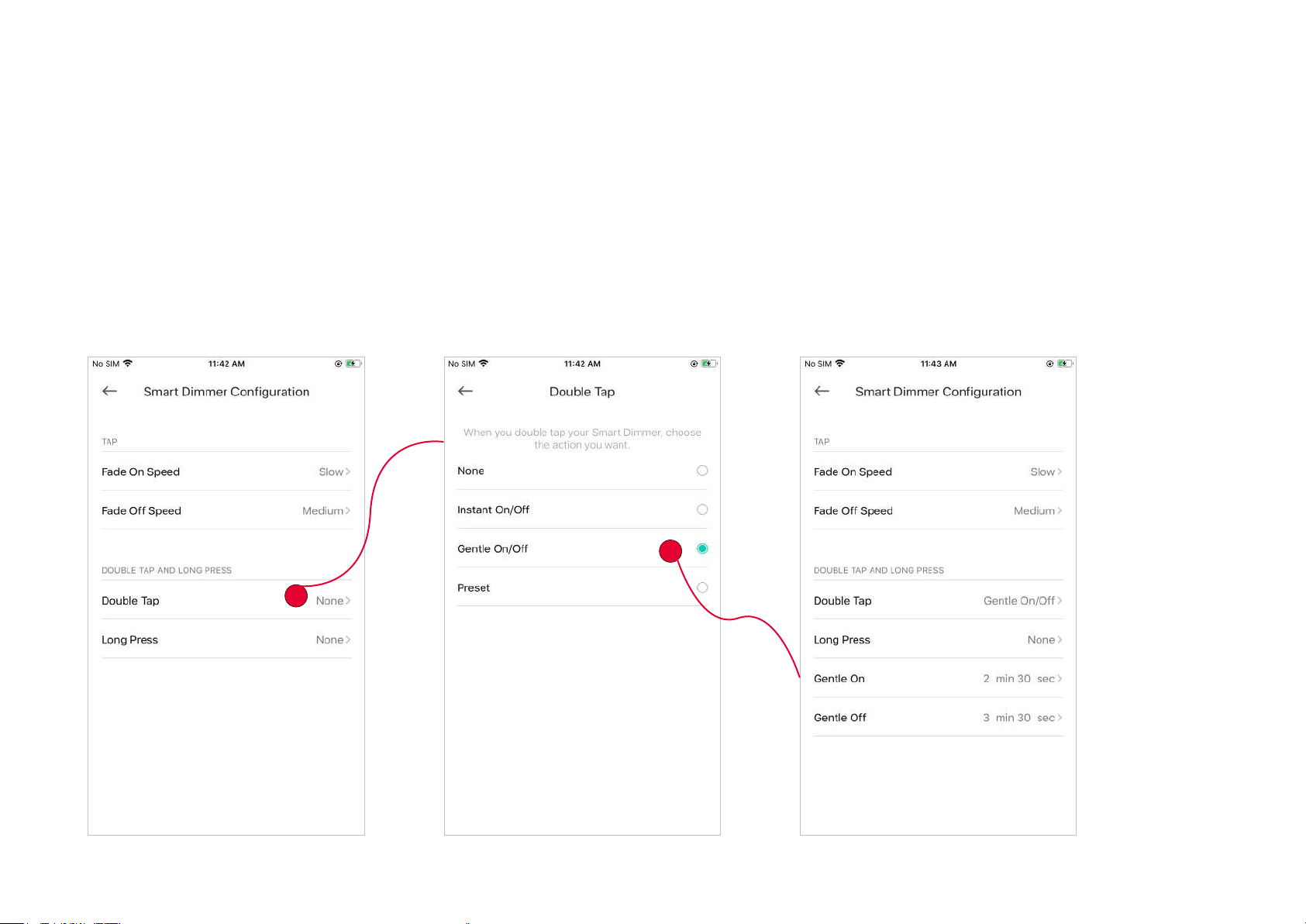

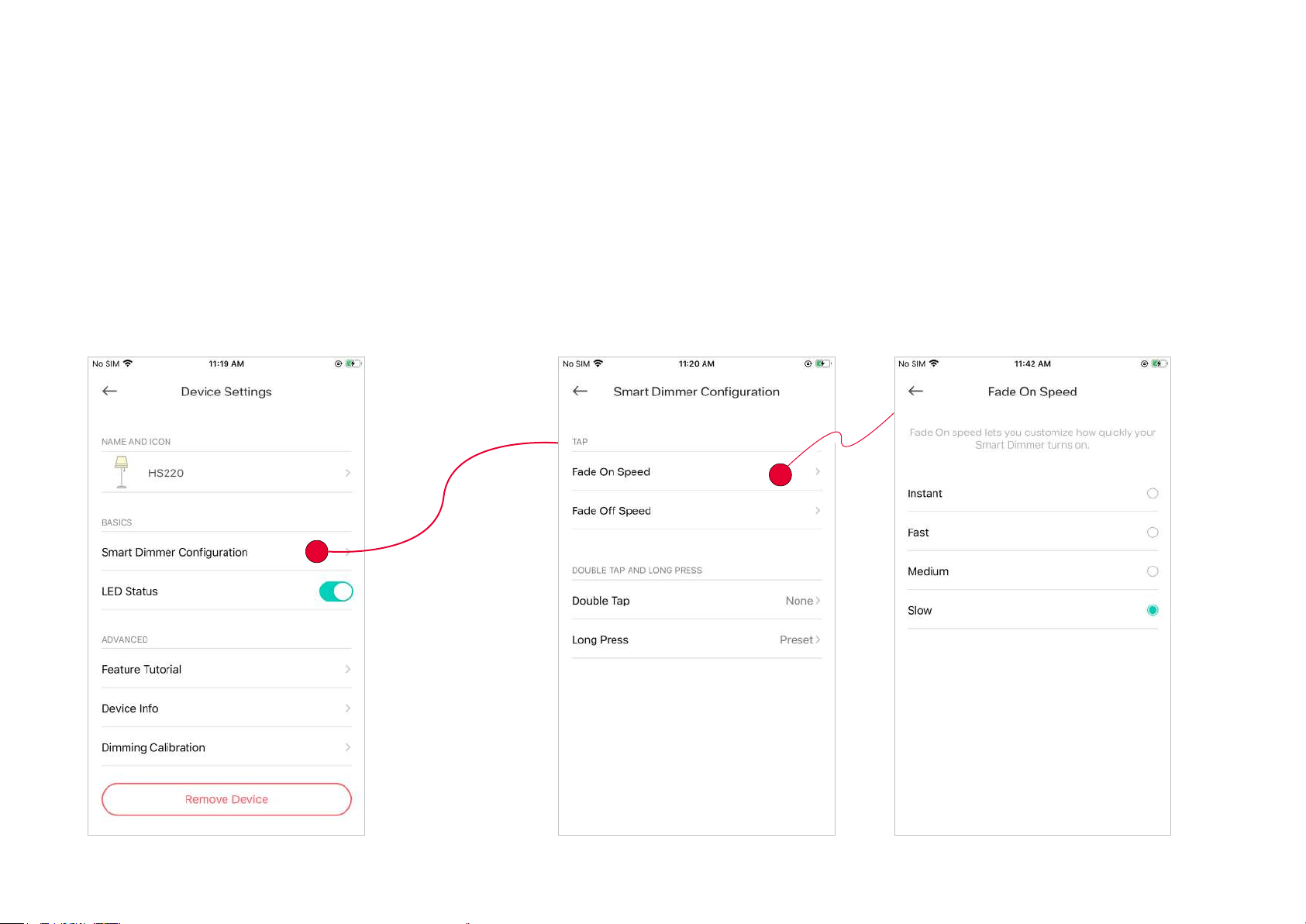

Smart Dimmer Conguration
1. Tap Smart Dimmer Configuration in the
Device Settings page.
2. Set the Fade On Speed / Fade Off Speed which decides how quickly your Smart
Dimmer turns on.
15
3. Set the eects for Double Tap, i.e., what eect you want when you double tap your Smart Dimmer.
e.g. I want my light to turn on/o slowly when I double tap my Smart Dimmer. Then you can set the time for gentle on and gentle o.
16
3. Set the eects for Long Press, i.e., what eect you want when you long press your Smart Dimmer.
e.g. I want my light to apply the preset of 80% brightness when I long press my Smart Dimmer.
17
Turn On/O LED
1. Turn on or o LED Status in the Device Settings page.
Note: Usually the LED turns white when light is o to show the location of
your Smart Dimmer. Turning o LED will disable that change.
18
Dimming Calibration
1. Tap Dimming Calibration in the Device
Settings page.
2. Set the dimming range for your Smart Dimmer. You can tap Test to help you nd the
proper minimum level of brightness by dimming up / down the brightness and checking
if the light ickers.
Tap to increase the brightness.
Tap to decrease the brightness.
19
Reset Your Smart Dimmer
TP-Link provides three methods to reset your Smart Dimmer.
Method 1
Swipe left your Smart Dimmer on the Home page and tap Delete. Then tap Remove
Device. Your Smart Dimmer will be removed from your Kasa account and restored to
factory settings.
20
Method 2
Tap your Smart Dimmer and go to the Devices Settings page. Then tap Remove Device
in the bottom. Your Smart Dimmer will be removed from your Kasa account and restored
to factory settings.
21
Method 3

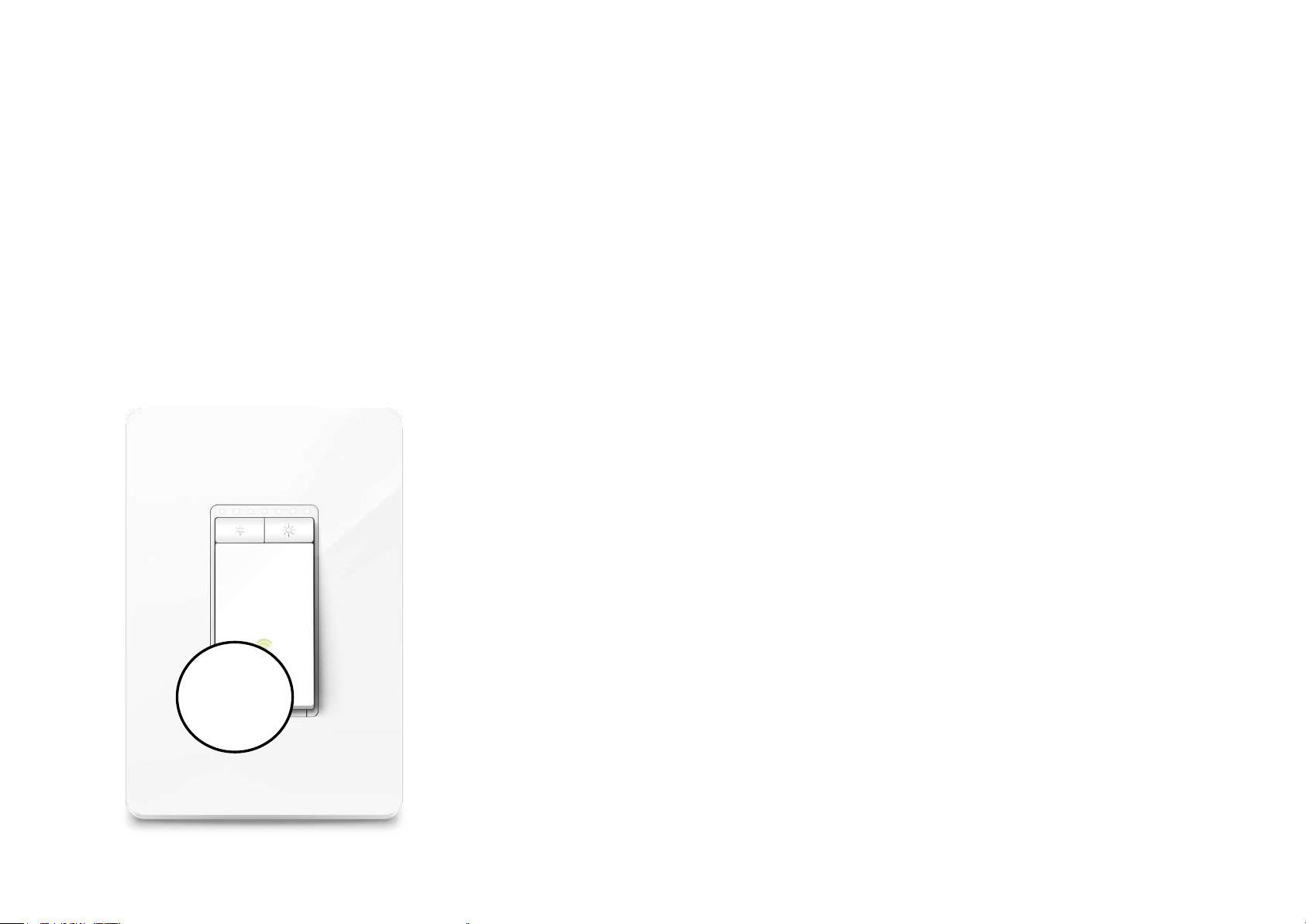

Press and hold the Reset button on the panel of the dimmer for 5s to enable setup mode while
keeping previous settings.
Press and hold the Reset button on the panel of the dimmer for 10s to restore your switch to
factory default settings.
22
Create Groups
You can add your Smart Dimmer and your other Kasa devices in a group so you can turn them on or o all togeher.
Create Group
1. Tap the button in the app and select Group. 2. Select devices to be added in a group. 3. Name the group and tap Save. The Group
is added successfully.
23

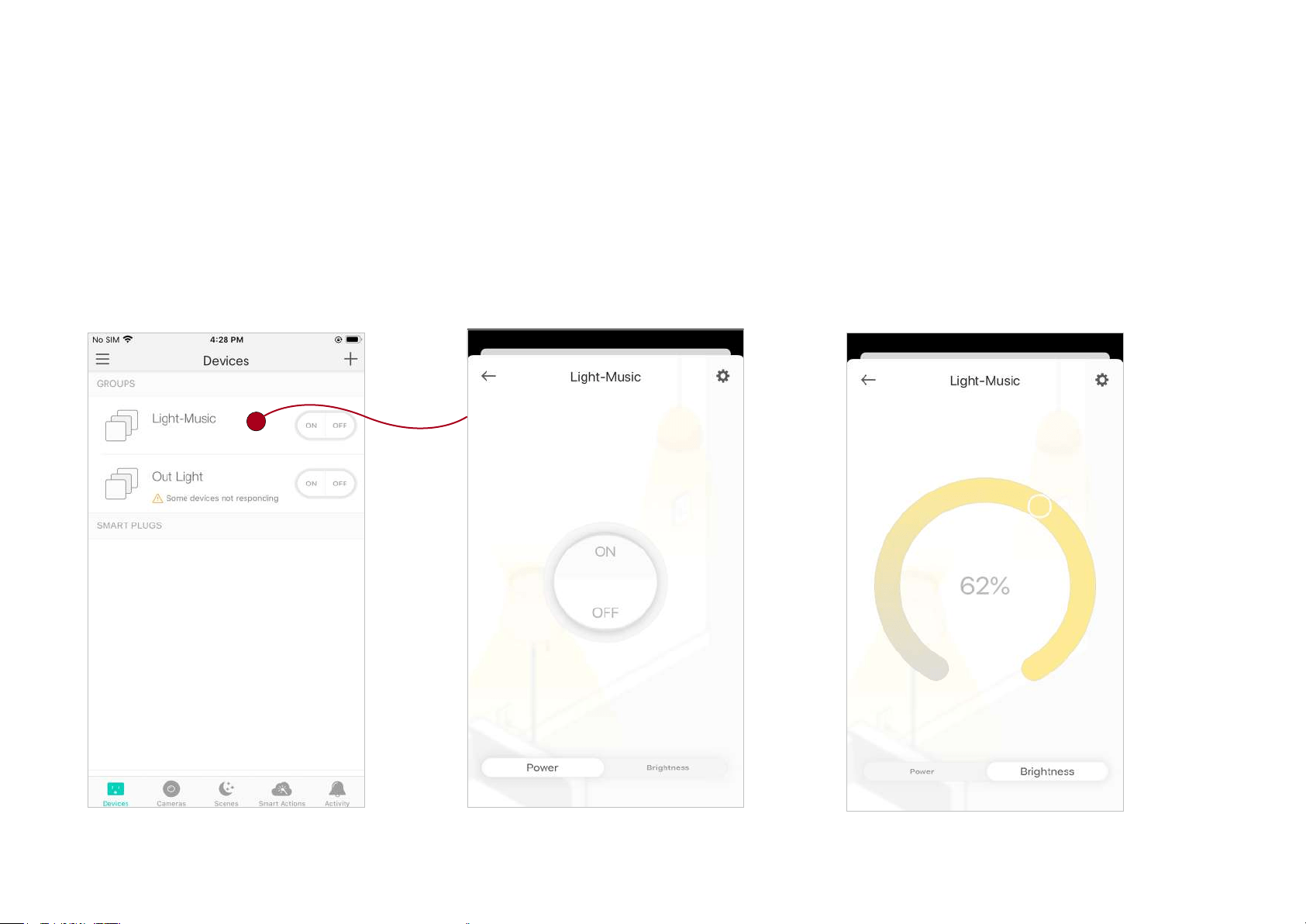

Edit Groups
You can change the name of the group or change the devices in the group.
Edit Group
1.Tap your group in the Home page. 2. Turn on or o your group. 3. Set the brightness for your dimmer in the group.
24

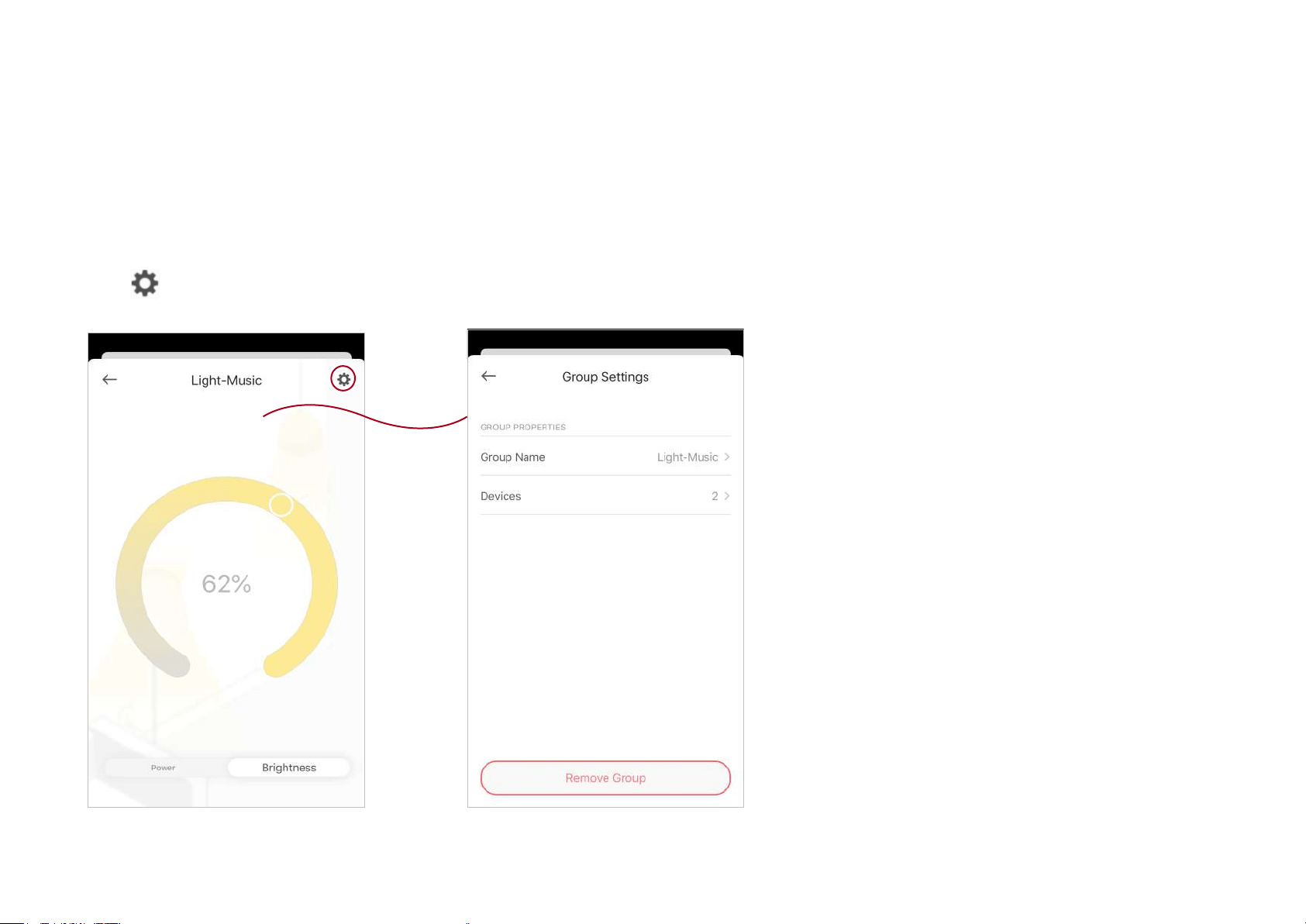

4.Tap to enter the Group Settings page. 5. Change the name of the group or change the devices in the group.
25
Remove Groups
You can change the name of the group or change the devices in the group.
Method 1
1. Swipe left your group in the Home page, then
tap Delete.
2. Tap Remove Group.
26
Remove Groups
You can change the name of the group or change the devices in the group.
Method 2
1. Tap your group in the Home page to enter the Status page. 2. Tap to enter the Group Settings page. 3. Tap Remove Group and double conrm.
27
Create Scenes
A scene is a preset group of smart devices that can be programmed, customized and activated simultaneously at the touch of a button from your
smartphone or tablet, allowing you to easily set your mood, activity or t any special occasion. To create a scene with your Smart Light Switch, you
need other Kasa smart devices, a smart plug for example.
1. Tap at the bottom, then tap + at the
top right corner.
2. Select a scene or create your own scene.
For example: I want to turn on the light and the
the speaker simultaneously in the morning
with just a tap in the Kasa Smart app .
3. Select devices for the scene to work on
and set their status respectively.
28
4. Pick an icon for your scene. 5. Name your scene. 6. Your scene is created and is displayed in
the scene list. Just tap the scene to activate
it.
29

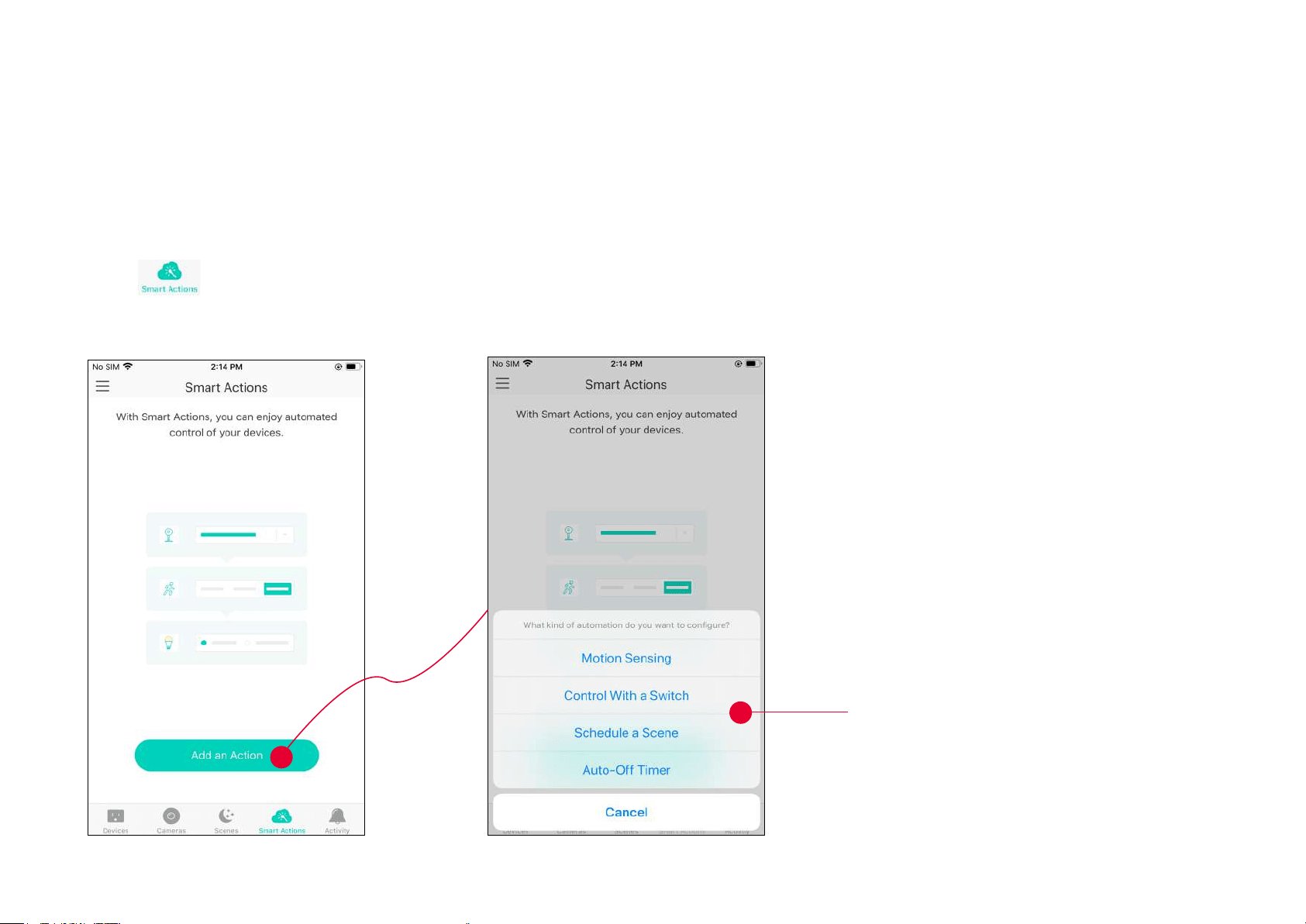

Smart Actions
Smart Actions is a function provided that enables device interconnections and home automations. With Smart Actions, your Kasa devices can work
together to create a smarter smart home. From the moment you wake up to the moment you drift asleep, Smart Actions make your home safer and
more comfortable.
1. Tap at the bottom, then tap Add
an Action.
2. Select an automation type for your Smart
Actions.
Motion Sensing: Take actions when a Kasa
camera senses a motion.
Control With a Switch: Extending the Smart
Switch control to other Kasa Smart devices. Turn
on/o a group of devices with the Smart Switch
all together.

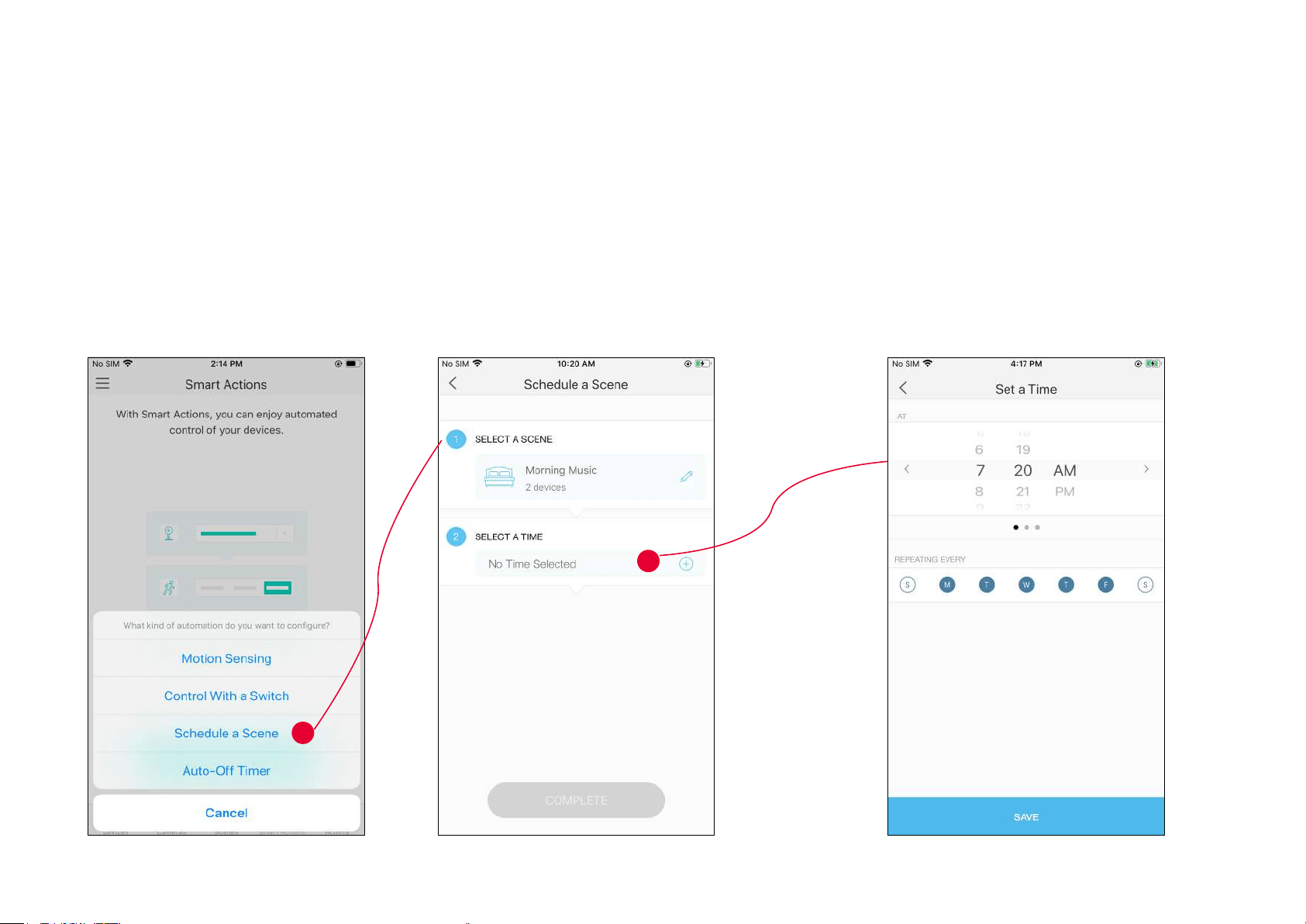

Schedule a Scene: Schedule a “Scene” to be
turned on automatically at the time specied.
Auto-off Timer: Whenever a Smart device is
turned on, turn it o after the designated amount
of time.
30
1. Tap Motion Sensing then select a camera. 2. Select your Smart Light Switch.
1. Congure Motion Sensing if you already have a Kasa Smart Camera
e.g.: I want to turn the light on when my Kasa camera senses a motion.
31
3. Set the time when you want the action to run. You can choose Always or tap Custom to choose time according to your needs.
For example: I want the motion to trigger the light on from 11:00 PM to 7:00 AM every day.
32

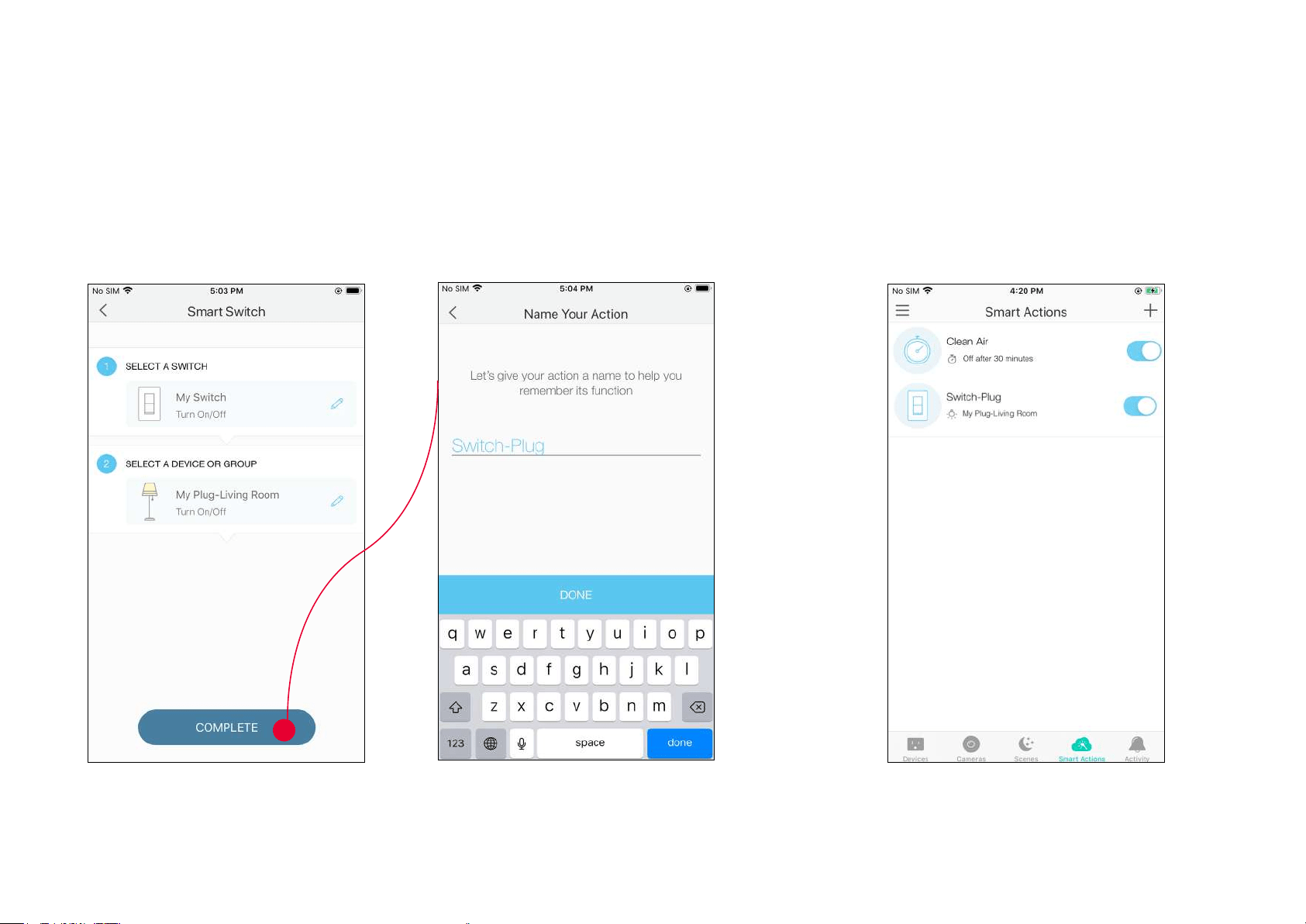

4. (Optional) Set an auto-o timer then tap COMPLETE. Then your living room light will
be turned o after the time you set.
5. Name your action for easy identication.
33
6. The Smart Action is created successfully
and displayed in the Smart Actions list.
34
1. Tap Control With a Switch. 2. Add a Kasa smart switch. Then select
your Kasa smart plug which your living room
light is plugged in.
2. Congure Control With a Switch if you have other Kasa smart dveices
e.g.: I want to turn on the living room light, which is plugged in my Kasa smart plug, when I turn on my switch, and
turn the light o when I turn o the switch.
35
4. Name your action for easy identication. 5. Now Your Smart Action is created
successfully and is displayed in the smart
actions list.
36
1. Tap Schedule a Scene then select a scene you have created.
For example: I want to turn on my Morning Music scene, which turns on my light switch
and my music speaker (plugged in to a Kasa smart plug) with just a tap, at 7: 20 AM
every weekday.
2. Set the time and frequency at which you
want your scene to be turned on .
3. Congure Schedule a Scene
e.g.: I want to turn on the scene I have created automatically at scheduled time.
37
3. Name your action for easy identication. 4. The Smart Action is created successfully
and displayed in the Smart Actions list.
38
1. Tap Auto-O Timer then select a device. 2. Set the time.
4. Congure Auto-O Timer
e.g.: I want to turn o my Kasa Smart Light Switch after 30 minutes whenever it turns on.
39
3. Name your action for easy identication. 4. The Smart Action is created successfully
and displayed in the Smart Actions list.
40
Discover Kasa
Use the Kasa Smart app to pair your Smart Light Switch with Amazon Alexa or Google Home Assistant, and enjoy a full hands-free experience. Kasa
helps manage the rest of your smart home too, working with Samsung SmartThings to trigger changes when you arrive home or leave for the day.
Launch the Kasa Smart app. Go to the sidebar and tap Work with Kasa. You can choose Amazon Alexa / Google Assistant/ IFTTT / Samsung
SmartThings for detailed instructions.
41
FCC compliance information statement
Product Name: Smart Wi-Fi Dimmer Switch
Model Number: HS220
Responsible party:
TP-Link USA Corporation, d/b/a TP-Link North America, Inc.
Address: 145 South State College Blvd. Suite 400, Brea, CA 92821
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6803
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
42
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2021.04.25
43
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le
fonctionnement.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
NCC Notice
注意！
依據 低功率電波輻射性電機管理辦法
LP0002低功率射頻器材技術規範_章節3.8.2
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
44
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
BSMI Notice
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
設備名稱：
Equipment name
Smart Wi-Fi Dimmer Switch
型號（型式）：
Type designation (Type)
HS220
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
PCB ○ ○ ○ ○ ○ ○
外殼 ○ ○ ○ ○ ○ ○
電源供應板 — ○ ○ ○ ○ ○
其他及其配件 − ○ ○ ○ ○ ○
45
備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds
the reference percentage value of presence condition.
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of
presence.
備考 3.〝−〞係指該項限用物質為排除項目。
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.
Safety Information
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• Alert to service person
CAUTION
DOUBLE POLE / NEUTRAL FUSING
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to
improper use of the device. Please use this product with care and operate at your own risk.
Warnings
• Install only in a suitable UL Listed outlet box (suitable dimensions: W > 2.83in./72mm, H > 1.81in./46mm, D > 3.15in./80mm).
• CAUTION - Risk of Electric Shock - More than one disconnect switch may be required to de-energize the equipment before servicing.
• The manufacturer’s assigned screw torque.
• Tighten terminal screws to 13 lbf-in
• Supported specified line number for the thread terminal copper wire: 12AWG 14AWG and 16AWG.
• Supported Load Types:
120VAC 60Hz
300W Incandescent
46
150W LED
• Operating Temperature: 0 ºC-40 ºC (32°F-104°F)
Explanation of the symbols on the product label
Symbol Explanation
Indoor use only
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
