TOUCHDOWN 48” CEILING FAN
MODEL #50205
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,
8 am - 5 pm, EST.
Español p. 20
2
WELCOME
PREPARATION
Before beginning the assembly of this product, ensure
that all parts are present. Compare all parts with the
package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to
assemble the product.
After opening the top of the carton, remove the
mounting hardware package from the foam inserts,
then remove the motor from the packaging and
place it on a soft surface, such as a carpet, to avoid
damage to the nish.
Estimated Assembly Time: Under 120 minutes
Tools Required for Assembly (not included): Electrical
Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape
Measure, Wiring Handbook, and Wire Cutters
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check
the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft
brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth. You may
occasionally apply a light coat of furniture polish to
wood blades for added protection.
Important: Shut off the main power supply before you
begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
FAN WEIGHT
The net weight of this fan is: 14.55 lbs. (6,6 kg).
TABLE OF CONTENTS
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Care and Maintenance ........................2
Package Contents ...........................3
Safety Information ...........................4
Mounting Options ............................5
Mounting Bracket Installation ...................6
Standard or Angle Mounting Instructions . . . . . . . . . .7
Closemount Instructions......................10
Wiring ....................................11
Canopy Installation..........................12
Blade Installation ...........................13
Light Kit Installation .........................14
Operating Installation . . . . . . . . . . . . . . . . . . . . . . . .16
Replacement Parts List ......................17
Troubleshooting ............................18
Limited Lifetime Warranty.....................19
3
PACKAGE CONTENTS

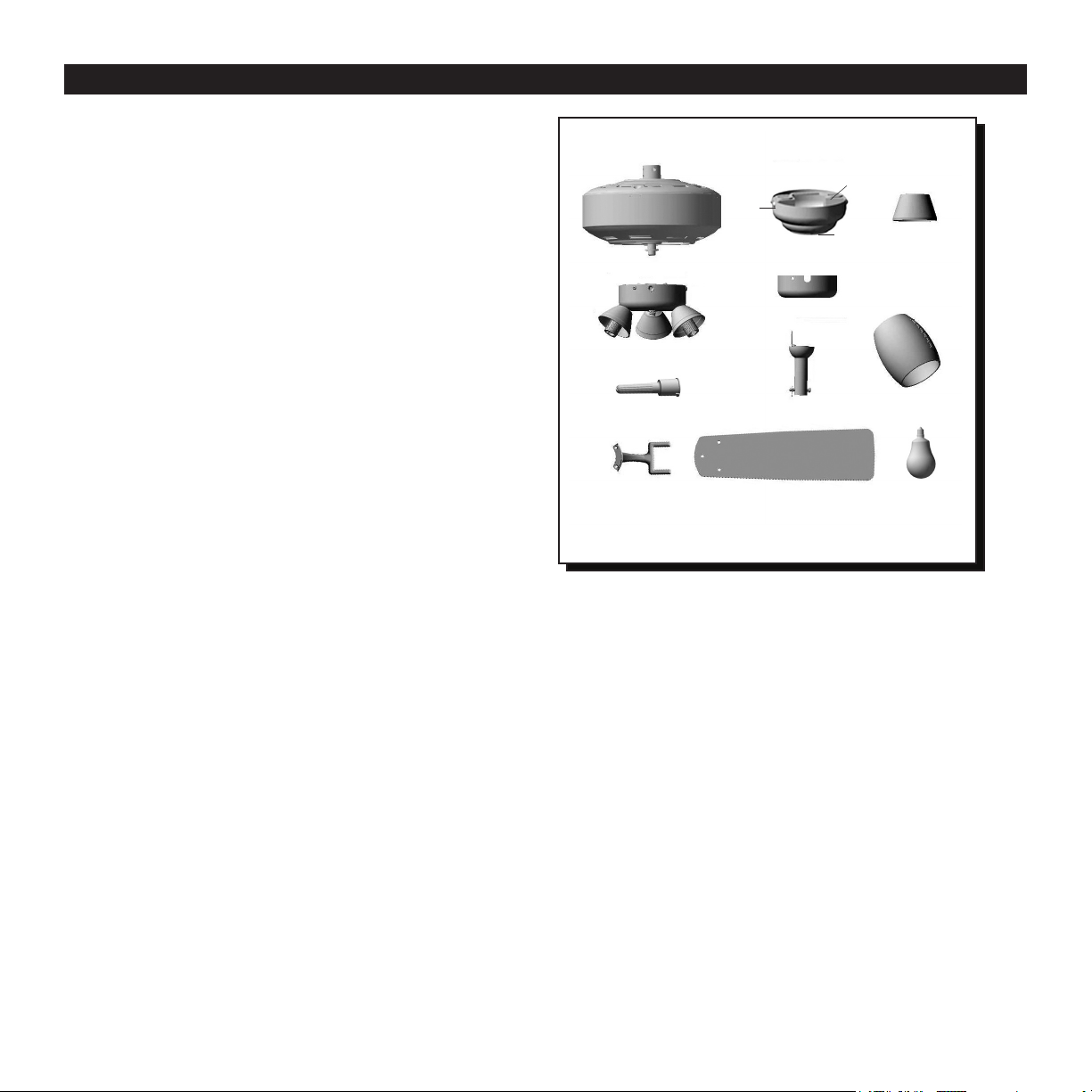

Unpack your fan and check the contents. You
should have the following items:
1. Motor Housing
2. Light Kit
3. Socket Ring Tool
4. Blade Arm (5)
5. Canopy
6. Hanger Bracket
7. Canopy Cover
8. Optional Cap
9. Downrod
10. Blade (5)
11. Yoke Cover
12. Glass Shade (3)
13. Bulb (3)
14. Loose parts bags containing (not shown):
Mounting hardware, blade attachment
hardware, electrical hardware, pull chains, wire
connectors, etc.
1
2
7
4
8
5
10
9
3
6
11
13
12
4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if
you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the blades to
the oor and at least 30 in. (76 cm) from the end of the blades to any obstruction.
DANGER
WARNING
WARNING
When using an existing outlet box, make sure
the outlet box is securely attached to the building
structure and can support the full weight of
the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is
essential in minimizing wobble and noise in the
fan after installation is complete.
To reduce the risk of re or electric shock, do not
use the fan with any solid-state speed-control
device or control the fan speed with a full-range
dimmer switch.
To reduce the risk of re, electric shock, or personal
injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the
mounting screws provided with the outlet box. Most
outlet boxes commonly used for the support of
lighting xtures are not acceptable for fan support
and may need to be replaced. Consult a qualied
electrician if in doubt. Secure the outlet box directly
to the building structure. The outlet box and its
support must be able to support the moving weight
of the fan, at least 35 lbs. (15,88 kg).
!
!
!
!
WARNING
CAUTION
CAUTION
To reduce the risk of re, electric shock, or
personal injury, do not bend the blade arms
when installing them, balancing the blades, or
cleaning the fan. Do not insert objects between
the rotating fan blades.
Read all instructions and safety information
before installing your new fan. Review the
accompanying assembly diagrams.
Carefully check all screws, bolts, and nuts on
the fan motor housing to ensure that they are
secured.
!
!
!
!
!
!
!
!
5

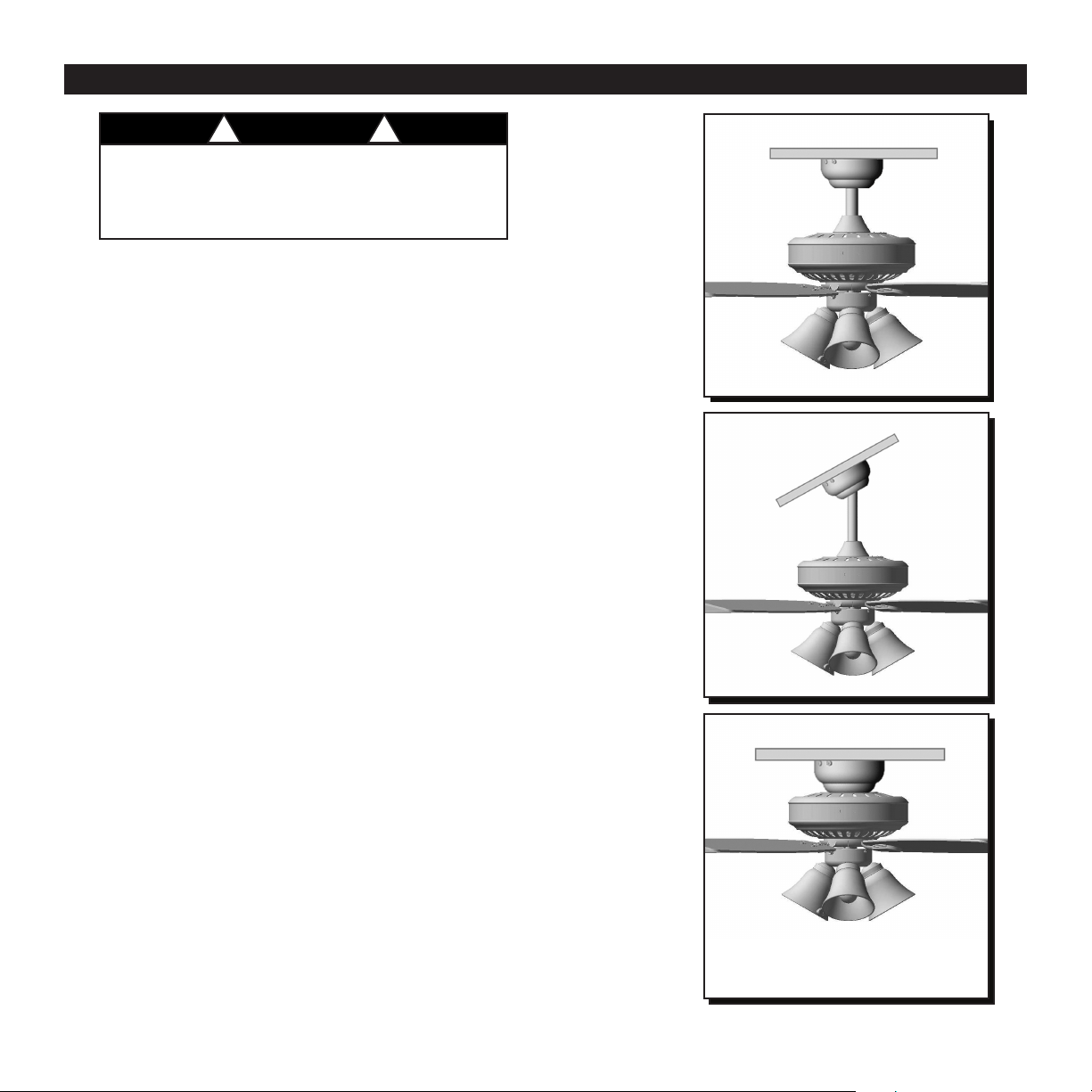

MOUNTING OPTIONS
DANGER
Turn off the circuit breakers and the wall
switch to the fan supply line leads. Failure to
disconnect the power supply prior to installation
may result in serious injury or death.
Fig. 1
Fig. 2
Fig. 3
1. Your fan has 3 mounting options:
• Standard (Fig. 1)
• Angled (Fig. 2)
• Closemount (Fig. 3)
Helpful Hint: Downrod style mounting is best suited for
ceilings 8 ft. (2,44 m) or higher. For taller ceilings
you may want to use a longer downrod (sold
separately). Angle style mounting is best suited
for angled or vaulted ceilings. A longer downrod
is sometimes necessary to ensure proper blade
clearance. Closemount mounting is most suitable
for ceilings lower than 8 ft. (2,44 m) high.
Note: The fans in gures 1 through 3 are not the actual
fan in your package, they are a representation of
the 3 different mounting options.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
2. Ensure that the blades of the fan are 30 in. (76 cm)
from any obstruction.
3. Check the downrod length to ensure the blades will
be at least 7 ft. (2,14 m) above your oor.
! !
Fig. 5
6
MOUNTING BRACKET INSTALLATION
Fig. 4
Mounting
Bracket
Screws
Mounting
Bracket
Canopy
Washer
5. Secure the mounting bracket to the outlet box using
screws and washers provided with the outlet box
(not included) (Fig. 5).
Note: It is very important that you use proper hardware
when installing the mounting bracket as it supports
the fan.
Important: If using the angle mount, ensure that the
open end of the mounting bracket is installed facing
the peak of the ceiling.
4. Loosen the four mounting bracket screws.
Completely remove the two mounting bracket
screws and washers from the round holes in the
canopy. Set aside for later use. Detach mounting
bracket from the canopy (Fig. 4).
Mounting Bracket
Screw
Washer
Fig. 8
Downrod
Canopy
Yoke
Cover
Motor
Housing
7
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
Downrod
Clip
Downrod
Pin
Fig. 7
Fig. 6
Set Screws
Downrod Pin
Downrod Clip

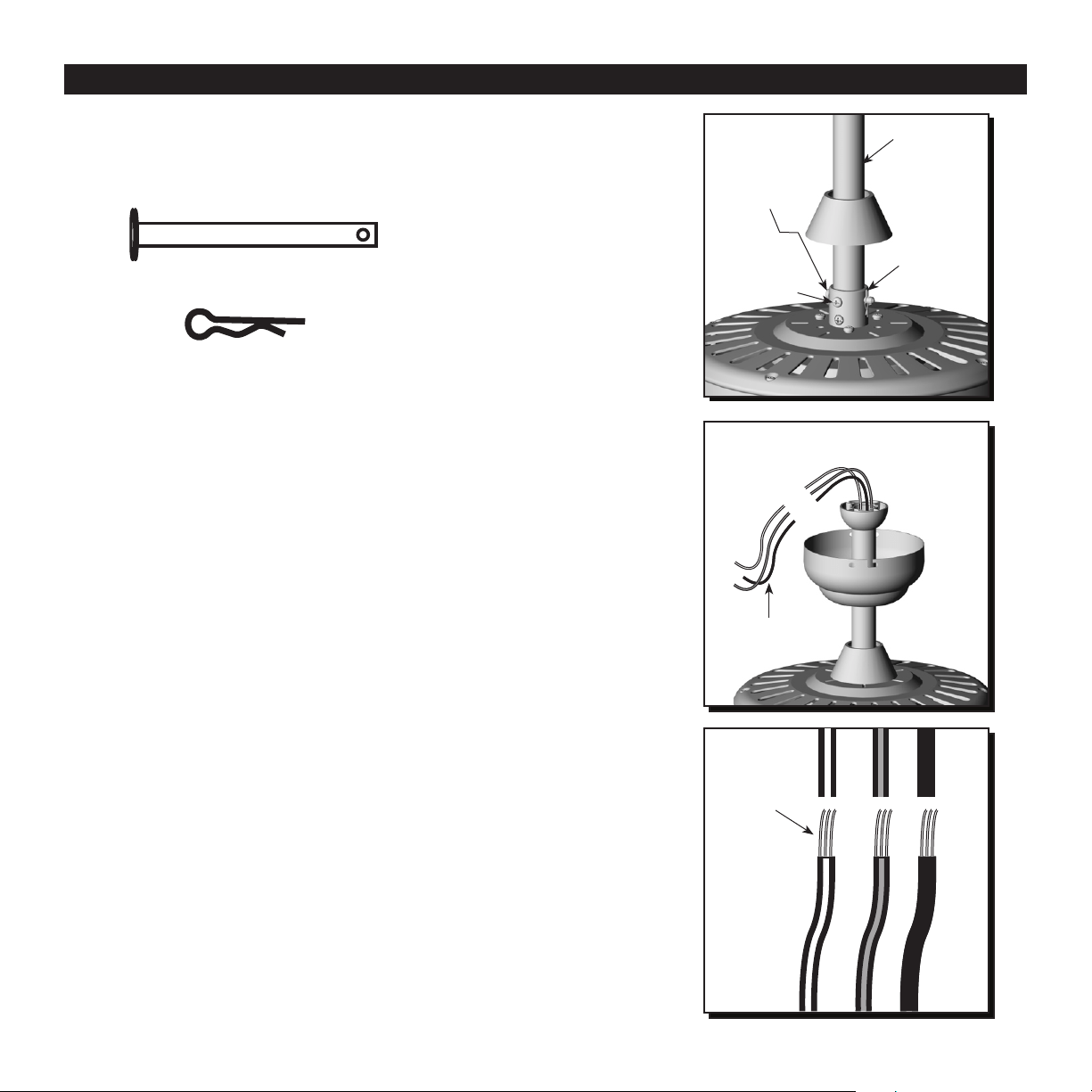

6. Partially loosen the two set screws in the yoke at
the top of the motor housing (Fig. 6).
7. Remove the downrod pin and downrod clip from
the downrod (Fig. 7).
8. Thread the wires from the motor housing through
the yoke cover, canopy and out through the top of
the downrod (Fig. 8).
8
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

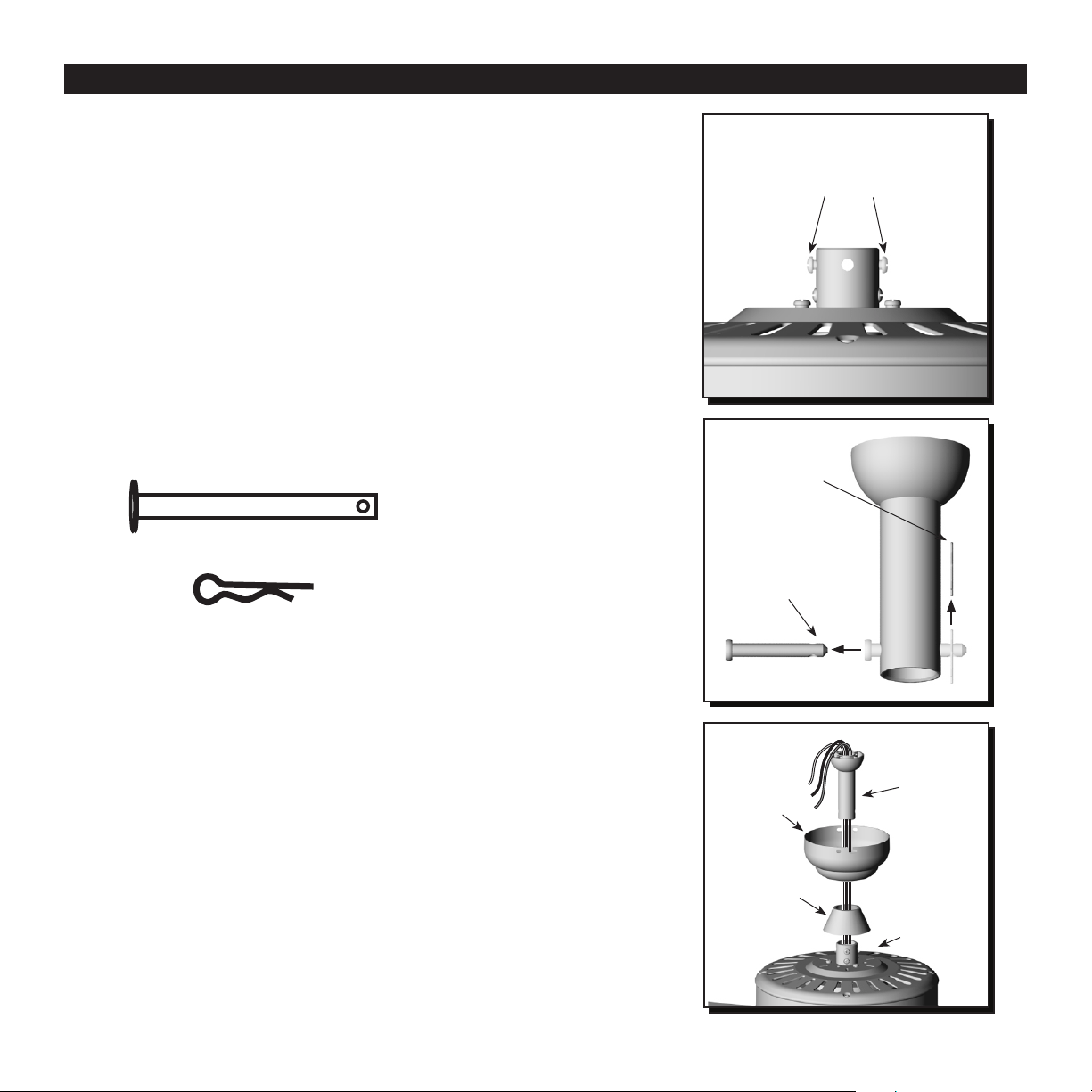

9. Slide the downrod into the yoke of the motor
housing, align the holes, and reinstall the downrod
pin and downrod clip. Then retighten the set
screws (Fig. 9).
10. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested that you do so in the following manner:
Take the lead wires and make sure that you have
pulled them all the way through the top of the
downrod and measure 8 in. (20 cm) of lead wire,
and then cut the excess wire off with wire cutters
(not included) (Fig. 10).
11. If you cut back the lead wire in Step 10, strip 1/2
in. (12 mm) of insulation from the end of each wire.
Twist the stripped ends of each strand of wire within
the insulation with pliers (not included) (Fig. 11).
Note: If you did not cut back the lead wires in Step 10,
Step 11 is not necessary and you may proceed to
Step 12 instead.
Downrod
Downrod
Pin
Set Screw
Downrod
Clip
Fig. 9
Fig. 10
Fig. 11
Cut Wires
Stripped
Wires
Downrod Pin
Downrod Clip
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

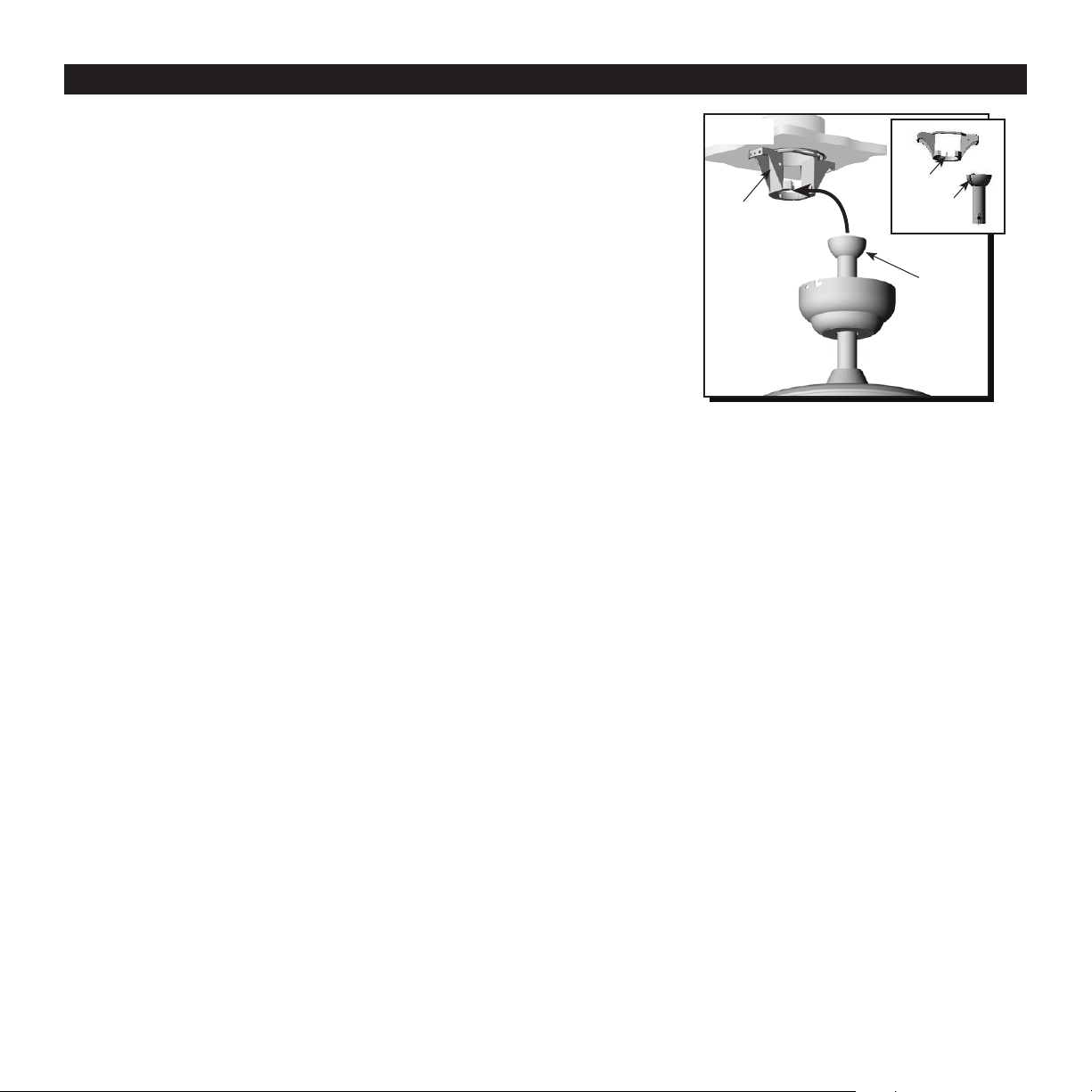

12. Install the downrod ball into the mounting bracket
opening. Align the slot in the downrod ball with the
tab in the mounting bracket. The downrod should
not rotate if installed correctly (Fig. 12).
Mounting
Bracket
Downrod
Ball
Tab
Slot
Fig. 12
Closemount
Screws
Spring
Washer
Fig. 14
10
CLOSEMOUNT INSTRUCTIONS
13. Remove the canopy cover from the bottom of the
canopy (Fig. 13).
Helpful Hint: The downrod, hanging ball, and canopy
cover are not used in this type of installation.
15. Raise the fan and place the canopy on the
mounting bracket hook for wiring (Fig. 15).
Canopy
Canopy
Hook
Canopy
Cover
Fig. 13
Fig. 15
Closemount Screw
Spring Washer
14. Align the canopy with the closemount screw holes
in the top of the motor housing. Secure the canopy
to the top of the motor housing by installing three
closemount screws and spring washers into the top
of the motor housing (Fig. 14).
Black (live)
White (neutral)
Bare/Green (ground)
Black
Blue
White
Green
OFF
Black (live)
Second Wire (live)
White (neutral)
Bare/Green (ground)
Black
Blue
White
Green
OFF OFF
Wire Connector
a
CAUTION
WARNING
If house wires are different colors than referred to in
the following step, stop immediately. A professional
electrician is recommended to determine wiring.
Incorrect wire connection can damage the receiver
and could cause re or injury.
Be sure outlet box is properly grounded or that a
ground (green or bare) wire is present.
! !
! !
Fig. 16
Fig. 17

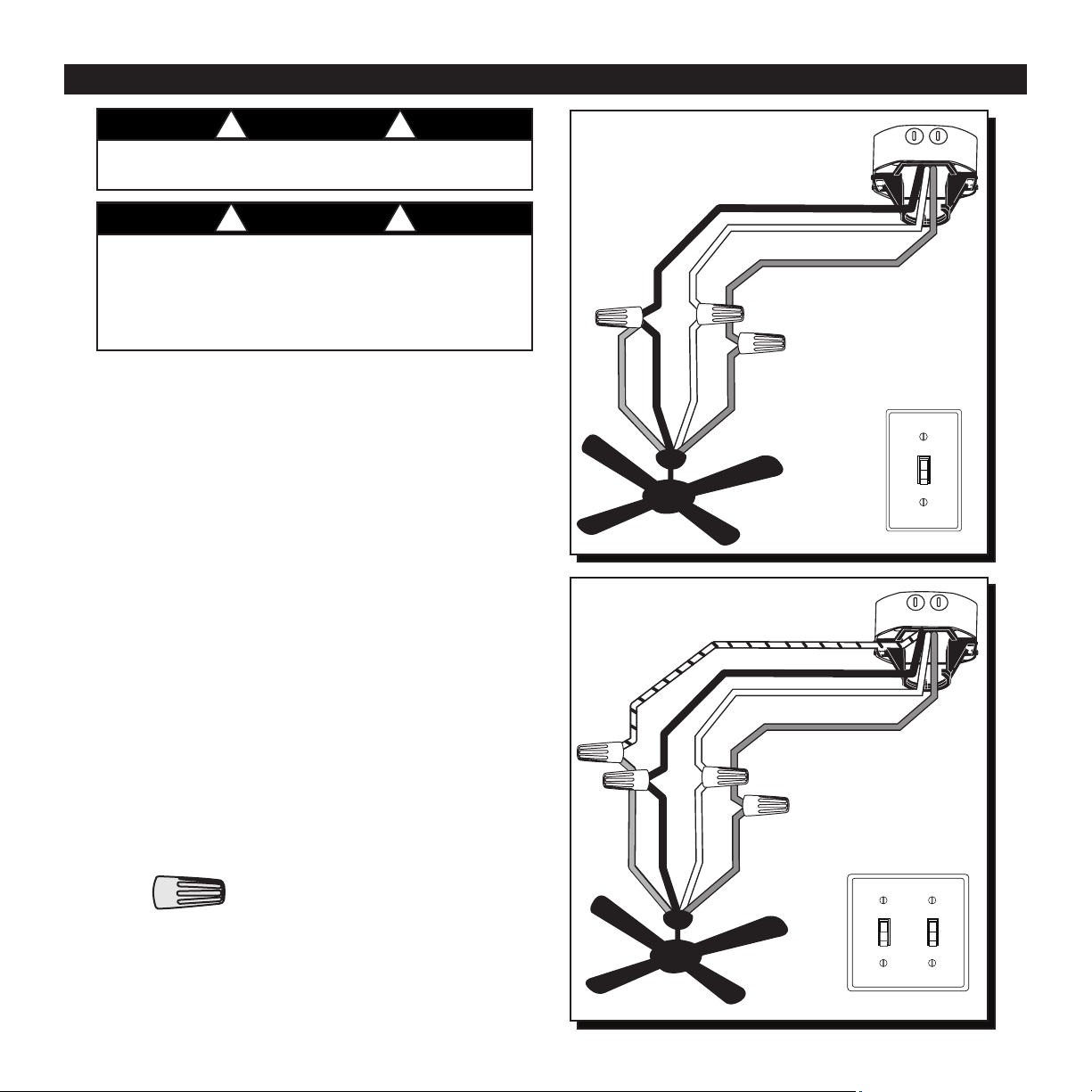

16. Connect supply and fan wires according to the
diagram (Fig. 16) and these steps:
• Connect the Green wires from the fan and
mounting bracket to the Bare/Green (ground)
supply wire.
• Connect the Black and Blue wire from the fan to
the Black (live) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
Secure all wiring connections together with wire
connectors and push all connected wires back into
the outlet box.
17. (Optional) If a second hot power wire is available
from outlet box, connect it to the blue (light power)
wire from the fan for separate light and fan control
(Fig.17).
Important: The black fan wire is power for fan. The blue
fan wire is power for the light. The white wire from
the fan is common/neutral. The green wires from the
fan and mounting bracket are ground wires.
11
WIRING
12
CANOPY INSTALLATION
Mounting
Bracket
Canopy
Fig. 18
18. Lift the canopy up so the partially installed
mounting bracket screws are situated in the L-slots

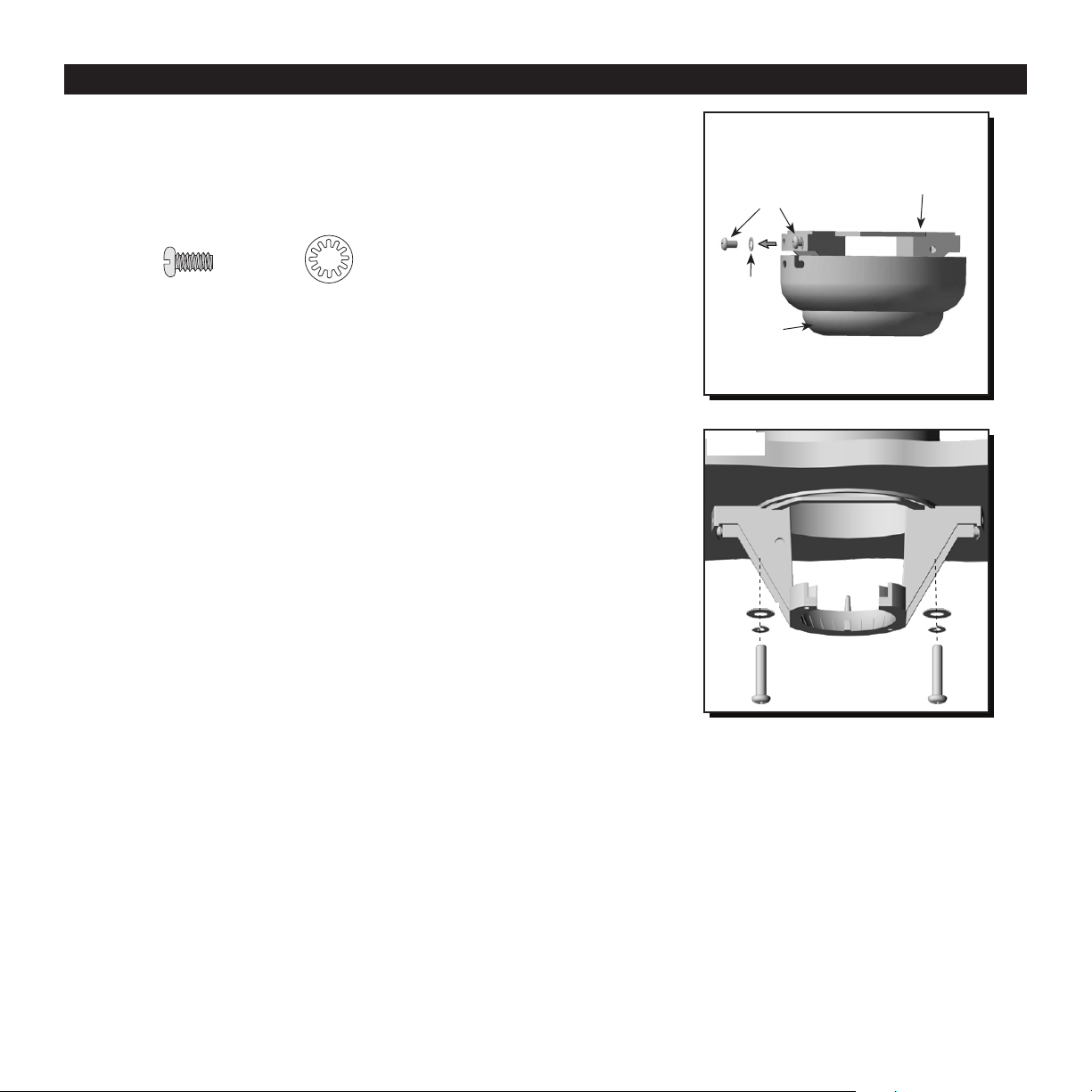

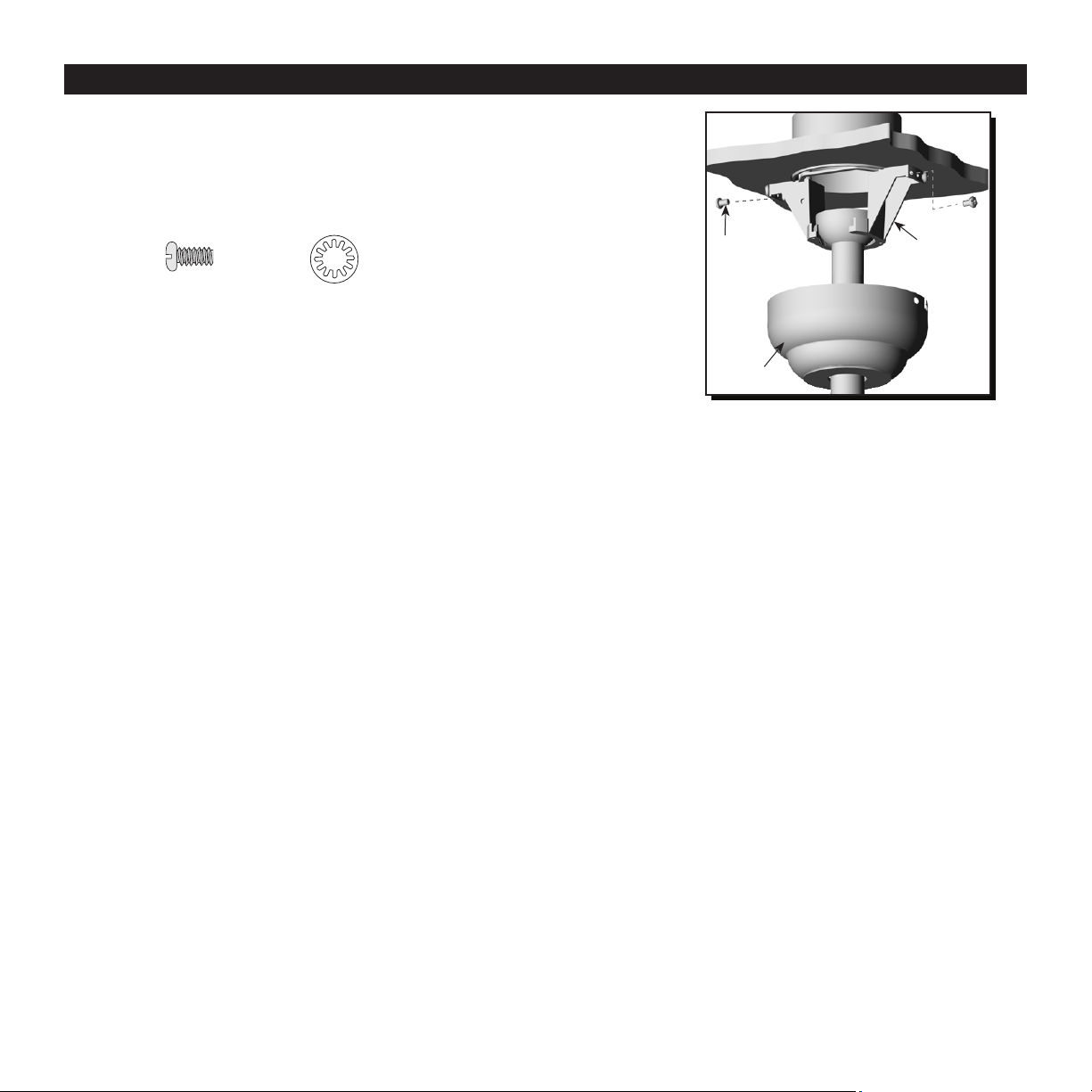

on each side of the canopy. Rotate the canopy
clockwise and install the two remaining mounting
bracket screws and washers from Step 4 (Fig.18).
Mounting Bracket
Screw
Washer
Mounting
Bracket Screw
and Washer
Fig. 21
Motor Screw Blade Arm
Blade Isolator
Cutout
13
BLADE INSTALLATION

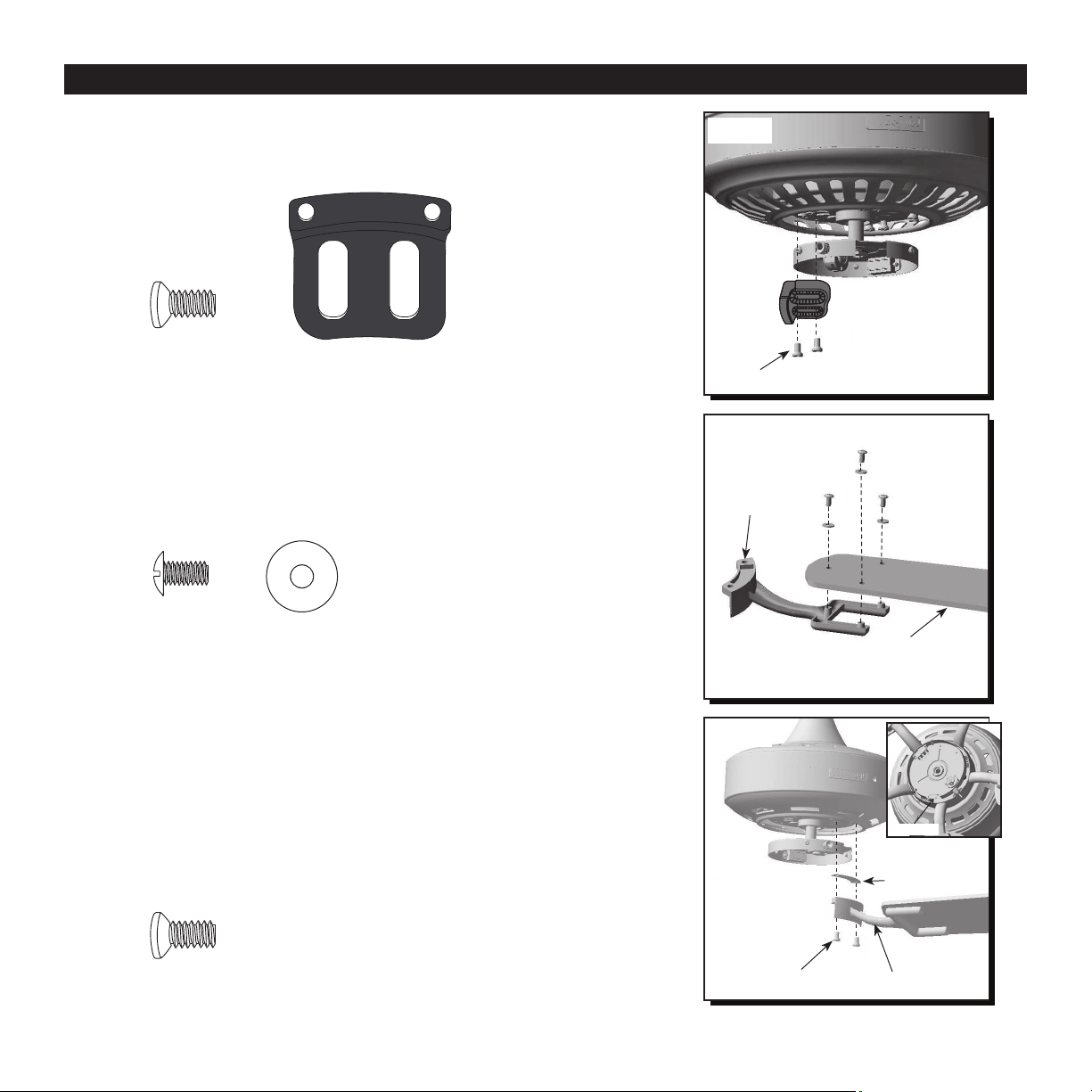

20. Partially insert the three blade screws along
with the washers through the blade and into the
blade arm. Starting with the center blade screw,
tighten the blade screws. Repeat this step for the
remaining blades and blade arms (Fig. 20).

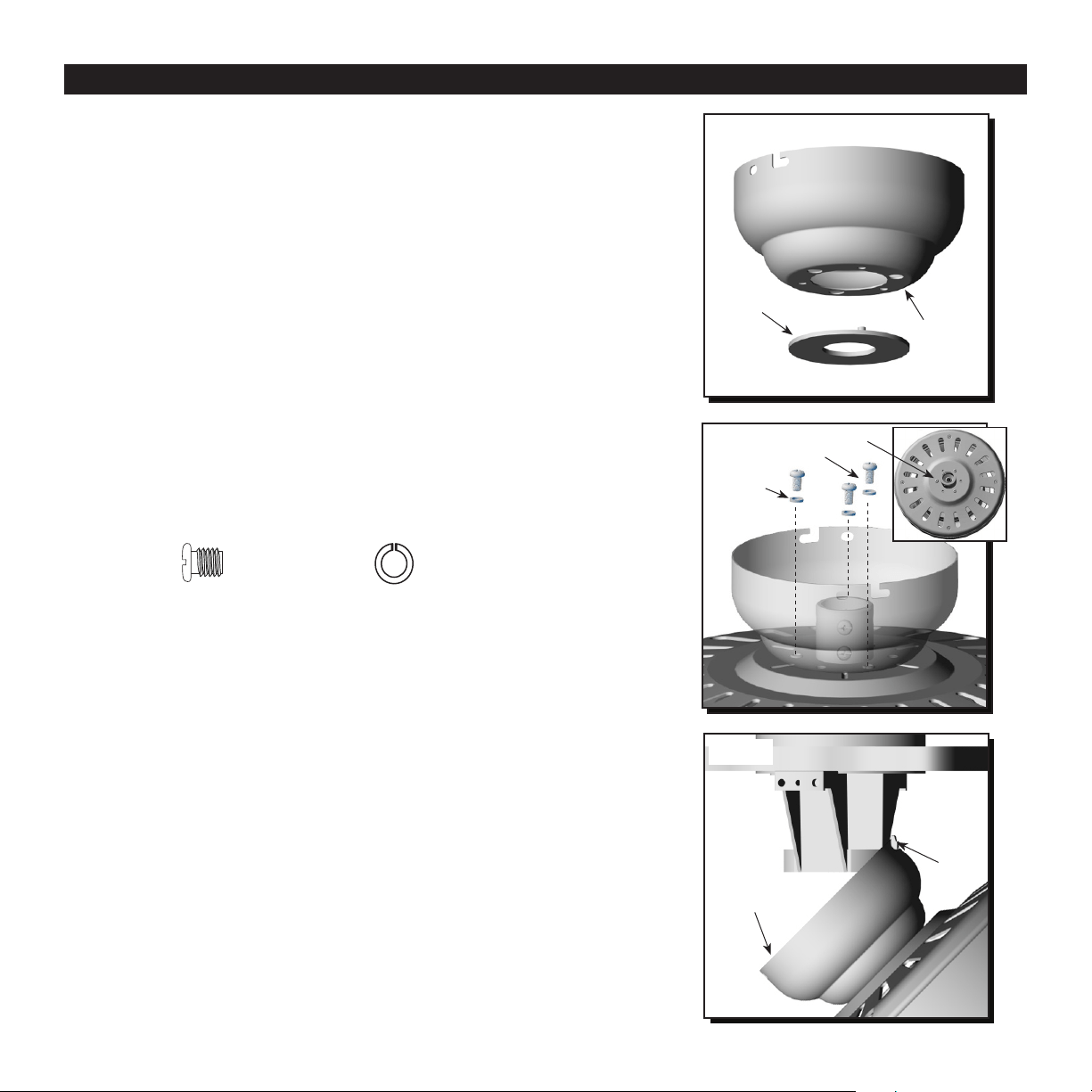

19. Remove motor screws from underside of motor
and save for blade arm attachment. Discard the
plastic motor blocks but keep the screws (Fig. 19).
Blade
Blade Arm
Blade Screw
Washer
Fig. 20
Fig. 19
Motor Screw
Motor Block
Motor Screw
Motor Screw
Blade Screw Washer
Motor Block
21. Insert two previously removed motor screws through
one blade arm and blade isolator and into the
motor. Tighten motor screws securely. Repeat with
remaining blade arms, making sure to completely
secure each blade arm before proceeding with to the
next (Fig. 21).
Note: A cutout in the upper switch housing allows easy
access to the motor screw holes.
14
LIGHT KIT INSTALLATION

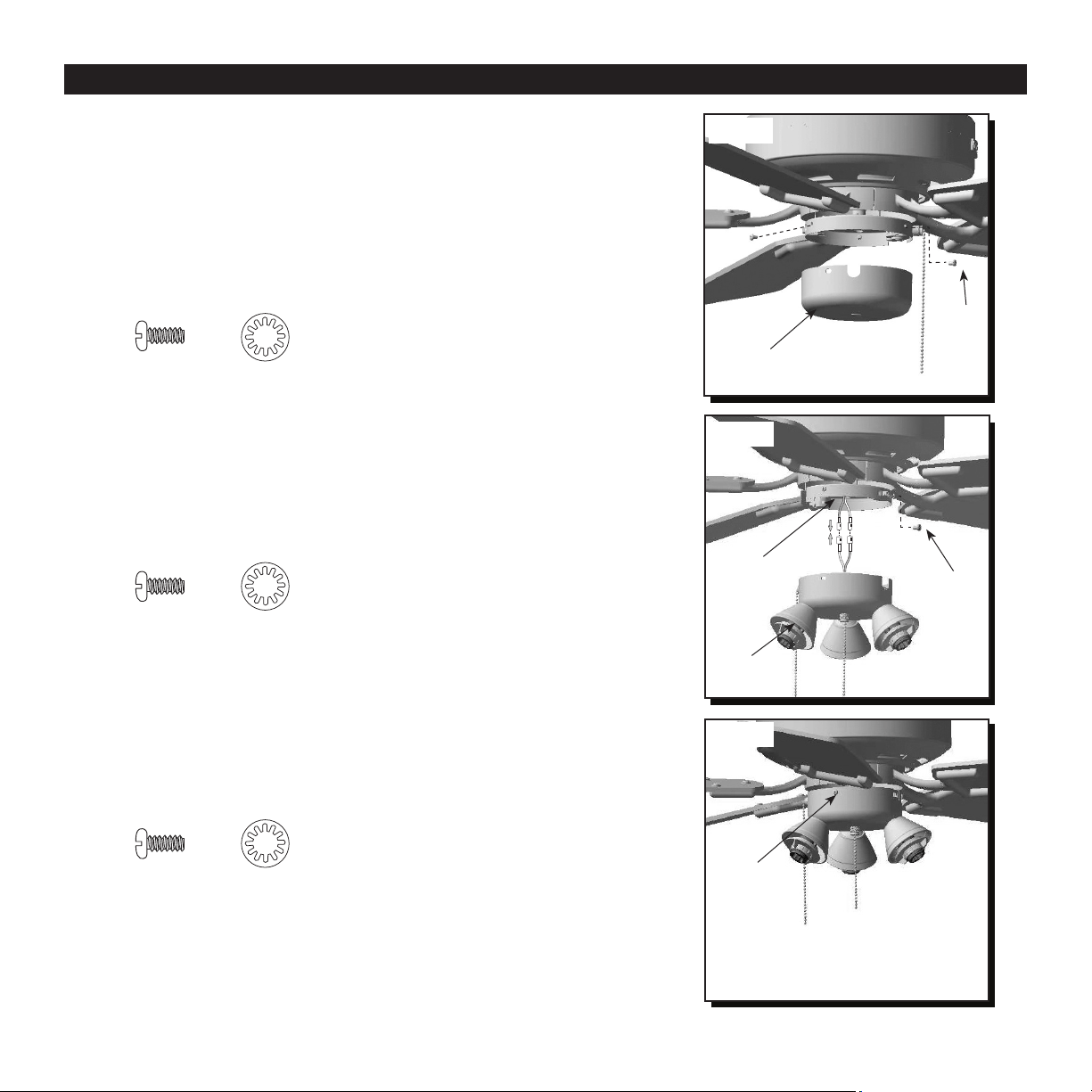

23. To install the fan with a light kit: Remove the
three screws and washers from upper switch
housing. Connect the single pin connectors from
the light kit to the single pin connectors from the
upper switch housing -- black to blue and white to
white. Make sure plugs connect tightly (Fig. 23).
24. Align holes in the light kit with holes in upper switch
housing. Re-insert screws and washers that were
previously removed. Use a Phillips screwdriver (not
included) to secure all screws (Fig. 24).
Fig. 23
Fig. 24
Screw and
Washer
Screw Washer
Screw
Screw
Washer
Washer
22. (Optional) To install the fan without a light kit:
Remove the three screws and washers from the
upper switch housing. Align holes in optional cap
with holes in upper switch housing. Re-insert
screws and washers that were previously removed.
Use a Phillips screwdriver (not included) to secure
all screws (Fig. 22).
Proceed to step 28.
Fig. 22
Optional
Cap
Screw
and
Washer
Screw
and
Washer
Upper
Switch
Housing
Light
Kit
15
LIGHT KIT INSTALLATION

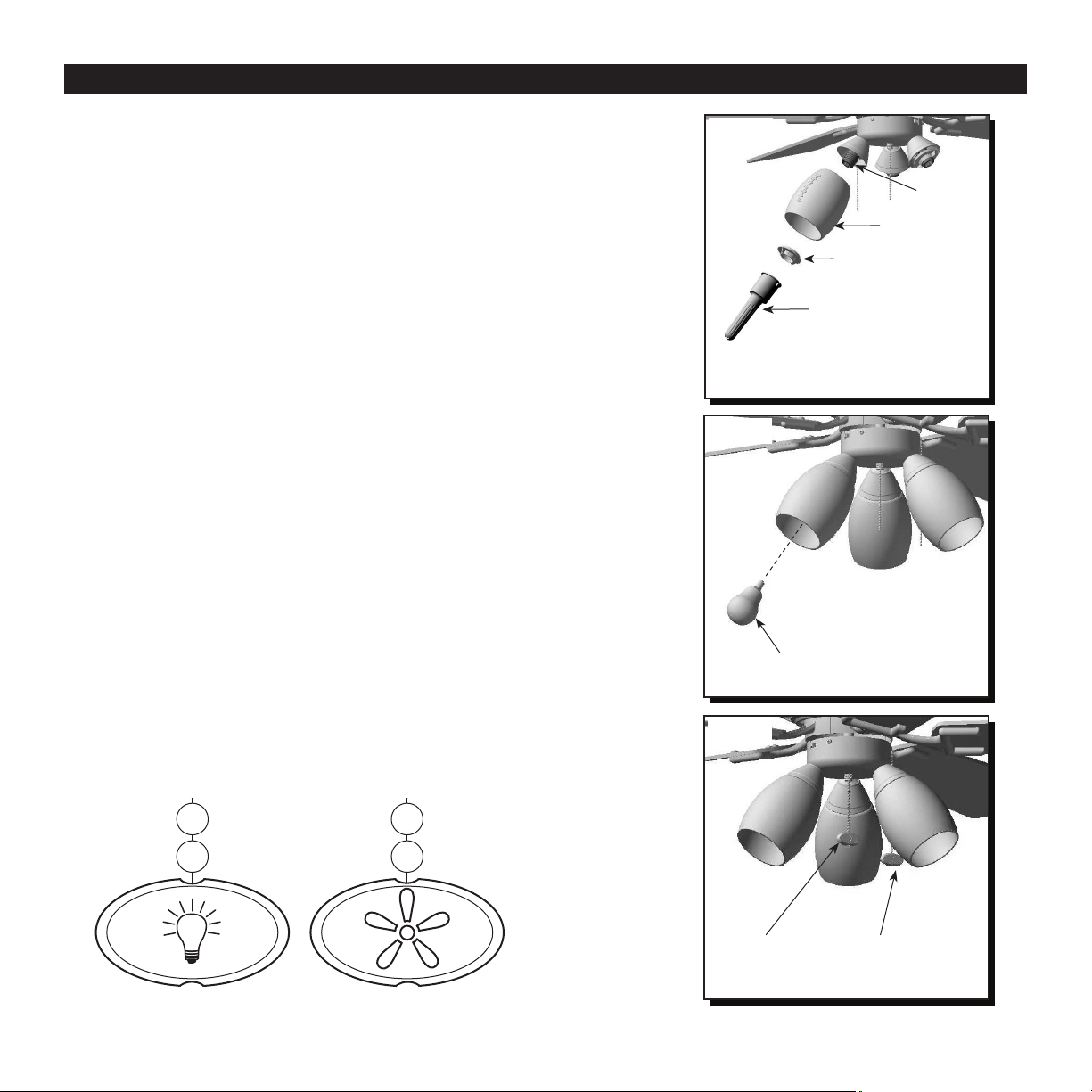

27. Snap the end of the pull chain extensions or
custom pull chain extensions (sold separately) onto
the ends of the appropriate pull chains (Fig. 27).
Fig. 26
Fig. 27
Glass Shade
Socket Ring
Socket Ring Tool
Light
Pull Chain
Fan
Pull Chain
Socket
Bulb
26. Install each bulb (Fig. 26).
Important: When you need to replace the bulb,
please allow bulb and light kit to cool down before
touching the bulb or the light kit.
Fig. 25
25. Remove socket ring from socket. Lift glass shade
onto the light kit and secure with socket ring using the
socket ring tool. Repeat for each socket (Fig. 25).
Light Pull Chain Fan Pull Chain
16
OPERATING INSTRUCTIONS

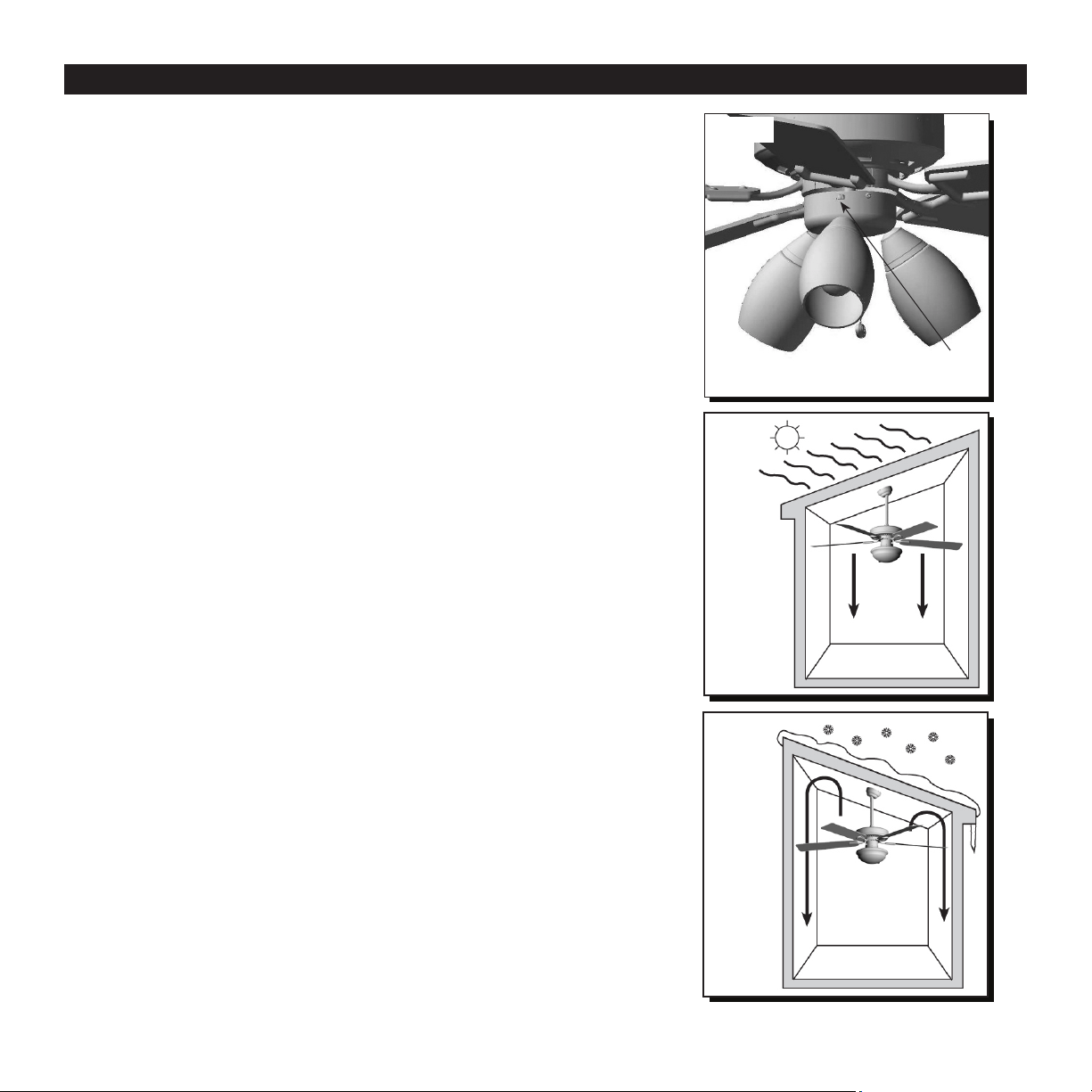

28. Use the fan reverse switch, located on the side
of the light kit, to optimize your fan for seasonal
performance (Fig. 28).
Using a ceiling fan will allow you to raise your
thermostat in the summer and lower your
thermostat in the winter without sacricing comfort.
Note: The reverse switch must be set either completely
left or right in order for the fan to function correctly.
If the reverse switch is set in the middle position,
the fan will not operate.
Important: Wait for the fan to stop before moving the
reverse switch.
29. In warmer weather, push the reverse switch left,
which will result in downward airow creating a
wind chill effect (Fig. 29).
Note: Energy savings are possible by turning on the
ceiling fan and setting the thermostat a few degrees
warmer. To maximize savings, turn ceiling fan off
when no one is in the room.
30. In cooler weather, push the reverse switch right
and the fan to low, which will result in upward
airow that can help move hot air off the ceiling. By
mixing the air, the furnace may not have to run as
often and may yield energy savings (Fig. 30).
Fig. 28
Fig. 29
Fig. 30
Reverse
Switch
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday -
Thursday, 8 a.m. - 5 p.m., EST, Friday.
17

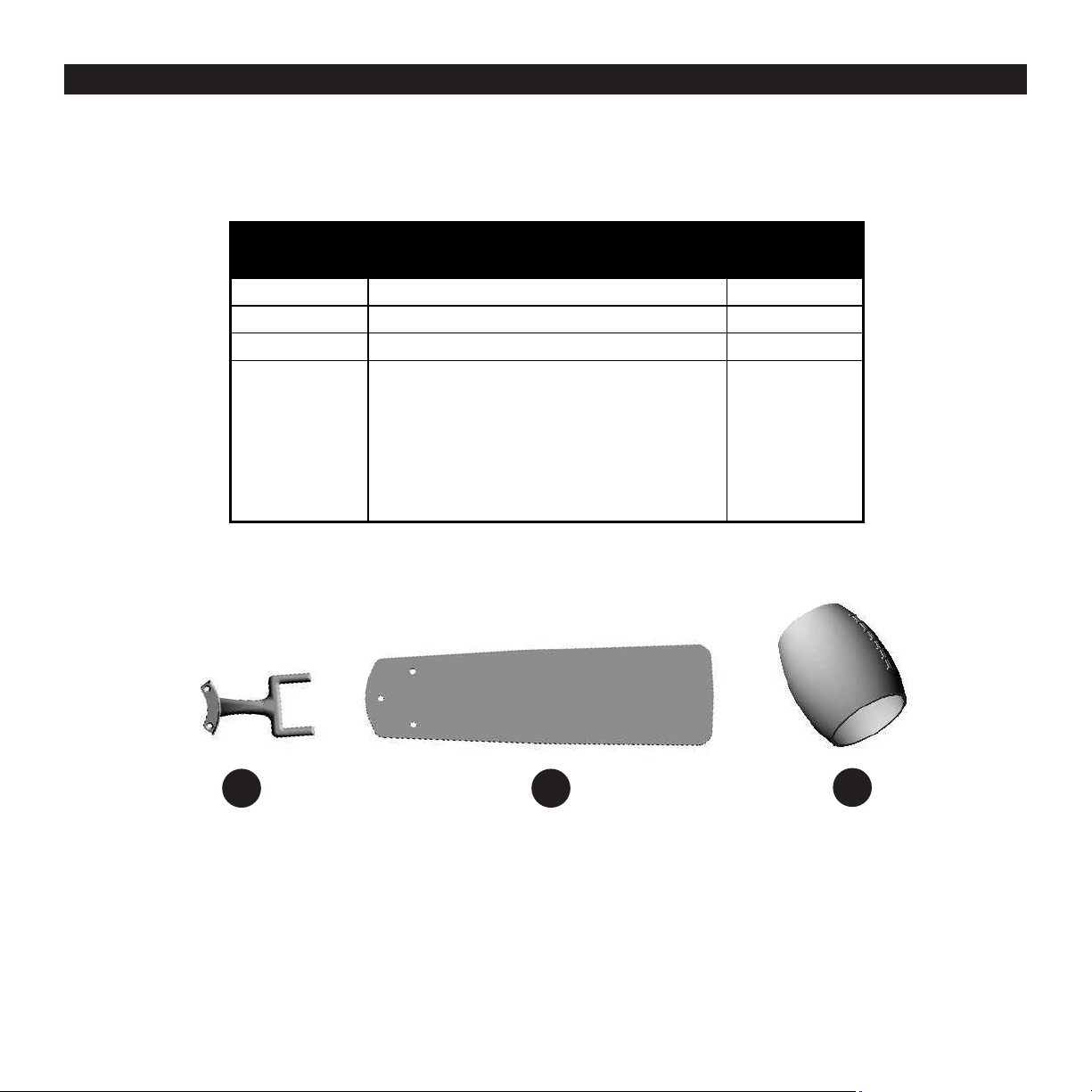

PIECE DESCRIPTION
Model 50205
PART#
A Blade Arm 50205-A
B Blade 50205-B
C Shade 50205-C
D
Loose parts bags containing (not shown):
Mounting hardware, blade attachment
hardware, electrical hardware, pull chains,
wire connectors, etc.
50205-D
A
C
B
18
TROUBLESHOOTING
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on
the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the nish. Clean
the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for
added protection.
Important: Shut off the main power supply before you begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
Problem: The fan does not move
1. Turn the power on or check the fuse.
2. Turn the power off. Loosen the canopy and check all connections.
3. Check that the connectors from the light kit and fan are connected properly.
4. Disable the power supply to the fan motor and re-start the motor.
5. The blade is overweight. Do not install the unapproved blades.
Problem: The fan is noisy.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Replace the cracked blade.
Problem: There is excessive wobbling
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the motor.
2. Switch one blade with a blade from the opposite side. Or balance the fan using a balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the electrical
outlet box.
4. The bracket must be ush without movement against the outlet box.
Problem: The fan operates correctly, but the lights are not working (if applicable).
1. Re-install the bulb(s).
2. Ensure that the male and female plugs in the light kit are connected properly.
3. Turn the power off and check all connections at the ceiling outlet box.
4. Check to see if the light is over than 190W, since a limiter included.
19
LIMITED LIFETIME WARRANTY
Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the
fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material for
a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part
caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this warranty.
HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-licensed
electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING DIRECTLY OR INDIRECTLY,
FROM ANY BREACH OF WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS
PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES SO THIS LIMITATION MAY NOT APPLY TO YOU.
IF THE ORIGINAL PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY IS VOIDED.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’S WARRANTIES ARE LIMITED TO THE WRITTEN WARRANTIES SET OUT IN THIS HKC
CEILING FAN LIMITED LIFETIME WARRANTY. ALL OTHER EXPRESS AND IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE AND THE IMPLIED WARRANTY OF MERCHANTABILITY ARE DISCLAIMED. SOME STATES
DO NOT ALLOW THE DISCLAIMER OF IMPLIED WARRANTIES, SO THIS DISCLAIMER MAY NOT
APPLY TO YOU.
To obtain warranty service, please write down your model number and call Customer Service at
1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have a
copy of the receipt as proof of purchase.
The Honeywell Trademark is used under license from Honeywell International
Inc. Honeywell International Inc. makes no representations or warranties with
respect to this product. This product is manufactured for:
Hong Kong China Electric Appliance Manufacture Co., Ltd.
3059 Forest Hill Irene Rd, Suite 103
Germantown, TN 38138
1-877-361-3883
9083-EN r030514
