DIGITAL PIANO
CA501
Owner’s Manual
2
Important Safety Instructions
Important Information
Important Safety Instructions
Be sure to read these Safety Precautions carefully before using this instrument to ensure correct use.
When using this electronic musical instrument, please observe the following precautions for safety.
When this instrument is used by small children, please ensure safe use under the supervision of a parent.
▋ Warnings, cautions, and symbols have the following meanings.
denotes that care (precaution) should be taken.
denotes a prohibited operation (an operation
that must not be done).
denotes an instruction (an operation that should
be carried out) or indicative notice.
WARNING
Describes a potential hazard that could result in death or serious injury if the indication
is ignored and this instrument is handled incorrectly.
Doing so may cause a electric shock, re, injury fall, damage, or breakdown .
The product should be connected to an
AC outlet of the specied voltage.
The included power cord and AC adap-
tor are only for use with this instrument.
Do not forcibly bend, place a heavy ob-
ject on, bring a high-temperature object
close to, or damage the power cord and
AC adapter cord.
Do not bring the AC adaptor close to a
hightemperature object or use in a man-
ner that heat accumulates.
If dust accumulates on the power plug,
wipe it clean with a cloth.
When any of the following cases occur,
this instrument may have broken down.
In such a case, do not use this instru-
ment, keep the power cord disconnect-
ed from the outlet, and contact the shop
from which the product was purchased.
1. Foreign objects fell into the instrument.
2. Water was spilled into the instrument.
3. Some parts of the instrument or accessory be-
came abnormally hot.
4. Unusual smell or smoke occurred.
Do not
disassemble
Do not disassemble, repair, or modify
this instrument.
When disconnecting the power cord
plug, always hold the plug and pull out.
Disconnect the power cord during light-
ning storms or when this instrument is
unused for long periods of time.
Should an abnormality occur in this in-
strument, immediately turn the power
o and disconnect the power plug from
the outlet.
No wet hands
Do not insert or pull out the power plug
with wet hands.
No water
Do not get this instrument wet.
3
Important Information
Important Safety Instructions
CAUTION
Describes a potential hazard that could result in injury or damage to property if the indi-
cation is ignored and this instrument is handled incorrectly.
Doing so may cause a fall, damage, breakdown, injury, Health damage.
Keep the power cord plug in a state
where it can be disconnected from the
outlet easily.
This instrument is not completely shut-
o from the power supply even when
the power switch is turned o.
To shut-o completely, disconnect the
power plug from the outlet.
Do not put any part of your body under
the keyboard cover, music stand, or ped-
als.
Do not stand on, hang down from, or
push this instrument.
When moving this instrument, always
lift in a horizontal direction by two or
more people.
Piano should be placed in a location
such that its position does not aect its
own ventilation. Keep a minimum dis-
tance of 5 cm around the instrument for
sucient ventilation.
Do not run around this instrument.
Do not drop this instrument or apply a
large impact.
When using the headphones, do not lis-
ten for long periods of time at high vol-
ume levels.
Do not use this instrument in the follow-
ing areas.
1. Areas where the oor is unstable and the instru-
ment becomes wobbly.
2. Areas that become wet.
3. Extremely hot or cold areas.
4. Extremely humid or dry areas.
5. Areas where the instrument is exposed to direct
sunlight, such as those near a window.
6. Areas where a large amount of sand or dust is
present.
7. Areas where the instrument is exposed to exces-
sive vibrations.
Do not play with or stand on the bench,
or allow two or more persons to sit on
the bench. (only if included the Bench)
When assembling this instrument or
bench (if included), read the assembly
instructions in advance.
Regularly inspect assembling screws of
this instrument and the bench (if includ-
ed) for looseness and retighten if neces-
sary.
The height adjustment of the bench
should be performed when no one is sit-
ting on it. (only if included the Bench)
4
Important Safety Instructions
Important Information
Règles de sécurité (Supplémentairespour le Canada)
Exemples de symboles graphiques
Indique que des précautions doivent être prises.
Indique une manipulation interdite.
Indique qu’une manipulation doit être eectuée.
AVERTISSEMENT
Indique un risque potentiel qui peut entraîner la mort, ou de graves lé-
sions, si l’appareil n’est pas manipulé correctement.
Doing so may cause a electric shock, re, injury fall, damage, or breakdown .
Faite attention de ne pas introduire un
produit étranger à l’intérieur de l’appa-
reil.
Ne jamais placer sur le produit des ob-
jets contenant des liquides, tels que des
vases ou autres recipients..
Ce produit n’est pas totalement décon-
necté du circuit électrique lorsqu’il est
mis hors tension par le bouton d’arrêt.
Si l’appareil ne doit pas être utilisé pen-
dant une longue période, débranchez le
câble d’alimentation de la prise secteur.
Il est recommandé de placer l’instrument
à proximité de la prise de courant et de
positionner le câble d’alimentation sec-
teur de sorte qu’il puisse être débranché
rapidement en cas d’urgence, le courant
électrique étant toujours présent tant
que la prise est branchée même si le
bouton de mise en marche est en posi-
tion Arrêt.
PRECAUTION
Indique un risque potentiel qui peut entraîner la détérioration, ou des dommages, pour
l’appareil ou ses propriétés, si celui-ci n’est pas manipulé correctement.
Description de la l’emplacement de la reference
(Le cas échéant):
Anglais phrase: The nameplate label is located
on the underside of the instruments, as indicated
below.
Français phrase: La reference commerciale est
inscrite sur une etiquette en dessous de votre
instrument, conformement a l’indication ci-des-
sous.
Votre piano doit être placé à un endroit tel que
sa position n’altère pas sa propre ventilation.
Gardez une distance minimum de 5 cm autour de
l’instrument pour une aération susante.
5
Important Information
Important Safety Instructions
▋ Notes on Repair
Should an abnormality occur in the product, immediately turn
the power OFF, disconnect the power cord plug, and then con-
tact the shop from which the product was purchased.
▋ An information on Disposal for users
If your product is marked with this recycling
symbol it means that, at the end of its life, you
must dispose of it separately by taking it to an
appropriate collection point.You should not mix
it with general household waste. Disposing of this
product correctly will prevent potential negative
eects on the environment and human health
which could otherwise arise due to inappropriate
waste handling.
For further details, please contact your local au-
thority. (European Union only)
▋ FCC Information (U.S.A)
Caution :
Changes or modications not expressly approved by KAWAI
could void the user’s authority to operate the equipment.
Note :
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the in-
structions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
▋ Supplier’s Declaration of Conformity
Products : Electronic Piano
Model Number : CA501
Responsible Party Name : Kawai America Corporation
Address : 2055 East University Drive Rancho
Dominguez, CA 90220
Telephone : 310-631-1771
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, includ-
ing interference that may cause undesired operation.
This applies only to products distributed by Kawai America Cor-
poration.
▋ Nameplate location
The nameplate label is located on the underside of the instru-
ment, as indicated below.
Nameplate
6
Important Information
Introduction
Introduction
Thank you for purchasing this Kawai digital piano.
Please read this owner’s manual carefully and keep the manual in a safe place to make full use of this product and maximise its prod-
uct life.
▋ About this owner’s manual
This owner’s manual contains quick references for basic play-
back features and operation details for various functions.
▋ Nameplate
The information, including model name and serial number, is
specied on the nameplate located on the underside of the in-
strument.
▋ Intellectual property rights
• The Bluetooth® word mark and logos are registered trade-
marks owned by the Bluetooth SIG, Inc. and any use of such
marks by Kawai Musical Instruments Mfg. Co., Ltd. is under li-
cense.
• “Windows” is a registered trademark of Microsoft Corporation.
• “Mac” is a registered trademark of Apple Inc.
• Some samples © PREMIER Engineering Inc.
▋ Cleaning
• Use a dry soft cloth to wipe the main body.
• Avoid using alcohol, benzene, thinner, or chlorine bleach. Do-
ing so may result in discoloration or deformation of the keys,
exterior, or panels.
• Depending on the material of the cloth used, wiping the prod-
uct repeatedly may result in discoloration or deformation.
• If the surface of the pedals become dirty, clean the pedals us-
ing a dry dish-washing sponge. Wiping the gold-plated pedals
with a cloth may cause the surface to appear dull.
• If the pedals become dirty, do not attempt to clean them with
rust-removing solvents, abrasives, or les.
▋ Symbols
[ ]
The characters enclosed in brackets [ ] indicate
the names of sliders, buttons, ports or jacks.
This symbol shows the location of the button to
be operated, and the number in this symbol indi-
cates the order of operation.
The value in this symbol corresponds to the num-
ber describing the operating instructions.
The pointer nger symbol indicates key opera-
tion, and the value in this symbol corresponds to
the number assigned to the corresponding oper-
ation.
This symbol indicates operating precautions.
This symbol describes terminology and provides
additional information if the screen display is dif-
ferent from the name.
P
This symbol indicates the page to be referenced.
▋ About tuning
This piano is a digital instrument and does not require tuning.
If any aspect of this instrument does not function or perform as
expected, please contact the store from where the instrument
was purchased to seek assistance.
8
Important Information
Table of Contents
Table of Contents
Important Information
Important Safety Instructions �������2
Introduction ��������������6
Table of Contents ������������8
Preparation
Part Names and Functions ������� 10
Opening/Closing the Key Cover ����� 12
Music Rest �������������� 12
Pedal support bolt ����������� 12
Power ���������������� 13
Home screen ������������� 13
Volume and headphones �������� 14
Basic Operation
Sounds���������������� 15
Pedals ���������������� 15
Metronome �������������� 16

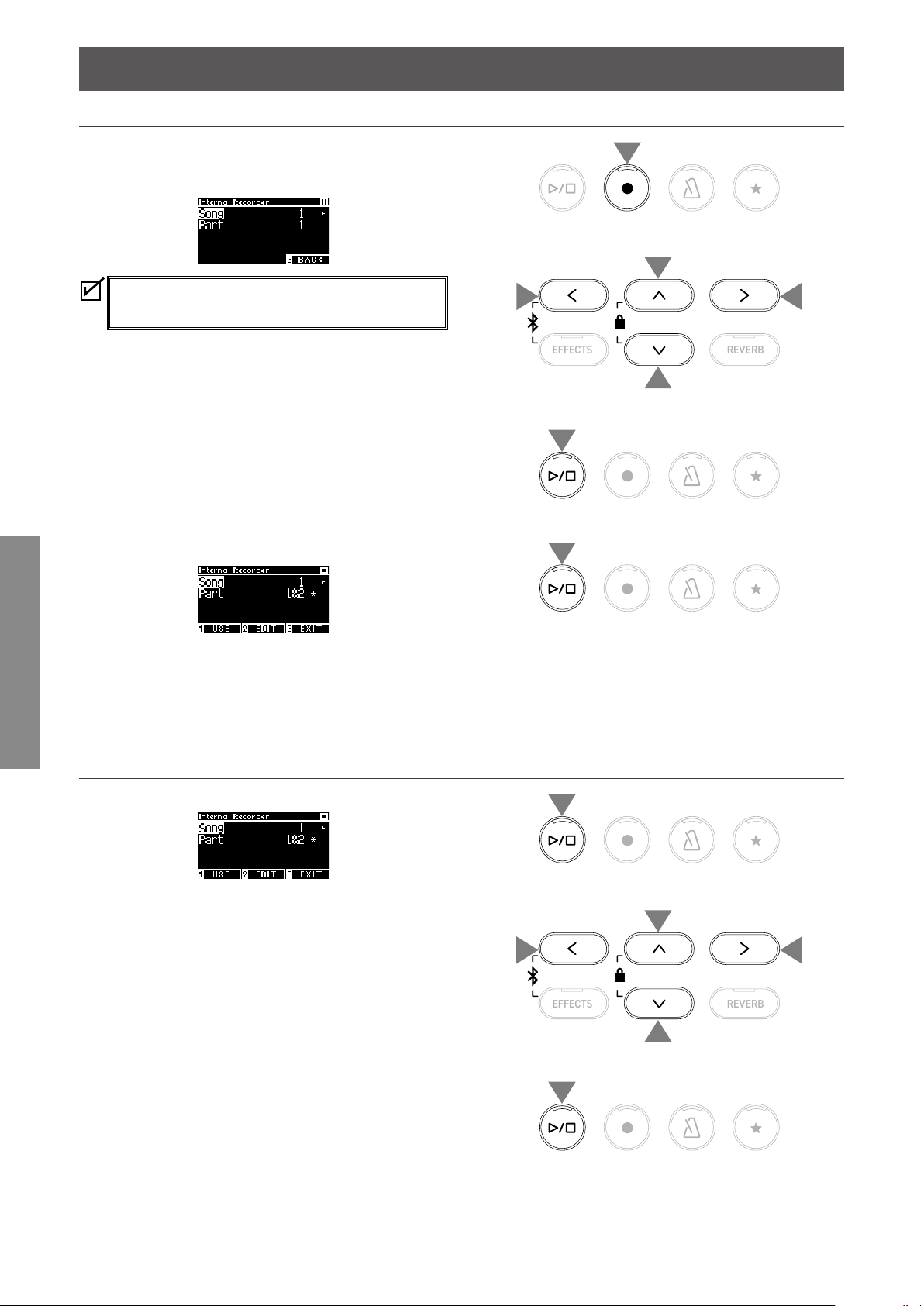

Recorder ��������������� 17
Recording to internal memory
and playing back …………………………… 18
Recording to a USB memory device
and playing back …………………………… 21
Reverb ���������������� 26
Eects ���������������� 27
Dual ����������������� 29
Dual Settings ………………………………… 30
Split ����������������� 31
Split Settings ………………………………… 32
4 Hands ��������������� 33
Four Hands Settings ………………………… 34

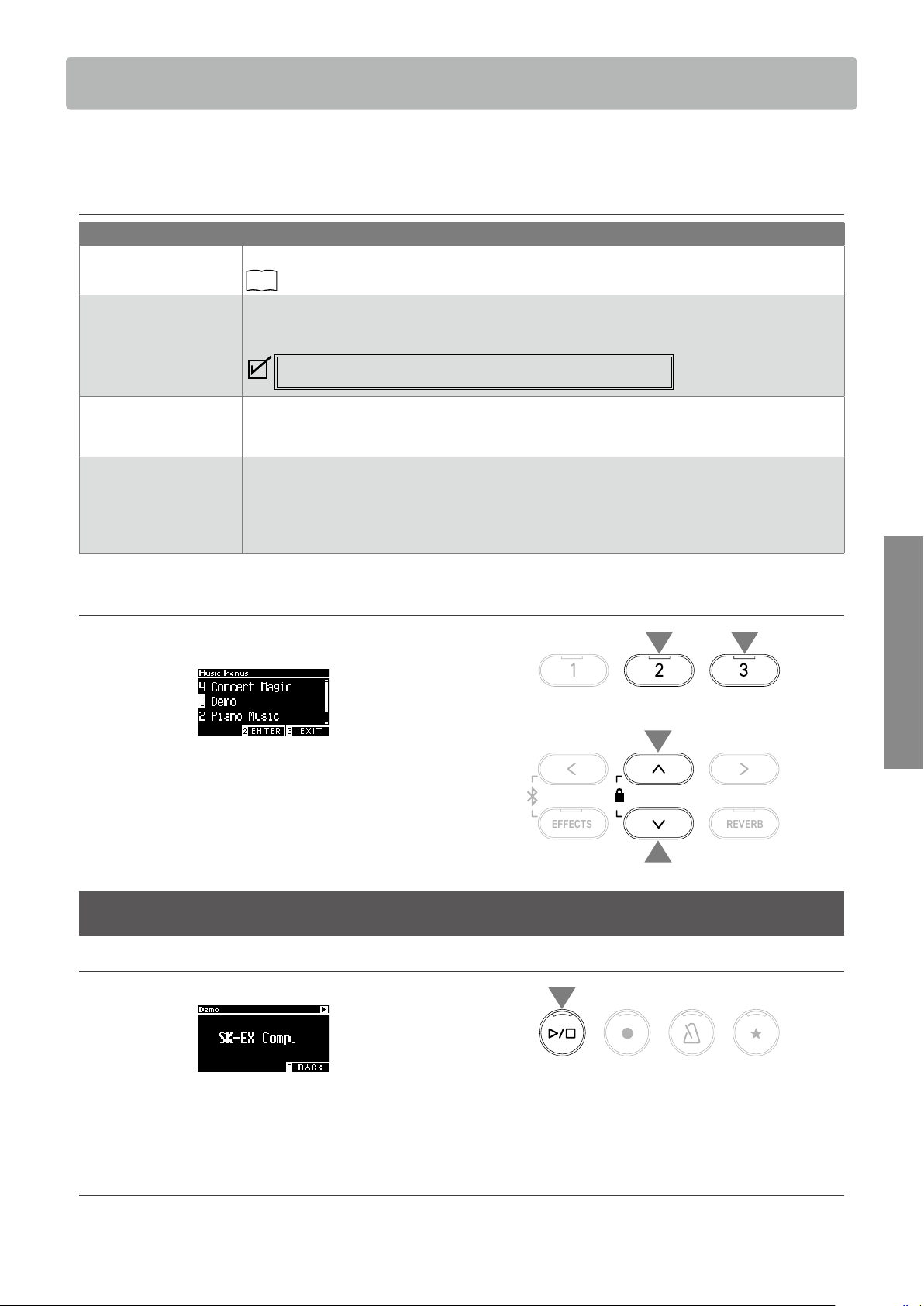

Music Menu �������������� 35
Demo Songs ………………………………… 35
Piano Music ………………………………… 36
Lesson ……………………………………… 36
Practicing �������������� 37

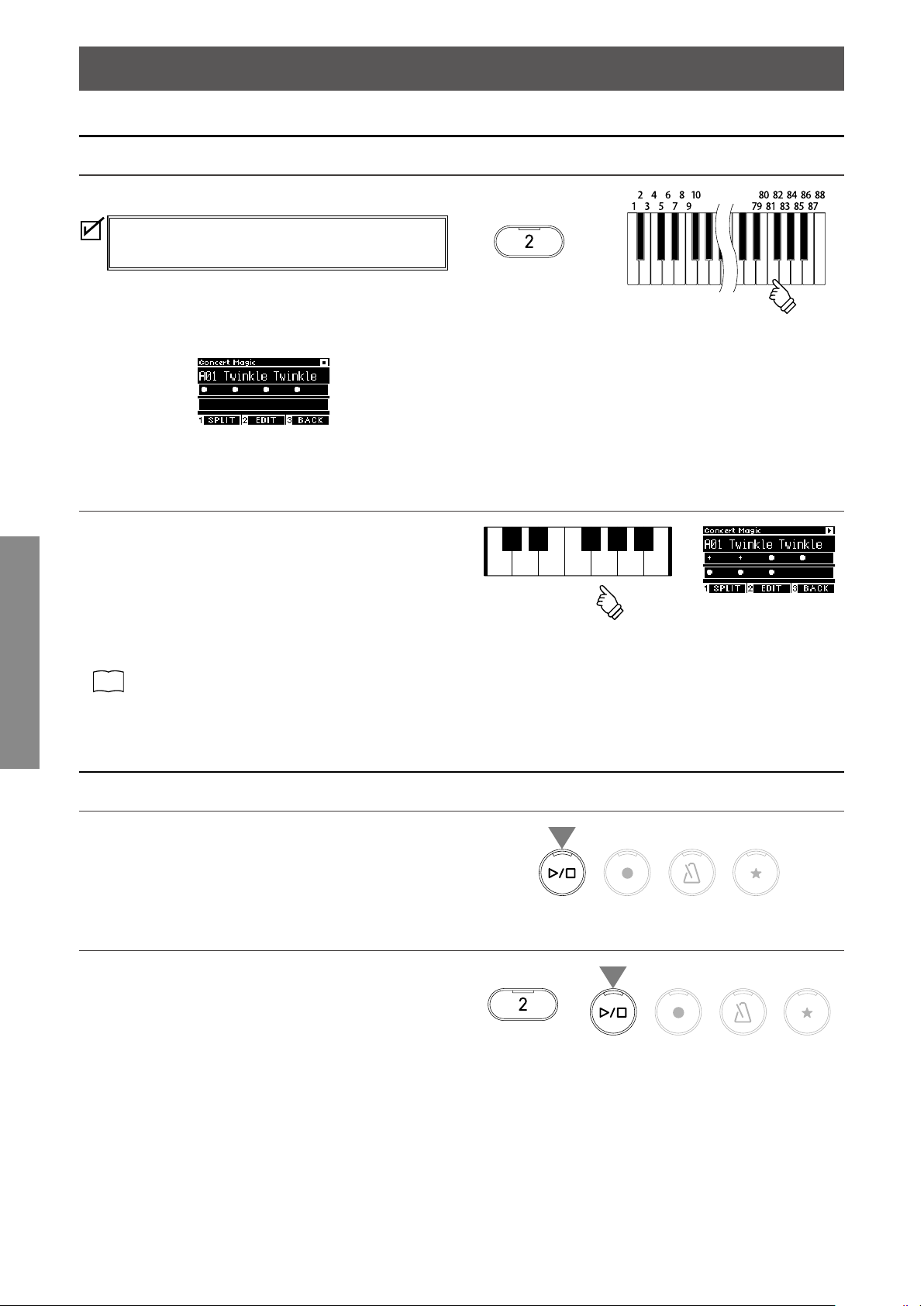

Concert Magic ……………………………… 40
Playing a Concert Magic song ������ 40
Listening to a Concert Magic song ���� 40
Concert Magic song settings ������ 41

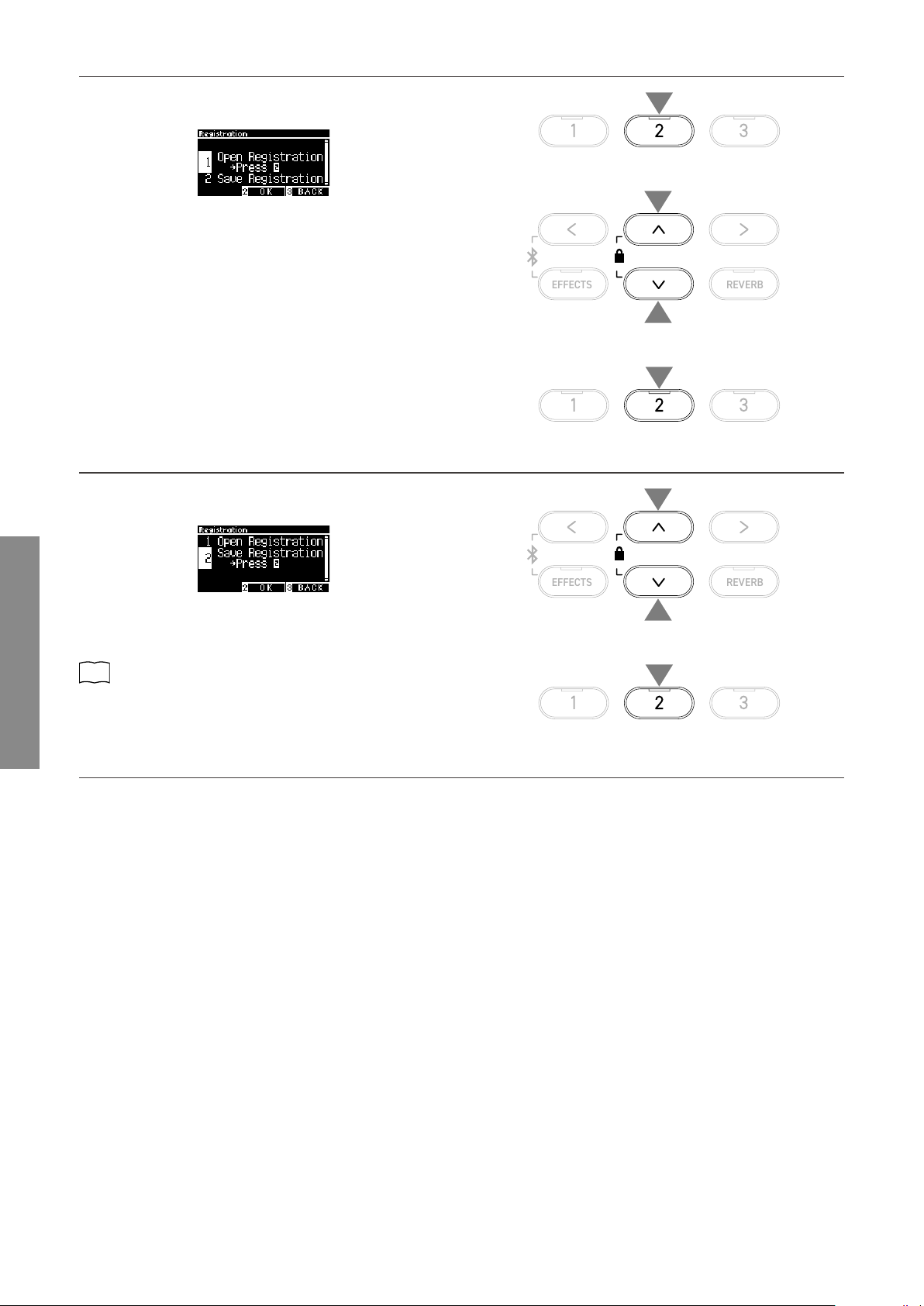

Registration Memories ��������� 42
Panel Lock �������������� 45
Adjustments & Settings
Settings Menu ������������ 46
Basic Settings………………………………… 46
1 Key Transpose ����������� 47
2 Song Transpose ���������� 47
3 Tone Control ����������� 48
4 Speaker Volume ���������� 49
5 Low Volume Balance �������� 49
6 Tuning ������������� 49
7 Damper Hold ����������� 49
10 Startup Settings ��������� 50
11 Factory Reset ���������� 50
12 Auto Display O ��������� 50
13 Auto Power O ���������� 50
Virtual Technician …………………………… 51
Smart Mode ������������� 51
Advanced Mode ����������� 52
Phones Settings ……………………………… 62
1 Spatial Headphone Sound ������ 62
2 Phones Type ����������� 63
3 Phones Volume ���������� 63
USB Menu …………………………………… 63
1 Load Song ������������ 66
2 Load Registration All �������� 67
3 Load Registration Single ������� 68
4 Load Startup Setting �������� 69
5 Save Internal Song ��������� 70
6 Save SMF Song ���������� 71
7 Save Registration All �������� 72

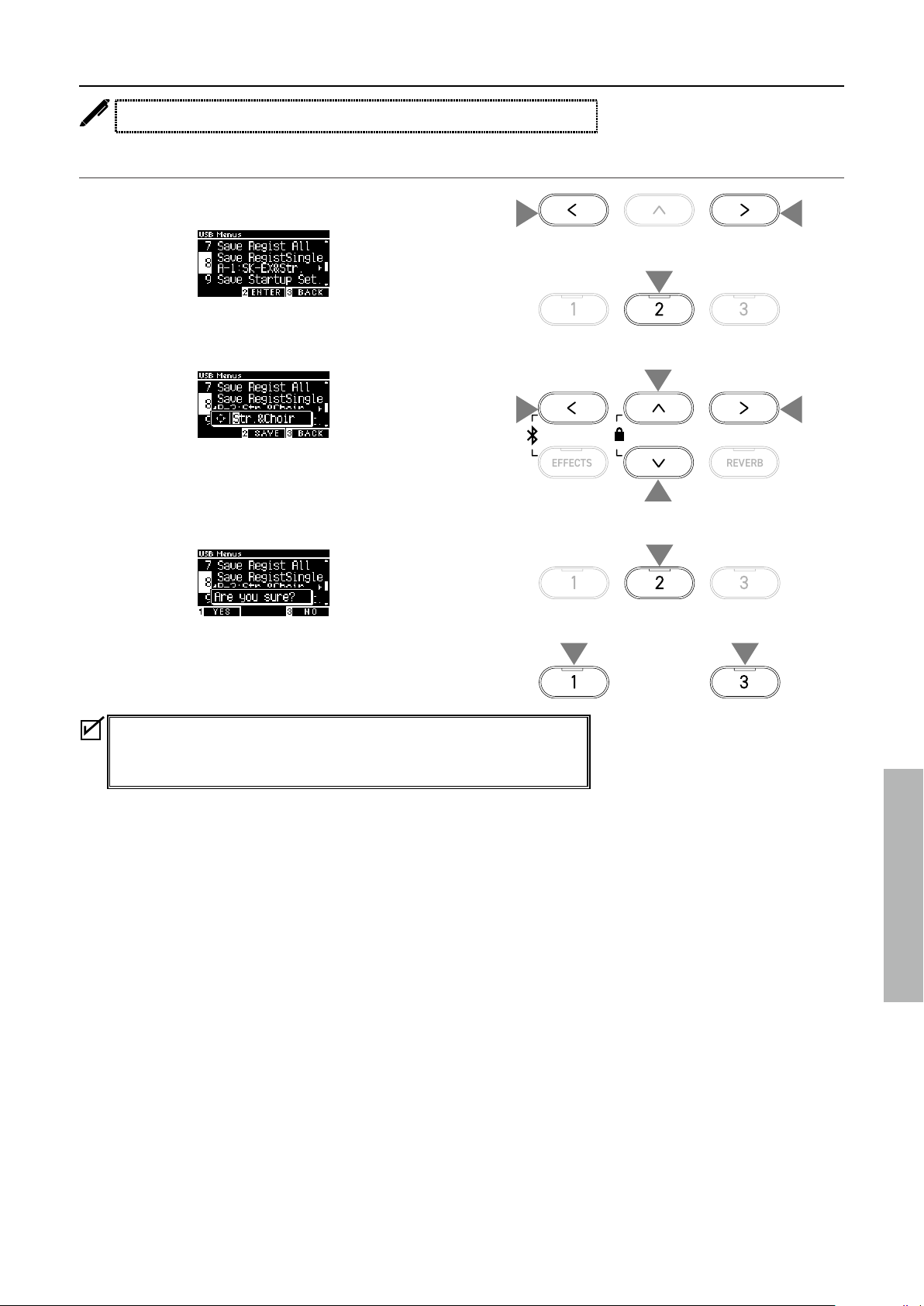

8 Save Registration Single ������� 73
9 Save Startup Setting �������� 74
10 Rename File ����������� 75
11 Delete File ������������ 76
12 Format USB ����������� 76
Bluetooth Settings ………………………… 77
1 Bluetooth ������������ 78
2 Bluetooth Audio Volume ������ 78
9
Important Information
Table of Contents
Appendix
Troubleshooting ������������ 79
Internal Songs List ����������� 81
Drum Rhythm List ����������� 83

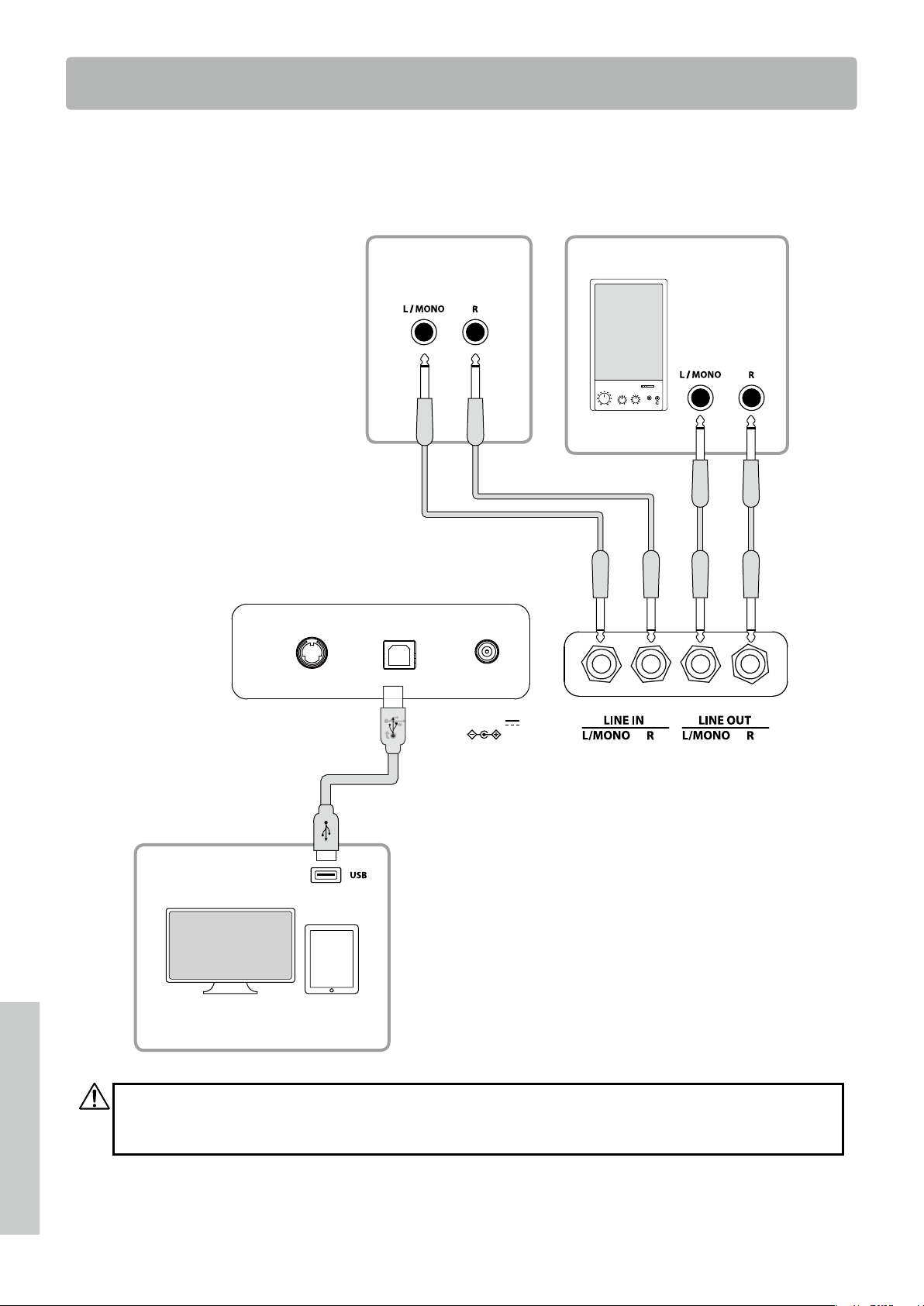

Connecting to Other Devices ������ 84

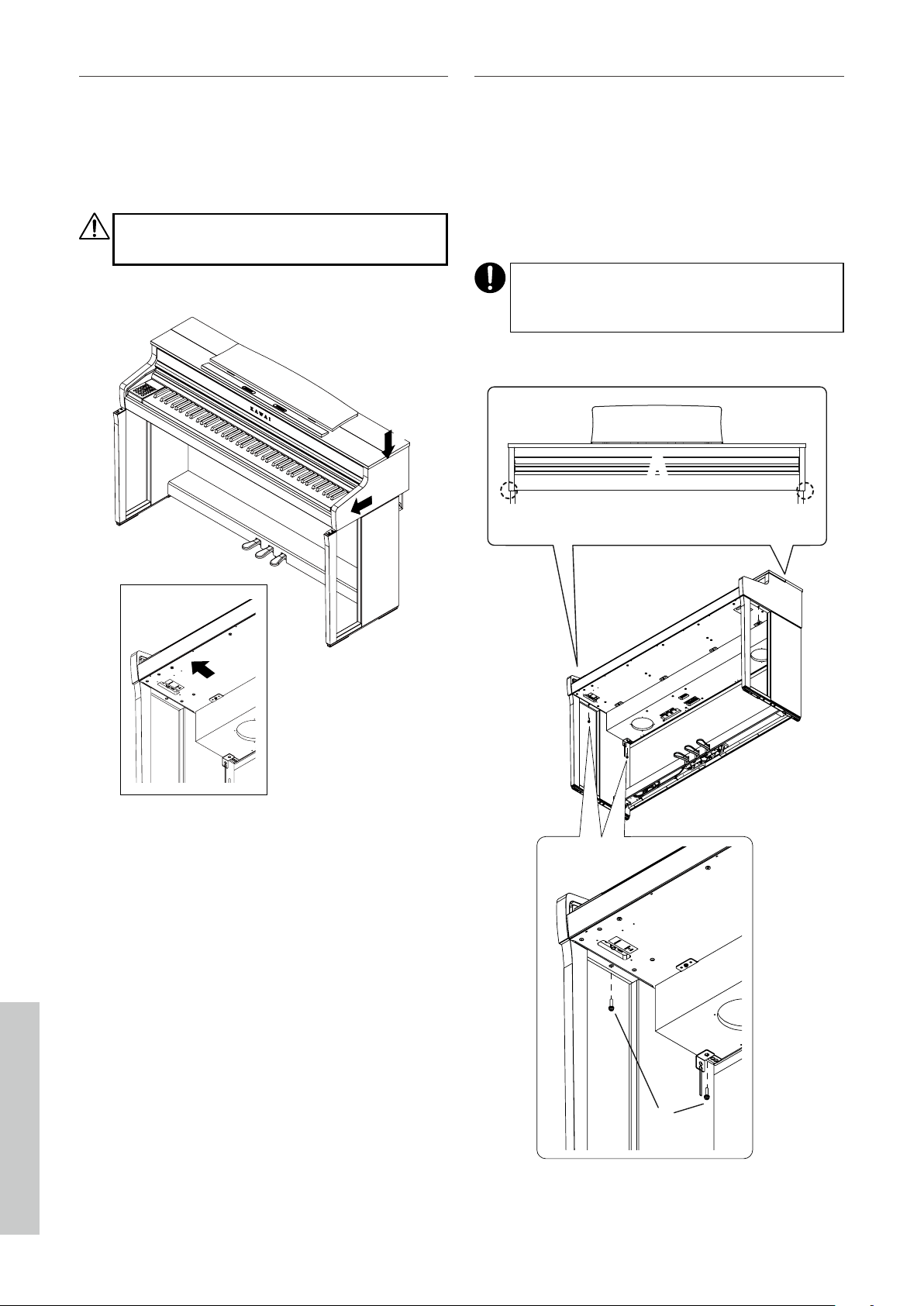

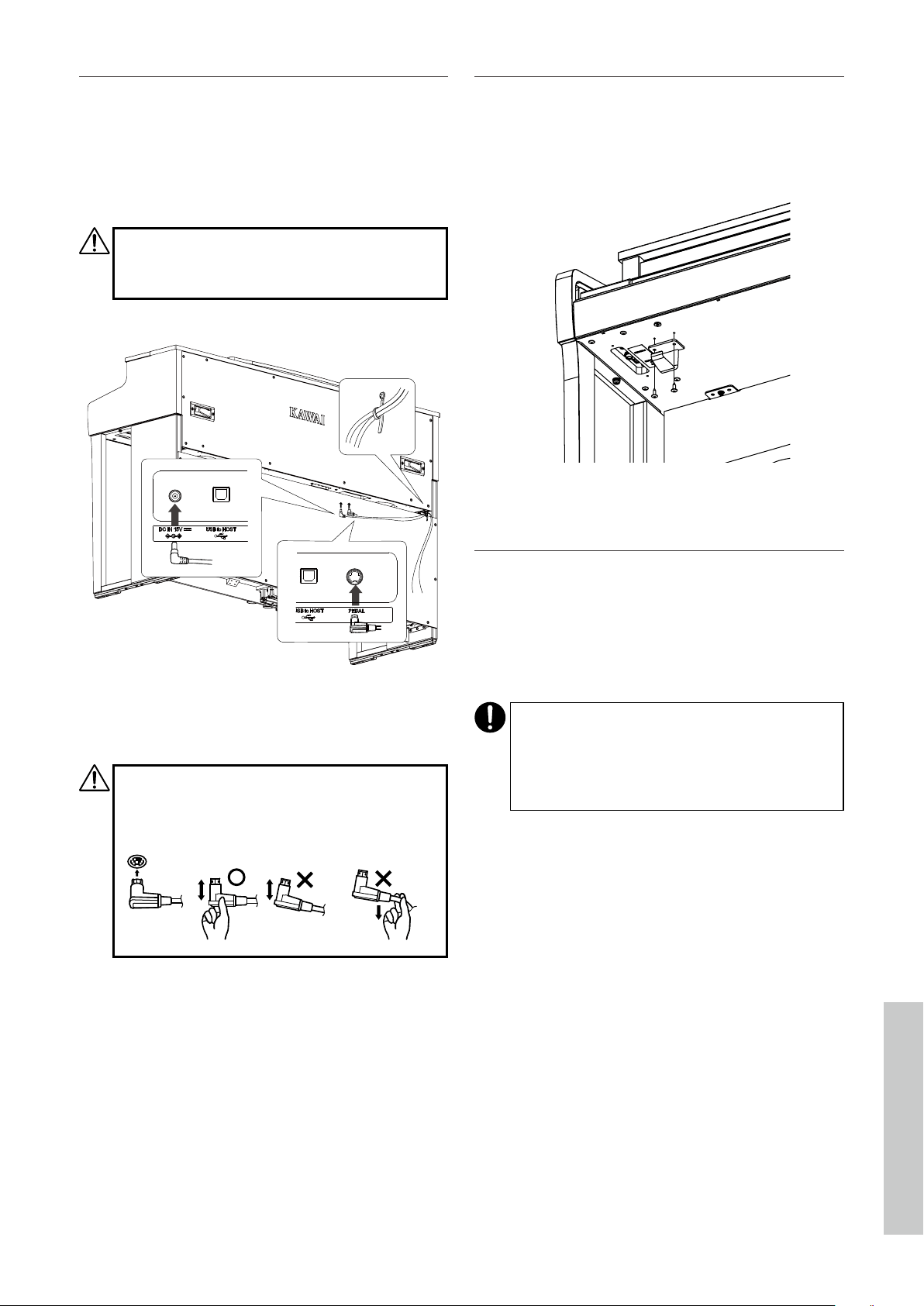

Assembly Instructions ��������� 86
Information about Adaptor Specications � 90
EU Declaration of Conformity ������ 91
Specications ������������� 92
For more information on MIDI and its operation details, please download the supplementary web manual:
https://www2.kawai.co.jp/emi-web/piano-docs/
10
Preparation
Part Names and Functions
Part Names and Functions
⑱
EFFECTS REVERB
1 2 3 4
5 6 7 8
E.PIANO ORGAN
STRINGS
PADHARPSI BASS
PIANO1 PIANO2
⑥
⑧
③
④
⑤
⑦
⑩
⑪
⑫
⑨
②
①
⑬
⑭
⑲
⑰⑯⑮
In market locations where Bluetooth functionality is
not available, the Bluetooth mark will not be printed.
11
Preparation
Part Names and Functions
① [POWER] button
This button is used to turn the power on/o. Be sure to turn
o the instrument after playing.
② [MASTER VOLUME] slider
This slider controls the volume output from the built-in
speakers, headphones, or LINE OUT connectors.
③ Display
The display shows the function names and setting values.
A protective plastic lm is attached to the display
during production. Please remove this lm before
attempting to play the instrument.
④ [1][2][3] buttons
These buttons correspond to items displayed at the bot-
tom of the display.
Their purposes vary depending on the displayed contents.
⑤ ARROW buttons
These buttons are used for various purposes such as dis-
playing the previous screen or next screen.
They are [UP], [DOWN], [RIGHT], and [LEFT] buttons.
⑥ [EFFECTS] button
This button is used to select the eect, set how the eect is
applied, and turn the eect on/o.
⑦ [REVERB] button
This button is used to select the reverb eect and turn the
eect on/o.
⑧ [PLAY/STOP] button
This button is used to play/stop recorded performances
and Internal Songs such as those stored in Lesson.
⑨ [REC] button
This button is used to record the performance.
⑩ [METRONOME] button
This button is used to turn the metronome function on/o
and adjust its tempo, time signature, and volume settings.
⑪ [REGISTRATION] button
This button is used to store preferred sounds and settings
to a Registration memory, where the can be quickly re-
called.
⑫ SOUND buttons
These buttons are used to select the sound.
⑬ [PHONES] jacks
These jacks are used to connect stereo headphones to
the instrument, allowing headphones with a stereo mini
phone plug and headphones with a stereo standard plug
to be connected at the same time.
⑭ [USB to DEVICE] port
This port is used to connect a USB memory device.
⑮ [PEDAL] connector
This connector is used to plug the pedal cable attached to
the pedal unit.
⑯ [USB to HOST] port
This port is used to connect the instrument to a computer
using a USB “B to A” type cable in order to send and receive
MIDI data.
⑰ [DC IN] jack
This jack is used to connect the AC adaptor.
⑱ [LINE IN] jacks
These jacks are used to connect other electronic instru-
ments or audio devices to output their sounds from the
instrument’s built-in speakers.
⑲ [LINE OUT] jacks
These jacks are used to connect other external devices (am-
plier, stereo system) to listen to the instrument’s sound, or
to record to audio devices.
12
Preparation

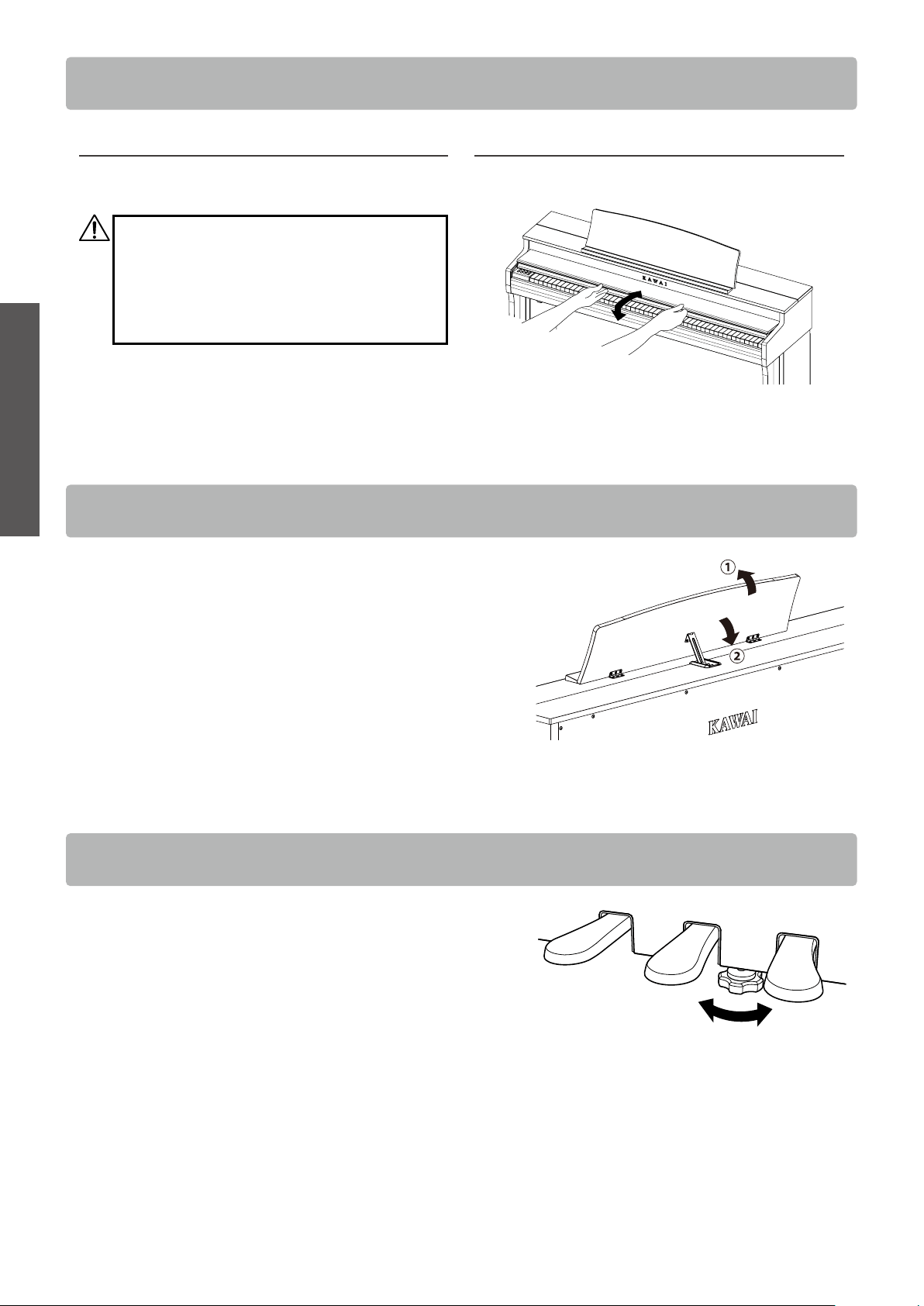

Opening/Closing the Key Cover
Opening/Closing the Key Cover
▋ Opening the key cover
Gently lift the key cover with both hands, then slowly push it
back into the instrument’s body.
• Do not leave any object on the key cover when
opening the key cover. Doing so could cause the
objects to fall inside the instrument, leading to
electric shock, short-circuit, ignition, or failure.
• Be careful not to have hands and ngers caught
between the key cover and the main body.
▋ Closing the key cover
Slowly pull the key cover with both hands, then gently lower it
downward.
Music Rest
1. Lift the music rest.
2. Set the metal prop on the rear side of the music rest to a de-
sired position in the recessed holder on the top surface of the
main body.
(The angle is adjustable in three stages.)
Pedal support bolt
A pedal support bolt is attached at the base of the pedal board to
aid stability when the pedals are pushed.
Turn the bolt anti-clockwise until it makes contact with the oor
and supports the pedals rmly. If the pedal support bolt does
not make contact with the oor, the pedal board may become
damaged.
13
Preparation
Power
Power
1. Connecting the AC adaptor to the main body
Plug the supplied AC adaptor into the power cord and insert it
into the [DC IN] jack located on the underside of the main body.
2. Connecting the plug into an outlet
Connect the AC power adaptor to an AC outlet.
3. Turning the power on/o
Press the [POWER] button to turn the power on.
When the instrument has started up, the LED indicator of the
[POWER] button will turn on.
To turn the power o, press the [POWER] button again.
Do not turn o the power until the startup process is
completed.
Do not unplug the power cord until the display has
turned o.
The rst screen that appears when the instrument has started up after power-on is called the Home screen.
The Home screen is the initial menu of the operation.
Bluetooth icon
This icon appears when Bluetooth is
turned on.
The icon will be reversed when
a Bluetooth device is connected
successfully.
Transpose icon
This icon appears when Key
Transpose is turned on.
Headphone icon
This icon appears when a pair of headphones are
connected.
USB icon
This icon appears when a USB
memory device is connected.
These correspond to [1], [2], and [3] buttons.
Their purposes vary depending on the displayed contents.
Home screen
14
Preparation

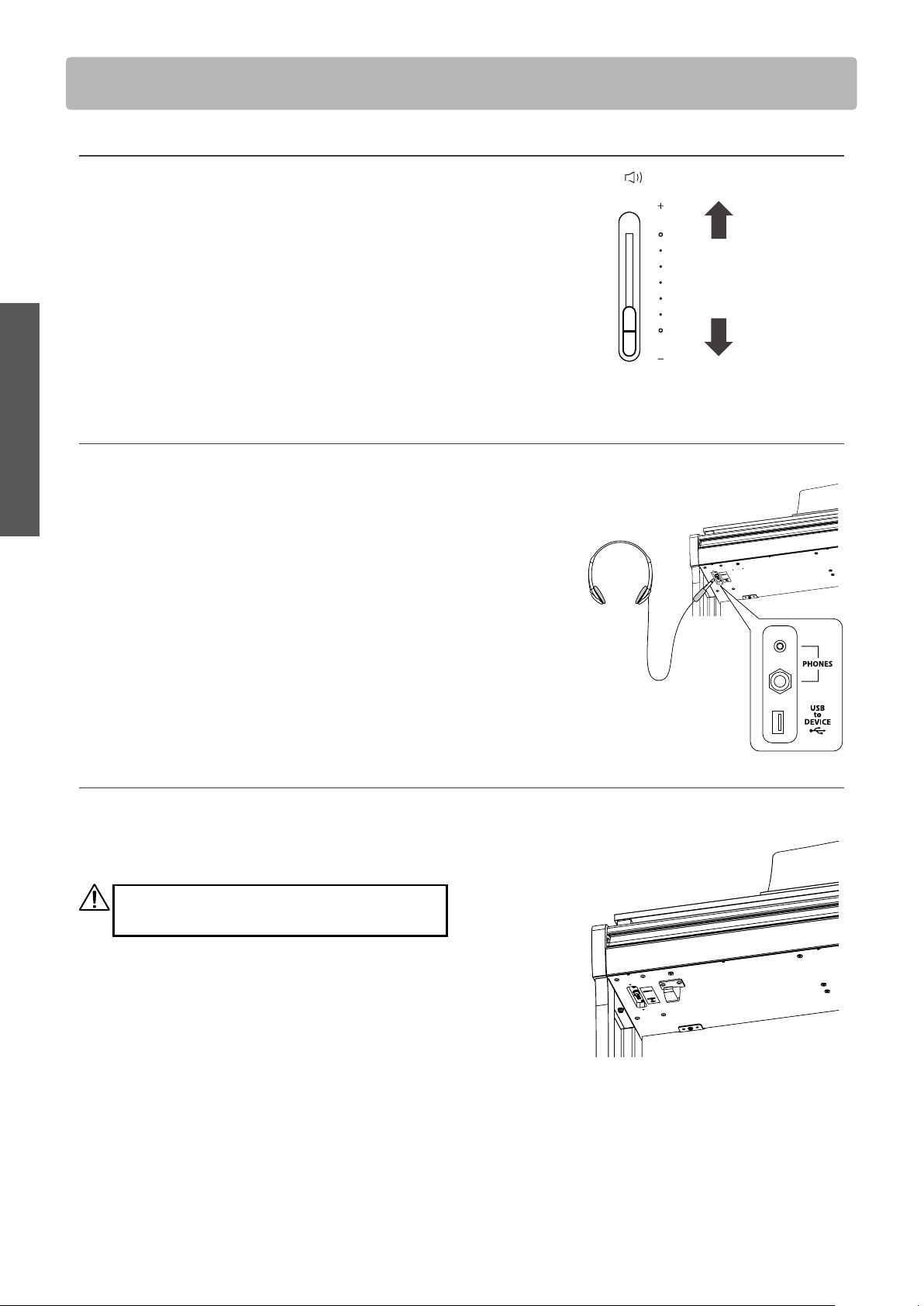

Volume and headphones
Volume and headphones
▋ Adjusting the volume
Use the [MASTER VOLUME] slider located on the right side of the
main body to adjust the volume.
Move the slider up to increase the volume and down to decrease
the volume.
Adjust the volume while listening to the sound by striking the
keys.
▋ Using headphones
Plug the headphones into the [PHONES] jack located on the un-
derside of the main body.
When the headphones are connected, the speakers on the main
body no longer produce sound.
▋ Using the headphone hook
When the headphones are not in use, the headphones can be
placed on the headphone hook.
To use the headphone hook, attach it as shown in the illustra-
tion.
Do not hang any other items except headphones on
the headphone hook. Doing so could result in damage.
Increase
Decrease
15
Basic Operation
Sounds
Sounds
This instrument features a selection of 45 realistic instrument sounds. Sounds are arranged into eight cat-
egories, with several sounds assigned to each SOUND button. “SK-EX Competition Grand Piano | Concert”
is selected as the default setting. The sounds are displayed on the Home screen.
P81
Sound/Demo Songs List

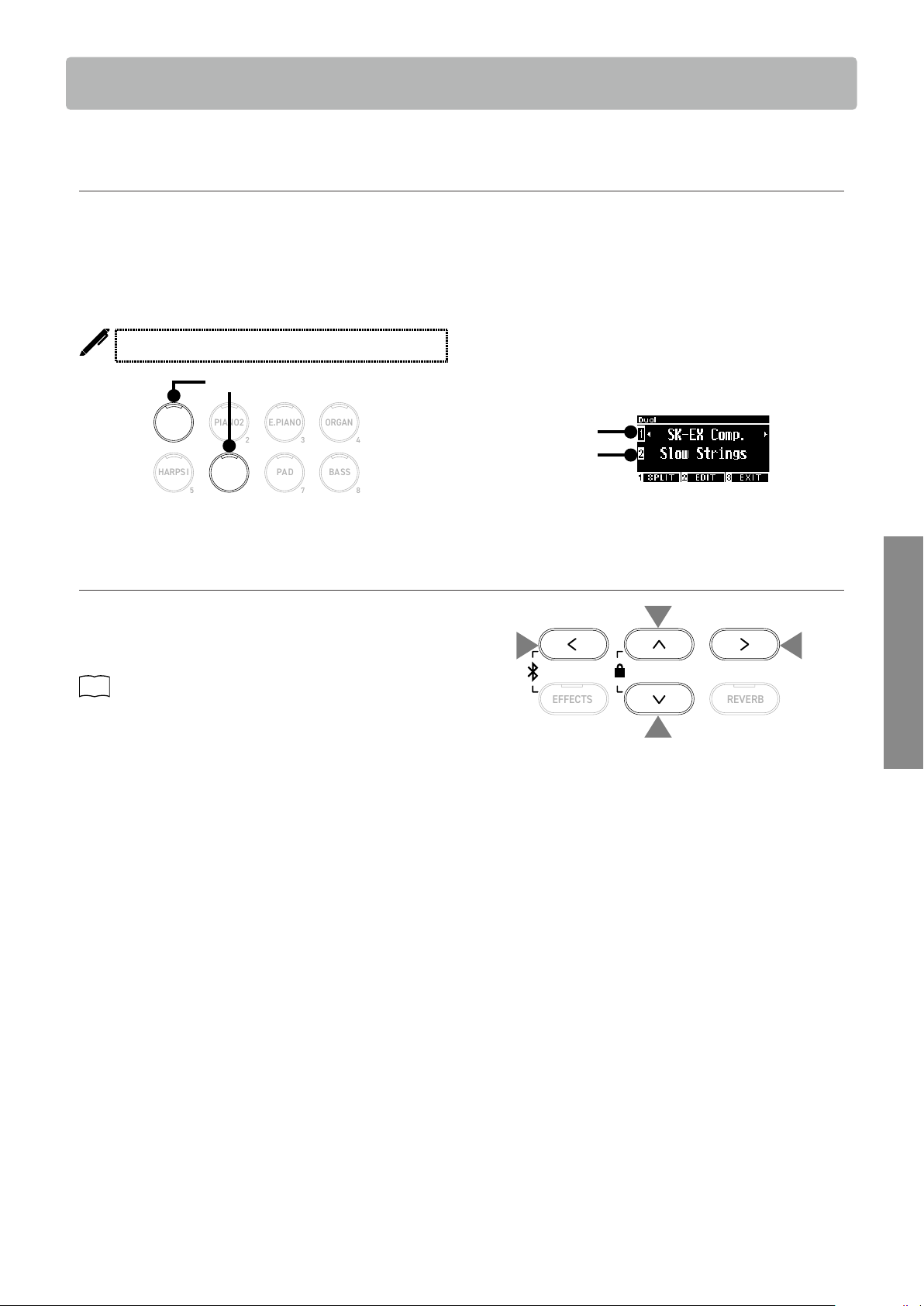

▋ Selecting a sound
1. On the Home screen, press the [UP]/[DOWN] button to select
a category.
Or, press the SOUND button to select the category.
The LED indicator for the selected SOUND button will turn
on and the name of the selected sound will be shown in the
LCD display.
The display may show shortened sound names.
2. Press the [LEFT]/[RIGHT] button to select a sound variation.
Or, press the same SOUND button to select the variation.
This instrument is equipped with three pedals.
Damper pedal (right pedal)
Depressing this pedal while playing the piano will sustain the
sound even after one’s hands have been lifted from the key-
board. The length of reverberation can be controlled by the level
of pedal depression. (Half-pedal supported)
▋ Sostenuto pedal (centre pedal)
Depressing this pedal after pressing any key and before releas-
ing the key(s) will sustain the sound of only those notes that
have been played. Any keys that are subsequently pressed after
stepping on the sustenuto pedal will not be sustained.
▋ Soft pedal (left pedal)
Depressing this pedal softens the sound, reducing its volume
slightly. The eect of the soft pedal can be controlled by the de-
pressed depth of the pedal. Rotary speed (Slow or Fast) can be
controlled when Rotary is selected as the Eect Type.
The eect of pressing each pedal may not be noticeable
depending on the sound.
Soft pedal
Sostenuto pedal
Damper pedal
▋ Grand Feel Pedal System
This instrument features the Grand Feel Pedal System, which replicates the sustain, soft, and sostenuto pedal weighting of a Shigeru
Kawai SK-EX Competition Grand piano.
Pedals
1
1
2 2
EFFECTS
REVERB
16
Basic Operation

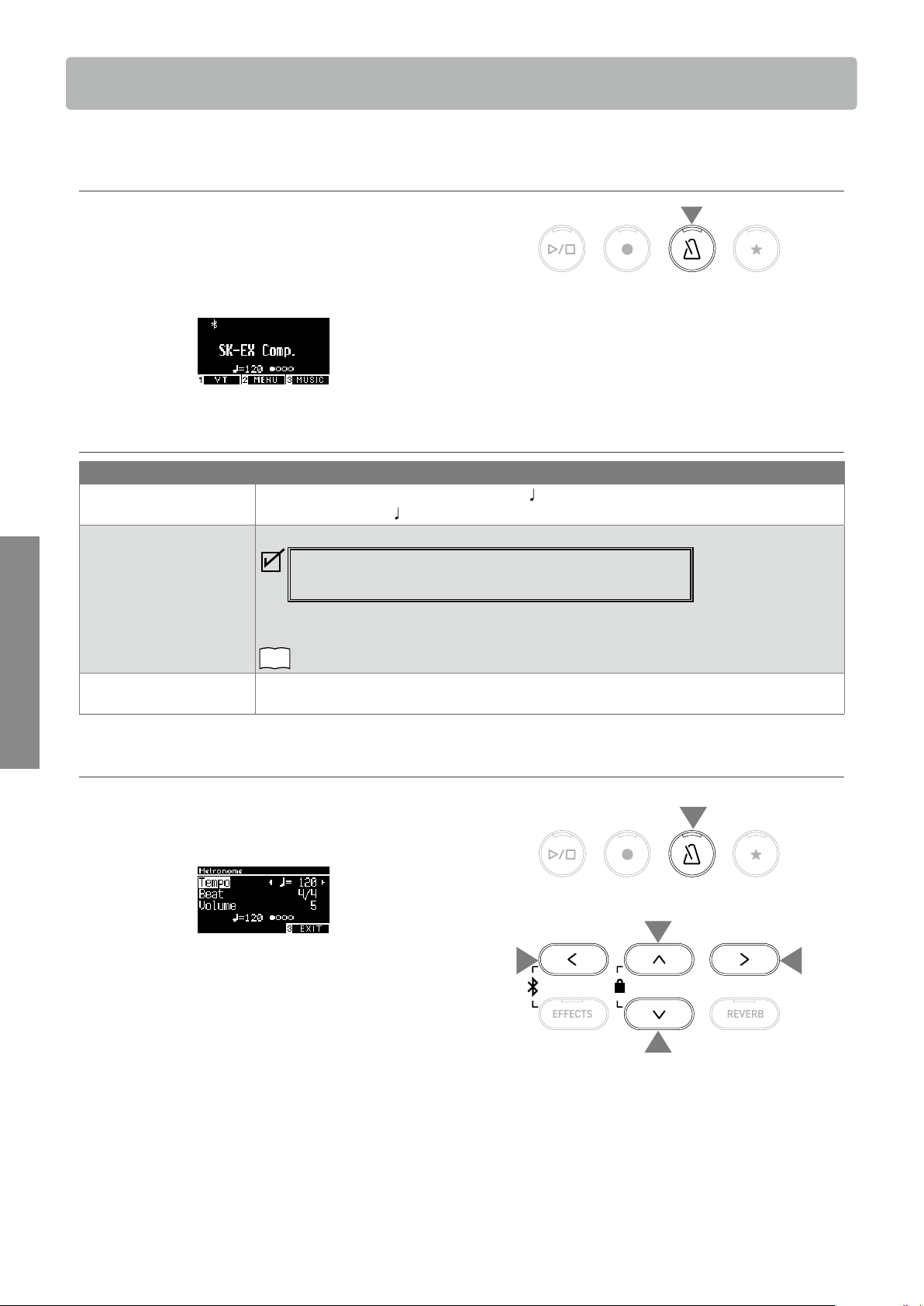

Metronome
Metronome
The Metronome function provides a steady beat to aid practicing the piano.
Turning the Metronome on/o
• Press the [METRONOME] button.
The LED for the [METRONOME] button turns on and the met-
ronome sound begins.
• Pressing the [METRONOME] button again will stop the met-
ronome and turn o the LED indicator for the [METRONOME]
button.
▋ Metronome settings
Item Description
Tempo The value can be specied in the range from
= 10 to 400.
The default setting is
= 120.
Beat/Rhythm The beat setting is available from the following: 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, 12/8.
When the setting 1/4 is selected, it produces only the click sounds
without an accent beat.
The default setting is 4/4.
100 rhythm types are available.
P83
Drum Rhythm List
Volume The metronome volume can be specied in the range from 1 to 10.
The default setting is 5.
▋ Setting the Metronome
1. Press the hold the [METRONOME] button to enter the Metro-
nome settings screen.
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button will return to the Home screen.
hold
1
2
2
3
3
EFFECTS
REVERB
17
Basic Operation
Recorder
Recorder
This instrument allows songs to be recorded and played back. This instrument is equipped with an Inter-
nal Recorder to record/playback songs to/from internal memory, and a USB Recorder to record/playback
songs to/from USB memory device.
Recording format
Internal memory
• Internal format
USB memory device
• MP3 format
Bitrate: 256 kbit/s xed, Sampling frequency: 44.1 kHz, Stereo
• WAV format
Sampling frequency: 44.1 kHz, 16 bit, Stereo
Internal Recorder
• This instrument allows up to 10 songs to be recorded, stored in internal memory.
Each song consists of two separate parts.
This allows the right hand and left hand to be recorded into separate parts and played back separately for practicing one hand.
These parts can also be played back together.
• When a song is recorded to the song memory containing performance data, the existing performance data will be overwritten by
the new performance data.
• When recording into part 2 without playing back part 1 which is already recorded, set part 2 to be played back in song recorder
mode.
• The total recording capacity of this instrument is approximately 90,000 notes.
The LED indicators for the [PLAY/STOP] button and [REC] button turn o and recording stops if the memory becomes full while
recording.
Performances are recorded until immediately before the recorder stops.
Rough guide for the total recording capacity:
For example, if the total recording capacity is 5,000 notes, Beethoven’s Für Elise can be recorded three to four times, or
recording of 10 to 15 minutes is possible.
However, the recording time varies depending on the number of notes in the piece and tempo of the piece.
The recording time is also aected by the number of times the pedal is depressed because the recorder records pedal
operations, too.
• The recorded contents are not erased by turning this instrument o.
▋ Recording to a USB memory device
• This instrument is capable of recording performances directly to a USB memory device in audio format.
• The USB Recorder will also capture Bluetooth audio sound, allowing the performances played with backing music to be recorded.
Sound from the LINE IN connectors will not be captured
by the USB Recorder.
Panel operations while recording with the Internal Recorder
• The sound selected before recording, and sounds selected during recording will be stored.
• Changes to the eect settings will not be stored.
• The tempo setting will not be stored.
▋ Files that can be played back
This instrument can play back the following data:
• Songs that are recorded to store in internal memory.
• SMF les stored in a USB memory device (Format 0, Format 1)
• KSO les stored in a USB memory device (internal song format les)
• MP3 les stored in a USB memory device (Bitrate: 8~320 kbps, Sampling frequency: 44.1 kHz, 48 kHz, or 32 kHz, Stereo)
• WAV les stored in a USB memory device (Sampling frequency: 44.1 kHz, 16 bit, Stereo)
18
Recorder
Basic Operation
Recording to internal memory and playing back
Recording to internal memory
1. Press the [REC] button to enter the Internal Recorder screen.
The LED indicator for the [REC] button will start to ash once
the Internal Recorder screen opens.
If a USB memory device is connected, press the [1] but-
ton to display the Internal Recorder screen.
2. Press the [UP]/[DOWN] button to select the “Song” or “Part”.
3. Press the [LEFT]/[RIGHT] button to set the song memory or
part to be recorded.
4. Press the [PLAY/STOP] button to start recording.
Recording can also be started by pressing a key.
When the recording starts, the LED indicators for the [REC]
button and the [PLAY/STOP] button will turn on.
5. Press the [PLAY/STOP] button to nish recording.
When the recording ends, the LED indicators for the [PLAY/
STOP] button and the [REC] button will turn o.
A “
” symbol will appear beside the recorder song.
The display automatically enters song playback mode.
Song playback mode
• The performances can be recorded with the Metronome func-
tion turned on by pressing the [METRONOME] button.
▋ Playing back performances from internal memory
1. Press the [PLAY/STOP] button to enter song playback mode.
2. Press the [UP]/[DOWN] button to select the “Song” or “Part”.
3. Press the [LEFT]/[RIGHT] button to select the song and part
to play back.
4. Press the [PLAY/STOP] button to start the playback.
Press the [PLAY/STOP] button again to stop the playback.
• Pressing the [3] button will return to the Home screen.
2
2
3 3
EFFECTS
REVERB
1
4
5
2
2
3
3
EFFECTS
REVERB
4
1
19
Basic Operation
Recorder
▋ Playing back performances from internal memory with dierent settings
The following settings can be changed for the performances recorded in internal memory.
Internal Recorder function Description Page
Key Transpose Transpose the pitch of the keyboard. P47
Song Transpose Transpose the pitch of the recorded song to be played back. P47
Erase Erase a song. P19
Convert to Audio Convert the recorded song into an MP3 le or a WAV le and store it in a USB memory
device.
P20
1. On the song recorder mode, press the [2] button to enter the
Internal Recorder Edit screen.
Internal Recorder Edit screen
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button will return to song playback mode.
▋ Erasing performances from internal memory
1. With “Erase” selected, press the [2] button to enter the Erase
Song screen.
2. Press the [UP]/[DOWN] button to select the “Song” or “Part”.
3. Press the [LEFT]/[RIGHT] button to select the song and part.
4. A conrmation message appears when pressing the [2] but-
ton.
5. Press the [1] button to erase, or press the [3] button to cancel.
• Press and hold [PLAY/STOP] and [REC] buttons while the in-
strument is turned o, and turn on the power to erase all re-
corded songs.
2
2
3
3
EFFECTS
REVERB
1
1
4
or
55
2
2
3
3
EFFECTS
REVERB
20
Recorder
Basic Operation

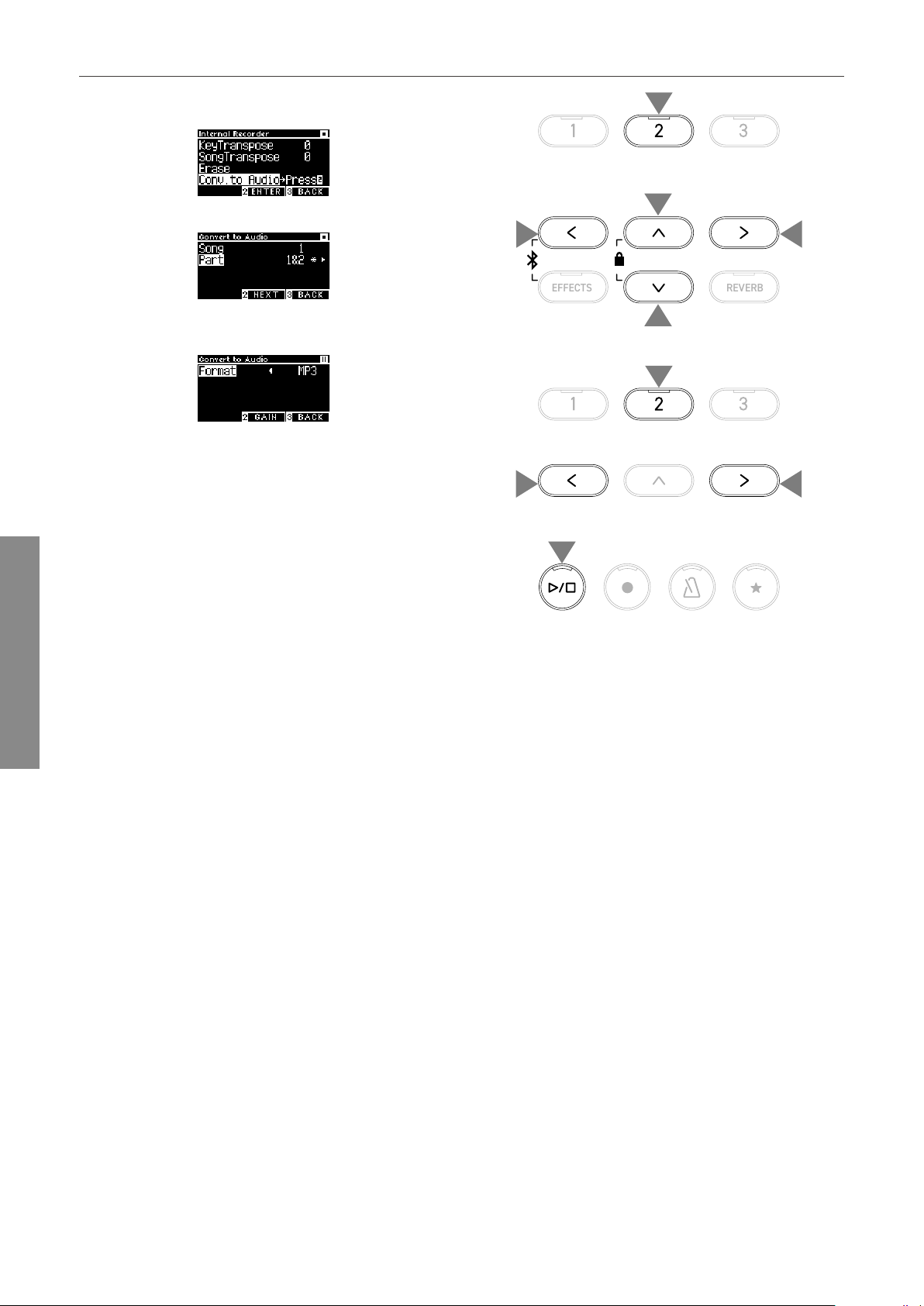

▋ Converting performances in internal memory
1. With “Conv. to Audio” selected, press the [2] button to enter
the Convert to Audio screen.
2. Press the [UP]/[DOWN] button to select the “Song” or “Part”.
3. Press the [LEFT]/[RIGHT] button to select the song and part.
4. Press the [2] button.
5. Press the [LEFT]/[RIGHT] button to select the target format.
Select “MP3” or “WAV” format.
6. Press the [PLAY/STOP] button to start conversion.
Pressing any key will also start conversion.
The LED indicators for the [PLAY/STOP] button and [REC] will
turn o when the conversion starts.
• Keys pressed during the conversion are also recorded.
2
2
3
3
EFFECTS
REVERB
1
4
5 5
6
21
Basic Operation
Recorder
Recording to a USB memory device and playing back
Recording to a USB memory device
1. With a USB memory device connected to the instrument,
pressing the [REC] button will enter the USB Recorder screen.
The LED indicator for the [REC] button will start to ash once
the USB Recorder screen opens.
The Internal Recorder screen appears if a USB memory
device is not connected.
2. Press the [LEFT]/[RIGHT] button to select the target format.
Pressing the [1] button switches to the Internal Record-
er screen.
3. Press the [2] button to enter the Gain Adjustment screen.
Gain Adjustment screen
The level meter is displayed on the Gain Adjustment screen.
When the digital piano is played, recording levels are dis-
played separately for the L channel and R channel.
4. Press the [LEFT]/[RIGHT] button to adjust the gain.
The gain can be adjusted in the range from 0 to 15 dB.
The recorded sound may become distorted if the Gain
setting is set to a high level.
5. Press the [PLAY/STOP] button to start recording.
Recording can also be started by pressing a key.
The LED indicators for the [REC] button and [PLAY/STOP] but-
ton will turn on when recording starts.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default level.
Recording cannot be started from the Gain Adjustment
screen.
2 2
1
3
4
4
5
22
Recorder
Basic Operation
▋ Saving the recorded performances
1. Press the [PLAY/STOP] button to stop recording.
The LED indicators for the [PLAY/STOP] button and [REC] will
turn o when recording stops.
2. Press the [1] button to save the recorded performance to a
USB memory device, or press the [3] button to cancel.
Specify the name for the song to be saved to the USB mem-
ory device.
3. Press the [LEFT]/[RIGHT] button to move the cursor and press
the [UP]/[DOWN] button to change characters.
4. Press the [2] button after entering the song name to save the
recording.
5. In the case where a le with the same name already exists,
press the [1] button to overwrite, or press the [3] button to
cancel.
When a le with the same name exists
The LCD display returns to step 2 when canceled.
• The LCD display returns to song recorder mode automatically
after saving the le.
The recorded audio le will be saved in the root folder
of the USB memory device.
It is not possible to save the le in a dierent folder.
▋ Characters that can be used
0 – 9 A – Z a – z ! # $ % & ' ( ) + , - . ; = @ [ ] ^ _ ` { }
3
3
3
3
EFFECTS
REVERB
1
4
or
55
22
or
23
Basic Operation
Recorder

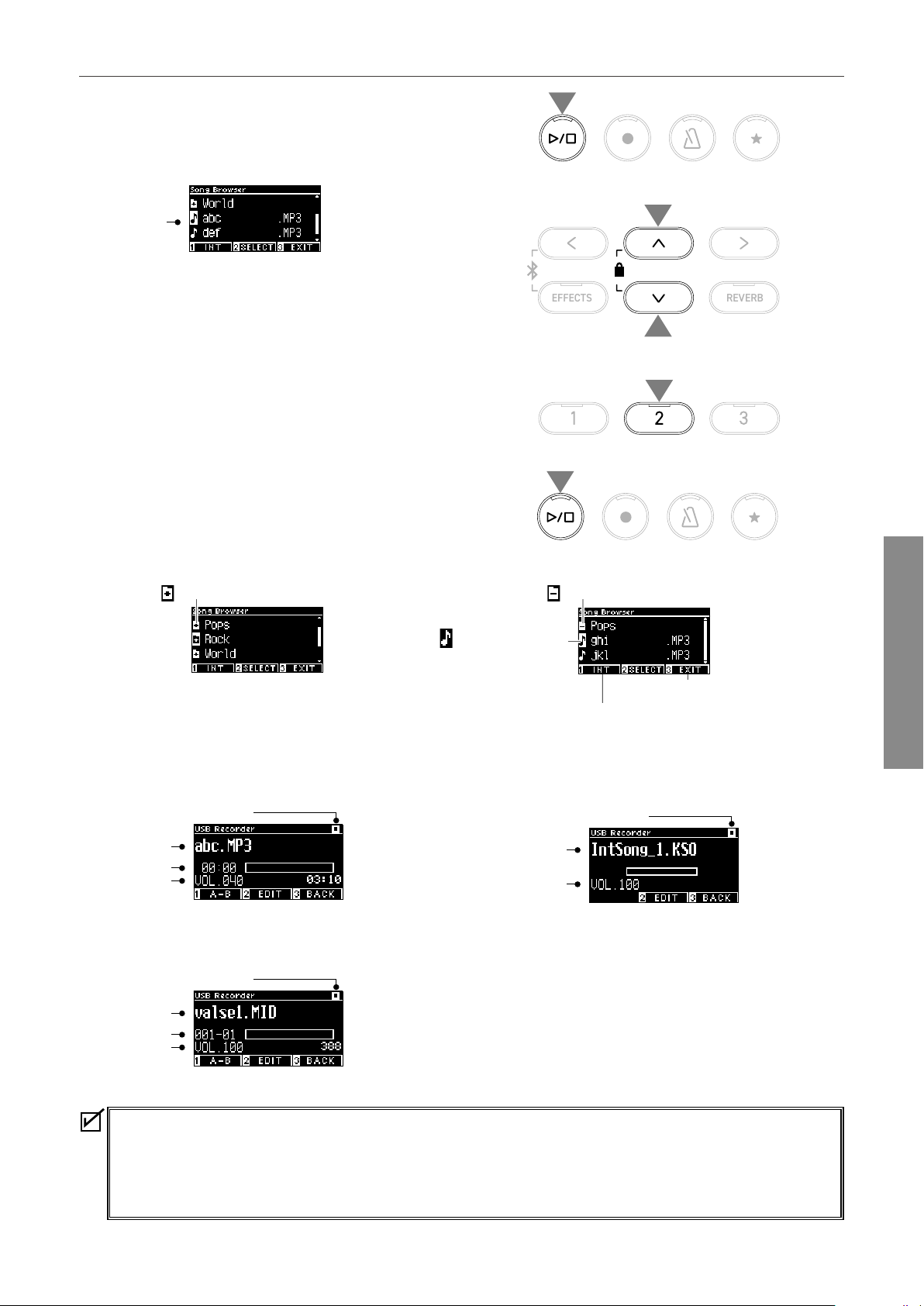

▋ Playing back songs in a USB memory device
1. With a USB memory device connected to the instrument,
pressing the [PLAY/STOP] button will enter the Song Browser
screen.
Contents of the root folder are shown if a USB memory device
is connected.
Selection
cursor
2. Press the [UP]/[DOWN] button to move the selection cursor.
3. Press the [2] to select the song or enter the folder.
4. Press the [PLAY/STOP] button to play back.
Press the [PLAY/STOP] button again to stop.
• Pressing the [3] button after stopping playback will return to
the Song Browser screen.
Song Browser screen
indicates a folder. Returns to the upper folder.
Displays the Internal Recorder screen.
Returns to the Home screen.
indicates a song.
LCD display and buttons while playing back an SMF, KSO, MP3, or WAV le
<MP3 or WAV le>
Song name
Play/Stop icon
Time
Volume
Song recorder mode
<SMF le>
Song name
Play/Stop icon
Current bar
Volume
Song recorder mode
• While the volume of commercial audio les are maximized in the mastering process, normal recording volume of the
instrument (piano) is quieter because of the wide dynamic range of the instrument. Therefore, volume adjustment may be
required.
• Folder names, le names, song names, and artist names will not be displayed correctly if they contain characters that cannot
be recognized by the instrument.
1
3
4
2
2
EFFECTS
REVERB
<KSO le (internal song le)>
Song name
Volume
Play/Stop icon
Song recorder mode
24
Recorder
Basic Operation
▋ Setting an A-B repeat
1. While playing a song in a USB memory device, press the [1] button to specify the start point (A) of the loop.
2. Upon reaching the desired position, press the [1] button again to specify the end point (B) of the loop.
The repeat will be canceled if the [1] button is pressed again.
An A-B repeat cannot be set for KSO les.

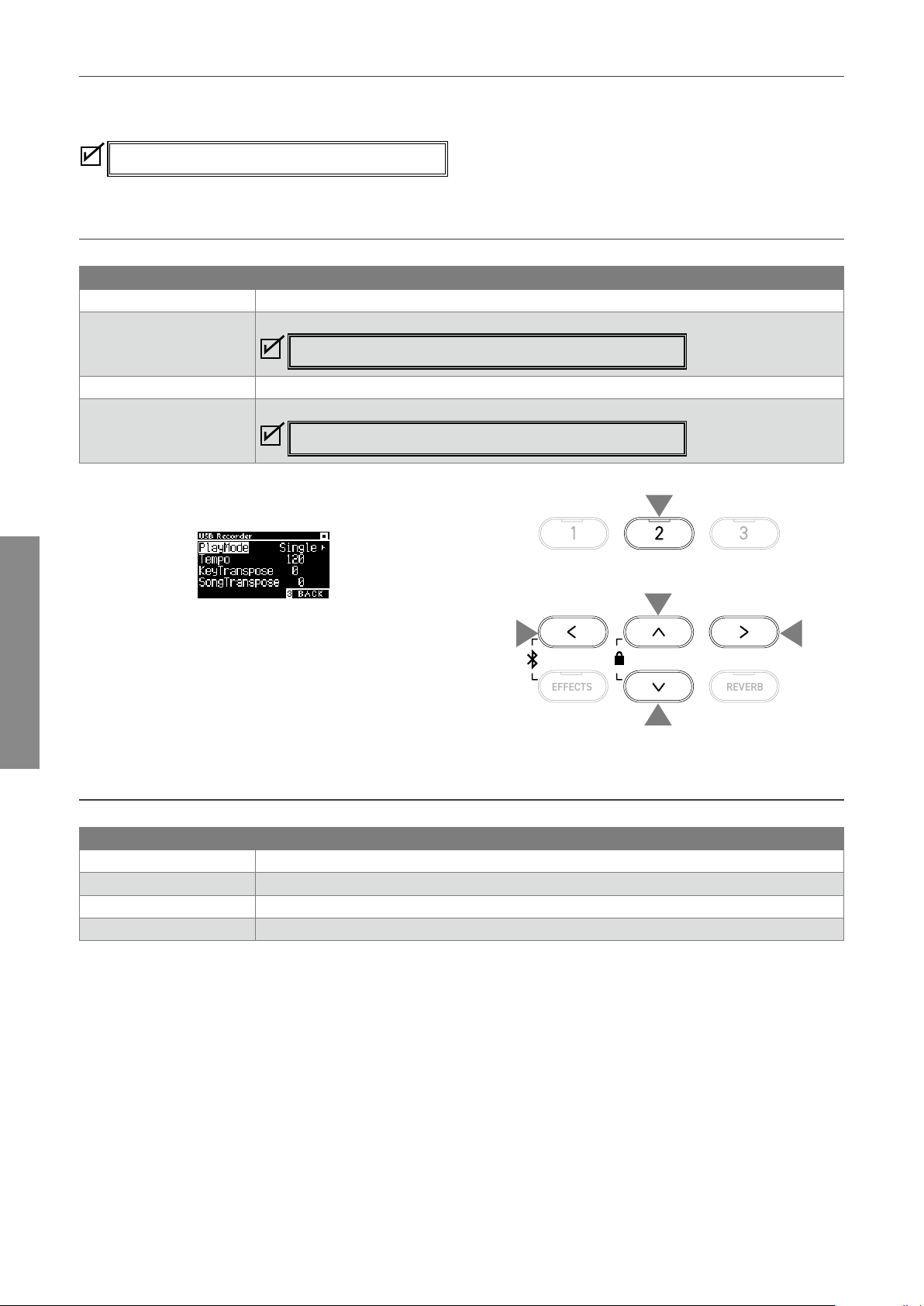

▋ Playing back performances from a USB memory device with dierent settings
The following settings can be specied for performances in a USB memory device.
USB Recorder function Description
Play Mode Select the desired play mode.
Tempo Set the tempo.
This setting is displayed only when an SMF or KSO le is selected.
Key Transpose Transpose the pitch of the keyboard.
Song Transpose Transpose the pitch of the recorded song to be played back.
This setting is displayed only when an SMF or KSO le is selected.
1. On the song recorder mode, press the [2] button to enter the
USB Recorder Edit screen.
USB Recorder Edit screen
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button will return to song recorder mode.
▋ Play Mode settings
There are four play modes.
Play Mode setting Description
Single Play the selected song once.
1 Repeat Play the selected song repeatedly.
All Repeat Play the songs in the selected folder repeatedly.
Random Play the songs in the selected folder randomly.
1
2
2
3
3
EFFECTS
REVERB
25
Basic Operation
Recorder
▋ Overdubbing data in a USB memory device
1. With a USB memory device connected to the instrument,
pressing the [PLAY/STOP] button will enter the Song Browser
screen.
2. Press the [UP] or [DOWN] button to move the selection cursor
over the song to be overdubbed.
3. Press the [REC] button to enter the USB Recorder screen.
The LED indicator for the [REC] button will start to ash once
the USB Recorder screen opens.
4. Press the [UP]/[DOWN] button to select a “Mode”.
5. Press the [LEFT]/[RIGHT] button to select a mode as follows.
• Select “Over Dubbing” if it is MP3 or WAV data.
• Select “Conv.to Audio” if it is SMF or KSO data.
6. Press the [PLAY/STOP] button to start recording.
Recording can also be started by pressing a key.
The LED indicators for the [REC] button and [PLAY/STOP] but-
ton will turn on when recording starts.
P22
Saving the recorded performances
• SMF and KSO data is converted to MP3/WAV data when overdubbing.
• Normal recording will start if “New Song” is selected instead of overdubbing.
1
3
6
4
4
5
5
EFFECTS
REVERB
2
2
EFFECTS
REVERB
26
Basic Operation
Reverb
Reverb
The Reverb setting adds reverberation to the sound.
Turning Reverb on/o
• Press the [REVERB] button.
The LED indicator for the [REVERB] button will turn on and the
reverberation eect is applied.
• The reverberation eect is removed and the LED indicator
for the [REVERB] button is turned o if the [REVERB] button is
pressed again.
▋ List of reverb settings
Reverb setting Description
Type Sets one of the six available reverb types.
Depth Sets the reverb depth in the range from 1 to 10.
Time Sets the reverb time in the range from 1 to 10.
▋ List of reverb types
Type Description
Room Simulates the reverberation of a performance in a small rehearsal room.
Lounge Simulates the reverberation of a performance in a piano lounge.
Small Hall Simulates the reverberation of a performance in a small hall.
Concert Hall Simulates the reverberation of a performance in a large concert hall for classical music.
Live Hall Simulates the reverberation of a performance in a large hall for live music performance.
Cathedral Simulates the reverberation of a performance in a large cathedral.
▋ Reverb settings
1. Press and hold the [REVERB] button to enter the Reverb Edit
screen.
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value or type.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button will return to the Home screen.
EFFECTS
REVERB
2
2
3
3
EFFECTS
REVERB
hold
1
27
Basic Operation
Eects
The eect function allows various eects to be added to the sound.
Turning Eects on/o
• Press the [EFFECTS] button.
The LED indicator for the [EFFECTS] button will turn on and the
eect is applied.
• The eect is removed and the LED indicator for the [EFFECTS]
button is turned o if the [EFFECTS] button is pressed again.
▋ List of eect types
Eect type Description
Mono Delay This eect adds a mountain-like echo to the sound.
Ping Delay This eect echoes the sound alternately left and right.
Triple Delay This eect echoes the sound in the order of center, right, and left.
Chorus This eect expands the sound by matching the original sound with a sound that has pitch uctuations.
Classic Chorus This eect reproduces the chorus of yesteryear by digital signal processing.
Ensemble This eect adds richness to the sound with a three-phase chorus.
Tremolo This eect gives uctuations to the volume.
Classic Tremolo This eect reproduces the tremolo of yesteryear by digital signal processing.
Vibrato Tremolo This eect adds vibrato to tremolo.
Tremolo+Amp This eect reproduces the change in sound caused by the amplier and combines it with tremolo.
Auto Pan This eect periodically changes the position where the sound can be heard.
Classic Auto Pan This eect reproduces the auto pan of yesteryear by digital signal processing.
Auto Pan+Amp This eect reproduces the change in sound caused by the amplier and combines it with the auto pan.
Phaser+AutoPan This eect adds the auto pan to the phaser.
Phaser This eect makes the sound y around by matching an out-of-phase sound with the original sound.
Classic Phaser This eect reproduces the phaser of yesteryear by digital signal processing.
Phaser+Amp This eect reproduces the change in sound caused by the amplier and combines it with the phaser.
Phaser+Chorus This eect adds chorus to the phaser.
Rotary1 This eect reproduces the change in sound caused by the rotary speaker.
You can switch the speed of rotation by stepping on the soft pedal (left pedal).
Rotary2 This eect adds a little distortion to Rotary1.
Rotary3 This eect adds more distortion to Rotary2.
Rotary4 This eect adds chorus to Rotary1.
Rotary5 This eect adds chorus to Rotary2.
Rotary6 This eect adds chorus to Rotary3.
EFFECTS
REVERB
Eects
28
Eects
Basic Operation
▋ List of eect settings
Settings of the eects can also be adjusted.
Eect type Eect setting Eect (when the number is increased)
Delay 3 types Eect level The degree of applying eect will be deeper.
Time The interval between echoes will be longer.
Chorus, Ensemble Eect level The degree of applying eect will be deeper.
Speed The speed of uctuations will be faster.
Classic Chorus Mono / Stereo The sound will spread deeper.
Speed The speed of uctuations will be faster.
Tremolo 3 types
Auto Pan 2 types, Phaser 2 types
Eect level The degree of applying eect will be deeper.
Speed The speed of uctuations and undulations will be faster.
Rotary 6 types Accel. Speed The speed when changing between slow and faster will be faster.
Rotary Speed The faster speed will increase.
[Eect]+[Eect]
[Eect]+Amp
Eect level The degree of applying eect will be deeper.
Speed The speed of uctuations and undulations will be faster.
▋ Eects settings
1. Press and hold the [EFFECTS] button to enter the Eects Edit
screen.
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value or type.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button will return to the Home screen.
2
2
3 3
hold
1
EFFECTS
REVERB
29
Basic Operation
Dual
Dual
The Dual function allows two sounds to be layered together.
Entering Dual
Press two SOUND buttons to be layered simultaneously. The LED indicators for the pressed SOUND buttons will turn on and the names
of the sounds will appear on the LCD display.
The sound that is pressed rst is displayed on the rst line as Part 1.
Example:
To layer [PIANO1] and [STRINGS] sounds, press the [PIANO1] and [STRINGS] buttons simultaneously as shown in Figure 1. They will
appear on the display as shown in Figure 2.
The display may show shortened sound names.
3
E.PIANO
4
ORGAN
6
STRINGS
7
PA D
5
HARPS I
8
BASS
1
PIANO1
2
PIANO2
Press simultaneously
Figure 1
Part 1
Part 2
Figure 2
▋ Selecting a sound for each part
1. On the Dual screen, press the [UP]/[DOWN] button to select
the sound part.
2. Press the [LEFT]/[RIGHT] button to set the sound variation of
the selected part.
P81
Sound/Demo Songs List
• Pressing the [3] button will return to the Home screen.
Or, pressing any single SOUND button will return to the Home
screen.
1
1
2 2
EFFECTS
REVERB
30
Dual
Basic Operation
Dual Settings
List of Dual settings
Dual Edit setting Default setting Description
Balance 9-9 Adjust the volume balance of the two sounds.
Part 1Part 2
Octave
(Layer Octave Shift)
0 Adjust the sound range of Part 2 in Dual between -2 and +2 octaves.
For example, if “SK-EX Competition Grand Piano | Concert” and “String Ensemble”
are combined in dual mode, the sound of “String Ensemble” can be played an oc-
tave higher.
Dynamics
(Layer Dynamics)
10 Adjust the dynamic sensitivity of Part 2 in Dual between 1 and 10.
The smaller the number, the lower the dynamic sensitivity.
For example, lowering the dynamic sensitivity of “String Ensemble” in a perfor-
mance of “SK-EX Competition Grand Piano | Concert” and “String Ensemble” in Dual
can improve the dynamics of the piano sound.
▋ Dual settings
1. On the Dual screen, press the [2] button to enter the Dual Edit
screen.
Dual Edit screen
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button twice will return to the Home screen.
1
2
2
3
3
EFFECTS
REVERB
31
Basic Operation
Split
Split
The Split function divides the keyboard into lower and upper sections, each of which can be played with
a dierent sound. The point that divides lower and upper sections is called the “split point”.
Entering Split
• On the Dual screen, press the [1] button to enter the Split
screen.
The LED indicator for the SOUND button assigned to the upper
section will turn on.
The LED indicator for the SOUND button assigned to the lower
section will ash.
Upper section sound
Lower section sound
• By default, the lower section will be set to the “Wood Bass”
sound.
• Pressing the [3] button will return to the Home screen.
▋ Changing the split point
Press and hold the [1] button, then press the desired split key on the keyboard.
The pressed split key will become the lowest note in the upper section.
Lower section Upper section
Split point
hold
• The default setting of the split point is C4.
▋ Changing the upper/lower section sounds
1. Press a SOUND button to set the sound for the upper section.
Press and hold the [1] button, then press a SOUND button to set the sound for the lower section.
Upper section Lower section
hold
1
3
E.PIANO
4
ORGAN
6
STRINGS
7
PA D
5
HARPS I
8
BASS
1
PIANO1
2
PIANO2
3
E.PIANO
4
ORGAN
6
STRINGS
7
PA D
5
HARPS I
8
BASS
1
PIANO1
2
PIANO2
1
2. Press the [LEFT]/[RIGHT] button to set the sound for each sec-
tion.
1
2 2
32
Split
Basic Operation
Split Settings
List of split settings
Split Edit setting Default setting Description
Balance 9-9 Adjust the volume balance of the two sounds.
Upper sectionLower section
Octave
(Lower Octave Shift)
0 Adjust the sound range of the lower section in Split between 0 and +3 octaves.
Pedal
(Lower Pedal)
O Set the damper pedal function on or o for the lower section in Split.
The pedal function is always on for the upper section.
Split Point C4 Set the split point in the range from A#0 to C8.
▋ Split settings
1. On the Split screen, press the [2] button to enter the Split Edit
screen.
Split Edit screen
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value or type.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button twice will return to the Home screen.
1
2
2
3
3
EFFECTS
REVERB
33
Basic Operation
4 Hands
4 Hands
The Four Hands function divides the keyboard into left and right sections, each of which can be played
in the same key range. At this time, the damper pedal (right) acts as a damper pedal for the right section,
and the soft pedal (left) acts as a damper pedal for the left section.
Entering Four Hands
• On the Split screen, press the [1] button to enter the Four
Hands screen.
The LED indicator for the SOUND button assigned to the right
section will turn on.
The LED indicator for the SOUND button assigned to the left
section will ash.
Right section sound
Left section sound
• By default, the right and left sections will both be set to the
“SK-EX Competition Grand Piano | Concert” sound.
• Pressing the [3] button will return to the Home screen.
▋ Changing the Four Hands split point
Press and hold the [1] button, then press the desired split key on the keyboard.
The pressed split key will become the lowest note in the right section.
Left section Right section
Split point
hold
• The default setting of the split point is F4.
▋ Changing the right/left section sounds
1. Press a SOUND button to set the sound for the right section.
Press and hold the [1] button, then press a SOUND button to set the sound for the left section.
Right section Left section
hold
1
3
E.PIANO
4
ORGAN
6
STRINGS
7
PA D
5
HARPS I
8
BASS
1
PIANO1
2
PIANO2
3
E.PIANO
4
ORGAN
6
STRINGS
7
PA D
5
HARPS I
8
BASS
1
PIANO1
2
PIANO2
1
2. Press the [LEFT]/[RIGHT] button to set the sound for each sec-
tion.
1
2 2
34
4 Hands
Basic Operation
Four Hands Settings
List of Four Hands settings
Four Hands Edit setting Default setting Description
Balance 9-9 Adjust the volume balance of the two sounds.
Right sectionLeft section
Octave
(Right Octave Shift)
-2 Adjust the sound range of the right section between -3 and 0 octaves.
Octave
(Left Octave Shift)
2 Adjust the sound range of the left section between 0 and +3 octaves.
Split Point F4 Set the split point in the range from A#0 to C8.
▋ Four Hands settings
1. On the Four Hands screen, press the [2] button to enter the
Four Hands Edit screen.
Four Hands Edit screen
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button twice will return to the Home screen.
1
2
2
3
3
EFFECTS
REVERB
35
Basic Operation
Music Menu
Music Menu
The Music Menu contains four functions consisting of Demo Songs, Piano Music, Lesson, and Concert
Magic.
Music Menu list
Function Description
Demo Songs A selection of short songs to demonstrate each sound.
P81
Sound/Demo Songs List
Piano Music A selection of 29 popular piano works ranging from the Baroque period such as Rameau, to the Ro-
mantic period such as Chopin. Notated scores are provided in the separate “Classical Piano Collection”
book*.
Depending on market location.
Lesson A collection of contemporary lesson songs and classical etudes.
For a complete listing of available Lesson songs, please refer to the separate “Internal Song Lists” book-
let.
Concert Magic A selection of 176 Concert Magic songs. The Concert Magic function allows players to experience a
real piano performance by simply tapping any key with their nger. Concert Magic songs can also be
played back as demo songs.
For a complete listing of available Concert Magic songs, please refer to the separate “Internal Song
Lists” booklet.
▋ Entering the Music Menu mode
1. On the Home screen, press the [3] button to enter the Music
Menu screen.
2. Press the [UP]/[DOWN] button to select the function to use.
3. Press the [2] button to enter the selected function.
Demo Songs
Playing/Stopping demo songs
• A demo song starts when the Demo Songs screen appears.
• Pressing the [PLAY/STOP] button will stop the song.
• Pressing the [PLAY/STOP] button again will play the song from
the beginning.
▋ Changing demo songs
• The demo song changes if the sound is changed by pressing the SOUND button or an ARROW button in the Demo Songs screen.
• Demo songs can be changed during playback.
2
2
EFFECTS
REVERB
3 1
36
Music Menu
Basic Operation
Piano Music
Depending on market location.
▋ Selecting a piano music piece
On the Piano Music screen, press the [UP]/[DOWN] button or
[LEFT]/[RIGHT] button to select a song.
The song name appears in the upper section and the composer
name appears in the lower section of the LCD display.
Title
Composer
▋ Listening and stopping a piano music piece
• Pressing the [PLAY/STOP] button will replay the piano music
piece.
• Pressing the [PLAY/STOP] button again will stop the song.
Lesson
Lesson song books
Alfred Lesson Books Classical Lesson Books
Alfred’s Premier Piano Course Lesson 1A Burgmüller 25 (25 Etudes Faciles, Opus 100)
Alfred’s Premier Piano Course Lesson 1B Czerny 30 (Etudes de Mécanisme, Opus 849)
Alfred’s Basic Piano Library Lesson Book Level 1A Czerny 100 (Hundert Übungsstücke, Opus 139)
Alfred’s Basic Piano Library Lesson Book Level 1B Beyer 106 (Vorschule im Klavierspiel, Opus 101)
Alfred’s Basic Adult Piano Course Lesson Book Level 1 J.S. Bach: Inventionen
Sonatinen Album 1
Chopin Walzer (Chopin waltzes series 1-19)
Lesson books sold separately – please refer to the separate “Internal Song Lists”
booklet for more information.
▋ Selecting a song
1. On the Lesson screen, press the [UP]/[DOWN] button to select
the item to set (book name, song title, or current bar).
2. Press the [LEFT]/[RIGHT] button to set the item.
Book name
Current bar
Song title
The lesson song can be changed during playback.
However, it is not possible to change the lesson song
during recording.
EFFECTS
REVERB
1
1
2
2
EFFECTS
REVERB
37
Basic Operation
Music Menu
Practicing
The Lesson function allows players to practice the piano in the six methods listed below.
Playing a lesson song and learning the songs
Playing back and stopping a song
With a lesson song selected, press the [PLAY/STOP] button.
The LED indicator for the [PLAY/STOP] button will turn on.
The lesson song playback starts after a one-bar count-in of the
metronome.
• Pressing the [PLAY/STOP] button again will stop the lesson song.
• After stopping the song, pressing the [PLAY/STOP] button again will resume playback from 2 bars prior to where it was stopped.
The song is played from the beginning when [EFFECTS] and [REVERB] buttons are pressed together.
• Pressing the [METRONOME] button will turn the metronome on.
Playing from the middle of the song
Select a lesson song to play back and press the [EFFECTS] or [RE-
VERB] button.
Pressing the [EFFECTS] button move the playback position a bar
backward and pressing the [REVERB] button move the playback
position a bar forward.
Press and hold the button to go back/forward quickly.
Press the [UP]/[DOWN] button to select the beat of the bar.
Pressing the [LEFT] button move the playback position a beat
backward and pressing the [RIGHT] button move the playback
position a beat forward.
▋ Practicing the right-hand (left-hand) parts while playing back the left-hand
(right-hand) parts of a lesson song
1. On the Lesson screen, press the [2] button to enter the Lesson
Edit screen.
2. Press the [UP]/[DOWN] button to select “Balance”.
3. Press the [LEFT]/[RIGHT] button to adjust the volume of the
left/right-hand part volume.
Right handLeft hand
Lesson Edit screen
Practicing the right hand part while playing back the left
hand part
Practicing the left hand part while playing back the right
hand part
Press the [LEFT] button.
The volume of the right hand part will be reduced.
The right hand part is muted when the value is 9-1.
Press the [RIGHT] button.
The volume of the left hand part will be reduced.
The left hand part is muted when the value is 1-9.
• The sound quality may vary depending on the interval or timing of the performance when practicing along with a lesson
song; however, this is not a fault.
• For some Beyer lesson pieces, increasing the value on the left will reduce the volume of the student’s part, while increasing
the value on the right will reduce the volume of the teacher’s part.
EFFECTS REVERB
EFFECTS
REVERB
1
2
2
3
3
EFFECTS
REVERB
38
Music Menu
Basic Operation
▋ Practicing by changing the tempo
1. On the Lesson Edit screen, press the [UP]/[DOWN] button to
select “Tempo”.
2. Press the [LEFT]/[RIGHT] button to adjust the value.
▋ Practicing in an A-B repeat
Specify two bar positions within a lesson song to practice between these two positions repeatedly.
Method 1
1. While playing a lesson song, press the [1] button to specify
the start point of the repeat.
The start point (A) is set and the LED indicator of the [1] but-
ton starts ashing.
2. Upon reaching the desired position, press the [1] button to
specify the end point (B) of the repeat.
The end point (B) is set and the LED indicator of the [1] button
turns on.
Once an A-B repeat is set, the playback position returns to 2
beats before the start point after reaching the end point.
3. Press the [1] button again to cancel the repeat point setting
and restore the normal playback.
Method 2
Press the [EFFECTS] or [REVERB] button while stopping to set the
bar positions of the repeat.
Note that the bar of the end point cannot be set earlier
than the bar of the start point.
1
1
2
2
EFFECTS
REVERB
1
2
3
EFFECTS REVERB
39
Basic Operation
Music Menu
▋ Recording the right (or left) hand part while playing the left (or right) hand part of a les-
son song, and playing back
1. With a lesson song selected, press the [REC] button.
The LED indicators for the [REC] button and [PLAY/STOP] but-
ton turn on, and the lesson song playback and recording start
after a one-bar count-in of the metronome.
2. Press the [PLAY/STOP] button to end recording.
The lesson song playback and recording end, and the LED
indicators for the [REC] button and [PLAY/STOP] button will
turn o.
• Pressing the [EFFECTS] or [REVERB] button will change the position to start playing back.
• Pressing the [PLAY/STOP] button again will stop the lesson song and the recorded performance.
• Repeat is disabled while the repeat points are set.
• The recorded performance is erased when the [REC] button and [PLAY/STOP]
button are pressed simultaneously. It is also erased when another lesson song
is selected.
▋ Finger Exercises
The nger exercise function allows practicing and recording of “Hanon” (20 pieces in Part 1), or “major and minor scales, arpeggios,
chords, and cadences”. Evaluation on evenness, etc. is shown on the LCD display to help with reviewing one’s own performance.
It is also possible to listen to model performances of each Finger Exercise, like other lesson songs.
1. With a “Hanon” piece selected, press the [REC] button.
The LED indicators for the [REC] button and [PLAY/STOP] but-
ton turn on, and the lesson song playback and recording start
after a one-bar count-in of the metronome.
2. Press the [PLAY/STOP] button to end recording.
The lesson song playback and recording end, and evaluation
results of “Wrong notes”, “Timing problems”, and “Evenness”
are displayed for a few seconds each repeatedly.
3. Press the [PLAY/STOP] button to play the lesson song and the
recorded performance.
This allows checking one’s own recorded performance while
referring to the evaluation results.
Press the [PLAY/STOP] button again to stop the lesson song
and the recorded performance.
• Pressing the [EFFECTS] or [REVERB] button will change the po-
sition to start playing back.
• Pressing the [UP]/[DOWN] button will end the evaluation dis-
play and return to the Lesson screen.
• Playback of the recorded performance is still possible after ending the display
of the evaluation results.
• The recorded performance is erased when the [REC] button and [PLAY/STOP]
button are pressed simultaneously.
• The recorded performance is also erased when another lesson song is selected.
2 1
40
Music Menu
Basic Operation
Concert Magic
Playing a Concert Magic song
Selecting a Concert Magic song
Two Concert Magic songs are assigned to each key.
Bank A from A1 to A88 and Bank B from B1 to B88
contain 176 songs in total.
On the Concert Magic screen, press and hold the [2] button, then
press a key to select the desired concert magic song. Press the
same key again to switch between Bank A and Bank B.
▋ Performing the selected Concert Magic song
• Tap any key to perform the concert magic song.
• The tempo of the song is determined by the tapping speed.
• The volume of the song is determined by the tapping force.
• Black circles () on the display change to plus symbols (+) as
the song progresses.
Use them as a guide for tapping.
• The sound can be changed by the same operation as the nor-
mal sound change operation.
P81
Sound/Demo Songs List
Listening to a Concert Magic song
Random Play
With a concert magic song selected, press the [PLAY/STOP] but-
ton to play concert magic songs randomly.
Press the [PLAY/STOP] button again to stop the playback.
▋ Category Play
With a concert magic song selected, press and hold the [2] but-
ton and press the [PLAY/STOP] button to play all of the songs in
the same group as the selected song repeatedly, in numerical
order.
hold
hold
41
Basic Operation
Music Menu

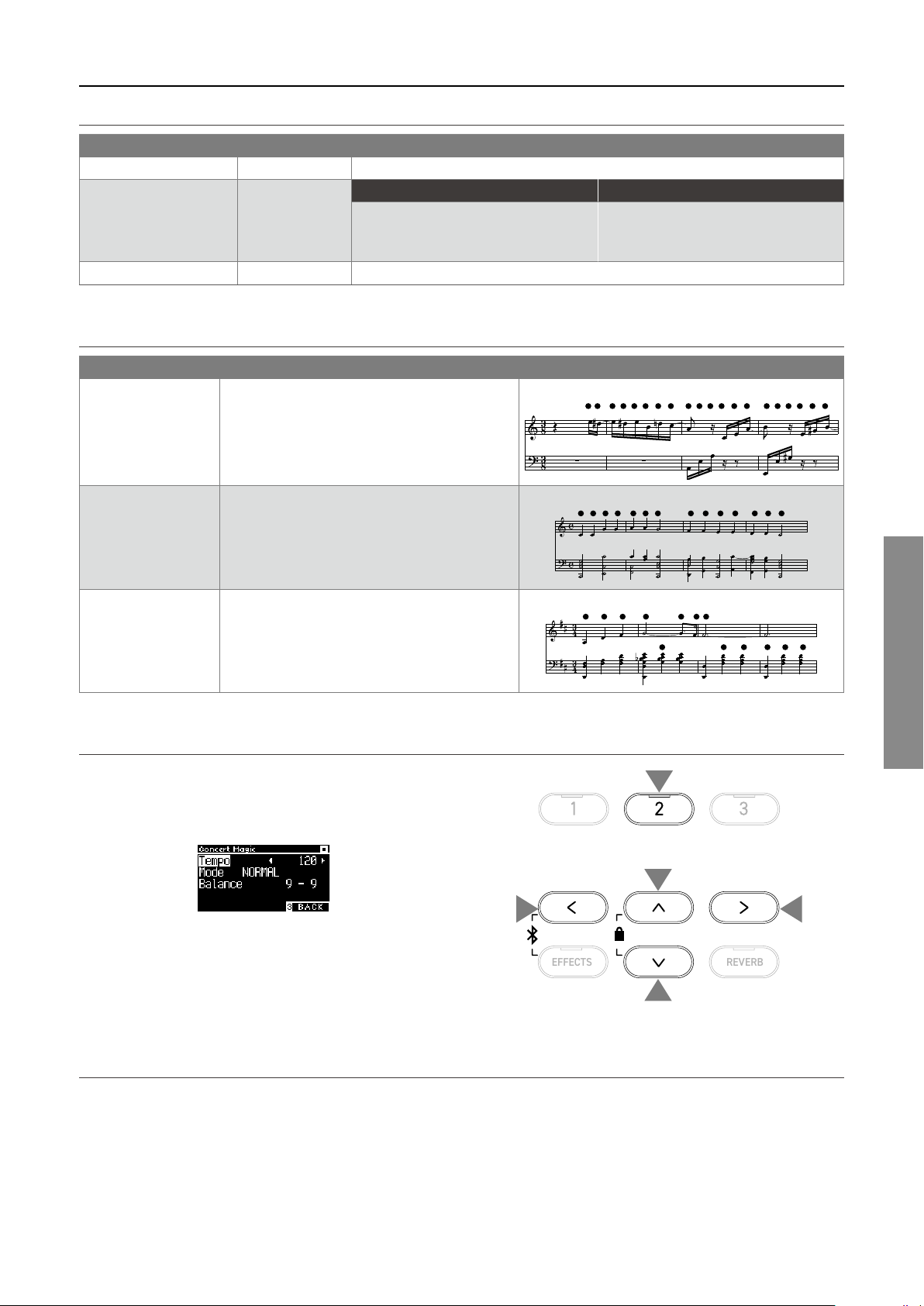

Concert Magic song settings
List of setting items
Concert Magic setting Default setting Description
Tempo - Set the tempo.
Mode Normal Normal Steady Beat
Concert Magic songs will be performed
according to their arrangement type.
All Concert Magic songs will be per-
formed by tapping the key with a con-
stant beat.
Balance 9-9 Adjust the volume balance between the melody and accompaniment parts.
▋ Concert Magic song arrangement types
Type Description Example
Easy Beat (EB) Tap out a constant, steady beat on any key of
the keyboard.
“Für Elise”
Melody Play (MP) Tap out the rhythm of the melody on any key of
the keyboard.
“Twinkle, Twinkle, Little Star”
Skillful (SK) Tap out the rhythm of both the melody and the
accompaniment notes on any key of the key-
board.
“Waltz of the Flowers”
▋ Concert Magic song settings
1. On the Concert Magic screen, press the [2] button to enter
the Concert Magic Edit screen.
2. Press the [UP]/[DOWN] button to select the settings menu.
3. Press the [LEFT]/[RIGHT] button to set the value or type.
Concert Magic Edit screen
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
• Pressing the [3] button twice will return to the Home screen.
▋ Steady Beat mode
Steady Beat mode allows all Concert Magic songs to be played by simply tapping any key with a constant steady beat, regardless of
the song arrangement type.
1
2
2
3
3
EFFECTS
REVERB
42
Basic Operation
Registration Memories
Registration Memories
The registration function memorizes panel settings such as sounds and eects. Each Bank can store 8
dierent Registration memories, allowing 16 memories in total.
A collection of settings can be stored to a memory.
This memory is called a “Registration”.
Registration functions
Normal setting
Sounds (Including sound settings for Dual and Split)
Metronome
Reverb, Eects
Dual settings P30
Balance
Layer Octave Shift
Layer Dynamics
Split settings P42
Balance
Lower Octave Shift
Lower Pedal on/o
Split Point
Four Hands settings P34
Balance
Right Octave Shift
Left Octave Shift
Split Point
Basic Settings P46
Tuning
Tone Control
Damper Hold
Virtual Technician P51
Touch Curve
Voicing
Damper Resonance
Damper Noise
String Resonance
Undamped String Resonance
Cabinet Resonance
Key-o Eect
Fall-back Noise
Hammer Noise
Hammer Delay
Topboard Simulation
Decay Time
Release Time
Minimum Touch
Stretch Tuning
Temperament
Key Volume
Half-Pedal Adjust
Soft Pedal Depth
MIDI Settings
MIDI Channel
Local Control
Transmit Program Change No.
Multi-timbral Mode
Channel Mute
43
Basic Operation
Registration Memories

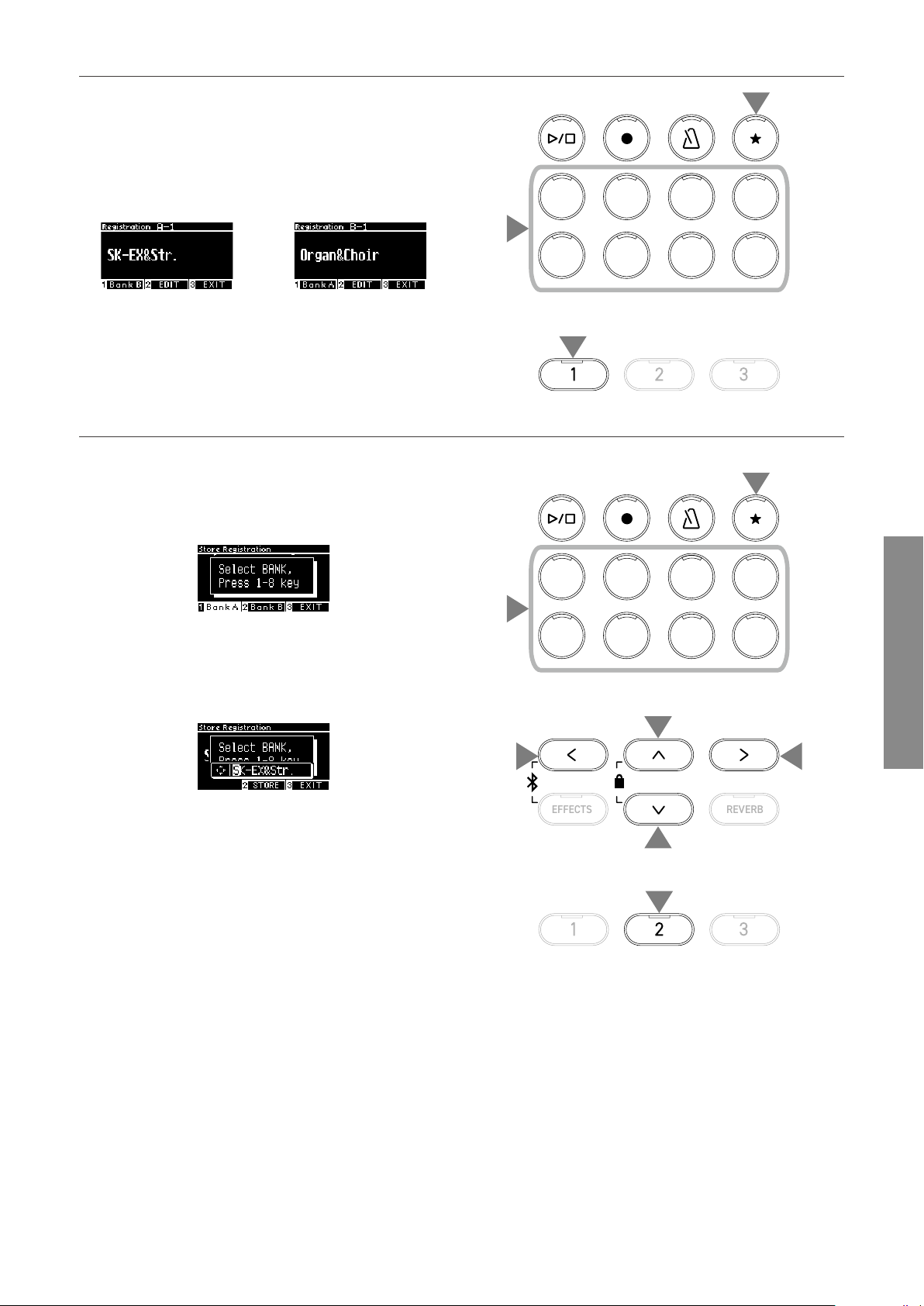

Recalling the registration
1. Press the [REGISTRATION] button to enter the Registration
screen.
A previously stored registration will be recalled.
The registration name is displayed on the LCD display.
2. Press one of the eight registration memory SOUND buttons
to select the registration to be recalled.
3. Press the or [1] button to alternate between Bank A and Bank B.
Bank A Bank B
• Pressing the [REGISTRATION] button again will restore normal
operation.
▋ Storing a Registration memory
1. Press and hold the [REGISTRATION] button.
LED indicators for the eight registration memory SOUND but-
tons starts ashing.
Press the [1] or [2] button to select the Bank in which to store
the registration.
2. Press one of the eight registration memory SOUND buttons
to select the number to store the registration.
3. Press the [LEFT]/[RIGHT] button to move the cursor and press
the [UP]/[DOWN] button to change characters to give a name
to the registration.
4. Press the [2] button to store the registration. A beep will
sound to conrm the operation.
3
1
3
E.PIANO
4
ORGAN
6
STRINGS
7
PA D
5
HARPS I
8
BASS
1
PIANO1
2
PIANO2
2
hold
1
3
E.PIANO
4
ORGAN
6
STRINGS
7
PA D
5
HARPS I
8
BASS
1
PIANO1
2
PIANO2
2
4
3
3
3
3
EFFECTS
REVERB
44
Registration Memories
Basic Operation
▋ Checking and editing the selected registration
1. On the Registration screen, press the [2] button to enter the
Registration Edit screen.
Registration Edit screen
2. Press the [UP]/[DOWN] button to select the “Open Registra-
tion” function.
3. Press the [2] button.
• The instrument returns to the normal performance status
while retaining the registration settings. This allows checking
and editing of settings such as the sound and reverb.
▋ Saving the selected registration in a USB memory device
1. On the Registration Edit screen, press the [UP]/[DOWN] but-
ton to select “Save Registration”.
2. Press the [2] button to enter the screen to save the registra-
tion to a USB memory device.
P73
Save Registration Single
▋ Resetting all Registration memories
Press and hold the [REGISTRATION] button and [REC] button while turning the instrument’s power on to reset the registration settings
to factory settings.
2
2
EFFECTS
REVERB
1
3
1
1
EFFECTS
REVERB
2
45
Basic Operation
Panel Lock
Panel Lock
This function locks the control panel.
▋ Activating the Panel Lock
On the Home screen, press the [UP] and [DOWN] buttons simul-
taneously to enable the Panel Lock function.
The LED indicator for the [2] button starts ashing and panel
lock will be activated.
• Panel lock can be activated only in the Home screen (where the sound name is
displayed). Panel lock cannot be activated in any other screen.
• Panel lock is not deactivated by turning o the power.
▋ Deactivating the Panel Lock
Press and hold the [2] button.
This unlocks the panel operations.
Press
simultaneously
EFFECTS
REVERB
hold
46
Adjustments & Settings
Settings Menu
Settings can be changed to suit playing conditions.
Settings Menu
Settings Menu Description Page
Basic Settings Playing settings and save each settings. P46
Virtual Technician Simulate various adjustments on the piano electronically to nd the right setting for the
performer.
P51
Phones Settings Headphone settings. P62
MIDI Settings MIDI settings.
For more information on MIDI and its operation details,
please download the supplementary web manual:
USB Menus USB memory device settings. P63
Bluetooth Settings Bluetooth Audio and Bluetooth MIDI settings. P77
▋ Entering the Settings Menu
On the Home screen, press the [2] button to enter the Settings Menu screen.
Basic Settings
Basic Settings default values
Setting Default setting Page
1. Key Transpose 0C P47
2. Song Transpose 0 P47
3. Tone Control Flat P48
4. Speaker Volume Normal P49
5. Low Volume Balance 3 P49
6. Tuning 440.0Hz P49
7. Damper Hold O P49
8. Split O P31
9. Four Hands O P33
10. Startup Setting - P50
11. Factory Reset - P50
12. Auto Display O 5min P50
13. Auto Power O - P50
The above default settings can be overridden using the Startup Settings function.
Settings Menu
47
Adjustments & Settings
Settings Menu
▋ Entering the Basic Settings screen
1. On the Settings Menu screen, press the [UP]/[DOWN] button
to select “Basic Settings”.
2. Press the [2] button to enter the Basic Settings screen.
3. Press the [UP]/[DOWN] button to select the function to use.
4. Press the [LEFT]/[RIGHT] button to set the value or type.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
1 Key Transpose
The Key Transpose setting changes the pitch of the keyboard in semi-tone steps.
Key Transpose setting
The value can be specied in the range from -12 to +12 in semi-
tone steps.
▋ Checking the Key Transpose status
The transpose icon appears on the Home screen if Key Transpose is changed from its default setting 0.
LCD display when Key Transpose is set to “+5”
LCD display when Key Transpose is set to
the default value “0C”
2 Song Transpose
The Song Transpose function transposes songs played from a USB memory device (SMF and KSO les),
Internal Recorder, Piano Music, Lesson, and Concert Magic.
Demo Songs cannot be transposed.
Song Transpose setting
Transposition can be specied in semi-tone steps.
1
1
EFFECTS
REVERB
2
3
3
4
4
EFFECTS
REVERB
48
Adjustments & Settings
Settings Menu
3 Tone Control
The Tone Control setting allows players to optimise the sound quality in order to achieve the best sound
quality within the area that the instrument is located.
Tone Control types
Type Description
Flat Tone control adjustment is not applied.
Brilliance Adjusts the overall brightness of the sound.
Bass boost Emphasises low-range frequencies, creating a deeper sound.
Bass cut Reduces low-range frequencies, creating a clearer sound.
Mid boost Emphasises mid-range frequencies, creating a harder sound.
Loudness Emphasises frequencies to retain the instrument’s sound character even at low volume levels.
Bright Emphasises high-range frequencies, creating a brighter sound.
Mellow Reduces high-range frequencies, creating a softer sound.
User Allows the low, mid, and high-range frequency bands to be adjusted separately.
▋ Adjusting the Brilliance level
Tone Control type Brilliance can adjust the brightness of the
sound between -10 and +10.
1. With “Brilliance” selected, press the [2] button.
2. Press the [LEFT]/[RIGHT] button to set the value.
The greater the value the brighter of the sound.
▋ Adjusting the User Tone Control value
1. With “User” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select the band to be ad-
justed.
3. Press the [LEFT]/[RIGHT] button to set the volume and fre-
quency.
2 2
1
1
2
2
3
3
EFFECTS
REVERB
49
Adjustments & Settings
Settings Menu
4 Speaker Volume
The Speaker Volume setting allows the maximum volume level of the digital piano’s speaker output to be
reduced, providing ner adjustment control over the master volume.
Speaker Volume setting
“Normal” or “Low” can be specied.
5 Low Volume Balance
The Low Volume Balance setting enhances pianissimo touches, allowing the piano to be played more
naturally when the [MASTER VOLUME] slider is set to a low level.
The display shows “Low Vol. Balance”.
Low Volume Balance setting
The value can be specified in the range from 1 to 5 or set to O.
Increasing the value will enhance the sound of pianissimo
touches while the volume is reduced.
6 Tuning
The Tuning function allows players to adjust the pitch of the instrument.
Adjusting the pitch
The pitch can be adjusted in the range from 427.0 to 453.0 Hz in
the unit of 0.5 Hz.
7 Damper Hold
The Damper Hold setting is used to determine whether sounds such as organ or strings should be sus-
tained continuously when the sustain (damper) pedal is pressed, or whether these sounds should decay,
naturally.
Damper Hold setting
When this setting is turned on, sustained sounds played while
the damper pedal is pressed will be sustained even after hands
are lifted from the keyboard.
When this setting is turned o, sustained sounds played while
the damper pedal is pressed will decay after hands are lifted
from the keyboard.
50
Adjustments & Settings
Settings Menu
10 Startup Settings
The Startup Settings function allows preferred settings to be stored in memory, and automatically re-
called as the default settings every time the instrument is turned on.
Settings stored in Startup Settings
• Basic Settings
• Virtual Technician settings
• Phones Settings
• MIDI Settings
• Dual settings, Split settings, and Four Hands settings
• Metronome tempo, beat, and volume settings
• Sound selected when Startup Settings are stored
• Sounds selected for each SOUND button when Startup Set-
tings are stored
• Eects and Reverb settings for each sound when Startup Set-
tings are stored
▋ Executing the Startup Settings
With “Startup Settings” selected, press the [REC] button.
When the Startup Settings have been stored, the display will return to the Basic Settings screen.
11 Factory Reset
Factory Reset is a function that restores the instrument back to its factory default conguration.
Executing the Factory Reset
With “Factory Reset” selected, press the [REC] button.
When the Factory Reset is complete, the display will return to the Home screen.
Internal Recorder and Registration memories are not reset.
12 Auto Display O
The Auto Display O function can be used to automatically turn o the display after a specied time has
elapsed.
Auto Display O setting
The Auto Display O setting can be set to 15 seconds, 5 minutes,
or 30 minutes.
After the display has turned o, pressing any of the control but-
tons will turn on the display again.
13 Auto Power O
The Auto Power O function can be used to automatically turn o the power after a specied period of
inactivity.
Auto Power O setting
The Auto Power O setting can be set to O, 15 minutes, 60 min-
utes or 120 minutes.
The default Auto Power O setting varies depending
on market location.
51
Adjustments & Settings
Settings Menu

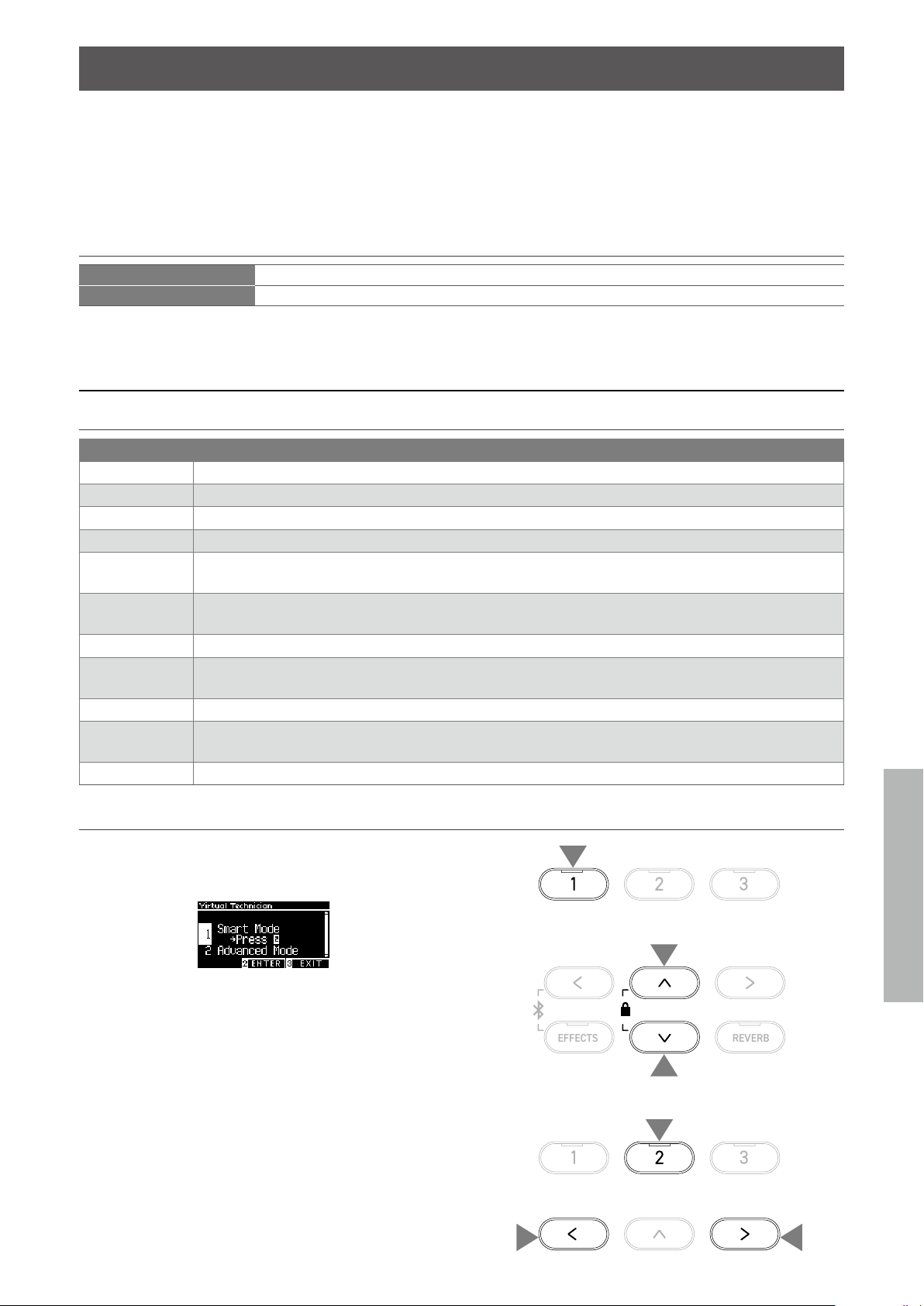

Virtual Technician
An experienced piano technician is essential to fully realise the potential of a ne acoustic piano. In ad-
dition to meticulously tuning each note, the technician also performs numerous regulation and voicing
adjustments that allow the instrument to truly sing.
The Virtual Technician settings of the digital piano simulate these renements digitally, allowing per-
formers to shape various aspects of the instrument’s character to suit their personal preferences.
Virtual Technician settings
Smart Mode Select a pre-determined combination of piano adjustments.
Advanced Mode Make ne adjustments to individual, voicing, touch curve, etc. parameters.
Smart Mode
Smart Mode settings
Name Description
Normal Default setting for Smart Mode.
Noiseless Setting to minimise additional damper and string resonance, and mechanism noises when keys are released.
Deep Resonance Setting to emphasise damper pedal resonance and string resonance.
Light Resonance Setting to reduce damper pedal resonance and string resonance.
Soft Setting to produce a softer tone by softening the hammers and increasing the touch weight of the keyboard,
which is suitable for slow, quiet pieces.
Brilliant Setting to produce a brighter tone including damper resonance by hardening the hammers, which is suitable
for cheerful and elegant pieces or songs requiring good resonance.
Clean Setting to reduce resonance by hardening the hammers and lightening the touch of keys.
Full Setting to emphasise noises and resonance by increasing the sensitivity of the hammers, which is suitable for
dynamic and powerful pieces.
Dark Setting to add unique darkness to the tone by hardening the hammers and increasing the touch weight of keys.
Rich Setting to emphasise the resonance by increasing the sensitivity of the hammers and lightening the touch of
keys.
Historical Setting to replicate the tone of a piano used during the Classical and Romantic eras.
Selecting the Smart Mode preset
1. On the Home screen, press the [1] button to enter the Virtual
Technician screen.
2. Press the [UP]/[DOWN] button to select “Smart Mode”.
3. Press the [2] button .
4. Press the [LEFT]/[RIGHT] button to set the Smart Mode type.
2
2
EFFECTS
REVERB
4 4
3
1
52
Adjustments & Settings
Settings Menu
▋ Showing the Smart Mode Help screen
In Smart Mode, press the [1] button to display descriptions of
each Smart Mode preset.
▋ Saving Smart Mode
In Smart Mode, press the [2] button to save the selected Smart Mode to the sound.
The saved settings will be reapplied to the sound even after restarting the instrument.
Advanced Mode
Advanced Mode items, eective sounds, and default settings
Setting Default Eective sound Page
1. Touch Curve Normal All sounds P53
2. Voicing Normal All sounds P54
3. Damper Resonance 5 Piano sound only P55
4. Damper Noise 5 Piano sound only P55
5. String Resonance 5 Piano sound only P55
6. Undamped Str. Res. 5 Piano sound only P56
7. Cabinet Resonance 1 Piano sound only P56
8. Key-o Eect 5 Piano sound
Tine Electric Piano
Reed Electric Piano
Tine Electric Piano 2
Clavi
Wood Bass
P56
9. Fall-back Noise 5 Piano sound
Harpsichord
P56
10. Hammer Noise 5 Piano sound only P57
11. Hammer Delay O Piano sound only P57
12. Topboard Simulation Open 2 Piano sound only P57
13. Decay Time 5 All sounds P57
14. Release Time 5 All sounds P58
15. Minimum Touch 1 Piano sound
Tine Electric Piano
Reed Electric Piano
Tine Electric Piano 2
P58
16. Stretch Tuning/User Tuning (Varies by the sound) All sounds P58
17. Temperament Equal Temp. All sounds P59
18. Temperament Key C All sounds P60
19. Key Volume Normal All sounds P60
20. Half-Pedal Adjust 5 All sounds P61
21. Soft Pedal Depth 5 All sounds P61
53
Adjustments & Settings
Settings Menu
▋ Selecting and adjusting the desired setting
1. On the Virtual Technician screen, press the [UP]/[DOWN] but-
ton to select “Advanced Mode”.
2. Press the [2] button.
3. Press the [UP]/[DOWN] button to select the settings menu.
4. Press the [LEFT]/[RIGHT] button to set the value or type.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
▋ Showing the Advanced Mode Help screen
In Advanced Mode, press the [1] button to display descriptions of each setting.
▋ Saving Advanced Mode
In Advanced Mode, press the [2] button to save types and values of Advanced Mode settings to the sound.
The saved settings will be reapplied to the sound even after restarting the instrument.
1 Touch Curve
The Touch Curve function allows players to change the relationship between the volume and the strength
of keystrokes.
The display shows “Touch”.
Touch Curve types
Touch Curve Description
Heavy 4 Produces a more softer sound consistently.
Heavy 3 Produces a softer sound consistently.
Heavy 2 Suitable for dynamic performances with accents.
Heavy 1 This curve makes it easier to produce soft sounds of a light hit and bright sounds of a strong hit.
Normal Reproduces the standard touch sensitivity of an acoustic piano.
Light 1 Produces a lounger volume even with a soft touch.
Light 2 Produces a more lounger volume even with a soft touch.
Light 3 Produces stable sounds even if playing with a weak touch.
Light 4 This touch curve is suitable for small children and organ players.
O Produces the sound at a constant volume regardless of the strength of keystrokes.
User A touch curve will be automatically created according to the force of the user’s ngers playing the keyboard.
1
1
EFFECTS
REVERB
2
3
3
4
4
EFFECTS
REVERB
54
Adjustments & Settings
Settings Menu

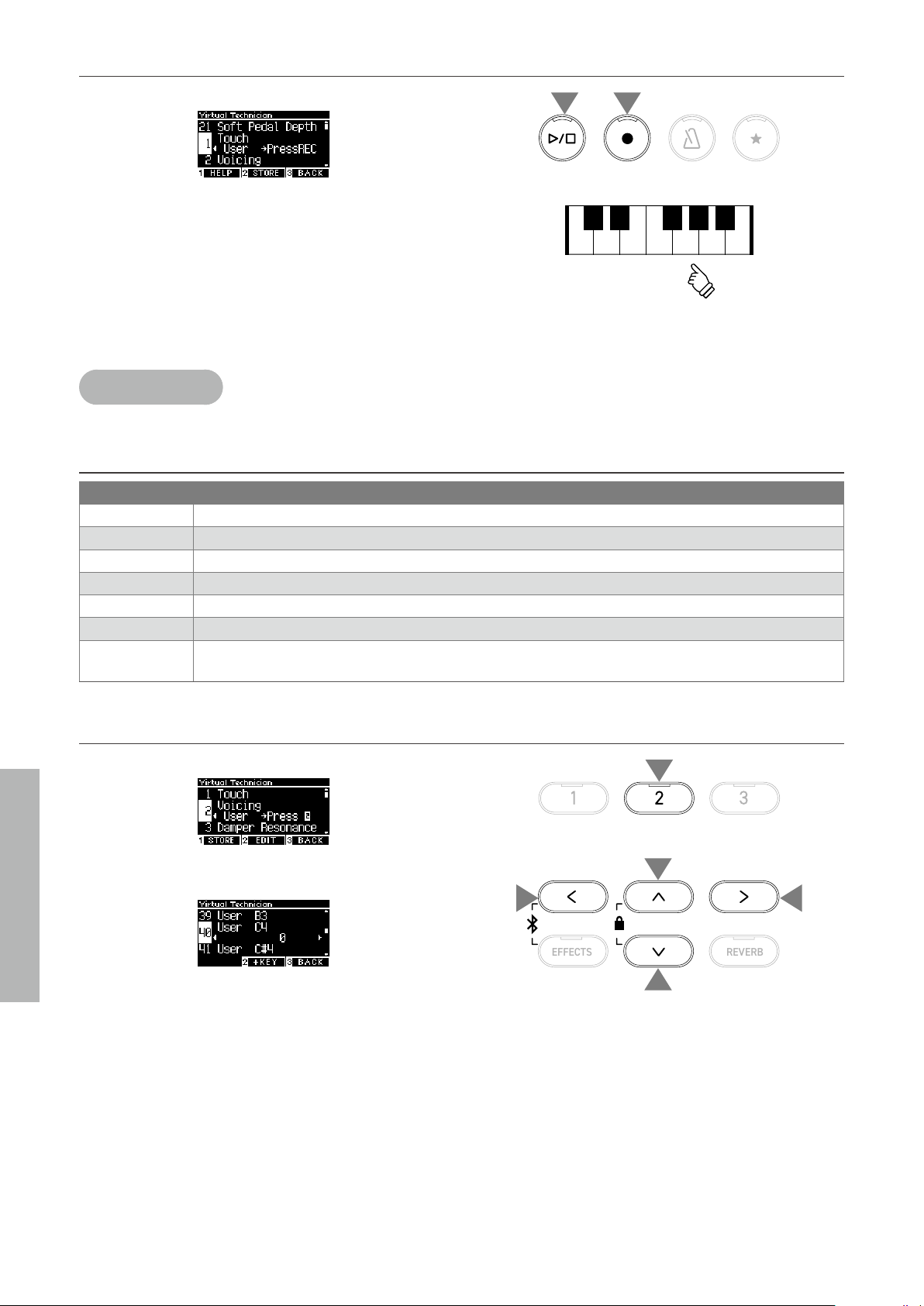

▋ Creating a User Touch Curve
1. With “User” selected, press the [REC] button.
2. Play any key from very soft to very loud.
3. Press the [PLAY/STOP] button when nished.
“analysis completed” is displayed when the user touch curve
is created.
• With “User” selected, pressing the [2] button will save the cre-
ated Touch Curve to the selected sound.
2 Voicing
The Voicing function simulates dierent hammer properties, aecting the tonal character of the piano.
Hammer types
Voicing type Description
Normal Normal setting.
Mellow 1 Setting to produce a softer tone by softening the hammers.
Mellow 2 Setting to produce an even softer tone by further softening the hammers than Mellow 1.
Dynamic Setting to produce a dynamic tone from soft to bright according to the touch of keys.
Bright 1 Setting to produce a brighter tone by hardening the hammers.
Bright 2 Setting to produce an even brighter tone by further hardening the hammers than Bright 1.
User Voicing adjustment between -5 and +5 can be set on any key.
-5 is the mellowest and +5 is the brightest setting.
▋ Adjusting User Voicing
1. With “User” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select the key to tune.
Or, press and hold the [2] button and press the key to tune.
3. Press the [LEFT]/[RIGHT] button to set the value.
• With “User” selected, pressing the [1] button will save the spec-
ied value to the selected sound.
1
3
2
1
2
2
3
3
EFFECTS
REVERB
55
Adjustments & Settings
Settings Menu
3 Damper Resonance
Damper Resonance simulates the resonance eects of the whole piano when the damper pedal is pressed.
Adjusting the Damper Resonance volume
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the smallest and “10” is the greatest.
When set to “O”, Damper Resonance will not be produced.
4 Damper Noise
The Damper Noise function adjusts the volume of the noise that occurs when the damper pedal is pressed.
Adjusting the Damper Noise volume
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the smallest and “10” is the greatest.
When set to “O”, Damper Noise will not be produced.
5 String Resonance
String Resonance simulates the resonance eects of the piano strings.
What is string resonance?
To experience the string resonance phenomenon, gently hold down the “C” key as shown in the illustration below, then play (strike
and release quickly) any of the keys marked with a symbol. In addition to the sound of each note played, it should also be possible
to hear the strings of the rst “C” key resonating “sympathetically”, thus demonstrating String Resonance.
F GC B F G C G C E G C D E G C
C# A# A#
E
hold
▋ Adjusting the String Resonance volume
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the smallest and “10” is the greatest.
When set to “O”, String Resonance will not be produced.
56
Adjustments & Settings
Settings Menu
6 Undamped String Resonance
Undamped String Resonance simulates the string resonance in the undamped topmost keys.
• The display shows “UndampedStr.Reso.”.
• Topmost keys of grand pianos are undamped; therefore, they are always free to
vibrate regardless of whether the damper pedal is pressed or not.
Adjusting the Undamped String Resonance volume
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the lightest and “10” is the deepest.
When set to “O”, resonance will not be produced.
7 Cabinet Resonance
Cabinet Resonance simulates the cabinet resonance of grand pianos.
Adjusting the Cabinet Resonance volume
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the lightest and “10” is the deepest.
When set to “O”, Cabinet Resonance will not be produced.
8 Key-o Eect
Key-o Eect simulates the sound of the damper’s touching the string immediately before the sound
stops.
Adjusting the Key-o Eect volume
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the lightest and “10” is the deepest.
When set to “O”, Key-o Eect will not be produced.
9 Fall-back Noise
Fall-back Noise simulates the noise from the key action when keys are released.
Adjusting the Fall-back Noise volume
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the smallest and “10” is the greatest.
When set to “O”, Fall-Back Noise will not be produced.
57
Adjustments & Settings
Settings Menu
10 Hammer Noise
The Hammer Noise function allows to adjust the sound of the hammers’ hitting strings and the keys’ hit-
ting the key bed when acoustic pianos are played.
Adjusting the Hammer Noise volume
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the smallest and “10” is the greatest.
When set to “O”, Hammer Noise will not be produced.
11 Hammer Delay
Hammer Delay simulates the slight delay of the hammers’ hitting strings when acoustic pianos are played
in pianissimo.
Adjusting the Hammer Delay value
The value can be specied in the range from 1 to 10, or can be set
t o “ O ”.
“1” is the smallest hammer delay and “10” is the greatest hammer
delay.
When set to “O”, Hammer Delay will not be produced.
12 Topboard Simulation
Topboard Simulation simulates the dierence in the sound produced by the opening of the topboard of
grand pianos.
Topboard Simulation types
Topboard position Description
Open3 Reproduce the status where the topboard is completely open.
Open2 Reproduce the status where the topboard is half open.
Open1 Reproduce the status where the topboard is slightly open.
Closed1 Reproduce the status where the topboard is closed except the front lid.
Closed2 Reproduce the status where the topboard is completely closed.
13 Decay Time
The Decay Time function allows to adjust the duration of the sound decay after keys are pressed.
Adjusting the Decay Time volume
The value can be specied in the range from 1 to 10.
“1” is the shortest decay and “10” is the longest decay.
58
Adjustments & Settings
Settings Menu
14 Release Time
The Release Time function allows to adjust the duration of the sound decay after keys are released.
Adjusting the Release Time volume
The value can be specied in the range from 1 to 10.
“1” is the shortest decay and “10” is the longest decay.
15 Minimum Touch
The Minimum Touch function allows to set the touch sensitivity for the quietest sound.
Adjusting the Minimum Touch value
The value can be specied in the range from 1 to 20.
When set to “1”, a sound is produced even by an extremely soft
touch.
When set to “20”, no sound is produced for an extremely soft
touch.
16 Stretch Tuning/User Tuning
The Stretch Tuning function allows a piano-specic tuning which makes lower octaves slightly atter and
upper octaves slightly sharper than the normal equal temperament. This function is available only when
equal temperament is selected for the temperament type. In addition, User Tuning allows individual tun-
ing for each of the 88 keys.
The display shows “Stretch/UserTuning”.
Stretch Tuning types
Stretch Tuning Description
O Normal equal temperament tuning.
Normal Lower octaves are slightly atter and upper octaves are slightly sharper than the normal equal tempera-
ment.
Wide Lower octaves are atter and upper octaves are sharper than the normal equal temperament.
User Tuning range between -50 and +50 can be set on each key.
59
Adjustments & Settings
Settings Menu

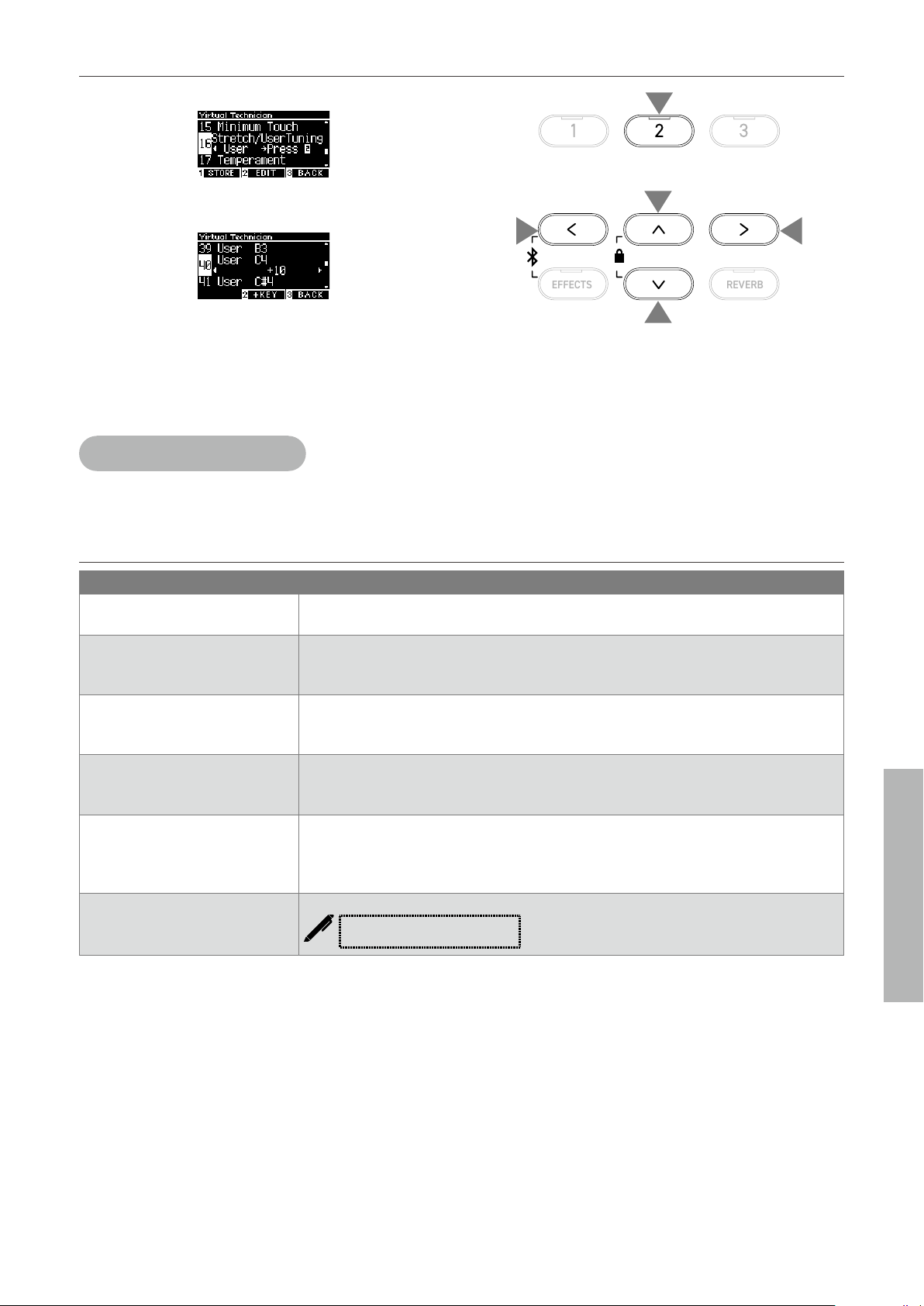

▋ User Tuning settings
1. With “User” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select the key to tune. Or,
press and hold the [2] button and press the key to tune.
3. Press the [LEFT]/[RIGHT] button to set the value.
• With “User” selected, pressing the [1] button will save the spec-
ied value to the selected sound.
17 Temperament
In addition to the most common equal temperament, this instrument can be set with early tuning sys-
tems used in the Renaissance and Baroque eras.
Temperament types
Temperament type Description
Equal Temperament
(Equal)
The most common tuning system for the modern pianos. This allows the consistent harmo-
nies regardless of modulations and transpositions.
Pure Temperament
(Pure Major/Pure Minor)
The tuning system that eliminated impurity from the most important third and fth inter-
vals. Therefore, third and fth sound pure; however, other intervals may sound impure.
Use this system by specifying the tonic of the piece to be played.
Pythagorean Temperament
(Pythagorean)
The tuning system that eliminated impurity from most of fth intervals. Although chords
sound impure due to the impurity in third intervals, the system brings out the character of
melodies.
Meantone Temperament
(Meantone)
The tuning system that incorporated slight impurity in fth intervals in order to eliminate
impurity from the most important major third intervals. This system was commonly used for
early keyboard music.
Werckmeister Temperament
(Werckmeister)
Kirnberger Temperament
(Kirnberger)
This tuning system makes keys with fewer key signatures sound closer to the Meantone
Temperament which produces chords purer, and keys with more key signatures sound clos-
er to the Pythagorean Temperament which brings out the character of melodies. This re-
ects the “character of keys” intended by the classical composers.
User Temperament
(User)
The original temperament can be set between -50 and +50 cents.
100 cents = Semi-tone
1
2
2
3
3
EFFECTS
REVERB
60
Adjustments & Settings
Settings Menu
▋ User Temperament settings
1. With “User” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select the sound to tune.
3. Press the [LEFT]/[RIGHT] button to set the value.
• With “User” selected, pressing the [1] button will save the spec-
ied value to the selected sound.
18 Temperament Key
Temperaments apart from the equal temperament are specic to the key. The Temperament Key function
adjusts the temperament to the specied tonic of the song to be played.
Selecting Temperament Key
The value can be specied in the range from C to B.
The temperament does not change if the equal temperament is
specied even when the tonic is set.
19 Key Volume
The Key Volume function allows players to adjust the volume of each of the 88 keys.
Key Volume types
Key Volume Description
Normal The default setting for the 88-key volume.
High Damping The volume is gradually reduced towards the upper sound range.
Low Damping The volume is gradually reduced towards the lower sound range.
High & Low Damping The volume is gradually reduced towards the upper and lower sound range.
Center Damping The volume is gradually reduced towards the center of the keyboard.
User The volume can be set between -50 and +50 for each of 88 keys.
1
2
2
3
3
EFFECTS
REVERB
61
Adjustments & Settings
Settings Menu
▋ User Key Volume settings
1. With “User” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select the key to adjust the
volume.
Or, press and hold the [2] button and press the key to adjust
the volume.
3. Press the [LEFT]/[RIGHT] button to set the value.
• With “User” selected, pressing the [1] button will save the spec-
ied value to the selected sound.
20 Half-Pedal Adjust
The Half-Pedal Adjust function allows the point at which the damper pedal becomes eective (i.e. when
the dampers of the piano begin to lift from the strings) to be adjusted.
Adjusting the Half-Pedal Adjust value
Value Description
1 This setting allows Half-Pedal to take eect at a
shallow point.
7 This setting allows Half-Pedal to take eect at a
deep point.
8 This setting is intended for using the pedal as a
MIDI controller.
The maximum value will be reached when the
damper pedal is pressed slightly.
10 This setting is intended for using the pedal as a
MIDI controller.
The maximum value will be reached when the
damper pedal is pressed fully.
21 Soft Pedal Depth
The Soft Pedal Depth function allows adjustment of eectiveness of the soft pedal.
Adjusting the Soft Pedal Depth value
The value can be specied in the range from 1 to 10.
The eect of the Soft Pedal is the lightest with “1”, and the great-
est with “10”.
1
2
2
3
3
EFFECTS
REVERB
62
Adjustments & Settings
Settings Menu
Phones Settings
Phones Settings
Setting Description Default setting
Spatial Headphone Sound Spatial Headphone Sound (SHS) is a feature that enhances the depth and real-
ism of the acoustic piano sound through earphones or headphones. This fea-
ture also reduces auditory discomfort and fatigue when using headphones or
earphones for extended periods of time.
Normal
Phones Type The Phones Type setting optimises the sound of the instrument when listen-
ing through dierent types of headphones or earphones.
Normal
Phones Volume The Phones Volume setting allows the maximum volume level of the head-
phones output to be increased.
Normal
▋ Entering the Phones Settings screen
1. On the Settings Menu screen, press the [UP]/[DOWN] button
to select “Phones Settings”.
2. Press the [2] button to enter the Phones Settings screen.
3. Press the [UP]/[DOWN] button to select the function to use.
4. Press the [LEFT]/[RIGHT] button to set the value or type.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
1 Spatial Headphone Sound
The display shows “SHS Mode”.
Spatial Headphone Sound types
Type Description
O Disables the Spatial Headphone Sound feature.
Forward Provides front focuses, somewhat narrow spatial positioning.
Normal Provides naturally balanced spatial positioning that is neither forward nor wide.
Wide Provides wide, very open spatial positioning.
1
1
EFFECTS
REVERB
2
3
3
4
4
EFFECTS
REVERB
63
Adjustments & Settings
Settings Menu
2 Phones Type
Phones type settings
Type Description
Normal Disables the headphone optimisation.
Open Optimises the sound for open-type headphones.
Semi-Open Optimises the sound for semi-open type headphones.
Closed Optimises the sound for closed-type headphones.
Inner-ear Optimises the sound for inner-ear type headphones.
Canal Optimises the sound for canal-type headphones.
3 Phones Volume
Changing the Phones Volume type
“Normal” or “High” can be specied.
Using headphones at high volume levels for extended
periods of time may result in hearing loss.
USB Menu
Compatible USB devices
Flash memory with USB support (USB memory devices) can be used.
Any other USB devices (mouse, keyboard, hub, etc.) cannot be used even if they are connected.
▋ Connecting a USB memory device
Insert the plug compatible to the [USB to DEVICE] port in the correct way taking care it is not upside down.
Connect the USB memory device directly without using a USB extension cable.
The “USB to Device” functionality of this instrument conforms to USB2.0 Hi-Speed standards. Older USB devices can still be used,
however data transfer speed will be limited to the maximum transfer speed of the device.
Connecting a USB memory device allows saving data created on this instrument into the USB memory and playing back the data in
the USB memory on this instrument.
▋ Formatting a USB memory device
Some USB memory devices require formatting before they can be used with this instrument. If a message appears to prompt for for-
matting the device after connecting the USB memory device to the [USB to DEVICE] port, check that the USB memory device does not
contain any necessary data, and format the device.
P76
Format USB
Contents of the USB memory device are erased after formatting.
The USB memory device may contain data used by other devices which is not displayed on this instrument. Take care when formatting
a device.
▋ Inserting and removing a USB memory device
Check that the USB memory device is not being accessed such as data being saved, copied, or deleted, or the device being formatted
before removing the USB memory device.
If a USB memory device is inserted while the instrument is turned on, some
devices may take a while before they can be played; however, this is not a fault.
64
Adjustments & Settings
Settings Menu
▋ Checking connection of a USB memory device
A USB icon appears in the display while a USB memory device is connected to the instrument.
P13
Home screen
▋ USB Menu functions
Function Description Page
1. Load Song Load a song le (KSO le) from a USB memory device into the instrument’s internal
memory.
P66
2. Load Registration All Load the registration le (All/KM3 le) from a USB memory device into the instru-
ment’s internal memory.
P67
3. Load Registration Single Load the registration le (Single/KM6 le) from a USB memory device into the instru-
ment’s internal memory.
P68
4. Load Startup Setting Load a startup setting le (KM1 le) from a USB memory device into the instrument’s
internal memory.
P69
5. Save Internal Song Save the song recorded in the instrument’s internal memory to a USB memory device
in KSO le format.
P70
6. Save SMF Song Save the song recorded in the instrument’s internal memory to a USB memory device
in SMF le format.
P71
7. Save Registration All Save all of the registrations set on the instrument to a USB memory device in KM3 le
format.
P72
8. Save Registration Single Save a registration set on the instrument to a USB memory device in KM6 le format. P73
9. Save Startup Setting Save the startup setting set on the instrument to a USB memory device in KM1 le
format.
P74
10. Rename File Rename a le in a USB memory device. P75
11. Delete File Delete a le in a USB memory device. P76
12. Format USB Format a USB memory device. P76
▋ Entering the USB Menu screen
1. On the Settings Menu screen, press the [UP]/[DOWN] button
to select “USB Menu”.
2. Press the [2] button to enter the USB Menu screen.
3. Press the [UP]/[DOWN] button to select the item to use.
1
1
EFFECTS
REVERB
2
3
3
EFFECTS
REVERB
65
Adjustments & Settings
Settings Menu

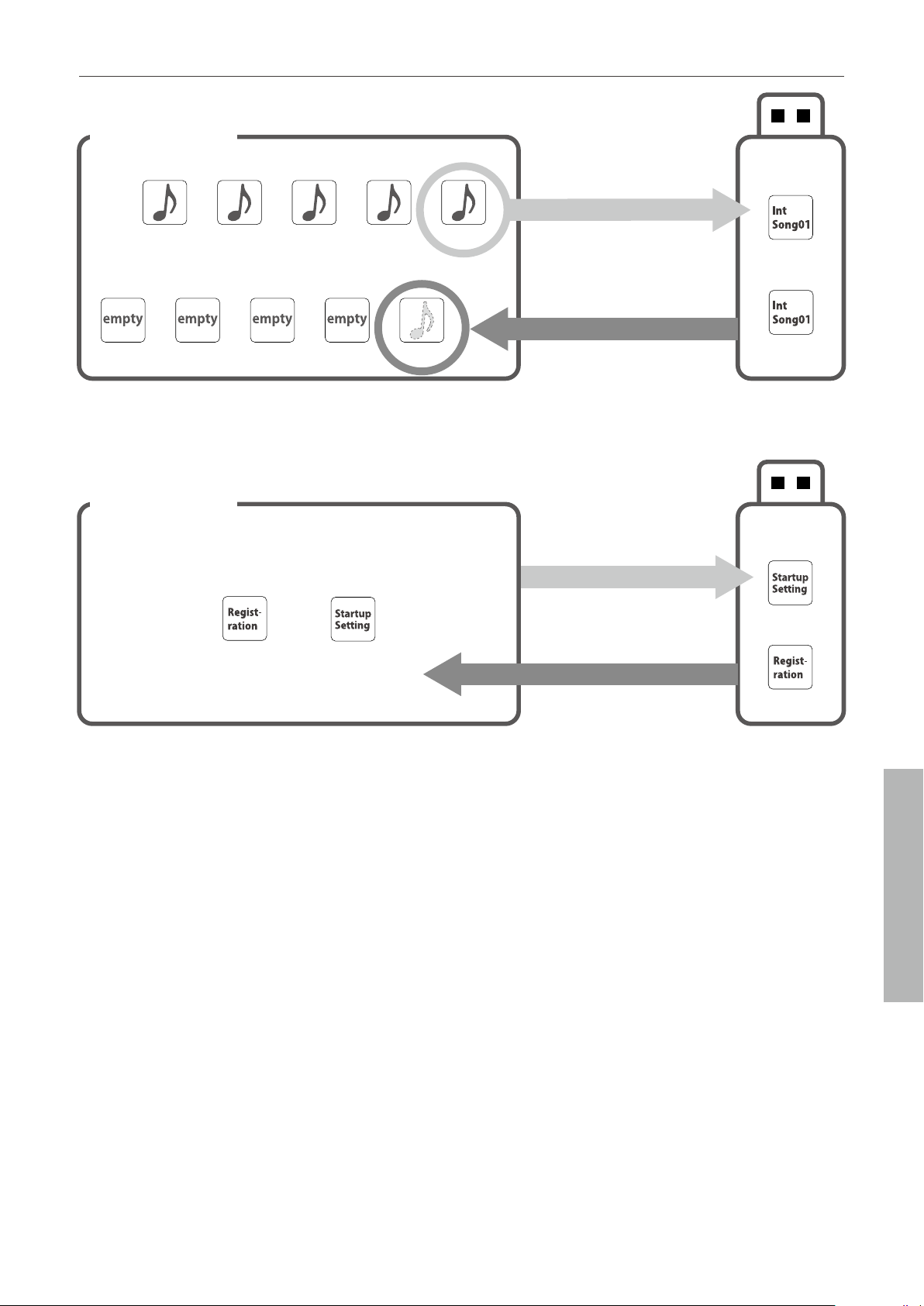

▋ Loading and saving USB Menu
Song
Save a song recorded in the in-
ternal memory to a USB memory
device as a KSO or SMF le.
Load A KSO le saved on a USB
memory device into the instru-
ment.
Save
Load
Songs that are stored in internal memory
Internal memory
Song 1
Song 6 Song 10Song 9Song 8Song 7
Song 2 Song 3 Song 4
USB memory
device
Song 5
SMF le
KSO le
Load
Save Registration and Startup
Settings to a USB memory
device.
Save
Load from USBOverwrite
Internal memory
Registration and Startup Settings set on the instrument
Load the Registration le and
Startup Settings le on a USB
memory device to the instru-
ment.
Load
KM3 or KM6 le KM1 le
USB memory
device
KM3 or KM6 le
KM1 le
Registration/Startup Settings
66
Adjustments & Settings
Settings Menu
1 Load Song
Loading
1. With “Load Song” selected, press the [LEFT]/[RIGHT] button to
select the internal song memory for the song to be loaded
into.
Songs are loaded into the memory that is used for recording
up to 10 songs.
2. Press the [2] button.
3. Press the [UP]/[DOWN] button to select the song to load.
4. Press the [2] button.
5. Press the [1] button to load, or press the [3] button to cancel.
3
3
EFFECTS
REVERB
1
1
2
4
or
55
67
Adjustments & Settings
Settings Menu
2 Load Registration All
The display shows “Load Regist All”.
Type of registration les
Type Description Extension
Single Stores a single registration. KM6
All Stores all of 16 registrations. KM3
▋ Loading
1. With “Load Regist All” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select a registration le
(type All) [.KM3] to be loaded.
3. Press the [2] button.
4. Press the [1] button to load, or press the [3] button to cancel.
The extension of the type All registration le is “KM3”.
The le is not compatible with other models.
Registrations set on the instrument will be all overwritten when the Load
Registration All function is executed. Check carefully before using this function.
1
3
or
44
2
2
EFFECTS
REVERB
68
Adjustments & Settings
Settings Menu
3 Load Registration Single
The display shows “Load RegistSingle”.
Loading
1. With “Load RegistSingle” selected, press the [LEFT]/[RIGHT]
button to select the registration memory for the registration
to be loaded into.
2. Press the [2] button.
3. Press the [UP]/[DOWN] button to select the registration le
(type Single) [.KM6] to be loaded.
4. Press the [2] button.
5. Press the [1] button to load, or press the [3] button to cancel.
The extension of the type Single registration le is
“KM6”.
The le is not compatible with other models.
3
3
EFFECTS
REVERB
1 1
2
4
or
55
69
Adjustments & Settings
Settings Menu
4 Load Startup Setting
The display shows “Load Startup Set.”.
Loading
1. With “Load Startup Set.” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select the startup settings
le [.KM1] to be loaded.
3. Press the [2] button.
4. Press the [1] button to load, or press the [3] button to cancel.
The extension of the startup settings le is “KM1”.
The le is not compatible with other models.
The startup settings conguration previously stored to memory will be deleted
when the Load Startup Setting function is executed.
1
3
or
44
2
2
EFFECTS
REVERB
70
Adjustments & Settings
Settings Menu
5 Save Internal Song
The display shows “Save Song(INT)”.
Saving
1. With “Save Song(INT)” selected, press the [LEFT]/[RIGHT] but-
ton to select a song to be saved.
2. Press the [2] button.
3. Specify the name for the song to be saved to the USB mem-
ory device.
Press the [LEFT]/[RIGHT] button to move the cursor and press
the [UP]/[DOWN] button to change characters.
Up to 12 characters can be specied for the le name.
4. Press the [2] button after entering the le name.
5. Press the [1] button to save, or press the [3] button to cancel.
In the case where a le with the same name already exists,
specify whether to overwrite it.
Press the [1] button to overwrite, or press the [3] button to
specify another name.
The song le will be saved in the root folder of the USB memory device.
It is not possible to save the le in a dierent folder.
The song may become unloadable to the instrument if the saved song is
renamed by another device such as a PC.
The extension of the saved le is “KSO”.
Files (*.KSO) that have been saved by USB Save Song (INT) can be loaded into
any one of the ten song memories available on the instrument.
P66
Load Song
2
4
or
55
3
3
3
3
EFFECTS
REVERB
1
1
71
Adjustments & Settings
Settings Menu
6 Save SMF Song
The display shows “Save Song(SMF)”.
Saving
1. With “Save Song(SMF)” selected, press the [LEFT]/[RIGHT]
button to select a song to be saved.
2. Press the [2] button.
3. Specify the name for the song to be saved to the USB mem-
ory device.
Press the [LEFT]/[RIGHT] button to move the cursor and press
the [UP]/[DOWN] button to change characters.
Up to 12 characters can be specied for the le name.
4. Press the [2] button after entering the le name.
5. Press the [1] button to save, or press the [3] button to cancel.
In the case where a le with the same name already exists,
specify whether to overwrite it.
Press the [1] button to overwrite, or press the [3] button to
specify another name.
The song le will be saved in the root folder of the USB memory device.
It is not possible to save the le in a dierent folder.
The extension of the saved song le is “MID”.
Files (*.MID) that have been saved by Save Song (SMF) cannot be loaded into the
instrument’s internal song memories.
P70
Use Save Internal Song to load songs into the ten song memories avail-
able on the instrument.
2
4
or
55
3
3
3
3
EFFECTS
REVERB
1
1
72
Adjustments & Settings
Settings Menu

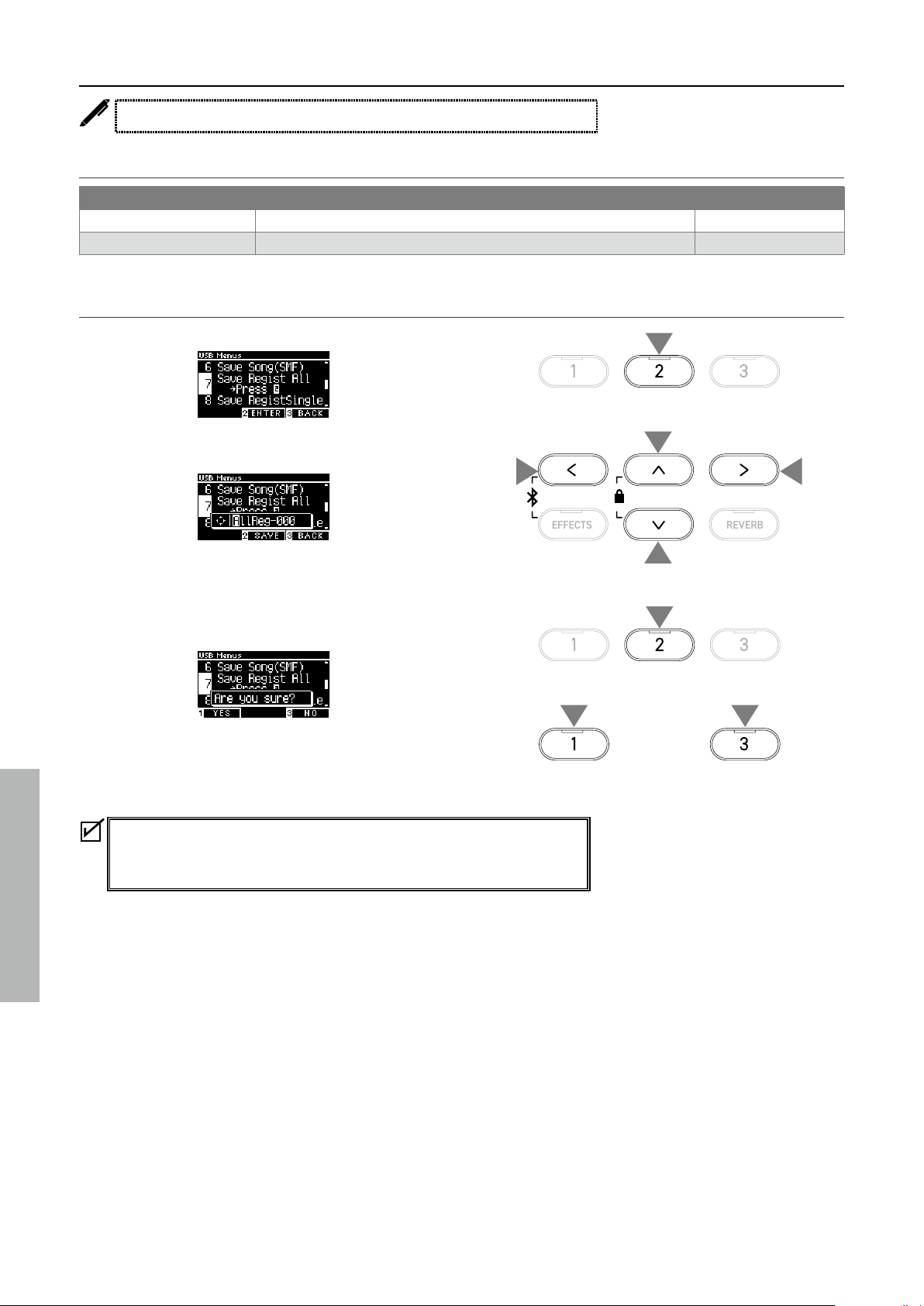

7 Save Registration All
The display shows “Save Regist All”.
Type of registration les
Type Description Extension
Single Stores a single registration. KM6
All Stores all of 16 registrations. KM3
▋ Saving
1. With “Save Regist All” selected, press the [2] button.
2. Specify the name for the le to be saved to the USB memory
device.
Press the [LEFT]/[RIGHT] button to move the cursor and press
the [UP]/[DOWN] button to change characters.
Up to 12 characters can be specied for the le name.
3. Press the [2] button after entering the le name.
4. Press the [1] button to save, or press the [3] button to cancel.
In the case where a le with the same name already exists,
specify whether to overwrite it.
Press the [1] button to overwrite, or press the [3] button to
specify another name.
The song le will be saved in the root folder of the USB memory device.
It is not possible to save the le in a dierent folder
The le saved by Save Registration All is not compatible with other models.
1
3
or
44
2
2
2
2
EFFECTS
REVERB
73
Adjustments & Settings
Settings Menu
8 Save Registration Single
The display shows “Save RegistSingle”.
Saving
1. With “Save RegistSingle” selected, press the [LEFT]/[RIGHT]
button to select the registration to be saved from A1 to B8.
2. Press the [2] button.
3. Specify the name for the le to be saved to the USB memory
device.
Press the [LEFT]/[RIGHT] button to move the cursor and press
the [UP]/[DOWN] button to change characters.
Up to 12 characters can be specied for the le name.
4. Press the [2] button after entering the le name.
5. Press the [1] button to save, or press the [3] button to cancel.
In the case where a le with the same name already exists,
specify whether to overwrite it.
Press the [1] button to overwrite, or press the [3] button to
specify another name.
The song le will be saved in the root folder of the USB memory device.
It is not possible to save the le in a dierent folder.
The le saved by Save Registration Single is not compatible with other models.
2
4
or
55
3
3
3
3
EFFECTS
REVERB
1
1
74
Adjustments & Settings
Settings Menu

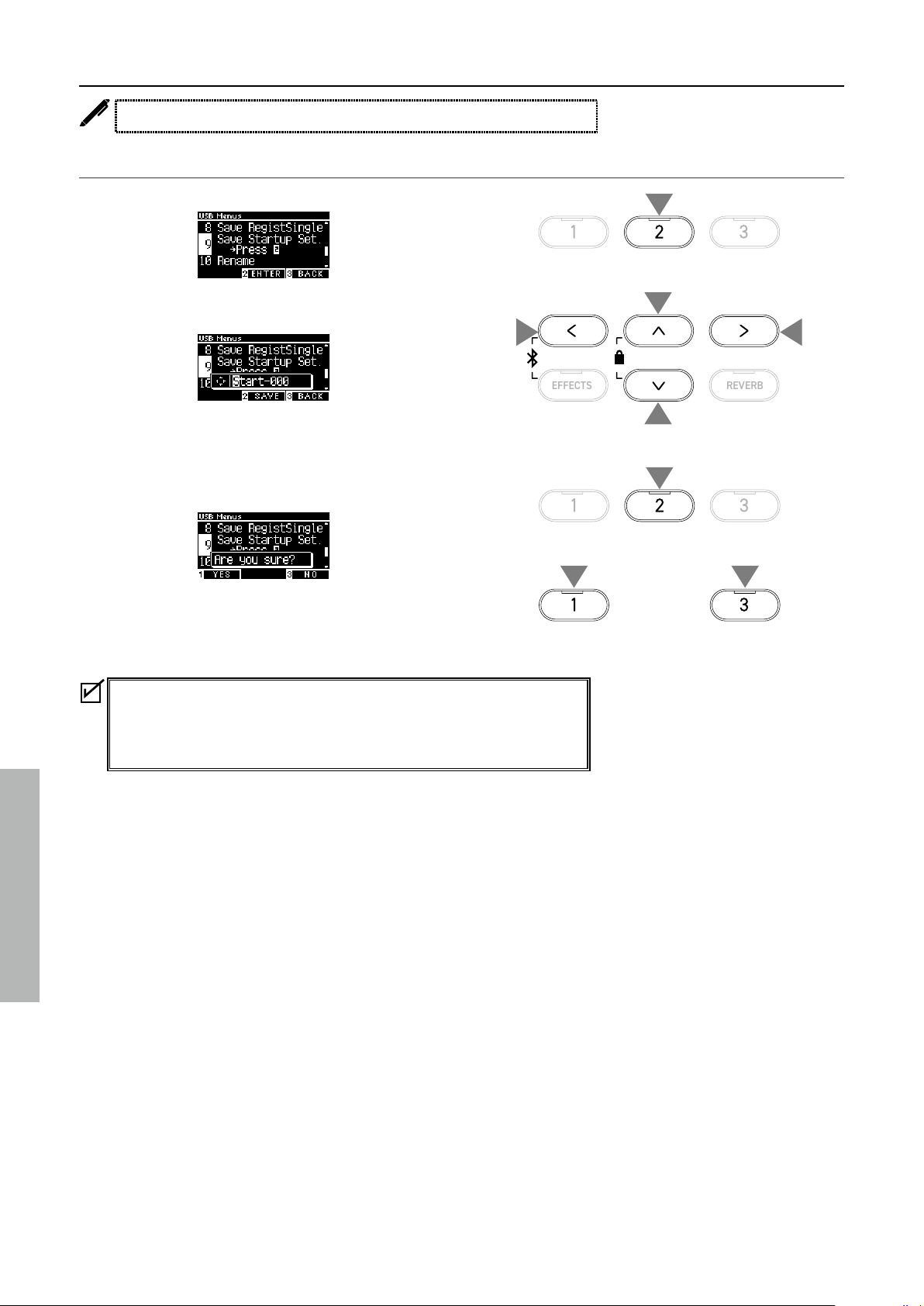

9 Save Startup Setting
The display shows “Save Startup Set.”.
Saving
1. With “Load Startup Set.” selected, press the [2] button.
2. Specify the name for the le to be saved to the USB memory
device.
Press the [LEFT]/[RIGHT] button to move the cursor and press
the [UP]/[DOWN] button to change characters.
Up to 12 characters can be specied for the le name.
3. Press the [2] button after entering the le name.
4. Press the [1] button to save, or press the [3] button to cancel.
In the case where a le with the same name already exists,
specify whether to overwrite it.
Press the [1] button to overwrite, or press the [3] button to
specify another name.
The song le will be saved in the root folder of the USB memory device.
It is not possible to save the le in a dierent folder.
The extension of the startup settings le is “KM1”.
The startup settings le “*.KM1” is not compatible with other models.
1
3
or
44
2
2
2
2
EFFECTS
REVERB
75
Adjustments & Settings
Settings Menu
10 Rename File
Characters that can be used
0 – 9 A – Z a – z ! # $ % & ' ( ) + , - . ; = @ [ ] ^ _ ` { }
▋ Renaming a le
1. With “Rename” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select the le to be re-
named.
3. Press the [2] button.
4. Enter the new name.
Press the [LEFT]/[RIGHT] button to move the cursor and press
the [UP]/[DOWN] button to change characters.
Up to 12 characters can be specied for the le name.
5. Press the [2] button after entering the le name.
6. Press the [1] button to save, or press the [3] button to cancel.
1
2
2
EFFECTS
REVERB
3
5
or
66
4
4
4
4
EFFECTS
REVERB
76
Adjustments & Settings
Settings Menu
11 Delete File
Deleting a le
1. With “Delete” selected, press the [2] button.
2. Press the [UP]/[DOWN] button to select the le to be deleted.
3. Press the [2] button.
4. Press the [1] button to delete, or press the [3] button to can-
cel.
12 Format USB
Formatting
1. With “Format” selected, press the [2] button.
2. Press the [1] button to format, or press the [3] button to can-
cel.
1
3
or
44
2
2
EFFECTS
REVERB
1
or
22
77
Adjustments & Settings
Settings Menu
Bluetooth Settings
Availability of Bluetooth function dependent on market location.
Bluetooth Settings
Type Description Connection method
Bluetooth MIDI When using a smart device app that supports
Bluetooth MIDI, this function allows the instru-
ment to be controlled by an app, or send/receive
MIDI data wirelessly.
Enable the smart device’s Bluetooth function,
launch an app that supports Bluetooth MIDI, then
select “CA501 MIDI” from the app’s connection set-
ting screen.
Bluetooth Audio This function allows audio from the connected
smart device (such as songs, videos, etc.) to be
played through the instrument’s speakers wire-
lessly.
Enable the smart device’s Bluetooth function, then
select “CA501 Audio” from the device’s Bluetooth
connection setting screen.
If “CA501 Audio” does not appear, press and hold
the [LEFT] and [EFFECTS] buttons on the instru-
ment’s control panel while the Home screen is
shown in the display. After pairing successfully,
the instrument will automatically reconnect to the
smart device when the power is turned on.
• For more detailed instructions regarding Bluetooth pairing, please refer to the supplementary Bluetooth® Connectivity
Guide manual, available from the Kawai Global website: https://www.kawai-global.com/support/manual.
• Only one smart device can be connected to the piano’s Bluetooth MIDI or Bluetooth audio at a time.
▋ Entering the Bluetooth Settings screen
1. On the Settings Menu screen, press the [UP]/[DOWN] button
to select “Bluetooth Settings”.
2. Press the [2] button to enter the Bluetooth Settings screen.
3. Press the [UP]/[DOWN] button to select the type to use.
4. Press the [LEFT]/[RIGHT] button to set the value.
• Pressing the [LEFT]/[RIGHT] buttons simultaneously will re-
store the default setting.
1
1
EFFECTS
REVERB
2
3
3
4
4
EFFECTS
REVERB
78
Adjustments & Settings
Settings Menu
1 Bluetooth
Bluetooth settings
This function can be turned on and o.
Turn on the Bluetooth function of this instrument and enable
Bluetooth communications of the smart device application near
the instrument.
2 Bluetooth Audio Volume
This function allows players to adjust the volume of music stored in smart devices, which is output from
the instrument’s speakers.
After adjusting the volume on the smart device or using the [MASTER VOLUME] slider, this function can
be used to ne tune the volume.
The display shows “Bluetooth Vol”.
Adjusting the Bluetooth Audio Volume
The value can be adjusted in the range from -15 to +15.
79
Appendix
Troubleshooting
Troubleshooting
Power (Settings)
Problem Possible Cause and Solution Page
The instrument does not turn
on.
Check to see if the main connector of this instrument, AC adaptor, and power outlet
are properly connected.
P13
The instrument turned itself
o all of a sudden.
The instrument turned o by
itself.
Check to see if the “Auto Power O” function is not enabled. P50
The display turned o all of a
sudden.
When the time to turn o the display is specied in the “Auto Display O” function,
the display will automatically turn o after the preset time. Pressing any of the control
buttons will turn on the display again.
P50
▋ Sound/Performance
Problem Possible Cause and Solution Page
No sound is coming out. • Check to see whether the volume has been set to the lowest level.
• Check to see whether a pair of headphones or a headphone conversion plug have
been connected to the [PHONES] jacks.
• Check to see whether “Local Control” has been turned o.
P14
web manual
Sounds get distorted in certain
performances or at specic
ranges.
For some performances, increasing the volume may cause the sound to be distorted.
If this happens, reduce the volume.
P14
The pitch or sound quality of
certain piano tones is odd.
The built-in piano tones are designed to reproduce the tones created by an acoustic
grand piano as accurately as possible. Since the pianos produce a rich variety of res-
onance, the way the sound is perceived changes depending on the location or envi-
ronment. The way the sound is perceived also changes when a single key is pressed
and when the same key is pressed in the ow of a song. For this reason, strong over-
tones may be heard in some ranges, or the pitch and sound quality may seem odd.
But this is normal.
The volume is dierent for
each key.
Adjust the volume of keys as needed in the Key Volume setting. P60
Some keys are out of tune. Adjust these keys using User Tuning. P59
There is a noise or metallic
sound.
Adjust using Tone Control, Fall-back Noise, and/or Damper Noise. P48
P56
P55
Sound is mued, or piercing. Adjust using Topboard Simulation, Tone Control, Touch Curve, and/or Voicing. P48
P53
P54
There is a noise when releasing
keys.
Adjust Fall-back Noise and/or Key-o Eect. P56
P56
The high frequency notes
sustain longer even when the
damper pedal is not pressed.
This is normal.
The highest keys on an acoustic piano (shown below) are not equipped with the
sound suppressor dampers.
This instrument replicates this behaviour precisely and allows the sound of the keys
without dampers to sustain longer even when the damper pedal is not pressed.
No damper is attached
The pedal does not work at
all, or it does not produce the
same eect each time.
Check to see if the pedal cable is properly connected to the instrument. Even when
they are connected, try unplugging the cable and inserting it again to make sure.
80
Appendix
Troubleshooting
Problem Possible Cause and Solution Page
The pedals are unstable. Check that the adjustor is set to an appropriate height. P12
There is a noise when pressing
the pedal.
A sound of undamped strings occurs when the damper pedal is pressed regardless
of whether keys are pressed or not. This is not a fault.
▋ Connection
Problem Possible Cause and Solution Page
The instrument is unable to
connect to a smart device.
• Check to see if the instrument’s Bluetooth function is enabled.
• Use the application’s settings to connect, instead of the Bluetooth setting of the smart
device.
P78
Connection fails for the paired
smart device.
If the connection gets cut o immediately after pairing, turn o the Bluetooth setting
on the smart device and turn it back on, then try connecting the device again.
P78
The name of the piano does
not appear in the smart device.
It’s possible that another device is connected to the piano’s Bluetooth MIDI/Bluetooth
Audio. Press and hold the [LEFT] button and [EFFECTS] button on the Home screen to
cancel pairing.
P77
Unable to send recorded per-
formance of built-in songs.
Recorded performances of built-in songs will not output from Bluetooth MIDI.
▋ Playing back a song
Problem Possible Cause and Solution Page
The playback of a lesson song
does not start.
Select a song and then press the [PLAY/STOP] button. P37
No sound is coming out when
playing back a song (MP3 or
WAV).
Check that the volume of the USB Recorder is not 0.
Cannot play back songs saved
in a USB memory device.
The data format may be incompatible.
Transfer speed of the USB memory device may be too slow for playing back audio les.
Try another USB memory device that supports USB2.0 Hi-Speed.
P17
The volume of the MP3 or WAV
audio le is too quiet, or too
loud (distorted).
Adjust the recording level setting. P21
Unintended sound comes out
when playing back an SMF le.
No sound is coming out when
playing back an SMF le.
This instrument is not GM compatible.
Therefore, the le may be played with dierent sounds from GM devices or not played
at all depending on the sounds. This is not a fault.
81
Appendix
Internal Songs List
Internal Songs List
Sound/Demo Songs List
PIANO1
Piano 1
Sound Name Song Title Composer
SK-EX Competition Grand Piano | Concert Scherzo No.2 Chopin
EX Concert Grand Piano | Concert La Campanella Liszt
SK-5 Grand Piano | Classic Lieder Ohne Worte No.18 “Duetto” Mendelssohn
SK-EX Competition Grand Piano | Jazz Original Kawai
EX Concert Grand Piano | Standard Petit chien Chopin
SK-EX Competition Grand Piano | Mellow Sonata No.30 Op.109 Beethoven
EX Concert Grand Piano | Mellow La Fille aux Cheveux de lin Debussy
PIANO2
Piano 2
Sound Name Song Title Composer
Upright Piano | Classic Nocturne No. 20 Op. posth. Chopin
EX Concert Grand Piano | Pop Original Kawai
SK-5 Grand Piano | Pop — —
Upright Piano | Boogie — —
EX Concert Grand Piano | Modern Original Kawai
Upright Piano | Honky Tonk — —
E.PIANO
Electric Piano
Sound Name Song Title Composer
Tine Electric Piano Original Kawai
Reed Electric Piano — —
Modern Electric Piano Original Kawai
Tine Electric Piano 2 — —
Modern Electric Piano 2 Original Kawai
Clavi Original Kawai
ORGAN
Organ
Sound Name Song Title Composer
Jazz Organ Original Kawai
Blues Organ Original Kawai
Ballad Organ — —
Gospel Organ — —
Church Organ Chorale Prelude “Wachet auf, ruft uns die Stimme.” Bach
Diapason Wohl mir, daβ ich Jesum habe Bach
Diapason Octave — —
Principal Octave — —
HARPS I
Harpsi & Mallets
Sound Name Song Title Composer
Harpsichord French Suite No.6 Bach
Vibraphone Original Kawai
Marimba — —
Celesta — —
82
Appendix
Internal Songs List
STRINGS
Strings
Sound Name Song Title Composer
Slow Strings Original Kawai
String Pad Original Kawai
Warm Strings — —
String Ensemble Le quattro stagioni La primavera Vivaldi
PA D
Vocal & Pad
Sound Name Song Title Composer
Choir Londonderry Air Irish folk song
Choir 2 Original Kawai
New Age Pad Original Kawai
Atmosphere Original Kawai
BASS
Bass & Guitar
Sound Name Song Title Composer
Wood Bass Original Kawai
Electric Bass Original Kawai
Fretless Bass Original Kawai
Wood Bass & Ride Original Kawai
Ballad Guitar Original Kawai
Pick Nylon Guitar Original Kawai
83
Appendix
Drum Rhythm List
Drum Rhythm List
No. Rhythm Name
1 8 Beat 1
2 8 Beat 2
3 8 Beat 3
4 16 Beat 1
5 16 Beat 2
6 16 Beat 3
7 16 Beat 4
8 16 Beat 5
9 16 Beat 6
10 Rock Beat 1
11 Rock Beat 2
12 Rock Beat 3
13 Hard Rock
14 Heavy Beat
15 Surf Rock
16 2nd Line
17 50 Ways
18 Ballad 1
19 Ballad 2
20 Ballad 3
21 Ballad 4
22 Ballad 5
23 Light Ride 1
24 Light Ride 2
25 Smooth Beat
26 Rim Beat
27 Slow Jam
28 Pop 1
29 Pop 2
30 Electro Pop 1
31 Electro Pop 2
32 Ride Beat 1
33 Ride Beat 2
34 Ride Beat 3
35 Ride Beat 4
36 Slip Beat
37 Jazz Rock
38 Funky Beat 1
39 Funky Beat 2
40 Funky Beat 3
41 Funk 1
42 Funk 2
43 Funk 3
44 Funk Shue 1
45 Funk Shue 2
46 Buzz Beat
47 Disco 1
48 Disco 2
49 Hip Hop 1
50 Hip Hop 2
No. Rhythm Name
51 Hip Hop 3
52 Hip Hop 4
53 Techno 1
54 Techno 2
55 Techno 3
56 Heavy Techno
57 8 Shue 1
58 8 Shue 2
59 8 Shue 3
60 Boogie
61 16 Shue 1
62 16 Shue 2
63 16 Shue 3
64 T Shue
65 Triplet 1
66 Triplet 2
67 Triplet 3
68 Triplet 4
69 Triplet Ballad 1
70 Triplet Ballad 2
71 Triplet Ballad 3
72 Motown 1
73 Motown 2
74 Ride Swing
75 H.H. Swing
76 Jazz Waltz 1
77 Jazz Waltz 2
78 5/4 Swing
79 Fast 4 Beat
80 H.H. Bossa Nova
81 Ride Bossa Nova
82 Beguine
83 Mambo
84 Cha Cha
85 Samba
86 Light Samba
87 Surdo Samba
88 Latin Groove
89 Afro Cuban
90 Songo
91 Bembe
92 Merenge
93 Reggae
94 Tango
95 Habanera
96 Waltz
97 Ragtime
98 Country & Western
99 March
100
6/8 March
84
Appendix
Connecting to Other Devices
Connecting to Other Devices
This instrument features a variety of jacks that allow the instrument to be connected to MIDI devices,
computers, speakers, and mixers. It is also possible to connect external audio sources, such as an MP3
player, tablet, or a secondary keyboard, to the instrument’s amplier and speaker system. The illustration
below provides a visual overview of the connectors and their typical applications.
USB to HOST
PEDAL
DC IN 15V
Computer
Computer, etc.
Amplier, speaker, etc.
Other electronic music
instruments or CD player
Smart
device
• Turn o this instrument before connecting to other devices.
• Do not connect LINE IN and LINE OUT on this instrument directly with a cable. A noise will occur and may result in a failure
of the instrument.
85
Appendix
Connecting to Other Devices
USB drivers
For exchanging data between this digital piano and a computer via USB connection, the software (USB-MIDI driver) for the digital pi-
ano to function properly must be installed in the computer. On most modern operating systems, this driver software will be installed
automatically, and additional drivers will not be required.
The USB-MIDI driver to use is dierent depending on the computer’s operating system. For more information, please visit the Kawai
Global website:
https://www.kawai-global.com/support/manual
▋ Smart devices
This product supports connection to smart devices and allows players to use applications designed for the instrument.
Before using this feature, please check the latest information on the supported applications and operating environment, which is
available from the Kawai Global website:
https://www.kawai-global.com/support
▋ Notes on USB TO HOST
Bluetooth MIDI takes precedence if a Bluetooth MIDI device and a USB cable are connected at the same time.
When connecting the digital piano to a computer with a USB cable, insert the USB cable rst and then turn on the digital piano.
After connecting the digital piano to a computer via USB, it may take some time to establish communication between them.
If communication becomes unstable on the connection between the digital piano and the computer through a USB hub, connect
the USB cable directly to one of the computer’s USB ports.
Powering on/o the digital piano or plugging/unplugging the USB cable during any of the following situations may cause the
computer or digital piano to exhibit unstable behaviour:
- while installing the driver
- while restarting the computer
- while the MIDI application is running
- while communicating with the computer
- while the computer is in energy-saver mode
Only connect USB memory devices to the [USB to Device] port.
Connect the USB memory device directly, without using a USB extension cable.
Depending on the settings of the computer, the USB function may not work as intended. Please read the owner’s manual of the
computer and adjust the settings accordingly.
86
Appendix
Assembly Instructions
Assembly Instructions
The assembly requires two people.
When moving this product, make sure to keep it lifted in a horizontal orientation.
Be particularly careful to avoid catching hands and ngers in between parts.
▋ Checking the included parts
Before attempting to assemble this product, ensure that all the parts listed below are included. Please also prepare a Phillips-head
screwdriver.
AA
EE
BB
CC
DD
Main body
Pedal board
(including adjustor bolt)
Screw set Headphone hook set
AC adaptor Power cord
Back board
Side panels (left & right)
Screw (with at washer and spring washer) x 4
Headphone hook Mounting screw (4 x 14 mm) x 2
Tapping screw (long, black) (4 x 30mm) x 4 *
Tapping screw (short, black) (4 x 20mm) x 4 *
Tapping screw (silver) (4 x 16mm) x 4
*
The silver tapping screws are provided in a separate
bag.
* For some of the body colours, silver screws are provided
instead of black screws.
①
87
Appendix
Assembly Instructions
1. Attaching B and C to E
① Unfasten the pedal cable attached to E (one location only)
and extend the cable.
② Take the screws temporary mounted in E and set each one to
the metal groove of B and C, respectively.
③ Make sure that B and C are pressed against E without a gap.
Then, fasten the temporary mounting screws.
④ Insert the four silver tapping screws into the rest of the
holes. Tighten the screws to secure the panels in place.
B
E
③
②
d
B B
B B
E E
E
E
B
C
E
③
①
④
Pedal cable
Gaps
Temporary mounting screw
2. Attaching D
① Allow the E assembled with B and C to stand upright as
shown in the gure below.
Ensure that the adjustor is attached and the oor is
clear from parts or musical scores etc..
② Align the screw hole position of D to that of B and C. Use four
pieces of the long black tapping screws to set them in
place temporarily.
③ Align the screw hole position of D and E. Use four pieces of
the short black tapping screws to secure them in place.
④ Ensure that B and C are aligned with D without a gap, and
then fasten the temporarily mounted long black tapping
screws* to keep them in contact.
* For some of the body colours, silver screws are provid-
ed instead of black screws.
BB
CC
④
①
b
b
b
b
c
c
c
③
②
DD
c
Not aligned
Adjustor
①
88
Appendix
Assembly Instructions
3. Mounting A onto the stand
① Lift A and carefully place it onto the stand. Position A so that
the metal tting holes are visible on the front side of A when
viewed from above.
② Secure C in place. To prevent A from tilting and falling o,
hold the front side of A with one hand and slide A forwards.
The hook of A engages the metal tting of the side panel.
Be careful not to have hands or ngers caught between
A and the stand.
①
②
A
C
B
B
4. Fastening A to the stand
① Temporarily fasten A and the stand with four screws (with
at washer and spring washer).
② First, loosely fasten the screws
, and move A to the position
that allows the four screws go straight in. Then, even out the
left and right overhang.
③ Lastly, tighten the temporary fastened screws
until the
spring washer becomes at to ensure that A is rigidly at-
tached to the stand.
Make sure to fasten A to the stand using the screws.
Failure to do so could cause A to fall o from the stand,
which is extremely dangerous.
C
A
B
②
a
Front view
89
Appendix
Assembly Instructions
5. Connecting the cables
① Pass the pedal cable extended from E through the gap of D
to the rear side of the instrument and insert the cable to the
pedal connector on the bottom of A.
② Plug the AC adaptor into the power cord and insert it into
the [DC IN] jack.
③ Use the binders to secure the cables connected to B.
• Be careful with the orientation of the connector parts.
• Plug the connector straight in. Forcibly inserting it
could lead to a malfunction.
A
C
③
②
①
Insert the plug straight in at the correct angle. Avoid
applying excess force on it. Not doing so could bend
the pins or damage the plugs.
Keep the correct
angle
Do not bend Do not pull
the cable
6. Attaching the headphone hook
Attach the headphone hook to the hole shown in the gure,
using the two tapping screws (4 x 14 mm) provided in the
same bag.
7. Rotating the adjustor
Make sure to rotate the adjustor on the rear side of E until the
adjustor touches the oor. Depending on the material and
condition of the oor, stepping on the pedal may generate
frictional noises between the pedal and the oor. If this hap-
pens, please use a felt or carpet pad between the oor and
the adjustor to ll the gap.
Using the instrument with the adjustor lifted o the
oor or forcibly pressed against the oor could cause
the pedal base to break.
When moving the instrument, make sure to lift it o
from the oor without dragging it.
90
Appendix
Information about Adaptor Specications
Information about Adaptor Specications
This adapter specication table conforms to the requirements of EU Commission Regulation (EU)
2019/1782.
Adaptor Type
PS-129 PS-154 PS-241 PS-242
Manufacturer’s trademark KAWAI KAWAI KAWAI KAWAI
Model identier PS-129 PS-154 PS-241 PS-242
Input voltage 230 V 230 V 230 V 230 V
Input AC frequency 50 Hz 50 Hz 50 Hz 50 Hz
Output voltage 12.0 V 15.0 V 24.0 V 24.0 V
Output current 2.0 A 4.0 A 6.2 A 5.0 A
Output power 24.0 W 60.0 W 150.0 W 120.0 W
Average active eciency 90.38% 90.17% 90.41% 91.55%
Eciency at low load (10%) 85.71% 85.13% 78.62% 88.84%
No-load power consumption 0.061 W 0.200W 0.135 W 0.020 W
91
Appendix
EU Declaration of Conformity
SV
Swedish
FÖRENKLAD EU-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
Härmed försäkrar Kawai Europa GmbH att denna typ av radioutrustning [ CA501 ] överensstämmer med direktiv 2014/53/
EU. Den fullständiga texten till EU-försäkran om överensstämmelse nns på följande webbadress:
https://www.kawai-global.com/
Slovenian
FI
Finnish
YKSINKERTAISTETTU EU-VAATIMUSTENMUKAISUUSVAKUUTUS
Kawai Europa GmbH vakuuttaa, että radiolaitetyyppi [ CA501 ] on direktiivin 2014/53/EU mukainen.
EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa
SK
Slovak
ZJEDNODUŠENÉ EÚ VYHLÁSENIE O ZHODE
Kawai Europa GmbH týmto vyhlasuje, že rádiové zariadenie typu [ CA501 ] je v súlade so smernicou 2014/53/
EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese:
SL
POENOSTAVLJENA IZJAVA EU O SKLADNOSTI
Kawai Europa GmbH potrjuje, da je tip radijske opreme [ CA501 ] skladen z Direktivo 2014/53/EU.
Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu:
Portuguese
RO
Romanian
DECLARAȚIA UE DE CONFORMITATE SIMPLIFICATĂ
Prin prezenta, Kawai Europa GmbH declară că tipul de echipamente radio [ CA501 ] este în conformitate cu Directiva 2014/53/
UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet:
PL
Polish
UPROSZCZONA DEKLARACJA ZGODNOŚCI UE
Kawai Europa GmbH niniejszym oświadcza, że typ urządzenia radiowego [ CA501 ] jest zgodny z dyrektywą 2014/53/UE.
Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym:
PT
DECLARAÇÃO UE DE CONFORMIDADE SIMPLIFICADA
O(a) abaixo assinado(a) Kawai Europa GmbH declara que o presente tipo de equipamento de rádio [ CA501 ] está em conformidade com a Diretiva 2014/53/
UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet:
Maltese
NL
Dutch
VEREENVOUDIGDE EU-CONFORMITEITSVERKLARING
Hierbij verklaar ik, Kawai Europa GmbH, dat het type radioapparatuur [ CA501 ] conform is met Richtlijn 2014/53/EU.
De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres:
HU
Hungarian
EGYSZERŰSÍTETT EU-MEGFELELŐSÉGI NYILATKOZAT
Kawai Europa GmbH igazolja, hogy a [ CA501 ] típusú rádióberendezés megfelel a 2014/53/EU
irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen:
MT
DIKJARAZZJONI SSIMPLIFIKATA TA' KONFORMITÀ TAL-UE
B'dan, Kawai Europa GmbH, niddikjara li dan it-tip ta' tagħmir tar-radju [ CA501 ] huwa konformi mad-Direttiva 2014/53/UE. It-
test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej:
Latvian
LT
Lithuanian
SUPAPRASTINTA ES ATITIKTIES DEKLARACIJA
Aš, Kawai Europa GmbH, patvirtinu, kad radijo įrenginių tipas [ CA501 ] atitinka Direktyvą 2014/53/ES.
Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu:
IT
Italian
DICHIARAZIONE DI CONFORMITÀ UE SEMPLIFICATA
Il fabbricante, Kawai Europa GmbH, dichiara che il tipo di apparecchiatura radio [ CA501 ] è conforme alla direttiva 2014/53/UE. Il
testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet:
LV
VIENKĀRŠOTA ES ATBILSTĪBAS DEKLARĀCIJA
Ar šo Kawai Europa GmbH deklarē, ka radioiekārta [ CA501 ] atbilst Direktīvai 2014/53/ES. Pilns
ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē:
French
HR
Croatian
POJEDNOSTAVLJENA EU IZJAVA O SUKLADNOSTI
Kawai Europa GmbH ovime izjavljuje da je radijska oprema tipa [ CA501 ] u skladu s Direktivom 2014/53/
EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljede?oj internetskoj adresi:
EN
English
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Kawai Europa GmbH declares that the radio equipment type [ CA501 ] is in compliance with Directive 2014/53/
EU. The full text of the EU declaration of conformity is available at the following internet address:
FR
DECLARATION UE DE CONFORMITE SIMPLIFIEE
Le soussigné, Kawai Europa GmbH, déclare que l'équipement radioélectrique du type [ CA501 ] est conforme à la directive 201
4/53/
UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante:
Estonian
EL
Greek
ΑΠΛΟΥΣΤΕΥΜΕΝΗ ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ ΕΕ
Με την παρούσα ο/η Kawai Europa GmbH, δηλώνει ότι ο ραδιοεξοπλισμός [ CA501 ] πληροί την οδηγία 2014/53/ΕΕ.
Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:
DE
German
VEREINFACHTE EU-KONFORMITÄTSERKLÄRUNG
Hiermit erklärt Kawai Europa GmbH, dass der Funkanlagentyp [ CA501 ] der Richtlinie 2014/53/EU
entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse
verfügbar:
ET
LIHTSUSTATUD ELI VASTAVUSDEKLARATSIOON
Käesolevaga deklareerib Kawai Europa GmbH, et käesolev raadioseadme tüüp [ CA501 ] vastab direktiivi 2014/53/EL
nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil:
Czech
DA
Danish
FORENKLET EU-OVERENSSTEMMELSESERKLÆRING
Hermed erklærer Kawai Europa GmbH, at radioudstyrstypen [ CA501 ] er i overensstemmelse med direktiv 2014/53/
EU. EU-overensstemmelseserklæringens fulde tekst kan ndes på følgende internetadresse:
ES
Spanish
DECLARACIÓN UE DE CONFORMIDAD SIMPLIFICADA
Por la presente, Kawai Europa GmbH declara que el tipo de equipo radioeléctrico [ CA501 ] es conforme con la Directiva 2014/53/UE.
El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente:
CS
ZJEDNODUŠENÉ EU PROHLÁŠENÍ O SHODĚ
Tímto Kawai Europa GmbH prohlašuje, že typ rádiového zařízení [ CA501 ] je v souladu se směrnicí 2014/53/EU. Úplné
znění EU prohlášení o shodě je k dispozici na této internetové adrese:
EU Declaration of Conformity
BG
Bulgarian
ОПРОСТЕНА ЕС ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ
С настоящото Kawai Europa GmbH декларира, че този тип радиосъоръжение [ CA501 ] е в съответствие с Директива
2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес:
EU Declaration of Conformity
92
Appendix
Specications
Specications
Keyboard
Grand Feel Compact with Let-O, Triple Sensor, and Counterweights 88 wooden keys with
Ivory Touch key surfaces
Display
128 × 64 dots OLED
Polyphony
max. 256 notes
Sounds
45 sounds
P81
Metronome
1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, 12/8 beat + 100 drum rhythms
Internal Recorder
10 song, 2 track recorder – approximately 90,000 note memory capacity
USB Recorder
Playing back: MP3 (bitrate: 8 to 320 kbit/s, sampling frequency: 44.1 kHz, 48 kHz, or 32 kHz),
WAV (44.1 kHz, 16 bit), SMF, KSO (internal song le)
Internal Songs
Demo Songs: 33 songs
Piano Music: 29 or 42 songs
Concert Magic: 176 songs
Virtual Technician
Touch Curve, Voicing, Damper Resonance, Damper Noise, String Resonance,
Undamped String Resonance, Cabinet Resonance, Key-o Eect, Fall-back Noise,
Hammer Noise, Hammer Delay, Topboard Simulation, Decay Time, Release Time,
Minimum Touch, Stretch Tuning/User Tuning, Temperament, Temperament Key,
Key Volume, Half-Pedal Adjust, Soft Pedal Depth
Phones Settings
Spatial Headphone Sound (SHS), Phones Type, Phones Volume
Bluetooth®
MIDI: Bluetooth (Ver. 5.0 GATT-compatible) / Bluetooth Low Energy MIDI
Specication-compliant
AUDIO: Bluetooth (Ver. 5.1 A2DP-compatible)
Other Functions
Reverb, Eects, Dual, Split, Four Hands, Registration Memories, Panel Lock, Key Transpose,
Song Transpose, Tone Control, Speaker Volume, Low Volume Balance, Tuning, Damper Hold,
Startup Setting, Factory Reset, Auto Display O, Auto Power O, MIDI Settings, USB Menu
Pedals
Sustain (with half-pedal support), Soft (with half-pedal support), Sostenuto
Key Cover
Sliding type
Jacks
Headphones x 2 (1/4”, 1/8”), LINE OUT (1/4” L/MONO, R), LINE IN (1/4” L/MONO, R)
USB to Host, USB to Device
Output Power
50 W + 50 W
Speakers
13 cm x 2 (woofer)
(8 x 12) cm x 2 (top speaker)
Power Consumption
30 W (242 AC adaptor)
Dimensions
(Folding music rest)
1425 (W) × 485 (D) × 930 (H) mm
56 ” (W) × 19 ” (D) × 36 ⁄” (H)
Weight
66 kg / 145 ½ lbs.
* The specications and included products are subject to change without notice for improvement purposes.
* Availability of Bluetooth function dependent on market location.
2
Important Safety Instructions
Important Information
Important Safety Instructions
Be sure to read these Safety Precautions carefully before using this instrument to ensure correct use.
When using this electronic musical instrument, please observe the following precautions for safety.
When this instrument is used by small children, please ensure safe use under the supervision of a parent.
▋ Warnings, cautions, and symbols have the following meanings.
denotes that care (precaution) should be taken.
denotes a prohibited operation (an operation
that must not be done).
denotes an instruction (an operation that should
be carried out) or indicative notice.
WARNING
Describes a potential hazard that could result in death or serious injury if the indication
is ignored and this instrument is handled incorrectly.
Doing so may cause a electric shock, re, injury fall, damage, or breakdown .
The product should be connected to an
AC outlet of the speci ed voltage.
The included power cord and AC adap-
tor are only for use with this instrument.
Do not forcibly bend, place a heavy ob-
ject on, bring a high-temperature object
close to, or damage the power cord and
AC adapter cord.
Do not bring the AC adaptor close to a
hightemperature object or use in a man-
ner that heat accumulates.
If dust accumulates on the power plug,
wipe it clean with a cloth.
When any of the following cases occur,
this instrument may have broken down.
In such a case, do not use this instru-
ment, keep the power cord disconnect-
ed from the outlet, and contact the shop
from which the product was purchased.
1. Foreign objects fell into the instrument.
2. Water was spilled into the instrument.
3. Some parts of the instrument or accessory be-
came abnormally hot.
4. Unusual smell or smoke occurred.
Do not
disassemble
Do not disassemble, repair, or modify
this instrument.
When disconnecting the power cord
plug, always hold the plug and pull out.
Disconnect the power cord during light-
ning storms or when this instrument is
unused for long periods of time.
Should an abnormality occur in this in-
strument, immediately turn the power
o and disconnect the power plug from
the outlet.
No wet hands
Do not insert or pull out the power plug
with wet hands.
No water
Do not get this instrument wet.
Copyright © 2022 Kawai Musical Instruments Mfg. Co.,Ltd. All Rights Reserved.
SP00001784-R100
