NEC NP-P502H REPLACED BY NP-P554W 5000-lumen Professional User Manual

Projector

P502H/P452H

P502W/P452W

User’s Manual

Model No.

NP-P502H, NP-P452H, NP-P502W, NP-P452W

Ver. 1 10/15

•฀Apple,฀Mac,฀Mac฀OS,฀MacBook,฀and฀iMac฀are฀trademarks฀of฀Apple฀Inc.฀registered฀in฀the฀U.S.฀and฀other฀countries.

•฀App฀Store฀is฀a฀service฀mark฀of฀Apple฀Inc.

•฀IOS฀is฀a฀trademark฀or฀registered฀trademark฀of฀Cisco฀in฀the฀U.S.฀and฀other฀countries฀and฀is฀used฀under฀license.

•฀Microsoft,฀Windows,฀Windows฀Vista,฀Internet฀Explorer,฀.NET฀Framework฀and฀PowerPoint฀are฀either฀a฀registered฀

trademark฀or฀trademark฀of฀Microsoft฀Corporation฀in฀the฀United฀States฀and/or฀other฀countries.

•฀MicroSaver฀is฀a฀registered฀trademark฀of฀Kensington฀Computer฀Products฀Group,฀a฀division฀of฀ACCO฀Brands.

•฀Virtual฀Remote฀Tool฀uses฀WinI2C/DDC฀library,฀©฀Nicomsoft฀Ltd.

•฀The฀terms฀HDMI฀and฀HDMI฀High-Denition฀Multimedia฀Interface,฀and฀the฀HDMI฀Logo฀are฀trademarks฀or฀registered฀

trademarks฀of฀HDMI฀Licensing฀LLC฀in฀the฀United฀States฀and฀other฀countries.

•฀HDBaseT™฀is฀a฀trademark฀of฀HDBaseT฀Alliance.

•฀DLP฀is฀a฀trademark฀of฀Texas฀Instruments.

•฀Trademark฀PJLink฀is฀a฀trademark฀applied฀for฀trademark฀rights฀in฀Japan,฀the฀United฀States฀of฀America฀and฀other฀

countries฀and฀areas.

•฀Wi-Fi

,฀Wi-Fi฀Alliance

,฀Wi-Fi฀Protected฀Access

,฀Wi-Fi฀Direct

฀are฀registered฀trademarks฀of฀the฀Wi-Fi฀Alliance

WPA™,฀WPA2™,฀Wi-Fi฀Protected฀Setup™,฀Miracast™฀are฀trademarks฀of฀the฀Wi-Fi฀Alliance

•฀Blu-ray฀is฀a฀trademark฀of฀Blu-ray฀Disc฀Association

•฀CRESTRON฀and฀ROOMVIEW฀are฀registered฀trademarks฀of฀Crestron฀Electronics,฀Inc.฀in฀the฀United฀States฀and฀other฀

countries.

•฀Ethernet฀is฀either฀a฀registered฀trademark฀or฀trademark฀of฀Fuji฀Xerox฀Co.,฀Ltd.

•฀Google฀Play฀and฀Android฀are฀trademarks฀of฀Google฀Inc.

•฀Other฀product฀names฀and฀company฀logos฀mentioned฀in฀this฀user’s฀manual฀may฀be฀the฀trademarks฀or฀registered฀

trademarks฀of฀their฀respective฀holders.

•฀GPL/LGPL฀Software฀Licenses

฀The฀product฀includes฀software฀licensed฀under฀GNU฀General฀Public฀License฀(GPL),฀GNU฀Lesser฀General฀Public฀

License฀(LGPL),฀and฀others.

฀For฀more฀information฀on฀each฀software,฀see฀“readme.pdf”฀inside฀the฀“about฀GPL&LGPL”฀folder฀on฀the฀supplied฀CD-

ROM.

NOTES

(1)฀The฀contents฀of฀this฀user’s฀manual฀may฀not฀be฀reprinted฀in฀part฀or฀whole฀without฀permission.

(2)฀The฀contents฀of฀this฀user’s฀manual฀are฀subject฀to฀change฀without฀notice.

(3)฀Great฀care฀has฀been฀taken฀in฀the฀preparation฀of฀this฀user’s฀manual;฀however,฀should฀you฀notice฀any฀questionable฀

points,฀errors฀or฀omissions,฀please฀contact฀us.

(4)฀Notwithstanding฀article฀(3),฀NEC฀will฀not฀be฀responsible฀for฀any฀claims฀on฀loss฀of฀prot฀or฀other฀matters฀deemed฀

to฀result฀from฀using฀the฀Projector.

Important Information

Safety Cautions

Precautions

Please฀read฀this฀manual฀carefully฀before฀using฀your฀NEC฀projector฀and฀keep฀the฀manual฀handy฀for฀future฀reference.

CAUTION

To฀turn฀off฀main฀power,฀be฀sure฀to฀remove฀the฀plug฀from฀power฀outlet.

The฀power฀outlet฀socket฀should฀be฀installed฀as฀near฀to฀the฀equipment฀as฀possible,฀and฀should฀be฀easily฀

accessible.

CAUTION

TO฀PREVENT฀SHOCK,฀DO฀NOT฀OPEN฀THE฀CABINET.

THERE฀ARE฀HIGH-VOLTAGE฀COMPONENTS฀INSIDE.

REFER฀SERVICING฀TO฀QUALIFIED฀SERVICE฀PERSONNEL.

This฀symbol฀warns฀the฀user฀that฀uninsulated฀voltage฀within฀the฀unit฀may฀be฀sufcient฀to฀cause฀electrical฀

shock.฀Therefore,฀it฀is฀dangerous฀to฀make฀any฀kind฀of฀contact฀with฀any฀part฀inside฀of฀the฀unit.

This฀symbol฀alerts฀the฀user฀that฀important฀information฀concerning฀the฀operation฀and฀maintenance฀of฀this฀

unit฀has฀been฀provided.

The฀information฀should฀be฀read฀carefully฀to฀avoid฀problems.

WARNING:฀TO฀PREVENT฀FIRE฀OR฀SHOCK,฀DO฀NOT฀EXPOSE฀THIS฀UNIT฀TO฀RAIN฀OR฀MOISTURE.

DO฀NOT฀USE฀THIS฀UNIT’S฀PLUG฀WITH฀AN฀EXTENSION฀CORD฀OR฀IN฀AN฀OUTLET฀UNLESS฀ALL฀THE฀PRONGS฀

CAN฀BE฀FULLY฀INSERTED.

DOC Compliance Notice (for Canada only)

This฀Class฀B฀digital฀apparatus฀complies฀with฀Canadian฀ICES-003.

Machine Noise Information Regulation - 3. GPSGV,

The฀highest฀sound฀pressure฀level฀is฀less฀than฀70฀dB฀(A)฀in฀accordance฀with฀EN฀ISO฀7779.

Disposing of your used product

EU-wide฀legislation฀as฀implemented฀in฀each฀Member฀State฀requires฀that฀used฀electrical฀and฀electronic฀prod-

ucts฀carrying฀the฀mark฀(left)฀must฀be฀disposed฀of฀separately฀from฀normal฀household฀waste.฀This฀includes฀

projectors฀and฀their฀electrical฀accessories.฀When฀you฀dispose฀of฀such฀products,฀please฀follow฀the฀guidance฀

of฀your฀local฀authority฀and/or฀ask฀the฀shop฀where฀you฀purchased฀the฀product.

After฀collecting฀the฀used฀products,฀they฀are฀reused฀and฀recycled฀in฀a฀proper฀way.฀This฀effort฀will฀help฀us฀reduce฀

the฀wastes฀as฀well฀as฀the฀negative฀impact฀to฀the฀human฀health฀and฀the฀environment฀at฀the฀minimum฀level.

The฀mark฀on฀the฀electrical฀and฀electronic฀products฀only฀applies฀to฀the฀current฀European฀Union฀Member฀States.

For EU:฀The฀crossed-out฀wheeled฀bin฀implies฀that฀used฀batteries฀should฀not฀be฀put฀to฀the฀general฀household฀

waste!฀There฀is฀a฀separate฀collection฀system฀for฀used฀batteries,฀to฀allow฀proper฀treatment฀and฀recycling฀in฀

accordance฀with฀legislation.

According the EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be sepa-

rated to collect by local service.

Important Information

WARNING TO CALIFORNIA RESIDENTS:

Handling฀the฀cables฀supplied฀with฀this฀product฀will฀expose฀you฀to฀lead,฀a฀chemical฀known฀to฀the฀State฀of฀California฀

to฀cause฀birth฀defects฀or฀other฀reproductive฀harm.฀WASH฀HANDS฀AFTER฀HANDLING.

RF Interference (for USA only)

WARNING

The฀Federal฀Communications฀Commission฀does฀not฀allow฀any฀modications฀or฀changes฀to฀the฀unit฀EXCEPT฀those฀

specied฀by฀NEC฀Display฀Solutions฀of฀America,฀Inc.฀in฀this฀manual.฀Failure฀to฀comply฀with฀this฀government฀regu-

lation฀could฀void฀your฀right฀to฀operate฀this฀equipment.฀This฀equipment฀has฀been฀tested฀and฀found฀to฀comply฀with฀

the฀limits฀for฀a฀Class฀B฀digital฀device,฀pursuant฀to฀Part฀15฀of฀the฀FCC฀Rules.฀These฀limits฀are฀designed฀to฀provide฀

reasonable฀protection฀against฀harmful฀interference฀in฀a฀residential฀installation.฀This฀equipment฀generates,฀uses,฀and฀

can฀radiate฀radio฀frequency฀energy฀and,฀if฀not฀installed฀and฀used฀in฀accordance฀with฀the฀instructions,฀may฀cause฀

harmful฀interference฀to฀radio฀communications.฀However,฀there฀is฀no฀guarantee฀that฀interference฀will฀not฀occur฀in฀a฀

particular฀installation.

If฀this฀equipment฀does฀cause฀harmful฀interference฀to฀radio฀or฀television฀reception,฀which฀can฀be฀determined฀by฀

turning฀the฀equipment฀off฀and฀on,฀the฀user฀is฀encouraged฀to฀try฀to฀correct฀the฀interference฀by฀one฀or฀more฀of฀the฀

following฀measures:

•฀Reorient฀or฀relocate฀the฀receiving฀antenna.

•฀Increase฀the฀separation฀between฀the฀equipment฀and฀receiver.

•฀Connect฀the฀equipment฀into฀an฀outlet฀on฀a฀circuit฀different฀from฀that฀to฀which฀the฀receiver฀is฀connected.

•฀Consult฀the฀dealer฀or฀an฀experienced฀radio฀/฀TV฀technician฀for฀help.

For฀UK฀only:฀In฀UK,฀a฀BS฀approved฀power฀cord฀with฀moulded฀plug฀has฀a฀Black฀(ve฀Amps)฀fuse฀installed฀for฀use฀with฀

this฀equipment.฀If฀a฀power฀cord฀is฀not฀supplied฀with฀this฀equipment฀please฀contact฀your฀supplier.

Important Safeguards

These฀safety฀instructions฀are฀to฀ensure฀the฀long฀life฀of฀your฀projector฀and฀to฀prevent฀re฀and฀shock.฀Please฀read฀them฀

carefully฀and฀heed฀all฀warnings.

Installation

•฀Do฀not฀place฀the฀projector฀in฀the฀following฀conditions:

-฀Outdoors

-฀on฀an฀unstable฀cart,฀stand,฀or฀table.

-฀near฀water,฀baths,฀or฀damp฀rooms.

-฀in฀direct฀sunlight,฀near฀heaters,฀or฀heat฀radiating฀appliances.

-฀in฀a฀dusty,฀smoky฀or฀steamy฀environment.฀

-฀on฀a฀sheet฀of฀paper฀or฀cloth,฀rugs฀or฀carpets.

•฀Do฀not฀install฀and฀store฀the฀projector฀in฀the฀below฀circumstances.฀Failure฀to฀do฀so฀may฀cause฀of฀malfunction.

-฀In฀powerful฀magnetic฀elds.

-฀In฀corrosive฀gas฀environment.

•฀If฀you฀wish฀to฀have฀the฀projector฀installed฀on฀the฀ceiling:

-฀Do฀not฀attempt฀to฀install฀the฀projector฀yourself.

-฀The฀projector฀must฀be฀installed฀by฀qualied฀technicians฀in฀order฀to฀ensure฀proper฀operation฀and฀reduce฀the฀risk฀

of฀bodily฀injury.

-฀In฀addition,฀the฀ceiling฀must฀be฀strong฀enough฀to฀support฀the฀projector฀and฀the฀installation฀must฀be฀in฀accordance฀

with฀any฀local฀building฀codes.

-฀Please฀consult฀your฀dealer฀for฀more฀information.

iii

Important Information

WARNING

•฀Do฀not฀cover฀the฀lens฀with฀the฀lens฀cap฀or฀equivalent฀while฀the฀projector฀is฀on.฀Doing฀so฀can฀lead฀to฀melting฀of฀

the฀cap฀due฀to฀the฀heat฀emitted฀from฀the฀light฀output.฀

•฀Do฀not฀place฀any฀objects,฀which฀are฀easily฀affected฀by฀heat,฀in฀front฀of฀the฀projector฀lens.฀Doing฀so฀could฀lead฀

to฀the฀object฀melting฀from฀the฀heat฀that฀is฀emitted฀from฀the฀light฀output.

•฀Do฀not฀spray฀ammable฀gas฀to฀get฀rid฀of฀dust฀and฀dirt฀that฀accumulate฀on฀the฀lens฀and฀the฀lters.฀Doing฀so฀could฀

cause฀a฀re.

Place the projector in a horizontal position

The฀tilt฀angle฀of฀the฀projector฀should฀not฀exceed฀4฀degrees,฀nor฀should฀the฀projector฀be฀installed฀in฀any฀way฀other฀than฀

the฀desktop฀and฀ceiling฀mount,฀otherwise฀lamp฀life฀could฀decrease฀dramatically.

Fire and Shock Precautions

•฀Ensure฀that฀there฀is฀sufcient฀ventilation฀and฀that฀vents฀are฀unobstructed฀to฀prevent฀the฀build-up฀of฀heat฀inside฀your฀

projector.฀Allow฀at฀least฀4฀inches฀(10cm)฀of฀space฀between฀your฀projector฀and฀a฀wall.

•฀Do฀not฀try฀to฀touch฀the฀exhaust฀vents฀on฀the฀right฀side฀(when฀seen฀from฀the฀front)฀as฀it฀can฀become฀heated฀while฀the฀

projector฀is฀turned฀on฀and฀immediately฀after฀the฀projector฀is฀turned฀off.฀Parts฀of฀the฀projector฀may฀become฀temporarily฀

heated฀if฀the฀projector฀is฀turned฀off฀with฀the฀POWER฀button.฀

฀Use฀caution฀when฀picking฀up฀the฀projector.

•฀Prevent฀foreign฀objects฀such฀as฀paper฀clips฀and฀bits฀of฀paper฀from฀falling฀into฀your฀projector.฀Do฀not฀attempt฀to฀retrieve฀

any฀objects฀that฀might฀fall฀into฀your฀projector.฀Do฀not฀insert฀any฀metal฀objects฀such฀as฀a฀wire฀or฀screwdriver฀into฀your฀

projector.฀If฀something฀should฀fall฀into฀your฀projector,฀disconnect฀it฀immediately฀and฀have฀the฀object฀removed฀by฀a฀

qualied฀service฀personnel.

•฀Do฀not฀place฀any฀objects฀on฀top฀of฀the฀projector.

•฀Do฀not฀touch฀the฀power฀plug฀during฀a฀thunderstorm.฀Doing฀so฀can฀cause฀electrical฀shock฀or฀re.

•฀The฀projector฀is฀designed฀to฀operate฀on฀a฀power฀supply฀of฀100-240V฀AC฀50/60฀Hz.฀Ensure฀that฀your฀power฀supply฀

ts฀this฀requirement฀before฀attempting฀to฀use฀your฀projector.

•฀Do฀not฀look฀into฀the฀lens฀while฀the฀projector฀is฀on.฀Serious฀damage฀to฀your฀eyes฀could฀result.

•฀Keep฀any฀items฀such฀as฀magnifying฀glass฀out฀of฀the฀light฀path฀of฀the฀projector.฀The฀light฀being฀projected฀from฀the฀

lens฀is฀extensive,฀therefore฀any฀kind฀of฀abnormal฀objects฀that฀can฀redirect฀light฀coming฀out฀of฀the฀lens,฀can฀cause฀

unpredictable฀outcome฀such฀as฀re฀or฀injury฀to฀the฀eyes.

•฀Do฀not฀place฀any฀objects,฀which฀are฀easily฀affected฀by฀heat,฀in฀front฀of฀a฀projector฀exhaust฀vent.

฀Doing฀so฀could฀lead฀to฀the฀object฀melting฀or฀getting฀your฀hands฀burned฀from฀the฀heat฀that฀is฀emitted฀from฀the฀exhaust฀

vent.

Important Information

•฀Do฀not฀splash฀water฀over฀the฀projector.฀Doing฀so฀can฀cause฀electrical฀shock฀or฀re.฀If฀the฀projector฀gets฀wet,฀turn฀off฀

the฀projector,฀unplug฀the฀power฀cord฀and฀have฀the฀projector฀serviced฀by฀a฀qualied฀service฀personnel.

•฀Handle฀the฀power฀cord฀carefully.฀A฀damaged฀or฀frayed฀power฀cord฀can฀cause฀electric฀shock฀or฀re.

-฀Do฀not฀use฀any฀power฀cord฀other฀than฀the฀one฀supplied฀with฀the฀projector.

-฀Do฀not฀bend฀or฀tug฀the฀power฀cord฀excessively.

-฀Do฀not฀place฀the฀power฀cord฀under฀the฀projector,฀or฀any฀heavy฀object.

-฀Do฀not฀cover฀the฀power฀cord฀with฀other฀soft฀materials฀such฀as฀rugs.

-฀Do฀not฀heat฀the฀power฀cord.

-฀Do฀not฀handle฀the฀power฀plug฀with฀wet฀hands.

•฀Turn฀off฀the฀projector,฀unplug฀the฀power฀cord฀and฀have฀the฀projector฀serviced฀by฀a฀qualied฀service฀personnel฀under฀

the฀following฀conditions:

-฀When฀the฀power฀cord฀or฀plug฀is฀damaged฀or฀frayed.

-฀If฀liquid฀has฀been฀spilled฀into฀the฀projector,฀or฀if฀it฀has฀been฀exposed฀to฀rain฀or฀water.฀

-฀If฀the฀projector฀does฀not฀operate฀normally฀when฀you฀follow฀the฀instructions฀described฀in฀this฀user’s฀manual.

-฀If฀the฀projector฀has฀been฀dropped฀or฀the฀cabinet฀has฀been฀damaged.

-฀If฀the฀projector฀exhibits฀a฀distinct฀change฀in฀performance,฀indicating฀a฀need฀for฀service.

•฀Disconnect฀the฀power฀cord฀and฀any฀other฀cables฀before฀carrying฀the฀projector.

•฀Turn฀off฀the฀projector฀and฀unplug฀the฀power฀cord฀before฀cleaning฀the฀cabinet฀or฀replacing฀the฀lamp.

•฀Turn฀off฀the฀projector฀and฀unplug฀the฀power฀cord฀if฀the฀projector฀is฀not฀to฀be฀used฀for฀an฀extended฀period฀of฀time.

•฀When฀using฀a฀LAN฀cable:

฀For฀safety,฀do฀not฀connect฀to฀the฀terminal฀for฀peripheral฀device฀wiring฀that฀might฀have฀excessive฀voltage.

CAUTION

•฀Do฀not฀use฀the฀tilt-foot฀for฀purposes฀other฀than฀originally฀intended.฀Misuses฀such฀as฀gripping฀the฀tilt-foot฀or฀hang-

ing฀on฀the฀wall฀can฀cause฀damage฀to฀the฀projector.

•฀Do฀not฀send฀the฀projector฀in฀the฀soft฀case฀by฀parcel฀delivery฀service฀or฀cargo฀shipment.฀The฀projector฀inside฀the฀

soft฀case฀could฀be฀damaged.

•฀Select฀[HIGH]฀in฀Fan฀mode฀if฀you฀continue฀to฀use฀the฀projector฀for฀consecutive฀days.฀(From฀the฀menu,฀select฀

[SETUP]฀→฀[OPTIONS(1)]฀→฀[FAN฀MODE]฀→฀[HIGH].)

•฀Do฀not฀turn฀off฀the฀AC฀power฀for฀60฀seconds฀after฀the฀lamp฀is฀turned฀on฀and฀while฀the฀POWER฀indicator฀is฀blink-

ing฀blue.฀Doing฀so฀could฀cause฀premature฀lamp฀failure.

Remote Control Precautions

•฀Handle฀the฀remote฀control฀carefully.

•฀If฀the฀remote฀control฀gets฀wet,฀wipe฀it฀dry฀immediately.

•฀Avoid฀excessive฀heat฀and฀humidity.

•฀Do฀not฀short,฀heat,฀or฀take฀apart฀batteries.

•฀Do฀not฀throw฀batteries฀into฀re.

•฀If฀you฀will฀not฀be฀using฀the฀remote฀control฀for฀a฀long฀time,฀remove฀the฀batteries.

•฀Ensure฀that฀you฀have฀the฀batteries’฀polarity฀(+/−)฀aligned฀correctly.

•฀Do฀not฀use฀new฀and฀old฀batteries฀together,฀or฀use฀different฀types฀of฀batteries฀together.

•฀Dispose฀of฀used฀batteries฀according฀to฀your฀local฀regulations.

Note for Canadian Environmental Protection Act, 1999

The฀lamp(s)฀in฀this฀product฀contains฀mercury.฀Please฀dispose฀according฀to฀your฀local฀authority฀law.

FOR฀MORE฀INFORMATION,฀CONTACT:

NEC฀Display฀Solutions฀of฀America,฀Inc.

500฀Part฀Boulevard,฀Suite฀1100,฀Itasca,฀Illinois฀60143-1248

TELEPHONE฀800-836-0655

www.necdisplay.com

Important Information

Note for US Residents

The฀lamp฀in฀this฀product฀contains฀mercury.฀Please฀dispose฀according฀to฀Local,฀State฀or฀Federal฀Laws.

Lamp Replacement

•฀Use฀the฀specied฀lamp฀for฀safety฀and฀performance.

•฀To฀replace฀the฀lamp,฀follow฀all฀instructions฀provided฀on฀page฀

118.

•฀Be฀sure฀to฀replace฀the฀lamp฀when฀the฀message฀[THE LAMP HAS REACHED THE END OF ITS USABLE LIFE.

PLEASE REPLACE THE LAMP.]฀appears.฀If฀you฀continue฀to฀use฀the฀lamp฀after฀the฀lamp฀has฀reached฀the฀end฀of฀

its฀usable฀life,฀the฀lamp฀bulb฀may฀shatter,฀and฀pieces฀of฀glass฀may฀be฀scattered฀in฀the฀lamp฀case.฀Do฀not฀touch฀them฀

as฀the฀pieces฀of฀glass฀may฀cause฀injury.

฀If฀this฀happens,฀contact฀your฀dealer฀for฀lamp฀replacement.

A Lamp Characteristic

The฀projector฀has฀a฀discharge฀lamp฀for฀special฀purposes฀as฀a฀light฀source.

A฀lamp฀has฀a฀characteristic฀that฀its฀brightness฀gradually฀decreases฀with฀age.฀Also฀repeatedly฀turning฀the฀lamp฀on฀

and฀off฀will฀increase฀the฀possibility฀of฀its฀lower฀brightness.

The฀actual฀lamp฀life฀may฀vary฀depending฀upon฀the฀individual฀lamp,฀the฀environmental฀conditions฀and฀usage.

CAUTION:

•฀DO฀NOT฀TOUCH฀THE฀LAMP฀immediately฀after฀it฀has฀been฀used.฀It฀will฀be฀extremely฀hot.฀Turn฀the฀projector฀off฀

and฀then฀disconnect฀the฀power฀cord.฀Allow฀at฀least฀one฀hour฀for฀the฀lamp฀to฀cool฀before฀handling.

•฀When฀removing฀the฀lamp฀from฀a฀ceiling-mounted฀projector,฀make฀sure฀that฀no฀one฀is฀under฀the฀projector.฀Glass฀

fragments฀could฀fall฀if฀the฀lamp฀has฀been฀burned฀out.

About High Altitude mode

•฀Set฀[FAN฀MODE]฀to฀[HIGH฀ALTITUDE]฀when฀using฀the฀projector฀at฀altitudes฀approximately฀4000฀feet/1200฀meters฀

or฀higher.

฀Using฀the฀projector฀at฀altitudes฀approximately฀4000฀feet/1200฀meters฀or฀higher฀without฀setting฀to฀[HIGH฀ALTITUDE]฀

can฀cause฀the฀projector฀to฀overheat฀and฀the฀protector฀could฀shut฀down.฀If฀this฀happens,฀wait฀a฀couple฀minutes฀and฀

turn฀on฀the฀projector.

•฀Using฀the฀projector฀at฀altitudes฀less฀than฀approximately฀4000฀feet/1200฀meters฀and฀setting฀to฀[HIGH฀ALTITUDE]฀can฀

cause฀the฀lamp฀to฀overcool,฀causing฀the฀image฀to฀icker.฀Switch฀[FAN฀MODE]฀to฀[AUTO].

•฀Using฀the฀projector฀at฀altitudes฀approximately฀4000฀feet/1200฀meters฀or฀higher฀can฀shorten฀the฀life฀of฀optical฀com-

ponents฀such฀as฀the฀lamp.

About Copyright of original projected pictures:

Please฀note฀that฀using฀this฀projector฀for฀the฀purpose฀of฀commercial฀gain฀or฀the฀attraction฀of฀public฀attention฀in฀a฀venue฀

such฀as฀a฀coffee฀shop฀or฀hotel฀and฀employing฀compression฀or฀expansion฀of฀the฀screen฀image฀with฀the฀following฀func-

tions฀may฀raise฀concern฀about฀the฀infringement฀of฀copyrights฀which฀are฀protected฀by฀copyright฀law.

[ASPECT฀RATIO],฀[KEYSTONE],฀Magnifying฀feature฀and฀other฀similar฀features.

Turkish RoHS information relevant for Turkish market

EEE Yonetmeliğine Uygundur.

This฀device฀is฀not฀intended฀for฀use฀in฀the฀direct฀eld฀of฀view฀at฀visual฀display฀workplaces.฀To฀avoid฀incommoding฀reec-

tions฀at฀visual฀display฀workplaces฀this฀device฀must฀not฀be฀placed฀in฀the฀direct฀eld฀of฀view.

Important Information

Power management function

The฀projector฀has฀power฀management฀functions.฀To฀reduce฀power฀consumption,฀the฀power฀management฀functions฀(1฀

and฀2)฀are฀factory฀preset฀as฀shown฀below.฀To฀control฀the฀projector฀from฀an฀external฀device฀via฀a฀LAN฀or฀serial฀cable฀

connection,฀use฀the฀on-screen฀menu฀to฀change฀the฀settings฀for฀1฀and฀2.

1. STANDBY MODE (Factory preset: NORMAL)

To control the projector from an external device, select [NETWORK STANDBY] for [STANDBY MODE].

NOTE:

•฀When฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE],฀the฀following฀terminals฀and฀functions฀will฀not฀work:

฀MONITOR฀OUT฀terminal,฀AUDIO฀OUT฀terminal,฀LAN฀functions,฀Mail฀Alert฀function,฀DDC/CI฀(Virtual฀Remote฀Tool)

2. AUTO POWER OFF (Factory preset: 60 min.)

To control the projector from an external device, select [OFF] for [AUTO POWER OFF].

NOTE:

•฀When฀[1:00]฀is฀selected฀for฀[AUTO฀POWER฀OFF],฀you฀can฀enable฀the฀projector฀to฀automatically฀turn฀off฀in฀60฀minutes฀if฀there฀is฀

no฀signal฀received฀by฀any฀input฀or฀if฀no฀operation฀is฀performed.

Health precautions to users viewing 3D images

Before฀viewing,฀be฀sure฀to฀read฀health฀care฀precautions฀that฀may฀be฀found฀in฀the฀user’s฀manual฀included฀with฀your฀LCD฀

shutter฀eyeglasses฀or฀your฀3D฀compatible฀content฀such฀as฀DVDs,฀video฀games,฀computer's฀video฀les฀and฀the฀like.

To฀avoid฀any฀adverse฀symptoms,฀heed฀the฀following:

•฀Do฀not฀use฀LCD฀shutter฀eyeglasses฀for฀viewing฀any฀material฀other฀than฀3D฀images.

•฀Allow฀a฀distance฀of฀2฀m/7฀feet฀or฀greater฀between฀the฀screen฀and฀a฀user.฀Viewing฀3D฀images฀from฀too฀close฀a฀

distance฀can฀strain฀your฀eyes.

•฀Avoid฀viewing฀3D฀images฀for฀a฀prolonged฀period฀of฀time.฀Take฀a฀break฀of฀15฀minutes฀or฀longer฀after฀every฀hour฀

of฀viewing.

•฀If฀you฀or฀any฀member฀of฀your฀family฀has฀a฀history฀of฀light-sensitive฀seizures,฀consult฀a฀doctor฀before฀viewing฀3D฀

images.

•฀While฀viewing฀3D฀images,฀if฀you฀get฀sick฀such฀as฀nausea,฀dizziness,฀queasiness,฀headache,฀eyestrain,฀blurry฀

vision,฀convulsions,฀and฀numbness,฀stop฀viewing฀them.฀If฀symptoms฀still฀persist,฀consult฀a฀doctor.฀

•฀View฀3D฀images฀from฀the฀front฀of฀the฀screen.฀Viewing฀from฀an฀angle฀may฀cause฀fatigue฀or฀eyestrain.฀

Model Number of Wireless LAN unit

Wireless฀LAN฀unit฀is฀an฀optional฀item.

To฀nd฀the฀appropriate฀model฀to฀your฀area,฀please฀visit฀the฀company฀website:

URL:฀฀

http://www.nec-display.com/global/support/index.html

vii

Table of Contents

Important Information ............................................................................................i

1. Introduction ...........................................................................................................1

❶฀What’s฀in฀the฀Box? ..........................................................................................................1

❷฀Introduction฀to฀the฀Projector ...........................................................................................2

General .....................................................................................................................2

Installation ................................................................................................................. 2

Videos .......................................................................................................................2

Network ..................................................................................................................... 2

Energy-saving ...........................................................................................................3

About฀this฀user’s฀manual ........................................................................................... 3

❸฀Part฀Names฀of฀the฀Projector ...........................................................................................4

Front ..........................................................................................................................4

Mounting฀the฀lens฀cap฀strap ...................................................................................... 4

Rear ..........................................................................................................................5

Controls/Indicators ....................................................................................................6

Terminal฀Panel฀Features ...........................................................................................7

❹฀Part฀Names฀of฀the฀Remote฀Control ................................................................................8

Battery฀Installation ....................................................................................................9

Remote฀Control฀Precautions ..................................................................................... 9

Operating฀Range฀for฀Wireless฀Remote฀Control ......................................................... 9

2. Projecting an Image (Basic Operation) ...............................................10

❶฀Flow฀of฀Projecting฀an฀Image .........................................................................................10

❷฀Connecting฀Your฀Computer/Connecting฀the฀Power฀Cord ..............................................11

❸฀Turning฀on฀the฀Projector ...............................................................................................12

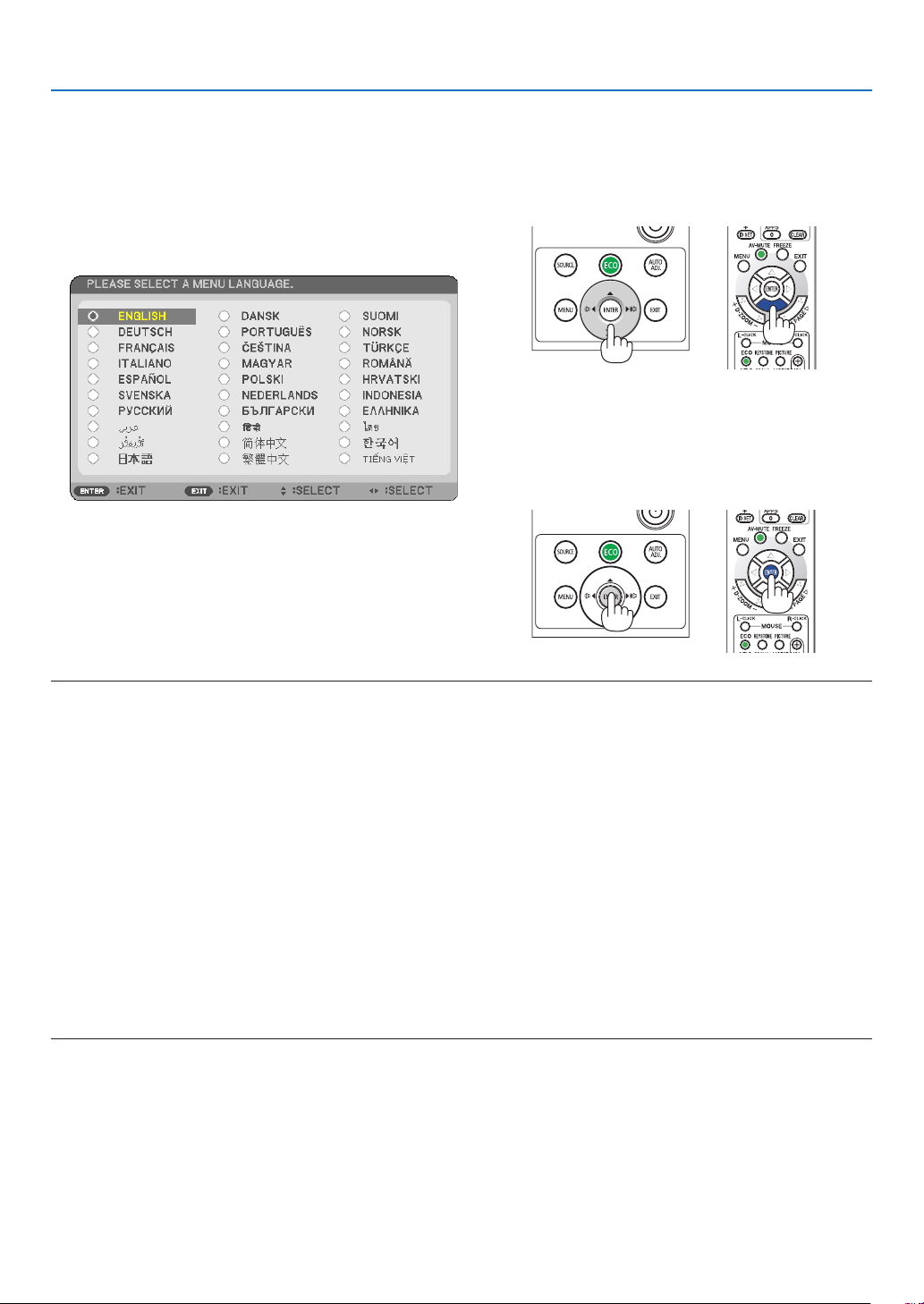

Note฀on฀Startup฀screen฀(Menu฀Language฀Select฀screen) ....................................... 13

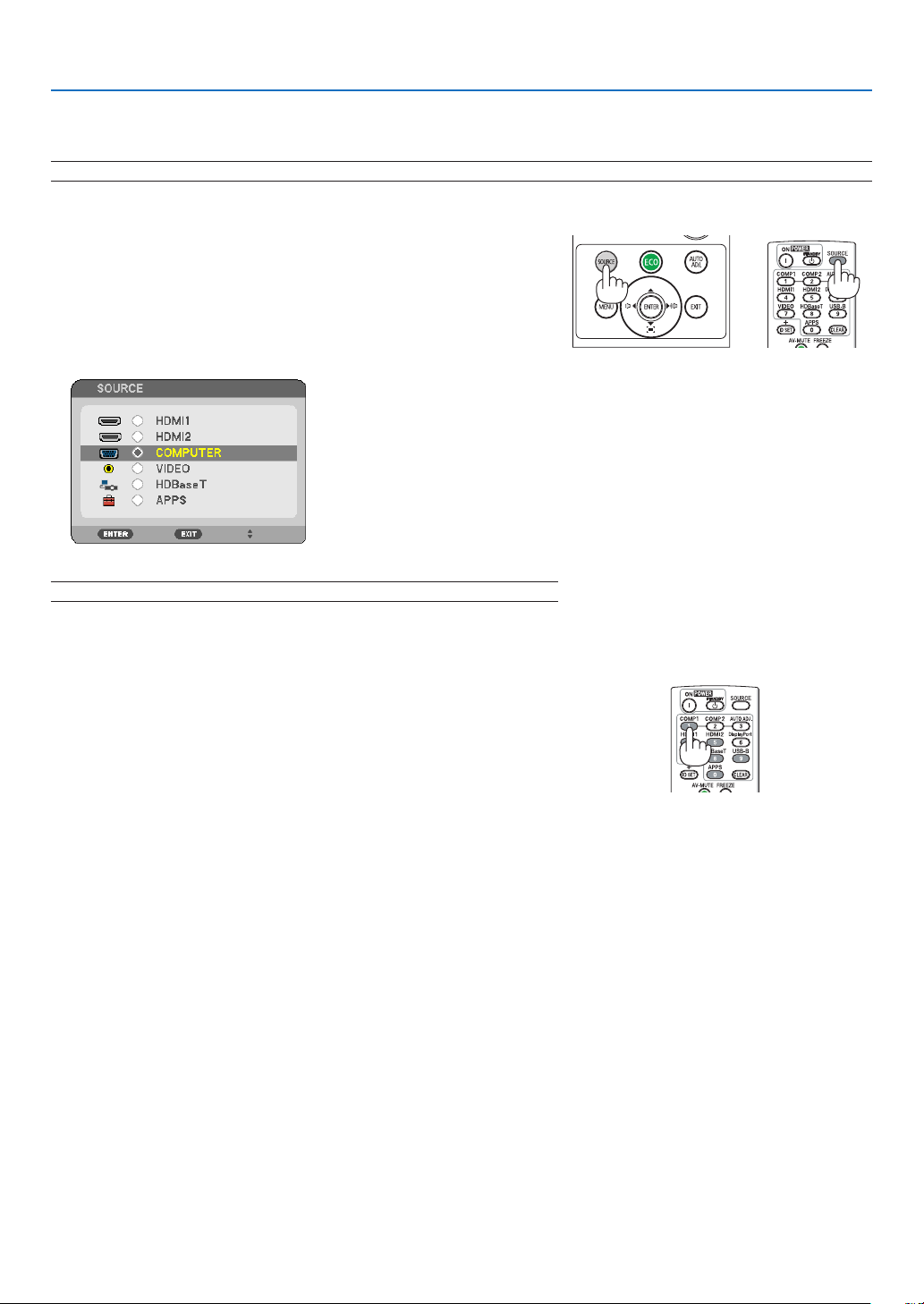

❹฀Selecting฀a฀Source .......................................................................................................14

Selecting฀the฀computer฀or฀video฀source..................................................................14

❺฀Adjusting฀the฀Picture฀Size฀and฀Position ........................................................................16

Adjusting฀the฀vertical฀position฀of฀a฀projected฀image฀(Lens฀shift) .............................17

Focus ......................................................................................................................19

Zoom ....................................................................................................................... 19

Adjusting฀the฀tilt฀(Tilt฀foot) .......................................................................................20

❻฀Correcting฀Keystone฀Distortion฀[KEYSTONE] ..............................................................21

❼฀Optimizing฀Computer฀Signal฀Automatically ..................................................................23

Adjusting฀the฀Image฀Using฀Auto฀Adjust ...................................................................23

❽฀Turning฀Up฀or฀Down฀Volume .........................................................................................23

❾฀Turning฀off฀the฀Projector ...............................................................................................24

❿฀When฀Moving฀the฀Projector ..........................................................................................25

3. Convenient Features ......................................................................................26

❶฀Turning฀off฀the฀Image฀and฀Sound .................................................................................26

❷฀Freezing฀a฀Picture ........................................................................................................26

❸฀Magnifying฀a฀Picture .....................................................................................................27

❹฀Changing฀Eco฀Mode/Checking฀Energy-Saving฀Effect฀ .................................................28

Using฀Eco฀Mode฀[ECO฀MODE] ...............................................................................28

Checking฀Energy-Saving฀Effect฀[CARBON฀METER] ..............................................29

viii

Table of Contents

❺฀Preventing฀the฀Unauthorized฀Use฀of฀the฀Projector฀[SECURITY] ..................................30

❻฀Viewing฀3D฀Images ....................................................................................................... 33

LCD฀shutter฀eyeglasses฀(recommended) ...............................................................33

Steps฀for฀viewing฀3D฀images฀on฀the฀projector.........................................................33

Troubleshooting฀on฀viewing฀3D฀images...................................................................36

4. Using On-Screen Menu .................................................................................37

❶฀Using฀the฀Menus ...........................................................................................................37

Menu฀Elements .......................................................................................................38

❷฀List฀of฀Menu฀Items ........................................................................................................39

❸฀Menu฀Descriptions฀&฀Functions฀[SOURCE] .................................................................42

HDMI1฀and฀HDMI2..................................................................................................42

COMPUTER ...........................................................................................................42

VIDEO ..................................................................................................................... 42

HDBaseT ................................................................................................................42

APPS ......................................................................................................................42

❹฀Menu฀Descriptions฀&฀Functions฀[ADJUST] ................................................................... 43

[PICTURE] ..............................................................................................................43

[IMAGE฀OPTIONS] .................................................................................................46

❺฀Menu฀Descriptions฀&฀Functions฀[SETUP] ..................................................................... 50

[GENERAL] ............................................................................................................. 50

[MENU] ...................................................................................................................53

[INSTALLATION] .....................................................................................................55

[OPTIONS(1)] .........................................................................................................59

[OPTIONS(2)] .........................................................................................................61

[3D] .........................................................................................................................64

❻฀Menu฀Descriptions฀&฀Functions฀[INFO.] .......................................................................66

[USAGE฀TIME] ........................................................................................................66

[SOURCE(1)] ..........................................................................................................67

[SOURCE(2)] ..........................................................................................................67

[HDBaseT] ..............................................................................................................67

[WIRED฀LAN] ..........................................................................................................67

[WIRELESS฀LAN] ...................................................................................................67

[VERSION(1)] .........................................................................................................67

[VERSION(2)] .........................................................................................................67

[OTHERS] ...............................................................................................................67

❼฀Menu฀Descriptions฀&฀Functions฀[RESET] ..................................................................... 68

Returning฀to฀Factory฀Default฀[RESET] ....................................................................68

5. Installation and Connections ....................................................................69

❶฀Setting฀Up฀the฀Screen฀and฀the฀Projector ......................................................................69

Tables฀of฀screen฀sizes฀and฀dimensions ..................................................................71

Example฀of฀installation฀on฀a฀desktop ......................................................................72

Lens฀shifting฀range ..................................................................................................73

❷฀Making฀Connections .....................................................................................................75

Connecting฀Your฀Computer .....................................................................................75

Connecting฀an฀External฀Monitor .............................................................................77

Connecting฀Your฀DVD฀Player฀or฀Other฀AV฀Equipment ............................................. 78

Connecting฀Component฀Input .................................................................................79

Connecting฀HDMI฀Input...........................................................................................80

Table of Contents

Connecting฀your฀document฀camera ........................................................................81

Connecting฀to฀a฀Wired฀LAN ....................................................................................82

Connecting฀to฀a฀Wireless฀LAN฀(Optional:฀NP05LM฀series) ..................................... 83

Connecting฀to฀a฀HDBaseT฀transmission฀device฀(sold฀commercially) ......................86

6. APPS MENU .........................................................................................................88

❶฀What฀can฀you฀do฀with฀the฀APPS฀MENU? .....................................................................88

7. User Supportware ............................................................................................92

❶฀Software฀Included฀on฀CD-ROM ....................................................................................92

❷฀Projecting฀Your฀Computer’s฀Screen฀Image฀from฀the฀Projector฀over฀a฀LAN฀(Image฀

Express฀Utility฀Lite) .................................................................................................93

Starting฀Image฀Express฀Utility฀Lite฀from฀a฀USB฀Memory฀or฀SD฀Card .....................96

❸฀Projecting฀an฀Image฀from฀an฀Angle฀(Geometric฀Correction฀Tool฀in฀Image฀Express฀

Utility฀Lite) ...............................................................................................................98

What฀you฀can฀do฀with฀GCT .....................................................................................98

Projecting฀an฀Image฀from฀an฀Angle฀(GCT) ..............................................................98

❹฀Controlling฀the฀Projector฀over฀a฀LAN฀(PC฀Control฀Utility฀Pro฀4/Pro฀5) ........................101

❺฀Using฀the฀Computer฀Cable฀(VGA)฀to฀Operate฀the฀Projector฀(Virtual฀Remote฀Tool) ....106

❻฀Projecting฀photos฀or฀documents฀saved฀on฀the฀smartphone฀over฀a฀wireless฀LAN฀

(Wireless฀Image฀Utility) .........................................................................................112

8. Maintenance .....................................................................................................113

❶฀Cleaning฀the฀Filters.....................................................................................................113

❷฀Cleaning฀the฀Lens.......................................................................................................116

❸฀Cleaning฀the฀Cabinet ..................................................................................................117

❹฀Replacing฀the฀Lamp฀and฀the฀Filters ............................................................................ 118

9. Appendix ..............................................................................................................125

❶฀Troubleshooting ..........................................................................................................125

Indicator฀Messages ............................................................................................... 125

Common฀Problems฀&฀Solutions ............................................................................127

If฀there฀is฀no฀picture,฀or฀the฀picture฀is฀not฀displayed฀correctly. ............................... 128

❷฀Specications .............................................................................................................129

❸฀Cabinet฀Dimensions ...................................................................................................131

❹฀Attaching฀the฀Optional฀Cable฀Cover฀(NP09CV) ..........................................................132

Attaching฀the฀cable฀cover ...................................................................................... 132

Removing฀the฀cable฀cover .....................................................................................133

❺฀Pin฀assignments฀and฀signal฀names฀of฀main฀terminals ...............................................134

❻฀Compatible฀Input฀Signal฀List .......................................................................................136

❼฀PC฀Control฀Codes฀and฀Cable฀Connection ..................................................................137

❽฀Update฀the฀Software ...................................................................................................138

❾฀Troubleshooting฀Check฀List ......................................................................................... 140

❿฀REGISTER฀YOUR฀PROJECTOR!฀(for฀residents฀in฀the฀United฀States,฀Canada,฀and฀

Mexico) .................................................................................................................142

1. Introduction

❶ What’s in the Box?

Make฀sure฀your฀box฀contains฀everything฀listed.฀If฀any฀pieces฀are฀missing,฀contact฀your฀dealer.

Please฀save฀the฀original฀box฀and฀packing฀materials฀if฀you฀ever฀need฀to฀ship฀your฀projector.

Projector

Remote control

(7N901122)

Batteries (AAA × 2)

Power cord

(US: 7N080240/7N080243)

(EU: 7N080027/7N080029)

Computer cable (VGA)

(7N520089)

Lens cap strap

For North America only

Limited warranty

For customers in Europe:

You will ﬁnd our current valid Guar-

antee Policy on our Web Site:

www.nec-display-solutions.com

•฀Important฀Information฀(For฀North฀

America: 7N8N6521) (For Other

countries than North America:

7N8N6521 and 7N8N6531)

•฀Quick฀Setup฀Guide฀(7N8N6541)/

(7N8N6551)

NEC Projector CD-ROM

User’s manual (PDF) and the utility

software

(7N952321)

1. Introduction

❷ Introduction to the Projector

This฀section฀introduces฀you฀to฀your฀new฀projector฀and฀describes฀the฀features฀and฀controls.

General

•฀Single-chip฀DLP฀projector฀with฀high฀resolution฀and฀high฀brightness

Model฀nameDMD฀panelResolutionAspect฀ratio

P502H/P452H 0.65฀type1920฀×฀1080฀pixels16:9

P502W/P452W 0.65฀type1280฀×฀800฀pixels16:10

•฀Lamp฀life฀up฀to฀5000฀hours

฀Using฀in฀Eco฀Mode฀allows฀you฀to฀prolong฀the฀projector’s฀lamp฀life฀up฀to฀5000฀hours฀(up฀to฀3000฀hours฀in฀ECO฀

MODE฀OFF).

•฀20฀W฀built-in฀speaker฀for฀an฀integrated฀audio฀solution฀/mic฀input฀supprted

฀Powerful฀20฀watt฀monaural฀speaker฀provides฀volume฀need฀for฀large฀rooms฀a฀dynamic฀or฀condenser฀mic฀can฀be฀

used.

Installation

•฀Lens฀shift฀mechanism฀for฀adjusting฀the฀position฀of฀the฀projected฀image฀easily

฀The฀position฀of฀the฀projected฀image฀is฀moved฀by฀turning฀the฀two฀dials฀on฀the฀projector฀cabinet฀top,฀one฀for฀the฀

vertical฀direction฀and฀another฀for฀the฀horizontal฀direction.

Videos

•฀Wide฀range฀of฀input฀terminals฀(HDMI฀×฀2,฀HDBaseT,฀etc.)

฀The฀projector฀is฀equipped฀with฀a฀variety฀of฀input฀terminals:฀HDMI฀(×฀2),฀Computer฀(analog),฀Video,฀HDBaseT,฀etc.฀

HDMI฀input฀terminal฀on฀this฀product฀supports฀HDCP.฀HDBase฀T฀is฀a฀connection฀standard฀for฀home฀appliances฀that฀

is฀established฀by฀the฀HDBaseT฀Alliance.

•฀Supports฀HDMI฀3D฀format

฀This฀projector฀can฀be฀used฀to฀watch฀videos฀in฀3D฀using฀commercially-available฀active฀shutter-type฀3D฀eyewear฀

and฀3D฀emitters฀that฀support฀Xpand฀3D.

Network

•฀Equips฀the฀feature฀of฀APPS฀MENU฀that฀can฀utilize฀the฀network.

฀The฀APPS฀MENU฀provides฀various฀functions฀as฀VIEWER,฀REMOTE฀DESKTOP฀CONNECTION,฀IMAGE฀EXPRESS฀

UTILITY,฀Miracast,฀NETWORK฀SETTINGS฀(Wired฀LAN/Wireless฀LAN),฀and฀PROGRAM฀TIMER.

•฀Convenient฀utility฀software฀(User฀Supportware)฀provided฀as฀standard

฀The฀ve฀utility฀software฀stored฀in฀the฀enclosed฀NEC฀Projector฀CD-ROM฀(Image฀Express฀Utility฀Lite฀(For฀Windows/

OS฀X),Virtual฀Remote฀Tool,฀PC฀Control฀Utility฀Pro฀4฀(for฀Windows฀)฀and฀PC฀Control฀Utility฀Pro฀5฀(for฀OS฀X))฀can฀be฀

used.

•฀CRESTRON฀ROOMVIEW฀compatible

฀This฀projector฀supports฀CRESTRON฀ROOMVIEW,฀allowing฀multiple฀devices฀connected฀to฀the฀network฀to฀be฀man-

aged฀from฀a฀computer฀or฀controller.

1. Introduction

Energy-saving

•฀0.26฀W฀(100-130฀V฀AC)/0.33฀W฀(200-240฀V฀AC)฀in฀standby฀condition฀with฀energy฀saving฀technology

฀Selecting฀[NORMAL]฀for฀[STANDBY฀MODE]฀from฀the฀menu฀can฀put฀the฀projector฀in฀power-saving฀mode.

฀NORMAL:฀0.26฀W฀(100-130฀V฀AC)/0.33฀W฀(200-240฀V฀AC)

฀NETWORK฀STANDBY:฀2.6฀W฀(100-130฀V฀AC)/2.6฀W฀(200-240฀V฀AC)

•฀“ECO฀MODE”฀for฀low฀power฀consumption฀and฀“CARBON฀METER”฀display

฀The฀power-saving฀is฀effective฀when฀the฀[ECO฀MODE]฀is฀set฀is฀converted฀into฀the฀amount฀of฀reductions฀of฀CO

emissions฀and฀this฀is฀indicated฀on฀the฀conrmation฀message฀displayed฀when฀the฀power฀is฀turned฀off฀and฀at฀[INFO.]฀

on฀the฀on-screen฀menu฀(CARBON฀METER).

About this user’s manual

The฀fastest฀way฀to฀get฀started฀is฀to฀take฀your฀time฀and฀do฀everything฀right฀the฀rst฀time.฀Take฀a฀few฀minutes฀now฀to฀

review฀the฀user’s฀manual.฀This฀may฀save฀you฀time฀later฀on.฀At฀the฀beginning฀of฀each฀section฀of฀the฀manual฀you’ll฀nd฀

an฀overview.฀If฀the฀section฀doesn’t฀apply,฀you฀can฀skip฀it.

1. Introduction

❸ Part Names of the Projector

Front

Remote Sensor

(→ page 9)

Lens shift dials (Horizontal/Vertical)

(→ page 17)

Lens Cap

Tilt Foot

(→ page 20)

Model name

Model name is indicated on the bot-

tom face of the projector

Wireless LAN cover

(

→ page 83)

Exhaust Vent

Focus Ring

(

→ page 19)

Lamp cover

(→ page 119)

Remote Sensor

(

→ page 9)

Zoom Lever

(→ page 19)

Lens

Intake฀Vent

(→ page 113)

Mounting the lens cap strap

1. Insert the tip of the strap into the lens cap mount hole and pass

the knot through.

Lens cap mount hole

2. Insert the knot into the strap mount hole (large) on the bottom of

the projector, then press it into the narrow (small) hole.

1. Introduction

Indicators

(→ page 6)

Controls

(

→ page 6)

Intake฀Vent฀Filter

(→ page 113, 123)

Remote Sensor

(→ page 9)

Security chain opening

Attach an anti-theft device.

The security chain opening accepts

security wires or chains up to 0.18

inch/4.6 mm in diameter.

Terminals

(→ page 7)

AC฀Input

Connect the supplied power cord’s

three-pin plug here, and plug the

other end into an active wall outlet.

(→ page 11)

Monaural฀Speaker

Intake฀Vent

(→ page 113)

Built-in Security Slot ( )*

Rear

Connection for cable cover (Left/

Right) Screw holes

(→ page 132)

*฀This฀security฀slot฀supports฀the฀

MicroSaver

฀Security฀System.

1. Introduction

Controls/Indicators

3 4

1. ฀(POWER)฀Button฀

฀(→฀page฀12, 24)

2. POWER Indicator

฀(→฀page฀

11, 12, 24, 125)

3. STATUS Indicator

฀(→฀page฀

125)

4.฀LAMP฀Indicator฀

฀(→฀page฀

125)

5.฀ECO฀Button฀

฀(→฀page฀

28)

6. SOURCE Button

฀(→฀page฀

14)

7. AUTO ADJ. Button

฀(→฀page฀

23)

8. MENU Button

฀(→฀page฀

37)

9. ▲▼◀▶฀/฀Volume฀Buttons฀◀▶ / Keystone Button ▼

฀(→

฀page฀

13, 21, 23, 37)

10. ENTER Button

฀(→฀page฀

37)

11. EXIT Button

฀(→฀page฀

37)

1. Introduction

Terminal Panel Features

1.฀COMPUTER฀IN/฀Component฀Input฀Terminal฀(Mini฀

D-Sub฀15฀Pin)฀

฀(→฀page฀

75, 79, 81)

2.฀COMPUTER฀AUDIO฀IN฀Mini฀Jack฀(Stereo฀Mini)฀

฀(→฀page฀

75, 79)

3.฀HDMI฀1฀IN฀Terminal฀(Type฀A)฀

฀(→฀page฀

75, 76, 80)

4.฀HDMI฀2฀IN฀Terminal฀(Type฀A)฀

฀(→฀page฀

75, 76, 80)

5.฀MONITOR฀OUT฀(COMP.)฀Terminal฀(Mini฀D-Sub฀15฀

Pin)฀

฀(→฀page฀

77)

6.฀AUDIO฀OUT฀Mini฀Jack฀(Stereo฀Mini)฀

฀(→฀page฀

77)

7.฀VIDEO฀IN฀Terminal฀(RCA)฀

฀(→฀page฀

78, 81)

8.฀VIDEO฀AUDIO฀IN฀L/MONO,฀R฀(RCA)฀

฀(→฀page฀

78)

9.฀Ethernet/HDBaseT฀Port฀(RJ-45)฀

฀(→฀page฀

82, 86)

10.฀LAN฀Port฀(RJ-45)฀

฀(→฀page฀

82, 87)

11.฀USB฀(Wireless฀LAN)฀Port฀

฀(→฀page฀

85)

12.฀USB฀Port฀(Type฀A)฀

฀(→฀page฀

89)

13.฀3D฀SYNC฀Terminal฀(Mini฀DIN฀3฀Pin)฀

฀(→฀page฀

35)

14.฀PC฀CONTROL฀[PC฀CONTROL]฀Port฀(D-Sub฀9฀Pin)฀

฀(→฀page฀137)

฀Use฀this฀port฀to฀connect฀a฀PC฀or฀control฀system.฀

This฀enables฀you฀to฀control฀the฀projector฀using฀serial฀

communication฀protocol.฀If฀you฀are฀writing฀your฀own฀

program,฀typical฀PC฀control฀codes฀are฀on฀page฀137.

15.฀SERVICE฀Port฀(USB฀Type฀B)

฀(for฀service฀purpose฀only)

16.฀REMOTE฀Connector฀(Stereo฀Mini)

฀Use฀this฀connector฀for฀wired฀remote฀control฀of฀the฀

projector฀using฀the฀NEC฀remote฀control฀for฀PX750U/

PH1000U/PH1400U/PX602UL/PH1202HL฀series.

฀Connect฀the฀projector฀and฀optional฀remote฀control฀

using฀a฀commercially฀available฀wired฀remote฀control฀

cable.

NOTE:฀

•฀When฀a฀remote฀control฀cable฀is฀connected฀to฀the฀REMOTE฀

connector,฀infrared฀remote฀control฀operations฀cannot฀be฀

performed.

•฀When฀[HDBaseT]฀is฀selected฀in฀the฀[REMOTE฀SENSOR]฀

and฀the฀projector฀is฀connected฀to฀a฀commercially-available฀

transmission฀device฀that฀supports฀HDBaseT,฀remote฀control฀

operations฀in฀infra-red฀cannot฀be฀carried฀out฀if฀transmission฀

of฀remote฀control฀signals฀has฀been฀set฀up฀in฀the฀transmission฀

device.฀However,฀remote฀control฀using฀infrared฀rays฀can฀be฀

carried฀out฀when฀the฀power฀supply฀of฀the฀transmission฀device฀

is฀switched฀off.

1 523 4

716 1413

9101511

1. Introduction

❹ Part Names of the Remote Control

＋

1. Infrared Transmitter

฀(→฀page฀9)

2. POWER ON Button

฀(→฀page฀

12)

3. POWER STANDBY Button

฀(→฀page฀

24)

4.฀SOURCE฀Button

฀(→฀page฀

14)

5.฀COMPUTER฀1฀Button

฀(→฀page฀

14)

6. COMPUTER 2 Button

฀(This฀button฀does฀not฀work฀in฀this฀

series฀of฀projectors)

7. AUTO ADJ. Button

฀(→฀page฀

23)

8. HDMI 1 Button

฀(→฀page฀

14)

9. HDMI 2 Button

฀(→฀page฀

14)

10. DisplayPort Button

฀(This฀button฀does฀not฀work฀in฀this฀

series฀of฀projectors)฀

11.฀VIDEO฀Button฀

฀(→฀page฀

14)

12. HDBaseT Button

฀(→฀page฀

14)

13. USB-B Button

฀(This฀button฀does฀not฀work฀in฀this฀

series฀of฀projectors)฀

14.฀APPS฀Button฀

฀(→฀page฀

14, 88)

15.฀ID฀SET฀Button

฀(→฀page฀

57)

16. Numeric Keypad Button/

CLEAR Button

฀(→

฀page฀

57)

17. FREEZE Button

฀(→฀page฀

26)

18.฀AV-MUTE฀Button

฀(→฀page฀

26)

19. MENU Button

฀(→฀page฀

37)

20. EXIT Button

฀(→฀page฀

37)

21. ▲▼◀▶ Button

฀(→

฀page฀

37)

22. ENTER Button

฀(→฀page฀

37)

23.฀D-ZOOM฀(+)(–)฀Button

฀(→฀page฀

27)

24.฀MOUSE฀L-CLICK฀Button*

฀(This฀button฀does฀not฀work฀in฀this฀

series฀of฀projectors)฀

25.฀MOUSE฀R-CLICK฀Button*

฀(This฀button฀does฀not฀work฀in฀this฀

series฀of฀projectors)฀

26. PAGE ▽/△ Button

฀(→

฀page฀

89)

27. ECO Button

฀(→฀page฀

28)

28. KEYSTONE Button

฀(→฀page฀

21)

29. PICTURE Button

฀(→฀page฀

43, 45)

30.฀VOL.฀(+)(–)฀Button

฀(→฀page฀

23)

31. ASPECT Button

฀(→฀page฀

48)

32. FOCUS/ZOOM Button

฀(This฀button฀does฀not฀work฀in฀this฀

series฀of฀projectors)฀

33. HELP Button

฀(→฀page฀

66)

1. Introduction

Battery Installation

1. Press ﬁrmly and slide the battery

cover off.

2. Install new batteries (AAA). En-

sure that you have the batteries’

polarity (+/−) aligned correctly.

3. Slip the cover back over the bat-

teries until it snaps into place. Do

not mix different types of batter-

ies or new and old batteries.

OPEN

Remote Control Precautions

•฀Handle฀the฀remote฀control฀carefully.

•฀If฀the฀remote฀control฀gets฀wet,฀wipe฀it฀dry฀immediately.

•฀Avoid฀excessive฀heat฀and฀humidity.

•฀Do฀not฀short,฀heat,฀or฀take฀apart฀batteries.

•฀Do฀not฀throw฀batteries฀into฀re.

•฀If฀you฀will฀not฀be฀using฀the฀remote฀control฀for฀a฀long฀time,฀remove฀the฀batteries.

•฀Ensure฀that฀you฀have฀the฀batteries’฀polarity฀(+/−)฀aligned฀correctly.

•฀Do฀not฀use฀new฀and฀old฀batteries฀together,฀or฀use฀different฀types฀of฀batteries฀together.

•฀Dispose฀used฀batteries฀according฀to฀your฀local฀regulations.

Operating Range for Wireless Remote Control

30°

30° 30° 30° 30°

30°

23.0 feet/

7 m

23.0 feet/7 m

Remote sensor on projector cabinet

Remote control

•฀The฀infrared฀signal฀operates฀by฀line-of-sight฀up฀to฀a฀distance฀of฀about฀23฀feet/7฀m฀and฀within฀a฀60-degree฀angle฀of฀

the฀remote฀sensor฀on฀the฀projector฀cabinet.

•฀The฀projector฀will฀not฀respond฀if฀there฀are฀objects฀between฀the฀remote฀control฀and฀the฀sensor,฀or฀if฀strong฀light฀falls฀

on฀the฀sensor.฀Weak฀batteries฀will฀also฀prevent฀the฀remote฀control฀from฀properly฀operating฀the฀projector.

This฀section฀describes฀how฀to฀turn฀on฀the฀projector฀and฀to฀project฀a฀picture฀onto฀the฀screen.

❶ Flow of Projecting an Image

Step 1

•฀Connecting฀your฀computer฀/฀Connecting฀the฀power฀cord฀(→ page 11)

Step 2

•฀Turning฀on฀the฀projector฀(→ page 12)

Step 3

•฀Selecting฀a฀source฀(→ page 14)

Step 4

•฀Adjusting฀the฀picture฀size฀and฀position฀(→ page 16)

•฀Correcting฀keystone฀distortion฀[KEYSTONE]฀(→ page 21)

Step 5

•฀Adjusting฀a฀picture฀and฀sound

- Optimizing a computer signal automatically (→ page 23)

- Turning up or down volume (

→ page 23)

Step 6

•฀Making฀a฀presentation

Step 7

•฀Turning฀off฀the฀projector฀(→ page 24)

Step 8

•฀When฀Moving฀the฀Projector฀(→ page 25)

2. Projecting an Image (Basic Operation)

❷ Connecting Your Computer/Connecting the Power Cord

1.฀Connect฀your฀computer฀to฀the฀projector.

This section will show you a basic connection to a computer. For information about other connections, see “5.

Installation฀and฀Connections”฀on฀page฀69.

฀Connect฀the฀computer฀cable฀(VGA)฀between฀the฀projector’s฀COMPUTER฀IN฀terminal฀and฀the฀computer’s฀port฀(mini฀

D-Sub 15 Pin). Turn two thumb screws of both terminals to ﬁx the computer cable (VGA).

2.฀Connect฀the฀supplied฀power฀cord฀to฀the฀projector.

฀First฀connect฀the฀supplied฀power฀cord’s฀three-pin฀plug฀to฀the฀AC฀IN฀of฀the฀projector,฀and฀then฀connect฀the฀other฀

plug of the supplied power cord in the wall outlet.

The projector’s power indicator will ﬂash for a few seconds and then will light red* (standby mode).

*฀This฀will฀apply฀for฀both฀indicators฀when฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE].฀See฀the฀Power฀Indicator฀

section.(→ page 125)

COMPUTER IN

Make฀sure฀that฀the฀prongs฀are฀fully฀inserted฀into฀

both฀the฀AC฀IN฀and฀the฀wall฀outlet.

To wall outlet ←

CAUTION:

Parts฀of฀the฀projector฀may฀become฀temporarily฀heated฀if฀the฀projector฀is฀turned฀off฀with฀the฀POWER฀button.

Be฀careful฀to฀handle฀the฀projector.

2. Projecting an Image (Basic Operation)

❸ Turning on the Projector

1. Remove the lens cap.

With the lens cap’s stopper pressed up, pull forward and

off.

Stopper

2. Press the

(POWER) button on the projector cabinet

or the POWER ON button on the remote control.

The POWER indicator lights blue and the image is projected

on the screen.

TIP:฀

•฀When฀the฀message฀“PROJECTOR฀IS฀LOCKED!฀ENTER฀YOUR฀

PASSWORD.”฀is฀displayed,฀it฀means฀that฀the฀[SECURITY]฀

feature฀is฀turned฀on.฀(→฀page฀31)

After you turn on your projector, ensure that the computer

or video source is turned on.

NOTE:฀When฀no฀input฀signal฀is฀present,฀the฀no-signal฀guidance฀is฀

displayed฀(factory฀menu฀setting).

Standby Blinking Power On

Steady red light Blinking blue

light

Steady blue

light

(→฀page฀

125)

2. Projecting an Image (Basic Operation)

Note on Startup screen (Menu Language Select screen)

When฀you฀rst฀turn฀on฀the฀projector,฀you฀will฀get฀the฀Startup฀menu.฀This฀menu฀gives฀you฀the฀opportunity฀to฀select฀one฀

of฀the฀30฀menu฀languages.

To select a menu language, follow these steps:

1. Use the ▲, ▼, ◀ or ▶ button to select one of the 30

languages from the menu.

2. Press the ENTER button to execute the selection.

After฀this฀has฀been฀done,฀you฀can฀proceed฀to฀the฀menu฀

operation.

If฀you฀want,฀you฀can฀select฀the฀menu฀language฀later.

(→฀[LANGUAGE]฀on฀page฀39฀and฀52)

NOTE:฀

•฀Keep฀the฀lens฀cap฀off฀the฀lens฀while฀the฀projector’s฀power฀is฀on.

฀If฀the฀lens฀cap฀is฀on,฀it฀could฀be฀warped฀due฀to฀high฀temperature.

•฀If฀one฀of฀the฀following฀things฀happens,฀the฀projector฀will฀not฀turn฀on.

-฀If฀the฀internal฀temperature฀of฀the฀projector฀is฀too฀high,฀the฀projector฀detects฀abnormal฀high฀temperature.฀In฀this฀condition฀the฀

projector฀will฀not฀be฀turned฀to฀protect฀the฀internal฀system.฀If฀this฀happens,฀wait฀for฀the฀projector’s฀internal฀components฀to฀cool฀

down.

-฀When฀the฀lamp฀reaches฀its฀end฀of฀usable฀life,฀the฀projector฀will฀not฀turn฀on.฀If฀this฀happens,฀replace฀the฀lamp.

-฀If฀the฀STATUS฀indicator฀lights฀orange฀with฀the฀power฀button฀pressed,฀it฀means฀that฀the฀[CONTROL฀PANEL฀LOCK]฀is฀turned฀on.฀

Cancel฀the฀lock฀by฀turning฀it฀off.฀(→฀page฀55)

-฀If฀the฀lamp฀fails฀to฀light,฀and฀if฀the฀LAMP฀indicator฀ashes฀on฀and฀off฀in฀a฀cycle฀of฀six฀times,฀wait฀a฀full฀minute฀and฀then฀turn฀on฀

the฀power.

•฀While฀the฀POWER฀indicator฀is฀blinking฀blue฀in฀short฀cycles,฀the฀power฀cannot฀be฀turned฀off฀by฀using฀the฀power฀button.

•฀Immediately฀after฀turning฀on฀the฀projector,฀screen฀icker฀may฀occur.฀This฀is฀normal.฀Wait฀3฀to฀5฀minutes฀until฀the฀lamp฀lighting฀is฀

stabilized.

•฀When฀the฀projector฀is฀turned฀on,฀it฀may฀take฀some฀time฀before฀the฀lamp฀light฀becomes฀bright.

•฀If฀you฀turn฀on฀the฀projector฀immediately฀after฀the฀lamp฀is฀turned฀off฀or฀when฀the฀temperature฀is฀high,฀the฀fans฀run฀without฀display-

ing฀an฀image฀for฀some฀time฀and฀then฀the฀projector฀will฀display฀the฀image.

2. Projecting an Image (Basic Operation)

❹ Selecting a Source

Selecting the computer or video source

NOTE:฀Turn฀on฀the฀computer฀or฀video฀source฀equipment฀connected฀to฀the฀projector.

Detecting the Signal Automatically

Press฀the฀SOURCE฀button฀once.฀The฀projector฀will฀search฀for฀the฀avail-

able฀input฀source฀and฀display฀it.฀The฀input฀source฀will฀change฀as฀follows:฀

[HDMI1]฀→฀[HDMI2]฀→฀[COMPUTER]฀→฀[VIDEO]฀→฀[HDBaseT]฀→฀[APPS]

•฀With฀the฀SOURCE฀screen฀displayed,฀you฀can฀press฀the฀SOURCE฀

button฀a฀few฀times฀to฀select฀the฀input฀source.

TIP:฀If฀no฀input฀signal฀is฀present,฀the฀input฀will฀be฀skipped.

Using the Remote Control

Press฀any฀one฀of฀the฀COMPUTER฀1,฀HDMI1,฀HDMI2,฀VIDEO,฀HDBaseT,฀

or฀APPS฀buttons.

2. Projecting an Image (Basic Operation)

Selecting Default Source

You฀can฀so฀that฀it฀will฀be฀displayed฀each฀time฀the฀projector฀is฀turned฀on.

1. Press the MENU button.

The menu will be displayed.

2. Press the

▶฀button฀twice฀to฀select฀[SETUP]฀and฀the฀▼฀button฀or฀the฀ENTER฀button฀to฀select฀[GENERAL].

Press the

▶

฀button฀four฀times฀to฀select฀[OPTIONS(2)].

4. Press the ▼฀button฀ve฀times฀to฀select฀[DEFAULT฀SOURCE฀SELECT]฀and฀press฀the฀ENTER฀button.

The [DEFAULT SOURCE SELECT] screen will be displayed.

(

→ page 63)

Select a source as the default source, and press the ENTER button.

6. Press the EXIT button a few times to close the menu.

7. Restart the projector.

The source you selected in step 5 will be projected.

TIP:฀

•฀When฀the฀projector฀and฀computer฀are฀connected฀and฀the฀projector฀is฀in฀standby,฀it฀is฀possible฀to฀turn฀on฀the฀projector’s฀power฀

and฀project฀the฀computer’s฀screen฀automatically฀by฀detecting฀the฀computer฀signals฀or฀HDMI฀signals฀issued฀from฀the฀computer.

฀([AUTO฀POWER฀ON]฀→฀page฀62)

•฀On฀Windows฀notebook฀computer,฀it฀can฀switch฀to฀enable/disable฀the฀external฀output฀by฀the฀combination฀of฀Fn฀key฀and฀one฀of฀

function฀key.

2. Projecting an Image (Basic Operation)

❺ Adjusting the Picture Size and Position

Use฀the฀lens฀shift฀dial,฀the฀adjustable฀tilt฀foot฀lever,฀the฀zoom฀lever/zoom฀ring฀and฀the฀focus฀ring฀to฀adjust฀the฀picture฀

size฀and฀position.

In฀this฀chapter฀drawings฀and฀cables฀are฀omitted฀for฀clarity.

Adjusting฀the฀projected฀image’s฀vertical฀and฀horizontal฀

position฀[Lens฀shift]

(→฀page฀17)

Adjusting฀the฀focus฀[Focus฀ring]

(→฀page฀19)

Finely฀adjusting฀the฀size฀of฀an฀image

[Zoom฀lever]

(→฀page฀19)

Adjusting฀the฀projected฀image’s฀height฀and฀horizontal฀tilt

[Tilt฀foot]

(→฀page฀20)

Correcting฀the฀keystone฀distortion฀[Keystone]

(→฀page฀21)

2. Projecting an Image (Basic Operation)

Adjusting the vertical position of a projected image (Lens shift)

CAUTION

Perform฀the฀adjustment฀from฀behind฀or฀from฀the฀side฀of฀the฀projector.฀Adjusting฀from฀the฀front฀could฀expose฀your฀

eyes฀to฀strong฀light฀which฀could฀injure฀them.

1. Turn the lens shift dials clockwise or counterclockwise.

Vertical dial

฀Turn฀this฀clockwise฀or฀counterclockwise฀to฀adjust฀the฀projection฀position฀in฀the฀vertical฀direction.

Horizontal dial

฀Turn฀this฀clockwise฀or฀counterclockwise฀to฀adjust฀the฀projection฀position฀in฀the฀horizontal฀direction.

Lens shift dial

(Horizontal)

Lens shift dial

(Vertical)

Upward

Leftward

Downward

Rightward

NOTE:

•฀The฀dials฀can฀be฀turned฀more฀than฀one฀full฀turn,฀but฀the฀projection฀position฀cannot฀be฀moved฀more฀than฀the฀range฀indicated฀

on฀the฀following฀page.฀Do฀not฀force฀to฀turn฀the฀dials.฀Doing฀so฀may฀damage฀the฀dials.

•฀If฀the฀lens฀is฀shifted฀to฀the฀maximum฀in฀the฀diagonal฀direction,฀the฀edges฀of฀the฀screen฀will฀be฀dark฀or฀shaded.

•฀The฀vertical฀shift฀adjustment฀must฀be฀nished฀with฀an฀image฀shifted฀upward.฀If฀you฀nish฀the฀vertical฀shift฀adjustment฀with฀an฀

image฀shifted฀down,฀the฀zoom/focus฀adjustments฀or฀strong฀shaking฀may฀cause฀a฀projected฀image฀to฀slightly฀shift฀down.

2. Projecting an Image (Basic Operation)

TIP:฀

•฀The฀diagram฀below฀shows฀the฀lens฀shift฀adjustment฀range฀([ORIENTATION]:฀[DESKTOP฀FRONT]).

•฀For฀the฀lens฀shift฀adjustment฀range฀regarding฀the฀[CEILING฀FRONT]฀projection,฀see฀page฀73.

฀[P502H/P452H]

100%V

62%V

100%H

25%H

Height of projected image

Width of projected image

฀[P502W/P452W]

100%V

59%V

100%H

28%H

Height of projected image

Width of projected image

฀Description฀of฀symbols:฀V฀indicates฀vertical฀(height฀of฀the฀projected฀image),฀H฀indicates฀horizontal฀(width฀of฀the฀projected฀image).

2. Projecting an Image (Basic Operation)

Focus

Use฀the฀FOCUS฀ring฀to฀obtain฀the฀best฀focus.

NOTE:

•฀Recommend฀to฀perform฀the฀focus฀adjustment฀after฀leaving฀the฀projector฀under฀the฀state฀the฀TEST฀PATTERN฀has฀been฀projected฀

for฀over฀30฀minutes.฀Please฀refer฀page฀58฀about฀the฀TEST฀PATTERN.

Focus ring

Zoom

Turn฀the฀zoom฀lever฀clockwise฀and฀counterclockwise.

Zoom lever

2. Projecting an Image (Basic Operation)

Adjusting the tilt (Tilt foot)

Adjusting฀the฀left฀and฀right฀tilt.

1. Turn the left and right tilt feet to adjust.

The tilt feet lengthen and shorten when turned.

The height of the projected image is adjusted by turning the left

and right tilt feet.

฀If฀the฀projected฀image฀is฀tilted,฀turn฀one฀of฀the฀tilt฀feet฀to฀adjust฀the฀

image so that it is level.

•฀If฀the฀projected฀image฀is฀distorted,฀see฀“6฀Correcting฀Keystone฀

Distortion฀[KEYSTONE]”฀(→ page 21).

•฀The฀tilt฀feet฀can฀be฀lengthened฀by฀a฀maximum฀of฀18฀mm.

•฀The฀tilt฀feet฀can฀be฀used฀to฀tilt฀the฀projector฀by฀a฀maximum฀of฀

4°.

Down

Tilt foot

NOTE:

•฀Do฀not฀use฀the฀tilt฀feet฀for฀any฀purpose฀other฀than฀adjusting฀the฀projector’s฀projection฀angle.

฀Handling฀the฀tilt฀feet฀improperly,฀such฀as฀carrying฀the฀projector฀by฀grasping฀the฀tilt฀foot฀or฀hooking฀it฀onto฀a฀wall฀using฀the฀tilt฀feet,฀

could฀damage฀the฀projector.

฀

2. Projecting an Image (Basic Operation)

❻ Correcting Keystone Distortion [KEYSTONE]

When฀the฀projector฀is฀not฀exactly฀perpendicular฀to฀the฀screen,฀keystone฀distortion฀occurs.฀To฀overcome฀it,฀you฀can฀use฀the฀

“Keystone”฀function,฀a฀digital฀technology฀that฀can฀adjust฀for฀keystone-type฀distortion,฀resulting฀in฀a฀crisp,฀square฀image.

The฀following฀procedure฀explains฀how฀to฀use฀the฀[KEYSTONE]฀screen฀from฀the฀menu฀to฀correct฀trapezoidal฀distortions.

When฀the฀projector฀is฀placed฀diagonally฀to฀the฀screen,฀

When฀the฀projector฀is฀set฀up฀at฀an฀angle฀in฀relation฀to฀the฀screen,฀adjust฀the฀Horizontal฀option฀of฀the฀Keystone฀menu฀

so฀that฀the฀top฀and฀bottom฀of฀sides฀of฀the฀projected฀image฀are฀parallel.

1. When APPS is not selected as source and the menu is not dis-

played on, press the ▼ button on the projector cabinet.

The Keystone screen will be displayed on the screen.

•฀Press฀the฀KEYSTONE฀button฀when฀using฀the฀remote฀control.

•฀See฀page฀

22 for [RESET].

2. Press the ▼฀button฀to฀select฀[VERTICAL]฀and฀then฀use฀the฀◀ or ▶

so that the left and right sides of the projected image are parallel.

*฀Adjust฀the฀vertical฀keystone฀distortion.

Projected area

Screen frame

3. Align the left (or right) side of the screen with the left (or right)

side of the projected image.

•฀Use฀the฀shorter฀side฀of฀the฀projected฀image฀as฀the฀base.

•฀In฀the฀right฀example,฀use฀the฀left฀side฀as฀the฀base.

Align left side

2. Projecting an Image (Basic Operation)

4. Press the ▲฀button฀to฀select฀[HORIZONTAL]฀and฀then฀use฀the฀◀

or ▶ so that the top and bottom sides of the projected image are

parallel.

•฀Adjust฀the฀horizontal฀keystone฀distortion.

5. Repeat steps 2 and 4 to correct keystone distortion.

6.฀After฀completing฀Keystone฀correction,฀press฀the฀EXIT฀button.

The Keystone screen will disappear.

•฀To฀perform฀Keystone฀correction฀again,฀press฀the฀▼ button to display

the Keystone screen and repeat above steps 1 to 6.

To฀return฀the฀keystone฀adjustments฀to฀default:

1. Press the ▼฀button฀to฀select฀[RESET]฀and฀press฀the฀ENTER฀button.

2. Press the ◀ or ▶฀button฀to฀select฀[YES]฀and฀press฀the฀ENTER฀button.

The adjustments will be reset.

•฀When฀resetting,฀the฀[HORIZONTAL]฀and฀[VERTICAL]฀adjustment฀values฀are฀also฀reset.

•฀The฀KEYSTONE฀feature฀can฀cause฀an฀image฀to฀be฀slightly฀blurred฀because฀the฀correction฀is฀made฀electronically.

2. Projecting an Image (Basic Operation)

❼ Optimizing Computer Signal Automatically

Adjusting the Image Using Auto Adjust

Optimizing฀a฀computer฀image฀automatically.฀(COMPUTER)

Press฀the฀AUTO฀ADJ.฀button฀to฀optimize฀a฀computer฀image฀automatically.

This฀adjustment฀may฀be฀necessary฀when฀you฀connect฀your฀computer฀for฀the฀rst฀time.

[Poor picture] [Normal picture]

NOTE:

Some฀signals฀may฀take฀time฀to฀display฀or฀may฀not฀be฀displayed฀correctly.

•฀If฀the฀Auto฀Adjust฀operation฀cannot฀optimize฀the฀computer฀signal,฀try฀to฀adjust฀[HORIZONTAL],฀[VERTICAL],฀[CLOCK],฀and฀[PHASE]฀

manually.฀(→฀page฀46,฀47)

❽ Turning Up or Down Volume

Sound฀level฀from฀the฀speaker฀or฀audio฀output฀can฀be฀adjusted.

TIP:฀When฀no฀menus฀appear,฀the฀◀฀and฀▶฀buttons฀on฀the฀projector฀cabinet฀work฀

as฀a฀volume฀control.฀

NOTE:

•฀Volume฀control฀is฀not฀available฀with฀the฀◀฀or฀▶฀button฀when฀an฀image฀is฀magni-

ed฀by฀using฀the฀D-ZOOM฀(+)฀button,฀when฀the฀menu฀is฀displayed,฀or฀when฀the฀

APPS฀is฀displayed.

TIP:฀The฀[BEEP]฀sound฀volume฀cannot฀be฀adjusted.฀To฀turn฀off฀the฀[BEEP]฀sound,฀

from฀the฀menu,฀select฀[SETUP]฀→฀[OPTIONS฀(1)]฀→฀[BEEP]฀→฀[OFF].

Increase฀volume

Decrease volume

2. Projecting an Image (Basic Operation)

❾ Turning off the Projector

To฀turn฀off฀the฀projector:

1. First, press the (POWER) button on the projector

cabinet or the STANDBY button on the remote control.

The conﬁrmation message will be displayed.

•฀The฀conrmation฀message฀displayed฀when฀the฀power฀

is turned off indicates the amount of CO

reduction this

session and lamp life remaining (

→ page 29).

2. Secondly, press the ENTER button or press the

(POWER) or the STANDBY button again.

The lamp and the power are turned off and the cooling

fan stops to rotate, the projector goes into the STANDBY

MODE. When in standby mode, the POWER indicator

will light red and the STATUS indicator will turn off when

[NORMAL] is selected for [STANDBY MODE].

Power On

Steady blue light

Fan rotating Standby

Blinking orange

light

Steady red light

3. Mount the lens cap.

Put the top side of the lens cap to the right position on the

cabinet and push in the bottom side. The stopper is secured

to the projector.

Stopper

CAUTION:

Parts฀of฀the฀projector฀may฀become฀temporarily฀heated฀if฀the฀projector฀is฀turned฀off฀with฀the฀POWER฀button.

Be฀careful฀to฀handle฀the฀projector.

NOTE:

•฀While฀the฀POWER฀indicator฀is฀blinking฀blue฀in฀short฀cycles,฀the฀power฀cannot฀be฀turned฀off฀by฀using฀the฀power฀button.

•฀You฀cannot฀run฀off฀the฀power฀for฀60฀seconds฀immediately฀after฀turning฀it฀on฀and฀displaying฀an฀image.

•฀Wait฀for฀about฀10฀seconds฀to฀turn฀off฀the฀power฀after฀making฀adjustment฀or฀change฀on฀each฀setting฀and฀close฀its฀menu.฀If฀the฀

power฀is฀turned฀off฀during฀this฀period,฀the฀adjustment฀and฀change฀may฀be฀reset฀at฀default฀setting.

•฀Do฀not฀disconnect฀the฀power฀cord฀while฀the฀cooling฀fan฀remains฀to฀rotate.฀It฀may฀be฀cause฀of฀malfunction.

2. Projecting an Image (Basic Operation)

❿ When Moving the Projector

Preparation:฀Make฀sure฀that฀the฀projector฀is฀turned฀off.

1. If the separately sold cable cover is mounted, remove it.

(

→ page 132)

2. Unplug the power cord.

3. Disconnect any other cables.

•฀Remove฀the฀USB฀memory฀if฀it฀is฀inserted฀into฀the฀projector.

❶ Turning off the Image and Sound

Press฀the฀AV-MUTE฀button฀to฀turn฀off฀the฀image฀and฀sound฀for฀a฀short฀

period฀of฀time.฀Press฀again฀to฀restore฀the฀image฀and฀sound.

NOTE:

•฀Even฀though฀the฀image฀is฀turned฀off,฀the฀menu฀still฀remains฀on฀the฀screen.

❷ Freezing a Picture

Press฀the฀FREEZE฀button.฀If฀the฀image฀of฀a฀DVD฀player,฀etc.,฀is฀be-

ing฀projected,฀the฀video฀switches฀to฀a฀still฀image.฀Press฀the฀FREEZE฀

button฀again฀to฀resume฀the฀video.

NOTE:฀The฀image฀is฀frozen฀but฀the฀original฀video฀is฀still฀playing฀back.

3. Convenient Features

❸ Magnifying a Picture

You฀can฀enlarge฀the฀picture฀up฀to฀four฀times.

NOTE:

•฀The฀maximum฀magnication฀may฀be฀less฀than฀four฀times฀depending฀on฀the฀signal.

To฀do฀so:

1.฀Press฀the฀D-ZOOM฀(+)฀button฀to฀magnify฀the฀picture.

To move the magniﬁed image, use the ▲,▼,◀ or ▶ button.

2. Press the ▲▼◀▶ button.

The area of the magniﬁed image will be moved

3.฀Press฀the฀D-ZOOM฀(−)฀button.

Each time the D-ZOOM (−) button is pressed, the image is reduced.

NOTE:฀

•฀The฀image฀will฀be฀magnied฀or฀demagnied฀at฀the฀center฀of฀the฀screen.

•฀Displaying฀the฀menu฀will฀cancel฀the฀current฀magnication.

3. Convenient Features

❹ Changing Eco Mode/Checking Energy-Saving Effect

Using Eco Mode [ECO MODE]

The฀ECO฀MODE฀(NORMAL฀and฀ECO)฀increases฀lamp฀life,฀while฀lowering฀power฀consumption฀and฀cutting฀down฀on฀

฀emissions.฀

Four฀brightness฀modes฀of฀the฀lamp฀can฀be฀selected:฀[OFF],฀[AUTO฀ECO],฀[NORMAL]฀and฀[ECO]฀modes.฀

[ECO฀MODE]฀DescriptionStatus฀of฀LAMP฀indicator

[OFF]The฀lamp฀brightness฀is฀100%.

Off

[AUTO฀ECO]

Lamp฀power฀consumption฀will฀be฀controlled฀between฀

[OFF]฀and฀[ECO]฀automatically฀according฀to฀picture฀level.

NOTE:฀A฀bright฀gradation฀may฀be฀less฀visible฀depending฀on฀

the฀image.

Steady฀Green฀

light

[NORMAL]

Lamp฀power฀consumption.฀(approx.฀80%฀brightness)฀

The฀lamp฀life฀will฀extend฀by฀lowering฀the฀lamp฀power.

[ECO]

Lamp฀power฀consumption฀(approx.฀60%฀brightness).฀The฀

lamp฀life฀will฀extend฀longer฀than฀the฀one฀on฀NORMAL฀

mode฀by฀controlling฀power฀appropriate฀for฀the฀lamp.฀

The฀maximum฀power฀becomes฀equivalent฀to฀the฀power฀

in฀NORMAL.

To฀turn฀on฀the฀[ECO฀MODE],฀do฀the฀following:฀

1.฀Press฀the฀ECO฀Button฀on฀the฀remote฀control฀to฀display฀[ECO฀MODE]฀screen.

2.฀Press฀the฀ECO฀button฀again฀to฀select฀a฀mode฀you฀wish.฀

•฀Each฀time฀the฀ECO฀button฀is฀pressed,฀the฀choices฀will฀be฀changed:

OFF → AUTO ECO → NORMAL → ECO → OFF

TIP:฀

•฀The฀leaf฀symbol฀at฀the฀bottom฀of฀the฀menu฀shows฀the฀current฀selection฀of฀ECO฀mode.

NOTE:฀

•฀The฀ECO฀MODE฀and฀DYNAMIC฀CONTRAST฀features฀control฀the฀lamp฀power.฀Some฀pictures฀may฀become฀extremely฀bright฀when฀

using฀both฀ECO฀MODE฀and฀DYNAMIC฀CONTRAST฀features฀to฀control฀the฀lamp฀power.฀To฀avoid฀this฀phenomena,฀turn฀off฀the฀ECO฀

MODE฀and฀DYNAMIC฀CONTRAST.

•฀Immediately฀after฀the฀menu฀item฀is฀selected฀for฀[ECO฀MODE],฀the฀screen฀may฀icker.฀This฀is฀not฀malfunction.

•฀Using฀the฀projector฀in฀the฀[AUTO฀ECO],฀[NORMAL],฀or฀[ECO]฀mode฀for฀[ECO฀MODE]฀may฀cause฀poor฀halftones฀depending฀on฀the฀

projected฀image.

•฀When฀[ECO]฀has฀been฀set฀for฀[ECO฀MODE],฀the฀fan฀noise฀may฀change฀in฀a฀certain฀cycle.

•฀The฀[ECO฀MODE]฀can฀be฀changed฀by฀using฀the฀menu.

฀Select฀[SETUP]฀→฀[GENERAL]฀→฀[ECO฀MODE].

•฀The฀lamp฀life฀remaining฀and฀lamp฀hours฀used฀can฀be฀checked฀in฀[USAGE฀TIME].฀Select฀[INFO.]฀→[USAGE฀TIME].

•฀The฀projector฀is฀always฀in฀[NORMAL]฀for฀90฀seconds฀after฀the฀lamp฀is฀turned฀on฀and฀while฀the฀POWER฀indicator฀is฀blinking฀green.฀

The฀lamp฀condition฀will฀not฀be฀affected฀even฀when฀[ECO฀MODE]฀is฀changed.

•฀After฀a฀lapse฀of฀1฀minute฀from฀when฀the฀projector฀displays฀no-signal฀guidance,฀a฀blue,฀black฀or฀logo฀screen,฀[ECO฀MODE]฀will฀

automatically฀switch฀to฀[ECO].

•฀If฀the฀projector฀is฀overheated฀in฀[OFF]฀mode,฀there฀may฀be฀a฀case฀where฀the฀[ECO฀MODE]฀automatically฀changes฀to฀[NORMAL]฀

mode฀to฀protect฀the฀projector.฀When฀the฀projector฀is฀in฀[NORMAL]฀mode,฀the฀picture฀brightness฀decreases.฀When฀the฀projector฀

comes฀back฀to฀normal฀temperature,฀the฀[ECO฀MODE]฀returns฀to฀[OFF]฀mode.

฀Thermometer฀symbol฀[฀

฀]฀indicates฀the฀[ECO฀MODE]฀is฀automatically฀set฀to฀[NORMAL]฀mode฀because฀the฀internal฀temperature฀

is฀too฀high.

3. Convenient Features

Checking Energy-Saving Effect [CARBON METER]

This฀feature฀will฀show฀energy-saving฀effect฀in฀terms฀of฀CO

฀emission฀reduction฀(kg)฀when฀the฀projector’s฀[ECO฀MODE]฀

is฀set.฀This฀feature฀is฀called฀as฀[CARBON฀METER].

There฀are฀two฀messages:฀[TOTAL฀CARBON฀SAVINGS]฀and฀[CARBON฀SAVINGS-SESSION].฀The฀[TOTAL฀CARBON฀

SAVINGS]฀message฀shows฀the฀total฀amount฀of฀CO

฀emission฀reduction฀from฀the฀time฀of฀shipment฀up฀to฀now.฀You฀can฀

check฀the฀information฀on฀[USAGE฀TIME]฀from฀[INFO.]฀of฀the฀menu.฀(→฀page฀

66)

The฀[CARBON฀SAVINGS-SESSION]฀message฀shows฀the฀amount฀of฀CO

฀emission฀reduction฀between฀the฀time฀of฀

changing฀to฀ECO฀MODE฀immediately฀after฀the฀time฀of฀power-on฀and฀the฀time฀of฀power-off.฀The฀[CARBON฀SAVINGS-

SESSION]฀message฀will฀be฀displayed฀in฀the฀[POWER฀OFF/฀ARE฀YOU฀SURE?]฀message฀at฀the฀time฀of฀power-off.

TIP:

•฀The฀formula฀as฀shown฀below฀is฀used฀to฀calculate฀the฀amount฀of฀CO

฀emission฀reduction.

฀Amount฀of฀CO

฀emission฀reduction฀=฀(Power฀consumption฀in฀[OFF]฀for฀[ECO฀MODE]฀−฀Power฀consumption฀in฀[ECO฀MODE])฀×฀

฀conversion฀factor.*฀When฀the฀image฀is฀turned฀off฀with฀the฀AV-MUTE฀button,฀the฀amount฀of฀CO

฀emmission฀reduction฀will฀also฀

increase.

*฀Calculation฀for฀amount฀of฀CO

฀emission฀reduction฀is฀based฀on฀an฀OECD฀publication฀“CO

฀Emissions฀from฀Fuel฀Combustion,฀

2008฀Edition”.

•฀The฀[TOTAL฀CARBON฀SAVINGS]฀is฀calculated฀based฀on฀savings฀recorded฀in฀15฀minutes฀intervals.

•฀This฀formula฀will฀not฀apply฀to฀the฀power฀consumption฀which฀is฀not฀affected฀by฀whether฀[ECO฀MODE]฀is฀turned฀on฀or฀off.

3. Convenient Features

❺

Preventing the Unauthorized Use of the Projector [SECURITY]

A฀keyword฀can฀be฀set฀for฀your฀projector฀using฀the฀Menu฀to฀avoid฀operation฀by฀an฀unauthorized฀user.฀When฀a฀keyword฀

is฀set,฀turning฀on฀the฀projector฀will฀display฀the฀Keyword฀input฀screen.฀Unless฀the฀correct฀keyword฀is฀entered,฀the฀pro-

jector฀cannot฀project฀an฀image.฀

•฀The฀[SECURITY]฀setting฀cannot฀be฀cancelled฀by฀using฀the฀[RESET]฀of฀the฀menu.

To enable the Security function:

1. Press the MENU button.

The menu will be displayed.

2. Press the

▶฀button฀twice฀to฀select฀[SETUP]฀and฀press฀the฀▼฀button฀or฀the฀ENTER฀button฀to฀select฀[GEN-

ERAL].

3. Press the ▶฀button฀to฀select฀[INSTALLATION].

4. Press the ▼฀button฀three฀times฀to฀select฀[SECURITY]฀and฀press฀the฀ENTER฀button.

The OFF/ON menu will be displayed.

5. Press the

▼฀button฀to฀select฀[ON]฀and฀press฀the฀ENTER฀button.

฀The฀[SECURITY฀KEYWORD]฀screen฀will฀be฀displayed.

6. Type in a combination of the four ▲▼◀▶ buttons and press the ENTER button.

NOTE:฀A฀keyword฀must฀be฀4฀to฀10฀digits฀in฀length.

฀The฀[CONFIRM฀KEYWORD]฀screen฀will฀be฀displayed.

3. Convenient Features

7. Type in the same combination of ▲▼◀▶ buttons and press the ENTER button.

The conﬁrmation screen will be displayed.

8.฀Select฀[YES]฀and฀press฀the฀ENTER฀button.

฀The฀SECURITY฀function฀has฀been฀enabled.

To฀turn฀on฀the฀projector฀when฀[SECURITY]฀is฀enabled:

1. Press the POWER button.

฀The฀projector฀will฀be฀turned฀on฀and฀display฀a฀message฀to฀the฀effect฀that฀the฀projector฀is฀locked.

2. Press the MENU button.

3. Type in the correct keyword and press the ENTER button. The projector will display an image.

NOTE:฀The฀security฀disable฀mode฀is฀maintained฀until฀the฀main฀power฀is฀turned฀off฀or฀unplugging฀the฀power฀cord.

3. Convenient Features

To disable the SECURITY function:

1. Press the MENU button.

The menu will be displayed.

2.฀฀Select฀[SETUP]฀→฀[INSTALLATION]฀→฀[SECURITY]฀and฀press฀the฀ENTER฀button.

The OFF/ON menu will be displayed.

3.฀Select฀[OFF]฀and฀press฀the฀ENTER฀button.

฀The฀SECURITY฀KEYWORD฀screen฀will฀be฀displayed.

4. Type in your keyword and press the ENTER button.

฀When฀the฀correct฀keyword฀is฀entered,฀the฀SECURITY฀function฀will฀be฀disabled.

NOTE:฀If฀you฀forget฀your฀keyword,฀contact฀your฀dealer.฀Your฀dealer฀will฀provide฀you฀with฀your฀keyword฀in฀exchange฀for฀your฀request฀

code.฀Your฀request฀code฀is฀displayed฀in฀the฀Keyword฀Conrmation฀screen.฀In฀this฀example฀[K992-45L8-JNGJ-4XU9-1YAT-EEA2]฀is฀

a฀request฀code.

3. Convenient Features

❻ Viewing 3D Images

The฀projector฀provides฀3D฀images฀to฀a฀user฀wearing฀commercially฀available฀LCD฀shutter฀eyeglasses.

CAUTION

Health precautions

Before฀viewing,฀be฀sure฀to฀read฀health฀care฀precautions฀that฀may฀be฀found฀in฀the฀user’s฀manual฀included฀with฀your฀LCD฀

shutter฀eyeglasses฀or฀your฀3D฀compatible฀content฀such฀as฀DVDs,฀video฀games,฀computer’s฀video฀les฀and฀the฀like.

To฀avoid฀any฀adverse฀symptoms,฀heed฀the฀following:

•฀Do฀not฀use฀LCD฀shutter฀eyeglasses฀for฀viewing฀any฀material฀other฀than฀3D฀images.

•฀Allow฀a฀distance฀of฀2฀m/7฀feet฀or฀greater฀between฀the฀screen฀and฀a฀user.฀Viewing฀3D฀images฀from฀too฀close฀a฀

distance฀can฀strain฀your฀eyes.

•฀Avoid฀viewing฀3D฀images฀for฀a฀prolonged฀period฀of฀time.฀Take฀a฀break฀of฀15฀minutes฀or฀longer฀after฀every฀hour฀

of฀viewing.

•฀If฀you฀or฀any฀member฀of฀your฀family฀has฀a฀history฀of฀light-sensitive฀seizures,฀consult฀a฀doctor฀before฀viewing฀3D฀

images.

•฀While฀viewing฀3D฀images,฀if฀you฀get฀sick฀such฀as฀nausea,฀dizziness,฀queasiness,฀headache,฀eyestrain,฀blurry฀

vision,฀convulsions,฀and฀numbness,฀stop฀viewing฀them.฀If฀symptoms฀still฀persist,฀consult฀a฀doctor.฀

•฀View฀3D฀images฀from฀the฀front฀of฀the฀screen.฀Viewing฀from฀an฀angle฀may฀cause฀fatigue฀or฀eyestrain.฀

LCD shutter eyeglasses (recommended)

•฀Use฀commercially฀available฀DLP

฀Link฀or฀other฀method฀compatible฀LCD฀shutter฀eyeglasses.

Steps for viewing 3D images on the projector

1.฀Connect฀the฀projector฀to฀your฀video฀equipment.฀

2.฀Turn฀on฀the฀projector,฀display฀the฀on-screen฀menu,฀and฀then฀select฀[ON]฀for฀the฀3D฀mode.

฀For฀the฀operating฀procedure฀to฀turn฀on฀the฀3D฀mode,฀refer฀to฀“On-screen฀menu฀for฀3D฀images”฀on฀the฀following฀

page.

3. Play your 3D compatible content and use the projector to display the image.

4.฀Put฀on฀your฀LCD฀shutter฀eyeglasses฀to฀view฀3D฀images.

Also refer to the user’s manual accompanied with your LCD shutter eyeglasses for more information.

On-screen menu for 3D images

Follow฀the฀steps฀to฀display฀the฀3D฀menu.

1. Press the MENU button.

The on-screen menu will be displayed.

2. Press the

▷ button twice.

The [SETUP] menu will be displayed.

3. Press the ▽ button once, and then press the ▷ button ﬁve times.

3. Convenient Features

The [3D] menu will be displayed

4. Press the ▽ button to select a signal and press the ENTER button.

฀The฀3D฀(DETAIL฀SETTINGS)฀screen฀will฀be฀displayed.

5. Press the ▽฀button฀to฀[GLASSES]฀and฀press฀the฀ENTER฀button.

The [GLASSES] setting screen will be displayed.

6. Press the

▽ button to select a compatible eyeglass method and press the ENTER button.

฀Set฀other฀3D-related฀menu฀options฀such฀as฀[FORMAT]฀and฀[L/R฀INVERT]฀as฀necessary.฀

When switched to a 3D image, the 3D viewing cautions message screen appears (by factory default). For details,

see page 54.

7. Press either

△ or ▽฀button฀to฀select฀[3D]฀and฀press฀the฀ENTER฀button.

The setting screen for 3D mode will be displayed on.

8. Press the

▽฀button฀to฀select฀[ON]฀and฀press฀the฀ENTER฀button.

The selected signal will be changed in 3D mode.

Selecting฀input฀connected฀to฀a฀source฀of฀3D฀images฀[HDMI1/HDMI2/COMPUTER/VIDEO/

HDBaseT]

This฀function฀switches฀the฀3D฀mode฀between฀ON฀and฀OFF฀for฀each฀input.

NOTE:

To฀conrm฀that฀the฀supported฀3D฀signal฀is฀accepted,฀use฀either฀way฀of฀the฀following:

•฀Make฀sure฀that฀[3D]฀is฀displayed฀in฀the฀top฀right฀of฀the฀screen฀after฀the฀source฀is฀selected.

•฀Display฀[INFO.]฀→฀[SOURCE(2)]฀→฀[3D฀SIGNAL]฀and฀make฀sure฀that฀“SUPPORTED”฀is฀displayed.

3. Convenient Features

To฀view฀3D฀images,฀see฀page฀33.

Select฀[HDMI1],฀[HDMI2],฀[COMPUTER],฀[VIDEO],฀or฀[HDBaseT].

NOTE:

•฀The฀maximum฀distance฀for฀viewing฀3D฀images฀is฀10฀m/394฀inches฀from฀the฀screen฀surface฀under฀the฀following฀restrictions:

-฀Brightness฀on฀the฀projector:฀2000฀lumens฀or฀greater

-฀Screen฀gain:฀1

-฀Viewing฀position:฀Facing฀straight฀towards฀the฀screen฀center

-฀Outside฀light:฀None

-฀LCD฀shutter฀eyeglasses:฀DLP®฀Link฀compatible฀3D฀eyeglasses

•฀If฀3D฀content฀is฀played฀back฀on฀your฀computer฀and฀the฀performance฀is฀poor฀it฀may฀be฀caused฀by฀the฀CPU฀or฀graphics฀chip.฀In฀this฀

case฀you฀may฀have฀difculty฀seeing฀the฀3D฀images฀as฀they฀were฀intended.฀Check฀to฀see฀if฀your฀computer฀meets฀the฀requirements฀

provided฀in฀your฀user’s฀manual฀included฀with฀your฀3D฀content.

•฀The฀DLP

฀Link฀compatible฀LCD฀shutter฀eyeglasses฀allow฀you฀to฀view฀3D฀images฀by฀receiving฀synch฀signals,฀which฀are฀included฀

in฀left฀eye฀and฀right฀eye฀images,฀reected฀from฀the฀screen.฀Depending฀on฀environments฀or฀conditions฀such฀as฀the฀ambient฀bright-

ness,฀screen฀size฀or฀viewing฀distance,฀the฀LCD฀shutter฀eyeglasses฀may฀fail฀to฀receive฀synch฀signals,฀causing฀poor฀3D฀images.

•฀When฀the฀3D฀mode฀is฀enabled,฀the฀Keystone฀correction฀range฀will฀be฀narrower.

•฀When฀the฀3D฀mode฀is฀enabled,฀the฀following฀settings฀are฀invalid.

฀[WALL฀COLOR],฀[PRESET],฀[REFERENCE],฀[COLOR฀TEMPERATURE]

•฀Refer฀to฀the฀[SOURCE(2)]฀screen฀under฀the฀[INFO.]฀menu฀for฀information฀on฀whether฀the฀input฀signal฀is฀3D฀compatible.

•฀Signals฀other฀than฀those฀listed฀in฀“Compatible฀Input฀Signal฀List”฀on฀page฀136฀will฀be฀out฀of฀range฀or฀will฀be฀displayed฀in฀2D.

Using a 3D emitter

This฀projector฀can฀be฀used฀to฀watch฀videos฀in฀3D฀using฀commercially-available฀active฀shutter-type฀3D฀eyewear.฀In฀

order฀to฀synchronize฀the฀3D฀video฀and฀eyewear,฀a฀commercially-available฀3D฀emitter฀needs฀to฀be฀connected฀to฀the฀

projector฀(on฀the฀projector฀side).

The฀3D฀eyewear฀receives฀information฀from฀the฀3D฀emitter฀and฀performs฀opening฀and฀closing฀on฀the฀left฀and฀right.฀

3D eyewear and 3D emitter preparations

Please฀use฀an฀active฀shutter-type฀3D฀eyewear฀that฀conforms฀with฀the฀VESA฀standard.

A฀commercially-available฀RF฀type฀made฀by฀Xpand฀is฀recommended.

3D eyewear ............ Xpand X105-RF-X2

3D emitter .............. Xpand AD025-RF-X1

Connect฀your฀3D฀emitter฀to฀the฀3D฀SYNC฀terminal฀of฀the฀projector.

NOTE:

•฀Use฀an฀active฀shutter฀3D฀eyewear฀(compliance฀with฀VESA)

•฀Check฀the฀operating฀conditions฀described฀in฀the฀user฀manual฀of฀the฀Blu-ray฀player.

•฀Please฀connect฀the฀DIN฀terminal฀of฀the฀3D฀emitter฀to฀the฀3D฀SYNC฀of฀the฀projector.

•฀The฀3D฀eyewear฀allows฀videos฀to฀be฀viewed฀in฀3D฀by฀receiving฀synchronized฀optical฀signals฀output฀from฀the฀3D฀emitter.฀As฀a฀result,฀

the฀3D฀image฀quality฀may฀be฀affected฀by฀conditions฀such฀as฀the฀brightness฀of฀the฀surroundings,฀screen฀size,฀viewing฀distance,฀

etc.

•฀When฀playing฀a฀3D฀video฀software฀on฀a฀computer,฀the฀3D฀image฀quality฀may฀be฀affected฀if฀the฀computer฀CPU฀and฀graphics฀chip฀

performance฀are฀low.฀Please฀check฀the฀required฀operating฀environment฀of฀the฀computer฀that฀is฀stated฀in฀the฀operating฀manual฀

attached฀to฀the฀3D฀video฀software.

3. Convenient Features

Troubleshooting on viewing 3D images

If฀images฀will฀not฀be฀displayed฀in฀3D฀or฀3D฀images฀appear฀as฀2D,฀check฀the฀following฀table.฀Also฀refer฀to฀the฀user’s฀

manual฀accompanied฀with฀your฀3D฀content฀or฀LCD฀shutter฀eyeglasses.

Possible causes Solutions

•฀The฀content฀you฀are฀playing฀back฀is฀not฀compatible฀with฀3D.•฀Play฀back฀a฀content฀compatible฀with฀3D.

•฀The฀3D฀mode฀was฀turned฀off฀for฀the฀selected฀source.•฀Use฀the฀projector’s฀menu฀to฀turn฀on฀3D฀mode฀for฀the฀selected฀

source.฀(→฀page฀

64)

•฀You฀are฀not฀using฀our฀recommended฀LCD฀shutter฀eyeglasses.•฀Use฀our฀recommended฀LCD฀shutter฀eyeglasses.฀(→฀page฀

33)

•฀If฀the฀shutter฀of฀your฀LCD฀shutter฀eyeglasses฀cannot฀syn-

chronize฀with฀the฀currently฀projected฀source,฀the฀following฀are฀

possible฀causes:

-฀Your฀LCD฀shutter฀eyeglasses฀are฀not฀switched฀on.•฀Switch฀on฀your฀LCD฀shutter฀eyeglasses.

For฀using฀a฀3D฀emitter:

•฀Use฀an฀active฀shutter-type฀3D฀eyewear฀and฀3D฀emitter฀recom-

mended.

-฀The฀battery฀in฀the฀LCD฀shutter฀eyeglasses฀ran฀down.•฀Recharge฀the฀battery฀or฀replace฀it.

-฀The฀correct฀eyeglass฀method฀is฀not฀selected.฀•฀Change฀the฀eyeglass฀method฀for฀3D฀by฀using฀the฀menu..฀(→

page฀

64)

-฀The฀viewing฀distance฀between฀the฀viewer฀and฀the฀screen฀

is฀too฀far.

•฀Move฀closer฀to฀the฀screen฀until฀the฀viewer฀gets฀3D฀images.฀

•฀Or฀use฀the฀projector’s฀menu฀to฀select฀[NON-INVERT]฀for฀[L/R฀

INVERT].฀

-฀There฀are฀bright฀light฀sources฀or฀other฀projectors฀near฀the฀

viewer.

•฀Keep฀light฀sources฀or฀other฀projectors฀away฀from฀the฀viewer.

•฀Do฀not฀look฀toward฀a฀bright฀light฀source.

•฀Or฀use฀the฀projector’s฀menu฀to฀select฀[NON-INVERT]฀for฀[L/R฀

INVERT].฀

•฀If฀your฀computer฀is฀not฀set฀for฀3D฀viewing,฀the฀following฀are฀

possible฀causes:

-฀Your฀computer฀does฀not฀meet฀the฀requirements฀for฀3D฀view-

ing.

•฀Check฀to฀see฀if฀your฀computer฀meets฀the฀requirements฀pro-

vided฀in฀your฀user’s฀manual฀included฀with฀your฀3D฀content.

-฀Your฀computer฀is฀not฀set฀for฀3D฀output.•฀Set฀your฀computer฀for฀3D฀output.

For฀using฀a฀3D฀emitter:

-฀There฀is฀an฀obstacle฀between฀the฀optical฀receiver฀of฀the฀3D฀

eyewear฀and฀the฀3D฀emitter.

•฀Please฀remove฀the฀obstacle.฀

-฀The฀3D฀format฀of฀the฀3D฀video฀contents฀is฀not฀supported.฀•฀Please฀check฀with฀the฀company฀selling฀the฀3D฀video฀contents.฀

4. Using On-Screen Menu

❶ Using the Menus

NOTE:฀The฀on-screen฀menu฀may฀not฀be฀displayed฀correctly฀while฀interlaced฀motion฀video฀image฀is฀projected.

1. Press the MENU button on the remote control or the projector cabinet to display the menu.

NOTE:฀The฀commands฀such฀as฀ENTER,฀EXIT,฀▲▼,฀◀▶฀in฀the฀bottom฀show฀available฀buttons฀for฀your฀operation.

2. Press the ◀▶ buttons on the remote control or the projector cabinet to display the submenu.

3. Press the ENTER button on the remote control or the projector cabinet to highlight the top item or the ﬁrst

tab.

4. Use the

▲▼ buttons on the remote control or the projector cabinet to select the item you want to adjust or

set.

You can use the

◀▶ buttons on the remote control or the projector cabinet to select the tab you want.

5. Press the ENTER button on the remote control or the projector cabinet to display the submenu window.

6. Adjust the level or turn the selected item on or off by using the

▲▼◀▶ buttons on the remote control or

the projector cabinet.

Changes฀are฀stored฀until฀adjusted฀again.

7. Repeat steps 2 -6 to adjust an additional item, or press the EXIT button on the remote control or the projec-

tor฀cabinet฀to฀quit฀the฀menu฀display.

NOTE:฀When฀a฀menu฀or฀message฀is฀displayed,฀several฀lines฀of฀information฀may฀be฀lost,฀depending฀on฀the฀signal฀or฀settings.

8. Press the MENU button to close the menu.

To return to the previous menu, press the EXIT button.

4. Using On-Screen Menu

Menu Elements

Slide bar

Solid triangle

Ta b

Radio button

ECO mode symbol

Wireless symbol

Menu windows or dialog boxes typically have the following elements:

Highlight ............................. Indicates the selected menu or item.

Solid triangle ......................Indicates further choices are available. A highlighted triangle indicates the item is active.

Tab ......................................Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.

Radio button ....................... Use this round button to select an option in a dialog box.

Source ................................Indicates the currently selected source.

Off Timer remaining time .... Indicates the remaining countdown time when the [OFF TIMER] is preset.

Slide bar .............................Indicates settings or the direction of adjustment.

ECO mode symbol ..............Indicates ECO MODE is set.

Key Lock symbol ................Indicates the [CONTROL PANEL LOCK] is enabled.

Thermometer symbol .........Indicates the projector is in the state of the [FORCED ECO MODE].

High Altitude symbol ..........Indicates the [FAN MODE] is set to [HIGH ALTITUDE] mode.

Wireless symbol .................Indicate the wireless LAN connection is enabled.

Menu mode ........................Indicate the [ADVANCED] menu or [BASIC] menu.

Source

Available buttons

Thermometer symbol Key฀Lock฀symbol

Off Timer remaining time

Menu mode

Highlight

High Altitude symbol

4. Using On-Screen Menu

❷ List of Menu Items

Some฀menu฀items฀are฀not฀available฀depending฀on฀the฀input฀source.฀The฀below฀listed฀menu฀items฀are฀on฀the฀advanced฀

menu.฀The฀mark฀(B)฀is฀added฀to฀the฀items฀on฀the฀basic฀menu.

Refer฀to฀

88฀pages฀about฀the฀APPS฀MENU.

Menu Item Default Options

SOURCE HDMI1 (B) *

HDMI2 (B) *

COMPUTER (B) *

VIDEO (B) *

HDBaseT (B) *

APPS (B) *

ADJUST PICTURE PRESET * 1–8

DETAIL SETTINGS REFERENCE * HIGH-BRIGHT, PRESENTATION, VIDEO, MOVIE, GRAPHIC, sRGB,

NATURAL, DICOM SIM.

GAMMA CORRECTION*

DYNAMIC, NATURAL, BLACK DETAIL

SCREEN SIZE*

* LARGE, MEDIUM, SMALL

COLOR TEMPERATURE * 5000, 6500, 7800, 9300

COLOR ENHANCEMENT * OFF, LOW, MEDIUM, HIGH

DYNAMIC CONTRAST * OFF, ON

CONTRAST (B) 32

BRIGHTNESS (B) 32

SHARPNESS (B) *

COLOR (B) 32

HUE (B) 16

RESET (B)

IMAGE OPTIONS CLOCK *

PHASE *

HORIZONTAL *

VERTICAL *

OVERSCAN AUTO AUTO, OFF, ON

ASPECT RATIO * AUTO, 4:3, 16:9, 15:9, 16:10, LETTERBOX, NATIVE

NOISE REDUCTION OFF OFF, LOW, MEDIUM, HIGH

SETUP GENERAL KEYSTONE (B) HORIZONTAL 0 -25–25

VERTICAL 0 -30–30

RESET

WALL COLOR (B) OFF OFF, WHITEBOARD, BLACKBOARD, BLACKBOARD (GRAY), LIGHT

YELLOW, LIGHT BLUE, LIGHT ROSE

ECO SETTINGS ECO MODE OFF OFF, AUTO ECO, NORMAL, ECO

AUTO ECO OPTIONS

AUTO DIM OFF OFF, 0:01, 0:03, 0:10, 0:20

NORMAL OPTION

CONSTANT

BRIGHTNESS

OFF OFF, ON

ECO OPTION

CONSTANT

BRIGHTNESS

OFF OFF, ON

CLOSED CAPTION OFF OFF, CAPTION1, CAPTION2, CAPTION3, CAPTION4, TEXT1, TEXT2,

TEXT3, TEXT4

OFF TIMER (B) OFF OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00

TOOLS (B) to APPS MENU

LANGUAGE (B) ENGLISH ENGLISH, DEUTSCH, FRANÇAIS, ITALIANO, ESPAÑOL, SVENSKA, 日

本語

DANSK, PORTUGUÊS, ČEŠTINA, MAGYAR, POLSKI, NEDERLANDS,

SUOMI

NORSK, TÜRKÇE, РУССКИЙ,

, Ελληνικά, 简体中文, 한국어,

TIẾNG ViỆT

ROMÂNĂ, HRVATSKI, БЪЛГАРСКИ, INDONESIA, ,

ไทย,

, 繁體中文

*฀The฀asterisk฀(*)฀indicates฀that฀the฀default฀setting฀varies฀depending฀on฀the฀signal.

*1฀The฀[GAMMA฀CORRECTION]฀item฀is฀available฀when฀an฀item฀other฀than฀[DICOM฀SIM.]฀is฀selected฀for฀[REFERENCE].

*2฀The฀[SCREEN฀SIZE]฀item฀is฀available฀when฀[DICOM฀SIM.]฀is฀selected฀for฀[REFERENCE].

4. Using On-Screen Menu

Menu Item Default Options

SETUP MENU COLOR SELECT COLOR COLOR, MONOCHROME

SOURCE DISPLAY ON OFF, ON

ID DISPLAY ON OFF, ON

ECO MESSAGE OFF OFF, ON

DISPLAY TIME AUTO 45 SEC MANUAL, AUTO 5 SEC, AUTO 15 SEC, AUTO 45 SEC

BACKGROUND BLUE BLUE, BLACK, LOGO

3D CAUTION MESSAGE ON OFF, ON

FILTER MESSAGE OFF OFF, 100H, 500H, 1000H, 2000H

INSTALLATION ORIENTATION DESKTOP

FRONT

DESKTOP FRONT, CEILING REAR, DESKTOP REAR, CEILING FRONT

CONTROL PANEL LOCK OFF OFF, ON

SECURITY OFF OFF, ON

COMMUNICATION SPEED 38400bps 4800bps, 9600bps, 19200bps, 38400bps

SERIAL PORT PC CONTROL PC CONTROL, HDBaseT

REMOTE SENSOR ALL ALL, FRONT/BACK, FRONT, BACK, HDBaseT

CONTROL ID CONTROL ID NUMBER 1 1–254

CONTROL ID OFF OFF, ON

TEST PATTERN

NETWORK SETTINGS to APPS MENU

OPTIONS(1) FAN MODE AUTO AUTO, HIGH, HIGH ALTITUDE

WXGA MODE OFF OFF, ON

HDMI

SETTINGS

HDMI1 VIDEO LEVEL AUTO AUTO, NORMAL, ENHANCED

HDMI2 VIDEO LEVEL AUTO AUTO, NORMAL, ENHANCED

HDBaseT VIDEO LEVEL AUTO AUTO, NORMAL, ENHANCED

AUDIO

SELECT

HDMI1 HDMI1 HDMI1, COMPUTER

HDMI2 HDMI2 HDMI2, COMPUTER

HDBaseT HDBaseT HDBaseT, COMPUTER

BEEP ON OFF, ON

OPTIONS(2) STANDBY MODE NORMAL NORMAL, NETWORK STANDBY

DIRECT POWER ON OFF OFF, ON

AUTO POWER ON OFF OFF, ON

AUTO POWER OFF 1:00 OFF, 0:05, 0:10, 0:15, 0:20, 0:30, 1:00

DEFAULT SOURCE SELECT LAST LAST, AUTO, HDMI1, HDMI2, COMPUTER, VIDEO, HDBaseT, APPS

CARBON CONVERT

CURRENCY $ $, €, JP¥, RMB¥

CURRENCY CONVERT

3D HDMI1 3D OFF OFF, ON

GLASSES DLP® Link DLP® Link, OTHERS

FORMAT AUTO AUTO, FRAME PACKING, SIDE BY SIDE, TOP AND BOTTOM, FRAME

SEQUENTIAL

L/R INVERT NON-INVERT NON-INVERT, INVERT

HDMI2 3D

OFF OFF, ON

GLASSES DLP® Link DLP® Link, OTHERS

FORMAT AUTO AUTO, FRAME PACKING, SIDE BY SIDE, TOP AND BOTTOM, FRAME

SEQUENTIAL

L/R INVERT NON-INVERT NON-INVERT, INVERT

COMPUTER 3D OFF OFF, ON

GLASSES DLP® Link DLP® Link, OTHERS

FORMAT SIDE BY SIDE SIDE BY SIDE, TOP AND BOTTOM, FRAME SEQUENTIAL

L/R INVERT NON-INVERT NON-INVERT, INVERT

VIDEO 3D OFF OFF, ON

L/R INVERT NON-INVERT NON-INVERT, INVERT

HDBaseT 3D OFF OFF, ON

GLASSES DLP® Link DLP® Link, OTHERS

FORMAT AUTO AUTO, FRAME PACKING, SIDE BY SIDE, TOP AND BOTTOM, FRAME

SEQUENTIAL

L/R INVERT NON-INVERT NON-INVERT, INVERT

*฀The฀asterisk฀(*)฀indicates฀that฀the฀default฀setting฀varies฀depending฀on฀the฀signal.

4. Using On-Screen Menu

Menu Item Default Options

INFO. USAGE TIME (B) LAMP LIFE REMAINING (B)

LAMP HOURS USED (B)

FILTER HOURS USED (B)

TOTAL CARBON SAVINGS (B)

TOTAL COST SAVINGS (B)

SOURCE(1) (B) RESOLUTION

HORIZONTAL FREQUENCY

VERTICAL FREQUENCY

SYNC TYPE SEPARATE SYNC, COMPOSITE SYNC, SYNC ON GREEN, SYNC ON

VIDEO

SYNC POLARITY

SCAN TYPE INTERLACE, NON-INTERLACE

SOURCE(2) (B) SIGNAL TYPE RGB, VIDEO, YCbCr

VIDEO TYPE

NTSC, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM

BIT DEPTH 8[bits], 10[bits], 12[bits]

VIDEO LEVEL FULL, ENHANCED, DEFAULT

3D SIGNAL SUPPORTED, NOT SUPPORTED

HDBaseT SIGNAL QUALITY NORMAL, WARNING, ABNORMAL

OPERATION MODE HDBaseT, ETHERNET, LOW POWER, DISCONNECT

LINK STATUS NO LINK, HDBaseT, LOW POWER, ETHERNET

HDMI STATUS NO HDMI, HDMI ON, HDCP ON

WIRED LAN IP ADDRESS

SUBNET MASK

GATEWAY

MAC ADDRESS

WIRELESS LAN IP ADDRESS

SUBNET MASK

GATEWAY

MAC ADDRESS

SSID

NETWORK TYPE

SECURITY

CHANNEL

SIGNAL LEVEL

VERSION(1) (B) FIRMWARE

DATA

VERSION(2) (B) FIRMWARE2

OTHERS (B) PROJECTOR NAME (B)

HOST NAME (B)

MODEL NO. (B)

SERIAL NUMBER (B)

LAN UNIT TYPE

CONTROL ID (when [CONTROL ID] is set) (B)

RESET CURRENT SIGNAL

ALL DATA

CLEAR LAMP HOURS

CLEAR FILTER HOURS

*฀The฀asterisk฀(*)฀indicates฀that฀the฀default฀setting฀varies฀depending฀on฀the฀signal.

4. Using On-Screen Menu

❸ Menu Descriptions & Functions [SOURCE]

HDMI1 and HDMI2

Selects฀the฀HDMI฀compatible฀equipment฀connected฀to฀your฀HDMI฀1฀IN฀or฀HDMI฀2฀IN฀terminal.

COMPUTER

Selects฀the฀computer฀connected฀to฀your฀COMPUTER฀input฀terminal฀signal.

NOTE:฀When฀the฀component฀input฀signal฀is฀connected฀to฀the฀COMPUTER฀IN฀terminal,฀select฀[COMPUTER].

฀

VIDEO

Selects฀what฀is฀connected฀to฀your฀VIDEO฀input-VCR,฀DVD฀player฀or฀document฀camera.

HDBaseT

Projects฀the฀signal฀transmitted฀from฀the฀terminals฀supported฀HDBaseT.฀(→฀page฀

86)

APPS

Display฀the฀APPS฀MENU฀or฀the฀function฀in฀the฀APPS฀MENU฀that฀was฀used฀last฀time.

4. Using On-Screen Menu

❹ Menu Descriptions & Functions [ADJUST]

[PICTURE]

[PRESET]

This฀function฀allows฀you฀to฀select฀optimized฀settings฀for฀your฀projected฀image.

You฀can฀adjust฀neutral฀tint฀for฀yellow,฀cyan฀or฀magenta.฀

There฀are฀eight฀factory฀presets฀optimized฀for฀various฀types฀of฀images.฀You฀can฀also฀use฀[DETAIL฀SETTINGS]฀to฀set฀

user฀adjustable฀settings฀to฀customize฀each฀gamma฀or฀color.

Your฀settings฀can฀be฀stored฀in฀[PRESET฀1]฀to฀[PRESET฀8].

HIGH-BRIGHT ........ Recommended for use in a brightly lit room.

PRESENTATION ..... Recommended for making a presentation using a PowerPoint ﬁle.

VIDEO .................... Recommended for typical TV program viewing.

MOVIE ................... Recommended for movies.

GRAPHIC ............... Recommended for graphics.

sRGB ..................... Standard color values

NATURAL ............... Well-balanced setting of brightness and color

DICOM SIM. .......... Recommended for DICOM simulation format.

NOTE:฀

•฀The฀[DICOM฀SIM.]฀option฀is฀for฀training/reference฀only฀and฀should฀not฀be฀used฀for฀actual฀diagnosis.

•฀DICOM฀stands฀for฀Digital฀Imaging฀and฀Communications฀in฀Medicine.฀It฀is฀a฀standard฀developed฀by฀the฀American฀College฀of฀Radiol-

ogy฀(ACR)฀and฀the฀National฀Electrical฀Manufacturers฀Association฀(NEMA).฀

฀The฀standard฀species฀how฀digital฀image฀data฀can฀be฀moved฀from฀system฀to฀system.฀

4. Using On-Screen Menu

[DETAIL SETTINGS]

Storing฀Your฀Customized฀Settings฀[REFERENCE]

This฀function฀allows฀you฀to฀store฀your฀customized฀settings฀in฀[PRESET฀1]฀to฀[PRESET฀8].

First,฀select฀a฀base฀preset฀mode฀from฀[REFERENCE],฀then฀set฀[GAMMA฀CORRECTION]฀and฀[COLOR฀TEMPERATURE].฀

HIGH-BRIGHT ........ Recommended for use in a brightly lit room.

PRESENTATION ..... Recommended for making a presentation using a PowerPoint ﬁle.

VIDEO .................... Recommended for typical TV program viewing.

MOVIE ................... Recommended for movies.

GRAPHIC ............... Recommended for graphics.

sRGB ..................... Standard color values.

NATURAL ............... Well-balanced setting of brightness and color

DICOM SIM. .......... Recommended for DICOM simulation format.

Selecting Gamma Correction Mode [GAMMA CORRECTION]

Each฀mode฀is฀recommended฀for:

DYNAMIC .............. Creates a high-contrast picture.

NATURAL ............... Natural reproduction of the picture.

BLACK DETAIL ....... Emphasizes detail in dark areas of the picture.

NOTE:฀This฀function฀is฀not฀available฀when฀[DICOM฀SIM.]฀is฀selected฀for฀[DETAIL฀SETTINGS].

Selecting฀Screen฀Size฀for฀DICOM฀SIM฀[SCREEN฀SIZE]

This฀function฀will฀perform฀gamma฀correction฀appropriate฀for฀the฀screen฀size.

LARGE ................... For screen size of 110"

MEDIUM ................ For screen size of 90"

SMALL ................... For screen size of 70"

NOTE:฀This฀function฀is฀available฀only฀when฀[DICOM฀SIM.]฀is฀selected฀for฀[DETAIL฀SETTINGS].

Adjusting฀Color฀Temperature฀[COLOR฀TEMPERATURE]

This฀option฀allows฀you฀to฀select฀the฀color฀temperature฀of฀your฀choice.

NOTE:฀When฀[PRESENTATION]฀or฀[HIGH-BRIGHT]฀is฀selected฀in฀[REFERENCE],฀this฀function฀is฀not฀available.

Enhancing the Color [COLOR ENHANCEMENT]

This฀allows฀you฀to฀adjust฀the฀color฀density฀of฀the฀image.

The฀color฀of฀the฀image฀will฀become฀deeper฀in฀the฀order฀of฀"LOW",฀"MEDIUM",฀AND฀"HIGH"฀as฀the฀displayed฀image฀

will฀become฀darker.

With฀"OFF"฀selected,฀the฀COLOR฀ENHANCEMENT฀function฀will฀not฀work.

NOTE:฀This฀function฀is฀available฀only฀when฀[PRESENTATION]฀is฀selected฀[REFERENCE].

Adjusting฀Brightness฀and฀Contrast฀[DYNAMIC฀CONTRAST]

This฀function฀allows฀you฀to฀adjust฀the฀contrast฀ratio฀optically.

To฀increase฀the฀contrast฀ratio,฀select฀[ON].

NOTE:

•฀The฀[DYNMIC฀CONTRAST]฀item฀cannot฀be฀selected฀in฀the฀following฀cases:

-฀When฀[CONSTANT฀BRIGHTNESS]฀is฀functioned฀under฀the฀state฀[ECO฀MODE]฀has฀been฀set฀to฀[NORMAL]฀or฀[ECO]฀for฀[ECO฀

SETTINGS].

-฀When฀[ON]฀is฀selected฀for฀[3D]฀while฀images฀are฀projected.

•฀The฀ECO฀MODE฀and฀DYNAMIC฀CONTRAST฀features฀control฀the฀lamp฀power.฀Some฀pictures฀may฀become฀extremely฀bright฀when฀

using฀both฀ECO฀MODE฀and฀DYNAMIC฀CONTRAST฀features฀to฀control฀the฀lamp฀power.฀To฀avoid฀this฀phenomena,฀turn฀off฀the฀ECO฀

MODE฀and฀DYNAMIC฀CONTRAST.

4. Using On-Screen Menu

[CONTRAST]

Adjusts฀the฀intensity฀of฀the฀image฀according฀to฀the฀incoming฀signal.

[BRIGHTNESS]

Adjusts฀the฀brightness฀level฀or฀the฀back฀raster฀intensity.

[SHARPNESS]

Controls฀the฀detail฀of฀the฀image.

[COLOR]

Increases฀or฀decreases฀the฀color฀saturation฀level.

[HUE]

Varies฀the฀color฀level฀from฀+/−฀green฀to฀+/−฀blue.฀The฀red฀level฀is฀used฀as฀reference.

Input฀signalCONTRASTBRIGHTNESSSHARPNESSCOLORHUE

COMPUTER/HDMI/HDBaseT฀(RGB)YesYesYesNo No

COMPUTER/HDMI/HDBaseT฀

(COMPONENT)

YesYesYesYesYes

VIDEOYesYesYesYesYes

APPS,฀LANYesYesYesNo No

Yes฀=฀Adjustable,฀No฀=฀Not฀adjustable

[RESET]

The฀settings฀and฀adjustments฀for฀[PICTURE]฀will฀be฀returned฀to฀the฀factory฀settings฀with฀the฀exception฀of฀the฀following;฀

Preset฀numbers฀and฀[REFERENCE]฀within฀the฀[PRESET]฀screen.

The฀settings฀and฀adjustments฀under฀[DETAIL฀SETTINGS]฀within฀the฀[PRESET]฀screen฀that฀are฀not฀currently฀selected฀

will฀not฀be฀reset.

4. Using On-Screen Menu

[IMAGE OPTIONS]

Adjusting฀Clock฀and฀Phase฀[CLOCK/PHASE]

This฀allows฀you฀to฀manually฀adjust฀CLOCK฀and฀PHASE.

CLOCK ................... Use this item to ﬁne tune the computer image or to remove any vertical banding that might appear. This

function adjusts the clock frequencies that eliminate the horizontal banding in the image.

This adjustment may be necessary when you connect your computer for the ﬁrst time.

PHASE ................... Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk. (This is

evident when part of your image appears to be shimmering.)

Use [PHASE] only after the [CLOCK] is complete.

4. Using On-Screen Menu

Adjusting฀Horizontal/Vertical฀Position฀[HORIZONTAL/VERTICAL]

Adjusts฀the฀image฀location฀horizontally฀and฀vertically.

-฀An฀image฀can฀be฀distorted฀during฀the฀adjustment฀of฀[CLOCK]฀and฀[PHASE].฀This฀is฀not฀malfunction.

-฀The฀adjustments฀for฀[CLOCK],฀[PHASE],฀[HORIZONTAL],฀and฀[VERTICAL]฀will฀be฀stored฀in฀memory฀for฀the฀

current฀signal.฀The฀next฀time฀you฀project฀the฀signal฀with฀the฀same฀resolution,฀horizontal฀and฀vertical฀frequency,฀

its฀adjustments฀will฀be฀called฀up฀and฀applied.

฀To฀delete฀adjustments฀stored฀in฀memory,฀from฀the฀menu,฀you฀select฀[RESET]฀→฀[CURRENT฀SIGNAL]฀or฀[ALL฀

DATA]฀and฀reset฀the฀adjustments.

Selecting฀Overscan฀Percentage฀[OVERSCAN]

This฀allows฀you฀to฀set฀the฀appropriate฀overscan฀for฀an฀incoming฀signal.

AUTO ..................... Display an appropriately overscanned image (factory setting).

OFF ........................ Does not overscan the image.

ON ......................... Overscans the image.

Projected image

Overscaned by 10%

NOTE:฀

•฀The฀[OVERSCAN]฀item฀cannot฀be฀selected฀when฀VIDEO฀signals฀are฀used฀or฀when฀[NATIVE]฀is฀selected฀for฀[ASPECT฀RATIO].

4. Using On-Screen Menu

Selecting Aspect Ratio [ASPECT RATIO]

The฀term฀“aspect฀ratio”฀refers฀to฀the฀ratio฀of฀width฀to฀height฀of฀a฀projected฀image.

The฀projector฀automatically฀determines฀the฀incoming฀signal฀and฀displays฀it฀in฀its฀appropriate฀aspect฀ratio.

•฀This฀table฀shows฀typical฀resolutions฀and฀aspect฀ratios฀that฀most฀computers฀support.

ResolutionAspect฀Ratio

VGA640฀×฀4804:3

SVGA800฀×฀6004:3

XGA1024฀×฀7684:3

WXGA1280฀×฀76815:9

WXGA1280฀×฀80016:10

WXGA+

1440฀×฀90016:10

SXGA1280฀×฀10245:4

SXGA+1400฀×฀10504:3

UXGA1600฀×฀12004:3

Full฀HD1920฀×฀108016:9

WUXGA1920฀×฀120016:10

OptionsFunction

AUTO

The฀projector฀will฀automatically฀determine฀the฀incoming฀signal฀and฀display฀it฀in฀its฀aspect฀

ratio.฀(→

next฀page)

The฀projector฀may฀erroneously฀determine฀the฀aspect฀ratio฀depending฀on฀its฀signal.฀If฀this฀

occurs,฀select฀the฀appropriate฀aspect฀ratio฀from฀the฀following.

4:3The฀image฀is฀displayed฀in฀4:3฀aspect฀ratio.

16:9The฀image฀is฀displayed฀in฀16:9฀aspect฀ratio.

15:9The฀image฀is฀displayed฀in฀15:9฀aspect฀ratio.

16:10The฀image฀is฀displayed฀in฀16:10฀aspect฀ratio.

LETTERBOXThe฀image฀of฀a฀letterbox฀signal฀is฀stretched฀equally฀in฀the฀horizontal฀and฀vertical฀direc-

tions฀to฀t฀the฀screen.฀Parts฀of฀the฀displayed฀image฀are฀cropped฀at฀the฀top฀and฀bottom฀

edges฀and฀therefore฀not฀visible.

NATIVEThe฀projector฀displays฀the฀current฀image฀in฀its฀true฀resolution฀when฀the฀incoming฀computer฀

signal฀has฀a฀lower฀resolution฀than฀the฀projector’s฀native฀resolution.

[Example]฀When฀the฀incoming฀signal฀with฀the฀resolution฀of฀

800฀×฀600฀is฀displayed:

NOTE:

•฀When฀a฀non-computer฀signal฀is฀displayed,฀the฀[NATIVE]฀is฀not฀available.

•฀When฀a฀signal฀with฀a฀higher฀resolution฀than฀the฀projector’s฀native฀resolution฀is฀displayed,฀[NA-

TIVE]฀is฀not฀available.

4. Using On-Screen Menu

Sample image when the appropriate aspect ratio is automatically determined

[Computer฀signal]

Aspect฀ratio฀of฀incoming฀signal4:35:416:915:916:10

Sample฀image฀when฀the฀appro-

priate฀aspect฀ratio฀is฀automati-

cally฀determined

P502H/P452H

P502W/P452W

[Video฀signal]

Aspect฀ratio฀of฀incoming฀signal4:3LetterboxSqueeze

Sample฀image฀when฀the฀aspect฀

ratio฀is฀automatically฀determined

NOTE:฀To฀display฀a฀letterbox฀signal฀prop-

erly,฀select฀[LETTERBOX].

NOTE:฀To฀display฀a฀squeezed฀signal฀prop-

erly,฀select฀[16:9].

TIP:

•฀The฀term฀“letterbox”฀refers฀to฀a฀more฀landscape-oriented฀image฀when฀compared฀to฀a฀4:3฀image,฀which฀is฀the฀standard฀aspect฀

ratio฀for฀a฀video฀source.

฀The฀letterbox฀signal฀has฀aspect฀ratios฀with฀the฀vista฀size฀“1.85:1”฀or฀cinema฀scope฀size฀“2.35:1”฀for฀movie฀lm.

•฀The฀term฀“squeeze”฀refers฀to฀the฀compressed฀image฀of฀which฀aspect฀ratio฀is฀converted฀from฀16:9฀to฀4:3.

Turning on Noise Reduction [NOISE REDUCTION]

This฀function฀allows฀you฀to฀select฀the฀level฀of฀noise฀reduction.

The฀projector฀is฀set฀to฀the฀optimized฀level฀for฀each฀signal฀at฀the฀factory.

Select฀your฀preference฀item฀for฀your฀signal฀when฀video฀noise฀is฀noticeable.

The฀options฀are฀[OFF],฀[LOW],฀[MEDIUM],฀and฀[HIGH].

NOTE:฀This฀feature฀is฀not฀available฀for฀the฀RGB฀signal.฀Noise฀reduction฀set฀to฀off฀gives฀best฀image฀quality฀by฀way฀of฀higher฀bandwidth.฀

Noise฀reduction฀set฀to฀on฀softens฀the฀image.

4. Using On-Screen Menu

❺ Menu Descriptions & Functions [SETUP]

[GENERAL]

Correcting Keystone Distortion Manually [KEYSTONE]

You฀can฀correct฀horizontal฀or฀vertical฀keystone฀manually.฀[HORIZONTAL]฀and฀[VERTICAL]฀(simultaneously฀adjustable)฀

correction฀can฀be฀selected.

NOTE:

•฀Some฀items฀are฀not฀available฀when฀one฀item฀is฀activated.฀Unavailable฀items฀are฀shown฀in฀grey.

•฀To฀change฀from฀one฀item฀to฀another฀item,฀reset฀the฀rst฀item.

•฀Adjustment฀values฀will฀be฀overwritten.฀They฀will฀not฀be฀deleted฀even฀when฀the฀projector฀is฀turned฀off.

•฀Using฀[KEYSTONE]฀correction฀can฀cause฀the฀image฀to฀be฀slightly฀blurred฀because฀the฀correction฀is฀made฀electronically.

HORIZONTAL ......... Corrects horizontal keystone distortion. (→ page 21)

VERTICAL .............. Corrects vertical keystone distortion. (→ page

21)

RESET .................... Returns all the above items to the factory preset values.

TIP:

•฀The฀maximum฀adjustment฀range฀with฀[KEYSTONE]฀correction฀is฀±25°฀in฀the฀horizontal฀direction,฀±30°฀in฀the฀vertical฀direction.

-฀Depending฀on฀input฀signal,฀the฀adjustable฀range฀may฀be฀narrower.

4. Using On-Screen Menu

Using the Wall Color Correction [WALL COLOR]

This฀function฀allows฀for฀quick฀adaptive฀color฀correction฀in฀applications฀where฀the฀screen฀material฀is฀not฀white.

Setting various items related to lamp brightness [ECO SETTINGS]

This฀option฀allows฀you฀to฀decrease฀the฀power฀consumption฀or฀to฀prolong฀the฀lamp฀life฀by฀controlling฀the฀lamp฀brightness.

ECO MODE

The฀ECO฀MODE฀increases฀lamp฀life,฀while฀lowering฀power฀consumption฀and฀cutting฀down฀on฀CO2฀emissions.฀Four฀

brightness฀modes฀of฀the฀lamp฀can฀be฀selected:฀[OFF],฀[AUTO฀ECO],฀[NORMAL]฀and฀[ECO]฀modes.฀(→฀page฀

28)

NOTE:฀The฀[OFF]฀item฀is฀automatically฀selected฀for฀[ECO฀MODE]฀when฀[ON]฀is฀selected฀[3D]฀while฀images฀are฀projected.

AUTO ECO OPTIONS

Set฀options฀when฀[AUTO฀ECO]฀is฀selected฀for฀[ECO฀MODE].

AUTO฀DIMOFFThe฀AUTO฀DIM฀feature฀will฀not฀work.

0:01,฀0:03,฀0:10,฀0:20฀

(min.)

This฀option฀will฀automatically฀dim฀the฀lamp฀light฀when฀

no฀input฀signal฀is฀present฀for฀a฀certain฀period฀time:฀0:01,฀

0:03,฀0:10,฀and฀0:20฀(minutes).฀When฀it฀reaches฀the฀pre-

set฀time,฀the฀lamp฀brightness฀will฀decrease฀to฀about฀30%฀

immediately฀after฀the฀screen฀becomes฀dim฀for฀a฀moment.฀

Changing฀images฀will฀return฀to฀its฀original฀brightness.

NORMAL OPTION

Set฀the฀option฀when฀[NORMAL]฀is฀selected฀for฀[ECO฀MODE].

CONSTANT฀BRIGHTNESS:฀

OFF ........................ The CONSTANT BRIGHTNESS feature will not work. The lamp brightness will gradually decrease over long

periods of time.

ON ......................... The lamp brightness will increase according to the lamp use of time and will be kept at the lamp brightness

equivalent to the brightness at NORMAL. After the lamp brightness reaches the maximum, the lamp bright-

ness will gradually decrease over long periods of time.

ECO OPTION

Set฀the฀option฀when฀[ECO]฀is฀selected฀for฀[ECO฀MODE].

CONSTANT฀BRIGHTNESS:

OFF ........................ The CONSTANT BRIGHTNESS feature will not work. The lamp brightness will gradually decrease over long

periods of time.

ON ......................... The lamp brightness will increase according to the lamp use of time and will be kept at the lamp brightness

equivalent to the brightness at ECO. After the lamp brightness reaches the maximum, the lamp brightness

will gradually decrease over long periods of time. The lamp brightness will be kept longer than at NORMAL.

4. Using On-Screen Menu

Setting Closed Caption [CLOSED CAPTION]

This฀option฀sets฀several฀closed฀caption฀modes฀that฀allow฀text฀to฀be฀superimposed฀on฀the฀projected฀image฀of฀Video฀

or฀S-Video.

OFF ........................ This exits the closed caption mode.

CAPTION 1-4 ......... Text is superimposed.

TEXT 1-4 ................ Text is displayed.

NOTE:

•฀The฀closed฀caption฀is฀not฀available฀under฀the฀following฀conditions:

-฀when฀messages฀or฀menus฀are฀displayed.

-฀when฀an฀image฀is฀magnied,฀frozen,฀or฀muted.

•฀Portions฀of฀superimposed฀text฀or฀closed฀caption฀may฀be฀truncated.฀If฀that฀happens,฀try฀to฀place฀the฀superimposed฀text฀or฀closed฀

caption฀within฀the฀screen.

•฀The฀projector฀does฀not฀support฀optional฀extended฀characters฀for฀closed฀captioning.

Using Off Timer [OFF TIMER]

1. Select your desired time between 30 minutes and 16 hours: OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.

2. Press the ENTER button on the remote control.

3. The remaining time starts counting down.

4. The projector will turn off after the countdown is complete.

NOTE:

•฀To฀cancel฀the฀preset฀time,฀set฀[OFF]฀for฀the฀preset฀time฀or฀turn฀off฀the฀power.

•฀When฀the฀remaining฀time฀reaches฀3฀minutes฀before฀the฀projector฀is฀turned฀off,฀the฀[THE฀PROJECTOR฀WILL฀TURN฀OFF฀WITHIN฀3฀

MINUTES]฀message฀will฀be฀displayed฀on฀the฀bottom฀of฀the฀screen.

Display the tools menu [TOOLS]

This฀function฀display฀the฀tools฀menu.฀(→฀page฀91)

Selecting Menu Language [LANGUAGE]

You฀can฀choose฀one฀of฀30฀languages฀for฀on-screen฀instructions.

NOTE:฀Your฀setting฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

4. Using On-Screen Menu

[MENU]

Selecting Menu Color [COLOR SELECT]

You฀can฀choose฀between฀two฀options฀for฀menu฀color:฀COLOR฀and฀MONOCHROME.

Turning On / Off Source Display [SOURCE DISPLAY]

This฀option฀turns฀on฀or฀off฀input฀name฀display฀such฀as฀HDMI1,฀HDMI2,฀COMPUTER,฀VIDEO,฀HDBaseT,฀APPS,฀to฀be฀

displayed฀on฀the฀top฀right฀of฀the฀screen.

When฀no฀input฀signal฀is฀present,฀the฀no-signal฀guidance฀prompting฀you฀to฀check฀for฀an฀available฀input฀will฀be฀displayed฀at฀

the฀center฀of฀the฀screen.฀When฀the฀[APPS]฀item฀is฀selected฀for฀[SOURCE],฀the฀no-signal฀guidance฀will฀not฀be฀displayed.

Turning ON/OFF Control ID [ID DISPLAY]

ID DISPLAY ........... This option turns on or off the ID number which is displayed when the ID SET button on the remote control

is pressed.

Turning On / Off Eco Message [ECO MESSAGE]

This฀option฀turns฀on฀or฀off฀the฀following฀messages฀when฀the฀projector฀is฀turned฀on.฀

The฀Eco฀Message฀prompts฀the฀user฀to฀save฀energy.฀When฀[OFF]฀is฀selected฀for฀[ECO฀MODE],฀you฀will฀get฀a฀message฀

to฀prompt฀you฀to฀select฀[AUTO฀ECO],฀[NORMAL],฀or฀[ECO]฀for฀[ECO฀MODE].

When฀[AUTO฀ECO],฀[NORMAL],฀or฀[ECO]฀is฀selected฀for฀[ECO฀MODE]

To฀close฀the฀message,฀press฀any฀one฀of฀the฀buttons.฀The฀message฀will฀disappear฀if฀no฀button฀operation฀is฀done฀for฀

30฀seconds.

When฀[OFF]฀is฀selected฀for฀[ECO฀MODE]

Pressing฀the฀ENTER฀button฀will฀display฀the฀[ECO฀MODE]฀screen.฀(→฀page฀28)

To฀close฀the฀message,฀press฀the฀EXIT฀button.

Selecting Menu Display Time [DISPLAY TIME]

This฀option฀allows฀you฀to฀select฀how฀long฀the฀projector฀waits฀after฀the฀last฀touch฀of฀a฀button฀to฀turn฀off฀the฀menu.฀The฀

preset฀choices฀are฀[MANUAL],฀[AUTO฀5฀SEC],฀[AUTO฀15฀SEC],฀and฀[AUTO฀45฀SEC].฀The฀[AUTO฀45฀SEC]฀is฀the฀fac-

tory฀preset.

4. Using On-Screen Menu

Selecting฀a฀Color฀or฀Logo฀for฀Background฀[BACKGROUND]

Use฀this฀feature฀to฀display฀a฀blue/black฀screen฀or฀logo฀when฀no฀signal฀is฀available.฀The฀default฀background฀is฀[BLUE].

NOTE:฀

•฀When฀[SOURCE฀DISPLAY]฀is฀turned฀on,฀the฀no-signal฀guidance฀prompting฀you฀to฀check฀for฀an฀available฀input฀will฀be฀displayed฀

at฀the฀center฀of฀the฀screen฀regardless฀of฀its฀selection.

•฀Your฀setting฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

[3D CAUTION MESSAGE]

This฀selects฀whether฀to฀display฀a฀caution฀message฀or฀not฀when฀switching฀to฀a฀3D฀video.

The฀default฀condition฀when฀shipped฀from฀the฀factory฀is฀ON.

OFF ........................ The 3D caution message screen will not be displayed.

ON ......................... The 3D caution message screen will be displayed when switching to a 3D video.Press the ENTER button to

cancel the message.

•฀The฀message฀will฀disappear฀automatically฀after฀60฀seconds฀or฀when฀other฀buttons฀are฀pressed.฀If฀it฀disappears฀

automatically,฀the฀3D฀caution฀message฀will฀be฀displayed฀again฀when฀switching฀to฀a฀3D฀video.

Selecting Interval Time for Filter Message [FILTER MESSAGE]

This฀option฀allows฀you฀to฀select฀the฀time฀preference฀for฀displaying฀the฀lter฀cleaning฀message.฀Clean฀the฀lter฀when฀

you฀get฀the฀message฀“PLEASE฀CLEAN฀THE฀FILTER.”฀(→฀page฀113)

Five฀options฀are฀available:฀

OFF,฀100[H],฀500[H],฀1000[H],฀2000[H]

NOTE:฀Your฀setting฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

4. Using On-Screen Menu

[INSTALLATION]

Selecting฀Projector฀Orientation฀[ORIENTATION]

This฀reorients฀your฀image฀for฀your฀type฀of฀projection.฀The฀options฀are:฀desktop฀front฀projection,฀ceiling฀rear฀projection,฀

desktop฀rear฀projection,฀and฀ceiling฀front฀projection.

DESKTOP฀FRONTCEILING฀REAR

DESKTOP฀REARCEILING฀FRONT

Disabling the Cabinet Buttons [CONTROL PANEL LOCK]

This฀option฀turns฀on฀or฀off฀the฀CONTROL฀PANEL฀LOCK฀function.

NOTE:

•฀This฀CONTROL฀PANEL฀LOCK฀does฀not฀affect฀the฀remote฀control฀functions.

•฀How฀to฀release฀the฀CONTROL฀PANEL฀LOCK

1.฀When฀the฀projector฀is฀projecting฀image฀or฀in฀the฀sleep฀mode,฀press฀and฀hold฀the฀SOURCE฀button฀on฀the฀projector฀cabinet฀for฀

about฀10฀seconds.฀The฀CONTROL฀PANEL฀LOCK฀will฀be฀released.

2.฀When฀the฀projector฀is฀in฀the฀standby฀mode,฀press฀and฀hold฀the฀POWER฀button฀on฀the฀projector฀cabinet.฀It฀enables฀to฀power฀on฀

the฀projector.฀After฀checking฀the฀projector฀is฀projecting฀image,฀perform฀the฀previous฀step฀1.฀

TIP:฀When฀the฀[CONTROL฀PANEL฀LOCK]฀is฀turned฀on,฀a฀key฀lock฀icon฀[฀฀]฀will฀be฀displayed฀at฀the฀bottom฀right฀of฀the฀menu.

4. Using On-Screen Menu

Enabling Security [SECURITY]

This฀feature฀turns฀on฀or฀off฀the฀SECURITY฀function.

Unless฀the฀correct฀keyword฀is฀entered,฀the฀projector฀cannot฀project฀an฀image.฀(→฀page฀

30)

NOTE:฀Your฀setting฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

Selecting Communication Speed [COMMUNICATION SPEED]

This฀feature฀sets฀the฀baud฀rate฀of฀the฀PC฀Control฀port฀(D-Sub฀9P).฀It฀supports฀data฀rates฀from฀4800฀to฀38400฀bps.฀The฀

default฀is฀38400฀bps.฀Select฀the฀appropriate฀baud฀rate฀for฀your฀equipment฀to฀be฀connected฀(depending฀on฀the฀equip-

ment,฀a฀lower฀baud฀rate฀may฀be฀recommended฀for฀long฀cable฀runs).

NOTE:฀Your฀selected฀communication฀speed฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

Selecting the serial port [SERIAL PORT]

This฀sets฀which฀terminal฀on฀the฀projector฀will฀receive฀the฀serial฀control฀signals฀for฀remotely฀controlling฀the฀projector฀

from฀a฀commercially฀available฀HDBaseT฀transmission฀devices฀(control฀signals฀for฀turning฀the฀power฀on฀and฀off,฀etc.).฀

There฀is฀no฀need฀to฀make฀this฀setting฀if฀not฀operating฀the฀projector฀by฀remote฀control฀(only฀sending฀video฀and฀audio).

PC CONTROL ......... Control signals (RS232C serial communications) are received at the PC CONTROL terminal.

HDBaseT ................ The video/audio and control signals (RS232C serial communications) are received at the Ethernet/HDBaseT

port.

NOTE:฀

•฀When฀[HDBaseT]฀is฀set,฀it฀will฀not฀work฀when฀the฀projector฀is฀in฀the฀standby฀mode,฀regardless฀of฀whether฀[STANDBY฀MODE]฀(→฀

page฀

61)฀is฀set฀to฀[NORMAL]฀or฀[NETWORK฀STANDBY]฀(the฀power฀cannot฀be฀turned฀on).

฀The฀methods฀below฀can฀be฀used฀to฀turn฀on฀the฀projector’s฀power฀when฀it฀is฀in฀the฀standby฀mode.

•฀The฀projector฀can฀be฀operated฀by฀connecting฀the฀computer฀and฀projector฀by฀RS232C฀serial฀communications฀(on฀the฀projector,฀

using฀the฀PC฀CONTROL฀terminal฀and฀the฀PC฀Control฀Utility฀application,฀with฀[STANDBY฀MODE]฀set฀to฀[NETWORK฀STANDBY]).

•฀The฀projector฀can฀be฀operated฀by฀connecting฀the฀computer฀and฀projector฀over฀the฀network฀(on฀the฀projector,฀using฀the฀LAN฀

port฀and฀PC฀Control฀Utility฀application,฀with฀[STANDBY฀MODE]฀set฀to฀[NETWORK฀STANDBY]).

TIP:

•฀When฀controlling฀the฀projector฀using฀the฀LAN฀port,฀this฀works฀with฀either฀setting.

Turning On or Off Remote Sensor [REMOTE SENSOR]

Set฀the฀remote฀control฀sensors฀on฀the฀projector’s฀front฀and฀rear฀panels฀and฀the฀HDBaseT฀remote฀control฀sensor.

The฀options฀are:฀ALL,฀FRONT/BACK,฀FRONT,฀BACK,฀and฀HDBaseT.฀

NOTE:

•฀When฀[HDBaseT]฀is฀set,฀it฀will฀not฀work฀when฀the฀projector฀is฀in฀the฀standby฀mode,฀regardless฀of฀whether฀[STANDBY฀MODE]฀(→฀

page฀61)฀is฀set฀to฀[NORMAL]฀or฀[NETWORK฀STANDBY]฀(the฀power฀cannot฀be฀turned฀on).

TIP:

•฀If฀the฀remote฀control฀system฀does฀not฀function฀when฀direct฀sunlight฀or฀strong฀illumination฀strikes฀the฀remote฀control฀sensor฀of฀

the฀projector,฀change฀another฀option.

•฀Remote฀control฀by฀infrared฀rays฀is฀not฀available฀when฀the฀remote฀control฀cable฀is฀connected฀to฀the฀REMOTE฀termial.

4. Using On-Screen Menu

Setting฀ID฀to฀the฀Projector฀[CONTROL฀ID]

You฀can฀operate฀multiple฀projectors฀separately฀and฀independently฀with฀the฀single฀remote฀control฀that฀has฀the฀CONTROL฀

ID฀function.฀If฀you฀assign฀the฀same฀ID฀to฀all฀the฀projectors,฀you฀can฀conveniently฀operate฀all฀the฀projectors฀together฀

using฀the฀single฀remote฀control.฀To฀do฀so,฀you฀have฀to฀assign฀an฀ID฀number฀to฀each฀projector.

CONTROL ID NUMBER ....... Select a number from 1 to 254 you wish to assign to your projector.

CONTROL ID .......................Select [OFF] to turn off the CONTROL ID setting and select [ON] to turn on the CONTROL ID setting.

NOTE:฀

•฀When฀[ON]฀is฀selected฀for฀[CONTROL฀ID],฀the฀projector฀cannot฀be฀operated฀by฀using฀the฀remote฀control฀that฀does฀not฀support฀

the฀CONTROL฀ID฀function.฀(In฀this฀case฀the฀buttons฀on฀the฀projector฀cabinet฀can฀be฀used.)

•฀Your฀setting฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

•฀Pressing฀and฀holding฀the฀ENTER฀button฀on฀the฀projector฀cabinet฀for฀10฀seconds฀will฀display฀the฀menu฀for฀canceling฀the฀Control฀

ID.

Assigning or Changing the Control ID

1. Turn on the projector.

2. Press the ID SET button on the remote control.

฀The฀CONTROL฀ID฀screen฀will฀be฀displayed.

฀If฀the฀projector฀can฀be฀operated฀with฀the฀current฀remote฀control฀ID,฀the฀[ACTIVE]฀will฀

be฀displayed.฀If฀the฀projector฀cannot฀be฀operated฀with฀the฀current฀remote฀control฀ID,฀

the฀[INACTIVE]฀will฀be฀displayed.฀To฀operate฀the฀inactive฀projector,฀assign฀the฀control฀

ID฀used฀for฀the฀projector฀by฀using฀the฀following฀procedure฀(Step฀3).

＋

3. Press one of numeric keypad buttons while pressing and holding the ID SET

button on the remote control.

Example:

฀To฀assign฀“3”,฀press฀the฀“3”฀button฀on฀the฀remote฀control.

฀No฀ID฀means฀that฀all฀the฀projectors฀can฀be฀operated฀together฀with฀a฀single฀remote฀

control.฀To฀set฀“No฀ID”,฀enter฀“000”฀or฀press฀the฀CLEAR฀button.

TIP:฀The฀range฀of฀IDs฀is฀from฀1฀to฀254.

4. Release the ID SET button.

฀The฀updated฀CONTROL฀ID฀screen฀will฀be฀displayed.

NOTE:฀

•฀The฀IDs฀can฀be฀cleared฀in฀a฀few฀days฀after฀the฀batteries฀are฀run฀down฀or฀removed.

•฀Accidentally฀pressing฀any฀one฀of฀the฀buttons฀of฀the฀remote฀control฀will฀clear฀currently฀specied฀

ID฀with฀batteries฀removed.

4. Using On-Screen Menu

Using Test Pattern [TEST PATTERN]

Displays฀the฀test฀pattern฀for฀adjusting฀distortion฀on฀the฀screen฀and฀the฀focus฀at฀the฀time฀of฀the฀projector฀setup.฀Once฀

the฀[TEST฀PATTERN]฀on฀the฀onscreen฀menu฀is฀selected,฀the฀pattern฀for฀adjustment฀will฀be฀displayed฀on.฀If฀you฀nd฀

distortion฀on฀the฀pattern,฀adjust฀the฀projector฀installation฀angle฀or฀correct฀distortion฀by฀pressing฀the฀KEYSTONE฀button฀

on฀the฀remote.฀If฀the฀focus฀adjustment฀is฀required,฀control฀the฀focus฀lever.฀Press฀EXIT฀button฀to฀close฀the฀test฀pattern฀

and฀return฀to฀the฀menu.฀

NOTE:

•฀Recommend฀to฀perfrom฀the฀focus฀adjustment฀after฀leaving฀the฀projector฀under฀the฀state฀the฀TEST฀PATTERN฀has฀been฀projected฀

for฀over฀30฀minutes.

Setting฀the฀network฀[NETWORK฀SETTINGS]

This฀function฀display฀the฀network฀settings฀menu.฀(→฀page฀90)

4. Using On-Screen Menu

[OPTIONS(1)]

Selecting Fan Mode [FAN MODE]

Fan฀Mode฀is฀used฀to฀set฀the฀speed฀of฀the฀internal฀cooling฀fan.

AUTO ..................... The built-in fans automatically run at a variable speed according to the internal temperature.

HIGH ...................... The built-in fans run at a high speed.

HIGH ALTITUDE ..... The built-in fans run at a high speed. Select this option when using the projector at altitudes approximately

4000 feet/1200 meters or higher.

NOTE:฀

•฀It฀is฀recommended฀that฀you฀select฀High฀speed฀mode฀if฀you฀use฀the฀projector฀non-stop฀for฀consecutive฀days.

•฀฀Set฀[FAN฀MODE]฀to฀[HIGH฀ALTITUDE]฀when฀using฀the฀projector฀at฀altitudes฀approximately฀4000฀feet/1200฀meters฀or฀higher.

•฀Using฀the฀projector฀at฀altitudes฀approximately฀4000฀feet/1200฀meters฀or฀higher฀without฀setting฀to฀[HIGH฀ALTITUDE]฀can฀cause฀

the฀projector฀to฀overheat฀and฀the฀protector฀could฀shut฀down.฀If฀this฀happens,฀wait฀a฀couple฀minutes฀and฀turn฀on฀the฀projector.

•฀฀Using฀the฀projector฀at฀altitudes฀approximately฀4000฀feet/1200฀meters฀or฀higher฀can฀shorten฀the฀life฀of฀optical฀components฀such฀

as฀the฀lamp.

•฀Your฀setting฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

Enabling or Disabling WXGA Mode [WXGA MODE]

Selecting฀[ON]฀will฀give฀priority฀to฀WXGA฀(1280฀×฀768)/WUXGA฀(1920฀×฀1200)฀signals฀in฀recognizing฀an฀input฀signal.

When฀[WXGA฀MODE]฀is฀set฀to฀[ON],฀XGA฀(1024฀×฀768)/UXGA฀(1600฀×฀1200)฀signals฀may฀not฀be฀recognized.฀In฀this฀

case,฀select฀[OFF].

4. Using On-Screen Menu

Setting HDMI1, HDMI2, or HDBaseT [HDMI SETTINGS]

Make฀the฀settings฀for฀each฀video฀level฀when฀connecting฀HDMI฀equipment฀and฀Ethernet/HDBaseT฀terminal.฀

VIDEO LEVEL ......... Select [AUTO] to automatically detect video level. If automatic detection may not work well, select [NOR-

MAL] to disable the [ENHANCED] feature of your HDMI equipment or select [ENHANCED] to improve image

contrast and increase detail in the dark areas.

Setting Audio [AUDIO SELECT]

Make฀the฀settings฀for฀each฀audio฀level฀when฀connecting฀HDMI฀equipment฀and฀Ethernet/HDBaseT฀terminal.฀Select฀

between฀each฀equipment฀and฀computer.

HDMI1, HDMI2

........... Select [HDMI1] or [HDMI2] to switch the HDMI 1 IN or HDMI 2 IN digital audio signal or select [COMPUTER]

to switch the COMPUTER input audio signal.

HDBaseT ................ Select [HDBaseT] or [COMPUTER] to switch the source connected to the network.

Enabling Key Sound and Error Sound [BEEP]

This฀feature฀turns฀on฀or฀off฀the฀button฀sound฀or฀alarm฀when฀an฀error฀occurs฀or฀the฀following฀operations฀are฀performed.

-฀Displaying฀the฀main฀menu฀

-฀Switching฀sources

-฀Resetting฀data฀by฀using฀[RESET]

-฀Pressing฀POWER฀ON฀or฀STANDBY฀button

4. Using On-Screen Menu

[OPTIONS(2)]

Selecting Power-saving in [STANDBY MODE]

The฀projector฀has฀two฀standby฀modes:฀[NORMAL]฀and฀[NETWORK฀STANDBY].

The฀NORMAL฀mode฀is฀the฀mode฀that฀allows฀you฀to฀put฀the฀projector฀in฀the฀power-saving฀condition฀which฀consumes฀

less฀power฀than฀the฀NETWORK฀STANDBY฀mode.

NORMAL .......................POWER indicator: Red light/STATUS indicator: Off

When [NORMAL] is selected, only the following buttons and feature will work:

POWER buttons on the projector cabinet and the remote control, powering on from PC Control com-

mand, and AUTO POWER ON.

NETWORK STANDBY .... POWER indicator: Orange light/STATUS indicator: Off

When [NETWORK STANDBY] is selected, the projector can be turned on over a wired LAN/wireless LAN

connection and only the following buttons, terminals, and features will work:

POWER buttons on the projector cabinet and the remote control, powering on from PC Control command,

AUTO POWER ON, Operation by User Supportware, Network service, Program Timer.

Important:

•฀When฀[NETWORK฀STANDBY]฀is฀selected,฀[AUTO฀POWER฀OFF]฀will฀turn฀in฀grey฀and฀be฀disabled฀and฀[0:10]฀will฀be฀selected฀auto-

matically฀for฀[AUTO฀POWER฀OFF].

•฀In฀the฀below฀conditions,฀setting฀of฀the฀[STANDBY฀MODE]฀is฀disabled฀and฀the฀projector฀will฀go฀into฀the฀SLEEP฀mode*.

*฀Sleep฀mode฀refers฀the฀mode฀without฀functional฀restrictions฀by฀the฀[STANDBY฀MODE].฀Power฀consumption฀in฀the฀SLEEP฀mode฀

is฀relatively฀higher฀than฀the฀[NETWORK฀STANDBY]฀mode.฀The฀Status฀indicator฀turns฀on฀in฀Green.

฀When฀[STANDBY฀MODE]฀→฀[NETWORK฀STANDBY]฀is฀selected

-฀When฀[NETWORK฀SERVICE]฀→฀[AMX฀SETTINGS]฀→฀[ENABLE]฀is฀selected฀

-฀When฀[NETWORK฀SERVICE]฀→฀[CRESTRON฀SETTINGS]฀→฀[CRESTRON฀CONTROL]฀→฀[ENABLE]฀is฀selected

-฀When฀[NETWORK฀SETTINGS]฀→฀[WIRELESS฀LAN]฀→฀Except฀for฀[DISABLE]฀and฀mounting฀the฀wireless฀LAN฀unit฀to฀the฀projector

-฀When฀the฀signal฀is฀input฀to฀the฀computer,฀HDMI฀1฀IN฀or฀HDMI฀2฀IN฀terminals

NOTE:฀

•฀When฀an฀HDBaseT฀transmitter฀is฀connected฀to฀the฀Ethernet/HDBaseT฀port,฀if฀the฀projector฀is฀in฀the฀standby฀mode,฀the฀projector฀

cannot฀be฀controlled฀(the฀power฀cannot฀be฀turned฀on),฀regardless฀of฀the฀[STANDBY฀MODE]฀setting.

TIP:฀

•฀Even฀when฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE],฀power฀on฀or฀off฀can฀be฀done฀by฀using฀the฀PC฀CONTROL฀port.

•฀The฀power฀consumption฀in฀the฀standby฀mode฀will฀not฀be฀included฀in฀calculating฀CO

฀emission฀reduction.

•฀Your฀setting฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

Enabling Direct Power On [DIRECT POWER ON]

Turns฀the฀projector฀on฀automatically฀when฀the฀power฀cord฀is฀inserted฀into฀an฀active฀power฀outlet.฀This฀eliminates฀the฀

need฀to฀always฀use฀the฀POWER฀button฀on฀the฀remote฀control฀or฀projector฀cabinet.

4. Using On-Screen Menu

Turning฀On฀the฀Projector฀By฀Applying฀Computer฀Signal฀[AUTO฀POWER฀ON]

When฀the฀projector฀is฀in฀Standby฀mode,฀applying฀a฀computer฀or฀HDMI฀signal฀from฀a฀computer฀connected฀to฀the฀COM-

PUTER฀IN฀input,฀HDMI1,฀or฀HDMI2฀input฀will฀power฀on฀the฀projector฀and฀simultaneously฀project฀the฀image.

This฀functionality฀eliminates฀the฀need฀to฀always฀use฀the฀POWER฀button฀on฀the฀remote฀control฀or฀the฀projector฀cabinet฀

to฀power฀on฀the฀projector.

To฀use฀this฀function,฀rst฀connect฀a฀computer฀to฀the฀projector฀and฀the฀projector฀to฀an฀active฀AC฀input.

NOTE:฀

•฀Disconnecting฀a฀computer฀signal฀from฀the฀computer฀will฀not฀power฀off฀the฀projector.฀We฀recommend฀using฀this฀function฀in฀com-

bination฀of฀the฀AUTO฀POWER฀OFF฀function.

•฀This฀function฀will฀not฀be฀available฀under฀the฀following฀conditions:

-฀when฀a฀component฀signal฀is฀applied฀to฀the฀COMPUTER฀IN฀terminal

-฀when฀a฀Sync฀on฀Green฀RGB฀signal฀or฀composite฀sync฀signal฀is฀applied

•฀To฀enable฀the฀AUTO฀POWER฀ON฀after฀changing฀to฀the฀sleep฀mode฀turning฀off฀the฀projector,฀wait฀5฀seconds฀and฀input฀a฀computer฀

or฀HDMI฀signal.

฀If฀a฀computer฀or฀HDMI฀signal฀is฀still฀present฀when฀the฀projector฀is฀turned฀off,฀the฀AUTO฀POWER฀ON฀will฀not฀work฀and฀the฀projector฀

remains฀in฀standby฀mode.

Enabling Power Management [AUTO POWER OFF]

When฀this฀option฀is฀selected฀you฀can฀enable฀the฀projector฀to฀automatically฀turn฀off฀(at฀the฀selected฀time:฀5min.,฀10min.,฀

15min.,฀20min.,฀30min.,฀60min.)฀in฀one฀of฀the฀below฀conditions.

-฀No฀signal฀is฀received.

-฀The฀thumbnail฀screen฀is฀displayed.

-฀No฀operation฀is฀performed.

NOTE:

•฀This฀item฀can฀be฀selected฀only฀when฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE].

•฀When฀[NETWORK฀STANDBY]฀is฀selected,฀[AUTO฀POWER฀OFF]฀will฀turn฀grey฀in฀color฀and฀be฀disabled฀to฀select,฀[0:15]฀will฀be฀

selected฀automatically.

4. Using On-Screen Menu

Selecting Default Source [DEFAULT SOURCE SELECT]

You฀can฀set฀the฀projector฀to฀default฀to฀any฀one฀of฀its฀inputs฀each฀time฀the฀projector฀is฀turned฀on.

LAST ...................... Sets the projector to default to the previous or last active input each time the projector is turned on.

AUTO ..................... Searches for an active source in order of [HDMI1] → [HDMI2] → [COMPUTER] → [VIDEO] → [HDBaseT]

→ [APPS] and displays the ﬁrst found source.

HDMI1 ................... Displays the digital source from the HDMI 1 IN terminal every time the projector is turned on.

HDMI2 ................... Displays the digital source from the HDMI 2 IN terminal every time the projector is turned on.

COMPUTER ........... Displays the computer signal from the COMPUTER IN terminal every time the projector is turned on.

VIDEO .................... Displays the Video source from the VIDEO IN terminal every time the projector is turned on.

HDBaseT ................ Projects the signal transmitted from the terminals supported HDBaseT.

APPS ..................... Display the APPS MENU.

NOTE:

•฀[APPS]฀can฀not฀be฀detected฀when฀[AUTO]฀is฀selected.฀For฀projecting฀image฀from฀APPS,฀select฀[APPS]฀or฀[LAST].

Setting฀carbon฀footprint฀factor฀[CARBON฀CONVERT]

Adjusts฀the฀carbon฀footprint฀factor฀in฀the฀carbon฀saving฀calculation.฀The฀initial฀setting฀is฀0.505[kg-CO2/kWh]฀based฀on฀

the฀CO2฀Emissions฀from฀Fuel฀Combustion฀(2008฀Edition)฀published฀by฀OECD.

Selecting your currency [CURRENCY]

Displays฀electricity฀pricing฀(available฀in฀4฀currency฀units).

$ ............................ US Dollar

€ ........................... EU Euro

JP¥ ........................ Japanese Yen

RMB¥ .................... Chinese Yuan

Changing฀currency฀setting฀and฀currency฀convert฀setting฀[CURRENCY฀CONVERT]

Changes฀currency฀setting฀and฀currency฀convert฀setting฀for฀CARBON฀METER.

The฀initial฀setting฀are฀as฀follows:

US Dollar ............... 0.11 [$/kWh]

EU Euro ................. 0.19 [€/kWh]

Japanese Yen ......... 20 [¥/kWh]

Chinese Yuan ......... 0.48 [¥/kWh]

The฀initial฀settings฀for฀US฀dollar,฀EU฀Euro,฀and฀Japanese฀Yen฀are฀based฀on฀“Energy฀Prices฀and฀Taxes฀(second฀quarter฀

2010”฀published฀by฀OECD.

The฀initial฀setting฀for฀Chinese฀Yuan฀is฀based฀on฀“Chinese฀Data฀File฀(2010)”฀published฀by฀JETRO.

4. Using On-Screen Menu

[3D]

Selecting฀input฀connected฀to฀a฀source฀of฀3D฀images฀[HDMI1/HDMI2/COMPUTER/VIDEO/HDBaseT]

[3D]

This฀function฀switches฀the฀3D฀mode฀between฀ON฀and฀OFF฀for฀each฀input.

ON ......................... Turns on the 3D mode for the selected input.

NOTE:

To฀conrm฀that฀the฀supported฀3D฀signal฀is฀accepted,฀use฀either฀way฀of฀the฀following:

•฀Make฀sure฀that฀[3D]฀is฀displayed฀in฀the฀top฀right฀of฀the฀screen฀after฀the฀source฀is฀selected.

•฀Display฀[INFO.]฀→฀[SOURCE(2)]฀→฀[3D฀SIGNAL]฀and฀make฀sure฀that฀“SUPPORTED”฀is฀displayed.

OFF ........................ Turns off the 3D mode for the selected input.

[GLASSES]

Select฀3D฀glasses฀method.

DLP

Link .............. For 3D eyeglasses (ones manufactured by XPAND are recommended) or DLP

Link compatible LCD shutter

eyeglasses.

Others .................... For other LCD shutter eyeglasses such as IR or wired LCD shutter types.

NOTE:

•฀When฀using฀crystal฀shutter฀glasses฀other฀than฀those฀using฀the฀DLP®฀Link฀method,฀it฀may฀not฀be฀possible฀to฀synchronize,฀depend-

ing฀on฀the฀glasses.

•฀This฀function฀will฀not฀work฀for฀VIDEO฀source.

[FORMAT]

Sets฀3D฀format.

AUTO ............................Automatically selects the appropriate format. The supported format is HDMI 3D only.

FRAME PACKING ..........Selects this format for the FRAME PACKING 3D image. FRAM PACKING is a format that stores the left

and right eye images without compression.

SIDE BY SIDE ...............Selects this format for the SIDE BY SIDE 3D image. SIDE BY SIDE is a format that stores the left and

right eye images displayed horizontally. Only the half of the horizontal resolution is supported

TOP AND BOTTOM .......Selects this format for the TOP AND BOTTOM 3D image. TOP AND BOTTOM is a format that stores the

left and right eye images displayed vertically. Only the half of the vertical resolution is supported.

FRAME SEQUENTIAL ....Selects this format for the FRAME SEQUENTIAL 3D image. FRAME SEQUENTIAL is a format that displays

the left and right eye images alternately.

NOTE:

•฀This฀function฀will฀not฀work฀for฀VIDEO฀source.

•฀When฀3D฀signals฀are฀input,฀operation฀is฀only฀possible฀when฀[GLASSES]฀is฀set฀to฀“DLP®฀Link”.

4. Using On-Screen Menu

[L/R฀INVERT]

Change฀the฀setting฀if฀you฀have฀difculty฀seeing฀3D฀images.

NON-INVERT ......... Normal setting.

INVERT .................. Changes the order of displaying the images for left eye and right eye.

NOTE:

•฀When฀[L/R฀INVERT]฀cannot฀be฀operated,฀the฀[L/R฀INVERT]฀screen฀will฀not฀be฀displayed฀even฀when฀the฀remote฀control’s฀video฀

button฀is฀pressed.

4. Using On-Screen Menu

❻ Menu Descriptions & Functions [INFO.]

Displays฀the฀status฀of฀the฀current฀signal฀and฀lamp฀usage.฀This฀item฀has฀nine฀pages.฀The฀information฀included฀is฀as฀follows:

TIP:฀Pressing฀the฀HELP฀button฀on฀the฀remote฀control฀will฀show฀the฀[INFO.]฀menu฀items.

[USAGE TIME]

[LAMP฀LIFE฀REMAINING]฀(%)*

[LAMP฀HOURS฀USED]฀(H)

[FILTER฀HOURS฀USED]฀(H)

[TOTAL฀CARBON฀SAVINGS]฀(kg-CO2)

[TOTAL฀COST฀SAVINGS]($)

*฀The฀progress฀indicator฀shows฀the฀percentage฀of฀remaining฀bulb฀life.

฀The฀value฀informs฀you฀of฀the฀amount฀of฀lamp฀usage.฀When฀the฀remaining฀lamp฀time฀reaches฀0,฀the฀LAMP฀LIFE฀

REMAINING฀bar฀indicator฀changes฀from฀0%฀to฀100฀Hours฀and฀starts฀counting฀down.

฀If฀the฀remaining฀lamp฀time฀reaches฀0฀hours,฀the฀projector฀will฀not฀turn฀on.

•฀The฀message฀to฀the฀effect฀that฀the฀lamp฀should฀be฀replaced฀will฀be฀displayed฀for฀one฀minute฀when฀the฀projector฀is฀

turned฀on฀and฀when฀the฀POWER฀button฀on฀the฀projector฀or฀the฀STANDBY฀button฀on฀the฀remote฀control฀is฀pressed.

฀To฀dismiss฀this฀message,฀press฀any฀button฀on฀the฀projector฀or฀the฀remote฀control.

Lamp฀life฀(H)Brightness by mode

OFF AUTO ECO NORMAL ECO OFF AUTO ECO NORMAL ECO

3000H

3000H฀to฀

5000H

4000H 5000H 100%OFF฀thru฀ECOApprox.฀80%Approx.฀60%

•฀[TOTAL฀CARBON฀SAVINGS]

฀This฀displays฀the฀estimated฀carbon฀saving฀information฀in฀kg.฀The฀carbon฀footprint฀factor฀in฀the฀carbon฀saving฀cal-

culation฀is฀based฀on฀the฀OECD฀(2008฀Edition).฀(→฀page฀

29)

4. Using On-Screen Menu

[SOURCE(1)]

[RESOLUTION]฀[HORIZONTAL฀FREQUENCY]฀

[VERTICAL฀FREQUENCY]฀[SYNC฀TYPE]฀

[SYNC฀POLARITY]฀[SCAN฀TYPE]

[SOURCE(2)]

[SIGNAL฀TYPE]฀[VIDEO฀TYPE]฀

[BIT฀DEPTH]฀[VIDEO฀LEVEL]฀

[3D฀SIGNAL]

[HDBaseT]

[SIGNAL฀QUALITY]฀[OPERATION฀MODE]฀

[LINK฀STATUS]฀[HDMI฀STATUS]

[WIRED LAN]

[IP฀ADDRESS]฀[SUBNET฀MASK]฀

[GATEWAY]฀[MAC฀ADDRESS]

[WIRELESS LAN]

[IP฀ADDRESS]฀[SUBNET฀MASK]฀

[GATEWAY]฀[MAC฀ADDRESS]฀

[SSID]฀[NETWORK฀TYPE]฀

[SECURITY]฀[CHANNEL]฀

[SIGNAL฀LEVEL]

[VERSION(1)]

[FIRMWARE]฀Version฀[DATA]฀Version

[VERSION(2)]

[FIRMWARE2]฀Version

[OTHERS]

[PROJECTOR฀NAME]฀[HOST฀NAME]฀

[MODEL฀NO.]฀[SERIAL฀NUMBER]฀

[LAN฀UNIT฀TYPE]฀[CONTROL฀ID]฀(when฀[CONTROL฀ID]฀is฀set)

4. Using On-Screen Menu

❼ Menu Descriptions & Functions [RESET]

Returning to Factory Default [RESET]

The฀RESET฀feature฀allows฀you฀to฀change฀adjustments฀and฀settings฀to฀the฀factory฀preset฀for฀a฀(all)฀source฀(s)฀except฀

the฀following:

[CURRENT SIGNAL]

Resets฀the฀adjustments฀for฀the฀current฀signal฀to฀the฀factory฀preset฀levels.฀

The฀items฀that฀can฀be฀reset฀are:฀[PRESET],฀[CONTRAST],฀[BRIGHTNESS],฀[COLOR],฀[HUE],฀[SHARPNESS],฀[AS-

PECT฀RATIO],฀[HORIZONTAL],฀[VERTICAL],฀[CLOCK],฀[PHASE],฀and฀[OVERSCAN].

[ALL DATA]

Reset฀all฀the฀adjustments฀and฀settings฀for฀all฀the฀signals฀to฀the฀factory฀preset.

All฀items฀can฀be฀reset฀EXCEPT฀[LANGUAGE],฀[BACKGROUND],฀[FILTER฀MESSAGE],฀[ORIENTATION],฀[SERIAL฀

PORT],฀[SECURITY],฀[COMMUNICATION฀SPEED],฀[CONTROL฀ID],฀[STANDBY฀MODE],฀[FAN฀MODE],฀[CARBON฀

CONVERT],฀[CURRENCY],฀[CURRENTY฀CONVERT],฀[LAMP฀LIFE฀REMAINING],฀[LAMP฀HOURS฀USED],฀[FILTER฀

HOURS฀USED],฀[TOTAL฀CARBON฀SAVINGS],฀[PROJECTOR฀NAME],฀[WIRED฀LAN],฀[WIRELESS฀LAN],฀[IMAGE฀

EXPRESS฀UTILITY฀LITE],฀[NETWORK฀SERVICE],฀[DATE฀&฀TIME],฀[ADMINISTRATOR฀MODE],฀and฀[REMOTE฀

DESKTOP฀CONNECTION].

Clearing Lamp Hour Meter [CLEAR LAMP HOURS]

Resets฀the฀lamp฀clock฀back฀to฀zero.฀Selecting฀this฀option฀displays฀submenu฀for฀a฀conrmation.฀Select฀[YES]฀and฀press฀

the฀ENTER฀button.

NOTE:฀Elapsed฀time฀of฀the฀lamp฀use฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

NOTE:฀The฀projector฀will฀turn฀off฀and฀go฀into฀standby฀mode฀when฀you฀continue฀to฀use฀the฀projector฀for฀another฀100฀hours฀after฀the฀

lamp฀has฀reached฀the฀end฀of฀its฀life.฀In฀this฀condition฀you฀cannot฀clear฀the฀lamp฀hour฀meter฀on฀the฀menu.฀If฀this฀happens,฀press฀

the฀HELP฀button฀on฀the฀remote฀control฀for฀10฀seconds฀to฀reset฀the฀lamp฀clock฀back฀to฀zero.฀Do฀this฀only฀after฀replacing฀the฀lamp.

Clearing the Filter Usage Hours [CLEAR FILTER HOURS]

Resets฀the฀lter฀usage฀back฀to฀zero.฀Selecting฀this฀option฀displays฀submenu฀for฀a฀conrmation.฀Select฀[YES]฀and฀press฀

the฀ENTER฀button.

NOTE:฀Elapsed฀time฀of฀the฀lter฀use฀will฀not฀be฀affected฀even฀when฀[RESET]฀is฀done฀from฀the฀menu.

❶ Setting Up the Screen and the Projector

Use฀this฀to฀get฀a฀general฀idea฀of฀what฀the฀screen฀size฀will฀be฀when฀set฀in฀a฀certain฀position,฀what฀size฀screen฀you฀will฀

need,฀and฀what฀distance฀you฀will฀need฀to฀project฀images฀of฀the฀desired฀size.

The฀projection฀distance฀range฀at฀which฀focusing฀is฀possible฀is฀0.79฀m฀(for฀a฀30฀model)฀to฀14.19฀m฀(for฀a฀300฀model).฀

Install฀within฀this฀range.

[P502H/P452H]

0123456789101112 13 14 15

12 13 14 15

1234567891011

100

120

150

180

200

240

300

(inch)

(m)

Screen size

Screen height from the center of the

projector lens

[Projection distance]

When zoom lever turned to wide

With tilt feet tilted 4° when set to wide

When zoom lever turned to telescopic

When zoom lever

turned to telescopic

Screen center line

(telescopic)

When zoom lever

turned to wide

Projector lens center Screen center line (wide)

(m)

*฀The฀gures฀indicated฀for฀“height฀of฀screen฀from฀projector฀lens฀center”฀on฀the฀projection฀distance฀table฀are฀for฀a฀lens฀shift฀of฀62%฀

[Reading฀the฀Table]

From฀the฀upper฀table฀on฀this฀page,฀to฀project฀wide฀images฀on฀a฀150฀screen,฀install฀at฀about฀4.1฀m฀from฀the฀front.

Also,฀from฀the฀lower฀table฀we฀can฀see฀that฀about฀2.1฀m฀are฀required฀from฀the฀projector’s฀lens฀center฀to฀the฀upper฀edge฀

of฀the฀screen.฀Use฀this฀to฀see฀whether฀or฀not฀enough฀height฀can฀be฀provided฀from฀the฀projector฀to฀the฀ceiling฀and฀

for฀installing฀the฀screen.฀The฀diagram฀shows฀the฀projection฀distance฀when฀the฀projector฀is฀installed฀horizontally.฀The฀

projected฀image฀can฀be฀moved฀up฀and฀down,฀left฀and฀right฀using฀the฀lens฀shift฀function.฀(→฀page฀

17)

5. Installation and Connections

[P502W/P452W]

0 12345678910 11 12 13 14 15

12 13 14 15

12345678910 11

100

120

150

180

200

240

300

(inch)

(m)

Screen size

Screen height from the center of the

projector lens

[Projection distance]

When zoom lever turned to wide

With tilt feet tilted 4° when set to wide

When zoom lever turned to telescopic

When zoom lever

turned to telescopic

Screen center line

(telescopic)

When zoom lever

turned to wide

Projector lens center Screen center line (wide)

(m)

*฀The฀gures฀indicated฀for฀“height฀of฀screen฀from฀projector฀lens฀center”฀on฀the฀projection฀distance฀table฀are฀for฀a฀lens฀shift฀of฀59%฀

[Reading฀the฀Table]

From฀the฀upper฀table฀on฀this฀page,฀to฀project฀wide฀images฀on฀a฀150฀screen,฀install฀at฀about฀4.1฀m฀from฀the฀front.

Also,฀from฀the฀lower฀table฀we฀can฀see฀that฀about฀2.1฀m฀are฀required฀from฀the฀projector’s฀lens฀center฀to฀the฀upper฀edge฀

of฀the฀screen.฀Use฀this฀to฀see฀whether฀or฀not฀enough฀height฀can฀be฀provided฀from฀the฀projector฀to฀the฀ceiling฀and฀

for฀installing฀the฀screen.฀The฀diagram฀shows฀the฀projection฀distance฀when฀the฀projector฀is฀installed฀horizontally.฀The฀

projected฀image฀can฀be฀moved฀up฀and฀down,฀left฀and฀right฀using฀the฀lens฀shift฀function.฀(→฀page฀

17)

5. Installation and Connections

Tables of screen sizes and dimensions

[P502H/P452H]

Screen height

Screen width

Screen size

(diagonal)

Size฀(inches)Screen฀widthScreen฀height

(inches)(cm)(inches)(cm)

302666.415 37.4

40 3588.620 49.8

50 44 110.725 62.3

6052 132.82974.7

8070177.13999.6

100 87221.4 49124.5

120 105 265.759149.4

150 131332.174186.8

200 174442.898249.1

250 218553.4123311.3

300261664.1147373.6

[P502W/P452W]

Screen height

Screen width

Screen size

(diagonal)

Size฀(inches)Screen฀widthScreen฀height

(inches)(cm)(inches)(cm)

3025 64.61640.4

40 3486.221 53.8

50 42 107.72667.3

6051 129.23280.8

8068172.342 107.7

100 85215.4 53134.6

120 102 258.564161.5

150 127323.179201.9

200 170430.8106269.2

250 212 538.5132336.5

300254 646.2159403.9

5. Installation and Connections

Example of installation on a desktop

The฀diagram฀below฀shows฀an฀example฀of฀when฀the฀projector฀is฀used฀on฀a฀desktop.

Horizontal฀projection฀position:฀Equal฀distance฀to฀the฀left฀and฀right฀from฀the฀center฀of฀the฀lens

Vertical฀projection฀position:฀(see฀table฀below)฀

[P502H/P452H]

Screen surface

Lower edge of screen with 62% V

Measurement +H

Measurement -H

Lower edge of screen with 0% V

Lens center

Approximately 81 to 86 mm

Projection distance L

(Note)฀Height฀from฀lens฀center฀to฀lower฀edge฀of฀screen฀(with฀tilt฀feet฀screwed฀in)

Screen฀size฀(inches)Throw฀distance฀LHeight฀H

WideTele0%V฀–฀62%V

(inches)(m)(inches)(m)(inches)(cm)

30310.7955 1.39−7.4–+1.7−18.7–+4.3

40 42 1.07731.86−9.8–+2.3−24.9–+5.8

50 531.34922.34−12.2–+2.8−31.1–+7.2

60641.62111 2.81−14.7–+3.4−37.4–+8.7

80862.171483.76−19.6–+4.6−49.8–+11.6

100 1072.721854.71−24.5–+5.7−62.3–+14.5

120 1293.282235.66−29.4–+6.9−74.7–+17.4

150 1624.11 2797.08−36.8–+8.5−93.4–+21.7

200 2165.493729.45−49.0–+11.4−124.5–+28.9

250 2706.8746511.82−61.3–+14.3−155.7–+36.2

3003258.2555914.19−73.5–+17.1−186.8–+43.4

[P502W/P452W]

Screen surface

Lower edge of screen with 59% V

Measurement +H

Measurement -H

Lower edge of screen with 0% V

Lens center

Approximately 81 to 86 mm

Projection distance L

(Note)฀Height฀from฀lens฀center฀to฀lower฀edge฀of฀screen฀(with฀tilt฀feet฀screwed฀in)

Screen฀size฀(inches)Throw฀distance฀LHeight฀H

WideTele0%V฀–฀59%V

(inches)(m)(inches)(m)(inches)(cm)

30320.81561.42 −8.0–+1.3−20.2–+3.4

40 431.09751.90−10.6–+1.8−26.9–+4.6

50 54 1.37942.39−13.3–+2.2−33.7–+5.7

60651.661132.87−15.9–+2.7−40.4–+6.9

80872.22 151 3.84−21.2–+3.6−53.8–+9.2

100 110 2.781894.81−26.5–+4.5−67.3–+11.5

120 1323.352275.78−31.8–+5.4−80.8–+13.8

150 1654.192857.23−39.8–+6.8−101.0–+17.2

200 221 5.603809.65−53.0–+9.1−134.6–+23.0

250 2767.0147512.08−66.3–+11.3−168.3–+28.7

3003328.4357114.50 −79.5–+13.6−201.9–+34.5

5. Installation and Connections

Lens shifting range

This฀projector฀is฀equipped฀with฀a฀lens฀shift฀function฀(→฀page฀

17)฀for฀adjusting฀the฀image฀position฀using฀dials.฀Lens฀

shifting฀is฀possible฀within฀the฀range฀shown฀below.

NOTE:฀

•฀In฀case฀lens฀shifted฀volume฀exceeds฀the฀below฀illustrated฀range,฀blur฀and฀shade฀may฀appear฀around฀ends฀of฀projected฀image.

Legend:฀V฀“Vertical”฀refers฀to฀the฀screen฀height฀and฀H฀“Horizontal”฀refers฀to฀the฀screen฀width.฀The฀lens฀shift฀range฀is฀

expressed฀as฀a฀ratio฀of฀height฀and฀width,฀respectively.

[P502H/P452H]

Lens฀shifting฀range:

Vertical฀direction:฀+62%,฀−0%

Horizontal฀direction:฀±25%

100%V

62%V

100%H

25%H

Height of projected image

Width of projected image

[P502W/P452W]

Lens฀shifting฀range:

Vertical฀direction:฀+59%,฀−0%

Horizontal฀direction:฀±28%

100%V

59%V

100%H

28%H

Height of projected image

Width of projected image

*฀The฀lens฀shift฀range฀is฀the฀same฀for฀ceiling฀installation.

5. Installation and Connections

(Example)฀When฀using฀to฀project฀on฀a฀150"฀screen

[P502H/P452H]

According฀to฀the฀“Table฀of฀screen฀sizes฀and฀dimensions”฀(→฀page฀

71),฀H฀=฀130.8"/332.1฀cm,฀V฀=฀73.6"/186.8฀cm.

Adjustment฀range฀in฀the฀vertical฀direction:฀the฀projected฀image฀can฀be฀moved฀upwards฀0.62฀×฀73.6"/186.8฀cm฀≈

45.3"/115฀cm฀(when฀the฀lens฀is฀at฀the฀center฀position).฀

Adjustment฀range฀in฀the฀horizontal฀direction:฀the฀projected฀image฀can฀be฀moved฀to฀the฀left฀0.25฀×฀130.8"/332.1฀cm฀≈

32.7"/83฀cm,฀to฀the฀right฀approximately฀32.7"/83฀cm.

[P502W/P452W]

According฀to฀the฀“Table฀of฀screen฀sizes฀and฀dimensions”฀(→฀page฀71),฀H฀=฀127.3"/323.1฀cm,฀V฀=฀79.5"/201.9฀cm.

Adjustment฀range฀in฀the฀vertical฀direction:฀the฀projected฀image฀can฀be฀moved฀upwards฀0.59฀×฀79.5"/201.9฀cm฀≈

46.9"/119฀cm฀(when฀the฀lens฀is฀at฀the฀center฀position).฀

Adjustment฀range฀in฀the฀horizontal฀direction:฀the฀projected฀image฀can฀be฀moved฀to฀the฀left฀0.28฀×฀127.3"/323.1฀cm฀≈

35.4"/90฀cm,฀to฀the฀right฀approximately฀35.4"/90฀cm.

*฀Figures฀differ฀by฀several฀%฀because฀the฀calculation฀is฀approximate.

WARNING

*฀Installing฀your฀projector฀on฀the฀ceiling฀must฀be฀done฀by฀a฀qualied฀technician.฀Contact฀your฀NEC฀dealer฀for฀more฀

information.

*฀Do฀not฀attempt฀to฀install฀the฀projector฀yourself.

•฀Only฀use฀your฀projector฀on฀a฀solid,฀level฀surface.฀If฀the฀projector฀falls฀to฀the฀ground,฀you฀can฀be฀injured฀and฀the฀

projector฀severely฀damaged.

•฀Do฀not฀use฀the฀projector฀where฀temperatures฀vary฀greatly.฀The฀projector฀must฀be฀used฀at฀temperatures฀between฀

41°F฀(5°C)฀and฀104°F฀(40°C)฀(Eco฀mode฀selected฀automatically฀at฀95°F฀to฀104°F/35°C฀to฀40°C).

•฀Do฀not฀expose฀the฀projector฀to฀moisture,฀dust,฀or฀smoke.฀This฀will฀harm฀the฀screen฀image.

•฀Ensure฀that฀you฀have฀adequate฀ventilation฀around฀your฀projector฀so฀heat฀can฀dissipate.฀Do฀not฀cover฀the฀vents฀on฀

the฀side฀or฀the฀front฀of฀the฀projector.

Reﬂecting the Image

Using฀a฀mirror฀to฀reect฀your฀projector’s฀image฀enables฀you฀to฀enjoy฀a฀much฀larger฀image฀when฀a฀smaller฀space฀is฀

required.฀Contact฀your฀NEC฀dealer฀if฀you฀need฀a฀mirror฀system.฀If฀you’re฀using฀a฀mirror฀system฀and฀your฀image฀is฀

inverted,฀use฀the฀MENU฀and฀▲▼◀▶฀buttons฀on฀your฀projector฀cabinet฀or฀your฀remote฀control฀to฀correct฀the฀orienta-

tion.฀(→฀page฀55)

5. Installation and Connections

❷ Making Connections

Connecting Your Computer

Computer฀cables฀and฀HDMI฀can฀be฀used฀to฀connect฀to฀a฀computer.฀The฀HDMI฀cable฀is฀not฀enclosed฀with฀the฀projector.฀

Please฀get฀ready฀a฀suitable฀cable฀for฀the฀connection.

NOTE:฀Signals฀supported฀by฀Plug฀&฀Play฀(DDC2)

INPUT

COMPUTER฀INHDMI฀1฀INHDMI฀2฀IN

analogdigitaldigital

YesYesYes

HDMI 1 IN

HDMI 2 IN

COMPUTER IN

AUDIO IN

Computer cable (VGA) (supplied)

To mini D-Sub 15-pin terminal on the projector.

It฀is฀recommended฀that฀you฀use฀a฀commercial-

ly available distribution ampliﬁer if connecting

a signal cable longer than the cable supplied.

NOTE:฀For฀Mac,฀use฀a฀commercially฀available฀

pin฀adapter฀(not฀supplied)฀to฀connect฀to฀your฀

Mac’s฀video฀port.

Stereo mini-plug audio

cable (not supplied)

HDMI฀cable฀(not฀supplied)

Use฀High฀Speed฀HDMI

Cable.

•฀Select฀the฀source฀name฀for฀its฀appropriate฀input฀terminal฀after฀turning฀on฀the฀projector.

Input฀terminal

SOURCE฀button฀on฀the฀projector฀cabinet

Button฀on฀the฀remote฀control

HDMI฀1฀IN

฀HDMI1(HDMI฀1*)

HDMI฀2฀IN

฀HDMI2(HDMI฀2*)

COMPUTER฀IN

฀COMPUTER(COMPUTER฀1)

5. Installation and Connections

NOTE:฀The฀projector฀is฀not฀compatible฀with฀video฀decoded฀outputs฀of฀the฀NEC฀ISS-6020฀switcher.

NOTE:฀An฀image฀may฀not฀be฀displayed฀correctly฀when฀a฀Video฀source฀is฀played฀back฀via฀a฀commercially฀available฀scan฀converter.฀

This฀is฀because฀the฀projector฀will฀process฀a฀video฀signal฀as฀a฀computer฀signal฀at฀the฀default฀setting.฀In฀that฀case,฀do฀the฀following.

*฀When฀an฀image฀is฀displayed฀with฀the฀lower฀and฀upper฀black฀portion฀of฀the฀screen฀or฀a฀dark฀image฀is฀not฀displayed฀correctly:

฀Project฀an฀image฀to฀ll฀the฀screen฀and฀then฀press฀the฀AUTO฀ADJ.฀button฀on฀the฀remote฀control฀or฀the฀projector฀cabinet.

Enabling the computer’s external display

Displaying฀an฀image฀on฀the฀notebook฀PC’s฀screen฀does฀not฀necessarily฀mean฀it฀outputs฀a฀signal฀to฀the฀projector.

When฀using฀a฀PC฀compatible฀laptop,฀a฀combination฀of฀function฀keys฀will฀enable/disable฀the฀external฀display.

Usually,฀the฀combination฀of฀the฀“Fn”฀key฀along฀with฀one฀of฀the฀12฀function฀keys฀gets฀the฀external฀display฀to฀come฀on฀or฀off.฀For฀

example,฀NEC฀laptops฀use฀Fn฀+฀F3,฀while฀Dell฀laptops฀use฀Fn฀+฀F8฀key฀combinations฀to฀toggle฀through฀external฀display฀selections.

Cautions฀when฀using฀a฀DVI฀signal

•฀When฀the฀computer฀has฀a฀DVI฀output฀terminal,฀use฀a฀commercially฀available฀converter฀cable฀to฀connect฀the฀computer฀

to฀the฀projector’s฀HDMI฀1฀IN฀or฀HDMI฀2฀IN฀terminal฀(only฀digital฀video฀signals฀can฀be฀input).

HDMI 1 IN

HDMI 2 IN

AUDIO IN

NOTE:฀When฀Viewing฀a฀DVI฀Digital฀Signal

•฀Turn฀off฀the฀power฀of฀the฀computer฀and฀projector฀before฀connecting.

•฀When฀a฀video฀deck฀is฀connected฀via฀a฀scan฀converter,฀etc.,฀the฀display฀may฀not฀be฀correct฀during฀fast-forwarding฀and฀rewinding.

•฀Use฀a฀DVI-to-HDMI฀cable฀compliant฀with฀DDWG฀(Digital฀Display฀Working฀Group)฀DVI฀(Digital฀Visual฀Interface)฀revision฀1.0฀stan-

dard.

฀The฀cable฀should฀be฀within฀197"/5฀m฀long.

•฀Turn฀off฀the฀projector฀and฀the฀PC฀before฀connecting฀the฀DVI-to-HDMI฀cable.

•฀To฀project฀a฀DVI฀digital฀signal:฀Connect฀the฀cables,฀turn฀the฀projector฀on,฀then฀select฀the฀HDMI฀input.฀Finally,฀turn฀on฀your฀PC.

฀Failure฀to฀do฀so฀may฀not฀activate฀the฀digital฀output฀of฀the฀graphics฀card฀resulting฀in฀no฀picture฀being฀displayed.฀Should฀this฀happen,฀

restart฀your฀PC.

•฀Do฀not฀disconnect฀the฀DVI-to-HDMI฀cable฀while฀the฀projector฀is฀running.฀If฀the฀signal฀cable฀has฀been฀disconnected฀and฀then฀

reconnected,฀an฀image฀may฀not฀be฀correctly฀displayed.฀Should฀this฀happen,฀restart฀your฀PC.

•฀The฀COMPUTER฀video฀input฀terminals฀support฀Windows฀Plug฀and฀Play.

•฀A฀Mac฀signal฀adapter฀(commercially฀available)฀may฀be฀required฀to฀connect฀a฀Mac฀computer.

5. Installation and Connections

Connecting an External Monitor

You฀can฀connect฀a฀separate,฀external฀monitor฀to฀your฀projector฀to฀simultaneously฀view฀on฀a฀monitor฀the฀computer฀

analog฀image฀you’re฀projecting.

AUDIO OUT

MONITOR OUT (COMP.)

Computer cable (VGA) (not supplied)

Computer cable (VGA) (supplied)

Stereo mini-plug audio cable (not supplied)

NOTE:

•฀The฀AUDIO฀OUT฀mini฀jack฀does฀not฀support฀Headphone฀terminal.

•฀When฀audio฀equipment฀is฀connected,฀the฀projector฀speaker฀is฀disabled.

•฀The฀signal฀output฀from฀the฀MONITOR฀OUT฀(COMP.)฀of฀this฀projector฀is฀for฀projecting฀image฀on฀exclusive฀one฀display.

•฀When฀no฀signal฀is฀applied฀over฀3฀minutes฀in฀the฀condition฀of฀projector฀standby฀when฀NETWORK฀STANDBY฀is฀set฀in฀the฀Standby฀

mode,฀output฀from฀the฀MONITOR฀OUT฀(COMP.)฀or฀AUDIO฀OUT฀terminal฀will฀be฀stopped.฀In฀this฀case฀pull฀out฀the฀computer฀cable฀

and฀set฀it฀back฀after฀inputting฀video฀signal

Monitor฀out฀and฀sleep฀mode:

•฀The฀MONITOR฀OUT฀(COMP.)฀terminal฀will฀not฀work฀when฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE].฀

฀The฀MONITOR฀OUT฀(COMP.)฀terminal฀will฀work฀only฀in฀the฀sleep฀mode.฀

฀Applying฀a฀signal฀from฀the฀COMPUTER฀IN฀terminal฀will฀put฀the฀projector฀in฀the฀sleep฀mode,฀which฀allows฀you฀to฀use฀the฀MONITOR฀

OUT฀(COMP.)฀terminal฀and฀the฀AUDIO฀OUT฀mini฀jack.฀

฀The฀sleep฀mode฀is฀one฀of฀the฀standby฀modes.฀The฀sleep฀mode฀cannot฀be฀selected฀from฀the฀menu.

•฀In฀the฀network฀standby฀mode,฀sound฀for฀the฀last฀viewed฀computer฀or฀video฀source฀will฀be฀heard.฀

฀BNC-to-฀COMPUTER฀IN฀terminal฀converted฀signal฀will฀not฀be฀output฀in฀the฀standby฀mode฀and฀sleep฀mode.

5. Installation and Connections

Connecting Your DVD Player or Other AV Equipment

Connecting฀Video฀Input

VIDEO IN

AUDIO IN

Audio cable (not supplied)

Video cable (not supplied)

Audio cable (not supplied)

Audio equipment

•฀Select฀the฀source฀name฀for฀its฀appropriate฀input฀terminal฀after฀turning฀on฀the฀projector.

Input฀terminal

SOURCE฀button฀on฀the฀projector฀

cabinet

Button฀on฀the฀remote฀control

VIDEO฀IN

฀VIDEO

(VIDEO)

NOTE:฀Refer฀to฀your฀VCR฀owner’s฀manual฀for฀more฀information฀about฀your฀equipment’s฀video฀output฀requirements.

NOTE:฀An฀image฀may฀not฀be฀displayed฀correctly฀when฀a฀Video฀source฀is฀played฀back฀in฀fast-forward฀or฀fast-rewind฀via฀a฀scan฀converter.

5. Installation and Connections

Connecting Component Input

Connection฀for฀component฀signal.฀Signal฀from฀the฀color฀difference฀signal฀output฀terminal฀on฀DVD฀players฀(DVD฀video฀

output)฀and฀the฀YPbPr฀output฀terminal฀on฀the฀Hi-vision฀video฀can฀be฀projected.฀Recommend฀to฀connect฀the฀terminal฀

for฀audio฀output฀on฀the฀DVD฀player฀to฀the฀audio฀components.

COMPUTER IN

AUDIO IN

15-pin - to - RCA (female) × 3 cable adapter

(ADP-CV1E)

Stereo mini plug - to - RCA audio cable (not supplied)

Component video RCA × 3 cable (not supplied)

Audio cable (not supplied)

DVD player

Audio Equipment

•฀Select฀the฀source฀name฀for฀its฀appropriate฀input฀terminal฀after฀turning฀on฀the฀projector.

Input฀terminal

SOURCE฀button฀on฀the฀projector฀

cabinet

Button฀on฀the฀remote฀control

COMPUTER฀IN

฀COMPUTER(COMPUTER฀1)

NOTE:฀Refer฀to฀your฀DVD฀player’s฀owner’s฀manual฀for฀more฀information฀about฀your฀DVD฀player’s฀video฀output฀requirements.

5. Installation and Connections

Connecting HDMI Input

You฀can฀connect฀the฀HDMI฀output฀of฀your฀DVD฀player,฀hard฀disk฀player,฀Blu-ray฀player,฀or฀notebook฀type฀PC฀to฀the฀

HDMI฀IN฀terminal฀of฀your฀projector.

HDMI 1 IN

HDMI 2 IN

HDMI฀cable฀(not฀supplied)

Use฀High฀Speed฀HDMI

Cable.

Audio cable (not supplied)

•฀Select฀the฀source฀name฀for฀its฀appropriate฀input฀terminal฀after฀turning฀on฀the฀projector.

Input฀terminal

SOURCE฀button฀on฀the฀projector฀

cabinet

Button฀on฀the฀remote฀control

HDMI฀1฀IN

฀HDMI1(HDMI1*)

HDMI฀2฀IN

฀HDMI2(HDMI2*)

•฀When฀connecting฀the฀HDMI฀1฀IN฀terminal฀(or฀HDMI฀2฀IN฀terminal)฀of฀the฀projector฀to฀the฀DVD฀player,฀the฀projec-

tor’s฀video฀level฀can฀be฀made฀settings฀in฀accordance฀with฀the฀DVD฀player’s฀video฀level.฀In฀the฀menu฀select฀[HDMI฀

SETTINGS]฀→฀[VIDEO฀LEVEL]฀and฀make฀necessary฀settings.

•฀If฀the฀HDMI฀input฀sound฀cannot฀be฀heard,฀in฀the฀menu฀select฀[AUDIO฀SELECT]฀→฀[HDMI1]฀or฀[HDMI2].฀(→฀page฀

60)

5. Installation and Connections

Connecting your document camera

You฀can฀connect฀your฀document฀camera฀and฀project฀printed฀documents,฀etc.

COMPUTER IN

VIDEO IN

Name, position, and direction of

terminals are vary depending on

camera฀model.฀Please฀check฀user's฀

manual of your camera for details.

Computer cable (VGA)

(supplied)

Video cable (not supplied)

•฀Select฀the฀source฀name฀for฀its฀appropriate฀input฀terminal฀after฀turning฀on฀the฀projector.

Input฀terminal

SOURCE฀button฀on฀the฀projector฀

cabinet

Button฀on฀the฀remote฀control

COMPUTER฀IN

฀COMPUTER(COMPUTER฀1)

VIDEO฀IN

฀VIDEO

(VIDEO)

5. Installation and Connections

Connecting to a Wired LAN

The฀projector฀comes฀standard฀with฀the฀Ethernet/HDBaseT฀port฀(RJ-45)฀and฀the฀LAN฀port฀which฀provide฀a฀LAN฀con-

nection฀using฀a฀LAN฀cable.฀

To฀use฀a฀LAN฀connection,฀you฀are฀required฀to฀set฀the฀wired฀LAN฀settings฀on฀the฀projector฀menu.฀Select฀[SETUP]฀→

[INSTALLATION]฀→฀[NETWORK฀SETTINGS].฀(→฀page฀

58).

The฀network฀settings฀can฀also฀be฀selected฀from฀the฀APPS฀menu.

Example of LAN connection

Example฀of฀wired฀LAN฀connection

Ethernet

HDBaseT

Server

Hub

LAN cable (not supplied)

NOTE:฀Use฀a฀Category฀5฀or฀higher฀

LAN฀cable.

NOTE:

•฀About฀the฀projector’s฀Ethernet/HDBaseT฀and฀LAN฀ports

฀The฀Ethernet/HDBaseT฀and฀LAN฀ports฀are฀the฀same,฀aside฀from฀the฀HDBaseT฀function.฀To฀connect฀to฀the฀LAN,฀use฀only฀1฀of฀the฀

ports฀(it฀is฀not฀possible฀to฀connect฀both฀ports฀to฀the฀LAN).

฀For฀controlling฀the฀projector฀by฀a฀HDBaseT฀transmitter฀whose฀control฀signal฀is฀not฀supported฀(or฀with฀which฀cannot฀connect฀the฀

projector)฀or฀over฀the฀network,฀connect฀to฀the฀LAN฀port.฀At฀the฀same฀time,฀for฀controlling฀the฀projector฀over฀the฀network฀that฀is฀

in฀the฀state฀of฀the฀NETWORK฀STANDBY฀On,฀connect฀to฀the฀LAN฀port.

5. Installation and Connections

Connecting to a Wireless LAN (Optional: NP05LM series)

The฀USB฀Wireless฀LAN฀Unit฀also฀provides฀a฀wireless฀LAN฀connection.฀To฀use฀a฀wireless฀LAN฀connection,฀you฀are฀

required฀to฀assign฀an฀IP฀address฀to฀the฀projector.

Important:฀

•฀If฀you฀use฀the฀projector฀with฀the฀USB฀Wireless฀LAN฀Unit฀in฀the฀area฀where฀the฀use฀of฀wireless฀LAN฀equipment฀is฀prohibited,฀remove฀

the฀USB฀Wireless฀LAN฀Unit฀from฀the฀projector.

•฀Buy฀the฀appropriate฀USB฀Wireless฀LAN฀Unit฀for฀your฀country฀or฀area.

NOTE:฀

•฀Your฀computer’s฀wireless฀LAN฀adapter฀(or฀unit)฀must฀be฀complied฀with฀Wi-Fi฀(IEEE802.11a/b/g/n)฀standard.

Attaching the USB Wireless LAN Unit

NOTE:

•฀The฀USB฀Wireless฀LAN฀Unit฀must฀be฀inserted฀into฀the฀USB฀Wireless฀LAN฀Unit฀port฀in฀the฀correct฀direction.฀It฀cannot฀be฀inserted฀

in฀the฀reverse฀direction.฀If฀the฀USB฀Wireless฀LAN฀Unit฀is฀inserted฀in฀the฀reverse฀direction฀with฀excessive฀force฀applied,฀the฀USB฀

port฀may฀break.

•฀Before฀touching฀the฀USB฀Wireless฀LAN฀Unit,฀touch฀a฀metallic฀object฀(such฀as฀a฀door฀knob฀or฀aluminum฀window฀frame)฀to฀discharge฀

the฀static฀electricity฀from฀your฀body.

•฀Always฀insert฀or฀remove฀the฀USB฀Wireless฀LAN฀unit฀when฀the฀main฀power฀is฀turned฀off.฀Failure฀to฀do฀so฀may฀cause฀projector฀

malfunction฀or฀damage฀to฀the฀USB฀wireless฀LAN฀unit.฀If฀the฀projector฀will฀not฀work฀correctly,฀turn฀off฀the฀projector,฀disconnect฀

the฀power฀cord,฀and฀then฀connect฀it฀again.

•฀Do฀not฀insert฀other฀USB฀devices฀into฀the฀USB฀(wireless฀LAN)฀port฀in฀the฀wireless฀LAN฀cover.฀Do฀not฀insert฀the฀USB฀Wireless฀LAN฀

unit฀into฀the฀USB฀port.

NOTE:When฀the฀cable฀cover฀is฀attached,฀remove฀it฀before฀inserting฀the฀USB฀Wireless฀LAN฀Unit.

Prepare฀a฀Phillips฀screw฀driver฀beforehand.

1. Press the POWER button to turn off the projector and set it

into standby condition, and disconnect the power cord.

2. Remove the wireless LAN cover.

฀Turn฀the฀wireless฀LAN฀cover฀xing฀screw฀counterclockwise฀and฀

then฀take฀it฀off฀from฀the฀projector.

3. Insert the wireless LAN unit into the USB (wireless LAN) port.

NOTE:฀Do฀not฀force฀to฀insert฀the฀USB฀Wireless฀LAN฀Unit.

5. Installation and Connections

4. Mount the wireless LAN cover.

(1)฀Insert฀the฀hook฀on฀the฀back฀of฀the฀cover฀into฀the฀groove฀in฀the฀

projector and close the wireless LAN cover.

(2)฀Turn฀the฀screw฀clockwise฀to฀tighten฀it.

Groove

Hook

* To remove the USB Wireless LAN Unit, disconnect the power

cord and use the above procedure.

NOTE:฀

•฀Do฀not฀press฀the฀button฀on฀the฀USB฀Wireless฀LAN฀Unit.฀The฀button฀does฀

not฀work฀with฀this฀model.

5. Installation and Connections

Example of wireless LAN connection

To฀use฀a฀LAN฀connection,฀you฀are฀required฀to฀set฀the฀Wireless฀LAN฀settings฀on฀the฀projector฀menu.฀Select฀[SETUP]฀

→฀[INSTALLATION]฀→฀[NETWORK฀SETTINGS].฀(→฀page฀58).

The฀network฀settings฀can฀also฀be฀selected฀from฀the฀APPS฀menu.

PC with wireless LAN card

inserted

PC with built-in wireless

LAN function

Wired LAN

Wireless access point

USB Wireless LAN Unit

5. Installation and Connections

Connecting to a HDBaseT transmission device (sold commercially)

HDBaseT฀is฀a฀connection฀standard฀for฀home฀appliances฀that฀is฀established฀by฀the฀HDBaseT฀Alliance.

Use฀a฀LAN฀cable฀sold฀commercially฀to฀connect฀the฀Ethernet฀/฀HDBaseT฀port฀of฀the฀projector฀(RJ-45)฀to฀a฀HDBaseT฀

transmission฀device฀sold฀commercially.

Control฀signals฀(serial฀and฀LAN)฀and฀remote฀control฀signals฀(IR฀commands)฀from฀an฀external฀device฀are฀only฀supported฀

when฀the฀projector’s฀power฀is฀turned฀on.

Connection example

Ethernet/HDBaseT

Computer (for control use) Computer (for output use)

Example of a transmission device

Remote control

HDMI฀output฀video฀device

NOTE:

•฀Please฀use฀a฀shielded฀twisted฀pair฀(STP)฀cable฀of฀Category฀5e฀or฀higher฀for฀the฀LAN฀cable฀(sold฀commercially).

•฀The฀maximum฀transmission฀distance฀over฀the฀LAN฀cable฀is฀100฀m.

•฀Please฀do฀not฀use฀other฀transmission฀devices฀between฀the฀projector฀and฀the฀HDBaseT฀transmission฀device.฀The฀picture฀quality฀

may฀be฀deteriorated฀as฀a฀result.

•฀This฀projector฀is฀not฀guaranteed฀to฀work฀with฀all฀HDBaseT฀transmission฀devices฀sold฀commercially.

5. Installation and Connections

TIP:

•฀With฀the฀projector’s฀Ethernet/HDBaseT฀port,฀remote฀control฀is฀not฀available฀when฀the฀projector฀is฀in฀the฀standby฀mode฀(serial฀

communications฀is฀not฀available).฀(Remote฀control฀becomes฀available฀when฀the฀projector’s฀power฀is฀on).฀The฀2฀(two)฀methods฀

below฀can฀be฀used฀to฀turn฀on฀the฀projector’s฀power฀when฀it฀is฀in฀standby฀mode.

1.฀The฀projector฀can฀be฀operated฀by฀connecting฀the฀computer฀and฀projector฀to฀the฀network฀(on฀the฀projector,฀using฀the฀LAN฀port฀

and฀PC฀Control฀Utility฀application฀with฀[STANDBY฀MODE]฀set฀to฀[NETWORK฀STANDBY]฀(→฀page฀101).

Ethernet/HDBaseT

DC IN

HDBaseT

Computer (for projector control)

Computer (for output)

Example of a transmitter

Switching hub, etc.

Video฀device฀with฀HDMI฀output

2.฀The฀projector฀can฀be฀operated฀by฀RS232C฀serial฀communication฀(On฀this฀projector,฀use฀the฀PC฀CONTROL฀terminal฀and฀the฀

application฀software,฀PC฀Control฀Utility,฀and฀select฀[PC฀CONTROL]฀for฀the฀[SERIAL฀PORT])฀with฀[STANDBY฀MODE]฀set฀to฀

[NETWORK฀STANDBY].

6. APPS MENU

❶ What can you do with the APPS MENU?

It฀becomes฀available฀to฀select฀the฀expansion฀functions฀indicated฀in฀below฀and฀various฀setting฀with฀the฀APPS฀MENU.

For฀displaying฀the฀APPS฀MENU,฀press฀the฀APPS฀button฀on฀the฀remote฀or฀select฀[APPS]฀as฀the฀[SOURCE]฀on฀the฀

onscreen฀menu.

INFORMATION

Detailed฀information฀about฀each฀function฀on฀the฀APPS฀MENU฀is฀explained฀on฀our฀web฀site.฀Please฀search฀it฀by฀the฀

model฀name฀of฀your฀projector.

http://www.nec-display.com/dl/en/pj_manual/lineup.html

APPS MENU screen display

Current date and time

Important:฀

Before utilizing the func-

tion of APPS MENU, set

day and time.

IMAGE฀EXPRESS฀UTIL-

ITY

Miracast

NETWORK฀INFORMA-

TION

REMOTE DESKTOP

CONNECTION

VIEWER

FOCUS

Indicating฀the฀selected฀

item.

Surrounded in a yellow

square.

Wireless LAN proﬁle

selection

NETWORK฀SETTINGS

TOOLS

WEB฀SHARING฀SET-

TING/DISPLAYING฀AC-

CESS PASSWORD

NOTE:

•฀When฀this฀projector฀is฀not฀in฀a฀network,฀you฀cannot฀select฀[REMOTE฀DESKTOP฀CONNECTION],฀[IMAGE฀EXPRESS฀UTILIITY],฀

[Miracast],฀and฀[WEB฀SHARING].

6. APPS MENU

VIEWER

Select฀the฀saved฀images/movies฀and฀project฀them฀by฀the฀projector.฀This฀function฀is฀available฀for฀explained฀below:

(1)฀Projector฀Memory:฀Images฀and฀movies฀temporarily฀saved฀in฀the฀projector’s฀built-in฀memory฀utilizing฀the฀WEB฀

SHARING.

(2)฀USB฀Memory:฀Images฀and฀movies฀saved฀in฀the฀USB฀memory฀connected฀with฀the฀projector.

(3)฀Common฀Folder:฀Images฀and฀movies฀saved฀in฀the฀common฀folder฀in฀a฀network฀connected฀with฀the฀projector.

REMOTE DESKTOP CONNECTION

•฀Select฀the฀computer฀connected฀in฀the฀same฀network฀with฀the฀projector,฀and฀the฀projector฀projects฀the฀images฀on฀

the฀computer฀over฀the฀network.

฀A฀commercially฀available฀USB฀keyboard฀can฀be฀used฀for฀controlling฀Windows฀8฀and฀Windows฀7฀computers฀connected฀

in฀the฀network฀with฀the฀projector.

IMAGE EXPRESS UTILITY

•฀If฀various฀terminal฀units฀such฀as฀a฀computer,฀a฀smartphone,฀and฀a฀tablet฀are฀connected฀with฀the฀projector฀in฀the฀

network,฀it฀enables฀to฀transmit฀images฀saved฀on฀each฀terminal฀to฀the฀projector฀and฀to฀project฀them.

•฀You฀can฀connect฀terminal฀units฀in฀multiple฀OS฀(Windows,฀OS฀X,฀Android,฀and฀iOS)฀with฀the฀projector฀simultaneously.

•฀The฀projector฀receives฀images฀transmitted฀from฀multiple฀terminal฀units฀(Max.฀50฀units)฀and฀projects฀them฀on฀the฀

screen฀dividing฀it฀(Max.฀4฀×฀4)฀at฀the฀same฀time.

Transmit Stop

Simultaneous connection

Simultaneous display

•฀Install฀the฀application฀software฀“Image฀Express฀Utility฀Lite”,฀included฀in฀the฀CD-ROM฀supplied฀with฀the฀projector฀on฀

computers.฀(→฀page฀94, 97)

•฀For฀a฀smartphone฀and฀a฀tablet,฀download฀the฀application฀“Wireless฀Image฀Utility”฀from฀our฀web฀site฀and฀install฀it฀on฀

these.฀(→฀page฀112)

Miracast

By฀wirelessly฀connecting฀the฀terminal฀units฀supporting฀the฀Miracast฀such฀as฀the฀Android฀with฀the฀projector,฀it฀enables฀

the฀projector฀to฀project฀images฀transmitted฀from฀these฀terminals.

Before฀connecting฀these฀terminal฀units,฀set฀[Miracast]฀in฀the฀[NETWORK฀SETTINGS]฀on฀the฀projector.

6. APPS MENU

WEB SERVER FUNCTION

WEB SHARING

Without฀using฀the฀exclusive฀software,฀it฀enables฀to฀share฀images฀and฀les฀among฀the฀projector฀and฀computers฀in฀the฀

same฀network฀by฀accessing฀the฀web฀server฀of฀the฀projector฀utilizing฀the฀web฀browser.

BACDE

Sharing ﬁles

IMAGE EXPRESS UTILITY LITE

It฀enables฀to฀control฀screen฀splitting฀pattern฀and฀displaying฀position฀of฀the฀images฀that฀are฀simultaneously฀transmit-

ted฀from฀each฀terminal฀utilizing฀the฀application฀software,฀Image฀Express฀Utility฀Lite฀or฀Wireless฀Image฀Utility,฀on฀the฀

computer฀browser฀screen.฀Precise฀controls฀as฀changing฀number฀of฀screen฀portions฀and฀pages฀to฀display฀are฀available.

PROJECTOR CONTROL

It฀enables฀to฀control฀the฀projector฀on฀the฀web฀browser฀screens฀on฀the฀computers.

HOW฀TO฀ACCESS฀THE฀WEB฀SERVER

Connect฀the฀projector฀and฀computers฀in฀a฀network฀and฀access฀the฀URL฀in฀below฀by฀the฀web฀browser฀of฀the฀computers.

URL:฀http://<IP฀address฀of฀the฀projector>

NETWORK SETTINGS

Set฀up฀below฀for฀connecting฀the฀projector฀with฀a฀wired/wireless฀LAN.

PROJECTOR NAME

Set฀up฀the฀projector฀name฀and฀host฀name.฀Serial฀number฀of฀the฀projector฀is฀set฀as฀factory฀default.

NETWORK INFORMATION

Indicate฀information฀when฀the฀projector฀has฀connected฀in฀a฀network฀(by฀a฀wired/wireless฀LAN)

WIRED LAN

Set฀up฀for฀connecting฀the฀projector฀by฀a฀wired฀LAN.

WIRELESS LAN

Set฀up฀for฀connecting฀the฀projector฀by฀a฀wireless฀LAN.฀At฀the฀same฀time,฀set฀up฀for฀the฀SIMPLE฀ACCESS฀POINT,฀

Wi-Fi฀Direct,฀and฀Miracast.

IMAGE EXPRESS UTILITY

Set฀up฀the฀MODE฀(FREE,฀MANAGED)฀for฀the฀IMAGE฀EXPRESS฀UTILITY.

It฀also฀available฀for฀setting฀up฀a฀password฀to฀log฀in฀the฀ADMINISTRATOR฀MODE฀for฀the฀IMAGE฀EXPRESS฀UTILITY฀

in฀the฀WEB฀SERVER฀functions.

NETWORK฀SERVICE

Set฀up฀various฀setting฀for฀the฀AMX,฀HTTP฀server,฀PJLink,฀Alert฀mail฀and฀CRESTRON.

6. APPS MENU

TOOLS

Set฀up฀for฀various฀features฀as฀the฀mouse,฀program฀timer,฀day฀and฀time,฀administrator฀mode฀and฀default฀APP.

MOUSE

A฀commercially฀available฀USB฀mouse฀can฀be฀used฀for฀operating฀the฀APPS฀MENU.฀Perform฀the฀set฀up฀for฀using฀it.

PROGRAM TIMER

Once฀day฀and฀time฀is฀set฀up,฀changing฀the฀projector’s฀condition฀in฀powering฀ON/standby,฀switching฀input฀signals,฀and฀

switching฀ECO฀mode฀can฀be฀automatically฀performed.

DATE AND TIME

Determine฀time฀zone฀and฀summer฀time฀of฀your฀area฀and฀set฀up฀current฀date฀and฀time.

ADMINISTRATOR MODE

Selecting฀the฀menu฀mode฀of฀the฀projector,฀enable/disable฀to฀save฀all฀set฀up฀values฀of฀the฀projector,฀and฀set฀up฀a฀

password฀for฀the฀administrator฀mode.

DEFAULT APP

When฀a฀terminal฀other฀than฀the฀“APPS”฀terminal฀is฀selected฀and฀you฀switch฀to฀the฀“APPS”฀terminal,฀the฀function฀se-

lected฀as฀the฀default฀application฀is฀launched฀automatically.

When฀the฀projector฀is฀turned฀on฀in฀the฀condition฀of฀being฀selected฀the฀“APPS”฀terminal,฀the฀application฀selected฀in฀the฀

[DEFAULT฀APP]฀will฀be฀started฀automatically.

7. User Supportware

❶ Software Included on CD-ROM

Names฀and฀Features฀of฀Bundled฀Software฀Programs

Name฀of฀software฀programFeatures

Image฀Express฀Utility฀Lite

Image฀Express฀Utility฀Lite฀for฀

Mac

•฀This฀is฀a฀software฀program฀used฀to฀project฀your฀computer’s฀screen฀over฀the฀

wired/wireless฀network.฀The฀computer฀cable฀(VGA)฀is฀not฀required.฀(→฀page฀

93)

•฀This฀software฀program฀can฀be฀used฀to฀control฀the฀power฀ON/OFF฀and฀source฀

selection฀of฀the฀projector฀from฀your฀computer.

•฀The฀Geometric฀Correction฀Tool฀(GCT)฀function฀allows฀you฀to฀correct฀distortion฀

of฀images฀projected฀on฀a฀curved฀wall.฀(→฀page฀98)

*฀“GCT”฀function฀is฀not฀supported฀by฀Mac.

Name฀of฀software฀programFeatures

PC฀Control฀Utility฀Pro฀4

PC฀Control฀Utility฀Pro฀5฀(for฀Mac฀

OS)

This฀is฀a฀software฀program฀used฀to฀operate฀the฀projector฀from฀the฀computer฀when฀

the฀computer฀and฀the฀projector฀are฀connected฀with฀LAN฀(wired฀or฀wireless)฀or฀

a฀serial฀cable.฀(→฀page฀

101)

Name฀of฀software฀programFeatures

Virtual฀Remote฀Tool

(Windows฀only)

This฀is฀a฀software฀program฀used฀to฀control฀the฀power฀ON/OFF฀and฀source฀selec-

tion฀of฀the฀projector฀from฀your฀computer฀by฀using฀the฀supplied฀computer฀cable฀

(VGA)฀and฀others.฀(→฀page฀

106)

Only฀via฀serial฀connection฀it฀is฀also฀used฀to฀send฀an฀image฀to฀the฀projector฀and฀

logo฀to฀prevent฀it฀from฀changing.

NOTE:

•฀Image฀Express฀Utility฀Lite฀does฀not฀support฀“Meeting฀Mode”฀in฀Image฀Express฀Utility฀2.0฀supplied฀with฀our฀other฀models.

Download Service and Operating Environment

Please฀visit฀our฀website฀about฀operating฀environment฀and฀download฀service฀for฀each฀software:

Visit฀URL:฀http://www.nec-display.com/dl/en/index.html

Download฀-฀Projector฀→฀Software฀&฀Driver

Name and Features of an application for Android / iOS.

Name฀of฀application:฀

Wireless฀Image฀Utility฀(Android฀/฀iOS)

Features:

By฀connecting฀the฀projector฀with฀a฀smartphone,฀it฀enables฀to฀transfer฀photos฀and฀documents฀saved฀on฀the฀smartphone฀

and฀project฀these฀on฀the฀projector.฀(→฀page฀112)

*฀Wireless฀Image฀Utility฀is฀not฀contained฀in฀the฀supplied฀CD-ROM.

7. User Supportware

❷ Projecting Your Computer’s Screen Image from the

Projector over a LAN (Image Express Utility Lite)

Using฀Image฀Express฀Utility฀Lite฀contained฀on฀the฀supplied฀NEC฀Projector฀CD-ROM฀allows฀you฀to฀send฀the฀computer’s฀

screen฀image฀to฀the฀projector฀over฀a฀wired฀or฀wireless฀LAN.

Image฀Express฀Utility฀Lite฀is฀a฀program฀compatible฀with฀Windows.

Image฀Express฀Utility฀Lite฀for฀Mac฀is฀a฀program฀compatible฀with฀OS฀X.฀(→฀page฀

97)

This฀section฀will฀show฀you฀an฀outline฀about฀how฀to฀connect฀the฀projector฀to฀a฀LAN฀and฀to฀use฀Image฀Express฀Utility฀

Lite.฀For฀the฀operation฀of฀Image฀Express฀Utility฀Lite,฀see฀the฀help฀of฀Image฀Express฀Utility฀Lite.

Step฀1:฀install฀Image฀Express฀Utility฀Lite฀on฀the฀computer.฀

Step฀2:฀Connect฀the฀projector฀to฀a฀LAN.

Step฀3:฀Start฀Image฀Express฀Utility฀Lite.

TIP:

•฀Image฀Express฀Utility฀Lite฀(for฀Windows)฀can฀be฀started฀from฀most฀commercially฀available฀removable฀media฀such฀as฀USB฀memory฀

devices฀or฀SD฀cards฀without฀the฀need฀to฀install฀on฀your฀computer.฀(→฀page฀

96)

What You can Do with Image Express Utility Lite

Image฀transmission฀(for฀Windows฀and฀OS฀X)

•฀The฀screen฀of฀your฀computer฀can฀be฀sent฀to฀the฀projector฀via฀a฀wired฀or฀wireless฀network฀without฀a฀computer฀cable฀

(VGA).

Audio฀transfer฀capability฀(for฀Windows฀only)

•฀Image฀Express฀Utility฀Lite฀allows฀you฀to฀send฀the฀computer's฀screen฀image฀and฀audio฀to฀the฀projector฀over฀wired/

wireless฀LAN฀connection.

•฀Audio฀transfer฀capability฀is฀available฀only฀when฀the฀computer฀connects฀with฀the฀projector฀in฀peer-to-peer฀network.

Geometric฀Correction฀Tool฀[GCT]฀(for฀Windows฀only)

See฀“❸฀Projecting฀an฀Image฀from฀an฀Angle฀(Geometric฀Correction฀Tool฀in฀Image฀Express฀Utility฀Lite)”.฀(→฀page฀

98)

7. User Supportware

Using on Windows

Step 1: install Image Express Utility Lite on the computer.

NOTE:

•฀To฀install฀or฀uninstall฀the฀program,฀the฀Windows฀user฀account฀must฀have฀“Administrator”฀privilege.฀

•฀Exit฀all฀running฀programs฀before฀installation.฀If฀another฀program฀is฀running,฀the฀installation฀may฀not฀be฀completed.฀

•฀Image฀Express฀Utility฀Lite฀will฀be฀installed฀to฀the฀system฀drive฀of฀your฀computer.

฀If฀the฀message฀“There฀is฀not฀enough฀free฀space฀on฀destination”฀is฀displayed,฀free฀up฀enough฀space฀(about฀100฀MB)฀to฀install฀the฀

program.

1.฀Insert฀the฀accompanying฀NEC฀Projector฀CD-ROM฀into฀your฀CD-ROM฀drive.

The menu window will be displayed.

TIP:

If฀the฀menu฀window฀will฀not฀be฀displayed,฀try฀the฀following฀procedure.

For฀Windows฀7:

1.฀Click฀“start”฀on฀Windows.

2.฀Click฀“All฀Programs”฀→฀“Accessories”฀→฀“Run”.

3.฀Type฀your฀CD-ROM฀drive฀name฀(example:฀“Q:\”)฀and฀“LAUNCHER.EXE”฀in฀“Name”.฀(example:฀Q:\LAUNCH

ER.EXE)

4.฀Click฀“OK”.

The menu window will be displayed.

2.฀Click฀“Installing฀Image฀Express฀Utility฀Lite”฀on฀the฀menu฀window.

The installation will start.

฀“END฀USER฀LICENSE฀AGREEMENT”฀screen฀will฀be฀displayed.฀

฀Read฀“END฀USER฀LICENSE฀AGREEMENT”฀carefully฀

3.฀If฀you฀agree,฀click฀“I฀agree.”฀and฀then฀click฀“Next”.฀

•฀Follow฀the฀instructions฀on฀the฀installer฀screens฀to฀complete฀the฀installation.฀

•฀When฀the฀installation฀is฀complete,฀you฀will฀return฀to฀the฀menu฀window.

When the installation is complete, a completion message will be displayed.

4.฀Click฀“OK”.

This completes the installation.

TIP:

•฀Uninstalling฀Image฀Express฀Utility฀Lite

To฀uninstall฀Image฀Express฀Utility฀Lite,฀do฀the฀same฀procedures฀stated฀as฀in฀“Uninstalling฀Virtual฀Remote฀Tool”.฀Read฀“Virtual฀Remote฀

Tool”฀as฀“Image฀Express฀Utility฀Lite”฀(→฀page฀

109)

7. User Supportware

Step 2: Connect the projector to a LAN.

Connect฀the฀projector฀to฀the฀LAN฀by฀following฀the฀instructions฀in฀“Connecting฀to฀a฀Wired฀LAN”฀(→฀page฀

82)฀and฀“Con-

necting฀to฀a฀Wireless฀LAN฀(Optional:฀NP05LM฀series)”฀(→฀page฀83).

Step 3: Start Image Express Utility Lite.

1.฀On฀Windows,฀click฀“Start”฀→฀“All฀programs”฀→฀“NEC฀Projector฀UserSupportware”฀→฀“Image฀Express฀Utility฀

Lite”฀→฀“Image฀Express฀Utility฀Lite”.

฀Image฀Express฀Utility฀Lite฀will฀start.

฀The฀select฀window฀for฀network฀connection฀will฀be฀displayed

2.฀Select฀Network฀and฀click฀“OK”.

The select window for destination will show a list of connectable projectors.

•฀When฀connecting฀the฀computer฀directly฀to฀the฀projector฀by฀one-to-one,฀“Simple฀Access฀Point”฀is฀recommended.

•฀To฀check฀for฀the฀network฀available฀for฀connected฀projectors,฀from฀the฀menu,฀select฀[INFO.]฀→฀[WIRELESS฀LAN]฀

→฀[SSID].

3.฀Place฀a฀check฀mark฀for฀projectors฀to฀be฀connected,฀and฀then฀click฀“Connect”.

•฀When฀one฀or฀more฀projectors฀are฀displayed,฀from฀the฀menu฀on฀the฀projector,฀select฀[INFO.]฀→฀[WIRELESS฀LAN]฀

→฀[IP฀ADDRESS].

฀When฀connected฀to฀the฀projector,฀the฀Image฀Express฀Utility฀Lite฀control฀window฀appears฀at฀the฀top฀of฀the฀screen.฀

The computer can be controlled by operating the control window.

4. Operate the control window.

(1) (2) (3) (4) (5) (6)(7)

(1) (Streaming) .....Display the movie streaming window when the projector supports the movie streaming function. If the

projector does not support the movie streaming function, this icon remains in inactive.

(2)

(Source) ..........Selects an input source of the projector.

(3)

(Picture) ..........Turns on or off AV-MUTE (Picture mute), FREEZE (Freeze a picture), display, and GCT (geometric cor-

rection tool). Refer to page 98 about GCT.

(4)

(Sound) ...........Turns on or off AV-MUTE (Sound mute), play the sound and control the volume.

(5)

(Others) ...........Uses for “Update”, “HTTP Server”, “Settings” and “Information”.

(6)

(Project) ..........Enables to change screen size for presentation, menu indication (hide/indicate), interruption prohibition/

accept interruption.

It also enables to power off the projector.

(7)

(Help) ..................Displays the help of Image Express Utility Lite.

NOTE:

•฀When฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE]฀from฀the฀menu,฀the฀projector฀that฀is฀turned฀off฀will฀not฀be฀displayed฀in฀the฀

select฀window฀for฀destination

7. User Supportware

TIP:

Viewing฀the฀“Help”฀le฀of฀Image฀Express฀Utility฀Lite

•฀Displaying฀the฀Help฀le฀of฀Image฀Express฀Utility฀Lite฀while฀it฀is฀running.

฀Click฀the฀[?]฀(help)฀icon฀on฀the฀control฀window.

The Help screen will be displayed.

•฀Displaying฀the฀Help฀le฀of฀GCT฀while฀it฀is฀running.

฀Click฀“Help”฀→฀“Help”฀on฀the฀edit฀window.

The Help screen will be displayed.

•฀Displaying฀the฀help฀le฀using฀the฀Start฀Menu.

฀Click฀“Start”฀→฀“All฀programs”฀or฀“Programs”฀→฀“NEC฀Projector฀User฀Supportware”฀→฀“Image฀Express฀Utility฀Lite”฀

→฀“Image฀Express฀Utility฀Lite฀Help”.

The Help screen will be displayed.

Starting Image Express Utility Lite from a USB Memory or SD Card

Image฀Express฀Utility฀Lite฀can฀be฀started฀from฀commercially฀available฀removable฀media฀such฀USB฀memory฀or฀SD฀

cards฀if฀it฀is฀copied฀beforehand.฀This฀will฀eliminate฀the฀trouble฀of฀installing฀Image฀Express฀Utility฀Lite฀to฀your฀computer.

1.฀Copy฀Image฀Express฀Utility฀Lite฀to฀removable฀media.

฀Copy฀all฀the฀folders฀and฀les฀(total฀size฀approx.฀7฀MB)฀from฀the฀“IEU_Lite฀(removable-media)”฀folder฀in฀the฀supplied฀

NEC Projector CD-ROM to the root directory of your removable media.

2. Insert your removable media into your computer.

฀The฀“AutoPlay”฀screen฀will฀be฀displayed฀on฀your฀computer.

TIP:฀

•฀If฀the฀“AutoPlay”฀screen฀is฀not฀displayed,฀open฀the฀folder฀from฀“Computer”฀(“My฀Computer”฀for฀Windows฀XP).

3.฀Click฀“Open฀folder฀to฀view฀les”

฀The฀IEU_Lite.exe,฀other฀folder,฀and฀les฀will฀be฀displayed.

4.฀Double-click฀the฀“IEU_Lite.exe”฀(฀

) icon.

฀Image฀Express฀Utility฀Lite฀will฀start.

7. User Supportware

Using on Mac

Step 1: Install Image Express Utility Lite for Mac on the computer

1.฀Insert฀the฀accompanying฀NEC฀Projector฀CD-ROM฀in฀your฀Mac฀CD-ROM฀drive.

฀The฀CD-ROM฀icon฀will฀be฀displayed฀on฀the฀desktop.

2.฀Double-click฀the฀CD-ROM฀icon.

The CD-ROM window will be displayed.

3.฀Double-click฀the฀“Mac฀OS฀X”฀folder.

4.฀Double-click฀“Image฀Express฀Utility฀Lite.dmg”.

฀The฀“Image฀Express฀Utility฀Lite”฀window฀will฀be฀displayed.

5.฀Drag฀and฀drop฀the฀“Image฀Express฀Utility฀Lite”฀folder฀to฀your฀Applications฀folder฀on฀OS฀X.

Step 2: Connect the projector to a LAN

Connect฀the฀projector฀to฀the฀LAN฀by฀following฀the฀instructions฀in฀“Connecting฀to฀a฀Wired฀LAN”฀(→฀page฀

82)฀and฀“Con-

necting฀to฀a฀Wireless฀LAN฀(Optional:฀NP05LM฀series)”฀(→฀page฀83).

Step 3: Start Image Express Utility Lite for Mac

1. Open your Applications folder on OS X.

2.฀Double-click฀the฀“Image฀Express฀Utility฀Lite”฀folder.

3.฀Double-click฀the฀“Image฀Express฀Utility฀Lite”฀icon.

฀When฀Image฀Express฀Utility฀Lite฀for฀Mac฀starts,฀the฀select฀window฀for฀destination฀will฀be฀displayed.

•฀At฀the฀rst฀time฀of฀startup,฀“END฀USER฀LICENSE฀AGREEMENT”฀screen฀will฀be฀displayed฀before฀the฀select฀

window for destination is displayed.

฀Read฀“END฀USER฀LICENSE฀AGREEMENT”฀and฀select฀“I฀accept฀the฀terms฀in฀the฀license฀agreement”,฀and฀click฀

“OK”.

4.฀Select฀a฀projector฀to฀be฀connected,฀and฀then฀click฀“Connect”.

฀Your฀desktop฀screen฀will฀be฀displayed฀on฀the฀projector.

TIP:

Viewing฀the฀Help฀of฀Image฀Express฀Utility฀Lite฀for฀Mac฀

•฀From฀the฀menu฀bar,฀click฀“Help”฀→฀“Image฀Express฀Utility฀Lite฀Help”฀while฀Image฀Express฀Utility฀for฀Mac฀is฀

running.

The Help screen will be displayed

Uninstalling a software program

1.฀Put฀the฀“Image฀Express฀Utility฀Lite”฀folder฀to฀the฀Trash฀icon.

2. Put the conﬁguration ﬁle of Image Express Utility Lite for Mac to the Trash icon.

•฀The฀conguration฀le฀of฀Image฀Express฀Utility฀Lite฀for฀Mac฀is฀located฀in฀“/Users/<your฀user฀name>/Library/Prefer-

ences/jp.necds.Image_Express_Utility_Lite.plist”.

฀

7. User Supportware

❸ Projecting an Image from an Angle (Geometric Correction

Tool in Image Express Utility Lite)

The฀Geometric฀Correction฀Tool฀(GCT)฀function฀allows฀you฀to฀correct฀distortion฀of฀images฀projected฀even฀from฀an฀angle.฀

What you can do with GCT

•฀The฀GCT฀feature฀includes฀the฀following฀three฀functions

•฀4-point฀Correction:฀You฀can฀t฀a฀projected฀image฀within฀the฀border฀of฀the฀screen฀easily฀by฀align฀the฀four฀corners฀

of฀an฀image฀to฀the฀ones฀of฀the฀screen.

•฀Multi-point Correction:฀You฀can฀correct฀a฀distorted฀image฀on฀the฀corner฀of฀a฀wall฀or฀irregular฀shaped฀screen฀

by฀using฀many฀separated฀screens฀to฀correct฀the฀image฀as฀well฀as฀4-point฀Correction.

•฀Parameters Correction:฀You฀can฀correct฀a฀distorted฀image฀by฀using฀a฀combination฀of฀transformational฀rules฀

prepared฀in฀advance.

This฀section฀will฀show฀an฀example฀for฀use฀with฀4-point฀Correction.

For฀information฀about฀“Multi-point฀Correction”฀and฀“Parameters฀Correction”,฀see฀the฀help฀le฀of฀Image฀Express฀

Utility฀Lite.฀(→฀page฀

96, 97)฀

•฀Your฀correction฀data฀can฀be฀stored฀in฀the฀projector฀or฀your฀computer฀which฀can฀be฀restored฀when฀necessary.

•฀The฀GCT฀function฀is฀available฀with฀a฀wired฀or฀wireless฀LAN฀connection,฀and฀video฀cable.฀

Projecting an Image from an Angle (GCT)

Install฀Image฀Express฀Utility฀Lite฀on฀the฀computer฀and฀launch฀it฀to฀display฀the฀control฀window.฀(→฀page฀94, 95)

Preparation:฀Adjust฀the฀projector฀position฀or฀the฀zoom฀so฀that฀the฀projected฀image฀can฀cover฀the฀whole฀screen฀area.

1.฀Click฀the฀“฀

฀”฀(Others)฀icon฀and฀then฀the฀“฀฀”฀(Options)฀

button.

Options window will be displayed.

2.฀Click฀the฀check฀box฀“Use฀the฀multiple฀connection฀feature”฀and฀

then clear the check mark.

3.฀Click฀the฀“OK”฀button.

7. User Supportware

4.฀Click฀the฀“”(Projection)฀icon฀and฀then฀the฀“฀฀”(Exit)฀

button.

5.฀Click฀“Yes”.

6. Start the Image Express Utility Lite again.

7.฀Click฀the฀“฀฀”฀(Picture)฀icon฀and฀then฀the฀“฀฀”฀button.

฀The฀“4-point฀Correction”฀window฀will฀be฀displayed.

8.฀Click฀the฀“Start฀Correction”฀button฀and฀then฀“Start฀4-point฀

Correction”฀button.

A green frame and a mouse pointer ( ) will be displayed.

•฀Four฀[฀•฀]฀marks฀will฀be฀appeared฀at฀four฀corners฀of฀the฀green฀

frame

9.฀Use฀the฀mouse฀to฀click฀the฀[฀•฀]฀mark฀of฀which฀corner฀you฀wish฀

to move.

The currently selected [

•฀]฀mark฀will฀turn฀red.

(In฀the฀above฀example,฀Windows฀screens฀are฀omitted฀for฀clarication.)

100

7. User Supportware

.฀Drag฀the฀selected฀[฀•฀]฀mark฀to฀the฀point฀you฀wish฀to฀correct฀

and drop it.

•฀When฀you฀click฀somewhere฀within฀the฀project฀image฀area,฀the฀

nearest [ •฀]฀mark฀will฀go฀to฀the฀position฀where฀the฀mouse฀cur-

sor is.

. Repeat Step 9 and 10 to correct the distortion of the projected

image.

. After completing, right-click the mouse.

The green frame and the mouse pointer will disappear from the

projected image area. This will complete the correction.

.฀Click฀the฀“X”฀(close)฀button฀on฀the฀“4-point฀Correction”฀window.

฀The฀“4-point฀Correction”฀window฀will฀disappear฀and฀the฀4-point฀

correction฀will฀take฀effect.

.฀Click฀the฀“฀฀”฀button฀on฀the฀control฀window฀to฀exit฀the฀GCT.

TIP:

•฀After฀performing฀the฀4-point฀correction,฀you฀can฀save฀the฀4-point฀correction฀data฀to฀the฀projector฀by฀clicking฀“File”฀→฀“Export฀to฀

the฀projector…”฀on฀the฀“4-point฀Correction”฀window.

•฀See฀the฀Help฀of฀Image฀Express฀Utility฀Lite฀for฀operating฀“4-point฀Correction”฀window฀and฀other฀functions฀than฀GCT.฀(→฀page฀

96,฀

97)

101

7. User Supportware

❹

Controlling the Projector over a LAN (PC Control Utility Pro 4/

Pro 5)

Using฀the฀utility฀software฀“PC฀Control฀Utility฀Pro฀4”฀and฀“PC฀Control฀Utility฀Pro฀5”฀included฀on฀the฀companion฀NEC฀

Projector฀CD-ROM,฀the฀projector฀can฀be฀controlled฀from฀a฀computer฀over฀a฀LAN.

PC฀Control฀Utility฀Pro฀4฀is฀a฀program฀compatible฀with฀Windows.฀(→฀this฀page)

PC฀Control฀Utility฀Pro฀5฀is฀a฀program฀compatible฀with฀Mac฀OS.฀(→฀page฀104)

Control Functions

Power฀On/Off,฀signal฀selection,฀picture฀freeze,฀picture฀mute,฀audio฀mute,฀adjusting,฀error฀message฀notication,฀

event฀schedule.

Screen฀of฀PC฀Control฀Utility฀Pro฀4

This฀section฀provides฀an฀outline฀of฀preparation฀for฀use฀of฀PC฀Control฀Utility฀Pro฀4/Pro฀5.฀For฀information฀on฀how฀to฀use฀

PC฀Control฀Utility฀Pro฀4/Pro฀5,฀see฀Help฀of฀PC฀Control฀Utility฀Pro฀4/Pro฀5.฀(→฀page฀

103, 105)

Step฀1:฀Install฀PC฀Control฀Utility฀Pro฀4/Pro฀5฀on฀the฀computer.

Step฀2:฀Connect฀the฀projector฀to฀a฀LAN.

Step฀3:฀Start฀PC฀Control฀Utility฀Pro฀4/Pro฀5.

•฀To฀run฀PC฀Control฀Utility฀Pro฀4฀on฀Windows฀8.1,฀Windows฀8฀and฀Windows฀XP,฀“Microsoft฀.NET฀Framework฀Version฀

2.0”฀is฀required.฀The฀Microsoft฀.NET฀Framework฀Version฀2.0,฀3.0฀or฀3.5฀is฀available฀from฀Microsoft’s฀web฀page.฀

Download฀and฀install฀it฀on฀your฀computer.

TIP:

•฀With฀PC฀Control฀Utility฀Pro฀4,฀control฀is฀also฀possible฀by฀RS-232C฀serial฀communications฀connected฀to฀the฀projector’s฀PC฀CONTROL฀

terminal.

Using on Windows

Step 1: Install PC Control Utility Pro 4 on the computer

NOTE:

•฀To฀install฀or฀uninstall฀the฀program,฀the฀Windows฀user฀account฀must฀have฀[Administrator]฀privilege.

•฀Exit฀all฀running฀programs฀before฀installation.฀If฀another฀program฀is฀running,฀the฀installation฀may฀not฀be฀completed.

1฀Insert฀the฀accompanying฀NEC฀Projector฀CD-ROM฀into฀your฀CD-ROM฀drive.

The menu window will be displayed.

102

7. User Supportware

TIP:

If฀the฀menu฀window฀will฀not฀be฀displayed,฀try฀the฀following฀procedure.

For฀Windows฀7:

1.฀Click฀“start”฀on฀Windows.

2.฀Click฀“All฀Programs”฀→฀“Accessories”฀→฀“Run”.

3.฀Type฀your฀CD-ROM฀drive฀name฀(example:฀“Q:\”)฀and฀“LAUNCHER.EXE”฀in฀“Name”.฀(example:฀Q:\

LAUNCHER.EXE)

4.฀Click฀“OK”.

The menu window will be displayed.

2฀Click฀“PC฀Control฀Utility฀Pro฀4”฀on฀the฀menu฀window.

The installation will start.

When the installation is complete, the Welcome window will be displayed.

3฀Click฀“Next”.

฀“END฀USER฀LICENSE฀AGREEMENT”฀screen฀will฀be฀displayed.

฀Read฀“END฀USER฀LICENSE฀AGREEMENT”฀carefully.

4฀If฀you฀agree,฀click฀“I฀accept฀the฀terms฀in฀the฀license฀agreement”฀and฀then฀click฀“Next”.

•฀Follow฀the฀instructions฀on฀the฀installer฀screens฀to฀complete฀the฀installation.

•฀When฀the฀installation฀is฀complete,฀you฀will฀return฀to฀the฀menu฀window.

TIP:

•฀Uninstalling฀PC฀Control฀Utility฀Pro฀4

To฀uninstall฀PC฀Control฀Utility฀Pro฀4,฀do฀the฀same฀procedures฀stated฀as฀in฀“Uninstalling฀Virtual฀Remote฀Tool”.฀Read฀“Virtual฀Remote฀

Tool”฀as฀“PC฀Control฀Utility฀Pro฀4”฀(→฀page฀

109)

103

7. User Supportware

Step 2: Connect the projector to a LAN.

Connect฀the฀projector฀to฀the฀LAN฀by฀following฀the฀instructions฀in฀“Connecting฀to฀a฀Wired฀LAN”฀(→฀page฀

82)฀and฀“Con-

necting฀to฀a฀Wireless฀LAN฀(Optional:฀NP05LM฀series)”฀(→฀page฀83).

Step 3: Start PC Control Utility Pro 4

Click฀“Start”฀→฀“All฀programs”฀or฀“Programs”฀→฀“NEC฀Projector฀User฀Supportware”฀→฀“PC฀Control฀Utility฀Pro฀4”฀→

“PC฀Control฀Utility฀Pro฀4”.

NOTE:฀

•฀For฀the฀Schedule฀function฀of฀the฀PC฀Control฀utility฀Pro฀4฀to฀work,฀you฀must฀have฀your฀computer฀running฀and฀not฀in฀standby/

sleep฀mode.฀Select฀“Power฀Options”฀from฀the฀“Control฀Panel”฀in฀Windows฀and฀disable฀its฀standby/sleep฀mode฀before฀running฀the฀

scheduler.

[Example]฀For฀Windows฀7:

Select฀“Control฀Panel”฀→฀“System฀and฀Security”฀→฀“Power฀Options”฀→฀“Change฀when฀the฀computer฀sleeps”฀→฀“Put฀the฀computer฀

to฀sleep”฀→฀“Never”.฀

NOTE:฀

•฀When฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE]฀from฀the฀menu,฀the฀projector฀cannot฀be฀turned฀on฀via฀the฀network฀(wired฀LAN/

wireless฀LAN)฀connection.

TIP:

Viewing฀the฀Help฀of฀PC฀Control฀Utility฀Pro฀4

•฀Displaying฀the฀Help฀le฀of฀PC฀Control฀Utility฀Pro฀4฀while฀it฀is฀running.

฀Click฀“Help฀(H)”฀→฀“Help฀(H)฀…”฀of฀window฀of฀PC฀Control฀Utility฀Pro฀4฀in฀this฀order.

The pop-up menu will be displayed.

•฀Displaying฀the฀help฀le฀using฀the฀Start฀Menu.

฀Click฀“Start”฀→฀“All฀programs”฀or฀“Programs”฀→฀“NEC฀Projector฀User฀Supportware”฀→฀“PC฀Control฀Utility฀Pro฀4”฀→

“PC฀Control฀Utility฀Pro฀4฀Help”.

The Help screen will be displayed.

104

7. User Supportware

Using on Mac

Step 1: Install PC Control Utility Pro 5 on the computer

1.฀Insert฀the฀accompanying฀NEC฀Projector฀CD-ROM฀in฀your฀Mac฀CD-ROM฀drive.

฀The฀CD-ROM฀icon฀will฀be฀displayed฀on฀the฀desktop.

2.฀Double-click฀the฀CD-ROM฀icon.

The CD-ROM window will be displayed.

3.฀Double-click฀the฀“Mac฀OS฀X”฀folder.

4.฀Double-click฀“PC฀Control฀Utility฀Pro฀5.pkg”.

The installer will start.

5.฀Click฀“Next”.

฀“END฀USER฀LICENSE฀AGREEMENT”฀screen฀will฀be฀displayed.

6.฀Read฀“END฀USER฀LICENSE฀AGREEMENT”฀and฀click฀“Next”.

The conﬁrmation window will be displayed

7.฀Click฀“I฀accept฀the฀terms฀in฀the฀license฀agreement”.

Follow the instructions on the installer screens to complete the installation.

Step 2: Connect the projector to a LAN

Connect฀the฀projector฀to฀the฀LAN฀by฀following฀the฀instructions฀in฀“Connecting฀to฀a฀Wired฀LAN”฀(→฀page฀

82)฀and฀“Con-

necting฀to฀a฀Wireless฀LAN฀(Optional:฀NP05LM฀series)”฀(→฀page฀83).

Step 3: Start PC Control Utility Pro 5

1. Open your Applications folder in OS X.

2.฀Click฀the฀“PC฀Control฀Utility฀Pro฀5”฀folder.

3.฀Click฀the฀“PC฀Control฀Utility฀Pro฀5”฀icon.

PC Control Utility Pro 5 will start.

NOTE:฀

•฀For฀the฀Schedule฀function฀of฀the฀PC฀Control฀utility฀Pro฀5฀to฀work,฀you฀must฀have฀your฀computer฀running฀and฀not฀in฀sleep฀mode.฀

Select฀“Energy฀Saver”฀from฀the฀“System฀Preferences”฀in฀Mac฀and฀disable฀its฀sleep฀mode฀before฀running฀the฀scheduler.

•฀When฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE]฀from฀the฀menu,฀the฀projector฀cannot฀be฀turned฀on฀via฀the฀network฀(wired฀LAN/

wireless฀LAN)฀connection.

105

7. User Supportware

TIP:

Uninstalling a software program

1.฀Put฀the฀“PC฀Control฀Utility฀Pro฀5”฀folder฀to฀the฀Trash฀icon.

2.฀Put฀the฀conguration฀le฀of฀PC฀Control฀Utility฀Pro฀5฀to฀the฀Trash฀icon.

•฀The฀conguration฀le฀of฀PC฀Control฀Utility฀Pro฀5฀is฀located฀in฀“/Users/<your฀user฀name>/Application฀Data/NEC฀

Projector฀User฀Supportware/PC฀Control฀Utility฀Pro฀5”.

Viewing฀the฀Help฀of฀PC฀Control฀Utility฀Pro฀5

•฀Displaying฀the฀Help฀le฀of฀PC฀Control฀Utility฀Pro฀5฀while฀it฀is฀running.฀

•฀From฀the฀menu฀bar,฀click฀“Help”฀→฀“Help”฀in฀this฀order.฀

The Help screen will be displayed.

•฀Displaying฀the฀Help฀using฀the฀Dock฀

1.฀Open฀“Application”฀folder฀in฀OS฀X.

2.฀Click฀the฀“PC฀Control฀Utility฀Pro฀5”฀folder.

3.฀Click฀the฀“PC฀Control฀Utility฀Pro฀5฀Help”฀icon.

The Help screen will be displayed.

฀

106

7. User Supportware

❺ Using the Computer Cable (VGA) to Operate the

Projector (Virtual Remote Tool)

Using฀the฀utility฀software฀“Virtual฀Remote฀Tool”฀included฀on฀the฀companion฀NEC฀Projector฀CD-ROM,฀Virtual฀Remote฀

screen฀(or฀toolbar)฀can฀be฀displayed฀on฀your฀computer฀screen.

This฀will฀help฀you฀perform฀operations฀such฀as฀projector’s฀power฀on฀or฀off฀and฀signal฀selection฀via฀the฀computer฀cable฀

(VGA),฀serial฀cable,฀or฀LAN฀connection.฀Only฀via฀serial฀connection฀it฀is฀also฀used฀to฀send฀an฀image฀to฀the฀projector฀

and฀register฀it฀as฀the฀logo฀data฀of฀the฀projector.฀After฀registering฀it,฀you฀can฀lock฀the฀logo฀to฀prevent฀it฀from฀changing.

Control Functions

Power฀On/Off,฀signal฀selection,฀picture฀freeze,฀picture฀mute,฀audio฀mute,฀Logo฀transfer฀to฀the฀projector,฀and฀remote฀

control฀operation฀on฀your฀PC.

Virtual฀Remote฀screenToolbar

This฀section฀provides฀an฀outline฀of฀preparation฀for฀use฀of฀Virtual฀Remote฀Tool.

For฀information฀on฀how฀to฀use฀Virtual฀Remote฀Tool,฀see฀Help฀of฀Virtual฀Remote฀Tool.฀(→฀page฀

111)

Step฀1:฀Install฀Virtual฀Remote฀Tool฀on฀the฀computer.฀(→฀page฀107)

Step฀2:฀Connect฀the฀projector฀to฀the฀computer.฀(→฀page฀109)

Step฀3:฀Start฀Virtual฀Remote฀Tool.฀(→฀page฀110)

TIP:

•฀Virtual฀Remote฀Tool฀can฀be฀used฀with฀a฀LAN฀and฀a฀serial฀connection.฀USB฀connection฀is฀not฀supported฀by฀Virtual฀Remote฀Tool.

•฀For฀update฀information฀on฀Virtual฀Remote฀Tool,฀visit฀our฀website:฀

฀http://www.nec-display.com/dl/en/index.html

107

7. User Supportware

NOTE:

•฀When฀[COMPUTER]฀is฀selected฀from฀your฀source฀selection,฀the฀Virtual฀Remote฀screen฀or฀the฀toolbar฀will฀be฀displayed฀as฀well฀as฀

your฀computer฀screen.

•฀Use฀the฀supplied฀computer฀cable฀(VGA)฀to฀connect฀the฀COMPUTER฀IN฀terminal฀directly฀with฀the฀monitor฀output฀terminal฀of฀the฀

computer฀to฀use฀Virtual฀Remote฀Tool.

฀Using฀a฀switcher฀or฀other฀cables฀than฀the฀supplied฀computer฀cable฀(VGA)฀may฀cause฀failure฀in฀signal฀communication.

฀VGA฀cable฀terminal:

฀Pin฀Nos.฀12฀and฀15฀are฀required฀for฀DDC/CI.

•฀Virtual฀Remote฀Tool฀may฀not฀work฀depending฀on฀your฀computer’s฀specications฀and฀version฀of฀graphic฀adapters฀or฀drivers.

•฀To฀run฀Virtual฀Remote฀Tool฀on฀Windows฀8.1฀and฀Windows฀8,฀“Microsoft฀.NET฀Framework฀Version฀2.0”฀is฀required.฀The฀Microsoft฀

.NET฀Framework฀Version฀2.0,฀3.0฀or฀3.5฀is฀available฀from฀Microsoft’s฀web฀page.฀Download฀and฀install฀it฀on฀your฀computer.

•฀Logo฀data฀(graphics)฀that฀can฀be฀sent฀to฀the฀projector฀with฀Virtual฀Remote฀Tool฀has฀the฀following฀restrictions:฀

฀(Only฀via฀serial฀connection)

-฀File฀size:฀Less฀than฀768฀KB

-฀Image฀size฀(resolution):฀

฀P502H/P452H:฀Horizontal฀1920฀×฀vertical฀1080฀dots฀or฀less

฀P502W/P452W:฀Horizontal฀1280฀×฀vertical฀800฀dots฀or฀less

•฀To฀put฀the฀default฀“NEC฀logo”฀back฀in฀the฀background฀logo,฀you฀need฀to฀register฀it฀as฀the฀background฀logo฀by฀using฀the฀image฀le฀

(P502H/P452H:฀/Logo/NEC_logo2015_1920x1080.bmp,฀P502W/P452W:฀/Logo/NEC_logo2015_1280x800.bmp)฀inclulded฀on฀the฀

supplied฀NEC฀Projector฀CD-ROM.

TIP:

•฀The฀projector’s฀COMPUTER฀IN฀terminal฀supports฀DDC/CI฀(Display฀Data฀Channel฀Command฀Interface).฀DDC/CI฀is฀a฀standard฀

interface฀for฀bidirectional฀communication฀between฀display/projector฀and฀computer.

•฀With฀the฀Virtual฀Remote฀Tool,฀control฀is฀possible฀with฀both฀network฀(wired/wireless฀LAN)฀and฀serial฀connections.

Step 1: Install Virtual Remote Tool on the computer

NOTE:

•฀To฀install฀Virtual฀Remote฀Tool,฀the฀Windows฀user฀account฀must฀have฀“Administrator”฀privilege.฀

•฀Exit฀all฀running฀programs฀before฀installing฀Virtual฀Remote฀Tool.฀If฀another฀program฀is฀running,฀the฀installation฀may฀not฀be฀com-

pleted.฀

1฀Insert฀the฀accompanying฀NEC฀Projector฀CD-ROM฀into฀your฀CD-ROM฀drive.

The menu window will be displayed.

TIP:

If฀the฀menu฀window฀will฀not฀be฀displayed,฀try฀the฀following฀procedure.

For฀Windows฀7

1.฀Click฀“start”฀on฀Windows.

2.฀Click฀“All฀Programs”฀→฀“Accessories”฀→฀“Run”.

3.฀Type฀your฀CD-ROM฀drive฀name฀(example:฀“Q:\”)฀and฀“LAUNCHER.EXE”฀in฀“Name”.฀(example:฀Q:\

LAUNCHER.EXE)

4.฀Click฀“OK”.

The menu window will be displayed.

108

7. User Supportware

2฀Click฀“Install฀Virtual฀Remote฀Tool”฀on฀the฀menu฀window.

The installation will start.

When the installation is complete, the Welcome window will be displayed.

3฀Click฀“Next”.

฀“END฀USER฀LICENSE฀AGREEMENT”฀screen฀will฀be฀displayed.

฀Read฀“END฀USER฀LICENSE฀AGREEMENT”฀carefully.

4฀If฀you฀agree,฀click฀“I฀accept฀the฀terms฀in฀the฀license฀agreement”฀and฀then฀click฀“Next”.

•฀Follow฀the฀instructions฀on฀the฀installer฀screens฀to฀complete฀the฀installation.

•฀When฀the฀installation฀is฀complete,฀you฀will฀return฀to฀the฀menu฀window.

109

7. User Supportware

TIP:

Uninstalling฀Virtual฀Remote฀Tool

Preparation:

Exit฀Virtual฀Remote฀Tool฀before฀uninstalling.฀To฀uninstall฀Virtual฀Remote฀Tool,฀the฀Windows฀user฀account฀must฀have฀

“Administrator”฀privilege฀(Windows฀8.1,฀Windows฀8,฀Windows฀7฀and฀Windows฀Vista)฀or฀“Computer฀Administrator”฀

privilege฀(Windows฀XP).

•฀For฀Windows฀8.1,฀Windows฀8,฀Windows฀7฀and฀Windows฀Vista

1฀Click฀“Start”฀and฀then฀“Control฀Panel”.

The Control Panel window will be displayed.

2฀Click฀“Uninstall฀a฀program”฀under฀“Programs”

฀The฀“Programs฀and฀Features”฀window฀will฀be฀displayed.

3฀Select฀Virtual฀Remote฀Tool฀and฀click฀it.

4฀Click฀“Uninstall/Change”฀or฀“Uninstall”.

฀•฀When฀the฀“User฀Account฀Control”฀windows฀is฀displayed,฀click฀“Continue”.

Follow the instructions on the screens to complete the uninstallation.

Step 2: Connect the projector to the computer

1฀Use฀the฀supplied฀computer฀cable฀(VGA)฀to฀connect฀the฀COMPUTER฀IN฀terminal฀of฀the฀projector฀directly฀

with the monitor output terminal of the computer.

2฀Connect฀the฀supplied฀power฀cord฀to฀the฀AC฀IN฀of฀the฀projector฀and฀the฀wall฀outlet.

The projector is in the standby condition.

COMPUTER IN

AC฀Input

Supplied computer cable (VGA)

→ To wall outlet

Power cord (supplied)

TIP:

•฀When฀Virtual฀Remote฀Tool฀starts฀for฀the฀rst฀time,฀“Easy฀Setup”฀window฀will฀be฀displayed฀to฀navigate฀your฀connections.

110

7. User Supportware

Step 3: Start Virtual Remote Tool

Start using the shortcut icon

•฀Double-click฀the฀shortcut฀icon฀

on the Windows Desktop.

Start from the Start menu

•฀Click฀[Start]฀→฀[All฀Programs]฀or฀[Programs]฀→฀[NEC฀Projector฀User฀Supportware]฀→฀[Virtual฀Remote฀Tool]฀

→฀[Virtual฀Remote฀Tool].

฀When฀Virtual฀Remote฀Tool฀starts฀for฀the฀rst฀time,฀“Easy฀Setup”฀window฀will฀be฀displayed.

Follow the instructions on the screens

฀When฀“Easy฀Setup”฀is฀completed,฀the฀Virtual฀Remote฀Tool฀screen฀will฀be฀displayed.

NOTE:

•฀When฀[NORMAL]฀is฀selected฀for฀[STANDBY฀MODE]฀from฀the฀menu,฀the฀projector฀cannot฀be฀turned฀on฀via฀the฀computer฀cable฀

(VGA)฀or฀network฀(wired฀LAN/wireless฀LAN)฀connection.

TIP:

•฀The฀Virtual฀Remote฀Tool฀screen฀(or฀Toolbar)฀can฀be฀displayed฀without฀displaying฀“Easy฀Setup”฀window.

฀To฀do฀so,฀click฀to฀place฀a฀check฀mark฀for฀“฀฀Do฀not฀use฀Easy฀Setup฀next฀time”฀on฀the฀screen฀at฀Step฀6฀in฀“Easy฀Setup”.

111

7. User Supportware

Exiting฀Virtual฀Remote฀Tool

1฀Click฀the฀Virtual฀Remote฀Tool฀icon฀ on the Taskbar.

The pop-up menu will be displayed.

2฀Click฀“Exit”.

The Virtual Remote Tool will be closed.

Viewing฀the฀help฀le฀of฀Virtual฀Remote฀Tool

•฀Displaying฀the฀help฀le฀using฀the฀taskbar

1฀Click฀the฀Virtual฀Remote฀Tool฀icon฀

฀on฀the฀taskbar฀when฀Virtual฀Remote฀Tool฀is฀running.

The pop-up menu will be displayed.

2.฀Click฀“Help”.

The Help screen will be displayed.

•฀Displaying฀the฀help฀le฀using฀the฀Start฀Menu.

1.฀Click฀“Start”฀→฀“All฀programs”฀or฀“Programs”฀→฀“NEC฀Projector฀User฀Supportware”฀→฀“Virtual฀Remote฀

Tool”฀→฀and฀then฀“Virtual฀Remote฀Tool฀Help”฀in฀this฀order.

The Help screen will be displayed.

112

7. User Supportware

❻ Projecting photos or documents saved on the smartphone

over a wireless LAN (Wireless Image Utility)

Utilizing฀the฀Wireless฀Image฀Utility,฀it฀enables฀to฀transfer฀photos฀and฀documents฀saved฀on฀terminals฀as฀a฀smartphone฀

or฀a฀tablet฀to฀the฀projector฀via฀the฀wireless฀LAN฀and฀project฀them.

There฀are฀two฀kinds฀of฀Wireless฀Image฀Utility฀software฀one฀for฀Android฀and฀another฀for฀iOS฀that฀can฀be฀downloaded฀

from฀Google฀Play฀or฀App฀Store.

For Android

http://www.nec-display.com/dl/en/pj_android/wiu_for-android.html

For iOS

http://www.nec-display.com/dl/en/pj_ios/wiu_for-ios.html

113

8. Maintenance

This฀section฀describes฀the฀simple฀maintenance฀procedures฀you฀should฀follow฀to฀clean฀the฀lters,฀the฀projection฀window,฀

the฀cabinet,฀and฀to฀replace฀the฀lamp฀and฀the฀lters.

❶ Cleaning the Filters

Filters฀are฀xed฀at฀two฀positions฀on฀this฀projector.

Intake฀vent฀lter:

At฀the฀bottom฀of฀control฀panel.

Prevent฀the฀projector฀inside฀from฀dust฀and฀dirt฀accumulation.

Color฀wheel฀lter:฀

Fixed฀inside฀the฀lamp฀cover.฀

Prevent฀the฀color฀wheel฀from฀dust฀and฀dirt฀accumulation.

In฀this฀manual,฀call฀the฀intake฀vent฀lter฀“Filter฀(A)”฀and฀the฀color฀wheel฀lter฀“Filter฀(B)”.

If฀dust฀and฀dirt฀accumulates฀on฀the฀Filter฀(A),฀it฀may฀cause฀of฀trouble฀by฀overheat.฀Clean฀it฀periodically.฀Cleaning฀is฀not฀

necessary฀for฀the฀Filter฀(B).

WARNING

•฀Do฀not฀use฀a฀spray฀containing฀ammable฀gas฀to฀get฀rid฀of฀accumulated฀dust฀and฀dirt฀on฀the฀lters.฀It฀may฀cause฀

of฀re.

NOTE:฀The฀message฀for฀lter฀cleaning฀will฀be฀displayed฀for฀one฀minute฀after฀the฀projector฀is฀turned฀on.฀When฀the฀message฀is฀dis-

played,฀clean฀the฀lter.

To฀cancel฀the฀message,฀press฀any฀button฀on฀the฀projector฀cabinet฀or฀the฀remote฀control.

CAUTION

•฀Before฀cleaning฀the฀lter,฀turn฀off฀the฀projector฀and฀unplug฀the฀power฀cord฀rst.฀Wait฀and฀make฀sure฀until฀the฀

unit฀has฀cooled฀down฀completely.฀Removing฀the฀lter฀cover฀when฀the฀unit฀is฀running฀could฀result฀in฀burns.

Turn฀off฀the฀projector฀and฀unplug฀the฀power฀cord฀before฀cleaning฀the฀cabinet฀or฀replacing฀the฀lamp.฀

114

8. Maintenance

1. Turn off the power supply and pull out the plug from the wall

outlet.

2. Pinch the knob at the bottom of the ﬁlter case and pull it out.

•฀If฀you฀put฀the฀projector฀upside฀down฀for฀cleaning฀as฀the฀illustra-

tion, please lay a mat as a cloth for protecting the cabinet top

from damage.

Knob

3. Remove the Filter (A) from the ﬁlter case.

Filter case

Filter (A)

4.฀Vacuum฀all฀the฀dust฀on฀the฀Filter฀(A)฀and฀the฀lter฀case.

•฀Get฀rid฀of฀dust฀accumulated฀on฀the฀intake฀vent฀on฀the฀projector.

•฀Make฀sure฀to฀use฀a฀brush฀adaptor฀on฀the฀vacuum฀cleaner.฀Never฀

apply the vacuum hose or the hard nozzle directly on the ﬁlter

and ﬁlter case without ﬁxing on a brush adaptor.

•฀Pay฀enough฀attention฀not฀to฀damage฀the฀lter฀(A).

•฀Do฀not฀wash฀the฀lters฀with฀soap฀and฀water.฀Soap฀and฀water฀will฀

damage the ﬁlter membrane.

115

8. Maintenance

5. Set the cleaned Filter (A) onto the ﬁlter case.

•฀Set฀the฀cut฀off฀part฀of฀the฀Filter฀(A)฀meeting฀with฀the฀knob฀part฀

on the ﬁlter case.

Knob

Cut off

6. Insert the ﬁlter case to the projector cabinet.

฀Make฀sure฀that฀the฀lter฀case฀is฀inserted฀in฀the฀correct฀orientation.

7.฀Clear฀the฀lter฀hour฀meter.

฀Connect฀the฀power฀cord฀plug฀to฀the฀wall฀outlet฀and฀turn฀on฀the฀projector.฀Select฀[CLEAR฀FILTER฀HOURS]฀for฀[RE

SET] in the onscreen menu. (→ page 68)

116

8. Maintenance

❷ Cleaning the Lens

•฀Turn฀off฀the฀projector฀before฀cleaning.

•฀Do฀not฀scratch฀or฀mar฀the฀projection฀window฀as฀it฀is฀made฀of฀glass.

•฀Use฀a฀blower฀or฀lens฀paper฀to฀clean฀the฀projection฀window,฀and฀be฀careful฀not฀to฀scratch฀or฀mar฀the฀glass฀surface.

•฀Never฀use฀alcohol฀or฀glass฀lens฀cleaner฀as฀doing฀so฀will฀cause฀of฀damage฀to฀the฀plastic฀lens฀surface.

WARNING

•฀Do฀not฀use฀a฀spray฀containing฀ammable฀gas฀to฀get฀rid฀of฀accumulated฀dust฀and฀dirt฀on฀the฀projection฀window.฀

It฀may฀cause฀of฀re.

117

8. Maintenance

❸ Cleaning the Cabinet

Turn฀off฀the฀projector,฀and฀unplug฀the฀projector฀before฀cleaning.

•฀Use฀a฀dry฀soft฀cloth฀to฀wipe฀dust฀off฀the฀cabinet.

฀If฀heavily฀soiled,฀use฀a฀mild฀detergent.฀

•฀Never฀use฀strong฀detergents฀or฀solvents฀such฀as฀alcohol฀or฀thinner.฀

•฀For฀cleaning฀the฀vents฀or฀the฀speaker,฀use฀a฀vacuum฀cleaner฀with฀a฀brush฀attachment.฀Do฀not฀apply฀the฀vacuum฀

hose฀or฀the฀nozzle฀adaptor฀directly฀onto฀the฀vents฀and฀speaker.

Vacuum the dust off the vents.

•฀Clogged฀vents฀may฀cause฀a฀rise฀in฀the฀internal฀temperature฀of฀the฀projector,฀resulting฀in฀malfunction.

•฀Do฀not฀scratch฀or฀hit฀the฀cabinet฀with฀your฀ngers฀or฀any฀hard฀objects

•฀Contact฀your฀dealer฀for฀cleaning฀the฀inside฀of฀the฀projector.

NOTE:฀Do฀not฀apply฀volatile฀agent฀such฀as฀insecticide฀on฀the฀cabinet,฀the฀projection฀window,฀or฀the฀screen.฀Do฀not฀leave฀a฀rubber฀

or฀vinyl฀product฀in฀prolonged฀contact฀with฀it.฀Otherwise฀the฀surface฀nish฀will฀be฀deteriorated฀or฀the฀coating฀may฀be฀stripped฀off.฀

118

8. Maintenance

❹ Replacing the Lamp and the Filters

When฀the฀lamp฀reaches฀the฀end฀of฀its฀life,฀the฀LAMP฀indicator฀in฀the฀cabinet฀will฀blink฀red฀and฀the฀message฀“THE฀

LAMP฀HAS฀REACHED฀THE฀END฀OF฀ITS฀USABLE฀LIFE.฀PLEASE฀REPLACE฀THE฀LAMP฀AND฀FILTER.”฀will฀appear฀

(*).฀Even฀though฀the฀lamp฀may฀still฀be฀working,฀replace฀the฀lamp฀to฀maintain฀the฀optimal฀projector฀performance.฀After฀

replacing฀the฀lamp,฀be฀sure฀to฀clear฀the฀lamp฀hour฀meter.฀(→฀page฀

68)

CAUTION

•฀DO฀NOT฀TOUCH฀THE฀LAMP฀immediately฀after฀it฀has฀been฀used.฀It฀will฀be฀extremely฀hot.฀Turn฀the฀projector฀off฀

and฀then฀disconnect฀the฀power฀cord.฀Allow฀at฀least฀one฀hour฀for฀the฀lamp฀to฀cool฀before฀handling.

•฀Use฀the฀specied฀lamp฀for฀safety฀and฀performance.฀

฀To฀order฀the฀replacement฀lamp,฀specify฀your฀lamp฀type.

฀Replacement฀lamp:

฀NP39LP:฀P502H/P502W

฀NP38LP:฀P452H/P452W

฀The฀replacement฀lamp฀comes฀with฀lters.฀Replace฀the฀lamp฀and฀the฀lters฀(A)฀(B)฀at฀the฀same฀time.

•฀DO฀NOT฀REMOVE฀ANY฀SCREWS฀except฀one฀lamp฀cover฀screw฀and฀three฀lamp฀housing฀screws.฀You฀could฀receive฀

an฀electric฀shock.

•฀Do฀not฀break฀the฀glass฀on฀the฀lamp฀housing.

฀Keep฀nger฀prints฀off฀the฀glass฀surface฀on฀the฀lamp฀housing.฀Leaving฀nger฀prints฀on฀the฀glass฀surface฀might฀cause฀

an฀unwanted฀shadow฀and฀poor฀picture฀quality.

•฀The฀projector฀will฀turn฀off฀and฀go฀into฀standby฀mode฀when฀you฀continue฀to฀use฀the฀projector฀for฀another฀100฀hours฀

after฀the฀lamp฀has฀reached฀the฀end฀of฀its฀life.฀If฀this฀happens,฀be฀sure฀to฀replace฀the฀lamp.฀If฀you฀continue฀to฀use฀

the฀lamp฀after฀the฀lamp฀reaches฀the฀end฀of฀its฀life,฀the฀lamp฀bulb฀may฀shatter,฀and฀pieces฀of฀glass฀may฀be฀scattered฀

in฀the฀lamp฀case.฀Do฀not฀touch฀them฀as฀the฀pieces฀of฀glass฀may฀cause฀injury.฀If฀this฀happens,฀contact฀your฀NEC฀

dealer฀for฀lamp฀replacement.

*NOTE:฀This฀message฀will฀be฀displayed฀under฀the฀following฀conditions:

•฀for฀one฀minute฀after฀the฀projector฀has฀been฀powered฀on

•฀when฀the฀

฀(POWER)฀button฀on฀the฀projector฀cabinet฀or฀the฀STANDBY฀button฀on฀the฀remote฀control฀is฀pressed

To฀turn฀off฀the฀message,฀press฀any฀button฀on฀the฀projector฀cabinet฀or฀the฀remote฀control.

Optional฀lamp฀and฀tools฀needed฀for฀replacement:

•฀Phillips฀screwdriver฀(plus-head)

•฀Replacement฀lamp

Flow of Replacing the Lamp and the Filters

Step 1. Replace the lamp and the Filter (B)

Step 2. Replace the Filter (A) (

→ page 123)

Step 3.

฀Clear฀the฀lamp฀usage฀hours฀and฀the฀lter฀usage฀hours฀(→ page 124)

119

8. Maintenance

To฀replace฀the฀lamp฀and฀the฀Filter฀(B):฀

1. Remove the lamp cover.

(1) Loosen the lamp cover screw

•฀The฀lamp฀cover฀screw฀is฀not฀removable.

(2) Push and slide the lamp cover off.

2. Pull out the ﬁlter case. Pinch the ﬁlter case handle and pull it

in the arrow indicated direction.

3. Replace the Filter (B).

(1) Pull out the Filter (B) from the ﬁlter case.

120

8. Maintenance

(2) Vacuum off accumulated dust and dirt on inside and outside of

the ﬁlter case.

(3) Fix a new Filter (B) onto the ﬁlter case.

4. Remove the lamp housing.

(1) Loosen the three screws securing the lamp housing until the

phillips screwdriver goes into a freewheeling condition.

•฀The฀three฀screws฀are฀not฀removable.

(2) Remove the lamp housing by holding it.

CAUTION:

Make฀sure฀that฀the฀lamp฀housing฀is฀cool฀enough฀to฀before฀

removing฀it.

121

8. Maintenance

5. Install a new lamp housing.

(1)฀Insert฀a฀new฀lamp฀housing฀until฀the฀lamp฀housing฀is฀plugged฀

into฀the฀socket.฀

(2) Push the top center of the lamp housing to secure it.

(3) Secure it in place with the three screws.

•฀Be฀sure฀to฀tighten฀the฀screws.

6. Insert for resetting the ﬁlter case.

122

8. Maintenance

7. Reattach the lamp cover.

(1)฀Slide฀the฀lamp฀cover฀back฀until฀it฀snaps฀into฀place.

(2) Tighten the screw to secure the lamp cover.

•฀Be฀sure฀to฀tighten฀the฀screw.

This฀completes฀the฀lamp฀and฀Filter฀(B)฀replacement.

Go฀on฀to฀the฀Filter฀(A)฀replacement.

NOTE:฀When฀you฀continue฀to฀use฀the฀projector฀for฀another฀100฀hours฀after฀the฀lamp฀has฀reached฀the฀end฀of฀its฀life,฀the฀projector฀

cannot฀turn฀on฀and฀the฀menu฀is฀not฀displayed.

If฀this฀happens,฀press฀the฀HELP฀button฀on฀the฀remote฀control฀for฀10฀seconds฀to฀reset฀the฀lamp฀clock฀back฀to฀zero.

When฀the฀lamp฀time฀clock฀is฀reset฀to฀zero,฀the฀LAMP฀indicator฀goes฀out.

฀

123

8. Maintenance

To฀replace฀the฀Filter฀(A):

NOTE:฀

•฀Before฀replacing฀the฀lters,฀wipe฀off฀dust฀and฀dirt฀from฀the฀projector฀cabinet.฀

•฀The฀projector฀is฀precision฀equipment.฀Keep฀out฀dust฀and฀dirt฀during฀lter฀replacement.

•฀Do฀not฀wash฀the฀lters฀with฀soap฀and฀water.฀Soap฀and฀water฀will฀damage฀the฀lter฀membrane.฀

•฀Put฀lters฀into฀place.฀Incorrect฀attachment฀of฀a฀lter฀may฀cause฀dust฀and฀dirt฀to฀get฀into฀the฀inside฀of฀the฀projector.฀

Before฀replacing฀the฀Filter฀(A),฀make฀sure฀to฀replace฀the฀lamp฀and฀Filter฀(B).฀(→฀page฀

119)

1. Pinch the knob at the bottom of the ﬁlter case and pull it out.

•฀If฀you฀put฀the฀projector฀upside฀down฀for฀replacing฀the฀Filter฀(A)฀

as the illustration, please lay a mat as a cloth for protecting the

cabinet top from damage.

Knob

2. Remove the Filter (A) from the ﬁlter case.

Filter case

Filter (A)

3.฀Vacuum฀all฀the฀dust฀on฀inside฀and฀outside฀of฀the฀lter฀case.

•฀Get฀rid฀of฀dust฀accumulated฀on฀the฀intake฀vent฀on฀the฀projector.

124

8. Maintenance

4. Fix a new Filter (A) onto the ﬁlter case.

•฀Set฀the฀cut฀off฀part฀of฀the฀Filter฀(A)฀meeting฀with฀the฀knob฀part฀

on the ﬁlter case.

Knob

Cut off

5. Insert the Filter case to the projector cabinet.

฀Make฀sure฀that฀the฀lter฀case฀is฀inserted฀in฀the฀correct฀orientation.

This฀completes฀the฀lter฀replacement.

Go฀on฀to฀the฀clearing฀lamp฀and฀lter฀hour฀meters.

To฀clear฀the฀lamp฀usage฀hours฀and฀the฀lter฀usage฀hours:

1. Place the projector where you use it.

2. Plug the power cord into the wall outlet, and then turn on the projector.

3.฀Clear฀the฀lamp฀usage฀hours฀and฀the฀lter฀usage฀hours.

1. From the menu, select [RESET] → [CLEAR LAMP HOURS] and reset the lamp usage hours.

2.฀Select฀[CLEAR฀FILTER฀HOURS]฀and฀reset฀the฀lter฀usage฀hours.฀(→ page 68)

125

9. Appendix

❶ Troubleshooting

This฀section฀helps฀you฀resolve฀problems฀you฀may฀encounter฀while฀setting฀up฀or฀using฀the฀projector.

Indicator Messages

POWER Indicator

Indicator Condition Projector฀ConditionNote

Off The main power is off Without connecting the power cable.

Blinking

light

Blue 0.5 sec On,

0.5 sec Off

The projector is getting ready to turn on. Wait for a moment

2.5 sec On,

0.5 sec Off

Off Timer is activated.

Program timer (off time) is activated.

–

Orange (short ﬂashes) Cooling Wait for a moment

Orange (long ﬂashes)

On Timer is activated.

Program timer (on time) is activated.

–

Steady

light

Blue

The projector is turned on. –

Orange Sleep mode* While the STATUS Indicator lights in Green

In Standby condition [NETWORK STAND-

BY] is selected for [STANDBY MODE]

–

Red In Standby condition [NORMAL] is

selected for [STANDBY MODE]

–

STATUS Indicator

Indicator Condition Projector฀ConditionNote

Off Normal or Standby –

Blinking

light

Red

1 cycle (0.5 sec

On, 2.5 sec Off)

Cover error The lamp cover is not set properly. Reset the lamp

cover. (→ page

122)

2 cycle (0.5 sec

On, 0.5 sec Off)

Temperature error The projector is overheated. Move the projector to a

cooler location.

3 cycle (0.5 sec

On, 0.5 sec Off)

Power error Power unit is not working properly. Contact your dealer.

4 cycle (0.5 sec

On, 0.5 sec Off)

Fan error Fans will not work correctly.

6 cycle (0.5 sec

On, 0.5 sec Off)

Lamp error The lamp is not turned on. Wait over 1 minute and

power on the projector again. Even though the lamp is

not turned on, ask your dealer or service personnel for

repair.

Orange 1 cycle (0.5 sec

On, 2.5 sec Off)

Network conﬂict Both the built-in wired LAN and the wireless LAN cannot

be connected to the same network at the same time.

To use both built-in wired LAN and wireless LAN at the

same time, connect them to different networks.

NOTE:฀In฀the฀Standby฀condition,฀the฀status฀indicator฀

on฀the฀cabinet฀does฀not฀blink฀in฀orange฀even฀if฀the฀

network฀conicts

Green 0.5 sec On,

0.5 sec Off

Re-ﬁring the lamp (The projector is cool-

ing down)

Wait for a moment

Steady

light

Green Sleep mode* While the POWER Indicator lights in Orange

Orange

CONTROL PANEL LOCK is on. You have pressed cabinet button when Control Panel

Lock is on.

CONTROL ID error Remote control ID and projector ID are not matched.

*฀The฀sleep฀mode฀refers฀to฀the฀mode฀in฀which฀the฀restrictions฀to฀functions฀due฀to฀the฀[STANDBY฀MODE]฀settings฀have฀been฀elimi-

nated.

LAMP Indicator

Indicator Condition Projector฀ConditionNote

Off Normal –

Blinking

light

Red

Lamp has reached its end of life. Lamp

replacement message will be displayed.

Replace the lamp.

Steady

light

Red Lamp has been used beyond its limit. The

projector will not turn on until the lamp is

replaced.

Replace the lamp.

Green [ECO MODE] is set to [AUTO ECO], [NOR-

MAL] or [ECO]

–

126

9. Appendix

Over-Temperature Protection

If฀the฀projector฀inside฀temperature฀gets฀too฀high,฀the฀lamp฀will฀be฀turned฀off฀automatically฀and฀the฀status฀indicator฀will฀

start฀to฀blink฀(2-cycle฀On฀and฀Off).

Should฀this฀happen,฀do฀the฀following:

•฀Unplug฀the฀power฀cord฀after฀the฀cooling฀fans฀stop.

•฀Move฀the฀projector฀to฀a฀cooler฀location฀if฀the฀room฀where฀you฀are฀presenting฀is฀particularly฀too฀warm.

•฀Clean฀the฀vents฀if฀they฀are฀clogged฀with฀dust.

•฀Wait฀about฀60฀minutes฀until฀the฀inside฀of฀the฀projector฀becomes฀cool฀enough.

127

9. Appendix

Common Problems & Solutions

(→฀“POWER/STATUS/LAMP฀Indicator”฀on฀page฀

125.)

Problem Check฀These฀Items

Does not turn on

or shut down

•฀Check฀that฀the฀power฀cord฀is฀plugged฀in฀and฀that฀the฀power฀button฀on฀the฀projector฀cabinet฀or฀the฀remote฀

control is on. (→ pages

11, 12)

•฀Ensure฀that฀the฀lamp฀cover฀is฀installed฀correctly.฀(→ page 121)

•฀Check฀to฀see฀if฀the฀projector฀has฀overheated.฀If฀there฀is฀insufcient฀ventilation฀around฀the฀projector฀or฀if฀the฀

room where you are presenting is particularly warm, move the projector to a cooler location.

•฀Check฀to฀see฀if฀you฀continue฀to฀use฀the฀projector฀for฀another฀100฀hours฀after฀the฀lamp฀has฀reached฀the฀end฀

of its life. If so, replace the lamp. After replacing the lamp, reset the lamp hours used. (→ page 68)

•฀The฀lamp฀may฀fail฀to฀light.฀Wait฀a฀full฀minute฀and฀then฀turn฀on฀the฀power฀again.

•฀Set฀[FAN฀MODE]฀to฀[HIGH฀ALTITUDE]฀when฀using฀the฀projector฀at฀altitudes฀approximately฀4000฀feet/1200฀

meters or higher. Using the projector at altitudes approximately 4000 feet/1200 meters or higher without

setting to [HIGH ALTITUDE] can cause the projector to overheat and the projector could shut down. If this

happens, wait a couple minutes and turn on the projector. (→ page 59)

If you turn on the projector immediately after the lamp is turned off, the fans run without displaying an

image for some time and then the projector will display the image. Wait for a moment.

•฀In฀case฀it’s฀hard฀to฀think฀the฀trouble฀is฀not฀caused฀on฀the฀above฀mentioned฀conditions,฀unplug฀the฀power฀

cord from the outlet. Then wait 5 minutes before plugging it in again. (→ page 24)

Will turn off

•฀Ensure฀that฀the฀[OFF฀TIMER]฀or฀[AUTO฀POWER฀OFF]฀is฀off.฀(→ page

52, 62)

No picture

•฀Check฀if฀the฀appropriate฀input฀is฀selected.฀(→ page

14) If there is still no picture, press the SOURCE button

or one of the source buttons again.

•฀Ensure฀your฀cables฀are฀connected฀properly.

•฀Use฀menus฀to฀adjust฀the฀brightness฀and฀contrast.฀(→ page 45)

•฀Check฀that฀the฀AV฀MUTE฀(image฀off)฀buttons฀are฀not฀pressed.

•฀Reset฀the฀settings฀or฀adjustments฀to฀factory฀preset฀levels฀using฀the฀[RESET]฀in฀the฀Menu.฀(→ page 68)

•฀Enter฀your฀registered฀keyword฀if฀the฀Security฀function฀is฀enabled.฀(→ page 30)

•฀If฀the฀HDMI฀1฀IN฀or฀the฀HDMI฀2฀IN฀signal฀cannot฀be฀displayed,฀try฀the฀following.

- Reinstall your driver for the graphics card built in your computer, or use the updated driver.

For reinstalling or updating your driver, refer to the user guide accompanied with your computer or

graphics card, or contact the support center for your computer manufacturer.

Install the updated driver or OS on your own responsibility.

We are not liable for any trouble and failure caused by this installation.

•฀Signals฀may฀not฀be฀supported฀depending฀on฀the฀HDBaseT฀transmission฀device.฀IR฀and฀RS232C฀cannot฀be฀

used in certain cases as well.

•฀Be฀sure฀to฀connect฀the฀projector฀and฀notebook฀PC฀while฀the฀projector฀is฀in฀standby฀mode฀and฀before฀turning฀

on the power to the notebook PC.

In most cases the output signal from the notebook PC is not turned on unless connected to the projector

before being powered up.

*฀If฀the฀screen฀goes฀blank฀while฀using฀your฀remote฀control,฀it฀may฀be฀the฀result฀of฀the฀computer’s฀screen-

saver or power management software.

•฀See฀also฀the฀next page.

Picture suddenly

becomes dark

•฀Check฀if฀the฀projector฀is฀in฀the฀Forced฀ECO฀mode฀because฀of฀too฀high฀ambient฀temperature.฀If฀this฀is฀the฀

case, lower the internal temperature of the projector by selecting [HIGH] for [FAN MODE]. (→ page

59)

Color tone or hue is

unusual

•฀Check฀if฀an฀appropriate฀color฀is฀selected฀in฀[WALL฀COLOR].฀If฀so,฀select฀an฀appropriate฀option.฀(→ page

51)

•฀Adjust฀[HUE]฀in฀[PICTURE].฀(→ page

45)

Image฀isn’t฀square฀to฀

the screen

•฀Reposition฀the฀projector฀to฀improve฀its฀angle฀to฀the฀screen.฀(→ page

16)

•฀Use฀the฀Keystone฀correction฀function฀to฀correct฀the฀trapezoid฀distortion.฀(→ page 21)

Picture is blurred

•฀Adjust฀the฀focus.฀(→ page

19)

•฀Reposition฀the฀projector฀to฀improve฀its฀angle฀to฀the฀screen.฀(→ page 16)

•฀Ensure฀that฀the฀distance฀between฀the฀projector฀and฀screen฀is฀within฀the฀adjustment฀range฀of฀the฀lens.฀(→

page

69)

•฀Has฀the฀lens฀been฀shifted฀by฀an฀amount฀exceeding฀the฀guaranteed฀range?฀(→ page

73)

•฀Condensation฀may฀form฀on฀the฀lens฀if฀the฀projector฀is฀cold,฀brought฀into฀a฀warm฀place฀and฀is฀then฀turned฀

on. Should this happen, let the projector stand until there is no condensation on the lens.

128

9. Appendix

Problem Check฀These฀Items

Image is scrolling

vertically, horizontally

or both

•฀Check฀the฀computer’s฀resolution฀and฀frequency.฀Make฀sure฀that฀the฀resolution฀you฀are฀trying฀to฀display฀is฀

supported by the projector. (→ page

136)

•฀Adjust฀the฀computer฀image฀manually฀with฀the฀[HORIZONTAL]/[VERTICAL]฀in฀the฀[IMAGE฀OPTIONS].฀(→

page

47)

Remote control does

not work

•฀Install฀new฀batteries.(→ page

•฀Make฀sure฀there฀are฀no฀obstacles฀between฀you฀and฀the฀projector.

•฀Stand฀within฀22฀feet฀(7฀m)฀of฀the฀projector.฀(→ page 9)

Indicator is lit or

blinking

•฀See฀the฀POWER/STATUS/LAMP฀Indicator.฀(→ page

125)

Cross color in RGB

mode

•฀Press฀the฀AUTO฀ADJ.฀button฀on฀the฀projector฀cabinet฀or฀the฀remote฀control.฀(→ page

23)

•฀Adjust฀the฀computer฀image฀manually฀with฀[CLOCK]/[PHASE]฀in฀[IMAGE฀OPTIONS]฀in฀the฀menu.฀(→ page

46)

For฀more฀information฀contact฀your฀dealer.

If there is no picture, or the picture is not displayed correctly.

•฀Power฀on฀process฀for฀the฀projector฀and฀the฀PC.

฀Be฀sure฀to฀connect฀the฀projector฀and฀notebook฀PC฀while฀the฀projector฀is฀in฀standby฀mode฀and฀before฀turning฀on฀the฀

power฀to฀the฀notebook฀PC.

฀In฀most฀cases฀the฀output฀signal฀from฀the฀notebook฀PC฀is฀not฀turned฀on฀unless฀connected฀to฀the฀projector฀before฀

being฀powered฀up.

NOTE:฀You฀can฀check฀the฀horizontal฀frequency฀of฀the฀current฀signal฀in฀the฀projector’s฀menu฀under฀Information.฀If฀it฀reads฀“0kHz”,฀

this฀means฀there฀is฀no฀signal฀being฀output฀from฀the฀computer.฀(→฀page฀67฀or฀go฀to฀next฀step)

•฀Enabling฀the฀computer’s฀external฀display.

฀Displaying฀an฀image฀on฀the฀notebook฀PC’s฀screen฀does฀not฀necessarily฀mean฀it฀outputs฀a฀signal฀to฀the฀projector.฀

When฀using฀a฀PC฀compatible฀laptop,฀a฀combination฀of฀function฀keys฀will฀enable/disable฀the฀external฀display.฀Usually,฀

the฀combination฀of฀the฀“Fn”฀key฀along฀with฀one฀of฀the฀12฀function฀keys฀gets฀the฀external฀display฀to฀come฀on฀or฀off.฀

For฀example,฀NEC฀laptops฀use฀Fn฀+฀F3,฀while฀Dell฀laptops฀use฀Fn฀+฀F8฀key฀combinations฀to฀toggle฀through฀external฀

display฀selections.

•฀Non-standard฀signal฀output฀from฀the฀computer

฀If฀the฀output฀signal฀from฀a฀notebook฀PC฀is฀not฀an฀industry฀standard,฀the฀projected฀image฀may฀not฀be฀displayed฀

correctly.฀Should฀this฀happen,฀deactivate฀the฀notebook฀PC’s฀LCD฀screen฀when฀the฀projector฀display฀is฀in฀use.฀Each฀

notebook฀PC฀has฀a฀different฀way฀of฀deactivate/reactivate฀the฀local฀LCD฀screens฀as฀described฀in฀the฀previous฀step.฀

Refer฀to฀your฀computer’s฀documentation฀for฀detailed฀information.

•฀Image฀displayed฀is฀incorrect฀when฀using฀a฀Mac

฀When฀using฀a฀Mac฀with฀the฀projector,฀set฀the฀DIPswitch฀of฀the฀Mac฀adapter฀(not฀supplied฀with฀the฀projector)฀accord-

ing฀to฀your฀resolution.฀After฀setting,฀restart฀your฀Mac฀for฀the฀changes฀to฀take฀affect.

฀For฀setting฀display฀modes฀other฀than฀those฀supported฀by฀your฀Mac฀and฀the฀projector,฀changing฀the฀DIP฀switch฀on฀

a฀Mac฀adapter฀may฀bounce฀an฀image฀slightly฀or฀may฀display฀nothing.฀Should฀this฀happen,฀set฀the฀DIP฀switch฀to฀

the฀13"฀xed฀mode฀and฀then฀restart฀your฀Mac.฀After฀that,฀restore฀the฀DIP฀switches฀to฀a฀displayable฀mode฀and฀then฀

restart฀the฀Mac฀again.

NOTE:฀A฀Video฀Adapter฀cable฀manufactured฀by฀Apple฀Inc.฀is฀needed฀for฀a฀MacBook฀which฀does฀not฀have฀a฀mini฀D-Sub฀15-pin฀terminal.

•฀Mirroring฀on฀a฀MacBook

*฀When฀using฀the฀projector฀with฀a฀MacBook,฀output฀may฀not฀be฀set฀to฀1024฀×฀768฀unless฀“mirroring”฀is฀off฀on฀your฀

MacBook.฀Refer฀to฀owner’s฀manual฀supplied฀with฀your฀Mac฀computer฀for฀mirroring.

•฀Folders฀or฀icons฀are฀hidden฀on฀the฀Mac฀screen

฀Folders฀or฀icons฀may฀not฀be฀seen฀on฀the฀screen.฀Should฀this฀happen,฀select฀[View]฀→฀[Arrange]฀from฀the฀Apple฀

menu฀and฀arrange฀icons.

129

9. Appendix

❷ Specifications

This฀section฀provides฀technical฀information฀about฀projector’s฀performance.

Model name NP-P502HNP-P502WNP-P452HNP-P452W

Method

1฀Chip฀DLP฀type

Specications฀of฀main฀parts

DMD฀panelSize0.65"฀(aspect฀ratio:฀

16:9)

0.65"฀(aspect฀ratio:฀

16:10)

0.65"฀(aspect฀ratio:฀

16:9)

0.65"฀(aspect฀ratio:฀

16:10)

Pixels฀

(*1)

2,073,600฀(1920฀

dots฀×฀1080฀lines)

1,024,000฀(1280฀

dots฀×฀800฀lines)

2,073,600฀(1920฀

dots฀×฀1080฀lines)

1,024,000฀(1280฀

dots฀×฀800฀lines)

Projection฀lensesF฀=฀2.0,฀f฀=฀18.2–31.1฀mm

ZoomManual฀(Zoom฀Ratio฀=฀1.7)

FocusManual

Lens฀shiftingH:฀±25%,฀V:฀+62%,฀

−0%

H:฀±28%,฀V:฀+59%,฀

−0%

H:฀±25%,฀V:฀+62%,฀

−0%

H:฀±28%,฀V:฀+59%,฀

−0%

Lamp

375฀W฀AC฀

(299฀W฀in฀NORMAL)

(226฀W฀in฀ECO)

335฀W฀AC฀

(267฀W฀in฀NORMAL)

(202฀W฀in฀ECO)

Optical฀device฀Optical฀isolation฀by฀dichroic฀mirror,฀combining฀by฀dichroic฀prism

Light฀output฀

(*2)

(*3)

5,000฀lm฀(NORMAL:฀80%,฀ECO:฀60%)4,500฀lm฀(NORMAL:฀80%,฀ECO:฀60%)

Contrast฀ratio฀

(*2)

฀(all฀white/all฀black)6,000:1฀with฀lamp฀control

Screen฀size฀(throw฀distance)฀30฀to฀300฀inches฀

(0.8–14.2฀m)

30฀to฀300฀inches฀

(0.8–14.5฀m)

30฀to฀300฀inches฀

(0.8–14.2฀m)

30฀to฀300฀inches฀

(0.8–14.5฀m)

Projection฀AngleFrom฀0฀to฀15.9฀deg฀

at฀80"

From฀0฀to฀14.8฀deg฀

at฀80"

From฀0฀to฀15.9฀deg฀

at฀80"

From฀0฀to฀14.8฀deg฀

at฀80"

Projection฀Distance฀(From฀Projection฀

Lens)

Wide:฀From฀0.8฀to฀

8.2฀m

Tele:฀From฀1.4฀to฀

14.2฀m

Wide:฀From฀0.8฀to฀

8.4฀m

Tele:฀From฀1.4฀to฀

14.5฀m

Wide:฀From฀0.8฀to฀

8.2฀m

Tele:฀From฀1.4฀to฀

14.2฀m

Wide:฀From฀0.8฀to฀

8.4฀m

Tele:฀From฀1.4฀to฀

14.5฀m

Color฀reproducibility฀10-bit฀color฀processing฀(approx.฀1.07฀billion฀colors)

Scanning฀frequencyHorizontalAnalog:฀15฀kHz,฀24฀to฀100฀kHz฀(24฀kHz฀or฀greater฀for฀RGB฀inputs),฀conforming฀to฀

VESA฀standards

Digital:฀15฀kHz,฀24฀to฀153฀kHz,฀conforming฀to฀VESA฀standards

VerticalAnalog:฀48฀Hz,฀50฀to฀85฀Hz,฀100,฀120฀Hz฀conforming฀to฀VESA฀standards

Digital:฀24,฀25,฀30,฀48฀Hz,฀50฀to฀85฀Hz,฀100,฀120฀Hz฀conforming฀to฀VESA฀standards

Main฀adjustment฀functionsManual฀zoom,฀manual฀focus,฀manual฀lens฀shift,฀input฀signal฀switching฀(HDMI1/HDMI2/

COMPUTER/VIDEO/HDBaseT),฀auto฀image฀adjustment,฀picture฀maginication,฀mut-

ing฀(video),฀power฀on/standby,฀on-screen฀display/selection,฀etc.

Max.฀display฀resolution฀(horizontal฀×฀verti-

cal)

Analog:฀1920฀×฀1200฀(handled฀with฀Advanced฀AccuBlend)

Digital:฀1920฀×฀1080฀(handled฀with฀Advanced฀AccuBlend)

Input฀signals

R,G,B,H,VRGB:฀0.7฀Vp-p/75฀Ω

Y:฀1.0฀Vp-p/75฀Ω฀(with฀Negative฀Polarity฀Sync)

Cb,฀Cr฀(Pb,฀Pr):฀0.7฀Vp-p/75฀Ω

H/V฀Sync:฀4.0฀Vp-p/TTL

Composite฀Sync:฀4.0฀Vp-p/TTL

Sync฀on฀G:฀1.0฀Vp-p/75฀Ω฀(with฀Sync)

Composite฀video฀1.0฀Vp-p/75฀Ω

Component

Y:฀1.0฀Vp-p/75฀Ω฀(with฀Sync)

Cb,฀Cr฀(Pb,฀Pr):฀0.7฀Vp-p/75฀Ω

DTV:฀฀480i,฀480p,฀720p,฀1080i,฀1080p฀(60฀Hz)

576i,฀576p,฀720p,฀1080i,฀1080p฀(50฀Hz)

DVD:฀Progressive฀signal฀(50/60฀Hz)

AudioStereo฀L/R:฀0.5฀Vrms/22฀kΩ฀or฀over

Input/output฀terminals

Computer/Com-

ponent

Video฀input฀Mini฀D-Sub฀15-pin฀×฀1

Video฀output฀Mini฀D-Sub฀15-pin฀×฀1

Audio฀input฀RCA฀×฀2฀(For฀Video),฀Stereo฀mini฀Jack฀(For฀Computer)

Audio฀output฀Stereo฀mini฀Jack฀(Selected฀from:฀Computer/Video/HDMI)

HDMIVideo฀input฀HDMI

฀Terminal฀type฀A฀×฀2

Deep฀Color฀(color฀depth):฀8-/10-/12-bit฀compatible

Colorimetry:฀RGB,฀YcbCr444฀and฀YcbCr422฀compatible

LipSync฀compatible,฀HDCP฀compatible฀

(*4)

,฀Supports฀3D

Audio฀input฀HDMI:฀Sampling฀frequency฀–฀32/44.1/48฀kHz,฀Sampling฀bits฀–฀16/20/24฀bits

130

9. Appendix

Model name NP-P502HNP-P502WNP-P452HNP-P452W

HDBaseT

Video฀input฀Deep฀Color฀(color฀depth):฀Support฀8/10/12฀bits

Colorimetry:฀Support฀RGB,฀YCbCr444฀and฀YCbCr422฀

Support฀LipSync฀,฀HDCP฀

(*4)

,฀3D฀

Audio฀input฀Sampling฀frequency:฀32/44.1/48฀kHz

Sampling฀bit:฀16/20/24฀bit

Remote฀terminalStereo฀mini฀Jack฀×฀1

USB฀portType฀A1฀for฀USB฀memory

Type฀B1฀for฀service

Ethernet/HDBaseT฀portRJ-45฀×฀1,฀Supports฀BASE-TX

3D฀SYNC฀output฀terminal5฀V฀/฀10฀mA,฀synchronized฀signal฀output฀for฀3D฀use

Control฀Terminals

RS-232C฀terminal฀(PC฀control)D-Sub฀9-pin฀×฀1

Built-in฀Speaker20฀W฀(monaural)

Usage฀environmentOperating฀temperature:฀5฀to฀40°C฀

(*5)

Operating฀humidity:฀20฀to฀80%฀(with฀no฀condensation)

Storage฀temperature:฀−10฀to฀50°C฀

(*5)

Storage฀humidity:฀20฀to฀80%฀(with฀no฀condensation)

Operating฀altitude:฀0฀to฀8000฀feet/2400฀meters฀

(Set฀[FAN฀MODE]฀to฀[HIGH฀ALTITUDE]฀when฀using฀the฀projector฀at฀altitudes฀approxi-

mately฀4000฀feet/1200฀meters฀or฀higher.)

Power฀supply100–240฀V฀AC,฀50/60฀Hz

Power฀con-

sumption

ECO฀

MODE

OFF465฀W฀(100-130฀V)

445฀W฀(200-240฀V)

426฀W฀(100-130฀V)

416฀W฀(200-240฀V)

NORMAL379฀W฀(100-130฀V)

366฀W฀(200-240฀V)

346฀W฀(100-130฀V)

340฀W฀(200-240฀V)

ECO311฀W฀(100-130฀V)

305฀W฀(200-240฀V)

288฀W฀(100-130฀V)

286฀W฀(200-240฀V)

STANDBY฀

MODE

NORMAL0.26฀W฀(100-130฀V)/0.33฀W฀(200-240฀V)

NETWORK฀

STANDBY

2.6฀W฀(100-130฀V)/2.6฀W฀(200-240฀V)

Rated฀input฀current฀2.2฀A฀(240฀V฀AC)฀to฀5.4฀A฀(100฀V฀AC)2.0฀A฀(240฀V฀AC)฀to฀4.9฀A฀(100฀V฀AC)

External฀dimensions฀14.3"฀(width)฀×฀5.1"฀(height)฀×฀11.9"฀(depth)/

362฀(width)฀×฀129฀(height)฀×฀302฀(depth)฀mm฀(not฀including฀protrusions)

14.3"฀(width)฀×฀5.5"฀(height)฀×฀12.1"฀(depth)/

362฀(width)฀×฀139฀(height)฀×฀306฀(depth)฀mm฀(including฀protrusions)

Weight฀11.46฀lbs฀(5.2฀kg)

*1฀Effective฀pixels฀are฀more฀than฀99.99%.฀

*2฀Compliance฀with฀ISO21118-2012฀

*3฀This฀is฀the฀light฀output฀value฀(lumens)฀when฀the฀[PRESET]฀mode฀is฀set฀to฀[HIGH-BRIGHT].฀If฀any฀other฀mode฀is฀selected฀as฀the฀

[PRESET]฀mode,฀the฀light฀output฀value฀may฀drop฀slightly.

*4฀HDMI

฀(Deep฀Color,฀Lip฀Sync)฀with฀HDCP฀

฀What฀is฀HDCP/HDCP฀technology?฀

฀HDCP฀is฀an฀acronym฀for฀High-bandwidth฀Digital฀Content฀Protection.฀High฀bandwidth฀Digital฀Content฀Protection฀(HDCP)฀is฀a฀system฀

for฀preventing฀illegal฀copying฀of฀video฀data฀sent฀over฀a฀High-Denition฀Multimedia฀Interface฀(HDMI).฀

฀If฀you฀are฀unable฀to฀view฀material฀via฀the฀HDMI฀input,฀this฀does฀not฀necessarily฀mean฀the฀projector฀is฀not฀functioning฀properly.฀With฀

the฀implementation฀of฀HDCP,฀there฀may฀be฀cases฀in฀which฀certain฀content฀is฀protected฀with฀HDCP฀and฀might฀not฀be฀displayed฀

due฀to฀the฀decision/intention฀of฀the฀HDCP฀community฀(Digital฀Content฀Protection,฀LLC).฀

฀Video:฀Deep฀Color;฀8/10/12-bit,฀LipSync฀

฀Audio:฀LPCM;฀up฀to฀2฀ch,฀sample฀rate฀32/44.1/48฀KHz,฀sample฀bit;฀16/20/24-bit

*5฀35฀to฀40°C฀–฀“Forced฀eco฀mode”

•฀These฀specications฀and฀the฀product’s฀design฀are฀subject฀to฀change฀without฀notice.

For฀additional฀information฀visit:

US:฀

http://www.necdisplay.com/

Europe:฀http://www.nec-display-solutions.com/

Global:฀http://www.nec-display.com/global/index.html

For฀information฀on฀our฀optional฀accessories,฀visit฀our฀website฀or฀see฀our฀brochure.

The฀specications฀are฀subject฀to฀change฀without฀notice.

131

9. Appendix

81 (3.2)

68 (2.7)

175 (6.9)

200 (7.9)

5 (0.2)

362 (14.3)

302 (11.9)

306 (12)

139 (5.5)

150 (5.9)

130 (5.1)

129 (5.1)

91 (3.6)

❸ Cabinet Dimensions

Unit:฀mm฀(inch)

Lens center

132

9. Appendix

❹ Attaching the Optional Cable Cover (NP09CV)

After฀nishing฀connections,฀attach฀the฀supplied฀cable฀cover฀to฀properly฀hide฀the฀cables.

CAUTION:

•฀Be฀sure฀to฀tighten฀the฀screws฀after฀attaching฀the฀cable฀cover.฀Failure฀to฀do฀so฀may฀cause฀the฀cable฀cover฀to฀come฀

off฀and฀fall,฀resulting฀in฀injury฀or฀damage฀to฀the฀cable฀cover.

•฀Do฀not฀put฀bundled฀cables฀in฀the฀cable฀cover.฀Doing฀so฀may฀damage฀the฀power฀cord,฀resulting฀in฀a฀re.

•฀Do฀not฀hold฀the฀cable฀cover฀while฀moving฀the฀projector฀or฀do฀not฀apply฀excessive฀force฀to฀the฀cable฀cover.฀Doing฀

so฀may฀damage฀the฀cable฀cover,฀resulting฀in฀injury.

Attaching the cable cover

Tool฀needed:

•฀Phillips฀screwdriver฀(plus-head)฀about฀12฀cm/4.7฀inches฀in฀length

12 cm/4.7 inches

1. Align the left and right ﬁxing screw holes on the cable cover

and the projector, and then put screws to each hole.

NOTE:

•฀Be฀careful฀not฀to฀get฀cables฀caught฀in฀between฀the฀cable฀cover฀and฀

the฀projector.

Cable cover ﬁxing screw hole

Fixing screw

2. Tighten the cable cover screws.

•฀Be฀sure฀to฀tighten฀the฀screws.

133

9. Appendix

Removing the cable cover

1. Loosen the cable cover screws until the Phillips screw-

driver goes into a freewheeling condition and remove the

cover.

•฀When฀suspended฀from฀the฀ceiling,฀hold฀so฀that฀the฀cable฀

cover does not drop.

•฀The฀screws฀cannot฀be฀removed.

134

9. Appendix

❺ Pin assignments and signal names of main terminals

COMPUTER IN Terminal (Mini D-Sub 15 Pin)

Connection and signal level of each pin

51423

11 12 13 14 15

6978

Signal Level

Video฀signal฀:฀0.7Vp-p฀(Analog)

Sync฀signal฀:฀TTL฀level

Pin No. RGB฀Signal฀(Analog)YCbCr Signal

1 RedCr

Green฀or฀Sync฀on฀GreenY

3BlueCb

4 Ground

5 Ground

Red฀GroundCr฀Ground

7Green฀GroundY฀Ground

8Blue฀GroundCb฀Ground

9Hot฀Plug

10 Sync฀Signal฀Ground

11 No฀Connection

12 Bi-directional฀DATA฀(SDA)

13Horizontal฀Sync฀or฀Composite฀Sync

14 Vertical฀Sync

15 Data฀Clock

HDMI 1 IN/HDMI 2 IN Terminal (Type A)

135791113151719

246810 12 14 16 18

Pin No. Signal Pin No. Signal

1 TMDS฀Data฀2+11 TMDS฀Clock฀Shield

2 TMDS฀Data฀2฀Shield12 TMDS฀Clock−

3TMDS฀Data฀2−13CEC

4 TMDS฀Data฀1+14 Disconnection

5 TMDS฀Data฀1฀Shield15 SCL

6TMDS฀Data฀1−฀16SDA

7TMDS฀Data฀0+17DDC/CEC฀grounding

8TMDS฀Data฀0฀Shield18+5฀V฀power฀supply

9TMDS฀Data฀0−19Hot฀plug฀detection

10 TMDS฀Clock฀+

135

9. Appendix

Ethernet/HDBaseT/LAN Port (RJ-45)

12345678

Pin No. Signal

1 TxD+/HDBT0+

2 TxD−/HDBT0−

3RxD+/HDBT1+

4 Disconnection/HDBT2+

5 Disconnection/HDBT2−

6RxD−/HDBT1−

7Disconnection/HDBT3+

8Disconnection/HDBT3−

USB Port (Type A)

Pin No. Signal

1 V

BUS

2 D−

3D+

4 Grounding

PC CONTROL Port (D-Sub 9 Pin)

1234

6789

Communications protocol

Pin No. Signal

1 Unused

RxD฀reception฀data

3TxD฀transmission฀data฀

4 Unused

5 Grounding

6Unused

RTS฀transmission฀request

8CTS฀transmission฀allowed

9Unused

136

9. Appendix

HDMI

Signal

Resolution

(dots)

Aspect฀Ratio

Refresh฀Rate

(Hz)

VGA640×4804:360

SVGA800 ×6004:360

XGA1024 ×7684:360

WXGA1280 ×768*

15:960

1280×800*

16:1060

1366×76816:960

Quad-VGA1280×9604:360

SXGA1280× 1024 5:460

SXGA+1400 × 1050 4:360

WXGA+1440 ×90016:1060

WXGA++1600×90016:960

WSXGA+1680 ×1050 16:1060

HDTV฀(1080p)1920 ×1080*

16:950/60

HDTV฀(1080i)1920× 108016:950/60

HDTV฀(720p)1280 ×72016:950/60

SDTV฀(480p)720×4804:3/16:960

SDTV฀(576p)720×5764:3/16:950

SDTV฀(480i)720×4804:3/16:960

SDTV฀(576i)720×5764:3/16:950

Signal

Resolution

(dots)

Aspect฀Ratio

Refresh฀Rate

(Hz)

For฀PC฀Signal

XGA1024 ×7684:360/120*

HD1280×72016:960/120*

WXGA1280 ×80016:1060/120*

HDTV฀(1080p)1920 ×108016:960

For฀Video฀Signal

SDTV฀(480i)720×4804:3/16:960

HDMI 3D

SignalResolution฀(dots)Aspect฀RatioRefresh฀Rate฀(Hz)

Structure:฀Frame฀Packing

1080p1920× 108016:923.98/24

720p1280 ×72016:950/59.94/60

Structure:฀Side฀by฀Side฀(Half)

1080i1920× 108016:950/59.94/60

Structure:฀Top฀and฀Bottom

1080p1920× 108016:923.98/24

720p1280 ×72016:950/59.94/60

❻ Compatible Input Signal List

Analog RGB

Signal

Resolution

(dots)

Aspect฀Ratio

Refresh฀Rate

(Hz)

VGA640×4804:360/72/75/85/iMac

SVGA800 ×6004:356/60/72/75/85/

iMac

XGA1024 ×7684:360/70/75/85/iMac

WXGA1280 ×768*

15:960

1280×800*

16:1060

1360×768*

16:9*

1366×768*

16:960

Quad-VGA1280 ×9604:360/75

SXGA1280× 1024 5:460/75

SXGA+1400 × 1050 4:360

WXGA+1440 ×90016:1060

WXGA++1600×900*

16:960

UXGA1600× 1200 *

4:360

WSXGA+1680 ×1050 16:1060

HD1280×72016:960

Full฀HD1920 ×1080*

16:960

WUXGA1920× 1200 *

16:1060

MAC฀19"1024 ×7684:375

MAC฀21"1152 ×8704:3*

MAC฀23"1280× 1024 5:465

Component

SignalFormatAspect฀Ratio

Refresh฀Rate

(Hz)

HDTV฀(1080p)1920 ×108016:950/60

HDTV฀(1080i)1920× 108016:950/60

HDTV฀(720p)1280 ×72016:950/60

SDTV฀(480p)720×4804:3/16:960

SDTV฀(576p)720×5764:3/16:950

SDTV฀(480i)720×4804:3/16:960

SDTV฀(576i)720×5764:3/16:950

Composite฀Video

SignalAspect฀Ratio

Refresh฀Rate

(Hz)

NTSC4:360

PAL4:350

PAL604:360

SECAM4:350

*1฀Native฀resolution฀on฀1080p฀model฀(NP-P502H/NP-P452H)

*2฀Native฀resolution฀on฀WXGA฀model฀(NP-P502W/NP-P452W)

*3฀The฀projector฀may฀fail฀to฀display฀these฀signals฀correctly฀when฀[AUTO]฀

is฀selected฀for฀[ASPECT฀RATIO]฀in฀the฀on-screen฀menu.

฀The฀factory฀default฀is฀[AUTO]฀for฀[ASPECT฀RATIO].฀To฀display฀these฀

signals,฀select฀[16:9]฀for฀[ASPECT฀RATIO].

*4฀WXGA฀MODE:฀OFF

*5฀WXGA฀MODE:฀ON

*6฀120Hz฀signals฀are฀supported฀for฀Frame฀Sequential฀only.

NOTE:

•฀An฀image฀with฀higher฀or฀lower฀resolution฀than฀the฀projector’s฀native฀resolution฀(1280฀×฀800)฀will฀be฀displayed฀with฀Advanced฀

AccuBlend.

•฀Sync฀on฀Green฀and฀Composite฀sync฀signals฀are฀not฀supported.

•฀Signals฀other฀than฀those฀specied฀in฀the฀table฀above฀may฀not฀be฀displayed฀correctly.฀If฀this฀should฀happen,฀change฀the฀refresh฀

rate฀or฀resolution฀on฀your฀PC.฀Refer฀to฀Display฀Properties฀help฀section฀of฀your฀PC฀for฀procedures.

137

9. Appendix

❼ PC Control Codes and Cable Connection

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT HDMI1 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT HDMI2 02H 03H 00H 00H 02H 01H 1BH 23H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT APPS 02H 03H 00H 00H 02H 01H 20H 28H

INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H 22H 2AH

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

NOTE:฀Contact฀your฀local฀dealer฀for฀a฀full฀list฀of฀the฀PC฀Control฀Codes฀if฀needed.

Cable Connection

Communication฀Protocol

Baud rate .........................................38400 bps

Data length ......................................8 bits

Parity ...............................................No parity

Stop bit ............................................One bit

X on/off ............................................None

Communications procedure .............Full duplex

NOTE:฀Depending฀on฀the฀equipment,฀a฀lower฀baud฀rate฀may฀be฀recommended฀for฀long฀cable฀runs.

PC Control Terminal (D-SUB 9P)

15243

67 98

To GND of PC

To RxD of PC

To TxD of PC

To RTS of PC

To CTS of PC

NOTE฀1:฀Pins฀1,฀4,฀6฀and฀9฀are฀no฀used.

NOTE฀2:฀Jumper฀“Request฀to฀Send”฀and฀“Clear฀to฀Send”฀together฀on฀both฀ends฀of฀the฀cable฀to฀simplify฀cable฀connection.

NOTE฀3:฀For฀long฀cable฀runs฀it฀is฀recommended฀to฀set฀communication฀speed฀within฀projector฀menus฀to฀9600฀bps.

138

9. Appendix

❽ Update the Software

Using฀the฀web฀browser฀on฀a฀computer,฀download฀the฀updated฀software฀for฀the฀projector฀from฀our฀web฀site฀and฀install฀

it฀on฀the฀projector฀by฀the฀wired฀LAN฀connection.

NOTE:

•฀The฀exclusive฀web฀browser฀enables฀to฀update฀the฀software฀is฀Internet฀Explorer฀11.

•฀Before฀performing฀the฀software฀update,฀make฀sure฀to฀connect฀your฀computer฀with฀the฀projector฀by฀the฀LAN฀cable.฀It฀does฀not฀

support฀the฀wireless฀LAN฀connection.

•฀Make฀sure฀to฀set฀[NETWORK฀STANDBY]฀as฀the฀standby฀mode฀of฀the฀projector.฀Factory฀default฀setting฀for฀the฀standby฀mode฀is฀

[NORMAL]฀(→฀page฀61)

•฀The฀software฀update฀is฀enabled฀only฀when฀the฀projector฀is฀in฀standby฀condition.฀While฀performing฀the฀software฀update,฀do฀not฀

power฀on฀the฀projector.฀At฀the฀same฀time,฀do฀not฀shut฀down฀the฀AC฀power.

•฀Never฀update฀the฀browser฀page฀during฀the฀software฀update.฀It฀disables฀the฀computer฀for฀displaying฀the฀web฀page฀correctly.

1. Access to the software download support page in our web site.

URL:

http://www.nec-display.com/dl/en/pj_soft/lineup.html

2.฀Check฀if฀the฀software฀installed฀on฀the฀projector฀in฀use฀is฀updated.

•฀You฀can฀check฀the฀software฀version฀from฀either฀[VERSION(1)]฀or฀[VERSION(2)]฀in฀the฀onscreen฀menu฀[INFOR

MATION].

3. If newer software version than one on the projector in use is uploaded on our website, download and save

it in an appropriate folder on your computer.

4. Turn off the power of the projector and set it in the standby condition.

Important:

•฀Software฀update฀cannot฀be฀performed฀when฀the฀standby฀mode฀is฀set฀at฀NORMAL.

5.฀Connect฀the฀projector฀with฀your฀computer฀by฀the฀LAN฀cable.

6. Start up the web browser on your computer and then input the following web address:

฀URL฀(for฀the฀software฀update):฀http://<Projector฀IP฀address>/update.html

The software update screen will be displayed on.

7.฀Click฀[Browse….]฀at฀the฀center฀of฀the฀screen฀and฀select฀the฀software฀you฀saved฀in฀the฀procedure฀3.

•฀Check฀the฀le฀name฀indicated฀on฀the฀UPDATE฀FILE฀list.

8.฀Click฀[START฀UPDATING]฀at฀the฀center฀of฀the฀screen.

The screen display will change and your computer starts to update the software.

139

9. Appendix

NOTE:

•฀During฀the฀software฀update,฀pay฀attention฀to฀the฀follows:

-฀Do฀not฀turn฀off฀the฀AC฀Power฀for฀the฀projector.

-฀Do฀not฀reload฀or฀move฀the฀web฀page.

-฀Do฀not฀close฀the฀web฀page.

•฀When฀software฀update฀is฀completed฀properly,฀the฀below฀will฀be฀displayed฀on:

1.฀UPLOADING฀THE฀UPDATE฀FILE:฀COMPLETED

2.฀CHECKING฀THE฀UPDATE฀FILE:฀COMPLETED

3.฀WRITING฀IN฀THE฀UPDATE฀FILE:฀COMPLETED

4.฀COMPLETE฀UPDATING:฀PLEASE฀REBOOT.

9.฀Click฀[REBOOT]฀at฀the฀right฀bottom฀of฀the฀screen.

The software update is completed and the projector will go into the standby mode.

NOTE:

•฀If฀an฀error฀occurs฀during฀the฀software฀update,฀an฀error฀code฀in฀below฀will฀be฀displayed฀in฀the฀“UPDATING฀STATUS”฀column.

฀2001:฀Failed฀to฀upload฀the฀le.

฀2007:฀The฀uploaded฀le฀is฀too฀large.

฀2011:฀The฀uploaded฀le฀is฀broken.

฀2012:฀The฀uploaded฀le฀is฀broken.

฀4001:฀Received฀no฀signal฀of฀the฀HTTP฀transmission.

฀The฀error฀codes฀other฀than฀above฀may฀be฀displayed.

฀If฀an฀error฀is฀found฀during฀the฀software฀update,฀turn฀on฀the฀projector฀and฀update฀the฀le฀again.

฀When฀the฀software฀update฀is฀not฀completed฀properly฀even฀if฀you฀tried฀to฀update฀several฀times,฀please฀consult฀your฀dealer.

140

9. Appendix

❾ Troubleshooting Check List

Before฀contacting฀your฀dealer฀or฀service฀personnel,฀check฀the฀following฀list฀to฀be฀sure฀repairs฀are฀needed฀also฀by฀

referring฀to฀the฀“Troubleshooting”฀section฀in฀your฀user’s฀manual.฀This฀checklist฀below฀will฀help฀us฀solve฀your฀problem฀

more฀efciently.

*฀Print฀this฀page฀and฀the฀next฀page฀for฀your฀check.

Frequency of occurrence □ always □฀sometimes฀(How฀often?_____________________)฀□฀other฀(__________________)

Power

□

No power (POWER indicator does not light blue). See also “Status

Indicator (STATUS)”.

□

Power฀cord’s฀plug฀is฀fully฀inserted฀into฀the฀wall฀outlet.

□

Lamp cover is installed correctly.

□

Lamp Hours Used (lamp operation hours) was cleared after

lamp replacement.

□

No power even though you press and hold the POWER button.

□

Shut down during operation.

□

Power฀cord’s฀plug฀is฀fully฀inserted฀into฀the฀wall฀outlet.

□

Lamp cover is installed correctly.

□

[AUTO POWER OFF] is turned off (only models with the [AUTO

POWER OFF] function).

□

[OFF TIMER] is turned off (only models with the [OFF TIMER]

function).

Video and Audio

□

No image is displayed from your PC or video equipment to the

projector.

□

Still no image even though you connect the projector to the PC

ﬁrst, then start the PC.

□

Enabling฀your฀notebook฀PC’s฀signal฀output฀to฀the฀projector.

•฀ A฀combination฀of฀function฀keys฀will฀enable/disable฀the฀exter-

nal฀display.฀Usually,฀the฀combination฀of฀the฀“Fn”฀key฀along฀

with฀one฀of฀the฀12฀function฀keys฀turns฀the฀external฀display฀

on฀or฀off.฀

□

No image (blue or black background, no display).

□

Still no image even though you press the AUTO ADJUST button.

□

Still no image even though you carry out [RESET] in the

projector’s฀menu.

□

Signal฀cable’s฀plug฀is฀fully฀inserted฀into฀the฀input฀terminal

□

A message appears on the screen.

(฀_____________________________________________฀)

□

The source connected to the projector is active and available.

□

Still no image even though you adjust the brightness and/or

the contrast.

□

Input฀source’s฀resolution฀and฀frequency฀are฀supported฀by฀the฀

projector.

□

Image is too dark.

□

Remains unchanged even though you adjust the brightness

and/or the contrast.

□

Image is distorted.

□

Image appears to be trapezoidal (unchanged even though you

carry out the [KEYSTONE] adjustment).

□

Parts of the image are lost.

□

Still unchanged even though you press the AUTO ADJUST

button.

□

Still unchanged even though you carry out [RESET] in the

projector’s฀menu.

□

Image is shifted in the vertical or horizontal direction.

□

Horizontal and vertical positions are correctly adjusted on a

computer signal.

□

Input฀source’s฀resolution฀and฀frequency฀are฀supported฀by฀the฀

projector.

□

Some pixels are lost.

□

Image is ﬂickering.

□

Still unchanged even though you press the AUTO ADJUST

button.

□

Still unchanged even though you carry out [RESET] in the

projector’s฀menu.

□

Image shows ﬂickering or color drift on a computer signal.

□

Still unchanged even though you change [FAN MODE] from

[HIGH] to [AUTO].

□

Image appears blurry or out of focus.

□

Still฀unchanged฀even฀though฀you฀checked฀the฀signal’s฀resolution฀

on฀PC฀and฀changed฀it฀to฀projector’s฀native฀resolution.

□

Still unchanged even though you adjusted the focus.

□

No sound.

□

Audio cable is correctly connected to the audio input of the

projector.

□

Still unchanged even though you adjusted the volume level.

□

AUDIO OUT is connected to your audio equipment (only models

with the AUDIO OUT terminal).

Other

□

Remote control does not work.

□

No obstacles between the sensor of the projector and the

remote control.

□

Projector is placed near a ﬂuorescent light that can disturb the

infrared remote controls.

□

ID for the projector and for the remote are same.

□

Buttons on the projector cabinet do not work (only models with the

[CONTROL PANEL LOCK] function)

□

[CONTROL PANEL LOCK] is not turned on or is disabled in

the menu.

□

Still unchanged even though you press and hold the EXIT button

for a minimum of 10 seconds.

141

9. Appendix

In the space below please describe your problem in detail.

Information on application and environment where your projector is used

Installation environment

Screen size: inch

Screen type: □ White matte □ Beads □ Polarization

□ Wide angle □ High contrast

Throw distance: feet/inch/m

Orientation: □ Ceiling mount □ Desktop

Power outlet connection:

□

Connected directly to wall outlet

□ Connected to power cord extender or other (the

number฀of฀connected฀equipment______________)

□ Connected to a power cord reel or other (the number

of฀connected฀equipment______________)

Computer

Manufacturer:

Model number:

Notebook PC □ / Desktop □

Native resolution:

Refresh rate:

Video adapter:

Other:

Video฀equipment

VCR, DVD player, Video camera, Video game or other

Manufacturer:

Model number:

Signal cable

NEC฀standard฀or฀other฀manufacturer’s฀cable?

Model number: Length: inch/m

Distribution ampliﬁer

Model number:

Switcher

Model number:

Adapter

Model number:

Projector

DVD player

Projector

Model number:

Serial No.:

Date of purchase:

Lamp operating time (hours):

ECO MODE: □ OFF □ AUTO ECO

□ NORMAL □ ECO

Information on input signal:

Horizontal synch frequency [ ] kHz

Vertical synch frequency [ ] Hz

Synch polarity H □ (+) □ (−)

V □ (+) □ (−)

Synch type □ Separate □ Composite

□ Sync on Green

STATUS Indicator:

Steady light □ Orange □ Green

Flashing light [ ] cycles

Remote control model number:

142

9. Appendix

❿ REGISTER YOUR PROJECTOR! (for residents in the United

States, Canada, and Mexico)

Please฀take฀time฀to฀register฀your฀new฀projector.฀This฀will฀activate฀your฀limited฀parts฀and฀labor฀warranty฀and฀InstaCare฀

service฀program.

Visit฀our฀web฀site฀at฀www.necdisplay.com,฀click฀on฀support฀center/register฀product฀and฀submit฀your฀completed฀form฀online.

Upon฀receipt,฀we฀will฀send฀a฀conrmation฀letter฀with฀all฀the฀details฀you฀will฀need฀to฀take฀advantage฀of฀fast,฀reliable฀

warranty฀and฀service฀programs฀from฀the฀industry฀leader,฀NEC฀Display฀Solutions฀of฀America,฀Inc.

NEC NP-P502H REPLACED BY NP-P554W 5000-lumen Professional Installation Projector

Product's Documents

User Manual

Specifications

NEC NP-P502H REPLACED BY NP-P554W Questions and Answers
