Electric Air Pump Compressor / Air Inflator & Deflator
SLPUMP30
for SUP Stand-Up Paddle-Boards
and Water Sport Pool Inflatables
Electric Air Pump Compressor / Air Inflator & Deflator
SLPUMP30
for SUP Stand-Up Paddle-Boards
and Water Sport Pool Inflatables
I. PRODUCT INTRODUCTION
SLPUMP20 is an intelligent DC electric pump with the preset pressure LCD
screen, which can be used for inflatable tent, SUP, etc. Thanks to the intelligent
pressure system, for example, if a pressure value is preset, when the pressure
reaches the preset pressure value, the pump will automatically stop inflating.
II. LIST OF ACCESSORIES
Please make sure that the following accessories are in the box before using it, if
any missing, please contact with the local supplier.
III. DETAILS OF ACCESSORIES
www.SereneLifeHome.com
1
READ THIS USER MANUAL CAREFULLY BEFORE USING THIS EQUIPMENT.
User Instructions must always be available to the user
and are not to be removed except by the user of this equipment.
CATALOGUE
I. Product Introduction
II. List of Accessories
III. Details of Accessories
IV. Safety Instructions
V. Inflation Operation
VI. Precautions
VII. Fault Handling
VIII. Maintenance and Storage
IX. Features and Technical Specs
www.SereneLifeHome.com
2
Air pump Hose Instruction Book
2
2
2
3
4
5
6
6
8
4
5
6
7
8
1
3
2
11
10
9
20.00
Inflation inlet
Deflation outlet
DC plug
Pressure value LCD screen
Pressure unit toggle button
Pressurizing button
Decompressing button
On/off button
Hose
Air tap
Flexible conduit adaptor
I. PRODUCT INTRODUCTION
SLPUMP20 is an intelligent DC electric pump with the preset pressure LCD
screen, which can be used for inflatable tent, SUP, etc. Thanks to the intelligent
pressure system, for example, if a pressure value is preset, when the pressure
reaches the preset pressure value, the pump will automatically stop inflating.
II. LIST OF ACCESSORIES
Please make sure that the following accessories are in the box before using it, if
any missing, please contact with the local supplier.
III. DETAILS OF ACCESSORIES
www.SereneLifeHome.com
1
READ THIS USER MANUAL CAREFULLY BEFORE USING THIS EQUIPMENT.
User Instructions must always be available to the user
and are not to be removed except by the user of this equipment.
CATALOGUE
I. Product Introduction
II. List of Accessories
III. Details of Accessories
IV. Safety Instructions
V. Inflation Operation
VI. Precautions
VII. Fault Handling
VIII. Maintenance and Storage
IX. Features and Technical Specs
www.SereneLifeHome.com
2
Air pump Hose Instruction Book
2
2
2
3
4
5
6
6
8
4
5
6
7
8
1
3
2
11
10
9
20.00
Inflation inlet
Deflation outlet
DC plug
Pressure value LCD screen
Pressure unit toggle button
Pressurizing button
Decompressing button
On/off button
Hose
Air tap
Flexible conduit adaptor
V. INFLATION OPERATION
• Connect the end with Flexible conduit adaptor of the hose with the air pump
inflation inlet (1), and twist clockwise to tighten it, as Figure 1.
• Install the other end of the hose into the supporting air tap of the air bag
(step ① in Figure 2), and twist clockwise to tighten it, and then insert the
inflation valve of the air bag and twist clockwise to fix it (step ② in Figure 2).
• Plug the DC plug into the 12V DC socket.
• Press the pressure unit toggle button to select the unit you need.
• Press the pressurizing button or decompressing button to set the
pressure value you need, with the range of the pressure value from 0 to 16PSI,
(1PSI=0.0689BAR)
• After finishing the above steps, press the power switch button to start to
inflate.
• During the inflating process, you can press the pressurizing button or
decompressing button to increase or reduce the pressure value, press the
pressure unit toggle button to switch the unit, and press the On/Off button
to stop.
• When the pressure reaches the set value, the air pump will stop working
automatically.
• After completing the inflation, pull out the DC plug from the 12V DC socket.
• After pulling out the DC plug, please take down the hose from the air pump and
air bag and store it.
• Notice: The factory set pressure value of the air pump is 10PSI (10PSI=0.689BAR),
and at the time of the secondary use, the set pressure value for the last time use
will be displayed by default.
• Notice: After powered on, if there is no operation within 2 minutes, the air
pump will enter standby mode, and the machine can be initiated by pressing
the power switch button
www.SereneLifeHome.com
3
IV. SAFETY INSTRUCTIONS
• Warning: In order to reduce the risk of injury, please keep children away from it.
Always supervise children and incapacitated person contacting or using this air
pump.
• Warning: Children shall be kept far away from this product and wire.
• Warning: This product is not applicable for the person with declining physical
strength, sensory ability or mental capacity, the person lack of skill and the
mentally retarded person, unless they are under the protection of their
guardians, supervised and directed at the same time.
• Warning: Before moving, maintaining, repairing or adjusting this product,
please first pull out the DC plug from the socket.
• Warning: Please do not bury the wire in the soil, and it shall be place in the safe
zone where it won't be damaged by mower or other equipment.
• Warning: If the power wire is damaged, the power wire must be changed by
the manufacturer or its service agent or the similar authorized personnel, in
case of any risk.
• Warning: If you are standing in a place with water or your hands are wet, please
don't plug or pull the DC plug.
• Warning: Before inflating, please pay attention to check the maximum bearable
pressure of the inflatable product, because the air bag may be damaged upon
exceeding the maximum bearable pressure.
• Warning: Before using, please check the cigarette lighter socket to make sure
that there is no rust or residue inside. The cigarette lighter socket with poor
electric conduction may cause overheating of the product or power source,
which will damage the product.
• Warning: The purpose of using this product is limited to the description in the
instruction book.
www.SereneLifeHome.com
4
Figure 2Figure 1
V. INFLATION OPERATION
• Connect the end with Flexible conduit adaptor of the hose with the air pump
inflation inlet (1), and twist clockwise to tighten it, as Figure 1.
• Install the other end of the hose into the supporting air tap of the air bag
(step ① in Figure 2), and twist clockwise to tighten it, and then insert the
inflation valve of the air bag and twist clockwise to fix it (step ② in Figure 2).
• Plug the DC plug into the 12V DC socket.
• Press the pressure unit toggle button to select the unit you need.
• Press the pressurizing button or decompressing button to set the
pressure value you need, with the range of the pressure value from 0 to 16PSI,
(1PSI=0.0689BAR)
• After finishing the above steps, press the power switch button to start to
inflate.
• During the inflating process, you can press the pressurizing button or
decompressing button to increase or reduce the pressure value, press the
pressure unit toggle button to switch the unit, and press the On/Off button
to stop.
• When the pressure reaches the set value, the air pump will stop working
automatically.
• After completing the inflation, pull out the DC plug from the 12V DC socket.
• After pulling out the DC plug, please take down the hose from the air pump and
air bag and store it.
• Notice: The factory set pressure value of the air pump is 10PSI (10PSI=0.689BAR),
and at the time of the secondary use, the set pressure value for the last time use
will be displayed by default.
• Notice: After powered on, if there is no operation within 2 minutes, the air
pump will enter standby mode, and the machine can be initiated by pressing
the power switch button
www.SereneLifeHome.com
3
IV. SAFETY INSTRUCTIONS
• Warning: In order to reduce the risk of injury, please keep children away from it.
Always supervise children and incapacitated person contacting or using this air
pump.
• Warning: Children shall be kept far away from this product and wire.
• Warning: This product is not applicable for the person with declining physical
strength, sensory ability or mental capacity, the person lack of skill and the
mentally retarded person, unless they are under the protection of their
guardians, supervised and directed at the same time.
• Warning: Before moving, maintaining, repairing or adjusting this product,
please first pull out the DC plug from the socket.
• Warning: Please do not bury the wire in the soil, and it shall be place in the safe
zone where it won't be damaged by mower or other equipment.
• Warning: If the power wire is damaged, the power wire must be changed by
the manufacturer or its service agent or the similar authorized personnel, in
case of any risk.
• Warning: If you are standing in a place with water or your hands are wet, please
don't plug or pull the DC plug.
• Warning: Before inflating, please pay attention to check the maximum bearable
pressure of the inflatable product, because the air bag may be damaged upon
exceeding the maximum bearable pressure.
• Warning: Before using, please check the cigarette lighter socket to make sure
that there is no rust or residue inside. The cigarette lighter socket with poor
electric conduction may cause overheating of the product or power source,
which will damage the product.
• Warning: The purpose of using this product is limited to the description in the
instruction book.
www.SereneLifeHome.com
4
Figure 2Figure 1
www.SereneLifeHome.com
5
VI. DEFLATION OPERATION
• Remove the hose from the inflation inlet. Connect the end with flexible conduit
adaptor (11) of the hose with the air pump deflation outlet (2), and twist clock
wise to tighten it, as Figure 3,and the other end shall still be to the airbag.
• Press the button of the power switch of air pump, and start the deflation
until all the gas is discharged, then the power can be turned off to stop the
deflation.
VI. PRECAUTIONS
• The applied power source must be the 12V DC power source (as Figure 4).
• Do not block the inflation inlet (1) and Deflation outlet (2), and ensure that the
inflation inlet (1) and Deflation outlet (2) shall remain smooth at all times.
• Observe the local waste treatment provisions, and it is not allowed to throw
the air pump away randomly.
• Don't use this product when the hose is damaged, and please change the hose
immediately.
• Don't pull out the hose when inflating, because that the high pressure may hurt
the physical body.
• Don't make the air pump work for more than 20 minutes, because that motor
overheating may cause internal damage; and the air pump shall be fully cooled
for 30 minutes after continuously working up to 20 minutes.
www.SereneLifeHome.com
6
• Please don't use this air pump if any part is damaged, and please contact with
the professional personnel to repair it.
• This product shall not be exposed to the rain or immersed in water. In order to
prevent risk, the inflation inlet shall not be forward to face or body.
• Please don't not leave while inflating.
• Please start the car when using the product, in case of unnecessary damage.
VII. FAULT HANDLING
VIII. MAINTENANCE AND STORAGE
• After using, or if you want to move, maintain or adjust the product, please first
pull out the DC plug from the socket.
• When it is idle, it shall be properly stored after being fully cooled.
• It shall not be exposed to the rain or immersed in water.
• Please store it in the dry and ventilated place.
Figure 3
Fault Inspection Solution
The air pump
cannot be started
normally.
1. The power source
is not plugged
properly.
2. The fuse in DC
plug (7) is burnt
out.
3. Overheating or
overload causes
motor stop.
1. Make sure that the power
wire is plugged in the 12V
DC socket.
2. Change the fuse.
3. Cool the motor and restart it.
4. If the problem cannot be
solved, please contact with
the manufacturer or its
service agent or the similar
authorized personnel.
Slow or abnormal
inflation.
1. Check whether
the hose is blocked
or cracked.
2. The joint between
the hose and air
pump or air bag is
not installed
properly.
1. Change the hose or make it
unblocked, and check
whether the hose is cracked.
2. Reinstall the hose.
3. If the problem cannot be
solved, please contact with
the manufacturer or its
service agent or the similar
authorized personnel.
Figure 4
www.SereneLifeHome.com
5
VI. DEFLATION OPERATION
• Remove the hose from the inflation inlet. Connect the end with flexible conduit
adaptor (11) of the hose with the air pump deflation outlet (2), and twist clock
wise to tighten it, as Figure 3,and the other end shall still be to the airbag.
• Press the button of the power switch of air pump, and start the deflation
until all the gas is discharged, then the power can be turned off to stop the
deflation.
VI. PRECAUTIONS
• The applied power source must be the 12V DC power source (as Figure 4).
• Do not block the inflation inlet (1) and Deflation outlet (2), and ensure that the
inflation inlet (1) and Deflation outlet (2) shall remain smooth at all times.
• Observe the local waste treatment provisions, and it is not allowed to throw
the air pump away randomly.
• Don't use this product when the hose is damaged, and please change the hose
immediately.
• Don't pull out the hose when inflating, because that the high pressure may hurt
the physical body.
• Don't make the air pump work for more than 20 minutes, because that motor
overheating may cause internal damage; and the air pump shall be fully cooled
for 30 minutes after continuously working up to 20 minutes.
www.SereneLifeHome.com
6
• Please don't use this air pump if any part is damaged, and please contact with
the professional personnel to repair it.
• This product shall not be exposed to the rain or immersed in water. In order to
prevent risk, the inflation inlet shall not be forward to face or body.
• Please don't not leave while inflating.
• Please start the car when using the product, in case of unnecessary damage.
VII. FAULT HANDLING
VIII. MAINTENANCE AND STORAGE
• After using, or if you want to move, maintain or adjust the product, please first
pull out the DC plug from the socket.
• When it is idle, it shall be properly stored after being fully cooled.
• It shall not be exposed to the rain or immersed in water.
• Please store it in the dry and ventilated place.
Figure 3
Fault Inspection Solution
The air pump
cannot be started
normally.
1. The power source
is not plugged
properly.
2. The fuse in DC
plug (7) is burnt
out.
3. Overheating or
overload causes
motor stop.
1. Make sure that the power
wire is plugged in the 12V
DC socket.
2. Change the fuse.
3. Cool the motor and restart it.
4. If the problem cannot be
solved, please contact with
the manufacturer or its
service agent or the similar
authorized personnel.
Slow or abnormal
inflation.
1. Check whether
the hose is blocked
or cracked.
2. The joint between
the hose and air
pump or air bag is
not installed
properly.
1. Change the hose or make it
unblocked, and check
whether the hose is cracked.
2. Reinstall the hose.
3. If the problem cannot be
solved, please contact with
the manufacturer or its
service agent or the similar
authorized personnel.
Figure 4
www.SereneLifeHome.com
7
www.SereneLifeHome.com
8

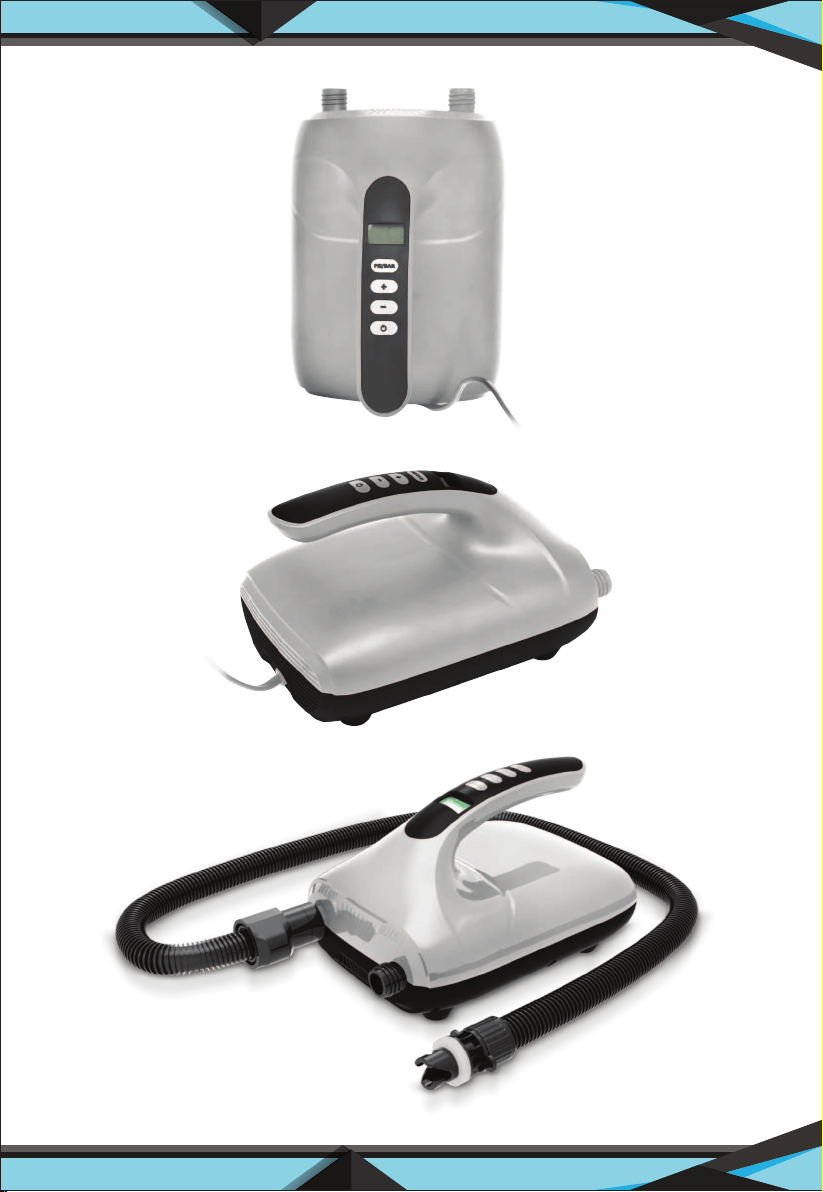

IX. FEATURES AND TECHNICAL SPECS
Features:
• Compact & Portable Air Compressor
• Air Deflator Feature Quickly Deflates, Removes Air
• Hassle-Free ‘Insert & Pump’ Operation
• Simple Electric Plug-in Design
• Integrated, Wired Power Cable
• Powered via Car Power Outlet / Cigarette Accessory Jack
• Digital LCD Display & Button Controls
• Adjustable PSI Air Pressure Settings
• Long Flexible Air Hose
• Convenient Carry Handle
• Disassembles for Space-Saving Vehicle Trunk Storage
What’s in the Box:
• Air Pump
• Detachable Air Hose
Technical Specs:
• Power Output: 110Watt Max
• Selectable Pressure Units: PSI / Bar
• Adjustable Air Pressure: 0-20 PSI (Up to 1.378 Bar)
• Air Hose Length: 3.3’ ft.
• Car CigPower Cable Length: 9.8’ ft.
• Power: DC 12V
• Dimensions (L x W x H): 9.8’’ x6.9’’x6.1’’ -inches
www.SereneLifeHome.com
7
www.SereneLifeHome.com
8
IX. FEATURES AND TECHNICAL SPECS
Features:
• Compact & Portable Air Compressor
• Air Deflator Feature Quickly Deflates, Removes Air
• Hassle-Free ‘Insert & Pump’ Operation
• Simple Electric Plug-in Design
• Integrated, Wired Power Cable
• Powered via Car Power Outlet / Cigarette Accessory Jack
• Digital LCD Display & Button Controls
• Adjustable PSI Air Pressure Settings
• Long Flexible Air Hose
• Convenient Carry Handle
• Disassembles for Space-Saving Vehicle Trunk Storage
What’s in the Box:
• Air Pump
• Detachable Air Hose
Technical Specs:
• Power Output: 110Watt Max
• Selectable Pressure Units: PSI / Bar
• Adjustable Air Pressure: 0-20 PSI (Up to 1.378 Bar)
• Air Hose Length: 3.3’ ft.
• Car CigPower Cable Length: 9.8’ ft.
• Power: DC 12V
• Dimensions (L x W x H): 9.8’’ x6.9’’x6.1’’ -inches
