NEC NP-UM330WI-WK1 3300-Lumen Interactive Widescreen Ultra User Manual

Portable Projector

UM330X/UM280X/

UM 330W/UM 280W

User’s Manual

The UM280X and UM280W are not distributed in North America.

Model No.

NP-UM330X, NP-UM280X, NP-UM330W, NP-UM280W

Ver. 1/09/12

• Apple,Mac,MacOS,MacBook,andiMacaretrademarksofAppleInc.registeredintheU.S.andothercountries.

• Microsoft,Windows,WindowsVista,InternetExplorer,.NETFrameworkandPowerPointareeitheraregistered

trademarkortrademarkofMicrosoftCorporationintheUnitedStatesand/orothercountries.

• IntelandIntelCorearetrademarksofIntelCorporationintheU.S.and/orothercountries.

• PowerPCisaregisteredtrademarkoftheInternationalBusinessMachinesCorporation.

• MicroSaverisaregisteredtrademarkofKensingtonComputerProductsGroup,adivisionofACCOBrands.

• VirtualRemoteToolusesWinI2C/DDClibrary,©NicomsoftLtd.

• HDMI,theHDMILogoandHigh-DenitionMultimediaInterfacearetrademarksorregisteredtrademarksofHDMI

LicensingLLC.

• TrademarkPJLinkisatrademarkappliedfortrademarkrightsinJapan,theUnitedStatesofAmericaandother

countries and areas.

• Wi-Fi

,Wi-FiAlliance

,andWi-FiProtectedAccess(WPA,WPA2)

areregisteredtrademarksoftheWi-FiAlli-

ance.

• Blu-rayisatrademarkofBlu-rayDiscAssociation

• CRESTRONandROOMVIEWareregisteredtrademarksofCrestronElectronics,Inc.intheUnitedStatesandother

countries.

• Otherproductandcompanynamesmentionedinthisuser’smanualmaybethetrademarksorregisteredtrademarks

oftheirrespectiveholders.

• GPL/LGPLSoftwareLicenses

 TheproductincludessoftwarelicensedunderGNUGeneralPublicLicense(GPL),GNULesserGeneralPublic

License(LGPL),andothers.

 Formoreinformationoneachsoftware,see“readme.pdf”insidethe“aboutGPL&LGPL”folderonthesuppliedCD-

ROM.

NOTES

(1)Thecontentsofthisuser’smanualmaynotbereprintedinpartorwholewithoutpermission.

(2)Thecontentsofthisuser’smanualaresubjecttochangewithoutnotice.

(3)Greatcarehasbeentakeninthepreparationofthisuser’smanual;however,shouldyounoticeanyquestionable

points,errorsoromissions,pleasecontactus.

(4)Notwithstandingarticle(3),NECwillnotberesponsibleforanyclaimsonlossofprotorothermattersdeemed

toresultfromusingtheProjector.

Important Information

Safety Cautions

Precautions

PleasereadthismanualcarefullybeforeusingyourNECprojectorandkeepthemanualhandyforfuturereference.

CAUTION

Toturnoffmainpower,besuretoremovetheplugfrompoweroutlet.

Thepoweroutletsocketshouldbeinstalledasneartotheequipmentaspossible,andshouldbeeasily

accessible.

CAUTION

TOPREVENTSHOCK,DONOTOPENTHECABINET.

THEREAREHIGH-VOLTAGECOMPONENTSINSIDE.

REFERSERVICINGTOQUALIFIEDSERVICEPERSONNEL.

Thissymbolwarnstheuserthatuninsulatedvoltagewithintheunitmaybesufcienttocauseelectrical

shock.Therefore,itisdangeroustomakeanykindofcontactwithanypartinsideoftheunit.

Thissymbolalertstheuserthatimportantinformationconcerningtheoperationandmaintenanceofthis

unithasbeenprovided.

Theinformationshouldbereadcarefullytoavoidproblems.

WARNING:TOPREVENTFIREORSHOCK,DONOTEXPOSETHISUNITTORAINORMOISTURE.

DONOTUSETHISUNIT’SPLUGWITHANEXTENSIONCORDORINANOUTLETUNLESSALLTHEPRONGS

CANBEFULLYINSERTED.

DOC Compliance Notice (for Canada only)

ThisClass Bdigital apparatusmeetsallrequirementsoftheCanadianInterference-CausingEquipmentRegula-

tions.

Machine Noise Information Regulation - 3. GPSGV,

Thehighestsoundpressurelevelislessthan70dB(A)inaccordancewithENISO7779.

CAUTION

Avoiddisplayingstationaryimagesforaprolongedperiodoftime.

DoingsocanresultintheseimagesbeingtemporarilysustainedonthesurfaceoftheLCDpanel.

Ifthisshouldhappen,continuetouseyourprojector.Thestaticbackgroundfrompreviousimageswill

disappear.

Disposing of your used product

EU-widelegislationasimplementedineachMemberStaterequiresthatusedelectricalandelectronicprod-

uctscarryingthemark(left)mustbedisposedofseparatelyfromnormalhouseholdwaste.Thisincludes

projectorsandtheirelectricalaccessoriesorlamps.Whenyoudisposeofsuchproducts,pleasefollowthe

guidanceofyourlocalauthorityand/orasktheshopwhereyoupurchasedtheproduct.

Aftercollectingtheusedproducts,theyarereusedandrecycledinaproperway.Thiseffortwillhelpus

reducethewastesaswellasthenegativeimpactsuchasmercurycontainedinalamptothehumanhealth

andtheenvironmentattheminimumlevel.

ThemarkontheelectricalandelectronicproductsonlyappliestothecurrentEuropeanUnionMember

States.

Important Information

WARNING TO CALIFORNIA RESIDENTS:

Handlingthecablessuppliedwiththisproductwillexposeyoutolead,achemicalknowntotheStateofCalifornia

tocausebirthdefectsorotherreproductiveharm.WASHHANDSAFTERHANDLING.

RF Interference (for USA only)

WARNING

TheFederalCommunicationsCommissiondoesnotallowanymodicationsorchangestotheunitEXCEPTthose

speciedbyNECDisplaySolutionsofAmerica,Inc.inthismanual.Failuretocomplywiththisgovernmentregu-

lationcouldvoidyourrighttooperatethisequipment.Thisequipmenthasbeentestedandfoundtocomplywith

thelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,uses,and

canradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause

harmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.

Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby

turningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

ForUKonly:InUK,aBSapprovedpowercordwithmouldedplughasaBlack(veAmps)fuseinstalledforusewith

thisequipment.Ifapowercordisnotsuppliedwiththisequipmentpleasecontactyoursupplier.

Important Safeguards

Thesesafetyinstructionsaretoensurethelonglifeofyourprojectorandtopreventreandshock.Pleasereadthem

carefullyandheedallwarnings.

Installation

• Donotplacetheprojectorinthefollowingconditions:

- on an unstable cart, stand, or table.

- nearwater,baths,ordamprooms.

- indirectsunlight,nearheaters,orheatradiatingappliances.

- inadusty,smokyorsteamyenvironment.

- onasheetofpaperorcloth,rugsorcarpets.

• Ifyouwishtohavetheprojectorinstalledontheceiling:

- Donotattempttoinstalltheprojectoryourself.

- Theprojectormustbeinstalledbyqualiedtechniciansinordertoensureproperoperationandreducetherisk

ofbodilyinjury.

- Inaddition,theceilingmustbestrongenoughtosupporttheprojectorandtheinstallationmustbeinaccordance

withanylocalbuildingcodes.

- Pleaseconsultyourdealerformoreinformation.

iii

Important Information

WARNING

• Donotplaceanyobjects,whichareeasilyaffectedbyheat,infrontoftheprojectionwindow.Doingsocould

leadtotheobjectmeltingfromtheheatthatisemittedfromthelightoutput.

Place the projector in a horizontal position

Thetiltangleoftheprojectorshouldnotexceed10degrees,norshouldtheprojectorbeinstalledinanywayother

thanthedesktopandceilingmount,otherwiselamplifecoulddecreasedramatically.

+10˚

−10˚

Fire and Shock Precautions

• Ensurethatthereissufcientventilationandthatventsareunobstructedtopreventthebuild-upofheatinsideyour

projector.Allowatleast4inches(10cm)ofspacebetweenyourprojectorandawall.

• Donottrytotouchtheexhaustventasitcanbecomeheatedwhiletheprojectoristurnedonandimmediatelyafter

theprojectoristurnedoff.Partsoftheprojectormaybecometemporarilyheatediftheprojectoristurnedoffwith

thePOWERbuttonoriftheACpowersupplyisdisconnectedduringnormalprojectoroperation.

 Usecautionwhenpickinguptheprojector.

• Preventforeignobjectssuchaspaperclipsandbitsofpaperfromfallingintoyourprojector.Donotattempttoretrieve

anyobjectsthatmightfallintoyourprojector.Donotinsertanymetalobjectssuchasawireorscrewdriverintoyour

projector.Ifsomethingshouldfallintoyourprojector,disconnectitimmediatelyandhavetheobjectremovedbya

qualiedservicepersonnel.

• Donotplaceanyobjectsontopoftheprojector.

• Donottouchthepowerplugduringathunderstorm.Doingsocancauseelectricalshockorre.

• Theprojectorisdesignedtooperateonapowersupplyof100-240VAC50/60Hz.Ensurethatyourpowersupply

tsthisrequirementbeforeattemptingtouseyourprojector.

• Donotlookintotheprojectionwindowwhiletheprojectorison.Seriousdamagetoyoureyescouldresult.

• Keepanyitemssuchasmagnifyingglassoutofthelightpathoftheprojector.Thelightbeingprojectedfromthe

projectionwindowisextensive,thereforeanykindofabnormalobjectsthatcanredirectlightcomingoutofthe

projectionwindow,cancauseunpredictableoutcomesuchasreorinjurytotheeyes.

• Donotplaceanyobjects,whichareeasilyaffectedbyheat,infrontofaprojectorexhaustvent.

 Doingsocouldleadtotheobjectmeltingorgettingyourhandsburnedfromtheheatthatisemittedfromtheex-

haust.

• Donotsplashwaterovertheprojector.Doingsocancauseelectricalshockorre.Iftheprojectorgetswet,turnoff

theprojector,unplugthepowercordandhavetheprojectorservicedbyaqualiedservicepersonnel.

• Handlethepowercordcarefully.Adamagedorfrayedpowercordcancauseelectricshockorre.

- Donotuseanypowercordotherthantheonesuppliedwiththeprojector.

Important Information

- Donotbendortugthepowercordexcessively.

- Donotplacethepowercordundertheprojector,oranyheavyobject.

- Donotcoverthepowercordwithothersoftmaterialssuchasrugs.

- Donotheatthepowercord.

- Donothandlethepowerplugwithwethands.

• Turnofftheprojector,unplugthepowercordandhavetheprojectorservicedbyaqualiedservicepersonnelunder

thefollowingconditions:

- Whenthepowercordorplugisdamagedorfrayed.

- Ifliquidhasbeenspilledintotheprojector,orifithasbeenexposedtorainorwater.

- Iftheprojectordoesnotoperatenormallywhenyoufollowtheinstructionsdescribedinthisuser’smanual.

- Iftheprojectorhasbeendroppedorthecabinethasbeendamaged.

- Iftheprojectorexhibitsadistinctchangeinperformance,indicatinganeedforservice.

• Disconnectthepowercordandanyothercablesbeforecarryingtheprojector.

• Turnofftheprojectorandunplugthepowercordbeforecleaningthecabinetorreplacingthelamp.

• Turnofftheprojectorandunplugthepowercordiftheprojectorisnottobeusedforanextendedperiodoftime.

• WhenusingaLANcable(onlymodelswiththeRJ-45LANport):

 Forsafety,donotconnecttotheconnectorforperipheraldevicewiringthatmighthaveexcessivevoltage.

CAUTION

• Besuretotightenthescrewsafterattachingthecablecover.Failuretodosomaycausethecablecovertocome

offandfall,resultingininjuryordamagetothecablecover.

• Donotputbundledcablesinthecablecover.Doingsomaydamagethepowercord,resultinginare.

• Donotholdthecablecoverwhilemovingtheprojectorordonotapplyexcessiveforcetothecablecover.Doing

somaydamagethecablecover,resultingininjury.

• Donotusethefeetforpurposesotherthanoriginallyintended.Misusessuchasgrippingthetilt-footorhanging

onthewallcancausedamagetotheprojector.

• Donotsendtheprojectorinthesoftcasebyparceldeliveryserviceorcargoshipment.Theprojectorinsidethe

softcasecouldbedamaged.

• Select[HIGH]inFanmodeifyoucontinuetousetheprojectorforconsecutivedays.(Fromthemenu,select

[SETUP]→[OPTIONS(1)]→[FANMODE]→[HIGH].)

• DonotturnofftheACpowerfor60secondsafterthelampisturnedonandwhilethePOWERindicatorisblink-

ingblue.Doingsocouldcauseprematurelampfailure.

Remote Control Precautions

• Handletheremotecontrolcarefully.

• Iftheremotecontrolgetswet,wipeitdryimmediately.

• Avoidexcessiveheatandhumidity.

• Donotshort,heat,ortakeapartbatteries.

• Donotthrowbatteriesintore.

• Ifyouwillnotbeusingtheremotecontrolforalongtime,removethebatteries.

• Ensurethatyouhavethebatteries’polarity(+/−)alignedcorrectly.

• Donotusenewandoldbatteriestogether,orusedifferenttypesofbatteriestogether.

• Disposeofusedbatteriesaccordingtoyourlocalregulations.

Important Information

Note for US Residents

Thelampinthisproductcontainsmercury.PleasedisposeaccordingtoLocal,StateorFederalLaws.

Lamp Replacement

• Usethespeciedlampforsafetyandperformance.

• Toreplacethelamp,followallinstructionsprovidedonpage120.

• Besuretoreplacethelampandlterwhenthemessage[THE LAMP HAS REACHED THE END OF ITS USABLE

LIFE. PLEASE REPLACE THE LAMP AND FILTER.]appears.Ifyoucontinuetousethelampafterthelamphas

reachedtheendofitsusablelife,thelampbulbmayshatter,andpiecesofglassmaybescatteredinthelampcase.

Donottouchthemasthepiecesofglassmaycauseinjury.

 Ifthishappens,contactyourdealerforlampreplacement.

A Lamp Characteristic

Theprojectorhasahigh-pressuremercurylampasalightsource.

Alamphasacharacteristicthatitsbrightnessgraduallydecreaseswithage.Alsorepeatedlyturningthelampon

andoffwillincreasethepossibilityofitslowerbrightness.

Theactuallamplifemayvarydependingupontheindividuallamp,theenvironmentalconditionsandusage.

CAUTION:

• DONOTTOUCHTHELAMPimmediatelyafterithasbeenused.Itwillbeextremelyhot.Turntheprojectoroff

andthendisconnectthepowercord.Allowatleastonehourforthelamptocoolbeforehandling.

• Whenremovingthelampfromaceiling-mountedprojector,makesurethatnooneisundertheprojector.Glass

fragmentscouldfallifthelamphasbeenburnedout.

About High Altitude mode

• Set[FANMODE]to[HIGHALTITUDE]whenusingtheprojectorataltitudesapproximately5500feet/1700meters

orhigher.

 Usingtheprojectorataltitudesapproximately5500feet/1700metersorhigherwithoutsettingto[HIGHALTITUDE]

cancausetheprojectortooverheatandtheprotectorcouldshutdown.Ifthishappens,waitacoupleminutesand

turnontheprojector.

• Usingtheprojectorataltitudeslessthanapproximately5500feet/1700metersandsettingto[HIGHALTITUDE]

cancausethelamptoovercool,causingtheimagetoicker.Switch[FANMODE]to[AUTO].

• Usingtheprojectorataltitudesapproximately5500feet/1700metersorhighercanshortenthelifeofopticalcom-

ponentssuchasthelamp.

About Copyright of original projected pictures:

Pleasenotethatusingthisprojectorforthepurposeofcommercialgainortheattractionofpublicattentioninavenue

suchasacoffeeshoporhotelandemployingcompressionorexpansionofthescreenimagewiththefollowingfunc-

tionsmayraiseconcernabouttheinfringementofcopyrightswhichareprotectedbycopyrightlaw.

[ASPECTRATIO],[KEYSTONE],Magnifyingfeatureandothersimilarfeatures.

Turkish RoHS information relevant for Turkish market

EEE Yonetmeliğine Uygundur.

Thisdeviceisnotintendedforuseinthedirecteldofviewatvisualdisplayworkplaces.Toavoidincommodingreec-

tionsatvisualdisplayworkplacesthisdevicemustnotbeplacedinthedirecteldofview.

Table of Contents

Important Information ............................................................................................i

1. Introduction .......................................................................................................... 1

1What’sintheBox? ......................................................................................................... 1

IntroductiontotheProjector .......................................................................................... 2

Featuresyou’llenjoy: ............................................................................................... 2

Aboutthisuser’smanual .......................................................................................... 3

PartNamesoftheProjector .......................................................................................... 4

TopandScreenSideofProjector ............................................................................ 4

TerminalPanelSideofProjector .............................................................................. 4

RemovingandAttachingtheCableCover ............................................................... 5

TopFeatures ............................................................................................................ 7

TerminalPanelFeatures .......................................................................................... 8

PartNamesoftheRemoteControl ............................................................................... 9

BatteryInstallation ................................................................................................. 10

RemoteControlPrecautions .................................................................................. 10

OperatingRangeforWirelessRemoteControl ...................................................... 10

OperatingEnvironmentforSoftwareIncludedonCD-ROM ........................................ 11

OperatingEnvironment .......................................................................................... 12

2. Projecting an Image (Basic Operation) .............................................. 14

1FlowofProjectinganImage ........................................................................................ 14

ConnectingYourComputer/ConnectingthePowerCord ............................................. 15

TurningontheProjector .............................................................................................. 16

NoteonStartupscreen(MenuLanguageSelectscreen) ...................................... 17

SelectingaSource ...................................................................................................... 18

Selectingthecomputerorvideosource................................................................. 18

AdjustingthePictureSizeandPosition ....................................................................... 19

Adjustinghorizontal/verticalposition ...................................................................... 20

Adjustingthefocus(Focusring) ............................................................................ 20

Adjustingthetilt(Tiltfoot) ...................................................................................... 21

Finelyadjustingtheverticaltilt ............................................................................... 21

Adjustingthesize[DigitalZoom] ............................................................................ 22

CorrectingKeystoneDistortionManually .................................................................... 23

Adjustingwithbuttonsonthecabinet .................................................................... 23

Adjustingwiththeremotecontrol ........................................................................... 24

OptimizingComputerSignalAutomatically ................................................................. 25

AdjustingtheImageUsingAutoAdjust .................................................................. 25

TurningUporDownVolume ........................................................................................ 25

TurningofftheProjector .............................................................................................. 26

WhenMovingtheProjector ......................................................................................... 27

3. Convenient Features ..................................................................................... 28

1TurningofftheImageandSound ................................................................................ 28

FreezingaPicture ....................................................................................................... 28

EnlargingaPicture ...................................................................................................... 28

ChangingEcoMode/CheckingEnergy-SavingEffect ................................................ 29

vii

Table of Contents

UsingEcoMode[ECOMODE] .............................................................................. 29

CheckingEnergy-SavingEffect[CARBONMETER] ............................................. 30

PreventingtheUnauthorizedUseoftheProjector[SECURITY] ................................. 31

UsingtheComputerCable(VGA)toOperatetheProjector(VirtualRemoteTool) ..... 34

OperatingYourComputer’sMouseFunctionsfromtheProjector’sRemoteControl

viatheUSBCable(RemoteMouseFunction) ....................................................... 40

ProjectingYourComputer’sScreenImagefromtheProjectorviatheUSBCable

(USBDisplay) ........................................................................................................ 41

ControllingtheProjectorbyUsinganHTTPBrowser ................................................. 43

ControllingtheProjectoroveraLAN(PCControlUtilityPro4/Pro5) ......................... 50

ProjectingYourComputer’sScreenImagefromtheProjectoroveraLAN(Image

ExpressUtilityLite) ................................................................................................ 54

StartingImageExpressUtilityLitefromaUSBMemoryorSDCard .................... 57

ProjectinganImagefromanAngle(GeometricCorrectionToolinImageExpress

UtilityLite) .............................................................................................................. 59

WhatyoucandowithGCT .................................................................................... 59

ProjectinganImagefromanAngle(GCT) ............................................................. 59

ConnectingYourMicrophone ....................................................................................... 61

4. Using the Viewer ............................................................................................. 62

❶WhatyoucandowiththeViewer ................................................................................. 62

❷ProjectingimagesstoredinaUSBmemorydevice .................................................... 64

ConvertingPowerPointlestoSlides(ViewerPPTConverter3.0) ............................. 70

5. Using On-Screen Menu ................................................................................ 73

1UsingtheMenus .......................................................................................................... 73

MenuElements ............................................................................................................ 74

ListofMenuItems ....................................................................................................... 75

MenuDescriptions&Functions[SOURCE] ................................................................ 78

COMPUTER .......................................................................................................... 78

HDMI1and2 .......................................................................................................... 78

VIDEO .................................................................................................................... 78

S-VIDEO ................................................................................................................ 78

VIEWER ................................................................................................................. 78

NETWORK ............................................................................................................. 78

USBDISPLAY ........................................................................................................ 78

MenuDescriptions&Functions[ADJUST] .................................................................. 79

[PICTURE] ............................................................................................................. 79

[IMAGEOPTIONS] ................................................................................................ 82

MenuDescriptions&Functions[SETUP] .................................................................... 86

[GENERAL] ............................................................................................................ 86

[MENU] .................................................................................................................. 88

[INSTALLATION] .................................................................................................... 90

[OPTIONS(1)] ........................................................................................................ 92

[OPTIONS(2)] ........................................................................................................ 94

SettinguptheProjectorforaWiredLANConnection[WIREDLAN] ..................... 96

SettinguptheProjectorforaWirelessLANConnection(withtheoptionalUSB

WirelessLANUnitequipped)[WIRLESSLAN] ...................................................... 97

viii

Table of Contents

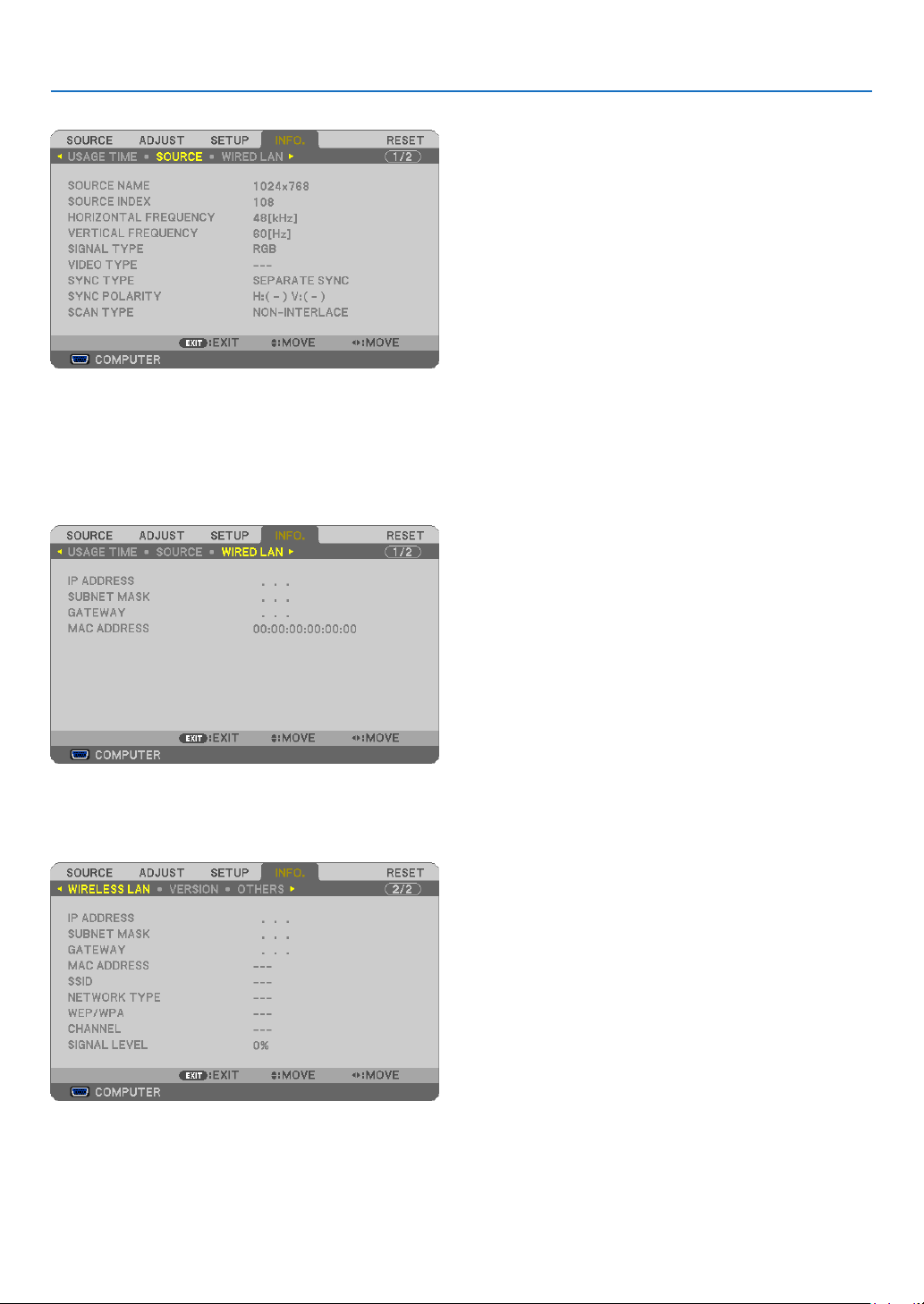

MenuDescriptions&Functions[INFO.] ...................................................................... 99

[USAGETIME] ....................................................................................................... 99

[SOURCE]............................................................................................................ 100

[WIREDLAN] ....................................................................................................... 100

[WIRELESSLAN] ................................................................................................ 100

[VERSION] ........................................................................................................... 101

[OTHERS] ............................................................................................................ 101

MenuDescriptions&Functions[RESET] .................................................................. 102

ReturningtoFactoryDefault[RESET] ................................................................. 102

6. Installation and Connections ................................................................. 103

1SettingUptheScreenandtheProjector ................................................................... 103

MakingConnections .................................................................................................. 106

ConnectingYourComputer .................................................................................. 106

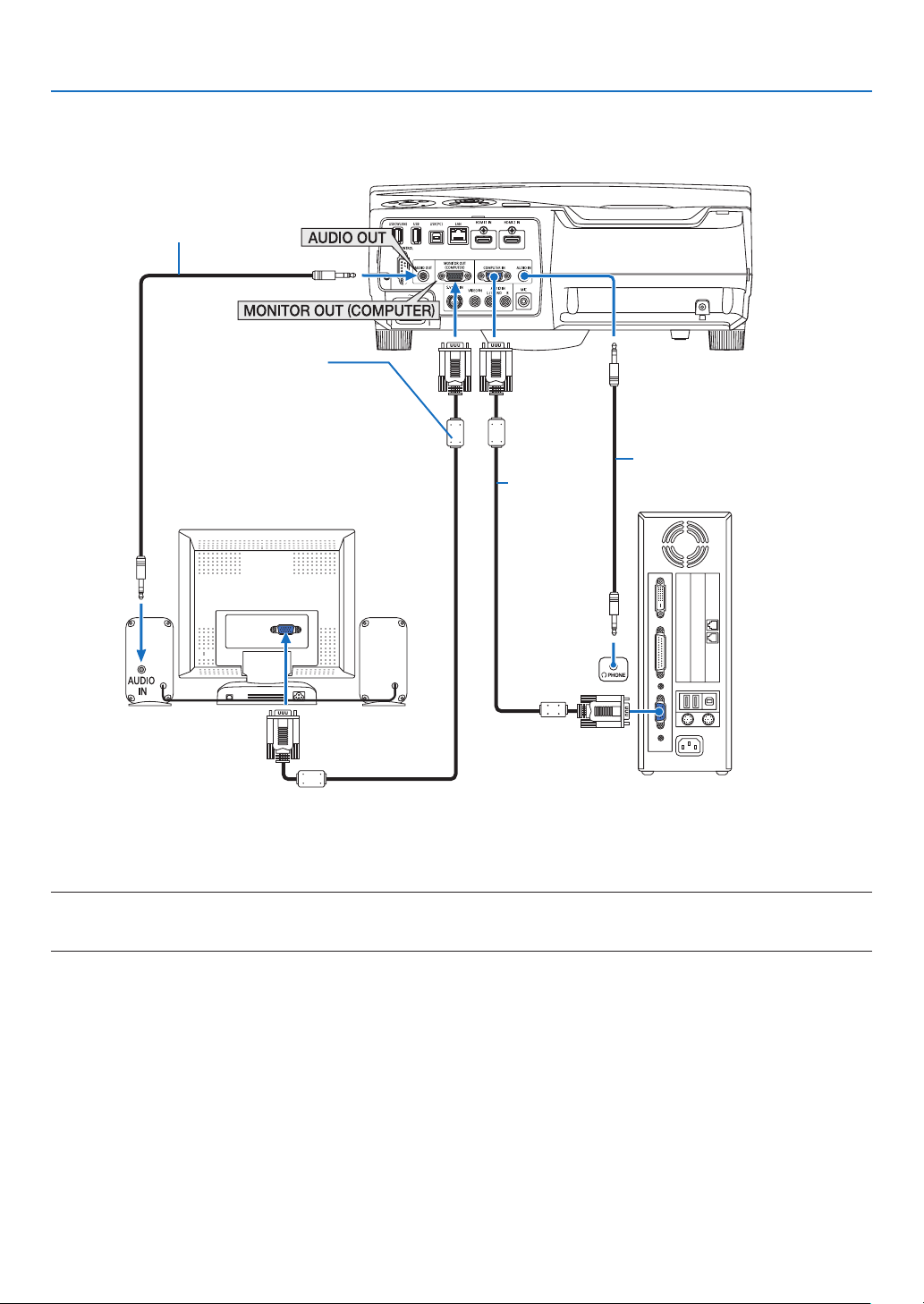

ConnectinganExternalMonitor .......................................................................... 108

ConnectingYourDVDPlayerorOtherAVEquipment .......................................... 109

ConnectingComponentInput .............................................................................. 110

ConnectingHDMIInput........................................................................................ 111

ConnectingtoaWiredLAN ................................................................................. 112

ConnectingtoaWirelessLAN(Optional:NP02LMseries) .................................. 113

7. Maintenance .................................................................................................... 116

1CleaningtheFilters.................................................................................................... 116

CleaningtheProjectionWindow ................................................................................ 119

CleaningtheCabinet ................................................................................................. 119

ReplacingtheLampandtheFilters ........................................................................... 120

8. Appendix ............................................................................................................. 126

1Troubleshooting ......................................................................................................... 126

IndicatorMessages .............................................................................................. 126

CommonProblems&Solutions ........................................................................... 127

Ifthereisnopicture,orthepictureisnotdisplayedcorrectly. .............................. 128

Specications ............................................................................................................ 129

CabinetDimensions .................................................................................................. 131

PinAssignmentsofD-SubCOMPUTERInputConnector ........................................ 132

CompatibleInputSignalList ...................................................................................... 133

PCControlCodesandCableConnection ................................................................. 134

TroubleshootingCheckList ........................................................................................ 135

TCOCertication ....................................................................................................... 137

REGISTERYOURPROJECTOR!(forresidentsintheUnitedStates,Canada,and

Mexico) ................................................................................................................ 138

Projector

Cable cover (24F48981)

(attached to the projector at the time of

shipment → page 5)

1. Introduction

1 What’s in the Box?

Makesureyourboxcontainseverythinglisted.Ifanypiecesaremissing,contactyourdealer.

Pleasesavetheoriginalboxandpackingmaterialsifyoueverneedtoshipyourprojector.

Power cord

(US: 7N080240)

(EU: 7N080027)

Computer cable (VGA)

(7N520073/7N520052)

NEC Projector CD-ROM

User’s manual (PDF) and the utility

software

(7N951861)

For North America only

Limited warranty

For customers in Europe:

You will ﬁnd our current valid

Guarantee Policy on our Web

Site:

www.nec-display-solutions.com

• ImportantInfomation(ForNorth

America: 7N8N3231) (For Other

countries than North America:

7N8N3231 and 7N8N3241)

• QuickSetupGuide(7N8N3251)/

(7N8N3261)

Remote control

(7N900924)

Batteries (AAA × 2)

Unlessotherwisedescribedinthe user’smanual,the drawings for theprojectorcabinet showexamplesof the

UM330X.

1. Introduction

 Introduction to the Projector

Thissectionintroducesyoutoyournewprojectoranddescribesthefeaturesandcontrols.

Features you’ll enjoy:

• Ultrashortthrowdistances

 Ultrashortfocallensesprovideforalargerimageusingashorterthrowdistancewhencomparedtoatypical

projectorlens.

 UM330X/UM280X:Max116.6"(UM330W/UM280W:Max110"),throwdistance:51cm/20inches

 (Thethrowdistancereferstothedistancebetweenthescreenandthescreensideoftheprojector)

• Quickstart(3seconds*

),QuickPowerOff,DirectPowerOff

3 seconds*

afterturningonthepower,theprojectorisreadytodisplayPCorvideoimages.

 Theprojectorcanbeputawayimmediatelyaftertheprojectorispowereddown.Nocooldownperiodisrequired

aftertheprojectoristurnedofffromtheremotecontrolorcabinetcontrolpanel.

 Theprojectorhasafeaturecalled“DirectPowerOff”.Thisfeatureallowstheprojectortobeturnedoff(evenwhen

projectinganimage)byusingtheMainPowerSwitchordisconnectingtheACpowersupply.

 ToturnofftheACpowersupplywhentheprojectorispoweredon,useapowerstripequippedwithaswitchand

abreaker.

*1 Thequickstarttimeisonlywhen[STANDBYMODE]issetto[NORMAL]intheon-screenmessage.

• 0.2W(100-130VAC)/0.4W(200-240VAC)instandbyconditionwithenergysavingtechnology

 Selecting[POWER-SAVING]for[STANDBYMODE]fromthemenucanputtheprojectorinpower-savingmode

thatconsumesonly0.2W(100-130VAC)/0.4W(200-240VAC).

• CarbonMeter

 Thisfeaturewillshowenergy-savingeffectintermsofCO

emissionreduction(kg)whentheprojector’s[ECO

MODE]issetto[AUTOECO],[NORMAL],or[ECO].

 TheamountofCO

emissionreductionwillbedisplayedintheconrmationmessageatthetimeofpower-offand

intheINFOoftheon-screenmenu.

• Lamplifeupto8000hours*

 UsinginEcoMode(ECO)allowsyoutoprolongtheprojector’slamplifeupto8000hours(upto4000hoursin

ECOMODEOFF).

*2 UM330X/UM330W:6000hours(upto3000hoursinECOMODEOFF)

• TwoHDMIinputssupportsdigitalsignals

 ThetwoHDMIinputsprovideHDCPcompatibledigitalsignals.TheHDMIinputalsosupportsaudiosignal.

• 16Wbuilt-inspeakerforanintegratedaudiosolution

 Powerful16wattmonauralspeakerprovidesvolumeneedforlargerooms.

• MICInputprovided

 AMICinputjackforacommerciallyavailabledynamicmicrophoneisusefulforyourpresentationinaconference

room or lecture in a classroom.

• Theoptionalinteractivewhiteboardkitandtheprojectorcanbeusedtoconvertyourwhiteboardintoa

virtualtouchscreen.

 Aninteractivewhiteboardkit(NP02Wi)isavailableasanoption.

• ThesuppliedremotecontrolallowsyoutoassignaCONTROLIDtotheprojector

 Multipleprojectorscanbeoperatedseparatelyandindependentlywiththesamesingleremotecontrolbyassigning

anIDnumbertoeachprojector.

1. Introduction

• USBDisplay

 UsingacommerciallyavailableUSBcable(compatiblewithUSB2.0specications)toconnectthecomputerwith

theprojectorallowsyoutosendyourcomputerscreenimagetotheprojectorwithouttheneedofatraditional

computercable(VGA).

• IntegratedRJ-45connectorforwirednetworkingcapabilityalongwithwirelessnetworkingcapabilities

 AnRJ-45connectorisstandard.AnoptionalUSBWirelessLANUnitisrequiredforwirelessLANconnection.

• Softwareprograms(UserSupportware)containedinthesuppliedCD-ROM

 ThesuppliedNECProjectorincludesfourprograms:VirtualRemoteTool,ImageExpressUtilityLite(forWindows/

MacOS),PCControlUtilityPro4(forWindows)/5(forMacOS),andViewerPPTConverter3.0.

 ImageExpressUtilityLite(forWindows)canbestartedfromacommerciallyavailableUSBmemoryorSDcard

withouttheneedofinstallingonyourcomputer.

• AUTOPOWERONandAUTOPOWEROFFfeatures

 TheDIRECTPOWERON,AUTOPOWERON(COMP.),AUTOPOWEROFF,andOFFTIMERfeatureseliminate

theneedtoalwaysusethePOWERbuttonontheremotecontrolorprojectorcabinet.

• Preventingunauthorizeduseoftheprojector

 Enhancedsmartsecuritysettingsforkeywordprotection,cabinetcontrolpanellock,securityslot,andsecurity

chainopeningtohelppreventunauthorizedaccess,adjustmentsandtheftdeterrence.

• HighresolutionuptoWUXGA*

 Highresolutiondisplay-uptoWUXGAcompatible,XGA(UM330X/UM280X)/WXGA(UM330W/UM280W)native

resolution.

*3 WhenWXGAMODEissettoON.

• CRESTRONROOMVIEWcompatibility

 TheprojectorsupportsCRESTRONROOMVIEW,allowingmultipledevicesconnectedinthenetworktobeman-

agedandcontrolledfromacomputerorcontroller.

About this user’s manual

Thefastestwaytogetstartedistotakeyourtimeanddoeverythingrightthersttime.Takeafewminutesnowto

reviewtheuser’smanual.Thismaysaveyoutimelateron.Atthebeginningofeachsectionofthemanualyou’llnd

anoverview.Ifthesectiondoesn’tapply,youcanskipit.

1. Introduction

 Part Names of the Projector

Top and Screen Side of Projector

Controls

(→ page 7)

FilterCover/IntakeVent/Filter

(→ page 116, 123)

Spacer (Left/Right)

To ﬁne-adjust the height of the rear

foot, remove the spacer and rotate

the rear foot to the desired height.

(→ page 21)

Projection Window

Focus Ring

(→ page 20)

Tilt Foot

(→ page 21)

Built-in Security Slot (

Lamp Cover

(→ page 121)

Security chain opening

Attach an anti-theft device.

The security chain opening accepts

security wires or chains up to 0.18

inch/4.6 mm in diameter.

* ThissecurityslotsupportstheMicroSaver

SecuritySystem.

MonauralSpeaker(16W)

Terminal Panel (→ page 8)

ACInput

Connect the supplied power cord’s

three-pin plug here, and plug the

other end into an active wall outlet.

(→ page 15)

Remote Sensor

(→ page 10)

Screw Hole for Cable Cover (Left/

Right)

(→ page 5)

Terminal Panel Side of Projector

IntakeVent/Filter

(→ page 116, 123)

Exhaust Vent

1. Introduction

Removing and Attaching the Cable Cover

Afternishingconnections,attachthesuppliedcablecovertoproperlyhidethecables.

CAUTION:

• Besuretotightenthescrewsafterattachingthecablecover.Failuretodosomaycausethecablecovertocome

offandfall,resultingininjuryordamagetothecablecover.

• Donotputbundledcablesinthecablecover.Doingsomaydamagethepowercord,resultinginare.

• Donotholdthecablecoverwhilemovingtheprojectorordonotapplyexcessiveforcetothecablecover.Doingso

maydamagethecablecover,resultingininjury.

Removingthecablecover

Toolneeded:

• Phillipsscrewdriver(plus-head)about9cm/4inchesinlength

9 cm/4 inches

1. Loosen the cable cover screws until the Phillips screw-

driver goes into a freewheeling condition

2. Remove the cable cover.

1Push up the cable cover slightly and rotate it to release.

Pull the cable cover while pushing and holding the arrow

part

 Ifyoundittohardtoreleasethecablecover,tryholdingit

slightly up.

1. Introduction

Attachingthecablecover

1. Align four tabs of the cable cover with grooves of the pro-

jector and push the cable cover until you click it.

NOTE:

• Becarefulnottogetcablescaughtinbetweenthecablecoverandthe

projector.

2. Tighten the cable cover screws.

• Besuretotightenthescrews.

1. Introduction

Top Features

1, 2

1. (POWER)Button(→page16, 26)

2. POWER Indicator (→page15, 16, 26, 126)

3. STATUSIndicator(→page126)

4. LAMPIndicator(→page120, 126)

5. ECOButton(→page29)

6. SOURCEButton(→page18)

7. AUTOADJ.Button(→page25)

8. MENUButton(→page73)

9. /VolumeButtons /KeystoneButtons

 (→page23, 25)

10.ENTERButton(→page73)

11.EXITButton(→page73)

1. Introduction

Terminal Panel Features

1. COMPUTERIN/ComponentInputConnector

(MiniD-Sub15Pin)(→page106, 110)

2. COMPUTERAUDIOINMiniJack(StereoMini)

(→

page106, 110)

3. HDMI1INConnector(TypeA)

(→

page106, 111)

4. HDMI2INConnector(TypeA)

(→

page106, 111)

5. USB(PC)Port(TypeB)

(→

page40, 41, 106)

6. MONITOROUT(COMPUTER)Connector(MiniD-

Sub15Pin)(→page108)

7. AUDIO OUT Mini Jack (Stereo Mini)(→ page

108)

8. S-VIDEOINConnector(MiniDIN4Pin)

(→page109)

9. VIDEOINConnector(RCA)(→page109)

10.VIDEO/S-VIDEOAUDIOINL/MONO,R(RCA)

(→

page109)

11.LANPort(RJ-45)(→page112)

12.USBPort(TypeA)(→page64)

13.USB(WLAN)Port

 (ForoptionalUSBWirelessLANUnit)

(→page113)

14.PCCONTROL[PCCONTROL]Port(D-Sub9Pin)

(→

page134)

 Usethis port toconnect a PCorcontrol system.

Thisenablesyoutocontroltheprojectorusingserial

communicationprotocol.Ifyouarewritingyourown

program,typicalPCcontrolcodesareonpage134.

15.MICInputJack(MonauralMini)

(→page61)

9 15

111213 4

1. Introduction

 Part Names of the Remote Control

1. Infrared Transmitter

(→page10)

2. POWERONButton

(→page16)

3. POWEROFFButton

(→page26)

4,5,6.COMPUTER1/2/3Button

(→page18)

 (COMPUTER2/3buttonisnotavailable.)

7. AUTOADJ.Button

(→page25)

8. VIDEOButton

(→page18)

9. S-VIDEOButton

(→page18)

10.HDMIButton(→page18)

11.VIEWERButton(→page18, 62)

12.NETWORKButton(→page18)

13.USBDISPLAYButton(→page18)

14.IDSETButton

(→page91)

15.NumericKeypadButton/CLEARButton

(→page91)

16.FREEZEButton

(→page28)

17.AV-MUTEButton

(→page28)

18.MENUButton

(→page73)

19.EXITButton(→page73)

20.

Button(→page73)

21.ENTERButton(→page73)

22.D-ZOOM(+)(–)Button

(→page28)

23.MOUSEL-CLICKButton*

(→page40)

24.MOUSER-CLICKButton*

(→page40)

25.PAGE/Button

(→page40)

26.ECOButton(→page29)

27.KEYSTONEButton

(→page24)

28.PICTUREButton

(→page79, 81)

29.VOL.(+)(–)Button

(→page25)

30.ASPECTButton

(→page84)

31.FOCUS/ZOOMButton

 TheZOOMbuttonwilldisplaytheDIGITALZOOMbar.

(→page22, 86)TheFOCUSbuttondoesnotwork

onthisseriesofprojectors.

32.HELPButton

(→page99)

* TheMOUSEL-CLICKandMOUSER-CLICKbuttonsworkonlywhenaUSBcableisconnectedwithyourcom-

puter.

1. Introduction

Remote Control Precautions

• Handletheremotecontrolcarefully.

• Iftheremotecontrolgetswet,wipeitdryimmediately.

• Avoidexcessiveheatandhumidity.

• Donotshort,heat,ortakeapartbatteries.

• Donotthrowbatteriesintore.

• Ifyouwillnotbeusingtheremotecontrolforalongtime,removethebatteries.

• Ensurethatyouhavethebatteries’polarity(+/−)alignedcorrectly.

• Donotusenewandoldbatteriestogether,orusedifferenttypesofbatteriestogether.

• Disposeofusedbatteriesaccordingtoyourlocalregulations.

Operating Range for Wireless Remote Control

30°

60°

22 feet/7 m

19.7 feet/6 m

Remote sensor on projector cabinet

Remote control

• Theinfraredsignaloperatesbyline-of-sightuptoadistanceofabout22feet/7mandwithina60-degreeangleof

theremotesensorontheprojectorcabinet.

• Theprojectorwillnotrespondifthereareobjectsbetweentheremotecontrolandthesensor,orifstronglightfalls

onthesensor.Weakbatterieswillalsopreventtheremotecontrolfromproperlyoperatingtheprojector.

Pressrmlyandslidethebattery

coveroff.

Installnewbatteries(AAA).Ensure

thatyouhavethebatteries’polarity

(+/−)alignedcorrectly.

Battery Installation

Slipthecoverbackoverthebat-

teriesuntilitsnapsintoplace.Do

notmixdifferenttypesofbatteries

ornewandoldbatteries.

OPEN

1. Introduction

 Operating Environment for Software Included on CD-ROM

NamesandFeaturesofBundledSoftwarePrograms

Nameofsoftwareprogram Features

VirtualRemoteTool

(Windowsonly)

ThisisasoftwareprogramusedtocontrolthepowerON/OFFandsourceselec-

tionoftheprojectorfromyourcomputerbyusingthesuppliedcomputercable

(VGA)andothers.(→page34)

Nameofsoftwareprogram Features

ImageExpressUtilityLite

ImageExpressUtilityLitefor

MacOS

• Thisisasoftwareprogramusedtoprojectyourcomputer’sscreenoverthe

USBcableorthewired/wirelessnetwork.Thecomputercable(VGA)isnot

required.(→page41,page54)

• ThissoftwareprogramcanbeusedtocontrolthepowerON/OFFandsource

selectionoftheprojectorfromyourcomputer.

• TheGeometricCorrectionTool(GCT)functionallowsyoutocorrectdistortion

ofimagesprojectedonacurvedwall.(→page59)

* “USBDisplay”and“GCT”functionsarenotsupportedbyMac.

Nameofsoftwareprogram Features

PCControlUtilityPro4

PCControlUtilityPro5(forMac

OS)

Thisisasoftwareprogramusedtooperatetheprojectorfromthecomputerwhen

thecomputerandtheprojectorareconnectedwithLAN(wiredorwireless)or

aserialcable.(→page50)

Nameofsoftwareprogram Features

ViewerPPTConverter3.0

(Windowsonly)

ThisisasoftwareprogramusedtoconvertlescreatedwithPowerPointinto

JPEGlesthatcanbedisplayedwiththeviewerfunctionoftheprojectorwhen

aUSBmemorydeviceisinsertedintotheprojector.(→page70)

NOTE:

• ImageExpressUtilityLitedoesnotsupport“MeetingMode”inImageExpressUtility2.0includedwithourothermodels.

Downloadservice

Fortheupdateinformationaboutthesesoftwareprograms,visitourwebsite:

URL:http://www.nec-display.com/dl/en/index.html

1. Introduction

Operating Environment

ThefollowingistheoperatingenvironmentforImageExpressUtilityLite.Fortheoperatingenvironmentofothersoft-

wareprogram,refertothehelpfunctionofeachsoftwareprogram.

[Windows]

SupportedOS Windows7HomeBasic

Windows7HomePremium

Windows7Professional

Windows7Ultimate

Windows7Enterprise

WindowsVistaHomeBasic

WindowsVistaHomePremium

WindowsVistaBusiness

WindowsVistaUltimate

WindowsVistaEnterprise

WindowsXPHomeEdition(32-bitversion)ServicePack3orlater

WindowsXPProfessional(32-bitversion)ServicePack3orlater

• Windowspower-savingfunctionisnotsupported.

Processor • Windows7/WindowsVista

PentiumM1.2GHzequivalentorhigherrequired

Dualcore1.5GHzorhigherrecommended

• WindowsXP

PentiumM1.0GHzequivalentorhigherrequired

Dualcore1.0GHzorhigherrecommended

Memory • Windows7/WindowsVista

512MBormorerequired

1GBormorerecommended

• WindowsXP

256MBormorerequired

512MBormorerecommended

*Morememorymayberequiredtorunadditionalapplicationssimultane-

ously.

Graphicprocessor • Windows7/WindowsVista

The“Graphics”score3.0ormore of“WindowsExperienceIndex”recom-

mended.

Networkenvironment TCP/IP-compatiblewiredLANorwirelessLAN

(*UseawirelessLANunitcomplyingwiththeWi-Fistandard.)

Resolution • Windows7/WindowsVista

SVGA(800×600)orhigherrequired

XGA(1024×768)recommended

• WindowsXP

VGA(640×480)orhigherrequired

XGA(1024×768)recommended

1024dots× 768 lines-1280dots × 800linesrecommended (UM330W/

UM280W)

ScreenColors HighColor(15bits,16bits)

TrueColor(24bits,32bits)(recommended)

• 256orfewercolorsarenotsupported.

1. Introduction

[Mac]

SupportedOS MacOSXv10.6,v10.7

Processor(CPU) Intel

Core™Duoprocessor1.5GHzorhigherrequired

Intel

Core™2Duoprocessor1.6GHzorhigherrecommended

* PowerPC

isnotsupported

Memory 512MBorhigherrequired

Networkenvironment WiredorwirelessLANrequiredthatsupportsTCP/IP

OnlywirelessLANunitsbuiltintoMacareguaranteedtoworkwithImage

ExpressUtilityLite.

“EasyConnection”supportsonlywirelessLAN.

SupportedResolution VGA(640×480)orhigherrequired

XGA(1024×768)recommended

(1024×768–1280×800recommendedforUM330W/UM280W)

SupportedScreenColors 16.70millioncolorsrequired

Thissectiondescribeshowtoturnontheprojectorandtoprojectapictureontothescreen.

1 Flow of Projecting an Image

Step 1

• Connectingyourcomputer/Connectingthepowercord(→ page 15)

Step 2

• Turningontheprojector(→ page 16)

Step 3

• Selectingasource(→ page 18)

Step 4

• Adjustingthepicturesizeandposition(→ page 19)

• Correctingkeystonedistortion[KEYSTONE](→ page 23)

Step 5

• Adjustingapictureandsound

- Optimizing a computer signal automatically (→ page 25)

- Turning up or down volume (→ page 25)

Step 6

• Makingapresentation

Step 7

• Turningofftheprojector(→ page 26)

Step 8

• WhenMovingtheProjector(→ page 27)

2. Projecting an Image (Basic Operation)

 Connecting Your Computer/Connecting the Power Cord

1. Connectyourcomputertotheprojector.

This section will show you a basic connection to a computer. For information about other connections, see “6.

InstallationandConnections”onpage106.

 Connectthecomputercable(VGA)betweentheprojector’sCOMPUTERINconnectorandthecomputer’sport

(mini D-Sub 15 Pin). Turn two thumb screws of both connectors to ﬁx the computer cable (VGA).

2. Connectthesuppliedpowercordtotheprojector.

 Firstconnectthesuppliedpowercord’sthree-pinplugtotheACINoftheprojector,andthenconnecttheother

plug of the supplied power cord in the wall outlet.

The projector’s power indicator will ﬂash for a few seconds and then will light orange* (standby mode).

The STATUS indicator will also light green*.

 *Thiswillapplyforbothindicatorswhen[NORMAL]isselectedfor[STANDBYMODE].SeethePowerIndicator

section.(→ page 126)

Makesurethattheprongsarefullyinsertedinto

boththeACINandthewalloutlet.

To wall outlet ←

CAUTION:

PartsoftheprojectormaybecometemporarilyheatediftheprojectoristurnedoffwiththePOWERbuttonorifthe

ACpowersupplyisdisconnectedduringnormalprojectoroperation.

Usecautionwhenpickinguptheprojector.

2. Projecting an Image (Basic Operation)

 Turning on the Projector

• Pressthe (POWER)buttonontheprojectorcabinet

orthePOWERONbuttonontheremotecontrol.

The POWER indicator will turn to blue and the projector

will become ready to use.

TIP:

• Whenthemessage“Projectorislocked!Enteryourpassword.”

isdisplayed,itmeansthatthe[SECURITY]featureisturnedon.

(→page31)

After you turn on your projector, ensure that the computer

or video source is turned on.

NOTE:Whennoinputsignalispresent,theno-signalguidanceis

displayed(factorymenusetting).

(→page126)

Standby Blinking PowerOn

Steady orange light Blinking blue light Steady blue light

2. Projecting an Image (Basic Operation)

Note on Startup screen (Menu Language Select screen)

Whenyourstturnontheprojector,youwillgettheStartupmenu.Thismenugivesyoutheopportunitytoselectone

ofthe29menulanguages.

Toselectamenulanguage,followthesesteps:

1. Use the , ,  or  button to select one of the 29

languages from the menu.

2. Press the ENTER button to execute the selection.

After this has been done, you can proceed to the menu

operation.

Ifyouwant,youcanselectthemenulanguagelater.

(→[LANGUAGE]onpage75 and 88)

NOTE:

• Whenturningoffthepowersupplyandthenbackonbyusingapowerstriporbreaker.

 Allowaminimumof1secondbetweenturningoffthemainpowersupplyandturningitbackonagain.

 Failingtodosocouldresultinnopowertotheprojector.(Therewillbenostand-byLED)

 Shouldthishappen,unplugthepowercordandplugitinagain.Turnonthemainpower.

• Ifoneofthefollowingthingshappens,theprojectorwillnotturnon.

- Iftheinternaltemperatureoftheprojectoristoohigh,theprojectordetectsabnormalhightemperature.Inthisconditionthe

projectorwillnotturnontoprotecttheinternalsystem.Ifthishappens,waitfortheprojector’sinternalcomponentstocool

down.

- Whenthelampreachesitsendofusablelife,theprojectorwillnotturnon.Ifthishappens,replacethelamp.

- IftheSTATUSindicatorlightsorangewiththepowerbuttonpressed,itmeansthatthe[CONTROLPANELLOCK]isturnedon.

Cancelthelockbyturningitoff.(→page90)

- Ifthelampfailstolight,andiftheSTATUSindicatorashesonandoffinacycleofsixtimes,waitafullminuteandthenturn

onthepower.

• WhilethePOWERindicatorisblinkingblueinshortcycles,thepowercannotbeturnedoffbyusingthepowerbutton.

• Immediatelyafterturningontheprojector,screenickermayoccur.Thisisnormal.Wait3to5minutesuntilthelamplightingis

stabilized.

• Whentheprojectoristurnedon,itmaytakesometimebeforethelamplightbecomesbright.

• Ifyouturnontheprojectorimmediatelyafterthelampisturnedofforwhenthetemperatureishigh,thefansrunwithoutdisplay-

inganimageforsometimeandthentheprojectorwilldisplaytheimage.

2. Projecting an Image (Basic Operation)

 Selecting a Source

Selecting the computer or video source

NOTE:Turnonthecomputerorvideosourceequipmentconnectedtotheprojector.

DetectingtheSignalAutomatically

PresstheSOURCEbuttononce.Theprojectorwillsearchfortheavailable

inputsourceanddisplayit.Theinputsourcewillchangeasfollows:

COMPUTER→HDMI1→HDMI2→VIDEO→S-VIDEO→VIEWER→

USBDISPLAY→COMPUTER→ ...

• WiththeSOURCEscreendisplayed,youcanpresstheSOURCE

buttonafewtimestoselecttheinputsource.

TIP:Ifnoinputsignalispresent,theinputwillbeskipped.

UsingtheRemoteControl

PressanyoneoftheCOMPUTER1,HDMI,VIDEO,S-VIDEO,VIEWER,

NETWORK,orUSBDISPLAYbuttons.

NOTE: The HDMIbutton onthe remotecontrol willtoggle between “HDMI1” and

“HDMI2”.UpontherstbuttonpushtheprojectorwillalwaysswitchtoHDMI1IN.A

secondbuttonpushwillthenswitchtoHDMI2IN.ifthereisonlyoneHDMIsource

connectedtotheprojectoritisrecommendedtoplacethatsignalontheHDMI1IN

connector.

SelectingDefaultSource

Youcansetasourceasthedefaultsourcesothatitwillbedisplayed

eachtimetheprojectoristurnedon.

1. Press the MENU button.

The menu will be displayed.

2. Press the buttontwicetoselect[SETUP]andpressthe but-

tonortheENTERbuttontoselect[GENERAL].

Press the



buttonfourtimestoselect[OPTIONS(2)].

4. Press the buttonvetimestoselect[DEFAULTSOURCESE-

LECT]andpresstheENTERbutton.

The [DEFAULT SOURCE SELECT] screen will be displayed.

(→ page 95)

Select a source as the default source, and press the ENTER button.

6. PresstheEXITbuttonafewtimestoclosethemenu.

7. Restart the projector.

The source you selected in step 5 will be projected.

NOTE:Evenwhen[AUTO]isturnedon,the[NETWORK]willnotbeautomatically

selected.Tosetyournetworkasthedefaultsource,select[NETWORK].

TIP:

• Whentheprojectorisin Standbymode,applyingacomputersignalfrom a

computerconnectedtotheCOMPUTERINinputwillpowerontheprojector

andsimultaneouslyprojectthecomputer’simage.

 ([AUTOPOWERON(COMP.)]→page95)

• OnWindows7,acombinationoftheWindowsandPkeysallowsyoutosetup

externaldisplayeasilyandquickly.

2. Projecting an Image (Basic Operation)

 Adjusting the Picture Size and Position

Usetheadjustabletiltfoot,thezoomfunctionorthefocusringtoadjustthepicturesizeandposition.

Inthischapterdrawingsandcablesareomittedforclarity.

Adjustinghorizontal/verticalposition

(→page20)

Adjustingthefocus[Focusring]

(→page20)

Finelyadjustingtheleftandrighttilt[TiltFoot]

(→page21)

Finelyadjustingtheverticaltilt[TiltFoot]

(→page21)

Adjustingthesize[DigitalZoom]

(→page22)

Correctingthekeystonedistortion[Keystone]*

(→page23)

* Toperformkeystonecorrectionmanually,see“6.CorrectingKeystoneDistortionManually”onpage23.

2. Projecting an Image (Basic Operation)

Adjusting horizontal/vertical position

Thethrowdistancecanaffectthesizeandtheheightoftheprojectedimage.Beforeinstallingtheprojector,decide

thethrowdistanceaccordingto“SettingUptheScreenandtheProjector”(→page103, 104)

Itisrecommendedtodisplaythetestpatternwhileadjustingtheimage.(→page92)

1. Move the projector back and forth and left and right so that

the image ﬁts the screen width.

 Youcanreducetheimagesizeto70%byusing[DIGITALZOOM]

from the menu.

2. Place the projector so that it is parallel with the screen.

 Ifthetopsideoftheimageisnotparallelwithitsbottomside,rotate

theprojectorslightlyto adjust it.Iftheside of the imageshows

outside the screen, move it to the center line of the screen.

Adjusting the focus (Focus ring)

• Rotatethefocusringuntilyouobtainthebestfocus.

Focus ring

(view from the bottom)

2. Projecting an Image (Basic Operation)

Adjusting the tilt (Tilt foot)

Adjustingtheleftandrighttilt.

1. Remove the spacers.

 Rotatethetiltfootclockwisetoloosenit(leftandright).

• Theprojectorcanbepositionedwiththespacersattached.Keep

the spacer.

2. Rotate the tilt foot to adjust the left and right tilt.

NOTE:

• Donotextendthetiltfootbeyonditsheightlimit(18mm/0.7inches).Doing

somaycausethetiltfoottocomeoutoftheprojector.

• Attachthespacertoeachtiltfootwhenmovingtheprojector.

Finely adjusting the vertical tilt

1. Remove the spacers.

Down

2. Rotate the tilt foot on each side to ﬁnely adjust the height.

NOTE:

• Donotusethetilt-footforpurposesotherthanoriginallyintended.

 Misusessuchasusingthetiltfoottocarryorhang(fromthewallorceiling)

theprojectorcancausedamagetotheprojector.

2. Projecting an Image (Basic Operation)

Adjusting the size [Digital Zoom]

Usetheremotecontroltonelyadjustthesizeoftheimage.

1. PresstheFOCUS/ZOOMbuttonontheremotecontrol.

 TheDIGITALZOOMbarwillbedisplayed.

2. Press the  or buttontonelyzoominorout.

3. After completing the adjustment, press the ENTER button.

 TheDIGITALZOOMbarwillbeclosed.

2. Projecting an Image (Basic Operation)

 Correcting Keystone Distortion Manually

Ifthescreenistiltedvertically,keystonedistortionbecomeslarge.Tocorrectkeystonedistortionmanually,proceed

withthefollowingstepstocorrectkeystonedistortion.

NOTE:

• TheKeystonecorrectioncancauseanimagetobeslightlyblurredbecausethecorrectionismadeelectronically.

• TheKeystonecorrectionrangecanbemadenarrower,dependingonasignaloritsaspectratioselection.

Adjusting with buttons on the cabinet

1. Press the  or  button with no menus displayed.

 Thekeystonebarwillbedisplayed.

2. Use the  or  to correct the keystone distortion.

 Thekeystonebarwillbeclosedafteraperiodoftime.

3. Press the ENTER button.

 Thekeystonebarwillbeclosed.

NOTE:

• Whenthemenuisdisplayed,theaboveoperationisnotavailable.Whenthemenuisdisplayed,presstheMENUbuttontoclose

themenuandstarttheKeystonecorrection.

 Fromthemenu,select[SETUP]→[GENERAL]→[KEYSTONE].Thechangescanbesavedwith[KEYSTONESAVE].(→page

86)

• KeystonecontrolisnotavailablewiththeorbuttonwhenVIEWERisused.

2. Projecting an Image (Basic Operation)

Adjusting with the remote control

1. PresstheKEYSTONEbutton.

 TheKeystonebarwillbedisplayed.

2. Use the  or  button to correct the keystone distortion.

Adjust so that the right and left sides are parallel.

3. PresstheEXITbutton.

 TheKeystonebarwillbeclosed.

2. Projecting an Image (Basic Operation)

 Optimizing Computer Signal Automatically

Adjusting the Image Using Auto Adjust

Optimizingacomputerimageautomatically.(COMPUTER)

PresstheAUTOADJ.buttontooptimizeacomputerimageautomatically.

Thisadjustmentmaybenecessarywhenyouconnectyourcomputerforthersttime.

[Poor picture]

[Normal picture]

NOTE:

Somesignalsmaytaketimetodisplayormaynotbedisplayedcorrectly.

• IftheAutoAdjustoperationcannotoptimizethecomputersignal,trytoadjust[HORIZONTAL],[VERTICAL],[CLOCK],and[PHASE]

manually.(→page82,83)

 Turning Up or Down Volume

Soundlevelfromthespeakeroraudiooutputcanbeadjusted.

TIP:Whennomenusappear,theandbuttonsontheprojectorcabinetwork

asavolumecontrol.

NOTE:

• Volumecontrolisnotavailablewiththeorbuttonwhenanimageisenlarged

byusingtheD-ZOOM(+)buttonorwhenthemenuisdisplayed.

• Volume control is not available with the  or  button whenVIEWER is

used.

TIP:The[BEEP]soundvolumecannotbeadjusted.Toturnoffthe[BEEP]sound,

fromthemenu,select[SETUP]→[OPTIONS(1)]→[BEEP]→[OFF].

Increasevolume

Decrease volume

2. Projecting an Image (Basic Operation)

 Turning off the Projector

Toturnofftheprojector:

1. First, press the (POWER)buttononthe projector

cabinetorthePOWEROFFbuttonontheremotecon-

trol.

The conﬁrmation message will be displayed.

2. Secondly, press the ENTER button or press the

(POWER)orthePOWEROFFbuttonagain.

The lamp will turn off and the projector will go into standby

mode. When in standby mode, the POWER indicator will

light orange and the STATUS indicator will light green when

[NORMAL] is selected for [STANDBY MODE].

CAUTION:

PartsoftheprojectormaybecometemporarilyheatediftheprojectoristurnedoffwiththePOWERbuttonorifthe

ACpowersupplyisdisconnectedduringnormalprojectoroperation.

Usecautionwhenpickinguptheprojector.

NOTE:

• Whilethepowerindicatorisblinkingblueinshortcycles,thepowercannotbeturnedoff.

• Youcannotturnoffthepowerfor60secondsimmediatelyafterturningitonanddisplayinganimage.

• DonotdisconnecttheACpowersupplytotheprojectorwithin10secondsofmakingadjustmentorsettingchangesandclosing

themenu.Doingsocancauselossofadjustmentsandsettings.

PowerOn

Steady blue light

Standby

Steady

orange light

2. Projecting an Image (Basic Operation)

 When Moving the Projector

Preparation:Makesurethattheprojectoristurnedoff.

1. Remove the cable cover.

(→ page 5)

2. Unplug the power cord.

3. Disconnectanyothercables.

• RemovetheUSBmemoryorthewirelessLANUnitifitisinsertedintotheprojector.

1 Turning off the Image and Sound

PresstheAV-MUTEbuttontoturnofftheimageandsoundforashort

periodoftime.Pressagaintorestoretheimageandsound.

Theprojector’spower-savingfunctionwillwork10secondsaftertheim-

ageisturnedoff.

Asaresult,thelamppowerwillbereduced.

NOTE:

•

Eventhoughtheimageisturnedoff,themenustillremainsonthescreen.

• SoundfromtheAUDIOOUTjack(Stereomini)canbeturnedoff.

• Evenwhenthepower-savingfunctionworks,thelamppowermayberestored

toitsoriginalleveltemporarily.

• Torestoretheimage,evenifyoupresstheAV-MUTEbuttonimmediatelyafter

thestartofthepower-savingfunction,thelampbrightnessmaynotberestored

toitsoriginallevel.

 Freezing a Picture

PresstheFREEZEbuttontofreezeapicture.Pressagaintoresume

motion.

NOTE:Theimageisfrozenbuttheoriginalvideoisstillplayingback.

 Enlarging a Picture

Youcanenlargethepictureuptofourtimes.

NOTE:Themaximummagnicationmaybelessthanfourtimesdependingon

thesignal.

Todoso:

1. PresstheD-ZOOM(+)buttontomagnifythepicture.

To move the magniﬁed image, use the ,, or  button.

3. Convenient Features

 Changing Eco Mode/Checking Energy-Saving Effect

Using Eco Mode [ECO MODE]

TheECOMODE(NORMALandECO)increaseslamplife,whileloweringpowerconsumptionandcuttingdownon

emissions.

Fourbrightnessmodesofthelampcanbeselected:[OFF],[AUTOECO],[NORMAL]and[ECO]modes.

[ECOMODE] Description StatusofLAMPindicator

[OFF] Thelampbrightnessis100%. Off

[AUTOECO] Lamppowerconsumptionwillbechangedbetween

[OFF] and [NORMAL] automatically according to

picturelevel

NOTE:Abrightgradationmay be less visible depending

ontheimage.

[NORMAL] Lamppowerconsumption:approx.75%brightness.

The lamp life will extend by lowering the lamp

power.

SteadyGreen

light

[ECO]

Lamppowerconsumption(approx.60%brightness).

The lamp lifewill extend longer than the one on

NORMALmodebycontrollingpowerappropriatefor

thelamp.Themaximumpowerbecomesequivalent

tothepowerinNORMAL.

Toturnonthe[ECOMODE],dothefollowing:

1. PresstheECOButtonontheremotecontroltodisplay[ECOMODE]screen.

2. PresstheECObuttonagaintoselectamodeyouwish.

• EachtimetheECObuttonispressed,thechoiceswillbechanged:

OFF → AUTO ECO → NORMAL → ECO → OFF

TIP:

• TheleafsymbolatthebottomofthemenushowsthecurrentselectionofECOmode.

2. Press the  button.

The area of the magniﬁed image will be moved

3. PresstheD-ZOOM(−)button.

 EachtimetheD-ZOOM(−)buttonispressed,theimageisreduced.

NOTE:

• Theimagewillbeenlargedorreducedatthecenterofthescreen.

• Displayingthemenuwillcancelthecurrentmagnication.

3. Convenient Features

NOTE:

• The[ECOMODE]canbechangedbyusingthemenu.

 Select[SETUP]→[GENERAL]→[ECOMODE].

• Thelampliferemainingandlamphoursusedcanbecheckedin[USAGETIME].Select[INFO.]→[USAGETIME].

• Theprojectorisalwaysin[NORMAL]for90secondsafterthelampisturnedonandwhilethePOWERindicatorisblinkinggreen.

Thelampconditionwillnotbeaffectedevenwhen[ECOMODE]ischanged.

• Afteralapseof1minutefromwhentheprojectordisplaysno-signalguidance,ablue,blackorlogoscreen,[ECOMODE]will

automaticallyswitchto[ECO].Theprojectorwillreturntoitsoriginalsettingonceasignalisaccepted.

• Iftheprojectorisoverheatedin[OFF]mode,theremaybeacasewherethe[ECOMODE]automaticallychangesto[NORMAL]

modetoprotecttheprojector.Whentheprojectorisin[NORMAL]mode,thepicturebrightnessdecreases.Whentheprojector

comesbacktonormaltemperature,the[ECOMODE]returnstoitsoriginalsetting.

 Thermometersymbol[ ]indicatesthe[ECOMODE]isautomaticallysetto[NORMAL]modebecausetheinternaltemperature

istoohigh.

• Immediatelyafter[ECOMODE]ischangedfrom[ECO]tooneof[OFF],[AUTOECO],or[NORMAL],thelampbrightnessmay

decreasetemporarily.Thisisnotamalfunction.

Checking Energy-Saving Effect [CARBON METER]

Thisfeaturewillshowenergy-savingeffectintermsofCO

emissionreduction(kg)whentheprojector’s[ECOMODE]

issetto[AUTOECO],[NORMAL],or[ECO].Thisfeatureiscalledas[CARBONMETER].

Therearetwomessages:[TOTALCARBONSAVINGS]and[CARBONSAVINGS-SESSION].The[TOTALCARBON

SAVINGS]messageshowsthetotalamountofCO

emissionreductionfromthetimeofshipmentuptonow.Youcan

checktheinformationon[USAGETIME]from[INFO.]ofthemenu.(→page99)

The[CARBONSAVINGS-SESSION]messageshowstheamountofCO

emissionreductionbetweenthetimeof

changingtoECOMODEimmediatelyafterthetimeofpower-onandthetimeofpower-off.The[CARBONSAVINGS-

SESSION]messagewillbedisplayedinthe[POWEROFF/AREYOUSURE?]messageatthetimeofpower-off.

TIP:

• TheformulaasshownbelowisusedtocalculatetheamountofCO

emissionreduction.

 AmountofCO

emissionreduction=(PowerconsumptioninOFFforECOMODE−PowerconsumptioninAUTOECO/NORMAL/

ECOforECOMODE)×CO

conversionfactor.*WhentheimageisturnedoffwiththeAV-MUTEbutton,theamountofCO

em-

missionreductionwillalsoincrease.

 *CalculationforamountofCO

emissionreductionisbasedonanOECDpublication“CO

EmissionsfromFuelCombustion,2008

Edition”.

• The[TOTALCARBONSAVINGS]iscalculatedbasedonsavingsrecordedin15minutesintervals.

• Thisformulawillnotapplytothepowerconsumptionwhichisnotaffectedbywhether[ECOMODE]isturnedonoroff.

3. Convenient Features



Preventing the Unauthorized Use of the Projector [SECURITY]

AkeywordcanbesetforyourprojectorusingtheMenutoavoidoperationbyanunauthorizeduser.Whenakeyword

isset,turningontheprojectorwilldisplaytheKeywordinputscreen.Unlessthecorrectkeywordisentered,thepro-

jectorcannotprojectanimage.

• The[SECURITY]settingcannotbecancelledbyusingthe[RESET]ofthemenu.

ToenabletheSecurityfunction:

1. Press the MENU button.

The menu will be displayed.

2. Press the buttontwicetoselect[SETUP]andpressthebuttonortheENTERbuttontoselect[GEN-

ERAL].

3. Press the buttontoselect[INSTALLATION].

4. Press the buttonthreetimestoselect[SECURITY]andpresstheENTERbutton.

The OFF/ON menu will be displayed.

5. Press the buttontoselect[ON]andpresstheENTERbutton.

 The[SECURITYKEYWORD]screenwillbedisplayed.

6. Type in a combination of the four  buttons and press the ENTER button.

NOTE:Akeywordmustbe4to10digitsinlength.

 The[CONFIRMKEYWORD]screenwillbedisplayed.

3. Convenient Features

7. Type in the same combination of  buttons and press the ENTER button.

The conﬁrmation screen will be displayed.

8. Select[YES]andpresstheENTERbutton.

 TheSECURITYfunctionhasbeenenabled.

Toturnontheprojectorwhen[SECURITY]isenabled:

1. PressthePOWERbutton.

 Theprojectorwillbeturnedonanddisplayamessagetotheeffectthattheprojectorislocked.

2. Press the MENU button.

3. Type in the correct keyword and press the ENTER button. The projector will display an image.

NOTE:Thesecuritydisablemodeismaintaineduntilthemainpoweristurnedofforunpluggingthepowercord.

3. Convenient Features

TodisabletheSECURITYfunction:

1. Press the MENU button.

The menu will be displayed.

2.Select[SETUP]→[INSTALLATION]→[SECURITY]andpresstheENTERbutton.

The OFF/ON menu will be displayed.

3. Select[OFF]andpresstheENTERbutton.

 TheSECURITYKEYWORDscreenwillbedisplayed.

4. Type in your keyword and press the ENTER button.

 Whenthecorrectkeywordisentered,theSECURITYfunctionwillbedisabled.

NOTE:Ifyouforgetyourkeyword,contactyourdealer.Yourdealerwillprovideyouwithyourkeywordinexchangeforyourrequest

code.YourrequestcodeisdisplayedintheKeywordConrmationscreen.Inthisexample[NB52-YGK8-2VD6-K585-JNE6-EYA8]

isarequestcode.

3. Convenient Features

 Using the Computer Cable (VGA) to Operate the

Projector (Virtual Remote Tool)

Usingtheutilitysoftware“VirtualRemoteTool”includedonthecompanionNECProjectorCD-ROM,VirtualRemote

screen(ortoolbar)canbedisplayedonyourcomputerscreen.

Thiswillhelpyouperformoperationssuchasprojector’spoweronoroffandsignalselectionviathecomputercable

(VGA),serialcable,orLANconnection.OnlyviaserialorLANconnectionitisalsousedtosendanimagetothe

projectorandregisteritasthelogodataoftheprojector.Afterregisteringit,youcanlockthelogotopreventitfrom

changing.

ControlFunctions

PowerOn/Off,signalselection,picturefreeze,picturemute,audiomute*,Logotransfertotheprojector,andremote

controloperationonyourPC.

VirtualRemotescreen Toolbar

ThissectionprovidesanoutlineofpreparationforuseofVirtualRemoteTool.

ForinformationonhowtouseVirtualRemoteTool,seeHelpofVirtualRemoteTool.(→page39)

Step1:InstallVirtualRemoteToolonthecomputer.(→page35)

Step2:Connecttheprojectortothecomputer.(→page37)

Step3:StartVirtualRemoteTool.(→page38)

TIP:

• VirtualRemoteToolcanbeusedwithaLANandaserialconnection.USBconnectionisnotsupportedbyVirtualRemoteTool.

• ForupdateinformationonVirtualRemoteTool,visitourwebsite:

 http://www.nec-display.com/dl/en/index.html

3. Convenient Features

NOTE:

• When[COMPUTER]isselectedfromyoursourceselection,theVirtualRemotescreenorthetoolbarwillbedisplayedaswellas

yourcomputerscreen.

• Usethesuppliedcomputercable(VGA)toconnecttheCOMPUTERINconnectordirectlywiththemonitoroutputconnectorof

thecomputertouseVirtualRemoteTool.

 Usingaswitcherorothercablesthanthesuppliedcomputercable(VGA)maycausefailureinsignalcommunication.

 VGAcableconnector:

 PinNos.12and15arerequiredforDDC/CI.

• VirtualRemoteToolmaynotworkdependingonyourcomputer’sspecicationsandversionofgraphicadaptersordrivers.

• TorunVirtualRemoteToolonWindowsXPHomeEditionandWindowsXPProfessional,“Microsoft.NETFrameworkVersion

2.0orlater”isrequired.TheMicrosoft.NETFrameworkVersion2.0orlaterisavailablefromMicrosoft’swebpage.Download

andinstalltheitonyourcomputer.

• Logodata(graphics)thatcanbesenttotheprojectorwithVirtualRemoteToolhasthefollowingrestrictions:

 (OnlyviaserialorLANconnection)

- Filesize:Lessthan1MB

- Imagesize(resolution):

 UM330X/UM280X:Horizontal1024×vertical768dotsorless

 UM330W/UM280W:Horizontal1280×vertical800dotsorless

- Numberofcolors:256colorsorless

TIP:

• Theprojector’sCOMPUTERINconnectorsupportsDDC/CI(DisplayDataChannelCommandInterface).DDC/CIisastandard

interfaceforbidirectionalcommunicationbetweendisplay/projectorandcomputer.

Step 1: Install Virtual Remote Tool on the computer

NOTE:

• ToinstallVirtualRemoteTool,theWindowsuseraccountmusthave“Administrator”privilege(Windows7,WindowsVistaand

WindowsXP).

• ExitallrunningprogramsbeforeinstallingVirtualRemoteTool.Ifanotherprogramisrunning,theinstallationmaynotbecom-

pleted.

1 InserttheaccompanyingNECProjectorCD-ROMintoyourCD-ROMdrive.

The menu window will be displayed.

3. Convenient Features

TIP:

Ifthemenuwindowwillnotbedisplayed,trythefollowingprocedure.

ForWindows7

1. Click“start”onWindows.

2. Click“AllPrograms”→“Accessories”→“Run”.

3. Type your CD-ROM drive name (example:“Q:\”) and“LAUNCHER.EXE” in“Name”. (example: Q:\

LAUNCHER.EXE)

4. Click“OK”.

The menu window will be displayed.

2 Click“InstallVirtualRemoteTool”onthemenuwindow.

The installation will start.

When the installation is complete, the Welcome window will be displayed.

3 Click“Next”.

 “ENDUSERLICENSEAGREEMENT”screenwillbedisplayed.

 Read“ENDUSERLICENSEAGREEMENT”carefully.

4 Ifyouagree,click“Iacceptthetermsinthelicenseagreement”andthenclick“Next”.

• Followtheinstructionsontheinstallerscreenstocompletetheinstallation.

• Whentheinstallationiscomplete,youwillreturntothemenuwindow.

3. Convenient Features

TIP:

UninstallingVirtualRemoteTool

Preparation:

ExitVirtualRemoteToolbeforeuninstalling.TouninstallVirtualRemoteTool,theWindowsuseraccountmusthave

“Administrator”privilege(Windows7andWindowsVista)or“ComputerAdministrator”privilege(WindowsXP).

•ForWindows7/WindowsVista

1 Click“Start”andthen“ControlPanel”.

The Control Panel window will be displayed.

2 Click“Uninstallaprogram”under“Programs”

 The“ProgramsandFeatures”windowwillbedisplayed.

3 SelectVirtualRemoteToolandclickit.

4 Click“Uninstall/Change”or“Uninstall”.

 •Whenthe“UserAccountControl”windowsisdisplayed,click“Continue”.

Follow the instructions on the screens to complete the uninstallation.

•ForWindowsXP

1 Click“Start”andthen“ControlPanel”.

The Control Panel window will be displayed.

2 Double-click“Add/RemovePrograms”.

The Add / Remove Programs window will be displayed.

3 ClickVirtualRemoteToolfromthelistandthenclick“Remove”.

Follow the instructions on the screens to complete the uninstallation.

Step 2: Connect the projector to the computer

1 Usethesuppliedcomputercable(VGA)toconnecttheCOMPUTERINconnectoroftheprojectordirectly

with the monitor output connector of the computer.

2 ConnectthesuppliedpowercordtotheACINoftheprojectorandthewalloutlet.

The projector is in the standby condition.

ACInput

Supplied computer cable (VGA)

→ To wall outlet

Power cord (supplied)

TIP:

• WhenVirtualRemoteToolstartsforthersttime,“EasySetup”windowwillbedisplayedtonavigateyourconnections.

3. Convenient Features

Step 3: Start Virtual Remote Tool

Startusingtheshortcuticon

• Double-clicktheshortcuticon ontheWindowsDesktop.

StartfromtheStartmenu

• Click[Start]→[AllPrograms]or[Programs]→[NECProjectorUserSupportware]→[VirtualRemoteTool]

→[VirtualRemoteTool].

 WhenVirtualRemoteToolstartsforthersttime,“EasySetup”windowwillbedisplayed.

Follow the instructions on the screens

 When“EasySetup”iscompleted,theVirtualRemoteToolscreenwillbedisplayed.

NOTE:

• When[POWER-SAVING]isselectedfor[STANDBYMODE]fromthemenu,theprojectorcannotbeturnedonviathecomputer

cable(VGA)ornetwork(wiredLAN/wirelessLAN)connection.

TIP:

• TheVirtualRemoteToolscreen(orToolbar)canbedisplayedwithoutdisplaying“EasySetup”window.

 Todoso,clicktoplaceacheckmarkfor“ DonotuseEasySetupnexttime”onthescreenatStep6in“EasySetup”.

3. Convenient Features

ExitingVirtualRemoteTool

1 ClicktheVirtualRemoteToolicon on the Taskbar.

The pop-up menu will be displayed.

2 Click“Exit”.

The Virtual Remote Tool will be closed.

ViewingthehelpleofVirtualRemoteTool

•Displayingthehelpleusingthetaskbar

1 ClicktheVirtualRemoteToolicon onthetaskbarwhenVirtualRemoteToolisrunning.

The pop-up menu will be displayed.

2. Click“Help”.

The Help screen will be displayed.

•DisplayingthehelpleusingtheStartMenu.

1. Click“Start”→“Allprograms”or“Programs”→“NECProjectorUserSupportware”→“VirtualRemote

Tool”→andthen“VirtualRemoteToolHelp”inthisorder.

The Help screen will be displayed.

3. Convenient Features



Operating Your Computer’s Mouse Functions from the

Projector’s Remote Control via the USB Cable (Remote Mouse

Function)

Thebuilt-inremotemousefunctionenablesyoutooperateyourcomputer’smousefunctionsfromthesuppliedremote

controlwhentheprojectorisconnectedtoacomputerviaacommerciallyavailableUSBcable(compatiblewithUSB

2.0specications).

TheRemoteMousefunctionworksfortheCOMPUTERinputwhilethecomputerscreenisdisplayed.

TheRemoteMousefunctionwillnotworkwhileyoufreezeormagnifyanimage.

• UsingtheUSBcabletoconnecttheprojectorandthecomputerwillalsostartUSBDisplayfunction.

USB cable (not supplied)

NOTE:

• AUSBcablemustsupporttheUSB2.0Specications.

• Themousefunctioncanbeusedwiththefollowingoperatingsystems:

 Windows7,WindowsXP,orWindowsVista

• InSP2orolderversionofWindowsXP,ifthemousecursorwillnotmovecorrectly,dothefollowing:

 CleartheEnhancepointerprecisioncheckboxunderneaththemousespeedsliderintheMousePropertiesdialogbox[Pointer

Optionstab].

• Waitatleast5secondsafterdisconnectingtheUSBcablebeforereconnectingitandviceversa.Thecomputermaynotidentify

theUSBcableifitisrepeatedlyconnectedanddisconnectedinrapidintervals.

• ConnecttheprojectortothecomputerwithaUSBcableafterstartingthecomputer.Failuretodosomayfailtostartthecom-

puter.

Operatingyourcomputer’smousefromtheremotecontrol

Youcanoperateyourcomputer’smousefromtheremotecontrol.

PAGE / Button ��scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint

on your computer�

 Buttons ��moves the mouse cursor on your computer�

MOUSE L-CLICK/ENTER Button ��works as the mouse left button�

MOUSE R-CLICK Button ��works as the mouse right button�

NOTE:

• Whenyouoperatethecomputerusingthe orbuttonwiththemenudisplayed,boththemenuandthemousepointer

willbeaffected.Closethemenuandperformthemouseoperation.

TIP:YoucanchangethePointerspeedontheMousePropertiesdialogboxontheWindows.Formoreinformation,seetheuser

documentationoronlinehelpsuppliedwithyourcomputer.

3. Convenient Features

 Projecting Your Computer’s Screen Image from the

Projector via the USB Cable (USB Display)

UsingacommerciallyavailableUSBcable(compatiblewithUSB2.0specications)toconnectthecomputerwiththe

projectorallowsyoutosendyourcomputerscreenimagetotheprojectorfordisplaying.PowerOn/Offandsource

selectionoftheprojectorcanbedonefromyourcomputerwithoutconnectingacomputercable(VGA).

NOTE:

• TomakeUSBDISPLAYavailableonWindowsXP,theWindowsuseraccountmusthave“Administrator”privilege.

• USBDisplayusesfunctionsofImageExpressUtilityLitecontainedonNECProjectorCD-ROM(→page54).

 StartingUSBDisplay,however,willnotinstallImageExpressUtilityLiteonyourcomputer.ThisisbecauseUSBDisplayexecutes

theprojector’sprogramonly.

• USBDisplaywillnotworkin[POWER-SAVING]of[STANDBYMODE].(→page94)

• WhenUSBDisplayisused,thesoundisoutputfromtheCOMPUTERAUDIOINMiniJack(StereoMini).Imageandsoundmay

notbesynchronized.

1. Start the computer.

2. Connecttheprojector’spowercordtothewalloutletandputtheprojectorintostandbycondition.

3. UsetheUSBcabletoconnectthecomputerwiththeprojector.

USB cable (not supplied)

→ To wall outlet

Power cord (supplied)

 Themessage“Theprojectorisinstandbymode.Connectit?”willbedisplayedonthecomputerscreen.

• ThecontrolwindowofImageExpressUtilityLitewillbedisplayedonthetopofthescreen.

NOTE:Depending onthe computer setting,the “AutoPlay” windowmay be displayedwhen the

computerdetectstheconnectiontotheprojector.Ifthishappens,clickthe“StartUSBDisplay”

window.

4. Click“Yes”.

 Theprojectorwillturnonandthemessage“Theprojectorisgettingready.Pleasewait.”willbedisplayedonthe

computer screen. This message will disappear in a few seconds.

3. Convenient Features

5. Operatethecontrolwindow.

(1) (Source) �� Selects an input source of the projector�

(2) (Picture) �� Turns on or off AV-MUTE (Picture mute), and turns on or off FREEZE (Freeze a picture)�

(3) (Sound) �� Turns on or off AV-MUTE (Sound mute), play the sound and turns up or down the volume�

(4) (Others) �� Uses “Update”, “HTTP Server”*, “Settings” and “Information”�

* The HTTP Server cannot be selected when a USB cable is connected�

(5) (Exit) �� Exit Image Express Utility Lite� You can also turn off the projector at the same time�

(6) (Help) �� Displays the help of Image Express Utility Lite�

(1) (2) (3) (4) (5)(6)

3. Convenient Features

 Controlling the Projector by Using an HTTP Browser

Overview

TheHTTPServerfunctionprovidessettingsandoperationsfor:

1. Settingforwired/wirelessnetwork(NETWORKSETTINGS)

To use wireless LAN connection, the optional USB Wireless LAN Unit is required. (→ page 113)

To use wired/wireless LAN connection, connect the projector to the computer with a commercially available LAN

cable. (→ page 112)

2. SettingAlertMail(ALERTMAIL)

 Whentheprojectorisconnectedtoawired/wirelessnetwork,lampreplacetimeorerrormessageswillbesentvia

e-mail.

3. Operatingtheprojector

Power on/off, selecting input, volume control and picture adjustments are possible.

4. SettingPJLinkPASSWORDandAMXBEACON

Thisdeviceuses“JavaScript”and“Cookies”andthebrowsershouldbesettoacceptthesefunctions.Thesetting

methodwillvarydependingontheversionofbrowser.Pleaserefertothehelplesandtheotherinformationprovided

inyoursoftware.

TwowaysofaccesstotheHTTPserverfunctionareavailable:

• StarttheWebbrowseronthecomputerviathenetworkconnectedtotheprojectorandenterthefollowing

URL :

 http://<theprojector’sIPaddress>/index.html

• UseImageExpressUtilityLitecontainedonthesuppliedNECProjectorCD-ROM.

TIP:ThefactorysettingIPaddressis[DHCPON].

NOTE:

• Tousetheprojectorinanetwork,consultwithyournetworkadministratoraboutnetworksettings.

• Thedisplay’sorbutton’sresponsecanbesloweddownoroperationmaynotbeaccepteddependingthesettingsofyournet-

work.

 Shouldthishappen,consultyournetworkadministrator.Theprojectormaynotrespondifitsbuttonsarerepeatedlypressedin

rapidintervals.Shouldthishappen,waitamomentandrepeat.Ifyoustillcan’tgetanyresponse,turnoffandbackontheprojec-

tor.

• IfthePROJECTORNETWORKSETTINGSscreendoesnotappearinthewebbrowser,presstheCtrl+F5keystorefreshyourweb

browser(orclearthecache).

Preparation before Use

ConnecttheprojectortoacommerciallyavailableLANcablebeforeengaginginbrowseroperations.(→page112)

Operationwithabrowserthatusesaproxyservermaynotbepossibledependingonthetypeofproxyserverandthe

settingmethod.Althoughthetypeofproxyserverwillbeafactor,itispossiblethatitemsthathaveactuallybeenset

willnotbedisplayeddependingontheeffectivenessofthecache,andthecontentssetfromthebrowsermaynotbe

reectedinoperation.Itisrecommendedthataproxyservernotbeusedunlessitisunavoidable.

3. Convenient Features

Handling of the Address for Operation via a Browser

RegardingtheactualaddressthatisenteredfortheaddressorenteredtotheURLcolumnwhenoperationofthepro-

jectorisviaabrowser,thehostnamecanbeusedasitiswhenthehostnamecorrespondingtotheIPaddressofthe

projectorhasbeenregisteredtothedomainnameserverbyanetworkadministrator,orthehostnamecorresponding

totheIPaddressoftheprojectorhasbeensetinthe“HOSTS”leofthecomputerbeingused.

Example1:Whenthehostnameoftheprojectorhasbeensetto“pj.nec.co.jp”,accessisgainedtothenetwork

settingbyspecifying

 http://pj.nec.co.jp/index.html

fortheaddressortheentrycolumnoftheURL.

Example2:WhentheIPaddressoftheprojectoris“192.168.73.1”,accessisgainedtothenetworksettingby

specifying

 http://192.168.73.1/index.html

fortheaddressortheentrycolumnoftheURL.

PROJECTOR ADJUSTMENT

POWER:Thiscontrolsthepoweroftheprojector.

ON �� Power is switched on�

OFF �� Power is switched off�

VOLUME:Thiscontrolsthevolumeoftheprojector.

 �� Increases the volume adjustment value�

 �� Decreases the volume adjustment value�

AV-MUTE:Thiscontrolsthemutefunctionoftheprojector.

PICTURE ON �� Mutes the video�

PICTURE OFF �� Cancels the video muting�

SOUND ON �� Mutes the audio�

SOUND OFF �� Cancels the audio muting�

ALL ON �� Mutes each of the video, and audio functions�

ALL OFF �� Cancels the muting of each of the video, and audio functions�

3. Convenient Features

PICTURE:Controlsthevideoadjustmentoftheprojector.

BRIGHTNESS  �� Increases the brightness adjustment value�

BRIGHTNESS  �� Decreases the brightness adjustment value�

CONTRAST  �� Increases the contrast adjustment value�

CONTRAST  �� Decreases the contrast adjustment value�

COLOR  �� Increases the color adjustment value�

COLOR  �� Decreases the color adjustment value�

HUE  �� Increases the hue adjustment value�

HUE  �� Decreases the hue adjustment value�

SHARPNESS  �� Increases the sharpness adjustment value�

SHARPNESS  �� Decreases the sharpness adjustment value�

• Thefunctionsthatcanbecontrolledwillvarydependingonthesignalbeinginputtotheprojector.(→page

81)

SOURCESELECT:Thisswitchestheinputconnectoroftheprojector.

COMPUTER �� Switches to the COMPUTER IN connector�

HDMI1 �� Switches to the HDMI 1 IN connector

HDMI2

�� Switches to the HDMI 2 IN connector�

VIDEO �� Switches to the VIDEO IN connector�

S-VIDEO �� Switches to the S-VIDEO IN connector�

VIEWER �� Switches to the data on the USB memory device�

NETWORK �� Switches to a LAN signal�

USB DISPLAY �� Switches to the USB Port (PC)�

PROJECTORSTATUS:Thisdisplaystheconditionoftheprojector.

LAMP LIFE REMAINING ��Displays the remaining life of the lamp as a percentage�

LAMP HOURS USED ��Displays how many hours the lamp has been used�

FILTER HOURS USED ��Displays how many hours the ﬁlter has been used�

ERROR STATUS �� Displays the status of errors occurring within the projector�

LOGOFF:Loggingoffyourprojectorandreturningtotheauthenticationscreen(LOGONscreen).

3. Convenient Features

NETWORK SETTINGS

•SETTINGS

WIRED or WIRELESS

SETTING SetforwiredLANorforwirelessLAN.

APPLY ApplyyoursettingstowiredLANorwirelessLAN.

DHCPON AutomaticallyassignIPaddress,subnetmask,andgatewaytotheprojectorfromyour

DHCPserver.

DHCPOFF SetIPaddress,subnetmask,andgatewaytotheprojectorassignedbyyournetwork

administrator.

IPADDRESS SetyourIPaddressofthenetworkconnectedtotheprojector.

SUBNETMASK Setyoursubnetmasknumberofthenetworkconnectedtotheprojector.

GATEWAY Setthedefaultgatewayofthenetworkconnectedtotheprojector.

AUTODNSON DHCPserverwillautomaticallyassignIPaddressofDNSserverconnectedtothe

projector.

AUTODNSOFF SetyourIPaddressofDNSserverconnectedtotheprojector.

SettingforWIREDLAN

ENABLE TurnonwiredLANconnection

DISABLE TurnoffwiredLANconnection

SettingforWIRELESSLAN(withtheoptionalUSBWirelessLANUnitequipped)

EASYCONNECTION ExecuteawirelessLANusingEASYCONNECTION.

CHANNEL Selectachannel.Availablechannelsvarydependingonthecountryandregion.When

youselect[INFRASTRUCTURE],makesurethattheprojectorandyouraccesspoint

areonthesamechannel;whenyouselect[ADHOC],makesurethattheprojectorand

yourcomputerareonthesamechannel.

PROFILE1/PROFILE2 TwosettingscanbesetforwirelessLANconnection.SelectPROFILE1orPROFILE

SSID

Enteranidentier(SSID)forwirelessLAN.Communicationcan bedoneonlywith

equipmentwhoseSSIDmatchesSSIDforyourwirelessLAN.

SITESURVEY DisplaysalistofavailableSSIDsforwirelessLANonsite.SelectanSSIDwhichyou

can access.

3. Convenient Features

NETWORKTYPE SelectcommunicationmethodwhenusingwirelessLAN.

INFRASTRUCTURE:Selectthisoptionwhencommunicatingwithoneormoreequip-

mentconnectedtothewirelessLANnetworkviaawirelessaccesspoint.

ADHOC:SelectthisoptionwhenusingthewirelessLANtodirectlycommunicatewith

acomputerinpeer-to-peermode.

SECURITYTYPE Turnonorofftheencryptionmodeforsecuretransmission.Whenturnontheencryp-

tionmode,setWEPkeyorencryptedkey.

DISABLE Willnotturnontheencryptionfeature.Yourcommunications

maybemonitoredbysomeone.

WEP64bit Uses64-bitdatalengthforsecuretransmission.

WEP128bit Uses128-bitdatalengthforsecuretransmission.Thisoptionwill

increaseprivacyandsecuritywhencomparedtouseof64-bit

datalengthencryption.

WPAPSK-TKIP/

WPAPSK-AES/

WPA2PSK-TKIP/

WPA2PSK-AES

TheseoptionsprovidestrongersecuritythanWEP.

NOTE:

• TheWEPsettingsmustbethesameascommunicationdevicessuchasPCoraccesspointin

yourwirelessnetwork.

• WhenyouuseWEP,yourimagetransmissionspeedwillslowdown.

• [WPAPSK-TKIP],[WPAPSK-AES],[WPA2PSK-TKIP]and[WPA2PSK-AES]arenotavailable

when[ADHOC]isselectedfrom[NETWORKTYPE].

INDEX Selectencryptionkeywhenselecting[WEP64bit]or[WEP128bit]in[SECURITY

TYPE].

KEY

Whenselecting[WEP64bit]or[WEP128bit]in[SECURITYTYPE]:

EnterWEPkey.

Select Characters(ASCII) Hexadecimaldigit(HEX)

WEP64bit Upto5characters Upto10characters

WEP128bit Upto13characters Upto26characters

When selecting [WPAPSK-TKIP], [WPAPSK-AES],[WPA2 PSK-TKIP] or [WPA2

PSK-AES]:

Enterencryptionkey.Keylengthmustbe8orgreaterand63orless.

•NAME

PROJECTORNAME Enteranameforyourprojectorsothatyourcomputercanidentifytheprojector.A

projectornamemustbe16charactersorless.

TIP:Projectornamewillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

HOSTNAME Enterthehostnameofthenetworkconnectedtotheprojector.Ahostnamemustbe

15orless.

DOMAINNAME Enterthedomainnameofthenetworkconnectedtotheprojector.Adomainname

mustbe60charactersorless.

3. Convenient Features

•ALERTMAIL

ALERTMAIL(English

only)

Thisoptionwillnotifyyourcomputeroflampreplacetimeorerrormessagesviae-mail

whenusingwirelessorwiredLAN.

PlacingacheckmarkwillturnontheAlertMailfeature.

ClearingacheckmarkwillturnofftheAlertMailfeature.

Sampleofamessagetobesentfromtheprojector:

Thelampandltersareattheendofitsusablelife.Pleasereplacethelampand

lters.

ProjectorName:NECProjector

LampHoursUsed:100[H]

SENDER’SADDRESS Entersender’saddress.

SMTPSERVERNAME EntertheSMTPservernametobeconnectedtotheprojector.

RECIPIENT’SADDRESS

1,2,3

Enteryourrecipient’saddress.Uptothreeaddressescanbeentered.

TESTMAIL Sendatestmailtocheckwhetheryoursettingsarecorrectornot

NOTE:

• Ifyouexecuteatest,youmaynotreceiveanAlertmail.Shouldthishappen,checkifnetwork

settingsarecorrect.

• Ifyouenteredanincorrectaddressinatest,youmaynotreceiveanAlertmail.Shouldthis

happen,checkiftheRecipient’sAddressiscorrect.

SAVE Clickthisbuttontoreecttheabovesettings.

•NETWORKSERVICE

PJLinkPASSWORD SetapasswordforPJLink*.Apasswordmustbe32charactersorless.Donotforget

yourpassword.However,ifyouforgetyourpassword,consultwithyourdealer.

HTTPPASSWORD SetapasswordforHTTPserver.Apasswordmustbe10charactersorless.

AMXBEACON TurnonorofffordetectionfromAMXDeviceDiscoverywhenconnectingtothenetwork

supportedbyAMX’sNetLinxcontrolsystem.

TIP:

WhenusingadevicethatsupportsAMXDeviceDiscovery,allAMXNetLinxcontrolsystemwillrec-

ognizethedeviceanddownloadtheappropriateDeviceDiscoveryModulefromanAMXserver.

PlacingacheckmarkwillenabledetectingtheprojectorfromAMXDeviceDiscovery.

ClearingacheckmarkwilldisabledetectingtheprojectorfromAMXDeviceDiscovery.

*WhatisPJLink?

PJLinkisastandardizationofprotocolusedforcontrollingprojectorsofdifferentmanufacturers.Thisstandardproto-

colisestablishedbyJapanBusinessMachineandInformationSystemIndustriesAssociation(JBMIA)in2005.

TheprojectorsupportsallthecommandsofPJLinkClass1.

SettingofPJLinkwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

CRESTRONROOMVIEWcompatibility

TheprojectorsupportsCRESTRONROOMVIEW,allowingmultipledevicesconnectedinthenetworktobemanaged

andcontrolledfromacomputeroracontroller.

Formoreinformation,visithttp://www.crestron.com

<SettingProcedure>

AccesstotheHTTPserverfunction,andmakenecessarysettingsfor[CRESTRON]in[NETWORKSETTINGS].

3. Convenient Features

•ROOMVIEWformanagingfromthecomputer.

DISABLE DisablesROOMVIEW.

ENABLE EnablesROOMVIEW.

•CRESTRONCONTROLformanagingfromthecontroller.

DISABLE DisablesCRESTRONCONTROL.

ENABLE EnablesCRESTRONCONTROL.

IPADDRESS SetyourIPaddressofCRESTRONSERVER.

IPID SetyourIPIDofCRESTRONSERVER.

TIP:TheCRESTRONsettingsarerequiredonlyforusewithCRESTRONROOMVIEW.

Formoreinformation,visithttp://www.crestron.com

•INFORMATION

WIREDLAN DisplayalistofsettingsofwiredLANconnection.

WIRELESSLAN DisplayalistofsettingsofwirelessLANconnection.

UPDATE Reectsettingswhentheyarechanged.

3. Convenient Features



Controlling the Projector over a LAN (PC Control Utility Pro 4/

Pro 5)

Usingtheutilitysoftware“PCControlUtilityPro4”and“PCControlUtilityPro5”includedonthecompanionNEC

ProjectorCD-ROM,theprojectorcanbecontrolledfromacomputeroveraLAN.

PCControlUtilityPro4isaprogramcompatiblewithWindows.(→thispage)

PCControlUtilityPro5isaprogramcompatiblewithMacOS.(→page53)

ControlFunctions

PowerOn/Off,signalselection,picturefreeze,picturemute,audiomute,adjusting,errormessagenotication,event

schedule.

ScreenofPCControlUtilityPro4

ThissectionprovidesanoutlineofpreparationforuseofPCControlUtilityPro4/Pro5.Forinformationonhowtouse

PCControlUtilityPro4/Pro5,seeHelpofPCControlUtilityPro4/Pro5.(→page52, 53)

Step1:InstallPCControlUtilityPro4/Pro5onthecomputer.

Step2:ConnecttheprojectortoaLAN.

Step3:StartPCControlUtilityPro4/Pro5.

• TorunPCControlUtilityPro4onWindowsXPHomeEditionandWindowsXPProfessional,“Microsoft .NET

FrameworkVersion2.0orlater”isrequired.TheMicrosoft.NETFrameworkVersion2.0orlaterisavailablefrom

Microsoft’swebpage.Downloadandinstalltheitonyourcomputer.

TIP:

• PCControlUtilityPro4canbeusedwithaserialconnection.

Using on Windows

Step 1: Install PC Control Utility Pro 4 on the computer

NOTE:

• Toinstalloruninstalltheprogram,theWindowsuseraccountmusthave[Administrator]privilege(Windows7,WindowsVista

andWindowsXP)

• Exitallrunningprogramsbeforeinstallation.Ifanotherprogramisrunning,theinstallationmaynotbecompleted.

1 InserttheaccompanyingNECProjectorCD-ROMintoyourCD-ROMdrive.

The menu window will be displayed.

3. Convenient Features

TIP:

Ifthemenuwindowwillnotbedisplayed,trythefollowingprocedure.

ForWindows7:

1. Click“start”onWindows.

2. Click“AllPrograms”→“Accessories”→“Run”.

3. Type your CD-ROM drive name (example:“Q:\”) and“LAUNCHER.EXE” in“Name”. (example: Q:\

LAUNCHER.EXE)

4. Click“OK”.

the menu window will be displayed.

2 Click“PCControlUtilityPro4”onthemenuwindow.

The installation will start.

When the installation is complete, the Welcome window will be displayed.

3 Click“Next”.

 “ENDUSERLICENSEAGREEMENT”screenwillbedisplayed.

 Read“ENDUSERLICENSEAGREEMENT”carefully.

4 Ifyouagree,click“Iacceptthetermsinthelicenseagreement”andthenclick“Next”.

• Followtheinstructionsontheinstallerscreenstocompletetheinstallation.

• Whentheinstallationiscomplete,youwillreturntothemenuwindow.

TIP:

•UninstallingPCControlUtilityPro4

TouninstallPCControlUtilityPro4,dothesameproceduresstatedasin“UninstallingVirtualRemoteTool”.Read“VirtualRemote

Tool”as“PCControlUtilityPro4”(→page37)

3. Convenient Features

Step 2: Connect the projector to a LAN.

ConnecttheprojectortotheLANbyfollowingtheinstructionsin“ConnectingtoaWiredLAN”(→page112),“Con-

nectingtoaWirelessLAN(Optional:NP02LMseries)”(→page113)and“9.ControllingtheProjectorbyUsingan

HTTPBrowser”(→page43)

Step 3: Start PC Control Utility Pro 4

Click“Start”→“Allprograms”or“Programs”→“NECProjectorUserSupportware”→“PCControlUtilityPro4”→

“PCControlUtilityPro4”.

NOTE:

• FortheSchedulefunctionofthePCControlutilityPro4towork,youmusthaveyourcomputerrunningandnotinstandby/

sleepmode.Select“PowerOptions”fromthe“ControlPanel”inWindowsanddisableitsstandby/sleepmodebeforerunningthe

scheduler.

[Example]ForWindows7:

Select“ControlPanel”→“SystemandSecurity”→“PowerOptions”→“Changewhenthecomputersleeps”→“Putthecomputer

tosleep”→“Never”.

NOTE:

• When[POWER-SAVING]isselectedfor[STANDBYMODE]fromthemenu,theprojectorcannotbeturnedonviathenetwork

(wiredLAN/wirelessLAN)connection.

TIP:

ViewingtheHelpofPCControlUtilityPro4

• DisplayingtheHelpleofPCControlUtilityPro4whileitisrunning.

 Click“Help(H)”→“Help(H)…”ofwindowofPCControlUtilityPro4inthisorder.

The pop-up menu will be displayed.

• DisplayingthehelpleusingtheStartMenu.

 Click“Start”→“Allprograms”or“Programs”→“NECProjectorUserSupportware”→“PCControlUtilityPro4”→

“PCControlUtilityPro4Help”.

The Help screen will be displayed.

3. Convenient Features

Using on Mac OS

Step 1: Install PC Control Utility Pro 5 on the computer

1. InserttheaccompanyingNECProjectorCD-ROMinyourMacCD-ROMdrive.

 TheCD-ROMiconwillbedisplayedonthedesktop.

2. Double-clicktheCD-ROMicon.

The CD-ROM window will be displayed.

3. Double-clickthe“MacOSX”folder.

4. Double-click“PCControlUtility.mpkg”.

The installer will start.

5. Click“Next”.

 “ENDUSERLICENSEAGREEMENT”screenwillbedisplayed.

6. Read“ENDUSERLICENSEAGREEMENT”andclick“Next”.

The conﬁrmation window will be displayed

7. Click“Iacceptthetermsinthelicenseagreement”.

Follow the instructions on the installer screens to complete the installation.

Step 2: Connect the projector to a LAN

ConnecttheprojectortotheLANbyfollowingtheinstructionsin“ConnectingtoaWiredLAN”(→page112),“Con-

nectingtoaWirelessLAN(Optional:NP02LMseries)”(→page113)and“❾ControllingtheProjectorbyUsingan

HTTPBrowser”(→page43)

Step 3: Start PC Control Utility Pro 5

1. OpenyourApplicationsfolderinMacOS.

2. Clickthe“PCControlUtilityPro5”folder.

3. Clickthe“PCControlUtilityPro5”icon.

PC Control Utility Pro 5 will start.

NOTE:

• FortheSchedulefunctionofthePCControlutilityPro5towork,youmusthaveyourcomputerrunningandnotinsleepmode.

Select“EnergySaver”fromthe“SystemPreferences”inMacanddisableitssleepmodebeforerunningthescheduler.

• When[POWER-SAVING]isselectedfor[STANDBYMODE]fromthemenu,theprojectorcannotbeturnedonviathenetwork

(wiredLAN/wirelessLAN)connection.



TIP:

ViewingtheHelpofPCControlUtilityPro5

•DisplayingtheHelpleofPCControlUtilityPro5whileitisrunning.

• Fromthemenubar,click“Help”→“Help”inthisorder.

The Help screen will be displayed.

•DisplayingtheHelpusingtheDock

1. Open“ApplicationFolder”inMacOS.

2. Clickthe“PCControlUtilityPro5”folder.

3. Clickthe“PCControlUtilityPro5Help”icon.

The Help screen will be displayed.



3. Convenient Features

 Projecting Your Computer’s Screen Image from the

Projector over a LAN (Image Express Utility Lite)

UsingImageExpressUtilityLitecontainedonthesuppliedNECProjectorCD-ROMallowsyoutosendthecomputer’s

screenimagetotheprojectoroveraUSBcableorawiredorwirelessLAN.

ImageExpressUtilityLiteisaprogramcompatiblewithWindows.

ImageExpressUtilityLiteforMacOSisaprogramcompatiblewithMacOS.(→page58)

ThissectionwillshowyouanoutlineabouthowtoconnecttheprojectortoaLANandtouseImageExpressUtility

Lite.FortheoperationofImageExpressUtilityLite,seethehelpofImageExpressUtilityLite.

Step1:installImageExpressUtilityLiteonthecomputer.

Step2:ConnecttheprojectortoaLAN.

Step3:StartImageExpressUtilityLite.

TIP:

• ImageExpressUtilityLite(forWindows)canbestartedfrommostcommerciallyavailableremovablemediasuchasUSBmemory

devicesorSDcardswithouttheneedtoinstallonyourcomputer.(→page57)

What You can Do with Image Express Utility Lite

•Imagetransmission(forWindowsandMacOS)

• Thescreenofyourcomputercanbesenttotheprojectorviaawiredorwirelessnetworkwithoutacomputercable

(VGA).

• Byusing“EASYCONNECTION”function,thecomplicatednetworksettingscanbesimpliedandthecomputer

willautomaticallyconnecttotheprojector.

• Thescreenofyourcomputercanbesenttouptofourprojectorsatthesametime.

•USBDisplay(forWindowsonly)

• Computer’sscreenimagecanbeprojectedviaaUSBcable,withoutconnectingacomputercable(VGA).

• JustconnectingthecomputerandtheprojectoroveraUSBcablewillmaketheUSBDisplayfunctionavailable

(Plug&Play)evenwithoutinstallingImageExpressUtilityLiteonthecomputer.(→page41)

•GeometricCorrectionTool[GCT](forWindowsonly)

See“⓬ProjectinganImagefromanAngle(GeometricCorrectionToolinImageExpressUtilityLite)”.(→page59)

NOTE:

• WhenImageExpressUtilityLiteisused,theaudiofromtheCOMPUTERAUDIOINMiniJack(StereoMini)maynotbesynchro-

nizedwiththevideo.

Using on Windows

Step 1: install Image Express Utility Lite on the computer.

NOTE:

• Toinstalloruninstalltheprogram,theWindowsuseraccountmusthave“Administrator”privilege(Windows7,WindowsVista

andWindowsXP).

• Exitallrunningprogramsbeforeinstallation.Ifanotherprogramisrunning,theinstallationmaynotbecompleted.

• ImageExpressUtilityLitewillbeinstalledtothesystemdriveofyourcomputer.

 Ifthemessage“Thereisnotenoughfreespaceondestination”isdisplayed,freeupenoughspace(about100MB)toinstallthe

program.

1. InserttheaccompanyingNECProjectorCD-ROMintoyourCD-ROMdrive.

The menu window will be displayed.

3. Convenient Features

TIP:

Ifthemenuwindowwillnotbedisplayed,trythefollowingprocedure.

ForWindows7:

1.Click“start”onWindows.

2.Click“AllPrograms”→“Accessories”→“Run”.

3. TypeyourCD-ROMdrivename(example:“Q:\”)and“LAUNCHER.EXE”in“Name”.(example:Q:\LAUNCH-

ER.EXE)

4. Click“OK”.

The menu window will be displayed.

2. Click“InstallingImageExpressUtilityLite”onthemenuwindow.

The installation will start.

 “ENDUSERLICENSEAGREEMENT”screenwillbedisplayed.

 Read“ENDUSERLICENSEAGREEMENT”carefully

3. Ifyouagree,click“Iagree.”andthenclick“Next”.

• Followtheinstructionsontheinstallerscreenstocompletetheinstallation.

• Whentheinstallationiscomplete,youwillreturntothemenuwindow.

When the installation is complete, a completion message will be displayed.

4. Click“OK”.

This completes the installation.

TIP:

•UninstallingImageExpressUtilityLite

TouninstallImageExpressUtilityLite,dothesameproceduresstatedasin“UninstallingVirtualRemoteTool”.Read“VirtualRemote

Tool”as“ImageExpressUtilityLite”(→page37)

Step 2: Connect the projector to a LAN.

ConnecttheprojectortotheLANbyfollowingtheinstructionsin“ConnectingtoaWiredLAN”(→page112),“Con-

nectingtoaWirelessLAN(Optional:NP02LMseries)”(→page113)and“9.ControllingtheProjectorbyUsingan

HTTPBrowser”(→page43)

Step 3: Start Image Express Utility Lite.

1. OnWindows,click“Start”→“Allprograms”→“NECProjectorUserSupportware”→“ImageExpressUtility

Lite”→“ImageExpressUtilityLite”.

 ImageExpressUtilityLitewillstart.

 Theselectwindowfornetworkconnectionwillbedisplayed

2. SelectNetworkandclick“OK”.

The select window for destination will show a list of connectable projectors.

• Whenconnectingthecomputerdirectlytotheprojectorbyone-to-one,“EasyConnection”isrecommended.

• Whenoneormorenetworksfor“EASYCONNECTION”arefound,the“EasyConnectionSelectionScreen”

window will be displayed.

• Tocheckforthenetworkavailableforconnectedprojectors,fromthemenu,select[INFO.]→[WIRELESS

LAN]→[SSID].

3. Convenient Features

3. Selectthenetworkyouwishtoconnect,andclick“Select”.

The target selection window will be displayed.

4. Placeacheckmarkforprojectorstobeconnected,andthenclick“Connect”.

• Whenoneormoreprojectorsaredisplayed,fromthemenuontheprojector,select[INFO.]→[WIRELESSLAN]

→[IPADDRESS].

When connecting with the projector is established, you can operate the control window to control the projector. (→

page 42)

NOTE:

• When[POWER-SAVING]isselectedfor[STANDBYMODE]fromthemenu,theprojectorthatisturnedoffwillnotbedisplayed

intheselectwindowfordestination

TIP:

Viewingthe“Help”leofImageExpressUtilityLite

• DisplayingtheHelpleofImageExpressUtilityLitewhileitisrunning.

 Clickthe[?](help)icononthecontrolwindow.

The Help screen will be displayed.

• DisplayingtheHelpleofGCTwhileitisrunning.

 Click“Help”→“Help”ontheeditwindow.

The Help screen will be displayed.

• DisplayingthehelpleusingtheStartMenu.

 Click“Start”→“Allprograms”or“Programs”→“NECProjectorUserSupportware”→“ImageExpressUtilityLite”

→“ImageExpressUtilityLiteHelp”.

The Help screen will be displayed.

3. Convenient Features

Starting Image Express Utility Lite from a USB Memory or SD Card

ImageExpressUtilityLitecanbestartedfromcommerciallyavailableremovablemediasuchUSBmemoryorSDcards

ifitiscopiedbeforehand.ThiswilleliminatethetroubleofinstallingImageExpressUtilityLitetoyourcomputer.

1. CopyImageExpressUtilityLitetoremovablemedia.

 Copyallthefoldersandles(totalsizeapprox.6MB)fromthe“IEU_Lite(removable-media)”folderinthesupplied

NEC Projector CD-ROM to the root directory of your removable media.

2. Insertyourremovablemediaintoyourcomputer.

 The“AutoPlay”screenwillbedisplayedonyourcomputer.

TIP:

• Ifthe“AutoPlay”screenisnotdisplayed,openthefolderfrom“Computer”(“MyComputer”forWindowsXP).

3. Click“Openfoldertoviewles”

 TheIEU_Lite.exe,otherfolder,andleswillbedisplayed.

4. Double-clickthe“IEU_Lite.exe”( ) icon.

 ImageExpressUtilityLitewillstart.

NOTE:

• The“EASYCONNECTION”functionisnotsupportedwhenImageExpressUtilityLiteisstartedfromremovablemedia.

3. Convenient Features

Using on Mac OS

Step 1: Install Image Express Utility Lite for Mac OS on the computer

1. InserttheaccompanyingNECProjectorCD-ROMinyourMacCD-ROMdrive.

 TheCD-ROMiconwillbedisplayedonthedesktop.

2. Double-clicktheCD-ROMicon.

The CD-ROM window will be displayed.

3. Double-clickthe“MacOSX”folder.

4. Double-click“ImageExpressUtilityLite.dmg”.

 The“ImageExpressUtilityLite”windowwillbedisplayed.

5. Draganddropthe“ImageExpressUtilityLite”foldertoyourApplicationsfolderinMacOS.

Step 2: Connect the projector to a LAN

ConnecttheprojectortotheLANbyfollowingtheinstructionsin“ConnectingtoaWiredLAN”(→page112),“Con-

nectingtoaWirelessLAN(Optional:NP02LMseries)”(→page113)and“❾ControllingtheProjectorbyUsingan

HTTPBrowser”(→page43)

Step 3: Start Image Express Utility Lite for Mac OS

1. OpenyourApplicationsfolderinMacOS.

2. Double-clickthe“ImageExpressUtilityLite”folder.

3. Double-clickthe“ImageExpressUtilityLite”icon.

 WhenImageExpressUtilityLiteforMacOSstarts,theselectwindowfordestinationwillbedisplayed.

• Atthersttimeofstartup,“ENDUSERLICENSEAGREEMENT”screenwillbedisplayedbeforetheselect

window for destination is displayed.

 Read“ENDUSERLICENSEAGREEMENT”andselect“Iacceptthetermsinthelicenseagreement”,andclick

“OK”.

4. Selectaprojectortobeconnected,andthenclick“Connect”.

 Yourdesktopscreenwillbedisplayedontheprojector.

TIP:

ViewingtheHelpofImageExpressUtilityLiteforMacOS

• Fromthemenubar,click“Help”→“ImageExpressUtilityLiteHelp”whileImageExpressUtilityisrun-

ning.

The Help screen will be displayed



3. Convenient Features

 Projecting an Image from an Angle (Geometric Correction

Tool in Image Express Utility Lite)

TheGeometricCorrectionTool(GCT)functionallowsyoutocorrectdistortionofimagesprojectedevenfroman

angle.

What you can do with GCT

• TheGCTfeatureincludesthefollowingthreefunctions

• 4-pointCorrection:Youcantaprojectedimagewithintheborderofthescreeneasilybyalignthefourcorners

ofanimagetotheonesofthescreen.

• Multi-pointCorrection:Youcancorrectadistortedimageonthecornerofawallorirregularshapedscreen

byusingmanyseparatedscreenstocorrecttheimageaswellas4-pointCorrection.

• Parameters Correction:Youcancorrectadistortedimagebyusingacombinationoftransformationalrules

preparedinadvance.

Thissectionwillshowanexampleforusewith4-pointCorrection.

Forinformationabout“Multi-pointCorrection”and“ParametersCorrection”,seethehelpleofImageExpress

UtilityLite.(→page56, 58)

• Yourcorrectiondatacanbestoredintheprojectororyourcomputerwhichcanberestoredwhennecessary.

• TheGCTfunctionisavailablewithaUSBcable,wiredorwirelessLANconnection,andvideocable.

Projecting an Image from an Angle (GCT)

ThissectionwillshowanexampleforusewithUSBDisplay(usingaUSBcabletoconnectacomputerandthepro-

jector).

• TheUSBDisplayfunctionwillautomaticallydisplaythecontrolwindow

• ForavideocableorLANconnection,installandstartImageExpressUtilityLiteinyourcomputerbeforehand.(→

page54)

Preparation:Adjusttheprojectorpositionorthezoomsothattheprojectedimagecancoverthewholescreenarea.

1. Clickthe“ ”(Picture)iconandthenthe“ ”button.

 The“4-pointCorrection”windowwillbedisplayed.

2. Clickthe“StartCorrection”buttonandthen“Start4-pointCorrection”button.

A green frame and a mouse pointer ( ) will be displayed.

• Four[•]markswillbeappearedatfourcornersofthegreenframe

3. Convenient Features

3. Usethemousetoclickthe[•]markofwhichcorneryouwishtomove.

The currently selected [ •]markwillturnred.

(Intheaboveexample,Windowsscreensareomittedforclarication.)

4. Dragtheselected[•]marktothepointyouwishtocorrectanddropit.

• Whenyouclicksomewherewithintheprojectimagearea,thenearest[•]markwillgotothepositionwhere

the mouse cursor is.

5. Repeat Step 3 and 4 to correct the distortion of the projected image.

6. After completing, right-click the mouse.

The green frame and the mouse pointer will disappear from the projected image area. This will complete the cor-

rection.

7. Clickthe“X”(close)buttononthe“4-pointCorrection”window.

 The“4-pointCorrection”windowwilldisappearandthe4-pointcorrectionwilltakeeffect.

8. Clickthe“ ”buttononthecontrolwindowtoexittheGCT.

TIP:

• Afterperformingthe4-pointcorrection,youcansavethe4-pointcorrectiondatatotheprojectorbyclicking“File”→“Exportto

theprojector…”onthe“4-pointCorrection”window.

• SeetheHelpofImageExpressUtilityLiteforoperating“4-pointCorrection”windowandotherfunctionsthanGCT.(→page56,

58)

3. Convenient Features

 Connecting Your Microphone

ConnectingacommerciallyavailabledynamicmicrophonetotheMICinputjackallowsyoutooutputyourmicsound

fromthebuilt-inspeaker.

SoundfromCOMPUTER,VIDEO,S-VIDEO,andHDMIaudioinputswillbeheardfromthespeakerwithyourmicro-

phonevoice.

Microphonesensitivitycanbeadjusted.Fromthemenu,select[SETUP]→[INSTALLATION]→[MICGAIN].(→page

92)

NOTE:

• TheMICinputjackdoesnotsupportpluginpowermicrophones.

• IfthereisnosignalwheneitherHDMIinputisselected,soundoutputmaynotwork.

4. Using the Viewer

❶ What you can do with the Viewer

TheViewerhasthefollowingfeatures.

• WhenacommerciallyavailableUSBmemorythatstoresimagelesisinsertedintotheUSBport(TypeA)ofthe

projector,theViewerallowsyoutoviewtheimagelesontheUSBmemory.

 Evenifnocomputerisavailable,presentationscanbeconductedsimplywiththeprojector.

• SupportedgraphicformatisJPEG.

• TheViewerdisplaysthethumbnailscreen(JPEGExifonly)onwhichyoucanjumptoanyspecicimageyouwish

toproject.

• Therearetwowaysofplayback forslideshow:manualplaybackandautoplayback.Theintervaltimecanbe

changedinautoplayback.

• Theorderofdisplayingimagescanbesetbyname,dateorsize.Ascendingordescendingordercanbese-

lected.

• Imagescanberotatedby90degreesduringplayback.

4. Using the Viewer

NOTE

• TheUSBportoftheprojectordoesnotsupportUSBhub.

• ThefollowingoperationsbyusingthebuttonsontheprojectorarenotpossiblewhentheVIEWERscreensuchastheslidescreen

andthethumbnailscreenisdisplayed.

- Keystonecorrectionbyusingthe▲/▼button

- AutoAdjustmentbyusingtheAUTOADJ.button

- Volumecontrolwiththe◀or▶button

 ToperformKeystonecorrectionorSourceselectionduringdisplayoftheViewer,presstheMENUbuttontwicetodisplaythe

menuandoperateViewerfromthemenu.

• FreezingpicturebyusingtheFREEZEbuttonontheremotecontrolisnotpossiblewhentheVIEWERscreensuchastheslide

screenandthethumbnailscreenisdisplayed.

• Executing[RESET]→[ALLDATA]fromthemenuwillreturnthesettingsfortheViewertoolbartothefactorydefault.

• USBmemory

- BesuretouseaUSBmemorydeviceformattedwiththeFAT32orFAT16lesystem.

 TheprojectordoesnotsupportNTFSformattedUSBmemory.

 IftheprojectordoesnotrecognizeyourUSBmemory,checkiftheformatissupported.

 ToformatyourUSBmemoryinyourcomputer,refertothedocumentorhelplethatcomeswithyourWindows.

- WedonotwarrantthattheUSBportoftheprojectorwillsupportallUSBmemoriesinthemarket.

• Supportedimages

- SupportedleformatforViewerareasfollows.

 WedonotwarrantalltheimagesaresupportedforViewer.

 Imagesotherthanmentionedinthetablemaynotbesupported.

Imagetype Extension Description

JPEG JPG/JPEG

Baseline/Exifaresupported

- Slideshow,effect,andsoundeffectsetwithPowerPointcannotbeplayedback.

- Imagecanbedisplayedataresolutionupto10000×10000pixels.

- Evenifimagesaremetbytheaboveconditions,theremaybesomeimageswhichcannotbeplayedback.

- Morethan200icons(totalnumberofimageleiconsandfoldericons)cannotbedisplayedinathumbnailscreen.

- Longle/foldernamewillbelimitedtothespeciedlength.Thiscanbeshownbybracketadded.

- Ifonefolderhasmanyles,ittakessometimetoplayback.

• Ifasinglefoldercontainstoomanyles,switchingimageswilltaketime.Toshortenswitchingtime,reducethenumberofimages

containedinasinglefolder.

TIP:Exchangeableimageleformat(Exif)isastandardimageleformatusedbydigitalcameraswiththeadditionofspecic

shootingdata.

4. Using the Viewer

❷ Projecting images stored in a USB memory device

ThissectionexplainsthebasicoperationoftheViewer.

TheexplanationprovidestheoperationalprocedurewhentheViewertoolbar(→page68)issettothefactoryde-

fault.

-StartingtheViewer .......................................................................below

-RemovingtheUSBmemoryfromtheprojector ....................... page66

-ExitingtheViewer..................................................................... page66

Preparation:BeforestartingtheViewer,storeimagestotheUSBmemoryusingyourcomputer.

Starting the Viewer

1. Turnontheprojector.(→ page 16)

2. InserttheUSBmemoryintotheUSBportoftheprojec-

tor.

• DonotremovetheUSBmemoryfromtheprojectorwhile

it’s LED ﬂashes. Doing so may corrupt the data.

3. PresstheSOURCEbuttonontheprojectorcabinet.

The Viewer start screen will be displayed.

• PresstheVIEWERbuttonontheremotecontrol.

4. Using the Viewer

4. Press the ENTER button.

The thumbnail screen will be displayed. (→ page 67)

5. Use the ▲▼◀ or ▶ button to select an icon.

• The→ (arrow) symbol on the right indicates there are more

pages. pressing the PAGE ▽ (page down) button will show

the next page: pressing the PAGE △ (page up) will show

the previous page.

6. Press the ENTER button.

The selected slide will be displayed.

• Whenafoldericonisselected,iconscontainedinthefolder

will be displayed.

7. Press the ▶ button to select the next slide.

The slide on the right will be displayed.

• The◀ or ▶ button can be used to select the next (right)

slide or the previous (left) slide in the thumbnail screen.

• PressingtheMENUbuttonduringdisplayofthethumbnail

screen, the slide screen, or the slideshow screen will display

the toolbar. The toolbar is used to select or rotate an slide.

(→ page 68)

8. Press the EXIT button when the toolbar is not dis-

played.

The thumbnail screen will be displayed.

• Anotherwaytodisplaythethumbnailscreenistopressthe

ENTER button.

• Toclosethetoolbar,presstheMENUbuttontoreturntothe

SOURCE list, and press the MENU button again to close

the SOURCE list.

4. Using the Viewer

Removing the USB memory from the projector

1. SelecttheVIEWERstartscreen.

 PresstheEXITbuttonwithnomenudisplayed.

2. RemovetheUSBmemoryfromtheprojector.

 MakesurethattheLEDontheUSBmemoryisnotashing

before removing the USB memory.

NOTE:IfyouremovetheUSBmemoryfromtheprojectorwithaslide

displayed,theprojectormaynotoperatecorrectly.Ifthishappens,

turnofftheprojectorandunplugthepowercord.Wait3minutes,then

connectthepowercord,andturnontheprojector.

Exiting the Viewer

1. Press the MENU button with the slide screen or the

thumbnail screen displayed.

The control bar or the pop-up menu will be displayed.

2. Press the MENU button again.

The on-screen menu will be displayed.

3. Select a source other than [VIEWER] and press the

ENTER button.

The Viewer will be exited.

TIP:ToexittheViewerusingtheremotecontrol,selectasourceother

than[VIEWER].

4. Using the Viewer

Parts of each screen

TheViewerhasfourscreens.

(1) Viewer start screen (3) Thumbnail screen (9) Slide screen/

(11) Slideshow screen

Name Description

(1)Viewerstartscreen ThisscreenwillbedisplayedrstwhenyouselecttheViewer.

(2)USBicon ThisiconindicatesthattheUSBmemoryisinsertedintotheprojector.

(3)Thumbnailscreen ThisscreenwillshowalistoffoldersandimagelesstoredintheUSBmemory.The

JPEGExifleswillbedisplayedinthumbnailscreenonly.

• Themaximumnumberofimagelesorfolderswithinonepageisdifferentdepending

on the model.

 UM330XandUM280Xare5by4

 UM330WandUM280Ware6by4

(4)Cursor Thecursorisusedtoselect(highlight)thefolderorimagelebyusing▲▼◀▶ but-

ton.

(5)Backicon Thisiconisusedtoreturntotheupper(parent)folder.

(6)Foldericon ThisiconshowsthattheUSBmemoryhasfolders.

(7)Pageup(Pagedown)

icon

Thisiconshowsfurtherfoldersorimagelesareavailableinthenext(previous)page.

Use the ▶buttontogotothenext(previous)row.ThePAGE▽orPAGE△ on the

remotecontrolisusedtogotothenextorpreviouspagedirectly.

(8)Thumbnailtoolbar Thistoolbarisusedinthethumbnailscreen.PressingtheMENUbuttonwilldisplay

thistoolbar.(→page68)

(9)Slidescreen Thisscreenisusedformanualplayback.Theselectedimagewillbedisplayedinfull

screen.

(10)Slidetoolbar Thistoolbarisusedintheslidescreen.PressingtheMENUbuttonwilldisplaythis

toolbar.(→page69)

(11)Slideshowscreen Thisscreenisusedforautoplayback.Theslideswillbechangedautomatically.

(12)Slideshowtoolbar Thistoolbarisusedintheslideshowscreen.PressingtheMENUbuttonwilldisplay

thistoolbar.(→page69)

(5) (6) (4) (7)

(8)(2) (10) (12)

4. Using the Viewer

Using the toolbar

1. Press the MENU button.

The toolbar will be displayed.

The SOURCE screen will be displayed as Viewer connection screen.

2. Use the ◀ or ▶ button to select an item and use the ▲ or ▼ button to select its available option.

When the cursor is placed, the selected item will be changed to yellow.

The ▲ or ▼ shows more available choices.

3. Press the ENTER button.

The selected item will be displayed.

4. Press the MENU button two times.

The toolbar will be closed and the SOURCE list will be displayed. Press the MENU button again to close the

SOURCE list.

Thumbnailtoolbar

Menu Options Description

(1)Back — Goesbacktothepreviousimage.Whenthecursorreachesthetopleftof

thescreen,itwillgotothepreviouspage.

(2)Forward — Goestothenextimage.Whenthecursorreachesthebottomrightofthe

screen,itwillgotothenextpage.

(3)Display Closesthemenuandreturnstothethumbnailscreen.

Closesthemenuandstartstheslideshowfromthehighlighteditem.

Closesthemenuanddisplaystheslidescreen.

(4)Order Displaystheiconsalphabeticallybyname.(numberbeforealphabet)

Displaystheiconsindescendingorderoflesize.

Displaystheiconsintheorderofcreationdate

(1) (2) (3) (4)

4. Using the Viewer

Slidetoolbar

Menu Options Description

(1)Display Closesthemenuandswitchestotheslidescreen.

Closesthemenuanddisplaysthethumbnailscreen.

Closesthemenuandstartstheslideshowfromthehighlighteditem.

(2)Image

display

Closesthemenuanddisplaystheimageinitsactualsize.

Closesthemenuanddisplaystheimageintheprojector’smaximumreso-

lution.

(3)Clockwise

rotation

— Closethemenuandrotatetheimage90°clockwise

(4)Counter-

clockwise

rotation

— Closethemenuandrotatetheimage90°counterclockwise

Slideshowtoolbar

Menu Options Description

(1)Stop — Closesthemenuandchangestotheslidescreen.

(2)Back — Goesbacktothepreviousimage.

(3)Forward — Goestothenextimage.

(4)Interval Speciesintervaltimewhenplayingbacktheslides.

(5)Repeat Repeatstoplaybacktheimagesinthefolder.

Returnstothethumbnailscreen.

TIP:

• Apictureiconatthecenterofthescreenshowsthatthelecannotbedisplayedintheslidescreenorthumbnailscreen.

• Slidetoolbarsettingforrotationwillbecancelledifthefolderismovedfromoneplacetoanother.

(1) (2) (3) (4)

(1) (2) (3) (4) (5)

4. Using the Viewer

 Converting PowerPoint ﬁles to Slides (Viewer PPT Converter

3.0)

UsingViewerPPTConverter3.0containedonthesuppliedNECProjectorCD-ROMallowsyoutoconvertPower-

PointlesintoJPEGles.ConvertedJPEGlescanbesavedtoaUSBmemory.WhentheUSBmemoryinserted

intotheprojector,theseJPEGlescanbedisplayedwiththeviewerfunctionoftheprojectorwithoutconnectinga

computer.

NOTE:

ByusingPPTConverter3.0,PowerPointleisconvertedintoindexle(withextension“.idx”)

Whenconversionisdone,indexle(withextension“.idx”)willbecreated.Atthesametimeafolderwiththesamenamewillbe

createdwhereJPEGleswillbesavedto.Theprojector’sViewerdoesnotsupportindexle(withextension.idx).

Install Viewer PPT Converter 3.0 on the computer.

NOTE:

• Toinstalloruninstalltheprogram,theWindowsuseraccountmusthave“Administrator”privilege(Windows7,WindowsVista

andWindowsXP).

• Exitallrunningprogramsbeforeinstallation.Ifanotherprogramisrunning,theinstallationmaynotbecompleted.

1. InserttheaccompanyingNECProjectorCD-ROMintoyourCD-ROMdrive.

The menu window will be displayed.

TIP:

Ifthemenuwindowwillnotbedisplayed,trythefollowingprocedure.

ForWindows7:

1. Click“start”onWindows.

2. Click“AllPrograms”→“Accessories”→“Run”.

3. TypeyourCD-ROMdrivename(example:“Q:\”)and“LAUNCHER.EXE”in“Name”.(example:Q:\LAUNCH-

ER.EXE)

4 Click“OK”.

The menu window will be displayed.

4. Using the Viewer

2. Click“InstallViewerPPTConverter3.0”onthemenuwindow.

The installation will start.

When the installation is complete, the Welcome window will be displayed.

3 Click“Next”.

 “ENDUSERLICENSEAGREEMENT”screenwillbedisplayed.

 Read“ENDUSERLICENSEAGREEMENT”carefully

4. Ifyouagree,click“Iacceptthetermsinthelicenseagreement”andthenclick“Next”.

• Followtheinstructionsontheinstallerscreenstocompletetheinstallation.

• Whentheinstallationiscomplete,youwillreturntothemenuwindow.

NOTE:

WhenViewerPPTConverter3.0hasbeeninstalled,oncestartViewerPPTConverter3.0oncewiththeprivilegeusedforinstallation.

ThenexitfromViewerPPTConverter3.0withoutdoinganything.

•Starting

ClickWindow’s[Start]→[AllPrograms]→[NECProjectorUserSupportware]→[ViewerPPTConverter3.0]→[ViewerPPT

Converter3.0],inthatorder.

NOTE:

WheninstallingViewerPPTConverter3.0ontoapersonalcomputerthathasPowerPointinstalled,ViewerPPTConverter3.0is

automaticallyregisteredasaPower-Pointadd-in.

ItisnecessarytocancelViewerPPTConverter3.0add-inbeforeuninstallingViewerPPTConverter3.0.

RefertoViewerPPTConverter3.0Helptounregistertheadd-in.

TIP:

•UninstallingViewerPPTConverter3.0

TouninstallViewerPPTConverter3.0,dothesameproceduresstatedasin“UninstallingVirtualRemoteTool”.Read“VirtualRemote

Tool”as“ViewerPPTConverter3.0”(→page37)

4. Using the Viewer

Converting PowerPoint ﬁles and saving them to a USB memory

1. InserttheUSBmemoryintotheUSBportofthecomputer.

2. OnWindows,click“Start”→“Allprograms”→“NECProjectorUserSupportware”→“ViewerPPTConverter

3.0”→“ViewerPPTConverter3.0”.

Viewer PPT Converter 3.0 will start.

3.Click“Brows...”andselectaPowerPointleyouwishtoconvert,andthenclick“Open”.

4.Click“Next”.

5. SelecttheUSBmemorydrivefor“CardDrive”andtypein“Indexname”.

 Indexnamemustbeeightalphanumericcharactersorless.2-bytecharacterandlewithalonglenamecannot

be used.

6. Click“Export”.

A conﬁrmation message will be displayed.

7. Click“OK”.

Exporting a ﬁle will start.

8. Click“OK”.

9. Click“Exit”.

Viewer PPT Converter 3.0 will exit.

10.RemovetheUSBmemoryfromthecomputer.

NOTE:

• BeforeremovingtheUSBmemoryfromtheUSBportofthecomputer,clickthe“SafetoRemoveHardware”icononthetask-

bar.

5. Using On-Screen Menu

1 Using the Menus

NOTE:Theon-screenmenumaynotbedisplayedcorrectlywhileinterlacedmotionvideoimageisprojected.

1. Press the MENU button on the remote control or the projector cabinet to display the menu.

NOTE:ThecommandssuchasENTER,EXIT,,inthebottomshowavailablebuttonsforyouroperation.

2. Press the  buttons on the remote control or the projector cabinet to display the submenu.

3. Press the ENTER button on the remote control or the projector cabinet to highlight the top item or the ﬁrst

tab.

4. Use the  buttons on the remote control or the projector cabinet to select the item you want to adjust or

set.

 Youcanusethe buttons on the remote control or the projector cabinet to select the tab you want.

5. Press the ENTER button on the remote control or the projector cabinet to display the submenu window.

6. Adjust the level or turn the selected item on or off by using the  buttons on the remote control or

the projector cabinet.

Changesarestoreduntiladjustedagain.

7. Repeatsteps2-6toadjustanadditionalitem,orpresstheEXITbuttonontheremotecontrolortheprojec-

tor cabinet to quit the menu display.

NOTE:Whenamenuormessageisdisplayed,severallinesofinformationmaybelost,dependingonthesignalorsettings.

8. Press the MENU button to close the menu.

 Toreturntothepreviousmenu,presstheEXITbutton.

5. Using On-Screen Menu



Menu Elements

Slide bar

Solid triangle

Tab

Radio button

High Altitude symbol

ECO mode symbol

Wireless symbol

Menuwindowsordialogboxestypicallyhavethefollowingelements:

Highlight ��Indicates the selected menu or item�

Solid triangle ��Indicates further choices are available� A highlighted triangle indicates the item is active�

Tab ��Indicates a group of features in a dialog box� Selecting on any tab brings its page to the front�

Radio button ��Use this round button to select an option in a dialog box�

Source ��Indicates the currently selected source�

Off Timer remaining time ��Indicates the remaining countdown time when the [OFF TIMER] is preset�

Slide bar �� Indicates settings or the direction of adjustment�

ECO mode symbol ��Indicates ECO MODE is set�

Key Lock symbol �� Indicates the [CONTROL PANEL LOCK] is enabled�

Thermometer symbol �� Indicates the [ECO MODE] is forcibly set to [NORMAL] mode because the internal temperature is

too high�

High Altitude symbol �� Indicates the [FAN MODE] is set to [HIGH ALTITUDE] mode�

Wireless symbol ��Indicate the wireless LAN connection is enabled�

Source

Available buttons

Thermometer symbol

KeyLocksymbol

Off Timer remaining

time

Highlight

5. Using On-Screen Menu

 List of Menu Items

Somemenuitemsarenotavailabledependingontheinputsource.

MenuItem Default Options

SOURCE

COMPUTER *

HDMI1 *

HDMI2 *

VIDEO *

S-VIDEO *

VIEWER *

NETWORK *

USBDISPLAY *

ADJUST


PRESET * 1–7

DETAILSETTINGS

GENERAL

REFERENCE *

HIGH-BRIGHT,PRESENTATION,VIDEO,MOVIE,GRAPHIC,

sRGB,DICOMSIM.

GAMMA

CORRECTION*

DYNAMIC,NATURAL,BLACKDETAIL

SCREENSIZE*

* LARGE,MEDIUM,SMALL

COLOR

TEMPERATURE

5000,6500,7800,8500,9300,10500

DYNAMIC

CONTRAST

OFF,ON

IMAGEMODE

* STILL,MOVIE

COLOR

ENHANCEMENT

OFF,ON

WHITEBALANCE

CONTRASTR 0

CONTRASTG 0

CONTRASTB 0

BRIGHTNESSR *

BRIGHTNESSG *

BRIGHTNESSB *

CONTRAST 63

BRIGHTNESS 63

SHARPNESS 7

COLOR 31

HUE 31

RESET

IMAGE

OPTIONS

CLOCK *

PHASE *

HORIZONTAL *

VERTICAL *

OVERSCAN *

0[%],5[%],10[%]

ASPECTRATIO

UM330X/UM280X:AUTO,4:3,16:9,15:9,16:10,WIDE

ZOOM,NATIVE

UM330W/UM280W:AUTO,4:3,16:9,15:9,16:10,

LETTERBOX,NATIVE

POSITION(NotavailableonUM330W/

UM280W)

−96to96

SETUP GENERAL

DIGITALZOOM 100 70to100

KEYSTONE 0

KEYSTONESAVE OFF OFF,ON

WALLCOLOR OFF

OFF,WHITEBOARD,BLACKBOARD,BLACKBOARD

(GRAY),LIGHTYELLOW,LIGHTGREEN,LIGHTBLUE,

SKYBLUE,LIGHTROSE,PINK

ECOMODE AUTOECO OFF,AUTOECO,NORMAL,ECO

CLOSEDCAPTION OFF

OFF,CAPTION1,CAPTION2,CAPTION3,CAPTION4,

TEXT1,TEXT2,TEXT3,TEXT4

OFFTIMER OFF OFF,0:30,1:00,2:00,4:00,8:00,12:00,16:00

LANGUAGE ENGLISH

ENGLISH,DEUTSCH,FRANÇAIS,ITALIANO,ESPAÑOL,

SVENSKA,日本語

DANSK,PORTUGUÊS,ČEŠTINA,MAGYAR,POLSKI,

NEDERLANDS,SUOMI

NORSK,TÜRKÇE,РУССКИЙ, , Ελληνικά, 中文, 한국어

ROMÂNĂ, HRVATSKI, БЪЛГАРСКИ, INDONESIA, ,

ไทย,

, 繁體中文

* Theasterisk(*)indicatesthatthedefaultsettingvariesdependingonthesignal.

*1 The[GAMMACORRECTION]itemisavailablewhenanitemotherthan[DICOMSIM.]isselectedfor[REFERENCE].

*2 The[SCREENSIZE]itemisavailablewhen[DICOMSIM.]isselectedfor[REFERENCE].

*3 Thedefaultsettingvariesdependingonthesettingof[REFERENCE].

5. Using On-Screen Menu

MenuItem Default Options

SETUP

COLORSELECT COLOR COLOR,MONOCHROME

SOURCEDISPLAY ON OFF,ON

IDDISPLAY ON OFF,ON

ECOMESSAGE OFF OFF,ON

DISPLAYTIME AUTO45SEC MANUAL,AUTO5SEC,AUTO15SEC,AUTO45SEC

BACKGROUND BLUE BLUE,BLACK,LOGO

FILTERMESSAGE

UM330X/

UM330W:3500(H)

UM280X/

UM280W:5000(H)

UM330X/UM330W:OFF,100[H],500[H],1000[H],2000[H],

3500[H]

UM280X/UM280W:OFF,100[H],500[H],1000[H],2000[H],

5000[H]

INSTALLATION

ORIENTATION

DESKTOP

FRONT

DESKTOPFRONT,CEILINGREAR,DESKTOPREAR,

CEILINGFRONT

CONTROLPANELLOCK OFF OFF,ON

SECURITY OFF OFF,ON

COMMUNICATIONSPEED 38400bps 4800bps,9600bps,19200bps,38400bps

CONTROLID

CONTROLID

NUMBER

1 1–254

CONTROLID OFF OFF,ON

TESTPATTERN

MICGAIN 2 0, 1, 2, 3

OPTIONS(1)

AUTOADJUST NORMAL OFF,NORMAL,FINE

FANMODE AUTO AUTO,HIGH,HIGHALTITUDE

SIGNALSELECT

COMPUTER

RGB/

COMPONENT

RGB/COMPONENT,RGB,COMPONENT

VIDEO AUTO

AUTO,NTSC3.58,NTSC4.43,PAL,PAL-M,PAL-N,PAL60,

SECAM

S-VIDEO AUTO

AUTO,NTSC3.58,NTSC4.43,PAL,PAL-M,PAL-N,PAL60,

SECAM

WXGAMODE

UM330X/UM280X:

OFF

UM330W/

UM280W:ON

OFF,ON

DEINTERLACE ON OFF,ON

HDMI

SETTINGS

HDMI1

VIDEOLEVEL AUTO AUTO,NORMAL,ENHANCED

AUDIOSELECT HDMI1 HDMI1,COMPUTER

HDMI2

VIDEOLEVEL AUTO AUTO,NORMAL,ENHANCED

AUDIOSELECT HDMI2 HDMI2,COMPUTER

BEEP ON OFF,ON

OPTIONS(2)

STANDBYMODE NORMAL NORMAL,POWER-SAVING

DIRECTPOWERON OFF OFF,ON

AUTOPOWERON(COMP.) OFF OFF,ON

AUTOPOWEROFF OFF OFF,0:05,0:10,0:20,0:30,1:00

DEFAULTSOURCESELECT LAST

LAST,AUTO,COMPUTER,HDMI1,HDMI2,VIDEO,

S-VIDEO,VIEWER,NETWORK,USBDISPLAY

WIREDLAN

WIREDLAN ENABLE DISABLE,ENABLE

SETTINGS

DHCP:ON

AUTODNS:ON

DHCP,IPADDRESS,SUBNETMASK,GATEWAY,

AUTODNS,DNS

RECONNECT

WIRELESSLAN

PROFILE

EASY

CONNECTION

DISABLE,EASYCONNECTION,PROFILE1,PROFILE2

RECONNECT

INFO.

USAGETIME

LAMPLIFEREMAINING

LAMPHOURSUSED

FILTERHOURSUSED

TOTALCARBONSAVINGS

SOURCE

SOURCENAME

SOURCEINDEX

HORIZONTALFREQUENCY

VERTICALFREQUENCY

SIGNALTYPE

VIDEOTYPE

SYNCTYPE

SYNCPOLARITY

SCANTYPE

WIREDLAN

IPADDRESS

SUBNETMASK

GATEWAY

MACADDRESS

* Theasterisk(*)indicatesthatthedefaultsettingvariesdependingonthesignal.

5. Using On-Screen Menu

MenuItem Default Options

INFO.

WIRELESSLAN

IPADDRESS

SUBNETMASK

GATEWAY

MACADDRESS

SSID

NETWORKTYPE

WEP/WPA

CHANNEL

SIGNALLEVEL

VERSION

FIRMWARE

DATA

OTHERS

PROJECTORNAME

MODELNO.

SERIALNUMBER

LANUNITTYPE

CONTROLID(when[CONTROLID]is

set)

RESET

CURRENTSIGNAL

ALLDATA

CLEARLAMPHOURS

CLEARFILTERHOURS

* Theasterisk(*)indicatesthatthedefaultsettingvariesdependingonthesignal.

5. Using On-Screen Menu

 Menu Descriptions & Functions [SOURCE]

COMPUTER

SelectsthecomputerconnectedtoyourCOMPUTERinputconnectorsignal.

NOTE:WhenthecomponentinputsignalisconnectedtotheCOMPUTERINconnector,select[COMPUTER].



HDMI1 and 2

SelectstheHDMIcompatibleequipmentconnectedtoyourHDMI1or2INconnector.

VIDEO

SelectswhatisconnectedtoyourVIDEOinput-VCR,DVDplayerordocumentcamera.

S-VIDEO

SelectswhatisconnectedtoyourS-VIDEOinput-VCRorDVDplayer.

NOTE:Aframemayfreezeforabriefperiodoftimewhenavideoisplayedbackinfast-forwardorfast-rewindwithaVideoorS-

Videosource.

VIEWER

ThisfeatureenablesyoutomakepresentationsusingaUSBmemorythatcontainsslides.

(→page62“4.UsingtheViewer”)

NETWORK

SelectsasignalfromtheLANport(RJ-45)ortheinstalledUSBwirelessLANunit(optional).

USB DISPLAY

SelectsthecomputerconnectedtotheUSB(PC)port(typeB)byusingacommerciallyavailableUSBcable.

(→page41)

5. Using On-Screen Menu

 Menu Descriptions & Functions [ADJUST]

[PICTURE]

[PRESET]

Thisfunctionallowsyoutoselectoptimizedsettingsforyourprojectedimage.

Youcanadjustneutraltintforyellow,cyanormagenta.

Therearesevenfactorypresetsoptimizedforvarioustypesofimages.Youcanalsouse[DETAILSETTINGS]toset

useradjustablesettingstocustomizeeachgammaorcolor.

Yoursettingscanbestoredin[PRESET1]to[PRESET7].

HIGH-BRIGHT �� Recommended for use in a brightly lit room�

PRESENTATION �� Recommended for making a presentation using a PowerPoint ﬁle�

VIDEO �� Recommended for typical TV program viewing�

MOVIE �� Recommended for movies�

GRAPHIC �� Recommended for graphics�

sRGB �� Standard color values

DICOM SIM� �� Recommended for DICOM simulation format�

NOTE:

• The[DICOMSIM.]optionisfortraining/referenceonlyandshouldnotbeusedforactualdiagnosis.

• DICOMstandsforDigitalImagingandCommunicationsinMedicine.ItisastandarddevelopedbytheAmericanCollegeofRadiol-

ogy(ACR)andtheNationalElectricalManufacturersAssociation(NEMA).

 Thestandardspecieshowdigitalimagedatacanbemovedfromsystemtosystem.

[DETAIL SETTINGS]

5. Using On-Screen Menu

[GENERAL]

StoringYourCustomizedSettings[REFERENCE]

Thisfunctionallowsyoutostoreyourcustomizedsettingsin[PRESET1]to[PRESET7].

First,selectabasepresetmodefrom[REFERENCE],thenset[GAMMACORRECTION]and[COLORTEMPERA-

TURE].

HIGH-BRIGHT �� Recommended for use in a brightly lit room�

PRESENTATION �� Recommended for making a presentation using a PowerPoint ﬁle�

VIDEO �� Recommended for typical TV program viewing�

MOVIE �� Recommended for movies�

GRAPHIC �� Recommended for graphics�

sRGB �� Standard color values�

DICOM SIM� �� Recommended for DICOM simulation format�

SelectingGammaCorrectionMode[GAMMACORRECTION]

Eachmodeisrecommendedfor:

DYNAMIC �� Creates a high-contrast picture�

NATURAL �� Natural reproduction of the picture�

BLACK DETAIL �� Emphasizes detail in dark areas of the picture�

NOTE:Thisfunctionisnotavailablewhen[DICOMSIM.]isselectedfor[DETAILSETTINGS].

SelectingScreenSizeforDICOMSIM[SCREENSIZE]

Thisfunctionwillperformgammacorrectionappropriateforthescreensize.

LARGE �� For screen size of 110"

MEDIUM

�� For screen size of 90"

SMALL

�� For screen size of 70"

NOTE:Thisfunctionisavailableonlywhen[DICOMSIM.]isselectedfor[DETAILSETTINGS].

AdjustingColorTemperature[COLORTEMPERATURE]

Thisoptionallowsyoutoselectthecolortemperatureofyourchoice.

NOTE:When[PRESENTATION]or[HIGH-BRIGHT]isselectedin[REFERENCE],thisfunctionisnotavailable.

AdjustingBrightnessandContrast[DYNAMICCONTRAST]

Thisfunctionallowsyoutoadjustthecontrastratioopticallyusingthebuilt-iniris.

Toincreasethecontrastratio,select[ON].

SelectingStillImageModeorMovieMode[IMAGEMODE]

Thisfunctionallowsyoutoselectthestillimagemodeorthemoviemode.

STILL �� This mode is for a still image�

MOVIE �� This mode is for a movie�

NOTE:Thisfunctionisavailableonlywhen[HIGH-BRIGHT]isselectedfor[REFERENCE].

5. Using On-Screen Menu

EnhancingtheColor[COLORENHANCEMENT]

Thisfunctionallowsyoutoenhancethecolorofimage.

OFF �� Does not enhance the color

�� Enhances the color�

NOTE:Thisfunctionisavailableonlywhen[PRESENTATION]isselected[REFERENCE].

AdjustingWhiteBalance[WHITEBALANCE]

Thisallowsyoutoadjustthewhitebalance.Contrastforeachcolor(RGB)toadjustthewhitelevelofthescreen;

Brightnessforeachcolor(RGB)isusedtoadjusttheblacklevelofthescreen.

[CONTRAST]

Adjuststheintensityoftheimageaccordingtotheincomingsignal.

[BRIGHTNESS]

Adjuststhebrightnesslevelorthebackrasterintensity.

[SHARPNESS]

Controlsthedetailoftheimage.

[COLOR]

Increasesordecreasesthecolorsaturationlevel.

[HUE]

Variesthecolorlevelfrom+/−greento+/−blue.Theredlevelisusedasreference.

Inputsignal CONTRAST BRIGHTNESS SHARPNESS COLOR HUE

COMPUTER/HDMI(RGB) Yes Yes Yes No No

COMPUTER/HDMI(COMPONENT) Yes Yes Yes Yes Yes

VIDEO/S-VIDEO/COMPONENT Yes Yes Yes Yes Yes

VIEWER/NETWORK/USBDISPLAY Yes Yes Yes No No

Yes=Adjustable,No=Notadjustable

[RESET]

Thesettingsandadjustmentsfor[PICTURE]willbereturnedtothefactorysettingswiththeexceptionofthefollowing;

Presetnumbersand[REFERENCE]withinthe[PRESET]screen.

Thesettingsandadjustmentsunder[DETAILSETTINGS]withinthe[PRESET]screenthatarenotcurrentlyselected

willnotbereset.

5. Using On-Screen Menu

[IMAGE OPTIONS]

AdjustingClockandPhase[CLOCK/PHASE]

ThisallowsyoutomanuallyadjustCLOCKandPHASE.

CLOCK �� Use this item to ﬁne tune the computer image or to remove any vertical banding that might appear� This

function adjusts the clock frequencies that eliminate the horizontal banding in the image�

This adjustment may be necessary when you connect your computer for the ﬁrst time�

PHASE �� Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk� (This is

evident when part of your image appears to be shimmering�)

Use [PHASE] only after the [CLOCK] is complete�

NOTE:The[CLOCK]and[PHASE]itemsareavailableforRGBsignalsonly.

5. Using On-Screen Menu

AdjustingHorizontal/VerticalPosition[HORIZONTAL/VERTICAL]

Adjuststheimagelocationhorizontallyandvertically.

NOTE:The[HORIZONTAL]and[VERTICAL]itemsarenotavailableforVIDEO,S-VIDEO,HDMI,VIEWER,NETWORK,andUSB

DISPLAY.

- Animagecanbedistortedduringtheadjustmentof[CLOCK]and[PHASE].Thisisnotmalfunction.

- Theadjustmentsfor[CLOCK],[PHASE],[HORIZONTAL],and[VERTICAL]willbestoredinmemoryforthe

currentsignal.Thenexttimeyouprojectthesignalwiththesameresolution,horizontalandverticalfrequency,

itsadjustmentswillbecalledupandapplied.

 Todeleteadjustmentsstoredinmemory,fromthemenu,youselect[RESET]→[CURRENTSIGNAL]or[ALL

DATA]andresettheadjustments.

SelectingOverscanPercentage[OVERSCAN]

Selectoverscanpercentage(0%,5%and10%)forsignal.

Projected image

Overscaned by 10%

NOTE:

• The[0[%]]cannotbeselectedwhenVIDEOandS-VIDEOsignalsareused.

• The[OVERSCAN]itemisnotavailable:

 •when[NATIVE]isselectedfor[ASPECTRATIO].

 •when[VIEWER],[NETWORK],or[USBDISPLAY]isselectedfor[SOURCE]

5. Using On-Screen Menu

SelectingAspectRatio[ASPECTRATIO]

Theterm“aspectratio”referstotheratioofwidthtoheightofaprojectedimage.

Theprojectorautomaticallydeterminestheincomingsignalanddisplaysitinitsappropriateaspectratio.

• Thistableshowstypicalresolutionsandaspectratiosthatmostcomputerssupport.

Resolution AspectRatio

VGA 640×480 4:3

SVGA

800×600 4:3

XGA

1024×768 4:3

WXGA

1280×768 15:9

WXGA

1280×800 16:10

WXGA+

1440×900 16:10

SXGA

1280×1024 5:4

SXGA+

1400×1050 4:3

UXGA

1600×1200 4:3

WUXGA

1920×1200 16:10

Options Function

AUTO

Theprojectorwillautomaticallydeterminetheincomingsignalanddisplayitinitsaspect

ratio.(→ nextpage)

Theprojectormayerroneouslydeterminetheaspectratiodependingonitssignal.Ifthis

occurs,selecttheappropriateaspectratiofromthefollowing.

4:3 Theimageisdisplayedin4:3aspectratio.

16:9 Theimageisdisplayedin16:9aspectratio.

15:9 Theimageisdisplayedin15:9aspectratio.

16:10 Theimageisdisplayedin16:10aspectratio.

WIDEZOOM

(UM330X/UM280X)

Theimageisstretchedleftandright.

Partsofthedisplayedimagearecroppedattheleftandrightedgesandthereforenot

visible.

LETTERBOX

(UM330W/UM280W)

Theimageofaletterboxsignalisstretchedequallyinthehorizontalandverticaldirec-

tionstotthescreen.Partsofthedisplayedimagearecroppedatthetopandbottom

edgesandthereforenotvisible.

NATIVE Theprojectordisplaysthecurrentimageinitstrueresolutionwhentheincomingcomputer

signalhasalowerresolutionthantheprojector’snativeresolution.

[Example 1]When the incoming

signalwiththeresolutionof800×

600isdisplayed ontheUM330X/

UM280X:

[Example 2]When the incoming

signalwiththeresolutionof800×

600isdisplayedontheUM330W/

UM280W:

NOTE:

• Whenanon-computersignalisdisplayed,the[NATIVE]isnotavailable.

• Whenasignalwithahigherresolutionthantheprojector’snativeresolutionisdisplayed,[NA-

TIVE]isnotavailable.



5. Using On-Screen Menu

Sampleimagewhentheappropriateaspectratioisautomaticallydetermined

UM330X/UM280X

[Computersignal]

Aspectratioofincomingsignal 4:3 5:4 16:9 15:9 16:10

Sampleimagewhentheappro-

priate aspectratiois automati-

callydetermined

[Videosignal]

Aspectratioofincomingsignal 4:3 Letterbox Squeeze

Sampleimage whenthe as-

pectratio is automaticallyde-

termined

NOTE:Todisplayasqueezedsignalprop-

erly,select[16:9]or[WIDEZOOM].

UM330W/UM280W

[Computersignal]

Aspectratioofincomingsignal 4:3 5:4 16:9 15:9 16:10

Sampleimagewhentheappro-

priate aspectratiois automati-

callydetermined

[Videosignal]

Aspectratioofincomingsignal 4:3 Letterbox Squeeze

Sampleimage whenthe as-

pectratio is automaticallyde-

termined

NOTE:Todisplayaletterboxsignalprop-

erly,select[LETTERBOX].

NOTE:Todisplayasqueezedsignalprop-

erly,select[16:9].

TIP:

• Imagepositioncanbeadjustedverticallyusing[POSITION]whenthe[16:9],[15:9],or[16:10]aspectratiosareselected.

• Theterm“letterbox”referstoamorelandscape-orientedimagewhencomparedtoa4:3image,whichisthestandardaspect

ratioforavideosource.

 Theletterboxsignalhasaspectratioswiththevistasize“1.85:1”orcinemascopesize“2.35:1”formovielm.

• Theterm“squeeze”referstothecompressedimageofwhichaspectratioisconvertedfrom16:9to4:3.

AdjustingtheVerticalPositionofImage[POSITION](notavailableonUM330W/UM280W)

(onlywhen[16:9],[15:9],or[16:10]isselectedfor[ASPECTRATIO])

When[16:9],[15:9],or[16:10]isselectedin[ASPECTRATIO],theimageisdisplayedwithblackbordersonthetop

and bottom.

Youcanadjusttheverticalpositionfromthetoptothebottomoftheblackarea.

5. Using On-Screen Menu

 Menu Descriptions & Functions [SETUP]

[GENERAL]

UsingDigitalZoom[DIGITALZOOM]

Thisfeatureallowsyoutoelectronicallyneadjusttheimagesizeonthescreen.

TIP:Toadjusttheprojectedimagesizeroughly,movetheprojectorawayorclosertothescreen.Toneadjustthezoom,usethe

[DIGITALZOOM]function.(

→

page22)

CorrectingVerticalKeystoneDistortionManually[KEYSTONE]

Youcancorrectverticaldistortionmanually.(→page23)

TIP:Whenthisoptionishighlighted,pressingtheENTERbuttonwilldisplayitsslidebarforadjustment.

SavingVerticalKeystoneCorrection[KEYSTONESAVE]

Thisoptionenablesyoutosaveyourcurrentkeystonesettings.

OFF �� Does not save current keystone correction settings� It will return your keystone correction settings to

“zero”�

ON �� Saves current keystone correction settings

Savingyourchangeonceaffectsallsources.Thechangesaresavedwhentheprojectoristurnedoff.

5. Using On-Screen Menu

UsingtheWallColorCorrection[WALLCOLOR]

Thisfunctionallowsforquickadaptivecolorcorrectioninapplicationswherethescreenmaterialisnotwhite.

NOTE:Selecting[WHITEBOARD]reduceslampbrightness.

SettingEcoMode[ECOMODE]

TheECOMODEincreaseslamplife,whileloweringpowerconsumptionandcuttingdownonCO

emissions.

Fourbrightnessmodesofthelampcanbeselected:[OFF],[AUTOECO],[NORMAL]and[ECO]modes.

(→page29)

5. Using On-Screen Menu

SettingClosedCaption[CLOSEDCAPTION]

ThisoptionsetsseveralclosedcaptionmodesthatallowtexttobesuperimposedontheprojectedimageofVideo

orS-Video.

OFF �� This exits the closed caption mode�

CAPTION 1-4 �� Text is superimposed�

TEXT 1-4 �� Text is displayed�

NOTE:

• Theclosedcaptionisnotavailableunderthefollowingconditions:

- whenmessagesormenusaredisplayed.

- whenanimageismagnied,frozen,ormuted.

• Portionsofsuperimposedtextorclosedcaptionmaybetruncated.Ifthathappens,trytoplacethesuperimposedtextor

closedcaptionwithinthescreen.

UsingOffTimer[OFFTIMER]

1. Selectyourdesiredtimebetween30minutesand16hours:OFF,0:30,1:00,2:00,4:00,8:00,12:00,16:00.

2. Press the ENTER button on the remote control.

3. The remaining time starts counting down.

4. The projector will turn off after the countdown is complete.

NOTE:

• Tocancelthepresettime,set[OFF]forthepresettimeorturnoffthepower.

• Whentheremainingtimereaches3minutesbeforetheprojectoristurnedoff,the[THEPROJECTORWILLTURNOFFWITHIN3

MINUTES]messagewillbedisplayedonthebottomofthescreen.

SelectingMenuLanguage[LANGUAGE]

Youcanchooseoneof29languagesforon-screeninstructions.

NOTE:Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

[MENU]

SelectingMenuColor[COLORSELECT]

Youcanchoosebetweentwooptionsformenucolor:COLORandMONOCHROME.

TurningOn/OffSourceDisplay[SOURCEDISPLAY]

ThisoptionturnsonoroffinputnamedisplaysuchasCOMPUTER,HDMI1,HDMI2,VIDEO,S-VIDEO,VIEWER,

NETWORK,USBDISPLAY,tobedisplayedonthetoprightofthescreen.

Whennoinputsignalispresent,theno-signalguidancepromptingyoutocheckforanavailableinputwillbedisplayed

atthecenterofthescreen.Whenthe[VIEWER]or[NETWORK]itemisselectedfor[SOURCE],theno-signalguid-

ancewillnotbedisplayed.

5. Using On-Screen Menu

TurningON/OFFControlID[IDDISPLAY]

ID DISPLAY �� This option turns on or off the ID number which is displayed when the ID SET button on the remote control

is pressed�

TurningOn/OffEcoMessage[ECOMESSAGE]

Thisoptionturnsonoroffthefollowingmessageswhentheprojectoristurnedon.

TheEcoMessagepromptstheusertosaveenergy.When[OFF]isselectedfor[ECOMODE],youwillgetamessage

topromptyoutoselect[AUTOECO],[NORMAL],or[ECO]for[ECOMODE].

When[AUTOECO],[NORMAL],or[ECO]isselectedfor[ECOMODE]

Toclosethemessage,pressanyoneofthebuttons.Themessagewilldisappearifnobuttonoperationisdonefor

30 seconds.

When[OFF]isselectedfor[ECOMODE]

PressingtheENTERbuttonwilldisplaythe[ECOMODE]screen.(→page29)

Toclosethemessage,presstheEXITbutton.

SelectingMenuDisplayTime[DISPLAYTIME]

Thisoptionallowsyoutoselecthowlongtheprojectorwaitsafterthelasttouchofabuttontoturnoffthemenu.The

presetchoicesare[MANUAL],[AUTO5SEC],[AUTO15SEC],and[AUTO45SEC].The[AUTO45SEC]isthefac-

torypreset.

SelectingaColororLogoforBackground[BACKGROUND]

Use this feature todisplaya blue/black screen or logo when no signal is available.The default background is

[BLUE].

NOTE:

• Ifthe[LOGO]itemisselectedfor[BACKGROUND]withthe[NETWORK]or[USBDISPLAY]sourceselected,the[BLUE]itemwill

beselectedregardlessofitsselection.

• When[SOURCEDISPLAY]isturnedon,theno-signalguidancepromptingyoutocheckforanavailableinputwillbedisplayed

atthecenterofthescreenregardlessofitsselection.

• Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

SelectingIntervalTimeforFilterMessage[FILTERMESSAGE]

Thisoptionallowsyoutoselectthetimepreferencebetweendisplayingthemessageforcleaningthelters.Clean

thelterwhenyougetthemessage“PLEASECLEANTHEFILTER.”(→page116)

Sixoptionsareavailable:

UM330X/UM330W:OFF,100[H],500[H],1000[H],2000[H],3500[H]

UM280X/UM280W:OFF,100[H],500[H],1000[H],2000[H],5000[H]

NOTE:Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

5. Using On-Screen Menu

[INSTALLATION]

SelectingProjectorOrientation[ORIENTATION]

Thisreorientsyourimageforyourtypeofprojection.Theoptionsare:desktopfrontprojection,ceilingrearprojection,

desktoprearprojection,andceilingfrontprojection.

DESKTOPFRONT CEILINGREAR

DESKTOPREAR CEILINGFRONT

DisablingtheCabinetButtons[CONTROLPANELLOCK]

ThisoptionturnsonorofftheCONTROLPANELLOCKfunction.

NOTE:

• ThisCONTROLPANELLOCKdoesnotaffecttheremotecontrolfunctions.

• Whenthecontrolpanelislocked,pressingandholdingtheEXITbuttonontheprojectorcabinetforabout10secondswillchange

thesettingto[OFF].

TIP:Whenthe[CONTROLPANELLOCK]isturnedon,akeylockicon[ ]willbedisplayedatthebottomrightofthemenu.

EnablingSecurity[SECURITY]

ThisfeatureturnsonorofftheSECURITYfunction.

Unlessthecorrectkeywordisentered,theprojectorcannotprojectanimage.(→page31)

NOTE:Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

5. Using On-Screen Menu

SelectingCommunicationSpeed[COMMUNICATIONSPEED]

ThisfeaturesetsthebaudrateofthePCControlport(D-Sub9P).Itsupportsdataratesfrom4800to38400bps.The

defaultis38400bps.Selecttheappropriatebaudrateforyourequipmenttobeconnected(dependingontheequip-

ment,alowerbaudratemayberecommendedforlongcableruns).

NOTE:Yourselectedcommunicationspeedwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

SettingIDtotheProjector[CONTROLID]

YoucanoperatemultipleprojectorsseparatelyandindependentlywiththesingleremotecontrolthathastheCONTROL

IDfunction.IfyouassignthesameIDtoalltheprojectors,youcanconvenientlyoperatealltheprojectorstogether

usingthesingleremotecontrol.Todoso,youhavetoassignanIDnumbertoeachprojector.

CONTROL ID NUMBER ��Select a number from 1 to 254 you wish to assign to your projector�

CONTROL ID ��Select [OFF] to turn off the CONTROL ID setting and select [ON] to turn on the CONTROL ID set-

ting�

NOTE:

• When[ON]isselectedfor[CONTROLID],theprojectorcannotbeoperatedbyusingtheremotecontrolthatdoesnotsupport

theCONTROLIDfunction.(Inthiscasethebuttonsontheprojectorcabinetcanbeused.)

• Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

• PressingandholdingtheENTERbuttonontheprojectorcabinetfor10secondswilldisplaythemenuforcancelingtheControl

ID.

AssigningorChangingtheControlID

1. Turn on the projector.

2. PresstheIDSETbuttonontheremotecontrol.

 TheCONTROLIDscreenwillbedisplayed.

 IftheprojectorcanbeoperatedwiththecurrentremotecontrolID,the[ACTIVE]willbedisplayed.Iftheprojector

cannotbeoperatedwiththecurrentremotecontrolID,the[INACTIVE]willbedisplayed.Tooperatetheinactive

projector,assignthecontrolIDusedfortheprojectorbyusingthefollowingprocedure(Step3).

3. PressoneofnumerickeypadbuttonswhilepressingandholdingtheIDSET

button on the remote control.

Example:

 Toassign“3”,pressthe“3”buttonontheremotecontrol.

 NoIDmeansthatalltheprojectorscanbeoperatedtogetherwithasingleremote

control.Toset“NoID”,enter“000”orpresstheCLEARbutton.

TIP:TherangeofIDsisfrom1to254.

4. ReleasetheIDSETbutton.

 TheupdatedCONTROLIDscreenwillbedisplayed.

NOTE:

• TheIDscanbeclearedinafewdaysafterthebatteriesarerundownorremoved.

• Accidentallypressinganyoneofthebuttonsoftheremotecontrolwillclearcurrentlyspecied

IDwithbatteriesremoved.

5. Using On-Screen Menu

UsingTestPattern[TESTPATTERN]

Displaysthetestpatterntocheckforimagedistortionatthetimeoftheprojectorsetup.PresstheENTERbuttonto

displaythetestpattern;presstheEXITbuttontoclosethetestpatternandreturntothemenu.Menuoperationand

keystonecorrectionarenotpossiblewhenthetestpatternisdisplayed.

SettingMICGain[MICGAIN]

ThisfeatureallowsyoutoadjustyourmicrophonesensitivitywhenitisconnectedtotheMICinputjackoftheprojec-

tor.MicrophonevolumecanbeadjustedwiththeVOL.(+)or(−)buttonontheremotecontrolorthe or  on the

projectorcabinet.

[OPTIONS(1)]

SettingAutoAdjust[AUTOADJUST]

ThisfeaturesetstheAutoAdjustmodesothatthecomputersignalcanbeautomaticallyormanuallyadjustedfor

noiseandstability.Youcanautomaticallymakeadjustmentintwoways:[NORMAL]and[FINE].

OFF �� The computer signal will not be automatically adjusted� You can manually optimize the computer signal�

NORMAL �� Default setting� The computer signal will be automatically adjusted� Normally select this option�

FINE �� Select this option if ﬁne adjustment is needed� It takes more time to switch to the source than when [NOR-

MAL]is selected�

SelectingFanMode[FANMODE]

Thisoptionallowsyoutoselectthreemodesforfanspeed:Automode,Highspeedmode,andHighAltitudemode.

AUTO �� The built-in fans automatically run at a variable speed according to the internal temperature�

HIGH �� The built-in fans run at high speed�

HIGH ALTITUDE �� The built-in fans run at a high speed� Select this option when using the projector at altitudes approximately

5500 feet/1700 meters or higher�

Whenyouwishtocooldownthetemperatureinsidetheprojectorquickly,select[HIGH].

NOTE:

• ItisrecommendedthatyouselectHighspeedmodeifyouusetheprojectornon-stopforconsecutivedays.

• Set[FANMODE]to[HIGHALTITUDE]whenusingtheprojectorataltitudesapproximately5500feet/1700metersorhigher.

• Usingtheprojectorataltitudesapproximately5500feet/1700metersorhigherwithoutsettingto[HIGHALTITUDE]cancause

theprojectortooverheatandtheprotectorcouldshutdown.Ifthishappens,waitacoupleminutesandturnontheprojector.

• Usingtheprojectorataltitudeslessthanapproximately5500feet/1700metersandsettingto[HIGHALTITUDE]cancausethe

lamptoovercool,causingtheimagetoicker.Switch[FANMODE]to[AUTO].

• Usingtheprojectorataltitudesapproximately5500feet/1700metersorhighercanshortenthelifeofopticalcomponentssuch

asthelamp.

• Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

TIP:

• When[HIGHALTITUDE]isselected,anicon[ ]isdisplayedatthebottomoftheon-screenmenu.

5. Using On-Screen Menu

SelectingSignalFormat[SIGNALSELECT]

[COMPUTER]

Allowsyoutochoose[COMPUTER]foranRGBsourcesuchasacomputer,or[COMPONENT]foracomponent

videosourcesuchasaDVDplayer.Normallyselect[RGB/COMPONENT]andtheprojectorautomaticallydetectsa

componentsignal.Howevertheremaybesomecomponentsignalsthattheprojectorisunabletodetect.Ifthisisthe

case,select[COMPONENT].

[VIDEO&S-VIDEOSystemSelect]

Thisfeatureenablesyoutoselectcompositevideostandardsautomaticallyormanually.

Normallyselect[AUTO]andtheprojectorwillautomaticallydetectthevideostandard.

Inthecasewheretheprojectorhasdifcultydetectingthevideostandard,selecttheappropriatevideostandardfrom

the menu.

ThismustbedoneforVIDEOandS-VIDEOrespectively.

EnablingorDisablingWXGAMode[WXGAMODE]

Selecting[ON]willgiveprioritytoWXGA(1280×768)/WUXGA(1920×1200)signalsinrecognizinganinputsig-

nal.

When[WXGAMODE]issetto[ON],XGA(1024×768)/UXGA(1600×1200)signalsmaynotberecognizedon

UM330X/UM280X.Inthiscase,select[OFF].

NOTE:

• The[OFF]isselectedatthetimeofshipmentofUM330X/UM280X.

• The[ON]isselectedatthetimeofshipmentofUM330W/UM280W.

Enablingthedeinterlace[DEINTERLACE]

Turnsonoroffthedeinterlacefunctionforatelecinesignal.

OFF �� Select this option if there is any jitter or artifacts in video�

ON �� Default standard setting�

NOTE:ThisfeatureisnotavailableforHDTV(progressive)andcomputersignals.

SettingHDMI1/2[HDMISETTINGS]

MakethesettingsforeachvideolevelandaudiolevelwhenconnectingHDMIequipmentsuchasaDVDplayer.

VIDEO LEVEL �� Select [AUTO] to automatically detect video level� If automatic detection may not work well, select [NOR-

MAL] to disable the [ENHANCED] feature of your HDMI equipment or select [ENHANCED] to improve image

contrast and increase detail in the dark areas�

AUDIO SELECT �� Select [HDMI1] or [HDMI2] to switch the HDMI 1 or HDMI 2 IN digital audio signal and select [COMPUTER]

to switch the COMPUTER input audio signal�

EnablingKeySoundandErrorSound[BEEP]

Thisfeatureturnsonoroffthebuttonsoundoralarmwhenanerroroccursorthefollowingoperationsareper-

formed.

-Displayingthemainmenu

-Switchingsources

-Resettingdatabyusing[RESET]

-PressingPOWERONorPOWEROFFbutton

5. Using On-Screen Menu

[OPTIONS(2)]

SelectingPower-savingin[STANDBYMODE]

Theprojectorhastwostandbymodes:[NORMAL]and[POWER-SAVING].

ThePOWER-SAVINGmodeisthemodethatallowsyoutoputtheprojectorinthepower-savingconditionwhich

consumeslesspowerthantheNORMALmode.TheprojectorispresetforNORMALmodeatthefactory.

NORMAL �� Power indicator: Orange light/STATUS indicator: Green light

POWER-SAVING

�� Power indicator: Red light/STATUS indicator: Off

The following connectors, buttons or functions will not work during this mode�

- MONITOR OUT (COMP�) connector, and AUDIO OUT connector

- LAN and Mail Alert functions

- Buttons other than POWER button on the cabinet

- Buttons other than POWER ON button on the remote control

- Virtual Remote Tool, USB Display fucntion

NOTE:

• When[CONTROLPANELLOCK],[CONTROLID],or[AUTOPOWERON(COMP.)]isturnedon,the[STANDBYMODE]settingis

notavailable.

• Evenwhen[POWER-SAVING]isselectedfor[STANDBYMODE],poweronoroffcanbedonebyusingthePCCONTROLport.

• ThepowerconsumptioninthestandbymodewillnotbeincludedincalculatingCO

emissionreduction.

• Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

EnablingDirectPowerOn[DIRECTPOWERON]

Turnstheprojectoronautomaticallywhenthepowercordisinsertedintoanactivepoweroutlet.Thiseliminatesthe

needtoalwaysusethePOWERbuttonontheremotecontrolorprojectorcabinet.

5. Using On-Screen Menu

TurningOntheProjectorByApplyingComputerSignal[AUTOPOWERON(COMP.)]

WhentheprojectorisinStandbymode,applyingacomputersignalfromacomputerconnectedtotheCOMPUTER

INinputwillpowerontheprojectorandsimultaneouslyprojectthecomputer’simage.

ThisfunctionalityeliminatestheneedtoalwaysusethePOWERbuttonontheremotecontrolortheprojectorcabinet

topowerontheprojector.

Tousethisfunction,rstconnectacomputertotheprojectorandtheprojectortoanactiveACinput.

NOTE:

• Disconnectingacomputersignalfromthecomputerwillnotpowerofftheprojector.Werecommendusingthisfunctionincom-

binationoftheAUTOPOWEROFFfunction.

• Thisfunctionwillnotbeavailableunderthefollowingconditions:

- whenacomponentsignalisappliedtotheCOMPUTERINconnector

- whenaSynconGreenRGBsignalorcompositesyncsignalisapplied

• ToenabletheAUTOPOWERON(COMP.)afterturningofftheprojector,wait3secondsandinputacomputersignal.

 Ifacomputersignalisstillpresentwhentheprojectoristurnedoff,theAUTOPOWERON(COMP.)willnotworkandtheprojector

remainsinstandbymode.

EnablingPowerManagement[AUTOPOWEROFF]

Whenthisoptionisselectedyoucanenabletheprojectortoautomaticallyturnoff(attheselectedtime:5min.,10min.,

20min.,30min.,60min.)ifthereisnosignalreceivedbyanyinputorifnooperationisperformed.

SelectingDefaultSource[DEFAULTSOURCESELECT]

Youcansettheprojectortodefaulttoanyoneofitsinputseachtimetheprojectoristurnedon.

LAST �� Sets the projector to default to the previous or last active input each time the projector is turned on�

AUTO �� Searches for an active source in order of COMPUTER → HDMI1 → HDMI2 → VIDEO → S-VIDEO → VIEWER

→ USB DISPLAY → COMPUTER and displays the ﬁrst found source�

COMPUTER �� Displays the computer signal from the COMPUTER IN connector every time the projector is turned on�

HDMI1 �� Displays the digital source from the HDMI 1 IN connector every time the projector is turned on�

HDMI2 �� Displays the digital source from the HDMI 2 IN connector every time the projector is turned on�

VIDEO �� Displays the Video source from the VIDEO IN connector every time the projector is turned on�

S-VIDEO �� Displays the Video source from the S-VIDEO IN connector every time the projector is turned on�

VIEWER �� Displays slides or plays back movie ﬁles from the USB memory device every time the projector is turned

on�

NETWORK �� Displays a signal from LAN port (RJ-45) or the USB Wireless LAN Unit�

USB DISPLAY �� Displays the computer signal from the USB (PC) port every time the projector is turned on�

5. Using On-Screen Menu

Setting up the Projector for a Wired LAN Connection [WIRED LAN]

Important

• Consultwithyournetworkadministratoraboutthesesettings.

• WhenusingawiredLANconnection,connectaLANcable(Ethernetcable)totheLANport(RJ-45)oftheprojec-

tor.(→page112)

TIP:Thenetworksettingsyoumakewillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

[WIREDLAN] [DISABLE] WiredLANconnectionwillbeturnedoff.

[ENABLE] WiredLANconnectionwillbeturnedon.

[SETTINGS] [DHCP]

�� IP address, subnet mask, and gateway will

be automatically assigned to the projector

from your DHCP server�

OFF �� Specify IP address, subnet mask, and gate-

way assigned by your network administra-

tor�

[IPADDRESS] Set your IP address of the network connected to the

projector.

[SUBNETMASK] Setyoursubnetmasknumberofthenetworkconnected

totheprojector.

[GATEWAY] Setthedefaultgatewayofthenetworkconnectedtothe

projector.

[AUTODNS]

ON �� DHCP server will automatically assign IP

address of DNS server connected to the

projector�

OFF �� Set your IP address of DNS server connected

to the projector�

5. Using On-Screen Menu

Setting up the Projector for a Wireless LAN Connection (with the optional USB Wireless

LAN Unit equipped) [WIRLESS LAN]

Important

• Consultwithyournetworkadministratoraboutthesesettings.

• WhenusingawirelessLANconnection,attachtheoptionalUSBWirelessLANtotheprojector.(→page113)

[PROFILE] [DISABLE] WirelessLANconnectionwillbeturnedoff

[EASYCONNECTION] Select[EASYCONNECTION]toexecuteawirelessLAN

easilyusing ImageExpressUtilityLiteon thesupplied

NECProjectorCD-ROM.

[PROFILE1] UptotwosettingsfortheUSBwirelessLANunitcanbe

storedinmemoryoftheprojector.(→page46)

Torecallthesettingsfrommemory,select[PROFILE1]or

[PROFILE2]from[PROFILE].

[PROFILE2]

[RECONNECT] Retrytoconnecttheprojectortoanetwork.Trythisifyouhavechanged[PROFILE].

NOTE:Afterselecting[EASYCONNECTION]from[PROFILE],youcannotmakesettingsto[DHCP],[IPADDRESS],[SUBNETMASK],

[GATEWAY],and[AUTODNS]except[CHANNEL].

5. Using On-Screen Menu

HintsonHowtoSetUpLANConnection

TosetuptheprojectorforaLANconnection:

AccesstheHTTPserverfunctiontodisplaythewebbrowser(→page43)andselect[NETWORKSETTINGS]→

[SETTINGS]→[WIRELESSLAN]→[PROFILE1]or[PROFILE2].

TwosettingscanbesetfortheUSBWirelessLANUnit.

Nextselect[SETTINGS]foryourselectedprole,andset[ENABLE]or[DISABLE]for[DHCP],[IPADDRESS],

[SUBNETMASK],and[GATEWAY].Lastclick[SAVE].Toreectchanges,clickthe[SETTING]tabandthenclick

[APPLY].(→page46)

TorecallLANsettingsstoredintheprolenumber:

Use[PROFILE1]or[PROFILE2]setontheHTTPserver,fromtheprojector’menu,select[SETUP]→[WIRE-

LESSLAN]→[PROFILE]→[PROFILE1]or[PROFILE2].Lastselect[YES]andpresstheENTERbutton.(→

page97)

To connect a DHCP server:

Fromtheprojectormenu,select[SETUP]→[WIREDLAN]→[SETTINGS]→[DHCP]→[ON]andpresstheENTER

button.TospecifyIPaddresswithoutusingtheDHCPserver,usetheHTTPserverfunction.(→page43)

TosetonlyforwirelessLAN(NETWORKTYPEandWEP/WPA):

AccesstheHTTPserverfunctiontodisplaythewebbrowser(→page43)andselect[NETWORKSETTINGS]→

[SETTINGS]→[WIRELESSLAN]→[PROFILE1]or[PROFILE2].

Makenecessarysettingsfor[SETTINGS]andclick[SAVE].

Fromtheprojectormenu,select[SETUP]→[WIRELESSLAN]→[PROFILE]→[PROFILE1]or[PROFILE2].

ToselectanSSID:

AccesstheHTTPserverfunctiontodisplaythewebbrowser(→page43)andselect[NETWORKSETTINGS]→

[SETTINGS]→[WIRELESSLAN]→[CONNECTION]→[SITESURVEY]andselecttheID.

Ifyoudonotuse[SITESURVEY],typetheSSIDin[CONNECTION]andselect[INFRASTRUCTURE]or[ADHOC].

(→page46)

Toreceivelampreplacementtimeorerrormessagesviae-mail:

AccesstheHTTPserverfunctiontodisplaythewebbrowser(→page43)andselect[NETWORKSETTINGS]→

[ALERTMAIL],andset[SENDER’SADDRESS],[SMTPSERVERNAME],and[RECIPIENT’SADDRESS].Last,

click[SAVE].(→page48)

Toexecute[EASYCONNECTION]usingImageExpressUtilityLite:

The[EASYCONNECTION]isamodethatcanabbreviatethetroublesomeLANsettingswhenusingtheImage

ExpressUtilityLiteandconnectingthePCandprojectorviaawirelessLAN.

TheImageExpressUtilityLiteiscontainedonthesuppliedNECProjectorCD-ROM.

Touse[EASYCONNECTION],accesstheHTTPserverfunctiontodisplaythewebbrowser(→page43)andselect

[NETWORKSETTINGS]→[SETTINGS]→[WIRELESSLAN]→[EASYCONNECTION].Nextselect[SETTINGS]

→[CHANNEL].Lastclick[SAVE].

Fromtheprojectormenu,select[SETUP]→[WIRELESSLAN]→[PROFILE]→[EASYCONNECTION].

5. Using On-Screen Menu

 Menu Descriptions & Functions [INFO.]

Displaysthestatusofthecurrentsignalandlampusage.Thisitemhassixpages.Theinformationincludedisas

follows:

TIP:PressingtheHELPbuttonontheremotecontrolwillshowthe[INFO.]menuitems.

[USAGE TIME]

[LAMPLIFEREMAINING](%)*

[LAMPHOURSUSED](H)

[FILTERHOURSUSED](H)

[TOTALCARBONSAVINGS](kg-CO2)

* Theprogressindicatorshowsthepercentageofremainingbulblife.

 Thevalueinformsyouoftheamountoflampusage.Whentheremaininglamptimereaches0,theLAMPLIFE

REMAININGbarindicatorchangesfrom0%to100Hoursandstartscountingdown.

 Iftheremaininglamptimereaches0hours,theprojectorwillnotturnon.

• Themessagetotheeffectthatthelamportheltersshouldbereplacedwillbedisplayedforoneminutewhen

theprojectoristurnedonandwhenthePOWERbuttonontheprojectorortheremotecontrolispressed.

 Todismissthismessage,pressanybuttonontheprojectorortheremotecontrol.

Lamplife(H)

Replacementlamp Model

ECO MODE

OFF/AUTOECO NORMAL ECO

3000 3500 6000 NP17LP-UM UM330X/UM330W

4000 5000 8000 NP16LP-UM UM280X/UM280W

•

[TOTALCARBONSAVINGS]

 Thisdisplaystheestimatedcarbonsavinginformationinkg.Thecarbonfootprintfactorinthecarbonsavingcal-

culationisbasedontheOECD(2008Edition).(→page30)

100

5. Using On-Screen Menu

[SOURCE]

[SOURCENAME] [SOURCEINDEX]

[HORIZONTALFREQUENCY] [VERTICAL FREQUENCY]

[SIGNALTYPE] [VIDEOTYPE]

[SYNCTYPE] [SYNCPOLARITY]

[SCANTYPE]

[WIRED LAN]

[IPADDRESS] [SUBNETMASK]

[GATEWAY] [MACADDRESS]

[WIRELESS LAN]

[IPADDRESS] [SUBNETMASK]

[GATEWAY] [MACADDRESS]

[SSID] [NETWORKTYPE]

[WEP/WPA] [CHANNEL]

[SIGNALLEVEL]

101

5. Using On-Screen Menu

[VERSION]

[FIRMWARE]Version

[DATA]Version

[OTHERS]

[PROJECTORNAME]

[MODELNO.]

[SERIALNUMBER]

[LANUNITTYPE]

[CONTROLID](when[CONTROLID]isset)

102

5. Using On-Screen Menu

 Menu Descriptions & Functions [RESET]

Returning to Factory Default [RESET]

TheRESETfeatureallowsyoutochangeadjustmentsandsettingstothefactorypresetfora(all)source(s)except

thefollowing:

[CURRENTSIGNAL]

Resetstheadjustmentsforthecurrentsignaltothefactorypresetlevels.

Theitemsthatcanberesetare:[PRESET],[CONTRAST],[BRIGHTNESS],[COLOR],[HUE],[SHARPNESS],

[ASPECTRATIO],[HORIZONTAL],[VERTICAL],[CLOCK],[PHASE],and[OVERSCAN].

[ALLDATA]

Resetalltheadjustmentsandsettingsforallthesignalstothefactorypreset.

All items can be reset EXCEPT[LANGUAGE],[BACKGROUND],[FILTERMESSAGE],[SECURITY],[COMMUNI-

CATIONSPEED],[CONTROLID],[STANDBYMODE],[FANMODE],[LAMPLIFEREMAINING],[LAMPHOURS

USED],[FILTERHOURSUSED],[TOTALCARBONSAVINGS],[WIREDLAN],and[WIRELESSLAN].

Toresetthelampusagetime,see“ClearingLampHourMeter[CLEARLAMPHOURS]”below.

ClearingLampHourMeter[CLEARLAMPHOURS]

Resetsthelampclockbacktozero.Selectingthisoptiondisplayssubmenuforaconrmation.Select[YES]andpress

theENTERbutton.

NOTE:Elapsedtimeofthelampusewillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

NOTE:Theprojectorwillturnoffandgointostandbymodewhenyoucontinuetousetheprojectorforanother100hoursafterthe

lamphasreachedtheendofitslife.Inthisconditionyoucannotclearthelamphourmeteronthemenu.Ifthishappens,pressthe

HELPbuttonontheremotecontrolfor10secondstoresetthelampclockbacktozero.Dothisonlyafterreplacingthelamp.

ClearingtheFilterUsageHours[CLEARFILTERHOURS]

Resetsthelterusagebacktozero.Selectingthisoptiondisplayssubmenuforaconrmation.Select[YES]andpress

theENTERbutton.

NOTE:Elapsedtimeofthelterusewillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

103

1 Setting Up the Screen and the Projector

[UM330X/UM280X]

Thefurtheryourprojectorisfromthescreenorwall,thelargertheimage.Theminimumsizetheimagecanbeis61.5"

(1562mm)measureddiagonallywhentheprojectoris4inches(105mm)betweenthescreensideoftheprojector

andthewallorscreen.Thelargesttheimagecanbeis116.6"(2962mm)whentheprojectoris20inches(510mm)

betweenthescreensideoftheprojectorandthewallorscreen.

[UM330X/UM280X]

ScreenSize

H1 H2

L1 L2

Diagonal Width Height wide

inch mm inch mm inch mm inch mm inch mm inch mm inch mm

61.5 1562 49 1250 37 937 10 243 47 1180 4 105 18 448

70 1778 56 1422 42 1067 10 262 52 1329 7 168 20 511

80 2032 64 1626 48 1219 11 285 59 1504 9 241 23 585

90 2286 72 1829 54 1372 12 307 66 1679 12 315 26 658

100 2540 80 2032 60 1524 13 330 73 1854 15 388 29 732

110 2794 88 2235 66 1676 14 352 80 2028 18 462 32 805

116.6 2962 93 2369 70 1777 14 367 84 2144 20 510 34

854

NOTE:

• Theaboveguresaredesignvaluesandmayvary.

0102030405060708090

61.5

100

110

116.6

Screen height

Screen size (inch)

Screen size (diagonal)

Screen width

Center of screen

Projector bottom

Throw distance L1/L2 (cm)

Screen side of projector

Center of projection window

6. Installation and Connections

104

6. Installation and Connections

[UM330W/UM280W]

Thefurtheryourprojectorisfromthescreenorwall,thelargertheimage.Theminimumsizetheimagecanbeis58"

(1473mm)measureddiagonallywhentheprojectoris4inches(105mm)betweenthescreensideoftheprojector

andthewallorscreen.Thelargesttheimagecanbeis110"(2794mm)whentheprojectoris20inches(510mm)

betweenthescreensideoftheprojectorandthewallorscreen.

[UM330W/UM280W]

ScreenSize

H1 H2

L1 L2

Diagonal Width Height wide

inch mm inch mm inch mm inch mm inch mm inch mm inch mm

58 1473 49 1249 31 781 10 244 41 1025 4 105 18 448

60 1524 51 1292 32 808 10 249 42 1057 5 120 18 464

70 1778 59 1508 37 942 11 272 48 1214 8 198 21 542

80 2032 68 1723 42 1077 12 296 54 1373 11 276 24 620

90 2286 76 1939 48 1212 13 320 61 1532 14 354 27 698

100 2540 85 2154 53 1346 14 344 67 1690 17 432 31 776

110 2794 93 2369 58 1481 14 368 72 1849 20 510 34

854

0102030405060708090

100

110

Screen height

Screen size (inch)

Screen size (diagonal)

Screen width

Center of screen

Projector bottom

Throw distance L1/L2 (cm)

Screen side of projector

Center of projection window

105

6. Installation and Connections

WARNING

* Installingyourprojectorontheceilingmustbedone

byaqualiedtechnician.ContactyourNECdealerfor

moreinformation.

* Donotattempttoinstalltheprojectoryourself.

• Onlyuseyourprojectoronasolid,levelsurface.Ifthe

projectorfallstotheground,youcanbeinjuredand

theprojectorseverelydamaged.

• Donotuse the projector wheretemperaturesvary

greatly.Theprojectormustbeusedattemperatures

between41°F(5°C)and104°F(40°C)(Ecomode

selected automatically at 95°F to 104°F/35°C to

40°C).

• Do not expose the projector to moisture, dust, or

smoke.Thiswillharmthescreenimage.

• Ensure thatyouhaveadequate ventilation around

yourprojectorsoheatcandissipate.Donotcoverthe

ventsonthesideorthefrontoftheprojector.

ReectingtheImage

Usingamirrortoreectyourprojector’simageenables

youtoenjoyamuchlargerimagewhenasmallerspace

isrequired.ContactyourNECdealerifyouneedamirror

system.Ifyou’reusingamirrorsystemandyourimage

isinverted,usetheMENUandbuttonsonyour

projectorcabinetoryourremotecontroltocorrectthe

orientation.(→page90)

106

6. Installation and Connections

 Making Connections

NOTE:WhenusingwithanotebookPC,besuretoconnecttheprojectorandnotebookPCwhiletheprojectorisinstandbymode

andbeforeturningonthepowertothenotebookPC.

InmostcasestheoutputsignalfromthenotebookPCisnotturnedonunlessconnectedtotheprojectorbeforebeingpoweredup.

* Ifthescreengoesblankwhileusingyourremotecontrol,itmaybetheresultofthecomputer’sscreen-saverorpowermanage-

mentsoftware.

Enabling the computer’s external display

DisplayinganimageonthenotebookPC’sscreendoesnotnecessarilymeanitoutputsasignaltotheprojector.

WhenusingaPCcompatiblelaptop,acombinationoffunctionkeyswillenable/disabletheexternaldisplay.

Usually,thecombinationofthe“Fn”keyalongwithoneofthe12functionkeysgetstheexternaldisplaytocomeon

oroff.Forexample,NEClaptopsuseFn+F3,whileDelllaptopsuseFn+F8keycombinationstotogglethrough

externaldisplayselections.

Connecting Your Computer

NOTE:SignalssupportedbyPlug&Play(DDC2)

INPUT

COMPUTER IN HDMI 1 IN HDMI 2 IN

analog digital digital

Yes Yes Yes

A commercially available

USB cable

(compatible with USB 2.0

speciﬁcations)

Computer cable (VGA) (supplied)

To mini D-Sub 15-pin connector on the

projector.Itisrecommendedthatyou

use a commercially available distribu-

tion ampliﬁer if connecting a signal

cable longer than the cable supplied.

Type B

Type A

Stereo mini-plug audio cable (not supplied)

HDMIcable(notsupplied)

UseHighSpeedHDMI

Cable.

NOTE:ForMac,useacommerciallyavailable

pinadapter(notsupplied)toconnecttoyour

Mac’svideoport.

107

6. Installation and Connections

• Selectthesourcenameforitsappropriateinputconnectorafterturningontheprojector.

Inputconnector

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

COMPUTERIN COMPUTER (COMPUTER1)

HDMI1IN HDMI1 (HDMI*)

HDMI2IN HDMI2 (HDMI*)

USB(PC) USBDISPLAY (USBDISPLAY)

* TheHDMIbuttonontheremotecontrolwilltogglebetween“HDMI1andHDMI2”.Upontherstbuttonpushthe

projectorwillalwaysswitchtoHDMI1IN.AsecondbuttonpushwillthenswitchtoHDMI2IN.ifthereisonlyone

HDMIsourceconnectedtotheprojectoritisrecommendedtoplacethatsignalontheHDMI1INconnector.

NOTE:TheprojectorisnotcompatiblewithvideodecodedoutputsoftheNECISS-6020switcher.

NOTE:AnimagemaynotbedisplayedcorrectlywhenaVideoorS-Videosourceisplayedbackviaacommerciallyavailablescan

converter.

Thisisbecausetheprojectorwillprocessavideosignalasacomputersignalatthedefaultsetting.Inthatcase,dothefollowing.

* Whenanimageisdisplayedwiththelowerandupperblackportionofthescreenoradarkimageisnotdisplayedcorrectly:

 ProjectanimagetollthescreenandthenpresstheAUTOADJ.buttonontheremotecontrolortheprojectorcabinet.

108

6. Installation and Connections

Connecting an External Monitor

Youcanconnectaseparate,externalmonitortoyourprojectortosimultaneouslyviewonamonitorthecomputer

analogimageyou’reprojecting.

NOTE:

• Daisychainconnectionisnotpossible.

• Whenaudioequipmentisconnected,theprojectorspeakerisdisabled.

Computer

cable (VGA)

(supplied)

Stereo mini-plug audio cable (not

supplied)

Computer cable (VGA)

(not supplied)

Stereo mini-plug audio

cable (not supplied)

109

6. Installation and Connections

Connecting Your DVD Player or Other AV Equipment

ConnectingVideo/S-VideoInput

• Selectthesourcenameforitsappropriateinputconnectorafterturningontheprojector.

Inputconnector

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

VIDEOIN

VIDEO

(VIDEO)

S-VIDEOIN

S-VIDEO

(S-VIDEO)

NOTE:TheAUDIOINLandRjacks(RCA)aresharedbetweentheVideoandS-Videoinputs.

NOTE:RefertoyourVCRowner’smanualformoreinformationaboutyourequipment’svideooutputrequirements.

NOTE:AnimagemaynotbedisplayedcorrectlywhenaVideoorS-Videosourceisplayedbackinfast-forwardorfast-rewindvia

ascanconverter.

Audio cable (not supplied)

Video cable (not supplied)

S-Video cable (not supplied)

Audio cable (not supplied)

Audio equipment

110

6. Installation and Connections

Connecting Component Input

 Acomponentsignalwillbeautomaticallydisplayed.Ifnot,fromthemenu,select[SETUP]→[OPTIONS(1)]→

[SIGNALSELECT]→[COMPUTER],andthenplaceacheckmarkintheComponentradiobutton.

• Selectthesourcenameforitsappropriateinputconnectorafterturningontheprojector.

Inputconnector

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

COMPUTERIN COMPUTER (COMPUTER1)

NOTE:RefertoyourDVDplayer’sowner’smanualformoreinformationaboutyourDVDplayer’svideooutputrequirements.

15-pin - to - RCA (female) × 3

cable adapter (ADP-CV1E)

Stereo mini plug - to - RCA audio

cable (not supplied)

Component video RCA ×

3 cable (not supplied)

Audio cable (not supplied)

DVD player

Audio Equipment

111

6. Installation and Connections

Connecting HDMI Input

YoucanconnecttheHDMIoutputofyourDVDplayer,harddiskplayer,Blu-rayplayer,ornotebooktypePCtothe

HDMIINconnectorofyourprojector.

NOTE:TheHDMIINconnectorsupportsPlug&Play(DDC2B).

Inputconnector

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

HDMI1IN HDMI1 (HDMI*)

HDMI2IN HDMI2 (HDMI*)

* TheHDMIbuttonontheremotecontrolwilltogglebetween“HDMI1andHDMI2”.Upontherstbuttonpushthe

projectorwillalwaysswitchtoHDMI1IN.AsecondbuttonpushwillthenswitchtoHDMI2IN.ifthereisonlyone

HDMIsourceconnectedtotheprojectoritisrecommendedtoplacethatsignalontheHDMI1INconnector.

TIP:ForusersofaudiovideoequipmentwithanHDMIconnector:

Select“Enhanced”ratherthan“Normal”ifHDMIoutputisswitchablebetween“Enhanced”and“Normal”.

Thiswillprovideimprovedimagecontrastandmoredetaileddarkareas.

Formoreinformationonsettings,refertotheinstructionmanualoftheaudiovideoequipmenttobeconnected.

• WhenconnectingtheHDMIINconnectoroftheprojectortotheDVDplayer,theprojector’svideolevelcanbe

madesettingsinaccordancewiththeDVDplayer’svideolevel.Inthemenuselect[HDMISETTINGS]→[VIDEO

LEVEL]andmakenecessarysettings.

• IftheHDMIinputsoundcannotbeheard,inthemenuselect[HDMISETTINGS]→[HDMI1]or[HDMI2]→[AUDIO

SELECT]→[HDMI1]or[HDMI2].(→page93)

HDMIcable(notsupplied)

UseHighSpeedHDMI

Cable.

Audio cable (not supplied)

112

6. Installation and Connections

Connecting to a Wired LAN

TheprojectorcomesstandardwithaLANport(RJ-45)whichprovidesaLANconnectionusingaLANcable.

TouseaLANconnection,youarerequiredtosettheLANontheprojectormenu.Select[SETUP]→[WIREDLAN].

(→page96).

ExampleofLANconnection

ExampleofwiredLANconnection

Server

Hub

LAN cable (not supplied)

NOTE:UseaCategory5orhigher

LANcable.

113

6. Installation and Connections

Connecting to a Wireless LAN (Optional: NP02LM series)

TheUSBWirelessLANUnitalsoprovidesawirelessLANconnection.TouseawirelessLANconnection,youare

requiredtoassignanIPaddresstotheprojector.

Important:

• IfyouusetheprojectorwiththeUSBWirelessLANUnitintheareawheretheuseofwirelessLANequipmentis

prohibited,removetheUSBWirelessLANUnitfromtheprojector.

• BuytheappropriateUSBWirelessLANUnitforyourcountryorarea.

NOTE:

• ThegreenLEDontheUSBWirelessLANUnitashestoshowthattheUSBWirelessLANUnitisworking.

• Yourcomputer’swirelessLANadapter(orunit)mustbecompliedwithWi-Fi(IEEE802.11b/g/n)standard.

FlowofSettingWirelessLAN

Step 1: AttachtheUSBWirelessLANUnittotheprojector.

Step 2: ConnectthecomputertotheprojectorviawiredLAN.(→ page 112)

 Usethecomputer’sbrowsertodisplaytheprojector’sHTTPserver.(→ page 43)

Step 3: UseanHTTPservertosetthewirelessLAN.(→ page 46)

 AccesstheHTTPserverfunctiontoset[NETWORKSETTINGS]→[SETTINGS]→[WIRELESS]→

[EASYCONNECTION],[PROFILE1]or[PROFILE2].

NOTE:

• TousetheHTTPserverfunction,theprojectormustbeconnectedtoanetwork.

 FirstusethewiredLANtoconnecttheprojectortoanetworkandthenusetheHTTPservertosetthewirelessLAN.

• AftersettingthewirelessLANbyusingtheHTTPserver,set[NETWORKSETTINGS]→[SETTINGS]→[WIRED]→[DISABLE]

WhenswitchingtosetontheprojectorafterconnectingtothewirelessLAN:

UsethemenutosetthewirelessLANconnectionfortheprojector.

(→page97)

Select[DISABLE],[EASYCONNECTION],[PROFILE1]or[PROFILE2]yousetfromtheHTTPserver.

AttachingtheUSBWirelessLANUnit

NOTE:

• TheUSBWirelessLANUnitmustbeinsertedintotheUSBWirelessLANUnitportinthecorrectdirection.Itcannotbeinserted

inthereversedirection.IftheUSBWirelessLANUnitisinsertedinthereversedirectionwithexcessiveforceapplied,theUSB

portmaybreak.

• BeforetouchingtheUSBWirelessLANUnit,touchametallicobject(suchasadoorknoboraluminumwindowframe)todischarge

thestaticelectricityfromyourbody.

• AlwaysinsertorremovetheUSBWirelessLANunitwhenthemainpoweristurnedoff.Failuretodosomaycauseprojector

malfunctionordamagetotheUSBwirelessLANunit.Iftheprojectorwillnotworkcorrectly,turnofftheprojector,disconnect

thepowercord,andthenconnectitagain.

• DonotinsertotherUSBdevicesintotheUSBWirelessLANunitport.DonotinserttheUSBWirelessLANunitintotheUSB(PC)

port(TypeB).

114

6. Installation and Connections

NOTE:Whenthecablecoverisattached,removeitbeforeinsertingtheUSB

WirelessLANUnit.

1. PressthePOWERbuttontoturnofftheprojectorandsetit

into standby condition, and disconnect the power cord.

2. SlowlyinserttheUSBWirelessLANUnitintotheUSB(WLAN)

port.

Remove the cap from the USB Wireless LAN Unit, and then insert

itwiththesurface(sideofindicator)facingoutward.Keepthecap

for later use.

NOTE:DonotforcetoinserttheUSBWirelessLANUnit.

ToremovetheUSBWirelessLANUnit,disconnectthepowercord

andusetheaboveprocedure.

NOTE:

• ThegreenLEDontheUSBWirelessLANUnitashestoshowthatWireless

LANUnitisworking.IftheUSBWirelessLANUnitisincorrectlyattached,

theblueLEDwillnotash.

• DonotpressthebuttonontheUSBWirelessLANUnit.Thebuttonwillnot

workwiththismodel.

115

6. Installation and Connections

ExampleofwirelessLANconnection

(NetworkType→Infrastructure)

Toenabledirect communication(i.e.,peer-to-peer)betweenpersonalcomputers andprojectors,youneed to

selecttheAdHocmode.

UsetheHTTPserverfunctiontomakethesettings.(→page43)

ExampleofwirelessLANconnection(NetworkType→AdHoc)

PC with wireless LAN

card inserted

PC with built-in wireless

LAN function

Wired LAN

Wireless access point

USB Wireless LAN Unit

PC with wireless LAN

card inserted

PC with built-in wireless

LAN function

USB Wireless LAN Unit

116

Thissectiondescribesthesimplemaintenanceproceduresyoushouldfollowtocleanthelters,theprojectionwindow,

thecabinet,andtoreplacethelampandthelters.

1 Cleaning the Filters

Theair-lterspongekeepsdustanddirtfromgettinginsidetheprojectorandshouldbefrequentlycleaned.Ifthelter

isdirtyorclogged,yourprojectormayoverheat.

NOTE:Themessageforltercleaningwillbedisplayedforoneminuteaftertheprojectoristurnedonoroff.Whenthemessage

isdisplayed,cleanthelters.Thetimetocleantheltersissetto[3500H]attimeofshipmentonUM330X/UM330W;thetimeto

cleantheltersissetto[5000H]attimeofshipmentonUM280X/UM280W.

Tocancelthemessage,pressanybuttonontheprojectorcabinetortheremotecontrol.

Thetwo-layerlterontheprojectorimprovescoolinganddust-proofcapabilities.

Theoutsides(intakeside)oftherstandsecondlayerltersremovedust.

Tocleanthelter,detachthelterunitandtheltercover.

CAUTION

• Beforecleaningthelters,turnofftheprojector,disconnectthepowercordandthenallowthecabinettocool.

Failuretodosocanresultinelectricshockorburninjuries.

1. Push the button to release the ﬁlter cover and pull it out.

Button

2. Remove the two ﬁlter cases.

Small ﬁlter case Large ﬁlter case

Tab

7. Maintenance

117

7. Maintenance

3. Remove the four ﬁlters and use a vacuum cleaner to vacuum

all the dust inside and outside.

Get rid of dust in the sponge ﬁlter

NOTE:

• Whenever you vacuum the lter, use the soft brush attachment to

vacuum.Thisistoavoiddamagetothelter.

• Donotwashthelterwithwater.Doingsocanresultinlterclogging.

4. Remove dust from the ﬁlter cover and the two ﬁlter cases

(largeandsmall).

Clean both outside and inside.

5. Attachthefourlterstotwoltercases(largeandsmall).

• Attachthecoarse-texturesponge lter to the outside oflter

case.

The coarse-texture sponge ﬁlter has slits on it. Align these slits

with the protrusions of the ﬁlter case.

• Attach the ne-texturesponge lterto the inside of the lter

case.

Slit

118

7. Maintenance

6. Insertthelargeltercaseintotheprojectorcabinet.

 Makesure that the ltercase isinsertedinthe correct orienta-

tion.

7. Put the small ﬁlter case to the projector cabinet.

 Makesure that the ltercase isinsertedinthe correct orienta-

tion.

8. Put the ﬁlter cover back to the projector cabinet.

 Inserttwocatchesofthetipoftheltercoverintothegrooveofthe

cabinet, and push the button to close the ﬁlter cover.

• Ifyoundittohardtoclosetheltercover,trypushingthenotch

part.

Button

Notch

Catch

Insiderib

(protrusion)

9. Clearthelterusagehours.

Plug the power cord into the wall outlet, and then turn on the pro-

jector.

From the menu, select [RESET] →[CLEARFILTERHOURS].(→

page 102)

The interval time to clean the ﬁlters is set to [OFF] at time of ship-

ment. When using the projector as it is, you do not clear the ﬁlter

usage

119

7. Maintenance

 Cleaning the Projection Window

• Turnofftheprojectorbeforecleaning.

• Donotscratchormartheprojectionwindowasitismadeofglass.

• Useablowerorlenspapertocleantheprojectionwindow,andbecarefulnottoscratchormartheglasssur-

face.

 Cleaning the Cabinet

Turnofftheprojector,andunplugtheprojectorbeforecleaning.

• Useadrysoftclothtowipedustoffthecabinet.

 Ifheavilysoiled,useamilddetergent.

• Neverusestrongdetergentsorsolventssuchasalcoholorthinner.

• Whencleaningtheventsorthespeakerusingavacuumcleaner,donotforcethebrushofthevacuumcleaner

intotheslitsofthecabinet.

Vacuum the dust off the vents.

• Cloggedventsmaycauseariseintheinternaltemperatureoftheprojector,resultinginmalfunction.

• Donotscratchorhitthecabinetwithyourngersoranyhardobjects

• Contactyourdealerforcleaningtheinsideoftheprojector.

NOTE:Donotapplyvolatileagentsuchasinsecticideonthecabinet,theprojectionwindow,orthescreen.Donotleavearubberor

vinylproductinprolongedcontactwithit.Otherwisethesurfacenishwillbedeterioratedorthecoatingmaybestrippedoff.

120

7. Maintenance

 Replacing the Lamp and the Filters

Whenthelampreachestheendofitslife,theLAMPindicatorinthecabinetwillblinkredandthemessage“THE

LAMPHASREACHEDTHEENDOFITSUSABLELIFE.PLEASEREPLACETHELAMPANDFILTER.”willappear

(*).Eventhoughthelampmaystillbeworking,replacethelamptomaintaintheoptimalprojectorperformance.After

replacingthelamp,besuretoclearthelamphourmeter.(→page102)

CAUTION

• DONOTTOUCHTHELAMPimmediatelyafterithasbeenused.Itwillbeextremelyhot.Turntheprojectoroff

andthendisconnectthepowercord.Allowatleastonehourforthelamptocoolbeforehandling.

• Usethespeciedlampforsafetyandperformance.

 Toorderthereplacementlamp,specifyyourlamptype.

 Replacementlamp:

 NP17LP-UM:UM330X/UM330W

 NP16LP-UM:UM280X/UM280W

 Thereplacementlampcomeswithlters.Whiletheltersattachedtotheprojectoratthetimeofpurchaseare

madeofdarkspongematerial,theltersincludedwiththeoptionallamparemadeofnon-wovenwhitematerial.

Thereisnodifferenceinperformancebetweenthesetwotypes.

• DONOTREMOVEANYSCREWSexceptonelampcoverscrewandtwolamphousingscrews.Youcouldreceive

anelectricshock.

• Donotbreaktheglassonthelamphousing.

 Keepngerprintsofftheglasssurfaceonthelamphousing.Leavingngerprintsontheglasssurfacemightcause

anunwantedshadowandpoorpicturequality.

• Theprojectorwillturnoffandgointostandbymodewhenyoucontinuetousetheprojectorforanother100hours

afterthelamphasreachedtheendofitslife.Ifthishappens,besuretoreplacethelamp.Ifyoucontinuetouse

thelampafterthelampreachestheendofitslife,thelampbulbmayshatter,andpiecesofglassmaybescattered

inthelampcase.Donottouchthemasthepiecesofglassmaycauseinjury.Ifthishappens,contactyourNEC

dealerforlampreplacement.

*NOTE:Thismessagewillbedisplayedunderthefollowingconditions:

• foroneminuteaftertheprojectorhasbeenpoweredon

• whenthe (POWER)buttonontheprojectorcabinetorthePOWEROFFbuttonontheremotecontrolispressed

Toturnoffthemessage,pressanybuttonontheprojectorcabinetortheremotecontrol.

Optionallampandtoolsneededforreplacement:

• Phillipsscrewdriver(plus-head)

• Replacementlamp

Flow of Replacing the Lamp and the Filters

Step 1. Replace the lamp

Step 2. Replacethelters(→ page 123)

Step 3. Clearthelampusagehoursandthelterusagehours(→ page 102)

121

7. Maintenance

2. Remove the lamp housing.

(1)Loosenthetwoscrewssecuringthelamphousinguntilthephillipsscrewdrivergoesintoafreewheelingcondi-

tion.

 •Thetwoscrewsarenotremovable.

 •Thereisaninterlockonthiscasetopreventtheriskofelectricalshock.Donotattempttocircumventthis

interlock.

(2)Removethelamphousingbyholdingit.

Toreplacethelamp:

1. Remove the lamp cover.

(1)Loosenthelampcoverscrew

 •Thelampcoverscrewisnotremovable.

(2)Pushandslidethelampcoveroff.

CAUTION:

Makesurethatthelamphousingiscool

enoughtobeforeremovingit.

Interlock

122

7. Maintenance

Thiscompletesthelampreplacement.

Goontothelterreplacement.

NOTE:Whenyoucontinuetousetheprojectorforanother100hoursafterthelamphasreachedtheendofitslife,theprojector

cannotturnonandthemenuisnotdisplayed.

Ifthishappens,presstheHELPbuttonontheremotecontrolfor10secondstoresetthelampclockbacktozero.

Whenthelamptimeclockisresettozero,theLAMPindicatorgoesout.



4. Reattach the lamp cover.

(1)Slidethelampcoverbackuntilitsnapsintoplace.

(2)Tightenthescrewtosecurethelampcover.

 •Besuretotightenthescrew.

3. Installanewlamphousing.

(1)Insertanewlamphousinguntilthelamphousingispluggedintothesocket.

(2)Pushthetopcenterofthelamphousingtosecureit.

(3)Secureitinplacewiththetwoscrews.

 •Besuretotightenthescrews.

123

7. Maintenance

Toreplacethelters:

NOTE:

• Replaceallfourltersatthesametime.

• Beforereplacingthelters,wipeoffdustanddirtfromtheprojectorcabinet.

• Theprojectorisprecisionequipment.Keepoutdustanddirtduringlterreplacement.

• Donotwashthelterswithsoapandwater.Soapandwaterwilldamagetheltermembrane.

• Putltersintoplace.Incorrectattachmentofaltermaycausedustanddirttogetintotheinsideoftheprojector.

Beforereplacingthelters,replacethelamp.(→page120)

1. Push the button to release the ﬁlter cover and pull it out.

Button

2. Remove the two ﬁlter cases.

Small ﬁlter case Large ﬁlter case

Tab

124

7. Maintenance

3. Remove the four ﬁlters and use a vacuum cleaner to vacuum

all the dust inside and outside.

Get rid of dust in the sponge ﬁlter

NOTE:

• Whenever you vacuum the lter, use the soft brush attachment to

vacuum.Thisistoavoiddamagetothelter.

• Donotwashthelterwithwater.Doingsocanresultinlterclogging.

4. Remove dust from the ﬁlter cover and the two ﬁlter cases

(largeandsmall).

Clean both outside and inside.

5. Attachthefourlterstotwoltercases(largeandsmall).

• Attachthecoarse-texturesponge lter to the outside oflter

case.

The coarse-texture sponge ﬁlter has slits on it. Align these slits

with the protrusions of the ﬁlter case.

• Attach the ne-texturesponge lterto the inside of the lter

case.

Slit

125

7. Maintenance

6. Insertthelargeltercaseintotheprojectorcabinet.

 Makesure that the ltercase isinsertedinthe correct orienta-

tion.

7. Put the small ﬁlter case to the projector cabinet.

 Makesure that the ltercase isinsertedinthe correct orienta-

tion.

8. Put the ﬁlter cover back to the projector cabinet.

 Inserttwocatchesofthetipoftheltercoverintothegrooveofthe

cabinet, and push the button to close the ﬁlter cover.

• Ifyoundittohardtoclosetheltercover,trypushingthenotch

part.

Button

Notch

Catch

Insiderib

(protrusion)

Thiscompletesthelterreplacement.

Goontotheclearinglampandlterhourmeters.

Toclearthelampusagehoursandthelterusagehours:

1. Place the projector where you use it.

2. Plug the power cord into the wall outlet, and then turn on the projector.

3. Clearthelampusagehoursandthelterusagehours.

1. From the menu, select [RESET] → [CLEAR LAMP HOURS] and reset the lamp usage hours.

2. Select[CLEARFILTERHOURS].andresetthelterusagehours.(→ page 102)

126

8. Appendix

1 Troubleshooting

Thissectionhelpsyouresolveproblemsyoumayencounterwhilesettinguporusingtheprojector.

Indicator Messages

PowerIndicator

Indicator Condition ProjectorCondition Note

Off The main power is off –

Blinking light Blue

0�5 sec On,

0�5 sec Off

The projector is getting ready to turn on� Wait for a moment�

2�5 sec On,

0�5 sec Off

Off Timer is enabled� –

Steady light Blue The projector is turned on� –

Orange [NORMAL] is selected for [STANDBY MODE] –

Red [POWER-SAVING] is selected for [STANDBY

MODE]

–

StatusIndicator

Indicator Condition ProjectorCondition Note

Off Normal or Standby ([POWER-SAVING] for

[STANDBY MODE])

–

Blinking light Red

1 cycle (0�5 sec

On, 2�5 sec Off)

Lamp cover error or lamp housing error Replace the lamp cover or lamp housing correctly�

2 cycle (0�5 sec

On, 0�5 sec Off)

Temperature error The projector is overheated� Move the projector to

a cooler location�

3 cycle (0�5 sec

On, 0�5 sec Off)

Power error Power unit is not working properly� Contact your

dealer�

4 cycle (0�5 sec

On, 0�5 sec Off)

Fan error Fans will not work correctly�

6 cycle (0�5 sec

On, 0�5 sec Off)

Lamp error Lamp fails to light� Wait a full minute and then turn

on again�

Orange 1 cycle (0�5 sec

On, 2�5 sec Off)

Network conﬂict

Both the built-in wired LAN and the wireless LAN cannot

be connected to the same network at the same time�

To use both built-in wired LAN and wireless LAN at the

same time, connect them to different networks�

Green Re-firing the lamp (The projector is cooling

down�)

The projector is re-ﬁring�

Wait for a moment�

Steadylight

Green

Standby ([NORMAL] for [STANDBY MODE])

–

Orange

CONTROL PANEL LOCK is on� You have pressed cabinet button when Control

Panel Lock is on�

CONTROL ID error Remote control ID and projector ID are not

matched�

Lamp Indicator

Indicator Condition ProjectorCondition Note

Off Normal –

Blinking light Red

Lamp has reached its end of life� Lamp replace-

ment message will be displayed�

Replace the lamp�

Steady light Red Lamp has been used beyond its limit� The projector

will not turn on until the lamp is replaced�

Replace the lamp�

Green [ECO MODE] is set to [NORMAL] or [ECO] –

Over-TemperatureProtection

Ifthetemperatureinsidetheprojectorrisestoohigh,theover-temperatureprotectorwillautomaticallyturnoffthelamp

withtheSTATUSindicatorblinking(2-cycleOnandOff.)

Shouldthishappen,dothefollowing:

• Unplugthepowercordafterthecoolingfansstop.

• Movetheprojectortoacoolerlocationiftheroomwhereyouarepresentingisparticularlytoowarm.

• Cleantheventsiftheyarecloggedwithdust.

• Waitabout60minutesuntiltheinsideoftheprojectorbecomescoolenough.

127

8. Appendix

Common Problems & Solutions

(→“Power/Status/LampIndicator”onpage126.)

Problem CheckTheseItems

Does not turn on

or shut down

• Checkthatthepowercordispluggedinandthatthepowerbuttonontheprojectorcabinetortheremotecontrol

is on� (→ pages 15, 16)

• Ensurethatthelampcoverisinstalledcorrectly.(→ page 122)

• Checktoseeiftheprojectorhasoverheated.Ifthereisinsufcientventilationaroundtheprojectororiftheroom

where you are presenting is particularly warm, move the projector to a cooler location�

• Checktoseeifyoucontinuetousetheprojectorforanother100hoursafterthelamphasreachedtheendofits

life� If so, replace the lamp� After replacing the lamp, reset the lamp hours used� (→ page 120)

• Thelampmayfailtolight.Waitafullminuteandthenturnonthepoweragain.

• Set[FANMODE]to[HIGHALTITUDE]whenusingtheprojectorataltitudesapproximately5500feet/1700meters

or higher� Using the projector at altitudes approximately 5500 feet/1700 meters or higher without setting to [HIGH

ALTITUDE] can cause the projector to overheat and the projector could shut down� If this happens, wait a couple

minutes and turn on the projector� (→ page 92)

If you turn on the projector immediately after the lamp is turned off, the fans run without displaying an image for

some time and then the projector will display the image� Wait for a moment�

Will turn off • Ensurethatthe[OFFTIMER]or[AUTOPOWEROFF]isoff.(→ page 88, 95)

No picture

• UsetheCOMPUTER,theHDMI,theVIDEOortheS-VIDEObuttonontheremotecontroltoselectyoursource

(Computer, HDMI1, HDMI2, Video or S-Video)� (→ page 18) If there is still no picture, press the button again�

• Ensureyourcablesareconnectedproperly.

• Usemenustoadjustthebrightnessandcontrast.(→ page 81)

• Resetthesettingsoradjustmentstofactorypresetlevelsusingthe[RESET]intheMenu.(→ page 102)

• EnteryourregisteredkeywordiftheSecurityfunctionisenabled.(→ page 31)

• BesuretoconnecttheprojectorandnotebookPCwhiletheprojectorisinstandbymodeandbeforeturningon

the power to the notebook PC�

In most cases the output signal from the notebook PC is not turned on unless connected to the projector before

being powered up�

* If the screen goes blank while using your remote control, it may be the result of the computer’s screen-saver

or power management software�

• Seealsothenext page�

Picture suddenly be-

comes dark

• CheckiftheprojectorisintheForcedECOmodebecauseoftoohighambienttemperature.Ifthisisthecase,

lower the internal temperature of the projector by selecting [HIGH] for [FAN MODE]� (→ page 92)

Color tone or hue is un-

usual

• Checkifanappropriatecolorisselectedin[WALLCOLOR].Ifso,selectanappropriateoption.(→ page 87)

• Adjust[HUE]in[PICTURE].(→ page 81)

Image isn’t square to the

screen

• Repositiontheprojectortoimproveitsangletothescreen.(→ page 20, 21)

• UsetheKeystonecorrectionfunctiontocorrectthetrapezoiddistortion.(→ page 23)

Picture is blurred

• Adjustthefocus.(→ page 20)

• Repositiontheprojectortoimproveitsangletothescreen.(→ page 20, 21)

• Ensurethatthedistancebetweentheprojectorandscreeniswithintheadjustmentrangeoftheprojectionwindow.

(→ page 103, 104)

• Condensationmayformonthelensiftheprojectoriscold,broughtintoawarmplaceandisthenturnedon.

Should this happen, let the projector stand until there is no condensation on the lens�

Fli c k e r app e a r s on

screen

•

Set [FAN MODE] to other than [HIGH ALTITUDE] mode when using the projector at altitudes approximately 5500 feet/1700

meters or lower� Using the projector at altitudes less than approximately 5500 feet/1700 meters and setting to [HIGH ALTI-

TUDE] can cause the lamp to overcool, causing the image to ﬂicker� Switch [FAN MODE] to [AUTO]� (→ page 92)

Image is scrolling ver-

tically, horizontally or

both

• Checkthecomputer’sresolutionandfrequency.Makesurethattheresolutionyouaretryingtodisplayissupported

by the projector� (→ page 133)

• AdjustthecomputerimagemanuallywiththeHorizontal/Verticalinthe[IMAGEOPTIONS].(→ page 83)

Remote control does

not work

• Installnewbatteries.(→ page 10)

• Makesuretherearenoobstaclesbetweenyouandtheprojector.

• Standwithin22feet(7m)oftheprojector.(→ page 10)

Indicator is lit or blink-

ing

• SeethePOWER/STATUS/LAMPIndicator.(→ page 126)

Cross color in RGB

mode

• PresstheAUTOADJ.buttonontheprojectorcabinetortheremotecontrol.(→ page 25)

• Adjustthecomputerimagemanuallywith[CLOCK]/[PHASE]in[IMAGEOPTIONS]inthemenu.(→ page 82)

128

8. Appendix

Problem CheckTheseItems

Mic sound is not heard • CheckifyourmicrophonecableisconnectedtotheMICinputjackcorrectly.

• Checkifyouuseadynamicmicrophone.Pluginpowermicrophonesarenotsupportedbytheprojector.

Mic sound is too loud

or quiet

• Adjust[MICGAIN]fromthemenu.(→ page 92)

Formoreinformationcontactyourdealer.

If there is no picture, or the picture is not displayed correctly.

• PoweronprocessfortheprojectorandthePC.

 BesuretoconnecttheprojectorandnotebookPCwhiletheprojectorisinstandbymodeandbeforeturningon

thepowertothenotebookPC.

 InmostcasestheoutputsignalfromthenotebookPCisnotturnedonunlessconnectedtotheprojectorbefore

beingpoweredup.

NOTE:Youcancheckthehorizontalfrequencyofthecurrentsignalintheprojector’smenuunderInformation.Ifitreads“0kHz”,

thismeansthereisnosignalbeingoutputfromthecomputer.(→page100orgotonextstep)

• Enablingthecomputer’sexternaldisplay.

 DisplayinganimageonthenotebookPC’sscreendoesnotnecessarilymeanitoutputsasignaltotheprojector.

WhenusingaPCcompatiblelaptop,acombinationoffunctionkeyswillenable/disabletheexternaldisplay.Usu-

ally,thecombinationofthe“Fn”keyalongwithoneofthe12functionkeysgetstheexternaldisplaytocomeon

oroff.Forexample,NEClaptopsuseFn+F3,whileDelllaptopsuseFn+F8keycombinationstotogglethrough

externaldisplayselections.

• Non-standardsignaloutputfromthecomputer

 IftheoutputsignalfromanotebookPCisnotanindustrystandard,theprojectedimagemaynotbedisplayed

correctly.Shouldthishappen,deactivatethenotebookPC’sLCDscreenwhentheprojectordisplayisinuse.Each

notebookPChasadifferentwayofdeactivate/reactivatethelocalLCDscreensasdescribedinthepreviousstep.

Refertoyourcomputer’sdocumentationfordetailedinformation.

• ImagedisplayedisincorrectwhenusingaMac

 WhenusingaMacwiththeprojector,settheDIPswitchoftheMacadapter(notsuppliedwiththeprojector)ac-

cordingtoyourresolution.Aftersetting,restartyourMacforthechangestotakeaffect.

 ForsettingdisplaymodesotherthanthosesupportedbyyourMacandtheprojector,changingtheDIPswitchon

aMacadaptermaybounceanimageslightlyormaydisplaynothing.Shouldthishappen,settheDIPswitchto

the13"xedmodeandthenrestartyourMac.Afterthat,restoretheDIPswitchestoadisplayablemodeandthen

restarttheMacagain.

NOTE:AVideoAdaptercablemanufacturedbyAppleInc.isneededforaMacBookwhichdoesnothaveaminiD-Sub15-pin

connector.

• MirroringonaMacBook

* WhenusingtheprojectorwithaMacBook,outputmaynotbesetto1024×768unless“mirroring”isoffonyour

MacBook.Refertoowner’smanualsuppliedwithyourMaccomputerformirroring.

• FoldersoriconsarehiddenontheMacscreen

 Foldersoriconsmaynotbeseenonthescreen.Shouldthishappen,select[View]→[Arrange]fromtheApple

menuandarrangeicons.

129

8. Appendix

 Speciﬁcations

Thissectionprovidestechnicalinformationaboutprojector’sperformance.

Optical

ModelNumber NP-UM330X NP-UM280X NP-UM330W NP-UM280W

LCDPanel 0.63inchLCDwithMicroLensArray(Aspect

Ratio4:3)

0.59inchLCDwithMicroLensArray(Aspect

Ratio16:10)

Resolution*

1024×768pixels(XGA) 1280×800pixels(WXGA)

Lens Digitalzoomandmanualfocus

DigitalZoomRatio=1.4

F=1.8 f=4.78mm

Lamp 265WAC

(195WinNORMAL)

(160WinECO)

230WAC

(170WinNORMAL)

(140WinECO)

265WAC

(195WinNORMAL)

(160WinECO)

230WAC

(170WinNORMAL)

(140WinECO)

LightOutput*

3300 lumens 2800 lumens 3300 lumens 2800 lumens

NORMAL:75%

ECO:60%*

ContrastRatio*

(fullwhite:fullblack)

3000:1

ImageSize(Diagonal) 61.5-116.6inches/1562-2962mm 58-110inches/1473-2794mm

ProjectionDistance

(Min.–Max.)

18-34inches/448-854mm 18-34inches/448-854mm

ProjectionAngle 53° 49°

*1 Effectivepixelsaremorethan99.99%.

*2 Thisisthelightoutputvalue(lumens)whenthe[PRESET]modeissetto[HIGH-BRIGHT].Ifanyothermodeisselectedasthe

[PRESET]mode,thelightoutputvaluemaydropslightly.

*3 CompliancewithISO21118-2005

*4 ThemaximumpowerbecomesequivalenttopowerinNORMAL(ECOMODE).

Electrical

ModelNumber NP-UM330X NP-UM280X NP-UM330W NP-UM280W

Inputs

1×RGB/Component(D-Sub15P),2×HDMITypeA(19P,HDMI

Connector)HDCPsupported*

1×S-Video(DIN4P),1×Video(RCA),1×(L/R)RCAAudio,1×StereoMiniAudio

Outputs 1×RGB(D-Sub15P),1×StereoMiniAudio

PCControl 1×PCControlPort(D-Sub9P)

WiredLANPort 1×RJ-45(10BASE-T/100BASE-TX)

WirelessLANPort

(Optional)

IEE802.11b/g/n(optionalUSBWirelessLANUnitrequired)

USBPort 1×TypeA,1×TypeB

MICInput 1×MonauralMiniAudio(Dynamicmichrophoneonly;notsupportedbyplug-inmic)

ColorReproduction 10-bitsignalprocessing(1.07billioncolors)(HDMI,VIEWER,NETWORK:Colors,16.7millioncolors)

CompatibleSignals*

Analog:VGA/SVGA/XGA/WXGA/Quad-VGA/SXGA/SXGA+/WXGA+/WXGA++/UXGA/WSXGA+/HD/

FullHD/WUXGA/Mac13",16",21",23"

Component:480i/480p/576i/576p/720p/1080i/1080p

HDMI:VGA/SVGA/XGA/WXGA/Quad-VGA/SXGA/SXGA+/WXGA+/WXGA++/WSXGA+/480p/576p/7

20p/1080i/1080p

HorizontalResolution 540TVlines:NTSC/NTSC4.43/PAL/PAL-M/PAL-N/PAL60

300TVlines:SECAM

ScanRate Horizontal:15kHzto100kHz(RGB:24kHzorover)

Vertical:50Hzto120Hz(HDMI:50Hzto85Hz)

SyncCompatibility SeparateSync

*5 HDMI

(DeepColor,LipSync)withHDCP

 WhatisHDCP/HDCPtechnology?

 HDCPisanacronymforHigh-bandwidthDigitalContentProtection.HighbandwidthDigitalContentProtection(HDCP)isasystem

forpreventingillegalcopyingofvideodatasentoveraHigh-DenitionMultimediaInterface(HDMI).

 IfyouareunabletoviewmaterialviatheHDMIinput,thisdoesnotnecessarilymeantheprojectorisnotfunctioningproperly.With

theimplementationofHDCP,theremaybecasesinwhichcertaincontentisprotectedwithHDCPandmightnotbedisplayed

duetothedecision/intentionoftheHDCPcommunity(DigitalContentProtection,LLC).

 Video:DeepColor;8/10/12-bit,LipSync

 Audio:LPCM;upto2ch,samplerate32/44.1/48KHz,samplebit;16/20/24-bit

*6 Animagewithhigherorlowerresolutionthantheprojector’snativeresolution(UM330X/UM280X:1024×768/UM330W/UM280W:

1280×800)willbedisplayedwithAdvancedAccuBlend.(→page133)

130

8. Appendix

ModelNumber NP-UM330X NP-UM280X NP-UM330W NP-UM280W

Built-inSpeaker 16W(monaural)

PowerRequirement 100–240VAC,50/60Hz

InputCurrent 4.0A/1.7A 3.6A/1.6A 4.0A/1.7A 3.6A/1.6A

PowerCon-

sumption

ECOMODE

OFF

360W(100-130V)

344W(200-240V)

318W(100-130V)

304W(200-240V)

360W(100-130V)

344W(200-240V)

318W(100-130V)

304W(200-240V)

NORMAL 272W(100-130V)

263W(200-240V)

242W(100-130V)

235W(200-240V)

272W(100-130V)

263W(200-240V)

242W(100-130V)

235W(200-240V)

ECO 239W(100-130V)

233W(200-240V)

218W(100-130V)

212W(200-240V)

239W(100-130V)

233W(200-240V)

218W(100-130V)

212W(200-240V)

STANDBY

(NORMAL)

8W(100-130V)

9W(200-240V)

STANDBY

(POWER-

SAVING)

0.2W(100-130V)/0.4W(200-240V)

Mechanical

ModelNumber NP-UM330X NP-UM280X NP-UM330W NP-UM280W

Installation

Orientation

Desktop/Front,Desktop/Rear,Ceiling/Front,Ceiling/Rear

Dimensions 14.9"(W)×4.4"(H)×16.9"(D)/378mm(W)×112mm(H)×428mm(D)

(notincludingprotrusions)

Weight 12.6lbs/5.7kg 12.3lbs/5.6kg 12.6lbs/5.7kg 12.3lbs/5.6kg

Environmental

Considerations

OperationalTemperatures:41°to104°F(5°to40°C),

(ECOmodeselectedautomaticallyat95°Fto104°F/35°Cto40°C)

20%to80%humidity(non-condensing)

StorageTemperatures:14°to122°F(-10°to50°C),

20%to80%humidity(non-condensing)

Regulations UL/C-ULApproved(UL60950-1,CSA60950-1)

MeetsDOCCanadaClassBrequirements

MeetsFCCClassBrequirements

MeetsAS/NZSCISPR.22ClassB

MeetsEMCDirective(EN55022,EN55024,EN61000-3-2,EN61000-3-3)

MeetsLowVoltageDirective(EN60950-1,TÜVGSApproved)

Foradditionalinformationvisit:

US:http://www.necdisplay.com/

Europe:http://www.nec-display-solutions.com/

Global:http://www.nec-display.com/global/index.html

Forinformationonouroptionalaccessories,visitourwebsiteorseeourbrochure.

Thespecicationsaresubjecttochangewithoutnotice.

131

8. Appendix

378 (14.9)

114 (4.5)

43 (1.7)

163 (6.4)

114 (4.5)

424.5 (16.7)

344 (13.5)

165 (6.5)

115 (4.5)

112.5 (4.4)

151.3 (6.0)

10.5 (0.4)

428 (16.9)

112 (4.4)

 Cabinet Dimensions

Unit:mm(inch)

Attachment surface of ceiling mount

132

8. Appendix

 Pin Assignments of D-Sub COMPUTER Input Connector

Mini D-Sub 15 Pin Connector

SignalLevel

Videosignal:0.7Vp-p(Analog)

Syncsignal:TTLlevel

51423

11 12 13 14 15

6978

Pin No. RGBSignal(Analog) YCbCrSignal

1 Red Cr

GreenorSynconGreen Y

3 Blue Cb

4 Ground

5 Ground

RedGround CrGround

7 GreenGround YGround

8 BlueGround CbGround

9 NoConnection

10 SyncSignalGround

11 NoConnection

12 Bi-directionalDATA(SDA)

13 HorizontalSyncorComposite

Sync

VerticalSync

15 DataClock

COMPUTER IN

NOTE:PinNos.12and15arerequiredforDDC/CI.



133

8. Appendix

 Compatible Input Signal List

AnalogRGB

Signal

Resolution

(dots)

AspectRatio

RefreshRate

(Hz)

VGA 640 × 480 4:3 60/72/75/85/

iMac

SVGA 800 × 600 4:3 56/60/72/75/85/

iMac

XGA 1024 × 768 *

4:3 60/70/75/85/

iMac

WXGA 1280 × 768 *

15:9 60

1280 × 800 *

16:10 60

1360 × 768 *

16:9 60

1366 × 768 *

16:9 60

Quad-VGA 1280 × 960 4:3 60/75

SXGA 1280 × 1024 5:4 60/75

SXGA+ 1400 × 1050 4:3 60

WXGA+ 1440 × 900 16:10 60

WXGA++ 1600 × 900 *

16:9 60

UXGA 1600 × 1200 *

4:3 60

WSXGA+ 1680 × 1050 16:10 60

HD 1280 × 720 16:9 60

FullHD 1920 × 1080 16:9 60

WUXGA 1920 × 1200 *

16:10 60

MAC13" 640 × 480 4:3 67

MAC16" 832 × 624 4:3 75

MAC19" 1024 × 768 4:3 75

MAC21" 1152 × 870 4:3 75

MAC23" 1280 × 1024 5:4 65

Component

Signal Format AspectRatio

RefreshRate

(Hz)

HDTV(1080p) 1920 × 1080 16:9 50/60

HDTV(1080i) 1920 × 1080 16:9 50/60

HDTV(720p) 1280 × 720 16:9 50/60

SDTV(480p) 720 × 480 4:3/16:9 60

SDTV(576p) 720 × 576 4:3/16:9 50

SDTV(480i) 720 × 480 4:3/16:9 60

SDTV(576i) 720 × 576 4:3/16:9 50

CompositeVideo/S-Video

Signal AspectRatio

RefreshRate

(Hz)

NTSC 4:3 60

PAL 4:3 50

PAL60 4:3 60

SECAM 4:3 50

*1NativeresolutiononXGAmodel(UM330X/UM280X)

*2NativeresolutiononWXGAmodel(UM330W/UM280W)

*3Theprojectormayfailtodisplaythesesignalscorrectlywhen[AUTO]

isselectedfor[ASPECTRATIO]intheon-screenmenu.

 Thefactorydefaultis[AUTO]for[ASPECTRATIO].Todisplaythese

signals,select[16:9]for[ASPECTRATIO].

*4WXGAMODE:OFF

*5WXGAMODE:ON

NOTE:

• Animage with higher orlower resolutionthan theprojector’snative resolution (UM330X/UM280X: 1024× 768/ UM330W/

UM280W:1280×800)willbedisplayedwithAdvancedAccuBlend.

• SynconGreenandCompositesyncsignalsarenotsupported.

• Signalsotherthanthosespeciedinthetableabovemaynotbedisplayedcorrectly.Ifthisshouldhappen,changetherefresh

rateorresolutiononyourPC.RefertoDisplayPropertieshelpsectionofyourPCforprocedures.

HDMI

Signal

Resolution

(dots)

AspectRatio

RefreshRate

(Hz)

VGA 640 × 480 4:3 60

SVGA 800 × 600 4:3 60

XGA 1024 × 768 *

4:3 60

WXGA 1280 × 768 *

15:9 60

1280 × 800 *

16:10 60

1366 × 768 16:9 60

Quad-VGA 1280 × 960 4:3 60

SXGA 1280 × 1024 5:4 60

SXGA+ 1400 × 1050 4:3 60

WXGA+ 1440 × 900 16:10 60

WXGA++ 1600 × 900 16:9 60

WSXGA+ 1680 × 1050 16:10 60

HDTV(1080p) 1920 × 1080 16:9 50/60

HDTV(1080i) 1920 × 1080 16:9 50/60

HDTV(720p) 1280 × 720 16:9 50/60

SDTV(480p) 720 × 480 4:3/16:9 60

SDTV(576p) 720 × 576 4:3/16:9 50

134

8. Appendix

 PC Control Codes and Cable Connection

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT HDMI1 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT HDMI2 02H 03H 00H 00H 02H 01H 1BH 23H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H

INPUT SELECT VIEWER 02H 03H 00H 00H 02H 01H 1FH 27H

INPUT SELECT NETWORK 02H 03H 00H 00H 02H 01H 20H 28H

INPUT SELECT USB DISPLAY 02H 03H 00H 00H 02H 01H 22H 2AH

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

NOTE:ContactyourlocaldealerforafulllistofthePCControlCodesifneeded.

Cable Connection

CommunicationProtocol

Baud rate ��38400 bps

Data length

��8 bits

Parity

��No parity

Stop bit

��One bit

X on/off

��None

Communications procedure

��Full duplex

NOTE:Dependingontheequipment,alowerbaudratemayberecommendedforlongcableruns.

PC Control Connector (D-SUB 9P)

NOTE1:Pins1,4,6and9arenoused.

NOTE2:Jumper“RequesttoSend”and“CleartoSend”togetheronbothendsofthecabletosimplifycableconnection.

NOTE3:Forlongcablerunsitisrecommendedtosetcommunicationspeedwithinprojectormenusto9600bps.

15243

67 98

To GND of PC

To RxD of PC

To TxD of PC

To RTS of PC

To CTS of PC

135

8. Appendix

No image is displayed from your PC or video equipment to the

projector�

Still no image even though you connect the projector to the PC

ﬁrst, then start the PC�

Enabling your notebook PC’s signal output to the projector�

• Acombinationoffunctionkeyswillenable/disabletheexter-

naldisplay.Usually,thecombinationofthe“Fn”keyalong

withoneofthe12functionkeysturnstheexternaldisplay

onoroff.

No image (blue or black background, no display)�

Still no image even though you press the AUTO ADJUST

button�

Still no image even though you carry out [RESET] in the

projector’s menu�

Signal cable’s plug is fully inserted into the input connector

A message appears on the screen�

( _____________________________________________ )

The source connected to the projector is active and available�

Still no image even though you adjust the brightness and/or

the contrast�

Input source’s resolution and frequency are supported by the

projector�

 Troubleshooting Check List

Beforecontactingyourdealerorservicepersonnel,checkthefollowinglisttobesurerepairsareneededalsoby

referringtothe“Troubleshooting”sectioninyouruser’smanual.Thischecklistbelowwillhelpussolveyourproblem

moreefciently.

*Printthispageandthenextpageforyourcheck.

Frequency of occurrence  always  sometimes (How often?_____________________)  other (__________________)

Power

No power (POWER indicator does not light blue) See also “Status

Indicator (STATUS)”�

Power cord’s plug is fully inserted into the wall outlet�

Main power switch is pressed to the ON position�

Lamp cover is installed correctly �

Lamp Hours Used (lamp operation hours) was cleared after

lamp replacement�

No power even though you press and hold the POWER but-

ton�

Shut down during operation�

Power cord’s plug is fully inserted into the wall outlet�

Lamp cover is installed correctly �

[AUTO POWER OFF] is turned off (only models with the [AUTO

POWER OFF] function)�

[OFF TIMER] is turned off (only models with the [OFF TIMER]

function)�

Video and Audio

Image is too dark�

Remains unchanged even though you adjust the brightness

and/or the contrast�

Image is distorted�

Image appears to be trapezoidal (unchanged even though you

carry out the [KEYSTONE] adjustment)�

Parts of the image are lost�

Still unchanged even though you press the AUTO ADJUST

button�

Still unchanged even though you carry out [RESET] in the

projector’s menu�

Image is shifted in the vertical or horizontal direction�

Horizontal and vertical positions are correctly adjusted on a

computer signal�

Input source’s resolution and frequency are supported by the

projector�

Some pixels are lost�

Image is ﬂickering�

Still unchanged even though you press the AUTO ADJUST

button�

Still unchanged even though you carry out [RESET] in the

projector’s menu�

Image shows ﬂickering or color drift on a computer signal�

Still unchanged even though you change [FAN MODE] from

[HIGH ALTITUDE] to [AUTO]�

Image appears blurry or out of focus�

Still unchanged even though you checked the signal’s resolution

on PC and changed it to projector’s native resolution�

Still unchanged even though you adjusted the focus�

No sound�

Audio cable is correctly connected to the audio input of the

projector�

Still unchanged even though you adjusted the volume level�

AUDIO OUT is connected to your audio equipment (only models

with the AUDIO OUT connector)�

Other

Remote control does not work�

No obstacles between the sensor of the projector and the

remote control�

Projector is placed near a ﬂuorescent light that can disturb the

infrared remote controls�

Batteries are new and are not reversed in installation�

Buttons on the projector cabinet do not work (only models with the

[CONTROL PANEL LOCK] function)

[CONTROL PANEL LOCK] is not turned on or is disabled in

the menu�

Still unchanged even though you press and hold the EXIT button

for a minimum of 10 seconds�

136

8. Appendix

In the space below please describe your problem in detail.

Information on application and environment where your projector is used

Projector

Model number:

Serial No�:

Date of purchase:

Lamp operating time (hours):

Eco Mode:  OFF  AUTO ECO

 NORMAL  ECO

Information on input signal:

Horizontal synch frequency [ ] kHz

Vertical synch frequency [ ] Hz

Synch polarity H  (+)  (−)

V  (+)  (−)

Synch type  Separate  Composite

 Sync on Green

STATUS Indicator:

Steady light  Orange  Green

Flashing light [ ]] cycles

Remote control model number:

Signalcable

NEC standard or other manufacturer’s cable?

Model number: Length: inch/m

Distribution ampliﬁer

Model number:

Switcher

Model number:

Adapter

Model number:

Installationenvironment

Screen size: inch

Screen type:  White matte  Beads  Polarization

 Wide angle  High contrast

Throw distance: feet/inch/m

Orientation:  Ceiling mount  Desktop

Power outlet connection:



Connected directly to wall outlet

 Connected to power cord extender or other (the

number of connected equipment______________)



Connected to a power cord reel or other (the number

of connected equipment______________)

Computer

Manufacturer:

Model number:

Notebook PC  / Desktop 

Native resolution:

Refresh rate:

Video adapter:

Other:

Videoequipment

VCR, DVD player, Video camera, Video game or other

Manufacturer:

Model number:

Projector

DVD player

137

8. Appendix

 TCO Certiﬁcation

SomemodelsinthisproductfamilyareTCOcertied.AllTCOcertiedmodelshavetheTCOmarkonthemarking

plate(onthebottomoftheproduct).ToseealistofourTCOcertiedprojectorsandtheirTCOCertication(inEnglish

only),visitourwebsiteathttp://www.nec-display.com/ap/en_projector/tco/index.html

TheTCOcertication,designedbyTCODevelopment,isaninternationalenvironmentalandergonomicsstandard

forITequipment.

InsomecaseswemaypostalistofTCOcertiedmodelsonourwebsitebeforetheTCOmarkisplacedontheprod-

uct.Thisdifferenceintimingisrelatedtothedatecerticationisreceivedcomparedwiththeprojectorsmanufacturing

date.

138

8. Appendix

 REGISTER YOUR PROJECTOR! (for residents in the United

States, Canada, and Mexico)

Pleasetaketimetoregisteryournewprojector.ThiswillactivateyourlimitedpartsandlaborwarrantyandInstaCare

serviceprogram.

Visitourwebsiteatwww.necdisplay.com,clickonsupportcenter/registerproductandsubmityourcompletedform

online.

Uponreceipt,wewillsendaconrmationletterwithallthedetailsyouwillneedtotakeadvantageoffast,reliable

warrantyandserviceprogramsfromtheindustryleader,NECDisplaySolutionsofAmerica,Inc.

NEC NP-UM330WI-WK1 3300-Lumen Interactive Widescreen Ultra Short Throw Projector wWall Mount

Product's Documents

User Manual

Specifications

NEC NP-UM330WI-WK1 Questions and Answers
