CARE AND MAINTENANCE
The KoolScapes™ Environmental Rain Barrel needs little care.
- There is an overflow spout (5) in the back to prevent water from overflowing out
the top of the Rain Barrel. To divert the water away from your home simply
attach a backwash hose to the overflow spout and run through your garden or
lawn for slow watering.
-
- Make sure to drain the water before winter in the areas where the temperatures
drop below freezing.
Also if you get a lot of rainfall in your area you may want to have several rain
barrels to harvest the rainwater. To connect another Rain Barrel you will need to
attach tubing to the overflow spout and secure with a clamp. Connect the other
end of the tubing to the overflow spout of the second rain barrel and secure with
a clamp.
INSTALLATION
YOU WILL NEED
- Downspout Diverter (1)
(to be purchased separately)
- Hacksaw
- Level
- Drill with ¼” Drill Bit and screws to secure
the downspout diverter to the downspout
TO START

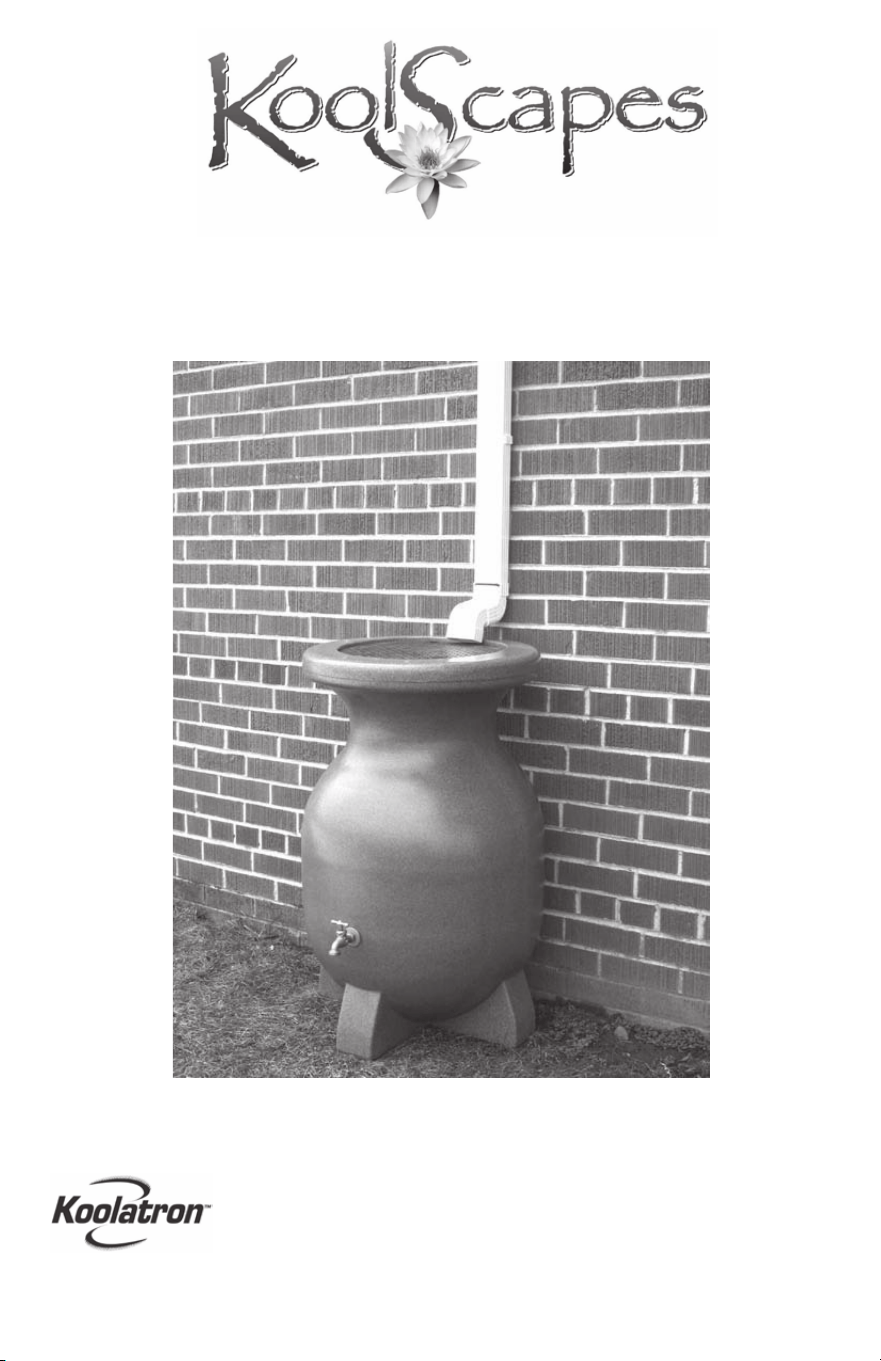

Start by choosing a location for the
KoolScapes™ Environmental Rain Barrel
where there is a downspout nearby.
1. Place the Downspout Diverter (1) on the
top of the Rain Barrel and hold it up to the
Downspout and mark a line with a pencil.
2. Using the Hacksaw cut a straight line at
the mark you just made.
3. Place the Screen Guard (2) in the open
area on the top of the Rain Barrel.
4. Attach a downspout diverter to the down-
spout and connect so that it sits on the screen guard on the top of the Rain
Barrel.
5. Using the Level ensure your Rain Barrel is level to avoid tipping when full.
6. Ensure that the spigot (3) is inserted into the fitting in the bottom front of the
Rain Barrel – turn in clock wise direction until it is sealed tight.
7. Ensure that the drain plug (4) is also sealed tight by also turning it in clock wise.
1
2
3
5
4
©2018 Koolatron, Inc. All rights reserved. Tous droits rÈservÈs.
All specification are subject to change without notice. Toutes spécifications sont sujettes à changement sans préavis.
Made in Canada/Fabriqué au Canada 01/2018-v5H1S092 Please Read These Instructions Carefully Before Use!
S.V.P., lire attentivement les instructions avant l'utilisation !
Installation Manual
Guide d’installation
RAIN BARRELS
BARILS PLUVIAL
RBB-55 •RBSS-55 •RBSS-75
WARRANTY / GARANTIE
This KOOLATRON product is warranted to the retail
customer for 90 days from date of retail purchase,
against defects in material and workmanship.
WHAT IS COVERED
• Replacement parts and labour.
• Transportation charges to customer for the
repaired product.
WHAT IS NOT COVERED
• Damage caused by abuse, accident, misuse, or
neglect.
• Transportation of the unit or component from the
customer to Koolatron.
IMPLIED WARRANTIES
Any implied warranties, including the implied war-
ranty of merchantability are also limited to the dura-
tion of 90 days from the date of retail purchase.
WARRANTY REGISTRATION
Register on-line at www.koolatron.com AND keep
the original, dated, sales receipt with this manual.
WARRANTY AND SERVICE PROCEDURE
If you have a problem with your unit, or require
replacement parts, please telephone the following
number for assistance:
North America 1-800-265-8456
Koolatron has Master Service Centres at these
locations:
U.S.A.
4330 Commerce Dr., Batavia, NY 14020-4102
Canada
139 Copernicus Blvd., Brantford, ON N3P1N4
139 Copernicus Blvd., Brantford, ON N3P1N4
A Koolatron Master Service Centre must perform all
warranty work.
Cet appareil KOOLATRON est garanti à l'acheteur au
détail pendant 90 jours à compter de sa date
d'achat contre tous défauts de pièces et de fabrica-
tion.
CE QUE COUVRE LA GARANTIE
• Pièces de rechange et main d'œuvre.
• Frais d'expédition du produit réparé de Koolatron à
l'adresse du client.
CE QUE LA GARANTIE NE COUVRE PAS
• Tous dégâts causés par un abus, un accident, une
mauvaise utilisation ou une négligence.
• Frais d'expédition de l'appareil ou de la pièce du
client à Koolatron.
GARANTIES IMPLICITES
Toutes garanties implicites, y compris celle de
qualité marchande, se limitent également à 90 jours
à compter de la date d'achat.
ENREGISTREMENT DE LA GARANTIE
Inscrivez-vous en ligne à www.koolatron.com et
conservez le reçu de caisse daté d'origine avec ce
manuel.
PRISE EN CHARGE DE LA GARANTIE ET
PROCÉDURES DE RÉPARATION
Si vous avez un problème avec votre unité ou si vous
avez besoin de pièces de rechange, veuillez télé-
phoner au numéro suivant pour assistance :
Amérique du Nord 1-800-265-8456
Koolatron dispose de centres principaux de répara-
tions à ces adresses :
U.S.A.
4330 Commerce Dr., Batavia, NY 14020-4102
Canada
Les réparations sous garantie doivent être effec-
tuées par un centre principal de réparations
Koolatron.
