BROAN MFG. CO., INC. 04306120
926 W. State St. Hartford, WH53027 99042529A

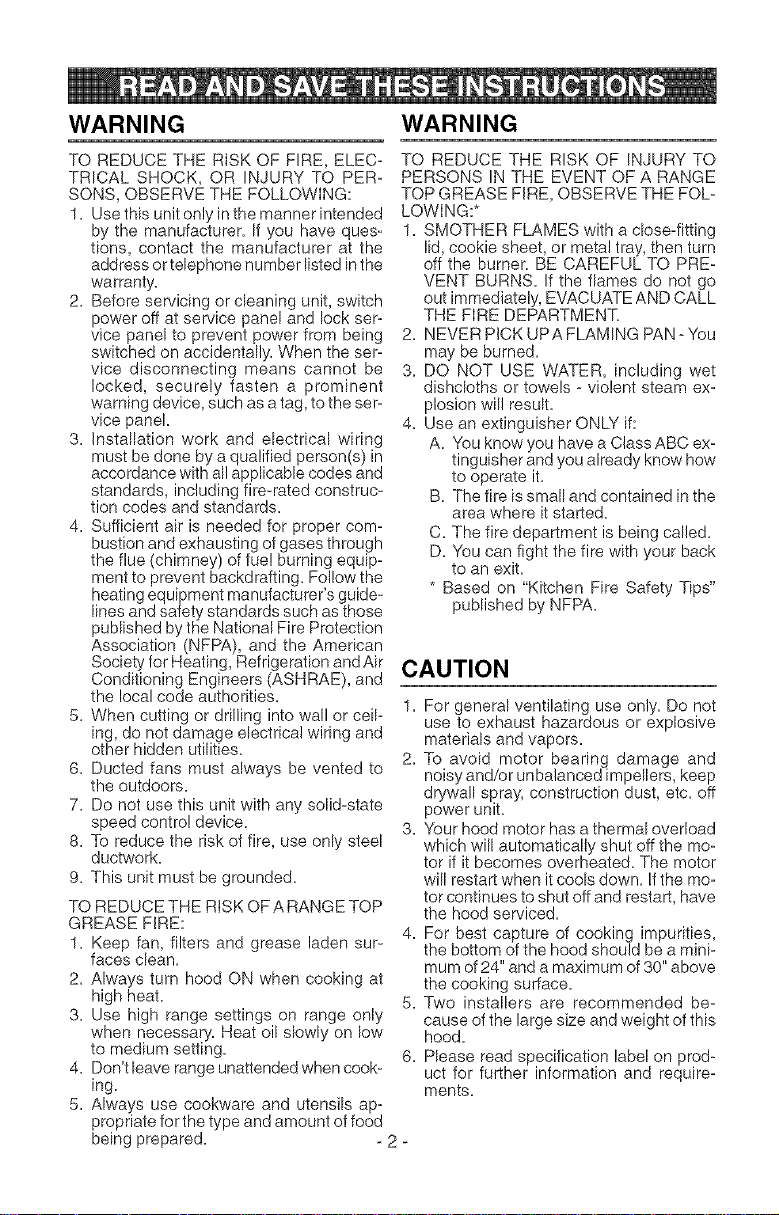

WARNING WARNING
TO REDUCE THE RISK OF FIRE, ELEC=
TRICAL SHOCK, OR INJURY TO PER_
SONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended
by the manufacturer. If you have ques=
tions, contact the manufacturer at the
address or telephone number listed in the
warranty.
2. Before servicing or cleaning unit, switch
power off at service panel and lock ser=
vice panel to prevent power from being
switched on accidentally. When the ser-
vice disconnecting means cannot be
locked, securely fasten a prominent
warning device, such as a tag, to the ser-
vice panel
3. Installation work and electrical wiring
must be done by a qualified person(s) in
accordance with all applicable codes and
standards, including fire=rated construc=
tion codes and standards.
4. Sufficient air is needed for proper com_
bustion and exhausting of gases through
the flue (chimney) of fue! burning equip_
ment to prevent backdrafting. Follow the
heating equipment manufacturer's guide=
lines and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American
Society for Heating, Refrigeration andAir
Conditioning Engineers (ASHRAE), and
the local code authorities.
5. When cutting or drilling into wall or ceil=
ing, do not damage electrical wiring and
other hidden utilities.
6. Ducted fans must always be vented to
the outdoors.
7. Do not use this unit with any solid-state
speed control device.
8. To reduce the risk of fire, use only steel
ductwork.
9. This unit must be grounded.
TO REDUCE THE RiSK OF A RANGE TOP
GREASE FIRE:
1. Keep fan, filters and grease laden sur=
faces clean.
2. Always turn hood ON when cooking at
high heat.
3. Use high range settings on range only
when necessary. Heat oil slowly on low
to medium setting.
4. Don't leave range unattended when cook-
ing.
5. Always use cookware and utensils ap=
propriate for the type and amount of food
being prepared.
TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOL-
LOWING:*
1. SMOTHER FLAMES with a close_fitting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PRE-
VENT BURNS. If the flames do not go
out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
2. NEVER PICK UPA FLAMING PAN _You
may be burned.
3. DO NOT USE WATER, including wet
dishcloths or towels _ violent steam ex=
plosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC ex-
tinguisher and you already know how
to operate it.
B. The fire is small and contained in the
area where it started.
C. The fire department is being called.
D. "Youcan fight the fire with your back
to an exit.
* Based on "Kitchen Fire Safety Tips"
published by NFPA.
CAUTION
1. For general ventilating use only. Do not
use to exhaust hazardous or explosive
materials and vapors.
2. To avoid motor bearing damage and
noisy and/or unbalanced impellers, keep
drywall spray, construction dust, etc. off
power unit.
3. 'four hood motor has athermal overload
which will automatically shut off the mo-
tor if it becomes overheated. The motor
will restart when it cools down. If the too=
tor continues to shut off and restart, have
the hood serviced.
4. For best capture of cooking impurities,
the bottom of the hood should be a mini=
mum of 24" and a maximum of 30" above
the cooking surface.
5. Two installers are recommended be_
cause of the large size and weight of this
hood.
6. Please read specification label on prod-
uct for further information and require_
ments.
-2-

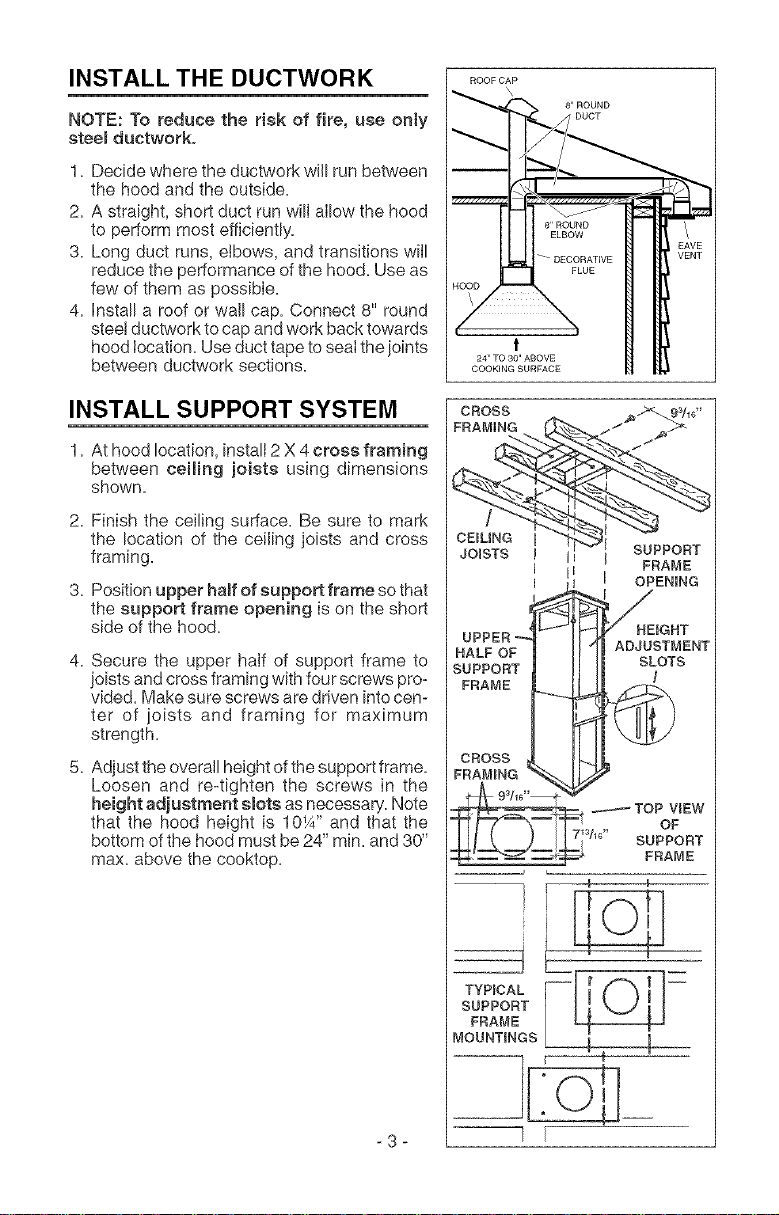

INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only
ateemductworko
1, Decide where the ductwork will run between
the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use as
few of them as possible.
4. Install a roof or wall cap. Connect 8" round
stee! ductwork to cap and work back towards
hood location. Use duct tape to seaI the joints
between ductwork sections.
ROOFCAP
\
INSTALL SUPPORT SYSTEM
1, At hood location, install 2 X 4cross framing
between ceiling joists using dimensions
shown.
2. Finish the ceiling surface. Be sure to mark
the location of the ceiling joists and cross
framing.
3= Position upper haffof support framesothat
the support frame opening is on the short
side of the hood.
4. Secure the upper half of support frame to
joists and cross framing with four screws pro-
vided. Make sure screws are driven into cen-
ter of ioists and framing for maximum
strength.
5. Adjust the overall height of the support frame.
Loosen and re-tighten the screws in the
height adjustment slots as necessary. Note
that the hood height is 10V4" and that the
bottom of the hood must be 24" rain. and 30"
max. above the cooktop.
_3-
CROSS
FRAMING
CEILING
JOISTS
SUPPORT
FRAME
I OPENING
HEIGHT
UPPER
HALF OF ADJUSTMENT
SLOTS
SUPPORT l
FRAME
CROSS I
FRAMING
TOP WEW
OF
3h6" SUPPORT
FRAME
"1 I

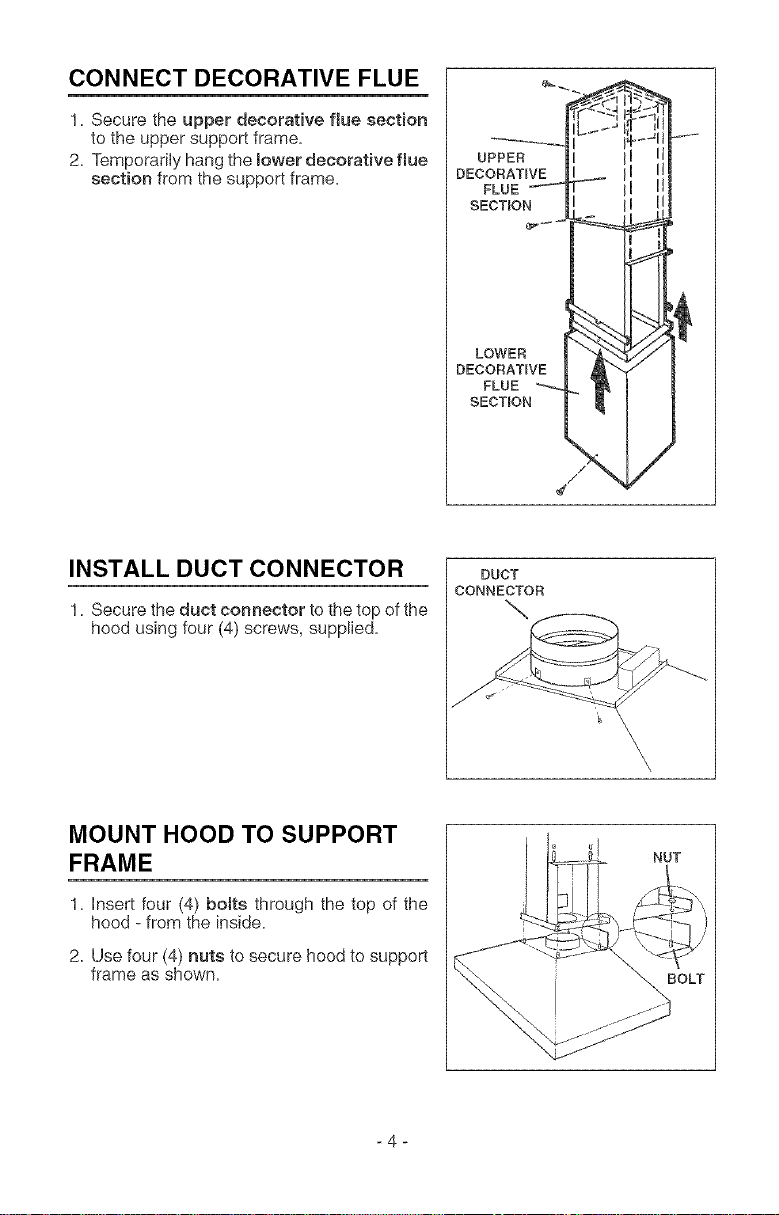

CONNECT DECORATIVE FLUE
1. Secure the upper decorative flue section
to the upper support frame.
2. Temporarily hang the mowerdecorative flue
section from the support frame.
INSTALL DUCT CONNECTOR
1=Secure the duct connector to the top of the
hood using four (4) screws, supplied.
DUCT
CONNECTOR
\
MOUNT HOOD TO SUPPORT
FRAME
1= insert four (4) bolts through the top of the
hood - from the inside.
2. Use four (4) nuts to secure hood to support
frame as shown.
NUT

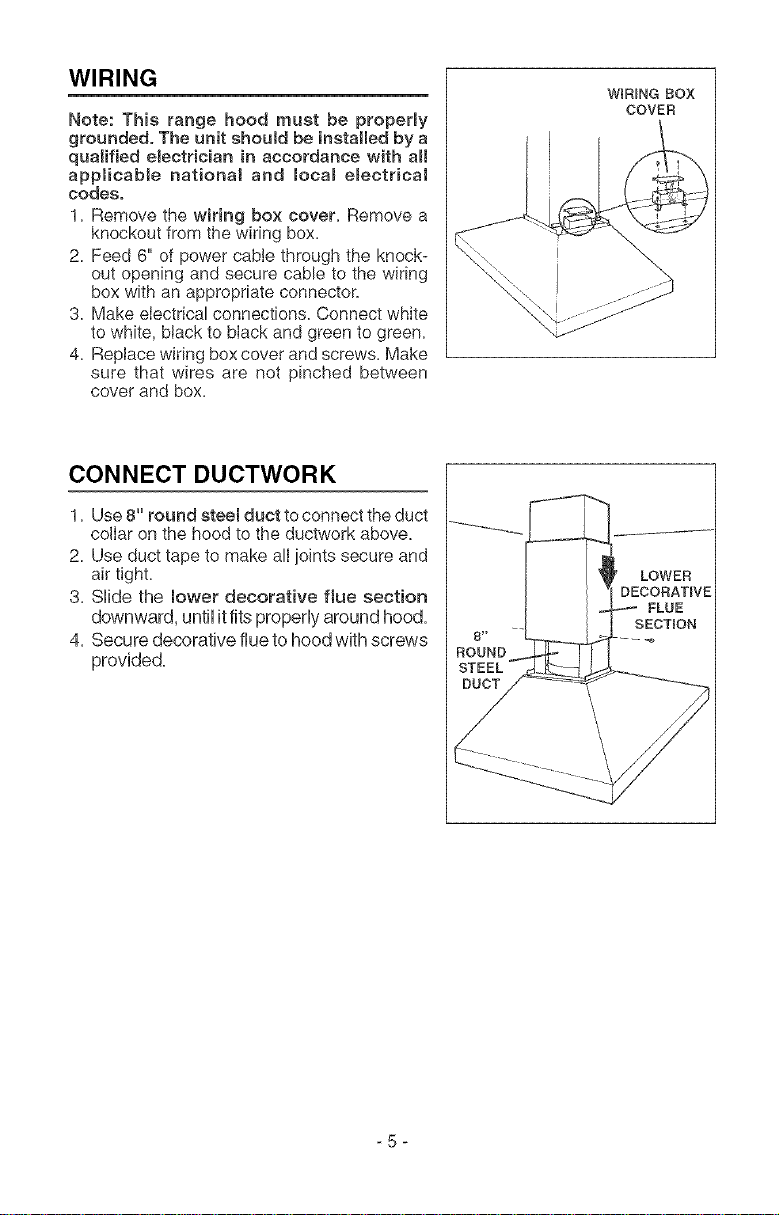

WIRING
Note: This range hood must be properly
grounded. The unit shoutd be installed by a
qualified electrician in accordance with all
applicable nationa_ and Iocam emectricam
codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box.
2. Feed 6" of power cable through the knock-
out opening and secure cable to the wiring
box with an appropriate connector.
3. Make electrical connections. Connect white
to white, black to black and green to green.
4. Replace wiring box cover and screws. Make
sure that wires are not pinched between
cover and box.
WiRiNG BOX
COVER
CONNECT DUCTWORK
1. Use 8" round steel duct to connect the duct
colIar on the hood to the ductwork above.
2. Use duct tape to make all ioints secure and
air tight.
3. Slide the lower decorative flue section
downward, until itfits properly around hood.
4. Secure decorative flue to hood with screws
provided.

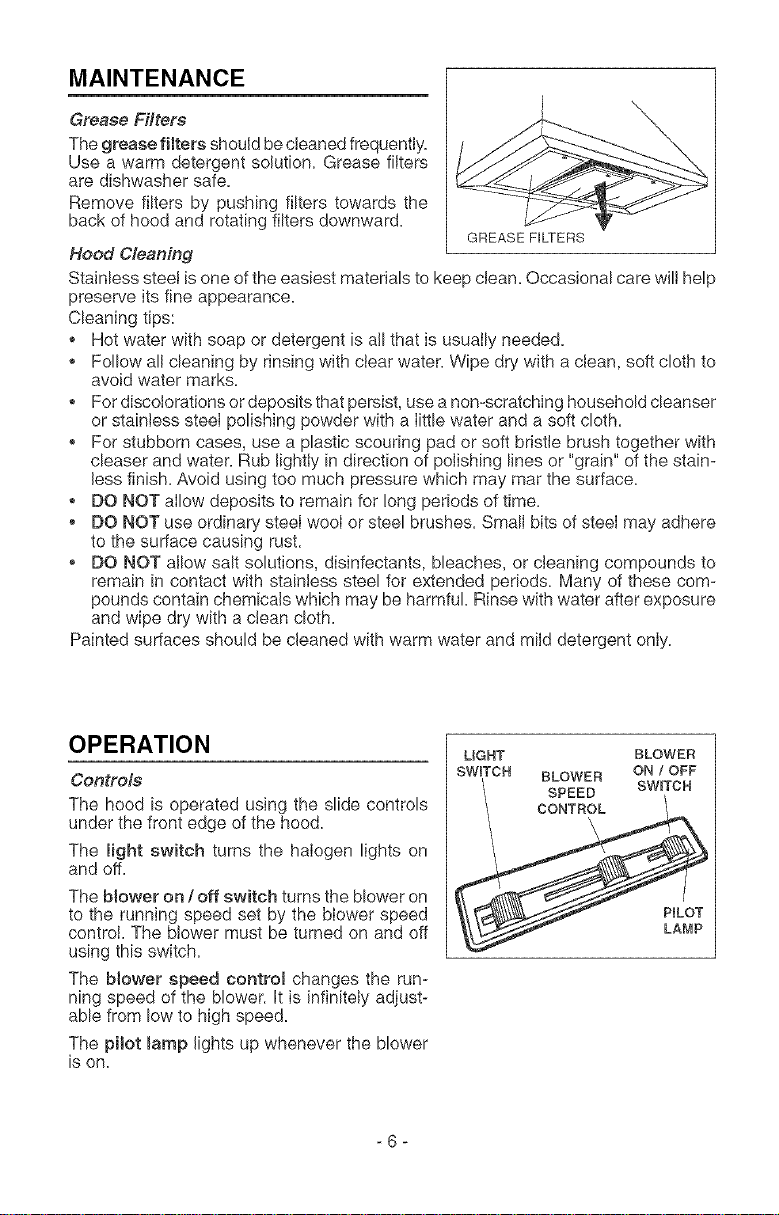

MAINTENANCE
Grease Filters
The grease filters should be cteaned frequently.
Use a warm detergent solution. Grease filters
are dishwasher safe.
Remove filters by pushing filters towards the
back of hood and rotating filters downward.
Hood Cleaning
GREASE FILTERS
Stainless steel is one of the easiest materials to keep clean. Occasional care wilI help
preserve its fine appearance.
Cleaning tips:
,, Hot water with soap or detergent is all that is usually needed.
,, Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to
avoid water marks.
,, For discolorations or deposits that persist, use a non-scratching household cleanser
or stainless steeI polishing powder with a little water and a soft cloth.
,, For stubborn cases, use a plastic scouring pad or soft bristle brush together with
cleaser and water. Rub lightly in direction of polishing lines or "grain" of the stain-
less finish. Avoid using too much pressure which may mar the surface.
,, DO NOT allow deposits to remain for !ong periods of time.
,, DO NOT use ordinary steel wooI or steel brushes. Small bits of steel may adhere
to the surface causing rust.
,, DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to
remain is contact with stainless steel for extended periods. Many of these com-
pounds contain chemicals which may be harmful. Rinse with water after exposure
and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
OPERATION
Controls
The hood is operated using the slide controls
under the front edge of the hood.
The light switch turns the halogen lights on
and off.
The blower on / off switch turns the blower on
to the running speed set by the blower speed
control. The blower must be turned on and off
using this switch.
The blower speed control changes the run-
sing speed of the blower. It is infinitely adjust-
able from low to high speed.
The pilot mamp lights up whenever the blower
is on=
LIGHT SLOWER
SWITCH SLOWER ON / OFF
SPEED SW_TCN
CONTROL
PILOT
LAMP

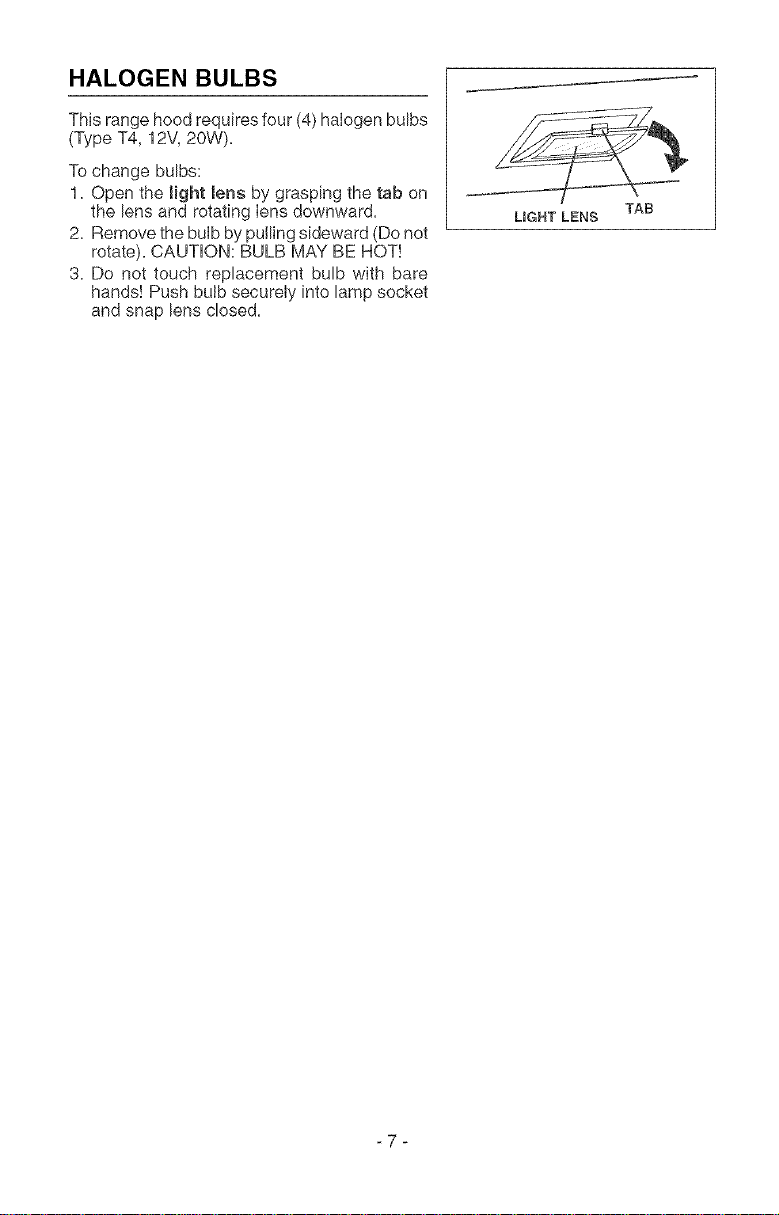

HALOGEN BULBS
This range hood requires four (4) halogen bulbs
(Type T4, 12V, 20W).
To change bulbs:
1=Open the light lens by grasping the tab on
the lens and rotating Iens downward.
2. Remove the bulb by pulling sideward (Do not
rotate). CAUTION: BULB MAY BE HOT!
3. Do not touch replacement bulb with bare
hands! Push bulb securely into lamp socket
and snap lens closed.
TAB
LIGHT LENS
_7-

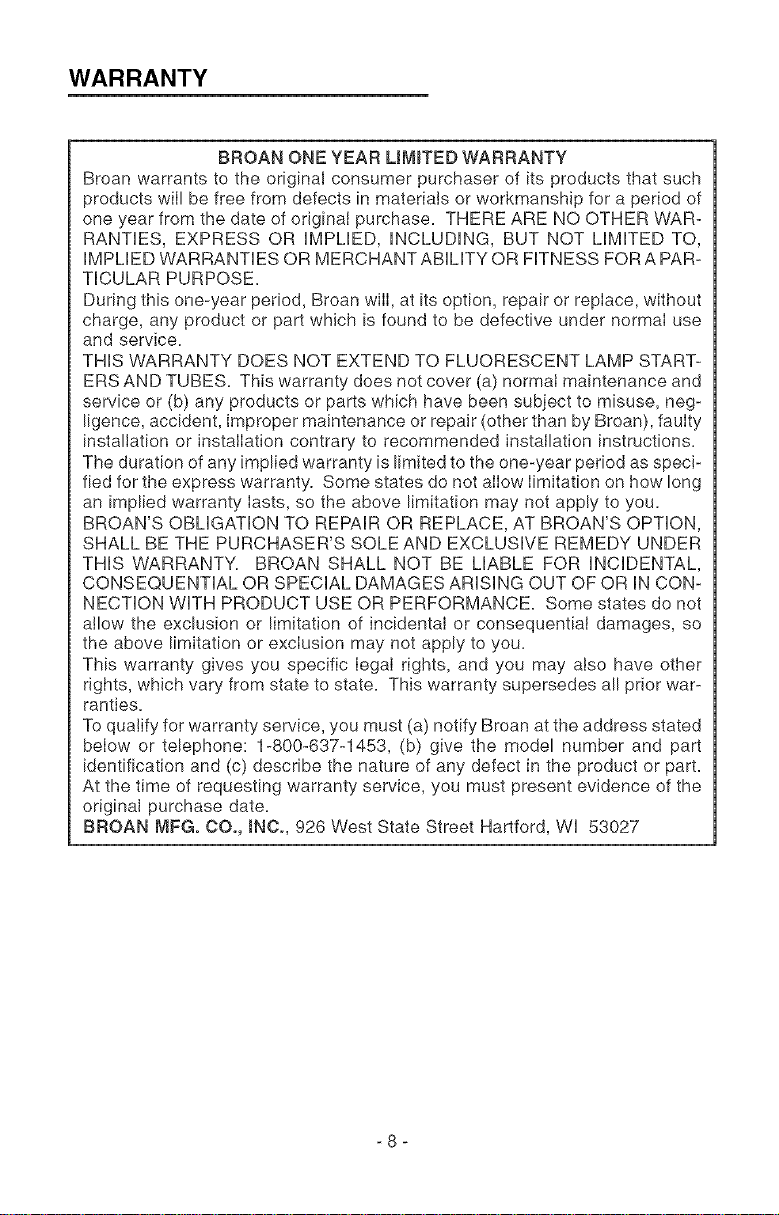

WARRANTY
BROAN ONE YEAR LIMITED WARRANTY
Broan warrants to the original consumer purchaser of its products that such
products wilI be free from defects in materials or workmanship for a period of
one year from the date of original purchase. THERE ARE NO OTHER WAR-
RANTES, EXPRESS OR IMPLED, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTES OR MERCHANT ABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE.
During this one-year period, Broan will, at its option, repair or replace, without
charge, any product or part which [s found to be defective under normal use
and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP START-
ERS AND TUBES. This warranty does not cover (a) normal maintenance and
service or (b) any products or parts which have been subject to misuse, neg-
ligence, accident, improper maintenance or repair (other than by Broan), faulty
installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as speci-
fied for the express warranty. Some states do not allow limitation on how long
an implied warranty lasts, so the above limitation may not apply to you.
BROAN'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN'S OPTION,
SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER
THIS WARRANTY. BROAN SHALL NOT BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CON-
NECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not
allow the exclusion or limitation of incidental or consequent[aI damages, so
the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may atso have other
rights, which vary from state to state. This warranty supersedes all prior war-
ranties.
To qualify for warranty service, you must (a) notify Broan at the address stated
below or telephone: 1-800-637-1453, (b) give the model number and part
identification and (c) describe the nature of any defect in the product or part.
At the time of requesting warranty service, you must present evidence of the
original purchase date.
BROAN MFGo COo, tNCo, 926 West State Street Hartford, WI 53027
_8_

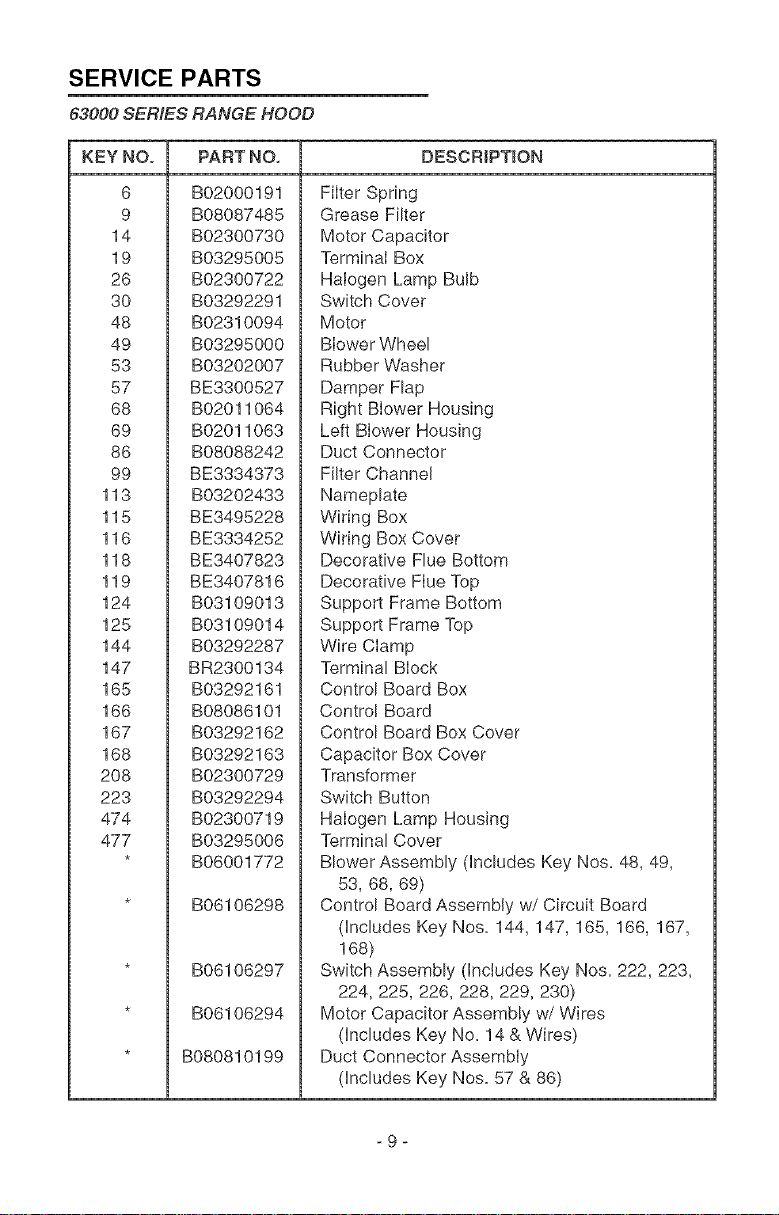

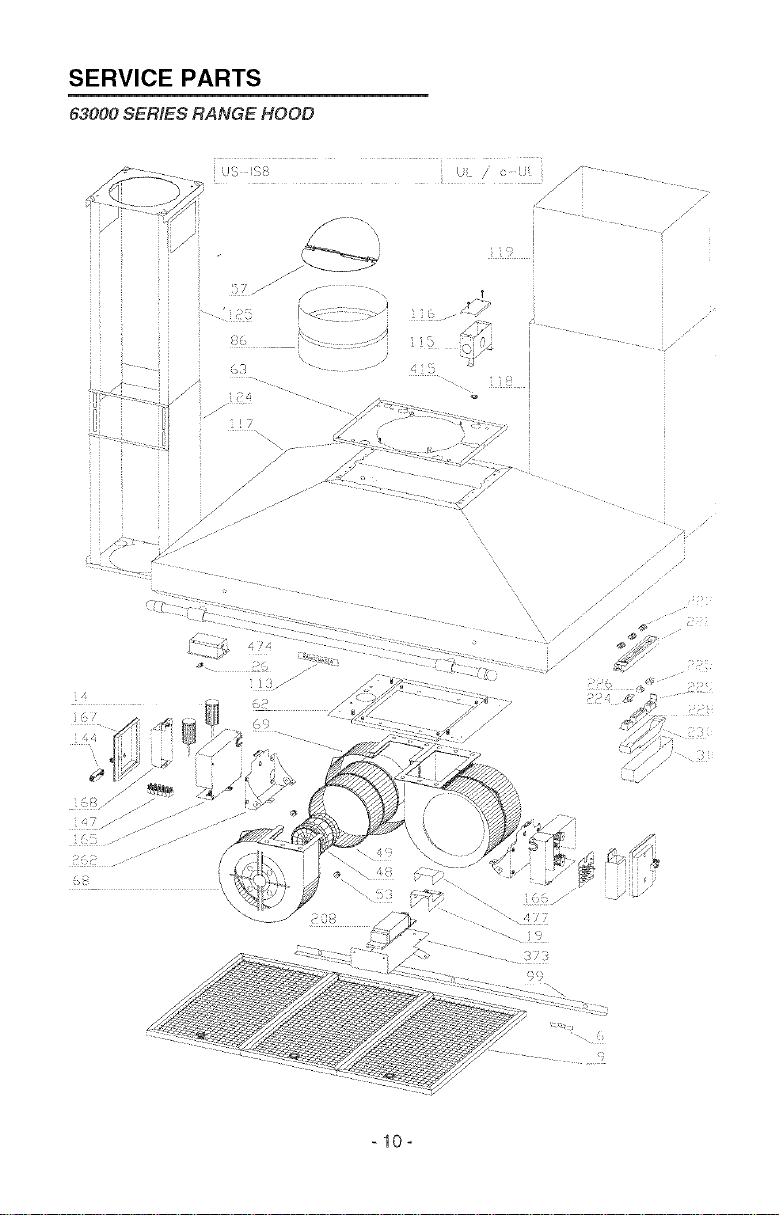

SERVICE PARTS
63000 SERIES RANGE HOOD
KEY NO. PART NO, DESCRIPTION
6
9
14
19
26
3O
48
49
53
57
68
69
86
99
113
115
116
118
119
124
125
144
147
165
166
167
168
2O8
223
474
477
B02000191
B08087485
B02300730
B03295005
B02300722
B03292291
B02310094
B03295000
B03202007
BE3300527
B02011064
B02011063
B08088242
BE3334373
B03202433
BE3495228
BE3334252
BE3407823
BE3407816
B03109013
B03109014
B03292287
BR2300134
B03292161
B08086101
B03292162
B03292163
B02300729
B03292294
B02300719
B03295006
B06001772
B06106298
B06106297
B06106294
B080810199
Filter Spring
Grease Filter
Motor Capacitor
Terminal Box
Halogen Lamp Bulb
Switch Cover
Motor
Blower Wheel
Rubber Washer
Damper Flap
Right Blower Housing
Left Blower Housing
Duct Connector
Filter Channel
Nameplate
Wiring Box
Wiring Box Cover
Decorative Flue Bottom
Decorative Flue Top
Support Frame Bottom
Support Frame Top
Wire Clamp
Terminal Block
Control Board Box
Contro! Board
Control Board Box Cover
Capacitor Box Cover
Transformer
Switch Button
Halogen Lamp Housing
Terminal Cover
Blower Assembly (Includes Key Nos. 48, 49,
53, 68, 69)
Control Board Assembly w/Circuit Board
(Includes Key Nos. 144, 147, 165, 166, 167,
168)
Switch Assembly (Includes Key Nos. 222,223,
224, 225, 226, 228, 229, 230)
Motor Capacitor Assembly w/Wires
(Includes Key No. 14 & Wires)
Duct Connector Assembly
(Includes Key Nos. 57 & 86)
_9-
SERVICE PARTS
63000 SERIES RANGE HOOD
U / ( '
//
z
,J
•. • ,. S/"
j
/
-10-
